Operating Instructions

Digital High Definition Plasma TV

System No. TH-65XVS30U

Model No.

• TH-65XVS30: High Definition Plasma Display

• TU-PT700U: Digital Media Receiver

For assistance, please call : 1-888-VIEW-PTV(843-9788)

or send e-mail to : [email protected] or visit us at www.panasonic.com (U.S.A.)

For assistance, please call : 787-750-4300

or visit us at www.panasonic.com (Puerto Rico)

For assistance, please call : 1-800-561-5505

or visit us at www.panasonic.ca (Canada)

Before connecting, operating or adjusting this product, please read these instructions completely. Please keep this manual for future reference.

English

TQBC0944

Page 2

The lightning flash with arrow-head within a triangle

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

WARNING: To reduce the risk of electric shock, do not remove cover or back. No user-serviceable parts inside. Refer servicing to qualified service personnel.

WARNING: To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture.

Do not place liquid containers (flower vase, cups, cosmetics, etc.) above the set. (including on shelves above, etc.)

WARNING: AS WITH ANY SMALL OBJECT, SD CARDS CAN BE SWALLOWED BY YOUNG CHILDREN. DO

NOT ALLOW CHILDREN TO HANDLE THE SD CARD.

WARNING: 1) To prevent electric shock, do not remove cover. No user serviceable parts inside. Refer servicing to

qualified service personnel.

2) Do not remove the grounding pin on the power plug. This apparatus is equipped with a three pin grounding-type power plug. This plug will only fit a grounding-type power outlet. This is a safety feature. If you are unable to insert the plug into the outlet, contact an electrician. Do not defeat the purpose of the grounding plug.

is intended to tell the user that parts inside the product are a risk of electric shock to persons.

The exclamation point within a triangle is intended to tell the user that important operating and servicing instructions are in the papers with the appliance.

Note:

Do not allow a still picture to be displayed for an extended period, as this can cause a permanent afterimage to remain on the Plasma Television. Examples of still pictures include logos, video games, computer images, teletext and images displayed in 4:3 mode.

Manufactured under license from Dolby Laboratories.

“Dolby” and the double-D symbol are trademarks of Dolby Laboratories.

HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC.

: SD Logo is a trademark.

Manufactured under license from BBE Sound, Inc.

Licensed by BBE Sound, Inc. under USP4638258, 5510752 and 5736897. BBE and BBE symbol are registered trademarks of BBE Sound, Inc.

CableCARDTM is a trademark of Cable Television Laboratories, Inc.

Page 3

Important Safety Instructions

1) Read these instructions.

2) Keep these instructions.

3) Heed all warnings.

4) Follow all instructions.

5) Do not use this apparatus near water.

6) Clean only with dry cloth.

7) Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.

8) Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.

9) Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

10) Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

11) Only use attachments / accessories specified by the manufacturer.

12) Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart / apparatus combination to avoid injury from tip-over.

13) Unplug this apparatus during lightning storms or when unused for long periods of time.

14) Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

15) To prevent electric shock, ensure the grounding pin on the AC cord power plug is securely connected.

The nameplate for this Receiver is located on the bottom of the product.

TU-PT700U

RECEIVER

DIGITAL MEDIA

SD CARD

Page 4

Dear Panasonic Customer

Welcome to the Panasonic family of customers. We hope that you will have many years of enjoyment

from your new Plasma TV.

To obtain maximum benefit from your set, please read these Instructions before making any adjustments,

and retain them for future reference.

Retain your purchase receipt also, and record the model number and serial number of your set in the

space provided on the back cover of these instructions.

Visit our Panasonic Web Site for USA : www.panasonic.com

for Puerto Rico : www.panasonic.com for Canada : www.panasonic.ca

For assistance, please call : 1-888-VIEW-PTV(843-9788)

or send e-mail to : [email protected] or visit us at www.panasonic.com (U.S.A.)

For assistance, please call : 787-750-4300

or visit us at www.panasonic.com (Puerto Rico)

For assistance, please call : 1-800-561-5505

or visit us at www.panasonic.ca (Canada)

This product incorporates copyright protection technology that is protected by U.S. patents and other intellectual property rights. Use of this copyright protection technology must be authorized by Macrovision Corporation, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision. Reverse engineering or disassembly is prohibited.

U.S. Patents Nos. 4,631,603; 4,577,216; 4,819,098; 4,907,093; 6,381,747; and 6,516,132.

Trademark Credits

VGA is a trademark of International Business Machines Corporation.

•

Macintosh is a registered trademark of Apple Computer, USA.

•

S-VGA is a registered trademark of the Video Electronics Standard Association.

•

Even if no special notation has been made of company or product trademarks, these trademarks have been fully respected.

Page 5

Table of Contents

Important Safety Instructions ....................................... 3

FCC STATEMENT ........................................................... 6

Safety Precautions ......................................................... 7

Cleaning and maintenance ........................................... 8

Installation ...................................................................... 9

Receiver Location ......................................................... 9

Optional External Equipment ........................................ 9

Remote Control Battery Installation .............................. 9

Accessories .................................................................. 10

Connection ................................................................... 11

Connection to the display ............................................ 12

Cable / Antenna Connection ....................................... 12

AV Connection ............................................................ 13

VCR Connection .................................................... 13

Digital TV - Set-Top Box (DTV-STB)

or DVD Connection ........................................ 14

Program Out Connection (PROG OUT) ................. 14

Amplifier Connection .............................................. 15

Front AV Connection ................................................... 15

HDMI Connection ........................................................ 16

PC Connection ............................................................ 17

CableCARDTM Connection .......................................... 18

Power ON / OFF ............................................................ 19

Location of Controls .................................................... 20

First Time Setup ........................................................... 22

Watching TV programs ................................................ 23

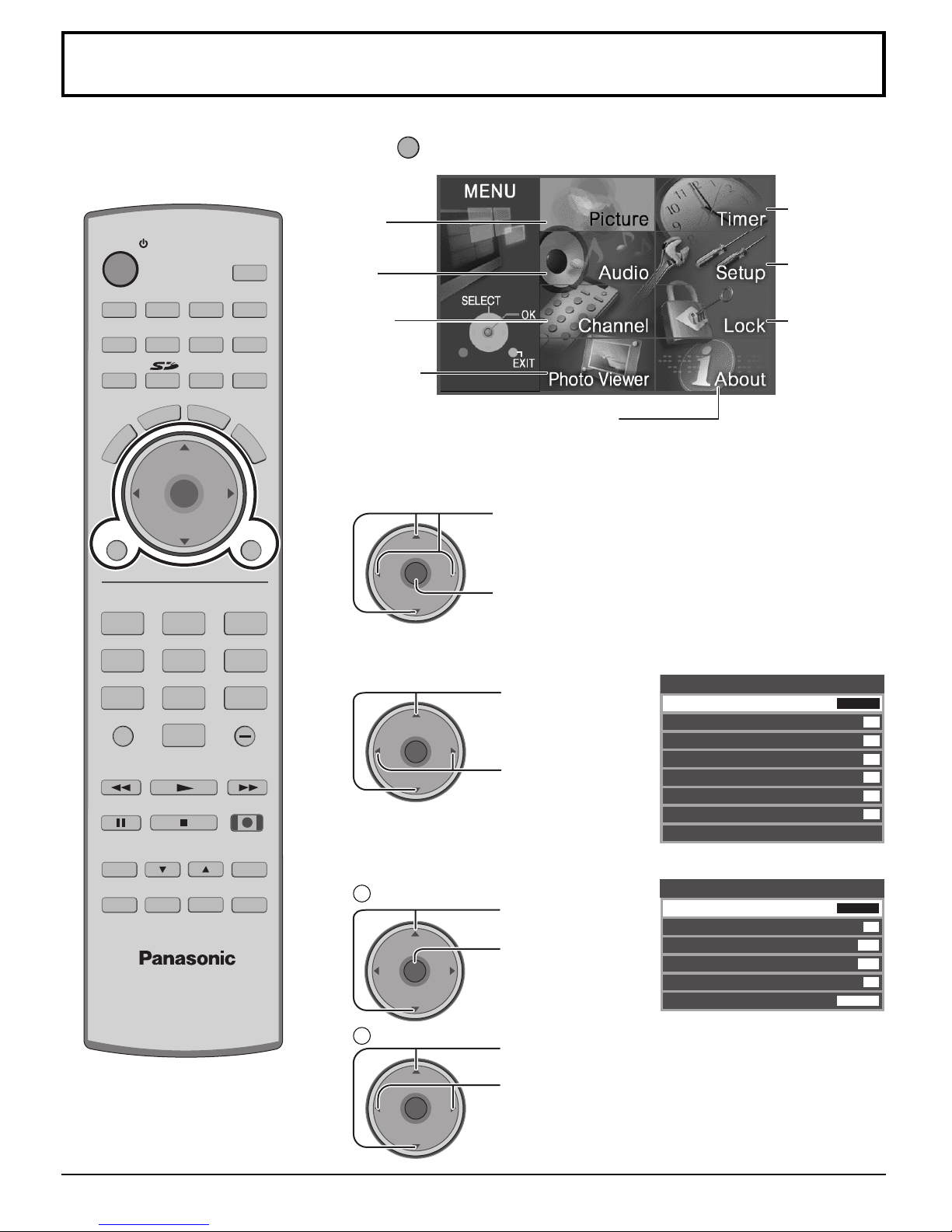

Menu Navigation .......................................................... 24

Picture ......................................................................... 26

Pic Mode ................................................................ 26

Color / Tint / Brightness / Picture / Sharpness / Normal..

Other Adjust ........................................................... 26

Audio ........................................................................... 28

Bass / Treble / Balance / Normal ........................... 28

Other Adjust ........................................................... 28

Channel ....................................................................... 30

Favorite .................................................................. 30

Captions ................................................................. 31

Timer ........................................................................... 33

Clock Set ................................................................ 33

Day Set .................................................................. 33

Timer ...................................................................... 34

Sleep ...................................................................... 35

Setup ........................................................................... 36

Program CH ........................................................... 36

Auto Scan .............................................................. 37

Manual Program .................................................... 37

Signal Meter ........................................................... 38

Language ............................................................... 38

Closed Caption ...................................................... 39

Other Adjust ........................................................... 41

CableCARDTM........................................................ 41

Lock ............................................................................ 42

Password ............................................................... 42

Lock Set ................................................................. 42

Channel Lock ......................................................... 43

Block Program ....................................................... 43

How Long? ............................................................. 45

Blocking Messages ................................................ 45

Photo Viewer ................................................................ 46

Thumbnail Mode ......................................................... 48

Photo Viewer Setup Menu .......................................... 49

Slide Show ............................................................. 49

Rotate .................................................................... 50

Zoom ...................................................................... 50

Card ....................................................................... 50

Photo Viewer Troubleshooting ............................... 51

PIP (Picture in Picture) Operation .............................. 52

SPLIT Operation ........................................................... 54

Aspect Controls ........................................................... 56

PC MENU....................................................................... 57

Operating peripheral equipment................................. 59

Programming the remote control code ........................ 59

Infrared Code Index .................................................... 60

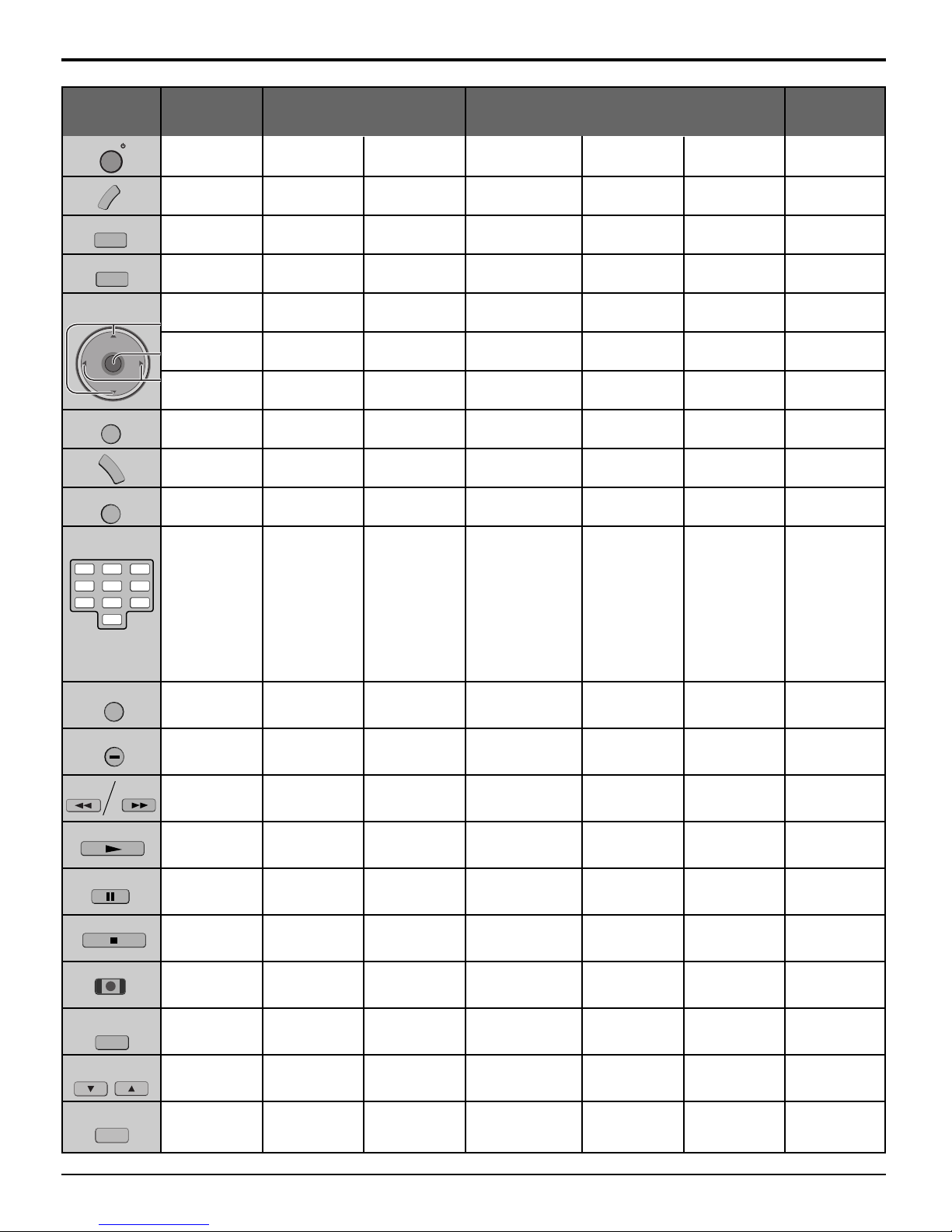

Mode Operational Key Chart ...................................... 63

Troubleshooting Chart................................................. 65

Specifications ............................................................... 67

VIDEO/COMPONENT/

RGB/PC/HDMI input signals ................ back cover

Page 6

FCC STATEMENT

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

FCC CAUTION: To assure continued compliance and possible undesirable interference, these products maintain at least 40 cm spacing to other peripheral devices. Any changes or modifications to these products not expressly approved by Matsushita Electric Corporation of America could result harmful interference and would void the user’s authority to operate this device.

FCC Declaration of Conformity Model No.TH-65XVS30, TU-PT700U

Responsible Party: Matsushita Electric Corporation of America

One Panasonic Way, Secaucus, NJ 07094

Contact Source: Panasonic Consumer Electronics Company

1-888-843-9788 email: [email protected]

CANADIAN NOTICE:

For Models TH-65XVS30, TU-PT700U This Class B digital apparatus complies with Canadian ICES-003.

Page 7

Safety Precautions

WARNING

Set up

Do not place the Plasma TV on sloped or unstable surfaces.

The Plasma TV may fall off or tip over.

•

Do not place any objects on top of the Plasma TV.

If water spills onto the Plasma TV or foreign objects get inside it, a short-circuit may occur which could result in fire or

•

electric shock. If any foreign objects get inside the Plasma TV, please consult an Authorized Service Center.

Do not cover the ventilation holes.

Doing so may cause the Plasma TV to overheat, which can cause fire or damage to the Plasma TV.

•

If using the pedestal, leave a space of 3 15/16” (10 cm) or more at the top, left and right, 2 3/8” bottom, and 2 3/4” (7 cm) or more at the rear. If using some other setting-up method, leave a space of 3 15/16” (10 cm) or more at the top, bottom, left and right, and 2 61/64” (7.5 cm) or more at the rear.

Avoid installing this product near electronic equipment that easily receives electromagnetic waves.

It may cause interference in image, sound, etc. In particular, keep video equipment away from this product.

•

(6 cm) or more at the

AC Power Supply Cord

The Plasma TV is designed to operate on 120 V AC, 50/60 Hz.

Securely insert the power cord plug as far as it will go.

If the plug is not fully inserted, heat may be generated which could cause fire. If the plug is damaged or the wall socket

•

plate is loose, they should not be used.

Do not handle the power cord plug with wet hands.

Doing so may cause electric shocks.

•

Do not do anything that might damage the power cable. When disconnecting the power cable, hold the plug, not the cable.

Do not make any modifications, place heavy objects on, place near hot objects, heat, bend, twist or forcefully pull the

•

power cable. Doing so may cause damage to the power cable which can cause fire or electric shock. If damage to the cable is suspected, have it repaired at an Authorized Service Center.

If the Plasma TV will not be used for a long period of time, unplug the power cord from the wall outlet.

If problems occur during use

If a problem occurs (such as no picture or no sound), or if smoke or an abnormal odor is detected from the Plasma TV, unplug the power cord immediately.

Continuous use of the TV under these conditions might cause fire or permanent damage to the unit. Have the TV

•

evaluated at an Authorized Service Center. Services to the TV by any unauthorized personnel are strongly discouraged due to its high voltage dangerous nature.

If water or foreign objects get inside the Plasma TV, if the Plasma TV is dropped, or if the cabinet becomes damaged, disconnect the power cord plug immediately.

A short may occur, which could cause fire. Contact an Authorized Service Center for any repairs that need to be made.

•

Page 8

Safety Precautions

CAUTION

This Plasma TV is for use only with the following optional accessories. Use with any other type of optional accessories may cause instability which could result in the possibility of injury.

(All of the following accessories are manufactured by Matsushita Electric Industrial Co., Ltd.)

Pedestal ............................................................ TY-ST65-M

•

Speaker System ................................................ TY-SP65XVS30

•

Wall-hanging bracket (Vertical) ......................... TY-WK65PV7

•

Always be sure to ask a qualified technician to carry out set-up.

When using the Plasma TV

Do not bring your hands, face or objects close to the ventilation holes of the Plasma TV.

Top of the Plasma TV is usually very hot due to the high temperature of exhaust air being released through the ventilation

•

holes. Burns or personal injuries can happen if any body parts are brought too close. Placing any object near the top of the TV could also result in heat damages to the object as well as to the TV if its ventilation holes are blocked.

Be sure to disconnect all cables before moving the Plasma TV.

Moving the TV with its cables attached might damage the cables which, in turn, can cause fire or electric shock.

•

Disconnect the power plug from the wall outlet as a safety precaution before carrying out any cleaning.

Electric shocks can result if this is not done.

•

Clean the power cable regularly to prevent it from becoming dusty.

Built-up dust on the power cord plug can increase humidity which might damage the insulation and cause fire. Unplug

•

the cord from the wall outlet and clean it with a dry cloth.

This Plasma TV radiates infrared rays, therefore it may affect other infrared communication equipment. Install your infrared sensor in a place away from direct or reflected light from your Plasma TV.

Cleaning and maintenance

The front of the display panel has been specially treated. Wipe the panel surface gently using only a cleaning cloth or a soft, lint-free cloth.

If the surface is particularly dirty, soak a soft, lint-free cloth in a weak detergent solution and then wring the cloth to

•

remove excess liquid. Use this cloth to wipe the surface of the display panel, then wipe it evenly with a dry cloth, of the same type, until the surface is dry. Do not scratch or hit the surface of the panel with fingernails or other hard objects. Furthermore, avoid contact with volatile

•

substances such as insect sprays, solvents and thinner, otherwise the quality of the surface may be adversely affected.

If the cabinet becomes dirty, wipe it with a soft, dry cloth.

If the cabinet is particularly dirty, soak the cloth in a weak detergent solution and then wring the cloth dry. Use this cloth

•

to wipe the cabinet, and then wipe it dry with a dry cloth. Do not allow any detergent to come into direct contact with the surface of the Plasma TV.

•

If water droplets get inside the unit, operating problems may result. Avoid contact with volatile substances such as insect sprays, solvents and thinner, otherwise the quality of the cabinet

•

surface may be adversely affected or the coating may peel off. Furthermore, do not leave it for long periods in contact with articles made from rubber or PVC.

Note:

Do not allow a still picture to be displayed for an extended period, as this can cause a permanent after-image to remain on the Plasma TV. Examples of still pictures include logos, video games, computer images, teletext and images displayed in 4:3 mode.

Page 9

Installation

Receiver Location

This unit is intended to be used with an optional stand or entertainment center. Consult your dealer for available options. Locate for comfortable viewing. Avoid placing where sunlight or other bright light (including reflections) will fall on the screen. Use of some types of fluorescent lighting can reduce remote control transmitter range. Adequate ventilation is essential to prevent internal component failure. Keep away from areas of excessive heat or moisture.

Optional External Equipment

The Video/Audio connection between components can be made with shielded video and audio cables. For best performance, video cables should utilize 75 ohm coaxial shielded wire. Cables are available from your dealer or electronic supply store. Before you purchase any cables, be sure you know what type of output and input connectors your various components require. Also determine the length of cable you will need.

Remote Control Battery Installation

1. Open the cover. 2. Install the batteries and replace the cover. Note the correct polarity (+ and -).

Two AA size

Helpful Hints:

For frequent remote control users, replace old batteries with alkaline batteries for longer life.

Helpful Hints:

Whenever you remove the batteries, you may need to reset the remote control infrared codes. We recommend that you record the code

on page 60, prior to setting up the remote control.

Precaution on battery use

Incorrect installation can cause battery leakage and corrosion that will damage the remote control transmitter.

Observe the following precautions:

1. Batteries should always be replaced as a pair. Always use new batteries when replacing the old set.

2. Do not combine a used battery with a new one.

3. Do not mix battery types (example: “Zinc Carbon” with “Alkaline”).

4. Do not attempt to charge, short-circuit, disassemble, heat or burn used batteries.

5. Battery replacement is necessary when remote control acts sporadically or stops operating the TV set.

Page 10

Accessories

Check that you have the Accessories and items shown

Plasma Display unit (TH-65XVS30)

• Plasma Display TH-65XVS30

POWER

• Batteries for the remote control (AA Battery × 2)

• F-Type antenna adapter (for 5C-2V) × 2

• Operating Instructions • Remote control EUR7627Z40

POWER

VCR DVD

DBS

RCVR

TV/VIDEO

VOLCHVOL

1 2 3

4 5 6

7 809

PIP MIN

REW

PLAY

PAUSE REC

STOP

FREEZE

SPLIT CH

TV/VCR

DVD/VCR CH

SPLIT

PIP MOVE

•Warranty card

• Product Registration card

• Customer Services Directory

• AC cord

• Customer care plan card

• Cable fixing bands

(TMME203 or TMME187) × 2

SAP

LIGHT

CBL

AUX

A -ANTENNA - B

EXIT

PROG

PIP MAX

SEARCH OPEN/CLOSE

SWAP

Digital Media Receiver

• TU-PT700U

SD CARD

R TU-PT700U EIVE C

DIA RE

DIGITAL

• CAUTION / FCC STATEMENT

• AC cord

• Display-Receiver cable

Page 11

Connection

Note:

Please turn off the power of the Plasma Display unit and Digital Media Receiver when connecting or removing Display - Receiver cable.

Display connection

When connecting the speakers, be sure to use only the optional accessory speakers. For details on installation and connection of the speaker, refer to the Speaker’s Installation Manual. (Supplied)

Speakers (Optional accessories)

SPEAKER Terminals (R)

SPEAKER Terminals (L)

– AC cord fixing

1.Connect the AC cord plug to the Plasma Display.

2. Fix the left side clamper.

3. Fix the right side clamper.

Note: The power plug in the illustration may not be the type fitted to your set.

– Cable fixing bands Secure any excess cables with bands as required.

Open

Push until the hook clicks.

2. Pull off.

1. Keep the knob pressed.

Pass the attached cable fixing band through the clip as shown in the figure.

DEDICATED RECEIVER IN SERVICE USE

To DEDICATED DISPLAY OUT connector on Digital Media Receiver

To secure cables connected to Terminals, wrap the cable fixing band around them then pass the pointed end through the locking block, as shown in the figure.

While ensuring there is sufficient slack in cables to minimize stress (especially in the power cord), firmly bind all cables with the supplied fixing band.

To tighten: To loosen:

Pull

Push the catch

These terminals are not in use.

Page 12

Connection

Connection to the display

ANTENNAAB

Cable In

DEDICATED DISPLAY OUT

SERVICE ONLY

CableCARD

(Turn Card upside down and gently insert it.)

DIGITAL AUDIO OUT

CARD TOP

AUDIO

LLPBLP

RR 2 AUDIO OUT

1YY

AUDIO

PRRP

COMPONENT VIDEO INPUT

S VIDEO

PROG OUT

VIDEO

AUDIO

INPUT

DEDICATED DISPLAY OUT

Notes:

• Install the Digital Media Receiver at least 15.7 inch (40 cm) away from the Plasma Display to avoid interference.

• Be sure the power to the Plasma Display and digital media receiver is OFF before connecting cables.

• Do not remove the cable connecting the display and tuner unit while the power is on. If the cable is removed inadvertently, turn off the display and digital media receiver before reconnecting the cable.

Cable / Antenna Connection

• For proper reception of VHF/UHF channels, an external antenna is required. For best reception, an outdoor antenna is recommended.

• When you enjoy terrestrial TV programs only, connect the home antenna to ANTENNA (A).

• When you enjoy cable TV programs only, connect the cable TV’s cable to ANTENNA (A).

• When you enjoy both the terrestrial TV programs and the cable TV programs, connect the cable TV’s cable to ANTENNA

(A), and the terrestrial antenna cable to ANTENNA (B).

• Select the antenna mode in Input Setup (see page 22).

Either cable TV or home antenna connection

SERVICE ONLY

ANTENNAAB

Cable In

POWER

ANTENNAA

(Turn Card upside down and gently insert it.)

DEDICATED DISPLAY OUT

CABLE IN

CableCARD

DIGITAL AUDIO OUT

CARD TOP

AUDIO

LLPBLP

R AUDIO OUT

75 Ohm coaxial cable

Both cable TV and home antenna connection

Cable In

CABLE IN

ANTENNAAB

DEDICATED DISPLAY OUT

ANTENNAA

SERVICE ONLY

(Turn Card upside down and gently insert it.)

CableCARD

DIGITAL AUDIO OUT

CARD TOP

AUDIO

LLPBLP

RR 2 1 AUDIO OUT

1YY

AUDIO

PRRP

COMPONENT VIDEO INPUT

1YY

AUDIO

PRRP

COMPONENT VIDEO INPUT

S VIDEO

VIDEO

AUDIO

PROG OUT

INPUT

S VIDEO

VIDEO

PROG OUT

AUDIO

INPUT

Home antenna

VHF

UHF

Mixer

Incoming Cable signal

Home antenna

VHF

UHF

Mixer

Page 13

Connection

Notes:

• Certain cable systems offset some channels to reduce interference or have Premium (scrambled) channels. A cable converter box is required for proper reception. Check with your local cable company for its compatibility requirements.

•To obtain optimum quality picture and sound, from an antenna, the correct cable (75 Ohm coaxial) and the correct terminating plug are required.

• If a communal antenna system is used, you may require the correct connection cable and plug between the wall antenna socket and your television receiver.

•Your local television service center or dealer may be able to assist you in obtaining the correct antenna system for your particular area and the accessories required.

• Any matters regarding antenna installation, upgrading of existing systems or accessories required, and the costs incurred, are your responsibility.

AV Connection

ANTENNAAB

Cable In

DEDICATED DISPLAY OUT

VCR Connection

S VCR

S VIDEO

VIDEO

AUDIO

SERVICE ONLY

CableCARD

CARD TOP

(Turn Card upside down and gently insert it.)

OUTPUT

DIGITAL AUDIO OUT

1YY

AUDIO

LLPBLP

RR 2 1

PRRP

AUDIO OUT

COMPONENT VIDEO INPUT

S Video cable

AV cable

S VIDEO

PROG OUT

VIDEO

AUDIO

INPUT

DIGITAL AUDIO OUT

AUDIO

LLPBLP

RR 2 1 AUDIO OUT

S VIDEO

VIDEO

AUDIO

INPUT

1YY

AUDIO

PRRP

COMPONENT VIDEO INPUT

DIGITAL AUDIO OUT

AUDIO

LLPBLP

RR 2 1 AUDIO OUT

COMPONENT VIDEO INPUT

PROG OUT

INPUT

1YY

AUDIO

PRRP

S VIDEO

VIDEO

AUDIO

PROG OUT

S VIDEO

VIDEO

AUDIO

INPUT

Note:

The S Video input will override the composite video signal when S Video cable is connected. Connect either S Video cable or Video cable.

Page 14

Connection

Digital TV - Set-Top Box (DTV-STB) or DVD Connection

This TV is capable of displaying 480i, 1080i and 480p DTV signals when connected to a DTV Tuner Set-Top-Box (STB) or using the internal DTV Tuner. This TV also utilizes a progressive scan doubler, which de-interlaces the NTSC signal and progressively scans the image. This allows you to sit close to the TV and not see the thin black horizontal lines (venetian blind effect) associated with interlaced TV pictures.

•To view DTV programs, connect the STB to the component video input terminals (Y, PB , PR) of the TV. Component color inputs provide luminance and separate color signal.

• Select the output of the STB to either 480i, 1080i or 480p.

•A DTV signal must be available in your area.

• Use a Panasonic DTV-STB (Digital TV-Set-Top Box) or DVD Player.

Set Top Box

DVD player

DIGITAL TV OUTPUT

AUDIO OUTPUT

Component Video cable

Audio cable

AUDIO

COMPONENT VIDEO INPUT

DIGITAL AUDIO OUT

Program Out Connection (PROG OUT)

See optional equipment manual for further instructions for recording and monitoring.

VCR

DVD recorder

DIGITAL AUDIO OUT

MONITOR

VIDEO

AUDIO

INPUT

AV cable

RROG OUT

AUDIO

LLPBLP

RR 2 AUDIO OUT

COMPONENT VIDEO INPUT

AUDIO

LLPBLP

RR 2 1 AUDIO OUT

1YY

AUDIO

PRRP

COMPONENT VIDEO INPUT

1YY

AUDIO

PROG OUT

INPUT

S VIDEO

VIDEO

AUDIO

S VIDEO

VIDEO

AUDIO

Notes:

• When a device (STB, DVD, etc.) is connected to the HDMI terminal (see page 16), no video or audio is output due to license restrictions.

• Program Out signal may not be available when COMPONENT input (see page 20) is selected for the Main picture during PIP or SPLIT operation (see pages 52, 54).

• When receiving digital channel signals, all digital formats are down-converted to composite NTSC video to be output through Program Out terminals.

• Some programs contain Macrovision signal to prevent VCR recording.

Page 15

Connection

Amplifier Connection

For a full Home Theater sound experience, an external Dolby Digital∗ decoder and a multichannel amplifier must be connected to the DIGITAL AUDIO OUT terminal on the TV.

Dolby Digital 5.1 channel surround sound delivers digital-quality sound. Dolby Digital provides five discrete full-bandwidth

∗

channels for front left, front right, center, surround left and surround right, plus a LFE (Low Frequency Effect) subwoofer channel.

Amplifier

OPTICAL IN

Optical digital audio cable

DIGITAL AUDIO OUT

AUDIO INPUT

Audio cable

Procedure

1. Select Speakers “Off” in Audio menu (see page 29).

2. Adjust the amplifier volume to the desired level.

R AUDIO OUT

Notes:

• External speakers cannot be connected directly to AUDIO OUT terminals.

LLPBLP

RR 2 AUDIO OUT

• When ATSC channel is selected, the output from the DIGITAL AUDIO OUT jack will be Dolby Digital. When NTSC channel is selected, the output will be PCM.

Front AV Connection

Push to open the front panel and connect equipment to front Audio/Video input terminals.

DIGITAL MEDIA RECEIVER TU-PT700U

PC CARD

SD CARD

MENU OK TV/VIDEO VOLUME CHANNEL

INPUT 3 PC

S VIDEO VIDEO L-AUDIO-R

AUDIO

1YY

AUDIO

PRRP

COMPONENT VIDEO INPUT

PROG OUT

INPUT

S VIDEO

VIDEO

AUDIO

INPUT 3 PC

S VIDEO VIDEO VIDEO L-AUDIO-R

AV cable

OUTPUT

AUDIO

VIDEO

CAMERA RECORDER

S Video cable

SVIDEO

A second VCR, video disc player, video game equipment and DSS equipment can also be connected to the video input terminals. See the optional equipment manual for details.

Notes:

• The S VIDEO connection provides higher quality picture. It overrides other VIDEO connections.

• If the connecting equipment has a S Video terminal, connect a S Video cable.

Page 16

Connection

HDMI Connection

∗

HDMI uncompressed standard. The HDMI terminal supports both video and audio information. To the HDMI Set Top Box or DVD player with HDMI or DVI output terminal.

Input a High-bandwidth Digital Content Protection (HDCP) high-definition picture source to this HDMI terminal, so you can display the high-definition pictures on this TV in the digital form.

(High Definition Multi media Interface) is the first all digital consumer electronics A/V interface that supports

∗

input terminal, you can connect an EIA/CEA-861/861B

∗

compliant consumer electronic device, such as a

ANTENNAAB

Cable In

DEDICATED DISPLAY OUT

SERVICE ONLY

CableCARD

(Turn Card upside down and gently insert it.)

DIGITAL AUDIO OUT

CARD TOP

AUDIO

LLPBLP

RR 2 AUDIO OUT

AUDIO

PRRP

COMPONENT VIDEO INPUT

1YY

AUDIO

PROG OUT

S VIDEO

VIDEO

AUDIO

INPUT

AUDIO OUTPUT

Audio cable

Set Top Box

DVD player

HDMI cable

HDMI signal out

Notes:

• An audio cable should be connected only when using a HDMI conversion adapter to connect with a DVI cable.

• If the external device has DVI output only, use a DVI to HDMI adapter cable

∗

to connect to the HDMI terminal.

• Connect the audio cables to the AUDIO IN terminals for HDMI.

• Select the audio setting in HDMI In (see page 29).

Compatible VIDEO Signal

1080i 480p

480i

No. of dots (H × V)

1,920 × 1,080i

720 × 480p

640 × 480p

720(1,440) × 480i

Vertical scanning frequency (Hz)

59.94/60

This input terminal is not intended for use with computers.

Compatible sampling frequency of AUDIO signal through HDMI (L.PCM) : 48kHz / 44.1kHz / 32 kHz

Notes:

• This HDMI connector is Type A.

• If you connect an equipment without a digital output terminal, connect to the COMPONENT VIDEO, S VIDEO or VIDEO input terminal on the TV so you can enjoy an analog signal.

• The DIGITAL IN terminal can only be used with 1080i, 480i or 480p picture signals. Set the Digital Set -Top -Box DIGITAL OUT terminal Output setting to 1080i, 480i or 480p. For detailed information, refer to the Digital Set -Top -Box instruction manual. If you cannot display the picture because your Digital Set -Top -Box does not have a DIGITAL OUT terminal Output setting, use the component Video Input (or the S Video Input or Video Input). In this case the picture will be displayed as an analog signal.

1. HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI

∗

Licensing LLC.

2. EIA/CEA-861/861B profiles compliance covers profiles for transmission of uncompressed digital video including

∗

high bandwidth digital content protection.

3. Consult your consumer electronics dealer for availability details.

∗

[for USA] HDMI-DVI conversion cable (TY-SCHO3DH): available on Panasonic Website (www.panasonic.com).

Page 17

PC Connection

COMPUTER

DIGITAL MEDIA RECEIVER TU-PT700U

PC CARD

SD CARD

MENU OK TV/VIDEO VOLUME CHANNEL

INPUT 3 PC

S VIDEO L-AUDIO-R

VIDEO

Connection

INPUT 3 PC

S VIDEO VIDEO L-AUDIO-R

Stereo plug

D-sub 15p

Audio

Connect a cable which matches the audio output terminal on the computer.

RGB

PC cable

Conversion adapter if necessary (purchase locally)

Notes:

• Computer signals which can be input are those with a horizontal scanning frequency of 15 to 110 kHz and vertical scanning frequency of 48 to 120 Hz. (However, the image will not be displayed properly if the signals exceed 1,200 lines.)

• The maximum resolution:

Aspect

4:3

1,024 × 768

16:9

1,366 × 768

If the display resolution exceeds these maximums, it may not be possible to show fine detail with sufficient clarity.

• Some PC models cannot be connected to the set.

• There is no need to use an adapter for computers with DOS/V compatible D-sub 15P terminal.

• The computer shown in the illustration is for example purposes only.

• Additional equipment and cables shown are not supplied with this set.

• Do not set the horizontal and vertical scanning frequencies for PC signals which are above or below the specified frequency range.

Signal Names for D-sub 15P Connector

Pin No.

15 14 13 12 11

Pin Layout for PC Input Terminal

67839

1 2 3 4 5

Signal Name

NC (not connected)

GND (Ground)

Pin No.

6 7 8 9

Signal Name GND (Ground) GND (Ground) GND (Ground)

NC (not connected)

GND (Ground)

Pin No.

11 12 13 14 15

Signal Name

NC (not connected)

HD/SYNC

VD NC

Page 18

Connection

CableCARDTM Connection

CableCARDTM allows you to tune digital and high definition cable channels through the cable antenna. Consult your cable company on the availability of CableCARDTM.

Procedure

1. Connect the cable antenna to ANTENNA (A).

2. Insert the CableCARDTM (as its front side facing down) into CableCARDTM slot on the back of the Receiver.

3. Turn the TV on (see page 19).

4. Set the input mode to TV (see page 20). Follow the messages displayed on the screen.

ANTENNAA

Cable In

SERVICE ONLY

CableCARD

(Turn Card upside down and gently insert it.)

CARD TOP

ANTENNAAB

Cable In

DEDICATED DISPLAY OUT

SERVICE ONLY

CableCARD

CARD TOP

(Turn Card upside down and gently insert it.)

DIGITAL AUDIO OUT

1YY

AUDIO

LLPB LPB

RR 2 1

PR RPR

AUDIO OUT

COMPONENT VIDEO INPUT

PROG OUT

S VIDEO

VIDEO

AUDIO

INPUT

Insert the CableCARDTM into the slot with the front side facing down.

Notes:

• If you experience keyboard or remote control function hang-up when using CableCARD

, unplug the TV and plug it back

on and try the controls again. If this condition still exists, please call Panasonic Customer Call Center for further instructions.

• Do not insert a PCMCIA card into CableCARDTM slot.

Page 19

Power ON / OFF

Connecting the AC cord plug to the Plasma Display.

Fix the AC cord plug to digital media receiver.

DISPLAY OUT

Connecting the plug to the Wall Outlet

Press the Power switch on the Plasma Display to turn the set on: Power-On.

Power Indicator: Green

Fix the AC cord plug securely to the Plasma Display with the clamper. (see page 11)

POWER

Occasionally on-screen-menus appear while connection cable is not inserted, but these onscreen-menus are not effective. Remote control

POWER

is not accessible to those menus.

Remote Control Sensor

Notes:

Power Indicator

• Please turn off the power of the Plasma Display unit and Digital Media Receiver when connecting or removing Display Receiver cable.

POWER

Press the POWER

button on the remote control to turn the Plasma

Display off.

POWER

TV VCR DVD

DBS

RCVR

TV/VIDEO

SAP

LIGHT

CBL

AUX

A -ANTENNA - B

Power Indicator: Red (standby)

Press the POWER button on the remote control to turn the Plasma TV on.

Power Indicator: Green

Turn the power to the Plasma TV on or off by pressing the POWER

button on the Digital Media Receiver unit, when the Plasma TV is on or in standby mode.

Note:

The TV will still consume some power as long as the power cord is still inserted into the wall outlet.

Page 20

Location of Controls

SD CARD slot PC CARD slot

POWER button

SD CARD

PC CARD

Display Main Menu or return one step backward in menus

MENU OK TV/VIDEO VOLUME CHANNEL

(see pages 24, 57).

Choose menu and submenu entry.

Volume adjusters

TV/VIDEO

Change the input mode.

POWER

Turn the TV ON or OFF.

Mode Selection buttons (see page 59, 60) Selects the operation mode for the remote control. The operation of each equipment can be done by this remote control.

Channel selectors

DIGITAL MEDIA RECEIVER TU-PT700U

PC CARD

SD CARD

MENU OK TV/VIDEO VOLUME CHANNEL

INPUT 3 PC

S VIDEO VIDEO L-AUDIO10-R

PC CARD EJECT button

POWER

SAP

DBS

TV/VIDEO

VCR DVD

RCVR

LIGHT

CBL

AUX

A -ANTENNA - B

TV/VIDEO

Change the input mode.

Component 1

Video 3PC Video 1

Component 2

Video 2

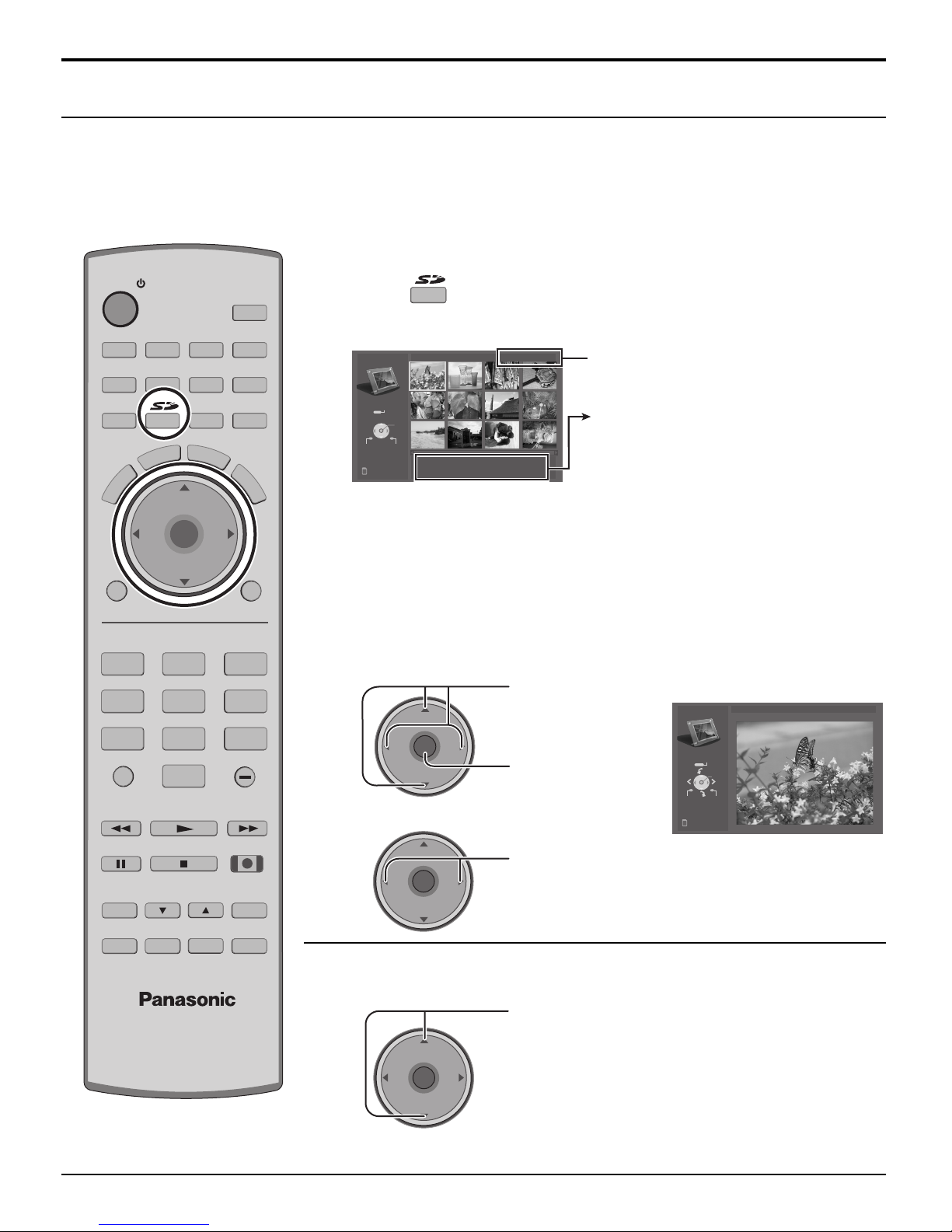

Access Photo Viewer (see page 46).

R-TUNE

Switch to previously viewed channel and input modes.

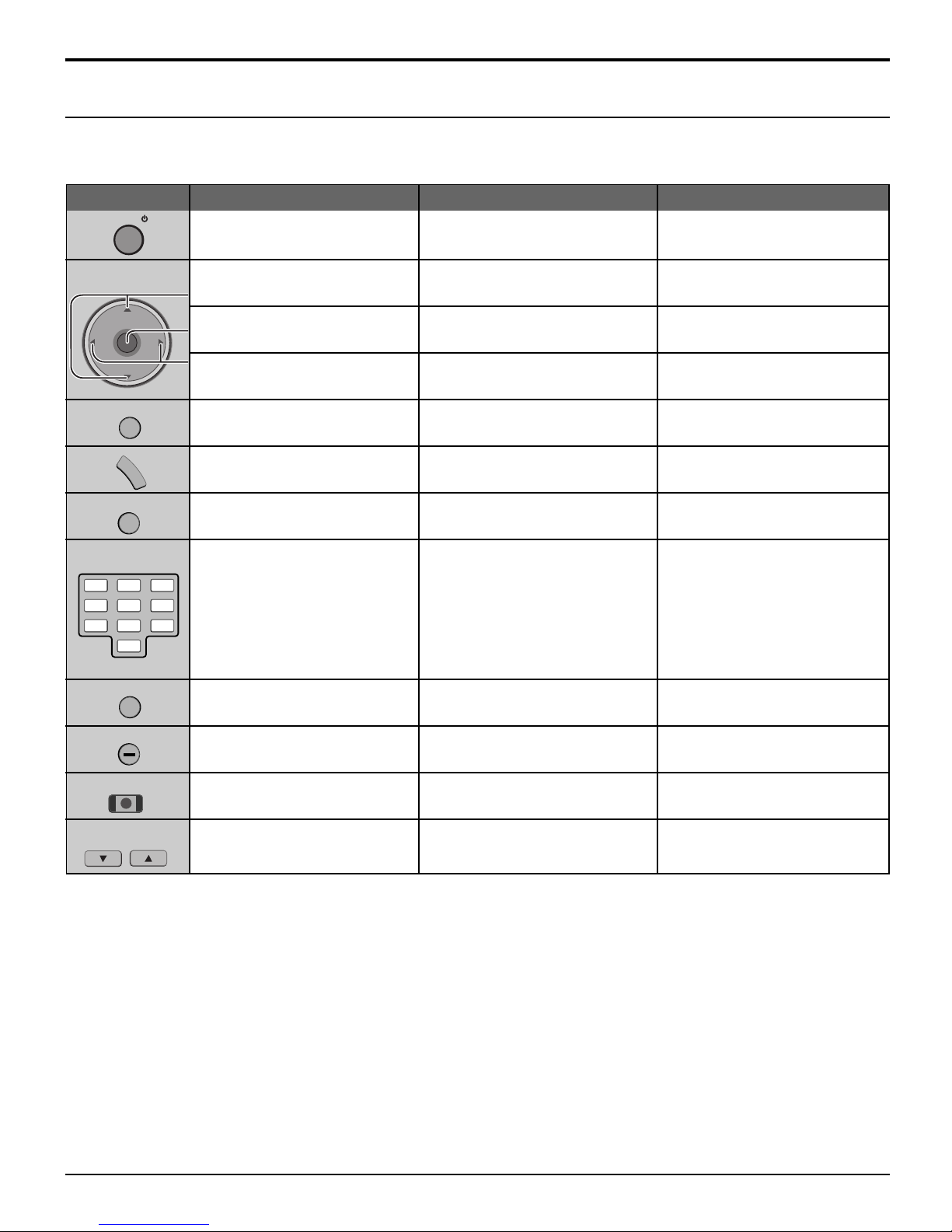

Operation of other Device (see pages 63, 64)

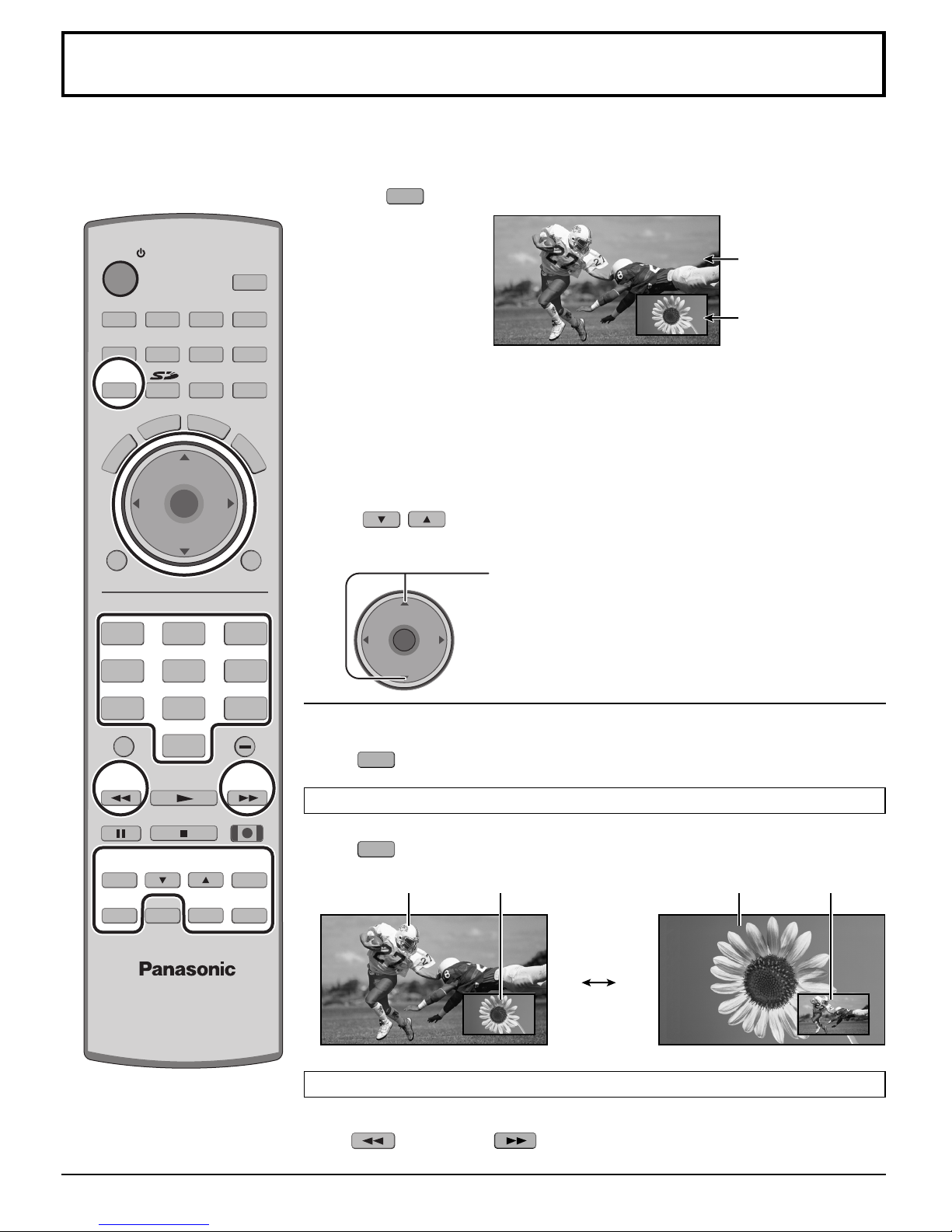

PIP MIN, PIP MAX

PIP MIN

REW

PAUSE

PLAY

STOP

PIP MAX

REC

Change the size of PIP frame (see page

52).

Display search frames during PIP or SPLIT

FREEZE

TV/VCR

SPLIT CH

DVD/VCR CH

SEARCH OPEN/CLOSE

operation (see pages 53, 55).

SPLIT CH

Select the channel during PIP or SPLIT

FREEZE

operation (see pages 52, 54).

Freeze the picture (see pages 53, 55).

HDMI

VOL

1 2 3

4 5 6

7 8

R-TUNE

PIP MIN

REW

PAU SE

FREEZE

TV/VCR

PIP SPLIT MOVE

PLAY

STOP

SPLIT CH

DVD/VCR CH

EXIT

PROG

PIP MAX

REC

SEARCH OPEN/CLOSE

SWAP

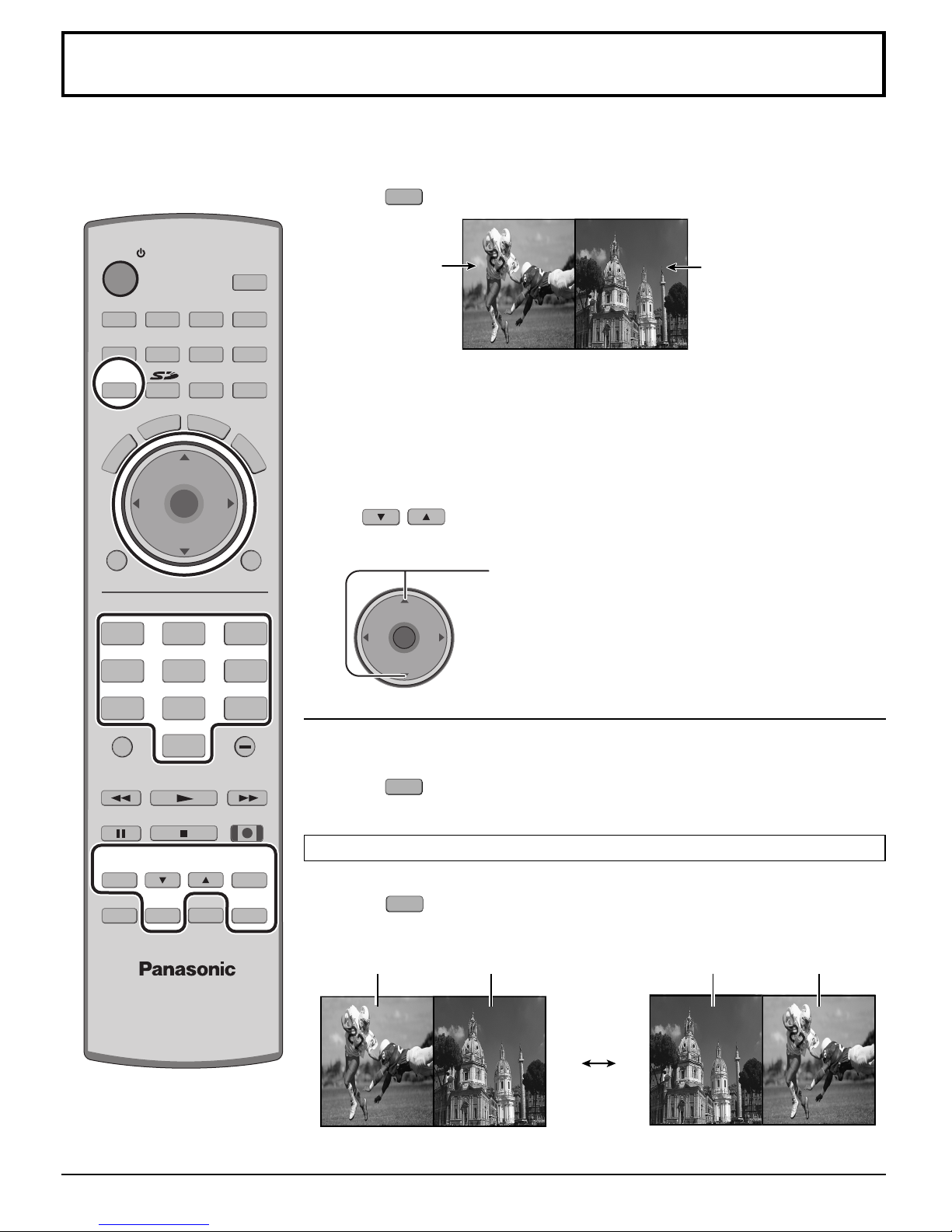

PIP : PIP (Picture in Picture) Operation (see page 52-53) SPLIT : Split Screen (see page 54-55) MOVE : Move PIP frame (see page 53). SWAP : Swap pictures in PIP or SPLIT operation (see page 52, 54).

Page 21

Location of Controls

SAP

• Digital channel Select the audio track (if available).

Audio Track 1 of 1 (English)

• Analog channel Cycle through different audio modes. e.g.

LIGHT

Light the remote control buttons. The selected button blinks when lit.

A -ANTENNA - B

Switch to (A or B) RF antenna input.

MUTE

Mute the sound. Press again to cancel the mute.

ASPECT

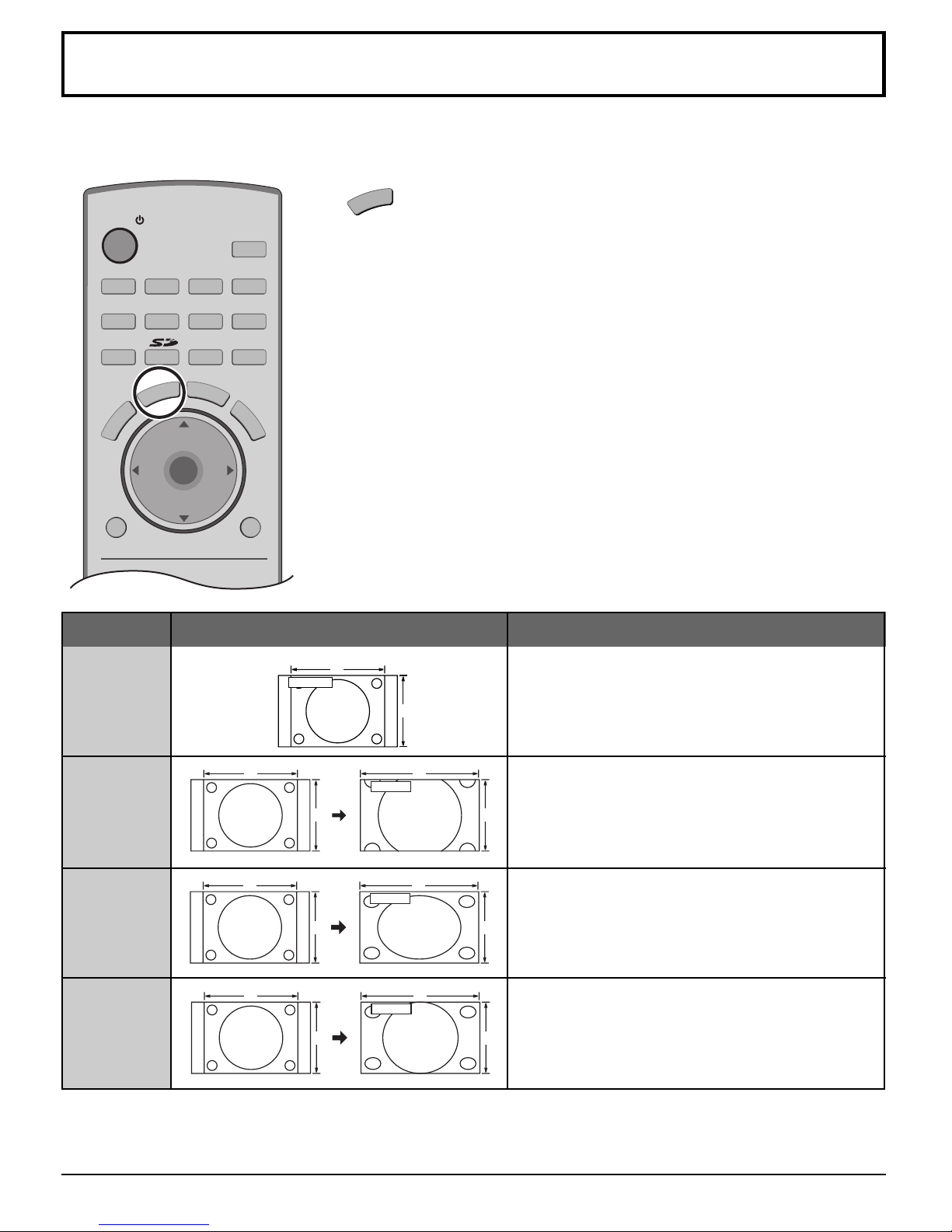

Change the screen aspect (see page 56).

BBE

Turn BBE VIVA 3D OFF or ON (see page 29).

RECALL

Display or remove the channel banner.

Antenna designation, Channel and program # and Station identifier Rating Clock

Stereo SAP Mono

Program Aspect

Picture mode setting

PIP/SPLIT CH number or Input information

A: 15-1 KPBS - HD

Add FAV

Press OK button to add or delete the channel in the Favorite channel list (see page 30).

VOL : Reduces volume. : Move cursor to the left during

TV-G 1080i

Closed Caption

CH: Change to the next channel up. : Move cursor upward during menu mode.

menu mode.

Display Main Menu or return

SAP

SAP indication

VOL

MENU EXIT

VOL

VIVID HDMI

Choose menu and submenu entry.

VOL : Increase volume. : Move cursor to the right during

menu mode.

EXIT

Exit menus.

12:30 pm

Time remaining in Sleep Timer

one step backward in menus (see pages 24, 57).

CH: Change to the next channel down. : Move cursor downward during menu mode.

Direct program number selection buttons

PROG -: When tuning digital channel, press the button to enter the minor number in a compound

channel number.

• To enter the channel number e.g. CH 15-1: [1] [5] [-] [1] [OK]

Page 22

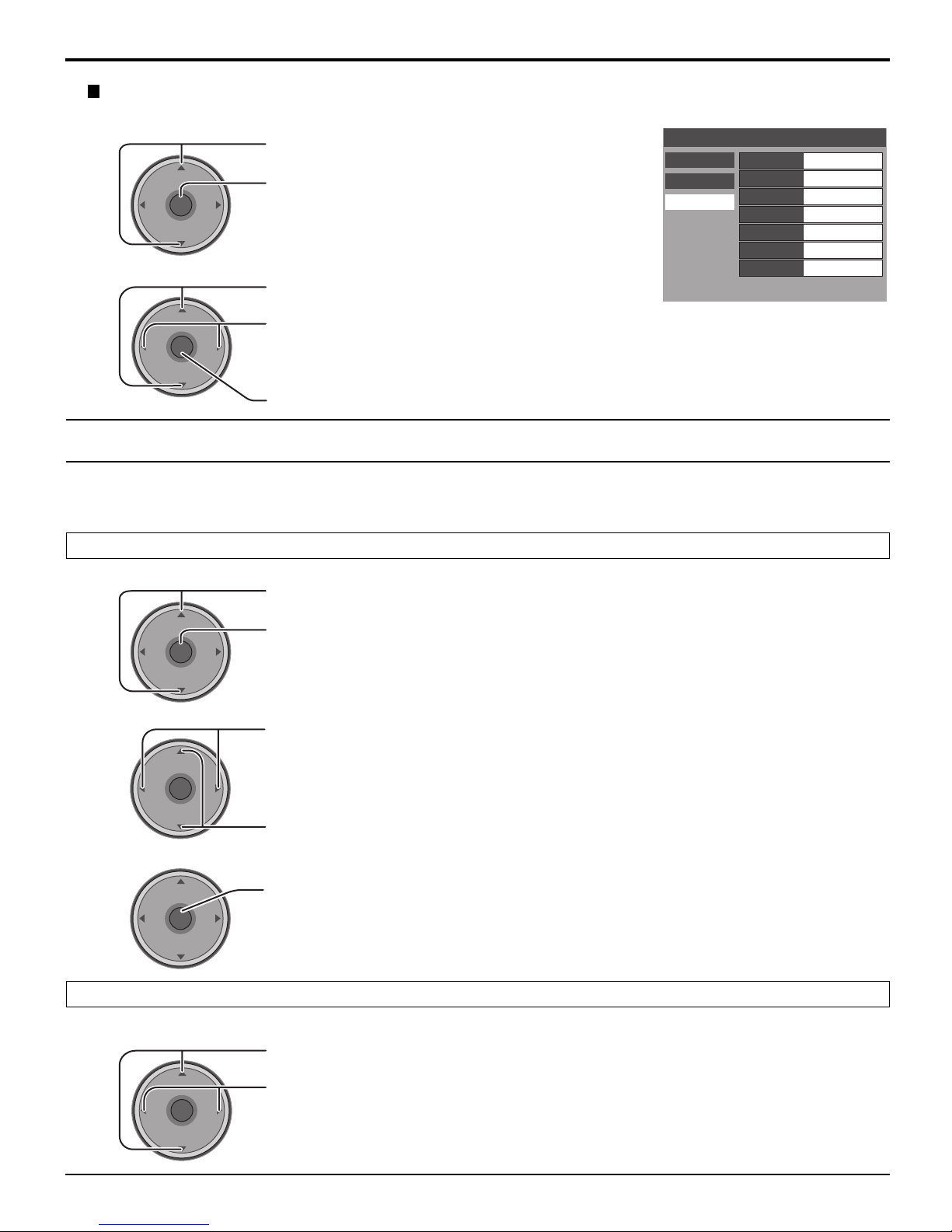

First Time Setup

For your convenience, First Time Setup menu will be displayed on screen when the

POWER

SAP

set is turned on for the first time. If needed, follow the menus and procedures displayed on-screen for setting up the features. You can also make the settings in Setup menu (see pages 36-38).

TV VCR DVD

LIGHT

Input Setup

Select the configuration of RF input depending on the

DBS

RCVR

TV/VIDEO

CBL

AUX

A -ANTENNA - B

signal source.

VOL

MENU EXIT

VOL

1 2 3

Auto Scan

This feature allows you to selectively auto scan channels. You can scan All, Analog only channels or Analog & Digital channels.

First Time Setup

Input Setup Scan All

Auto Scan

Language

Antenna (A) Analog

Antenna (A) Analog & Digital

Antenna (B) Analog

Antenna (B) Analog & Digital

VOL

First Time Setup

Setting

Cable/Antenna

Press to select Input Setup.

Input Setup

Auto Scan

Language

Press to select Cable only, Cable/Antenna or Antenna only.

Press to enter your selection.

Press to start the Auto Scan. All available channels with a signal will be programmed into memory.

Language

Allows you to select the language used for On Screen Displays.

First Time Setup

Input Setup

Auto Scan

Language

Setting

English

VOL

Press to select Auto Scan.

Press to enter the sub-menu field.

Press to select the sub-menu.

Press to start Auto Scan. After Auto Scan is completed, the TV tunes to the first channel

found during Auto Scan.

Notes:

• If the EXIT button is pressed at anytime during Auto Scan, Auto Scan will be cancelled and the TV will return to the First Time Setup menu.

• If a CableCARD

is present during the First Time Setup and Antenna (A) is set to cable, Antenna (A) will not be scanned due to the CableCARDTM providing the channel map.

VOL

Press to select Language.

Press to enter the sub-menu field.

Press to select the Language.

English Spanish French

Press to enter your selection.

To return to the previous menu

Press

To exit the menu screen

EXIT

Press

Page 23

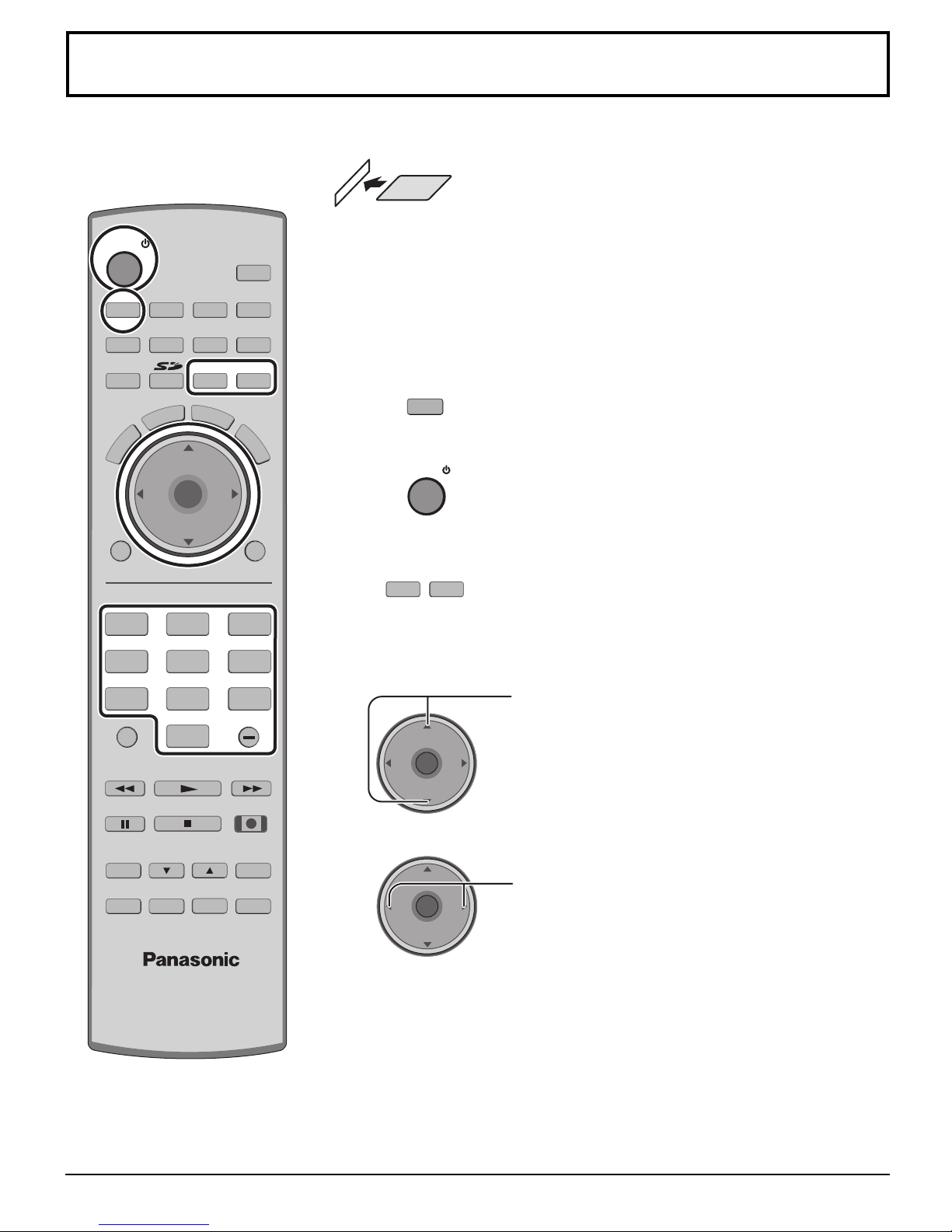

Watching TV programs

To enjoy cable TV programs, first insert the CableCARD its front side facing down) into CableCARDTM slot on the back

of the Receiver. (see page 18)

POWER

DBS

TV/VIDEO

VCR DVD

RCVR

CBL

A -ANTENNA - B

SAP

LIGHT

AUX

CableCARD

Note:

If you enjoy terrestrial TV programs only, you don't need to insert the CableCARDTM.

(with

VOL

1 2 3

4 5 6

7 8 9

R-TUNE

PIP MIN

REW

PAUSE

FREEZE

TV/VCR

PIP SPLIT MOVE

PLAY

STOP

SPLIT CH

DVD/VCR CH

VOL

PIP MAX

SEARCH OPEN/CLOSE

EXIT

PROG

REC

SWAP

POWER

A -ANTENNA - B

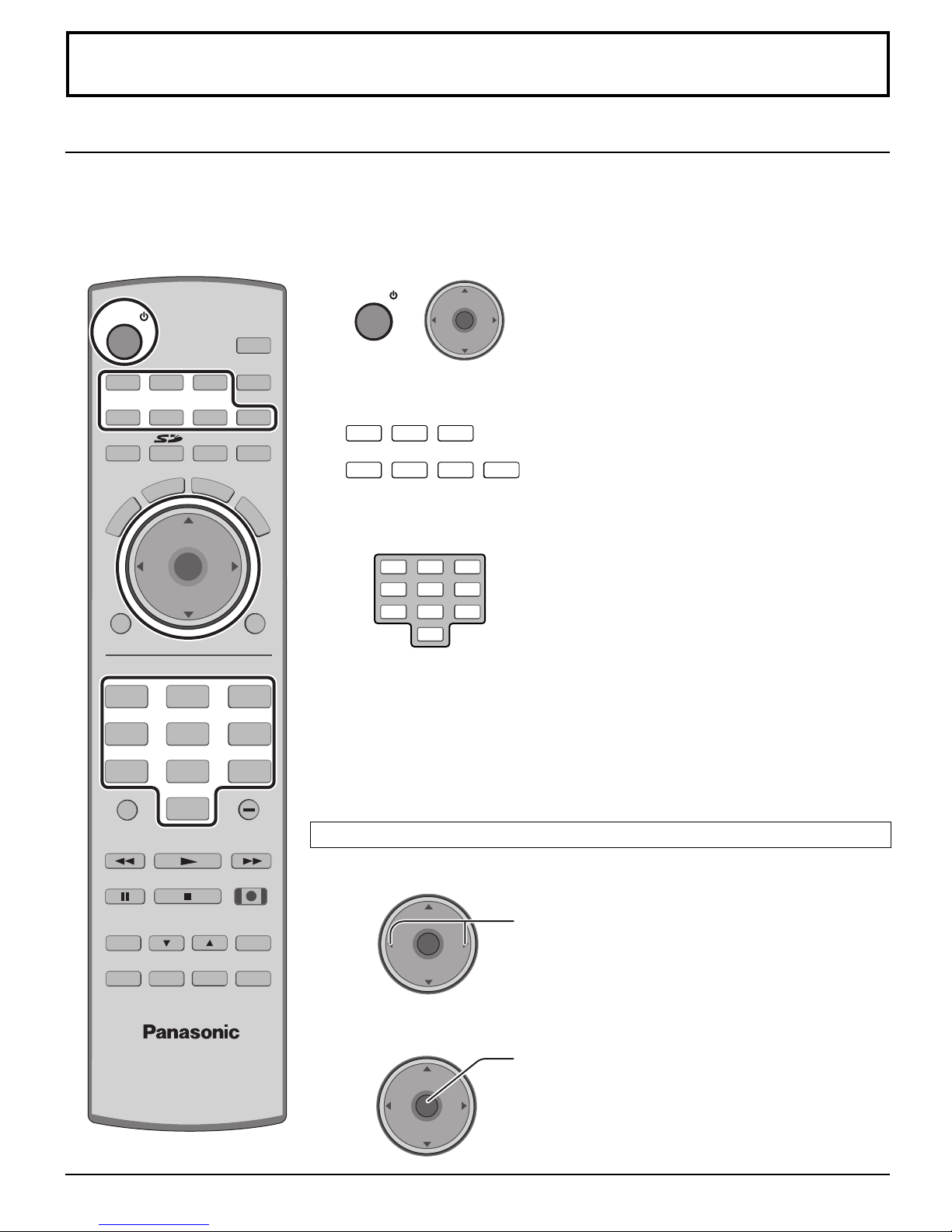

Press to operate the TV set with the remote control.

Press to turn the TV on.

Press ANTENNA (A) or (B) button for desired TV signals. (see pages 12, 13, 14)

Press to select desired channel.

•You can also use the direct program number selection buttons and PROG–button (see page 21).

VOL

Select the desired volume level.

Note:

The channel number and volume level remain the same even after the TV is turned off.

Page 24

Menu Navigation

POWER

VCR DVD

DBS

RCVR

TV/VIDEO

MENU EXIT

VOL

SAP

LIGHT

CBL

AUX

A -ANTENNA - B

VOL

1 2 3

Press to display the Main menu.

Timer


(see page 33)

(see page 26)

Audio

(see page 28)

Channel

(see page 30)

Setup

(see page 36)

Lock

(see page 42)

Photo Viewer

(see page 46)

About

The About screen displays assorted information

about the TV. Please have this information when calling Customer Care Center.

VOL

Press to select the menu.

Press to enter the sub-menu field.

4 5 6

7 8

R-TUNE

PIP MIN

REW

PAUSE

FREEZE

TV/VCR

PIP SPLIT MOVE

PLAY

STOP

SPLIT CH

DVD/VCR CH

PROG

PIP MAX

REC

SEARCH OPEN/CLOSE

SWAP

[Picture / Audio / Timer]

Press to select the sub-menu.

Press to adjust the sub-menu.

VOL

(To select Other Adjust sub-menu)

Press to select Other Adjust.

VOL

Press to display the sub-menu.

Press to select the sub-menu. Press to select or activate the submenu.

VOL

ex. Picture menu


Pic Mode

Color

Tint

Brightness


Sharpness

Normal

Other Adjust

ex. Picture menu

Other Adjust

Color

Temp

Color Mng.

Video NR

3D Y/C Filter

Color Matrix

Freeze

Vivid

Cool

Off

Split

Page 25

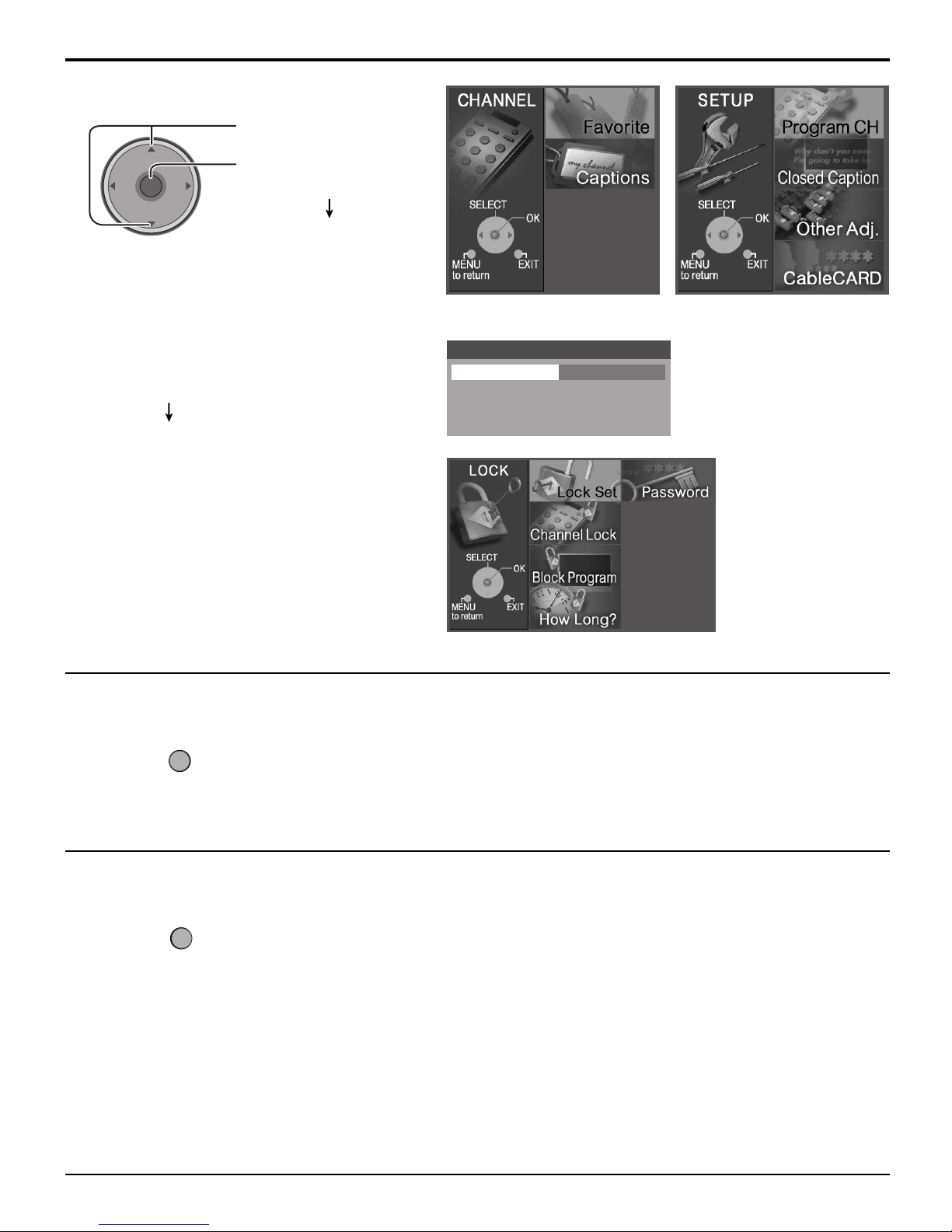

[Channel / Setup]

Menu Navigation

Press to select the menu.

VOL

Press to enter the submenu field.

Proceed to adjustment and setting.

[Lock]

Enter password and repeat step 2.

Proceed to adjustment and setting.

Password

Enter Password

- - - -

To return to the previous screen

Press to return.

To exit menu

EXIT

Press to return to normal picture.

Page 26

Menu Navigation


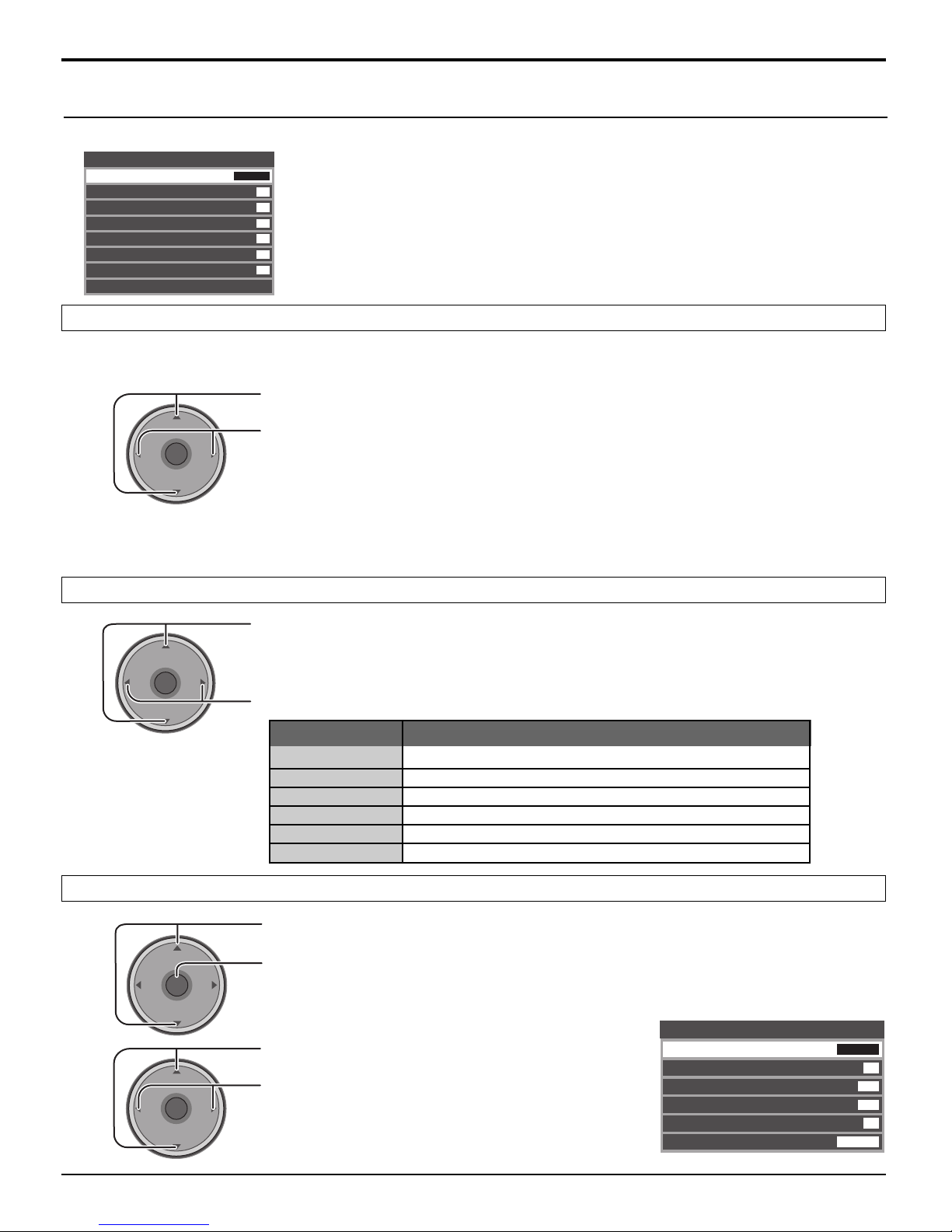

Press the MENU key to activate the main menu and select Picture. (refer to page 24)


Pic Mode

Color

Tint

Brightness


Sharpness

Normal

Other Adjust

Pic Mode

Lets you choose the pre-set picture modes that best suits the program you are viewing. This feature also affects Color Temp setting (see page 27).

Vivid

Press to select Pic Mode.

Note:

VOL

Press to select the picture mode.

Vivid (default):

•

Standard : Recommended for normal viewing conditions with subdued room lighting.

•

Cinema : For watching movies in a darkened room. It provides a soft, film-like picture.

•

Auto : Automatically senses the ambient light conditions and adjusts the brightness

•

Provides enhanced picture contrast and sharpness for viewing in a well-lit room.

and gradation accordingly, to optimize contrast.

Each mode has its own picture settings (Color, Tint, Brightness, Picture and Sharpness).

Color / Tint / Brightness / Picture / Sharpness / Normal

Press to select the sub-menu.

VOL

Press to adjust the sub-menu.

Item

Color Tint Brightness Picture Sharpness Normal

Adjusts desired color intensity. Adjusts natural flesh tones. Adjusts dark areas of picture. Adjusts white areas of picture. Adjusts clarity of outline detail. Resets all picture adjustments to factory default settings.

Explanations

Other Adjust

VOL

Press to select Other Adjust.

Press to display the sub-menu.

Press to select the sub-menu.

Press to select or activate the sub-menu.

Other Adjust

Color

Temp

Color Mng.

Video NR

3D Y/C Filter

Color Matrix

Freeze

Cool

Off

Split

Page 27

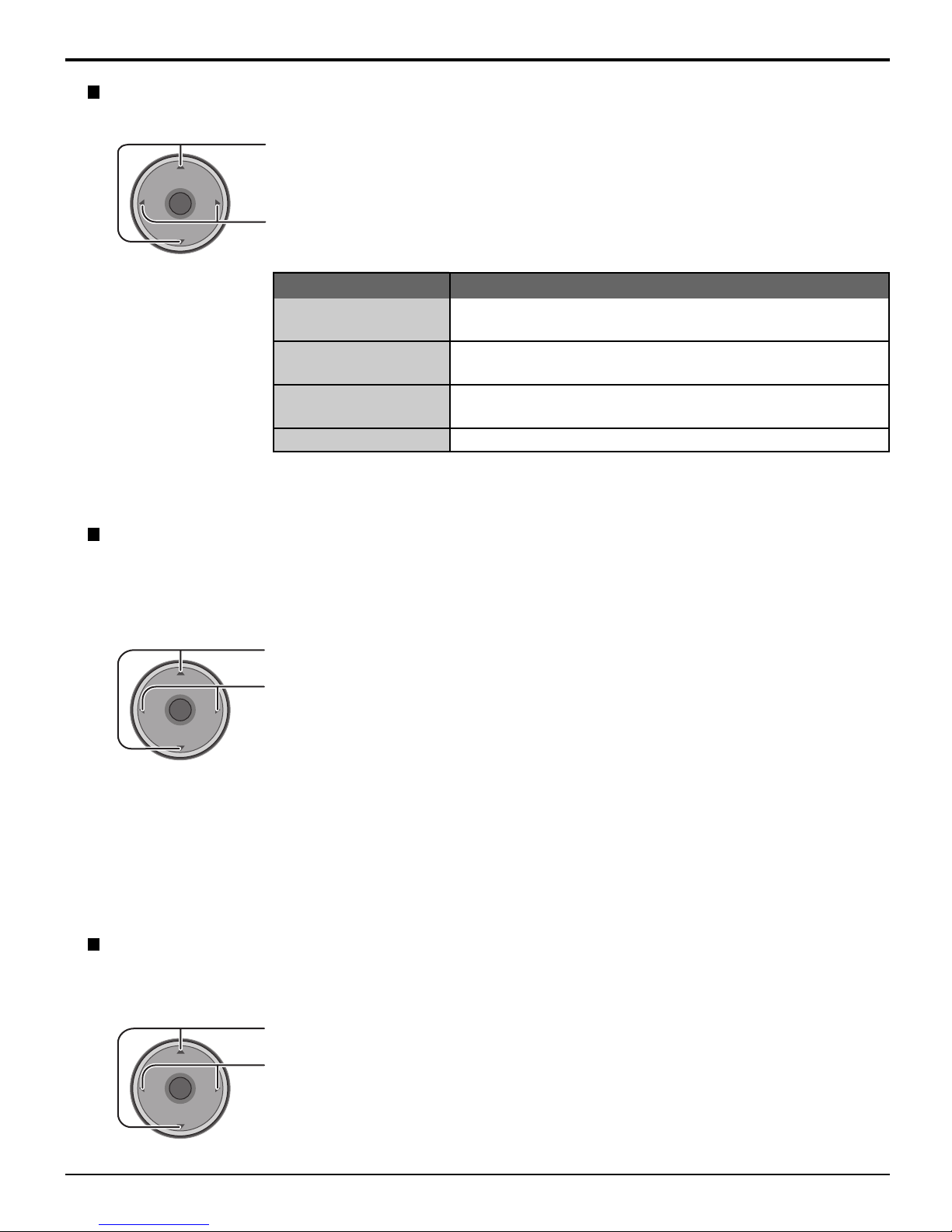

Color Temp (temperature) / Color Mng. / Video NR / 3D Y/C Filter

Press to select the sub-menu.

Menu Navigation

VOL

Press to adjust or activate the sub-menu.

Item

Color Temp

(Temperature)

Color Mng.

(Color Management)

Video NR

3D Y/C Filter

Select Normal, Warm (red) or Cool (blue) colors to suit personal preferences.

Color Mng. On Enable vivid color adjustment automatically.

Reduces noise in the channel, commonly called snow. Remains off when receiving a strong signal.

Minimizes noise and cross color in the picture.

Explanations

Color Matrix

Displays 480p input signals in a natural color from digital equipment adapters connected to COMPONENT VIDEO INPUT (Y, PB, PR) terminals. Select HD or SD to automatically adjust color parameters for HD (high definition) or SD (standard definition).

Press to select Color Matrix.

VOL

Press to select SD or HD.

SD : When the input signal is a normal TV system (NTSC).

•

HD : When the input signal is a High-Definition system (ATSC).

•

Notes:

• This feature is available only with 480p signal and not available with regular TV (NTSC) program.

• When viewing a non-standard DTV signal format, you can change color parameters manually for the best picture quality.

Freeze

This feature is used to freeze main picture and display it in a PIP or SPLIT frame, when the FREEZE button on the remote control is pressed. Press FREEZE again to delete frame (see pages 53, 55).

Press to select Freeze.

VOL

Press to select Split or PIP.

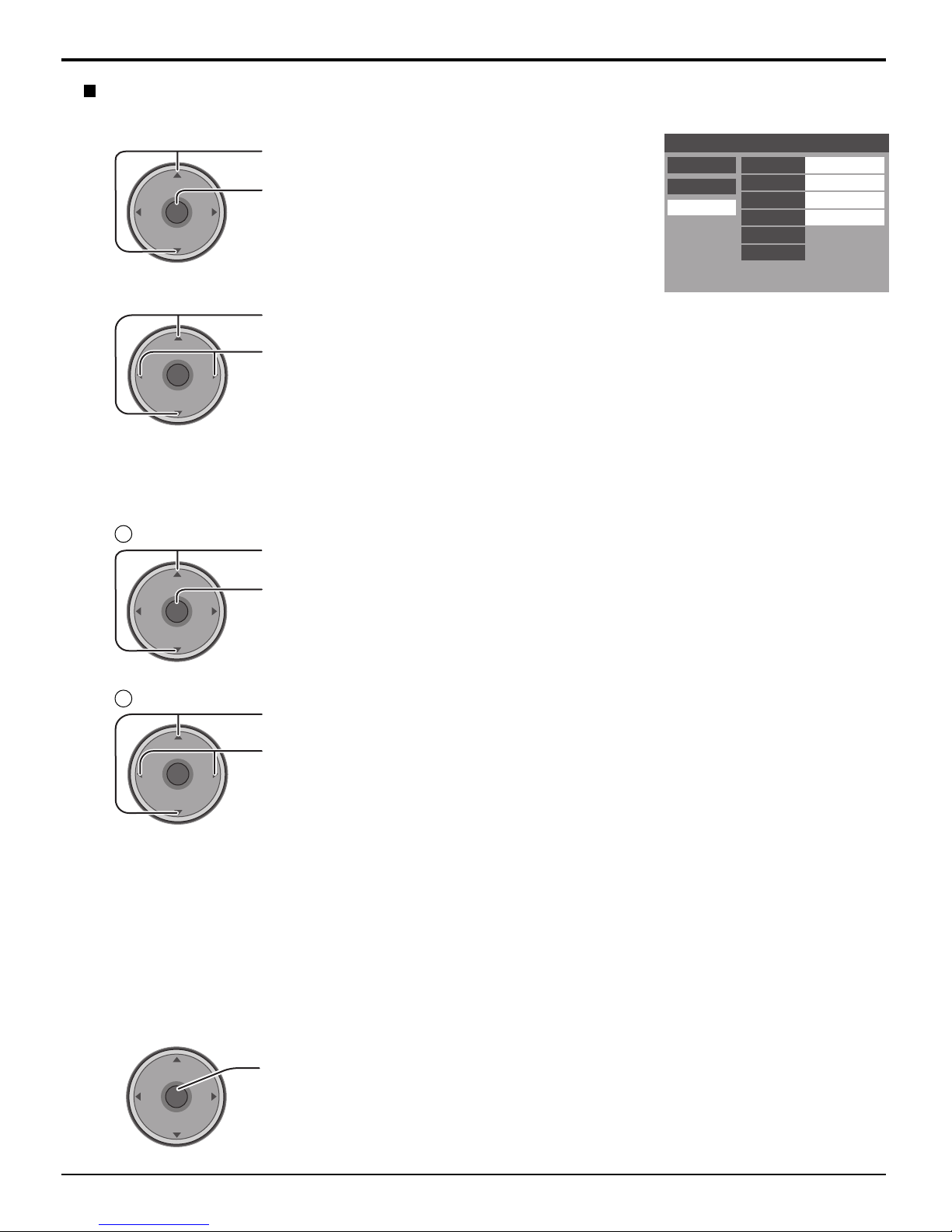

Page 28

Menu Navigation

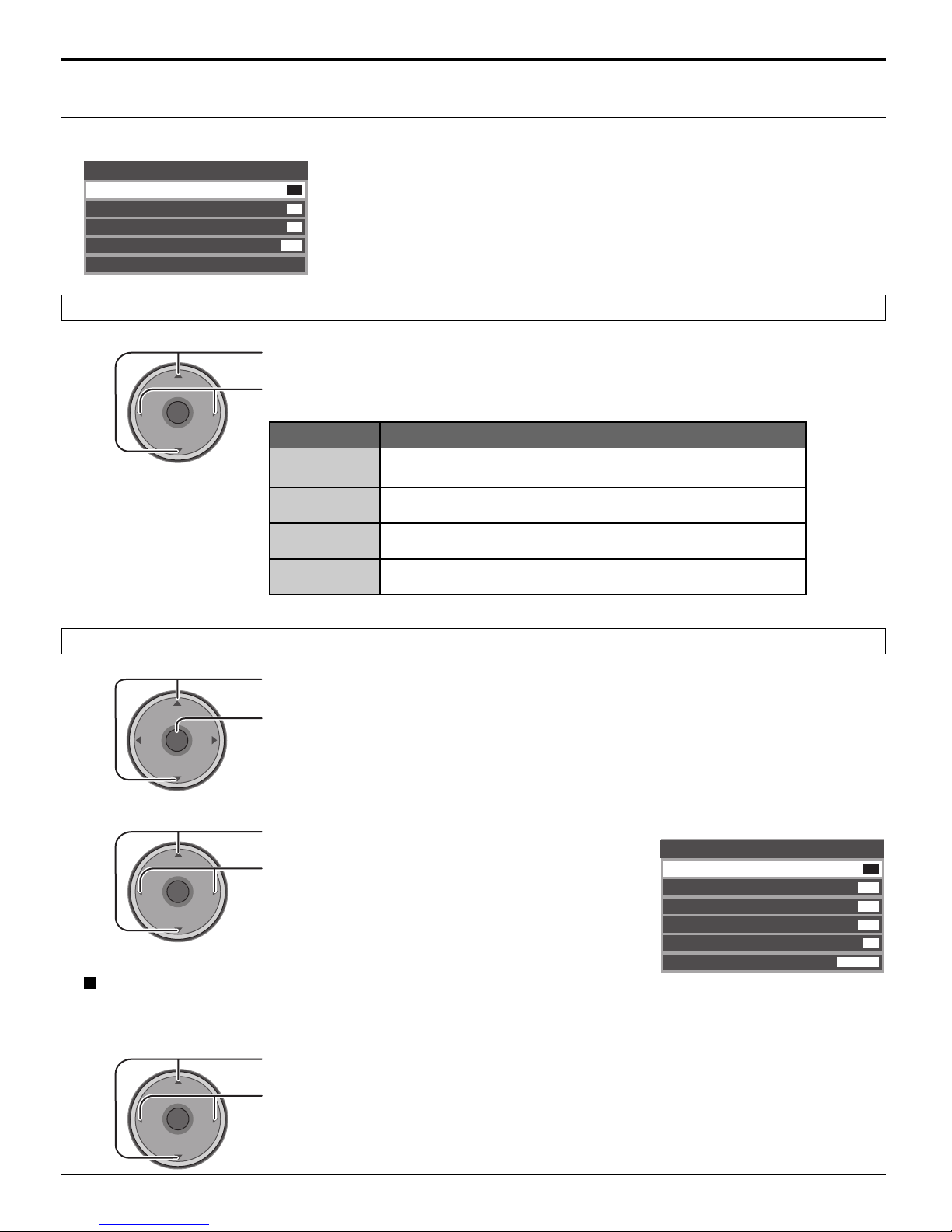

Audio

Press the MENU key to activate the main menu and select Audio. (refer to page 24)

Audio

Bass

Treble

Balance

Normal

Other Adjust

Bass / Treble / Balance / Normal

Set

Press to select the sub-menu.

VOL

Other Adjust

VOL

AI Sound

VOL

Press to adjust or activate the sub-menu.

Item

Bass

Treble

Balance

Normal

Increase or decrease the bass response.

Increase or decrease the treble response.

Emphasize the left / right speaker volume.

Reset Bass, Treble and Balance adjustments to factory default settings.

Press to select Other Adjust.

Press to display the sub-menu.

Press to select the sub-menu.

Press to select or activate the sub-menu.

Explanations

Other Adjust

AI Sound

BBE VlVA 3D

BBE

Surround

Speakers

HDMI ln

Off

Auto

Equalize overall volume levels across all channels. AI sound is not available in VIDEO input mode (see page 20). Effective only during internal TV tuner operation.

Press to select AI Sound.

VOL

Press to select On or Off.

Page 29

Menu Navigation

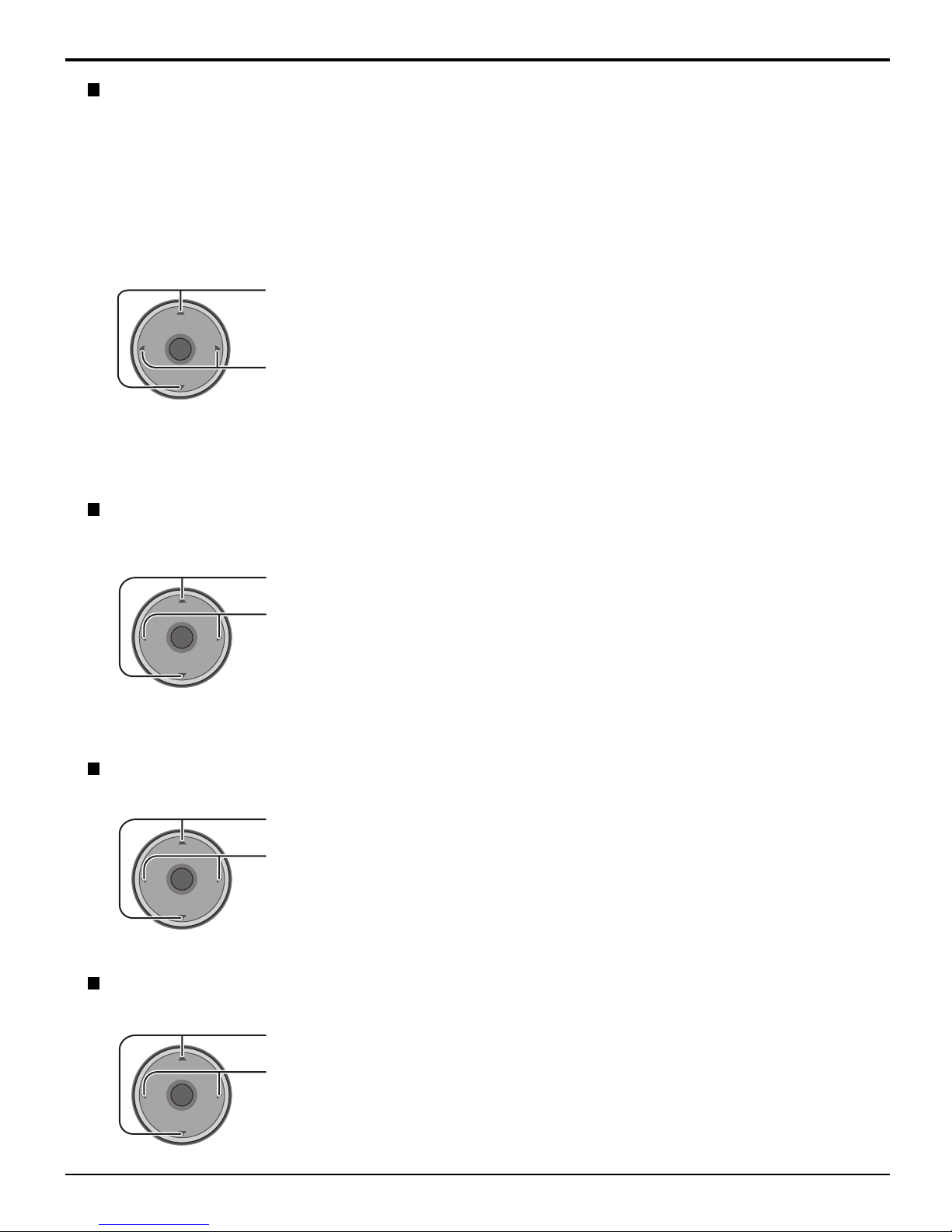

BBE VIVA 3D / BBE

BBE VIVA 3D BBE VIVA 3D provides a musically accurate natural 3D image with hi-fi sound. The clarity of the sound

is improved by BBE while the width, depth and height of the sound image are expanded by BBE’s proprietary 3D sound processing. BBE VIVA 3D is compatible with all TV programs including news, music, dramas, movies and sports as well as electronic games. BBE VIVA 3D enhances the surround sound effect, while maintaining the clarity of dialogue.

BBE Sound technology enhances speech intelligibility and restores the dynamic range of musical passages

to provide outstanding natural sound.

Press to select BBE VIVA 3D or BBE.

VOL

Press to select On or Off.

Notes:

• When “BBE VIVA 3D” is set to On, “BBE” and “Surround” setting are fixed to “On” and “3D”.

• When “BBE VIVA 3D” is set to Off, “BBE” and “Surround” can be set individually.

Surround

Enhances audio response when listening to stereo.

Press to select Surround.

VOL

Press to select On or Off.

The benefits of Surround sound are enormous. You can be completely enveloped in sound; just as if you were at a concert hall or cinema. The Surround effect can be obtained without the use of external Ambience speakers.

Note:

This feature is effective when BBE VIVA 3D is set to Off.

Speakers

This feature is used to turn TV speakers On or Off (see page 15, Amplifier Connection).

Press to select Speakers.

VOL

Press to select On or Off.

• On : TV speakers operate normally.

• Off : TV speakers off.

HDMI In

When using HDMI (see page 16), this feature will let you switch between Analog Input and Digital Input.

Press to select HDMI In.

VOL

Press to select the mode.

• Auto : Automatically selects Analog / Digital signal.

• Digital : Digital Input only.

• Analog : Analog Input only.

Page 30

Menu Navigation

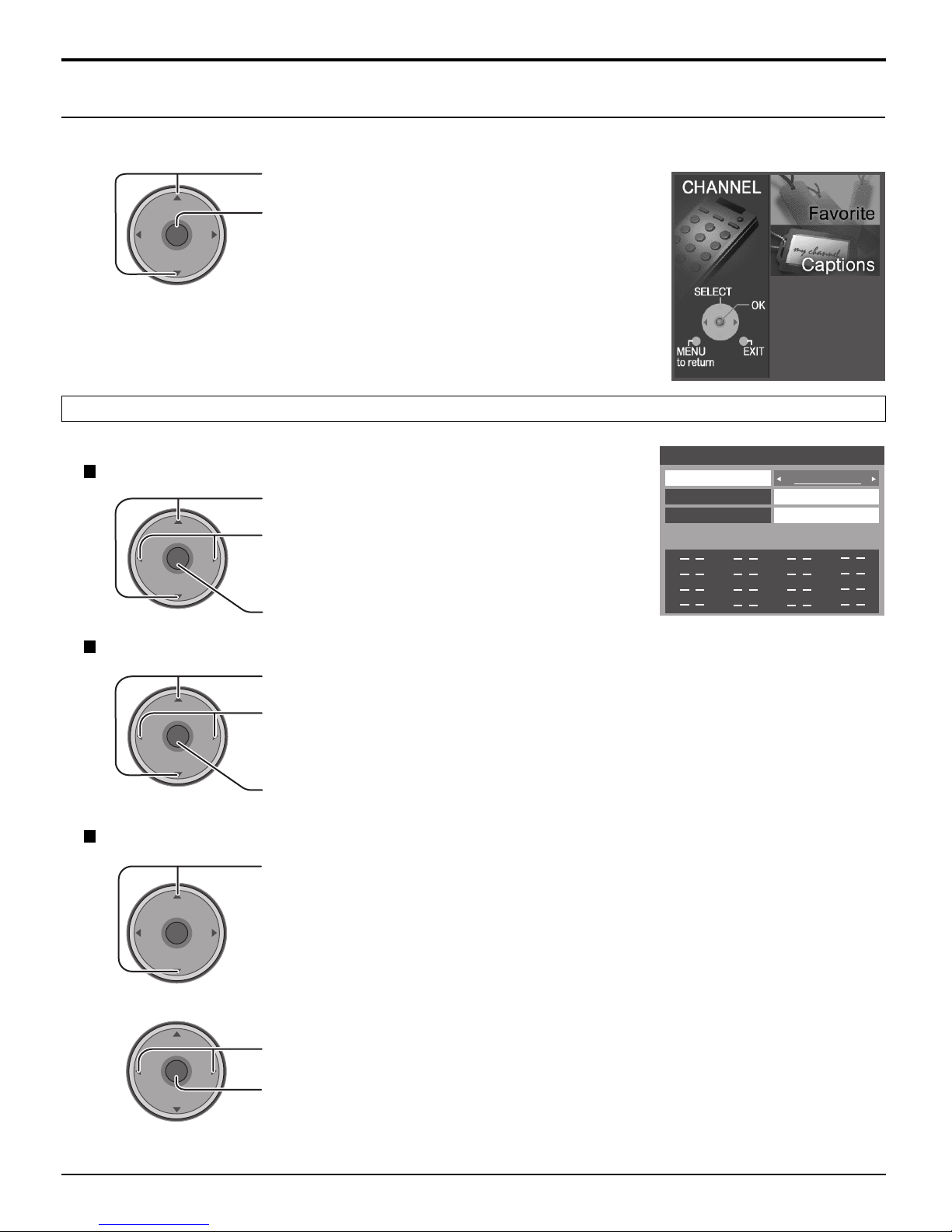

Channel

Press the MENU key to activate the main menu and select Channel. (refer to page 24)

Press to select the menu.

VOL

Press to display the sub-menu.

Favorite

Allows you to create Favorite channel list from Antenna (A) or Antenna (B).

Surf Mode

Press to select Surf Mode.

VOL

RF Input

VOL

Press to select Favorites or All Channels.

Press to enter your selection.

Favorite

Surf Mode

RF Input

Channel

The maximum is 16 favorite channels.

All Channels

Antenna (A)

A: 2

Channel

VOL

Press to select RF Input.

VOL

Press to select Antenna (A) or Antenna (B).

Press to enter your selection.

Press to select Channel.

VOL

Press to select the channel.

Press to add the channel.

To delete the channel, press again while the channel number is displayed.

• Repeat step 2 to program up to 16 favorite channels.

Page 31

Menu Navigation

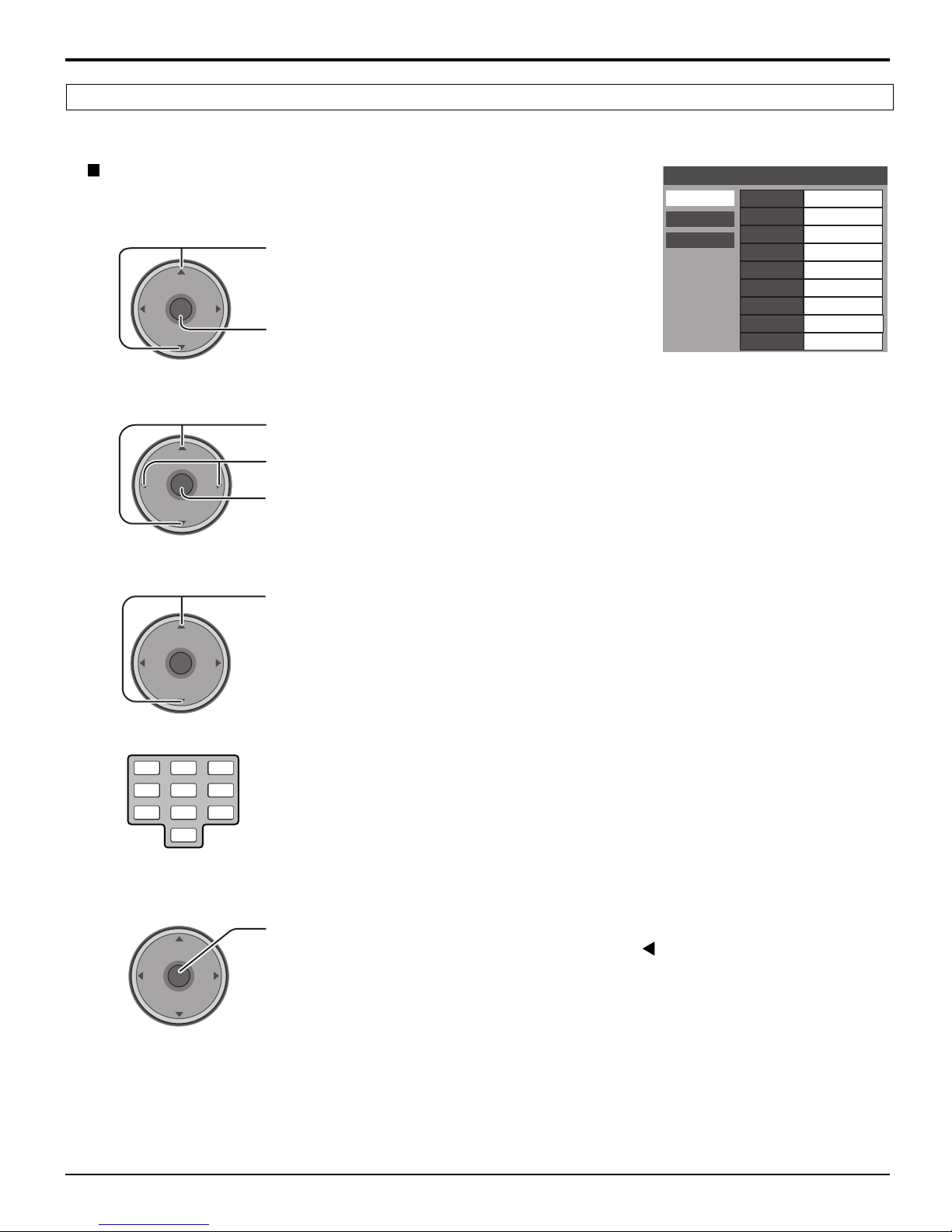

Captions

To enter preset and manual labels to desired stations. Also to enter input label to video inputs.

Preset Labels

To enter channel numbers for popular TV stations.

VOL

Press to select Preset Labels.

Press to enter the sub-menu field.

Press to select RF Input.

Press to select Antenna (A) or Antenna (B).

Press to enter your selection.

Press to select the desired preset caption.

Captions

Preset Labels

Manual Labels

Input Labels

RF Input

ABC

CBS

FOX

NBC PBS

CNN

ESPN

HBO

Antenna (A)

VOL

1 2 3

4 5 6

7 809

VOL

Select the channel (refer to your local TV guide).

Press to enter your selection.

VOL

To delete a channel number, while highlighted press repeatedly until all numbers are removed, then press OK button.

Note:

Only inputs with a signal will be selectable.

Page 32

Menu Navigation

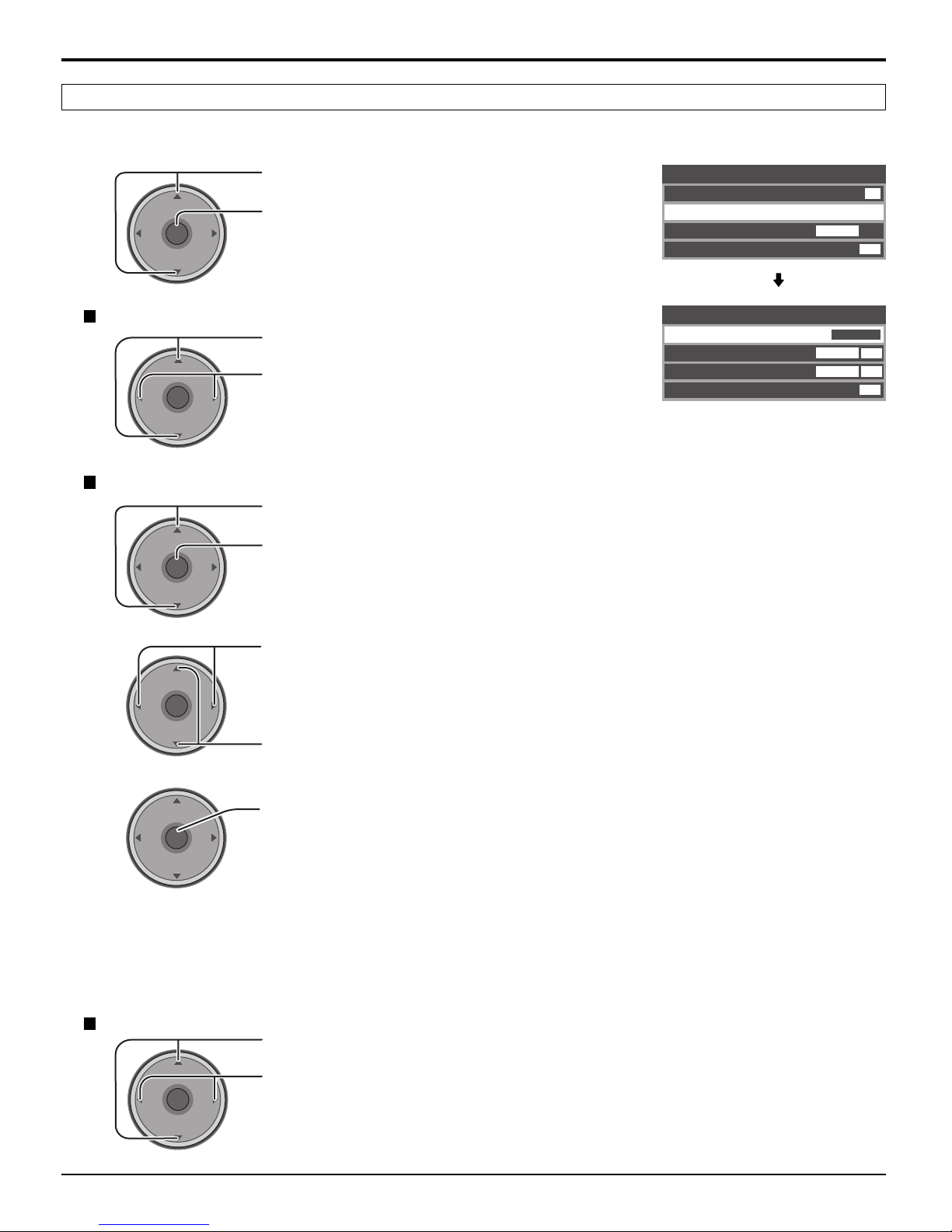

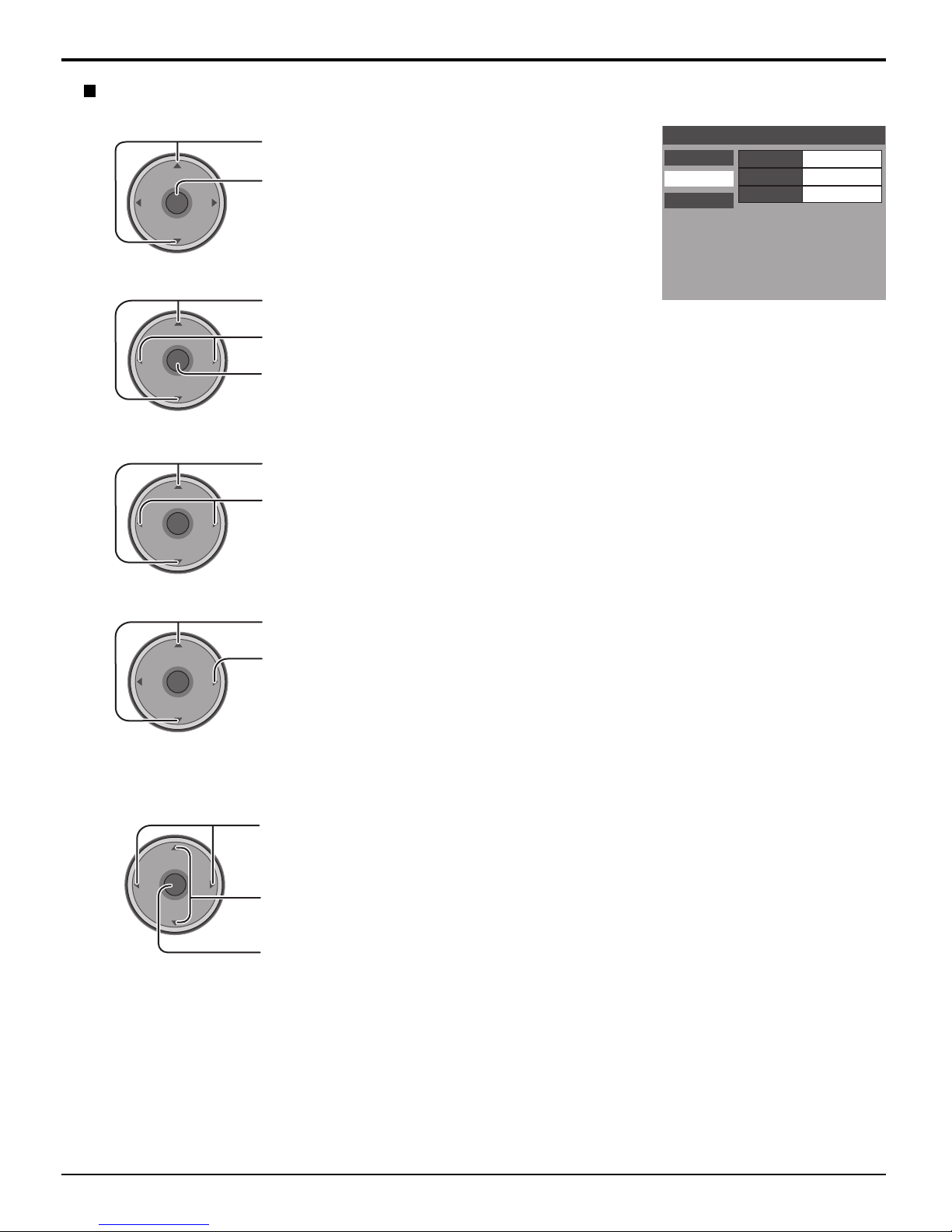

Manual Labels

To enter numbers and captions manually.

VOL

Press to select Manual Labels.

Press to enter the sub-menu field.

Captions

Preset Labels

Manual Labels

Input Labels

RF Input

Channel

Caption

Antenna (A)

A: 2

VOL

Press to select RF Input.

VOL

Press to select Antenna (A) or Antenna (B).

Press to enter your selection.

Press to select Channel.

VOL

Press to select the available channel number.

Press to select Caption.

VOL

Press right to enter edit mode.

[Edit]

Press to select the character position.

VOL

Press to select the character (refer to your local TV guide).

•Repeat until all characters are added, up to 7 characters can be added for each channel.

•To delete the selected character, press until [Blank] is displayed. Press to enter your selection.

Note: Only inputs with a signal will be selectable.

Page 33

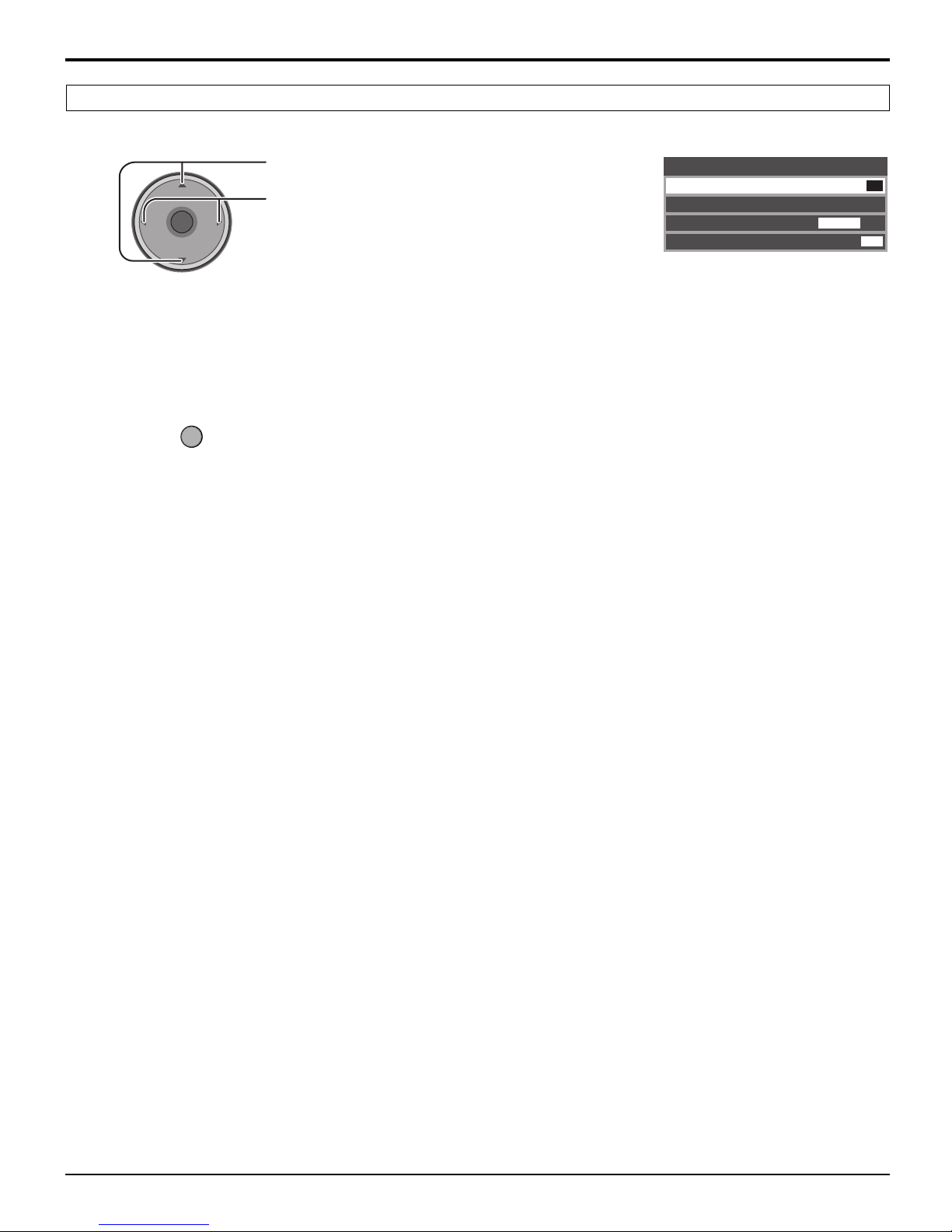

Input Labels

To label video input connections for on-screen display.

VOL

Press to select Input Labels.

Press to enter the sub-menu field.

Press to select the video input.

Press to select the preset input label.

•To delete Input labels, press until no label is displayed, and then press OK button to enter

your selection.

•To skip the input, select ‘‘SKIP’’. The input will be skipped when you press TV/VIDEO. Press to enter your selection.

Timer

Press the MENU key to activate the main menu and select Timer. (refer to page 24) Set the time in Clock Set (see below) before setting Timer.

Menu Navigation

Captions

Preset Labels

Manual Labels

Input Labels

Component 1

Component 2

HDMI Video 1

Video 2

Video 3

SKIP

Clock Set

VOL

Day Set

Press to select Clock Set.

VOL

Press to enter the time field.

Press to select the hour (AM or PM) or the minutes

VOL

position.

Press to set the hour (AM or PM) and the minutes.

Press to enter your selection.

Set the day of the week.

Press to select Day Set.

VOL

Press to select the day of the week.

Page 34

Menu Navigation

Timer

Select timer to turn the TV on and off at selected times and on selected day.

VOL

Day

VOL

On Time / Off Time

VOL

Press to select Timer.

Press to enter the Timer sub-menu.

Press to select Day.

Press to select appropriate day setting.

Press to select On Time or Off Time.

Press to enter the time field.

Timer

Sleep

Timer

Clock Set

Day Set

Timer

Day

On Time

Off Time

Set

- -

- - : - -

- - -

MON-FRI

7 : 10 AM

8 : 10 PM

Yes

VOL

Press to select the hour (AM or PM ) or the minutes position.

Press to set the hour (AM or PM) and the minutes.

Press to enter your selection.

Notes:

• The TV automatically turns Off after 90 minutes when turned On by the Timer. It will be cancelled if the Off Time is selected or if a key is pressed.

• When the power to the TV set is disrupted due to a power outage or similar problem, the off-timer will be deactivated and the TV will be in standby mode even after power is restored.

Set

Press to select Set.

VOL

Press to select Yes or No.

Page 35

Sleep

Menu Navigation

Press to select Sleep.

VOL

Press to select the desired sleep time (No, 30, 60 or 90).

•To turn off the timer, select No.

•To confirm the remaining time, press RECALL button

(see page 21).

To return to the previous screen

Press to return.

To activate Timer

Select the channel and turn off the TV.

Timer

Sleep

Timer

Clock Set

Day Set

- - : - -

- -

- - -

Page 36

Menu Navigation

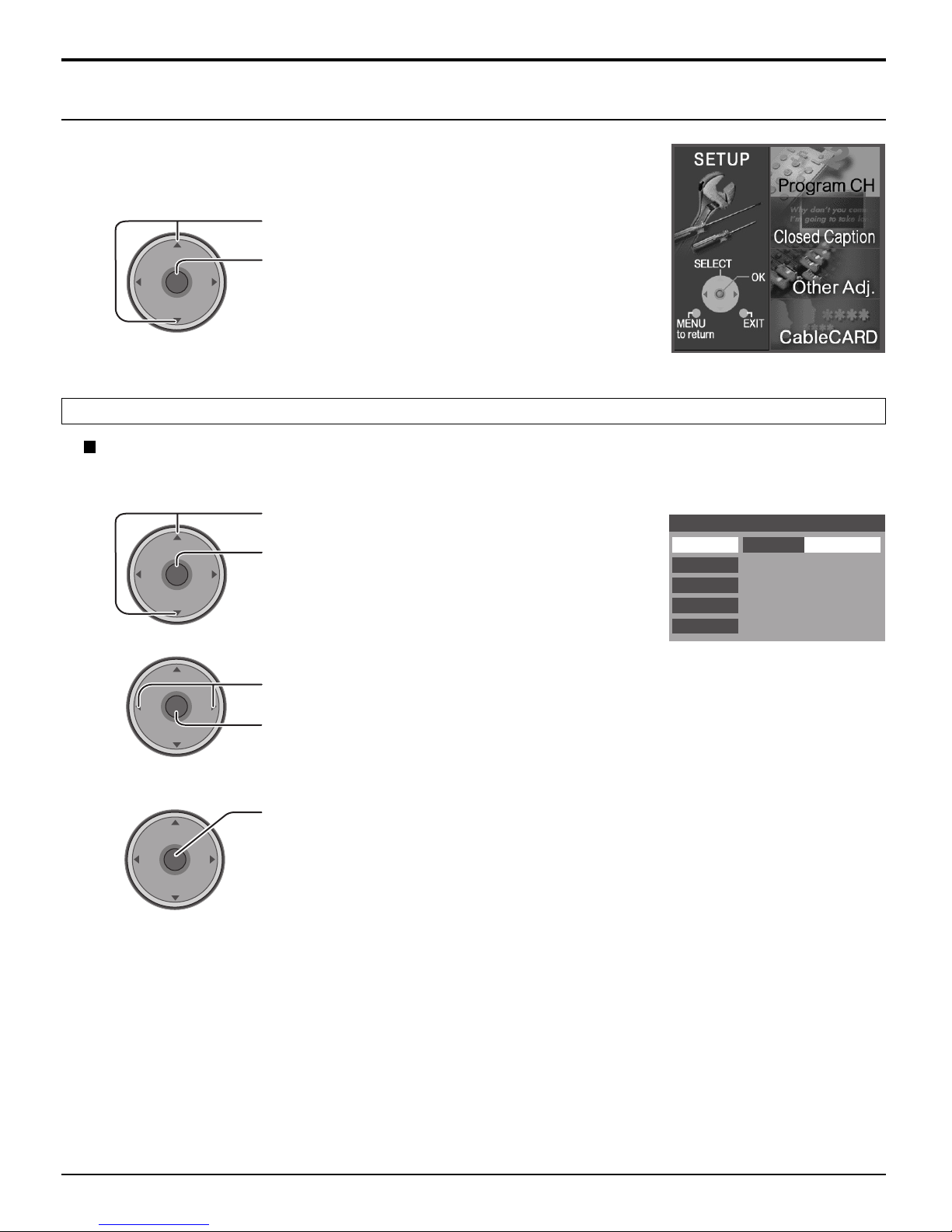

Setup

Press the MENU key to activate the main menu and select Setup. (refer to page 24)

Press to select the menu.

VOL

Press to display the sub-menu.

Program CH

Input Setup

Lets you specify the antenna mode (Cable only, Cable/Antenna or Antenna only).

VOL

Press to select Input Setup.

Press to enter the sub-menu field.

VOL

Press to select the antenna mode.

Press to enter your selection.

• The confirmation message appears.

Program Channel

Input Setup

Auto Scan

Manual Program

Signal Meter

Language

Setting

Cable/Antenna

VOL

Press to start Auto Scan. All available channels with a signal will be programmed into memory.

Notes:

• Auto Scan is necessary when you select the input signal for the first time or whenever you change the antenna

configuration.

• If CableCARDTM is not inserted, the Auto scan performs Scan All.

• When CableCARDTM is inserted and Cable only is selected, Auto Scan will be skipped.

• When CableCARDTM is inserted and Cable/Antenna is selected, Antenna (B) Analog & Digital Auto Scan will be

performed.

• In order to manually select Antenna B from the remote, Auto Scan must first be performed.

Page 37

Menu Navigation

Auto Scan

Automatically scans all available channels, Antenna (A) Analog, Antenna (A) Analog & Digital, Antenna (B) Analog and Antenna (B) Analog & Digital.

VOL

Press to select Auto Scan.

Press to enter the sub-menu field.

Press to select the sub-menu.

Press to start Auto Scan.

• After Auto Scan is completed, press to the previous screen.

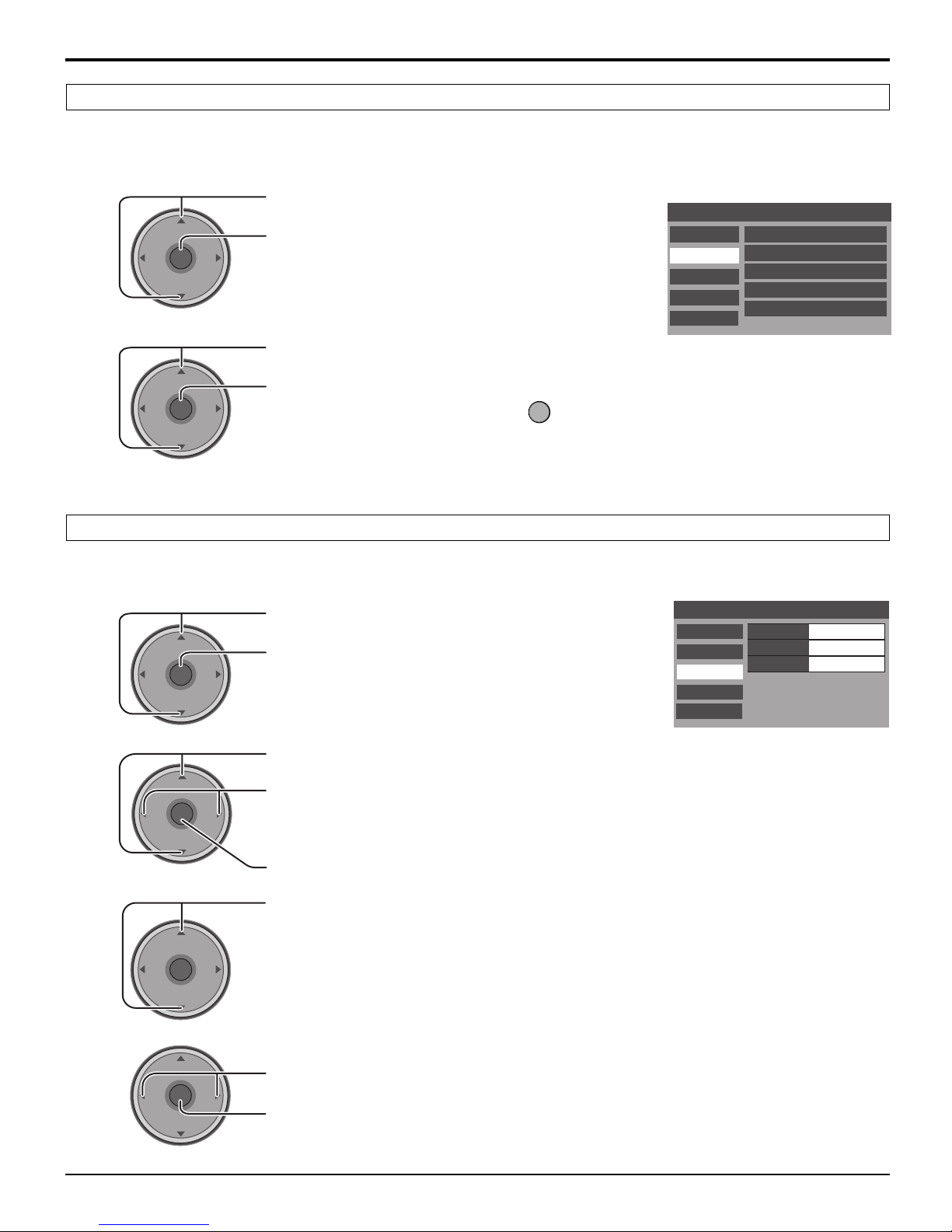

Manual Program

To add or delete channels from either channels list (A/B) manually.

VOL

Press to select Manual Program.

Press to enter the sub-menu field.

to return

Program Channel

Input Setup Scan All

Auto Scan

Manual Program

Signal Meter

Language

Program Channel

Input Setup

Auto Scan

Manual Program

Signal Meter

Language

Antenna (A) Analog

Antenna (A) Analog & Digital

Antenna (B) Analog

Antenna (B) Analog & Digital

RF Input

Channel Add

Channel Del

Antenna (A)

A: 1 A: 2

VOL

Press to select RF Input.

Press to select Antenna (A) or Antenna (B).

Press to enter your selection.

VOL

Press to select Channel Add or Channel Del.

VOL

Press to select the channel.

Press to add or delete the channel.

Page 38

Menu Navigation

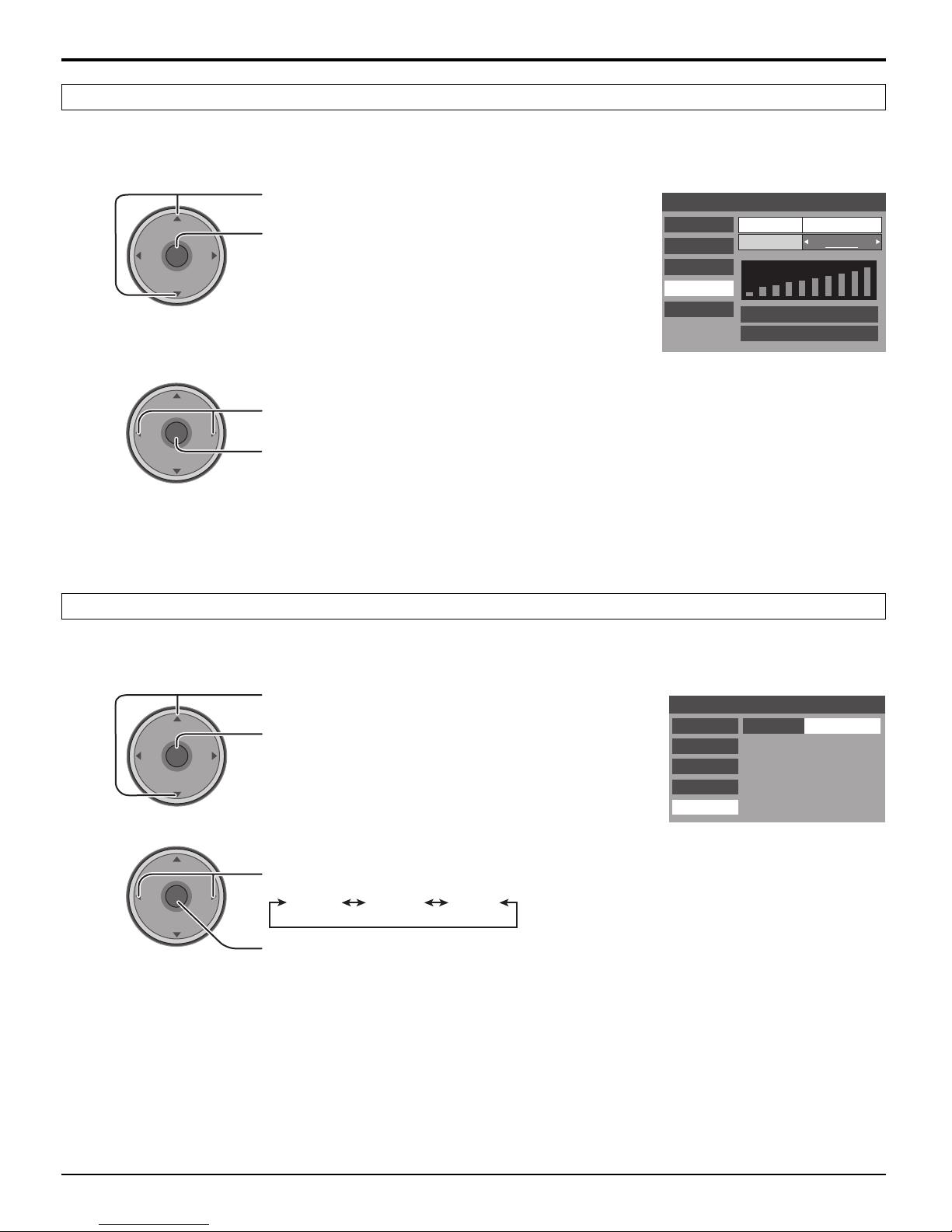

Signal Meter

(For digital channels only)

Displays the signal strength of the ATSC digital channel in either Antenna (A) or Antenna (B).

VOL

Press to select Signal Meter.

Press to enter the sub-menu field.

Press to select the channel.

Press to display the Signal Strength.

• The color of the signal bar usually indicates the strength of the received signal. Green - Adequate signal for a good reception. Yellow - Poor signal strength. Red - Very poor signal strength.

Language

Allows you to select the language used for On Screen Displays.

Program Channel

Input Setup

Auto Scan

Manual Program

Signal Meter

Language

RF Input Channel

Signal Strength : 96%

Peak : 96%

Antenna (B)

B: 26-3

VOL

Press to select Language.

VOL

Press to enter the sub-menu field.

Press to select the Language.

English Spanish French

Program Channel

Input Setup

Auto Scan

Manual Program

Signal Meter

Language

Setting

English

Press to enter your selection.

Page 39

Menu Navigation

Closed Caption

The television includes a built-in decoder that is capable or providing a visual display of the audio portion. The program viewed must provide Closed Captioning (CC) for the television to display it.

CC Mode

Activates Closed Captioning when the MUTE button is pressed.

VOL

Press to select CC Mode.

Press to enter the sub-menu field.

Press to select the setting.

• Off : Recommended mode when Closed Caption is not being used.

Closed Caption

CC Mode

Analog

Digital

Setting

Off

• On : To display Closed Captions.

• On Mute : To display Closed Captions when audio is muted.

Notes:

• The closed caption is not displayed when you use HDMI connection.

• When displaying or recording an analog channel program on connected equipment, select the closed caption On/Off setting on the connected equipment. The TV’s CC Mode setting does not affect with the analog channel output signal.

• When displaying or recording a digital channel program on a connected equipment, set the TV’s CC Mode setting to Off and select the closed caption On/Off setting on the connected equipment. The digital closed captions will overlap if the closed caption setting is On on both the TV and the connected equipment.

Analog

Lets you choose the closed caption service of Analog broadcasting.

VOL

Press to select Analog.

Press to enter the sub-menu field.

Press to select the setting.

• CC1 : For video related information that can be displayed (up to 4 line of script on the screen, where it does not disturb the relevant parts of the picture). Script can be in any language.

• CC2/CC3/CC4 : Other modes used for video related information.

• T1 :

Blanks out a large portion of the picture on the television screen, and

displays program guide or any other information currently being transmitted.

• T2/T3/T4 : Other modes that display information and blank out a large portion of the picture of the TV screen.

Press to enter your selection.

Closed Caption

CC Mode

Analog

Digital

Service

CC1

Page 40

Menu Navigation

Digital

The Digital Closed Caption menu lets you configure the way you choose to view the digital captioning.

VOL

Press to select Digital.

VOL

Press to enter the sub-menu field.

Closed Caption

CC Mode Primary

Analog

Digital

Service

Font

Size

Style

Colors

Reset

Automatic

[Service / Font / Size / Style]

VOL

[Colors]

VOL

Sample CC Text

Press to select the sub-menu.

Press to select the setting.

• Service : Primary, Secondary, Service 3, Service 4, Service 5, Service 6

• Font :

Automatic, Default, Mono-serif, Pro-serif, Mono, Prop, Casual, Cursive, Small Caps

• Size : Automatic, Normal, Small, Large

• Style : Automatic, None, Raised, Depressed, Uniform, Drop Shadow

Press to select color.

Press to enter the sub-menu field.

Press to select the sub-menu.

VOL

Press to select the setting.

• Colors : Foreground ....... The opacity of the font (Automatic, Black, White, Red,

Fore Opacity ..... The opacity of the text box (Automatic,Transparent,

Background ...... The color of the text box (Automatic, Black, White, Red,

Back Opacity .... The opacity of the text box (Automatic, Transparent,

Outline .............. The outline of the dropshadow (if selected under

• Reset : Reset the Digital CC settings.

VOL

Press to enter your selection.

Green, Blue, Yellow, Magenta, Cyan)

Translucent, Solid, Flashing)

Green, Blue, Yellow, Magenta, Cyan)

Translucent, Solid, Flashing)

style)(Automatic, Black, White, Red, Green, Blue, Yellow, Magenta, Cyan).

Page 41

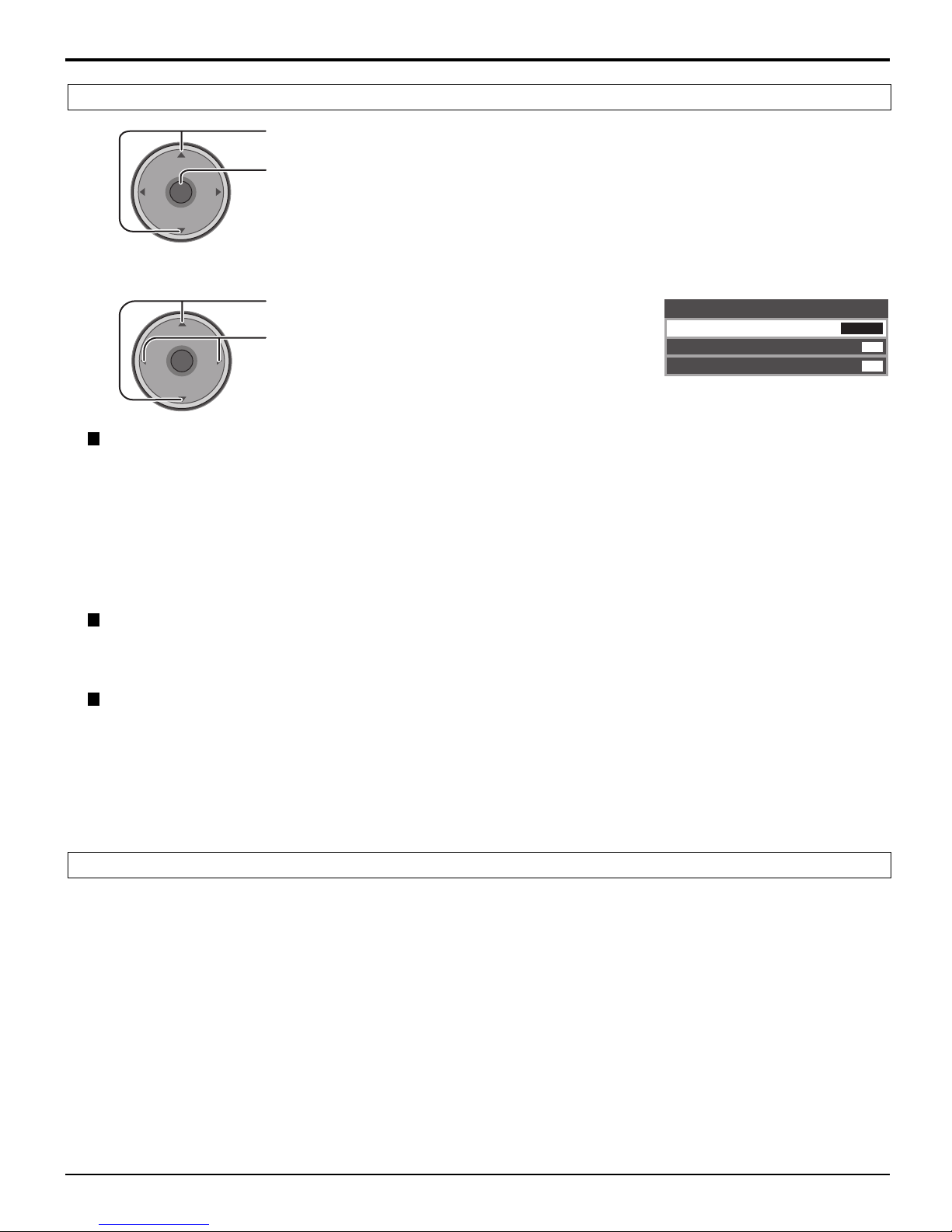

Other Adjust

Menu Navigation

VOL

Press to select Other Adj.

Press to display the sub-menu.

Press to select the sub-menu.

Press to select or activate the sub-menu.

Other Adjust

Side Bar

Power Save

Input Skip

Bright

Off

Side Bar (Off, Dark, Mid, Bright)

Displaying a picture in 4:3 mode for an extended period may cause an after-image. Change the brightness of the side bars to reduce the risk of after-image.

Notes:

•To reduce the occurrence of after-images, set the Side Bar to Bright.

• The side bar may flash (alternate black/white) depending on the picture. Using Cinema mode will reduce such flashing (see page 26).

Power Save (Off or On)

Suppress the luminous level of the TV to reduce power consumption.

Input Skip (Off or On)

Skip unconnected input when you press TV/VIDEO. (Except HDMI and PC)

Note:

To skip HDMI and PC, set the Input Label of “HDMI” and “PC” to “SKIP” in Captions. (see page 33)

CableCARD

This menu provides information when a CableCARDTM is inserted into the CableCARDTM slot (see page 18).

Notes:

• If CableCARDTM is not inserted and you access the CableCARDTM Info, the message “Cable Module Not present” appears.

•To receive the features offered by your cable company, you may have to subscribe to those services. Contact your cable company regarding availability of the CableCARDTM. The CableCARDTM is required to receive premium digital services (where available) through the cable input. You may also be able to order call-ahead pay per view events.

Page 42

Menu Navigation

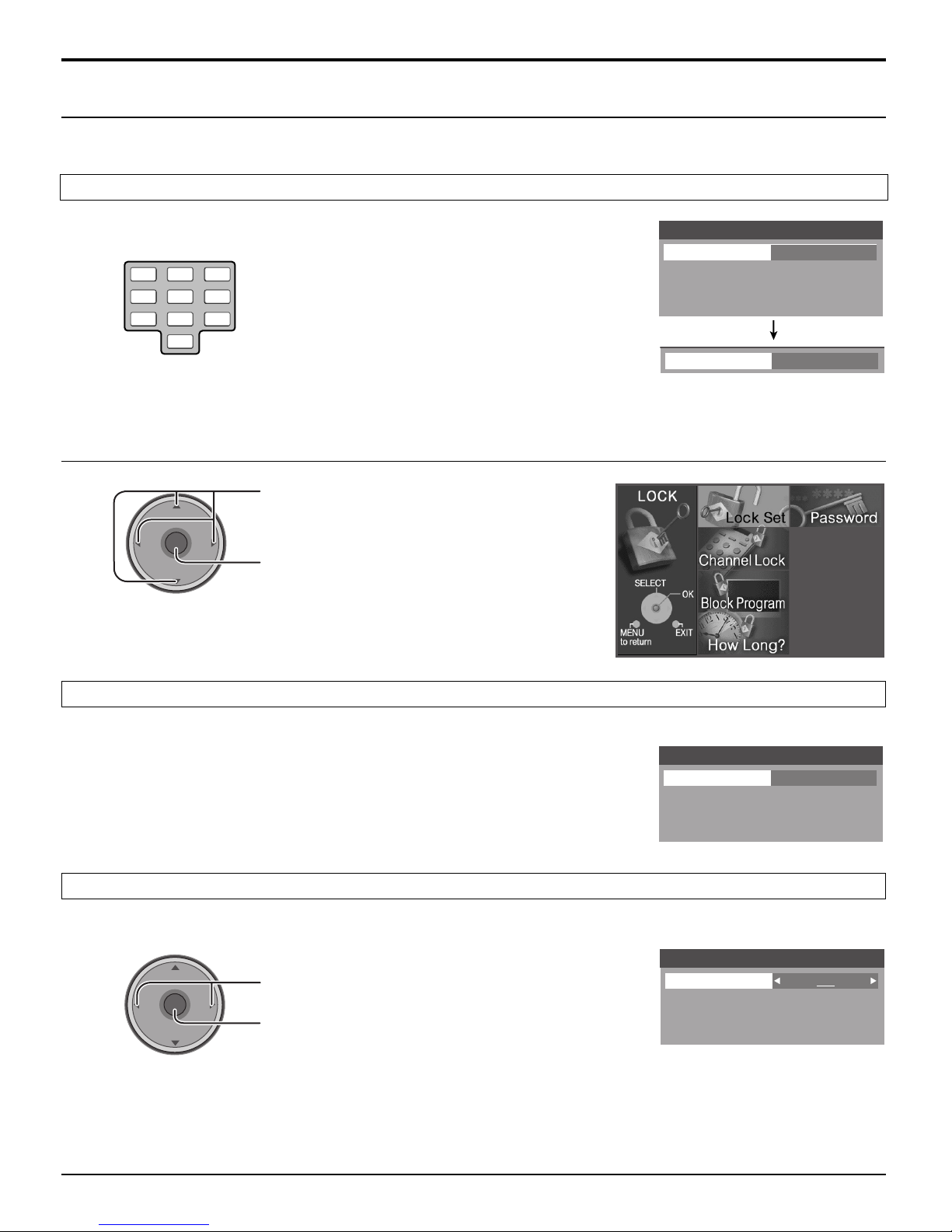

Lock

Press the MENU key to activate the main menu and select LOCK. (refer to page 24)

New Password / Enter Password

Create a 4-digit password to enter the Lock menu.

1 2 3

4 5 6

7 809

Enter a 4-digit password.

After entering your password for the first time, “New

Password

New Password

- - - -

Password” will change to “Enter Password”.

Enter Password

- - - -

Notes:

• Use a code that is easy to remember and record it in a safe place.

• If Always is selected in How Long? (see page 45) and you forget your secret code, the TV must be serviced by a qualified technician to clear the Lock setup.

Press to select the menu.

VOL

Press to display the sub-menu.

Password

If you would like to change the password to enter the Lock menu, change the password here.

Password

Change Password

Lock Set

Select Lock Set to prevent viewing video games, VCR tapes, channels and Video modes.

Lock Set

VOL

Press to select the setting.

Press to enter your selection.

• Off : Turns off Lock set functions.

• Lock All : All channels are locked regardless of the rating level.

• Game Lock : Locks out CH 3, 4 and Video inputs.

• Channel Lock : Locks out specific analog and digital channels. Password is required to view any of the locked channels.

Mode

- - - -

Off

Page 43

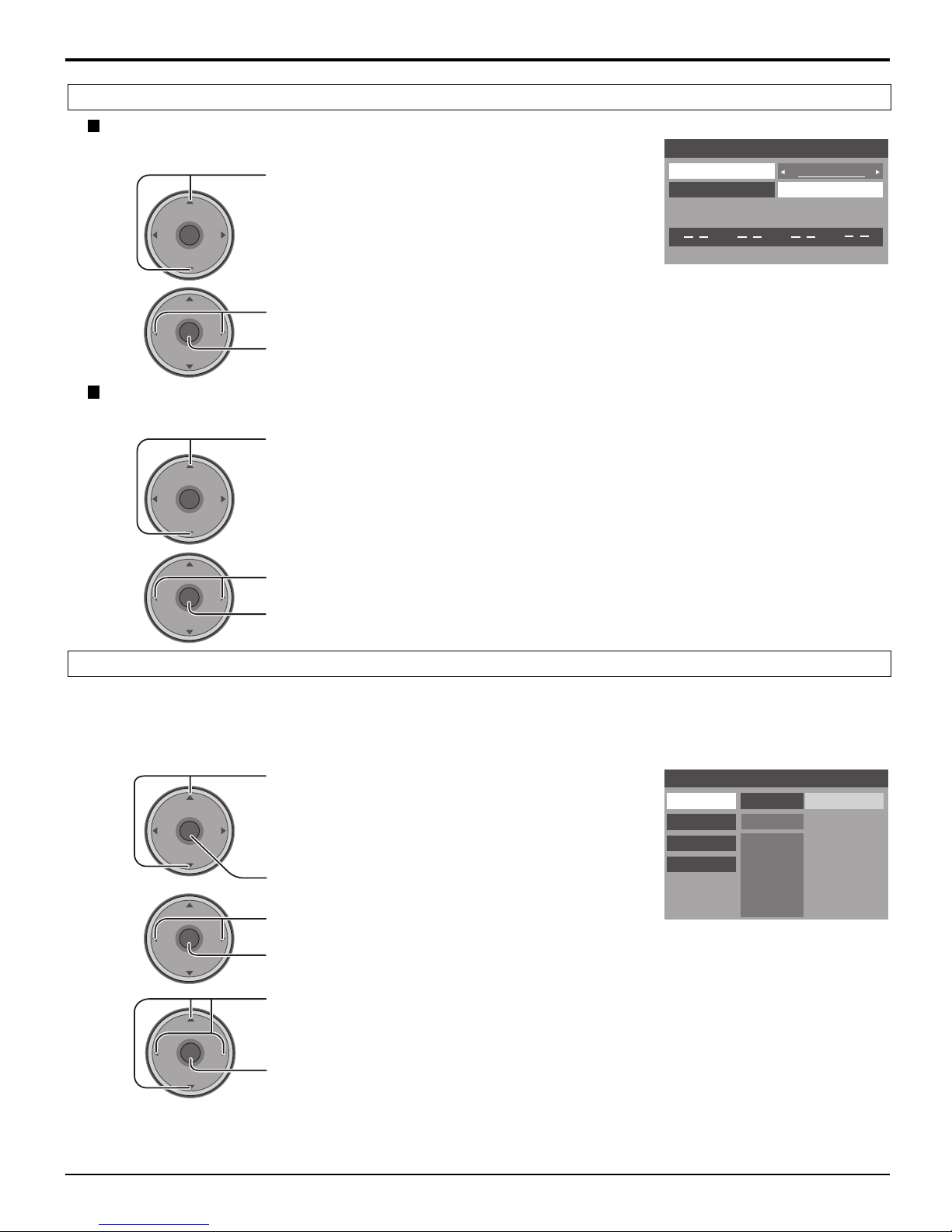

Channel Lock

RF Input

Select either Antenna (A) or Antenna (B).

VOLCHVOL

Press to select RF Input.

Menu Navigation

Channel Lock

RF Input Antenna (A)

Channel

The maximum is 4 locked channels.

A: 2

VOLCHVOL

Press to select the setting.

Press to enter your selection.

Channel

Select up to four (4) channels to be blocked out. These channels will be blocked out regardless of the program rating.

VOLCHVOL

Press to select Channel.

Press to select the setting.

Press to enter your selection.

• To clear the channel number from the list, select the channel number and press OK.

Block Program

This television incorporates V-CHIP technology to block the viewing of movies and television programs according to the rating category. There are four (4) Content Advisory Categories: MPAA (Motion Picture Association of America) and TV Parental Guidelines Ratings. These categories are used as guidelines for blocking the programs.

The default mode for the Lock category is the Unlocked state.

•

VOLCHVOL

Press to select MPAA, U.S.TV, C.E.L.R or C.F.L.R.

MPAA : for U.S movie ratings U.S. TV : for U.S TV program ratings C.E.L.R : for Canadian English ratings C.F.L.R : for Canadian French ratings

Press to enter the Mode field.

Press to select On or Off.

Press to enter your selection.

Block Program

MPAA

U.S.TV

C.E.L.R

C.F.L.R

Mode

PG-13

NC-17

Off

Viewable

Viewable Viewable Viewable Viewable Viewable

Viewable

VOLCHVOL

Press to highlight the desired rating level.

Press to change the rating limit to “Blocked” or “Viewable”.

Notes:

• The NR rating is independent of other ratings.

•

Placing a block on a specific age based rating level, the NR rating and any other more restrictive ratings will also be blocked.

Page 44

Menu Navigation

U.S. MOVIES RATINGS CHART

PG-13

NC-17

U.S. TV PROGRAMS RATINGS CHART

The TV Parental Guidelines has 7 levels of age-based ratings that can be selected. These 7 levels are split into 2 age-based groups: Youth Age-based Ratings and Guidance Age-based Ratings. Some of these age-based ratings can also have content-based ratings, denoted as D (Dialog), L (Language), S (Sex) and V (Violence).The table below shows the age-based ratings selection.

CONTAINS NO RATING (NOT RATED) AND NA (NOT APPLICABLE) PROGRAMS. Movie been rated or rating does not apply. GENERAL AUDIENCES. All ages admitted. PARENTAL GUIDANCE SUGGESTED. Some material may not be suitable for children. PARENTS STRONGLY CAUTIONED. Some material may be inappropriate for children under 13. RESTRICTED. Under 17 requires accompanying parent or adult guardian. NO ONE 17 AND UNDER ADMITTED. ADULTS ONLY.

Age-based

Group

(Not Rated)

Youth

Guidance

FV : Fantasy/Cartoon Violence. V:Violence S:Sex L:Offensive Language D:Dialogue with sexual content.

Age-based

Ratings

TV-NR

TV-Y

TV-Y7

TV-G

TV-PG

TV-14

TV-MA

Possible Content

Selections

•Viewable

• Blocked

•Viewable

• Blocked

• FV (Fantasy Violence)

•Viewable

• Blocked

•Viewable

• Blocked

• D,L,S,V (all selected)

• Any combination of D, L, S, V

• D,L,S,V (all selected)

• Any combination of D, L, S, V

• L,S,V (all selected)

• Any combination of L, S, V

Description

Not Rated. See CUSTOMER CAUTION on page 45.

All children. The themes and elements in this program are specifically designed for a very young audience, including children from ages 2-6. Directed to older children. Themes and elements in this program may include mild physical or comedic violence, or may frighten children under the age of 7. General audience. It contains little or no violence, no strong language, and little or no sexual dialogue or situations. Parental guidance suggested. The program may contain infrequent coarse language, limited violence, some suggestive sexual dialogue and situations. Parents strongly cautioned. This program may contain sophisticated themes, sexual content, strong language and more intense violence.

Mature audiences only. This program may contain mature themes, profane language, graphic violence, and explicit sexual content.

CANADIAN ENGLISH RATINGS CHART

C8+

14+

18+

Exempt - Exempt programming includes: news, sports, documentaries and other information programming, talk shows, music videos, and variety programming. Programming intended for children under age 8. No offensive language, nudity or sexual content. Programming generally considered acceptable for children 8 years and over. No profanity, nudity or sexual content. General programming, suitable for all audiences. Parental Guidance suggested. Some material may not be suitable for children. Programming contains themes or content which may not be suitable for viewers under the age of 14. Parents are strongly cautioned to exercise discretion in permitting viewing by pre-teens and early teens. 18+ years old. Programming restricted to adults. Contains constant violence or scenes of extreme violence.

Page 45

Menu Navigation

CANADIAN FRENCH RATINGS CHART

8 ANS+

13ANS+

16ANS+

18ANS+

The V-Chip system that is used in this set is capable of blocking “NR” programs (non rated, not applicable and none) per FCC Rules Section15.120(e)(2). If the option of blocking “NR” programs is chosen “unexpected and possibly confusing results may occur, and you may not receive emergency bulletins or any of the following types of programming:”

• Emergency Bulletins (Such as EAS messages, weather warnings and others)

• Locally originated programming • News • Political • Public Service Announcements • Religious • Sports

• Weather

Exempt - Exempt programming. General - Programming intended for audience of all ages. Contains no violence, or the violence content is minimal or is depicted appropriately. 8+ General - Not recommended for young children. Programming intended for a broad audience but contains light or occasional violence. Adult supervision recommended. Programming may not be suitable for children under the age of 13 - Contains either a few violent scenes or one or more sufficiently violent scenes to affect them. Adult supervision strongly suggested. Programming may not be suitable for children under the age of 16 - Contains frequent scenes of violence or intense violence. Programming restricted to adults. Contains constant violence or scenes of extreme violence.

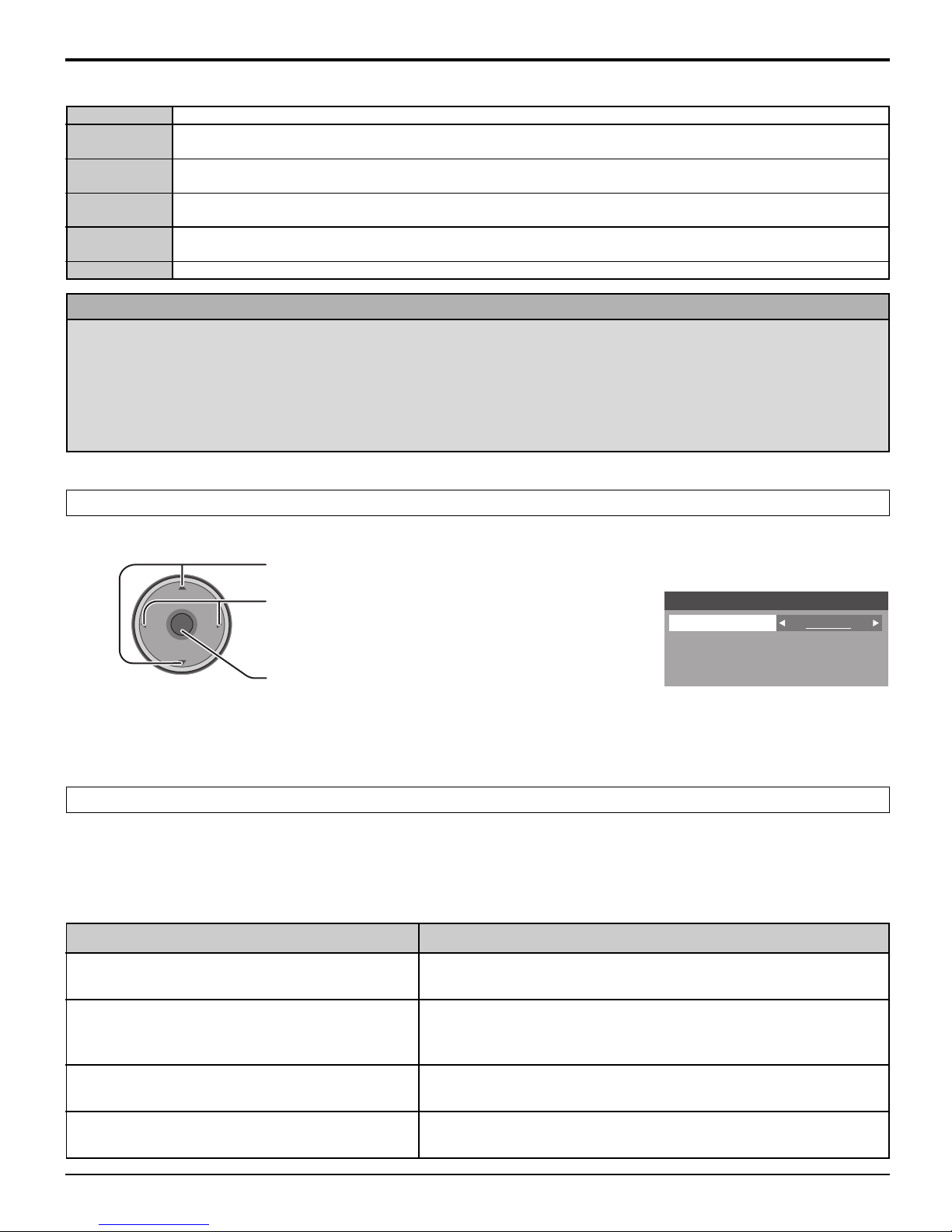

Customer Caution

How Long?

The Lock settings remain for the selected duration.

Press to select How Long?

VOL

Press to select 12 hours, 24 hours, 48 hours or “Always”. (see Note below)

How Long?

Time

The TV will remain locked for

the selected duration

12 hours

Press to enter your selection.

Note:

When you select “Always” and you forget your secret code, the TV must be serviced by a qualified technician to clear the Lock setup.

Blocking Messages

Various Blocking messages are displayed on-screen depending upon the type of blocking you have selected in the Lock menu.

Note:

Entering the password will override the block condition. However, the ratings selection will be retained.

Message

Possible cause

Video Inputs Locked.

Channel Locked. Press OK to enter password for temporary unlock.

All Channels and Video Inputs Locked. Press OK to enter password for temporary unlock.

Rating Limit Exceeded. Press OK to enter password.

The [TV/VIDEO] button was pressed when the Game Lock had been selected.

Tuned to the designated channel when the Channel Lock had been selected. Tuned to 3 ch and 4 ch when the Game Lock had been selected.

Lock All is selected.

Received programs that exceed the Block Program rating level.

Page 46

Photo Viewer

GITAL

Photo Viewer lets you display JPEG images recorded by digital camera on SD card or other types of memory card when it is inserted in the proper card slot.

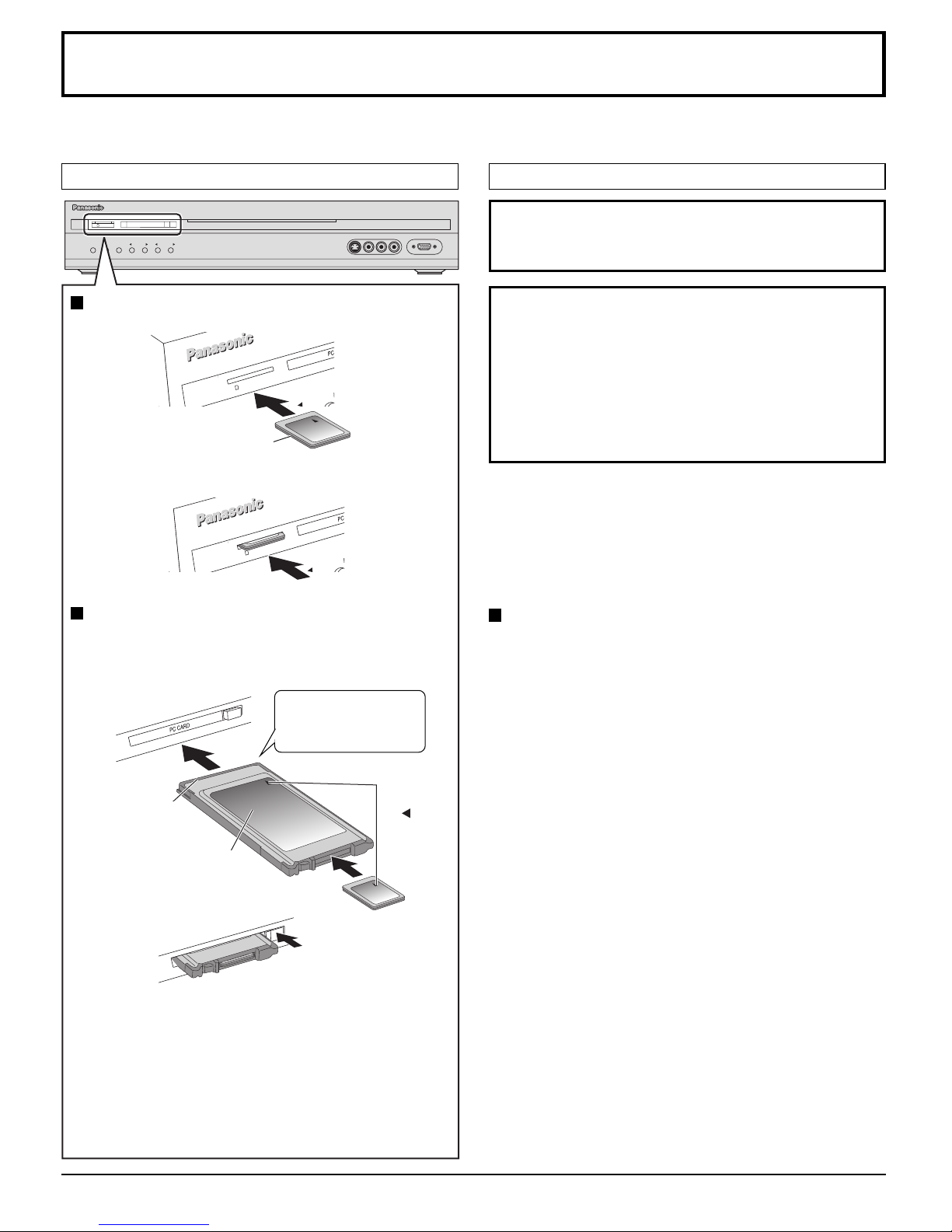

Inserting and removing a card

DIGITAL MEDIA RECEIVER TU-PT700U

PC CARD

SD CARD

MENU OK TV/VIDEO VOLUME CHANNEL

SD card slot

Insert the card.

SD CARD

OLUME

Label-side upward

Insert it to be clicked in.

Remove the card.

SD CARD

OLUME

Push the center of the card.

PCMCIA card slot

Turn the TV off before inserting or removing a PCMCIA card.

Insert the card.

Holding both edges, securely insert it to the depth.

Terminal face to the depth.

Label-side upward

Remove the card.

Push the eject button.

If the eject button does not pop out

Push in PCMCIA card again, and then push again the eject button.

Note:

Remove PCMCIA card adaptor and memory card together. Do not attempt to remove memory card from adaptor while still plugged into card slot.

INPUT 3 PC

S VIDEO VIDEO L-AUDIO10-R

Align the direction of

mark.

Compatible card type and card size (Maximum)

SD card slot

SD Card (512MB)

•

miniSD Card

•

PCMCIA card slot

SD Card (512MB)

•

Multi Media Card (128MB)• Compact Flash (1GB)

•

Smart Media (128MB)

•

xD Picture Card(128MB)

•

Memory Stick Pro (1GB)

•

∗

(128MB)

The cards require standard PCMCIA card adapter.

(Some PC card adapter will not be compatible.)

∗ miniSD Card requires miniSD adapter.

• Photo Viewer is not compatible with card type hard disk

(Micro Drive, Mobile type hard disk, etc).

• Memory cards are not supplied with this television.

• When both SD card and PCMCIA card are inserted in the slot, SD card has the priority.

Card Data Protection

• Do not remove the card while Photo Viewer is accessing

the information (when the card icon is flashing). Such action may damage the memory card or the unit itself.

• Before inserting or removing the PCMCIA card, make sure

that the TV is turned Off. Otherwise, it may damage the unit.

• Do not touch the terminals on the back of the SD card/

PCMCIA card.

• Always insert a card in the correct direction. Failure to

do so may result in damage to the card and this unit.

• Do not subject the card to excessive pressure or strong

impacts.

• Electrical interference, electrostatic discharges and

malfunctions of the unit or card may result in data loss or damage to the card.

• Stored data should be periodically backed up as a

protection against data corruption, data loss or device malfunction. Please note that our company shall not accept any liability for damage or loss of stored data.

• WARNING: As with any small object, SD cards can be

swallowed by young children. Do not allow children to handle

SD cards. Please remove the SD card

immediately after use.

Multi Media Card (128MB)

•

miniSD Card

•

Memory Stick (128MB)

•

Flash ATA (128 MB)

•

∗

(128MB)

Page 47

Photo Viewer

Folders and Files

• Photo Viewer can only show still images recorded by a digital still camera with DCF∗ and EXIF standard JPEG file. ∗DCF (Design rule for Camera File system)

Unified standard established by Japan Electronics and Information Technology Industries Association (JEITA).

• Memory cards must be formatted with FAT12 or FAT16 in order to be viewed on TV. If the card is not formatted, it may cause incompatibility with certain memory card adapters. If this happens, reformat the card using your digital camera. Reformatting the card will erase the images stored in it. Refer to your camera manual for more information.

• Maximum number of folders that can be displayed: 100.

• Maximum number of files that can be displayed: 3000.

• Picture resolution: Compatible in the range 64 x 64 - 8192 x 8192 (sub-sampling 4:2:2 or 4:2:0)

• If the image is imported from a PC, it must follow the EXIF (Exchangeable image file format) 2.0, 2.1, 2.2 in addition to the DCF (design rule for Camera File system) format.

• The JPEG modified using a PC will not be displayed on TV.

• The Photo Viewer cannot display Motion JPEG and still image not DCF formatted (i.e. TIFF, BMP).

• If the file is partially corrupted, it may be shown in lower resolution.

• The displayed image size depends on the recorded size.

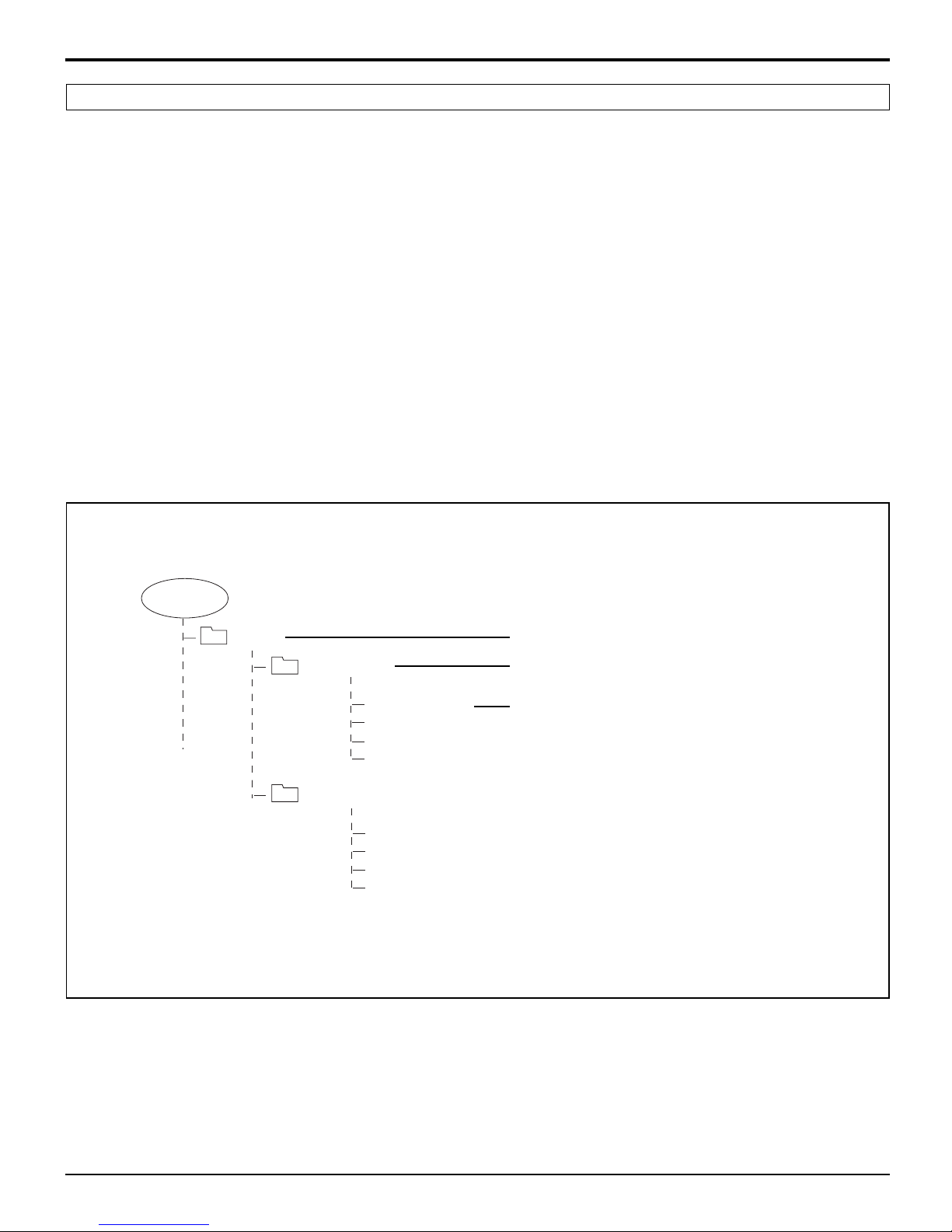

Example folder structure

JPEG images in all the folders are displayed sequentially.

ROOT

DCIM

100_PANA

P1000001.jpg P1000002.jpg P1000003.jpg P1000004.jpg

Created automatically

Folder names consist of a 3-digit folder number which is followed by five arbitrary characters.

File names consist of four arbitrary characters followed by a 4-digit file number.

101_PANA

P1010001.jpg P1010002.jpg P1010003.jpg P1010004.jpg

Notes:

• Folder and file names may vary according to the digital still camera.

• Use the characters “a-z”, “A-Z”, “0-9” and “_” to name a directory or a file. Do not use two-byte characters or other special codes.

Page 48

Photo Viewer

SELECT

EXIT

SD to Setup

INDEX

SD to Setup

EXIT

Thumbnail Mode

The thumbnail screen is the initial entry screen from the main menu.

• When both SD card and PCMCIA card are inserted, the TV plays SD card. To play a PCMCIA card, select “PC” in “Card” (see page 50) after inserting the PCMCIA card.

Insert the card into the appropriate slot (see page 46).

POWER

SAP

Press to display the thumbnail screen.

VCR DVD

DBS

TV/VIDEO

RCVR

VOL

CBL

A -ANTENNA - B

VOL

1 2 3

4 5 6

7 8

R-TUNE

PIP MIN

REW

PLAY

LIGHT

AUX

EXIT

PROG

PIP MAX

PhotoViewer

SD to Setup

SELECT

EXIT

Filename :100-0001 Date :08/12/2004 Pixel : 1 1 2 0 X840

0 0 0 1 / 0 0 0 6

Picture No. / Total No. of pictures

File name, the date and the pixel (resolution) of the picture

Notes:

•You can also enter the thumbnail screen from MENU screen (see page 24).

• It may take long time to display the thumbnail if there are lots of files or the file size is large.

• The video disappears from the screen while the Photo Viewer access the information from the card. After accessing the images from the card, a thumbnail screen is displayed.

VOL

Select the thumbnail

VOL

image.

Press to display the image in the single

Single picture view mode

PhotoViewer

SD to Setup

INDEX

EXIT

0 0 0 1 / 0 0 0 61 0 0 -- 0 0 0 6

picture view mode.

PAUSE REC

FREEZE

TV/VCR

PIP SPLIT MOVE

STOP

SPLIT CH

DVD/VCR CH

SEARCH OPEN/CLOSE

SWAP

To rotate the picture

While in the single picture view mode

VOL

Press to select the next or the previous picture.

• Press OK to return to the thumbnail screen.

Press to rotate the picture ninety degrees.

VOL

Page 49

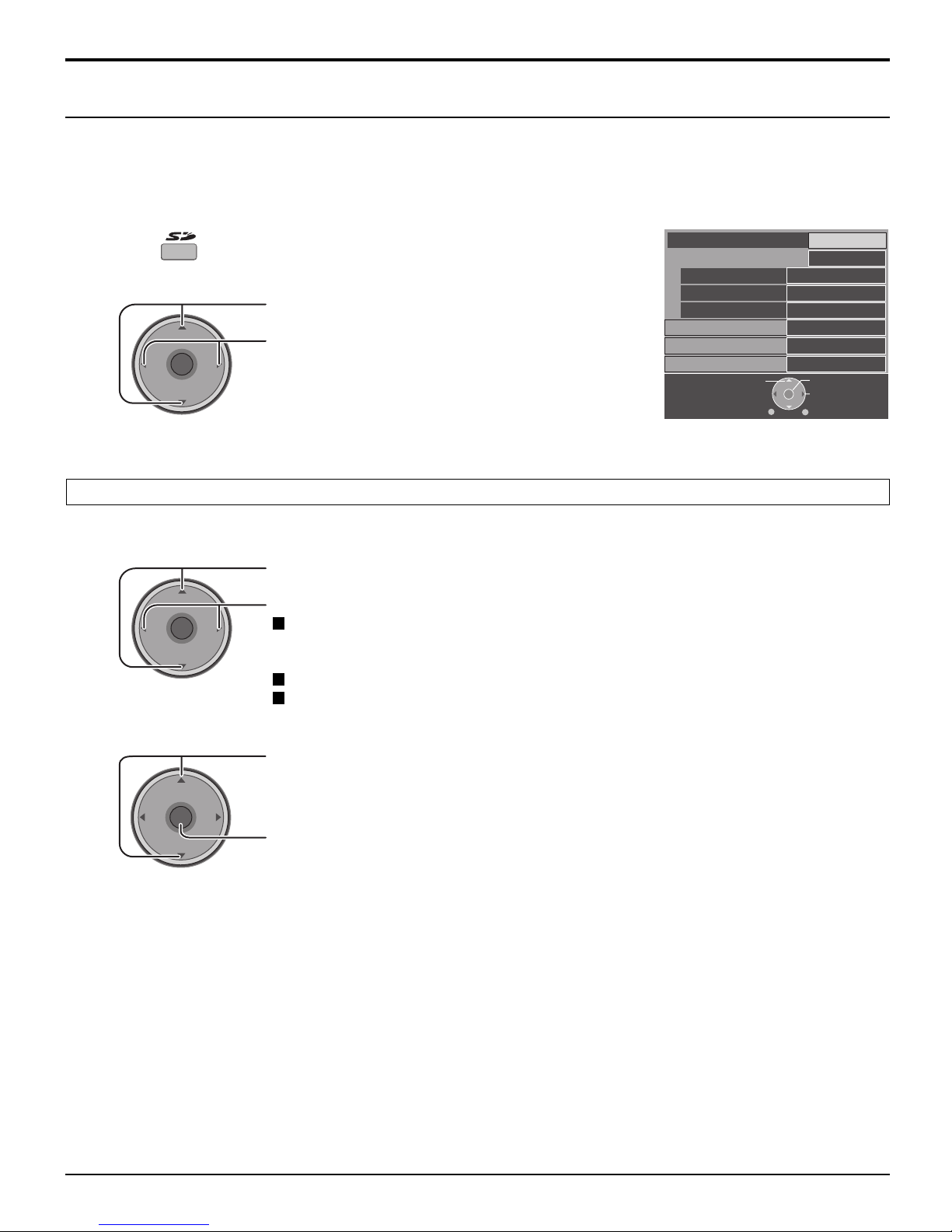

Photo Viewer Setup Menu

This menu allows you to customize features in the Photo Viewer Setup Menu.

While in the thumbnail mode or the single picture view mode (see page 48)

Photo Viewer

VOL

Press to display the Setup Menu screen.

Press to select the sub-menu.

Press to adjust or activate the sub-menu.

Slide Show

Select the settings of Interval, Sequence and Repeat before starting the slide show.

VOL

Press to select the sub-menu.

Press to adjust or activate the sub-menu.

Interval

Allows you to change the length of time that a slide is being displayed on screen. (5Sec, 10Sec, 15Sec, 30Sec, 60Sec, 90Sec, 10Min).

Sequence (Order or Random) Repeat (OFF or ON)

Setup Menu Slide Show Start

Interval

Sequence

Repeat

Rotate

Zoom

Card

SELECT

Return

5Sec

Order

OFF

Left

To Fit

CHANGE

EXIT

Press to select Start.

VOL

Press to start the slide show.

• Press again to stop.

• Press ASPECT to change the aspect of the image (see page 56).

Page 50

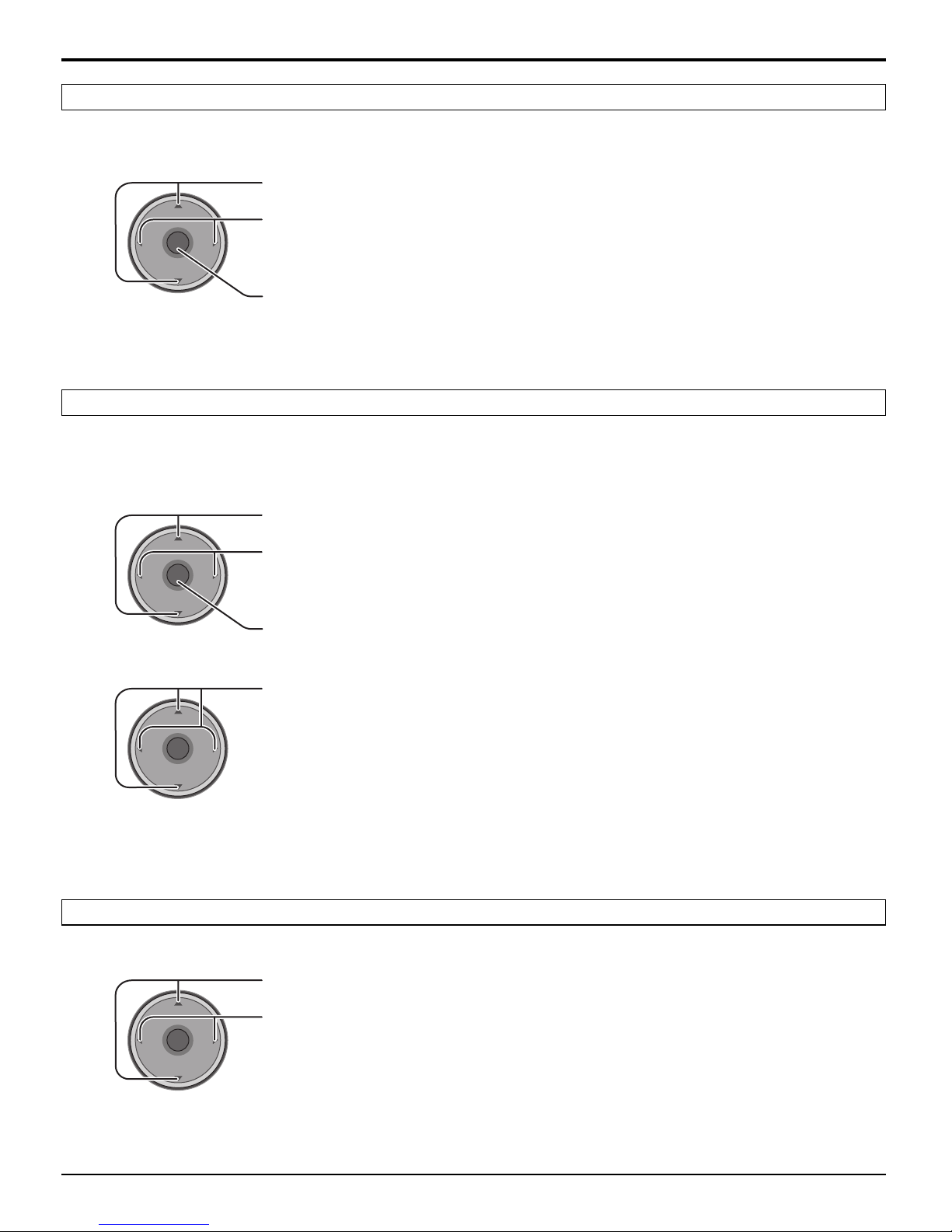

Photo Viewer

Rotate

To access menu see page 49. Allows you to rotate the image (see also page 48).

Press to select Rotate.

VOL

Press to select Left or Right.

Press to activate the setting.

Zoom

To access menu see page 49.

(While in the single picture view mode only)

Lets you select the magnification of the single picture display.

Press to select Zoom.

VOL

Press to select To Fit, x2 or x4.

Press to activate the setting.

VOL

Press to move the image in the picture frame.

To cancel Zoom Press OK to view the picture in normal magnification.

Card

To access menu see page 49. Select either SD or PC when both cards are inserted in the slots.

Press to select Card.

VOL

Press to select SD or PC.

Page 51

Photo Viewer Troubleshooting

Photo Viewer

Symptom

• Incompatible format. Must be formatted with FAT

Cannot read the content of the card.

PC card cannot be ejected.

Poor picture quality.

Long time to display.

The screen turns black.

Error messages

“Card is not inserted correctly.

“This type of image is not supported.”

“This type of format is not supported.”

”

“

“Photo Viewer cannot support over 3000 JPEG files. “Photo Viewer cannot support over 8192 x 8192 pixels.

”

12 or FAT 16.

• The extension is not “JPG”.

• The folders not under DCF standard.

Push the card all the way in, and eject.

If the main image cannot be read (the file is partially corrupted), the Photo Viewer will read the thumbnail. Please confirm the format of the image.

There are lots of images or the file size is large.

If the TV is left with no operation for longer than 5 minutes during the thumbnail screen or the single picture view mode, the screen turns black to avoid image retention. Press any key to return to the normal display.

Cause and remedy

Insert a card.

The JPEG file is corrupted and cannot be decoded. The card is not formatted with FAT 12 or FAT 16 or if it is not DCF standard.

Thumbnail and main picture cannot be shown.

Over 3000 image files.

Resolution over.

Page

47 47

“This type of card is not supported.”

“Press any key to return.”

Incompatible card is inserted.

The screen turned black to avoid image retention. Press any key to return to the normal display.

Page 52

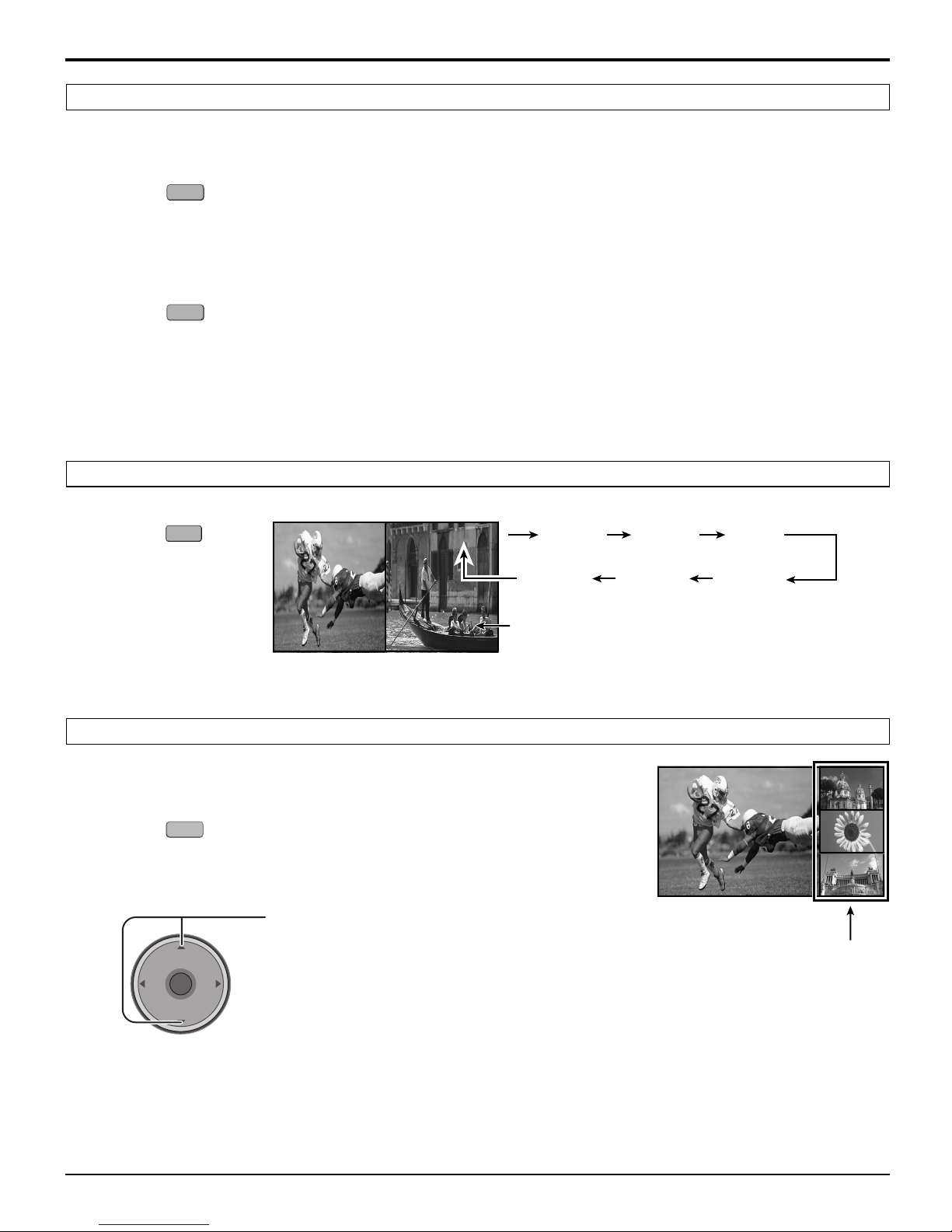

PIP (Picture in Picture) Operation

PIP MAX

This television includes a two-tuner Picture In Picture (PIP) feature. This allows you to watch two (2) live broadcasts at the same time with or without an external video source such as a VCR, cable box, etc.

POWER

VCR DVD

DBS

TV/VIDEO

RCVR

VOL

CBL

A -ANTENNA - B

1 2 3

VOL

SAP

LIGHT

AUX

EXIT

PIP

Press to display the PIP frame.

Main picture

PIP frame

Notes:

• Audio is from Main picture only.

• PIP frame displays analog channel signal of ANTENNA (A) only, and cannot display ANTENNA (B) or digital channel signal.

In the PIP frame

SPLIT CH

DVD/VCR CH

Select the channel.

In the Main picture

Press to select the channel.

• You can also use the numbered buttons.

VOL

4 5 6

7 8

R-TUNE

PROG

PIP MIN

REW

PAUSE REC

FREEZE

TV/VCR

PIP SPLIT MOVE

PLAY

STOP

SPLIT CH

DVD/VCR CH

PIP MAX

SEARCH OPEN/CLOSE

SWAP

To cancel the PIP operation

PIP

To swap the pictures

SWAP

Main picture Main picturePIP frame PIP frame

To change the size of PIP frame

PIP MIN

REW

: smaller : larger

Page 53

PIP (Picture in Picture) Operation

CH #

To freeze the picture

PIP frame

FREEZE

TV/VCR

• Press again to cancel Freeze.

Main Picture

While PIP frame is not displayed

FREEZE

TV/VCR

• Select PIP or Split (see page 27, Freeze) when freezing the Main picture.

Notes:

• Freeze is canceled after 3 minutes.

• Only MOVE (see below) is active while the Main picture is frozen.

To select the input mode of PIP frame

TV/VIDEO

CH # Comp 1 Comp 2 HDMI

To search the channel

(For analog channels only)

SEARCH OPEN/CLOSE

In the Main picture

VOL

To move PIP frame

The input mode changes in PIP frame.

Press to display search frames.

• Press again to cancel Search.

Press to select the channel.

• You can also use the numbered buttons.

Video 2Video 3

Video 1

CH10

CH11

CH12

CH13

Search frames

MOVE

Press to position PIP frame to one of the four corners.

PIP Frame

Page 54

SPLIT Operation

This feature lets you watch two different channels side by side with or without an external video source.

POWER

DBS

TV/VIDEO

VCR DVD

RCVR

VOL

SAP

LIGHT

AUX

CBL

A -ANTENNA - B

VOL

EXIT

SPLIT

Main picture

Press to display the SPLIT frame.

SPLIT frame (The previously selected screen appears.)

Notes:

• Audio is from Main picture only.

• SPLIT frame displays analog channel signal of ANTENNA (A) only, and cannot display ANTENNA (B) or digital channel signal.

In the SPLIT frame

SPLIT CH

DVD/VCR CH

Select the channel.

In the Main picture

Press to select the channel.

• You can also use the numbered buttons.

1 2 3

4 5 6

7 8

R-TUNE

PROG

PIP MIN

REW

PAUSE REC

FREEZE

TV/VCR

PIP SPLIT MOVE

PLAY

STOP

SPLIT CH

DVD/VCR CH

PIP MAX

SEARCH OPEN/CLOSE

SWAP

VOL

To cancel the SPLIT operation.

SPLIT

To swap the pictures

SWAP

Main picture Main pictureSPLIT frame SPLIT frame

CH10

CH5

CH10

Page 55

CH #

To freeze the picture

SPLIT Operation

SPLIT frame

FREEZE

TV/VCR

• Press again to cancel Freeze.

Main Picture

While SPLIT frame is not displayed

FREEZE

TV/VCR

• Select PIP or Split (see page 27, Freeze) when freezing the Main picture.

Note:

• Freeze is canceled after 3 minutes.

To select the input mode of SPLIT frame

TV/VIDEO

CH10

CH # Comp 1 Comp 2 HDMI

Video 2Video 3

Video 1

The input mode changes in SPLIT frame.

To search the channel

(For analog channels only)

OPEN/CLOSE

Press to display search frames.

• Press again to cancel Search.

In the Main picture

Press to select the channel.

• You can also use the numbered buttons.

VOL

Notes:

• The Main picture and the SPLIT frame are processed by individual circuits, and may have a slight difference in image quality.

•You cannot display the same picture in the Main picture and the SPLIT frame at the same time.

• While Main picture freeze frame is displayed, you cannot select or search the channel, swap the pictures, or select the input mode.

CH11

CH10

CH12

CH13

Search frames

Page 56

Aspect Controls

Lets you choose the aspect depending on the format of the received signal and your preference.

POWER

VCR DVD

DBS

RCVR

TV/VIDEO

MENU EXIT

VOL

SAP

LIGHT

AUX

CBL

A -ANTENNA - B

VOL

Note: The available aspect modes depend on the receiving signal.

•

Press to change the aspect mode.

480i : 4:3, FULL, JUST or ZOOM

480p (4:3) : 4:3, FULL or ZOOM

480p (16:9) : 4:3, FULL or ZOOM

1080i : 16:9 only

PC mode : NORMAL, FULL, JUST or ZOOM

(In PC mode, “4:3” indication is displayed as “NORMAL”.)

Mode

4 : 3

(NORMAL in

PC mode)

ZOOM

FULL

JUST

Picture Explanation

4 : 3

ZOOM

Displays a 4:3 picture at its standard 4:3 size with gray side bars. (It may create an after-image on screen if displayed for a prolonged period of time.)

Expands a 4:3 picture uniformly (width and height) to full screen width and then reposition the picture vertically. (Recommended for letterbox. This will

show picture at full screen size.)

FULL

Displays a picture at full screen size. (Recommended

3 9

JUST

for anamorphic pictures.)

Stretches the right and left edges of a 4:3 picture to fill the screen, and the center of the screen has aspect correction applied. The size of the picture depends on the original signal. (Recommended for regular TV viewing.)

Note:

In PC mode, aspect mode information is displayed in the top right of the screen.

Page 57

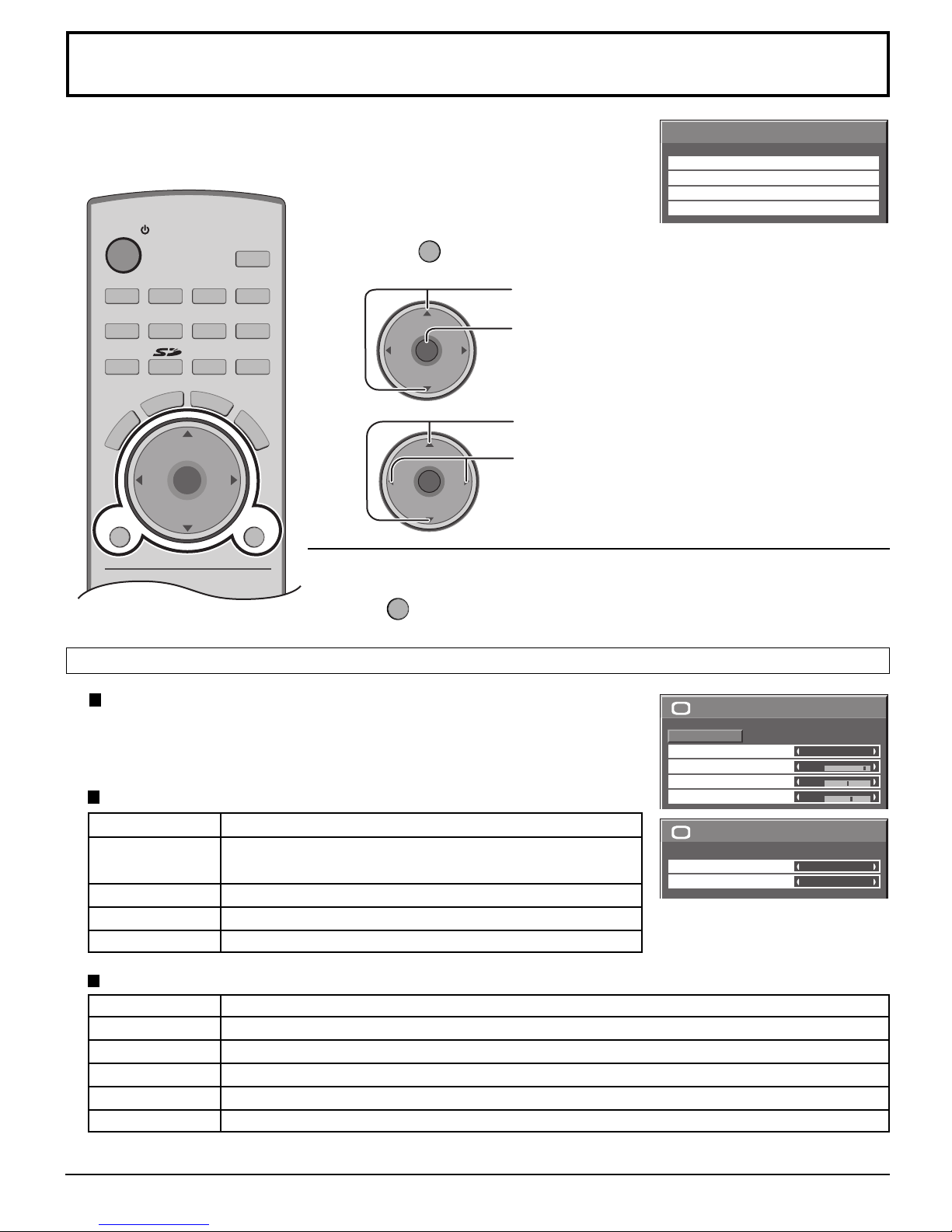

PC MENU

Preparation:

• Connect a PC to the TV (see page 17).

• Select PC input mode (see page 20).

POWER

TV VCR DVD

DBS

RCVR

TV/VIDEO

MENU EXIT

VOL

SAP

LIGHT

CBL

AUX

A -ANTENNA - B

VOL

To return to the previous screen

VOL

EXIT

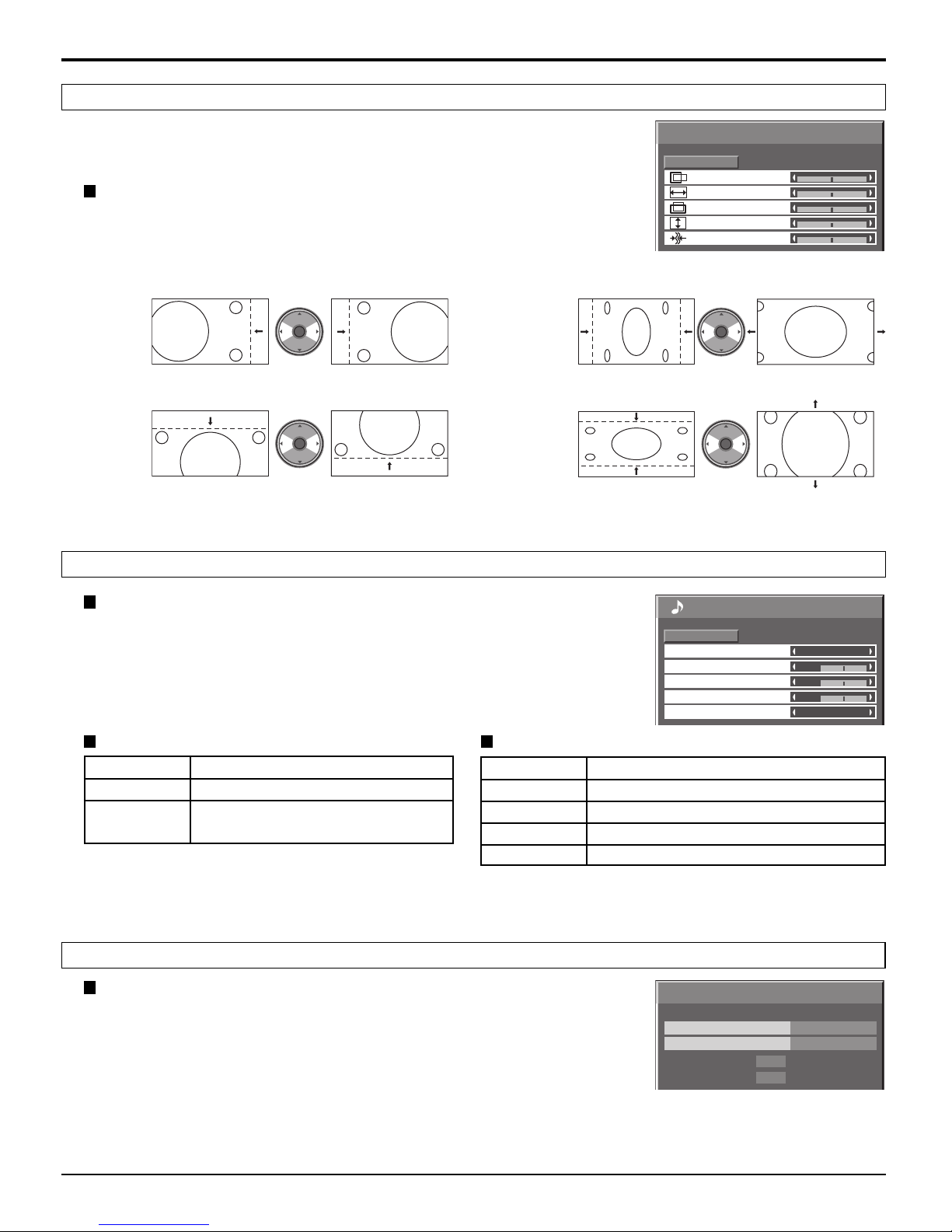

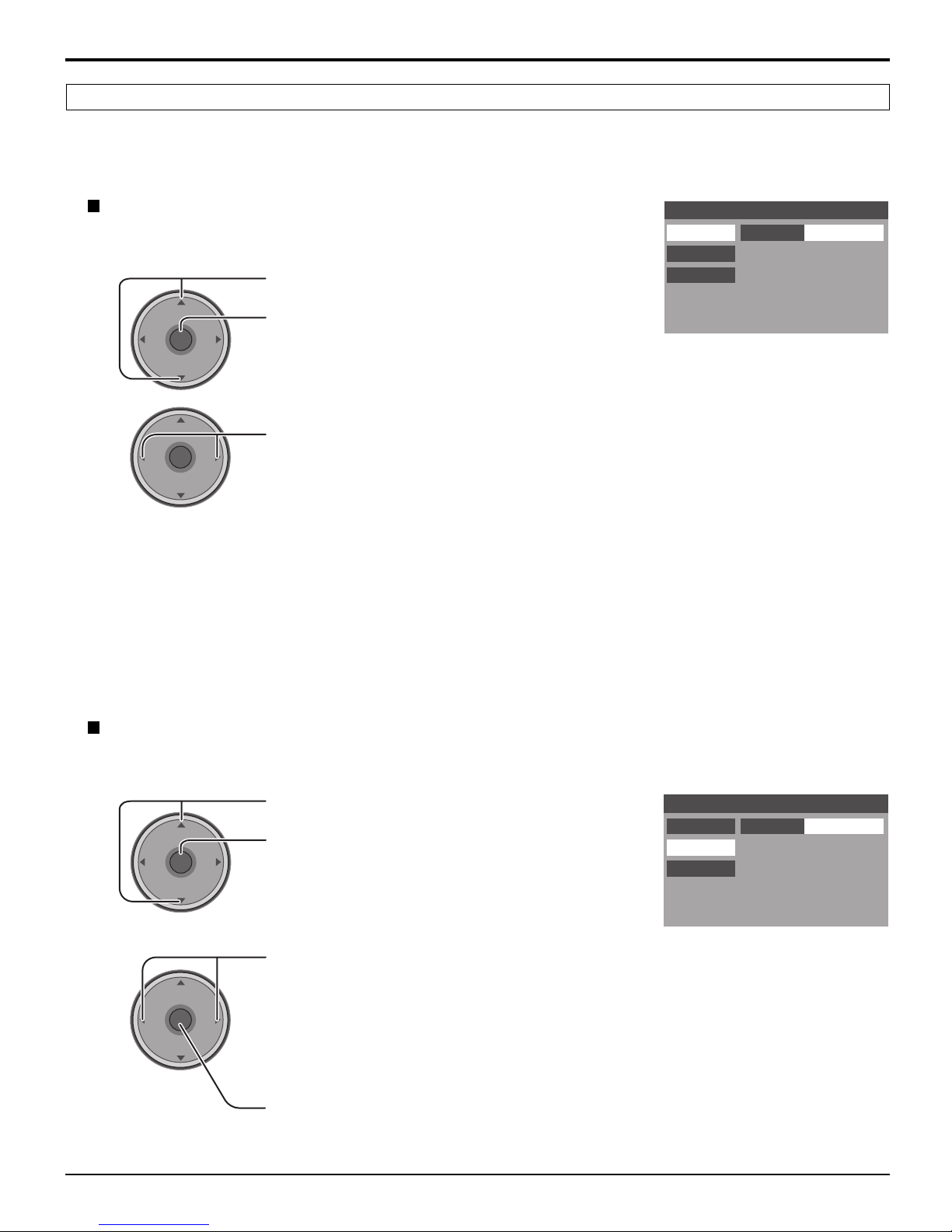

PC MENU


PICTURE POS./SIZE

SOUND SIGNAL

Press to display the PC MENU.

Press to select the sub-menu.

Press to display the sub-menu screen.

VOL

Press to select the sub sub-menu.

Press to adjust the sub sub-menu.

VOL


NORMALIZE

Select “NORMALIZE” to reset adjustments to the factory default setting.

Note:

• You can select “NORMALIZE” when you changed the settings.

PICTURE MENU

Automatically selects the mode that best suits the brightness

AUTO

STANDARD

DYNAMIC

CINEMA

of the environment.

For viewing in standard (evening lighting) environments.

For viewing in brighter environments.

Ideal for movies.

PICTURE, BRIGHTNESS, SHARPNESS, COLOR TEMP, COLOR MANAGEMENT

Item


BRIGHTNESS

SHARPNESS

COLOR TEMP

COLOR MANAGEMENT

Adjusts white areas of picture.

Adjusts dark areas of picture.

Adjusts clarity of outline detail.

Select Normal, Warm (red) or Cool (blue) colors to suit personal preferences. On: Enable vivid color adjustment automatically

Function


NORMALIZE

PICTURE MENU PICTURE

BRIGHTNESS SHARPNESS


COLOR TEMP COLOR MANAGEMENT

NORMAL

1/2

STANDARD

0 3

2/2

NORMAL

Page 58

PC MENU

PICTURE POS./SIZE

(To access menu see page 57.)

Note:

If a “Cue” or “Rew” signal from a VCR or may DVD player is received, the picture position may shift up or down despite of the PICTURE POS./SIZE settings.

NORMALIZE

Select “NORMALIZE” to reset adjustments to the factory default setting.

Note:

• You can select “NORMALIZE” when you change the settings.

H-POS

V-POS

Adjust the horizontal position.

Adjust the vertical position.

CLOCK PHASE

VOL VOL

Eliminate flickering and distortion.

H-SIZE

V-SIZE

Adjust the horizontal size.

Adjust the vertical size.

(RGB/PC in mode)

PICTURE POS. /SIZE

VOL VOL

NORMAL

NORMALIZE

H-POS H-SIZE V-POS V-SIZE CLOCK PHASE

SOUND

(To access menu see page 57.)

NORMALIZE

Select “NORMALIZE” to reset adjustments to the factory default setting.

Note:

• You can select “NORMALIZE” when you change the settings.

AUDIO MENU

STANDARD

AUTO

Function

Emits the original sound. Automatically controls proper volume

level.

BASS, TREBLE, BALANCE, SURROUND

Item

BASS

TREBLE

BALANCE

SURROUND

Adjusts low sounds Adjusts high sounds

Adjusts left and right volumes Select ON or OFF

Note:

BASS, TREBLE and SURROUND settings are memorized separately for each AUDIO MENU (STANDARD, AUTO).

SIGNAL

(To access menu see page 57.)

H-FREQ. (kHz) / V-FREQ. (Hz) (Only for RGB input signal)

Displays the H (Horizontal)/V (Vertical) frequencies.

Display range: Horizontal 15 - 110 kHz

Vertical 48 - 120 Hz

Note:

Sync : The H and V sync or synchronized signal are automatically selected.

If both input, it is selected the H and V sync.

VIDEO NR : Not effective for this model.

SOUND

NORMALIZE

AUDIO MENU BASS TREBLE BALANCE SURROUND

Function

SIGNAL

SYNC VIDEO NR

H-FREQ.

V-FREQ.

NORMAL

33.8

60.0

STANDARD 0 0 0

OFF

kHz

Page 59

Operating peripheral equipment

Programming the remote control code

You can operate other manufacturers’ components using this TV’s remote control.

Preparation:

Connect the plug of the external component to the wall outlet.

•

Make sure the component is turned off.

•

POWER

TV VCR DVD

CBL

A -ANTENNA - B

DBS

TV/VIDEO

RCVR

VOL

1 2 3

4 5 6

7 8

R-TUNE

PIP MIN

REW

PLAY

VOL

SAP

LIGHT

AUX

EXIT

PROG

PIP MAX

POWER

VOLCHVOL

Press and hold POWER and OK together, for at least 5 seconds.

The mode selection buttons flashes, and then release

•

the POWER and OK.

TV VCR DVD

Select the type of the component.

DBS

RCVR

1 2 3

4 5 6

7 8

CBL AUX

The selected button light and all others go out.

•

Enter the 3-digit infrared code (see pages 60-62).

Factory default setting : Panasonic

•

Press POWER to test the operation.

•

Notes:

• If the component does not operate with the Remote Control, repeat the procedure using another code. (Some brands have multiple codes).

• If an incorrect code is entered, or if the procedure takes longer than 30 seconds,the programming will fail.

To find a code not listed in the index

PAUSE REC

FREEZE

TV/VCR

PIP SPLIT MOVE

STOP

SPLIT CH

DVD/VCR CH

SEARCH OPEN/CLOSE

SWAP

After selecting the type of component (step 2, above)

VOL

Press to select the code.

• The code starts from the current device.

• Press POWER button to test the operation.

• Repeat the steps until the component code is found. It may take many attempts before the correct code is found.

Press to store the code.

VOL

Page 60

Operating peripheral equipment

Infrared Code Index

The remote control is capable of operating many brands of peripheral equipment. Refer to page 59 for programming procedures.

Notes:

• The remote control memory is limited and therefore some models may not operate. The remote control is not designed to control all features available in all models.

• After entering the proper infrared code, press the desired Mode Selection buttons (see page 20). Refer to pages 63 and 64 for details on operating peripheral equipment using the remote control.

Infrared Remote Codes for Specific Components

Helpful Hint: Write down the code numbers for your components in the space provided below. This will serve as a

handy reference whenever you need to reprogram your remote control.

CABLE

Cable Box

DBS

Digital Broadcast System

VCR

Video Cassette Recorder

RCVR

Receiver or Amplifier

Compact Disc Player

Laser Disc Player

Other Component

VCR

AUX

Other Component

Codes for VCR

Brand Code Admiral 335 Aiwa 332 Akai 314, 315, 316, 329 Audio Dynamic 311, 339 Bell &Howell 305, 313 Broksonic 320, 326 Canon 323, 325 CCE 343 Citizen 306 Craig 305, 306, 329 Curtis Mathes 324, 345 Daewoo 301, 324, 343 DBX 310, 311, 339 Dimensia 345 Emerson 303, 319, 320, 325, 326, 343 Fisher 305, 307, 308, 309, 313 Funai 320, 326, 334 GE 324, 333, 345 Goldstar 306 Gradiente 334 Hitachi 300, 323, 345 Instant Replay 323, 324 Jensen 339 JVC 310, 311, 334, 339 Kenwood 306, 310, 311, 339 LXI 300, 305, 306, 307, 308, 309 Magnavox 323, 324, 331 Marantz 310, 311, 339 Marta 306 Memorex 309, 324 MGA 338, 340, 341, 347, 348 Minolta 300, 345 Mitsubishi 338, 340, 341, 347, 348 Multitech 304, 347 NEC 310, 311, 334, 339 Olympic 323, 324

Other Component

Brand Code Optimus 306, 321, 328, 335 Orion 320, 326 Panasonic 321, 322, 323, 324 Penney

300, 305, 310, 311, 324, 339, 345 Pentax 300, 311, 345 Philco 320, 323, 324, 326, 331, 343 Philips 323, 324, 331 Pioneer 323 Proscan 300, 301, 302, 323, 324, 331,

333, 345, 346 Quasar 321, 322, 323, 324 Radio Shack 305, 309, 324, 333, 336, 340 RCA 300, 301, 302, 323, 324, 331,

333, 345, 346 Realistic 305, 309, 324, 336, 340 Samsung 302, 304, 333 Sansui 320, 326, 339, 352 Sanyo 305, 309, 313 Scott 301, 302, 304, 309, 320, 326,

338, 340, 347, 348 Sears 300, 305, 306, 307, 308 Sharp 335, 336 Shintom 317 Signature 2000 335 Singer 317 Sony 328, 329, 330 Sylvania 323, 324, 331 Tashiro 306 Tatung 310, 311, 339 Teac 310, 311, 339 Technics 321, 322, 323, 324 Teknika 324 Toshiba 301, 346 Vector Research 311 Wards 306, 309, 335, 336, 344 Yamaha 305, 310, 311, 339 Zenith 306, 344

Page 61

DVD

Codes for DVD

Brand Code Denon 100 Ferguson 101 JVC 109 Mitsubishi 105 Nordmende 101 Panasonic 100 Philips 103 Pioneer 102 RCA 101

Codes for CD

Brand Code Admiral 226 Aiwa 233, 235 Carver 229 Denon 242 Emerson 239 Fisher 205 Harman Kardon 219, 220, 221, 223 Hitachi 207 Jensen 234 JVC 240, 241, 245 Kardon 223 Kenwood 200, 201, 211, 245 LXI/Sears 236 Magnavox 229, 232 Marantz 229 McIntosh 221 Nakamichi 210 Onkyo 214, 215

Operating peripheral equipment

Brand Code Saba 101 Samsung 110 Sharp 108 Sony 104 Technics 100 Thomson 101 Toshiba 103 Yamaha 100 Zenith 107

Brand Code Optimus 208, 218, 220, 222 Panasonic 224, 225, 227 Philips 229, 230 Pioneer 208 Quasar 224, 225, 227 RCA 231, 237, 238, 247 Sansui 210, 246 Sanyo 205 Scott 210, 246 Sharp 242, 243 Sherwood 220 Sony 228 Soundesign 244 Teac 212, 216, 218 Technics 224, 225, 227 Victor 240, 241, 245 Yamaha 202, 203, 204

AUX

Codes for Personal Video Recorders

Brand Code Panasonic Replay TV Philips Tivo 101 Sony Tivo 102

100

Codes for Cassette Deck

Brand Code Aiwa 223, 224, 225 Denon 231 Fisher 203 Jensen 214 JVC 229, 230 Kenwood 200, 207 Marantz 202 Nakamichi 205 Onkyo 208, 209, 213 Panasonic 216, 218

Brand Code Philips 222 Pioneer 204 RCA 226, 227, 228 Sansui 205, 210 Sharp 231 Sony 219, 220 Teac 210, 211, 215 Technics 216, 218 Yamaha 201, 202

Page 62

Operating peripheral equipment

Codes for Receivers

RCVR

CBL

Brand Code Admiral 120 Aiwa 125, 126 Denon 134, 135, 136 Fisher 104 Garrard 113 Harman Kardon 115, 123 Jensen 129 JVC 132, 133 Kenwood 100, 108 Magnavox 127 Marantz 124 Mclntosh 116 Nakamichi 106 Onkyo 109, 114

Codes for Cable Box

Brand Code ABC 124 Archer 125, 132 Cableview 105, 132 Citizen 105, 122 Curtis 112, 113 Diamond 124, 125, 132 Eagle 129 Eastern 134 GC Brand 105, 132 Gemini 122 General 111, 119, 120, 121, 122, 123, Instrument/Jerrold Hamlin 112, 118, 140, 141, 142, 145 Hitachi 103, 124 Macom 103, 104, 105 Magnavox 133 Memorex 130 Movietime 105, 132 Oak 102, 137, 139 Panasonic 109, 110, 114 Philips 106, 107, 128, 129, 130 Pioneer 101, 116 Pulsar 105, 132

124, 125, 126, 127

Brand Code Optimus 103, 127, 130, 131 Panasonic 118, 119, 121 Philips 123 Pioneer 105, 107 Quasar 118, 119, 121 RCA 103, 105, 127, 130, 131 Sansui 103, 111, 139 Sharp 134, 137 Sony 122 Soundesign 138 Teac 111, 112, 113 Technics 118, 119, 121 Victor 132, 133 Yamaha 101, 102

Brand Code Puser 132 RCA 115 Realistic 132 Regal 112, 118, 140, 141, 142, 145 Regency 134 Rembrandt 105, 132, 137 Samsung 105 Scientific Atlanta 111, 112, 113 Slmark 101, 105 Sprucer 105, 110 Stargate 105, 132 Tel eview 101, 105 Texscan 144 Tocom 135 Toshiba 104 Unika 125, 132 Universal 122, 132 Videoway 106 Viewstar 129, 130 Zenith 100, 117 Zenith /Drae 100 Satellite

Codes for DBS

DBS

Brand Code Dish Network 105, 115, 116 Echo Star 105 (Echostar) Express VU 105, 115 G.E. 106 G.I. 108 (General Instrument) Gradiente 114 Hitachi 103, 111, 112 HNS (Hughes) 103

Brand Code Magnavox 101, 102 Panasonic 104 Philips 101, 102 Primestar 108 Proscan 106, 109, 110, 113 RCA 106, 109, 110, 113 Sony 107 Star Choice 103, 108 Toshiba 100 Uniden 101, 102

Page 63

Operating peripheral equipment

Mode Operational Key Chart

This chart defines which keys that are operational after programming (if needed), while in the selected remote control mode, DTV, CABLE, DBS, VCR, DVD ...etc.

KEY NAME DTV MODE CABLE MODE DBS MODE

POWER

POWER POWER POWER

NAVIGATION UP/DOWN CABLE CHANNEL UP/DOWN DBS NAVIGATION UP/DOWN

VOLCHVOL

DBS MENU

EXIT

1 2 3

4 5 6

7 809

R-TUNE

PROG

REC

SPLIT CH

DVD/VCR CH

NAVIGATION RIGHT/LEFT

DTV MENU

PROGRAM INFO.

EXIT (EPG)ELECTRONIC

PROGRAM GUIDE

DBS NAVIGATION RIGHT/LEFT

DBS PROGRAM INFO.

EXIT DBS MENU

Select Channel Select Channel Select Channel

PREVIOUS STB CHAN CABLE PREVIOUS CHAN DBS PREVIOUS CHAN

DTV PROGRAM/DASH

Info (EPG) ELECTRONIC

PROGRAM GUIDE

DBS CHANNEL UP/DOWN

Page 64

Operating peripheral equipment

KEY NAME VCR MODE RCVR MODE

POWER

POWER POWER POWER POWER POWER POWER POWER

TV/VIDEO

LIGHT

VOLCHVOL

EXIT

1 2 3

4 5 6

7 809

-- - - --

TV INPUT SW

-- - - --

---

-- - - ---

-- - -

-- -

ONSCREEN VCR

DISPLAY

-- -

(DVD) (CD) (PVR) (VCR2) (TAPE)

-- -

NAVIGATION

UP/DOWN

NEXT/PREVIOUS

TRACK

DVD DISPLAY TIME FORMAT

EXIT PVR MENU

NAVIGATION

UP/DOWN

NAVIGATION

RIGHT/LEFT

PVR MENU

---

Select Channel

TV INPUT SW

VOLUME

---

ONSCREEN VCR

DISPLAY

---

RCVR MUTE

RCVR INPUT SW

REMOTE

BUTTONS

TUNER +/

+/-RCVR VOLUME +/

1.... AV1

2.... AV2

3.... AV3

4.... AV4

5.... CD

6.... TUNER

7.... PHONO

8.... TAPE

9.... AUX

DVD/CD MODE AUX MODE

PIP MIN

REW

PAUSE

FREEZE

TV/VCR

SPLIT CH

DVD/VCR CH

SEARCH OPEN/CLOSE

R-TUNE

PROG

PLAY

STOP

REC

PIP MAX

-- - -

PREVIOUS CHAN

RELAY ZONES

DECK A/B

PVR

-- - ---

VCR REW/FF

SKIP SEARCH

REW/FF

SEARCH REW/FF

RETURN TO LIVE

VCR REW/FF

TAPE REW/FF SURROUND -/+

PLAY PLAY PLAY PLAY PLAY PLAY

PAUSE STILL/PAUSE PAUSE PAUSE PAUSE PAUSE

STOP STOP STOP

VCR RECORD

TV/VCR SWITCH

VCR CHANNEL

UP/DOWN

SLOW +/

-- -

OPEN/CLOSE OPEN/CLOSE

STOP STOP

PVR RECORD VCR RECORD

TV/VCR SWITCH

PVR CHANNEL

UP/DOWN

PVR

QUICK SKIP

VCR CHANNEL

UP/DOWN

---

TAPE RECORD

RCVR CENTER

Page 65

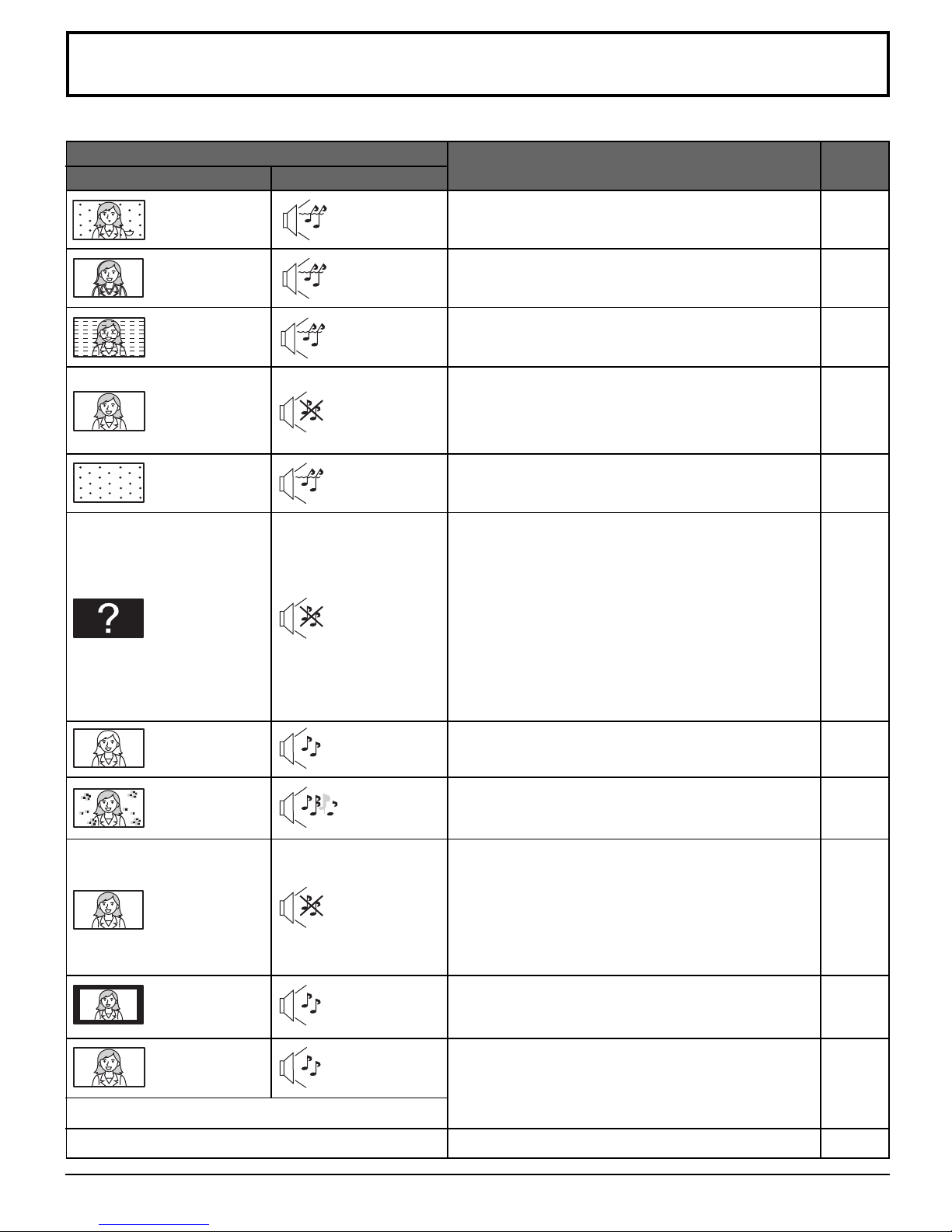

Troubleshooting Chart

Before calling for service, determine the symptoms and follow suggested solutions.

Symptoms

VIDEO AUDIO

Snowy Video

Multiple Image

Interference

Normal Video

No Video with Snow

No Video / No PIP

Noisy Audio

No Audio

Noisy Audio

No Audio

Solutions

• Adjust the antenna location and connection.

• Check the antenna lead-in cable.

• Move the television away from electrical appliances, lights, vehicles and medical equipment.

• Increase volume.

• Check Mute.

• Check Speaker connection.

• Check Television Speakers on/off.

• Change channel.

• Set Input Setup properly.

• Check the antenna cables.

• Check the power cord is plugged into the wall outlet.

• Adjust Brightness and Audio controls.

• Change channel.

• Check the cable connections.

• Program the remote control code.

• Check the second video source operation.

• Make sure that a PC is not connected to HDMI input. Rarely, the TV will not display video in HDMI input from devices with HDMI or DVI output due to bad communication between the TV and the devices. Should this happens, unplug the HDMI/DVI device and plug it back on.

Page

12, 13

12, 13 12, 13

23 21 11 29

12, 13

26,28,29

23 13-18 59-62 59-64

No Color

Digitalization of image Image freeze up

Normal Video

Black Box on Screen

Normal Video

Intermittent Remote Control Operation

Cannot select Antenna B

Normal Audio

Audio Break up

Wrong Audio

Normal Audio

• Adjust Color settings.

• Change channel.

• Re-orient the ATSC antenna.

• Check signal meter. If the signal is weak, add a signal booster to boost the signal strength.

• Check the audio mode is set to Stereo or Mono, Not SAP.

• Change the audio of the HDMI device to Linear PCM.

• Check the audio setting for HDMI. If there is functional problem with Digital Audio, use Analog audio.

• Change CC (Closed Caption).

• Replace the remote control batteries.

• Perform Auto Scan.

26, 27

39, 40

Page 66

Troubleshooting Chart

Plasma Display panel

Symptoms

Some parts of the screen do not light up.

An after-image appears

Whirring sounds can be heard from the display unit.

When turning the unit on, the PDP LED momentarily turns

green then the unit shuts off and LED turns Red.

• The plasma display panel is manufactured using an extremely high level of

• Do not allow a still picture to be displayed for an extended period, as this can

Note:

The permanent after-image on the Plasma TV resulting from fixed image use is not an operating defect and as such is not covered by the Warranty. This product is not designed to display fixed images for extended periods of time.

• The TV is fitted with a cooling fan to dissipate heat generated during normal

• The TV slightly consumes power and rotates the cooling fan even when

Check the 2 main interconnection cables (24pin and 26pin) rear of PDP and Tuner box. Make sure they are firmly connected. (Loose connection of 24pin will cause no power on symptom.)

Check

precision technology, however, sometimes some parts of the screen may be missing picture elements or have luminous spots. This is not a malfunction.

cause a permanent after-image to remain on the Plasma TV. Examples of still pictures include logos, video games, computer images, teletext and images displayed in 4:3 mode.

use. The rotating fan may cause a whirring sound but it is not a malfunction.

turned off in order to receive program guide data etc. through the Cable CARD. The rotating fan may cause a whirring sound but it is not a malfunction.

Page

41, 56

Occasionally on-screenmenus appear while connection cable is not inserted, but these onscreen-menus are not effective. Remote control is not accessible to those menus.

Power off both the display and the receiver, and check the cable connection.

Page 67

Specifications

Digital Media Receiver

Power Source Power Consumption

Dimensions (W × H × D) Mass (weight) Channel Capability-ATSC / NTSC FEATURES

Accessories Supplied

Operating condition

Connection terminals

COMPONENT VIDEO INPUT1-2

Maximum

Stand-by condition

Temperature

Humidity

RGB input

AV INPUT 1- 3

AV PROG. OUT

AUDIO OUT

HDMI/AUDIO INPUT

DIGITAL AUDIO OUT

Display out

Two screen display functions LINEAR PIP BBE VIVA 3D V-Chip CLOSED CAPTION HDMI 3D Y/C FILTER JPEG Viewer CableCARD

D-SUB 15pin R,G,B / 0.7 Vp-p (75 Ω)

VIDEO (Phono Jack Type) 1.0 Vp-p (75 Ω) S-VIDEO (Mini DIN 4-pin) Y : 1.0 Vp-p (75 Ω), C : 0.286 Vp-p (75 Ω) AUDIO L-R (Phono Jack Type × 2) 0.5 Vrms VIDEO (Phono Jack Type) 1.0 Vp-p (75 Ω) AUDIO L-R (Phono Jack Type × 2) 0.5 Vrms AUDIO L-R (Phono Jack Type × 2) 0.5 Vrms Y 1.0 Vp-p (including sync) P

B / PR 0.7 Vp-p

AUDIO L-R (Phono Jack Type × 2) 0.5 Vrms HDMI type A Connector AUDIO L-R (Phono Jack Type × 2) 0.5 Vrms PCM / Dolby Digital, Fiber Optic D-sub 26-pin, Digital RGB 24-pin

TU-PT700U

120 V AC, 60 Hz

45 W

16.9” (430 mm) × 3.4” (86 mm) × 14.8” (377 mm)

VHF/ UHF : 2-69, CATV:1-135

slot

32 °F - 104 °F (0 °C - 40 °C)

22 W

approx. 13.2 lbs

AC cord

Display-Receiver cable

20 % - 80 %

HD, VD / TTL Level (high impedance)

Plasma Display

TH-65XVS30 Power Source Power Consumption

Display panel

Screen size

Dimensions (W × H × D)

Mass (weight)

Sound Speaker out (8 Ω) Accessories Supplied

Batteries for the remote control

Operating condition

Connection terminals

Maximum Stand-by condition Power off condition

Contrast Ratio

(No.of pixels)

Display unit only

Remote control

AC cord

Cable fixing bands

F-Type antenna adapter

Temperature

Humidity

Display in terminals

Drive method : AC type 65-inch, 16:9 aspect ratio

1,434 mm (W) × 806 mm (H) × 1,645 mm (diagonal)

61.18” (1,554 mm) × 36.42” (925 mm) × 3.9” (99 mm)

Note: Design and Specifications are subject to change without notice. Weight and Dimensions shown are approximate.

120 V AC, 50/60 Hz

695 W

Save OFF 1.0 W, Save ON 0.8 W

0.3 W

3000:1

1,049,088 (1,366 (W) × 768(H))

[4,098 × 768 dots]

approx. 179.68 lbs

20 W [10 W + 10 W] (10 % THD)

EUR7627Z40

2 × AA Size

(TMME203 or TMME187) × 2

(for 5C-2V) × 2

32 °F - 104 °F (0 °C - 40 °C)

20 % - 80 %

D-sub 26-pin

Digital RGB 24-pin

Page 68
