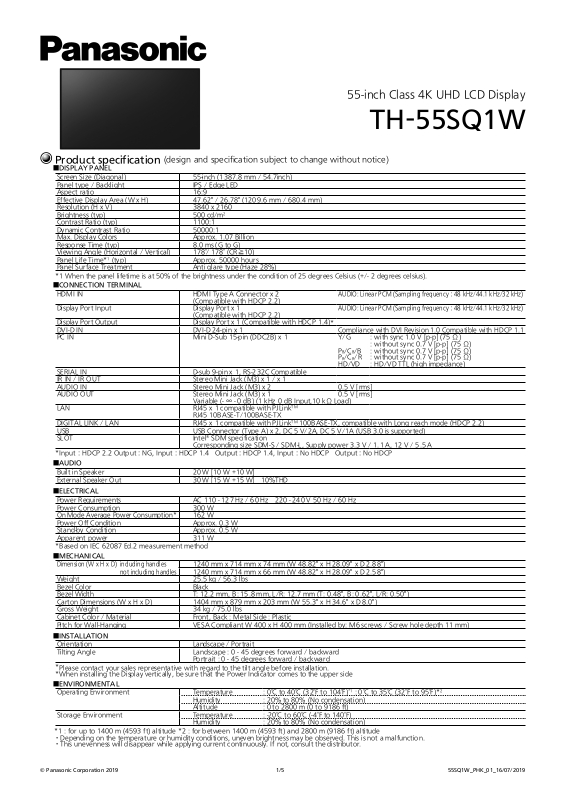

Page 1

55-inch Class 4K UHD LCD Display

TH-55SQ1W

Product specification

(design and specification subject to change without notice)

■DISPLAY PANEL

Screen Size (Diagonal) 55-inch (1387.8 mm / 54.7inch) Panel type / Backlight IPS / Edge LED Aspect ratio 16:9 Effective Display Area (W x H) 47.62" / 26.78" (1209.6 mm / 680.4 mm) Resolution (H x V) 3840 x 2160 Brightness ( Contrast Ratio ( Dynamic Contrast Ratio 50000:1 Max. Display Colors Approx. 1.07 Billion Response Time ( Viewing Angle (Horizontal / Vertical) 178°/ 178° (CR≧10) Panel Life Time Panel Surface Treatment Anti glare type (Haze 28%)

typ

) 500 cd/m

typ

) 1100:1

typ

) 8.0 ms (G to G)

typ

(

) Approx. 50000 hours

*1 When the panel lifetime is at 50% of the brightness under the condition of 25 degrees Celsius (+/- 2 degrees celsius).

■CONNECTION TERMINAL

HDMI IN HDMI Type A Connector x 2

Display Port Input Display Port x 1

Display Port Output Display Port x 1 (Compatible with HDCP 1.4) DVI-D IN DVI-D 24-pin x 1 PC IN Mini D-Sub 15-pin

SERIAL IN D-sub 9-pin x 1, RS-232C Compatible IR IN / IR OUT AUDIO IN Stereo Mini Jack (M3) x 2　 0.5 V [rms] AUDIO OUT Stereo Mini Jack (M3) x 1　 0.5 V [rms]

LAN RJ45 x 1 compatible with PJLink

DIGITAL LINK / LAN RJ45 x 1 compatible with PJLink USB USB Connector (Type A) x 2, DC 5 V/2A, DC 5 V/1A (USB 3.0 is supported) SLOT Intel

(Compatible with HDCP 2.2)

(DDC2B)

x 1 Y/G

Stereo Mini Jack (M3) x 1 / x 1

Variable (- ∞ - 0 dB) (1 kHz 0 dB Input,10 kΩ Load)

RJ45 10BASE-T/100BASE-TX

SDM specification

Corresponding size SDM-S / SDM-L, Supply power 3.3 V / 1.1 A, 12 V / 5.5 A

100BASE-TX, compatible with Long reach mode (HDCP 2.2)

AUDIO: Linear PCM (Sampling frequency：48 kHz/44.1 kHz/32 kHz)

Compliance with DVI Revision 1.0 Compatible with HDCP 1.1

P P HD/VD

: with sync 1.0 V [p-p] (75 Ω) : without sync 0.7 V [p-p] (75 Ω) : without sync 0.7 V [p-p] (75 Ω)

B/CB

: without sync 0.7 V [p-p] (75 Ω)

R/CR

: HD/VD TTL (high impedance)

*Input：HDCP 2.2 Output：NG, Input：HDCP 1.4　Output：HDCP 1.4, Input：No HDCP　Output：No HDCP

■AUDIO

Built in Speaker 20 W [10 W +10 W] External Speaker Out 30 W [15 W +15 W]　10%THD

■ELECTRICAL

Power Requirements AC 110 - 127 Hz / 60 Hz　220 - 240 V 50 Hz / 60 Hz Power Consumption 300 W On Mode Average Power Consumption*162 W Power Off Condition Approx. 0.3 W Stand-by Condition Approx. 0.5 W Apparent power 311 W

*Based on IEC 62087 Ed.2 measurement method

■MECHANICAL

Dimension (W x H x D) including handles not including handles Weight 25.5 kg / 56.3 lbs Bezel Color Black Bezel Width T: 12.2 mm, B: 15.8 mm, L/R: 12.7 mm (T: 0.48", B: 0.62", L/R: 0.50") Carton Dimensions (W x H x D) 1404 mm x 879 mm x 203 mm (W 55.3" x H 34.6" x D 8.0") Gross Weight 34 kg / 75.0 lbs Cabinet Color / Material Front, Back : Metal Side : Plastic Pitch for Wall-Hanging

1240 mm x 714 mm x 74 mm (W 48.82" x H 28.09" x D 2.88") 1240 mm x 714 mm x 66 mm (W 48.82" x H 28.09" x D 2.58")

VESA Compliant W 400 x H 400 mm (Installed by: M6 screws / Screw hole depth 11 mm)

■INSTALLATION

Orientation Tilting Angle Landscape : 0 - 45 degrees forward / backward

Please contact your sales representative with regard to the tilt angle before installation.

*When installing the Display vertically, be sure that the Power Indicator comes to the upper side

■ENVIRONMENTAL

Operating Environment Temperature : 0℃ to 40℃ (32°F to 104°F)

Storage Environment Temperature : -20℃ to 60℃ (-4°F to 140°F)

1 : for up to 1400 m (4593 ft) altitude *2 : for between 1400 m (4593 ft) and 2800 m (9186 ft) altitude 　・Depending on the temperature or humidity conditions, uneven brightness may be observed. This is not a malfunction. ・This unevenness will disappear while applying current continuously. If not, consult the distributor.

Landscape / Portrait

Portrait : 0 - 45 degrees forward / backward

Humidity : 20% to 80% (No condensation) Altitude : 0 to 2800 m (0 to 9186 ft)

: 0℃ to 35℃ (32°F to 95°F)

Humidity : 20% to 80% (No condensation)

Page 2

55-inch Class

714(28.1)

74(2.9)

M6 Screw hole depth 11(0.5)

4K UHD

LCD Display

TH-55SQ1W

MAIN FEATURE

USB Media Player Yes (4K is supported) Failover/Failback Yes Data Cloning Yes Digital Zoom Yes Multi display settings Yes Power on Screen Delay Yes Auto setting Yes Screen Saver Yes Power Management Yes Power save Yes Button Lock Yes Controller user level Yes Input search Yes 6,12-segment colour management Dynamic contrast Yes Color enhancement Yes Refine enhancer Yes Gradation smoother Yes Dynamic backlight control Yes Set up timer Yes Content management Software compatible Image settings Yes HDMI CEC Compatible Memory Viewer Operating Time AMX D.D. Yes Crestron Connected Extron XTP Yes WEB Browser control Yes

PJLink Screen Transfer compatible Yes Multi Monitoring & Control Software compatible Video Wall Manager compatible Content management Software compatible Auto vertical and horizontal

determination (Accelerometer)

*In case of running for a long time, the moving image is recommended

to be displayed. If you display a still picture for an extended period, the image retention might remain on the screen. However, image retention can gradually disappear by displaying a moving images.

(HDMI/DP/DVI-D/PC/DIGITAL LINK)

Yes

Yes Yes 24h / day

Yes

Yes Yes Yes

Yes

REMOTE CONTROL TRANSMITTER

Power Requirements DC 3 V (2 x AAA Size batteries) Operating distance Approx. 7 m (23 ft) Weight Approx. 63 g (2.2 oz) including batteries Dimemsions (W x H x D) 48 x 134 x 20 mm (1.9" x 5.3" x 0.8")

*When operated directly in front of receptor.

DIMENSIONS

1240(48.9)

31(1.2)

66(2.6)

(35)((1.4))

STANDARD (CERTIFICATIONS)

SAFETY REGULATIONS

RADIATION REGULATIONS

UL) ANSI / UL 62368-1: 2014 , 2nd Edition UL60950-1, 2nd Edition, 2014-10-14 CAN / CSA-C22.2 No. 62368-1-14, 2nd Edition Mexico: NOM

CB) IEC 62368-1: 2014 (Second Edition) IEC 60950-1: 2005 (Second Edition) + Am 1: 2009 + Am 2: 2013 BEAB)

BEAB) EU Deviation (EN62368-1:2014) (Second Edition) (EN60950-1:2006 + A11:2009 + A1:2010 + A12:2011+A2:2013) BEAB approval

RCM) AS/NZS Deviation (AS/NZS 62368-1:2018 , Second Edition)

FCC) FCC CFR 47, Part 15, Subpart B 2015 Class A ANSI C63.4-2014 ICES-003 Issue6: 2016

CE) EN55032: 2012 EN55024: 2010, EN55035 EN61000-3-2: 2014 EN61000-3-3: 2013

RCM) AS / NZS CISPR32:2013 RCM Mark

INCLUDED ACCESSORIES

- Remote Control　- Batteries (AAA size) x 2　- Clamper x 3

- USB memory cover x 1　- SDM-S attachment x 1

- AC cord (approx. 2.0 m (79"))　- CD-ROM / User Manual　

- Operating Instruction Book

OPTIONAL ACCESSORIES

Pedestal Stand TY-ST55PE9 Early Warning Software Video wall manager

Automatic Display Adjustment Upgrade Kit

275.5(10.9) 258.5(10.2)

ET-SWA 100 / 105series TY-VUK10

Cautions: This drawing is not a scale

400

(15.8)

Units : mm (inches)

12.7 (0.5)

Active Area 1209.6(47.62)

12.2

15.8(0.7)

(0.5)

Active Area

680.4(26.78)

4.7(0.2)

342(13.46)

Active Area

17(0.7)

90.5(3.6)

12.7 (0.5)

32.3(1.3)

3.3(0.2)

(1.8)

165

(6.5)

400(15.8)

(8.6)

218.3

225(8.9)

CONNECTION TERMINAL

* Specifications and appearance are subject to change without notice.

Page 3

55-inch Class

4K UHD

LCD Display

List of correspondence signals

The picture signal which can indicate this machine is as it is the following table.

●Specific HDMI signals inside the plug and play compatible signal table are as it follows.

1 : 4K/60p (HDR), 2 : 4K/60p (SDR), 3 : 4K/30p, 4 : 2K

Correspondence

signal

NTSC/NTSC4.43/

PAL‑M/PAL60

PAL/PAL‑N/SECAM 720 x 576i 15.63 50.00 ‑ V

480/60i 720 x 480i 15.73 59.94 13.50 Y 576/50i 720 x 576i 15.63 50.00 13.50 Y 480/60i 720 (1440) x 480i

576/50i 720 (1440) x 576i 480/60p 720 x 483 31.47 59.94 27.00 Y/D/H/DL/DP 576/50p 720 x 576 31.25 50.00 27.00 Y/D/H/DL/DP 720/60p 1280 x 720 45.00 60.00 74.25 Y/D/H/DL/DP 720/50p 1280 x 720 37.50 50.00 74.25 Y/D/H/DL/DP 1080/60i 1920 x 1080i 33.75 60.00 74.25 Y/D/H/DL/DP 1080/50i 1920 x 1080i 28.13 50.00 74.25 Y/D/H/DL/DP

1080/24p 1920 x 1080 27.00 24.00 74.25 Y/D/H/DL/DP

1080/24PsF 1920 x 1080i 27.00 48.00 74.25 D/H/DL/DP

1080/25p 1920 x 1080 28.13 25.00 74.25 Y/D/H/DL/DP 1080/30p 1920 x 1080 33.75 30.00 74.25 Y/D/H/DL/DP 1080/60p 1920 x 1080 67.50 60.00 148.50 Y/D/H/DL/DP 1080/50p 1920 x 1080 56.25 50.00 148.50 Y/D/H/DL/DP

2K/24p 2048 x 1080 27.00 24.00 74.25 D/H/DL/DP 2K/25p 2048 x 1080 28.13 25.00 74.25 D/H/DL/DP 2K/30p 2048 x 1080 33.75 30.00 74.25 D/H/DL/DP 2K/48p 2048 x 1080 54.00 48.00 148.50 D/H/DL/DP 2K/60p 2048 x 1080 67.50 60.00 148.50 D/H/DL/DP

2K/50p 2048 x 1080 56.25 50.00 148.50 D/H/DL/DP 3840 x 2160/24p 3840 x 2160 54.00 24.00 297.00 H/DL/DP 3840 x 2160/25p 3840 x 2160 56.25 25.00 297.00 H/DL/DP 3840 x 2160/30p 3840 x 2160 67.50 30.00 297.00 H/DL/DP 3840 x 2160/60p 3840 x 2160 135.00 60.00 594.00 H/DL 3840 x 2160/50p 4096 x 2160/24p 4096 x 2160 54.00 24.00 297.00 H/DL/DP 4096 x 2160/25p 4096 x 2160 56.25 25.00 297.00 H/DL/DP 4096 x 2160/30p 4096 x 2160 67.50 30.00 297.00 H/DL/DP 4096 x 2160/60p 4096 x 2160 135.00 60.00 594.00 H/DL 4096 x 2160/50p 4096 x 2160 112.50 50.00 594.00 H/DL

640 x 400/70 640 x 400 31.47 70.09 25.18 R/D/H/DL/DP 640 x 400/85 640 x 400 37.86 85.08 31.50 R/D/H/DL/DP 640 x 480/60 640 x 480 31.47 59.94 25.18 R/D/H/DL/DP 640 x 480/67 640 x 480 35.00 66.67 30.24 R/D/H/DL/DP 640 x 480/73 640 x 480 37.86 72.81 31.50 R/D/H/DL/DP 640 x 480/75 640 x 480 37.50 75.00 31.50 R/D/H/DL/DP 640 x 480/85 640 x 480 43.27 85.01 36.00 R/D/H/DL/DP 800 x 600/56 800 x 600 35.16 56.25 36.00 R/D/H/DL/DP

800 x 600/60 800 x 600 37.88 60.32 40.00 R/D/H/DL/DP 800 x 600/72 800 x 600 48.08 72.19 50.00 R/D/H/DL/DP 800 x 600/75 800 x 600 46.88 75.00 49.50 R/D/H/DL/DP 800 x 600/85 800 x 600 53.67 85.06 56.25 R/D/H/DL/DP 832 x 624/75 832 x 624 49.72 74.55 57.28 R/D/H/DL/DP 852 x 480/60 852 x 480 31.47 59.94 34.24 D/H/DL/DP

1024 x 768/50 1024 x 768 39.55 50.00 51.89 D/H/DL/DP 1024 x 768/60 1024 x 768 48.36 60.00 65.00 R/D/H/DL/DP 1024 x 768/70 1024 x 768 56.48 70.07 75.00 R/D/H/DL/DP 1024 x 768/75 1024 x 768 60.02 75.03 78.75 R/D/H/DL/DP 1024 x 768/82 1024 x 768 65.55 81.63 86.00 R/D/H/DL/DP 1024 x 768/85 1024 x 768 68.68 85.00 94.50 R/D/H/DL/DP 1066 x 600/60 1066 x 600 37.64 59.94 53.00 D/H/DL/DP 1152 x 864/60 1152 x 864 53.70 60.00 81.62 D/H/DL/DP 1152 x 864/70 1152 x 864 63.99 70.02 94.20 R/D/H/DL/DP 1152 x 864/75 1152 x 864 67.50 75.00 108.00 R/D/H/DL/DP 1152 x 864/85 1152 x 864 77.09 85.00 119.65 1152 x 870/75 1152 x 870 68.68 75.06 100.00 R/D/H/DL/DP 1280 x 720/60 1280 x 720 44.76 60.00 74.48 R/D/H/DL/DP 1280 x 768/50 1280 x 768 39.55 49.94 65.18 R/D/H/DL/DP 1280 x 768/60 1280 x 768 47.70 60.00 80.14 R/D/H/DL/DP 1280 x 768/60 1280 x 768 47.78 59.87 79.50 R/D/H/DL/DP 1280 x 800/50 1280 x 800 41.20 50.00 68.56 R/D/H/DL/DP 1280 x 800/60 1280 x 800 49.31 59.91 71.00 R/D/H/DL/DP 1280 x 800/60 1280 x 800 49.70 59.81 83.50 R/D/H/DL/DP 1280 x 960/60 1280 x 960 60.00 60.00 108.00 R/D/H/DL/DP

1280 x 960/85 1280 x 960 85.94 85.00 148.50 R 1280 x 1024/60 1280 x 1024 63.98 60.02 108.00 R/D/H/DL/DP 1280 x 1024/75 1280 x 1024 79.98 75.02 135.00 R/D/H/DL/DP 1280 x 1024/85 1280 x 1024 91.15 85.02 157.50 R/D/H/DL/DP

1360 x 768/60 1360 x 768 47.71 60.02 85.50 D/H/DL/DP

1360 x 768/60 1360 x 768 47.70 60.00 84.72 D/H/DL/DP

1360 x 768/60 1360 x 768 47.72 59.80 84.75 D/H/DL/DP

1366 x 768/50 1366 x 768 39.55 50.00 69.92 D/H/DL/DP

1366 x 768/60 1366 x 768 48.39 60.03 86.71 R/D/H/DL/DP

Resolution

(dot)

720 x 480i 15.73 59.94 ‑ V

3840 x 2160 112.50 50.00 594.00 H/DL*4/DP

Scan rate

Horizontal

(kHz)

15.73 59.94 27.00 D/H/DL/DP

15.63 50.00 27.00 D/H/DL/DP

Vertical

(Hz)

Dot clock rate

(MHz)

Format

R/D/H/DL/DP

/DP

TH-55SQ1W

Plug and play compatible signal

HDMI

1 2 3 4

- - - - - - -

○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ -

- - - - - - -

○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ -

- - - - - - -

○ ○ ○ - ○ ○ ○ ○ ○ - ○ ○ ○ ○ ○ - ○ ○ ○ ○ - - - ○ ○ ○ - - - ○ ○ ○ ○ - ○ ○ ○ ○ ○ - ○ ○ ○ ○ ○ - ○ ○ ○ ○ - - - ○ ○ ○ - - - ○ -

- - - - - - -

○ ○ ○ ○ ○ ○ ○

- - - - - - -

○ ○ ○ ○ ○ ○ ○

- - - - - - -

○ ○ ○ ○ ○ ○ ○

- - - - - - -

- - - - - ○ ○

- - - - - - -

- - - - - ○ ○

- - - - - - -

- - - - - ○ ○

- - - - - - -

○ ○ ○ ○ ○ ○ ○

- - - - - - -

DL DP

DVI-D/

Page 4

55-inch Class

Correspondence

signal

1366 x 768/60 1366 x 768 48.00 60.00 72.00 R/D/H/DL/DP

1366 x 768/50 1366 x 768 39.56 49.89 69.00 R/D/H/DL/DP

1366 x 768/60 1366 x 768 47.71 59.79 85.50 R/D/H/DL/DP 1400 x 1050/60 1400 x 1050 65.22 60.00 122.61 D/H/DL/DP 1400 x 1050/75 1400 x 1050 82.20 75.00 155.85 R/D/H/DL/DP

1440 x 900/60 1440 x 900 55.47 59.90 88.75 R/D/H/DL/DP

1440 x 900/60 1440 x 900 55.92 60.00 106.47 R/D/H/DL/DP

1600 x 900/50 1600 x 900 46.30 50.00 97.05 R/D/H/DL/DP

1600 x 900/60 1600 x 900 60.00 60.00 108.00 D/H/DL/DP

1600 x 900/60 1600 x 900 55.99 59.95 118.25 D/H/DL/DP

1600 x 900/60 1600 x 900 55.92 60.00 119.00 D/H/DL/DP 1600 x 1200/60 1600 x 1200 75.00 60.00 162.00 R/D/H/DL/DP 1680 x 1050/60 1680 x 1050 65.29 59.95 146.25 R/D/H/DL/DP 1920 x 1080/60 1920 x 1080 1920 x 1080/60 1920 x 1080 67.50 60.00 148.50 R/D/H/DL/DP 1920 x 1200/60 1920 x 1200 74.04 59.95 154.00 R/D/H/DL/DP 1920 x 2160/60 1920 x 2160 133.29 59.99 277.25 H/DL/DP 1920 x 2160/60 1920 x 2160 135.00 60.00 297.00 H/DL/DP 2560 x 1440/60 2560 x 1440 88.79 59.95 241.50 H/DL/DP 2560 x 1600/50 2560 x 1600 82.37 49.95 286.00 H/DL/DP 2560 x 1600/60 2560 x 1600 98.71 59.97 268.50 H/DL/DP 3840 x 1080/60 3840 x 1080 66.63 59.97 266.50 H/DL/DP 3840 x 2160/60 3840 x 2160 133.31 60.00 533.25 H/DL/DP 3840 x 2160/30 3840 x 2160 65.69 29.98 262.75 H/DL/DP

*1：Pixel-Repetition signal (dot clock frequency 27.0 MHz) only *2：Signals to represent formats are as follows.

V ：CVS (AV IN) R ：D-sub RGB (PC IN) Y ：YC D ：DVI-D (DVI-D IN) H ：HDMI (HDMI 1, HDMI 2) DL ：DIGITAL LINK (DIGITAL LINK) DP ：Display Port (Display Port)

*3：Based on VESA CVT-RB (Reduced Blanking) standard *4：YC

BCR

*5：Signals with ○ in the Plug and Play-supported signal column are the ones written in EDID (Extended Display Identification Data) of this unit.

For signals without ○ in the Plug and Play-supported signal column, resolutions may not be selected on the PC side even if this unit supports those signals.

Note

●An auto detected signal format may be differently displayed from the actual input signal.

4K UHD

/YPBPR (PC IN)

BCR

LCD Display

Resolution

(dot)

420 format only supported

Scan rate

Horizontal

(kHz)

66.59 59.93 138.50 R/D/H/DL/DP

Vertical

(Hz)

Dot clock rate

(MHz)

Format

Plug and play compatible signal

HDMI

1 2 3 4

- - - - - - -

- - - - - ○ ○

- - - - - - -

○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○

- - - - - - -

- - ○ - ○ ○ -

- - - - - - -

- - - - - 〇 -

TH-55SQ1W

DL DP

●[ i ] shown after the number of dots of resolution means the interlace signal.

●When 1080/30PsF signal and 1080/25PsF signal are input, they are processed as 1080/60i signal and 1080/50i signal, and then displayed.

DVI-D/

Page 5

55-inch Class

View from back

Terminals

Sec. Ter-SIDE

4K UHD

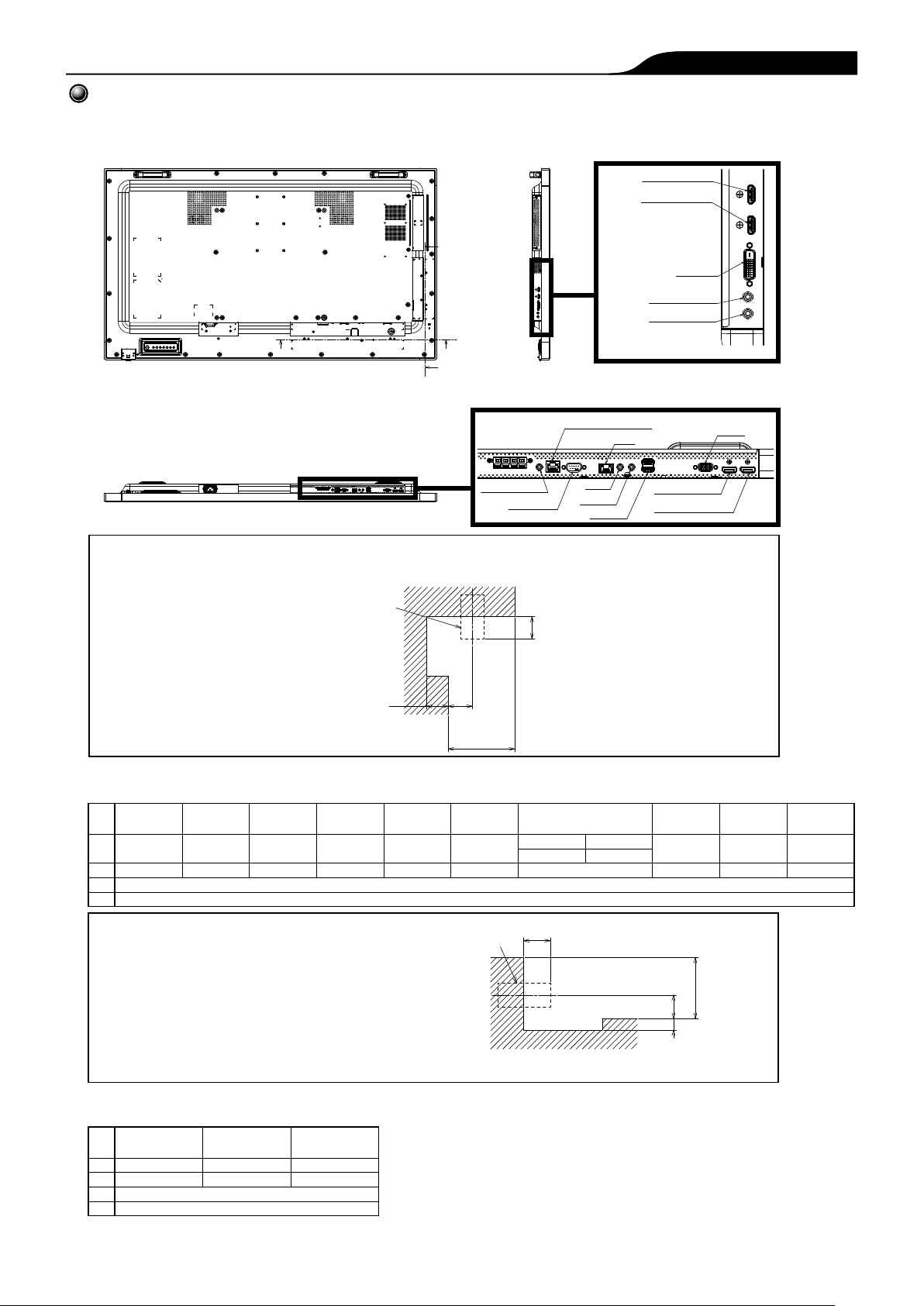

Drawing of terminals

LCD Display

TH-55SQ1W

Magnified figure of terminal b

HDMI AV IN 1

HDMI AV IN 2

DVI-D IN

AUDIO IN 1

AUDIO IN 2

Sectional view of terminal a

（AUDIO OUT / DIGITAL LINK LAN / SERIAL IN / LAN / IR IN / IR OUT / USB / PC IN / DisplayPort IN / DisplayPort OUT）

Terminal a 55SQ1W Terminal (Bottom)

A 13 (0.51) 13 (0.52) 13 (0.50) 11 (0.42) 13 (0.51) 13 (0.51)

B 3 (0.11) － 5 (0.20) － 3 (0.11) 3 (0.11) － 5 (0.20) －－ C

AUDIO

OUT

DIGITAL

LINK LAN

SECTION A-A

SERIAL IN

LAN

Sec.Ter-BTM

IR IN IR OUT

SECTION B-B

Magnified figure of terminal a

DIGITAL LINK LAN

LAN

AUDIO OUT

SERIAL IN

USB:1 USB:2

IR IN

IR OUT

USB×2

USB PC IN

(0.42)

(0.75)

DisplayPort IN

DisplayPort OUT

13 (0.50) 10 (0.39) 10 (0.39)

PC IN

Units : mm (inch)

DisplayPort INDisplayPort

OUT

Sectional view of terminal b

（HDMI AV IN（1/2） / DVI-D IN / AUDIO IN（1/2））

Terminal b 55SQ1W Terminal (Side)

HDMI AV IN

1/2

A 10 (0.39) 11 (0.45) 13 (0.51)

B － 6 (0.22) 3 (0.11) C 35 (1.39)

*Due to the construction of terminal, some types of connecting cable or USB memory device cannot be used.

Be sure to use connecting cable or USB memory device after confirmation in this drawing.

DVI-D IN AUDIO IN 1/2

(0.18)

Units : mm (inch)
