Operating Instructions

46”/50” Class 1080p Plasma HDTV

(46.0/49.9 inches measured diagonally)

Manual de instrucciones

Televisión de alta definición de 1080p y clase 46”/50” de Plasma

(46,0/49,9 pulgadas medidas diagonalmente)

Model No.

Número de modelo

TH-46PZ850U TH-50PZ850U

Quick Start Guide

(See page 6-15)

Guía de inicio rápido

(vea la página 6-15)

For assistance (U.S.A.), please call:

1-877-95-VIERA (958-4372)

or visit us at www.panasonic.com/contactinfo

For assistance (Puerto Rico), please call:

787-750-4300

or visit us at www.panasonic.com

For assistance (Canada), please call:

1-866-330-0014

or visit us at www.vieraconcierge.ca

Para solicitar ayuda (EE.UU.), llame al:

1-877-95-VIERA (958-4372)

ó visítenos en www.panasonic.com/contactinfo

Para solicitar ayuda (Puerto Rico), llame al:

787-750-4300

ó visítenos en www.panasonic.com

HD3D Sound

ViV

English

Español

Please read these instructions before operating your set and retain them for future reference. The images shown in this manual are for illustrative purposes only.

Lea estas instrucciones antes de utilizar su televisor y guárdelas para consultarlas en el futuro. Las imágenes mostradas en este manual tienen solamente fines ilustrativos.

TQB2AA0785-2

Turn your own living room into a movie theater!

Experience an amazing level of multimedia excitement

This device contains a digital television tuner, so it should receive digital over the air TV programming, with a suitable antenna, after the end of full-power analog TV broadcasting in the United States (as required by law) on February 17,

2009. Some older television receivers, if they rely on a TV antenna, will need a TV Converter to receive over the air digital programming, but should continue to work as before for other purposes (e.g., for watching low-power TV stations still broadcasting in analog, watching pre-recorded movies, or playing video games). When a Converter is used with an older television receiver, a signal splitter might be necessary to continue to receive low-power analog broadcasts via an antenna. For more information, please see www.DTV.gov. For information on the TV Converter program, and on government coupons that may be used toward the purchase of one, see www.dtv2009.gov, or call the NTIA at 1-888-DTV-2009. Please check with your cable or satellite service provider if you have questions about your cable or satellite set-top box.

SDHC Logo is a trademark.

HD3D Sound

Manufactured under license

from BBE Sound, Inc.

ViV

GalleryPlayer and the GalleryPlayer

Logo are trademarks of

GalleryPlayer, Inc.

Licensed by BBE Sound, Inc. under one or more of the following US

patents: 5510752, 5736897.

BBE and BBE symbol are registered trademarks of BBE Sound, Inc.

VIERA Link™ is a trademark of

Matsushita Electric Industrial Co., Ltd.

HDMI, the HDMI logo and High-Definition Multimedia

Interface are trademarks or registered trademarks of

VIERA CAST™ is a trademark of

Matsushita Electric Industrial Co., Ltd.

HDMI Licensing LLC.

Contents

Please read before using the unit

Safety Precautions ······································· 4 Notes ····························································5

Enjoy rich multimedia

VCR

Amplifier Home theater system

DVD recorder/

Blu-ray Disc recorder

HDAVI Control™

HDAVI Control™ is a trademark of

Matsushita Electric Industrial Co., Ltd.

EZ Sync™

EZ Sync™ is a trademark of

Matsushita Electric Industrial

Co., Ltd.

Set Top Box

SD memory card

Camcorder

Personal

computer

DVD player/

Blu-ray Disc player

Quick Start Guide

Accessories/Optional Accessory ·····6 Basic Connection ····························· 9 Identifying Controls ························ 13 First Time Setup ···························· 14

Enjoy your TV!

Basic Features

Watching TV ···············································16 Viewing from SD Card ·······························18 Watching Videos and DVDs ·······················22 Displaying PC Screen on TV ·····················24 VIERA CASTTM ···········································26

Advanced Features

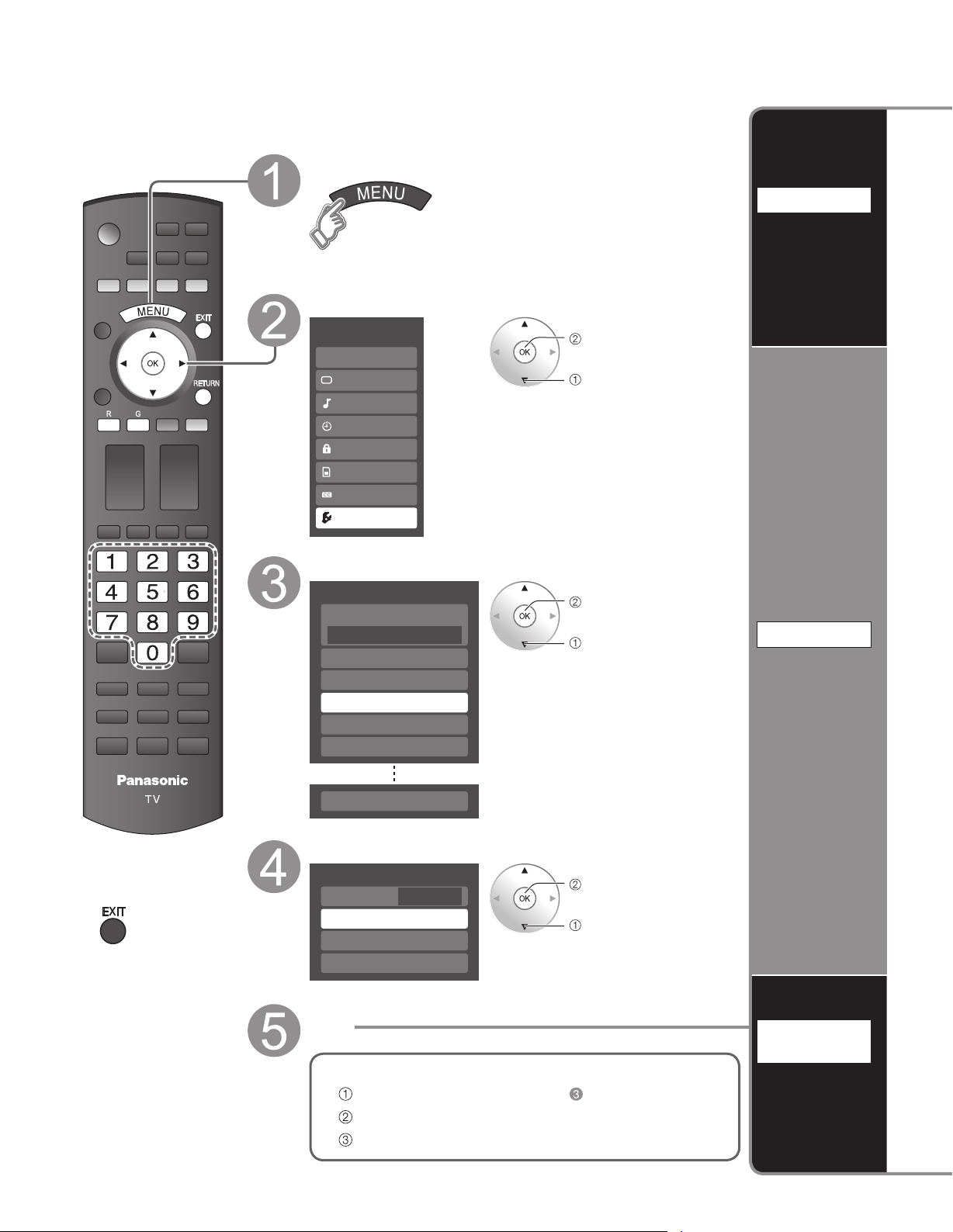

How to Use Menu Functions

(picture, sound quality, etc.) ·······················28 VIERA LinkTM “HDAVI ControlTM” ················32 Network setting ·········································· 36 VIERA CASTTM setting ·······························38 Lock ··························································· 40 Editing and Setting Channels ····················42 Closed Caption ·········································· 44 Input Labels/Monitor Out ···························45 Using Timer ················································ 46 Programming the Remote to Operate

Peripheral Equipment ································47 Recommended AV Connections ················ 48

FAQs, etc.

Remote Control Operation/Code List ·········50 Ratings List for Lock ··································53 Technical Information ································· 54 Care and Cleaning ·····································58 Specifications ············································· 59 FAQ ···························································· 60 Limited Warranty (for U.S.A.) ·····················62 Customer Services Directory (for U.S.A.) ··63 Limited Warranty (for Canada) ···················64

Quick Start

Guide

Viewing Advanced FAQs, etc.

Manufactured under license from Dolby Laboratories.

DOLBY and the double-D symbol are

trademarks of Dolby Laboratories.

Safety Precautions

The lightning flash with arrowhead within a triangle

CAUTION

RISK OF ELECTRIC SHOCK

WARNING: To reduce the risk of electric shock, do not remove cover or back. No user-serviceable parts inside. Refer servicing to qualified service personnel.

WARNING: To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture.

Do not place liquid containers (flower vase, cups, cosmetics, etc.) above the set (including on shelves above, etc.).

DO NOT OPEN

Important Safety Instructions

is intended to tell the user that parts inside the product are a risk of electric shock to persons.

The exclamation point within a triangle is intended to tell the user that important operating and servicing instructions are in the papers with the appliance.

1) Read these instructions.

2) Keep these instructions.

3) Heed all warnings.

4) Follow all instructions.

5) Do not use this apparatus near water.

6) Clean only with dry cloth.

7) Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.

8) Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.

9) Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

10) Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

11) Only use attachments / accessories specified by the manufacturer.

12) Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart / apparatus combination to avoid injury from tip-over.

13) Unplug this apparatus during lightning storms or when unused for long periods of time.

14) Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

15) To prevent electric shock, ensure the grounding pin on the AC cord power plug is securely connected.

FCC STATEMENT

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause

harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

FCC Caution: To assure continued compliance, follow the attached installation instructions and use only shielded interface cables when connecting to computer or peripheral devices. Any changes or modifications not expressly approved by Panasonic Corp. of North America could void the user’s authority to operate this device.

FCC Declaration of Conformity

Model No. TH-46PZ850U, TH-50PZ850U

Responsible Party: Panasonic Corporation of North America Contact Source: Panasonic Consumer Electronics Company email: consumerproducts@panasonic.com

One Panasonic Way, Secaucus, NJ 07094 1-877-95-VIERA (958-4372)

CANADIAN NOTICE:

For Model TH-46PZ850U, TH-50PZ850U This Class B digital apparatus complies with Canadian ICES-003.

WARNING/CAUTION

WARNING

Small parts can present choking hazard if accidentally swallowed. Keep small parts away from young children. discard unneeded small parts and other objects, including packaging materials and plastic bags/sheets to prevent them from being played with by young children, creating the potential risk of suffocation.

Set up

Do not place the Plasma TV on sloped or unstable surfaces.

The Plasma TV may fall off or tip over.

Do not place any objects on top of the Plasma TV.

If water spills onto the Plasma TV or foreign objects get

inside it, a short-circuit may occur which could result in fire or electric shock. If any foreign objects get inside the Plasma TV, please consult an Authorized Service Center.

This Plasma TV is for use only with the following optional accessories. Use with any other type of optional accessories may cause instability which could result in the possibility of injury.

(All of the following accessories are manufactured by Matsushita Electric Industrial Co., Ltd.)

• Wall-hanging bracket (Vertical) TY-WK42PV4W

• Wall-hanging bracket (Angled) TY-WK42PR4W

Always be sure to ask a qualified technician to carry out set-up.

Two or more people are required to install and remove the

television. If two people are not present, the television may be dropped, and personal injury may result.

Transport only in upright position!

Transporting the unit with its display panel facing upright or

downward may cause damage to the internal circuitry.

AC Power Supply Cord

The Plasma TV is designed to operate on 120 V AC, 60 Hz. Securely insert the power cord plug as far as it will go.

If the plug is not fully inserted, heat may be generated which

could cause fire. If the plug is damaged or the wall socket plate is loose, they should not be used.

The included power cord is for use with this unit only. Do not use any power cord other than that provided with this TV.

Doing so may cause fire or electric shocks.

Do not handle the power cord plug with wet hands.

Doing so may cause electric shocks.

Do not do anything that might damage the power cord. When disconnecting the power cord, hold the plug, not the cord.

Do not make any modifications to, place heavy objects on, place near hot objects, heat, bend, twist or forcefully pull the power cord. Doing so may cause damage to the power cord which can cause fire or electric shock. If damage to the cord is suspected, have it repaired at an Authorized Service Center.

If problems occur during use

If a problem occurs (such as no picture or no sound), or if smoke or an abnormal odor is detected from the Plasma TV, unplug the power cord immediately.

Continued use of the TV under these conditions might cause

fire or permanent damage to the unit. Have the TV evaluated at an Authorized Service Center. Servicing of the TV by any unauthorized personnel is strongly discouraged due to its high voltage dangerous nature.

If water or foreign objects get inside the Plasma TV, if the Plasma TV is dropped, or if the cabinet becomes damaged, disconnect the power cord plug immediately.

A short may occur, which could cause fire. Contact an

Authorized Service Center for any repairs that need to be made.

Do not cover the ventilation holes.

Doing so may cause the Plasma TV to overheat, which can

cause fire or damage to the Plasma TV.

Leave a space of 3 15/16” (10 cm) or more at the top, left and right, and 2 3/4” (7 cm) or more at the rear. When using the pedestal, keep the space between the bottom of the TV and the floor surface.

When using the Plasma TV

Be sure to disconnect all cables before moving the Plasma TV.

Moving the TV with its cables attached might damage the

cables which, in turn, can cause fire or electric shock.

Disconnect the power plug from the wall outlet as a safety precaution before carrying out any cleaning.

Electric shocks can result if this is not done.

Clean the power cord plug regularly to prevent it from becoming dusty.

Built-up dust on the power cord plug can increase humidity

which might damage the insulation and cause fire. Unplug the cord from the wall outlet and clean it with a dry cloth.

This Plasma TV radiates infrared rays; therefore, it may affect other infrared communication equipment. Install your infrared sensor in a place away from direct or reflected light from your Plasma TV. Do not climb up onto the television or use it as a step. (Young children should be made particularly aware of this caution.)

If the unit falls over or becomes damaged through misuse,

injury may result.

The TV will still consume some power as long as the power cord is inserted into the wall outlet.

CAUTION

Notes

Do not display a still picture for a long time

This causes the image to remain on the plasma screen (“Image retention”). This is not considered a malfunction and is not covered by the warranty.

Typical still images

Channel number and other logos

•

Image displayed in 4:3 mode

•

SD Card photo • Video game • Computer image

•

4 : 3

Set up

■

Do not place the unit where it’s exposed to sunlight or other

bright light (including reflections).

Use of some types of fluorescent lighting may reduce the remote

control’s transmission range.

To prevent “Image retention”, the screen saver is automatically activated after a few minutes if no signals are sent or no operations are performed. (p. 61)

Accessories/Optional Accessory

Accessories

Check you have all the items shown.

Accessories

Remote Control Transmitter

N2QAYB000217

AC cord Pedestal

TBLX0032

Operating Instructions Quick Setup Guide

(For viewing HD programming)

Optional Accessory

Wall-hanging bracket

(vertical)

TY-WK42PV4W

(angle)

TY-WK42PR4W

Remote Control Transmitter (2)

AA Battery

How to assemble (p.7)

Product Registration Card (U.S.A.) Customer Care Plan Card (U.S.A.) RS232C terminal Specifications

Note

In order to maintain the TV’s performance and

safety, be absolutely sure to ask your dealer or a licensed contractor to secure the wall-hanging brackets.

Carefully read the instructions accompanying the

plasma TV stand or pedestal, and be absolutely sure to take steps to prevent the TV from tipping over.

Handle the TV carefully during installation since

subjecting it to impact or other forces may cause its panel to crack.

Cable clamper Batteries for the

Cleaning cloth

Hook

Open

Installing the remote’s batteries

•

Note the correct polarity (+ or -).

Caution

Incorrect installation may cause battery leakage and corrosion, resulting in damage to the remote control.

Do not mix old and new batteries. Do not mix different battery types (such as alkaline and manganese batteries). Do not use rechargeable (Ni-Cd) batteries.

Do not burn or break batteries. Make a note of the remote control

codes before changing batteries in case the codes are reset. (p. 47)

Attaching the pedestal to TV

Assembling the pedestal

■

Fix securely with assembly screws A. (Total 4 screws) Tighten screws firmly.

View from above

When this hole is aligned with the center of the groove, the pedestal will be positioned at the center of its rotation.

Set-up

■

Carry out work on a horizontal and level surface. Align the pedestal with its center of rotation, referring to

“Assembling the pedestal,”

Tighten screws firmly.

Pole

Bottom view

Rear side

Base

Pole

Front

Accessories

Assembly screws (4 of each)

M5 x 18 (Silver)

M5 x 25 (Black)

Poles (2)



or R is printed at the

bottom of the poles.

Base (1)

Quick Start

Guide

Accessories/Optional Accessory

Arrow mark

Hole for pedestal installation

Pole

Warning

Do not disassemble or modify the pedestal.

Otherwise the TV may fall over and become damaged, and personal injury may result.

Caution

Do not use any other TV and displays.

Otherwise the TV may fall over and become damaged, and personal injury may result.

Do not use the pedestal if it becomes warped or damaged.

If you use the pedestal when it is damaged, personal injury may result. Contact your nearest Panasonic Dealer

immediately.

During set-up, make sure that all screws are securely tightened.

If sufficient care is not taken to ensure screws are properly tightened during assembly, the pedestal will not be

strong enough to support the TV, and it might fall over and become damaged, and personal injury may result.

Base

Fix securely with assembly screws B.

(Total 4 screws)

Accessories/Optional Accessory

(Continued)

Location

Adjust the plasma panel to your desired angle.

Note

Ensure that the pedestal does not hang over the edge of the base even if the TV swivels to the full rotation range. Do not place any objects or hands within the full rotation range.

(View from above)

a: 17.9 ” (453 mm)

c c

b: 20.2 ” (513 mm) c: 10˚

AC cord connection

To attach To remove

Keep pushing both side snaps

Insert it firmly until the tabs on both sides click into place.

Cable Binding Instructions

Do not bundle the RF cable and AC cord

together (could cause distorted image).

Fasten the cables with the Cable clamper as

necessary.

When using the options, follow the option’s

assembly manual to fix cables.

To attach

Cable clamper

To bundle

hooks

hole

Insert

Set

To remove

To loosen

knob

Snaps

Keep pushing both sides till they snap

Keep pushing the knob

Reference of connection

Antenna terminal Pin terminals HDMI terminal

Firmly tighten by hand.

greenbluered

green

Match colors of plugs and terminals. Insert firmly.

Insert firmly.

To connect antenna terminal and Cable Box

Basic Connection

Example 1

Cable TV

Connecting Antenna (To watch TV)

VHF/UHF Antenna

Cable TV

VHF/UHF Antenna

NTSC (National Television System Committee):

•

Conventional broadcasting ATSC (Advanced Television Systems Committee):

•

Digital TV Standards include digital high-definition television

(HDTV), standard-definition television (SDTV), data broadcasting, multi-channel surround-sound audio and interactive television.

Back of the TV

* See page 8

(AC cord connection)

AC 120 V

60 Hz

AC Cord (Connect after all the other connections.)

Quick Start

Guide

Basic Connection (Antenna + TV)

Accessories/Optional Accessory

(If no Cable Box) or

ANT OUTANT IN

Cable Box

Note

Not all cables and external equipment shown in this book are supplied with the TV. For the details of the external equipment’s connections, please refer to the operating manuals for the equipment. When disconnecting the power cord, be absolutely sure to disconnect the power cord plug from the wall outlet first. For additional assistance, visit us at: www.panasonic.com

Cable Box/Cable

You need to subscribe to a cable TV service to enjoy viewing their

•

programming. If using a Cable Box set the TV channel to CH3 or CH4 for regular cable.

•

You can enjoy high-definition programming by subscribing to a high-

•

definition cable Service. The connection for high-definition can be done with the use of HDMI or Component Video cable. (p. 12) To view high-definition programming select the correct video input. (p. 22)

•

www.panasonic.ca

To connect antenna terminal and DVD recorder or VCR

TO AUDIO AMP

COMPONENT

VIDEO IN

112

VIDEO

S VIDEO

AUDIO

PROG OUT

LRL

AUDIO

RS232C

HDMI 1 HDMI 2 HDMI 3

Basic Connection (Continued)

Example 2

Connecting DVD recorder (VCR) (To record/playback)

AV Equipment (e.g. DVD Recorder or VCR)

VHF/UHF Antenna

DVD Recorder

If this source has higher resolution through interlace or progressive signal, connection can be done with the use of Component Video or HDMI cable. (p. 12)

VCR

Connection can be done with the use of an RF cable and Composite Video/S Video cable. (p. 12)

VHF/UHF Antenna

Back of the TV

* See page 8

(AC cord connection)

AC 120 V

60 Hz

AC Cord

AUDIO

ANT OUTANT IN

(e.g. DVD Recorder or VCR)

AV Equipment

(with TV tuner)

Connecting TV and AV equipment

Please refer to

- D on p. 12

To connect antenna terminal and Satellite Receiver and DVD recorder or VCR

TO AUDIO AMP

COMPONENT

VIDEO IN

112

VIDEO

S VIDEO

AUDIO

PROG OUT

LRL

AUDIO

RS232C

HDMI 1 HDMI 2 HDMI 3

Example 3

Connecting DVD recorder (VCR) and satellite receiver

DVD Recorder

VCR

Satellite

Receiver

VHF/UHF Antenna

You can enjoy high-definition programming by subscribing to high-definition satellite service. Connection can be done with the use of HDMI or Component Video cable. (p. 12)

Guide

VHF/UHF Antenna

AC 120 V

60 Hz

AC Cord

Back of the TV

* See page 8

(AC cord connection)

Quick Start

Basic Connection (TV + DVD Recorder or VCR + Satellite Receiver)

AUDIO

ANT IN

Satellite Receiver DVD Recorder or VCR

ANT OUTANT IN

(with TV tuner)

Connecting TV and AV equipment

Please refer to

- D on p. 12.

Note

For details of external equipment connections, please refer to the operating manuals for the equipment.

(TV + DVD Recorder or VCR)

High-Definition

Standard-Definition

Basic Connection (Continued)

AUDIO

COMPONENT

AUDIO

TO AUDI

VIDEO IN

S VIDEO

PROG

LRL

TO AUDI

S VIDEO

AUDIO

TO AUDI

VIDEO IN

PROG

LRL

TO AUDI

AV cable connections

To use HDMI terminals

HDMI 1 HDMI 2 HDMI 3

Connecting to HDMI terminals will enable you to enjoy high-definition digital images and high-quality

sound.

For “VIERA LinkTM connections”, please refer to p. 49.

To use COMPONENT terminals

green

blue

red

white

red

green

white

green

blue

red

blue

red

white

red

HDMI AV OUT

COMPONENT VIDEO OUT

AUDIO OUT

AV Equipment

e.g. Blu-ray Disc player

AV Equipment

e.g. Blu-ray Disc player

Recorders may also be connected to COMPOSITE or S VIDEO terminals. (see below)

To use S VIDEO terminals

To use COMPOSITE terminals

The S Video input will override the composite video signal when S Video cable is connected. Connect

either S Video or Video cable.

Connecting to S VIDEO terminals will enable you to enjoy greater picture quality than using Composite

terminals.

white

red

yellow

white

red

white

red

yellow

white

red

white

red

yellow

white

red

S VIDEO OUT

AUDIO

OUT

COMPOSITE OUT

AV Equipment

e.g. DVD Recorder

e.g. VCR

AV Equipment

e.g. DVD Recorder

e.g. VCR

Note

Some programs contain a copyright protection signal to prevent recording.

When the copyright protection program is displayed, do not connect the other TV monitor through a VCR. Video signals fed through VCRs may be affected by copyright protection systems and the picture will be distorted on the other TV monitor.

For the details of the external equipment’s connections, please refer to the operating manuals for this equipment.

Identifying Controls

TV controls/indicators

Front of the TV

Displays the Main menu.

Chooses menu and submenu entries.

HDMI input 4 connector

SD CARD

Selects channels in sequence

POWER button

Note

The TV consumes a limited amount of power as long as the power cord is inserted into the wall outlet.

C.A.T.S. sensor Plasma C.A.T.S. (Contrast Automatic Tracking System). (p. 28)

Remote control sensor Within about 23 feet (7 meters) in front

Power indicator (on: red, off: no light)

of the TV set.

Volume up/down

Swing up the door at “▲” .

Video Input 2 connector

Remote control

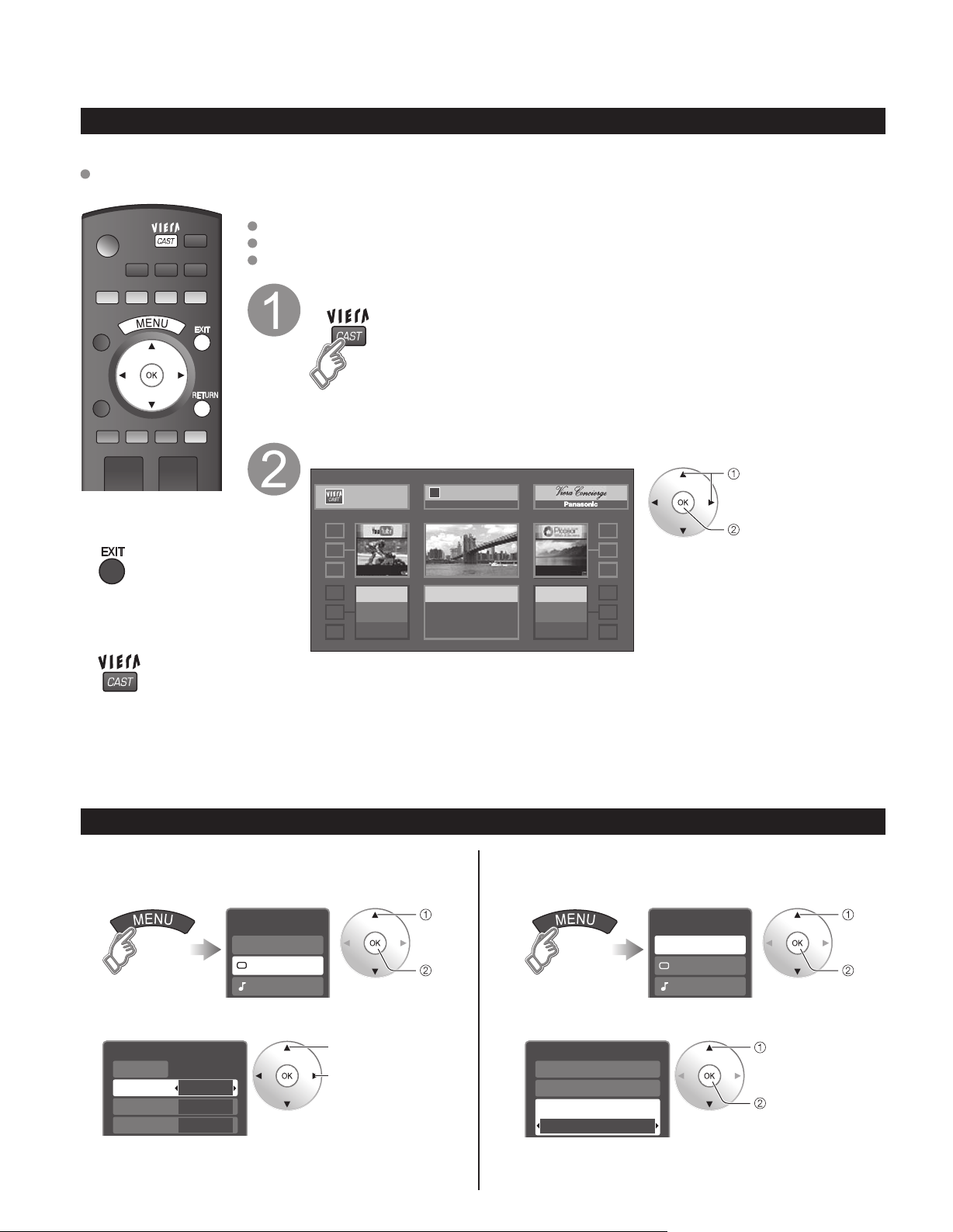

Displays VIERA CAST screen (Home screen)

Switches TV On or Off (Standby) Viewing from SD Card (p. 18-21) The equipment (Remote control mode)

selection button (p. 22) Press LIGHT to make the selected mode button flash three times.

Changes the input mode (p. 22)

Displays Sub Menu (p. 16, 30) Colored buttons

(used for various functions) (for example p. 18, 34)

Channel up/down Press LIGHT to light for 5 seconds.

Changes aspect ratio (p. 17)

Operates the Favorite channel list function. (p. 17)

SUB

(p. 26) Selects Audio Mode for TV viewing (p. 16)

VIERA Link menu (p. 34-35) Lights the CH and VOL buttons for 5

seconds. Makes the selected remote control mode key (TV, VCR, DBS/CBL or DVD) flash three times. Press again to turn off the CH and VOL button lights.

Displays Main Menu (p. 28) Exits from menu screen Selects/OK/Change Returns to previous menu Volume up/down

Press LIGHT to light for 5 seconds. Displays or removes the channel banner (p. 16)

Sound mute On/Off Numeric keypad to select any channel

(p. 16) or press to enter alphanumeric input in menus. (p. 22, 40, 42, 46, 47)

SD card slotChanges the input mode

Quick Start

Guide

Identifying Controls

Basic Connection (AV cable connections)

Switches to previously viewed channel or input modes.

External equipment operations (VCRs, DVDs, etc.) (p. 22)

Direct channel access for DTV and DBS (p. 16)

Switches to input terminal that has “GAME” label.

First Time Setup

“First time setup” is displayed only when the TV is turned on for the first time after the power cord is inserted into a wall outlet and when “Auto power on” (p. 30-31) is set to “No”.

Press to exit from

■

a menu screen

Press to return

■

to the previous screen

Note

To change setting

(Language/ Auto program/ Network setting/ VIERA CAST setting/ Clock) later, go to Menu screen (p. 30)

Turn the TV On with the POWER button

POWER

(Remote)(TV)

* This setting will be skipped next time if you select “Home”.

Select your language

Language

English Español Français

select

Be sure to select “Home”

Please select your viewing environment.

Home Store

Please confirm your selection (Home) before pressing OK button.

If you select “Store” by mistake in , confirmation screen will be displayed.

■

You are selecting the mode for store demonstration

Yes No

Select “No” and return to previous screen . If you select “Yes”, Screen enters store demonstration mode. Displays “Please

select your viewing environment” screen once again as shown below.

Reselect “Home”.

• Unplug the TV and plug it again.

• Press and hold down the front POWER button.

select

Auto channel setup

Select “Auto program”

First time setup

Language

Auto program

Network setting VIERA CAST setting Clock

Select “ANT in”

Program channel

ANT in

Auto

Cable

Select “Auto”

Program channel

ANT in

Auto

Cable

select

ANT in

Cable: Cable TV Antenna: Antenna

Select scanning mode (ALL channels/Analog only/Digital only)

Auto program

All channels

Analog only Digital only

select

Auto program

Progress

Number of analog channels Number of digital channels

Press RETURN to quit.

RETURN

Start scanning the channels

Available channels (analog/digital) are automatically set.

All channels: Scans digital and analog channels Analog only: Scans Analog channels only Digital only: Scans Digital channels only

Confirm registered channels

rogram

Apply Cancel

aption Favorite Add

. . .

...

Yes

...

Yes

...

Yes

If OK is not pressed after selecting “Apply”, the channels will not be saved.

The channel will be saved when no operation is performed for 60 seconds and

the “Manual program” menu will also exit automatically.

If you perform scanning more than twice, previously saved channels are erased.

select “Apply”

Network setting/VIERA CAST setting

First time setup

Language Auto program

Network setting VIERA CAST setting

Clock

Network setting (p. 36-37) VIERA CAST setting (p. 38-39)

select

Quick Start

Guide

First Time Setup

Press to exit from

■

a menu screen

Note

About broadcasting

systems

Analog (NTSC): Conventional

broadcasting

Digital (ATSC): New programming

that allows you to view more channels featuring high-quality video and sound

Adjust the clock

First time setup

Language Auto program Network setting VIERA CAST setting

Clock

Manual setting

Clock

Mode

Year Month Day Hour Minute

Auto setting

Clock

Mode

Timezone DST

Manual

2008

1 7

10 AM

2008/ 6/11 8:07AM

Auto

Est

select

set select

item

Mode

Manual: Adjust the clock manually

(Year/Month/Day/Hour/Minute)

Auto:

The clock is adjusted automatically via Internet service. Only available when the TV is on a network.

Set “Network setting” and

“VIERA CAST setting” first.

(Time zone/DST)

Year

Month

Day

Hour

Minute

Select the year Select the month Select the day Adjust the hour Adjust the minute

Time zone

Select your time zone.

(EST/CST/MST/PST/AKST/ HST/NST/AST)

DST

Set DST (Daylight Saving Time) setting. (On/Off)

On:

Advances the clock one hour from the time is set according to the time zone.

Watching TV

Listen with SAP (Secondary Audio Program)

■

Select Audio Mode for watching TV

Digital mode

Press SAP to select the next audio track (if available) when receiving a digital channel.

Analog mode

Press SAP to select the desired audio mode.

• Each press of SAP will change the audio mode. (Stereo/SAP/Mono)

Display the SUB MENU

■

Press SUB MENU to show sub menu screen. (p. 30)

This menu consists of shortcuts to convenient functions.

Information Recall

■

Displays or removes the channel banner.

Channel

Station identifier

SAP indication

Signal resolution

Rating Level

Picture mode

Sleep timer remaining time

Aspect ratio

Closed caption

Clock

Connect the TV to a cable box/cable, set-top-box, satellite box, or antenna cable (p. 9-12)

To watch TV and other functions

Turn power on

SUB MENU

POWER

(TV)

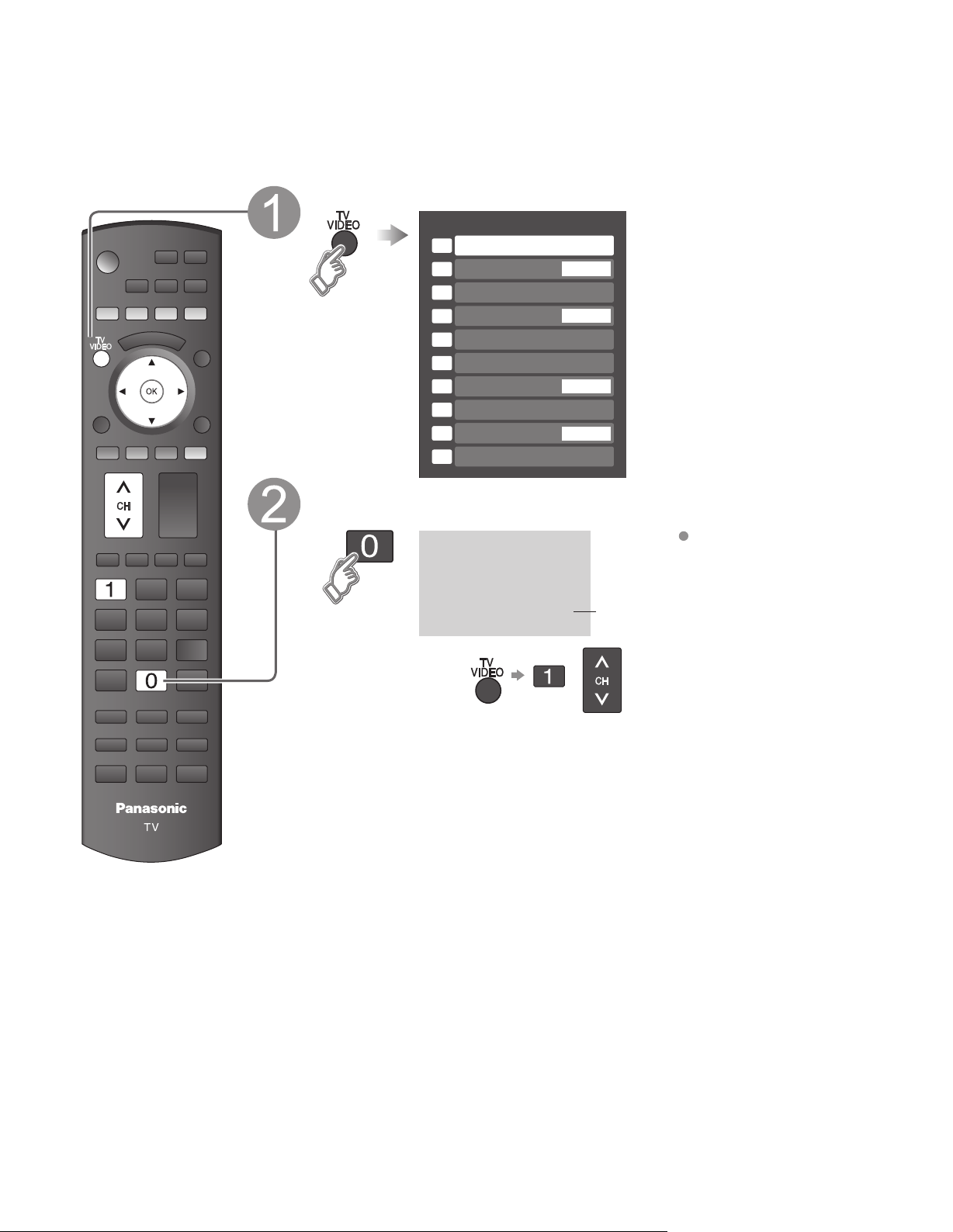

Select a channel number

down

(TV)

Note

If the mode is not TV, press and select TV.

(p. 22)

To directly input the digital

■

channel number

When tuning to a digital channel, press the button to enter the minor number in a compound channel number.

example: CH15-1:

Other Useful Functions (Operate after )

■

Audio track 1 of 2

SUB

(English)

Setup SUB MENU

Surf mode

All

Set favorite CC Caption select Signal meter

Off

15-2 12:30 PM ABC-HD

THE NEWS

CC SAP

TV-G 1080i Standard 4:3

Set favorite 1/3

1 2 3

---

Set favorite 1/3

1 2 3 4

Note

Change aspect ratio

■

Press FORMAT to cycle through the aspect modes. (p. 54)

• 480i, 480p: FULL/JUST/4:3/ZOOM

• 1080p, 1080i, 720p: FULL/H-FILL/JUST/4:3/ZOOM

Call up a favorite channel

■

FAVORITE

Channel numbers registered in Favorite are displayed on the favorite tune

screen. Select the desired broadcast station with the cursor or use number buttons. (see below)

Favorite channels

1/3

1 2 3 4

Reselect “Cable” or “Antenna” in “ANT in” of “Program channel” to switch the signal reception between cable TV

and antenna. (p. 15, 43)

The channel number and volume level remain the same even after the TV is turned off.

Favorite Feature

Set Favorite Feature

■

Display the SUB MENU.

SUB

Setup SUB MENU

Surf mode

All

Set favorite

Caption select

Signal meter

Off

select

Setup SUB MENU

Surf mode

All

Set favorite CC Caption select Signal meter

“Set favorite”

• Press FAVORITE repeatedly to change between pages (1/3, 2/3, 3/3, or exit).

Press ▲▼to highlight a position on the list. Then, press OK to save the displayed channel in that position.

Off

select

Use Favorite Feature

■

26-1 ---

select

Viewing

Press FAVORITE.

• Press FAVORITE repeatedly to change between pages (1/3, 2/3, 3/3, or exit).

Watching TV

Press ▲▼ or a Numbered key (1-9 and 0) to highlight a channel on the list.

• Selecting a channel number from the list with the number button will display the channel directly.

Press OK to display the highlighted channel.

To delete a favorite channel

A saved channel can be removed from the list by holding

down OK while its position is highlighted.

To change the page

Pressing ◄ changes the page backward. Pressing ► changes the page forward.

26-1 - - -

• You can also use the NUMBER buttons (1-9 and 0) to select a list number (1-9 and 0). By doing so, the displayed channel will be saved on that list number without pressing OK.

Viewing from SD Card

SD CARD

SD Card

Insert the card Remove the card

Press in lightly

on SD Card, then release.

Compliant card type

(maximum capacity): SDHC Card (16 GB), SD Card (2 GB), miniSD Card (1 GB) (requiring miniSD Card adapter)

For cautions and details

on SD Cards (p. 55) Blue LED lights while SD Card is inserted if set “SD card LED” to “On” in Setup Menu (p. 30).

Label surface

Push until a click is heard

VIERA Link

Lock

SD card

You can view photos taken with a digital camera or digital video camera and saved on an SD card. (Media other than SD Cards may not be reproduced properly.)

Movie player

Insert the SD card and select “Play SD card now”

“SD card setting” will be displayed automatically each time an SD card is inserted

for the first time.

SD card setting

Play SD card automatically

Movie

Play SD card now

Play SD card automatically Movie: The video data plays automatically from next Photo: The photo data plays automatically from next

Select later

Off: The data can be played manually.

Set it to playback the data when SD card is inserted.

time. Go to P. 19 time. Go to P. 20

: “SD card” menu will be displayed from next

time. Go to

Press the SD key or select “SD card” on the Menu.

You can skip this step when “Play SD card now” is selected or other than “off”

(Movie/Photo/Select later) is set in “Play SD card automatically” setting.

Select the item.

SD card

Photo viewer

Press to return to TV

■

Press to exit from

■

a menu screen

Press to return

■

to the previous screen

Movie player

Note

No video signals can be output from PROG OUT terminal when playing the

movie.

This product is licensed under the AVC patent portfolio license for the personal and noncommercial use of a consumer to (i) encode video in compliance with the AVC Standard (“AVC Video”) and/or (ii) decode AVC Video that was encoded by a consumer engaged in a personal and non-commercial activity and/or was obtained from a video provider licensed to provide AVC Video. No license is granted or shall be implied for any other use. Additional information may be obtained from MPEG LA, LLC. See http://www.mpegla.com.

select

Photo viewer

Go to P. 20

Select the movie to be listed

Recording format (MPEG2/AVCHD)

Movie Viewer

Select OK

RETURN

No. Date and Time Duration

12/20/2007

10:26

1 2 3 4

6 7 8 9

01/17/2008 03/07/2008 04/24/2008 06/10/2008 08/19/2008 10/02/2008 10/13/2008 12/01/2008

14:25 07:25 09:25 11:34 10:25 12:25 14:25 16:25

00h16m35s 01h45m35s 00h05m35s 01h10m35s 00h05m27s 00h35m35s 00h12m35s 00h53m35s 01h24m35s

View

Navigation area

PLAY

00:00.14

PLAY

00:00.14

Pause

Play Search

RETURN

Stop

R YG B

Skip Skip

Movie Banner

Date and Time Duration

Date & Time

06/10/2007 11:34

Duration

00h05m27s

06/10/2007 11:34 00h05m27s

select

Pause

Play Search

RETURN

Stop

R YG B

Skip Skip

To display/hide banner

•

Movie information

Date and Time:

Date and time of recording are displayed.

Duration:

Recording time is displayed.

To display Navigation area

•

To hide Navigation area

•

To previous movie

•

To next movie

•

Viewing

Elapsed time of current movie

To adjust picture and audio/

■

To use VIERA Link function

Display “Movie menu”

Select the item

Movie menu

VIERA Link

Picture Audio

Adjust or set

Picture 1/2

Reset

Picture mode

Picture Brightness

example: Picture menu Picture menu/Audio menu VIERA Link (p. 28)

Vivid 0 0

select

select Adjust or set

Other settings

To confirm or change the current audio status

■

In or

Display “current audio status”

Each press of SAP will change the audio mode.

( If the movie has multiple audio signals.)

It may take several seconds to change the sound.

Viewing from SD Card

stereo

(Current audio status)

Viewing from SD Card (Continued)

SD CARD

Photo viewer

Follow direction in Movie player (P. 18)

Select the data to be viewed

Thumbnail view

Photo viewer

Total Information

No.

Pana0365 Date 01/01/2008 Pixel

1600x1200

Accessing

Select

R YG B

Slide show

Pana0365 Pana0366 Pana0367 Pana0368

Pana0369 Pana0370 Pana0371 Pana0372

Pana0373 Pana0374 Pana0375 Pana0376

RETURN

Navigation area

Accessing

select

view

Present status (While reading the data)

Accessing

Press to return to TV

■

Selected picture information is displayed. No.: Image number or file name is

displayed.

Date: Date of recording is displayed. Pixel: Display resolution is displayed.

Total number of images

Rotate Prev.

R YG B

Slide show

(to Slide show)

Next RETURN

Prev.

R YG B

Single

(to Single photo display)

Note

Depending on the JPEG format, “Information” contents may not be displayed

correctly. Refer to p. 55 (Data format for SD card browsing) for details.

View

Rotate 90 degrees (counter-clockwise) To next photo Rotate 90 degrees (clockwise)

To previous photo

Rotate Prev.

Next RETURN

R YG B

Slide show

Navigation area

Displays one at a time

To display/hide Navigation area

Pause Next

RETURN

Press to exit from

■

a menu screen

Press to return

■

to the previous screen

To change the view (slide show mode, adjusting images, etc.)

To set up the slide show mode

■

Display “Photo menu”

Select “Setup slide show”

Photo menu


Setup slide show

Select the item and adjust

Setup slide show

Disp. time

Repeat

Disp. time

Repeat

Note

For large image sizes, the display time will be longer

than the number of seconds set.

To stop in mid-cycle Press

You can set how many seconds each image is displayed in Slide show mode. (1-10/15/20/30/45/60/120 sec)

Turn the slide show Repeat function On or Off.

select

“Setup slide

show” ok

Select Adjust

To adjust picture

■

Display “Photo menu”

Select “picture”

Photo menu


Setup slide show

Select the item

Picture 1/2

Reset

Picture mode

Picture Brightness

Picture menu (p. 28)

Adjust or select

Picture 1/2

Reset

Picture mode

Picture Brightness

0 0

Vivid

select

“Picture”

select

Adjust or Select

Viewing

Viewing from SD Card

Viewing from a GalleryPlayer SD Card

You can view high-definition art and photography purchased on or downloaded to an SD card. GalleryPlayer provides pre-loaded SD cards with copy-protected imagery and images for download to your computer that can be saved on an SD card for display on your television.

GalleryPlayer images are available for a fee from GalleryPlayer, Inc.

Watching Videos and DVDs

If you have applicable equipment connected to the TV, you can easily watch videos and DVDs using the TV’s remote control.

Input Select

You can select the external equipment to access. To operate other manufacturers’ equipment, you need to register the code of the equipment. (p. 47)

With the connected equipment turned On

Display the Input select menu

Select the input mode

Input select

Component 1

Component 2

HDMI 1

HDMI 2

HDMI 3

HDMI 4

Video 1

Video 2

AUX

GAME

(example)

select

enter

Press corresponding NUMBER button on the remote control to select the input of your choice.

Select the input of your choice, then press OK.

During the selection, if no action

is taken for several seconds, the “Input select” menu disappears.

To return to TV

■

Note

For details, see

the manual of the connected equipment.

HDMI 1

GAME

Terminal Label

The terminal and label of the

connected equipment are displayed.

To label each of the inputs,

(example)

please refer to p. 45.

Note

The input label will be displayed on “Input select” screen if Input label is set on p. 45.

For front input terminals (HDMI 4/Video 2), “GAME” input label is set as default.

(Picture mode is set to “Game”, refer to p. 56.) For more details for picture mode setting, refer to p.56. For Input label, refer to p. 45.

Press Game to switch to the game screen

■

Switches to Input terminal that has “GAME” label.

Cycle through the input terminals if there are multiple Input terminals that have “GAME” label. (p. 45)

If there is no Input terminal with “GAME” label,

you cannot switch the input terminal to any other

HDMI 1

HDMI 4

Video 2

GAME

input terminal than the one currently selected.

Select the remote control mode

Press the key to select

Operate the connected equipment, pointing TV’s remote control at the equipment.

VCR MODE DVD MODE

VCR Record Record

Rewind/Fast Forward

(For other operations, see p. 50)

Skip Reverse/ Forward

Reverse/Forward

VCR MODE DVD MODE

Stop Stop Pause Pause Play Play

(example)

VIERA Link

Setting

If you connect equipment that has “HDAVI Control” function to a TV with HDMI cable, you can use

VIERA Link

Lock

Setup

SD card CC

Setup 2/2

VIERA Link setting

Network setting About

more convenient functions. Please refer to p. 32-35. Before using these functions, you need to set “VIERA Link” setting to “On” as shown below.

Display menu

Select “Setup”

select

Select “VIERA Link setting”

select

Viewing

Press to exit from

■

a menu screen

Press to return

■

to the previous screen

Select “VIERA Link”

VIERA Link setting

VIERA Link

Power off link Power on link Default speakers

On Set Set

select

Select “On”

(default is On)

Now you can set each “VIERA Link” function according to your preference (p. 32-35)

Note

If no HDMI equipment is connected or standard HDMI equipment (non- “VIERA

Link”) is used, set it to “Off”.

For the details on the external equipment’s connections, please refer to the

operating manuals for the equipment.

change

Watching Videos and DVDs

Displaying PC Screen on TV

The screen of the PC connected to the unit can be displayed on the TV. You can also listen to PC sound with the audio cable connected. To connect PC (p. 48)

Display the Input select menu

Input select

AUX

GAME

Select “PC”

Component 1

Component 2 HDMI 1

HDMI 2

HDMI 3

HDMI 4

Video 1

Video 2

To return to TV /

■

Corresponding signals

(p. 57)

Displays PC screen

PC menu setting (change as desired)

■

Making settings “How to Use Menu Functions” to (p. 28)

Menu Item Adjustments/Configurations (options)

Reset Resets PC adjust


PC adjust

Sync

Dot clock

H-position

V-position

Clock phase

Input resolution

H & V: The H and V sync signals are input from the HD/VD connector. (p. 57) On G: Uses a synchronized signal on the Video G signal, which is input from the G

connector. (p. 57)

Alleviates the problem if a picture appears to be vertically-striped, flickers partially or is blurred.

Adjusts the horizontal position.

Adjusts the vertical position.

Alleviates the problem if the whole picture appears to flicker or is blurred. First adjust the Dot Clock to get the best possible picture, then adjust the Clock Phase so that a clear picture appears.

Note

It may not be possible to display a clear picture due to poor input signals.

Switches to wide display.

Input signal switched from VGA to WVGA Input signal switched from XGA to WXGA

Viewing

Displaying PC Screen on TV

Displays the H (Horizontal)/V (Vertical) frequencies.

H-frequency V-frequency

Display range

Horizontal: 15 - 110 kHz Vertical: 48 - 120 Hz

Audio menu (p. 28) For PC input, only audio signals can be output from PROG OUT terminals.

VIERA CAST

Operate VIERA CAST

You can access information services (TV content) from the Home screen via the Internet.

You need broadband environment to use this service.

Preparations

VIERA CAST connections (p. 27) Network setting (p. 36) VIERA CAST setting (p. 38)

Display the Home screen

Select the item and press OK

The

H: -- °

Press to exit from

■

a menu screen

Settings

Weather Channel

L: 40°

44°

select

view

Press to return to

■

the Home screen

This screen is an example. It varies according to the usage conditions. * Depending on the usage conditions, it may take a while to read all the data.

To adjust picture and audio

■

Display “Menu” and select “picture” or “Audio”

VIERA Link


Audio

Select the item and adjust

Picture 1/2

Reset

Picture mode

Picture Brightness

example: Picture menu Picture menu/Audio menu (p. 28)

Vivid 0 0

select Adjust

COMING

SOON

Bloomberg

TELEVISION

Stocks

Other settings

To use VIERA Link function

■

Display “Menu” and select “VIERA Link”

select

Select the item and set

VIERA Link (p. 28, 34)

COMING

SOON

VIERA Link

Record now Stop recording

VIERA Link control

Recorder

VIERA Link

Picture Audio

select

set

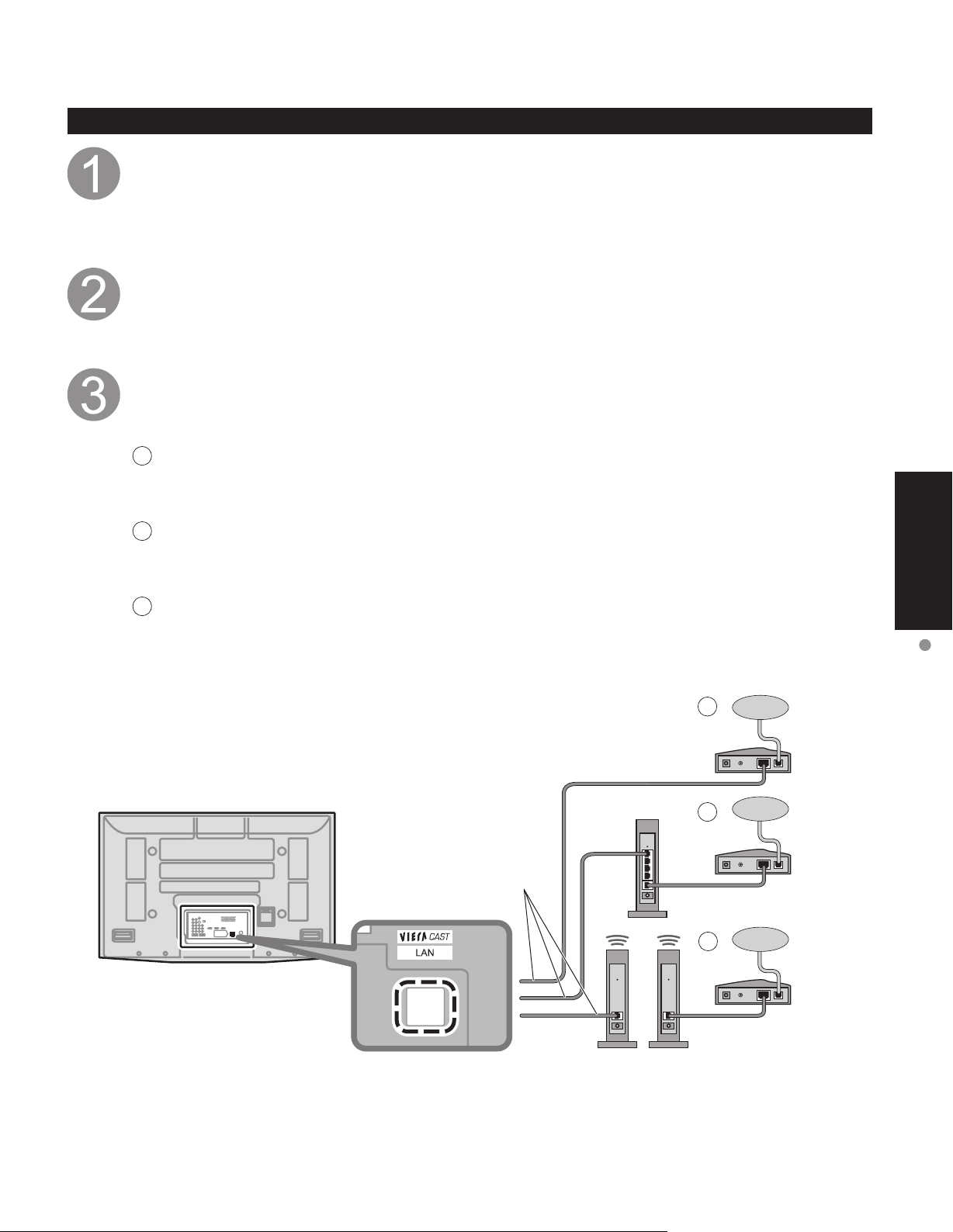

VIERA CAST connections

Contact your Broadband service provider

If you don’t have broadband service, please order the high-speed Internet service no less than

1.5 Mbps by your local broadband company. If you already have Internet high speed service, make sure that the connection speed is at least 1.5Mbps. Please note that dial-up Internet service cannot be used for the IPTV.

Select wired or wireless connection

If the Cable/DSL modem is close to the TV and you have only one TV set, you might choose wired connection. If the Cable/DSL modem is far from the TV and/or you have more TV’s in the house, you might want to use wireless network.

Connecting to the internet

Basic connection

If you are not using the network for connecting anything else but the TV, you could just connect the TV directly to the Cable/DSL Ethernet connection (see schematic below).

Advanced wired connection

If you are using the network for connecting many PC’s/Laptops and want to connect the TV, you should use a router to connect the TV to the internet (see schematic below).

Viewing

Advanced wireless connection

If you are using the network for connecting many PC’s/Laptops and want to connect the TV, you could also use a wireless router to connect the TV to the internet (see schematic below).

Internet

Cable/DSL modem

Router

Ethernet cable

Internet

Cable/DSL modem

Internet

Cable/DSL modem

VIERA CAST

Wireless Repeater

How to Use Menu Functions

Various menus allow you to make settings for the picture, sound, and other functions so that you can enjoy watching TV best suited for you.

Display menu

Displays the functions that can be set

(varies depending on the input signal)

Select the menu

VIERA Link


Audio Timer Lock SD card CC Setup

select

Select the item

select

Press to exit from

■

a menu screen

Picture 1/2

Reset

Picture mode

Picture Brightness Color Tint Sharpness

(example: Picture menu)

Vivid 0 0 0 0 0

Menu list

■

Menu Item

VIERA Link

Record now Stop recording VIERA Link control Speaker output

Reset Picture mode

Picture, Brightness, Color, Tint, Sharpness

Color temp. Color mgmt.

Digital cinema color C.A.T.S.

Pro setting


Zoom adjust PC adjust

Video NR 3D Y/C filter

Advanced picture

Color matrix Block NR

Mosquito NR Black level 3:2 pulldown

24p Direct in

HD size

Press to return

■

to the previous screen

Adjust or select

Picture 1/2

Reset

Picture mode

Picture Brightness Color Tint Sharpness

(example: Picture menu)

Vivid 0 0 0 0 0

adjust or select

Audio

Timer

Lock

Reset Bass Treble Balance

AI sound BBE VIVA 3D

Advanced audio

BBE Surround Audio leveler

Speaker output HDMI 1 in

HDMI 2 in HDMI 3 in HDMI 4 in

Sleep, Timer 1-5

Adjustments/Configurations (alternatives)

[Record now/Stop recording]

Records programs on the recorder immediately with the TV’s remote control (p. 34-35).

[VIERA Link control] Selects equipment to access and operate. (Recorder/Home theater/Player/Camcorder) (p.34-35) [Speaker output]

Selects an audio output. (Home theater/TV) (p. 34-35)

VIERA Link menu is accessible directly by pressing the VIERA Link button on the remote control. (p. 34)

•

Resets all picture adjustments to factory default settings except for “Advanced picture”. Basic picture mode (Vivid/Standard/Studio ref/Game/Custom) (p. 56)

Adjusts color, brightness, etc. for each picture mode to suit your taste

Display range

•

Picture/Brightness/Color/Sharpness: 0 - 100 Tint: -50 - +50

Picture Brightness Color

+20 0 0

Selects a choice of Cool (blue), Normal, or Warm (red) color. (Cool/Normal/Warm) On: Enhances green and blue color reproduction, especially outdoor scenes. (On/Off)

Auto

: Automatically adjusts the color gamut of the input image to the color gamut of the panel. On: Shows an expanded display of the input image color gamut. Off: Displays the color gamut of the input image as is. (Auto/On/Off)

Adjusts the brightness and gradation accordingly to optimize contrast. (Off/On) Adjust the “Picture mode” setting in more detail. (p. 56)

(This setting can be adjusted only when “Custom” or ”Photo” is selected.) Adjusts vertical alignment and size when aspect setting is “ZOOM” (p. 54)

Sets PC display (p. 24) Reduces noise, commonly called snow. Leave it off when receiving a strong signal. (Off/On) Minimizes noise and cross-color in the picture. (On/Off)

Selects image resolution of component-connected devices (HD/SD)

SD: Standard Definition HD: High Definition

•

Only 480p signal accepted; regular TV (NTSC) is not available.

•

Reduces noise of specific digital signals of DVD, STB, etc. (On/Off) Reduces HDTV flicker noise in the contoured sections of an image (Off/On) Selects Dark or Light. Valid only for external input signals. (Dark/Light) Transfers film to video. (On/Off)

48Hz: Achieves more cinematic playback by reproducing the movie contents at twice the speed of 24

frames per second. (60Hz/48Hz)

Selects between 95 % (Size 1) or 100 % (Size 2) for the scanning area with High-definition signal. (Size 1/ Size 2) Select “Size 1” if noise is generated on the edges of the screen.

Size 1: Selected item for “HD size”. Scanning 95%

•

Size 2: Selected item for “HD size”. Scanning 100%

•

Resets Bass, Treble and Balance adjustments to factory default settings. Increases or decreases the bass response. Increases or decreases the treble response. Emphasizes the left / right speaker volume. Equalizes overall volume levels across all channels and external inputs. (On/Off)

BBE ViVA HD3D (High-Definition 3D) Sound provides musically accurate natural 3D image with Hi-Fi sound. The clarity of the sound is improved by BBE while the width, depth and height of sound image are expanded by BBE’s proprietary 3D sound process. BBE ViVA HD3D Sound is compatible with all TV programs including news, music, dramas, movies, sports and electronic games. (On/Off)

BBE High Definition Sound restores clarity and presence for better speech intelligibility and musical realism. (On/Off) Enhances audio response when listening to stereo. (On/Off) Minimizes volume disparity after switching to external inputs

Switch to “Off” when using external speakers (On/Off)

“AI sound”, “Surround”, and “Audio leveler” do not work if “Off” is selected

•

The default setting is “Digital” for HDMI connection. (Digital input signal) Select audio input terminal when DVI cable is connected. (Analog audio input signal) (Digital/Component 1/Component 2/Video 1/Video 2/PC)

HDMI1 in HDMI2 in

Digital Digital

Reset

Picture mode Tint

Sharpness

Color temp.

Color mgmt.

Digital cinema color

C.A.T.S. Pro setting

Zoom adjust PC adjust Video NR 3D Y/C filter

Color matrix

Block NR Mosquito NR

Black level

3:2 pulldown 24p Direct in

HD size

Reset

Bass Treble

Balance AI sound

BBE VIVA 3D

BBE

Surround

Audio leveler

Speaker output

HDMI3 in HDMI4 in

Vivid

0 0

Cool

Auto

Light

60 Hz

Size1

0 0

Digital Digital

Off

Off On

Off

How to Use Menu Functions

(picture, sound quality, etc.)

Advanced

The TV can automatically turn On/Off at the designated date and time (p. 46) Locks the channels and programs (p. 40)

In AV mode, the Audio menu and Setup menu give fewer options.

Sleep

How to Use Menu Functions

Various menus allow you to make settings for the picture, sound, and other functions so that you can enjoy watching TV best suited for you.

Display menu

Displays the functions that can be set

(varies according to the input signal)

Select “Setup”

VIERA Link

Picture Audio Timer Lock SD card CC

Setup

select

Select the item

select

Press to exit from

■

a menu screen

Press to return

■

to the previous

screen

Setup 1/2

Surf mode

All

Language Clock Program channel External devices Anti image retention

Menu list

■

Menu Item

SD Card

SD card CC

Surf mode Language

Clock Program channel

External

devices

Input labels Monitor out

Anti Image retention

Pixel orbiter

Time Side bar Scrolling bar

VIERA Link setting

VIERA Link Power off link

Setup

Power on link

Default speakers Network setting VIERA CAST setting

Auto power on

Advanced setup

No signal shut-off

SUB

Display SubMenu

SUB

Select the item

Setup SUB MENU

Surf mode

All

Set favorite CC Caption select Signal meter

Off

select

set or next

No action shut-off

SD card LED

Play SD card automatically About Reset

Sub menu list

■

Menu Item

SUB MENU

Surf mode

Setup

Set favorite CC Caption select Signal meter

(Continued)

Adjustments/Configurations (alternatives)

[Photo viewer] To view the still picture. (p. 20) [Movie player] To view moving pictures recorded in MPEG 2 or AVCHD format. (p. 18)

Displays subtitles (Closed Caption) (p. 44) Sets the mode to select the channel with Channel up/down button (All/Favorite/Digital only/Analog only)

Favorite: Only channels registered as FAVORITE (p. 17)

•

Selects the screen menu language (p. 14) Adjusts the clock (p. 14) Sets channels (p. 42) Selects the terminal and label of the external equipment (p. 45)

[Component 1/Component 2/HDMI 1/HDMI 2/HDMI 3/HDMI 4/Video 1/Video 2]

To prevent howling and image oscillation, stops output of the pictures and audio specified in this menu. (p. 45) (On/Off) Prevents “Image retention” with Wobbling. (Automatic/Force)

Automatic: Shifts the display image automatically.

•

Force:

•

Sets the time for “Pixel orbiter-Force” setting. (1/2/3/4) Change the brightness of the side bar (Off/Dark/Mid/Bright) (4:3 mode only)

The recommended setting is “Bright” to prevent panel “Image retention”. (p. 58)

•

Press “OK” to start “Scrolling” on the screen (p. 58) Controls equipment connected to HDMI terminals (p. 32) (On/Off)

“Power off link”, “Power on link”, and “Default speakers” cannot be selected if “Off” is set.

•

Sets “Power off link” of HDMI connection equipment (p. 32) (Set/No) Sets “Power on link” of HDMI connection equipment (p. 32) (Set/No) Selects the default speakers (p. 32) (TV/Theater)

Sets Network setting (p. 36)

Shifts the display image every (1/2/3/4) minutes according to what was set in the “Time” menu.

SD card

Surf mode

Language Clock Program channel

Pixel orbiter

Time

Side bar

Scrolling bar

VIERA Link

Power off link Power on link Default speakers Network setting

Automatic

All

How to Use Menu Functions

(picture, sound quality, etc.)

Bright

Set

Sets VIERA CAST setting (p. 38) Turns TV On automatically when the cable box or a connected device is turned On (No/Set)

The “Sleep” timer, “On / Off timer”, and “First time setup” will not function if “Auto power on” is set. (p. 46)

•

To conserve energy, the TV automatically turns off when NO SIGNAL and NO OPERATION is performed for more than 10 minutes. (Set/No)

Note

Not in use when setting “Auto power on”, “On/Off Timer”, “Lock”, “SD Mode”, or Digital channel.

•

“No signal shut-off was activated” will be displayed for about 10 seconds when the TV is turned on for

•

the first time after turning the power off by “No signal shut-off”. The on-screen display will flash 3, 2 and 1 to indicate the last three (3) remaining minutes prior to the shut-off.

•

To conserve energy, the TV automatically turns off when no operation of remote or front panel key continues for more than 3 hours. (No/Set)

Note

Not in use when setting “Auto power on” or “On/Off Timer” or PC input display.

•

“No action shut-off was activated” will be displayed for about 10 seconds when the TV is turned on for

•

the first time after turning the power off by “No action shut off”. The on-screen display will flash 3, 2 and 1 to indicate the last three (3) remaining minutes prior to the shut-off.

•

Set to “On”, if you light SD card LED while SD card is inserted. (On/Off ) Set “On” to play back SD cards automatically. (Movie/Photo/Off/Select later) Displays TV version and software license. Performing Reset will clear all items set with Setup, such as channel settings. (p. 42)

Adjustments/Configurations (alternatives)

Sets the mode to select the channel with Channel up/down button (All/Favorite/Digital only/Analog only) Sets favorite channels. (p. 17) Displays Closed Caption. (p. 44) (Off/On) Changes the station identifier. (p. 43) Checks the signal strength if interference or freezing occurs on a digital image. (p. 43)

VIERA CAST setting

Auto power on

No signal shut-off

No action shut-off

SD card LED

Play SD card automatically

About

Reset

Set

Movie

Advanced

VIERA Link

Automatic Input Switching

Power on link

Power off link

Default speakers

One-touch theater playback

Providing the setting information

(for “HDAVI Control 3”)

Automatic lip-sync function

(for “HDAVI Control 3”)

VIERA LinkTM is a new name for EZ Sync Enjoy additional HDMI Inter-Operability with Panasonic products which have “HDAVI Control” function. This TV supports “HDAVI Control 3” function. Connections to some Panasonic equipment (DVD recorder DIGA, HD Camcorder, Player theatre, RAM theater, Amplifier, etc.) with HDMI cables allow you to interface them automatically. The equipment with “HDAVI Control” function enables the following operations:

Automatic Input Switching (p. 33) Power on link (p. 33) Power off link (p. 33) Default speakers (p. 33) One-touch theater playback (p. 33) Speaker control (p. 35)

Equipment with the “HDAVI Control 2” (or more) function enables the following operations:

Providing the setting information (for “HDAVI Control 3”) (p. 33) Automatic lip-sync function (for “HDAVI Control 3”) (p. 33)

Direct TV Recording (for “HDAVI Control 3”) (p. 35) VIERA Link “HDAVI Control”, based on the control functions provided by HDMI which is an industry standard known as HDMI CEC (Consumer Electronics Control), is a unique function that we have developed and added. As such, its operation with other manufacturers’ equipment that supports HDMI CEC cannot be guaranteed. Please refer to the individual manuals for other manufacturers’ equipment supporting the VIERA Link function.

■

This function needs an HDMI compliant (fully wired) cable. Non-HDMI-compliant cables cannot be utilized. It is recommended that you use Panasonic’s HDMI cable. Recommended part number: RP-CDHG10 (3.3 ft/1.0 m), RP-CDHG15 (4.9 ft/1.5 m), RP-CDHG20 (6.6 ft/2.0 m),

* For more detail on the external equipment’s connections, please refer to the operating

“HDAVI Control

Simultaneously control all Panasonic “HDAVI Control” equipped components using one

button on one remote.

VIERA Link control only with the TV’s remote control (for “HDAVI Control 2” or “HDAVI Control 3”) (P. 35)

For the first time / When adding new equipment, reconnecting equipment or changing the setup after the connection, turn the equipment on and then switch the TV on. Select the input mode to HDMI1, HDMI2, HDMI3 or HDMI4 (p. 22), and make sure that an image is displayed correctly. HDMI cable

RP-CDHG30 (9.8 ft/3.0 m), RP-CDHG50 (16.4 ft/5.0 m) manuals for the equipment.

”

Press to exit from

■

a menu screen

Press to return

■

to the previous screen

Follow direction - in “VIERA Link setting” (p. 23)

Select settings

VIERA Link setting

VIERA Link Power off link Power on link

Default speakers

On Set Set

select

Set

VIERA Link setting

VIERA Link Power off link Power on link

Default speakers

On Set Set

Theater

change

At the start of the DIGA, Player theater, or RAM theater playback, the TV’s input automatically switches to the input based on the playback equipment.

For the RAM theater, the speakers automatically switch to the theater system.

If using the DIGA operation, the TV’s input automatically switches to the DIGA and DIGA menu is displayed.

When “Set” is selected (p. 30), TV is turned on automatically and switches to the appropriate HDMI input whenever VIERA Link compatible equipment is initially turned on and Play mode is selected.

When “Set” is selected (p. 30) and the TV is turned off, all connected VIERA Link compatible equipment is also automatically turned off.

DIGA (Panasonic DVD Recorder) will not turn off if it is still in rec mode.

Caution: The TV remains on even if the VIERA Link compatible equipment is turned off. “TV” is the default setting. To set the Home Theater system as default speakers, change the default speakers

setting from “TV” to “Theater”. Sound will be output from the Home Theater whenever the TV is powered on. If the “ONE TOUCH PLAY” key is pressed on the remote control for Panasonic Home Theater system, the following

sequence of operations is performed automatically.

Home Theater power switches On, and playback begins. TV power switches On, and the playback screen is displayed. Audio is muted on the TV and switches to the theater system.

The following information about the TV settings can be transmitted to each equipment (Recorder/Home theater/ Player) that has “HDAVI Control 3” function connected to a TV with HDMI cable.

Transmittable data

Recorder

Home

theater

Player

On Screen Display Language setting

(English/Español/Français)

○○○

Panel Aspect Ratio

(16:9fixed)

○○○

Closed caption

information

mode

○

--- ---

CC type

○

--- ---

Digital setting

○

--- ---

Channel

information

Input signal

○

--- ---

Channel list

○

--- ---

Caption information

○

--- ---

Note

There is a possibility that all the GUI language information might be set from equipment that has HDMI CEC

function connected to TV with HDMI cable. Depending on operating conditions or the specification for each piece of equipment the setting may or may not be applied.

For details on the external equipment’s operation, please refer to the operating manuals for the equipment.

[For Recorder]

You cannot operate other functions while transmitting TV’s information above except Power On/Off key operation.

When you turn off this unit, the transmission will be interrupted (only when you are transmitting Channel information).

Minimizes lip-sync delays between the picture and audio when you connect to a Panasonic theater system or Amplifier.

VIERA Link

“HDAVI Control

”

Advanced

Speaker control

VIERA Link Control only with the TV’s remote control

(for “HDAVI Control 2” or “HDAVI Control 3”)

Direct TV Recording

(for HDAVI control 3)

VIERA Link

You can enjoy more convenient operation with the “HDAVI Control” function in the “VIERA Link” menu. For more details on the of “HDAVI Control” function, refer to p. 32

Display VIERA Link menu

SUB

“HDAVI Control

VIERA Link

Picture Audio Timer Lock SD card

”

Press to exit from

■

a menu screen

Press to return

■

to the previous screen

Select the item

Record now Stop recording

VIERA Link control

Recorder

Speaker output

Select

Record now Stop recording

VIERA Link control

Home theater

Speaker output

select

set or next

change

Set

(Continued)

You can select Home theater or TV speakers for audio output. Control theater speakers with the TV’s remote control. This function is available only when Panasonic Amplifier or Player theater is connected.

Select “Speaker output” Select “Home theater” or “TV”

■

Home theater: Adjustment for equipment

Volume up / down

Mute

The sound of the TV is muted. When the equipment is turned off, the TV speakers

take over.

Selecting “Home theater” turns the equipment on

automatically if it is in standby mode.

■

TV: The TV speakers are on.

select change

In the VIERA Link menu, you can select HDMI connected equipment and access it quickly. Continue using your TV’s remote control to operate the equipment, pointing it at the TV.

Select “VIERA Link Control” Select the equipment you want to access.

(Recorder/Home theater/Player/Camcorder)

■

Available TV’s remote control buttons

Move the cursor/Select

Set/Access

Return to the previous menu

Display the Functions menu on the equipment

Available when the purpose of the keys is displayed on screen

select change

You can select available items only.

Operate the equipment with the TV’s remote

control, pointing it at the TV.

To operate the equipment, read the manual of the

equipment.

Records the current program on the recorder immediately.

Select “Record now”

Select “Stop recording”, when you want to stop recording

select

set

select

set

For optimal recording, the settings of the recorder

might be required. For details, read the manual of the recorder.

Recording will not stop automatically when the program

is finished.

Record now Stop recording VIERA Link control

Recorder

Speaker output

VIERA Link

“HDAVI Control

Record now Stop recording

VIERA Link control

Recorder

Speaker output

Record now

Stop recording VIERA Link control

Recorder

Speaker output

SUB

Record now

Stop recording

VIERA Link control

Recorder

Speaker output

”

Advanced

Network Setting

Setup 2/2

VIERA Link setting

Network setting

VIERA CAST setting Advanced setup About Reset

Connection test

IP setting

• IP setting

mode

• IP address

• Sub netmask

• Default

gateway

DNS setting

• DNS setting

mode

• Primary DNS

• Secondary

DNS

Connection speed setting

• LAN speed

setting

• LAN speed

Software update

This is a setting for connecting to a broadband environment.

Display menu

Press to exit from

■

a menu screen

Press to return

■

to the previous screen

Select “Setup”

VIERA Link

Picture Audio Timer Lock SD card CC

Setup

Select “Network setting”

Select the item and adjust

Network setting 1/2

Connection test Succeeded

IP setting mode Automatic IP address 192.168.0.5 Sub netmask 255.255.255.0 Default gateway 192.168.0.254

select

set or next

select

select adjust

Network setting 2/2

DNS setting mode OK

Primary DNS 192.168.0.20 Secondary DNS 192.168.0.21 LAN speed setting Automatic LAN speed 10BASE half duplex Software update MAC address 12-34-56-78-80-ab

Automatic

Check that the network settings are as shown below, and then start “Connection test”.

Select “Connection test” and press OK.

Succeeded

: “Connection test” succeeded

Failed: Check the broadband environment connection

and settings and the network settings, and then perform the test again.

Test in progress

---: Test not yet performed

*Press OK again to cancel the test. (It takes a while to cancel the test.)

Network setting 1/2

Connection test Succeeded

IP setting mode Manual IP address 192.168.0.5 Sub netmask 255.255.255.0 Default gateway 192.168.0.254

select

Select “IP setting mode” and set to “Automatic”.

■

Manual setting

Select “IP setting mode” and set to “Manual”

Select the item and press OK Check the specifications of the broadband router and

enter each IP address.

(When IP automatic acquisition in DHCP can be used)

Network setting 1/2

Connection test Succeeded

IP setting mode Automatic

IP address 192.168.0.5 Sub netmask 255.255.255.0 Default gateway 192.168.0.254

The acquired address is displayed.

select

Sub netmask

change channel ok

Each IP address is acquired automatically.

Select “DNS setting mode” and set to “Automatic”.

(When DNS automatic acquisition in DHCP can be used)

Network setting 2/2

DNS setting mode OK

Primary DNS 192.168.0.20

Automatic

Secondary DNS 192.168.0.21

The acquired address is displayed.

select

Each IP address is acquired automatically.

If you are using a broadband router, IP automatic acquisition in DHCP can be used under normal circumstances. If you are not sure, check with the person who installed the equipment, or check the instructions of each device.

■

Manual setting

Select “DNS setting mode” and set to “Manual” Select the item and press OK Enter each IP address as was specified by the

provider.

Primary DNS 10

select ok

Select “LAN speed setting” (Default is “Automatic”)

Normally, select “Automatic”.

If “Connection test” failed, set the “LAN speed setting”

to “manual” and then select “10BASE half duplex”, “10BASE duplex”, “100BASE half duplex” or “100 BASE duplex”. Cannot be selected when the “LAN speed setting” is “Automatic”.

Changing the settings may make it impossible to

connect some types of equipment.

Network setting 2/2

DNS setting mode OK Primary DNS 192.168.0.20

Automatic

Secondary DNS 192.168.0.21

LAN speed setting Automatic

LAN speed 10BASE half duplex

select

adjust

Select “Software update” Press OK to start the software update screen.

Follow directions of the screen.

* Set “Clock” first. (p. 15)

Network setting 2/2

DNS setting mode OK Primary DNS 192.168.0.20

Automatic

Secondary DNS 192.168.0.21 LAN speed setting Automatic LAN speed 10BASE half duplex

Software update

select

Network Setting

Advanced

The network settings become effective when you close the menu and run “Connection test”.

VIERA CAST

Connection test

Proxy setting

• Proxy

address

• Proxy port

Entering characters

Display menu

Select “Setup”

VIERA Link

Picture Audio Timer Lock SD card CC

Setup

Setting

select

set or next

Press to exit from

■

a menu screen

Press to return

■

to the previous screen

Select “VIERA CAST setting”

Setup 2/2

VIERA Link setting Network setting

VIERA CAST setting

Advanced About Reset

select

Select the item and adjust

VIERA CAST setting

Proxy address

Proxy port 0 Connection test

---

select

Select “Connection test” and Press OK

VIERA CAST setting

Proxy address

Proxy port 0

---

Connection test

select

When a connection is made to the connection test site

and a message is displayed that indicates a successful connection

The settings are correct.

When the connection is not successful

An error message is displayed on the screen.

* Check the connection and settings. (p. 36-37, below)

If you perform the proxy settings, check the proxy address and the proxy port number.

Set only if specified by the provider. It is not required for normal household use.

■

Proxy address

This is the address of the relay server that is

connected to the target server instead of the browser and sends data to the browser.

Setting is only required if specified by the provider. Select “Proxy address” and Press OK

■

Proxy port

This number is specified by the provider together with

the proxy address.

Select “Proxy port” and Press OK. Enter the Port number.

Proxy port 0

select ok

VIERA CAST setting

Proxy address

Proxy port 0

---

Connection test

select

Enter address

(see “Entering characters” below)

Proxy address

prIo

Select “OK”

If you perform the proxy settings, it may make it impossible to view VIERA CAST movie content.

You can use the remote control key to enter the alphanumeric characters.

Select

RETURN

Y G

Delete ABC→123

1 @ . 2ABC 3DEF 4GHI 5 JKL 6MNO 7PQRS 8TUV 9WXYZ

0 - ,

LAST



Navigation area

Select

RETURN

Y G

Delete ABC→123

@ .2ABC3DEF

GHI5JKL6MNO

PQRS8TUV9WXYZ

- ,

LAST



Switches Input mode alphabet to numeric.

VIERA CAST setting

Proxy address

Proxy port 0

---

Connection test

Number of presses

123456789101112 1@./:~_1 1 2abcABC2 2 3def 3 4ghi 4 5jkl 5 6mno 6 7pqrs 7 8tuv 8 9wxyz 9 0-,;’”?!()&¥00

LAST Space

∗

- Space #

Characters are displayed as shown in following table.

VIERA CAST

Setting

Advanced

VIERA CAST setting will be effective when you close the menu or run “Connection test”.

Lock

You can lock specified channels or shows to prevent children from watching objectionable content.

Display menu

Select “Lock”

VIERA Link

Picture Audio Timer

Lock

SD card CC Setup

select

Input your 4-digit password

A 4-digit code must be entered to view a blocked program or change rating settings.

Create password Enter password.

----

You will be asked to enter your password each time you display the Lock menu.

If it is your first time entering the

password, enter the password twice in order to register it.

Press to exit from

■

a menu screen

Caution

Make a note of your

password in case you forget it. (If you have forgotten your password, consult your local dealer.)

Note

When you select a

locked channel, a message will be displayed that allows you to view the channel if you input

your password.

Select the Lock mode

Lock

Mode

Channel Game Program VIERA CAST Change password

Off Off Off Off Off

Select the item

Lock

Mode

Channel

Game Program VIERA CAST Change password

Custom

Off Off Off Off

set select

select

Off: Unlocks all the lock

settings of “Channel”, “Game”, “Program” and VIERA CAST.

All: Locks all the inputs

regardless of the lock settings of “Channel”, “Game”, “Program” and VIERA CAST.

Custom:

Locks specified inputs of “Channel”, ”Game”, “Program” and VIERA CAST.

“Channel”, ”Game”, “Program” and VIERA CAST will grey out unless “Custom” is selected in “Mode”.

set

Set

■

Channel lock

Select up to 7 (1-7) channels to be blocked. These channels will be blocked regardless of the program rating.

Select “Mode” and set to “Custom” Select channel to lock.

Channel lock

Mode

Channel 1 Channel 2 Channel 3

Custom

3 4

select

set

To lock/unlock all channels:

Select “Mode” and set to “All” or “Off”. All: Locks all channels

Off: Unlocks all channels

Game lock

Locks Channel 3, Channel 4 and external inputs.

Select “Game” in 5 and set to “On”.

select

set

On: Locks Off: Unlocks

Program lock

■

To set a rating level

“V-chip” technology enables restricted shows to be locked according to TV ratings.

Select “Mode” and set to “On”.

set select

Select the rating category you wish

to follow

select

MPAA: U.S movie ratings U.S.TV: U.S TV program ratings C.E.L.R.:Canadian English ratings C.F.L.R.: Canadian French ratings

Select the rating to be locked

select

Example of “MPAA” (U.S movie ratings)

NR No rating

G General Audience: All ages admitted

PG Parental Guidance Suggested

PG-13

Parents Strongly Cautioned: Inappropriate for children under 13

Restricted: Under 17 requires accompanying parent or adult guardian

NC-17 No one 17 and under admitted

X Adults only

To get more information (p. 53)

■

To disable recording of the locked program

Select “Monitor out” and set to “On”.

set select

VIERA CAST lock

Locks VIERA CAST. Select “VIERA CAST” in 5 and set to “On”. When you press VIERA CAST, the “VIERA CAST Lock” screen is displayed. Type the correct password to enter the Home screen.

select

set

On: Locks Off: Unlocks

Change password

■

To change the password

In , select “Change password” and

press OK

Input the new 4-digit password twice

Lock

Mode Channel Game Program

Off Off Off

VIERA CAST

Off

Change password

Change password Enter new password.

----

To select the channel or the rating of the program to be locked

Program lock

Mode

Monitor out MPAA U.S.TV C.E.L.R. C.F.L.R.

Program lock

Mode Monitor out

MPAA

U.S.TV C.E.L.R. C.F.L.R.

On On Off Off Off Off

Program lock

Mode

Monitor out

MPAA U.S.TV C.E.L.R. C.F.L.R.

On Off Off Off Off Off

Lock

Advanced

Note

This television is designed to support the “Downloadable U.S. Region Rating System” when available. (Available only in U.S.A.) The Off rating is independent of other ratings. When placing a lock on a specific-age-based-rating level, the Off rating and any other more restrictive ratings will

also be blocked.

Editing and Setting Channels

Auto

Set automatically

Manual

Set manually

Signal

meter

Check signal strength

The current channel settings can be changed according to your needs and reception conditions.

Display menu

Select “Setup”

VIERA Link

Picture Audio Timer Lock SD card CC

Setup

Select “Program channel”

Setup 1/2

Surf mode

All

Language Clock

Program channel

External devices Anti image retention

select

Press to exit from

■

a menu screen

Reset

Select the function

Program channel

ANT in

Auto

Manual Signal meter

Cable

Set

To reset the settings of setup menu

■

Select “Reset” in Setup menu ( ) and press OK Input your 4-digit password with number buttons

Select “YES” on the confirmation screen and press OK

select

Automatically searches and adds available channels to the memory.

Select “ANT in”

Select Cable or Antenna (p. 14)

Select “Auto”

select

Select a scanning mode (p. 15)

select

Settings are made automatically

After the scanning is completed, select “Apply”.

(see below ).

All previously saved channels are erased.

Use this procedure when changing the channel setup or changing the channel display. Also, use this to add or skip channels from channel list manually. You can select channel tuning mode (Digital only/Analog only) in “Surf mode”(p. 31)

Edit

Caption

select change set/next

Caption

Select the station identifier

Caption detail

Rename (maximum 7 characters available)

Favorite

Set favorite 1/3

1 2

select

Set favorite Select the number

Add

Press OK to select “Yes (add)” or “No (skip)”

Move cursor to channel number

Edit

Caption Favorite Add

Apply Cancel

Manual program

2 ...

...

Yes

3 ...

...

Yes

Cannnel

select Press OK to tune

to the channel.

Select “Apply”

Apply Cancel

...

Yes

select “Apply”

Select “Edit”

Edit

Cannnel

Caption Favorite Add

Apply Cancel

Manual program

2 ...

...

Yes

3 ...

...

Yes

4 ...

...

Yes

5 ...

...

Yes

select next

Select the item to be edited

Go back to previous page

Edit

Caption Favorite Add

Apply Cancel

Manual program

2 ...

...

Yes

Select

RETURN Prev. page

G B Y

3 ...

...

Yes

4 ...

...

Yes

5 ...

...

Yes

6 ...

...

Yes

7 ...

...

Yes

8 ...

...

Yes

9 ...

...

Yes

Cannnel

Caption

Favorite

Add

Proceed to next page

select the item to edit (Caption/Favorite/ Add)

•

Caption:

Changes the station identifier

•

Favorite:

Registers channel to Favorite

List

•

Add:

Adds or skips channels

To cancel the Edit

Edit

Caption Favorite Add

Apply Cancel

Manual program

2 ...

...

Yes

3 ...

...

Yes

4 ...

...

Yes

5 ...

...

Yes

Cannnel

select next

(returns to “Program

channel”) select “Yes”

Check the signal strength if interference is found or freezing occurs on a digital image.

Signal intensity

change channel ok

If the signal is weak, check the antenna.

If no problem is found, consult your local dealer.

Note

Not available if “Cable” is selected in “ANT in”

(see above).

Available only for digital antenna channels.

Program channel

ANT in

Auto

Manual

Cable

Auto program

All channels

Analog only Digital only

Signal meter

Caption select

Caption

Caption detail Apply Cancel

26-1 - - -

---

Changes will be lost. Continue?

Yes No

Editing and Setting Channels

Advanced

Signal meter

Channel

Signal strength

Current Peak level

If “Lock” (p. 40) is activated and “Program channel” is selected, “Enter password.” will be displayed.

1-1

30% 45%

Closed Caption

Display Closed Caption

The television includes a built-in decoder that is capable of providing a text display of the audio. The program being viewed must be transmitting Closed Caption (CC) information. (p.54)

■

Select the item and set

select set

Mode

Select “On” (when not using, select “Off”).

Analog

(Choose the Closed Caption service of Analog broadcasting.)

CC1-4: Information related to pictures

(Appears at bottom of screen)

T1-4: Textual information

(Appears over entire screen)

Digital

(The Digital Closed Caption menu lets you configure the way you choose to view the digital captioning.)

Select the setting.

“Primary”, “Second.”, “Service 3”, “Service

4”, “Service 5”, “Service 6”

The settings in “Analog” or “Digital”

depend on the broadcaster.

■

To make more in-depth display settings in digital programs

Select “Digital setting” and press OK Select the item and set

select set

Size: Text size Font: Text font Style: Text style (Raised, Depressed, etc.) Foreground: Color of text Fore opacity: Opacity of text Background: Color of text box Back opacity: Opacity of text box Outline: Outline color of text

(Identify the setting options on the screen.)

■

To reset the settings

Select “CC reset” and press OK

Display menu

Select “CC”

VIERA Link

Picture Audio Timer Lock

Press to exit from

■

a menu screen

SD card

Setup

select

Mode Analog

Digital

Digital setting CC reset

CC1

Primary

Digital setting

Size Font Style

Foreground

Fore opacity Background Back opacity Outline

Automatic Automatic Automatic Automatic Automatic Automatic Automatic Automatic

Input Labels/Monitor Out

Input labels

Display labels of external devices

Devices connected to external input terminals can be labeled for easier identification during input selection. (In selecting input mode from p. 22 )

■

Select the terminal and label of the external equipment

select set

Video 1

VCR

Label Terminal

[example]

Terminals: Comp. 1-2/HDMI 1-4/Video 1-2/PC Label: SKIP*/VCR/DVD/CABLE/DBS/PVR/GAME/AUX/

RECEIVER/[BLANK] For the PC terminal, only “SKIP” is available. * If “SKIP” is selected, the TV/VIDEO button press will skip its input.

Each selected label will be displayed on “Input select” screen.

(p. 22)

Monitor out

Stop output of the picture and audio

To prevent howling and image oscillation, stops output of the pictures and audio specified in this menu. (p. 31)

■

Select the terminal and set “Off”

Monitor out

Component 1 Component 2 HDMI 1 HDMI 2 HDMI 3

Video 2

On On On On

HDMI 4

Video 1

Off

select set

Select “Off” to stop output of picture and

audio. (Video 1/Video 2)

Component 1/Component 2/HDMI 1/HDMI

2/HDMI 3/HDMI 4 cannot output video signals regardless of “Monitor out” setting.

When equipment (STB, DVD, etc.) is

connected to HDMI, COMPONENT or PC terminals, no video signals can be passed through PROG OUT terminal.

VIERA Link

Lock

Setup

SD card CC

Display menu and select “Setup”

Select “External devices”

Setup 1/2

Surf mode

All

Language Clock Program channel

External devices

Anti image retention

select

Input Labels/Monitor Out

Closed Caption

Press to exit from

■

a menu screen

Select “Input labels” or “Monitor out”

External devices

Input labels

Monitor out

Input labels

Component 1

Component 2 HDMI 1 HDMI 2 HDMI 3 HDMI 4 Video 1 Video 2 PC

Custom Custom

3 4

GAME

select

Advanced

Using Timer

The TV can automatically turn On/Off at the designated date and time.

The Clock must be set before On time/Off time settings. (p. 15) The “Sleep” timer and “On / Off timer” will not work if the “Auto power on” (p. 31) is set.

Display menu

Select “Timer”

VIERA Link

Picture Audio

Timer

Lock SD card

Select the timer to set

Timer

Sleep

Timer 1 Timer 2 Timer 3 Timer 4 Timer 5

Sleep

Timer 1

Timer 5

select

Turns Off automatically Turns On/Off automatically

(5 timers can be set.)

Press to exit from

■

a menu screen

Press to return

■

to the previous screen

Note

The TV automatically

turns Off after 90 minutes when turned On by the Timer. This operation will be cancelled if the Off time is selected or if a key is pressed.

Set the timer

To set “Sleep” (Off Timer)

■

Set to shut the unit off after a pre-selected amount of time.

Sleep

To set “Timer 1-5” (On/Off Timer)

■

Select the item and set

Timer 1

Channel

Day On time Off time Set

310 - 1

EVR FRI 10:00 AM 11:00 AM

Channel

Day

SUN/MON/TUE/WED/THU/FRI/SAT (displays the nearest future date) MON-FRI/SAT-SUN/DAILY/EVR SUN/EVR MON/ EVR TUE/EVR WED/EVR THU/EVR FRI/ EVR SAT

On time Off time

Set

set

Select the channel Select the day

The time to turn On The time to turn Off Timer setting (On/Off)

0/30/60/90 (minutes)

select

set

Programming the Remote to Operate Peripheral Equipment

You can operate other manufacturers’ equipment using this TV’s remote control.

Connect the external equipment to the TV and

1 2

Power Off the external equipment

Press both buttons simultaneously for

more than 3 seconds.

Release the buttons when the equipment selection

•

buttons start flashing.

Select the equipment

with the equipment selection button

The selected button remains lit (other buttons are not lit).

•

Programming the Remote to Operate Peripheral Equipment

Input the equipment’s 4-digit remote

4 5

Press to return to the TV

■

mode

Caution

Registration will fail if the wrong code is input or it takes more than 30 seconds to register.

•

To find a code not listed in the code list

This procedure searches all codes and is called the “sequence method.”

control code

Operate the equipment with the remote control

The external equipment turns On.

•

If the equipment does not operate with the

■

remote control

•

Input the remote control code again

•

Change the code with above and test again

(p. 50)

When your equipment has a single code When your equipment has multiple codes

(p. 51-52)

Using Timer

Advanced

After step above, change the code and

test

change

Operate the equipment with the remote control (p. 50)

Repeat until the code is found

•

It may take many attempts before the correct

•

code is found

When the correct code is found

store

AUDIO

TO AUDIO AMP

COMPONENT

VIDEO IN

112

VIDEO

S VIDEO

AUDIO

PROG OUT

LRL

AUDIO

RS232C

HDMI 1 HDMI 2 HDMI 3

Recommended AV Connections

These diagrams show our recommendations or how to connect the TV unit to your various equipment. For other connections, consult the instructions for each piece of equipment and its specifications. For additional assistance, please visit our website at: www.panasonic.com

Front of the TV

Back of the TV

www.panasonic.ca

AC 120 V 60 Hz AC Cord

(Connect after all the other connections are complete.)

Cable TV

Cable Box

To watch

■

camcorder images

Camcorder

RGB

PC cable

VCR DVD Player

(For HDMI

connection, HDMI compatible equipment only. For connection

Conversion

adapter (if

necessary)

using HDMIDVI Conversion cable, see HDMI 1, HDMI 2 or HDMI 3 connection on this page.)

To watch DVDs

■

DVD Player/Set Top Box

Note

The picture and audio input signals connected to a

terminal specified in “Monitor out” (p. 45) cannot be output from “PROG OUT” terminals.

However, audio output can be obtained from “DIGITAL

AUDIO OUT” terminal.

To prevent howling and image oscillation, set the

“Monitor out” setting when connecting the VCR with loop-connection. (p. 30, 45)

When equipment (STB, DVD, etc.) is connected to

HDMI, COMPONENT or PC terminals, no video signals can be passed through PROG OUT terminal.

RS232C connection (Serial port)*

AUDIO cable (stereo mini)

Computer

Amplifier

To listen to the TV

■

through speakers

Optical digital audio cable

Audio cable

OPTICAL IN

To watch digital

■

video image

LAN connection (p. 27)

Connect with

HDMI cable

HDMI-DVI Conversion cable + Audio cable*

DVD Recorder /

■

VCR

DVD Player or Set Top Box (HDMI compatible machines only)

When receiving digital channel signals, all digital

formats are down-converted to composite NTSC video to be output through the PROG OUT terminals.

*1 Please see p. 28-29 for setup when using an external

analog audio cable with an HDMI to DVI cable.

• For details about the RS232C command, contact

Customer Care. (p.63, 64) Note that we only provide information in accordance with our disclosure rules.

• See “RS232C terminal Specification” sheet. (attached separately)

AUDIO

TO AUDIO AMP

COMPONENT

VIDEO IN

112

VIDEO

S VIDEO

AUDIO

PROG OUT

LRL

HDMI 1 HDMI 2 HDMI 3

VIERA LinkTM Connections

Follow the connection diagrams below for HDAVI control of a single piece of AV equipment such as a Panasonic DVD recorder (DIGA), RAM theater, or Player theater system. Refer to page 32-35 for Setup Menu settings and additional control information.

Optional HDMI and/or optical cables are not included.

•

If connection (or setting) of equipment compatible with HDAVI control is changed, switch the power of this unit Off and On again while the power of all equipment is On (so that the unit can correctly recognize the connected equipment) and check that DVD recorder (DIGA), RAM theater, and Player theater playback operate.

Note

HDMI 1 is recommended.

When connecting to HDMI 2/HDMI 3/HDMI 4, set the input mode to HDMI 2/HDMI 3/HDMI 4 (p. 22) initially before

connecting to HDMI 2/HDMI 3/HDMI 4. After connection, confirm the HDMI control functions (p. 32-35).

Connecting this unit to the DVD recorder (DIGA), RAM

■

theater, or Player theater

For DVD recorder (DIGA): Connect with HDMI cable

For RAM theater and Player theater: Connect with the HDMI and audio cables. If audio cable is not connected, you cannot listen to the TV program

Connecting this unit to a DVD

■

recorder (DIGA) and AV amp

When using an “VIERA Link” audio-

video amplifier and a compatible DVD recorder (DIGA) use a daisy chain connection as shown below.

through the theater system.

Digital Audio out

Recommended AV Connections

Back of the TV

or or

HDMI cable

AUDIO IN

Home Theater Systems with VIERA Link function

HDMI (AV OUT)

HD Camcorder with VIERA Link function

HDMI (AV OUT)

DVD recorder (DIGA) with VIERA Link function

HDMI (AV OUT)

AV amp with VIERA Link function

HDMI (AV IN)

DVD recorder (DIGA) with VIERA Link function

One AV amp and one DVD recorder (DIGA) can be operated with this unit.

Refer to the diagram above when connecting a DVD recorder/player and an AV amp to your Viera Television.

Setting of this unit after connection

■

After making connections as shown above, set “VIERA Link” (under “VIERA Link setting”) to “On” using the Setup

menu. (p. 23, 30-31).

Advanced

Note

Individual HDMI equipment may require additional menu settings specific to each model. Please refer to their

respective operating instruction manuals.

When audio from other equipment connected to this unit via HDMI is output using “DIGITAL AUDIO OUT” of this

unit, the system switches to 2CH audio.

(When connecting to an AV amp via HDMI, you can enjoy higher sound quality.)

For more details about HDMI cables for connecting a Panasonic HD camcorder, read the manual of the equipment.

Remote Control Operation/Code List

The following explains how to operate external devices with the TV’s remote control.

Register the remote control codes (p. 47) if you want to operate an external device from another manufacturer. (p. 51-52)

Note

Operation may not be possible depending on the available memory size of the remote control.

This remote control is not designed to cover operation of all functions of all models.

Remote Control Operation List

■

This chart defines which keys are operational after programming (if needed) while in the selected remote control mode, CABLE, DBS, VCR, or DVD.

KEY NAME VCR MODE

Power Power Power Power

TV Input Switch TV Input Switch TV Input Switch TV Input Switch

SUB

Channel Up/Down Channel Up/Down Channel Up/Down Channel Up/Down

DBS/CBL MODE

(DBS) (CBL)

LIST LIST DVD AUDIO

Menu Menu Functions

Exit Exit Up/Down/Left/Right Up/Down/Right/Left Up/Down/Right/Left

Select Select Enter

Guide Guide Sub Menu

PPV/VOD PPV/VOD Return Red A Red

Green B Green Blue C Blue Yellow D Yellow

DVD MODE

TV Volume Up/Down TV Volume Up/Down TV Volume Up/Down TV Volume Up/Down

Onscreen Display Info Info/Display/OSD Onscreen Display TV Mute TV Mute TV Mute TV Mute

0-9 0-9 0-9 0-9

TV/VCR Switch TV/DBS Switch TV/CBL Switch Rewind/Fast Forward Rewind/Fast Forward Rewind/Fast Forward Reverse/Forward VCR Record PVR Record *

Stop Stop Stop Stop

Pause Pause Pause Pause

Play Play Play Play

Aspect Aspect Favorite Favorite Direct Navigator

Last Channel Last Channel Drive Select Sub Channel Music PROG (Sub Channel) Page Down/Up Page Down/Up Skip Reverse/Forward

PVR Record *

Record

*1: Combination type

Remote Control Code List

■

Cable Converter (C) ( )

Brand Code Brand Code Brand Code Brand Code

ABC 0003, 0007, 0008 ADB 2092 Americast 0899 Amino 1602, 1822 Bell South 0899 Clearmaster 0883 ClearMax 0883 Contec 0019 Coolmax 0883 Digeo 1187 Director 0476 General Instrument 0003, 0276, 0476, 0810 GoldStar 0144 Hamlin 0009, 0273

Cable/PVR Combination (C) ( )

Americast 0899 Amino 1822 Digeo 1187 General Instrument 0810

Satellite Receiver (S) ( )

AlphaStar 0772 Bell ExpressVu 0775, 1170 Chaparral 0216 Coolsat 1806 Crossdigital 1109 DirecTV 0099, 0247, 0392, 0566, 0639, 0724,

Dish Network System 0775, 1005, 1170, 1505, 1775 Dishpro 0775, 1005, 1505, 1775 Echostar 0775, 1005, 1170, 1505, 1775 Expressvu 0775, 1775 Fortec Star 1821, 1948

DBS/PVR Combination (S) ( )

Bell ExpressVu 0775, 1170 DirecTV 0099, 0392, 0639, 1076, 1142, 1377,

Dish Network System 0775, 1505 Dishpro 0775, 1505

VCR (V) ( )

ABS 1972 Accurian 0000 Admiral 0048, 0209 Adventura 0000 Aiko 0278 Aiwa 0000, 0037, 0124, 0307, 0468 Akai 0041, 0061, 0106, 0175, 0242 Alienware 1972 Allegro 1137 America Action 0278 American High 0035 Asha 0240 Audio Dynamics 0040 Audiovox 0037, 0278 Beaumark 0240 Bell & Howell 0104 Broksonic 0002, 0121, 0184, 0209, 0348,

Calix 0037 Canon 0035, 0102 Captive Works 2167 Carver 0081 CCE 0072, 0278 CineVision 1137 Citizen 0037, 0278, 1278 Colt 0072 Craig 0037, 0047, 0072, 0240 Curtis Mathes 0035, 0041, 0060, 0162, 1035 Cybernex 0240 CyberPower 1972 Daewoo 0045, 0278, 0561, 0637, 1137, 1278 DBX 0040, 0050 Dell 1972 Denon 0042 Dimensia 2613 DirecTV 0739 Durabrand 0038, 0039 Dynatech 0000 Electrohome 0037 Electrophonic 0037 Emerex 0032 Emerson 0000, 0002, 0037, 0043, 0061, 0068,

ESA 1137 Fisher 0047, 0104 Fuji 0033, 0035 Funai 0000, 0593, 1335, 1593 Garrard 0000 Gateway 1972

0749, 0819, 1076, 1108, 1109, 1142, 1189, 1377, 1392, 1414, 1442, 1443, 1444, 1609, 1639, 1640, 1749, 1856

1392, 1442, 1443, 1444, 1640

0479, 1479

0121, 0184, 0208, 0209, 0212, 0278, 0479, 0561, 0593, 0637, 1278, 1479, 1593

Hytex 0007 i3 Micro 1602 Jerrold 0003, 0012, 0276, 0476, 0810 Memorex 0000 Motorola 0276, 0476, 0810, 1106, 1187,

MTS 1951 Multitech 0883 Myrio 1602, 1822 Oak 0007, 0019 Optimus 0021 Pace 0008, 0237, 1877 Panasonic 0000, 0021, 0107, 0623 Paragon 0000

Jerrold 0810 Motorola 0810, 1106, 1187, 1376 Myrio 1822 Pace 0237, 1877

GE 0566 General Instrument 0869 GOI 0775, 1775 Goodmans 1246 Hisense 1535 Hitachi 0819, 1250 HTS 0775, 1775 Hughes Network

Systems Humax 1781, 1790

iLo 1535 Janeil 0152 JVC 0775, 1170, 1775 LG 1226, 1414

Echostar 0775, 1170, 1505 Expressvu 0775 Hughes Network

Systems JVC 1170

GE 0035, 0060, 0202, 0240, 0761, 0807,

Go Video 0432, 0526, 0614, 0643, 1137 GoldStar 0037, 0038, 1137, 1237 Gradiente 0000 Harley Davidson 0000 Harman/Kardon 0038, 0075, 0081 Harwood 0068, 0072 Headquarter 0046 Hewlett Packard 1972 HI-Q 0047 Hitachi 0000, 0041, 0042, 0089, 0105, 2613 Howard Computers 1972 HP 1972 Hughes Network

Systems Humax 0739, 1797, 1988

Hush 1972 iBUYPOWER 1972 Instant Replay 0035, 0226 Jensen 0041 JVC 0008, 0041, 0067, 2079 KEC 0037, 0278 Kenwood 0038, 0041, 0067 KLH 0072 Kodak 0035, 0037 LG 1037, 1137, 2010 Linksys 1972 Lloyd’s 0000, 0208 Logik 0072 LXI 0037 Magnasonic 0593, 1278 Magnavox 0000, 0035, 0039, 0081, 0110, 0149,

Magnin 0240 Marantz 0035, 0081 Marta 0037 Matsushita 0035, 0162, 1162 Media Center PC 1972 MEI 0035 Memorex 0000, 0035, 0037, 0039, 0046, 0047,

MGA 0043, 0061, 0240 MGN Technology 0240, Microsoft 1972 Mind 1972 Minolta 0042, 0105 Mitsubishi 0043, 0061, 0067, 0075, 0173, 0214,

Motorola 0035, 0048

1254, 1376, 1951

0749, 1142, 1442, 1443, 1444, 1749

1142, 1442, 1443, 1444

1035, 1060, 2613

0042, 0739

0563, 0593, 1335, 1593, 1781

0048, 0104, 0162, 0209, 0240, 0307, 0348, 0479, 1037, 1162, 1237, 1262

0242, 0443, 0807

Philips 0317, 1305 Pioneer 0144, 0533, 0877, 1877 Pulsar 0000 Quasar 0000 RadioShack 0883 RCA 0021, 1256 Regal 0273, 0279 Runco 0000 Samsung 0144 Scientific Atlanta 0008, 0477, 0877, 1877 Sejin 1602 Sony 1006 Sprucer 0021 Starcom 0003

Pioneer 0877, 1877 RCA 1256 Scientific Atlanta 0877, 1877 Sony 1006

Magnavox 0722, 0724 Memorex 0724 Mitsubishi 0749 Motorola 0869 NEC 1270 Next Level 0869 Panasonic 0152, 0247, 0701, 1189, 1786 Pansat 1807 Paysat 0724 Philips 0099, 0722, 0724, 0749, 0856, 1076,

Proscan 0392, 0566 Proton 1535 RadioShack 0869

Motorola 0869 Philips 1142, 1442 Proscan 0392 RCA 1392 Samsung 1442

MTC 0000, 0240 Multitech 0000, 0072 NEC 0038, 0040, 0041, 0050, 0067, 0104 Nikko 0037 Nikon 0034 Niveus Media 1972 Noblex 0240 Northgate 1972 Olympus 0035, 0226 Onkyo 0222 Optimus 0037, 0048, 0104, 0162, 0432, 0593,

Orion 0002, 0184, 0209, 0479, 1479 Panasonic 0035, 0077, 0102, 0162, 0225, 0226,

Penney 0035, 0037, 0038, 0040, 0042, 0240,

Pentax 0042, 0105, Philco 0035 Philips 0035, 0081, 0110, 0618, 0739,

Pilot 0037 Pioneer 0067, 1337 Polk Audio 0081 Presidian 1593 Profitronic 0240 Proscan 0060, 0202, 0761, 1060 Protec 0072 Pulsar 0039 Quarter 0046 Quartz 0046 Quasar 0035, 0077, 0162, 1035, 1162 RadioShack 0000, 1037 Radix 0037 Randex 0037 RCA 0042, 0060, 0077, 0105, 0106, 0149,

Realistic 0000, 0035, 0037, 0046, 0047,

ReplayTV 0614, 0616 Ricavision 1972 Ricoh 0034 Rio 1137 Runco 0039 Salora 0075 Samsung 0045, 0240, 0739, 1014 Samtron 0643 Sanky 0039, 0048

1142, 1442, 1749

1048, 1062, 1162, 1262

0227, 0246, 0378, 0485, 0614, 0616, 0837, 1035, 1062, 1162, 1244, 1262, 1562, 1807, 1808, 1809

1035, 1237

1081, 1181

0202, 0240, 0761, 0807, 0880, 1035, 1060, 2613

0048, 0104

Supercable 0276 Supermax 0883 Thomson 1256 Tocom 0012, 0059 Torx 0003 Toshiba 0000 Tristar 0883 United Artists 0007 V2 0883 Viewmaster 0883 Vision 0883 Vortex View 0883 Zenith 0000, 0525, 0899

Supercable 0276 Thomson 1256 Zenith 0899

RCA 0143, 0566, 0855, 1392 Samsung 1108, 1109, 1276, 1377, 1442, 1609 Sanyo 1219 Sony 0639, 1639, 1640 Star Choice 0869 Tivo 1142, 1442, 1443, 1444 Toshiba 0749, 0790, 1285, 1749 UltimateTV 1392, 1640 Ultrasat 1806 Uniden 0722, 0724 US Digital 1535 USDTV 1535 Voom 0869 Zenith 1810, 1856

Sony 0639, 1640 Star Choice 0869 Tivo 1142, 1442, 1443, 1444 Zenith 1810

Sansui 0000, 0041, 0067, 0209, 0479, 1479 Sanyo 0046, 0047, 0104, 0159, 0240 Scott 0043, 0045, 0121, 0184, 0212 Sears 0000, 0035, 0037, 0042, 0046, 0047,

Sharp 0048, 0807, 0848 Shintom 0072 Shogun 0240 Singer 0072 Sonic Blue 0614, 0616, 1137 Sony 0000, 0032, 0033, 0034, 0035, 0636,

Stack 9 1972 STS 0042 Sylvania 0000, 0035, 0043, 0081, 0110, 0593,

Symphonic 0000, 0593, 1593 Systemax 1972 Tagar Systems 1972 Tashiko 0037 Tatung 0041 Teac 0000, 0041 Technics 0035, 0162, 0246 Teknika 0000, 0035, 0037 Thomas 0000 Tivo 0618, 0636, 0739, 1337, 1996 TMK 0208, 0240 Toshiba 0043, 0045, 0212, 0845, 1008, 1145,

Totevision 0037, 0240 Touch 1972 Unitech 0240 Vector 0045 Vector Research 0038, 0040 Video Concepts 0040, 0045, 0061 Videomagic 0037 Videosonic 0240 Viewsonic 1972 Villain 0000 Voodoo 1972 Wards 0000, 0035, 0042, 0047, 0048, 0060,

White Westinghouse 0072, 0209, 0637 XR-1000 0000, 0035, 0072 Yamaha 0038 Zenith 0000, 0033, 0034, 0039, 0209, 0479,

ZT Group 1972

0104, 0105, 1237

1032, 1972

1593, 1781

1972, 1988, 1996

0072, 0081, 0149, 0212, 0240

0637, 1137, 1139, 1479

Remote Control Operation/Code List

FAQs, etc.

Remote Control Operation/Code List (Continued)

Remote Control Code List

■

DBS/PVR Combination (V) ( )

Brand Code Brand Code Brand Code Brand Code

DirecTV 0739

DVD-Recorder (V) ( )

Magnavox 0000

PVR (V) ( )

ABS 1972 Alienware 1972 Captive Works 2167 CyberPower 1972 Dell 1972 DirecTV 0739 Gateway 1972 Go Video 0614 Hewlett Packard 1972 Howard Computers 1972 HP 1972

DVD (Y) ( )

Accurian 0675, 1072, 1416 Adcom 1094 Aiwa 0641 Akai 0695, 0770, 0899, 1089 Alco 0790 Allegro 0869 Amphion Media Works 0872, 1245 AMW 0872, 1245 Apex Digital 0672, 0717, 0755, 0794, 0796, 0797,

Arrgo 1023 Aspire Digital 1168, 1407 Astar 1678, 1679 Audiologic 0736 Audiovox 0790, 1041, 1072, 1121, 1122 Axion 1072 B & K 0655, 0662 BBK 1224 Bel Canto Design 1571 Blaupunkt 0717 Blue Parade 0571 Broksonic 0695, 1419 CAVS 1057 Cinea 0831 Cinego 1399 CineVision 0833, 0869, 0876 Citizen 0695, 1277, 1587, 2116 Coby 0778, 0852, 1086, 1107, 1165, 1177,

Craig 0831 Curtis Mathes 1087 CyberHome 0816, 0874, 1023, 1024, 1117, 1129,

Daewoo 0705, 0784, 0833, 0869, 1169, 1172,

Denon 0490, 0634, 1634 Desay 1407 Diamond Vision 1316 Disney 0675, 1270 Dual 1068, 1085 Durabrand 1127 DVD2000 0521 Electrohome 2116

DVD-Recorder (Y) ( )

Accurian 0675, 1416 Apex Digital 1056 Aspire Digital 1168 Broksonic 1419 Citizen 2116 Coby 1086 CyberHome 1129, 1502 Electrohome 2116

Blu-ray Disc (Y) ( )

LG 0741 Panasonic 1641, 2061, 2062

HD-DVD (Y) ( )

LG 0741 Onkyo 1769 RCA 1769 Toshiba 1769

HTiB (Y) ( )

Aiwa 0641 Audiovox 0790 KLH 0790 Koss 0651 Oritron 0651

1004, 1020, 1056, 1061, 1100

1351, 1628

1502, 1537

1234, 1242, 1441

Hughes Network Systems

Humax 0739, 1797, 1988 Hush 1972 iBUYPOWER 1972 LG 2010 Linksys 1972 Media Center PC 1972 Microsoft 1972 Mind 1972 Niveus Media 1972

Emerson 0591, 0675, 1268 Enterprise 0591 ESA 1268 Fisher 0670 Funai 0675, 1268, 1334 Gateway 1073, 1077, 1158 GE 0522, 0717, 0815 Go Video 0715, 0741, 0744, 0783, 0833,

Go Vision 1072 GoldStar 0741 GPX 0699, 0769 Greenhill 0717 Harman/Kardon 0582, 0702 Helios 2080 Hello Kitty 0831 Hitachi 0573, 0664, 1247 Hiteker 0672 Humax 1500, 1588 iLo 1348, 1472 Initial 0717, 1472 Insignia 1268, 2095 Integra 0627 Jaton 1078 JBL 0702 JSI 1423 JVC 0558, 0623, 0867, 1164, 1275,

jWin 1049, 1051, 1675 Kawasaki 0790 Kenwood 0490, 0534, 0682 KLH 0717, 0790, 1020, 1149 Konka 0711, 0721 Koss 0651, 0896, 1423 Landel 0826 Lasonic 0798, 1173 Lenoxx 1127 LG 0591, 0741, 0869 LiteOn 1058, 1158, 1416, 1440, 1656 Loewe 0511 Magnavox 0503, 0539, 0646, 0675, 1268, 1354,

Funai 0675, 1334 Gateway 1073, 1158 Go Video 0741, 1158, 1304, 1730 iLo 1348 JVC 1164, 1275 LG 0741 LiteOn 1158, 1416, 1440 Magnavox 0646, 0675, 1506

Philips 2084 Pioneer 0142

Panasonic 0458, 1779, 1907, 1908, 1909, 1910,

Philips 1267 Polk Audio 0539 RCA 0790

0739 Philips 0739

0739

0869, 1044, 1075, 1099, 1144, 1158, 1304, 1730

1550, 1602

1472, 1506

1925, 1990, 2017

Samsung 0739

Northgate 1972 Panasonic 0614, 0616, 1807, 1808, 1809 Philips 0618, 0739 Pioneer 1337 RCA 0880 ReplayTV 0614, 0616 Samsung 0739 Sonic Blue 0614, 0616 Sony 0636, 1972 Stack 9 1972 Systemax 1972

Malata 0782, 1159 Marantz 0539 McIntosh 1273 Memorex 0695, 0831, 1270 Microsoft 0522, 1708, 2083 Mintek 0717, 0839, 1472 Mitsubishi 0521, 1521 Momitsu 1082 NAD 0692, 0741 Nakamichi 1222 NEC 0785 Nesa 0717 Next Base 0826 NexxTech 1402 Norcent 0872, 1003, 1107, 1265 Nova 1517 Onkyo 0503, 0627, 0792, 1769 Oppo 0575, 1224 1525 OptoMedia Electronics 0896 Oritron 0651 Panasonic 0458, 0490, 0632, 0703, 1010, 1011,

Philco 0675 Philips 0503, 0539, 0646, 0675, 1267, 1340,

Pioneer 0142, 0525, 0571, 0631, 0632, 1571 Polaroid 1020, 1061, 1086, 1245, 1316,

Polk Audio 0539 Portland 0770 Presidian 0675, 1072 Princeton 0674 Proscan 0522 ProVision 0778 Qwestar 0651 RCA 0522, 0571, 0717, 0790, 0822, 1022,

Rio 0869 RJTech 1360 Rotel 0623, 1178 Rowa 0823

Panasonic 0490, 1010, 1011, 2060, 2061, 2062 Philips 0646, 1340 Pioneer 0631 Polaroid 1086, 2130 RCA 0522 Samsung 0490, 1470 Sensory Science 1158 Sharp 0675

Samsung 0199 Sony 1516

Rio 0869 Sherwood 1077 Sonic Blue 0869 Sony 1824, 1892, 1903, 1904, 1934, 1981,

1362, 1462, 1464, 1490, 1641, 1762, 1907, 1908, 1909, 1910, 1925, 1986, 1990, 2017, 2060, 2061, 2062

1354, 2056, 2084

1478, 2130

1132, 1769

2020, 2043

Tivo 0739

Tagar Systems 1972 Tivo 0618, 0636, 0739, 1337 Toshiba 1008, 1972, 1988, 1996 Touch 1972 Viewsonic 1972 Voodoo 1972 ZT Group 1972

Sampo 0698, 0752 Samsung 0199, 0490, 0573, 0820, 0899, 1044,

Sansui 0695 Sanyo 0670, 0695, 0873 Sensory Science 1158 Sharp 0630, 0675, 0752, 1256 Sharper Image 1117 Sherwood 0633, 0770, 1043, 1077 Shinsonic 0533, 0839 Sigma Designs 0674 Sonic Blue 0869, 1099 Sony 0533, 0864, 1033, 1069, 1070, 1431,

Sova 1122 Sungale 1074 SVA 0860, 1105 Sylvania 0675, 1268 Symphonic 0675 TAG McLaren 0894 Teac 0790 Technics 0490, 0703 Technosonic 0730 Techwood 0692 Terapin 1031 Theta Digital 0571 Tivo 1503 Toshiba 0503, 0695, 1045, 1154, 1503, 1588,

Tredex 0799, 0800, 0803, 0804 Urban Concepts 0503 US Logic 0839 Venturer 0790 Vizio 1064, 1226 Vocopro 1027, 1360 Xbox 0522, 1708, 2083 Xwave 1001 Yamaha 0490, 0497, 0539, 0545 Zenith 0503, 0591, 0741, 0869 Zoece 1265

Sony 1033, 1069, 1070, 1431, 1432,

Sylvania 0675 Toshiba 1588 Zenith 0741

Teac 0790 Toshiba 1854 Venturer 0790 Yamaha 0497

1075, 1470

1432, 1433, 1516, 1533, 1536, 1548, 1791, 1824, 1892, 1903, 1904, 1934, 1981, 2020, 2043

1608, 1769, 1854

1433, 1536

Ratings List for Lock

“V-chip” technology enables you to lock channels or shows according to standard ratings set by the entertainment industry. (p. 41)

U.S. MOVIE RATINGS (MPAA)

■

PG-13

NC-17

U.S. TV PROGRAMS RATINGS (U. S. TV)

■

Age-based

Group

NR (Not Rated)

Youth

Guidance

FV: Fantasy/Cartoon Violence. V: Violence S: Sex L: Offensive Language D: Dialogue with sexual content.

NO RATING (NOT RATED) AND NA (NOT APPLICABLE) PROGRAMS. Movie which has not been rated or where rating does not apply.

GENERAL AUDIENCES. All ages admitted. PARENTAL GUIDANCE SUGGESTED. Some material may not be suitable for children. PARENTS STRONGLY CAUTIONED. Some material may be inappropriate for children under 13. RESTRICTED. Under 17 requires accompanying parent or adult guardian. NO ONE 17 AND UNDER ADMITTED. ADULTS ONLY.

Age-based

Ratings

TV-NR

TV-Y

TV-Y7

TV-G

TV-PG

TV-14

TV-MA

Possible Content

Selections

Viewable

•

Blocked

•

Viewable

•

Blocked

•

FV Blocked

•

Viewable

•

Blocked

•

Viewable

•

Blocked

•

D,L,S,V (all selected)

•

Any combination of D,

•

L, S, V D,L,S,V (all selected)

•

Any combination of D,

•

L, S, V L,S,V (all selected)

•

Any combination of L,

•

S, V

Description

Not Rated. All children. The themes and elements in this program are specifically

designed for a very young audience, including children from ages 2-6. Directed to older children. Themes and elements in this program may

include mild physical or comedic violence, or may frighten children under the age of 7.

General audience. It contains little or no violence, no strong language, and little or no sexual dialogue or situations.

Parental guidance suggested. The program may contain infrequent coarse language, limited violence, some suggestive sexual dialogue and situations.

Parents strongly cautioned. This program may contain sophisticated themes, sexual content, strong language and more intense violence.

Mature audiences only. This program may contain mature themes, profane language, graphic violence, and explicit sexual content.

Remote Control Operation/Code List

CANADIAN ENGLISH RATINGS (C. E. L. R.)

■

E C

C8+

PG 14+ 18+

CANADIAN FRENCH RATINGS (C. F. L. R.)

■

E G

8 ans+ 13 ans+ 16 ans+

18 ans+

Exempt - Exempt programming includes: news, sports, documentaries and other information programming, talk shows, music videos, and variety programming.

Programming intended for children under age 8. No offensive language, nudity or sexual content. Programming generally considered acceptable for children 8 years and over. No profanity, nudity or sexual content. General programming, suitable for all audiences. Parental Guidance suggested. Some material may not be suitable for children. Programming contains themes or content which may not be suitable for viewers under the age of 14. Parents are

strongly cautioned to exercise discretion in permitting viewing by pre-teens and early teens. 18+ years old. Programming restricted to adults. Contains constant violence or scenes of extreme violence.

Exempt - Exempt programming. General - Programming intended for audience of all ages. Contains no violence, or the violence content is minimal

or is depicted appropriately. 8+ General - Not recommended for young children. Programming intended for a broad audience but contains light

or occasional violence. Adult supervision recommended. Programming may not be suitable for children under the age of 13 - Contains either a few violent scenes or one or

more sufficiently violent scenes to affect them. Adult supervision strongly suggested. Programming may not be suitable for children under the age of 16 - Contains frequent scenes of violence or intense

violence. Programming restricted to adults. Contains constant violence or scenes of extreme violence.

Caution

The V-Chip system that is used in this set is capable of blocking “NR” programs (non rated, not applicable and

none) as per FCC Rules Section15.120(e)(2). If the option of blocking “NR” programs is chosen “unexpected and possibly confusing results may occur, and you may not receive emergency bulletins or any of the following types of programming:”

• Emergency Bulletins (Such as EAS messages, weather warnings and others)

• Locally originated programming • News • Political • Public Service Announcements • Religious • Sports • Weather

Ratings List for Lock

FAQs, etc.

Technical Information

Closed Caption (CC)

For viewing the CC of digital broadcasting, set the aspect to FULL (If viewing with H-FILL, JUST, ZOOM, or 4:3;

characters might be cut off).

The CC can be displayed on the TV if the receiver (such as a set-top box or satellite receiver) has the CC set On

using the Component or HDMI connection to the TV.

If the CC is set to On on both the receiver and TV when the signal is 480i (except for the HDMI connection), the CC

may overlap on the TV. If a digital program is being output in analog format, the CC data will also be output in analog format. If the recorder or output monitor is connected to the TV, the CC needs to be set up on the recorder or output

monitor.

Aspect Ratio (FORMAT)

Press the FORMAT button to cycle through the aspect modes. This lets you choose the aspect depending on the format of the received signal and your preference. (p. 17) (e.g.: in case of 4:3 image)

FULL JUST

FULL

Enlarges the 4:3 image horizontally to the screen’s side edges. (Recommended for anamorphic picture)

H-FILL 4:3

H-FILL

Enlarges the 4:3 image horizontally to the screen’s side edges. The side edges of the image are cut off.

ZOOM

Enlarges the 4:3 image to the entire screen. (Recommended for Letter Box)

JUST

Stretches to justify the 4:3 image to the four corners of the screen. (Recommended for normal TV broadcast)

Side bar

Standard (Note that “Image retention” of the side bar may occur from displaying it for a long time.)

Note

480i (4:3), 480i (16:9), 480p (4:3), 480p (16:9):

FULL, JUST, 4:3 or ZOOM

1080p / 1080i / 720p:

FULL, H-FILL, JUST, 4:3 or ZOOM

Zoom adjust

Vertical image position and size can be adjusted in “ZOOM”. Select “Zoom adjust” on the “Picture” menu. (p. 28-29) V-position: Vertical position adjustment V-size: Vertical size adjustment

To reset the aspect ratio (OK)

Data format for SD Card browsing

Photo: Still images recorded with digital still cameras compatible with JPEG files of DCF* and EXIF**

Movie: SD-Video Standard Ver. 1.2 [MPEG-2 (PS format)] and AVCHD Standard compatible files with an

standards Data format-Baseline JPEG (Sub-sampling: 4:4:4, 4:2:2 or 4:2:0) Max. number of files - 9,999 Image resolution - 160 x 120 to 10,000,000

audio format that is either MPEG-1/Layer-2 format or Dolby Digital format (A modified data with a PC may not be displayed correctly.)

* DCF (Design rule for camera file system): A Japan Electronics and Information Technology Industries Association’s standard

** EXIF (Exchangeable Image File Format)

Note

Format the card with the recording equipment. The picture may not appear correctly on this TV depending on the recording equipment used. Display may take some time when there are many files and folders. This function cannot display Motion JPEG and still image not DCF formatted (i.e. TIFF, BMP). Data modified with a PC may not be displayed. Images imported from a PC must be compatible with EXIF 2.0, 2.1 and 2.2. Partly degraded files might be displayed at a reduced resolution. All “.JPG” extension datas in the card will be read in Photo View Mode. The folder and file names may be different depending on the digital camera used. Do not use two-byte characters or other special codes. The card may become unusable with this TV if file or folder names are changed. For the suitable SD Memory Cards, please confirm the latest information on the following website.

http://panasonic.co.jp/pavc/global/cs (This site is in English only)

Cautions in handling SD Card:

Do not remove the card while the unit is accessing data (this can damage card or unit). Do not touch the terminals on the back of the card. Do not subject the card to a high pressure or impact. Insert the card in the correct direction (otherwise, card may be damaged). Electrical interference, static electricity, or erroneous operation may damage the data or card. Back up the recorded data at regular intervals in case of deteriorated or damaged data or erratic

operation of the unit. (Panasonic is not liable for any deterioration or damage of recorded data.)

Message Meaning

Is SD card in?

No file

Cannot read file

Feature not available

Cannot display image due to incorrect ID data.

Cannot display image on SD card.

SD Card warning messages

The card is not inserted.

The card has no data or this type of data is not supported.

The file is broken or unreadable. The TV does not support the format.

Your operation is not available.

GalleryPlayer warning messages

There is a problem with your TV decoder. If this message appears, please contact Panasonic Service Center for

assistance. Refer to page 63 (Customer Services Directory), page 62, 64 (Limited Warranty)

There is a problem with the data.

Check the data inside the SD card.

Technical Information

FAQs, etc.

Technical Information (Continued)

VIERA LinkTM “HDAVI ControlTM”

HDMI connections to some Panasonic equipment allow you to interface automatically. (p. 32)

This function may not work normally depending on the equipment condition. The equipment can be operated by other remote controls with this function on even if TV is in Standby mode. Image or sound may not be available for the first few seconds when the playback starts. Image or sound may not be available for the first few seconds when Input mode is switched. Volume function will be displayed when adjusting the volume of the equipment.

If you connect the same kind of equipment at once (for example: one DIGA to HDMI 1 / another DIGA to HDMI 2), VIERA LinkTM

is available for the terminal with the smaller number. If you connect equipment that has more than “HDAVI Control 2” (or more) function to the TV with HDMI cable, the sound from

DIGITAL AUDIO OUT terminal can be output as multi channel surround. “HDAVI Control 3” is the newest standard (current as of December, 2007) for the HDAVI Control compatible equipment.

This standard is compatible with the conventional HDAVI equipment.

HDMI connection

HDMI (high-definition multimedia interface) allows you to enjoy high-definition digital images and high-quality sound by connecting the TV unit and the devices. HDMI-compatible equipment (*1) with an HDMI or DVI output terminal, such as a set-top box or a DVD player, can be connected to the HDMI connector using an HDMI compliant (fully wired) cable.

HDMI is the world’s first complete digital consumer AV interface complying with a non-compression standard. If the external equipment has only a DVI output, connect to the HDMI terminal via a DVI to HDMI adapter cable (*2). When the DVI to HDMI adapter cable is used, connect the audio cable to the audio input terminal. Audio settings can be made on the “HDMI 1 in”, “HDMI 2 in”, “HDMI 3 in” or “HDMI 4” menu screen. (p. 28)

Applicable audio signal sampling frequencies (L.PCM): 48 kHz, 44.1 kHz, 32 kHz

(*1): The HDMI logo is displayed on an HDMI-compliant device. (*2): Enquire at your local digital equipment retailer shop.

Caution

Use with a PC is not assumed. All signals are reformatted before being displayed on the screen. If the connected device has an aspect adjustment function, set the aspect ratio to “16:9”. These HDMI connectors are “type A”. These HDMI connectors are compatible with HDCP (High-Bandwidth Digital Content Protection) copyright protection. A device having no digital output terminal may be connected to the input terminal of either “COMPONENT”, “S VIDEO”, or

“VIDEO” to receive analog signals. The HDMI input terminal can be used with only the following image signals: 480i, 480p, 720p, 1080i and 1080p.

Match the output setting of the digital device. For details of the applicable HDMI signals, see below.

DIGITAL AUDIO OUT terminals

You can enjoy your home theater by connecting a Dolby Digital (5.1 channel) decoder and “Multi Channel” amplifier to the DIGITAL AUDIO OUT terminals.

Caution

Depending on your DVD player and DVD-Audio software the copyright protection function may operate and disable optical output. External speakers cannot be connected directly to PROG OUT terminals. When an ATSC channel is selected, the output from the DIGITAL AUDIO OUT jack will be Dolby Digital. When an NTSC

channel is selected, the output will be PCM. When playing movie on SD Card Movie player, when the sound has been recorded in Dolby Digital, the output from the

DIGITAL AUDIO OUT terminal will be Dolby Digital. When the sound is recorded in the other formats, the output will be PCM.

See pages 48-49 for more information

Picture mode

Vivid: Provides enhanced picture contrast and sharpness for viewing in a well-lit room. Standard: Recommended for normal viewing conditions with subdued room lighting. Studio ref: Provides high-quality gradation and color tone picture for a cinema-like feel. Game: Custom (Photo): Customizes each item according to your taste.

Note

Picture mode will be automatically set to “Standard” if you change the Input label from “GAME” to other labels. Picture mode will be automatically set to “Game” if you change from an Input label other than “GAME” to “GAME” label.

For playing video game. This mode will be set automatically if “GAME” is selected from Input label setting (p. 45) Photo is displayed in JPEG mode.

Pro setting

Normal: Resets all Pro setting adjustments to factory default settings. (Set/No) Panel brightness: Selects the display panel brightness.

(High: Vivid, Mid: Standard, Low: Studio ref)

Contour emphasis: Adjusts the contour emphasis of the image. (On/Off) Gamma adjust: Gamma correction. Adjusts the intermediate brightness of the image. (Normal/Mid/Full 1/Full 2) Black extension: Adjusts the dark shades of the image in gradation. W/B high R: Adjusts the white balance for light red areas. W/B high B: Adjusts the white balance for light blue areas. W/B low R: Adjusts the white balance for dark red areas. W/B low B: Adjusts the white balance for dark blue areas. AGC: Increases the brightness of dark signal automatically. (On/Off)

Input signal that can be displayed

* Mark: Applicable input signal for Component (Y, PB, PR), HDMI and PC

horizontal frequency (kHz) vertical frequency (Hz) COMPONENT HDMI PC

525 (480) / 60i 15.73 59.94 525 (480) /60p 31.47 59.94 750 (720) /60p 45.00 59.94 1,125 (1,080) /60i 33.75 59.94 1,125 (1,080) /60p 67.43 59.94 1,125 (1,080) /60p 67.50 60.00 1,125 (1,080) /24p 26.97 23.98 1,125 (1,080) /24p 27.00 24.00 640 × 400 @70 31.47 70.08 640 × 480 @60 31.47 59.94 Macintosh13” (640 × 480) 35.00 66.67 640 × 480 @75 37.50 75.00 852 × 480 @60 31.47 59.94 800 × 600 @60 37.88 60.32 800 × 600 @75 46.88 75.00 800 × 600 @85 53.67 85.08 Macintosh16” (832 × 624) 49.73 74.55 1,024 × 768 @60 48.36 60.00 1,024 × 768 @70 56.48 70.07 1,024 × 768 @75 60.02 75.03 1,024 × 768 @85 68.68 85.00 Macintosh 21” (1,152 × 870) 68.68 75.06 1,280 × 1,024 @60 63.98 60.02 1,366 × 768 @60 48.36 60.00

** ** ** **

* * * *

* * * * * * * * * * * *

Technical Information

* * * *

Note

Signals other than above may not be displayed properly. The above signals are reformatted for optimal viewing on your display.

PC Input Terminals Connection

Computer signals which can be input are those with a horizontal scanning frequency of 15 to 110 kHz and vertical scanning frequency

of 48 to 120 Hz. (However, the image will not be displayed properly if the signals exceed 1,200 lines.) Some PC models cannot be connected to the set. There is no need to use an adapter for computers with IBM PC/AT compatible D-sub 15P terminal. The maximum resolution: 1,280 × 1,024

If the display resolution exceeds these maximums, it may not be possible to show fine detail with sufficient clarity. Signal Names for D-sub 15P Connector

1514131211

67839

Pin Layout for PC Input Terminal

Pin No.

Signal Name

R GND (Ground) NC (not connected) G GND (Ground) NC B GND (Ground) HD/SYNC

NC (not connected) NC (not connected) VD

GND (Ground) GND (Ground) NC

Pin No.

Signal Name

Pin No.

Signal Name

FAQs, etc.

Technical Information (Continued)

Side Bar

Do not display a picture in 4:3 mode for an extended period, as this can cause “Image retention” to remain on either or both sides of the display field. To reduce the risk of such “Image retention”, change the brightness of the side bars. See pages 30-31 for more information

The side bar may flash (alternate black/white) depending on the picture. Using

Cinema mode will reduce such flashing (See below).

Side Bar

4:3 Screen Display

Image retention

Scrolling bar

Scrolling bar: To prevent “Image retention”, scrolls white horizontal bar from top to bottom on a black

screen. Press any key except the POWER key to return to previous screen. You will return to previous screen if no key operation has not been performed for 15 minutes.

See pages 30-31 for more information

[Scrolling bar]

Care and Cleaning

First, unplug the Power cord plug from the wall outlet.

Display panel

The front of the display panel has been specially treated. Wipe the panel surface gently using only a cleaning cloth or a soft, lintfree cloth.

If the surface is particularly dirty, soak a soft, lint-free cloth in diluted mild liquid dish soap (1 part mild liquid dish soap diluted

by 100 times the amount of water) and then wring the cloth to remove excess liquid. Use this cloth to wipe the surface of the display panel, then wipe it evenly with a dry cloth of the same type until the surface is dry.

Do not scratch or hit the surface of the panel with fingernails or other hard objects. Furthermore, avoid contact with volatile

substances such as insect sprays, solvents, and thinner; otherwise, the quality of the surface may be adversely affected.

Cabinet

If the cabinet becomes dirty, wipe it with a soft, dry cloth.

If the cabinet is particularly dirty, soak the cloth in a weak mild liquid dish soap and then wring the cloth dry.

Use this cloth to wipe the cabinet and then wipe it dry with a dry cloth.

Do not allow any mild liquid dish soap to come into direct contact with the surface of the Plasma TV.

If water droplets get inside the unit, operating problems may result.

Avoid contact with volatile substances such as insect sprays, solvents, and thinner; otherwise, the quality of the cabinet surface

may be adversely affected or the coating may peel off. Furthermore, do not leave it for long periods in contact with articles made from rubber or PVC.

Pedestal

Cleaning

Wipe the surfaces with a soft, dry cloth. If the unit is particularly dirty, clean it using a cloth soaked with water to

which a small amount of mild liquid dish soap has been added and then wipe with a dry cloth.

Do not use products such as solvents, thinner, or household wax for cleaning, as they can damage the surface

coating. (If using a chemically-treated cloth, follow the instructions supplied with the cloth.)

Do not attach sticky tape or labels, as they can make the surface of the pedestal dirty. Do not allow long-term

contact with rubber, vinyl products, or the like. (Doing so will cause deterioration.)

Specifications

TH-46PZ850U TH-50PZ850U

Power Source AC 120 V, 60 Hz

Power

Consumption

Maximum 638 W 700 W

Standby condition 0.2 W 0.2 W

Plasma

Display panel

Drive method AC type Aspect Ratio 16:9 Visible screen size (W × H × Diagonal)

(No. of pixels)

Sound

Audio Output

46 ” class (46.0 inches measured diagonally) 50 ” class (49.9 inches measured diagonally)

40.1 ” × 22.5 ” × 46.0 ” (1,019 mm × 573 mm × 1,169 mm)

2,073,600 (1,920 (W) × 1,080 (H)) [5,760 × 1,080 dots]

Super Slim SP (2.5 W) × 2, Woofer (13 W) × 2

43.5 ” × 24.4 ” × 49.9 ” (1,106 mm × 622 mm × 1,269 mm)

PC signals Channel Capability

(Digital/Analog) Operating Conditions

VIDEO IN 1-2

COMPONENT

Connection Terminals

INPUT 1-2 HDMI 1-4

PC RS232C (Serial) D-sub 9pin for external control

LAN (for VIERA CAST IPTV)

Card slot SD CARD slot × 1 AV PROG OUT DIGITAL AUDIO OUT PCM / Dolby Digital, Fiber Optic

FEATURES

( W × H × D )

Dimensions

Including pedestal

VGA, SVGA, XGA, WXGA, SXGA Horizontal scanning frequency 31 - 69 kHz Vertical scanning frequency 59 - 86 Hz

VHF/ UHF: 2 - 69, CATV: 1 - 135 Temperature: 32 °F – 104 °F (0 °C – 40 °C)

Humidity: 20 % – 80 % RH (non-condensing) VIDEO: RCA PIN Type × 1 1.0 V [p-p] (75 Ω)

S-VIDEO: Mini DIN 4-pin Y: 1.0 V [p-p] (75 Ω) C: 0.286 V [p-p] (75 Ω) AUDIO L-R: RCA PIN Type × 2 0.5 V [rms]

Y: 1.0 V [p-p] (including synchronization) P

B, PR: ±0.35 V [p-p]

AUDIO L-R: RCA PIN Type × 2 0.5 V [rms] TYPE A Connector × 4

This TV supports “HDAVI Control 3” function.

•

D-SUB 15PIN: R,G,B / 0.7 V [p-p] (75 Ω) HD, VD / 1.0 - 5.0 V [p-p] (high impedance) AUDIO L-R: Stereo Mini Jack (Ф3.5 mm) × 1

RJ45 (10BASE-T/100BASE-TX)

VIDEO: RCA PIN Type × 1 1.0 V [p-p] (75 Ω) AUDIO L-R: RCA PIN Type × 2 0.5 V [rms]

3D Y/C FILTER CLOSED CAPTION IPTV (VIERA CAST) V-Chip BBE VIVA 3D Photo viewer Movie player HDAVI Control 3

46.5 ” × 31.7 ” × 15.3 ” (1,181 mm × 803 mm × 387 mm)

Technical Information Care and Cleaning

Specifications

49.9 ” × 33.4 ” × 15.3 ” (1,267 mm × 847 mm × 387 mm)

TV Set only

Mass

Including pedestal 92.6 lb. (42 ) 99.3 lb. (45 ) TV Set only 83.8 lb. (38

46.5 ” × 29.6 ” × 4.1 ” (1,181 mm × 750 mm × 104 mm)

) 88.2 lb. (40 )

[TH-46PZ850U] [TH-50PZ850U]

46.5 ” (1,181 mm)

29.6 ” (750 mm)

31.7 ” (803 mm)

18.0 ”

(456 mm)

4.1 ” (104 mm)

3.9 ”

(98 mm)

15.3 ” (387 mm)

49.9 ” × 31.2 ” × 4.1 ” (1,267 mm × 794 mm × 104 mm)

49.9 ” (1,267 mm)

31.2 ” (794 mm)

33.4 ” (847 mm)

18.0 ”

(456 mm)

15.3 ” (387 mm)

4.1 ” (104 mm)

3.9 ”

(98 mm)

Note

Design and Specifications are subject to change without notice. Mass and Dimensions shown are approximate.

FAQs, etc.

FAQ

Before requesting service or assistance, please follow these simple guides to resolve the problem. If the problem still persists, please contact your local Panasonic dealer or Panasonic Service Center for assistance. For details (p. 63, 64) For additional assistance, please contact us via the website at: www.panasonic.com/contactinfo www.panasonic.ca

White spots or shadow images (noise)

Check the position, direction,

and connection of the antenna.

Interference or frozen digital channels

(intermittent sound)

Change the direction of antenna

for digital channels.

Check “Signal meter” (p. 43).

If the signal is weak, check the antenna and consult your local dealer.

SUB

Pictures from external equipment are distorted when the unit is connected via HDMI

Is the HDMI cable connected properly?

(p. 48, 49)

Turn Off the TV unit and equipment, then

turn them On again. Check an input signal from the equipment. (p. 57)

Use equipment compliant with

EIA/CEA-861/861B.

Recording does not start immediately

Check the settings of the recorder. For

details, read the manual of the recorder.

The remote control does not work

Are the batteries installed correctly? (p. 6) Are the batteries new? Select the correct remote control mode

(p. 13, 22)

If there is a problem with your TV, please refer to the table below to determine the symptoms, then carry out the suggested check. If this does not solve the problem, please contact your local Panasonic dealer, quoting the model number and serial number (both found on the rear of the TV).

Problem Actions

The function to prevent “Image retention” is activated.

“Press any key to return” moves on the screen

One spot remains dark

(Not a faulty symptom)

The screen saver is activated if the TV unit is not operated for

•

a certain time in SD mode. “Image retention” (p. 5)

•

A pixel or luminescent spot can occasionally

be missing in plasma displays. (Not a faulty symptom)

Chaotic image, noisy

Screen

No image can be displayed

Only spots are displayed instead of images

Neither image nor sound is produced

Black Box appears

No sound is produced

Check nearby electrical products

(car, motorcycle, fluorescent lamp).

Check Picture menu (p. 28) Check the cable connections. (p. 9-12) Check that the correct input has been selected. (p. 22)

Check the channel settings. (p. 42) Check the antenna cables.

Is the AC power cord plugged into the outlet? Is the TV unit turned On? Check Picture menu (p. 28) and volume. Check the AV cable connections. (p. 9-12) Check that the correct input has been selected. (p. 22)

Change settings of Closed Caption (CC). (p. 44)

Are the speakers’ cables connected correctly? (p. 48) Is “Sound Mute” active? (p. 13) Is the volume set to the minimum? Is “Speaker output” set to “Off”? (p. 28) Change “SAP” settings. (p. 16)

Check “HDMI 1 in”, “HDMI 2 in”, “HDMI 3 in” or “HDMI 4 in” settings. (p. 28)

FAQ

Sound

Sound is unusual

Whirling sound is heard

TV set

Parts of the TV set become hot.

Set “SAP” setting to “Stereo” or “Mono.” Check the HDMI device connected to the unit. Set the audio setting of the HDMI device to

“Linear PCM.”

If digital sound connection has a problem,

select analog sound connection.

The sound is from the built-in cooling fan

(not a sign of faulty operation).

Even when the temperature of parts of the front, top and

rear panels has risen, these temperature rises will not pose any problems in terms of performance or quality.

FAQs, etc.

Limited Warranty (for U.S.A.)

PANASONIC CONSUMER ELECTRONICS COMPANY, DIVISION OF PANASONIC CORPORATION OF NORTH AMERICA One Panasonic Way Secaucus, New Jersey 07094

PANASONIC SALES COMPANY, DIVISION OF PANASONIC PUERTO RICO, INC. Ave. 65 de Infanteria, Km. 9.5 San Gabriel Industrial Park Carolina, Puerto Rico 00985

Panasonic Color Television

Limited Warranty

Limited Warranty Coverage

If your product does not work properly because of a defect in materials or workmanship, Panasonic Consumer Electronics Company or Panasonic Puerto Rico, Inc. (collectively referred to as “the warrantor”) will, for the length of the period indicated on the chart below, which starts with the date of original purchase (“Limited Warranty period”), at its option either (a) repair your product with new or refurbished parts, or (b) replace it with a new or a refurbished product. The decision to repair or replace will be made by the warrantor.

Customer Services Directory (for U.S.A.)

Limited Warranty (for U.S.A.)

For hearing or speech impaired TTY users, TTY: 1-866-605-1277

■

Service in Puerto Rico

Panasonic Puerto Rico, Inc. Ave. 65 de Infantería, Km. 9.5, San Gabriel Industrial Park, Carolina, Puerto Rico 00985 Phone (787)750-4300, Fax (787)768-2910

FAQs, etc.

Limited Warranty (for Canada)

Panasonic Canada Inc.

PANASONIC PRODUCT - LIMITED WARRANTY

Panasonic Canada Inc. warrants this product to be free from defects in material and workmanship and agrees to remedy any such defect for a period as stated below from the date of original purchase.

Plasma TV / Monitor In-home service One (1) year, parts (including Plasma Panel) and labour. LCD TV (26 in & over) In-home service One (1) year, parts (including LCD Panel) and labour.

In-home Service will be carried out only to locations accessible by roads and within 50 km of an authorized Panasonic service facility.

LIMIT ATIONS AND EXCLUSIONS

This warranty does not apply to products purchased outside Canada or to any product which has been improperly installed, subjected to usage for which the product was not designed, misused or abused, damaged during shipping, or which has been altered or repaired in any way that affects the reliability or detracts from the performance, nor does it cover any product which is used commercially. Dry cell batteries are also excluded from coverage under this warranty. This warranty is extended to the original end user purchaser only. A purchase receipt or other proof of date of original purchase is required before warranty service is performed.

THIS EXPRESS, LIMITED WARRANTY IS IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING ANY IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. IN NO EVENT WILL PANASONIC CANADA INC. BE LIABLE FOR ANY SPECIAL, INDIRECT OR CONSEQUENTIAL DAMAGES.

In certain instances, some jurisdictions do not allow the exclusion or limitation of incidental or consequential damages, or the exclusion of implied warranties, so the above limitations and exclusions may not be applicable.

In-home service requires clear, complete and easy access to the product by the Authorized Servicentre and does not include removal or re-installation of an installed product. If removal is required to service the product, it will be at the discretion of the Servicentre and in no event will Panasonic Canada Inc. or the Servicentre be liable for any special, indirect or consequential damages.

WARRANTY SERVICE

For product operation and information assistance, please contact:

Our Customer Care Centre: 1-800 #: 1-866-330-0014 Email link: www.vieraconcierge.ca

FOR PRODUCT REPAIRS, please contact Viera Customer Care Agent using the above contact info.

IF YOU SHIP THE PRODUCT TO A SERVICENTRE

Carefully pack and send prepaid, adequately insured and preferably in the original carton.

Include details of the defect claimed, and proof of date of original purchase.

Note

Limited Warranty (for Canada)

FAQs, etc.

Customer’s Record

The model number and serial number of this product can be found on its back cover. You should note this serial number in the space provided below and retain this book, plus your purchase receipt, as a permanent record of your purchase to aid in identification in the event of theft or loss, and for Warranty Service purposes.

Model Number Serial Number

Anotación del cliente

El modelo y el número de serie de este producto se encuentran en su panel posterior. Deberá anotarlos en el espacio provisto a continuación y guardar este manual, más el recibo de su compra, como prueba permanente de su adquisición, para que le sirva de ayuda al identificarlo en el caso de que le sea sustraído o lo pierda, y también para disponer de los servicios que le ofrece la garantía.

Modelo Número de serie

Panasonic Consumer Electronics Company, Division of Panasonic Corporation of North America

Panasonic Puerto Rico, Inc.

Ave. 65 de Infanteria, Km. 9.5 San Gabriel Industrial Park

Carolina, Puerto Rico 00985 One Panasonic Way, Secaucus New Jersey 07094 U.S.A.

Panasonic Canada Inc.

5770 Ambler Drive Mississauga, Ontario L4W 2T3 CANADA

Printed in U.S.A.

Impreso en EE.UU.

Panasonic TH-50PZ850U User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

Safety Precautions

Notes

Accessories/Optional Accessory

Basic Connection

Identifying Controls

First Time Setup

Watching TV

Viewing from SD Card

Watching Videos and DVDs

Displaying PC Screen on TV

VIERA CAST

Network Setting

VIERA CAST setting

Lock

Editing and Setting Channels

Closed Caption

Input Labels/Monitor Out

Using Timer

Programming the Remote to Operate Peripheral Equipment

Recommended AV Connections

Remote Control Operation/Code List

Ratings List for Lock

Technical Information

Care and Cleaning

Specifications

Limited Warranty (for U.S.A.)

Customer Services Directory (for U.S.A.)

Limited Warranty (for Canada)
