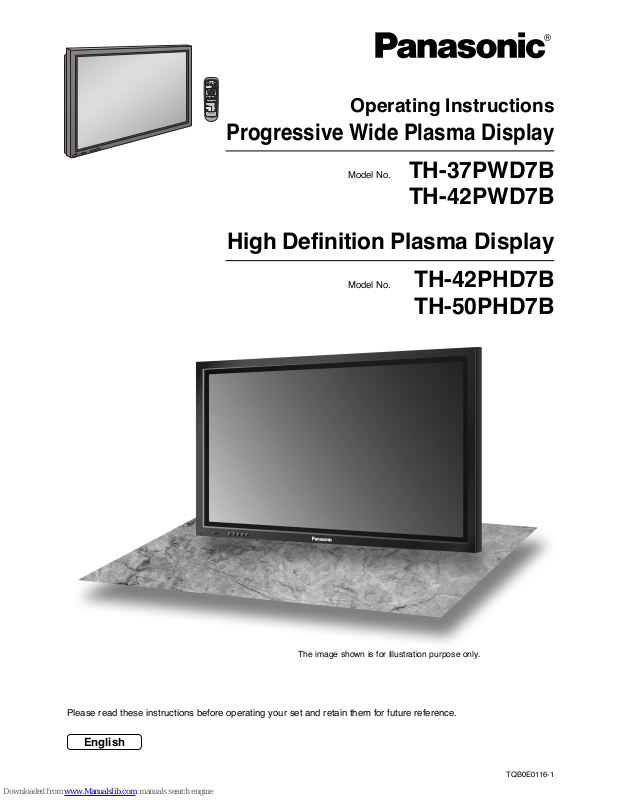

Page 1

PLASMA DISPLAY

ENT

–

OWER

Please read these instructions before operating your set and retain them for future reference.

English

TH-42PHD7B TH-50PHD7B

High Definition Plasma Display

Model No.

TH-37PWD7B TH-42PWD7B

Operating Instructions

Progressive Wide Plasma Display

Model No.

The image shown is for illustration purpose only.

TQB0E0116-1

Page 2

Table of Contents

Important Safety Notice ............................................. 3

Safety Precautions ..................................................... 4

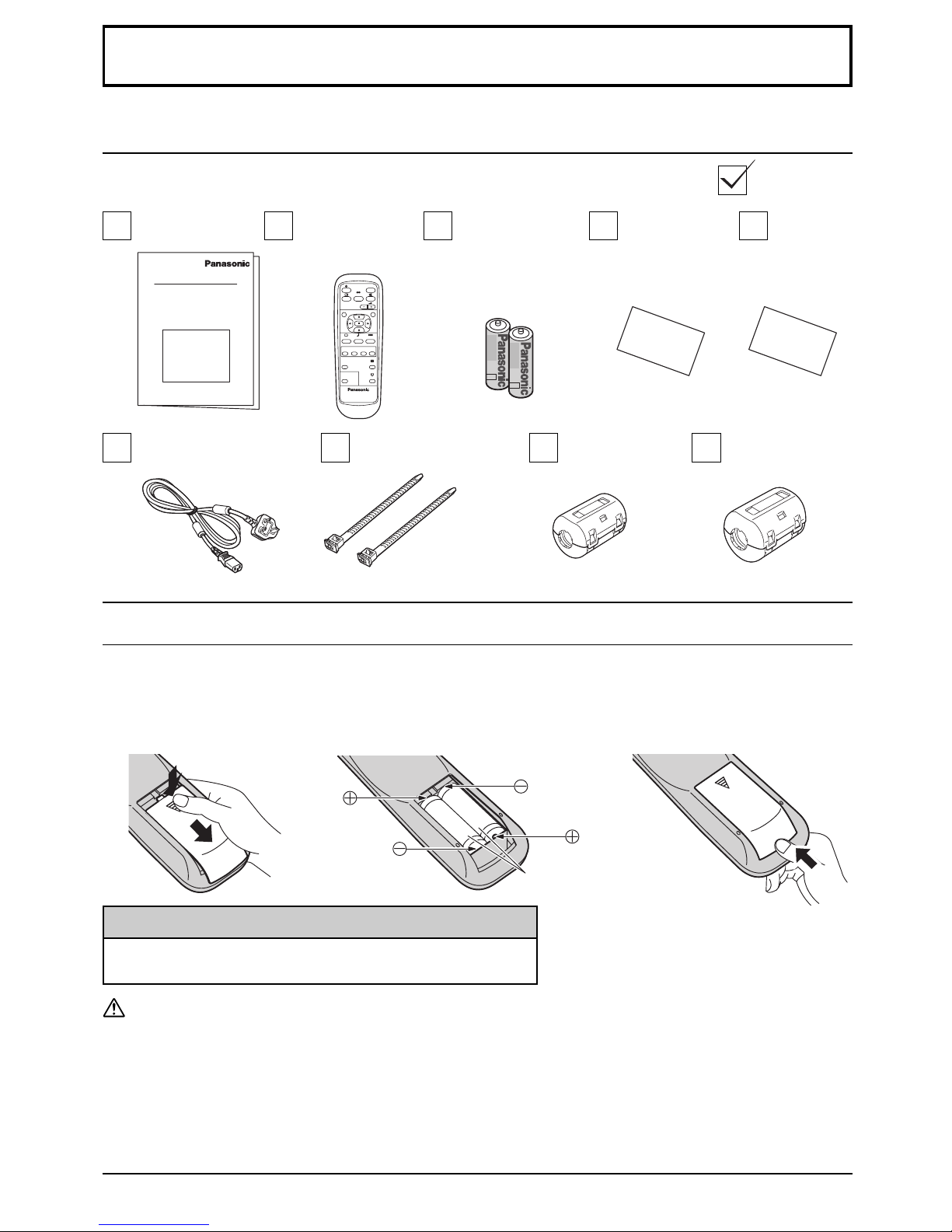

Accessories ................................................................ 7

Accessories Supply ................................................... 7

Remote Control Batteries .......................................... 7

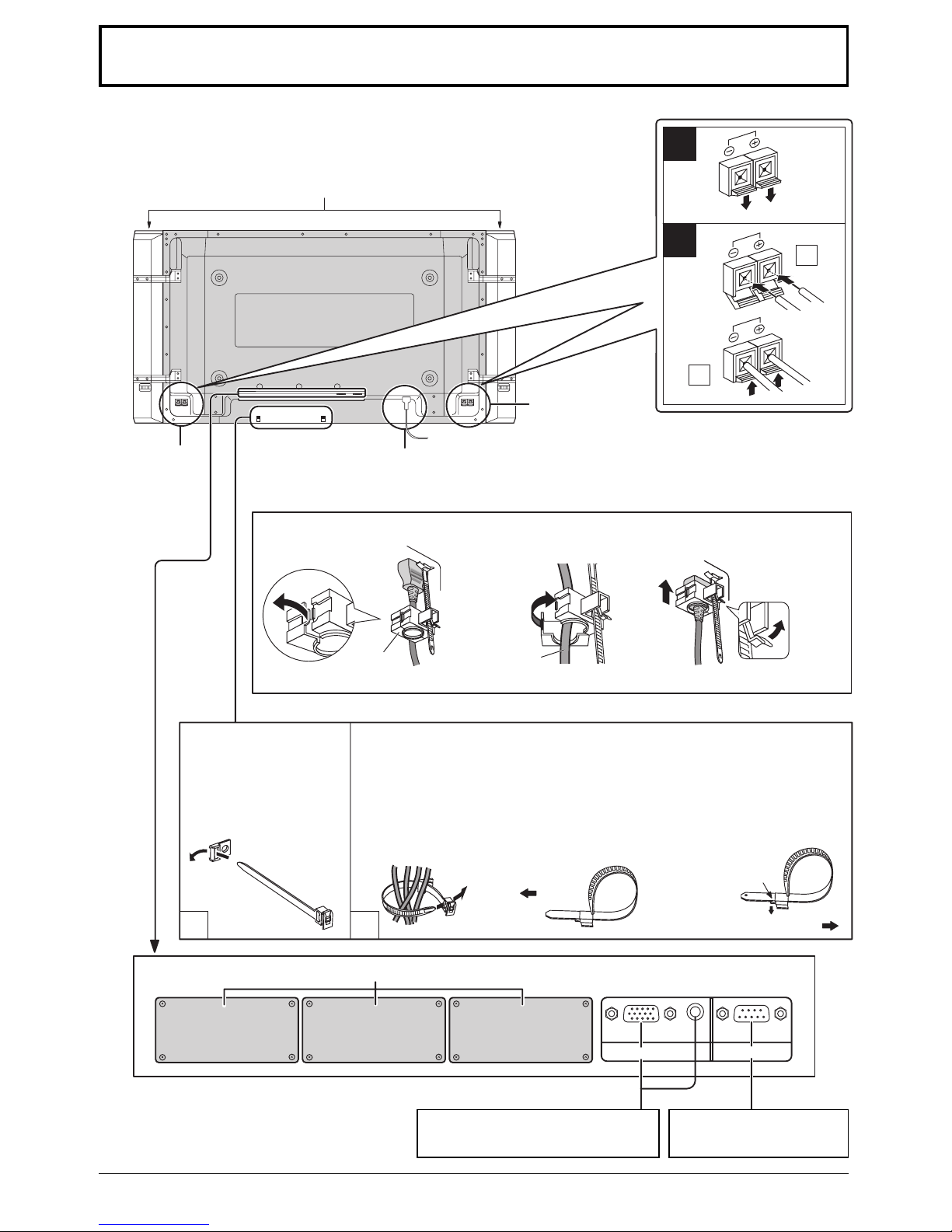

Connections ............................................................... 8

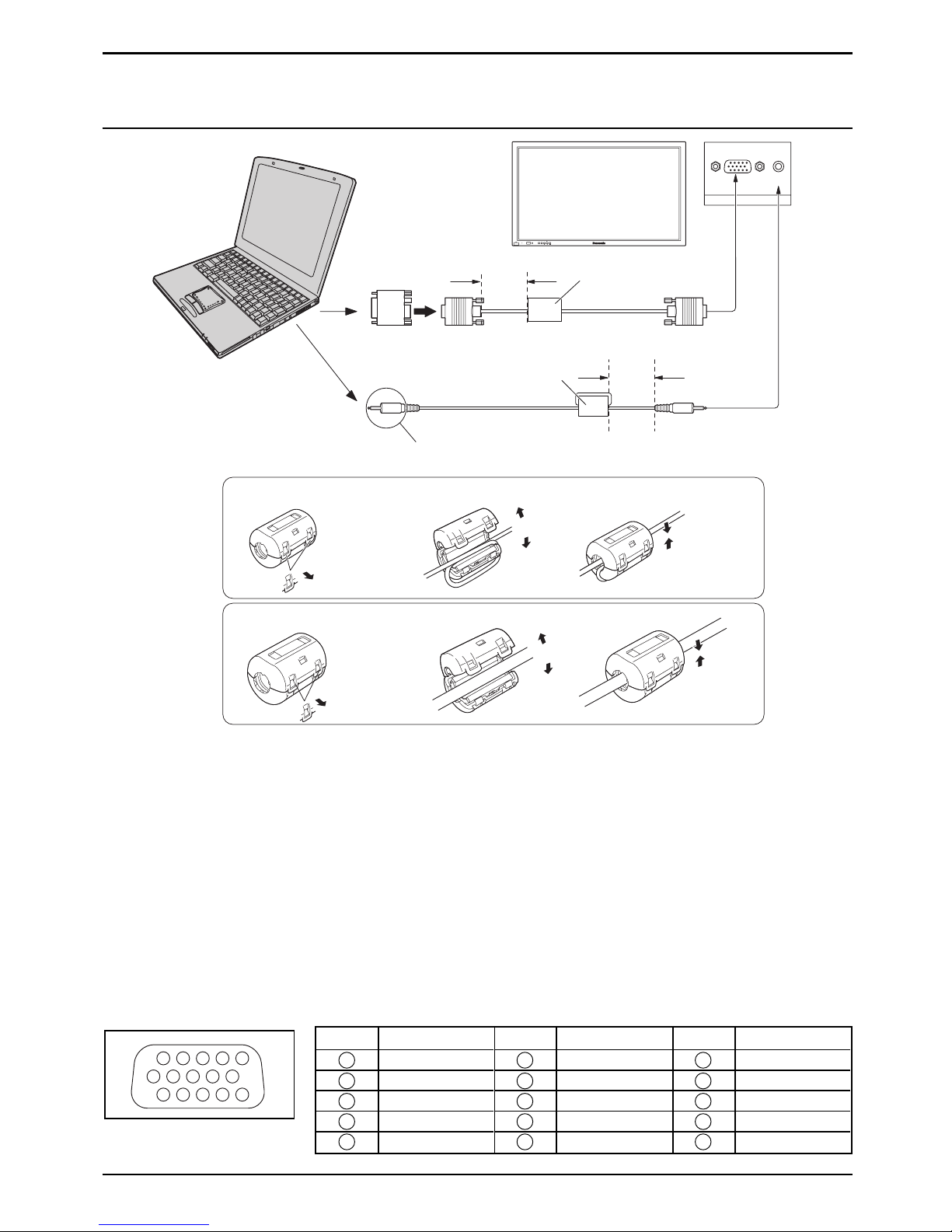

PC Input Terminals connection ................................. 9

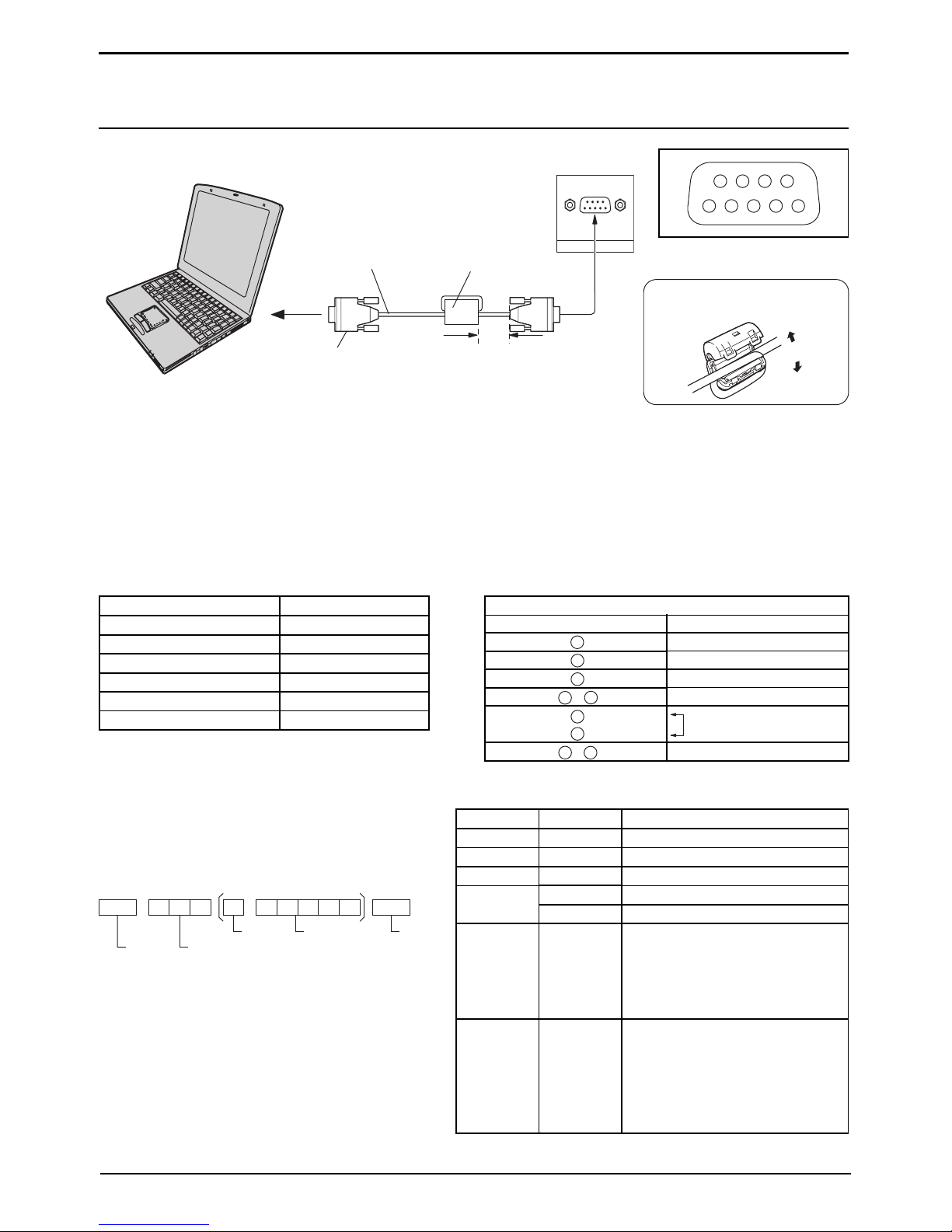

SERIAL Terminals connection ................................. 10

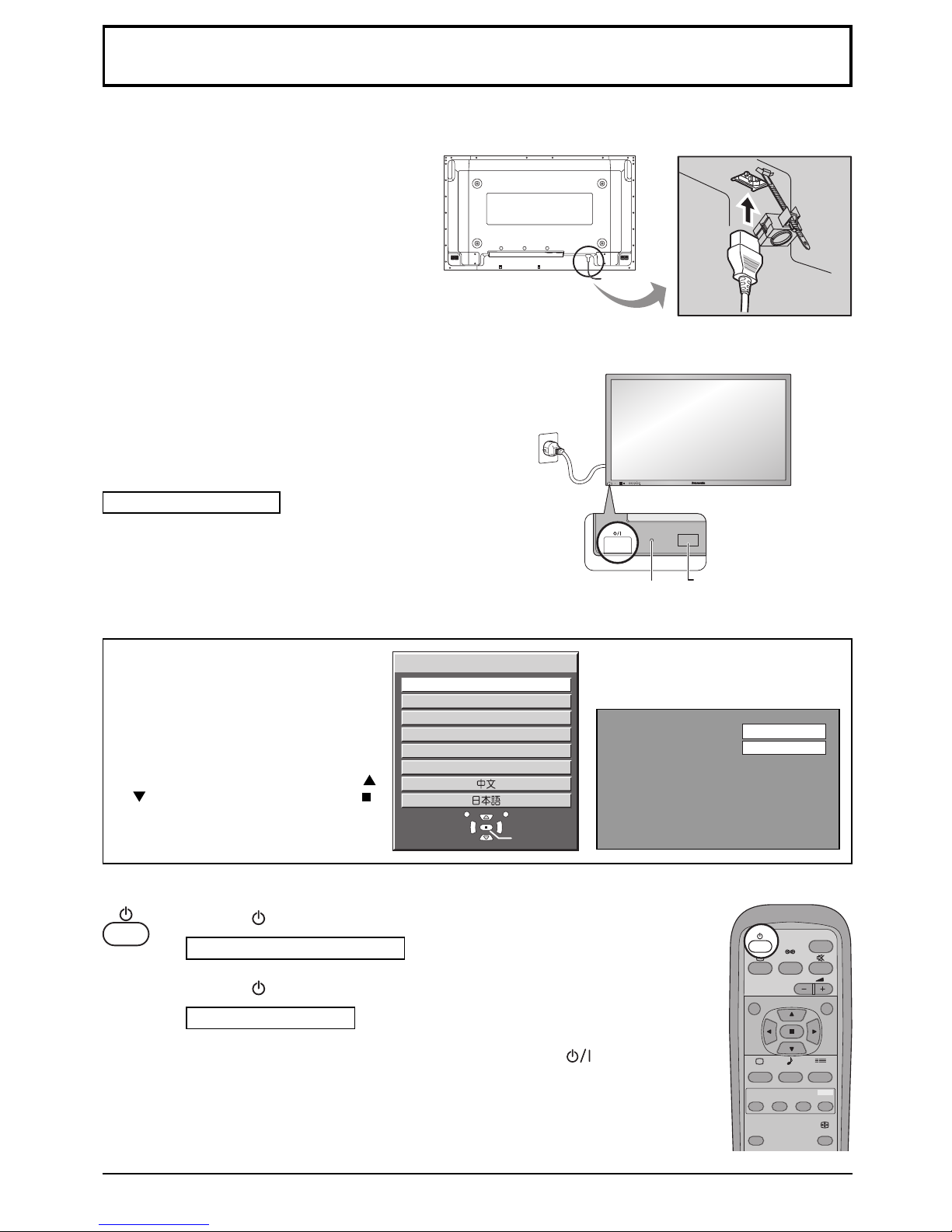

Power On / Off .......................................................... 11

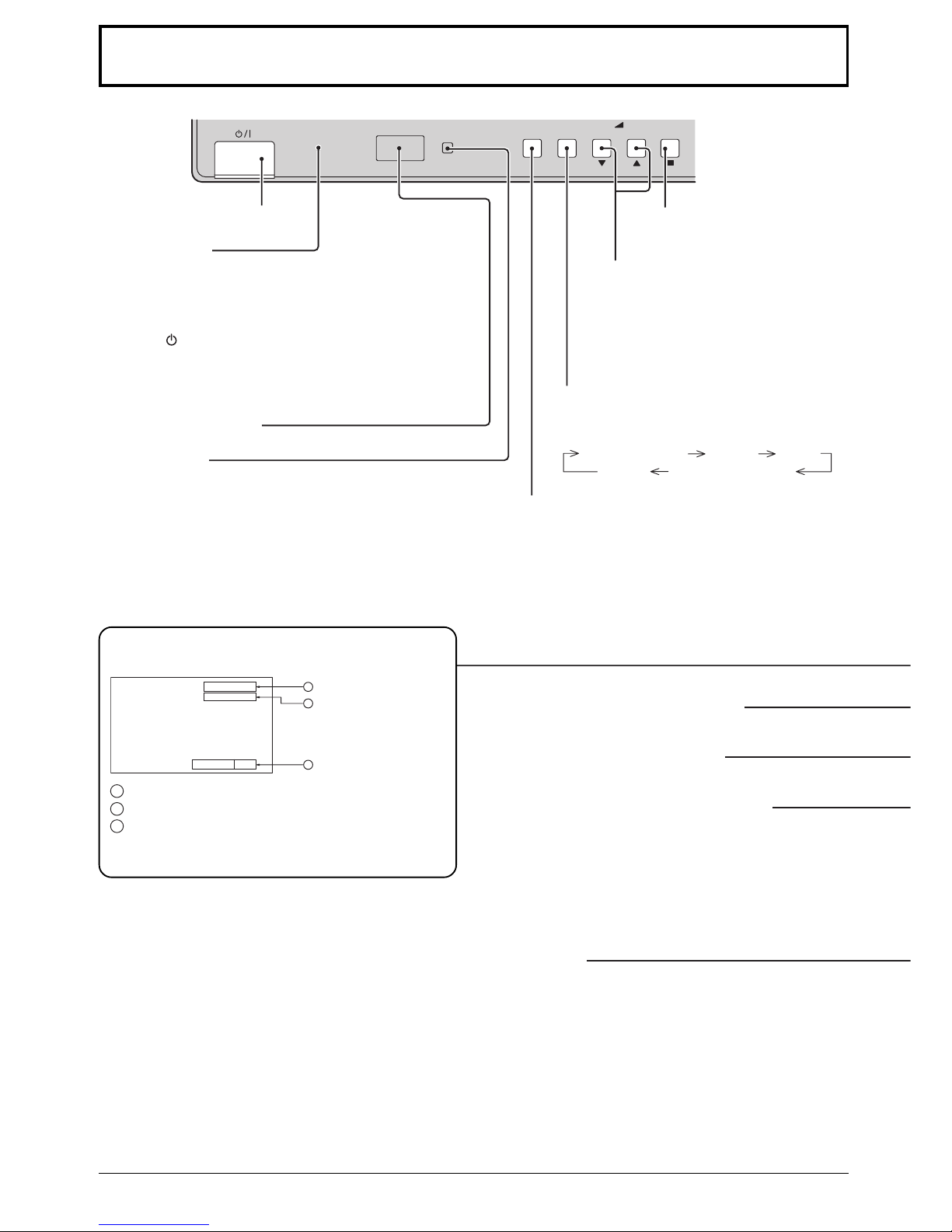

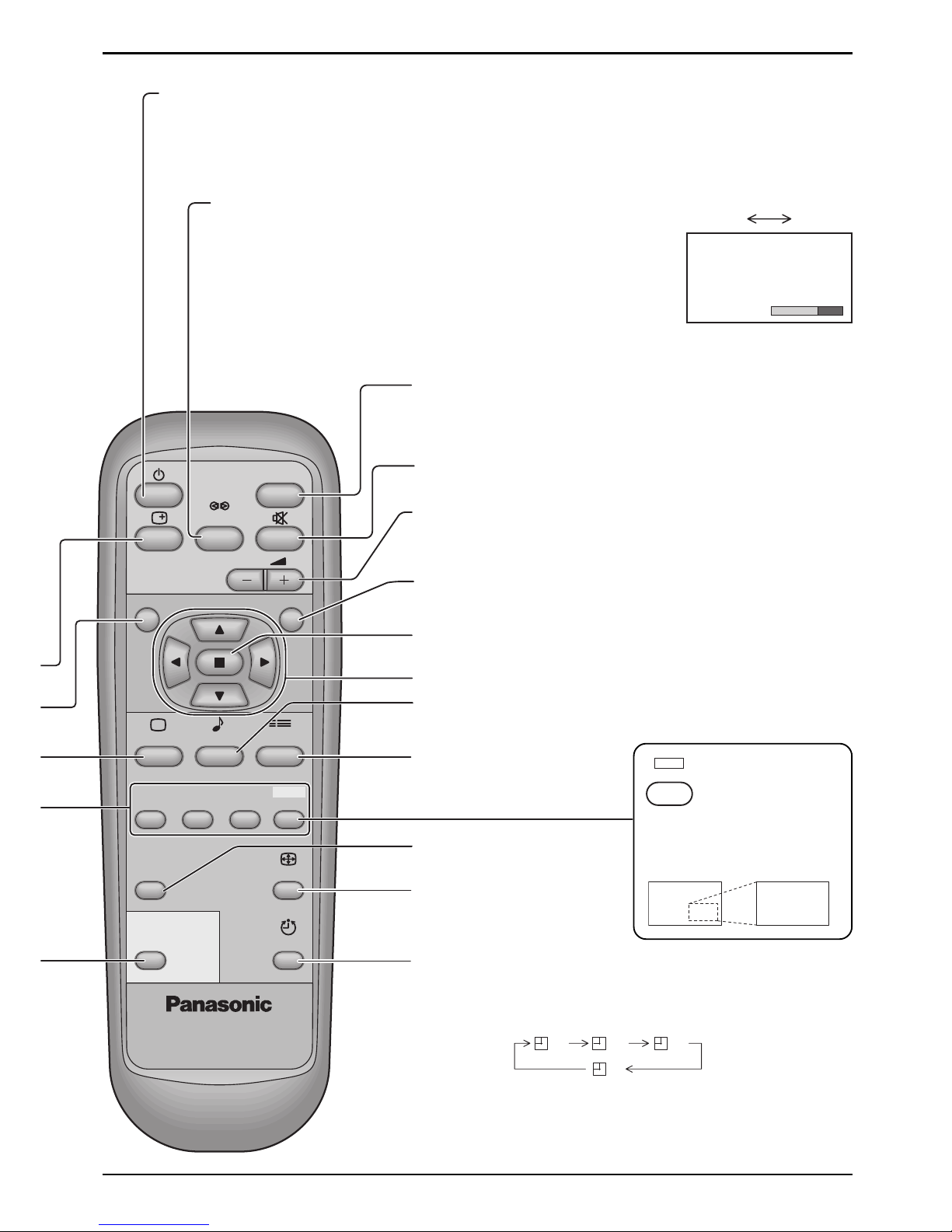

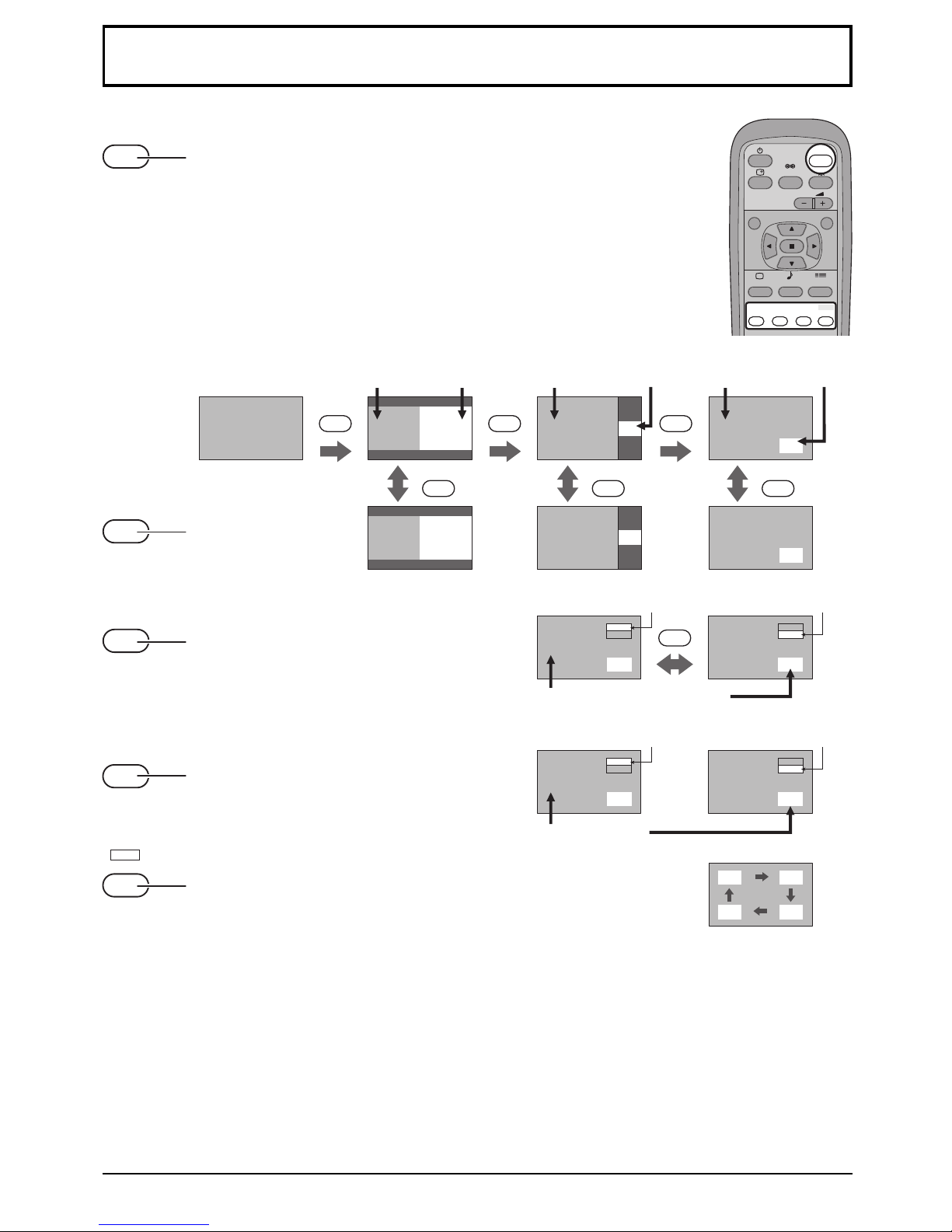

Basic Controls .......................................................... 12

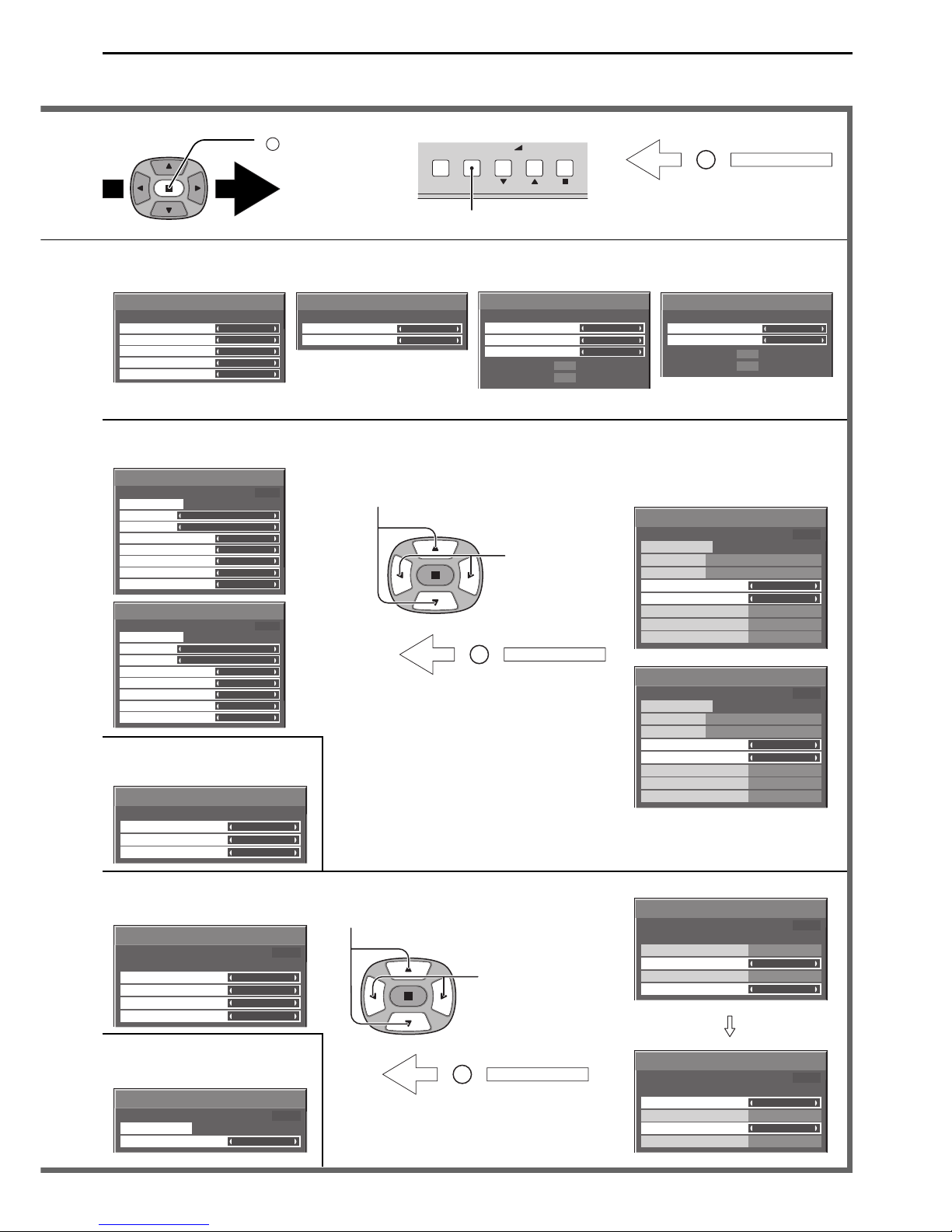

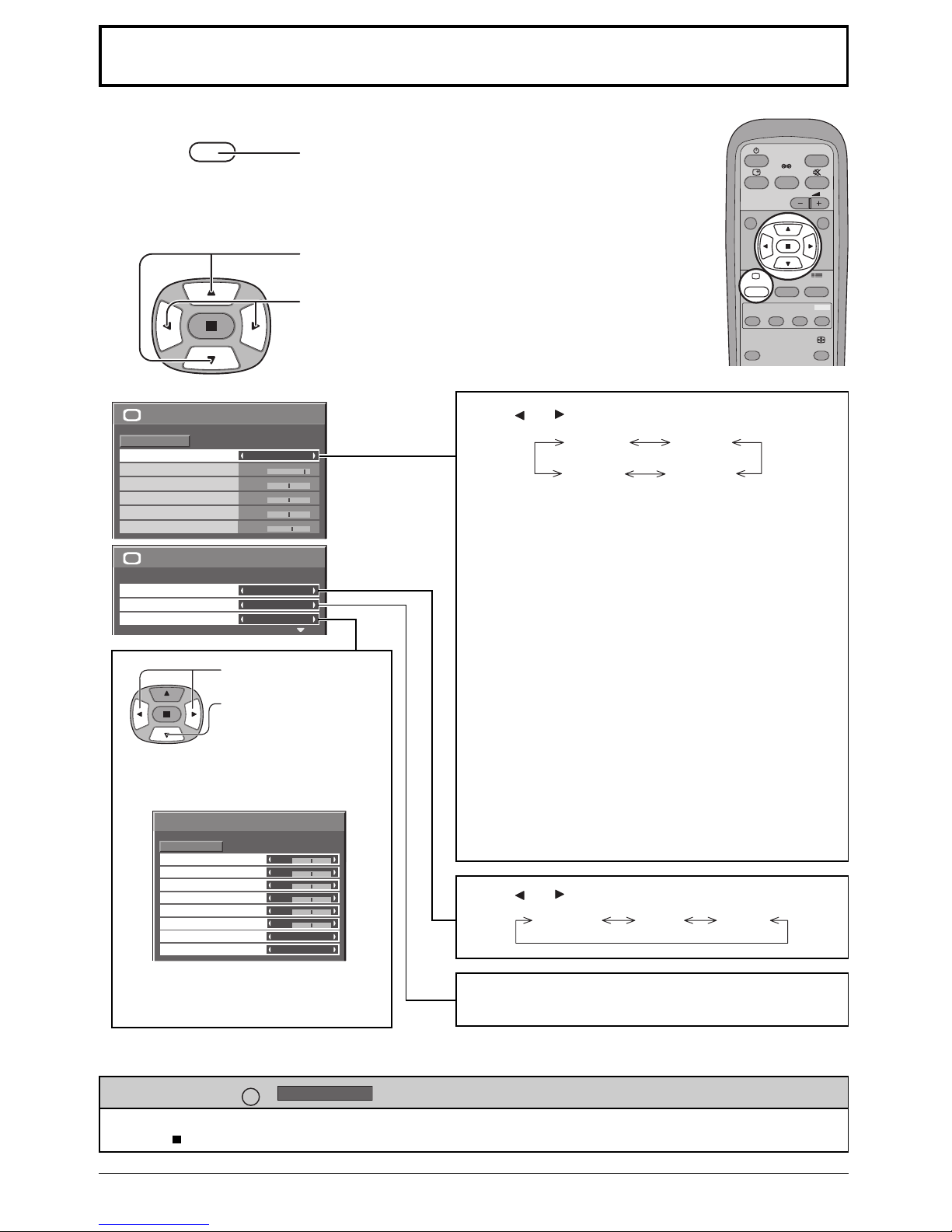

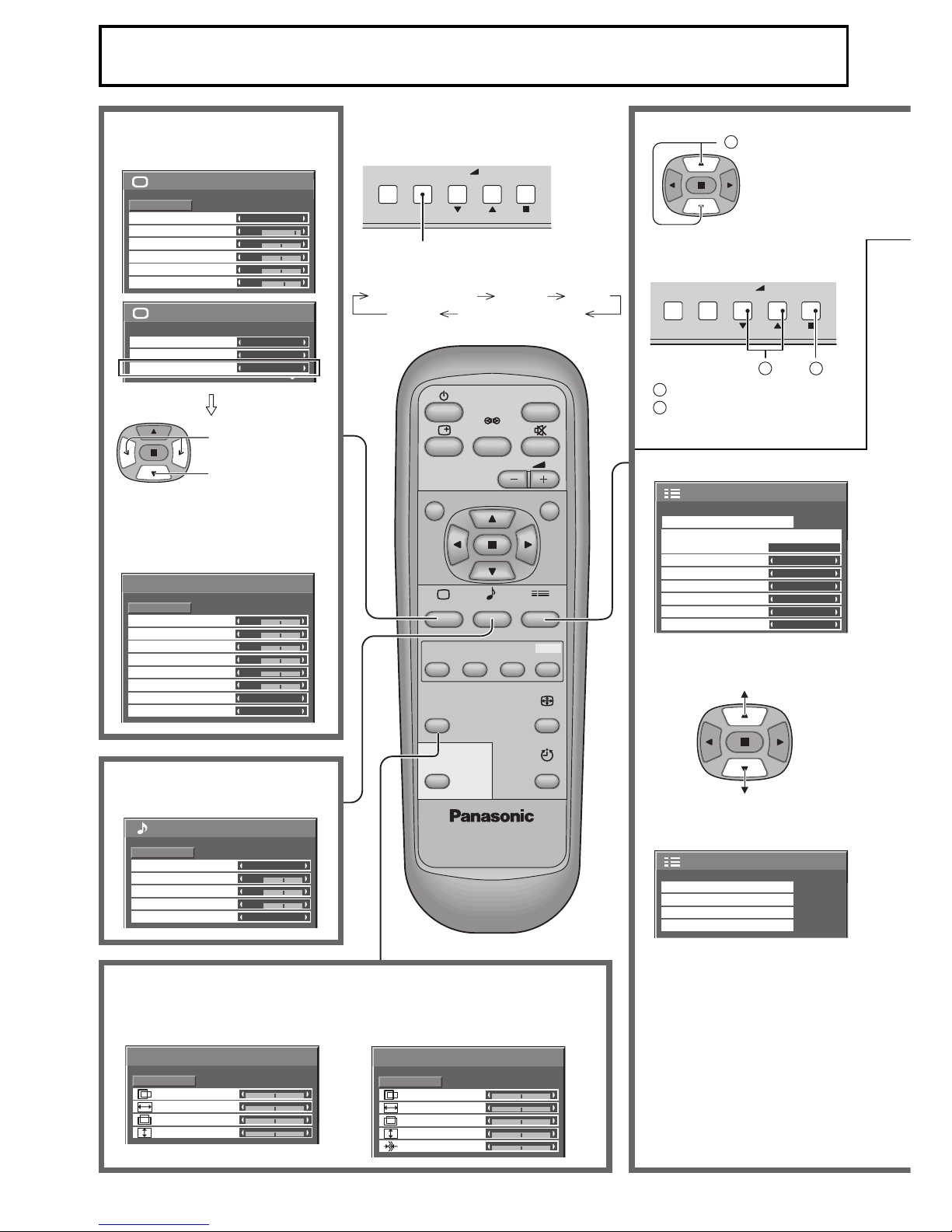

On-Screen Menu Displays ....................................... 14

Initial selections ....................................................... 16

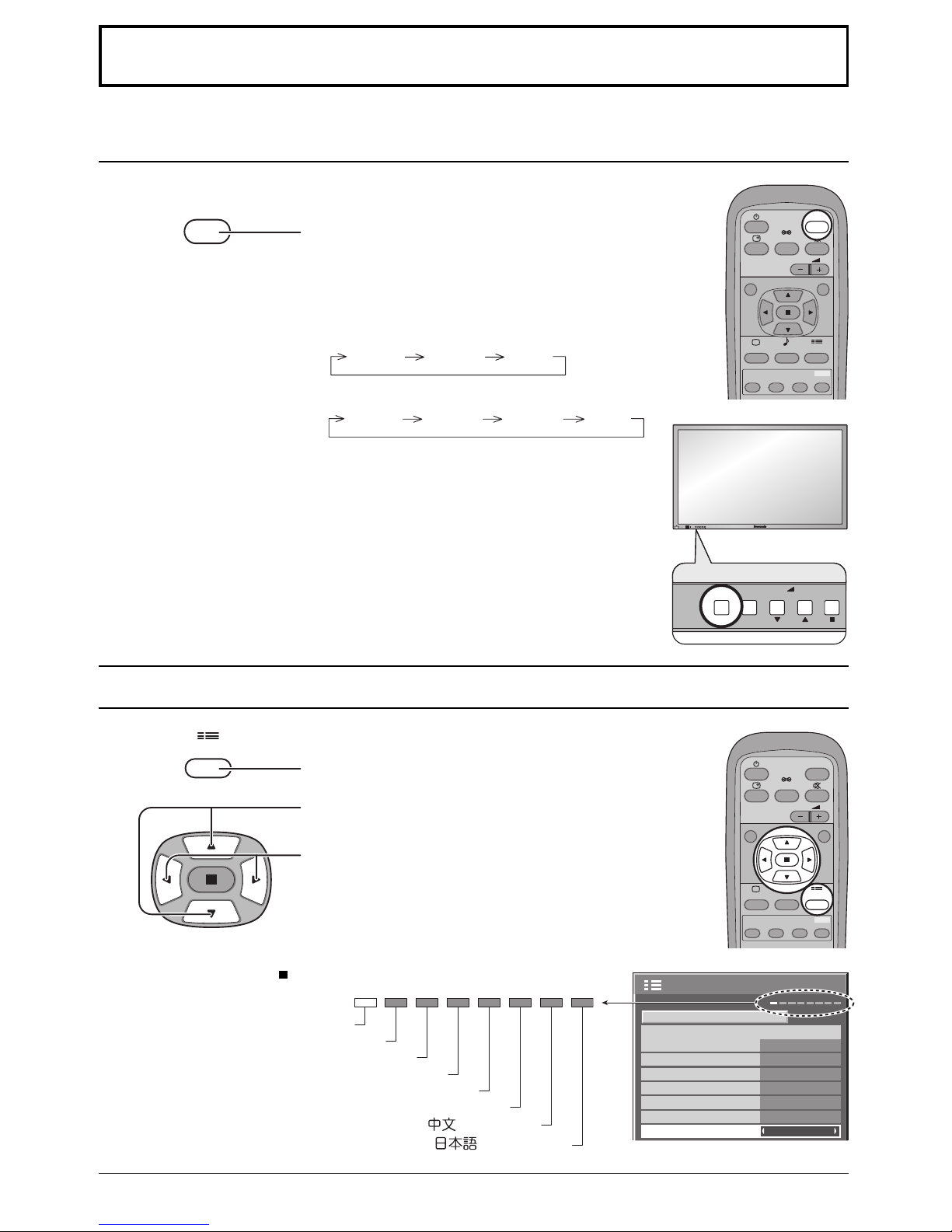

Selecting the input signal ........................................ 16

Selecting the On-Screen Menu Language .............. 16

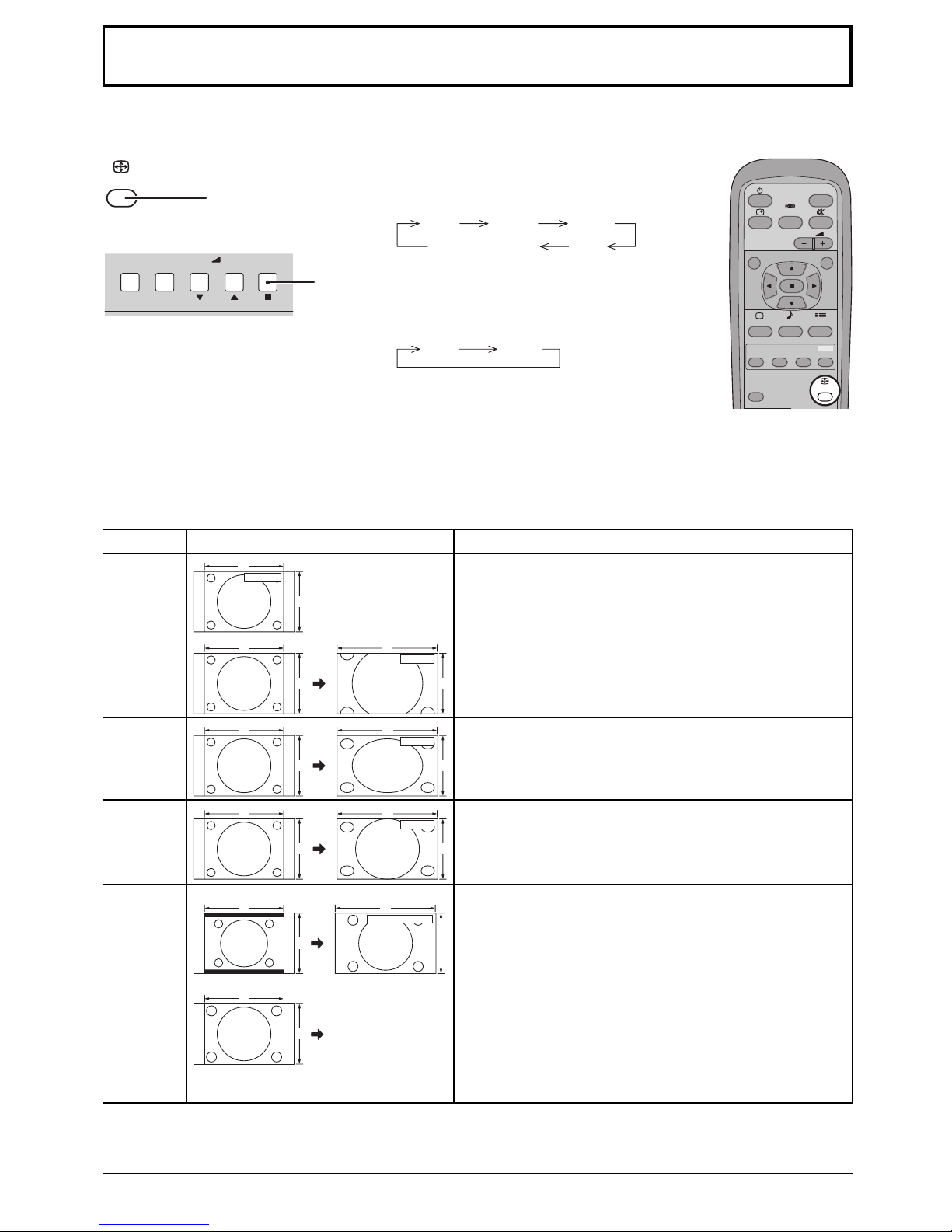

ASPECT Controls ..................................................... 17

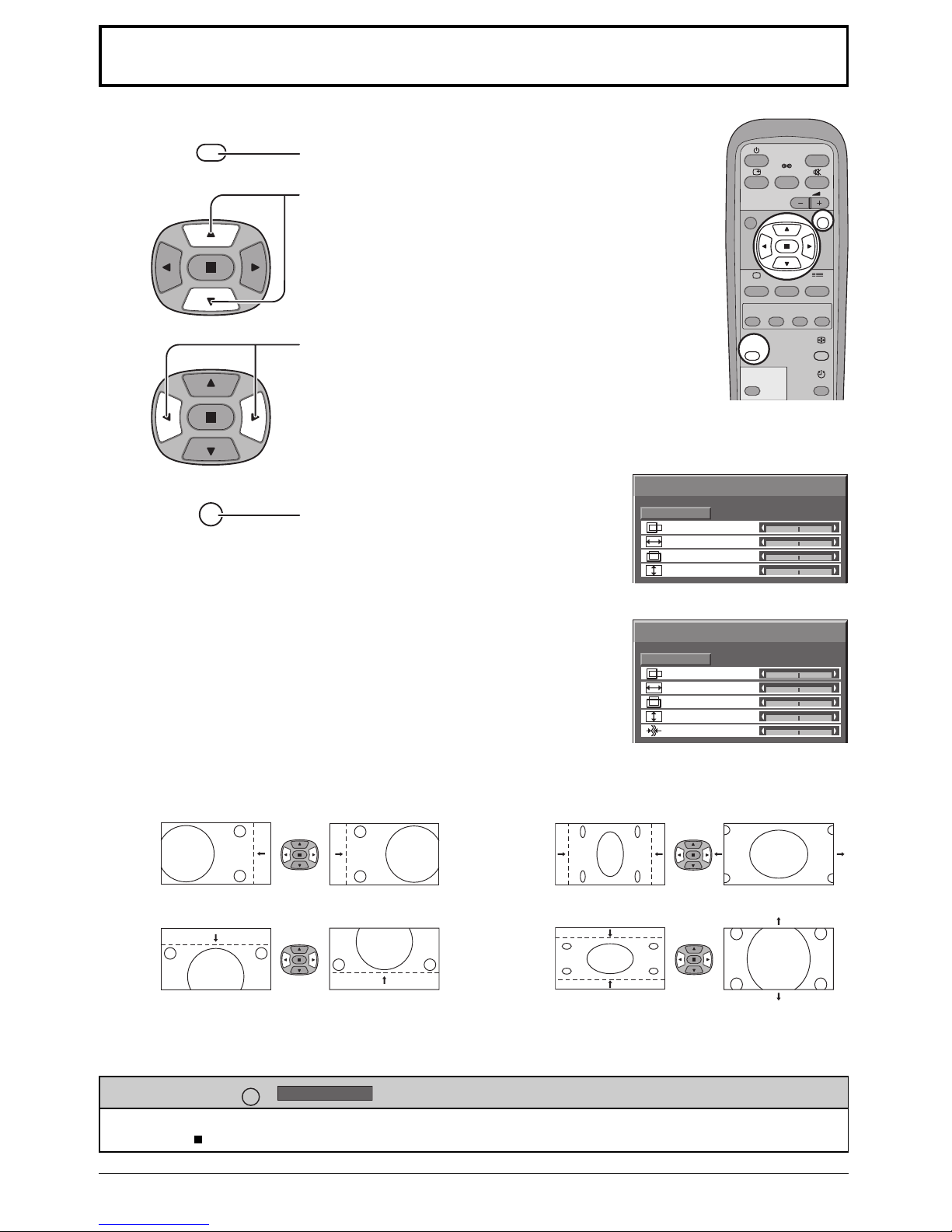

Adjusting Picture Pos. / Size................................... 18

MULTI PIP .................................................................. 19

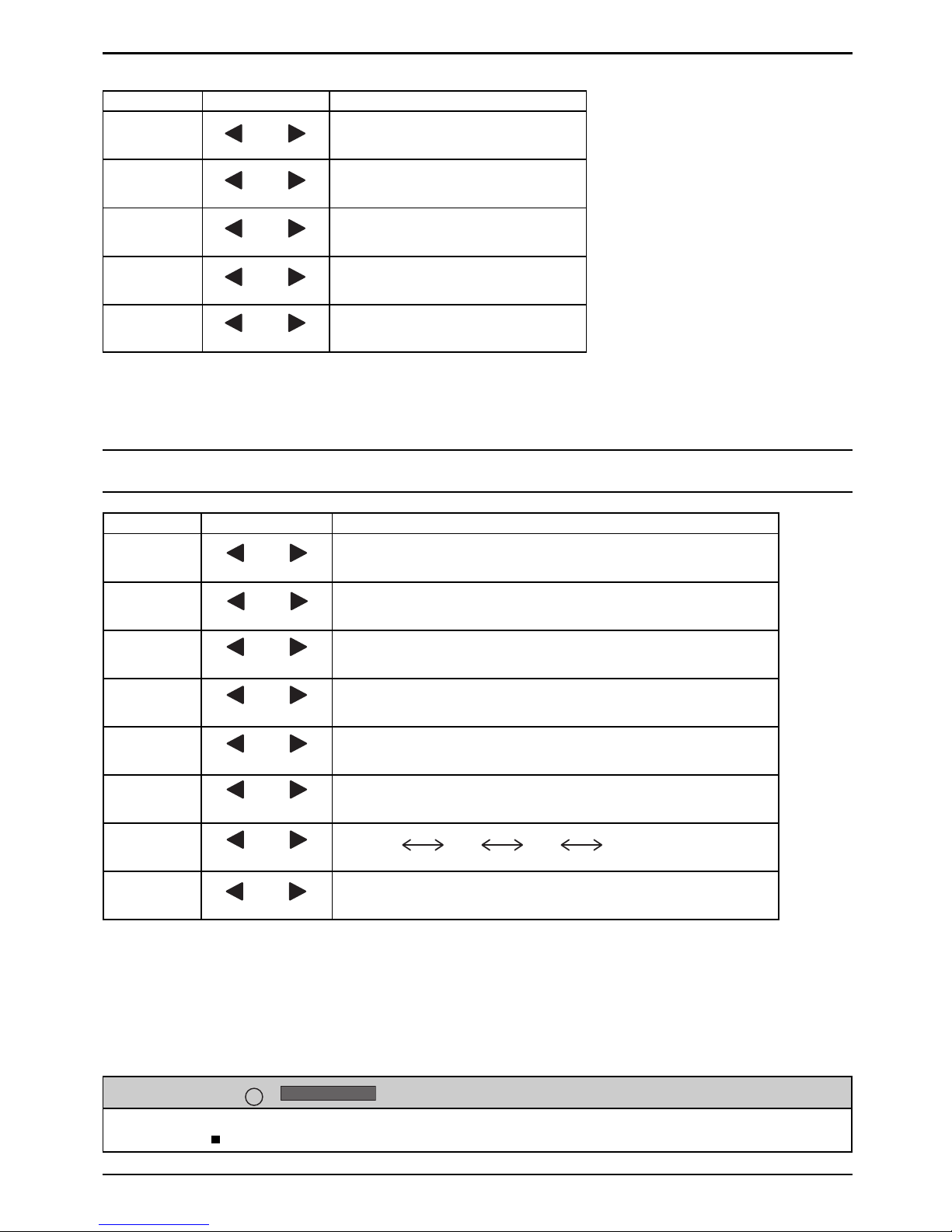

Picture Adjustments ................................................ 20

Advanced settings ................................................... 21

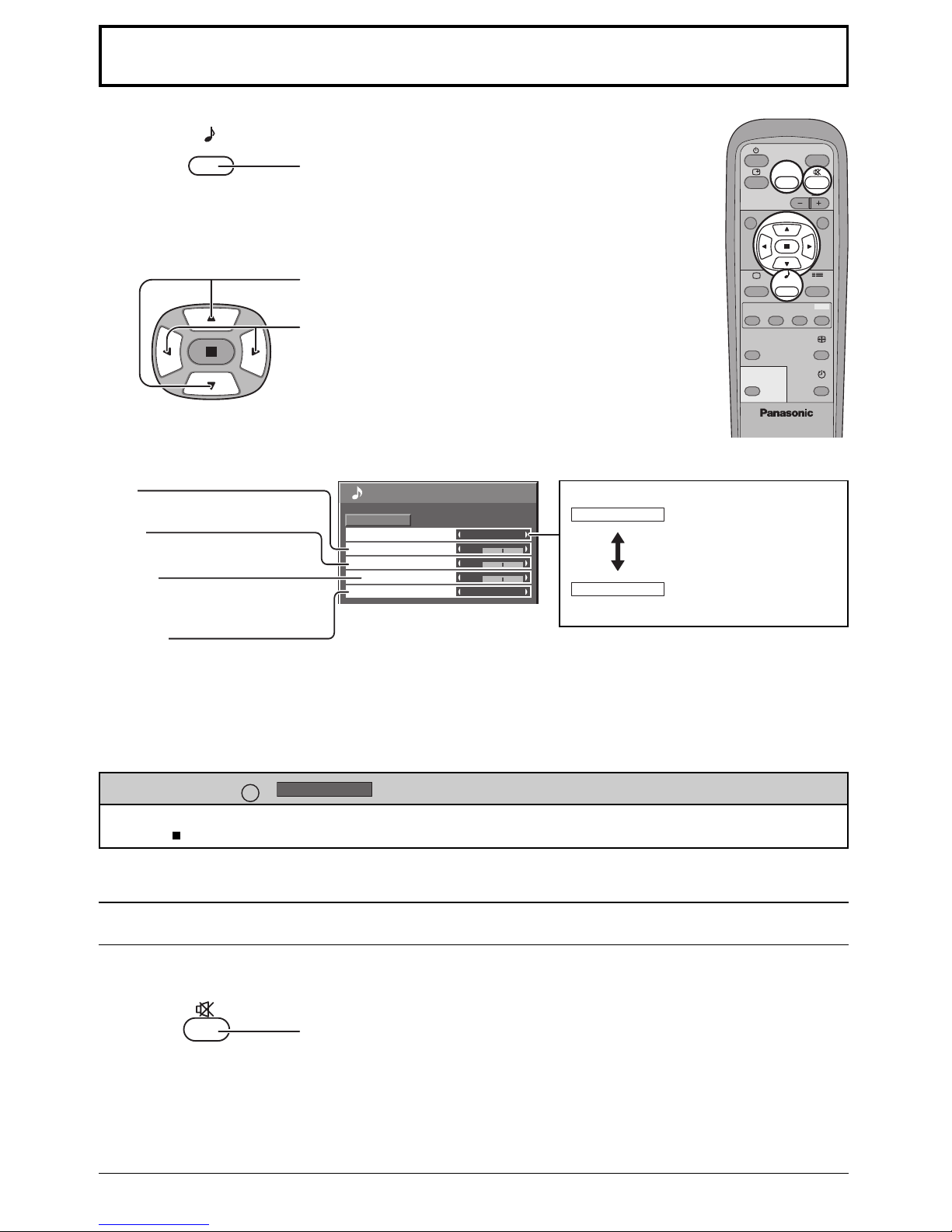

Sound Adjustment ................................................... 22

Mute ........................................................................ 22

Digital Zoom ............................................................. 23

PRESENT TIME Setup / Set up TIMER ................... 24

PRESENT TIME Setup ........................................... 24

Set up TIMER.......................................................... 25

Screensaver (For preventing after-images) ........... 26

Setup of Screensaver Time..................................... 27

Reduces screen after-image ................................... 27

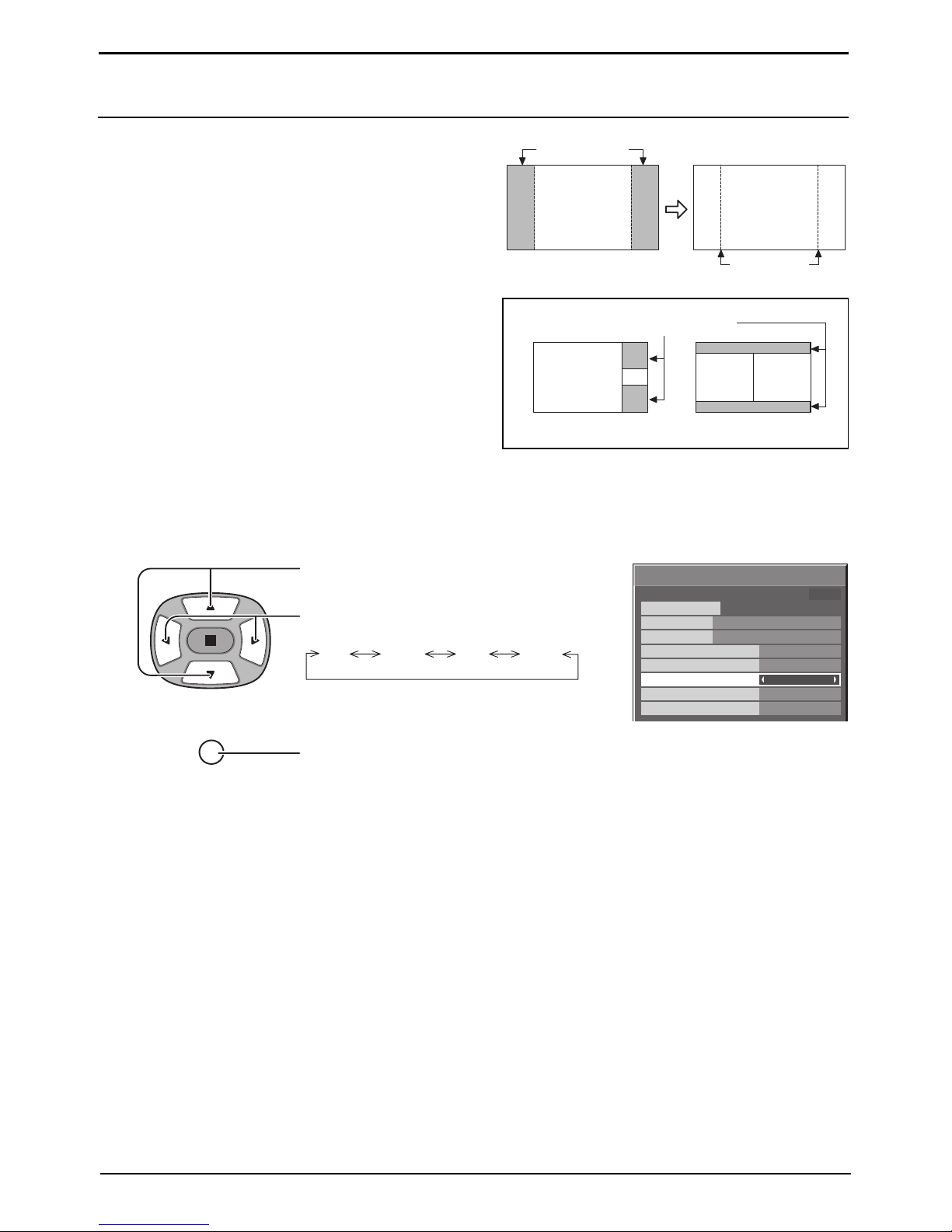

Side Panel Adjustment ............................................ 28

Reduces power consumption ................................. 29

Customizing the Input labels ................................... 29

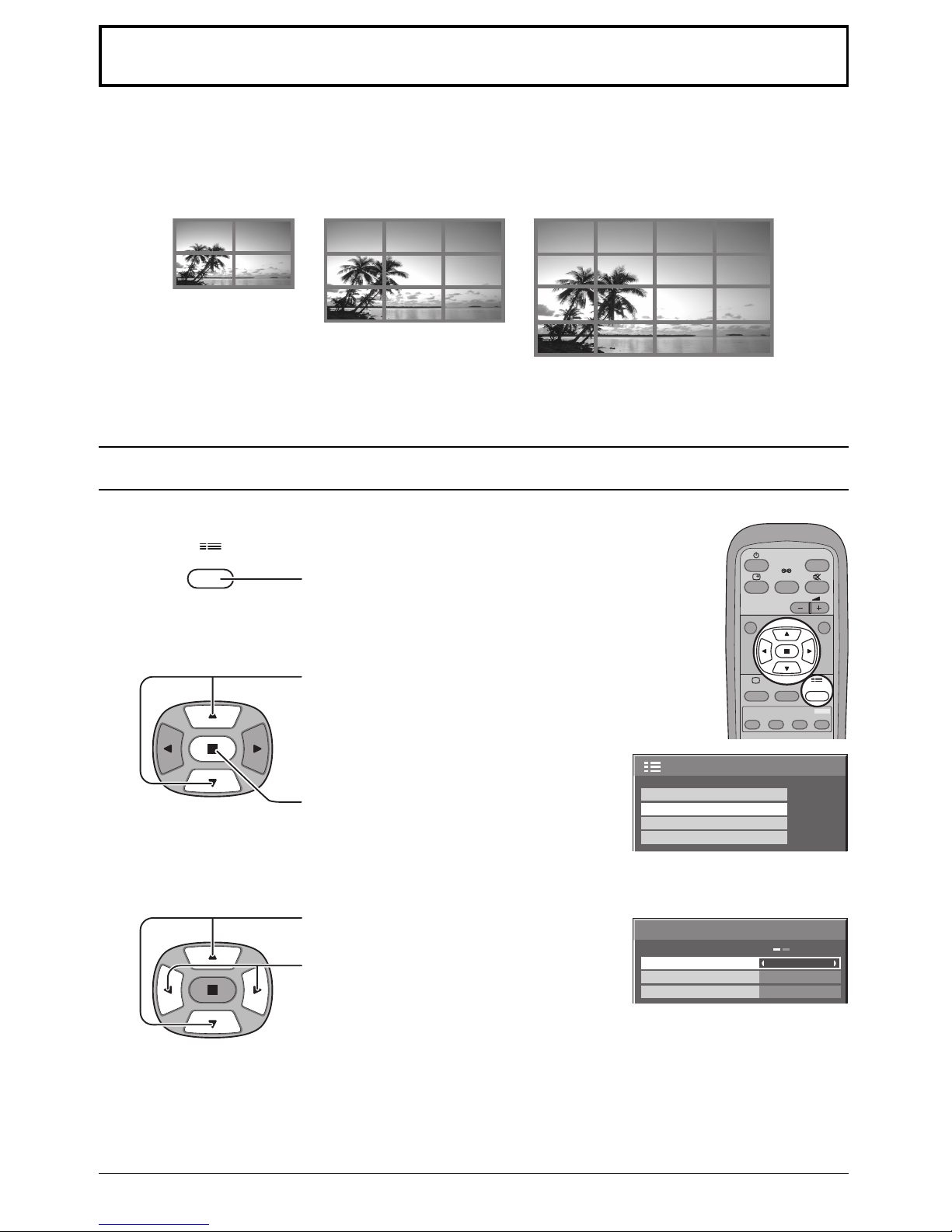

Setup for MULTI DISPLAY ....................................... 30

How to Setup MULTI DISPLAY ............................... 30

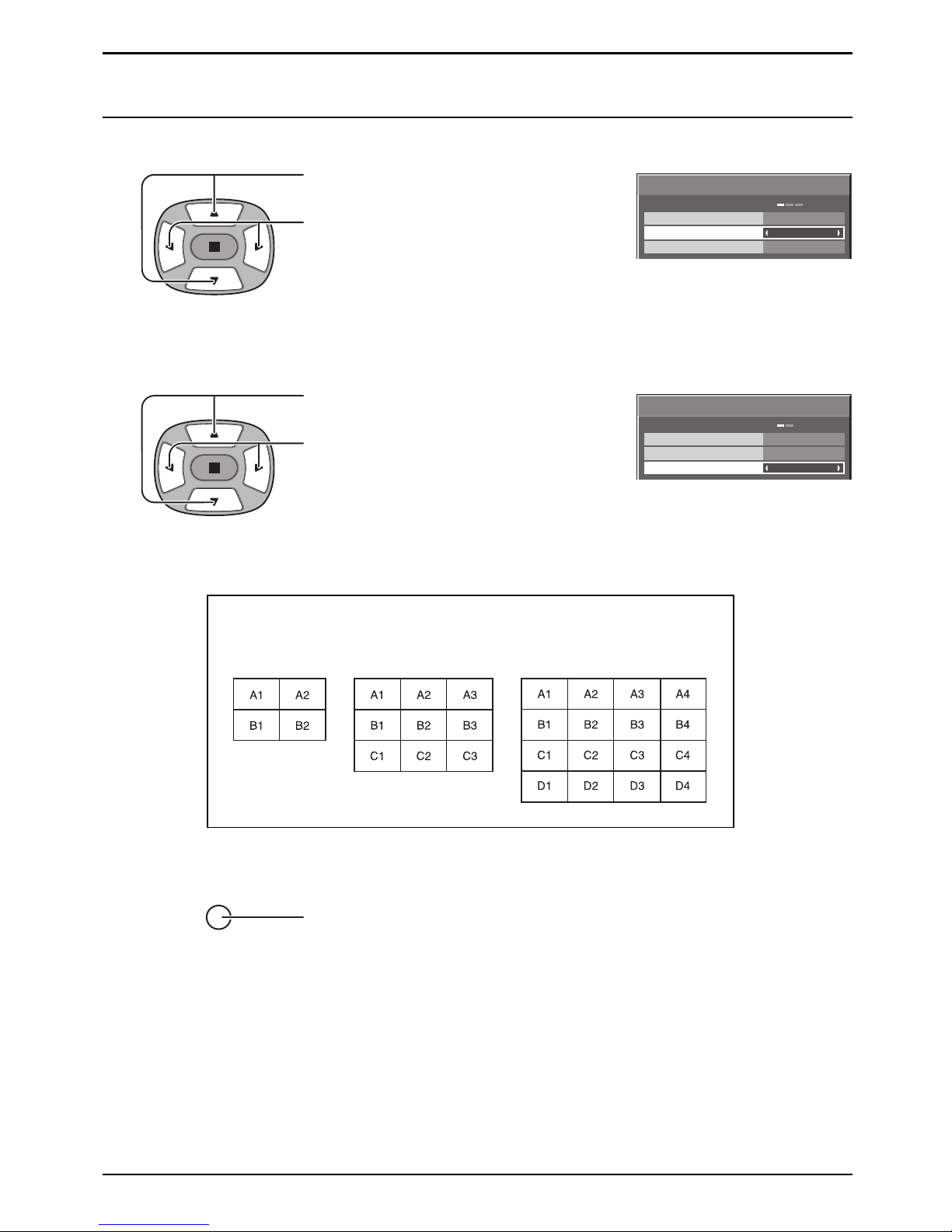

How to set the display location

number for each Plasma Display ................. 31

Setup for Input Signals ............................................ 32

Component / RGB-in select .................................... 32

3D Y/C Filter ............................................................ 32

Colour system / Panasonic Auto ............................. 33

Cinema reality / P-NR ............................................. 33

Sync ........................................................................ 34

H-Freq. (kHz) / V-Freq. (Hz).................................... 34

Shipping condition................................................... 35

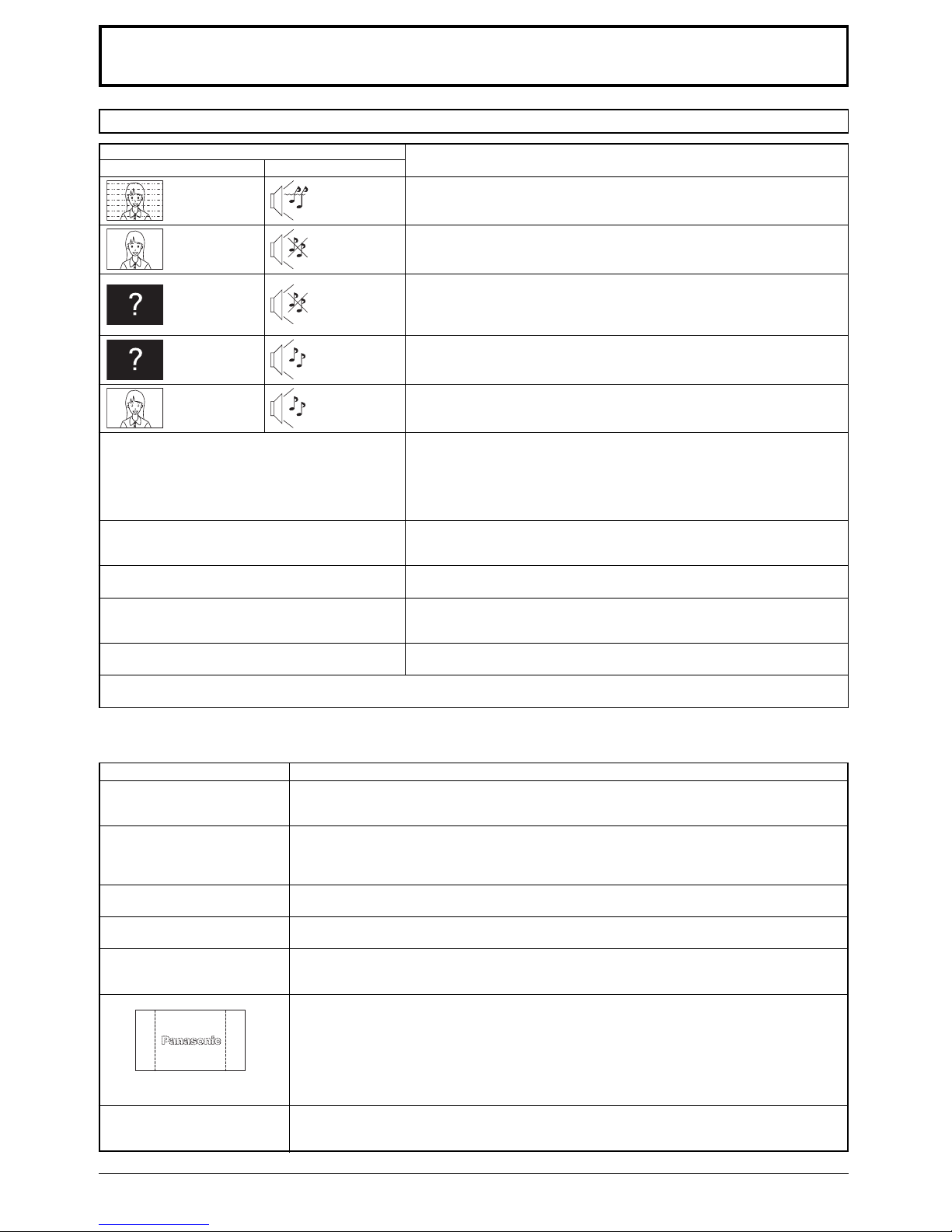

Troubleshooting ....................................................... 36

Input signal can be displayed ................................. 37

Specifications ........................................................... 38

Dear Panasonic Customer

Welcome to the Panasonic family of customers. We hope that you will have many years of enjoyment from your new Plasma Display. To obtain maximum benefit from your set, please read these Instructions before making any adjustments, and retain them for future reference. Retain your purchase receipt also, and note down the model number and serial number of your set in the space provided on the rear cover of these instructions.

Visit our Panasonic Web Site http://www.panasonic.co.jp/global/

Trademark Credits

•

VGA is a trademark of International Business Machines Corporation.

•

Macintosh is a registered trademark of Apple Computer, USA.

•

S-VGA is a registered trademark of the video Electronics Standard Association. Even if no special notation has been made of company or product trademarks, these trademarks have been fully respected.

Note:

Do not allow a still picture to be displayed for an extended period, as this can cause a permanent after-image to remain on the Plasma Display. Examples of still pictures include logos, video games, computer images, teletext and images displayed in 4:3 mode.

Page 3

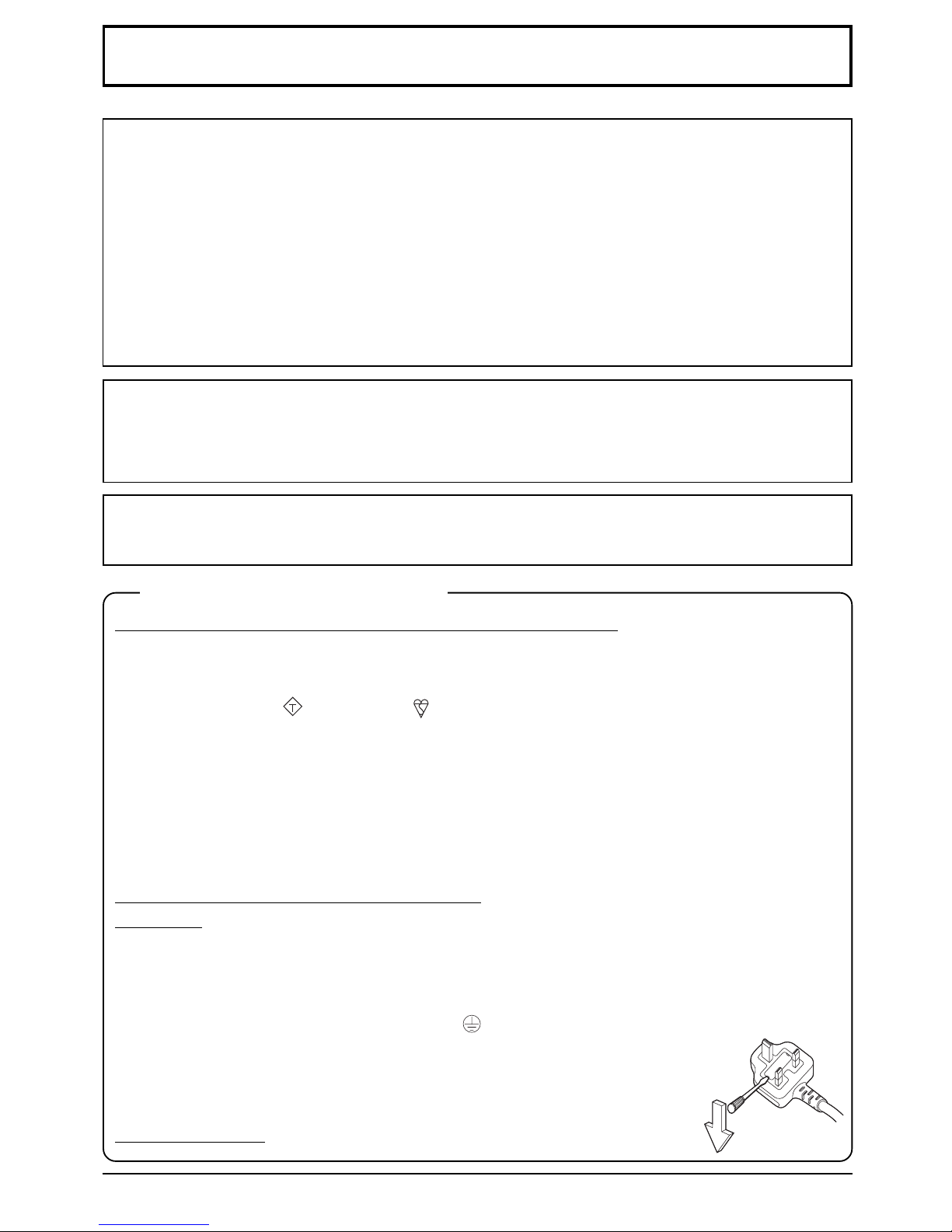

Important Safety Notice

CAUTION

This appliance is intended for use in environments which are relatively free of electromagnetic fields. Using this appliance near sources of strong electromagnetic fields or where electrical noise may overlap with the input signals could cause the picture and sound to wobble or cause interference such as noise to appear. To avoid the possibility of harm to this appliance, keep it away from sources of strong electromagnetic fields.

WARNING

This is a class A product. In a domestic environment this product may cause radio interference in which case you may be required to take adequate measures.

WARNING

1) To prevent damage which may result in fire or shock hazard, do not expose this appliance to dripping or splashing. Do not place containers with water (flower vase, cups, cosmetics, etc.) above the set. (including on shelves above, etc.) No naked flame sources, such as lighted candles, should be placed on / above the set.

2) To prevent electric shock, do not remove cover. No user serviceable parts inside. Refer servicing to qualified service personnel.

3) Do not remove the earthing pin on the power plug. This apparatus is equipped with a three pin earthing-type power plug. This plug will only fit an earthing-type power outlet. This is a safety feature. If you are unable to insert the plug into the outlet, contact an electrician. Do not defeat the purpose of the earthing plug.

4) To prevent electric shock, ensure the earthing pin on the AC cord power plug is securely connected.

IMPORTANT: THE MOULDED PLUG

FOR YOUR SAFETY, PLEASE READ THE FOLLOWING TEXT CAREFULLY.

This appliance is supplied with a moulded three pin mains plug for your safety and convenience. A 5 amp fuse is fitted in this plug. Shall the fuse need to be replaced, please ensure that the replacement fuse has a rating of 5 amps and that it is approved by ASTA or BSI to BS1362.

Check for the ASTA mark

ASA

or the BSI mark

on the body of the fuse.

If the plug contains a removable fuse cover, you must ensure that it is refitted when the fuse is replaced. If you lose the fuse cover the plug must not be used until a replacement cover is obtained. A replacement fuse cover can be purchased from your local Panasonic Dealer.

If the fitted moulded plug is unsuitable for the socket outlet in your home, then the fuse shall be removed and the plug cut off and disposed of safety. There is a danger of severe electrical shock if the cut off plug is inserted into any 13 amp socket.

If a new plug is to be fitted, please observe the wiring code as shown below. If in any doubt, please consult a qualified electrician.

WARNING: — THIS APPARATUS MUST BE EARTHED.

IMPORTANT: —The wires in this mains lead are coloured in accordance with the following code: —

Green-and-Yellow: Earth Blue: Neutral Brown: Live

As the colours of the wire in the mains lead of this appliance may not correspond with the coloured markings identifying the terminals in your plug, proceed as follows.

The wire which is coloured GREEN-AND-YELLOW must be connected to the terminal in the plug which is marked with the letter E or by the Earth symbol

or coloured GREEN or GREEN-AND-YELLOW.

The wire which is coloured BLUE must be connected to the terminal in the plug which is marked with the letter N or coloured BLACK.

The wire which is coloured BROWN must be connected to the terminal in the plug which is marked with the letter L or coloured RED.

How to replace the fuse. Open the fuse compartment with a screwdriver and replace the fuse.

Page 4

Safety Precautions

WARNING

Setup

This Plasma Display is for use only with the following optional accessories. Use with any other type of optional accessories may cause instability which could result in the possibility of injury.

(All of the following accessories are manufactured by Matsushita Electric Industrial Co., Ltd.)

• Speakers ···································································· TY-SP37P5W-K (TH-37PWD7B),

TY-SP42P5W-K (TH-42PWD7B(K), TH-42PHD7B), TY-SP42P6W-S (TH-42PWD7B(S)), TY-SP50P5W-K (TH-50PHD7B(K)), TY-SP50P6W-S (TH-50PHD7B(S))

• Pedestal ····································································· TY-ST05-K, TY-ST07-K (TH-37PWD7B, TH-42PWD7B(K),

TH-42PHD7B, TH-50PHD7B(K)), TY-ST42PA20 (TH-42PWD7B(S), TH-50PHD7B(S))

• Wall stand ·································································· TY-ST42PW1

• Mobile stand ······························································ TY-ST42PF3 (except TH-37PWD7B)

• Wall-hanging bracket (vertical) ·································· TY-WK42PV7,

TY-WK37PV3 (TH-37PWD7B), TY-WK42PV1 (except TH-37PWD7B)

• Wall-hanging bracket (angled) ··································· TY-WK42PR7,

TY-WK42PR1 (except TH-37PWD7B)

• Wall-hanging bracket (drawer type) ··························· TY-WK42DR1 (except TH-37PWD7B)

• Ceiling unit ································································· TY-CE42PS1

• Ceiling-hanging bracket ············································· TY-CE42PS7

• BNC Component Video Terminal Board ···················· TY-42TM6A

• BNC Composite Video Terminal Board ······················ TY-42TM6B

• RCA Component Video Terminal Board ···················· TY-42TM6Z

• RCA Composite Video Terminal Board ······················ TY-42TM6V

• RGB (Digital) Terminal Board ···································· TY-42TM6D

• RGB Active Through Terminal Board ························· TY-42TM6G

• PC Input Terminal Board ············································ TY-42TM6P

• Composite / Component Video Terminal Board ········· TY-42TM6Y

• SDI Terminal Board ···················································· TY-FB7SD

• HD-SDI Terminal Board ············································· TY-FB7HD

• HDMI Terminal Board ················································ TY-FB7HM

• Wireless Presentation Board ····································· TY-FB7WPE

• Touch Panel ······························································· TY-TP42P6-S (TH-42PWD7B, TH-42PHD7B),

TY-TP50P6-S (TH-50PHD7B)

• Fan kit ········································································ TY-UPK42HV7 (TH-42PHD7B),

TY-UPK50HV7 (TH-50PHD7B)

Always be sure to ask a qualified technician to carry out set-up.

Do not place the Plasma Display on sloped or unstable surfaces.

• The Plasma Display may fall off or tip over.

Do not place any objects on top of the Plasma Display.

• If water is spills onto the Plasma Display or foreign objects get inside it, a short-circuit may occur which could result

in fire or electric shock. If any foreign objects get inside the Plasma Display, please consult your local Panasonic dealer.

For sufficient ventilation; If using the pedestal (optional accessory) for the Plasma Display, leave a space of at least 10 cm at the top, left and right, at least 6 cm at the bottom, and at least 7 cm at the rear. If using some other setting-up method, leave a space of at least 10 cm at the top, bottom, left and right, and at least 1.9 cm at the rear.

Avoid installing this product near electronic equipment that is easy to receive electromagnetic waves.

• It will cause interference in image, sound, etc. In particular, keep video equipment away from this product.

Page 5

Safety Precautions

When using the Plasma Display

The Plasma Display is designed to operate on 220 - 240 V AC, 50/60 Hz.

Do not cover the ventilation holes.

• Doing so may cause the Plasma Display to overheat, which can cause fire or damage to the Plasma Display.

Do not stick any foreign objects into the Plasma Display.

• Do not insert any metal or flammable objects into the ventilations holes or drop them onto the Plasma Display, as

doing so can cause fire or electric shock.

Do not remove the cover or modify it in any way.

• High voltages which can cause severe electric shocks are present inside the Plasma Display. For any inspection,

adjustment and repair work, please contact your local Panasonic dealer.

Ensure that the mains plug is easily accessible.

Securely insert the power supply plug as far as it will go.

• If the plug is not fully inserted, heat may be generated which could cause fire. If the plug is damaged or the wall

socket is loose, they shall not be used.

Do not handle the power supply plug with wet hands.

• Doing so may cause electric shocks.

Do not do anything that may damage the power cable. When disconnecting the power cable, pull on the plug body, not the cable.

• Do not damage the cable, make any modifications to it, place heavy objects on top of it, heat it, place it near any hot

objects, twist it, bend it excessively or pull it. To do so may cause fire and electric shock. If the power cable is damaged, have it repaired at your local Panasonic dealer.

If the Plasma Display is not going to be used for any prolonged length of time, unplug the power supply plug from the wall outlet.

If problems occur during use

If a problem occurs (such as no picture or no sound), or if smoke or an abnormal odour starts to come out from the Plasma Display, immediately unplug the power supply plug from the wall outlet.

• If you continue to use the Plasma Display in this condition, fire or electric shock could result. After checking that the

smoke has stopped, contact your local Panasonic dealer so that the necessary repairs can be made. Repairing the Plasma Display yourself is extremely dangerous, and shall never be done.

If water or foreign objects get inside the Plasma Display, if the Plasma Display is dropped, or if the cabinet becomes damages, disconnect the power supply plug immediately.

• A short circuit may occur, which could cause fire. Contact your local Panasonic dealer for any repairs that need to

be made.

Page 6

CAUTION

When using the Plasma Display

Do not bring your hands, face or objects close to the ventilation holes of the Plasma Display.

• Heated air comes out from the ventilation holes at the top of Plasma Display will be hot. Do not bring your hands or

face, or objects which cannot withstand heat, close to this port, otherwise burns or deformation could result.

Be sure to disconnect all cables before moving the Plasma Display.

• If the Plasma Display is moved while some of the cables are still connected, the cables may become damaged,

and fire or electric shock could result.

Disconnect the power supply plug from the wall socket as a safety precaution before carrying out any cleaning.

• Electric shocks can result if this is not done.

Clean the power cable regularly to prevent it becoming dusty.

• If dust built up on the power cord plug, the resultant humidity can damage the insulation, which could result in fire.

Pull the power cord plug out from the wall outlet and wipe the mains lead with a dry cloth.

This Plasma Display radiates infrared rays, therefore it may affect other infrared communication equipment. Install your infrared sensor in a place away from direct or reflected light from your Plasma Display.

Cleaning and maintenance

The front of the display panel has been specially treated. Wipe the panel surface gently using only a cleaning cloth or a soft, lint-free cloth.

• If the surface is particularly dirty, wipe with a soft, lint-free cloth which has been soaked in pure water or water to

which a small amount of neutral detergent has been added, and then wipe it evenly with a dry cloth of the same type until the surface is dry.

• Do not scratch or hit the surface of the panel with fingernails or other hard objects, otherwise the surface may

become damaged. Furthermore, avoid contact with volatile substances such as insect sprays, solvents and thinner, otherwise the quality of the surface may be adversely affected.

If the cabinet becomes dirty, wipe it with a soft, dry cloth.

• If the cabinet is particularly dirty, soak the cloth in water to which a small amount of neutral detergent has been

added and then wring the cloth dry. Use this cloth to wipe the cabinet, and then wipe it dry with a dry cloth.

• Do not allow any detergent to come into direct contact with the surface of the Plasma Display. If water droplets get

inside the unit, operating problems may result.

• Avoid contact with volatile substances such as insect sprays, solvents and thinner, otherwise the quality of the

cabinet surface may be adversely affected or the coating may peel off. Furthermore, do not leave it for long periods in contact with articles made from rubber or PVC.

Safety Precautions

Page 7

PLASMA DISPLAY

INPUT

SURROUND

VOL


SOUND

SET UP

ASPECT

PICTURE POS. /SIZE

OFF TIMER

MULTI

PIP

SWAP SELECT MOVE

ZOOM

Accessories

Accessories Supply

Check that you have the accessories and items shown

Requires two R6 batteries.

1. Turn the transmitter face down. Press and slide off the battery cover.

2. Install the batteries as shown in the battery compartment. (Polarity + or – must match the markings in the compartment.)

3. Replace the cover and slide in reverse until the lock snaps.

Helpful Hint:

For frequent remote control users, replace old batteries with Alkaline batteries for longer life.

Precaution on battery use

Incorrect installation can cause battery leakage and corrosion that will damage the remote control transmitter. Disposal of batteries should be in an environment-friendly manner.

Observe the following precaution:

1. Batteries shall always be replaced as a pair. Always use new batteries when replacing the old set.

2. Do not combine a used battery with a new one.

3. Do not mix battery types (example: “Zinc Carbon” with “Alkaline”).

4. Do not attempt to charge, short-circuit, disassemble, heat or burn used batteries.

Battery replacement is necessary when remote control acts sporadically or stops operating the Plasma Display set.

Remote Control Batteries

“R6 (UM3)” size

Mains Lead K2CT3DH00018

Fixing bands TMME203 or TMME187 × 2

Batteries for the Remote Control Transmitter (2 × R6 (UM3) Size)

Remote Control Transmitter EUR646537

Operating Instruction book

Ferrite core J0KF00000018 × 1 (Small size)

Ferrite core J0KG00000054 × 2 (Large size)

Pan European Guarantee Card

1 Year Guarantee Registration

Page 8

SERIALPC IN

AUDIO

Connections

SPEAKERS Terminals (R)

SPEAKERS Terminals (L)

– Cable fixing bands Secure any excess cables with bands as required.

When connecting the speakers, be sure to use only the optional accessory speakers. Refer to the speaker’s Installation Manual for details on speaker installation.

(Example: TH-42PWD7B)

Speakers (Optional accessories)

Pass the attached cable fixing band through the clip as shown in the figure.

To secure cables connected to Terminals, wrap the cable fixing band around them then pass the pointed end through the locking block, as shown in the figure.

While ensuring there is sufficient slack in cables to minimize stress (especially in the power cord), firmly bind all cables with the supplied fixing band.

AC cord connection (see page 11)

Optional Terminal Board insert Slots (covered)

To tighten: To loosen:

Pull

Push the catch

3. Slide up the clamper and fix

the AC cord plug securely.

2. Insert the AC cord and

close the clamper securely.

1. Open the clamper.

Clamper

AC cord

Note: The power plug in the illustration may not be the type fitted to your set.

SLOT1 SLOT2

SLOT3

When loosen the clamper:

– AC cord fixing

From EXTERNAL monitor terminal on Computer (see page 9)

From SERIAL terminal on Computer (see page 10)

Page 9

Connections

PC Input Terminals connection

Notes:

•

Computer signals which can be input are those with a horizontal scanning frequency of 15 to 110 kHz and vertical scanning frequency of 48 to 120 Hz. (However, the image will not be displayed properly if the signals exceed 1,200 lines.)

•

The display resolution is a maximum of 640 × 480 dots (TH-37PWD7B, TH-42PWD7B), 768 × 768 dots (TH-42PHD7B),

1,024 × 768 dots (TH-50PHD7B) when the aspect mode is set to “4:3”, and 852 × 480 dots (TH-37PWD7B, TH42PWD7B), 1,024 × 768 dots (TH-42PHD7B), 1,366 × 768 dots (TH-50PHD7B) when the aspect mode is set to “16:9”. If the display resolution exceeds these maximums, it may not be possible to show fine detail with sufficient clarity.

• The PC input terminals are DDC1/2B-compatible. If the computer being connected is not DDC1/2B-compatible, you will need to make setting changes to the computer at the time of connection.

• Some PC models cannot be connected to the set.

• There is no need to use an adapter for computers with DOS/V compatible D-sub 15P terminal.

• The computer shown in the illustration is for example purposes only.

• Additional equipment and cables shown are not supplied with this set.

• Do not set the horizontal and vertical scanning frequencies for PC signals which are above or below the specified frequency range.

• To use sync input VBS signals, use the connector which incorporates a 75-ohm termination resistance and which is available on the market, for the connection of the HD connector where the VBS signals are to be input.

67839

1514131211

Signal Names for D-sub 15P Connector

Pin Layout for PC Input Terminal

Pin No.

1 2 3 4 5

Pin No.

6 7 8 9

Pin No.

11 12 13 14 15

Signal Name

R G

B GND (Ground) GND (Ground)

Signal Name GND (Ground) GND (Ground) GND (Ground)

NC (not connected)

GND (Ground)

Signal Name

GND (Ground)

SDA

HD/SYNC

SCL

AUDIO

PC IN

COMPUTER

Conversion adapter (if necessary)

RGB

D-sub 15p

Stereo plug

PC cable

Connect a cable which matches the audio output terminal on the computer.

Ferrite core (Small size)

(supplied)

Ferrite core (Large size) (supplied)

Audio

Less than

10 cm

Less than

10 cm

R - STANDBY G POWER ON

INPUTMENU ENTER

VOL

Installing the ferrite core (Small size)

Pull back the tabs (in two places)

Open

Press the cable through and close

Installing the ferrite core (Large size)

Pull back the tabs (in two places)

Open

Press the cable through and close

Page 10

SERIAL Terminals connection

Notes:

• Use the RS-232C cable to connect the computer to the Plasma Display.

• The computer shown is for example purposes only.

• Additional equipment and cables shown are not supplied with this set.

The SERIAL terminal is used when the Plasma Display is controlled by a computer.

The SERIAL terminal conforms to the RS-232C interface specification, so that the Plasma Display can be controlled by a computer which is connected to this terminal. The computer will require software which allows the sending and receiving of control data which satisfies the conditions given below. Use a computer application such as programming language software. Refer to the documentation for the computer application for details.

Basic format for control data

The transmission of control data from the computer starts with a STX signal, followed by the command, the parameters, and lastly an ETX signal in that order. If there are no parameters, then the parameter signal does not need to be sent.

Notes:

• If multiple commands are transmitted, be sure to wait for the response for the first command to come from this unit before sending the next command.

• If an incorrect command is sent by mistake, this unit will send an “ER401” command back to the computer.

Pin layout for RS-232C

9876

53214

Communication parameters

Signal level

Synchronization method

Baud rate

Parity

Character length

Stop bit

Flow control

RS-232C compliant

Asynchronous

9600 bps

None 8 bits

1 bit

Command

Command PON POF AVL

AMT

IMS

DAM

Control details Power ON Power OFF Volume 00 - 63 Audio mute OFF Audio mute ON Input select (toggle) Slot1 input Slot2 input Slot3 input PC input Screen mode select (toggle) 4 : 3 Zoom 16 : 9 Just Panasonic Auto

Parameter None None

0 1 None SL1 SL2 SL3 PC1 None NORM ZOOM FULL JUST SELF

With the power off, this display responds to PON command only.

Connections

RS-232C Conversion cable

D-sub 9-pin female

•

Details

R X D T X D

GND

Non use

Shorted

7 8

SERIAL

RS-232C Straight cable

D-sub 9p

COMPUTER

Less than

10 cm

Ferrite core (large size) (supplied)

STX

Start (02h)

ETX:C2C1 C3 P2P1 P3 P4 P5

Colon Parameter(s)

(1 - 5 bytes)

End (03h)

3-character command (3 bytes)

Open

Installing the ferrite core

(Large size)

Page 11

Power On / Off

Remote Control Sensor

Power Indicator

Connecting the plug to the Wall Outlet

Note:

Main plug types vary between countries. The power plug shown at left may, therefore, not be the type fitted to your set.

Press the Power switch on the Plasma Display to turn the set on: Power-On.

Power Indicator: Green

Example: The screen below is displayed for a while after the

Plasma Display is turned on. (setting condition is an example.)

When the Power is turned on for the first time, the Language selection screen is displayed.

From the second time on, language selection can be done from the setup menu. (see page 16)

Select the desired language using the or

button and press the ACTION ( )

button.

From the second time on, the below screen is

displayed for a while (setting

condition is an example).

Press the button on the remote control to turn the Plasma Display off.

Power Indicator: Red (standby)

Press the button on the remote control to turn the Plasma Display on.

Power Indicator: Green

Turn the power to the Plasma Display off by pressing the switch on the unit, when the Plasma Display is on or in standby mode.

Note:

During operation of the power management function, the power indicator turns orange in the power off state.

Connecting the AC cord plug to the Plasma Display.

Fix the AC cord plug securely to the Plasma Display with the clamper. (see page 8)

R - STANDBY

G POWER ON

R - STANDBY G POWER ON

TH-42PWD7

INPUTMENU ENTER

–+

VOL

INPUT

SURROUND

VOL


SOUND

SET UP

ASPECT

PICTURE POS. /SIZE

MULTI

PIP

SWAP SELECT MOVE

ZOOM

English (UK)

Deutsch

Français

Italiano

Español

ENGLISH (US)

OSD Language

Select Set

16:9

Page 12

PC button

Press the “PC” input mode selection button to select the PC input mode. This button is used to switch directly to PC input mode.

Note:

After-image (image lag) may occur on the plasma display panel when a still picture is kept on the panel for an extended period. The function that darkens the screen slightly is activated to prevent after-image (see page 36), this function is not the perfect solution to after-image.

R - STANDBY G POWER ON

INPUT MENU ENTER

VOL

TH-42PWD7

Basic Controls

Status button

Input label

Aspect mode (see page 17)

Off timer

The off timer indicator is displayed only when the off timer has been set.

Enter / Aspect button

(see page 14, 17)

INPUT button (INPUT1, INPUT2, INPUT3 and PC IN selection)

(see page 16)

Main Power On / Off Switch

Power Indicator

The Power Indicator will light.

• Power-OFF ... Indicator not illuminated (The unit will still consume some power as long as the power cord is still inserted into the wall outlet.)

• Standby ..... Red

• Power-ON ..... Green

• DPMS ........... Orange (With PC input signal and during

operation of PC’s screensaver.)

Remote control sensor

C.A.T.S. sensor Plasma C.A.T.S. (Contrast Automatic Tracking System)

Plasma C.A.T.S. automatically senses the ambient light conditions and adjusts the brightness and gradation accordingly, to optimise contrast. (Effective when Picture Mode is set to Auto.)

Volume Adjustment

Volume Up “+” Down “–” When the menu screen is displayed: “+”: press to move the cursor up “–”: press to move the cursor down (see page 14)

MENU Screen ON / OFF

Each time the MENU button is pressed, the menu screen will switch. (see page 14)

N button (see page 18, 20, 21, 22)

Press the “Status” button to display the current system status.

PICTURE button (see page 20)

MULTI Window buttons (see page 19)

Off timer 90

4:3

Normal Viewing Picture Setup

Sound Picture Pos. /Size

Page 13

PLASMA DISPLAY

INPUT

SURROUND

VOL


SOUND

SET UP

ASPECT

PICTURE POS. /SIZE

OFF TIMER

MULTI

PIP

SWAP SELECT MOVE

ZOOM

Basic Controls

SURROUND button

The surround setting switches on and off each time the SURROUND button is pressed. The benefits of surround sound are enormous. You can be completely enveloped in sound; just as if you were at a concert hall or cinema.

Note:

The surround settings are memorized separately for each Sound Mode (Normal, Auto).

Standby (ON / OFF) button

The Plasma Display must first be plugged into the wall outlet and turned on at the power switch (see page

11). Press this button to turn the Plasma Display On, from Stanby mode. Press it again to turn the Plasma Display Off to Stanby mode.

Off

Surround

INPUT button (INPUT1, INPUT2, INPUT3 and PC IN selection)

Press to select INPUT1, INPUT2, INPUT3 and PC IN input SLOTS sequentially. (see page 16)

Sound mute On / Off (see page 22)

Volume Adjustment

Press the Volume Up “+” or Down “–” button to increase or decrease the sound volume level.

ACTION button

Press to make selections.

ASPECT button

Press to adjust the aspect. (see page 17)

SOUND button (see page 22)

SET UP button (see page 14)

POSITION buttons

R button (see page 14, 15)

Press the R button to return to previous menu screen.

PICTURE POS. / SIZE button (see page 18)

OFF TIMER button

The Plasma Display can be preset to switch to stand-by after a fixed period. The setting changes to 30 minutes, 60 minutes, 90 minutes and 0 minutes (off timer cancelled) each time the button is pressed.

When three minutes remain, “Off timer 3” will flash. The off timer is cancelled if a power interruption occurs.

30 60

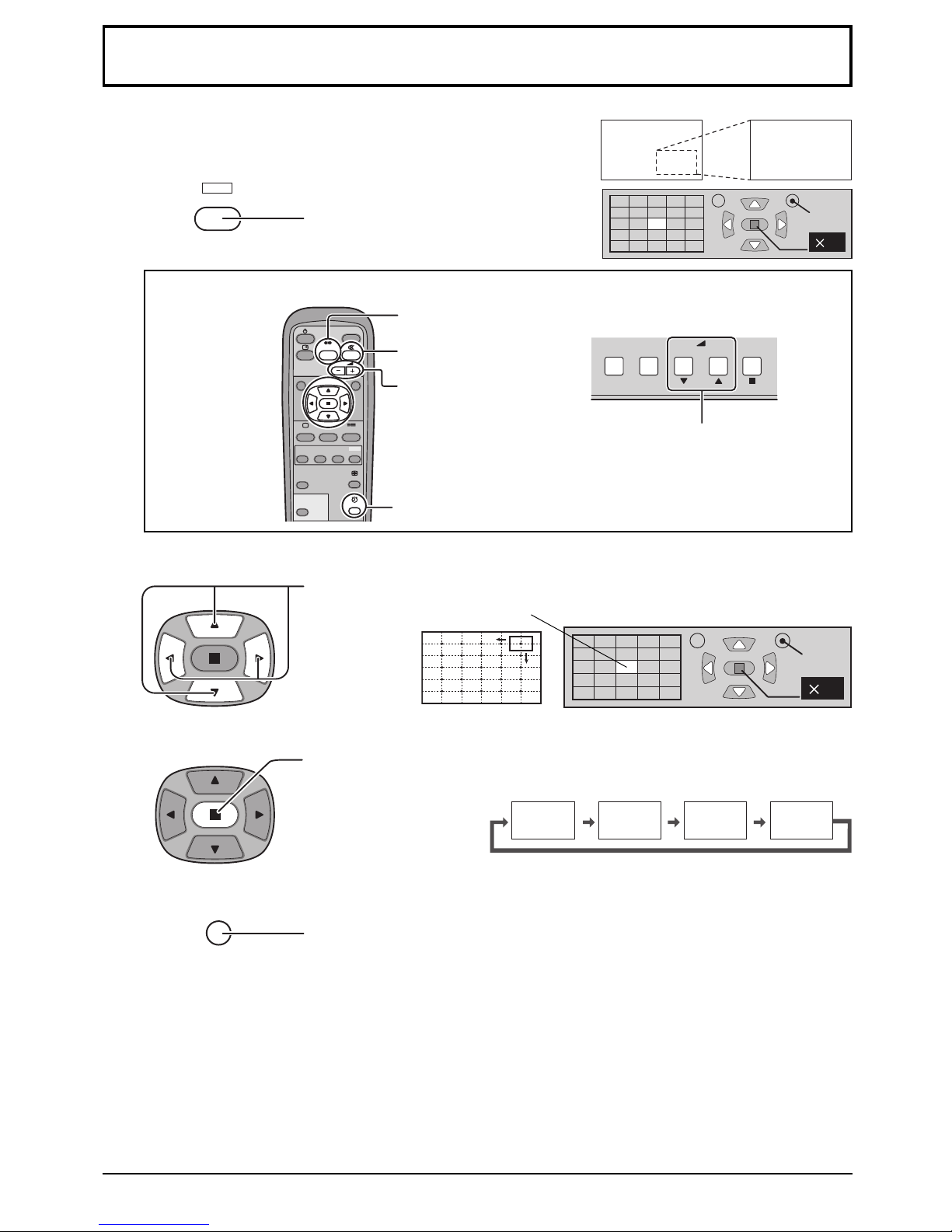

Digital Zoom (see page 23)

Press to access Digital Zoom.

ZOOM

MOVE

This displays an enlargement of the designated part of the displayed image.

Page 14

PLASMA DISPLAY

INPUT

SURROUND

VOL


SOUND

SET UP

ASPECT

PICTURE POS. /SIZE

OFF TIMER

MULTI

PIP

SWAP SELECT MOVE

ZOOM

INPUT MENU ENTER

–+

VOL

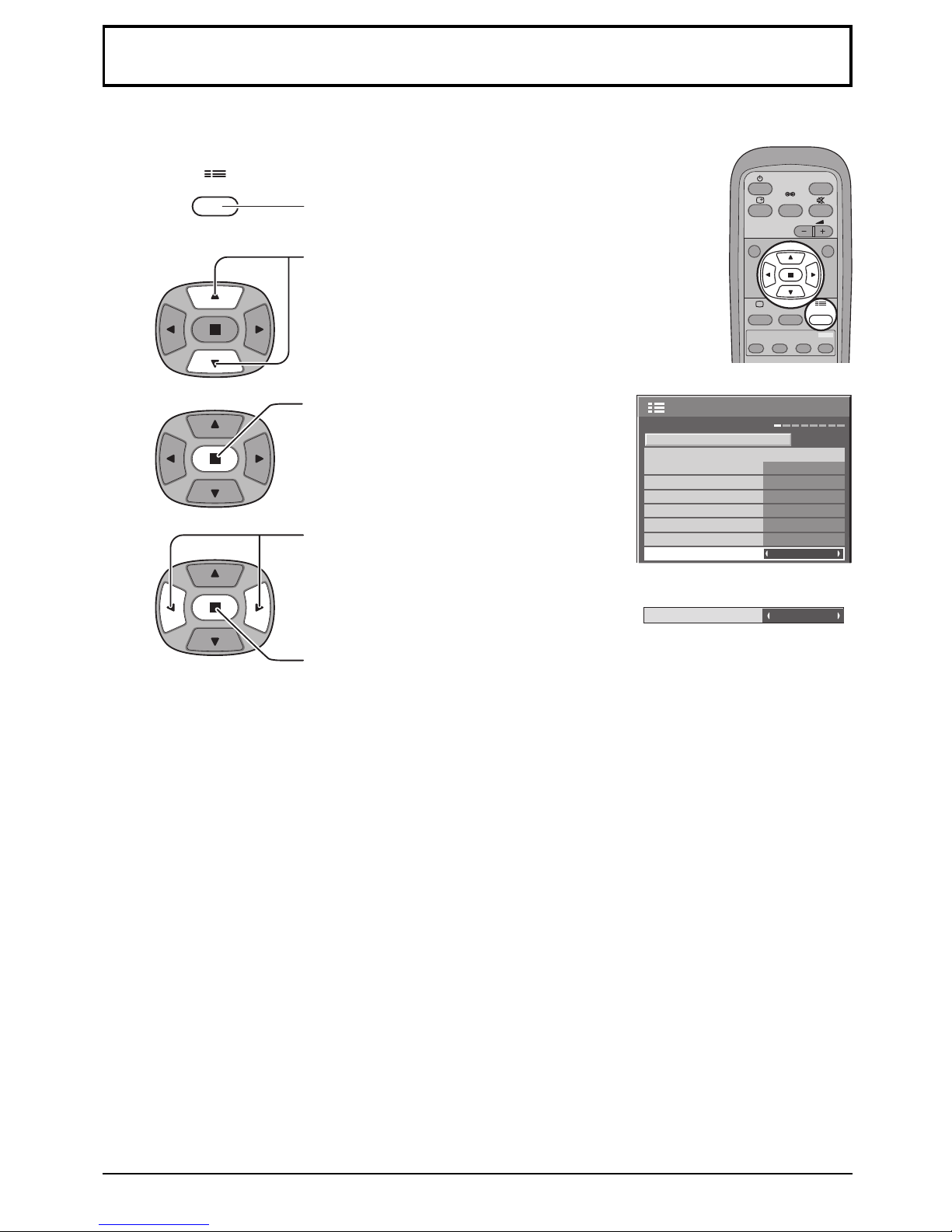

On-Screen Menu Displays

To Sound adjust menu (see page 22)

To Advanced settings (see page 20, 21)

Press to enter Advanced settings.

Press to select “On”.

To Picture adjust menu (see page 20)

The MENU button on the unit can also be pressed.

Each time the MENU button is pressed, the menu screen will switch.

INPUT MENU ENTER

–+

VOL

Press to select.

Press to access each adjust

screen.

[ from the unit ]

1/2Picture

Normal

Normalise

Normal

0 0 0 3

Brightness

Sharpness

Picture Mode

Colour

Contrast

Tint

2/2Picture

Advanced settings

White balance Colour Management

Normal

Off On

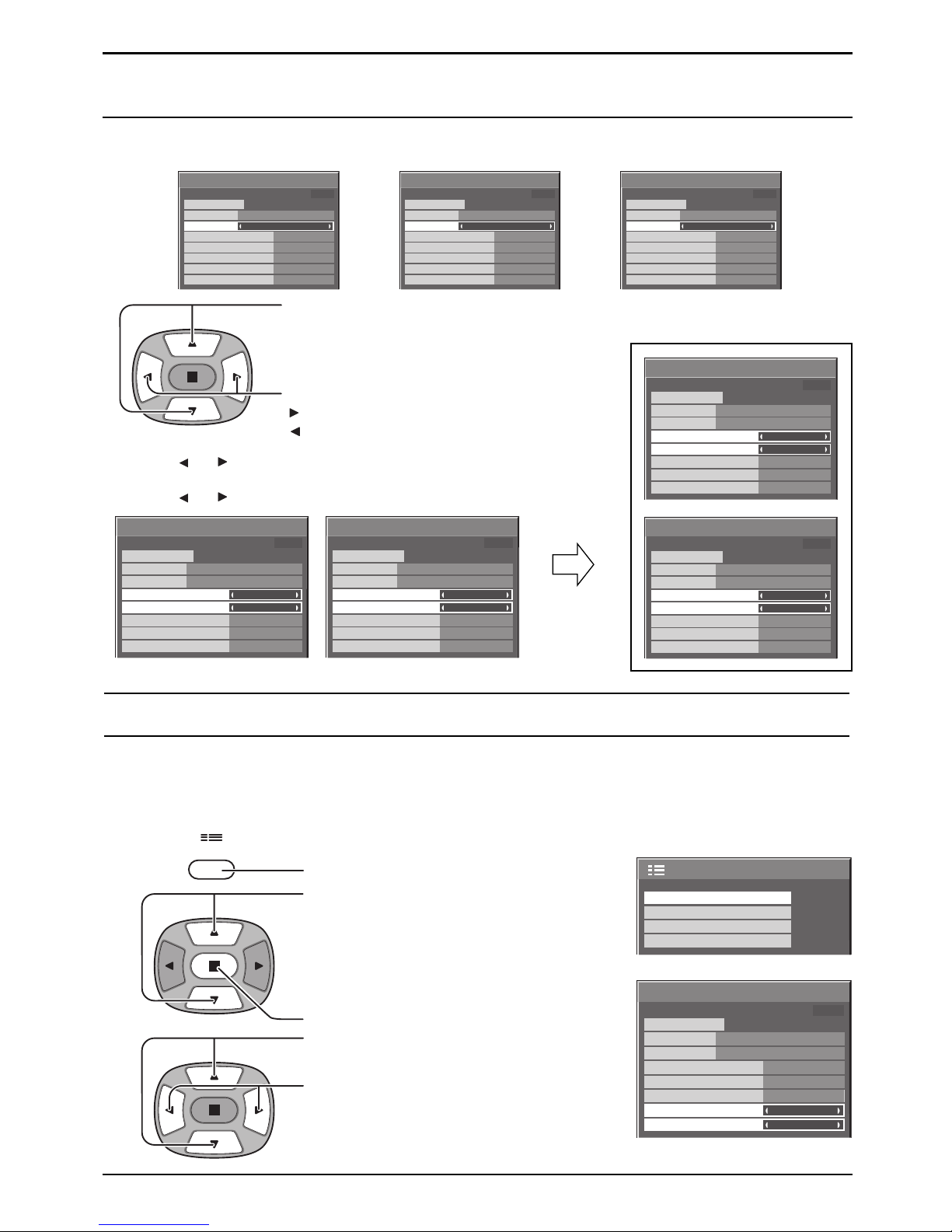

Advanced settings

Normal

Normalise

0 0

2.2 Off

W/B Low B

Black extension

W/B High B W/B Low R

AGC

Gamma

Input level W/B High R

Sound

Normal

Normalise

Normal 0 0 0

Off

Treble

Sound Mode

Balance

Bass

Surround

1/2

Signal

PC Off

Standby save

Off

Power management

Off

Auto power off

Off

OSD Language English (UK

)

Component / RGB-in select

RGB

Input label Power save

Setup

2/2Setup

Screensaver

MULTI DISPLAY Setup

Set up TIMER

PRESENT TIME Setup

Normal Viewing Picture Setup

Sound Picture Pos. /Size

Normal

Normalise

Picture Pos. /Size

V-Pos

H-Pos

V-Size

H-Size

Normal

Normalise

Picture Pos. /Size

V-Pos

H-Pos

V-Size

H-Size

Clock Phase

To Picture Pos./Size adjust menu (see page 18)

During “RGB / PC” input signal.

During “AV(S Video)”, “Component” and “DVI” input signal.

Page 15

Press to

access each adjust screen.

Press the R button to return to previous menu screen.

Note: “Signal” setup menu displays different setting condition for each input signals. (see page 16)

Press the R button to return to “Setup” menu.

Press to Setup.

Press to select Start Time / Finish Time (When Time Designation is selected). Press to select Periodic Time / Operating Time (When Interval is selected).

To setup Screensaver (see page 26-28)

To setup Multidisplay screen (see page 30)

Press the R button to return to “Setup” menu.

Press to select POWER ON Time / POWER OFF Time.

Press to Set up POWER ON Time / POWER OFF Time.

To Set up Timer selection screen (see page 24, 25)

To PRESENT TIME Setup (see page 24)

On-Screen Menu Displays

INPUT MENU ENTER

–+

VOL

Press to return to next menu screen.

[ from the unit ]

Screensaver

Start Function Mode

Side panel Wobbling Peak limit

Operating Time

Periodic Time

White bar scroll

Interval

6:15

12:30

High

Off Off

PRESENT TIME 00:00

Screensaver

Start Function Mode

Side panel Wobbling Peak limit

Finish Time

Start Time

White bar scroll

Time Designation

6:15

12:30

High

Off Off

PRESENT TIME 00:00

Screensaver

Start Function Mode

Side panel Wobbling Peak limit

Finish Time

Start Time

White bar scroll

Time Designation

6:15

12:30

High

Off Off

PRESENT TIME 00:00

Screensaver

Start Function Mode

Side panel Wobbling Peak limit

Operating Time

Periodic Time

White bar scroll

Interval

6:15

12:30

High

Off Off

PRESENT TIME 00:00

MULTI DISPLAY Setup

Location

MULTI DISPLAY Setup Ratio

Off

2 × 2

Set up TIMER

POWER OFF Function POWER OFF Time

POWER ON Time

POWER ON Function

Off

0.00 Off

0.00

PRESENT TIME 00:00

Set up TIMER

POWER OFF Function POWER OFF Time

POWER ON Time

POWER ON Function

Off

0.00 Off

0.00

PRESENT TIME 00:00

Set up TIMER

POWER OFF Function POWER OFF Time

POWER ON Time

POWER ON Function

Off

0.00 Off

0.00

PRESENT TIME 00:00

PRESENT TIME Setup

Set

PRESENT TIME

99:99

PRESENT TIME 99:99

Sync

P-NR

Signal

Auto

H-Freq.

V-Freq.

kHz

33.8

60.0

[

RGB

]

Cinema reality

Off Off

Cinema reality P-NR

Signal

Off Off

[

Component

]

3D Y/C Filter (NTSC) Colour system

Signal

Auto

Cinema reality Panasonic Auto (4 : 3)

Off

4 : 3

[AV]

P-NR

Off

Cinema reality P-NR

Signal

Off Off

H-Freq.

V-Fr eq.

kHz

33.8

60.0

[

DVI

]

To Signal screen for AV(S Video) (see page 32, 33)

To Signal screen for Component (see page 33)

To Signal screen for RGB (see page 33, 34)

To Signal screen for DVI (see page 33, 34)

Page 16

.......(Japanese)

.......(Chinese)

Italiano

Français

Deutsch

English(UK)

Español

ENGLISH(US)

R - STANDBY G POWER ON

INPUTMENU ENTER

VOL

MENU ENTERINPUT

VOL

SURROUND

VOL


SOUND

SET UP

INPUT

MULTI

PIP

SWAP SELECT MOVE

ZOOM

INPUT

SURROUND

VOL


SOUND

MULTI

PIP

SWAP SELECT MOVE

SET UP

ZOOM

1/2

Signal

PC Off

Standby save

Off

Power management

Off

Auto power off

Off

OSD Language English (UK

)

Component / RGB-in select

RGB

Input label Power save

Setup

PC ININPUT1 INPUT2 INPUT3

SET UP

PC ININPUT1 INPUT2

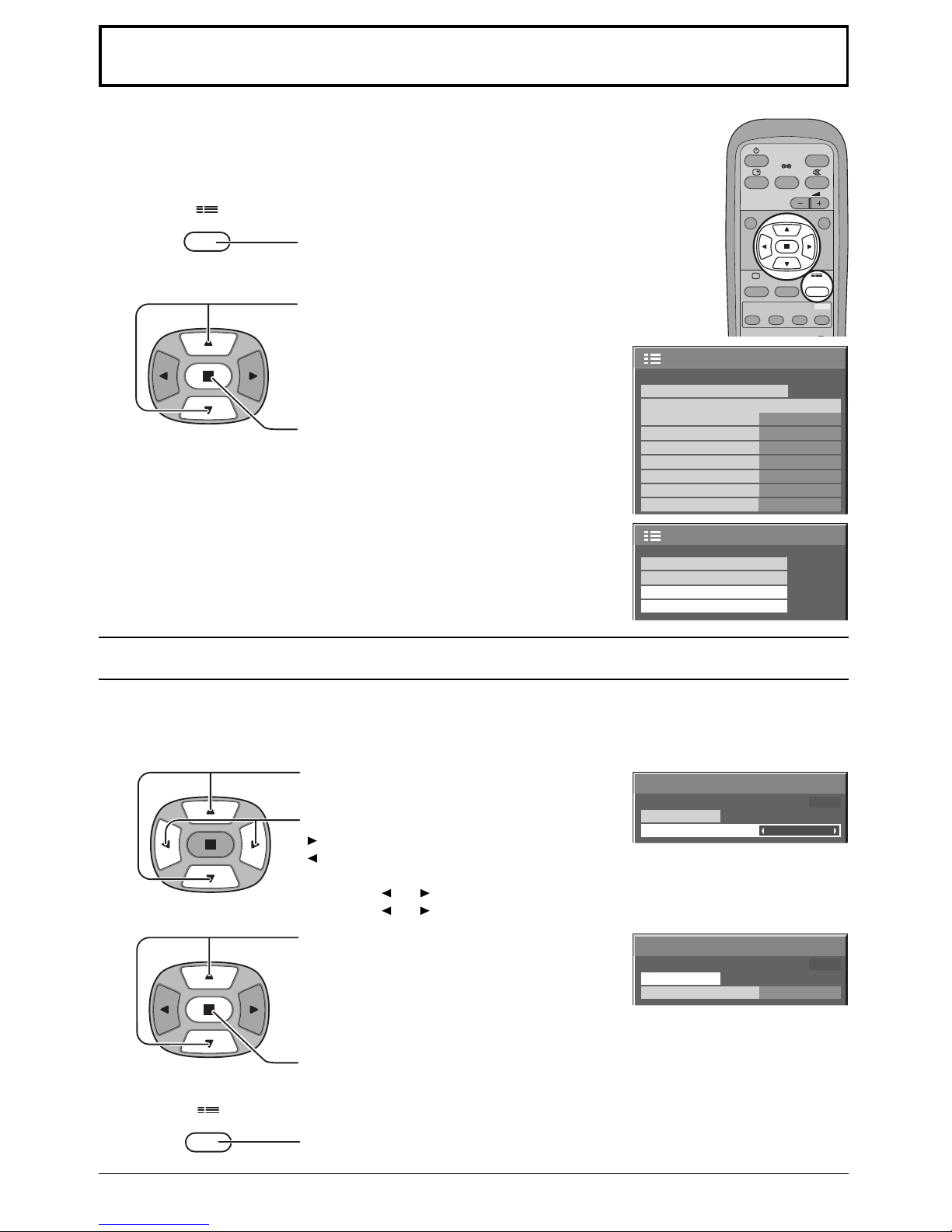

Selecting the On-Screen Menu Language

Press to display the Setup menu.

Press to select your preferred language.

Selectable languages

Press to select the OSD Language.

Notes:

• Selecting is also possible by pressing the INPUT button on the unit.

• Input terminal will not be selected if the terminal board is not installed into the SLOT.

• Select to match the signals from the source connected to the component/RGB input terminals. (see page 32)

• In 2 screen display, the same input mode cannot be selected for the main picture and sub picture.

Initial selections

Selecting the input signal

Select the input signals to be connected by installing the optional Terminal Boards.

Press to select the input signal to be played back from the equipment which has been connected to the Plasma Display.

Input signals will change as follows:

• TH-37PWD7B

• TH-42PWD7B, TH-42PHD7B, TH-50PHD7B

Page 17

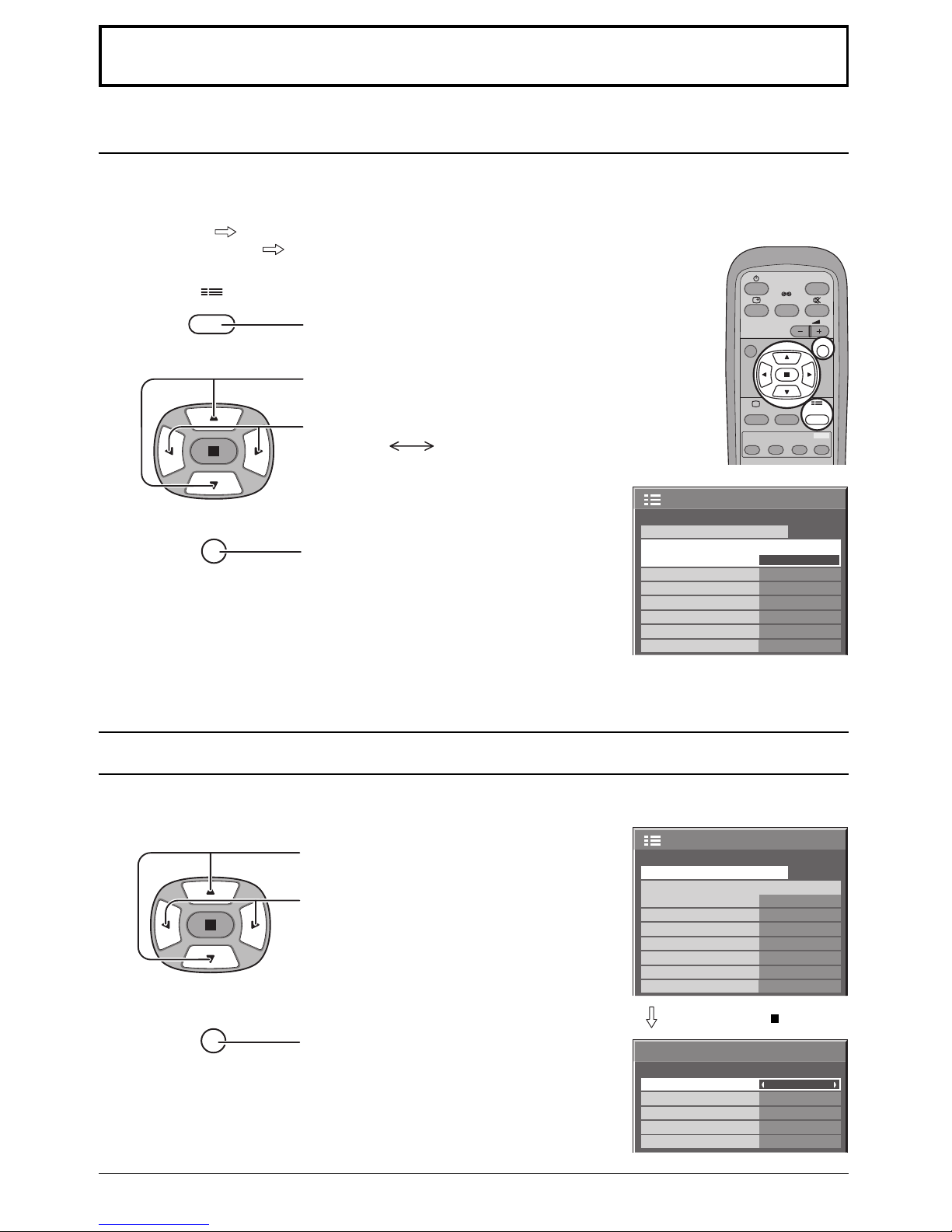

ASPECT Controls

The Plasma Display will allow you to enjoy viewing the picture at its maximum size, including wide screen cinema format picture.

Press repeatedly to move through the aspect options:

Notes:

• For PC signal input, the mode switches between “4:3”, “Zoom” and “16:9” only.

•

For a 1125 (1080) / 60i · 50i · 24p · 25p · 30p · 24sF, 1250 (1080) / 50i, 750 (720) / 60p · 50p signal input during “Component”,“RGB” and “DVI” input signal, the mode is set to “16:9” mode, and switching is not possible.

• Panasonic Auto can be selected only during Video signal input.

•

The aspect mode is memorized separately for each input terminal (INPUT1, INPUT2, INPUT3 and PC IN).

The aspect mode changes each time the ENTER button is pressed.

[During MULTI PIP Operations]

• Picture and Picture, Picture in Picture :

• Others : Aspect switching is not possible.

[from the unit]

INPUT

SURROUND

VOL


SOUND

SET UP

ASPECT

PICTURE POS. /SIZE

MULTI

PIP

SWAP SELECT MOVE

ZOOM

ASPECT

INPUT MENU ENTER

–+

VOL

4 : 3 16 : 9

Note: Do not allow the picture to be displayed in 4:3 mode for an extended period, as this can cause a permanent after-

image to remain on the Plasma Display Panel.

ExplanationPicture

Mode

4 : 3

Zoom

16 : 9

Just

3 9

Panasonic Auto

416

4 : 3 Zoom 16 : 9

Panasonic Auto Just

Changes in accordance with the Panasonic Auto mode setting (see page 33).

Image is expanded

For an elongated image

For a 4:3 image

4:3 will display a 4:3 picture at its standard 4:3 size.

Zoom mode magnifies the central section of the picture.

16:9 will display the picture at its maximum size but with slight elongation.

Just mode will display a 4:3 picture at its maximum size but with aspect correction applied to the center of the screen so that elongation is only apparent at the left and right edges of the screen. The size of the picture will depend on the original signal.

The display will automatically become enlarged (depending on the picture source), allowing you to view the picture at its maximum size.

Notes:

• Panasonic Auto mode is designed to automatically adjust the aspect ratio to handle a mix of 16:9 and 4:3 program material. Certain 4:3 program material, such as stock market data screens, may occasionally cause the image size to change unexpectedly. When viewing such programs, it is recommended that the ASPECT be set to 4:3.

• If adjusting the Picture V-Pos/V-Size in Panasonic Auto with 16:9 mode, the adjustment is not memorized. When exiting the mode, the screen will return to a former adjustment.

4 : 3

Zoom

16 : 9

Just

Panasonic

Auto

Page 18

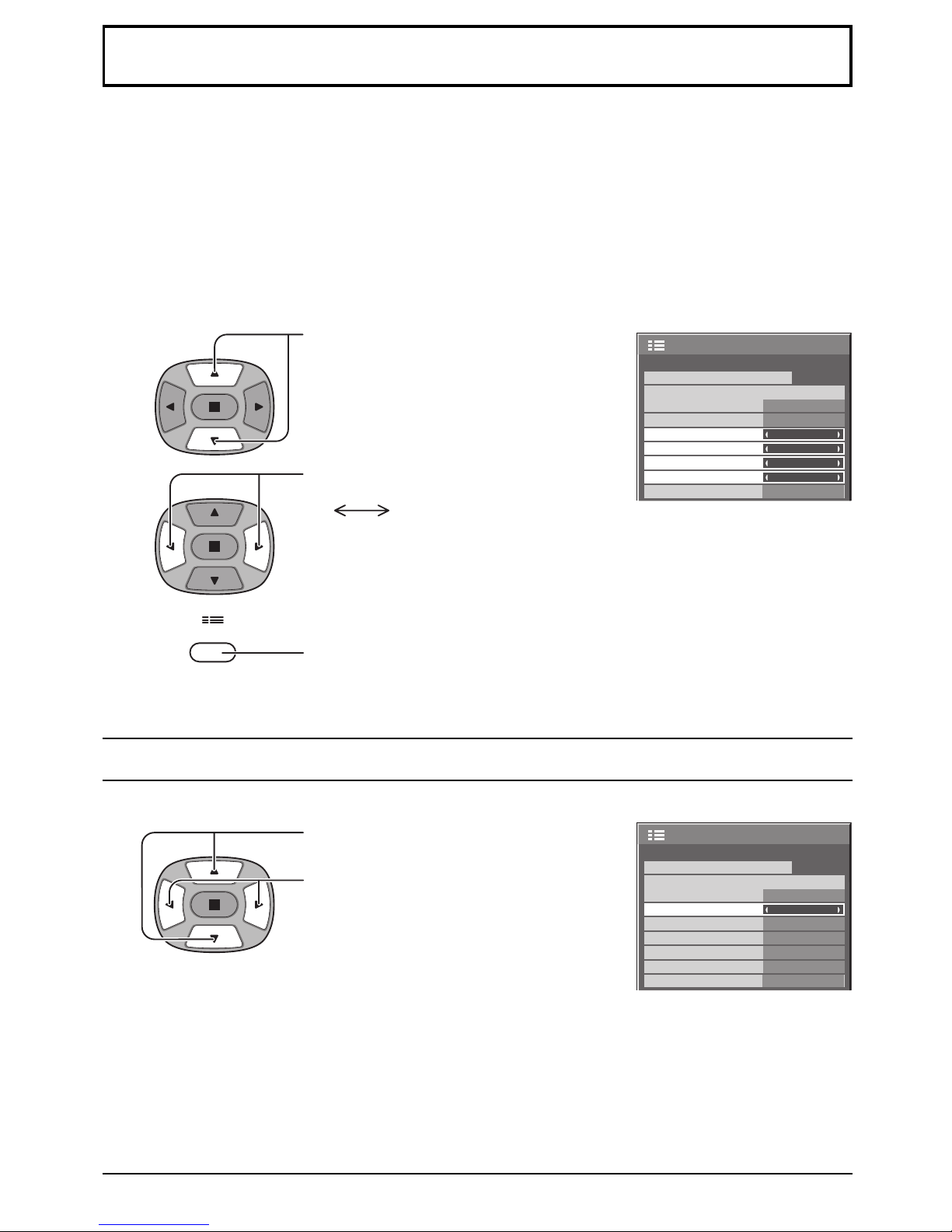

Adjusting Picture Pos. / Size

Press to adjust Pos. / Size.

Press to exit from adjust mode.

Press to select H-Pos / H-Size / V-Pos / V-Size / Clock Phase.


POS. /SIZE

Notes:

• Adjustment details are memorized separately for different input signal formats (Adjustments for component signals are memorized for 525 (480) / 60i · 60p, 625 (575) / 50i · 50p, 1125 (1080) / 60i · 50i · 24p

· 25p · 30p

· 24sF, 1250 (1080) / 50i, 750 (720) / 60p · 50p each, and RGB/PC/DVI signals are memorized for each frequency.)

• If a “Cue” or “Rew” signal from a VCR or DVD player is received, the picture position will shift up or down. This picture position movement cannot be controlled by the Picture Pos./Size function.

• If adjusting the Picture V-Pos/V-Size in Panasonic Auto with 16:9 mode, the adjustment is not memorized. When exiting the mode, the screen will return to a former adjustment.

N R

INPUT

SURROUND

VOL


SOUND

SET UP

ASPECT

PICTURE POS. /SIZE

OFF TIMER

MULTI

PIP

SWAP SELECT MOVE

ZOOM

Normal

Normalise

Picture Pos. /Size

V-Pos

H-Pos

V-Size

H-Size

Normal

Normalise

Picture Pos. /Size

V-Pos

H-Pos

V-Size

H-Size

Clock Phase

While the Picture Pos. / Size display is active, if either the N button on the remote control is pressed at any time or the ACTION ( ) button is pressed during “Normalise”, then all adjustment values are returned to the factory settings.

Helpful Hint ( N /

Normalise

Normalisation)

Adjust the horizontal size.

Adjust the vertical size.

H-Pos

V-Pos

Adjust the horizontal position.

Adjust the vertical position.

H-Size

V-Size

Eliminate the flickering and distortion.

Press to display the Picture Pos. /Size menu.

Clock Phase

(RGB/PC in mode)

During “RGB / PC” input signal.

During “AV(S Video)”, “Component” and “DVI” input signal.

Page 19

MULTI PIP

MULTI

PIP

MULTI

PIP

MULTI

PIP

PC1

VIDEO1

SELECT

SWAP SWAP SWAP

PC1

VIDEO1

VIDEO2 VIDEO1

PC1

VIDEO3

MULTI

PIP

SWAP

SELECT

ZOOM MOVE

INPUT

SURROUND

VOL


SOUND

SET UP

INPUT

MULTI

PIP

SWAP SELECT

MOVE

ZOOM

Press repeatedly. Each time pressing this button main picture and sub picture will be displayed as follows bellow.

Press to swap main picture and sub picture.

[Picture out Picture]

Press to select the input mode. Under main Picture and sub picture display, select the picture which you would like to change input modes.

Press to move the sub picture. Each time the location of the sub picture will be moved.

Notes:

• This button is effective only in the picture in picture.

• The sub picture may be hidden by the on screen display, depending on its position.

Main picture Sub picture

[Picture and Picture] [Picture in Picture]

Notes:

• Sound output is from the main picture.

• In 2 screen display, the same input mode cannot be selected for the main picture and sub picture.

• The main picture and sub picture are processed by different circuits, resulting in a slight difference in the clarity of the pictures. There may also be a difference in the picture quality of the sub picture depending on the type of signals displayed on the main picture and depending on the 2-picture display mode.

• Due to the small dimensions of the sub pictures used for the picture in picture and picture out picture displays, these sub pictures cannot be shown in detail.

•Two computer screen pictures are displayed in a simplified format, and it may not be possible to discern details on them satisfactorily.

[Example]

Input modes switching is possible

Press to change input signal.

Main picture label is bright Sub picture label is bright

Picture is changed

Main picture label is changed Sub picture label is changed

Main picture Sub picture Main picture Sub picture

Normal

Viewing

Page 20

1/2Picture

Normal

Normalise

Normal

0 0 0 3

Brightness

Sharpness

Picture Mode

Colour

Contrast

Tint

2/2Picture

Advanced settings

White balance Colour Management

Normal

Off On

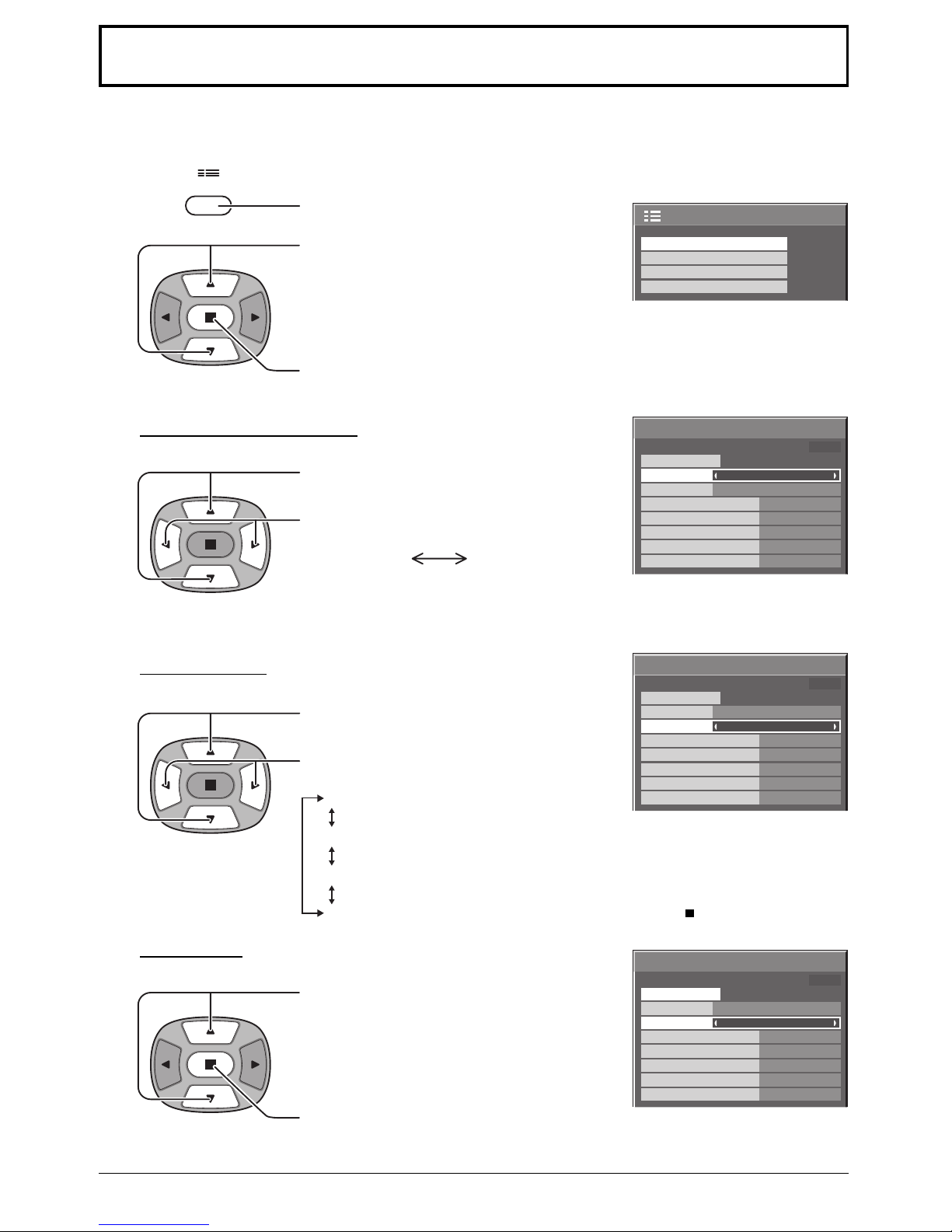

Picture Adjustments

Press to display the Picture menu.

Select to adjust each item.

Press to select the menu to adjust.

Select the desired level by looking at the picture behind the menu.

Advanced settings On Enables fine picture adjustment at a professional level (see next page).

Advanced settings Off Displays images with settings of the Picture menu.

Press to select “On”.

Press to enter Advanced settings .


Advanced settings

Normal

Normalise

0 0

2.2 Off

W/B Low B

Black extension

W/B High B W/B Low R

AGC

Gamma

Input level W/B High R

Press “ ” or “ ” button to switch between modes.

Note:

If you would like to change the picture and colour of the selected Picture menu to something else, adjust using the items in the Picture menu. (see next page)

Normal

For viewing in standard (evening lighting) environments. This menu selects the normal levels of Brightness and Contrast.

Dynamic

For viewing in brighter environments. This menu selects higher than normal levels of Brightness and Contrast.

Cinema

Ideal for movies.

Auto

Automatically selects the mode that best suits the brightness of the environment.

Normal Cool Warm

Auto Normal

Cinema Dynamic

Colour Management On Enables vivid colour adjustment automatically.

While the “Picture” menu is displayed, if either the N button on the remote control is pressed at any time or the ACTION ( ) button is pressed during “Normalise”, then all adjustment values are returned to the factory settings.

Helpful Hint ( N /

Normalise

Normalisation)

MULTI

PIP

SWAP SELECT MOVE

ZOOM

SURROUND

VOL

SOUND

SET UP

ASPECT

PICTURE POS. /SIZE

INPUT


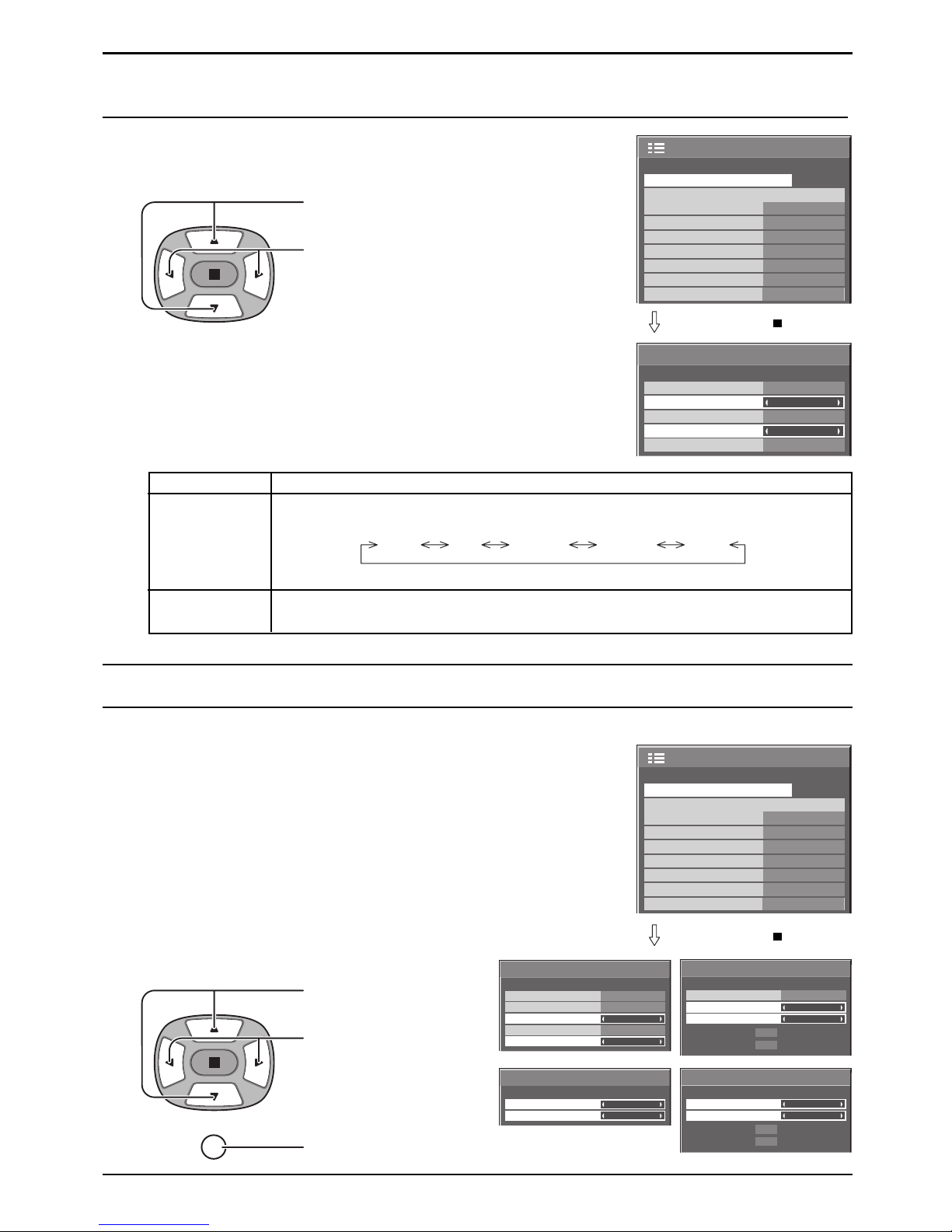

Page 21

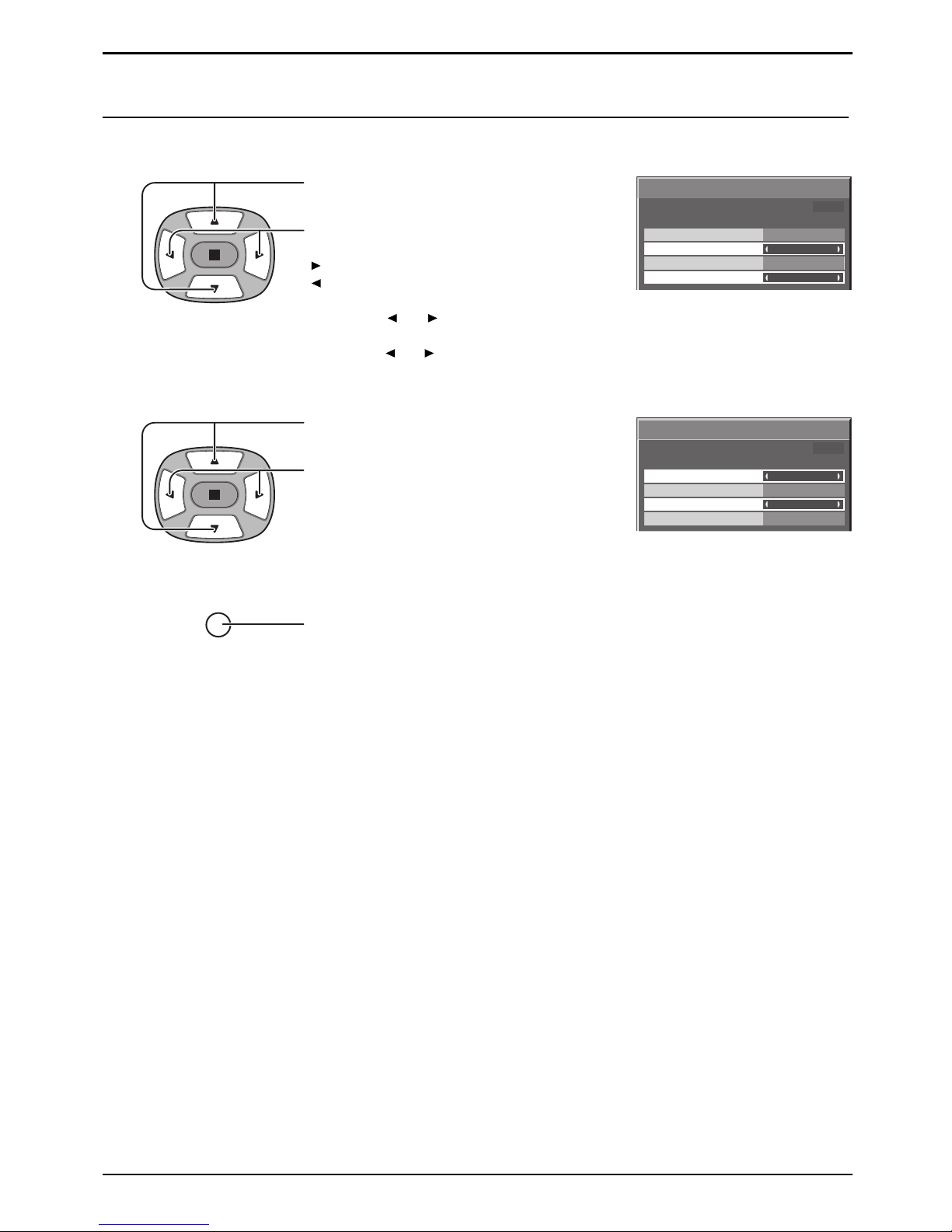

Details

Adjusts the dark shades of the image in gradiation.

Adjustment of parts which are extremely bright and hard to see. (This cannot be adjusted when the input signal is DVI.)

Adjusts the white balance for light red areas.

Adjusts the white balance for light blue areas.

Adjusts the white balance for dark red areas.

Adjusts the white balance for dark blue areas.

S Curve

2.0

2.2

2.5

Increases the brightness of dark signal automatically.

Effect

Picture Adjustments

Item

Contrast

Brightness

Colour

Tint

Sharpness

Effect Adjustments

Less More

Darker Brighter

Reddish Greenish

Selects the proper brightness and density for the room.

Adjusts for easier viewing of dark pictures such as night scenes and black hair.

Adjusts colour saturation.

Adjust for nice skin colour.

Adjusts picture sharpness.

Notes:

• “Colour” and “Tint” settings cannot be adjusted for “RGB/PC” and “DVI” input signal.

•You can change the level of each function (Contrast, Brightness, Colour, Tint, Sharpness) for each Picture Mode.

• The setting details for normal, dynamic and cinema respectively are memorized separately for each input mode (INPUT1, INPUT2, INPUT3 and PC IN).

• The “Tint” setting can be adjusted for NTSC signal only during “AV (S Video)” input signal.

• In Contrast, there is not a noticeable change even when contrast is increased with a bright picture or reduced with a dark picture.

Less More

Item

Black

extension

Input level

W/B High R

W/B High B

W/B Low R

W/B Low B

Gamma

AGC

Advanced settings

Less More

Down Up

Notes:

• Carry out “W/B” adjustment as follows.

1. Adjust the white balance of the bright sections using the “W/B High R” and “W/B High B” settings.

2. Adjust the white balance of the dark sections using the “W/B Low R” and “W/B Low B” settings.

3. Repeat steps 1 and 2 to adjust.

Steps 1 and 2 affect each other’s settings, so repeat each step in turn to make the adjustment.

• The adjustment values are memorized separately for each input mode (INPUT1, INPUT2, INPUT3 and PC IN).

• The adjustment range values should be used as an adjustment reference.

Off On

Less More

On the remote control unit, while the “Advanced settings” menu is displayed, if either the N button is pressed at any time or the ACTION ( ) button is pressed during “Normalise”, then all adjustment values are returned to the factory settings.

Helpful Hint ( N /

Normalise

Normalisation)

Page 22

Sound

Normal

Normalise

Normal 0 0 0

Off

Treble

Sound Mode

Balance

Bass

Surround

Sound Adjustment

Press to display the Sound menu.

Mute

Useful when answering the phone or receiving unexpected visitors.

Press to mute the sound. Press again to reactivate sound. Sound is also reactivated when power is turned off or volume level is changed.

Notes:

• Press the SURROUND button to directly turn the surround effect On and Off. (see page 13)

• Bass, Treble and Surround settings are memorized separately for each Sound Mode (Normal, Auto).

Select to adjust each item.

Press to select the menu to adjust.

Select the desired level by listening to the sound.

Bass

Adjusts low sounds

Treble

Adjusts high sounds

Balance

Adjusts left and right volumes

Surround

Select On or Off

PLASMA DISPLAY

N R

INPUT

VOL


SOUND

SET UP

ASPECT

PICTURE POS. /SIZE

OFF TIMER

MULTI

PIP

SWAP SELECT

MOVE

SURROUND

ZOOM

SOUND

Automatically controls proper volume level.

Emits the original sound.

Auto

Normal

While the “Sound” menu is displayed, if either the N button on the remote control is pressed at any time or the ACTION ( ) button is pressed during “Normalise”, then all adjustment values are returned to the factory settings.

Helpful Hint ( N /

Normalise

Normalisation)

Page 23

Digital Zoom

This displays an enlargement of the designated part of the displayed image.

Display the “Operation Guide”.

Press to access Digital Zoom. The “Operation Guide” will be displayed.

Select the area of the image to be enlarged.

Press on the enlargement location to select.

ZOOM MOVE

Select the magnification required for the enlarged display.

Each time this is pressed, the magnification factor changes. This is shown in the image being displayed.

Return to normal display (quit Digital Zoom).

Press to exit from the Digital Zoom.

The cursor will move.

SURROUND button

MUTE button

VOL button

OFF TIMER button

Exit

× 1 × 2 × 3 × 4

Exit

MULTI

PIP

SWAP SELECT MOVE

ZOOM

N R

SOUND

INPUT

VOL

PICTURE SET UP

ASPECT

PICTURE POS. /SIZE

SURROUND

OFF TIMER

Notes:

• When power goes OFF (including “Off Timer” operation), Digital Zoom terminates.

• The Digital Zoom function cannot be selected while in the following operation states: “Multi-screen” (MULTI DISPLAY). (see page 30) “Multi-viewer” (Picture in Picture, Picture out Picture, Picture and Picture) operation. (see page 19)

• While Digital Zoom is in operation, “Adjusting Picture Pos. / Size” cannot be used.

• The Digital Zoom capability is functional for the following component signals: 525 (480) / 60i · 60p, 625 (575) / 50i · 50p, 1125 (1080) / 60i · 50i · 24p · 25p · 30p · 24sF, 750 (720) / 60p · 50p, 1250 (1080) / 50i

• The Digital Zoom capability is functional for the following composite signals: NTSC, PAL, SECAM

During Digital Zoom, only the following buttons can be operated.

[Remote control] [Unit]

VOL button

INPUT MENU ENTER

–+

VOL

Page 24

PRESENT TIME Setup / Set up TIMER

The timer can switch the Plasma Display On or Off.

Before attempting Timer Set, confirm the PRESENT TIME and adjust if necessary. Then set POWER ON Time / POWER OFF Time.

Press to display the Setup menu.

Press to select Set up TIMER or PRESENT TIME Setup.

Press to display the Set up TIMER screen or PRESENT TIME Setup screen.

Display the PRESENT TIME Setup screen.

To setup PRESENT TIME, follow the procedure described below.

PRESENT TIME Setup

Press to select PRESENT TIME.

Press to select Set.

Press to store PRESENT TIME Setup.

Note:

Set cannot be selected unless PRESENT TIME is set.

Press to setup PRESENT TIME.

button: Forward button: Back

Notes:

• Pressing

“ ” or “ ”

button once changes PRESENT TIME 1minute.

• Pressing

“ ” or “ ”

button continuously changes PRESENT TIME by 15 minutes.

SET UP

Press to exit from PRESENT TIME Setup.

SET UP

1/2

PC Off

Standby save

Off

Power management

Off

Auto power off

Off

OSD Language English (UK

)

Component / RGB-in select

RGB

Input label

Signal

Power save

Setup

2/2Setup

Screensaver

MULTI DISPLAY Setup

Set up TIMER

PRESENT TIME Setup

PRESENT TIME 99:99

Set

PRESENT TIME

99:99

PRESENT TIME Setup

PRESENT TIME 99:99

Set

PRESENT TIME

99:99

INPUT

SURROUND

VOL


SOUND

MULTI

PIP

SWAP SELECT MOVE

SET UP

ZOOM

Page 25

Set up TIMER

Press to setup POWER ON Time / POWER OFF Time.

button: Forward button: Back

Notes:

• Pressing

“ ” or “ ”

button once changes POWER ON Time / POWER OFF Time

1minute.

• Pressing

“ ” or “ ”

button continuously changes POWER ON Time / POWER OFF

Time by 15 minutes.

Press to select POWER ON Time / POWER OFF Time.

Press to select On.

Press twice to exit from Setup.

PRESENT TIME Setup / Set up TIMER

Press to select POWER ON Function/ POWER OFF Function.

Note:

Timer function will not work unless “PRESENT TIME” is set.

Display the Set up TIMER screen.

Set up TIMER

POWER OFF Function POWER OFF Time

POWER ON Time

POWER ON Function

Off

0.00 Off

0.00

PRESENT TIME 00:00

Set up TIMER

POWER OFF Function POWER OFF Time

POWER ON Time

POWER ON Function

Off

0.00 Off

0.00

PRESENT TIME 00:00

Page 26

Reversal / Scroll selection

Screensaver (For preventing after-images)

Do not display a still picture, especially in 4:3 mode, for any length of time. If the display must remain on, a Screensaver should be used.

Press to display the Setup menu.

Press to select Screensaver.

Press to display Screensaver screen.

Press to select Function.

Press to select the desired function.

Press to select Mode.

Press to select each mode items.

Mode selection

White bar scroll : The white bar will scroll from left to right.

Image Reversal : Negative image will be displayed on the screen.

Time Designation : Operates when Start Time and Finish Time are setup and those

times arrive.

Interval : Operates when Periodic Time and Operating Time are setup and those

times arrive.

Off

White bar scroll Image Reversal

On : Operates when Start is selected and the ACTION ( ) button is pressed.

Start setting

Press to start Screensaver. The menu screen will disappear and the Screensaver will be activated. To stop the

Screensaver under On, press the R button.

SET UP

2/2Setup

Screensaver

MULTI DISPLAY Setup

Set up TIMER

PRESENT TIME Setup

Screensaver

Start Function Mode

Side panel Wobbling Peak limit

Finish Time

Start Time

White bar scroll

Off

6:15

12:30

High

Off Off

PRESENT TIME 00:00

Screensaver

Start Function Mode

Side panel Wobbling Peak limit

Finish Time

Start Time

White bar scroll

Off

6:15

12:30

High

Off Off

PRESENT TIME 00:00

Screensaver

Start Function Mode

Side panel Wobbling Peak limit

Finish Time

Start Time

White bar scroll

6:15

12:30

High

Off Off

PRESENT TIME 00:00

When the Mode is set to On, press to select Start.

Page 27

Screensaver (For preventing after-images )

Setup of Screensaver Time

Press to select Start Time / Finish Time (When Time Designation is selected). Press to select Periodic Time / Operating Time (When Interval is selected).

Press to setup.

button: Forward button: Back

Note: Timer function will not work unless “PRESENT TIME” is set.

Notes:

• Pressing

“ ” or “ ”

button once changes the Time 1minutes.

[However, switching occurs every 15 minutes when Periodic Time is selected.]

• Pressing

“ ” or “ ”

button continuously changes the Time by 15 minutes.

After selecting Time Designation or Interval, the relevant Time Setup will become available for selection and the Operating Time may be set. (Time cannot be set when “Mode” is “On” or “Off”.)

Reduces screen after-image

These functions prevent the occurrence of an “after image” on the display when turned ON.

Wobbling: Automatically shifts the display image at a dot level pitch (therefore unnoticeable to the eye) over time

to prevent after image of sharper contour of image.

Peak limit: Suppresses image contrast (peak brightness).

Note: When a still picture is viewed for an extended time, the screen may become slightly darker. (see page 36)

Press to select “Screensaver”.

Press to display Screensaver menu.

Press to select “Wobbling” or “Peak limit”.

Press to select “On” or “Off”.

Press to display the Setup menu.

SET UP

Screensaver

Start Function Mode

Side panel Wobbling Peak limit

Finish Time

Start Time

White bar scroll

Off

6:15

12:30

High

Off Off

PRESENT TIME 00:00

Screensaver

Start Function Mode

Side panel Wobbling Peak limit

Operating Time

Periodic Time

White bar scroll

Interval

6:15

12:30

High

Off Off

PRESENT TIME 00:00

Screensaver

Start Function Mode

Side panel Wobbling Peak limit

Finish Time

Start Time

White bar scroll

Time Designation

6:15

12:30

High

Off Off

PRESENT TIME 00:00

Screensaver

Start Function Mode

Side panel Wobbling Peak limit

Finish Time

Start Time

White bar scroll

Time Designation

6:15

12:30

High

Off Off

PRESENT TIME 00:00

Screensaver

Start Function Mode

Side panel Wobbling Peak limit

Operating Time

Periodic Time

White bar scroll

Interval

6:15

12:30

High

Off Off

PRESENT TIME 00:00

Screensaver

Start Function Mode

Side panel Wobbling Peak limit

Finish Time

Start Time

White bar scroll

Time Designation

0:00 0:00

High

Off Off

PRESENT TIME 00:00

Screensaver

Start Function Mode

Side panel Wobbling Peak limit

Operating Time

Periodic Time

White bar scroll

Interval

0:00 0:00 High

Off Off

PRESENT TIME 00:00

2/2Setup

Screensaver

MULTI DISPLAY Setup

Set up TIMER

PRESENT TIME Setup

Screensaver

Start Function Mode

Side panel Wobbling Peak limit

Finish Time

Start Time

White bar scroll

Off

6:15

12:30

High

Off Off

PRESENT TIME 00:00

Page 28

Side Panel Adjustment

Press to select Side panel.

Press to select Off, Low, Mid, High.

Press to exit from Screensaver.

Display the Screensaver screen. (Refer to the previous page, operation guide steps 1 and 2)

Off Low Mid High

side panel

4:3

Screen Display

after-images

Screensaver (For preventing after-images )

Picture out Picture Picture and Picture

Non picture area

This function may be applicable to the non-picture area.

Screensaver

Start Function Mode

Side panel Wobbling Peak limit

Finish Time

Start Time

White bar scroll

Off

6:15

12:30

High

Off Off

PRESENT TIME 00:00

Do not display a picture in 4:3 mode for an extended period, as this can cause an after-image to remain on the side panels either side of the display field. To reduce the risk of such an after-image, illuminate the side panels.

Notes:

• To reduce the occurrence of after-images, set the Side panel to High.

• The side panels may flash (alternate black / white) depending on the picture being shown on the screen. Using Cinema mode will reduce such flashing.

Page 29

Reduces power consumption

Press to select “On” or “Off”.

Press to select “Power save” “Standby save” “Power management” “Auto power off”.

• Power save: When this function is turned On, luminous level of the plasma display is suppressed, so

power consumption is reduced.

• Standby save: When this function is turned On, power consumption of the microcomputer is reduced during

power supply standby (see page 11-13), so standby power of the set is reduced.

• Power management: The unit power supply is turned On or Off depending on whether or not there is a signal

during PC input mode. This function is enabled when it is turned On. (Only during input from PC (MiniD-sub) terminal)

• Auto power off: Equipment power supply is turned Off when there is no signal.

When this is set to On, the power supply of the unit goes Off 10 minutes after the input signals stop. This function is effective for input signals except input from PC (Mini D-sub) terminal.

Press to exit from Setup.

Press to select Input label.

Press to change the Input label.

Customizing the Input labels

This function can change the label of the Input signal to be displayed.

Notes:

While selecting an Input signal through Optional Terminal Board connected to Slot1 to Slot3, the Input label will depend on each Optional Terminal Board.

Input labels for Slot1 to Slot3 and miniD-sub:

[Slot1 Input] INPUT1 / VIDEO1 / COMPONENT1 / RGB1 / DIGITAL1 / PC1 / DVD1 / CATV1 / VCR1 / STB1 [Slot2 Input] INPUT2 / VIDEO2 / COMPONENT2 / RGB2 / DIGITAL2 / PC2 / DVD2 / CATV2 / VCR2 / STB2 [Slot3 Input] INPUT3 / VIDEO3 / COMPONENT3 / RGB3 / PC3 / DVD3 / CATV3 / VCR3 / STB3 [PC (MiniD-sub) input] PC / COMPONENT / RGB / DVD / STB

On Off

SET UP

Note:

“Power management” and “Auto power off” are effective during normal viewing (one picture screen) only.

1/2

PC Off

Standby save

Off

Power management

Off

Auto power off

Off

OSD Language

English (UK

)

Component / RGB-in select

RGB

Input label

Signal

Power save

Setup

1/2

PC Off

Standby save

Off

Power management

Off

Auto power off

Off

OSD Language

English (UK

)

Component / RGB-in select

RGB

Input label

Signal

Power save

Setup

Page 30

Setup for MULTI DISPLAY

By lining up Plasma Displays in groups of 4, 9 or 16 as illustrated below, an enlarged picture may be displayed across all screens. For this mode of operation, each plasma display has to be set up with a Display number to determine its location.

Press to display the Setup menu.

Press to display the “MULTI DISPLAY Setup” menu.

Press to select the MULTI DISPLAY Setup.

Press to select the

MULTI DISPLAY Setup.

Press to select “On” or “Off”.

How to Setup MULTI DISPLAY

group of 16 (4 × 4)

SET UP

group of 4 (2 × 2) group of 9 (3 × 3)

2/2Setup

Screensaver

MULTI DISPLAY Setup

Set up TIMER

PRESENT TIME Setup

MULTI DISPLAY Setup

Location

MULTI DISPLAY Setup Ratio

Off

2 × 2

INPUT

SURROUND

VOL


SOUND

MULTI

PIP

SWAP SELECT MOVE

SET UP

ZOOM

Page 31

Press to select Ratio (2nd step).

Press to select “2 × 2”, “3 × 3”, “4 × 4”.

How to set the display location number for each Plasma Display

Press to select Location.

Press to select the required arrangement number. (A1-D4 : Refer to the following)

Display Number locations for each arrangement

Setup for MULTI DISPLAY

Press twice to exit from Setup.

( 2 × 2 ) ( 3 × 3 )

Notes:

• The multi-display capability is functional for the following component signals: 525 (480) / 60i · 60p, 625 (575) / 50i · 50p, 1125 (1080) / 60i · 50i · 24p · 25p · 30p · 24sF, 750 (720) / 60p · 50p, 1250 (1080) / 50i

• The multi-display capability is functional for the following composite signals: NTSC, PAL, SECAM

( 4 × 4 )

MULTI DISPLAY Setup

Location

MULTI DISPLAY Setup Ratio

Off

2 × 2

MULTI DISPLAY Setup

Location

MULTI DISPLAY Setup Ratio

Off

2 × 2

Page 32

Setup for Input Signals

Component / RGB-in select

Select the input signals to be connected by installing the Optional Terminal Board. (Refer to the Operating Instructions for the optional Terminal Board.) Select to match the signals from the source connected to the Component / RGB input terminals. Y, P B, PR signals

“Component”

R, G, B, HD, VD signals

“RGB”

Press to display the Setup menu.

Press to select the “Component / RGB-in select”.

Press to select the desired input signal. Component RGB

Press to exit from adjust mode.

3D Y/C Filter – For NTSC AV images

Select “Signal” from the “Setup” menu during AV(S Video) input signal. (“Signal [AV]” menu is displayed.)

Press to select the “3D Y/C Filter (NTSC)”

Press to set On / Off.

Press to exit from adjust mode.

Note:

When On, this setting only affects NTSC input signals.

SET UP

Notes:

• Selection may not be possible, depending on which optional board is installed.

• In case of PC input, only RGB can be selected.

1/2

PC Off

Standby save

Off

Power management

Off

Auto power off

Off

OSD Language

English (UK

)

Component / RGB-in select

RGB

Input label

Signal

Power save

Setup

1/2

PC Off

Standby save

Off

Power management

Off

Auto power off

Off

OSD Language English (UK

)

Component / RGB-in select

RGB

Input label

Signal

Power save

Setup

INPUT

SURROUND

VOL


SOUND

SET UP

MULTI

PIP

SWAP SELECT MOVE

ZOOM

Press ACTION ( ) button

3D Y/C Filter (NTSC) Colour system

Signal

Auto

Cinema reality Panasonic Auto (4 : 3)

Off

4 : 3

[AV]

P-NR

Off

Page 33

Setup for Input Signals

Auto PAL SECAM M.NTSC NTSC

1/2

PC Off

Standby save

Off

Power management

Off

Auto power off

Off

OSD Language English (UK

)

Component / RGB-in select

RGB

Input label

Signal

Power save

Setup

3D Y/C Filter (NTSC) Colour system

Signal

Auto

Cinema reality Panasonic Auto (4 : 3)

Off

4 : 3

[AV]

P-NR

Off

1/2

PC Off

Standby save

Off

Power management

Off

Auto power off

Off

OSD Language English (UK

)

Component / RGB-in select

RGB

Input label

Signal

Power save

Setup

3D Y/C Filter (NTSC) Colour system

Signal

Auto

Cinema reality Panasonic Auto (4 : 3)

Off

4 : 3

[AV]

P-NR

Off

Cinema reality P-NR

Signal

Off Off

[

Component

]

Cinema reality P-NR

Signal

Off Off

H-Freq.

V-Fr eq.

kHz

33.8

60.0

[

DVI

]

Sync

P-NR

Signal

Auto

H-Freq.

V-Freq.

kHz

33.8

60.0

[

RGB

]

Cinema reality

Off Off

Colour system / Panasonic Auto

Select Signal from the “Setup” menu during AV(S Video) input signal. (“Signal [AV]” menu is displayed.)

Press to select the “Colour system” or “Panasonic Auto”.

Press to select each functions.

If the picture image becomes unstable:

With the system set on Auto, under conditions of low level or noisy input signals the image may in rare cases become unstable. Should this occur, set the system to match the format of the input signal.

Mode

Colour system

Panasonic Auto (4:3)

Function

Set the colour system to match the input signal. If set to “Auto”, the colour system is determined automatically.

Set to “4 : 3” to view 4:3 images in an unchanged format when Panasonic Auto is selected. If you would like to view 4:3 images in Just format, set to “Just”.

Cinema reality / P-NR

Press to select Cinema reality or P-NR.

Press to set On / Off.

Press to exit from adjust mode.

Cinema reality:

When on, the display attempts to reproduce a more natural interpretation of sources such as movie pictures, which are recorded at 24 frames per second. If the picture is not stable, turn the setting to off.

Note:

When On, this setting only affects the following signal input:

• NTSC / PAL signal input during “AV(S Video)” input signal.

• 525i(480i) 625i(575i), 1125(1080) / 60i signal input during “Component” input signal.

Press ACTION ( ) button

P-NR:

Automatically reduces unwanted picture noise.

Note:

P-NR cannot be adjusted while a PC signal is being applied.

Page 34

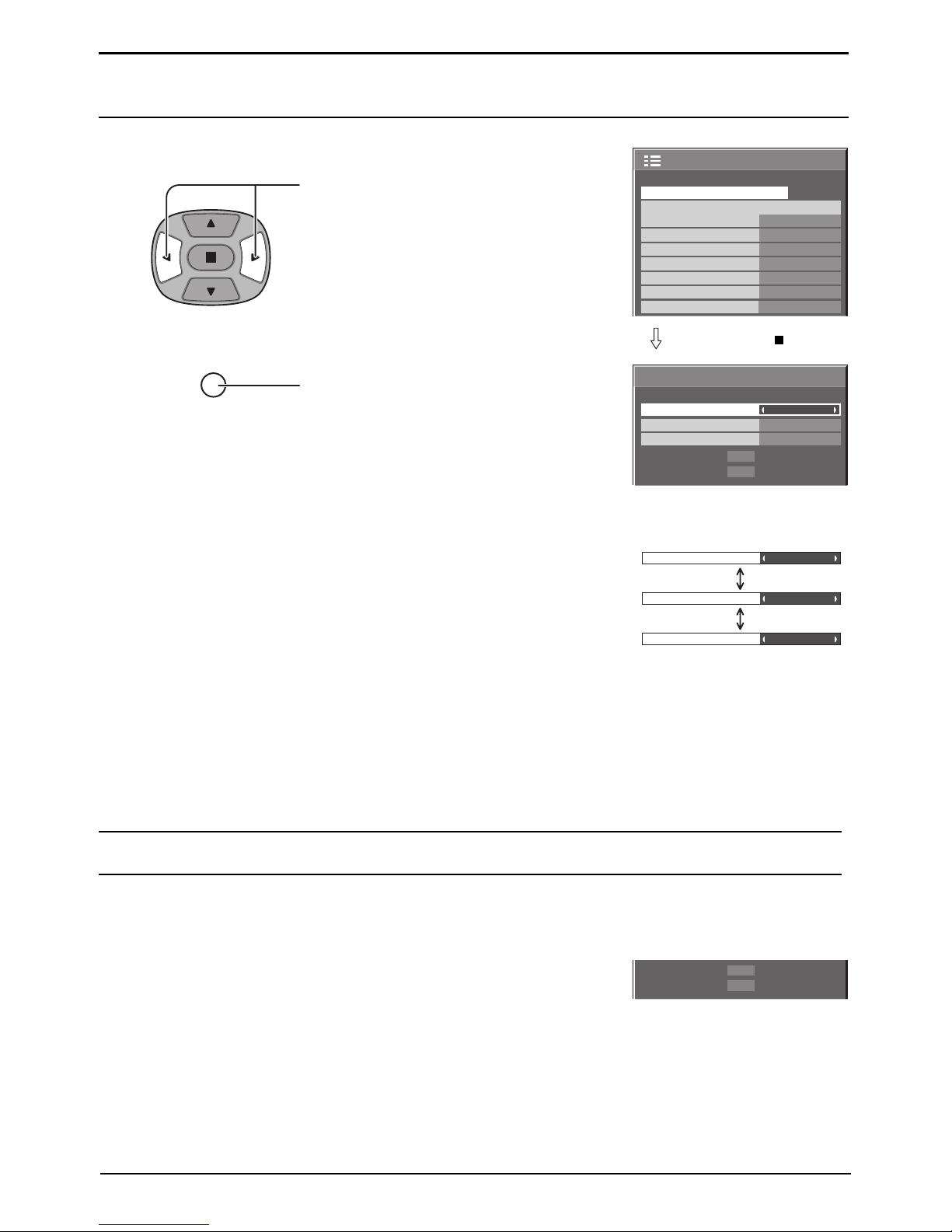

Select Signal from the “Setup” menu during RGB input signal.

Press to adjust.

Setting RGB sync signal:

Confirm that the input is set to RGB input (this setting is valid only for RGB input signal).

Auto: The H and V sync or synchronized signal are automatically

selected. If both input, it is selected the H and V sync.

on G: Uses a synchronized signal on the Video G signal, which is input

from the G connector.

VBS: Uses a synchronized signal of Composite Sync input, which is

input from the HD connector.

Displays the H (Horizontal) / V (Vertical) frequencies.

This display is valid only for RGB / PC and DVI input signal. Display range:

Horizontal 15 - 110 kHz Vertical 48 - 120 Hz

H-Freq. (kHz) / V-Freq. (Hz)

Setup for Input Signals

Sync

Press to exit from adjust mode.

Sync

Auto

Sync

on G

Sync

VBS

1/2

PC Off

Standby save

Off

Power management

Off

Auto power off

Off

OSD Language English (UK

)

Component / RGB-in select

RGB

Input label

Signal

Power save

Setup

Press ACTION ( ) button

Sync

P-NR

Signal

Auto

H-Freq.

V-Freq.

kHz

33.8

60.0

[

RGB

]

Cinema reality

Off Off

H-Freq.

V-Freq.

kHz

33.8

60.0

Page 35

Shipping condition

This function allows you to reset the unit to the factory setting.

SET UP

1/2

Signal

PC Off

Standby save

Off

Power management

Off

Auto power off

Off

OSD Language English (UK

)

Component / RGB-in select

RGB

Input label Power save

Setup

INPUT

SURROUND

VOL


SOUND

MULTI

PIP

SWAP SELECT MOVE

SET UP

ZOOM

Press to display the Setup menu.

Press to select “OSD Language”.

Press and hold till the SHIPPING menu is displayed.

Press to select “YES”.

Press to confirm.

SHIPPING

YES

[from the unit]

1 Press the MENU button till the Setup menu is displayed.

2 Press the Volume Up“+” or Down“–” button to select “OSD Language”.

3 Press and hold the ENTER button till the SHIPPING menu is displayed.

4 Press the Volume Up“+” or Down“–” button to select “YES”.

5 Press the ENTER button.

Note:

Press the R button to return to Setup menu when SHIPPING menu is displayed.

Page 36

Symptoms

Picture Sound

Before you call for service, determine the symptoms and make a few simple checks as shown below.

This Plasma Display uses special image processing. Hence a slight time lag may occur between image and audio, depending on the type of input signal. However, this is not a malfunction.

Symptoms

The screen darkens slightly when bright pictures with minimal movements are shown.

It takes a while for the picture to appear.

The edges of the images flicker.

The brightness on both sides of images in the 4:3 mode changes.

Some parts of the screen do not light up.

After-images appear

[for TH-42PHD7B, TH-50PHD7B] Whirring sounds can be heard from the display unit.

Plasma Display panel

Check

The screen will darken slightly when photos, still images of a computer or other pictures with minimal movements are shown for an extended period. This is done to reduce after-image on the screen and the shortening of the screen’s service life: It is normal and not indicative of malfunctioning.

The unit digitally processes the various signals in order to reproduce esthetically pleasing images. As such, it sometimes takes a few moments for the picture to appear when the power has been turned on, when the input has been switched or when the images for the main picture and sub picture on the two screens are swapped.

Due to the characteristics of the system used to drive the panel, the edges may appear to flicker in the fastmoving parts of the images: This is normal and not indicative of malfunctioning.

When viewing the side panels at the “High” or “Mid” setting, the brightness on both sides may change depending on the kind of program shown: This is normal and not indicative of malfunctioning.

The plasma display panel is manufactured using an extremely high level of precision technology, however, sometimes some parts of the screen may be missing picture elements or have luminous spots. This is not a malfunction.

Do not allow a still picture to be displayed for an extended period, as this can cause a permanent afterimage to remain on the Plasma Display. Examples of still pictures include logos, video games, computer images, teletext and images displayed in 4:3 mode.

Note:

The permanent after-image on the Plasma Display resulting from fixed image use is not an operating defect and as such is not covered by the Warranty. This product is not designed to display fixed images for extended periods of time.

The display unit is fitted with a cooling fan to dissipate heat generated during normal use. The whirring sound is caused by rotation of the fan and is not a malfunction.

Interference Noisy Sound

Normal Picture No Sound

No Picture No Sound

No Picture Normal Sound

No Coloaur Normal Sound

No remote control operations can be performed.

A cracking sound is sometimes heard from the unit.

The top or bottom of the picture on the screen is cut off when I use the zoom function.

Areas at the top and bottom of the screen where the image is missing appear when I use the zoom function.

I can hear sounds coming from inside the unit.

Checks

Electrical Appliances Cars / Motorcycles Fluorescent light

Volume (Check whether the mute function has been activated on the remote control.)

Not plugged into AC outlet Not switched on Picture and Brightness/Volume setting (Check by pressing the power switch or stand-by button on the remote control.)

If a signal with a non-applicable colour system format, or frequency is input, only the input terminal indication is displayed.

Colour controls set at minimum level (see page 20, 21) Colour system (see page 33)

Check whether the batteries have discharged completely and, if they have not, whether they were inserted properly. Check whether the remote control sensor is exposed to an outdoor light or a strong fluorescent light. Check whether the remote control designed specifically for use with the unit is being used. (The unit cannot be operated by any other remote control.)

If there is nothing wrong with the picture or sound, this is the sound of the cabinet undergoing very slight contractions in response to changes in the room temperature. There are no adverse effects on the performance or other aspects.

Adjust the position of the picture on the screen.

When using a video software program (such as a cinema size program) with a screen wider than one in the 16:9 mode, blank areas separate from the images are formed at the top and bottom of the screen.

When the power is turned on, a sound of the display panel being driven may be heard: This is normal and not indicative of malfunctioning.

Troubleshooting

Page 37

Signal name

Horizontal Vertical

RGB

When Multi Screen

frequency (kHz) frequency (Hz) and Digital Zoom

1 525 (480) / 60i 15.73 59.94

∗∗

2 525 (480) / 60p 31.47 59.94

∗∗

3 625 (575) / 50i 15.63 50.00

∗∗

4 625 (575) / 50p 31.25 50.00

∗∗

5 750 (720) / 60p 45.00 60.00

∗∗

6 750 (720) / 50p 37.50 50.00

∗∗

7 1,125 (1,080) / 60i 33.75 60.00

∗∗

8 1,125 (1,080) / 50i 28.13 50.00

∗∗

9 1,125 (1,080) / 24p 27.00 47.92

∗∗

10 1,125 (1,080) / 24sF 33.75 30.00

∗∗

11 1,125 (1,080) / 25p 28.13 25.00

∗∗

12 1,125 (1,080) / 30p 27.00 24.00

∗∗

13 1,250 (1,080) / 50i 31.25 50.00

∗∗

14 640 × 400 @70 Hz 31.46 70.07

∗∗

15 640 × 480 @60 Hz 31.47 59.94

∗∗

16 640 × 480 @72 Hz 37.86 72.81

∗∗

17 640 × 480 @75 Hz 37.50 75.00

∗∗

18 640 × 480 @85 Hz 43.27 85.01

∗∗

19 852 × 480 @60 Hz 31.47 59.94

∗∗

20 800 × 600 @56 Hz 35.16 56.25

∗∗

21 800 × 600 @60 Hz 37.88 60.32

∗∗

22 800 × 600 @72 Hz 48.08 72.19

∗∗

23 800 × 600 @75 Hz 46.88 75.00

∗∗

24 800 × 600 @85 Hz 53.67 85.06

∗∗

25 1,024 × 768 @60 Hz 48.36 60.00

∗∗

26 1,024 × 768 @70 Hz 56.48 70.07

∗∗

27 1,024 × 768 @75 Hz 60.02 75.03

∗∗

28 1,024 × 768 @85 Hz 68.68 85.00

∗∗

29 1,152 × 864 @75 Hz 67.50 75.00

∗∗

30 1,280 × 960 @60 Hz 60.00 60.00

∗∗

31 1,280 × 960 @85 Hz 85.94 85.00

∗∗

32 1,280 × 1,024 @60 Hz 63.98 60.02

∗∗

33 1,280 × 1,024 @75 Hz 79.98 75.03

∗∗

34 1,280 × 1,024 @85 Hz 91.15 85.02

∗∗

35 1,600 × 1,200 @60 Hz 75.00 60.00

∗∗

36 1,600 × 1,200 @65 Hz 81.25 65.00

∗∗

37 1,066 × 600 @60 Hz 37.88 60.32

∗∗

38 1,366 × 768 @60 Hz 48.36 60.00

∗∗

39 Macintosh13” (640 × 480) 35.00 66.67

∗∗

40 Macintosh16” (832 × 624) 49.72 74.54

∗∗

41 Macintosh21” (1,152 × 870) 68.68 75.06

∗∗

Input signal can be displayed

Note:

Signals without above specification may not be displayed properly.

Applicable input signals for PC Input (D-sub 15P) (∗ Mark)

Page 38

Notes:

• Design and specifications are subject to change without notice. Mass and dimensions shown are approximate.

• This equipment complies with the EMC standards listed below. EN55022, EN55024, EN61000-3-2, EN61000-3-3.

Specifications

Power Source Power Consumption

Normal use

Stand-by condition

Power off condition

Plasma Display panel

Contrast Ratio

Screen size

(No.of pixels)

Operating condition

Temperatuer

Humidity

Applicable signals

Colour System

Scanning format

PC signals

Connection terminals

SERIAL

SPEAKERS (6 Ω)

Accessories Supplied

Remote Control Transmitter

Batteries

Fixing bands

Ferrite core

Dimensions (W × H × D) Mass (weight)

main unit only with speakers

TH-37PWD7B TH-42PWD7B

220 - 240 V AC, 50/60 Hz

185 W 250 W

Save off 1.0 W, Save on 0.7 W Save off 1.0 W, Save on 0.7 W

0.3 W 0.3 W

Drive method : AC type Drive method : AC type

37-inch, 16:9 aspect ratio 42-inch, 16:9 aspect ratio

4000:1

818 mm (W) × 461 mm (H) 920 mm (W) × 518 mm (H)

× 939 mm (diagonal) × 1,056 mm (diagonal)

408,960 (852 (W) × 480 (H))

[2,556 × 480 dots]

0 °C - 40 °C

20 % - 80 %

NTSC, PAL, PAL60, SECAM, Modified NTSC 525 (480) / 60i · 60p, 625 (575) / 50i · 50p, 750 (720) / 60p · 50p, 1125 (1080) / 60i · 50i · 24p · 25p · 30p · 24sF ···· SMPTE274M, 1250 (1080) / 50i

VGA display

VGA

SVGA, XGA, SXGA, UXGA ···· (compressed)

Horizontal scanning frequency 15 - 110 kHz

Vertical scanning frequency 48 - 120 Hz

(HIGH-DENSITY D-SUB 15PIN) R,G,B / 0.7 Vp-p (75-ohm)

HD, VD / 1.0 - 5.0 Vp-p (high impedance) AUDIO IN (M3 JACK) 0.5 Vrms (high impedance) EXTERNAL CONTROL TERMINAL (D-SUB 9PIN) RS-232C COMPATIBLE

16W [8 W + 8 W] (10 % THD)

EUR646537

2 × R6 Size

(TMME203 or TMME187) × 2

J0KF00000018 × 1, J0KG00000054 × 2

920 mm × 550 mm × 89 mm 1,020 mm × 610 mm × 89 mm

approx. 24.0 kg net approx. 28.5 kg net

approx. 28.2 kg approx. 32.7 kg

Page 39

Power Source Power Consumption

Normal use

Stand-by condition

Power off condition

Plasma Display panel

Contrast Ratio

Screen size

(No.of pixels)

Operating condition

Temperatuer

Humidity

Applicable signals

Colour System

Scanning format

PC signals

Connection terminals

SERIAL

SPEAKERS (6 Ω)

Accessories Supplied

Remote Control Transmitter

Batteries

Fixing bands

Ferrite core

Dimensions (W × H × D) Mass (weight)

main unit only with speakers

TH-42PHD7B TH-50PHD7B

220 - 240 V AC, 50/60 Hz

315 W 435 W

Save off 1.0 W, Save on 0.7 W Save off 1.0 W, Save on 0.7 W

0.3 W 0.3 W

Drive method : AC type Drive method : AC type

42-inch, 16:9 aspect ratio 50-inch, 16:9 aspect ratio

3000:1

920 mm (W) × 518 mm (H) 1,106 mm (W) × 622 mm (H)

× 1,056 mm (diagonal) × 1,269 mm (diagonal)

786,432 (1,024 (W) × 768 (H)) 1,049,088 (1,366 (W) × 768 (H))

[3,072 × 768 dots] [4,098 × 768 dots]

0 °C - 40 °C

20 % - 80 %

XGA display

VGA, SVGA, XGA

SXGA, UXGA ···· (compressed)

Horizontal scanning frequency 15 - 110 kHz

Vertical scanning frequency 48 - 120 Hz

(HIGH-DENSITY D-SUB 15PIN) R,G,B / 0.7 Vp-p (75-ohm)

HD, VD / 1.0 - 5.0 Vp-p (high impedance) AUDIO IN (M3 JACK) 0.5 Vrms (high impedance) EXTERNAL CONTROL TERMINAL (D-SUB 9PIN) RS-232C COMPATIBLE

16W [8 W + 8 W] (10 % THD)

EUR646537

2 × R6 Size

(TMME203 or TMME187) × 2

J0KF00000018 × 1, J0KG00000054 × 2

1,020 mm × 610 mm × 89 mm 1,210 mm × 724 mm × 95 mm

approx. 29.5 kg net approx. 42.5 kg net

approx. 33.7 kg approx. 47.1 kg

Specifications

Notes:

• Design and specifications are subject to change without notice. Mass and dimensions shown are approximate.

• This equipment complies with the EMC standards listed below. EN55022, EN55024, EN61000-3-2, EN61000-3-3.

Page 40

Customer’s Record

The model number and serial number of this product can be found on its back cover. You should note this serial number in the space provided below and retain this book, plus your purchase receipt, as a permanent record of your purchase to aid in identification in the event of theft or loss, and for Warranty Service purposes.

Model Number Serial Number

Matsushita Electric Industrial Co., Ltd.

Web Site : http://www.panasonic.co.jp/global/

Sales and Support Information

Customer Care Centre

• For UK customers: 08705 357357

• For Republic of Ireland customers: 01 289 8333

• Visit our website for product information

www.panasonic.co.uk

• E-mail: [email protected]

Direct Sales at Panasonic UK

• Order accessory and consumable items for your product with ease and confidence by phoning our Customer Care Centre Monday – Friday 9:00am – 5:30pm (Excluding public holidays).

• Or go on line through our Internet Accessory ordering application at www.panasonic.co.uk.

• Most major credit and debit cards accepted.

• All enquiries transactions and distribution facilities are provided directly by Panasonic UK Ltd.

• It couldn’t be simpler!

• Also available through our Internet is direct shopping for a wide range of finished products, take a browse on our website for further details.

Exclusive to Plasma / DVD Ram / LCD Television / LCD Projector product:

Interested in purchasing an extended guarantee? Please contact your dealer or our Customer Support Department on 01344 476540 or [email protected] for more details.

Printed in Czech Republic

Information on Disposal for Users of Waste Electrical & Electronic Equipment (private households)

This symbol on the products and/or accompanying documents means that used electrical and electronic products should not be mixed with general household waste. For proper treatment, recovery and recycling, please take these products to designated collection points, where they will be accepted on a free of charge basis. Alternatively, in some countries you may be able to return your products to your local retailer upon the purchase of an equivalent new product. Disposing of this product correctly will help to save valuable resources and prevent any potential negative effects on human health and the environment which could otherwise arise from inappropriate waste handling. Please contact your local authority for further details of your nearest designated collection point.

Penalties may be applicable for incorrect disposal of this waste, in accordance with national legislation.

For business users in the European Union

If you wish to discard electrical and electronic equipment, please contact your dealer or supplier for further information.

Information on Disposal in other Countries outside the European Union

This symbol is only valid in the European Union. If you wish to discard this product, please contact your local authorities or dealer and ask for the correct method of disposal.
