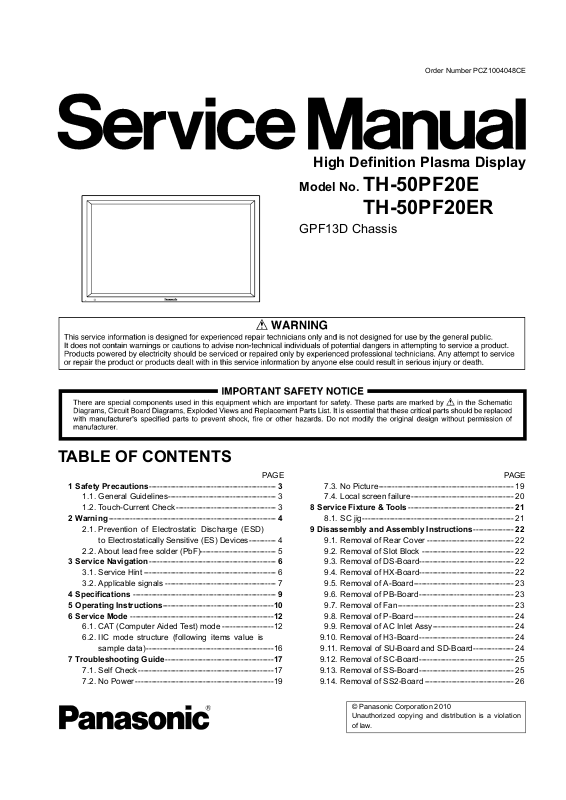

panasonic th_50pf20e_er Datasheet

Order Number PCZ1004048CE

High Definition Plasma Display

Model No. TH-50PF20E

TH-50PF20ER

GPF13D Chassis

TABLE OF CONTENTS

1 Safety Precautions----------------------------------------------- 3

1.1. General Guidelines---------------------------------------- 3

1.2. Touch-Current Check------------------------------------- 3

2 Warning -------------------------------------------------------------- 4

2.1. Prevention of Electrostatic Discharge (ESD)
to Electrostatically Sensitive (ES) Devices---------- 4

2.2. About lead free solder (PbF)---------------------------- 5

3 Service Navigation ----------------------------------------------- 6

3.1. Service Hint ------------------------------------------------- 6

3.2. Applicable signals ----------------------------------------- 7

4 Specifications ----------------------------------------------------- 9
5 Operating Instructions-----------------------------------------10
6 Service Mode -----------------------------------------------------12

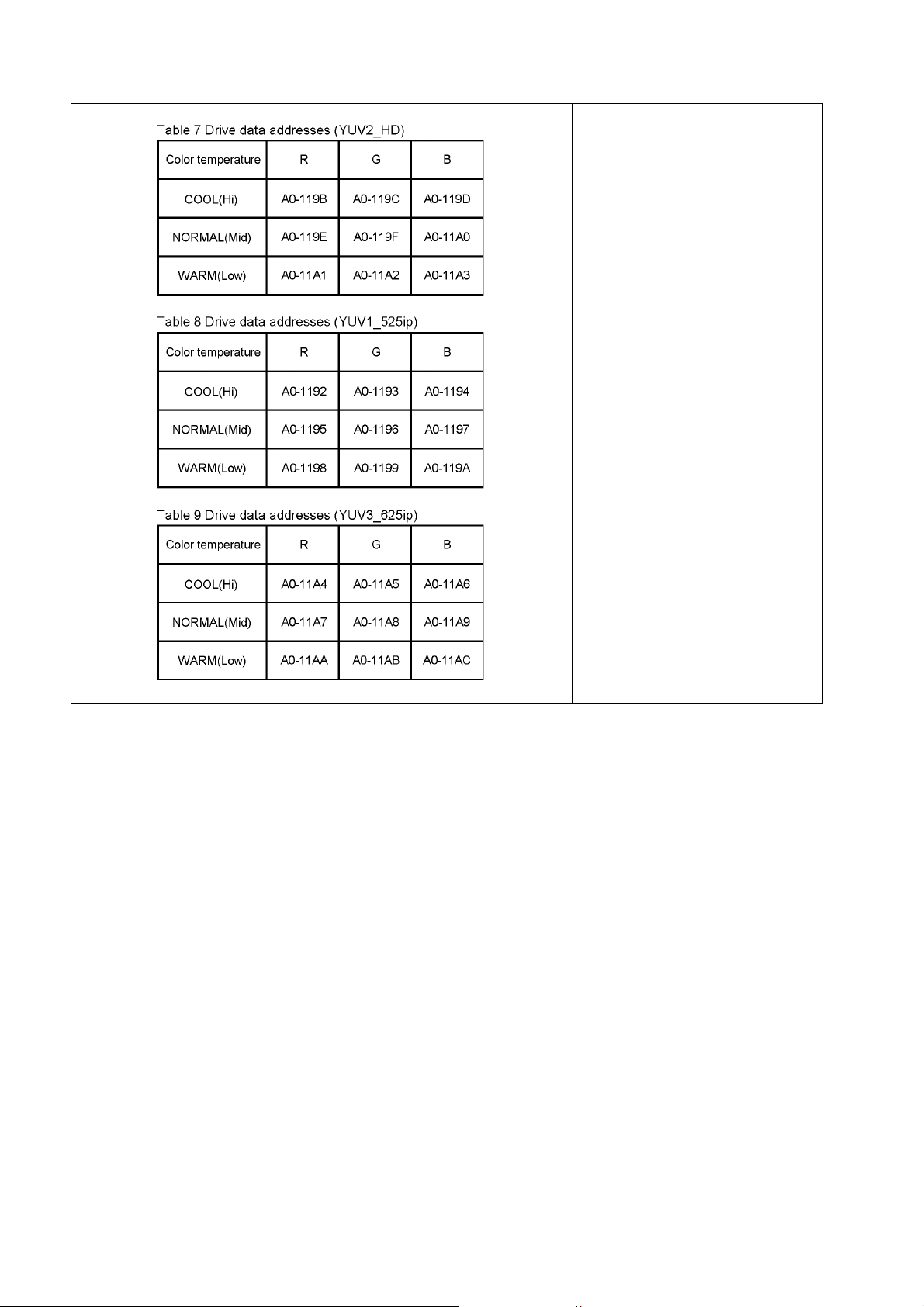

6.1. CAT (Computer Aided Test) mode -------------------12

6.2. IIC mode structure (following items value is
sample data) -----------------------------------------------16

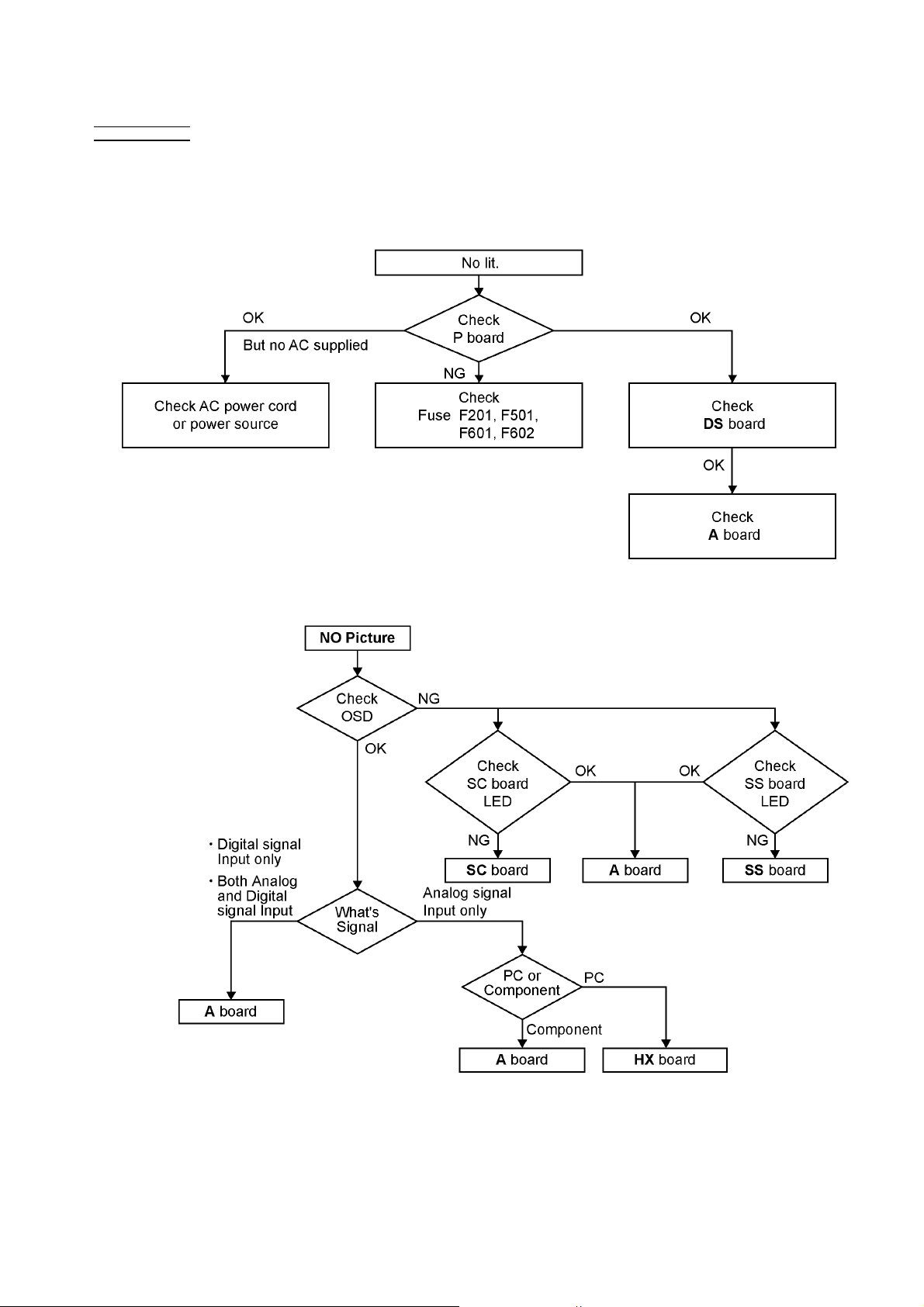

7 Troubleshooting Guide----------------------------------------17

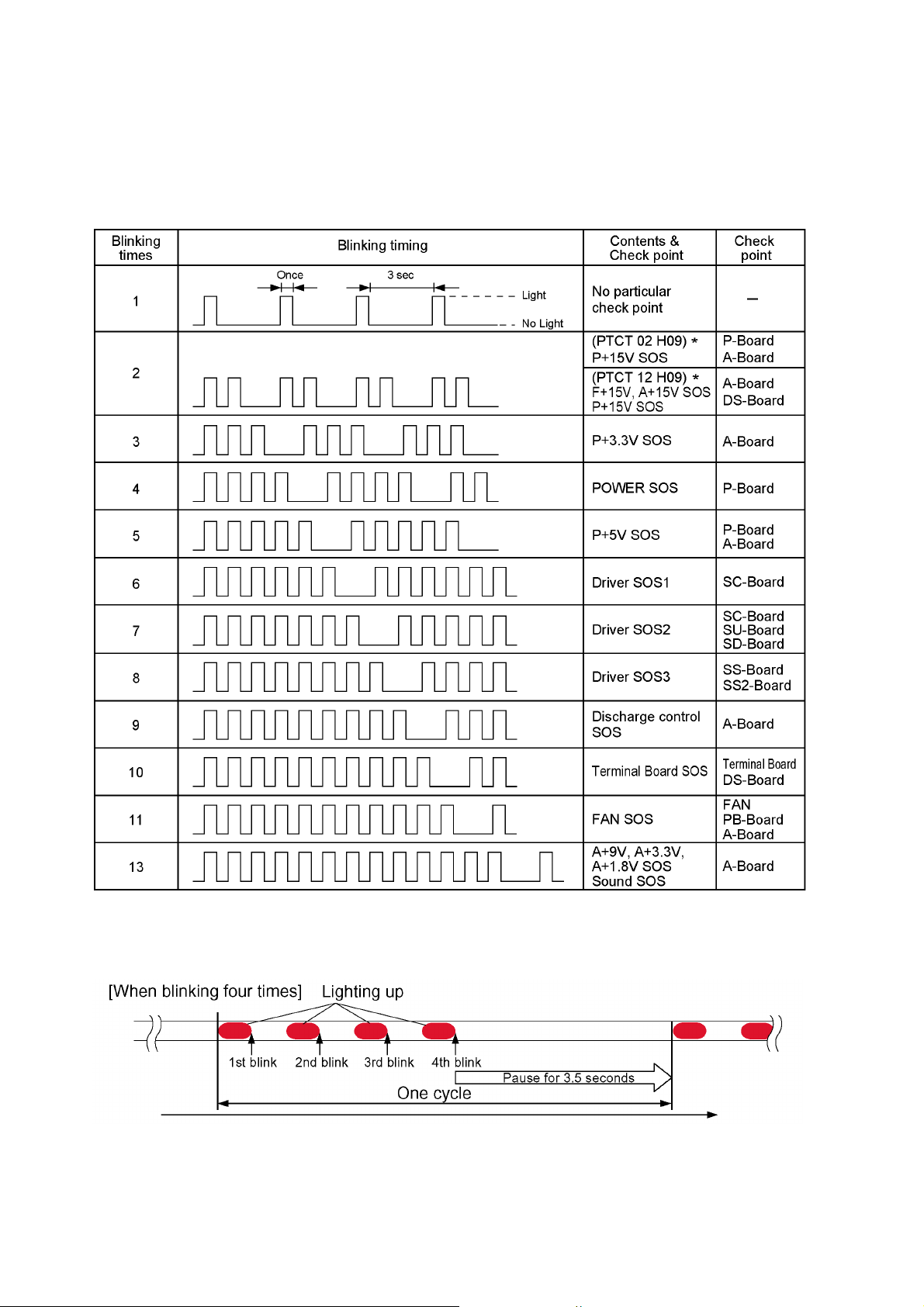

7.1. Self Check --------------------------------------------------17

7.2. No Power ---------------------------------------------------19

PAG E PAG E

7.3. No Picture -------------------------------------------------- 19

7.4. Local screen failure-------------------------------------- 20

8 Service Fixture & Tools --------------------------------------- 21

8.1. SC jig -------------------------------------------------------- 21

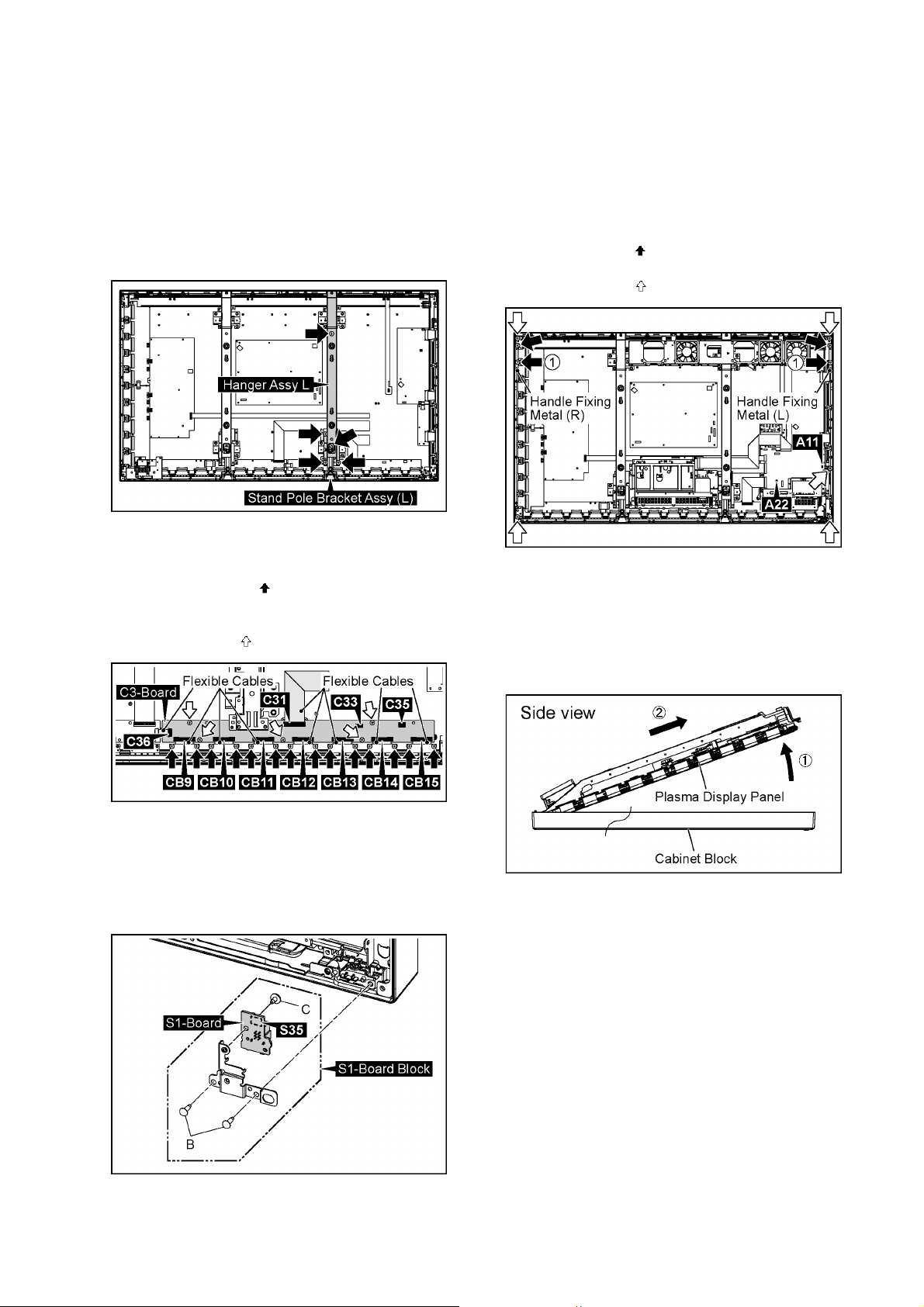

9 Disassembly and Assembly Instructions --------------- 22

9.1. Removal of Rear Cover -------------------------------- 22

9.2. Removal of Slot Block ---------------------------------- 22

9.3. Removal of DS-Board----------------------------------- 22

9.4. Removal of HX-Board----------------------------------- 22

9.5. Removal of A-Board ------------------------------------- 23

9.6. Removal of PB-Board ----------------------------------- 23

9.7. Removal of Fan------------------------------------------- 23

9.8. Removal of P-Board ------------------------------------- 24

9.9. Removal of AC Inlet Assy------------------------------ 24

9.10. Removal of H3-Board ----------------------------------- 24

9.11. Removal of SU-Board and SD-Board--------------- 24

9.12. Removal of SC-Board----------------------------------- 25

9.13. Removal of SS-Board ----------------------------------- 25

9.14. Removal of SS2-Board --------------------------------- 26

© Panasonic Corporation 2010
Unauthorized copying and distribution is a violation
of law.

TH-50PF20E / TH-50PF20ER

9.15. Removal of C1-Board ----------------------------------- 26

9.16. Removal of C2-Board ----------------------------------- 26

9.17. Removal of C3-Board ----------------------------------- 27

9.18. Removal of S1-Board ----------------------------------- 27

9.19. Removal of Front Glass, V1, V2-Board and
Cabinet Assy ---------------------------------------------- 27

9.20. Removal of Plasma Display Panel------------------- 29

10 Measurements and Adjustments -------------------------- 32

10.1. Adjustment ------------------------------------------------- 32

10.2. Adjustment ------------------------------------------------- 33

11 Block Diagram --------------------------------------------------- 37

11.1. Main Block Diagram ------------------------------------ 37

11.2. Block (1 of 5) Diagram ---------------------------------- 38

11.3. Block (2 of 5) Diagram ---------------------------------- 39

11.4. Block (3 of 5) Diagram ---------------------------------- 40

11.5. Block (4 of 5) Diagram ---------------------------------- 41

11.6. Block (5 of 5) Diagram ---------------------------------- 42

12 Wiring Connection Diagram --------------------------------- 43

12.1. Wiring (1) --------------------------------------------------- 43

12.2. Wiring (2) --------------------------------------------------- 44

13 Schematic Diagram--------------------------------------------- 45

13.1. Schematic Diagram Notes ----------------------------- 45

13.2. P-Board (1 of 3) Schematic Diagram --------------- 46

13.3. P-Board (2 of 3) Schematic Diagram --------------- 47

13.4. P-Board (3 of 3) Schematic Diagram --------------- 48

13.5. PB, V1, V2 and S1-Board Schematic Diagram --- 49

13.6. HX-Board Schematic Diagram------------------------ 50

13.7. DS-Board (1 of 2) Schematic Diagram ------------- 51

13.8. DS-Board (2 of 2) Schematic Diagram ------------- 52

13.9. A-Board (1 of 17) Schematic Diagram-------------- 53

13.10. A-Board (2 of 17) Schematic Diagram-------------- 54

13.11. A-Board (3 of 17) Schematic Diagram-------------- 55

13.12. A-Board (4 of 17) Schematic Diagram-------------- 56

13.13. A-Board (5 of 17) and H3-Board Schematic
Diagram----------------------------------------------------- 57

13.14. A-Board (6 of 17) Schematic Diagram-------------- 58

13.15. A-Board (7 of 17) Schematic Diagram-------------- 59

13.16. A-Board (8 of 17) Schematic Diagram-------------- 60

13.17. A-Board (9 of 17) Schematic Diagram-------------- 61

13.18. A-Board (10 of 17) Schematic Diagram ------------ 62

13.19. A-Board (11 of 17) Schematic Diagram ------------ 63

13.20. A-Board (12 of 17) Schematic Diagram ------------ 64

13.21. A-Board (13 of 17) Schematic Diagram ------------ 65

13.22. A-Board (14 of 17) Schematic Diagram ------------ 66

13.23. A-Board (15 of 17) Schematic Diagram ------------ 67

13.24. A-Board (16 of 17) Schematic Diagram ------------ 68

13.25. A-Board (17 of 17) Schematic Diagram ------------ 69

13.26. C1-Board Schematic Diagram ------------------------ 70

13.27. C2-Board (1 of 2) Schematic Diagram-------------- 71

13.28. C2-Board (2 of 2) Schematic Diagram-------------- 72

13.29. C3-Board (1 of 2) Schematic Diagram-------------- 73

13.30. C3-Board (2 of 2) Schematic Diagram-------------- 74

13.31. SC-Board (1 of 4) Schematic Diagram ------------- 75

13.32. SC-Board (2 of 4) Schematic Diagram ------------- 76

13.33. SC-Board (3 of 4) Schematic Diagram ------------- 77

13.34. SC-Board (4 of 4) Schematic Diagram ------------- 78

13.35. SS-Board (1 of 2) Schematic Diagram ------------- 79

13.36. SS-Board (2 of 2) and SS2-Board Schematic
Diagram----------------------------------------------------- 80

14 Printed Circuit Board ------------------------------------------ 81

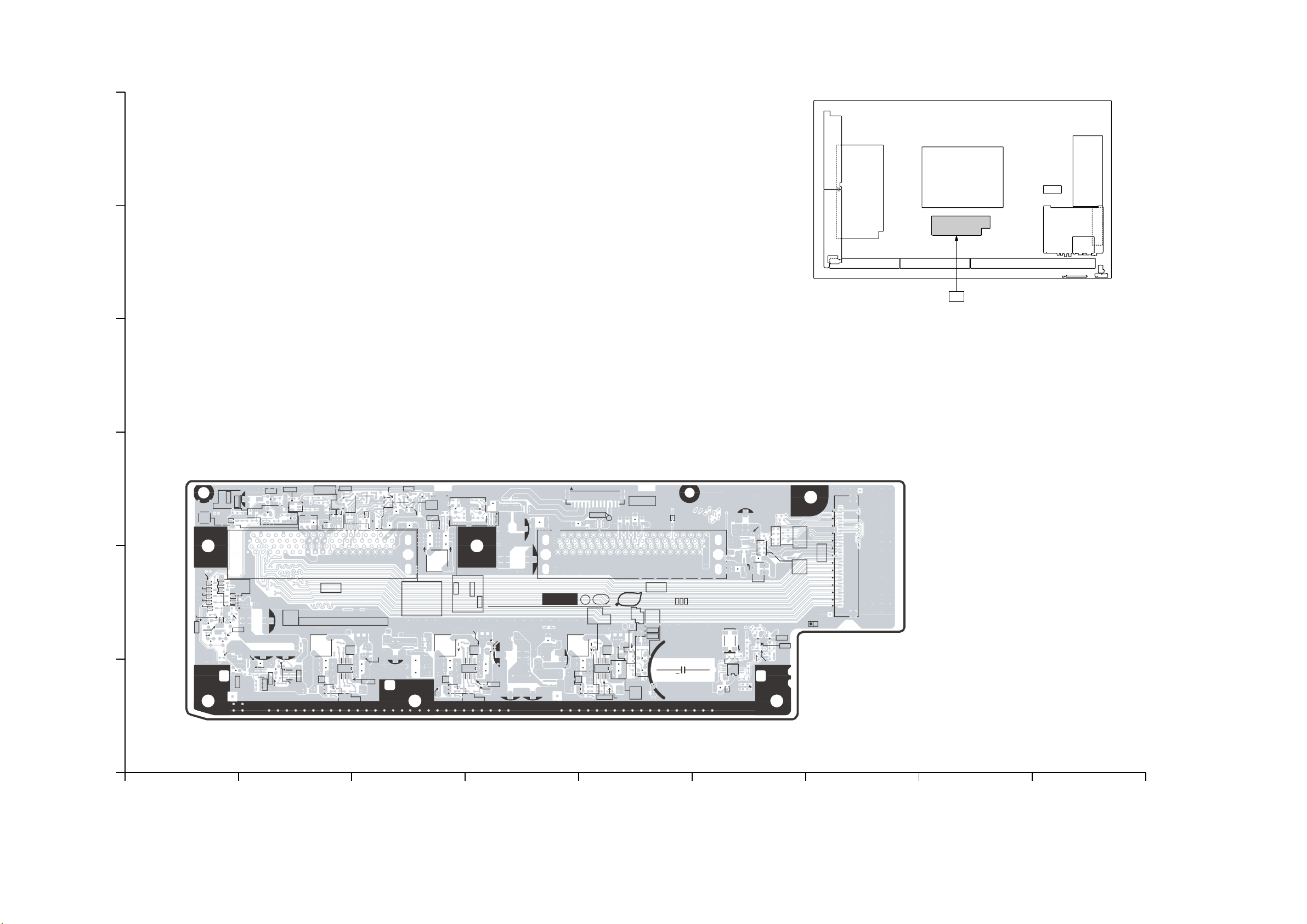

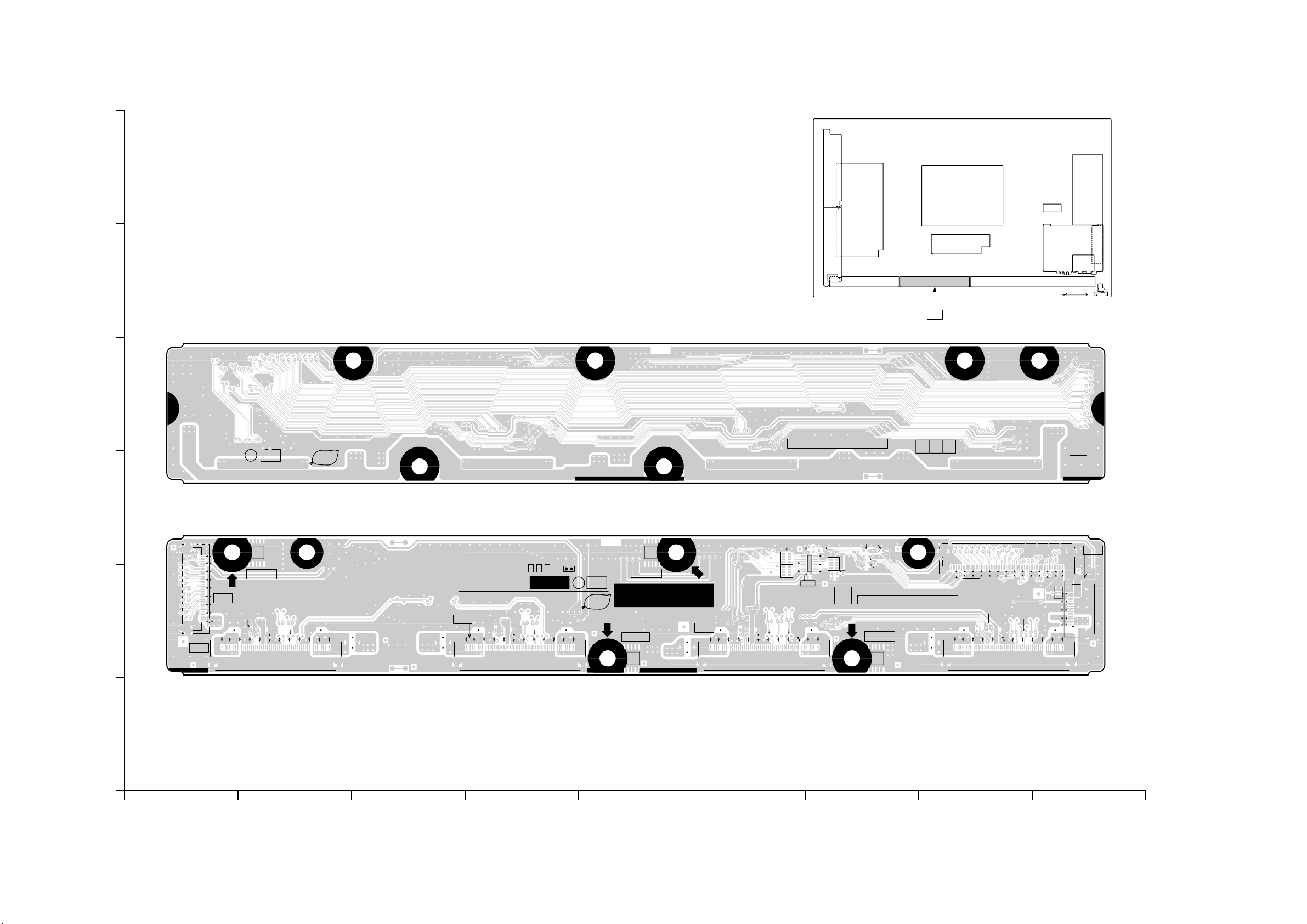

14.1. P-Board ----------------------------------------------------- 81

14.2. PB-Board -------------------------------------------------- 84

14.3. HX-Board -------------------------------------------------- 85

14.4. V1, V2, S1 and H3-Board ----------------------------- 86

14.5. DS-Board -------------------------------------------------- 87

14.6. A-Board ---------------------------------------------------- 89

14.7. C1-Board--------------------------------------------------- 91

14.8. C2-Board--------------------------------------------------- 92

14.9. C3-Board--------------------------------------------------- 93

14.10. SC-Board -------------------------------------------------- 94

14.11. SS2-Board------------------------------------------------- 96

14.12. SS-Board -------------------------------------------------- 97

15 Exploded View and Replacement Parts List----------- 99

15.1. Exploded View and Mechanical Replacement
Parts List --------------------------------------------------- 99

15.2. Electrical Replacement Parts List ------------------- 99

2

TH-50PF20E / TH-50PF20ER

1 Safety Precautions

1.1. General Guidelines

1. When conducting repairs and servicing, do not attempt to modify the equipment, its parts or its materials.

2. When wiring units (with cables, flexible cables or lead wires) are supplied as repair parts and only one wire or some of the
wires have been broken or disconnected, do not attempt to repair or re-wire the units. Replace the entire wiring unit instead.

3. When conducting repairs and servicing, do not twist the Faston connectors but plug them straight in or unplug them straight
out.

4. When servicing, observe the original lead dress.If a short circuit is found, replace all parts which have been overheated or
damaged by the short circuit.

5. After servicing, see to it that all the protective devices such as insulation barriers, insulation papers shields are properly
installed.

6. After servicing, make the following leakage current checks to prevent the customer from being exposed to shock hazards.

1.2. Touch-Current Check

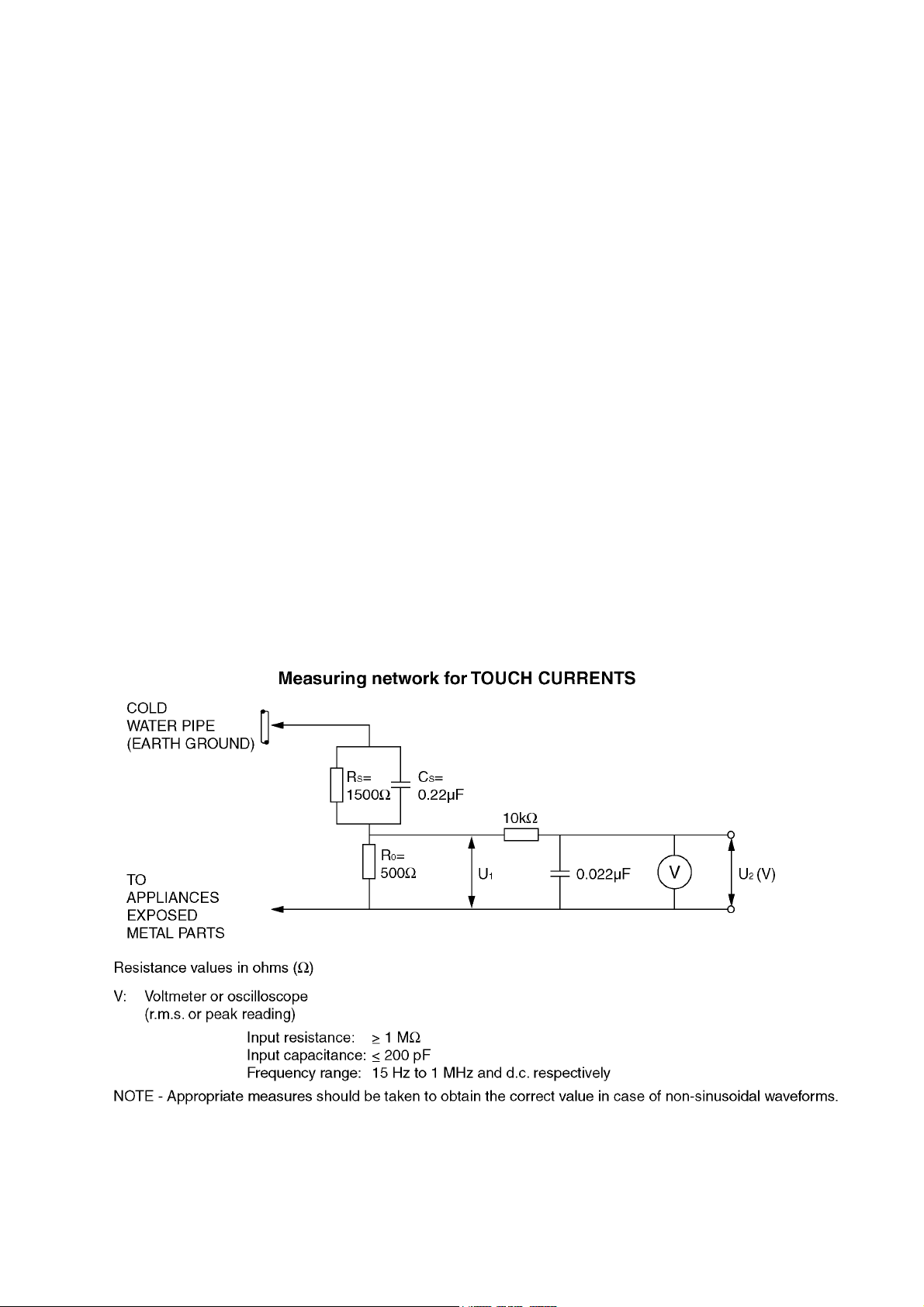

1. Plug the AC cord directly into the AC outlet. Do not use an isolation transformer for this check.

2. Connect a measuring network for touch currents between each exposed metallic part on the set and a good earth ground
such as a water pipe, as shown in Figure 1.

3. Use Leakage Current Tester (Simpson 228 or equivalent) to measure the potential across the measuring network.

4. Check each exposed metallic part, and measure the voltage at each point.

5. Reserve the AC plug in the AC outlet and repeat each of the above measure.

6. The potential at any point (TOUGH CURRENT) expressed as voltage U

For a. c.: U

For d. c.: U

Note:

The limit value of U

mA d. c.
The limit value U

7. In case a measurement is out of the limits specified, there is a possibility of a shock hazard, and the equipment should be
repaired and rechecked before it is returned to the customer.

= 35 V (peak) and U2 = 0.35 V (peak);

1

= 1.0 V,

1

= 0.35 V (peak) for a. c. and U1 = 1.0 V for d. c. correspond to the values 0.7 mA (peak) a. c. and 2.0

2

= 35 V (peak) for a. c. correspond to the value 70 mA (peak) a. c. for frequencies greater than 100 kHz.

1

and U2, does not exceed the following values:

1

Figure 1

3

TH-50PF20E / TH-50PF20ER

2 Warning

2.1. Prevention of Electrostatic Discharge (ESD) to Electrostatically Sensi­tive (ES) Devices

Some semiconductor (solid state) devices can be damaged easily by static electricity. Such components commonly are called Elec­trostatically Sensitive (ES) Devices. Examples of typical ES devices are integrated circuits and some field-effect transistors and
semiconductor “chip” components. The following techniques should be used to help reduce the incidence of component damage
caused by electrostatic discharge (ESD).

1. Immediately before handling any semiconductor component or semiconductor-equipped assembly, drain off any ESD on your
body by touching a known earth ground. Alternatively, obtain and wear a commercially available discharging ESD wrist strap,
which should be removed for potential shock reasons prior to applying power to the unit under test.

2. After removing an electrical assembly equipped with ES devices, place the assembly on a conductive surface such as alumi­num foil, to prevent electrostatic charge buildup or exposure of the assembly.

3. Use only a grounded-tip soldering iron to solder or unsolder ES devices.

4. Use only an anti-static solder removal device. Some solder removal devices not classified as “anti-static (ESD protected)” can
generate electrical charge sufficient to damage ES devices.

5. Do not use freon-propelled chemicals. These can generate electrical charges sufficient to damage ES devices.

6. Do not remove a replacement ES device from its protective package until immediately before you are ready to install it. (Most
replacement ES devices are packaged with leads electrically shorted together by conductive foam, aluminum foil or compara­ble conductive material).

7. Immediately before removing the protective material from the leads of a replacement ES device, touch the protective material
to the chassis or circuit assembly into which the device will be installed.

Caution

Be sure no power is applied to the chassis or circuit, and observe all other safety precautions.

8. Minimize bodily motions when handling unpackaged replacement ES devices. (Otherwise ham less motion such as the brush­ing together of your clothes fabric or the lifting of your foot from a carpeted floor can generate static electricity (ESD) sufficient
to damage an ES device).

4

TH-50PF20E / TH-50PF20ER

2.2. About lead free solder (PbF)

Note: Lead is listed as (Pb) in the periodic table of elements.
In the information below, Pb will refer to Lead solder, and PbF will refer to Lead Free Solder.
The Lead Free Solder used in our manufacturing process and discussed below is (Sn+Ag+Cu).
That is Tin (Sn), Silver (Ag) and Copper (Cu) although other types are available.

This model uses Pb Free solder in it’s manufacture due to environmental conservation issues. For service and repair work, we’d
suggest the use of Pb free solder as well, although Pb solder may be used.
PCBs manufactured using lead free solder will have the PbF within a leaf Symbol PbF stamped on the back of PCB.

Caution

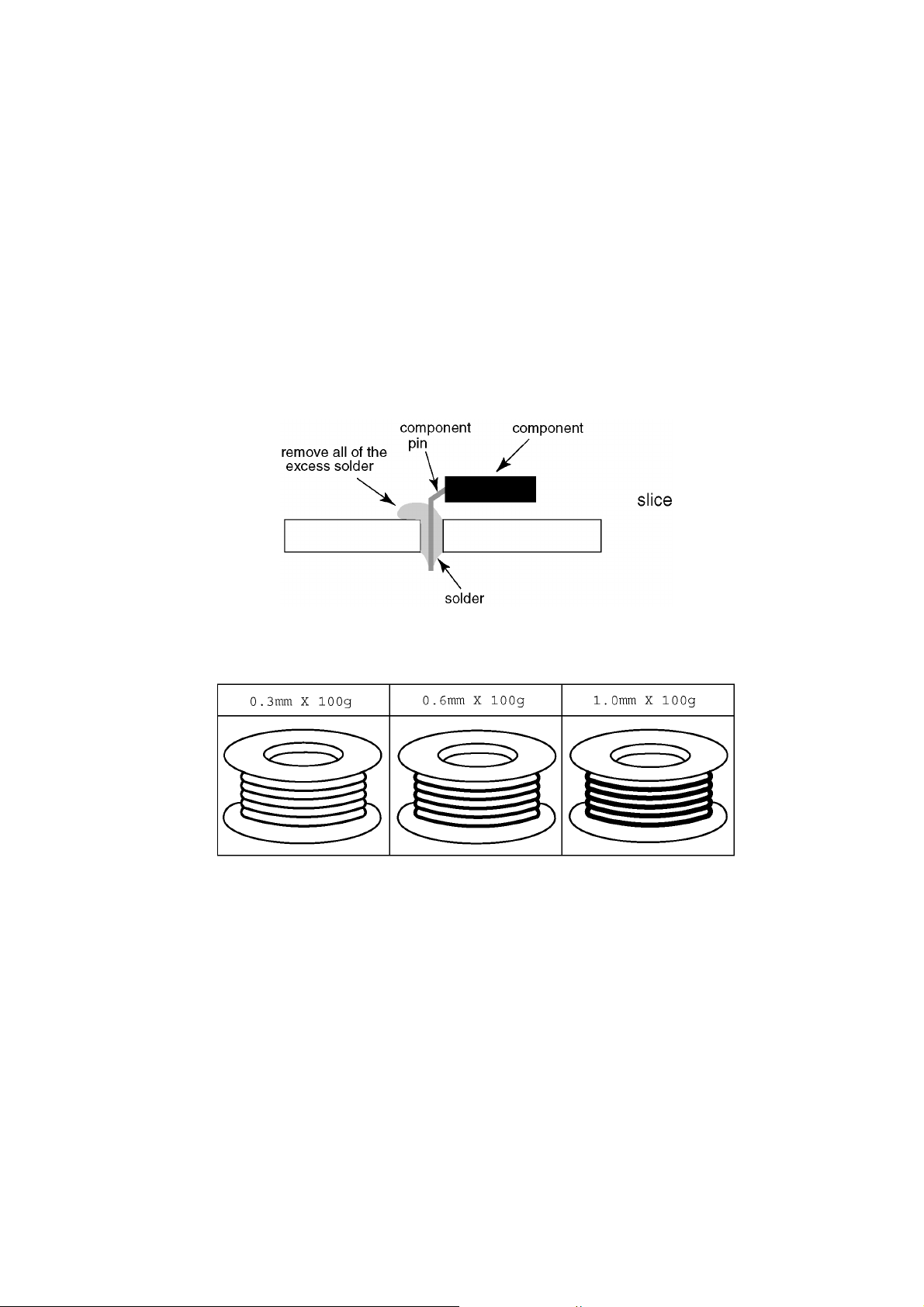

• Pb free solder has a higher melting point than standard solder. Typically the melting point is 50 ~ 70 °F (30~40 °C) higher. Please
use a high temperature soldering iron and set it to 700 ± 20 °F (370 ± 10 °C).

• Pb free solder will tend to splash when heated too high (about 1100 °F or 600 °C).
If you must use Pb solder, please completely remove all of the Pb free solder on the pins or solder area before applying Pb sol­der. If this is not practical, be sure to heat the Pb free solder until it melts, before applying Pb solder.

• After applying PbF solder to double layered boards, please check the component side for excess solder which may flow onto the
opposite side. (see figure below)

Suggested Pb free solder

There are several kinds of Pb free solder available for purchase. This product uses Sn+Ag+Cu (tin, silver, copper) solder. How­ever, Sn+Cu (tin, copper), Sn+Zn+Bi (tin, zinc, bismuth) solder can also be used.

5

TH-50PF20E / TH-50PF20ER

3 Service Navigation

3.1. Service Hint

Board Name Function Board Name Function

A Digital Signal Processor, Microcomputer

Format Converter, Plasma AI Processor
Sub-Field Processor, Sync Processor,
Audio Processor, Speaker Out Amplifier

DS Slot Interface (Audio / Video / Sync Input Switch),

DC-DC Converter

SC Scan drive V1 Remote receiver, LED-G, R
SU Scan out (Upper)

Non serviceable.
SU-Board should be exchanged for service.

SD Scan out (Lower)

Non serviceable.
SD-Board should be exchanged for service.

SS Sustain drive

SS2 Sustain out

C1 Data drive (Right)
C2 Data drive (Center)
C3 Data drive (Left)
S1 Power switch

V2 Key switch

P Power supply
PB Fan control
H3 Speaker terminal
HX PC / RS-232C_Input terminal

6

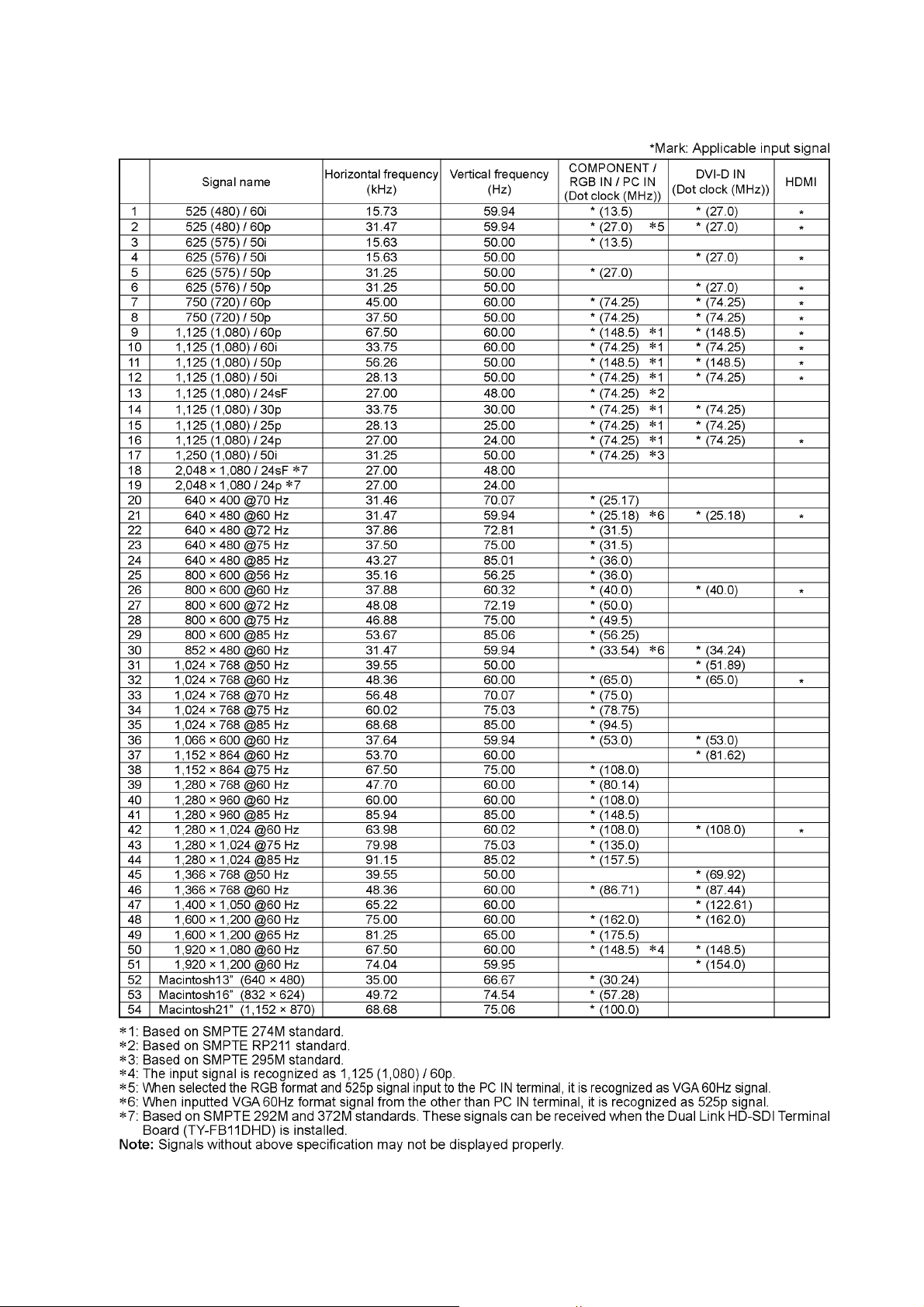

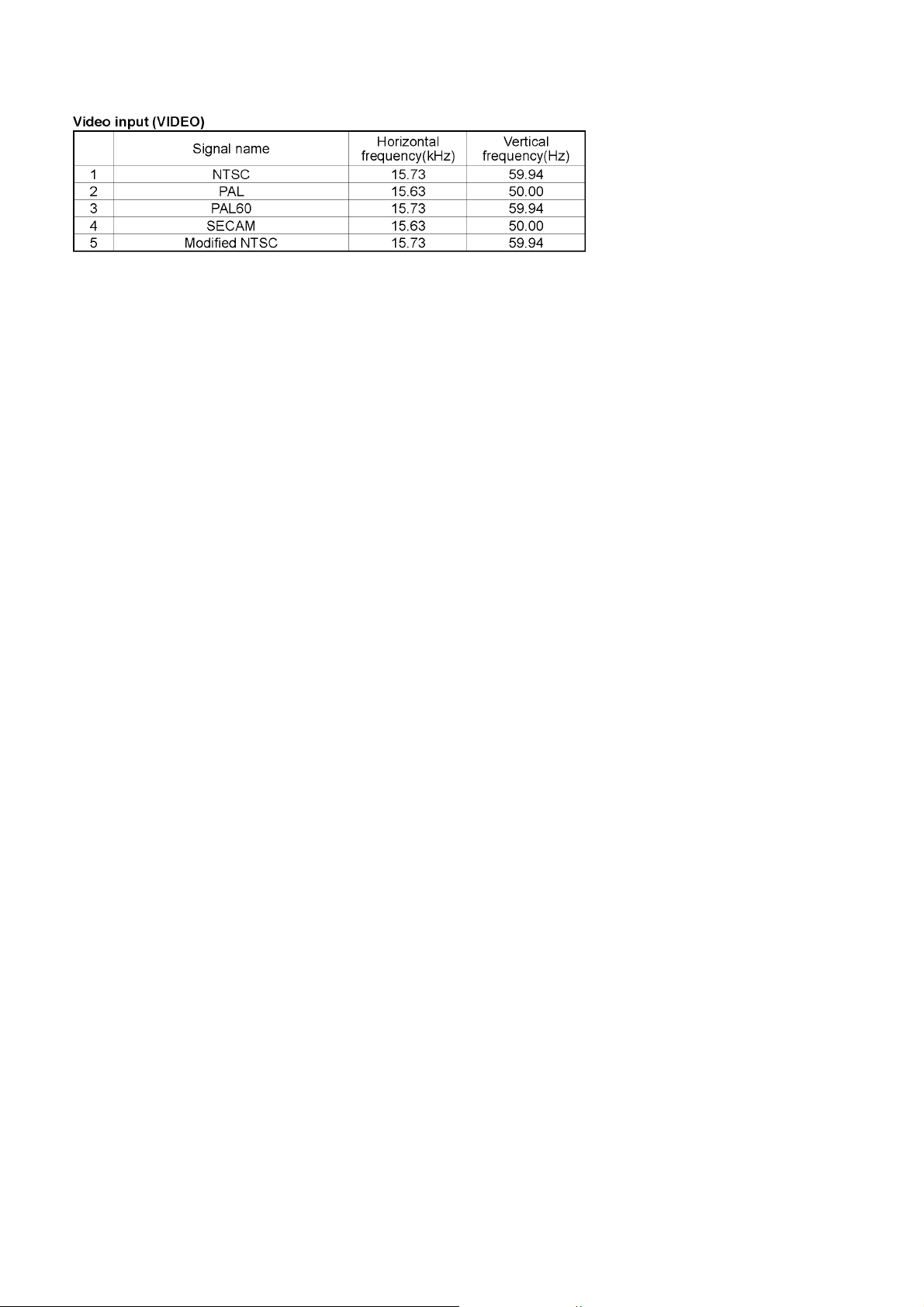

3.2. Applicable signals

TH-50PF20E / TH-50PF20ER

7

TH-50PF20E / TH-50PF20ER

8

TH-50PF20E / TH-50PF20ER

4 Specifications

Power Source 220 - 240 V AC, 50/60Hz
Power Consumption

Power on 445 W
Stand-by condition Save OFF 1.1 W, Save ON 0.6 W
Power off condition 0.3 W

Plasma Display panel Drive method: AC type 50-inch,

16:9 aspect ratio

Screen size 1,105 mm (W) × 622 mm (H) × 1,268 mm (diagonal)

(No. of pixels) 2,073,600 (1,920 (W) × 1,080 (H) [5,760 × 1,080 dots]

Operating condition

Temperature 0 °C - 40 °C
Humidity 20 % - 80 %

Applicable signals

Color System NTSC, PAL, PAL60, SECAM, Modified NTSC
Scanning format

PC signals VGA, SVGA, XGA, SXGA

Connection terminals

LAN

AV I N

VIDEO BNC 1.0 Vp-p (75-ohm)
AUDIO L-R RCA Pin jack × 2 0.5 Vrms
HDMI TYPE A Connector

COMPONENT / RGB IN

Y / G BNC with sync 1.0 Vp-p (75-ohm)
P

B/CB

P

R/CR

AUDIO L-R RCA PIN JACK × 2 0.5 Vrms

DVI-D IN DVI-D 24 Pin Compliance with DVI Revision 1.0

AUDIO Stereo mini jack (M3) × 1 0.5 Vrms

PC IN High-Density Mini D-sub 15 Pin Y or G with sync 1.0 Vp-p (75-ohm)

AUDIO Stereo mini jack (M3) × 1 0.5 Vrms

SERIAL External Control Terminal

EXT SP Speaker Terminal 6-ohm, 16 W [8 W + 8 W] (10 % THD)

Accessories Supplied

Remote Control Transmitter N2QAYB000432
Batteries R6 (UM3) Size × 2
Clamper TMME289 × 3

Dimensions (W × H × D) 1,210 mm × 724 mm × 89 mm
Mass (weight)

main unit only approx. 31.0 kg net
with speakers approx. 36.0 kg

Note:

• Design and specifications are subject to change without notice. Mass and dimensions shown are approximate.

• This equipment complies with the EMC standards listed below.
EN55022, EN55024, EN61000-3-2, EN61000-3-3.

525 (480) / 60i 60p, 625 (575) / 50i 50p, 750 (720) / 60p 50p, 1125 (1080) /

60i 60p 50i 50p 24p 25p 30p 24sF, 1250 (1080) / 50i

UXGA ..... (compressed)

Horizontal scanning frequency 15 - 110 kHz
Vertical scanning frequency 48 - 120 Hz

RJ45 10BASE-T/100BASE-TX, compatible with PJLink

/B BNC 0.7 Vp-p (75-ohm)

/R BNC 0.7 Vp-p (75-ohm)

Content Protection Compatible with HDCP 1.1

VBS (use HD port) with picture 1.0 Vp-p (high impedance)

D-sub 9 Pin RS-232C compatible

TM

Y or G without sync 0.7 Vp-p (75-ohm)
P

/ CB / B:0.7 Vp-p (75-ohm)

B

P

/ CR / R:0.7 Vp-p (75-ohm)

R

HD / VD:1.0 - 5.0 Vp-p (high impedance)

without picture 0.3 Vp-p (high impedance)

9

TH-50PF20E / TH-50PF20ER

5 Operating Instructions

10

TH-50PF20E / TH-50PF20ER

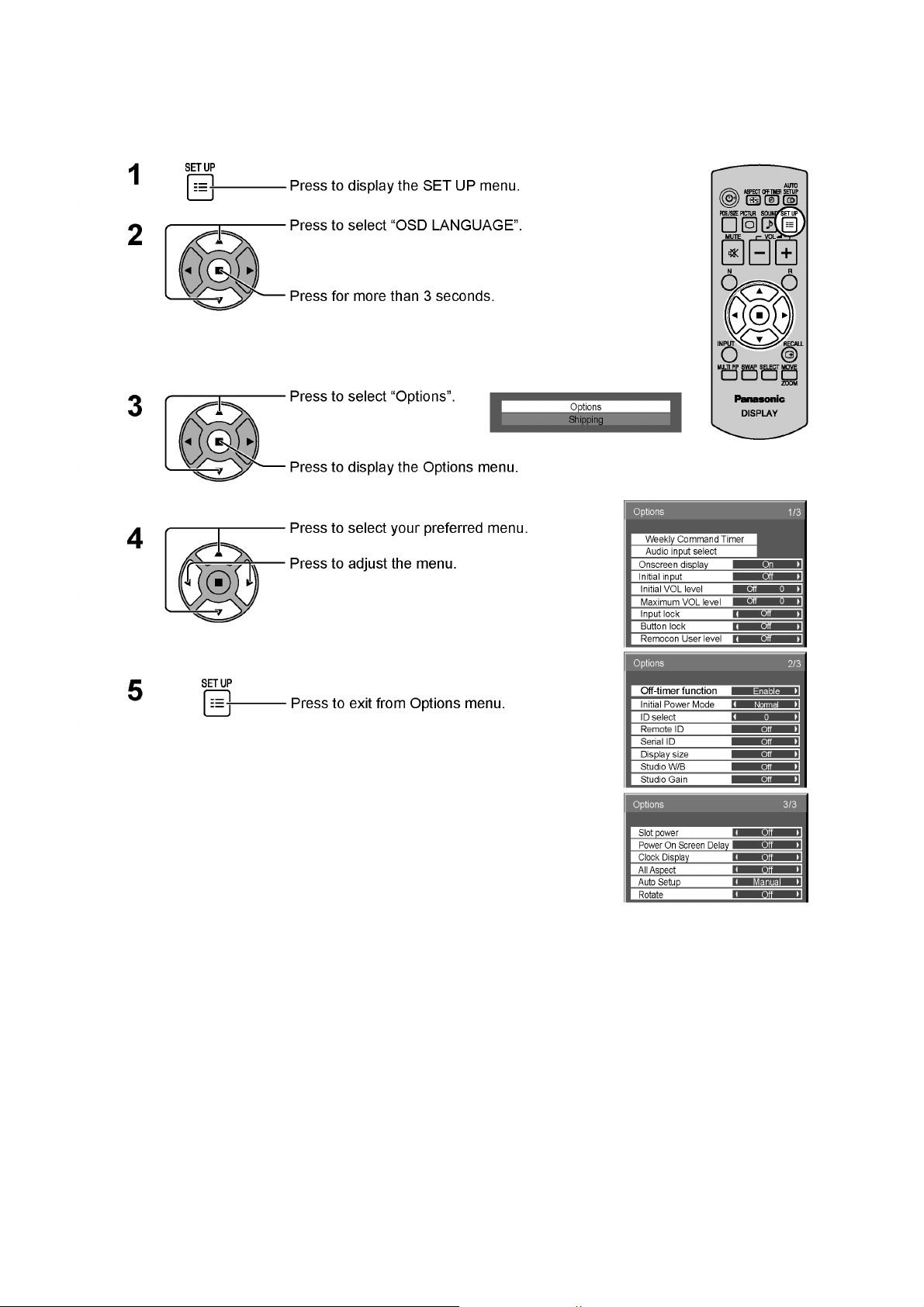

Option Menu for GPF13D series

GPF13D chassis series have special function and operation setting facility called Option Menu. This Option Menu is useful
for special function required customers. This should be set at the installation stage.

Option menus default setting Contents
Weekly Command Timer --- Sets Weekly Command Timer.
Audio input select --- Set up the sound when an image input is selected.
Onscreen display On Enable/Disable to display input mode indication after power on and no signal

Initial INPUT Off Sets the initial input mode when the power is turned on. Allow input mode selec-

Initial VOL level Off Sets the initial volume level when the power is turned on. Allow Volume control

Maximum VOL Level Off Sets the maximum volume to desired level. Volume cannot exceed this level.
INPUT lock Off Fixes the input mode to AV, Component/RGB or PC. Can not change input

Button lock Off Enable/Disable bottom operation buttons (Input, Menu, Enter and/or volume up/

Remocon User Level Off Remote key invalidation.

Off-timer function Enable Off-timer operation Enable/Disable.
Initial Power Mode Normal Sets the power mode of the unit for when the power recovers from failure or

ID select 0 Set ID number from 0 to 100.
Remote ID Off Remote ID function On/Off.

Serial ID Off Serial ID function On/Off
Display size Off Display size function On/Off
Studio W/B Off Studio W/B function On/Off
Studio Gain Off Studio Gain function On/Off
Slot power Off Sets the slot power mode while the power is turned on.

Power On Screen Delay Off You can set the power-on delay time of the displays to reduce the power load,

Clock Display Off Clock Display function On/Off.
All Aspect Default Aspect mode: default/All aspect mode.
Auto Setup Manual Sets the operational mode of the automatic position adjustment in the POS./

Rotate Off Rotate function On/Off

indication.

tion while power is on.

while power is on.

mode by input selection key.

down)

Off: Valid key is all key of remote.
User1: Valid key are only Stand-by (ON/OFF), Input, Direct input, Picture, Sur­round, Sound mute On/Off, and volume adjustment.
User2: Valid key is only Stand-by (ON/OFF).
User3: All keys are null and void

after plugging off and in again.

(While the Remote ID on, standard remote function can not control the unit.)

Allow Optional Terminal Board insert Slots while power is on.

when you press to turn on the multiple displays that are set together, for
example, on MULTI DISPLAY system.
Set each display’s setting individually.

SIZE menu.

Note:

When both main unit buttons and remote control are disabled due to the “Button lock”, “Remocon User level” or “Remote ID”
adjustments, set all the values “Off” so that all the buttons are enabled again.
Press the “Volume down” button on main unit together with “R” button on the remote control and hold for more than 5 seconds.
The “SHIPPING“ menu is displayed and the lock is released when it disappears.

11

TH-50PF20E / TH-50PF20ER

6 Service Mode

6.1. CAT (Computer Aided Test) mode

To exit the CAT mode, access the ID mode and switch off the main power.

6.1.1. IIC mode

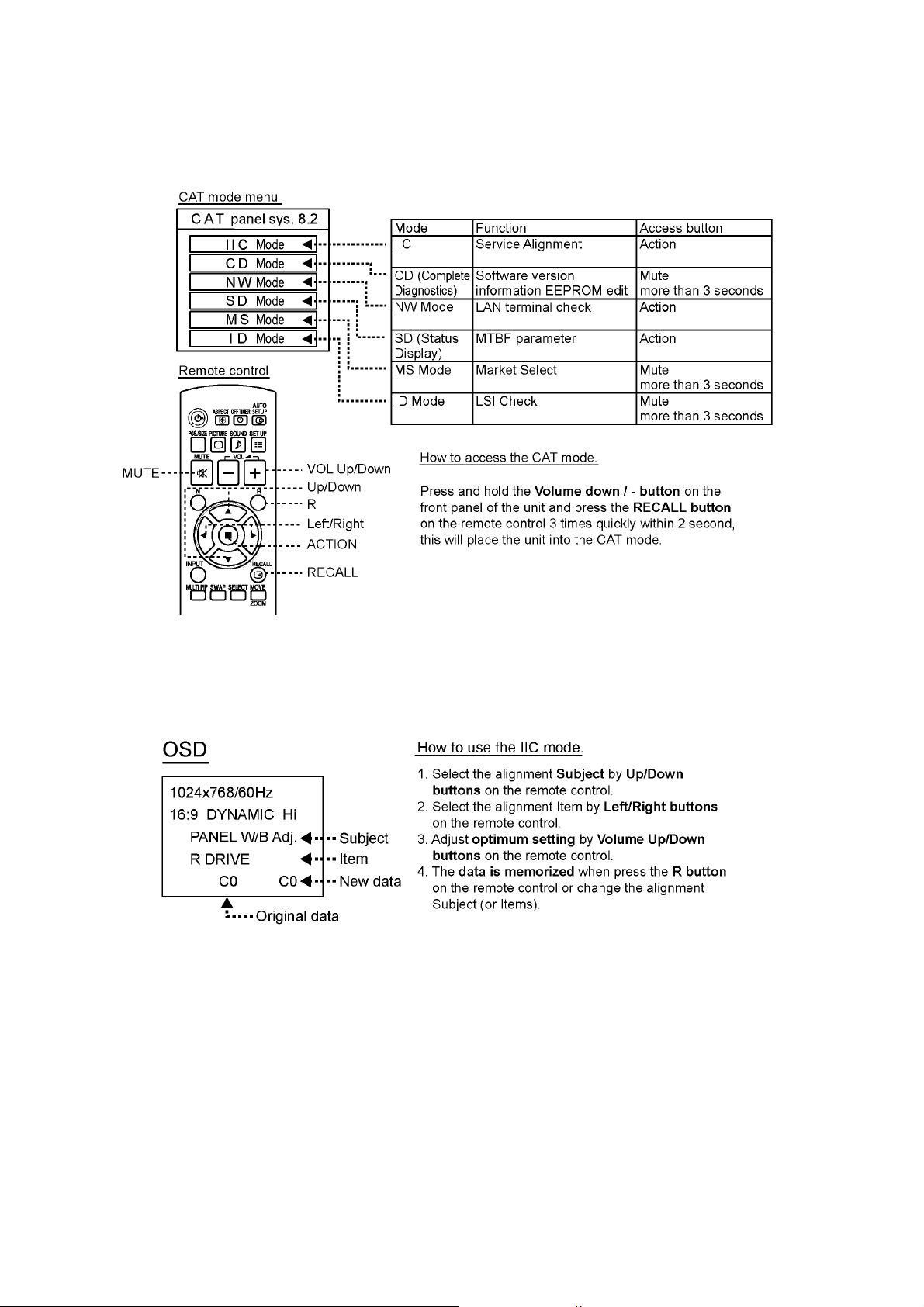

Select the IIC mode by Up/Down button on the remote control at the front page of CAT mode and then press the Action button on
the remote control.

Subject and item are mentioned on “IIC mode structure”.
To exit the IIC mode, press the R button on the remote control.

12

TH-50PF20E / TH-50PF20ER

6.1.2. CD mode

Select the CD mode by Up/Down button on the remote control at the front page of CAT mode and then press the Mute button on
the remote control more than 3 seconds.

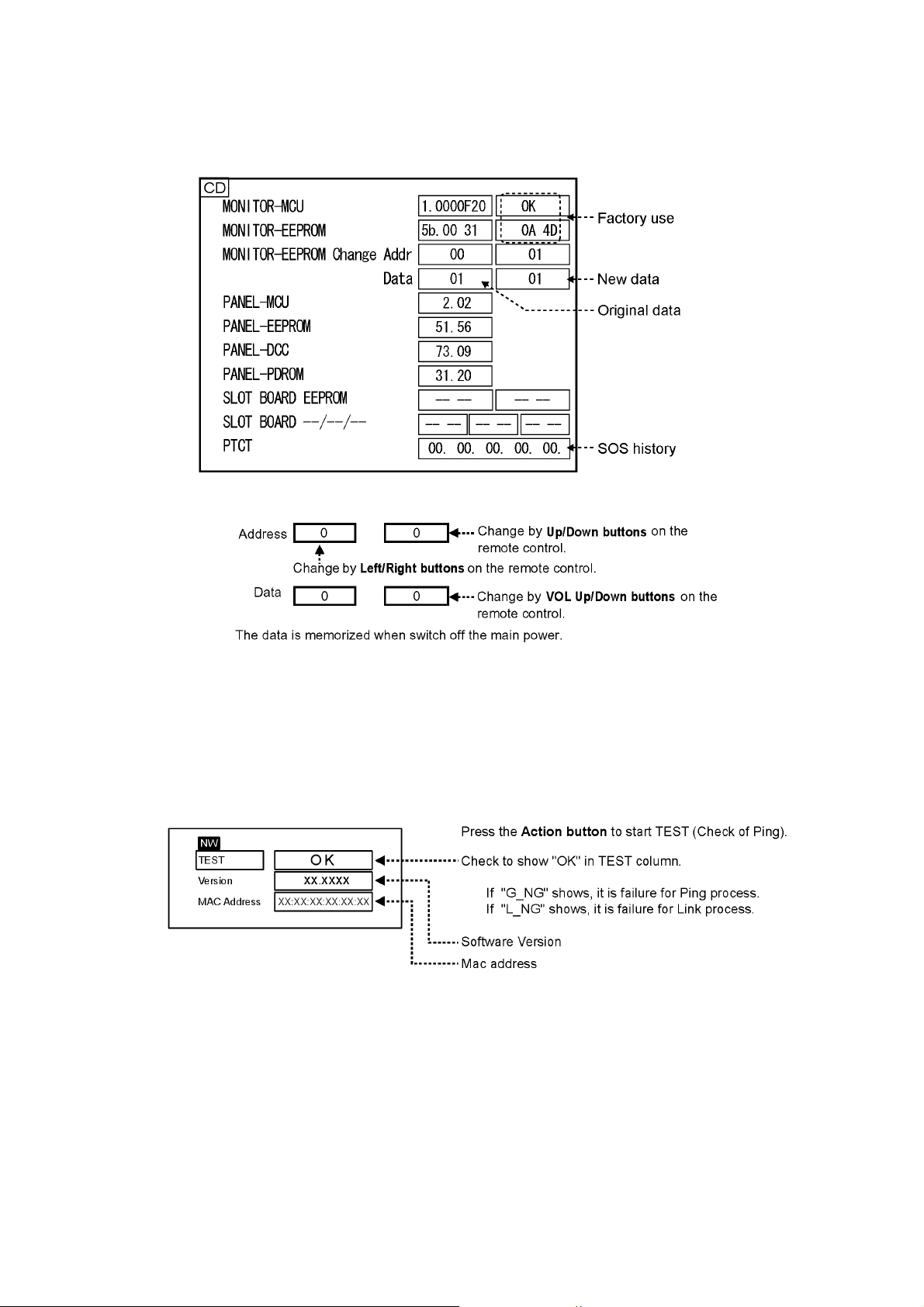

Memory data change

To exit the CD mode, press the R button on the remote control.

6.1.3. NW mode

Note :

To use the network function, set each "Network Setup" setting and make sure to set the "Control I/F Select" to "LAN".

Select the NW mode by Up/Down button on the remote control at the front page of CAT mode and then press the Action button
on
the remote control.

To exit the NW mode, press the R button on the remote control.

13

TH-50PF20E / TH-50PF20ER

6.1.4. SD mode

Select the SD mode by Up/Down button on the remote control at the front page of CAT mode and then press the Action button on
the remote control.

To exit the SD mode, press the R button on the remote control.

6.1.5. MS mode

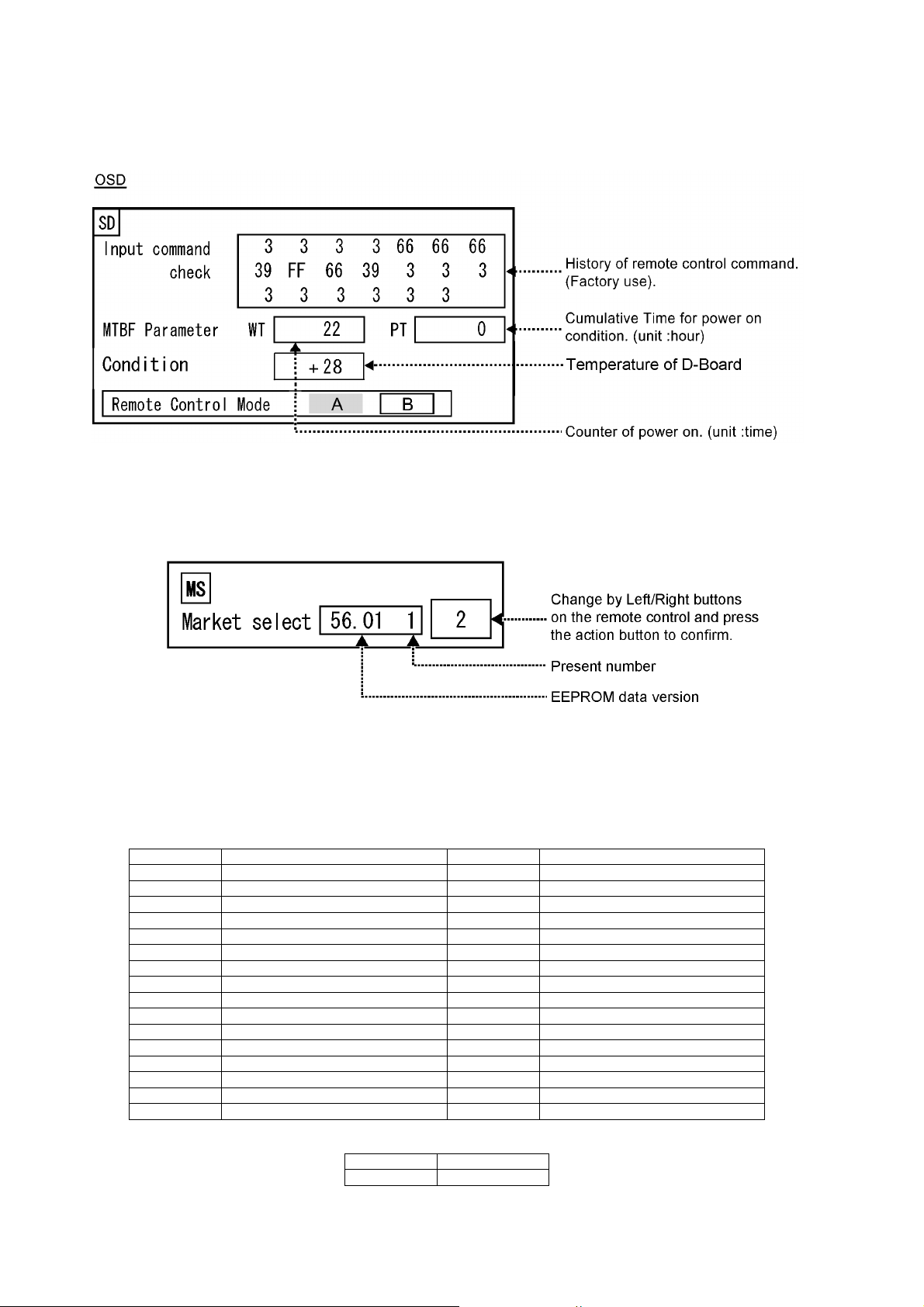

Select the MS mode by Up/Down button on the remote control at the front page of CAT mode and then press the Mute button on
the remote control more than 3 seconds.

To exit the MS mode, press the R button on the remote control.

Caution:

Market Select should be set after exchange of DN-Board.

Destination number

Number Destination Number Destination

0 Japan 16 -­1North America 17 -­2 Europe 18 China
3 Others 19 China (Hotel)
4 Britain 20 Russia
5 Taiwan 21 Russia (Hotel)
6 Thailand 22 Hong Kong
7-- 23-­8 Japan (Hotel) 24 -­9 North America (Hotel) 25 --

10 Europe (Hotel) 26 --

11 -- 27 -­12 Britain (Hotel) 28 Middle East/Hong Kong
13 -- 29 Middle East/Hong Kong (Hotel)
14 Thailand (Hotel) 30 Australia
15 -- 31 Australia (Hotel)

Default setting

Number Destination

1 North America

14

TH-50PF20E / TH-50PF20ER

6.1.6. ID mode

Select the ID mode by Up/Down button on the remote control at the front page of CAT mode and then press the Mute button on
the remote control more than 3 seconds.

To exit the ID mode, press the R button on the remote control.

15

TH-50PF20E / TH-50PF20ER

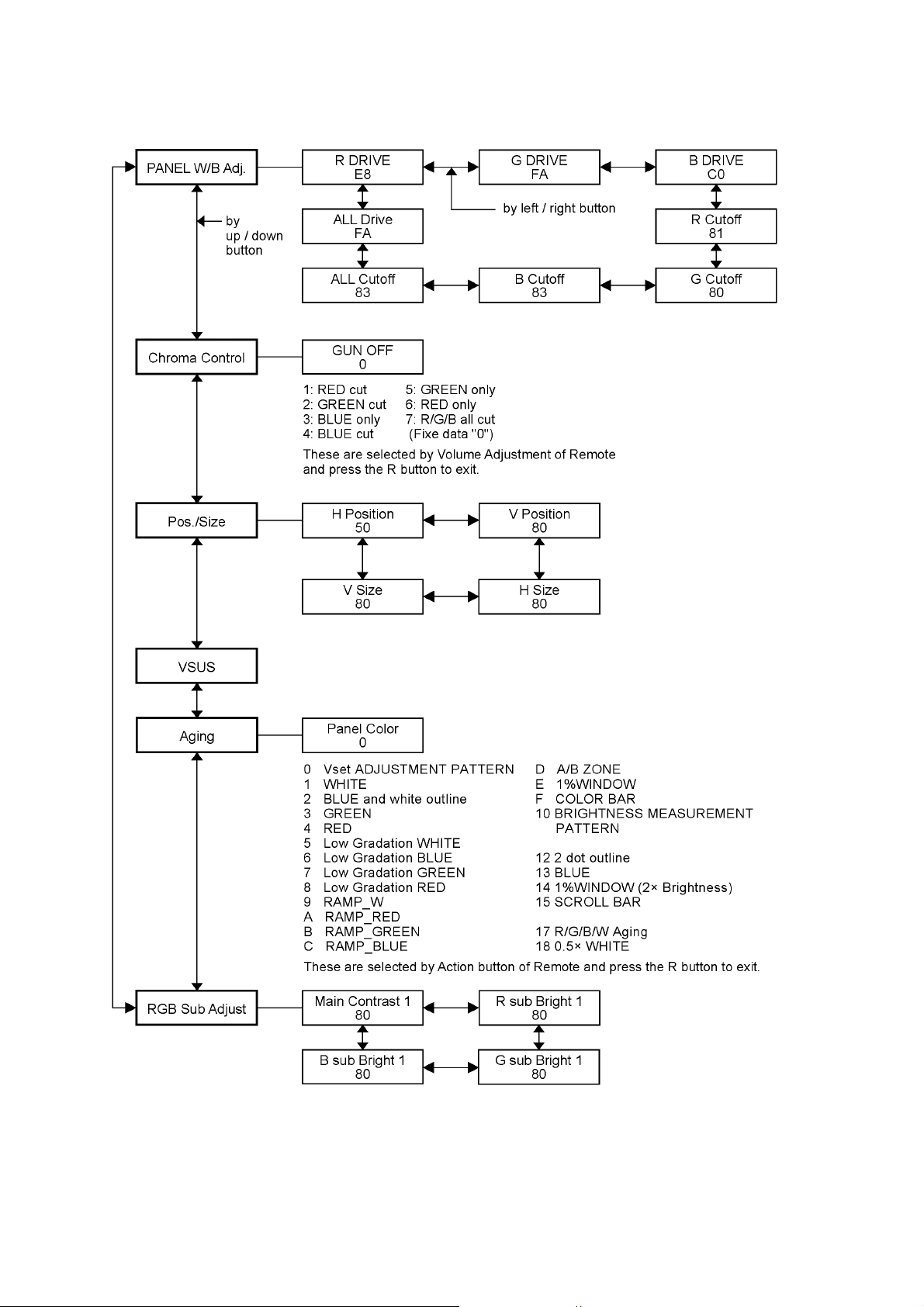

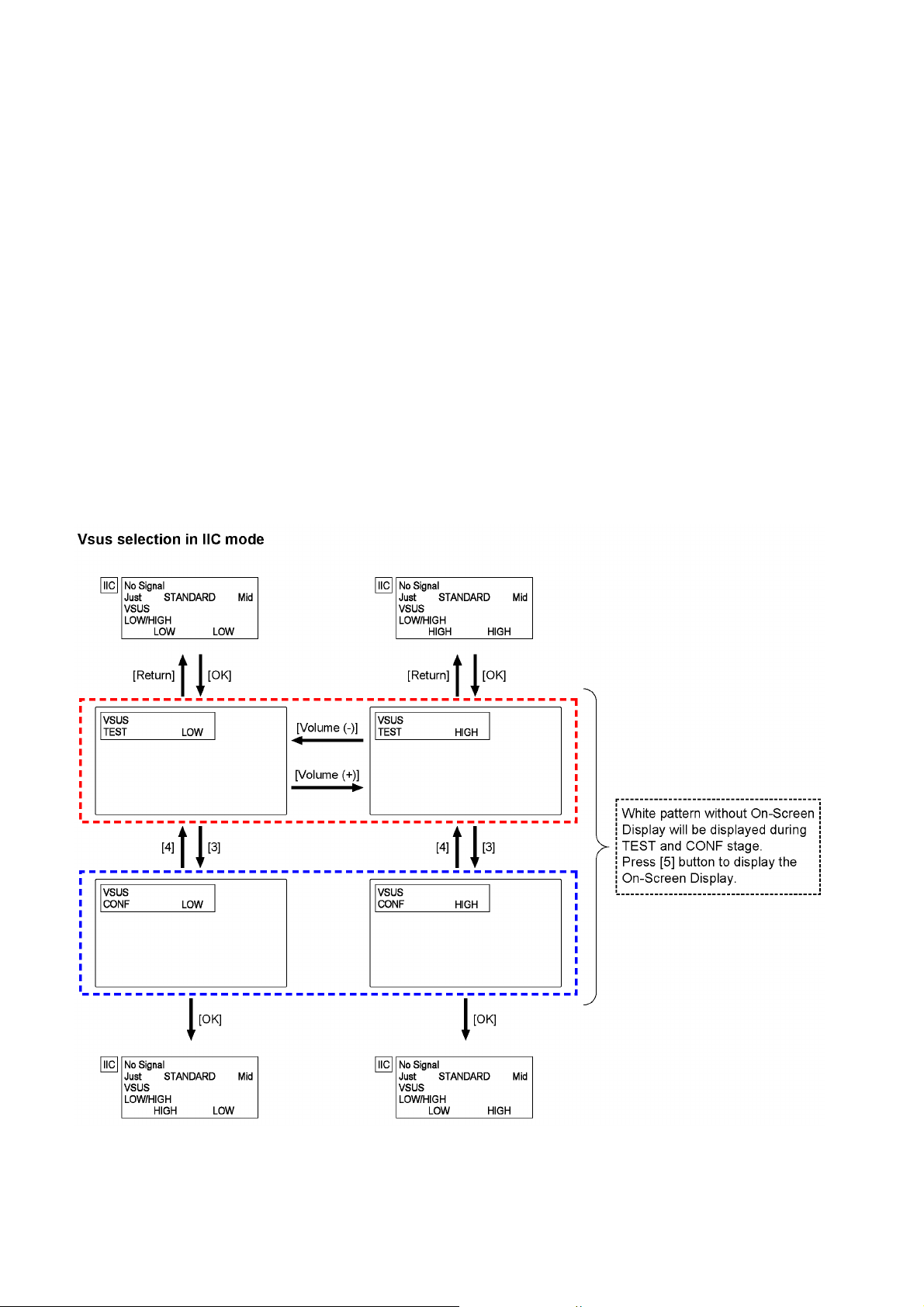

6.2. IIC mode structure (following items value is sample data)

16

7 Troubleshooting Guide

7.1. Self Check

7.1.1. Display Indication

1. Self-check is used to automatically check the bus line
controlled circuit of the Plasma display.

2. To get into the Self-check mode, press the volume down
button on the customer controls at the bottom of the set,
at the same time pressing the OFF-TIMER button on the
remote control, and the screen will show.

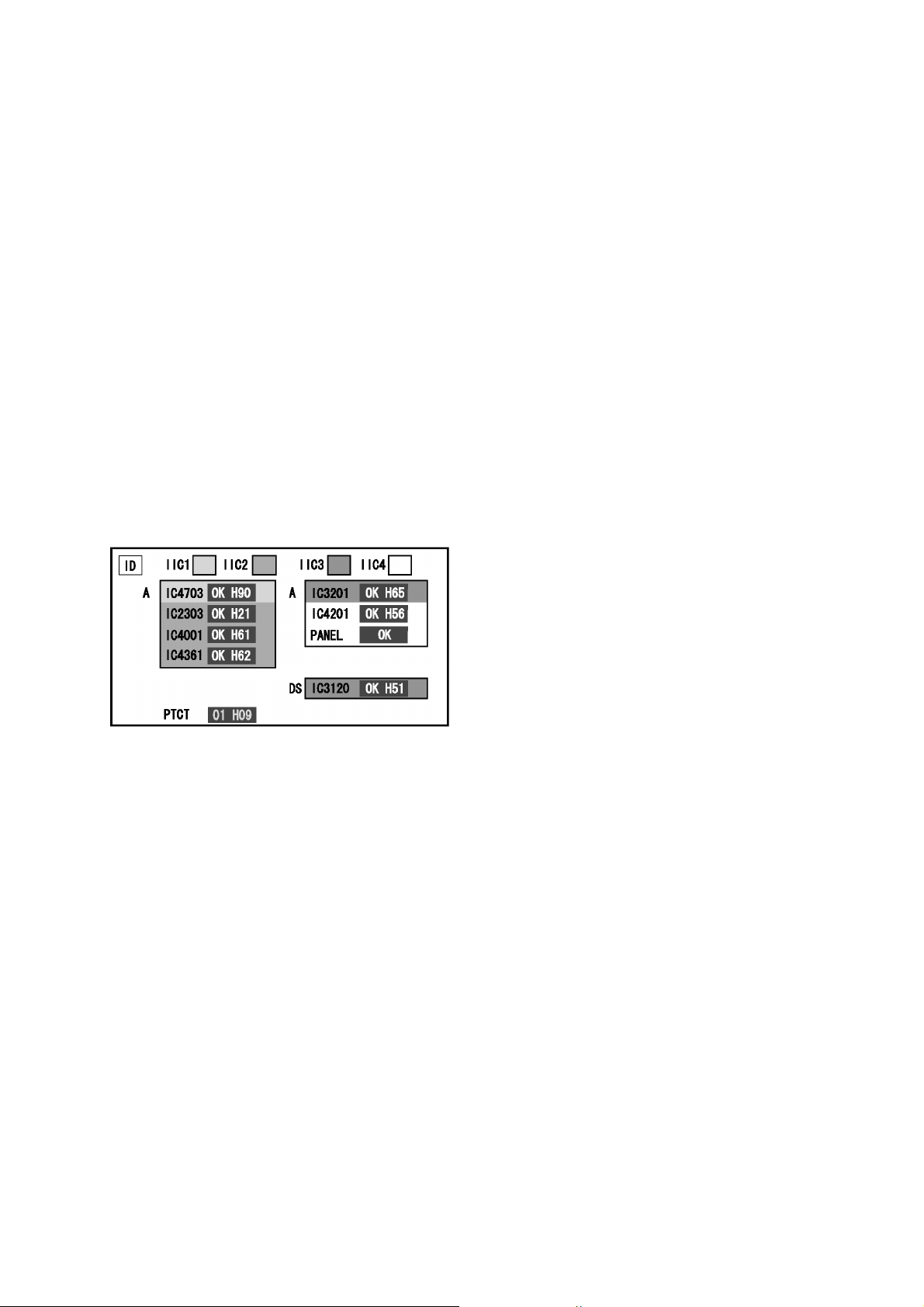

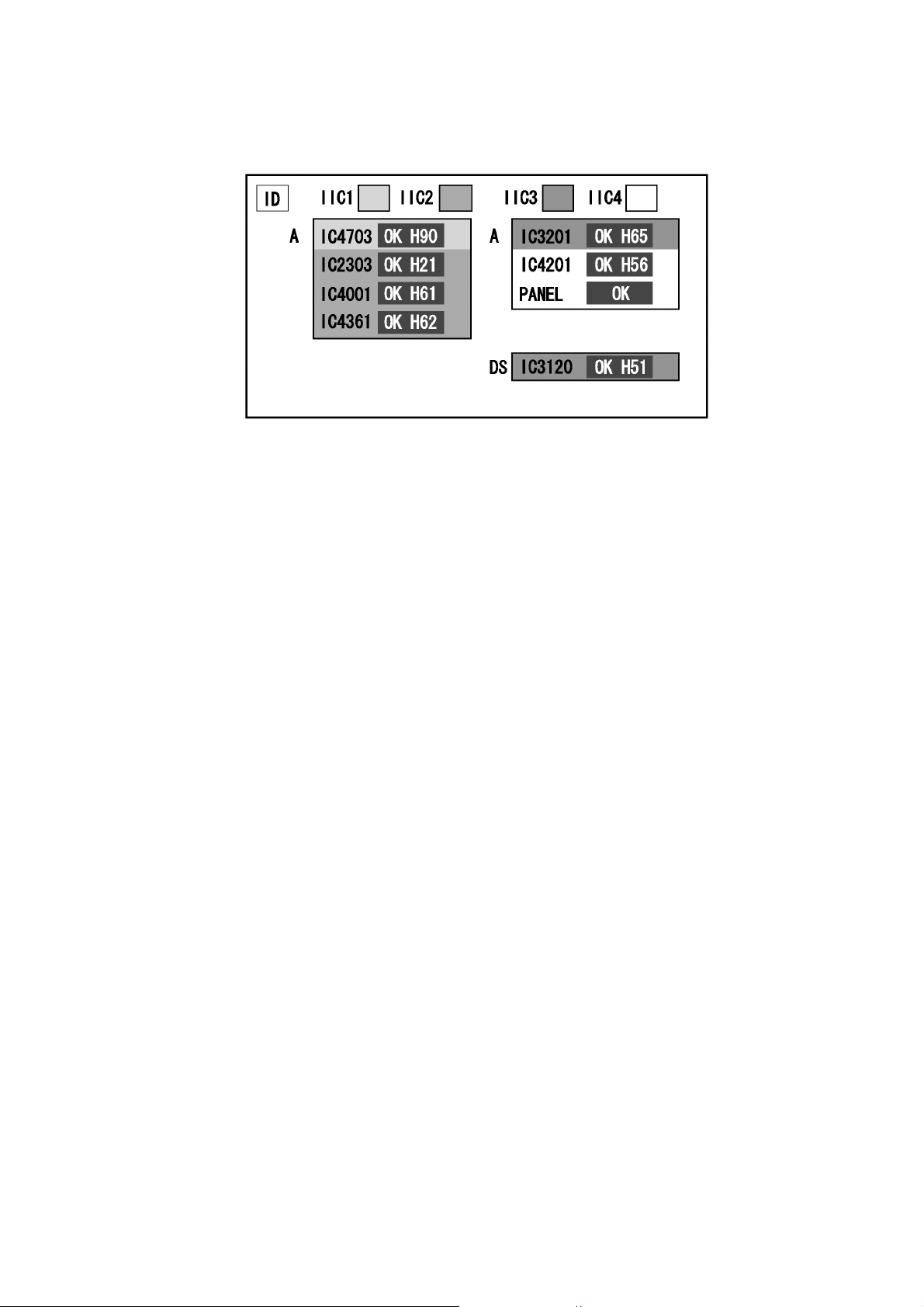

If the IIC ports have been checked and found to be incorrect
Or not located then “ - - ” will appear in place of “ OK ”
“ 01 ” in the line of the “ PTCT ” means the number of blinks of
the Power LED is 1. (Reference to 7.1.2)
“ H09 ” in the line of the “ PTCT ” is the error code.

To exit the CAT mode switch off the main power.

Note:

The line of the “ PTCT ” displays when you get into the Self­check mode for the first time only after the Power LED
blinks.

TH-50PF20E / TH-50PF20ER

17

TH-50PF20E / TH-50PF20ER

7.1.2. Power LED Blinking timing chart

1. Subject
Information of LED Blinking timing chart.

2. Contents
When an abnormality has occurred to the unit, the protection circuit operates and resets to the stand by mode. At this time,
the defective block can be identified by the number of blinks of the Power LED on the front panel of the unit.

* Refer to 7.1.1 Display Indication

About blinking LED

18

7.2. No Power

First check point
There are following 3 states of No Power indication by power LED.

1. No lit.

2. Green is lit then turns red blinking a few seconds later.

3. Only red is lit.

TH-50PF20E / TH-50PF20ER

7.3. No Picture

19

TH-50PF20E / TH-50PF20ER

7.4. Local screen failure

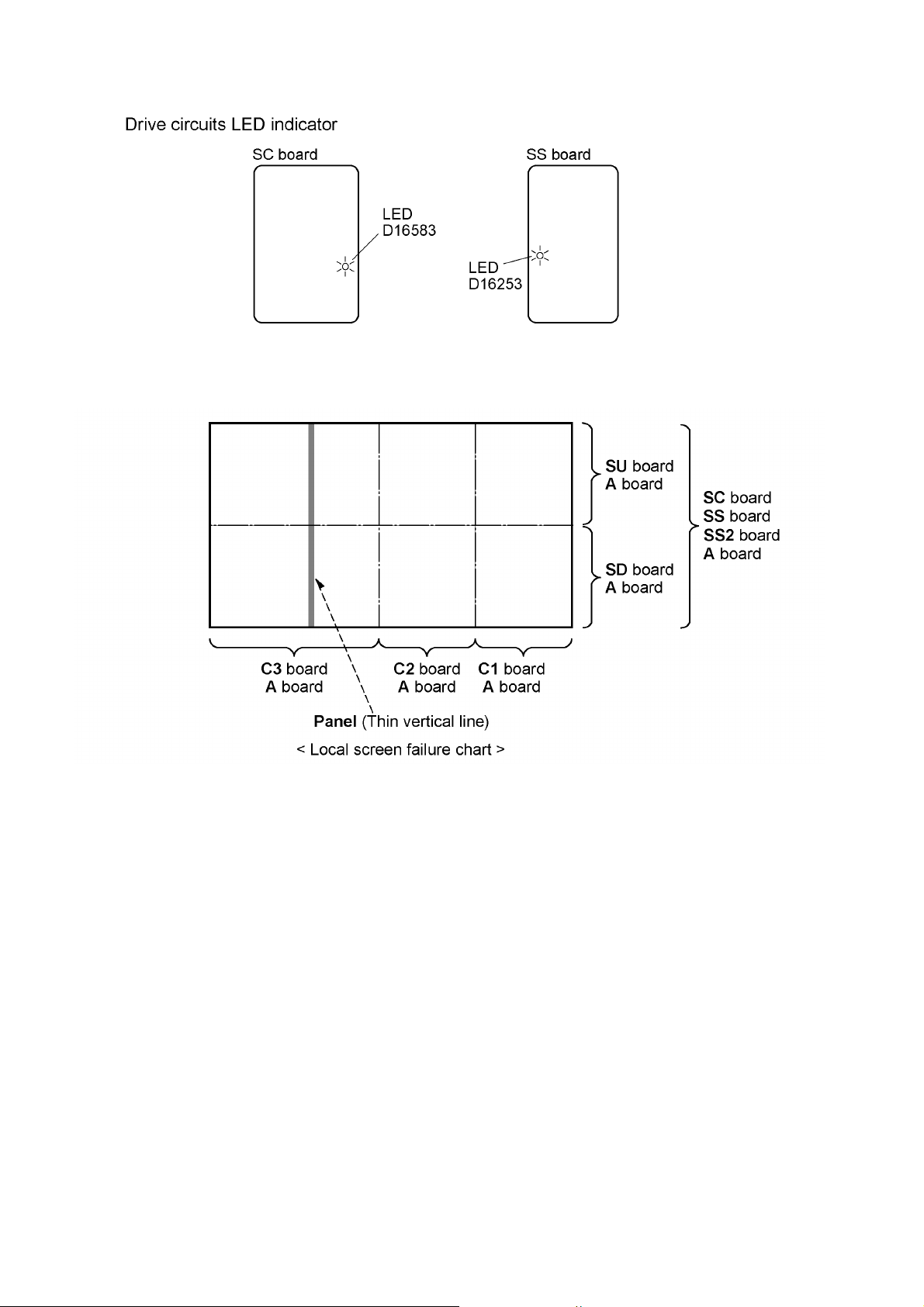

Plasma display may have local area failure on the screen. Fig - 1 is the possible defect P.C.B. for each local area.

Fig - 1

20

TH-50PF20E / TH-50PF20ER

8 Service Fixture & Tools

8.1. SC jig

Purpose:

To find the failure board (SC or SU/SD) when the power LED is blinking 7 times.

SC jig:

Jumper connector to connect to SC50 connector on SC board

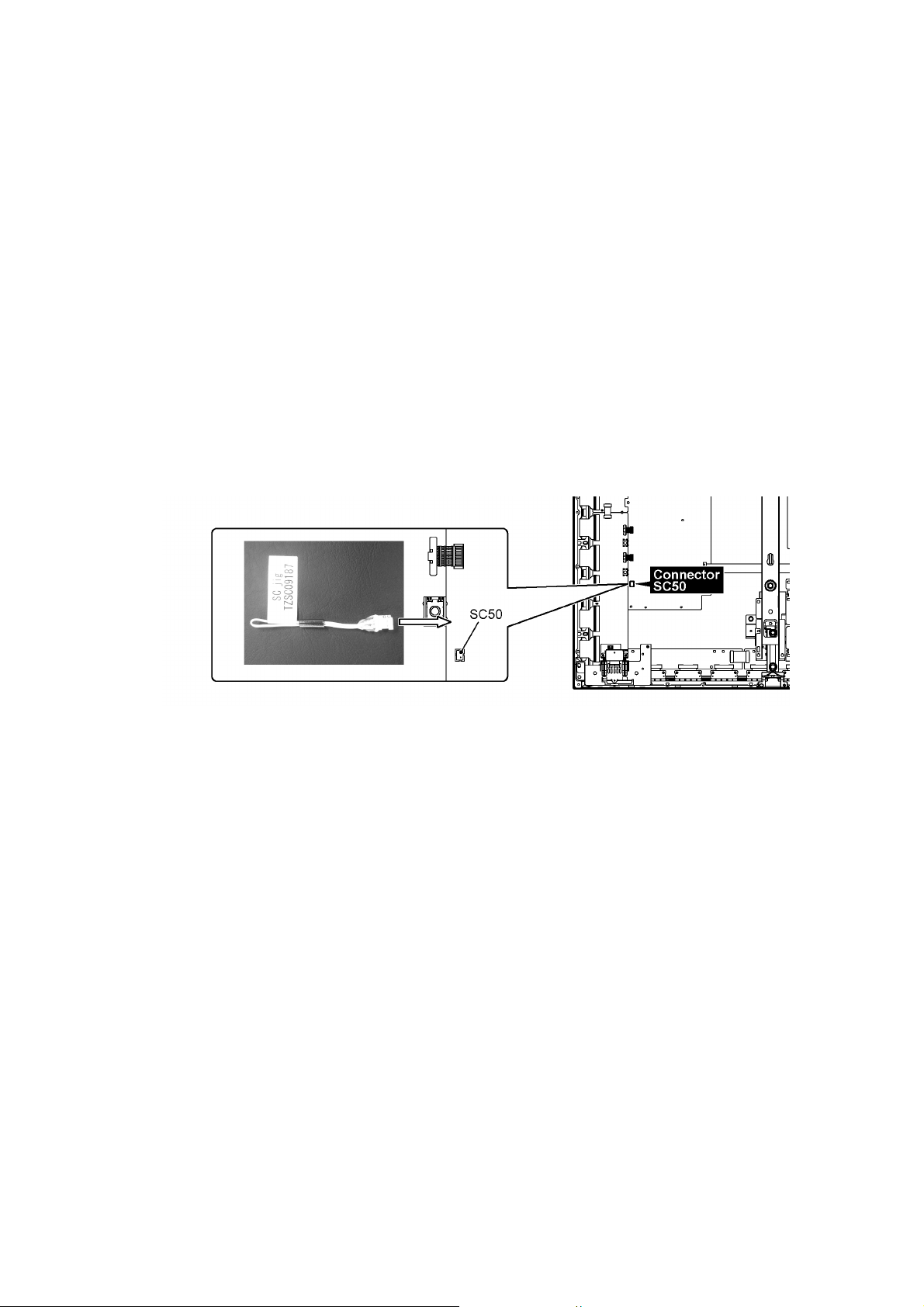

Part number:

TZSC09187

How to use:

Caution: Remove SC jig from SC board after inspection.

1. Remove all connector between SC board and SU/SD board to isolate SC board from both SU and SD board electrically.

Note: The board will be damaged if all connector is not removed (for example; remove connector only for SU board
and stay connecting with SD board. The board will be damaged.)

2. Connect SC jig to connector SC50 at left bottom side of SC board.

3. Turn on the TV/Display Unit and confirm the power LED blinking.
LED blinking: Possible cause of failure is in SC board
No LED blinking (Lighting or no lighting): Possible cause of failure is in SU or SD board

4. After inspection, turn off the TV/Display Unit and wait a few minutes to discharge.

5. Remove SC jig from SC board.

21

TH-50PF20E / TH-50PF20ER

9 Disassembly and Assem-

bly Instructions

• To disassemble P.C.B., wait for 1 minute after power was off
for discharge from electrolysis capacitors.

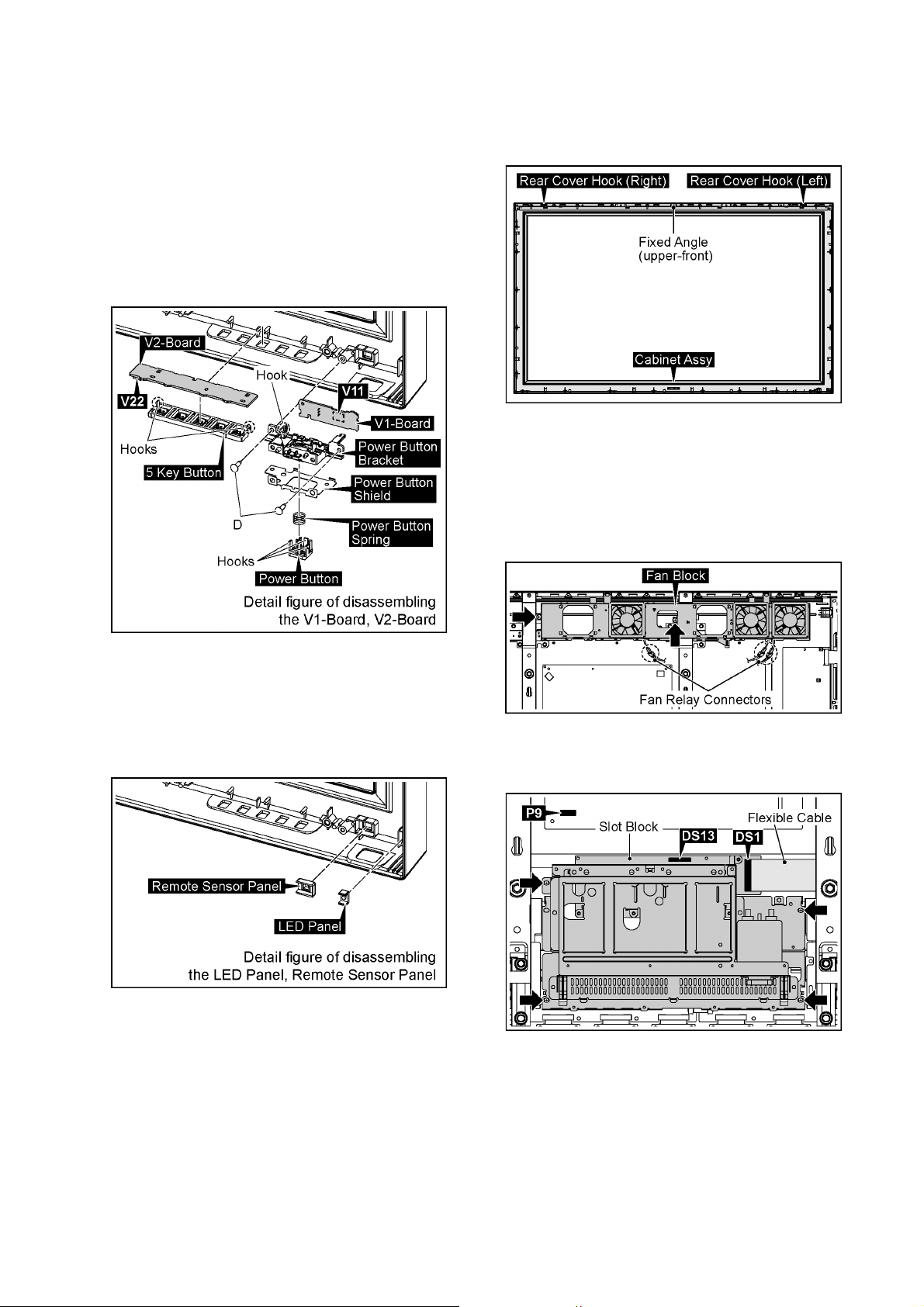

• , , , and marks indicate screw positions.

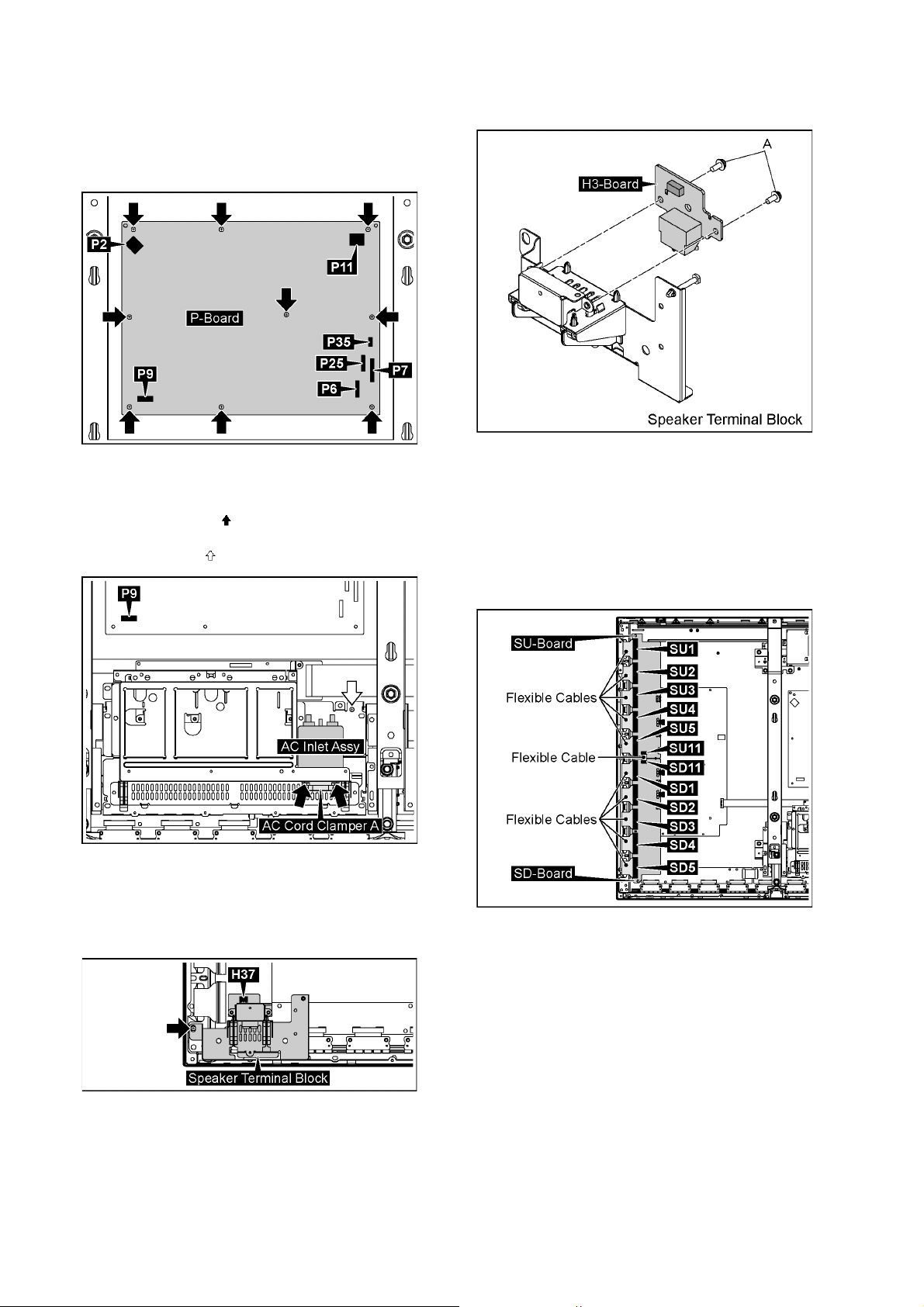

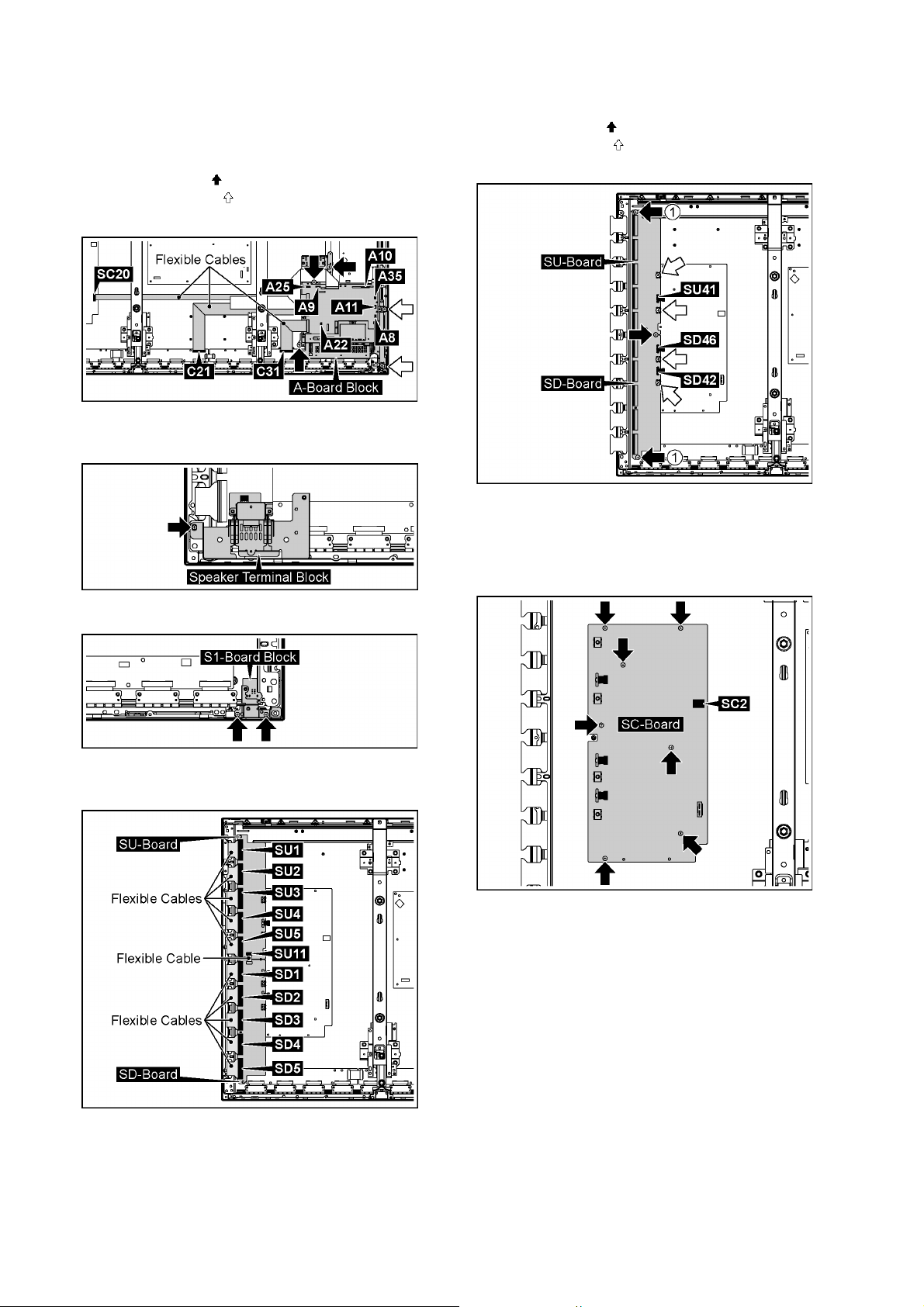

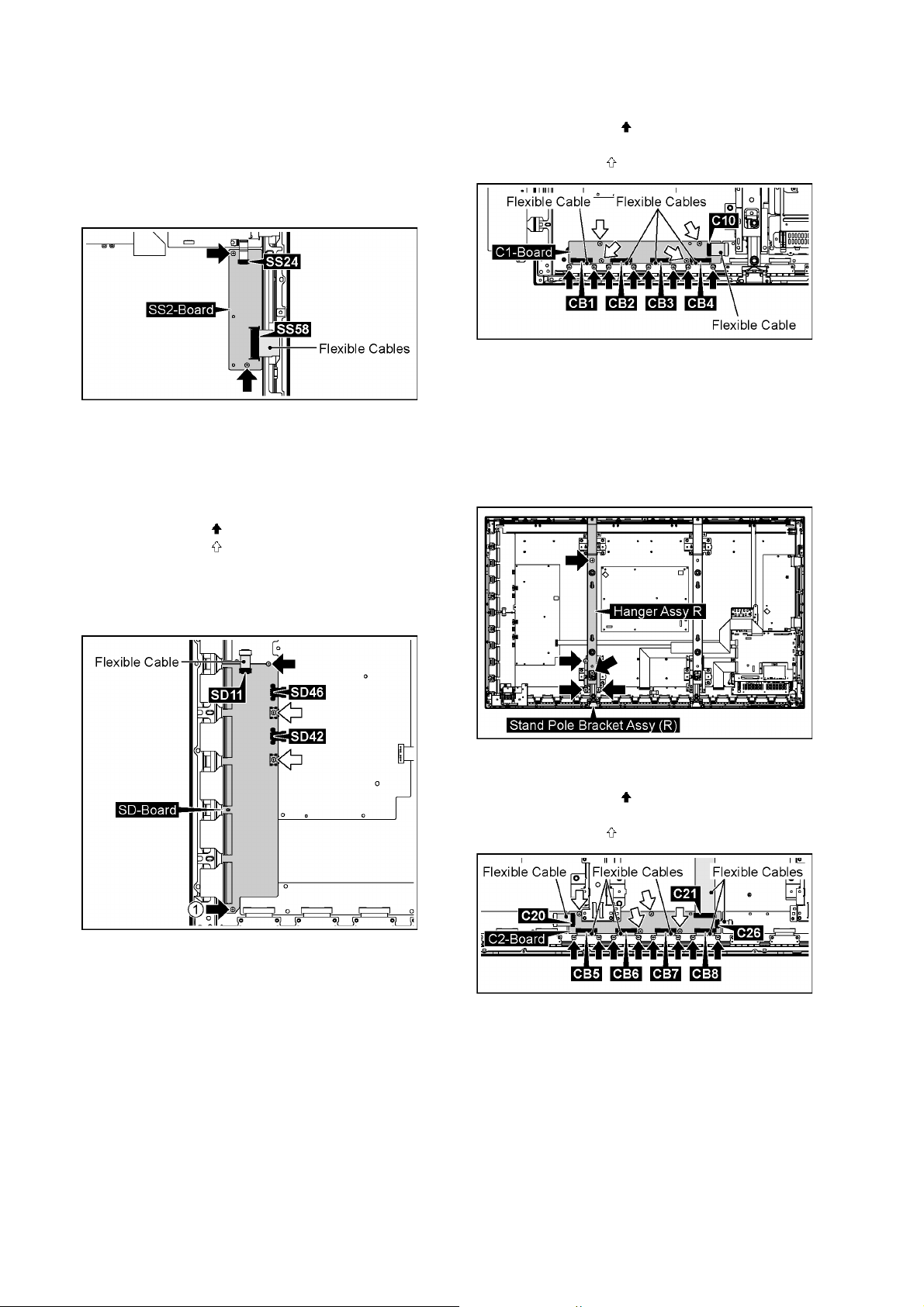

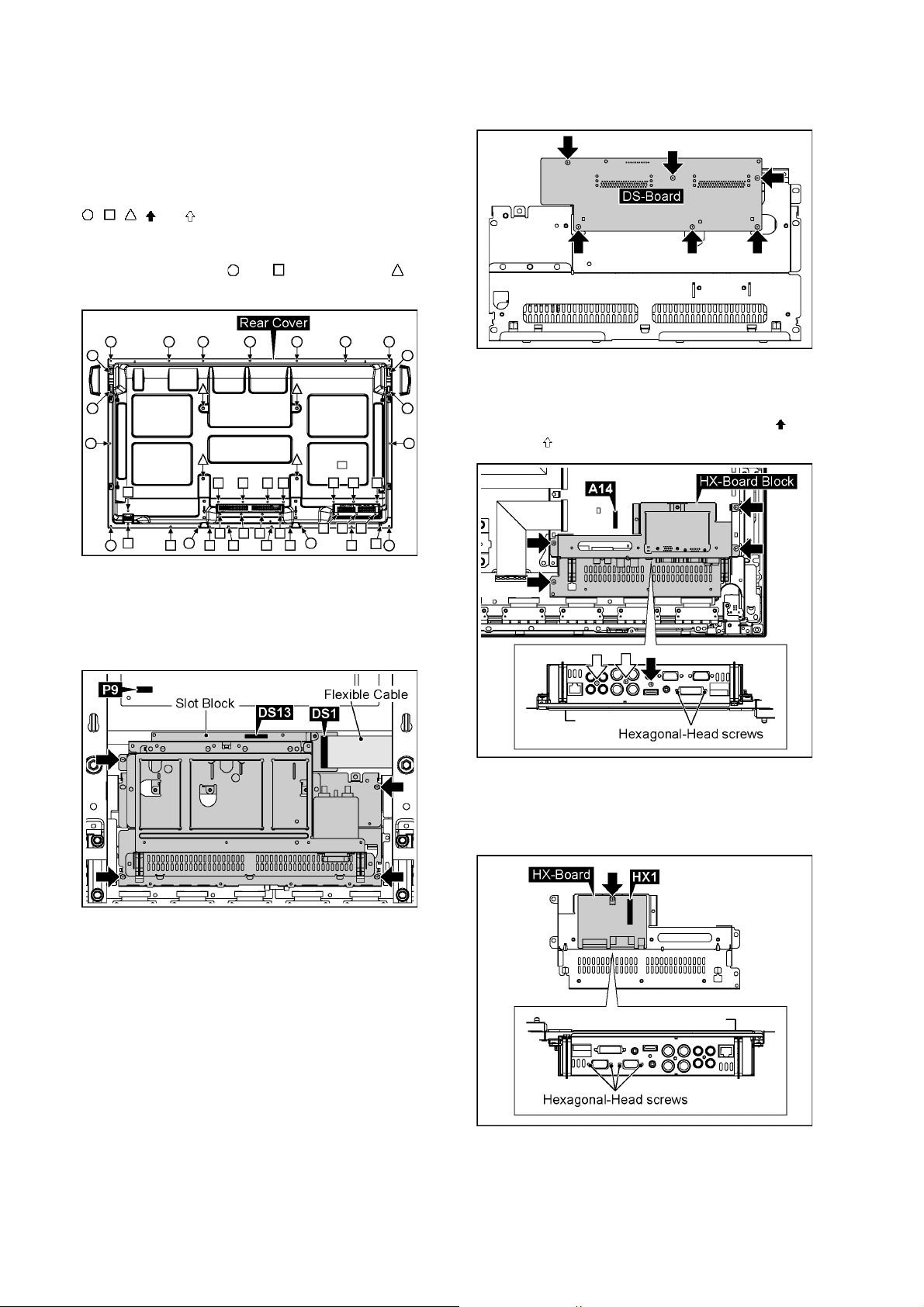

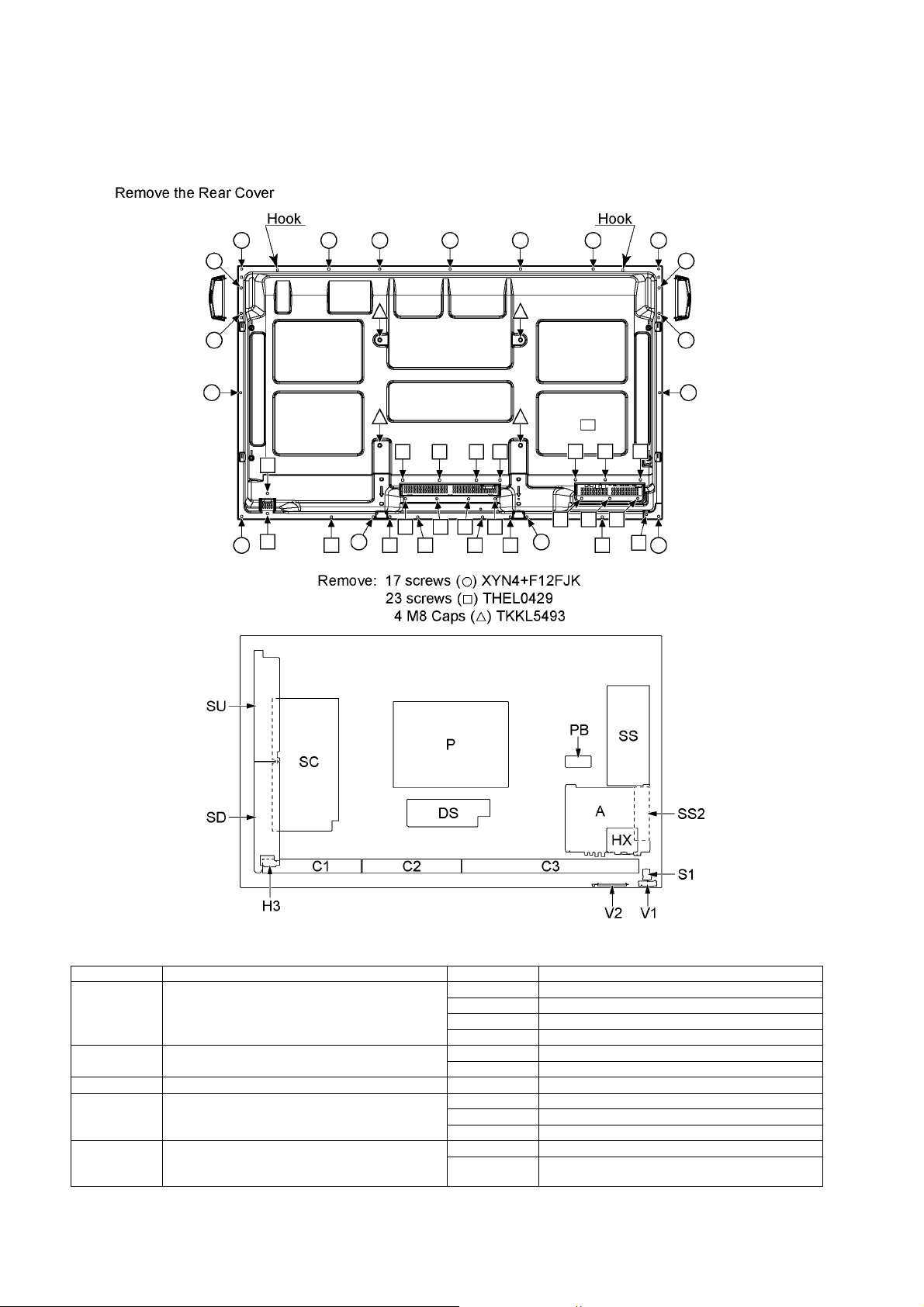

9.1. Removal of Rear Cover

1. Remove screws (×17 , ×23 ) and M8 Cap (×4 ) and
then remove the Rear Cover.

3. Remove 6 screws and then remove DS-Board.

9.4. Removal of HX-Board

1. Disconnect the connector (A14).

2. Remove 2 Hexagonal-Head screws, 5 screws ( ) and 2
screws ( ) and then remove the HX-Board Block.

9.2. Removal of Slot Block

1. Disconnect the connectors (DS13, P9).

2. Remove the flexible cable from the connector (DS1).

3. Remove 4 screws and then remove the Slot Block.

9.3. Removal of DS-Board

1. Remove the Slot Block.
(Refer to Removal of Slot Block)

2. Turn over the Slot Block.

3. Turn over the HX-Board Block.

4. Disconnect the connector (HX1).

5. Remove 4 Hexagonal-Head screws and 1 screw of HX­Board and then remove HX-Board.

22

TH-50PF20E / TH-50PF20ER

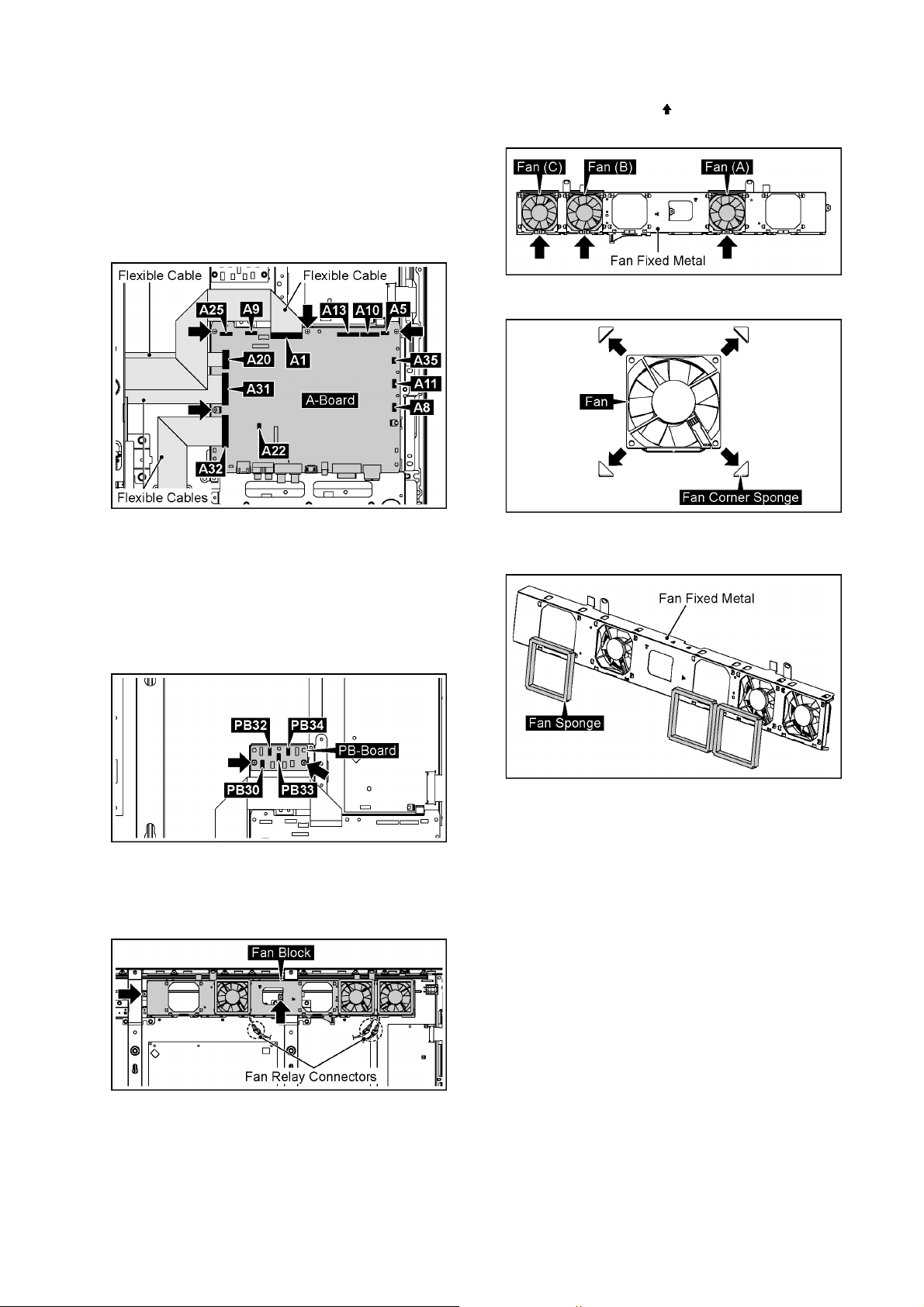

9.5. Removal of A-Board

1. Remove the HX-Board Block.
(Refer to Removal of HX-Board)

2. Disconnect the connectors (A5, A8, A9, A10, A11, A13,
A22, A25, A35).

3. Remove the flexible cables from the connectors (A1, A20,
A31, A32).

4. Remove 4 screws and then remove A-Board.

Note: when fixing A-Board

• Put the flexible Cable between the Fixed Metal and A­Board when Connect the flexible Cable to the connector
(A1).

3. Remove each 1 screw ( ) and then remove the Fan from
the Fan Fixed Metal.

4. Remove each 4 Fan Corner Sponges from the Fan.

5. Reassemble the Fans in reverse order.

6. Stick the Fan Sponges around the Fan.

9.6. Removal of PB-Board

1. Disconnect the connectors (PB30, PB32, PB33, PB34).

2. Remove 2 screws and then remove PB-Board.

9.7. Removal of Fan

1. Disconnect the Fan Relay Connectors.

2. Remove 2 screws and then remove the Fan Block.

Note:

The Fan Sponge is not re-usable.
Please use a new one when Fan exchange.

23

TH-50PF20E / TH-50PF20ER

9.8. Removal of P-Board

1. Disconnect the connectors (P2, P6, P7 P9, P11, P25,
P35).

2. Remove 9 screws and then remove P-Board.

9.9. Removal of AC Inlet Assy

1. Disconnect the connector (P9).

2. Remove 2 screws ( ) and then remove the AC Cord
Clamper A.

3. Remove 1 screw ( ) and then remove the AC Inlet Assy.

3. Remove 2 screws (A) and then remove H3-Board.

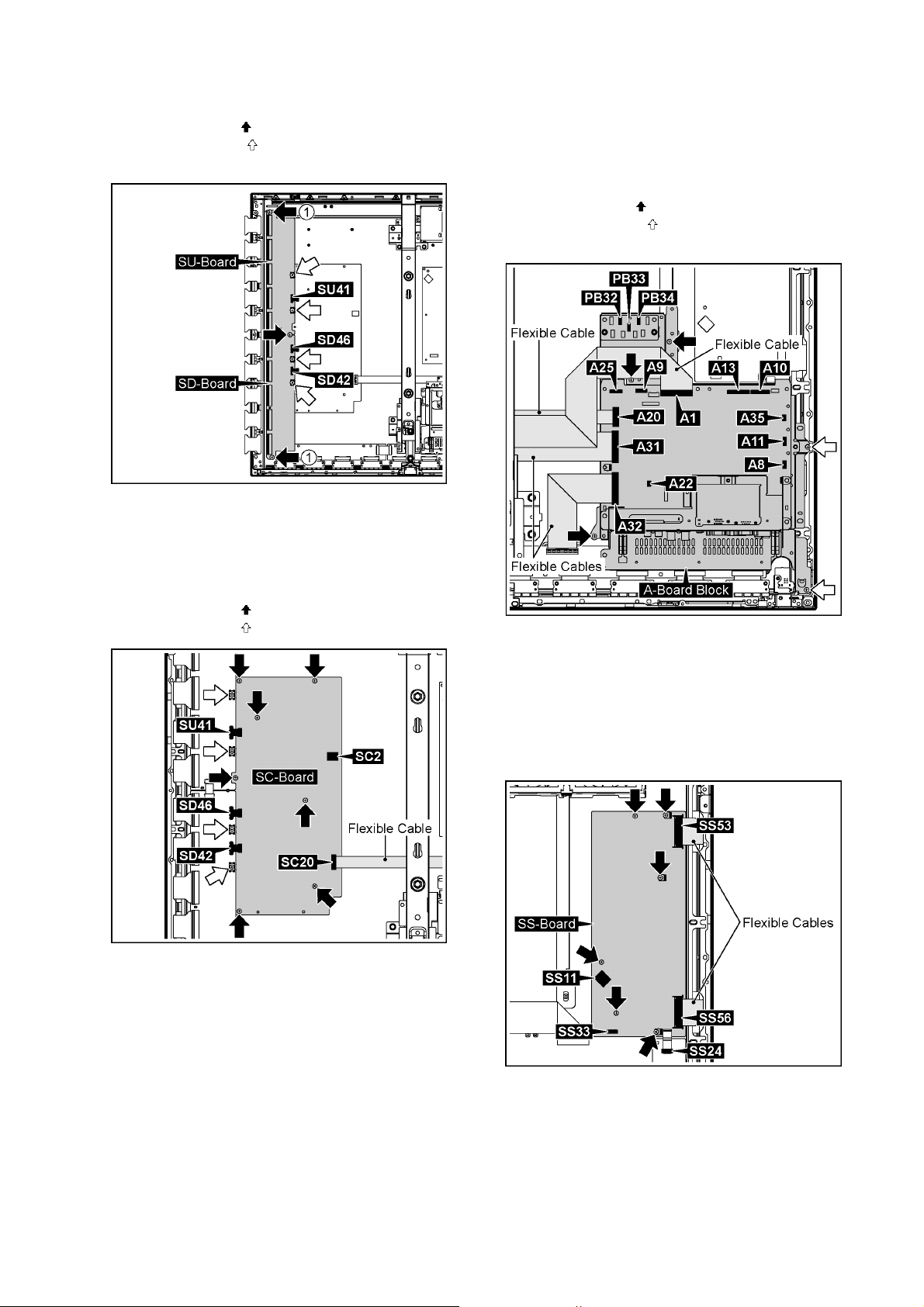

9.11. Removal of SU-Board and SD­Board

1. Remove the Speaker Terminal Block.
(Refer to Removal of Speaker Terminal Block)

2. Remove the flexible cables from the connectors (SU1,
SU2, SU3, SU4, SU5, SU11, SD1, SD2, SD3, SD4, SD5,
SD11).

9.10. Removal of H3-Board

1. Disconnect the connector (H37).

2. Remove 1 screw and then remove the Speaker Terminal
Block (H3-Board).

24

TH-50PF20E / TH-50PF20ER

3. Disconnect the connectors (SU41, SD42, SD46).

4. Remove 3 screws ( ).

5. Remove 4 screws ( ) and then remove SU-Board and
SD-Board.

Note: when fixing SU-Board and SD-Board

• Screw on 2 screws (1) firstly.

9.12. Removal of SC-Board

1. Disconnect the connectors (SC2, SU41, SD42, SD46).

2. Remove the flexible cable from the connector (SC20).

3. Remove 7 screws ( ).

4. Remove 4 screws ( ) and then remove SC-Board.

9.13. Removal of SS-Board

1. Disconnect the connectors (A8, A9, A10, A11, A13, A22,
A25, A35, PB32, PB33, PB34).

2. Remove the flexible cables from the connectors (A1, A20,
A31, A32).

3. Remove 3 screws ( ).

4. Remove 2 screws ( ) and then remove the A-Board
Block.

Note: when fixing A-Board Block

• Put the flexible Cable between the Fixed Metal and A­Board when Connect the flexible Cable to the connector
(A1).

5. Disconnect the connectors (SS11, SS24, SS33).

6. Remove the flexible cables from the connectors (SS53,
SS56).

7. Remove 6 screws and then remove SS-Board.

25

TH-50PF20E / TH-50PF20ER

9.14. Removal of SS2-Board

1. Remove the A-Board Block.
(Refer to remove of SS-Board).

2. Disconnect the connector (SS24).

3. Remove the flexible cables from the connector (SS58).

4. Remove 2 screws and then remove SS-Board.

9.15. Removal of C1-Board

1. Remove the Speaker Terminal Block.
(Refer to remove of Speaker Terminal Block).

2. Disconnect the connectors (SD42, SD46).

3. Remove the flexible cable from the connector (SD11).

4. Remove 2 screws ( ).

5. Remove 2 screws ( ) and then turn over SD-Board to the
left.

Note:

Do not damage the Flexible Cables of SD-Board, and
the parts on SC-Board.

6. Remove the flexible cable from the connector (C10).

7. Remove 8 screws ( ) and then remove the flexible
cables from the connectors (CB1, CB2, CB3, CB4).

8. Remove 4 screws ( ) and then remove C1-Board.

9.16. Removal of C2-Board

1. Remove the Fan Block.
(Refer to remove of Fan).

2. Remove the Slot Block.
(Refer to remove of Slot Block).

3. Remove 5 screws and then remove the Hanger Assy R
and the Stand Pole Bracket Assy (R).

Note: when fixing SD-Board

• Screw on 1 screw (1) firstly.

4. Remove the flexible cables from the connectors (C20,
C21, C26).

5. Remove 8 screws ( ) and then remove the flexible
cables from the connectors (CB5, CB6, CB7, CB8).

6. Remove 4 screws ( ) and then remove C2-Board.

26

TH-50PF20E / TH-50PF20ER

9.17. Removal of C3-Board

1. Remove the Fan Block.
(Refer to remove of Fan).

2. Remove the Slot Block.
(Refer to remove of Slot Block).

3. Remove the A-Board Block.
(Refer to remove of SS-Board).

4. Remove 5 screws and then remove the Hanger Assy L
and the Stand Pole Bracket Assy (L).

5. Disconnect the connectors (C33, C35).

6. Remove the flexible cables from the connectors (C31,
C36).

7. Remove 14 screws ( ) and then remove the flexible
cables from the connectors (CB9, CB10, CB11, CB12,
CB13, CB14, CB15).

8. Remove 5 screws ( ) and then remove C3-Board.

9.19. Removal of Front Glass, V1,
V2-Board and Cabinet Assy

1. Remove the Speaker Terminal Block.
(Refer to remove of Speaker Terminal Block).

2. Remove the S1-Board Block.
(Refer to Removal of S1-Board)

3. Disconnect the connectors (A11, A22).

4. Remove 4 screws ( ) and then remove the Handle Fixing
Metal (L, R).

5. Remove 5 screws ( ).

Note: when fixing Handle Fixing Metal (L, R)

• Screw on 2 screws (1) firstly.

6. Pull the bottom of the Plasma Display Panel forward
(arrow1).

7. Slide the Plasma Display Panel and then remove the
Plasma Display Panel (arrow2).

9.18. Removal of S1-Board

1. Remove 2 screws (B) and then remove the S1-Board
Block.

2. Disconnect the connector (S35).

3. Remove 1 screw (C) and then remove S1-Board.

27

TH-50PF20E / TH-50PF20ER

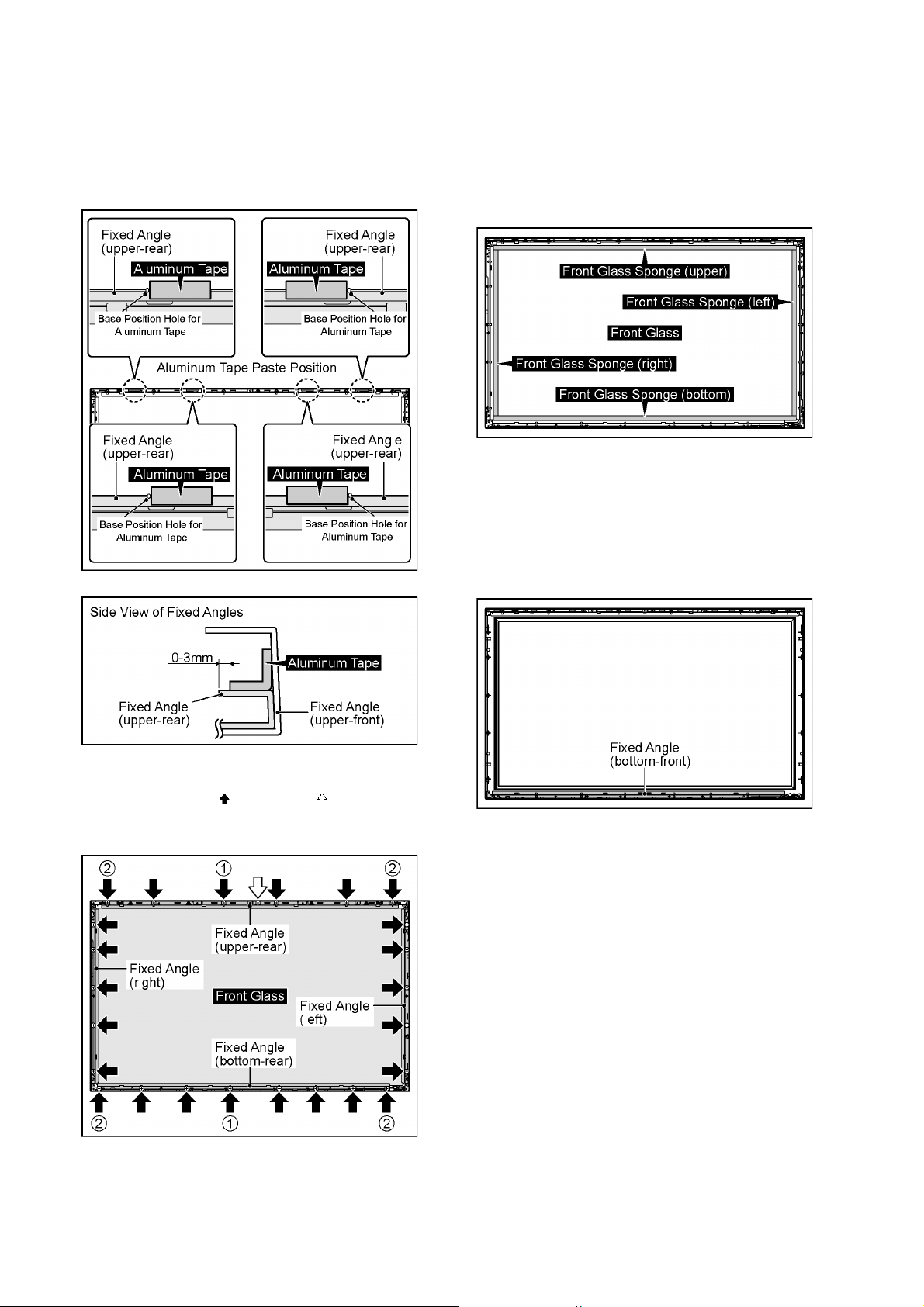

9.19.1. Notice when Front Glass or Cabinet
Assy is exchanged

Please use the Aluminum Tapes when you exchange the Front
Glass or the Cabinet Assy.
Paste the Aluminum Tapes to original position.

Note: when fixing Fixed Angle (upper-rear, bottom­rear)

• Firstly screw on 6 screws (1-2) in order.

Note: when Front Glass is exchanged

• Paste the Front Glass Sponges in order along each
Fixed Angles left and right, upper and bottom.

Note

• The sponges are parts which cannot be recycled. Please
use the new article when you exchange the Front Glass.

9.19.3. Removal of V1-Board and V2-Board

1. Remove the Front Glass.
(Refer to remove of Front Glass).

2. Remove the Fixed Angle (bottom-front).

9.19.2. Removal of Front Glass

1. Remove 24 screws ( ) and 1 screw ( ) and then remove
the Fixed Angle (left, right, upper-rear, bottom-rear).

2. Remove the Front Glass.

28

TH-50PF20E / TH-50PF20ER

3. Remove 2 screws (D).

4. Disconnect the connector (V11).

5. Remove 1 hook and then remove V1-Board

6. Remove 2 hooks and then remove the Power Button
Shield.

7. Remove 3 hooks and then remove the Power Button and
Power Button Spring.

8. Disconnect the connector (V22) and then remove V2­Board.

9. Remove 2 hooks and then remove the 5 Key Button from
V2-Board.

4. Remove the Rear Cover Hook (Left, Right).

5. Remove the Fixed Angle (upper-front).

6. Remove the Cabinet Assy.

9.20. Removal of Plasma Display
Panel

The C1,C2,C3 Boards are connected with the plasma dis­play panel for the repair.

1. Disconnect the Fan Relay Connectors.

2. Remove 2 screws and then remove the Fan Block.

9.19.4. Removal of Cabinet Assy

1. Remove the Front Glass.
(Refer to Removal of Front Glass)

2. Remove V1-Board and V2-Board.
(Refer to Removal of V1-Board and V2-Board)

3. Remove the LED Panel and Remote Sensor Panel.

3. Disconnect the connectors (DS13, P9).

4. Remove the flexible cable from the connector (DS1).

5. Remove 4 screws and then remove the Slot Block.

29

TH-50PF20E / TH-50PF20ER

6. Disconnect the connectors (A8, A9, A10, A11, A22, A25,
A35).

7. Remove the flexible cables from the connectors (C21,
C31, SC20).

8. Remove 3 screws ( ).

9. Remove 2 screws ( ) and then remove the A-Board
Block.

10. Remove 1 screw and then remove the Speaker Terminal
Block.

13. Disconnect the connectors (SU41, SD42, SD46).

14. Remove 3 screws ( ).

15. Remove 4 screws ( ) and then remove SU-Board and
SD-Board.

Note: when fixing SU-Board and SD-Board

• Screw on 2 screws (1) firstly.

16. Disconnect the connectors (SC2).

17. Remove 7 screws and then remove SC-Board.

11. Remove 2 screws and then remove the S1-Board Block.

12. Remove the flexible cables from the connectors (SU1,
SU2, SU3, SU4, SU5, SU11, SD1, SD2, SD3, SD4, SD5).

30

TH-50PF20E / TH-50PF20ER

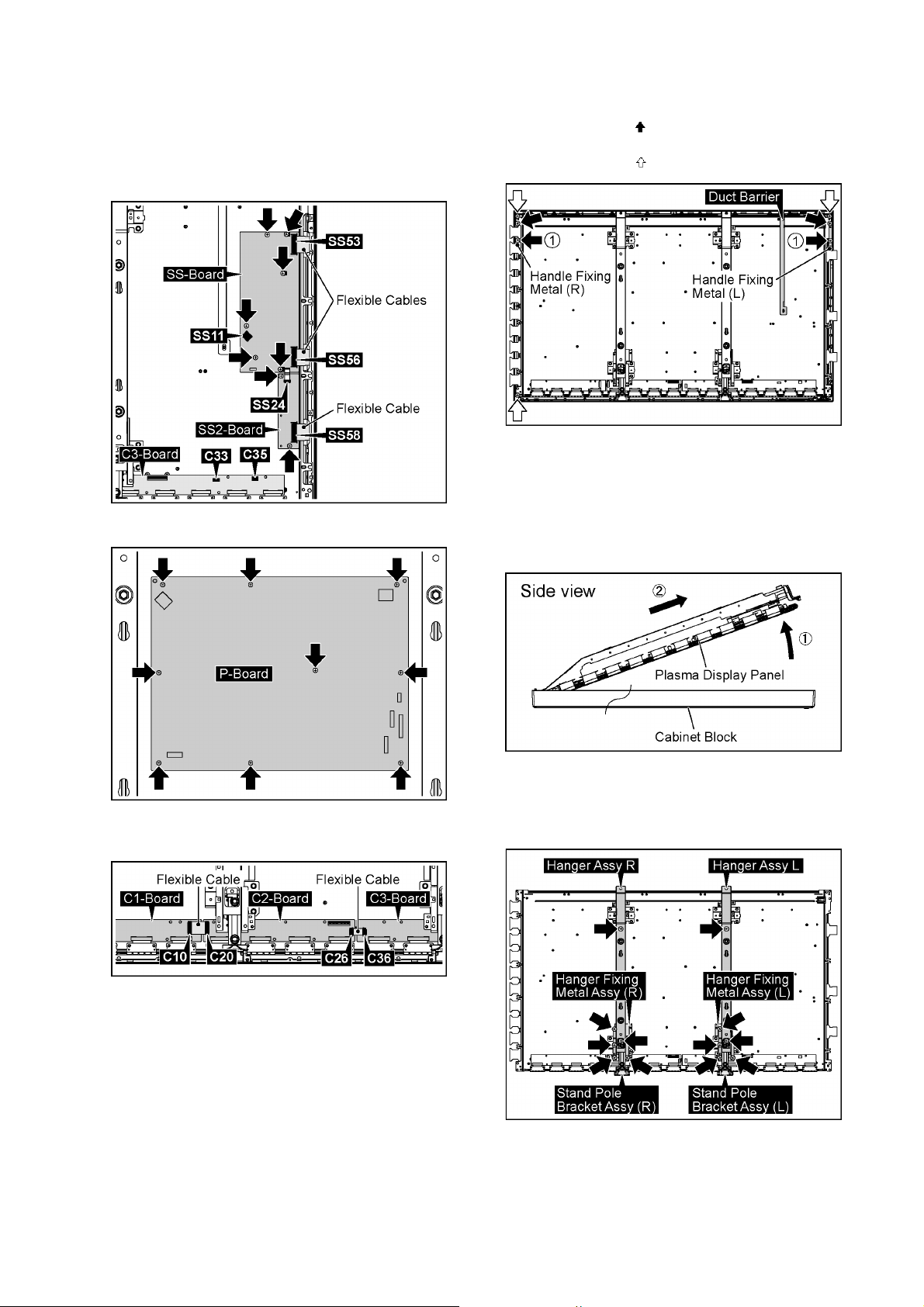

18. Disconnect the connectors (C33, C35, SS11, SS24).

19. Remove the flexible cables from the connectors (SS53,
SS56, SS58).

20. Remove 8 screws and then remove SS-Board and SS2­Board.

21. Remove 9 screws and then remove P-Board.

23. Remove the Duct Barrier.

24. Remove 4 screws ( ) and then remove the Handle Fixing
Metal (L, R).

25. Remove 3 screws ( ).

Note: when fixing Handle Fixing Metal (L, R)

• Screw on 2 screws (1) firstly.

26. Pull the bottom of the Plasma Display Panel forward
(arrow1).

27. Slide the Plasma Display Panel and then remove the
Plasma Display Panel (arrow2).

22. Remove the flexible cables from the connectors (C10,
C20, C26, C36).

28. Remove 12 screws and then remove the Hanger Assy L,
the Hanger Assy R, the Stand Pole Bracket Assy (L, R)
and the Hanger Fixing Metal Assy (L, R).

29. Exchange the Plasma Display Panel.

31

TH-50PF20E / TH-50PF20ER

10 Measurements and Adjustments

10.1. Adjustment

10.1.1. Vsus selection

Caution:

When Plasma panel or A-board is replaced, Vsus should be set to LOW or HIGH.

Procedure

1. Access the CAT mode.
Press and hold the Volume down / - button on the front panel of the unit and press the RECALL button on the remote con­trol 3 times quickly within 2 second, this will place the unit into the CAT mode.

2. Select the IIC mode.

3. Go into item [VSUS] in the IIC mode by Up / Down buttons. LOW or HIGH will be displayed.

4. Press [OK] button to go to TEST stage.
White pattern without On-Screen Display will be displayed during TEST and CONF stage. Press [5] button to display the On­Screen Display.

5. Press [VOL (-)] button to set to LOW.

6. In LOW setting

a. If no several dead pixel is visible remarkably in white pattern, press [3] button to go to CONF stage.
b. If the several dead pixels are visible remarkably in white pattern, Set to HIGH by press [VOL (+)] button. Press [3] button

to go to CONF stage if the symptom is improved.

7. Press [OK] button in CONF stage to store LOW or HIGH.

8. Exit Service Mode by pressing [Power] button.

32

10.2. Adjustment

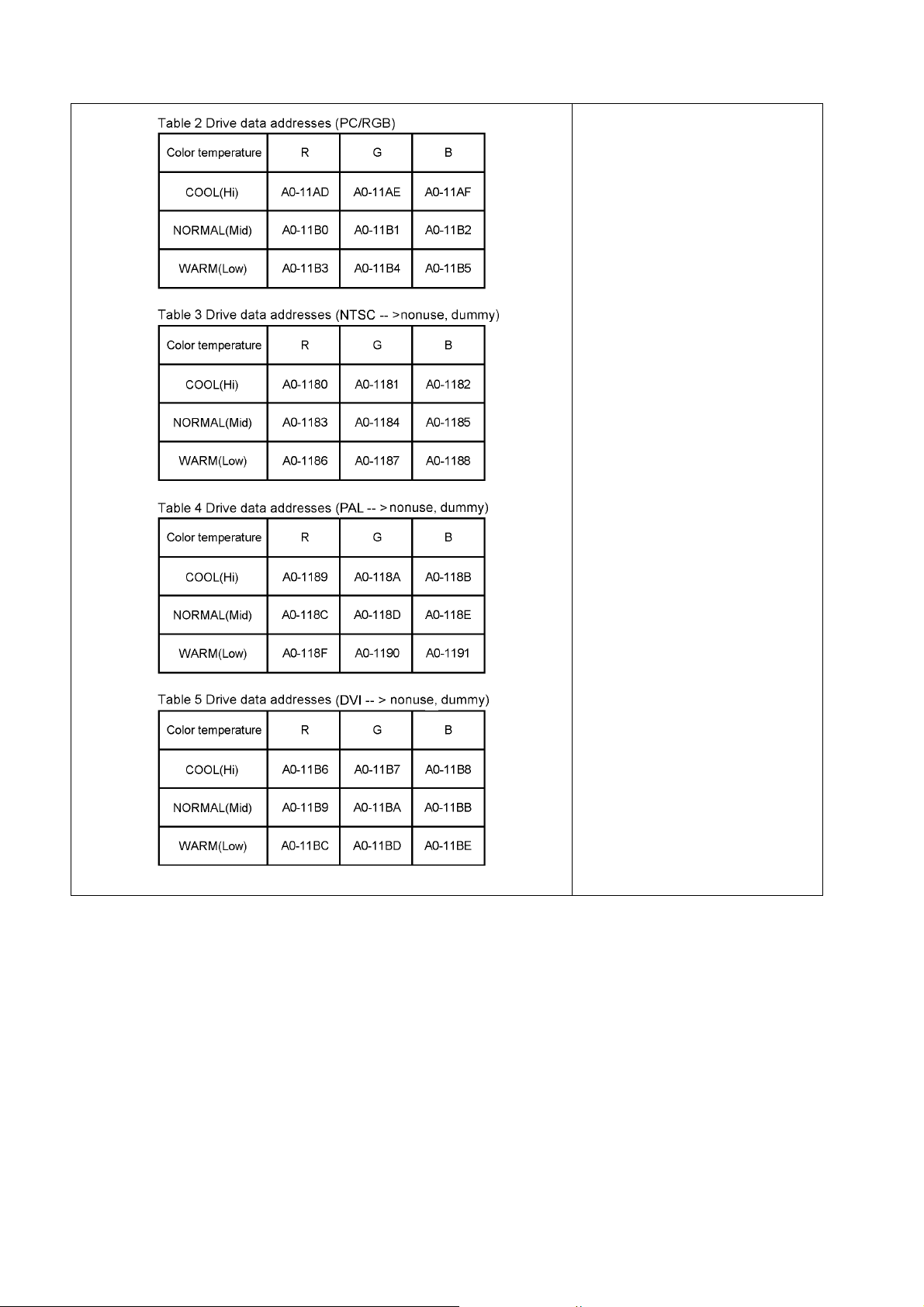

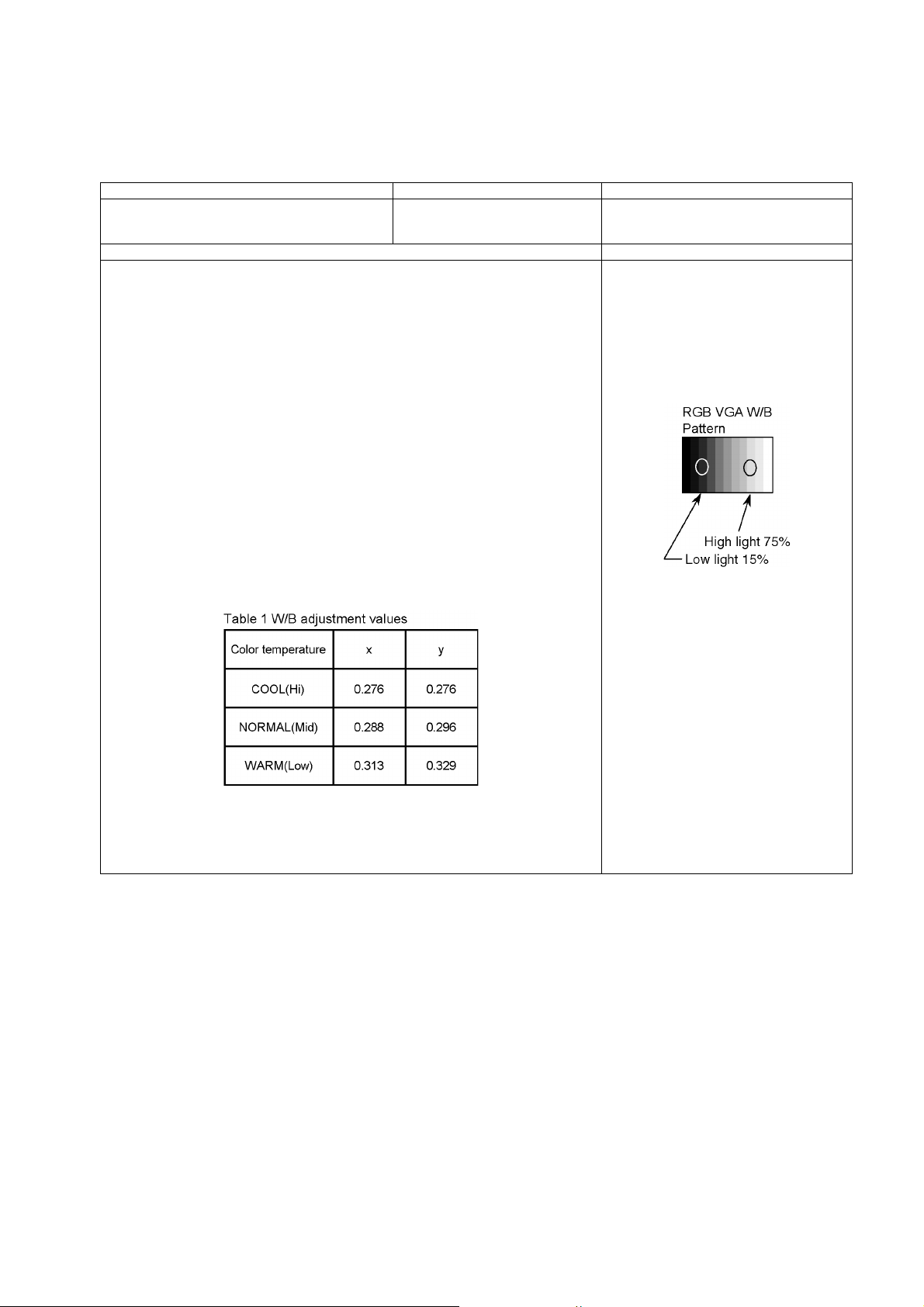

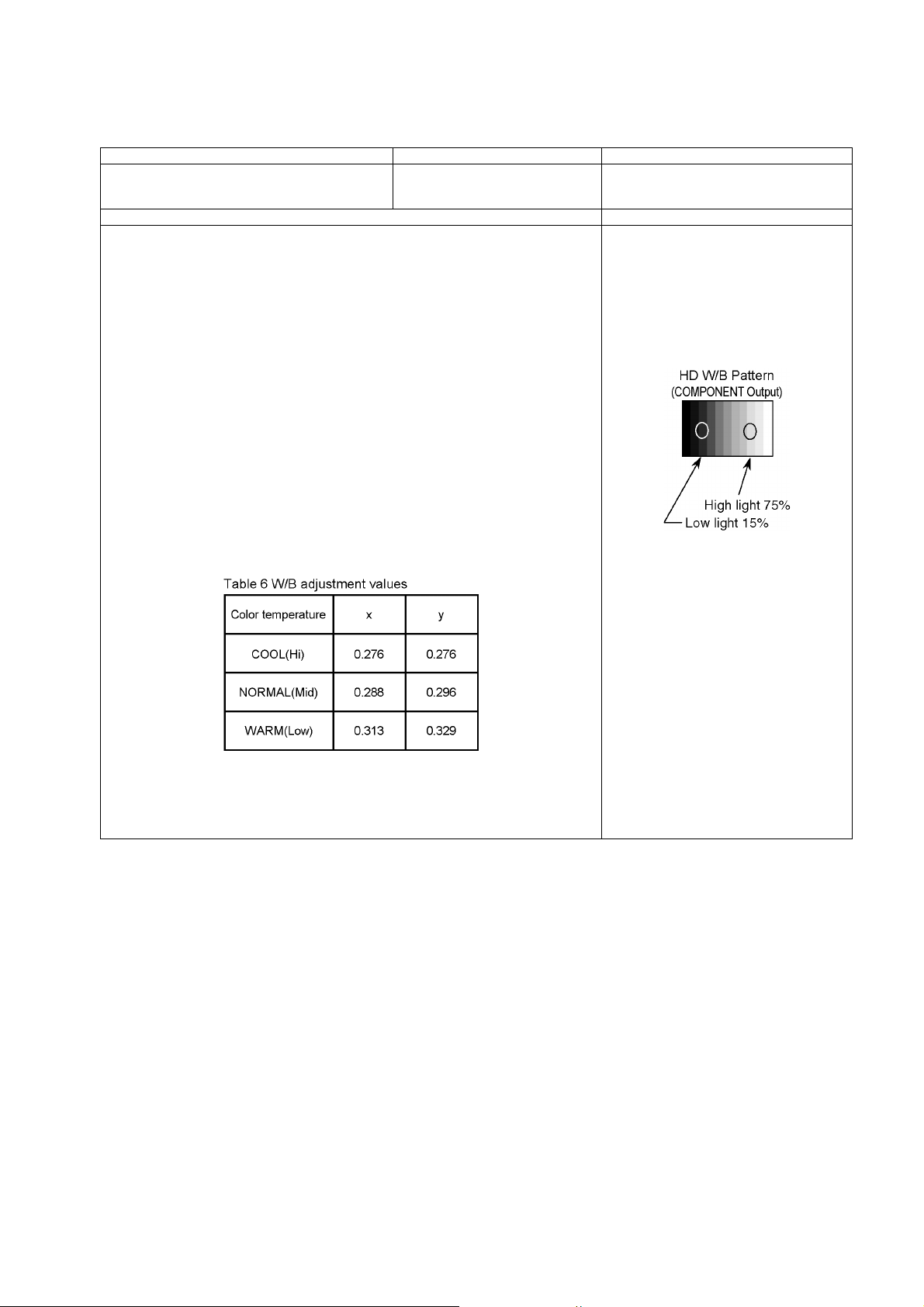

10.2.1. RGB white balance adjustment

Instrument Name Connect to Setting

• RGB VGA60 W / B pattern

• Color analyzer
(Minolta CA-100 or equivalent)

Steps Remarks

[Condition]

• Make sure the front panel to be used on the final set is fitted.

• Make sure a color signal is not being shown before adjustment.

• Put the color analyzer where there is little color variation.

PC input
Panel surface

TH-50PF20E / TH-50PF20ER

User setting: Normal
(Picture menu: STANDARD)

Picture Menu: Standard
User setting: Normal
Aspect: Full (16 : 9)
Position and size: Normal

[Adjustment]

1. Set COMPONET / RGB-IN SELECT to RGB.

2. Select the IIC mode “PANEL W / B Adj.” item.

3. Check that the color temperature is “COOL (Hi)”.

4. Output a white balance pattern.

5. Touch the signal receiver of color analyzer to the highlight window’s center.

6. Fix G drive at E0h and adjust B drive and R drive so x, y become the “Color temperature
COOL (Hi)” in the below table.

7. Increase R / G / B together so the maximum drive value in R / G / B becomes FCh.

8. Set color temperature to “NORMAL (Mid)”.

9. Fix G drive at E0h and adjust B drive and R drive so the highlight window’s x, y becomes
the “Color temperature NORMAL (Mid)” in the below table.

10. Increase R / G / B together so the maximum drive value in R / G / B becomes FCh.

11. Set color temperature to “WARM (Low)”.

12. Set G drive to E0h and adjust B drive and R drive so the highlight window’s x, y become
the “Color temperature WARM (Low)” shown in the below table.

13. Increase R / G / B together so the maximum drive value in R / G / B becomes FCh.

14. Copy the R drive, G drive and B drive data in NTSC, PAL DVI region.

• “7” key : color temperature select.

• “9” key : Picture menu select.

• Highlight section Signal amplitude 75%

• Drive standard G: E0h

Adjustment target
Hi-light: x ± 0.003 y ± 0.003
Hi-light is target of the number at drive adjustment in the hi-light windows.
Therefore, it is not target of the hi-light number at after adjustment white balance.

33

TH-50PF20E / TH-50PF20ER

34

10.2.2. YUV white balance adjustment

Instrument Name Connect to Setting

• HD(1125/60i) W / B pattern (COMPONENT Output)

• Color analyzer
(Minolta CA-100 or equivalent)

Steps Remarks

[condition]

• Make sure the front panel to be used on the final set is fitted.

• Make sure a color signal is not being shown before adjustment.

• Put the color analyzer where there is little color variation.

PC input
Panel surface

TH-50PF20E / TH-50PF20ER

User setting: Normal
(Picture menu: STANDARD)

Picture Menu: STANDARD
User setting: Normal
Aspect: Full (16 : 9)
Position and size: Normal

[Adjustment]

1. Set COMPONENT / RGB-IN SELECT to COMPONENT.

2. Select the IIC mode “PANEL W / B Adj.” item.

3. Check that the color temperature is “COOL (Hi)”.

4. Output a white balance pattern.

5. Touch the signal receiver of color analyzer to the highlight window’s center.

6. Fix G drive at E0h and adjust B drive and R drive so x, y become the “Color temperature
COOL (Hi)” in the below table.

7. Increase R / G / B together so the maximum drive value in R / G / B becomes FCh.

8. Set color temperature to “NORMAL (Mid)”.

9. Fix G drive at E0h and adjust B drive and R drive so the highlight window’s x, y becomes
the “Color temperature NORMAL (Mid)” in the below table.

10. Increase R / G / B together so the maximum drive value in R / G / B becomes FCh.

11. Set color temperature to “WARM (Low)”.

12. Set G drive to E0h and adjust B drive and R drive so the highlight window’s x, y become
the “Color temperature WARM (Low)” shown in the below table.

13. Increase R / G / B together so the maximum drive value in R / G / B becomes FCh.

14. Copy the R drive, G drive and B drive data in YUV1_525ip, YUV3_625ip region.

• “7” key : color temperature select.

• “9” key : Picture menu select.

• Highlight section Signal amplitude 75%

• Drive standard G: E0h

Adjustment target
Hi-light: x ± 0.003 y ± 0.003
Hi-light is target of the number at drive adjustment in the hi-light windows.
Therefore, it is not target of the hi-light number at after adjustment white balance.

35

TH-50PF20E / TH-50PF20ER

36

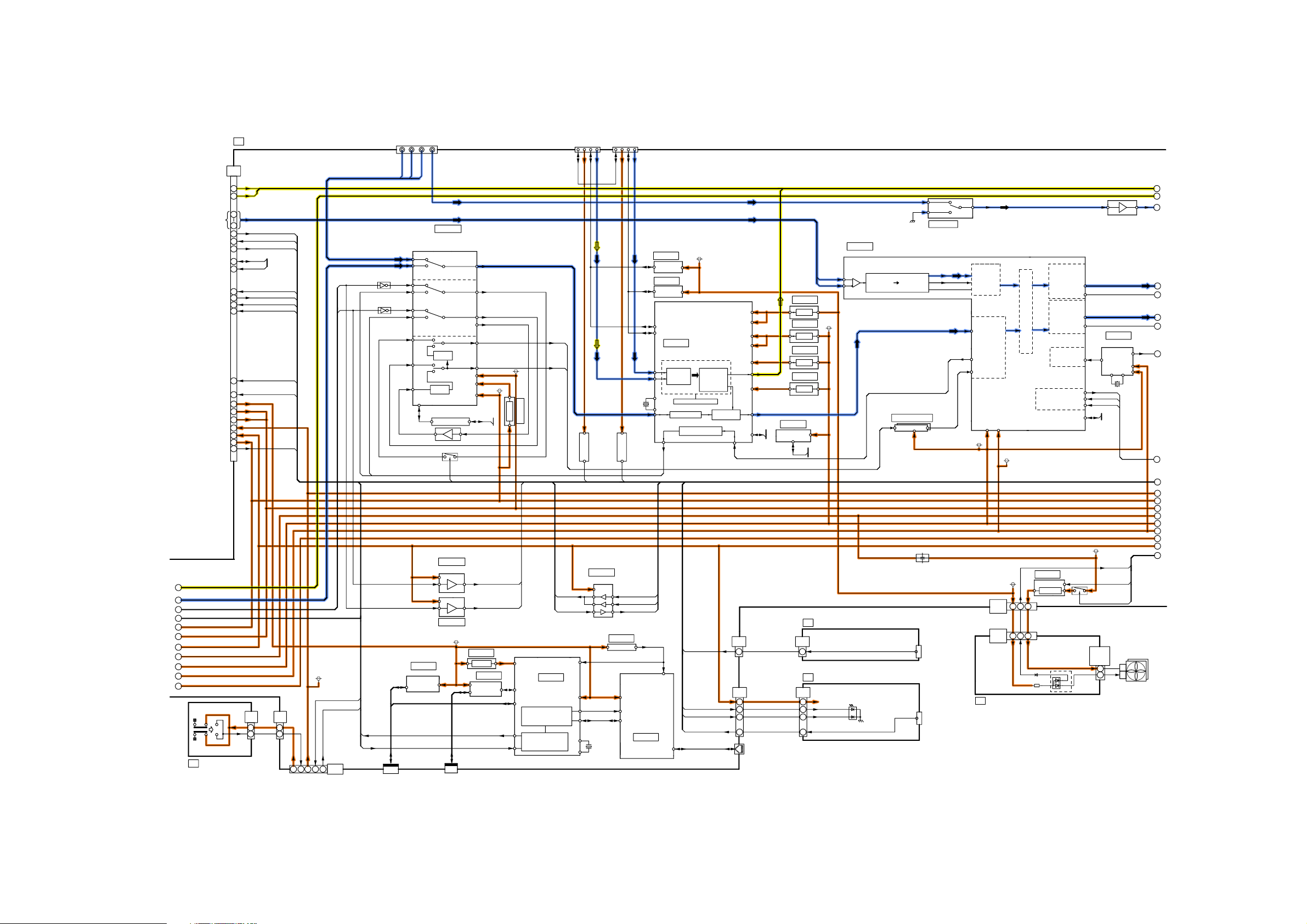

11 Block Diagram

OR

HD,VD-2

L+/-

FAN A-C

A1

A20

A+3.3V

P+3.3V

Vda

P+15V

A+15V

Vda

F+15V

SOS7_SC2

A13

P+15V

SD46

P+5V

SOS8_SS

SS24

A+1.8V

F+15V

P+5V

Vda

DS1

DCDC

LAN+3.3V

F+15V

SCX1

P6

DCDC

P+5V

SOS8_SS

VSUS

SU11

VSUS

C10 C20

F+15V

A+9V

L,R-DVI

P+3.3V

L,R-HA

SOUND
+15V

A+9V

F+15V_MON

A+5V

A+5V

VSUS

F+15V

+1.2V(P)

L,R

DCDC

STB+5V

MAIN SW2

P+3.3V,P+5V

MAIN SW1

LAN DATA

DCDC

SDRAM

LAN
CONTROL

HD,VD

A32

RXD/TXD_LAN

DCDC

ASIC

Y,PB,PR

SS21

H37

L,R-CV

C26

DCDC

R+/-

LAN+3.3V

P+15V

STBY+3.3V

C33

DCDC

ON

P+15V

VSUS

A+15V

GenX7

S35

STB+3.3V

R,B,G

R,G,B

PC

DS2

+3.3V

P+3.3V

+2.5V(P)

Y,PB,PR-PC

+5V(P)

A+15V

IIC

A35

JK2301

A31

HDMI DVI

+3.3V(STB)

A+1.8V

A11

SOS8_SS

SOS6_SC1

A+3.3V

SLOT SOS

P+3.3V

+1.8V(P)

P2

STBY+3.3V

DCDC

HD/VD

P9

A8

DCDC

DCDC

R,G,B

A+5V

HDMI SPDIF

SS11

SS33

L/R

C31

RXD/TXD_PC

P+1.2V

DS
13

SD11

SC2

P+5V

DCDC

F+15V

A+5V

SOS8_SS

V11

P+5V

L,R-PC

STB+5V

A22

STB+5V

STB_ON

STB+3.3V

STBY+5V

STBY+5V

V22

A10

+3.3V(P)

P35

V

L,R-PC

RS232C

EEPROM

LVDS

Vda

SOS8_SS

HD,VD-PC

A+15V

Y,PB,PR-1

DS_SOS

P+2.5V

P+5V

C35

SC42

SC41

HD,VD

100BASE-TX

SC46

HX1

P+3.3V

P+3.3V

P+15V

P+5V

10BASE-T/

SOS6_SC1

P+3.3V

A+9V

A+9V

HDMI SW

STB_ON

PB30

SOUND
+15V

R+/-

Y,PB,PR-PC

VSUS

SOS4_PS

A5

A14

+1.2V(STB)

A+5V

SOS7_SC2

SC20

P+15V

EEPROM

P11

P+15V

LAN+14V

SD42

C21

L,R-1

A9

SU41

STBY+1.2V

P+5V

Vda

A+9V

HD,VD-1

C36

HX

BUFFER

DS SLOT INTERFACE

SCAN
DRIVER

PC/RS232C TERMINAL

SLOT1

DS SOS DET
CIRCUIT

LVDS IN

SCAN
DRIVER

SC-BOARD
FLOATING PART
SOS DETECT

CONTROL
PULSE

SCAN CONTROL

VAD GEN.

SC-BOARD
ENERGY RECOVERY
SOS DETECT

VSCAN GEN.

MICOM

AUDIO
SELECT

DVI

LVDS RX

VIDEO SIGNAL
DECODER

VIDEO
PROCESSOR

ASIC OUTB

IP CONV.

ASIC OUTA

DIGITAL SIGNAL PROCESSOR

VIDEO SIGNAL
SELECT

COMPONENT/
COMPOSITE

VIDEO

LVDS/OSD

AUDIO
PROCESSOR

A

TTL CONV.

HDMI
DECODER

SYNC SIGNAL
SELECT

VIDEO PROCESSOR

AUDIO IN

HDMI
AUDIO

SYNC
PROCESSOR

AUDIO IN

REMOTE IN

RESET

A+5V SOS

DS BOARD SOS

A+15V SOS

PANEL STB_ON

DN BOARD SOS

FAN SOS

PANEL READY

PANEL SOS

F+15V SOS

LED_G

ALL OFF

KEYSCAN

LED_R/

V2

REMOTE
RECEIVER

S1

REMOTE RECEIVER/LED

LED

MAIN SW2

H3

TERMINAL

TERMINAL

SPEAKER R

SPEAKER L

V1

SPEAKER

KEY SWITCH

MAIN SW1

TERMINALS

KEY SWITCH

POWER SWITCH

POWER SW

FAN SOS DET

SOUND
CONTROL

RESET

DN BOARD
SOS

CIRCUIT

SP AMP

PS SOS4

RELAY

P-BOARD
SOS DETECT

SUSTAIN
VOLTAGE
RECTIFIER

MAIN SW1

POWER
FACTOR
CONTROL

PROCESS
VOLTAGE
RECTIFIER

RECTIFIER

RECTIFIER

ON/OFF CONTROL

STANDBY
VOLTAGE
RECTIFIER

POWER MICOM

POWER SUPPLY

P

MAIN SW2

P_S0

P_S1

VIDEO DATAVIDEO DATA

RESET

DISCHARGE
CONTROL

P+3.3V DET

PANEL READY

P+15V DET

P+5V DET

RESET

SOS8_SS

PANEL STB_ON

SOS7_SC2

POWER SOS

PANEL MICOM

SOS6_SC1

VSUS_CON_S0

PANEL SOS

VSUS_CON_S1

ALL OFF

SUSTAIN CONTROL

SCAN CONTROL

DATA DRIVER

PLASMA AI

LVDS RX

SUB-FIELD PROCESSOR

CPG with SS
H/V SYNC CONTROL

CONTROL SIGNAL

VE GEN.

SUSTAIN DRIVESS

ENERGY RECOVERY

SUSTAIN CONTROL

SS-BOARD
SOS DETECT

VSUS GEN.

DATA
DRIVER

DATA
DRIVER

DATA
DRIVER

DATA
DRIVER

DATA
DRIVER

DATA
DRIVER

DATA
DRIVER

DATA
DRIVER

DATA
DRIVER

DATA
DRIVER

DATA
DRIVER

DATA
DRIVER

DATA
DRIVER

DATA
DRIVER

DATA
DRIVER

VIDEO DATA

DATA DRIVER (LEFT)

VIDEO DATA

SUSTAIN CONTROL

VIDEO DATA

DATA DRIVER (RIGHT)

VIDEO DATA

C3

C1

SUSTAIN CONTROL

VIDEO DATA

DATA DRIVER (CENTER)

C2

DCC_SOS

PB33
PB34

PB32

P7

SU

SCAN OUT (LOWER)

SCAN OUT (UPPER)

SD

SC SCAN DRIVE

FAN VOLTAGE
CONTROL

FAN+15V

SOUND
+15V

A25

STB+5V

P25

STB+5V

(LED:10TIMES)

(LED:6TIMES)

(LED:7TIMES)

(LED:13TIMES)

(LED:13TIMES)

(LED:2TIMES)

(LED:10TIMES)

(LED:2TIMES)

(LED:11TIMES)

(LED:10TIMES)

(LED:11TIMES)

(LED:4TIME)

HOTCOLD

(LED:5TIMES)

(LED:6TIMES)

(LED:2TIMES)

(LED:3TIMES)

(LED:8TIMES)

(LED:7TIMES)

(LED:4TIMES)

(LED:8TIME)

(LED:9TIMES)

PB

FAN CONTROL

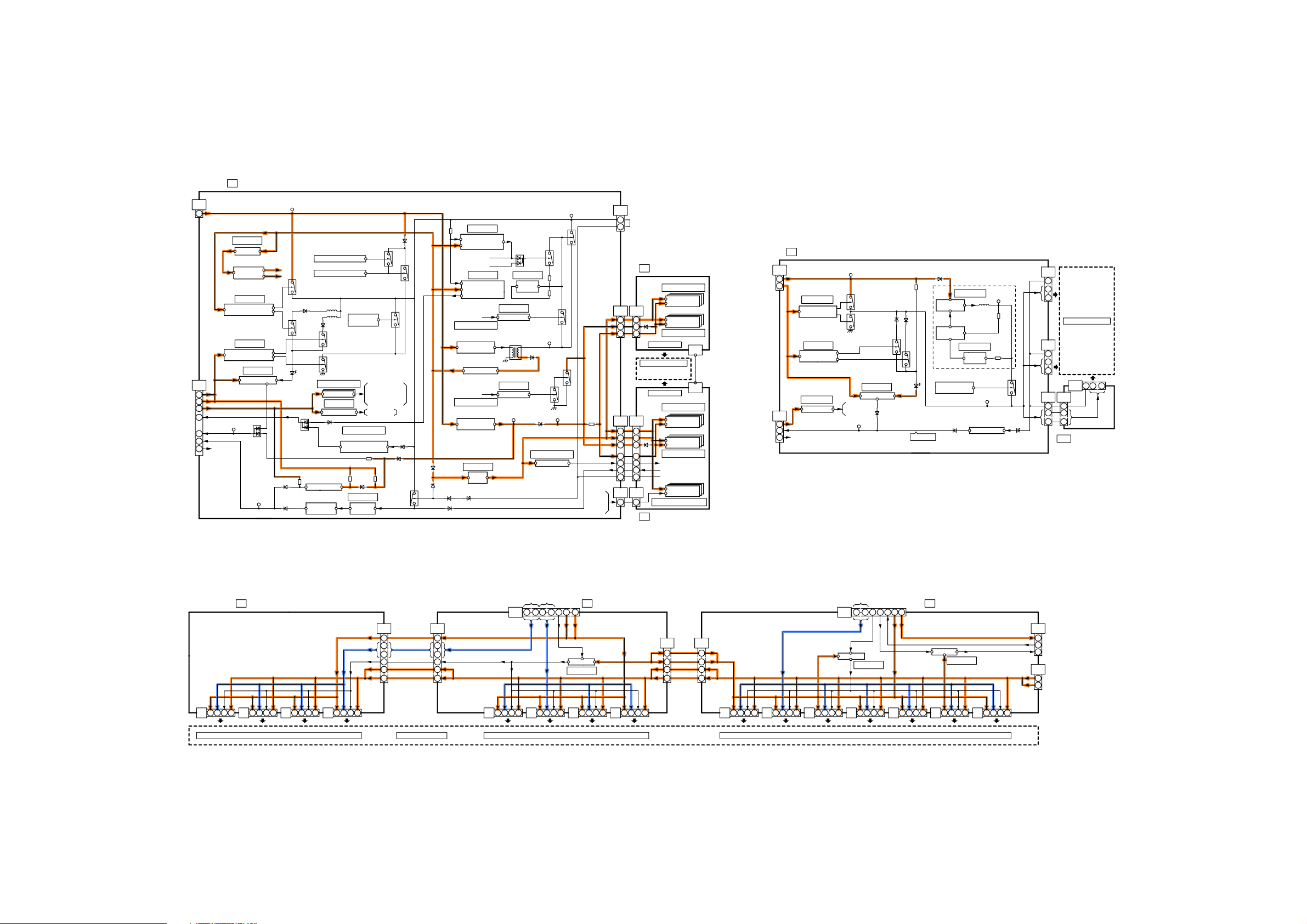

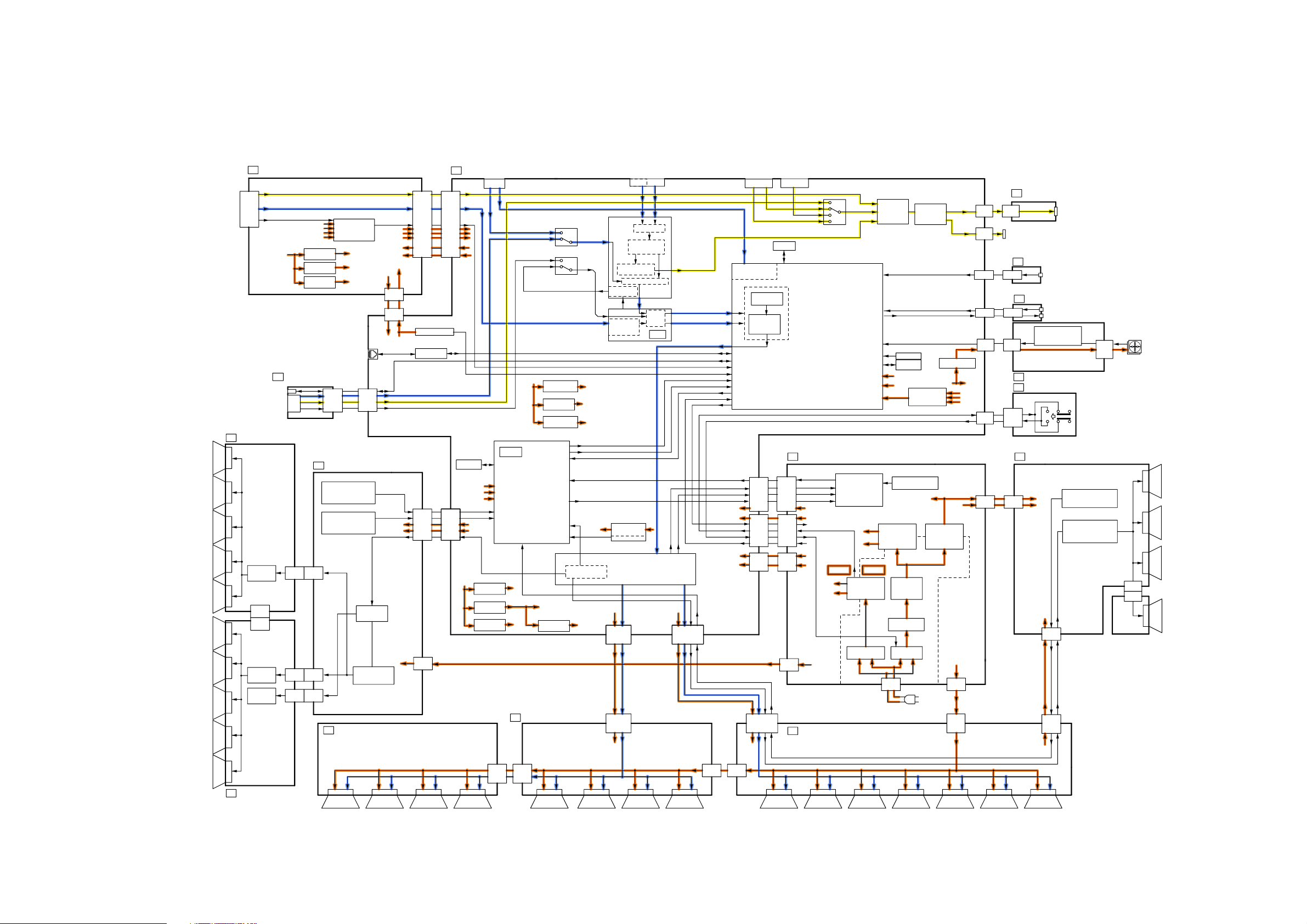

11.1. Main Block Diagram

TH-50PF20E / TH-50PF20ER

37

TH-50PF20E / TH-50PF20ER

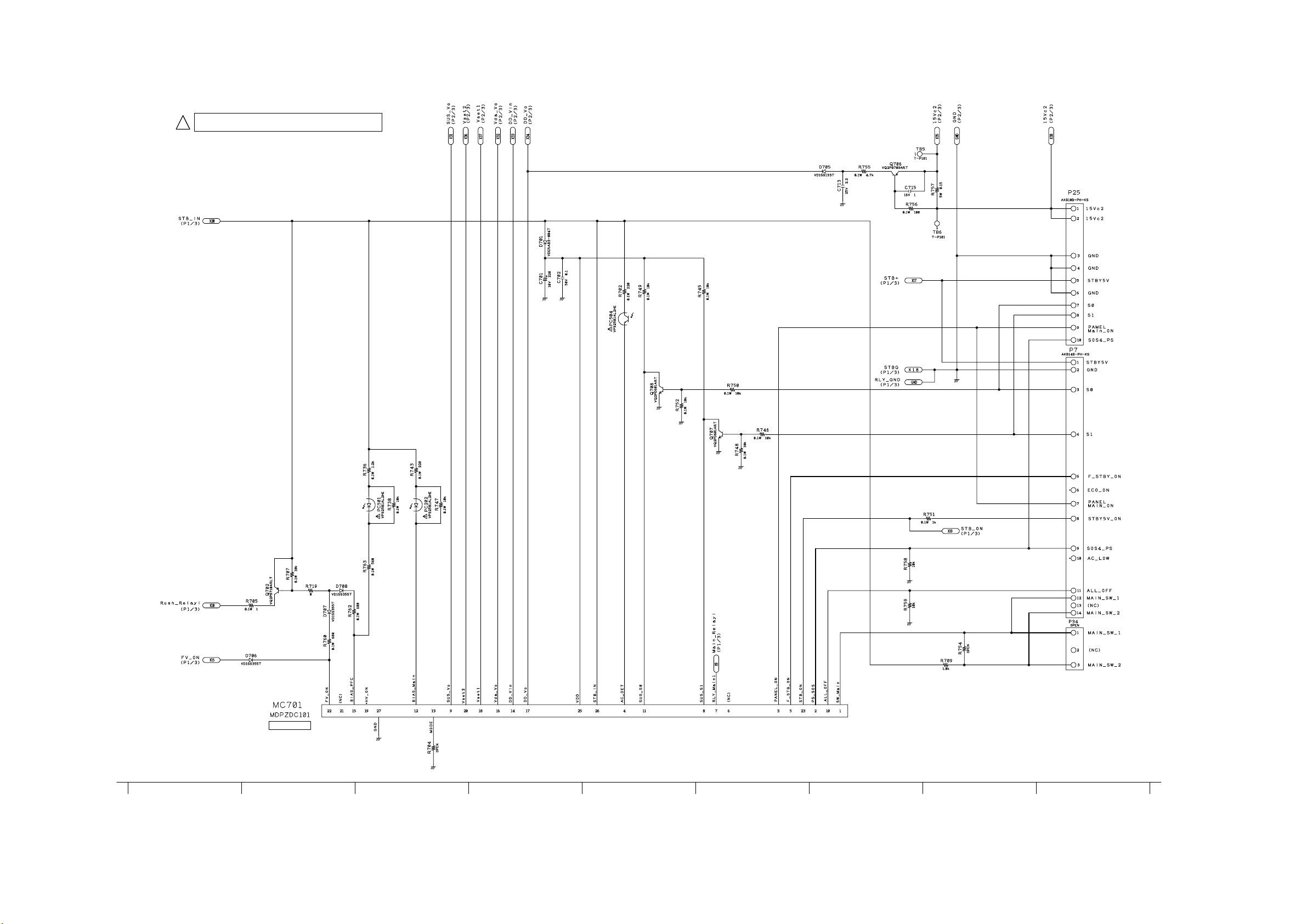

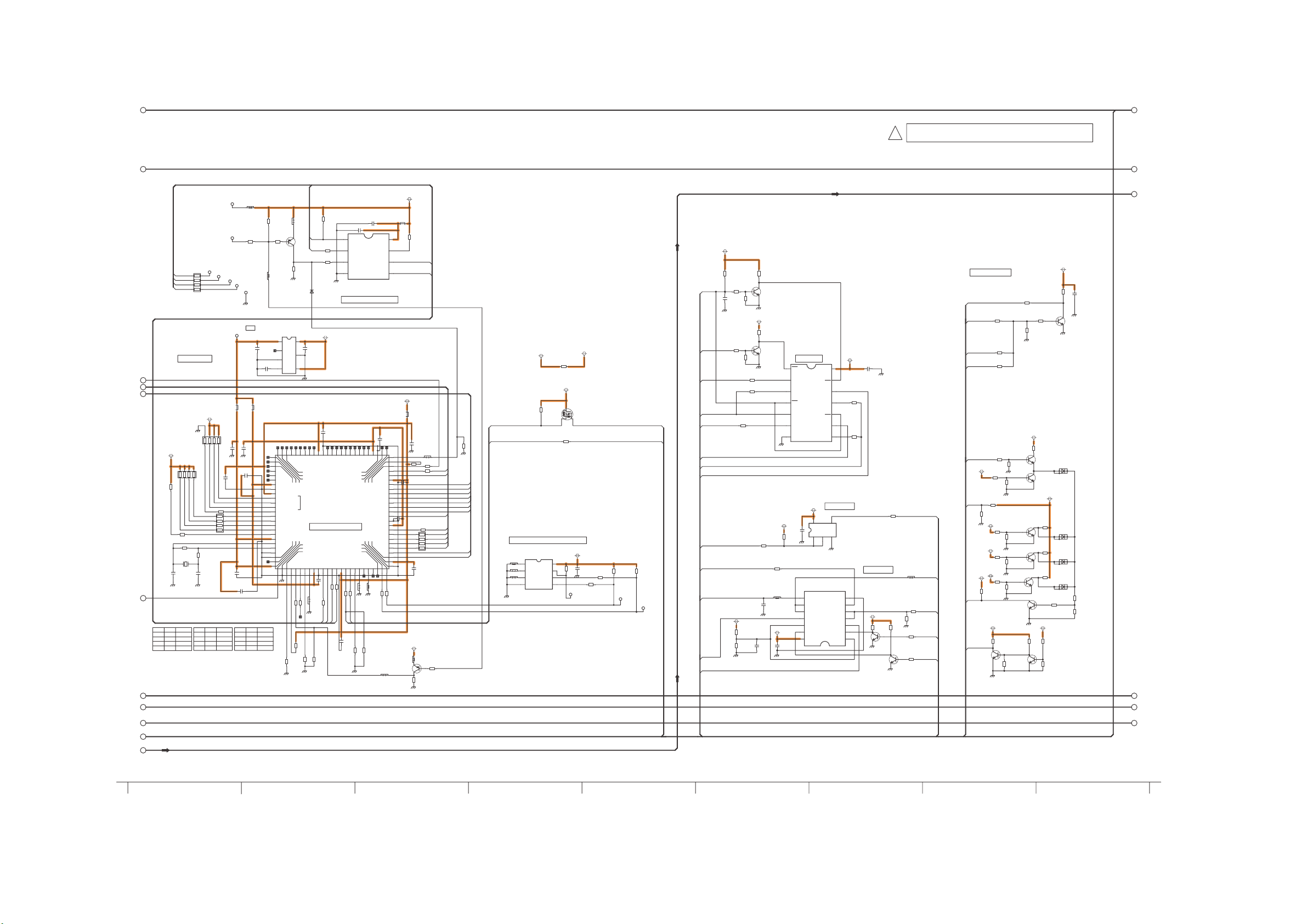

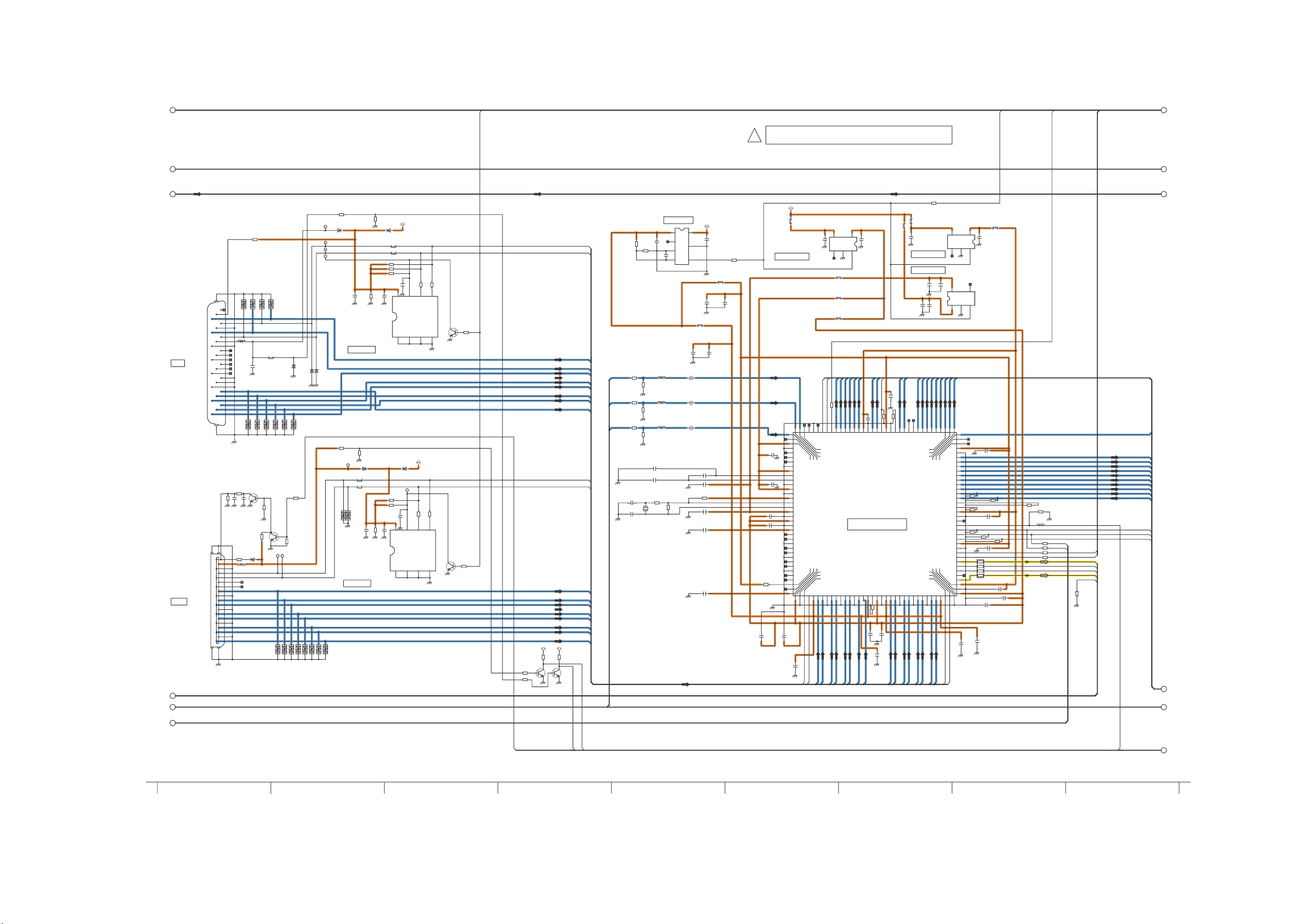

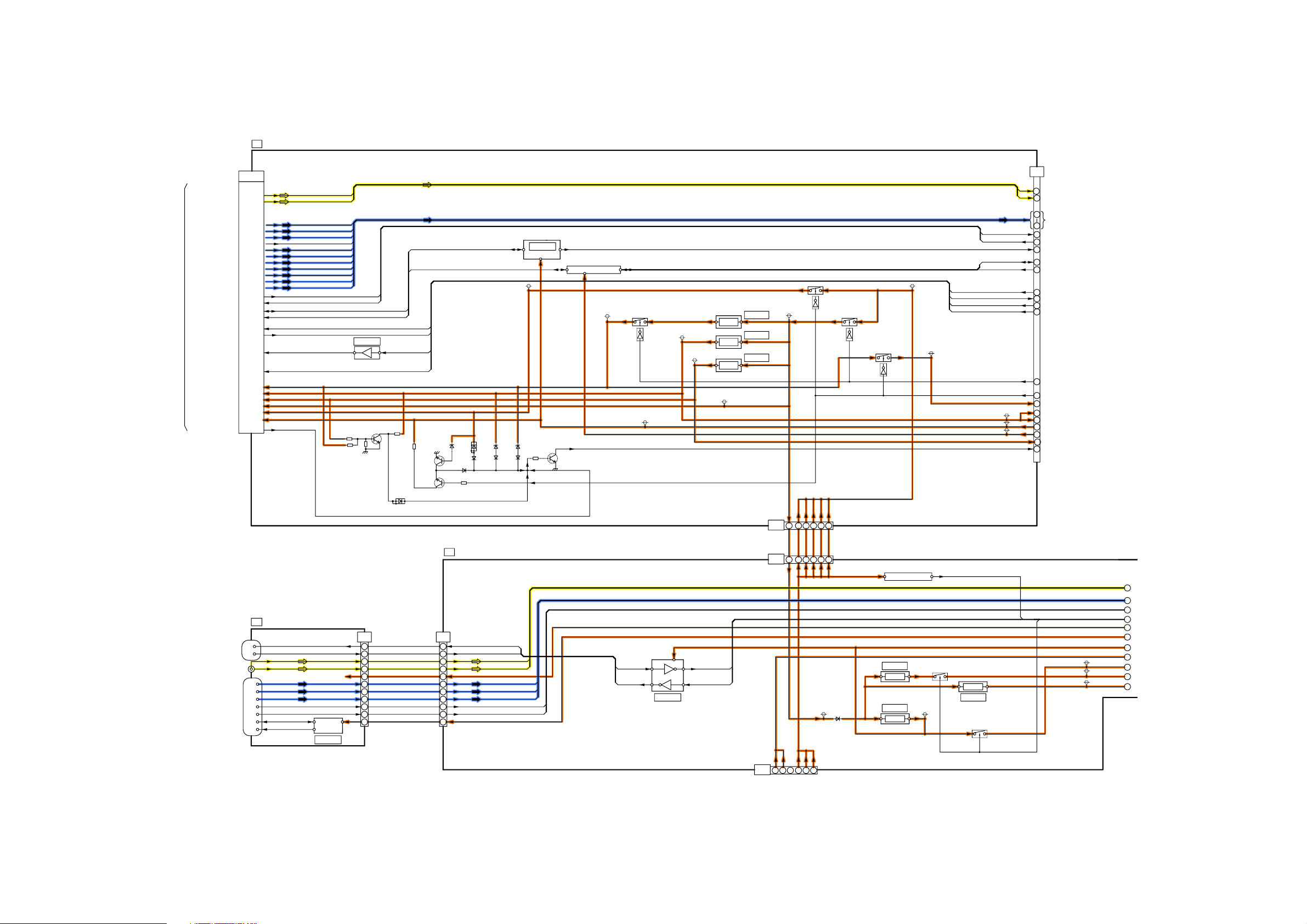

11.2. Block (1 of 5) Diagram

DS SLOT INTERFACE

DS2

TX3+/-

TX9+/-

TX8+/-

TXC+/-

TX7+/-

TX2+/-

TX6+/-

TX1+/-

TX5+/-

TX0+/-

TX4+/-

REMOTE

RESET

SLOT5V

SLOT9V

LAN14V

STB5V

A26

A28

B14

B15

A15

A14

A13

A12

B11

B12

A9

A10

B9

B8

A7

A8

B6

B5

A5

A4

B2

B3

A3

A2

RXD

B26

TXD

B27

B24

B25

B23

B28

B30

B35

B17

A17

B19

A19

A21

B21

B37

B38

A40

B40

A22

SOS

B31

SLOT1

AUDIO IN L

AUDIO IN R

IIC_DATA1

IIC_CLOCK1

IIC_CONT1(SRQ)

PLUG DET

SLOT3.3V

SLOT15V

A_ED+/-

A_OE+/-

A_OD+/-

A_CLK+/-

A_OC+/-

A_EC+/-

A_OB+/-

A_EB+/-

A_OA+/-

A_EA+/-

A_EE+/-

RXD_S1

TXD_S1

SDA_S1

SCL_S1

IIC_CONT

SLOT1_DET

REMOTE_OUT_S1

RESET

DS1

A1

49

L_1

R_1

IIC3

IC3120

IC3100

REMOTE OUT

3.3V->5V

Q3100,01

SHORT SOS

D3100,01

R3110

Q3103

Q3104

D3104

D3102

D3109

D3103

D3110

D3108

D3105

OVER VOLTAGE SOS

R3111

LAN+14V

D3111

D3112

TIME CLOCK

R3108

LAN14V_ON/OFF

IIC3

(LED:10TIMES)

Q3102

Q3120,21

5V<->3.3V

SLOT+3.3V

IIC3

STB+5V

Q3005

Q3004

15V_ON/OFF

Q3002

IC3002

+5V

+3.3V

IC3001

+5V

+9V

+15V

IC3000

+9V

+15V

Q3000

LAN+14V_ON/OFF

Q3003

Q3001

15V_ON/OFF

Q3007

F+15V

LAN+3.3V

Q3006

IIC_CONT

SLOT1_DET

REMOTE_OUT

RESET

A_OA+­A_EA+­A_CLK+-

SLOT_RXD

SLOT_TXD

SDA3

SCL3

STB+3.3V

STB+5V

-

-

+5V

OE+­ EE+-

DS_SOS

AUDIO IN L

47

AUDIO IN R

33

2

58

RXD_TU

59

TXD_TU

57

RTC INT

63

S_DATA3

64

S_CLOCK3

65

IIC_CONT

61

SLOT1_DET

55

REMOTE_OUT

54

RESET

51

15V_ON/OFF

LAN+14V_ON/OFF

52

44

LAN+3.3V

38

P+5V

39

P+5V

40

STB+5V

36

STB+3.3V

SLOT+9V

41

60

DS_SOS

A_OA+­A_EA+­A_CLK+-

-

OE+-

-

EE+-

JK3509

RS232C

JK3513

PC AUDIO IN

JK3511

PC IN

HX

PC/RS232C TERMINAL

2

3

1

2

3

13

14

12

15

IIC_DATA

IIC_CLOCK

EEPROM

IC3502

11

3

4

5

1

A13

SOUND+15V

2

1 3

11

P+15V

2

F+15V

F+15V

F+15V

F+15V

F+15V

2

4

5

1

3

F+15V_MON

IC4903

+1.8V

Q4661,62

Q4901,02

+1.2V

SW+3.3V

P+1.8V

STB+1.2V

1

2

3

4

5

6

7

8

9

10

11

IC4902

IC4901

+15V(P)

F+15V

9

8

7

NC

+3.3V

STB+3.3V

P_ON/OFF

Q4903,04

DS13

A

DIGITAL SIGNAL PROCESSOR

HX1

14

12

11

10

+9V

TXD_PC

RXD_PC

L_PC

R_PC

SLOT+9V

8

6

4

3

2

1

PR_PC

Y_PC

PB_PC

HD_PC

VD_PC

5V

A14

1515

14

12

11

10

8

6

4

3

2

1

TXD_PC

RXD_PC

SLOT+9V

PR_PC

PB_PC

HD_PC

VD_PC

L_PC

R_PC

Y_PC

5V

RXD_PC

TXD_PC

IC4301

RS232C
DRIVER

VCC

RXD_PC

TXD_PC

A10

P6

38

11.3. Block (2 of 5) Diagram

G

G

TXD_PC

F_STB_ON

REMOTE_IN

TXD_PC_M

VSYNC_ON/OFF

DPMS_HD

FAN_CONT

FAN_SOS

FAN_ON/OFF

RXD_PC

TXD_LAN

RXD_LAN

D_RXD

D_TXD

DPMS_VD

ALL_OFF

A+5V

A+1.8V

A+3.3V

FAN+15V

A+9V

A+5V

STBY+5V

A+3.3V

A+5V

FL4961

+3.3V_LAN

VDD

10bit A/D

36

3

PI1HS,PI1VS

74.25MHz

V1

+3.3V

RECEIVER

HDMI_CEC

D1550

STBY+3.3V

IC4515

IC4451

3

JK4001

REMOTE_OUT

+

1

HDMI

HD

+5V(FAN)

Y/G

12

FAN-SOS

VCC

17

3V_SCL3

3.3V

PB30

CLD

VIDEO
PROCESSOR

1

20MHz

STBY+5V

VOUT

HDA,VDA

GE0-9(10bit)

HDA,VDA

A11

MAIN SW2

LED_R

IC3272

10

30bitx2_ASIC OUT

V22

PI2G0-G9

HDMI_DET

FAN VOLTAGE
CONTROL

DVI IN

ASIC OUT A

3

A_OA+-

-

OE+-

5V->3.3V

67

IC4001

EEPROM

TTL

+1.8V

+1.8V

PI2B0-B9

PB32

POWER LED

SW

1

IC8301

PR-M/PB-M/Y-M

14

RESET

A5

VCC

11

ON

JK8301

IIC2

MII_MDC

1

TXD

V1_V

KEY INPUT

IC3271

EEPROM

IC8304

-

+3.3V

RTC INT

5V<->3.3V

DVDD
+1.8V

KEY SWITCH

SPI

MCCLK

VCC

DVDDIC
+3.3V

VCC1

CLKM/20MHz

A43

RESET

Y/PB/PR_PC

DECODE

3

LAN
CONTROL

RE0-9(10bit)

KEY SW

PARALLEL

LED_R

MII_TXD/
MII_RXD

+5V(HDMI)

S1

UART

30bit

IIC_IF

A+5V

IC8302

15

HDMI IN

30bit

EEPROM

LED_G

+5V(DVI)

25MHZ

JK3201

33

31

RESET

Y/PB/PR_HA

3

100BASE-TX

1

IC4004

+1.8V

DDC IIC

+5V

LAN+14V_ON/OFF

STBY+3.3V

20

FOR
FACTORY
USE

Q3211,12

MII DATA

VCC2

VD

CLK

SDA/
SCL

30bit_RGB VIDEO SIGNAL PROCESSOR

MII_TXD
MII_RXD

HDMI

DDC IIC

HD

10BASE-T/

SYNC SIGNAL
PROCESSOR

DVI_DET

4

SDA/
SCL

ASIC

REMOTE RECEIVER/LED

+1.8V

LVDS

RXD

+3.3V

FOR
FACTORY
USE

IC8308

A46

V2 KEY SWITCH

+3.3V

PVDD
+1.8V

HD

+1.8V

SPI
FRASH
MEMORY

IC4201

IC4981

CONTROL IIC

VIDEO IN SELECTOR

7

IC8303

HD_M/
VD_M

IC8305

25MHZ

CLOCK GEN

IC4312

CLOCK

REMOTE

PB33

1

25

SYNC SIGNAL PROCESSOR

2

SELECTOR

OR

LAN+3.3V

3

NETWORK
CONTROL

HD_M

10/100
EtherMAC
w/FIFO

6

+9V(FAN)

LAN
DATA

28

9

COMPONENT SELECT

PI1B0-B9

TXD_TU

VIDEO IN

H/V

LED_R

SEPA

HDMI I/F RECEIVER

+5V

HDMI PROCESSOR

SLOT1_DET

COMPONENT SELECT

A9

5

3V_SDA3

IIC_CONT

1

Y0,Y1,UV0,UV1

JK4002

PI1D(0)-(29)

HDCP KEY

+7/12V

RXD_TU

[A]

LVDS RECEIVER & TTL PARALLEL

CLK

6

DPMS_HD 5V->3.3V

6

29

HD_ADA
VD_ADA

PI2HS,PI2VS

SYNC PROCESSOR

TMDS DATA

CLOCK

A_EA+-- EE+-

2

MAIN

22

A+5V

1

V11

HD/VD SELECT

IC3201

A/D CONV.

PI2D(0)-(29)

AD_G0-G9

DIGITAL SIGNAL PROCESSOR

LED_G

POWER SW
SW061

Q3271,72
D3271,72

Q4981,82

IC3202

5VNRST

MAIN SW1

DPMS_VD 5V->3.3V

HD/VD SELECT

SEPA

Y2-Y9

4

HS,VS,CLK

VD

A35

POWER SWITCH

A1

DATA

A_CLK+-

P7

VD

ASIC-ARM

V Sync

3

AVDD
+1.8V

DS_SOS

30

IC4003

A+9V

5V->3.3V

PB34

TEMP
SENSOR

+1.8V

TMDS DATA

CLOCK

Q4157

IC4281,82

S35

DS1

8

Q4451,52

RM001

IC4005

SDA/SCL

9

HDMI_CEC

H/V

A

PI2R0-R9

Q4104

ASIC OUT B

IC4002

CLK

UV2-UV9

IC4007

PR/R

DATA

A22

VD_M

MCLD

3

DDCB_IIC

DDCC_IIC

PB/B

MCDATA

FAN SOS DET

PI1G0-G9

AUDIO IN L

Q3273,74
D3273,74

1

CLK5

Q3203

R/G/B

3

AUDIO IN R

18

IC4006

IC4361

REMOTE RECEIVER

6

AD_R0-R9

IIC3

+5V

R/G/B

H Sync

4

Q3201,02

SYNC SEPA
SIGNAL

IIC2

+3.3V

1

PI1R0-R9

LED_G

HS,VS,CLK

15V_ON/OFF

1

IIC

BE0-9(10bit)

30bit

AD_B0-B9

8

11

10

6

7

2

3

5

1

9

4

35

38

33

34

31

36

32

37

30

29

27

28

26

24

39

23

22

21

25

IIC3

28.64636
MHz

IIC2

TVDD
+3.3V

CVDD
+1.8V

20MHz

+1.8V

(LED:11TIMES)

(LED:11TIMES)

FAN_A-C

PB FAN CONTROL

TH-50PF20E / TH-50PF20ER

39

TH-50PF20E / TH-50PF20ER

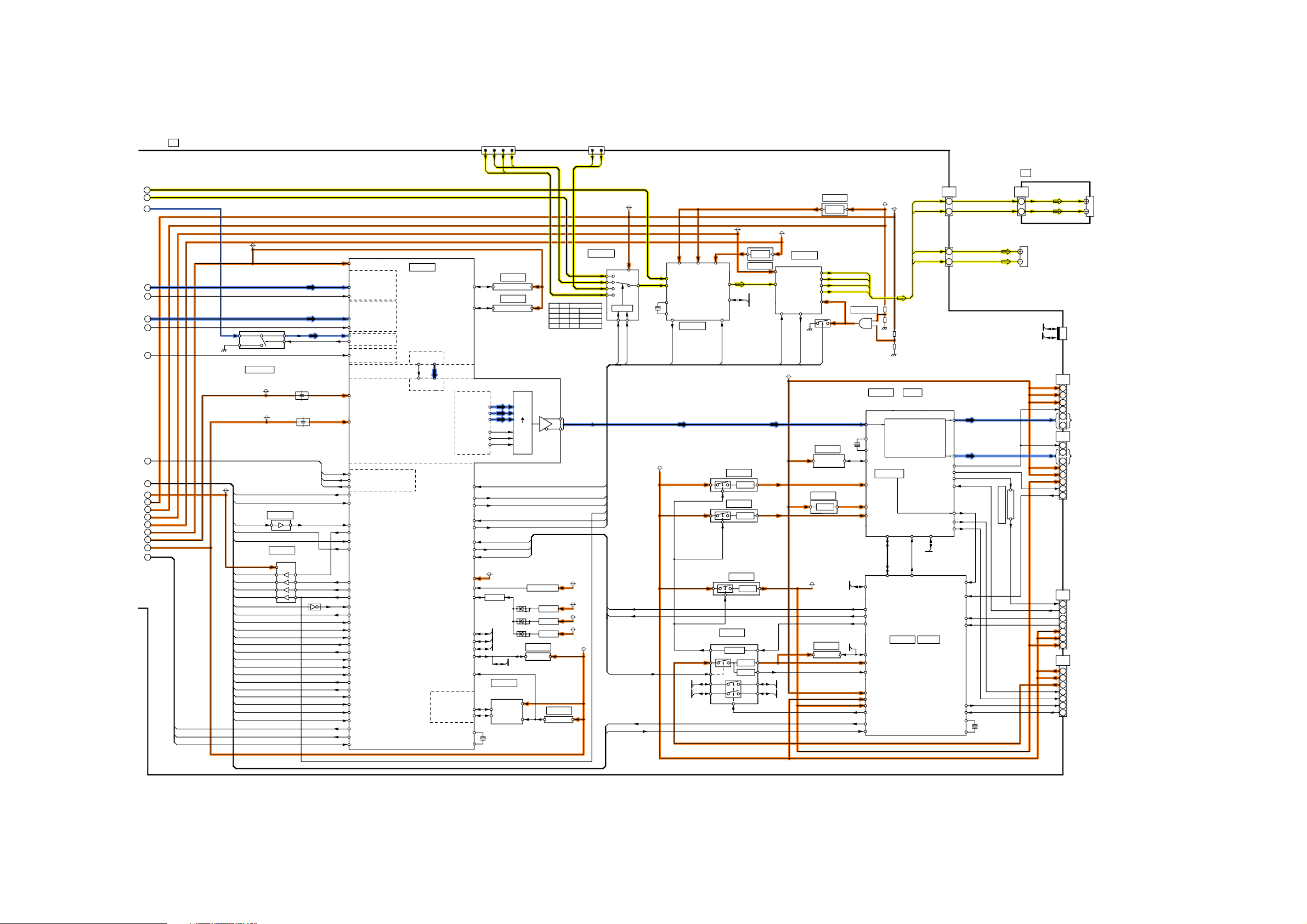

11.4. Block (3 of 5) Diagram

JK2401

L1

R2

L2

IC4502

DDR_SDRAM

IC4503

DDR_SDRAM

PANEL_STBY_ON

A+5V

Q4670

IIC2

IIC3

IIC4

IC4702

16Mbit

FLASH MEMORY

A0-A19

DQ0-DQ15

36MHz

(COMPONENT)

R1

AUDIO INPUT(L/R_HA)

LVDS

DATA

PARALLEL

TTL

ALARM

READY

A+15V SOS

Q4663,64

+1.8V SOS

D4663

+9V SOS

D4664

+3.3V SOS

D4665

IC4703

EEPROM

IIC1

Q4667

Q4668

Q4669

IC4501

SCX1

IP CONVERTER

SCX1 IN

SCX1 IN

SCX1

(COMPOSITE)

AUDIO IN(L/R_CV)

DDR_SDRAM

INTERFACE

DDR_SDRAM
INTERFACE

SCX1

MICOM

AUD_SEL1

AUD_SEL2

AUDIO_SOS

SOUND_MUTE

PANEL SOS

PANEL STBY ON

PANEL_STATUS

A+5V SOS

(LED:10TIME)

A+15V SOS

(LED:2TIME)

DN BOARD SOS

(LED:13TIME)

SDA2/SCL2

SDA3/SCL3

SDA4/SCL4

SDA1/SCL1

FLASH MEMORY
INTER FACE

ADDRESS
DATA

LVDS OUT

XIRQ3

RST

VSYNC

HSYNC

CLK_O

ROUT

GOUT

BOUT

A

DIGITAL SIGNAL PROCESSOR

21

22

23

A+1.8V

+1.8V

SCX IN A

DATA

CLD

CLK

PI1D(0)-(9)
PI1D(10)-(19)
PI1D(20)-(29)

HS,VS,CLK

SCX IN B

PI2D(0)-(9)
PI2D(10)-(19)
PI2D(20)-(29)

HS,VS,CLK

VIDEO DECODER

CLOCK IN

POCLK/74.25M

+1.2V

VIDEO SIGNAL PROCESSOR

+3.3V

OSD
10bit LVDS

FPGA_DATAIN

FPGA_LD

FPGA_CLK

POWER_ON/OFF

DS BOARD SOS

RXD_TU

TXD_TU

RXD_PC

TXD_PC

LED_R

LED_G

LSI RESET

REMOTE IN

IIC CONT

DPMS_HD

DPMS_VD

RTC_INT

SOUND_MUTE

STB_ON

KEY_INPUT

ALL_OFF

FSTB+15V_MON

LAN+14V_ON/OFF

15V_ON/OFF

SLOT1_DET

HDMI_DET

DVI_DET

VSYNC_ON/OFF

FAN_CONT

FAN_ON/OFF

FAN_SOS

(LED:11TIMES)

ASIC-ARM

(LED:10TIME)

(LED:2TIMES)

IC4382

STBY+1.2V

STBY+3.3V

PI1D(0)-(29)

PI1HS,PI1VS

PI2D(0)-(29)

PI2HS,PI2VS

IC4314

IC4313

5V<-3.3V

5V

24

25

26

27

28

29

30

31

32

33

34

35

36

37

38

39

FAN_CONT

FAN_ON/OFF

FAN_SOS

STBY+5V

VIDEO SWITCH

P_ON/OFF

DS_SOS

5VRXD_TU

TXD_PC_M

RXD_PC

5VTXD_TU

LED_R

LED_G

5VNRST

REMOTE_IN

IIC_CONT

DPMS_VD

DPMS_HD

RTC_INT

SOUND_MUTE

F_STB_ON

KEY_INPUT

ALL_OFF

FSTB+15V_MON

LAN+14V_ON/OFF

15V_ON/OFF

SLOT1_DET

HDMI_DET

DVI_DET

VSYNC_ON/OFF

VOUT

FL4008

FL4007

G

G

G

G

3.3VRXD_TU

Q4351

30bit

30bit

SEL1

L

H

L

H

-

+

IC4704

RESET

SEL2

L

L

H

H

LVDS DATA

A+15V

A+1.8V

A+9V

A+3.3V

STBY+3.3V

JK2402

IN1

IN2

IN3

IN4

L/R_PC

L/R_HA

L/R_DVI

L/R_CV

OUTPUT

PC

COMPONENT

DVI

COMPOSITE

R3

L3

IC2306

AUDIO INPUT
SELECT

XIRQ3

NRST

(DVI)

AUDIO IN(L/R_DVI)

A+9V

VCC

LOGIC

AUD_SEL1

AUD_SEL2

ALARM

READY

PANEL_STBY_ON

D_TXD

D_RXD

L/R

24.576
MHz

P+15V

ODVDD

AVDD

INT1

IC2303

SOUND CONTROL

XIRQ3

STB_
IIC2

STB_
IIC1

SOUND+15V

DVDD

SDA/SCL

RESET

NRST

IC9004

STB+3.3V/RESET

BUFFER

IIC2

IC9803

IC9800

IC9801

+3.3V

+1.2V

+3.3V

RESET

+5V

+1.8V

IC2305

P3V_
IIC2

P3V_
IIC1

VCC

PWM IN

NRST

A+3.3V

STBY

P+3.3V

IC2301

SP AMP

AUDIO_SOS

OUT+

OUT-

OUT+

OUT-

MUTE

AUDIO SOS

LVDS DATA

IC9802

P+5V

IC9001

EEPROM

IC2304

+3.3V

Q2301

SOUND_MUTE

IC9304

FLASH
MEMORY

+2.5V

ALARM

READY

20MHz

STB_IIC1

STB_IIC2

L_OUT+

L_OUT-

R_OUT+

R_OUT-

A+5V

IC2302

IC9300

VIDEO/PANEL CONTROL

FLASH I/F

DISCHARGE
CONTROL

+3.3V

+2.5V

+1.2V

OSD I/F

OSD I/F

IIC

PANEL SOS

PANEL STATUS

POWER ON/OFF

IIC

STB+3.3V

RESET

+3.3V(P)DET

+15V(P)DET

+5V(P)DET

IIC_SW

D_TXD

D_RXD

R OUT+

A+9V

R OUT-

L OUT+

L OUT-

PD4H

LVDS RX

CPG with SS

H/V SYNC CONTROL

SUB-FIELD PROCESSOR

PLASMA AI

CONTROL DATA

SUSTAIN CONTROL

SCAN CONTROL

P3V_IIC2

DRVRST

GenX7

IC9003

PANEL MICOM

(LED:3TIMES)

(LED:2TIMES)

(LED:5TIMES)

DCC_SOS

IIC

(LED:9TIMES)

(LED:8TIMES)

(LED:6TIMES)

(LED:7TIMES)

PANEL MAIN
ON

POWER SOS

(LED:4TIMES)

A8

1

3

UHZ

P_S0

P_S1

DCC_SOS

SOS8_SS

SOS6_SC1

SOS7_SC2

JK2301

VIDEO DATA

VIDEO DATA

SP_R+

SP_R-

SP_L+

SP_L-

10MHz

H37

BUFFER

IC9400-02

H3

1

3

SPEAKER
TERMINALS

JK8500

SPEAKER R
TERMINAL

P3V_IIC1

STB_IIC2

A6

C21

A31

38

P+3.3V

39

P+3.3V

40

P+3.3V

CONTROL DATA

11

VIDEO DATA

35

C31

A32

CONTROL DATA

3

VIDEO DATA

31

52

P+3.3V

53

P+3.3V

55

P+5V

SUSTAIN CONTROL

49

SOS8_SS

A20

SC20

SCAN CONTROL

UHZ

18

15

SOS6_SC1

16

SOS7_SC2

29

P+15V

30

P+15V

1

P+5V

A25

P25

1

P+15V

2

P+15V

5

STB+5V

7

VSUS_CON_S0

8

VSUS_CON_S1

9

PANEL MAIN ON

10

POWER SOS

FOR
FACTORY
USE

JK8500

SPEAKER L
TERMINAL

40

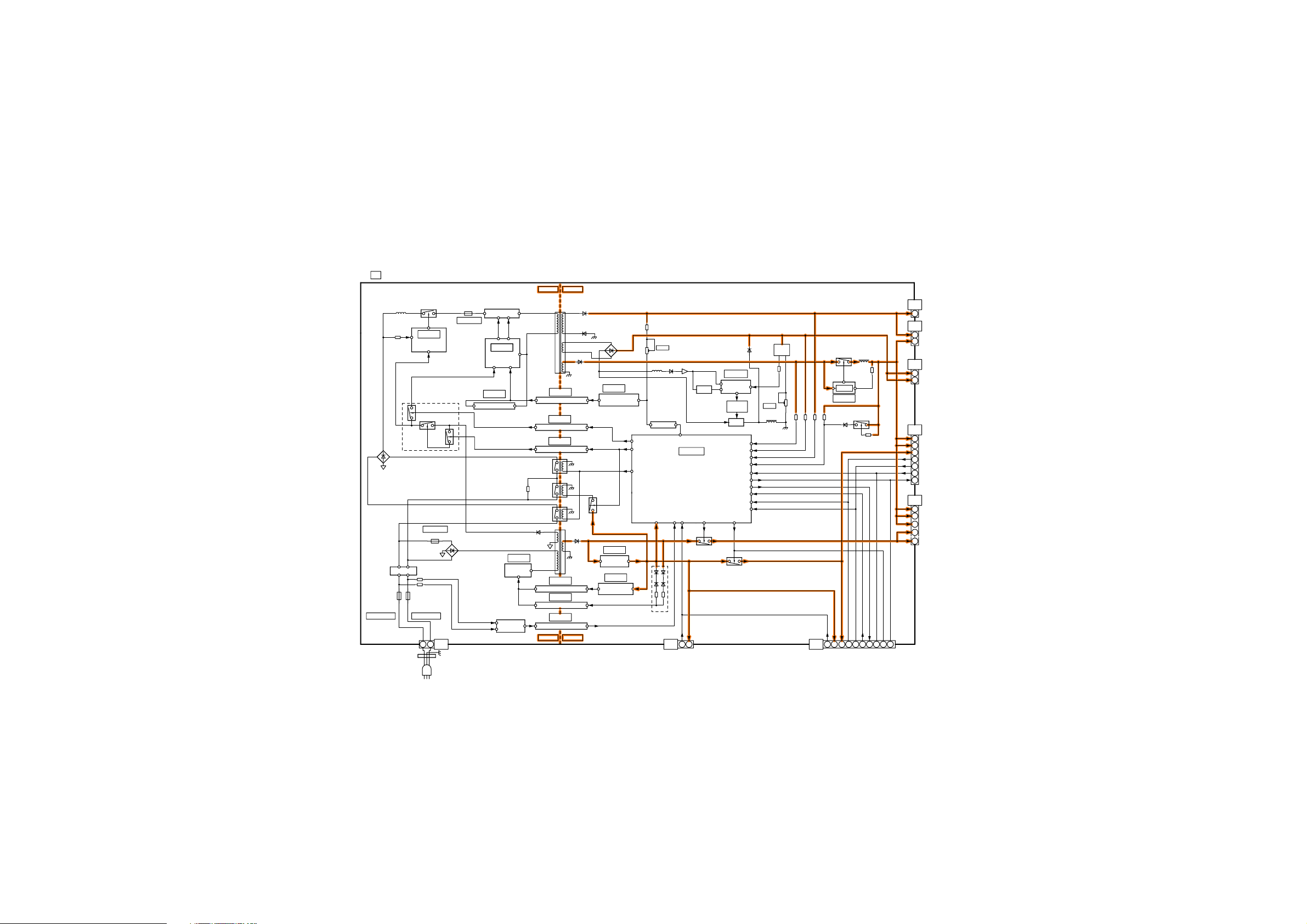

11.5. Block (4 of 5) Diagram

NO
HOLDER

NO

HOLDER

NO

HOLDERNOHOLDER

D403

F501

D351

D504

D401

D551,52

D705

F201

F602

D402

F601

D253

D254

Vda

Vda
DET

IC403

AC DET

PC202

7

ALL OFF

P6

AC CORD

PC502

SC2

1

FILTER

8

Vda_Vo

Q503

7

P+15V

10

VSUS_CON_S1

CONT

1

Q405
Q406

3

FET
DRIVER

P34

VDET

Vda
DET

T201

F+15V

Q201,Q202

IC201

P35

K605

3

RESONANCE

2

MC701

L603

STB+5V

P+15V

PHOTO COUPLER

MAIN SW2

MAIN SW1

PC504

PFC

Vsus

IC551

IC202

STB5V_

ON/OFF

P

10A 250V

Q402

IC251

Q408

Q601,04,06

S0

L601,L602

Vsus

POWER SUPPLY

5A 250V

BIAS_PFC

9

Q401

9

P25

Q602,Q603

DET

5

LIVE

A25

RECTIFIER

PANEL MAIN ON

A9

9

STB+5V

Q557

PANEL_MAIN_ON

2

POWER SOS

15V_IN

Vsus

1

1

T501

BIAS

11

PHOTO COUPLER

1

LIVE

Q404

D603

PHOTO COUPLER

2A 250V

Q706

L401

4

S1

NEUTRAL

IC352

+5V

COMPARATOR

VR401

Vda
CONTROL

L351

5

F+15V

D501

RESONANCE
CONTROL

1

15V_OUT DET

Q551

Vsus

BIAS_MAIN

A10

VR251

BIAS 5V

PC501

MAIN SW1

IC601

MAIN RELAY_ON

1

4

VSUS_CON_S0

Q403

SOUND+15V

STB+5V

Vda

P+15V

Vda

MAIN SW2

Q355

F_STB ON

P11

Vsus_Vo

BIAS_PFC

TV SUB ON

L402

P9

SOS4_PS

RF601

10A 250V

2

F_15V_ON

15V

FB

7

P+15V

VC1

RECTIFIER

CONTROL

BIAS_MAIN

12

PHOTO COUPLER

SOUND+15V

PHOTO COUPLER

STB
ERROR DET

STB

Vda

Q504

IC501

MAIN SW_ON

K604

8

P+15V

3

SS11

POWER COTROL

P2

14

Q203

VGH

VSET1/VSET2

Vsus
ERROR DET

AC DET

C35

2

VGL

PC201

OCP

VSET1/2

K602

P7

Q502,05,06

ALL OFF

Q407

Q251,Q252

F+15V

NEUTRAL

Q702

1

NO USE

NC

NC

NCNCNC

NC

PC503

PHOTO COUPLER

MC551

5V

OVP DET

COLDHOT

COLDHOT

(LED:4TIMES)

TH-50PF20E / TH-50PF20ER

41

TH-50PF20E / TH-50PF20ER

11.6. Block (5 of 5) Diagram

SC

SCAN DRIVE

P+15V

P+15V

SOS6_SC1

SOS7_SC2

SCAN CONTROL

P2

SC2

1

Vsus

IC16771

Vad+5V

PC16461


COUPLER

IC16501

CSH/CMH GATE
DRIVE CIRCUIT

IC16521

CSL/CML GATE
DRIVE CIRCUIT

IC16581

TPSOS6

(LED:6TIMES)

SCAN
CONTROL

ERROR DET

D16822

TPSOS7

(LED:7TIMES)

SC

A20

20

7

6

35

P+5V

18

UHZ

21

20

TPVSUS

15V_F

D16476

D16473

F16V

IC16661

COMPARATOR

IC16920

COMPARATOR

IC16784,85

PC16896,97

IPD CIRCUIT

VAD GEN.
SHUNT REG

Q16885

F16V GEN.

IC16786,87

PC16722,23

IPD CIRCUIT

VSCN GEN.
SHUNT REG

IC16724

+5V

(SC1)

D16475

CRC1

CRC2

CEL

CEL

CHA

SCNR_PRO

IC16773

INVERTER

T16471

IC16691

NAND

TPVSCN

Q16608

D16901

IC16692

SHUNT

REG.

D16728

F16V

D16618

PC16603

PHOTO COUPLER

MID

PC16684

PHOTO COUPLER

VRH

VRL

D16482

Q16452

Q16421
Q16422

IC16561,62

CMH

CSH

CMH

Q16402
Q16403

D16462

Q16441

CSH

CSL

CML

D16583
LED(G)

BUFFER

IC16563

D16493

INVERTER

D16920

Q16876

ERROR DET

PC16480

COUPLER

P+5V

D16820

D16480

UHZ

Q16607

CERS

CPH1

PC16685

COUPLER

VOL

CML
CMH
CSH
CSL

CRC1

IC16490,91

Q16490

SEPA PROTECT
CIRCUIT

P+15V

D16821

IC16471

SHUNT
REG

Q16601

Q16621
Q16622

CIS

CPH1
CIS
CERS
CEL

CRC2

SIU
OC1
OC2
CLK
SEL

D16490

D16871
D16872

Q16471

VFG

Vscn

D16721

(16V_F)

D16791

VFG

Q16818

TPVAD

Q16660

Q16647

D16859

IC16792,93

VHIZ GEN.

Q16661

TPSC1

5V_F

TP59,TP60
TP61,TP62

VSCN-F

SC
50

1

SC JIG

2

SUSTAIN DRIVE

SS

SU

SCAN OUT (UPPER)

IC14601-03

SCAN

SU1-SU5

PLASMA PANEL

PANEL SCAN
ELECTRODES

SD1-SD5

DRIVER

SCAN

DRIVER

IC14604-06

SU
11

SD
11

SU

SC

41

41

8

8

4

Vfo

4

2

2

IC14801-03

SD

SC

42

42

5

5

6

6

2

2

Vfo

1

VHIZ

SIU
OC1
OC2
CLK
SEL

1

7

7

8

8

9

9

SC

SD

46

46

SD

SCAN

DRIVER

SCAN

DRIVER

IC14804-06

VHIZ

SCNR_PRO

CHA

LOGIC IC

IC14901,02,04

SCAN OUT (LOWER)

SUSTAIN CONTROL

P11

P+15V

C33

SOS8_SS

Vsus

P+5V

SS
11

1

4

SS
33

1

7

IC16131

VSUS Gen.

DRIVER

IC16151

ENERGY

RECOVERY

IC16241

BUFFER

SUSTAIN CONTROL

TPVSUS

UMH

UML

USH

USL

(LED:8TIMES)

UEH
UML
UMH

Q16001
Q16002

Q16021
Q16022

USL
USH

TPSOS8

D16041

Q16041

Q16051

IC16251

ERROR DET

D16255

D16051

D16253
LED(G)

FPC DET

D16316

VE GEN.

COUPLER

PC16191

VE Gen.
DRIVER

D16280

IPD CIRCUIT

IC16304

PC16301

IC16312

L16303

SHUNT

REG.

UEH

UML

Q16280

ERROR DET

TPSS1

Q16101
Q16102

TPVE

D16282

SS
53

1

2

13

PLASMA PANEL

PANEL SUSTAIN
ELECTRODE

SS
56

1

2

13

SS

2

1

13

58

SS

SS

21

24

7

7

1

1

6

6

SUSTAIN

SS2

CONNECTOR
(LOWER)

VIDEO DATA

VIDEO DATA

DATA DRIVER (RIGHT)

C1

C10

40

33

VIDEO DATA

9

CONTROL DATA

4

1

CB1

CB2

CB3

CB4

PANEL DRIVER

P+3.3V

Vda

Vda

PLASMA PANEL

C20

1

8

32

37

40

A31

35

59

C21

CB5

CB6

6

33

PANEL DRIVER

P+3.3V

P+3.3V

CONTROL DATA

3

1

BUFFER

IC17201

CB7

DATA DRIVER (CENTER)

C2

CB8

C26

C36

P+3.3V

20

18

5

1

P+3.3V

Vda

Vda

1

3

16

20

CB9

CB
10

CB
11

A32

C31

BUFFER

CB
12

PANEL DRIVER

66

IC17300

VIDEO DATA

CONTROL DATA

21

SOS8_SS

P+5V

P+3.3V

SUSTAIN CONTROL

3

6

1

CB
13

DATA DRIVER (LEFT)

C3

BUFFER

IC17302

CB
14

SS33

C33

1

P+5V

7

SOS8_SS

SUSTAIN CONTROL

C35

P35

1

Vda

2

Vda

CB
15

42

12 Wiring Connection Diagram

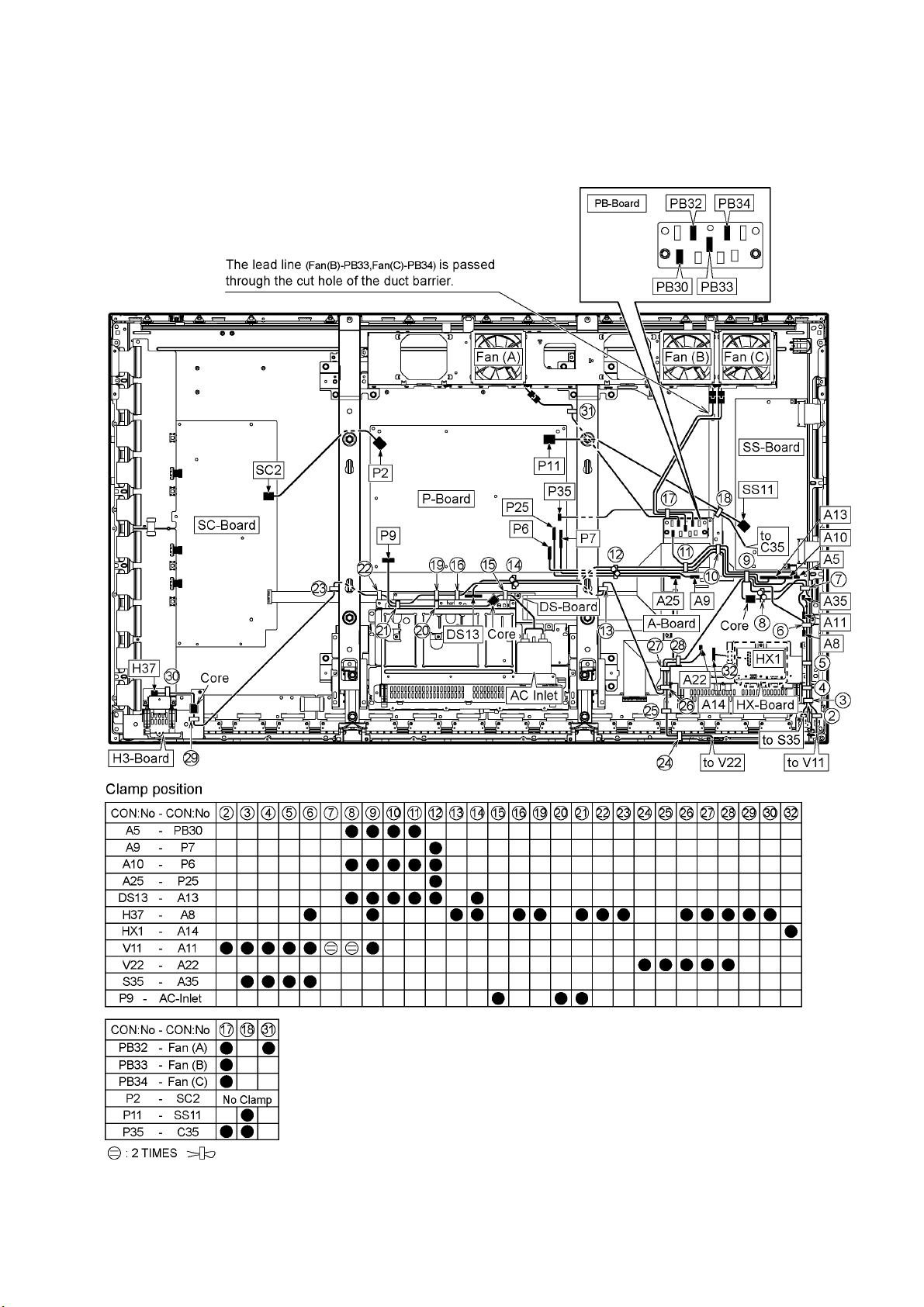

12.1. Wiring (1)

TH-50PF20E / TH-50PF20ER

43

TH-50PF20E / TH-50PF20ER

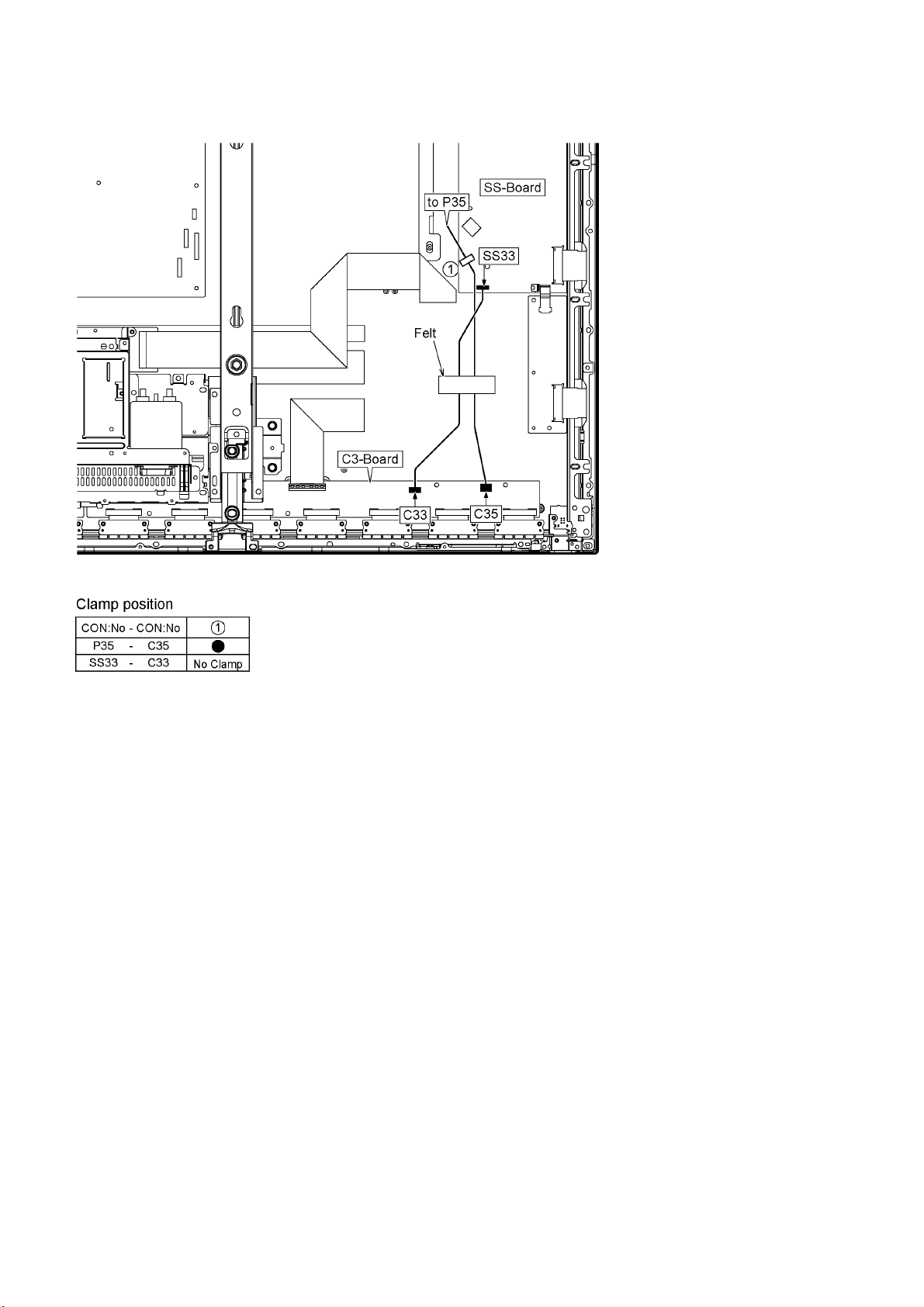

12.2. Wiring (2)

44

13 Schematic Diagram

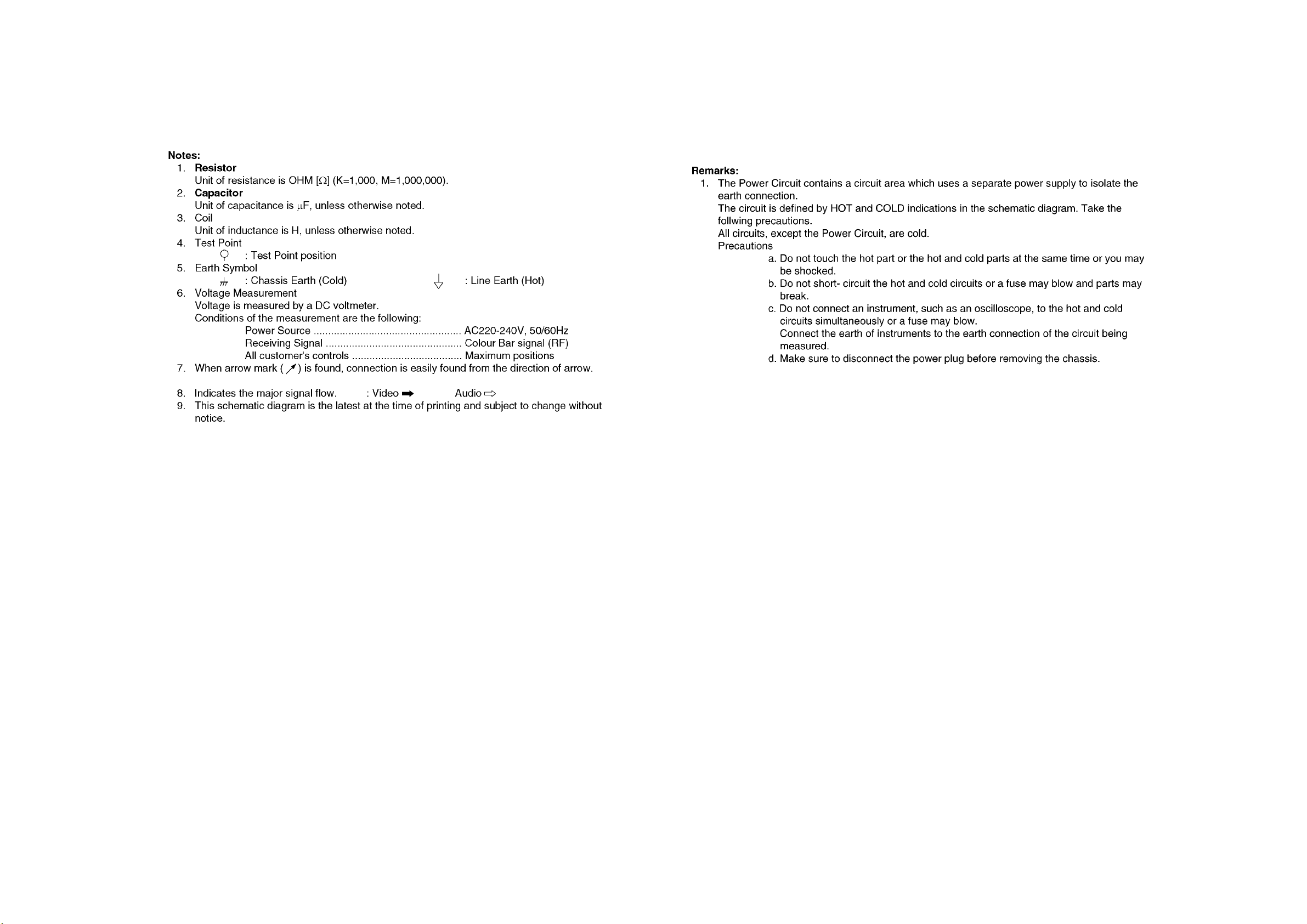

13.1. Schematic Diagram Notes

TH-50PF20E / TH-50PF20ER

45

TH-50PF20E / TH-50PF20ER

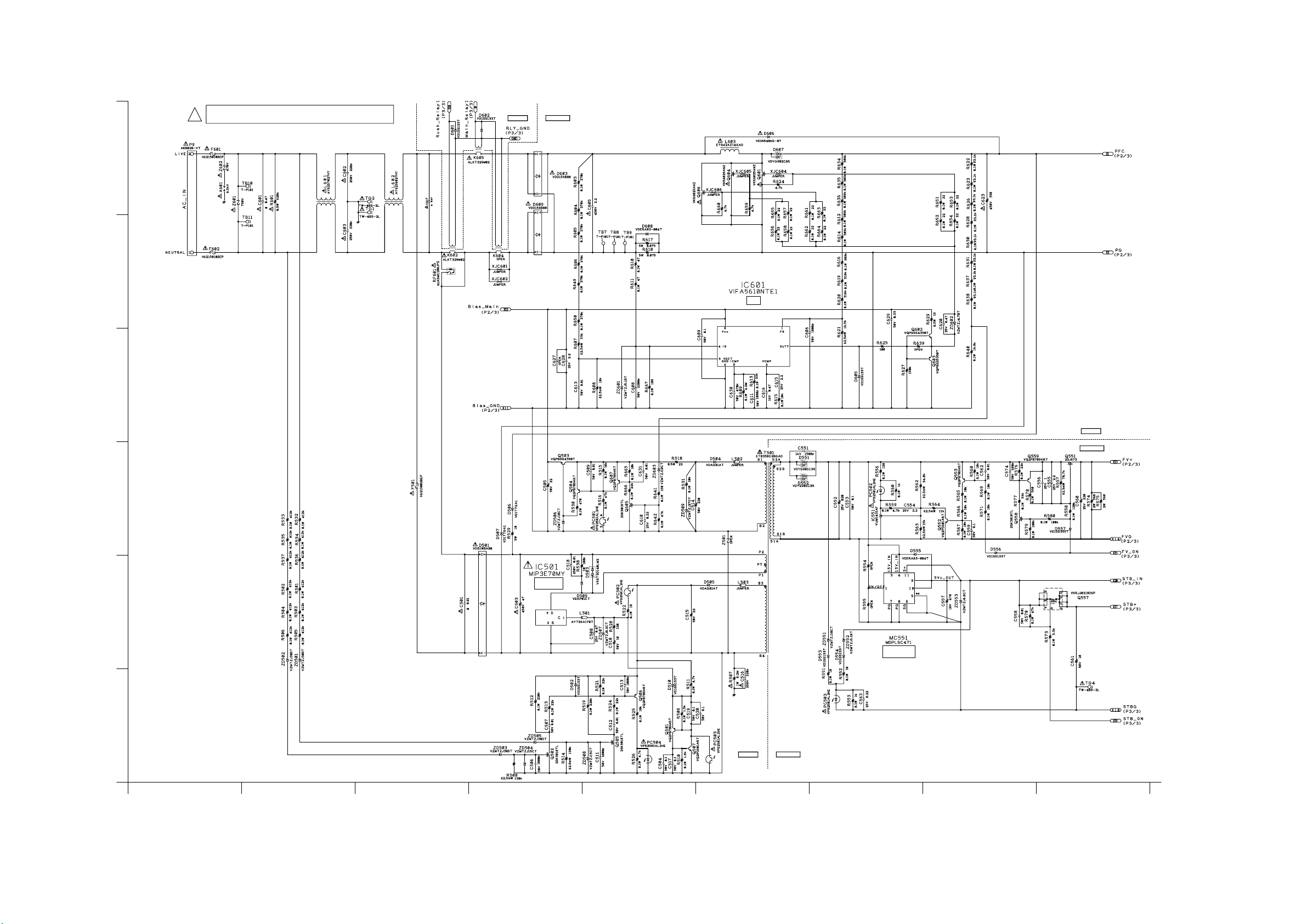

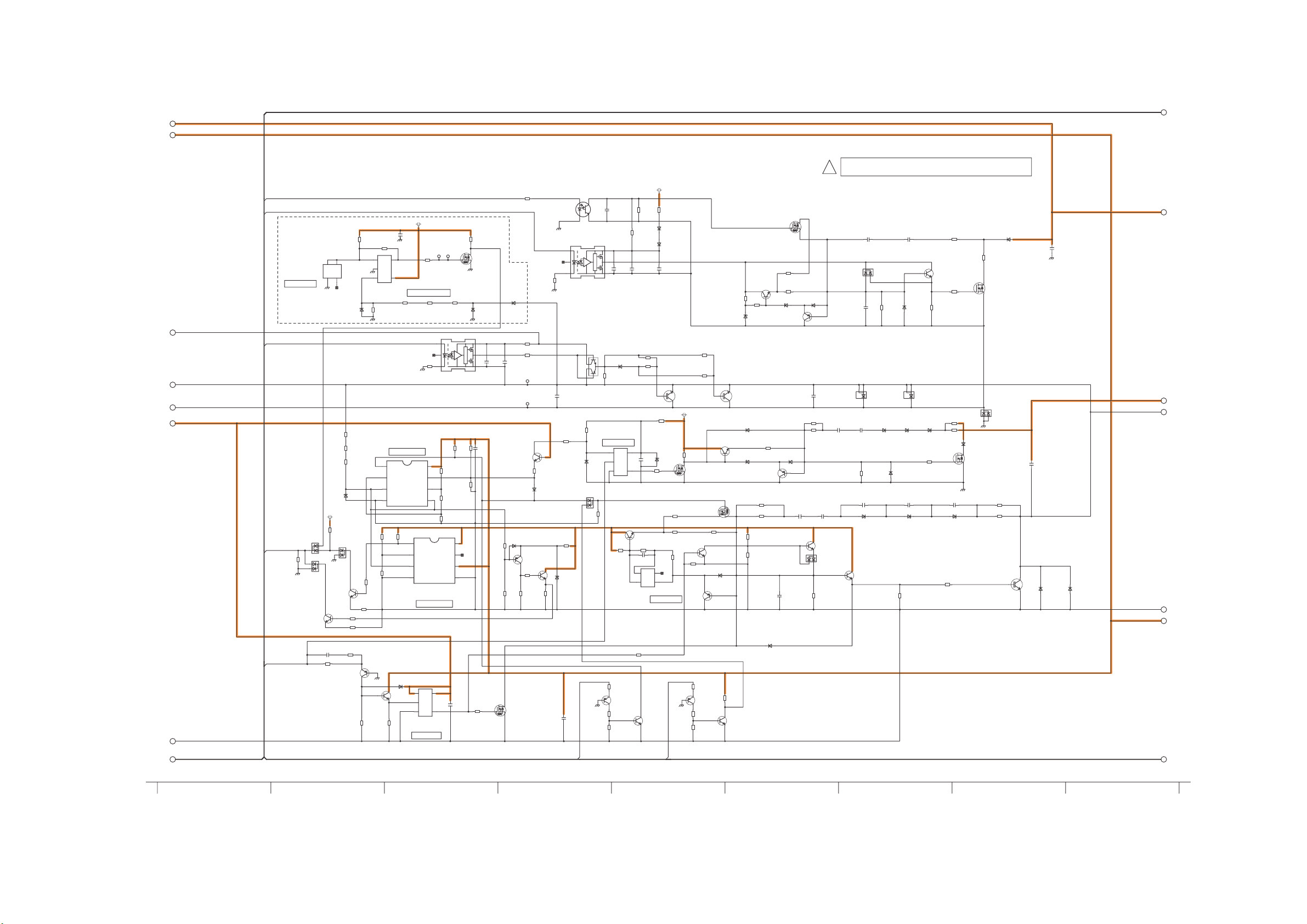

13.2. P-Board (1 of 3) Schematic Diagram

P-BOARD ETX2MM814MNH (1/3)

!

A

B

HOT

COLD

PFC

C

HOT

COLD

D

STB
CONTROL

E

STB
ERROR DET

F

HOT

2 896

4

5

COLD

731

46

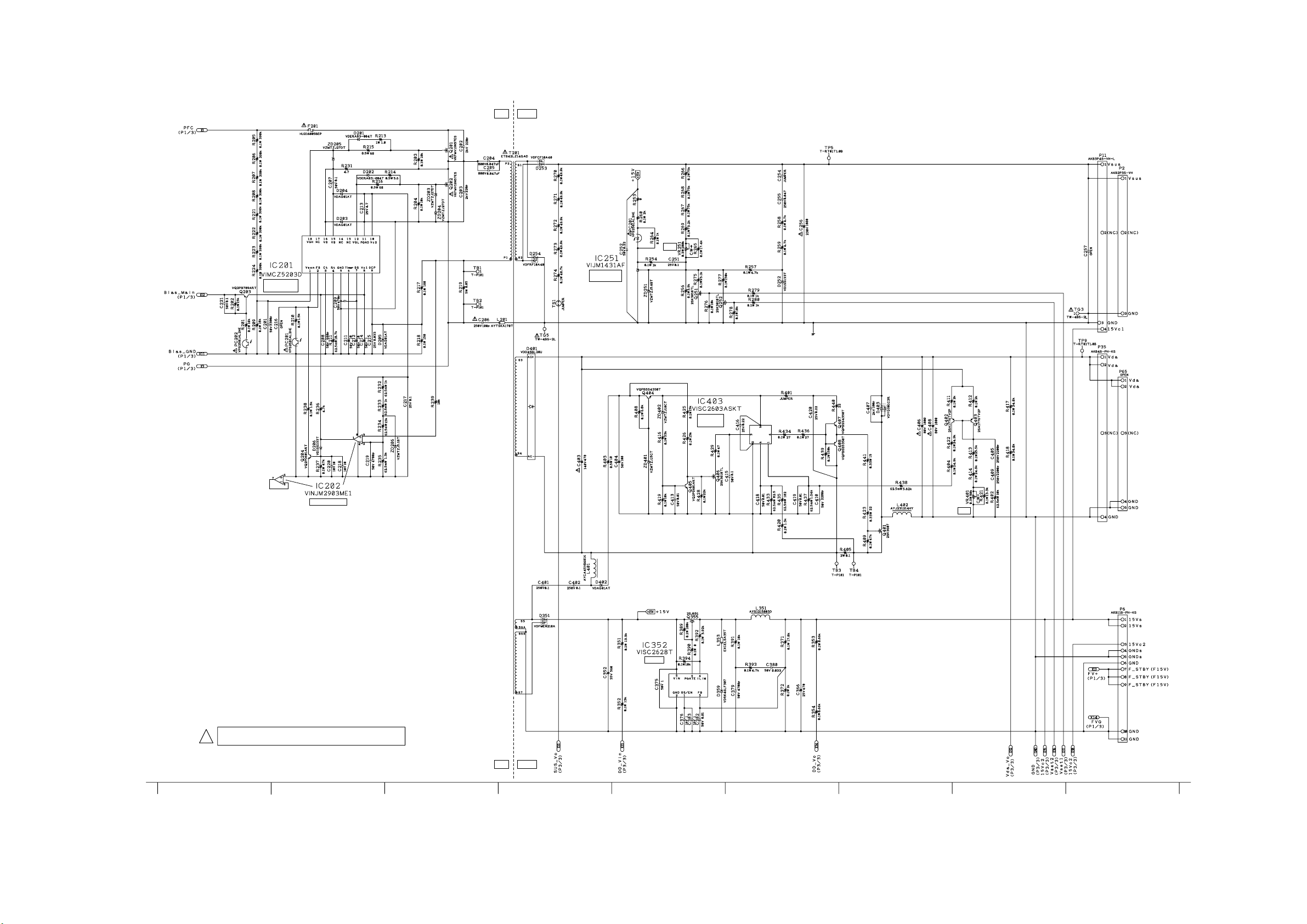

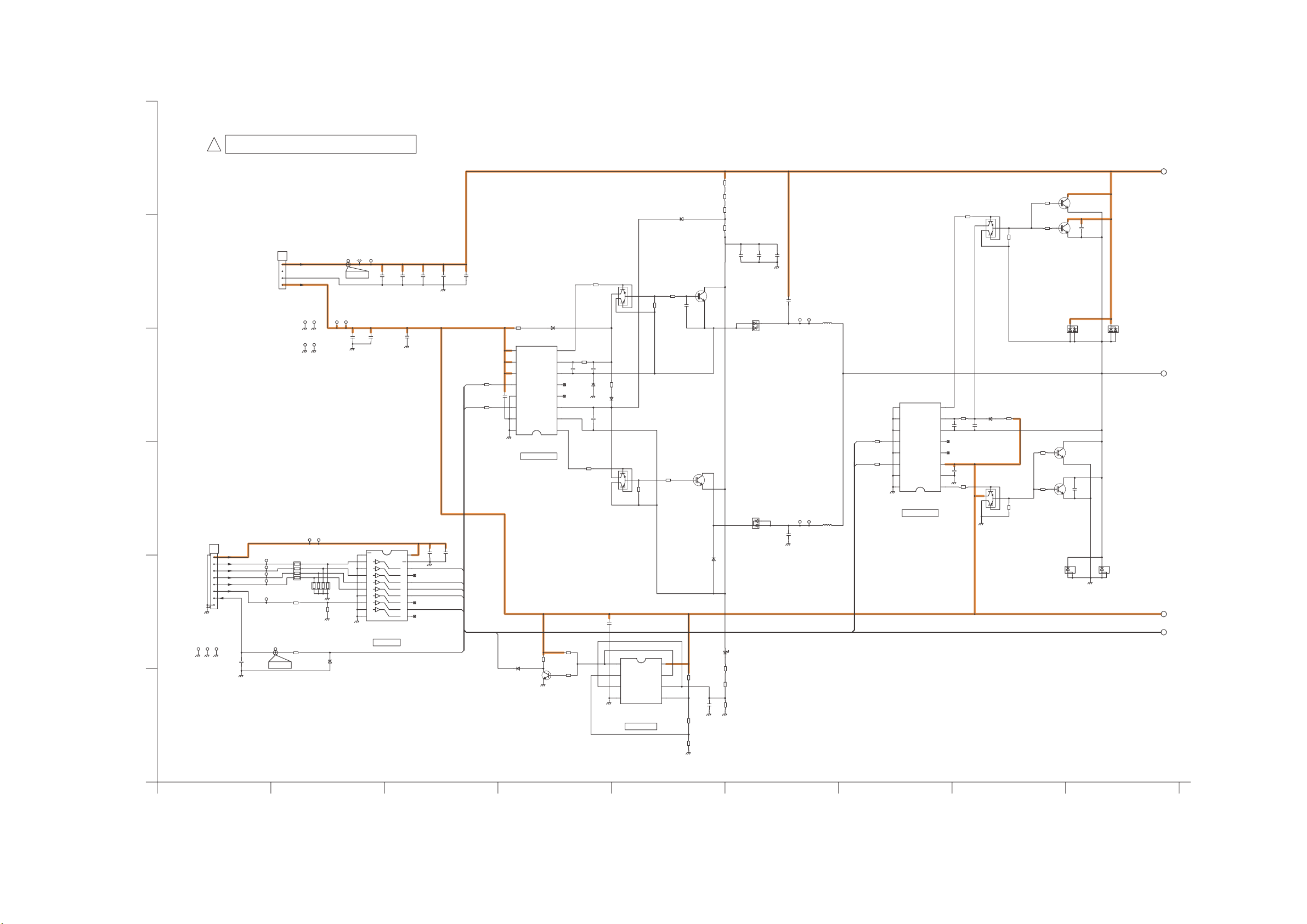

13.3. P-Board (2 of 3) Schematic Diagram

RESONANCE
CONTROL

TH-50PF20E / TH-50PF20ER

COLD

HOT

TO
SS-BOARD
(SS11)

TO
SC-BOARD
(SC2)

Vsus

Vsus
ERROR DET

TO
C3-BOARD
(C35)

COMPARATOR

P+15V

Vda
CONTROL

Vda

TO
A-BOARD
(A10)

P-BOARD ETX2MM814MNH (2/3)

!

COLD

HOT

141310 11 1612 17 1815

47

TH-50PF20E / TH-50PF20ER

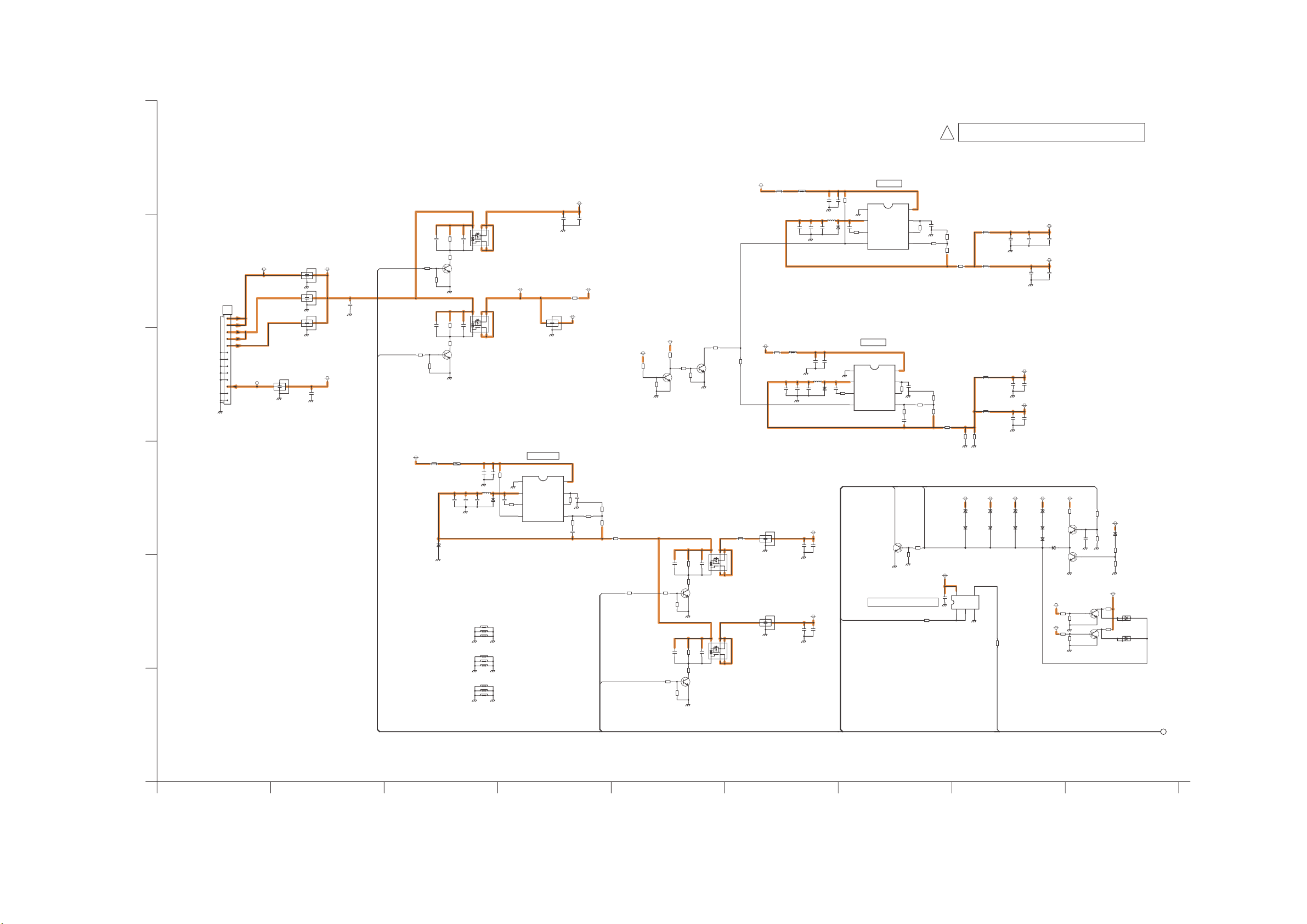

13.4. P-Board (3 of 3) Schematic Diagram

P-BOARD ETX2MM814MNH (3/3)

!

TO
A-BOARD
(A25)

TO
A-BOARD
(A9)

POWER MICOM

NO USE

25 2720 2419 22 262321

48

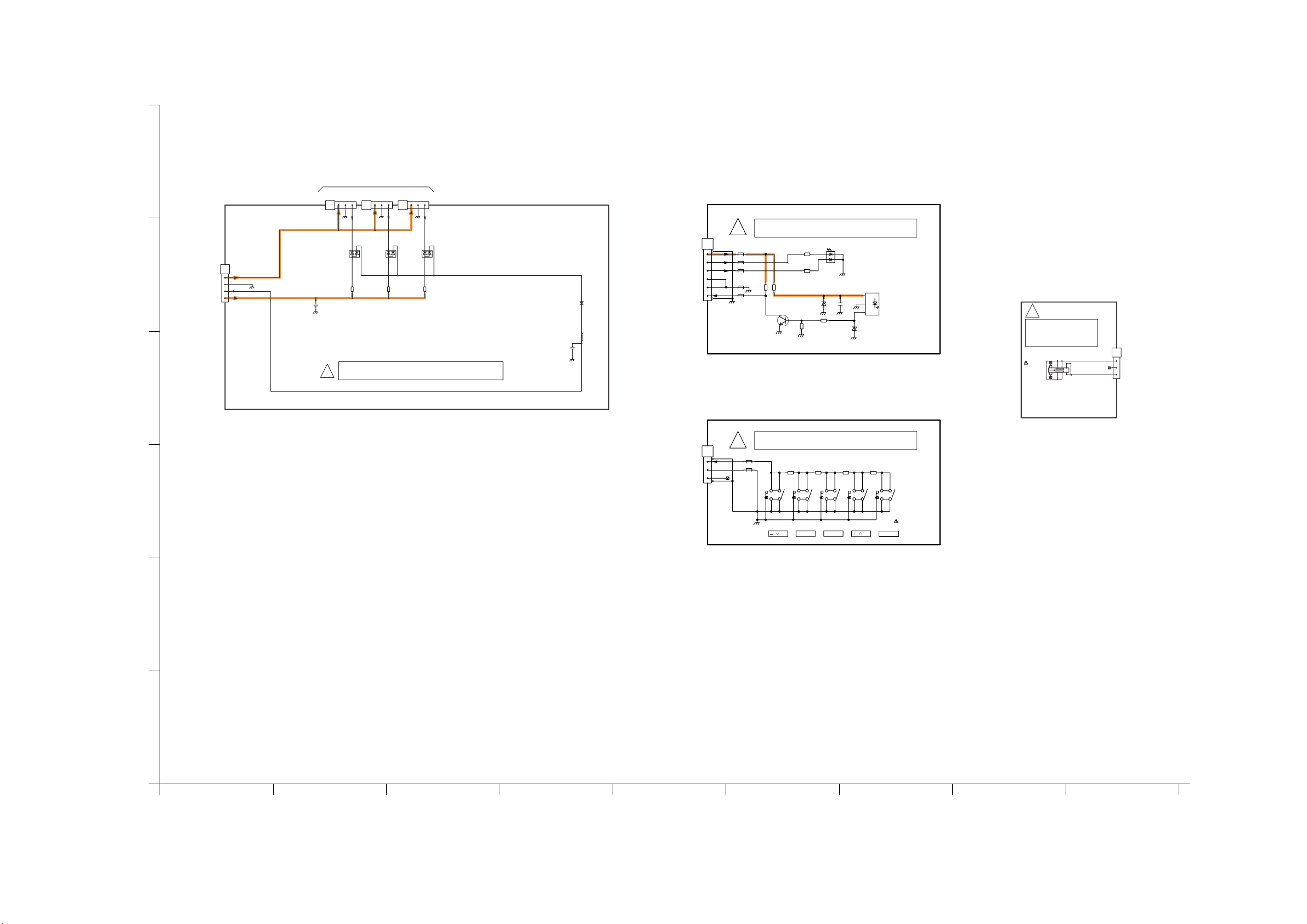

13.5. PB, V1, V2 and S1-Board Schematic Diagram

A

TO FAN

PB32

123

PB33

123

PB34

123

TH-50PF20E / TH-50PF20ER

TO
A-BOARD
(A11)

D851

TO
A-BOARD
(A5)

B

FAN_VOLTAGE

PB30

FAN SOS

1

2

GND

3

4

5V

MA3X152D0L

C862

16V
1u

!

D852

MA3X152D0L

R851

4.7k

PB-BOARD TNPA4962AD

D853

MA3X152D0L

R852

4.7k

R853

4.7k

D859
MA2J1110GL

VJ850

P

C859

10V
1u

STB3.3V

REMOCON

LED_G

LED_R

OPT

GND

!

V1-BOARD TNPA5162

V11

L1501

1

2

3

4

5

6

STB3.3V

L1502

L1503

L1505

R1550

1k

L1506

Q1540

DSC200100L

R1554

1.2k

R1553

2.4k

R1551
47

D1551

DZ2J039M0L

R1552

220k

D1550

B3AGB0000060

G

LED G

R

LED R

VCC

C1530

6.3V

GND

10u

OUT

RM001

R1500

1k

DZ2J039M0L

B3RAD0000168

REMOTE RECIEVER

D1554

!

S1-BOARD
TNPA5164

SW061

K0F162B00002

PUSH

POWER SW

S35

1

2

3

TO
A-BOARD
(A35)

C

TO
A-BOARD
(A22)

KEY_SW

V22

GND

!

V2-BOARD TNPA5163

1

2

3

L1507

L1508

R15113kR1512

R1510

2.2k

R1513

8.2k

4.7k

D

SW1550

EVQPLHA15

/

VOL

SW1551

EVQPLHA15

MENU INPUT

SW1552
EVQPLHA15

SW1553

EVQPLHA15

VOL ENTER

/

SW1554

EVQPLHA15

E

F

5

683

712

94

49

TH-50PF20E / TH-50PF20ER

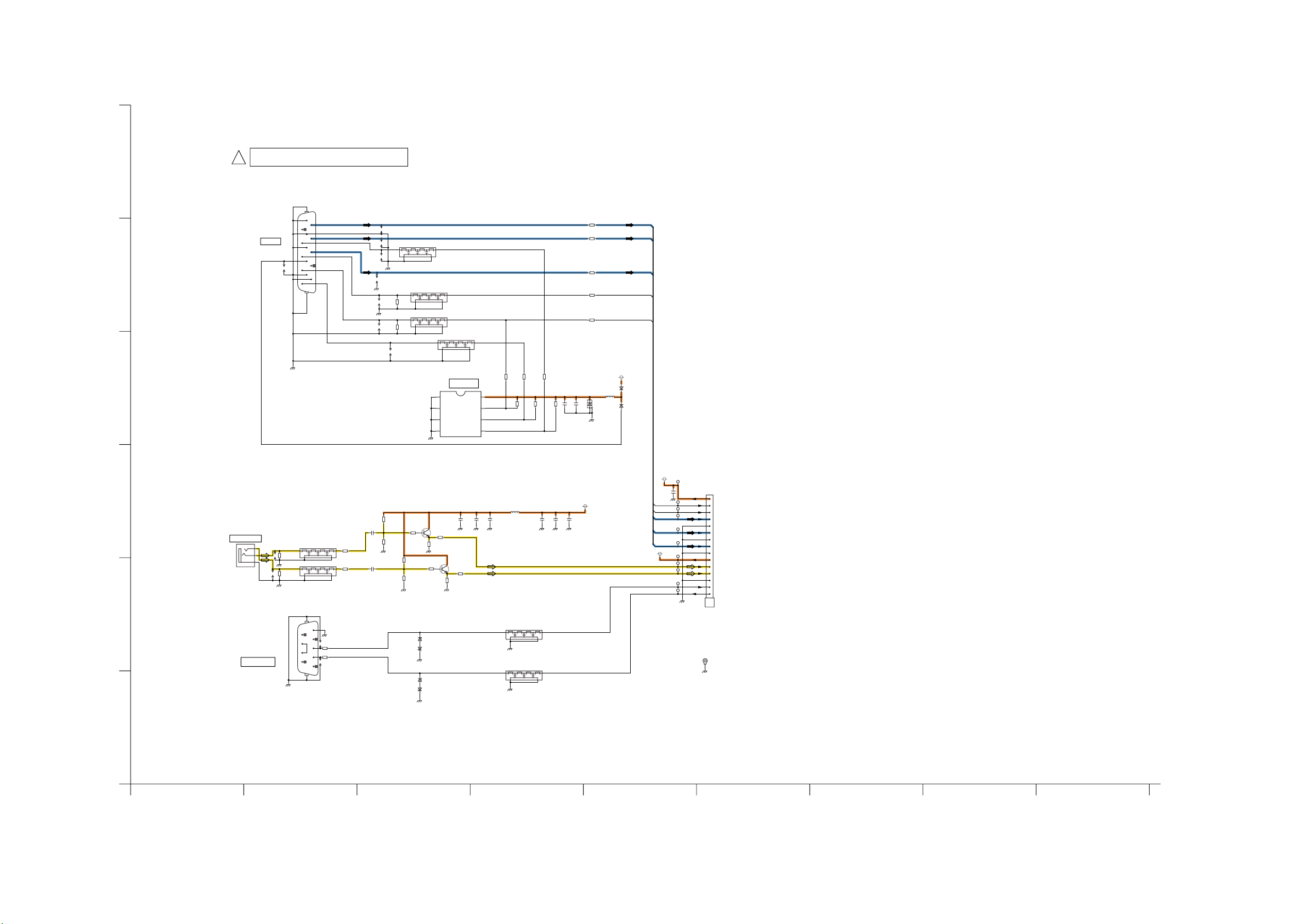

13.6. HX-Board Schematic Diagram

!

A

HX-BOARD TZTNP021CEE

6

JK3511

K1FB115BA020

PC IN

B

C

D

JK3513

K2HC1YYB0049

AUDIO IN

2

L

3

R

1

E

JK3509

K1FA109B0062

REMOTE IN

1

11

7

2

12

8

3

13

9

4

14

10

5

15

R3653

C3561

16V

FL3512

J0MAB0000054

1

R3529

180k

1

R3530

180k

PCis

RI

9

CTS

8

RTS

7

6

DSR

2

2

FL3513

J0MAB0000054

5

GND

4

DTR

3

TXD

2

RXD

1

CD

3

4

3

4

R3510

100

R3511

100

1u

R3547

100

R3548

100

C3562

16V

1u

FL3516

J0MAB0000054

1

R3508

4.7k

R3509

4.7k

33k

R3654

68k

R3655

33k

R3656

68k

MAZ81600HL

MAZ81600HL

MAZ81600HL

MAZ81600HL

3

2

4

FL3510

J0MAB0000054

1

1

Q3531

2SD0601A0L

R3776

100

D3507

D3508

D3509

D3510

2

2

FL3511

J0MAB0000054

R3663

1k

3

4

3

4

FL3517

J0MAB0000054

1

1

2

3

4

R3668

100

R3777

100

R3664

1k

2

E0

E1

E2

VSS

IC3502

TVRR702

DDC
EEPROM

C3550

50V

0.01u

Q3532

2SD0601A0L

R3672
100

3

4

R3586

R3590

R3585

56

R3400

10k

L3555

ELJPA100KFB

1

2

1

2

FL3514

J0MAB0000054

FL3515

J0MAB0000054

56

R3589

R3778

47k

47k

C3404

C3405

16V

25V

0.1u

10u

3

4

3

4

56

8

VCC

7

WC

6

SCL

5

SDA

C3552

C3551

25V

25V
10u

10u

R3591

0

R3592

0

R3593

0

R3790

100

R3791

100

L3526

D3504

ELJPA100KFB

MAZ30560ML

C3523

C3524

50V

25V

0.01u

10u

SLOT9V

C3406

25V
10u

P5V

B0HCMM000014

B0HCMM000014

PC_R

PC_G

PC_B

PC_HD

PC_VD

D3512

D3511

P5V

TP65

C3409

16V

0.1u

TP66

PC_VD

TP67

PC_HD

TP68

PC_B

TP69

PC_G

TP70

PC_R

SLOT9V

TP71

TP72

TP73

TP74

TP75

15

14

13

12

11

10

9

8

7

6

5

4

3

2

1

HX1

TO
A-BOARD

(A14)

ZA3001

K4ZZ01000206

P5V

VD

HD

PB/B

GND

Y/G

GND

PR/R

GND

SLOT9V

R

L

GND

RXD

TXD

F

5

683

712

94

50

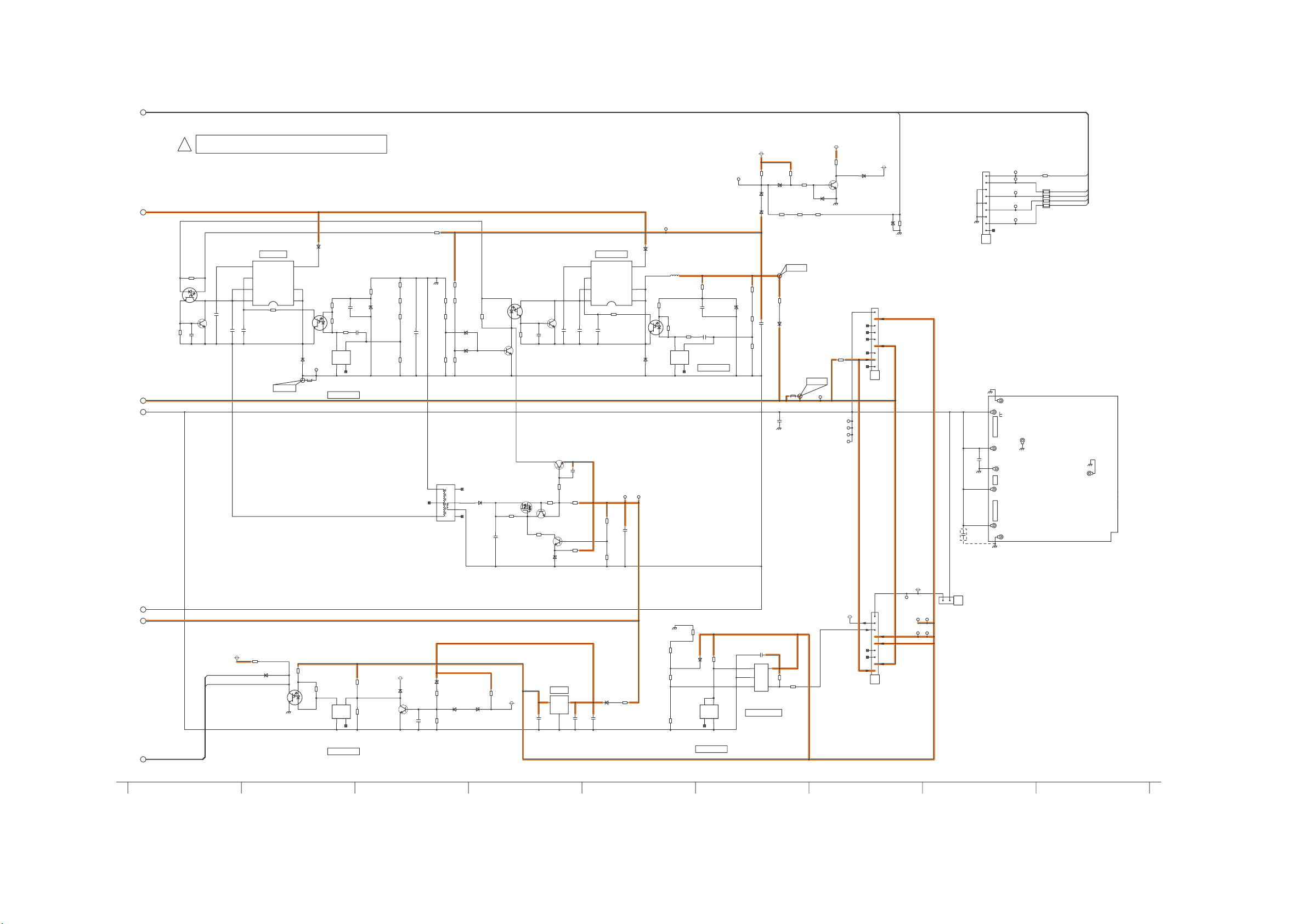

13.7. DS-Board (1 of 2) Schematic Diagram

+

+

+

+

+

+

15V_ON/OFF

LAN14V_ON/OFF

REMOCON_OUT

DS_SOS

REMOCON_OUT1

LAN14V_ON/OFF

LAN14V_ON/OFF

15V_ON/OFF

AH_SOS

C3052

10u
25V

C3040

10u

6.3V

C3050

16V

0.1u

C3004

50V

0.01u

C3037

10u
25V

C3022

10u

25V

C3018

0.1u

25V

C3054

10u

25V

C3021

10u

25V

C3000

10u

25V

C3058

10V

2.2u

C3046

16V

0.1u

C3045

16V

0.1u

C3051

10u

25V

C3042

0.1u
25V

C3034

50V

68p

C3005

1u

16V

C3024

0.1u

25V

C3100

16V

0.1u

C3055

0.1u
25V

C3035

16V

0.1u

C3026

16V

2.2u

C3043

0.1u
25V

C3028
16V

0.1u

C3041

10V

2.2u

C3057

2.2u

10V

C3002

10u

25V

C3063
10V

2.2u

C3039

10u
25V

C3017

10u

25V

C3011

50V

0.01u

C3036

10u
25V

C3013

16V

0.1u

C3006

50V

0.01u

C3049

50V

100p

C3056

0.1u
25V

C3003

1u

16V

C3023

16V

0.1u

C3031

16V

0.1u

C3060

50V

0.01u

C3020

16V

0.1u

C3065

16V

0.1u

C3059

1u

16V

C3062

10u

6.3V

C3064

6.3V

470u

C3010
25V
47u

C3044

6.3V

47u

C3027

16V
470u

C3101

6.3V

47u

C3025

16V
47u

D3110

B0ACCJ000048

D3004

B0JCPG000030

D3105
B0ACCJ000048

D3112

B0ACCJ000048

D3107

B0ACCJ000048

D3001

B0JCPG000030

D3002

B0JCPG000030

D3108
B0ACCJ000048

D3103
B0ACCJ000048

D3101

B0ACCE000005

D3100

B0ACCE000005

D3111
DZ2J056M0L

D3102
B0BC01600013

D3005

B0BC5R900001

D3104
B0BC01000014

D3109
DZ2J068M0L

D3106
B0BC010A0007

F1J1E104A148

FL3007

123

F1J1E104A148

FL3008

123

F1J1E104A148

FL3004

123

FL3000

F1J1E104A148

12

3

F1J1E104A148

FL3002

12

3

F1J1E104A148

FL3001

1

2

3

F1J1E104A148

FL3003

1

2

3

C0JBAA000377

IC3100

1

IN_B

2

IN_A

3

GND

5

VCC4OUT_Y

IC3002

C0DBAYY00727

1

GND

2

SW

3

BS

4

EN/SYNC

5

FB

6

PG

7

VCC

8

IN

IC3000

C0DBAYY00727

1

GND

2

SW

3

BS

4

EN/SYNC

5

FB

6

PG

7

VCC

8

IN

IC3001

C0DBAYY00727

1

GND

2

SW

3

BS

4

EN/SYNC

5

FB

6

PG

7

VCC

8

IN

DS13

1

2

3

4

5

6

7

8

9

10

11

12

13

L3006

J0JHC0000117

L3004

J0JHC0000117

L3007

J0JHC0000117

L3012

J0JHC0000096

L3002

J0JHC0000117

L3013

J0JHC0000096

L3008

J0JHC0000096

L3003

J0JHC0000096

L3010

G1C330MA0363

L3001

G1C330MA0363

L3005

G1C330MA0363

LAN14V

SLOT3.3V

LAN14V

P_F15V

SLOT3.3V

15V

5V

SLOT15V

SLOT5V

15V_2

SLOT3.3V

15V_2

SLOT9V

P_F15V

9V_M

15V

SLOT5V

SLOT9V

STB5V_S

15V_2

F15V

15V_2

STB5V_S

5V

SLOT3.3V

LAN14V

LAN3.3V

SLOT9V

VJ3008

VJ3002

VJ3010

VJ3003

VJ3004

VJ3000

VJ3001

VJ3005

VJ3009

VJ3007

VJ3006

PA3000

K5H1022A0031

TP3000

Q3003

B1DHDC000028

Q3007

B1DHDC000028

Q3005

B1DHDC000028

Q3002

B1DHDC000028

Q3000

DSC200100L

Q3001

DSC200100L

Q3004

DSC200100L

Q3008

DSC200100L

Q3101

DSC200100L

Q3100

DSC200100L

Q3102

DSC200100L

Q3103

DSC200100L

Q3009

DSC200100L

Q3104

DSC200100L

Q3006

DSC200100L

R3009

0

R3050

47k

R3028

100k

R3000

3.3k

R3105

4.7k

R3043

22k

R3019

100k

R3026
100

1/2W

R3029

100k

R3034

17.4k

1%

R3020

0

R3039

22k

R3112

100k

R3021

0

R3005

6.8k

R3038

3.6k

R3013
487

1%

R3048

10k

R3035

22

R3049

100

R3015

0

R3031

0

R3040

10k

R3008

10k

R3102

18k

R3114

39k

R3014

4.99k

1%

R3110

22k

R3004

3.3k

R3055

0

R3051

0

R3002

22k

R3032

0

R3044

10k

R3108

56k

R3042

3.6k

R3037

6.2k

R3103

2.2k

R3109

47k

R3106

2.2k

R3025
100

1/2W

R3030
0

R3012

0

R3046

10k

R3111

10k

R3104

10k

R3016
100k

R3010

100k

R3027

22

R3001

6.8k

R3006

22k

R3101

100

R3041

4.7k

R3113

75k

R3045

1k

R3107

10k

R3017

22

R3003

10k

R3024

9.53k

1%

R3022

0

R3033
56k

1%

R3047

10k

R3100

0

R3023

49.9k

1%

D

S

GDDDD

SD

D

G

D

D

DGD

S

D

D

DGD

SD

G

G

G

G

G

G

G

G

G

G

G

G

G

G

P

P

P

P

P

P

P

P

P

P

GND

15V->9V

GND

GND

GND

SOS BLOCK

GND

COMMON_GND

REMOCON OUT 3.3V->5V

F15V

F15V

F15V

GND

F15V

15V

F15V

GND

1

C

F

745 98

A

E

32

D

6

B

15V->5V

15V->3.3V

TO
A-BOARD
(A13)

DS-BOARD TZTNP031CEE (1/2)

!

1

TH-50PF20E / TH-50PF20ER

51

TH-50PF20E / TH-50PF20ER

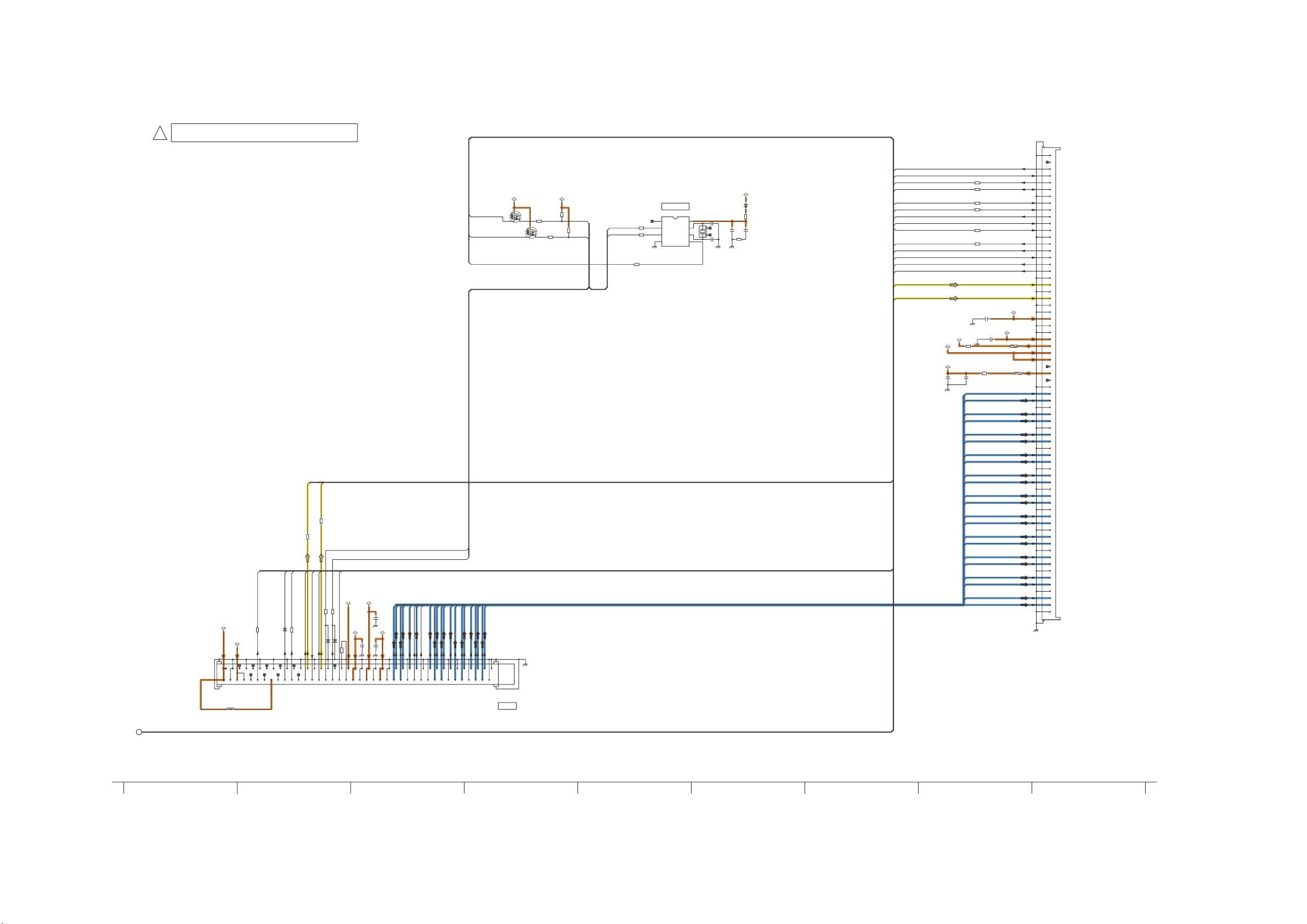

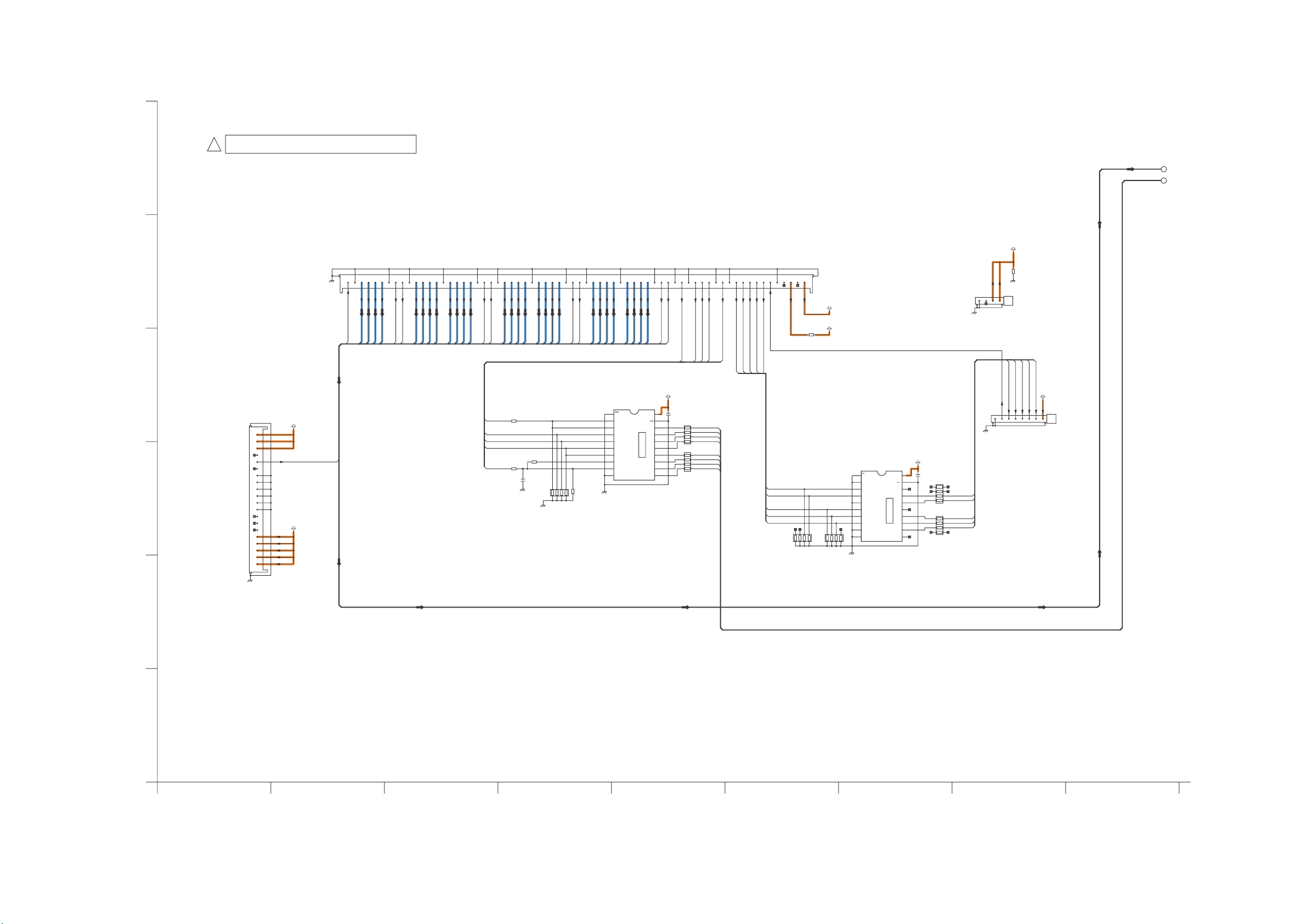

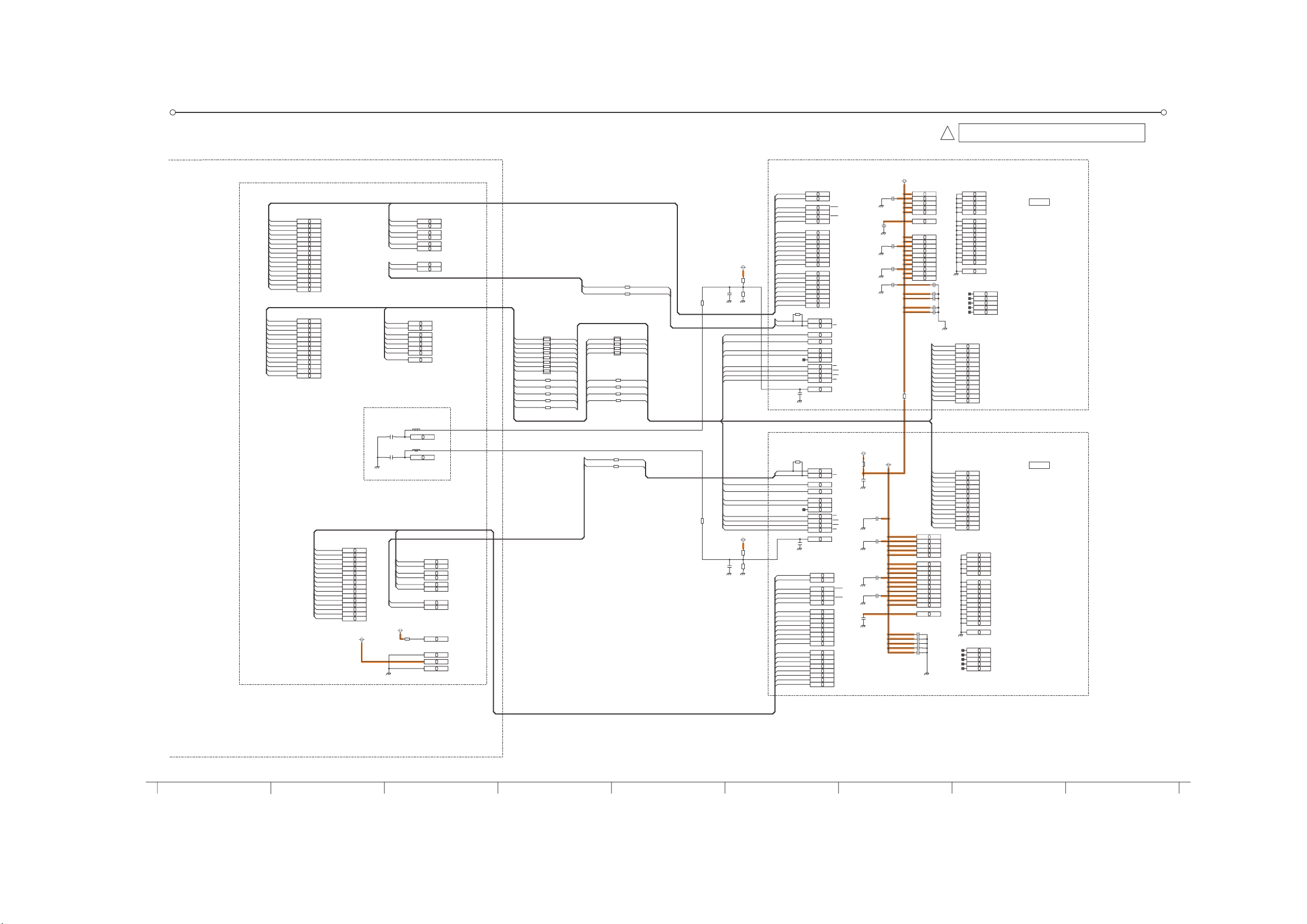

13.8. DS-Board (2 of 2) Schematic Diagram

!

DS-BOARD TZTNP031CEE (2/2)

AUD_L_DS1

AUD_R_DS1

R3164
0

R3171

0

B28

PLUG DET

AUDIO IN R

A28

AJ_TXD11

TXD

AJ_RXD11

A27

B27

AUDIO GND

RXD

B26

AUDIO IN L

SRQ

STB5V_S

IIC DAT

22

DZ2J062M0L

D3142

A24

B24

RSVD

SLOT5V

6.3V

C3143

SLOT3.3V

SLOT9V

16V

0

R3148

A23

B23

SRQ

NC(OPEN)

10u

10u

6.3V

C3141

C3140

A17

A18

A19

A20

A21

A22

B17

B18

B19

B20

B21

B22

GND

GND

GND

GND

GND

STB5V

SLOT5V

SLOT5V

SLOT9V

SLOT3.3V

SLOT3.3V

22

R3155

R3156

DZ2J062M0L

D3141

A25

A26

B25

IIC SCL

AUDIO GND

AH_SOS

RESET

LAN14V

100

R3147

SLOT15V

A34

A35

A36

A37

A38

A39

A40

B34

B35

B36

B37

B38

B39

B40

Y/G

GND

GND

PB/B

PR/R

RESET2

LAN14V

VJ3140

RESET1

LAN14V

SLOT15V

SLOT15V

Y/G GND

S2DETECT

PB/B GND

P

AH_SLOT1_DET

REMOCON_OUT1

100

D3140

R3149

B0ACCJ000048

A33

A29

A30

A31

A32

B33

B29

B30

B31

B32

NC

VD

HD

SOS

REMOTE

SYNC GND

SYNC GND

PR/R GND

CABLE DET

PWR_STATUS

TO

DS1

A-BOARD
(A1)

TERM

68

GND

67

15V_ON/OFF2

SRQ

3V_SCL3

3V_SDA3

AH_SLOT1_DET

DS_SOS

AJ_TXD11

AJ_RXD11

RTC_INT

REMOCON_OUT

RESET

S2DETECT

LAN14V_ON/OFF

15V_ON/OFF

AUD_L_DS1

AUD_R_DS1

3V_SCL3

3V_SDA3

RTC_INT

STB3.3V

S

B1CBHD000002

Q3120

STB5V_S

D3120

B0ACCJ000048

R3126

C3120

32.768K

50V

82

50V15p

+

C3123

C3122

1.5

0.1u

5.5V

16V

R3127

100

R3129

0

R3130

0

R3128

100

IC3120

C1DB00001208

CLOCK IC

H0J327200114

OSCOUT

/INTRA

X3120

8

VDD

7

OSCIN

6

1

/INTRB

2

SCL

3

SDA

45

VSS

C3121

15p

STB5V_S

G

D

G

S

B1CBHD000002

Q3121

R3124

2.7k

R3122

0

D

5V_SCL3

R3125

2.7k

R3123

5V_SDA3

0

5V_SCL3

5V_SDA3

AUD_L/R_DS

5V_SCL3

5V_SDA3

A_ED-

A_OE+

A_ED+

A_OD+

A_OE-

10u

A14

A15

A16

B14

B15

B16

GND

GND

TX3+

TX9+

TX9-

TX3-

TX3G

A_OB+

A_EC-

A_OC-

A_EC+

A_OC+

A_OD-

A_CLK-

A_CLK+

A10

A11

A12

A13

B10

B11

B12

B13

TX2-

TXCG

TX6+

TX2+

TX8+

TXC-

TX7+

TX8-

TXC+

TX7-

ETX_G3

A_EA-

A_EE+

A_EA+

A_OA-

A_OA+

A_EB-

A_EB+

A_OB-

TX2G

A_EE-

A1A2A3A4A5A6A7A8A9

DS2

B1B2B3B4B5B6B7B8B9

TX0+

TX0-

TX5-

TX1+

TX4-

TX4+

TX1G

TX6-

TX0G

TX1-

TX5+

ETX_G2

R3150

0

R3151

0

R3152

100

R3154

0

R3144

0

R3153

100

LAN3.3V

C3148

6.3V

10u

9V_M

STB5V_S

5V

STB3.3V

C3147

16V

0.1u

C3151

R3176

10u16V

0

+
C3146

6.3V
47u

A_OA-

A_OA+

A_OB-

A_OB+

A_OC-

A_OC+

A_OD-

A_OD+

A_OE-

A_OE+

A_CLK-

A_CLK+

A_EA-

A_EA+

A_EE-

A_EE+

A_EB-

A_EB+

A_EC-

A_EC+

A_ED-

A_ED+

PA3140

K5H1022A0031

R3177

PA3141

0

K5H1022A0031

NC

66

15V_ON/OFF2

65

A_IIC_CONT

64

3V_SCL3

63

3V_SDA3

62

GND

61

SL1_DET

60

DS_SOS

59

5VTXD_TU

58

5VRXD_TU

57

RTC_INT

56

GND

55

REMOCON_OUT

54

5VNRST

53

S2DETECT

52

LAN14V_ON/OFF

51

15V_ON/OFF

50

GND

49

AUD_L_OUT

48

GND

47

AUD_R_OUT

46

GND

45

GND

44

LAN3.3V

43

GND

42

GND

41

9V_M

40

STB_5V

39

5V

38

5V

37

NC

36

STB3.3V

35

NC

34

GND

33

A_OA-

32

A_OA+

31

GND

30

A_OB-

29

A_OB+

28

GND

27

A_OC-

26

A_OC+

25

GND

24

A_OD-

23

A_OD+

22

GND

21

A_OE-

20

A_OE+

19

GND

18

A_CLK-

17

A_CLK+

16

GND

15

A_EA-

14

A_EA+

13

GND

12

A_EE-

11

A_EE+

10

GND

9

A_EB-

8

A_EB+

7

GND

6

A_ED-

5

A_EC+

4

GND

3

A_ED-

2

A_ED+

1

GND

SIDE

SLOT1

1

141310 11 1612 17 1815

52

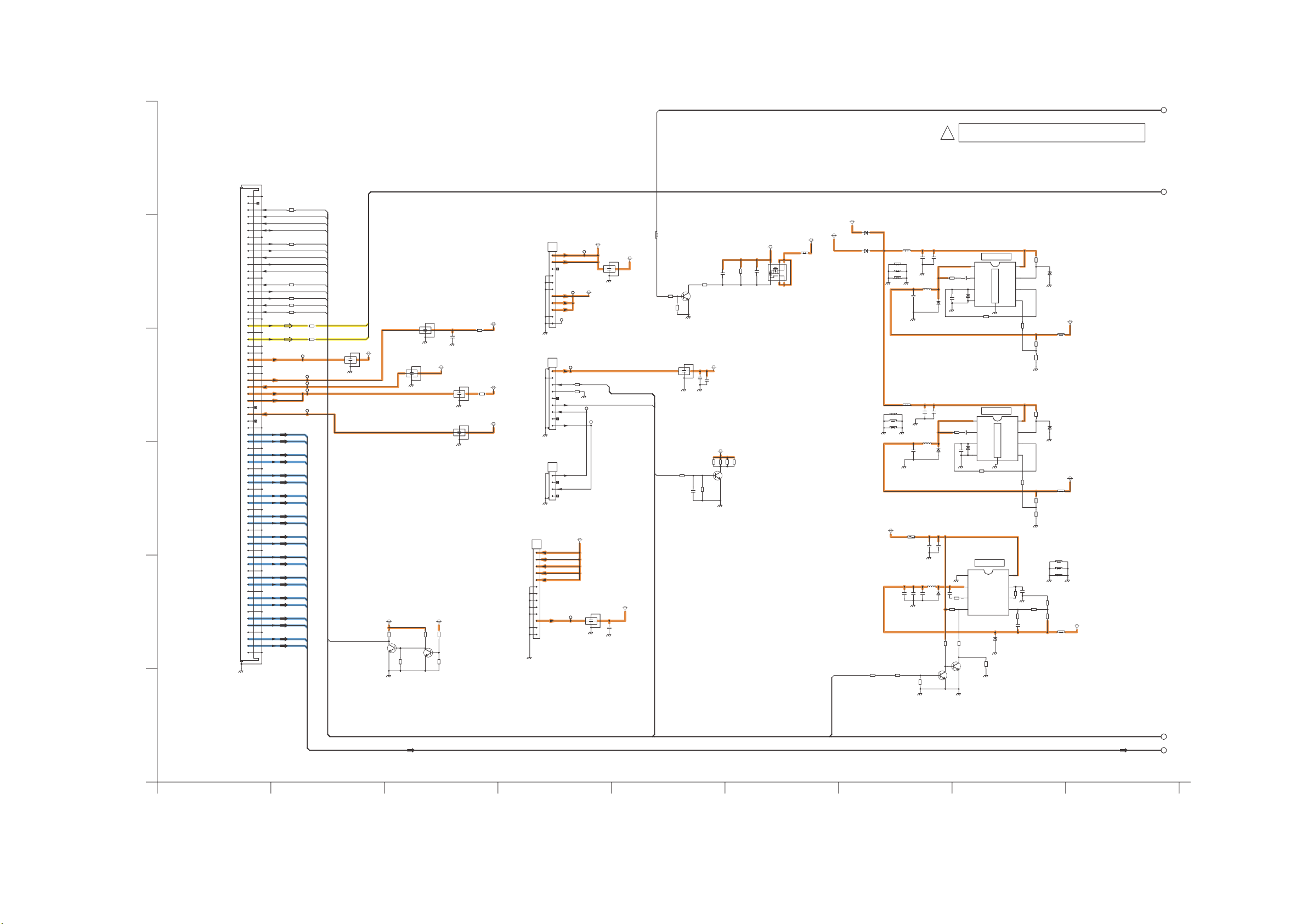

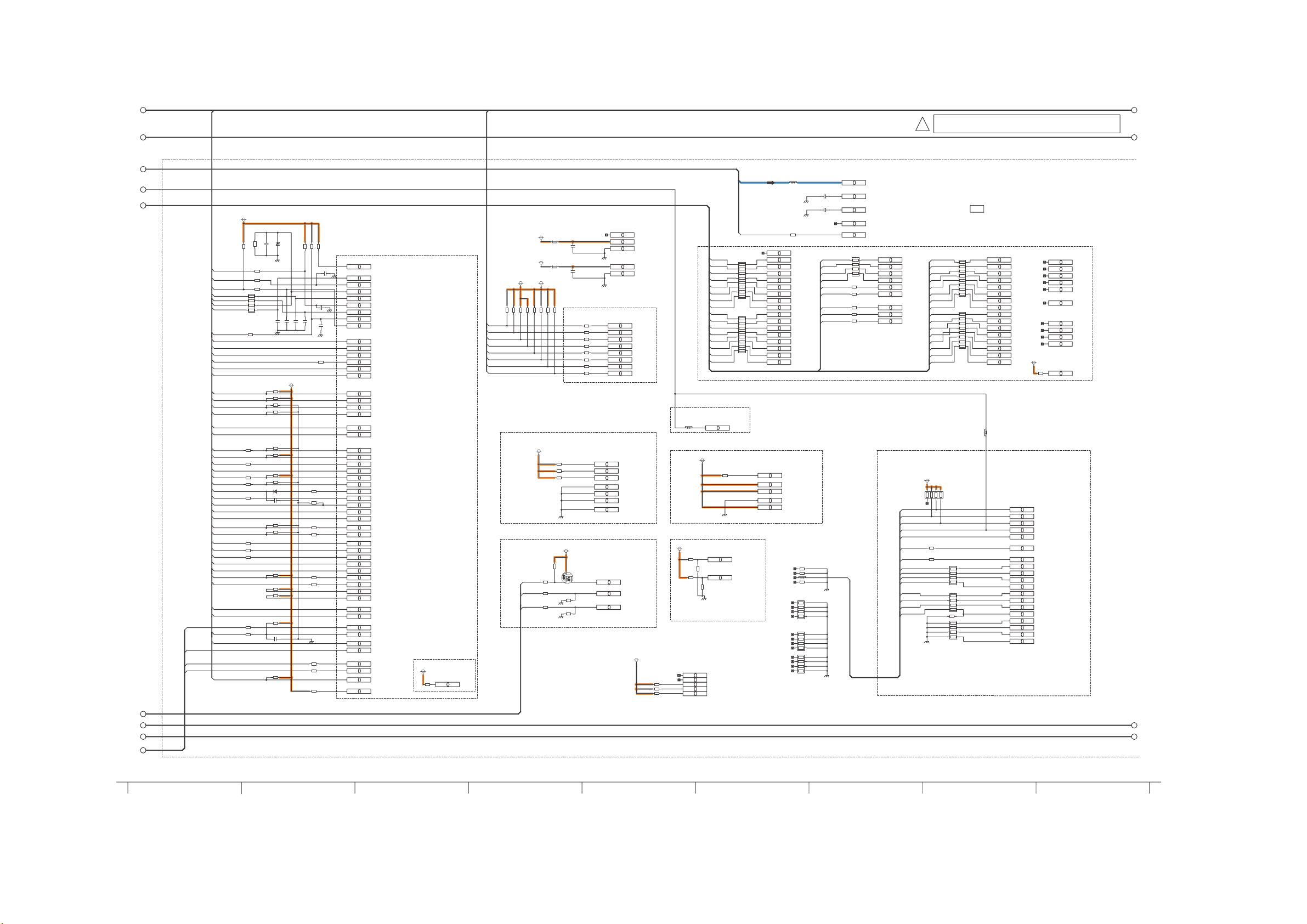

13.9. A-Board (1 of 17) Schematic Diagram

+

G

G

G

G

G

G

G

G

G

G

G

G

G

G

G

G

TERM

SIDE

S

P

P

P

P

P

P

P

P

P

P

P

P

P

P

P

Thermal Pad

Thermal Pad

A_EA+

A_EA-

A_CLK+

A_CLK-

A_OE+

A_OE-

A_OD+

A_OD-

A_OC+

A_OC-

A_OB+

A_OB-

A_OA+

A_OA-

REMOCON_OUT

15V_ON/OFF

LAN14V_ON/OFF

SL1_DET

5VNRST

5VRXD_TU

5VTXD_TU

DS_SOS

3V_SCL3

3V_SDA3

AUD_L_DS

AUD_R_DS

F15V_MON

A_IIC_CONT

STB_ON

RTC_INT

ALL_OFF1

15V_ON/OFF

A_P_ON/OFF

S2DETECT

A_P_ON/OFF

15V_ON/OFF2

A_ED+

A_ED-

A_EC+

A_EC-

A_EB+

A_EB-

A_EE-

A_EE+

C4951

1u

6.3V

C4952

25V

0.01u

C4910

16V
1u

C4923

16V

1u

C4917

10u
25V

C4904

10u

25V

C4906

10u

10V

C4919

10u
10V

C4921

16V

1u

C4908

16V 1u

C4918

0.1u
25V

C4905

0.1u

25V

C4966

10u
25V

C4934

10u
25V

C4937

0.1u
25V

C4932
10u
25V

C4935

10u
25V

C4940

50V

47p

C4936

16V

0.1u

C4933

0.1u
25V

C4941

16V

0.1u

C4965

1u

16V

C4968

10u
16V

C4964

16V

0.1u

C4963

6.3V
47u

D4902

B0JCME000092

D4916

B0JCPE000004

D4903

B0JCPE000004

D4901

B0JCPE000004

D4931

B0JCPG000030

D4932

B0BC4R000002

D4908

B0BC5R900001

D4905

B0BC5R900001

D4918

B0BC5R900001

D4921

B0BC5R900001

FL4964

F1J1E104A148

123

FL4968

F1J1E104A148

123

*FL4967

F1J1E104A148

123

FL4966

F1J1E104A148

123

FL4965

F1J1E104A148

123

F1J1E104A148

FL4962

123

F1J1E104A148

FL4961

123

FL4963

F1J1E104A148

123

IC4903

C0DBAYY00727

1

GND

2

SW

3

BS

4

EN/SYNC

5

FB

6

PG

7

VCC

8

IN

A1

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

33

34

35

36

37

38

39

40

41

42

43

44

45

46

47

48

49

50

51

52

53

54

55

57

58

59

60

61

62

63

64

65

66

67

68

56

69

70

A35

1

2

3

4

A9

1

2

3

4

5

6

7

8

9

A10

1

2

3

4

5

6

7

8

9

10

11

A13

1

2

3

4

5

6

7

8

9

10

11

12

13

L4901

G1C8R2ZA0202

L4902

G1C8R2ZA0202

L4903

G1C330MA0363

9V_M

STBY3.3V

F15V

LAN3.3V

15V

1.8V

STBY5V

15V

STBY3.3V

STB1.2V

STBY3.3V

STBY5V

SOUND15V

F15V

STBY3.3V

3.3V

15V

STBY5V

STBY5V

F15V

FAN15V

5V

R4956

R4901

R4910

R4916

R4925

R4926

R4951

R4942

R4912

R4927

R4941

R4940

R4911

R4913

R4928

R4939

PA4931

K5H1022A0031

TP4963

TP4968

TP4971

TP4970

TP4962

TP4960

TP4961

TP4965

TP4964

TP4967

TP4969

TP4966

Q4903

B1DHDC000028

Q4901

DSC200100L

Q4902

DSC200100L

Q4905

DSC200100L

Q4662

DSC200100L

Q4661

DSC200100L

Q4904

DSC200100L

R4905

100k

R4923

150k

R4902

10

R4964

330

R4953

3.6k

R4955

22k

R4662

10k

R4663

10k

R4665

1k

R4919

100k

R4906

31.6k

1%

R4921

11k

1%

R4932

22

R4664

12k

R4917

10

R4908
51k

R4305

0

R4306

0

R4904

100k

R4920

100k

R4302

100

R4303

100

R4304

100

R4301

100

R4307

100

R4308

100

R4937

0

R4936

37.4k

1%

R4935

46.4k

1%

R4961

0

R4963

10k

R4974

0

R4952

4.7k

R4973

0

R4954

10k

R4949

0

R4945

47k

R4946

22k

R4947

10k

R4944

0

R4943

100k

R4934
0

R4933
100k

R4938
100k

R4966

330

R4969

10k

R4967

330

R4968

3.3k

R4965

330

1%

R4907

10k

1%

R4922

19.1k

R4661

10k

IC4901

C0DBAYY00369

1

SW

2

BST

3

VCC

4

GND

5

FB

6

PG

7

EN/SYNC

8

IN

IC4902

C0DBAYY00369

1

SW

2

BST

3

VCC

4

GND

5

FB

6

PG

7

EN/SYNC

8

IN

AUD_R_OUT

A_EC-

N.C.

A_OB+

A_EB+

GND

A_OC-

A_IIC_CONT

GND

GND

A_OC+

GND

REMOCON_OUT

N.C.

A_EB-

A_OD-

5VNRST

GND

GND

9V_M

A_OD+

GND

GND

GND

STB_5V

A_OE-

GND

A_CLK-

GND

RTC_INT

A_OE+

GND

GND

GND

5VTXD_TU

3V_SDA3

S2DETECT

GND

GND

5V

5V

GND

LAN14V_ON/OFF

3V_SCL3

LAN3.3V

STB3.3V

GND

A_EE-

15V_ON/OFF

SL1_DET

A_EE+

A_EA+

A_OA-

A_ED+

GND

DS_SOS

AUD_L_OUT

A_OA+

A_EA-

A_ED-

GND

5VRXD_TU

GND

A_OB-

A_CLK+

A_EC+

GND

F15V

GND

F15V

GND

F15V

S15V

GND

S15V

P15V

GND

N.C.

15V_ON/OFF2

ALL_OFF

ECO_ON

NC(STBY5V_ON)

GND

F_STB_ON

STB5V

MAIN_SW_2

MAIN_SW_1

MAIN_SW_2 (5V)

MAIN_SW_1 (Swited_5V)

N.C.

N.C.

N.C.

1

C

F

745 98

A

E

32

D

6

B

TO
DS-BOARD
(DS1)

TO
P-BOARD
(P6)

TO
P-BOARD
(P7)

TO
S1-BOARD
(S35)

TO
DS-BOARD
(DS13)

A-BOARD TZTNP011DEE (1/17)

!

15V->3.3V

15V->1.2V

15V->1.8V

1

3

2

4

TH-50PF20E / TH-50PF20ER

53

TH-50PF20E / TH-50PF20ER

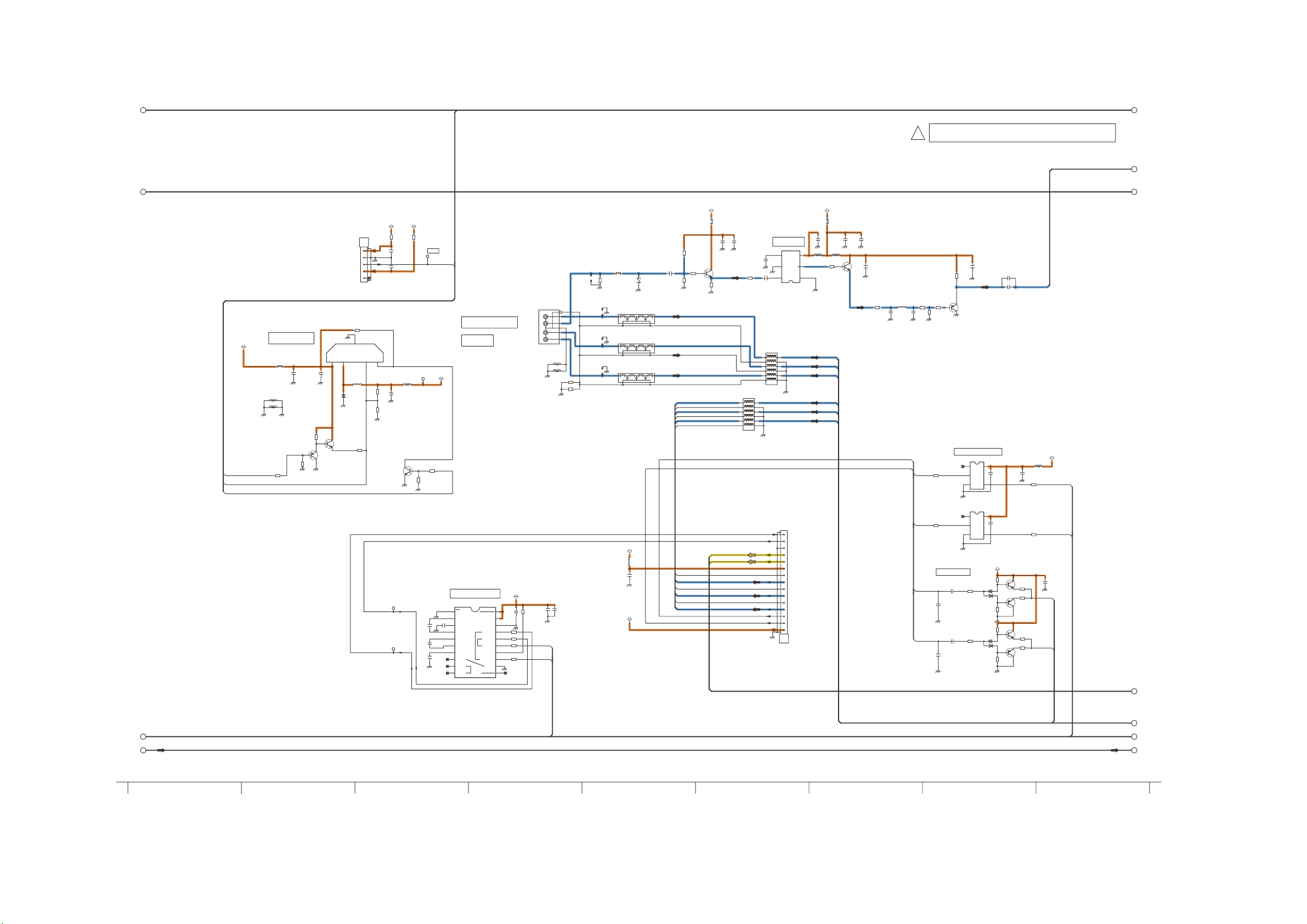

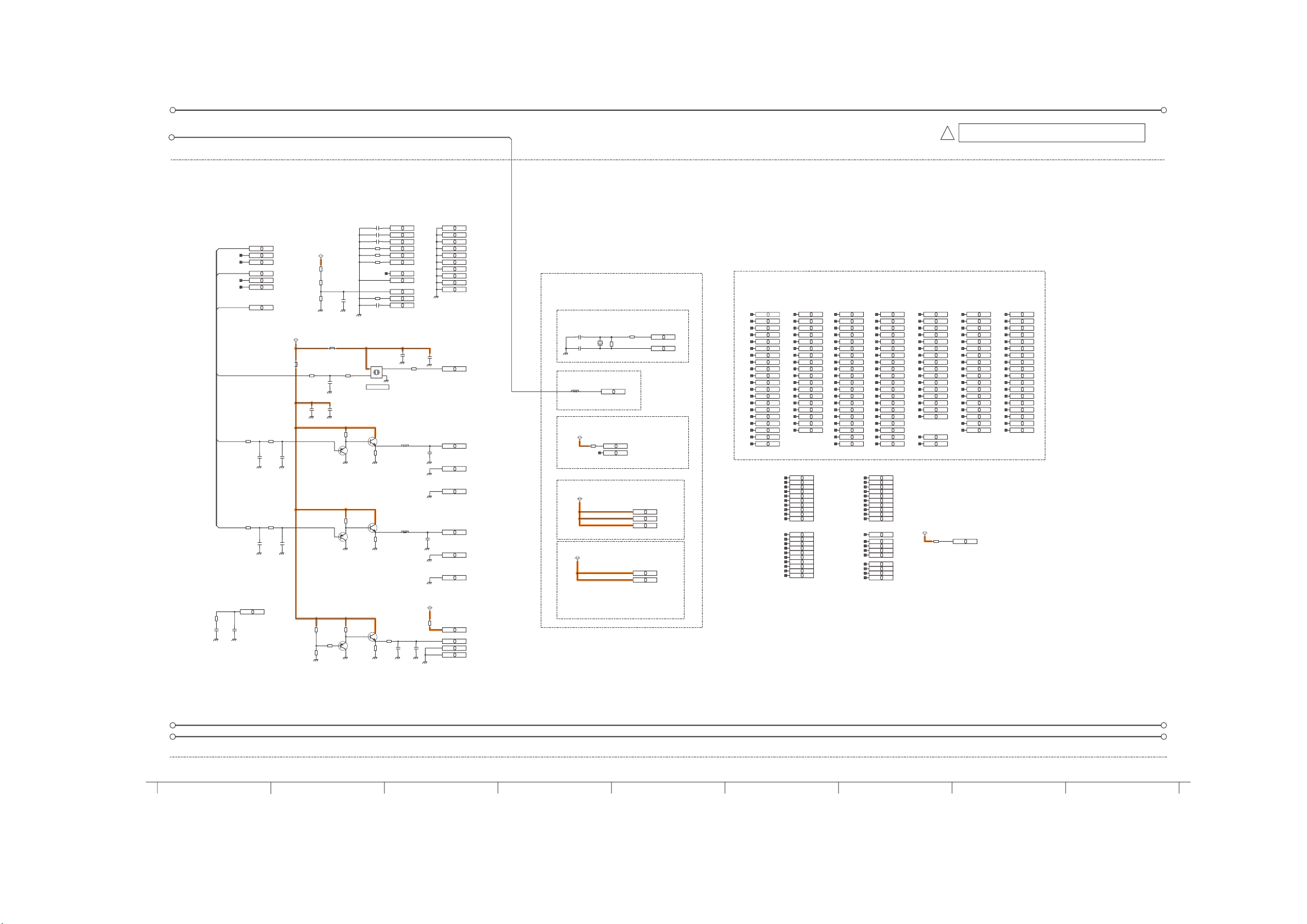

13.10. A-Board (2 of 17) Schematic Diagram

1

!

A-BOARD TZTNP011DEE (2/17)

11

12

2

9V_M 9V_M

FAN_CONT1

FAN_CONT2

FAN_ON/OFF

L3292

R3295

100

Q3291

DSC200100L

J0JHC0000117

IC4451

C1AB00001529

VIDEO SW

C3292

C3291

16V

16V

0.1u

10u

R4452

PR/R_GND

Y/G_GND

PB/B_GND

FL4001

J0MAB0000175

220

R3296

1k

AUD_L_PC

AUD_R_PC

C4454

16V

1u

C4455

10V

J0MAB0000175

IN2

H

Vcc

4

GND

OUT

5

L

IN1

SW

6

10u

FL3204

TXD

15

RXD

14

GND

13

L

12

R

11

9V->

10

GND

9

PR/R

8

GND

7

Y/G

6

GND

5

PB/B

4

HD

3

VD

2

5V->

1

A14

TO
HX-BOARD
(HX1)

FAN_VOLTAGE

TO
PB-BOARD
(PB30)

FAN_VOLTAGE

FAN SOS

FAN CONT

C4982

25V

1u

R4984

10k

R4983

47k

FAN BLOCK

VCC2OUT4INV5STBY

1

G1C101MA0363

D4981

B0JCME000092

Q4981

DSC200100L

Q4982

DSA200100L

IC4981

C0DBAZG00034

FAN VOLTAGE
CONTROL

FAN15V

+

L4982

J0JHC0000096

C4981

25V
220u

R4995

P

R4996

P

R4982

470

*R4997

*A5

1

2

GND

3

4

5V

5

R4989

22k

3

(FIN)

GND

L4981

10.5k

R4987
910

R4985

2.7k

1%

R4986

1%

1%

DSC200100L

0

+

Q4983

5V

*R4998

0

*C4987
25V

16V

*C4988

C4984
16V
470u

TP4311

TP4312

TPFAS

10u

TP4982

0.1u

R4988

P

RXD

TXD

FAN_SOS

S3204

GAP0.3

JK3201

H1

1

Pr

H2

2

COMPONENT

VIDEO

FAN_VOLTAGE

TP4981

R4993

10k

R4994

10k

IC4301

C1ZBZ0003985

RS232C DRIVER

1

EN

FORCEOFF

2

C1+

0.1u

C4314

C4315

3

0.1u
16V

C4316

0.1u
16V

C4317

0.1u
16V

V+

16V

4

C1-

DOUT1

5

C2+

6

7

8

9

10

RIN1

C2-

ROUT1

V-

FORCEON

DOUT2

DIN1

RIN2

DIN2

ROUT2

INVALID

Video

STBY3.3V

C4313

20

1u

6.3V

19

VCC

18

GND

R4315

100

17

R4314

100

16

R4313

100

15

14

R4312

100

13

12

11

SC

H3

Pb

3

H4

4

Y

VJ3201

P

VJ3202

P

R3204

0

R3205

0

+
C4311

R4316
0

RXD_PCI

A_TXD_PC

47u

6.3V

C4312

0.1u
16V

L3291

J0JHC0000117

R3291
75

1%

ERJ6ENF75R0V

G1C101MA0072

FL3203

J0HABB000004

1

2

FL3202

J0HABB000004

1

2

FL3201

J0HABB000004

1

2

9V_M

L3271

16V

10u

C3271

5V

S3203

GAP0.3

S3202

GAP0.3

S3201

GAP0.3

D3291

EZJP0V080GA

R3293

22k

C3293

10u

R3294

10V

33k

3

4

3

4

3

4

PB/B B_PC

PB/B_GND

Y/G

Y/G_GND

PR/R_GND

PR/R

Y/G

PB/B

3

2

1

C4453

16V

0.1u

R4451 R4453

P P

PR/R_HA

PB/B_HA

J0JHC0000117

R4454

100

Q4451

DSC200100L

Y/G_HA

G_PC

R_PCPR/R

L4451

C4451

C4452

16V

16V

0.1u

10u

C4456
16V

0.1u

R4455

1%

330

C4457

50V

10p

R4456

R4458

127

1%

L4452

G1C100JA0031

HD_PCIN

VD_PCIN

100

C4458

R4457

50V

1%

430

47p

R3282

HD_PCIN

0

R3283

VD_PCIN

0

HX SYNC IN

HD_PCIN

C3273

50V
150p

VD_PCIN

C3275
50V

1000p

R4459

Q4452

DSA200100L

C3274

10V
10u

C3276

1k

10V
10u

C4460

16V

0.1u

IC3271

C0JBAB000715

DPMS 5V->3.3V

1

NC

2

IN_A

3

GND

1

NC

2

IN_A

3

GND

B0ACCJ000048

R3271

100

B0ACCJ000048

B0ACCJ000048

R3276

100

B0ACCJ000048

C4462

1000p

50V

CVBS

C4461
10V
1u

STBY3.3V

5

VCC

C3278

16V

0.1u

4

OUT_Y

5

VCC

C3279

0.1u

16V

4

OUT_Y

9V_M

R3272

4.7k

D3271

D3272

R3273

4.7k

R3277

4.7k

D3273

D3274

R3278

4.7k

C3277

6.3V

1u

R3284

IC3272

C0JBAB000715

R3285

Q3271

DSC200100L

R3274

3.3

R3275

3.3

Q3272

DSA200100L

Q3273

DSC200100L

R3279

3.3

R3280

3.3

Q3274

DSA200100L

R3281

P

DPMS_HD

100

DPMS_VD

100

16V

0.1u

C3272

HD_PC

VD_PC

13

14

15

3

4

16

17

141310 11 1612 17 1815

54

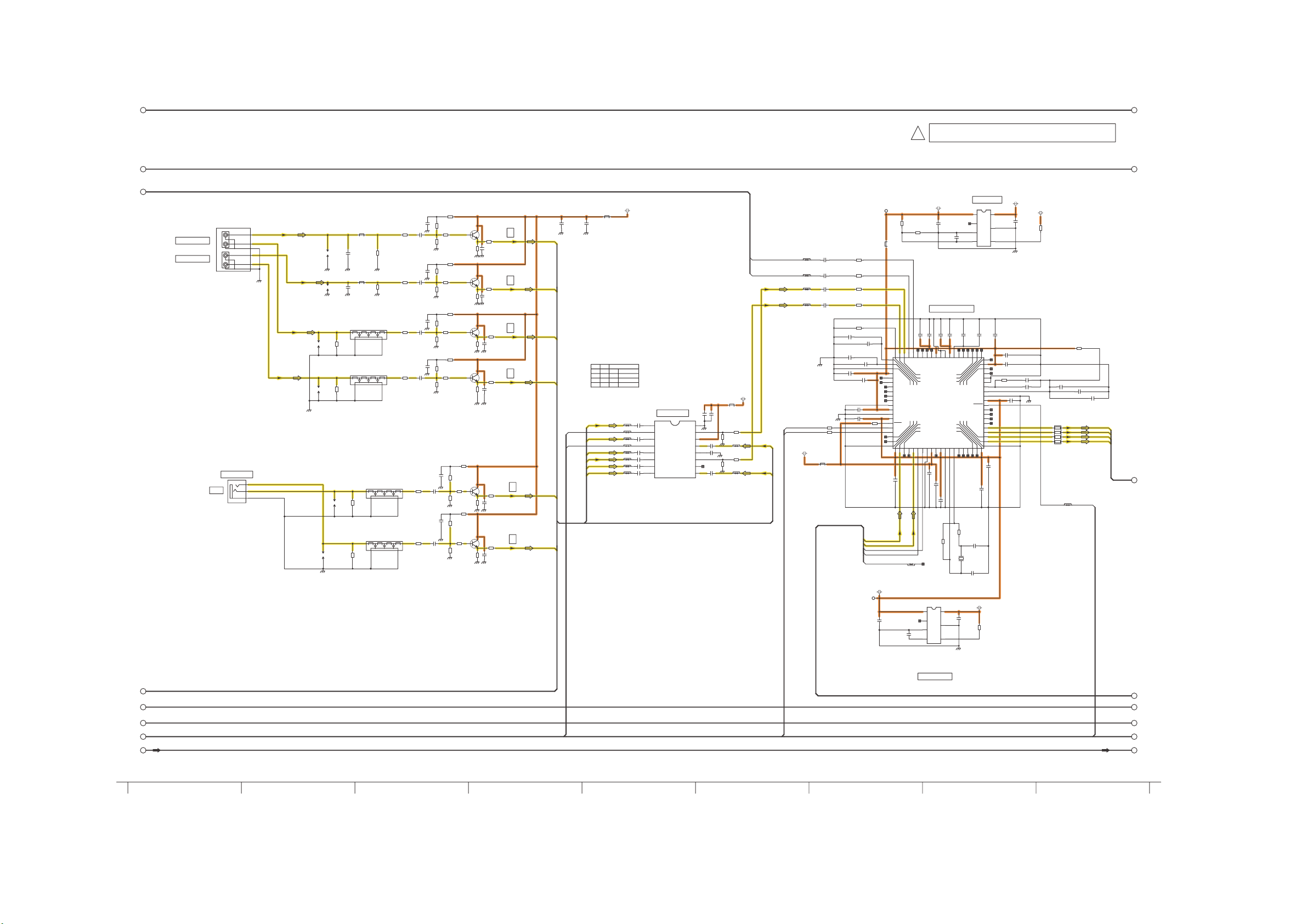

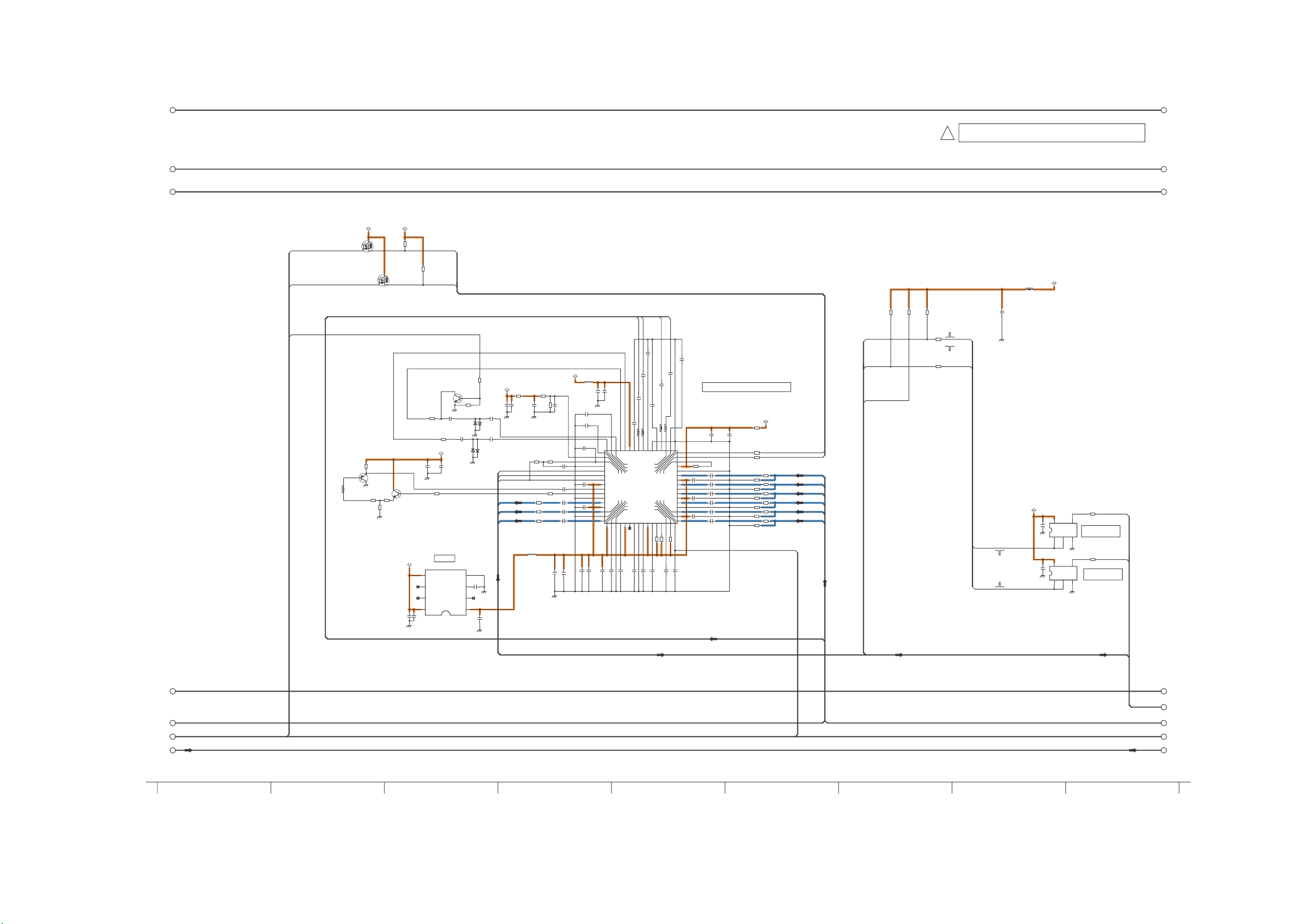

13.11. A-Board (3 of 17) Schematic Diagram

+

+

+

+

+

+

P

P

P

P

P

P

G_PC

P5V_SDA3

VSYNC_ON/OFF

HD-OUT

HD+OUT

HD-OUT

3V_SCL3

PR/R_M

HD_PC

3V_SDA3

VD+OUT

VD+OUT

Y/G_M

P5V_SCL3

HD+OUT

PB/B_M

VD_M

HD_M

5V_VD_M

5V_HD_M

5V_HD_M

5V_VD_M

VD_ADV

HD_ADV

Y/G_HA

PB/B_HA

PR/R_HA

B_PC

R_PC

VD_PC

S2DETECT

P5V_SCL3

P5V_SDA3

C4281

16V

0.1u

C4282

16V

0.1u

C3202
50V

0.01u

C3209

50V

0.01u

C3234

0.1u

16V

C3251

50V 1000p

C3237

0.1u

16V

C3229

2.2u

10V

C3221

0.1u

16V

C3222

0.1u16V

C3235

0.1u

16V

C3212

16V 0.1u

C3218

16V

0.1u

C3233

2.2u

10V

C3228

2.2u

10V

C3246

16V

4.7u

C3238

0.1u

16V

C3253

25V

0.1u

C3264

16V

0.01u

C3259
16V

0.1u

C3249

50V 0.01u

C3215

10V

2.2u

C3247

16V

4.7u

C3207

50V

0.01u

C3236

0.1u

16V

C3241

0.1u

16V

C3231

2.2u

10V

C3262

16V

0.1u

C3208

50V

0.01u

C3244

16V

1u

C3240

0.47u

16V

C3232

2.2u

10V

C3205

16V

0.1u

C3223

0.1u16V

C3258

16V

0.1u

C3239

0.47u

16V

C3219

16V

0.1u

C3252

50V

1000p

C3206

50V

0.01u

C3243

16V

1u

C3211

50V

0.01u

C3210

50V

0.01u

C3216

16V

0.1u

C3230

2.2u

10V

C3250

16V

0.01u

C3213

16V0.1u

C3263

10u

6.3V

C3248

16V 0.47u

C3225

0.1u16V

C3226

0.1u16V

C3224

0.1u16V

C3266

10V
1u

C3261

10u
16V

C3227

0.1u

16V

C3217

6.3V

47u

C3204

16V

47u

C3254

16V470u

C3255

16V470u

C3201
16V
47u

C3256

16V470u

D3202

B0ACCJ000048

D3204

B0ACCJ000048

D3203

B0ACCJ000048

D3201

B0ACCJ000048

IC3202

C0CBCDD00025

1

Vout

2

NC

3

Cn

4

GND

5

Cont

6

NC

7

NC

8

Vin

IC3201

C1AB00003160

1

VCC1

2

YIN4

3

GND

4

PBIN45VCC16NC7PRIN48GND9YIN310VCC111PBIN312PORT313PORT2

14

PRIN3

15

PORT1

16

PORT0

17

YIN218VCC119PBIN2

20

GND

21

PRIN2

22

VCC1

23

YIN1

24

GND

25

PBIN1

26

VCC1

27

PRIN1

28

GND

29

VDD

30

ADR31SDA32SCL

33

DGND

34

VIN4

35

VIN3

36

VIN237VIN1

38

GND

39

HIN440HIN341HIN242HIN143VCC244HOUT45VOUT

46

VIN

47

VDET

48

HIN

49

HDET

50

VERTADJ

51

VERTIN

52

GND

53

VD+OUT

54

HD-OUT

55

HD+OUT

56

VCC1

57

GCLAMP2

58

GCLAMP1

59

GND

60

YOUT

61

VCC1

62

PBOUT63GND64PROUT

L3203

G1C100K00020

L3201

G1C100K00020

3.3V

9V_M

5V

9V_M

9V_M

5V

3.3V 5V

5V

R3210

R3234

R3235

R3236

R3237

R3254

Q3211

B1CBHD000002

G

DS

Q3212

B1CBHD000002

G

DS

Q3202

DSC200100L

Q3203

DSC200100L

Q3201

DSA200100L

1%

R3218

75

R3241

10k

R3212

330k

1%

R3216

75

1%

R3256

1.5k

R3213

330k

R3221

56

1%

R3253

22k

R3251

100

R3223

56

1%

R3265

75

R3259

0

R3258

180

R3214

330k

R3215

56

1%

R3263

75

R3248

2.2k

1%

R3244

3k

R3208

0

1%

R3257

680

1%

R3239

22

R3255

100

1%

R3261

75

R3230

56

R3250

2.2k

R3225

56

1%

R3247

4.7k

R3232

2.7k

1%

R3245

2.2k

1%

R3224

75

1%

R3222

75

R3227

0

R3243

0

R3231

56

1%

R3220

75

R3219

56

1%

R3246

4.7k

R3252

2.2k

R3240

2.2k

1%

R3226

75

R3217

56

R4282

0

0

R4281

R3249

100

R3206

0

R3233

2.7k

C0JBAA000377

IC4281

1

IN_B

2

IN_A

3

GND

5

VCC4OUT_Y

C0JBAB000715

IC4282

1NC2

IN_A

3

GND

5

VCC4OUT_Y

VIDEO BLOCK

VIDEO/Sync SW,LPF,Sync Sep

VP

HP

HP

5V->3.3V
LEVEL SHIFT

VP

25 2720 2419 22 262321

A-BOARD TZTNP011DEE (3/17)

!

9V->5V

5V->3.3V
LEVEL SHIFT

12

15

16

13

17

14

11

22

21

25

24

27

28

23

26

TH-50PF20E / TH-50PF20ER

55

TH-50PF20E / TH-50PF20ER

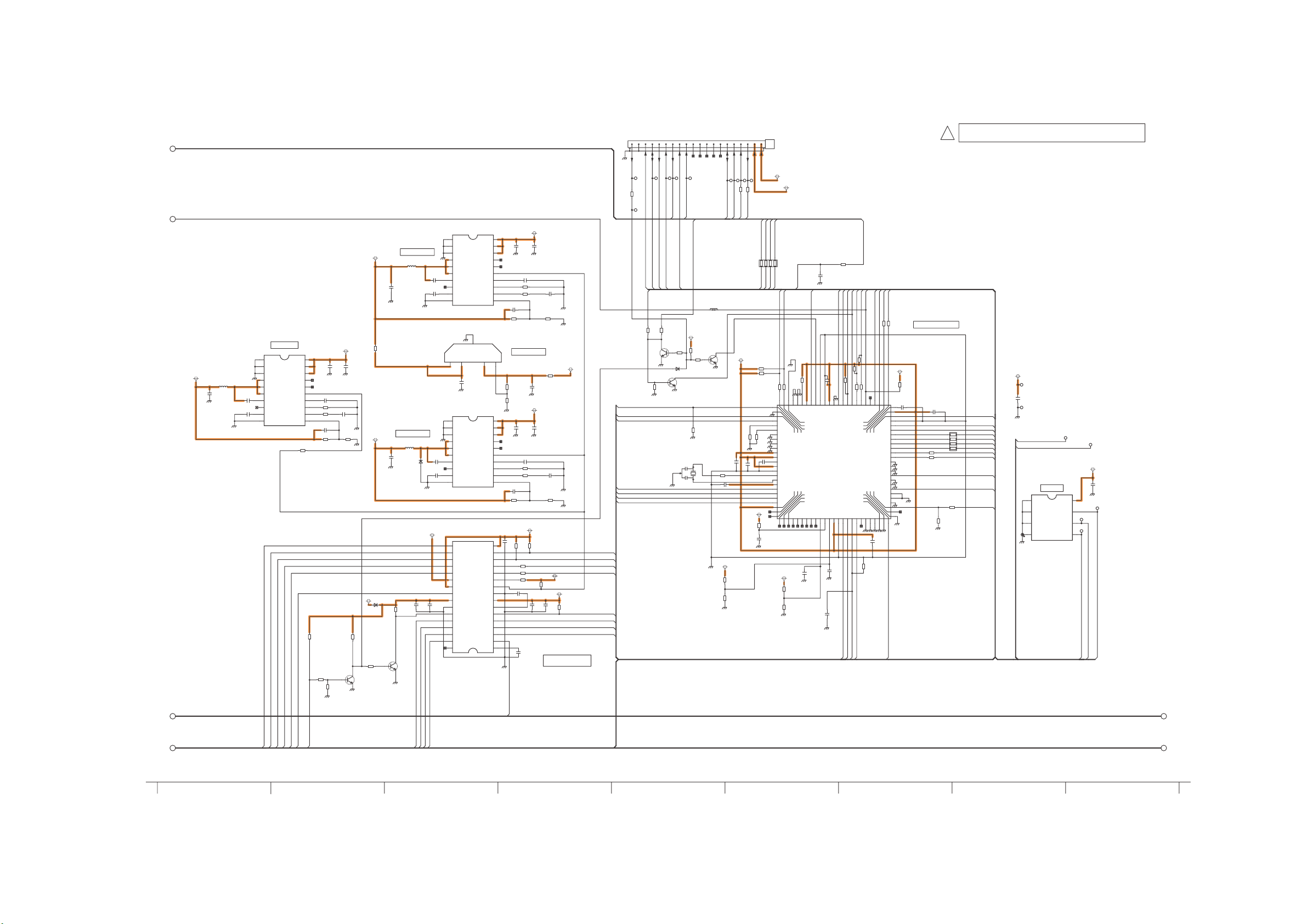

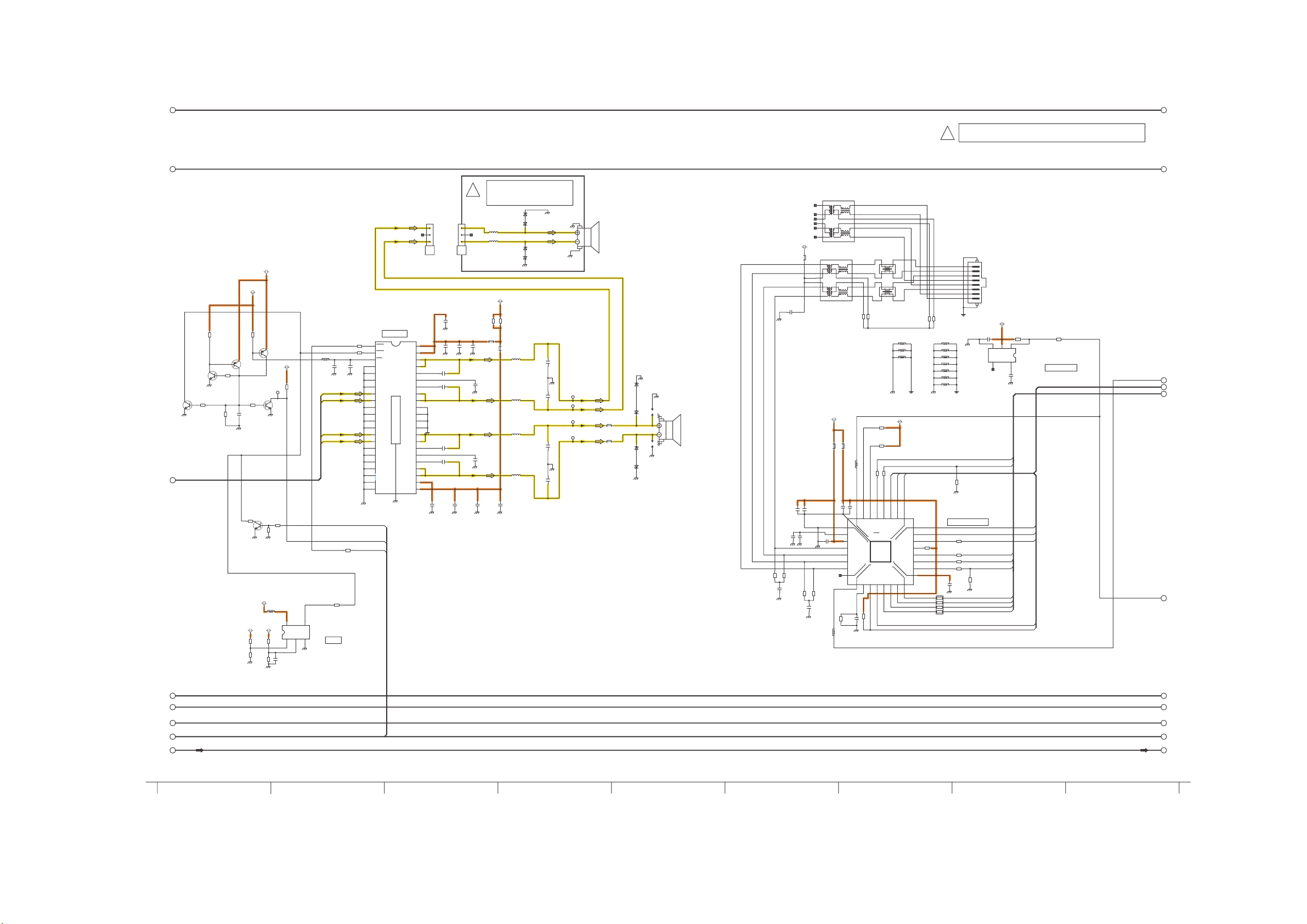

13.12. A-Board (4 of 17) Schematic Diagram

21

!

A-BOARD TZTNP011DEE (4/17)

22

IC2304

C2394

6.3V

2.2u

10u10V

C2390

AUXOUT3R

AUXOUT3L

HPOUT2R

PWM_READY

0.1u

16V

R2372

7

6

C0CBCBE00001

5V->3.3V

1

VOUT

2

NC

3

GND

C2395
50V
470p

4

CN

0.1u16V

0.1u16V

C2389

C2388

C2387

62

63

64

66NC67

68

AVDD69AGND70AGND71AVDD

FILTD

AUXOUT4L65AUXOUT4R
HPOUT1L

AGND

AGND

PLL_LF

AVDD

AVDD

DGND

HPOUT1R

HPOUT2L

DVDD

RESET

PWM4B

PWM4A

PWM3B

DGND42PWM1A43PWM1B

PWM3A

DVDD

PWM2B

PWM2A

38

39

C2376

R2373

470

1M

C2375

50V

12p

X2351
H0J245500089

C2374

15p

50V

3.3V

C2396

10V
1u

R2386

10k

5V

7

VIN

6

SUB

5

CONT

10u

C2386
10V
10u

10V

C2385
61
60

C2384

59

16V

58

57

56

R2379

55

54

53

52

C2378

51

50

49

48

47

46

45

44

41

40

10u10V

C2377

0.1u

16V

DVDD1.8V

C2393

10V
1u

R2384

10

R2380

C2381 1000p

50V

22

R2377

EXB28V220JX

0

C2380

0.1u

16V

C2379

10u

10V

PWM_SQ_R+

PWM_SQ_R-

PWM_SQ_L+

PWM_SQ_L-

R2378

A_NRST

S

10u10V

0.1u

C2383

0.1u

16V

2k

1%

C2382

1000p

50V

0.1u

16V

23

AUDIO BLOCK

COMPOSITE

COMPONENT

9V_M

L2407

R2405

C2405

JK2401

L2

L2

L1

L1

G

R2

R2

R1

R1

G

S2402

GAP0.3

GAP0.3

S2403

S2404
GAP0.3

JK2402

AUDIO IN

2

L

3

R

DVI

1

L2411

J0JHC0000117

C2411
50V
560p

J0JHC0000117

1

2

1

2

L2412

R

R2450
180k

L

R2443
180k

FL2403

J0HABB000003

FL2404

J0HABB000003

1

1

J0HABB000003

2

J0HABB000003

2

R2411

22k

R2419

22k

3

4

3

4

FL2406

FL2405

S2401

GAP0.3

C2414
50V
560p

R2427

180k

R2435
180k

S2406

GAP0.3

S2405

GAP0.3

16V

4.7u

R2412

100

C2412

1u

16V

C2406

16V

4.7u

R2420

100

C2415

1u

16V

C2407

16V

4.7u

R2428

C2417

100

16V
1u

C2408

16V

4.7u

R2436

100

C2419

16V
1u

R2451

3

100

4

R2444

3

100

4

4.7k

R2413

33k

R2415

100

R2414
47k

R2406

R2421

33k

R2423

100

R2422
47k

R2407

R2429

33k

R2431
100

R2430

47k

R2408

R2437

33k

R2439
100

R2438

47k

C2410

16V

4.7u

C2423

16V

R2453

1u

47k

C2409

16V

4.7u

C2421

16V
1u

Q2401

DSC200100L

L

R2417
100

R2416

C2413

1k

16V

0.1u

4.7k

Q2402

DSC200100L

R2425

100

R2424

C2416

1k

16V

0.1u

4.7k

Q2403

DSC200100L

R2433

100

R2432

C2418

1k

16V

4.7k

R2452

33k

R2454

R2445

33k

R2447

R2446

47k

0.1u

Q2404

DSC200100L

R2441

100

C2420

R2440

16V

0.1u

1k

R2410

4.7k

Q2406

DSC200100L

R2456

100

100

R2455

C2424

1k

16V

0.1u

R2409

4.7k

Q2405

DSC200100L

100

R2449

100

R2448

C2422

1k

16V

0.1u

AUD_L_CV

R

AUD_R_CV

L

AUD_L_HA

R

AUD_R_HA

R

AUD_R_DVI

L

AUD_L_DVI

C2404

16V

0.1u

AUD_SEL1

AUD_SEL2

J0JHC0000117

C2403
16V

10u

OUTPUT

SEL1

SEL2

IN1

L

LPC

L

IN2

H

COMPONENT

L

IN3

H

DVI

HH

IN4

COMPOSITE

IC2306

C1AB00003042

AUDIO SW

C2463

R2462

AUD_L_PC

R2463

R2464

AUD_L_HA

R2465

R2466

AUD_L_CV

R2467

AUD_R_PC

R2468

AUD_R_HA

R2469 R2470

AUD_R_CV

1

IN1a

P

1u

16V

2

CNT1

S

C2464

3

IN2a

P

1u

16V

4

CNT2

S

C2465

1u

5

IN4a

P

16V

C2466

6

1u

IN1b

P

16V

C2467

7

1u

IN2b

P

16V

C2468

8

1u

IN4b

P P

16V

C2357

R2357

10u

P3V_SDA2

P3V_SCL2

R2355

R2353

R2351

AUD3.3V

10V

P

C2355

10u

10V

P

C2353

10u

10V

P

C2351

10u

10V

P

C2359

16V

C2362

16V

C2364

16V

R2368

22

R2369

22

L2351

AUD_L_DS

AUD_R_DS

MAIN_L

MAIN_R

9V_M

C2461

47u
16V

C2462

GND

OUTa

V+

IN3a

Vref

OUTb

N.C.

IN3b

L2462

+

J0JHC0000117

0.01u
50V

16

L

56

R2475

15

R2474

14

100k

C2472

1u

13

16V

C2471

+

12

10u

16V

11

10

C2469

1u

9

16V

AUD_L_DVI

R2473

P

56

R2472

R2471

100k

AUD_R_DVI

TP2351

L2353

J0JYC0000068

R2358

23.2k

1%

R2356

23.2k

1%

R2354

23.2k

1%

R2352

23.2k

1%

R2359

1%

20k

0.1u
C2360

10u

10V

0.1u

C2363

10V

0.1u

C2365

10V

C2366

16V

0.1u

C2367

0.1u

16V

10u

10u

R2360

HDMI_SDIN

HDMI_SPDIF

HDMI_BCLK

HDMI_LRCK

MCLK

TP2352

10k

DVDD1.8V

80

1

2

4

AVDD

5

SIF_REFP

6

SIF_REFCM

7

SIF_REFN

8

SIF_IN1

9

SIF_PGA_REF

10

SIF_IN2

11

AGND

12

AVDD

13

DGND

14

DVDD

15

MUTE

16

SDA

17

SCL

18

21

C2368
16V

0.1u

C2397

6.3V

2.2u

C2398

AUD3.3V

R2381

75k

1%

R2382

1%

120k

IC2303

C1AB00002909

SOUND CONTROL

10u10V

0.1u16V

C2392

C2391

72

76

78

79

AUXIN2L77AUXIN2R

AUXOUT1L73AUXOUT1R74AUXOUT2L75AUXOUT2R
AUXIN1L

AUXIN1R

ISET

VREF3AGND

FILTA

SPDIF_IN5/LRCLK219SPDIF_IN6/BCLK220DGND

DVDD

SDIN0

SDIN1

SPDIF_OUT/SDO1

SDIN225SPDIF_IN0/SDIN326SPDIF_IN1/LRCLK027SPDIF_IN2/BCLK028ODGND29ODVDD30MCLK_OUT31DVDD32DGND33MCLKI/XIN34XOUT35SPDIF_IN4/BCLK136SPDIF_IN3/LRCLK137SDO0/AD0

22

23

24

10u10V

C2369

C2370

C2373
16V

0.1u

L2355

S

1

2

3

50V

45

470p

31

32

33

IC2305

C0DBFFD00003

3.3V->1.8V

24

25

26

27

28

28

30 36

343231 3529 33

34

35

36

37

38

56

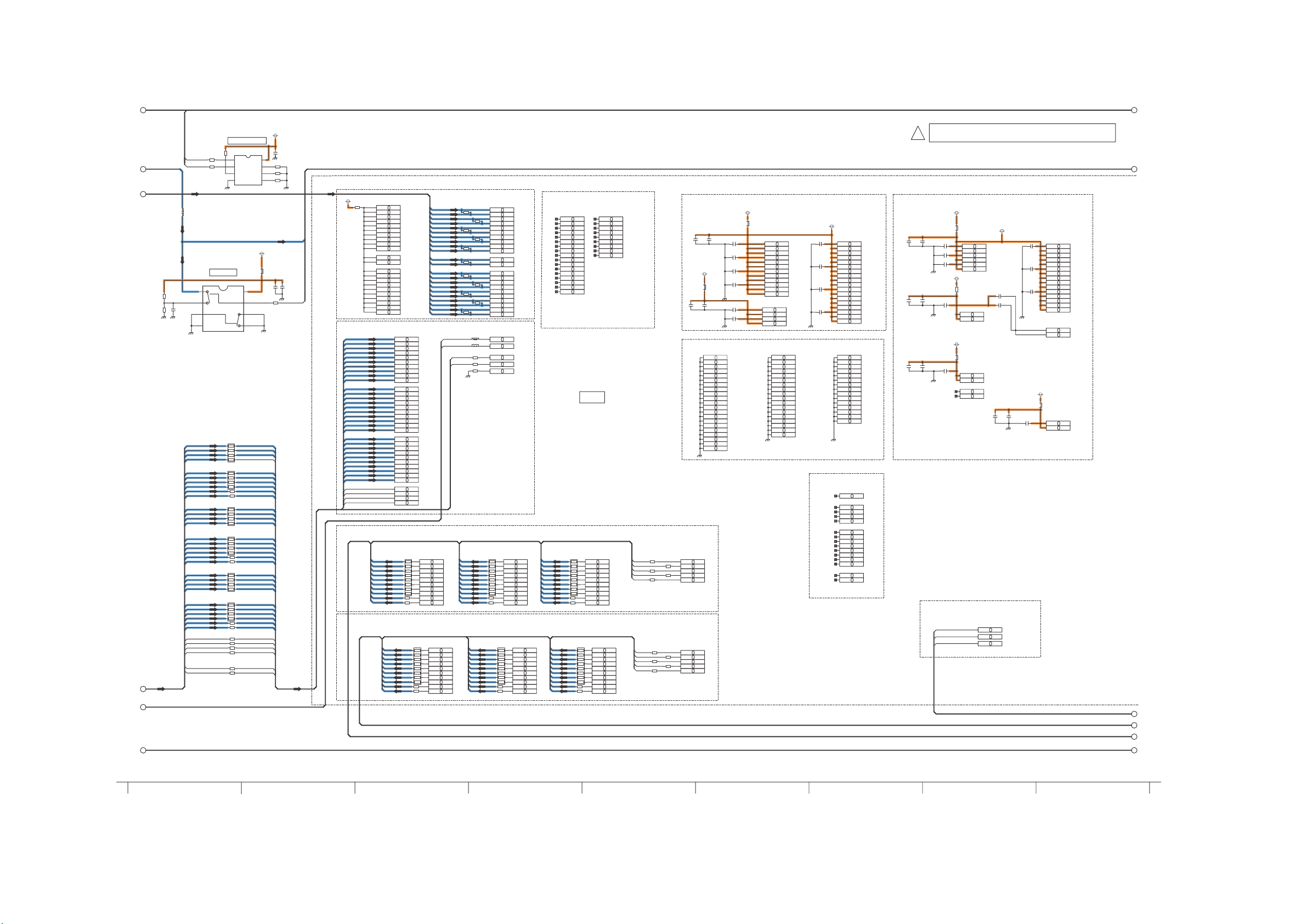

13.13. A-Board (5 of 17) and H3-Board Schematic Diagram

+

+

Thermal Pad

Thermal

Pad

S

S

S

P

P

P

P

P

P

P

P

P

P

P

EMDC

ETXEN

ETXCK

ETXD2

ETXD0

ECRS

ERXD0

ERXCK

EMDIO

ETXD1

ERXD1

ETXD3

ERXD3

ECOL

ERXER

ERXDV

ERXD2

SOUND_MUTE

PWM_SQ_R+

PWM_SQ_R-

A_NRST

PWM_SQ_L+

PWM_SQ_L-

AUDIO_SOS

*C8378

25V

0.1u

*C8304

6.3V

10u

*C8310

10u

6.3V

*C8314

10u

6.3V

*C8309

16V

0.1u

*C8315

10u

6.3V

*C8306

10u

6.3V

*C8313

16V

0.1u

*C8317

16V

0.1u

*C8316

50V
100p

*C8318

16V

0.1u

*C8377

25V

0.1u

*C8319

16V

0.1u

*C8312

10u

6.3V

C2349

16V

0.1u

C2308

10u

25V

C2306

50V

1000p

C2314

0.1u

50V

C2330

0.1u

50V

C2324

25V

0.33u

C2309

25V
1u

C2340

25V

0.33u

C2337

0.1u

50V

C2329
25V
1u

C2304

10u

25V

C2310

50V

1000p

C2333
25V

0.33u

C2317
25V

0.33u

C2313

25V
1u

C2321

0.1u

50V

C2305

25V
1u

C2312
16V

0.1u

C2311
10V
1u

C2345

0.1u

16V

C2301

25V

470u

C2302
25V

470u

D2304

B0BC03200003

D2303

B0BC03200003

D2302

B0BC03200003

D2301

B0BC03200003

C1AB00003322

IC2301

1

STBY

44

PVD1

2

MUTE

3

SOS

4

NC1

5

NC2

6

NC3

7

NC4

8

PWM_A1

9

PWM_B1

10

NC5

11

NC6

12

NC7

13

GND

14

PWM_B2

15

PWM_A2

16

NC8

17

NC9

18

NC10

19

NC11

20

NC12

21

NC13

22

NC14

23

PVD2

24

PVD2

25

OUT_CH2_P

26

OUT_CH2_P

27

BOOT_CH2_P

28

VDDA2

29

BOOT_CH2_N

30

OUT_CH2_N

31

OUT_CH2_N

32

PGND2

33

PGND2

34

PGND1

35

PGND1

36

OUT_CH1_N

37

OUT_CH1_N

38

BOOT_CH1_N

39

VDDA1

40

BOOT_CH1_P

41

OUT_CH1_P

42

OUT_CH1_P

43

PVD1

C1CB00002896

*IC8301

1

GND

2

VDDPLL_18

3

VDDA_33

4

RX-

5

RX+

6

TX-

7

TX+

8

XO

9

XI

10

REXT11MDIO12MDC13RXD314RXD215RXD1

16

RXD0

17

VDDIO_33

18

RXDV

19

RXC

20

RXER

21

INTRP

22

TXC

23

TXEN

24

TXD0

25

TXD1

26

TXD227TXD3

28

COL29CRS

30

LED031LED1

32

RST

JK2301

*JK8301

1

2

3

4

5

6

7

8

A8

1

2

3

*L8304

J0JHC0000045

*L8313

J0JHC0000045

L2316

J0JHC0000117

*L8303

J0JHC0000045

L2315

J0JHC0000117

L2308

J0JHC0000117

L2307

J0JHC0000117

*L8302

1

43

2

*L8301

1

43

2

L2304
G1C220MA0363

L2303

G1C220MA0363

L2306
G1C220MA0363

L2305
G1C220MA0363

3.3V_LAN

SOUND15V

3.3V_LAN

3.3V

STBY3.3V

3.3V

3.3V_LAN

STBY5V

3.3V_LAN

STBY3.3V

9V_M

R2306

R8311

R8315

R8482

R8483

R2331

R8405

R8411

R8484

R8460

R8461

R8479

R8480

R8481

TP2303

TP2311

TP2302

TP2304

TP2301

GAP0.3

S2301

GAP0.3

S2302

Q2304

DSC200100L

Q2306

DSC200100L

Q2305

DSC200100L

Q2301

DSC200100L

Q2302

DSA200100L

Q2303

DSA200100L

*R8329

EXB28V220JX

R2336

15k

*R8316

4.7k

*R8336

5.6k

R2327

0

R2333

10k

1%

R2332

24k

1%

*R8333

22

*R8410

4.7k

1%

*R8491

49.9

*R8327

4.7k

1%

*R8493

49.9

*R8332

22

R2302

0

R2303

10

R2304

10

R2328

47k

R2329

4.7k

R2334

7.5k

1%

1%

*R8335

7.5k

R2335

10k

1%

1%

*R8314

75

*R8409

4.7k

1%

*R8490

49.9

1%

*R8312

75R2301

0

1%

*R8308

75

*R8337

100

*R8322

22

R2321

0

*R8331

22

1%

*R8334

7.5k

1%

*R8313

6.49k

*R8318

22

1%

*R8309

75

*R8330

22

R2341

22k

R2342

22k

R2347

22k

R2346

47k

R2345

47k

R2343

47k

R2344

22k

1%

*R8492

49.9

*T8301

1

2

3

4

5

6

9

10

11

12

8

7

*T8302

1

2

3

4

5

6

9

10

11

12

8

7

C0EBE0000120

*IC8302

1

RST

2

VDD

3

GND

5Cd4

NC

C0JBAA000377

IC2302

1

IN_B

2

IN_A

3

GND

5

VCC4OUT_Y

D8501

B0BC03300003

D8503

B0BC03300003

D8500

B0BC03300003

D8502

B0BC03300003

JK8500

H37

1

2

3

L8501

0

L8502

0

TX+

RX+

TX-

RX-

TX+

TX+

RX+

TX-

RX-

RX-

RX+

TX-

Reset IC

LAN BLOCK

-R OUT

+R OUT

+L OUT

-L OUT

R+

L-

R-

L+

424137 4339 40 4438 45

A-BOARD TZTNP011DEE (5/17)

!

SP AMP

AND

SPEAKER(R)

TNPA5111

H3-BOARD

!

SPEAKER(L)

LAN CONTROL

LAN TERMINAL

36

37

31

35

38

32

33

34

40

41

42

44

45

43

46

47

48

49

50

TH-50PF20E / TH-50PF20ER

57

TH-50PF20E / TH-50PF20ER

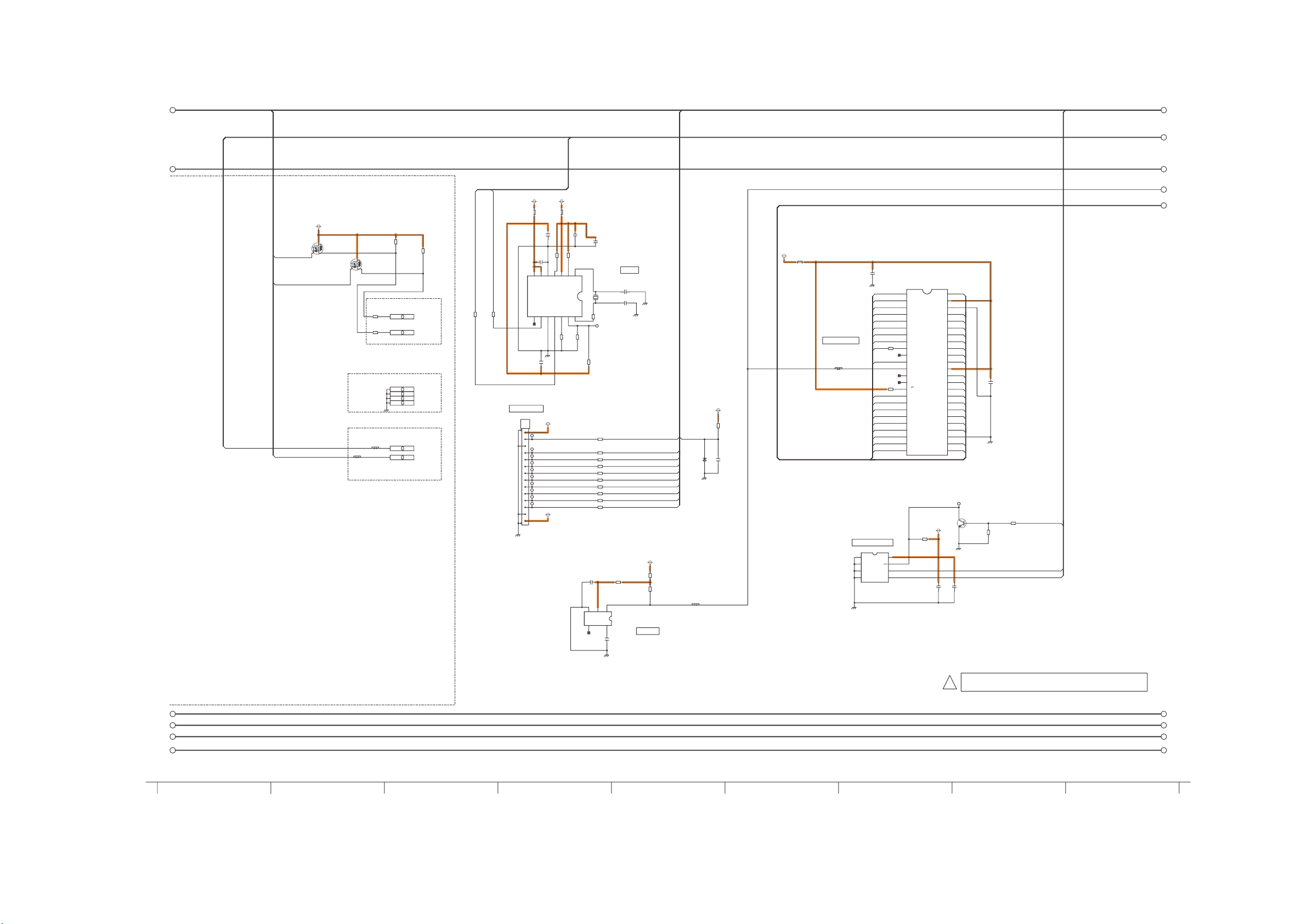

13.14. A-Board (6 of 17) Schematic Diagram

40

41

*R8338

EXB28V220JX

SPI_CS

SPI_SO

SPI_SI

SPI_SCK

*IC8303

C0DBFFD00003

3.3V->1.8V

42

43

44

3.3V_LAN

*R8478

EXB28V473JX

3.3V_LAN

*R8456

EXB28V473JX

10k

*R8457

*R8306

33

*R8447

9.1M

*R8448

220

*X8302

H0J250500091

*C8326

*C8325

10p

50V

12p

50V

45

FUNCTION

CFGA0

Low

High

Low

High

CFGB0

CFGA1

HOST

Low

Low

EX. MEMORY

Low

GPIO,I2S

High

Low

Reservation

High SPI1

High

46

47

48

49

50

TP8324

*R8301

EXB28V220JX

CFGB1

Low

Low

High

High

51

!

A-BOARD TZTNP011DEE (6/17)

52

53

10u

6.3V

54

LVDD

MII_MDIO

MII_RXD3

OSCO49INT#

MII_RXD2

MII_RXD1

MII_RXD0

MII_RXDV

MII_RXCLK

MII_RXER

MII_TXCLK

MII_TXEN

MII_TXD0

MII_TXD1

MII_TXD2

MII_TXD3

MII_MDC

MII_COL

3.3V_LAN

*L8307

J0JHC0000045

*R8372

8

10k

VCC

7

HOLD#

SCLK

SI

*C8341

16V

0.1u

52

53

HVDD

VSS

LVDD

24

23

22

*R8370

SPI_SCK

6

SPI_SI

5

3.3V_LAN

3.3V_LAN

*L8308
J0JHC0000045

*C8375

10u

6.3V

51

50

48

47

46

45

44

43

42

41

40

39

38

37

36

35

34

33

32

31

30

29

26

25

22

*R8371

R8373

S

*R8374

*R8375

10k

*R8474

*C8342

0.1u
16V

*C8374

0.1u
*R8376

16V

22

EXB28V220JX

*C8343

16V

0.1u

*R8499

22

EMDIO

EMDC

22

ERXD3

ERXD2

ERXD1

ERXD0

ERXDV

ERXCK

ERXER

ETXCK

ETXEN

ETXD0

ETXD1

ETXD2

ETXD3

*R8377

RXD1

TXD1

33k

ECOL

ECRS

R8487

R8488

R8489

*R8364

2.7k

*IC8308

TVRR238

EEP ROM for Mac adrress

1

NC

S

VCC

2

NC

S

S

WP

3

A2

SCL

4

GND

SDA

8

7

6

5

LAN3.3V

*R8441

0

3.3V_LAN

G

*Q8308

B1CBHD000002

D

S

*R8440

22

3.3V_LAN

*R8463

10k

*C8352

10V
1u

*R8390

22

*R8391

22

TP8303

TXD_LAN

RXD_LAN

*R8393

*R8392

5.6k

5.6k

TP8302

TP8301

3.3V_LAN

R8466

S

*R8465

R8469

S

10k

*Q8304

*R8467

DSA200100L

10k

UART_SW

IIC_INT

RXD_PCI

A_RXD_PC

D_RXD

D_TXD

A_TXD_PC

TXD_PC_M

5VRXD_TU

5VTXD_TU

5VNRST

5VLED_R

5VLED_G

STBY3.3V

R4334

5.6k

C4322

50V

1000p

R4331

10k

R4333

Q4322

10k

DSC200100L

R4332

10k

STBY3.3V

R4321

10k

R4346

R4343

100

R4345

STBY5V

STBY5V

10k

S

C4323
16V

0.1u

IC4312

C0JBAZ000851

UART SW

1

1OE

2

1A

3

1Y

4

2OE

5

2A

6

2Y

7

GND

C4326

16V

0.1u

8

9

10

11

12

13

14

STBY3.3V

5

VCC4OUT_Y

IN_B

1

3Y

3A

3B

4Y

4A

4B

VCC

14

VCC

13

4OE

12

4A

11

4Y

10

3OE

9

3A

8

3Y

IC4314

C0JBAA000377

5V->3.3V

IN_A

GND

2

3

GND

STBY3.3V

C4321

16V

0.1u

R4330

100

R4329

100

R4348

3VRXD_TU

100

IC4313

C0JBAA000175

3.3V->5V

7

2Y

6

2B

5

2A

4

1Y

1B

1A

R4337

3

2

1

DSC200100L

STBY3.3V

10k

Q4323

R4339

Q4324

DSC200100L

R4344

A_NRST

S

R4342

3VTXD_TU

100

R4341

10k

10k

A_LED_G

R4338

3.3k

A_LED_R

R4340

3.3k

R4323

Q4321

DSC200100L

22k

R4322

10k

0

R4325

R4326

0

R4328

100

R4347

100

C4325

0.1u
16V

STBY3.3V

R4335
10k

C4324

R4336

6.3V

2.2u

22k

REMOCON SOS

A_REM_IN

A_REMOCON

D_REM_OUT

REMOCON_OUT

LAN14V_ON/OFF

3.3V_LAN

5V_SOS

STBY3.3V

DN_SOS

R4666

15V_SOS

R4352

100

R4357

1k

R4359

0

R4358

100

*R4677

22k

*R4676

*R4675

100k

10k

*R4673

10k

*R4674

47k

R4671

3.9k

R4672

6.8k

Q4667

1.8V
DSC200100L

R4678

1k

47k

R4679

9V_M

Q4668

DSC200100L

R4681

7.5k

1k

R4682

3.3V

Q4669

DSC200100L

R4684

1k

R4685

47k

R4690

1k

Q4670

DSC200100L

STBY3.3V

Q4663

10k

DSC200100L

R4667

10k

STBY3.3V

R4351

C4351

10k

16V

0.1u

R4355

Q4351

22k

*Q4665

DSC200100L

*Q4666

DSC200100L

R4680

R4683

R4686

15V

DSC200100L

*D4662

B0ACCE000005

5V

D4663

10k

B0ACCE000005

D4664

10k

B0ACCE000005

D4665

10k

B0ACCE000005

R4687

5.6k

R4689

330

R4688

5.6k

R4669

12k

Q4664

DSC200100L

R4670

1k

R4356

22k

STBY5V

R4668

10k

TP8321

R8497

P

*R8346

10k

TP8322

TP8325

TP8326

TP8307

*L8305

J0JHC0000045

*C8327

6.3V
10u

0.1u

16V

*C8334

33

*R8486

*C8333

16V

0.1u

*C8328

16V

FUNCTION

CFGC0

SPI0

High

UART0High

Low

GPIO

High

SPI0

*R8350

10k

*R8344

22

*Q8301

DSA200100L

R8470

S

TP8327

TP8323

1.8V

1

Vin

Vo

*C8330

2

6.3V
NC

2.2u

sub

3

GND

*C8332

470p

50V

45

CONT

Cn

*L8306

J0JHC0000045

*C8329

6.3V
10u

73

74

75

76

79

*C8331

16V

0.1u

0.1u

Low

HINT

80

MEM0ALE

MEM0ALE

81

MCK

82

LVDD

LVDD

83

VSS

VSS

84

HVDD

HVDD

85

HIFSEL0/LINK

86

HIFSEL1/SPD

87

HIFSEL2/DPLX

88

DCLK

89

HMUX/DPCO

90

HINTPOL/DST0

91

HENDIAN/DST1

92

HSIZE/DST2

93

DSIO

94

OSC_LVDD

95

CLKI

96

CLKO

97

OSC_VSS

98

100

CFGA15TXD0/CFGB16RXD07RTS0#/CFGB08CTS0#9LVDD10VSS11SPI0_MOSI12SPI0_MISO13SPI0_SS14SPI0_SCLK15HVDD16TXD1/CFGC117RXD118RTS1#/CFGC019CTS1#20SPI1_MOSI21SPI1_MISO22SPI1_SS

CFGA1

1

2

3

4

FUNCTION

CFGC1

Low

SPI1

UART1

Low

I2S

High

High

3.3k

*R8349

S

R8354

*R8355

10k

*D8314

B0ACCJ000048

7

*C8335

10V
1u

6

69

HD1070HD1171HD1272HD13

HD14

HD15

HRD0#

HRD1#77HWR0#78HWR1#

LED

PLL_VSS99VCP

PLL_VDD

RESET#

TESTEN

CFGA0

22

22

R8414

*R8450

*R8449

68k

*R8351

3.3k

*R8358

*R8361

10k

SPI_CS

*R8362

SPI_SO

22

*R8363

22

3.3V_LAN

*C8337

16V

0.1u

66

67

HD868HD9

HVDD

*IC8304

C1CB00003205

NETWORK CONTROL

VSS

LVDD

22

22

*C8336

16V

0.1u

22

*R8455

*R8454

S

*R8453

SPI_SO

SPI_SCK

SPI_CS

SPI_SI

*R8360

3.3k

*C8340

16V

0.1u

1

CE#

2

SO

3

WP#

4

GND

*IC8305

TVRR237

4Mb SPI Flash Rom

55

VSS

HA0

HCS#

HWCTRL

VSS27HVDD28MII_CRS

SDA

SCL

SPI1_SCLK

HVDD

S

22

22

R8473

R8472

*R8452

*R8451

TXD1

RXD1

*C8338

16V

0.1u

*R8366

*R8368

3.3k

3.3k

*C8339

HA156HA257HD058HD159HD260HD361HD462HD563HD664HD765VSS

S

54

55

56

49 54534746 50 5148 52

58

13.15. A-Board (7 of 17) Schematic Diagram

+

+

+

+

S

P

P

P

P

P

RXB_1P

RXB_CN

RXB_CP

RXB_1N

RXB_0N

RXB_2P

RXB_0P

DDCB_SCL

RXB_2N

HPD2

DDCB_SDA

DVI_DET

HDMI_DET

TMDS_RXC-

TMDS_RXC+

TMDS_RX0+

TMDS_RX2+

TMDS_RX1-

TMDS_RX1+

TMDS_RX2-

TMDS_RX0-

XIRQ3

P3V_SDA2

P3V_SCL2

DDCC_SCL

DDCC_SDA

ADV_P5

ADV_P4

ADV_P3

ADV_P2

ADV_P6

ADV_P7

ADV_P8

ADV_P9

ADV_P10

ADV_P11

ADV_P15

ADV_P16

ADV_P17

ADV_P18

ADV_P19

ADV_P20

ADV_P21

ADV_P22

ADV_P23

ADV_P26

ADV_P27

ADV_P28

ADV_P29

ADV_P30

ADV_P31

ADV_P32

ADV_P33

ADV_P34

ADV_P35

ADV_P14

VSIN

HSIN

LLC/BLC

DDCB_SDA

DDCB_SCL

RXB_CN

RXB_CP

RXB_0N

RXB_0P

RXB_1N

RXB_1P

RXB_2N

RXB_2P

ADV_DEOUT

ADV_HSOUT

ADV_VSOUT

HD_ADV

VD_ADV

TMDS_RXC-

TMDS_RXC+

TMDS_RX0-

TMDS_RX0+

TMDS_RX1-

TMDS_RX2-

TMDS_RX2+

DDCC_SCL

DDCC_SDA

HDMI_SDIN

HDMI_LRCK

HDMI_SPDIF

HDMI_BCLK

A_P_ON/OFF

NRST2

PR/R_M

Y/G_M

PB/B_M

MCLK

EDID_WP

C4123

0.1u

16V

C4173

0.1u

16V

C4122

0.1u

16V

C4172

0.1u

16V

C4102

0.1u

16V

C4001

16V

0.1u

C4002

16V

0.1u

C4003

16V

0.1u

C4101

0.1u

16V

C4008

10V
10u

C4022

1u

6.3V

C4023
25V

0.01u

C4028

1u

6.3V

C4083

10u

10V

C4024

1u

6.3V

C4035

6.3V

4.7u

C4056

16V

0.1u

C4034

16V

0.1u

C4071

1u

10V

C4039

6.3V

4.7u

C4007

16V

0.1u

C4075

16V

C4044

1u

6.3V

C4032

16V

0.1u

C4021

25V

0.01u

C4050

1u

6.3V

C4052

1u

6.3V

C4077

16V

0.1u

C4026

1u

6.3V

C4055

16V

0.1u

C4054

16V

0.1u

C4027

25V

0.01u

C4006

16V

0.1u

C4082

10u

10V

C4072

2.2u

6.3V

C4025

25V

0.01u

C4081

10u
10V

C4030

16V

0.1u

C4048

1u

6.3V

C4046

1u

6.3V

C4031

16V

0.1u

C4084

10u

10V

C4037

16V

0.1u

C4073

470p

50V

C4042

1u

6.3V

C4151

0.1u

16V

C4088

16V

0.1u

C4085

6.3V

10u

C4086

16V

0.1u

C4087

6.3V

10u

C4009

10p

50V

C4010

10p

50V

33u

6.3V

C4121

33u

6.3V

C4171

C4074

47u

6.3V

C4076

47u

6.3V

D4116

B0ECKM000048

D4121

B0ECKM000048

D4122

B0ECKM000048

D4171

B0ECKM000048

D4172

B0ECKM000048

D4163

DZ2J056M0L

D4165

DZ2J056M0L

D4164

DZ2J056M0L

D4158

EZAEG2A50AX

D4114

EZAEG2A50AX

D4157

EZAEG2A50AX

D4104

EZAEG2A50AX

D4151

EZAEG2A50AX

D4106

EZAEG2A50AX

D4152

EZAEG2A50AX

D4113

EZAEG2A50AX

D4154

EZAEG2A50AX

D4155

EZAEG2A50AX

D4103

EZAEG2A50AX

D4107

EZAEG2A50AX

D4156

EZAEG2A50AX

D4101

EZAEG2A50AX

D4153

EZAEG2A50AX

D4105

EZAEG2A50AX

D4108

EZAEG2A50AX

D4161

EZAEG2A50AX

D4162

EZAEG2A50AX

D4102

EZAEG2A50AX

IC4006

1E02E13E24

VSS

5

SDA6SCL

7WC8

VCC

IC4005

1E02E13E24

VSS

5

SDA6SCL

7WC8

VCC

C1AB00002966

IC4001

1

CVDD2GND3DVDD

4

SPDIF

5

CLK_24.576

6

SCLK

7

LRCLK

8

I2S0

9

SDATA

10

SCL

11

GND

12

DVDDIO

13

DE

14

HS

15

VS/FIELD

16

INT1

17

SFL/SYNC_OUT/INT2

18

GND

19

DVDD

20

P0

21

P1

22

P2

23

P3

24

P4

25

P5

26

P6

27

P7

28

P8

29

P9

30

P10

31

P11

32

GND

33

DVDDIO

34

P1235P1336P14

37

P15

38

P16

39

P17

40

P1841P1942P2043P2144P2245P2346P2447P2548P2649P27

50

DCLKIN

51

GND

52

DVDDIO

53

LLC

54

TRIGIN/P2855SRL_UP/P29

56

GND

57

DVDD

58

SRL_IN/P30

59

R_ACTIVE/P31

60

P3261P3362P3463P35

64

RESETB

65

HS_IN66VS_IN

67FB68

AGND

69

SYNC2

70NC71

AIN4

72

AIN5

73

AIN6

74

NC

75

AVDD

76

AGND

77

NC

78

AIN9

79

NC

80

AGND

81

AVDD

82

REF2

83

REF1

84

AGND

85

AVDD

86

GND

87

PVDD

88

XTAL1

89

XTAL

90

PVDD

91

GND

92

CVDD

93

GND

94

TVDD

95

RxA_C-

96

RxA_C+

97

GND

98

RxA_0-

99

RxA_0+

100

GND

101

RxA_1-

102

RxA_1+

103

GND

104

RxA_2-

105

RxA_2+

106

DDCA_SCL

107

DDCA_SDA

108

TVDD

109

CVDD

110

GND

111

DDCB_SCL

112

DDCB_SDA

113

TVDD

114

RxB_C-

115

RxB_C+

116

GND

117

RxB_0-

118

RxB_0+

119

GND

120

RxB_1-

121

RxB_1+

122

GND

123

RxB_2-

124

RxB_2+

125

TVDD

126

RTERM

127

CVDD

128

GND

129

TVDD

130

RxC_C-

131

RxC_C+

132

GND

133

RxC_0-

134

RxC_0+

135

GND

136

RxC_1-

137

RxC_1+

138

GND

139

RxC_2-

140

RxC_2+

141

TVDD

142

DDCC_SCL

143

DDCC_SDA

144

GND

JK4002

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

JK4001

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

L4102

J0JYC0000068

L4083

J0JYC0000068

L4086

J0JYC0000068

L4087

J0JYC0000068

L4151

J0JYC0000068

L4084

J0JYC0000068

L4085

J0JYC0000068

L4071

J0JCC0000241

L4082

J0JYC0000068

L4152

J0JYC0000068

L4101

J0JYC0000068

L4072

J0JCC0000241

L4153

J0JHC0000034

L4081

J0JYC0000068

STBY3.3V

3.3V

5V

STBY3.3V

5V

5V

R4025

R4003

R4009

R4006

R4151

R4101

VJUMP1608-P

TP4111

TP4112

TP4113

TP4104

TP4114

TP4103

TP4102TP4101

Q4154

DSC200100L

Q4104

DSC200100L

Q4101

DSC200100L

Q4153

DSC200100L

Q4103

DSC200100L

Q4102

DSC200100L

R4017

EXB28V330JX

R4172

4.7k

R4127
10k

R4154

47k

R4152

5.6k

R4019

22

R4111

10k

R4107

47k

R4177

10k

R4153

10k

R4122

4.7k

R4121

4.7k

R4123

4.7k

R412556R4126

56

R4176

56

R4173

4.7k

R4171

4.7k

R4174

47k

R4175

56

R4182

47k

R4132

47k

1%

R4073

9.1k

R4031

47k

R4028

47k

R4032

47k

R4030

47k

R4026

47k

R4021

47k

1%

R4072

5.6k

1%

R4016

499

R4075

0

R4023

47k

R4029

47k

R4033

47k

R4020

47k

R4082

0

R4034

100

R4018

22

R4015

47k

R4106

47k

R4022

100

1%

R4007

39

1%

R4008

59

R4105

33

1%

R4001

39

R4024

100

R4104

10k

R4181

47k

R4131

47k

R4109

47k

1%

R4002
59

R4112

47k

220

R4039

1M

R4038

1M

R4037

1%

R4004

39

R4108
47k

R4102

1k

1%

R4005

59

R4040

0

H0J286500023

X4001

C0DBGYY00477

IC4004

1CE2

GND

3

NC

5

VOUT

4

VDD

C0DBGYY00477

IC4003

1CE2

GND

3

NC

5

VOUT

4

VDD

C0CBCAC00275

IC4007

1

VDD

2

GND

3

CE

5

VOUT4NC

C0CBCBE00001

IC4002

1

VOUT

2

NC

3

GND

4

CN

CONT

5

SUB

6

VIN

7

D0G

D2G

DDCG

D1-

D0+

D2-

SCL

D2+

CLK-

CEC

+5V

PB/B

SDA

PR/R

D0-

N.C.

CLK+

Y/G

CLKG

HPDT

D1G

D1+

IN

G1

R6

R5

R8

R1

R3

R7

R2

R9

R0

R4

G0

G2G3G4G5G6G7G8G9B0

B1

B2B3B4B5B6B7B8

B9

N.C.

TMDS_G

TMDS_G

TMDS_G

N.C.

N.C.

N.C.

+5V

GND

DDCD

N.C.

TMDS_C+

TMDS_G

HPS

N.C.

TMDS_D1-

TMDS_C-

TMDS_D0-

DDCC

TMDS_D2+

TMDS_D1+

TMDS_D0+

TMDS_D2-

DVI

OUT

TVRR235

TVRR236

HDMI

6258 6155 6056 59 6357

A-BOARD TZTNP011DEE (7/17)

!

EEPROM

EEPROM

HDMI I/F RECEIVER
A/D CONVERTER

5V->3.3V

3.3V->1.8V

3.3V->1.8V

3.3V->1.8V

54

56

55

51

53

52

63

66

62

61

64

65

TH-50PF20E / TH-50PF20ER

59

TH-50PF20E / TH-50PF20ER

13.16. A-Board (8 of 17) Schematic Diagram

61

IC4361

C1ZBZ0003775

TEMP SENSOR

R4363

10k

R4361

22

P3V_SDA2

62

P3V_SCL2

1

SDA

R4362

22

2

SCL

3

ALERT

0V

4

GND

63

P

R4461

IC4382

C0JBAS000215

VIDEO SW

1

R4463

3.16k

1%

R4464

1.8k

1%

1A

2

C4466

6.3V
3

10u

4

ADV_P35

ADV_P34

ADV_P33

ADV_P32

ADV_P31

ADV_P30

ADV_P29

ADV_P28

ADV_P27

ADV_P26

ADV_P23

ADV_P22

ADV_P21

ADV_P20

ADV_P19

ADV_P18

ADV_P17

ADV_P16

ADV_P15

ADV_P14

ADV_P11

ADV_P10

ADV_P9

ADV_P8

ADV_P7

ADV_P6

ADV_P5

ADV_P4

ADV_P3

ADV_P2

ADV_HSOUT

ADV_VSOUT

ADV_DEOUT

LLC/BLC

Vcc

1B

2C

GND

EXB28V680JX

EXB28V680JX

R4057

R4058

EXB28V680JX

EXB28V680JX

R4053

R4054

EXB28V680JX

EXB28V680JX

R4061

R4062

R4063

R4064

R4065

R4066

R4067

R4068

1C

2B

2A

R4055

R4056

68

68

R4051

R4052

68

68

R4059

R4060

68

68

68

68

68

33

100

100

64

3.3V

C4361
16V

0.1u

8

V+

R4369

7

A0

0

R4367

6

A1

0

R4365

5

A2

0

ASIC3.3V

R4202

IC4201 L16 LVA_RX5-

10k

IC4201 L15 LVA_RX5+

IC4201 L18 LVA_RX6-

IC4201 L17 LVA_RX6+

IC4201 M18 LVA_RX7-

IC4201 M17 LVA_RX7+

IC4201 N16 LVA_RX8-

ANMPIN

3.3V

L4461

C4465

C4464

8

7

6

5

DE_OUT

AD_CLK

HD_ADAHSIN

VD_ADAVSIN

16V

6.3V
10u

0.1u

R4466

CLAMPY

0

ASIC from A/D

BE_9

BE_8

BE_7

BE_6

BE_5

BE_4

BE_3

BE_2

BE_1

BE_0

GE_9

GE_8

GE_7

GE_6

GE_5

GE_4

GE_3

GE_2

GE_1

GE_0

RE_9

RE_8

RE_7

RE_6

RE_5

RE_4

RE_3

RE_2

RE_1

RE_0

AD_HD

AD_VD

IC4201 N15 LVA_RX8+

IC4201 N18 LVA_RX9-

IC4201 N17 LVA_RX9+

IC4201 J16 LVA_RXC-

IC4201 J15 LVA_RXC+

IC4201 G18 LVA_RX0-

IC4201 G17 LVA_RX0+

IC4201 G15 LVA_RX1-

IC4201 G16 LVA_RX1+

IC4201 F18 LVA_RX2-

IC4201 F17 LVA_RX2+

IC4201 F16 LVA_RX3-

IC4201 F15 LVA_RX3+

IC4201 H16 LVA_RX4-

IC4201 H17 LVA_RX4+

RE_0

RE_1

RE_2

RE_3

RE_4

RE_5

RE_6

RE_7

RE_8

RE_9

GE_0

GE_1

GE_2

GE_3

GE_4

GE_5

GE_6

GE_7

GE_8

GE_9

BE_0

BE_1

BE_2

BE_3

BE_4

BE_5

BE_6

BE_7

BE_8

BE_9

AD_HD

AD_VD

DE_OUT

AD_CLK

IC4201 A11 AD_R0

IC4201 B11 AD_R1

IC4201 C11 AD_R2

IC4201 D11 AD_R3

IC4201 A12 AD_R4

IC4201 B12 AD_R5

IC4201 D12 AD_R6

IC4201 B13 AD_R7

IC4201 C13 AD_R8

IC4201 D13 AD_R9

IC4201 A8 AD_G0

IC4201 B8 AD_G1

IC4201 C8 AD_G2

IC4201 A9 AD_G3

IC4201 B9 AD_G4

IC4201 C9 AD_G5

IC4201 A10 AD_G6

IC4201 B10 AD_G7

IC4201 C10 AD_G8

IC4201 D10 AD_G9

IC4201 C5 AD_B0

IC4201 D5 AD_B1

IC4201 A6 AD_B2

IC4201 B6 AD_B3

IC4201 C6 AD_B4

IC4201 D6 AD_B5

IC4201 A7 AD_B6

IC4201 B7 AD_B7

IC4201 C7 AD_B8

IC4201 D7 AD_B9

IC4201 D14 AD_H

IC4201 B14 AD_V

IC4201 C14 AD_FLD

IC4201 A15 AD_CLK

ASIC to SCW4_INPUT 1

R4251

EXB2HV101JV

2

5

4

3

7

1

6

0

8 28

9

IC4201 U15 PI1R2

IC4201 R17 PI1R5

IC4201 T17 PI1R4

IC4201 R18 PI1R3

IC4201 T15 PI1R7

IC4201 V15 PI1R1

IC4201 T16 PI1R6

IC4201 U16 PI1R0

R4252

100

IC4201 R16 PI1R8

R4253

100

IC4201 U14 PI1R9

ASIC to SCW4_INPUT 2

R4265

EXB2HV101JV

4B

0B

3B

6B

1B

7B

5B 23B

2B 26B

8B

9B

IC4201 U3 PI2R4

IC4201 R1 PI2R0

IC4201 P2 PI2R3

IC4201 R4 PI2R6

IC4201 T2 PI2R1

IC4201 R2 PI2R7

IC4201 T3 PI2R5

IC4201 R3 PI2R2

R4266

100

IC4201 P3 PI2R8

R4267

100

IC4201 T4 PI2R9

ASIC INPUT from DS

A_OA-

R4203

A_OA+

A_OB-

A_OB+

A_OC-

A_OC+

A_OD-

A_OD+

A_OE-

A_OE+

A_CLK-

A_CLK+

A_EA-

A_EA+

A_EB-

A_EB+

A_EC-

A_EC+

A_ED-

A_ED+

A_EE-

A_EE+

HD_M

VD_M

HD_ADA

VD_ADA

IC4201 H3 LVB_RX5-

IC4201 H2 LVB_RX5+

100

R4204

IC4201 G2 LVB_RX6-

IC4201 G1 LVB_RX6+

R4205

100

IC4201 G4 LVB_RX7-

IC4201 G3 LVB_RX7+

100

R4206

IC4201 F3 LVB_RX8-

IC4201 F2 LVB_RX8+

100

R4207

IC4201 E2 LVB_RX9-

IC4201 E3 LVB_RX9+

100

R4208

IC4201 J4 LVB_RXC-

IC4201 J3 LVB_RXC+

100

IC4201 L3 LVB_RX0-

IC4201 L2 LVB_RX0+

100

R4210

IC4201 M4 LVB_RX1-

IC4201 M5 LVB_RX1+

100

R4211

IC4201 M3 LVB_RX2+

100

R4212

IC4201 N2 LVB_RX3-

IC4201 N1 LVB_RX3+

100

R4213

IC4201 L4 LVB_RX4-

IC4201 L5 LVB_RX4+

100

From DS BOARD

R4221

IC4201 B3 HDA_IN

S

R4222

IC4201 A4 VDA_IN

S

To A/D

R4223

47

IC4201 B5 HDA_OUT

R4224

47

IC4201 C3 VDA_OUT

R4225

10k

IC4201 B4 CLP_OUT

R4254

EXB2HV101JV

15

12

17

16

11

13

10

14

18

19

16B

13B

14B

10B

11B

17B

15B

12B

18B

19B

IC4201 V12 PI1G5

IC4201 U13 PI1G2

IC4201 R12 PI1G7

IC4201 P13 PI1G6

IC4201 T14 PI1G1

IC4201 T13 PI1G3

IC4201 R15 PI1G0

IC4201 R14 PI1G4

R4255

100

IC4201 R13 PI1G8

R4256

100

IC4201 U12 PI1G9

R4268

EXB2HV101JV

IC4201 N4 PI2G6

IC4201 P4 PI2G3

IC4201 P5 PI2G4

IC4201 U4 PI2G0

IC4201 U5 PI2G1

IC4201 T5 PI2G7

IC4201 P6 PI2G5

IC4201 R6 PI2G2

R4269

100

IC4201 T6 PI2G8

R4270

100

IC4201 U6 PI2G9

ASIC NC

26

24

25

27

22

21

23

20

29

IC4201 C4 NC

IC4201 D4 NC

IC4201 D8 NC

IC4201 D9 NC

IC4201 D18 NC

IC4201 E4 NC

IC4201 E5 NC

IC4201 E6 NC

IC4201 E7 NC

IC4201 E8 NC

IC4201 E10 NC

IC4201 E11 NC

IC4201 E13 NC

IC4201 E15 NC

IC4201 F1 NC

IC4201 F4 NCIC4201 M2 LVB_RX2-

R4258

R4259

25B

20B

21B

22B

24B

27B

28B

29B

R4257

EXB2HV101JV

EXB2HV101JV

R4272

R4273

IC4201

C1AB00002899

ASIC

IC4201 V11 PI1B6

IC4201 R10 PI1B4

IC4201 T10 PI1B5

IC4201 R11 PI1B7

IC4201 T11 PI1B2

IC4201 T12 PI1B1

IC4201 P12 PI1B3

IC4201 U11 PI1B0

100

IC4201 U10 PI1B8

100

IC4201 P10 PI1B9

R4271

IC4201 U7 PI2B5

IC4201 R5 PI2B0

IC4201 P7 PI2B1

IC4201 R7 PI2B2

IC4201 T7 PI2B4

IC4201 R8 PI2B7

IC4201 V7 PI2B3

IC4201 V8 PI2B6

100

IC4201 U8 PI2B8

100

IC4201 T8 PI2B9

IC4201 F14 NC

IC4201 G14 NC

IC4201 H1 NC

IC4201 H18 NC

IC4201 M1 NC

IC4201 M15 NC

IC4201 M16 NC

IC4201 N14 NC

IC4201 P17 NC

ASIC VDE33(3.3V)

3.3V

C4207

16V 0.1u

C4208

16V 0.1u

C4209

16V

C4210

16V

ASIC3.3V

0.1u

0.1u

IC4201 P11 VDD_3.3V

IC4201 P18 VDD_3.3V

IC4201 V5 VDD_3.3V

IC4201 V14 VDD_3.3V

IC4201 B15 VDD_3.3V

IC4201 F7 VDD_3.3V

IC4201 F11 VDD_3.3V

IC4201 F12 VDD_3.3V

IC4201 H6 VDD_3.3V

IC4201 H13 VDD_3.3V

IC4201 L6 VDD_3.3V

IC4201 M13 VDD_3.3V

IC4201 N7 VDD_3.3V

IC4201 N8 VDD_3.3V

IC4201 N9 VDD_3.3V

IC4201 N10 VDD_3.3V

IC4201 N11 VDD_3.3V

IC4201 N12 VDD_3.3V

C4202

C4201

6.3V

6.3V
10u

10u

ASIC3.3V

L4203

C4211

6.3V
J0JCC0000241

10u

C4212

6.3V
10u

C4203

16V 0.1u

C4204

16V

C4205

16V 0.1u

C4206

16V

C4213

16V 0.1u

C4214

16V 0.1u

0.1u

0.1u

L4201

J0JHC0000096

IC4201 A5 VDD_3.3V

IC4201 A14 VDD_3.3V

IC4201 E1 VDD_3.3V

IC4201 E9 VDD_3.3V

IC4201 E12 VDD_3.3V

IC4201 E18 VDD_3.3V

IC4201 G7 VDD_3.3V

IC4201 H12 VDD_3.3V

IC4201 M7 VDD_3.3V

IC4201 M12 VDD_3.3V

IC4201 P1 VDD_3.3V

IC4201 P8 VDD_3.3V

IC4201 D2 LVDD_3.3V

IC4201 H15 LVDD_3.3V

IC4201 K4 LVDD_3.3V

IC4201 P15 LVDD_3.3V

ASIC GND

IC4201

A1 GND

IC4201 A3 GND

IC4201 A16 GND

IC4201 A18 GND

IC4201 B2 GND

IC4201 B17 GND

IC4201 C1 GND

IC4201 C18 GND

IC4201 D3 LGND

IC4201 E16 LPGND

IC4201 E17 LGND

IC4201 F13 GND

IC4201 G5 LGND

IC4201 G6 LPGND

IC4201 G11 GND

IC4201 G12 GND

IC4201 G13 GND

IC4201 H8 GND

IC4201 H9 GND

IC4201 H11 GND

IC4201 H14 LGND

IC4201 J6 GND

IC4201 J8 GND

IC4201 J10 GND

IC4201 J11 GND

IC4201 J13 GND

IC4201 J18 NC

IC4201 K1 NC

IC4201 K5 LGND

IC4201 K8 GND

IC4201 K9 GND

IC4201 K11 GND

IC4201 K12 GND

IC4201 L7 GND

IC4201 L8 GND

IC4201 L10 GND

IC4201 L11 GND

IC4201 L13 LPGND

IC4201 L14 LGND

IC4201 M8 GND

IC4201 M9 GND

IC4201 M10 GND

IC4201 M11 GND

IC4201 N3 LGND

IC4201 N5 LPGND

IC4201 P14 LGND

IC4201 T1 GND

IC4201 T18 GND

IC4201 U2 GND

IC4201 U17 GND

IC4201 V1 GND

IC4201 V3 GND

IC4201 V16 GND

IC4201 V18 GND

NC

IC4201 H7 NC

IC4201 J1 NC

IC4201 J2 NC

IC4201 J7 NC

IC4201 J17 NC

IC4201 K2 NC

IC4201 K3 NC

IC4201 K6 NC

IC4201 K7 NC

IC4201 K13 NC

R4260

PI1HS

PI1VS

R4262

PI1CLK

PI1FLD

R4264

PI1ACT

PI2HS

PI2VS

PI2CLK

PI2FLD

PI2ACT

IC4201 V9 PI1HSB

R4261

47

IC4201 U9 PI1VSB

47

IC4201 V13 PI1CLK

R4263

47

IC4201 P16 PI1FLD

47

IC4201 V10 PI1ACT

47

R4274

IC4201 V6 PI2HSB

R4275

47

IC4201 P9 PI2VSB

R4276

47

IC4201 V4 PI2CLK

R4277

47

IC4201 T9 PI2FLD

R4278

47

IC4201 R9 PI2ACT

47

IC4201 K14 NC

IC4201 K17 NC

IC4201 K18 NC

IC4201 L1 NC

IC4201 L12 NC

!

ASIC VCCINT(1.8V)

C4216

C4215

6.3V

6.3V
10u

10u

C4224

C4223

6.3V

6.3V
10u

10u

C4229

C4228

6.3V

6.3V
10u

10u

A-BOARD TZTNP011DEE (8/17)

1.8V

J0JHC0000096

J0JCC0000241

ASIC SIDE ARM

IC4201 B16 MCLD

IC4201 C16 MCCLK

IC4201 C17 MCDAT

ASIC1.8V

C4226

16V 0.1u

C4227

4V 22u

C4231

16V

16V 0.1u

16V 0.1u

C4233

16V 0.1u

IC4201 K10 VDD_1.8V

0.1u
IC4201 L9 VDD_1.8V

IC4201 U1 VDD_1.8V

IC4201 U18 VDD_1.8V

IC4201 V2 VDD_1.8V

IC4201 V17 VDD_1.8V

IC4201 F5 VDD_1.8V

IC4201 F6 VDD_1.8VIC4201 E14 NC

IC4201 F10 VDD_1.8V

IC4201 G10 VDD_1.8V

IC4201 J14 NC

IC4201 M6 VDD_1.8V

IC4201 M14 VDD_1.8V

IC4201 N6 VDD_1.8V

IC4201 N13 VDD_1.8V

IC4201 F8 FPCAP

IC4201 C12 FPCAP

ASIC1.8V

J0JCC0000241

L4207

IC4201 H5 LPVDD_1.8V

IC4201 K15 LPVDD_1.8V

C4220

C4221

C4222

C4232

6.3V

6.3V
10u

10u

C4217

16V

C4218

16V 0.1u

C4219

16V 0.1u

C4225

16V 0.1u

C4230

16V 0.1u

ASIC-ARM

MC_LD

A_MCCLK

MCDATA_O

L4204

0.1u

ASIC1.8V

R4201
100

IC4201 G8 VDDP_1.8V

IC4201 A13 VDDP_1.8V

ASIC1.8V

L4206

IC4201 H4 LVDD_1.8V

IC4201 K16 LVDD_1.8V

IC4201 J5 NC

IC4201 J12 NC

IC4201 A2 VDD_1.8V

IC4201 A17 VDD_1.8V

IC4201 B1 VDD_1.8V

IC4201 B18 VDD_1.8V

IC4201 H10 VDD_1.8V

IC4201 J9 VDD_1.8V

65

71

72

73

74

75

66

76

68 727064 7166 67 6965

60

13.17. A-Board (9 of 17) Schematic Diagram

CLKM

S

S

S

S

AO_A19

3V_SDA3

P3V_SCL2

CLKM_20MHZ

A_NRST

A_TXD_PC

3V_SDA1

3V_SCL1

EEPROM_WP

A_RXD_PC

A_IIC_CONT

3V_SCL1

A_IIC_CONT

3V_SDA1

P3V_SDA2

3V_SCL3

IIC_INT

74M_SS

AO_A16

AQ_D15

AQ_D7

AQ_D14

AQ_D6

AQ_D13

AQ_D5

AQ_D12

AQ_D4

AQ_D11

AQ_D3

AQ_D10

AQ_D2

AQ_D9

AQ_D1

AQ_D8

AQ_D0

AP_OE

AP_CE

AO_A0

AO_A15

AO_A14

AO_A13

AO_A12

AO_A11

AO_A10

AO_A9

AO_A8

AP_WE

AO_A18

AO_A17

AO_A7

AO_A6

AO_A5

AO_A4

AO_A3

AO_A2

AO_A1

CLKM_20MHZ

3V_SDA4

3V_SCL4

C4851

6.3V
1u

C4882

16V

0.1u

C4809

50V

100p

C4852

16V

0.1u

C4872

16V

0.1u

C4871
16V

4.7u

C4881

16V

0.1u

C4657

50V

18p

C4653

16V

0.1u

C4656

50V

12p

C4651

6.3V

10u

C4652

16V

0.1u

C4655

16V

0.1u

C4654

6.3V
10u

D4801

B0BC3R700004

IC4201 D1 NAND_TEST

IC4201 C15 CLKM

IC4201 D16 SCL

IC4201 D17 SDA

IC4201 F9 LVDS_TEST

IC4201 G9 AC_TEST

IC4201 C2 KME_TEST

IC4201 D15 NRST

IC4515

C1ZBZ0003984

CDCE913R07PWR

1

Xin/CLK

2S03

VDD

4

Vctrl

5

GND

6

VDDOUT7VDDOUT

8Y39

Y210GND11Y112S2/SCL13S1/SDA14Xuot

TVRR229AA

*IC4702

1

A15

2

A14

3

A13

4

A12

5

A11

6

A10

7

A9

8

A8

9

A19

10

NC

11

WE#

12

RESET#

13

NC

14

WP#/ACC

15

RY/BY#

16

A18

17

A17

18

A7

19

A6

20

A5

21

A4

22

A3

23

A2

24

A1

25

A0

26

CE#

27

GND

28

OE#

29

Q0

30

Q8

31

Q1

32

Q9

33

Q2

34

Q10

35

Q3

36

Q11

37

VCC

38

Q4

39

Q12

40

Q5

41

Q13

42

Q6

43

Q14

44

Q7

45

Q15/A-1

46

GND

47

BYTE#

48

A16

A4

1

2

3

4

5

6

7

8

9

10

11

12

13

14

L4652

J0JCC0000241

L4851

J0JCC0000241

L4651

J0JCC0000241

3.3V

STBY5V

3.3V

STBY3.3V

STBY3.3V

STBY3.3V

1.8V

STBY3.3V

STBY3.3V

R4231

R4232

R4866

R4885

TP4515

TP4011

TP4007

TP4008

TP4013

TP4006

TP4009

TP4014

TP4012

TP4015

TP4010

Q4201

B1CBHD000002

G

D

S

Q4202

B1CBHD000002

G

D

S

Q4871

DSC200100L

R4871

6.8k

R4652

10k

R4653

10k

R4657

10k

R4838

2.2k

R4649

0

R4845

100

*R4650

10k

R4844

100

R4659

47

R4882

0

R4881

0

R4869

5.6k

R4884

10k

R4839

100

R4874

10k

R4863

0

R4655

10k

R4843

100

R4848

100

R4237

47

R4235

47

R4239

2.7k

R4238

2.7k

R4842

100

R4841

100

R4873

10k

R4840

100

R4846

100

R4658 47

R4847

100

X4502

H0J200500076

TP4701

C0EBE0000120

IC4704

1

RST

2

VDD

3

GND

5Cd4

NC

TVRR232

*IC4703

1

E0

2

E1

3

E2

4

VSS

5

SDA

6

SCL

7

WC

8

VCC

RXD

SDA1

GND

RESET

ASIC CLKM NRST

ASIC IIC

IIC_CONT

PC CONNECT

GND

IIC_INT/BOOT

SCL1

STB5V

SCL3

SDA2

SCX1-EEPROM

ASIC TEST

16M-FLASH

SLV[A0]

128k

SDA3

SCL2

STB3.3V

TXD

CPG

77 807675 7874 8173 79

A-BOARD TZTNP011DEE (9/17)

!

71

72

75

76

74

73

81

82

87

89

83

85

86

88

84

TH-50PF20E / TH-50PF20ER

61

TH-50PF20E / TH-50PF20ER

13.18. A-Board (10 of 17) Schematic Diagram

81

!

A-BOARD TZTNP011DEE (10/17)

82

91

92

83

R4402

*IC4501 AK10 ADL[0]

*IC4501 AJ10 ADL[1]

*IC4501 AH10 ADL[2]

*IC4501 AG10 ADL[3]

*IC4501 AF10 ADL[4]

*IC4501 AE10 ADL[5]

*IC4501 AK11 ADL[6]

*IC4501 AJ11 ADL[7]

*IC4501 AH11 ADH[8]

*IC4501 AG11 ADH[9]

*IC4501 AF11 ADH[10]

*IC4501 AE11 ADH[11]

*IC4501 AK12 ADH[12]

*IC4501 AJ12 ADH[13]

*IC4501 AH12 ADH[14]

*IC4501 AG12 ADH[15]

*IC4501 AF12 ADH[16]

*IC4501 A4 JTAGICEENB

*IC4501 E6 IFMD[0]

*IC4501 C5 IFMD[1]

*IC4501 AJ6 RTCCSE

*IC4501 C24 MULTENB

R4828

R4829

R4830

R4831

R4401

P

EXB38VR000V

EXB38VR000V

EXB38VR000V

*IC4501 J2 ANMPIN

C4401

*IC4501 M2 ANSYIN

0.1u

16V

C4402

*IC4501 R2 ANSCIN

0.1u

16V

AO_A16

AO_A17

AO_A18

AO_A19

AO_A20

AO_A21

AP_WE

AP_CE

AP_OE

*IC4501 Y5 GIO[43]

*IC4501 Y6 GIO[44]

EXB28V100JX

R4854 0

R4855 0

R4856 0

R4857 0

R4858 0

0

CLAMPPLS

CLAMPY

R4853

*IC4501 AE12 ADH[17]

*IC4501 AJ13 ADH[18]

*IC4501 AH13 ADH[19]

*IC4501 AG13 ADH[20]

*IC4501 AF13 ADH[21]

*IC4501 AE13 ADH[22]

*IC4501 AJ14 WR0B

*IC4501 AE16 CS4B

*IC4501 AG14 RDB

IC4501

C1AB00003189

SCX1

R4860

EXB2HV100JV

AQ_D0

AQ_D1

AQ_D2

AQ_D3

AQ_D4

AQ_D5

AQ_D6

AQ_D7

EXB2HV100JV

AQ_D8

AQ_D9

AQ_D10

AQ_D11

AQ_D12

AQ_D13

AQ_D14

AQ_D15

*IC4501 AH7 DB[0]

*IC4501 AG7 DB[1]

*IC4501 AF7 DB[2]

*IC4501 AE7 DB[3]

*IC4501 AK8 DB[4]

*IC4501 AJ8 DB[5]

*IC4501 AH8 DB[6]

R4861

*IC4501 AG8 DB[7]

*IC4501 AF8 DB[8]

*IC4501 AE8 DB[9]

*IC4501 AK9 DB[10]

*IC4501 AJ9 DB[11]

*IC4501 AH9 DB[12]

*IC4501 AG9 DB[13]

*IC4501 AF9 DB[14]

*IC4501 AE9 DB[15]

R4821

S

STBY3.3V

R4862

10k

*IC4501 AE15 SDCSB

*IC4501 AH15 SDRASB

*IC4501 AK15 SDCASB

*IC4501 AF15 SDWEB

*IC4501 AJ15 SDCKE

*IC4501 AK14 BUSCLK

*IC4501 AH14 WR1B

*IC4501 AF14 CS0B

*IC4501 AE14 CS1B

*IC4501 AF16 CS2B

*IC4501 AG15 RDY

SCX1 ARM_ICE

STBY3.3V

R4820

EXB28V103JX

SCW3_TDI

SCW3_TMS

SCW3_TCK

SCW3_NTRST

SCW3_TDO

RTCK

R4822 22

TRACECLK

R4823

22

R4824

10k

10k

SCW3_NTRST

S

10k

R4834

R4835

R4836

PIPESTAT0

PIPESTAT1

PIPESTAT2

TRACESYNC

TRACEPKT0

TRACEPKT1

TRACEPKT2

TRACEPKT3

EXB28V220JX

EXB28V220JX

R4826

EXB38VR000V

R4825

10k

R4827

*IC4501 A3 TDI

*IC4501 D5 TMS

*IC4501 B4 TCK

*IC4501 B5 TRST

*IC4501 C4 TDO

*IC4501 AG6 RTCK

*IC4501 AE3 GIO[16]

*IC4501 AE5 GIO[18]

*IC4501 AE6 GIO[19]

*IC4501 AF1 GIO[20]

*IC4501 AE4 GIO[17]

*IC4501 AF2 GIO[21]

*IC4501 AF3 GIO[22]

*IC4501 AF4 GIO[23]

*IC4501 AF5 GIO[24]

*IC4501 AG1 GIO[25]

*IC4501 AG2 GIO[26]

*IC4501 AG3 GIO[27]

*IC4501 AG4 GIO[28]

TRACECLK

PIPESTAT[0]

PIPESTAT[1]

PIPESTAT[2]

TRACESYNC

TRACEPKT[0]

TRACEPKT[1]

TRACEPKT[2]

TRACEPKT[3]

TRACEPKT[4]

TRACEPKT[5]

TRACEPKT[6]

TRACEPKT[7]

84

ANMPIN

85

STBY3.3V

CLAMPY

SCX1 FLASHROM/SDRAM I/O

R4851

AO_A0

EXB2HV100JV

AO_A1

AO_A2

AO_A3

AO_A4

AO_A5

AO_A6

AO_A7

R4852

AO_A8

EXB2HV100JV

AO_A9

AO_A10

AO_A11

AO_A12

AO_A13

AO_A14

AO_A15

SCX1 RST

R4784

10k

*IC4501 C25 INT[2]

*IC4501

E7 GIO[40]

FPGA_CLK

FPGA_DATOUT

nCONFIG

nSTATUS

CONF_DONE

STB_SENSE

STB_SENSE

XIRQ3

HPD2

HDMI_DET

DVI_DET

F15V_MON

AUDIO_SOS

KEY_INPUT

5V_SOS

15V_SOS

FAN_SOS

DN_SOS

DS_SOS

AUD_SEL1

AUD_SEL2

FAN_CONT1

EDID_WP

VSYNC_ON/OFF

AMP_MUTE

A_LED_R

A_LED_G

STB_ON

A_NRST

LAN14V_ON/OFF

15V_ON/OFF

ALL_OFF1

IIC_INT

A_IIC_CONT

EEPROM_WP

TV_ON/OFF

A_DRVMUTE

SOUND_MUTE

UART_SW

NRST2

A_P_ON/OFF

FAN_ON/OFF

A_READY

A_ALARM

A_REM_IN

A_RXD_PC

TXD_PC_M

3VRXD_TU

3VTXD_TU

RXD_LAN

TXD_LAN

DPMS_VD

RTC_INT

15V_ON/OFF2

SL1_DET

R4722

R4728

R4720

R4724

R4726

R4735

R4737

R4738

R4747

R4749

R4711

R4707

R4704

R4710

R4702

EXB28V101JX

R4709

100

STBY3.3V

10k

10k

39k

R4705

12k

C4703

6.3V 1u

100

100

1k

R4713

R4714

R4715

R4716

R4719

1k

R4721

100

R4723

100

R4725

100

D4703

B0JCCE000008

C4709

100

50V 1000p

R4732

R4734

100

100

100

R4742

R4745

R4746

R4748

100

100

C4711

50V

R4752

10k

D4701

DZ2J033M0L

C4704

C4701

C4708

16V 0.1u

16V 0.1u

16V 0.1u

STBY3.3V

10k

10k

10k

3.3k

47k

10k

10k

10k

100k

100k

10k

10k

10k

10k

1000p

10k

SCX1 ARM I/O

R4708

R4701

R4706

C4702

C4705

16V

C4706

16V 0.1u

R4712

R4727

R4729

R4731

R4733

R4741

R4743

R4750

R4751

R4753

*IC4501 AH4 GIO[52]

0.1u

16V

*IC4501 G3 ADIN[0]

*IC4501 G4 ADIN[1]

*IC4501 G5 ADIN[2]

*IC4501 F1 ADIN[3]

0.1u
*IC4501 F2 ADIN[4]

*IC4501 F3 ADIN[5]

*IC4501 F4 ADIN[6]

*IC4501 F5 ADIN[7]

C4707

16V 0.1u

*IC4501 B2 DAOUT[0]

*IC4501 B1 DAOUT[1]

*IC4501 C3 DAOUT[2]

*IC4501 D3 DAOUT[3]

100

*IC4501 D2 DAOUT[4]

*IC4501 D1 DAOUT[5]

*IC4501 AC5 GIO[6]

*IC4501 AC6 GIO[7]

*IC4501 AD1 GIO[8]

*IC4501 AD2 GIO[9]

*IC4501 AE1 GIO[14]

*IC4501 AE2 GIO[15]

*IC4501 AH1 GIO[29]

*IC4501 AH2 GIO[30]

*IC4501 AH3 GIO[31]

*IC4501 AJ1 GIO[32]

*IC4501 AJ2 GIO[33]

*IC4501 AK2 GIO[34]

10k

*IC4501 AK3 GIO[35]

*IC4501 AJ3 GIO[36]

3.3k

*IC4501 AK4 GIO[37]

*IC4501 AJ4 GIO[38]

*IC4501 F7 GIO[39]

1k

*IC4501 D7 GIO[41]

1k

*IC4501 C7 GIO[42]

*IC4501 E25 IRRMIN

*IC4501 B27 SI0

*IC4501 A29 SO0

*IC4501 C27 SI1

*IC4501 A28 SO1

47

*IC4501 A26 SI2

47

*IC4501 B28 SO2

*IC4501 B26 SI3

*IC4501 A27 SO3

*IC4501 C13 DPHSB

*IC4501 D13 DPVSB

*IC4501 D26 INT[1]

*IC4501 D25 INT[3]

*IC4501 AD3 GIO[10]

*IC4501 AD6 GIO[13]

100

*IC4501 AC4 GIO[5]

100

*IC4501 AC3 GIO[4]

*IC4501 AC1 GIO[2]

10k

*IC4501 AJ7 GIOPUENB

RXD_PC

TXD_PC

RXD_Tuner

TXD_Tuner

RXD_LAN

TXD_LAN

DEBUG_in

DEBUG_out

SOS_INH

DN_SOS

AUDIO_SOS

FAN_SOS

5V_SOS

F15V_MON

15V_SOS

DS_SOS

KEY_INPUT

AUD_SEL1

AUD_SEL2

FAN_CONT

EDID_WP

VSYNC_ON/OFF

DA_MUTE

LED_Red

LED_Green

STAB_ON

LSI_RESET(OUT)

F15V_ON/OFF

15V_ON/OFF

ALL_OFF

IIC_INT

IIC_CONT

EEPROM_WP

TV_ON/OFF

DRIVER_MUTE

AUDIO_MUTE

UART_SW

LSI_RESET2

P_ON/OFF

FAN_ON/OFF

READY

ALARM

RMIN

DPMS_HD

DPMS_VD

XIRQ3

RTC_INT

15V_ON/OFF2

HPD2

HDMI_DET2

HDMI_DET1

SL1_DET

STBY3.3V

R4755

10k

ARM I/O N.C.

*IC4501 C26 INT[0]

3V_SCL1

3V_SDA1

P3V_SCL2

P3V_SDA2

3V_SCL3

3V_SDA3

3V_SCL4

3V_SDA4

R4810 2.7k

R4809 2.7k

SCX1 ARM_TEST

ASIC-ARM

L4701

C4714

J0JCC0000241

STBY3.3V

3.3V

STBY3.3V

2.7k

2.7k

R4814 2.7k

R4813

R4811 2.7k

R4812

SCX_3.3V

R4757

2.7k

R4758

MC_LD

100

R4760

MCDATA_O

100

R4762

A_MCCLK

100

L4702

J0JCC0000241

R4815 2.7k

R4770

R4772

R4774

R4816 2.7k

S

16V

0.1u

C4715

16V

0.1u

SCX1 ARM IIC

R4801

R4802

R4803

R4804

R4805

R4806

R4807

R4808

10k

10k

10k

3.3V

Q4701

B1CBHD000002

G

D

R4759

10k

R4761

10k

*IC4501 G2 VRADLS

*IC4501 E1 VRHADLS

*IC4501 G1 VRLADLS

*IC4501

*IC4501 C2 VRL

47

*IC4501 D29 SCL0

47

*IC4501 D30 SDA0

22

*IC4501 D27 SCL1

22

*IC4501 D28 SDA1

22

*IC4501 C29 SCL2

22

*IC4501 C30 SDA2

22

*IC4501 B29 SCL3

22

*IC4501 B30 SDA3

*IC4501 B3 TESTB[0]

*IC4501 C23 TESTB[1]

*IC4501 F24 TESTB[2]

*IC4501 E22 TESTH

*IC4501 D24 TESTH2[0]

*IC4501 F25 TESTH2[1]

*IC4501 AF21 LVDSEATIN

SCW SIDE FPGA

*IC4501 AB5 GIO[0]

*IC4501 AB6 GIO[1]

*IC4501 AC2 GIO[3]

C1 VRH

STBY3.3V

FPGA_LD

FPGA_DATIN

FPGA_CLK

VRH

VRL

SCL1

SDA1

SCL2

SDA2

SCL3

SDA3

SCL4

SDA4

R4794

*IC4501 A6 RSTB

S

SCX_3.3V

STB CHECK PORT

STBY5V

R4763

6.8k

R4764

10k

R4765

6.8k

R4766
10k

FPGA CONFIG

*IC4501 AD4 GIO[11]

10k

10k

10k

*IC4501 AD5 GIO[12]

*IC4501 AG5 GIO[54]

*IC4501 AF6 GIO[55]

*IC4501 AH5 GIO[53]

R4767

R4768

R4769

86

87

88

93

94

89

9087 8882 8683 84 85 89

62

13.19. A-Board (11 of 17) Schematic Diagram

S

S

S

74M_SS

ADREFLPWM_0

ADREFHPWM_0

VCXO_PWM

ADREFLPWM_0

VCXO_PWM

ADREFHPWM_0

C4592

50V

12p

C4591

50V

12p

C4404

16V 0.1u

C4405

16V

0.1u

C4406

16V

0.1u

C4430

16V

0.1u

C4434

50V

150p

C4411

6.3V

10u

C4412

50V

0.01u

C4428

16V

0.1u

C4427

6.3V

10u

C4426

6.3V
10u

C4424

6.3V

10u

C4423

6.3V
10u

C4421

6.3V

10u

C4413

6.3V
10u

C4408

16V 0.01u

C4407

16V 0.1u

C4425
16V

0.1u

C4429

6.3V
10u

C4422

50V

0.01u

C4433

16V

0.015u

*IC4501 A1 NC

*IC4501 R7 NC

*IC4501 AK27 POD[19]

*IC4501 AF25 POD[12]

*IC4501 AJ30 POD[28]

*IC4501 AF26 POD[18]

*IC4501 U7 NC

*IC4501 AA5 GIO[47]

*IC4501 AE24 POD[7]

*IC4501 Y4 ANTHREFIN

*IC4501 G10 NC

*IC4501 AH26 POD[16]

*IC4501 M8 NC

*IC4501 N1 VIM[1]

*IC4501 AC20 NC

*IC4501 R4 ANBIN

*IC4501 AD23 NC*IC4501 V7 NC

*IC4501 AK24 POD[2]

*IC4501 U24 NC

*IC4501 AK25 POD[8]

*IC4501 G13 NC

*IC4501 P23 NC

*IC4501 AB24 NC

*IC4501 H9 NC

*IC4501 R8 NC

*IC4501 K1 VIM[0]

*IC4501 G21 NC

*IC4501 K24 NC

*IC4501 M24 NC

*IC4501 J8 NC

*IC4501 N8 NC

*IC4501 Y24 NC

*IC4501 AD22 NC

*IC4501 AB7 NC

*IC4501 H17 NC

*IC4501 AD14 NC

*IC4501 AD11 NC

*IC4501 AD18 NC

*IC4501 AC19 NC

*IC4501 H22 NC

*IC4501 AC11 NC

*IC4501 AE23 POD[1]

*IC4501 AC7 NC

*IC4501 G8 NC

*IC4501 AD20 NC

*IC4501 AB4 GIO[51]

*IC4501 AD13 NC

*IC4501 AD12 NC

*IC4501 T23 NC

*IC4501 P8 NC

*IC4501 P24 NC

*IC4501 V23 NC

*IC4501 B23 POCLK

*IC4501 AD17 NC

*IC4501 AK28 POD[23]

*IC4501 AJ29 POD[27]

*IC4501 J7 NC

*IC4501 AB2 GIO[49]

*IC4501 W2 VDSOYIN

*IC4501 P3 BR[2]

*IC4501 AG25 POD[11]

*IC4501 G12 NC

*IC4501 AC22 NC

*IC4501 H12 NC *IC4501 K8 NC

*IC4501 AD15 NC

*IC4501 AG29 POHSB

*IC4501 P7 NC

*IC4501 E23 MCLKSELX

*IC4501 AB23 NC*IC4501 G19 NC

*IC4501 AJ24 POD[3]

*IC4501 W8 NC

*IC4501 L24 NC

*IC4501 U3 VRO

*IC4501 J4 ANRIN

*IC4501 G18 NC

*IC4501 AC24 NC

*IC4501 AA23 NC

*IC4501 D23 POSYRSTB

*IC4501 U23 NC

*IC4501 V1 DAOUTS

*IC4501 Y7 NC

*IC4501 AC23 NC

*IC4501 AD9 NC

*IC4501 AH6 RTCXTALIO

*IC4501 P1 VRHAD[2]

*IC4501 B16 IPCLK

*IC4501 AE26 POGO[3]

*IC4501 AA4 GIO[46]

*IC4501 AF24 POD[6]

*IC4501 J24 NC

*IC4501 G23 NC

*IC4501 AH30 POCLKO

*IC4501 AC8 NC

*IC4501 AD16 NC

*IC4501 AC15 NC

*IC4501 AC17 NC

*IC4501 AG28 POFLD

*IC4501 P4 BC[2]

*IC4501 H13 NC

*IC4501 A25 MCLK

*IC4501 W3 VDSOGIN

*IC4501 AE25 POD[13]

*IC4501 H8 NC

*IC4501 AG30 POVSB

*IC4501 M7 NC

*IC4501 AH24 POD[4]

*IC4501 AC12 NC

*IC4501 G17 NC

*IC4501 L23 NC

*IC4501 AD19 NC

*IC4501 U4 COMP

*IC4501 Y8 NC

*IC4501 AH29 POD[29]

*IC4501 AB8 NC

*IC4501 A17 XTALIN

*IC4501 T8 NC

*IC4501 W7 NC

*IC4501 H3 BR[0]

*IC4501 G7 NC

*IC4501 K23 NC

*IC4501 L1 VRHAD[1]

*IC4501 AC10 NC

*IC4501 AG26 POD[17]

*IC4501 H10 NC

*IC4501 W23 NC

*IC4501 AK30 NC*IC4501 N24 NC

*IC4501 H1 VRHAD[0]

*IC4501 N7 NC

*IC4501 H18 NC *IC4501 AC18 NC

*IC4501 AA7 NC

*IC4501 AC16 NC

*IC4501 AH25 POD[10]

*IC4501 J1 VRLAD[0]

*IC4501 AD10 NC

*IC4501 AC21 NC

*IC4501 H16 NC

*IC4501 AC14 NC

*IC4501 AF27 POGO[2]

*IC4501 H20 NC

*IC4501 M3 ANYIN

*IC4501 J23 NC

*IC4501 G16 NC

*IC4501 N23 NC

*IC4501 T1 VIM[2]

*IC4501 AH27 POD[21]

*IC4501 V3 VCXOCLKIN

*IC4501 AC9 NC

*IC4501 AA6 GIO[48]

*IC4501 H23 NC

*IC4501 V24 NC

*IC4501 AG27 POD[22]

*IC4501 W24 NC

*IC4501 AA24 NC

*IC4501 J3 ANVIN

*IC4501 L3 BR[1]

*IC4501 H14 NC

*IC4501 H19 NC

*IC4501 G11 NC

*IC4501 AJ25 POD[9]

*IC4501 G20 NC

*IC4501 AH28 POD[25]

*IC4501 R3 ANUIN

*IC4501 G14 NC

*IC4501 AK26 POD[14]

*IC4501 AB3 GIO[50]

*IC4501 AF29 POGO[0]

*IC4501 A19 SYSCLK

*IC4501 AJ26 POD[15]

*IC4501 AJ27 POD[20]

*IC4501 M23 NC*IC4501 H21 NC

*IC4501 A30 NC

*IC4501 AA3 GIO[45]

*IC4501 C17 XTALIO

*IC4501 V4 DAOUTBIN

*IC4501 E24 SYSCLKSELX

*IC4501 T7 NC

*IC4501 AF30 POACTB

*IC4501 G22 NC

*IC4501 AF23 POD[0]

*IC4501 U1 VREF

*IC4501 AD8 NC

*IC4501 AA8 NC

*IC4501 W6 AVCOLPF

*IC4501 W5 VDHSIN

*IC4501 R1 VRLAD[2]

*IC4501 AK29 POD[26]

*IC4501 M4 ANGIN

*IC4501 AF28 POGO[1]

*IC4501 V8 NC

*IC4501 M1 VRLAD[1]

*IC4501 H4 BC[0]

*IC4501 AK6 RTCXTALIN

*IC4501 L8 NC

*IC4501 G24 NC

*IC4501 Y23 NC

*IC4501 R24 NC

*IC4501 L7 NC

*IC4501 AC13 NC

*IC4501 U8 NC

*IC4501 AJ28 POD[24]

*IC4501 H7 NC

*IC4501 G9 NC

*IC4501 T24 NC

*IC4501 AD21 NC

*IC4501 H15 NC

*IC4501 H24 NC

*IC4501 L4 BC[1]

*IC4501 AD24 NC

*IC4501 AD7 NC

*IC4501 AK1 NC

*IC4501 R23 NC

*IC4501 W4 VDVSIN

*IC4501 H11 NC *IC4501 K7 NC

*IC4501 G15 NC

*IC4501 AG24 POD[5]

L4402

J0JHC0000117

L4401

J0JHC0000117

SCX_3.3V

SCX_3.3V

SCX_3.3V

3.3V

SCX_3.3V

SCX_1.2V

SCX_1.2V

R4420

R4427

R4503

Q4404

DSC200100L

Q4402

DSC200100L

Q4406

DSC200100L

Q4403

DSA200100L

Q4401

DSA200100L

Q4405

DSA200100L

R4425

1k

R4432

100

R4409

2.7k

1%

R4408
10k

R4406
10k

1%

R4407
10k

1%

R4421

10k

R4414

10k

R4415

10k

R4531

10k

R4411

1k

R4413

0

R4428

0

R4412

1k

R4403

15k

R4404

15k

R4433

1k

R4434

1k

R4435

0

R4405

15k

R4549

10k

R4426

1k

R4422

10k

R4431

2.7k

1%

R4430

4.7k

1%

R4501

470
R4502
1M

R4419

1k

R4418

1k

R4438

560

X4501

H0J360500017

X4401

+

-

1

Vcont2G

3

OUT4VDD

74.25

SCX1 POCLK

SCX1

CLK

RTC CLK

SCX1 NO USE CLK

SCX1 CLK SELECT

SCX1 SYSCLK

SCX1-(DIGITAL OUT)

OCK OUT 74.25MHz

NC

27MHz 50ppm

ANMPIN:ADC[0]
ANSYIN:ADC[1]
ANSCIN:ADC[2]

959493 97 99969291 98

A-BOARD TZTNP011DEE (11/17)

!

91

93

94

92

A1

A2

A3

TH-50PF20E / TH-50PF20ER

63

TH-50PF20E / TH-50PF20ER

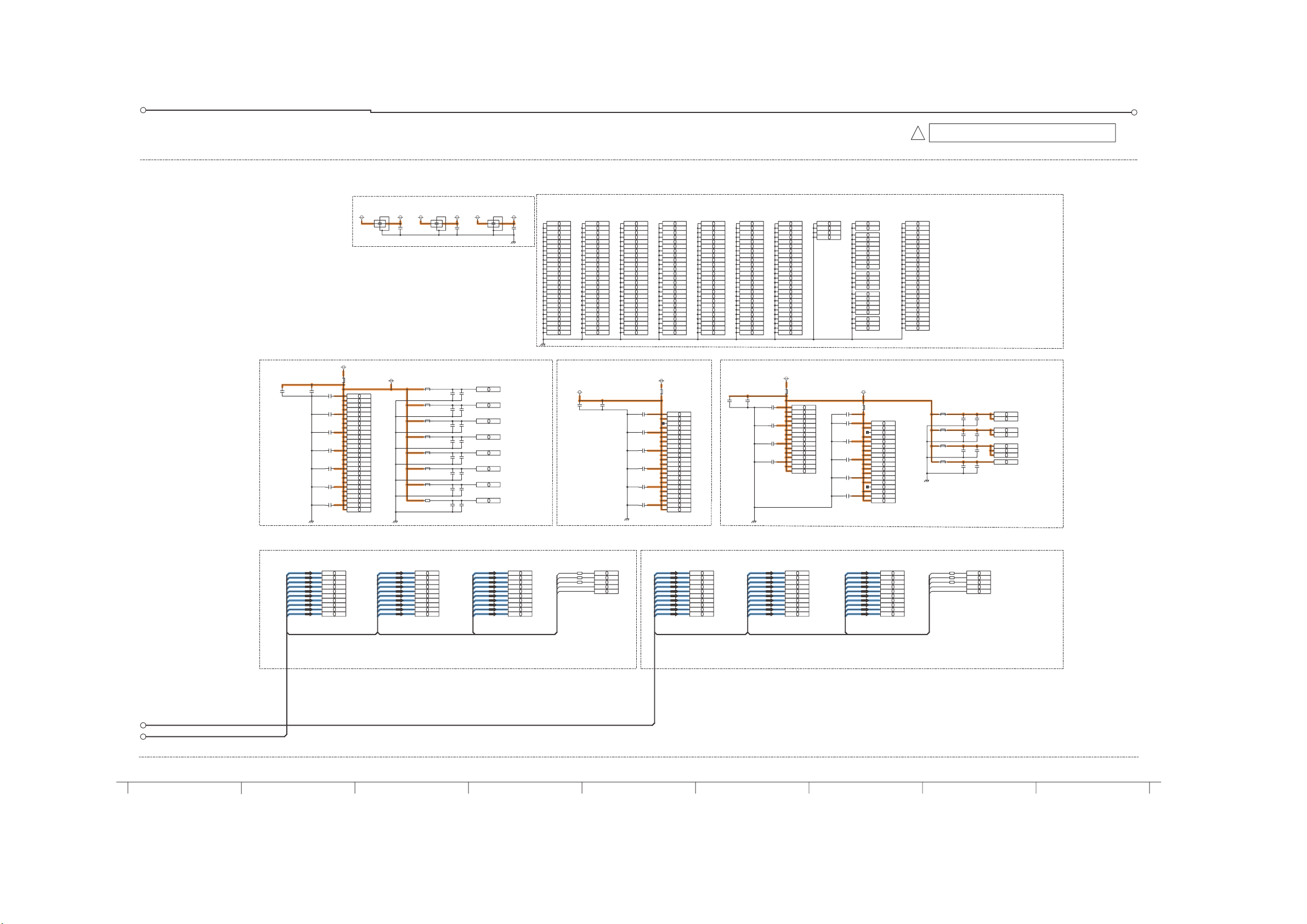

13.20. A-Board (12 of 17) Schematic Diagram

A1

!

A-BOARD TZTNP011DEE (12/17)

SEPARATE POWER

FL4503

F1J1E104A148

3

1

G

G

2

SCX_1.2V

D_1.8V

+

C4503

SCX1 VDD12(1.2V)

1.8V

D_1.2V

C4534

C4536

C4538

C4540

C4542

C4544

C4546

16V0.1u

16V0.1u

16V0.1u

16V0.1u

16V0.1u

16V0.1u

16V0.1u

L4507

J0JHC0000075

*IC4501 J15 VDD12

*IC4501 J16 VDD12

*IC4501 J22 VDD12

*IC4501 K15 VDD12

*IC4501 K16 VDD12

*IC4501 L25 VDD12

*IC4501 L26 VDD12

*IC4501 N25 VDD12

*IC4501 N26 VDD12

*IC4501 P21 VDD12

*IC4501 P22 VDD12

*IC4501 R11 VDD12

*IC4501 R21 VDD12

*IC4501 R22 VDD12

*IC4501 R25 VDD12

*IC4501 R26 VDD12

*IC4501 T11 VDD12

*IC4501 U25 VDD12

*IC4501 U26 VDD12

*IC4501 V21 VDD12

*IC4501 AA13 VDD12

*IC4501 AA14 VDD12

*IC4501 AB9 VDD12

*IC4501 AB10 VDD12

*IC4501 AB13 VDD12

*IC4501 AB14 VDD12

6.3V

C4533

10u

C4532

10u

6.3V

FL4501

STBY3.3V

4V

220u

J0JCC0000241

J0JCC0000241

J0JCC0000241

J0JCC0000241

J0JCC0000241

J0JCC0000241

J0JCC0000241

D_3.3V

F1J1E104A148

3

G

1

2

+

G

C4501

L4508

C4547

6.3V
10u

L4509

C4549

6.3V
10u

L4510

C4551

6.3V
10u

L4511

C4553

6.3V
10u

L4512

C4555

6.3V

10u

L4513

C4557

6.3V
10u

L4514

C4559

6.3V
10u

L4515

0

C4561

6.3V
10u

STB1.2V

4V

220u

*IC4501 A22 VDD12_PLL1

C4548

16V

0.1u

*IC4501 A21 VDD12_PLL2

C4550

16V

0.1u

*IC4501 A20 VDD12_PLL3

C4552

16V

0.1u

*IC4501 B20 VDD12_PLL3_1

C4554

16V

0.1u

*IC4501 A24 VDD12_PLL4

C4556

16V

0.1u

*IC4501 A18 VDD12_PLL5

C4558

16V

0.1u

*IC4501 Y1 VDD12_PLL6

C4560
16V

0.1u

*IC4501 AK5 VDD12_RTC

C4562
16V

0.1u

FL4502
F1J1E104A148

3

G

12

G

SCX1 GND

D_1.2V

+

C4502

*IC4501 A2 VSS

*IC4501 A5 VSS

4V

220u

*IC4501 A11 VSS

*IC4501 A13 VSS

*IC4501 A16 VSS

*IC4501 A23 VSS

*IC4501 B6 VSS

*IC4501 B17 VSS

*IC4501 B19 VSS

*IC4501 B25 VSS

*IC4501 C28 VSS

*IC4501 E27 VSS

*IC4501 E28 VSS

*IC4501 F30 VSS

*IC4501 G25 VSS

*IC4501 G26 VSS

*IC4501 J10 VSS

*IC4501 J13 VSS

*IC4501 J14 VSS

*IC4501 J17 VSS

*IC4501 J18 VSS

*IC4501 J21 VSS *IC4501 Y16 VSS

*IC4501 J30 VSS *IC4501 Y17 VSS

*IC4501 K13 VSS

*IC4501 K14 VSS

*IC4501 K10 VSS

*IC4501 K17 VSS

*IC4501 K18 VSS

*IC4501 K25 VSS

*IC4501 K26 VSS

*IC4501 L11 VSS

*IC4501 L12 VSS

*IC4501 L13 VSS

*IC4501 L14 VSS

*IC4501 L15 VSS

*IC4501 L16 VSS

*IC4501 L17 VSS

*IC4501 L18 VSS

*IC4501 L19 VSS

*IC4501 L20 VSS

*IC4501 M11 VSS

*IC4501 M12 VSS

*IC4501 M13 VSS

*IC4501 M14 VSS

*IC4501 M15 VSS

*IC4501 M16 VSS

*IC4501 M17 VSS

*IC4501 M18 VSS

*IC4501 M19 VSS

*IC4501 M20 VSS

*IC4501 M21 VSS

*IC4501 M22 VSS

*IC4501 M25 VSS

*IC4501 M28 VSS

*IC4501 N11 VSS

*IC4501 N12 VSS

*IC4501 N13 VSS

*IC4501 N14 VSS

*IC4501 N15 VSS

*IC4501 N16 VSS

*IC4501 N17 VSS

*IC4501 N18 VSS

*IC4501 N19 VSS

*IC4501 N20 VSS

*IC4501 N21 VSS

*IC4501 N22 VSS

*IC4501 N30 VSS

*IC4501 P11 VSS

*IC4501 P12 VSS

*IC4501 P13 VSS

*IC4501 P14 VSS

*IC4501 P15 VSS

*IC4501 P16 VSS

*IC4501 P17 VSS

*IC4501 P18 VSS

*IC4501 P19 VSS

*IC4501 P20 VSS

*IC4501 P25 VSS

*IC4501 P26 VSS

*IC4501 R12 VSS

*IC4501 R13 VSS

*IC4501 R14 VSS

*IC4501 R15 VSS

*IC4501 R16 VSS

*IC4501 R17 VSS

*IC4501 R18 VSS

*IC4501 R19 VSS

*IC4501 R20 VSS

*IC4501 T12 VSS

*IC4501 T14 VSS

*IC4501 T15 VSS

*IC4501 T16 VSS

*IC4501 T17 VSS

*IC4501 T18 VSS

*IC4501 T19 VSS

*IC4501 T20 VSS

*IC4501 T21 VSS

*IC4501 T25 VSS

*IC4501 T26 VSS

*IC4501 U11 VSS *IC4501 Y21 VSS

*IC4501 U12 VSS

*IC4501 U13 VSS

*IC4501 U14 VSS

*IC4501 U15 VSS

*IC4501 U16 VSS

*IC4501 U17 VSS

*IC4501 U18 VSS

*IC4501 U19 VSS

*IC4501 U20 VSS

*IC4501 U21 VSS

*IC4501 U22 VSS

*IC4501 U30 VSS

*IC4501 V11 VSS*IC4501 T13 VSS

*IC4501 V12 VSS

*IC4501 V13 VSS

*IC4501 V14 VSS

*IC4501 V15 VSS

*IC4501 V16 VSS

*IC4501 V17 VSS

*IC4501 V18 VSS

*IC4501 V19 VSS

*IC4501 V20 VSS*IC4501 T22 VSS

*IC4501 V25 VSS

SCX1 VDD18(1.8V)

SCX_1.8V

C4563

6.3V
10u
C4564

10u

6.3V

D_1.8V

L4516

J0JHC0000096

C4565

*IC4501 E26 VDD18

0.1u

16V

*IC4501 E29 VDD18

*IC4501 E30 VDD18

*IC4501 F26 VDD18

C4567

*IC4501 H25 VDD18

0.1u

16V

*IC4501 H26 VDD18

*IC4501 J25 VDD18

*IC4501 K21 VDD18

C4569

*IC4501 K22 VDD18

0.1u

16V

*IC4501 L21 VDD18

*IC4501 L22 VDD18

*IC4501 V22 VDD18 *IC4501 N3 VDD33_ADC11

C4571

*IC4501 W22 VDD18

0.1u

16V

*IC4501 W25 VDD18

*IC4501 Y25 VDD18

*IC4501 Y26 VDD18

C4573

*IC4501 AB25 VDD18

0.1u

16V

*IC4501 AB26 VDD18

*IC4501 AD25 VDD18

*IC4501 AD26 VDD18

C4575

*IC4501 AE29 VDD18

0.1u

16V

*IC4501 AE30 VDD18

C4504

6.3V
10u

*IC4501 V28 VSS

*IC4501 W1 VSS

*IC4501 W9 VSS

*IC4501 W10 VSS

*IC4501 W11 VSS

*IC4501 W12 VSS

*IC4501 W13 VSS

*IC4501 W14 VSS

*IC4501 W15 VSS

*IC4501 W16 VSS

*IC4501 W17 VSS

*IC4501 W18 VSS

*IC4501 W19 VSS

*IC4501 W20 VSS

*IC4501 W30 VSS

*IC4501 Y3 VSS

*IC4501 Y11 VSS

*IC4501 Y12 VSS

*IC4501 Y13 VSS

*IC4501 Y14 VSS

*IC4501 Y15 VSS

*IC4501 Y18 VSS

*IC4501 Y19 VSS

C4505

6.3V
10u

C4506

16V 0.1u

C4508

16V 0.1u

C4510

16V

C4512

16V 0.1u

*IC4501 Y20 VSS

*IC4501 Y22 VSS

*IC4501 AA11 VSS

*IC4501 AA12 VSS

*IC4501 AA15 VSS

*IC4501 AA21 VSS

*IC4501 AA22 VSS

*IC4501 AA25 VSS

*IC4501 AA26 VSS

*IC4501 AB1 VSS

*IC4501 AB11 VSS

*IC4501 AB12 VSS

*IC4501 AB15 VSS

*IC4501 AB21 VSS

*IC4501 AB22 VSS

*IC4501 AB30 VSS

*IC4501 AC25 VSS

*IC4501 AC26 VSS

*IC4501 AE21 VSS

*IC4501 AE22 VSS

*IC4501 AE27 VSS

*IC4501 AE28 VSS

*IC4501 AG16 VSS

D_3.3V

L4501

0.1u

J0JHC0000096

*IC4501 J11 VDD33

*IC4501 J12 VDD33

*IC4501 J19 VDD33

*IC4501 J20 VDD33

*IC4501 K11 VDD33

*IC4501 K12 VDD33

*IC4501 K19 VDD33

*IC4501 K20 VDD33

*IC4501 W21 VDD33

*IC4501 Y9 VDD33

*IC4501 Y10 VDD33

*IC4501 AA9 VDD33

*IC4501 AA10 VDD33

*IC4501 AA16 VDD33

*IC4501 AB16 VDD33

*IC4501 AG23 VSS

*IC4501 AH16 VSS

*IC4501 AH23 VSS

*IC4501 AK13 VSS

SCX1 VDD33(3.3V)

C4514

6.3V 10u
C4515

16V

C4517

16V

C4519

16V

C4521

16V

C4523

16V

0.1u

0.1u

0.1u

0.1u

0.1u

*IC4501 AJ5 VSS_RTC

*IC4501 AK7 VSS_RTC

*IC4501 B22 VSS_PLL1

*IC4501 B21 VSS_PLL2

*IC4501 C20 VSS_PLL3

*IC4501 D20 VSS_PLL3_1

*IC4501 B24 VSS_PLL4

*IC4501 B18 VSS_PLL5

*IC4501 Y2 VSS_PLL6

*IC4501 AA2 VSS_PLL6_1

*IC4501 D4 VSS_DAC_LS

*IC4501 E5 VSS_DAC_LS

*IC4501 F6 VSS_DAC_LS

*IC4501 K9 VSS_DAC_LS

*IC4501 U2 VSS_DAC_HS

*IC4501 U5 VSS_DAC_HS

*IC4501 U6 VSS_DAC_HS

*IC4501 V2 VSS_DAC_HS

*IC4501 V10 VSS_DAC_HS

*IC4501 E3 VSS_ADC_LS

*IC4501 G6 VSS_ADC_LS

*IC4501 L10 VSS_ADC_LS

SCX_3.3V

L4502

J0JHC0000096

*IC4501 H5 VDD33_ADC00

*IC4501 H6 VDD33_ADC00

*IC4501 M9 VDD33_ADC00

*IC4501 K3 VDD33_ADC01

*IC4501 K4 VDD33_ADC01

*IC4501 N9 VDD33_ADC01

*IC4501 L5 VDD33_ADC10

*IC4501 L6 VDD33_ADC10

*IC4501 P9 VDD33_ADC10

*IC4501 N4 VDD33_ADC11

*IC4501 R9 VDD33_ADC11

*IC4501 P5 VDD33_ADC20

*IC4501 P6 VDD33_ADC20

*IC4501 T9 VDD33_ADC20

*IC4501 T3 VDD33_ADC21

*IC4501 T4 VDD33_ADC21

*IC4501 U9 VDD33_ADC21

*IC4501 H2 VSS_ADC00

*IC4501 J5 VSS_ADC00

*IC4501 J6 VSS_ADC00

*IC4501 K2 VSS_ADC00

*IC4501 M10 VSS_ADC00

*IC4501 K5 VSS_ADC01

*IC4501 K6 VSS_ADC01

*IC4501 N10 VSS_ADC01

*IC4501 L2 VSS_ADC10

*IC4501 M5 VSS_ADC10

*IC4501 M6 VSS_ADC10

*IC4501 N2 VSS_ADC10

*IC4501 P10 VSS_ADC10

*IC4501 N5 VSS_ADC11

*IC4501 N6 VSS_ADC11

*IC4501 R10 VSS_ADC11

*IC4501 P2 VSS_ADC20

*IC4501 R5 VSS_ADC20

*IC4501 R6 VSS_ADC20

*IC4501 T2 VSS_ADC20

*IC4501 T10 VSS_ADC20

*IC4501 T5 VSS_ADC21

*IC4501 T6 VSS_ADC21

*IC4501 U10 VSS_ADC21*IC4501 AF22 VSS

J0JCC0000241

J0JCC0000241

J0JCC0000241

J0JCC0000241

L4503

L4504

L4505

L4506

C4524

6.3V
10u

C4526

6.3V
10u

C4528

6.3V

10u

C4530

6.3V

10u

*IC4501 E2 VDD33_ADC_LS

*IC4501 L9 VDD33_ADC_LS

C4525

16V

0.1u

*IC4501 E4 VDD33_DAC_LS

*IC4501 J9 VDD33_DAC_LS

C4527

16V

0.1u

*IC4501 V5 VDD33_DAC_HS

C4529

*IC4501 V6 VDD33_DAC_HS

16V

*IC4501 V9 VDD33_DAC_HS

0.1u

*IC4501 AA1 VDD33_PLL6_1

C4531

16V

0.1u

B1

SCX1_INPUT A from ASIC

0

1

2

3

4

5

6

7

8

9 19

*IC4501 F22 PI1D[0]

*IC4501 C21 PI1D[1]

*IC4501 D21 PI1D[2]

*IC4501 E21 PI1D[3]

*IC4501 F21 PI1D[4]

*IC4501 E20 PI1D[5]

*IC4501 F20 PI1D[6]

*IC4501 C19 PI1D[7]

*IC4501 D19 PI1D[8]

*IC4501 E19 PI1D[9]

10

11

13

14

15

16

17

18

*IC4501 F19 PI1D[10]

*IC4501 C18 PI1D[11]

*IC4501 D18 PI1D[12]

*IC4501 E18 PI1D[13]

*IC4501 F18 PI1D[14]

*IC4501 D17 PI1D[15]

*IC4501 E17 PI1D[16]

*IC4501 F17 PI1D[17]

*IC4501 C16 PI1D[18]

*IC4501 D16 PI1D[19]

20

21

22

23

24

25

26

27

28

29 29B

*IC4501 E16 PI1D[20]

*IC4501 F16 PI1D[21]

*IC4501 A15 PI1D[22]

*IC4501 B15 PI1D[23]

*IC4501 C15 PI1D[24]

*IC4501 D15 PI1D[25]

*IC4501 E15 PI1D[26]

*IC4501 F15 PI1D[27]

*IC4501 B14 PI1D[28]

*IC4501 C14 PI1D[29]

R4511

PI1HS

0

*IC4501 E14 PI1HSB

R4512

0

PI1VS

PI1CLK

PI1FLD

PI1ACT

*IC4501 B13 PI1VSB

R4513

0

*IC4501 A14 PI1CLK

*IC4501 D14 PI1FLD

*IC4501 F14 PI1ACTB

SCX1_INPUT B from ASIC

0B

1B

2B12

5B

6B

7B

8B

9B

*IC4501 E13 PI2D[0]

*IC4501 F13 PI2D[1]

*IC4501 B12 PI2D[2]

*IC4501 C12 PI2D[3]

*IC4501 D12 PI2D[4]

*IC4501 E12 PI2D[5]

*IC4501 F12 PI2D[6]

*IC4501 B11 PI2D[7]

*IC4501 C11 PI2D[8]

*IC4501 D11 PI2D[9]

10B

11B

12B

13B3B

14B4B

15B

16B

17B

18B

19B

*IC4501 E11 PI2D[10]

*IC4501 F11 PI2D[11]

*IC4501 A10 PI2D[12]

*IC4501 B10 PI2D[13]

*IC4501 C10 PI2D[14]

*IC4501 D10 PI2D[15]

*IC4501 E10 PI2D[16]

*IC4501 F10 PI2D[17]

*IC4501 A9 PI2D[18]

*IC4501 B9 PI2D[19]

20B

21B

22B

23B

24B

25B

26B

27B

28B

*IC4501 C9 PI2D[20]

*IC4501 D9 PI2D[21]

*IC4501 E9 PI2D[22]

*IC4501 F9 PI2D[23]

*IC4501 A8 PI2D[24]

*IC4501 B8 PI2D[25]

*IC4501 C8 PI2D[26]

*IC4501 D8 PI2D[27]

*IC4501 E8 PI2D[28]

*IC4501 F8 PI2D[29]

R4521

PI2HS

0

*IC4501 B7 PI2HSB

R4522

PI2VS

0

*IC4501 A7 PI2VSB

R4523

PI2CLK

0

PI2FLD

PI2ACT

*IC4501 A12 PI2CLK

*IC4501 C6 PI2FLD

*IC4501 D6 PI2ACTB

A2

A3

105102 103 106104 107101100 108

64

13.21. A-Board (13 of 17) Schematic Diagram

+

S

S

SCX1_MCLK2B

SCX1_MCLK2

DDR_NCLK2

DDR_CLK2

SCX1_DQ3

DDR_A5

SCX1_DQ17

SCX1_MCLK1

DDR_CLK1

SCX1_DQS1

DDR_A9

SCX1_DQ15

DDR_WE

DDR_A4

SCX1_DQM0

DDR_CAS

SCX1_A3

DDR_A8

SCX1_DQ20

DDR_RAS

SCX1_A2

DDR_A12

SCX1_DQ11

DDR_CKE

SCX1_A1

SCX1_DQ18

DDR_A10

SCX1_A0

SCX1_DQ21

DDR_A7

SCX1_DQS3

DDR_BA1

SCX1_DQM3

SCX1_BA0

SCX1_DQ14

SCX1_MCLK1B

SCX1_MCLK1B

SCX1_DQ1

SCX1_MCS

SCX1_MCLK1

SCX1_DQ13

SCX1_DQ24

SCX1_BA1

SCX1_DQ10

SCX1_DQM2

SCX1_MRAS

SCX1_DQ19

SCX1_DQ31

DDR_CS

SCX1_DQ8

SCX1_DQ7

DDR_A3

SCX1_DQ22

DDR_BA0

SCX1_DQM1

DDR_A2

SCX1_DQ16

SCX1_A12

SCX1_MWR

SCX1_DQ29

SCX1_A11

SCX1_A8

SCX1_MCAS

SCX1_DQ2

SCX1_A10

SCX1_A4

SCX1_DQ6

SCX1_MRAS

SCX1_A9

SCX1_A9

SCX1_DQ30

SCX1_MCKE

SCX1_A8

SCX1_A5

SCX1_DQ26

SCX1_A7

SCX1_A10

SCX1_DQ5

SCX1_A11

SCX1_A6

SCX1_A7

SCX1_DQ23

SCX1_A5

SCX1_A6

SCX1_BA1

SCX1_DQ27

SCX1_A4

SCX1_A1

SCX1_DQ4

SCX1_DQ12

DDR_A1

SCX1_DQS0

SCX1_DQ9

SCX1_MCKE

DDR_A6

SCX1_DQ28

SCX1_DQ0

SCX1_MWR

SCX1_DQ25

DDR_A11

SCX1_DQS2

SCX1_MCAS

DDR_NCLK1

DDR_A10

DDR_A11

SCX1_DQ4

DDR_A1

SCX1_DQ1

DDR_A9

DDR_A4

DDR_A3

DDR_A0

DDR_CS

DDR_A1

SCX1_DQM3

SCX1_DQ30

DDR_A5

SCX1_DQ26

SCX1_DQ23

SCX1_DQ19

SCX1_DQS1

SCX1_DQS2

SCX1_DQM2

SCX1_DQM0

DDR_A11

DDR_CLK2

SCX1_DQ18

SCX1_DQ8

DDR_WE

DDR_CAS

SCX1_DQ3

DDR_A10

SCX1_DQ17

DDR_BA1

SCX1_DQ12

DDR_CAS

DDR_A3

SCX1_DQSB0

SCX1_DQ15

DDR_RAS

SCX1_DQ16

DDR_A4

DDR_CKE

SCX1_DQSB1

SCX1_DQ21

DDR_A2

SCX1_DQ22

SCX1_DQS3

DDR_A7

SCX1_DQ2

DDR_CS

SCX1_DQ25

DDR_A2

DDR_A12

DDR_WE

SCX1_DQS0

DDR_RAS

SCX1_DQ0

SCX1_DQ9

DDR_A12

DDR_A9

SCX1_DQ29

SCX1_DQ28

DDR_BA0

SCX1_DQSB2

SCX1_DQ11

SCX1_DQSB3

SCX1_DQ24

SCX1_DQ27

SCX1_DQ7

DDR_NCLK2

DDR_A6

SCX1_DQM1

SCX1_DQ13

SCX1_DQ31

DDR_A8

DDR_BA1

DDR_A6

DDR_A0

DDR_A8

DDR_A5

SCX1_DQ5

SCX1_DQ10

DDR_BA0

SCX1_DQ14

DDR_A7

DDR_CKE

SCX1_DQ20

SCX1_DQ6

SCX1_A12

SCX1_A0

DDR_A0

SCX1_DQSB0

SCX1_DQSB1

SCX1_ODT

SCX1_ODT DDR_ODT

DDR_ODT

DDR_ODT

DDR_CLK1

DDR_NCLK1

SCX1_DQSB2

SCX1_DQSB3

SCX1_MCLK2

SCX1_MCLK2B

SCX1_A2

SCX1_BA0

SCX1_A3

SCX1_MCS

C4588

16V 0.1u

C4587

16V 0.1u

C4618
16V

0.1u

C4604

16V

0.1u

C4605

16V

0.1u

C4606

10u

10V

C4622

10u

10V

C4631

16V

0.1u

C4624

16V

0.1u

C4629

16V

0.1u

C4603
16V

0.1u

C4639

16V

0.1u

C4613

16V

0.1u

C4602

16V

0.1u

C4623

16V

0.1u

C4619

16V

0.1u

C4630

16V

0.1u

C4625

16V

0.1u

C4607

16V

0.1u

C4612

16V

0.1u

C4626

16V

0.1u

C4632

16V

0.1u

C4609

16V

0.1u

C4610

16V

0.1u

C4638

16V

0.1u

C4628

16V

0.1u

C4621

68u

4V

IC4502

C3ABRY000040

A1 VDD

IC4503

C3ABRY000040

A1 VDD

IC4503 H9 DQ5

IC4502 F2 VSSQ

IC4502 B8 VSSQ

IC4502 N1 VSS

IC4503 F3 LDM

IC4502 H2 VSSQ

IC4502 J7 VSSDL

IC4502 C1 VDDQ

IC4503 N3 A5

IC4502 K7 RAS

IC4502 H8 VSSQ

IC4503 R7 NC

IC4503 L8 CS

IC4502 M3 A1

IC4502 R2 A12

IC4502 E1 VDD

IC4502 P7 A11

IC4503 J3 VSS

IC4503 D2 VSSQ

IC4503 M7 A2

IC4503 C3 VDDQ

IC4503 G3 VDDQ

IC4502 B1 DQ14

IC4502 C9 VDDQ

IC4503 P9 VSS

IC4502 G2 DQ1

IC4503 B2 VSSQ

IC4502 D8 VSSQ

IC4502 D2 VSSQ

IC4503 H2 VSSQ

IC4503 G8 DQ0

IC4502 M2 A10

IC4502 H3 DQ3

IC4503 D7 DQ10

IC4502 M8 A0

IC4502 A8 UDQS

IC4502 G3 VDDQ

IC4502 N7 A6

IC4503 M9 VDD

IC4503 G2 DQ1

IC4503 F7 LDQS

IC4502 R8 NC

IC4502 L8 CS

IC4502 K9 ODT

IC4503 R2 A12

IC4503 N2 A3

IC4503 J9 VDD

IC4502 B7 UDQS

IC4503 R3 NC

IC4502 J1 VDDL

IC4503 H8 VSSQ

IC4502 L3 BA1

IC4503 E7 VSSQ

IC4503 H3 DQ3

IC4502 H7 DQ2

IC4502 H1 DQ4

IC4502 G1 VDDQ

IC4503 E2 NC

IC4503 J2 VREF

IC4502 F7 LDQS

IC4503 P3 A9

IC4503 B1 DQ14

IC4503 L3 BA1 IC4503 P2 A7

IC4503 H1 DQ4

IC4502 P9 VSS

IC4503 A2 NC

IC4502 L1 NC

IC4502 R3 NC

IC4502 K2 CKE

IC4502 J9 VDD

IC4503 N1 VSS

IC4502 G8 DQ0

IC4502 C2 DQ9

IC4503 M2 A10

IC4503 D9 DQ13

IC4502 L2 BA0

IC4502 E8 LDQS

IC4502 F9 DQ7

IC4503 A3 VSS

IC4502 R7 NC

IC4502 A3 VSS

IC4502 F3 LDM

IC4503 C2 DQ9

IC4503 R1 VDD

IC4503 M8 A0

IC4502 F8 VSSQ

IC4503 N8 A4

IC4503 D8 VSSQ

IC4502 D7 DQ10

IC4503 D1 DQ12

IC4502 E3 VSS

IC4502 K8 CK

IC4502 C8 DQ8

IC4502 D3 DQ11

IC4502 M7 A2

IC4503 L7 CAS

IC4502 N2 A3

IC4502 P2 A7

IC4502 G9 VDDQ

IC4503 N7 A6

IC4503 K2 CKE

IC4502 A2 NC

IC4503 C9 VDDQ

IC4503 B8 VSSQ

IC4502 J2 VREF

IC4503 G9 VDDQ

IC4503 E3 VSS

IC4503 E1 VDD

IC4502 F1 DQ6

IC4502 B9 DQ15

IC4502 B2 VSSQ

IC4503 B7 UDQS

IC4503 L1 NC

IC4503 K3 WE

IC4502 C3 VDDQ

IC4503 C7 VDDQ

IC4503 F1 DQ6

IC4502 N8 A4

IC4503 B9 DQ15

IC4502 N3 A5

IC4503 L2 BA0

IC4503 F9 DQ7

IC4503 C1 VDDQ

IC4502 E7 VSSQ

IC4503 F8 VSSQ

IC4503 K8 CK

IC4503 P8 A8

IC4503 P7 A11

IC4503 G1 VDDQ

IC4502 P3 A9

IC4503 D3 DQ11

IC4503 B3 UDM

IC4502 R1 VDD

IC4503 K9 ODT

IC4503 F2 VSSQ

IC4503 M3 A1

IC4503 R8 NC

IC4503 A9 VDDQ

IC4503 K7 RAS

IC4503 E9 VDDQ

IC4503 A7 VSSQ

IC4502 M9 VDD

IC4503 A8 UDQS

IC4502 D1 DQ12

IC4502 E9 VDDQ

IC4503 C8 DQ8

IC4502 K3 WE

IC4502 J8 CK

IC4502 B3 UDM

IC4502 A9 VDDQ

IC4503 J7 VSSDL

IC4502 P8 A8

IC4502 J3 VSS

IC4502 C7 VDDQ

IC4502 D9 DQ13

IC4503 G7 VDDQ

IC4502 G7 VDDQ

IC4502 A7 VSSQ

IC4502 L7 CAS

*IC4501 R30 MA[4]

*IC4501 G30 MDQSB[2]

*IC4501 AB27 MD[10]

*IC4501 Y29 MDQS[0]

*IC4501 M26 MA[2]

*IC4501 AB29 MD[8]

*IC4501 AA27 MD[7]

*IC4501 W26 MVREF[0]

*IC4501 F29 MD[16]

*IC4501 K27 MD[27]

*IC4501 P28 MA[7]

*IC4501 J28 MD[25]

*IC4501 AB28 MD[9]

*IC4501 N29 MODT

*IC4501 P29 MA[0]

*IC4501 K28 MDQM[3]

*IC4501 AD29 MD[13]

*IC4501 AC28 MDQM[1]

*IC4501 F28 MD[17]

*IC4501 G28 MDQM[2]

*IC4501 K29 MDQS[3]

*IC4501 Y27 MD[3]

*IC4501 T27 MA[9]

*IC4501 P30 MCSB

*IC4501 T29 MA[6]

*IC4501 R27 MRASB

*IC4501 L27 MD[31]

*IC4501 R29 MA[8]

*IC4501 V27 MWRB

*IC4501 Y28 MDQM[0]

*IC4501 H29 MD[21]

*IC4501 F23 MCLKSEL[0]

*IC4501 V26 MBA[0]

*IC4501 U29 MBA[1]

*IC4501 N27 MCASB

*IC4501 AD30 MD[12]

*IC4501 H27 MD[23]

*IC4501 W29 MD[0]

*IC4501 AD28 MD[14]

*IC4501 U28 MA[1]

*IC4501 J27 MD[26]

*IC4501 H28 MD[22]

*IC4501 W28 MD[1]

*IC4501 AC30 MDQSB[1]

*IC4501 C22 MCLKSEL[1]

*IC4501 AC29 MDQS[1]

*IC4501 D22 MCLKSEL[2]

*IC4501 L30 MD[28]

*IC4501 M29 MCLKO2

*IC4501 AD27 MD[15]

*IC4501 P27 MA[3]

*IC4501 H30 MD[20]

*IC4501 R28 MA[12]

*IC4501 L28 MD[30]

*IC4501 T28 MA[5]

*IC4501 Y30 MDQSB[0]

*IC4501 V29 MCLKO1

*IC4501 AC27 MD[11]

*IC4501 V30 MCLKO1B

*IC4501 M27 MOCDRES

*IC4501 J29 MD[24]

*IC4501 AA28 MD[6]

*IC4501 T30 MA[11]

*IC4501 AA29 MD[5]

*IC4501 N28 MA[10]

*IC4501 W27 MD[2]

*IC4501 K30 MDQSB[3]

*IC4501 F27 MD[18]

*IC4501 L29 MD[29]

*IC4501 AA30 MD[4]

*IC4501 G29 MDQS[2]

*IC4501 U27 MCKE

*IC4501 G27 MD[19]

*IC4501 M30 MCLKO2B

*IC4501 J26 MVREF[1]

IC4502 H9 DQ5

IC4503 E8 LDQS

IC4503 J8 CK

IC4502 E2 NC

IC4503 H7 DQ2

IC4503 J1 VDDL

L4602

J0JHC0000096

SCX_3.3V

1.8V_DDR1

SCX_1.8V

1.8V_DDR2

1.8V_DDR1

1.8V_DDR2

1.8V

R4576

R4577

R4571

EXB28V220JX

R4565

EXB2HV220JV

R4563

22

1%

R4622

1k

R4624

150

R4604

150

1%

R4621

1k

R4570

22

R4575

22

R4623

100

1%

R4601

1k

1%

R4602

1k

R4603

100

1%

R4548

200

R4574

22

R4607

0

R4564

22

R4569

22

R4568

22

R4567

22

R4561

22

R4573

22

R4566

22

R4572

22

R4562

22

DDR POWER

Address input

Data I/O

SCX1-DDR

SCX1 VREF(0.8V)

DDR2_1

DDR POWER

Address input

Data I/O

For DDR1

Input mask

For DDR2

Data strobe

Input mask

Data strobe

Bank select

Bank select

DDR2_2

115113 116111110 114 117112109

A-BOARD TZTNP011DEE (13/17)

!

DDR2-1

IC4502

DDR2-2

IC4503

B1 C1

TH-50PF20E / TH-50PF20ER

65

TH-50PF20E / TH-50PF20ER

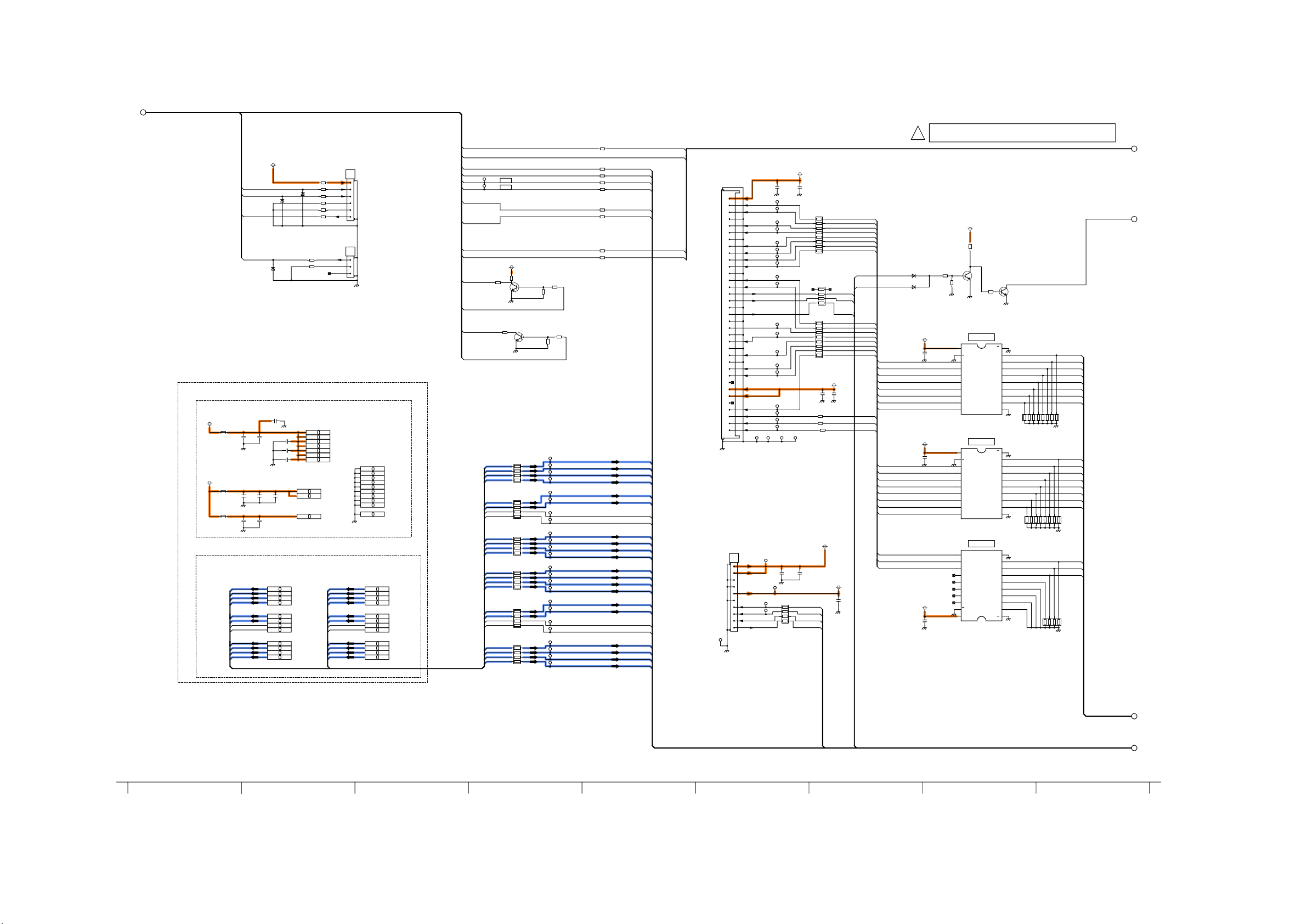

13.22. A-Board (14 of 17) Schematic Diagram

C1

SCX1_LVDS

LVDS VDD

SCX_3.3V

SCX_1.2V

LVDS OUT to FPGA

L4517

J0JCC0000241

L4518

J0JCC0000241

L4519

J0JCC0000241

E_TX_TA-

E_TX_TA+

E_TX_TB-

E_TX_TB+

E_TX_TC-

E_TX_TC+

E_TX_CLK-

E_TX_CLK+

E_TX_TD-

E_TX_TD+

E_TX_TE-

E_TX_TE+

5VLED_G

5VLED_R

A_REMOCON

KEY_INPUT

STBY3.3V

D4372

DZ2J056M0L

KEY_SCAN

D4374

DZ2J056M0L

C4578

C4577

C4576

6.3V

16V

10u

0.1u

C4583

C4582

6.3V

16V

10u 1u

0.1u

C4585

C4586

16V

6.3V

0.1u

10u

*IC4501 AJ22 LVDSO1B[0]

*IC4501 AK22 LVDSO1[0]

*IC4501 AG22 LVDSO1B[1]

*IC4501 AH22 LVDSO1[1]

*IC4501 AJ21 LVDSO1B[2]

*IC4501 AK21 LVDSO1[2]

*IC4501 AG20 LVDSO1B[5]

*IC4501 AH20 LVDSO1[5]

*IC4501 AG21 LVDSO1B[3]

*IC4501 AH21 LVDSO1[3]

*IC4501 AJ20 LVDSO1B[4]

*IC4501 AK20 LVDSO1[4]

D4371

DZ2J056M0L

1u6.3V

C4579

16V

0.1u

C4580

16V

0.1u

C4581

16V

0.1u

C4584

6.3V

L4371

0

L4372

0

L4373

0

L4374

0

L4375

0

L4376

0

R4377

0

R4378

0

*IC4501 AB17 VDD33_LVDS

*IC4501 AE18 VDD33_LVDS

*IC4501 AE19 VDD33_LVDS

*IC4501 AF18 VDD33_LVDS

*IC4501 AF19 VDD33_LVDS

*IC4501 AJ16 VDD33_LVDS

*IC4501 AJ23 VDD33_LVDS

*IC4501 AB18 VDD12_LVDS

*IC4501 AB19 VDD12_LVDS

*IC4501 AB20 VDD12_LVDSPLL

O_TX_TA-

O_TX_TA+

O_TX_TB-

O_TX_TB+

O_TX_TC-

O_TX_TC+

O_TX_CLK-

O_TX_CLK+

O_TX_TD-

O_TX_TD+

O_TX_TE-

O_TX_TE+

A11

A22

1

STB3.3V->

2

LED_G

3

LED_R

4

GND

5

GND

6

REMOCON

1

KEY-SW

2

GND

3

NC

*IC4501 AA17 VSS_LVDS

*IC4501 AA18 VSS_LVDS

*IC4501 AA19 VSS_LVDS

*IC4501 AE17 VSS_LVDS

*IC4501 AE20 VSS_LVDS

*IC4501 AF17 VSS_LVDS

*IC4501 AF20 VSS_LVDS

*IC4501 AK16 VSS_LVDS

*IC4501 AK23 VSS_LVDS

*IC4501 AA20 VSS_LVDSPLL

*IC4501 AJ19 LVDSO2B[0]

*IC4501 AK19 LVDSO2[0]

*IC4501 AG19 LVDSO2B[1]

*IC4501 AH19 LVDSO2[1]

*IC4501 AJ18 LVDSO2B[2]

*IC4501 AK18 LVDSO2[2]

*IC4501 AG17 LVDSO2B[5]

*IC4501 AH17 LVDSO2[5]

*IC4501 AG18 LVDSO2B[3]

*IC4501 AH18 LVDSO2[3]

*IC4501 AJ17 LVDSO2B[4]

*IC4501 AK17 LVDSO2[4]

TO
V1-BOARD

(V11)

TO
V2-BOARD

(V22)

E- LVDS0

E+ LVDS0

E- LVDS1

E+ LVDS1

E- LVDS2

E+ LVDS2

E- LVDSCLK

E+ LVDSCLK

E- LVDS3

E+ LVDS3

E- LVDS4

E+ LVDS4

O- LVDS0

O+ LVDS0

O- LVDS1

O+ LVDS1

O- LVDS2

O+ LVDS2

O- LVDSCLK

O+ LVDSCLK

O- LVDS3

O+ LVDS3

O- LVDS4

O+ LVDS4

R9229

0

100

R9231

100

R9230

R9232

R9233

R4389

R4390

R4391

R4392

PANEL_STBY_ON

100

100

0

0

0

0

RCLK_E-

RCLK_E+

RCLK_O-

RCLK_O+

P3V_SDA01

P3V_SCL01

RA_E-

RA_E+

RB_E-

RB_E+

RC_E-

RC_E+

RD_E-

RD_E+

RE_E-

RE_E+

RA_O-

RA_O+

RB_O-

RB_O+

RC_O-

RC_O+

RD_O-

RD_O+

RE_O-

RE_O+

DRVMUTE

A_IIC_CONT

READY

ALARM

AR_RXD_PC

AR_TXD_PC

D_REM_OUT RM_IN

A_IIC_CONT

DISPEN

A_PANEL_STBY_ON

A_READY

A_ALARM

3V_SDA4

3V_SCL4

D_RXD

D_TXD

DISPEN

A_DRVMUTE

A_PANEL_STBY_ON

TV_ON/OFF

TP4382

TP4381

E_TX_TA-

E_TX_TA+

E_TX_TB-

E_TX_TB+

E_TX_TC-

E_TX_TC+

E_TX_CLK-

E_TX_CLK+

E_TX_TD-

E_TX_TD+

E_TX_TE-

E_TX_TE+

O_TX_TA-

O_TX_TA+

O_TX_TB-

O_TX_TB+

O_TX_TC-

O_TX_TC+

O_TX_CLK-

O_TX_CLK+

O_TX_TD-

O_TX_TD+

O_TX_TE-

O_TX_TE+

A_IIC_CONT

DISPEN

PANEL_STBY_ON

TPRDY

READY

ALARM

TPALM

IIC_CONT

IIC_DATA1

IIC_CLK1

RXD

TXD

3.3V

Q4381

1k

R4382

DSC200100L

R4381

100

R4385

100

R4581

EXB28V100JX

R4582

EXB28V100JX

R4583

EXB28V100JX

*R4584

EXB28V100JX

*R4585

EXB28V100JX

*R4586

EXB28V100JX

Q4382

DSC200100L

R4384

10k

10k

R4383

R4387

10k

10k

R4386

TP4601

TP4602

TP4603

TP4604

TP4605

TP4606

TP4607

TP4608

TP4609

TP4610

TP4611

TP4612

TP4613

TP4614

TP4615

TP4616

TP4617

TP4618

TP4619

TP4620

TP4621

TP4622

TP4623

TP4624

SCCLK

SCNRST

SOS6_SC1

SOS7_SC2

SEL2

PANEL_MAIN_ON

TP9080

P5V

SIU

GND

CERS

CRC2

GND

OC2

CRC1

OC1

GND

CPH1

CIS

GND

UHZ

GND

CEL

GND

CSH

GND

CSL

GND

CMH

CML

+15V

+15V

SEL

CRC3

RSV

SOS4_PS

NC

NC

STBY5V

TO
SC-BOARD

(SC20)

*A20

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

33

34

35

TO
P-BOARD

(P25)

A25

+15V

+15V

GND

GND

GND

S0

S1

!

A-BOARD TZTNP011DEE (14/17)

D1

P5V

C9100

C9101

10V

SIDE

TERM

1

2

3

4

5

6

7

8

9

10

25V

10u

0.01u

TP9081

TP9082

TP9083

TP9084

TP9085

TP9086

TP9087

TP9088

TP9089

TP9090

TP9091

TP9092

TP9093

TP9094

TP9095

TP9096

TP9097

TP9098

TP9099

TP9103TP9101 TP9102 TP9104

TP9196

TP9006

R9189

TP9111

EXB38V101JV

TP9112

R9208

EXB2HV470JV

R9198

EXB38V101JV

R9209

EXB2HV470JV

P15V

15.00V

C9103

25V

0V

0V

0.01u

*R9224

47

*R9226

47

*R9247

47

P15V

C9106

C9108

25V

25V

10u

0.01u

P_S0

P_S1

PANEL_MAIN_ON

SOS4_PS

SC_SIU

SC_SCCLK

SC_CERS

SC_CRC2

SC_OC2

SC_CRC1

SCNRST

SC_OC1

SC_CERS

SC_CRC2

SC_OC2

SC_CRC1

SCNRST

SC_OC1

SC_CPH1

SC_CIS

SC_CEL

SC_CSH

SC_CSL

SC_CMH

SC_CML

SC-SEL2

SC_CML2

SC_SIU

SC_SCCLK

SC_SEL

SC_CRC3

D9802

B0JCCE000008

D9803

B0JCCE000008

P5V

C9400

16V

0.1u

P5V

C9401

16V

0.1u

P5V

*C9402

16V

0.1u

P_ON/OFF

OHZ1

SOS6_SC1

SOS7_SC2

SC_UHZ

SC_CPH1

SC_CIS

SC_CEL

SC_CSH

SC_CSL

SC_CMH

SC_CML

SC-SEL2

C9102

25V

10u

SC_SEL

SC_CRC3

SC_CML2

STB5V

C9110
16V

0.1u

R9881

10k

Q9800

DSC200100L

R9882
10k

20

Vcc

19

G2

18

Y1

17

Y2

16

Y3

15

Y4

14

Y5

13

Y6

12

Y7

11

Y8

20

Vcc

19

G2

18

Y1

17

Y2

16

Y3

15

Y4

14

Y5

13

Y6

12

Y7

11

Y8

Y8

11

Y7

12

Y6

13

Y5

14

Y4

Y3

16

Y2

17

Y1

18

0V

G2

19

Vcc

20

P15V

10k

R9880

IC9400

C0JBAZ002692

BUFFER

IC9401

C0JBAZ002692

BUFFER

IC9402

C0JBAZ002692

BUFFER

Q9802

DSC200100L

R9884

10k

1

G1

2

A1

3

A2

4

A3

5

A4

6

A5

7

A6

8

A7

9

A8

10

GND

R9400

EXB2HV103JV

1

G1

2

A1

3

A2

4

A3

5

A4

6

A5

7

A6

8

A7

9

A8

10

GND

EXB2HV103JV

GND

10

A8

9

A7

8

A6

7

A5

6

A4

5

A3

4

A2

3

A1

2

G1

1

EXB38V103JV

PD_SIU

PD_SCCLK

PD_CERS

PD_CRC2

PD_OC2

PD_CRC1

PD_SCNRST

PD_OC1

PD_CPH1

PD_CIS

PD_CEL

PD_CSH

PD_CSL

PD_CMH

PD_CML

PD_SEL2

R9401

PD_SEL

PD_CRC3

PD_CML2

R9402

D2

120 124123 125122118 119 126121

D3

D4

66

TH-50PF20E / TH-50PF20ER

(FIN)

S

OSD_R

P_ON/OFF

RXD_PC

P3V_SCL01

SOS8

P3V_SCL02

P3V_SCL01

STB_SDA02

AR_TXD_PC

SOS6

AR_STB_SCL02

OSD_HI

P3V_SDA01

IIC_SW

AR_STB_SDA02

P3V_SDA02

SOS8_SS

STB_SCL02

READY

AR_TXD_PC

PANEL_MAIN_ON

LED_R

LED_R

0V

OSD_HIN

LED_G

AR_RXD_PC

SC_UHZ

IIC_CONT

RXD_PC

SOS7

OSD_B

3.30V

STB_SDA02

STB_SDA01

AR_IIC_CONT

SOS7_SC2

STB_SCL02

TXD_PC

SOS8

OSD_G

STB_SCL01

SOS6

ALARM

OSD_YS P3V_SCL02

STB_SDA01

NRST

P3V_SDA01

OSD_CLKIN

OSD_VIN

D_UHZ

LED_G

IIC_SW

IIC_CONT

SOUT

SOS6_SC1

P3V_SDA02

OSD_CKI

NCS

NRST

STB_SCL01

DRVRST

SOS7

SCLK

AR_RXD_PC

0V

TXD_PC

IIC_CONT

AR_IIC_CONT

A_IIC_CONT

AR_STB_SDA02STB_SDA02

AR_STB_SCL02STB_SCL02

REMOCON

STB_SCL02

STB_SDA02

SOS_DCC

REMOCON

REM_IN

REM_IN

RM_IN

PANEL_STBY_ON

SIN

P_ON/OFF

XRST_SYS

EEP_WR_CTL

SOS4_PS

C9052

16V

0.1u

C9806

100p

50V

C9045

16V

0.1u

C9055

16V

0.1u

C9846 200p

50V

*C9831

3300p

25V

*C9835

22u

6.3V

C9053

16V

0.1u

C9809

2200p

50V

C9801

6800p

25V

C9054

200p

50V

C9061

16V

0.1u

*C9833

100p

50V

C9816

0.1u

25V

C9057

16V

0.1u

C9807

200p

50V

C9047

16V 0.1u

C9808

47p

50V

C9105
50V

100p

C9812

10u

25V

C9048

16V

0.1u

C9825

22u

6.3V

C9040

16V

0.1u

C9036
10V

10u

C9817

10u

10V

*C9829

0.047u

16V

C9813

10u

25V

C9819

10u

10V

C9065

16V

0.1u

C9062

4.7u

10V

*C9828

10u

25V

C9033

16V

0.1u

C9056

16V

0.1u

*C9845

200p

50V

C9037

0.01u

25V

C9046

16V

0.1u

C9063

16V

0.1u

C9805

10u

25V

C9044

10V

4.7u

C9034

16V

0.1u

C9803

4700p

25V

C9804

10u

25V

C9811

0.047u

16V

*C9827

10u

25V

C9815

22u

6.3V

C9800

0.1u

25V

C9035

10V

10u

*C9830

0.1u

25V

D9110

B0JCGD000002

*D9800

B0JCPD000026

D9000

B0JCCE000008

*IC9001

TVRR675AA

1

A0

2

A1

3

A2

4

GND

5

SDA

6

SCL

7

WP

8

Vcc

C0DBAYY00605

IC9800

PGND

1

2

PGND

3

PGND

4

SW

5

SW

6

SW

7

BOOT

8

NC

9

SS/DELAY

10

GND

11

FB

12

FC

13

RT

14

PSET

15

EN

16

NC

17

NC

18

VIN

19

VIN

20

VIN

C0DBAYY00605

IC9801

PGND

1

2

PGND

3

PGND

4

SW

5

SW

6

SW

7

BOOT

8

NC

9

SS/DELAY

10

GND

11

FB

12

FC

13

RT

14

PSET

15

EN

16

NC

17

NC

18

VIN

19

VIN

20

VIN

C0DBAYY00605

*IC9803

PGND

1

2

PGND

3

PGND

4

SW

5

SW

6

SW

7

BOOT

8

NC

9

SS/DELAY

10

GND

11

FB

12

FC

13

RT

14

PSET

15

EN

16

NC

17

NC

18

VIN

19

VIN

20

VIN

C1ZBZ0003983

IC9004

1

Y5

2

Y4

3

Y3

4

Y2

5

Y1

6

RESET

7

CD_OUT

8

STB33V

9

GND

10

DCDC_OE

11

VIN_OR

12

P_SDA1

13

P_SCL1

14

P_SDA2

15

P_SCL2

16

P33V_IN

17

IIC_SW

18

S_SCL2

19

S_SDA2

20

S_SCL1

21

S_SDA1

22

STB33VIN

23

P33V

24

P_ON_OFF

25

STB5V_IN

26

GND

27

CE

28

A1

29

A2

30

A3

31

A4

32

A5

MNZSFH8KFS3

IC9003

1

P60_SBO0A

2

P61_SBT0A

3

P62_SBI0A

4

P05_IRQ65P06_IRQ76P07_IRQ87P70_SDA08P71_SCL0

9

P50_RMIN_IRQ0

10

P2011P2112P2213P23

14

IVDD

15

VSS16P1017P1118P1219P1320P1421P1522P16

23

EXCLKSEL

24

P72_SDA1

25

P73_SCL1

26

P65_SBT227P66_SBI2

28

P30

29

P31

30

P32

31

P33

32

P34

33

P35

34

P36

35

P37

36

VPPEX_(N.C.)

37

IVDD

38

VDD

39

RONA

40

VSS

41

OSCXO

42

OSCXI

43

IVDD

44

P64_SBI1

45

P63_SBT1

46

NBOOT_(N.C.)

47

NRST

48

NTEST49SCLOCK_(UND)50SDATA_(UND)

51

ENTRG0_(UND)

52

ENTRG1_(UND)

53

TRCCLK_(UND)

54

TRCST_(UND)55TRCD0_(UND)56TRCD1_(UND)57TRCD2_(UND)58TRCD3_(UND)59P80_ADIN060P81_ADIN161P82_ADIN262P83_ADIN363IVDD64VSS65P84_ADIN466P85_ADIN567P86_ADIN668P87_ADIN769P90_ADIN870P91_ADIN971P92_ADIN1072P93_ADIN11

73

P74_SDA2

74

P75_SCL2

75

P40_TM0IO

76

P41_TM1IO77P42_TM2IO78P43_TM3IO

79

P44_TM4IO_SYSCLK

80

P00

81

P01

82

P02

83

P03_SBT0B

84

P04_SBO0B

85

P51_IRQ2

86

P52_IRQ3

87

P53_IRQ4

88

P54_IRQ5

89

PA7_VCLKOUT

90

PA6_HOUT

91

PA5_YSOUT

92

PA4_B00

93

PA3_G00

94

PA2_R00

95

PA1_VSYNC_IRQ1

96

PA0_HSYNC

97

VSS

98

OSDXI

99

IVDD

100

VDD

IC9802

C0DBEHG00006

1

CTL2Vcc4OUT5ADJ

3

GND(FIN)

A6

123456789

1011121314151617181920

*L9802

G1C6R8Z00008

L9801

G1C6R8Z00008

L9800

G1C6R8Z00010

STB3.3V

P15V

P3.3V

STB3.3V

STB3.3V

P15V

P3.3V

P15V

STB3.3V

STB3.3V

P5V

P3.3V

P3.3V

P5V

P2.5V

P1.2V

STB5V

STB3.3V

P15V

P3.3V

STB5V

P15V

VJ9303

TP9501

TP9502

TP9503

TP9504

TP9203

TP9204

TP9000

TP9200

TP9202

TP9500

TP9201

TP9001

TP9002

TP9313

TP9316

TP9314

TP9315

TD9058

Q9001

DSC200100L

Q9004

DSC200100L

Q9003

DSC200100L

Q9002

DSC200100L

Q9000

DSC200100L

R9104

EXB38V101JV

R9119

EXB38V470JV

R9072

10k

R9872

3.3k

1%

R9166

10k

R9212

47

*R9910

15k

1%

R9868
100k

R9871

10k

R9111

0

R9875

20k

1%

R9185

22

R9149

100k

R9873

10k

1%

R9215

100k

R9213

47

R9155

2.7k

R9130

47

*R9908

10k

1%

R9153

10k

R9890
110k

1%

R9874

27k

1%

R9878

8.2k

1%

R9129
68k

R9121
100k

R9107

3.3k

R9194

470

R9877

43k

1%

*R9900

27k

1%

R9203

22k

R9225

2.7k

R9879

15k

1%

R9188

2.7k

R9151

22

R9142

100k

R9140

4.7k

R9145

10k

R9146

10k

R9144

10k

R9143

100k

R9135

47k

R9136
47k

R9137

33k

R9138

100

R9105

22

*R9916

0

*R9915

0

*R9218

0

*R9891

47k

1%

R9901 27k

1%

R4395

0

R9150

22

R9207

24k

R9124

47

R9187

2.7k

R4394

0

R9154

2.7k

R9206
56k

R9152

10k

R9134

47k

0

R9126

R9201

10

R9200

10

*R9909

47k

1%

R9223

2.7k

R9070

10k

R9186

22

R9164

10k

R9205
33k

X9000

H2C1005A0041

GNDNCREMOCON

TXD

IIC_CONT

STBY3.3V

SCL1

LED_R

RXDNCLED_G

SDA1

IIC_INT

STBY5V

NC

SDA2

SCL2

NC

NC

D_mode

130 132129128127 133131 134 135

A-BOARD TZTNP011DEE (15/17)

!

15V->5V

15V->3.3V

15V->1.2V

STB5V->STB3.3V
RESET

3.3V->2.5V

PANEL CONTROL

EEPROM

FACTORY

USE

FOR

D1

D2

D3

D4

E1

E2

13.23. A-Board (15 of 17) Schematic Diagram

67

TH-50PF20E / TH-50PF20ER

13.24. A-Board (16 of 17) Schematic Diagram

!

A-BOARD TZTNP011DEE (16/17)

PD_UEH

PD_USL/UML2

PD_USH

PD_UML

PD_UMH

PD_LED2

PD_ODED2

PD_PCD3

PD_PCD4

PD_CLRD2

R9308

47

R9309

47

*IC9304

TVRR695AA

FLASH MOMORY

1

CS#

2

SO/SIO1

3

WP#/SIO2

4

GND

R9609

EXB38V470JV

R9611

EXB38V470JV

R9610

EXB38V470JV

TP9105

TP9106

NC/SIO3

SI/SIO0

P3.3V

C9300

0.1u

16V

8

VCC

R9306

7

47

6

SCLK

R9307

5

47

USL/UML2_C

D-LED2

D-ODED2

D-PCD3

D-PCD4

D-CLRD2

47

R9337

UEH_C

USH_C

UML_C PD_PCD3

UMH_C

P3.3V

1k

R9323

TP9300

R9322 47

*IC9300 B30 DCCIPORT0

TP9301

*IC9300 B6 SPIHZ

*IC9300 A4 FLSCK

*IC9300 B5 FLNCS

*IC9300 B4 FLSIO0

*IC9300 C5 FLSIO1

*IC9300 A6 FLSIO2

*IC9300 A5 FLSIO3

*IC9300 B3 EXTFLSO

*IC9300 A3 EXTFLSCK

*IC9300 C4 EXTFLSI

*IC9300 A2 EXTFLNCS

*IC9300 N28 DCCOP26

*IC9300 P28 DCCOP25

*IC9300 Y3 DCCOP22

*IC9300 R28 DCCOP23

*IC9300 K30 DCCOP24

*IC9300 L29 DCCOP15

*IC9300 L30 DCCOP14

*IC9300 M29 DCCOP13

*IC9300 M30 DCCOP12

*IC9300 R29 DCCOP37

*IC9300 P29 DCCOP18

*IC9300 N30 DCCOP19

*IC9300 P30 DCCOP21

*IC9300 N29 DCCOP29

*IC9300 W1 DCCOP36

*IC9300 Y1 DCCOP16

*IC9300 AA2 DCCOP17

*IC9300 Y2 DCCOP20

*IC9300 AA1 DCCOP28

P_S0

P_S1

OSD_HIN

OSD_VIN

OSD_CLKIN

OSD_YS

OSD_R

OSD_B

OSD_G

OSD_CKI

OSD_HI

XRST_SYS

DRVRST

DRVMUTE

10k

R9503

SOS_DCC

OHZ1

LVDS_INPUT

RA_O+

RA_O-

RB_O+

RB_O-

RC_O+

RC_O-

RCLK_O+

RCLK_O-

RD_O+

RD_O-

RE_O+

RE_O-

TD9528

R9316 47

TD9529

R9318 47

R9319 47

*IC9300 B15 RXOAP

*IC9300 A15 RXOAN

*IC9300 B14 RXOBP

*IC9300 A14 RXOBN

*IC9300 B13 RXOCP

*IC9300 A13 RXOCN

*IC9300 B12 RXOCKP

*IC9300 A12 RXOCKN

*IC9300 B11 RXODP

*IC9300 A11 RXODN

*IC9300 B10 RXOEP

*IC9300 A10 RXOEN

*IC9300 U3 DCCOP40

*IC9300 P3 DCCOP41

*IC9300 C29 SFLATCHI

*IC9300 A27 SFRST

*IC9300 B26 SFVRST

*IC9300 D30 FPCLK

*IC9300 E29 FPDAT1

*IC9300 E28 FPDAT0

TP9076

*IC9300 C2 OSDHO

TP9078

*IC9300 K29 SFVO

TP9113

*IC9300 D1 OSDVO

*IC9300 C1 OSDCKO

*IC9300 E2 OSDYSI

*IC9300 D2 OSDRI

*IC9300 E1 OSDBI

*IC9300 D3 OSDGI

*IC9300 F1 OSDCKI

*IC9300 E3 OSDHI

*IC9300 A29 XRST

*IC9300 B28 XRSTSYS

*IC9300 A28 DCCIDRVRST

*IC9300 C30 DCCIDISPEN

*IC9300 B27 SOS

IIC

P3V_SDA02

P3V_SCL02

*IC9300 B7 SDA

*IC9300 A7 SCL

TP9107

TP9108

TP9109

TP9110

R933847

R9336

EXB38V470JV

R9334 47

R9335 47

R9300

EXB38V470JV

SIN

SCLK

SOUT

NCS

PD_UEH

PD_USL/UML2

PD_USH

PD_UML

PD_UMH

PD_LED2

PD_PCD4

PD_ODED2

PD_CLRD2

PD_LED1

PD_PCD1

PD_PCD2

PD_ODED1

PD_CLRD1

RA_E+

RA_E-

RB_E+

RB_E-

RC_E+

RC_E-

RCLK_E+

RCLK_E-

RD_E+

RD_E-

RE_E+

RE_E-

R9321

1M

*IC9300 B21 RXEAP

*IC9300 A21 RXEAN

*IC9300 B20 RXEBP

*IC9300 A20 RXEBN

*IC9300 B19 RXECP

*IC9300 A19 RXECN

*IC9300 B18 RXECKP

*IC9300 A18 RXECKN

*IC9300 B17 RXEDP

*IC9300 A17 RXEDN

*IC9300 B16 RXEEP

*IC9300 A16 RXEEN

H0J200500076

PD_VSET2

PD_SIU

PD_SCCLK

PD_CERS

PD_SEL

PD_OC2

PD_CRC1

PD_SCNRST

PD_OC1

PD_CIS

PD_CML2

PD_CEL

PD_CSH

PD_CSL

PD_CPH1

PD_CMH

PD_CML

PD_SEL2

PD_CRC2

PD_CRC3

D_UHZ

X9300

50V

R9320

1.2k

TD9380

TD9381

TD9383

TD9330

*IC9300 V30 XI

C9301

18p

C9302

18p

50V

*IC9300 W30 XO

*IC9300 M3 DCCOP35

*IC9300 N3 DCCOP39

*IC9300 R3 DCCIFBK1

*IC9300 V3 DCCOP11

*IC9300 T3 DCCIFBK2

*IC9300 K2 DCCOP30

*IC9300 K1 DCCOP34

*IC9300 L2 DCCOP6

*IC9300 L1 DCCOP38

*IC9300 M2 DCCOP33

*IC9300 M1 DCCOP7

*IC9300 N2 DCCOSCRST

*IC9300 N1 DCCOP32

*IC9300 P2 DCCOP10

*IC9300 R2 DCCOP5

*IC9300 R1 DCCOP9

*IC9300 T2 DCCOP2

*IC9300 T1 DCCOP3

*IC9300 U2 DCCOP4

*IC9300 U1 DCCOP0

*IC9300 V2 DCCOP1

*IC9300 L3 DCCOP27

*IC9300 V1 DCCOP8

*IC9300 W2 DCCOP31

*IC9300 P1 DCCIFBK0

DD1_2P

DD1_2N

DD1_1P

DD1_1N

DRVCLK1P

DRVCLK1N

DD2_2P

DD2_2N

DD2_1P

DD2_1N

DD3_2P

DD3_2N

DD3_1P

DD3_1N

DRVCLK2P

DRVCLK2N

DD4_2P

DD4_2N

DD4_1P

DD4_1N

DD5_2P

DD5_2N

DD5_1P

DD5_1N

DRVCLK3P

DRVCLK3N

DD6_2P

DD6_2N

DD6_1P

DD6_1N

*IC9300 AC2 LVDOD0P *IC9300 AJ26 LVDOD24P

*IC9300 AC1 LVDOD0N

*IC9300 AD2 LVDOD1P

*IC9300 AD1 LVDOD1N

*IC9300 AC4 LVDRCK0P

*IC9300 AC3 LVDRCK0N

*IC9300 AE2 LVDOD2P

*IC9300 AE1 LVDOD2N

*IC9300 AF2 LVDOD3P

*IC9300 AF1 LVDOD3N

*IC9300 AG2 LVDOD4P

*IC9300 AG1 LVDOD4N

*IC9300 AH2 LVDOD5P

*IC9300 AH1 LVDOD5N

*IC9300 AG3 LVDRCK2P

*IC9300 AF3 LVDRCK2N

*IC9300 AJ4 LVDOD6P

*IC9300 AK4 LVDOD6N

*IC9300 AJ5 LVDOD7P

*IC9300 AK5 LVDOD7N

*IC9300 AJ6 LVDOD8P

*IC9300 AK6 LVDOD8N

*IC9300 AJ7 LVDOD9P

*IC9300 AK7 LVDOD9N

*IC9300 AH7 LVDRCK4P

*IC9300 AH6 LVDRCK4N

*IC9300 AJ8 LVDOD10P

*IC9300 AK8 LVDOD10N

*IC9300 AJ9 LVDOD11P

*IC9300 AK9 LVDOD11N

DD7_2P

DD7_2N

DD7_1P

DD7_1N

DRVCLK4P

DRVCLK4N

DD8_2P

DD8_2N

DD8_1P

DD8_1N

DRVCLK5P

DRVCLK5N

DD9_2P

DD9_2N

DD9_1P

DD9_1N

DRVCLK6P

DRVCLK6N

DD10_2P

DD10_2N

DD10_1P

DD10_1N

DD11_2P

DD11_2N

DD11_1P

DD11_1N

DRVCLK7P

DRVCLK7N

DD12_2P

DD12_2N

DD12_1P

DD12_1N

*IC9300 AJ12 LVDOD12P

*IC9300 AK12 LVDOD12N

*IC9300 AJ13 LVDOD13P

*IC9300 AK13 LVDOD13N

*IC9300 AH13 LVDRCK6P

*IC9300 AH12 LVDRCK6N

*IC9300 AJ14 LVDOD14P

*IC9300 AK14 LVDOD14N

*IC9300 AJ15 LVDOD15P

*IC9300 AK15 LVDOD15N

*IC9300 AH15 LVDRCK7P

*IC9300 AH14 LVDRCK7N

*IC9300 AJ16 LVDOD16P

*IC9300 AK16 LVDOD16N

*IC9300 AJ17 LVDOD17P

*IC9300 AK17 LVDOD17N

*IC9300 AH17 LVDRCK8P

*IC9300 AH16 LVDRCK8N

*IC9300 AJ18 LVDOD18P

*IC9300 AK18 LVDOD18N

*IC9300 AJ19 LVDOD19P

*IC9300 AK19 LVDOD19N

*IC9300 AJ22 LVDOD20P

*IC9300 AK22 LVDOD20N

*IC9300 AJ23 LVDOD21P

*IC9300 AK23 LVDOD21N

*IC9300 AH23 LVDRCK10P

*IC9300 AH22 LVDRCK10N

*IC9300 AJ24 LVDOD22P

*IC9300 AK24 LVDOD22N

*IC9300 AJ25 LVDOD23P

*IC9300 AK25 LVDOD23N

DD13_2P

DD13_2N

DD13_1P

DD13_1N

DRVCLK8P

DRVCLK8N

DD14_2P

DD14_2N

DD14_1P

DD14_1N

DD15_2P

DD15_2N

DD15_1P

DD15_1N

DRVCLK9P

DRVCLK9N

*IC9300 AK26 LVDOD24N

*IC9300 AJ27 LVDOD25P*IC9300 T30 CKMO

*IC9300 AK27 LVDOD25N

*IC9300 AH27 LVDRCK12P

*IC9300 AH26 LVDRCK12N

*IC9300 AH29 LVDOD26P

*IC9300 AH30 LVDOD26N

*IC9300 AG29 LVDOD27P

*IC9300 AG30 LVDOD27N

*IC9300 AF29 LVDOD28P

*IC9300 AF30 LVDOD28N

*IC9300 AE29 LVDOD29P

*IC9300 AE30 LVDOD29N

*IC9300 AD28 LVDRCK14P

*IC9300 AE28 LVDRCK14N

*IC9300 AD29 LVDOD30P

*IC9300 AD30 LVDOD30N

*IC9300 AC29 LVDOD31P

*IC9300 AC30 LVDOD31N

*IC9300 AE3 LVDRCK1P

*IC9300 AD3 LVDRCK1N

*IC9300 AH5 LVDRCK3P

*IC9300 AH4 LVDRCK3N

*IC9300 AH9 LVDRCK5P

*IC9300 AH8 LVDRCK5N

*IC9300 AH19 LVDRCK9P

*IC9300 AH18 LVDRCK9N

*IC9300 AH25 LVDRCK11P

*IC9300 AH24 LVDRCK11N

*IC9300 AF28 LVDRCK13P

*IC9300 AG28 LVDRCK13N

*IC9300 AB28 LVDRCK15P

*IC9300 AC28 LVDRCK15N

IC9300

C1AB00003258

VIDEO SIGNAL
PANEL CONTROL

PD4H

F1

F2

D-LED1

D-PCD1

D-PCD2

D-ODED1

R9608

PD_LED1

PD_ODED1

PD_PCD1

PD_PCD2

PD_CLRD1

EXB2HV470JV

E1

D-ODED1

D-CLRD1

D-LED1

D-PCD1

D-PCD2

DATA_DRIVER

SS_PULSE

TP9900

SIDE

123456789

GND

KEY_SCAN

D-CLRD1

DD1_1N

DD1_2P

DD1_2N

DD1_1P

TP9904

TP9902

TP9901

TP9903

PC1

LE1

ODE1

TP9116

TP9117

TP9118

TP9115

1011121314151617181920212223242526272829303132

GND

GND

PC2

CLR1

DD1_1-

DD1_2-

DD1_2+

DD1_1+

DD2_2P

DD2_1P

DD3_2N

DD2_1N

DD2_2N

DRVCLK1N

DRVCLK1P

TP9119

TP9122

TP9123

TP9121

TP9120

GND

DRVCLK1-

DRVCLK1+

TP9124

GND

DD2_2-

DD2_1-

DD2_2+

DD3_1P

DD3_2P

DD3_1N

TP9126

TP9125

TP9128

TP9127

GND

DD3_2-

DD3_1-

DD3_2+

DD2_1+

DD4_2N

DRVCLK2N

DRVCLK2P

TP9131

TP9130

TP9129

GND

GND

DD3_1+

DRVCLK2+

DRVCLK2-

DD5_2N

DD5_2P

DD5_1N

DD4_1N

DD4_2P

DD4_1P

TP9133

TP9132

TP9134

3334353637383940414243444546474849505152535455575859606162636465666768

DD4_2-

DD4_1-

DD4_2+

DD5_1P

TP9136

TP9137

TP9135

TP9138

GND

DD5_2-

DD5_1-

DD5_2+

DD4_1+

DD6_2N

DD6_2P

DD6_1N

DD6_1P

DD7_2N

DD7_2P

DD7_1N

DRVCLK3N

DRVCLK3P

TP9141

TP9143

TP9142

DRVCLK3+

TP9144

GND

DD6_1-

DD6_2-

DD6_2+

TP9140

TP9139

GND

DD5_1+

DRVCLK3-

DD7_1P

TP9145

TP9147

TP9148

TP9146

GND

DD7_1-

DD7_2-

DD6_1+

DD7_2+

DD8_2N

DD8_2P

DD8_1N

DD8_1P

DRVCLK4N

DRVCLK4P

TP9149

TP9151

TP9150

56

GND

GND

DD7_1+

DRVCLK4-

DRVCLK4+

DRVCLK5N

TP9154

TP9152

TP9153

TP9155

GND

DD8_2-

DD8_1-

DD8_1+

DD8_2+

DRVCLK5-

DRVCLK5P

TP9156

DRVCLK5+

P3.3V

VJ9902

P

TERM

NC

GND

P3.3V

P3.3V

P3.3V

TO

*A31

C2-BOARD

(C21)

TP9195

TP9197

TP9193

TP9194

F3

E2

136 141140138137 139 142 143 144

68

13.25. A-Board (17 of 17) Schematic Diagram

TERM

SIDE

P

P

PP P

DD15_2N

DD15_2P

DD13_1P

DD13_2N

DD14_1P

DRVCLK9N

DRVCLK8N

DD14_2N

DRVRST

DD13_1N

DD15_1N

DD14_2P

DD14_1N

DD13_2P

DD15_1P

DRVCLK9P

DRVCLK8P

SOS8_SS

UEH_C

USL/UML2_C

USH_C

UML_C

UMH_C

D-CLRD2

D-PCD4

D-PCD3

D-ODED2

D-LED2

DD12_1P

DD12_1N

DD12_2P

DD12_2N

DRVCLK7P

DRVCLK7N

DD11_1P

DD11_1N

DRVCLK6P

DRVCLK6N

DD9_1P

DD9_1N

DD9_2P

DD9_2N

C_5V_DET

DD10_2N

DD10_2P

DD10_1N

DD10_1P

DD11_2N

DD11_2P

C9313

0.1u

16V

C9356

0.1u

16V

C9315

0.1u

16V

C9347

1u

6.3V

C9316

10V

10u

C9314

10V

10u

C9350

0.1u

16V

C9363 0.1u

16V

C9340

0.1u

16V

C9374 0.1u

16V

C9383 0.1u

16V

C9351 0.1u

16V

C9308

0.1u

16V

C9339

0.1u

16V

C9900

25V

0.01u

C9325

0.1u

16V

C9327

0.1u

16V

C9312

10V

10u

C9372

10V

10u

C9342

0.1u

16V

C9335

10V

10u

C9375 0.1u

16V

C9371

10V

10u

C9392

10V

10u

C9322

0.1u

16V

C9391

10V

10u

C9344

0.1u

16V

C9380 0.1u

16V

C9361 0.1u

16V

C9307

0.1u

16V

C9311

0.1u

16V

C9319

0.1u

16V

C9349

10u

10V

C9337

10V

10u

C9336

10V

10u

C9373

10V

10u

C9352

6.3V
1u

C9323

0.1u

16V

*IC9300 A1 VDD33

*IC9300 AF5 GND

*IC9300 AB29 MLVDS_VDD

*IC9300 B25 TEST

*IC9300 AG14 MLVDS_VDD

*IC9300 AJ20 GND

*IC9300 E19 LRX_V12

*IC9300 K5 VDDC

*IC9300 AG8 MLVDS_VDD

*IC9300 AK28 GND

*IC9300 E17 SCS_VDD18

*IC9300 D23 VDD33

*IC9300 D16 VDD33

*IC9300 AF24 VDDC

*IC9300 E30 SBO0

*IC9300 A24 ID0

*IC9300 AF27 miniLVDS_RI3

*IC9300 C9 GND

*IC9300 AB3 VDDC

*IC9300 AF17 SCS_VDD18

*IC9300 AJ10 SCS_ANA_17

*IC9300 P5 SCS_VDD15

*IC9300 D21 LRX_V12C_1

*IC9300 AJ29 GND

*IC9300 AG16 MLVDS_VDD

*IC9300 Y27 PLLICK_AVS

*IC9300 V5 SCS_VDD18

*IC9300 D5 GND

*IC9300 G2 SCS_ANA_29

*IC9300 G5 VDDC

*IC9300 V29 GND

*IC9300 AK29 GND

*IC9300 E6 GND

*IC9300 D6 LRX_TXN_1

*IC9300 AF13 SCS_VDD18

*IC9300 D18 LRX_V12C_2

*IC9300 E7 VDDC

*IC9300 A9 LRX_VDDH

*IC9300 C23 GND

*IC9300 E21 VDDC

*IC9300 AJ11 GND

*IC9300 J28 SCS_ANA_26

*IC9300 R26 SCS_VDD18

*IC9300 C28 GND

*IC9300 N26 SCS_VDD18

*IC9300 AK20 GND

*IC9300 AE4 miniLVDS_RI0

*IC9300 AG6 MLVDS_VDD

*IC9300 AB2 VDDC

*IC9300 AF22 VDDC

*IC9300 W29 GND

*IC9300 C14 GND

*IC9300 AB30 MLVDS_VDD

*IC9300 U4 SCS_ANA_35

*IC9300 AG18 PLLSSMLCK_AVS

*IC9300 AJ1 GND

*IC9300 E5 VDD33

*IC9300 M27 SCS_ANA_28

*IC9300 W4 VDD33

*IC9300 AG4 GND

*IC9300 E24 VDDC

*IC9300 H3 VDD33

*IC9300 AD4 MLVDS_VDD

*IC9300 AE26 VDDC

*IC9300 G3 SCS_ANA_27

*IC9300 E15 GND

*IC9300 C13 GND

*IC9300 N4 SCS_ANA_33

*IC9300 D8 VDD33

*IC9300 H1 GND

*IC9300 AA27 PLLSSDCCCK_AVS

*IC9300 G1 GND

*IC9300 AK11 GND

*IC9300 W28 VDD33

*IC9300 AF25 SCS_ANA_18

*IC9300 AD27 MLVDS_VDD

*IC9300 AF18 SCS_ANA_0

*IC9300 L26 SCS_VDD15

*IC9300 B24 ID1

*IC9300 R27 SCS_ANA_30

*IC9300 A25 ID2

*IC9300 V26 VDDC

*IC9300 C20 GND

*IC9300 AB26 VDDC

*IC9300 E14 SCS_VDD18

*IC9300 J5 VDDC

*IC9300 V28 VDD33

*IC9300 E20 LRX_V12

*IC9300 C12 GND

*IC9300 AF14 SCS_VDD18

*IC9300 F2 SCS_ANA_25

*IC9300 E26 GND

*IC9300 C22 GND

*IC9300 F28 SBO1

*IC9300 AA26 SCS_ANA_40

*IC9300 K4 GND

*IC9300 AF10 VDDC

*IC9300 E25 GND

*IC9300 AF12 GND

*IC9300 G29 SRLF1

*IC9300 B1 GND

*IC9300 AF15 GND

*IC9300 AE27 miniLVDS_MON3

*IC9300 AG24 MLVDS_VDD

*IC9300 AE5 miniLVDS_MON0

*IC9300 AK10 SCS_ANA_21

*IC9300 H2 GND

*IC9300 AF8 VDDC

*IC9300 H5 VDDC

*IC9300 C26 SCS_ANA_10

*IC9300 E13 SCS_VDD18

*IC9300 M28 DCCIPORT1

*IC9300 AG15 VTEST1

*IC9300 AA29 MLVDS_VDD

*IC9300 D19 LRX_V12C_3

*IC9300 D20 LRX_V12C_0

*IC9300 M5 GND

*IC9300 R4 VDD33

*IC9300 AD5 MLVDS_VDD

*IC9300 AB4 VDDC

*IC9300 AH20 GND

*IC9300 V4 VDD33

*IC9300 C18 SCS_ANA_13

*IC9300 AF16 SCS_VDD18

*IC9300 AF9 VDDC

*IC9300 U26 VDDC

*IC9300 G4 GND

*IC9300 AK21 SCS_ANA_3

*IC9300 J1 GND

*IC9300 E10 VDDC

*IC9300 U5 SCS_VDD18

*IC9300 N5 SCS_VDD15

*IC9300 AA5 VDDC

*IC9300 H4 GND

*IC9300 AB1 VDDC

*IC9300 H30 MHIO

*IC9300 T29 GND

*IC9300 D24 VDD33

*IC9300 D15 VTEST0

*IC9300 AF21 VDDC

*IC9300 AA30 MLVDS_VDD

*IC9300 P26 SCS_VDD18

*IC9300 AG27 GND

*IC9300 C25 SCS_ANA_12

*IC9300 W27 PLLICK_AVD

*IC9300 J27 VDD33

*IC9300 C8 SCS_ANA_8

*IC9300 D12 SCS_ANA_11

*IC9300 AG10 SCS_ANA_24

*IC9300 A8 GND

*IC9300 B2 VDD33

*IC9300 D22 GND

*IC9300 AF23 VDDC

*IC9300 D27 GND

*IC9300 E18 GND

*IC9300 AC5 MLVDS_VDD

*IC9300 K27 GND

*IC9300 AD26 VDDC

*IC9300 E9 VDDC

*IC9300 E22 VDDC

*IC9300 AJ28 SCS_ANA_16

*IC9300 G28 SRLF2

*IC9300 A30 GND

*IC9300 AF19 SCS_ANA_2

*IC9300 Y4 GND

*IC9300 K26 GND

*IC9300 Y28 MLVDS_VDD

*IC9300 D29 SBI0

*IC9300 L28 TMODE1

*IC9300 E11 LRX_V12

*IC9300 Y5 GND

*IC9300 T28 GND

*IC9300 A26 SFLATCHO

*IC9300 Y29 SCS_ANA_36

*IC9300 T27 GND

*IC9300 R30 GND

*IC9300 B22 LRX_VDDH

*IC9300 C6 IICSYNC

*IC9300 AH28 GND

*IC9300 AC27 MLVDS_VDD

*IC9300 W3 VDD33

*IC9300 D9 VDD33

*IC9300 AG25 MLVDS_VDD

*IC9300 W26 GND

*IC9300 AB5 VDDC

*IC9300 AJ30 GND

*IC9300 E27 SCS_ANA_7

*IC9300 Y26 SCS_ANA_38

*IC9300 AK1 GND

*IC9300 F4 GND

*IC9300 AA28 MLVDS_VDD

*IC9300 AJ3 SCS_ANA_37

*IC9300 D26 GND

*IC9300 AK30 GND

*IC9300 AC26 VDDC

*IC9300 H29 MVIO

*IC9300 F30 SBT0

*IC9300 C21 GND

*IC9300 AG7 MLVDS_VDD

*IC9300 C27 GND

*IC9300 G26 VDDC

*IC9300 AF4 GND

*IC9300 V27 GND

*IC9300 H27 VDD33

*IC9300 T26 SCS_VDD18 *IC9300 D10 VDD33

*IC9300 J26 VDDC

*IC9300 J2 GND

*IC9300 AH11 GND

*IC9300 M4 SCS_ANA_31

*IC9300 D25 VDD33

*IC9300 R5 SCS_VDD18

*IC9300 B23 GND

*IC9300 F26 GND

*IC9300 AG23 miniLVDS_RI2*IC9300 D14 LRX_TXP_0

*IC9300 P27 VDD33

*IC9300 T5 SCS_VDD18

*IC9300 AG26 MLVDS_VDD

*IC9300 L4 GND

*IC9300 J30 SHIO

*IC9300 D17 VDD33

*IC9300 N27 VDD33

*IC9300 AF7 MLVDS_VDD

*IC9300 B9 LRX_VDDH

*IC9300 E8 VDDC

*IC9300 W5 GND

*IC9300 AA3 GND

*IC9300 AK2 GND

*IC9300 Y30 GND*IC9300 C16 GND

*IC9300 C19 SCS_ANA_15

*IC9300 E12 LRX_V12

*IC9300 AB27 PLLSSDCCCK_AVD

*IC9300 D11 SCS_ANA_6

*IC9300 C17 GND

*IC9300 G27 SCS_ANA_5

*IC9300 G30 SRLF0

*IC9300 AG9 MLVDS_VDD*IC9300 H28 VDD33

*IC9300 AG20 GND

*IC9300 E16 SCS_VDD18

*IC9300 P4 VDD33

*IC9300 L27 GND

*IC9300 K28 TMODE0

*IC9300 AG13 MLVDS_VDD

*IC9300 E23 VDDC

*IC9300 K3 OCKOUT

*IC9300 AG17 MLVDS_VDD

*IC9300 AH21 SCS_ANA_22

*IC9300 C3 VDD33

*IC9300 C24 SCS_ANA_14

*IC9300 A23 GND

*IC9300 U30 GND

*IC9300 B29 GND

*IC9300 L5 GND

*IC9300 F29 SBT1

*IC9300 D7 LRX_TXP_1

*IC9300 E4 GND

*IC9300 D13 LRX_TXN_0

*IC9300 AF20 GND

*IC9300 F27 SCS_ANA_9

*IC9300 AG12 miniLVDS_RI1

*IC9300 AG5 SCS_ANA_39

*IC9300 U28 VDD33

*IC9300 U27 SCS_ANA_34

*IC9300 C7 SCS_ANA_23

*IC9300 AG22 miniLVDS_MON2

*IC9300 U29 SCS_ANA_32

*IC9300 AH3 GND

*IC9300 AA4 VDDC

*IC9300 D4 VDD33

*IC9300 AJ2 GND

*IC9300 AG11 miniLVDS_MON1

*IC9300 D28 SBI1

*IC9300 AF6 MLVDS_VDD

*IC9300 B8 GND

*IC9300 AK3 GND

*IC9300 C15 GND

*IC9300 C11 GND

*IC9300 F5 GND

*IC9300 H26 VDDC

*IC9300 AH10 SCS_ANA_19

*IC9300 AJ21 SCS_ANA_1

*IC9300 AF26 GND

*IC9300 J29 SVIO

*IC9300 A22 LRX_VDDH

*IC9300 M26 SCS_VDD15

*IC9300 T4 GND

*IC9300 AF11 GND

*IC9300 C10 GND

*IC9300 AG19 PLLSSMLCK_AVD

*IC9300 J4 VDD33

*IC9300 AG21 SCS_ANA_20

*IC9300 F3 SCS_ANA_4

*IC9300 J3 VDD33

*A32

123456789

1011121314151617181920212223242526272829303132

3334353637383940414243444546474849505152535455575859606162636465666768

56

L9300

J0JHC0000117

L9301

J0JHC0000117

P5V

P3.3V

P3.3V

P1.2V

P2.5V

P3.3V

VJ9901

VJ9900

VJ9300

VJ9302

VJ9301

TP9912

TP9911

TP9180

TP9177

TP9179

TP9176

TP9010

TP9182

TP9164

TP9190

TP9173

TP9169

TP9185

TP9170

TP9175

TP9187

TP9192

TP9157

TP9166

TP9181

TP9183

TP9184

TP9165

TP9174

TP9171

TP9178

TP9162

TP9158

TP9905

TP9160

TP9159

TP9907

TP9906

TP9186

TP9909

TP9189

TP9163

TP9167

TP9191

TP9168

TP9908

TP9161

TP9188

TP9199

TP9205

TP9914

TP9913

TP9198

TP9910

TP9172

TP9206

TD9101

Q9900

DSC200100L

Q9901

DSC200100L

R9903

4.7k

R9906

100k

R9904

100k

R9327

1.6k

R9325

1.6k

R9905

10k

R9324

1.6k

R9326

1.6k

R9907

100

UMH

UML

DRVCLK9+

DRVCLK8-

DD15_1+

DD12_2-

DD9_1-

DD15_1-

DRVCLK8+

DD11_2-

PC3

DD10_2-

DD14_2+

USH

GND

DD15_2+

DRVCLK7-

GND

DD14_2-

DRVCLK6-

DD12_1+

P5V

GND

GND

DD13_1-

DD11_1-

DRVCLK6+

GND

DD11_2+

GND

GND

LE2

NC

USL/UML2

CLR2

DD15_2-

GND

DD13_2-

DD9_1+

3.3V_DET

DD11_1+

DD10_1-

PC4

DD14_1-

UEH

GND

NC

GND

DD10_1+

ODE2

DD12_1-

DD12_2+

P3.3V

DRVSOS8

GND

DD10_2+

GND

DD9_2+

DD13_1+

GND

GND

GND

DD14_1+

DD9_2-

DRVCLK7+

GND

DRVCLK9-

DD13_2+

151145 146 152149 153147 150148

A-BOARD TZTNP011DEE (17/17)

!

PD4H GND

TO
C3-BOARD

(C31)

F1

F2

F3

TH-50PF20E / TH-50PF20ER

69

TH-50PF20E / TH-50PF20ER

13.26. C1-Board Schematic Diagram

!

C1-BOARD TNPA5099

A

ZA17100

K4CD01000013

1 55155 155

ZA17101

K4CD01000013

ZA17102

K4CD01000013

ZA17103

K4CD01000013

40

C10

1

155

B

DD1_2+

DD1_1-

DD1_1+

AB_LED1

AB_PCD1

AB_CLRD1

AB_ODED1

R17100

150

SIDE

1345789

C

DM

CB1

TO
PANEL DATA
DRIVER

NC

NC

VDD2

VDD2

VDD2

111213141516171819202122232425262728293031

NC

GND

GND

GND

VDD2

VDD2

GND

VDD2

BLK

LEN

CLR

ODE

GND

GND

C1_3.3V

C17100

10V

1u

VDD1

VDD1

NC

OHZ

GND

GND

D

AB_PCD1

AB_LED1

AB_ODED1

AB_CLRD1

SIDE

1345789

NC

NC

DM

VDD2

VDD2

E

VDD2

111213141516171819202122232425262728293031

NC

GND

GND

GND

VDD2

VDD2

GND

VDD2

BLK

LEN

CLR

ODE

GND

GND

VDD1

VDD1

NC

OHZ

GND

GND

DD1_2-

100

R17101

32

33343536373839404142434445474849515253

A2P

A2N

GND

GND

GND

GND

GND

DD2_2-

DD2_2+

100

R17104

32

33343536373839404142434445474849515253

A2P

A2N

GND

GND

GND

GND

GND

DRVCLK1+

DRVCLK1-

VDA

200

100

R17103

R17102

A1P

FXP

A1N

FXN

DRVCLK1-

FXN

DRVCLK1+

FXP

GND

GND

TEST

200

R17107

GND

GND

TEST

GND

GND

DD2_1+

DD2_1-

100

R17105

A1P

A1N

GND

GND

R17106

NC

GND

GND

GND

R17109

NC

GND

GND

GND

C17104

1

100V

0.33u

TERM

55

NC

NC

VDD2

VDD2

VDD2

VDA

1

NC

VDD2

VDD2

VDD2

DM

VDD2

VDD2

VDD2

C17105

100V

0.33u

TERM

55

NC

DM

VDD2

VDD2

VDD2

SIDE

1345789

NC

DM

VDD2

VDD2

CB3

TO
PANEL DATA
DRIVER

SIDE

1345789

NC

DM

VDD2

VDD2

NC

NC

VDD2

VDD2

VDD2

VDD2

NC

NC

GND

VDD2

VDD2

VDD2

VDD2

AB_LED1

AB_PCD1

AB_CLRD1

AB_ODED1

111213141516171819202122232425262728293031

AB_CLRD1

NC

CLR

OHZ

GND

GND

VDD1

VDD1

NC

CLR

OHZ

GND

GND

GND

VDD1

VDD1

BLK

LEN

GND

GND

GND

111213141516171819202122232425262728293031

GND

GND

ODE

GND

GND

GND

C1_3.3V

C17106

10V

1u

AB_PCD1

AB_LED1

AB_ODED1

BLK

LEN

ODE

GND

GND

GND

DD3_2-

DD3_2+

DD3_1+

DD3_1-

DRVCLK2+

DRVCLK2-

VDA

100

R17111

32

33343536373839404142434445474849515253

A2P

A2N

GND

GND

GND

GND

GND

GND

GND

GND

DD4_1-

DD4_2-

DD4_2+

100

100

R17115

R17114

32

33343536373839404142434445474849515253

A2P

A2N

GND

A1N

GND

GND

200

100

R17113

R17112

A1P

FXP

A1N

FXN

DRVCLK2-

FXN

DRVCLK2+

GND

GND

TEST

FXP

GND

GND

TEST

GND

DD4_1+

200

R17116

A1P

GND

R17117

NC

GND

GND

GND

R17119

NC

GND

GND

GND

VDD2

C17110

1

100V

0.33u

TERM

55

NC

NC

VDD2

VDD2

VDD2

VDA

1

NC

VDD2

VDD2

DM

VDD2

VDD2

VDD2

C17111

100V

0.33u

TERM

55

NC

DM

VDD2

VDD2

VDD2

AB_LED1

AB_ODED1

AB_PCD1

AB_CLRD1

DD1_2-

DD1_2+

DD1_1-

DD1_1+

DRVCLK1-

DRVCLK1+

DD2_2-

DD2_2+

DD2_1-

DD2_1+

DD3_2-

DD3_2+

DD3_1-

DD3_1+

DRVCLK2-

DRVCLK2+

DD4_2-

DD4_2+

DD4_1-

DD4_1+

C1_3.3V

R17123

1k

3.3V_DET

VDA

R17124

220k

TERM

40

P3.3V

39

3.3V_DET

38

LE1

37

ODE1

36

PC1

35

CLR1

34

GND

33

DD1_2-

32

DD1_2+

31

DD1_1-

30

DD1_1+

29

GND

28

DRVCLK1-

27

DRVCLK1+

26

GND

25

DD2_2-

24

DD2_2+

23

DD2_1-

22

DD2_1+

21

GND

20

DD3_2-

19

DD3_2+

18

DD3_1-

17

DD3_1+

16

GND

15

DRVCLK2-

14

DRVCLK2+

13

GND

12

DD4_2-

11

DD4_2+

10

DD4_1-

9

DD4_1+

8

GND

7

NC

6

NC

5

NC

4

VDA

3

VDA

2

VDA

1

VDA

SIDE

C10

TO
C2-BOARD
(C20)

CB2

TO
PANEL DATA
DRIVER

C1_3.3V

C17101

10V

1u

CB4

TO
PANEL DATA
DRIVER

C1_3.3V

C17107

10V

1u

F

31 768

4

5

92

70

TH-50PF20E / TH-50PF20ER

TERM

SIDE

TERM

SIDE

TERM

SIDE

AB_PCD1_C1

AB_LED1_C1

AB_ODED1_C1

AB_CLRD1_C1

DD5_1-

AB_ODED2

DD5_2+

DD5_2-

DD5_1+

DRVCLK3+

DRVCLK3-

AB_PCD2

AB_CLRD2

AB_PCD2

DRVCLK3+

DD6_2-

AB_CLRD2

DD6_2+

DD6_1-

AB_LED2

DRVCLK3-

AB_ODED2

DD6_1+

3.3V_DET_2

DD4_1+

DD4_1-

DD4_2+

DD4_2-

DRVCLK2+

DRVCLK2-

DD3_1+

DD3_1-

DD3_2+

DD3_2-

DD2_1+

DD2_1-

DD2_2+

DD2_2-

DRVCLK1+

DRVCLK1-

DD1_1+

DD1_1-

DD1_2+

DD1_2-

AB_LED2

C17203

100V

0.33u

C17202

10V
1u

C17200

10V
1u

C17204

100V

0.33u

C20

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

33

34

35

36

37

38

39

40

1345789

1112131415161718192021222324252627282930313233343536373839404142434445474849515253

55

1345789

111213141516171819202122232425262728293031

32

33343536373839404142434445474849515253

55

VDA

VDAC2_3.3V

C2_3.3V

C2_3.3V

VDA

R17209

1

R17204

1

R17200

100

R17205

100

R17207

200

R17201

100

R17202

200

R17203

100

DD1_1-

DD1_2+

ODE1

GND

DD3_2-

NC

VDA

VDA

DRVCLK2-

DD4_2-

LE1

DD2_2-

DD3_2+

GND

NC

VDA

DD3_1-

CLR1

P3.3V

DRVCLK2+

DD4_1+

GND

GND

DD4_1-

DD1_1+

GND

DD4_2+

GND

NC

DD2_1-

VDA

DRVCLK1-

PC1

3.3V_DET

DD2_1+

DD2_2+

DD3_1+

DD1_2-

DRVCLK1+

GND

A1P

CLR

VDD2

GND

NC

GND

A2P

DM

NC

NC

NC

TEST

OHZ

VDD1

ODE

DM

GND

A2N

VDD2

LEN

GND

VDD2

GND

VDD2

VDD2

BLK

A1N

GND

VDD2

GND

NC

VDD2

VDD2

VDD1

GND

FXN

NC

GND

NC

VDD2

GND

VDD2

VDD2

GND

VDD2

GND

GND

FXP

GND

GND

GND

GND

GND

GND

GND

A1P

CLR

VDD2

GND

NC

GND

A2P

DM

NC

NC

NC

TEST

OHZ

VDD1

ODE

DM

GND

A2N

VDD2

LEN

GND

VDD2

GND

VDD2

VDD2

BLK

A1N

GND

VDD2

GND

NC

VDD2

VDD2

VDD1

GND

FXN

NC

GND

NC

VDD2

GND

VDD2

VDD2

GND

VDD2

GND

GND

FXP

GND

GND

GND

GND

GND

GND

GND

A

96873

B

E

D

4

C

12

F

5

TO
C1-BOARD
(C10)

CB5

TO

DRIVER

PANEL DATA

CB6

TO

DRIVER

PANEL DATA

1

2

3

C2-BOARD TNPA5100 (1/2)

!

13.27. C2-Board (1 of 2) Schematic Diagram

71

TH-50PF20E / TH-50PF20ER

13.28. C2-Board (2 of 2) Schematic Diagram

!

C2-BOARD TNPA5100 (2/2)

ODE1

LE1

PC2

PC1

CLR1

GND

GND

AA_PCD2

DD1_2-

DD1_2-

AA_CLRD1

GND

GND

68

TERM

AA_LED1

AA_ODED1

AA_PCD1

1

2

DD7_2-

DD7_2+

DD7_1-

DD7_1+

100

100

R17214

R17215

A1P

A2P

A2N

A1N

GND

GND

GND

SIDE

1345789

NC

DM

VDD2

CB7

TO
PANEL DATA
DRIVER

AB_PCD2

AB_LED2

AB_CLRD2

AB_ODED2

C17212

100V

0.33u

1112131415161718192021222324252627282930313233343536373839404142434445474849515253

NC

NC

VDD2

VDD2

VDD2

VDD2

GND

GND

GND

GND

VDD2

BLK

LEN

ODE

GND

GND

C2_3.3V

C17210

10V

1u

NC

CLR

OHZ

GND

VDD1

VDD1

GND

GND

GND

GND

GND

DRVCLK4-

DRVCLK1-

5758596061626364656667

DD1_1-

DRVCLK4+

FXP

DRVCLK1+

DD1_1+

DD1_1-

GND

GND

55

56

DD1_1+

DRVCLK1-

DRVCLK1+

100

R17216

GND

GND

GND

GND

TEST

GND

DD2_2+

DD2_1+

DD2_2-

DD2_1-

DD2_2-

DD2_2+

DD2_1-

DD2_1+

VDA

R17220

1

NC

GND

VDD2

VDD2

VDD2

GND

GND

DRVCLK2+

DRVCLK2-

DD3_2+

DD3_1+

DD3_2-

DD3_1-

DD3_2-

DD3_2+

DD3_1-

DD3_1+

DRVCLK2-

DRVCLK2+

TERM

55

NC

NC

DM

VDD2

VDD2

VDD2

GND

DD4_2+

DD4_1+

DD4_2-

DD4_1-

DD4_2-

DD4_2+

DD4_1-

DD4_1+

GND

GND

DRVCLK3+

DRVCLK3-

DD5_2+

DD5_1+

DD5_2-

DD5_1-

DD5_2-

DD5_2+

DD5_1-

DD5_1+

DRVCLK3-

DRVCLK3+

AB_LED2

AB_ODED2

AB_PCD2

AB_CLRD2

DD6_2-

DD6_2-

3.3V_DET_2

AB_LED1_C1

AB_ODED1_C1

AB_PCD1_C1

AB_CLRD1_C1

GND

DD6_2+

DD6_1+

DD6_1-

DD6_2+

DD6_1-

DD6_1+

C2_3.3V

C17216

16V

0.1u

DD7_2-

DD7_2-

R17224

EXB38V470JV

R17225

EXB38V470JV

GND

GND

DRVCLK4+

DRVCLK4-

DD7_2+

DD7_1+

DD7_1-

DD7_2+

DD7_1-

DD7_1+

DRVCLK4-

DRVCLK4+

Y8

11

Y7

12

Y6

13

Y5

14

Y4

15

Y3

16

Y2

17

Y1

18

G2

19

Vcc

20

DD8_2+

DD8_2-

101112131415161718192021222324252627282930313233343536373839404142434445464748495051525354

DD8_2-

DD8_2+

DD8_1-

IC17201

C0JBAU000043

DD8_1-

DD8_1+

GND

A8

A7

A6

A5

A4

BUFFER

A3

A2

A1

G1

GND

DD8_1+

NC

DRVCLK5+

DRVCLK5-

GND

P3.3V

P3.3V

P3.3V

123456789

DRVCLK5+

DRVCLK5-

R17226

680

10

9

8

7

6

5

4

3

2

1

SIDE

R17227

EXB38V681JV

R17296

TO

C21

A-BOARD
(A31)

C2_3.3V

R17228

0

C2_3.3V

VDA

R17229

R17232

0

AA_LED1

C17241

50V
100p

0

AA_ODED1

AA_PCD1

AA_PCD2

AA_CLRD1

R17233

0

220k

TERM

20

19

18

17

16

15

14

13

12

11

10

9

8

7

6

5

4

3

2

1

SIDE

C26

TO
C3-BOARD
(C36)

P3.3V

P3.3V

P3.3V

NC

3.3V_DET

NC

GND

GND

GND

GND

GND

GND

NC

NC

NC

VDA

VDA

VDA

VDA

VDA

DD1_2+

DD1_2+

FXN

3

DD8_2-

DD8_2+

DD8_1-

DD8_1+

DRVCLK5-

DRVCLK5+

100

R17217

32

33343536373839404142434445474849515253

A2P

A2N

GND

GND

100

100

R17219

R17218

A1P

FXP

A1N

FXN

GND

GND

GND

TEST

R17222

1

NC

GND

GND

GND

VDD2

VDA

55

ZA17201

K4CD01000013

ZA17202

K4CD01000013

ZA17203

K4CD01000013

1

68

C21

20

C26

55

ZA17200

TERM

55

NC

NC

VDD2

VDD2

DM

VDD2

VDD2

VDD2

K4CD01000013

40

C20

1

55 5511

1

11

SIDE

1345789

NC

DM

VDD2

CB8

TO
PANEL DATA
DRIVER

AB_PCD2

AB_LED2

AB_CLRD2

AB_ODED2

C17213

100V

0.33u

111213141516171819202122232425262728293031

NC

NC

VDD2

VDD2

VDD2

GND

GND

GND

GND

VDD2

VDD2

BLK

LEN

ODE

GND

GND

C2_3.3V

C17211

10V

1u

NC

CLR

OHZ

GND

GND

GND

GND

GND

GND

VDD1

VDD1

14 17 181210 1611 1513

72

TH-50PF20E / TH-50PF20ER

SIDE

TERM

TERM

SIDE

AB_UML

AB_USL

AB_UMH

AB_UEH

AB_USH

AA_UML

AA_USH

AA_USL

AA_UEH

DD9_2-

DD9_2+

DD9_1-

DRVCLK6-

DRVCLK6+

DD10_1-

DD10_2-

DRVCLK7+

DD10_2+

DD10_1+

DD12_1-

DD12_2-

DD12_2+

DD12_1+

DD13_1-

DD13_2-

DRVCLK8+

DD13_2+

DD13_1+

DRVCLK8-

DD14_1-

DD14_2-

DD14_2+

DD14_1+

DD15_1-

DD15_2-

DD15_2+

DRVCLK9+

DD15_1+

DRVCLK9-

AA_LED2

AA_ODED2

AA_PCD3

AA_CLRD2

AB_CLRD32

AB_CLRD31

AB_PCD32

AB_PCD31

AB_ODED31

AB_LED31

AB_LED32

AB_ODED32

3.3V_DET_3

3.3V_DET_3

DD9_1+

DD11_1-

DD11_1+

DD11_2+

DD11_2-

DRVCLK7-

AA_PCD4

AA_UMH

AA_LED2

AB_UEH

AB_USL

AB_USH

AB_UML

AB_UMH

AA_CLRD2

AA_PCD4

AA_PCD3

AA_ODED2

AA_USL

AA_UEH

AA_USH

AA_UMH

AA_UML

C17315

16V

0.1u

C17301

16V

0.1u

C17341

50V

100p

C0JBAZ002692

IC17302

G1

1

2

A1

3

A2

4

A3

5

A4

6

A5

7

A6

8

A7

9

A8

10

GND

11

Y8

12

Y7

13

Y6

14

Y5

15

Y4

16

Y3

17

Y2

18

Y1

19

G2

20

Vcc

C0JBAU000043

IC17300

G1

1

2

A1

3

A2

4

A3

5

A4

6

A5

7

A6

8

A7

9

A8

10

GND

11

Y8

12

Y7

13

Y6

14

Y5

15

Y4

16

Y3

17

Y2

18

Y1

19

G2

20

Vcc

C36

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

C31

123456789

101112131415161718192021222324252627282930313233343536373839404142434445464748495051525354

55

5758596061626364656667

68

56

C35

123

4

C33

1234567

8

SS_5V

SS_5V

SS_5V

C3_3.3V

C3_3.3V

VDA

VDA

C3_3.3V

R17326

EXB38V470JV

R17300

EXB38V681JV

R17302

EXB38V470JV

R17325

EXB38V470JV

R17303

EXB38V470JV

R17321

EXB38V681JV

R17323

EXB38V681JV

R17360

0

R17394

0

R17344

220k

R17393

0

R17301

680

R17395

0

GND

VDA

VDA

NC

UML

UMH

SOS8_SS

GND

P5V

UEH

USL

USH

DD15_2-

DD15_1-

GND

DD9_1+

DD9_1-

DRVCLK6+

P5V_SS

GND

GND

GND

GND

GND

GND

GND

DRVCLK7+

GND

DRVCLK7-

GND

DRVCLK8+

GND

DRVCLK8-

DRVCLK9+

DRVCLK6-

DRVCLK9-

DD10_2+

DD10_1+

DD10_2-

DD10_1-

DD11_2+

DD11_1+

DD11_2-

DD11_1-

DD12_2+

DD12_1+

DD12_2-

DD12_1-

DD13_2+

DD13_1+

DD13_2-

DD13_1-

DD14_2+

DD14_1+

DD9_2-

DD14_2-

DD9_2+

DD14_1-

DD15_2+

DD15_1+

VDA

GND

NC

GND

P3.3V

P3.3V

3.3V_DET

GND

NC

NC

NC

VDA

GND

VDA

GND

VDA

VDA

GND

NC

P3.3V

UMH

3.3V_DET

ODE2

LE2

PC3

CLR2

GND

PC4

GND

GND

GND

UML

USH

USL

UEH

GND

DRVSOS8NCP3.3V

NC

BUFFER

BUFFER

A

68

B

73

D

E

4

C

12 9

F

5

TO
A-BOARD
(A32)

TO
C2-BOARD
(C26)

TO
SS-BOARD
(SS33)

TO
P-BOARD
(P35)

C3-BOARD TNPA5101 (1/2)

!

1

2

13.29. C3-Board (1 of 2) Schematic Diagram

73

TH-50PF20E / TH-50PF20ER

13.30. C3-Board (2 of 2) Schematic Diagram

C3-BOARD TNPA5101 (2/2)

!

1

2

AB_PCD31

AB_LED31AB_LED31

AB_ODED31

AB_CLRD31

BLK

LEN

CLR

ODE

GND

GND

SIDE

1345789

NC

DM

VDD2

VDD2

NC

VDD2NCVDD2

VDD2

VDD2

C17302

100V

0.33u

111213141516171819202122232425262728293031

NC

GND

GND

GND

GND

DD9_2-

DD9_1-

DD9_2+

DD9_1+

DRVCLK6-

DRVCLK6+

100

100

R17304

32

33343536373839404142434445474849515253

NC

OHZ

GND

GND

GND

GND

VDD1

VDD1

A2P

A2N

GND

GND

GND

GND

200

R17305

R17306

A1P

FXP

A1N

FXN

GND

GND

GND

GND

TEST

VDA VDA

R17307

1

TERM

55

NC

GND

GND

VDD2

VDD2

NC

VDD2

DM

VDD2

VDD2

VDD2

SIDE

1345789

NC

DM

VDD2

NC

VDD2NCVDD2

VDD2

C17319

100V

0.33u

NC

VDD2

VDD2

AB_LED32

AB_PCD32

AB_CLRD32

AB_ODED32

111213141516171819202122232425262728293031

BLK

LEN

ODE

GND

GND

GND

GND

GND

GND

NC

CLR

OHZ

VDD1

VDD1

GND

GND

GND

GND

GND

DD13_1-

DD13_1+

DD13_2-

DD13_2+

32

A2N

GND

GND

DRVCLK8-

DRVCLK8+

100

100

R17332

33343536373839404142434445474849515253

A2P

GND

200

R17333

R17334

A1P

FXP

A1N

FXN

GND

GND

GND

GND

GND

GND

TEST

R17335

1

TERM

55

NC

VDD2

VDD2

NC

VDD2

DM

VDD2

VDD2

VDD2

CB9

TO
PANEL DATA
DRIVER

SIDE

CB10

TO
PANEL DATA
DRIVER

SIDE

CB11

TO
PANEL DATA
DRIVER

DM

DM

1345789

NC

NC

VDD2NCVDD2

VDD2

VDD2

VDD2

1345789

NC

NC

VDD2NCVDD2

VDD2

VDD2

VDD2

C3_3.3V C3_3.3V

C17300

10V

1u

AB_PCD31

AB_CLRD31

AB_ODED31

111213141516171819202122232425262728293031

NC

GND

GND

GND

GND

VDD2

111213141516171819202122232425262728293031

NC

GND

GND

GND

GND

VDD2

BLK

LEN

ODE

GND

GND

C3_3.3V

C17303

10V

1u

AB_LED31

AB_PCD31

AB_ODED31

BLK

LEN

ODE

GND

GND

C3_3.3V

C17306

10V

1u

CLR

AB_CLRD31

CLR

NC

OHZ

VDD1

VDD1

NC

OHZ

VDD1

VDD1

CB13

TO
PANEL DATA
DRIVER

DD10_1-

DD10_2-

DD10_1+

DD10_2+

100

R17309

32

33343536373839404142434445474849515253

A2P

GND

GND

GND

GND

GND

GND

A2N

GND

GND

GND

GND

DD11_2-

DD11_2+

100

R17318

32

33343536373839404142434445474849515253

A2P

A2N

GND

GND

GND

GND

DRVCLK6+

DRVCLK6-

200

100

R17312

R17310

A1P

FXP

A1N

FXN

GND

GND

DD11_1+

DD11_1-

DRVCLK7-

100

R17319

A1P

A1N

FXN

GND

GND

DRVCLK7+

FXP

GND

GND

GND

TEST

200

R17320

GND

GND

GND

TEST

VDA

R17313

NC

GND

GND

R17322

NC

GND

GND

C17307

1

100V

0.33u

TERM

55

NC

VDD2

VDD2

VDD2

VDA

1

VDD2

VDD2

VDD2

DM

VDD2

VDD2

VDD2

C17314

100V

0.33u

TERM

55

NC

DM

VDD2

VDD2

VDD2

SIDE

CB14

TO
PANEL DATA
DRIVER

SIDE

CB15

TO
PANEL DATA
DRIVER

DM

DM

1345789

NC

NC

VDD2NCVDD2

VDD2

VDD2

VDD2

1345789

NC

NC

VDD2NCVDD2

VDD2

VDD2

VDD2

NC

VDD2

C17325

100V

0.33u

NC

VDD2

C17317

10V

1u

AB_PCD32

AB_LED32

AB_CLRD32

AB_ODED32

111213141516171819202122232425262728293031

CLR

AB_CLRD32

CLR

NC

OHZ

GND

GND

GND

GND

GND

VDD1

VDD1

NC

OHZ

VDD1

VDD1

GND

GND

GND

GND

GND

BLK

LEN

ODE

GND

GND

GND

GND

GND

GND

C3_3.3V

C17320

10V
1u

AB_LED32

AB_PCD32

AB_ODED32

111213141516171819202122232425262728293031

BLK

LEN

ODE

GND

GND

GND

GND

GND

GND

C3_3.3V

C17323

10V

1u

DD14_1+

DD14_2-

DD14_2+

DD14_1-

DRVCLK8-

DRVCLK8+

100

100

R17337

32

33343536373839404142434445474849515253

A2P

A2N

GND

GND

GND

DD15_2-

DD15_1-

DD15_2+

100

R17342

32

33343536373839404142434445474849515253

A2P

A2N

GND

GND

GND

200

R17338

R17339

A1P

FXP

A1N

FXN

GND

GND

DD15_1+

DRVCLK9-

DRVCLK9+

100

100

R17345

R17343

A1P

FXP

A1N

FXN

GND

GND

GND

GND

GND

GND

TEST

GND

GND

GND

GND

TEST

VDA

R17340

NC

R17346

NC

C17324

1

100V

0.33u

TERM

55

NC

VDD2

VDD2

VDD2

VDA

1

VDD2

VDD2

VDD2

DM

VDD2

VDD2

VDD2

TERM

55

NC

DM

VDD2

VDD2

VDD2

R17348

150

SIDE

CB12

TO
PANEL DATA
DRIVER

DM

1345789

NC

NC

VDD2NCVDD2

VDD2

VDD2

VDD2

AB_PCD31

AB_LED31

AB_ODED31

AB_CLRD31

111213141516171819202122232425262728293031

NC

GND

GND

GND

GND

VDD2

BLK

LEN

ODE

GND

GND

C3_3.3V

C17313

10V

1u

NC

CLR

OHZ

VDD1

VDD1

DD12_1+

DD12_2-

DD12_1-

DD12_2+

32

A2N

GND

GND

GND

GND

GND

GND

GND

DRVCLK7-

DRVCLK7+

100

100

R17327

33343536373839404142434445474849515253

A2P

GND

200

R17328

R17329

A1P

FXP

A1N

FXN

GND

GND

GND

GND

TEST

VDA

R17330

1

NC

GND

GND

VDD2

VDD2

VDD2

VDD2

ZA17301

C17318

100V

0.33u

TERM

55

NC

DM

VDD2

VDD2

K4CD01000013

1

68

C31

1

C36

20

155 155155

ZA17300

K4CD01000013

CB9

1 1

1

55

CB10 CB11

ZA17304

K4CD01000013

CB12 CB13

ZA17303

K4CD01000013

155

ZA17302

K4CD01000013

155155

CB14

CB15

14 181210 1611 1513 17

74

TH-50PF20E / TH-50PF20ER

SC-BOARD TXNSC11XEK (1/4)

+++

+

TERM

SIDE

MAIN_STOP0

AA_SIU

AA_CLK

AA_CERS

AA_SEL

AA_OC2

AA_SC_FPGANRST

AA_OC1

AA_CEL

AA_CSH

AA_CSL

AA_CPH1

AA_CMH

AA_CML

AA_CML2

AA_CRC2

AA_UHZ

AA_CRC1

AA_CIS

AA_CRC3

AA_SOS6

VSUS

5V

C16562

16V

1u

C16564

16V

1u

C16565

50V

0.01u

C16566

50V

0.01u

C16582

16V
1u

C16593

50V

1000p

C16418

1.5u

250V

C16581

25V

1u

C16561

10V
10u

*C16412

220V
250u

C16791

25V

220u

*C16416

220V
250u

*C16419

250u

220V

D16480

B0ACCJ000048

D16790

B0JCME000093

D16822

B0ADCJ000100

D16583

B3ABB0000210

IC16581

C0BBBA000024

1

A_OUTPUT

2

A_-INPUT

3

A_+INPUT

4

GND

5

B_+INPUT

6

B_-INPUT

7

B_OUTPUT

8

VCC

IC16563

C0JBAB000916

1

1A

2

1Y

3

2A

4

2Y

5

3A

6

3Y

7

GND

8

4Y

9

4A

10

5Y

11

5A

12

6Y

13

6A

14

VCC

C0JBAU000043

IC16561

G1

1

2

A1

3

A2

4

A3

5

A4

6

A5

7

A6

8

A7

9

A8

10

GND

11

Y8

12

Y7

13

Y6

14

Y5

15

Y4

16

Y3

17

Y2

18

Y1

19

G2

20

Vcc

C0JBAU000043

IC16562

G1

1

2

A1

3

A2

4

A3

5

A4

6

A5

7

A6

8

A7

9

A8

10

GND

11

Y8

12

Y7

13

Y6

14

Y5

15

Y4

16

Y3

17

Y2

18

Y1

19

G2

20

Vcc

SC20

23

29

30

2

12

5

33

14

32

20

28

26

4

9

11

19

22

21

25

8

13

6

31

17

10

34

24

18

1

7

27

16

15

3

35

SC2

1

3

SOS7_SC2

5V

15V

15V

TP19

TP26

TP40

TP5

TP25

TP17

TP23

TP21

TP35

TP9

TP10

TP117

TP99

TP30

TP70

TP39

TP34

TP98

TP97

TP33

TP118

TP18

TP38

TP122

TP109

TP115

TP2

TP82

TP113TP108TP107

TP119

TP11

TP20

TP123

TP88

TP114

TP31

TP110

TP24

TP89

TP8

TP32

TP7

TP4

TP37

TP46

TP6

TP16

TP14

TP15

TP72

TP29

TP1

TP106

TP71

TP52

TP28

TP36

TP112

TP120 TP121

TP101

TP22

TP124

TP105

TP116

TP3

TP111

R16564

EXB38V470JV

R16566

EXB38V472JV

R16570

EXB38V472JV

R16562

EXB38V470JV

R16561

EXB38V470JV

R16579

EXB38V470JV

R16567

EXB38V472JV

R16563

EXB38V470JV

R16568

EXB38V472JV

R16565

EXB38V472JV

R16591

EXB38V472JV

R16476

4.7k

R16593

1.4k

R16585

1k

R16586

2.15k

R16588

10k

R16587

2.2k

R16590

220

R16583

39k

R16584

6.8k

R16582

39k

R16580

5.6k

SC_FPGANRST

CRC1

SEL

SIU

CLK

TPSOS7

TPSOS6

(GREEN LED)NC

SEL2

GND

CRC3

GND

P5V

CMH

SC_FPGANRST

CML

CPH1

CSL

CSL

CSH

CSH

CML

CMH

P15V

CRC2

CRC3

P5V

Vsus

GND

GND

CLK

GND

SIU

SEL

CERS

CIS

CPH1

OC2

SOS6

SOS7

GND

NC

CEL

GND

OC1

GND

P15V

Vsus

CRC1

OC1

UHZ

GND

CERS

OC2

Reserve

CEL

CRC2

SEL2

Reserve

C

1

A

42

E

9

F

68573

D

B

VOLTAGE ERROR DET
OPERATES AT 151V OR MORE
AND 60V OR LESS

!

INVERTER

BUFFER

BUFFER

ERROR DET

TO
A-BOARD
(A20)

TO
P-BOARD
(P2)

TPVSUS

MID

22

1

3

13.31. SC-Board (1 of 4) Schematic Diagram

75

TH-50PF20E / TH-50PF20ER

13.32. SC-Board (2 of 4) Schematic Diagram

1

SC-BOARD TXNSC11XEK (2/4)

!

AA_CMH

AA_CML2

AA_CSH

*D16462

B0FACP000003

B0ACCJ000048

*Q16441

B1JAEP000013

D16411

Vad+5V

PC16461

PS9856-2-F3-AX

R16416

10k

R16441

C16441

5.6

50V

3900p

VRH

TP90 TP91

1

R16411

270

2

3

R16410

390

45

Q16531

B1HFPFA00001

R16533

47k

C16471

630V

1000p

R16531

8

7

6

10

*L16401

G0CR30K00001

C16534

25V
1u

C16524

25V

4.7u

R16417

100

R16418

100

C16501

25V

IC16771

C0CBADC00072

Vad+5V

1

VIN 3

16V

1u

VAD

NC

9

NC

10

VCC

11

HIN

12

NC

13

LIN

14

GND

15

NC

16

IC16501

C0ZBZ0001708

FET DRIVER

CSH/CMH GATE
DRIVE CIRCUIT

MIDF

Vsus

VFG

Vad+5V

VOUT

COM

2

HO

VB

VS

NC

NC

VCC2

VCOM

LO

C16771

1u

16V_F

+

C16796

25V

470u

8

R16504

75

7

C16502

25V

4.7u

6

5

4

3

C16522

25V

4.7u

2

1

D16522

D1FK60-5073

R16523

75

D16503

B0ECHR000001

+

R16534

5.6

D16534

B0ECHR000001

C16523

25V

470u

+

D16536

B0ECHR000001

C16503

25V

470u

Q16501

R16503

10

B1HFPFA00001

R16512

47k

C16504

25V

4.7u

*D16401

DA3DF50ACSLW

*D16402

DA3DF50ACSLW

C16401

630V

5600p

*Q16402

DG3D5020CSLW

R16402

7.5

*Q16403

DG3D5020CSLW

R16403

7.5

Vsus

11

16V_F

12

13

VFG

14

VOL

15

Vad+5V

16

*C16631

250V

4u

MID

2

D16451

B0ECKP000055

3

250V

4u

*D16482

B0FACP000003

MIDC

250V

4u

*Q16452

B1JAEP000012

*C16481

630V

C16491

630V

1000p

Q16551

B1HFPFA00001

1000p

*L16411

G0CR30K00001

B0ACCJ000048

R16551

10

R16468

82k

R16467

82k

R16466

56k

D16466

R16465

27k

AA_CSL

AA_CML

15V

R16509

1

D16523

B0ECHR000001

NC

9

NC

10

15V

VCC

R16521

100

R16522

100

11

HIN

12

C16521

25V

1u

NC

13

LIN

14

GND

15

NC

16

CSL/CML GATE
DRIVE CIRCUIT

IC16521

C0ZBZ0001708

FET DRIVER

HO

8

VB

7

VS

6

NC

5

NC

4

VCC2

3

C16505

25V
1u

VCOM

2

LO

1

C16525

25V

4.7u

Q16521

R16506

10

B1HFPFA00001

R16517

47k

*Q16421

DG3D4020CSRP

R16421

7.5

*Q16422

DG3D4020CSRP

R16422

7.5

*D16421

B0FACP000006

C16421

630V

5600p

VAD

17

TP93

TP92

VRL

R16452

5.6

C16452

50V

3900p

R16553

47k

18

MID

*C16633

*C16632

11 13 1410 1815 1712 16

76

13.33. SC-Board (3 of 4) Schematic Diagram

SC-BOARD TXNSC11XEK (3/4)

+

+

AA_CERS

AA_CPH1

AA_CIS

AA_CEL

AA_CRC1

AA_CRC2

AA_UHZ

C16684

50V

0.1u

C16668

50V
220p

C16603

630V

1000p

C16608

50V

220p

C16661

630V

1000p

C16692

50V

0.1u

C16756

25V

4.7u

C16666

50V
82p

C16664

50V

82p

C16604

630V

1000p

C16665

50V
82p

C16646

630V
1000p

C16662

630V

1000p

C16675

50V
390p

C16641

2200p

630V

C16891

25V
1u

C16708

50V

0.1u

C16490

16V

1u

C16773

25V

1u

C16753

25V

4.7u

C16602

50V
22p

C16645

630V

1000p

C16685

50V

0.1u

C16755

25V

4.7u

C16707

50V

22p

C16642

5600p

630V

C16691

160V
100u

*C16417

220V
250u

F2A2T251A004

D16674

B0ECHR000001

D16618

B0ECKP000055

D16669

B0ACCJ000048

D16649

B0ACCJ000048

D16654

B0ACCJ000048

D16673

B0ECHR000001

D16671

B0ACCJ000048

D16490

B0ECKP000055

D16610

B0ACCJ000048

D16702

B0ACCJ000048

D16765

B0ECKP000055

D16653

B0ACCJ000048

D16478

B0ACCJ000048

D16407

B0JCME000093

D16607

B0ACCJ000048

D16902

B0ACCJ000048

D16497

B0ECKP000055

D16652

B0ECKP000055

D16650

B0ACCJ000048

D16491

B0ECKP000055

D16677

B0ADEJ000035

D16422

B0FACP000005

D16494

B0ADCJ000100

D16604

B0ADCJ000100

D16920

B0ADCJ000100

D16901

B0ADCJ000100

D16493

B0ADCJ000100

D16641

B0FBCN000006

D16642

B0FBCN000006

D16648

DZ2J051L0L

D16647

DZ2J150M0L

D16662

DZ2J150M0L

D16645

DZ2J150M0L

D16663

DZ2J150M0L

D16678

DZ2J15000L

D16646

DZ2J150M0L

D16605

DZ2J051L0L

D16664

DZ2J150M0L

D16602

DZ2J150M0L

D16651

DZ2J051M0L

D16477

DZ2J047L0L

D16492

DZ2J047M0L

C0DBZYY00352

IC16692

4

REFERENCE

3

CATHODE

1

NC

2

ANODE

C0DBZMC00006

IC16490

4

REFERENCE

3

CATHODE

1NC2

ANODE

C0JBAB000715

IC16773

1

NC

2

IN_A

3

GND

5

VCC

4

OUT_Y

C0BBAA000008

IC16491

1

-INPUT

2

3

+INPUT

5

VCC

4

OUTPUT

C0JBAC000363

IC16691

1

IN_B

2

IN_A

3

GND

5

VCC

4

OUT

IC16661

C0BBBA000024

1

A_OUTPUT

2

A_-INPUT

3

A_+INPUT

4

GND

5

B_+INPUT

6

B_-INPUT

7

B_OUTPUT

8

VCC

IC16920

C0BBBA000024

1

A_OUTPUT

2

A_-INPUT

3

A_+INPUT

4

GND

5

B_+INPUT

6

B_-INPUT

7

B_OUTPUT

8

VCC

15V

15V

5V

5V

PC16603

B3PBA0000498

12

3

4

PC16684

B3PBA0000496

1

2

34

5

6

PC16685

B3PBA0000496

1

2

34

5

6

TP104

TP103

TP68TP67

Q16608

B1CBGD000001

Q16647

B1CBGD000001

Q16818

B1CBGD000001

Q16607

B1CBGD000001

Q16490

B1CBGD000001

*Q16601

B1CERR000042

G

D

S

Q16660

B1CERR000042

Q16921

B1ABCN000007

Q16602

DSC2001Q0L

Q16677

DSC2001Q0L

Q16606

DSC2001Q0L

Q16676

B1ABCF000231

Q16649

B1ABCN000007

Q16920

B1ABCN000007

Q16678

B1ABCF000231

Q16662

DSC2001Q0L

Q16645

DSC2001Q0L

Q16702

B1ABCF000231

Q16671

B1ABCF000231

Q16668

DSC2001Q0L

Q16810

B1ABCF000231

Q16661

B1JAER000010

Q16622

B1JADN000009

Q16621

B1JADN000009

Q16646

DSA2001S0L

Q16675

B1ADCN000007

Q16701

B1ADCN000007

Q16603

DSA2001S0L

Q16663

DSA2001S0L

Q16670

B1ADCN000007

DSA2001S0L

Q16801

Q16762

B1HFPFA00001

R16493

6.19k

R16649

33

R16617

2.2k

R16652

8.2k

R16712

1k

R16612

47

10

R16765

R16666

22k

R16804

1.1k

R16678

2k

R16745

470k

R16747

2.2k

R16711

4.7k

R16615

1.1k

R16899

2.74k

R16682

10

R16897

1k

R16769

75

R16634

470

R16904

22k

R16893

82.5k

R16609

2k

R16695

1.5k

R16717

1k

R16667

2k

R16776

47

R16663

7.15k

R16761

10

R16927

22k

1

R16601

R16660

2.2k

R16490

120k

R16685

220

R16631

10k

R16901

4.7k

R16677

2k

R16654

47

R16681

10

R16691

56k

R16497

47k

R16692

1.5k

R16892

82.5k

R16661

1.2k

R16687

27k

R16707

3.9k

R16922

3.48k

R16690

4.7k

R16496

47

R16604

330

R16674

2k

R16928

4.7k

R16665

33

R16891

69.8k

R16646

1.18k

R16801

22k

R16607

6.98k

R16926

2.2k

R16662

10k

R16686

10k

R16673

4.7k

R16650
100k

R16655

10k

R16920

10k

R16651

2k

R16633

22k

R16492

120k

R16742

47k

R16694

56k

R16498

10k

R16621

220

R16763

47k

R16605

1.8k

R16699

10k

R16645

5.6k

R16684

220

R16802

30.9k

R16495

750

R16746

47k

R16679

10.7k

R16900

10k

R16898

1.05k

R16659

0

R16680

4.7k

R16921

1.24k

R16668

2k

R16648

2k

R16656

4.7k

R16622

220

R16664

2k

R16658

6.34k

R16491

120k

R16494

2k

R16653

1.8k

R16688

8.87k

R16675

4.7k

R16923

10k

R16610

100k

VOL

VFG

16V_F

Vsus

VAD VAD

Vad+5V

VSCN_F

16V_F

Vad+5V

VOL

16V_F

20 2523 272419 2621 22

!

VFG

VOL

Vad+5V

Vsus

16V_F

13

15

16

14

18

17

11

12

CIRCUIT

SEPA PROTECT

SEPA PROTECT

SHUNT REG

COMPARATOR

COMPARATOR

INVERTER

SHUNT REG

NAND GATE

16V_F

VAD

27

24

22

26

23

21

25

TH-50PF20E / TH-50PF20ER

77

TH-50PF20E / TH-50PF20ER

13.34. SC-Board (4 of 4) Schematic Diagram

21

!

SC-BOARD TXNSC11XEK (4/4)

Vsus

22

IC16784

MIP3910MSSCF

VAD GEN.

DRAIN

LS

4

FB

3

SOURCE

NC

2

SOURCE

VDD

1

C16856

10V

1u

C16858

10V
1u

R16837

1k

C16857

16V

0.1u

D16711

B0ECHR000001

PC16896

B3PBA0000498

R16938

180k

12

34

Q16816

DSC2001Q0L

R16789

C16843

10k

50V

0.1u

TPVAD

VSCN_F

23

VFG

24

5

7

8

PC16897

B3PBA0000498

L16472

G0ZZ00002183

B0ECKP000055

34

TP94

D16719

R16841

4.7k

12

R16843

1k

R16852

470k

3

ANODE

CATHODE

IC16785

C0DBZYY00352

SHUNT REG

4

1NC2

REFERENCE

*

R16838

100k

C16859

D16710

50V

DZ2J15000L

0.1u

C16854

50V

0.1u

AA_SOS6

B0ACCJ000048

R16756

TPSC1

5V

R16752

4.7k

Q16876

B1ABCF000231

D16875

12k

R16696

2.2

TP96

VSCN_F

VFG

TP59

TP60

TP61

TP62

D16820

B0ACCJ000048

Vfo

SOS7_SC2

D16874

DZ2J051M0L

9

8

7

6

5

4

3

2

1

SC41

TO
SU-BOARD
(SU41)

TP45

R16719

22

9

TP41

8

7

TP42

6

TP43

5

4

*C16902

*C16903

630V
3300p

630V

1500p

3

2

1

SC46

TO
SD-BOARD
(SD46)

ZA16411
TUXJ490

ZA16412

TUXJ490

K4CD01000011

SC46 SC41SC42

ZA16421
TUXJ490

ZA16422
TUXJ490

K4CD01000011

TUX2AX0981
TUXJ559

ZA16402

K4CD01000011

R16753

47k

5V_F

ZA16401

ZA16403

TP44

ZA16407

K4CD01000011

R16721
EXB38V220JV

AA_SEL

AA_SIU

AA_OC2

AA_CLK

AA_OC1

ZA16404

K4CD01000011

15V

*

R16774

27k

TP125

D16871

DZ2J240M0L

D16872

DZ2J200M0L

R16825

150k

R16845

66.5k

R16846

64.9k

R16849

64.9k

+

C16813

220V
220u

R16844

2.4k

R16785

107k

R16786

107k

R16787

10

8

33k

T16471

G4DYA0000200

P1

PT

R16822

82k

R16823

82k

R16937

180k

D16824

DZ2J330M0L

D16825

DZ2J330M0L

R16824

33k

1

NC

3

S2

4

S1

B0ECKP000055

5

NC6P2

PC16722

B3PBA0000498

12

Q16817

DSC2001Q0L

34

C16844

R16826

50V

10k

Q16930

DSC2001Q0L

R16936

2.2k

D16893

DZ2J056H0L

0.1u

Q16931

B1ABCN000007

R16930

2.7

R16932

Q16932

DSC2001Q0L

Q16815

B1ABCN000007

Q16885

B1CFNG000001

D16728

R16827

2.2k

+

C16793

25V

220u

IC16786

MIP3910MSSCF

VSCN GEN.

DRAIN

LS

4

FB

3

SOURCE

NC

2

SOURCE

VDD

1

R16829

1k

C16862

C16861

C16860

10V

10V
1u

1u

VAD

C16794

10V
10u

22k

R16931

2.7

R16935

5.1k

PC16723

16V

B3PBA0000498

0.1u

D16713

B0ECHR000001

TP57

R16933

10k

+

C16795

25V

470u

R16934

6.8k

TP95

D16720

B0ECKP000055

5

7

8

TP58

R16772

4.7k

12

34

L16698

G0C681MA0065

R16773

1k

CATHODE

3

ANODE

R16870

C16864

R16851

470k

4

1NC2

REFERENCE

68k

50V

0.1u

C16863

50V

0.1u

IC16787

C0DBZYY00352

SHUNT REG

DZ2J15000L

VSCN

R16831

68.1k

D16712

R16832

+

71.5k

R16873

2.4k

R16751

150k

R16783

D16821

150k

DZ2J330M0L

R16750

R16755

12k

12k

TPVSCN

R16860

8.2

C16842

D16859

160V

B0HCKS000002

100u

L16851

*C16460

630V

2200p

CHA

TP51

TP78

9

8

7

6

5

4

3

2

1

TP79

TP80

TP81

5V_F

D16473

B0ACCJ000048

Q16471

B1ABCF000231

SCNR_PRO

VAD

16V_F

*R16819

15V_F

D16791

DZ2J200M0L

R16791

1k

D16476

B0ACCJ000048

C16472

R16479

25V

10k

1u

D16475

DZ2J051M0L

R16478

5.6k

CHA

5V_F

C16724

25V

4.7u

IC16724

C0CBADE00049

5V_F

OUT3

COMMON

2

IN

C16723

25V
1u

R16929

+

1

C16721

50V

82u

VFG

D16721

B0ECHR000001

1

*R16820

*R16818

*R16919

150k

*C16797

50V

150k

*D16792

B0ACCJ000048

33k

7.5k

4

3

ANODE

1NC2

REFERENCE

*IC16793

C0DBZMC00006

SHUNT REG

*R16798

2.2k

CATHODE

0.1u

1

-INPUT

2

GND

3

+INPUT

*IC16792

C0BBAA000008

COMPARATOR

VHIZ GEN.

VCC

OUTPUT

5V_F

5

*R16799

1k

4

*R16797

22

31

SCNR_PRO

343332 36353029

SC42

TO
SD-BOARD
(SD42)

VAD

25

16V_F

26

5V

R16475

4.7k

D16474

AA_SC_FPGANRST

MAIN_STOP0

B0ACCJ000048

PC16480

B3PBA0000498

27

=

34

R16473

560

R16474

1k

12

C0DBEYY00114

3

ANODE

CATHODE

IC16471

SHUNT REG

4

1NC2

REFERENCE

R16471

3.9k

R16472

2.2k

28

FOR

1

2

FACTORY

SC50

USE

78

TH-50PF20E / TH-50PF20ER

+++

+

AA_SOS8

AA_UMH

AA_UML

AA_USL

AA_USH

AA_SOS8

AA_UEH

AA_USL

5V

AA_USH

AA_UML

AA_UMH

C16092

630V

1000p

C16242

16V

1u

C16244

10V
10u

C16131

25V

4.7u

C16133

25V

4.7u

C16251

16V
1u

C16151

25V

1u

C16105

25V
47p

C16104

25V
47p

C16152

25V

4.7u

C16041

50V

3900p

C16252

25V
1u

C16153

25V

4.7u

C16071

630V
1000p

C16243

50V

0.01u

C16002

630V

5600p

C16154

25V

4.7u

C16135

25V
1u

*C16202

250V

4u

*C16201

250V

4u

*C16014

1.5u

250V

*C16203

250V

4u

*C16022

630V

3300p

*C16012

220V
250u

*C16011

220V
250u

*C16013

220V
250u

C16271

25V

220u

D16151

B0ECKP000055

D16152

B0ECKP000055

D16255

B0ACCJ000048

D16131

B0ECKP000055

D16032

B0ACCJ000048

D16153

B0ECKP000055

D16050

B0ECKP000055

*D16001

B0FBCN000005

*D16002

B0FBCN000005

*D16041

B0FACP000004

*D16051

B0FBCN000007

*D16021

B0FCCN000003

*D16022

B0FCCN000003

D16253

B3ABB0000210

D16281

DZ2J051M0L

IC16251

C0BBBA000024

1

A_OUTPUT

2

A_-INPUT

3

A_+INPUT

4

GND

5

B_+INPUT

6

B_-INPUT

7

B_OUTPUT

8

VCC

C0ZBZ0001707

IC16131

1

LO

2

GND

3

VCC

4

NC

5

NC

6

VS

7

VB

8

HO

9

NC

10

NC

11

NC

12

HIN

13

NC

14

LIN

15

GND

16

NC

C0ZBZ0001708

IC16151

1

LO

2

VCOM

3

VCC2

4

NC

5

NC

6

VS

7

VB

8

HO

9

NC

10

NC

11

VCC

12

HIN

13

NC

14

LIN

15

GND

16

NC

C0JBAU000043

IC16241

G1

1

2

A1

3

A2

4

A3

5

A4

6

A5

7

A6

8

A7

9

A8

10

GND

11

Y8

12

Y7

13

Y6

14

Y5

15

Y4

16

Y3

17

Y2

18

Y1

19

G2

20

Vcc

SS11

1

3

4

SS33

1

2

3

4

5

6

7

8

*L16001

G0CR30K00001

*L16011

G0CR30K00001

VSUS

TP17

TP20

TP13

TP40

TP39

TP33

TP38

TP16

TP9

TP19

TP2TP1

TP10

TP18

TP34

TP5

TP41

TP21

TP6

TP14

TP22

TP7 TP8

Q16251

B1ABCF000231

*Q16051

B1JAEN000011

*Q16022

B1JADN000008

*Q16041

B1JAEN000010

*Q16002

B1JADN000009

*Q16001

B1JADN000009

*Q16021

B1JADN000008

Q16161

B1HFPFA00001

Q16141

B1HFPFA00001

Q16055

B1HFPFA00001

Q16056

B1HFPFA00001

R16242

EXB38V472JV

R16241

EXB38V470JV

R16159

1

R16155

1

R16132

100

R16143

47k

75

R16134

R16280

2.2k

R16183

47k

R16163

47k

R16031

82k

R16041

5.6

R16002

7.5

R16131

100

R16258

10k

R16152

100

R16252

39k

R16032

82k

R16254

6.8k

R16033

56k

R16022

7.5

R16257

27k

R16001

7.5

R16034

27k

R16141

10

R16230

47

R16251

1.4k

R16021

7.5

R16151

100

R16260

2.2k

R16137

1

R16231

4.7k

R16161

10

R16171

10

R16051

5.6

R16255

1.2k

R16173

47k

R16256

1.5k

75

R16154

R16181

10

R16253

39k

*C16015

250V

F0C2E155A252

(GREEN LED)

VSUS

GND

TPSOS8

-

15V

P5V

GND

UEH

USH

UML

SOS8_SS

USL

UMH

2

F

E

D

96

A

8

B

C

71 345

ERROR DET

BUFFER

ENERGY

FET DRIVER

RECOVERY

!

TO
P-BOARD
(P11)

TO
C3-BOARD
(C33)

FET DRIVER

DRIVER

VSUS Gen.

TPVSUS

3

4

2

1

SS-BOARD TXNSS11JFK (1/2)

13.35. SS-Board (1 of 2) Schematic Diagram

79

TH-50PF20E / TH-50PF20ER

13.36. SS-Board (2 of 2) and SS2-Board Schematic Diagram

!

SS-BOARD TXNSS11JFK (2/2)

1

TPSS1

Q16101

B1CFRM000008

B1CFRM000008

TP43

Q16102

TP54

*SS53

*SS56

SIDE

1

2

3

4

5

6

7

8

9

10

11

12

13

SIDE

1

2

3

4

5

6

7

8

9

10

11

12

13

PANEL
SUSTAIN
ELECTRODE

TERM

PANEL
SUSTAIN
ELECTRODE

TERM

ZA16003

K4CD01000011

TP29 TP31

TP30

ZA16002

K4CD01000011

ZA16001

K4CD01000011

TP28

TP26TP25

TP27TP24

TP51

TP56

*C16101

630V
2200p

D

S

G

G

S

D

R16105

470k

D16286

B0ACCJ000048

D16285

B0ADEJ000035

R16288

C16285

330k

50V

0.1u

R16289

C16286

330k

50V

0.1u

R16290

C16287

50V

0.1u

330k

R16285

EXB38V623JV

AA_SOS8

D16280

B0ACCJ000048

FPC protector

C16280

25V

1u

R16281

10k

Q16280

TP36

B1ABCF000231

R16282

220

D16282

DZ2J068M0L

R16283

47k

R16284

220k

2

D16191

R16195

B0ECKP000055

1

PC16191

AA_UEH

R16192

AA_UML

C16195

25V
1u

D16192

B0ACCJ000048

10k

B3PBA0000496

1

2

34

R16191

150

6

5

R16193

75

R16109

10 R16101

+

D16196

DZ2J200M0L

L16303

G0C471MA0049

C16193

25V
47u

C16331

250V

1u

C16191

C16192

25V

25V

0.1u

4.7u

D16317

B0ECKP000055

Q16191

B1HFPFA00001

R16116

47k

TP42

+

TPVe

C16328

160V
220u

D16101

B0JCME000093

220

R16103

10

R16104

10

R16102

220

*R16309

33k

*

+

*C16314

220V

=

34

250u

R16334

4.7k

12

R16335

1k

IC16312

C0DBZMC00006

SHUNT REG.

SS21

SS24

1

1

2

R16320

68k

C16318

D16315

50V

DZ2J150M0L

0.1u

R16332

470k

C16319

50V

0.1u

4

3

ANODE

CATHODE

1NC2

REFERENCE

*R16307

*R16318

R16319

64.9k

68k

2.49k

2

3

3

4

4

5

5

6

6

7

7

D16316

B0ECKP000055

3

4

C16316

16V

C16317

0.1u

10V

1u

IC16304

MIP3900MSSCF

R16330

VE GEN.

1k

4

3

2

1

C16315

10V

1u

DRAIN

LS

FB

CL

VDD

SOURCE

SOURCE

5

PC16301

B3PBA0000498

7

8

!

SS2-BOARD
TNPA4804

SS58

1

2

3

4

5

6

7

8

9

10

11

12

13

SIDE

TERM

PANEL
SUSTAIN
ELECTRODE

171311 151410 181612

80

TH-50PF20E / TH-50PF20ER

ABCDEFGH I

1

2

3

4

5

6

P-BOARD (FOIL SIDE)
ETX2MM814MNH

14 Printed Circuit Board

14.1. P-Board

81

TH-50PF20E / TH-50PF20ER

P

Parts Location

IC

IC201 E-4
IC202 E-3
IC251 C-5
IC352 D-3
IC403 B-3
IC501 F-2
IC551 D-1
IC601 G-4

PHOTO COUPLER

PC201 D-3
PC202 D-3
PC501 D-3
PC502 F-1
PC503 F-1
PC504 G-1

MODULE

MC551 C-1
MC701 B-1

P-BOARD (FOIL SIDE)

TRANSISTOR

Q201 D-5
Q202 D-4
Q203 E-3
Q204 E-3
Q251 C-6
Q252 C-6
Q355 D-3
Q401 B-4
Q402 B-3
Q403 B-3
Q404 B-2
Q405 B-2
Q406 C-2
Q407 B-3
Q408 B-3
Q502 G-2
Q503 E-2
Q504 E-3
Q505 G-2
Q506 G-1
Q507 F-1
Q551 C-2

Q557 C-1
Q558 C-2
Q559 C-2
Q601 F-4
Q602 G-4
Q603 F-4
Q604 F-4
Q605 E-3
Q606 F-3
Q607 E-3
Q702 B-1
Q706 B-2
Q707 C-1
Q708 C-2

TEST POINT

TP5 H-6
TP9 B-4

VOLUME

VR251 C-5
VR401 B-2

Parts Location

IC

IC201 D-2
IC501 D-4

MODULE

MC551 F-1
MC701 G-1

P-BOARD (COMPONENT SIDE)

TRANSISTOR

Q201 E-5
Q202 E-4
Q355 F-3
Q401 G-4
Q402 H-3
Q403 H-3
Q551 G-2
Q601 D-4
Q604 D-4
Q606 D-3

TEST POINT

TP5 B-6
TP9 H-4

VOLUME

VR251 F-5
VR401 H-2

82

TH-50PF20E / TH-50PF20ER

ABCDEFGH I

1

2

3

4

5

6

P-BOARD (COMPONENT SIDE)
ETX2MM814MNH

83

TH-50PF20E / TH-50PF20ER

14.2. PB-Board

6

PB-BOARD (FOIL SIDE)
TNPA4962AD

PB

R850

C859

PB31

D850

C862

D858

R860

PB30

1

3

4

1

5

1

3

D853

R853

PB34PB35

1

3

D852

PB33

PB32

D851

1

3

1

R854

D854

R856

3

D857

R857

1

PB38

1

PB

4

TNPA4962

R852

PB37

3

1

R855

3

D855D856

PbF

D859

R851

3

1

VJ850

PB36

SEE REVERSEFOR ORDERNO.

3

PB-BOARD (COMPONENT SIDE)
TNPA4962AD

PB31

PB32

PB34

PB35

1

2

3

1

3

PB33

1

3

1

3

1

PbF

TNPA4962

ORDER

4

PB30

3

NO.

3

3

3

PB

1

1

1

1

1

PB36 PB37

1

PB38

ABCDEFGH I

84

14.3. HX-Board

6

5

TH-50PF20E / TH-50PF20ER

HX

HX-BOARD (FOIL SIDE)
TZTNP021CEE

4

C406
C405
C404

TP74

R672

R664

TP73

JA4

JA3

R663

L555

TP72

C407

R668

Q532

3

R657

C551

C563

R777

R655

R656

R548

2

FL513

JK513

Q531

R665

C552

R529
R530

C553

R776

C561

FL512

JK511

HX1

6

11

R654

1

15

C409
C550

R508

JA14

FL516

1

TP71

JA5

JA12

JA2

TP75

JA6

JA8

R653

C562

JA1

TP65

C564

JA7

TP70

JA9

R547

D512

ZA001

TP69

L526

JA11

FL510

10

5

15

R586

D511

JA15

C503

TNPA5110

SEE REVERSE FOR ORDER NO.

PbF

4

R778

D503

R790

R592

5

R509

FL517

IC502

R589

JA13

R591

R593

R400

FL511

D504

C523

1

C524

8

R590

R585

JA10

5

96

JK509

TP66

R791

TP68

D507

TP67

D508

1

HX1

FL514

FL515

D509

R510

3CRNO.

D510

R511

HX-BOARD (COMPONENT SIDE)
TZTNP021CEE

J9

J3

TNPA5110

ORDER

NO.

CRNO.3

PbF

1

6

5

9

1 HX

J1

J6

J7

J8

JK509

ZA001

J4

HX1

15

1

J5

1

JK511

5

J2

JK513

1

ABCDEFGH I

85

TH-50PF20E / TH-50PF20ER

14.4. V1, V2, S1 and H3-Board

V2-BOARD(FOIL SIDE)
TNPA5163

6

TNPA5163

SEE REVERSE FOR ORDER NO.

V2-BOARD(COMPONENT SIDE)

5

TNPA5163

NO.

13

V22

ORDER

TNPA5163

L1508

L1507

V2

1

PbF

SW1552

SW1552

INPUT

R1512

R1512

SW1551

SW1551

MENU

R1511

R1511

1 V2

NO.ORDERFORREVERSESEE

SW1550

SW1550

R1510

R1510

VOL VOL

-/

PbF

PbF

SW1553

SW1553

+/

R1513

R1513

SW1554

SW1554

ENTER/

H3

S1

V1V2

4

V1-BOARD(FOIL SIDE)
TNPA5162

R1554

TNPA5162

D1554

V1

PbF

PbF

3

D1551

R1550
R1551

1

RM001

R1500

C1530

SEE REVERSE FOR ORDERNO.

SEE REVERSE FOR ORDERNO.

R1552

L1501

L1502

L1503

L1506

R1553

L1505

V1-BOARD(COMPONENT SIDE)
TNPA5162

NO.

V11

1

1

Q1540

C1531

V1

F

b
P

PbF

D1550

6

TNPA5162

ORDER

RM001

S1-BOARD(FOIL SIDE)
TNPA5164

PbF

FORREVERSE

ORDER

L061

SW061

S11

NO.

L062

2

TNPA5164

SEE

1

S1-BOARD(COMPONENT SIDE)
TNPA5164

S35

1

4

1

S1

SW061

PbF

NO.

ORDER

TNPA5164

H3-BOARD(FOIL SIDE)
TNPA5111

H37

L8501

1

TNPA5111

SEE REVERSE FOR ORDER NO.

D8503

D8502

JK8500

13

H3

L8502

D8501

D8500

PbF

H3-BOARD(COMPONENT SIDE)
TNPA5111

L8502

H37

1

TNPA5111

3

ORDER

L8501

NO.

1

JK8500

H3

ABCDEFGH I

86

14.5. DS-Board

6

5

TH-50PF20E / TH-50PF20ER

DS

4

DS-BOARD (FOIL SIDE)
TZTNP031CEE

3

2

DSMM2

B40

B39

A40

A39

TNPA5109 1

SEE REVERSE FOR ORDER NO.

C123

DS3

DS

PbF

B2

B1

A2

CRNo.3

B40

B39

A1

A40

A39

DS2

B2

B1

A2

A1

1

ABCDEFGH I

87

TH-50PF20E / TH-50PF20ER

6

5

DS

4

DS-BOARD (COMPONENT SIDE)
TZTNP031CEE

IC002

R159

C055

C053

C052

VJ008

R174

L012

PA3000

C045

B39

A40

A39

R166
R168

C155

C145

B40

C044

FL006

Q141

C163

C144

R164

R163

R172

R175

R171

C153

R169

C161

R165

R149

R160

L007

FL004

D140

C009

C041

C008

R170
R167

Q003

VJ140

R025

R026

R173

R022

L3000

C162

C154

L140

R147

L006

C040

C036

C039

C032

C160

C007

D003

C033

R008

L005

C031

R024

L141

R009

R006

R002

R003

Q001

Q3000

R005

R001

C006

R004

C003

C004

C005

R3000

VJ003

D002

C043

R027

1

4

8

5

R020

C035

C034
R023

R021

FL001

C002

C011

TNPA5109

Q002

ORDER

NO.

VJ004

VJ005

C028

VJ010

L008

C038

C027

C030

C037

C042

IC001

R019

FL002

C012

L002

C029

FL003

C010

R007

L004

FL005

C026

R055

DS13

13

R011
R012

4

5

IC3000

R017

FL3000

C158

C159

C157

C156

PbF

L003

VJ009

R046

VJ002

VJ3000

VJ001

R048

D001

1

R049

8

R050

C068

R127

C017
C016

C020

C018

R010

DS3

CRNo.3

R036

R047

C069

R045

Q008

Q009

D143

C123

B39

A39

B40

A40

C120

R126

C122

C150

C152

X120

IC120

5

8

D120

C147

FL140

R176

C121

R121

R131

4

1

R052

FL141

R128

R130

C149
C148

R129

R120

R125

C146

R177

R051

R150

R158

C151

R123

R151

Q120

R122

R124

Q121

R157

PA140
PA141

R152

R154

R144

R153

B2

1

C023

R053

C022

C015

C3000

C014

TP3000

C001

DS

1

C013
D3000
C019
R014

L001

C024

R016

C021

R013

B1

A2

A1

C025

R015

R054

C070

68

DS1

1

D142

D141

R043

D104

R112

R109

R111

R114

Q103

R044

R107

C100

Q101

C063

D102
D103

Q102

C062

D111

Q006

D109

R106

R042

C066

R105

C060
R041
C059

C101

R113

FL007

3

R108

DSMM1

C140

C141

C143

D105

D108

D110

D112

2

D107

R104

D100

D106

Q100

R103

R102

D101

A1

C061

IC100

Q104

B2

B1

A2

C065

L009

Q007

Q004

R038

R110

C064

C057

C067

5

R037

R140

R101

3

4

1

L011

R039

L013

D005

Q005

C048

R040

R032

C058

FL008

C054

C051

C046

R100

C047

C142

R141

L010

R148

R156

R155

DS2

R034

R162

R030

R028

5

C056

C049
R033

Q140

R161

VJ006

R035

VJ007

D004

1

4

8

R029

C050

R031

1

ABCDEFGH I

88

TH-50PF20E / TH-50PF20ER

ABCDEFGH I

1

2

3

4

5

6

A42

Q4201

Q4202

IC9001

IC9002

Q4403

IC9004

Q9800

Q4404

Q3271

Q9801

Q4405

Q3272

Q9802

Q4406

Q3273

Q3274

IC4002

IC4003

IC9400

IC4004

IC9401

IC4005

IC9402

IC4006

IC4007

Q3291

JK8301

IC9802

Q2301

Q2302

Q2303

Q2304

Q2305

Q2306

A8

IC2302

IC2304

IC2305

Q4665

Q4666

Q4667

Q4668

Q4669

Q4670

Q8301

Q8305

Q2351

Q8306

Q8307

Q4871

IC4281

IC4282

IC8302

IC8303

IC8305

IC8308

JK2401

JK2402

Q4103

Q4104

Q9901

Q4701

IC9304

Q4323

Q4903

Q4904

Q4905

IC4301

JK3201

IC4312

IC4313

IC4314

Q2405

IC4702

Q2406

IC4703

Q4153

JK4001

JK4002

IC9189

Q3201

Q3202

Q3203

Q4981

Q4982

A10

IC3202

A13

IC4981

JK2301

TNPH0837

1

A

LR

Y

Pb

Pr

Video

R1

R2

L2

L1

6

1

127

PbF

1

4

5

8

1

3

4

6

1

16

17

32

45

7

1

1

3

4

5

1

10

11

20

1

3

4

5

1

10

11

20

1

4

5

8

1

10

1120

1

4

5

8

1

3

4

5

71

28

15

3

1

1

3

4

5

1

4

5

7

SEE REVERSE FOR ORDER NO.

4

5

7

1

1

3

4

5

1

3

4

5

1

3

4

5

1

4

5

7

1

4

5

8

1

4

5

8

1

6

7

12

1

4

5

8

1

10

11

20

1

7

8

14

1

7

8

14

1

3

4

5

1

24

25

48

1

4

5

8

8

16

24

1

9

17

1

10

11

20

1

11

1

4

5

8

1

13

1

5

A-BOARD (FOIL SIDE)
TZTNP011DEE

A

R3224

CL4240

R4995

CL4241

R3226

CL4242

R4996

R3227

L8313

R4997

CL4243

R3228

R4998

CL4244

R4999

CL4245

R8432

TD9062

TD9063

R8433

C3253

CL4247

CL4054

CL4055

TD9066

CL4056CL4057

C9400

C3258

C9401

TP8301

C3259

TP8302

C9402

C4006

TP8303

C9403

C4007

C4008

CL4250

R3235

TP2351

CL4251

TP2352

TP8307

R3237

R3238

C3261

R3239

R8441

CL4255

A42

C3262

CL4256

C3263

CL4257

C4203

C3264

CL4258

C4204

CL4259

Q4201

C4205

Q4202

C4206

C4207

R3240

CL4068

C4208

R3241

C4209

R3242

R3243

CL4260

CL4261

CL4262

CL4457

CL4263

CL4458

CL4264

R3248

C4404

C4210

R8451

C9801

CL4265

IC9001

R3249

CL4071

CL4266

C9802

C3272

CL4072

IC9002

C9032

C9033

C3273

CL4267

R8453

C4213

Q4403

IC9004

R9200

C3274

Q9800

R8454

CL4268

C9034

Q4404

C4408

C4214

R8455

R9201

C3275

C9035

CL4269

Q3271

Q9801

C4215

Q4405

C3276

C9036

C9806

Q3272

Q9802

C4216

Q4406

C9807

R9203

Q3273

C9037

C4023

C4217

VJ9300

Q3274

C9038

CL4460

C9808

C4024

R3250

C4218

TP8321

VJ9301

R9205

C9809

R3251

C4025

C4219

TP8322

R9206

VJ9302

C4602

C4026

CL4462

TP8323

C4603

R9207

R3253

C4027

TP8324

R9208

R3254

C4028

CL4270

TP8325

C4411

R9209

R3255

CL4271

TP8326

C4412

R3256

CL4272

TP8327

R3257

C4607

CL4273

R9400

C4608

C9040

R3258

C9810

CL4274

C4220

R3259

R9401

C4609

C4221

R8462

R9402

C4222

R9403

R8463

CL4277

C4223

FL4964

C9044

C4030

C4224

CL4278

C9045

FL4965

C4031

CL4279

C4225

FL4966

C9046

IC4002

C4032

C4226

C9047

FL4967

C9817

C4803

IC4003

C4227

CL4087

C9048

FL4968

C4610

R8468

R3260

C9818

IC9400

IC4004

C4228

C9049

R9215

C9819

IC9401

C4611

IC4005

C4035

R4201

CL4089

C4229

IC9402

C4612

IC4006

R4202

R3262

C4613

C4037

IC4007

C4614

CL4280

R3264

C4809

C4615

C4039

CL4281

R4205

C4421

C4616

CL4282

C4422

R3266

CL4283

C4617

R4207

C9050

C9820

C4618

C4230

CL100

C3291

C4619

C9051

C9821

CL4285

R4015

CL101

C4231

CL102

C9822

C9052

C3292

R4016

C4426

C4232

CL4287

CL103

C9053

C3293

C4233

C4427

D9800

CL4288

R9608

C9054

C9824

CL104

C4428

CL4094

Q3291

CL105

R8475

D3271

JK8301

C9055

C4429

D9802

R8476

D3272

C9056

C9057

R8477

CL107

D3273

D9803

R9223

CL108

D9804

D3274

R9224

CL4098

C9058

R4210

R3271

D9805

R9225

C4045

CL4099

R3272

R9226

CL4482

C4046

R3273

R9227

C4623

CL4483

C4047

R4213

L9300

R3274

R9610

CL4484

C4048

R4020

C4430

L9301

R9611

R9229

R3275

CL4485

R4021

C4049

R4409

C4431

R3276

CL4292

L9302

C4626

R3277

C4627

R4023

C4433

R3278

CL4294

C4628

CL110

C4434

C9831

R4601

R3279

C4629

R4602

CL4296

C9832

IC9802

R4026

CL4297

R4603

C9063

C9833

R4027

C2303

R8484

CL4298

R4604

C4050

R4028

C2304

CL114

C9065

CL4299

R4605

Q2301

R4029

C2305

C4051

CL115

R4606

C2306

C4052

Q2302

CL117

R8487

C2307

Q2303

R3280

R8488

CL118

C4630

C2308

C4054

Q2304

D4801

R8489

C4631

C4055

C2309

R4221

Q2305

D4802

C4632

C4056

R4222

Q2306

D4803

C4633

R4223

D4804

C4634

R4030

A8

R4224

D4805

TP9101

C4635

CL4495

R4031

R4225

TP9102

D4806

C4636

R4032

R4226

D4807

TP9103

C4637

R4033

R4803

D4808

TP9104

C4638

C2310

TP9105

C4639

C2311

TP9106

C2312

TP9107

C2313

TP9108

TP9109

C9845

R8495

C2315

R4421

C9846

C2316

R4422

R4423

D4810

TP9300

C2318

R4424

R8499

TP9301

C2319

R4425

R4231

R3292

R4232

R4426

R9247

R3293

R4427

TP9110

R3294

R4428

R4234

R4040

TP9111

R3295

L4501

R4811

R4235

TP9112

R3296

L4502

R4236

L4503

R4237

TP9113

C2320

L4504

R4238

L4505

TP9115

TP4101

R4621

R4239

TP9116

TP4102

R4622

C2322

L4506

TP4103

TP9117

R4623

C2323

TP4104

TP9500

TP9118

R4624

R4430

TP9119

C4071

C2325

R4431

TP9501

C4072

C2326

R4432

TP9502

C4073

C2327

R4433

TP9503

R4434

R4240

TP9504

C4651

C2329

R4241

L4701

R4435

L4702

R4436

TP9313

TP9120

TP9314

C4654

R4438

R4820

TP9315

TP9121

R4821

TP9316

R4822

TP9122

R2306

TP9123

R2307

TP9124

R4824

R2308

L4514

TP4111

TP9125

R4825

R2309

C2331

TP4112

L4516

R4826

TP9126

C2332

IC2302

TP4113

L4517

TP9127

TP4114

L4518

TP9128

IC2304

C2334

R4829

TP9129

L4519

IC2305

C4081

C2335

C4082

C2336

C4083 C4084

C2338

R2310

C4661

C2339

R2311

R4251

C4085

R2312

C4086

R2313

C4087

TP9900

TP9130

R2314

R4254

C4088

TP9901

TP4311

R4831

TP9131

R4061

R4832

TP9902

TP4312

TP9132

R4062

R4256

TP9133

TP9903

R4257

TP9904

R4834

TP9134

TP9135

TP9905

Q4665

C4281

C2341

R4065

TP9136

TP9906

C4282

C2342

Q4666

TP9907

TP9137

C4283

R4067

Q4667

C2343

TP9908

TP9138

R4838

C4284

Q4668

TP4701

FL4001

TP9139

R4839

TP9909

D2321

Q4669

C2345

C2346

C2347

C2348

C2349

R2323

R4840

TP9140

TP9910

R2324

Q4670

TP4515

R4841

C8301

TP9141

TP9911

R4071

R2325

R4265

R4842

TP9912

TP9142

C8302

R4072

R2326

TP9143

R4843

TP9913

R4073

R2327

C8304

TP9914

TP9144

R4844

R4074

R2328

R4268

R4845

Q8301

TP9145

C8305

R4075

R2329

R4846

TD9102

TP9146

C8306

R4652

TP9147

R4847

C8307

R4848

TP9148

R4654

C8309

Q8305

C4871

TP9149

R4655

Q2351

C2355

Q8306

C4872

C2356

Q8307

C2357

C2358

Q4871

R2331

R4271

R2332

R2333

TP9150

C8310

R2334

R4851

TP9151

R4081

R2335

TD9302

C8312

R4852

TP9152

R4082

R2336

D4662

TD9303

R4853

TP9153

D4663

R9868

TP9154

C8314

R4854

D4664

R4855

C8315

CL4101

TP9155

R4661

D4665

TP9156

R4856

C8316

TP9157

C8317

CL4103

R4858

C8318

TP9158

CL4104

C8319

TP9159

R9871

R4281

C2369

R2341

R9872

R4282

R2342

R9873

R2343

C8320

R9874

R4860

TP9160

CL4300

R2344

CL4301

R4861

C8321

TP9161

R9875

R2345

C8322

R9876

TP9162

R2346

CL4303

TP9163

C8323

R9877

R2347

R9878

R4864

CL4304

TP9164

C8324

C2370

CL4305

R9879

TP9165

D8301

IC4281

CL4306

TD9316

D8302

TP9166

IC4282

CL4307

TD9317

D8303

R4673

TP9167

R4867

C2373

TP9168

CL4308

TD9318

D8304

C8328

R4674

TP9169

CL4309

D8305

R4675

R4676

R4677

R9880

R4678

R9881

D4871

C2379

R4679

R9882

R9883

R9884

TD9320

CL4310

C8330

TP9170

C8331

R4871

TP9171

R9885

R2355

R4872

IC8302

C8332

TP9172

CL4312

TP9173

C8333

CL4313

R4873

IC8303

R2357

TP9174

CL4314

C8334

TD9900

R4874

R9888

R4680

C2380

TP9175

C8335

IC8305

CL4315

C2381

R4681

VJ3201

TP9176

C8336

C2382

R4682

VJ3202

TP9177

C8337

TD9327

C2383

R4683

D8314

TD9328

IC8308

TP9178

C8338

R4684

TD9329

C8339

TP9179

C2385

R4685

R8312

R4686

R8313

R4687

R9890

R8314

R4688

R9891

R4689

R8316

R2362

R2363

CL4320

TP9180

TD9330

C8340

R2364

C8341

TP9181

TD9331

R8319

R2365

TD9332

TP9182

R9896

CL4322

C8342

TD9333

TP9183

R2367

TP9184

R4690

CL4325

TP9185

CL4326

TP9186

TP9187

C2393

R8320

TP9188

C2394

TP9189

R8321

C2395

C2396

CL2002

CL2003

R8323

C2397

R8324

C2398

R8325

CL2005

R8326

R8327

TP9190

R8328

CL2008

TP9191

TP9192

C8352

R2376

R2377

CL4333

TP9193

TP9194

CL4334

TP9195

R2379

TP9196

CL4336

CL4337

TP9197

TD9347

TP9198

CL4338

TD9348

TP9199

CL4339

TD9349

R8331

C9105

CL2011

CL2012

R8333

CL2013

CL4148

CL2014

R2380

JK2401

CL4149

R8335

CL2015

R2381

R8336

JK2402

CL2016

R2382

R8337

CL2017

R2383

TD9350

C9300

CL4340

R8338

R2384

CL4341

TP4381

R8339

TD9351

CL4342

TP4382

R2386

CL4343

R2387

TP4960

CL4150

R2388

TP4961

R2389

TP4962

TD9357

TP4963

C9307C9308

TD9358

R8340

TP4964

CL4348

R8341

CL4349

C9309

CL4155

TD9359

TP4965

TP4966

CL4156

L4982

CL4157

TP4967

TP4968

R2390

TP4969

Q4103

R8348

Q4104

C9310

TD9360

CL4350

R8349

TD9361

C9311

C9312

T8302

TD9362

CL4353

TD9363

C9313

C8374

C9314

TP4970

TD9364

CL4160

CL4354

C9315

TP4971

TD9365

C8375

CL4355

C9316

TD9366

C9317

TD9367

C8377

C8378

C9318

TD9368

CL4164

CL4358

C9319

R8351

TD9369

CL4166

R8352

CL4168

R8354

R8355

JS2301

JS2302

R8357

JS2303

C9320

TD9370

R8358

R9104

JS2304

CL4360

C9321

R9105

TD9371

JS2305

TD9372

C9322

TD9373

C9323

CL4363

CL4170

C4504

C9324

C4505

C9325

TP4981

CL4171

C9326

C4312

C4506

TP4982

TP4983

CL4367

C4313

C9327

C4507

D9110

C4314

C9328

TD9378

C4508

CL4368

TD9379

C4315

C9329

R8361

CL4175

CL4369

Q9901

C4509

CL4176

C4316

R8362

C4122

R8363

CL4177

C4317

C4123

R8365

R9111

C4701

C4702

R8367

C4703

TD9380

C9330

C4510

R8368

CL4370

C4704

C4511

TD9381

C9331

Q4701

C4705

C9332

C4512

TD9382

C4706

C9333

TD9383

C4707

C4513

TD9384

IC9304

C9334

CL4180

C4708

C4514

C9335

C4321

C4515

C9336

C4516

CL4377

C9337

C4517

C4323

C9338

CL4184

C4324

C4518

C9339

C4325

C4519

R8372

CL002

CL4186

C4326

R8373

CL003

Q4323

CL4188

CL004

C4710

R9121

R4301

C4711

CL006

R4302

C4906

Q4903

R4303

C4907

C4713

CL008

Q4904

CL4380

R4304

C9340

C4714

C4520

Q4905

R4305

C9341

CL009

R4111

C4715

C4521

R9125

C9342

R4306

R4112

C4522

R9126

C9343

CL4383

R4307

C4523

C9344

R4308

R9128

CL4190

C4524

CL4191

R9129

IC4301

C9345

C4525

C9346

C4526

C9347

C4527

CL010

C9348

C4910

C4528

CL011

C9349

C4529

R9323

CL4197

R9900

R9324

CL014

R9901

R4311

R9325

D4121

R9132

R4312

R9326

D4122

R9327

R4313

R4314

C9350

C4530

C9351

R4315

R4121

C4919

C4531

D4701

JK3201

C9352

R4316

C4532

R4122

R9907

C4533

R4317

C9353

R4123

R9908

CL4394

TP9000

C9354

R4124

C4534

R9909

TP9001

C9355

R4125

C4535

C4536

TP9002

C9356

IC4312

R4126

C9357

R4127

R4703

IC4313

C4537

C9358

R8390

R4128

C4920

R4704

C4538

IC4314

C9359

R8391

CL021

CL2071

R4511

C4539

R4705

TP9006

R8392

CL022

CL2072

R4706

R8393

C4923

R9334

R9910

R4708

L4204

R4321

Q2405

R4709

L4205

C2409

IC4702

R9336

Q2406

L4206

IC4703

R4323

Q4153

L4207

R9914

C9360

TP9200

R4324

C4540

R4131

C9361

R9915

TP9201

R4325

D4905

C4541

TP9202

R9916

C9362

R4132

R4326

C4542

TP9203

R9917

R4327

C9363

D4907

C4543

C9364

TP9010

R4328

TP9204

D4908

R4710

C4544

C2410

R9149

TP9205

R4329

C9365

C4545

R4711

L4401

C4546

TP9206

C9366

L4402

C9367

R4713

L4403

R4714

C9368

C4548

C9369

R4716

R4330

R4331

TP4006 TP4007

C4937

R4334

TP4008

C9370

R4910

C4550

TP4009

C9371

R4911

R4335

C9372

R4912

C4552

R4336

C9373

R4913

R4337

C9374

D4918

C4554

R4338

C9375

C2421

C9376

C2422

C4556

C9377

C2423

C9378

TP4010

C2424

C4558

C9379

TP4011

C4559

TP4012

C4172

TP4013

C4173

TP4014

D4920

TP4015

D4921

R4341

D2406

R4342

R4343

C9380

C4560

C4561

R9165

C9381

R4345

C4562

C9382

R4152

R4346

C9383

C4563

R4347

C9384

C4564

R4348

C4565

C9385

R4925

R4731

R2409

C9386

C4566

R4926

R4732

C4567

C9387

R4927

C9388

C4568

R4928

C9389

C4951

C4569

R4735

C4952

L3292

C4953

R2410

TP4601

TP4602

TP4603

TP4604

R4548

C9390

C4570

TP4605

C9391

C4571

R4549

TP4606

C9392

R4932

C4572

TP4607

C4573

C9393

TP4608

C9394

C4574

TP4609

C9395

C4575

C9396

C4576

C4577

C9397

C4578

R4550

C4579

R4747

TP4610

R4748

TP4611

C4965

D4171

R4749

TP4612

D4172

TP4613

L2307

TP4614

C4580

C4968

L2308

TP4615

C4581

C4969

R4171

TP4616

C4582

R4172

TP4617

C4583

R4173

TP4618

R4750

C4584

R4174

TP4619

C4585

JK4001

R4175

C4586

R4176

JK4002

R4177

C4587

C4970

R4178

C4588

CL4001

C4971

R4561

C4972

R4562

C4973

R4757

R4563

L2313

TP4620

C4974

TD9014

R4564

L2314

R4758

TP4621

R4759

C4975

IC9189

Q3201

TP4622

C3206

C4976

Q3202

TP4623

Q3203

C3207

C4977

R4567

TP4624

C3208

C4978

R4568

R4951

C4979

C3209

R4569

R4952

FL4502

R9197

R4953

R4954

R9198

R4760

R4955

TP2301

R4956

TP2302

TP2303

C3210

TP2304

C3211

R4765

C3212

C4982

R4572

R4766

C3213

CL083

R4767

C4983

R4573

R4768

R4574

C3215

CL085

Q4981

C4985

CL4015

R4575

CL086

C3216

Q4982

C4986

R4576

CL4017

CL087

R2443

R4577

CL4018

R2444

CL4019

R4961

R2445

L4651

C4989

R4962

R2446

L4652

R4963

R2447

R4964

R2448

CL4211

R4965

R4389

R2449

TP2311

R4966

CL4212

TP2312

CL4407

R4967

CL4213

TD9030

R4968

R4774

R4969

R4775

CL4215

TP9076

CL4023

TP9078

R4390

R2450

CL4218

D3201

R8405

R2451

L4081

CL4026

D3202

L4082

R2452

D3203

L4083

R2453

CL4027

R4394

D3204

R2454

L4084

CL4028

R8409

TD9039

R4395

R2455

L4085

R4396

R2456

L4086

R4973

L4087

R4974

TP9080

CL4220

TP9081

CL4415

R3206

TP9082

TP9083

R3207

CL4223

TP9084

R8410

TD9040

A10

CL4030

TP9085

CL4225

TP9086

IC3202

TP9087

CL4033

A13

R8414

TP9088

CL4228

CL4034

TD9045

TP9089

D4981

CL4035

C3236

TD9046

D4982

CL4036

R2463

D4984

R4980

D4985

R2465

R4981

R4982

D4986

R4983

D4987

TP9090

R4984

D4988

TP9091

R3215

R4985

R3216

TP9092

R4986

L8303

CL4427

TP9093

R3217

R4987

R3218

CL4428

TP9094

L8304

C3240

R4988

R4794

TP9095

R3219

CL4429

FL2405

IC4981

C3242

TP9096

FL2406

CL4042

TP9097

L8307

C3243

CL4237

L2353

TP9098

C3244

L8308

L2354

CL4238

TP9099

C3245

CL4239

C3246

C3247

R3220

R4990

CL4430

TD9058

JK2301

CL4431

R3222

CL4432

14.6. A-Board

89

TH-50PF20E / TH-50PF20ER

6

A-BOARD (COMPONENT SIDE)

5

4

3

2

1

TZTNP011DEE

AMM5

A25

A25

1

10

C9114

C9110

C9108

C9028

R9189

C9106

C9029

C9100

C9101

A21

A21

A33

A33

TD9903

VJ9902

ZA4002

A34

1

1

TD9103
TD9104
TD9105

A20

30

A20

35

TD9319

R9337

C9103

C9102

R9338

TD9315

R9307

R9309

R9306

R9308

1

1

A31

A31

40

68

FL9900

R9905

Q9900

Q9900

R9906

R9904

C9900

TD9905

R9903

TD9904

1

1

A34

A32

A32

THERMAL PAD

IC8301

R8377

17

25

R8334
R8322

55

TD9902

FL9901

TD9100

R4362

4

R4363

5

R4364

R4366

R4365

R4367

IC8301

R8318
R8317

R8315

C8313

32

1

68

R8490

R8491

R8492

R8493

1

TD9901

C8303

FL9902

VJ9901

VJ9900

6

R8482

R4361

1

R8483

IC4361

IC4361

C4361

R8461

8

R4368

R8460

R4369

8

7

JK8301

A9

A9

1

FL4962

R9335

Q4321

CL4073

Q4321

CL4210

C4322

CL4074

R4322

C9812

C9814

1

11

R8330

R8332

R8329

9

R8474

CL4154

T8301

CL2004

C4963

C4964

Q4322

Q4322

CL4209

A4

R4333

R4332

20

C9828

11

IC9801

C9813

IC9801

C9834

C9815

1

C9816

C9811

10

L9801

C9041

TD9095

TD9034

R9103

TD9042

51

A7

TD9043

TD9097

TD9044

TD9096

TD9047

TD9048

TD9049

TD9052

A7

76

IC9003

TD9054

TD9055

TD9056

R9166

C9117

TD9374

TD9375

TD9356

TD9353

TD9354

TD9355

TD9352

IC9300

TD9300

C9301

TD9322

R9321

TD9321

R9320

C9302

X9300

IC8304

R8473

R8472

R8366

R8452

R8371

R8370

26

C8343

CL4158

R8376

CL4159

IC8304

R8375
R8374

R8311

12

51

R8481

R8309

R8480

R8308

R8479

7

Q2402

L8301

L8302

R2424

R2425

R2419
D2402

2

JK8301

1

A6

R4391

CL9310

CL9306

R4392

CL4022

20

2

9

CL4302

A6

D4809

1

14

A4

11

20

C9827

IC9803

C9835

1

C9829

C9830

L9802

X9000

R9152

R9153

C9062

26

R9070

C9042

R9194

TD9093

TD9094

TD9013

TD9015

TD9037

TD9036

TD9033

TD9032

IC9003

TD9031

TD9029

TD9028

1

TD9106

TD9024

TD9023

TD9003

TD9005

TD9006

TD9007

TD9004

TD9022

TD9008

TD9057

C9061

R9124

R9212

R9213

R9107

100

R9119

TD9010

TD9012

TD9000

TD9025

R9319

TD9001

TD9002

R9316

R9318

TD9308

TD9326

TD9325

TD9011

A

TD9528

TD9009

TD9529

TD9386

TD9397

TD9398

TD9304

TD9342

TD9343

TD9344

TD9345

TD9390

TD9395

TD9396

TD9377

TD9306

TD9101

TD9305

TD9389

TD9385

TD9346

C9304

R9503

A22

R9609

A22

CL4163

R8449

CL4185

CL4161

R8450

1

C8326

R8448

X8302

100

R8447

C8325

R8306
R8486

R8456

R8301

R8478

CL4167

Q8304

R8466

CL4153

CL4152

76

CL4151

R8359

C8329

R8469

R8360

L8305

L8306

CL4182

CL4187

C8327

Q2401

C2405

C2406

C2413

C2416

Q2401

Q2402

R2405

R2406

R2413

R2421
R2423

R2415

C2412

R2440

C2415

R2416

R2414

R2420

R2422

R2441

R2412

R2417

L2411

C2411

L2412

C2414

R2435

R2411

D2404

D2401

S2401

S2402

68

19

A1

1

20

11

C9804

C9805

C9825

C9826

1

L9800

R9146

R9244
R9144
R9155

R9154

Q9002

CL9300

R9233

CL9299
R9232

R9187

R9188

R9072

VJ9303

C9399
R9300

TD9309
TD9311
TD9314
TD9312
TD9310

R9245

TD9313

R9243

R9246

R9242

R9235

R9234

IC9300

R9236

R9237

R9241

R9238

R9239

R9240

1

TD9376

C9303

5

CL4109

D4374

C4371

IC3272

4

IC3272

C3279

5

R3284

CL4291

CL4311

4

C3278

5

C3277

R3281

IC3271

1

R8497

R8346

A43

R8344

7

CL4183

C4311

Q2404

C2408

R2408
R2437

Q2403

R2439

R2432

C2419

R2433

R2436

R2427

D2403

IC9800

IC9800

10

C9800

C9803

Q9001

C9095
TD9067

Q9001

TD9065

Q9002

R9137 D4703
R9138

R9098

D9000

R9145

Q9003

C9398

A46

CL4493

A46

R8364

R8440

R8439

R3283

CL089

3

CL4293

1

CL088

3

R3282

IC3271

CL4289

1

C3271

CL084

L3271

C2403

CL082

C2404

L2407

CL081

CL078

A43

C2418

C2407

JK2401

Q2403

R2407
R2429
R2431

R3204

C2417

R2428

R2430

R3205

FL2403

JK3201

S2403

CL109

L3291

D3291

IC9803

10

C9039

R9150

R9151

R9219

R9218

R9093

R9094
R9164

R9185

TD9027

R9186

C9094

R9322

R9130

TD9323

TD9324

1

TD9301

R4378

FL4371

13

R4377

CL4174

R8457

R8464

R8350

R8470
R8465

Q8304

R8467

C2420

Q2404

R2438

FL2404

S2404

JK2401

A1

1

TNPH0837 1

ORDER

CL4399

A42

CL4403

2

1

R4828

CL4397

CL4401

Q9000

R4857

CL9304

Q4382

R4385

R9230

R9135

Q4382

R9136

Q9000

R9139
R9134

R4382

R4381

Q4381

R9231

CL9298

Q4381

Q9004

R4865

R4869

R4868

C9096

R9143

Q9004

R9142

R4863

C4853

R9140

Q9003

FL4501

C4601

Q8308

C4606

Q8308

+

L4602

L4601

CL116

R4607

CL4295

R3285

15

C3205

L3202

CL4413

L3203

CL4385

R4012

A14

CL4252

CL4389

R4010

CL4392

CL4253

CL4400

R4011

CL4254

R3223

1

R3221

A14

6

FL3204

7

Pr

FL3203

R3291

R3203

S3203

S3204

NO.

38

A42

37

R4830

CL4405

R4835

R4836

R4833

C4852

C4851

L4851

CL106

R4181

CL4102

Q4154

D4702

R4720

R4719

R4386

R4387

R4827

R4383

R4388

R4725
R4726

R4384

R4723

R4724

R4721

R4728

R4722
R4727

C4709

CL4344

R4866

R4701
R4730
R4729

CL4077

CL4459

R4531

R4754

L4515

R4769

R4753

CL4284

R4862

R4586

R4585

R4584

R4583

R4582

R4581

C4501

C4604 C4605

A

TD4501

C4503

FL4503

C4622

C4621

+

IC3201

C3227

C3226

R3212

R3213

R3214

C3204

CL4378

CL4376

CL4379

CL4382

CL4396

16

CL4408

CL4406

17

C3228

C3229

CL4384

C3230

CL4387

CL4391

C3231

IC3201

CL4398

C3232

CL4402

C3233

CL4404

R3230

CL4411

R3225

33

C3234

CL4330

CL4328

R3232

CL4409

CL4321

CL4317

R3231

R3233

CL4319

R3236

CL4165

C3237

C3238

R3234

C3239

C3235

Q3211

Q3212

1

CL4162

Q3212

Q3211

CL079

CL080

Pb

12

Video

R3201

FL3201

FL3202

R3202

S3202

JK3201

Q4451

C4460

C4456

C4451

R4459

Q4451

CL4006

R4453

CL4007

C4452

R4451

L4451

R4455

CL4005

L4452

C4453

C4454

R4454

IC4451

C4459

4

3

CL4010

CL4003

CL4002

R4452

Q4154

R4795

R4823

R4717

CL4329

R4718

CL4335

IC4502

1

TD4510

TD4508

IC4502

C3225

C3223

C3224

CL4373

CL4375

CL4347

CL4324

CL4357

C3241

L3201

Q4101

C4102

R4105

Q4101

S3201

C4458

C4457

1

C4455

CL4004

6

IC4451

IC4382

R4463

CL4021

L4461

R4182

C4464

C4465

C4414

R4752

81

R4466

R4406 R4407

X4401

R4751

R4405

CL4096

C4407

C4413

R4408

C4406

R4715

CL4025

R4762

C4401

C4402

R4413

R4411

R4412

R4761

CL4020

IC4501

TD4502

TD4506

TD4504

TD4512

R4566

R4570

R4571

R4565

A

C3221

C3222

C3256

CL4372

CL4371

1

CL4426

64

CL4424

CL4422

R3252

R3247

CL4361

C3252

CL4365

C3266

R3246

CL4359

49

C3251

CL4351

R3210

CL4345

C3218

R3244

C3249

C3250

R3208

C3248

R3245

R3209

C3202

C3219

CL4331

C3217

C3201

Q4102

C4103

R4106

R4108

R4107

R4109

R4110

Q4102

L4101

L4102

D4114

D4116

D4118

D4115

C4101

D4111

D4112

D4117

R4101

Y

R4102

R4103

JK4001

19

JK4001

Q4324

Q4452

C4424

C4423

R4417

CL4009

R4415

R4416

CL4008

R4414

Q4401

Q4401

R4458

Q4452

R4418

R4456

R4457

C4461

C4462

Q4402

Q4402

R4464

R4419

R4420

C4466

R4465

D4461

45

R4461

R4671

R4672

IC4382

C4425

D4661

R4462

CL4232

R4467

CL4233

CL4318

R4402

R4401

CL4323

R4707

R4712

R4404

C4405

R4702

R4403

CL4040

CL4356

CL4364

CL4366

CL4352

CL4374

CL4041

CL4346

CL4390

CL4362

A

CL4386

1

R4521
R4522

CL4332

C4591

CL4425

R4501
R4502

C4592

R4503

CL4423

R4807
R4808
C4808

TD4509

TD4507

R4802

TD4513

C4802

IC4501

IC4503

D4113

C4653

TD4505
TD4511

1

C4624

TD4503

8

IC4503

CL4286

C4625

R3263

CL4421

CL4419

R3265

C3255

R3261

CL4417

C3254

C4121

JK2402

D4108

D4101

D4102

D4104

D4106

D4103

D4105

D4107R4104

1

AMM4

R4665

R4664

C4962

CL111

CL112

1

R4662

Q4662

R4663

CL4214

R4344

CL4231

CL4227

CL4229

Q4661

Q4661Q4662

R4340

CL4216

Q4324

R4358

C4353

R4356

R4339

A

PbF

R4204

A

R4203

R4206

R4208

R4209

R4211

L4201

L4202

R4212

IC4704

C4202

C4211

R4266

C4201

C4212

L4203

CL4275

CL4276

R4771
R4770

R4785
R4784

R4734

R4733

R4512

CL4410

R4763

CL4388

R4772
R4773

C4807
R4815
R4816

R4810

C4652

R4656

R4657

7

IC4515

R4659

R4658

R4276

4

C4882

5

R4274

R4269

R4267

R4270

IC4704

1

R4884

R4885

3

R4882

C4881

R4881

R4883

C4594
R4524
R4523

R4513

R4514
C4593

X4501

R4742

R4741

C4712

R4764

R4746

R4745

R4755

R4736

R4737

R4756

R4739

R4744

L4509

C4549

CL4024

R4740

R4738

R4743

L4508

C4805
R4805

R4806
R4801
R4809

C4547

R4804

R4813

C4555

L4512

R4814

C4804

C4806

R4812

C4801

R4650

R4651

C4656

C4655

1

CL4461

R4648

X4502

CL4290

R4649

14

C4657

R4653

IC4515

R4009

R4008

R4007

R4001

R4002

R4004

R4005

C4009

R4039
C4010

X4001

C4074

C4076

JK4002

S2406

D4151 D4152 D4153

D4158

D4154

D4157

S2405

D2405

JK2402

A13

R4355

R4359

Q4351

CL4246

D4351

C4352

R4357

R4353

R4360

R4354

A13

C4351

CL4236

CL4249

R4352

R4351

Q4351

IC4201

1

IC4201

R4258

R4259

R4261

R4264

R4278

R4262

R4255

R4260

R4277

R4272

R4273

R4275

L4513

C4557

L4510

C4551

CL090

C2473

R2475

R2472

IC2306

R2474

R2471

16

IC2306

C2462

1

C2463

C2464

C2465

C2466

C2461

CL095

CL092

CL097

CL093

R2464

R2466

R2467

R2462

L2461

L2462

CL035

CL055

CL036

R4057

R4066

R4068

R4034

R4055

R4056

73

C4003

R4003

C4001

C4002

R4006

C4038

C4034

R4037

R4038

C4022

C4042

C4044

IC4001

R4014

C4021

C4041

C4043

C4075
L4071

109

IC4001

L4072

C4077

C4171

R4154

R4153

8

1

16

9

L4153

D4165

24

17

D4161

C4151

D4163

D4164

R4151

D4162

D4155

D4156

JK4002

C4966

FL4963

C4967

13

1

FL4961

R4669

C4961

Q4664

R4670

CL4248

Q4664

CL2010

CL4234

R4666

R4667

R4668

Q4663

Q4663

R4939

R4916

D4901

C4901

R4263

R4252

R4253

C4902

C4916

L4511

C2471

C2472

C2469

CL099

CL096

R2470

R2473

R4051

144

L4152

A47

THERMAL PAD

IC4902

C4502

R4053

R4054

R4052

37

CL4011

CL4012

R4059

R4060

R4025
R4064

R4024

R4063
R4022
R4019

R4018

R4017

1

CL4496

L4151

4

L4902

CL4016

C4922

C4917

D4916

CL4192

R4918

THERMAL PAD

C2302

C4918

8

1

R4917

L2306

C2317

C2328

C4553

L4507

CL091

C2470

9

8

C2468

C2467

CL098

CL094

R2468

R2469

CL053

CL4014

CL4013

R4058

A47

1

D4932

CL4195

L2314

A10

C4939

C4938

C4936

C4935

C4934

R4920
CL4196

C4921

CL4189

Q4983Q4984

A5

11

A10

R4991

R4992

Q4984

R4989

C4981

R4946

R4948

C4942

R4949

L4903

CL4468

R4921

R4924

C4925

R4922

D4919
C4924
R4923

CL4198

5

IC4902

4

D4917

R4919

C4909

CL4193

R2353

R2351

C2352

CL2074

C2361

C2360

C2363

C2365

L2351

R2360

L2352

R2361

CL4058

R2368

CL4059

R2369

CL4060

CL4061

R2302

R2301

22

23

C2314

L2305

C2324

D2304

L2316

D2303
S2302

A5

1

5

C4988

R4994

CL2009

C4987

CL2007

Q4983

CL2006

R4993

D4983

L4981

R4947

Q4901

Q4902

R4943

C4943

R4945

R4944

1

R4933

D4931

IC4903

4

5

R4936

R4935

Q4901

Q4902

CL121

R4937

R4934

C4940

IC4903

D4902

CL4178

R4901

C4912

D4906

R4909

C4904

R4906

R4907

C4911

R4908

C4903

R4905

CL4179

CL4181

C4905

8

5

IC4901

IC4901

D4903

L4901

CL4172

CL4173

4

1

R4904

R4902

C4908

D4904

R4903

THERMAL PAD

CL4169

CL2073

C2354

C2353

R2352

R2354

R2356

R2358

R2385

C2351

C2392

C2390

C2386

R2359

C2366

C2389

C2391

80

1

C2359

C2362

C2364

R2370

IC2303

C2367

CL2100

21

R2372

CL4063

C2368

C2374

R2373

CL4062

CL4064

L2355
C2372

R2371
C2371

X2351

L2302

R2321
R2322
R2320

R2330

R2303

R2304

IC2301

CL4053

CL4052

1

IC2301

44

C2321

C2330

C2337

L2304

C2340

C2344

C2333

D2301

D2302

L2315

S2301

L2313

3

A12

1

C4984

A12

PA4931

CL4327

8

C4933

C4932

C4931

AMM3

R4938

C4941

CL4480

CL4481

CL113

CL4194

R4940

R4942

R4941

14

A35

A35

AMM2

A11

CL4097

L4371

D4372

D4371

1

CL4222

CL4105

L4372

A11

L4373

L4374

CL4108

L4375

L4376

6

D4373

IC2303

C2387

C2388

61

C2384

AMM1

C2378

CL005

R2378

41

R2337

A8

R2375

C2376

C2377

R2374

C2375

13

A8

ZA4001

C2301

L2303

JK2301

JK2301

A

ABCDEFGH I

90

TH-50PF20E / TH-50PF20ER

ABCDEFGH I

1

2

3

4

5

6

C106 C107

C112

C113

C114

C115

ZA100

ZA101

ZA102

ZA103

R100

R101

R102

R103 R104

R105

R106

R107

R108

R109

R110

R111

R112

R113 R114 R115

R116

R117

R118

R119

R120

R123

R124

CB1

CB2

CB3

CB4

C10

C100

C101

TNPA5099

1 C1

CR NO.17

C102

C110

C105

C104

C103

C111

C108

C109

PbF

1

55

1

55

ORDER

NO.

1

40

1

55

1

55

1

55

1

55

1

55

1

55

1

40

12 3

TNPA5099

1C1

PbF

SEE REVERSE FOR ORDER NO.

C1-BOARD (FOIL SIDE)
TNPA5099

C1-BOARD (COMPONENT SIDE)
TNPA5099

C1

14.7. C1-Board

91

TH-50PF20E / TH-50PF20ER

14.8. C2-Board

6

5

C2-BOARD (FOIL SIDE)

C2

TNPA5100

4

12 3

1

TNPA5100

SEE REVERSE FOR ORDER NO.

3

C2-BOARD (COMPONENT SIDE)

C2

PbF

TNPA5100

R227

R233

C241

C245

R232

C243

C244

ZA203

R222

R223

C26

1

68

68

C21

CB8

C213

C249

1

R217

R218

R219

R228

R229

C215

20

20

FL200

1

1

1

55

55

R296

C253

1

1

ZA200

C20

2

40

40

CB5

C246

C200 C202

R201

R200

C201

15 5

R202 R203

C204

R206

551

R204

CR NO.17

1

TNPA5100

ORDER

NO.

CB6

R210

R209

C247

C203

15 5 1

15 5

R205

R207

C2

PbF

C207

ZA202

ZA201

R221

R220

CB7

C248

C212

1

1

R224

11

20

R225

C210 C211

R214

R216

R215

IC201

C214

C216

R226

10

1

C242

55

55

1

ABCDEFGH I

92

TH-50PF20E / TH-50PF20ER

ABCDEFGH I

1

2

3

4

5

6

C300

C301

C303

C306

IC300

C31

IC302

C33

C35

C36

C313

C315

C317

C320

C323

C326

FL302

ZA300

ZA301

ZA302

ZA303

ZA304

C341

C342 C377

C378

C379

C380

C381

C382

C383

C384

C385

C386

C387

C388

C389

R300

R301

R302

R303

C390

R304

C391

R305

R306

C392

R307

R308

R309

CB10

CB11

CB12

CB13

R310

CB14

CB15

R312

R313

R314

R318

R319

R320

R321

R322

R323

R324

R325

R326

R327

R328

R329

R330

R331

R332

R333

R334

R335

R336

R337

R338

R339

R340

R341

R342

R343

R344

R345

R346

R347

R348

R360

CB9

R393

R394

R395

CR NO.17

TNPA5101

1C3

C319

C304

C321

C314

C327

C322

C316

C324

C318

C302

C307

C305

C310

C325

PbF

1

55

1

55

1

10

11

20

1

68

1

10

11

20

1

8

1

4

1

20

1

5515 5

ORDER

NO.

1

68

1

55

1

55

1

55

1

55

1

55

1

55

1

55

1

55

551

1

55

1

20

C3TNPA5101 1

12 3

PbF

SEE REVERSE FOR ORDER NO.

C3-BOARD (FOIL SIDE)
TNPA5101

C3-BOARD (COMPONENT SIDE)
TNPA5101

C3

14.9. C3-Board

93

TH-50PF20E / TH-50PF20ER

14.10. SC-Board

6

SC

5

SC-BOARD (FOIL SIDE)
TXNSC11XEK

TP109

TP110

4

TP113

3

TP33

2

TP123

TP124

1

ZA421 ZA422

TP103

91

SC41

8

A

C

G

Q423

PbF

TNPA5081

SEE REVERSE FOR ORDER NO.

G

C

E

Q422

CRNo.16

C633

C

Q452

E

2

TP96

A

D422

K

G

E

TP117

TP118

TP114

C460

C450

TP104

Q601

S

G

D

L411

TP92

TP93

A

A

D481

K

A

A

D482

K

C901

C900

Q421

C

EG

1

1

SC

C632

C

G

TP121

TP122

Q622

G

C

Q621

E

G

C

K

AA

D421

2

3

C631

C400

Q451

E

TP4

13

SC2

TP5

E

TP2

TP1

TP111

TP112

TP107

TP108

9

C903

D642

A

K

K

D441

D641

A

A

A

K

TP116

L401

TP90TP91

C418

C

AA

E

GECG

Q441Q442

TP45

C902

TP41

8

D402

K

TP115

AA

K

AA

K

A

A

A

D461

D462

TP105

TP106

TP28

TP35

1

TP100

TP42

TP43

TP44

SC46

2

G

E

G

D401

C

C416

L400

K

A

ZA412

TP59

TP78

TP63

TP79

9

1

TP51

8

TP80

SC42

2

TP81

D

S

C691

G

Q660

ZA411

TP61

TP62

R696

Q661

C

GE

C721

C806

SC50

TP60

L851

12

TP58

C795

C793

T471

C813

TP34

TP67

TP32

S2 S1

P1 PT P2

8

Q402Q403

C

Q401

E

G

E

C

R838

TP29

C417

L472

C503

C419

C413

C412

C523

TP11

TP26

TP39

TP10

TP6

TP88

TP119

TP120

C796

TP52

TP22

TP15

TP18

TP40

TP19

TP37

C563

TP20

TP17

TP36

TP7

TP23

TP70

TP21

TP97

C592

TP38

TP14

TP24

TP25

TP94

TP9

TP16

TP89

TP8

TP30

5

4

1

IC784

C842

TP95

L698

85

4

1

IC786

R860

TP125

TP31

R774

C791

TP98

ABCDEFGH I

94

TH-50PF20E / TH-50PF20ER

ABCDEFGH I

1

2

3

4

5

6

Q701

SC41

SC42

Q702

D503

SC46

TP99

D701

D702

L698

SC50

C753

C754

C755

Q521

C561

C562

C756

C563

D900

C564

C565

D901

D902

C566

C567

D710

D711

IC561

IC562

D712

D713

IC563

IC564

D522

D523

Q531

D719

D720

Q920

Q921

D721

C771

C772

C773

D534

D728

C581

D536

C582

C583

D920

IC771

D921

IC773

Q930

Q931

IC581

Q932

R501

TP101

R502

TP102

R503

R504

Q551

C592

R506

C593

T471

R509

IC784

IC785

IC786

IC787

R511

C791

R512

C793

R707

C794

C795

C796

R516

C797

R517

R900

R901

R904

R711

R712

R521

R522

Q762

R523

R717

R719

R720

R721

R531

R919

D765

R532

R533

R534

R920

R921

R922

R923

R926

R927

R928

ZA421

R929

ZA422

D583

R930

R931

R932

R933

R934

R935

R742

R936

R937

R938

R745

ZA411

R551

ZA412

R746

R552

R747

R553

R750

D790

D791

R751

D792

R752

D793

R753

R560

D794

R754

R561

R755

R562

R756

R563

R564

R565

R566

R567

R568

C400

R569

C401

C402

C403

R761

R762

R763

R570

R765

R769

C602

C603

C604

R579

C412

C413

C608

C416

R772

C417

R773

IC490

C418

R774

R580

C419

IC491

R776

R582

R583

R777

R584

R585

C806

R586

R587

R588

C421

C422

C423

IC691

IC692

R783

R590

R785

R591

R592

R786

R787

C813

R593

R789

R791

ZA401

ZA402

R797

ZA403

R798

ZA404

R799

C631 C632

C827

ZA407

PC603

C633

Q401

C441

Q402

C442

Q403

D401

Q601

C641

C642

D402

Q602

Q603

C450

C645

C451

C646

Q606

C452

C647

Q607

D407

Q608

Q609

Q801

C842

D602

C843

C844

D604

D605

D411

D607

C460

C461

Q421 Q422 Q423

Q810

D610

IC464

C854

Q815

IC465

C661

D421

Q621

C856

Q816

C662

D422

Q622

Q817

C857

C663

C858

C664

Q818

D618

C859

C665

C471

C666

C472

C668

IC661

C860

IC471

C861

C862

C863

C864

PC896

PC897

C675

C481

Q441

C676

Q442

D820

D821

D822

D824

D825

R401

D441

R402 R403

C684

C490

PC461

Q645

C685

C491

Q451

Q646

Q452

Q647

Q649

R601

D641

D642

R604

R410

D645

C691

R605

D451

R411

D646

C692

D647

R607

R414

D648

R415

D649

R609

R416

R417

R418

R419

R801

R802

TP3

D650

R804

R610

C891

IC521

D651

D652

R612

D653

R420

D654

Q660

Q661

R615

R421

D461

Q662

D462

R422

Q663

R617

R423

PC480

Q471

D465

D466

Q668

L400

IC724

R621

L401

D662

R622

D663

D664

R818

Q670

D859

R819

Q671

Q672

Q673

D667

D473

IC920

PC684

D474

D475

D669

Q675

PC685

D476

Q676

D477

Q677

R820

Q678

D478

R822

R823

R824

D670

R825

D671

R631

L411

R826

D672

SC2

R827

D673

R633

D674

R634

D480

R829

R441

D481

R442

D482

Q876

D677

D678

Q490

R831

D871

R832

D872

D874

D875

R837

R838

D490

Q885

R451

R645

D491

PC722

R646

D492

R452

PC723

R647

D493

D494

R648

R649

D497

R841

R843

R844

R650

R845

R651

R846

R652

R653

R654

R849

R655

R656

R657

R658

R659

R465

R466

R467

R468

R851R852

D893

R660

R661

R662

R663

R664

R471

R665

R472

R666

R473

R667

R668

R474

C501

R475

C502

R476

C503

C504

R860

R478

R479

C505

TP46

R670

IC501

R671

R672

R673

R674

R675

R676

R677

R678

R679

C707

C708

R870

TP57

R873

R680

C900

R681

C901

C902

R682

C903

R684

R490

R491

R685

R492

R686

R687

R493

R688

R494

L851

C521

R495

C522

R496

C523

R497

C524

R498

C525

IC792

IC793

C527

R690

TP68

R691

L472

R692

R694

SC20

R695

C721

R696

C723

C724

TPSOS6

R699

TPSOS7

C533
C534

C535

R891

C536

R892

R893

R897

R898

R899

Q501

TP82

Discharge

TPVSUS

SCMM2

DIP

H.V. DANGER

H.V. DANGER

TPSC1

H.V. DANGER

SC

1

H.V. DANGER

SCMM1

CRNo.16

TPVSCN

TPVAD

A

A

TNPA5081

PbF

1

2

8

9

1

8

9

2

12

3

4

91

2

8

12

1

10

11

20

1

10

11

20

7

8

14

1

1

3

4

5

1

2

3

4

1

2

3

4

1

3

4

5

1

4

8

5

S2S1

P1PTP2

1

2

3

4

14

5

8

1

4

5

8

ORDER

NO.

1

3

4

5

G

C

E

G

C

E

G

C

E

AA

K

G

S

D

AA

K

12

3

4

C

GE

C

GE

C

G

E

1

3

4

5

12

3

4

1

3

4

5

A

A

K

G

C

E

A

A

K

G

C

E

1

4

5

8

G

C

EG

C

E

AA

K

C

GE

C

G

E

A

A

K

A

A

K

GS

D

GCE

AAKA

A

K

1

4

5

8

3

1

AA

K

AA

K

1

8

9

16

8

9

1

16

1

3

4

5

1

35

SC-BOARD (COMPONENT SIDE)
TXNSC11XEK

SC

95

TH-50PF20E / TH-50PF20ER

14.11. SS2-Board

6

5

SS2

4

SS2-BOARD (FOIL SIDE)
TNPA4804

6

7

3

SS24

1

2

TNPA4804

SEE REVERSE FOR ORDER NO.

SS2

PbF

SS58

113 113

1

SS2-BOARD (COMPONENT SIDE)

2

1

TNPA4804

SS2MM2

11 3131

SS58

ABCDEFGH I

SS2MM1

TNPA4804

ORDER

NO.

6

SS2

PbF

1

SS24

7

2

1

96

TH-50PF20E / TH-50PF20ER

ABCDEFGH I

1

2

3

4

5

6

C193

SS11

R309

SS21

L303

SS53

SS55SS56

VR001

SS61

SS63SS64

C201

C202

C203

C011

C012

C013

C014

C015

Q001 Q002 Q003

D001

C241

D002

Q021

Q022

Q023

C271

C272

Q041

Q042

D041

D042

Q051

D051

D052

L001

TPVSUS

TP2

TP5

TP6

TP7

TP8

TP9

L011

TP10

TP13 TP14

TP16

TP17

TP18

TP19

TP20

TP21

TPSOS8

TP24

TP25

TP26

TP27

TP28

TP29

TP30

TP31

TP33

TP34

TP36

TP38

TP39

TP40

IC304

TP41

TPVe

TPSS1

C314

TP51

TP53

TP54

TP56

C328

C331

PbF

SS

1

12 3

TNPA5082

CR No.16

4

1

17

26

11 3 11 311 311 3

SEE REVERSE FOR ORDER NO.

11 311 311 3

C

G

E

C

G

E

C

G

E

A

A

K

A

A

K

11 311 3

G

C

E

GCE

G

C

E

GCE

G

C

E

A

A

K

A

A

K

C

G

E

AA

K

AA

K

11 311 3

8

54

1

11 3

SS-BOARD (FOIL SIDE)
TXNSS11JFK

SS

14.12. SS-Board

97

TH-50PF20E / TH-50PF20ER

6

5

SS-BOARD (COMPONENT SIDE)
TXNSS11JFK

SS

4

D021

R155

R159

R150

D151

ZA002

R153

916

916

IC131

R135

R136

C135

R152

R151

K

DIP

R143

Q141

R141

R134

R137

R132

D153

C071

D041
A

A

R142

C131

1

1

C133

8

8

D131

R131

C072

AA

L001

K

A

CR No.16

D002

Q003

K

C003

E

Q042

R003

2

SS21

ZA001

C286

R281

R282

C281

IC241

110

R241

R242

TPSOS8

C243

1

6

7

C285

C284

D286

D284

R284

C280

D280

Q280

R231

R230

18

SS63

SS63

13 13 1

113 113

13 1

1

1

SS64

SS64

TNPA5082

G

R041

R001

C041

D253

G

C

C013

C271

SS55

A

D001

K

C014

R252 R253

A

C002

SSMM2

C015

C331

C328

C012

Discharge

ZA003

C011

R309

TPVe

TPVSUS

R105

D023

R101

1

D316

Q101Q102

G

R103

R104

S

SS11

C317

IC304

D

D

C316

4

5

4

C104

Q055

R002

C042

C001

E

G

Q001

C

C314

R173

Q041

C

ECG

C004

E

G

Q002

C

R171

R172

R042

E

13 1

ORDER

NO.

R330

C272

C105

SSMM1

PbF

S

R110

R116

D101

G

R102

D317

C315

1

PC301
R335
R332

R319

8

R254

3

4

C319

R251

C198

Q191

C251

D196

R193

L303

C318

D315

C252

IC251

41

R256

R290

C193

2

1

8

1

C191

R320

R334

VR001

R259

5

R255

R289

R109

R307

R318

IC312

SS56

SS

R287

R288

D191

Q251

R260

R257

R258

C101

R195

D255

D022

PC191

C241

D281

C192

R192

C195

D192

C287

R285

D285

R191

C244C051

C242

SS33

D282

R280

R283

1120

13

13

13

13

C103

SS61

SS61

SS53

TPSS1

1 13

1 13 1

1

1

Q161

R161

R162

R163

Q023

C023

C022

R023

C

E

G

E

Q022

R022

C

C021

R021

C

G

E

G

Q021

3

L011

R031

R032

R033

D152

C151

8

C203

C092

C091

R034

D032

C157

Q056

IC151

16 9

C154

1

2

C153

R154

R183

Q051

R181

E

C152

R051

G

D042

C

A

R182

C201

C202

D054

1

A

D052

A

A

D051

K

K

D050

A

ABCDEFGH I

98

15 Exploded View and Replacement Parts List

15.1. Exploded View and Mechanical Replacement Parts List

Please click the radio button for “Diagrams ll/Parts List” on the menu bar.

15.2. Electrical Replacement Parts List

15.2.1. Replacement Parts List Notes

TH-50PF20E / TH-50PF20ER

99

TH-50PF20E / TH-50PF20ER

15.2.2. Electrical Replacement Parts List

Safety Ref.

No.

PCB ETX2MM814MNH CIRCUIT BOARD P 1 (RTL)

PCB TNPA4804 CIRCUIT BOARD

PCB TNPA4962AD CIRCUIT BOARD PB 1 (RTL)

PCB TNPA5090 CIRCUIT BOARD SU 1

PCB TNPA5091 CIRCUIT BOARD SD 1

PCB TNPA5099 CIRCUIT BOARD C1 1 (RTL)

PCB TNPA5100 CIRCUIT BOARD C2 1 (RTL)

PCB TNPA5101 CIRCUIT BOARD C3 1 (RTL)

PCB TNPA5111 CIRCUIT BOARD H3 1 (RTL)

PCB TNPA5162 CIRCUIT BOARD V1 1 (RTL)

PCB TNPA5163 CIRCUIT BOARD V2 1 (RTL)

PCB TNPA5164 CIRCUIT BOARD S1 1 (RTL)

PCB TXNSC11XEK CIRCUIT BOARD SC 1 (RTL)PA

PCB TXNSS11JFK CIRCUIT BOARD SS 1 (RTL)PA

PCB TZTNP011DEE CIRCUIT BOARD A 1 (RTL)PA

PCB TZTNP021CEE CIRCUIT BOARD HX 1 (RTL)PA

PCB TZTNP031CEE CIRCUIT BOARD DS 1 (RTL)PA

F201 HU216005BEP FUSE 1

F501 HU215002BEP FUSE 1

F601 HU215010BEP FUSE 1

F602 HU215010BEP FUSE 1

A1 K1MY68BA0345 68P CONNECTOR 1
A4 K1KA14A00248 14P CONNECTOR 1
A5 K1KA05A00466 5P CONNECTOR 1
A6 K1KA20AA0009 20P CONNECTOR 1
A8 K1KA03AA0190 3P CONNECTOR 1
A9 K1KA09A00220 9P CONNECTOR 1

A10 K1KA11AA0194 11P CONNECTOR 1
A11 K1KA06A00508 6P CONNECTOR 1
A13 K1KA13AA0194 13P CONNECTOR 1
A14 K1KA15A00148 15P CONNECTOR 1
A20 K1MY35BA0345 35P CONNECTOR 1
A22 K1KA03A00632 3P CONNECTOR 1

A25 K1KA10A00416 10P CONNECTOR 1
A31 K1MY68BA0345 68P CONNECTOR 1
A32 K1MY68BA0345 68P CONNECTOR 1
A35 K1KA04A00667 4P CONNECTOR 1
A601 AYRA652MSV8T ARRESTOR 1

C10 K1MY40BA0345 40P CONNECTOR 1 PAVCCZ
C20 K1MY40BA0345 40P CONNECTOR 1 PAVCCZ
C21 K1MY68BA0345 68P CONNECTOR 1
C26 K1MN20BA0231 20P CONNECTOR 1
C31 K1MY68BA0345 68P CONNECTOR 1
C33 K1KY08AA0719 8P CONNECTOR 1

C35 K1KA04BA0107 4P CONNECTOR 1
C36 K1MY20BA0345 20P CONNECTOR 1
C201 ACMEB332K5T 50V 3300p 1
C202 ACDE2R221KP 2kV 220p 1
C203 ACDE2R221KP 2kV 220p 1
C204 ECWH8473HA 800V 0.033P 1

C205 ECWH8473HA 800V 0.033P 1

Part No. Part Name &

Description

SS2

Pcs Remarks

1 (RTL)

VCCZ

VCCZ

VCCZ

VCCZ

VCCZ

Safety Ref.

No.
C206 ACKX101KYP 250V 100p 1

C207 ECJ2XB1H104K C 0.1PF, K, 50V 1
C208 ACMBC681J5T 50V 680p 1
C209 ECJ1VC1H471J C 470PF J 50V 1
C211 ACRZL1H100T 50V 1000p 1

C212 ACRZL1H100T 50V 1000p 1
C213 ACYBB475K2F 25V 4.7PF 1
C214 ACMH1H010T 50V 1P 1
C215 ECJ1VB1E333K C 0.033UF, K,

C217 ACMEB104K2T 25V 0.1P 1
C218 ACMBB106K1AT 10V 10P 1
C219 ECJ1VB1H472K C 4700PF, K,

C220 ACMBB106K1AT 10V 10P 1
C221 ACMEB104K5T 50V 0.1P 1
C251 ACMEB104K2T 25V 0.1P 1

C252 ECQV1H224JL P 0.22UF, J,

C255 ECQE2473SKF C 0.047U 250V 1

C256 ACCST230102K 230V 1000P 1

C257 ACDE1SL220JP 1kV 22p 1
C352 ACRZL1V561T 35V 560P 1
C366 ACRZL1E471LT 25V 470P 1
C375 ACMAB105K5T 50V 1P 1
C376 ACMEB105K1T 16V 1P 1

C379 ECJ2VB1H472K C 0.42PF, K,

C380 ACMEB333K5T 50V 0.033P 1

C382 ACMEB103K5T 50V 10p 1
C383 ACMEB105K1T 16V 1P 1
C401 ECQE2104SKF 250V 0.1PF 1
C402 ECQE2104SKF 250V 0.1PF 1
C403 ACKMQ140471H 140V 470P 1

C404 ACRZL1H101T 50V 100P 1
C405 ACMBR222K2ET 250V 2200p 1

C406 ACKMQ1K182ZE 80V 1500P 1

C407 ACRR3DD101K7 2kV 100PF 1
C408 ACKMQ1K182ZE 80V 1500P 1

C409 ACMBR222K2ET 250V 2200p 1
C410 ECJ1VB1H222K C 2200PF, K,

C413 ECJ1VB1H103K C 0.001PF, K,

C415 ACMEB104K5T 50V 0.1P 1
C416 ACMEB224K2T 25V 0.22P 1
C418 ECJ1VB1H103K C 0.001PF, K,

C419 ECJ1VB1H103K C 0.001PF, K,

C420 ACMEB224K2T 25V 0.22P 1
C501 ACLE103KC 0.01PF 1

C503 ACPAG2W470T 450V 47P 1

C504 ACMEB104K5T 50V 0.1P 1
C505 ACRZL1H220T 50V 22P 1
C506 ECJ1VB1H102K C 1000PF, K,

C507 ECJ1VB1H103K C 0.001PF, K,

C508 ACMBB474K2T 25V 0.47P 1
C509 ECJ1VB1H103K C 0.001PF, K,

C510 ACRZL1H100T 50V 1000p 1

Part No. Part Name &

Description

25V

50V

50V

50V

50V

50V

50V

50V

50V

50V

50V

Pcs Remarks

1

1

1

1

1

1

1

1

1

1

1

100
