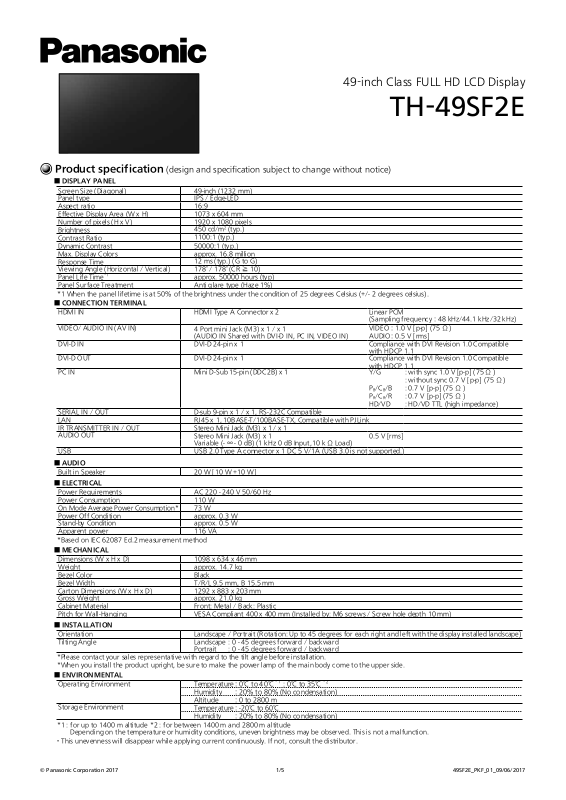

Panasonic TH-49SF2E Product Data Sheet

49-inch Class FULL HD LCD Display

TH-49SF2E

Product specification

■ DISPLAY PANEL

Screen Size (Diagonal) 49-inch (1232 mm) Panel type IPS / Edge-LED Aspect ratio 16:9 Effective Display Area (W x H) 1073 x 604 mm Number of pixels (H x V) 1920 x 1080 pixels Brightness Contrast Ratio Dynamic Contrast 50000:1 (typ.) Max. Display Colors approx. 16.8 million Response Time Viewing Angle (Horizontal / Vertical) 178°/ 178° (CR ≧ 10) Panel Life Time Panel Surface Treatment Anti glare type (Haze 1%)

*1 When the panel lifetime is at 50% of the brightness under the condition of 25 degrees Celsius (+/- 2 degrees celsius).

■ CONNECTION TERMINAL

HDMI IN HDMI Type A Connector x 2 Linear PCM

VIDEO/ AUDIO IN (AV IN)

DVI-D IN DVI-D 24-pin x 1 Compliance with DVI Revision 1.0 Compatible

DVI-D OUT DVI-D 24-pin x 1 Compliance with DVI Revision 1.0 Compatible

PC IN Mini D-Sub 15-pin (DDC2B) x 1 Y/G

SERIAL IN / OUT D-sub 9-pin x 1 / x 1, RS-232C Compatible LAN IR TRANSMITTER IN / OUT Stereo Mini Jack (M3) x 1 / x 1 AUDIO OUT

USB USB 2.0 Type A connector x 1 DC 5 V/1A (USB 3.0 is not supported.)

■ AUDIO

Built in Speaker 20 W [10 W +10 W]

■ ELECTRICAL

Power Requirements AC 220 - 240 V 50/60 Hz Power Consumption 110 W On Mode Average Power Consumption* Power Off Condition approx. 0.3 W Stand-by Condition approx. 0.5 W Apparent power 116 VA

*Based on IEC 62087 Ed.2 measurement method

■ MECHANICAL

Dimensions (W x H x D) 1098 x 634 x 46 mm Weight approx. 14.7 kg Bezel Color Black Bezel Width T/R/L 9.5 mm, B 15.5 mm Carton Dimensions (W x H x D) 1292 x 883 x 203 mm Gross Weight approx. 21.0 kg Cabinet Material Front: Metal / Back: Plastic Pitch for Wall-Hanging VESA Compliant 400 x 400 mm (Installed by: M6 screws / Screw hole depth 10 mm)

■ INSTALLATION

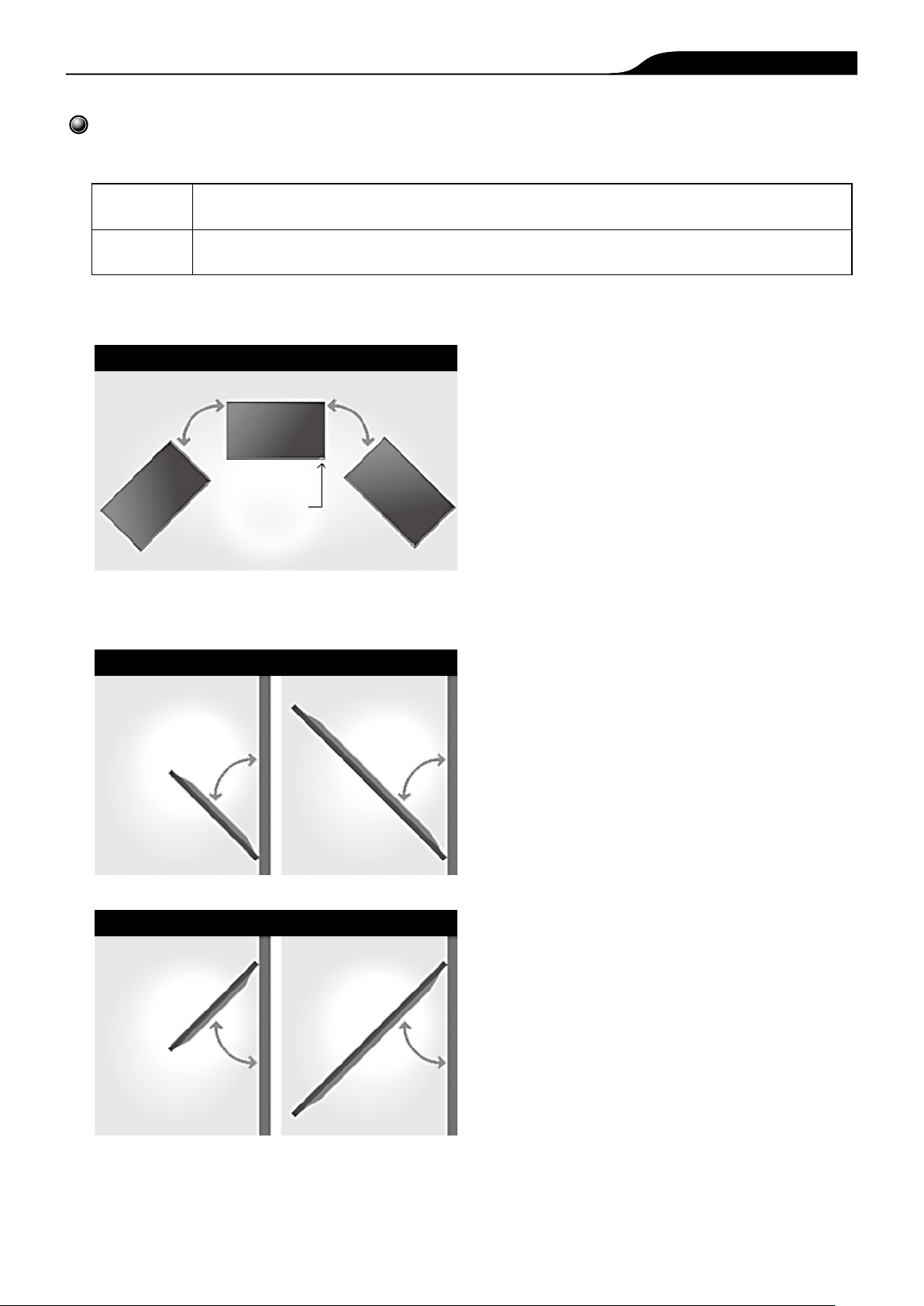

Orientation Landscape / Portrait (Rotation: Up to 45 degrees for each right and left with the display installed landscape) Tilting Angle Landscape : 0 - 45 degrees forward / backward

*Please contact your sales representative with regard to the tilt angle before installation.

*When you install the product upright, be sure to make the power lamp of the main body come to the upper side.

■ ENVIRONMENTAL

Operating Environment

Storage Environment

*1 : for up to 1400 m altitude *2 : for between 1400 m and 2800 m altitude

Depending on the temperature or humidity conditions, uneven brightness may be observed. This is not a malfunction.

・This unevenness will disappear while applying current continuously. If not, consult the distributor.

(design and specification subject to change without notice)

450 cd/m 1100:1 (typ.)

12 ms (typ.) (G to G)

approx. 50000 hours (typ)

4 Port mini Jack (M3) x 1 / x 1

(AUDIO IN Shared with DVI-D IN, PC IN, VIDEO IN)

RJ45 x 1, 10BASE-T/100BASE-TX, Compatible with PJLink

Stereo Mini Jack (M3) x 1 0.5 V [rms] Variable (- ∞ - 0 dB) (1 kHz 0 dB Input,10 k Ω Load)

73 W

Portrait : 0 - 45 degrees forward / backward

Temperature ：0℃ to 40℃ Humidity ：20% to 80% (No condensation) Altitude ：0 to 2800 m Temperature ：-20℃ to 60℃ Humidity ：20% to 80% (No condensation)

(typ.)

: 0℃ to 35℃

(Sampling frequency：48 kHz/44.1 kHz/32 kHz)

VIDEO： 1.0 V [p-p] (75 Ω ) AUDIO： 0.5 V [rms]

with HDCP 1.1

B/CB

R/CR

HD/VD

: with sync 1.0 V [p-p] (75 Ω ) : without sync 0.7 V [p-p] (75 Ω ) : 0.7 V [p-p] (75 Ω )

: 0.7 V [p-p] (75 Ω )

: HD/VD TTL (high impedance)

49-inch Class FULL HD LCD Display

MAIN FEATURE

USB Media Player YES Failback / Failover YES Data Cloning YES Digital ZOOM YES Multi display settings YES Power on screen delay YES Auto setting YES Screensaver YES HDMI power management YES PC power management YES DVI-D power management YES Power save YES Button lock YES Controller user level Input search YES 6-segment colour management YES Dynamic contrast YES Colour enhancement YES Refine enhancer YES Gradation smoother YES Set up timer YES AMX D.D. YES Crestron Connected Extron XTP YES WEB Browser control YES

PJLink

Image compatible Input Detection YES HDMI CEC compatible YES Viewer YES Early Warning Software compatible YES Multi Monitoring & Control Software compatible Video Wall Manager compatible YES CMS Content management Software compatible

YES

YES YES

YES

DIMENSIONS

TH-49SF2E

Operating Time* 24h/day

The brightness of the display panel is equivalent to about 75% its full capacity,

when the Light ID is transmitted. The displayed image may flicker, but this is due

to a change in the brightness during Light ID transmission and not due to trouble.

* In case of running for a long time, the moving image is recommended

to be displayed. If you display a still picture for an extended period, the image retention might remain on the screen. However, image retention can gradually disappear by displaying a moving images.

* Specifications and appearance are subject to change without notice.

STANDARD (CERTIFICATIONS)

SAFETY REGULATIONS

RADIATION REGULATIONS

REMOTE CONTROL TRANSMITTER

Power Requirements DC 3 V (2 x AAA Size batteries) Operating distance approx. 7 m* Weight approx. 63 g including batteries Dimensions (W x H x D) 48 x 134 x 20 mm

*When operated directly in front of receptor.

INCLUDED ACCESSORIES

- AC cord (1.8 m) - Remote Control - Batteries (AAA size) x 2

- Clamper x 3 - CD-ROM / User Manual

OPTIONAL ACCESSORIES

Pedestal Stand TY-ST43PE9

EU:EN60950-1:2006 + A11:2009 + A1:2010 + A12:2011+A2:2013 BEAB approval EN55032:2012+AC:2013 (CLASS A) EN55024:2010, EN61000-3-2:2014, EN61000-3-3:2013 IEC61000-4-2:2008, IEC61000-4-3:2010, IEC61000-4-4:2012 IEC61000-4-5:2005, IEC61000-4-6:2013, IEC61000-4-8:2009 IEC61000-4-11:2004

Cautions: This drawing is not a scale

Units : mm

1098

9.5 9.5

Effective Display Area 1073.7

15.5 9.5

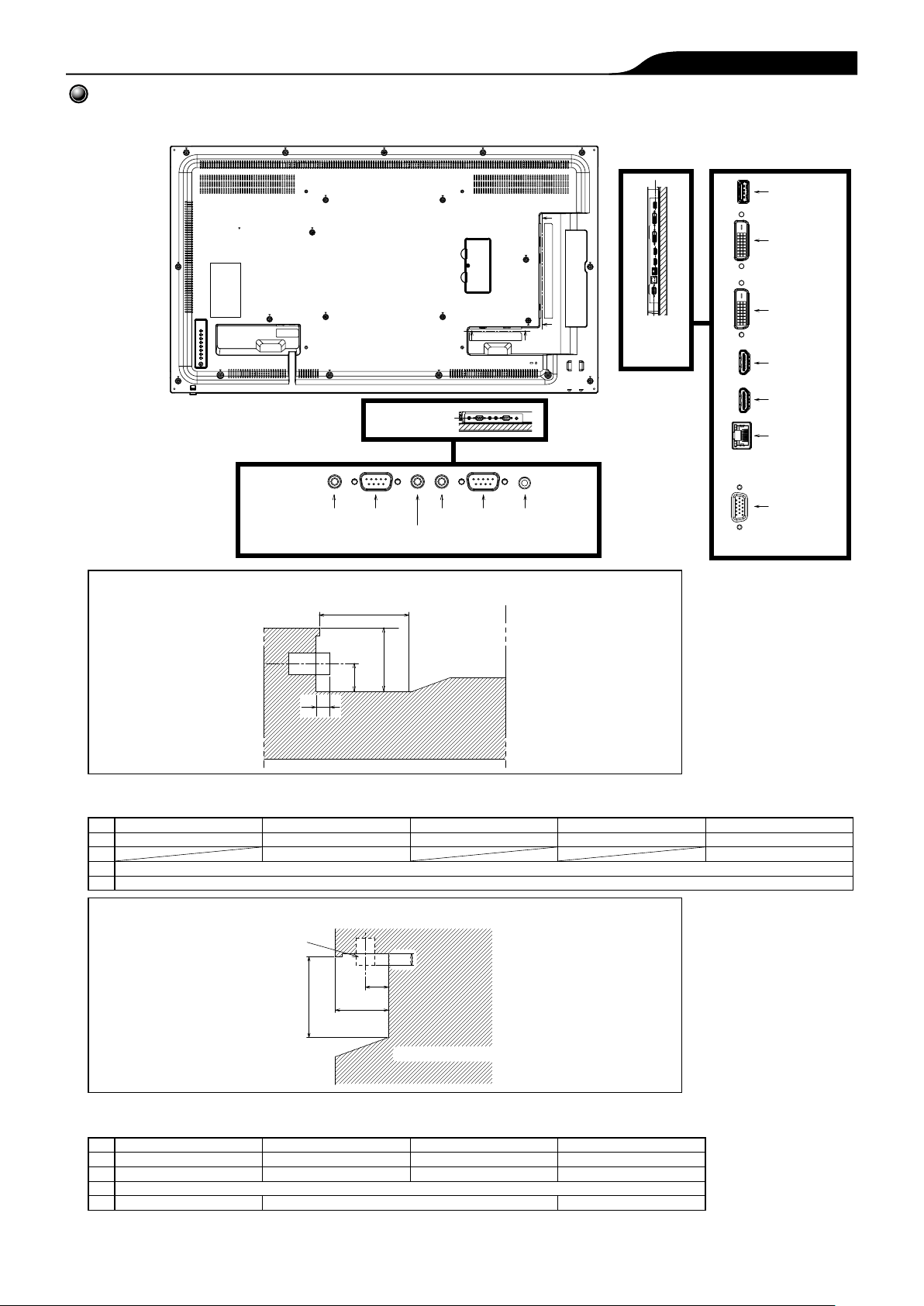

CONNECTION TERMINAL

634

604

Effective Display Area

16.6

58.6 22 3.4

46 400

400

M6 Screw hole depth 10 mm

DIGITAL LINK

* Specifications and appearance are subject to change without notice.
