Page 1

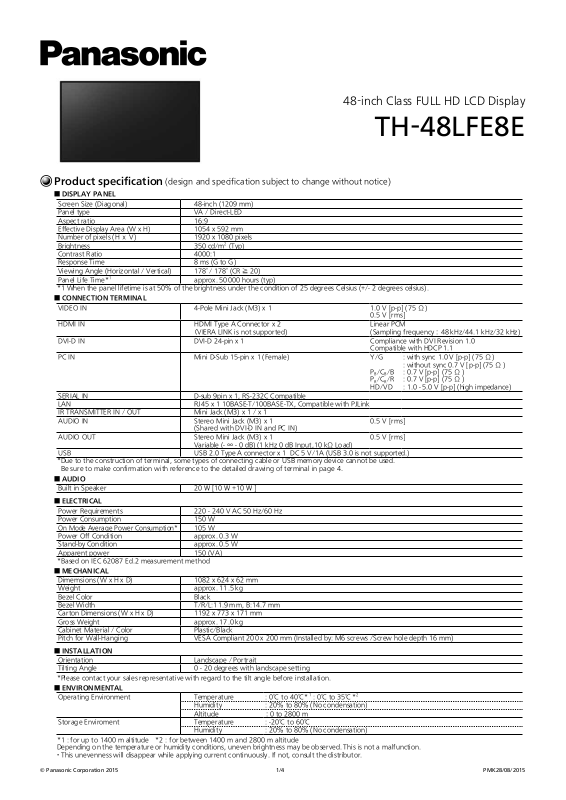

48-inch Class FULL HD LCD Display

TH-48LFE8E

(design and specification subject to change without notice)

Product specification

■ DISPLAY PANEL

Screen Size (Diagonal) 48-inch (1209 mm) Panel type VA / Direct-LED Aspect ratio 16:9 Effective Display Area (W x H) 1054 x 592 mm Number of pixels (H ｘ V) 1920 x 1080 pixels Brightness 350 cd/m Contrast Ratio 4000:1 Response Time 8 ms (G to G) Viewing Angle (Horizontal / Vertical) 178°/ 178° (CR ≧ 20) Panel Life Time*

*1 When the panel lifetime is at 50% of the brightness under the condition of 25 degrees Celsius (+/- 2 degrees celsius).

■ CONNECTION TERMINAL

VIDEO IN 4-Pole Mini Jack (M3) x 1 1.0 V [p-p] (75 Ω )

HDMI IN HDMI Type A Connector x 2

DVI-D IN DVI-D 24-pin x 1 Compliance with DVI Revision 1.0

PC IN Mini D-Sub 15-pin x 1 (Female) Y/G

SERIAL IN D-sub 9pin x 1, RS-232C Compatible LAN RJ45 x 1 10BASE-T/100BASE-TX, Compatible with PJLink　 IR TRANSMITTER IN / OUT Mini Jack (M3) x 1 / x 1 AUDIO IN Stereo Mini Jack (M3) x 1　

AUDIO OUT Stereo Mini Jack (M3) x 1　

USB USB 2.0 Type A connector x 1 DC 5 V/1A (USB 3.0 is not supported.)

*Due to the construction of terminal, some types of connecting cable or USB memory device cannot be used.

Be sure to make confirmation with reference to the detailed drawing of terminal in page 4.

■ AUDIO

Built in Speaker 20 Ｗ [10 Ｗ +10 Ｗ ]

■ ELECTRICAL

Power Requirements 220 - 240 V AC 50 Hz/60 Hz Power Consumption 150 W On Mode Average Power Consumption* Power Off Condition approx. 0.3 W Stand-by Condition approx. 0.5 W Apparent power 150 (VA)

*Based on IEC 62087 Ed.2 measurement method

■ MECHANICAL

Dimemsions (W x H x D) 1082 x 624 x 62 mm Weight approx. 11.5 kg Bezel Color Black Bezel Width T/R/L:11.9 mm, B:14.7 mm Carton Dimensions (W x H x D) 1192 x 773 x 171 mm Gross Weight approx. 17.0 kg Cabinet Material / Color Plastic/Black Pitch for Wall-Hanging VESA Compliant 200 x 200 mm (Installed by: M6 screws /Screw hole depth 16 mm)

■ INSTALLATION

Orientation Landscape / Portrait Tilting Angle 0 - 20 degrees with landscape setting

*Please contact your sales representative with regard to the tilt angle before installation.

■ ENVIRONMENTAL

Operating Environment Temperature : 0℃ to 40℃*1 : 0℃ to 35℃*

Storage Enviroment Temperature : -20℃ to 60℃

*1 : for up to 1400 m altitude　*2 : for between 1400 m and 2800 m altitude Depending on the temperature or humidity conditions, uneven brightness may be observed. This is not a malfunction.

・This unevenness will disappear while applying current continuously. If not, consult the distributor.

approx. 50000 hours (typ)

（VIERA LINK is not supported)

(Shared with DVI-D IN and PC IN)

Variable (- ∞ - 0 dB) (1 kHz 0 dB Input,10 kΩ Load)

105 W

Humidity : 20% to 80% (No condensation) Altitude ：0 to 2800 m

Humidity : 20% to 80% (No condensation)

(Typ)

0.5 V [rms] Linear PCM

(Sampling frequency：48 kHz/44.1 kHz/32 kHz)

Compatible with HDCP 1.1

B/CB

PR/CR/R HD/VD

0.5 V [rms]

: with sync 1.0 V [p-p] (75 Ω ) : without sync 0.7 V [p-p] (75 Ω )

: 0.7 V [p-p] (75 Ω ) : 0.7 V [p-p] (75 Ω ) : 1.0 - 5.0 V [p-p] (high impedance)

Page 2

48-inch Class FULL HD LCD Display

TH-48LFE8E

MAIN FEATURE

Digital Zoom Yes Multi Display Yes Power ON Screen Delay Yes 1:1 Pixel mode Yes Auto setup Yes Screen Saver Yes PC Power Management Yes DVI-D Power Management Yes HDMI Power Management Yes Input Lock Yes Button Lock Yes Remote-control User Level Yes Input Search Yes USB Media Player Yes Data Cloning Yes Early Warning Software compatible

Multi Monitoring & Control Software compatible

Operating Time*

*In case of running for a long time, the moving image is

recommended to be displayed. If you display a still picture for an extended period, the image retention might remain on the screen. However, image retention can gradually disappear by displaying movie images.

Yes

16 h/day

DIMENSIONS

724179 179

OPTIONAL ACCESSORIES

Pedestal Stand TY-ST43PE8

STANDARD (CERTIFICATIONS)

SAFETY REGULATIONS IEC60950-1 RADIATION REGULATIONS EN55022:2010 Class A,

EN55024:2010,EN61000-3-2 :2006+A1:2009+A2:2009 class D, EN61000-3-3:2013

REMOTE CONTROL TRANSMITTER

Power Requirements DC 3 V

Operating distance approx. 7 m* Weight approx. 63 g

Dimemsions (W x H x D) 44 x 105 x 20.5 mm

*When operated directly in front of receptor.

(2 x AAA Size batteries)

including batteries

INCLUDED ACCESSORIES

- AC cord (1.8 m)　- Remote Control　- Batteries (AAA size) x 2

- Clamper x 3　- CD-ROM / User Manual　- Operating instruction book

Cautions: This drawing is not a scale

Units : mm

1082

11.9

624

14.7 11.9

CONNECTION TERMINAL

11.9

145

200

100

200

* Specifications and appearance are subject to change without notice.

Page 3

48-inch Class FULL HD LCD Display

List of correspondence signals

The picture signal which can indicate a this machine is as it is the following table.

TH-48LFE8E

V：VIDEO R：D-sub RGB Y：YCbCr/YPbPr

D：DVI-D H：HDMI

■ Picture signal form

Correspondence signal

NTSC/NTSC4.43 ／

PAL-M/PAL60

PAL/PAL-N/SECAM 720 x 576i 15.63 50.00 ｰ V

525i (480i 625i (576i 525i (480i

625i (576i 525p (480p 625p (576p

750 (720) /60p 1280 x 720 45.00 60.00 74.25 R/Y/D/H 750 (720) /50p 1280 x 720 37.50 50.00 74.25 R/Y/D/H

1125(1080)/60i*

1125 (1080) /50i 1920 x 1080i 28.13 50.00 74.25 R/Y/D/H

1125 (1080) /24p 1920 x 1080 27.00 24.00 74.25 R/Y/D/H

1125 (1080) /24PsF 1920 x 1080i 27.00 48.00 74.25 R/Y

1125 (1080) /25p 1920 x 1080 28.13 25.00 74.25 R/Y/D/H 1125 (1080) /30p 1920 x 1080 33.75 30.00 74.25 R/Y/D/H 1125 (1080) /60p 1920 x 1080 67.50 60.00 148.50 R/Y/D/H 1125 (1080) /50p 1920 x 1080 56.25 50.00 148.50 R/Y/D/H

) ) ) )

) )

Resolution

(dot)

720 x 480i 15.73 59.94 ｰ V

720 x 480i 15.73 59.94 13.50 R/Y

720 x 576i 15.63 50.00 13.50 R/Y 720 (1440) x 480i* 720 (1440) x 576i*

720 x 480 31.47 59.94 27.00 R/Y/D/H

720 x 576 31.25 50.00 27.00 R/Y/D/H

1920 x 1080i 33.75 60.00 74.25 R/Y/D/H

Horizontal

(kHz)

15.73 59.94 27.00 D/H

15.63 50.00 27.00 D/H

Scan rate

Vertical

(Hz)

Dot clock rate

(MHz)

Input format

■ PC signal form

Correspondence signal

VESA400 640 x 400

VGA 640 x 480

SVGA 800 x 600

MAC16 832 x 624 49.72 74.55 57.28 R/Y/D/H

852 x 480 852 x 480 31.47 59.94 34.24 D/H

XGA 1024 x 768

WSVGA 1066 x 600 37.64 59.94 53.00 D/H

MXGA 1152 x 864

MAC21 1152 x 870 68.68 75.06 100.00 R/Y/D/H

1280 x 720 1280 x 720 44.76 60.00 74.48 R/Y/D/H

1280 x 768 1280 x 768

1280 x 800 1280 x 800

MSXGA 1280 x 960

SXGA 1280 x 1024

1360 x 768 1360 x 768

1366 x 768 1366 x 768

SXGA+ 1400 x 1050

WXGA+ 1440 x 900

1600 x 900 1600 X 900

WSXGA+ 1680 x 1050 65.29 59.95 146.25 R/Y/D/H

UXGA 1600 x 1200

1920 x 1080

WUXGA 1920 x 1200

● The signal format distinguished automatically will be sometimes indication different from an actual input signal. *1: When 1125 (1035) /60i signal is input, it is displayed as 1125 (1080) /60i signal.

*2: Pixel-Repetition signal (dot clock frequency 27.0 MHz) only *3: Displayed with image elements thinned out in the image processing circuit. *4: Based on VESA CVT-RB (Reduced Blanking) standard

Resolution

(dot)

1920 x 1080

1920 x 1080 67.50 60.00 148.50 R/Y/D/H

Horizontal

(kHz)

31.47 70.09 25.18 R/Y/D/H

31.50 85.08 31.50 R/Y/D/H

31.47 59.94 25.18 R/Y/D/H

35.00 66.67 30.24 R/Y/D/H

37.86 72.81 31.50 R/Y/D/H

37.50 75.00 31.50 R/Y/D/H

43.27 85.01 36.00 R/Y/D/H

35.16 56.25 36.00 R/Y/D/H

37.88 60.32 40.00 R/Y/D/H

48.08 72.19 50.00 R/Y/D/H

46.88 75.00 49.50 R/Y/D/H

53.67 85.06 56.25 R/Y/D/H

39.55 50.00 51.89 D/H

48.36 60.00 65.00 R/Y/D/H

56.48 70.07 75.00 R/Y/D/H

60.02 75.03 78.75 R/Y/D/H

65.55 81.63 86.00 R/Y/D/H

68.68 85.00 94.50 R/Y/D/H

53.70 60.00 81.62 D/H

63.99 70.02 94.20 R/Y/D/H

67.50 75.00 108.00 R/Y/D/H

77.09 85.00 119.65 R/Y/D/H

39.55 49.94 65.18 R/Y/D/H

47.70 60.00 80.14 R/Y/D/H

47.78 59.87 79.50 R/Y/D/H

41.20 50.00 68.56 R/Y/D/H

49.31 59.91 71.00 R/Y/D/H

49.70 59.81 83.50 R/Y/D/H

60.00 60.00 108.00 R/Y/D/H

85.94 85.00 148.50 R/Y

63.98 60.02 108.00 R/Y/D/H

79.98 75.02 135.00 R/Y/D/H

91.15 85.02 157.50 R/Y/D/H

47.71 60.02 85.50 D/H

47.70 60.00 84.72 D/H

47.72 59.80 84.75 D/H

39.55 50.00 69.92 D/H

48.39 60.03 86.71 R/Y/D/H

48.00 60.00 72.00 R/Y/D/H

39.56 49.89 69.00 R/Y/D/H

47.71 59.79 85.50 R/Y/D/H

65.22 60.00 122.61 D/H

82.20 75.00 155.85 R/Y/D/H

55.47 59.90 88.75 R/Y/D/H

55.92 60.00 106.47 R/Y/D/H

46.30 50.00 97.05 D/H

60.00 60.00 108.00 D/H

55.99 59.95 118.25 D/H

55.92 60.00 119.00 D/H

75.00 60.00 162.00 R/Y/D/H

66.59 59.93 138.50 R/Y/D/H

74.04 59.95 154.00 R/Y/D/H

Scan rate

Vertical

(Hz)

Dot clock rate

(MHz)

Input format

Page 4

48-inch Class FULL HD LCD Display

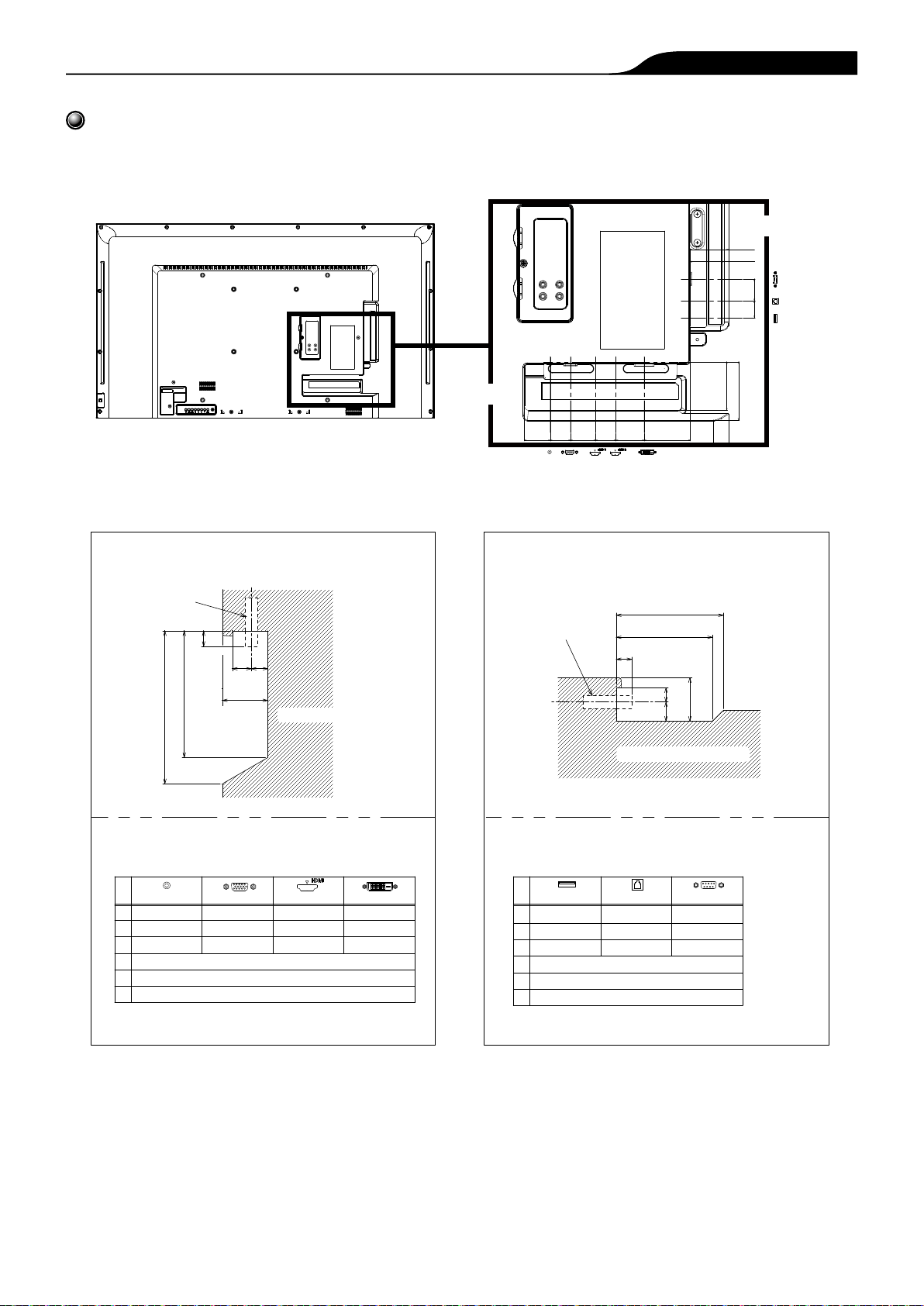

Drawing of terminals

TH-48LFE8E

View from back

Sectional view of terminal a

（VIDEO/PC/HDMI/DVI）

Terminals

Magnified figure of terminal

Terminal a

30.8 24 30 24 33.5 54.8

VIDEOPCHDMI 1 HDMI 2

Sectional view of terminal b

（USB/LAN/SERIAL）

Terminals

DVI-D

Terminal b

45.5

40.3

SERIAL

LAN

USB

69.1

(on the product side)

VIDEO

9.6 B C

1.7

6.36.6

5.3 D E F

*Due to the construction of terminal, some types of connecting cable or USB memory device cannot be used.

Be sure to use connecting cable or USB memory device after confirmation in this drawing.

19.9

58.0

69.1

HDMI

7.69.8

8.6

-0.8

DVI

9.1

7.1

5.6

48LFE8E48LFE8E

USB

8.8

8.0

-0.8

LAN

11.5

7.0

-0.2

19.1

40.3

45.5

SERIAL

11.0

5.7

5.3
