Panasonic th-47lfx60u, th-47lfx60 operating instructions

Download

Page 1

Operating Instructions (Details)

FULL HD LCD Display (for business use)

Model No.

TH-47LFX60U TH-47LFX6NU TH-47LFX60W TH-47LFX6NW

English

Please read these instructions before operating your set and retain them for future reference.

Page 2

Dear Panasonic Customer

Welcome to the Panasonic family of customers. We hope that you will have many years of enjoyment from your new LCD Display. To obtain maximum benefit from your set, please read these Instructions before making any adjustments, and retain them for future reference. Retain your purchase receipt also, and note down the model number and serial number of your set in the space provided on the rear cover of these instructions. Visit our Panasonic Web Site http://panasonic.net

Page 3

Precautions for Installation

• Do not install by yourself. Please ask a installation professional or your dealer to install.

• This product corresponds to IP55 resistance of the product.

• Please note the dust and water resistance of this product does not guarantee damage or fault free.

CAUTION

This product corresponds to international standard IP rating (Ingress Protection) dust ingress protection level 5 and water ingress protection level 5.

Terminal cover

After connecting cable etc. of the device to the terminals, check if the terminal cover is sealed correctly and closed  rmly using all the  xing screws when attaching the terminal cover. To seal the terminal cover correctly, be aware of the following points:

Check if the  xing sealant is  xed in the correct position in the cover. Fixing sealant is an important part to seal the cable part.

Terminal part on main unit rear side

dust and water protection standard. Do not change or damage dust or water

Using with dust or water resistance degraded causes fire, electric shock, or product damage.

Terminal cover rear side

Note:

IPX5 water resistance refers to the capability to prevent the harmful effects of water jet from any directions.

Fixing sealant

Stick the cable to the shape of the dent on the terminal strip base tightly.

*1: Based on tests performed by Cosmos Corporation.

The structure is to keep the

•

airtightness by tucking the cable pulled out along the dent on the terminal strip base with both fixing sealant of the terminal strip base and terminal cover.

iii

Page 4

Precautions for Installation

Protective coating

Cabinet aluminum parts and rear face are protected from corrosion with coating. Be careful not to damage the surface. In case the surface is damaged, corrosion may occur from there.

Installation position

•

When direct sunlight is on the screen, black shadow may appear. This will disappear when the temperature drops.

• To install the product long term in a special environment such as near a swimming pool, hot spring, or ocean, or in a factory uses chemicals or gases, please consult your local Panasonic dealer beforehand.

• The product is equipped with cooling fans and air  lters that need to be cleaned or replaced if covered with dust. Removing or installing air  lters requires space around the Display. With this in mind, provide adequate space when installing the Display.

[Height 7.874”/200 mm or greater, Width 7.874”/200 mm or greater, Depth 7.874”/200 mm or greater]

d:7.874”/200 mm or greater

Installation conditions

To use the product in an environment where outdoor air temperature is lower than 32 °F (0 °C), make sure to set the “Outdoor mode” to “On”. The inside temperature is kept constant and the startup can be performed

smoothly. (see page 17, 33)

Consult your dealer if this product will be exhibited or used in a condition where it will be splashed with water continuously or for a long time.

Always use the product at an ambient temperature in the range of 32 °F - 122 °F / 0 °C - 50 °C (during Outdoor mode: -4 °F - 122 °F / -20 °C - 50 °C). Ambient temperature refers to the temperature of the air immediately in front of the inlets on the back of the Display.

Set Outdoor mode to “On” if the Display is installed where direct sunlight is on the screen.

The Display can be tilted forward or backward at an angle as high as 20 degrees.

To install on a wall etc.

• Consult your dealer about  ttings etc. beforehand.

• In securing the back side of the Display to a wall, use VESA-based (400 x 400)  ttings. Note that any VESA-based  ttings should not interfere with the screws (x 10) allowing the  lter covers or terminal cover to be attached / removed and the front door to be opened / closed (in the interest of operations by a service contractor).

Page 5

Precautions for Installation

• Choose a permanent position where the total weight of the product and  ttings can be hold permanently. If the strength of the position is not suf cient, a serious accident such as fall may be caused.

• Do not install the product where a person can be hang or lean on, or a passer may collide into. Accident may be caused.

• Take measures for tipping over and fall with an assumption of a  tting or installation location failure.

• Installation strength may be degraded due to aging depends on the environment. Ask a installation professional to inspect or repair regularly.

• When an abnormality or fault such as loose screw is detected, ask an installation professional or your dealer immediately for repair.

• Panasonic will not be responsible for any damages from an accident such as defect of installation, improper use, modi cation, or natural disaster.

Page 6

CAUTION

RISK OF ELECTRIC SHOCK

WARNING: To reduce the risk of electric shock, do not remove cover or back. No user-serviceable parts inside. Refer servicing to qualified service personnel.

DO NOT OPEN

The lightning flash with arrowhead within a triangle is intended to tell the user that parts inside the product are a risk of electric shock to persons.

The exclamation point within a triangle is intended to tell the user that important operating and servicing instructions are in the papers with the appliance.

WARNING :

2) Do not remove the grounding pin on the power plug. This apparatus is equipped with a three

1) To prevent electric shock, do not remove cover. No user serviceable parts inside. Refer



servicing to quali ed service personnel.

pin grounding-type power plug. This plug will only  t a grounding-type power outlet. This is a safety fea ture. If you are unable to insert the plug into the outlet, contact an electrician.

Important Safety Instructions

1) Read these instructions.

2) Keep these instructions.

3) Heed all warnings.

4) Follow all instructions.

5) Clean only with dry cloth.

6) Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.

7) Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including ampli ers) that produce heat.

8) Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not  t into your outlet, consult an electrician for replacement of the obsolete outlet.

9) Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

10) Only use attachments / accessories speci ed by the manufacturer.

11) Use only with the cart, stand, tripod, bracket, or table speci ed by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart / apparatus combination to avoid injury from tip-over.

12) Unplug this apparatus during lightning storms or when unused for long periods of time.

13) Refer all servicing to quali ed service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

14) To prevent electric shock, ensure the grounding pin on the AC cord power plug is securely connected.

Page 7

FCC STATEMENT

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult the dealer or an experienced technician for help.

This device complies with Part15 of the FCC Rules. Operation is subject to the following two conditions:(1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

FCC CAUTION: To assure continued compliance, follow the attached installation instructions and use only shielded interface cables when connecting to computer or peripheral devices. Any changes or modi cations not expressly approved by Panasonic Corp. of North America could void the user's authority to operate this device.

FCC Declaration of Conformity

Model No. TH-47LFX60U, TH-47LFX6NU

Responsible Party: Panasonic Corporation of North America Two Riverfront Plaza, Newark, New Jersey 07102-5490 Contact Source: Panasonic System Communications Company of North America

1-877-655-2357

CANADIAN NOTICE:

This Class B digital apparatus complies with Canadian ICES-003.

vii

Page 8

Important Safety Notice

IMPORTANT: THE MOULDED PLUG (For TH-47LFX60W and TH-47LFX6NW)

WARNING

1) No naked  ame sources, such as lighted candles, should be placed on / above the set.

2) To prevent electric shock, do not remove cover. No user serviceable parts inside. Refer servicing to quali ed service personnel.

3) Do not remove the earthing pin on the power plug. This apparatus is equipped with a three pin earthing-type power plug. This plug will only  t an earthing-type power outlet. This is a safety feature. If you are unable to insert the plug into the outlet, contact an electrician.

Do not defeat the purpose of the earthing plug.

4) To prevent electric shock, ensure the earthing pin on the AC cord power plug is securely connected.

CAUTION

This appliance is intended for use in environments which are relatively free of electromagnetic  elds. Using this appliance near sources of strong electromagnetic  elds or where electrical noise may overlap with the input signals could cause the picture and sound to wobble or cause interference such as noise to appear. To avoid the possibility of harm to this appliance, keep it away from sources of strong electromagnetic  elds.

FOR YOUR SAFETY, PLEASE READ THE FOLLOWING TEXT CAREFULLY.

This display is supplied with a moulded three pin mains plug for your safety and convenience. A 10 amp fuse is  tted in this plug. Shall the fuse need to be replaced, please ensure that the replacement fuse has a rating of 10 amps and that it is approved by ASTA or BSI to BS1362.

Check for the ASTA mark

If the plug contains a removable fuse cover, you must ensure that it is re tted when the fuse is replaced. If you lose the fuse cover the plug must not be used until a replacement cover is obtained. A replacement fuse cover can be purchased from your local Panasonic dealer.

Do not cut off the mains plug. Do not use any other type of mains lead except the one supplied with this display. The supplied mains lead and moulded plug are designed to be used with this display to avoid interference and for your safety. If the socket outlet in your home is not suitable, get it changed by a quali ed electrician. If the plug or mains lead becomes damaged, purchase a replacement from an authorized dealer.

WARNING : — THIS DISPLAY MUST BE EARTHED.

How to replace the fuse.

IMPORTANT: THE MOULDED PLUG (For TH-47LFX60W and TH-47LFX6NW)

or the BSI mark on the body of the fuse.

ASA

Open the fuse compartment with a screwdriver and replace the fuse.

viii

Page 9

Table of Contents

Precautions for Installation .................................... iii

Important Safety Instructions ................................. vi

FCC STATEMENT .................................................... vii

Important Safety Notice ........................................ viii

Safety Precautions ................................................... 2

Accessories .............................................................. 6

Accessories Supply ................................................. 6

Remote Control Batteries ........................................ 7

About Power Supply Cord ....................................... 8

Connections .............................................................. 9

How to remove terminal cover ................................. 9

AC cord connection ................................................. 9

Video equipment connection ................................. 10

AUDIO OUT connection .........................................11

HDMI connection ....................................................11

DVI-D IN connection .............................................. 12

PC Input Terminals connection .............................. 13

SERIAL Terminals connection ............................... 14

Example connection using the DIGITAL LINK

Terminal ................................................................. 15

Power On / Off ......................................................... 16

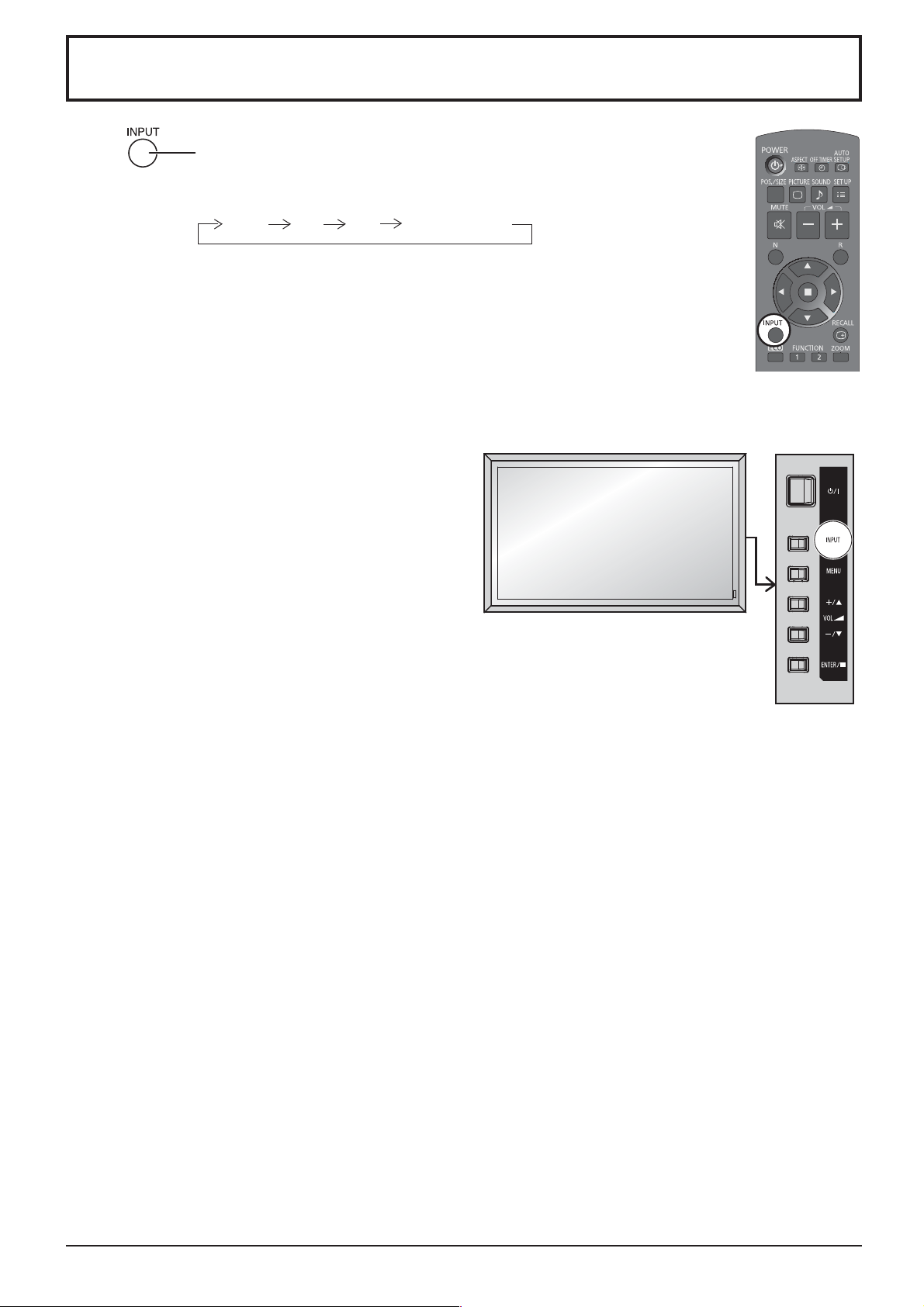

Selecting the input signal ...................................... 18

Basic Controls ........................................................ 19

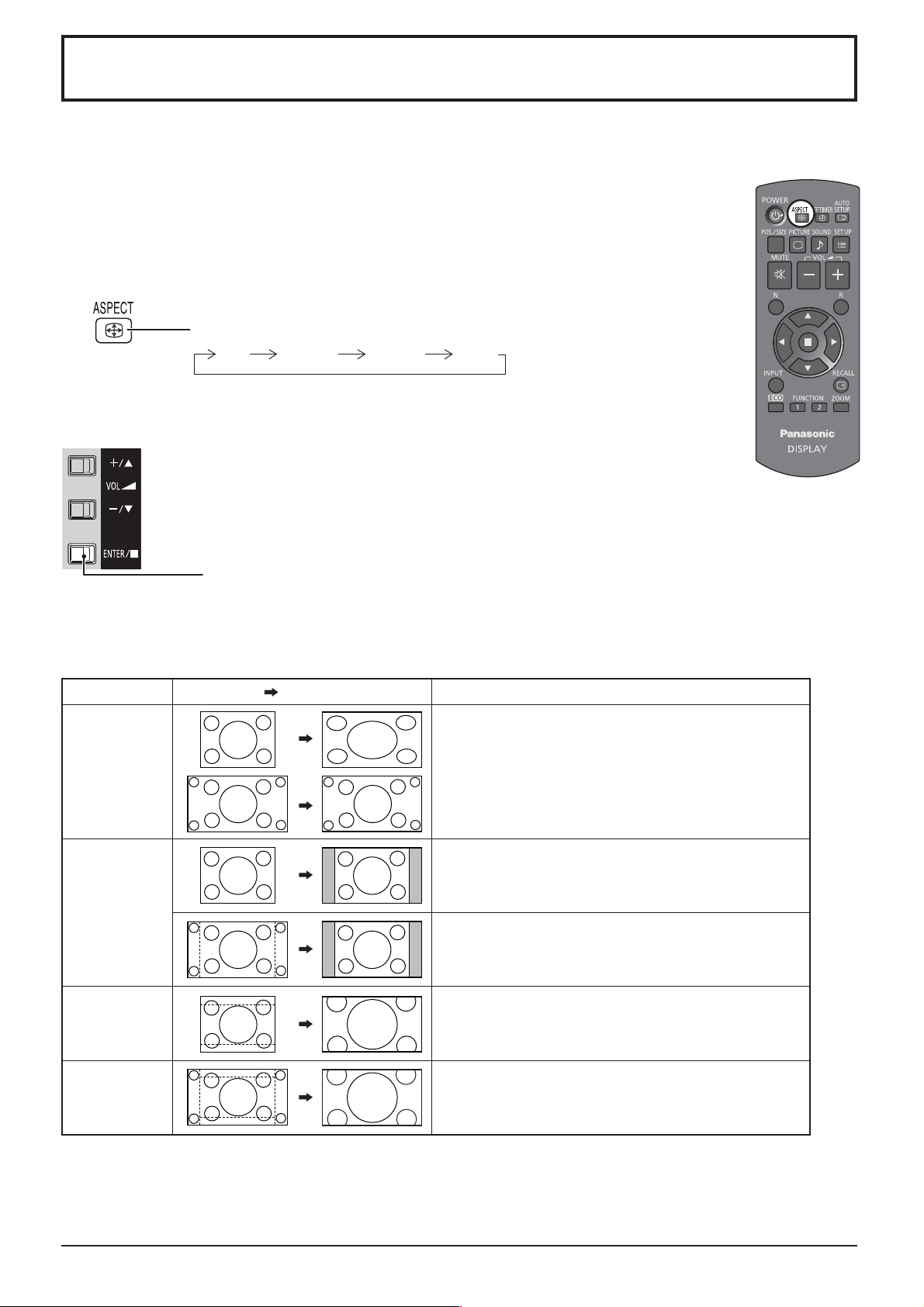

ASPECT Controls ................................................... 21

Digital Zoom ............................................................ 22

On-Screen Menu Displays ..................................... 23

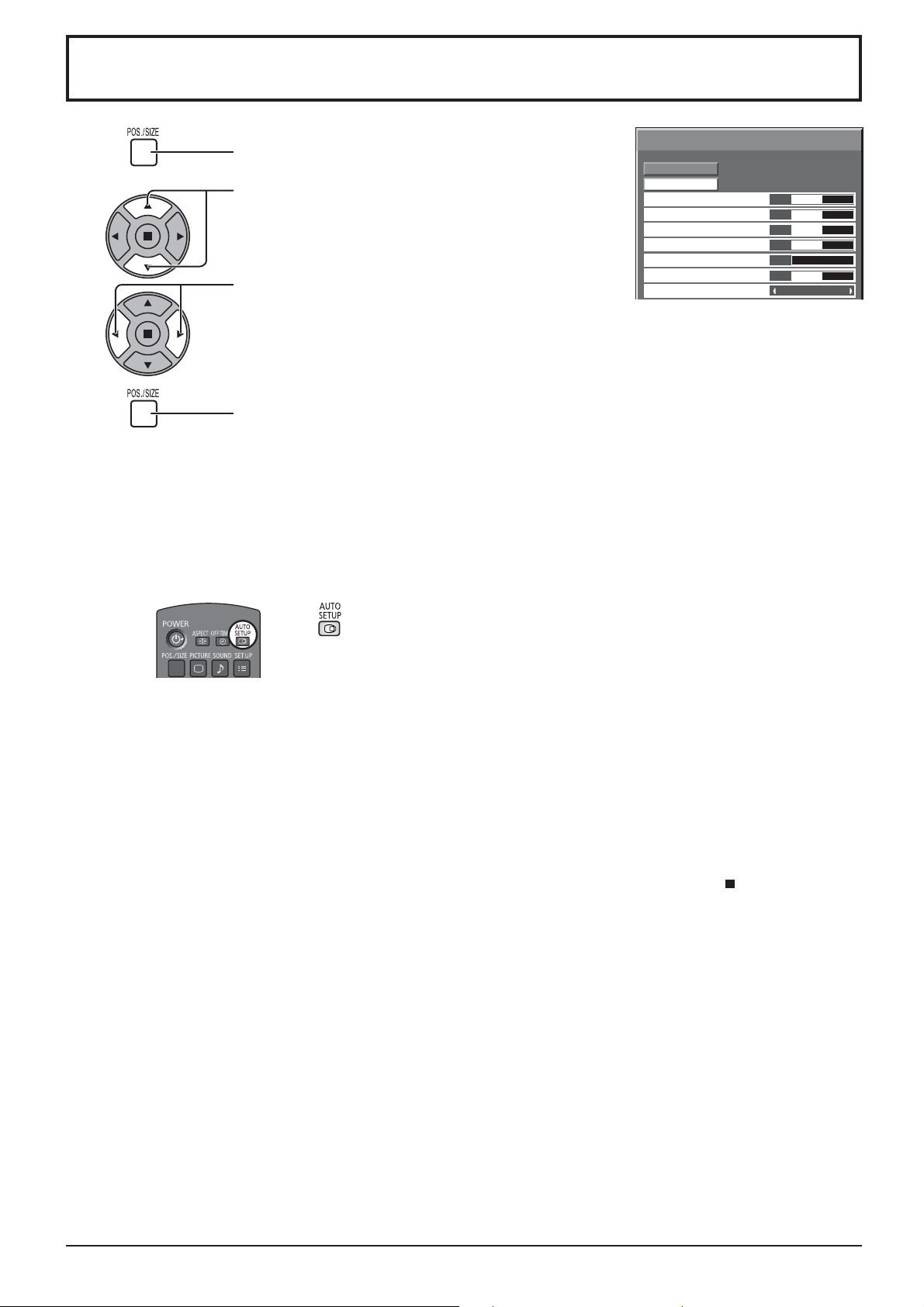

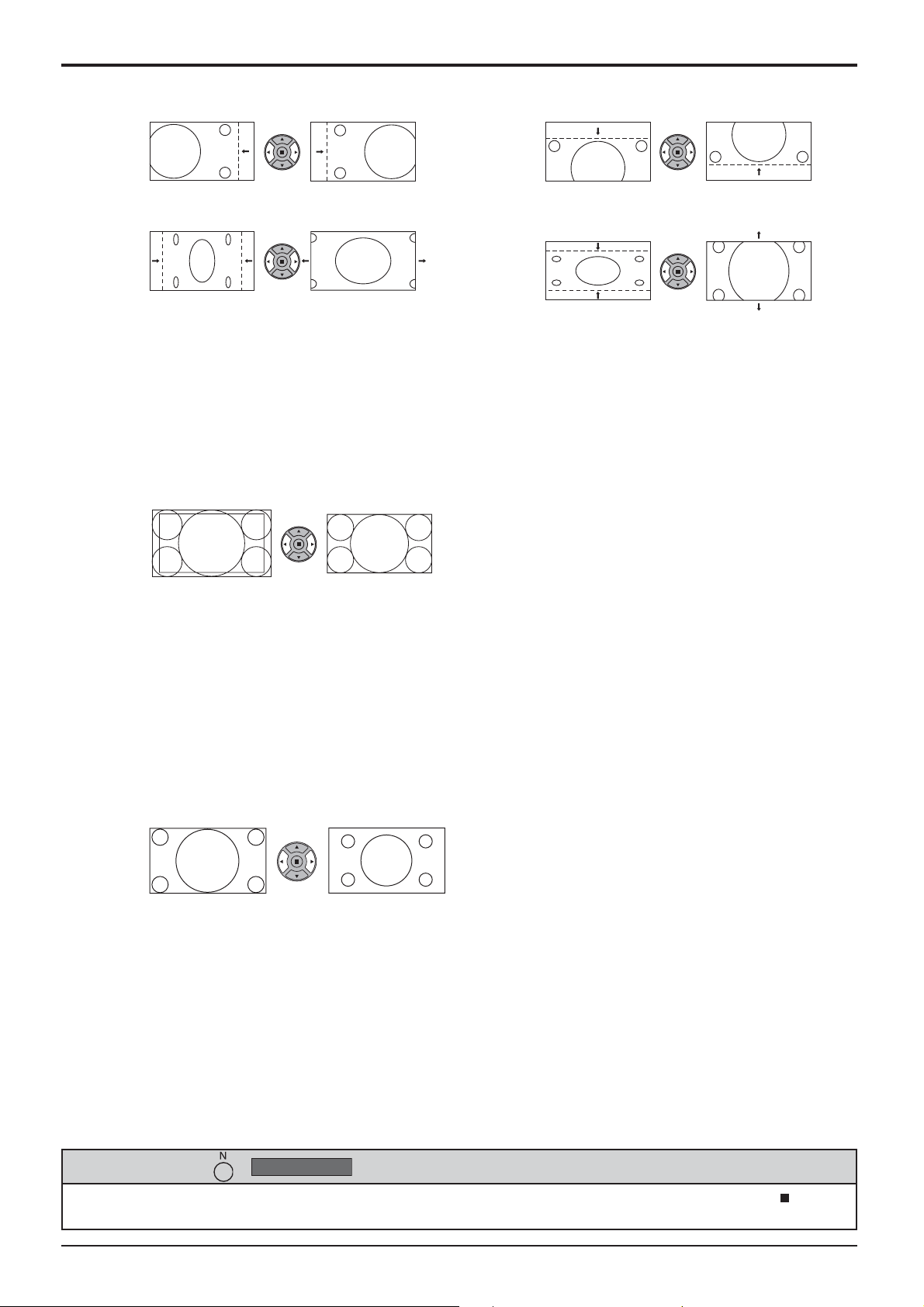

Adjusting Pos. /Size ............................................... 24

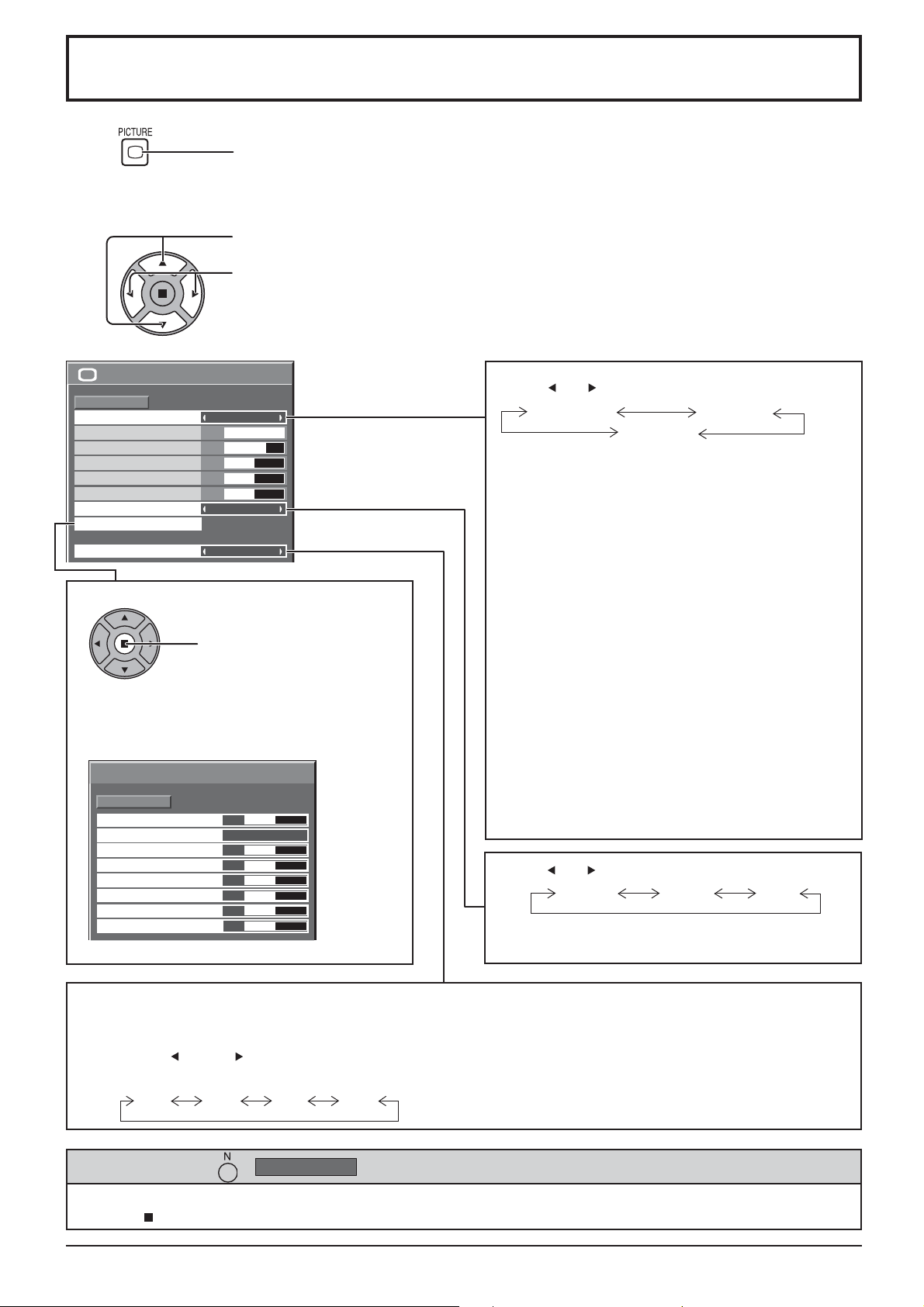

Picture Adjustments ............................................... 26

Advanced settings ................................................. 27

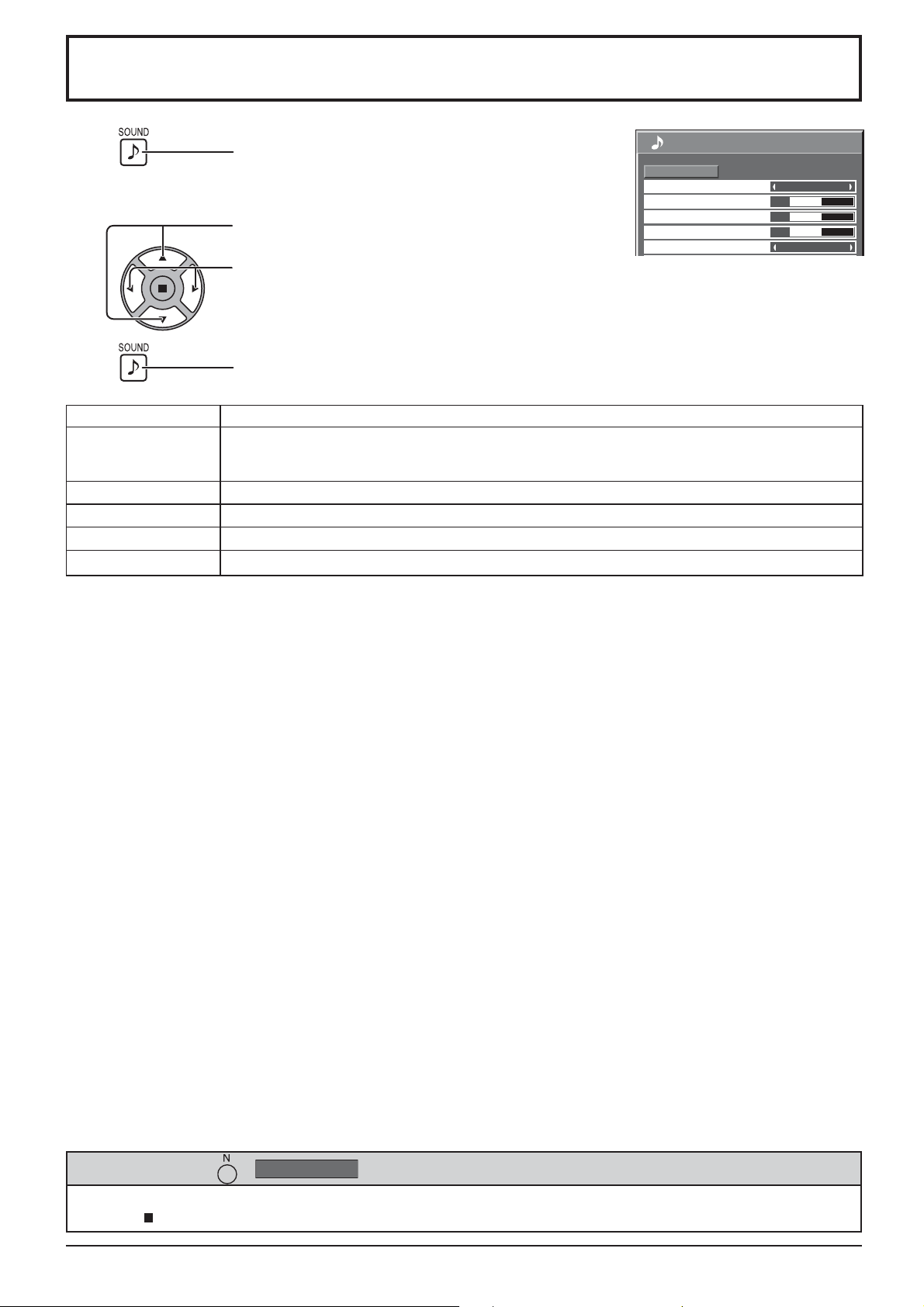

Sound Adjustment .................................................. 28

PRESENT TIME Setup / Set up TIMER .................. 29

PRESENT TIME Setup .......................................... 29

Set up TIMER ........................................................ 30

Screensaver (For preventing image retention) .... 31

Setup of Screensaver Time ................................... 32

Wobbling ................................................................. 32

No activity power off .............................................. 33

Outdoor mode ......................................................... 33

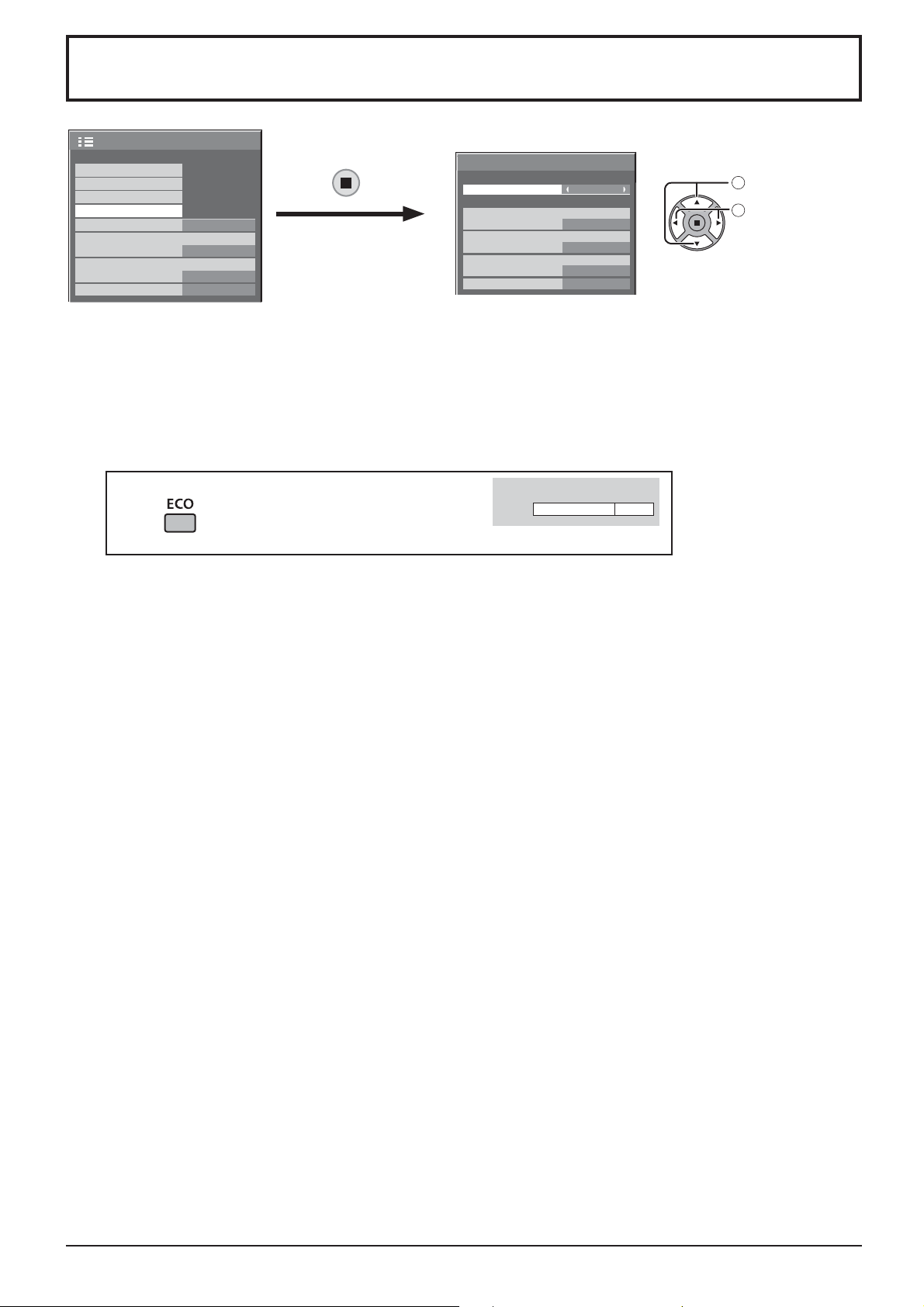

ECO Mode settings ................................................. 34

Customizing the Input labels ................................. 35

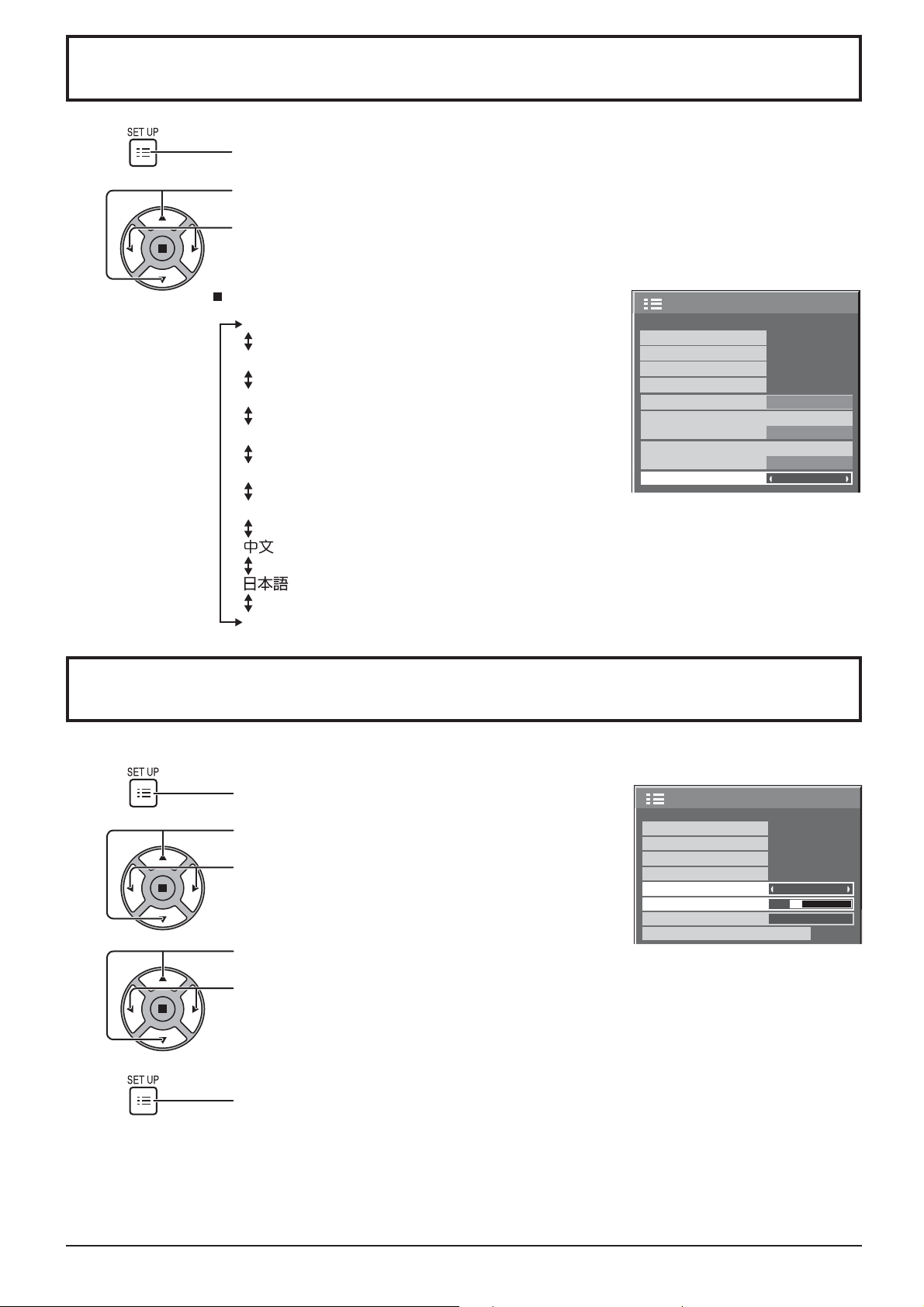

Selecting the On-Screen Menu Language ............ 36

Customizing the On-Screen Menu Display .......... 36

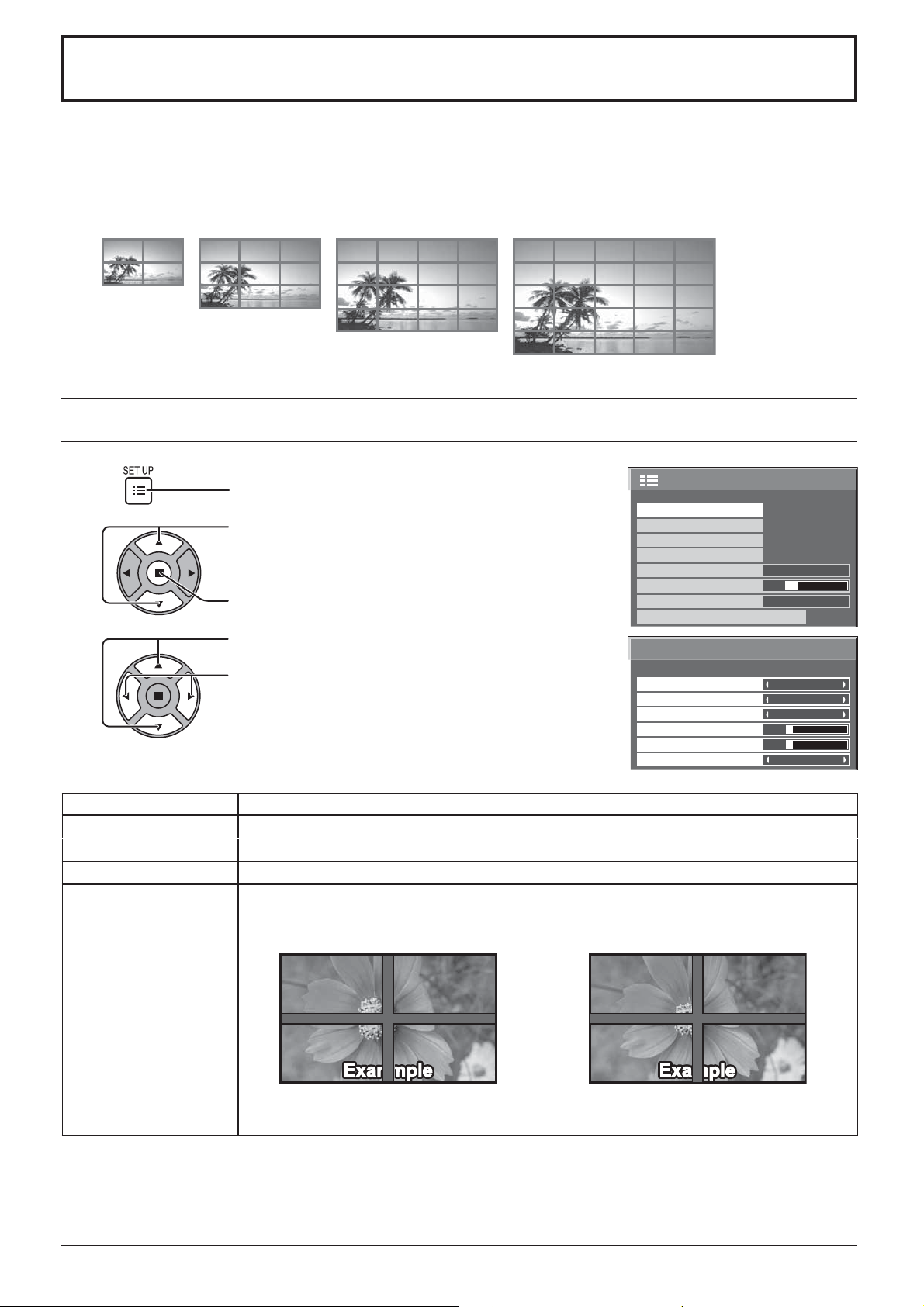

Setup for MULTI DISPLAY ...................................... 37

How to Setup MULTI DISPLAY ............................. 37

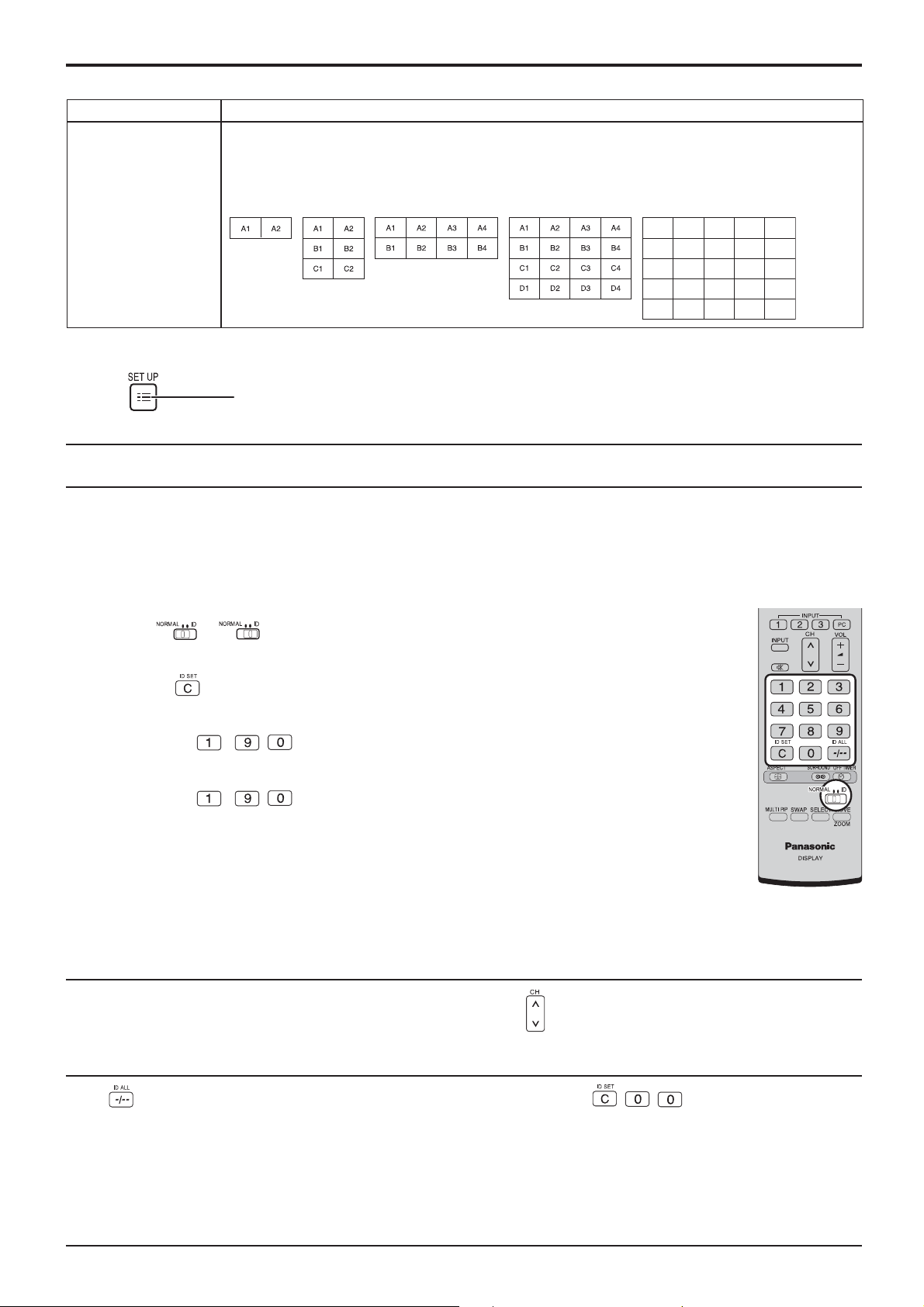

ID Remote Control Function .................................. 38

Setup for Input Signals .......................................... 39

YUV / RGB-in select .............................................. 39

Signal menu .......................................................... 39

Cinema reality* ...................................................... 40

XGA Mode ............................................................. 40

Sync ...................................................................... 40

HDMI Range .......................................................... 41

Input signal display ................................................ 41

Maintenance information ....................................... 42

Network Setup ........................................................ 43

Options Adjustments ............................................. 46

Input Search .......................................................... 48

RS-232C/LAN Information Timing ......................... 49

Using Network Function ........................................ 50

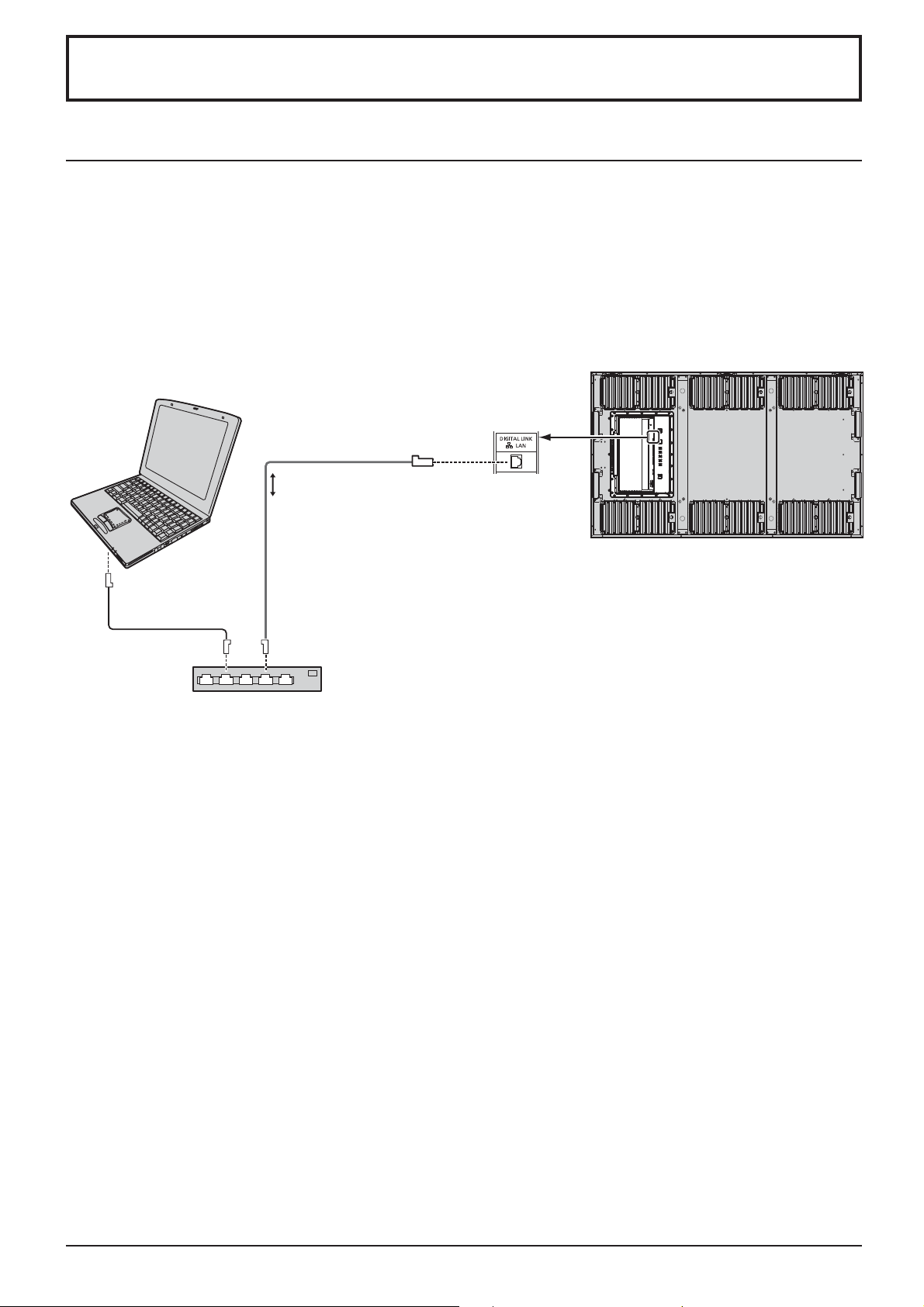

Network Connection .............................................. 50

DIGITAL LINK Connections (connecting with a

twisted pair cable transmitter) ............................... 51

Command Control ................................................. 52

PJLink™ Protocol .................................................. 52

Using Web Browser Control .................................. 53

Before Using Web Browser Control....................... 53

Access from Web Browser .................................... 53

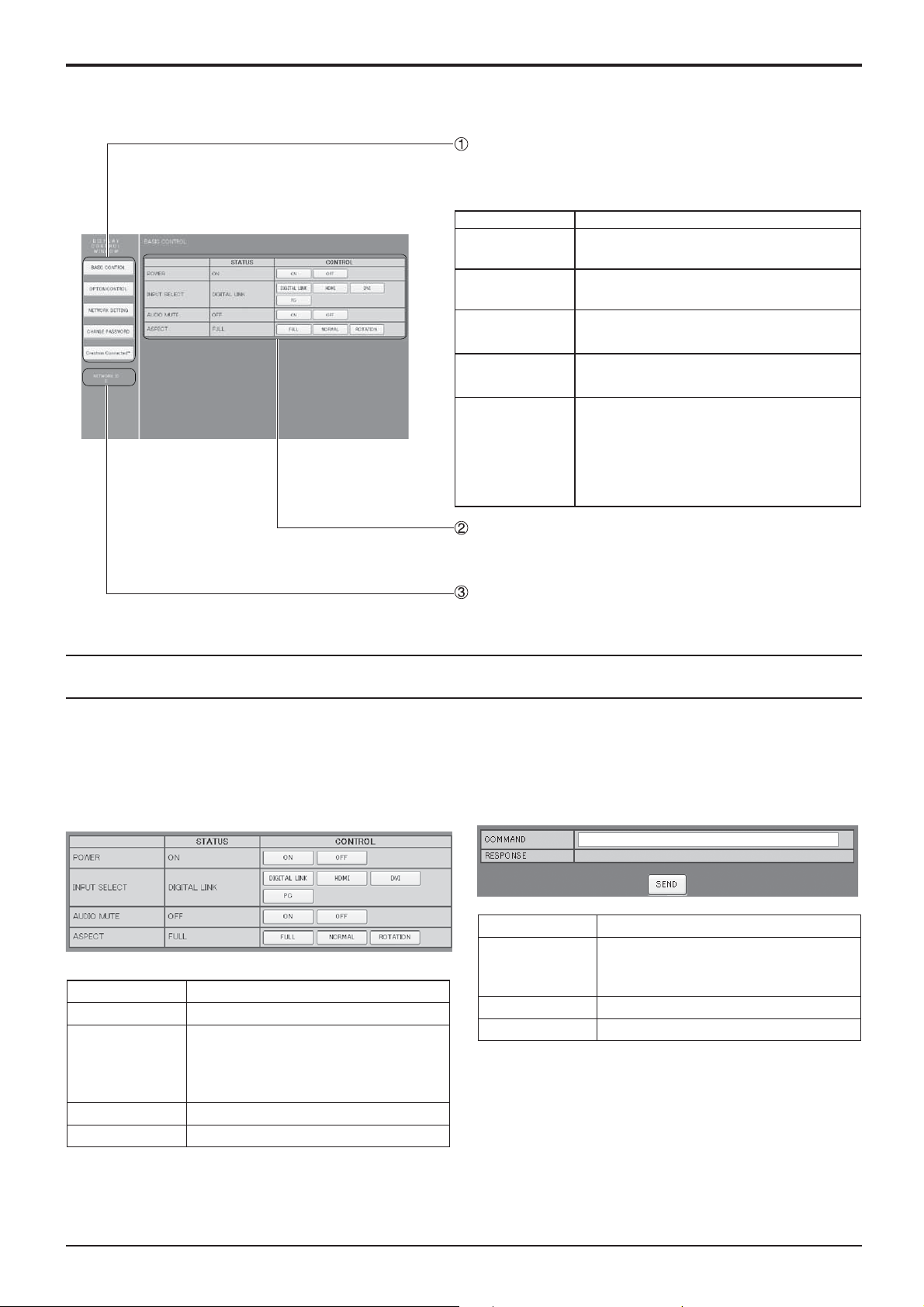

Display Control (BASIC CONTROL/OPTION

CONTROL Screen) ............................................... 54

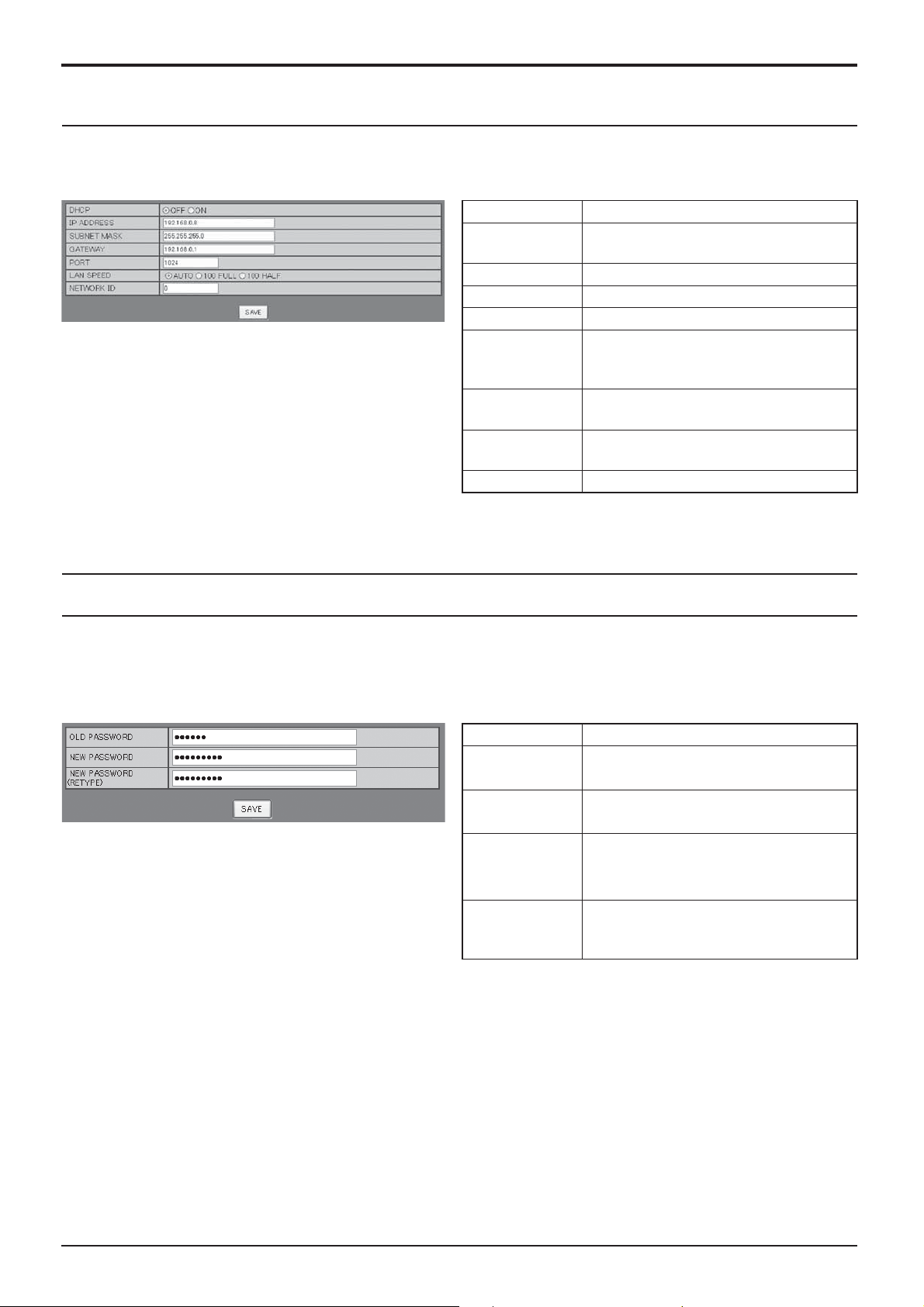

NETWORK SETTING (NETWORK SETTING

Screen) .................................................................. 55

Password Setting (CHANGE PASSWORD

Screen) .................................................................. 55

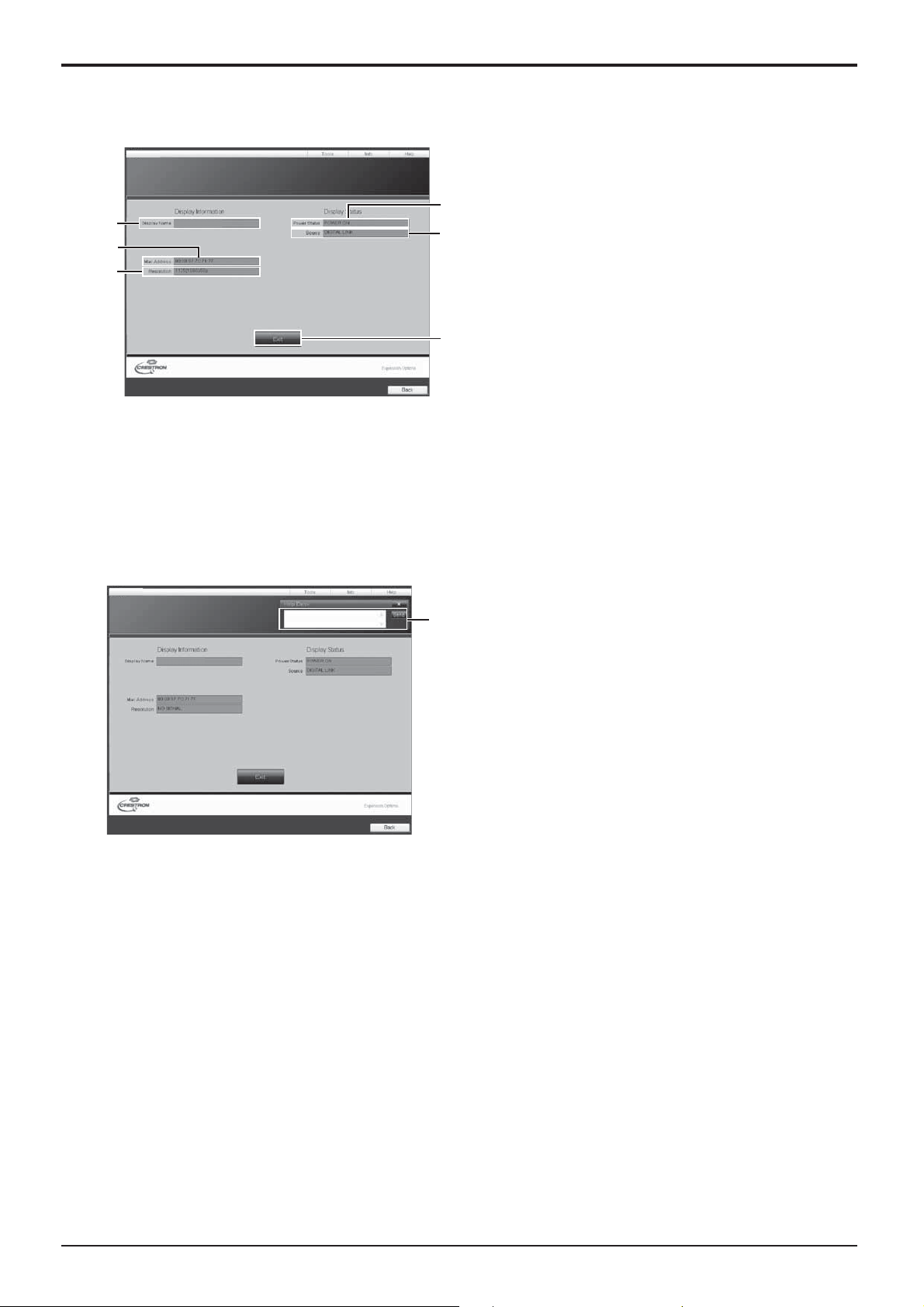

Crestron Connected™ page .................................. 56

Troubleshooting ..................................................... 58

Applicable Input Signals ........................................ 60

Shipping condition ................................................. 61

Speci cations ......................................................... 62

Trademark Credits

• VGA is a trademark of International Business Machines Corporation.

• Microsoft®, Windows®, Windows Vista®, and Internet Explorer® are the registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries.

• Macintosh, Mac, Mac OS, OS X and Safari are the trademarks of Apple Inc. registered in the United States and other countries.

• SVGA, XGA, SXGA and UXGA are registered trademarks of the Video Electronics Standard Association.

Even if no special notation has been made of company or product trademarks, these trademarks have been fully

respected.

• HDMI, the HDMI Logo, and High-De nition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.

• RoomView, Crestron RoomView and Fusion RV are registered trademarks of Crestron Electronics, Inc, and Crestron Connected is the trademark of Crestron Electronics, Inc.

Note:

Image retention may occur. If you display a still picture for an extended period, the image might remain on the screen. However, it will disappear after a while.

Page 10

Safety Precautions

WARNING

Setup

This LCD Display is for use only with the following optional accessories. Use with any other type of optional accessories may cause instability which could result in the possibility of injury.

(All of the following accessories are manufactured by Panasonic Corporation.)

Replacement Air Filter .................................... TY-AF60STD (Air  lter A: 6, Air  lter B: 3, Air  lter C: 3)

We are not responsible for any product damage, etc. caused by use of the wall-hanging bracket or ceiling-hanging bracket other than those speci ed, or by failures in the installation environment for the wall-hanging bracket or ceilinghanging bracket even during the warranty period.

Always be sure to ask a quali ed technician to carry out set-up.

Small parts can present choking hazard if accidentally swallowed. Keep small parts away from young children. Discard unneeded small parts and other objects, including packaging materials and plastic bags/sheets to prevent them from being played with by young children, creating the potential risk of suffocation.

Do not place the Display on sloped or unstable surfaces, and ensure that the Display does not hang over the edge of the base.

• The Display may fall off or tip over.

Do not place any objects on top of the Display.

• If any foreign objects get inside the Display, please consult your local Panasonic dealer.

Transport only in upright position!

• Transporting the unit with its display panel facing upright or downward may cause damage to the internal circuitry.

Ventilation should not be impeded by covering the ventilation openings with items such as newspapers, table cloths and curtains.

For suf cient heat release; Leave a space of 7.874” (20 cm) or more at the top, bottom, right, left, and rear to install.

• Use the product within the operating condition temperature range.

• Do not block any inlet or outlet of the Display.

Cautions for Wall Installation

• Wall installation should be performed by an installation professional. Installing the Display incorrectly may lead to an accident that results in death or serious injury. Furthermore, when installing on a wall, a wall hanging bracket that conforms to VESA standards (VESA 400 × 400) must be used.

• When installing the Display vertically, make sure to place the terminal cover downward.

terminal cover

• If you terminate the use of the Display on the wall, ask a professional to remove the Display as soon as possible.

Install the Display away from any heaters.

• This causes cabinet deformation and breakdown.

Page 11

Safety Precautions

When using the LCD Display

The Display is designed to operate on 110 - 127 or 220 - 240 V AC, 50/60 Hz.

Attach the terminal cover  rmly to use.

• Otherwise the dust and water resistance is damaged and may cause  re, electric shock or product damage.

Do not stick any foreign objects into the Display.

• Do not insert any metal or  ammable objects into the Display or drop them onto the Display, as doing so can cause  re or electric shock.

Do not remove the cover or modify it in any way.

• High voltages which can cause severe electric shocks are present inside the Display. For any inspection, adjustment and repair work, please contact your local Panasonic dealer.

Ensure that the mains plug is easily accessible.

An apparatus with CLASS I construction shall be connected to a mains socket outlet with a protective earthing connection.

Do not use any power supply cord other than that provided with this unit.

• Doing so may cause  re or electric shocks.

Securely insert the power supply plug as far as it will go.

• If the plug is not fully inserted, heat may be generated which could cause  re. If the plug is damaged or the wall socket is loose, they shall not be used.

Do not handle the power supply plug with wet hands.

• Doing so may cause electric shocks.

Do not do anything that may damage the power cable. When disconnecting the power cable, pull on the plug body, not the cable.

• Do not damage the cable, make any modi cations to it, place heavy objects on top of it, heat it, place it near any hot objects, twist it, bend it excessively or pull it. To do so may cause  re and electric shock. If the power cable is damaged, have it repaired at your local Panasonic dealer.

Keep the accessories screw out of reach of children to prevent swallowing.

If the Display is not going to be used for any prolonged length of time, unplug the power supply plug from the wall outlet.

To prevent the spread of  re, keep candles or other open  ames away from this product at all times.

If problems occur during use

If a problem occurs (such as no picture or no sound), or if smoke or an abnormal odour starts to come out from the Display, immediately unplug the power supply plug from the wall outlet.

• If you continue to use the Display in this condition,  re or electric shock could result. After checking that the smoke has stopped, contact your local Panasonic dealer so that the necessary repairs can be made. Repairing the Display yourself is extremely dangerous, and shall never be done.

If foreign objects get inside the Display, if the Display is dropped, or if the cabinet becomes damages, disconnect the power supply plug immediately.

•

A short circuit may occur, which could cause  re. Contact your local Panasonic dealer for any repairs that need to be made.

Page 12

Safety Precautions

CAUTION

When using the LCD Display

Be sure to disconnect all cables before moving the Display.

• If the Display is moved while some of the cables are still connected, the cables may become damaged, and  re or electric shock could result.

Disconnect the power supply plug from the wall socket as a safety precaution before carrying out any cleaning.

• Electric shocks can result if this is not done.

Clean the power cable regularly to prevent it becoming dusty.

• If dust built up on the power cord plug, the resultant humidity can damage the insulation, which could result in  re. Pull the power cord plug out from the wall outlet and wipe the mains lead with a dry cloth.

Do not burn or breakup batteries.

• Batteries must not be exposed to excessive heat such as sunshine,  re or the like.

Power supply

• Install the product near an electrical outlet so that the plug can be unplugged immediately when an abnormality occurs.

• For a wall installation, used a power outlet which can be unplugged immediately when an abnormality occurs.

• This product is energized when the power plug is inserted to a socket. To cut off the power completely, the power plug must be unplugged from the socket.

Cabinet

• Corner part of the metal cabinet is a potential injury hazard.

• To lift the product, hold the handles for the precaution of fall. Injury or damage may be caused.

Do not touch the fans when replacing the air  lters.

Cleaning and maintenance

About the glass surface

• If  ngerprints or dirt are on the glass surface, clear image cannot be obtained. Please be careful not to scratch or make it dirty.

Dirt on the glass can be cleaned with a sponge, cloth or squeegee. Do not use strong acidic or alkaline solution, especially detergent contains  uoride, otherwise the antire ection material on the glass surface will be affected to have irreparable damage.

The glass has been specially treated. Wipe the glass gently using only a cleaning cloth or a soft, lint-free cloth.

• If the glass is particularly dirty, wipe with a soft, lint-free cloth which has been soaked in pure water or water in which neutral detergent has been diluted 100 times, and then wipe it evenly with a dry cloth of the same type until the surface is dry.

If the cabinet becomes dirty, wipe it with a soft, dry cloth.

• If the cabinet is particularly dirty, soak the cloth in water to which a small amount of neutral detergent has been added and then wring the cloth dry. Use this cloth to wipe the cabinet, and then wipe it dry with a dry cloth.

• Do not allow any detergent to come into direct contact with the surface of the Display. If water droplets get inside the unit, operating problems may result.

• Avoid contact with volatile substances such as insect sprays, solvents and thinner, otherwise the quality of the cabinet surface may be adversely affected or the coating may peel off. Furthermore, do not leave it for long periods in contact with articles made from rubber or PVC.

Page 13

Safety Precautions

Maintaining air  lters

The cooling structure of the Display is designed to circulate air taken in from outside inside the Display using fans. Air  lters are built into the inlet and outlet.

When “Filter” is displayed on the screen as you turn on the power, or when the power indicator is blinking green and orange alternately, there is accumulated dust on the air  lters. Check the condition of the air  lter and fan in “Maintenance Information” in the Setup menu, and clean or replace the air  lter and inspect the fan as necessary. (see page 42)

How to remove the air  lters

Unplug the power plug.

Loosen the decorative screws on

the exhaust vent sections until they turn freely.

Decorative screw

Remove the  lter cover, and pull

out the air  lter B and air  lter C.

Pull out the air  lter A.

How to install the air  lters

When replacing the air  lters, carefully prevent foreign matter from entering the inside of the Display. If foreign matter has entered, do not try to take it out by force but consult your local Panasonic dealer.

Outlet

Inlet

Fan

Do not touch the fans.

Air  lter A

Air  lter B

Filter Cover

Install the air  lter A. Install the air  lter B to the outlet. Fold the air  lter C into thirds and install to the inlet. Make sure to install the air  lters correctly. Attach the  lter covers and tighten the decorative screws. Check whether the  lter covers are secure.

Air  lter A

Air  lter C (Folded into thirds)

Cleaning air  lters

To clean the air  lters, soak in a neutral detergent diluted 200 times with water, rinse well in water, and leave to

dry in the shade.

Notes:

• Air  lters must be installed before using the Display. The absence of an air  lter may cause failure in the Display due to the intake of foreign matter or dust.

• When an air  lter is damaged or is unobtrusively soiled even after cleaning, replace the air  lter with a new one. Contact your sales agent for replacement.

• The amount of foreign matter or dust adhering to air  lters varies depending on the installation location and the used hours. Increase the frequency of cleaning in locations where dust can easily accumulate.

• Do not touch the fans or wiring inside the Display.

• When removing air  lters from or installing into the Display set on a high place, take care of your own safety, and avoid the concerned parts falling.

• Clean the air  lters approximately once every 1 month and replace them approximately once a year.

• There is no fan in the inlet.

Filter Cover

Page 14

Accessories

Accessories Supply

Check that you have the accessories and items shown

Operating Instruction book

Power supply cord

Main plug types vary between countries. Make sure to use the power supply cord with the voltage and shape appropriate to your country and region. (see page 8)

Panasonic badge

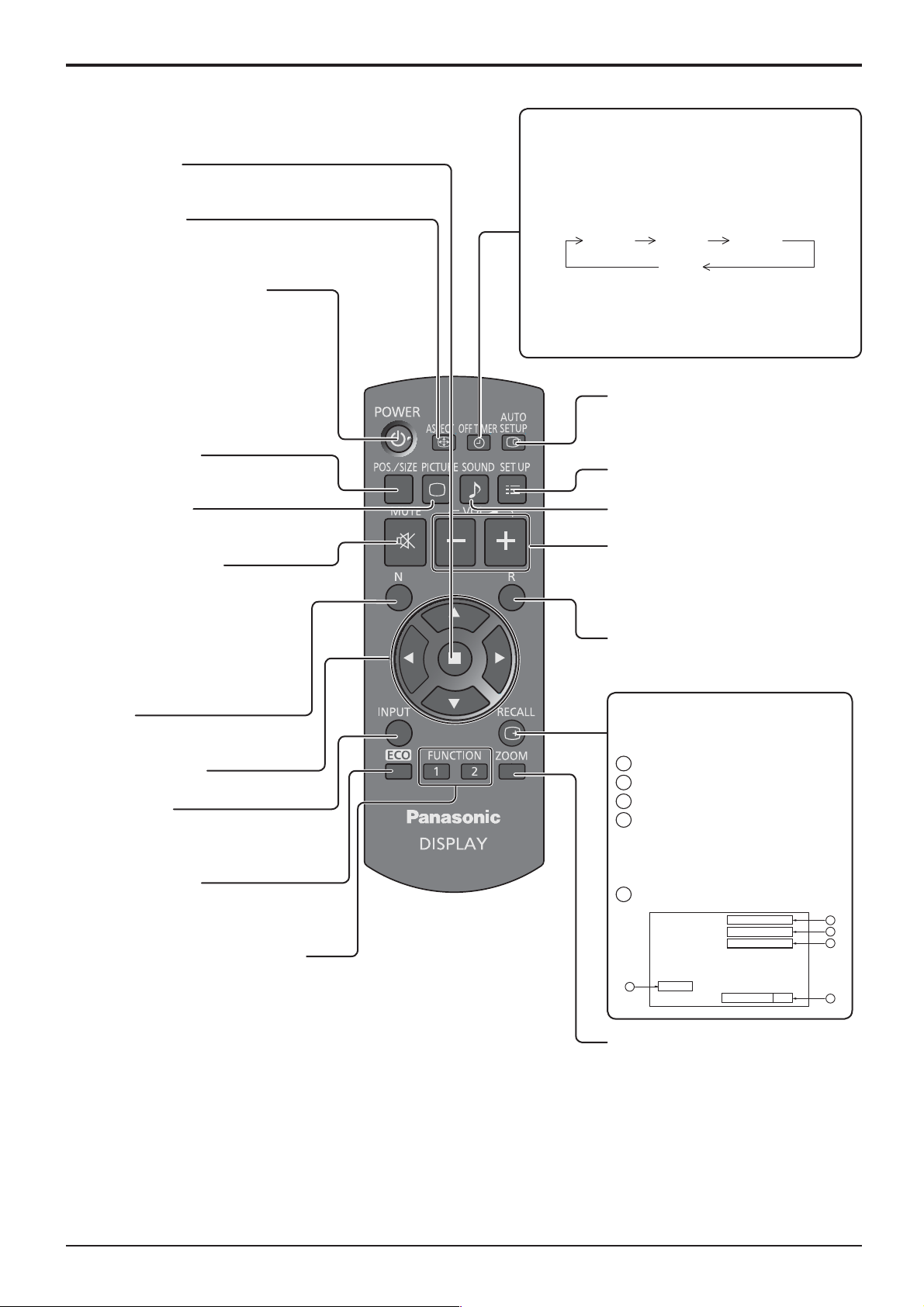

Remote Control Transmitter N2QAYB000691

Batteries for the Remote Control Transmitter (R6 (UM3, AA) Size × 2)

Note:

Remote Control Transmitter is not water protection type.

Door holders × 2

An installation professional or service provider will attach it to the Display frame at the time of installation.

Screws × 12 XYN4+F10VM

Attention

Store small parts in an appropriate manner, and keep them away from young children.

Used by a service provider during maintenance work.

Page 15

Accessories

Remote Control Batteries

Requires two R6 batteries.

1. Pull and hold the hook, then open the battery cover.

2. Insert batteries - note correct polarity ( + and -).

“R6 (UM3, AA)” size

Helpful Hint:

For frequent remote control users, replace old batteries with Alkaline batteries for longer life.

Precaution on battery use

Incorrect installation can cause battery leakage and corrosion that will damage the remote control transmitter. Disposal of batteries should be in an environment-friendly manner.

Observe the following precaution:

1. Batteries shall always be replaced as a pair. Always use new batteries when replacing the old set.

2. Do not combine a used battery with a new one.

3. Do not mix battery types (example: “Zinc Carbon” with “Alkaline”).

4. Do not attempt to charge, short-circuit, disassemble, heat or burn used batteries.

Battery replacement is necessary when remote control acts sporadically or stops operating the Display set.

6. Do not burn or breakup batteries. Batteries must not be exposed to excessive heat such as sunshine,  re or the like.

3. Replace the cover.

Page 16

Accessories

About Power Supply Cord

Main plug types vary between countries. Check the shape of the power plugs to choose the appropriate cable for you.

Country name and applicable model name Appropriate AC Cables

Asia

TH-47LFX60W TH-47LFX6NW

Middle East

TH-47LFX60W TH-47LFX6NW

Africa

TH-47LFX60W TH-47LFX6NW

Middle/South America

TH-47LFX TH-47LFX6NU

North America TH-47LFX TH-47LFX6NU Europe

TH-47LFX60W TH-47LFX6NW

Oceania TH-47LFX60W TH-47LFX6NW

India Indonesia Philippine Malaysia Singapore Hong Kong

United Arab Emirates Iraq Iran Oman Syria Lebanon Qatar Kuwait Saudi Arabia

Egypt

South Africa

Uruguay Ecuador Colombia Chili Panama

Paraguay Puerto Rico Venezuela Peru Bolivia Honduras

USA Canada

Italy Austria Netherlands Greece Switzerland Sweden Spain Czech Denmark Germany Norway Hungary Finland France Bulgaria Belgium Portugal Poland Monaco Luxembourg Russia Kazakhstan Ukraine Belarus UK Cable C

Australia New Zealand

Cable B or Cable C

Cable B or Cable CEthiopia

Cable A (110-127 V AC Compatible)

Cable C

Cable A

Cable B

Cable D

TH-47LFX60U, TH-47LFX6NU:

Cable A

Plug Type : A

TH-47LFX60W, TH-47LFX6NW:

Cable B

Plug Type : SE

Cable C

Plug Type : BF

Cable D

Plug Type : O

Insulating sleeve

Note:

Depending on the country of destination,

Depending on the country of destination, relay type or direct attached type of the

relay type or direct attached type of the power supply cord is used.

power supply cord is used.

Page 17

Connections

How to remove terminal cover

A terminal cover is attached to the input and output terminals to protect them from dust and water. To remove the terminal cover to connect a cable or other item, remove all 12 screws from the terminal cover. Opening the terminal cover with some screws left on will damage the terminal cover.

Remove the screws (12) to take out the terminal cover.

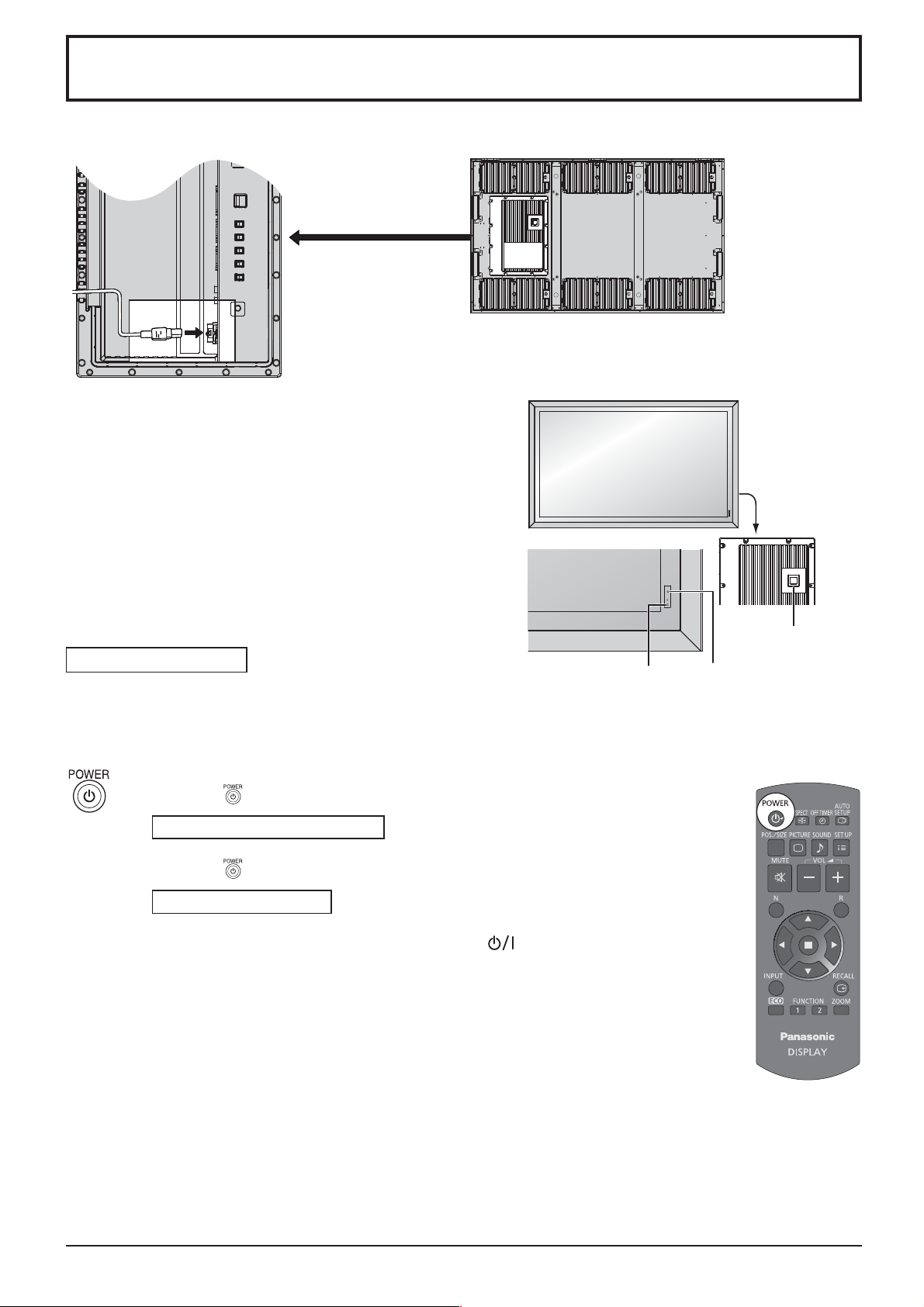

AC cord connection

Notes:

• After connection, check the cable is pulled out along the groove without overlapping, then tighten the all 12 screws to attach the terminal cover correctly. Otherwise water enters inside and causes  re, electric shock and product damage.

• Make sure to read the “Terminal cover” (page iii) section for the correct handling of the terminal cover to use the product properly.

Remove the terminal cover (See above)

AC cord  xing

Unplug the AC cord

Plug the AC cord into the display unit.

Plug the AC cord until it clicks.

Note:

Make sure that the AC cord is locked on both the left and right sides.

Unplug the AC cord pressing the two knobs.

Note:

When disconnecting the AC cord, be absolutely sure to disconnect the AC cord plug at the socket outlet  rst.

Page 18

Connections

Video equipment connection

Remove the terminal cover (see page 9)

DVI-D IN

DVI-D Input Terminal (see page 12)

PC IN PC Input Terminal (see page 13)

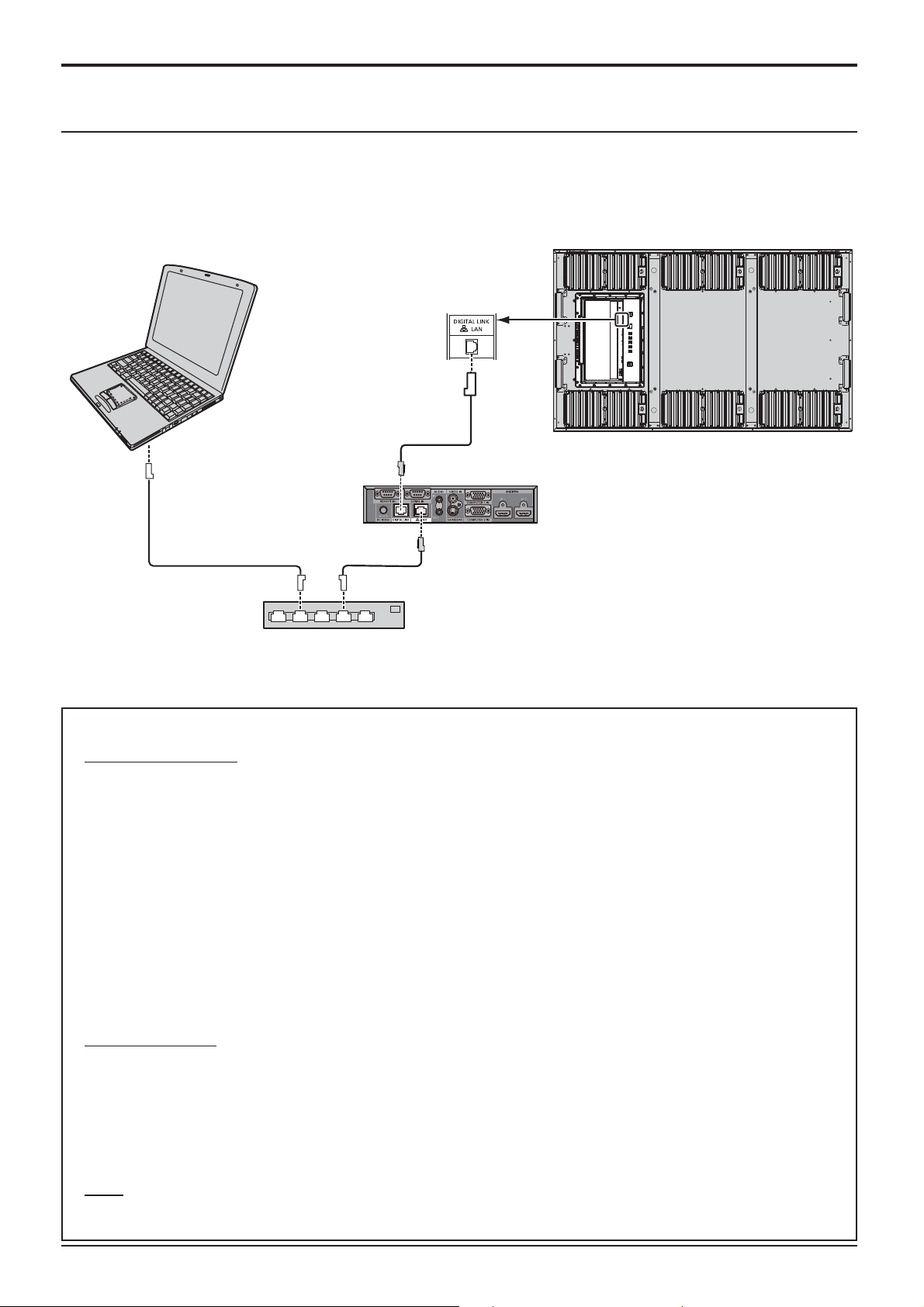

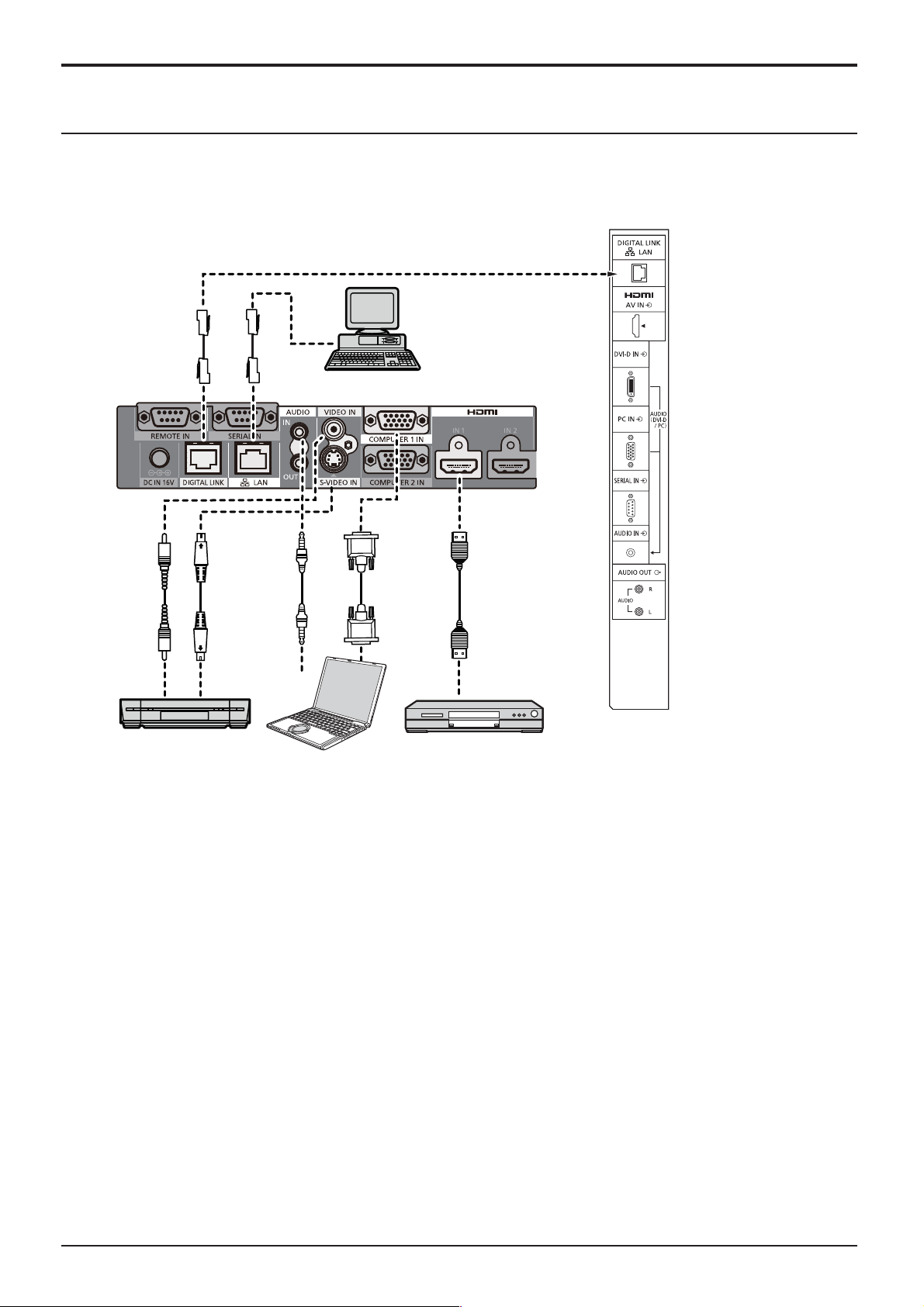

LAN, DIGITAL LINK*

Connect to a DIGITAL LINK input terminal network to control the Display. Alternatively, connect to a device that sends video and audio signals via the DIGITAL LINK terminal. (see page 15)

AV IN

HDMI HDMI Input Terminal (see page 11)

SERIAL

Control the Display by connecting to PC (see page 14)

AUDIO (DVI-D / PC)

Connect the audio output of equipment connected to DVI-D IN or PC IN. (see page 12, 13)

Note:

* DIGITAL LINK is technology that enables signals such as audio and video to be transmitted using twisted pair

cables. (see page 15, 51)

• Use the screw holes shown in the  gures below for such purposes as mounting the brackets for cabling if necessary. (Use the supplied screws for screw holes.)

AUDIO OUT

Connect to sound

equipment (see page 11)

8 places

4 places

Page 19

AUDIO OUT connection

Note:

Additional equipment and cables shown are not supplied with this set.

Stereophonic sound code

Connections

audio equipment

line-in

HDMI connection

[Pin assignments and signal names]

Pin No.

Signal Name

T.M.D.S Data2+

T.M.D.S Data2

Shield

T.M.D.S Data2-

T.M.D.S Data1+ T.M.D.S Data1

Shield

T.M.D.S Data1-

T.M.D.S Data0+ T.M.D.S Data0

Shield

T.M.D.S Data0-

T.M.D.S Clock+

Pin No.

15 16

18 19

T.M.D.S Clock Shield

T.M.D.S Clock-

CEC

Reserved (N.C. on device)

SCL SDA DDC/CEC

Ground +5V Power Hot Plug Detect

Signal Name

DVD player

HDMI

AV OU T

HDMI cables

Note:

Additional equipment and HDMI cable shown are not supplied with this set.

Page 20

Connections

DVI-D IN connection

PC with DVI-D video out

DVI-video cable (Within 5 m)

Stereo mini plug (M3)

Shared with PC IN.

DVI-D Input Connector Pin Layouts

Connection port view

Pin No.

Signal Name

T.M.D.S. data 2-

T.M.D.S. data 2+

T.M.D.S. data 2 shield

3 4 5

DDC clock

DDC data

7 8

T.M.D.S. data 1-

T.M.D.S. data 1+

T.M.D.S. data 1 shield

11 12 24

Note:

Additional equipment and cables shown are not supplied with this set.

Pin No.

13 14 15 16 17 18 19 20 21 22 23

Signal Name

+5 V DC Ground Hot plug detect T.M.D.S. data 0T.M.D.S. data 0+ T.M.D.S. data 0 shield

T.M.D.S. clock shield T.M.D.S. clock+ T.M.D.S. clock-

Page 21

PC Input Terminals connection

Conversion adapter (if necessary)

COMPUTER

Connect a cable which matches the audio output terminal on the computer.

Audio

RGB

Mini D-sub 15p

(Male)

Stereo mini plug (M3)

Connections

(Female)

Shared with DVI-D IN.

Notes:

• Computer signals which can be input are those with a horizontal scanning frequency of 30 to 110 kHz and vertical scanning frequency of 48 to 120 Hz. (However, the image will not be displayed properly if the signals exceed 1,200 lines.)

• The display resolution is a maximum of 1,440 × 1,080 dots when the aspect mode is set to “4:3”, and 1,920 × 1,080 dots when the aspect mode is set to “16:9”. If the display resolution exceeds these maximums, it may not be possible to show  ne detail with suf cient clarity.

• The PC input terminals are DDC2B-compatible. If the computer being connected is not DDC2B-compatible, you will need to make setting changes to the computer at the time of connection.

• Some PC models cannot be connected to the set.

• There is no need to use an adapter for computers with DOS/V compatible Mini D-sub 15P terminal.

• The computer shown in the illustration is for example purposes only.

• Additional equipment and cables shown are not supplied with this set.

• Do not set the horizontal and vertical scanning frequencies for PC signals which are above or below the speci ed frequency range.

Signal Names for Mini D-sub 15P Connector

Pin No. Signal Name Pin No. Signal Name Pin No. Signal Name

1514131211

67839

Pin Layout for PC Input Terminal

NC (not connected)

GND (Ground)

+5 V DC

GND (Ground)

NC (not connected)

HD/SYNC

SDA

SCL

Page 22

Connections

6 7 8 9

1 3 4 5 2

SERIAL Terminals connection

The SERIAL terminal is used when the Display is controlled by a computer.

COMPUTER

RS-232C Straight cable

(Female)

Pin layout for SERIAL Terminal

(Male)

Notes:

D-sub 9p

• Use the RS-232C straight cable to connect the computer to the Display.

• The computer shown is for example purposes only.

• Additional equipment and cables shown are not supplied with this set.

• When using serial control with this display, be sure to con gure the “Control I/F Select” in the “Network Setup” menu. When controlling the Display with RS232C terminal, select “RS-232C (Serial)”. When controlling with the RS232C terminal of a DIGITAL LINK device, select “RS-232C(DIGITAL LINK)”. (see page 43)

The SERIAL terminal conforms to the RS-232C interface speci cation, so that the Display can be controlled by a computer which is connected to this terminal. The computer will require software which allows the sending and receiving of control data which satis es the conditions given below. Use a computer application such as programming language software. Refer to the documentation for the computer application for details.

Communication parameters

Signal level RS-232C compliant

Synchronization method Asynchronous

Baud rate 9600 bps

Parity None

Character length 8 bits

Stop bit 1 bit

Flow control None

Basic format for control data

The transmission of control data from the computer starts with a STX signal, followed by the command, the parameters, and lastly an ETX signal in that order. If there are no parameters, then the parameter signal does not need to be sent.

STX C1 C2 C3 P1 P2 P3 P4: P5 ETX

Start (02h)

Colon Parameter(s) 3-character command (3 bytes)

(1 - 5 bytes)

End (03h)

Notes:

• If multiple commands are transmitted, be sure to wait for the response for the  rst command to come from this unit before sending the next command.

Signal names for D-sub 9P connector

Pin No. Details

2 3 5

• 7 8

•

R X D T X D

GND

Non use

(Shorted in this set)

These signal names are those of computer speci cations.

Command

Command Parameter Control details PON None Power ON POF None Power OFF AVL *** Volume 000 - 100

AMT

IMS None

DAM None

0 Audio MUTE OFF 1 Audio MUTE ON

HM1 DV1 PC1 DL1

ZOOM FULL NORM ZOM2

Input select (toggle) HDMI input (HDMI) DVI-D IN input (DVI) PC IN input (PC) DIGITAL LINK input

Screen mode select (toggle) Zoom1 16:9 4:3 Zoom2

With the power off, this display responds to PON command only.

• If an incorrect command is sent by mistake, this unit will send an “ER401” command back to the computer.

• Consult an Authorized Service Center for detail instructions on command usage.

Page 23

Connections

Example connection using the DIGITAL LINK Terminal

A twisted pair cable transmitter such as the Panasonic Digital Interface Box (ET-YFB100) uses twisted pair cables to

transmit inputted video and audio signals, and these digital signals can be input to the Display via the DIGITAL LINK

terminal.

Display Connection Terminals

Control

Computer

When a Panasonic ET-YFB100 is used

Video Cassette Recorder DVD Player

Computer

Notes:

• When connecting with DIGITAL LINK, be sure to con gure each of the “Network Setup” settings. (see page 43-45)

• For details on precautions related to connecting to the DIGITAL LINK terminals, see “connecting with a twisted pair cable transmitter”. (see page 51)

Page 24

Power On / Off

Connecting the AC cord plug to the Display.

Remove the terminal cover (See page 9)

Connecting the plug to the Wall Outlet

Notes:

• Main plug types vary between countries. The power plug shown at right may, therefore, not be the type  tted to your set.

• When disconnecting the AC cord, be absolutely sure to disconnect the AC cord plug at the socket outlet  rst.

Press the Power switch on the Display to turn the set on: Power-On.

Power Indicator: Green

Press the button on the remote control to turn the Display off.

Power Indicator: Red (standby)

Press the

Power Indicator: Green

Turn the power to the Display off by pressing the the Display is on or in standby mode.

Note:

During operation of the power management function, the power indicator turns orange in the power off state.

button on the remote control to turn the Display on.

Remote Control Sensor

switch on the unit, when

Power switch

Power Indicator

Page 25

Italiano

Español

ENGLISH (US)

English (UK)

Deutsch

Français

OSD Language

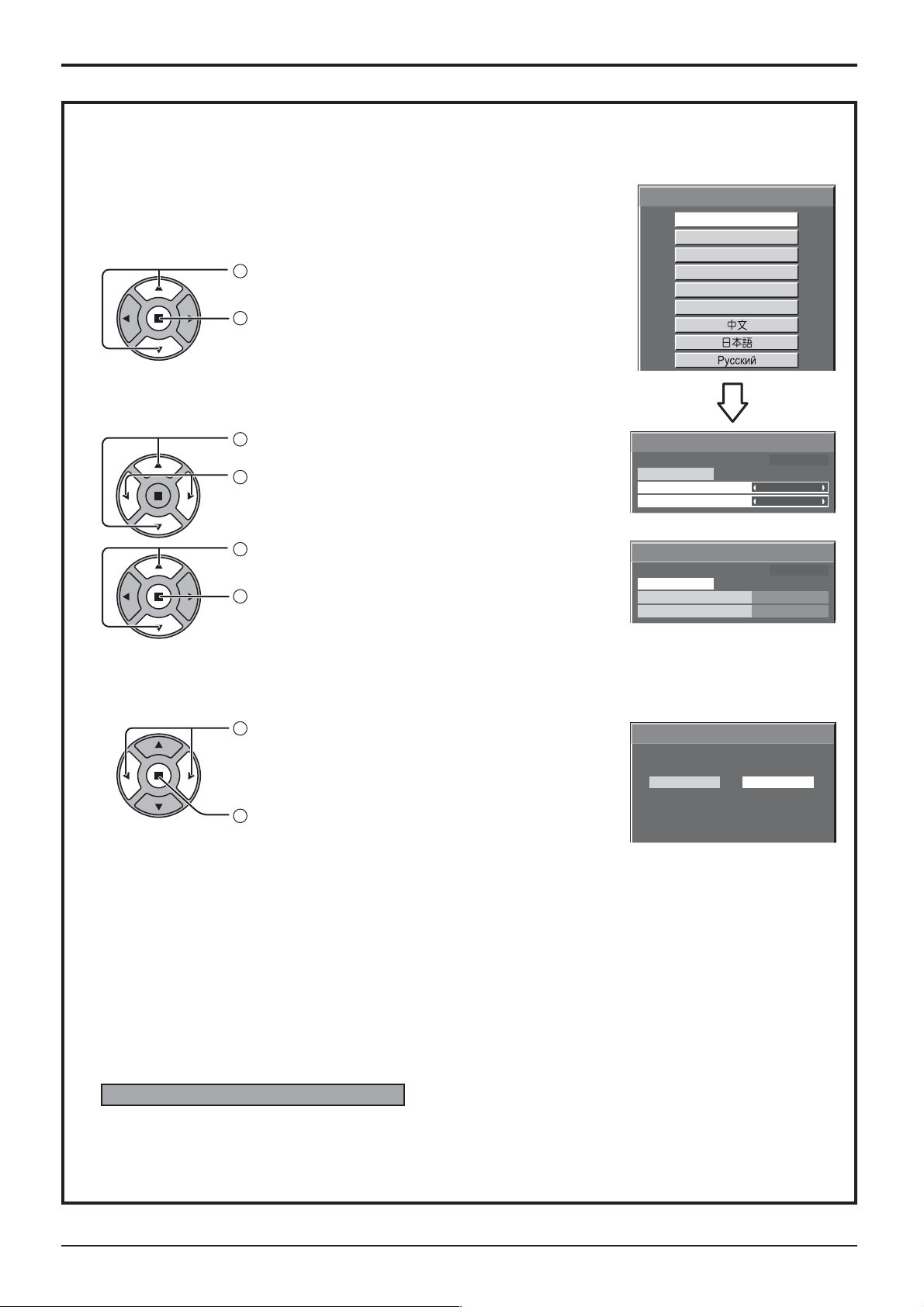

When  rst switching on the unit

Following screen will be displayed when the unit is turned on for the  rst time. Select the items with the remote control. Unit buttons are invalid.

OSD Language

Select the language.

Set.

PRESENT TIME Setup

Select “DAY” or “PRESENT TIME”.

Setup “DAY” or “PRESENT TIME”.

Power On / Off

PRESENT TIME Setup

PRESENT TIME MON 99 : 99

Set DAY PRESENT TIME

MON

99 : 99

Outdoor mode

Select “Set”.

Set.

Note:

PRESENT TIME Setup

PRESENT TIME MON 99 : 99

Set DAY PRESENT TIME

This setting screen is not displayed on TH-47LFX60U and TH-47LFX6NU.

Select “Yes” or “No”.

Set.

Outdoor mode

Is this display being installed outdoor?

Yes

Once you select “Yes”, outdoor mode will be set to “On”. Please select correctly to optimize performance.

Notes:

• Once the items are set, the screens won't be displayed when switching on the unit next time.

• After the setting, the items can be changed in the following menus. OSD Language (see page 36) PRESENT TIME Setup (see page 29) Outdoor mode (see page 33)

TUE

10 : 00

Power ON warning message

The following message may be displayed when turning the unit power ON:

No activity power off Precautions

’No activity power off’ is enabled.

If “No activity power off” in Setup menu is set to “Enable”, a warning message is displayed every time the power is turned ON. (see page 33)

This message display can be set with the following menu: Options menu

Power On Message (see page 48)

Page 26

Selecting the input signal

Press to select the input signal to be played back from the equipment which has been connected to the Display.

Input signals will change as follows:

HDMI

HDMI: HDMI input terminal in AV IN (HDMI). PC: PC input terminal in PC IN. DVI: DVI input terminal in DVI-D IN. DIGITAL LINK: DIGITAL LINK input to DIGITAL LINK terminal

Note:

Selecting is also possible by pressing the INPUT button on the unit.

DVI

DIGITAL LINK

Page 27

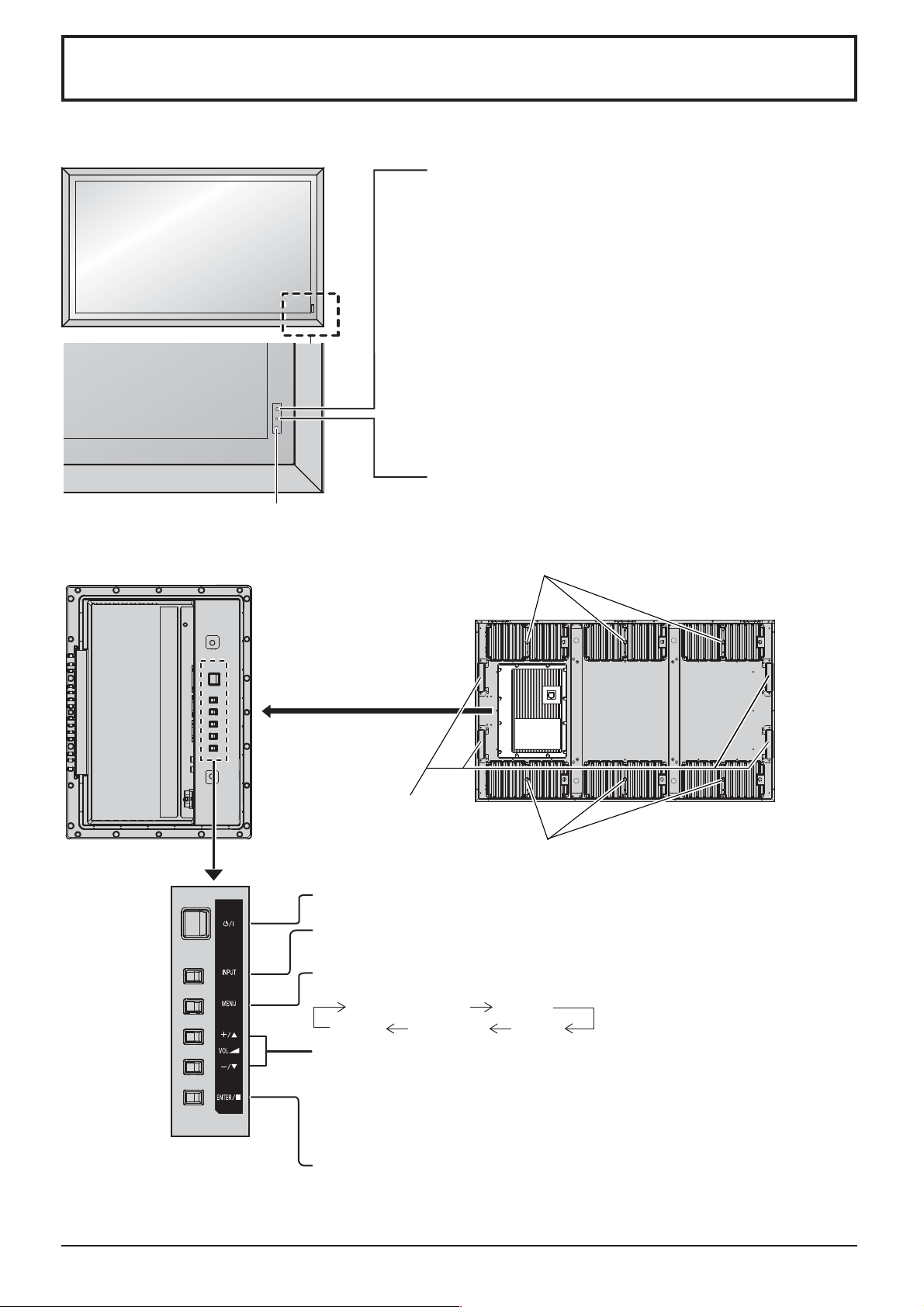

Basic Controls

Main Unit

Remote control sensor

Power Indicator

The Power Indicator will light.

• Power-OFF .... Indicator not illuminated (The unit will still

consume some power as long as the power cord is still inserted into the wall outlet.)

• Standby ........ Red

Orange (When the control terminal selection is “LAN” or “RS-232C(DIGITAL LINK)”. See page 43) Orange (When Outdoor mode is set to “ON”. See page 33)

• Power-ON ...... Green

• PC Power management (DPMS)

......................... Orange (With PC input signal. See page 34)

• DVI-D Power management

......................... Orange (With DVI input signal. See page 34)

• When dust has accumulated on the air  lters

.........................

Brightness Sensor (see page 34)

Detects the brightness in the viewing environment.

Outlet (air  lter, fan) (see page 5)

Green and orange blink alternately (See page 5)

Remove the terminal cover (see page 9)

Handle

Inlet (air  lter) (see page 5)

Main Power On / Off Switch

INPUT button (INPUT signal selection)

(see page 18)

MENU Screen ON / OFF

Each time the MENU button is pressed, the menu screen will switch. (see page 23)

Normal Viewing Picture

Sound Pos. /Size

Volume Adjustment

Volume Up “+” Down “–” When the menu screen is displayed: “+” : press to move the cursor up “–” :

press to move the cursor down

(see page 23)

Enter / Aspect button

(see page 21, 23)

Setup

Page 28

Basic Controls

Remote Control Transmitter

ACTION button

Press to make selections.

ASPECT button

Press to adjust the aspect. (see page 21)

Standby (ON / OFF) button

The Display must  rst be plugged into the wall outlet and turned on at the power switch (see page 16). Press this button to turn the Display On, from Standby mode. Press it again to turn the Display Off to Standby mode.

POS. /SIZE button

(see page 24, 25)

PICTURE button (see page 26, 27)

Sound mute On / Off Press this button to mute the sound. Press again to reactivate sound. Sound is also reactivated when power is turned off or volume level is changed.

OFF TIMER button

The Display can be preset to switch to stand-by after a  xed period. The setting changes to 30 minutes, 60 minutes, 90 minutes and 0 minutes (off timer cancelled) each time the button is pressed.

30 min 60 min

90 min

0 min

When three minutes remain, “Off timer 3 min” will  ash. The off timer is cancelled if a power interruption occurs.

AUTO SETUP button

Automatically adjusts the position/ size of the screen. (see page 24)

SET UP button (see page 29 - 45)

SOUND button (see page 28)

Volume Adjustment

Press the Volume Up “+” or Down “–” button to increase or decrease the sound volume level.

R button (see page 23) Press the R button to return to previous menu screen.

N button (see page 25, 26, 27, 28)

POSITION buttons

INPUT button

Press to select Input signal sequentially. (see page 18)

ECO MODE (ECO)

Press to change the ECO MODE setup status. (see page 34)

FUNCTION buttons (FUNCTION)

(see page 48)

RECALL button

Press the “RECALL” button to display the current system status.

Input label

Aspect mode (see page 21)

Air  lter conditions (see page 5)

Off timer

The off timer indicator is

displayed only when the off timer has been set.

Clock Display (see page 47)

PC 4:3

Filter

10:00

Off timer

90min

1 2 3

Digital Zoom (see page 22)

Page 29

ASPECT Controls

The Display will allow you to enjoy viewing the picture at its maximum size, including wide screen cinema format picture.

Note:

Be aware that if you put the display in a public place for commercial purposes or a public showing and then use the aspect mode select function to shrink or expand the picture, you may be violating the copyright under copyright law. It is prohibited to show or alter the copyrighted materials of other people for commercial purposes without the prior permission of the copyright holder.

Press repeatedly to move through the aspect options:

4:3 Zoom1 16:9*Zoom2

[from the unit]

Right side surface

The aspect mode changes each time the ENTER button is pressed.

Note:

The aspect mode is memorized separately for each input terminal.

Aspect mode

16:9*

4:3

Zoom1

Picture Enlarged screen

The display of the pictures  lls the screen. In the case of SD signals, pictures with a 4:3 aspect ratio are enlarged horizontally, and displayed. This mode is suited to displaying anamorphic pictures with a 16:9 aspect ratio.

Pictures with a 4:3 aspect ratio are displayed with their original aspect ratio. Side panels are displayed at the left and right edges of the screen.

The pictures with a 4:3 aspect ratio among the 16:9 aspect ratio signals are displayed with their original aspect ratio. The left and right edges of the pictures are masked with side panels.

Letterbox pictures with a 16:9 aspect ratio are enlarged vertically and horizontally so that their display  lls the screen. The top and bottom edges of the pictures are cut off.

Description

Letterbox pictures with a 16:9 aspect ratio are enlarged

Zoom2

vertically and horizontally so that their display  lls the screen. The top and bottom edges as well as the left and right edges of the pictures are cut off.

* In “ENGLISH (US)” OSD language, this is displayed as “FULL”.

Page 30

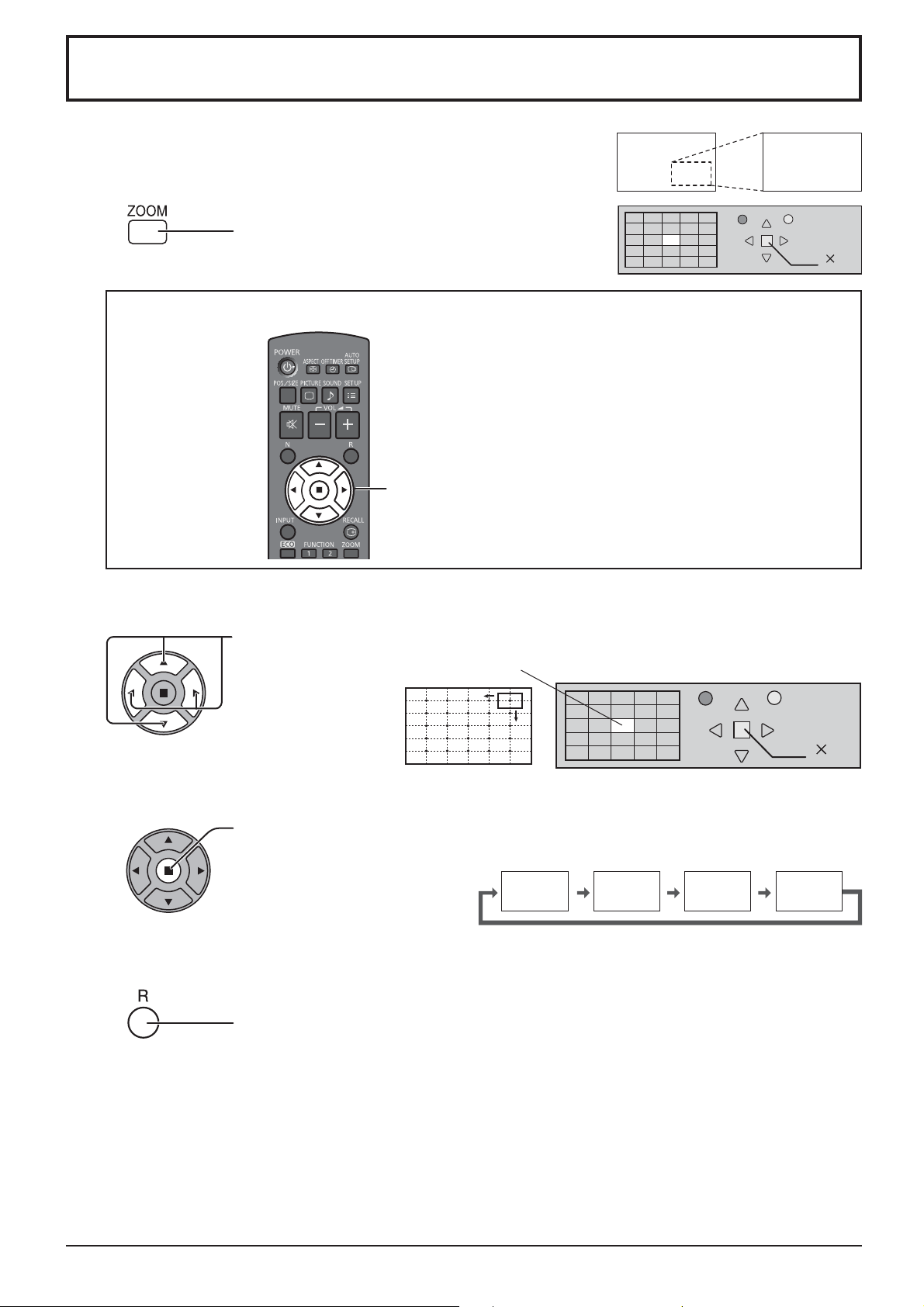

Digital Zoom

This displays an enlargement of the designated part of the displayed image.

Display the operation guide.

Press to access Digital Zoom. The operation guide will be displayed.

During Digital Zoom, only the following buttons can be operated.

[Remote control]

Select the area of the image to be enlarged.

Press on the enlargement location to select.

Exit

POSITION / ACTION button

The cursor will move.

Select the magni cation required for the enlarged display.

Each time this is pressed, the magni cation factor changes. This is shown in the image being displayed.

× 1 × 2 × 3 × 4

Return to normal display (quit Digital Zoom).

Press to exit from the Digital Zoom.

Notes:

• When power goes OFF (including “Off Timer” operation), Digital Zoom terminates.

• The Digital Zoom function cannot be selected while in the following operation state: When MULTI DISPLAY Setup is On (see page 37). When Screensaver is running (see page 31)

• While Digital Zoom is in operation, “Adjusting Pos. / Size” cannot be used.

Exit

Page 31

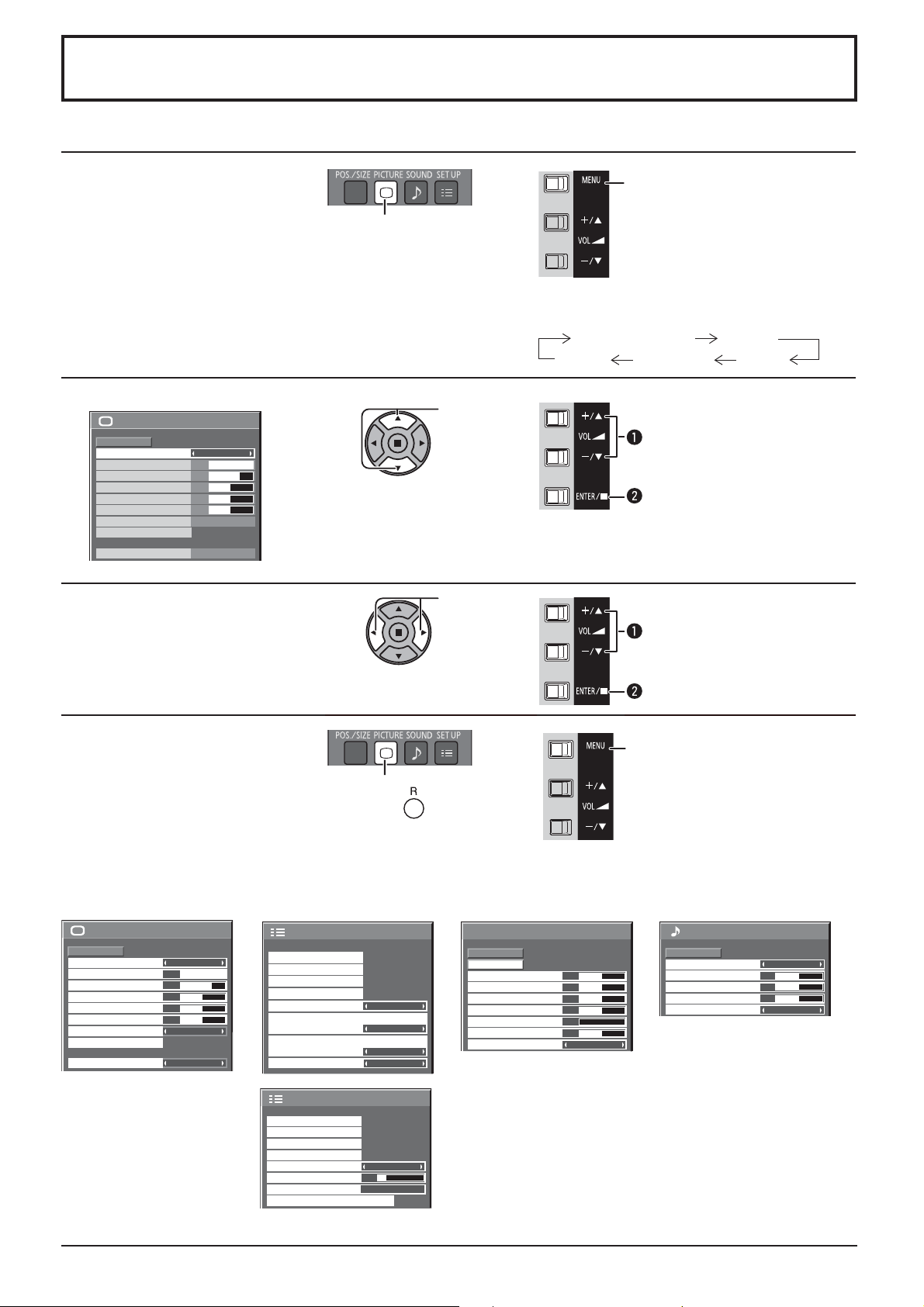

On-Screen Menu Displays

0 0 0

Sound

Normal

Normalise

Normal

Off

Treble

Sound Mode

Balance

Bass

Surround

100

70 50


Normal

Normalise

Normal

Brightness

Colour

Picture Mode

Contrast

Backlight

Advanced settings

White balance

Normal

FRAME CREATION

Max

Sharpness

Remote Control Unit

Display the menu screen.

Press to select. (Example: Picture menu)

Select the item.

Select.

Press several times.

Each time the MENU button is pressed, the menu screen will switch.

Normal Viewing Picture

Sound Pos. /Size Setup

Select.

Press.

(Example: Picture menu)

Set.

Adjust.

Press.

Exit the menu.

Press several times.

Press.

Press to return to the previous menu.

Menu display list

Note: Menu that cannot be adjusted is grayout. Adjustable menu changes depending on signal, input and menu setting.

Picture menu Setup menu Pos./Size menu Sound menu

Picture Mode Backlight Contrast Brightness Colour Sharpness White balance

FRAME CREATION

See page 26, 27


Normal

Normalise

Advanced settings

100

70 50 50 50

Normal

Max

Setup

Signal

Screensaver

Input label

ECO Mode settings Wobbling YUV/RGB-in select

No activity power off

OSD Language English(UK

MULTI DISPLAY Setup

Set up TIMER

PRESENT TIME Setup

Network Setup Menu Display Duration Menu Transparency Outdoor mode

Maintenance information

See page 29-45

Off

RGB

Disable

15 S

1/2

)

2/2Setup

Pos. /Size

Normal

Normalise

Auto Setup

H-Pos H-Size V-Pos V-Size Clock Phase Dot Clock 1:1 Pixel Mode

See page 24, 25

0 0 0 0 0 0

Off

See page 28

Page 32

Adjusting Pos. /Size

Press to display the Pos. /Size menu.

Press to select the menu to adjust.

Press to adjust the menu.

Note:

If a “Cue” or “Rew” signal from a VCR or DVD player is received, the picture position will shift up or down. This picture position movement cannot be controlled by the Picture Pos./Size function.

Auto Setup

H-Pos/V-Pos, H-Size/V-Size, Dot Clock and Clock Phase are automatically adjusted when the PC signal is received. This setting only operates when a PC signal is input, and the aspect is “16:9”.

Using Remote Control

Press to exit from adjust mode.

Pos. /Size

Normalise

Auto Setup

H-Pos H-Size V-Pos V-Size Clock Phase Dot Clock 1:1 Pixel Mode

Notes:

Unadjustable items are grayed out. Adjustable items differ depending on the input signal and the display mode.

Normal

0 0 0 0 0 0

Off

When on the remote control is pressed, “Auto Setup” will be executed.

When Auto Setup does not work, “Invalid” is displayed.

Notes:

• Auto Setup may not work when a cropped or dark image is input. In such case, switch to a bright image with borders and other objects are clearly shown, and then try auto setup again.

• Depending on the signal, out of alignment may occur after Auto Setup. Carry out  ne tuning for the position/size as required.

• If Auto Setup cannot set properly for vertical frequency 60Hz XGA signal (1024×768@60Hz and 1366×768@60Hz), pre-selecting the individual signal in “XGA Mode” (see page 40) may results in correct Auto Setup.

• Auto Setup does not work well when a signal such as additional information is superimposed out of valid image period or intervals between synchronizing and image signals are short.

• If Auto Setup cannot adjust correctly, select “Normalise” once and press ACTION ( Pos. /Size manually.

• If the picture goes off screen in the horizontal direction as a result of performing Auto Setup, perform Dot Clock adjustment.

), then adjust

Page 33

Adjusting POS. /SIZE

H-Pos Adjust the horizontal position. V-Pos Adjust the vertical position.

H-Size Adjust the horizontal size. V-Size Adjust the vertical size.

Clock Phase

Dot Clock (During PC input signal)

Over scan Turn image over scan On/Off.

1:1 Pixel Mode

(During PC input signal)

Eliminate the  ickering and distortion.

Periodic striped pattern interference (noise) may occur when a striped pattern is displayed. If this happens, adjust so that any such noise is minimized.

Con gurable signals are as follows: 525i, 525p, 625i, 625p, 750/60p, 750/50p (DVI, HDMI)

On Off

Notes:

• “Off” is effective during only “16:9” aspect mode.

• When “Off” is set, “H-Size” and “V-Size” cannot be adjusted.

Adjusts the display size when 1125i or 1125p signal is input.

Notes:

• “On” is effective during only “16:9” aspect mode.

• Select On when you would like to replay 1920 × 1080 input signal.

• Applicable input signal; 1125 (1080) / 50i · 60i · 24psF · 24p · 25p · 30p · 50p · 60p

• Select Off when  ickering is shown around the image.

• H-Size and V-Size cannot be adjusted when On is selected.

Off On

Helpful Hint ( /

While the Pos. / Size display is active, if either the N button on the remote control is pressed at any time or the ACTION ( ) button is pressed during “Normalise”, then all adjustment values (except “Clock Phase” and “Dot Clock”) are returned to the factory settings.

Normalise

Normalisation)

Page 34

100

70 50


Normal

Normalise

Normal

Brightness

Colour

Picture Mode

Contrast

Backlight

Advanced settings

White balance

Normal

Sharpness

FRAME CREATION

Max

Picture Adjustments

Select to adjust each item.

Press to display the Picture menu.

Press to select the menu to adjust.

Select the desired level by looking at the picture behind the menu.

Note:

Menu that cannot be adjusted is grayout. Adjustable menu changes depending on signal, input and menu setting.

Press “ ” or “ ” button to switch between modes.

Normal*

Dynamic

Cinema

Normal*

For viewing in standard (evening lighting) environments. * In “ENGLISH (US)” OSD language, this is

displayed as “STANDARD”.

Dynamic

For viewing in brighter environments.

Press to enter Advanced settings .

Advanced settings Enables  ne picture adjustment at a professional level (see next page).

Advanced settings

Normalise

Input level Gamma W/B High R W/B High G W/B High B W/B Low R W/B Low G W/B Low B

Normal

2.2 50 50 50 50 50 50

FRAME CREATION

Improves motion picture quality by reducing motion blur. Press the left or right button to switch between modes.

Off Min Mid

Max

Cinema

For use in viewing tone-focused pictures with brightness reduced.

Note:

If you would like to change the picture and colour

of the selected Picture menu to something else, adjust using the items in the Picture menu. (see next page)

• In “ENGLISH (US)” OSD language, the “Picture Mode” is displayed as “PICTURE MENU”.

Press “ ” or “ ” button to switch between modes.

Normal Warm Cool

• In “ENGLISH (US)” OSD language, the “White

balance” is displayed as “COLOR TEMP”.

Notes:

• The mode is memorized per input terminal.

• Even if “Normalise” is selected, the Normal setting will not be restored.

• The picture and menu will disappear for a moment if you switch the mode to Off, or switch from Off to another mode.

Helpful Hint ( /

While the “Picture” menu is displayed, if either the N button on the remote control is pressed at any time or the ACTION (

) button is pressed during “Normalise”, then all adjustment values are returned to the factory settings.

Normalise

Normalisation)

Page 35

Picture Adjustments

Item Effect Adjustments

Backlight

Contrast*

Darker

Less More

Brighter

Adjusts luminance of the back light.

Selects the proper brightness and density for the room.

Adjusts for easier viewing of

Brightness

Colour

Sharpness

Darker Brighter

Less More

dark pictures such as night scenes and black hair.

Adjusts colour saturation.

Adjusts picture sharpness.

* In “ENGLISH (US)” OSD language, this is displayed as “PICTURE”.

Advanced settings

Item Effect Details

Input level

Less More

Adjustment of parts which are extremely bright and hard to see.

Notes:

• You can change the level of each function (Backlight, Contrast, Brightness, Sharpness) for each Picture Mode.

• The setting details for normal, dynamic and cinema respectively are memorized separately for each input terminal.

• “Backlight” can be adjusted when “ECO Mode” is set to “Custom” and “Power save” to “Off”. (see page 34)

• “Colour” can be adjusted when the following inputs are selected: HDMI, DVI, or DIGITAL LINK

Gamma

W/B High

W/B Low R

W/B Low G

W/B Low B

Down Up

Less More

S Curve 2.0 2.2 2.6

Adjusts the white balance for light red areas.

Adjusts the white balance for light green areas.

Adjusts the white balance for light blue areas.

Adjusts the white balance for dark red areas.

Adjusts the white balance for dark green areas.

Adjusts the white balance for dark blue areas.

Notes:

• Carry out “W/B” adjustment as follows.

Adjust the white balance of the bright sections using the “W/B High R”, “W/B High G” and “W/B High B” settings.

2. Adjust the white balance of the dark sections using the “W/B Low R”

, “W/B Low G”

and “W/B Low B” settings.

3. Repeat steps 1 and 2 to adjust.

Steps 1 and 2 affect each other’s settings, so repeat each step in turn to make the adjustment.

• The adjustment values are memorized separately for each input terminal.

• The adjustment range values should be used as an adjustment reference.

Helpful Hint ( /

Normalise

Normalisation)

On the remote control unit, while the “Advanced settings” menu is displayed, if either the N button is pressed at any time or the ACTION ( ) button is pressed during “Normalise”, then all adjustment values are returned to the factory settings.

Page 36

Sound Adjustment

Select to adjust each item.

Press to display the Sound menu.

Press to select the menu to adjust.

Sound

Normalise

Sound Mode Bass Treble Balance Surround

Select the desired level by listening to the sound.

Press to exit from adjust mode.

Item Details

Normal*2: Emits the original sound.

Sound Mode*

Bass

Treble

Balance

Surround

Dynamic: Accentuates sharp sound. Clear: Attenuates human voice.

Adjusts low pitch sounds.

Adjusts high pitch sounds.

Adjusts left and right volumes.

Select On or Off.

Note: Bass, Treble and Surround settings are memorized separately for each Sound Mode.

Normal

Normal 0 0 0

Off

In “ENGLISH (US)” OSD language, this is displayed as “AUDIO MENU”.

In “ENGLISH (US)” OSD language, this is displayed as “STANDARD”.

Helpful Hint ( /

Normalise

Normalisation)

While the “Sound” menu is displayed, if either the N button on the remote control is pressed at any time or the ACTION (

) button is pressed during “Normalise”, then all adjustment values are returned to the factory settings.

Page 37

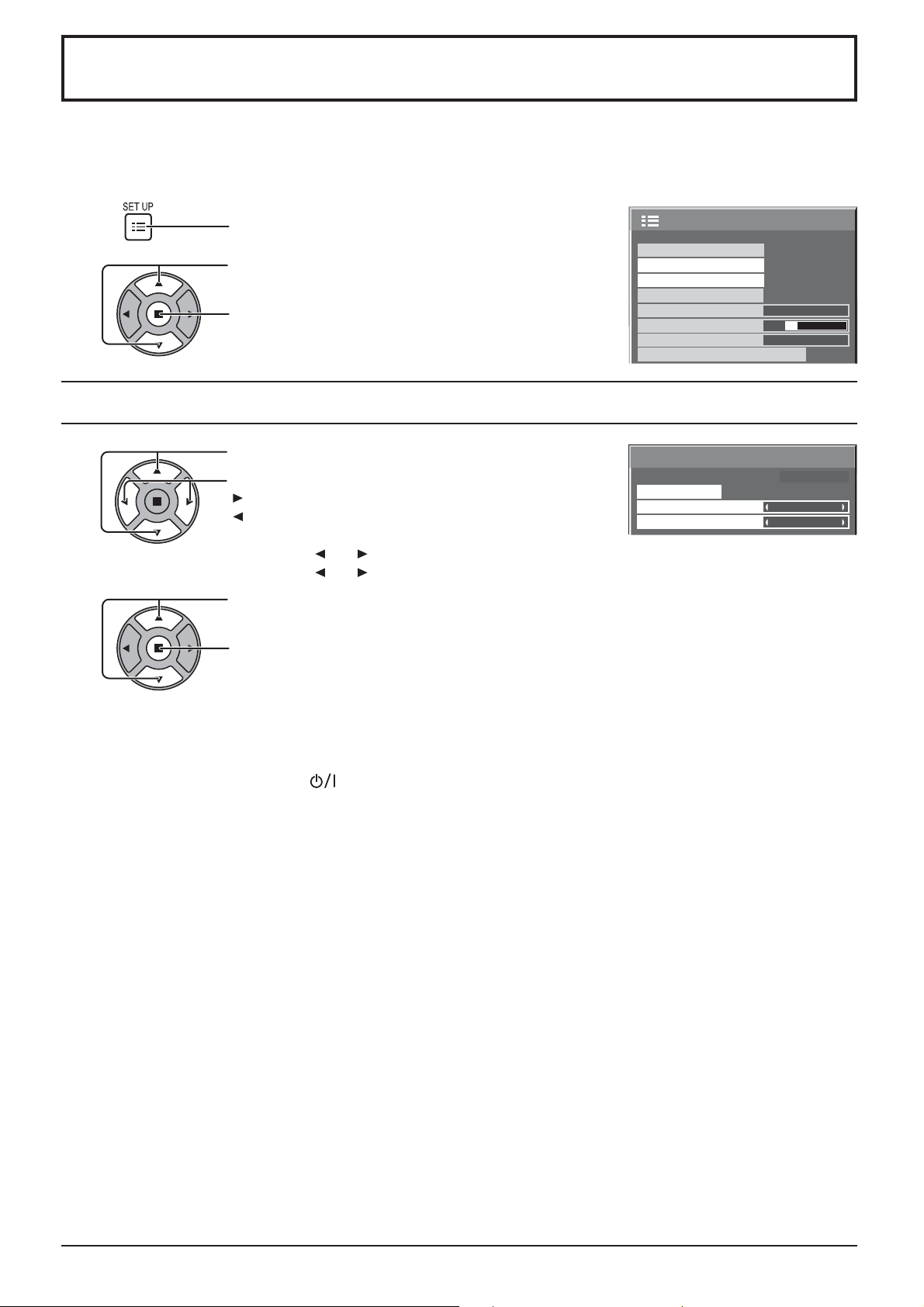

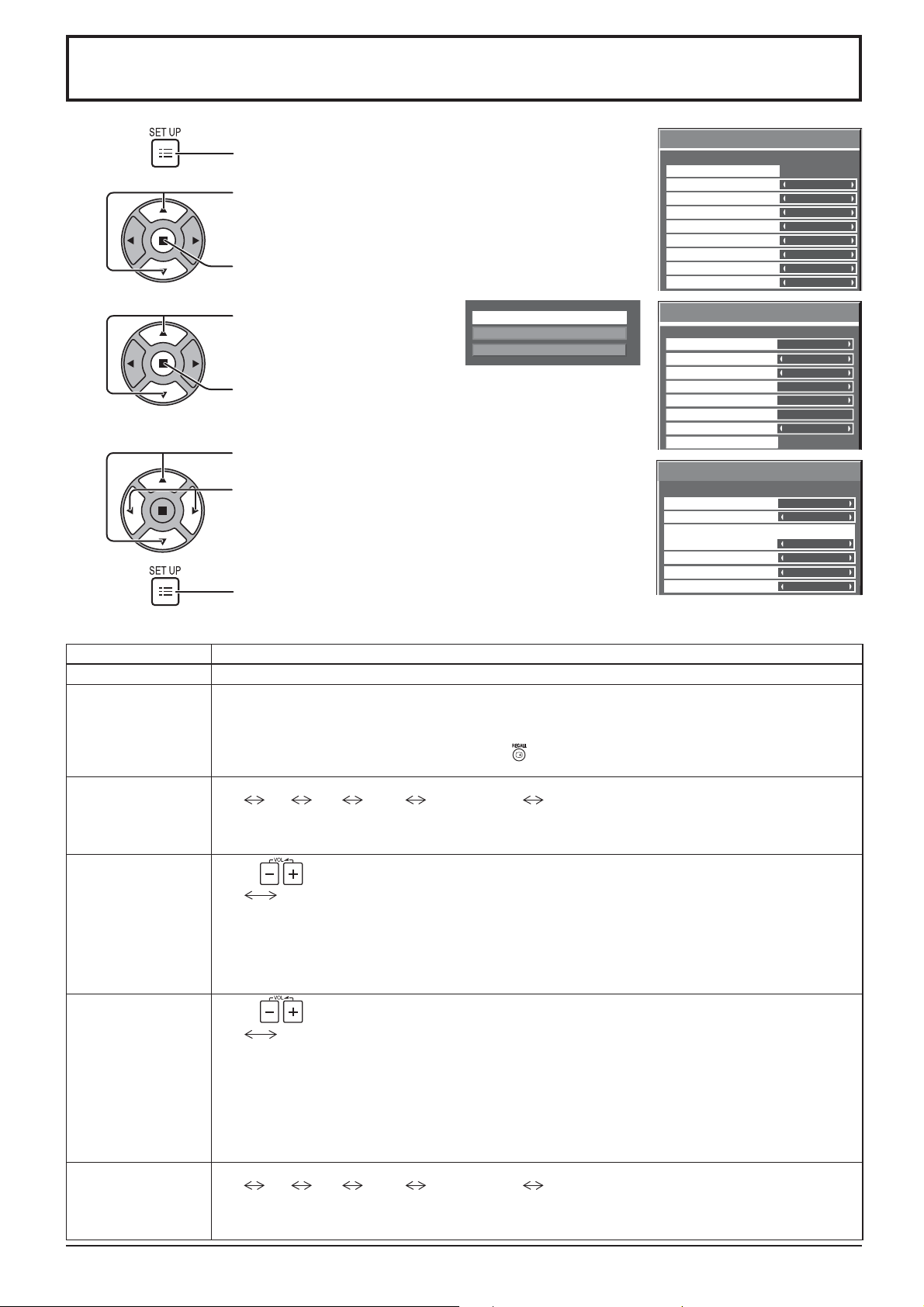

PRESENT TIME Setup / Set up TIMER

The timer can switch the Display On or Off.

Before attempting Timer Set, con rm the PRESENT TIME and adjust if necessary. Then set POWER ON Time / POWER OFF Time.

Press to display the Setup menu.

Press to select Set up TIMER or PRESENT TIME Setup.

Press to display the Set up TIMER screen or PRESENT TIME Setup screen.

PRESENT TIME Setup

Press to select DAY or PRESENT TIME*.

Press to setup DAY or PRESENT TIME*.

button: Forward button: Back

Notes:

• Pressing “

• Pressing “ ” or “ ” button continuously changes PRESENT TIME by 15 minutes.

Press to select Set.

” or “ ” button once changes PRESENT TIME 1 minute.

Press to store PRESENT TIME Setup.

Notes:

• Set cannot be selected unless PRESENT TIME* is set.

• Unless setting the present time other than “99:99”, “DAY” and “PRESENT TIME”* can not be set.

• The settings of “DAY” and “PRESENT TIME”* are reset when leaving the display turned off for about 7 days for the following reasons:

Pressing Disconnecting the AC cord. Interruption of power supply. * In “ENGLISH (US)” OSD language, this is displayed as “PRESENT TIME OF DAY”.

switch of the unit to turn off the display.

MULTI DISPLAY Setup

Set up TIMER

PRESENT TIME Setup

Network Setup Menu Display Duration Menu Transparency Outdoor mode

Maintenance information

PRESENT TIME Setup

PRESENT TIME MON 99 : 99

Set DAY PRESENT TIME

2/2Setup

15 S

MON

99 : 99

Page 38

PRESENT TIME Setup / Setup TIMER

Set up TIMER

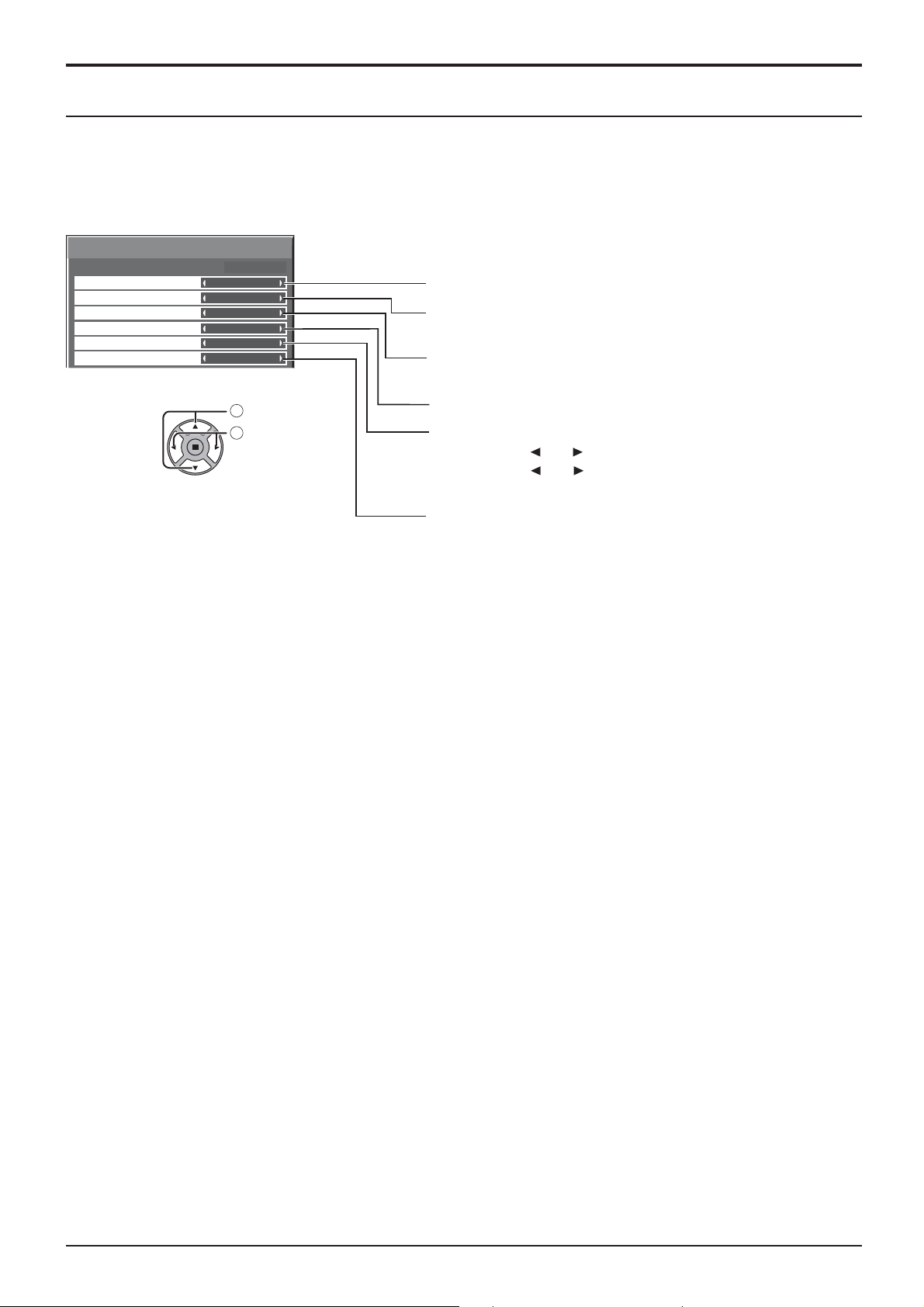

Set the program for turning the power On/Off and select the input signal at the speci ed time. Up to 20 programs can be set.

[Setting Example]

Program 1, Every Monday, 12:00, Power On, Input: HDMI

Set up TIMER

PRESENT TIME MON 0 : 03

Program Timer Function Day Power Mode Time Input

MON

Power On

12 : 00

HDMI

select

adjust

Set the program number.

To execute the program, set to “On”.

The program is disabled when “Off” is set.

Set the day.

The program is executed every day when “Everyday” is set

Set the power On/Off.

Set the time.

Pressing “ ” or “ ” button once changes “Time” 1 minute. Pressing “ ” or “ ” button continuously changes “Time” by 15 minutes.

Set the input.

Notes:

• This function cannot be set unless “PRESENT TIME Setup” is set.

• If more than one programs are set for the same time, only the program with the smallest program number is

enabled.

Page 39

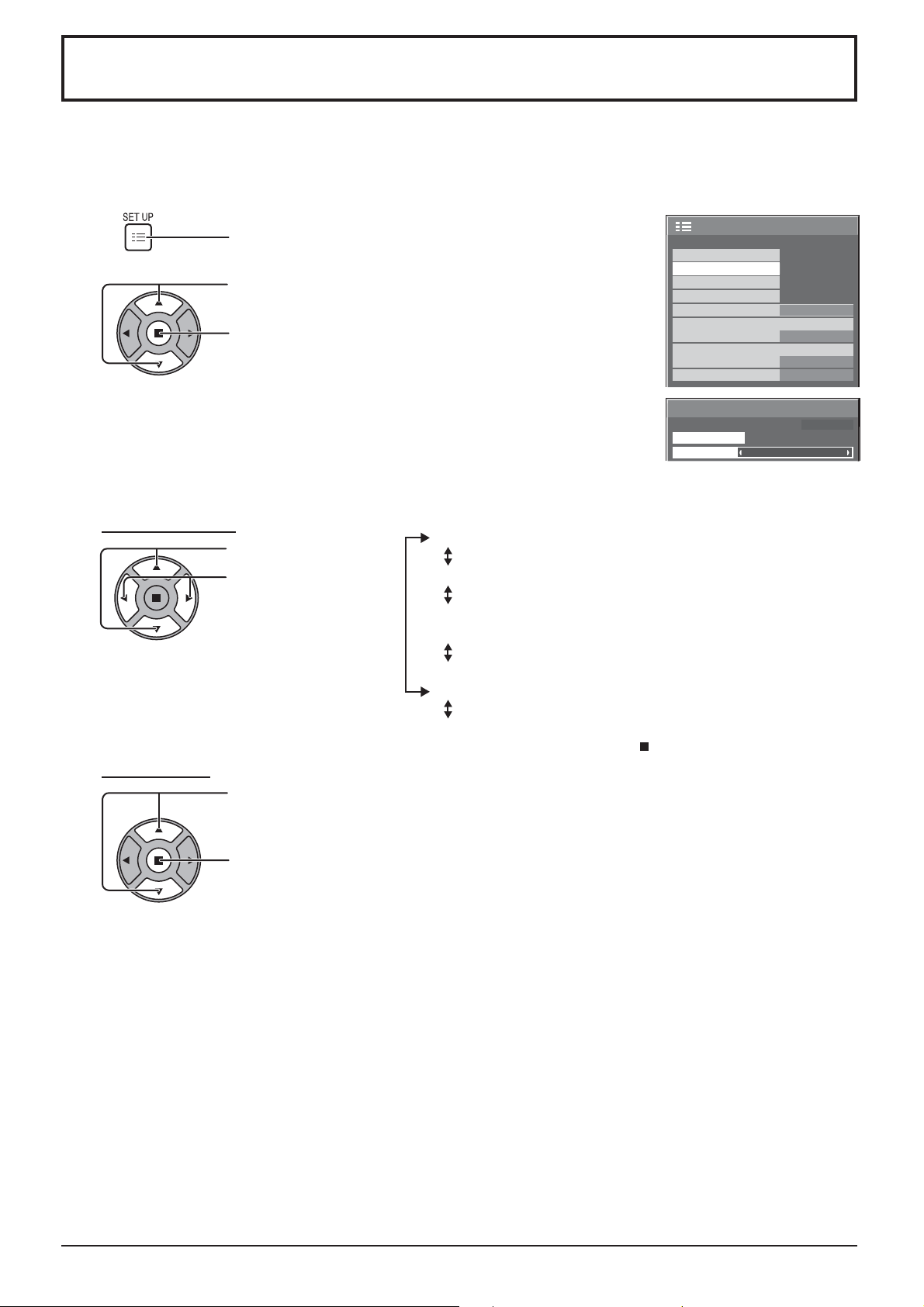

Screensaver

Start

Mode

Off

PRESENT TIME MON 0 : 02

Screensaver (For preventing image retention)

Do not display a still picture, especially in 4:3 mode, for any length of time. If the display must remain on, a Screensaver should be used. When the screen saver is operating, the following 5 patterns are displayed full screen for 5 seconds each.

BlackDark GrayGrayLight GrayWhite

Mode selection

Start setting

Press to display the Setup menu.

Press to select Screensaver.

Press to display Screensaver screen.

Off

Press to select Mode.

Press to select each mode items.

Interval

Time Designation*

: Operates when Periodic Time and Operating

: Operates when Start Time and Finish

Standby after SCR Saver

: Operates while Screensaver duration, and

On : Operates when Start is selected and the

When the Mode is set to On, press to select Start.

Off

RGB

Disable

1/2

)

Setup

Signal

Screensaver

Input label

ECO Mode settings Wobbling YUV/RGB-in select

No activity power off

OSD Language English(UK

Time are setup and those times arrive.

Time are setup and those times arrive. * In “ENGLISH (US)” OSD language, this

is displayed as “TIME OF DAY”.

display enters standby mode.

ACTION (

) button is pressed.

Press to start Screensaver. The menu screen will disappear and the Screensaver will be activated. To stop the

Screensaver under On, press the R button or any buttons on the main unit.

Note: When the display is turned off, the Scrensaver will be deactivated.

Page 40

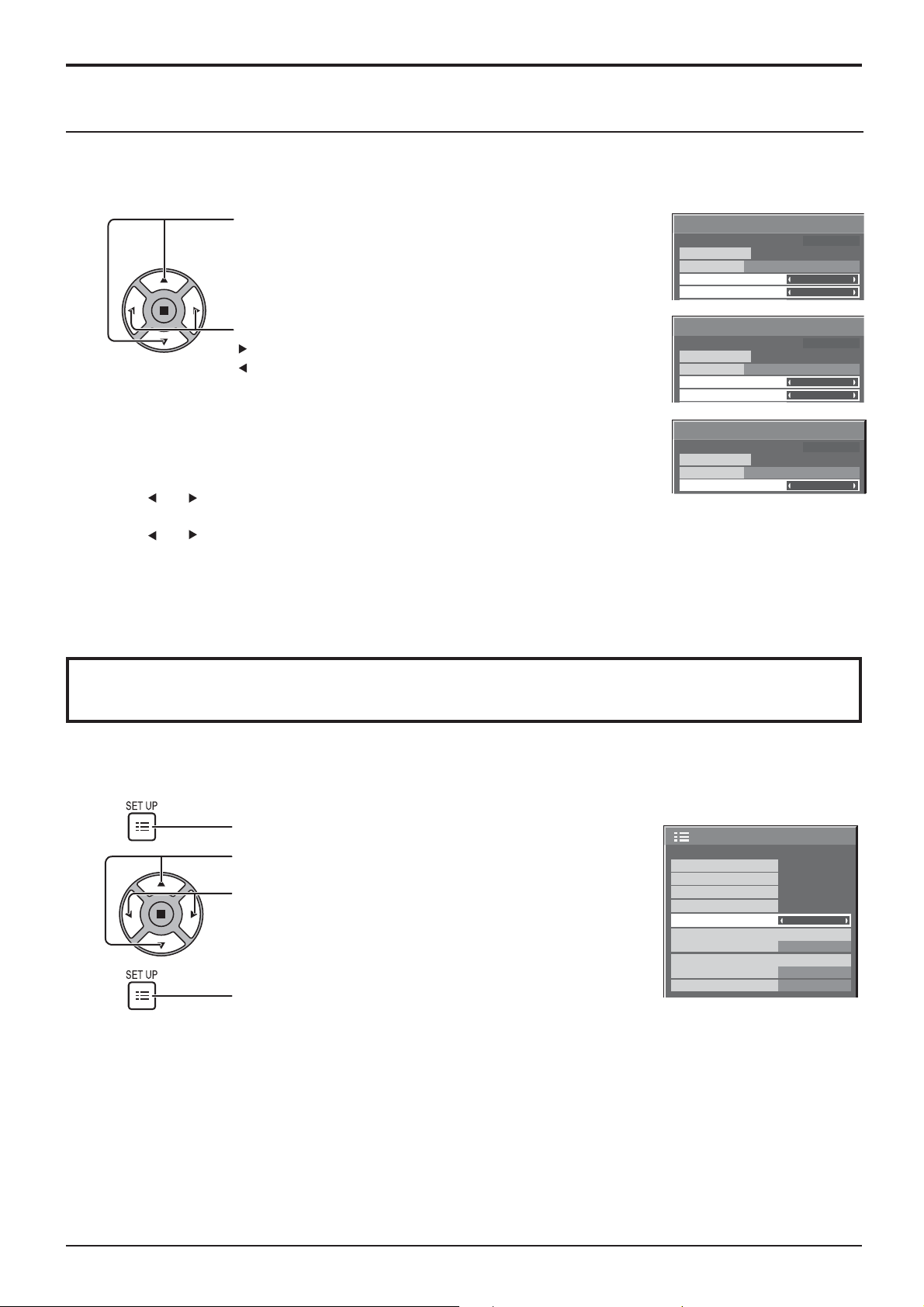

Screensaver

Start

Mode

Finish Time

Start Time

Time Designation

6 : 15

12 : 30

PRESENT TIME MON 15 : 00

Screensaver

Start

Mode

Operating Time

Periodic Time

Interval

12 : 00

3 : 00

PRESENT TIME MON 15 : 00

Screensaver

Start Mode Screensaver duration

Standby after SCR Saver

6 : 15

PRESENT TIME MON 15 : 00

Screensaver (For preventing image retention)

Setup of Screensaver Time

After selecting Time Designation, Interval or Standby after SCR Saver, the relevant Time Setup will become available for selection and the Operating Time may be set. (Time cannot be set when “Mode” is “On” or “Off”.)

Press to select Start Time / Finish Time (When Time Designation is selected). Press to select Periodic Time* (When Interval is selected). Press to select Screensaver duration (When Standby after SCR Saver is selected). Press to setup. button: Forward

button: Back

*1 In “ENGLISH (US)” OSD language, this is displayed as “SHOW DURATION”. *2 In “ENGLISH (US)” OSD language, this is displayed as “SAVER DURATION”.

Notes:

• Pressing “

” or “ ” button once changes the Time 1 minute.

[However, switching occurs every 15 minutes when Periodic Time is selected.]

• Pressing “

” or “ ” button continuously changes the Time by 15 minutes.

• “Screensaver duration” of the “Standby after SCR Saver” can be set from 0:00 to 23:59. When this is set to “0:00”, “ Standby after SCR Saver” will not be activated.

/ Operating Time*

Note: Timer function will not work unless “PRESENT TIME” is set.

Wobbling

Automatically shifts the display image (therefore unnoticeable to the eye) to prevent image retention of sharper contour of image.

Press to display the Setup menu.

Press to select “Wobbling”.

Press to select “On” or “Off”. On: Shifts the position of the display image on a  xed

interval.

Press to exit from adjust mode.

Notes:

• If “MULTI DISPLAY Setup” is set to “On”, this function does not operate.

• When this function is operating, part of the screen may appear to be missing.

time

Setup

Signal

Screensaver

Input label

ECO Mode settings Wobbling YUV/RGB-in select

No activity power off

OSD Language English(UK

Off

RGB

Disable

1/2

)

Page 41

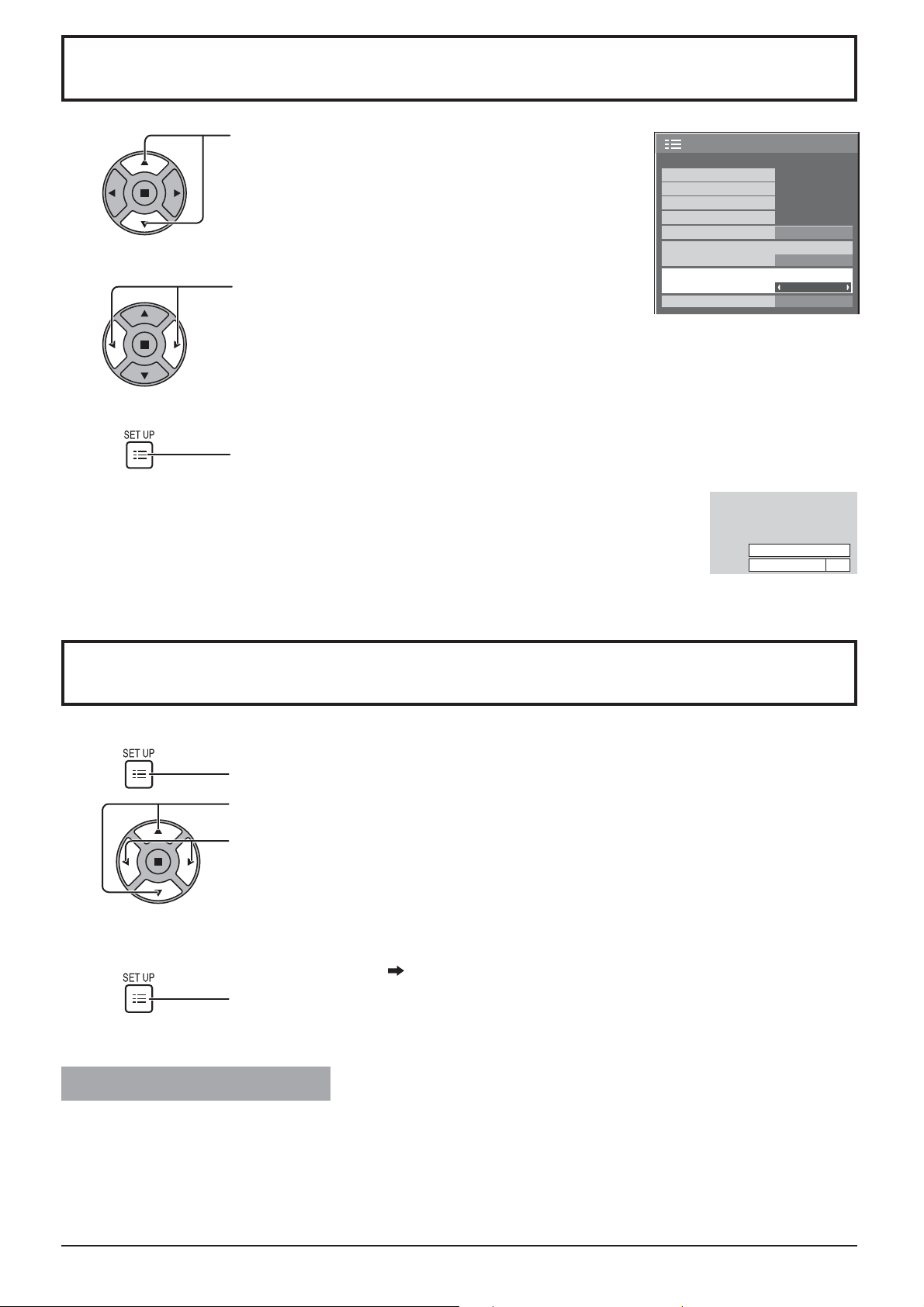

No activity power off

Press to select the menu to adjust.

Press to select “Enable” or “Disable”.

When this function is set to “Enable”, the power is turned off (standby) automatically when there is no operation of the Display for 4 hours. Starting from 3 minutes before the turn off, the remaining time will be displayed. When the power is turned off due to this function, a message “Last turn off due to ’No activity power off’.” is displayed next time the power is turned on.

Note:

During the screensaver is running, this function is disabled.

Press to exit from Setup.

Setup

ECO Mode settings Wobbling YUV/RGB-in select

No activity power off

OSD Language English(UK

Signal

Screensaver

Input label

Off

RGB

Disable

Press any key to abort.

No activity power off

1/2

)

3min

Outdoor mode

These settings are con gured to preserve the quality of the Display when it is used in a high or low temperature environment.

When this function is set to “On”, the following message appears at standby.

OUTDOOR MODE IS ACTIVE.

Notes:

• Do not unplug the power cable while using the Display with this function “On”.

• When this function is set to “On”, the power consumption at standby is approx. 40W.

• The fans spin while this is set to “On” even if the Display is in standby mode.

• Turn this function “On” to use this product when it is directly exposed to sunlight.

Press to display the Setup menu.

Press to select “Outdoor mode”.

Press to select “On” or “Off”.

Off: Operates normal standby. On: When the temperature inside the Display becomes low, the following operations are

performed:

1. Turn on the back light to prevent a decrease of temperature during standby.

2. When pictures are displayed and the “Local Dimming” function is set to “On”, the operations are the same as when it is set to “Off”. Local Dimming

Press to exit from adjust mode.

page 47

Page 42

ECO Mode settings

Off

RGB

Disable

1/2

)

ECO Mode

No signal power off

PC Power management

DVI-D Power management

Power save

Custom

Disable

Off

Off Off

select

adjust

Setup

Signal

Screensaver

Input label

ECO Mode settings Wobbling YUV/RGB-in select

No activity power off

OSD Language English(UK

ECO Mode

Custom: The menu of power consumption reduction is individually set. On: The following  xed values are set to the menu of power consumption reduction. Individual setting is not available.

No Signal power off: Enable PC Power management: On DVI-D Power management: On Power save: Sensor

Using Remote Control

When is pressed, the “ECO Mode” setting

changes.

ECO Mode On

Custom settings

The menu of the power consumption reduction is individually set. This setting is enabled when “ECO Mode” is set to “Custom”.

No signal power off

Equipment power supply is turned Off when there is no signal. When this is set to “Enable”, the power supply of the unit goes Off 10 minutes after the input signals stop.

PC Power management

When this function is set to On, it operates under the following conditions to turn the power on or off automatically. When no pictures are detected for 30 or so seconds during PC signal input:  Power is turned off (standby); the power indicator lights up orange. When pictures are subsequently detected:  Power is turned on; the power indicator lights up green.

Notes:

• This function operates only during input from PC IN terminal.

• This function is effective when “Sync” is set to “Auto” and during normal viewing.

DVI-D Power management

When this function is set to On, it operates under the following conditions to turn the power on or off automatically. When no pictures (sync signal) are detected for 30 or so seconds during DVI signal input:  Power is turned off (standby); the power indicator lights up orange. When pictures (sync signal) are subsequently detected:  Power is turned on; the power indicator lights up green.

Note:

This function operates only during DVI signal input.

Power save

This function adjusts the brightness of the backlight to reduce power consumption.

Off:

This function does not operate.

On:

Backlight brightness is reduced.

Sensor: Note:

When this function is set to “On” or “Sensor”, the “Backlight” setting in the Picture menu is disabled.

The backlight brightness is automatically adjusted according to the viewing environment.

Page 43

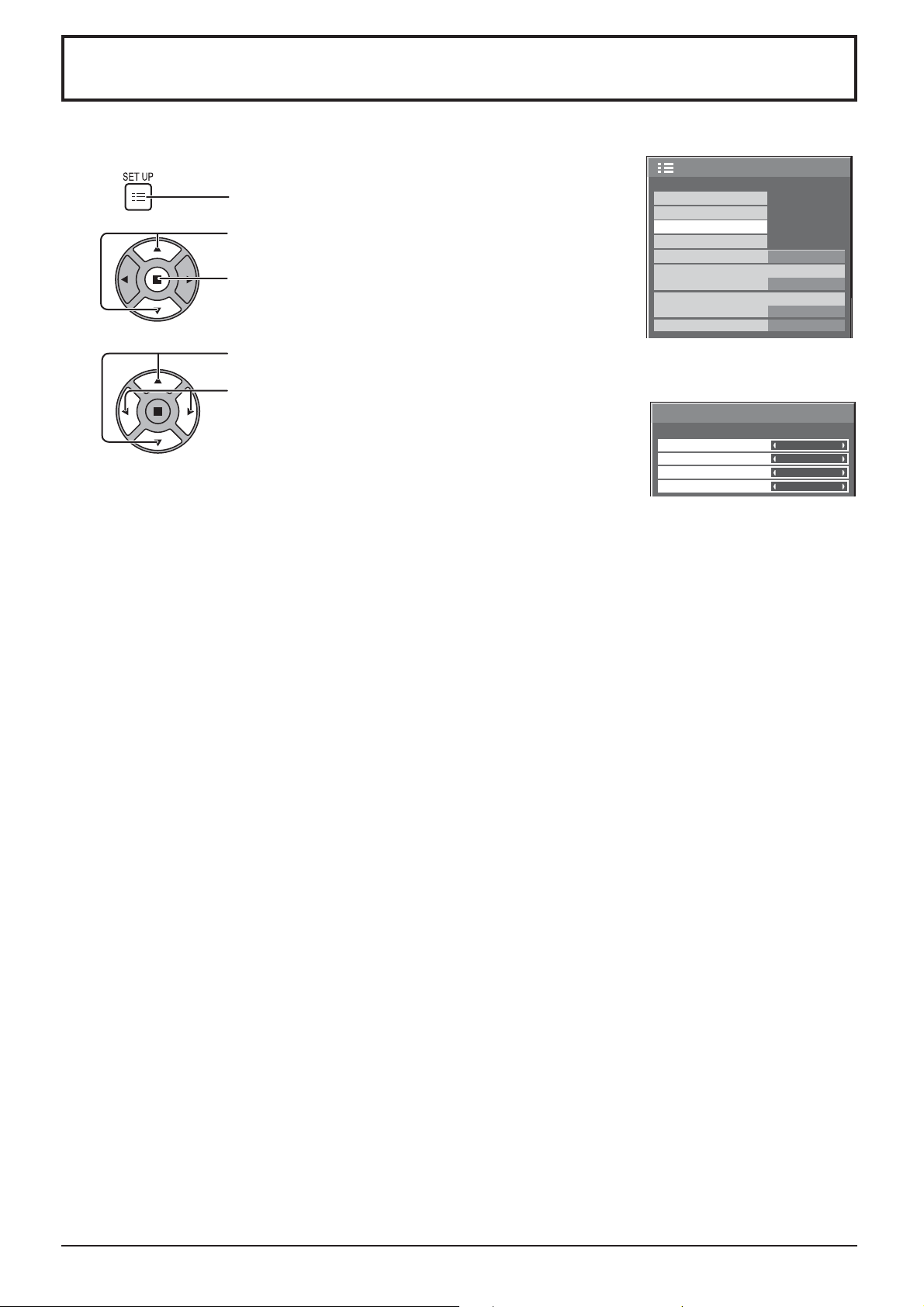

Customizing the Input labels

This function can change the label of the Input signal to be displayed. (see page 18)

Setup

1/2

Press to display the Setup menu.

Press to select Input label.

Press to display the Input label screen.

Press to select image input.

Signal

Screensaver

Input label

ECO Mode settings Wobbling YUV/RGB-in select

No activity power off

OSD Language English(UK

Off

RGB

Disable

)

Press to change input label.

Input label

PC DVI

DIGITAL LINK

HDMI

Image input Input label [PC] PC / DVD1 / DVD2 / DVD3 / Blu-ray1 / Blu-ray2 / Blu-ray3 / CATV / VCR / STB / (Skip) [DVI] DVI / DVD1 / DVD2 / DVD3 / Blu-ray1 / Blu-ray2 / Blu-ray3 / CATV / VCR / STB / (Skip) [DIGITAL LINK] DIGITAL LINK / DVD1 / DVD2 / DVD3 / Blu-ray1 / Blu-ray2 / Blu-ray3 / CATV / VCR / STB / (Skip) [HDMI] HDMI / DVD1 / DVD2 / DVD3 / Blu-ray1 / Blu-ray2 / Blu-ray3 / CATV / VCR / STB / (Skip)

DVI

DIGITAL LINK

HDMI

(Skip): The INPUT button press will skip its input.

Page 44

Selecting the On-Screen Menu Language

Press to display the Setup menu.

Press to select the OSD Language.

Press to select your preferred language.

Selectable languages

English (UK)

Deutsch

Français

Italiano

Español

ENGLISH (US)

......(Chinese)

.......(Japanese)

Setup

Signal

Screensaver

Input label

ECO Mode settings

Wobbling YUV/RGB-in select

No activity power off

OSD Language English(UK

Off

RGB

Disable

1/2

)

.......(Russian)

Customizing the On-Screen Menu Display

Set the display time and background transparency of the on-screen menu display.

Press to display the Setup menu.

Press to select “Menu Display Duration”.

Press to adjust the display duration.

Press to select “Menu Transparency”.

Press to adjust the transparency.

MULTI DISPLAY Setup

Set up TIMER

PRESENT TIME Setup

Network Setup Menu Display Duration Menu Transparency Outdoor mode

Maintenance information

2/2Setup

15 S

Press to exit from adjust mode.

Page 45

2/2Setup

MULTI DISPLAY Setup

Set up TIMER

PRESENT TIME Setup

Network Setup

Menu Display Duration

15 S

Menu Transparency

Outdoor mode

Maintenance information

Setup for MULTI DISPLAY

By lining up the Displays in groups, for example, as illustrated below, an enlarged picture may be displayed across all screens. For this mode of operation, each display has to be set up with a Display number to determine its location.

(Example)

group of 16 (4 × 4)group of 4 (2 × 2) group of 9 (3 × 3) group of 25 (5 × 5)

How to Setup MULTI DISPLAY

Item Details

MULTI DISPLAY Setup

Horizontal Scale

Vertical Scale

Press to display the Setup menu.

Press to select the MULTI DISPLAY Setup.

Press to display the “MULTI DISPLAY Setup” menu.

Press to select the MULTI DISPLAY Setup.

Press to select “On” or “Off”.

Select “On” or “Off”.

Select “1”, “2”, “3”, “4”, “5”.

Areas of the image that are hidden by the joint sections are adjusted both horizontally and vertically (0~100).

To show joints between displays. To hide joints between displays.

MULTI DISPLAY Setup

MULTI DISPLAY Setup Horizontal Scale Vertical Scale Bezel H Adjustment Bezel V Adjustment Location

Off

1 10 10

Bezel H Adjustment Bezel V Adjustment

Suitable for still image display. Suitable for moving image display.

Setting value: 0 Setting value: 100

Page 46

Setup for MULTI DISPLAY

Item Details

Select the required arrangement number. (A1-E5 : Refer to the following)

Display Number locations for each arrangement.

(Examples)

( 2 × 1) ( 2 × 3 ) ( 4 × 4 )( 4 × 2 ) ( 5 × 5 )

Location

A1 A2 A3 A4 A5

B1 B2 B3 B4 B5

C1 C2 C3 C4 C5

D1 D2 D3 D4 D5

E1 E2 E3 E4 E5

Press to exit from Setup.

ID Remote Control Function

You can set the remote control ID when you want to use this remote control on one of several different displays.

Note:

To operate this function, please purchase ID remote controller sold separately. Object model : EUR7636090R (Europe)

EUR7636070R (Other countries)

Switch to on the right side.

Press the button on the remote control.

Press one of

- , for the tens digit setting.

- , for the units digit setting.

Notes:

• The numbers in 2, 3 and 4 should be set up quickly.

• Adjustable ID number range is 0 - 99.

• If a number button is pressed more than two times, the  rst two numbers become the ID number for the remote control.

ID remote control button operation

The operation is the same as normal remote control except for the button.

ID Cancellation

Press button on remote control. (This has the same effect as pressing the , , buttons at the same time.)

Notes:

• Set the Remote ID “On” to operate the ID remote control.

If Remote ID is set to “On”, you can use the remote control without identical ID number during option menu display. (see page 47)

• The ID remote control cannot be used when ID select is set to anything other than 0, and the remote control ID is not the same as the ID select number (see page 47).

Page 47

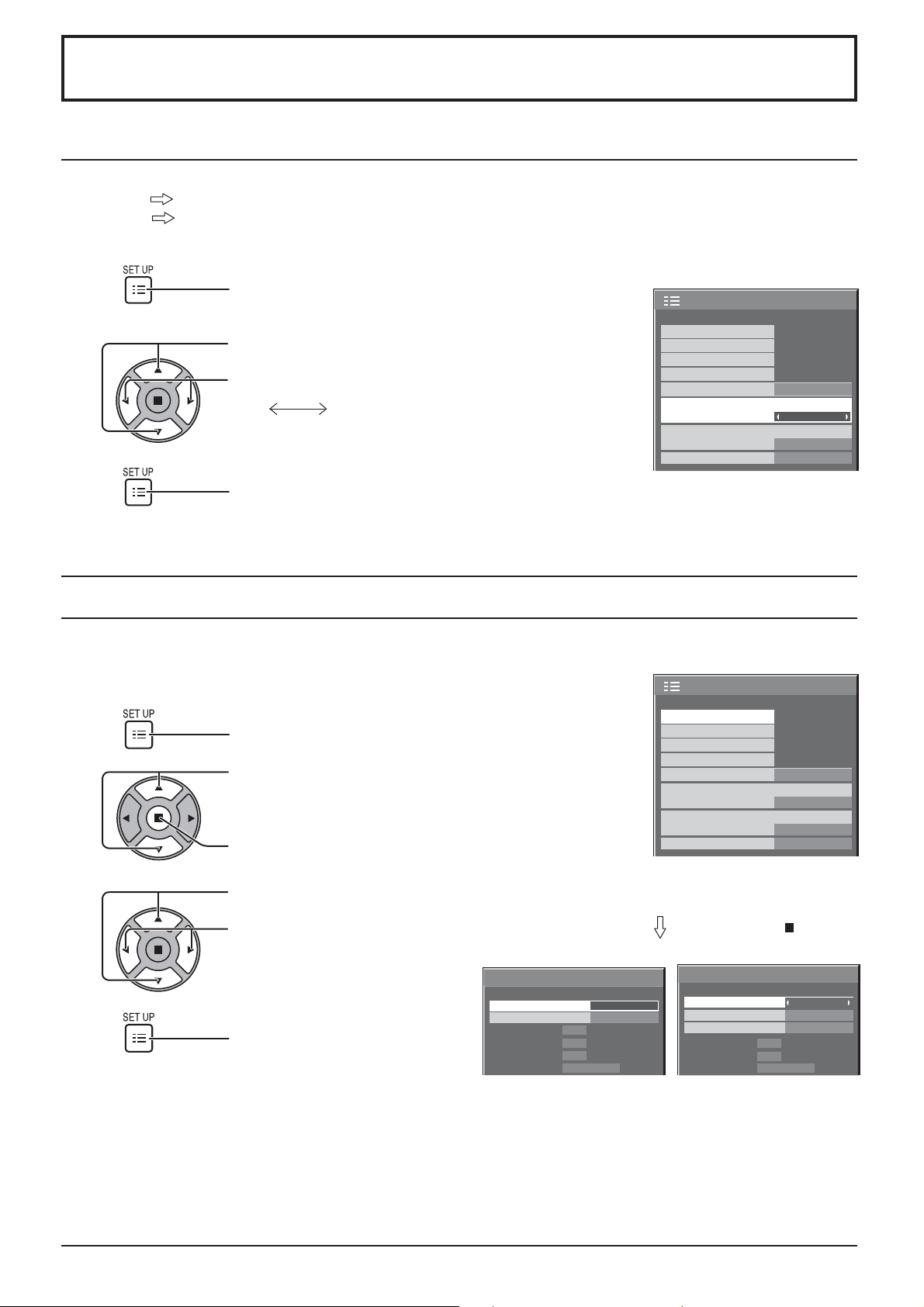

Setup for Input Signals

YUV / RGB-in select

Select to match the signals from the source connected to DVI-D IN terminal. YUV signals “YUV” RGB signals “RGB”

Press to display the Setup menu.

Press to select the “YUV / RGB-in select”.

Press to select the desired mode.

YUV

Press to exit from adjust mode.

RGB

Signal menu

Note:

“Signal” setup menu displays a different setting condition for each input signal.

Press to display the Setup menu.

Press to select the “Signal”.

Press to display the Signal menu.

Setup

Signal

Screensaver

Input label

ECO Mode settings Wobbling YUV/RGB-in select

No activity power off

OSD Language English(UK

Setup

Signal

Screensaver

Input label

ECO Mode settings Wobbling YUV/RGB-in select

No activity power off

OSD Language English(UK

Off

RGB

Disable

Off

RGB

Disable

1/2

)

1/2

)

Press to select the menu to adjust.

Press to adjust the menu.

Press to exit from adjust mode.

For Digital

Signal

Cinema reality HDMI Range

H-Freq.

V-Freq. Hz

Dot Clock Freq.

Signal Format

kHz

63.98

60.02 MHz

108.0

1280×1024/60

[

Off

Auto

Digital

Press ACTION ( ) button

For PC

Signal

]

Sync Cinema reality XGA Mode

H-Freq.

V-Freq.

Signal Format

kHz

63.98

60.02 1280×1024/60

1024

Auto

Off

[

768

RGB

]

Page 48

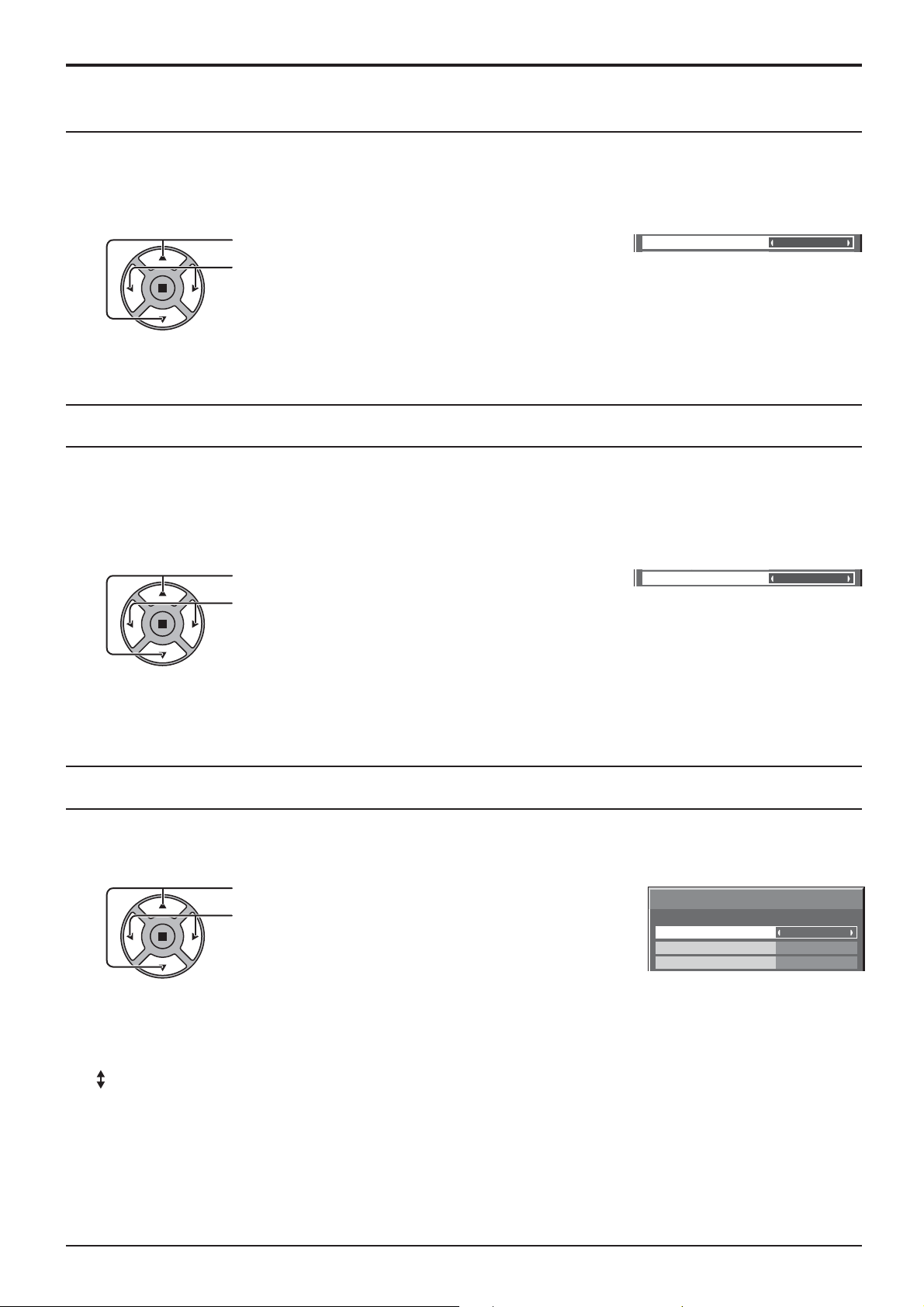

Setup for Input Signals

Cinema reality

Off

XGA Mode

1024 × 768

Cinema reality*

Cinema reality*:

When on, the display attempts to reproduce a more natural interpretation of sources such as movie pictures, which are recorded at 24 frames per second. If the picture is not stable, turn the setting to off.

Press to select Cinema reality*.

Press to set On / Off.

* In “ENGLISH (US)” OSD language, this is displayed as “3:2 PULLDOWN”.

XGA Mode

This menu is displayed when the input signal is analog. This menu sets two types of XGA signals with 60Hz vertical frequency having different aspect ratios and sampling rates (1,024 × 768 @ 60Hz and 1,366 × 768 @ 60Hz). When a 1,280 x 768 @ 60Hz input signal is automatically detected, the image is processed as a 1,280 x 768 @ 60Hz XGA input signal irrespective of this setting.

Press to select “XGA Mode”.

Press to select “1024×768”, “1366×768”.

Note:

After making this setting, be sure to make each adjustment (such as “Auto Setup”) on the “Pos. /Size” menu as necessary. (see page 24, 25)

Sync

This function operates only during input from PC IN terminal.

Press to select the “Sync”.

Press to adjust.

Con rm that the input is set to RGB input (this setting is valid only for RGB input signal).

Signal

Sync Cinema reality XGA Mode

Auto

1024

Off

[

RGB

768

]

Auto:

The H and V sync or synchronized signal is automatically selected. If both input, it is selected the H and V sync. However, the synchronized signal that is input  rst is selected.

on G: Uses a synchronized signal on the Video G signal, which is input from the G connector.

Page 49

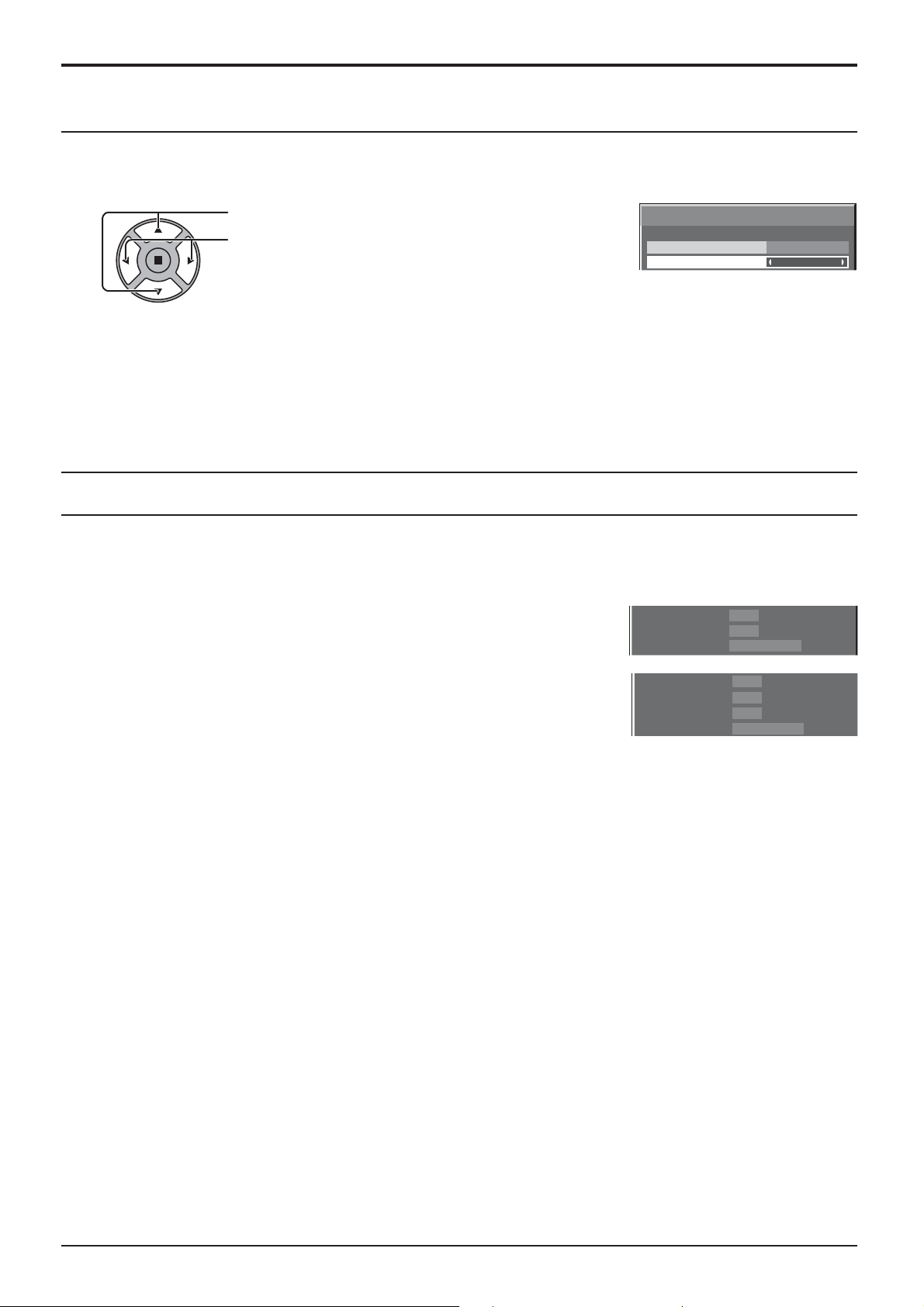

Setup for Input Signals

HDMI Range

Switches the dynamic range according to the input signal from HDMI terminal.

Press to select “HDMI Range”.

Press to select “Video(16-235)”, “Full(0-255)”, “Auto”.

Video(16-235): If the input signal is the video range, Example: HDMI terminal output for DVD player Full(0-255): If the input signal is full range, Example: HDMI terminal output for personal computer Auto:

Switches the dynamic range automatically between “Video(16-235)” and “Full(0-255)” according to the input signal.

Note:

This function can be set to the HDMI signal and DIGITAL LINK.

Signal

Cinema reality HDMI Range

[

Off

Auto

Digital

]

Input signal display

Displays the frequency and the type of the current input signal.

This display is valid only for PC and Digital input signal. Display range:

Horizontal 15 - 110 kHz Vertical 48 - 120 Hz

The dot clock frequency is displayed during digital signal input.

Note:

The automatically detected signal format may be displayed differently than the actual input signal.

H-Freq.

V-Freq.

Signal Format

H-Freq.

V-Freq . Hz

Dot Clock Freq.

Signal Format 1280×1024/60

kHz

63.98

60.02 1280×1024/60

kHz

63.98

60.02 MHz

108.0

Page 50

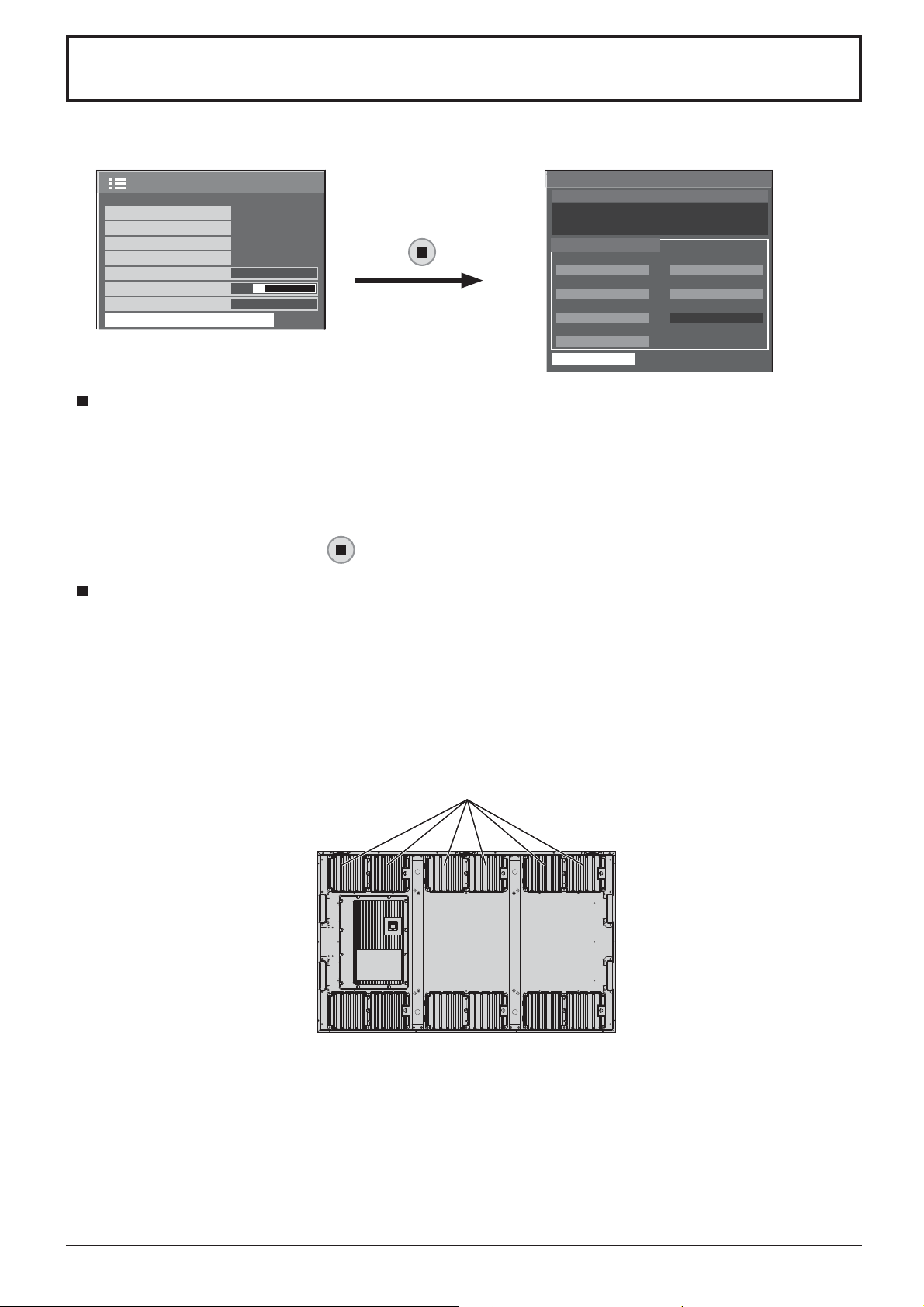

Maintenance information

Maintenance information related to the fan and air  lter is displayed.

Maintenance information

Fan inspection required. Please contact service provider.

FAN

No.1

No.3

No.5

INSIDE

START TEST

No.2

No.4

No.6

SERVICE

MULTI DISPLAY Setup

Set up TIMER

PRESENT TIME Setup

Network Setup Menu Display Duration Menu Transparency Outdoor mode

Maintenance information

2/2Setup

Press

15 S

Maintenance information

Messages related to the air  lter condition, fan operating status and inspection noti cations are displayed. When “Please clean  lters. Then, click “START TEST”. Consult owner’s manual for instructions.” is displayed, remove and clean the air  lter. (see page 5) If “Please clean  lters. Then, click “START TEST”. Consult owner’s manual for instructions.” is displayed again a short period after cleaning the air  lter, contact the service provider. If “Please contact service provider.” is displayed, contact the service provider.

• After cleaning the air  lter, press

FAN

The status of each fan is displayed. If “SERVICE” is displayed, contact the service provider for inspection of the fan.

to execute the status test again and check the maintenance information.

Note:

When viewed from the back, the fans are displayed as “No.1” to “No.6” in order starting from the right side. Interior circulation fans inside the Display are indicated as “INSIDE”.

“No.1” to “No.6” from the right

Page 51

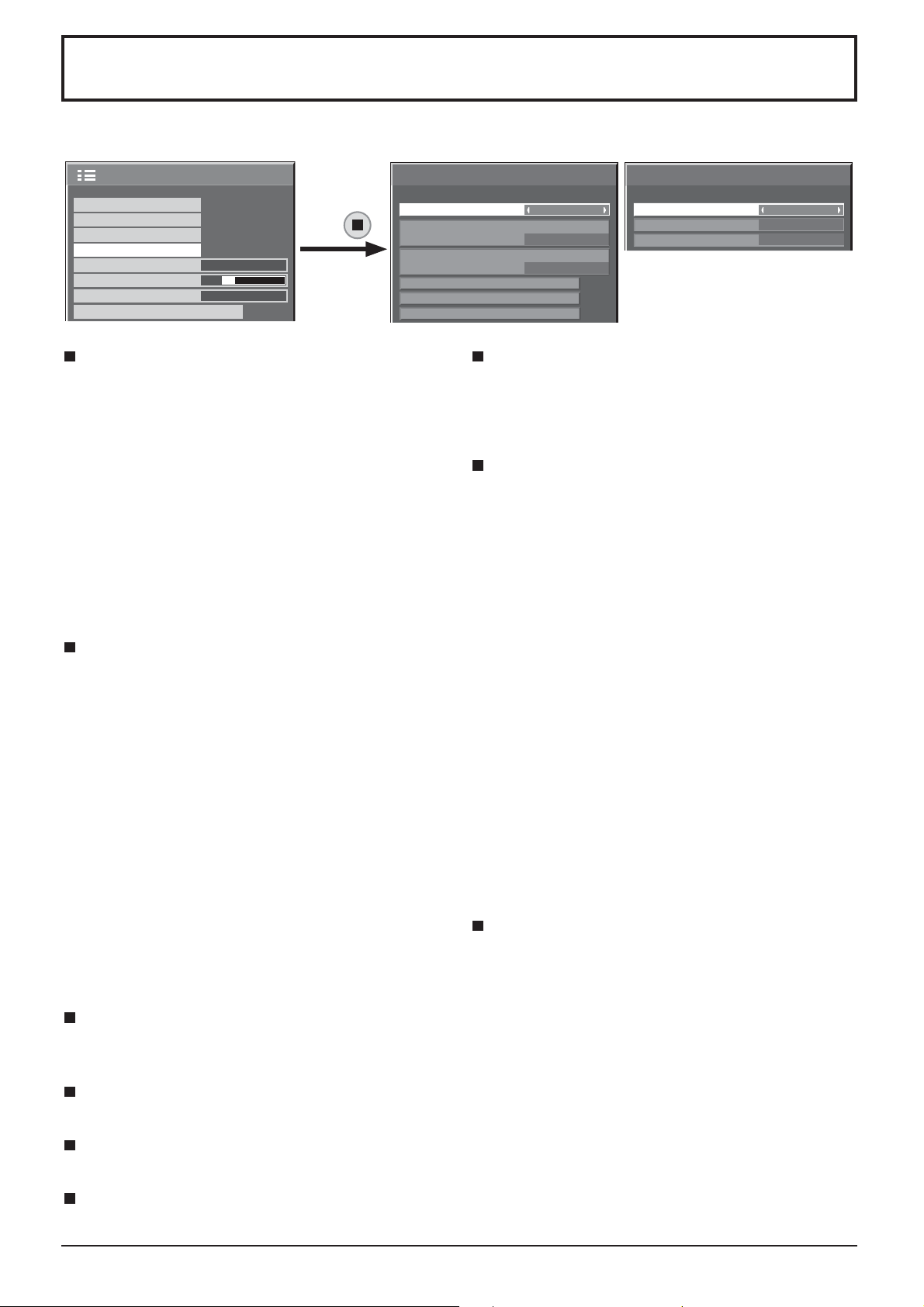

Network Setup

Con gure the various settings required to use the network function.

MULTI DISPLAY Setup

Set up TIMER

PRESENT TIME Setup

Network Setup Menu Display Duration Menu Transparency Outdoor mode

Maintenance information

DIGITAL LINK mode

2/2Setup

Press

15 S

Network Setup

DIGITAL LINK mode

Control l/F Select

Display Name

You can switch the communication method of DIGITAL LINK. Auto: The communication method is automatically

selected. HDMI/LAN/RS232C communication can be used. Ethernet connection can be made.

DIGITAL LINK: HDMI/LAN/RS232C communication

can be used via a twisted pair cable transmitter.

Ethernet: LAN communication can be used via the

LAN terminal of the Display.

Note:

When “Ethernet” is selected, set the “Control I/F Select” to “LAN”.

Control I/F Select

RS-232C (Serial): Control using the Display's RS232C. LAN: Control using the Display or the LAN terminal of

a twisted pair cable transmitter.

RS-232C

Notes:



When “LAN” or “

the power lamp lights orange when the remote control power is switched “Off” (standby).



When controlling using the RS232C command from

page 14 to the RS232C terminal of the Display, select “

the RS232C terminal of the “RS-232C (Serial)” or DIGITAL LINK device.



When using any of the control techniques listed on

pages 52 to 57, select “LAN”.

(DIGITAL LINK): Control using the twisted

pair cable transmitter's RS232C.

RS-232C

(DIGITAL LINK)” to control from

(DIGITAL LINK)” is set,

1/2

Network Setup

LAN Setup

DIGITAL LINK

Digital Interface Box

status

AMX D.D.

Auto

RS-232C (Serial)

LFX60-00

AMX D.D.

Crestron Connected™

Extron XTP

This function allows the Display to be detected by AMX Device Discovery. For more details, visit the following website. http://www.amx.com/

Crestron Connected™

When this function is set to on, the Display can be monitored or controlled via the network using equipment and application software of Crestron Electronics, Inc.

This Display supports the following application software from Crestron Electronics, Inc.



RoomView® Express



Fusion RV



RoomView® Server Edition

[Crestron Connected™] is a function to connect to

a system developed by Crestron Electronics, Inc. which manages and controls multiple system devices connected to the network.

• For details of “Crestron Connected™”, refer to the Crestron Electronics, Inc. website (Provided only in English). http://www.crestron.com/ For the download of “RoomView the Crestron Electronics, Inc. website (Provided only in English). http://www.crestron.com/getroomview

Extron XTP

To carry out connection settings with XTP Transmitter made by Extron. Visit the following website for details. http://www.extron.com

Express”, refer to

2/2

Off

Off Off

Display Name

The name of the Display that is shown on the network can be changed.

LAN Setup

See page 44

DIGITAL LINK status

See page 45

Digital Interface Box

See page 45

Page 52

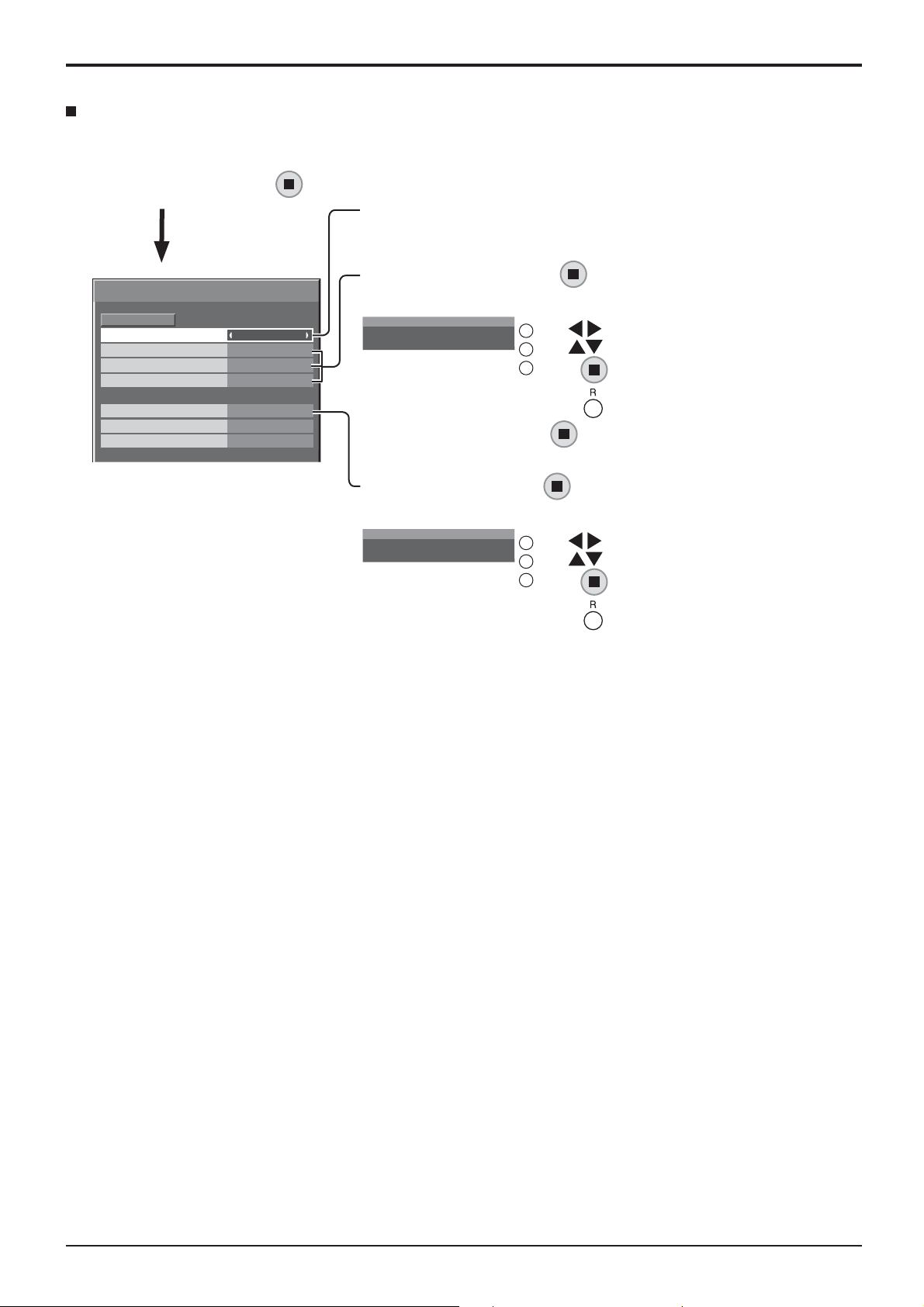

Network Setup

LAN Setup

Detailed network settings for the LAN established via the LAN terminal of the Display or twisted pair cable transmitter can be con gured.

Select “LAN Setup” and press .

LAN Setup

Save

DHCP

IP address

Subnet mask

Gateway

Port

DUPLEX

Network ID

MAC Address

Off

192.168. 0. 8

255.255.255. 0

192.168. 0. 1

1024

Auto

--:--:--:--:--:--

DHCP, IP address, Subnet mask, and Gateway settings

1 Set DHCP.

When “Off” is selected, IP address and other settings can be set

manually.

2 Select the item and press . 3 Enter an address.

IP address

192.168. 0. 8

Use to select a digit.

Use to change a number.

Press .

Pressing

will cancel the address change.

4 Select “Save” and press .

Port setting

1 Select “Port” and press . 2 Enter a port number.

Port

01024

Use to select a digit.

Use to change a number.

Press .

Pressing

will cancel the port number change.

Save

Save the current network Setup. Each value set for DHCP, IP address, Subnet mask, and Gateway will be saved. If “NG” is displayed, check the same IP address is not used within the same network.

DHCP (DHCP client function)

To obtain an IP address automatically using a DHCP server, set this to “On”. If DHCP server is not used, set

Port

Set the port number used for command control. The available setting range is 1024 – 65535. When the PJLink™ protocol is used, the port setting is not necessary.

DUPLEX

Set the connection speed of the LAN environment. Select the value from Auto, 100 Half or 100 Full.

this to “Off”.

Network ID

IP address (IP address display and setting)

Enter an IP address if DHCP server is not used.

Subnet mask (Subnet mask display and setting)

Enter a subnet mask if DHCP server is not used.

Set the ID to identify this unit. The available setting range is 0 – 99.

MAC Address

Display the MAC address of this unit. However, the MAC address is not displayed when the “Control I/F Select”

Gateway (Gateway address display and setting)

Enter a gateway address if DHCP server is not used.

is set to “RS-232C (Serial)” or “RS-232C (DIGITAL LINK)”.

Notes:

• To use a DHCP server, make sure the DHCP server is started.

• Contact your network administrator for details on settings.

Page 53

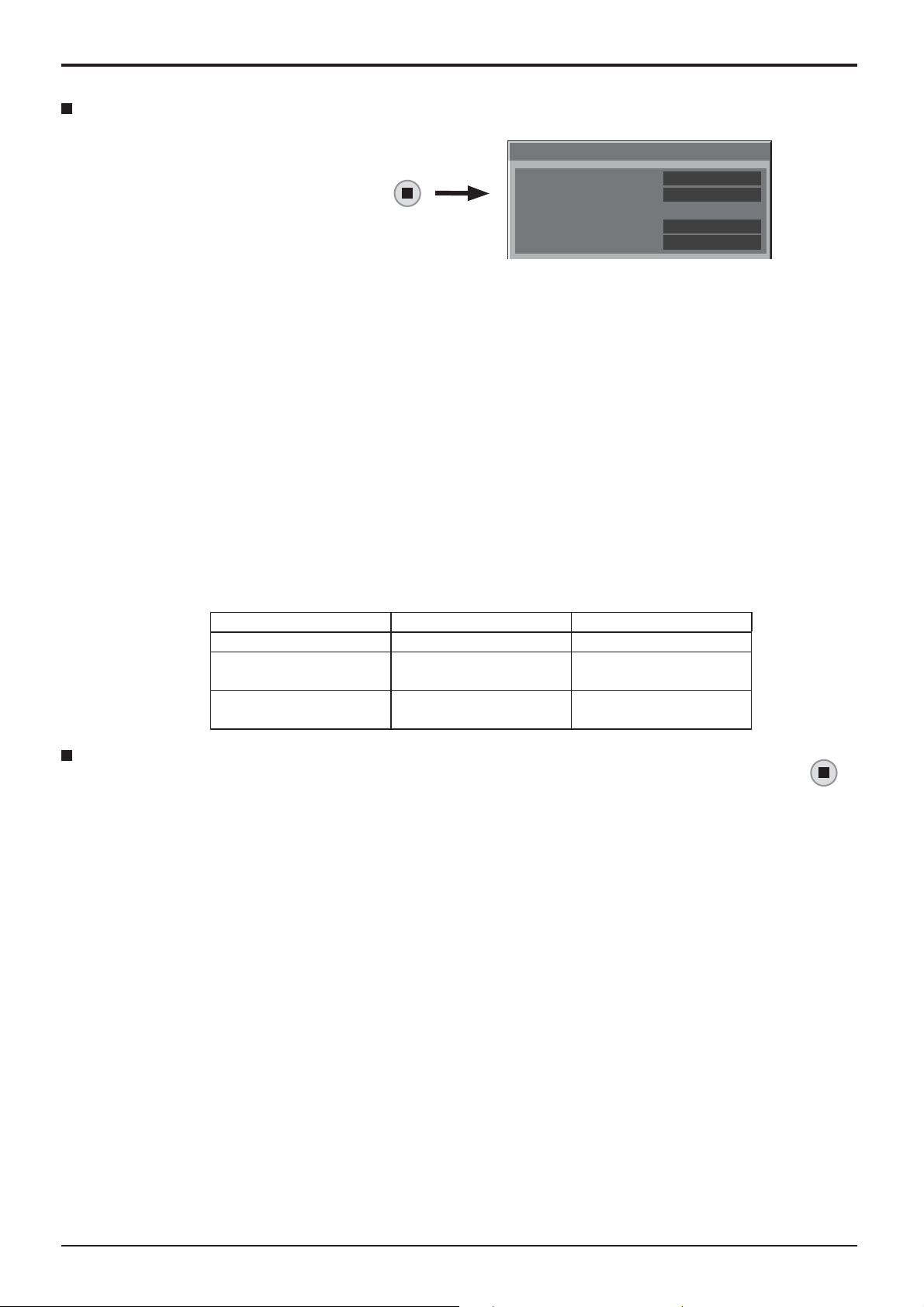

DIGITAL LINK status

Display the DIGITAL LINK connection environment.

Network Setup

DIGITAL LINK status

Select “DIGITAL LINK status” and press .

LINK status

HDMI status

Signal quality

Min

Max

No Link

No HDMI

-XX dB

-YY dB

LINK status : Either “No link”, “DIGITAL LINK”, or “Ethernet” will be displayed.

No link : No LAN connection, etc.

DIGITAL LINK : Connected to the DIGITAL LINK device by LAN

Ethernet : The PC is connected to the DIGITAL LINK terminal of this product and is

LAN connected

HDMI status : Either “No HDMI”, “HDMI ON”, or “HDCP ON” will be displayed.

No HDMI : DIGITAL LINK not connected

HDMI ON : DIGITAL LINK connected

HDCP ON : A signal with an HDCP is  owing with a DIGITAL LINK connection.

Signal quality : It is the quanti ed minimum and maximum numbers of errors that have occurred. The

display colors are red, yellow, or green, depending on the number.

The number is represented by yellow or red if the LAN cable is disconnected or the cable

is not shielded. This signal quality shows  gures between the twisted pair cable transmitter

that is connected and the display.

Signal Quality Display Colors Reception Status

-12dB or below Green The reception is normal

-11 to -8dB Yellow Part of the received data is corrupted

-7dB or above Red There are reception dif culties

Digital Interface Box

A switch will be made to the Set up Digital Interface Box menu when “Digital Interface Box” is selected and is pressed.

Note:

This function can only be selected when the Digital Interface Box (ET-YFB100) made by our company is connected to a LAN terminal and its power is on.

Page 54

Options Adjustments

Press to display the Setup menu.

Press to select “OSD Language”.

Press for more than 3 seconds.

Press to select “Options”.

Press to display the Options menu.

Press to select your preferred menu.

Press to adjust the menu.

Press to exit from Options menu.

Options

Display Serial Number

Shipping

Options

Input Search On screen display Initial input Initial VOL level Maximum VOL level Input lock Button lock Remocon User level Local Dimming

Options

Off-timer function

Initial Power Mode ID select Remote ID Serial ID Studio W/B LAN Control Protocol RS-232C/LAN Information Timing

Options

Power ON Screen Delay Clock Display Power On Message (No activity power off)

Function button assign 1 Function button assign 2 Power Switch Lock

On Off

Off00

Off

Enable

Normal

Off

Protocol 1

Off Off

DIGITAL LINK

Maintenance

Off

1/3

2/3

3/3

• The serial number of this device is displayed when “Display Serial Number” is selected in step 3.

Item Adjustments

Input Search

On screen display

Initial input

Initial VOL level

Maximum VOL level

Input lock

Set auto input switching for when there is no signal. (see page 48) On: Displays all the following on screen.

• Power on display

• Input signal switch display

• No signal display

• Mute and the remaining time of off-timer after

was pressed.

Off: Hides all the items above from view. Adjusts the input signal when the unit is turned on.

Off PC DVI HDMI DIGITAL LINK Off Notes:

• Only the adjusted signal is displayed. (see page 18)

• This menu is available only when “Input lock” is “Off”.

Press

Off

button to adjust the volume when the unit is turned on.

On Off: Sets normal volume. On: Sets your preferred volume. Notes:

When “Maximum VOL level” is “On”, the volume can only be adjusted between 0 and your maximum range.

•

• You can hear the changed volume regardless of your volume setting before opening the options menu

if you adjust the volume when “Initial VOL level” is “On” and cursor is on the menu.

Press

Off

button to adjust the maximum volume.

On Off: Sets auto maximum volume. On: Sets your preferred maximum volume. Notes:

• If the “Maximum VOL level” is set lower than the “Initial VOL level”, the “Initial VOL level” automatically

becomes the same as the “Maximum VOL level”.

• The volume display can go up to 100 regardless of the settings.

• You can hear the changed volume regardless of your volume setting before opening the options menu

if you adjust the volume when “Maximum VOL level” is “On” and cursor is on the menu.

Locks the input switch operation.

Off PC DVI HDMI DIGITAL LINK Off Notes:

• Only the adjusted signal is displayed (see page 18).

• Input switch can be used when this is set to “Off”.

Page 55

Item Adjustments

Button lock

Remocon User level

Local Dimming

Off-timer function

Initial Power Mode

ID select

Remote ID

Serial ID

Studio W/B

LAN Control

Protocol

RS-232C/LAN

Information Timing

Power ON Screen

Delay

Clock Display

Options Adjustments

Off Off: All the buttons on main unit can be used. MENU&ENTER: Locks On: Locks all the button on main unit except the Power switch.

Sets Button lock with the unit buttons in the following procedure.

Off: Press MENU&ENTER: On: Press

Off Off: You can use all of the buttons on the remote control. User1: You can only use

User2: You can only use User3:

Improve the contrast by controlling the amount of LED backlight. The contrast ratio of different area in a same picture can be dramatically improved.

Off: Disables Local Dimming function. On: Enables Local Dimming function.

Enable: Enables the “Off-timer function”. Disable: Disables the “Off-timer function”. Note: When “Disable” is set, the Off-timer is cancelled.

Normal

Sets the power mode of the unit for when the power recovers from failure or after plugging off and in again.

Normal: Power returns in as the same state as before the power interruption. Standby On: Power returns in power On. (Power Indicator : green) Note: When using multiple displays, “Standby” is preferred to be set in order to reduce a power load.

Sets panel ID number when panel is used in “Remote ID” or “Serial ID”. Set value range: 0 - 100 (Standard value: 0) The setting of this menu is valid only when using ID remote control.

Off On: Enable ID remote control functions. Note: To use the ID remote control function, it is necessary to set each ID number of remote control and

Sets the panel ID Control.

Off On: Enables the external control by the ID.

Off On: Sets the colour temperature for TV studio. Note: Valid only when the “Warm” is set as “White balance” in Picture menu.

Select the LAN control protocol.

Protocol 1: Control with the Panasonic Display sequence. Protocol 2: Control with the sequence that compatible with Panasonic Projector.

Set up the informing manner if error warning occured. (see page 49)

Off

You can set the power-on delay time of the displays to reduce the power load, when you press turn on the multiple displays that are set together, for example, on MULTI DISPLAY system. Set each display’s setting individually.

Off: The display will be turned on at the same time as 1 to 30 (sec.)

Notes:

• During this function is working, the power indicator is blinking green.

• This function also works when the power recovers from failure or after plugging off and in again the power cord.

Off: Not display the clock. On: Display the clock.

The clock is displayed at the lower left of the screen when

Note: When “PRESENT TIME Setup” is not set, the clock is not displayed even

On MENU&ENTER

and buttons on main unit.

four timesPress

Press four timesPress

four timesPress four timesPress

INPUT

four timesPress

INPUT

four timesPress

User1 User2 User3

, , , , buttons on the remote control.

button on the remote control.

Locks all the buttons on remote control.

On Standby

: Power returns in standby mode. (Power Indicator : red/orange)

: Disables ID remote control functions. You can use normal remote control operations.

display unit. About the setting method, please refer to “ID Remote Control Function” (see page

38) and “ID select” (above-mentioned).

: Disables external control by the ID.

: Nullify all the settings adjusted.

1 2 3.... 30

is pressed.

: Set the power-on delay time (second).

After pressing , the display will be powered on with time delay depending on this setting.

button is pressed.

if “Clock Display” is “On”. (see page 29)

10:00

Page 56

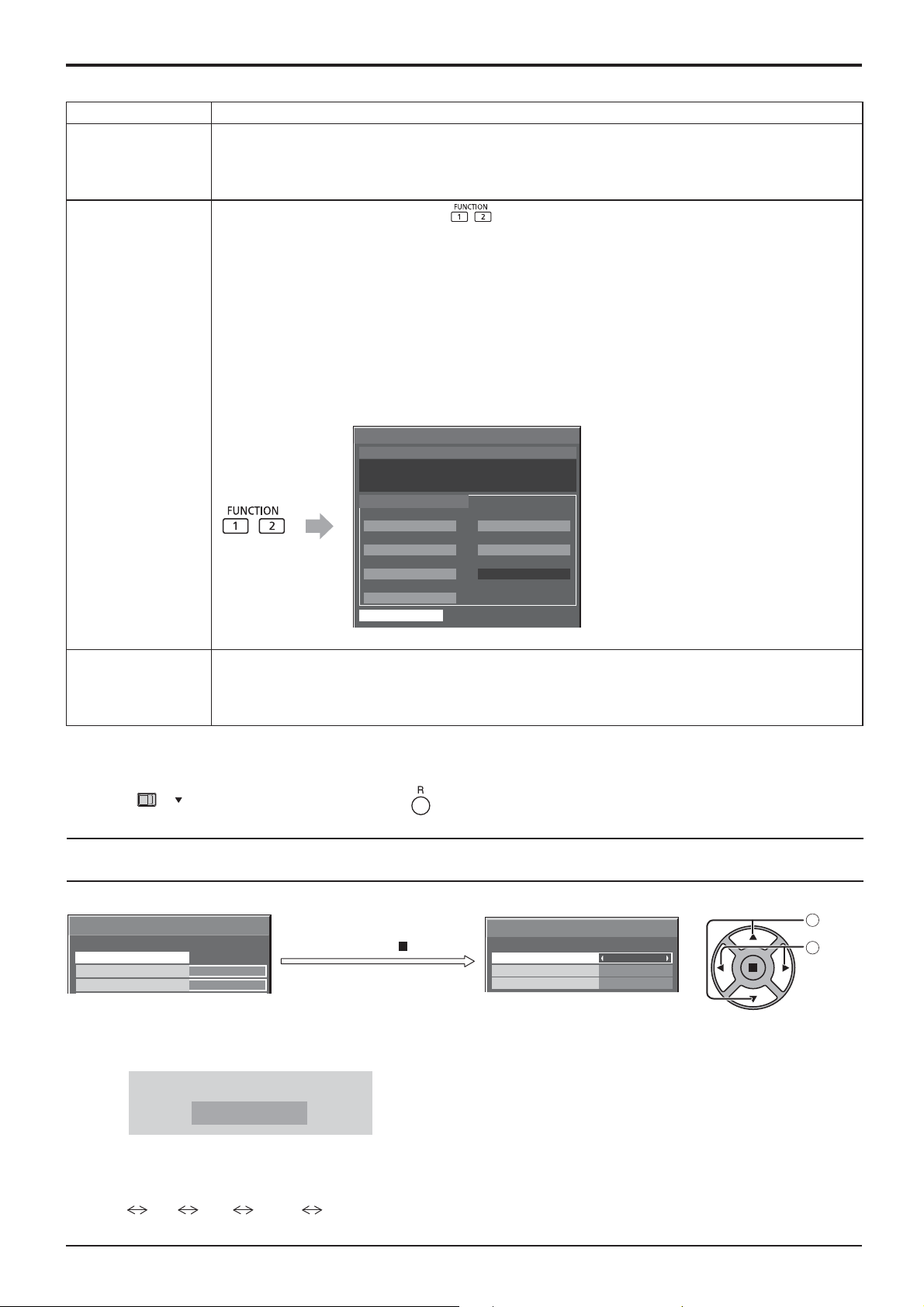

Options Adjustments

Item Adjustments

Power On Message

(No activity power

off)

Function button assign 1 Function button assign 2

Power Switch Lock

Normalisation

When both main unit buttons and remote control are disabled due to the “Button lock”, “Remocon User level” or “Remote ID” adjustments, set all the values “Off” so that all the buttons are enabled again.

Press the

The “Shipping” menu is displayed and the lock is released when it disappears.

Whether to show/hide No activity power off Precautions at the time of power ON is set.

On: The warning precautions are shown at the time of power ON. Off: The warning precautions are not shown at the time of power ON. Note: This setting is enabled only if “No activity power off” is “Enable” (see page 33).

Set the functions that operates when is pressed.

Signal: The “Signal” menu is displayed. Screensaver: The “Screensaver” menu is displayed. ECO menu: The “ECO Mode settings” menu is displayed. Set up TIMER: The “Set up TIMER” menu is displayed. DIGITAL LINK:

Switch to DIGITAL LINK inputs. If it is ET-YFB100, the input switch menu on the YFB100 side is displayed.

Maintenance: Display the maintenance information. Note:

Factory settings are as follows. FUNCTION1 button: DIGITAL LINK FUNCTION2 button: Maintenance

Use the FUNCTION button

The menu screen is displayed. (Example: Maintenance)

Maintenance information

Fan inspection required. Please contact service provider.

FAN

No.1

No.3

No.5

INSIDE

START TEST

No.2

No.4

No.6

SERVICE

Press the FUNCTION button to exit from the menu.

Sets the lock setting for the display Power switch.

On: Power switch operation is disabled. Off: Power switch operation is enabled. Note: This function is only for TH-47LFX60U and TH-47LFX6NU.

button on main unit together with button on the remote control and hold for more than 5 seconds.

Input Search

When a signal is not detected, another input with a signal is automatically selected.

Options

Input Search On screen display Initial input

Input Search

Off: When there is no signal, the input is not switched automatically. All Inputs: Searches all inputs and switches to an input with a signal.

Priority: Searches “Primary Input” and “Secondary Input” in order and switches to an input with a signal.

“Searching...” is displayed during the input search.

Primary Input, Secondary Input

Set the input to search when “Priority” is selected.

(NONE)

Note:

PC DVI HDMI DIGITAL LINK

This menu is available only when “Input lock” is “Off”. (see page 46)

1/3

On Off

Searching...

Press ACTION ( ) button

Input Search

Primary Input Secondary Input

select

adjust

Off

Page 57

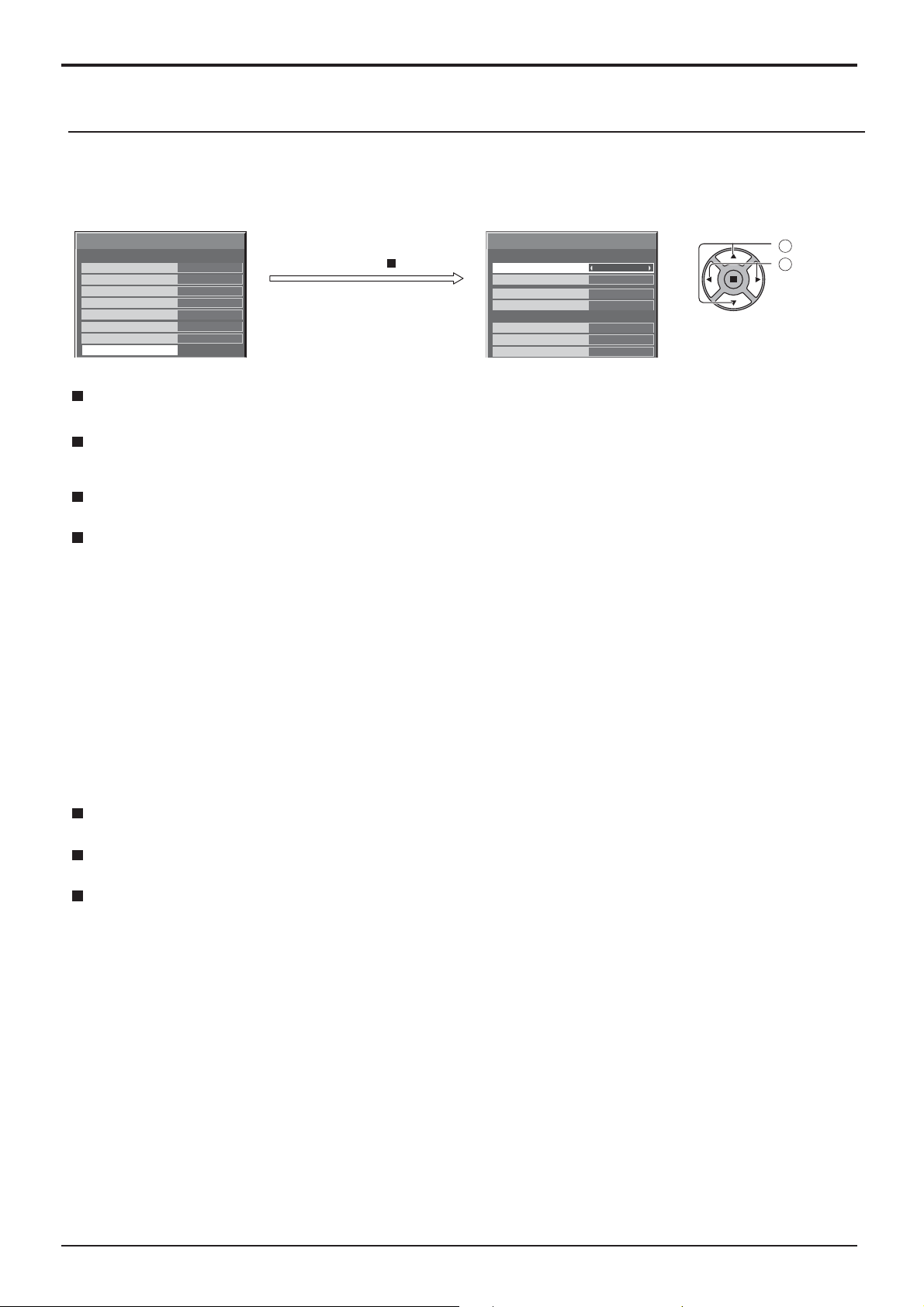

Options Adjustments

RS-232C/LAN Information Timing

Set up the informing manner for no signal or temperature rising. While RS232C controls: Warning or error message sent on the display atuomatically. While LAN controls: Acquire the warning or error message from the display.

Options

Off-timer function Initial Power Mode ID select Remote ID Serial ID Studio W/B LAN Control Protocol RS-232C/LAN Information Timing

No Signal Warning

Enable Normal

Protocol 1

2/3

Press ACTION ( ) button

Off

RS-232C/LAN Information Timing

No Signal Warning No Signal Warning Timing

No Signal Error No Signal Error Timing

Temperature Warning Temperature Warning Value Temperature Warning Release Value

5min

10min

55°C

52°C

select

adjust

If set to “On”, the display sends out the no signal warning.

No Signal Warning Timing

Set up the detecting time for no signal warning.

No Signal Error

If set to “On”, the display sends out the no signal error.

No Signal Error Timing

Set up the detecting time for no signal error.

The warning of “No Signal Warning” and the error of “No Signal Error” are not sent when the no signal state is detected through any of the following functions: No Signal power off: Enable, PC Power management, DVI-D Power management (see page 34)

Setting Example

No Signal Warning Timing: 5 minutes No Signal Error Timing: 10 minutes PC Power management: On (30 seconds) If there is no signal when PC IN is input, “PC Power management” is activated  rst and the Display enters the standby mode.

Note:

The “No Signal Error Timing” cannot be set shorter than “No Signal Warning Timing”.

Temperature Warning

If set to “On”, the display sends out the warning temperature.

Temperature Warning Value

Set up the detecting temperature for temperature warning.

Temperature Warning Release Value

Set up the temperature to release the temperature warning.

Page 58

Using Network Function

Network Connection

This unit has a network function to control the network connected display with your computer.

Note:

To use the network function, set each “Network Setup” setting and make sure to set the “Control I/F Select” to “LAN”. (see page 43) When “LAN” is set, power indicator lights orange under the condition of power “Off” with remote control (stand-by state).

Example of network connection

COMPUTER

LAN cable (not supplied)

Hub or broadband router

Notes:

• Make sure the broadband router or hub supports 100BASE-TX.



Use a LAN cable between the twisted pair cable transmitter and the device that conforms to the following

conditions.



It meets or exceeds CAT5e standards



It is a shielded cable (with a connector)

• When laying the cable(s), use an instrument such as a cable tester or cable analyzer and check whether the cable characteristics are CAT5e or above. When using a relay connector along the path, also include this in the measurements.

• Touching the DIGITAL LINK terminal with a statically charged hand (body) may cause damage due to its

discharge.

Do not touch the DIGITAL LINK terminal or a metal part of the LAN cable.

• For instructions on how to connect, consult your network administrator.



It is a straight cable



It is a solid cable

Display (main unit, rear) Remove the terminal cover (see page 9)

Page 59

Using Network Function

DIGITAL LINK Connections (connecting with a twisted pair cable transmitter)

This device is equipped with functions that allow Ethernet signals from a twisted pair cable transmitter to be received through a LAN cable along with video/audio signals.

Network connections via twisted pair cable transmitter

Display (rear surface of the main body) Remove the terminal cover (see page 9)

DIGITAL LINK terminal

Twisted pair cable

transmitter

LAN cable

(commercial)

Hub or broadband router

LAN cable (commercial)

Note:

Con gure the settings in “Network Setup” when using a DIGITAL LINK connection. (see pages 43 to 45)

Precautions for use while connecting with a twisted pair cable transmitter

Installing / Connecting



Ask the dealer or a quali ed technician to carry out the cable wiring work for DIGITAL LINK connections.

Insuf cient wiring work may cause the inability to apply the cable transmission characteristics and cropped or fuzzy images and sounds.

 The transmission distance between the twisted pair cable transmitter and the device is up to 100 meters.

Exceeding this distance can cause cropped images or sounds, as well as LAN communication errors.



Do not use a hub between the twisted pair cable transmitter and the Display.

 When connecting to the Display using the twisted pair cable transmitter (receiver) of other maker, do not

use another twisted pair cable transmitter between the twisted pair cable transmitter of other maker and this device. The images and sounds may be interrupted or become unstable.



If possible, lay the cable so that it is extended and not coiled in order to minimize both external and internal noise.

 Lay out cables of the twist pair cable transmitter and this product away from other cables, especially from

the power supply cable.



When laying multiple cables, keep them as close together as possible running parallelly and not bundled.



After laying the cable(s), make sure that the signal quality in “DIGITAL LINK status” is -12 dB or below. Twisted pair cables  Use a LAN cable between the twisted pair cable transmitter and the device that conforms to the following

conditions.



It meets or exceeds CAT5e standards



It is a shielded cable (with a connector)



When laying the cable(s), use an instrument such as a cable tester or cable analyzer and check whether the cable

characteristics are CAT5e or above. When using a relay connector along the path, also include this in the measurements.  Do not pull cables hard. Also avoid forcefully bending or folding them. Other 

This device is compatible with our Digital Interface Box (ET-YFB100). For the twisted pair cable transmitter

of the other maker, refer to the following URL. (http://panasonic.net/prodisplays/products/47lfx60/index.html)



It is a straight cable



It is a solid cable

Page 60

Using Network Function

Command Control

Network function of the unit can control the unit in the same way as serial control from a network.

Supported commands

Commands used in the serial control are supported. (see page 14)

Note:

Consult your local Panasonic dealer for detail instructions on command usage.

PJLink™ Protocol

The network function of the unit conforms with PJLink™ class 1 and you can operate the following actions from your computer using PJLink™ protocol.

• Display setup

• Display status query

Supported commands

Commands to control the unit with PJLink™ protocol are shown in the table below.

Command Control Remark

POWR Power control

POWR ? Power status query

INPT Input switch INPT ? Input switch query AVMT Shutter control Parameter

AVMT ? Shutter control query Parameter

ERST ? Error status query Parameter

LAMP ? Lamp status query Not supported INST ? Input switch list query

NAME ? Display name query Returns the settings of “Display Name” in “Network Setup”. INF1 ? Manufacturer name query Returns “Panasonic” INF2 ? Model name query Returns “47LFX60U” / “47LFX6NU” (U model)

INFO ? Other information query Returns version number CLSS ? Class information query Returns “1”

Parameter 0 = Standby 1 = Power “On”

Parameter See the parameter for command INST ?

10 = Picture On (picture mute deactivated), 11 = Picture Off (picture on mute) 20 = Audio On (audio mute deactivated), 21 = Audio Off (audio on mute) 30 = Shutter mode Off (picture and audio mute deactivated) 31 = Shutter mode On (picture and audio on mute)

11 = Picture Off (picture on mute) 21 = Audio Off (audio on mute) 30 = Shutter mode Off (picture and audio mute deactivated) 31 = Shutter mode On (picture and audio on mute)

First byte: Means fan error. 0 or 2. Second byte: 0 Third byte: 0 Fourth byte: 0 Fifth byte: 0 Sixth byte: Means other error. 0 or 2. Meaning of the 0 – 2 settings: 0 = Error is not detected, 2 = Error

Parameter 11: PC IN input (PC) 31:

Digital Link input (DIGITAL LINK)

Returns “47LFX60W” / “47LFX6NW” (W model)

32: HDMI input (HDMI) 33: DVI-D IN input (DVI)

PJLink™ security authentication

Set “panasonic” for the PJLink™ password.

• PJLink™ is a pending trademark in Japan, the United States, and other countries or areas.

Page 61

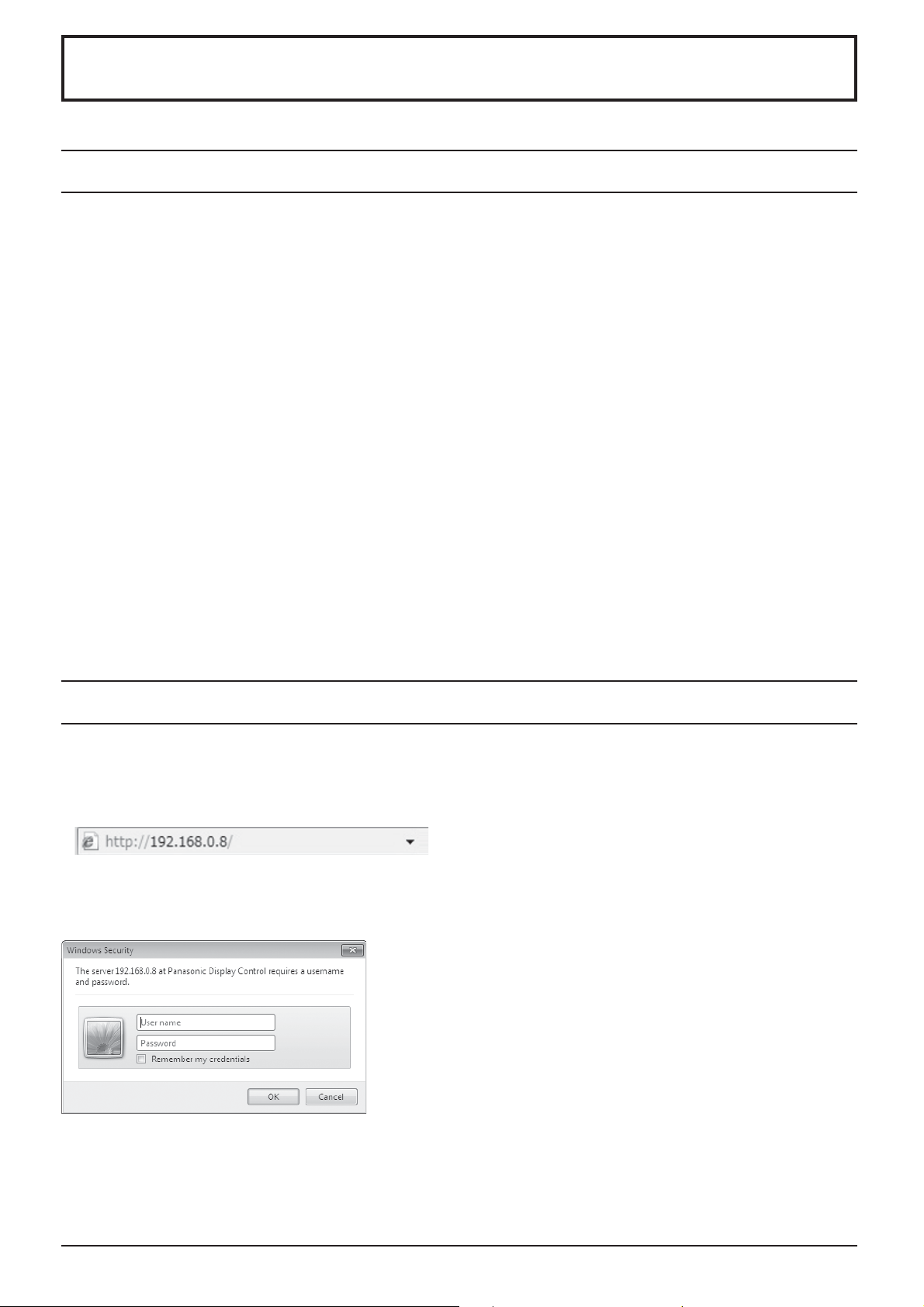

Using Web Browser Control

You can use a Web browser to control the unit and set up a network and password.

Before Using Web Browser Control

To use the Web browser control, the unit and computer setups are required.

Unit Setup

Set each “Network Setup” setting and make sure to set the “Control I/F Select” to “LAN”. (see page 43)

Computer Setup

Disable the proxy server settings and enable JavaScript.

(Windows) (Macintosh)

Disable proxy server settings 1 Display [Internet Properties] window.

Click [Start] – [Control Panel] – [Network and Internet] – [Internet Options].

2 Click the [Connections] tab and then [LAN Settings]. 3 Deselect the [Use automatic con guration script] and

[Use a proxy server for your LAN] boxes.

4 Click [OK].

Enable JavaScript 1 Display [Internet Properties] window.

Click [Start] – [Control Panel] – [Network and Internet] – [Internet Options].

2 Set the security level on the [Security] tab to [Default

Level]. Alternatively enable [Active scripting] from the [Custom Level] button.

Disable proxy server settings 1 From the [Safari] menu, click [Preferences].

General screen is displayed.

2 From the [Advanced] tab, click the [Change

Settings…] button next to [Proxies]. Click [Proxies] and set up a proxy server.

3 Deselect the [Web Proxy] and [Automatic Proxy

Con guration] boxes.

4 Click [Apply Now].

Enable JavaScript 1 Display [Security] of Safari. 2 Select [Enable JavaScript] under [Web content].

Access from Web Browser

Access to the TOP screen of the Web browser control using a Web browser.

1 Start your Web browser. 2 Enter the IP address set with the “LAN Setup” of the unit.

(see page 44)

3 Enter the user name and password when the

Authentication screen is displayed.

Authentication screen

Click [OK].

After logged in, the TOP screen of the Web browser control is displayed. (see page 54)

Notes:



The password used here is the same password

used for command control and the PJLink™ security authentication.



Default user name and password are as follows:

User name: user1 Password: panasonic



The password can be changed on the Password

Setup screen after logging in (see page 55). The user name cannot be changed.



Under no circumstances, Panasonic Corporation

or it's associated companies will ask customers their password directly. Even if you are asked directly, please do not reveal your password.

Page 62

Using Web Browser Control

TOP screen structure of the Web browser control

After logging in, the TOP screen of the Web browser control is displayed.

Menu items are displayed. When a button is clicked, setup screen of each item is displayed.

Item Details

BASIC CONTROL

OPTION CONTROL

NETWORK SETTING CHANGE PASSWORD Crestron Connected™

BASIC CONTROL screen is displayed. (see below)

OPTION CONTROL screen is displayed. (see below)

Network Setup screen is displayed. (see page 55) Password setup screen is displayed. (see page 55) The Crestron Connected™ operations screen will appear. (see pages 56, 57)  This button does not appear when

“Crestron Connected™” in “Network Setup” is “OFF”. (see page 43)

According to the selected item from the menu, setup

status or set items are displayed.

Network ID information

ID to identify the unit is displayed.

Display Control (BASIC CONTROL/OPTION CONTROL Screen)

Click BASIC CONTROL or OPTION CONTROL from the menu. Various controls of the unit can be set.

BASIC CONTROL screen OPTION CONTROL screen

Click BASIC CONTROL from the menu. Unit status and buttons to change settings are displayed.

Item Details

POWER Switch ON/OFF of the unit power.

Switch the input signals. Displayed

INPUT SELECT

AUDIO MUTE Switch ON/OFF of the sound mute. ASPECT Switch the screen modes

buttons vary according to the connection status of the video device.

Click OPTION CONTROL from the menu. Command input  eld for command control of the unit is displayed.

Item Details

Enter a command. Use the same

COMMAND

RESPONSE Response from the unit is displayed. SEND Command is sent and run.

Note: After the settings are changed, it may take a while till

the display’s response is displayed.

command used for the serial control. (see page 14)

Page 63

Using Web Browser Control

NETWORK SETTING (NETWORK SETTING Screen)

Click NETWORK SETTING from the menu. Various settings of a network can be set. For the details of the setting items, please check Network Setup under the Set up of the unit. (see page 44)

Item Details

Set to ON when a DHCP server is used, or OFF when it is not used.

Enter the port number used for command control. The available setting range is 1024 - 65535.

Set the connection speed of the LAN environment.

Set the ID to identify this unit. The available setting range is 0 - 99.

Notes:

• To use a DHCP server, make sure the DHCP server is started.

• During a DHCP server is used, IP ADDRESS, SUBNET MASK, and GATEWAY values cannot be entered.

• When the set values are changed properly, “NETWORK SETTING CHANGED.” message and the changed set items are displayed.

DHCP

IP ADDRESS Enter an IP address. SUBNET MASK Enter a subnet mask. GATEWAY Enter a gateway address.

PORT

LAN SPEED

NETWORK ID

SAVE Save the each set value.

Password Setting (CHANGE PASSWORD Screen)

Click CHANGE PASSWORD from the menu. Password to access the Web browser control can be set. When the password is changed in this screen, the password used for command control and the PJLink™ security authentication is also changed.

Item Details

Notes:

• The default password is “panasonic”.

• Up to 32 alphanumeric characters can be used for a password.

• When the password is changed properly, “Password has changed.” message is displayed.

OLD PASSWORD NEW PASSWORD

NEW PASSWORD

(RETYPE)

SAVE

Enter the old password.

Enter the new password.

Enter the password entered in “NEW PASSWORD” for con rmation.

Save the new password. The con rmation screen is displayed. Click OK to change the password.

Page 64

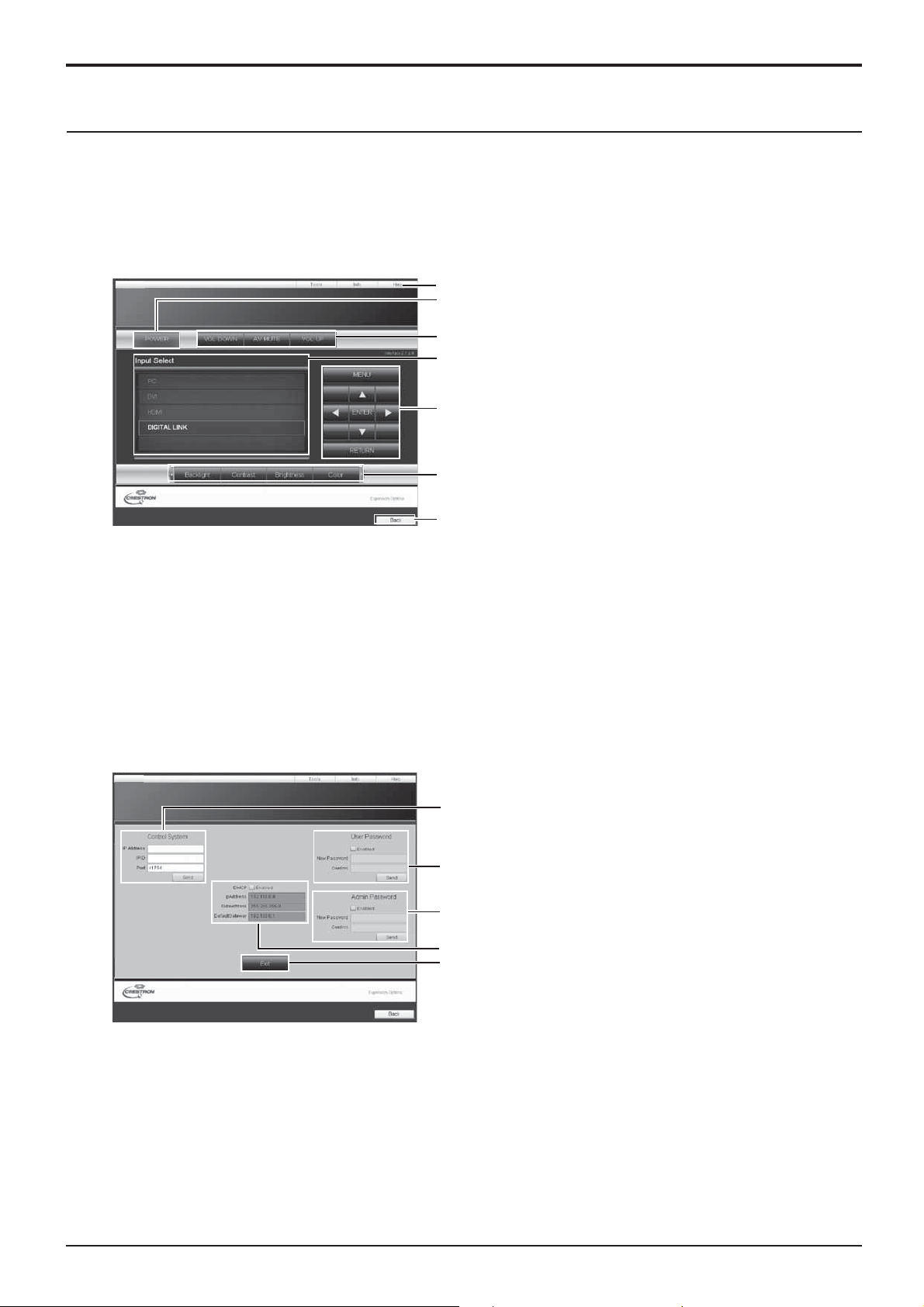

Using Web Browser Control

Crestron Connected™ page

You can monitor or control the Display using Crestron Connected™. When you click [Crestron Connected™], the Crestron Connected™ operation page is displayed. If Adobe Flash Player is not installed in your computer, or if the browser does not support Flash, this page does not appear. In this case, return to the previous page by clicking [Back] in the operation page.

Operation page

Panasonic LCD Display

1 Tools, Info, Help

1 2

Switches the pages for tools, information, help using the tab.

2 POWER

Switches between on and off of the power.

3 VOL DOWN, AV MUTE, VOL UP

Sets the volume, AV mute. When the power of the

Display is turned off, VOL DOWN, AV MUTE and VOL UP are not available.

4 Input Select

Sets the input selection. When the power of the Display is turned off, this operation is not

available.

5 Operation buttons on the menu screen

Operates on the menu screen.

6 Image quality adjustments

Operate items related to image quality.

7 Back

Returns to the previous page.

Tools page

Click Tools on the operation page.

Panasonic LCD Display

1 Control system

Sets the information required for the communication with the controller that is connected to the Display.

2 User Password

Sets the password for the user rights in the operation page of Crestron Connected™.

3 Admin Password

Sets the password for the administrator rights in the

operation page of Crestron Connected™.

4 Network status

4 5

Displays the setting of LAN. DHCP: Displays the value in the current setting. IpAddres: Displays the value in the current setting. SubnetMask: Displays the value in the current setting. DefaultGateway: Displays the value in the current setting.

5 Exit

Return to the operation page.

Note:

When you monitor or control the Display using Crestron Connected™, set “Crestron Connected™” to “On” in the “Network Setup” menu. (see page 43)

Page 65

Info page

Click Info on the operation page.

Panasonic LCD Display

LFX60-00

1 Display Name

Displays the name of the Display.

2 Mac Address

Displays the MAC address.

3 Resolution

Displays the resolution of the Display.

4 Power Status

Displays the status of the power.

5 Source

Displays the selected video input.

6 Exit

Return the operation page.

Using Web Browser Control

Help page

Click Help on the operation page. The Help Desk screen is displayed.

Panasonic LCD Display

LFX60-00

1 Help Desk

Sends or receive messages to the administrator who uses Crestron Connected™.

Page 66

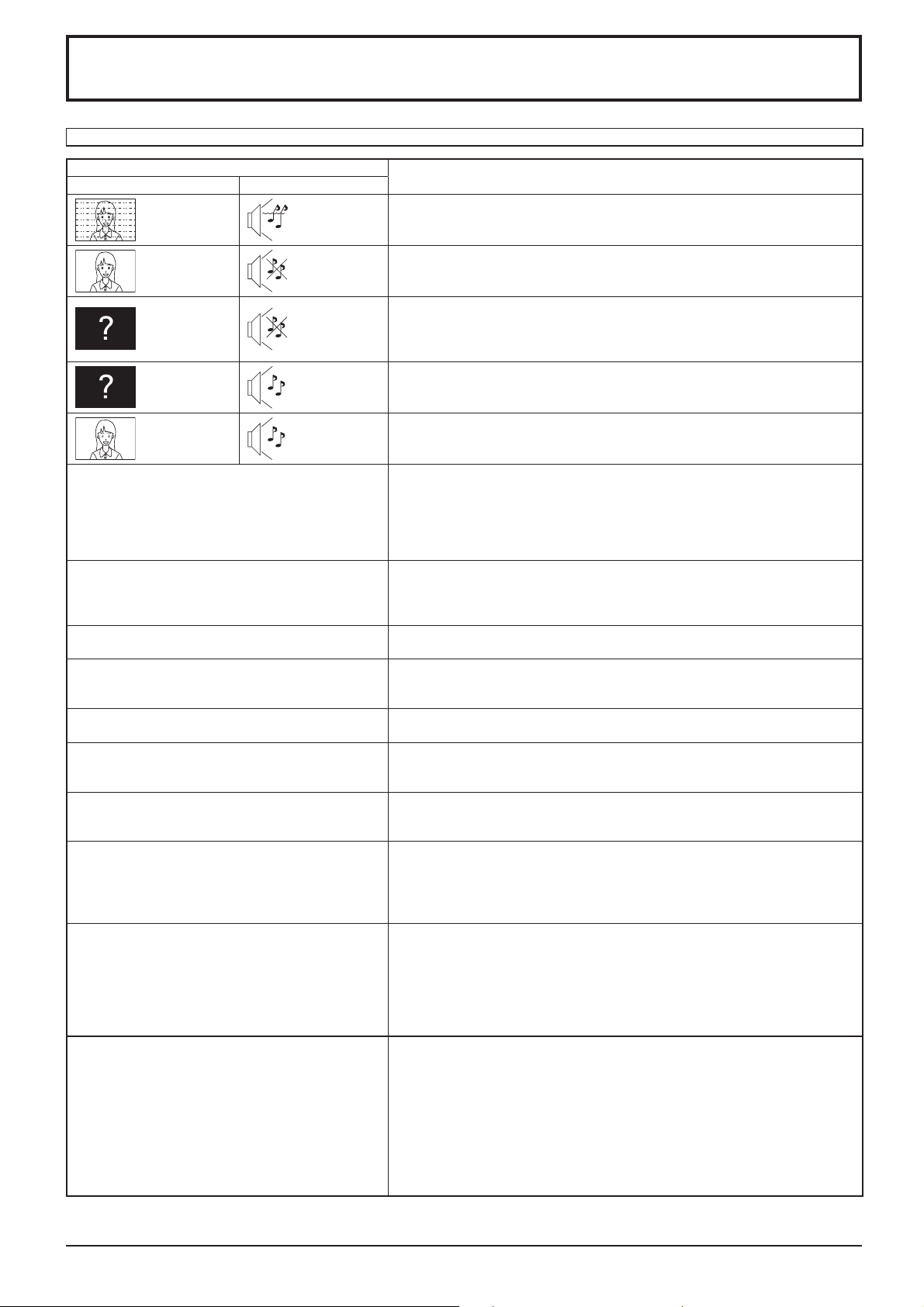

Troubleshooting

Before you call for service, determine the symptoms and make a few simple checks as shown below.

Symptoms

Picture Sound

Electrical Appliances

Interference Noisy Sound

Normal Picture No Sound

No Picture No Sound

No Picture Normal Sound

No Colour Normal Sound

No remote control operations can be performed. Check whether the batteries have discharged completely and, if they have not,

A cracking sound is sometimes heard from the unit. If there is nothing wrong with the picture or sound, this is the sound of the

The top or bottom of the picture on the screen is cut off when I use the zoom function.

Areas at the top and bottom of the screen where the image is missing appear when I use the zoom function.

I can hear sounds coming from inside the unit. When the power is turned on, a sound of the fan may be heard: This is normal

Parts of the unit become hot. Even when the temperature of parts of the front, top and rear panels has risen,

Power automatically turns off unexpectedly. Check the settings of “No signal power off”, “PC Power management”, “DVI-D

There is no picture displayed or sound output sometimes.

The RS232C is uncontrollable Check whether the connection has been made properly. (see page 14)

The LAN is uncontrollable Check whether the connection has been made properly. (see page 50)

Cars / Motorcycles Fluorescent light

Volume (Check whether the mute function has been activated on the remote control.)

Not plugged into AC outlet Not switched on Picture and Brightness/Volume setting (Check by pressing the power switch or stand-by button on the remote control.)

If a signal with a non-applicable colour system format, or frequency is input, only the input terminal indication is displayed.

Colour controls set at minimum level (see page 26, 27)

whether they were inserted properly. Check whether the remote control sensor is exposed to an outdoor light or a strong  uorescent light. Check whether the remote control designed speci cally for use with the unit is being used. (The unit cannot be operated by any other remote control.)

cabinet undergoing very slight contractions in response to changes in the room temperature. There are no adverse effects on the performance or other aspects.

Adjust the position of the picture on the screen.

When using a video software program (such as a cinema size program) with a screen wider than one in the 16:9 mode, blank areas separate from the images are formed at the top and bottom of the screen.

and not indicative of malfunctioning.

these temperature rises will not pose any problems in terms of performance or quality.

Power management” and “No activity power off”. Any of them may be set to “On (Enable)”. (see page 33, 34)

When HDMI or DVI signals are input to the Display using a selector or distributor, sound or images may not be output in the normal fashion depending on the selector or distributor used. The symptoms may be improved by turning the power off and on again, or by replacing the selector or distributor.

When controlling the RS232C command on page 14 from the RS232C terminal in the display, make sure that “Control I/F Select” is “RS-232C (Serial)”, and that it is “RS-232C(DIGITAL LlNK)” when controlling from the RS232C terminal of the DIGITAL LINK device. (see page 43) Check whether “LAN Setup” has been con gured properly. (see page 44) (When controlling from the RS232C terminal of the DIGITAL LINK device)

Check whether “Control I/F Select” is “LAN” when controlling with the WEB browser control or the command control on page 52. (see page 43) Check whether “LAN Setup” has been con gured properly. (see page 44) When connecting to a device of AMX, Crestron Electronics, Inc., or Extron, set “AMX D.D.”, “Crestron Connected™”, or “Extron XTP” according to the device to use. (see page 43) See the “Signal quality” information of “DIGITAL LINK status” to check the LAN cable status such as whether the LAN cable is disconnected or the cable is not shielded. (see page 45)

Checks

Page 67

Troubleshooting

Symptoms Checks

There is no picture displayed or sound output from the DIGITAL LINK terminal.

This LCD Display uses special image processing. Hence a slight time lag may occur between image and audio, depending on the type of input signal. However, this is not a malfunction.

LCD Display panel

Symptoms Check

The screen darkens slightly when bright pictures with minimal movements are shown.

It takes a while for the picture to appear.

The edges of the images  icker.

There may be red spots, blue spots, green spots and black spots on the screen.

The screen will darken slightly when photos, still images of a computer or other pictures with minimal movements are shown for an extended period. This is done to reduce image retention on the screen and the shortening of the screen’s service life: It is normal and not indicative of malfunctioning.

The unit digitally processes the various signals in order to reproduce esthetically pleasing images. As such, it sometimes takes a few moments for the picture to appear when the power has been turned on, when the input has been switched.

Due to the characteristics of the system used to drive the panel, the edges may appear to  icker in the fast-moving parts of the images: This is normal and not indicative of malfunctioning.

This is a characteristic of liquid crystal panels and is not a problem. The liquid crystal panel is built with very high precision technology giving you  ne picture details. Occasionally, a few non-active pixels may appear on the screen as  xed points of red, blue, green, or black. Please note this does not affect the performance of your LCD.

Image retention may occur. If you display a still picture for an extended period, the image might remain on the screen. However, it will disappear after a while. This is not considered as malfunction.

Check whether the connection has been made properly between the video (output) equipment and twisted pair cable transmitter and between the twisted pair cable transmitter and this product. (see page 15) Check whether “DIGITAL LINK mode” is set to “Auto” or “DIGITAL LINK” instead of “Ethernet”. (see page 43)

Image retention appears

Page 68

Applicable Input Signals

PC signals

Signal name

1 640x400@70Hz 31.46 70.07 2 640x480@60Hz 31.47 59.94 3 640x480@72Hz 37.86 72.81 4 640x480@75Hz 37.50 75.00 5 640x480@85Hz 43.27 85.01 6 800x600@56Hz 35.16 56.25 7 800x600@60Hz 37.88 60.32 8 800x600@72Hz 48.08 72.19

9 800x600@75Hz 46.88 75.00 10 800x600@85Hz 53.67 85.06 11 852x480@60Hz 31.47 59.94 12 1024x768@50Hz 39.55 50.00 13 1024x768@60Hz 48.36 60.00 14 1024x768@70Hz 56.48 70.07 15 1024x768@75Hz 60.02 75.03 16 1024x768@85Hz 68.68 85.00 17 1066x600@60Hz 37.64 59.94 18 1152x864@60Hz 53.70 60.00 19 1152x864@75Hz 67.50 75.00 20 1280x768@60Hz 47.70 60.00 21 1280x960@60Hz 60.00 60.00 22 1280x960@85Hz 85.94 85.00 23 1280x1024@60Hz 63.98 60.02 24 1280x1024@75Hz 79.98 75.02 25 1280x1024@85Hz 91.15 85.02 26 1366x768@50Hz 39.55 50.00 27 1366x768@60Hz 48.36 60.00 28 1400x1050@60Hz 65.22 60.00 29 1600x1200@60Hz 75.00 60.00 30 1920x1080@60Hz 67.50 60.00 31 1920x1200@60Hz 74.04 59.95 * (154.0) 32 Macintosh13"(640x480) 35.00 66.67 33 Macintosh16"(832x624) 49.72 74.55 34 Macintosh21"(1152x870) 68.68 75.06

Horizontal

frequency (kHz)

Vertical frequency

(Hz)

PC IN

(Dot clock (MHz))

(25.17)

(25.18)

(31.5)

(36.0)

(40.0)

(50.0)

(49.5)

(56.25)

(65.0)

(75.0)

(78.75)

(94.5)

(108.0)

(80.14)

(108.0)

(148.5)

(108.0)

(135.0)

(157.5)

(86.71)

(162.0)

(148.5)

(30.24)

(57.28)

(100.0)

*Mark: Applicable input signal

DVI-D IN

(Dot clock (MHz))

(25.18)

(40.0)

(34.24)

(51.89) *

(65.0)

(53.0)

(81.62)

(108.0)

1

(69.92)

(87.44)

(122.61)

(162.0)

(148.5)

1 Not compatible with Sync on G.

• The signal format automatically detected may differ from the actual input signal in display.

• The corresponding signals for DIGITAL LINK inputs are the same as those for HDMI inputs.

HDMI

* *

* * * * * *

Component signals

Signal name

1 525(480)/60i 15.73 59.94 * (27.0) *

2 525(480)/60p 31.47 59.94 * (27.0) *

3 625(575)/50i 15.63 50.00

4 625(576)/50i 15.63 50.00 * (27.0)

5 625(575)/50p 31.25 50.00 *

6 625(576)/50p 31.25 50.00 * (27.0) *

7 750(720)/60p 45.00 60.00 * (74.25) *

8 750(720)/50p 37.50 50.00 * (74.25) *

9 1,125(1,080)/60p 67.50 60.00 * (148.5) * 10 1,125(1,080)/60i 33.75 60.00 * (74.25) * 11 1,125(1,080)/50p 56.25 50.00 * (148.5) * 12 1,125(1,080)/50i 28.13 50.00 * (74.25) 13

1,125(1,080)/24psF 14 1,125(1,080)/30p 33.75 30.00 * (74.25) * 15 1,125(1,080)/25p 28.13 25.00 * (74.25) * 16 1,125(1,080)/24p 27.00 24.00 * (74.25) *

Horizontal

frequency (kHz)

27.00 48.00

Vertical frequency

(Hz)

*Mark: Applicable input signal

DVI-D IN

(Dot clock (MHz))

HDMI

Page 69

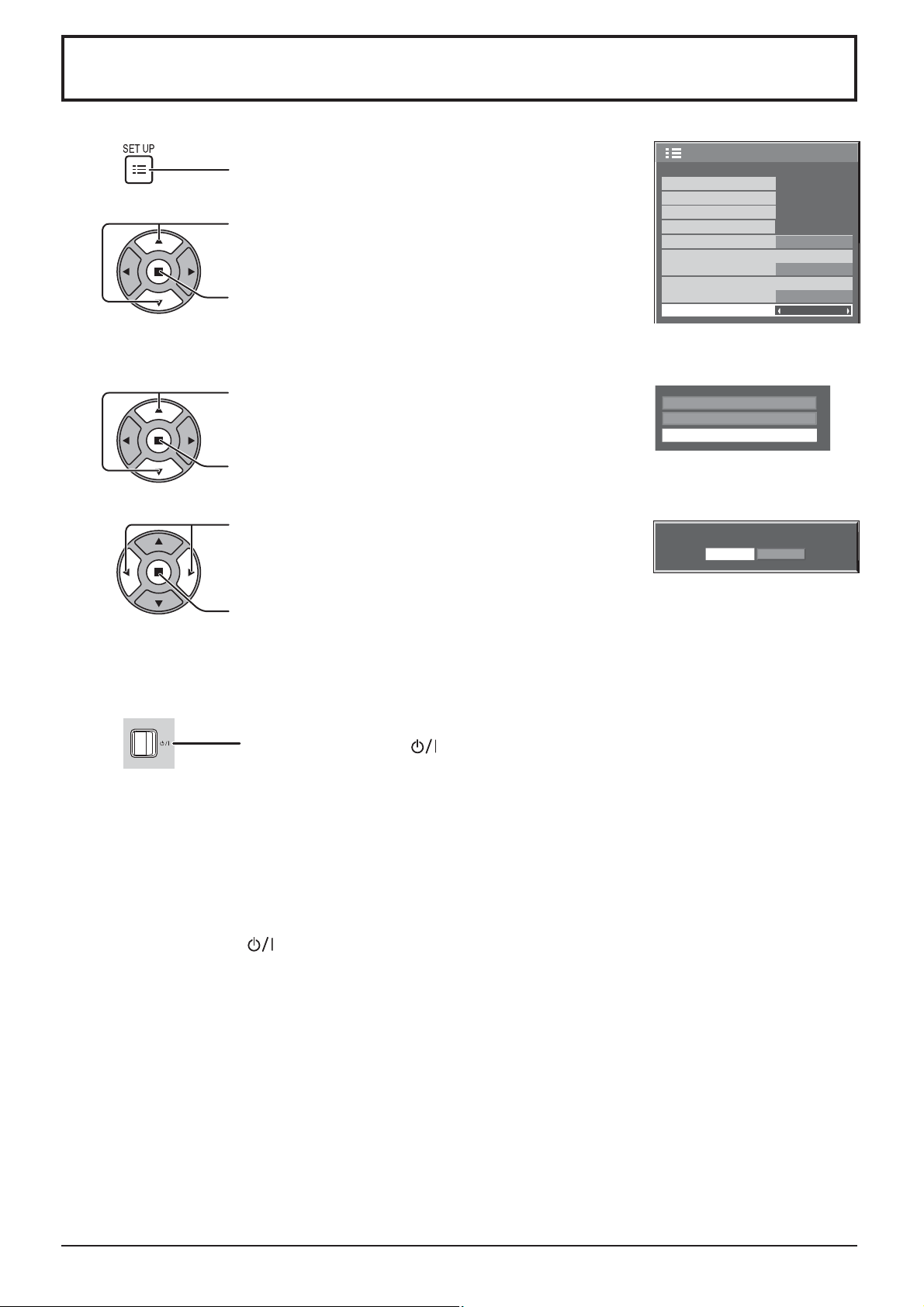

Shipping condition

This function allows you to reset the unit to the factory setting.

Press to display the Setup menu.

Press to select “OSD Language”.

Press for more than 3 seconds.

Press to select “Shipping”.

Press to display the Shipping menu.

Press to select “YES”.

Setup

Signal

Screensaver

Input label

ECO Mode settings Wobbling YUV/RGB-in select

No activity power off

OSD Language English(UK

Options

Display Serial Number

Shipping

YES NO

Off

RGB

Disable

1/2

)

Press to con rm.

[from the unit]

1 Press the MENU button till the Setup menu is displayed. 2 Press the Volume Up“+” or Down“–” button to select “OSD Language”. 3 Press and hold the ENTER button till the Shipping menu is displayed. 4 Press the Volume Up“+” or Down“–” button to select “YES”. 5 Press the ENTER button and wait for 10 sec. 6 Press the power switch (

Wait for 10 seconds.

Press the power switch ( ) on main unit to turn the power off. * For TH-47LFX60U and TH-47LFX6NU

If the power switch is locked, please disconnect the AC cord plug from the wall outlet.

) on main unit to turn the power off.

* For TH-47LFX60U and TH-47LFX6NU

If the power switch is locked, please disconnect the AC cord plug from the wall outlet.

Page 70

Speci cations

TH-47LFX60U TH-47LFX6NU TH-47LFX60W TH-47LFX6NW

Power Source 110 - 127 V AC,

50/60 Hz

Power Consumption

Power on 370 W 270 W 370 W 270 W

Power off condition 0.3 W

Stand-by condition 0.5 W

Outdoor mode On: 41 W

Network stand-by mode: 16 W

LCD Display panel 47-inch IPS panel, 16:9 aspect ratio Screen size 40.9” (W) × 23.0” (H) × 46.9” (diagonal) /

1,039 mm (W) × 584 mm (H) × 1,192 mm (diagonal)

(No. of pixels) 2,073,600 (1,920 (W) × 1,080 (H))

[5,760 × 1,080 dots]

Operating condition

Temperature 32 °F - 122 °F / 0 °C - 50 °C* (during Outdoor mode: -4 °F - 122 °F / -20 °C - 50 °C)

Humidity 20 % - 80 % (no condensation)

Applicable signals

Scanning format 525 (480) / 60i · 60p, 625 (575) / 50i · 50p, 750 (720) / 60p · 50p, 1125 (1080) / 60i ·

60p · 50i · 50p · 24p · 25p · 30p · 24psF

PC signals VGA, SVGA, XGA, SXGA

UXGA ···· (compressed)

Horizontal scanning frequency 30 - 110 kHz

Vertical scanning frequency 48 - 120 Hz

Connection terminals

DIGITAL LINK For RJ45 network and DIGITAL LINK connections, compatible with PJLink™

Communication method: RJ45 100BaseTX

HDMI TYPE A Connector

DVI-D IN

AUDIO

PC IN

AUDIO

SERIAL External Control Terminal

AUDIO

OUT

Dimensions (W × H × D) 46” × 27.8” × 8.6”

Mass (weight) approx. 103.7 lbs / 47.0 kg

L-R RCA PIN JACK × 2 (L / R)

DVI-D 24 Pin Content Protection Stereo mini jack (M3) × 1

High-Density Mini D-sub 15 Pin

Stereo mini jack (M3) × 1

D-sub 9 Pin RS-232C compatible

Output level: Variable (-  0 dB) [INPUT 1 kHz / 0 dB, 10 k Load]

1,162 mm × 706 mm × 216 mm

Compliance with DVI Revision 1.0 Compatible with HDCP 1.1

0.5 Vrms, Shared with PC IN G with sync 1.0 Vp-p (75 )

G without sync 0.7 Vp-p (75 ) B: 0.7 Vp-p (75 ) R: 0.7 Vp-p (75 ) HD/VD: 1.0 - 5.0 Vp-p (high impedance)

0.5 Vrms, Shared with DVI-D IN

220 - 240 V AC,

50/60 Hz

Notes:

• Design and speci cations are subject to change without notice. Mass and dimensions shown are approximate.

• This equipment complies with the EMC standards listed below. EN55022, EN55024, EN61000-3-2, EN61000-3-3.

• “DIGITAL LINK” is the technology of transmitting signals from images, sounds, etc. with a twisted pair cable, and the original name of our projector and display.

Page 71

This product has software installed partially licensed under the Free BSD LICENSE. Free BSD LICENSE regulations under the above specifications are as follows: (These regulations are set by the third party; therefore the original (English) regulations are stated.)

Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met:

1. Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer.

2. Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution.

3. All advertising materials mentioning features or use of this software must display the following acknowledgement:

This product includes software developed by the University of California, Berkeley and its contributors.

4. Neither the name of the University nor the names of its contributors may be used to endorse or promote products derived from this software without specific prior written permission.

THIS SOFTWARE IS PROVIDED BY THE REGENTS AND CONTRIBUTORS “AS IS” AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE REGENTS OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.

Page 72

Information for Users on Collection and Disposal of Old Equipment and used Batteries

These symbols on the products, packaging, and/or accompanying documents mean that used electrical and electronic products and batteries should not be mixed with general household waste. For proper treatment, recovery and recycling of old products and used batteries, please take them to applicable collection points, in accordance with your national legislation and the Directives 2002/96/EC and 2006/66/EC. By disposing of these products and batteries correctly, you will help to save valuable resources and prevent any potential negative effects on human health and the environment which could otherwise arise from inappropriate waste handling. For more information about collection and recycling of old products and batteries, please contact your local municipality, your waste disposal service or the point of sale where you purchased the items. Penalties may be applicable for incorrect disposal of this waste, in accordance with national legislation.

For business users in the European Union

If you wish to discard electrical and electronic equipment, please contact your dealer or supplier for further information.

[Information on Disposal in other Countries outside the European Union]

These symbols are only valid in the European Union. If you wish to discard these items, please contact your local authorities or dealer and ask for the correct method of disposal.

Note for the battery symbol (bottom two symbol examples):

This symbol might be used in combination with a chemical symbol. In this case it complies with the requirement set by the Directive for the chemical involved.

USA only: Disposal may be regulated in your community due to environmental considerations. For disposal or recycling information, please visit Panasonic website: http://www.panasonic.com/environmental or call 1-888-769-0149.

Customer’s Record

The model number and serial number of this product can be found on its rear panel. You should note this serial number in the space provided below and retain this book, plus your purchase receipt, as a permanent record of your purchase to aid in identi cation in the event of theft or loss, and for Warranty Service purposes.

Model Number Serial Number

For TH-47LFX60U and TH-47LFX6NU Panasonic System Communications Company of North America

Unit of Panasonic Corporation of North America

Executive Of ce :

Two Riverfront Plaza, Newark, New Jersey 07102-5490

Panasonic Canada Inc.

5770 Ambler Drive Mississauga, Ontario L4W 2T3

For TH-47LFX60W and TH-47LFX6NW

Pursuant to the directive 2004/108/EC, article 9(2) Panasonic Testing Centre Panasonic Service Europe, a division of Panasonic Marketing Europe GmbH Winsbergring 15, 22525 Hamburg, F.R. Germany

Web Site : http://panasonic.net

¤ Panasonic Corporation 2014

M0414-0
