Operating Instructions
Plasma Television
Model No. TH-42PZ8BA
TH-46PZ8BA
Please read these instructions before operating your set and retain them for future reference.
The images shown in this manual are for illustrative purposes only.
U.K. Standard
English
Page 2
Turn your living room into a home theatre!
Experience an amazing level of multi-media excitement
■ Receives digital terrestrial broadcastings using an integrated DVB (Digital Video
Broadcasting) tuner
Display DVB programmes with TV Guide (p. 20) / Timer Programming (p. 40) /
Register and instantly call up favourite programmes with Profi le Edit (p. 32)
■ Sharp pictures with HDMI connection
Enjoy high-defi nition digital picture and high-quality sound by using an HDMI cable (p. 50)
■ Links up and controls the connected equipment with “Q-Link” and “VIERA Link”
Easy recording and playback, create home theatre without complicated settings, etc. (p. 42)
■ Supports Audio Description signal (p. 15 and p. 26)
This function can add an additional audio track to describe events on-screen and aids
understanding and enjoyment, particularly for visually-impaired viewers.
2
Digital Switchover
Starting in late 2007 and ending in 2012, TV services in the UK will go completely
digital, TV region by TV region.
If you have any questions, please call Digital UK on
or visit
Digital Switchover will cover a period of several weeks. When it starts you will lose
all Analogue TV programmes and some Digital TV programmes will be missing.
You will need to retune your TV each time this happens to recover your digital
programmes.
•
Cable or Satellite users should still retune the TV to continue to receive Freeview
services via their aerial. (Your Analogue programme for viewing Cable or Satellite
services will change to a new position.)
Due to the digital reception technologies involved, quality of the DTV signals may be relatively low in some cases,
•
despite good reception of analogue programmes.
www.digitaluk.co.uk
To retune your TV “Auto Setup” in “Tuning Menu” (p. 35)
08456 50 50 50
Page 3
FULL HD
This TV uses a high defi nition panel to
produce high defi nition pictures close to their
original resolution.
100Hz Double Scan
20,000:1 Native Contrast
A wide contrast ratio will deliver pictures with
24p Playback
Can support 1080p, 24 frames per second
0.001 msec Panel Response Time
Extremely fast response time to minimise
V-Audio
Utilises Panasonic’s advanced Digital
100Hz Double Scan is a function of this
TV that reduces large area fl icker.
a deep black level and a brighter white level
for greater image depth.
source materials.
picture lag.
Amplifi cation technology.
Contents
Be Sure to Read
Safety Precautions ······································4
•
(Warning / Caution)
Notes ··························································· 5
•
Maintenance ··············································· 5
•
Quick Start Guide
Accessories / Options ········· 6
•
Identifying Controls ·············· 8
•
Basic Connection ················ 10
•
Auto Setup ······························ 12
•
Enjoy your TV!
Basic Features
Watching TV ·············································· 14
•
Viewing Teletext ········································17
•
Using TV Guide ·········································20
•
Watching VCR, DVD and Satellites ··········22
•
Quick Start Guide
Viewing Advanced FAQs, etc.
Lead-free display
The Plasma display panel used in the 2008
∗
All VIERA plasma display panels are
lead-free.
environment when recycling or disposing of
them in the future.
Up to 100,000 hours Plasma Panel Lifetime
VIERA TV range is rated for up to 100,000
hours.
This measurement is based on the time taken for
the brightness of the panel to reduce to half of it’s
maximum level.
The time taken to reach this level may vary depending
on the image content and the environment where the
TV is used.
Image retention and malfunctions are not taken into
account.
This reduces the impact on the
∗
Advanced Features
How to Use Menu Functions ·····················24
•
(picture, sound quality, etc.)
DVB Settings (DVB) ··································30
•
(pay-TV, software update)
Editing Programmes ································· 32
•
Tuning Programmes ·································· 34
•
Restore Settings ······································· 36
•
Owner ID ···················································37
•
Input Labels ·············································· 38
•
Recording Controls ···································40
•
Link Functions ··········································42
•
(Q-Link / VIERA Link)
External Equipment ··································· 48
•
FAQs, etc.
Technical Information ································ 50
•
FAQs ·························································53
•
On screen messages ································ 55
•
Licence ······················································ 57
•
Glossary ···················································· 57
•
Index ························································· 58
•
Specifi cations ············································ 59
•
3
Page 4
Safety Precautions
Warning & Caution
Handling the mains plug and
lead
Ensure that the mains plug is easily accessible at
•
all times. The On / Off switch on this model does
not fully disconnect the TV from the mains supply.
Remove the mains plug from the wall socket when
the TV is not used for a prolonged period of time.
Ensure the earth pin on the mains plug is securely
•
connected to prevent electrical shock.
An apparatus with CLASS I construction shall
•
be connected to a mains socket outlet with a
protective earthing connection.
Do not use any mains lead other than that
•
provided with this TV. (This may cause fi re or
electrical shock.)
Do not expose to direct
sunlight and other sources
of heat
Avoid exposing the TV to direct sunlight and other
•
sources of heat. To prevent fi re never place any
type of candle or naked fl ame on top or near the
TV.
Power source
This TV is designed to operate on 220-240 V,
•
50 / 60 Hz AC.
Do not remove the cover
Do not remove the rear cover as live parts are accessible
•
when it is removed. There are no user serviceable parts
inside.
Do not expose your ears to
excessive volume from the
headphones
Irreversible damage can be caused.
•
AC 220-240 V
50 / 60 Hz
Do not place the TV on sloped
or unstable surfaces
The TV may fall off or tip over.
•
Transport only in upright position
Transporting the TV with its display panel facing upright or downward may cause damage to the internal circuitry.
•
IMPORTANT: THE MOULDED MAINS PLUG
FOR YOUR SAFETY, PLEASE READ THE FOLLOWING TEXT CAREFULLY.
This TV is supplied with a moulded three pin mains plug for your safety and convenience. A 5 amp (TH-42PZ8BA) /
10 amp (TH-46PZ8BA) fuse is fi tted in this mains plug. Shall the fuse need to be replaced, please ensure that the
replacement fuse has a rating of 5 amps (TH-42PZ8BA) / 10 amps (TH-46PZ8BA) and that it is approved by ASTA or
BSI to BS1362.
Check for the ASTA mark
If the mains plug contains a removable fuse cover, you must ensure that it is refi tted when the fuse is replaced.
If you lose the fuse cover the mains plug must not be used until a replacement cover is obtained.
A replacement fuse cover may be purchased from your local Panasonic dealer.
Do not cut off the mains plug.
Do not use any other type of mains lead except the one supplied with this TV.
The supplied mains lead and moulded plug are designed to be used with this TV to avoid interference
and for your safety.
If the socket outlet in your home is not suitable, get it changed by a qualifi ed electrician.
If the plug or mains lead becomes damaged, purchase a replacement from an authorized dealer.
WARNING: – THIS TV MUST BE EARTHED.
How to replace the fuse.
Open the fuse compartment with a screwdriver and replace the fuse.
or the BSI mark on the body of the fuse.
ASA
4
Page 5
Do not expose to rain or
excessive moisture
To prevent damage which might result
•
in electric shock or fi re, do not expose
this TV to rain or excessive moisture.
This TV must not be exposed to
dripping or splashing water and objects
fi lled with liquid, such as vases, must
not be placed on top of or above the TV.
Do not block the rear
ventilation openings
Ventilation should not be impeded by
•
covering the ventilation openings with
items such as newspapers, tablecloths
and curtains.
Notes
Do not display a still picture for a long time
This causes the image to remain on the plasma screen (“image
retention”).
This is not considered a malfunction and is not covered by the
warranty.
Typical still images
Programme number and other logos
•
Image displayed in 4:3 mode
•
Video game
•
To prevent image retention, contrast is lowered automatically
after a few minutes if no signals are sent or no operations are
performed. (p. 53)
■ Auto power standby function
If no signal is received and no operation is performed in
•
Analogue TV mode for 30 minutes, the TV will automatically go
to standby mode.
■
Keep the TV away from these types of equipment
Electronic equipment
•
In particular, do not place video equipment near the TV
(electromagnetic interference may distort images / sound).
Equipment with an infrared sensor
•
This TV also emits infrared rays (this may affect operation of
other equipment).
Allow suffi cient space
around the TV for
radiated heat
Minimum distance
10
10
When using the pedestal, keep the
•
space between the bottom of the TV
and the fl oor surface.
In case of using Wall-hanging bracket,
•
follow the manual of it.
10 7
(cm)
Use only the dedicated
pedestals / mounting
equipment
Using an unapproved pedestal or other
•
fi xtures may make the TV unstable,
risking injury. Be sure to ask your local
Panasonic dealer to perform setup.
Use approved pedestals / mounts
•
(p. 6).
Maintenance
First, remove the mains plug from the socket outlet.
Display panel
Regular care: Gently wipe the surface clean of dirt by using a soft cloth.
Major contamination: Wipe the surface clean using a soft cloth
dampened with clean water or diluted neutral detergent (1 part
detergent to 100 parts water). Then, using a soft dry cloth, evenly
wipe the surface clean until it is dry.
Caution
The surface of the display panel has been specially treated and
•
may be easily damaged.
Do not tap or scratch the surface with your fi ngernail or other hard
object.
Take care not to subject the surface to insect repellent, solvent,
•
thinner, or other volatile substances
(this may degrade surface quality).
Cabinet, Pedestal
Regular care: Wipe the surface clean using a soft dry cloth.
Major contamination: Dampen a soft cloth with clean water or water
containing a small amount of neutral detergent. Then, wring the cloth
and wipe the surface clean with it. Finally, wipe the surface clean with
a dry cloth.
Caution
Take care not to subject the TV's surfaces to detergent.
•
(A liquid inside the TV could lead to product failure.)
Take care not to subject surfaces to insect repellent, solvent,
•
thinner, or other volatile substances
(this may deteriorate the surface by peeling the paint).
Do not allow the cabinet and pedestal to make contact with a
•
rubber or PVC substance for a long time.
Mains plug
Wipe the mains plug with a dry cloth at regular intervals. (Moisture
and dust may lead to fi re or electrical shock.)
5
Page 6
Accessories / Options
Standard accessories
Remote Control
N2QAYB000222
•
Operating Instructions
Pan European
Guarantee Card
CRM
(Customer Relationship
Management)
This product contains possibly dangerous parts (such as plastic bags), that can be breathed in or swallowed by
•
young children accidentally. Keep these parts out of reach of young children.
Optional accessories
OK
132
465
798
0
TV
Check that you have the accessories and items shown
Batteries for the
Remote Control (2)
R6 (UM3)
•
Cleaning cloth
TXFPE01RLTB
•
Clamper
TMME289
•
p. 8
Pedestal
TBLX0053-1
•
TXFBL01RSTD
•
(TH-42PZ8BA)
TBLX0051-1
•
TXFBL01RLTD
•
(TH-46PZ8BA)
p. 7
Some items may not be available locally.
Mains Lead
K2CT3DH00018
•
(TH-42PZ8BA)
K2CT3DH00025
•
(TH-46PZ8BA)
p. 11
Wall-hanging bracket
(vertical)
TY-WK42PV3W
•
TY-WK42PV4W
•
Caution
In order to maintain the unit’s performance and safety, be absolutely sure to ask your dealer or a licenced
•
contractor to secure the wall-hanging brackets.
Carefully read the instructions accompanying the pedestal, and be absolutely sure to take steps to prevent the
•
TV from tipping over.
Handle the TV carefully during installation since subjecting it to impact or other forces may cause product
•
damage.
(angle)
TY-WK42PR3W
•
TY-WK42PR4W
•
Installing / removing remote’s batteries
1
Hook
Pull open
2
Note the correct
polarity (+ or -)
+
+
-
Close
6
Caution
Incorrect installation may cause battery leakage and corrosion, resulting in damage to the remote control.
•
Do not mix old and new batteries.
•
Do not mix different battery types (such as alkaline and manganese batteries).
•
Do not use rechargeable (Ni-Cd) batteries.
•
Do not burn or breakup batteries.
•
Batteries must not be exposed to excessive heat such as sunshine, fi re or the like.
Page 7
Attaching the pedestal
Warning
Do not disassemble or modify the pedestal.
Otherwise the TV may fall over and become damaged, and personal injury may result.
•
Caution
Do not use any other TV and displays.
Otherwise the TV may fall over and become damaged, and personal injury may result.
•
Do not use the pedestal if it becomes warped or physically damaged.
If you use the pedestal while it is physically damaged, personal injury may result. Contact your nearest
•
Panasonic dealer immediately.
During set-up, make sure that all screws are securely tightened.
If insuffi cient care is taken to ensure screws are properly tightened during assembly, the pedestal will not be
•
strong enough to support the TV, and it might fall over and become damaged, and personal injury may result.
Ensure that the TV does not fall over.
If the TV is knocked or children climb onto the pedestal with the TV installed, the TV may fall over and personal
•
injury may result.
Two or more people are required to install and remove the TV.
If two or more people are not present, the TV may be dropped, and personal injury may result.
•
Assembly screw (4)
(silver)
XYN5+F18FN
•
Assembly screw (4)
(black)
THEL062N
•
(TH-42PZ8BA)
THEL060N
(TH-46PZ8BA)
Pole (2)
R : TBLA3632
•
(TH-42PZ8BA)
TBLA3614
(TH-46PZ8BA)
L : TBLA3633
•
(TH-42PZ8BA)
TBLA3615
(TH-46PZ8BA)
Base
TBLX0053-1
•
(TH-42PZ8BA)
TBLX0051-1
•
(TH-46PZ8BA)
Quick Start Guide
•
Accessories / Options
M5 × 18 M5 × 25
■ Assembling the pedestal
Use the four assembly screws to fasten the left and
right poles to the base securely.
Make sure that the screws are securely tightened.
•
Forcing the assembly screws the wrong way will
•
strip the threads.
“L” or “R” mark is stamped on the bottom of the pole.
•
■ Securing the TV
Use the assembly screws to fasten securely.
Make sure that the screws are securely tightened.
•
Carry out the work on a horizontal and level surface.
•
View from the bottom
L
R
D
B
Arrow mark
R
A
L
Front
Hole for pedestal installation
D
7
Page 8
P
U
LL
Accessories / Options
Using the clamper
Rear of the TV
Do not bundle the RF cable and mains
•
lead together (could cause distorted
image).
Fix cables with clampers as necessary.
•
When using the optional accessory,
•
follow the option’s assembly manual to
fi x cables.
■ Attach the clamper ■ Bundle the cables
hole
Insert the clamper
in a hole
To remove
from the TV:
Keep
snaps
pushing both
side snaps
Set the
tip in the
hooks
To loosen:
knobhooks
Identifying Controls
TV
Function select
Volume / Contrast / Brightness / Colour /
•
Sharpness / Tint (NTSC mode) / Bass /
Treble / Balance / Auto Setup (p. 34)
Lift door to open
AV3
Keep
pushing
the knob
8
Increases or decreases the programme position by one. When a function is already displayed,
press to increase or decrease the selected function. When in Standby mode, switches TV On.
Mains power
On / Off switch
Switch On to turn on the TV
•
or turn the TV to standby
mode by the remote control
Changes the
input mode
Timer LED
Active for Timer Programming or Standby for Direct TV Recording :orange (fl ash)
•
Timer Programming On :orange
C.A.T.S. (Contrast Automatic Tracking System) sensor
Senses brightness to adjust picture quality in “Eco” mode in Picture Menu (p. 26)
•
Remote control signal receiver
Power LED
Standby: red
•
On: green
When using the remote control, indicates the TV has received a command.
•
Headphones jack
(p. 48)
AV3 terminals
(p. 48)
Page 9
Identifying Controls
Remote Control
Standby On / Off switch
Switches TV On or Off standby
•
Guide (p. 20)
Displays TV Guide
•
OK
Confi rms selections and choices
•
Press after selecting programme positions to
•
quickly change programme
Main Menu (p. 24)
Press to access VIERA Link, Picture,
•
Sound and Setup Menus
Aspect (p. 16)
Changes aspect ratio from
•
Aspect Selection list
Also possible by pressing this button
•
repeatedly until you reach the desired aspect
VIERA Link Menu (p. 45)
Press to access VIERA Link Menu directly
•
Programme Information (p. 15)
Displays programme information
•
Programme Up / Down
Selects programme in sequence
•
Teletext (p. 17)
Switches to teletext mode
•
Subtitles (p. 14)
Displays subtitles
•
VCR / DVD Panasonic equipment
operations (p. 23)
INPUT
GUIDE
OK
MENU
ASPECT
OPTION
132
465
798
0
VCR
TEXT STTL INDEX HOLD
REC
PROGRAMME
VCR DVD
EXIT
RETURN
DIRECT TV REC
Input mode selection
TV -
switches DVB / Analogue mode (p. 14)
•
AV - switches to AV input mode from Input
•
Selection list (p. 22)
Exit
Returns to the normal viewing screen
•
Cursor buttons
Makes selections and adjustments
•
Return
Returns to the previous menu
•
Coloured buttons
Used for the selection, navigation and
•
operation of various functions
Direct TV Recording (p. 43 and p. 45)
Records programme immediately in
•
DVD Recorder / VCR with Q-Link or
VIERA Link connection
Option Menu (p. 15)
Easy setting for viewing and sound
•
options
Numeric buttons
Changes programme and teletext pages
•
When in Standby mode, switches TV On
•
Sound Mute
Switches sound mute On or Off
•
Volume Up / Down
Hold
Freeze / unfreeze picture (p. 14)
•
Holds the current teletext page (teletext
•
mode) (p. 19)
Index (p. 19)
Returns to the teletext index page
•
(teletext mode)
Quick Start Guide
•
•
Identifying Controls
Accessories / Options
TV
9
Page 10
Basic Connection
External equipment and cables shown are not supplied with this TV.
Please ensure that the unit is disconnected from the mains socket before attaching or disconnecting any leads.
When disconnecting the mains lead, be absolutely sure to disconnect the mains plug at the socket outlet fi rst.
Example 1
Connecting aerial
Example 2
Connecting DVD Recorder / VCR
TV only TV, DVD Recorder or VCR
Aerial AerialRear of the TV Rear of the TV
AC 220-240 V
50 / 60 Hz
AUDIO
OUT
COMPONENT
AUDIO
IN
LRL
R
Mains lead (supplied)
RF cable
AV2AV1
RGB
RGB
VIDEO
VIDEO
S VIDEO
Y
P
B
P
R
HDMI 1 HDMI 2
AUDIO
OUT
COMPONENT
AUDIO
LRL
RGB
VIDEO
IN
Y
P
B
R
P
R
Mains lead (supplied)
AV2AV1
RGB
VIDEO
S VIDEO
AC 220-240 V
50 / 60 Hz
HDMI 1 HDMI 2
10
RF cable
SCART cable
(fully wired)
RF OUT
DVD Recorder or VCR
RF IN
RF cable
Note
Connect to AV2 for a DVD Recorder / VCR supporting Q-Link (p. 43).
•
Connect to AV1 for a Satellite receiver.
•
For HDMI-compatible equipment, possible to connect to HDMI terminals (HDMI1 / HDMI2) by using HDMI cable
•
(p. 48).
Q-Link connection p. 42
•
VIERA Link connection p. 42
•
Read the manual of the equipment too.
•
Page 11
Example 3
Connecting DVD Recorder / VCR and Satellite receiver
TV, DVD Recorder / VCR and Satellite
Rear of the TV
Quick Start Guide
Aerial
AUDIO
OUT
COMPONENT
AUDIO
IN
LRL
R
Push until both
side tabs click
Make sure that
the mains lead is
securely fi xed.
To remove from the TV:
•
Press both tabs
and pull on
mains connector
to release
AC 220-240 V
50 / 60 Hz
•
Basic Connection
tabs
Mains lead (supplied)
AV2AV1
RGB
RGB
VIDEO
VIDEO
S VIDEO
Y
P
B
P
R
HDMI 1 HDMI 2
RF cable
SCART cable
(fully wired)
Fully wired HDMI
compliant cable
DVD Recorder
or VCR
SCART cable
(fully wired)
Satellite receiver
RF OUT
RF IN
RF OUT
RF OUT
RF IN
RF IN
RF cable
RF cable
11
Page 12
Auto Setup
Search and store TV programmes automatically.
These steps are not necessary if the setup has been completed by your local dealer.
Plug the TV into mains socket and switch On
(Takes a few seconds to be displayed)
1
You can now use the remote
•
control to turn On the TV or turn
the TV to standby mode.
(Power LED: On)
GUIDE
MENU
ASPECT
OK
132
465
798
VCR
OPTION
0
INPUT
DIRECT TV REC
EXIT
RETURN
2
Auto Setup - Digital and Analogue
Digital Scan 21 68
Analogue Scan
This will take about 6 minutes.
Channel Service Name Type Quality
62
CBBC Channel Free TV 10
62 BBC Radio Wales Free TV 10
62 E4 Free TV 10
62 Cartoon Nwk Free TV 10
29 Analogue
33
BBC1 Analogue
Free TV: 4 Pay TV: 0 Radio: 0 Data: 0 Analogue: 2
EXIT
Sending Preset Data
Please wait!
0% 100%
Remote control unavailable
21 68
-
Searching
-
■ When inputting Owner ID
Owner ID
Please enter new PIN
PIN
EXIT
RETURN
0 9
* * * *
PIN entry
Auto Setup will start to search for
•
TV programmes and store them in
the numbered order as specifi ed
by the broadcasters.
If Q-Link, or similar technology
•
(p. 43), compatible recorder is
connected, analogue programme
information is automatically
downloaded to the recorder.
(Digital programme information is
not downloaded.)
Following the on-screen operation
guide, enter your own choice of PIN
number, name, etc.
For detailed procedures
•
“Owner ID” (p. 37)
Make a note of the PIN number
•
in case you forget it.
12
TEXT STTL INDEX HOLD
REC
VCR DVD
PROGRAMME
TV
3
■ When inputting Owner ID later
EXIT
Select the picture setting
Please select your viewing environment.
•
Auto Setup is now complete and your TV is ready for viewing.
Home Shop
“Shop” and “Home” are equal
to “Dynamic” and “Normal”
respectively - “Viewing Mode” in
“Picture Menu” (p. 26)
If you input the ID later
•
“Owner ID” (p. 37)
select
set
To check programme list
•
at-a-glance
“Using TV Guide” (p. 20)
To edit programmes
•
“Editing Programmes” (p. 32)
Page 13

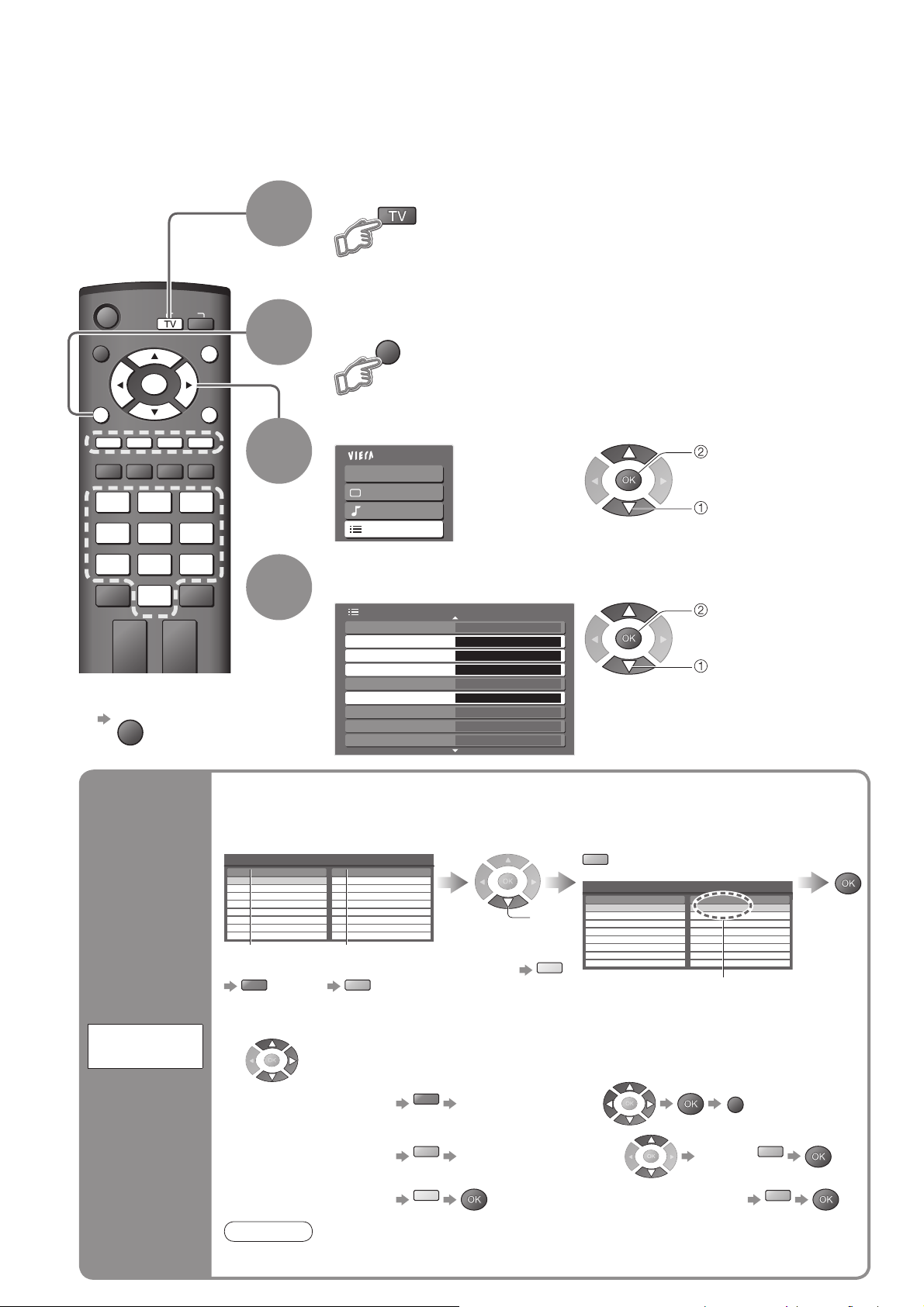

Many features available on this TV can be accessed via the On Screen Display
menu.
■ How to use remote control
Using the
On Screen
Displays
MENU
RETURN
EXIT

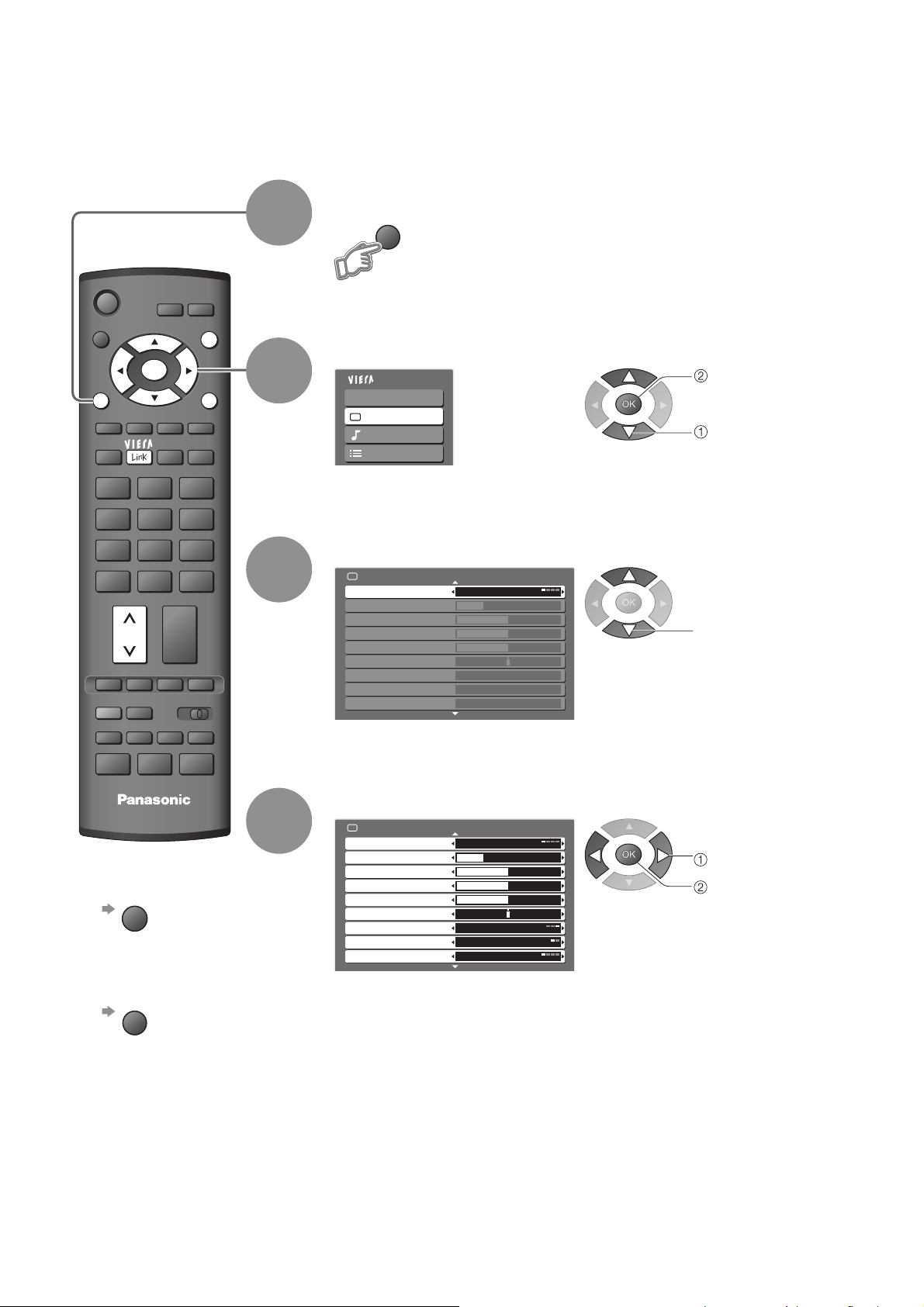

Open the main menu
Move the cursor / select the menu
Move the cursor / adjust levels / select from a range of options
Access the menu / store settings after adjustments have been made or options
have been set
Return to the previous menu
Exit the menu system and return to the normal viewing screen
■ ON SCREEN HELP Instructions box
(example: Owner ID)
Owner ID
Please enter new PIN
PIN
* * * *
Quick Start Guide
•
Auto Setup
EXIT
RETURN
On-screen operation
guide will help you.
Note
If tuning has failed “Auto Setup” (p. 35)
•
If downloading has failed “Q-Link Download” (p. 27)
•
To initialize all settings “Shipping Condition” (p. 36)
•
If you turned the TV Off during Standby mode last time, the TV will be in Standby mode when you turn the TV On
•
with Mains power On / Off switch.
0 9
PIN entry
13
Page 14
Watching TV
Turn power on
(Press for about 1 second)
1
INPUT
Mains power On / Off switch should be On. (p. 8)
•
GUIDE
MENU
ASPECT
132
465
798
TEXT INDEX
STTL HOLD
REC
PROGRAMME
OK
OPTION
0
VCR
EXIT
RETURN
DIRECT TV REC
VCR DVD
Volume
2
3
Select DVB (Digital Video Broadcasting) or
Analogue mode
Also possible to select the mode using the
•
TV button on the front panel of the TV. (p. 8)
1 BBC ONE WALES
Coronation Street
20 : 00 ~ 20 : 55
Now
Profile 1
23:35
Change category
For info press
Information banner appears
whenever you select a
programme
For details p. 15
•
Select a programme
up
down
or
132
465
798
0
VCR
To select the two or three-digit
•
programme number, e.g. 39
3 9
(in a short time)
■ Select a programme using Information banner (p. 15)
Possible to confi rm the programme name before selecting programmes.
Display Information banner
if it is not displayed
While the banner is displayed,
select the programme
select programme
TV
Note
To watch pay-TV
•
p. 31
■ Other useful functions
Hold
Display
subtitles
Freeze / unfreeze picture
Display / hide subtitles (if available)
To change the language for DVB (if available)
•
“Preferred Subtitles” (p. 27)
Possible to set display
•
timeout in “Banner Display
Timeout” (p. 27).
watch

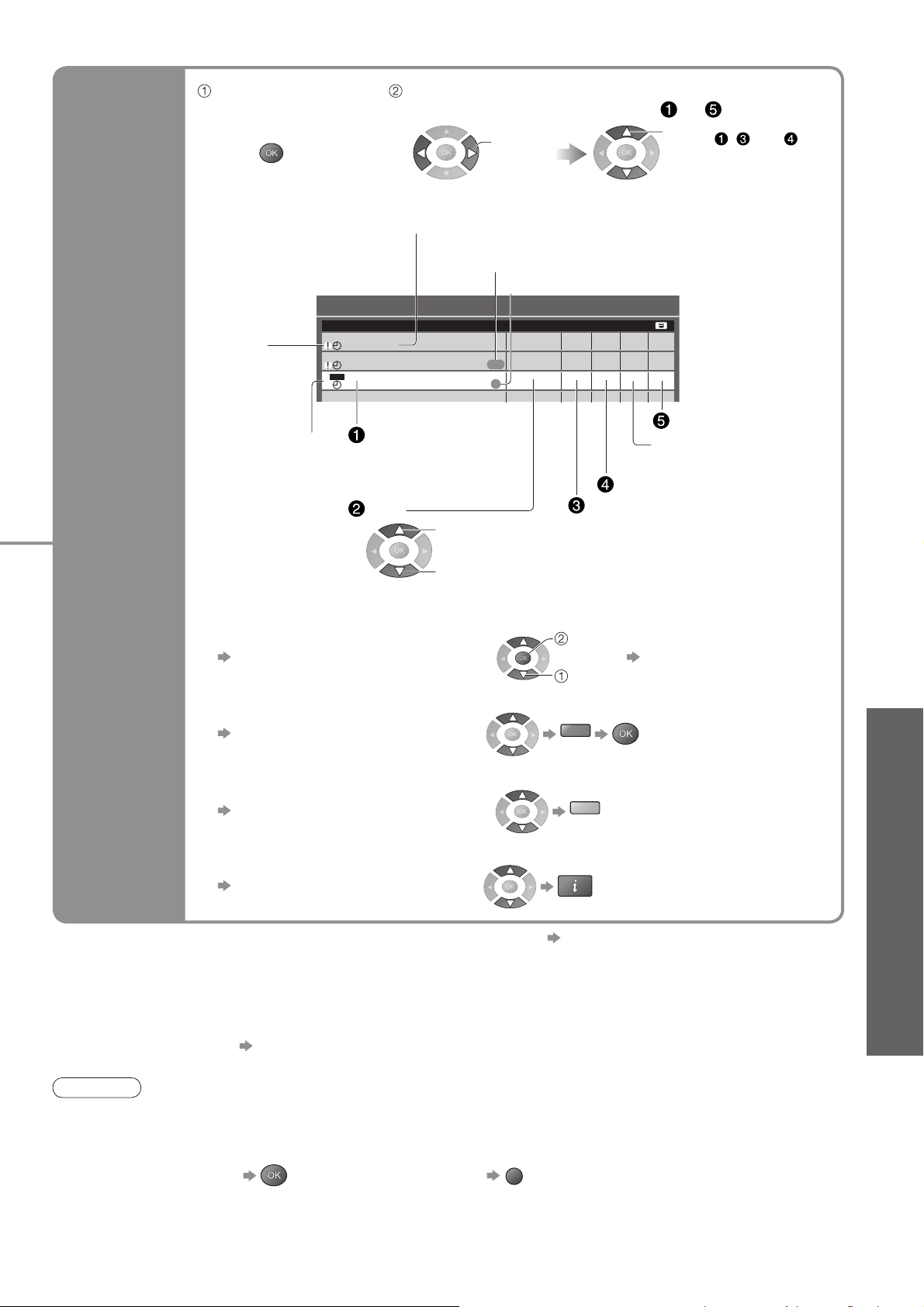

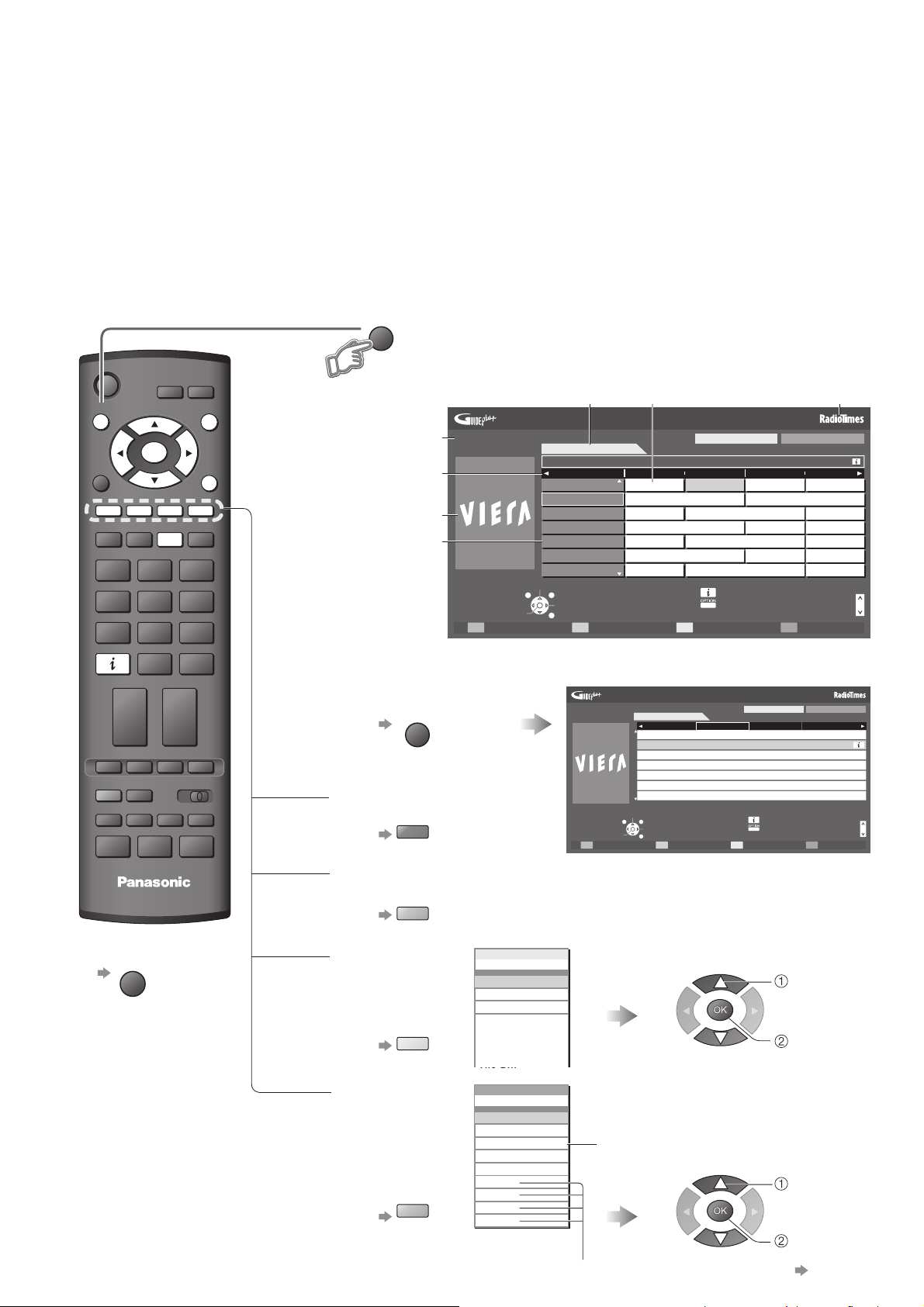

■ Select a programme using TV Guide (p. 20)
Possible to confi rm the TV Guide (EPG) before selecting programmes.
Display
TV Guide
GUIDE
Select the event
now on the air
select
access
HOLD
STTL
Select “View”
Eastender
19:30- 20:00
View
Timer Programming
select
watch
14
Page 15
■ Other useful functions
Display Information banner
Also appears when changing a programme
•
Features available / Message meanings
ProgrammeEvent
Example:
1 BBC ONE WALES
Coronation Street
20 : 00 ~ 20 : 55
Mute Encrypted
DVB: Event Start / Finish time
Analogue: Programme status
Programme type
(if it is Radio or Data service)
Now
Current time Category
23:35Radio
Change category
For info press
SubtitlesAD TXT Multi Audio 45
Profile 1
Display
Information
banner
Mute
Sound mute On
Bad signal
Poor TV signal quality
Encrypted
Scrambled programme
AD
Audio Description service available
This function can aid visually-impaired
•
viewers by adding an additional audio
track to describe events on-screen.
For settings p. 26
•
To confi rm another tuned
•
programme name
To change the category
•
Information on the next event
•
(DVB mode)
Extra information (press again to hide the banner)
•
(DVB mode)
“AD”, “Subtitles”, “TXT”, “Multi Audio” indications are
•
displayed as available on particular programmes, but may not
be available for all individual programmes being broadcast.
Display the extra information to confi rm availability of these
functions.
blue
Subtitles
Subtitle service available
TXT
Teletext service available
Multi Audio
Multiple audio available
Stereo, Mono
Audio mode
1 - 90
Off Timer remaining time
For settings p. 16
•
To watch the programme
•
listed in the banner
To hide
•
To set display timeout
•
“Banner Display Timeout” (p. 27)
EXIT
Example:
1 BBC ONE WALES
Coronation Street
20 : 00 ~ 20 : 55
[AD]
Viewing
All DVB Services
23:35
Change category
Now
AD
Exit info
•
Watching TV
Display the
selectable
settings for
the current
programme
Check or change the current
programme status instantly
Multi Audio (DVB mode)
Allows you to select between alternative
language for sound tracks (if available)
Subtitle Language (DVB mode)
Allows you to select the language in which
subtitles should appear (if available)
NICAM (Analogue mode)
Sound Menu (p. 26)
Note
Also possible to change the settings in Menu list (p. 26 and p. 27).
•
OPTION
Volume Correction
Adjusts volume of individual programme or
input mode
Audio Description (DVB mode)
Select “On” if the programme has Audio
Description service, then you will hear an
additional audio track to describe events
on-screen
To change
•
change
select
15
Page 16
Watching TV
A
A
A
■ Other useful functions
Turn the TV off automatically after a fi xed period
Off Timer
Display the
menu
MENU
To cancel Set to “Off” or turn the TV off.
•
To display the remaining time Information banner (p. 15)
•
When the remaining time is within 3 minutes, the remaining time will fl ash on screen.
•
Select “Setup” Select “Off Timer” and set the time
Main Menu
VIERA Link
Sound
Setup
access
select
Setup Menu
Timer Programming
DVB Profile Edit
DVB Service List
Link Settings
Child Lock
Tuning Menu
GUIDE Plus+ Settings
Off Timer
Power on Preference TV
1/3
set
select
Off
Change
aspect
ratio
Change the aspect ratio
SPECT
Enjoy viewing the picture at its optimum size and aspect.
Display Aspect
Selection list
SPECT
To change the mode using the ASPECT button only
•
SPECT
(Press repeatedly until you reach the desired mode)
Auto 16:9
14:9 4:3
Zoom1 Zoom2
While the list is displayed,
select the mode
store
select
The best ratio is chosen
and the picture expanded
to fi ll the screen.
For details p. 50
Displays the
image at the standard
“14:9” without distortion.
Displays a “16:9” letterbox
or “4:3” image without
distortion.
Aspect Selection
Auto
16:9
14:9
4:3
Zoom1
Zoom2
Zoom3
Select
EXIT
Change
RETURN
Aspect
Selection list
Directly displays the
image at “16:9” without
distortion (anamorphic).
Displays the image at the
standard “4:3” without
distortion.
Displays a “16:9” letterbox
(anamorphic) image
full-screen without
distortion.
16
Zoom3
Displays a “2.35:1” letterbox (anamorphic)
image full-screen without distortion. At “16:9”,
displays the image at its maximum
(with slight enlargement).
Note
Not available when Subtitle is active in DVB mode.
•
Not available in Analogue teletext mode.
•
Aspect mode can be memorized separately for SD (Standard defi nition) and HD (High
•
defi nition) signals.
Page 17
Viewing Teletext
You can enjoy news, weather forecasts and subtitles, etc. (depending on the broadcaster)
DVB mode
DVB teletext services
DVB teletext services differ greatly from analogue teletext.
When you switch to a DVB teletext service, the images
you see can contain graphics and text, laid out and
controlled in a manner decided by the broadcaster.
You can check if the programme
•
has teletext service.
GUIDE
MENU
ASPECT
132
465
798
OK
OPTION
0
VCR
INPUT
EXIT
RETURN
DIRECT TV REC
1
2
3
If in Analogue mode
Select DVB
Information
banner
(p. 15)
1 BBC ONE WALES
Coronation Street
20 : 00 ~ 20 : 55
Displayed if programme has
teletext service
Now
23:35
Change category
For info press
TXT
Profile 1
Switch to Teletext
TEXT
17:51 28 Feb
How to use
In all cases, it is possible to navigate the pages using buttons on the
remote control, but because the commands available must apply to all
manufacturers of DVB equipment, some on screen commands may
not correspond exactly to the remote control buttons.
For example:
When “select” or “go” is displayed
•
When “◄”, “►”, “▲”, “▼” symbol is displayed
•
Viewing
•
•
Viewing Teletext
Watching TV
STTL INDEX HOLD
TEXT
REC
PROGRAMME
TV
VCR DVD
When the key words are displayed on colour bar
•
When options with numbers are displayed
•
When “i” is displayed (information)
•
■ To return to TV
Note
As soon as you switch to a DVB programme with links to a teletext service,
•
software is downloaded in the background to enable the teletext function.
This means that when switching to a DVB programme, you should wait for
approximately 5 seconds before pressing the TEXT button - this will allow
the software to download. If you press the TEXT button before download is
complete, there will be a short delay before the text screen is displayed.
While navigating DVB teletext, you will fi nd there is a short delay when
•
moving between pages while the page downloads. There is often a prompt
shown somewhere on the page (for example “Loading”) to let you know that
this is happening.
TEXT
red green yellow blue
132
465
798
0
VCR
17
Page 18
Viewing Teletext
Analogue mode
What is FASTEXT mode (default)?
In FASTEXT mode, four differently coloured subjects are situated at the bottom of the screen. To access more
information about one of these subjects, press the appropriately coloured button. This facility enables fast access to
information on the subjects shown.
What is List mode?
In List mode, four differently coloured page numbers are situated at the bottom of the screen. Each of these
numbers can be altered and stored in the TV’s memory. (“Store frequently viewed pages”, p. 19)
■ To change mode “Teletext” in Setup Menu (p. 27)
If in DVB mode
Select Analogue
1
INPUT
GUIDE
OK
MENU
ASPECT
OPTION
132
465
798
0
VCR
TEXT STTL INDEX HOLD
REC
VCR DVD
PROGRAMME
EXIT
RETURN
DIRECT TV REC
2
3
Switch to Teletext
TEXT
Displays the
•
index page
(content varies
depending on the
broadcasters)
Select the page
132
465
798
or
0
VCR
up
down
■ To adjust contrast
EXIT
■ To return to TV
Current
page
number
or
MENU
(Press twice)
Sub page number
<< 01 02 03 04 05 06 07 >>
TELETEXT
INFORMATION
Colour bar
yellow
green
red
(Corresponds to the colour bar)
As the blue bar is displayed
17:51 28 Feb
blue
Time / date
18
TV
Reveal
hidden
data
FULL /
TOP /
BOTTOM
Reveal hidden words e.g. quiz page answers
MENU
red
MENU
green
■ Re-hide
(Expand the TOP half)
red
(TOP) (BOTTOM)
Normal (FULL)
(Expand the BOTTOM half)
Page 19
HOLD

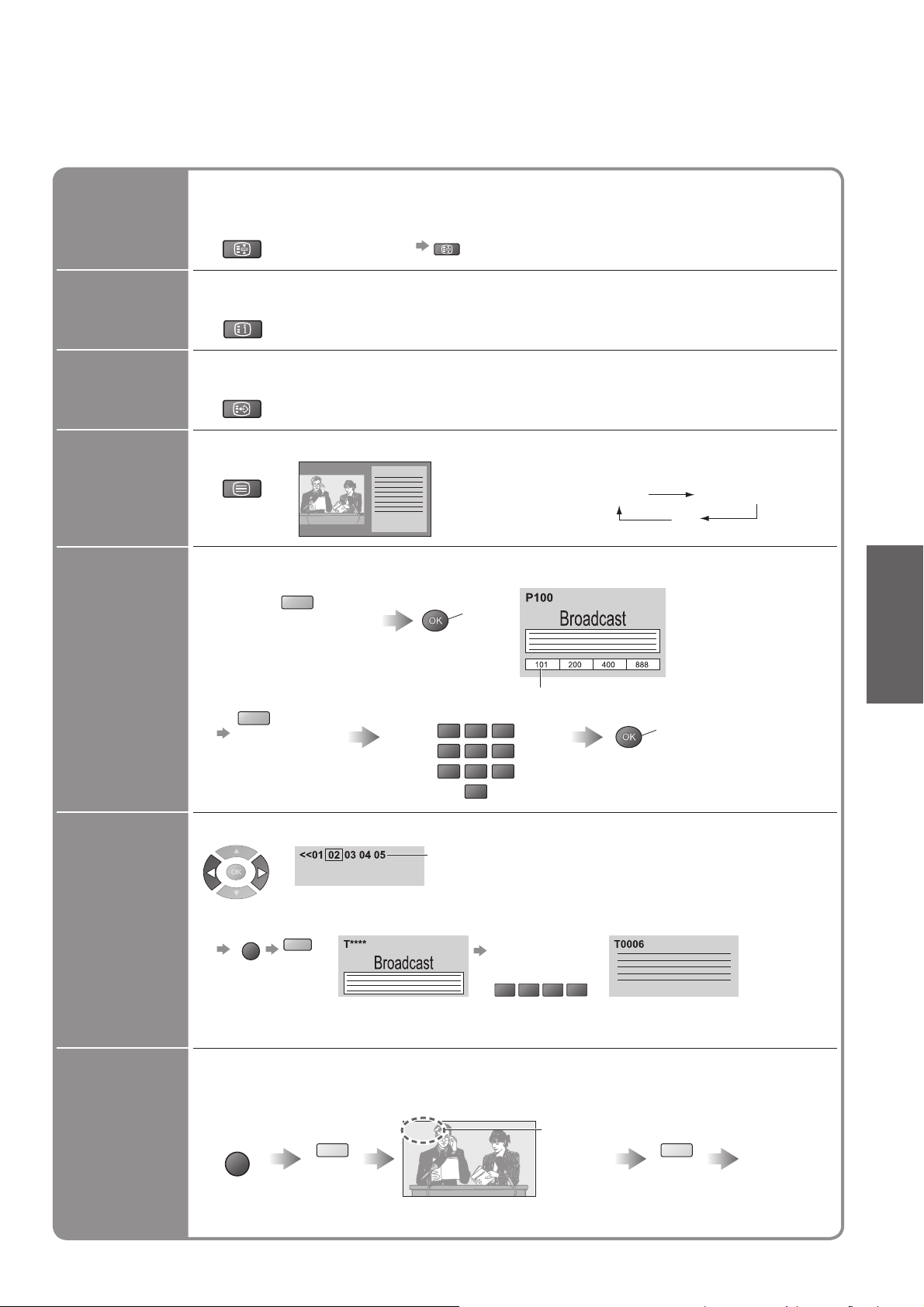

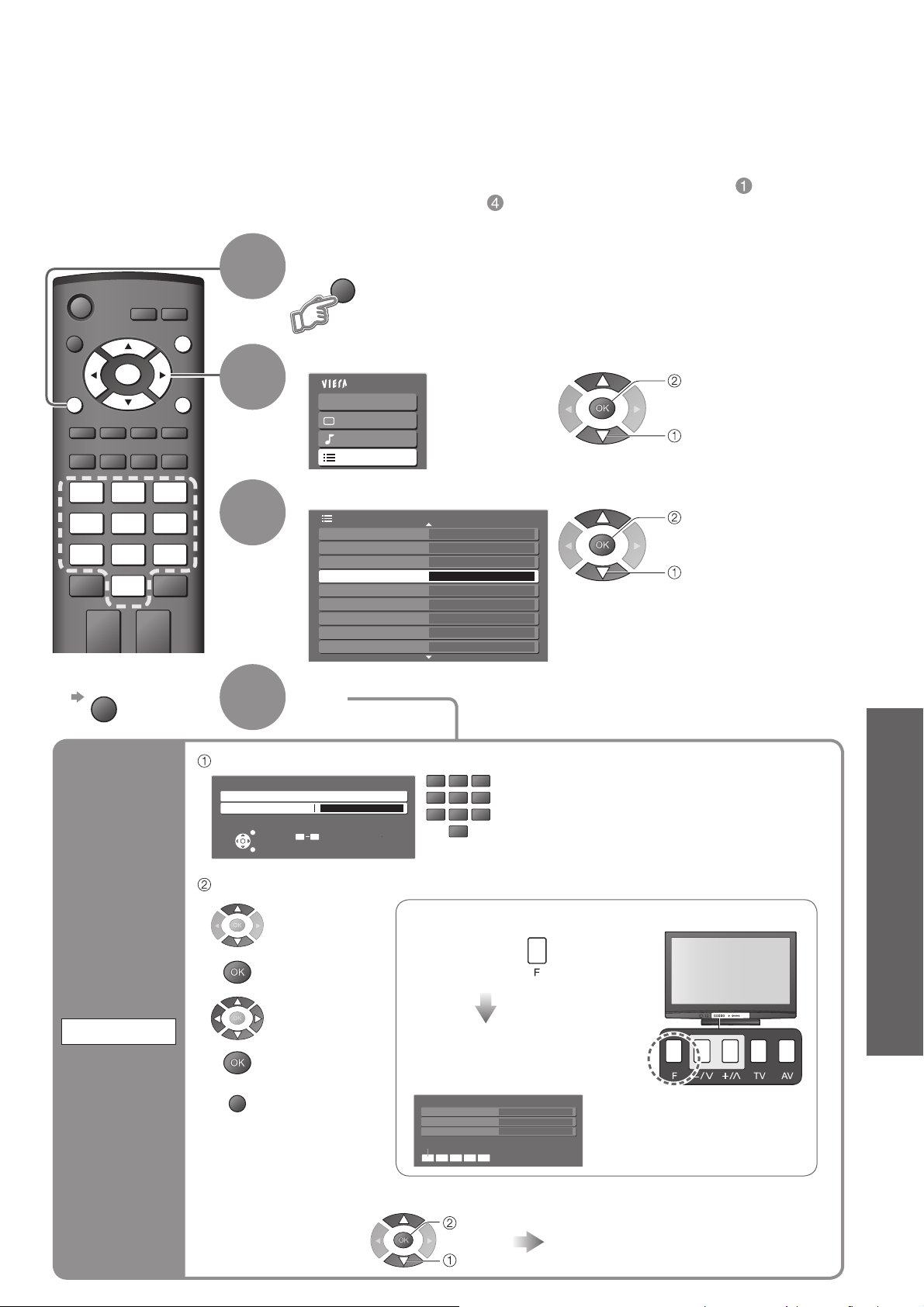

INDEX
Subtitles
View in
multi
window
Stop automatic updating
(If you wish to hold the current page without updating)
HOLD
■ To resume
HOLD
Return to the main index page
INDEX
View subtitles
STTL
Factory setting is “P888” (subtitle service) on blue button (List mode).
•
Watch TV and Teletext in two windows at once
TEXT
Operations can be made only in Teletext screen.
•
Each time pressed: Teletext TV and Teletext
•
TV
Store
frequently
viewed
pages
View sub
page
Store frequently viewed pages in the colour bar
As page is
displayed
Corresponding
colour button
■ To change stored pages
Enter new page number
Colour button you
want to change
press
and
hold
132
465
798
The number changes to white.
0
VCR
press
and
hold
(List mode only)
If you wish to use
•
Subtitles, do not
change number on
blue button.
View sub page (Only when teletext is more than one page)
Appears at top of
the screen
■ To view specifi c sub page
MENU
blue
Sub pages:
•
The number of sub pages varies depending on the broadcasters (up to 79 pages).
It may take some time for searching, during which time you can watch TV.
Enter the
4-digit number
example: P6
0 0 0
6
Viewing
•
Viewing Teletext
Watch
TV while
waiting
for update
View the TV picture while searching for a teletext page
Teletext automatically updates itself when new information becomes available.
Changes to TV screen temporarily
MENU
yellow yellow
The news page provides a function that indicates arrival of latest news (“News Flash”).
•
P108
(You cannot change the programme.)
Appears
when
updating is
completed
View the
updated
page
19
Page 20
Using TV Guide
TV Guide―Electronic Programme Guide (EPG) provides an on-screen listing of the programmes
currently broadcast and the forthcoming broadcasts over the next seven days (depending on the
broadcasters).
This TV supports the GUIDE Plus+ system.
•
The Gemstar branding partner will supply the rating informations in the event information and the recommended
•
group in the Prog.Type list.
Analogue programmes will be listed after DVB programmes. “D” means DVB programme and “A” means
•
Analogue programme.
When this TV is turned on for the fi rst time, or the TV is switched off for more than a week, it may take some time
•
before the TV Guide is completely shown.
INPUT
GUIDE
OK
MENU
ASPECT
OPTION
EXIT
RETURN
DIRECT TV REC
132
465
798
0
VCR
TEXT STTL INDEX HOLD
REC
VCR DVD
PROGRAMME
TV
■ To return to TV
EXIT
GUIDE
Current date
TV Guide time
Advertisement
Programme
(TV Guide start page)
■ To change the layout
(Landscape / Portrait)
■ To the previous day
(DVB mode)
■ To the next day
(DVB mode)
■ To view a
programme list
of the selected
type
(DVB mode)
View TV Guide (landscape or portrait)
View “Portrait” to see one programme at a time
View “Landscape” to see many programmes
and time
GUIDE
red
green
yellow
Example:
Wed 24/10/2007
10:46
Change display mode
Timer Programming
TV Guide date
Wed 24th
20:00 - 20:30 DIY SOS : We open in the Battersbys
1
BBC ONE Eastender DIY SOS The Bill Red Cap
D
BBC THR
7
D
E4 Emmerdal. Coronation Street The Bill
14
D
CBBC Cha 10 O’ clock News BBC Pepsi Char. Good bye
70
D
Cartoon Panorama Sex And The City Terminator
72
D
105
BBCi I’ m A Celebrity Pop Idol News
D
719
BBC Radi
D Rugby 15 To 1 The Bill
Select channel
EXIT
Select programme
-24 Hr +24 Hr Prog.Type Category
RETURN
Example:
Wed 24/10/2007
10:46
Change display mode
Timer Programming
Prog. Type
All Types
All Types
21:00 21:30
21:00 21:30
Red Cap
Red Cap
Movie
News
.
The Bill
The Bill
.
Good bye
Good bye
.
.
Terminator
Terminator
.
.
News
News
.
So
So
Hell
Hell
The
The
(Type list)
Event
TV Guide: Landscape
19:30Time: 20:00 20:30 21:00
Hot Wars Horiday Program
Landscape (Displays by programme)
TV Guide: Portrait
Wed 24th
D 1 BBC O D 7 BBC T D 14 E4 D 70 CBBC
Eastender
19:30~20:00
DIY SOS
20:00~21:00
The Bill
21:00~22:00
Red Cap
21:00~22:00
Live junction
22:30~23:00
POP 100
23:00~23:30
Rugby
23:00~00:00
Select programme
EXIT
Select channel
RETURN
+24 Hr Prog.Type Category
Logo of the Gemstar
branding partner
All Types All Services
Info
Select Advert
All Types All Services
Info
Select Advert
Page up
Page down
Portrait (Displays by time)
select type
view
Page up
Page down
20
■ To view a
programme list
of the selected
category
blue
Categor y
Categor y
All Service s
All Service s
All Services
All Services
All DVB Services
All Analogue Services
Free TV
Free Services
V
Information
TV and Data Services
Profile 1
Profile 1
Profile 2
Profile 2
Profile 3
Profile 3
Profile 4
Profile 4
(Category list)
Only Analogue TV programmes are
listed
select
category
view
To list favourite programmes p. 32
Page 21

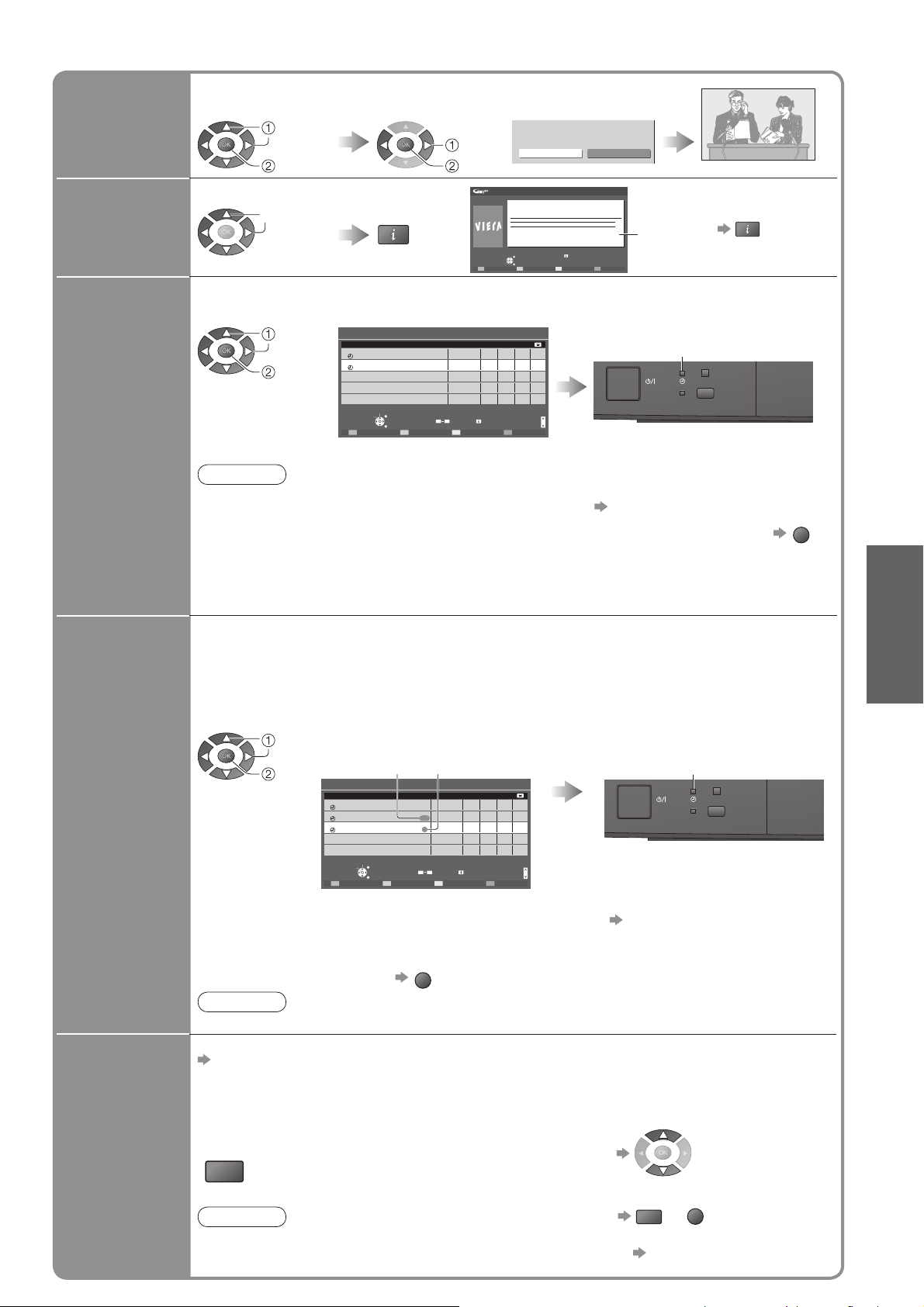

■ Other useful functions (Operate after viewing TV Guide)
Watch the
programme
View details
of the event
(DVB mode)
Timer
Programming
Event
recording
(Timer
Programming
according to
the TV Guide
signal)
View
advertisement
Select the current
Select “View”
event or programme
select
access
Select the event
select
select
watch
View details
Wed 24/10/2007
10:46
Timer Programming
Eastender
19:30- 20:00
TV Guide: Landscape
Wednesday, 24 October 2007
DIY SOS
BBC ONE
20:00 - 20:30, 30 min.
EXIT
RETURN
View
Timer Programming
Return to List
Details
(TV screen)
■ To return to
the start page
Select the event to output to external recorder
Timer LED will turn on if
select
set
Timer Programming Wed 05/08/04 18:50
Pos. Date Start End min.
Name
1D BBC1
<TIMER>
3DITV1
Freshly Squeezed Extra
DITV1
---
--- --/-- --:-- --:-- --- ---
Freshly Squeezed Extra
--- --/-- --:-- --:-- --- ---
--- --/-- --:-- --:-- --- ---
Select timer
EXIT
Edit timer
RETURN
Delete Timer off
(Timer Programming screen)
6/8 FR 18:00 20: 00 12 0 Off
7/8 SA 21:30 22:3 0 60 Off
--/-- --:-- --:-- --- ---
S/P
0 9
Info
Page up
Page down
Note
When recording programmes, you must make
•
the proper settings on the recorder connected to the TV.
If a compatible recorder with Q-Link or similar
technologies is connected to the TV (p. 43) and the
1/1
Timer Programming is set.
Timer LED
Orange Timer LED
•
(Blinking during timer active)
■ To check / change / cancel a
Timer Programming event
“Timer Programming” (p. 41)
RETURN
■ To return to TV Guide
“Link Settings” (p. 27) are completed, no setting of the recorder is required.
Also read the manual of the recorder.
If you select the current programme, a screen asking you to confi rm whether you wish to watch or record it
•
will appear. Select “Timer Programming” to record from the time you fi nish the Timer Programming setting.
Event recording is a timer programme controlled by information from the TV Guide.
Programme start and end times may be changed by broadcasters and sent to the TV for
timer programme to follow the change.
Split Programme is a programme which is interrupted by one or more events.
Both of the above are subject to signals being sent by broadcasters.
Select the event to output to external recorder
select
set
■
To check / change / cancel an Event recording event “Timer Programming” (p. 41)
If you edit the Event recording after setting to record, it will no longer be performed as Event
•
recording. The recording will be performed according to the time setting in Timer Programming.
“Guide” is
displayed if the
timer is set from
the TV Guide
Timer Programming Wed 05/08/04 18:50
Pos. Date Start End min.
Name
1D BBC1
<TIMER>
1D BBC1
Holiday News
3DITV1
--- --/-- --:-- --:-- --- ---
Freshly Squeezed Extra
--- --/-- --:-- --:-- --- ---
--- --/-- --:-- --:-- --- ---
Select timer
EXIT
Edit timer
RETURN
Delete Timer off
(Timer Programming screen)
“S/P” is displayed if the
timer is set from the
TV Guide and the event
is a Split Programme
6/8 FR 18:00 20: 00 12 0 Off
7/8 SA 21:30 22:3 0 60 Off
Guide
7/8 SA 22:30 23:3 0 60 Off
S/P
0 9
RETURN
Page up
Info
Page down
Timer LED will turn on if
Timer Programming is set.
Timer LED
1/1
Orange Timer LED
•
(Blinking during timer active)
■ To return to TV Guide
Note
Whilst making Split Programme recording, it is not possible to record any events between sections.
•
Enter your postcode when using this function for the fi rst time
“Postcode” in “GUIDE Plus+ Settings” (p. 27)
If you have already entered your postcode in Owner ID (p. 12), you do not have to enter again.
If you enter an incorrect postcode for your area, or no postcodes are entered, advertisement
may not be displayed correctly.
Display advertisement information
OPTION
Note
Some advertisements are for future programmes.
•
In this case it is possible to use the Event recording function.
The information from the GUIDE Plus+ system will not be lost even if turned Off with Mains power On / Off switch.
•
To display the latest advertisement, you
•
will need to update the information.
To update the information continuously, the
•
TV must be left in Standby mode at night.
■ To change advertisements
■ To return to TV Guide
OPTION
RETURN
or
see above
Viewing
•
Using TV Guide
21
Page 22
Watching VCR, DVD and Satellites
Connect the external equipment (VCRs, DVD equipment, etc.) and you can watch the input.
Connect the Satellite receiver and you can watch satellite broadcasts.
To connect the equipment p. 10 and p. 11
•
The Remote Control is capable of operating some functions of selected Panasonic external equipment.
Turn the TV on
■
When connecting with SCART as example 2 or 3 (p. 10 and p. 11)
Receives input signals automatically when playback starts or
satellite receiver is switched on
Input signals are automatically identifi ed by the SCART (pin 8)
•
terminal.
This function is also available for HDMI connections (p. 48).
•
■ If input mode is not switched automatically
Perform and
Dependant on the setup of the equipment
•
GUIDE
1
INPUT
EXIT
OK
MENU
ASPECT
132
465
798
TEXT STTL INDEX HOLD
PROGRAMME
REC
OPTION
0
VCR
VCR DVD
RETURN
DIRECT TV REC
2
3
4

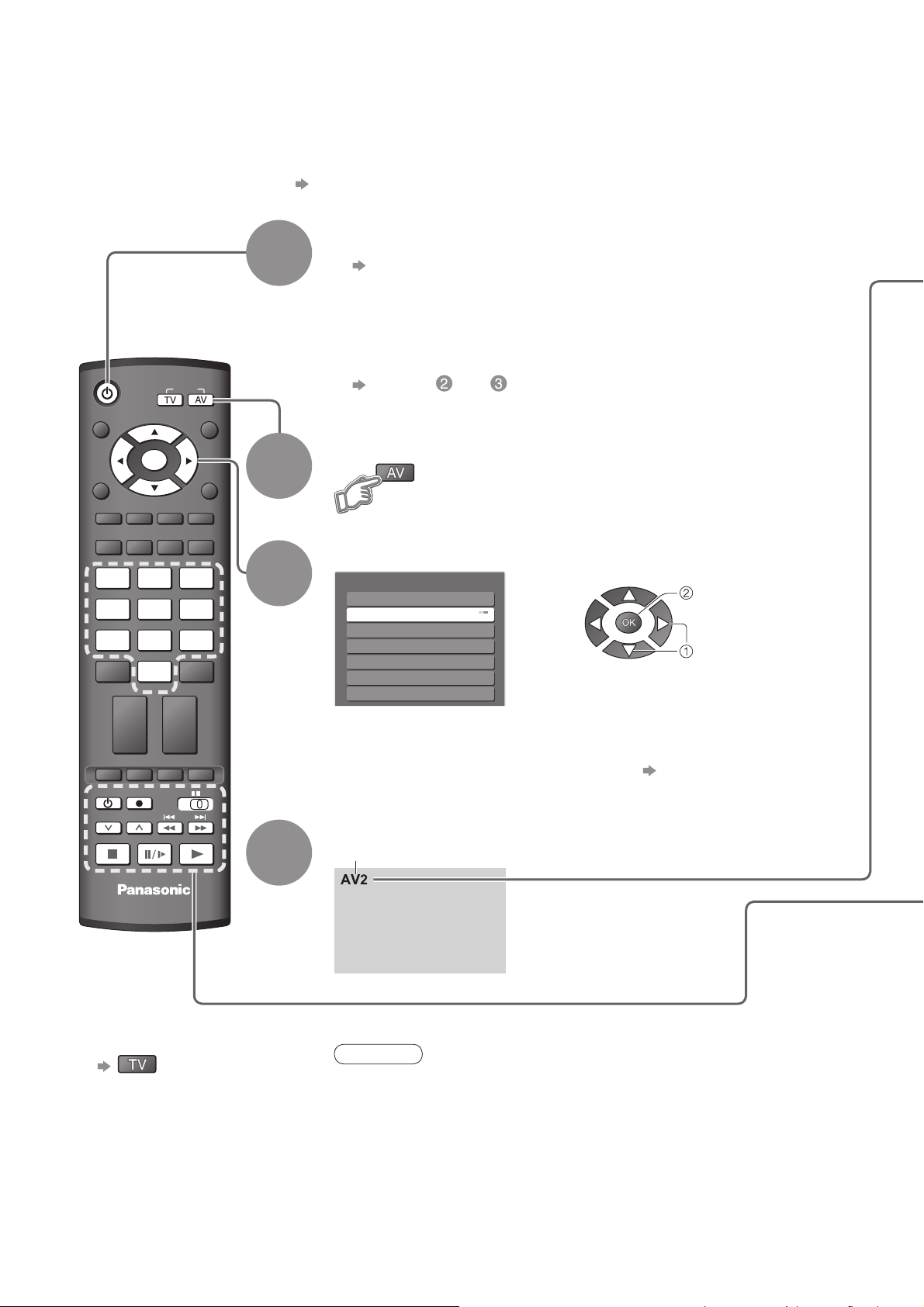

Display the Input select menu
Select the input mode connected to the equipment
Input Selection
AV1
AV2/S
AV3/S
COMPONENT
HDMI1
HDMI2
TV
You can also select the input using the AV button on the remote
•
control or the front panel of the TV.
Press the button repeatedly until the desired input is selected.
You can label or skip each input mode “Input Labels” (p. 38)
•
Skipped inputs will not be displayed when AV button is pressed.
View
Displays the selected mode
watch
select
22
TV
■ To return to TV
Note
If the external equipment has an aspect adjustment function, set to “16:9”.
•
For details, see the manual of the equipment or ask your local dealer.
•
Page 23
Screen display
Terminal
Manual input
default
setting in
( )
“Input Labels”
Auto input
EC mode or
(
VIERA Link
Panasonic equipment connected to the TV can be directly operated with the remote control.
)
AV1 AV2 AV3
AV1
AV1-RGB
EC/AV1
EC/AV1-RGB
AV2
AV2-S-Video
AV2-RGB
EC/AV2
EC/AV2-S-Video
EC/AV2-RGB
COMPONENT HDMI1 HDMI2
AV3
AV3-S-Video
――
COMPONENT HDMI1 HDMI2
EC/HDMI1
Applicable for
•
EC mode and
VIERA Link
EC/HDMI2
Applicable for
•
VIERA Link
VCR DVD
VCR / DVD switch
Select VCR to operate Panasonic VCR or DVD equipment
Select DVD to operate Panasonic DVD equipment or Player home theatre
Standby
Set to Standby mode / Turn on
Play
Playback videocassette / DVD
Stop
Stop the operations
Rewind / Skip / Search
VCR: Rewind, view the picture rapidly in reverse
DVD: Skip to the previous track or title
Press and hold to search backward
Fast-forward / Skip / Search
VCR: Fast-forward, view the picture rapidly forward
DVD: Skip to the next track or title
Press and hold to search forward
Pause
Pause / Resume
DVD: Press and hold to play at slow speed
∗
Viewing
•
Watching VCR, DVD and Satellites
PROGRAMME
REC
Setting your remote control to operate Panasonic VCR, DVD, etc.
∗
Set the VCR / DVD switch to the appropriate position
Press and hold during the following operations
Enter the appropriate code for the equipment
to be controlled, see table below
“VCR” position
Equipment Code
VCR 10 (default)
DVD 11
Note
Confi rm if the remote control works correctly after changing the code.
•
The codes will be reset to default values if batteries are replaced.
•
“DVD” means DVD player, DVD recorders and Recorder home theatre.
•
Some operations may not be possible on some equipment models.
•
Programme Up / Down
Select programme
Record
Start recording
132
465
798
0
“DVD” position
Equipment Code
Player home theatre
VCR
DVD 70 (default)
VCR DVD
Press
71
23
Page 24
How to Use Menu Functions
Various menus allow you to make settings for the picture, sound, and other functions.
Display the menu
INPUT
1
MENU
Displays the functions that can be set
•
(varies according to the input signal)
GUIDE
OK
MENU
ASPECT
OPTION
132
465
798
0
VCR
TEXT STTL INDEX HOLD
REC
VCR DVD
PROGRAMME
EXIT
RETURN
DIRECT TV REC
2
3
Select the menu
Main Menu
VIERA Link
Sound
Setup
(example: Picture Menu)
Select the item
Picture Menu 1/2
Viewing Mode Dynamic
Contrast
Brightness
Colour
Sharpness
Tint
Colour Balance Warm
Colour Management Off
P-NR Off
(example: Picture Menu)
access
select
select
TV
■ To return to TV
at any time
EXIT
■ To return to the
previous screen
RETURN
4
Adjust or select
Picture Menu
Viewing Mode Dynamic
Contrast
Brightness
Colour
Sharpness
Tint
Colour Balance Warm
Colour Management Off
P-NR Off
(example: Picture Menu)
1/2
change
store or access
( Required by
some functions)
24
Page 25

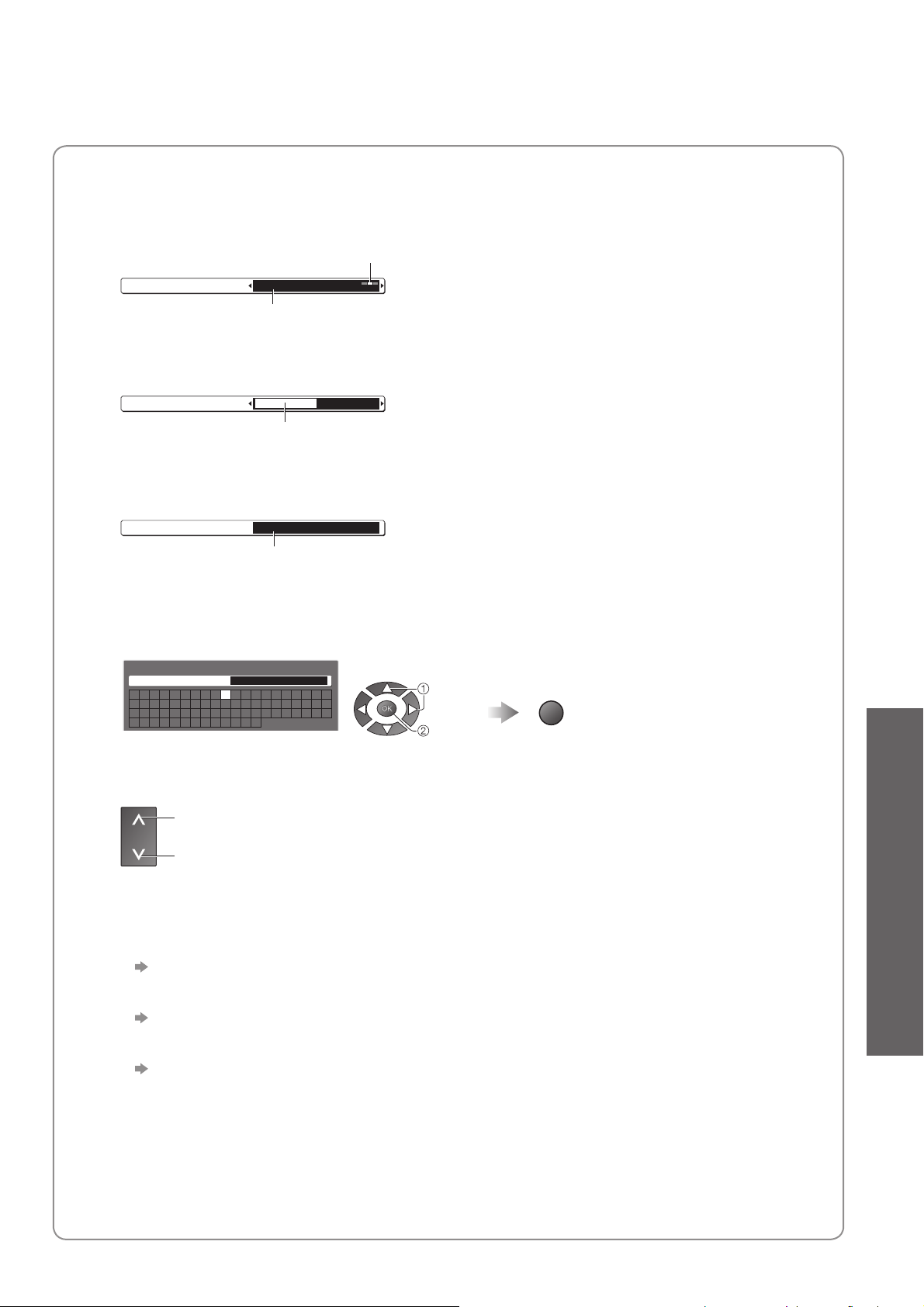

■ Choose from among alternatives
Number and positions of alternatives
Colour Balance Normal
Changed
■ Adjust using the slide bar
Sharpness
Moved
■ Go to the next screen
Tuning Menu Access
Displays the next screen
■ Enter characters using alpha / numeric keys
You can input information using alpha / numeric keys.
User input
Name
ABCDEFGH I JKLMN
UVWXYZ 0123456
abcde fgh i j k lmn
uvwxyz () +- .* _
OPQRST
789! : #
opqr st
Set characters
select
set
Store
RETURN
•
How to Use Menu Functions
(picture, sound quality, etc.)
■ To change menu pages
up
down
■ To reset the settings
To reset the picture settings only
•
“Reset to Default” in Picture Menu (p. 26)
To reset the sound settings only
•
“Reset to Default” in Sound Menu (p. 26)
To initialize all settings
•
“Shipping Condition” in Setup Menu (p. 36)
Advanced
25
Page 26
How to Use Menu Functions
■ Menu list
Menu Item Adjustments / Configurations (alternatives)
VIERA Link
Pause Live TV
Direct TV Rec
VIERA Link Control
Speaker Selection
Viewing Mode
Contrast, Brightness,
Colour, Sharpness
Tint
Colour Balance
Colour Management
P-NR
3D-COMB
Reset to Default
Mode
Bass
Treble
Balance
Headphone Volume
Surround
Volume Correction
Speaker Distance
to Wall
Sound
Preferred Multi Audio
NICAM
HDMI1 Input
Description
Audio Description
Audio
Menu
Volume
Speakers
Headphones
Reset to Default
Controls the connected equipment with VIERA Link function, and enables various
convenient recording, playback, etc. (p. 45 - 47)
You can also access VIERA Link Menu directly using the VIERA Link button on the
•
remote control.
Selects four different screen settings (Dynamic / Normal / Cinema / Eco)
Dynamic :
Normal : Recommended for viewing under normal ambient room lighting conditions
Cinema : For watching movies in a darkened room producing a cinema-like picture
Eco :
In each Viewing Mode setting, Contrast, Brightness, Colour, Sharpness, Tint, Colour Balance,
Colour Management and 3D-COMB can be adjusted and stored to suit your particular viewing
requirement (e.g., you may require different settings for viewing sports, fi lms, news etc.)
Set for each input signal
•
Changes will be stored automatically
•
Increases or decreases the levels of these options according to your personal preference
With an NTSC signal source connected to the TV, the picture hue can be adjusted to
suit your taste
For NTSC signal reception only
•
Allows you to set the overall colour tone of the picture (Cool / Normal / Warm)
Automatically adjusts colours to vivid ones (Off / On)
Picture Noise Reduction
Automatically reduces unwanted picture noise and fl icker noise in the contoured parts of
a picture (Off / Min / Mid / Max)
Occasionally, whilst viewing still or slow moving pictures, colour patterning may be seen
Set to “On” to display sharper and more accurate colours (Off / On)
For PAL or NTSC signal reception only
•
Not valid on RGB, S-Video, Component and HDMI
•
Press the OK button to reset the present Picture Mode to the default settings
Select two different sound settings (Music / Speech)
In each Sound Mode setting, Bass and Treble can be adjusted and stored to suit your
particular sound requirement
Changes to any settings in a mode will affect all signal sources
Sound quality can be improved
Increases or decreases level to enhance or minimise lower, deeper sound output
Increases or decreases level to enhance or minimise sharper, higher sound output
Adjusts volume level of right and left speakers
Adjusts the volume of the headphones
Surround sound settings (Off / On)
Provides a dynamic enhancer to simulate improved spatial effects
Adjusts volume of individual programme or input mode
Adjusts the low frequency sound (Over 30cm / Up to 30cm)
If the back space between the TV and wall is over 30 cm, “Over 30cm” is recommended.
•
If the back space between the TV and wall is within 30 cm, “Up to 30cm” is recommended.
•
Selects the preferred language for DVB multi audio (depending on the broadcaster)
NICAM (Near Instantaneous Companded Audio Multiplex)
A format for digital sound over television
Reproduces stereo sound (Off / On)
Off if reception is poor (FM monaural sound)
•
Analogue mode only
•
Select to fi t the input signal (Auto / Digital / Analogue) (p. 50)
Auto : Automatic detection of digital or analogue sound source
Digital : HDMI cable connection
Analogue : HDMI-DVI adapter cable connection
HDMI input mode only
•
HDMI2 terminal is for digital signal only
•
No setting for HDMI2 available
•
Useful for visually-impaired viewers (Off / On)
Select “On” to activate the description sound track if available
Adjusts the volume for audio description
Set to “On” to activate the description sound track from TV speakers (Off / On)
Set to “On” to activate the description sound track from headphones (Off / On)
Press the OK button to reset the present Sound Mode to the default settings
Effective to Bass, Treble, Balance, Headphone Volume and Surround
•
Provides enhanced picture contrast and sharpness when viewing in a bright room
Adjusts picture settings automatically dependent on ambient lighting conditions
26
Page 27
■ Menu list
Menu Item Adjustments / Configurations (alternatives)
Timer Programming
DVB Profi le Edit
DVB Service List
Analogue Service List
VIERA Link
Link Settings
Q-Link
AV1 / AV2 out
Q-Link Download
Child Lock
Auto Setup
DVB
Tuning Menu
Manual Tuning
Analogue
Manual Tuning
Add New DVB
Services
New Service
Message
DVB Signal
Condition
Setup
GUIDE Plus+
Settings
Postcode
Records forthcoming programmes (p. 40)
Creates list of favourite programmes (p. 32)
Skips the unwanted DVB programmes (p. 33)
Skips the unwanted Analogue programmes or edits Analogue programmes (p. 33)
Sets to use VIERA Link functions (Off / On) (p. 44)
Selects which AV terminal is to be used for data communication between this TV and a
compatible recorder (AV1 / AV2) (p. 43)
Select the connected terminal to the recorder even it is not compatible with Q-Link.
•
Chooses the signal to be transmitted from the TV to Q-Link
(TV / AV1 / AV2 / AV3 / Monitor)
Monitor: Image displayed on screen
•
Component and HDMI signals cannot be outputted.
•
Downloads analogue programme information to a Q-Link compatible equipment
connected to the TV
Locks a programme / AV input to prevent access to it (p. 33)
Automatically sets the programmes received in the area (p. 35)
Sets the DVB programmes manually (p. 35)
Sets the Analogue programmes manually (p. 35)
Adds new DVB services (p. 35)
Selects whether to give a notifi cation message when a new DVB service is found (p. 35)
Checks the DVB signal condition (p. 35)
Sets your postcode to display advertisements in the GUIDE Plus+ system (p. 20)
•
How to Use Menu Functions
(picture, sound quality, etc.)
System
Information
Off Timer
Power on Preference
Teletext
Preferred Subtitles
Shipping Condition
Owner ID
Common Interface
System Update
Power Save
Side Panel
Picture Overscan
Input Labels
Banner Display
Timeout
Software Licence
System Information
Only available items can be selected.
•
Displays the system information of the GUIDE Plus+ system
Sets the time the TV automatically turns Off (Off / 15 / 30 / 45 / 60 / 75 / 90 minutes)
Set to “TV” to view picture from TV tuner.
Set to “AV” to view input from an external equipment connected to a SCART terminal,
e.g. satellite receiver (TV / AV)
The external equipment must be switched on and sending a control signal for
•
automatic switching at power on to occur.
Analogue teletext display mode (FASTEXT / List) (p. 18)
Selects the preferred language for DVB subtitles (depending on the broadcaster)
To display subtitles p. 14
•
Resets all settings, for example, when moving house (p. 36)
Inputs the owner ID (p. 37)
Uses include to watch pay-TV (p. 31)
Downloads new software to TV (p. 31)
Reduces brightness of picture to economise on power consumption (Off / On)
Increases the brightness of the side panel (Off / Low / Mid / High)
The recommended setting is “High” to prevent panel “image retention”.
•
Selects the screen area displaying the image (Off / On)
On : Enlarged the image to hide the edge of the image.
Off : Displayed the image in the original size.
Set to “On” if noise is generated on the edge of the screen.
•
This function is available when aspect is set to Auto (16:9 signal only) or 16:9.
•
This function can be memorized separately for SD (Standard defi nition) and HD (High
•
defi nition) signals.
Labels or skips each input terminal (p. 38)
Sets how long the information banner (p. 15) stays on screen
0 (No display) to 10 sec. in 1-sec. increments
•
Displays the software licence information
Displays the system information of this TV
Advanced
27
Page 28
How to Use Menu Functions

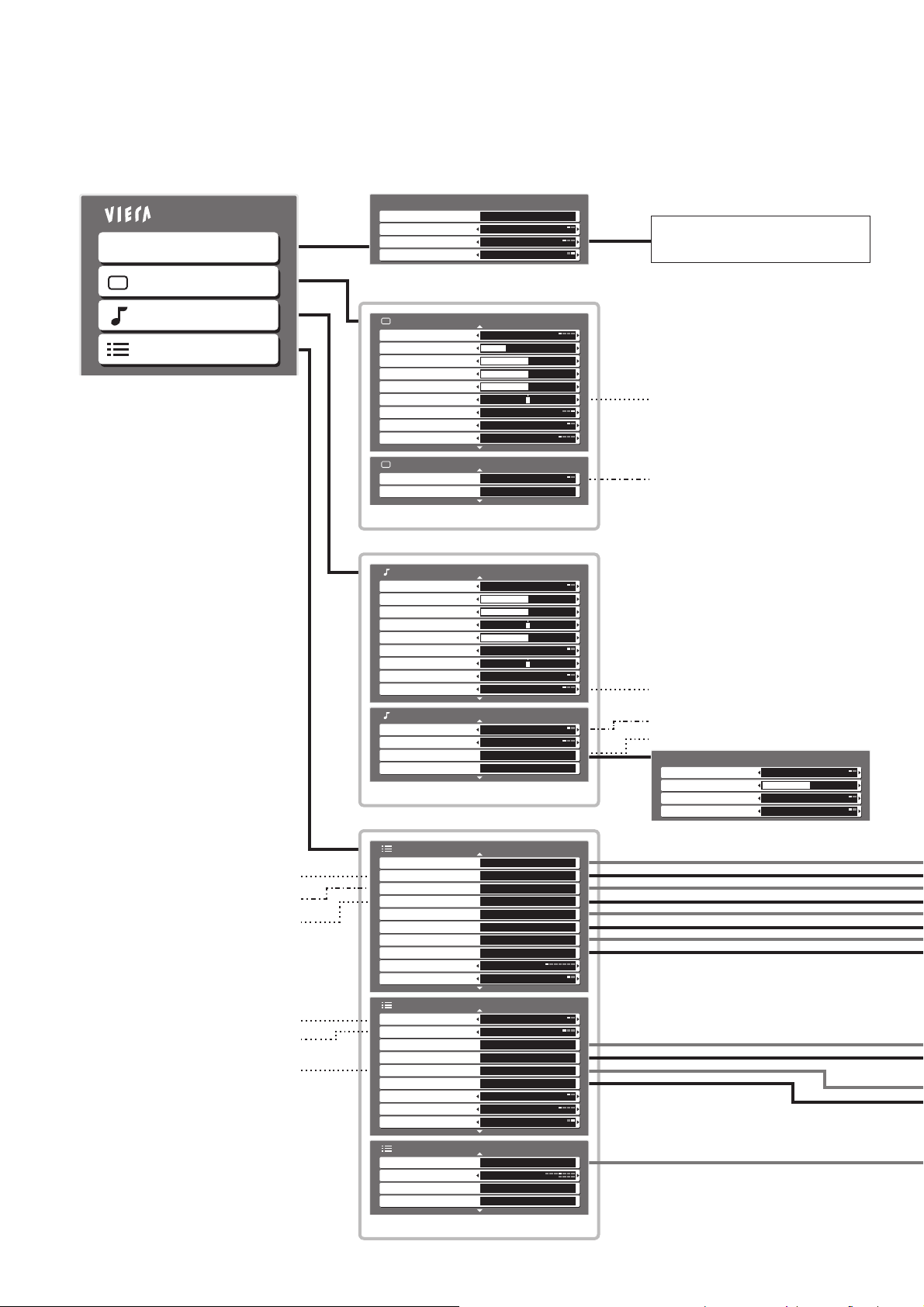

■ Overview
How to operate (p. 24)
•
Main Menu
VIERA Link
VIERA Link Menu
Pause Live TV
Direct TV Rec
VIERA Link Control
Speaker Selection
Access
Start
Recorder
Home Cinema
The menu of the accessed
equipment
(p. 45)
Sound
Setup
Only available in DVB
Only available in DVB
Only available in Analogue
Only available in Analogue
Only available in DVB
Only available in DVB
Picture Menu
Viewing Mode Dynamic
Contrast
Brightness
Colour
Sharpness
Tint
Colour Balance Warm
Colour Management Off
P-NR Off
Picture Menu
3D-COMB Off
Reset to Default Set
Sound Menu
Mode Music
Bass
Treble
Balance
Headphone Volume
Surround Off
Volume Correction
Speaker Distance to Wall
Preferred Multi Audio English
Sound Menu
NICAM Off
HDMI1 Input Auto
Audio Description Access
Reset to Default Set
Setup Menu
Timer Programming
DVB Profile Edit Access
DVB Service List
Analogue Service List Access
Link Settings Access
Child Lock Access
Tuning Menu
GUIDE Plus+ Settings Access
Off Timer
Power on Preference TV
Setup Menu
Teletext FASTEXT
Preferred Subtitles English
Shipping Condition Access
Owner ID
Common Interface Access
System Update Access
Power Save
Side Panel Off
Picture Overscan
Setup Menu
Input Labels Access
Banner Display Timeout
Software Licence Access
System Information Access
Over 30cm
Access
Access
Access
Off
Access
Off
On
3 seconds
1/2
2/2
(p. 26)
1/2
2/2
(p. 26)
1/3
2/3
3/3
(p. 27)
Only available in NTSC
Only available in NTSC / PAL
Only available in DVB
Only available in Analogue
Only available in DVB
Audio Description Menu
Audio Description Off
Volume
Speakers Off
Headphones Off
(p. 26)
28
Page 29

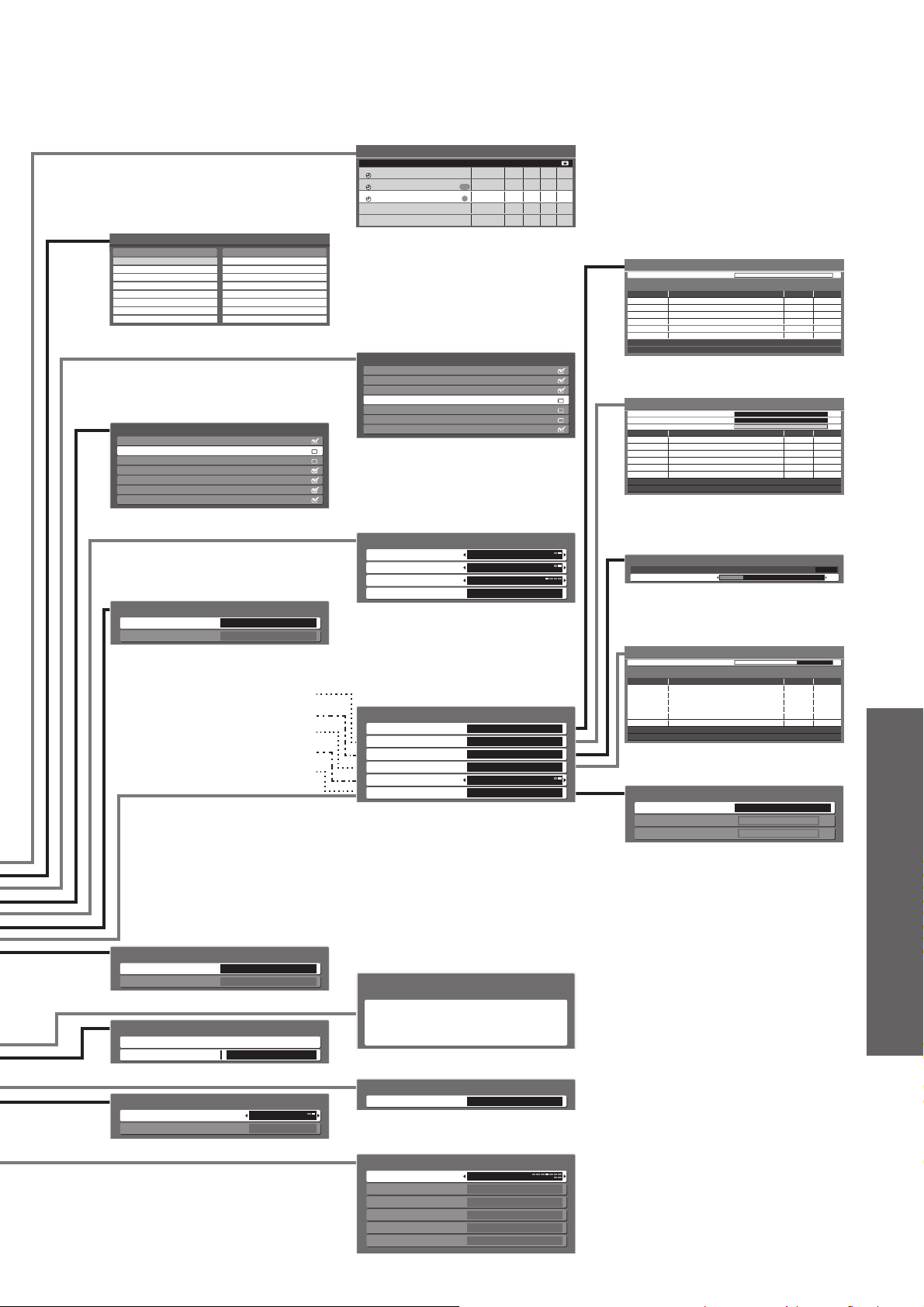

All DVB Services
BBC One Wales
1
BBC THREE7
E414
CBBC Channel70
Cartoon Nwk72
BBCi105
BBC Radio Wales719
BBC Radio Cymru720
Analogue Service List
BBC1
1
2
*****
3
*****
4
5
6
7
Child Lock
Change PIN Access
Child Lock List
Profile 1
Only available in DVB
Only available in Analogue
Only available in DVB
Only available in DVB
Only available in DVB
Wed 12/05/04 10:46Profile Editor
(p. 32)
(p. 33)
(p. 33)
Timer Programming Wed 05/08/04 18:50
Pos. Date Start End min.
Name
1D BBC1
<TIMER>
1D BBC1
Holiday News
3D ITV1
--- --/-- --:-- --:-- --- ---
Freshly Squeezed Extra
--- --/-- --:-- --:-- --- ---
--- --/-- --:-- --:-- --- ---
6/8 FR 18 :00 20:00 120 Off
7/8 SA 21: 30 22:30 60 Off
Guide
7/8 SA 22: 30 23:30 60 Off
S/P
(p. 40)
DVB Service List
70
CBBC Channel
72
Cartoon Nwk
105
BBCi
719
BBC Radio Wales
720
BBC Radio Cymru
1
BBC ONE Wales
7
BBC THREE
(p. 33)
Link Settings
VIERA Link
Q-Link AV2
AV2 out TV
Q-Link Download Access
On
(p. 27)
Tuning Menu
Auto Setup Access
DVB Manual Tuning
Analogue Manual Tuning
Add New DVB Services Access
New Service Message
DVB Signal Condition Access
Access
Access
On
(p. 34)
Auto Setup - Digital
Scan 21 68
This will take about 3 minutes.
Channel Service Name Type Quality
62
CBBC Channel Free TV 10
62 BBC Radio Wales Free TV 10
62 E4 Free TV 10
62 Cartoon Nwk Free TV 10
Free TV: 4 Pay TV: 0 Radio: 0 Data: 0
Searching
(p. 35)
DVB Manual Tuning
Frequency
Signal Quality 0 10
Analogue Scan 21 68
Signal Strength 0 10
Position Service Name Type New
Free TV: 0 Pay TV: 0 Radio: 0 Data: 0
Stopped
474[CH21]
(p. 35)
Analogue Manual Tuning
1 BBC1 CH33
Manual Tuning 21 68
(p. 35)
Add New DVB Services
Scan 21 68
Analogue Scan 21 68
This will take about 3 minutes.
Channel Service Name Type Quality
Free TV: 0 Pay TV: 0 Radio: 0 Data: 0
Searching
(p. 35)
DVB Signal Condition
DVB Programme
Signal Quality
Signal Strength
[CH70] CBBC Channel
010
010
(p. 35)
MHz
•
How to Use Menu Functions
(picture, sound quality, etc.)
Advanced
GUIDE Plus+ Settings
Postcode Access
System Information
Owner ID
Please enter new PIN
PIN
System Update
Auto Update Search in Standby
System Update Search Now
* * * *
On
(p. 27)
(p. 37)
(p. 31)
Shipping Condition
All tuning data will be erased
Are you sure?
Are you sure?
(p. 36)
Slot 1:
Off
Module inserted
2 of 2Common Interface
(p. 31)
Input Labels
AV1 DVD
AV2/S AV2/S
AV3/S AV3/S
COMPONENT COMPONENT
HDMI1 HDMI1
HDMI2 HDMI2
(p. 38)
29
Page 30

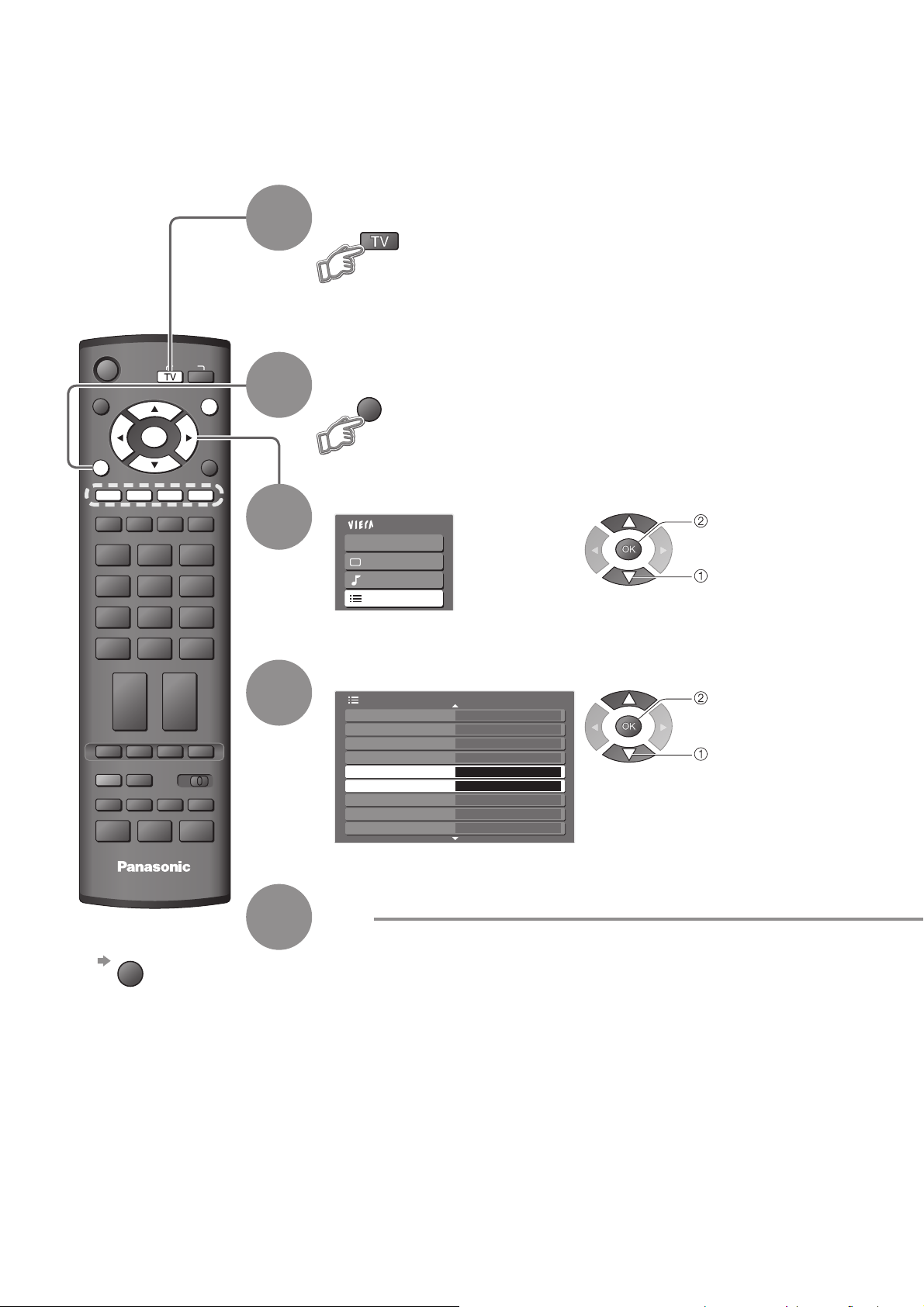

DVB Settings (DVB mode)
DVB Settings provide access to various advanced features.
If in Analogue mode
1
Select DVB
INPUT
GUIDE
OK
MENU
ASPECT
OPTION
132
465
798
0
VCR
TEXT STTL INDEX HOLD
REC
VCR DVD
PROGRAMME
EXIT
RETURN
DIRECT TV REC
2
3
4
Display the menu
MENU
Select “Setup”
Main Menu
VIERA Link
Sound
Setup
access
select
Select “Common Interface” or “System Update”
Setup Menu
Teletext FASTEXT
Preferred Subtitles English
Shipping Condition
Owner ID
Common Interface Access
System Update Access
Power Save
Side Panel Off
Picture Overscan
Off
On
2/3
access
select
30
TV
■ To return to TV
EXIT
5
Set
Page 31

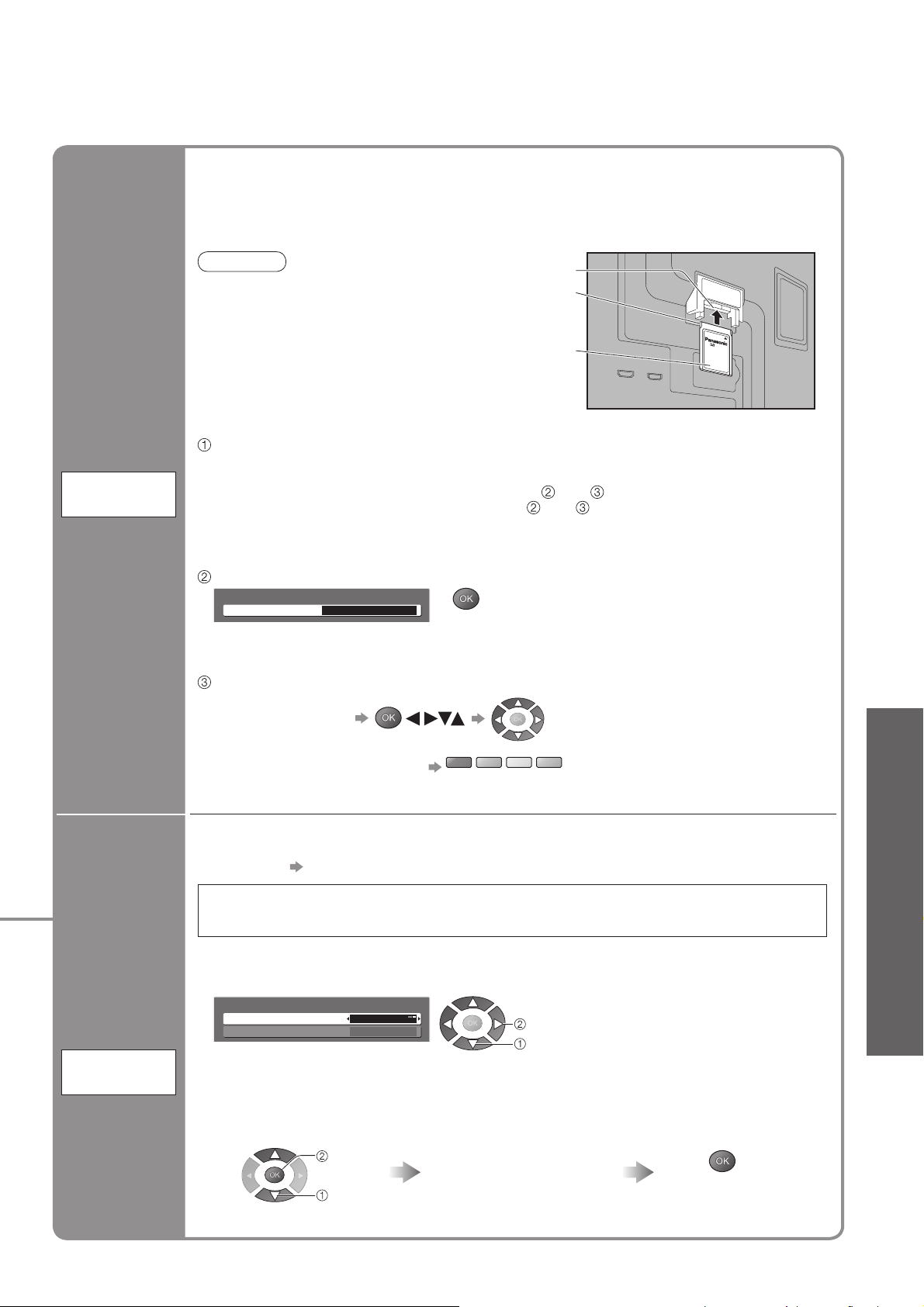

The Common Interface Module menu provides access to software contained on Common
Interface (CI) Modules.
This TV receiver works only Pay TV modules complying with CI standard.
Pay-TV
Common
Interface
Caution
Turn Off Mains power On / Off switch
•
whenever inserting or removing the CI
module.
If a view card and a card reader
•
come as a set, fi rst insert the card
reader, then insert the view card into
the card reader.
Do not insert the module up side down.
•
Insert the CI module (optional)
The features that appear on screen are dependent on the contents of the selected CI
•
module.
Normally pay-TV services will appear without and .
•
If pay-TV service does not appear, perform and .
For more details, see the manual of the CI module, or check with the broadcaster.
•
Access “Common Interface”
Slot 1:
Follow the on-screen instructions
example: select, go
Off
Module inserted
2 of 2Common Interface
CI slot
Insert or
remove
straightly and
completely
CI module
Rear of the TV
On-screen operation guide
•
may not correspond to the
remote control buttons.
(pay-TV, software update)
•
DVB Settings (DVB)
Update
TV’s
software
system
System
Update
Coloured characters
Download new software to TV.
For details p. 51
•
If System Update is performed, the software will be updated (it may change TV
functions). If you do not wish to do so, set “Auto Update Search in Standby” to Off.
Select “Auto Update Search in Standby” and then set “On” or “Off”
System Update
Auto Update Search in Standby
System Update Search Now
On
red green yellow blue
set
select
On: Automatically performs
•
a search in standby and
downloads an update, if any
software updates are available
■ To update immediately
Select
“System Update Search Now”
access
select
Searches for an update
(for several mins.) and
displays a corresponding
message if any
Download
Download may take
•
for about 20 mins.
Advanced
31
Page 32
Editing Programmes
You can make your favourite programme lists, skip unwanted programmes and control programme
audience, etc.
Select DVB or Analogue
1
“DVB Profi le Edit” and “DVB Service List” are available in DVB mode only.
•
“Analogue Service List” is available in Analogue mode only.
•
Display the menu
MENU
Select “Setup”
Main Menu
VIERA Link
Sound
Setup
access
select
GUIDE
MENU
ASPECT
OK
132
465
INPUT
OPTION
EXIT
RETURN
DIRECT TV REC
2
3
798
0
VCR
■ To return to TV
EXIT
List
favourite
programmes
DVB
Profile Edit
Select “DVB Profile Edit”, “DVB Service List”,
“Analogue Service List” or “Child Lock” and set
4
Create your favourite programme list (Profi le) from various broadcasters (up to 4: Profi le 1 to 4).
The list is added to “Category” in TV Guide (p. 20) and information banner (p. 15) and then
easily accessed.
Setup Menu
Timer Programming
DVB Profile Edit Access
DVB Service List
Analogue Service List
Link Settings
Child Lock Access
Tuning Menu
GUIDE Plus+ Settings
Off Timer Off
Access
Access
1/3
Select a programme and add it to the list
blue
Profile 1
Wed 12/05/04 10:46Profile Editor
select
To add all
•
programmes
to the list
yellow
green
BBC One Wales
1
BBC THREE7
E414
CBBC Channel70
Cartoon Nwk72
BBCi105
BBC Radio Wales719
BBC Radio Cymru720
All DVB Services
A programme is added
All DVB Services
BBC One Wales
1
BBC THREE7
E414
CBBC Channel70
Cartoon Nwk72
BBCi105
BBC Radio Wales719
BBC Radio Cymru720
To change
the category
red
To display
another Profi le
access
select
BBC One Wales
1
Profile 1
Wed 12/05/04 10:46Profile Editor
■ To edit Profi le
Select the field of Profile to edit and:
32
(DVB mode)
To name the Profi le
•
To move the programme
•
To delete the programme
•
Select the character
red
Select the new position Confi rm
green
yellow
To delete all programmes
•
RETURN
green
blue
Note
Programme numbers (known as logical channel numbers) cannot be changed, due to
•
broadcast restrictions.
Page 33

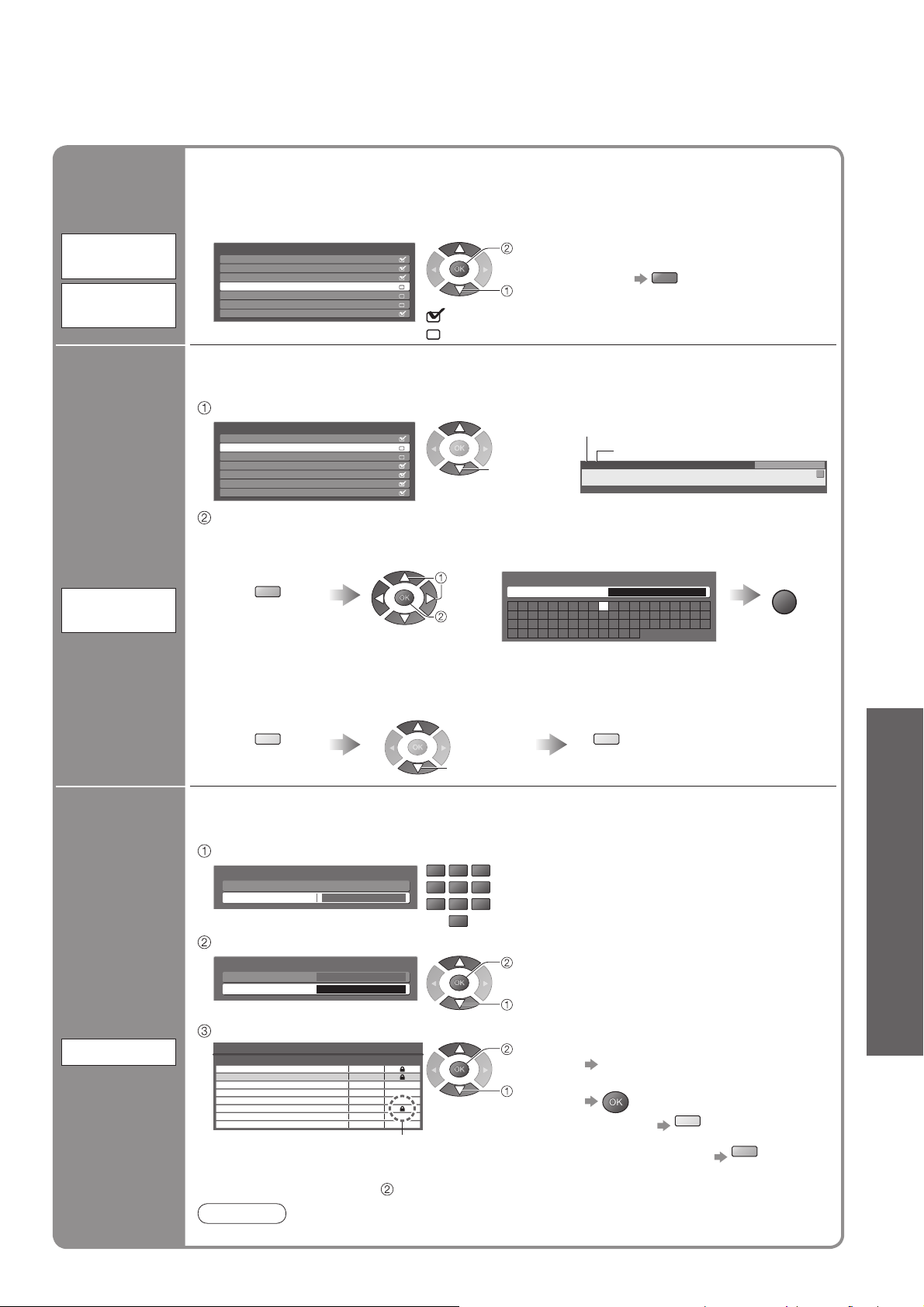

Skip
unwanted
programmes
DVB
Service List
Analogue
Service List
Edit analogue
programmes
(Change
name, Move)
Analogue
Service List
You can hide unwanted services. The deleted services cannot be displayed except in this
function. Use this function to skip unwanted programmes.
“DVB Service List” lists all tuned DVB programmes in DVB mode.
•
“Analogue Service List” lists all tuned Analogue programmes in Analogue mode.
•
Select a service and add / delete
DVB Service List
70
CBBC Channel
72
Cartoon Nwk
105
BBCi
719
BBC Radio Wales
720
BBC Radio Cymru
1
BBC ONE Wales
7
BBC THREE
:add
:delete (skip)
add / delete
select
To retune each programme
•
(Manual Tuning)
(p. 35)
red
You can change the programme name and programme position for Analogue programmes.
This function is available in Analogue mode.
•
If a VCR is connected only with the RF cable, edit “VCR”.
•
Select the programme to edit
Analogue Service List
BBC1
1
*****
2
3
*****
4
5
6
7
select
Programme position
Name
3 FTP
Coronation Street
CH30
23:35
All Analogue Services
Change category
Edit
■ To change the name displayed when selecting programmes
Select
“Rename”
green
Set characters
select
set
Edit Service Name
Name
ABCDEFGH I JKLMN
UVWXYZ 0123456
abcdefghijklmn
uvwxyz () +- .* _
OPQRST
789! : #
opqr st
(maximum: fi ve characters)
Store
RETURN
•
Editing Programmes
Control
programme
audience
Child Lock
■ To move the programme position
Select new position Store
yellow
select
You can lock specifi c programmes / AV input terminals and control who watches them.
(When the locked programme / input is selected, a message appears; by entering the PIN
number, you can watch it.)
Enter the PIN number (4 digits)
132
Please enter new PIN
PIN
* * * *
1 of 2Child Lock-PIN Entry
465
798
0
VCR
Select “Child Lock List”
Child Lock
Change PIN
Child Lock List
Access
access
select
Select the programme / input to be locked
Name
BBC One Wales
1
BBC THREE7
E414
VCR
BBC11
*****2
AV1
AV2/ S
Type
Free TV
Free TV
Free TV
Analogue
Analogue
Analogue
AV
AV
Wed 12/05/04 10:46Child Lock List - Services and AV
Lock
Appears when the programme / input is locked
set
select
■ To change the PIN number
Select “Change PIN” in and enter a new PIN number twice.
Note
Setting “Shipping Condition” (p. 36) erases the PIN number and all settings.
•
yellow
Enter the PIN number twice at fi rst
•
setting.
Make a note of the PIN number in
•
case you forget it.
To cancel
•
Select the locked programme /
input
To lock all
•
To cancel all locks
•
yellow
blue
Advanced
33
Page 34

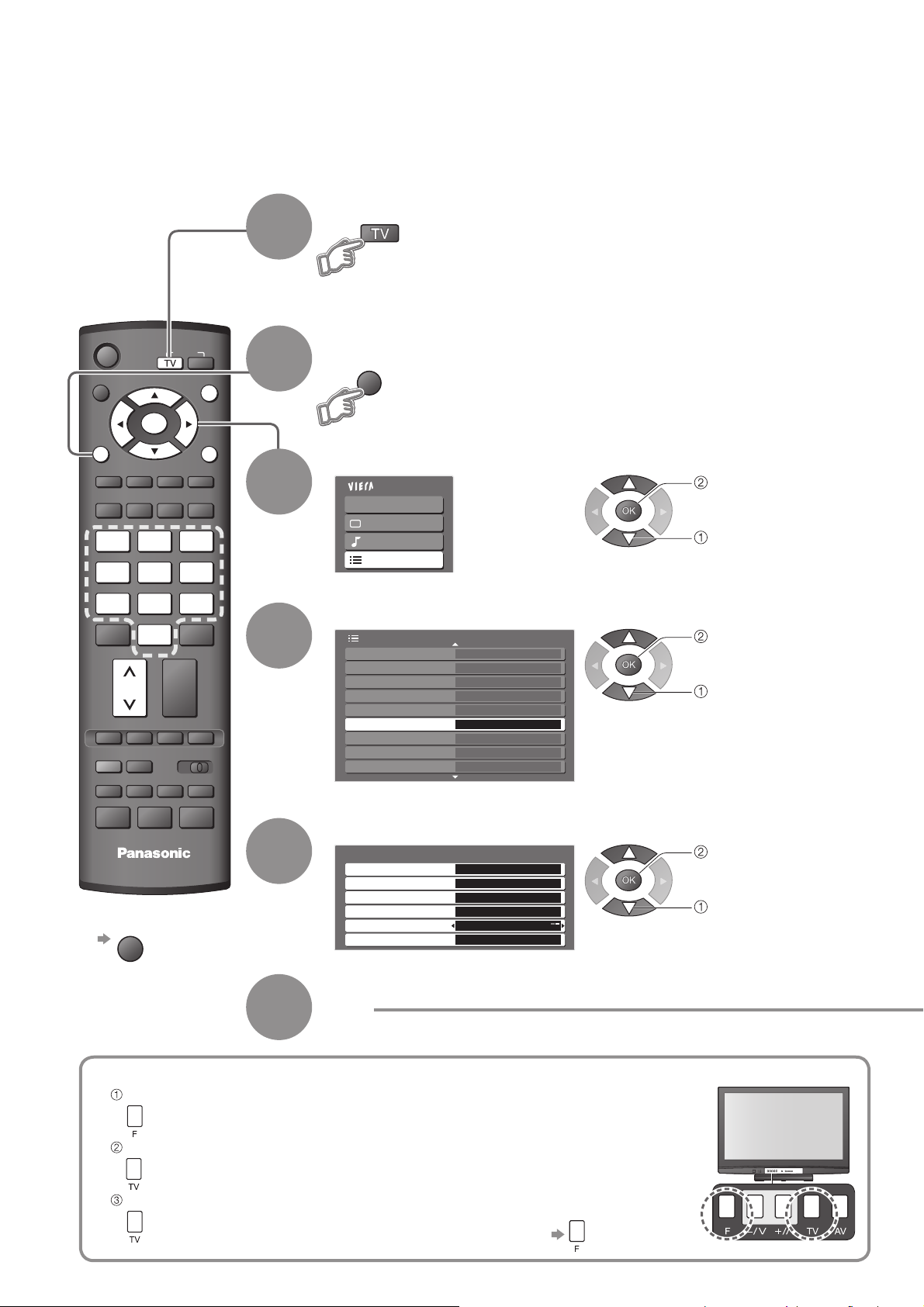

Tuning Programmes
You can retune all the TV programmes when moving house or search for new services which may have
recently started broadcasting.
Select DVB or Analogue
1
“DVB Manual Tuning”, “Add New DVB Services”, “New Service
•
Message” and “DVB Signal Condition” are available in DVB
mode only.
“Analogue Manual Tuning” is available in Analogue mode only.
•
INPUT
GUIDE
OK
MENU
ASPECT
132
465
798
TEXT STTL INDEX HOLD
PROGRAMME
REC
OPTION
0
VCR
VCR DVD
EXIT
RETURN
DIRECT TV REC
2
3
4
Display the menu
MENU
Select “Setup”
Main Menu
VIERA Link
Sound
Setup
Select “Tuning Menu”
Setup Menu
Timer Programming
DVB Profile Edit
DVB Service List
Link Settings
Child Lock
Tuning Menu
GUIDE Plus+ Settings
Off Timer Off
Power on Preference TV
Access
1/3
access
select
access
select
34
Select a function
Tuning Menu
Auto Setup Access
DVB Manual Tuning
Analogue Manual Tuning
Add New DVB Services Access
New Service Message
DVB Signal Condition Access
Set
Access
Access
On
TV
■ To return to TV
EXIT
5
6
■ For Auto Setup, using the buttons on the front of the TV (p. 8)
Press repeatedly until “Auto Setup” appears
Access “Auto Setup”
Start “Auto Setup”
To return to TV
•
access
select
Page 35

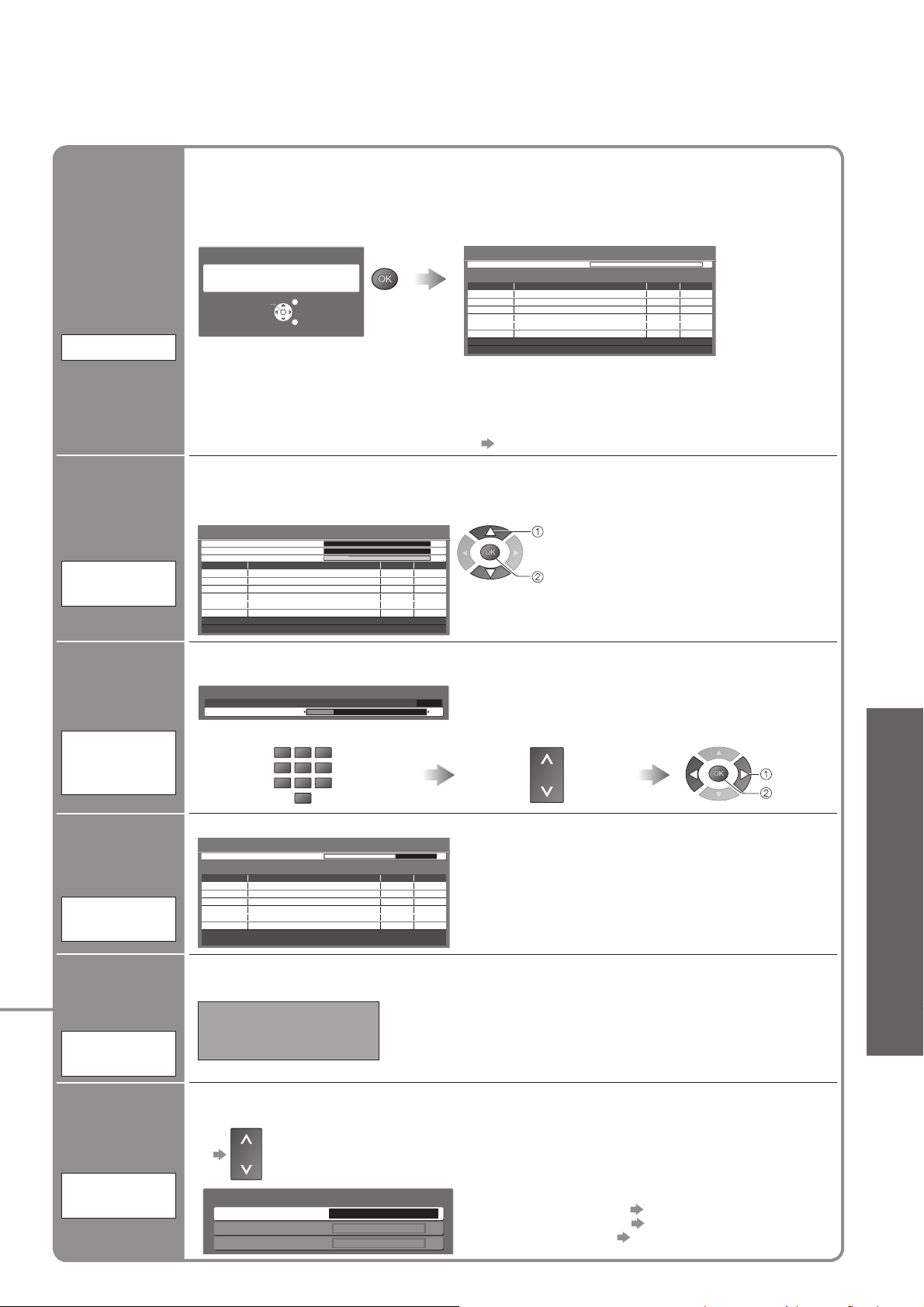

Set all DVB
or Analogue
programmes
automatically
Auto Setup
Set DVB
programme
manually
DVB Manual
Tuning
Automatically retune all DVB or Analogue programmes received in the area.
Only DVB programmes are retuned in DVB mode.
•
Only Analogue programmes are retuned in Analogue mode.
•
If a Child Lock PIN number (p. 33) has been set, it must be entered.
•
Start Auto Setup Settings are made automatically
474[CH21]
MHz
Auto Setup - Digital
Scan 21 68
This will take about 3 minutes.
Channel Service Name Type Quality
62
CBBC Channel Free TV 10
62 BBC Radio Wales Free TV 10
62 E4 Free TV 10
62 Cartoon Nwk Free TV 10
Free TV: 4 Pay TV: 0 Radio: 0 Data: 0
All services found will be added to the
•
DVB Service List.
Searching
select channel
search
Auto Setup
All digital tuning data will be erased
Start Auto Setup
All the previous tuning settings are erased.
•
The analogue settings are downloaded to a Q-Link compatible equipment connected to
•
the TV in Analogue mode.
When the operation is completed, the programme at programme position “1” will be
•
displayed.
If tuning has not been done completely “DVB Manual Tuning”, “Analogue Manual Tuning”
•
Normally use “Auto Setup” or “Add New DVB Services” to add DVB programmes to your
service list.
If tuning has not been done completely or for adjusting the direction of the aerial, use this
function.
DVB Manual Tuning
Frequency
Signal Quality 0 10
Analogue Scan 21 68
Signal Strength 0 10
Position Service Name Type New
Free TV: 0 Pay TV: 0 Radio: 0 Data: 0
EXIT
RETURN
Stopped
•
Tuning Programmes
Set Analogue
programme
manually
Analogue
Manual
Tuning
Add DVB
programme
automatically
Add New
DVB Services
Display a
notifi cation
message
New Service
Message
Check
DVB signal
DVB Signal
Condition
Set Analogue programme manually after Auto Setup.
If a VCR is connected only with the RF cable, select programme position “0”.
•
Analogue Manual Tuning
1 BBC1 CH33
Manual Tuning 21 68
Search and storeSelect the programmeSelect the programme position
132
465
798
0
VCR
Any new services found will be added to the DVB Service List.
Add New DVB Services
Scan 21 68
Analogue Scan 21 68
This will take about 3 minutes.
Channel Service Name Type Quality
Free TV: 0 Pay TV: 0 Radio: 0 Data: 0
Selects whether to give a notifi cation message when a new DVB service is found. (Off / On)
New DVB service found!
Press OK to start Auto Setup.
Press EXIT to lgnore.
Selecting Auto Setup will delete
current Profile and Childlock settings
Selects a programme and checks the DVB signal condition.
To change the programme
•
DVB Signal Condition
DVB Programme [CH70] CBBC Channel
Signal Quality
Signal Strength
Searching
Selecting OK (Auto Setup) will delete the current Profi le and
•
Childlock settings.
010
010
The new service is added with the current settings
•
saved as they are.
A good Signal Strength is not an indication of
suitable signal for DVB reception. Please use
the Signal Quality indicator as follows:
Signal Quality:
Green bar Good
•
Yellow bar Poor
•
Red bar Bad (Check the aerial)
•
search
store
Advanced
35
Page 36

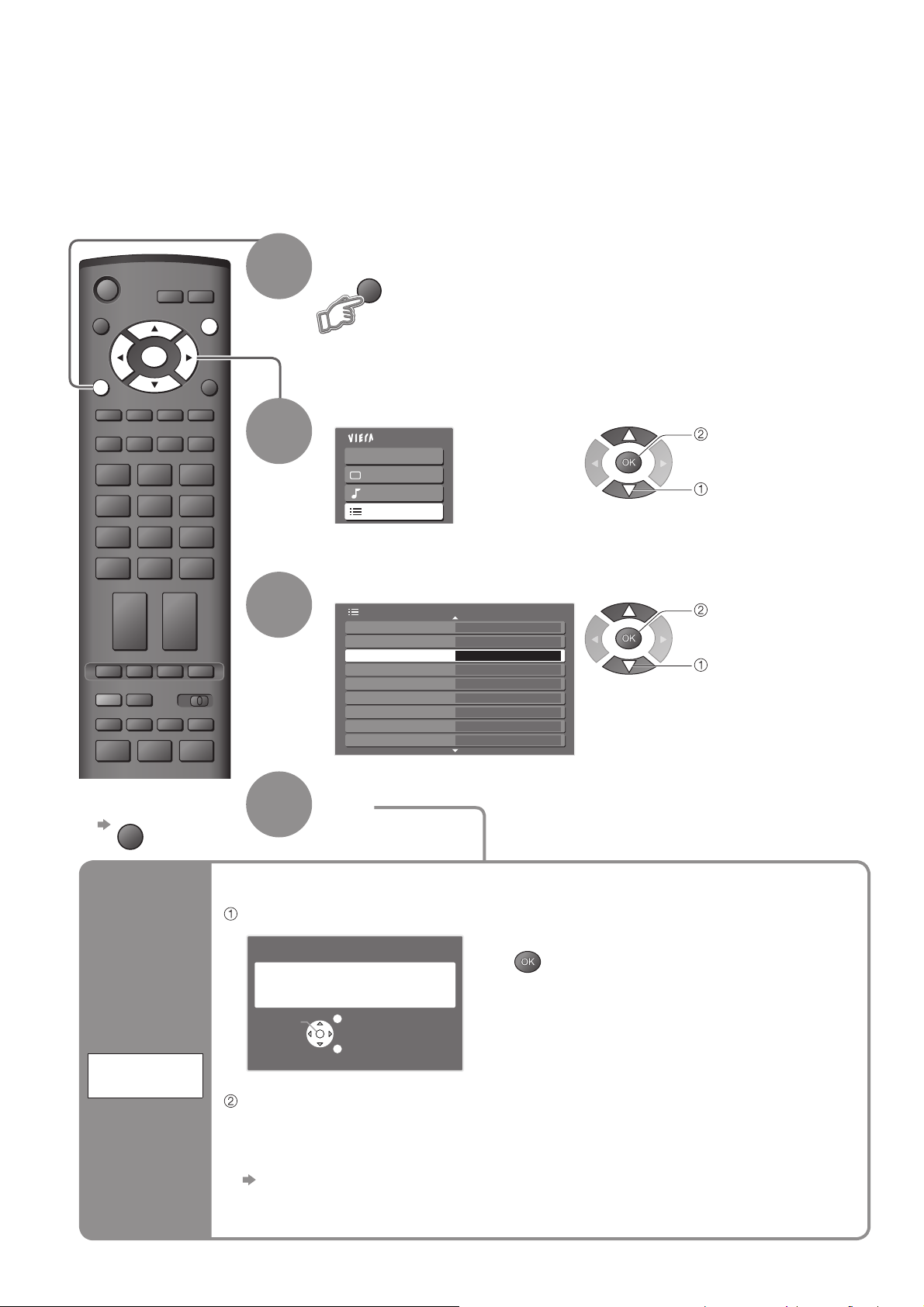

Restore Settings
Resets the TV to its original condition, i.e. no programmes tuned in.
All settings other than “Owner ID” (programmes, picture, sound quality, etc.) are reset.
Display the menu
INPUT
1
MENU
GUIDE
OK
MENU
ASPECT
OPTION
132
465
798
0
VCR
TEXT STTL INDEX HOLD
REC
VCR DVD
PROGRAMME
EXIT
RETURN
DIRECT TV REC
2
3
Select “Setup”
Main Menu
VIERA Link
Sound
Setup
Select “Shipping Condition”
Setup Menu
Teletext FASTEXT
Preferred Subtitles English
Shipping Condition
Owner ID
Common Interface
System Update
Power Save
Side Panel Off
Picture Overscan
Access
Off
On
2/3
access
select
access
select
■ To return to TV
EXIT
Restore
Settings
Shipping
Condition
4
Set
Check the message and initialise
Shipping Condition
All tuning data will be erased
Confirm
Are you sure?
Are you sure?
EXIT
RETURN
Follow the on-screen instructions
“Auto Setup” will automatically start when Mains power On / Off switch is next
•
turned On. (p. 12)
■ To retune TV programmes only, e.g. after moving house
“Auto Setup” (p. 35)
36
Page 37
Owner ID
Entry of the security code (PIN number) and “personal information” (your name, address and postcode).
In the unfortunate event of theft it will help the Police to determine the owner.
If you have skipped the Owner ID input in “Auto Setup” (p. 12), and input it later, start from .
If you input the Owner ID in “Auto Setup” (p. 12), perform .
Display the menu
1
INPUT
MENU
GUIDE
OK
MENU
ASPECT
OPTION
EXIT
RETURN
DIRECT TV REC
132
465
798
0
VCR
■ To return to TV
EXIT
Select “Setup”
2
Main Menu
VIERA Link
Sound
Setup
Select “Owner ID”
3
4
Enter the PIN number (4 digits)
Owner ID
Please enter new PIN
PIN
EXIT
RETURN
Setup Menu
Teletext FASTEXT
Preferred Subtitles English
Shipping Condition
Owner ID
Common Interface
System Update
Power Save
Side Panel Off
Picture Overscan
Set
* * * *
0 9
PIN entry
Access
Off
On
132
465
798
0
VCR
access
select
2/3
Enter the PIN number twice at fi rst setting.
•
Make a note of the PIN number in case you
•
forget it.
access
select
•
Restore Settings
•
Owner ID
Advanced
Input
owner ID
Owner ID
Enter your name, address, and postcode, in that order
Select the
entry fi eld
Enter the
“User input” mode
Select the
character
Set
RETURN
Store
To check the “personal information” stored
Hold down for
about 6 sec.
Displays the information
on the screen
(for several sec.)
Owner ID
NAME A
HOUSE NO
POSTCODE
EXIT
The PIN number is not
•
displayed.
■ To change the PIN number
access
Select the “PIN” fi eld
select
Enter a new PIN number twice
37
Page 38

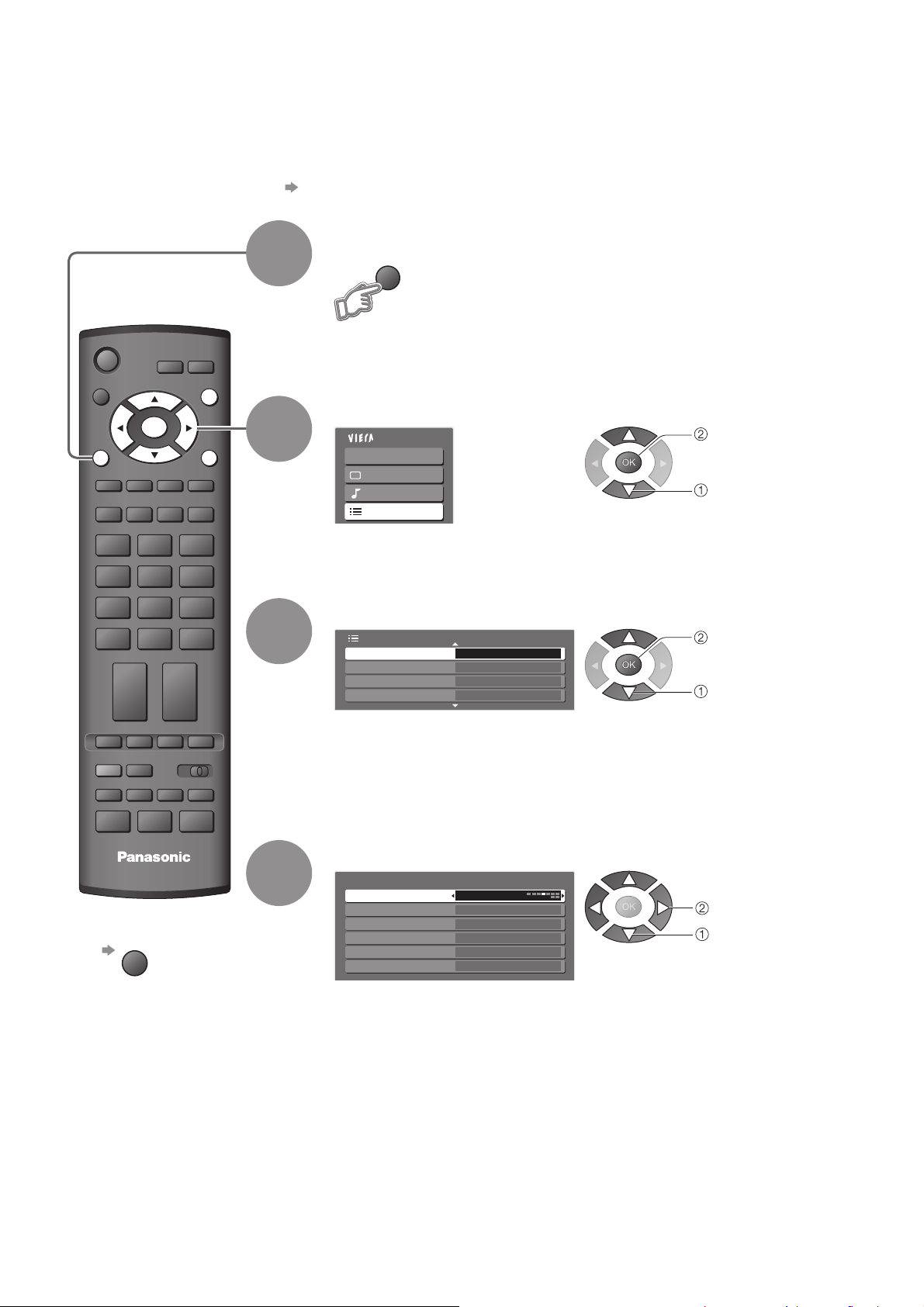

Input Labels
For easier identifi cation and selection of the input mode, you can label each input terminals or skip
terminal that is not connected to any equipment.
To select the input mode p. 22
•
Display the menu
1
INPUT
MENU
GUIDE
OK
MENU
ASPECT
OPTION
132
465
798
0
VCR
TEXT STTL INDEX HOLD
REC
VCR DVD
PROGRAMME
EXIT
RETURN
DIRECT TV REC
2
3
Select “Setup”
Main Menu
VIERA Link
Sound
Setup
Select “Input Labels”
Setup Menu
Input Labels Access
Banner Display Timeout
Software Licence
System Information
3 seconds
3/3
access
select
access
select
38
TV
■ To return to TV
EXIT
4
Select a input terminal and set
Input Labels
AV1 DVD
AV2/S AV2/S
AV3/S AV3/S
COMPONENT COMPONENT
HDMI1 HDMI1
HDMI2 HDMI2
The labels you set will be displayed in “Input Selection” menu (p. 22) or banner.
If “Skip” is selected, you cannot select the mode.
•
set
select
Page 39
■ User input
You can name each input terminals freely.
Select “User input”
select
access
Set characters
select
set
User input
Name
ABCDEFGH I JKLMN
UVWXYZ 0123456
abcde fgh i j k lmn
uvwxyz () +- .* _
OPQRST
789! : #
opqr st
(maximum: ten characters)
Store
RETURN
•
Input Labels
Advanced
39
Page 40

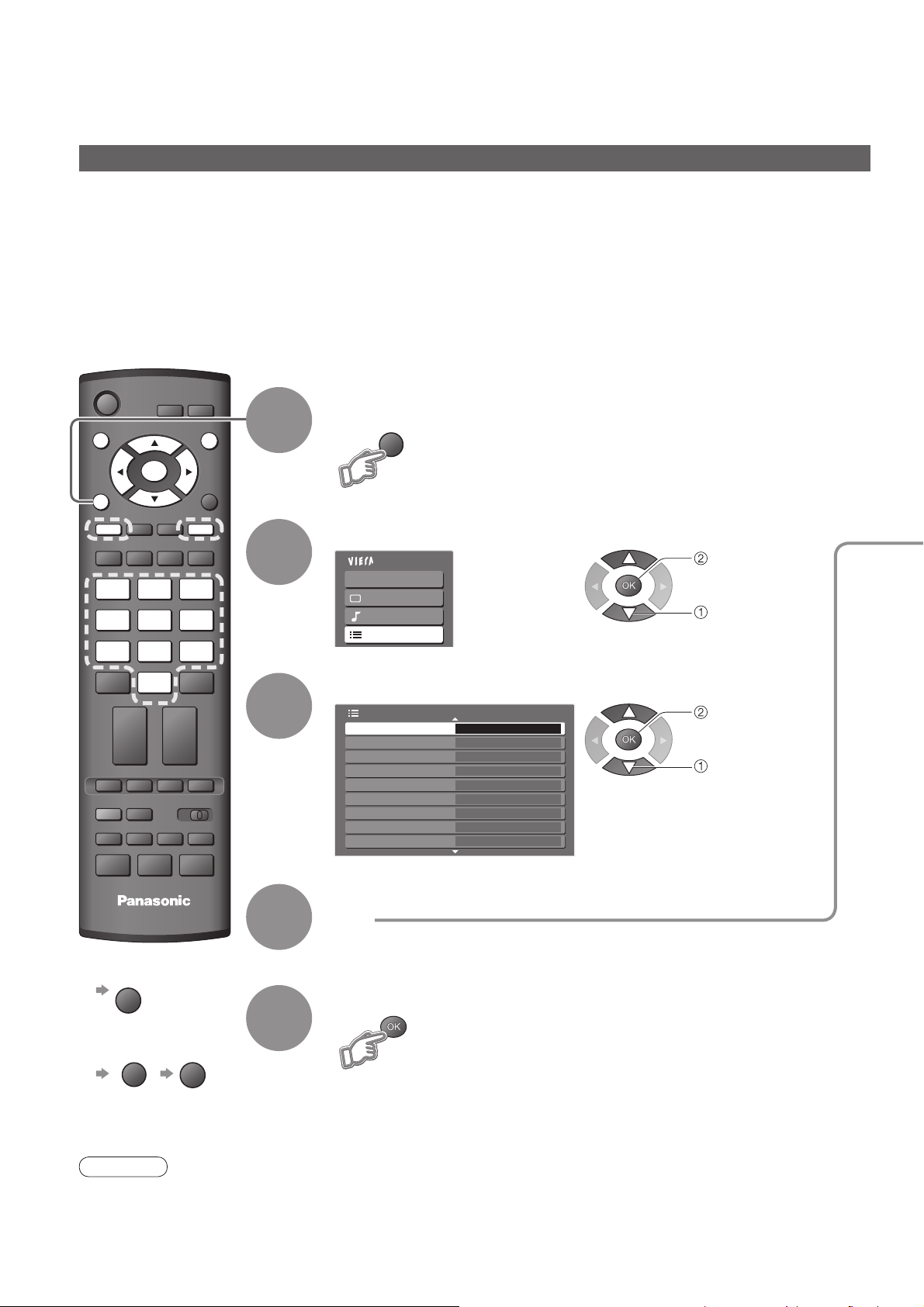

Recording Controls
Timer Programming from Menu
The Timer programming menu allows you to choose programmes that you wish to record. At the correct
time, the TV will switch on and tune to the correct programme (even if the TV is in Standby mode).
TV Guide may also be used to set timer programming. (p. 20)
If the recorder is compatible with Q-Link or similar technologies (p. 43), and setup / connection are
•
done completely (p. 42 and p. 43), you do not need to programme the recorder – the TV will control
the recording progress.
If the recorder is not compatible with Q-Link or similar technologies, set “Q-Link” in Setup Menu (p. 27)
•
to the connected terminal (AV1 or AV2), and make timer programming of the recorder (Read the
manual of the recorder).
“D” means DVB programme and “A” means Analogue programme.
•
INPUT
GUIDE EXIT
OK
OPTION
VCR DVD
RETURN
DIRECT TV REC
MENU
ASPECT
132
465
798
0
VCR
TEXT STTL INDEX HOLD
REC
PROGRAMME
1
2
3
Display the menu
MENU
Select “Setup”
Main Menu
VIERA Link
Sound
Setup
Select “Timer Programming”
Setup Menu 1/3
Timer Programming
DVB Profile Edit
DVB Service List
Link Settings
Child Lock
Tuning Menu
GUIDE Plus+ Settings
Off Timer
Power on Preference TV
Access
Off
access
select
access
select
40
TV
4
Set
■ To return to TV
EXIT
Store
■
To stop recording
GUIDE
Caution
The TV must either be On or in standby.
•
For preparations of a recorder, read the manual of the recorder.
•
No other programme can be selected during recording.
•
It may not be possible to record an encrypted programme (which is copy-protected).
•
EXIT
5
Page 41
Set timer
programming
details
Start making
the settings
Displayed
if the timer
programming
events are
overlapped
Current timer
programming
event
Timer Programming Wed 05/08/04 18:50
Pos. Date Start End min.
Name
7D BBC THREE
<TIMER>
1D BBC1
Holiday News
3D ITV1
Freshly Squeezed Extra
-- - --/-- --:-- --:-- --- ---
Repeat the operations as below,
and set items in the order of to
select
the item
Timer recording
Records according to the time setting
Guide: Event recording
Records according to the TV Guide signal (p. 21)
S/P: Split Programme (p. 21)
Guide
S/P
Programme
Date
one day ahead
daily or weekly
(press repeatedly)
■ To change a timer programming event
Select the programme to be changed
■ To cancel a timer programming event
6/8 FR 1 7:00 18:3 0 90 Off
6/8 FR 1 8:00 20:0 0 1 20 Off
7/8 SA 21 :30 22: 30 6 0 Off
•
Ending time
Starting time
Daily SU-SA: Sunday to Saturday
•
Daily MO-SA: Monday to Saturday
•
Daily MO-FR: Monday to Friday
•
Weekly SA/FR/TH/WE/TU/MO/SU:
•
Same time on the same day every week
access
select
Correct as necessary
(as above)
set
Subtitles (Off / Auto)
Recording time
(automatic display)
, and can
•
also be entered
with numeric
buttons.
•
Recording Controls
Select the programme to be deleted
red
■ To cancel a timer programming event temporarily
Select the programme to be cancelled
blue
Each time pressed:
•
cancel ↔ stop cancelling
■ To view details of the programming
Select the programme to be viewed
Press again to return to
•
Timer Programming menu.
■ Event recording (Timer Programming from TV Guide-EPG) p. 21
Event recording is a timer programme controlled by information from the TV Guide.
Programme start and end times may be changed by broadcasters and sent to the TV for timer programme to
follow the change.
Split Programme is a programme which is interrupted by one or more events.
Both of the above are subject to signals being sent by broadcasters.
■ Direct TV Recording p. 43 and p. 45
You can record the current programme to DVD Recorder / VCR immediately.
Note
Check that the Timer LED (Orange) is lit. If not, timer programmes are not active or not stored.
•
“!” will identify any timer events that have been set and overlap. If this occurs then the fi rst event will start and
•
fi nish as programmed. The next timer event can then start.
2 mins. before the starting time: a reminder message appears.
•
(To remove the message ; To cancel the programming
A Timer Programming event will automatically change to the desired programme 10 seconds before the start
•
time.
To stop Timer Programming event directly prior to the start time, it is necessary to stop the recorder manually.
•
Timer Programming will be performed even if the TV is in Pause Live TV recording (p. 45). In this case, Pause
•
Live TV recording will be cancelled.
EXIT
)
Advanced
41
Page 42

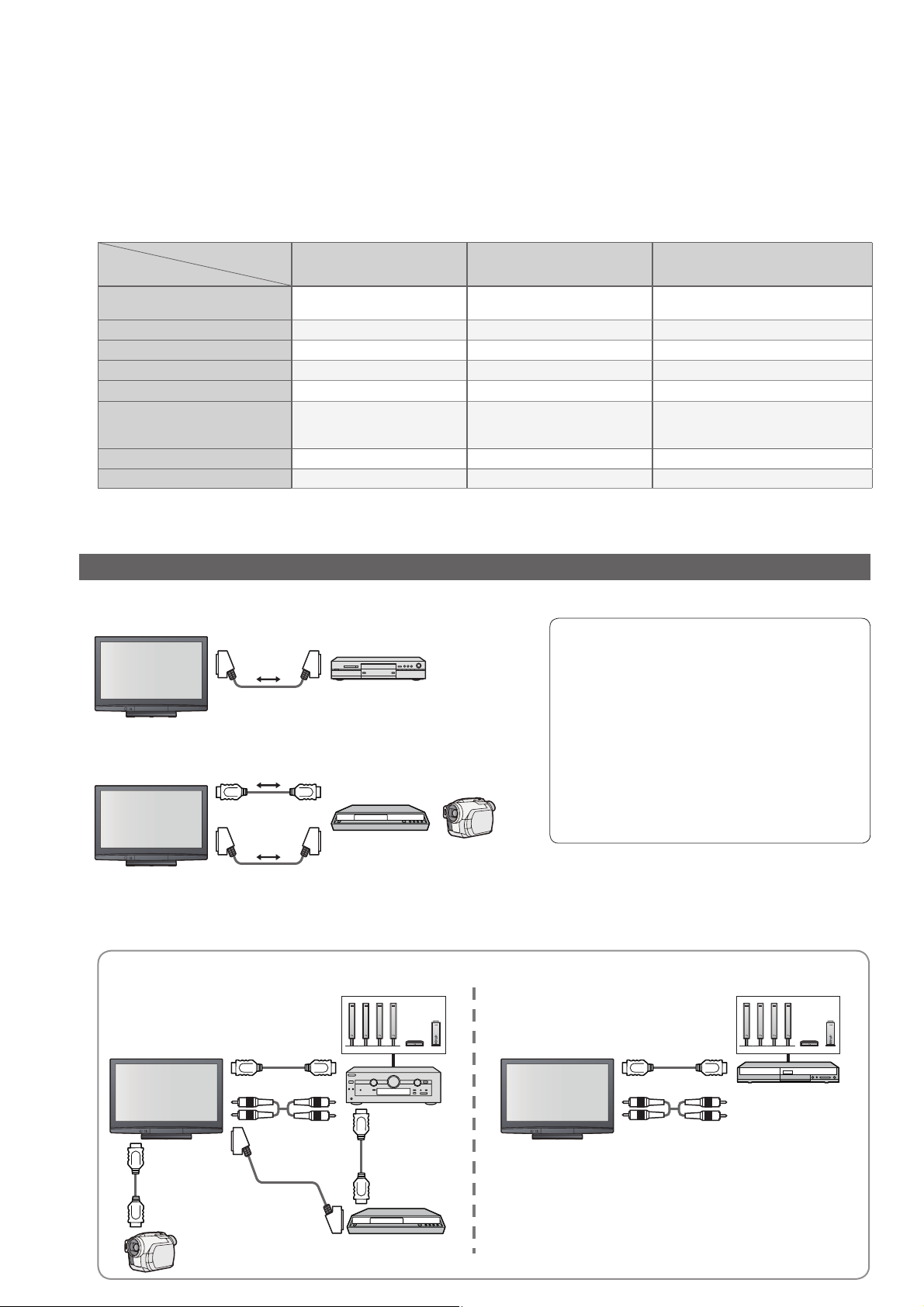

Q-Link
Link Functions
Q-Link connects the TV and DVD Recorder / VCR, and enables easy recording, playback, etc. (p. 43)
VIERA Link (HDAVI ControlTM) connects the TV and the equipment with VIERA Link function, and
enables easy control, convenient recording, playback, etc. (p. 44 - 47)
You can use Q-Link and VIERA Link functions together.
(
VIERA Link
■ Summary of Q-Link and VIERA Link functions
)
Features
Analogue programme
download
Easy playback
Power on link
Power off link
Speaker control
Control the menu of the
connected equipment by
VIERA remote control
Direct TV Recording
Pause Live TV programme
∗
∗ ∗
∗∗∗
: Available with the equipment which has “HDAVI Control 2” or “HDAVI Control 3” function.
: Available with the equipment which has “HDAVI Control 3” function.
: These features may be available even with other manufacturers’ equipment supporting HDMI CEC.
Connection
∗∗∗
∗∗∗
∗∗∗
∗∗∗
Q-Link
(SCART connection)
O
OO O
OO O
OO O
-
-
O
--
VIERA Link
(HDMI connection only)
-
OO
∗
O
-
(SCART and HDMI connection)
VIERA Link
O
O
O
O
Connections
Read the manual of the equipment, too.
■ Q-Link
SCART cable
Connect the DVD Recorder / VCR supporting Q-Link to the
•
TV’s AV1 or AV2 terminal via a fully wired SCART cable.
DVD Recorder / VCR
with Q-Link function
■ VIERA Link
HDMI cable
DIGA Recorder / HD Video Camera
Connect the equipment supporting VIERA Link to the TV’s AV1, AV2, HDMI1 or HDMI2 terminals via fully
•
wired SCART and HDMI cables together.
Some functions are available only with HDMI cable connection. But use both HDMI and SCART cables to
•
support many features normally.
SCART cable
with VIERA Link function
SCART cable
•
Use fully wired SCART cable.
HDMI cable
•
Use fully wired HDMI compliant cable.
Non-HDMI-compliant cables cannot be
utilized.
Recommended Panasonic’s HDMI cable
part number:
• RP-CDHG10 (1.0 m)
• RP-CDHG15 (1.5 m)
• RP-CDHG20 (2.0 m)
• RP-CDHG30 (3.0 m)
• RP-CDHG50 (5.0 m)
∗
∗∗
∗∗
42
For Speaker control (Home Cinema)
To use Amplifi er
•
HDMI cable
Amplifi er with
VIERA Link
function
HDMI
cable
DIGA Recorder with
VIERA Link function
HDMI
cable
HD Video Camera with
VIERA Link function
RCA cable
SCART cable
To use Player theatre
•
HDMI cable
RCA cable
Speaker systemSpeaker system
Player theatre with
VIERA Link function
Page 43

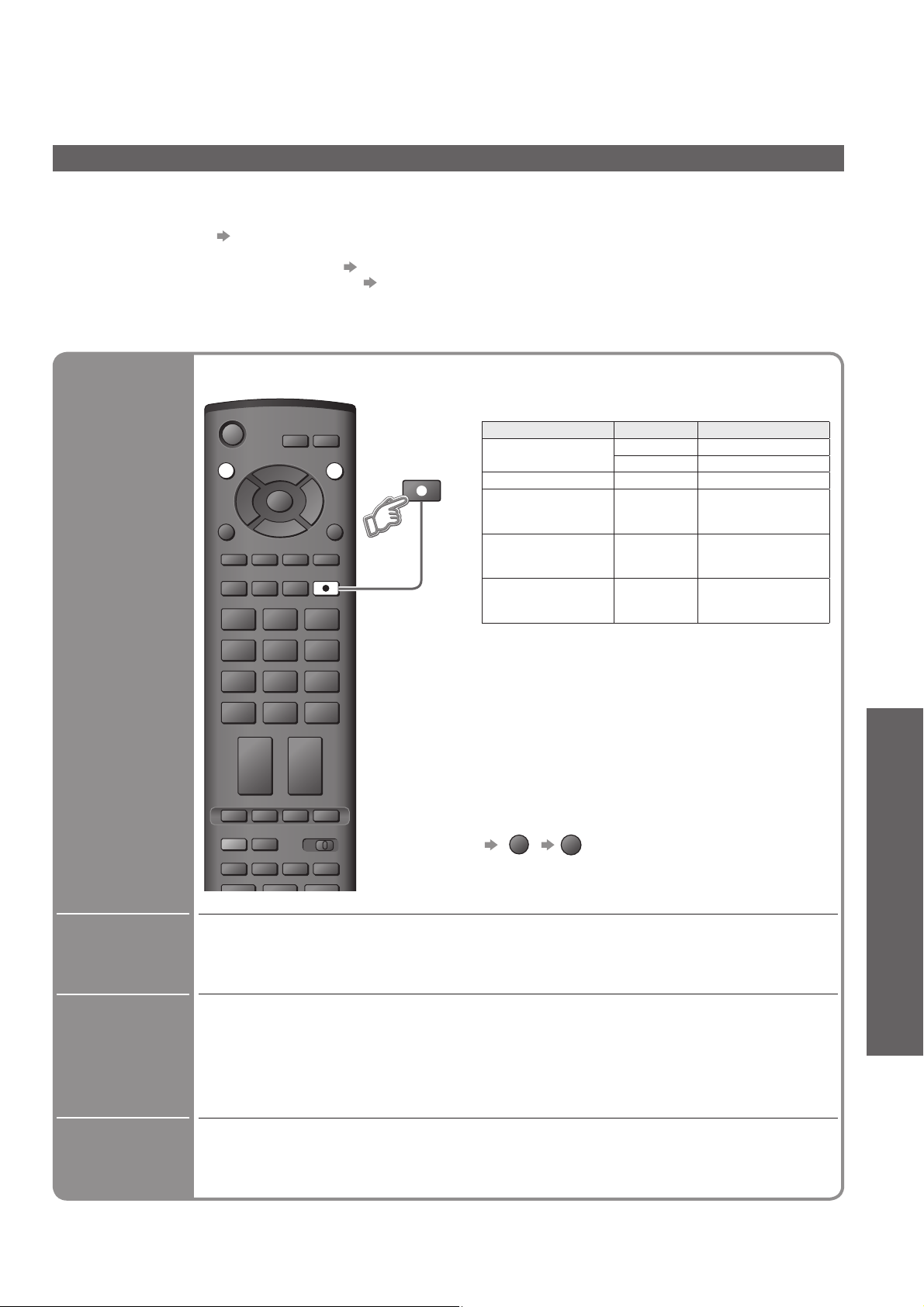

Q-Link
■ Preparations
Connect the DVD Recorder / VCR with the following logos:
•
“Q-Link”, “NEXTVIEWLINK”, “DATA LOGIC”, “Easy Link”, “Megalogic” or “SMARTLINK”
Q-Link connection p. 42
•
Set up the DVD Recorder / VCR. Read the manual of the equipment.
•
Q-Link terminal setup in Setup Menu “Q-Link” (p. 27), “AV1 / AV2 out” (p. 27)
•
Download Analogue programme setting
•
“Q-Link Download” (p. 27) or “Auto Setup” in Analogue mode (p. 35)
or “Auto Setup” - when first using the TV (p. 12)
■ Features available
Some recorders are not applicable. Read the manual of the recorder.
Recording the current programme in DVD Recorder / VCR immediately.
Available conditions:
•
Current mode Using tuner How to record
Analogue
DVB TV TV monitor out
AV
( watching recorder’s
tuner)
AV
( watching recorder’s
external input)
AV
( watching TV’s
external input)
When Direct TV Recording is performed, the
•
recorder is automatically turned on if it is in Standby
mode.
Changing programme or turning off the TV is
•
available while the recorder is recording from its
own tuner.
Changing programme is not available while the
•
recorder is recording from the TV tuner.
Turning off the TV will stop the recording if the
•
recording from an AV source connected to the TV.
■ To stop recording
GUIDE
EXIT
Direct TV
Recording -
What you see
is What you
record
INPUT
GUIDE
OK
MENU
ASPECT
132
465
798
TEXT STTL INDEX HOLD
PROGRAMME
REC
OPTION
0
VCR
VCR DVD
EXIT
DIRECT TV REC
RETURN
DIRECT TV REC
TV TV monitor out
Recorder Recorder’s tuner
Recorder Recorder’s tuner
-
-
Recorder’s
external input
TV monitor out
(Q-Link / VIERA Link)
•
Link Functions
Advanced
Information
/ Message
Recording information or if recording is not possible, a message is displayed.
Power
on link
and Easy
When DVD Recorder / VCR starts playback or direct navigator / function menu
for the equipment are activated, the TV is turned on and input mode is switched
automatically so that you can view the content. (Only when TV is in Standby mode.)
playback
Power off
link
• “DATA LOGIC” (a trademark of Metz Corporation) • “Megalogic” (a trademark of Grundig Corporation)
• “Easy Link” (a trademark of Philips Corporation) • “SMARTLINK” (a trademark of Sony Corporation)
When TV is set to Standby mode, the recorder is also automatically set to
Standby. (Only when the videocassette or DVD is not active.)
43
Page 44
Link Functions
Q-Link
(
VIERA Link
)
VIERA Link “ ControlTM”
∗
Enjoy additional HDMI Inter-Operability with Panasonic products which have “HDAVI Control” function.
This TV supports “HDAVI Control 3” function.
Connections to the equipment (DIGA Recorder, HD Video Camera, Player theatre, Amplifier, etc.) with
HDMI and SCART cables allow you to interface them automatically.
These features are limited to models incorporating “HDAVI Control” and “VIERA Link”.
Some functions are not available depending on the equipment’s version of HDAVI Control. Please confi rm the
•
connected equipment’s version of HDAVI Control.
VIERA Link “HDAVI Control”, based on the control functions provided by HDMI which is an industry standard
•
known as HDMI CEC (Consumer Electronics Control), is a unique function that we have developed and added.
As such, its operation with other manufacturers’ equipment that supports HDMI CEC cannot be guaranteed.
Please refer to individual manuals for other manufacturers’ equipment supporting VIERA Link function.
About applicable Panasonic equipment, consult your local Panasonic dealer
or refer to the URL: www.panasonic.co.uk
∗
■ Preparations
Connect the equipment supporting VIERA Link.
•
VIERA Link connection p. 42
•
Set up the connected equipment. Read the manual of the equipment.
•
For optimal recording, the settings of the recorder might be required. For details, read the manual of the
•
recorder.
Download Analogue programme setting
•
Set VIERA Link On in Setup Menu “VIERA Link” (p. 27)
•
Set up the TV
•
After connection, turn the equipment on and then switch the TV on.
Select the input mode to HDMI1 or HDMI2 (p. 22), and make sure that an image is displayed
correctly.
This setup should be done each time when the following conditions occur:
• for the first time
• when adding or reconnecting equipment
• when changing setup
“Q-Link Download” (p. 27) or “Auto Setup” in Analogue mode (p. 35)
or “Auto Setup” - when first using the TV (p. 12)
■ Features available
Easy
playback
Power on
link
Power off
link
Automatic Input switching - When the connected equipment is operated, input mode
is switched automatically. When it is stopped operating, input mode is returned.
When the connected equipment starts playback or direct navigator / function menu
for the equipment are activated, the TV is automatically turned on. (Only when TV is
in Standby mode.)
When TV is set to Standby mode, the connected equipment is also automatically
set to Standby.
•
This function will work even if the TV enters standby mode automatically by Off Timer
function or auto power standby function.
44
Page 45

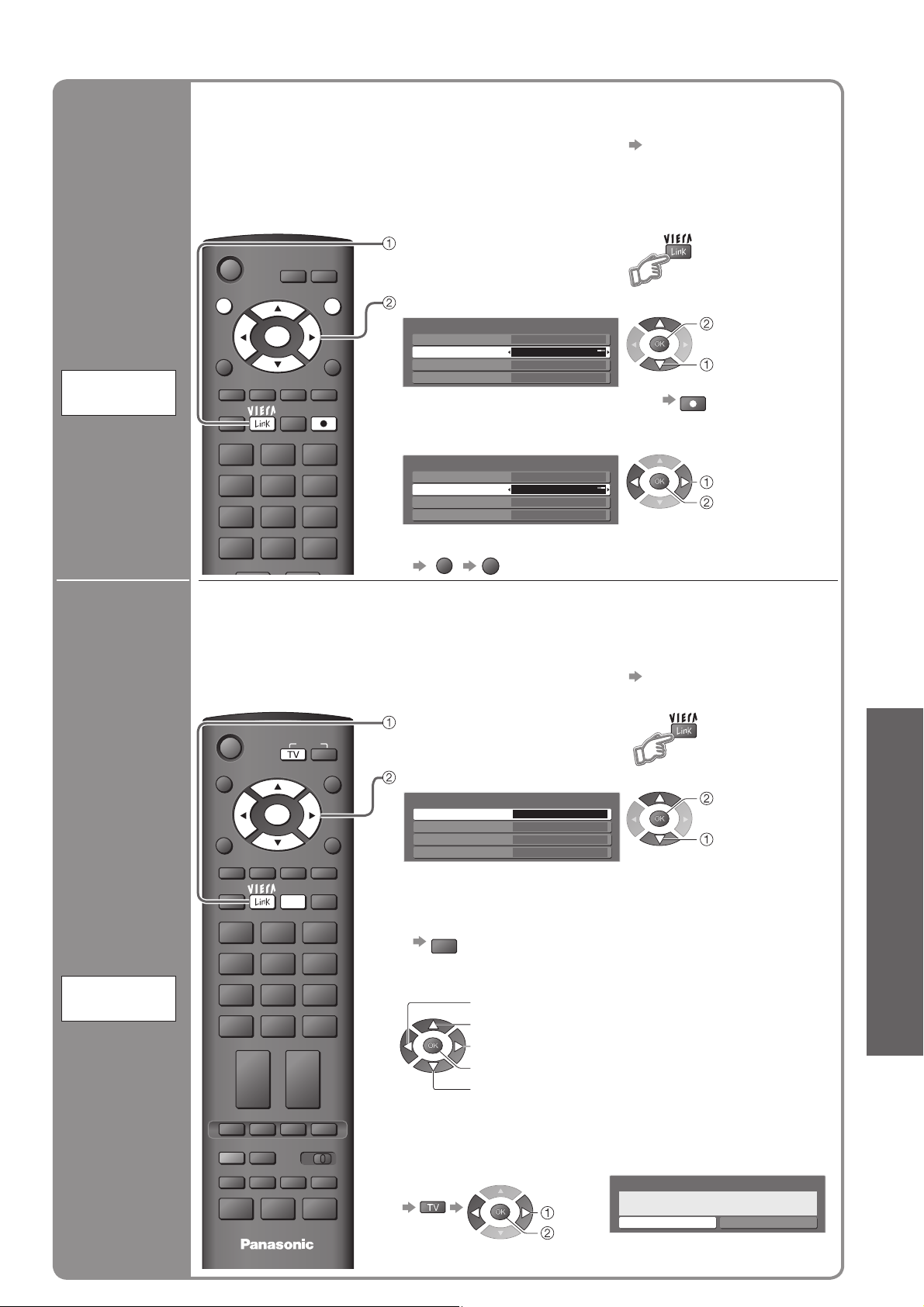

■ Features available (Using VIERA Link Menu)
Recording the current programme in DIGA Recorder immediately.
This function is available with DIGA Recorder which has “HDAVI Control 3” function.
•
Connect DIGA Recorder with both HDMI and SCART cables to use this function.
•
If you cannot operate, check the settings and the equipment “Preparations” (p. 44)
•
Changing programme or turning off the TV is available while the recorder is recording from
•
its own tuner.
Changing programme is not available while the recorder is recording from the TV tuner.
•
Turning off the TV will stop the recording if the recording from an AV source connected to
•
the TV.
Direct TV
Recording -
What you see
is What you
record
(HDAVI Control 3)
INPUT
GUIDE EXIT
OK
MENU
RETURN
Display “VIERA Link Menu”
Select “Direct TV Rec” and start recording
Direct TV
Rec
ASPECT
OPTION
DIRECT TV REC
•
■ To stop recording
132
465
798
0
VCR
You can pause the live TV programme and resume later.
Live TV programme will be recorded on HDD of the connected DIGA Recorder.
This function is available with DIGA Recorder which has HDD and “HDAVI Control 3”
•
function.
Connect DIGA Recorder with both HDMI and SCART cables to use this function.
•
If you cannot operate, check the settings and the equipment “Preparations” (p. 44)
•
Access and pause the live TV programme
INPUT
Select “Stop” in “Direct TV Rec” and access
•
Display “VIERA Link Menu”
VIERA Link Menu
Pause Live TV
Direct TV Rec
VIERA Link Control
Speaker Selection
Speaker Selection
You can also start recording directly
VIERA Link Menu
Pause Live TV
Direct TV Rec
VIERA Link Control
Speaker Selection
Speaker Selection
You can also stop recording directly.
GUIDE
EXIT
Start
Recorder
Home Cinema
Home Cinema
Stop
Recorder
Home Cinema
Home Cinema
start
select
DIRECT TV REC
select
stop
(Q-Link / VIERA Link)
•
Link Functions
GUIDE
MENU
Pause
Live TV
programme
ASPECT
HDAVI Control 3
and
(
Recorder with HDD
)
Pause Live
TV
132
465
798
PROGRAMME
EXIT
OK
RETURN
DIRECT TV REC
OPTION
0
VCR
STTLTEXT INDEX HOLD
REC
VCR DVD
TV
Select “Pause Live TV” and pause
VIERA Link Menu
Pause Live TV
Direct TV Rec
VIERA Link Control
Speaker Selection
Speaker Selection
The TV picture will be paused.
Live TV programme is recorded on HDD from where it was
•
paused.
If the paused TV picture disappears after a few minutes
•
OPTION
•
■ To operate Pause Live TV
(the paused picture will be restored)
Follow the operation guide to operate Pause Live TV function.
•
Access
Start
Recorder
Home Cinema
Home Cinema
search backward
pause
search forward
playback
stop
If you stop playback, the recorded programme
•
will be deleted from HDD.
Operations may be different
depending on the recorder. In
this case, follow the operation
guide or read the manual of
the recorder.
pause
select
■ To return to Live TV
(stop playback of Pause Live TV / cancel pause)
Select “Yes”
If you stop playback or cancel pause, the recorded
•
programme will be deleted from HDD.
select
stop
Pause Live TV
Stop Pause Live TV?
Yes No
Advanced
45
Page 46

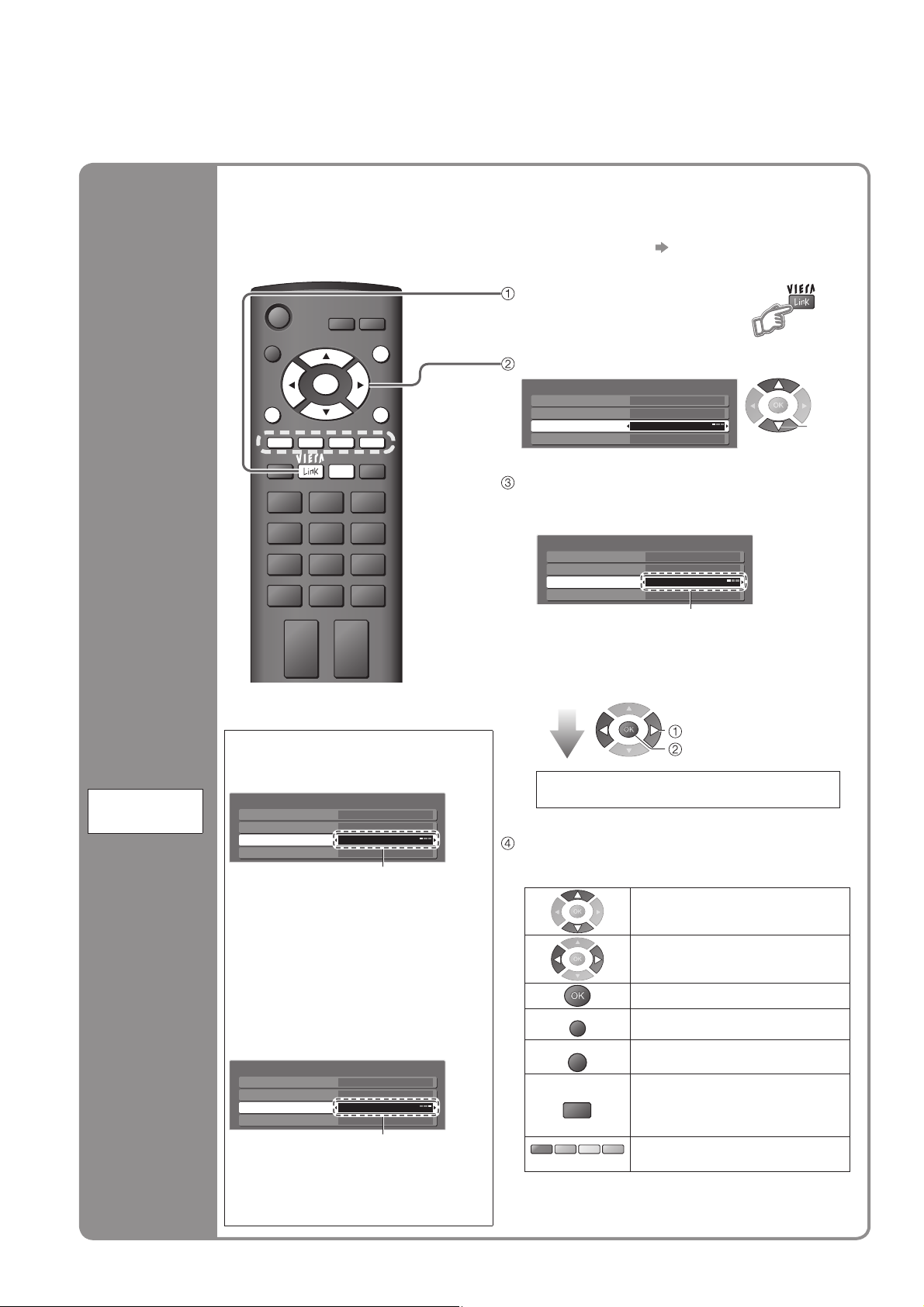

Link Functions
■ Features available (Using VIERA Link Menu)
You can control some functions of the connected equipment with this TV remote
control (point the remote control at the TV’s signal receiver).
This function is available with the equipment which has “HDAVI Control 2” or
•
“HDAVI Control 3” function.
If you cannot operate, check the settings and the equipment “Preparations” (p. 44)
•
Access and operate the menu of the equipment
Display “VIERA Link Menu”
INPUT
Q-Link
(
VIERA Link
)
Control
the menu
of the
connected
equipment
by VIERA
remote
control
HDAVI Control 2
(
HDAVI Control 3
VIERA Link
Control
GUIDE
OK
MENU
ASPECT
OPTION
EXIT
RETURN
DIRECT TV REC
132
465
798
0
VCR
■ If you access
the invalid equipment
When the equipment with
“HDAVI Control” function is
)
connected
VIERA Link Menu
Pause Live TV
Direct TV Rec
VIERA Link Control
Speaker Selection
Speaker Selection
Recorder / Player / Home Cinema /
Video Camera
The type of the connected
equipment is displayed.
But you cannot access it. Use its
own remote control to operate the
equipment.
When the equipment of other
types or manufacturers is
connected
VIERA Link Menu
Pause Live TV
Direct TV Rec
VIERA Link Control
Speaker Selection
Speaker Selection
“Others” is displayed.
You cannot access it. Use its own
remote control to operate the
equipment.
Start
Recorder
Home Cinema
Home Cinema
Start
Others
Home Cinema
Home Cinema
Others
Select “VIERA Link Control”
Pause Live TV
Direct TV Rec
VIERA Link Control
Speaker Selection
Speaker Selection
Select the equipment you want to access
“Home Cinema” means Player theatre,
•
Recorder theatre and Amplifi er.
VIERA Link Menu
Pause Live TV
Direct TV Rec
VIERA Link Control
Speaker Selection
Speaker Selection
Recorder / Player / Home Cinema / Video Camera
Start
Recorder
Home Cinema
Home Cinema
Start
Recorder
Home Cinema
Home Cinema
select
The type of the connected equipment is
displayed.
Select the type of the equipment and
access.
select
access
The menu of the accessed equipment
(Input mode will be changed automatically)
Operate the menu of the equipment
Available VIERA remote control buttons
•
(depending on the connected equipment):
Move the cursor / select the menu
Move the cursor / access / adjust
Store / set / access
RETURN
EXIT
OPTION
yellow
red green
About the operations for the equipment, read
•
the manual of the equipment.
Return to the previous menu
Exit the menu
Display the operation guide for the
equipment /
The same functions with the
OPTION button of the equipment
Access when the key words are
blue
displayed on colour bar
46
Page 47

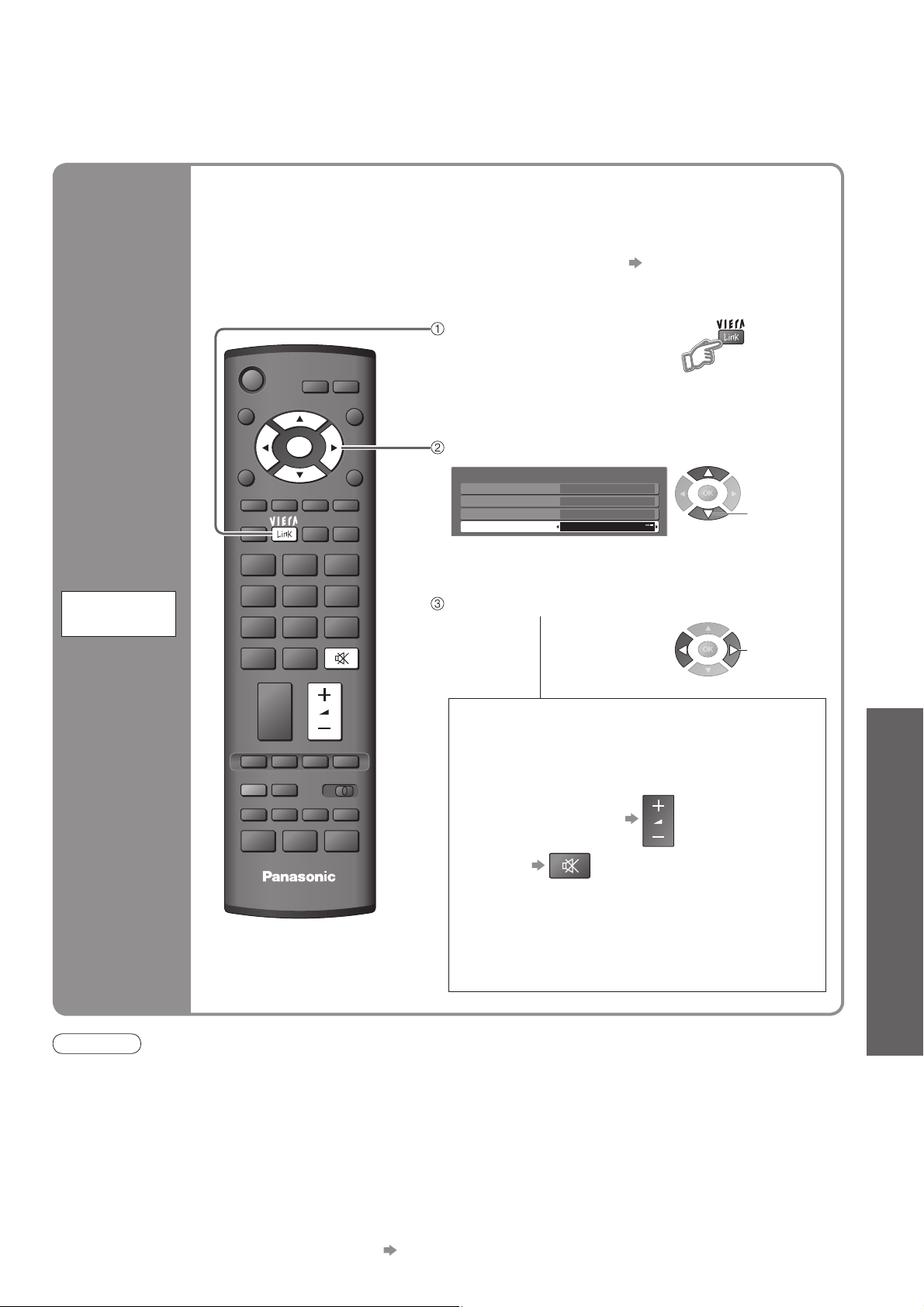

■ Features available (Using VIERA Link Menu)
You can control the theatre speaker with this TV remote control (point the remote
control at the TV’s signal receiver).
This function is available with the Amplifi er or Player theatre which has “HDAVI Control”
•
function.
If you cannot operate, check the settings and the equipment “Preparations” (p. 44)
•
Access and control the speaker volume
INPUT
Display “VIERA Link Menu”
Speaker
control
Speaker
Selection
GUIDE
OK
MENU
ASPECT
132
465
798
TEXT STTL INDEX HOLD
PROGRAMME
REC
OPTION
0
VCR
VCR DVD
EXIT
RETURN
DIRECT TV REC
Select “Speaker Selection”
VIERA Link Menu
Pause Live TV
Direct TV Rec
VIERA Link Control
Speaker Selection
Speaker Selection
Set to “Home Cinema” or “TV”
Start
Recorder
Home Cinema
Home Cinema
■ Home Cinema
Amplifier or Player theatre will be
automatically turned on if it is in Standby
mode and the sound is from theatre
speakers connected to the equipment.
Volume up / down
•
select
set
(Q-Link / VIERA Link)
•
Link Functions
Advanced
Mute
•
TV
The sound of TV speakers is mute.
•
When the equipment is turned off, TV speakers
•
will be active.
■ TV
TV speakers are active.
Note
This function may not work properly depending on the connected equipment.
•
Image or sound may not be available for the fi rst few seconds when the playback starts.
•
Image or sound may not be available for the fi rst few seconds when Input mode is switched.
•
Volume function will be displayed when adjusting the volume of the equipment.
•
Easy playback is also available by using the remote control for Amplifi er or Player theatre. Read the manual of
•
the equipment.
About HDMI cable for connecting Panasonic HD Video Camera, read the manual of the equipment.
•
If more than one equipment of the same type are connected to the TV by HDMI cables, for example two DIGA
•
Recorders to HDMI1 and HDMI2, VIERA Link will only be available for the lower terminal number, in this case
HDMI1.
“HDAVI Control 3” is the newest standard (current as of December, 2007) for HDAVI Control compatible
•
equipment. This standard is compatible with conventional HDAVI equipment.
To confi rm this TV’s version of HDAVI Control “System Information” (p. 27)
•
47
Page 48

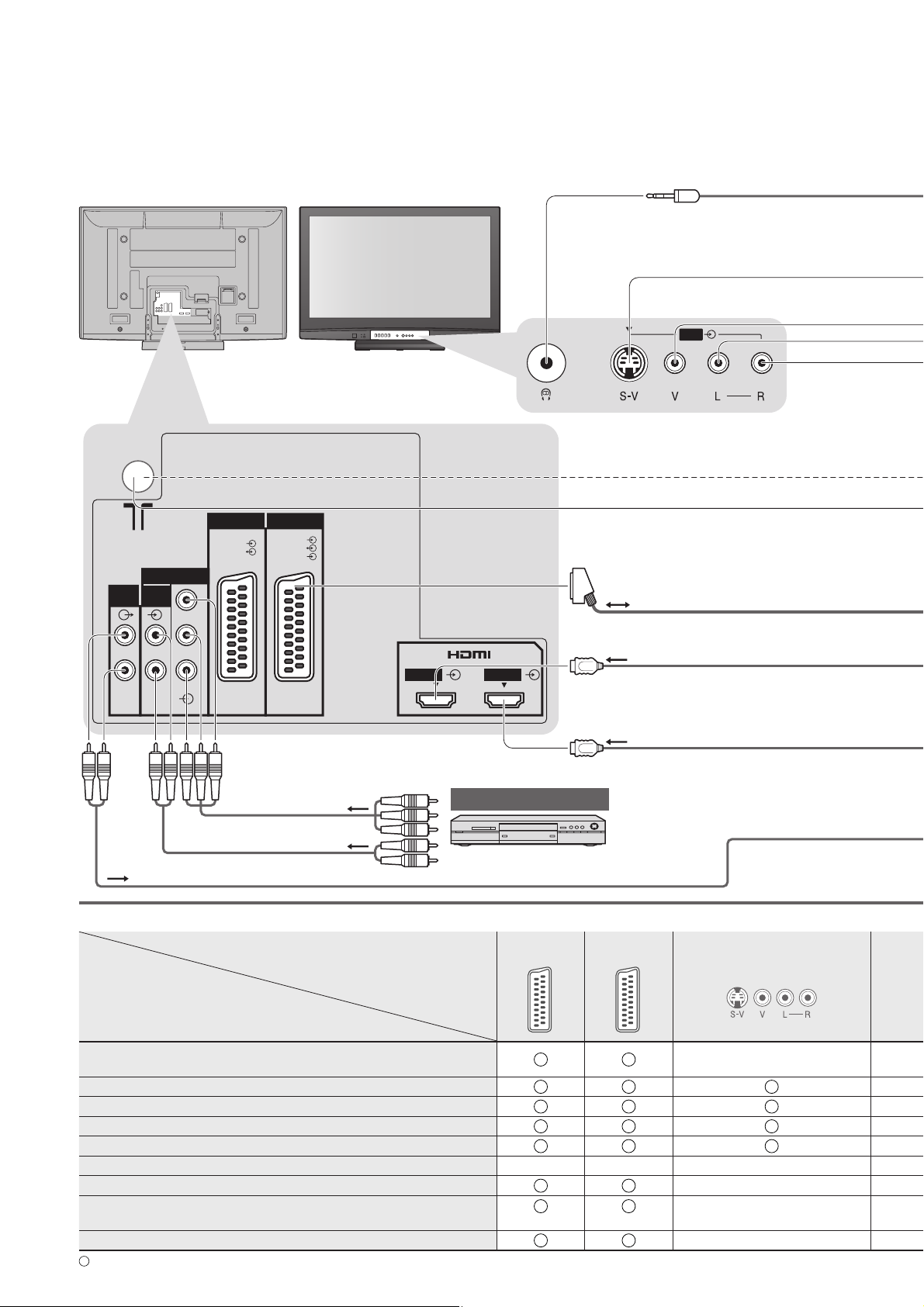

External Equipment
These diagrams show our recommendations for connection of your TV to various pieces of equipment.
For other connections, consult the instructions for each piece of equipment, the table below, and the
specifi cations (p. 59).
( M3 stereo mini plug)
AV3
AV2AV1
RGB
VIDEO
S VIDEO
AUDIO
OUT
COMPONENT
AUDIO
IN
Y
RGB
VIDEO
LRL
R
PB
P
R
(Viewing)
(Listening)
HDMI 1 HDMI 2
To watch DVDs
DVD player
■ Types of connectable equipment to each terminal
AV1 AV2 AV3 (Front of TV)
Terminal
Recording / Playback
(equipment)
To record / playback videocassettes / DVDs
(VCR / DVD recorder)
To watch DVDs (DVD player)
To watch camcorder images (Video camera)
To watch satellite broadcasts (Set top box)
To play games (Game equipment)
To use amplifi er with speaker system
Q-Link
48
VIERA Link
Direct TV Recording
: Recommended Connection
(with HDMI) (with HDMI)
Page 49

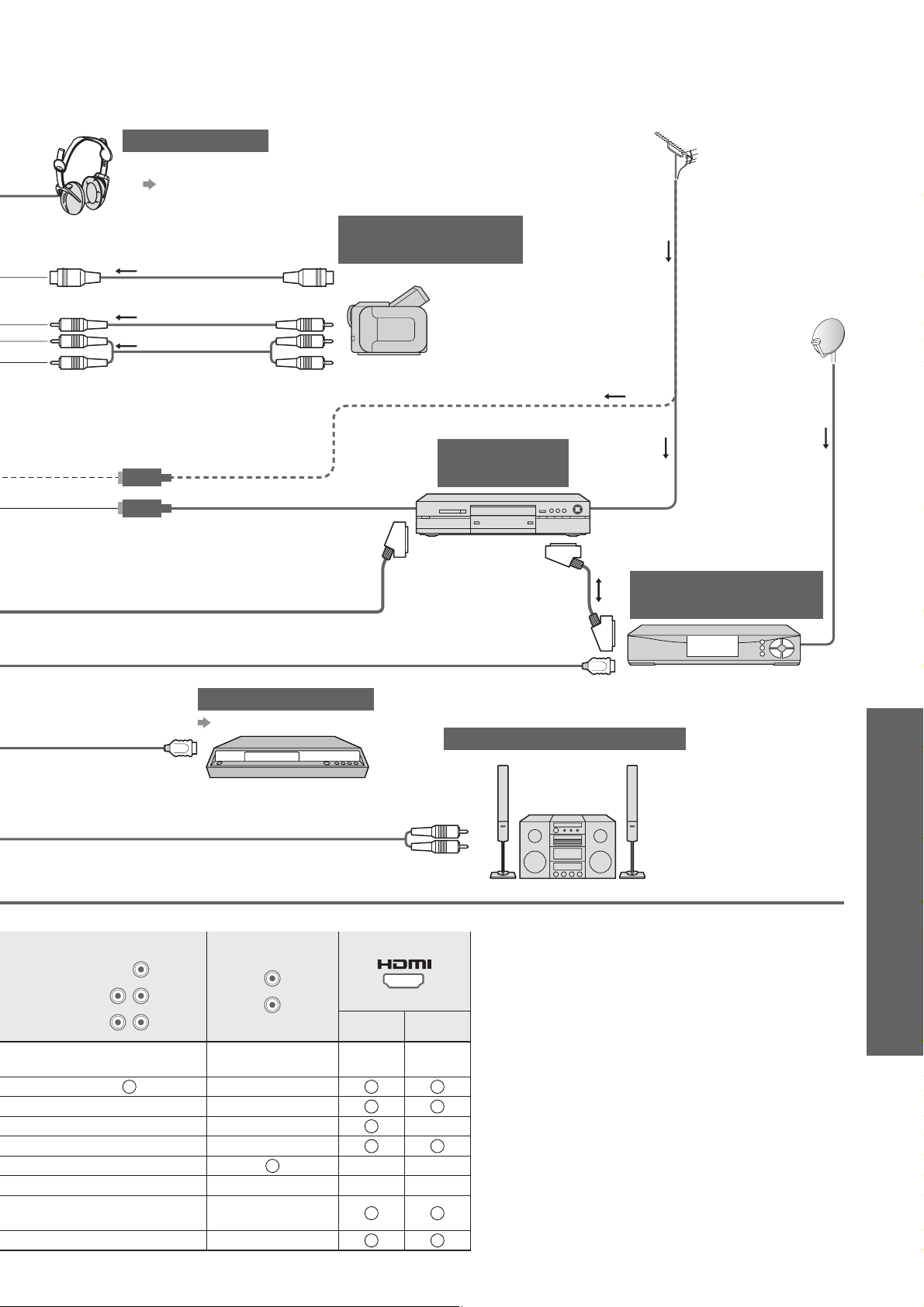

Headphones
■ To adjust volume
“Headphone Volume” in the
Sound Menu (p. 26)
(S-VIDEO)
or
(VIDEO)
(AUDIO)
Camcorder /
Game equipment
DVD Recorder /
VCR
SCART cable
To record /
playback
SCART
cable
RF
cable
or
•
External Equipment
To watch
satellite broadcasts
Fully wired HDMI
compliant cable
COMPONENT
L
R
Fully wired HDMI
compliant cable
HD Satellite receiver
HDMI equipment
“HDMI connection” (p. 50)
To listen with speakers
DVD Recorder
Advanced
RCA cable
Amplifier with speaker system
AUDIO OUT
Y
PB
P
R
L
R
12
49
Page 50
Technical Information
Auto Aspect
The optimum size and aspect can be chosen, and you can enjoy fi ner images. (p. 16)
■
Auto
Auto aspect determines the best aspect ratio to use to fi ll your screen. It does this using a four step process to
determine if the picture being viewed is a widescreen picture.
If Auto aspect detects a widescreen signal it switches into the appropriate 16:9 or 14:9 widescreen mode. If Auto
aspect does not detect a widescreen signal then this advanced TV enhances the picture for optimum viewing
pleasure.
The text shown on the screen indicates how Auto aspect determined which ratio to use:
“WIDE” appears in the top left of the screen if a widescreen identifi cation signal (WSS) is found or a signal found
through a SCART or HDMI terminal. Auto aspect switches to the appropriate 16:9 or 14:9 widescreen ratio. This
function will also work in any aspect mode. “Auto” appears in the top left of the screen if black stripes above and
below the picture are detected. Auto aspect chooses the best ratio and expands the picture to fi ll the screen.
This process can take several minutes, depending on the darkness of the picture.
Aspect Control Signal
Signal name
PAL
PAL 525/60
DVB
M.NTSC
NTSC (AV input only)
525(480)/60i
SD
525(480)/60p
625(576)/50i
625(576)/50p
750(720)/50p
750(720)/60p
HD
1125(1080)/50i
1125(1080)/60i
1125(1080)/50p
1125(1080)/60p
1125(1080)/24p
Widescreen signal (WSS)
TV AV1 AV2 AV3 COMPONENT AV1 AV2 HDMI1 HDMI2
OOOO O O
----
O
----
----
--- - -
-
-
OOO
OOO
-
-
-
-
-
-
-
Control signal through SCART (pin 8) or HDMI terminal
OO
OO
OO
OO
OO
OO
OO
OO
OO
OO
OO
OO
Note
The ratio varies depending on the programme, etc. If the ratio is greater than the standard “16:9”, black bands
•
may appear at the top and bottom of the screen.
If the screen size looks unusual when a widescreen-recorded programme is played back on a VCR, adjust the
•
tracking of the VCR. (See the VCR manual.)
HDMI connection
HDMI (high-defi nition multimedia interface) allows you to enjoy high-defi nition digital images and high-quality sound
by connecting the TV and the equipment.
HDMI-compatible equipment (∗1) with an HDMI or DVI output terminal, such as a DVD player, a set top box or a
game equipment, can be connected to the HDMI terminal using an HDMI compliant (fully wired) cable.
About connections, see “External Equipment” (p. 48).
Note
HDMI is the world’s fi rst complete digital consumer AV interface complying with a non-compression standard.
•
If the external equipment has only a DVI output, connect to the HDMI1 terminal via a DVI to HDMI adapter
•
cable (∗2).
When the DVI to HDMI adapter cable is used, connect the audio cable to the audio input terminal (HDMI1: use
•
COMPONENT-AUDIO terminals).
Audio settings can be made on the “HDMI1 Input” menu screen. (p. 26)
•
Applicable audio signal sampling frequencies (2ch L.PCM): 48 kHz, 44.1 kHz, 32 kHz
•
HDMI2 terminal is for digital audio signal only.
•
Use with a PC is not assumed.
•
If the connected equipment has an aspect adjustment function, set the aspect ratio to “16:9”.
•
These HDMI connectors are “type A”.
•
These HDMI connectors are compatible with HDCP (High-Bandwidth Digital Content Protection) copyright
•
protection.
An equipment having no digital output terminal may be connected to the input terminal of either “COMPONENT”,
•
“S-VIDEO”, or “VIDEO” to receive analogue signals.
The HDMI input terminal can be used with only the following image signals:
•
480i, 480p, 576i, 576p, 720p, 1080i and 1080p. Match the output setting of the digital equipment.
For details of the applicable HDMI signals, see p. 52.
•
(
(
∗
1): The HDMI logo is displayed on HDMI-compliant equipment.
∗
2): Enquire at your local digital equipment retailer shop.
50
Page 51
Updating the DVB software
From time to time, a new version of software for DVB mode may become available for download to enhance the
performance or operations of the TV.
A notifi cation banner will appear when you tune to one of the BBC channels, or you can search for a new version
software by using the “System Update Search Now” function (p. 31).
To start downloading press “OK”, this may take up to 20 minutes to
complete.
Do you really want to update the software and reboot the system?
To ignore the new software press “EXIT”, but this banner will keep
appearing during the period of new software availability, usually 2 to 3 days.
To download any new software automatically, ensure that the “Auto Update Search in Standby” function in the
System Update menu is set to “On” (p. 31).
The TV will then download new software automatically at night if it is left in standby without any timer programme
in progress.
Note
During software download and update, DO NOT switch off the TV.
•
New version 1.00 found.
Press OK to download the new version
Press EXIT to lgnore

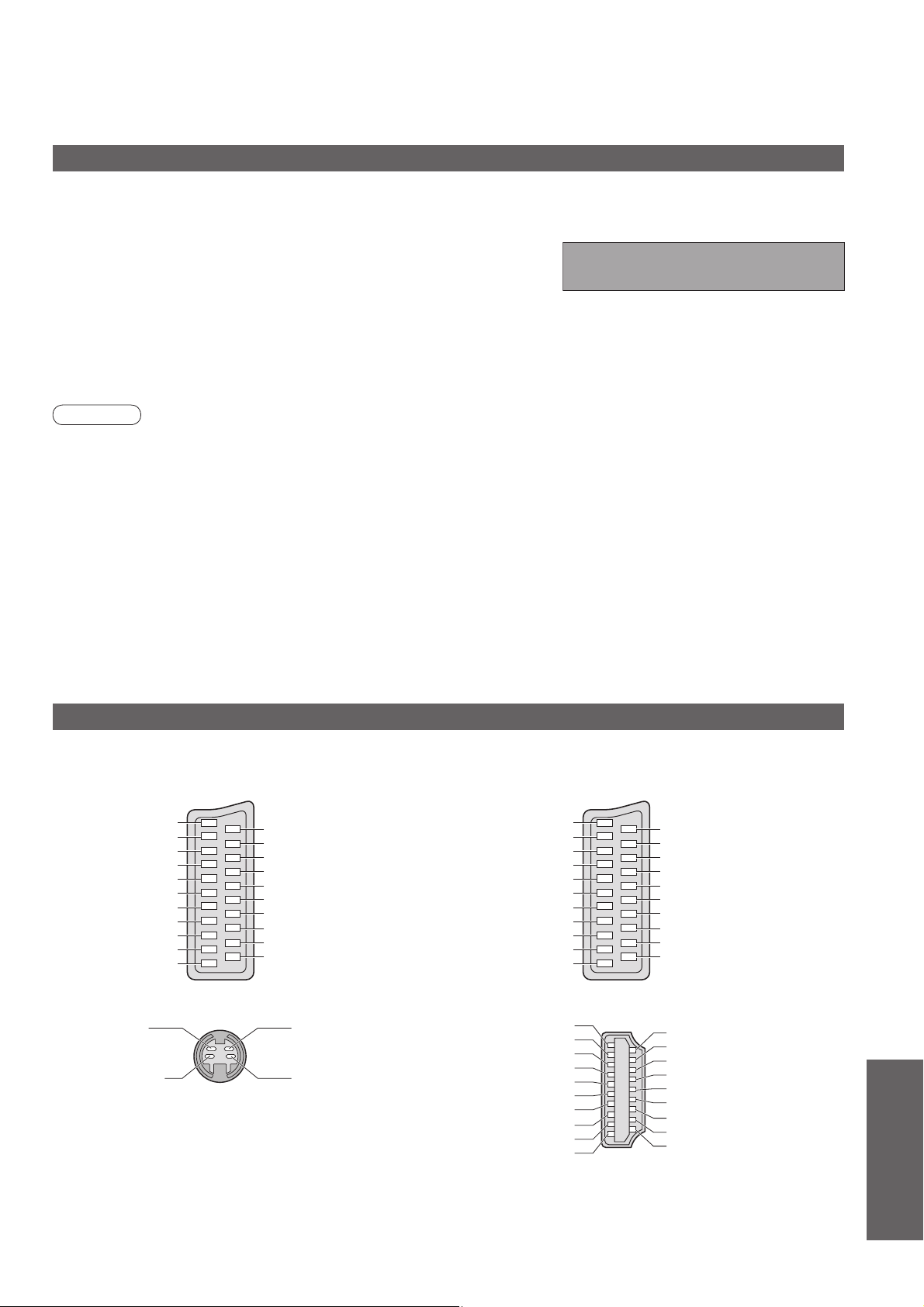

SCART, S-VIDEO and HDMI terminal information
■ AV1 SCART terminal
(RGB, VIDEO, Q-Link)
Suitable inputs for AV1 include RGB (Red / Green / Blue).
Socket Earth 21
CVBS out (video) 19
CVBS earth 17
Red in 15
Red earth 13
Green in 11
Green earth 9
Blue in 7
Blue earth 5
Audio out (L) 3
Audio out (R) 1
20 CVBS in (video)
18 RGB status earth
16 Status RGB
14 Earth
12 -10 Q-Link data
8 Status CVBS
6 Audio in (L)
4 Audio earth
2 Audio in (R)
■ AV2 SCART terminal
(RGB, VIDEO, S-VIDEO, Q-Link)
AV2 - Pins 15 and 20 are dependent on AV2 S-VHS /
VIDEO switching.
Socket Earth 21
CVBS out (video) 19
CVBS earth 17
Red in, S.C. - in 15
Red earth 13
Green in 11
Green earth 9
Blue in 7
Blue earth 5
Audio out (L) 3
Audio out (R) 1
■ AV3 S-VIDEO 4 pin terminal ■ HDMI terminal
Chrominance in Luminance in
Chrominance earth Luminance earth
Hot Plug Detect 19
DDC/CEC Ground 17
SCL 15
CEC 13
TMDS Clock Shield
TMDS Data0− 9
TMDS Data0+ 7
TMDS Data1 Shield 5
TMDS Data2− 3
TMDS Data2+ 1
11
20 CVBS in (video)
18 RGB status earth
16 Status RGB
14 Earth
12 -10 Q-Link data
8 Status CVBS
6 Audio in (L)
4 Audio earth
2 Audio in (R)
18 +5V Power
16 SDA
Reserved (in cable but N.C. on device)
14
12 TMDS Clock−
10 TMDS Clock+
8 TMDS Data0 Shield
6 TMDS Data1−
4 TMDS Data1+
2 TMDS Data2 Shield
•
Technical Information
FAQs, etc.
51
Page 52
Technical Information
Input signal that can be displayed
COMPONENT (Y, PB, PR), HDMI
∗
Mark: Applicable input signal
Signal name COMPONENT HDMI
525 (480) / 60i
525 (480) / 60p
625 (576) / 50i
625 (576) / 50p
750 (720) / 60p
750 (720) / 50p
1,125 (1,080) / 60i
1,125 (1,080) / 50i
1,125 (1,080) / 60p
1,125 (1,080) / 50p
1,125 (1,080) / 24p
Note
Signals other than above may not be displayed properly.
•
The above signals are reformatted for optimal viewing on your display.
•
∗∗
∗∗
∗∗
∗∗
∗∗
∗∗
∗∗
∗∗
∗
∗
∗
52
Page 53

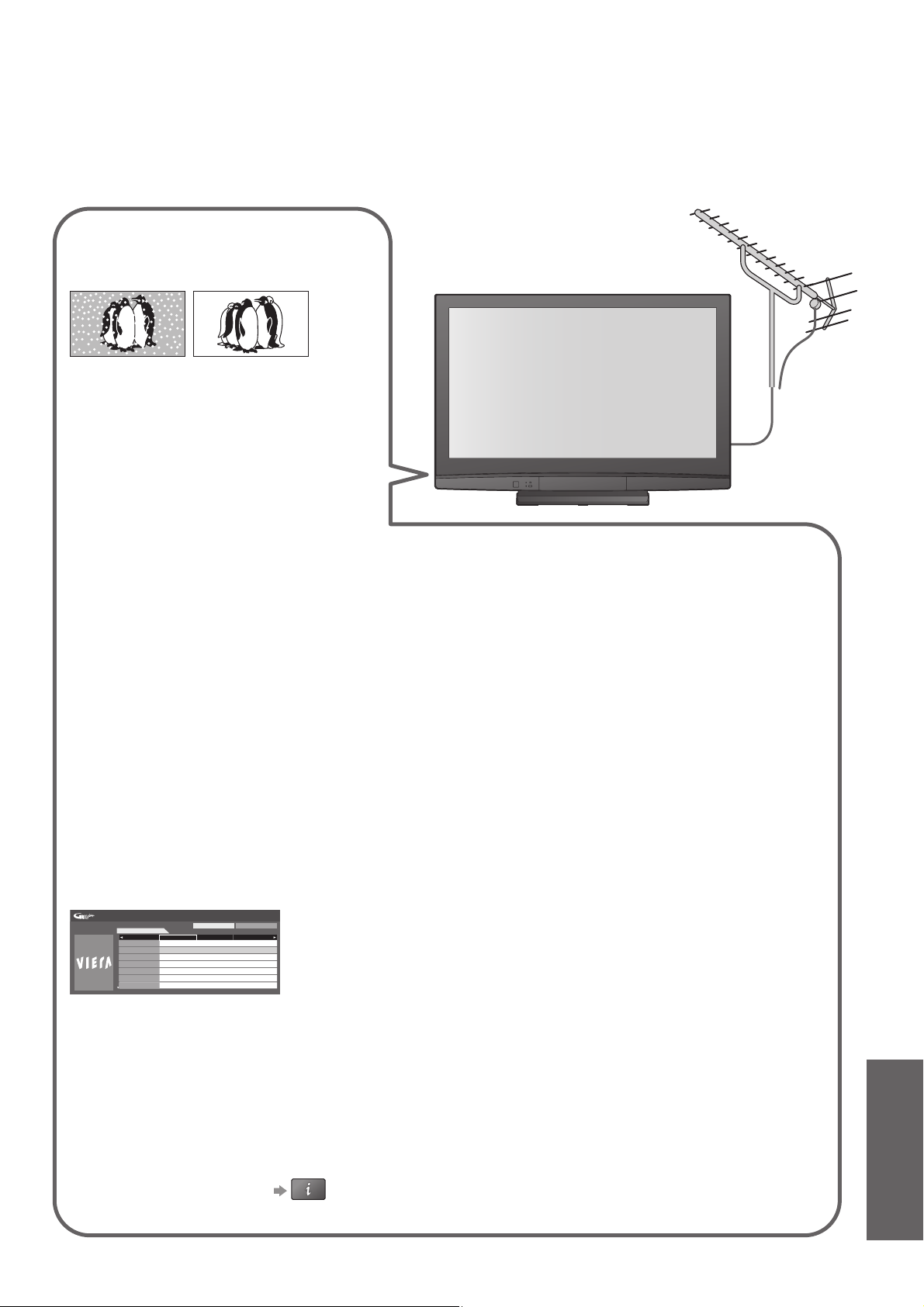

FAQs
Before requesting service or assistance, please follow these simple guides to resolve the problem.
If the problem still persists, please contact your local Panasonic dealer or Panasonic Customer Care
Centre for assistance. For details (p. 60)
White spots or shadow
images (noise)
Check the position, direction, and
•
connection of the aerial.
Neither image nor
sound is produced
Is the TV in “AV mode”?
•
Is the mains lead plugged into the socket
•
outlet?
Is the TV turned On?
•
Check Picture Menu (p. 26) and volume.
•
Check all required SCART cables and
•
connections are fi rmly in place.
Q-Link function does not work
Please confi rm SCART cable and connection. Also
•
please set “AV1 / AV2 out” in the Setup Menu (p. 27).
Auto aspect
Auto aspect is designed to provide you
•
with the best aspect ratio to use to fi ll your
screen. For user control please see p. 50.
S-Video / black and
white picture
Using AV button please confi rm your
•
selection is S-Video I.e. AV2/S (p. 22).
No programmes shown
on TV Guide
Wed 24/10/2007
10:46
Check the DVB transmitter.
•
Adjust the direction of the aerial to another
•
transmitter installed nearby.
Check the analogue broadcast.
•
If the image quality is poor, check the
aerial and consult your nearest dealer.
TV Guide: Portrait
Wed 24th
D 1 BBC O D 7 BBC T D 14 E4 D 70 CBBC
All Types All Services
On Screen messages
- I.e. EC/AV1
You can simply clear these
•
Press again to redisplay.
“VIERA Link” function
does not work and an error
message appears
Confi rm the connection.
•
Turn the connected equipment on and then switch the TV
•
on. (p. 44)
Recording does not start
immediately
Check the settings of the recorder. For details, read the
•
manual of the recorder.
Permanently lit spots on screen
Due to production process involved in this technology
•
this may result in some pixels which are permanently lit
or unlit. This is not a malfunction.
Contrast is reduced
Contrast is lowered in the following conditions without
•
any user operation for a few minutes:
● no signal in DVB or AV mode
● selected locked programme
● selected invalid programme
● selected radio service
● displayed menu
● Digital teletext (no video contents)
•
Frequently Asked Questions
•
Technical Information
FAQs, etc.
53
Page 54
FAQs
Problem Actions
Chaotic image, noisy
Set “P-NR” in the Picture Menu (to remove noise). (p. 26)
•
Check nearby electrical products
•
(car, motorcycle, fl uorescent lamp).
No image can be
Screen Sound DVB HDMI Other
displayed
Blurry or distorted image
(no sound or low volume)
Unusual image is displayed
No sound is produced
Sound level is low
or sound is distorted
Whirling sound is heard
Due to the digital reception technologies involved, quality of the DTV signals may be relatively low in some
•
cases, despite good reception of analogue programmes.
Is “Colour” or “Contrast” in the Picture Menu set to the minimum?
•
(p. 26)
Reset programmes. (p. 35)
•
Turn off the TV with Mains power On / Off switch, then turn it On
•
again.
Is “Sound mute” active? (p. 9)
•
Is the volume set to the minimum?
•
Sound signal reception may be deteriorated.
•
Set “NICAM” (p. 26) in the Sound Menu to “Off”.
•
(Analogue only)
The sound is from built-in cooling fan
•
(not a sign of faulty operation).
Interference or
frozen / disappearing
image in DVB
Sound is unusual
Pictures from external
equipment are unusual
when the equipment is
connected via HDMI
TV goes into
“Standby mode”
The remote control
does not work
Check “DVB Signal Condition”. (p. 35)
•
If “Signal Quality” or “Signal Strength” are displayed in red, check
aerial.
If problem persists, consult your local Panasonic dealer.
Turn the TV off with the Mains power On / Off switch, then turn it
•
On again.
Set the sound setting of the connected equipment to
•
“2ch L.PCM”.
Check the “HDMI1 Input” setting in the Sound Menu. (p. 26)
•
If digital sound connection has a problem, select analogue sound
•
connection. (p. 50)
Is the HDMI cable connected properly? (p. 48)
•
Turn Off the TV and equipment, then turn them On again.
•
Check an input signal from the equipment. (p. 52)
•
Use an equipment compliant with EIA/CEA-861/861B.
•
Off Timer function is activated.
•
The TV enters “Standby mode” about 30 mins. after analogue
•
broadcasting ends.
Are the batteries installed correctly? (p. 6)
•
Has the TV been switched On?
•
54
An error message appears
Follow the message’s instructions.
•
If the problem persists, contact the authorized Service Centre.
•
Page 55
On screen messages
Message Meaning / Action
All tuning data will be erased
Are you sure ?
Are you sure you want to delete this timer ?
Press OK to delete timer
Press RETURN to return
Bad Signal
Child Lock is active !
Press OK to enter PIN
Feature not available
Invalid operation - Please check settings and
connections
“Shipping Condition” will erase all tuning data (p. 36).
•
Confi rm correct operation.
•
Confi rm correct operation.
•
The signal is weak. Check the aerial.
•
The selected programme is locked in Child Lock (p. 33).
•
It is not possible to record these sources (COMPONENT / HDMI).
•
Check the Q-Link or VIERA Link connection and setting (p. 42 - 44).
•
Invalid system time. Please exit !
Max. number of Timers already set !
New DVB Service Found!
Press OK start Auto Setup
Press EXIT to Ignore.
Selecting Auto Setup will delete
current Profi le and Childlock settings
New version 1.90 found.
Do you really want to update the
software and reboot the system ?
Press OK to download the new version
Press EXIT to Ignore
No DVB Service found
Please check aerial or local
DVB service availability.
Press OK to start Auto Setup
No module inserted
No Recording - Check media
Cannot get the time information. Check the connection of the RF
•
cable.
The maximum number of timer programming events is 15.
•
There is a new DVB service or programme.
•
There is a new software available.
•
Please follow the message.
•
If it is still failed, consult your local Panasonic dealer.
Check the CI module inserted completely (p. 31).
•
The tape or disc may be “write protected”, missing or damaged.
•
•
Frequently Asked Questions
•
On screen messages
FAQs, etc.
No Recording - Already recording
The equipment may already be recording.
•
55
Page 56
On screen messages
Message Meaning / Action
No Recording - Unknown reason
No Service
No Signal
PIN incorrect !
Please check settings and connections on
HDMI devices.
Please wait.
Recording this service now
The recording may not be performed. Check the equipment.
•
Disc or tape may be full.
•
The broadcaster has stopped the service.
•
Check the connection of the RF cable.
•
The PIN number you entered is wrong.
•
Communication error in VIERA Link function (p. 44).
•
A function is in progress.
•
The recorder is recording the programme signal from its own tuner.
•
You can turn the TV off and leave the equipment recording in the
normal way.
Sending Preset Data Please wait !
Shipping condition completed.
TV can now be switched off.
Software successfully updated
Press EXIT to continue
Software Update failed. Please try again later.
Press EXIT to continue
Timer already expired !
Timer Event Due to Start
DVB 1: BBC1 has been
Programmed for recording at 20:00
Timer incorrect !
Q-Link or VIERA Link programme download is in progress.
•
“Auto Setup” will automatically start when Mains power On / Off
•
switch is next turned On. (p. 12)
The software updating is fi nished.
•
Perform “System Update Search Now” in System Update (p. 31).
•
If this is still unsuccessful, there may not be any new software
available.
Starting time in Timer Programming is already past. Set correctly
•
(p. 41).
This message will appear 2 minutes before timer programming
•
event due to start.
Set Start and End times in Timer Programming correctly (p. 41).
•
56
Tuner Locked
Please stop recording to operate
Unable to download, Check Equipment
If you want to unlock, cancel Direct TV Recording (p. 43 and p. 45)
•
or Timer Programming (p. 40).
The tape or disc is active. Stop the equipment and try again.
•
Page 57
Licence
DVB is a trademark of the DVB Digital Video Broadcasting Project (1991 to 1996).
•
HDMI, the HDMI Logo and High-Defi nition Multimedia Interface are trademarks or registered trademarks of HDMI
•
Licensing LLC.
HDAVI ControlTM is a trademark of Panasonic Corporation.
•
GUIDE Plus+ is (1) a registered trademark or trademark of, (2) manufactured under license from and (3)
•
subject of various international patents and patent applications owned by, or licensed to, Gemstar-TV Guide
International, Inc. and/or its related affi liates.
GEMSTAR-TV GUIDE INTERNATIONAL, INC. AND/OR ITS RELATED AFFILIATES ARE NOT IN ANY WAY
LIABLE FOR THE ACCURACY OF THE PROGRAM SCHEDULE INFORMATION PROVIDED BY THE GUIDE
PLUS+ SYSTEM. IN NO EVENT SHALL GEMSTAR-TV GUIDE INTERNATIONAL, INC. AND/OR ITS RELATED
AFFILIATES BE LIABLE FOR ANY AMOUNTS REPRESENTING LOSS OF PROFITS, LOSS OF BUSINESS, OR
INDIRECT, SPECIAL, OR CONSEQUENTIAL DAMAGES IN CONNECTION WITH THE PROVISION OR USE
OF ANY INFORMATION, EQUIPMENT, OR SERVICES RELATING TO THE GUIDE PLUS+ SYSTEM.
http://www.europe.guideplus.com/
Trade Mark of the DVB Digital Video Broadcasting Project (1991 to 1996)
TH-42PZ8BA Declaration of Conformity No. 5774, 23 June 2008
TH-46PZ8BA Declaration of Conformity No. 5773, 23 June 2008
Glossary
■
DVB
Digital Video Broadcasting
■
DVD
Digital Versatile Disc
■
DVI
Digital Visual Interface
■
EPG
Electronic Programme Guide
■
HDMI
High-Defi nition Multimedia Interface
■
NTSC
National Television System Committee
One of the television signals used in USA, etc.
■
RF
Radio Frequency - Signal received from terrestrial
aerial
■
RGB / S-Video / Video
Choose between these three video formats
depending on personal preference and equipment
requirement
(RGB - Red, Green and Blue)
■
SCART
21 pin connection used for video, audio and
switching signals (Also known as Euro SCART and
Peritel)
■
VCR
Video Cassette Recorder
•
•
On screen messages
Licence
•
Glossary
FAQs, etc.
57
Page 58
Index
Accessories ·····································································6
A
Add New DVB Services
Analogue Manual Tuning ··············································· 35
Aspect ·····································································16, 50
Audio Description ····················································15, 26
Auto Setup ·······························································12, 35
AV1 / AV2 out ··························································· 27, 43
Banner Display Timeout ················································ 27
B
Category list ·································································· 20
C
Child Lock ······································································33
CI module ······································································31
Clamper ···········································································8
COMPONENT ························································· 48, 52
Connection ························································10, 42, 48
Direct TV Recording ················································ 43, 45
D
Download to equipment ··········································· 12, 27
DVB Manual Tuning ······················································35
DVB Profile Edit ····························································· 32
DVB Settings ·································································30
DVB Signal Condition ····················································35
DVI ················································································50
DVDs ······································································· 10, 22
EPG ··············································································· 20
E
External equipment ···········································10, 22, 48
External input ································································ 22
Event recording ····························································· 21
FAQs ······································································· 53, 54
F
Free input menu ····························································25
GUIDE Plus+ Settings ··················································· 27
G
HDMI ········································································50-52
H
Hold ········································································· 14, 19
Home Cinema ·························································42, 47
Information banner ························································15
I
Input Labels ···································································38
Input signal ···································································· 52
·················································· 35
New Service Message ··················································· 35
N
NICAM ···········································································26
NTSC ·······································································28, 59
Off Timer ·································································· 16, 27
O
Optional accessories ······················································· 6
Owner ID ·································································12, 37
PAL ················································································ 59
P
Pedestal ··········································································7
Picture Overscan ··························································· 27
PIN number ·······················································12, 33, 37
P-NR ··············································································26
Power LED ································································8, 12
Q-Link ································································27, 42, 43
Q
Quick Start Guide ·······················································6-13
Remote control ···························································· 6, 9
R
Reset to Default ····························································· 26
RGB ···············································································59
Sales and Support Information ······································60
S
Satellite receiver ················································ 11, 22, 48
SCART ······························································10, 42, 51
Shipping Condition ························································ 36
Specifications ································································ 59
Split Programme ····························································21
Subtitles ···································································14, 19
Surround ········································································26
S-Video ····································································48, 51
System Update ························································31, 51
Teletext ·····································································17-19
T
Timer LED ···························································8, 21, 41
Timer Programming ·······················································40
Tuning Menu ·································································· 34
TV Guide ······································································· 20
TV speaker ····································································47
Type list ·········································································20
Update the software
U
User input ······································································39
·················································31, 51
58
Licence ··········································································57
L
Mains Lead ····································································10
M
Mains power On / Off switch ·····································8, 12
Maintenance ····································································5
Menu Functions ························································24-29
Mode ·············································································26
Multi Audio
········································································· 15
Video ······································································· 22, 48
V
VIERA Link ·························································42, 44-47
Viewing Mode ································································ 26
Volume Correction ························································· 26
WSS ·············································································· 50
W
Zoom ············································································· 16
Z
Page 59
Specifi cations
TH-42PZ8BA TH-46PZ8BA
Power Source
Power
Consumption
Average use
AC 220-240 V, 50 / 60 Hz
385 W 470 W
Standby condition
Display
panel
Aspect Ratio
Visible screen size
Number of pixels
Sound
Speaker
Audio Output
Headphones
Receiving Systems /
Band name
Aerial - Rear
Operating Conditions
Connection Terminals
AV1 (Scart terminal)
AV2 (Scart terminal)
VIDEO
AV3
COMPONENT
HDMI1 / 2
Output
Dimensions ( W × H × D )
Mass
Note
Design and Specifi cations are subject to change without notice. Mass and Dimensions shown are approximate.
•
This equipment complies with the EMC standards listed below.
•
EN55013, EN61000-3-2, EN61000-3-3, EN55020.
Pedestal: ST-42R4-WG / ST-50R4-WG (For safety approval)
•
S-VIDEO
AUDIO L - R
VIDEO
AUDIO L - R
AUDIO L - R
0.4 W (Without monitor out recording)
20 W (With monitor out recording)
16:9
106 cm (diagonal)
922 mm (W) × 518 mm (H)
2,073,600 (1,920 (W) × 1,080 (H)) [5,760 × 1,080 dots]
160 mm × 42 mm × 2 pcs, 8
20 W (10 W + 10 W), 10% THD
M3 (3.5 mm) stereo mini Jack × 1
PAL I : UHF E21-68
PAL 525/60
DVB : Digital terrestrial services via UHF aerial input.
M.NTSC : Playback from M.NTSC Video recorders (VCR).
NTSC (AV input only) : Playback from NTSC Video recorders (VCR).
UHF
Temperature : 0 °C - 35 °C
Humidity : 20 % - 80 % RH (non-condensing)
21 Pin terminal (Audio/Video in, Audio/Video out, RGB in, Q-Link)
21 Pin terminal (Audio/Video in, Audio/Video out, RGB in, S-Video in, Q-Link)
RCA PIN Type × 1 1.0 V[p-p] (75 Ω)
Mini DIN 4-pin Y:1.0 V[p-p] (75 Ω) C:0.286 V[p-p] (75 Ω)
RCA PIN Type × 2 0.5 V[rms]
Y 1.0 V[p-p] (including synchronization)
P
RCA PIN Type × 2 0.5 V[rms]
TYPE A Connectors
RCA PIN Type × 2 0.5 V[rms] (high impedance)
1,048 mm × 727 mm × 327 mm (With Pedestal)
1,048 mm × 679 mm × 95 mm (TV only)
32.0 k
30.0 k Net (TV only)
: Playback of NTSC tape from some PAL Video recorders (VCR) or NTSC disc
playback from DVD player and recorder.
B, PR ±0.35 V[p-p]
Net (With Pedestal)
Ω
This TV supports “HDAVI Control 3” function.
•
117 cm (diagonal)
1,019 mm (W) × 573 mm (H)
1,158 mm × 800 mm × 387 mm (With Pedestal)
1,158 mm × 747 mm × 95 mm (TV only)
37.0 k Net (With Pedestal)
35.0 k Net (TV only)
•
Specifi cations
•
Index
FAQs, etc.
59
Page 60
Information for Users on Collection and Disposal of Old Equipment and used Batteries
These symbols on the products, packaging, and/or accompanying documents mean that used
electrical and electronic products and batteries should not be mixed with general household waste.
For proper treatment, recovery and recycling of old products and used batteries, please take them to
applicable collection points, in accordance with your national legislation and the Directives
2002/96/EC and 2006/66/EC.
By disposing of these products and batteries correctly, you will help to save valuable resources and
prevent any potential negative effects on human health and the environment which could otherwise
arise from inappropriate waste handling.
For more information about collection and recycling of old products and batteries, please contact your
local municipality, your waste disposal service or the point of sale where you purchased the items.
Penalties may be applicable for incorrect disposal of this waste, in accordance with national
legislation.
For business users in the European Union
If you wish to discard electrical and electronic equipment, please contact your dealer or supplier for
further information.
[Information on Disposal in other Countries outside the European Union]
These symbols are only valid in the European Union. If you wish to discard these items, please
contact your local authorities or dealer and ask for the correct method of disposal.
Note for the battery symbol (bottom two symbol examples):
This symbol might be used in combination with a chemical symbol. In this case it complies with the
requirement set by the Directive for the chemical involved.
Sales and Support Information
Customer Care Centre
• For customers within the UK: 0844 844 3852
• For customers within the Republic of Ireland: 01 289 8333
• Visit our website for product information www.panasonic.co.uk
• E-mail: [email protected]
Direct Sales at Panasonic UK
• For customers: 0844 844 3856
• Order accessory and consumable items for your product with ease and confi dence by phoning our Customer Care Centre
Monday ─ Thursday 9:00am ─ 5:30pm, Friday 9:30am ─ 5:30pm (Excluding public holidays).
• Or go on line through our Internet Accessory ordering application at www.panasonic.co.uk.
• Most major credit and debit cards accepted.
• All enquiries transactions and distribution facilities are provided directly by Panasonic UK Ltd.
• It couldn’t be simpler!
• Also available through our Internet is direct shopping for a wide range of fi nished products, take a browse on our website for
further details.
Interested in purchasing an extended guarantee?
Please call 0870 240 6284 or visit www.panasonic.co.uk/guarantee.
Customer’s Record
The model number and serial number of this product may be found on its rear panel. You should note this serial
number in the space provided below and retain this book, plus your purchase receipt, as a permanent record of your
purchase to aid in identifi cation in the event of theft or loss, and for Warranty Service purposes.
Model Number Serial Number
Panasonic (U. K.) Ltd.
Willoughby Road, Bracknell, Berks RG12 8FP Web Site : http://www.panasonic-europe.com
© Panasonic Corporation 2008
Printed in Czech Republic
Loading...
