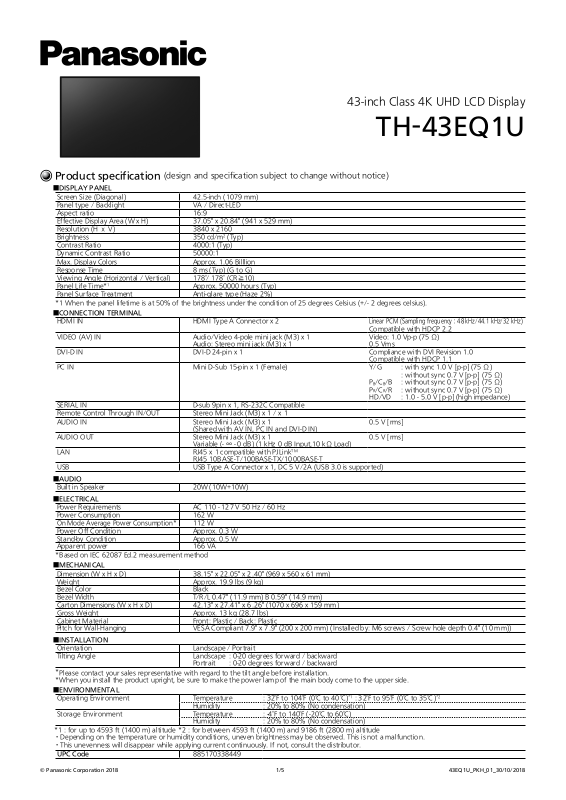

Page 1
43-inch Class 4K UHD LCD Display
TH-43EQ1U
Product specification
■DISPLAY PANEL
Screen Size (Diagonal) 42.5-inch (1079 mm)
Panel type / Backlight VA / Direct-LED
Aspect ratio 16:9
Effective Display Area (W x H) 37.05" x 20.84" (941 x 529 mm)
Resolution (H ｘ V) 3840 x 2160
Brightness 350 cd/m
Contrast Ratio 4000:1 (Typ)
Dynamic Contrast Ratio 50000:1
Max. Display Colors Approx. 1.06 Billlion
Response Time 8 ms (Typ) (G to G)
Viewing Angle (Horizontal / Vertical) 178°/ 178° (CR≧10)
Panel Life Time
Panel Surface Treatment Anti-glare type (Haze 2%)
*1 When the panel lifetime is at 50% of the brightness under the condition of 25 degrees Celsius (+/- 2 degrees celsius).
■CONNECTION TERMINAL
HDMI IN HDMI Type A Connector x 2
VIDEO (AV) IN Audio/Video 4-pole mini jack (M3) x 1
DVI-D IN DVI-D 24-pin x 1 Compliance with DVI Revision 1.0
PC IN Mini D-Sub 15-pin x 1 (Female) Y/G
SERIAL IN D-sub 9pin x 1, RS-232C Compatible
Remote Control Through IN/OUT Stereo Mini Jack (M3) x 1 / x 1
AUDIO IN Stereo Mini Jack (M3) x 1
AUDIO OUT Stereo Mini Jack (M3) x 1
LAN RJ45 x 1 compatible with PJLink
USB USB Type A Connector x 1, DC 5 V/2A (USB 3.0 is supported)
■AUDIO
Built in Speaker 20W (10W+10W)
■ELECTRICAL
Power Requirements AC 110 - 127 V 50 Hz / 60 Hz
Power Consumption 162 W
On Mode Average Power Consumption*112 W
Power Off Condition Approx. 0.3 W
Stand-by Condition Approx. 0.5 W
Apparent power 166 VA
*Based on IEC 62087 Ed.2 measurement method
■MECHANICAL
Dimension (W x H x D) 38.15" x 22.05" x 2.40" (969 x 560 x 61 mm)
Weight Approx. 19.9 lbs (9 kg)
Bezel Color Black
Bezel Width T/R/L 0.47" (11.9 mm) B 0.59" (14.9 mm)
Carton Dimensions (W x H x D) 42.13" x 27.41" x 6.26" (1070 x 696 x 159 mm)
Gross Weight Approx. 13 kg (28.7 lbs)
Cabinet Material Front: Plastic / Back: Plastic
Pitch for Wall-Hanging VESA Compliant 7.9" x 7.9" (200 x 200 mm) (Installed by: M6 screws / Screw hole depth 0.4" (10 mm))
■INSTALLATION
Orientation Landscape / Portrait
Tilting Angle Landscape : 0-20 degrees forward / backward
*
Please contact your sales representative with regard to the tilt angle before installation.
*When you install the product upright, be sure to make the power lamp of the main body come to the upper side.
■ENVIRONMENTAL
Operating Environment Temperature : 32°F to 104°F (0℃ to 40℃)
Storage Environment Temperature : -4°F to 140°F (-20℃ to 60℃)
*1 : for up to 4593 ft (1400 m) altitude *2 : for between 4593 ft (1400 m) and 9186 ft (2800 m) altitude
・Depending on the temperature or humidity conditions, uneven brightness may be observed. This is not a malfunction.
・This unevenness will disappear while applying current continuously. If not, consult the distributor.
UPC Code 885170338449
© Panasonic Corporation 2018 1/5 43EQ1U_PKH_01_30/10/2018
1
*
(design and specification subject to change without notice)
2
(Typ)
Approx. 50000 hours (Typ)
Linear PCM (Sampling frequency：48 kHz/44.1 kHz/32 kHz)
Compatible with HDCP 2.2
Audio: Stereo mini jack (M3) x 1
(Shared with AV IN, PC IN and DVI-D IN)
Variable (- ∞ - 0 dB) (1 kHz 0 dB Input,10 kΩ Load)
RJ45 10BASE-T/100BASE-TX/1000BASE-T
Portrait : 0-20 degrees forward / backward
Humidity : 20% to 80% (No condensation)
Humidity : 20% to 80% (No condensation)
TM
Video: 1.0 Vp-p (75 Ω)
0.5 Vms
Compatible with HDCP 1.1
P
B/CB
P
R/CR
HD/VD
0.5 V [rms]
0.5 V [rms]
1
*
: 32°F to 95°F (0℃ to 35℃)
: with sync 1.0 V [p-p] (75 Ω)
: without sync 0.7 V [p-p] (75 Ω)
/B
: without sync 0.7 V [p-p] (75 Ω)
/R
: without sync 0.7 V [p-p] (75 Ω)
: 1.0 - 5.0 V [p-p] (high impedance)
2
*
Page 2
43-inch Class
4K UHD
LCD Display
TH-43EQ1U
MAIN FEATURE
USB Media Player Yes
Failover/Failback Yes
Data Cloning Yes
Digital Zoom Yes
Multi display settings
Power ON Screen Delay Yes
1:1 Pixel mode Yes
Screen Saver Yes
Power Management HDMI/PC/DVI-D
Power save Yes
Button Lock Yes
Controller user level Yes
Input search / Input detection
6-segment color management
Picture mode Yes
Dynamic contrast Yes
Color enhancement Yes
Refine enhancer Yes
Gradation smoother Yes
Dynamic backlight control
Set up timer Yes
AMX D.D. Yes
Crestron Connected
WEB Browser control Yes
PJLink Yes
Image settings
HDMI CEC Compatible
Memory Viewer
Playlist Editing Function
Operating Time
*1 In case of running for a long time, the moving image is recommended
to be displayed. If you display a still picture for an extended period,
the image retention might remain on the screen. However, image
retention can gradually disappear by displaying movie images.
TM
1
*
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
18 / day
STANDARD (CERTIFICATIONS)
SAFETY REGULATIONS UL60950-1, 2nd Edition,2014-10-14
RADIATION REGULATIONS
CSA C22.2 No. 60950-1-07, 2nd Edition,
2014-10
Mexico: NOM-019-SCFI-1998
FCC 47 CFR, Part 15, Subpart B Class A
ANSI C63.4-2014
ICES-003
REMOTE CONTROL TRANSMITTER
Power Requirements DC 3 V (2 x AAA Size batteries)
Operating distance Approx. 23 ft (7 m)
Weight Approx. 2.2 oz (63 g) including batteries
Dimemsions (W x H x D) 1.9" x 5.3" x 0.8" (48 x 134 x 20 mm)
*When operated directly in front of receptor.
*
INCLUDED ACCESSORIES
- Remote Control - Batteries (AAA size) x 2
- AC cord (approx. 70.9" (1.8 m)) - 4-pole mini plug conversion cable
- Clamper x 3 - USB Memory cover x 1
- CD-ROM / User Manual - Operating Instruction Book
COMPATIBLE SOFTWARE
Multi Monitoring & Control Software Ver.2.1 or later
CMS Content Management Software Ver 3.0 or later
Video Wall Manager
Ver 1.9 or later
OPTIONAL ACCESSORIES
Pedestal TY - ST43PE8
Early Warning Software
Basic license / 3-year license
* Multi-Monitoring Control Software Ver 2.1 or later is required.
ET-SWA100 / 105series
*
(Depending on the license type, the symbol
at the end of the part number is different.)

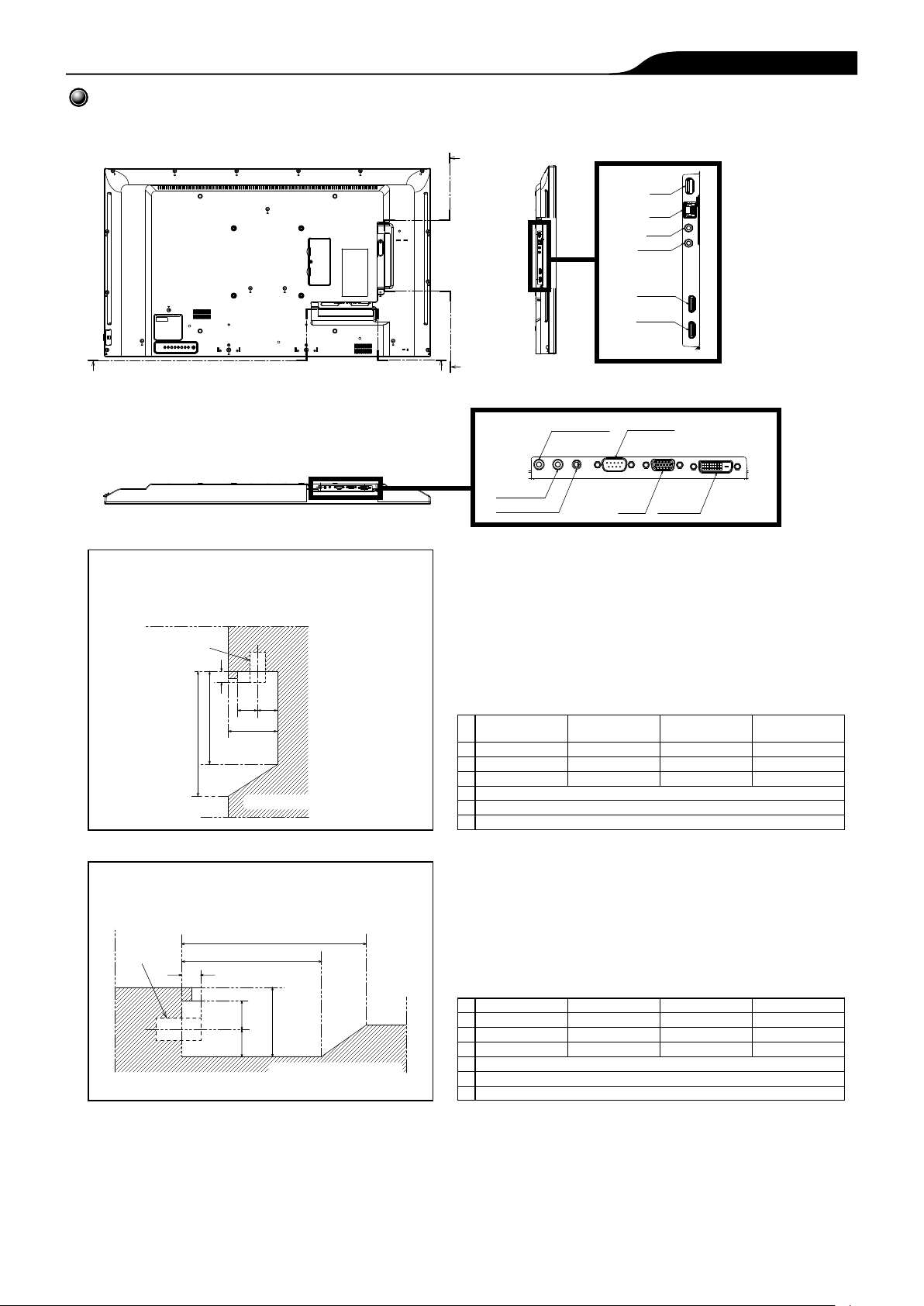

DIMENSIONS (TENTATIVE)
38.2(969)
0.5(11.9)
0.5(11.9)
Active Area 37(941)
22.1(560)
Active Area
0.6(14.9)
CONNECTION TERMINAL
20.8(529)
1.8(45)
0.5(11.9)
0.2(3)
0.7(17)
2.3(57)
2.4(61)
0.7(16)
2(50)
6.2(155)
7.9(200)
7.9(200)
6(154)
7.7(195) 11.2(283)
12.4(313)
Cautions: This drawing is not a scale
Units : inches (mm)
M6 Screw hole depth 0.4(10)
10.1(256)
* Specifications and appearance are subject to change without notice.
© Panasonic Corporation 2018 2/5 43EQ1U_PKH_01_30/10/2018
Page 3
43-inch Class
4K UHD
LCD Display
TH-43EQ1U
List of correspondence signals
The picture signal which can indicate this machine is as it is the following table.
● Specific HDMI signals inside the plug and play compatible signal table are as it follows.
1 : 4K/60p, 2 : 4K/30p, 3 : 2K
Correspondence
signal
NTSC/NTSC4.43/
PAL‑M/PAL60
PAL/PAL‑N/SECAM 720 x 576i 15.63 50.00 ‑ V
480/60i 720 x 480i 15.73 59.94 13.50 Y
576/50i 720 x 576i 15.63 50.00 13.50 Y
480/60i 720 (1440) x 480i
576/50i 720 (1440) x 576i
480/60p 720 x 483 31.47 59.94 27.00 Y/D/H
576/50p 720 x 576 31.25 50.00 27.00 Y/D/H
720/60p 1280 x 720 45.00 60.00 74.25 Y/D/H
720/50p 1280 x 720 37.50 50.00 74.25 Y/D/H
1080/60i 1920 x 1080i 33.75 60.00 74.25 Y/D/H
1080/50i 1920 x 1080i 28.13 50.00 74.25 Y/D/H
1080/24p 1920 x 1080 27.00 24.00 74.25 Y/D/H
1080/24PsF 1920 x 1080i 27.00 48.00 74.25 Y/D/H
1080/25p 1920 x 1080 28.13 25.00 74.25 Y/D/H
1080/30p 1920 x 1080 33.75 30.00 74.25 Y/D/H
1080/60p 1920 x 1080 67.50 60.00 148.50 Y/D/H
1080/50p 1920 x 1080 56.25 50.00 148.50 Y/D/H
2K/24p 2048 x 1080 27.00 24.00 74.25 D/H
2K/25p 2048 x 1080 28.13 25.00 74.25 D/H
2K/30p 2048 x 1080 33.75 30.00 74.25 D/H
2K/48p 2048 x 1080 54.00 48.00 148.50 D/H
2K/60p 2048 x 1080 67.50 60.00 148.50 D/H
2K/50p 2048 x 1080 56.25 50.00 148.50 D/H
3840 x 2160/24p 3840 x 2160 54.00 24.00 297.00 H
3840 x 2160/25p 3840 x 2160 56.25 25.00 297.00 H
3840 x 2160/30p 3840 x 2160 67.50 30.00 297.00 H
3840 x 2160/60p 3840 x 2160 135.00 60.00 594.00 H
3840 x 2160/50p 3840 x 2160 112.50 50.00 594.00 H
4096 x 2160/24p 4096 x 2160 54.00 24.00 297.00 H
4096 x 2160/25p 4096 x 2160 56.25 25.00 297.00 H
4096 x 2160/30p 4096 x 2160 67.50 30.00 297.00 H
4096 x 2160/60p 4096 x 2160 135.00 60.00 594.00 H
4096 x 2160/50p 4096 x 2160 112.50 50.00 594.00 H
640 x 400/70 640 x 400 31.47 70.09 25.18 R/D/H ‑ ‑ ‑ ‑
640 x 400/85 640 x 400 37.86 85.08 31.50 R/D/H ‑ ‑ ‑ ‑
640 x 480/60 640 x 480 31.47 59.94 25.18 R/D/H
640 x 480/67 640 x 480 35.00 66.67
640 x 480/73 640 x 480 37.86 72.81 31.50 R/D/H ‑ ‑ ‑ ‑
640 x 480/75 640 x 480 37.50 75.00 31.50 R/D/H ‑ ‑ ‑ ‑
640 x 480/85 640 x 480 43.27 85.01 36.00 R/D/H ‑ ‑ ‑ ‑
800 x 600/56 800 x 600 35.16 56.25 36.00 R/D/H ‑ ‑ ‑ ‑
800 x 600/60 800 x 600 37.88 60.32 40.00 R/D/H
800 x 600/72 800 x 600 48.08 72.19 50.00 R/D/H ‑ ‑ ‑ ‑
800 x 600/75 800 x 600 46.88 75.00 49.50 R/D/H ‑ ‑ ‑ ‑
800 x 600/85 800 x 600 53.67 85.06 56.25 R/D/H ‑ ‑ ‑ ‑
832 x 624/75 832 x 624 49.72 74.55 57.28 R/D/H ‑ ‑ ‑ ‑
852 x 480/60 852 x 480 31.47 59.94 34.24 D/H ‑ ‑ ‑ ‑
1024 x 768/50 1024 x 768 39.55 50.00 51.89 D/H ‑ ‑ ‑ ‑
1024 x 768/60 1024 x 768 48.36 60.00 65.00 R/D/H
1024 x 768/70 1024 x 768 56.48 70.07 75.00 R/D/H ‑ ‑ ‑ ‑
1024 x 768/75 1024 x 768 60.02 75.03 78.75 R/D/H ‑ ‑ ‑ ‑
1024 x 768/82 1024 x 768 65.55 81.63 86.00 R/D/H ‑ ‑ ‑ ‑
1024 x 768/85 1024 x 768 68.68 85.00 94.50 R/D/H ‑ ‑ ‑ ‑
1066 x 600/60 1066 x 600 37.64 59.94 53.00 D/H ‑ ‑ ‑ ‑
1152 x 864/60 1152 x 864 53.70 60.00 81.62 D/H ‑ ‑ ‑
1152 x 864/70 1152 x 864 63.99 70.02 94.20 R/D/H ‑ ‑ ‑ ‑
1152 x 864/75 1152 x 864 67.50 75.00 108.00 R/D/H ‑ ‑ ‑ ‑
1152 x 864/85 1152 x 864 77.09 85.00 119.65 R/D/H ‑ ‑ ‑ ‑
1152 x 870/75 1152 x 870 68.68 75.06 100.00 R/D/H ‑ ‑ ‑ ‑
1280 x 720/60 1280 x 720 44.76 60.00 74.48 R/D/H ‑ ‑ ‑
1280 x 768/50 1280 x 768 39.55 49.94 65.18 R/D/H ‑ ‑ ‑ ‑
1280 x 768/60 1280 x 768 47.70 60.00 80.14 R/D/H ‑ ‑ ‑ ‑
1280 x 768/60 1280 x 768 47.78 59.87 79.50 R/D/H ‑ ‑ ‑ ‑
1280 x 800/50 1280 x 800 41.20 50.00 68.56 R/D/H ‑ ‑ ‑ ‑
1280 x 800/60 1280 x 800 49.31 59.91 71.00 R/D/H ‑ ‑ ‑ ‑
1280 x 800/60 1280 x 800 49.70 59.81 83.50 R/D/H ‑ ‑ ‑
1280 x 960/60 1280 x 960 60.00 60.00 108.00 R/D/H ‑ ‑ ‑ ‑
1280 x 960/85 1280 x 960 85.94 85.00 148.50 R ‑ ‑ ‑ ‑
1280 x 1024/60 1280 x 1024 63.98 60.02 108.00 R/D/H
1280 x 1024/75 1280 x 1024 79.98 75.02 135.00 R/D/H ‑ ‑ ‑ ‑
1280 x 1024/85 1280 x 1024 91.15 85.02 157.50 R/D/H ‑ ‑ ‑ ‑
1360 x 768/60 1360 x 768 47.71 60.02 85.50 D/H ‑ ‑ ‑ ‑
1360 x 768/60 1360 x 768 47.70 60.00 84.72 D/H ‑ ‑ ‑ ‑
1360 x 768/60 1360 x 768 47.72 59.80 84.75 D/H ‑ ‑ ‑ ‑
Resolution
(dot)
720 x 480i 15.73 59.94 ‑ V
*1
*1
Scan rate
Horizontal
(kHz)
15.73 59.94 27.00 D/H
15.63 50.00 27.00 D/H
Vertical
(Hz)
Dot clock rate
(MHz)
30.24 R/D/H ‑ ‑ ‑ ‑
Format
*2
Plug and play compatible signal
HDMI
1 2 3
‑ ‑ ‑ ‑
‑ ‑ ‑ ‑
‑ ‑ ‑ ‑
‑ ‑ ‑ ‑
✓ ✓ ✓
✓ ✓ ✓
✓ ✓ ✓
✓ ✓ ✓
✓ ✓ ✓
✓ ✓ ✓
✓ ✓ ✓
✓ ✓ ✓
✓ ✓ ✓
‑ ‑ ‑ ‑
✓ ✓ ✓
✓ ✓ ✓
✓ ✓ ✓
✓ ✓ ✓
‑ ‑ ‑ ‑
‑ ‑ ‑ ‑
‑ ‑ ‑ ‑
‑ ‑ ‑ ‑
‑ ‑ ‑ ‑
‑ ‑ ‑ ‑
✓ ✓
✓ ✓
✓ ✓
✓
✓
✓ ✓
✓ ✓
✓ ✓
✓
✓
✓ ✓ ✓ ✓
✓ ✓ ✓ ✓
✓ ✓ ✓ ✓
✓ ✓ ✓ ✓
‑ ‑ ‑
‑ ‑ ‑
‑ ‑ ‑
‑ ‑ ‑
‑ ‑
‑ ‑
‑ ‑
‑ ‑
‑ ‑
‑ ‑
*4
DVI-D/PC
‑
‑
‑
‑
‑
‑
‑
‑
‑
‑
‑
‑
‑
✓
✓
✓
© Panasonic Corporation 2018 3/5 43EQ1U_PKH_01_30/10/2018
Page 4
43-inch Class
Correspondence
signal
1366 x 768/50 1366 x 768 39.55 50.00 69.92 D/H ‑ ‑ ‑ ‑
1366 x 768/60 1366 x 768 48.39 60.03 86.71 R/D/H ‑ ‑ ‑ ‑
1366 x 768/60 1366 x 768 48.00 60.00 72.00 R/D/H ‑ ‑ ‑ ‑
1366 x 768/50 1366 x 768 39.56 49.89 69.00 R/D/H ‑ ‑ ‑ ‑
1366 x 768/60 1366 x 768 47.71 59.79 85.50 R/D/H ‑ ‑ ‑ ‑
1400 x 1050/60 1400 x 1050 65.22 60.00 122.61 D/H ‑ ‑ ‑ ‑
1400 x 1050/75 1400 x 1050 82.20 75.00 155.85 R/D/H ‑ ‑ ‑ ‑
1440 x 900/60 1440 x 900 55.47 59.90 88.75 R/D/H ‑ ‑ ‑ ‑
1440 x 900/60 1440 x 900 55.92 60.00 106.47 R/D/H ‑ ‑ ‑ ‑
1600 x 900/50 1600 x 900 46.30 50.00 97.05 D/H ‑ ‑ ‑ ‑
1600 x 900/60 1600 x 900 60.00 60.00 108.00 D/H ‑ ‑ ‑ ‑
1600 x 900/60 1600 x 900 55.99 59.95 118.25 D/H ‑ ‑ ‑ ‑
1600 x 900/60 1600 x 900 55.92 60.00 119.00 D/H ‑ ‑ ‑
1600 x 1200/60 1600 x 1200 75.00 60.00 162.00 R/D/H ‑ ‑ ‑ ‑
1680 x 1050/60 1680 x 1050 65.29 59.95 146.25 R/D/H ‑ ‑ ‑ ‑
1920 x 1080/60 1920 x 1080
1920 x 1080/60 1920 x 1080 67.50 60.00 148.50 R/D/H
1920 x 1200/60 1920 x 1200 74.04 59.95 154.00 R/D/H
1920 x 2160/60 1920 x 2160 133.29 59.99 277.25 H ‑ ‑ ‑ ‑
1920 x 2160/60 1920 x 2160 135.00 60.00 297.00 H ‑ ‑ ‑ ‑
2560 x 1440/60 2560 x 1440 88.79 59.95 241.50 H ‑
2560 x 1600/50 2560 x 1600 82.37 49.95 286.00 H ‑ ‑ ‑ ‑
2560 x 1600/60 2560 x 1600 98.71 59.97 268.50 H ‑ ‑ ‑ ‑
3840 x 1080/60 3840 x 1080 66.63 59.97 266.50 H ‑ ‑ ‑ ‑
*1：Pixel-Repetition signal (dot clock frequency 27.0 MHz) only
*2：Alphabets inside the Format column represent as it follows.
V：CVS（AV IN）
R：D-sub RGB（PC IN）
Y：YCBCR/YPBPR（PC IN）
D：DVI-D（DVI-D IN）
H：HDMI（HDMI 1、HDMI 2）
*3：Based on VESA CVT-RB (Reduced Blanking) standard
*4： Signals with ● in the plug and play compatible signal column is the signal described in the EDID (extended display identification data) of the display. For the signals
without ● in the plug and play compatible signal column, the resolution may not be selected on the computer even if the display is supporting it.
Note
● The signal format distinguished automatically will be sometimes indication different from an actual input signal.
● When 1080/30PsF signal and 1080/25PsF signal are input, they are processed as 1080/60i signal and 1080/50i signal, and then displayed.
4K UHD
Resolution
LCD Display
(dot)
*3
Scan rate
Horizontal
(kHz)
66.59 59.93 138.50 R/D/H ‑ ‑ ‑ ‑
Vertical
(Hz)
Dot clock rate
(MHz)
Format
*2
Plug and play compatible signal
1 2 3
✓ ✓ ✓ ✓
✓ ✓ ✓ ✓
TH-43EQ1U
HDMI
✓
*4
DVI-D/PC
✓
‑ ‑
© Panasonic Corporation 2018 4/5 43EQ1U_PKH_01_30/10/2018
Page 5
43-inch Class
View from back
(on the product side)
(on the product side)
4K UHD
Drawing of terminals
LCD Display
TH-43EQ1U
Magnified figure
B
of terminal b
USB
LAN
IR IN
IR OUT
HDMI 1
HDMI 2
SECTION A-A
Sectional view of terminal a
（
AUDIO OUT / AUDIO IN / VIDEO AV IN / SERIAL IN /
PC IN / DVI-D IN
Terminals
）
C
A
B
E
F
D
B
AA
SECTION B-B
Magnified figure of terminal a
AUDIO OUT
AUDIO IN
VIDEO AV IN
SERIAL IN
PC IN DVI-D IN
Terminal a
43EQ1U Terminal (Bottom)
AUDIO IN/OUT
VIDEO AV IN
A 0.42 (10.6) 0.41 (10.4) 0.41 (10.3) 0.36 (9)
B 0.2 (5.5) 0.23 (5.7) 0.23 (5.8) 0.28 (7.1)
C
0.06 (1.7) 0.2 (5.3) 0.2 (5.3) 0.22 (5.6)
D 0.77 (19.7)
E 2.27 (57.9)
F 2.73 (69.5)
SERIAL IN PC IN DVI-D IN
Units : inches (mm)
Sectional view of terminal b
（USB / LAN / IR IN / IR OUT / HDMI 1 / HDMI 2）
*Due to the construction of terminal, some types of connecting cable or USB memory device cannot be used.
Be sure to use connecting cable or USB memory device after confirmation in this drawing.
© Panasonic Corporation 2018 5/5 43EQ1U_PKH_01_30/10/2018
Terminals
C
F
E
Terminal b
43EQ1U Terminal (Side)
B
D
A
A 0.39 (9.8) 0.3 (7.6) 0.35 (8.8) 0.26 (6.6)
B 0.22 (5.5) 0.3 (7.7) 0.26 (6.5) 0.34 (8.7)
C - D 0.78 (19.9)
E 1.6 (40.7)
F 1.79 (45.5)
USB LAN IR IN/OUT HDMI
0.06 (1.7)
Units : inches (mm)
-
Loading...
