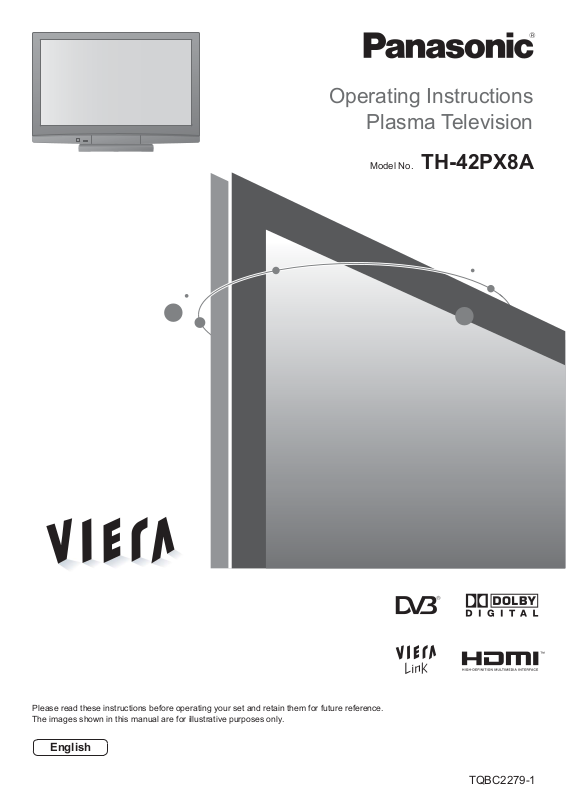

Operating Instructions
Plasma Television
Model No.
TH-42PX8A
Please read these instructions before operating your set and retain them for future reference.
The images shown in this manual are for illustrative purposes only.
English
TQBC2279-1
Page 2
Turn your own living room into a movie theatre!
Experience an amazing level of multi-
■ Receives digital terrestrial broadcastings using an integrated DVB (Digital Video
Broadcasting) tuner
■ Sharp pictures with HDMI connection
■ Links up and controls the connected equipment with “VIERA Link”
2
Page 3
media excitement
Enjoy rich multi-media
Camcorder
Personal
computer
Amplifi er with
Speaker system
VCR
DVD Recorder
Set top box
DVD player
Contents
Be Sure to Read
Safety Precautions ······································ 4
•
(Warning / Caution)
Notes ··························································· 5
•
Maintenance ··············································· 5
•
Quick Start Guide
Accessories / Options ········· 6
•
Basic Connection ·················· 8
•
Identifying Controls ············ 11
•
Auto Tuning ··························· 12
•
Enjoy your TV!
Basic Features
Watching TV ·············································· 14
•
Using TV Guide ········································· 17
•
Viewing Teletext ········································ 18
•
Watching Videos and DVDs ······················ 20
•
Quick Start Guide
Viewing Advanced FAQs, etc.
Advanced Features
How to Use Menu Functions ····················· 22
•
(picture, sound quality, etc.)
DVB Settings (DVB) ·································· 26
•
Editing Programmes ································· 28
•
Tuning Programmes ··································30
•
Restore Settings ······································ 32
•
Input Labels ·············································· 33
•
Displaying PC Screen on TV ·····················34
•
HDMI Functions ········································35
•
VIERA Link “HDAVI ControlTM” ··················· 36
•
External Equipment ··································· 40
•
FAQs, etc.
Technical Information ································42
•
FAQs ·························································45
•
Licence ······················································ 47
•
Specifi cations ············································ 48
•
WARRANTY ·············································· 49
•
3
Page 4
Safety Precautions
Warning
Handling the mains plug and lead
Insert the mains plug fully into the socket outlet. (If the mains plug is loose, it could generate heat and cause fi re.)
•
Ensure that the mains plug is easily accessible.
•
Ensure the earth pin on the mains plug is securely connected to prevent electrical shock.
•
Do not touch the mains plug with a wet hand. (This may cause electrical shock.)
•
Do not use any mains lead other than that provided with this TV. (This may cause fi re or electrical shock.)
•
Do not damage the mains lead. (A damaged lead may cause fi re or electrical shock.)
•
Do not move the TV with the lead plugged in the socket outlet.
•
Do not place a heavy object on the lead or place the lead near a high-temperature object.
•
Do not twist the lead, bend it excessively, or stretch it.
•
Do not pull on the lead. Hold onto the mains plug body when disconnecting lead.
•
Do not use a damaged mains plug or socket outlet.
•
If you fi nd any
abnormality,
remove the mains plug
immediately!
AC 220-240 V
50 / 60 Hz
Power source
This TV is designed to operate on 220-240 V,
•
50 / 60 Hz AC.
Do not remove covers
NEVER modify the TV yourself
(High-voltage components may cause serious electrical shock.)
Have the TV checked, adjusted, or repaired at your
•
local Panasonic dealer.
Keep liquids away from the TV
To prevent damage which may result in fi re or shock hazard,
•
do not expose this appliance to dripping or splashing.
Do not place containers with water (fl ower vase, cups,
•
cosmetics, etc.) above the TV. (including on shelves
above, etc.)
Do not expose to direct sunlight
and other sources of heat
Avoid exposing the TV to direct sunlight and other
•
sources of heat. To prevent fi re never place any type of
candle or naked fl ame on top or near the TV.
Do not place foreign objects
inside the TV
Do not allow any objects to drop into the TV through
•
the air vents (fi re or electrical shock may result).
Do not place the TV on sloped or
unstable surfaces
The TV may fall off or tip over.
•
Use only the dedicated pedestals
/ mounting equipment
Using an unapproved pedestal or other fi xtures may
•
make the TV unstable, risking injury. Be sure to ask
your local Panasonic dealer to perform setup.
Use approved pedestals / mounts (p. 6).
•
4
Page 5
Notes
Caution
■
When cleaning the TV, remove the mains plug
Cleaning an energized TV may cause electrical shock.
•
■
When the TV is not going to be used for a
long period of time, remove the mains plug
This TV will still consume some power even in
•
the Off mode, as long as the mains plug is still
connected to a live socket outlet.
■ Transport only in upright position
Transporting the TV with its display panel facing upright
•
or downward may cause damage to the internal circuitry.
■ Allow suffi cient space around the
TV for radiated heat
Minimum distance
10
10
When using the pedestal, keep the space between
•
the bottom of the TV and the fl oor surface.
In case of using Wall-hanging bracket, follow the manual of it.
•
10 7
(cm)
■ Do not block the rear air vents
Blocked ventilation by newspapers, table cloths, curtains,
•
etc. may cause overheating, fi re or electrical shock.
■
Do not expose your ears to excessive
volume from the headphones
Irreversible damage can be caused.
•
Do not display a still picture for a long time
This causes the image to remain on the plasma
screen (“image retention”).
This is not considered a malfunction and is not
covered by the warranty.
Typical still images
Programme number and other logos
•
Image displayed in 4:3 mode
•
Video game
•
Computer image
•
To prevent image retention, contrast is lowered
automatically after a few minutes if no signals are
sent or no operations are performed. (p. 45)
■ Auto power standby function
If no signal is received and no operation is
•
performed in Analogue TV mode for 30 minutes,
the TV will automatically go to standby mode.
■ Keep the TV away from these types of
equipment
Electronic equipment
•
In particular, do not place video equipment near
the TV (electromagnetic interference may distort
images / sound).
Equipment with an infrared sensor
•
This TV also emits infrared rays (this may affect
operation of other equipment).
Maintenance
First, remove the mains plug from the socket outlet.
Display panel
Regular care: Gently wipe the surface clean of dirt by using a soft cloth.
Major contamination: Wipe the surface clean using a soft cloth dampened with clean water or diluted neutral detergent
(1 part detergent to 100 parts water). Then, using a soft dry cloth, evenly wipe the surface clean until it is dry.
Caution
The surface of the display panel has been specially treated and may be easily damaged.
•
Do not tap or scratch the surface with your fi ngernail or other hard object.
Take care not to subject the surface to insect repellent, solvent, thinner, or other volatile substances
•
(this may degrade surface quality).
Cabinet, Pedestal
Regular care: Wipe the surface clean using a soft dry cloth.
Major contamination: Dampen a soft cloth with clean water or water containing a small amount of neutral detergent.
Then, wring the cloth and wipe the surface clean with it. Finally, wipe the surface clean with a dry cloth.
Caution
Take care not to subject the TV's surfaces to detergent.
•
(A liquid inside the TV could lead to product failure.)
Take care not to subject surfaces to insect repellent, solvent, thinner, or other volatile substances
•
(this may deteriorate the surface by peeling the paint).
Do not allow the cabinet and pedestal to make contact with a rubber or PVC substance for a long time.
•
Mains plug
Wipe the mains plug with a dry cloth at regular intervals. (Moisture and dust may lead to fi re or electrical shock.)
5
Page 6
Accessories / Options
Standard accessories
Remote Control
N2QAYB000229
•
Operating Instructions
with Warranty
statement
This product contains possibly dangerous parts (such as plastic bags), that can be breathed in or swallowed by
•
young children accidentally. Keep these parts out of reach of young children.
Optional accessories
Wall-hanging bracket
(vertical)
TY-WK42PV3W
•
TY-WK42PV4W
•
Caution
In order to maintain the unit’s performance and safety, be absolutely sure to ask your dealer or a licenced
•
contractor to secure the wall-hanging brackets.
Carefully read the instructions accompanying the pedestal, and be absolutely sure to take steps to prevent
•
the TV from tipping over.
Handle the TV carefully during installation since subjecting it to impact or other forces may cause product
•
damage.
OK
132
465
798
0
CH VOL
TV
Check that you have the accessories and items shown
Batteries for the
Remote Control
R6 (AA)
•
Pedestal (ST-42R4-WK)
TBLX0060
•
p. 7
(2)
Clamper (2)
p. 10
(angle)
TY-WK42PR3W
•
TY-WK42PR4W
•
Mains Lead
p. 8
6
Installing remote’s batteries
1
Pull open
Hook
Caution
Incorrect installation may cause battery leakage and corrosion, resulting in damage to the remote control.
•
Do not mix old and new batteries.
•
Do not mix different battery types (such as alkaline and manganese batteries).
•
Do not use rechargeable (Ni-Cd) batteries.
•
Do not burn or breakup batteries.
•
Batteries must not be exposed to excessive heat such as sunshine, fi re or the like.
2
Note the correct
polarity (+ or -)
+
+
-
Close
Page 7
Attaching the pedestal
Warning
Do not disassemble or modify the pedestal.
Otherwise the TV may fall over and become damaged, and personal injury may result.
•
Caution
Do not use any other TV and displays.
Otherwise the TV may fall over and become damaged, and personal injury may result.
•
Do not use the pedestal if it becomes warped or physically damaged.
If you use the pedestal while it is physically damaged, personal injury may result. Contact your nearest
•
Panasonic dealer immediately.
During set-up, make sure that all screws are securely tightened.
If insuffi cient care is taken to ensure screws are properly tightened during assembly, the pedestal will not be
•
strong enough to support the TV, and it might fall over and become damaged, and personal injury may result.
Ensure that the TV does not fall over.
If the TV is knocked or children climb onto the pedestal with the TV installed, the TV may fall over and personal
•
injury may result.
Two or more people are required to install and remove the TV.
If two or more people are not present, the TV may be dropped, and personal injury may result.
•
Quick Start Guide
Assembly screw (4)
(silver)
M5 × 18 mm M5 × 25 mm
Assembly screw (4)
(black)
■ Assembling the pedestal
Use the four assembly screws to fasten the left and
right poles to the base securely.
Make sure that the screws are securely tightened.
•
Forcing the assembly screws the wrong way will
•
strip the threads.
“L” or “R” mark is stamped on the bottom of the pole.
•
■ Securing the TV
Use the assembly screws to fasten securely.
Make sure that the screws are securely tightened.
•
Carry out the work on a horizontal and level surface.
•
Pole (2) Base
L
R
D
M5 × 25 mm
B
R
A
M5 × 18 mm
•
Accessories / Options
L
Front
View from the bottom
Hole for pedestal installation
Arrow mark
D
7
Page 8

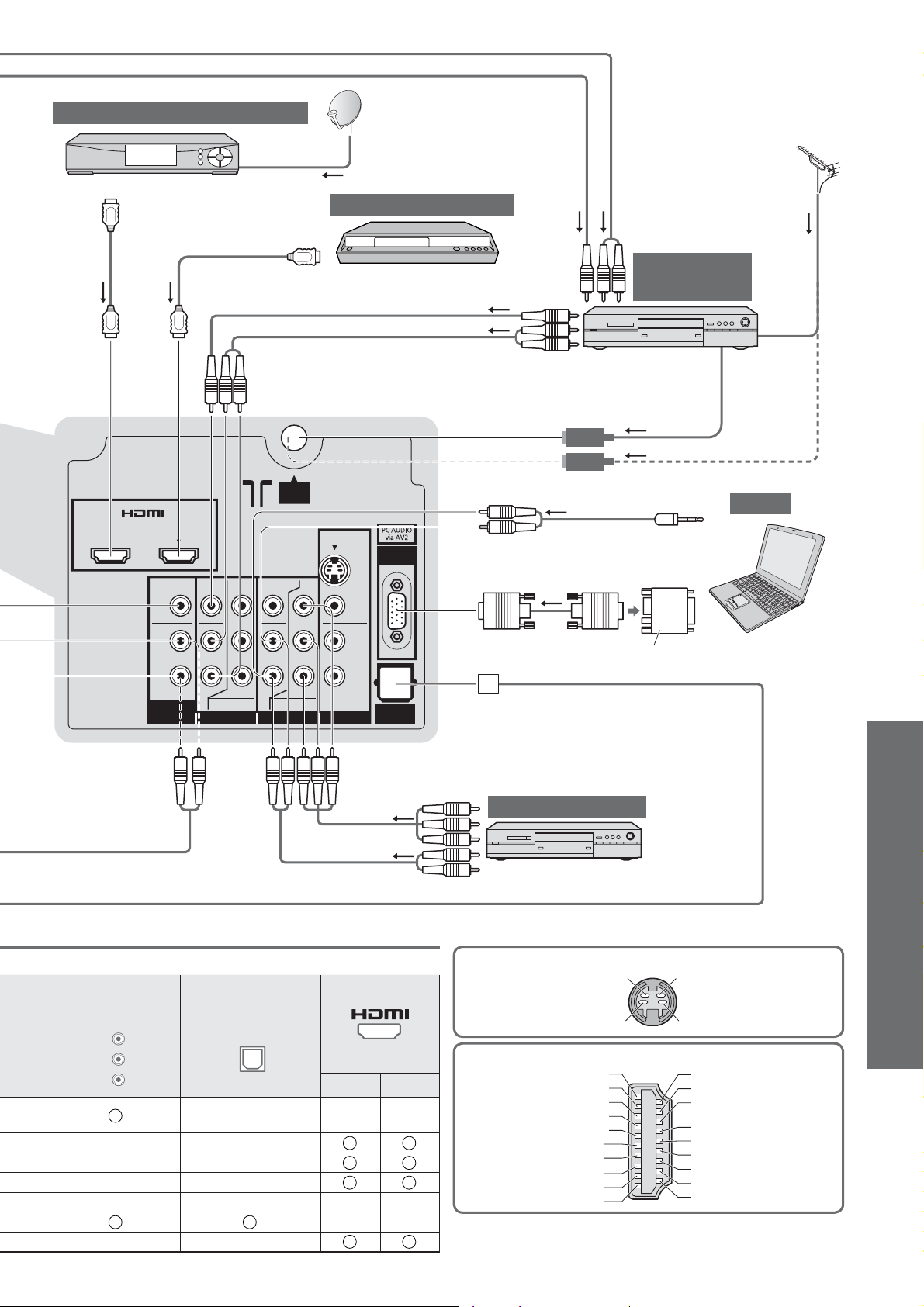

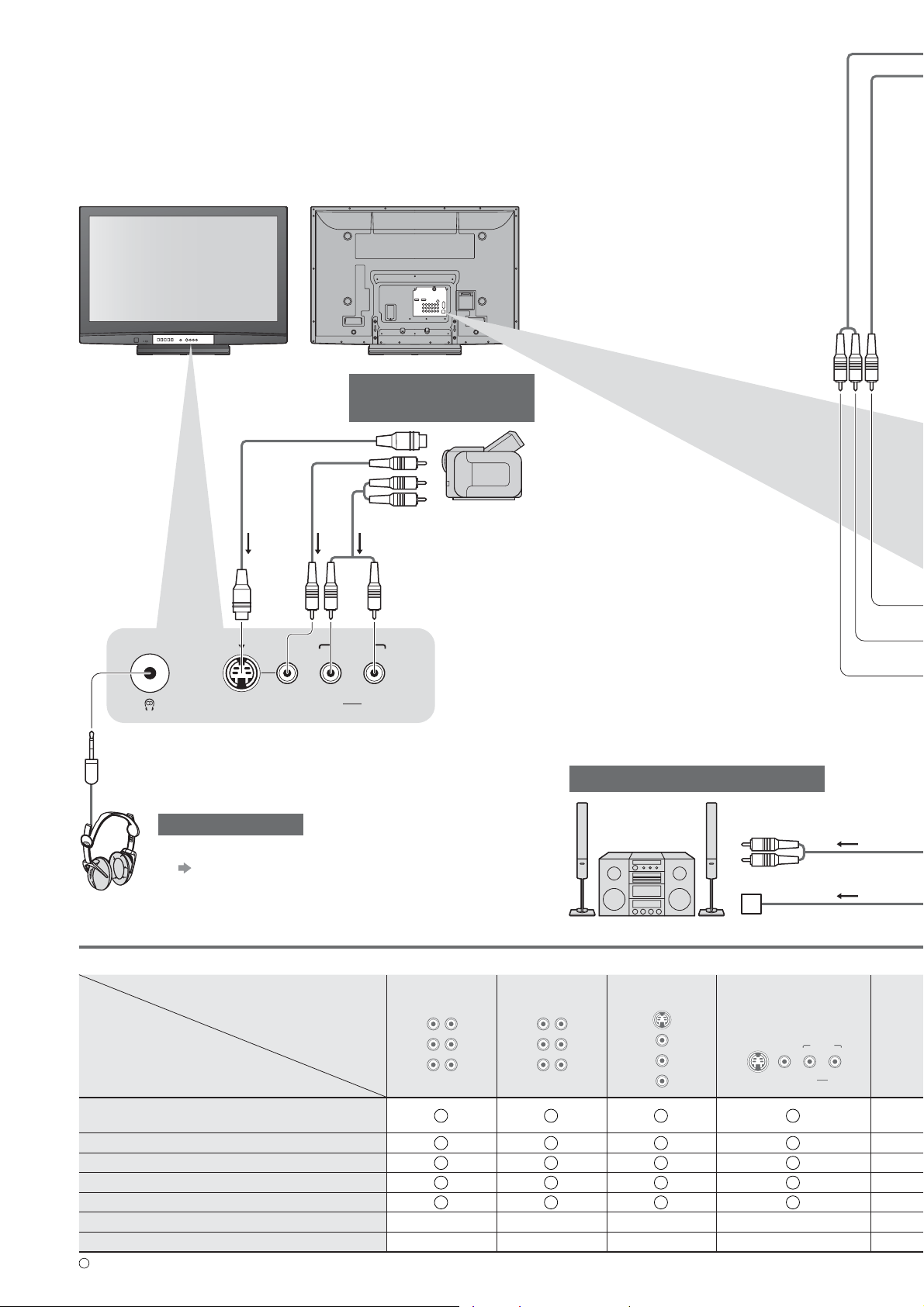

Basic Connection
External equipment and cables shown are not supplied with this TV.
Please ensure that the unit is disconnected from the mains socket before attaching or disconnecting any leads.
When disconnecting the mains lead, be absolutely sure to disconnect the mains plug at the socket outlet fi rst.
Example 1
Connecting aerial
TV only
Rear of the TV
Aerial
AV IN
12
VIDEO VIDEO
Y
LRL
PB/CB
Push until both
side tabs click
Make sure that
the mains lead is
securely fi xed.
To remove from the TV:
•
Press both tabs
and pull on
mains connector
to release
AC 220-240 V
50 / 60 Hz
tabs
Mains lead (supplied)
RF cable
ANT
S VIDEO
PC
VIDEO
Y
L
PB/CB
AUDIOAUDIOAUDIO
VIDEO
L
AUDIO
8
R
MONITOR
OUT
P
R
COMPONENT
AV1 IN
R
/
CR
R
P
R
/
CR
COMPONENT
AV2 IN AV3 IN
DIGITAL
AUDIO OUT
Note
Do not put the RF cable close to the mains lead to avoid noise.
•
Do not place the RF cable under the TV.
•
To obtain optimum quality picture and sound, an Aerial, the correct cable (75 Ω coaxial) and the correct
•
terminating plug are required.
If a communal Aerial system is used, you may require the correct connection cable and plug between the wall
•
Aerial socket and the TV.
Your local Television Service Centre or dealer may be able to assist you in obtaining the correct Aerial system for
•
your particular area and the accessories required.
Any matters regarding Aerial installation, upgrading of existing systems or accessories required, and the costs
•
incurred, are the responsibility of you, the Customer.
Page 9
Example 2
Connecting DVD Recorder / VCR
TV, DVD Recorder or VCR
AerialRear of the TV
AV IN
12
VIDEO VIDEO
LRL
PB/CB
R
MONITOR
OUT
P
COMPONENT
AV1 IN
Mains lead (supplied)
ANT
S VIDEO
VIDEO
L
AUDIOAUDIOAUDIO
R
CR
COMPONENT
AV2 IN AV3 IN
Y
PB/CB
P
L
R
R
/
CR
Y
R
/
VIDEO
AUDIO
PC
DIGITAL
AUDIO OUT
AC 220-240 V
50 / 60 Hz
Quick Start Guide
•
Basic Connection
RCA cable
AUDIO
OUT
VIDEO
OUT
RF OUT
RF IN
DVD Recorder or VCR
Note
VIERA Link connection p. 36
•
If your recorder is not available for DVB p. 46
•
Read the manual of the equipment too.
•
RF cable
RF cable
9
Page 10
Basic Connection
Example 3
Connecting DVD Recorder / VCR and Set top box
TV, DVD Recorder / VCR and Set top box
Rear of the TV
AC 220-240 V
50 / 60 Hz
Mains lead
(supplied)
RF cable
Aerial
AV IN
12
VIDEO VIDEO
R
MONITOR
OUT
Fully wired HDMI
compliant cable
Rear of the TV
LRL
COMPONENT
AV1 I N
Y
PB/CB
P
R
/
CR
ANT
VIDEO
Y
L
PB/CB
AUDIOAUDIOAUDIO
R
P
R
/
CR
COMPONENT
AV2 I N AV3 I N
S VIDEO
L
R
VIDEO
AUDIO
PC
DIGITAL
AUDIO OUT
DVD Recorder
or VCR
AUDIO
VIDEO
OUT
RCA cable
OUT
RCA cable
HDMI
OUT
Set top box
Using the clamper
RF OUT
AUDIO
AUDIO
VIDEO
IN
IN
RF IN
RF cable
VIDEO
OUT
OUT
RF IN
Do not bundle the RF cable and mains
•
lead together (could cause distorted
RF cable
image).
Fix cables with clampers as necessary.
•
When using the optional accessory,
•
follow the option’s assembly manual to
fi x cables.
10
■ Attach the clamper ■ Bundle the cables
To remove
from the TV:
hole
snaps
Insert the clamper
in a hole
Keep
pushing both
side snaps
Set the
tip in the
hooks
To loosen:
knobhooks
Keep
pushing
the knob
Page 11
P
U
L
L
Identifying Controls
TV
Function select
Volume / Contrast / Brightness / Colour /
•
Sharpness / Tint (NTSC mode) / Bass /
Treble / Balance / Auto Tuning (p. 30)
AV4 IN
S VIDEO
VIDEO
Lift door to open
AUDIO
L
R
Increases or decreases the programme position by one. When a
function is already displayed, press to increase or decrease the
selected function. When in Standby mode, switches TV On.
Mains power
On / Off switch
Switch On to turn on the TV
•
or turn the TV to standby
mode by the remote control
Remote control signal receiver
Power LED
Standby: red
•
On: green
When using the remote control, indicates the TV has received a command.
•
Remote Control
Standby On / Off switch
Switches TV On or Off standby
•
Guide (p. 17)
Displays TV Guide
•
OK
Confi rms selections and choices
•
Press after selecting programme positions to
•
quickly change programme (DVB) (p. 14)
Main Menu (p. 22)
Press to access VIERA Link, Picture,
•
Sound and Setup Menus
Aspect (p. 16)
Changes aspect ratio from
•
Aspect Selection list
Also possible by pressing this button
•
repeatedly until you reach the desired aspect
VIERA Link Menu (p. 37)
Press to access VIERA Link Menu directly
•
Numeric buttons
Changes programme and teletext pages
•
When in Standby mode, switches TV On
•
Programme Information
Displays programme information
•
Programme Up / Down
Selects programme in sequence
•
When in Standby mode, switches TV On
•
Teletext (p. 18)
Switches to teletext mode
•
Subtitles (p. 14)
Displays Subtitles
•
VCR / DVD Panasonic equipment
operations (p. 21)
(p. 15)
Changes the
input mode
POWER
GUIDE
MENU
R G Y B
132
465
798
INFO MUTE
TEXT STTL INDEX HOLD
PROGRAMME
Headphones
jack
(p. 40)
INPUT
OK
OPTIONASPECT
0
CH VOL
RECPOWER
VCR DVD
TV
EXIT
RETURN
AV4
terminals
(p. 40)
Input mode selection
TV -
switches DVB / Analogue mode (p. 14)
•
AV - switches to AV input mode from Input
•
Selection list (p. 20)
Exit
Returns to the normal viewing screen
•
Cursor buttons
Makes selections and adjustments
•
Return
Returns to the previous menu
•
Coloured buttons
Used for the selection, navigation and
•
operation of various functions
Stereo / Bilingual Sound Selection
(p. 43) (Analogue)
Changes the sound track, if programme
•
has multiple audio tracks (DVB)
Option Menu (p. 15)
Easy setting for viewing and sound
•
options
Sound Mute
Switches sound mute On or Off
•
Volume Up / Down
Hold
Freeze / unfreeze picture (p. 14)
•
Holds the current teletext page (teletext
•
mode) (p. 19)
Index (p. 19)
Returns to the teletext index page
•
(teletext mode)
Quick Start Guide
•
•
Identifying Controls
Basic Connection
11
Page 12
Auto Tuning
Search and store TV programmes automatically.
These steps are not necessary if the setup has been completed by your local dealer.
Plug the TV into mains socket and switch On
(Takes a few seconds to be displayed)
1
You can now use the remote
•
control to turn On the TV or turn
the TV to standby mode.
(Power LED: On)
Select your state
Select State / Territory
POWER
ASPECT
MENU
2
INPUT
EXIT
OK
RETURN
New South Wales / Australian Capital Territory
Victoria
Queensland
South Australia
Western Australia
Northern Territory
Tasmania
Start Auto Tuning
select
OPTION
DIRECT TV REC
132
465
798
0
VCR
TEXT F.P. INDEX HOLD
REC
VCR DVD
PROGRAMME
TV
3
4
Auto Tuning - Digital (DVB) and Analogue
Digital (DVB) Tuning 6 69
Analogue Tuning 0 75
This will take about 6 minutes.
RF Ch Service Name Type Quality
2
ABC TV Sydney DVB 10
3 SBS DIGITAL 1 DVB 10
4 FTV guide DVB 10
7 7 Digital DVB 10
CH 29 Analogue
CH 33
DVB: 4 Analogue: 2
Searching
Analogue
-
-
Auto Tuning will start to search for
•
TV programmes and store them in
the numbered order as specifi ed
by the broadcasters.
Select the picture setting
Please select your viewing environment.
•
•
Home: “Viewing Mode” is set as
Shop: “Viewing Mode” is set as
Home Shop
“Home” is the recommended
mode for viewing at home. Select
“Home” for optimal picture / power
consumption. “Shop” is for in-store
display.
If “Shop” is selected, the word
“Shop” appears every time the TV is
switched on. (p. 14)
“Normal”. (p. 24)
“Dynamic”. (p. 24)
select
set
12
Auto Tuning is now complete and your TV is ready for viewing.
To edit programmes
•
“Editing Programmes” (p. 28)
Page 13
Many features available on this TV can be accessed via the On Screen Display
menu.
■ How to use remote control
Using the
On Screen
Displays
MENU
OK
RETURN
EXIT
Open the main menu
Move the cursor / select the menu
Move the cursor / adjust levels / select from a range of options
Access the menu / store settings after adjustments have been made or options
have been set
Return to the previous menu
Exit the menu system and return to the normal viewing screen
■ ON SCREEN HELP Instructions box
(example: Sound Menu)
Sound Menu 1/2
Mode Music
Bass
Treble
Balance
Headphone Volume
Surround Off
Volume Correction
Speaker Distance to Wall
MPX
Select
EXIT
Change
RETURN
Over 30cm
Stereo
16
16
12
Page up
Page down
Quick Start Guide
•
Auto Tuning
On-screen operation guide
will help you.
Note
If tuning has failed “Auto Tuning” (p. 31)
•
To initialize all settings “Shipping Condition” (p. 32)
•
If you turned the TV Off during Standby mode last time, the TV will be in Standby mode when you turn the TV On
•
with Mains power On / Off switch.
13
Page 14
Watching TV
Turn power on
1
POWER
Mains power On / Off switch should be On. (p. 11)
•
If “Shop” is displayed on the top right of the screen,
•
reset settings in “Shipping Condition” (p. 32), and
select “Home” in “Auto Tuning” (p. 12).
POWER
ASPECT
MENU
RGYB
ASPECT
INPUT
OK
OPTION
132
465
798
0
INFO
CH VOL
TEXT INDEX
STTL
REC
VCR DVD
PROGRAMME
EXIT
RETURN
DIRECT TV REC
HOLD
Volume
2
3
Select DVB (Digital Video Broadcasting) or
Analogue mode
Also possible to select the mode using the
•
TV button on the front panel of the TV. (p. 11)
Information banner appears
whenever you select a
1 TEN Digital
Coronation Street
9:00 am - 11:00 am
All DVB Services
10:30 am
Select FAV List
Now
programme
For details p. 15
•
Select a programme
or
132
465
798
All DVB Services
6
Cartoon Nwk
7
BBC Radio Wales
BBC Radio Cymru
8
BBC ONE Wales
1
BBC THREE
2
BBCi
3
CBBC Channel
4
Select
EXIT
Connect
RETURN
0
Page up
Page down
up
CH
down
To select from the Programme List
•
To select the two or three-digit
•
programme number, e.g. 39
3 9
If one or two-digit programme
•
number
quickly changes the
programme
(in a short time)
select
programme
watch
TV
Note
When the TV is switched
•
to standby, there will be a
clicking sound after a short
delay. This is normal.
■ Other useful functions
Hold
Display
subtitles
Freeze / unfreeze picture
Display / hide subtitles (if available)
Channel changing is also possible when this function is active.
•
■ Select a programme using Information banner (p. 15)
Possible to confi rm the programme name before selecting programmes.
Display Information banner
if it is not displayed
INFO
Possible to set display
•
timeout in “Banner Display
Timeout” (p. 25).
While the banner is displayed,
select the programme
select programme
watch
■ Select a programme using TV Guide (p. 17)
Possible to confi rm the TV Guide (EPG) before selecting programmes.
Display TV Guide
GUIDE
Select the programme
select programme
watch
HOLD
STTL
14
Page 15
■ Other useful functions
Display
Information
banner
Display Information banner
Also appears when changing a programme
•
ProgrammeEvent
Example:
1 TEN Digital
Coronation Street
9:00 am - 11:00 am
Rating: PG Bad Signal
DVB: Event Start / Finish time
Analogue: Programme status
Features available / Message meanings
Sound mute On
II
, I,
,
Audio mode (Analogue mode) (p. 43)
Rating:
Rating information (p. 42)
Bad signal
Poor TV signal quality
Encrypted
Scrambled programme
To confi rm another tuned
•
programme name
To change the category
•
( To select a Fav List
if you have defi ned)
Information on the next event
•
(DVB mode)
Extra information
•
(DVB mode)
INFO
B
(press again to hide the banner)
INFO
Current time Category
10:30 am
Now
Subtitle service available
Teletext service available
Multiple audio available (DVB mode)
1 - 90
Off Timer remaining time
For settings see below
•
To watch the programme
•
listed in the banner
To download new software to TV
•
R
•
•
“System Update Search Now”
(p. 27)
To hide
To set display timeout
“Banner Display Timeout” (p. 25)
EXIT
All DVB Services
Select FAV List
Software update
45
Viewing
•
Watching TV
Display the
selectable
settings for
the current
programme
Off Timer
Check or change the current
OPTION
programme status instantly
Volume Correction
Sound Menu (p. 24)
Adjusts volume of individual programme or
input mode
Audio Selection (DVB mode)
Allows you to select between alternative
language for sound tracks (if available)
Note
Also possible to change the settings in Menu list (p. 24 and p. 25).
•
MPX (Analogue mode)
Sound Menu (p. 24)
To change
•
Turn the TV off automatically after a fi xed period
Display the
menu
MENU
To cancel Set to “Off” or turn the TV off.
•
To display the remaining time Information banner (above)
•
When the remaining time is within 3 minutes, the remaining time will fl ash on screen.
•

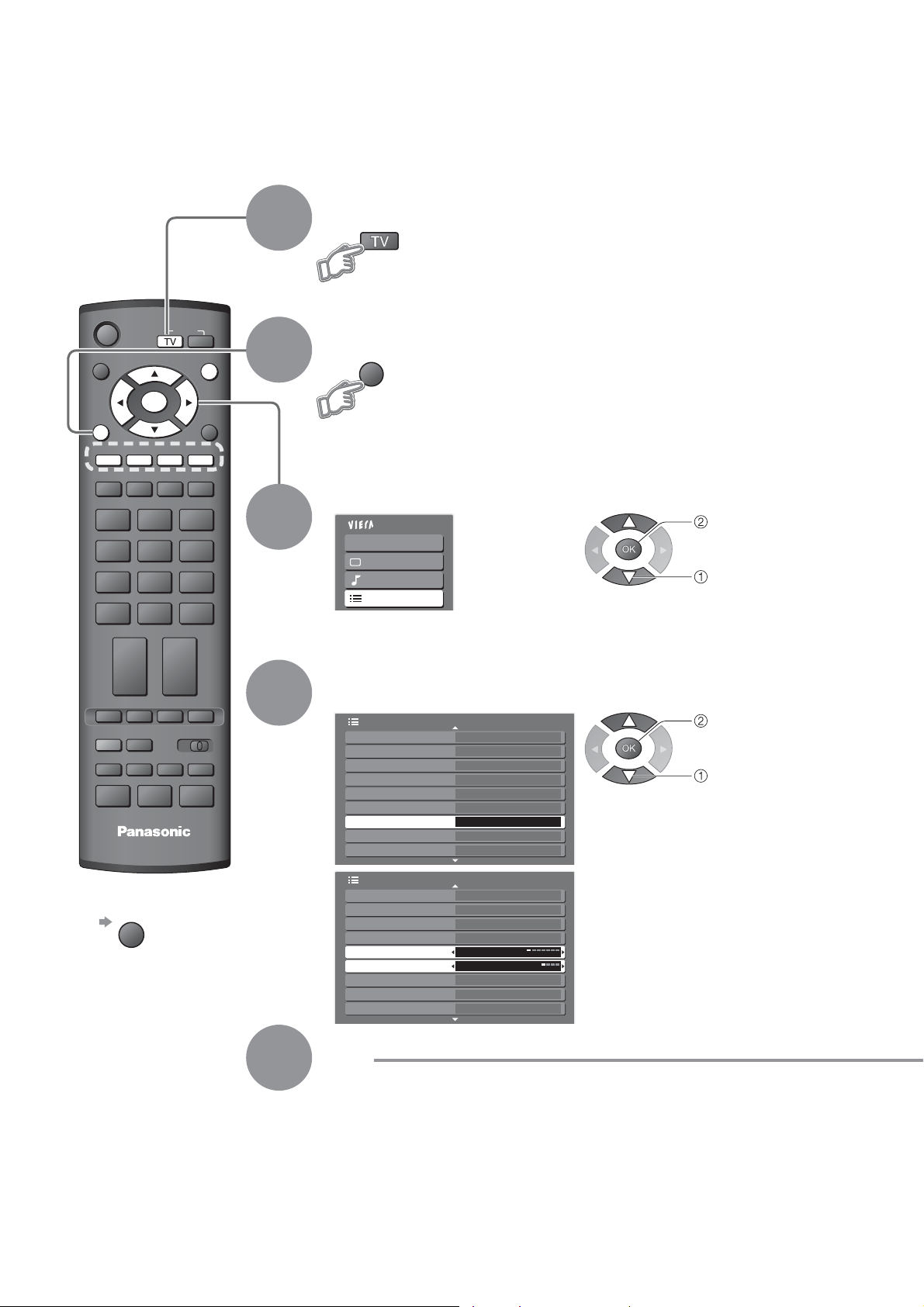

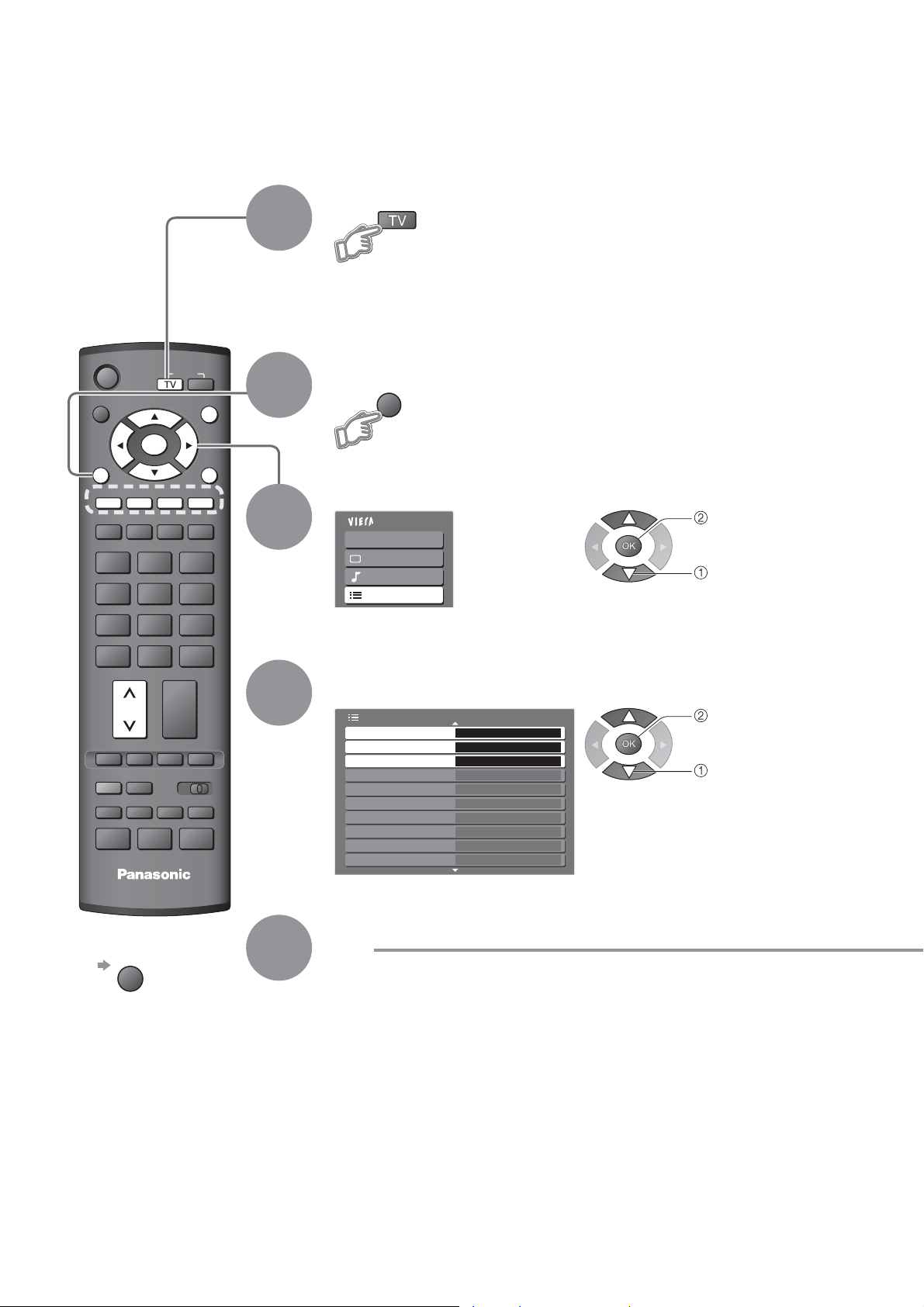

Select “Setup”
Main Menu
VIERA Link
Sound
Setup
access
select
Select “Off Timer” and set the time
Setup Menu
DVB Favourites Edit
DVB Service List
Tuning Menu
Off Timer
Teletext TOP
Shipping Condition
System Update
Power Save Off
Side Panel Off
Off
1/2
change
select
set
select
15
Page 16
Watching TV
A
A
A
■ Other useful functions
Change
aspect
ratio
Change the aspect ratio
Enjoy viewing the picture at its optimum size and aspect.
Display Aspect
Selection list
SPECT
To change the mode using the ASPECT button only
•
SPECT
(Press repeatedly until you reach the desired mode)
16:9 14:9
Just 4:3
While the list is displayed,
select the mode
Directly displays the
image at “16:9” without
distortion (anamorphic).
Displays a “4:3”
image full-screen.
Stretching is only
noticeable at the left and
right edges.
SPECT
store
select
Aspect Selection
16:9
14:9
Just
4:3
4:3 Full
Zoom1
Zoom2
Zoom3
Select
Change
Aspect
Selection list
Displays the
image at the standard
“14:9” without distortion.
Displays the image at the
standard “4:3” without
distortion.
EXIT
RETURN
4:3 Full Zoom1
Zoom2 Zoom3
Displays a “4:3” image
enlarged horizontally to fi t
the screen.
Only available in DVB
•
mode or HD signal
Displays a “16:9” letterbox
(anamorphic) image
full-screen without
distortion.
Displays a “16:9” letterbox
or “4:3” image without
distortion.
Displays a “2.35:1”
letterbox (anamorphic)
image full-screen
without distortion. At “16:9”,
displays the image at its
maximum (with slight
enlargement).
Note
Only “16:9” and “4:3 Full” are available in DVB mode.
•
Only “16:9” and “4:3” are available in PC mode.
•
Not available in teletext mode.
•
Aspect mode can be memorized separately for SD (Standard defi nition) and HD (High
•
defi nition) signals. (except DVB mode)
16
Page 17
Using TV Guide
Using TV Guide enables you to select programme easily, view event informations, etc.
TV Guide―Electronic Programme Guide (EPG) provides an on-screen listing of the programmes
currently broadcast and the future broadcasts over the next seven days (depending on the
broadcasters).
Analogue programmes will be listed after DVB programmes. “D” means DVB programme and “A” means
•
Analogue programme.

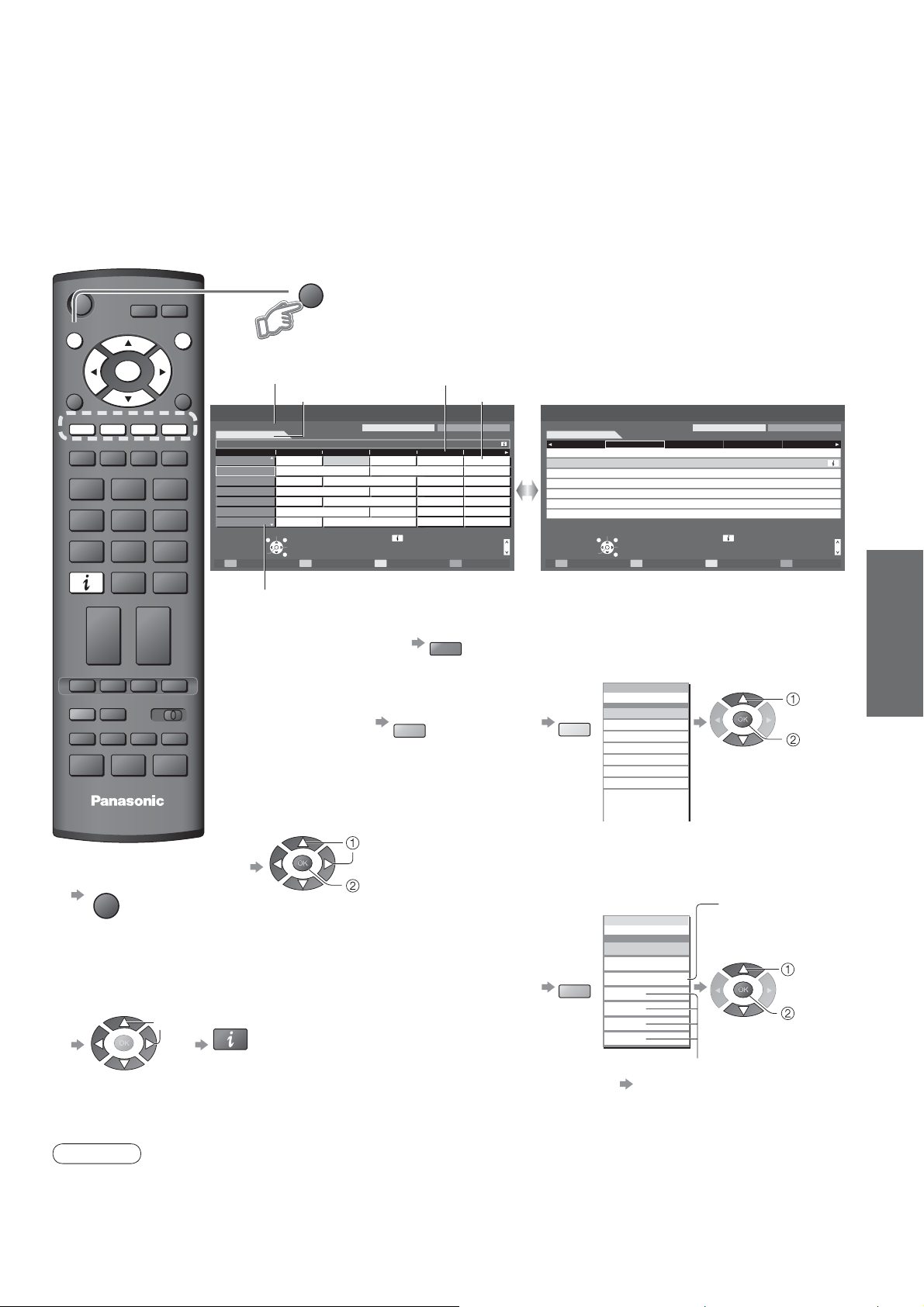

View TV Guide
POWER
GUIDE
INPUT
EXIT
GUIDE
Each time pressed, the layout will be changed.
(Landscape / Portrait)
OK
MENU
R G Y B
132
465
798
0
INFO
CH VOL
RETURN
Example: Example:
TV Guide
Wed 24.10.2007 3:07 am
OPTIONASPECT
MUTE
D
D
D
D
D
D
D Rugby 15 To 1 The Bill
Current date and time
TV Guide date
Wed, 24.10.2007
2:54 am - 3:24 am DIY SOS : We open in the Battersbys
TEN Digital Eastender DIY SOS The Bill Red Cap
1
ABC TV Sydney
2
SBS DIGITAL Emmerdal. Coronation Street The Bill
3
FTV guide 10 O’ clock News BBC Pepsi Char. Good bye
4
7 Digital Panorama Sex And The City Terminator
7
105
BBCi I’m A Celebrity Pop Idol News
719
BBC Radi
Select service
View
Landscape
3:00 amTime: 3:30 am 4:00 am 4:30 am 5:00 am
Hot Wars Horiday Program
EXITPortrait/Landscape
Select programme
RETURN
+24 Hr Prog.Type Favourites
Landscape (Displays by service)
Service
■ To the previous day
(DVB mode)
TEXT STTL INDEX HOLD
RECPOWER
VCR DVD
PROGRAMME
■ To the next day
(DVB mode)
■ To watch the programme
TV
Select the event or programme
now on the air
select
■ To return to TV
EXIT
watch
■ To view details of the event (DVB mode)
Select the event
select
Press again to return to
•
INFO
TV Guide.
TV Guide time
Event
All Types All Services
Sports
Live junction
Drama
NEWS
Hello
News
Japan
Info
Page down
R
G
TV Guide
Page up
Wed 24.10.2007 3:07 am
Wed, 24.10.2007
D 1 TEN Digital
3:00 am - 3:30 am
3:30 am - 4:00 am
4:00 am - 4:30 am
4:30 am - 5:00 am
5:00 am - 5:30 am
5:30 am - 6:00 am
6:00 am - 6:30 am
Select programme
Portrait/Landscape
View
Portrait
D
2 ABC TV Sydney
Eastender
DIY SOS
The Bill
Red Cap
Live junction
POP 100
Rugby
EXIT
Select service
RETURN
+24 Hr Prog.Type Favourites
■ To view a programme list of the
selected type (DVB mode)
(Type list)
Prog. type
All Types
All Types
Y
Movie
News
Entertainment
Sport
Children’s
Music
.
.
.
.
.
■ To view a programme list of the
selected favourites list
(Favourites list)
All Service s
All DVB Services
All Analogue Services
B
Fav List1
Fav List2
Fav List3
Fav List4
Favourites
All Service s
To list favourite programmes
p. 29
All Types All Services
D 4 FTV guideD 3 SBS DIGITAL D 7 7 Digital
Info
Page up
Page down
Portrait (Displays by time)
select
type
view
Only Analogue
TV programmes
are listed
select a
favourites
list
view
Viewing
•
•
Using TV Guide
Watching TV
Note
When this TV is turned on for the fi rst time, or the TV is switched off for more than a week, it may take some time
•
before the TV Guide is completely shown.
17
Page 18

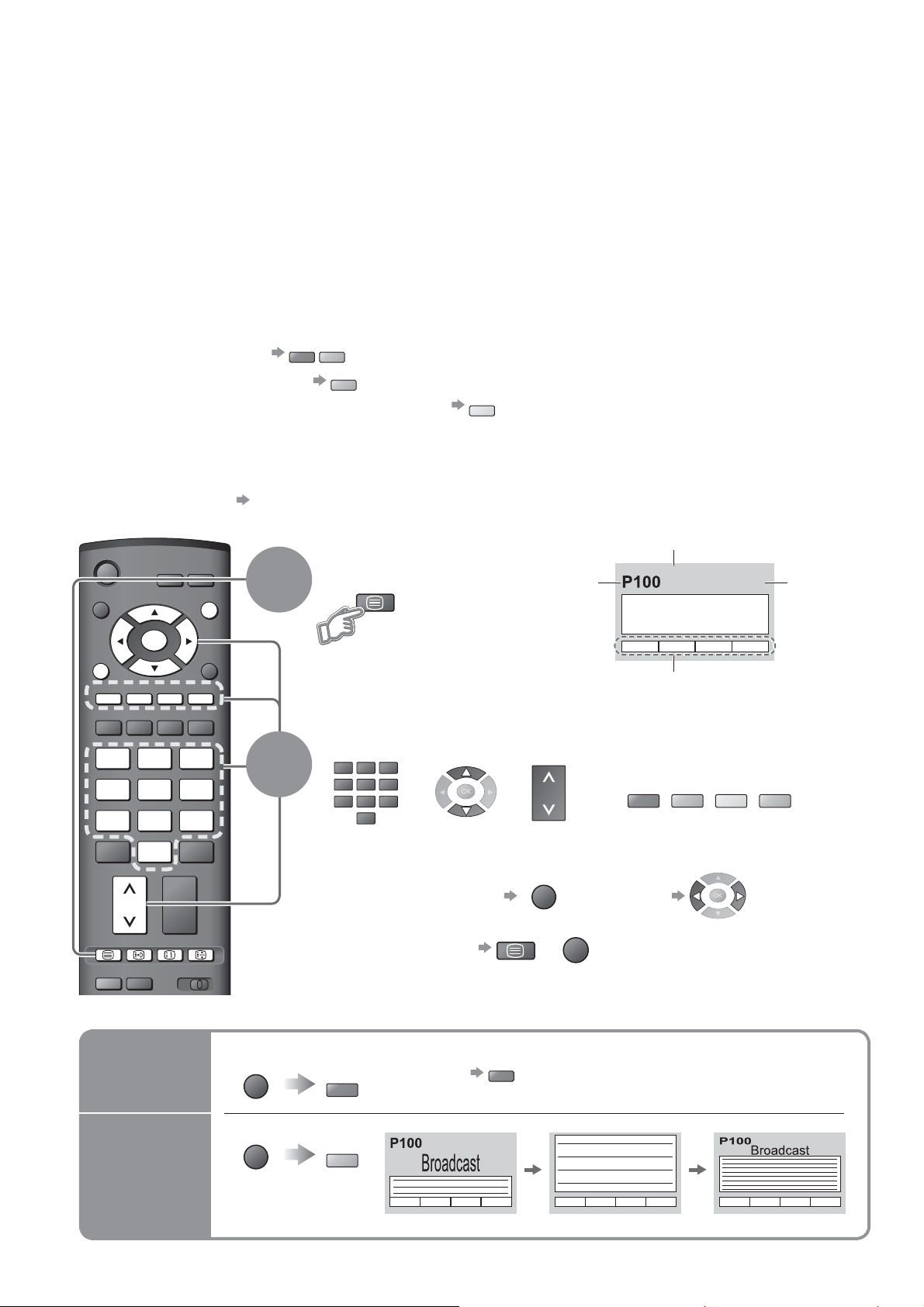

Viewing Teletext
You can enjoy teletext broadcasting, including news, weather forecasts and subtitles, if this service is
provided by the broadcasters.
What is FASTEXT mode?
In FASTEXT mode, four differently coloured subjects are situated at the bottom of the screen. To access more
information about one of these subjects, press the appropriately coloured button. This facility enables fast access to
information on the subjects shown.
What is TOP mode? (in case of TOP text broadcasting)
TOP is a particular improvement of the standard teletext service that results in an easier search and effective guide.
Fast overview of the teletext information available
•
Easy to use step-by-step selection of the topical subject
•
Page status information at the bottom of the screen
•
Available page up / down R
To select among subject blocks
To select next subject within the subject block
(After the last subject, it moves to the next subject block.)
What is List mode?
In List mode, four differently coloured page numbers are situated at the bottom of the screen. Each of these
numbers can be altered and stored in the TV’s memory. (“Store frequently viewed pages”, p. 19)
■ To change mode “Teletext” in Setup Menu (p. 25)
INPUT
ASPECT
OK
MENU
RGYB
EXIT
RETURN
1
G
B
Y
Switch to Teletext
TEXT
Displays Index
•
(content varies
depending on the
broadcasters)
Current
page
number
Sub page number
<< 01 02 03 04 05 06 07 >>
17:51 28 Feb
TELETEXT
INFORMATION
Colour bar
Time / date
OPTION
DIRECT TV REC
132
465
2
798
0
CH
TEXT STTL INDEX HOLD
REC
VCR DVD

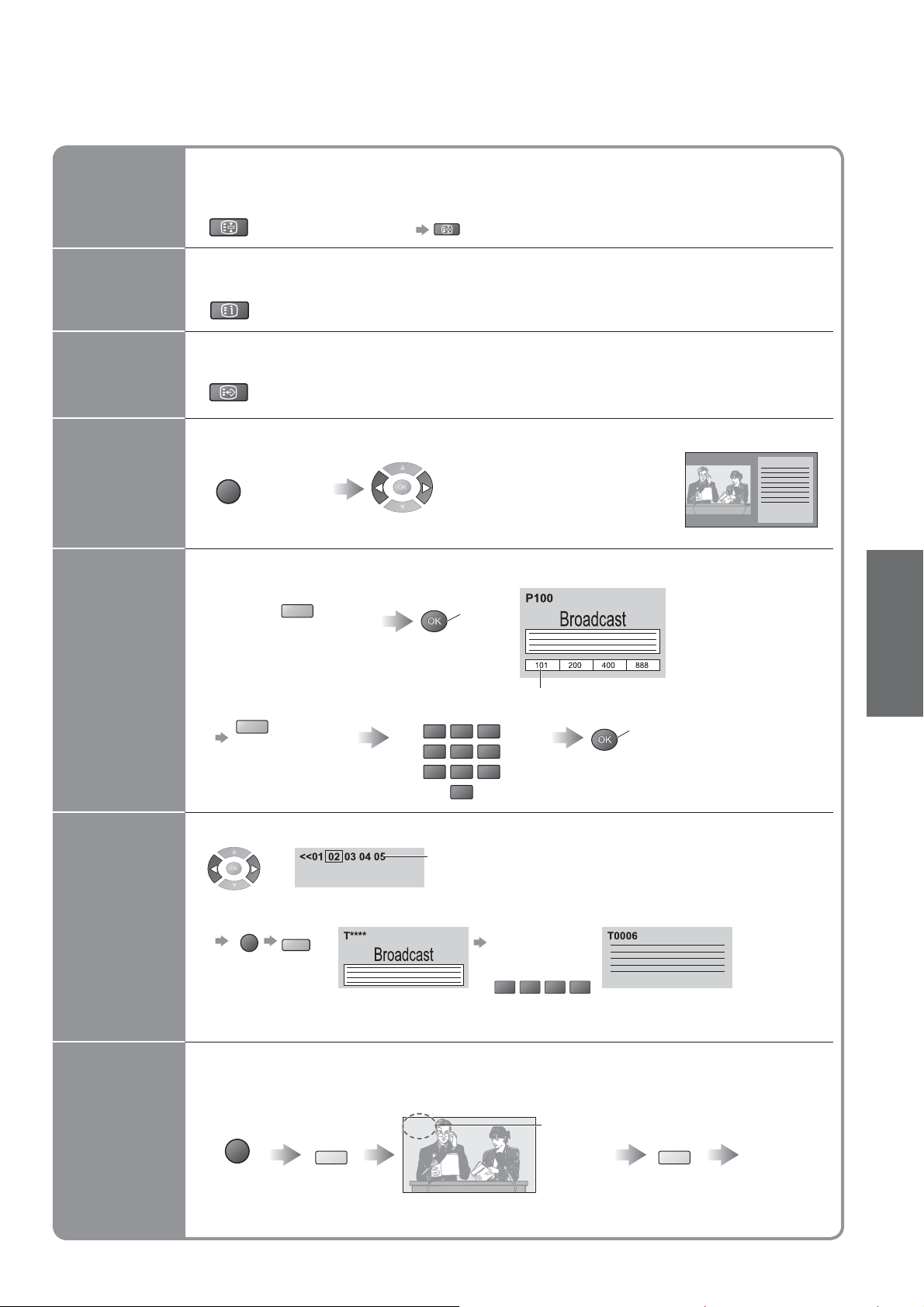

■ Using teletext conveniently
Reveal
hidden
data
FULL /
TOP /
BOTTOM
Reveal hidden words e.g. quiz page answers
MENU
MENU
Select the page (up to page 899)
132
465
798
or
0
or
■ To adjust contrast
TEXT
■ To return to TV
R
G
■ Re-hide
(Expand the TOP half)
R
(TOP)
CH
or
MENU
(Press three times)
EXIT
or
(Expand the BOTTOM half)
R
(Corresponds to the colour bar)
G
Y B
As the blue bar is displayed
Normal (FULL)(BOTTOM)
18
Page 19
HOLD
INDEX
Stop automatic updating
(If you wish to hold the current page without updating)
HOLD
HOLD
■ To resume
Return to the main index page
INDEX
Call up
subtitles
View in
multi
window
Store
frequently
viewed
pages
Display subtitles
STTL
Watch TV and Teletext in two windows at once
MENU
(Press twice)
Operations can be made only in Teletext screen.
•
Store frequently viewed pages in the colour bar
As page is
displayed
■ To change stored pages
Colour button you
want to change
Call up P801 (subtitle page) if available.
•
If you press this button during P801 is displayed, teletext mode will be
•
cancelled and return to TV.
Select Picture and text
•
On or Off
press
Corresponding
colour button
Enter new page number
and
hold
The number changes to white.
132
465
798
0
press
and
hold
(List mode only)
Viewing
•
Viewing Teletext
View sub
page
Watch
TV while
waiting
for update
View sub page (Only when teletext is more than one page)
Appears at top of
the screen
■ To view specifi c sub page
MENU
Sub pages:
•
The number of sub pages varies depending on the broadcasters (up to 79 pages).
It may take some time for searching, during which time you can watch TV.
View the TV picture while searching for a teletext page
Teletext automatically updates itself when new information becomes available.
MENU
The news page provides a function that indicates arrival of latest news (“News Flash”).
•
B
Changes to TV screen temporarily
P108
Y Y
(You cannot change the programme.)
Enter the
4-digit number
example: P6
0 0 0
6
Appears
when
updating is
completed
View the
updated
page
19
Page 20

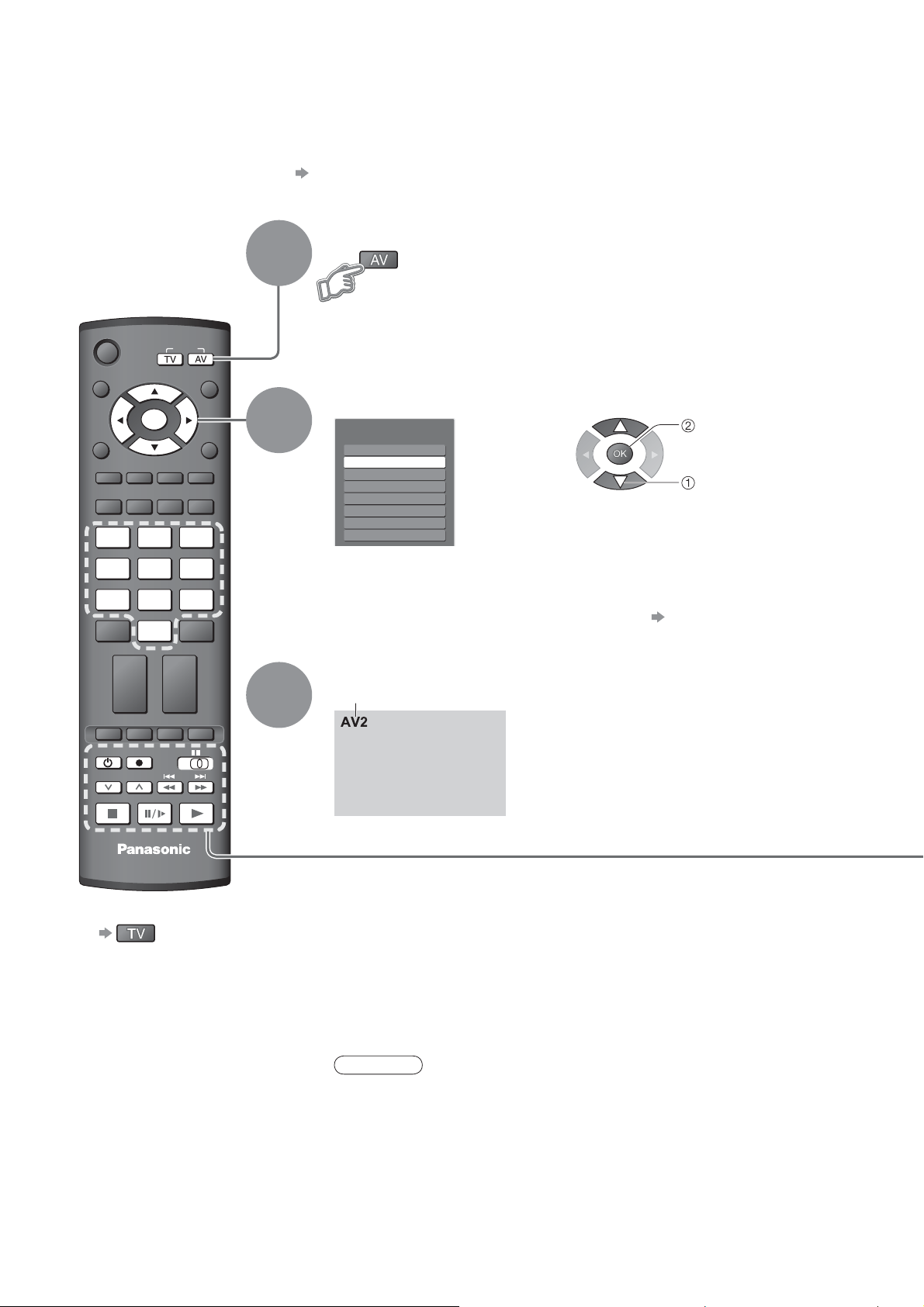

Watching Videos and DVDs
Connect the external equipment (VCRs, DVD equipment, etc.) and you can watch the input.
To connect the equipment p. 8 - 10
•
The Remote Control is capable of operating some functions of selected Panasonic external equipment.
Display the Input select menu
1
INPUT
ASPECT
OK
MENU
OPTION
132
465
798
0
TEXT F.P. INDEX HOLD
REC
POWER
PROGRAMME
VCR DVD
EXIT
RETURN
DIRECT TV REC
2
3
Select the input mode connected to the equipment
Input Selection
AV1
AV2
AV3
AV4
PC
HDMI1
HDMI2
TV
You can also select the input using the AV button on the remote
•
control or the front panel of the TV.
Press the button repeatedly until the desired input is selected.
You can label or skip each input modes “Input Labels” (p. 33)
•
watch
select
View
Displays the selected mode
20
TV
■ To return to TV
Note
If the external equipment has an aspect adjustment function, set to “16:9”.
•
For details, see the manual of the equipment or ask your local dealer.
•
Page 21

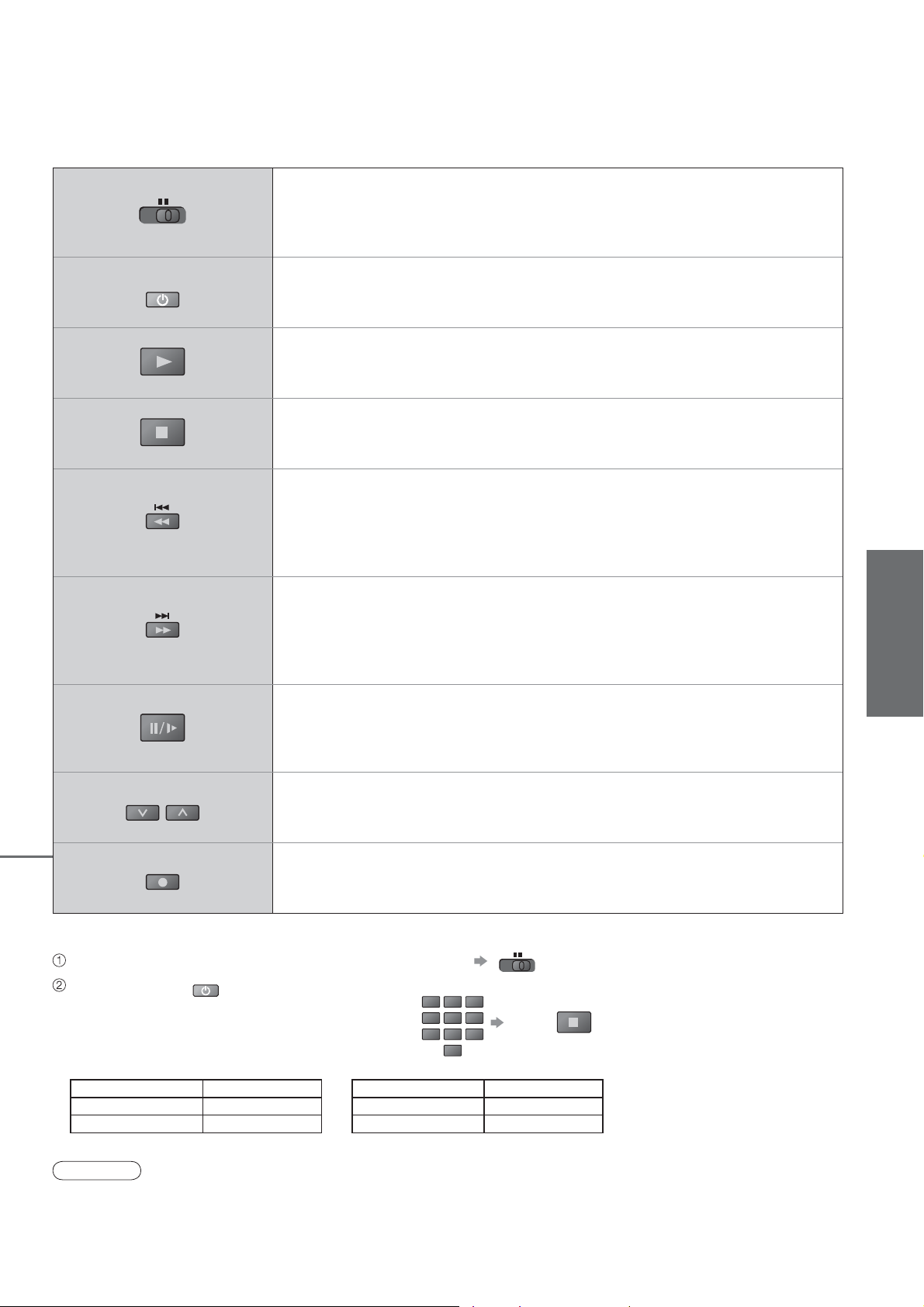

Panasonic equipment connected to the TV can be directly operated with the remote control.
VCR DVD
POWER
VCR / DVD switch
Select VCR to operate Panasonic VCR or DVD equipment
Select DVD to operate Panasonic DVD equipment or Player home theatre
Standby
Set to Standby mode / Turn on
Play
Playback videocassette / DVD
Stop
Stop the operations
Rewind / Skip / Search
VCR: Rewind, view the picture rapidly in reverse
DVD: Skip to the previous track or title
Press and hold to search backward
Fast-forward / Skip / Search
VCR: Fast-forward, view the picture rapidly forward
DVD: Skip to the next track or title
Press and hold to search forward
∗
Viewing
Pause
Pause / Resume
DVD: Press and hold to play at slow speed
PROGRAMME
REC
Setting your remote control to operate Panasonic VCR, DVD, etc.
∗
Set the VCR / DVD switch to the appropriate position
Press and hold
Enter the appropriate code for the equipment
to be controlled, see table below
“VCR” position
Equipment Code
VCR 10 (default)
DVD 11
POWER
during the following operations
Programme Up / Down
Select programme
Record
Start recording
132
465
798
0
“DVD” position
Equipment Code
DVD 70 (default)
Player home theatre
VCR DVD
Press
71
•
Watching Videos and DVDs
Note
Confi rm if the remote control works correctly after changing the code.
•
The codes will be reset to default values if batteries are replaced.
•
“DVD” means DVD player, DVD recorders and Recorder home theatre.
•
Some operations may not be possible on some equipment models.
•
21
Page 22

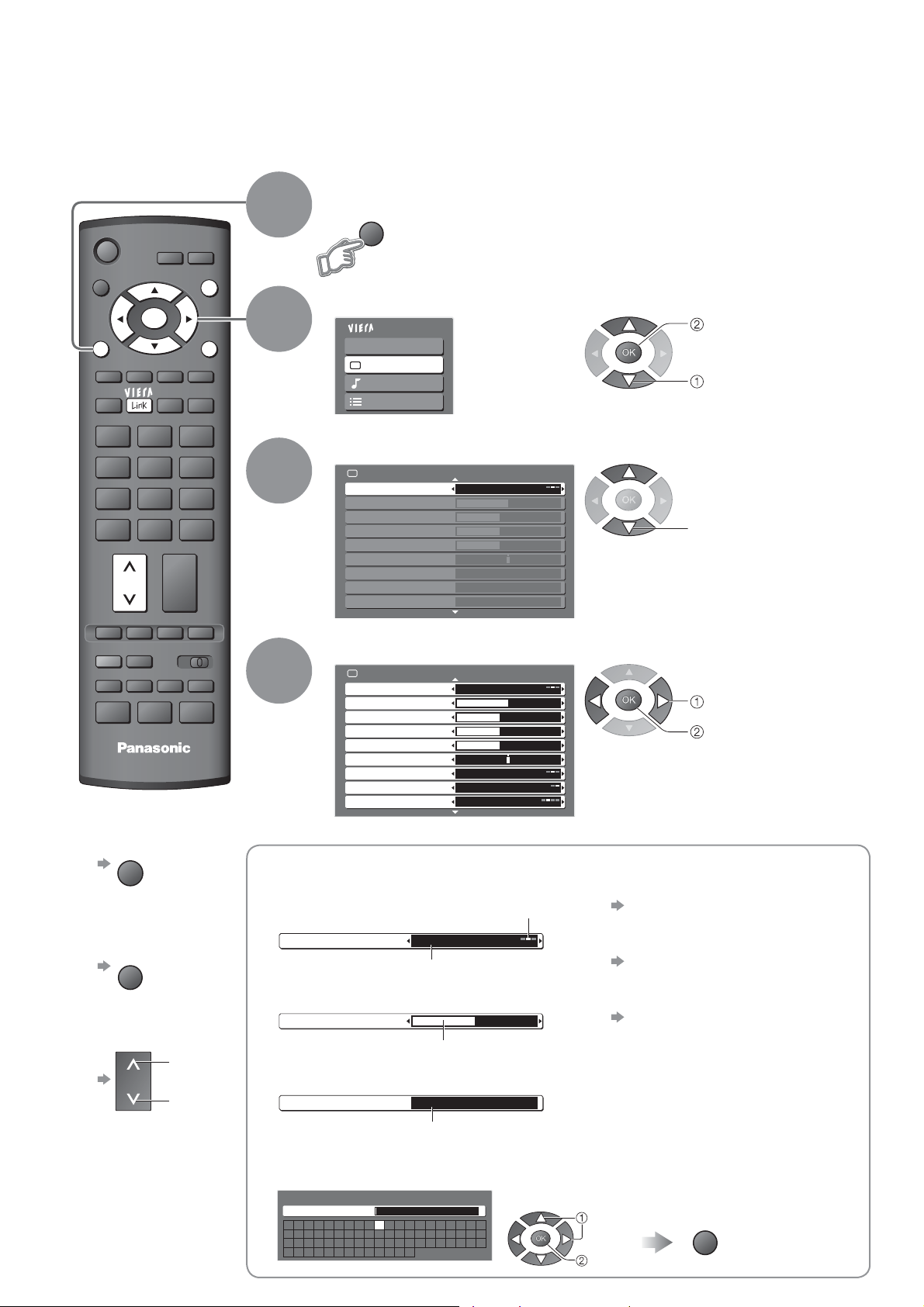

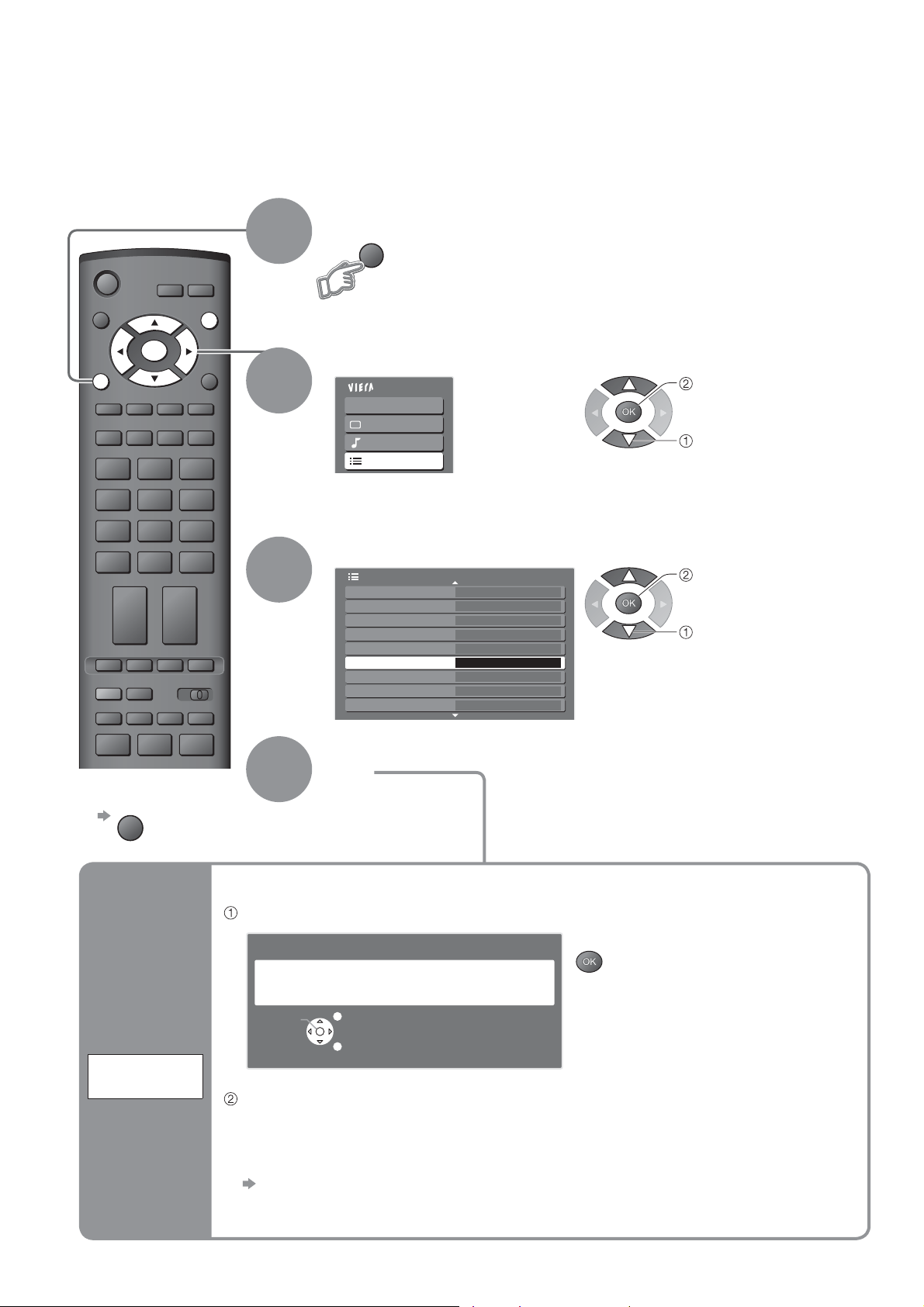

How to Use Menu Functions
Various menus allow you to make settings for the picture, sound, and other functions.
Display the menu
INPUT
ASPECT
OK
MENU
SURROUND
OPTION
EXIT
RETURN
DIRECT TV REC
132
465
798
0
VCR
CH
TEXT F.P. INDEX HOLD
REC
VCR DVD
PROGRAMME
TV
■ To return to TV
at any time
EXIT
■ To return to the
previous screen
RETURN
■ To change menu
pages
up
CH
down
1
MENU
Displays the functions that can be set
•
(varies according to the input signal)
Select the menu
2
Main Menu
VIERA Link
Sound
Setup
(example: Picture Menu)
Select the item
3
Picture Menu 1/2
Viewing Mode Normal
Contrast
Brightness
Colour
Sharpness
Tint
Colour Balance
Colour Management
P-NR Off
Normal
On
(example: Picture Menu)
Adjust or select
4
Picture Menu
Viewing Mode Normal
Contrast
Brightness
Colour
Sharpness
Tint
Colour Balance
Colour Management
P-NR
Normal
On
Min
(example: Picture Menu)
■ Choose from among
alternatives
Number and positions of alternatives
Colour Balance Normal
Changed
■ Adjust using the slide bar
Sharpness
Moved
■ Go to the next screen
Tuning Menu Access
50
access
select
60
50
50
50
1/2
60
50
50
50
select
change
store or access
( Required by some
functions)
■ To reset the settings
To reset the picture settings only
•
“Reset Picture Defaults”
in Picture Menu (p. 24)
To reset the sound settings only
•
“Reset Sound Defaults”
in Sound Menu (p. 24)
To initialize all settings
•
“Shipping Condition”
in Setup Menu (p. 32)
22
Displays the next screen

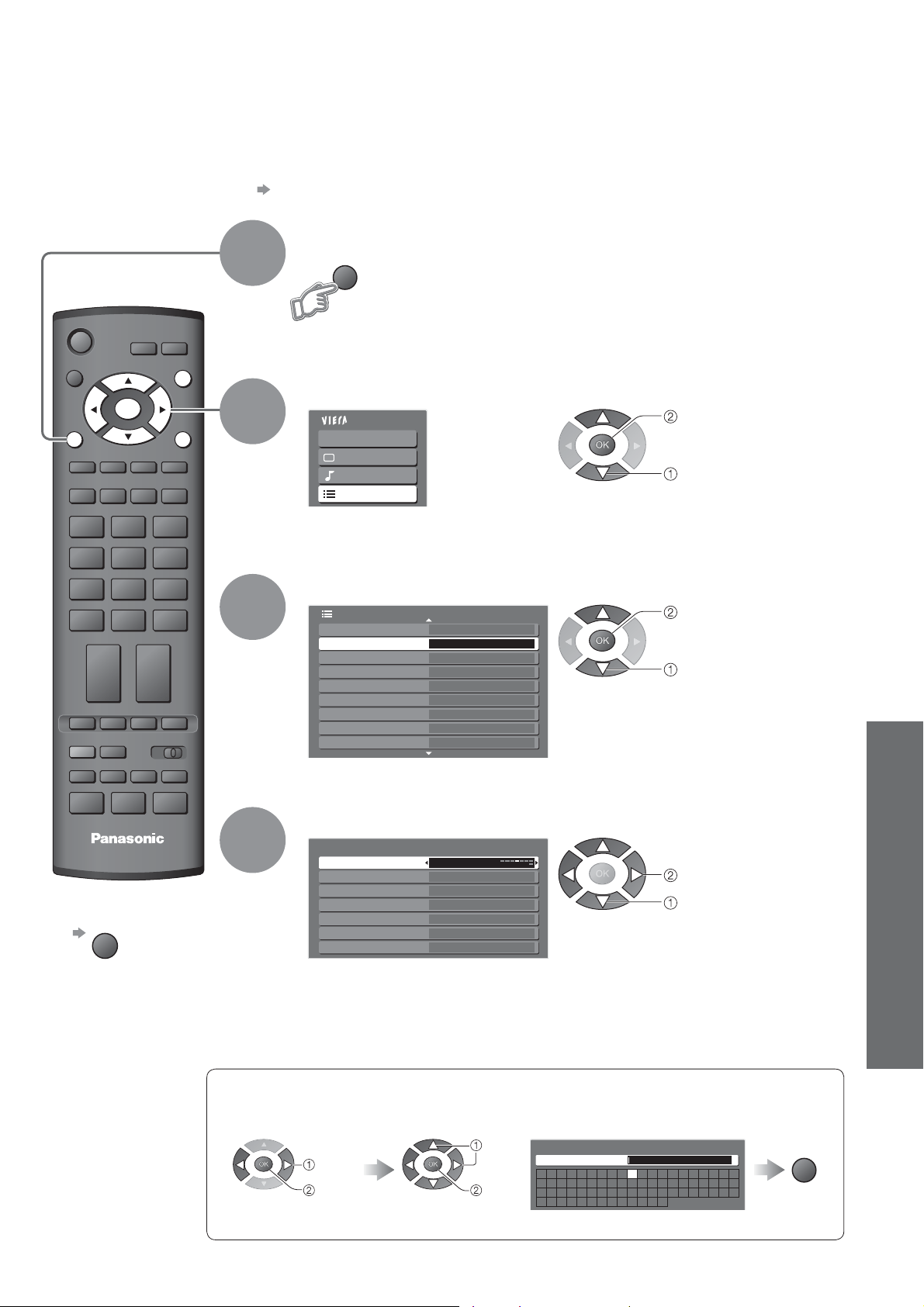

■ Enter characters by free input menu
You can enter names or numbers freely for some items.
User input
Name
ABCDEFGHI JKLMN
UVWXYZ 0123456
abcdefghijklmn
uvwxyz ( )+ - . * _
OPQRST
789! : #
opqr s t
Set characters
select
set
Store
RETURN
Page 23

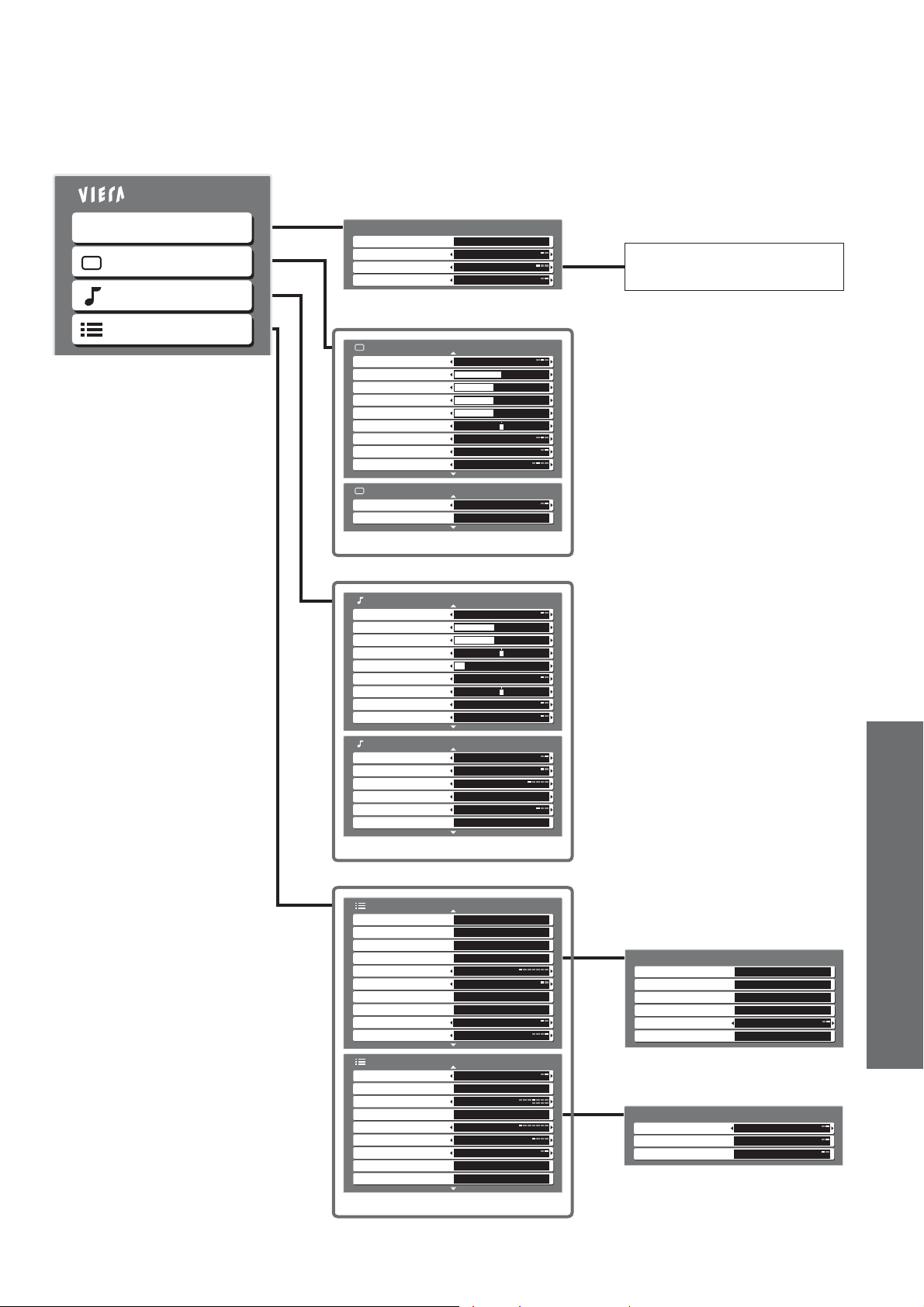

■ Overview
Main Menu
VIERA Link
Sound
Setup
VIERA Link Menu
Pause Live TV
Direct TV Rec
VIERA Link Control
Speaker Selection
Picture Menu
Viewing Mode Normal
Contrast
Brightness
Colour
Sharpness
Tint
Colour Balance
Colour Management
P-NR
Picture Menu
3D-COMB On
Reset Picture Defaults Reset
Sound Menu
Mode Music
Bass
Treble
Balance
Headphone Volume
Surround Off
Volume Correction
Speaker Distance to Wall
MPX Stereo
Sound Menu
DVB Audio Preference MPEG
SPDIF Selection Auto
MPEG Optical Level 0dB
Audio Selection English
HDMI1 Input Auto
Reset Sound Defaults Reset
Access
Start
Recorder
Home Cinema
Normal
On
Min
Over 30cm
(p. 37)
1/2
60
50
50
50
2/2
(p. 24)
1/2
16
16
12
2/2
(p. 24)
The menu of the accessed
equipment
•
How to Use Menu Functions
(picture, sound quality, etc.)
Advanced
Setup Menu
DVB Favourites Edit Access
DVB Service List
Analogue Service List
Tuning Menu
Off Timer Off
Teletext TOP
Shipping Condition Access
System Update Access
Power Save
Side Panel
Picture Overscan
Input Labels Access
Banner Display Timeout
VIERA Link Settings
Region Select
Daylight Saving Time
Refresh Rate Access
Software Licence Access
System Information Access
Depending on the received signals, available items are varied.
•
Access
Access
Access
Off
High
On
3 seconds
Access
NSW / ACT
Auto
100Hz
1/2
2/2 Setup Menu
(p. 25)
Tuning Menu
Auto Tuning
DVB Manual Tuning
Analogue Manual Tuning
Add New DVB Services Access
New Service Message
DVB Signal Display Access
VIERA Link Settings
VIERA Link
Power off Link Set
Power on Link No
Access
Access
Access
On
On
Access
(p. 31)
(p. 25, 36)
23
Page 24
24
How to Use Menu Functions
■ Menu list
Menu Item Adjustments / Configurations (alternatives)
VIERA Link
Pause Live TV
Direct TV Rec
VIERA Link Control
Speaker Selection
Viewing Mode
Contrast, Brightness,
Colour, Sharpness
Tint
Colour Balance
Colour Management
P-NR
3D-COMB
Reset Picture Defaults
Mode
Bass
Treble
Balance
Headphone Volume
Surround
Volume Correction
Speaker Distance
to Wall
MPX
Sound
DVB Audio
Preference
SPDIF Selection
MPEG Optical Level
Audio Selection
HDMI1 Input
Reset Sound Defaults
Controls the connected equipment with VIERA Link function, and enables various
convenient recording, playback, etc. (p. 37 - 39)
You can also access VIERA Link Menu directly using the VIERA Link button on the
•
remote control.
Basic picture mode (Dynamic / Normal / Cinema)
Dynamic :
Normal : Recommended for viewing under normal ambient room lighting conditions
Cinema : For watching movies in a darkened room producing a cinema-like picture
Set for each input signal
•
Increases or decreases the levels of these options according to your personal preference
With an NTSC signal source connected to the TV, the picture hue can be adjusted to suit your taste
For NTSC or 60Hz (Component / HDMI) input signal reception only
•
Allows you to set the overall colour tone of the picture (Cool / Normal / Warm)
Automatically adjusts colours to vivid ones (Off / On)
Not valid on PC signal
•
Picture Noise Reduction
Automatically reduces unwanted picture noise and fl icker noise in the contoured parts of
a picture (Off / Min / Mid / Max)
Not valid on PC signal
•
Occasionally, whilst viewing still or slow moving pictures, colour patterning may be seen
Set to “On” to display sharper and more accurate colours (Off / On)
For PAL or NTSC signal reception only
•
Not valid on S-Video, Component, PC and HDMI
•
Press the OK button to reset Viewing Mode on all inputs to default settings.
Basic sound mode (Music / Speech)
Increases or decreases level to enhance or minimise lower, deeper sound output
Increases or decreases level to enhance or minimise sharper, higher sound output
Adjusts volume level of right and left speakers
Adjusts the volume of the headphones
Surround sound settings (Off / On)
Provides a dynamic enhancer to simulate improved spatial effects
Adjusts volume of individual programme or input mode
Adjusts the low frequency sound (Over 30cm / Up to 30cm)
If the back space between the TV and wall is over 30 cm, “Over 30cm” is recommended.
•
If the back space between the TV and wall is within 30 cm, “Up to 30cm” is recommended.
•
Select stereo / monaural (Mono / Stereo) (p. 43)
Normally: Stereo
•
Stereo signal cannot be received: Mono
•
M1 / M2: Available while mono signal is transmitted
•
Analogue mode only
•
Selects the initial setting for Audio tracks (Dolby Digital / MPEG)
If programme has both Dolby Digital and MPEG audio tracks, priority is given to what you select
Dolby Digital: A method of coding digital signals developed by Dolby Laboratories. Apart
MPEG: An audio compression method that compresses audio to small size without any
DVB mode only
•
Selects the initial setting for digital audio output signal from DIGITAL AUDIO OUT terminal
(Auto / PCM)
Auto: Dolby Digital is output as Dolby Digital Bitstream. MPEG is output as PCM.
PCM: Dolby Digital is output as PCM. MPEG is output as PCM.
DVB mode only
•
Normally, MPEG sound is larger than Dolby Digital one
You can adjust the audio level of MPEG output from DIGITAL AUDIO OUT terminal as
the initial setting
0dB to -12dB in -2dB reductions
•
DVB mode only
•
Selects the preferred language for DVB multi audio (depending on the broadcaster)
Select to fi t the input signal (Auto / Digital / Analogue) (p. 35)
Auto: Automatic detection of digital or analogue sound source
Digital: HDMI cable connection
Analogue: HDMI-DVI adapter cable connection
HDMI input mode only
•
HDMI2 terminal is for digital signal only
•
No setting for HDMI2 available
•
Press the OK button to reset the present Sound Mode to the default settings
Provides enhanced picture contrast and sharpness when viewing in a bright room
from stereo (2ch) audio, these signals can also be multi-channel audio.
considerable loss of audio quality.
Page 25
■ Menu list
Menu Item Adjustments / Configurations (alternatives)
DVB Favourites Edit
DVB Service List
Analogue Service List
Auto Tuning
DVB Manual
Tuning Menu
Tuning
Analogue
Manual Tuning
Add New DVB
Services
New Service
Message
DVB Signal
Display
Off Timer
Teletext
Shipping Condition
System Update
Power Save
Side Panel
Setup
Picture Overscan
Creates list of favourite programmes (p. 29)
Skips the unwanted DVB programmes (p. 29)
Skips the unwanted Analogue programmes or edits Analogue programmes (p. 29)
Automatically sets the programmes received in the area (p. 31)
Sets the DVB programmes manually (p. 31)
Sets the Analogue programmes manually (p. 31)
Adds new DVB services (p. 31)
Selects whether to give a notifi cation message when a new DVB service is found (p. 31)
Checks the DVB signal condition (p. 31)
Sets the time the TV automatically turns Off (Off / 15 / 30 / 45 / 60 / 75 / 90 minutes)
Teletext display mode (TOP (FASTEXT) / List) (p. 18)
Resets all settings, for example, when moving house (p. 32)
Downloads new software to TV (p. 27)
Reduces brightness of picture to economise on power consumption (Off / On)
Increases the brightness of the side panel (Off / Low / Mid / High)
The recommended setting is “High” to prevent panel “image retention”
•
Selects the screen area displaying the image (Off / On)
On : Enlarged the image to hide the edge of the image.
Off : Displayed the image in the original size.
Set to “On” if noise is generated on the edge of the screen.
•
This function is available when aspect is set to 16:9.
•
This function can be memorized separately for SD (Standard defi nition) and HD (High
•
defi nition) signals.
•
How to Use Menu Functions
(picture, sound quality, etc.)
Input Labels
Banner Display
Timeout
VIERA Link Settings
VIERA Link
Power off Link
Power on Link
Region Select
Daylight Saving Time
Refresh Rate
Software Licence
System Information
A different menu will be displayed while PC, DVI to HDMI adapter cable is used. (p. 34-35)
•
Only available items can be selected.
•
Labels or skips each input terminals (p. 33)
Sets how long the information banner (p. 15) stays on screen
0 (No display) to 10 sec. in 1-sec. increments
•
Sets to use VIERA Link functions (Off / On) (p. 36)
Sets to use Power off Link function (No / Set) (p. 36)
Sets to use Power on Link function (No / Set) (p. 36)
Selects the region where you live to adjust the standard time (NSW/ACT / Victoria /
Queensland / South Australia / Western Australia / Northern Territory / Tasmania)
(p. 27)
Select time offset from the standard time for Summer Time
(Auto / Off / +1/2 Hr / +1 Hr) (p. 27)
Set to “Auto” normally
•
Changes the image processing of the panel (depending on the input signal)
(50Hz / 100Hz)
Set to “100Hz” normally
•
Displays the software licence information
Displays the system information of this TV
Advanced
25
Page 26
DVB Settings
DVB Settings provide access to various advanced features.
If in Analogue mode
Select DVB
1
(DVB mode)
POWER
GUIDE
MENU
R G Y B
INPUT
OK
OPTIONASPECT
132
465
798
0
INFO
CH VOL
TEXT STTL INDEX HOLD
RECPOWER
VCR DVD
PROGRAMME
TV
MUTE
EXIT
RETURN
2
3
4
Display the menu
MENU
Select “Setup”
Main Menu
VIERA Link
Sound
Setup
access
select
Select “System Update”, “Region Select” or
“Daylight Saving Time”
Setup Menu
DVB Favourites Edit
DVB Service List
Tuning Menu
Off Timer Off
Teletext TOP
Shipping Condition
System Update Access
Power Save
Side Panel
Off
Off
1/2
access
select
26
■ To return to TV
EXIT
5
Picture Overscan
Input Labels
Banner Display Timeout
VIERA Link Settings
Region Select
Daylight Saving Time
Refresh Rate
Software Licence
System Information
Set
2/2 Setup Menu
On
3 seconds
NSW / ACT
Auto
100Hz
Page 27

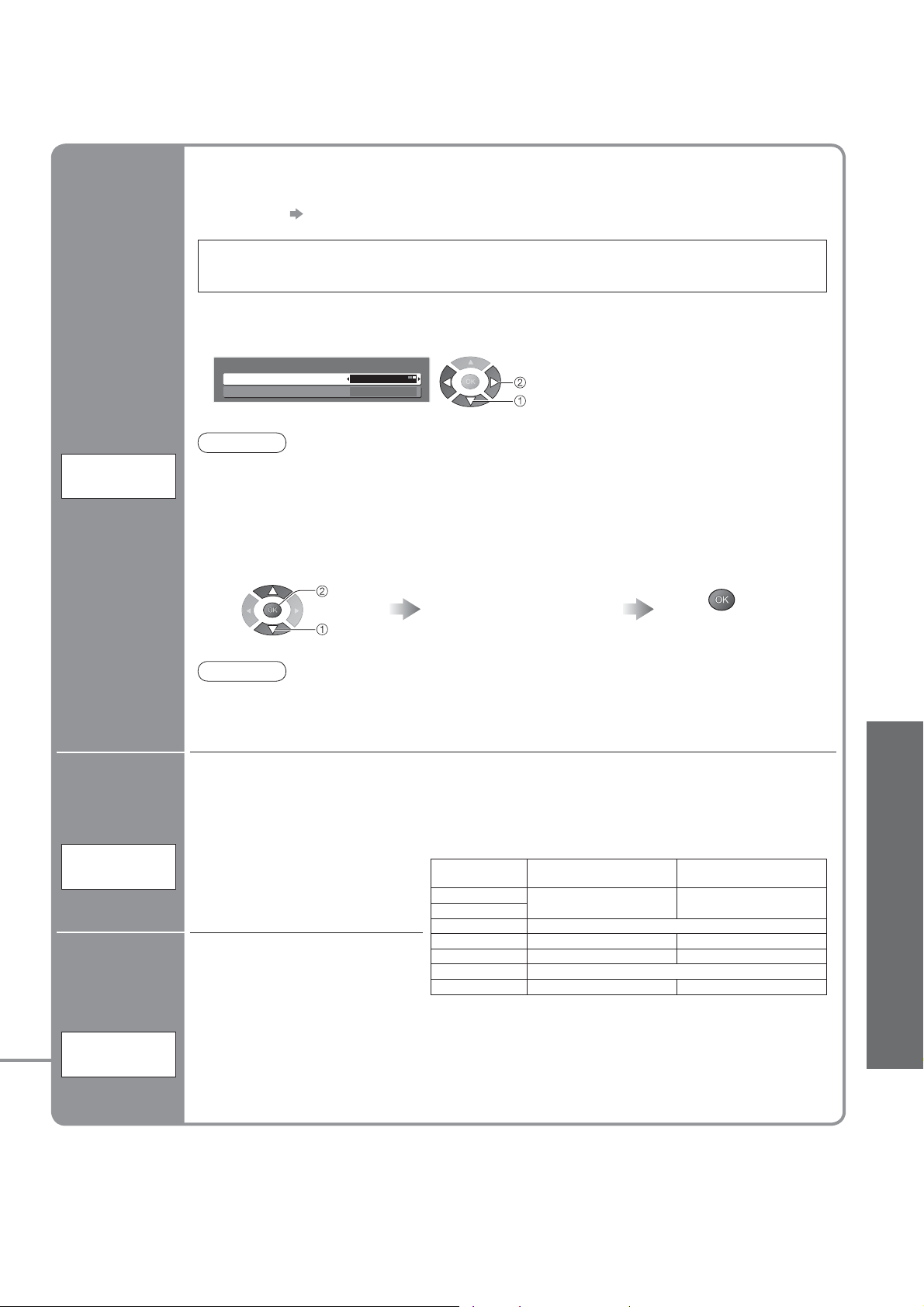

Update
TV’s
software
system
System
Update
Download new software to TV.
For details p. 42
•
If System Update is performed, the software will be updated (it may change TV
functions). If you do not wish to do so, set “Auto Update Search in Standby” to Off.
Select “Auto Update Search in Standby” and then set “On” or “Off”
System Update
Auto Update Search in Standby
System Update Search Now
Note
When the TV is switched to standby, there will be a clicking sound after a short delay.
•
Similar clicking sounds will also occur at 3:00 AM and 5:00 AM (p. 44) when “Auto update
Search in Standby” is set to “On”. These sounds are normal.
On
set
select
On: Automatically performs
•
a search in standby and
downloads an update, if any
software updates are available
■ To update immediately
Select
“System Update Search Now”
start
select
Searches for an update
(for several mins.) and
displays a corresponding
message if any
Download
Download may take
•
for about 20 mins.
•
DVB Settings (DVB)
Adjust the
standard time
Region
Select
Adjust for
Summer Time
Daylight
Saving Time
Note
During downloading, the TV will display a blank screen for 40 to 50 seconds. Do not
•
interrupt the TV during this procedure.
Select the region where you live
to adjust the standard time.
The time contained in the
•
broadcast signal is UTC
(Universal Time coordinated)
formally known as GMT
(Greenwich Mean Time).
Select time offset from the
standard time for Summer
Time.
Normally select “Auto”.
•
If there is a gap between
•
displayed time and actual
time, set this function.
Region Standard time
NSW / ACT
Victoria
Queensland +10:00
South Australia
Western Australia
Northern Territory
Tasmania +10:00 +11:00
+10:00 +11:00
+9:30 +10:30
+8:00 +9:00
Daylight Saving Time: Auto
(During Summer Time)
+9:30
(Based on GMT)
Advanced
27
Page 28
Editing Programmes
You can make your favourite programme lists and skip unwanted programmes, etc.
Select DVB or Analogue
1
“DVB Favourites Edit” and “DVB Service List” are available in
•
DVB mode only.
“Analogue Service List” is available in Analogue mode only.
•
INPUT
ASPECT
OK
MENU
RGYB
OPTION
132
465
798
0
CH
TEXT F.P. INDEX HOLD
REC
VCR DVD
PROGRAMME
EXIT
RETURN
DIRECT TV REC
2
3
4
Display the menu
MENU
Select “Setup”
Main Menu
VIERA Link
Sound
Setup
access
select
Select “DVB Favourites Edit”, “DVB Service List”
or “Analogue Service List”
Setup Menu
DVB Favourites Edit Access
DVB Service List
Analogue Service List
Tuning Menu
Off Timer Off
Teletext TOP
Shipping Condition
System Update
Power Save
Side Panel
Access
Access
Off
Off
1/2
access
select
28
TV
■ To return to TV
EXIT
5
Set
Page 29

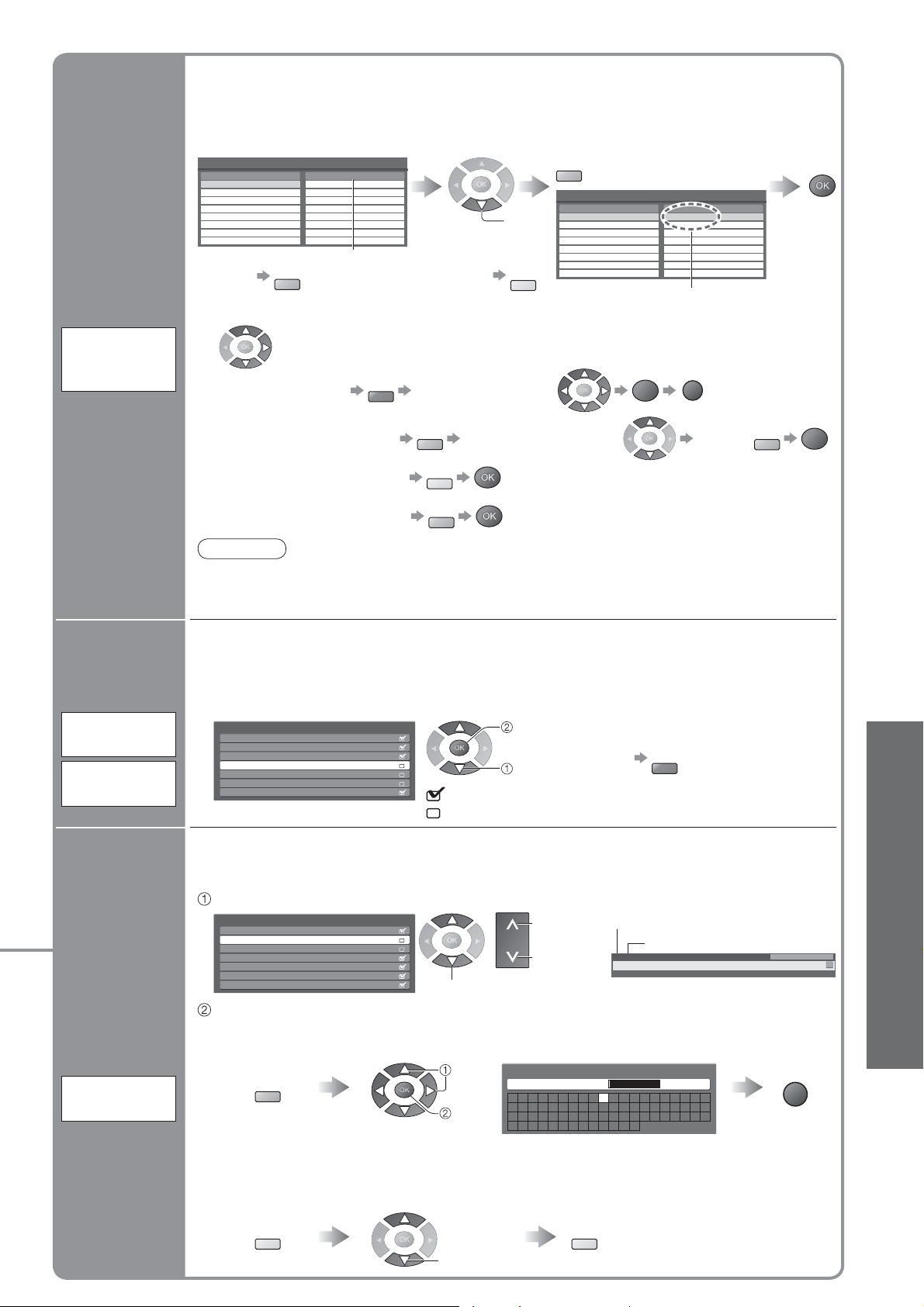

List
favourite
programmes
Create your favourite programme list from various broadcasters (up to 4: Fav List1 /
Fav List2 / Fav List3 / Fav List4).
The list is added to “Favourites” list in TV Guide (p. 17) and information banner (p. 15) and
then easily accessed.
Select a programme and add it to the list
Favourites Edit
TEN Digital
1
ABC TV Sydney2
SBS DIGITAL 13
FTV guide4
7 Digital7
NINE DIGITAL9
7 HD Digital70
7 Guide77
All DVB Services
To display another List
B
Fav List1
To add all
•
programmes
to the list
select
G
Favourites Edit
All DVB Services
TEN Digital
1
ABC TV Sydney2
SBS DIGITAL 13
FTV guide4
7 Digital7
NINE DIGITAL9
7 HD Digital70
Y
7 Guide77
Fav List1
TEN Digital1
A programme is added
■ To edit List
DVB
Favourites
Edit
(DVB mode)
Skip
unwanted
programmes
DVB
Service List
Analogue
Service List
Edit analogue
programmes
(Change
name, Move)
Analogue
Service List
Select the field of List to edit and:
RETURN
To name the List R Select the character OK
•
To move the programme G Select the new position Confi rm G
•
To delete the programme Y
•
OK
•To delete all programmes B
Note
Programme numbers (known as logical channel numbers) are defi ned by the broadcaster
•
and cannot be changed.
Hidden services (see below) can be selected but not viewed.
•
You can hide unwanted services. The deleted services cannot be displayed except in this
function. Use this function to skip unwanted programmes.
“DVB Service List” is listed all tuned DVB programmes in DVB mode.
•
“Analogue Service List” is listed all tuned Analogue programmes in Analogue mode.
•
Select a service and add / delete
DVB Service List
70
CBBC Channel
72
Cartoon Nwk
105
BBCi
719
BBC Radio Wales
720
BBC Radio Cymru
1
BBC ONE Wales
7
BBC THREE
:add
:delete (skip)
add / delete
select
To retune each programme
•
(Manual Tuning)
R (p. 31)
You can change the programme name and programme position for Analogue programmes.
This function is available in Analogue mode.
•
If a VCR is connected only with the RF cable, edit “VCR”.
•
Select the programme to edit
Analogue Service List
BBC1
1
*****
2
3
*****
*****
4
*****
5
*****
6
*****
7
page up
CH
page down
select
Programme position
Name
1 TEN
Coronation Street
10:30 am
All Analogue Services
Edit
■ To change the name displayed when selecting programmes
Select
“Rename”
G
Set characters
select
set
Edit service name
Name
ABCDEFGHI JKLMN
UVWXYZ 0123456
abcde f gh i j k lmn
uvwxyz ( )+ - . * _
OPQRST
789! : #
opqr s t
(maximum: fi ve characters)
Store
RETURN
•
Editing Programmes
Advanced
■ To move the programme position
Select new position
Y
select
Store
Y
29
Page 30

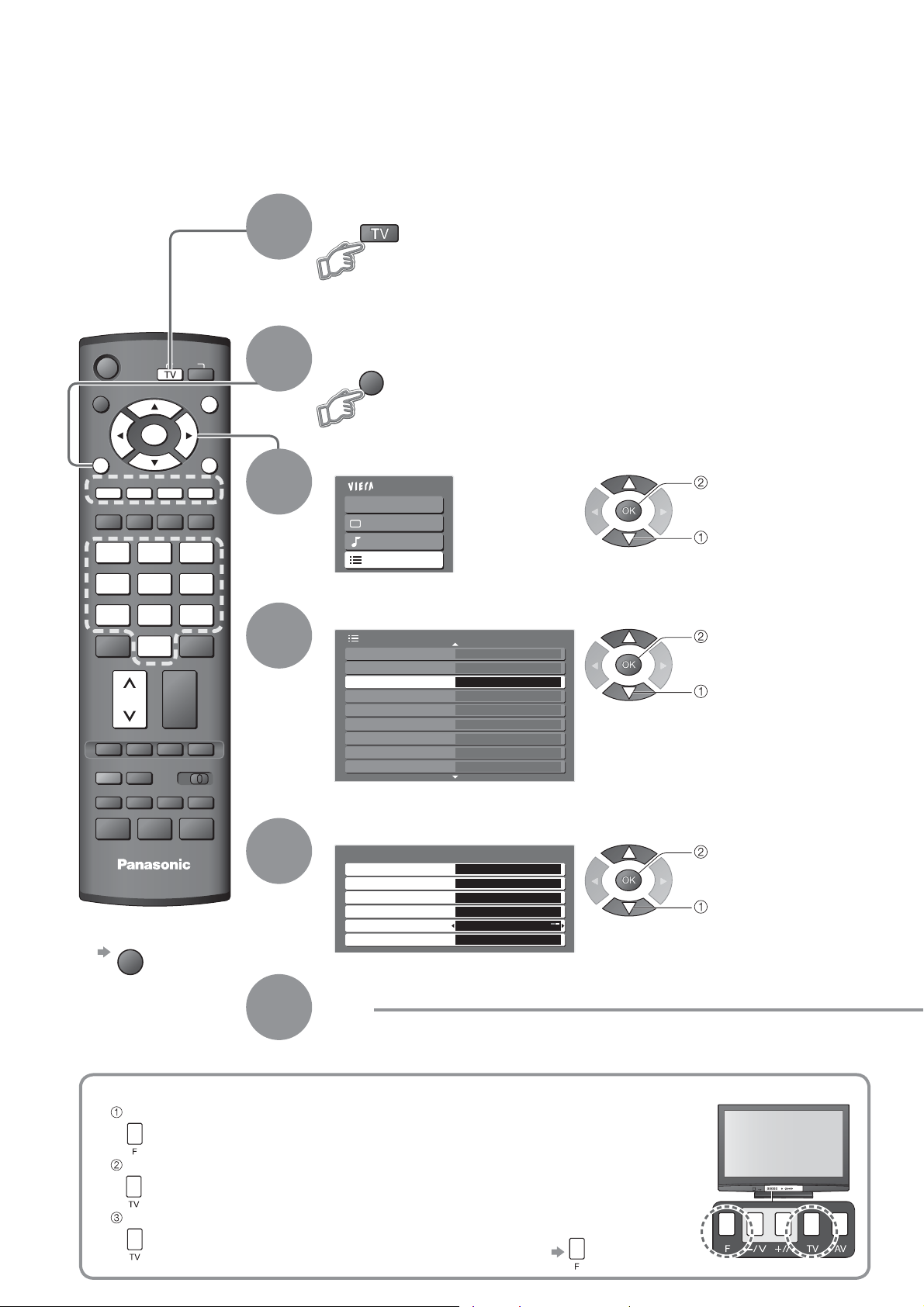

Tuning Programmes
You can retune all the TV programmes when moving house or search for new services which may have
recently started broadcasting.
Select DVB or Analogue
“DVB Manual Tuning”, “Add New DVB Services”, “New Service
•
Message” and “DVB Signal Display” are available in DVB mode
only.
“Analogue Manual Tuning” is available in Analogue mode only.
•
Main Menu
access
select
INPUT
ASPECT
OK
MENU
RGYB
OPTION
132
EXIT
RETURN
DIRECT TV REC
1
2
3
Display the menu
MENU
Select “Setup”
VIERA Link
Sound
Setup
465
798
0
CH
TEXT F.P. INDEX HOLD
REC
VCR DVD
PROGRAMME
TV
■ To return to TV
EXIT
4
5
6
Select “Tuning Menu”
Setup Menu
DVB Favourites Edit
DVB Service List
Tuning Menu
Off Timer Off
Teletext TOP
Shipping Condition
System Update
Power Save
Side Panel
Access
Off
Off
Select a function
Tuning Menu
Auto Tuning
DVB Manual Tuning
Analogue Manual Tuning
Add New DVB Services Access
New Service Message
DVB Signal Display Access
Access
Access
Access
On
Set
1/2
access
select
access
select
30
■ For Auto Tuning, using the buttons on the front of the TV (p. 11)
Press repeatedly until “Auto Tuning” appears
Access “Auto Tuning”
Start “Auto Tuning”
To return to TV
•
Page 31

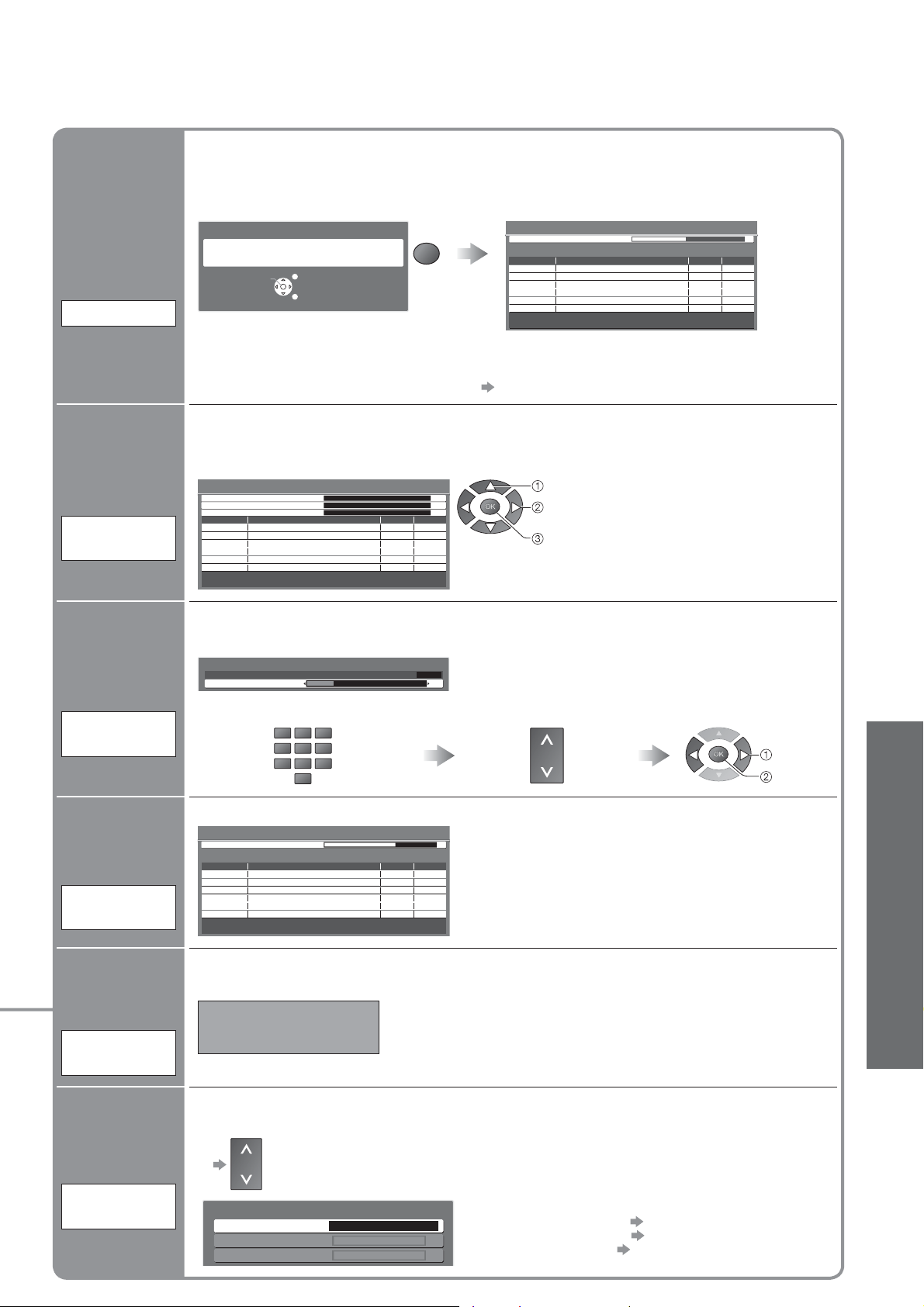

Set all DVB
or Analogue
programmes
automatically
Auto Tuning
Set DVB
programme
manually
DVB Manual
Tuning
Automatically retune all DVB or Analogue programmes received in the area.
Only DVB programmes are retuned in DVB mode.
•
Only Analogue programmes are retuned in Analogue mode.
•
Start Auto Tuning Settings are made automatically
Auto Tuning
All digital tuning data will be erased
Start Auto Tuning
All the previous tuning settings are erased.
•
When the operation is completed, the programme at programme position “1” will be
•
displayed.
If tuning has not been done completely “DVB Manual Tuning”, “Analogue Manual Tuning”
•
Normally use “Auto Tuning” or “Add New DVB Services” to add DVB programmes to your
service list.
If tuning has not been done completely or for adjusting the direction of the aerial, use this
function.
DVB Manual Tuning
Physical Channel
Signal Quality 0 10
Analogue Scan 21 68
Signal Strength 010
Prog. Service Name Type New
DVB: 0 Pay TV: - Radio: - Data: -
EXIT
RETURN
OK
474,00[CH21]
MHz
•
Auto Tuning - Digital (DVB)
Scan 6 69
This will take about 3 minutes.
RF Ch Service Name Type Quality
2
ABC TV Sydney DVB 10
3 SBS DIGITAL 1 DVB 10
4 FTV guide DVB 10
7 7 Digital DTV 10
CH 29 Analogue
CH 33
DVB: 3
select channel
adjust frequency (set where the level of
“Signal Quality” becomes the maximum)
search
All services found will be added to the
DVB Service List.
Searching
Analogue
-
-
•
Tuning Programmes
Set Analogue
programme
manually
Analogue
Manual Tuning
Add DVB
programme
automatically
Add New
DVB Services
Display a
notifi cation
message
New Service
Message
Set Analogue programme manually after Auto Tuning.
If a VCR is connected only with the RF cable, select programme position “0”.
•
Analogue Manual Tuning
1 CH33
Manual Tuning 0 75
Select the programme position
132
465
798
0
Any new services found will be added to the DVB Service List.
Add New DVB Services
Scan 6 69
Analogue Scan 21 68
This will take about 3 minutes.
RF Ch Service Name Type Quality
DVB: 0 Pay TV: - Radio: - Data: -
Selects whether to give a notifi cation message when a new DVB service is found. (Off / On)
New DVB service found!
Press OK to add new service.
Press EXIT to lgnore.
Searching
The new service is added with the current settings
•
saved as they are.
CH
Search and storeSelect the programme
search
store
Advanced
Check
DVB signal
DVB Signal
Display
Selects a programme and checks the DVB signal condition.
To change the programme
•
CH
DVB Signal Display
Service Name [CH53] 7 7 Digital
Signal Quality
Signal Strength00
10
10
A good Signal Strength is not an indication of
suitable signal for DVB reception. Please use
the Signal Quality indicator as follows:
Signal Quality:
Green bar Good
•
Yellow bar Poor
•
Red bar Bad (Check the aerial)
•
31
Page 32
Restore Settings
Resets the TV to its original condition, i.e. no programmes tuned in.
All settings (programmes, picture, sound quality, etc.) are reset.
Display the menu
1
INPUT
MENU
ASPECT
OK
MENU
OPTION
132
465
798
0
VCR
TEXT F.P. INDEX HOLD
REC
VCR DVD
PROGRAMME
EXIT
RETURN
DIRECT TV REC
2
3
Select “Setup”
Main Menu
VIERA Link
Sound
Setup
Select “Shipping Condition”
Setup Menu
DVB Favourites Edit
DVB Service List
Tuning Menu
Off Timer Off
Teletext TOP
Shipping Condition Access
System Update
Power Save
Side Panel
Off
Off
1/2
access
select
access
select
■ To return to TV
EXIT
Restore
Settings
Shipping
Condition
4
Check the message and initialise
Shipping Condition
Analogue & DVB tuning data will be erased
Confirm
Follow the on-screen instructions
“Auto Tuning” will automatically start when Mains power On / Off switch is next turned
•
On. (p. 12)
Set
Are you sure?
Are you sure?
EXIT
RETURN
■ To retune TV programmes only, e.g. after moving house
“Auto Tuning” (p. 31)
32
Page 33
Input Labels
For easier identifi cation and selection of the input mode, you can label each input terminals or skip
terminal that is not connected to any equipment.
To select the input mode p. 20
•
Display the menu
1
INPUT
MENU
ASPECT
OK
MENU
OPTION
132
465
798
0
VCR
TEXT F.P. INDEX HOLD
REC
VCR DVD
PROGRAMME
EXIT
RETURN
DIRECT TV REC
2
3
Select “Setup”
Main Menu
VIERA Link
Sound
Setup
Select “Input Labels”
Picture Overscan
Input Labels Access
Banner Display Timeout
VIERA Link Settings
Region Select
Daylight Saving Time
Refresh Rate Access
Software Licence
System Information
On
3 seconds
NSW / ACT
Auto
100Hz
access
select
•
Restore Settings
•
2/2 Setup Menu
access
select
Input Labels
TV
■ To return to TV
EXIT
Select a input terminal and set
4
Input Labels
AV1 DVD
AV2 AV2
AV3 AV3
AV4 AV4
PC PC
HDMI1 HDMI1
HDMI2 HDMI2
The labels you set will be displayed in “Input Selection” menu (p. 20) or banner.
If “Skip” is selected, you cannot select the mode.
•
■ User input
You can name each input terminals freely.
Select “User input” Set characters
select
select
access
set
set
select
User input
Name
ABCDEFGHI JKLMN
UVWXYZ 0123456
abcde f gh i j k lmn
uvwxyz ( )+ - . * _
(maximum: ten characters)
OPQRST
789! : #
opqr s t
Advanced
Store
RETURN
33
Page 34

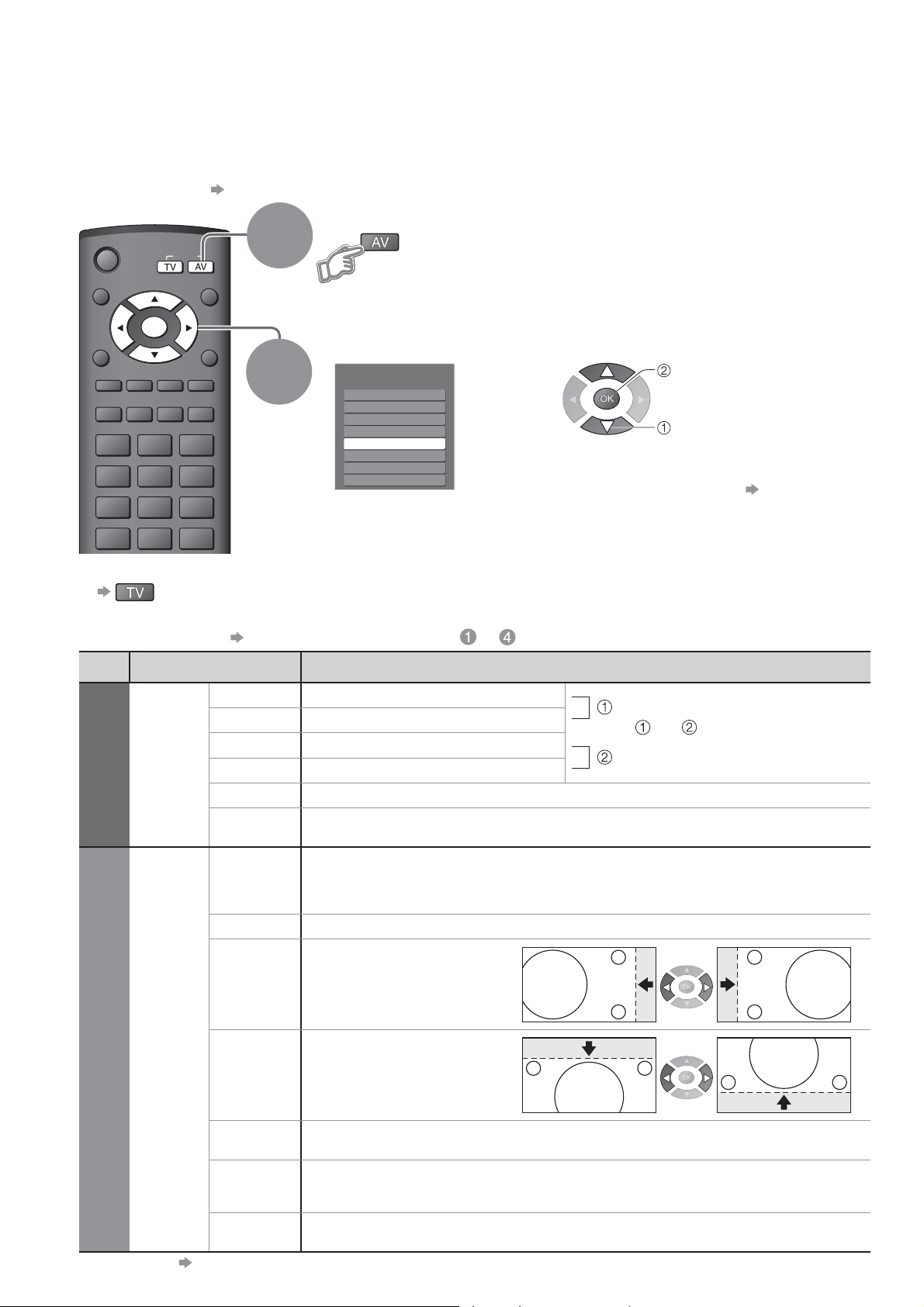

Displaying PC Screen on TV
The screen of the PC connected to the TV can be displayed on the TV.
You can also listen to PC sound with the audio cable connected.
To connect PC p. 40
•
Select the external input
1
2
Select “PC”
Input Selection
AV1
AV2
AV3
AV4
PC
HDMI1
HDMI2
TV
access
select
Corresponding signals p. 44
•
If “H-freq.” or “V-freq.” is shown in red,
•
the signals may not be supported.
PC Audio input is via AV2 Audio
•
connection. (p. 41)
ASPECT
MENU
132
465
798
OK
OPTION
0
INPUT
EXIT
RETURN
DIRECT TV REC
■ To return to TV
■ PC menu setting (changed as desired)
To make settings “How to Use Menu Functions” to (p. 22)
•
Menu Item Adjustments / Configurations (options)
W/B High R White balance of bright red area
Advanced
PC
Settings
W/B High B White balance of bright blue area
W/B Low R White balance of dark red area
W/B Low B White balance of dark blue area
Gamma (S Curve / 2.0 / 2.2 / 2.5)
Reset PC
Settings
Input
Resolution
Clock Set to the minimum level if noise occurs
Press the OK button to reset to the default Picture settings
Switches to a wide view
VGA (640 × 480 pixels), WVGA (852 × 480 pixels),
•
XGA (1,024 × 768 pixels), WXGA (1,366 × 768 pixels)
Options change depending on signals
•
Adjusts horizontal position
and
repeatedly adjusted
34
H-pos
Setup
PC
Setup
Other items p. 24 and p. 25
•
V-pos
Clock Phase
Sync
Reset PC
Settings
Adjusts vertical position
Eliminates fl icker and distortion
Adjust after Clock adjustment
•
PC sync signal type (H & V / SOG)
H & V : Horizontal and Vertical sync from your PC (Most common sync format)
•
SOG : Sync on Green sync from your PC
Press the OK button to reset to the default Setup settings
Set to the minimum level if noise occurs
•
Page 35

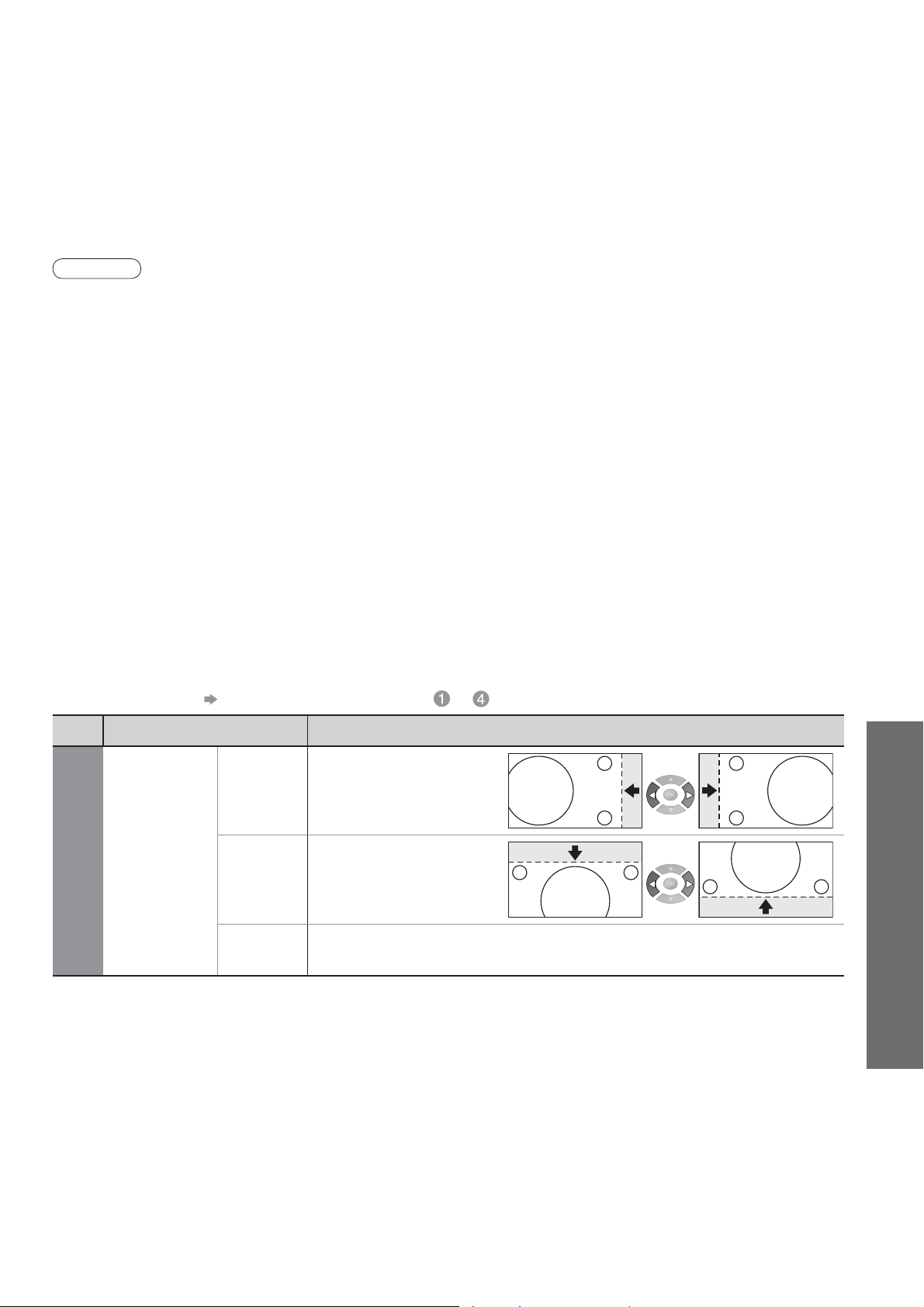

HDMI Functions
HDMI (high-definition multimedia interface) allows you to enjoy high-definition digital images and highquality sound by connecting the TV and the equipment.
HDMI-compatible equipment (∗1) with an HDMI or DVI output terminal, such as a set top box or a DVD
player, can be connected to the HDMI terminal using an HDMI compliant (fully wired) cable.
About connections, see “External Equipment” (p. 40).
Note
HDMI is the world’s fi rst complete digital consumer AV interface complying with a non-compression standard.
•
Audio settings can be made on the “HDMI1 Input” menu screen. (p. 24)
•
Applicable audio signal sampling frequencies (2ch L.PCM): 48 kHz, 44.1 kHz, 32 kHz
•
HDMI2 terminal is for digital audio signal only.
•
Use with a PC is not assumed.
•
If the connected equipment has an aspect adjustment function, set the aspect ratio to “16:9”.
•
These HDMI connectors are “type A”.
•
These HDMI connectors are compatible with HDCP (High-Bandwidth Digital Content Protection) copyright
•
protection.
An equipment having no digital output terminal may be connected to the input terminal of either “COMPONENT”,
•
“S-VIDEO”, or “VIDEO” to receive analogue signals.
The HDMI input terminal can be used with only the following image signals:
•
480i, 480p, 576i, 576p, 720p, 1080i and 1080p. Match the output setting of the digital equipment.
For details of the applicable HDMI signals, see p. 44.
•
•
Displaying PC Screen on TV
■ DVI connection
If the external equipment has only a DVI output, connect to the HDMI1 terminal via a DVI to HDMI adapter
•
cable (∗2).
When the DVI to HDMI adapter cable is used, connect the audio cable to the audio input terminal (HDMI1: use
•
AV2 IN AUDIO terminals).
■ DVI Position Settings
If the picture position is not fi t to the screen during the DVI connection, adjust the position on “DVI Position
Settings” in Setup Menu. The settings are memorized for each HDMI terminals and input signals.
To make settings “How to Use Menu Functions” to (p. 22)
•
Menu
Setup
DVI Position
Settings
Item Adjustments
Adjusts horizontal position
H-pos
Adjusts vertical position
V-pos
Reset
DVI Position
Settings
Press the OK button to reset to the default Setup settings
(∗1): The HDMI logo is displayed on HDMI-compliant equipment.
(∗2): Enquire at your local digital equipment retailer shop.
•
HDMI Functions
Advanced
35
Page 36

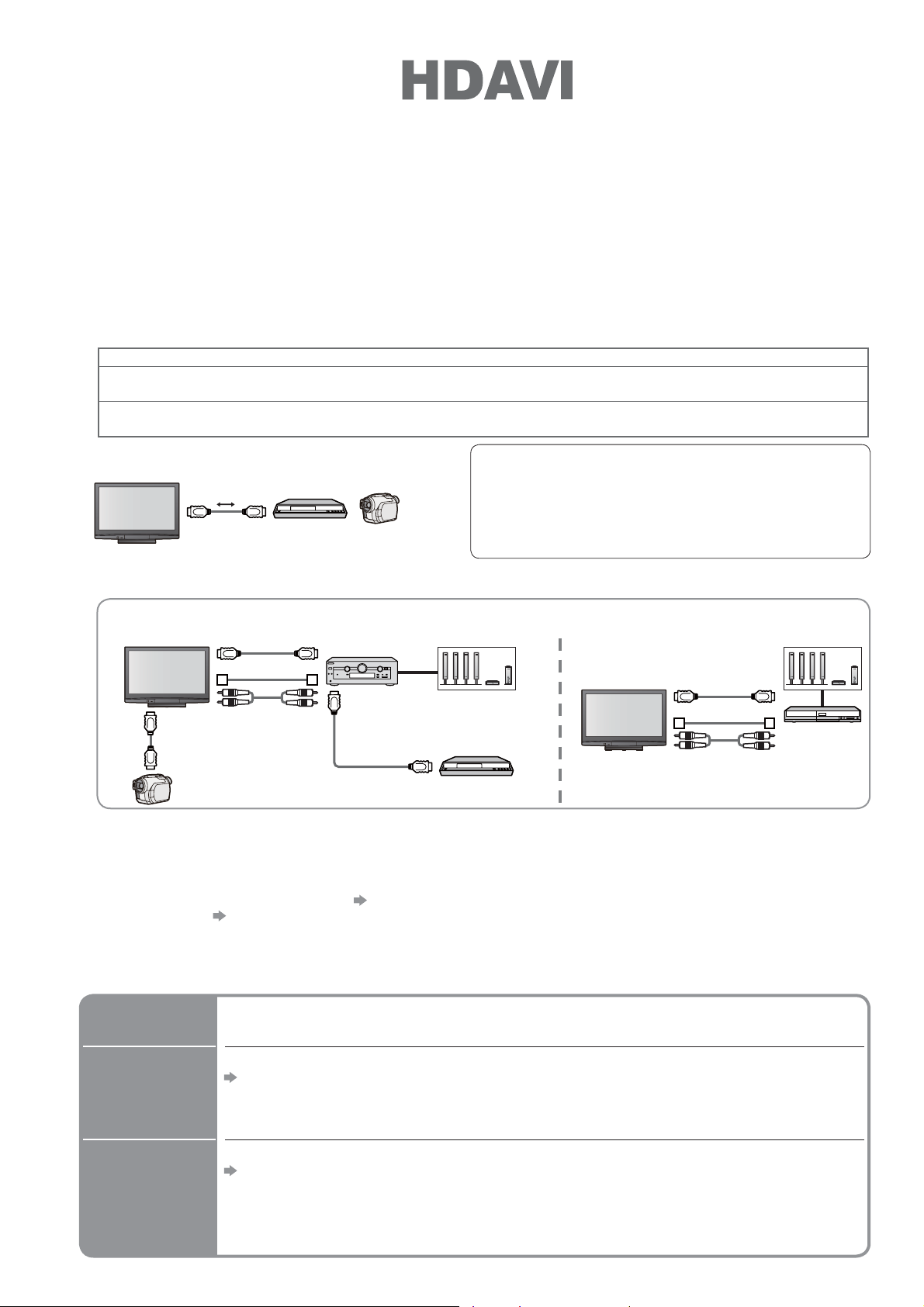

TM
VIERA Link “ Control
∗
Enjoy additional HDMI Inter-Operability with Panasonic products which have “HDAVI Control” function.
This TV supports “HDAVI Control 3” function.
Connections to the equipment (DIGA Recorder, HD Video Camera, Player theatre, Amplifi er, etc.) with
HDMI cable allow you to interface them automatically.
These features are limited to models incorporating “HDAVI Control” and “VIERA Link”.
Some functions are not available depending on the equipment’s version of HDAVI Control. Please confi rm the
•
connected equipment’s version of HDAVI Control.
VIERA Link “HDAVI Control”, based on the control functions provided by HDMI which is an industry standard
•
known as HDMI CEC (Consumer Electronics Control), is a unique function that we have developed and added.
As such, its operation with other manufacturers’ equipment that supports HDMI CEC cannot be guaranteed.
Please refer to individual manuals for other manufacturers’ equipment supporting VIERA Link function.
About applicable Panasonic equipment, consult your local Panasonic dealer.
”
∗
■ Summary of VIERA Link functions
Easy playback
•
Control the menu of the connected equipment by VIERA remote control
•
(Available with the equipment which has “HDAVI Control 2” or “HDAVI Control 3” function.)
Pause Live TV programme
•
(Available with the equipment which has “HDAVI Control 3” function.)
■ Connections
Read the manual of the equipment, too.
HDMI cable
Connect the equipment supporting VIERA Link to the TV’s HDMI1 or HDMI2 terminals via fully wired HDMI
•
cables.
Power on link
•
DIGA Recorder / HD Video Camera
with VIERA Link function
Power off link
•
Direct TV Recording
•
HDMI cable
•
Use fully wired HDMI compliant cable.
Non-HDMI-compliant cables cannot be utilized.
Recommended Panasonic’s HDMI cable part number:
• RP-CDHG10 (1.0 m) • RP-CDHG30 (3.0 m)
• RP-CDHG15 (1.5 m) • RP-CDHG50 (5.0 m)
• RP-CDHG20 (2.0 m)
Speaker control
•
For Speaker control (Home Cinema)
To use Amplifi er
•
HDMI cable
Optical digital
HDMI
cable
HD Video Camera with
VIERA Link function
audio cable
or
RCA cable
Amplifi er with
VIERA Link
function
HDMI cable
Speaker system Speaker system
DIGA Recorder with
VIERA Link function
To use Player theatre
•
HDMI cable
Optical digital
audio cable
or
RCA cable
■ Preparations
Connect the equipment supporting VIERA Link.
•
Set up the connected equipment. Read the manual of the equipment.
•
For optimal recording, the settings of the recorder might be required. For details, read the manual of the
•
recorder.
Set VIERA Link On in Setup Menu “VIERA Link” (p. 25)
•
Set up the TV After connection, turn the equipment on and then switch the TV on. Select the input
•
mode to HDMI1 or HDMI2 (p. 20), and make sure that an image is displayed correctly.
This setup should be done each time when the following conditions occur:
• for the first time / • when adding or reconnecting equipment / • when changing setup
■ Features available
Easy
playback
Power on
link
Power off
link
Automatic Input switching - When the connected equipment is operated, input mode
is switched automatically. When it is stopped operating, input mode is not returned.
Set Power on Link “Set” in Setup Menu to use this function
“Power on Link” (p. 22 - 23, 25)
When the connected equipment starts playback or direct navigator / function menu
for the equipment are activated, the TV is automatically turned on. (Only when TV is
in Standby mode.)
Set Power off Link “Set” in Setup Menu to use this function
“Power off Link” (p. 22 - 23, 25)
When TV is set to Standby mode, the connected equipment is also automatically
set to Standby.
This function will work even if the TV enters standby mode automatically by Off Timer
•
function or auto power standby function.
Player theatre
with
VIERA Link
function
36
The TV remains on even if the “VIERA Link” compatible equipment is turned off.
•
Page 37

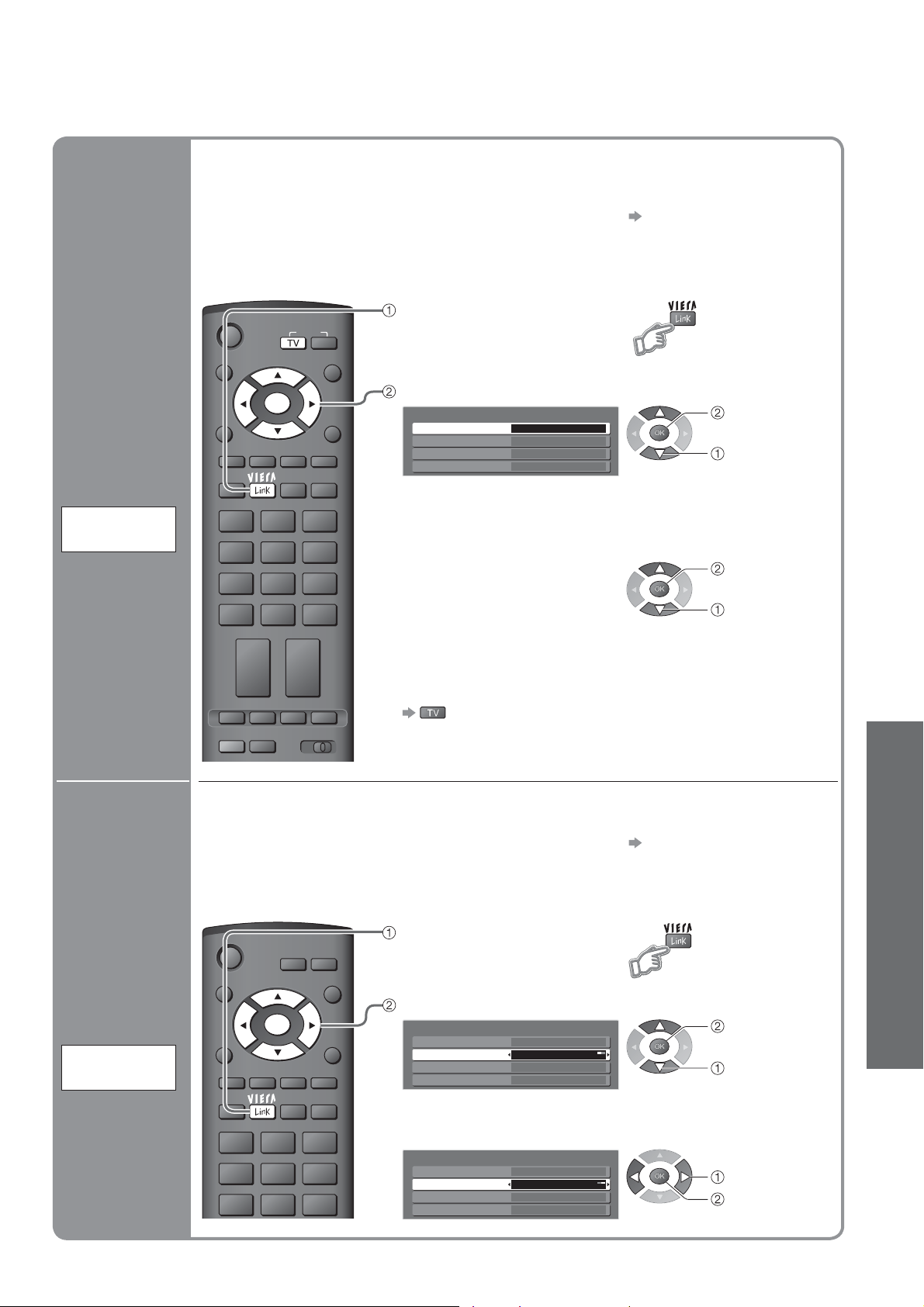

■ Features available (Using VIERA Link Menu)
You can pause the live TV programme and resume later.
This function is available with DIGA Recorder which has HDD and “HDAVI Control 3”
•
function.
If you cannot operate, check the settings and the equipment “Preparations” (p. 36)
•
Available conditions:
•
• when watching TV programme
• when watching the input from DIGA Recorder
Access and pause the live TV programme
POWER
GUIDE
Pause
Live TV
programme
HDAVI Control 3
and
(
Recorder with HDD
Pause Live
TV
MENU
RGYB
)
132
465
798
INFO MUTE
TEXT STTL INDEX HOLD
CH
Display “VIERA Link Menu”
INPUT
EXIT
OK
RETURN
OPTION SD CARDASPECT
Select “Pause Live TV” and pause
VIERA Link Menu
Pause Live TV
Direct TV Rec
VIERA Link Control
Speaker Selection
Speaker Selection
Live TV programme is recorded on HDD from where it was
•
paused.
Access
Start
Recorder
Home Cinema
Home Cinema
pause
select
•
VIERA Link “HDAVI Control
■ To resume (stop pause)
Select “Pause Live TV”
and access
About the operations after
0
VOL
RECPOWER
VCR DVD
•
resuming, read the manual
of the equipment.
■ To return to Live TV
(cancel pause or resumed playback)
(change the input mode)
If you cancel pause or resumed playback, the recorded
•
programme will be deleted from HDD.
resume
select
TM
”
Direct TV
Recording -
What you see
is What you
record
(HDAVI Control 3)
Direct TV
Rec
Recording the current programme in DIGA Recorder immediately.
This function is available with DIGA Recorder which has “HDAVI Control 3” function.
•
If you cannot operate, check the settings and the equipment “Preparations” (p. 36)
•
Available conditions:
•
• when watching TV programme
The recording is performed by using the tuner of DIGA Recorder.
•
Changing programme, input mode or turning off the TV is available during the recording.
POWER
GUIDE
MENU
RG BY
INPUT
EXIT
OK
RETURN
OPTION SD CARDASPECT
Display “VIERA Link Menu”
Select “Direct TV Rec” and start recording
VIERA Link Menu
Pause Live TV
Direct TV Rec
VIERA Link Control
Speaker Selection
Speaker Selection
Start
Recorder
Home Cinema
Home Cinema
start
select
■ To stop recording
132
465
798
Select “Stop” in “Direct TV Rec” and access
VIERA Link Menu
Pause Live TV
Direct TV Rec
VIERA Link Control
Speaker Selection
Speaker Selection
Stop
Recorder
Home Cinema
Home Cinema
select
stop
Advanced
37
Page 38

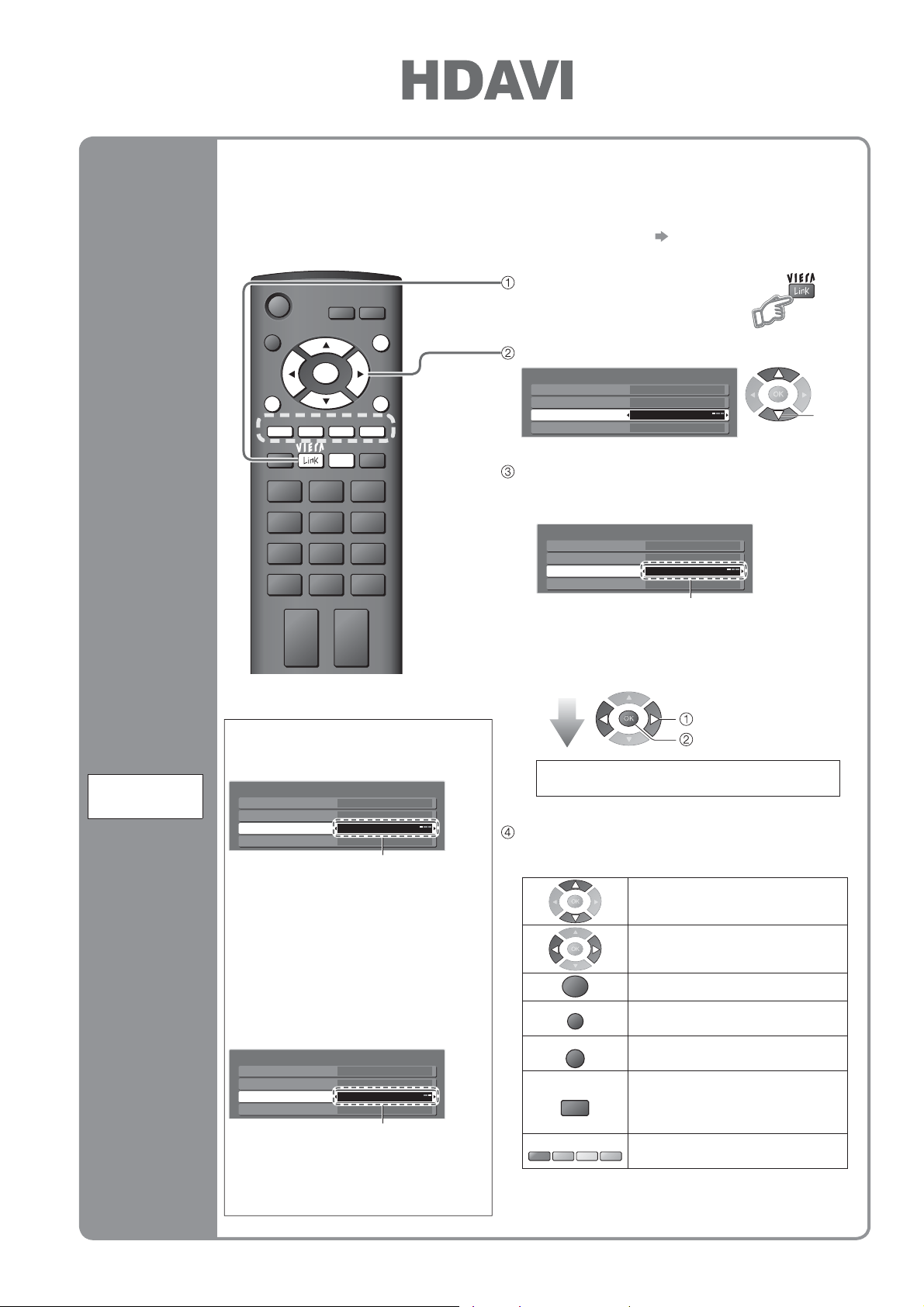

VIERA Link “ Control
■ Features available (Using VIERA Link Menu)
You can control some functions of the connected equipment with this TV remote
control (point the remote control at the TV’s signal receiver).
This function is available with the equipment which has “HDAVI Control 2” or
•
“HDAVI Control 3” function.
If you cannot operate, check the settings and the equipment “Preparations” (p. 36)
•
Access and operate the menu of the equipment
Display “VIERA Link Menu”
INPUT
TM
”
Control
the menu
of the
connected
equipment
by VIERA
remote
control
HDAVI Control 2
(
HDAVI Control 3
VIERA Link
Control
ASPECT
OK
MENU
RGYB
OPTION
EXIT
RETURN
DIRECT TV REC
132
465
798
0
VCR
MUTE
VOL
■ If you access
the invalid equipment
When the equipment with
“HDAVI Control” function is
)
connected
VIERA Link Menu
Pause Live TV
Direct TV Rec
VIERA Link Control
Speaker Selection
Speaker Selection
Recorder / Player / Home Cinema /
Video Camera
The type of the connected
equipment is displayed.
But you cannot access it. Use its
own remote control to operate the
equipment.
When the equipment of other
types or manufacturers is
connected
VIERA Link Menu
Pause Live TV
Direct TV Rec
VIERA Link Control
Speaker Selection
Speaker Selection
“Others” is displayed.
You cannot access it. Use its own
remote control to operate the
equipment.
Start
Recorder
Home Cinema
Home Cinema
Start
Others
Home Cinema
Home Cinema
Others
Select “VIERA Link Control”
VIERA Link Menu
Pause Live TV
Direct TV Rec
VIERA Link Control
Speaker Selection
Speaker Selection
Select the equipment you want to access
“Home Cinema” means Player theatre,
•
Recorder theatre and Amplifi er.
VIERA Link Menu
Pause Live TV
Direct TV Rec
VIERA Link Control
Speaker Selection
Speaker Selection
Recorder / Player / Home Cinema / Video Camera
Start
Recorder
Home Cinema
Home Cinema
Start
Recorder
Home Cinema
Home Cinema
select
The type of the connected equipment is
displayed.
Select the type of the equipment and
access.
select
access
The menu of the accessed equipment
(Input mode will be changed automatically)
Operate the menu of the equipment
Available VIERA remote control buttons
•
(depending on the connected equipment):
Move the cursor / select the menu
Move the cursor / access / adjust
OK
RETURN
EXIT
OPTION
R
G Y
About the operations for the equipment, read
•
the manual of the equipment.
Store / set / access
Return to the previous menu
Exit the menu
Display the operation guide for the
equipment /
The same functions with the
OPTION button of the equipment
Access when the key words are
B
displayed on colour bar
38
Page 39

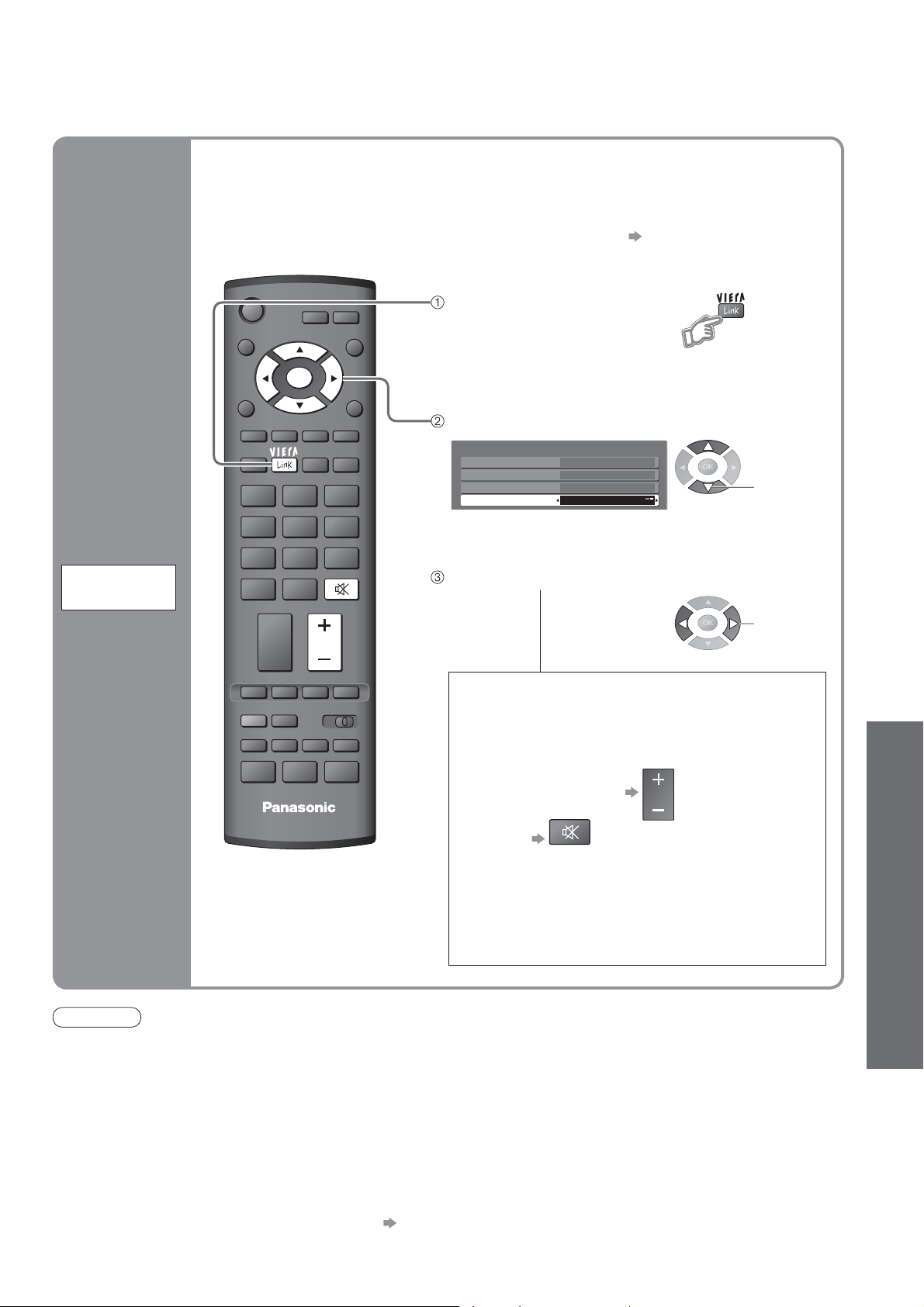

■ Features available (Using VIERA Link Menu)
You can control the theatre speaker with this TV remote control (point the remote
control at the TV’s signal receiver).
This function is available with the Amplifi er or Player theatre which has “HDAVI Control”
•
function.
If you cannot operate, check the settings and the equipment “Preparations” (p. 36)
•
Access and control the speaker volume
Speaker
control
Speaker
Selection
POWER
GUIDE
MENU
RGYB
132
465
798
INFO
CH
TEXT STTL INDEX HOLD
PROGRAMME
INPUT
OK
OPTION SD CARDASPECT
0
VOL
RECPOWER
VCR DVD
MUTE
EXIT
RETURN
Display “VIERA Link Menu”
Select “Speaker Selection”
VIERA Link Menu
Pause Live TV
Direct TV Rec
VIERA Link Control
Speaker Selection
Set to “Home Cinema” or “TV”
Start
Recorder
Home Cinema
■ Home Cinema
Amplifier or Player theatre will be
automatically turned on if it is in Standby
mode and the sound is from theatre
speakers connected to the equipment.
•
VIERA Link “HDAVI Control
select
set
TM
”
Volume up / down
•
TV
Mute
•
The sound of TV speakers is mute.
•
When the equipment is turned off, TV speakers
•
will be active.
MUTE
VOL
■ TV
TV speakers are active.
Note
This function may not work properly depending on the connected equipment.
•
Image or sound may not be available for the fi rst few seconds when the playback starts.
•
Image or sound may not be available for the fi rst few seconds when Input mode is switched.
•
Volume function will be displayed when adjusting the volume of the equipment.
•
Easy playback is also available by using the remote control for Amplifi er or Player theatre. Read the manual of
•
the equipment.
About HDMI cable for connecting Panasonic HD Video Camera, read the manual of the equipment.
•
If more than one equipment of the same type are connected to the TV by HDMI cables, for example two DIGA
•
Recorders to HDMI1 and HDMI2, VIERA Link will only be available for the lower terminal number, in this case
HDMI1.
“HDAVI Control 3” is the newest standard (current as of December, 2007) for HDAVI Control compatible
•
equipment. This standard is compatible with conventional HDAVI equipment.
To confi rm this TV’s version of HDAVI Control “System Information” (p. 25)
•
Advanced
39
Page 40
External Equipment
These diagrams show our recommendations for how to connect the TV to your various equipment.
For other connections, consult the instructions for each piece of equipment, the table below, and the
specifi cations (p. 48).
Camcorder /
Game equipment
(VIDEO)
or
(S-VIDEO)
(AUDIO)
40
AUDIO
AV4 I N
L R
( M3 stereo
mini plug)
S VIDEO
VIDEO
Headphones
■ To adjust volume
“Headphone Volume” in
the Sound Menu (p. 24)
■Types of connectable equipment to each terminal
Terminal
Recording / Playback
(equipment)
To record / playback videocassettes / DVDs
(VCR / DVD recorder)
To watch DVDs (DVD player)
To watch camcorder images (Video camera)
To watch satellite broadcasts (Set top box)
To play games (Game equipment)
To use amplifi er with speaker system
VIERA Link
: Recommended Connection
AV1 IN
VIDEO
Y
L
B
/
CB
P
AUDIO
R
PR/CR
AV2 IN
VIDEO
Y
L
B
/
P
AUDIO
R
PR/CR
To listen with speakers
or
Amplifier with speaker system
AV3 IN
S VIDEO
VIDEO
CB
L
AUDIO
R
AV4 IN
(Front of TV)
S VIDEO
VIDEO
AUDIO
LR
Page 41
To watch satellite broadcasts
Set top box
HDMI equipment
Fully wired HDMI
compliant cable
Fully wired HDMI
compliant cable
AV I N
12
VIDEO VIDEO
Y
L
L
PB/CB
R
R
MONITOR
OUT
P
COMPONENT
AV1 IN
VIDEO
L
AUDIOAUDIOAUDIO
R
R
/
CR
DVD Recorder
ANT
S VIDEO
Y
L
PB/CB
R
R
/
CR
P
COMPONENT
AV2 IN AV3 IN
VIDEO
AUDIO
PC
DIGITAL
AUDIO OUT
To record /
playback
DVD Recorder /
VCR
(Listening)
(Viewing)
Conversion adapter (if necessary)
RF cable
PC
or
•
External Equipment
Computer
RCA cable
Optical digital audio cable
MONITOR
OUT
VIDEO
L
AUDIO
R
DIGITAL
AUDIO OUT
(Viewing)
(Listening)
12
To watch DVDs
DVD player
S VIDEO 4 pin terminal
Chrominance in
Chrominance earth
HDMI terminal
Hot Plug Detect 19
DDC/CEC Ground 17
SCL 15
CEC 13
TMDS Clock Shield
TMDS Data0− 9
TMDS Data0+ 7
TMDS Data1 Shield 5
TMDS Data2− 3
TMDS Data2+ 1
Connect the S VIDEO or VIDEO terminal when using
•
AV3 / AV4 IN terminals.
Connect the COMPONENT or VIDEO terminal when
•
using AV1 / AV2 IN terminals.
11
Luminance in
Luminance earth
18 +5V Power
16 SDA
14 Reserved
(in cable but N.C. on device)
12 TMDS Clock−
10 TMDS Clock+
8 TMDS Data0 Shield
6 TMDS Data1−
4 TMDS Data1+
2 TMDS Data2 Shield
Advanced
41
Page 42
Technical Information
Programme Allocation (Analogue mode)
CH Display / Receive Programme CH Display / Receive Programme CH Display / Receive Programme
CH 0
CH 5
S 2
S 5
CH 5A CH 9A
S 6
S 10
CH 6
CH 9
CH 10
CH 12
S 11
S 44
CH 20
CH 75
Rating (DVB mode)
Rating Meaning Rating Meaning
- Not classifi ed M Mature
P Pre school MA 15+ Mature Adult 15+
C Children AV 15+ Adult strong Violence 15+
G General R Restricted 18+
PG Parental Guidance recommended
Updating the software system (DVB mode)
Update system software regularly to ensure that you have latest version software.
If there is an update available, a notifi cation banner is displayed when the service has the update information.
To download new software, press “OK” Downloading (approx. 20 mins.)
•
If you choose not to download, press “EXIT”.
■ To update automatically
Set “Auto Update Search in Standby” to “On” (p. 27)
If there is a new version software being broadcast, the TV will download this automatically.
The automatic updating sequence is carried out at 3:00 AM and 5:00 AM every morning under the following
•
conditions.
Standby (TV turned Off with the remote control)
Recording is not in progress.
■ To update manually
Perform “System Update Search Now” (p. 27)
If there is an update available, a notifi cation banner is displayed.
To download new software, press “OK” Downloading (approx. 20 mins.)
•
If you choose not to download, press “EXIT”.
42
Note
During downloading, do not turn Off the TV or touch any buttons.
•
(The TV is automatically activated after downloading is completed.)
When the TV is switched to standby, there will be a clicking sound after a short delay. Similar clicking sounds will
•
also occur at 3:00 AM and 5:00 AM when “Auto update Search in Standby” (p. 27) is set to “On”. These sounds
are normal.
Page 43
Stereo / Bilingual Sound Selection (Analogue mode)
When you receive the stereo / bilingual sound system, sound output modes can be selected by “MPX” in the
Sound Menu (p. 24).
I
Audio Signal STEREO
Mode Indicator
NICAM .......Used in New Zealand, Singapore, Hong Kong etc.
Type of broadcast
Mode Indicator
A2(German) .......Used in Australia, Malaysia etc.
Type of broadcast
Mode Indicator
Note
If the stereo signal is poor or the receiving conditions are not optimum or if STEREO:MONO automatic switching
•
occurs, it is recommended you switch from STEREO to MONO.
Even when the contents of the receiving signal undergo changes, selection mode is kept intact.
•
When the receiving conditions deteriorate, listening will be easier if the mode is set to the MONO position.
•
DUAL, also known as DUAL MONO or as BILINGUAL is not currently transmitted in some countries.
•
Regular broadcast
(Standard Audio)
No Indicator
Regular broadcast
(Standard Audio)
No Indicator
Regular + NICAM MONO
BILINGUAL or DUAL MONO:
MAIN
I II
(MAIN I )
I
MAIN I / SUB
III
II
I
NICAM STEREO
STEREO
SUB
II
NICAM DUAL MONO
MONO
(MAIN I / SUB II )
I
II
•
Technical Information
FAQs, etc.
43
Page 44

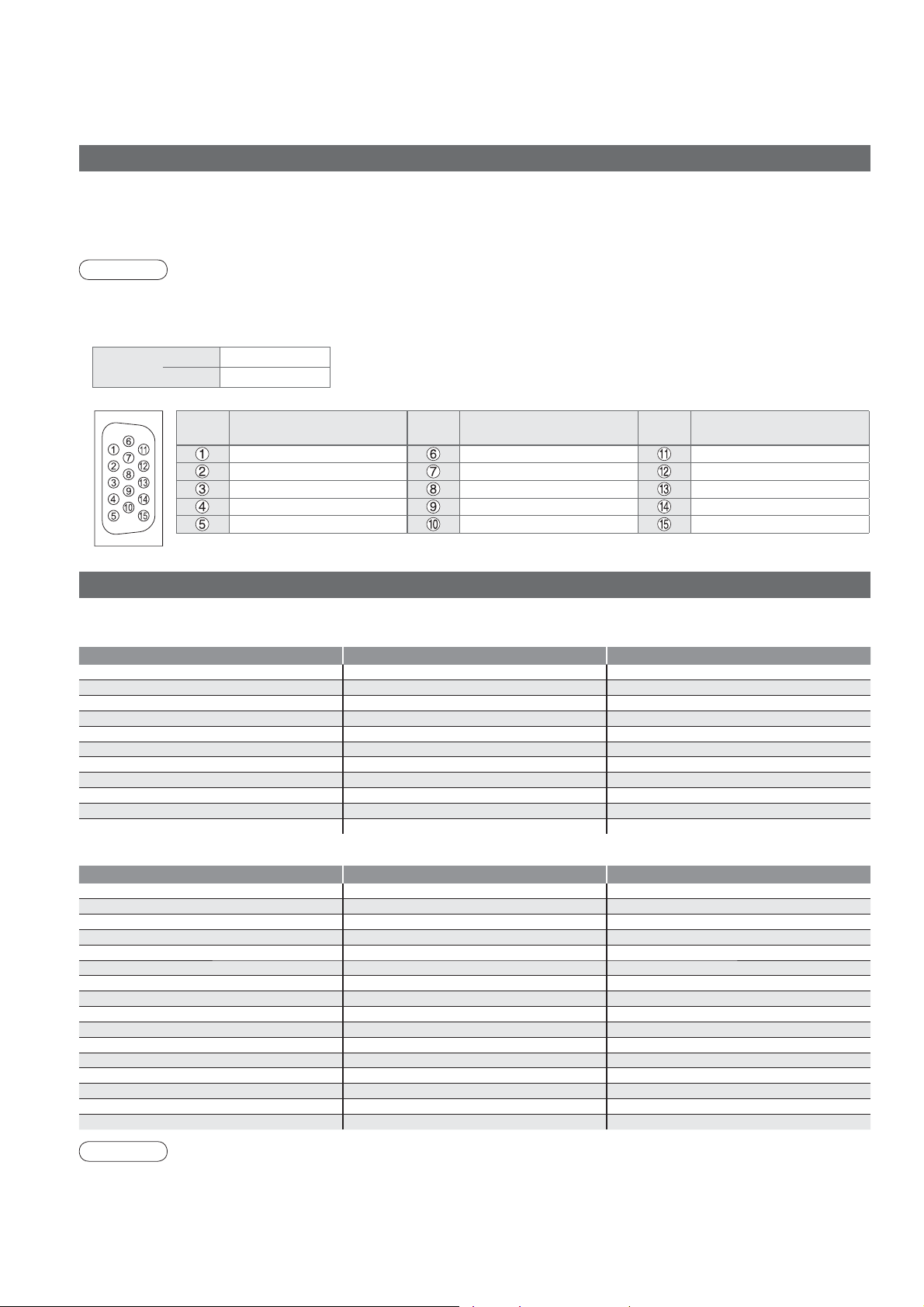

Technical Information
PC connection
A PC may be connected to this TV so that the PC screen is displayed and sound is heard from the TV.
PC signals that can be inputted: Horizontal scanning frequency 31 to 69 kHz; vertical scanning frequency
•
59 to 86 Hz (more than 1,024 signal lines could result in incorrect display of the image).
A PC adapter is not necessary for the DOS/V-compliant D-sub 15-pin connector.
•
Note
Some PC models cannot be connected to this TV.
•
When using PC, set the colour display quality of PC to the highest position.
•
For details of the applicable PC signals, see below.
•
Max. display resolution
•
Aspect
D-sub 15-pin connector signal
•
4:3
16:9
768 × 768 pixels
1,024 × 768 pixels
Pin No.
Signal Name
R GND (Ground) NC (not connected)
G GND (Ground) NC (not connected)
B GND (Ground) HD
NC (not connected) NC (not connected) VD
GND (Ground) GND (Ground) NC (not connected)
Pin No.
Signal Name
Pin No.
Signal Name
Input signal that can be displayed
COMPONENT (Y, PB/CB, PR/CR), HDMI
∗
Mark: Applicable input signal
Signal name COMPONENT HDMI
480i (60 Hz)
480p (60 Hz)
576i (50 Hz)
576p (50 Hz)
720p (60 Hz)
720p (50 Hz)
1,080i (60 Hz)
1,080i (50 Hz)
1,080p (60 Hz)
1,080p (50 Hz)
1,080p (24 Hz)
PC (D-sub 15P)
Signal name Horizontal frequency (kHz) Vertical frequency (Hz)
640 × 400 @70 Hz 31.47 70.07
640 × 480 @60 Hz 31.47 59.94
640 × 480 @75 Hz 37.50 75.00
800 × 600 @60 Hz 37.88 60.32
800 × 600 @75 Hz 46.88 75.00
800 × 600 @85 Hz 53.67 85.06
852 × 480 @60 Hz 31.44 59.89
1,024 × 768 @60 Hz 48.36 60.00
1,024 × 768 @70 Hz 56.48 70.07
1,024 × 768 @75 Hz 60.02 75.03
1,024 × 768 @85 Hz 68.68 85.00
1,280 × 1,024 @60 Hz 63.98 60.02
1,366 × 768 @60 Hz 48.39 60.04
Macintosh13” (640 × 480) 35.00 66.67
Macintosh16” (832 × 624) 49.73 74.55
Macintosh21” (1,152 × 870) 68.68 75.06
∗∗
∗∗
∗∗
∗∗
∗∗
∗∗
∗∗
∗∗
∗
∗
∗
44
Note
Signals other than above may not be displayed properly.
•
The above signals are reformatted for optimal viewing on your display.
•
Applicable input signal for PC is basically compatible to VESA standard timing.
•
PC signal is magnifi ed or compressed for display, so that it may not be possible to show fi ne detail with suffi cient
•
clarity.
Page 45

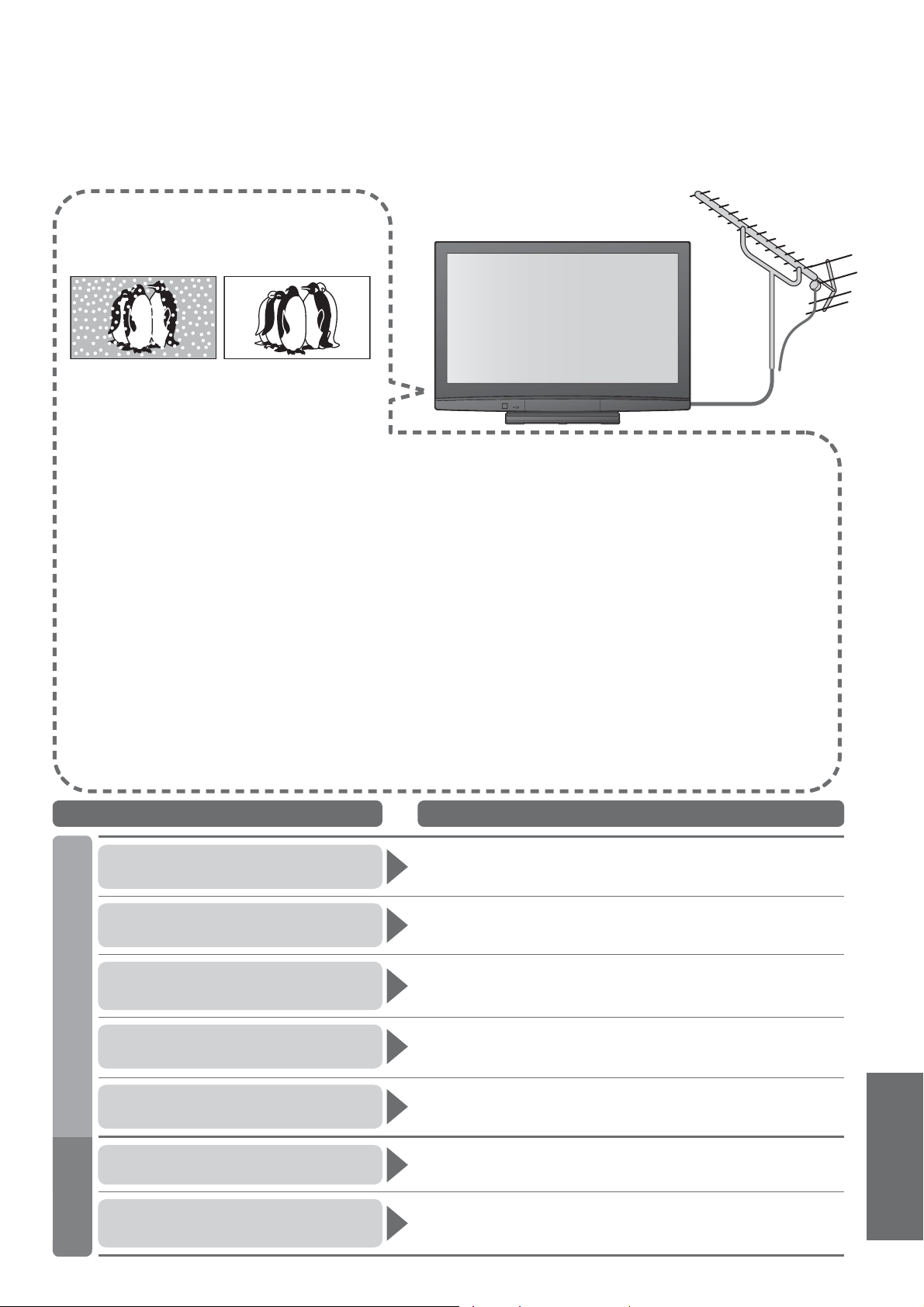

FAQs
Before requesting service or assistance, please follow these simple guides to resolve the problem.
If the problem still persists, please contact your local Panasonic dealer for assistance.
White spots or shadow
images (noise)
Check the position, direction, and
•
connection of the aerial.
Neither image nor
sound is produced
Is the TV in “AV mode”?
•
Is the mains lead plugged into the socket
•
outlet?
Is the TV turned On?
•
Check Picture Menu (p. 24) and volume.
•
An error message appears
Follow the message’s instructions.
•
If the problem persists, contact the
•
authorized Service Centre.
“VIERA Link” function
does not work and an
error message appears
Confi rm the connection.
•
Turn the connected equipment on and then
•
switch the TV on. (p. 36)
Problem Actions
Contrast is reduced
Contrast is lowered in the following conditions without any
•
user operation for a few minutes:
● no signal in DVB or AV mode
● selected invalid programme
● selected radio service
● displayed menu
Pixel Statement
An image on a LCD or Plasma TV screen is created by many small
•
groups of dots known as pixels (which is similar to the image in a
newspaper). It also naturally follows that higher panel resolutions
contain more pixels. To create a colour image, each pixel consists
of three tiny coloured dots (known as sub-pixels), one each of red,
green and blue. Each one of these dots is precisely controlled by
the electronics of the TV to produce the picture.
Whilst Panasonic maintains the highest standards in manufacturing
technology and processes in the construction of these panels,
there are a number of allowable pixel/subpixel failures that still
allow the panel to be defi ned as a good panel. It is not possible to
guarantee absolutely no pixel loss.
•
Frequently Asked Questions
Chaotic image, noisy
No image can be displayed
Screen
Blurry or distorted image
(no sound or low volume)
Unusual image is displayed
“Shop” appears on screen at
switch on
Sound
No sound is produced
Sound level is low
or sound is distorted
Set “P-NR” in the Picture Menu (to remove noise). (p. 24)
•
Check nearby electrical products (car, motorcycle, fl uorescent
•
lamp).
Is “Colour” or “Contrast” in the Picture Menu set to the minimum?
•
(p. 24)
Reset programme. (p. 31)
•
Turn off the TV with Mains power On / Off switch, then turn it on
•
again.
“Shop” was selected in “Auto Tuning” (p. 12).
•
Reset settings in “Shipping Condition” (p. 32), then select “Home”
in “Auto Tuning” (p. 12).
Is “Sound mute” active? (p. 11)
•
Is the volume set to the minimum?
•
Sound signal reception may be deteriorated.
•
Set “MPX” (p. 24) in the Sound Menu to “Mono”.
•
•
Technical Information
FAQs, etc.
45
Page 46

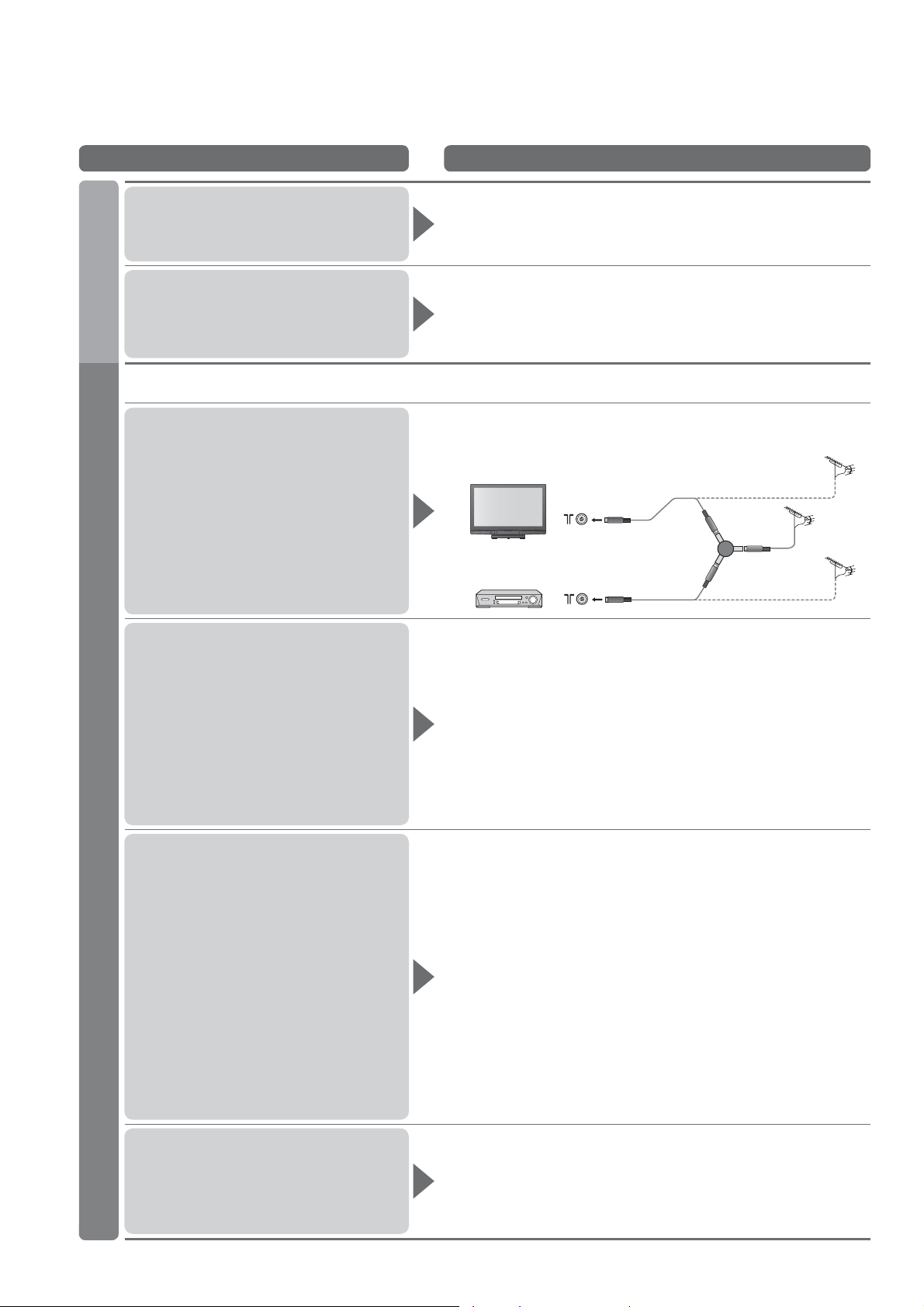

FAQs
Problem Actions
Sound is unusual
HDMI DVB
Set the sound setting of the connected equipment to “2ch L.PCM”.
•
Check the “HDMI1 Input” setting in the Sound Menu. (p. 24)
•
If digital sound connection has a problem, select analogue sound
•
connection. (p. 35)
Pictures from external equipment
are unusual when the equipment
is connected via HDMI
Digital TV reception technology requires high quality, robust DTV signals which in some domestic aerial
•
installations, may be relatively poor despite good analogue reception.
Aerial connection when using
DTV and VCR / DVD Recorder
After DVB Auto Tuning only
some or no DVB services are
found
Is the HDMI cable connected properly? (p. 40)
•
Turn Off the TV and equipment, then turn them On again.
•
Check an input signal from the equipment. (p. 44)
•
Use an equipment compliant with EIA/CEA-861/861B.
•
To maintain optimum signal quality from TV aerial, use a TV
•
aerial splitter (as illustrated) when connecting two or more
equipments to the same aerial.
TV
Aerial
Input
VCR
Check to ensure your area is covered by DVB transmissions.
•
(www.dba.org.au/)
Check that the aerial and antenna cable are designed for DVB.
•
For your safety, the aerial and cable should be inspected /
installed by a licenced installer that should comply with Australian
Standard AS1417.1.
Note: If you live within 5-10 Km of DVB transmission towers, a
combined VHF / UHF aerial should be adequate. Outside this
area, separate VHF and UHF aerials provide superior reception
performance.
If you live in a unit or apartment, check to ensure the Master
•
Antenna TV (MATV) system is designed for analogue and DVB-T
reception. Please consult your body corporate. (www.dba.org.au/)
terminal
Aerial Output
Aerial Output
(Individual aerial)
Splitter
Aerial Input
(Individual aerial)
46
Picture regularly breaks up on
some programmes, or
“No Signal” message
Picture very infrequently
breaks up on some or all
programmes
Check “Signal Display”. (p. 31)
•
If “Signal Quality” or “Signal Strength” are displayed in red or
constantly changing, check aerial.
If problem persists consult your local TV aerial installer.
Check that the aerial and antenna cable are designed for DVB.
•
For your safety, the aerial and cable should be inspected /
installed by a licenced installer that should comply with Australian
Standard AS1417.1.
Interference (known as impulse noise) from household
•
appliances such as light switches, fridges etc may cause picture
break up and / or audio distortion. Use high quality quad shielded
coaxial cable fl y lead between TV and antenna wall socket to
minimise impulse noise pickup. If problem persists consult your
local TV aerial installer.
When “No Signal” message is displayed check TV aerial connection.
•
The received signal may be too weak to allow the TV to reliably
•
lock to the desired “No Signal” programme to generate a stable
picture. Repeat the tuning procedure (p. 31). If problem persists
consult your local TV aerial installer.
Electrical atmospheric interference caused by local or distant lighting
•
storms or heavy rain with wind in “leafy” locations may cause
pictures to break up and audio to mute or distort momentarily.
Impulse noise interference from an infrequently used electrical
•
appliance, or a passing vehicle or lawn mower with a “noisy”
ignition system.
Page 47
Problem Actions
TV takes so long to turn on
The programme cannot be
changed
Other
The programme cannot be
selected
TV goes into “Standby mode”
The remote control does not
work
Like your computer, the TV has to run a number of diagnostic and
•
software checks before it can display any programmes.
Is the TV in Teletext mode? (p. 18)
•
Is the programme skipped? (p. 29)
•
Off Timer function is activated.
•
The TV enters “Standby mode” about 30 mins. after analogue
•
broadcasting ends.
Are the batteries installed correctly? (p. 6)
•
Has the TV been switched On?
•
Licence
DVB is a trademark of the DVB Digital Video Broadcasting Project (1991 to 1996).
•
VGA is a trademark of International Business Machines Corporation.
•
Macintosh is a registered trademark of Apple Inc., USA.
•
S-VGA is a registered trademark of the Video Electronics Standard Association.
•
Even if no special notation has been made of company or product trademarks, these trademarks have been fully
respected.
HDMI, the HDMI Logo and High-Defi nition Multimedia Interface are trademarks or registered trademarks of HDMI
•
Licensing LLC.
HDAVI ControlTM is a trademark of Matsushita Electric Industrial Co., Ltd.
•
Manufactured under license from Dolby Laboratories.
•
Dolby and the double-D symbol are trademarks of Dolby Laboratories.
Trade Mark of the DVB Digital Video Broadcasting Project (1991 to 1996)
TH-42PX8A Declaration of Conformity No. 5217, 10 December 2007
•
Frequently Asked Questions
•
Licence
FAQs, etc.
47
Page 48
Specifi cations
TH-42PX8A
Power Source AC 220-240 V, 50 / 60 Hz
Power
Consumption
Power rating 335 W
Standby condition 0.7 W
Display
panel
Aspect Ratio 16:9
Visible screen size
Number of pixels
Sound
Speaker Full range × 2 pcs, 8
Audio Output 20 W (10 W + 10 W ), 10% THD
Headphones M3 (3.5 mm) stereo mini Jack × 1
PC signals
Receiving Systems /
Band name
Aerial - Rear Standard Belling & Lee connector
Operating Conditions
Connection Terminals
AV1
Input
AV2
Input
AV3
Input
AV4
Input
Monitor
Output
Others
Dimensions ( W × H × D )
Mass
AUDIO L - R RCA PIN Type × 2 0.5 V[rms]
VIDEO RCA PIN Type × 1 1.0 V[p-p] (75 Ω)
COMPONENT
AUDIO L - R RCA PIN Type × 2 0.5 V[rms]
VIDEO RCA PIN Type × 1 1.0 V[p-p] (75 Ω)
COMPONENT
AUDIO L - R RCA PIN Type × 2 0.5 V[rms]
VIDEO RCA PIN Type × 1 1.0 V[p-p] (75 Ω)
S VIDEO Mini DIN 4-pin Y:1.0 V[p-p] (75 Ω) C:0.286 V[p-p] (75 Ω)
AUDIO L - R RCA PIN Type × 2 0.5 V[rms]
VIDEO RCA PIN Type × 1 1.0 V[p-p] (75 Ω)
S VIDEO Mini DIN 4-pin Y:1.0 V[p-p] (75 Ω) C:0.286 V[p-p] (75 Ω)
AUDIO L - R RCA PIN Type × 2 0.5 V[rms] (high impedance)
VIDEO RCA PIN Type × 1 1.0 V[p-p] (75 Ω)
HDMI1 / 2 Input TYPE A Connectors
PC Input
DIGITAL AUDIO OUT
Card slot SD Card slot × 1 (Factory use)
106 cm (diagonal)
922 mm (W) × 518 mm (H)
786,432 (1,024 (W) × 768 (H))
[3,072 × 768 dots]
VGA, SVGA, XGA
SXGA ······ (compressed)
Horizontal scanning frequency 31 - 69 kHz
Vertical scanning frequency 59 - 86 Hz
PAL B/G Reception of Off air broadcasts
DVB-T 7 MHz VHF / UHF (Australia) free-to-air TV broadcast reception
PAL 60 Hz Playback of NTSC tape from some PAL Video recorders (VCR)
M.NTSC Playback from M. NTSC Video recorders (VCR)
NTSC Playback from NTSC Video recorders (VCR)
Temperature : 0 °C - 35 °C
Humidity : 20 % - 80 % RH (non-condensing)
Y 1.0 V[p-p] (including synchronization)
B/CB, PR/CR ±0.35 V[p-p]
P
Y 1.0 V[p-p] (including synchronization)
P
B/CB, PR/CR ±0.35 V[p-p]
HIGH-DENSITY D-SUB 15PIN R, G, B/0.7 V[p-p] (75 Ω)
HD, VD/TTL Level 2.0 - 5.0 V[p-p] (high impedance)
(PC AUDIO via AV2 Input Audio L-R)
PCM / Dolby Digital, Fiber optic
1,020 mm × 727 mm × 327 mm (With Pedestal)
1,020 mm × 679 mm × 92.5 mm (TV only)
28.0 k Net (With Pedestal)
26.0 k Net (TV only)
Ω
This TV supports “HDAVI Control 3” function.
•
48
Note
Design and Specifi cations are subject to change without notice. Mass and Dimensions shown are approximate.
•
Page 49
WARRANTY - Australia only
Panasonic Australia Pty. Limited
Panasonic Australia
www.panasonic.com.au
1. The product is warranted for 12 months from the date of purchase. Subject to the conditions of this warranty Panasonic or it’s Authorised
Service Centre will perform necessary service on the product without charge for parts or labour if, in the opinion of Panasonic, the product is
found to be faulty within the warranty period.
2. This warranty only applies to Panasonic products purchased in Australia and sold by Panasonic Australia or its Authorised Distributors or Dealers
and only where the products are used and serviced within Australia or it’s territories. Warranty cover only applies to service carried out by a
Panasonic Authorised Service Centre and only if valid proof of purchase is presented when warranty service is requested.
3. This warranty only applies if the product has been installed and used in accordance with the manufacturer’s recommendations (as noted in the
operating instructions) under normal use and reasonable care (in the opinion of Panasonic). The warranty covers normal domestic use only
and does not cover damage, malfunction or failure resulting from use of incorrect voltages, incorrect installation, accident, misuse, neglect,
build-up of dirt or dust, abuse, maladjustment of customer controls, mains supply problems, thunderstorm activity, infestation by insects or
vermin, tampering or repair by unauthorised persons (including unauthorised alterations), exposure to abnormally corrosive conditions or any
foreign object or matter having entered the product.
4. This warranty does not cover the following items unless the fault or defect existed at the time of purchase:
(a) Video or Audio Tapes (d) Cabinet Parts (g) Microwave Oven cook plates.
(b) Video or Audio Heads and Stylii resulting (e) User replaceable Batteries (h) Kneader mounting shaft unit
from wear and tear in normal use (f) Thermal Paper, Toner/Ink Cartridges, (bread bakery)
(c) Shaver Heads or Cutters Drums, Developer, Film (Ink/Ribbon),
Film Cartridge, Printer Heads
5. If warranty service is required you should:
• Telephone Panasonic’s Customer Care Centre on 132600 or visit our website and use the Service Centre Locator for the name/address of
the nearest Authorised Service Centre.
• Send or bring the product to a Panasonic Authorised Service Centre together with your proof of purchase receipt as a proof of purchase date.
Please note that freight and insurance to and / or from your nearest Authorised Service Centre must be arranged by you.
• Note that home or pick-up/delivery service is available for the following products in the major metropolitan areas of Australia or the normal
operating areas of the nearest Authorised Service Centres:
(a) Picture tube (CRT) based Television Receivers (screen (b) Convection/Combination Microwave Ovens
sizes greater than 66cm); Rear Projection TV’s; Plasma/LCD (c) Whiteboard (except portable type)
televisions / displays (screen size greater than 103 cm)
6. The warranties hereby conferred do not extend to, and exclude, any costs associated with the installation, de-installation or re-installation of a
product, including costs related to the mounting, de-mounting or remounting of any screen, (and any other ancillary activities), delivery,
handling, freighting, transportation or insurance of the product or any part thereof or replacement of and do not extend to, and exclude, any
damage or loss occurring by reason of, during, associated with, or related to such installation, de-installation, re-installation or transit.
Panasonic Authorised Service Centres are located in major metropolitan areas and most regional centres of Australia, however, coverage will vary
dependant on product. For advice on exact Authorised Service Centre locations for your product, please telephone our Customer Care Centre on
132600 or visit our website and use the Service Centre Locator.
Unless otherwise specified to the consumer the benefits conferred by this express warranty are additional to all other conditions, warranties,
guarantees, rights and remedies expressed or implied by the Trade Practices Act 1974 and similar consumer protection provisions contained in
legislation of the States and Territories and all other obligations and liabilities on the part of the manufacturer or supplier and nothing contained
herein shall restrict or modify such rights, remedies, obligations or liabilities. November 2005
THIS WARRANTY CARD AND THE PURCHASE DOCKET (OR SIMILAR PROOF OF PURCHASE)
SHOULD BE RETAINED BY THE CUSTOMER AT ALL TIMES
If you require assistance regarding warranty conditions or any other enquiries,
please visit the Panasonic Australia
www.panasonic.com.au
If phoning in, please ensure you have your operating instructions available.
or by phone on 132 600
website
Panasonic Australia Pty. Limited
ACN 001 592 187 ABN 83 001 592 187
PRO-031-F01 Issue: 3.0 23-11-2005
Locked Bag 505, Frenchs Forest, NSW 2086
www.panasonic.com.au
•
•
Specifi cations
WARRANTY
FAQs, etc.
49
Page 50
MEMO
50
Page 51
51
Page 52
Customer’s Record
The model number and serial number of this product may be found on its rear panel. You should note this serial
number in the space provided below and retain this book, plus your purchase receipt, as a permanent record of your
purchase to aid in identifi cation in the event of theft or loss, and for Warranty Service purposes.
Model Number Serial Number
Matsushita Electric Industrial Co., Ltd.
Web Site : http://panasonic.net/
© 2008 Matsushita Electric Industrial Co., Ltd. All Rights Reserved.
Printed in China
Loading...
