PANASONIC TH-50PX7B, TH-42PX7B User Manual

Download

Page 1

Operating Instructions

Plasma Television

English

Please read these instructions before operating your set and retain them for future reference.

The images shown in this manual are for illustrative purposes only.

U.K. Standard

Printed in Czech Republic

Model No. TH-37PX7B

TH-42PX7B TH-50PX7B

Information on Disposal for Users of Waste Electrical & Electronic Equipment

0844 844 3852

Customer’s Record

The model number and serial number of this product may be found on its rear panel. You should note this serial number in the space provided below and retain this book, plus your purchase receipt, as a permanent record of your purchase to aid in identification in the event of theft or loss, and for Warranty Service purposes.

Model Number Serial Number

Trademark Credits

•

DVB is a trademark of the DVB Digital Video Broadcasting Project (1991 to 1996).

•

HDMI, the HDMI Logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC.

•

HDAVI ControlTM is a trademark of Matsushita Electric Industrial Co., Ltd.

Licence

(private households)

This symbol on the products and/or accompanying documents means that used electrical and electronic products should not be mixed with general household waste. For proper treatment, recovery and recycling, please take these products to designated collection points, where they will be accepted on a free of charge basis. Alternatively, in some countries you may be able to return your products to your local retailer upon the purchase of an equivalent new product. Disposing of this product correctly will help to save valuable resources and prevent any potential negative

effects waste handling. Please contact your local authority for further details of your nearest designated collection point. Penalties may be applicable for incorrect disposal of this waste, in accordance with national legislation.

human health and the environment which could otherwise arise from inappropriate

For business users in the European Union

If you wish to discard electrical and electronic equipment, please contact your dealer or supplier for further information.

Information on Disposal in other Countries outside the European Union

This symbol is only valid in the European Union. If you wish to discard this product, please contact your local authorities or dealer and ask for the correct method of disposal.

GUIDE

ASPECT

OPTION

132

465

798

VCR

TEXT STTL INDEX HOLD

REC

PROGRAMME

INPUT

DIRECT TV REC

VCR DVD

EXIT

RETURN

Page 2

Viewing Advanced FAQs, etc.Quick Start Guide

Contents

Turn your living room into a home theatre!

Experience an amazing level of multi-media excitement

•

Safety Precautions ······································ 4

(Warning & Caution)

•

Notes ··························································· 5

•

Maintenance ··············································· 5

Be Sure to Read

Advanced Features

•

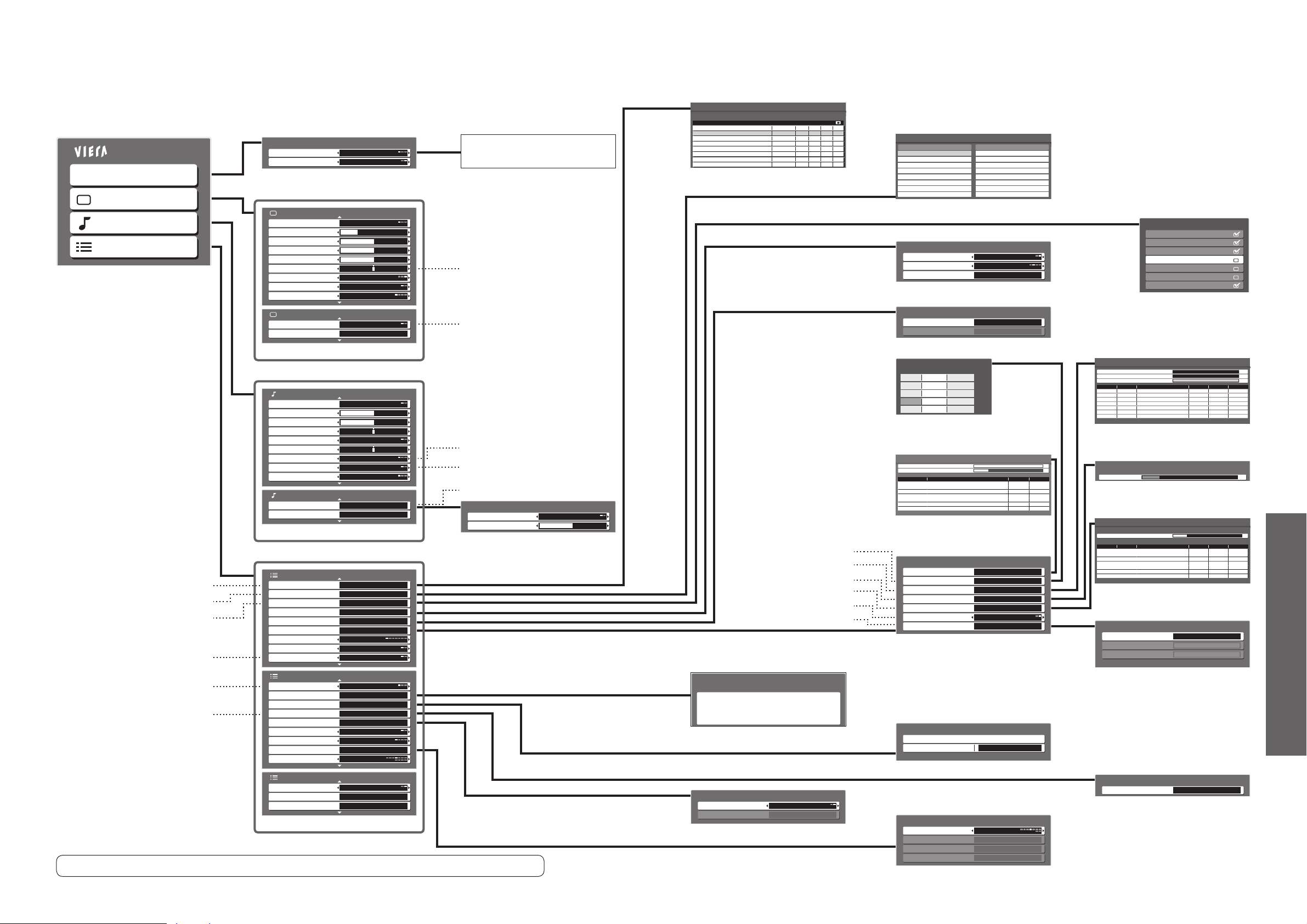

How to Use Menu Functions ····················· 23

(picture, sound quality, etc.)

•

DVB Settings (DVB) ·································· 28

(pay-TV, software update)

•

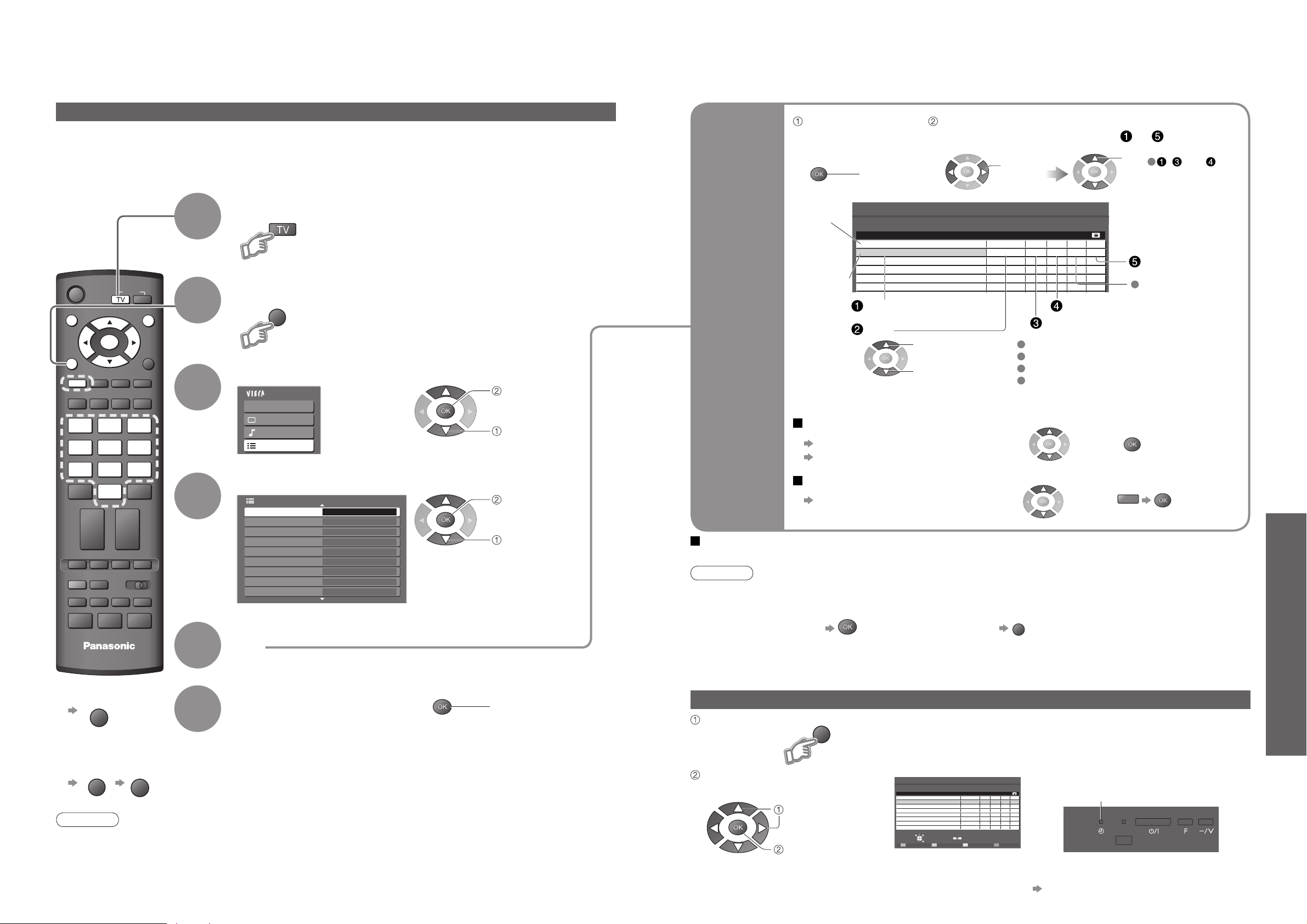

Editing Channels ······································· 30

•

Tuning Channels ······································· 32

•

Restore Settings ······································· 34

•

Owner ID ··················································· 35

•

Input Labels ·············································· 36

•

Recording Controls (DVB) ························ 38

•

Q-Link Functions ······································· 40

•

HDMI Functions ·······································41

(HDMI terminal / VIERA Link)

•

External Equipment ···································44

Basic Features

•

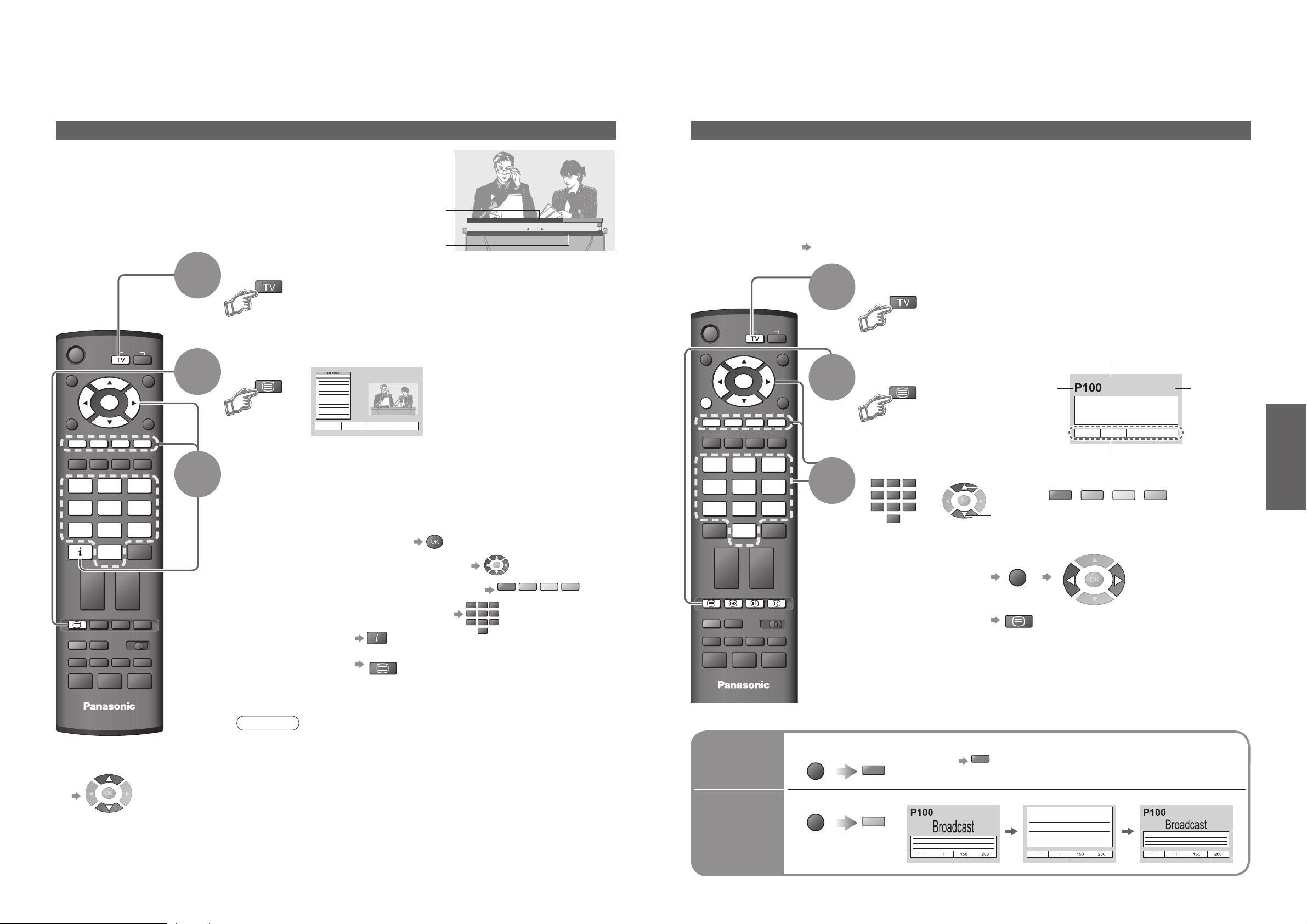

Watching TV ·············································· 14

•

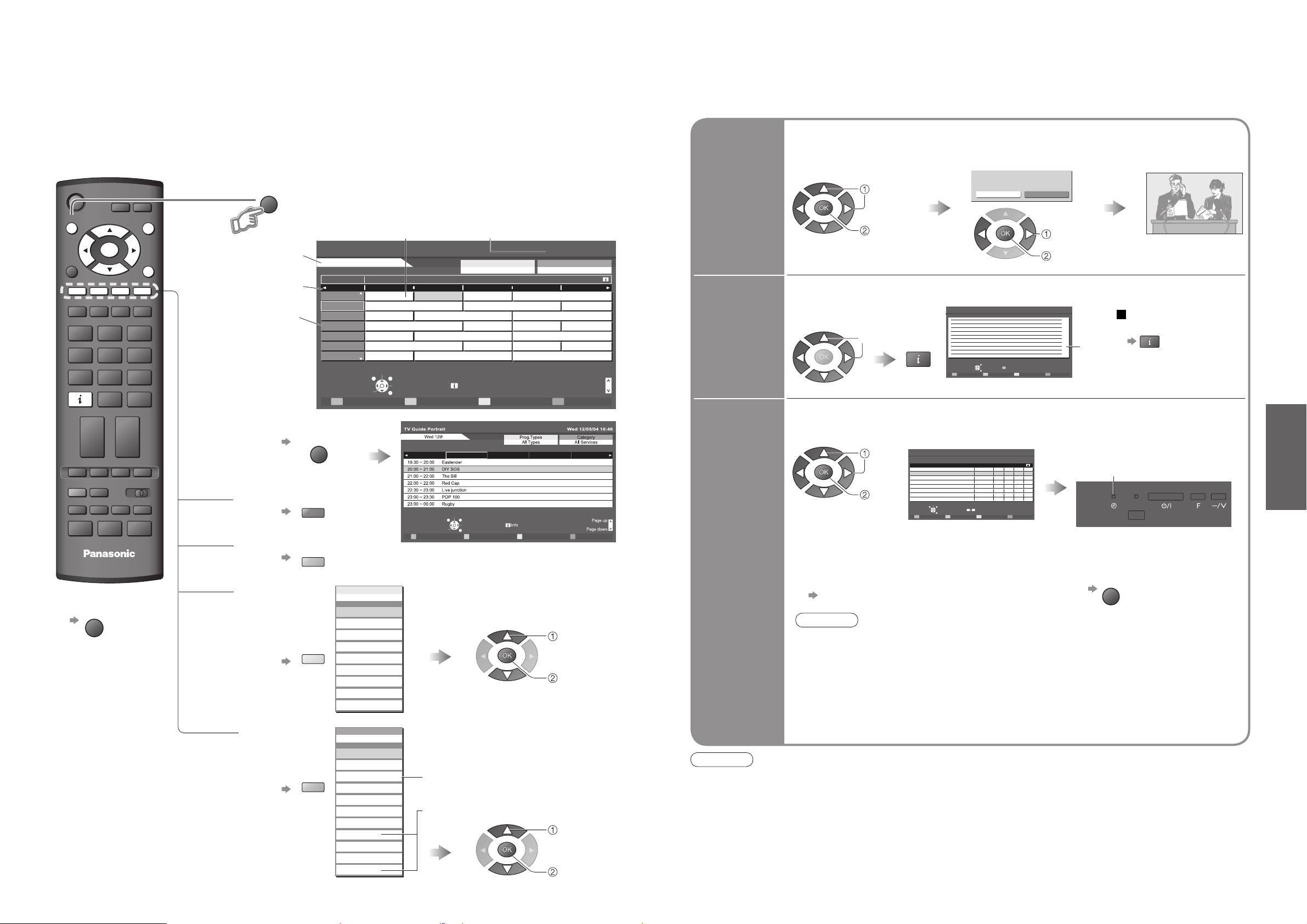

Using TV Guide ········································· 16

•

Watching VCR, DVD and Satellites ··········18

•

Viewing Teletext ········································20

Enjoy your TV!

•

Technical Information ································46

•

FAQs ·························································48

•

On screen messages ································ 50

•

Specifications ············································ 51

•

Index ························································· 51

•

Licence ······················································ 52

FAQs, etc.

Accessories / Options

········· 6

Attaching the pedestal

········ 7

Identifying Controls

·············· 9

Basic Connection

················ 10

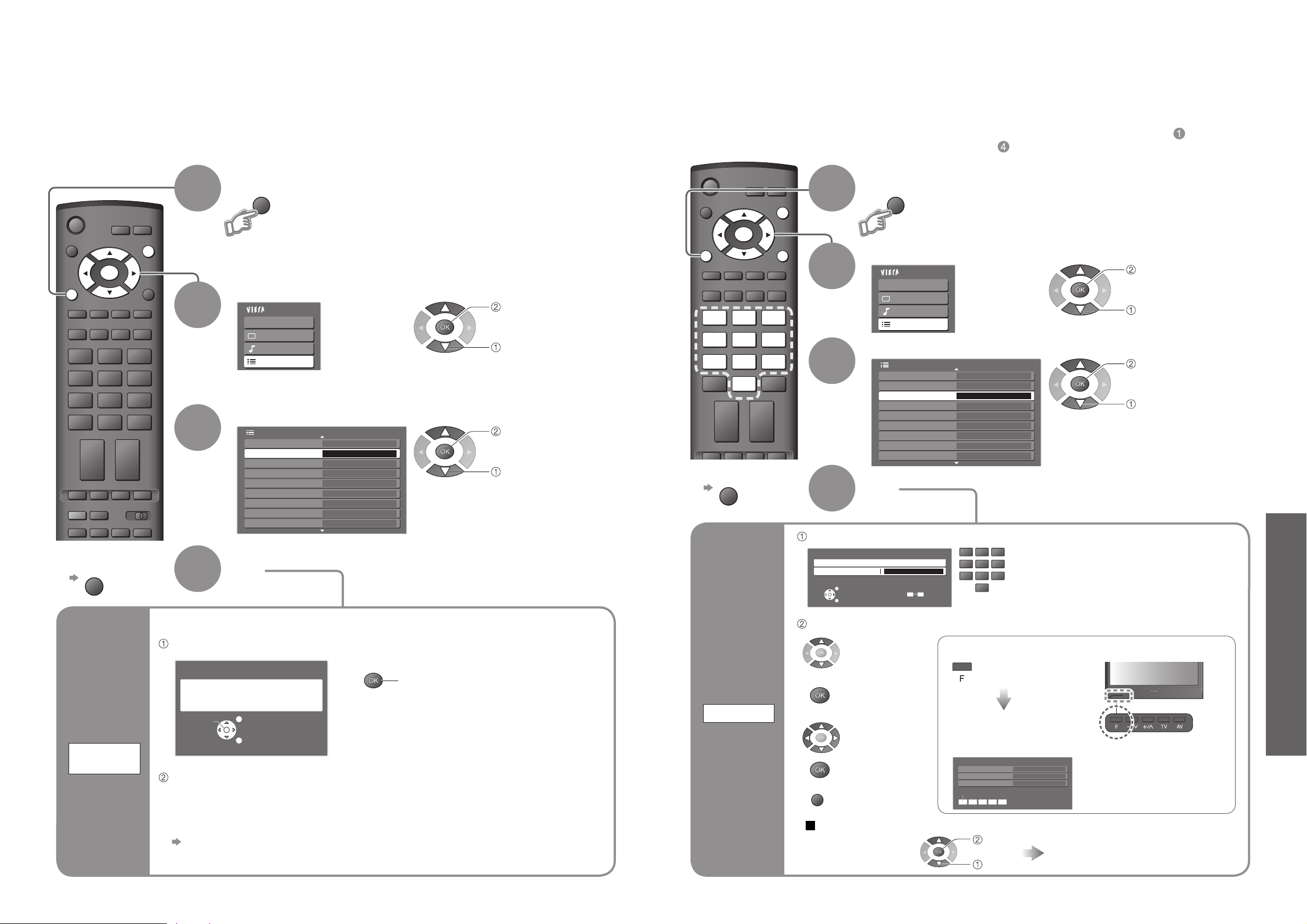

Auto Setup

······························ 12

Quick Start Guide

Receive digital terrestrial broadcastings using an integrated (Digital Video Broadcasting) tuner

(Display DVB programmes with TV Guide (p. 16) / Timer recording (p. 38) / Register and instantly call up favourite programmes with Profile Edit (p. 31))

Sharp pictures with HDMI terminal

Control DVD recorder / VCR via TV with Q-Link connection

(p. 40)

Create home theatre and Panasonic equipment link-ups with “VIERA Link” without complicated settings!

(p. 42)

Trade Mark of the DVB Digital Video Broadcasting Project (1991 to 1996) TH-37PX7B Declaration of Conformity No 4515, 16 January 2007 TH-42PX7B Declaration of Conformity No 4514, 16 January 2007 TH-50PX7B Declaration of Conformity No 4513, 16 January 2007

Support Audio Description signal

(p. 15 and p. 24)

Audio description (AD) is an ancillary component associated with a broadcast which delivers a verbal description of the visual scene as an aid to understanding and enjoyment particularly for visually-impaired viewers.

Enjoy rich multi-media

Camcorder

Amplifier with Speaker system

VCR

DVD player

DVD Recorder

Satellite receiver

Page 3

4 5

Safety Precautions

AC 220-240 V 50 / 60 Hz

Electronic equipment In particular, do not place video equipment near the TV

(electromagnetic interference may distort images / sound). Equipment with an infrared sensor

Keep the TV away from these equipment

Warning & Caution

Notes

Handling the mains plug

Ensure that the mains plug is easily accessible at all times. The On / Off switch on this model does not fully disconnect the TV from the mains supply. Remove the mains plug from the wall socket when the TV is not used for a prolonged period of time. Ensure the grounding pin on the mains plug is securely connected to prevent electrical shock.

An apparatus with CLASS I construction shall be connected to a mains socket outlet with a protective earthing connection.

Do not use any mains lead other than that provided with this TV. (This may cause fire or electrical shock.)

Do not expose to direct sunlight and other sources of heat

Avoid exposing the TV to direct sunlight and other sources of heat. To prevent fire never place any type of candle or naked flame on top or near the TV.

Power source

This TV is designed to operate on 220-240V, 50 / 60 Hz AC.

Display panel

Cabinet

Mains plug

Regular care: Gently wipe the surface clean of dirt by using a soft cloth. Major contamination: Wipe the surface clean using a soft cloth dampened with clean water or diluted neutral detergent by 100 times of water. Then, using a soft dry cloth, evenly wipe the surface clean until it is dry.

Regular care: Wipe the surface clean using a soft dry cloth. Major contamination: Dampen a soft cloth with clean water or water containing a small amount of neutral detergent. Then, wring the cloth and wipe the surface clean with it. Finally, wipe the surface clean with a dry cloth.

Wipe the mains plug with a dry cloth at regular intervals. (Moisture and dust may lead to fire or electrical shock.)

First, remove the mains plug from the socket outlet.

Caution

•

The surface of the display panel has been specially treated and may be easily damaged. Do not tap or scratch the surface with your fingernail or other hard object.

•

Use care not to subject the surface to insect repellent, solvent, thinner, or other volatile substances (this may degrade surface quality).

Caution

•

Use care not to subject the TV’s surfaces to detergent. (A liquid inside the TV could lead to product failure.)

•

Use care not to subject surfaces to insect repellent, solvent, thinner, or other volatile substances (this may deteriorate the surface by peeling the paint).

•

Do not allow the cabinet to make contact with a rubber or PVC substance for a long time.

Maintenance

Do not remove the cover

Do not remove the rear cover as live parts are accessible when it is removed. There are no user serviceable parts inside.

Use only the dedicated stands / mounting equipment

Using an unauthorized stand or other fixtures may make the TV shaky, risking injury. Be sure to ask your local Panasonic dealer to perform setup. Use optional stands / mounts (p. 6).

Do not place the TV on sloped or unstable surfaces

The TV may fall off or tip over.

Do not expose to rain or excessive moisture

To prevent damage which might result in electric shock or fire, do not expose this TV to rain or excessive moisture.

This TV must not be exposed to dripping

or splashing water and objects filled with liquid, such as vases, must not be placed on top of or above the TV.

Do not block the rear ventilation openings

Ventilation should not be impeded by covering the ventilation openings with items such as newspapers, tablecloths and curtains.

Transport only in upright position

Transporting the TV with its display panel facing upright or downward may cause damage to the internal circuitry.

If no signal is received and no operation is performed in Analogue TV mode for 30 minutes, the TV will automatically go to standby mode.

Auto power standby function

Do not display a still picture for a long time

This causes the image to remain on the plasma screen (“image retention”). This is not considered a malfunction and is not covered by the warranty.

To prevent image retention, contrast is lowered automatically after a few minutes if no signals are sent or no operations are performed. (p. 48)

Typical still images

Channel number and other logos Image displayed in 4:3 mode Video game

This TV also emits infrared rays (this may affect operation of other equipment).

IMPORTANT: THE MOULDED MAINS PLUG

FOR YOUR SAFETY, PLEASE READ THE FOLLOWING TEXT CAREFULLY.

The wire which is coloured GREEN-AND-YELLOW must be connected to the terminal in the mains plug which is marked with the letter E or by the Earth symbol or coloured GREEN or GREEN-AND-YELLOW. The wire which is coloured BLUE must be connected to the terminal in the mains plug which is marked with the letter N or coloured BLACK. The wire which is coloured BROWN must be connected to the terminal in the mains plug which is marked with the letter L or coloured RED. How to replace the fuse. Open the fuse compartment with a screwdriver and replace the fuse.

As the colours of the wire in the mains lead of this appliance may not correspond with the coloured markings identifying the terminals in your mains plug, proceed as follows.

WARNING: – THIS APPARATUS MUST BE EARTHED. IMPORTANT: – The wires in this mains lead are coloured in accordance with the following code: –

Green-and-Yellow: Earth

Blue: Neutral Brown: Live

If a new mains plug is to be fitted, please observe the wiring code as shown below. If in any doubt, please consult a qualified electrician.

If the fitted moulded mains plug is unsuitable for the socket outlet in your home, then the fuse shall be removed and the mains plug cut off and disposed of safety. There is a danger of severe electrical shock if the cut off mains plug is inserted into any 13 amp socket.

If the mains plug contains a removable fuse cover, you must ensure that it is refitted when the fuse is replaced. If you lose the fuse cover the mains plug must not be used until a replacement cover is obtained. A replacement fuse cover may be purchased from your local Panasonic Dealer.

This appliance is supplied with a moulded three pin mains plug for your safety and convenience. A 5 amp fuse is fitted in this mains plug. Shall the fuse need to be replaced, please ensure that the replacement fuse has a rating of 5 amps and that it is approved by ASTA or BSI to BS1362.

Check for the ASTA mark

or the BSI mark on the body of the fuse.

Allow sufficient space around the TV for radiated heat

(cm)

Minimum distance

ASA

Page 4

Quick Start Guide

Installing remote’s batteries

Batteries for the Remote Control Transmitter

(2)

•

R6 (UM3)

Pull open

Hook

Note the correct polarity (+ or -)

Caution

•

Incorrect installation may cause battery leakage and corrosion, resulting in damage to the remote control.

•

Do not mix old and new batteries.

•

Do not mix different battery types (such as alkaline and manganese batteries).

•

Do not use rechargeable (Ni-Cd) batteries.

•

Do not burn or breakup batteries.

Remote Control Transmitter

•

EUR7651110

Standard accessories

•

Attaching the pedestal

•

Accessories / Options

Check that you have the accessories and items shown

Operating Instructions Pan European Guarantee Card 1 Year Guarantee Registration CRM (Customer Relationship Management)

Accessories / Options

Clamper (2)

•

TMME289

Using the clamper

•

Do not bundle the RF cable and mains lead together (could cause distorted image).

•

Fix cables with clampers as necessary.

•

When using the optional accessory, follow the option’s assembly manual to fix cables.

Rear of the TV

snaps

To remove from the TV:

To loosen:

Keep pushing

both side snaps

Set the tip

in the hooks

Insert the clamper in a hole

hole

1. Attach the clamper

2. Bundle the cables

Keep pushing

the knob

knob

hooks

Caution

•

In order to maintain the unit’s performance and safety, be absolutely sure to ask your dealer or a licenced contractor to secure the wall-hanging brackets.

•

Carefully read the instructions accompanying the plasma TV stand or pedestal, and be absolutely sure to take steps to prevent the TV from tipping over.

•

Handle the TV carefully during installation since subjecting it to impact or other forces may cause product damage.

Mains Lead

•

K2CT3DH00018

Optional accessories

Wall-hanging bracket (vertical)

TY-WK42PV3W

(angle)

TY-WK42PR2W TY-WK42PR3W

Pedestal (ST-42H2-WK / ST-50H2-WK)

•

TBLX0024 (TH-37PX7B, TH-42PX7B)

•

TBLX0025 (TH-50PX7B)

For installation p. 7 and p. 8

Do not disassemble or modify the pedestal.

•

Otherwise the TV may fall over and become damaged, and personal injury may result.

■

Securing the TV

Label

View from the bottom

Arrow mark

Hole for pedestal installation

■

Assembling the pedestal

Insert the poles into the left and right holes in the underside of the base so that they fit securely as shown in the illustration above.

Installing the poles Securing the poles

Front

Use the assembly screws A to secure the poles firmly to the bottom of the base.

•

Forcing the assembly screws the wrong way will strip the threads.

Caution

Do not use any other TV and displays.

•

Otherwise the TV may fall over and become damaged, and personal injury may result.

Do not use the pedestal if it becomes warped or physically damaged.

•

If you use the pedestal while it is physically damaged, personal injury may result. Contact your nearest Panasonic Dealer immediately.

During set-up, make sure that all screws are securely tightened.

•

If sufficient care is not taken to ensure screws are properly tightened during assembly, the pedestal will not be strong enough to support the TV, and it might fall over and become damaged, and personal injury may result.

Use the accessory fall-prevention brackets to secure the TV.

•

If the TV is knocked or children climb onto the pedestal with the TV installed, the TV may fall over and personal injury may result.

Two or more people are required to install and remove the TV.

•

If two or more people are not present, the TV may be dropped, and personal injury may result.

Warning

Attaching the pedestal

Assembly screw (4)

M5 × 20

Assembly screw (4)

M5 × 30

Pole (2) Base

For TH-42PX7B, TH-50PX7B (Outside)

For TH-37PX7B (Inside)

Carry out work on a horizontal and level surface. Use the assembly screws to fasten securely.

132

465

798

Page 5

Quick Start Guide

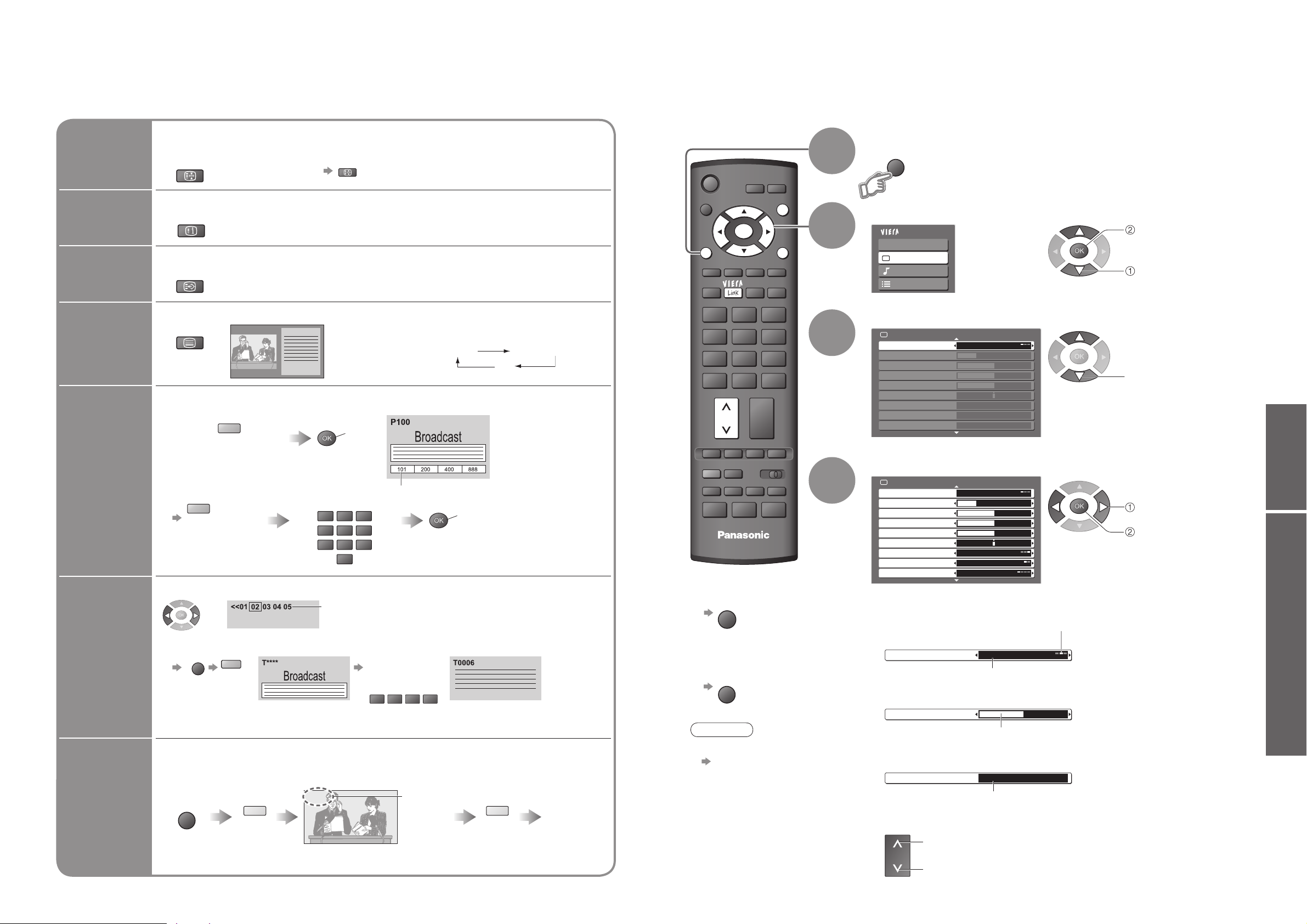

Cursor buttons to make selections and adjustments

Standby On / Off switch

(Switches TV On or Off standby)

Sound mute On / Off

Changes aspect ratio (p. 15)

Selects programmes in sequence

Teletext (p. 20)

OK button to confirm selections and choices Press after selecting programme positions to quickly change programme.

VCR / DVD operations (p. 19)

Volume

Programme Information (p. 15)

Teletext Index (p. 22)

Coloured buttons used for the selection, navigation and operation of various functions

EXIT

(Returns to TV screen)

DIRECT TV Recording

To immediately record programme in VCR / DVD recorder with Q-Link connection

(p. 40)

Programme / channel change buttons (0-9) and Teletext page buttons.

(p. 14 and p. 21)

When in Standby mode, switches TV On.

Access VIERA Link Menu (p. 43)

TV Guide (p. 16)

Option menu Sets the selectable settings of viewing and sound options easily (p. 15)

Subtitles Showing subtitles

(p. 15)

Changes the input mode TV -

switches DVB (digital broadcasting) / Analogue mode

(p. 14)

AV - changes AV input mode (p. 18)

Returns to the previous menu

Still picture (p. 15) Teletext Hold (p. 22)

Main Menu Press to access VIERA Link, Picture, Sound and Setup menus (p. 23)

Identifying Controls

Increases or decreases the programme position by one. When a function is already displayed, press to increase or decrease the selected function. When in Standby mode, switches TV On.

Remote control signal receiver

Changes the input mode

Function select

•

Volume / Contrast / Brightness / Colour / Sharpness / Tint (NTSC mode) / Bass / Treble / Balance / Auto Setup (p. 32)

DVB LED

•

Active for Timer Programming or Standby for Direct TV Recording :orange (flash) Timer Programming On :orange

Power LED

•

Standby: red On: green When using the remote control, indicates the TV has received a command.

Mains power On / Off switch

•

Identifying Controls

•

Attaching the pedestal

If required, additional fixings are supplied for securing the TV to a wall and table.

Select two screws which have held the rear cover of the TV (one screw each from right and left side at the same height position). Remove the two screws you selected, and attach the clamps to the TV using the removed screws.

Band (2) Screw (2)

Nominal diameter 4 mm × 12

Wood screw (2) Clamp (2)

Attaching the pedestal

■

Securing to a base

Fix pedestal and base together with band.

■

Securing to a wall

Fix to wall or post with strong commercial wire or chain.

Remove Attach

GUIDE

ASPECT

OPTION

INPUT

EXIT

RETURN

DIRECT TV REC

132

465

798

VCR

TEXT STTL INDEX HOLD

REC

VCR DVD

PROGRAMME

Page 6

Quick Start Guide

AUDIO OUT

V I D E O

A U D I O

C O M P O N E N T

•

Basic Connection

Note

•

Connect to AV2 for a DVD Recorder / VCR supporting Q-Link (p. 40).

•

Connect to AV1 for a Satellite receiver.

•

If connecting the TV and Satellite receiver with SCART cable, you can watch satellite broadcast by RGB input signal.

SCART:

21 pin connection used for video, audio and switching signals (Also known as Euro SCART and Peritel) RF: Radio Frequency - Signal received from terrestrial aerial. RGB / S-Video / Video:

Choose between these three video formats depending on personal preference and equipment requirement.

(RGB - Red, Green and Blue) VCR: Video Cassette Recorder DVD: Digital Versatile Disc

Basic Connection

DVD Recorder

or VCR

SCART cable (fully wired)

RF cable

Aerial

Mains lead (supplied)

SCART cable (fully wired)

DVD Recorder or VCR

RF cable

Aerial AerialRear of the TV Rear of the TV

Rear of the TV

Satellite receiver

External equipment and cables shown are not supplied with this TV. Please ensure that the unit is disconnected from the mains socket before attaching or disconnecting any leads. When disconnecting the mains lead, be absolutely sure to disconnect the mains plug at the socket outlet first.

Example 1 Connecting aerial

Example 2 Connecting DVD Recorder / VCR

Example 3 Connecting DVD Recorder / VCR and Sattelite receiver

AC 220-240 V 50 / 60 Hz

RF cable

TV only TV, DVD Recorder or VCR TV, DVD Recorder / VCR and Satellite

AC 220-240 V 50 / 60 Hz

SCART cable (fully wired)

RF cable

Clamper

•

To unfasten

RF IN

RF OUT

RF IN

RF OUT

RF IN

Page 7

Quick Start Guide

Plug the TV into mains socket and switch On

(Takes a few seconds to be displayed)

(example: Owner ID)

Auto Setup

Following the on-screen operation guide, enter your own choice of PIN number, name, etc.

•

For detailed procedures

“Owner ID” (p. 35)

•

Make a note of the PIN number in case you forget it.

Search and store TV channels automatically. These steps are not necessary if the setup has been completed by your local dealer.

■

When inputting owner ID

Auto Setup is now complete and your TV is ready for viewing.

■

When inputting owner ID later

•

You can now use the remote control to turn On the TV or turn the TV to standby mode. (Power LED: On)

•

If you input the ID later

“Owner ID” (p. 35)

•

If a compatible recording equipment with Q-Link or similar technologies (p. 40) is connected, analogue channel information is automatically downloaded to the equipment.

•

Auto Setup will start to search for TV channels and store them in the numbered order as specified by the broadcasters.

•

To check programme list at-a-glance

TV Guide (p. 16)

•

To edit channels

Editing Channels (p. 30)

Analogue Programme Edit (p. 33)

■

ON SCREEN HELP Instructions box

Open the main menu

Return to the previous menu

Move the cursor / select the menu

Move the cursor / adjust levels / select from a range of options

Access the menu / store settings after adjustments have been made or options have been set

Many features available on this TV can be accessed via the On Screen Display menu.

Note

•

If tuning has failed “Auto Setup” (p. 32).

•

If downloading has failed “Download” (p. 25).

•

If you turned the TV Off during Standby mode last time, the TV will be in Standby mode when you turn the TV On with Mains power On / Off switch.

■

How to use remote control

•

Auto Setup

Using the On Screen Displays

Exit the menu system and return to the normal viewing screen

On-screen operation guide will help you.

•

Also possible to change the setting in Picture Menu (p. 24)

Select the picture setting

select

set

INPUT

GUIDE

ASPECT

OPTION

132

465

798

VCR

TEXT STTL INDEX HOLD

REC

VCR DVD

PROGRAMME

EXIT

RETURN

DIRECT TV REC

Auto Setup - Digital and Analogue

Digital Scan 21 68 Analogue Scan 21 68

Channel Service Name Type Quality

CBBC Channel DVB 10 62 BBC Radio Wales DVB 10 62

BBC Radio Cymru 62

E4 62

Cartoon Nwk 29 Analogue 33

BBC1

This will take about 3 mins.

EXIT

DOWNLOAD IN PROGRESS

PLEASE WAIT

Programme : 63

Remote control unavailable

Please enter new PIN

EXIT Change RETURN

EXIT

* * * *

DVB 10 DVB 10 DVB 10

Analogue

Page up

0 9

Page down

1 of 2Owner ID

PIN entry

RETURN

EXIT

1 of 2Owner ID

Please enter new PIN

EXIT Change RETURN

* * * *

0 9

Page down

Page up

PIN entry

Viewing Mode

Please select your preferred viewing mode.

Dynamic Normal Cinema

Page 8

Viewing

•

Watching TV

•

To select the two or three-digit programme number, e.g. 39

Watching TV

Select a channel

Volume

Note

•

To watch pay-TV (p. 29)

Select DVB (Digital Video Broadcasting) or Analogue

Information banner

Turn power on

Mains power On / Off switch should be On.

(Press for about 1 second)

down

(in a short time)

•

To select programmes using TV Guide (p. 16)

•

You can also select the mode using the TV button on the front panel of the TV.

Change aspect ratio

Change the aspect ratio (p. 46)

Enjoy viewing the picture at its optimum size and aspect.

Aspect Selection list

•

To change the mode

•

To change the mode using the ASPECT button only

(Press repeatedly until you reach the desired mode)

Display Aspect Selection list

During the list is displayed, select the mode

Store

■

Other useful functions (Operate after )

Freeze / unfreeze picture

Hold

Display subtitles

Display / hide subtitles (if available)

•

To change the language for DVB

“Preferred Subtitles” (p. 25) (If available)

Display the current programme status

Check or change the current programme status instantly

•

To change

Subtitle Language (DVB mode)

Possible if the programme has some languages of subtitles

Multi Audio (DVB mode)

Possible if the programme has some languages of sounds

NICAM (Analogue mode)

Sound Menu (p. 24)

Volume Correction

Adjusts volume of individual channel or input mode

Audio Description (DVB mode)

This function can aid visually-impaired viewers by adding an additional audio track to

describe events on-screen. Select “On” if the programme has this signal, then you will hear the description sound

select

change

Note

•

Also possible to change the settings in Menu list (p. 24 and p. 25).

■

Other useful functions (Operate after )

Display information banner

Display programme information

•

To set display timeout

“Banner Display Timeout” (p. 25)

•

To hide

•

Appears also when changing channel.

•

Information of another channel

•

Information on next programme

(DVB)

•

To watch the programme listed in the banner

•

Information banner operation

1st press Display banner

2nd press Banner + programme synopsis (DVB)

3rd press Exit

Sound mute

Scrambled broadcasting

Teletext

Multiple audio

Off timer

Features available

Programme DVB: Programme

Start / Finish time

Analogue: Programme

Status

Channel Current time Category

To change the category

Weak TV signal

Subtitle

Audio description

•

“AD”, “Subtitles”, “TXT”, “Multi-Audio” indications are displayed as available on particular channels or services, but may not be available for all individual programmes being broadcast.

Press the button twice to confirm availability of these functions.

Example:

Off Timer

Main Menu

VIERA Link


Sound

Setup

1/3

DVB Timer Programming

DVB Profile Edit

DVB Service List

Q-Link Settings

Child Lock

Tuning Menu

Off Timer

Power on Preference

Teletext FASTEXT

Setup Menu

Off

Display the menu

Select “Setup”

access

select

Select “Off Timer” and set the time

set

select

•

To cancel Set to “Off” or turn the TV off

•

To display the remaining time Information banner (p. 15)

•

When the remaining time is within 3 minutes, the remaining time will flash on screen.

Turn the TV off automatically after a fixed period

INPUT

GUIDE

EXIT

RETURN

DIRECT TV REC

ASPECT

OPTION

132

465

798

VCR

TEXT INDEX

STTL HOLD

REC

VCR DVD

PROGRAMME

1 BBC ONE WALES

Corontation Street 20 : 00 ~ 20 : 55

Profile 1

23:35

Change category

For info press

Now

132

465

798

VCR

SPECT

HOLD

STTL

OPTION

1 BBC ONE WALES

Corontation Street 20 : 00 ~ 20 : 55

Mute Bad Signal Encrypted

SPECT

23:35

Now

SPECT

Change category

SubtitlesAD TXT Multi-Audio 45

For info press

Profile 1

EXIT

1 BBC ONE WALES

Corontation Street 20 : 00 ~ 20 : 55

Mute Bad Signal Encrypted

[AD]

23:35

Now

Subtitles TXT Multi-Audio 45

All DVB Services

Change category

Exit info

Aspect Selection

Auto

16:9 14:9 4:3 Zoom1 Zoom2 Zoom3

Select

Change

EXIT

RETURN

blue

Page 9

Viewing

■

To change the layout

(Landscape / Portrait)

■

To previous day (DVB mode)

■

To next day (DVB mode)

■

To view a programme list of the selected category

■

To view a programme list of the selected type (DVB mode)

Using TV Guide

Portrait (Displays by time)

select category

TV Guide―Electronic Programme Guide (EPG) provides an on-screen listing of programmes currently broadcast and future broadcasts over the next seven days (depending on the broadcaster). Analogue broadcasts will be listed after DVB broadcasts. “D” means DVB channel and “A” means Analogue channel.

TV Guide date

Programme (TV Guide start page)

View TV Guide (landscape or portrait)

select type

Current date and time

(Category list)

(Type list)

To list favourite channels (p. 31)

■

To return to TV

view

Landscape

(Displays by

broadcaster)

View “Portrait” to see one channel at a time View “Landscape” to see many channels

Note

•

When this TV is turned on for the first time, or the TV is switched off for more than a week, it may take some time before the TV Guide is completely shown.

•

Using TV Guide

■

Other useful functions (Operate after viewing TV Guide)

TV Guide time

Channel

Only analogue TV channels are listed

View details of the programme (DVB mode)

Select the programme

select

Details

To return to the start page

View details

Timer programming to record (DVB mode)

DVB LED

Select the programme to be broadcast

■

To check / change / cancel a timer programming event

“Timer Programming” (p. 38)

•

Orange DVB LED (Rapid blinking during recording)

(Timer Programming screen)

select

set

■

To return to TV Guide

DVB LED will turn on if Timer Programming is set.

Note

•

When recording programmes, you must make the proper settings on the external recording equipment connected to the TV. If a compatible recording equipment with Q-Link or similar technologies is connected to the TV (p. 10) and the “Q-Link Settings” (p. 25) are completed, no setting of the equipment is required. Also read the manual of the recording equipment.

•

If you select the programme now on the air, the confirmation screen whether watching or recording will appear. Select “Timer Programming” to record from the time you finish the Timer Programming setting.

Watch the programme

(TV screen)

Select the channel or programme now on the air

select

access

select

access

Select “View”

(DVB)

GUIDE

ASPECT

OPTION

132

465

798

VCR

TEXT STTL INDEX HOLD

REC

PROGRAMME

EXIT

INPUT

EXIT

RETURN

DIRECT TV REC

VCR DVD

GUIDE

Prog.Types

All Types

1 BBC ODD D D D7 BBC T 14 E4 70 CBBC 72 Cartoo

Select programme

EXIT

Timer Programming

-24 Hr

Select channel RETURN

+24 Hr Prog.type Category

green

yellow

TV Guide : Landscape Wed 05/08/04 18:50

Fri 6th

20:00 - 20:30 DIY SOS : We open in the Battersbys

105

719

D Rugby 15 To 1 The Bill

Change display mode

Timer Programming

19:30

Time: 20:00 20:30 21:00 21:30

BBC ONE

Eastender DIY SOS The Bill Red Cap

BBC THR

Hot Wars Horiday Program

E4 Emmerdal. Coronation Street The Bill

CBBC Cha

10 O’ clock News BBC Pepsi Char. Good bye Hello

Cartoon Panorama Sex And The City Terminator

BBCi I’m A Celebrity Pop Idol News The

BBC Radi

Select channel

EXIT Select programme Info

-24 Hr +24 Hr Prog.type Category

RETURN

GUIDE

S o

Hel l

Th e

Change display mode

red

blue

Prog. typ e

All T ype s

21:0 0 21:3 0

Movie s

Red Ca p

New s

The Bil l

Entertainmen t

Good by e

Spor t

T erminato r

Children’s

New s

Educatio n

The Bil l

Lifestyl e

Dram a

Categor y

All Service s

All DVB Services

All Analogue Services

Free TV

Pay TV

Radio

Information

Profile 1

Profile 2

Profile 3

Profile 4

Category

All Services

Page up

Page down

Eastender 19:30- 20:00

View

Timer Programming

TV Guide Wed 05/08/04 18:50

DVB Timer Programming Wed 05/08/04 18:50

Pos. Name Date Start End min.

13BBC1

ITV1

Select timer

EXIT

Edit timer

RETURN

Delete

Timer Programming

EXIT

Return to List

RETURN

6/8 FR

18:00

20:00

7/8 SA

0 9

12060Off

21:30

22:30

Off

RETURN

Page 10

Viewing

Terminal

AV1 AV2

Component HDMI

Manual input

default setting

in “Input Labels”

AV1

AV1-RGB

AV2

AV2-S-Video

AV2-RGB

Component HDMI

Auto input EC mode or

VIERA Link

EC/AV1

EC/AV1-RGB

EC/AV2

EC/AV2-S-Video

EC/AV2-RGB

―

EC/HDMI

•

Applicable for EC mode and VIERA Link

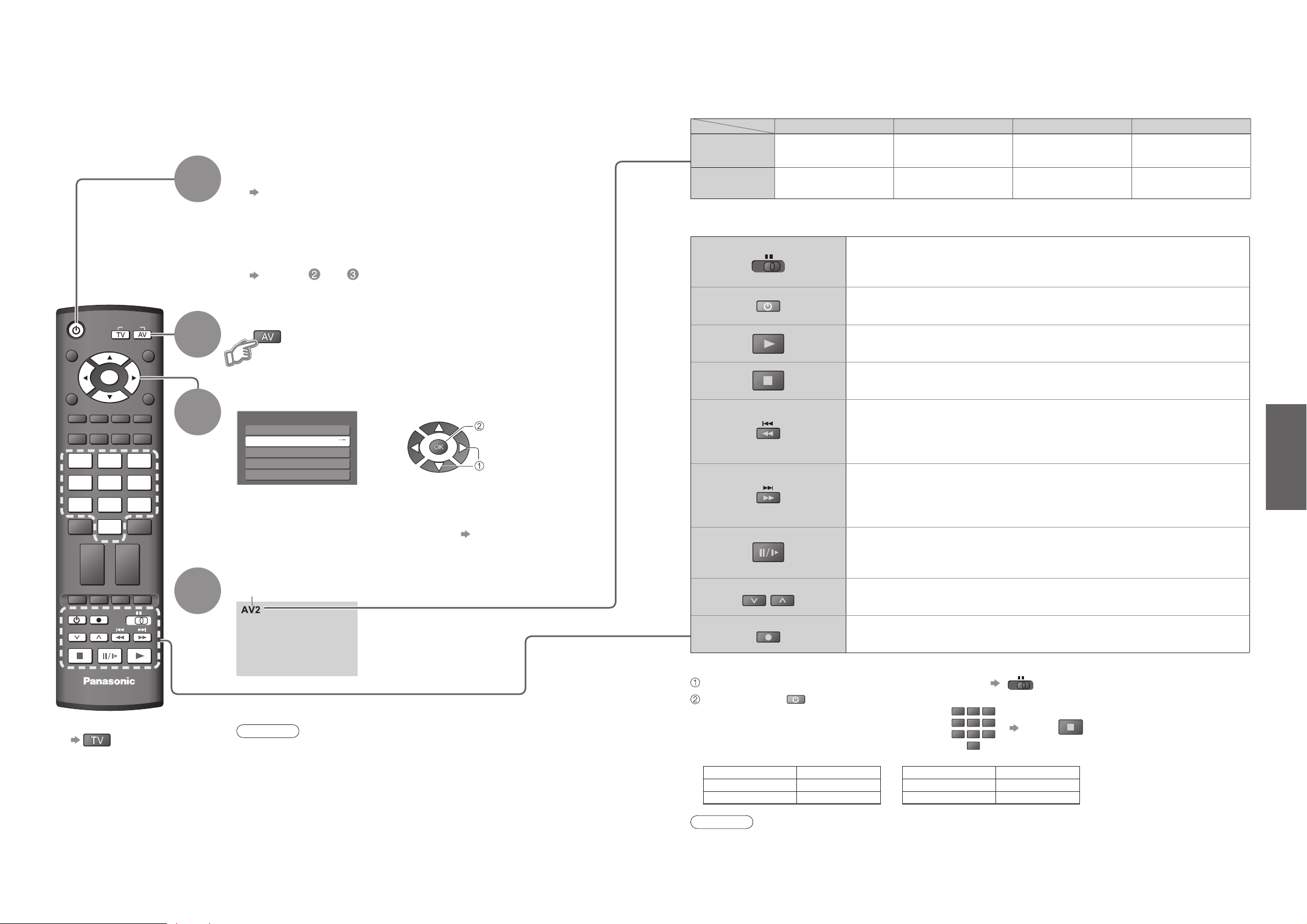

Watching VCR, DVD and Satellites

Connect the external equipment (VCRs, DVD equipment, etc.) and you can watch the input. Connect the Satellite receiver and you can watch satellite broadcasts. To connect the equipment (p. 10 and p. 11) The Remote Control is capable of operating some functions of selected Panasonic external equipment.

Select the input mode connected to the equipment

Note

•

If the external equipment has an aspect adjustment function, set to “16:9”.

•

For details, see the manual of the equipment or ask your local dealer.

■

To return to TV

Display the Input select menu

Displays the selected mode

Turn the TV on

■

When connecting with SCART as example 2 or 3 (p. 10 and p. 11)

Receives input signals automatically when playback starts or

satellite receiver is switched on

•

Input signals are automatically identified by the SCART (pin 8) terminal.

•

This function is also available for HDMI connections (p. 43).

■

If input mode is not switched automatically

Perform and

•

You can also select the input using the AV button on the remote control or the front panel of the TV.

Press the button repeatedly until the desired input is selected.

•

You can label or skip each input modes “Input Labels” (p. 36)

•

Dependant on the setup of the equipment

Screen display

•

Watching VCR, DVD and Satellites

VCR / DVD switch

∗

Select VCR to operate Panasonic VCR or DVD equipment Select DVD to operate Panasonic DVD equipment or Player home theatre

Standby

Set to Standby mode / Turn on

Play

Playback videocassette / DVD

Stop

Stop the operations

Rewind / Skip / Search

VCR: Rewind, view the picture rapidly in reverse DVD: Skip to the previous track or title Press and hold to search backward

Fast-forward / Skip / Search

VCR: Fast-forward, view the picture rapidly forward DVD: Skip to the next track or title Press and hold to search forward

Pause

Pause / Restart DVD: Press and hold to play at slow speed

Programme Up / Down

Select programme

Record

Start recording

Panasonic equipment connected to the TV can be directly operated with the remote control.

Note

•

Confirm correct operation after the code changed.

•

The codes will be reset to default values if batteries are replaced.

•

“DVD” means DVD player, DVD recorders and Recorder home theatre.

•

Some operations may not be possible on some equipment models.

∗

Setting your remote control to operate Panasonic VCR, DVD, etc.

Set the VCR / DVD switch to the appropriate position Press and hold during the following operations

Enter the appropriate code for the equipment to be controlled, see table below

Press

“VCR” position

Equipment Code

VCR 10 (default) DVD 11

“DVD” position

Equipment Code

DVD 70 (default)

Player home theatre

View

select

watch

GUIDE

INPUT

EXIT

RETURN

Input Selection

AV1

AV2/AV2S

COMPONENT

HDMI

ASPECT

132

465

798

OPTION

VCR

DIRECT TV REC

TEXT STTL INDEX HOLD

REC

VCR DVD

PROGRAMME

( )

VCR DVD

PROGRAMME

REC

132

465

798

VCR DVD

VCR

Page 11

Viewing

PROGRAMME

REC

VCR DVD

ASPECT

OPTION

DIRECT TV REC

GUIDE

RETURN

EXIT

INPUT

VCR

TEXT STTL INDEX HOLD

132

465

798

■

To return to TV

Viewing Teletext

Switch to Teletext

How to use

In all cases, it is possible to navigate the pages using buttons on the remote control, but because the commands available must apply to all manufacturers of DVB equipment, some on screen commands may not correspond exactly to the remote control buttons. For example:

You can enjoy news, weather forecasts and subtitles, etc. (depending on the broadcaster)

Note

•

As soon as you switch to a DVB channel with links to a teletext service, software is downloaded in the background to enable the teletext function. This means that when switching to a DVB channel, you should wait for approximately 5 seconds before pressing the TEXT button - this will allow the software to download. If you press the TEXT button before download is complete, there will be a short delay before the text screen is displayed.

•

While navigating DVB teletext, you will find there is a short delay when moving between pages while the page downloads. There is often a prompt shown somewhere on the page (for example “Loading”) to let you know that this is happening.

DVB (digital broadcasting) mode

DVB teletext services

DVB teletext services differ greatly from analogue teletext. When you switch to a DVB teletext service, the images you see can contain graphics and text, laid out and controlled in a manner decided by the broadcaster.

•

You can check if the programme has teletext information.

■

To change the channel

•

When “select” or “go” is displayed

•

When “◄”, “►”, “▲”, “▼” symbol is displayed

•

When the key words are displayed on colour bar

•

When options with numbers are displayed

•

When “i” is displayed (information)

Displayed if programme has teletext information

If in Analogue mode

Select DVB

Information banner (p. 15)

FULL / TOP / BOTTOM

Reveal hidden data

(TOP) (BOTTOM) Normal (FULL)

•

Re-hide

Reveal hidden words e.g. quiz page answers

•

Viewing Teletext

Switch to Teletext

Select the page

Analogue mode

■

To adjust contrast

If in DVB mode

Select Analogue

•

Displays the index page (content varies depending on the broadcasters)

(Corresponds to the colour bar)

down

■

Using Analogue teletext

What is FASTEXT mode (default)?

In FASTEXT mode, four differently coloured subjects are situated at the bottom of the screen. To access more information about one of these subjects, press the appropriately coloured button. This facility enables fast access to information on the subjects shown.

What is List mode?

In List mode, four differently coloured page numbers are situated at the bottom of the screen. Each of these numbers can be altered and stored in the TV’s memory. (“Store frequently viewed pages”, p. 22)

■

To change mode “Teletext” in Setup Menu (p. 25)

Time / date

Sub page number

Colour bar

As the blue bar is displayed

(Continued)

■

To return to TV

Current page number

(Expand the BOTTOM half)

(Expand the TOP half)

(Press twice)

•

Press once to have picture and text. Press again to return to TV.

GUIDE

INPUT

EXIT

TEXT

OPTION

VCR DVD

RETURN

DIRECT TV REC

ASPECT

132

465

798

TEXT

PROGRAMME

VCR

STTL INDEX HOLD

REC

17:51 28 Feb

TEXT

1 BBC ONE WALES

Corontation Street 20 : 00 ~ 20 : 55

red green yellow blue

132

465

798

VCR

Change category

For info press

TXT

Profile 1

23:35

Now

<< 01 02 03 04 05 06 07 >>

TELETEXT

INFORMATION

green

red

yellow

17:51 28 Feb

blue

TEXT

132

465

798

VCR

TEXT

red

green

red

Page 12

Advanced

Viewing

Main Menu

VIERA Link


Sound

Setup

Picture Menu 1/2

Viewing Mode Dynamic

Contrast

Brightness

Colour

Sharpness

Tint

Colour Balance Warm

Colour Management Off

P-NR Off

Viewing Teletext

Subtitles

•

Factory setting is “P888” (subtitle service) on blue button (List mode).

View subtitles by pressing STTL button

INDEX

Return to the main index page

■

Using Analogue teletext (Continued)

HOLD

If you wish to hold the current page without updating

Stop automatic updating

■

To resume

Watch TV while waiting for update

P108

Appears when updating is completed

(You cannot change the channel.)

Teletext automatically updates itself when new information becomes available.

•

The news page provides a function that indicates arrival of latest news (“News Flash”).

Changes to TV screen temporarily

View the updated page

View the TV picture while searching for a teletext page

View sub page

Enter the 4-digit number

example: P6

Appears at top of the screen

■

To view specific sub page

•

Sub pages: The number of sub pages varies depending on the broadcasters (up to 79 pages). It may take some time for searching, during which time you can watch TV.

View sub page (Only when teletext is more than one page)

•

How to Use Menu Functions (picture, sound quality, etc.)

•

Viewing Teletext

How to Use Menu Functions

Display the menu

Various menus allow you to make settings for the picture, sound, and other functions.

•

Displays the functions that can be set (varies according to the input signal)

Note

•

To initialize all settings

“Shipping Condition”

(p. 34)

■

To return to TV at any time

■

To return to the previous screen

Select the menu

Select the item

(example: Picture Menu)

access

select

Adjust or select

change

(example: Picture Menu)

Changed

Number and positions of alternatives

Moved

■

Choose from among alternatives

■

Adjust using the slide bar

store or access (Required by some functions)

Displays the next screen

■

Go to the next screen

■

To change menu pages

down

select

Store frequently viewed pages in the colour bar

(List mode only)

press and hold

As page is displayed

The number changes to white.

Corresponding colour button

•

If you wish to use Subtitles, do not change number on blue button.

■

To change stored pages

press and hold

Enter new page number

Colour button you want to change

Store frequently viewed pages

View in multi window

Watch TV and Teletext in two windows at once

•

Operations can be made only in Teletext screen.

•

Each time pressed: Teletext TV and Teletext

HOLD

INDEX

STTL

TEXT

132

465

798

VCR

blue

0 0

yellow yellow

INPUT

GUIDE

ASPECT

132

465

798

VCR

TEXT STTL INDEX HOLD

REC

PROGRAMME

EXIT

RETURN

OPTION

VCR DVD

EXIT

RETURN

DIRECT TV REC

Picture Menu

Viewing Mode Dynamic

Contrast

Brightness

Colour

Sharpness

Tint

Colour Balance Warm

Colour Management Off

P-NR Off

Colour Balance Normal

Sharpness

Tuning Menu Access

1/2

Page 13

Advanced

Item Adjustments / Configurations (alternatives)

VIERA Link

VIERA Link Control

Controls the connected Panasonic equipment “Access and control the connected equipment by VIERA remote control” (p. 43) “Speaker control” (p. 43)

•

You can also access VIERA Link Menu directly using the VIERA Link button on the remote control.

Speaker Selection


Viewing Mode

Selects three different screen settings (Dynamic / Normal / Cinema) In each Viewing Mode setting, Contrast, Brightness, Colour, Sharpness, Tint (in NTSC only), Colour balance, Colour Management and 3D-COMB can be adjusted and stored to suit your particular viewing requirement (e.g., you may require different settings for viewing sports, films, news etc.) Set for each input signal Changes will be stored automatically. By analysing and processing the incoming picture, all three modes feature automatic enhancement

Contrast, Brightness, Colour, Sharpness

Increases or decreases the levels of these options according to your personal preference

Tint

With an NTSC signal source connected to the TV, the picture hue can be adjusted to suit your taste

Colour Balance

Allows you to set the overall colour tone of the picture (Cool / Normal / Warm)

Colour Management

Automatically adjusts colours to vivid ones (Off / On)

P-NR

Picture Noise Reduction Automatically reduces unwanted picture noise (Off / Min / Mid / Max)

3D-COMB

Occasionally, whilst viewing still or slow moving pictures, colour patterning may be seen Set to “On” to display sharper and more accurate colours (Off / On)

•

For PAL or NTSC signal reception only

•

Not valid on RGB, S-Video, components and HDMI

•

Analogue mode only

Reset to Default

Press the OK button to reset the present Picture Mode to the default settings

•

P-NR is reset to Off (Analogue) or Min (DVB)

Sound

Mode

Select two different sound settings (Music / Speech) In each Sound Mode setting, Bass and Treble can be adjusted and stored to suit your particular sound requirement Changes to any settings in a mode will affect all signal sources Sound quality can be improved

Bass

Increases or decreases level to enhance or minimise lower, deeper sound output

Treble

Increases or decreases level to enhance or minimise sharper, higher sound output

Balance

Adjusts volume level of right and left speakers

Surround

Surround sound settings (Off / On) Provides a dynamic enhancer to simulate improved spatial effects

Volume Correction

Adjusts volume of individual channel or input mode

Preferred Multi Audio

Selects the preferred language for DVB multi audio (depending on the broadcaster)

NICAM

NICAM (Near Instantaneous Companded Audio Multiplex) A format for digital sound over television Reproduces stereo sound (Off / On)

•

Off if reception is poor (FM monaural sound)

•

Analogue mode only

HDMI Input

Select to fit the input signal (Auto / Digital / Analogue) (p. 41) Auto : Automatic detection of digital or analogue sound source

Digital : HDMI cable connection Analogue : HDMI-DVI adapter cable connection

•

HDMI input mode only

Audio

Description

Audio Description

Useful for visually-impaired viewers (Off / On) Select “On” to sound the description sound if the programme has the signal

Volume

Adjusts the volume for audio description

Reset to Default

Press the OK button to reset the present Sound Mode to the default settings

•

Effective to Bass, Treble and Balance

Item Adjustments / Configurations (alternatives)

Setup

DVB Timer Programming

Records future programmes (p. 38)

DVB Profile Edit

Creates list of favourite programmes (p. 31)

DVB Service List

Skips the unwanted DVB channels (p. 31)

Q-Link Settings

Q-Link

Selects which AV terminal is to be used for data communication between this TV and a compatible recording equipment (AV1 / AV2) (p. 40)

AV1 / AV2 out

Chooses the signal to be transmitted from the TV to Q-Link

(Analogue / DVB / AV1 / AV2 / Monitor)

•

Monitor: Image displayed on screen

•

Component and HDMI signals cannot be outputted

Download

Downloads analogue channel information to a Q-Link compatible equipment connected to the TV

Child Lock

Locks a programme channel to prevent access to it (p. 31)

Tuning Menu

Auto Setup

Automatically sets the channels received in the area (p. 32)

Analogue Programme Edit

Edits analogue channels (p. 33)

DVB Manual Tuning

Sets the DVB channels manually (p. 33)

Analogue Manual Tuning

Sets the analogue channels manually (p. 33)

Add New DVB Services

Adds new DVB services (p. 33)

New Service Message

Selects whether to give a notification message when a new DVB service is found (p. 33)

DVB Signal Condition

Checks the DVB signal condition (p. 33)

Off Timer

Sets the time the TV automatically turns Off (Off / 15 / 30 / 45 / 60 / 75 / 90 minutes)

Power on Preference

Set to “TV” to view picture from TV tuner. Set to “AV” to view input from an external equipment connected to a SCART terminal, e.g. satellite receiver (TV / AV)

•

The external equipment must be switched on and sending a control signal for automatic switching at power on to occur

Teletext

Analogue teletext display mode (FASTEXT / List) (p. 21)

Preferred Subtitles

Selects the preferred language for DVB subtitles (depending on the broadcaster)

•

To display subtitles p. 15

Shipping Condition

Resets all settings, for example, when moving house (p. 34)

Owner ID

Inputs the owner ID (p. 35)

Common Interface

Uses include to watch pay-TV (p. 29)

System Update

Downloads new software to TV (p. 29)

Power Save

Reduces brightness of picture to economise on power consumption (Off / On)

Side Panel

Increases the brightness of the side panel (Off / Low / Mid / High)

•

The recommended setting is “High” to prevent panel “image retention”

Input Labels

Labels or skips each input terminals (p. 36)

Banner Display Timeout

Sets how long the information banner (p. 15) stays on screen

•

0 (No display) to 10 sec. in 1-sec. increments

VIERA Link

Sets to use VIERA Link functions (Off / On) (p. 42)

Software Licence

Displays the software licence information

System Information

Displays the system information of this TV

■

Menu list

•

How to Use Menu Functions

(picture, sound quality, etc.)

How to Use Menu Functions

■

Menu list

•

Only available items can be selected.

Page 14

Advanced

•

How to Use Menu Functions

(picture, sound quality, etc.)

How to Use Menu Functions

•

How to operate (p. 23)

■

Overview

(p. 43)

Main Menu

VIERA Link


Sound

Setup

The menu of the accessed equipment

NTSC (National Television System Committee): One of television signal used in USA, etc.

Only available in DVB

Only available in Analogue

Only available in DVB

Only available in Analogue

Only available in DVB Only available in DVB Only available in DVB

Only available in NTSC

Only available in NTSC / PAL

(p. 24)

Only available in Analogue

Only available in DVB

(p. 24)

Wed 12/05/04 10:46Profile Editor

BBC One Wales

All DVB Services

BBC THREE7

E414

CBBC Channel70

Cartoon Nwk72

BBCi105

BBC Radio Wales719

BBC Radio Cymru720

Profile 1

(p. 31)

(p. 25)

DVB Timer Programming Wed 05/08/04 18:50

13BBC1

ITV1

6/8 FR

7/8 SA

18:00

21:30

20:00

22:30

12060Off

Off

Pos. Name Date Start End min.

(p. 39)

CBBC Channel

DVB Service List

Cartoon Nwk BBCi

BBC Radio Wales

BBC Radio Cymru BBC ONE Wales BBC THREE

72 105

719

720

1 7

(p. 31)

Analogue Programme Edit

1 CH33

2 CH21

3 CH21

4 CH60

5 CH21

1 2 3

X Y Z

F T P

4 5 6

Prog. Chan. Name

(p. 33)

Child Lock

Service List

Change PIN Access

(p. 31)

(p. 36)

System Update

Auto Update Search in Standby

System Update Search Now

(p. 29)

1 of 2Owner ID

Please enter new PIN

* * * *

(p. 35)

Off

2 of 2Common Interface

Slot 1:

Module inserted

(p. 29)

All tuning data will be erased

Are you sure? Are you sure?

Shipping Condition

(p. 34)

Programme 1 [CH33]

Analogue Manual Tuning

Manual Tuning 21 68

(p. 33)

DVB Manual Tuning

Signal Quality

Stopped

010

Signal Strength 010

Frequency MHz

[

CH21

]

474,00

Prog. Channel Net ID. QualityTS ID.Service Name

(p. 33)

Off

Tuning Menu

Auto Setup Access

Analogue Programme Edit

Access

DVB Manual Tuning

Analogue Manual Tuning

Access

Add New DVB Services Access

Access

New Service Message

DVB Signal Condition Access

(p. 32)

Add New DVB Services

Please wait!

This will take about 3 mins.

21 68

Prog. Channel Service Name Net ID. TS ID. Quality

ZDF ARD

(p. 33)

(p. 25)

Only available in DVB

(p. 33)

Off

DVB Signal Condition

DVB Programme

[70] CBBC Channel

0 5 10

Signal Quality Signal Strength

(p. 32)

Auto Setup - Digital and Analogue

This will take about 3 mins.

Analogue Scan 21 68

Digital Scan 21 68

Channel Service Name Type Quality

CBBC Channel DVB 10 62 BBC Radio Wales DVB 10 62

BBC Radio Cymru

DVB 10

Cartoon Nwk

DVB 10

29 Analogue

BBC1

Analogue

VIERA Link Menu

VIERA Link Control

Speaker Selection

Recorder

Home Cinema

Picture Menu

Viewing Mode Dynamic

Contrast

Brightness

Colour

Sharpness

Tint

Colour Balance Warm

Colour Management Off

P-NR Off

Picture Menu

3D-COMB Off

Reset to Default Set

Sound Menu

Mode Music

Bass

Treble

Balance

Surround

Volume Correction

Preferred Multi Audio

NICAM

HDMI Input Auto

Sound Menu

Audio Description Access

Reset to Default Set

Setup Menu

DVB Timer Programming

DVB Profile Edit Access

DVB Service List

Q-Link Settings Access

Child Lock Access

Tuning Menu

Off Timer Off

Power on Preference

Teletext FASTEXT

Setup Menu

Preferred Subtitles English

Shipping Condition Access

Owner ID

Common Interface Access

System Update Access

Power Save

Side Panel Off

Input Labels

Banner Display Timeout

Setup Menu

VIERA Link

Software Licence Access

System Information Access

Off

English

Off

Access

Off

Access

3 seconds

1/2

2/2

1/2

2/2

1/3

2/3

3/3

Audio Description Menu

Audio Description Off

Volume

Q-Link Settings

Q-Link AV2

AV2 out DVB

Download Access

Input Labels

AV1 DVD

AV2/AV2S AV2/AV2S

COMPONENT COMPONENT

HDMI HDMI

Page 15

Advanced

Main Menu

VIERA Link


Sound

Setup

RETURN

GUIDE

123

456

789

VCR

REC

VCR DVD

PROGRAMME

TEXT STTL INDEX HOLD

ASPECT

OPTION

DIRECT TV REC

EXIT

INPUT

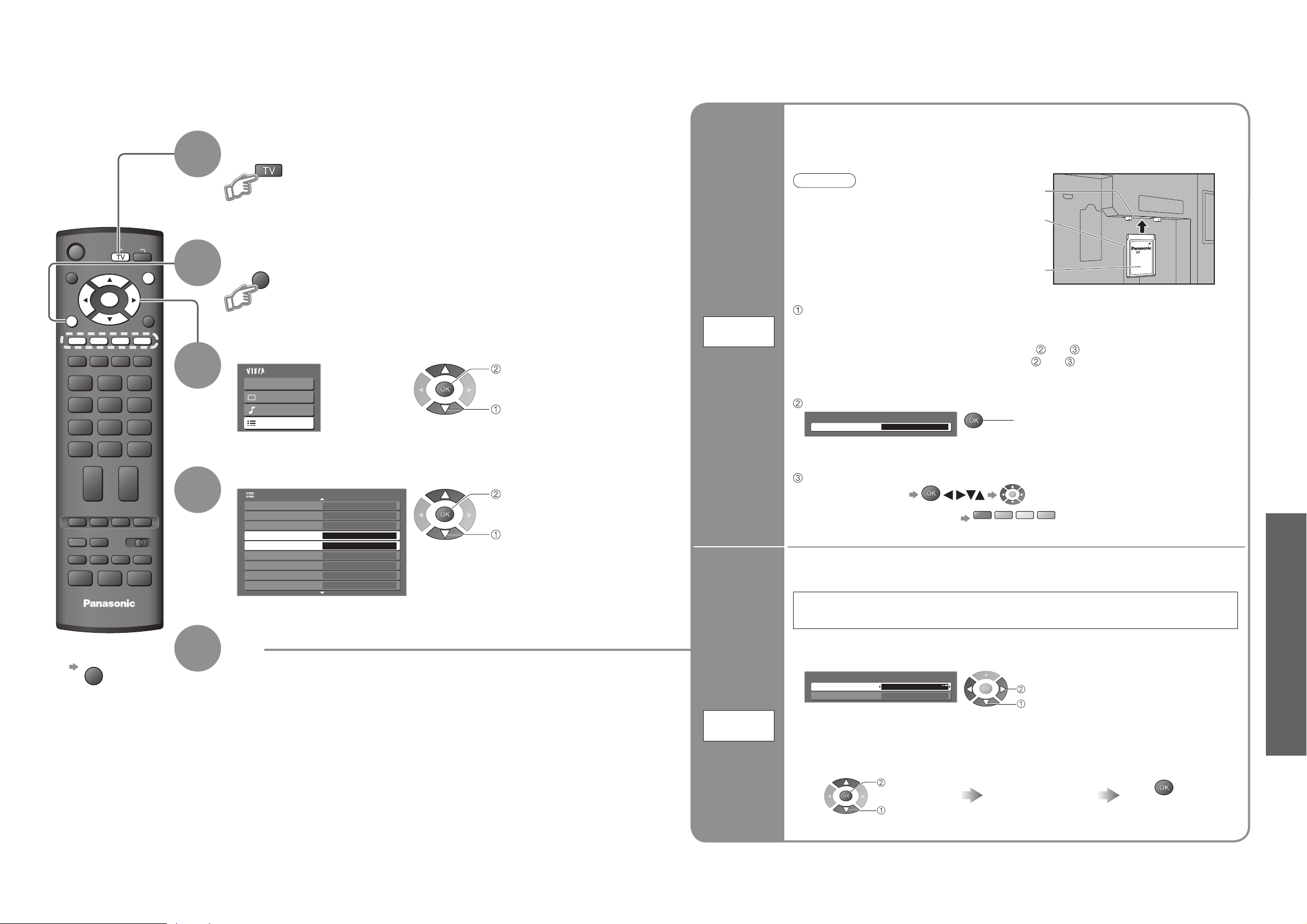

DVB Settings

Select “Setup”

Select “Common Interface” or “System Update”

Display the menu

Set

■

To return to TV

(DVB mode)

If in Analogue mode

Select DVB

DVB Settings provide access to various advanced features.

•

DVB Settings (DVB)

(pay-TV, software update)

System

Update

Update TV's software system

■

To update immediately

System Update

Auto Update Search in Standby

System Update Search Now

Select “Auto Update Search in Standby” and then set “On” or “Off”

•

On: Automatically performs a search in standby and downloads an update, if any software updates are available

set

select

Download new software to TV.

•

For details (p. 47)

If System Update is performed, the software will be updated (it may change TV functions). If you do not wish to do so, set “Auto Update Search in Standby” to Off.

The Common Interface Module menu provides access to software contained on Common Interface (CI) Modules. This TV receiver works only Pay TV modules complying with CI standard.

Off

2 of 2Common Interface

Slot 1:

Module inserted

Access “Common Interface”

select, go

Coloured characters

Follow the on-screen instructions

example:

•

On-screen operation guide may not correspond to the remote control buttons.

Caution

•

Turn Off Mains power On / Off switch whenever inserting or removing the CI module.

•

If a view card and a card reader come as a set, first insert the card reader, then insert the view card into the card reader.

•

Do not insert the module up side down.

•

The features that appear on screen are dependent on the contents of the selected CI module.

•

Normally pay-TV services will appear without and . If pay-TV services does not appear, perform and .

•

For more details, see the manual of the CI module, or check with the broadcaster.

Insert the CI module (optional)

CI slot

Insert or

remove

straightly

and

completely

CI module

Rear of the TV

Pay-TV

Common

Interface

access

select

Select “System Update Search Now”

Searches for an update (for several min.) and displays a corresponding message if any

Download

access

select

•

Download may take for about 20 min.

access

select

EXIT

Setup Menu

Preferred Subtitles English

Shipping Condition

Owner ID

Common Interface Access

System Update Access

Power Save

Side Panel Off

Input Labels

Banner Display Timeout

Off

3 seconds

2/3

red green yellow blue

Page 16

Advanced

Main Menu

VIERA Link


Sound

Setup

Off

1/3

DVB Timer Programming

DVB Profile Edit Access

DVB Service List

Q-Link Settings

Child Lock Access

Access

Tuning Menu

Off Timer Off

Power on Preference

Teletext FASTEXT

Setup Menu

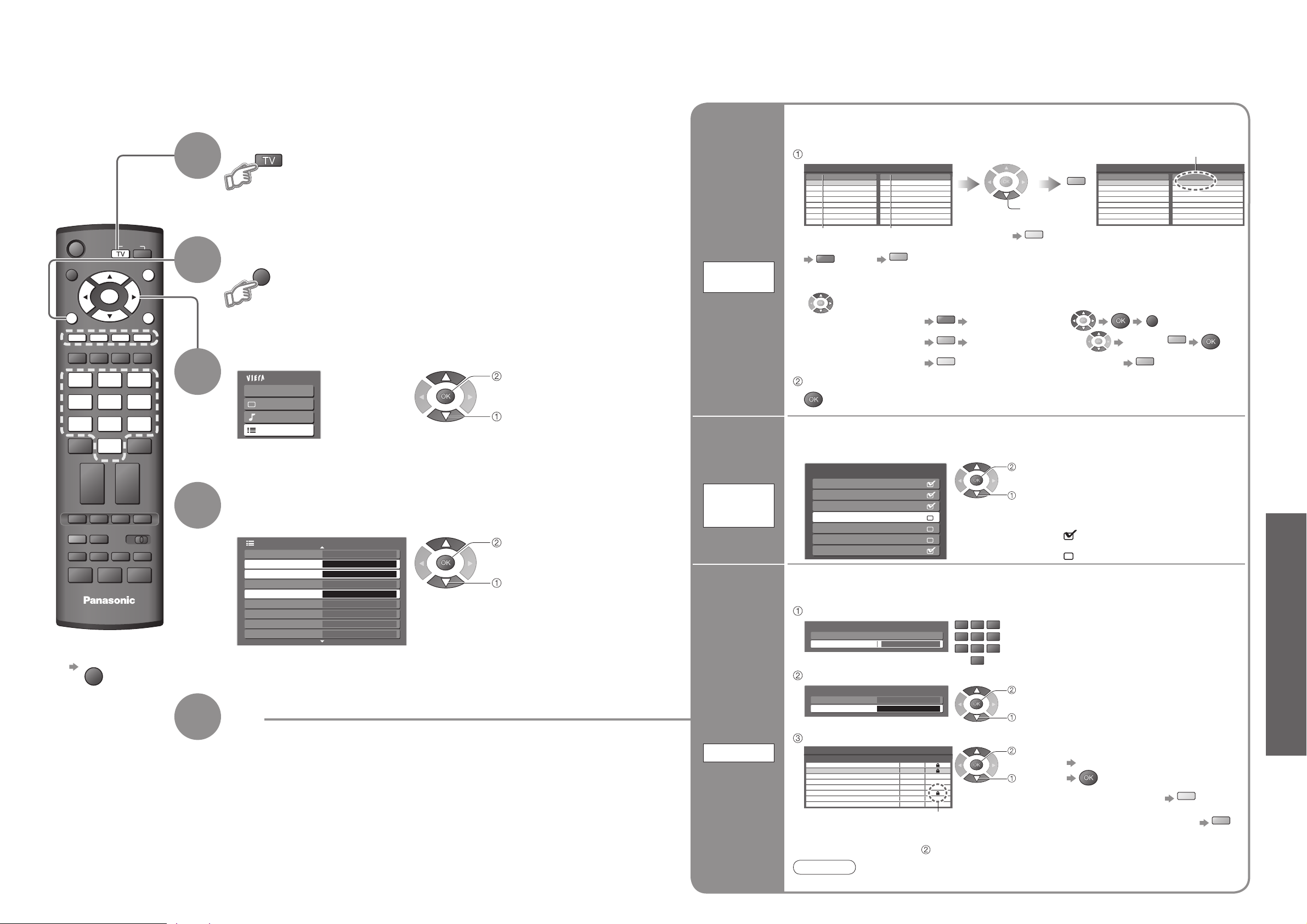

Editing Channels

Select “Setup”

Select “DVB Profile Edit”, “DVB Service List” or “Child Lock”

Display the menu

Set

You can make your favourite channel lists, skip unwanted channels and control channel audience.

■

To return to TV

•

Editing Channels

Select DVB or Analogue

•

“DVB Profile Edit” and “DVB Service List” are available in DVB mode only.

List favourite channels

DVB

Profile Edit

(DVB mode)

Wed 12/05/04 10:46Profile Editor

BBC One Wales

All DVB Services

BBC THREE7

E414

CBBC Channel70

Cartoon Nwk72

BBCi105

BBC Radio Wales719

BBC Radio Cymru720

BBC One Wales

Profile 1

Wed 12/05/04 10:46Profile Editor

BBC One Wales

All DVB Services

BBC THREE7

E414

CBBC Channel70

Cartoon Nwk72

BBCi105

BBC Radio Wales719

BBC Radio Cymru720

Profile 1

•

To add all channels to the list

Create your favourite channel list (Profile) from various broadcasters (up to 4: Profile 1 to 4). The list is added to “Category” in TV Guide (p. 16) and information banner (p. 15) and then easily accessed.

select

To change the category

To display another Profile

A channel is added

Select a channel and add it to the list

Store

•

Channel numbers (known as logical channel numbers) cannot be changed, due to broadcast restrictions.

■

To edit Profile

Select the field of Profile to edit and:

•

To name the Profile

Select the character

•

To move the channel

Select the new position Confirm

•

To delete the channel

•

To delete all channels

access

select

access

select

Control channel audience

1 of 2Child Lock-PIN Entry

Please enter new PIN

* * * *

Child Lock

Service List

Change PIN

Access

Wed 12/05/04 10:46Child Lock Service List

BBC One Wales

Service Name

BBC THREE7

E414

CBBC Channel70

Cartoon Nwk72

BBCi105

BBC Radio Wales719

BBC Radio Cymru720

Lock

DVB

Type

■

To change the PIN number

Select “Change PIN” in and enter a new PIN number twice.

You can lock specific channels and control who watches them. (When a channel is selected, a message appears; by entering the PIN number, you can watch the channel.)

select

Appears when the channel is locked

Enter the PIN number (4 digits)

Select “Service List”

•

To cancel

Select the locked channel

•

To lock all channels

•

To cancel all channel locks

Select the channel to be locked

Note

•

Setting “Shipping Condition” (p. 34) erases the PIN number and all settings.

•

Enter the PIN number twice at first setting.

•

Make a note of the PIN number in case you forget it.

set

select

access

Child Lock

Skip unwanted channels

DVB

Service

List

(DVB mode)

You can hide unwanted services. The deleted services cannot be displayed except in this function. Use this function to skip unwanted services.

Select a service and add / delete

add / delete

select

CBBC Channel

DVB Service List

Cartoon Nwk BBCi

BBC Radio Wales

BBC Radio Cymru BBC ONE Wales BBC THREE

72 105

719

720

1 7

:add

:delete (skip)

GUIDE

ASPECT

132

465

798

OPTION

VCR

INPUT

DIRECT TV REC

EXIT

RETURN

red

blue

red

green

yellow

green

yellow

RETURN

green

blue

TEXT STTL INDEX HOLD

REC

PROGRAMME

EXIT

VCR DVD

132

465

798

VCR

yellow

blue

Page 17

Advanced

Main Menu

VIERA Link


Sound

Setup

Off

1/3

DVB Timer Programming

DVB Profile Edit

DVB Service List

Q-Link Settings

Child Lock

Tuning Menu

Off Timer Off

Power on Preference

Teletext FASTEXT

Access

Setup Menu

Off

Tuning Menu

Auto Setup Access

Analogue Programme Edit

Access

DVB Manual Tuning

Analogue Manual Tuning

Access

Add New DVB Services Access

Access

New Service Message

DVB Signal Condition Access

Auto Setup - Digital and Analogue

This will take about 3 mins.

Analogue Scan 21 68

Digital Scan 21 68

Channel Service Name Type Quality

CBBC Channel DVB 10 62 BBC Radio Wales DVB 10 62

BBC Radio Cymru

DVB 10

Cartoon Nwk

DVB 10

29 Analogue

BBC1

Analogue

PROGRAMME

REC

VCR DVD

TEXT STTL INDEX HOLD

ASPECT

OPTION

DIRECT TV REC

GUIDE

INPUT

EXIT

VCR

132

465

798

RETURN

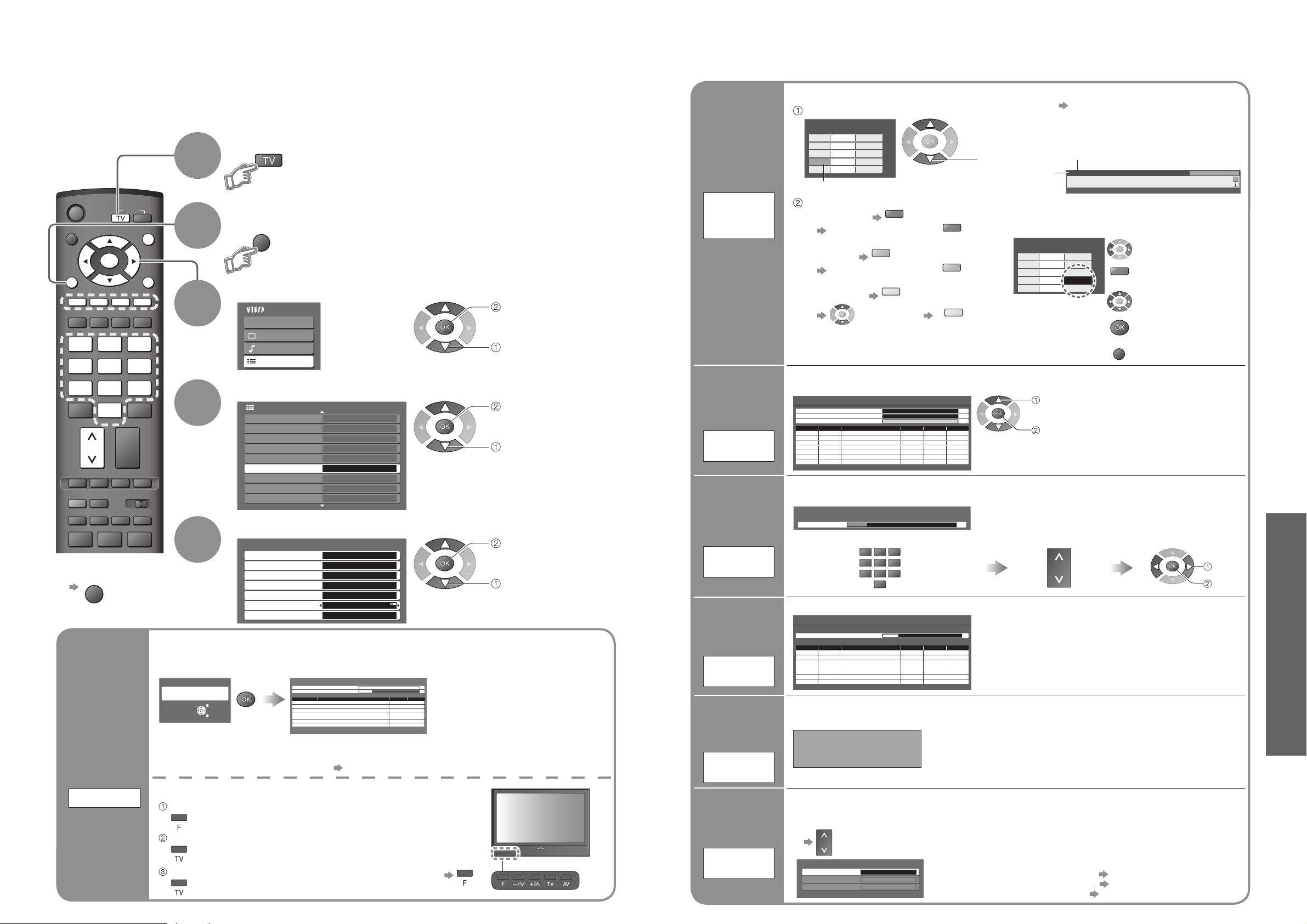

Tuning Channels

Select “Setup”

Select “Tuning Menu”

Display the menu

Select a function and set

You can re-tune all TV channels when moving house or search for new services which may have recently started broadcasting.

■

To return to TV

•

Tuning Channels

Set DVB and Analogue channels automatically

Auto Setup

Start Auto Setup Settings are made automatically

•

When the operation is completed, the digital service at programme position “1” will be displayed.

If no DVB services are found, the first analogue service will be displayed.

•

If tuning has not done completely “DVB Manual Tuning”, “Analogue Manual Tuning”

Automatically set the DVB and Analogue channels received in the area. If a Child Lock PIN number (p. 31) has been set, it must be entered.

For Auto Setup, using the buttons on the front of the TV

Press repeatedly until “Auto Setup” appears

Access “Auto Setup”

Start “Auto Setup”

■

To return to TV

Select DVB or Analogue

•

“DVB Manual Tuning”, “Add New DVB Services”, “New Service Message” and “DVB Signal Condition” are available in DVB mode only.

•

“Analogue Programme Edit” and “Analogue Manual Tuning” are available in Analogue mode only.

•

All previous settings are erased.

•

The analogue settings are downloaded to a Q-Link compatible equipment connected to the TV.

Display a notification message

New Service

Message

Selects whether to give a notification message when a new DVB service is found. (Off / On)

•

Selecting OK (Auto Setup) will delete current Profile and Childlock settings.

access

select

access

select

access

select

Add DVB channel automatically

Any new services found will be added to the DVB Service List (p. 31) automatically.

Add New DVB Services

Please wait!

This will take about 3 mins.

21 68

Prog. Channel Service Name Net ID. TS ID. Quality

ZDF ARD

•

The new service is added with the current settings saved as they are.

Add New

DVB Services

Set DVB channel manually

DVB Manual

Tuning

select channel

DVB Manual Tuning

Signal Quality

Stopped

010

Signal Strength 010

Frequency MHz

[

CH21

]

474,00

Prog. Channel Net ID. QualityTS ID.Service Name

Normally use “Auto Setup” or “Add New DVB Services” to add DVB channels to your service list. If tuning has not done completely, use this function.

•

All services found will be added to the DVB Service List (p. 31) automatically.

Set Analogue channel manually

Analogue

Manual Tuning

Programme 1 [CH33]

Analogue Manual Tuning

Manual Tuning 21 68

Set Analogue channel manually after Auto Setup. If a VCR is connected with only the RF cable, select programme position “0”.

store

Select the channel Search and storeSelect the programme position

Edit Analogue channels

■

Delete

■

Add

■

Move

■

Change name

Analogue

Programme

Edit

Analogue Programme Edit

1 CH33

2 CH21

3 CH21

4 CH60

5 CH21

1 2 3

X Y Z

F T P

4 5 6

Prog. Chan. Name

Analogue Programme Edit

1 CH33

2 CH21

3 CH21

4 CH60

5 CH21

Prog. Chan. Name

1 2 3

X Y Z

F T P

4 5 6

■

To change the name of the broadcaster displayed when selecting channels

Cursor

Select the channel to edit

Edit

■

To delete

After confirming, press

■

To add

After confirming, press

■

To move

Select new

position

Edit the analogue programme position settings

select

Channel

Name

Select the “Name” field

Select the character

Set

( Maximum:

five characters)

Enter the “User input” mode

•

To change channel number

“Analogue Manual Tuning”

Store

Check DVB signal

DVB Signal

Condition

Off

DVB Signal Condition

DVB Programme [70] CBBC Channel

0 5 10

Signal Quality Signal Strength

Selects a channel and checks the DVB signal condition. Use for adjusting the direction of the aerial.

A good Signal Strength is not an indication of suitable signal for DVB reception. Please use the Signal Quality indicator as follows:

Signal Quality:

•

Green bar Good

•

Yellow bar Poor

•

Red bar Bad (Check the aerial)

•

To change the programme

(during the menu appears)

3 FTP

Corontation Street

23:35

Profile 1

Change category

For info press

green

yellow

red

green

yellow

red

RETURN

EXIT

Auto Setup

All tuning data will be erased

Start Auto Setup

EXIT

RETURN

132

465

798

VCR

New DVB service found!

Press OK to start Auto Setup.

Press EXIT to lgnore.

Selecting Auto Setup will delete

current Profile and Childlock settings

Page 18

Advanced

Main Menu

VIERA Link


Sound

Setup

Main Menu

VIERA Link


Sound

Setup

GUIDE

INPUT

RETURN

ASPECT

OPTION

DIRECT TV REC

VCR

132

465

798

REC

TEXT STTL INDEX HOLD

PROGRAMME

VCR DVD

EXIT

INPUT

GUIDE

ASPECT

OPTION

DIRECT TV REC

TEXT STTL INDEX HOLD

EXIT

VCR

132

465

798

RETURN

Select “Setup”

Select “Shipping Condition”

Display the menu

Set

■

To return to TV

Restore Settings

Shipping

Condition

Restore Settings

Resets the TV to its original condition, i.e. no channels tuned in. All settings other than “Owner ID” (channels, picture, sound quality, etc.) are reset.

Owner ID

Input owner ID

Owner ID

•

Owner ID

•

Restore Settings

Select “Owner ID”

Set

■

To return to TV

Entry of the security code (PIN number) and “personal information” (your name, address and post code). In the unfortunate event of theft it will help the Police to determine the owner. If you have skipped the Owner ID input in “Auto Setup” (p. 12), and input it later, start from

If you input the Owner ID in “Auto Setup” (p. 12), perform

Select “Setup”

Display the menu

Check the message and initialise

Follow the on-screen instructions

•

“Auto Setup” will automatically start when Mains power On / Off switch is next turned On. (p. 12)

■

To re-tune TV channels only, e.g. after moving house

“Auto Setup” (p. 32)

set

access

select

access

select

access

select

access

select

•

Enter the PIN number twice at first setting.

•

Make a note of the PIN number in case you forget it.

Enter the PIN number (4 digits)

To change the PIN number

Select the entry field

To check the “personal information” stored

Hold down for about 3 sec.

Displays the information on the screen (for several sec.)

•

The PIN number is not displayed.

Enter the “User input” mode

Select the character

Set

Select the “PIN” field

Enter your name, address, and post code, in that order

Enter a new PIN number twice

access

select

Store

MENU MENU

2/3

EXIT

Setup Menu

Preferred Subtitles English

Shipping Condition

Owner ID

Common Interface

System Update

Power Save

Side Panel Off

Input Labels

Banner Display Timeout

Access

Off

3 seconds

EXIT

Please enter new PIN

EXIT Change RETURN

Setup Menu

Preferred Subtitles English

Shipping Condition

Owner ID

Common Interface

System Update

Power Save

Side Panel Off

Input Labels

Banner Display Timeout

1 of 2Owner ID

* * * *

Page up

0 9

PIN entry

Page down

Access

Off

3 seconds

132

465

798

VCR

2/3

Shipping Condition

All tuning data will be erased

Confirm

Are you sure? Are you sure?

EXIT

RETURN

Owner ID

NAME A

HOUSE NO

POSTCODE

EXIT

Page 19

Advanced

Main Menu

VIERA Link


Sound

Setup

•

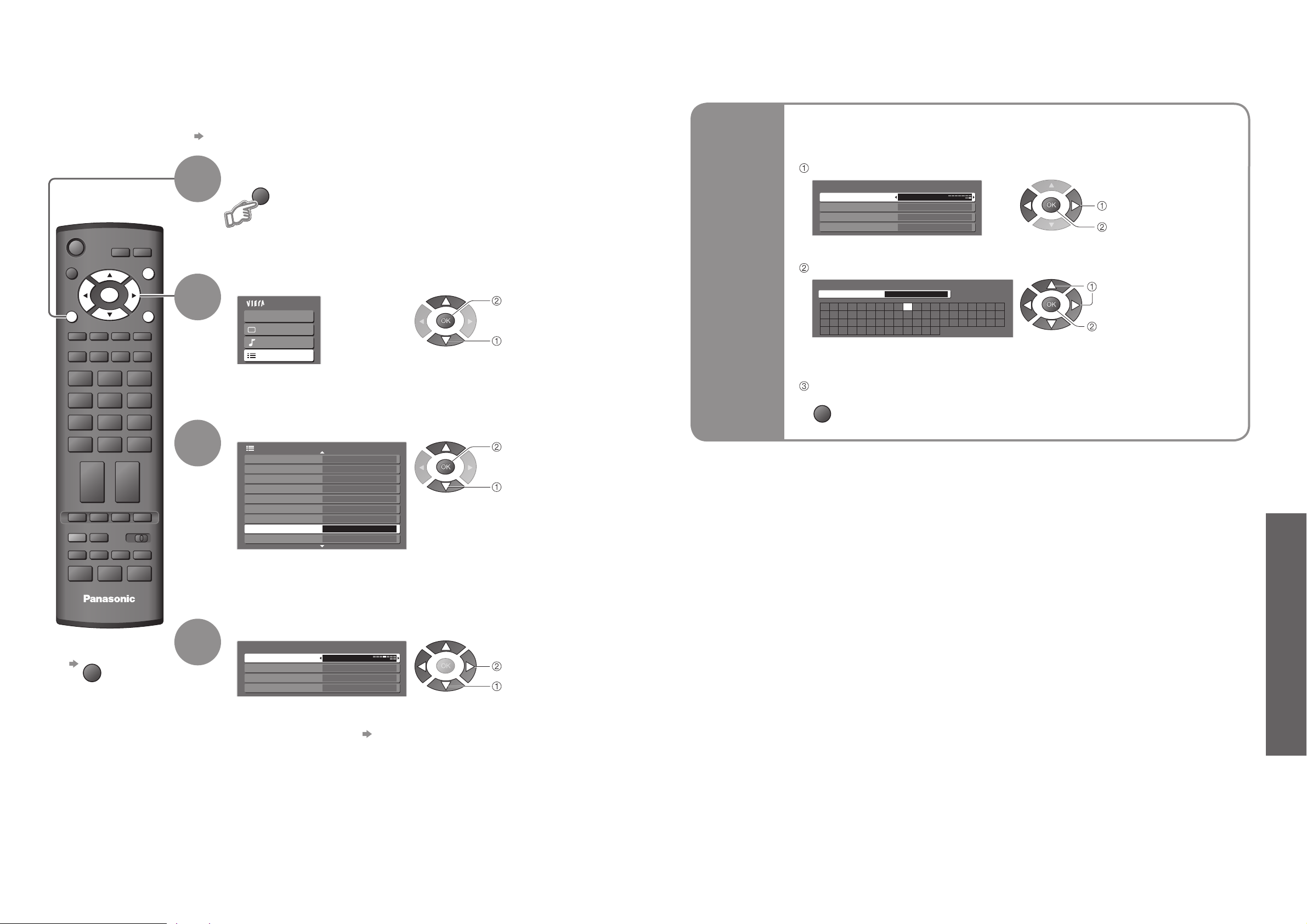

Input Labels

Select “Setup”

Select “Input Labels”

Display the menu

Select a input terminal and set

■

To return to TV

For easier identification and selection of the input mode, you can label each input terminals or skip terminal that is not connected to any equipment. (To select the input mode

p. 18)

set

select

access

select

access

select

(maximum: ten characters)

The labels you set will be displayed in “Input Selection” menu (p. 18) or banner.

•

If “Skip” is selected, you cannot select the mode.

•

How to set “User input” p. 37

User input

Select “User input”

Set characters

You can name each input terminals freely.

Store

access

select

set

select

INPUT

GUIDE

ASPECT

OPTION

132

465

798

VCR

TEXT STTL INDEX HOLD

REC

VCR DVD

PROGRAMME

EXIT

RETURN

DIRECT TV REC

Setup Menu

Preferred Subtitles English

Shipping Condition

Owner ID

Common Interface

System Update

Power Save

Side Panel Off

Input Labels

Banner Display Timeout

Off

Access

3 seconds

2/3

Input Labels

AV1 User input

AV2/AV2S AV2/AV2S

COMPONENT COMPONENT

HDMI HDMI

User input

Name

ABCDEFGH I JKLMN UVWXYZ 0123456 abcde fgh i j k lmn uvwxyz () +- .* _

RETURN

OPQRST 789 ! :# opqr s t

EXIT

Input Labels

AV1 DVD

AV2/AV2S AV2/AV2S

COMPONENT COMPONENT

HDMI HDMI

Page 20

Advanced

Main Menu

VIERA Link


Sound

Setup

Off

Setup Menu 1/3

DVB Timer Programming

DVB Profile Edit

Access

DVB Service List

Q-Link Settings

Child Lock

Tuning Menu

Off Timer Off

Power on Preference

Teletext FASTEXT

DVB Timer Programming Wed 05/08/04 18:50

Pos. Name Date Start End min.

BBC1

ITV1

6/8 FR

7/8 SA

18:00

21:30

20:00

22:30

12060Off

Off

Recording Controls

Select “Setup”

Select “DVB Timer Programming”

The Timer programming menu allows you to choose programmes that you wish to record. At the correct time, the DVB system will switch on and tune to the correct station (even if the TV is in Standby mode). If the recording equipment is compatible with Q-Link or similar technologies (p. 40) and connected to the TV’s AV2 terminal using a SCART cable (p. 44), you do not need to programme the device – the DVB system will control the recording process. TV Guide may also be used to set timer programmes. (p. 16)

Display the menu

Set

■

To return to TV

■

To stop recording

Timer Programming from Menu

Store

If in Analogue mode

Select DVB

Set timer programming details

Caution

•

The TV must either be On or in standby.

•

For preparations of a recording equipment, read the manual of equipment.

•

No other DVB channel can be selected during recording. However you can watch analogue channels.

•

It may not be possible to record an encrypted programme (which is copy-protected).

Note

•

Confirm the DVB LED lights (Orange). If not, a timer programming is not available.

•

A message will appear if you try to programme a timer event which overlaps an already programmed event.

•

2 min. before the starting time: a reminder message appears.

(To remove the message ; To cancel the programming

)

•

10 sec. before the starting time: in DVB mode, the TV automatically selects the programmed channel.

•

Cancelling the programming may not be valid immediately before the starting time. In this case, directly operate the recording equipment to cancel recording.

set

select the item

Select the programme to be changed using and press Correct as necessary (as above)

Repeat the operations as below,

and set items in the order of

To change a timer programming event

To cancel a timer programming event

Select the programme to be deleted using and press

, and can also be entered with numeric buttons.

start

Start making

the settings

•

Recording Controls (DVB)

Direct TV recording:

You can record the current programme to DVD Recorder or VCR immediately. (p. 40)

TV Guide–Electronic Programme Guide (EPG)–Timer Recording

(Timer Programming screen)

■

To check / change / cancel a timer programming event “Timer Programming” (above)

•

Orange DVB LED (Rapid blinking during recording)

set

select

(DVB mode)

DVB LED will turn on if Timer Programming is set.

store

access

select

access

select

View TV Guide

Select the programme

to be broadcast

•

There are two styles of display for TV Guide (Landscape / Portrait)

Channel

Previous timer programming event

Date

Starting time

Ending time

Subtitles (Off / Auto)

Recording time (automatic display)

Daily SU-SA: Sunday to Saturday Daily MO-SA: Monday to Saturday Daily MO-FR: Monday to Friday Weekly SA/FR/TH/WE/TU/MO/SU: Same time on the same day every week

Current timer programming event

one day ahead

daily or weekly (press repeatedly)

DVB LED

GUIDE

ASPECT

132

465

798

OPTION

VCR

INPUT

DIRECT TV REC

EXIT

RETURN

red

TEXT STTL INDEX HOLD

REC

VCR DVD

PROGRAMME

EXIT

GUIDE

EXIT

GUIDE

DVB Timer Programming Wed 05/08/04 18:50

Pos. Name Date Start End min.

13BBC1

ITV1

Select timer

EXIT

Edit timer

RETURN

Delete

6/8 FR

18:00

20:00

7/8 SA

0 9

12060Off

21:30

22:30

Off

Page 21

Advanced

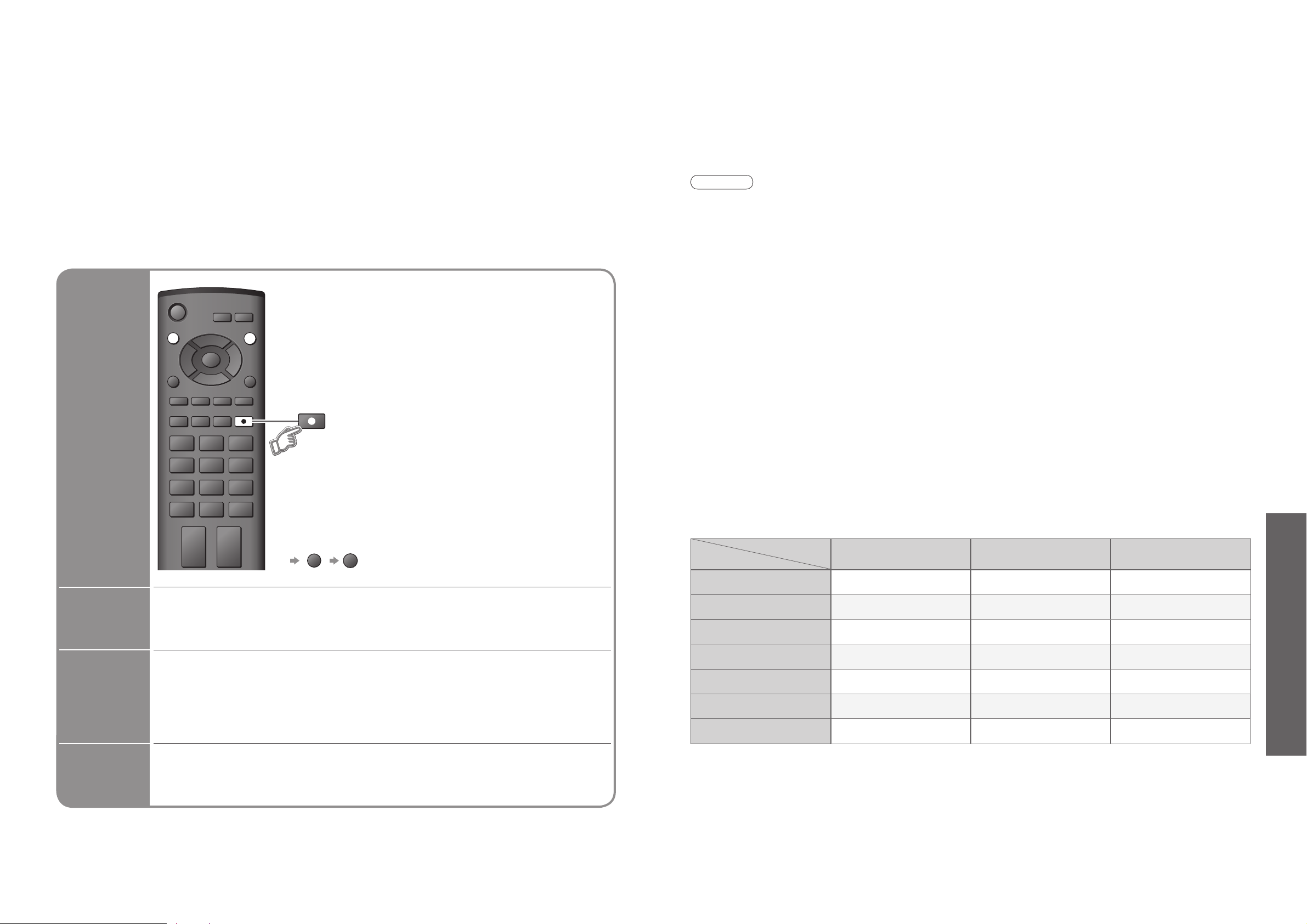

Connection

Function

VIERA Link and Q-Link VIERA Link only Q-Link only

Easy playback

OOO

Power on link

OOO

Power off link

OOO

Speaker control

(not via SCART)

Easy control only with VIERA remote control

(not via SCART)

Direct TV Recording

(not via HDMI)

Analogue channel download

(not via HDMI)

(HDMI) (SCART) (HDMI) (SCART)

Q-Link Functions

Q-Link connects the TV and VCR / DVD recorder, enables easy recording and playback.

■

Condition

■

Features available

Some recording equipments are not applicable. Read the manuals of the equipment.

Information / Message

Recording information or if recording is not possible, a message is displayed. (Only when the programme number is “0” or “AV mode” for some equipment.)

Power on link and Easy playback

When VCR or DVD recorder starts playback or direct navigator / function menu for the equipment are activated, the TV is turned on and input mode is switched automatically so that you can view the content. (Only when TV is in Standby mode.)

Power off link

When TV is set to Standby mode, the recording equipment is also automatically set to Standby. (Only when the videocassette or DVD is not active.)

•

Use the VCR / DVD recorder with the following logos: “Q-Link”, “NEXTVIEWLINK”, “DATA LOGIC”, “Easy Link”, “Megalogic”, or “SMARTLINK”

•

Connect the equipment to this TV’s AV1 or AV2 terminal via a “fully-wired” SCART cable. (p. 44)

•

Q-Link terminal setup in Setup menu (Q-Link, AV1 / AV2 out). (p. 25)

What you see is What you record

INPUT

RETURN

ASPECT

OPTION

VCR

132

465

798

EXIT

DIRECT TV REC

GUIDE

Direct TV Recording:

Recording the current programme in VCR / DVD recorder immediately.

■

To change DVB channel, stop recording

•

When Direct TV Recording is performed, the recording equipment is automatically turned on if it is in Standby mode.

•

The recording equipment is recording from its own tuner. You can turn the TV off during recording (Analogue only).

•

If you turn the TV off during recording from an AV source, the recording will be stopped.

•

When Direct TV Recording is performed while watching DVB channel, the DVB programme position is locked and no other DVB channel can be selected. However you can watch analogue channels.

• “DATA LOGIC” (a trademark of Metz Corporation) • “Megalogic” (a trademark of Grundig Corporation)

• “Easy Link” (a trademark of Philips Corporation) • “SMARTLINK” (a trademark of Sony Corporation) Read the manuals of the equipment too.

■

Download analogue channel settings

•

Perform Auto Setup. (p. 32)

When first using this TV, see “Auto Setup”. (p. 12)

•

Perform download to the equipment. (p. 25)

•

HDMI Functions

•

Q-Link Functions

(∗1): The HDMI logo is displayed on HDMI-compliant equipment. (∗2): Enquire at your local digital equipment retailer shop.

HDMI (high-definition multimedia interface) allows you to enjoy high-definition digital images and highquality sound by connecting the TV and the equipment. HDMI-compatible equipment (∗1) with an HDMI or DVI output terminal, such as a set top box or a DVD player, can be connected to the HDMI terminal using an HDMI compliant (fully wired) cable. About connections, see “External Equipment” (p. 44).

Note

•

HDMI is the world’s first complete digital consumer AV interface complying with a non-compression standard.

•

If the external equipment has only a DVI output, connect to the HDMI terminal via a DVI to HDMI adapter cable (∗2).

•

When the DVI to HDMI adapter cable is used, connect the audio cable to the audio input terminal (use COMPONENT-AUDIO terminals).

•

Audio settings can be made on the “HDMI Input” menu screen. (p. 24)

•

Applicable audio signal sampling frequencies (2ch L.PCM): 48 kHz, 44.1 kHz, 32 kHz

•

Use with a PC is not assumed.

•

If the connected equipment has an aspect adjustment function, set the aspect ratio to “16:9”.

•

This HDMI connector is “type A”.

•

This HDMI connector is compatible with HDCP (High-Bandwidth Digital Content Protection) copyright protection.

•

An equipment having no digital output terminal may be connected to the input terminal of either “Component”, “S-VIDEO”, or “Video” to receive analogue signals.

•

The HDMI input terminal can be used with only the following image signals: 480i, 480p, 576i, 576p, 720p, 1080i and 1080p. Match the output setting of the digital equipment.

•

For details of the applicable HDMI signals, see p. 47.

HDMI Functions

■

Summary of Control functions

Connecting with an HDMI cable to Panasonic equipment with VIERA Link function, you can control the equipment (p. 42).

You can use VIERA Link and Q-Link functions together.

DIRECT TV REC

GUIDE

EXIT

Page 22

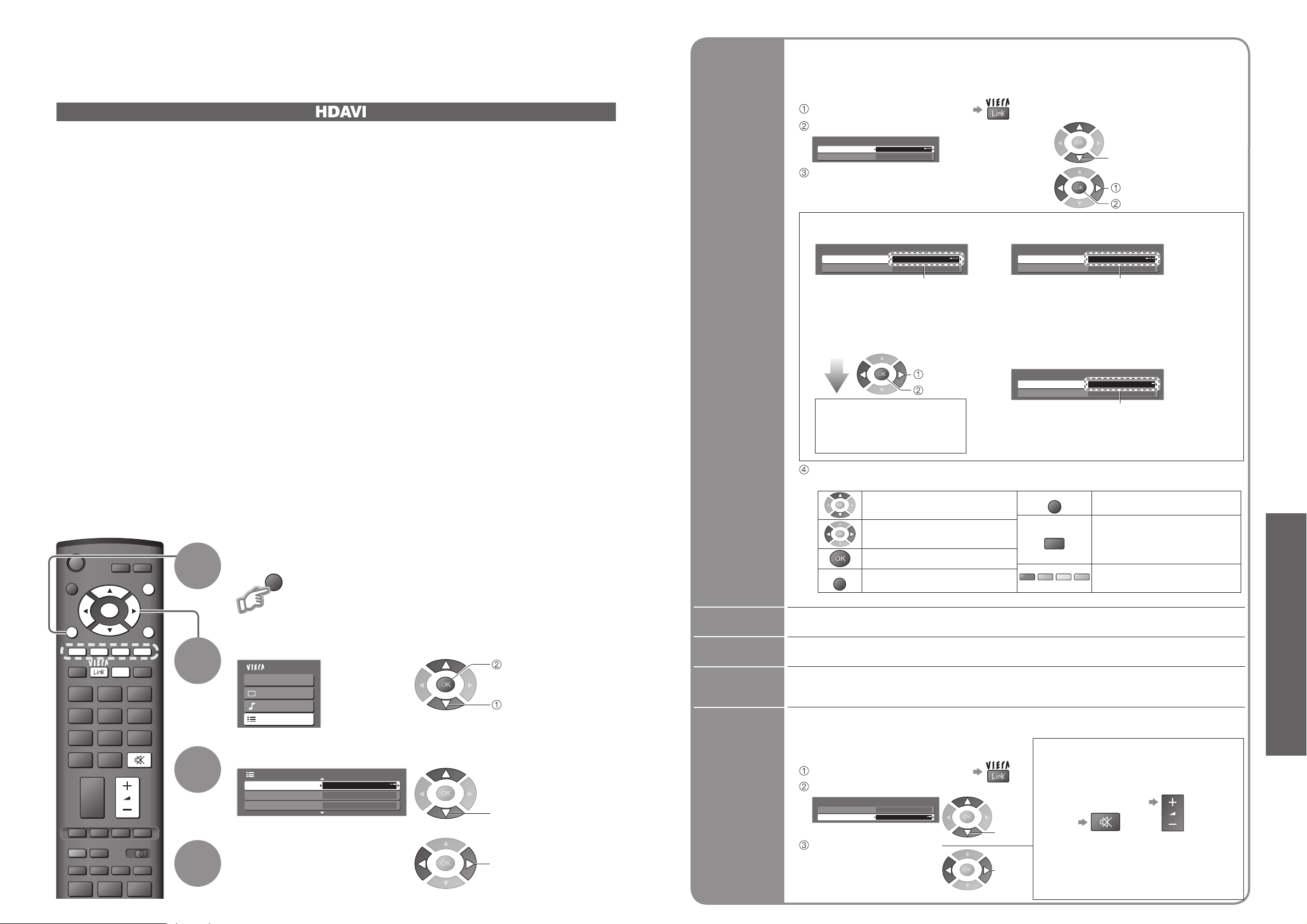

Advanced

GUIDE

INPUT

ASPECT

DIRECT TV REC

VCR

132

465

798

TEXT STTL INDEX HOLD

PROGRAMME

REC

VCR DVD

RETURN

EXIT

OPTION

Set to “On”

(default is On)

Select “Setup”

Select “VIERA Link”

Display the menu

∗

Enjoy additional HDMI Inter-Operability with Panasonic products which have “HDAVI Control” function. This TV supports “HDAVI Control 2” function. Connections to some Panasonic equipment (DVD Recorder DIGA, HD Video Camera, Player theatre, Amplifier, etc.) with HDMI cables allow you to interface them automatically. The equipment with “HDAVI Control” function enables the following operations:

•

Easy playback (p. 43)

•

Power on link (p. 43)

•

Power off link (p. 43)

•

Speaker control (p. 43)

In addition, the equipment with “HDAVI Control 2” function enables the following operation:

•

Access and control the connected equipment by VIERA remote control (p. 43) These features are limited to models incorporating Panasonic’s “HDAVI Control” and “VIERA Link”. VIERA Link “HDAVI Control”, based on the control functions provided by HDMI which is an industry standard known as HDMI CEC (Consumer Electronics Control), is a unique function that we have developed and added. As such, its operation with other manufacturers’ equipment that supports HDMI CEC cannot be guaranteed. Refer to individual manuals for compatibility information. About applicable equipment, consult your local Panasonic dealer or refer to the URL: www.panasonic.co.uk

VIERA Link “ ControlTM”

∗

HDMI Functions

■

HDMI cable

This function needs an HDMI compliant (fully wired) cable. Non-HDMI-compliant cables cannot be utilized.

It is recommended that you use Panasonic’s HDMI cable. Recommended part number:

•

RP-CDHG15 (1.5 m)

•

RP-CDHG30 (3.0 m)

•

RP-CDHG50 (5.0 m)

set

■

Preparations

Setup the equipment to enable this function. Read the manuals of the equipment.

About connections, see “External Equipment” (p. 45). Read the manuals of the equipment too.

■

For the first time / When adding new equipment, reconnecting equipment or changing setup

After connection turn the equipment on and then switch the TV on.

Select the input mode to HDMI (p. 18), and make sure that an image is displayed correctly.

Main Menu

VIERA Link


Sound

Setup

•

HDMI Functions

access

select

Easy playback

Automatic Input switching-When the connected Panasonic equipment is operated, input mode is switched automatically. When it is stopped operating, input mode is returned.

Power on link

When the connected Panasonic equipment starts playback or direct navigator / function menu for the equipment are activated, the TV is automatically turned on. (Only when TV is in Standby mode.)

Power off link

When TV is set to Standby mode, the connected Panasonic equipment is also automatically set to Standby.

•

This function will work even if the TV enters standby mode automatically by Off Timer function or auto power standby function.

Speaker control

select

You can control the theatre speaker with TV’s remote control. This function is available when Panasonic Amplifier or Player theatre is connected.

•

If you cannot access the menu, check the settings and the equipment (p. 42).

Display “VIERA Link Menu”

■

TV speakers are active.

■

Home Cinema

Amplifier or Player theatre will be automatically turned on (if it is in Standby mode) and the sound is from theatre speakers connected to the equipment.

Volume up / down

Mute

Select “Speaker Selection”

Set to “Home Cinema”

or “TV”

•

The sound of TV speakers is mute.

•

When the equipment is turned off, TV speakers will be active.

set

Access and control the connected equipment by VIERA remote control

•

About the operations for the equipment, read the manual of the equipment.

You can control some functions of the connected Panasonic equipment with this TV remote control (point the remote control at the TV’s signal receiver).

•

If you cannot access the menu, check the settings and the equipment (p. 42).

Display “VIERA Link Menu”

Operate the menu of the equipment

•

Available VIERA remote control buttons

(depending on the connected equipment)

Select “VIERA Link Control”

select

Select the equipment you want to access

•

“Home Cinema” means Player theatre, Recorder theatre and Amplifier.

Exit the menu

Display the operation guide for the equipment The same functions with the OPTION button of the equipment

Access when the key words are displayed on colour bar

Move the cursor / select the menu

Move the cursor / access / adjust

Store / Set / Access

Return to the previous menu

access

select

Access and operate the menu of the equipment

■

When the equipment with “HDAVI Control 2” function is connected

Recorder / Player / Home Cinema / Video Camera

Displayed the type of the connected equipment. Select the type of the equipment and access.

The menu of the accessed equipment

(Input mode will be changed automatically)

access

select

■

When the equipment with “HDAVI Control” function is connected

Recorder / Player / Home Cinema / Video Camera

Displayed the type of the connected equipment. But you cannot access it. Use its own remote control to operate the equipment.

■

When other type or other manufacturer of the equipment is connected

Others

“Others” is displayed. You cannot access it. Use its own remote control to operate the equipment.

Setup Menu 3/3

VIERA Link

Software Licence

System Information

VIERA Link Menu

VIERA Link Control

Speaker Selection

VIERA Link Menu

VIERA Link Control

Speaker Selection

RETURN

VIERA Link Menu

VIERA Link Control

Speaker Selection

Recorder

Home Cinema

Recorder

Home Cinema

Recorder

Home Cinema

VIERA Link Menu

VIERA Link Control

Speaker Selection

VIERA Link Menu

VIERA Link Control

Speaker Selection

EXIT

OPTION

red green

yellow

Recorder

Home Cinema

Others

Home Cinema

blue

Page 23

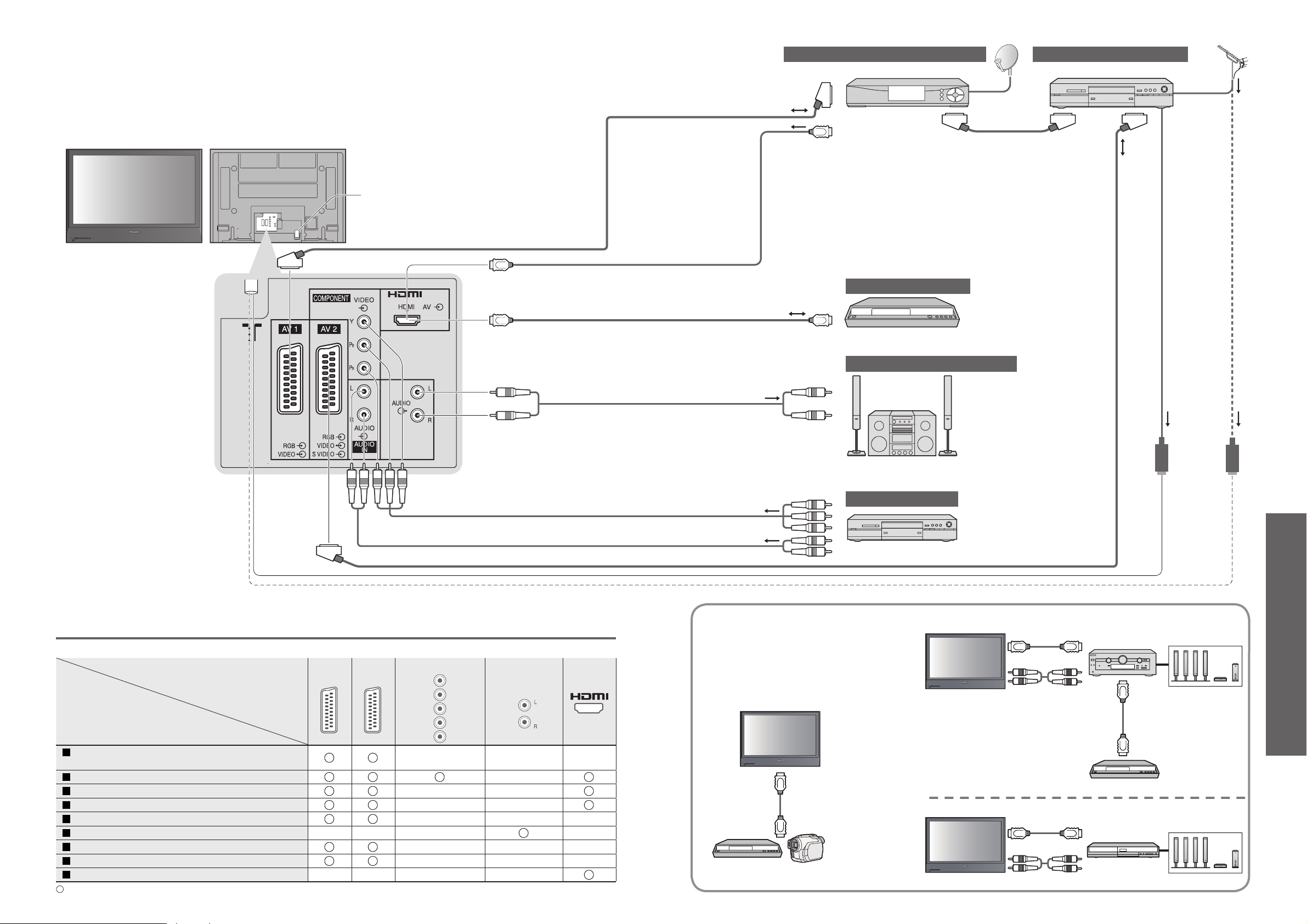

Advanced

Connector

Recording / Playback (equipment)

AV1 AV2

COMPONENT

AUDIO OUT

To record / playback videocassettes / DVDs

(VCR / DVD recorder)

To watch DVDs (DVD player) To watch camcorder images (Video camera) To watch satellite broadcasts (Set top box) To play games (Game equipment) To use amplifier with speaker system Q-Link Direct TV Recording VIERA Link

These diagrams show our recommendations for how to connect the TV to your various equipment. For other connections, consult the instructions for each piece of equipment, the table below, and the specifications (p. 51).

: Recommended Connection

■

Types of connectable equipment to each connector

External Equipment

•

External Equipment

Amplifier with speaker system

To listen with speakers

DVD Recorder / VCR

SCART

cable

RF cable

To record / playback

To watch DVDs

DVD player

(Viewing)

(Listening)

■

Easy playback, Easy control only with VIERA remote control

■

Home Cinema

Panasonic DVD Recorder, HD Video Camera, etc.

Panasonic Amplifier

Panasonic DVD Recorder

Speaker system

Panasonic Player theatre

•

Use fully wired HDMI compliant cable.

•

Read the manuals of the equipment too.

VIERA Link (p. 42)

Speaker system

This slot is for services by the Panasonic dealer.

Fully wired HDMI compliant cable

RCA cable

Satellite receiver

To watch satellite broadcasts

SCART cable

DVD Recorder

HDMI equipment

HDMI cable

RCA cable

Fully wired HDMI compliant cable

SCART cable

Page 24

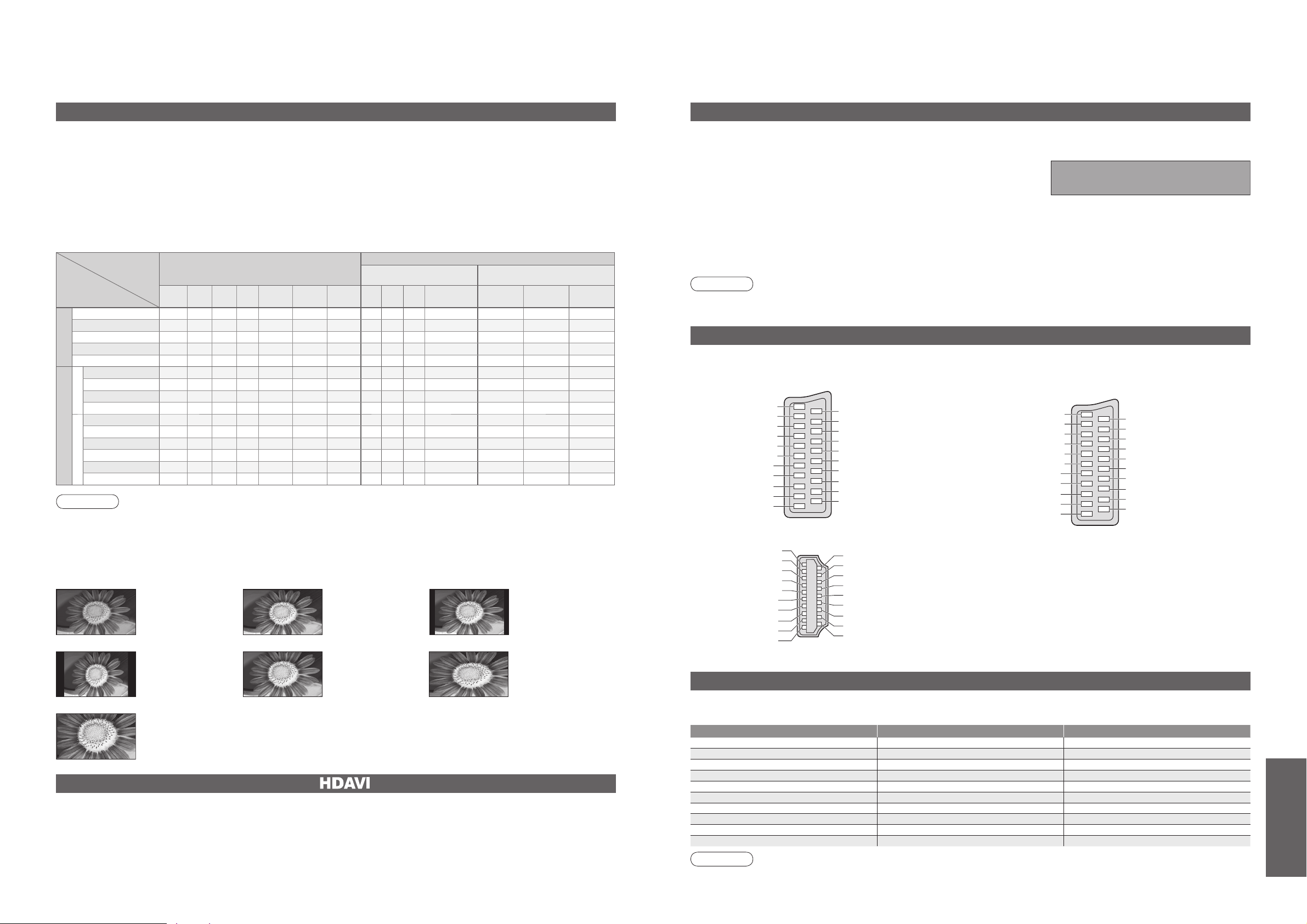

FAQs, etc.

Signal name

Aspect modes

Aspect Control Signal

Widescreen signal

(WSS)

Control signal through SCART

(pin 8) or HDMI terminal

Auto 16:9 14:9 4:3

Zoom1 Zoom2 Zoom3

TV AV1 AV2

Component

AV1 AV2 HDMI

TV/AV1/AV2

PAL

OOOO O O O OOO

PAL 525/60

OOOO O O O

--- -

DVB

OOOO O O O O

-- - - - -

M.NTSC

OOOO O O O

--- -

NTSC(AV input only)

OOOO O O O

--- -

Component/HDMI

525(480)/60i

OOOO O O O

--- - - -

525(480)/60p

OOOO O O O

--- - - -

625(576)/50i

OOOO O O O

---

625(576)/50p

OOOO O O O

---

750(720)/50p

OOOO O O O

--- - - -

750(720)/60p

OOOO O O O

--- - - -

1125(1080)/50i

OOOO O O O

--- - - -

1125(1080)/60i

OOOO O O O

--- - - -

1125(1080)/50p

OOOO O O O

--- - - -

1125(1080)/60p

OOOO O O O

--- - - -

Technical Information

Aspect Ratio

Note

•

The ratio varies depending on the programme, etc. If the ratio is greater than the standard “16:9”, black bands may appear at the top and bottom of the screen.

•

If the screen size looks unusual when a widescreen-recorded programme is played back on a VCR, adjust the tracking of the VCR. (See the VCR manual.)

•

Aspect mode can be memorized for SD (Standard definition) and HD (High definition) signals separately.

•

To select the ratio manually:

The optimum size and aspect can be chosen, and you can enjoy finer images. (p. 15)

■

Auto: Auto aspect determines the best aspect ratio to use to fill your screen. It does this using a four step process to determine if the picture being viewed is a widescreen picture.

4:3

14:916:9

Zoom3

Zoom2Zoom1

Directly displays the image at “16:9” without distortion (anamorphic).

Displays a “16:9” letterbox or “4:3” image without distortion.

Displays the image at the standard “14:9” without enlargement.

Displays a “16:9” letterbox (anamorphic) image full-screen without distortion.

Displays the image at the standard “4:3” without distortion.

Displays a “2.35:1” letterbox (anamorphic) image full-screen without distortion. At “16:9”, displays the image at its maximum (with slight enlargement).

Auto

The best ratio is chosen and the picture expanded to fill the screen.

If Auto aspect detects a widescreen signal it switches into the appropriate 16:9 or 14:9 widescreen mode. If Auto aspect

does not detect a widescreen signal then this advanced TV enhances the picture for optimum viewing pleasure. The text shown on the screen indicates how Auto aspect determined which ratio to use: “WIDE” appears in the top left of the screen if a widescreen identification signal (WSS) is found or a signal found

through a SCART terminal. Auto aspect switches to the appropriate 16:9 or 14:9 widescreen ratio. This function

will also work in any aspect mode. “Auto” appears in the top left of the screen if black stripes above and below

the picture are detected. Auto aspect chooses the best ratio and expands the picture to fill the screen. This

process can take several minutes, depending on the darkness of the picture.

Updating the DVB software

Note

•

During software download and update, DO NOT switch off the TV.

From time to time, a new version of software for DVB mode may become available for download to enhance performance or operations of the TV. A notification banner will appear when you tune to one of the BBC channels, or you can search for a new version software by using the “System Update Search Now” function (p. 29).

To start downloading press “OK”, this may take up to 20 minutes to complete. To ignore the new software press “EXIT”, but this banner will keep appearing during the period of new software availability, usually 2 to 3 days.

To download any new software automatically, ensure that the “Auto Update Search in Standby” function in the System Update menu is set to “On” (p. 29). The TV will then download new software automatically at night if it is left in standby without any timer programme in progress.

•

Technical Information

•

This function may not work normally depending on the equipment condition.

•

Image or sound may not be available for the first few seconds when the playback starts.

•

Image or sound may not be available for the first few seconds when Input mode is switched.

•

Volume function will be displayed when adjusting the volume of the equipment.

•

Easy playback is also available by using the remote control for Amplifier or Player theatre. Read the manuals of

the equipment.

•

“HDAVI Control 2” is the newest standard (current as of February, 2007) for Panasonic’s HDAVI Control

compatible equipment. This standard is compatible with Panasonic’s conventional HDAVI equipment.

HDMI connections to some Panasonic equipment allow you to interface them automatically. (p. 42)

VIERA Link “ ControlTM”

SCART and HDMI terminal information

Socket Earth CVBS out (video) CVBS earth Red in Red earth Green in Green earth Blue in Blue earth Audio out (L) Audio out (R)

CVBS in (video) RGB status earth Status RGB Earth

-Q-Link data Status CVBS Audio in (L) Audio earth Audio in (R)

21 19 17 15 13 11 9 7 5 3 1

20 18 16 14 12 10 8 6 4 2

■

AV1 SCART terminal

(RGB, VIDEO, Q-Link)

Suitable inputs for AV1 include RGB (Red / Green / Blue).

Socket Earth CVBS out (video) CVBS earth Red in, S.C. - in Red earth Green in Green earth Blue in Blue earth Audio out (L) Audio out (R)

CVBS in (video) RGB status earth Status RGB Earth

-Q-Link data Status CVBS Audio in (L) Audio earth Audio in (R)

21 19 17 15 13 11 9 7 5 3 1

20 18 16 14 12 10 8 6 4 2

■

AV2 SCART terminal

(RGB, VIDEO, S-VIDEO, Q-Link)

AV2 - Pins 15 and 20 are dependent on AV2 S-VHS / VIDEO switching.

Hot Plug Detect DDC/CEC Ground SCL CEC TMDS Clock Shield TMDS Data0− TMDS Data0+ TMDS Data1 Shield TMDS Data2− TMDS Data2+

+5V Power SDA Reserved (in cable but N.C. on device) TMDS Clock− TMDS Clock+ TMDS Data0 Shield TMDS Data1− TMDS Data1+ TMDS Data2 Shield

19 17 15 13 11 9 7 5 3 1

18 16 14 12 10 8 6 4 2

■

HDMI terminal

Input signal that can be displayed

Note

•

Signals other than above may not be displayed properly.

•

The above signals are reformatted for optimal viewing on your display.

Signal name COMPONENT HDMI

525 (480) / 60i

∗∗

525 (480) / 60p

∗∗

625 (576) / 50i

∗∗

625 (576) / 50p

∗∗

750 (720) / 60p

∗∗

750 (720) / 50p

∗∗

1,125 (1,080) / 60i

∗∗

1,125 (1,080) / 50i

∗∗

1,125 (1,080) / 60p

∗

1,125 (1,080) / 50p

∗

Mark: Applicable input signal

COMPONENT (Y, PB, PR), HDMI

Do you really want to update the software and reboot the system?

New version 1.00 found.

Press OK to download the new version

Press EXIT to lgnore

Page 25

FAQs, etc.

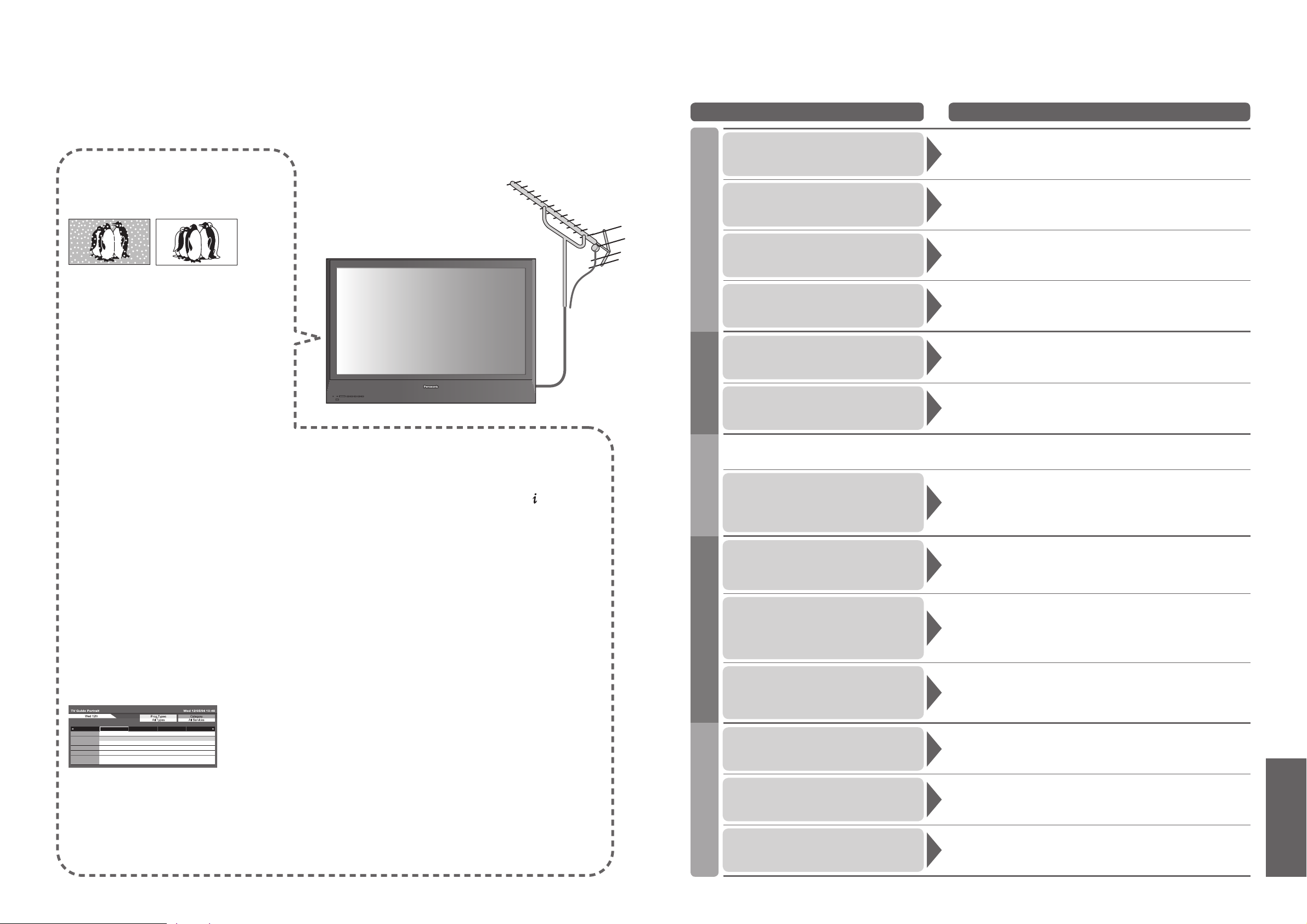

FAQs

Before requesting service or assistance, please follow these simple guides to resolve the problem. If problem still persists, please contact your local Panasonic dealer or Panasonic Customer Care Centre for assistance. For details (p. 52)

White spots or shadow images (noise)

•

Check the position, direction, and connection of the aerial.

Neither image nor sound is produced

•

Is the TV in “AV mode”?

•

Is the mains lead plugged into the socket outlet?

•

Is the TV turned On?

•

Check Picture Menu (p. 24) and volume.

•

Check all required SCART cables and connections are firmly in place.

Auto aspect

•

Auto aspect is designed to provide you with the best aspect ratio to use to fill your screen. For user control please see p. 46.

S-Video / black and white picture

•

Using AV button please confirm your selection is S-Video I.e. AV2/AV2S (p. 18).

No programmes shown on TV Guide

1 BBC ODD D D D7 BBC T 14 E4 70 CBBC 72 Cartoo

•

Check the DVB transmitter.

•

Adjust the direction of the aerial to another transmitter installed nearby.

•

Check the analogue broadcast. If the image quality is poor, check the aerial and consult your nearest dealer.

On Screen messages - I.e. EC/AV1

•

You can simply clear these by pressing the button . Press again to redisplay.

Direct TV record / Q-Link functions not recording

•

Please confirm SCART cable and connection. Also please set “AV1 / AV2 out” in the Setup Menu (p. 25).

Permanently lit spots on screen

•

Due to production process involved in this technology this may result in some pixels which are permanently lit or unlit. This is not a malfunction.

Contrast is reduced

•

Contrast is lowered when the following conditions without any user operation for a few minutes:

● no signal in DVB or AV mode

● selected locked channel

● selected invalid channel

● selected radio channel

● displayed menu

● Digital teletext (no video contents)

•

Frequently Asked Questions

Problem Actions

Screen Sound DVB

•

Due to the digital reception technologies involved, quality of the DTV signals may be relatively low in some cases, despite good reception of analogue programmes.

Chaotic image, noisy

•

Set “P-NR” in the Picture Menu (to remove noise). (p. 24)

•

Check nearby electrical products (car, motorcycle, fluorescent lamp).

The remote control does not work

•

Are the batteries installed correctly? (p. 6)

•

Has the TV been switched On?

TV goes into “Standby mode”

•

Off Timer function is activated.

•

The TV enters “Standby mode” about 30 min. after analogue broadcasting ends.

Unusual image is displayed

•

Turn off the TV with Mains power On / Off switch, then turn it on again.

Pictures from external equipment are unusual when the equipment is connected via HDMI

•

Is the HDMI cable connected properly? (p. 44)

•

Turn Off the TV and equipment, then turn them On again.

•

Check an input signal from the equipment. (p. 47)

•

Use an equipment compliant with EIA/CEA-861/861B.

Sound is unusual

•

Set the sound setting of the connected equipment to “2ch L.PCM”.

•

Check the “HDMI Input” setting in the Sound Men

u. (p. 24)

•

If digital sound connection has a problem, select analogue sound connection. (p. 41)

Interference or frozen / disappearing image in DVB

•

Check “DVB Signal Condition”. (p. 33) If “Signal Quality” or “Signal Strength” are displayed in red, check aerial. If problem persists, consult your local Panasonic dealer.

•

Turn the TV off with the Mains power On / Off switch, then turn it On again.

Sound level is low or sound is distorted

•

Sound signal reception may be deteriorated.

•

Set “NICAM” (p. 24) in the Sound Menu to “Off”. (Analogue only)

No sound is produced

•

Is “Sound mute” active? (p. 9)

•

Is the volume set to the minimum?

Blurry or distorted image

(no sound or low volume)

•

Reset channels. (p. 32)

No image can be displayed

•

Is “Colour” or “Contrast” in the Picture Menu set to the minimum? (p. 24)

HDMI Other

An error message appears

•

Follow the message’s instructions.

•

If the problem persists, contact the authorized Service Centre.

“VIERA Link” function does not work and an error message appears

•

Confirm the connection.

•

Turn the connected equipment on and then switch the TV on. (p. 42)

Page 26

FAQs, etc.

TH-37PX7B TH-42PX7B TH-50PX7B

Power Source

AC 220-240 V, 50 / 60 Hz

Power

Consumption

Average use

250 W 270 W 370 W

Standby condition

0.7 W (Without DVB recording) 20 W (With DVB recording)

0.5 W (Without DVB recording) 20 W (With DVB recording)

Display

panel

Aspect Ratio

16:9

Visible screen size

94 cm (diagonal) 106 cm (diagonal) 127 cm (diagonal) 819 mm (W) × 457 mm (H) 922 mm (W) × 518 mm (H) 1,106 mm (W) × 622 mm (H)

Number of pixels

737,280 (1,024 (W) × 720 (H)) [3,072 × 720 dots]

786,432 (1,024 (W) × 768 (H)) [3,072 × 768 dots]

1,049,088 (1,366 (W) × 768 (H)) [4,098 × 768 dots]

Sound

Speaker

160 mm × 42 mm × 2 pcs, 8

Audio Output

20 W (10 W + 10 W ), 10% THD

Receiving Systems / Band name

PAL I :UHF E21-68 PAL 525/60 : Playback of NTSC tape from some PAL Video recorders (VCR) or

NTSC disc playback from DVD player and recorder.

DVB :Digital terrestrial services via UHF aerial input. M.NTSC :Playback from M.NTSC Video recorders (VCR). NTSC (AV input only) :Playback from NTSC Video recorders (VCR).

Aerial - Rear

UHF

Operating Conditions

Temperature : 0 °C - 35 °C Humidity : 20 % - 80 % RH (non-condensing)

Connection

Terminals

AV1 (Scart terminal)

21 Pin terminal (Audio/Video in, Audio/Video out, RGB in, Q-Link)

AV2 (Scart terminal)

21 Pin terminal (Audio/Video in, Audio/Video out, RGB in, S-Video in, Q-Link)

HDMI

TYPE A Connector

•

This TV supports “HDAVI Control 2” function.

COMPONENT

VIDEO

Y 1.0 V[p-p] (including synchronization) P

B, PR ±0.35 V[p-p]

AUDIO L - R

RCA PIN Type × 2 0.5 V[rms]

Output

AUDIO L - R

RCA PIN Type × 2 0.5 V[rms] (high impedance)

Dimensions ( W × H × D )

917 mm × 665 mm × 320 mm (With Pedestal) 917 mm × 620 mm × 95 mm (TV only)

1,020 mm × 725 mm × 320 mm (With Pedestal) 1,020 mm × 680 mm × 95 mm (TV only)

1,210 mm × 839 mm × 370 mm (With Pedestal) 1,210 mm × 793 mm × 95 mm (TV only)

Mass

25.0 k Net (With Pedestal)

23.0 k Net (TV only)

28.0 k Net (With Pedestal)

26.0 k Net (TV only)

39.0 k Net (With Pedestal)

37.0 k Net (TV only)

On screen messages

No Signal

•

Check the connection of the RF cable.

DOWNLOAD IN PROGRESS PLEASE WAIT

•

Q-Link channel download is in progress.

Feature not available

•

Check the Q-Link connection and setting (p. 40).

•

The impossible source (Component / HDMI) to be record.

Invalid DVB Channel

•

Invalid DVB channel is selected.

Invalid system time. Please exit !

•

Cannot get the time information. Check the connection of the RF cable.

Max. number of Timers already set !

•

Maximum timer programming event is 8.

New DVB Service Found! Press OK start Auto Setup Press EXIT to Ignore. Selecting Auto Setup will delete current Profile and Childlock settings

•

There is a new DVB station.

New version 1.90 found. Do you really want to update the software and reboot the system ? Press OK to download the new version Press EXIT to Ignore

•

There is a new software available.

No DVB Service found

•

No DVB signal can be found in Auto Setup.

No module inserted

•

Check the CI module inserted completely (p. 29).

No recording - Check Tape or Disc

•

The tape or disc may be “write protected”, missing or damaged. The equipment may already be recording.

No recording - UNKNOWN REASON

•

The recording cannot be done by any reason. Check the equipment.

•

Disc or tape may be full.

No Service

•

The station stops the services.

Bad Signal

•

The signal is weak. Check the aerial.

Are you sure you want to delete this timer ? Press OK to delete timer Press Exit to return

•

Make sure the deleting programme event is with your desire.

Are you sure ?

•

Make sure the operation is with your desire.

All tuning data will be erased

•

“Shipping Condition” will erase all tuning data (p. 34).

•

“Auto Setup” will be erased all present DVB and Analogue tuning datas (p. 32).

Message Meaning / Action

•

Specifications

•

Index

•

On screen messages

No stations found Please insert the aerial

•

No analogue signal can be found in Auto Setup.

Tuner Locked Please stop recording to operate

•

If you want to unlock, cancel Direct TV Recording (p. 40) or Timer Programming (p. 38).

Timer overlap !

•

The timer programme events are overlapped. Cannot record other channel at the same time. Check the Starting and Ending times in Timer Programming (p. 39).

Timer incorrect !

•

Set Starting and Ending times in Timer Programming correctly (p. 39).

Timer Event Due to Start DVB 1: BBC1 has been Programmed for recording at 20:00

•

This message will appear 2 minutes before timer programming event due to start.

Software successfully updated Press EXIT to continue

•

The software updating is finished.

Software Update failed. Please try again later. Press EXIT to continue

•

Perform “System Update Search Now” in System Update (p. 29). If it is still failed, there may not be the new software.

Shipping condition completed. TV can now be switched off.

•

“Auto Setup” will automatically start when Mains power On / Off switch is next turned On. (p. 12)

Please check settings and connections on HDMI devices.• Communication error in VIERA Link function (p. 42).

This service is locked ! Press OK to enter PIN

•

The selected channel is locked in Child Lock (p. 31).

Timer already expired !

•

Starting time in Timer Programming is already past. Set correctly (p. 39).

Recording in progress

•

The recording equipment is recording the programme signal from its own tuner. You can turn the TV off and leave the equipment recording in the normal way.

Please wait.

•

A function is in progress.

Please check aerial or local DVB service availability. Press OK to start Auto Setup

•

Please follow the message. If it is still failed, consult your local Panasonic dealer.

Unable to download, Check Equipment

•

The tape or disc is active. Stop the equipment and try again.

PIN incorrect !

•

The PIN number you entered is wrong.

Specifications

Index

Accessories ·················· 6 Add New DVB Services

··· 33

Analogue Manual Tuning

···· 33

Analogue Programme Edit

··· 33 Aspect ·················· 15, 46 Audio Description

··· 15, 24 Auto Setup ············ 12, 32 AV1 / AV2 out ········ 25, 40

Banner Display Timeout

··· 25

Category list ··············· 16 Child Lock ··················· 31 CI module ··················· 29 Clamper ························ 6 COMPONENT ······ 44, 47 Connection ··········· 10, 44

Direct TV Recording ··· 40 Download to equipment

··· 12, 25 DVB LED ·········· 9, 17, 39 DVB Manual Tuning ··· 33 DVB Profile Edit ·········· 31 DVB Settings ·············· 28 DVB Signal Condition

··· 33

DVB Timer Programming

··· 38 DVI······························ 41 DVDs ···················· 10, 18

EPG ···························· 16 External equipment

···

10, 18, 44

External input ············· 18

FAQs····················· 48, 49

HDMI ··············· 41-43, 47 Hold ······················ 15, 22 Home Cinema ······ 43, 45

Information banner ····· 15 Input Labels ················ 36 Input signal ················· 47

Licence ······················· 52

Mains Lead ················· 10 Mains power On / Off switch

··························· 9, 14 Maintenance ················· 5 Menu Functions ····· 23-27 Mode ·························· 24

Multi Audio

··················· 15

New Service Message

··· 33 NICAM ························ 24 NTSC ···················· 26, 51

Off timer ················ 14, 25 Optional accessories ···· 6 Owner ID ·············· 12, 35

PAL ····························· 51 Pedestal ··················· 7, 8 PIN number ···· 12, 31, 35 P-NR ··························· 24 Power LED ············· 9, 12

Q-Link ··················· 25, 40 Quick Start Guide ···· 6-13

Remote control ········· 6, 9 Reset to Default ·········· 24 RGB ···························· 10

Sales and Support Information

······························· 52

Satellite receiver

···11, 18, 44

SCART ················· 10, 47 Shipping Condition ····· 34 Specifications ············· 51 Subtitles ················ 15, 22 Surround ····················· 24 S-Video ······················· 10 System Update ····· 29, 47

Teletext ·················· 20-22 Tuning Menu ··············· 32 TV Guide ···················· 16 TV speaker ················· 43 Type list ······················ 16

Update the software

···· 29, 47

User input ··················· 37

Video ···················· 10, 18 VIERA Link ····· 42, 45, 46 Viewing Mode ······· 12, 24 Volume Correction ······ 24

WSS ··························· 46

Zoom ·························· 46

Note

•

Design and Specifications are subject to change without notice. Weight and Dimensions shown are approximate.

•

This equipment complies with the EMC standards listed below. EN55013, EN61000-3-2, EN61000-3-3, EN55020.
