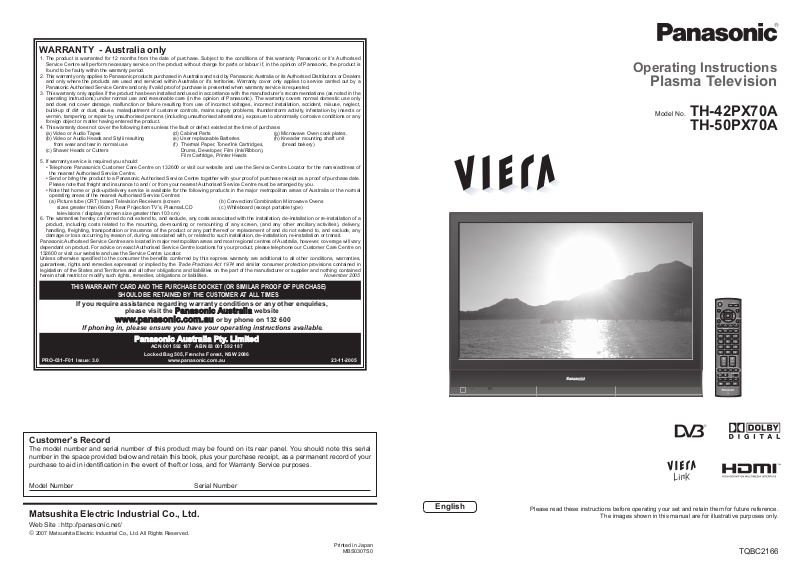

Page 1
Operating Instructions
Plasma Television
English
Please read these instructions before operating your set and retain them for future reference.
The images shown in this manual are for illustrative purposes only.
Printed in Japan
MBS0307S0
Matsushita Electric Industrial Co., Ltd.
Web Site : http://panasonic.net/
© 2007 Matsushita Electric Industrial Co., Ltd. All Rights Reserved.
Customer’s Record
The model number and serial number of this product may be found on its rear panel. You should note this serial
number in the space provided below and retain this book, plus your purchase receipt, as a permanent record of your
purchase to aid in identifi cation in the event of theft or loss, and for Warranty Service purposes.
Model Number Serial Number
TQBC2166
WARRANTY - Australia only
1. The product is warranted for 12 months from the date of purchase. Subject to the conditions of this warranty Panasonic or it’s Authorised
Service Centre will perform necessary service on the product without charge for parts or labour if, in the opinion of Panasonic, the product is
found to be faulty within the warranty period.
2. This warranty only applies to Panasonic products purchased in Australia and sold by Panasonic Australia or its Authorised Distributors or Dealers
and only where the products are used and serviced within Australia or it’s territories. Warranty cover only applies to service carried out by a
Panasonic Authorised Service Centre and only if valid proof of purchase is presented when warranty service is requested.
3. This warranty only applies if the product has been installed and used in accordance with the manufacturer’s recommendations (as noted in the
operating instructions) under normal use and reasonable care (in the opinion of Panasonic). The warranty covers normal domestic use only
and does not cover damage, malfunction or failure resulting from use of incorrect voltages, incorrect installation, accident, misuse, neglect,
build-up of dirt or dust, abuse, maladjustment of customer controls, mains supply problems, thunderstorm activity, infestation by insects or
vermin, tampering or repair by unauthorised persons (including unauthorised alterations), exposure to abnormally corrosive conditions or any
foreign object or matter having entered the product.
4. This warranty does not cover the following items unless the fault or defect existed at the time of purchase:
(a) Video or Audio Tapes (d) Cabinet Parts (g) Microwave Oven cook plates.
(b) Video or Audio Heads and Stylii resulting (e) User replaceable Batteries (h) Kneader mounting shaft unit
from wear and tear in normal use (f) Thermal Paper, Toner/Ink Cartridges, (bread bakery)
(c) Shaver Heads or Cutters Drums, Developer, Film (Ink/Ribbon),
Film Cartridge, Printer Heads
5. If warranty service is required you should:
• Telephone Panasonic’s Customer Care Centre on 132600 or visit our website and use the Service Centre Locator for the name/address of
the nearest Authorised Service Centre.
• Send or bring the product to a Panasonic Authorised Service Centre together with your proof of purchase receipt as a proof of purchase date.
Please note that freight and insurance to and / or from your nearest Authorised Service Centre must be arranged by you.
• Note that home or pick-up/delivery service is available for the following products in the major metropolitan areas of Australia or the normal
operating areas of the nearest Authorised Service Centres:
(a) Picture tube (CRT) based Television Receivers (screen (b) Convection/Combination Microwave Ovens
sizes greater than 66cm); Rear Projection TV’s; Plasma/LCD (c) Whiteboard (except portable type)
televisions / displays (screen size greater than 103 cm)
6. The warranties hereby conferred do not extend to, and exclude, any costs associated with the installation, de-installation or re-installation of a
product, including costs related to the mounting, de-mounting or remounting of any screen, (and any other ancillary activities), delivery,
handling, freighting, transportation or insurance of the product or any part thereof or replacement of and do not extend to, and exclude, any
damage or loss occurring by reason of, during, associated with, or related to such installation, de-installation, re-installation or transit.
Panasonic Authorised Service Centres are located in major metropolitan areas and most regional centres of Australia, however, coverage will vary
dependant on product. For advice on exact Authorised Service Centre locations for your product, please telephone our Customer Care Centre on
132600 or visit our website and use the Service Centre Locator.
Unless otherwise specified to the consumer the benefits conferred by this express warranty are additional to all other conditions, warranties,
guarantees, rights and remedies expressed or implied by the Trade Practices Act 1974 and similar consumer protection provisions contained in
legislation of the States and Territories and all other obligations and liabilities on the part of the manufacturer or supplier and nothing contained
herein shall restrict or modify such rights, remedies, obligations or liabilities. November 2005
THIS WARRANTY CARD AND THE PURCHASE DOCKET (OR SIMILAR PROOF OF PURCHASE)
SHOULD BE RETAINED BY THE CUSTOMER AT ALL TIMES
Panasonic Australia Pty. LimitedPanasonic Australia Pty. Limited
ACN 001 592 187 ABN 83 001 592 187
Locked Bag 505, Frenchs Forest, NSW 2086
www.panasonic.com.au
If you require assistance regarding warranty conditions or any other enquiries,
please visit the Panasonic AustraliaPanasonic Australia website
www.panasonic.com.auwww.panasonic.com.au or by phone on 132 600
If phoning in, please ensure you have your operating instructions available.
PRO-031-F01 Issue: 3.0 23-11-2005
Model No. TH-42PX70A
TH-50PX70A
POWER
INPUT
GUIDE
EXIT
OK
RETURN
MENU
RGYB
OPTIONASPECT
132
465
798
0
INFO MUTE
CH VOL
TEXT
STTL INDEX HOLD
REC
POWER
VCR DVD
PROGRAMME
TV
Page 2
2
3
Viewing Advanced FAQs, etc.Quick Start Guide
Turn your own living room into a movie theatre!
Experience an amazing level of multi-
media excitement
Enjoy rich multi-media
Camcorder
Amplifi er with
Speaker system
VCR
DVD player
DVD Recorder
Personal
computer
Set top box
Contents
•
Safety Precautions ······································ 4
(Warning / Caution)
•
Notes ··························································· 5
•
Maintenance ··············································· 5
Be Sure to Read
Advanced Features
•
How to Use Menu Functions ····················· 18
(picture, sound quality, etc.)
•
DVB Settings (DVB) ·································· 22
•
Editing and Setting Channels ···················· 24
•
Restore Settings ······································ 26
•
Input Labels ·············································· 27
•
Displaying PC Screen on TV ·····················28
•
HDMI Functions ········································29
•
VIERA Link “HDAVI ControlTM” ··················· 30
•
External Equipment ··································· 32
Basic Features
•
Watching TV ·············································· 10
•
Using TV Guide ········································· 12
•
Watching Videos and DVDs ······················ 14
•
Viewing Teletext ········································16
Enjoy your TV!
•
Technical Information ································34
•
FAQs ·························································37
•
Licence ······················································ 39
•
Specifi cations ············································ 39
•
WARRANTY ·············································· 40
FAQs, etc.
Accessories / Options
·········· 6
Identifying Controls
··············· 7
Basic Connection
··················· 8
Auto Tuning
······························· 9
Quick Start Guide
Receive digital terrestrial services using an integrated (Digital Video Broadcasting) tuner
Sharp pictures with HDMI terminal
Create home theatre and DVD recorder link-ups with
“VIERA Link” without complicated settings!
Trade Mark of the DVB Digital Video Broadcasting Project (1991 to 1996)
TH-42PX70A Declaration of Conformity No 4602, 28 February 2007
TH-50PX70A Declaration of Conformity No 4601, 28 February 2007
Page 3
4 5
Safety Precautions
If you fi nd any
abnormality,
remove the
mains plug immediately!
Keep liquids away from the TV
To prevent damage which may result in fi re or
shock hazard, do not expose this appliance to
dripping or splashing.
Do not place containers with water (fl ower vase,
cups, cosmetics, etc.) above the TV. (including on
shelves above, etc.)
Do not remove covers
NEVER modify the TV yourself
(High-voltage components may cause serious
electrical shock.)
Have the TV checked, adjusted, or repaired at your
local Panasonic dealer.
AC 220-240 V
50 / 60 Hz
Do not place foreign objects
inside the TV
Do not let metal or fl ammable objects drop into the
TV through the air vents (fi re or electrical shock
may result).
(Cleaning an energized TV may cause electrical shock.)
When cleaning the TV, remove the
mains plug
Handling the mains plug and lead
Insert the mains plug fully into the socket outlet. (If the mains plug is loose, it could generate heat and cause fi re.)
Ensure that the mains plug is easily accessible.
Ensure the grounding pin on the mains plug is securely connected to prevent electrical shock.
Do not touch the mains plug with a wet hand. (This may cause electrical shock.)
Do not use any mains lead other than that provided with this TV. (This may cause fi re or electrical shock.)
Do not damage the mains lead. (A damaged lead may cause fi re or electrical shock.)
Do not move the TV with the lead plugged in the socket outlet.
Do not place a heavy object on the lead or place the lead near a high-temperature object.
Do not twist the lead, bend it excessively, or stretch it.
Do not pull on the lead. Hold onto the mains plug body when disconnecting lead.
Do not use a damaged mains plug or socket outlet.
Warning Caution
Blocked ventilation by curtains,
etc. may cause overheating, fi re
or electrical shock.
Do not block the rear air vents
Notes
Do not expose to direct sunlight
and other sources of heat
Avoid exposing the TV to direct sunlight and other
sources of heat. To prevent fi re never place any
type of candle or naked fl ame on top or near the TV.
Mains plug
Wipe the mains plug with a dry cloth at regular intervals. (Moisture and dust may lead to fi re or electrical shock.)
Maintenance
First, remove the mains plug from the socket outlet.
Display panel
Regular care: Gently wipe the surface clean of dirt by using a soft cloth.
Major contamination: Wipe the surface clean using a soft cloth dampened with clean water or diluted neutral
detergent by 100 times of water. Then, using a soft dry cloth, evenly wipe the surface clean until it is dry.
Caution
•
The surface of the display panel has been specially treated and may be easily damaged.
Do not tap or scratch the surface with your fi ngernail or other hard object.
•
Use care not to subject the surface to bug repellent, solvent, thinner, or other volatile substances
(this may degrade surface quality).
Cabinet
Regular care: Wipe the surface clean using a soft dry cloth.
Major contamination: Dampen a soft cloth with clean water or water containing a small amount of neutral detergent.
Then, wring the cloth and wipe the surface clean with it. Finally, wipe the surface clean with a dry cloth.
Caution
•
Use care not to subject the TV's surfaces to detergent.
(A liquid inside the TV could lead to product failure.)
•
Use care not to subject surfaces to bug repellent, solvent, thinner, or other volatile substances
(this may deteriorate the surface by peeling the paint).
•
Do not allow the cabinet to make contact with a rubber or PVC substance for a long time.
When TV will not be used for a
long time, remove the mains plug
This TV will still consume some power even
in the Off mode, as long as the mains plug is
still connected to a live socket outlet.
Electronic equipment
In particular, do not place video equipment near the
TV (electromagnetic interference may distort images
/ sound).
Equipment with an infrared sensor
This TV also emits infrared rays (this may affect
operation of other equipment).
Keep the TV away from these equipment
Use only the dedicated stands
/ mounting equipment
Using an unauthorized stand or other fi xtures may
make the TV shaky, risking injury. Be sure to ask
your local Panasonic dealer to perform setup.
Use optional stands / mounts (p. 6).
Do not place the TV on sloped
or unstable surfaces
The TV may fall off or tip over.
If no signal is received and no operation is
performed in Analogue TV mode for 30 minutes, the
TV will automatically go to standby mode.
Auto power standby function
Transporting the TV with its display panel
facing upright or downward may cause
damage to the internal circuitry.
Transport only in upright position
Do not display a still picture for a long time
This causes the image to remain on the plasma
screen (“image retention”).
This is not considered a malfunction and is not
covered by the warranty.
To prevent image retention, contrast is lowered
automatically after a few minutes if no signals are
sent or no operations are performed. (p. 37)
Typical still images
Channel number and other logos
Image displayed in 4:3 mode
Video game
Computer image
Allow suffi cient space around the
TV for radiated heat
Minimum distance
10
10
10
7
(cm)
Page 4
6
7
Quick Start Guide
+
-
-
+
S VIDEO
AV4 IN
VIDEO L/MONO-R
AUDIO
PULL
Identifying ControlsAccessories / Options
•
Identifying Controls
•
Accessories / Options
Remote
Control
Transmitter
•
EUR7651150
Standard accessories
Check that you have the accessories and items shown
Batteries for the
Remote Control
Transmitter
(2)
•
R6 (AA)
Operating Instructions
Clamper (2)
Installing remote’s batteries
Caution
•
Incorrect installation may cause battery
leakage and corrosion, resulting in
damage to the remote control.
•
Do not mix old and new batteries.
•
Do not mix different battery types (such
as alkaline and manganese batteries).
•
Do not use rechargeable (Ni-Cd)
batteries.
•
Do not burn or breakup batteries.
1
Pull
open
Hook
2
Note the correct
polarity (+ or -)
Close
Using the clamper
•
Do not bundle the RF cable
and mains lead together (could
cause distorted image).
•
Fix cables with clampers as
necessary.
•
When using the optional
accessory, follow the option’s
assembly manual to fi x cables.
Rear of the TV
snaps
To remove from the TV:
To loosen:
Keep pushing
both side snaps
Set the tip
in the hooks
Insert the clamper
in a hole
hole
1. Attach the clamper
2. Bundle the cables
Keep pushing
the knob
knob
hooks
Caution
•
In order to maintain the unit’s performance and safety, be absolutely sure to ask your dealer or a licenced
contractor to secure the wall-hanging brackets.
•
Carefully read the instructions accompanying the plasma TV stand or pedestal, and be absolutely sure to take
steps to prevent the TV from tipping over.
•
Handle the TV carefully during installation since subjecting it to impact or other forces may cause product damage.
Optional accessories
Pedestal
Plasma TV stand Wall-hanging
bracket
(vertical)
TY-WK42PV3W
(angle)
TY-WK42PR2W
TY-WK42PR3W
TY-S42PX70WK
( TH-42PX70A)
TY-ST42D1-WK
TY-ST42D2-WK
( TH-42PX70A)
TY-S50PX70WK
( TH-50PX70A)
TY-ST50D2-WK
( TH-50PX70A)
Read the manual
of the pedestal for
installation.
Pedestal (ST-42H2-WK / ST-50H2-WK)
•
TBLX0024
(TH-42PX70A)
•
TBLX0025
(TH-50PX70A)
Cursor buttons to make selections and
adjustments
Standby On / Off switch
(Switches TV On or Off standby)
Sound mute On / Off
TV Guide (p. 12)
Selects services in sequence
Access VIERA Link Menu
(p. 31)
OK button to confi rm selections and choices
Press after selecting programme positions
to quickly change programme.

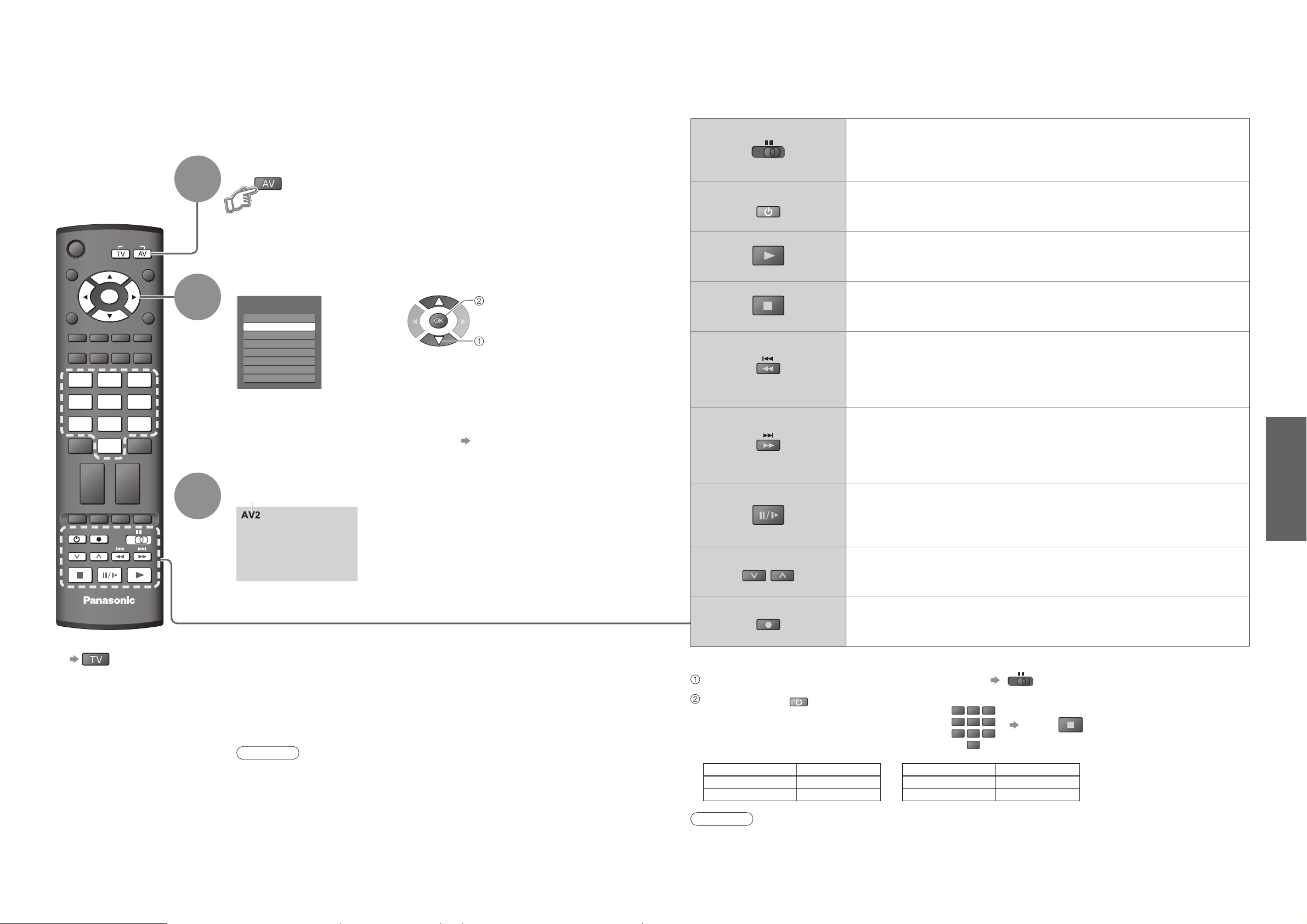

VCR / DVD operations
(p. 15)
Volume
Programme Information (p. 11)
Teletext Index (p. 17)
Coloured buttons used for the
selection, navigation and operation of
various functions
EXIT (Returns to TV screen)
Changes the sound track, if programme
has multiple audio tracks (DVB)
Stereo / Bilingual Sound Selection
(p. 35) (Analogue)
Programme / service change buttons (0-9)
and Teletext page buttons. (p. 10 and p. 16)
When in Standby mode, switches TV On.
Option menu
Sets the preferred settings of the
current programme easily
(p. 11)
Main Menu
Press to access VIERA Link, Picture,
Sound and Setup menus
(p. 18)
Subtitles
Showing subtitles (p. 11)
Changes aspect ratio (p. 11)
Changes the input mode
TV -
switches DVB (digital broadcasting)
/ Analogue mode
(p. 10)
AV - changes AV input mode (p. 14)
Returns to the previous menu
Still picture (p. 11)
Teletext Hold (p. 17)
Teletext (p. 16)
Increases or
decreases the
programme position
by one. When a
function is already
displayed, press to
increase or decrease
the selected
function. When in
Standby mode,
switches TV On.
Remote control
signal receiver
Changes the input mode
Function select
•
Volume / Contrast /
Brightness / Colour /
Sharpness /
Tint (NTSC mode) /
Bass / Treble /
Balance / Auto Tuning
(p. 24)
Power LED
•
Standby: red
On: green
Lift door to open
Mains power
On / Off switch
Headphones
jack
(p. 32)
AV4
terminals
(p. 32)
Mains Lead
Guarantee
OK
132
465
798
0
CH VOL
TV
POWER
GUIDE
OK
MENU
R G Y B
132
465
798
0
INFO MUTE
CH VOL
TEXT STTL INDEX HOLD
RECPOWER
PROGRAMME
INPUT
EXIT
RETURN
OPTIONASPECT
VCR DVD
TV
Page 5
8
9
Quick Start Guide
INPUT
ASPECT
OPTION
DIRECT TV REC
VCR
132
465
798
0
PROGRAMME
REC
VCR DVD
TEXT F.P. INDEX HOLD
POWER
RETURN
EXIT
MENU
OK
Select State / Territory
Northern Territory
Queensland
Victoria
New South Wales / Australian Capital Territory
Tasmania
South Australia
Western Australia
•
Auto Tuning
•
Basic Connection
Basic Connection
External equipment and cables shown are not supplied with this TV.
Please ensure that the unit is disconnected from the mains socket before attaching or disconnecting any leads.
When disconnecting the mains lead, be absolutely sure to disconnect the mains plug at the socket outlet fi rst.
Note
•
Do not put the RF cable close to the mains lead to avoid noise.
•
Do not place the RF cable under the TV.
•
To obtain optimum quality picture and sound, an Aerial, the correct cable (75 Ω coaxial) and the correct
terminating plug are required.
•
If a communal Aerial system is used, you may require the correct connection cable and plug between the wall
Aerial socket and the TV.
•
Your local Television Service Centre or dealer may be able to assist you in obtaining the correct Aerial system for
your particular area and the accessories required.
•
Any matters regarding Aerial installation, upgrading of existing systems or accessories required, and the costs
incurred, are the responsibility of you, the Customer.
Mains lead
(supplied)
Mains lead (supplied)
DVD Recorder or VCR
RF cable
Aerial
Aerial
Rear of the TV Rear of the TV
Example 1
Connecting aerial
Example 2
Connecting DVD Recorder / VCR
RF cable
RF cable
TV only TV, DVD Recorder or VCR
•
If your recorder is not available for DVB p. 38
AC 220-240 V
50 / 60 Hz
AC 220-240 V
50 / 60 Hz
Fastener
•
To unfasten
Plug the TV into mains socket and switch On
(Takes a few seconds to be displayed)
1
Auto Tuning
Search and store TV channels automatically.
These steps are not necessary if the setup has been completed by your local dealer.
Auto Tuning is now complete and your TV is ready for viewing.
•
You can now use the remote
control to turn On the TV or
turn the TV to standby mode.
(Power LED: On)
2
•
To edit channels
Editing and Setting Channels (p. 24)
•
If tuning has failed
“Auto Tuning” (p. 24).
•
If you turned the TV Off during Standby
mode last time, the TV will be in
Standby mode when you turn the TV
On with Mains power On / Off switch.
Select your state
3
Start Auto Tuning
•
Auto Tuning will start to search
for TV services and store them
in the numbered order as
specifi ed by the broadcasters.
select
(example: Sound Menu)
On-screen operation
guide will help you.
■
ON SCREEN HELP Instructions box
Open the main menu
Return to the previous menu
Move the cursor / select the menu
Move the cursor / adjust levels /
select from a range of options
Access the menu / store settings
after adjustments have been made
or options have been set

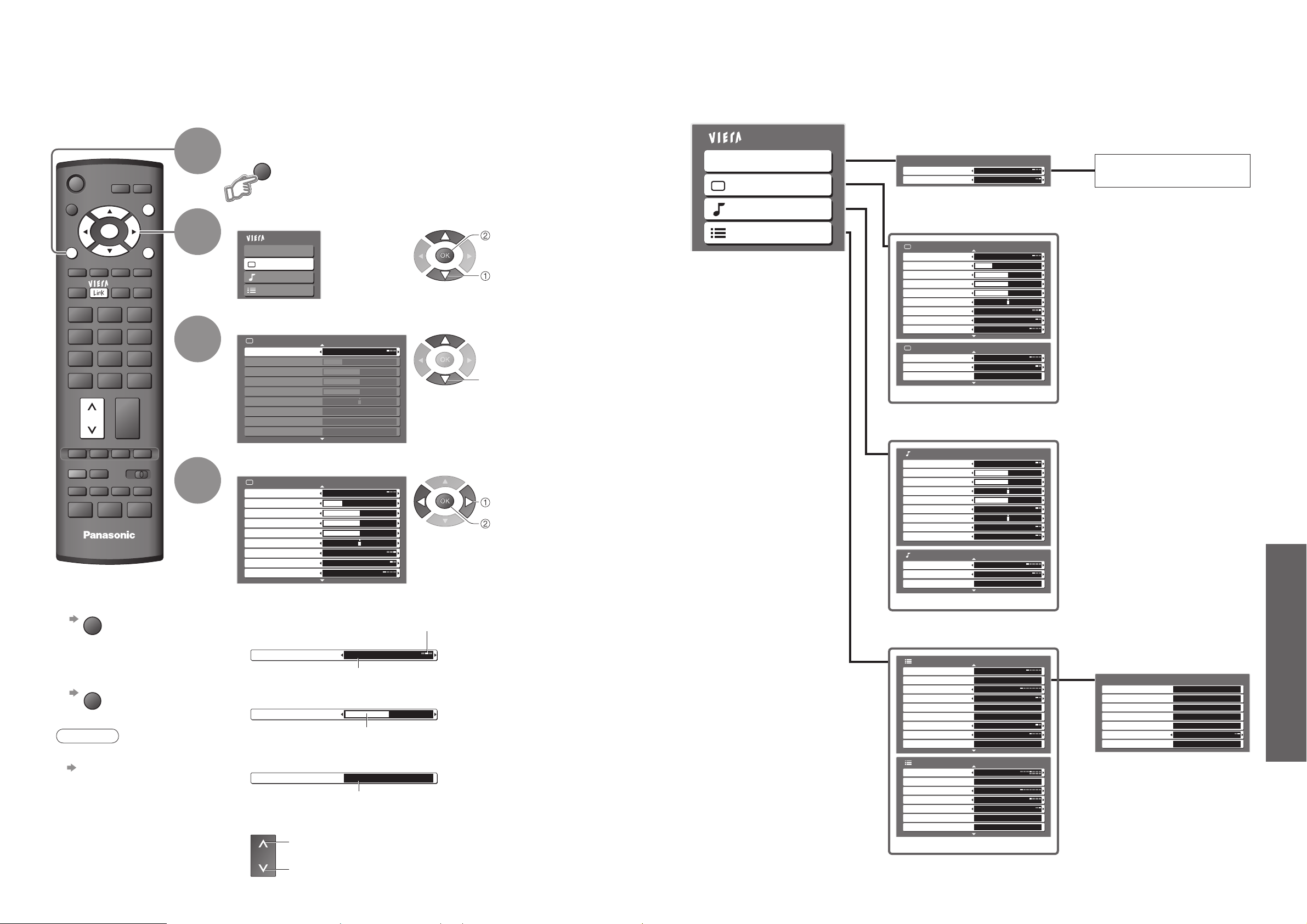

Many features available on this TV can be accessed via the On Screen Display menu.
■
How to use remote control
Using the
On Screen
Displays
Exit the menu system and
return to the normal viewing screen
AV1 IN
MONITOR
OUT
VIDEO
L
AUDIO
R
S VIDEO
PC
AUDIO
IN
L
R
AV2 IN AV3 IN
COMPONENT
PB/C
PR/C
Y
B
R
VIDEO COMPONENT
Y
PB/C
MONOMONOMONO
L
PR/C
R
AUDIO
B
R
PC
AV1 IN
S VIDEO
MONITOR
OUT
VIDEO
L
AUDIO
R
AUDIO
VIDEO
OUT
OUT
AUDIO
IN
L
R
AV2 IN AV3 IN
COMPONENT
PB/C
PR/C
Y
B
R
VIDEO COMPONENT
MONOMONOMONO
L
R
AUDIO
RF IN
RF OUT
Y
PB/C
PR/C
B
R
Auto Tuning - Digital (DVB) and Analogue
Digital (DVB) Tuning 6 69
MENU
RETURN
EXIT
Analogue Tuning 0 75
RF Ch Service Name Type Quality
2
ABC TV Sydney DVB 10
3 SBS DIGITAL 1 DVB 10
4
FTV guide
7
7 Digital
9
NINE DIGITAL
CH 29 Analogue
CH 33 Analogue
This will take about 3 mins.
EXIT
DVB 10
DVB 10
DVB 10
-
-
Sound Menu
Mode Music
Bass
Treble
Balance
Headphone Volume
Surround Off
Volume Correction
Reset Sound Defaults Set
Select
EXIT
Change
RETURN
Page 6
10
11
Viewing
•
To select the two or three-digit programme number, e.g. 39
Watching TV
Select a service
up
3
Turn power on
Mains power On / Off switch should be On.
down
or
1
•
Watching TV
Freeze / unfreeze picture
Hold
(in a short time)
■
Other useful functions (Operate after )
Display the
current
programme
status
Check or change the current
programme status instantly
Volume Correction
Adjusts volume of individual channel or input mode
Note
•
Also possible to change the settings in Menu list (p. 20).
Volume
2
Select DVB (Digital Video Broadcasting) or Analogue
Information banner
•
You can also select the mode using the TV button on the front panel
of the TV.
■
Select a service using Information banner
■

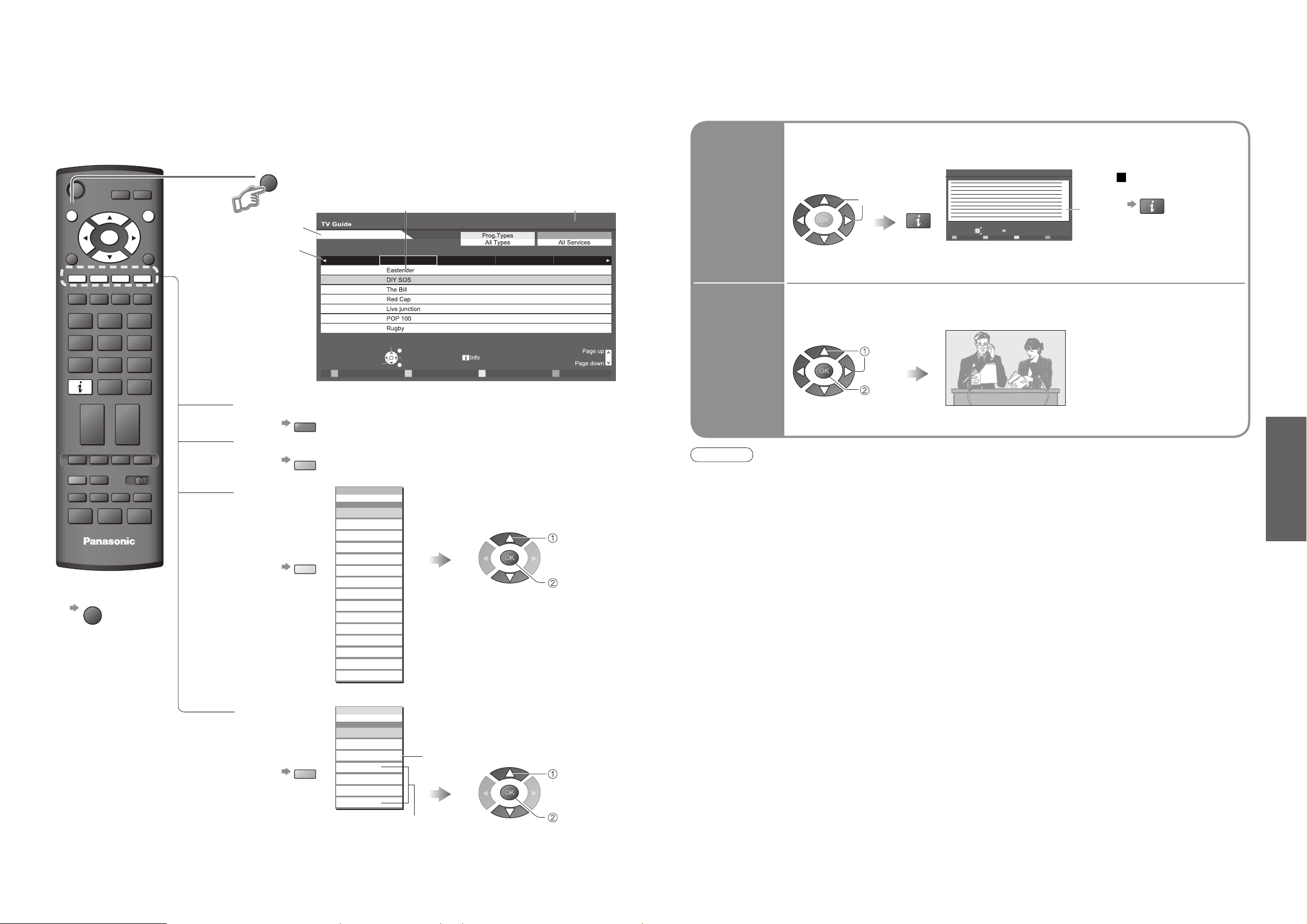

Select a service using TV Guide
“Using TV Guide” (p. 12)
select service
watch
•
This is the same as turning the teletext on and selecting P801.
•
Channel changing is not possible when this function is active.
Display / hide subtitles (if available)
Display
subtitles
Change
aspect
ratio
A
Change the aspect ratio (p. 34)
Enjoy viewing the picture at its optimum size and aspect.
Aspect Selection list
•
To change the mode
•
To change the mode using the ASPECT button only
A
(Press repeatedly until you reach the desired mode)
Display Aspect
Selection list
A
During the list is displayed,
select the mode
Store
Note
•
In DVB mode, aspect ratio is fi xed at 16:9.
Note
•
When the TV is switched to standby, there will be a clicking sound after a
short delay. This is normal.
Display
information
banner
Display programme information
Sound
mute
•
To set display timeout
“Banner Display Timeout” (p. 21)
•
To hide
•
Appears also when changing service.
•
Information of another channel
•
Information on next programme
(DVB)
•
To watch the programme listed in the banner
•
Information banner operation
1st press
Display banner
2nd press
Banner + programme synopsis (DVB)
3rd press
Exit
Rating
information (p. 34)
Subtitle
Teletext
Multiple audio
Off timer
Features available
Programme
DVB: Programme
Start / Finish time
Analogue: Programme
Status
Service Current time
Current
favourite list
To download new software to TV
•
“System Update Search Now” (p. 23)
Weak TV signal
Stereo sound
To change the Fav List
(If you have defi ned a Fav List)
POWER
ASPECT
MENU
RGYB
ASPECT
INPUT
OK
OPTION
132
465
798
0
INFO
CH VOL
TEXT INDEX
STTL
REC
VCR DVD
PROGRAMME
TV
EXIT
RETURN
DIRECT TV REC
HOLD
POWER
1 TEN Digital
Corontation Street
9:00 am - 11:00 am
INFO
CH
3
132
465
798
9
1 TEN Digital
Corontation Street
9:00 am - 11:00 am
10:30 am
Now
0
10:30 am
Now
All DVB Services
Select FAV List
All DVB Services
Select FAV List
HOLD
STTL
OPTION
INFO
1 TEN Digital
Corontation Street
9:00 am - 11:00 am
Rating: PGMute Bad Signal
Now
INFO
10:30 am
All DVB Services
Select FAV List
Software update
45TEXTSTTL
EXIT
B
R
SPECT
SPECT
SPECT
Aspect Selection
16:9
14:9
Just
4:3
4:3 Full
Zoom1
Zoom2
Zoom3
Select
Change
EXIT
RETURN
Page 7
12
13
Viewing
GUIDE
■
To previous day (DVB mode)
■
To next day (DVB mode)
■
To view a
programme list
of the selected
favourites list
■
To view a
programme list
of the
selected type
(DVB mode)
Using TV Guide
select
favourite
list
TV Guide―Electronic Programme Guide (EPG) provides an on-screen listing of programmes currently
broadcast and future broadcasts over the next seven days (depending on the broadcaster).
Analogue broadcasts will be listed after DVB broadcasts. “D” means DVB channel and “A” means
Analogue channel.
View TV Guide
select
type
(Favourites list)
(Type list)
■
To return to TV
view
(Displays by time)
•
Using TV Guide
Note
•
When this TV is turned on for the fi rst time, or the TV is switched off for more than a week, it may take some time
before the TV Guide is completely shown.
Watch the
programme
select
Select the programme now on the air
(TV screen)
watch
■
Other useful functions (Operate after viewing TV Guide)
View details
of the
programme
(DVB mode)
Select
the programme
select
Details
To return
to the start page
View details
To list favourite
services (p. 23)
view
TV Guide
date
Programme Current date and time
Service
Only analogue TV services are listed
POWER
GUIDE
OK
MENU
R G Y B
132
465
798
0
INFO
CH VOL
INPUT
EXIT
RETURN
OPTIONASPECT
MUTE
9:30 am - 10:00 am
10:00 am - 10:30 am
10:30 am - 11:00 am
11:00 am - 11:30 am
11:30 am -
1:00 pm -
3:00 pm -
R
Wed 12th May
1 TEN DigitalDD D D D
1:00 pm
3:00 pm
3:10 pm
-24 Hr
2 ABC TV Sydney
Select programme
View
EXIT
Select service
RETURN
3 SBS DIGITAL 4 FTV guide 7 7 Digital
+24 Hr Prog.type Favourites
Wed 12/05/04 10:15 am
Favourites
TV Guide Thu 05/08/04 10:49 am
INFO
EXIT
View
RETURN
Return to List
INFO
TEXT STTL INDEX HOLD
RECPOWER
PROGRAMME
TV
EXIT
VCR DVD
G
All T ype s
Movie s
New s
Entertainmen t
Y
B
Spor t
Children’s
Music
Arts/Culture
Current Affairs
Education/Information
Infotainment
Special
Comedy
Drama
Documentary
All Service s
All Service s
All DVB Services
All Analogue Services
Free TV
FavList1
Profile
FavList2
Pay TV
Profile
FavList3
Profile
FavList4
Prog. type
All T ype s
Categor y
Favourites
All Service s
All Service s
Page 8
14
15
Viewing
•
Watching Videos and DVDs
Watching Videos and DVDs
1
2
Connect the external equipment (VCRs, DVD equipment, etc.) and you can watch the input.
To connect the equipment (p. 8)
The Remote Control is capable of operating some functions of selected Panasonic external equipment.
Select the input mode connected to the equipment
Note
•
If the external equipment has an aspect adjustment function, set to “16:9”.
•
For details, see the manual of the equipment or ask your local dealer.
■
To return to TV
Display the Input select menu
Displays the selected mode
•
You can also select the input using the AV button on the remote
control or the front panel of the TV.
Press the button repeatedly until the desired input is selected.
•
You can label or skip each input modes “Input Labels” (p. 27)
VCR / DVD switch
∗
Select VCR to operate Panasonic VCR or DVD equipment
Select DVD to operate Panasonic DVD equipment or Player home theatre
Standby
Set to Standby mode / Turn on
Play
Playback videocassette / DVD
Stop
Stop the operations
Rewind / Skip / Search
VCR: Rewind, view the picture rapidly in reverse
DVD: Skip to the previous track or title
Press and hold to search backward
Fast-forward / Skip / Search
VCR: Fast-forward, view the picture rapidly forward
DVD: Skip to the next track or title
Press and hold to search forward
Pause
Pause / Restart
DVD: Press and hold to play at slow speed
Programme Up / Down
Select programme
Record
Start recording
Panasonic equipment connected to the TV can be directly operated with the remote control.
Note
•
Confi rm correct operation after the code changed.
•
The codes will be reset to default values if batteries are replaced.
•
“DVD” means DVD player, DVD recorders and Recorder home theatre.
•
Some operations may not be possible on some equipment models.
∗
Setting your remote control to operate Panasonic VCR, DVD, etc.
Set the VCR / DVD switch to the appropriate position
Press and hold
during the following operations
Enter the appropriate code for the equipment
to be controlled, see table below
Press
“VCR” position
Equipment Code
VCR 10 (default)
DVD 11
“DVD” position
Equipment Code
DVD 70 (default)
Player home theatre
71
Input Selection
AV1
AV2
AV3
AV4
PC
HDMI1
HDMI2
TV
3
View
select
watch
INPUT
ASPECT
OK
MENU
132
465
798
0
TEXT F.P. INDEX HOLD
REC
POWER
PROGRAMME
OPTION
VCR DVD
EXIT
RETURN
DIRECT TV REC
VCR DVD
POWER
PROGRAMME
TV
REC
POWER
VCR DVD
132
465
798
0
Page 9
16
17
Viewing
ASPECT
INPUT
RETURN
EXIT
REC
VCR DVD
OPTION
DIRECT TV REC
RGYB
MENU
OK
132
465
798
0
TEXT STTL INDEX HOLD

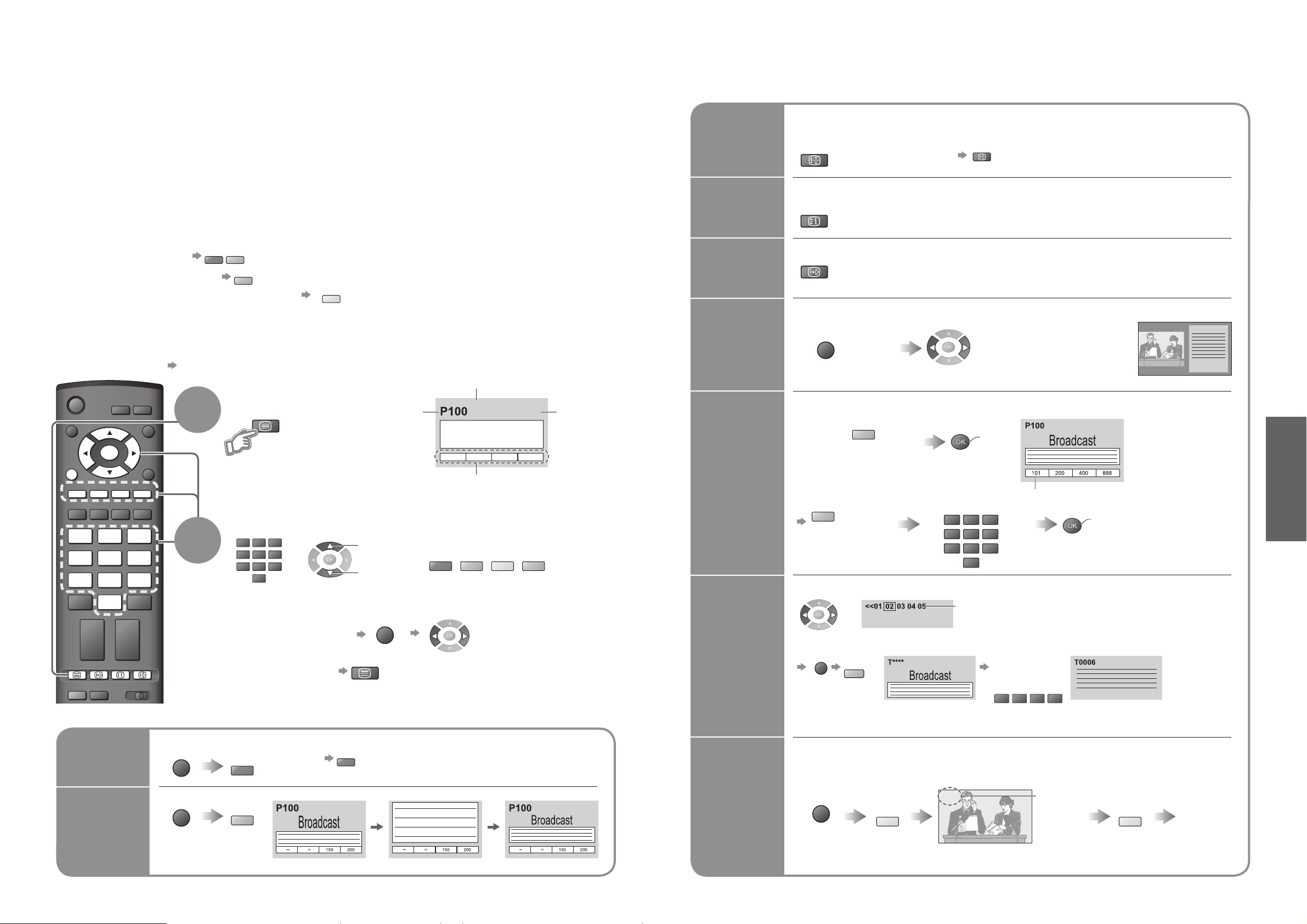

Viewing Teletext
Switch to Teletext
1
Select the page
or
You can enjoy teletext broadcasting, including news, weather forecasts and subtitles, if this service is
provided by the broadcasters.
or
■
To return to TV
(Corresponds to the colour bar)
•
Displays Index
(content varies
depending on the
broadcasters)
Call up a
favourite
pages
•
Call up the page stored in “blue”.
•
Factory setting is “P801” (subtitle page).
•
Viewing Teletext
Time / date
Current
page
number
Sub page number
Colour bar
What is FASTEXT mode?
In FASTEXT mode, four differently coloured subjects are situated at the bottom of the screen. To access more
information about one of these subjects, press the appropriately coloured button. This facility enables fast access to
information on the subjects shown.
What is List mode?
In List mode, four differently coloured page numbers are situated at the bottom of the screen. Each of these
numbers can be altered and stored in the TV’s memory. (“Store frequently viewed pages”, p. 17)
■
To change mode “Teletext” in Setup Menu (p. 21)
■
To adjust contrast
As the blue bar is displayed
Reveal
hidden
data
•
Re-hide
Reveal hidden words e.g. quiz page answers
■
Using teletext conveniently
FULL /
TOP /
BOTTOM
Normal (FULL)(BOTTOM)
(Expand the BOTTOM half)
INDEX
Return to the main index page
If you wish to hold the current page without updating
Stop or resume automatic updating
■
To resume
HOLD
Store
frequently
viewed
pages
Store frequently viewed pages in the colour bar
(List mode only)
press
and
hold
As page is
displayed
The number changes to white.
Corresponding
colour button
■
To change stored pages
press
and
hold
Enter new page number
Colour button you
want to change
View sub
page
•
Sub pages:
The number of sub pages varies depending on the broadcasters (up to 79 pages).
It may take some time for searching, during which time you can watch TV.
Enter the
4-digit number
example: P6
Appears at upper-left
corner of the screen
■
To view specifi c sub page
View sub page (Only when teletext is more than one page)
Watch
TV while
waiting
for update
P108
Appears
when
updating is
completed
(You cannot change the channel.)
Teletext automatically updates itself when new information becomes available.
•
The news page provides a function that indicates arrival of latest news (“News Flash”).
Changes to TV screen temporarily
View the
updated
page
View the TV picture while searching for a teletext page
2
(TOP)
(Expand the TOP half)
up
down
View in
multi
window
Watch TV and Teletext in two windows at once
•
Operations can be made only in Teletext screen.
(Press twice)
•
Select Picture and text
On or Off
What is TOP mode? (in case of TOP text broadcasting)
TOP is a particular improvement of the standard teletext service that results in an easier search and effective guide.
•
Fast overview of the teletext information available
•
Easy to use step-by-step selection of the topical subject
•
Page status information at the bottom of the screen
Available page up / down R
To select among subject blocks
To select next subject within the subject block
(After the last subject, it moves to the next subject block.)
G
B
Y
TEXT
MENU
132
465
798
R
0
MENU
G
TEXT
R
MENU
<< 01 02 03 04 05 06 07 >>
TELETEXT
INFORMATION
G
R
17:51 28 Feb
Y B
HOLD
HOLD
INDEX
STTL
MENU
132
465
798
0
MENU
B
0 0 0
6
MENU
Y Y
Page 10
Advanced
Main Menu
VIERA Link
Sound
Setup
Picture Menu 1/2
Viewing Mode Dynamic
Contrast
Brightness
Colour
Sharpness
Tint
Colour Balance Warm
Colour Management Off
P-NR Off
18
19

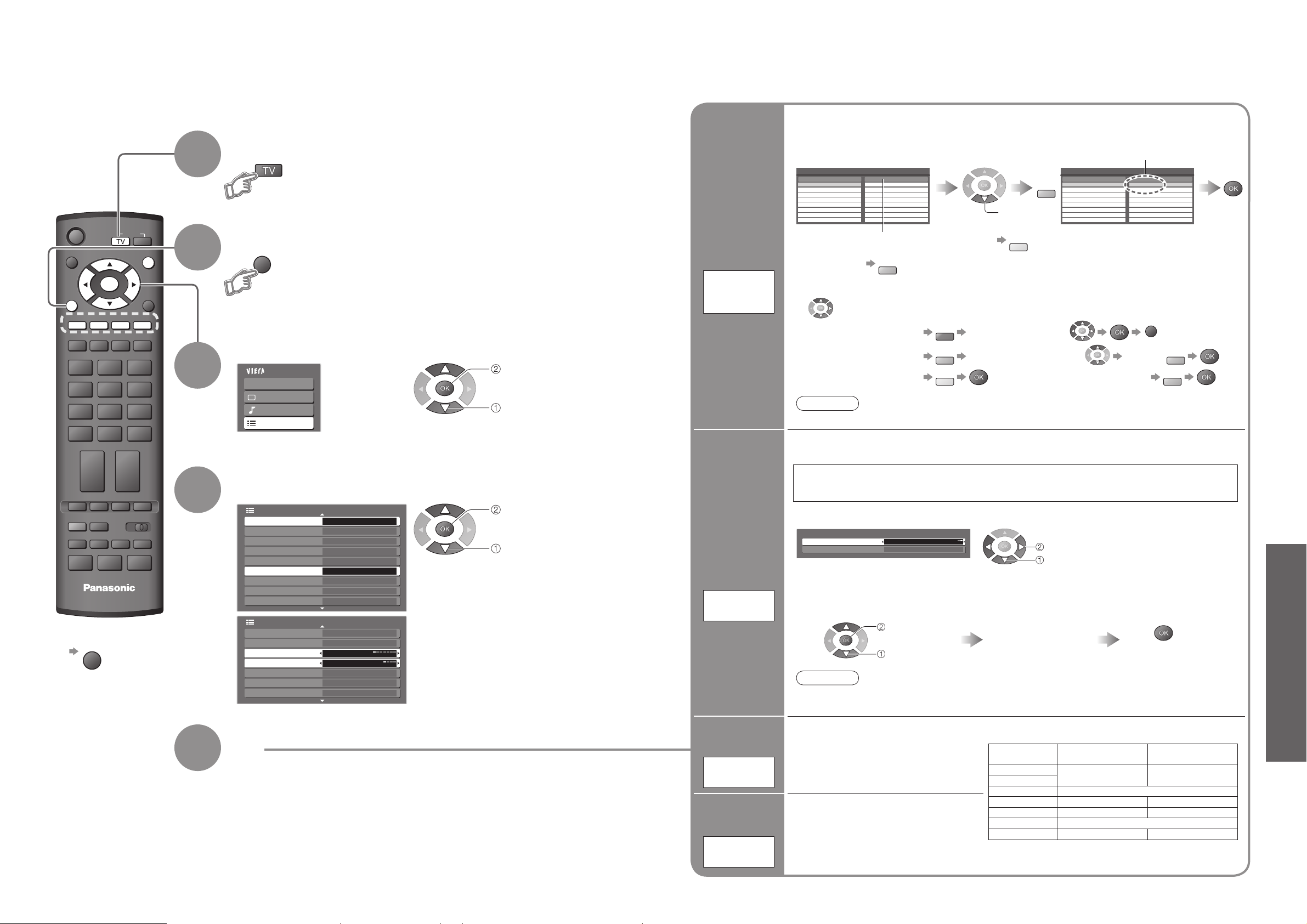

How to Use Menu Functions
•
How to Use Menu Functions
(picture, sound quality, etc.)
Display the menu
3
2
4
Various menus allow you to make settings for the picture, sound, and other functions.
•
Displays the functions that can be set
(varies according to the input signal)
Note
•
To initialize all settings
“Shipping Condition”
(p. 26)
■
To return to TV
at any time
■
To return to the
previous screen
Select the menu
Select the item
(example: Picture Menu)
Adjust or select
(example: Picture Menu)
(example: Picture Menu)
Changed
Number and positions
of alternatives
Moved
■
Choose from among alternatives
■
Adjust using the slide bar
1
Displays the next screen
■
Go to the next screen
■
To change menu pages
up
down
■
Overview
(p. 31)
Main Menu
VIERA Link
Sound
Setup
The menu of the accessed
equipment
(p. 20)
(p. 21)
(p. 24)
•
Only available items can be selected.
select
access
select
change
store or access
( Required by some
functions)
(p. 20)
INPUT
ASPECT
OK
MENU
SURROUND
OPTION
EXIT
RETURN
DIRECT TV REC
132
465
798
0
VCR
CH
TEXT F.P. INDEX HOLD
REC
VCR DVD
PROGRAMME
TV
EXIT
RETURN
MENU
Picture Menu
Viewing Mode Dynamic
Contrast
Brightness
Colour
Sharpness
Tint
Colour Balance Warm
Colour Management Off
P-NR Off
Colour Balance Normal
Sharpness
Tuning Menu Access
CH
1/2
VIERA Link Menu
VIERA Link Control
Speaker Selection
Picture Menu
Viewing Mode Dynamic
Contrast
Brightness
Colour
Sharpness
Tint
Colour Balance Warm
Colour Management Off
P-NR Off
Picture Menu
MPEG NR Off
3D-COMB Off
Reset Picture Defaults Set
Sound Menu
Mode Music
Bass
Treble
Balance
Headphone Volume
Surround Off
Volume Correction
DVB Audio Preference MPEG
SPDIF Selection PCM
Sound Menu
MPEG Audio Level 0dB
HDMI1 Input Auto
Reset Sound Defaults Set
Setup Menu
DVB Favourites Edit Access
Tuning Menu
Off Timer Off
Teletext TOP
Shipping Condition Access
System Update Access
Power Save
Side Panel
Input Labels Access
Banner Display Timeout
VIERA Link Settings
Region Select
Daylight Saving Time
Refresh Rate Access
Software License Access
System Information Access
Recorder
Home Cinema
Access
Off
Off
3 seconds
Access
NSW / ACT
Auto
100Hz
1/2
2/2
1/2
2/2
1/2
2/2 Setup Menu
Tuning Menu
Auto Tuning
Analogue Programme Edit
DVB Manual Tuning
Analogue Manual Tuning
Add New DVB Services Access
New Service Message
DVB Signal Display Access
Access
Access
Access
Access
On
Page 11
Advanced
Menu
Item Adjustments / Confi gurations (alternatives)
VIERA Link
VIERA Link Control
Controls the connected Panasonic equipment
“Easy control only with VIERA remote control” (p. 31)
“Speaker control” (p. 31)
•
You can also access VIERA Link Menu directly using the VIERA Link button on the
remote control.
Speaker Selection
Viewing Mode
Basic picture mode (Dynamic / Normal / Cinema)
•
Set for each input signal
Contrast, Brightness,
Colour, Sharpness
Adjusts colour, brightness, etc. for each picture mode to suit your taste
Tint
Adjusts tint of image
•
For NTSC signal reception only
Colour Balance
Chooses the colour balance of the entire image (Cool / Normal / Warm)
Colour Management
Automatically adjusts colours to vivid ones (Off / On)
•
Not valid on PC signal
P-NR
Picture Noise Reduction
Automatically reduces unwanted picture noise (Off / Normal / Dynamic / Auto)
•
Not valid on HDMI, PC signal or DVB
MPEG NR
Automatically reduces noise for watching DTV, DVD and VCD (Off / Min / Mid / Max)
3D-COMB
Automatically makes still pictures and slow pictures look more vivid (Off / On)
•
For PAL or NTSC signal reception only
•
Not valid on S-Video, components, PC and HDMI
•
Cannot be used with DVB
Reset Picture Defaults
Press the OK button to reset the present Picture Mode to the default settings
Sound
Mode
Basic sound mode (Music / Speech)
Bass
Adjusts the output level of deep bass
Treble
Adjusts the output level of high-pitch, shrill sound
Balance
Adjusts volume level of right and left speakers
Headphone Volume
Adjusts the volume of the headphones
Surround
Surround sound settings (Off / On)
Volume Correction
Adjusts volume of individual channel or input mode
DVB Audio
Preference
Selects the initial setting for Audio tracks (Dolby Digital / MPEG)
If programme has both Dolby Digital and MPEG audio tracks, priority is given to what you select
Dolby Digital : A method of coding digital signals developed by Dolby Laboratories. Apart
from stereo (2ch) audio, these signals can also be multi-channel audio.
MPEG : An audio compression method that compresses audio to small size
without any considerable loss of audio quality.
•
DVB mode only
SPDIF Selection
Selects the initial setting for digital audio output signal from DIGITAL AUDIO OUT
terminal (Auto / PCM)
Auto: Dolby Digital is output as Dolby Digital Bitstream. MPEG is output as PCM.
PCM
: Dolby Digital is output as PCM. MPEG is output as PCM.
•
DVB mode only
MPEG Audio Level
Normally, MPEG sound is larger than Dolby Digital one
You can adjust the audio level of MPEG as the initial setting
•
0dB to -12dB in -2dB reductions
•
DVB mode only
HDMI1 Input
Select to fi t the input signal (Auto / Digital / Analogue) (p. 29)
Auto : Automatic detection of digital or analogue sound source
Digital : HDMI cable connection
Analogue : HDMI-DVI adapter cable connection
•
HDMI input mode only
•
HDMI2 terminal is for digital signal only
•
No setting for HDMI2 available
Reset Sound Defaults
Press the OK button to reset the present Sound Mode to the default settings
Menu
Item Adjustments / Confi gurations (alternatives)
Setup
DVB Favourites Edit
Creates list of favourite programmes (p. 23)
Tuning Menu
Auto Tuning
Automatically sets the channels received in the area (p. 24)
Analogue
Programme Edit
Edits analogue channels (p. 25)
DVB Manual
Tuning
Sets the DVB channels manually (p. 25)
Analogue
Manual Tuning
Sets the analogue channels manually (p. 25)
Add New DVB
Services
Adds new DVB services (p. 25)
New Service
Message
Selects whether to give a notifi cation message when a new DVB service is found (p. 25)
DVB Signal
Display
Checks the DVB signal condition (p. 25)
Off Timer
Sets the time the TV automatically turns Off (Off / 15 / 30 / 45 / 60 / 75 / 90 minutes)
Teletext
Teletext display mode (TOP (FASTEXT) / List) (p. 16)
Shipping Condition
Resets all settings, for example, when moving house (p. 26)
System Update
Downloads new software to TV (p. 23)
Power Save
Reduces brightness of picture to economise on power consumption (Off / On)
Side Panel
Increases the brightness of the side panel (Off / Low / Mid / High)
•
The recommended setting is “High” to prevent panel “image retention”
Input Labels
Labels or skips each input terminals (p. 27)
Banner Display
Timeout
Sets how long the information banner (p. 11) stays on screen
•
0 (No display) to 10 sec. in 1-sec. increments
VIERA Link Settings
VIERA Link
Sets to use VIERA Link functions (Off / On) (p. 30)
Power off Link
Set to “Set” to use Power off Link function (No / Set) (p. 31)
Power on Link
Set to “Set” to use Power on Link function (No / Set) (p. 31)
Region Select
Selects the region where you live to adjust the standard time (NSW/ACT / Victoria /
Queensland / South Australia / Western Australia / Nothern Territory / Tasmania)
(p. 23)
Daylight Saving Time
Select time offset from the standard time for Summer Time
(Auto / Off / +1/2 Hr / +1 Hr) (p. 23)
•
Set to “Auto” normally
Refresh Rate
Changes the image processing of the panel (depending on the input signal) (50Hz / 100Hz)
•
Set to “100Hz” normally
Software Licence
Displays the software licence information
System Information
Displays the system information of this TV
20
21
■
Menu list
•
How to Use Menu Functions
(picture, sound quality, etc.)
How to Use Menu Functions
■
Menu list
•
A different menu will be displayed while PC or DVI to HDMI adapter cable is used. (p. 28 and p. 29)
•
Only available items can be selected.
Page 12
Advanced
Main Menu
VIERA Link
Sound
Setup
22
23

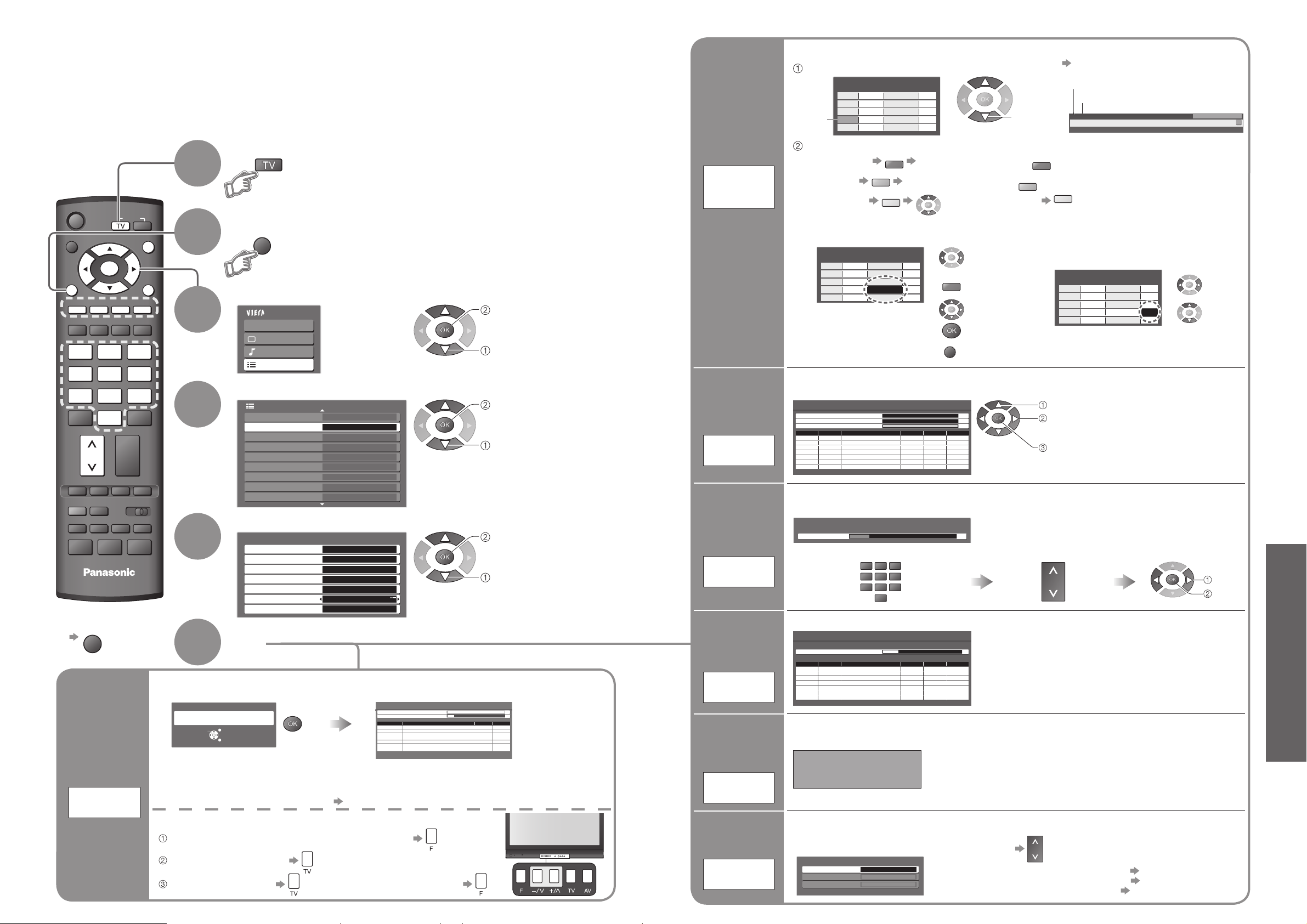

DVB Settings
4
3
5
Select “Setup”
Select “DVB Favourites Edit”, “System Update”,
“Region Select” or “Daylight Saving Time”
Display the menu
Set
■
To return to TV
(DVB mode)
1
If in Analogue mode
Select DVB
DVB Settings provide access to various advanced features.
•
DVB Settings (DVB)
2
access
select
access
select
Adjust the
standard time
Region
Select
Select the region where you live to
adjust the standard time.
•
The time contained in the broadcast
signal is UTC (Universal time,
coordinated).
Adjust for
Summer Time
Daylight
Saving Time
Select time offset from the standard
time for Summer Time.
•
Normally select “Auto”.
•
If there is a gap between displayed
time and actual time, set this
function.
(Based on GMT)
Region Standard time
Daylight Saving Time: Auto
(During Summer Time)
NSW / ACT
+10:00 +11:00
Victoria
Queensland +10:00
South Australia
+9:30 +10:30
Western Australia
+8:00 +9:00
Northern Territory
+9:30
Tasmania +10:00 +11:00
List
favourite
services
DVB
Favourites
Edit
Wed 12/05/04 10:46Favourites Edit
TEN Digital
All DVB Services
1
ABC TV Sydney2
SBS DIGITAL 13
FTV guide4
7 Digital7
NINE DIGITAL9
7 HD Digital70
7 Guide77
FavList1
TEN Digital1
Wed 12/05/04 10:46Favourites Edit
TEN Digital
All DVB Services
1
ABC TV Sydney2
SBS DIGITAL 13
FTV guide4
7 Digital7
NINE DIGITAL9
7 HD Digital70
7 Guide77
FavList1
•
To add all services
to the list
Create your favourite service List from various broadcasters (up to 4: FavList1 / FavList2 /
FavList3 / FavList4).
The list is displayed in information banner (p. 11), TV Guide (p. 12) and then easily accessed.
select
To display
another List
A service is added
Select a service and add it to the list
■
To edit List
Select the fi eld of List to edit and:
•
To name the List R Select the character
•
To move the service G Select the new position Confi rm G
•
To delete the service Y
•
To delete all services B
Note
•
Channel numbers cannot be changed, due to broadcast restrictions.
System
Update
■
To update immediately
System Update
Auto Update Search in Standby
System Update Search Now
On
Select “Auto Update Search in Standby” and then set “On” or “Off”
•
On: Automatically performs
a search in standby and
downloads an update, if any
software updates are available
set
select
Download new software to TV.
•
For details (p. 35)
If System Update is performed, the software will be updated (it may change TV
functions). If you do not wish to do so, set “Auto Update Search in Standby” to Off.
Select
“System Update Search Now”
Searches for an
update (for several
min.) and displays
a corresponding
message if any
Download
access
select
•
Download may take
for about 20 min.
Note
•
During downloading, the TV will display a blank screen for 40 to 50 seconds. Do not
interrupt the TV during this procedure.
Update
TV’s
software
system
POWER
GUIDE
MENU
R G Y B
132
465
798
INFO
CH VOL
TEXT STTL INDEX HOLD
PROGRAMME
EXIT
OK
INPUT
EXIT
RETURN
OPTIONASPECT
MENU
0
MUTE
RECPOWER
VCR DVD
TV
Setup Menu
DVB Favourites Edit Access
Tuning Menu
Off Timer Off
Teletext TOP
Shipping Condition
System Update Access
Power Save
Side Panel
Input Labels
Banner Display Timeout
VIERA Link Settings
Region Select
Daylight Saving Time
Refresh Rate Access
Software License
System Information
Off
Off
3 seconds
NSW / ACT
Auto
100Hz
1/2
2/2 Setup Menu
G
B
Y
RETURN
Page 13
Advanced
Main Menu
VIERA Link
Sound
Setup
Tuning Menu
Auto Tuning
Access
Analogue Programme Edit
Access
DVB Manual Tuning
Analogue Manual Tuning
Access
Add New DVB Services Access
Access
New Service Message
DVB Signal Display Access
On
24
25
Editing and Setting Channels
The current channel settings can be changed according to your needs and reception conditions.
You can re-tune all TV channels when moving house or search for new services which may have
recently started broadcasting.
•
Editing and Setting Channels
■
To return to TV
select
access
select
access
select
access
Edit
Analogue
channels
Analogue Programme Edit
1 CH33
2 CH21
3 CH21
4 CH60
5 CH21
Prog. Chan. Name
1 2 3
X Y Z
F T P
4 5 6
Off
Off
Off
Off
Off
Skip
Analogue Programme Edit
1 CH33
2 CH21
3 CH21
4 CH60
5 CH21
Prog. Chan. Name
1 2 3
X Y Z
F T P
4 5 6
Off
Off
Off
Off
Off
Skip
■
To change the name of the broadcaster
displayed when selecting channels
Cursor
Select the channel to edit
Edit
■
To delete R After confi rming, press
■
To add G After confi rming, press
■
To move Y Select new position
Edit the analogue programme position settings
select
( Maximum: fi ve characters)
Analogue Programme Edit
1 CH33
2 CH21
3 CH21
4 CH60
5 CH21
Prog. Chan. Name
1 2 3
X Y Z
F T P
4 5 6
Off
Off
Off
Off
Off
Skip
Select the
“Skip” fi eld
Select
“On”
■
To skip the channel
•
This function is only effective when
pressing the Programme Up / Down
button on the TV or the remote control.
Channel
Name
Select the
“Name” fi eld
Select the
character
Set
Enter the “User
input” mode
•
To change channel number
“Analogue Manual Tuning”
Store
■
Delete
■
Add
■
Move
■
Change
name
■
Skip
Analogue
Programme
Edit
Set
6
Select “Setup”
3
Select “Tuning Menu”
4
Display the menu
Select a function
5
2
1
Select DVB or Analogue
•
“DVB Manual Tuning”, “Add New DVB Services”, “New Service
Message” and “DVB Signal Display” are available in DVB mode only.
•
“Analogue Programme Edit” and “Analogue Manual Tuning” are
available in Analogue mode only.
Auto Tuning - Digital (DVB) and Analogue
This will take about 3 mins.
Analogue Tuning 0 75
Digital (DVB) Tuning 6 69
2
RF Ch Service Name Type Quality
ABC TV Sydney DVB 10
3 SBS DIGITAL 1 DVB 10
4
FTV guide
DVB 10
7
7 Digital
DVB 10
9
NINE DIGITAL
DVB 10
CH 29 Analogue
-
CH 33 Analogue
-
For Auto Tuning, using the buttons on the front of the TV
Press repeatedly until “Auto Tuning” appears
Access “Auto Tuning”
■
To return to TV
Start “Auto Tuning”
Access “Auto Tuning” Settings are made automatically
Automatically set the DVB and Analogue channels received in the area.
•
All previous settings are erased.
•
When the operation is completed, the digital service at programme position “1” will be displayed.
If no DVB services are found, the fi rst analogue service will be displayed.
•
If tuning has not done completely “DVB Manual Tuning”, “Analogue Manual Tuning”
Set channels
automatically
Auto
Tuning
DVB Signal Display
Service Name [CH53] 7 7 Digital
0 5 10
Signal Quality
Signal Strength
Selects a service and checks the DVB signal condition.
Use for adjusting the direction of the aerial.
Signal Quality:
•
Green bar Good
•
Yellow bar Poor
•
Red bar Bad (Check the aerial)
•
To change the service during the menu appears
Check
DVB signal
DVB Signal
Display
Display a
notifi cation
message
New Service
Message
Selects whether to give a notifi cation message when a new DVB service is found. (Off / On)
Normally use “Auto Tuning” or “Add New DVB Services” for the DVB channel setting.
If tuning has not done completely, use this function.
adjust frequency
( set where the level of “Signal Quality”
becomes the maximum)
select channel
search
DVB Manual Tuning
Signal Quality 0 10
Signal Strength 0 10
Physical Channel MHz
[
CH21
]
474.00
Prog. RF Ch Net ID. Quality
TS ID.Service Name
Set DVB
channel
manually
DVB Manual
Tuning
Add
DVB channel
automatically
Any new services found will be added automatically.
Add New DVB Services
Please wait!
This will take about 3 mins.
669
Prog. RF Ch Service Name Net ID. TS ID. Quality
ZDF
ARD
•
The new service is added with the current settings
saved as they are.
Add New
DVB Services
Programme 1 [CH33]
Analogue Manual Tuning
Manual Tuning 0 75
Set Analogue channel manually after Auto Tuning.
If a VCR is connected with only the RF cable, select programme position “0”.
store
search
Search and storeSelect the channel
Select the programme position
Set Analogue
channel
manually
Analogue
Manual Tuning
INPUT
ASPECT
OK
MENU
RGYB
OPTION
132
EXIT
RETURN
DIRECT TV REC
MENU
R
RETURN
G
1 TEN
Corontation Street
9:00 am - 11:00 am
RATING: PG Bad Signal Dolby D
R
Y
10:30 am
Now
All Analogue Services
Select FAV List
45TEXTSTTL
465
798
0
CH
TEXT F.P. INDEX HOLD
REC
VCR DVD
PROGRAMME
TV
EXIT
Auto Tuning
Analogue & DVB tuning data will be erased
Start Auto Tuning
EXIT
RETURN
Setup Menu
DVB Favourites Edit
Tuning Menu
Off Timer Off
Teletext TOP
Shipping Condition
System Update
Power Save
Side Panel
Input Labels
Access
Off
Off
1/2
132
465
798
0
New DVB service found!
Press OK to add new service.
Press EXIT to lgnore.
CH
CH

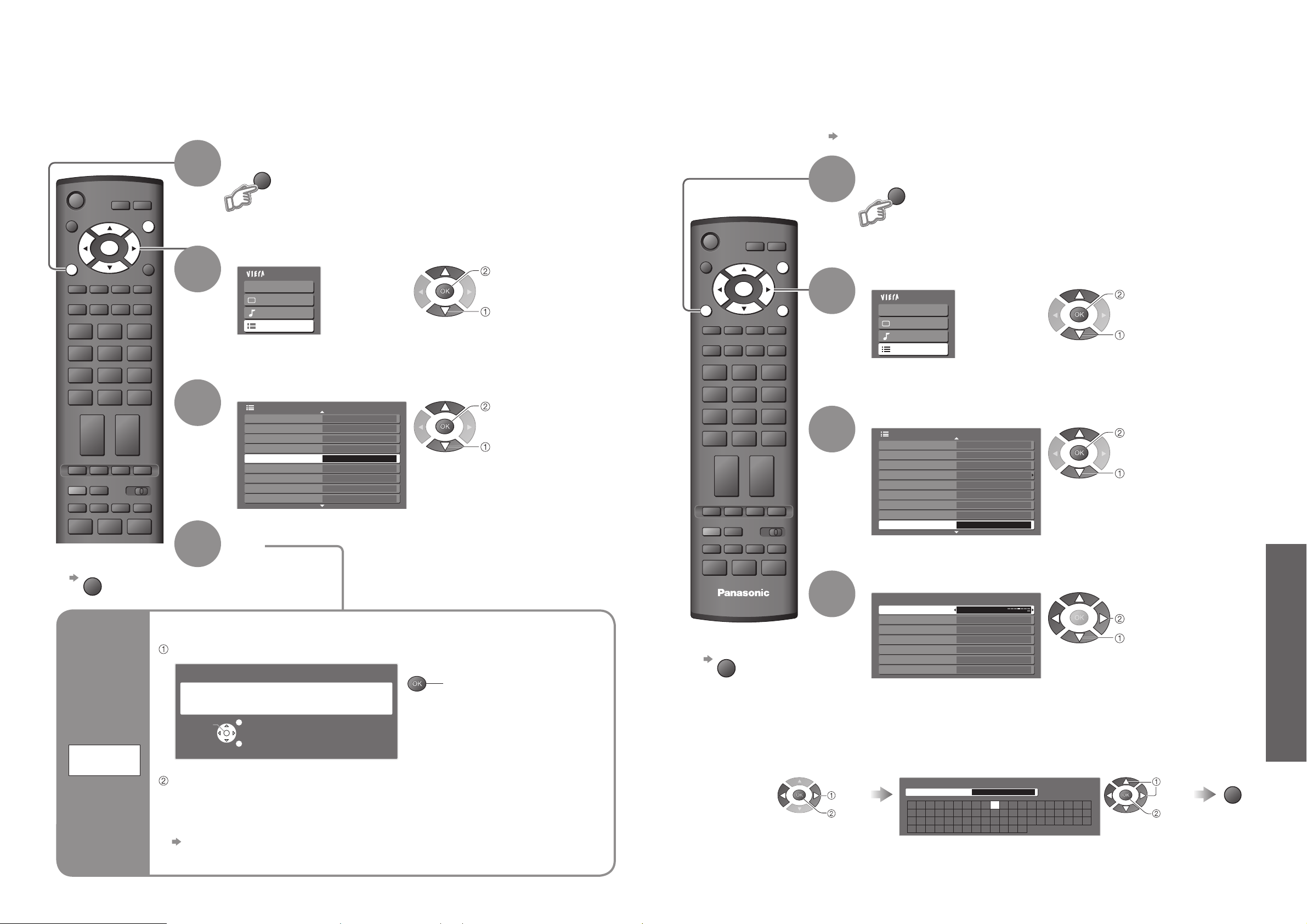

Page 14
Advanced
Main Menu
VIERA Link
Sound
Setup
ASPECT
INPUT
RETURN
VCR
132
465
798
0
OPTION
DIRECT TV REC
PROGRAMME
REC
VCR DVD
TEXT F.P. INDEX HOLD
EXIT
MENU
OK
Main Menu
VIERA Link
Sound
Setup
Input Labels
AV1 DVD
AV2 AV2
AV3 AV3
AV4 AV4
PC PC
HDMI1 HDMI1
HDMI2 HDMI2
26
27
Check the message and initialise
Follow the on-screen instructions
•
“Auto Tuning” will automatically start. (p. 9)
■
To re-tune TV channels only, e.g. after moving house
“Auto Tuning” (p. 24)
3
2
4
Select “Setup”
Select “Shipping Condition”
Display the menu
Set
■
To return to TV
Restore Settings
Shipping
Condition
Restore
Settings
Resets the TV to its original condition, i.e. no channels tuned in.
All settings (channels, picture, sound quality, etc.) are reset.
1
set
•
Input Labels
•
Restore Settings
select
access
select
access
Input Labels
2
3
4
Select “Setup”
Select “Input Labels”
Display the menu
Select a input terminal and set
■
To return to TV
For easier identifi cation and selection of the input mode, you can label each input terminals or skip
terminal that is not connected to any equipment.
(To select the input mode
p. 14)
1
The labels you set will be displayed in “Input Selection” menu (p. 14) or banner.
•
If “Skip” is selected, you cannot select the mode.
■
User input
You can name each input terminals freely.
Select “User input” Set characters
(maximum: ten characters)
select
access
select
access
select
set
access
select
set
select
Store
MENU
Setup Menu
DVB Favourites Edit
Tuning Menu
Off Timer Off
Teletext TOP
Shipping Condition Access
System Update
Power Save
Side Panel
Input Labels
Off
Off
EXIT
1/2
ASPECT
MENU
INPUT
EXIT
OK
RETURN
OPTION
DIRECT TV REC
132
465
798
0
VCR
TEXT F.P. INDEX HOLD
REC
VCR DVD
PROGRAMME
TV
EXIT
MENU
Setup Menu
DVB Favourites Edit
Tuning Menu
Off Timer Off
Teletext TOP
Shipping Condition
System Update
Power Save
Side Panel
Input Labels Access
Off
Off
1/2
Shipping Condition
Analogue & DVB tuning data will be erased
Confirm
Are you sure?
Are you sure?
EXIT
RETURN
Name
ABCDEFGH I JKLMN
UVWXYZ 0123456
abcde f gh i j k lmn
uvwxyz( )+- . *_
1 of 2User input
OPQRST
789 ! :#
opqr s t
RETURN

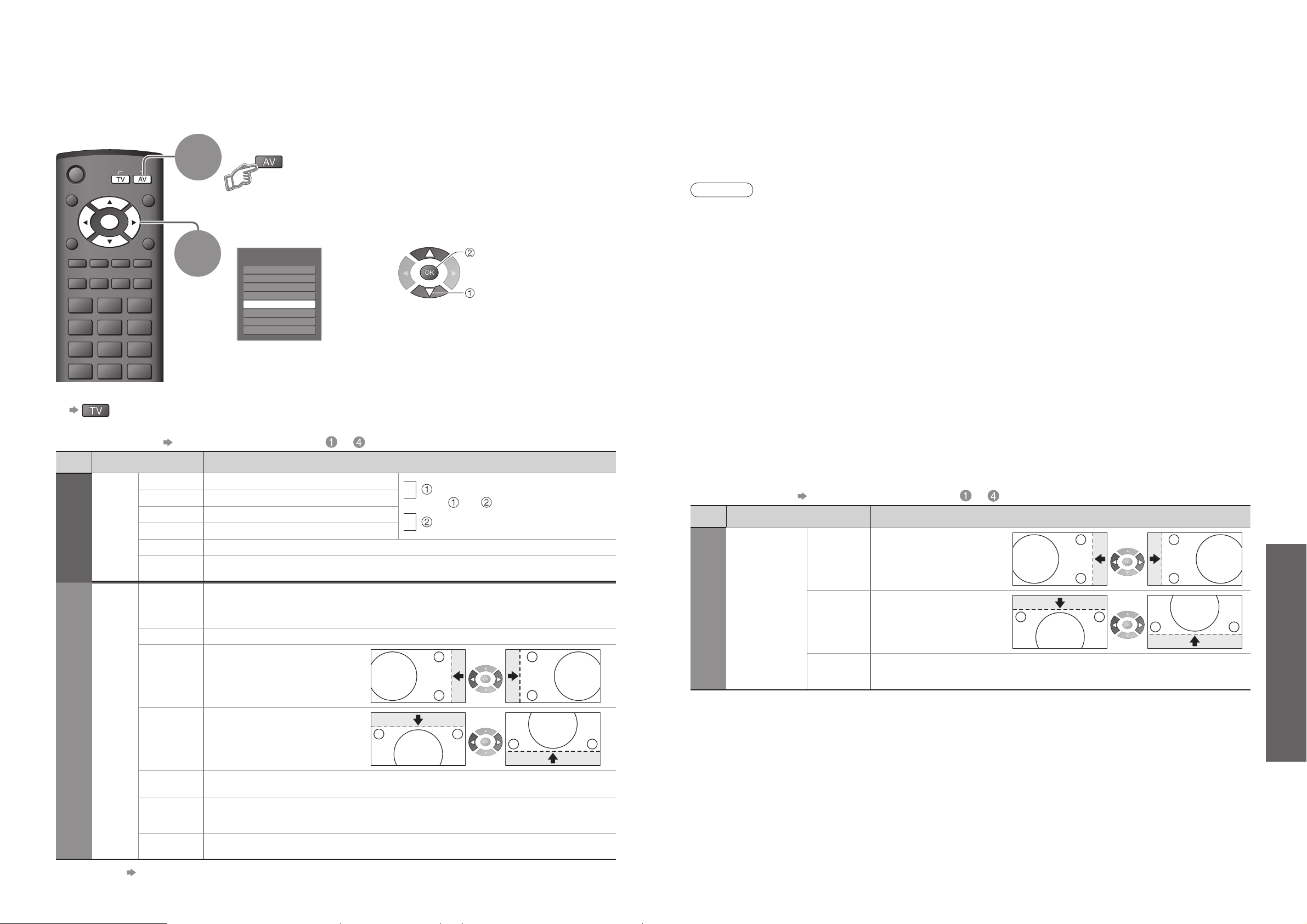

Page 15
Advanced
Menu
Item Adjustments / Confi gurations (options)
Advanced
PC
Settings
W/B High R White balance of bright red area
and
repeatedly adjusted
W/B High B White balance of bright blue area
W/B Low R White balance of bright red area
W/B Low B White balance of dark blue area
Gamma (2.0 / 2.2 / 2.5 / S Curve)
Reset PC
Settings
Press the OK button to reset to the default settings
Setup
PC
Setup
Input
Resolution
Switches to a wide view
•
VGA (640 × 480 pixels), WVGA (852 × 480 pixels),
XGA (1,024 × 768 pixels), WXGA (1,366 × 768 pixels)
•
Options change depending on signals
Clock Set to the minimum level if noise occurs
H-pos
Adjusts horizontal position
V-pos
Adjusts vertical position
Clock Phase
Eliminates fl icker and distortion
•
Adjust after Clock adjustment
•
Set to the minimum level if noise occurs
Sync
PC sync signal type (H & V / On G)
•
H & V : Horizontal and Vertical sync from your PC (Most common sync format)
On G : Sync on Green sync from your PC
Reset PC
Settings
Press the OK button to reset to the default settings
Menu
Item Adjustments
Setup
DVI Position
Settings
H-pos
Adjusts horizontal position
V-pos
Adjusts vertical position
Reset
DVI Position
Settings
Press the OK button to reset to the default settings
ASPECT
RETURN
EXIT
MENU
OPTION
DIRECT TV REC
132
465
798
0
INPUT
OK
Input Selection
AV1
AV2
AV3
AV4
PC
HDMI1
HDMI2
TV
28
29
•
HDMI Functions
•
Displaying PC Screen on TV
■
To return to TV
Displaying PC Screen on TV
Select the external input
Select “PC”
2
The screen of the PC connected to the TV can be displayed on the TV.
You can also listen to PC sound with the audio cable connected. To connect PC
(p. 32)
•
Corresponding signals (p. 36)
•
If “H-freq.” or “V-freq.” is shown in red,
the signals may not be supported.
■
PC menu setting (changed as desired)
•
To make settings “How to Use Menu Functions” to (p. 18)
•
Other items p. 20 and p. 21
1
select
access
(∗1): The HDMI logo is displayed on HDMI-compliant equipment.
(∗2): Enquire at your local digital equipment retailer shop.
HDMI (high-defi nition multimedia interface) allows you to enjoy high-defi nition digital images and high-
quality sound by connecting the TV and the equipment.
HDMI-compatible equipment (∗1) with an HDMI or DVI output terminal, such as a set top box or a DVD
player, can be connected to the HDMI terminal using an HDMI compliant (fully wired) cable.
About connections, see “External Equipment” (p. 32).
Note
•
HDMI is the world’s fi rst complete digital consumer AV interface complying with a non-compression standard.
•
Audio settings can be made on the “HDMI1 Input” menu screen. (p. 20)
•
Applicable audio signal sampling frequencies (2ch L.PCM): 48 kHz, 44.1 kHz, 32 kHz
•
HDMI2 terminal is for digital audio signal only.
•
Use with a PC is not assumed.
•
If the connected equipment has an aspect adjustment function, set the aspect ratio to “16:9”.
•
These HDMI connectors are “type A”.
•
These HDMI connectors are compatible with HDCP (High-Bandwidth Digital Content Protection) copyright
protection.
•
An equipment having no digital output terminal may be connected to the input terminal of either “Component”,
“S-VIDEO”, or “Video” to receive analogue signals.
•
The HDMI input terminal can be used with only the following image signals:
480i, 480p, 576i, 576p, 720p, 1080i and 1080p. Match the output setting of the digital equipment.
•
For details of the applicable HDMI signals, see p. 36.
HDMI Functions
■
DVI Position Settings
If the picture position is not fi t to the screen during the DVI connection, adjust the position on “DVI Position
Settings” in Setup Menu. The settings are memorized for each HDMI terminals and input signals.
•
To make settings “How to Use Menu Functions” to (p. 18)
■
DVI connection
If the external equipment has only a DVI output, connect to the HDMI1 terminal via a DVI to HDMI adapter cable (∗2).
When the DVI to HDMI adapter cable is used, connect the audio cable to the audio input terminal
(HDMI1: use AUDIO IN terminals).

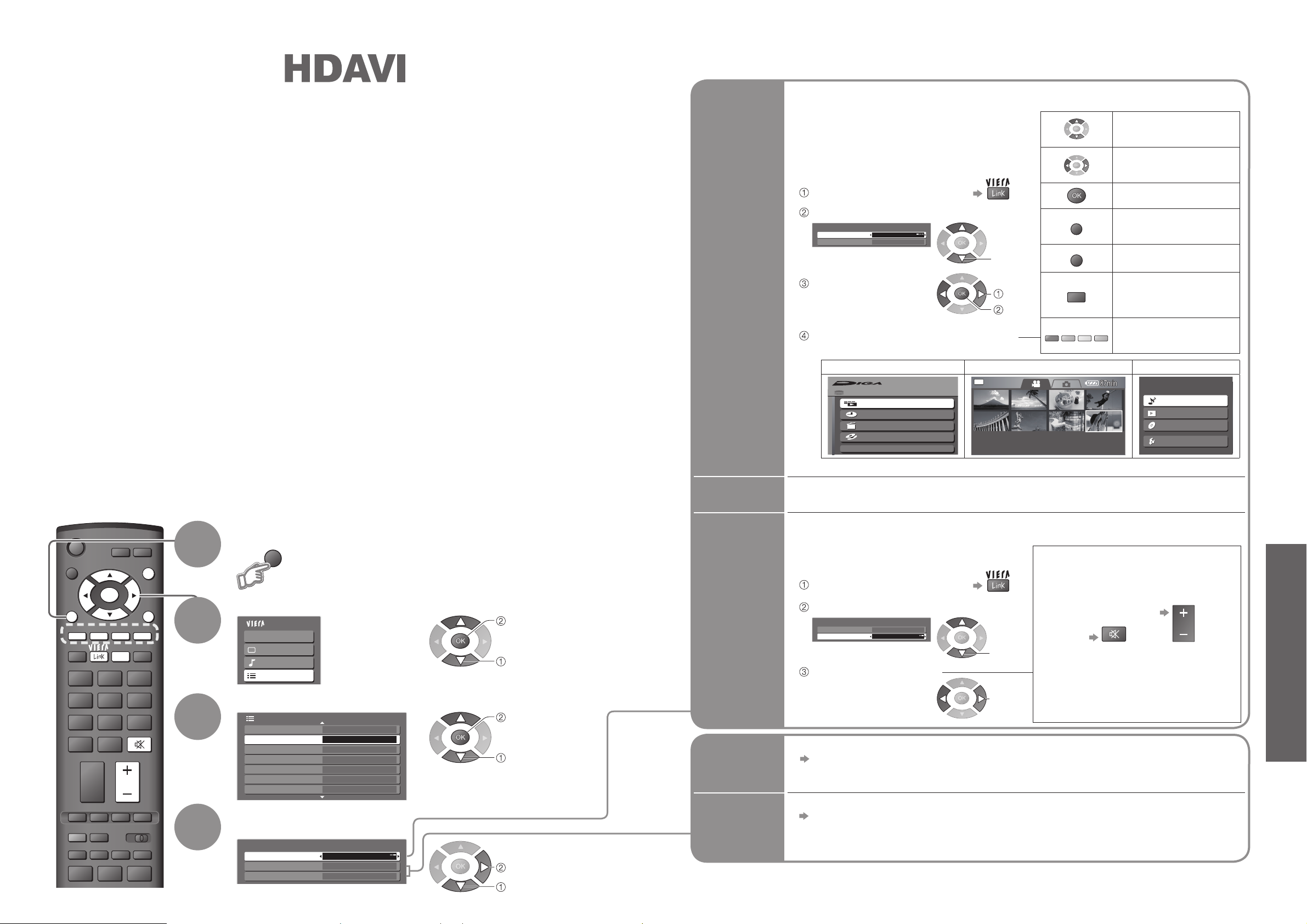

Page 16
Advanced
•
VIERA Link “HDAVI Control
TM
”
132
465
798
0
REC
VCR
DIRECT TV REC
ASPECT
INPUT
TEXT F.P. INDEX HOLD
PROGRAMME
VCR DVD
VOL
RGYB
RETURN
EXIT
MENU
OK
OPTION
MUTE
VIERA Link On
Power off Link Set
VIERA Link Settings
Power on Link
Set
30
31
Select “Setup”
Select “VIERA Link Settings”
2
1
3
Display the menu
∗
Enjoy additional HDMI Inter-Operability with Panasonic products which have “HDAVI Control” function.
This TV supports “HDAVI Control 2” function.
Connections to some Panasonic equipment (DVD Recorder DIGA, HD Video Camera, Player theatre,
Amplifi er, etc.) with HDMI cables allow you to interface them automatically.
The equipment with “HDAVI Control” function enables the following operations:
•
Easy playback (p. 31)
•
Power on Link (p. 31)
•
Power off Link (p. 31)
•
Speaker control (p. 31)
In addition, the equipment with “HDAVI Control 2” function enables the following operation:
•
Easy control only with VIERA remote control (p. 31)
These features are limited to models incorporating Panasonic’s “HDAVI Control” and “VIERA Link”.
VIERA Link “HDAVI Control”, based on the control functions provided by HDMI which is an industry
standard known as HDMI CEC (Consumer Electronics Control), is a unique function that we have
developed and added. As such, its operation with other manufacturers’ equipment that supports HDMI
CEC cannot be guaranteed.
Refer to individual manuals for compatibility information. About applicable equipment, consult your local
Panasonic dealer.
4
VIERA Link “ Control
TM
”
∗
■
HDMI cable
This function needs an HDMI compliant (fully wired) cable. Non-HDMI-compliant cables cannot be utilized.
It is recommended that you use Panasonic’s HDMI cable. Recommended part number:
•
RP-CDHG15 (1.5 m)
•
RP-CDHG30 (3.0 m)
•
RP-CDHG50 (5.0 m)
Easy
playback
Automatic Input switching-When the connected Panasonic equipment is operated, input
mode is switched automatically. When it is stopped operating, input mode is not returned.
■
Preparations
Setup the equipment to enable this function. Read the manuals of the equipment.
About connections, see “External Equipment” (p. 32). Read the manuals of the equipment too.
■
For the fi rst time / When adding new equipment, reconnecting equipment or changing setup
After connection turn the equipment on and then switch the TV on.
Select the input mode to HDMI1 or HDMI2 (p. 14), and make sure that an image is displayed
correctly.
Main Menu
VIERA Link
Sound
Setup
Speaker
control
You can control the theatre speaker with TV’s remote control.
This function is available when Panasonic Amplifi er or Player theatre is connected.
•
If you cannot access the menu, check the
settings and the equipment (p. 30).
■
TV
TV speakers are active.
■
Home Cinema
Adjustment for equipment
(automatically turned on if it is in
Standby mode).
Volume up / down
Mute
•
The sound of TV speakers is mute.
•
When the equipment is turned off,
TV speakers will be active.
Easy
control
only with
VIERA
remote
control
•
Example:
•
About the operations for the equipment, read the manual of the equipment.
DVD Recorder DIGA HD Video Camera Player theatre
HDD
FUNCTION MENU
Playback
Recording
Delete
Copy
To Others
ALL
DATE/TIME
2006.12. 1 10:46
8 / 8
Listen
Start
Watch
Import/Record
Setup
Select “VIERA Link” and
set to “On”
Power on
Link
Set to “Set”
When the connected Panasonic equipment starts playback or direct navigator /
function menu for the equipment are activated, the TV is automatically turned on.
(Only when TV is in Standby mode.)
Power off
Link
Set to “Set”
When TV is set to Standby mode, the connected Panasonic equipment is also
automatically set to Standby.
•
This function will work even if the TV enters standby mode automatically by Off Timer
function or auto power standby function.
•
The TV remains on even if the “VIERA Link” compatible equipment is turned off.
Display “VIERA Link Menu”
Select “Speaker Selection”
Set to “Home Cinema”
or “TV”
You can control some functions of the
connected Panasonic equipment with
this TV remote control (point the remote
control at the TV’s signal receiver).
•
If you cannot access the menu, check the
settings and the equipment (p. 30).
Move the cursor /
select the menu
Move the cursor / access /
adjust
Store / Set / Access
Return to the previous
menu
Exit the menu
The same functions with
the OPTION button of the
equipment
Access when the key words
are displayed on colour bar
•
Available VIERA remote control buttons:
(depending on the connected equipment)
Access the menu of the equipment
Display “VIERA Link Menu”
Select the
equipment you
want to access
Operate the menu of the equipment
Select “VIERA Link Control”
select
access
set
select
select
access
select
select
set
select
access
MENU
2/2 Setup Menu
Banner Display Timeout
VIERA Link Settings
Region Select
Daylight Saving Time
Refresh Rate Access
Software License
System Information
3 seconds
Access
NSW / ACT
Auto
100Hz
VIERA Link Menu
VIERA Link Control
Speaker Selection
Recorder
Home Cinema
VIERA Link Menu
VIERA Link Control
Speaker Selection
Recorder
Home Cinema
R G Y B
RETURN
EXIT
OPTION
VOL
MUTE
Page 17
Advanced
•

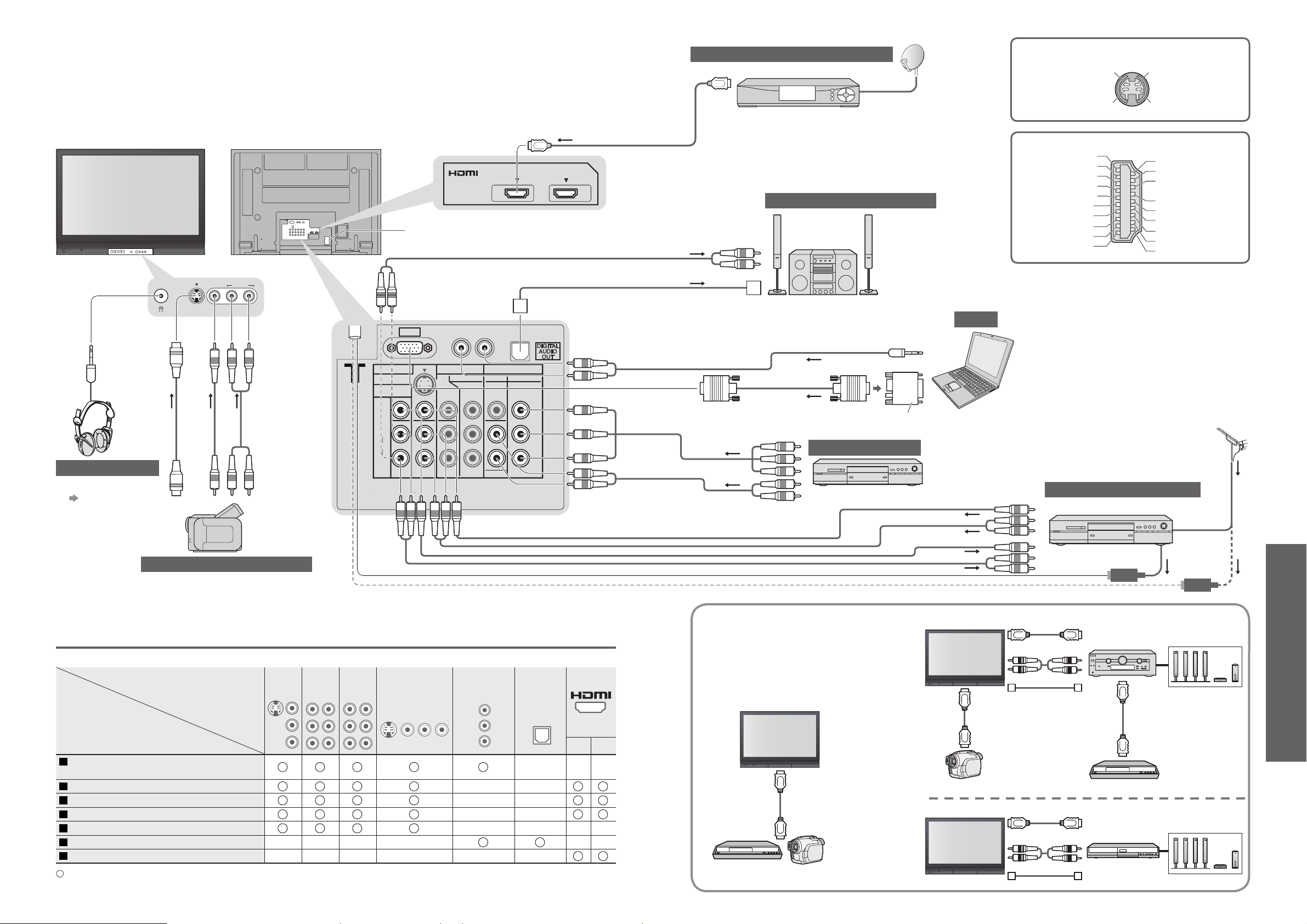

External Equipment
Connector
Recording / Playback
(equipment)
AV1 INAV2 INAV3
IN
AV4 IN
(Front of TV)
MONITOR
OUT
DIGITAL
AUDIO
OUT
12
To record / playback videocassettes / DVDs
(VCR / DVD recorder)
To watch DVDs (DVD player)
To watch camcorder images (Video camera)
To watch satellite broadcasts (Set top box)
To play games (Game equipment)
To use amplifi er with speaker system
VIERA Link
PC
AUDIO
IN
L
R
AV1 IN
MONITOR
OUT
COMPONENT
S VIDEO
AUDIO
VIDEO
COMPONENT
MONOMONOMONO
Y
L
R
Y
PR/C
R
PB/C
B
PR/C
R
PB/C
B
L
R
AUDIO
VIDEO
AV2 IN AV3 IN
S VIDEO
AV4 IN
VIDEO L/MONO-R
AUDIO
AV I N
1 2
32
33
These diagrams show our recommendations for how to connect the TV to your various equipment.
For other connections, consult the instructions for each piece of equipment, the table below, and the
specifi cations (p. 39).
(VIDEO)
or
(S-VIDEO)
(AUDIO)
: Recommended Connection
Headphones
Camcorder / Game equipment
■
Types of connectable equipment to each connector
External Equipment
■
To adjust volume
“Headphone
Volume” in the
Sound Menu
(p. 20)
( M3 stereo
mini plug)
Amplifi er with
speaker system
PC
(Viewing)
(Listening)
To listen with speakers
Conversion adapter (if necessary)
Set top box
DVD Recorder / VCR
RF cable
To watch satellite broadcasts
To record / playback
To watch DVDs
DVD player
Fully wired HDMI
compliant cable
(Viewing)
(Listening)
or
Computer
S VIDEO 4 pin terminal
Chrominance in
Chrominance earth
Luminance in
Luminance earth
Hot Plug Detect
DDC/CEC Ground
SCL
CEC
TMDS Clock Shield
TMDS Data0−
TMDS Data0+
TMDS Data1 Shield
TMDS Data2−
TMDS Data2+
+5V Power
SDA
Reserved (in cable
but N.C. on device)
TMDS Clock−
TMDS Clock+
TMDS Data0 Shield
TMDS Data1−
TMDS Data1+
TMDS Data2 Shield
19
17
15
13
11
9
7
5
3
1
18
16
14
12
10
8
6
4
2
HDMI terminal
•
Connect the S-VIDEO or VIDEO terminal
when using AV1 / AV4 IN terminals.
•
Connect the COMPONENT or VIDEO
terminal when using AV2 / AV3 IN
terminals.
This slot is for services by the Panasonic dealer.
■
Easy playback, Easy control
only with VIERA remote control
■
Home Cinema
Panasonic DVD Recorder,
HD Video Camera, etc.
Panasonic
Amplifi er
Panasonic DVD Recorder
Speaker system
Panasonic
Player theatre
HD Video Camera
•
Use fully wired HDMI compliant cable.
•
Read the manuals of the equipment too.
or
or
VIERA Link (p. 30)
Speaker system
or
Optical digital
audio cable

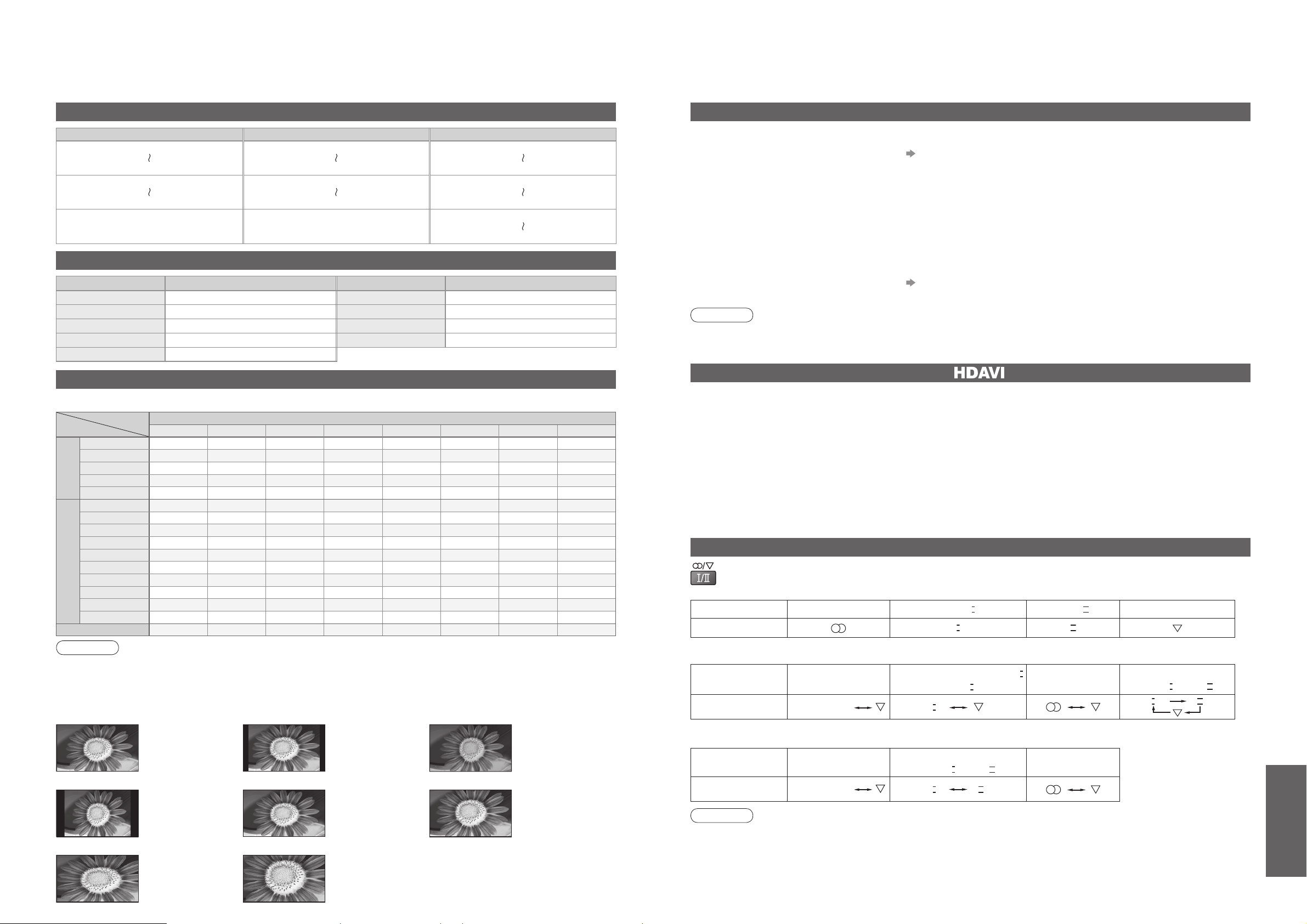

Page 18
FAQs, etc.
•
Technical Information
CH Display / Receive Channel CH Display / Receive Channel CH Display / Receive Channel
CH 0
CH 5
S 6
S 10
CH 10
CH 12
S 2
S 5
CH 6
CH 9
S 11
S 44
CH 5A CH9A
CH 20
CH 75
Signal name
Aspect modes
16:9 14:9 Just 4:3 4:3 Full Zoom1 Zoom2 Zoom3
TV/AV1/AV2/
AV3/AV4
PAL
OOOO
-
OOO
PAL 525/60
OOOO
-
OOO
DVB-T
O
-------
M.NTSC
OOOO
-
OOO
NTSC
OOOO
-
OOO
Component/HDMI
480i (60 Hz)
OOOO
-
OOO
480p (60 Hz)
OOOO
-
OOO
576i (50 Hz)
OOOO
-
OOO
576p (50 Hz)
OOOO
-
OOO
720p (50 Hz)
OOOOOOOO
720p (60 Hz)
OOOOOOOO
1,080i (50 Hz)
OOOOOOOO
1,080i (60 Hz)
OOOOOOOO
1,080p (50 Hz)
OOOOOOOO
1,080p (60 Hz)
OOOOOOOO
PC input
O
--
O
----
Audio Signal STEREO
MAIN
SUB
MONO
Mode Indicator
Type of broadcast
Regular broadcast
(Standard Audio)
Regular + NICAM MONO
(MAIN I )
NICAM STEREO
NICAM DUAL MONO
(MAIN I / SUB II )
Mode Indicator
No Indicator
Type of broadcast
Regular broadcast
(Standard Audio)
BILINGUAL or DUAL MONO:
MAIN I / SUB
STEREO
Mode Indicator
No Indicator
34
35
Technical Information
Channel Allocation (Analogue mode)
Aspect Ratio
Note
•
The ratio varies depending on the programme, etc. If the ratio is greater than the standard "16:9", black bands
may appear at the top and bottom of the screen.
•
If the screen size looks unusual when a widescreen-recorded programme is played back on a VCR, adjust the
tracking of the VCR. (See the VCR manual.)
•
To select the ratio manually: (Only “16:9” or “4:3” in PC mode)
The optimum size and aspect can be chosen, and you can enjoy fi ner images. (p. 11)
16:9
Directly displays
the image at “16:9”
without distortion
(anamorphic).
Zoom3
Displays a “2.35:1” letterbox (anamorphic) image
full-screen without distortion. At “16:9”, displays the
image at its maximum (with slight enlargement).
4:3
Displays the image
at the standard “4:3”
without distortion.
Zoom1
Displays a
“16:9” letterbox or
“4:3” image without
distortion.
Zoom2
Displays a
“16:9” letterbox
(anamorphic) image
full-screen without
distortion.
Just
Displays a 4:3 image
full-screen.
Stretching is only
noticeable at the left
and right edges.
4:3 Full
Displays a
“4:3” image enlarged
horizontally to fi t the
screen.
VIERA Link “ ControlTM”
14:9
Displays the image
at the standard
“14:9” without
enlargement.
•
This function may not work normally depending on the equipment condition.
•
Image or sound may not be available for the fi rst few seconds when the playback starts.
•
Image or sound may not be available for the fi rst few seconds when Input mode is switched.
•
Volume function will be displayed when adjusting the volume of the equipment.
•
If you connect the equipment that has “HDAVI Control 2” function to the TV with HDMI cable, the sound from
DIGITAL AUDIO OUT terminal can be output as multi channel surround.
•
Easy playback is also available by using the remote control for Amplifi er or Player theatre. Read the manuals of the equipment.
•
If you connect the same kind of equipment at once (for example: one DIGA to HDMI1 / another DIGA to HDMI2),
VIERA Link is available for the terminal with the smaller number.
•
“HDAVI Control 2” is the newest standard (current as of February, 2007) for Panasonic’s HDAVI Control
compatible equipment. This standard is compatible with Panasonic’s conventional HDAVI equipment.
HDMI connections to some Panasonic equipment allow you to interface them automatically. (p. 30)
Updating the software system
Note
•
During downloading, do not turn Off the TV or touch any button.
(The TV is automatically activated after downloading is completed.)
Update system software regularly to ensure that you have latest version software.
If there is an update available, a notifi cation banner is displayed when the channel has the update information.
•
To download new software, press “OK” Downloading (approx. 20 min.)
If you choose not to download, press “EXIT”.
■
To update automatically
Set “Auto Update Search in Standby” to “On” (p. 23)
If there is a new version software being broadcast, the TV will download this automatically.
•
The automatic updating sequence is carried out at 3:00 AM and 5:00 AM every night under the following conditions.
Standby (TV turned Off with the remote control)
Recording is not in progress.
■
To update manually
Perform “System Update Search Now” (p. 23)
If there is an update available, a notifi cation banner is displayed.
•
To download new software, press “OK” Downloading (approx. 20 min.)
If you choose not to download, press “EXIT”.
Rating (DVB mode)
Rating Meaning Rating Meaning
- Not classifi ed M Mature
P Pre school MA 15+ Mature Adult 15+
C Children AV 15+ Adult strong Violence 15+
G General R Restricted 18+
PG Parental Guidance recommended
Stereo / Bilingual Sound Selection (Analogue mode)
Note
•
If the stereo signal is poor or the receiving conditions are not optimum or if STEREO:MONO automatic switching
occurs, it is recommended you switch from STEREO to MONO.
•
Even when the contents of the receiving signal undergo changes, selection mode is kept intact.
•
When the receiving conditions deteriorate, listening will be easier if the mode is set to the MONO position, using
the stereo / bilingual sound selection button.
•
DUAL, also known as DUAL MONO or as BILINGUAL is not currently transmitted in some countries.
When you receive the stereo / bilingual sound system, sound output modes can be selected by pressing the
Stereo / Bilingual Sound Selection button.
NICAM .......Used in New Zealand, Singapore, Hong Kong etc.
A2(German) .......Used in Australia, Malaysia etc.
I
I II
I
III
II
I
II
I
II
Page 19
FAQs, etc.
•
Frequently Asked Questions
•
Technical Information
36
37

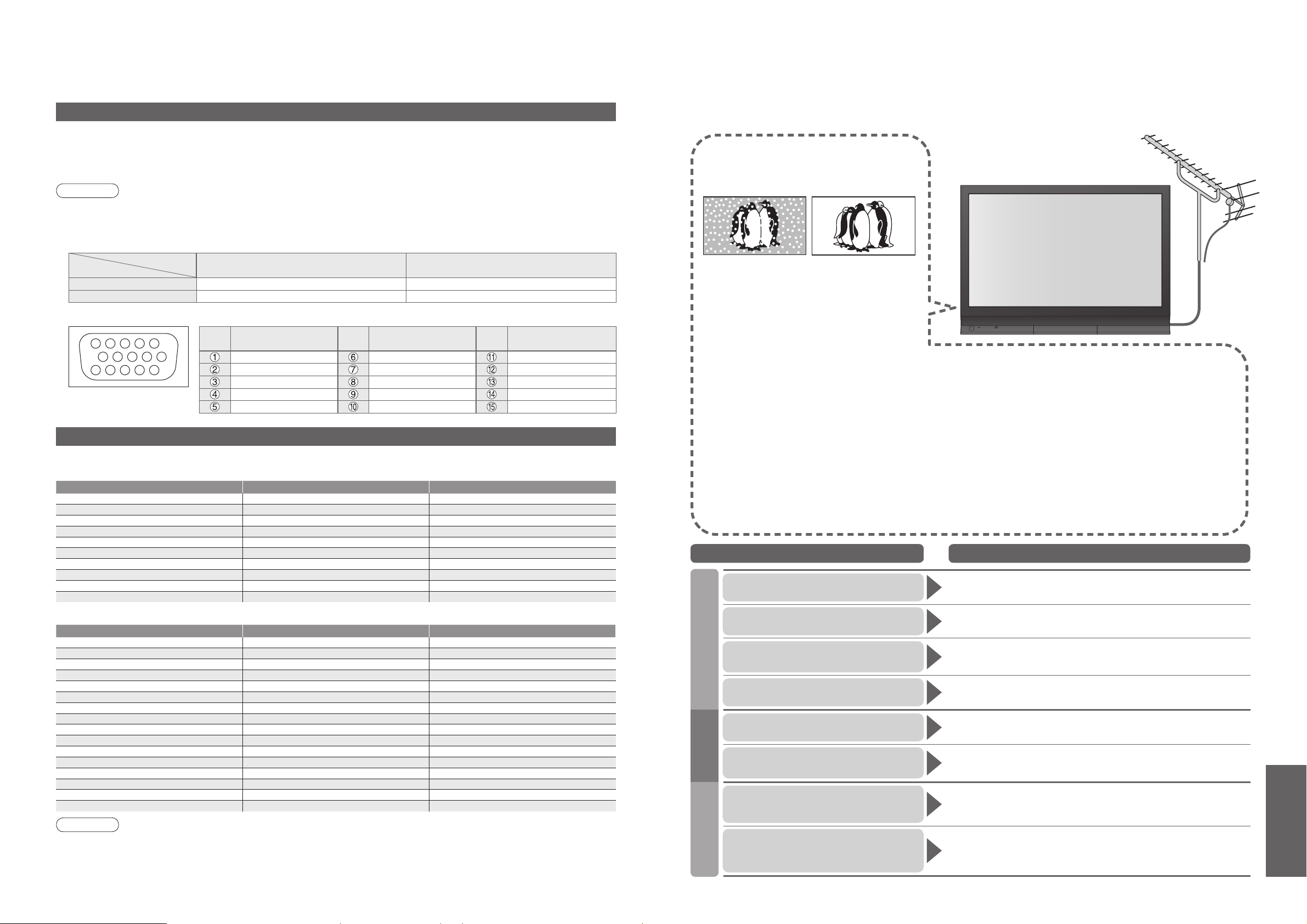

Technical Information
Input signal that can be displayed
Note
•
Signals other than above may not be displayed properly.
•
The above signals are reformatted for optimal viewing on your display.
•
Applicable input signal for PC is basically compatible to VESA standard timing.
•
PC signal is magnifi ed or compressed for display, so that it may not be possible to show fi ne detail
with suffi cient clarity.
Signal name COMPONENT HDMI
480i (60 Hz)
∗∗
480p (60 Hz)
∗∗
576i (50 Hz)
∗∗
576p (50 Hz)
∗∗
720p (50 Hz)
∗∗
720p (60 Hz)
∗∗
1,080i (50 Hz)
∗∗
1,080i (60 Hz)
∗∗
1,080p (50 Hz)
∗
1,080p (60 Hz)
∗
Signal name Horizontal frequency (kHz) Vertical frequency (Hz)
640 × 400 @70 Hz 31.47 70.07
640 × 480 @60 Hz 31.47 59.94
640 × 480 @75 Hz 37.50 75.00
800 × 600 @60 Hz 37.88 60.32
800 × 600 @75 Hz 46.88 75.00
800 × 600 @85 Hz 53.67 85.06
852 × 480 @60 Hz 31.44 59.89
1,024 × 768 @60 Hz 48.36 60.00
1,024 × 768 @70 Hz 56.48 70.07
1,024 × 768 @75 Hz 60.02 75.03
1,024 × 768 @85 Hz 68.68 85.00
1,280 × 1,024 @60 Hz 63.98 60.02
1,366 × 768 @60 Hz 48.39 60.04
Macintosh13” (640 × 480) 35.00 66.67
Macintosh16” (832 × 624) 49.73 74.55
Macintosh21” (1,152 × 870) 68.68 75.06
∗
Mark: Applicable input signal
COMPONENT (Y, PB/CB, PR/CR), HDMI
PC (D-sub 15P)
Pin No.
Signal Name
Pin No.
Signal Name
Pin No.
Signal Name
R GND (Ground) NC (not connected)
G GND (Ground) NC (not connected)
B GND (Ground) HD
NC (not connected) NC (not connected) VD
GND (Ground) GND (Ground) NC (not connected)
PC connection
A PC may be connected to this TV so that the PC screen is displayed and sound is heard from the TV.
•
PC signals that can be inputted: Horizontal scanning frequency 31 to 69 kHz; vertical scanning frequency
59 to 86 Hz (more than 1,024 signal lines could result in incorrect display of the image).
•
A PC adapter is not necessary for the DOS/V-compliant D-sub 15-pin connector.
Note
•
Some PC models cannot be connected to this TV.
•
When using PC, set the colour display quality of PC to the highest position.
•
For details of the applicable PC signals, see below.
•
Max. display resolution
•
D-sub 15-pin connector signal
TH-42PX70A TH-50PX70A
4:3 768 × 768 pixels 1,024 × 768 pixels
16:9 1,024 × 768 pixels 1,366 × 768 pixels
Aspect
Model No.
FAQs
Before requesting service or assistance, please follow these simple guides to resolve the problem.
If problem still persists, please contact your local Panasonic dealer for assistance.
White spots or shadow
images (noise)
•
Check the position, direction, and
connection of the aerial.
Neither image nor
sound is produced
•
Is the TV in “AV mode”?
•
Is the mains lead plugged into the socket
outlet?
•
Is the TV turned On?
•
Check Picture Menu (p. 20) and volume.
An error message
appears
•
Follow the message’s instructions.
•
If the problem persists, contact the
authorized Service Centre.
Permanently lit spots on screen
•
Due to production process involved in this technology
this may result in some pixels which are permanently lit
or unlit. This is not a malfunction.
Contrast is reduced
•
Contrast is lowered when the following conditions without
any user operation for a few minutes:
● no signal in DVB or AV mode
● selected invalid channel
● selected radio channel
● displayed menu
Problem Actions
Screen
No sound is produced
•
Is “Sound mute” active? (p. 7)
•
Is the volume set to the minimum?
Sound level is low
or sound is distorted
•
Sound signal reception may be deteriorated.
Chaotic image, noisy
•
Set “P-NR” in the Picture Menu (to remove noise). (p. 20)
•
Check nearby electrical products (car, motorcycle, fl uorescent lamp).
No image can be displayed
•
Is “Colour” or “Contrast” in the Picture Menu set to the minimum?
(p. 20)
Blurry or distorted image
(no sound or low volume)
•
Reset channels. (p. 24)
Unusual image is displayed
•
Turn off the TV with Mains power On / Off switch, then turn it on
again.
HDMI
Sound is unusual
•
Set the sound setting of the connected equipment to “2ch L.PCM”.
•
Check the “HDMI1 Input” setting in the Sound Menu. (p. 20)
•
If digital sound connection has a problem, select analogue sound
connection. (p. 29)
Pictures from external equipment
are unusual when the equipment
is connected via HDMI
•
Is the HDMI cable connected properly? (p. 32)
•
Turn Off the TV and equipment, then turn them On again.
•
Check an input signal from the equipment. (p. 36)
•
Use an equipment compliant with EIA/CEA-861/861B.
Sound
10
15 14 13 12 11
45
1
2
67839
Page 20
FAQs, etc.
•
Licence
•
Specifi cations
•
Frequently Asked Questions
TH-42PX70A TH-50PX70A
Power Source AC 220-240 V, 50 / 60 Hz
Power
Consumption
Average use 350 W 528 W
Standby condition 0.7 W 0.5 W
Display
panel
Aspect Ratio 16:9
Visible screen size
106 cm (diagonal) 127 cm (diagonal)
922 mm (W) × 518 mm (H) 1,106 mm (W) × 622 mm (H)
Number of pixels
786,432 (1,024 (W) × 768 (H))
[3,072 × 768 dots]
1,049,088 (1,366 (W) × 768 (H))
[4,098 × 768 dots]
Sound
Speaker 120 mm × 60 mm × 2 pcs, 8
Ω
Audio Output 20 W (10 W + 10 W ), 10% THD
Headphones M3 (3.5 mm) stereo mini Jack × 1
PC signals
VGA, SVGA, XGA
SXGA ······ (compressed)
Horizontal scanning frequency 31 - 69 kHz
Vertical scanning frequency 59 - 86 Hz
Receiving Systems /
Band name
PAL B/G Reception of Off air broadcasts
DVB-T 7 MHz VHF / UHF (Australia) free-to-air TV broadcast reception
PAL 60 Hz Playback of NTSC tape from some PAL Video recorders (VCR)
M.NTSC Playback from M. NTSC Video recorders (VCR)
NTSC Playback from NTSC Video recorders (VCR)
Aerial - Rear Standard Belling & Lee connector
Operating Conditions
Temperature : 0 °C - 35 °C
Humidity : 20 % - 80 % RH (non-condensing)
Connection Terminals
AV1
Input
AUDIO L - R RCA PIN Type × 2 0.5 V[rms]
VIDEO RCA PIN Type × 1 1.0 V[p-p] (75 Ω)
S VIDEO Mini DIN 4-pin Y:1.0 V[p-p] (75 Ω) C:0.286 V[p-p] (75 Ω)
AV2
Input
AUDIO L - R RCA PIN Type × 2 0.5 V[rms]
VIDEO RCA PIN Type × 1 1.0 V[p-p] (75 Ω)
COMPONENT
Y 1.0 V[p-p] (including synchronization)
PB/CB, PR/CR ±0.35 V[p-p]
AV3
Input
AUDIO L - R RCA PIN Type × 2 0.5 V[rms]
VIDEO RCA PIN Type × 1 1.0 V[p-p] (75 Ω)
COMPONENT
Y 1.0 V[p-p] (including synchronization)
PB/CB, PR/CR ±0.35 V[p-p]
AV4
Input
AUDIO L - R
RCA PIN Type × 2 0.5 V[rms]
VIDEO
RCA PIN Type × 1 1.0 V[p-p] (75 Ω)
S VIDEO
Mini DIN 4-pin Y:1.0 V[p-p] (75 Ω) C:0.286 V[p-p] (75 Ω)
Monitor
Output
AUDIO L - R
RCA PIN Type × 2 0.5 V[rms] (high impedance)
VIDEO
RCA PIN Type × 1 1.0 V[p-p] (75 Ω)
Others
HDMI1 / 2 Input
TYPE A Connectors
•
This TV supports “HDAVI Control 2” function.
PC Input
HIGH-DENSITY D-SUB 15PIN R, G, B/0.7 V[p-p] (75 Ω)
HD, VD/TTL Level 2.0 - 5.0 V[p-p] (high impedance)
Audio Input
RCA PIN Type × 2 0.5 V[rms]
DIGITAL AUDIO OUT
PCM / Dolby Digital, Fiber optic
Dimensions ( W × H × D )
1,020 mm × 750 mm × 320 mm (With Pedestal)
1,020 mm × 705 mm × 94 mm (TV only)
1,210 mm × 864 mm × 370 mm (With Pedestal)
1,210 mm × 818 mm × 94 mm (TV only)
Mass
30.0 k Net (With Pedestal)
28.0 k Net (TV only)
40.0 k Net (With Pedestal)
38.0 k Net (TV only)
38
39

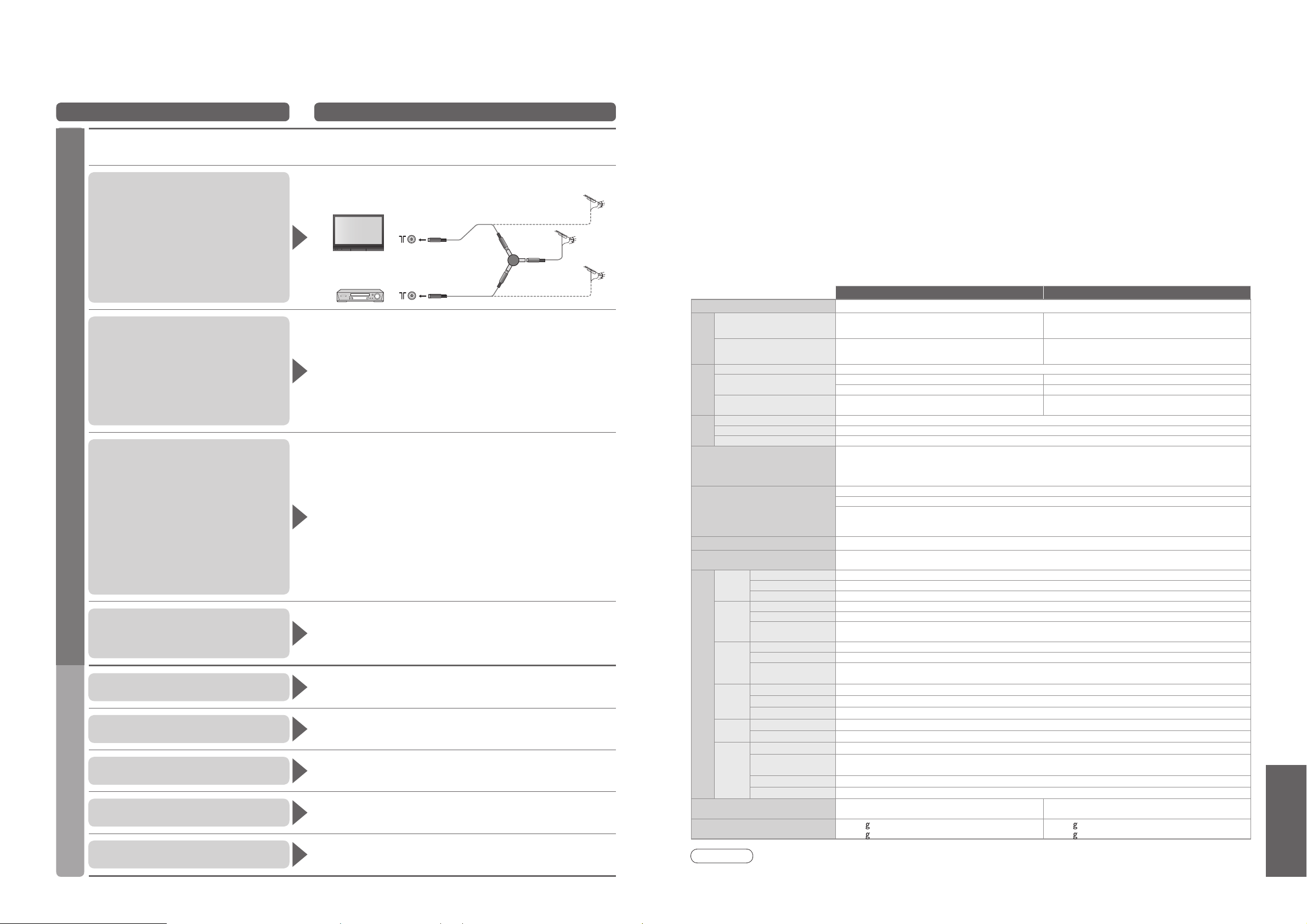

Problem Actions
After DVB Auto Tuning only
some or no DVB channels are
found
•
Check to ensure your area is covered by DVB transmissions.
(www.dba.org.au/)
•
Check that the aerial and antenna cable are designed for DVB.
For your safety, the aerial and cable should be inspected / installed by a
licenced installer that should comply with Australian Standard AS1417.1.
Note: If you live within 5-10 Km of DVB transmission towers, a
combined VHF / UHF aerial should be adequate. Outside this area,
separate VHF and UHF aerials provide superior reception performance.
•
If you live in a unit or apartment, check to ensure the Master
Antenna TV (MATV) system is designed for analogue and DVB-T
reception. Please consult your body corporate. (www.dba.org.au/)
Aerial connection when using
DTV and VCR / DVD Recorder
•
To maintain optimum signal quality from TV aerial, use a TV aerial splitter
(as illustrated) when connecting two or more equipments to the same aerial.
TV
VCR
(Individual aerial)
(Individual aerial)
Aerial
Input
terminal
Splitter
Aerial Output
Aerial Input
Aerial Output
DVB
•
Digital TV reception technology requires high quality, robust DTV signals which in some domestic aerial
installations, may be relatively poor despite good analogue reception.
Other
FAQs
Picture very infrequently
breaks up on some or all
channels
•
Electrical atmospheric interference caused by local or distant
lighting storms or heavy rain with wind in “leafy” locations may
cause pictures to break up and audio to mute or distort momentarily.
•
Impulse noise interference from an infrequently used electrical appliance,
or a passing vehicle or lawn mower with a “noisy” ignition system.
The remote control does not work
•
Are the batteries installed correctly? (p. 6)
•
Has the TV been switched On?
TV goes into “Standby mode”
•
Off Timer function is activated.
•
The TV enters “Standby mode” about 30 min. after broadcasting ends.
The channel cannot be selected
•
Is the channel locked? (p. 25)
The channel cannot be changed
•
Is the TV in Teletext mode? (p. 16)
TV takes so long to turn on
•
Like your computer, the TV has to run a number of diagnostic and
software checks before it can display any broadcast channels.
Picture regularly breaks up on
some channels, or
“No Signal” message
•
Check “Signal Display”. (p. 25)
If “Signal Quality” or “Signal Strength” are displayed in red or
constantly changing, check aerial.
If problem persists consult your local TV aerial installer.
•
Check that the aerial and antenna cable are designed for DVB.
For your safety, the aerial and cable should be inspected / installed by a
licenced installer that should comply with Australian Standard AS1417.1.
•
Interference (known as impulse noise) from household appliances
such as light switches, fridges etc may cause picture break up and /
or audio distortion. Use high quality quad shielded coaxial cable fl y
lead between TV and antenna wall socket to minimise impulse noise
pickup. If problem persists consult your local TV aerial installer.
•
When “No Signal” message is displayed check TV aerial connection.
•
The received signal may be too weak to allow the TV to reliably lock to the
desired “No Signal” channel to generate a stable picture. Repeat the tuning
procedure (p. 24). If problem persists consult your local TV aerial installer.
Licence
Trademark Credits
•
DVB is a trademark of the DVB Digital Video Broadcasting Project (1991 to 1996).
•
VGA is a trademark of International Business Machines Corporation.
•
Macintosh is a registered trademark of Apple Computer, USA.
•
S-VGA is a registered trademark of the Video Electronics Standard Association.
Even if no special notation has been made of company or product trademarks, these trademarks have been fully respected.
•
HDMI, the HDMI Logo and High-Defi nition Multimedia Interface are trademarks or registered trademarks of HDMI
Licensing LLC.
•
HDAVI ControlTM is a trademark of Matsushita Electric Industrial Co., Ltd.
•
Manufactured under license from Dolby Laboratories.
Dolby and the double-D symbol are trademarks of Dolby Laboratories.
Specifi cations
Note
•
Design and Specifi cations are subject to change without notice. Weight and Dimensions shown are approximate.
Loading...
