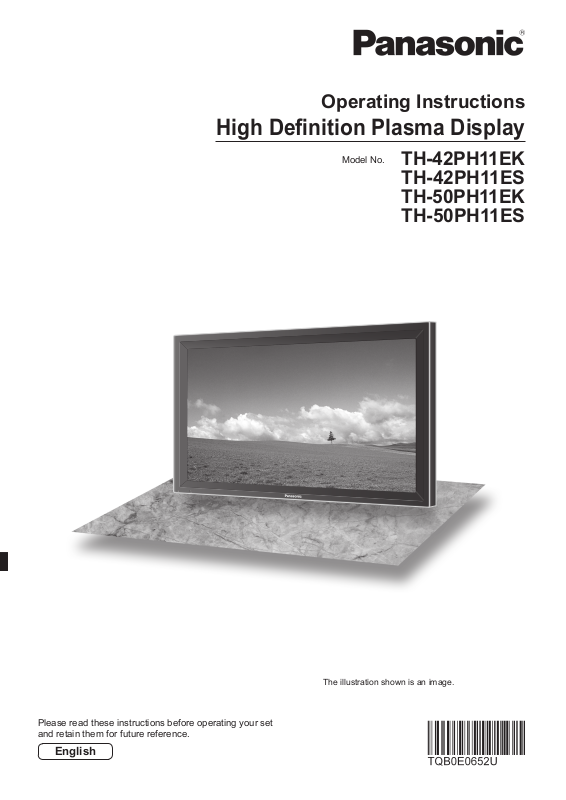

Page 1
Operating Instructions
High Defi nition Plasma Display
Model No.
TH-42PH11EK
TH-42PH11ES
TH-50PH11EK
TH-50PH11ES
Please read these instructions before operating your set
and retain them for future reference.
English
The illustration shown is an image.
Page 2
Dear Panasonic Customer
Welcome to the Panasonic family of customers. We hope that you will have many years of
enjoyment from your new Plasma Display.
To obtain maximum benefit from your set, please read these Instructions before making
any adjustments, and retain them for future reference.
Retain your purchase receipt also, and note down the model number and serial number of
your set in the space provided on the rear cover of these instructions.
Visit our Panasonic Web Site http://panasonic.net
Table of Contents
Important Safety Notice ........................................... 3
Safety Precautions ................................................... 4
Accessories .............................................................. 7
Accessories Supply ................................................. 7
Remote Control Batteries ........................................ 7
Connections .............................................................. 8
PC Input Terminals connection ................................ 9
SERIAL Terminals connection ............................... 10
AV connection ....................................................... 11
Power On / Off ......................................................... 12
Initial selections ..................................................... 14
Selecting the input signal ...................................... 14
Selecting the On-Screen Menu Language ............ 14
Basic Controls ........................................................ 15
ASPECT Controls ................................................... 17
MULTI PIP ................................................................ 18
Advanced PIP ........................................................ 19
Digital Zoom ............................................................ 20
On-Screen Menu Displays ..................................... 21
Adjusting Pos. /Size ............................................... 22
Picture Adjustments ............................................... 23
Advanced settings ................................................. 24
Sound Adjustment .................................................. 25
SDI sound Output .................................................. 25
PRESENT TIME Setup / Set up TIMER .................. 26
PRESENT TIME Setup .......................................... 26
Set up TIMER ........................................................ 26
Screensaver (For preventing image retention) .... 27
Setup of Screensaver Time ................................... 27
Reduces screen image retention ........................... 28
Side Panel Adjustment .......................................... 28
Reduces power consumption ............................... 29
Customizing the Input labels ................................. 30
Display orientation ................................................. 30
Setup for MULTI DISPLAY ...................................... 31
How to Setup MULTI DISPLAY ............................. 31
ID Remote Control Function .................................. 32
Setup for Input Signals .......................................... 33
Component / RGB-in select ................................... 33
YUV / RGB-in select .............................................. 33
Signal menu .......................................................... 34
3D Y/C Filter .......................................................... 34
Colour system / Panasonic Auto ........................... 35
Cinema reality ....................................................... 35
XGA Mode ............................................................. 35
Noise reduction ..................................................... 36
Sync ...................................................................... 37
Input signal display ................................................ 37
Options Adjustments ............................................. 38
Weekly Command Timer ....................................... 41
Shipping condition ................................................. 42
Troubleshooting ..................................................... 43
List of Aspect Modes ............................................. 44
VIDEO/PC input signals ......................................... 45
Command list of Weekly Command Timer. .......... 46
Specifi cations ......................................................... 47
Trademark Credits
• VGA is a trademark of International Business Machines Corporation.
• Macintosh is a registered trademark of Apple Computer, USA.
• SVGA, XGA, SXGA and UXGA are registered trademarks of the video Electronics Standard Association.
Even if no special notation has been made of company or product trademarks, these trademarks have been fully respected.
Note:
Do not allow a still picture to be displayed for an extended period, as this can cause a permanent image retention
to remain on the Plasma Display.
Examples of still pictures include logos, video games, computer images, teletext and images displayed in 4:3 mode.
2
Page 3
Important Safety Notice
IMPORTANT: THE MOULDED PLUG
WARNING
1) To prevent damage which may result in fi re or shock hazard, do not expose this appliance to dripping
or splashing.
Do not place containers with water (fl ower vase, cups, cosmetics, etc.) above the set. (including on
shelves above, etc.)
No naked fl ame sources, such as lighted candles, should be placed on / above the set.
2) To prevent electric shock, do not remove cover. No user serviceable parts inside. Refer servicing to qualifi ed
service personnel.
3) Do not remove the earthing pin on the power plug. This apparatus is equipped with a three pin earthing-type
power plug. This plug will only fi t an earthing-type power outlet. This is a safety feature. If you are unable to
insert the plug into the outlet, contact an electrician.
Do not defeat the purpose of the earthing plug.
4) To prevent electric shock, ensure the earthing pin on the AC cord power plug is securely connected.
CAUTION
This appliance is intended for use in environments which are relatively free of electromagnetic fi elds.
Using this appliance near sources of strong electromagnetic fi elds or where electrical noise may overlap with the
input signals could cause the picture and sound to wobble or cause interference such as noise to appear.
To avoid the possibility of harm to this appliance, keep it away from sources of strong electromagnetic fi elds.
FOR YOUR SAFETY, PLEASE READ THE FOLLOWING TEXT CAREFULLY.
This display is supplied with a moulded three pin mains plug for your safety and convenience. A 10 amp fuse is
fi tted in this plug. Shall the fuse need to be replaced, please ensure that the replacement fuse has a rating of 10
amps and that it is approved by ASTA or BSI to BS1362.
Check for the ASTA mark
If the plug contains a removable fuse cover, you must ensure that it is refi tted when the fuse is replaced.
If you lose the fuse cover the plug must not be used until a replacement cover is obtained.
A replacement fuse cover can be purchased from your local Panasonic dealer.
Do not cut off the mains plug.
Do not use any other type of mains lead except the one supplied with this display.
The supplied mains lead and moulded plug are designed to be used with this display to avoid
interference and for your safety.
If the socket outlet in your home is not suitable, get it changed by a qualifi ed electrician.
If the plug or mains lead becomes damaged, purchase a replacement from an authorized dealer.
WARNING : — THIS DISPLAY MUST BE EARTHED.
How to replace the fuse.
IMPORTANT: THE MOULDED PLUG
or the BSI mark on the body of the fuse.
ASA
Open the fuse compartment with a screwdriver and replace the fuse.
3
Page 4
Safety Precautions
WARNING
Setup
This Plasma Display is for use only with the following optional accessories. Use with any other type of optional
accessories may cause instability which could result in the possibility of injury.
(All of the following accessories are manufactured by Matsushita Electric Industrial Co., Ltd.)
• Speakers ......................................................
• Pedestal ....................................................... TY-ST07-K (for TH-42PH11EK), TY-ST07-S (for TH-42PH11ES),
• Mobile stand ................................................. TY-ST42PF3 (for TH-42PH11EK/S),
TY-ST58PF10 (for TH-42PH11EK/S, TH-50PH11EK/S)
• Wall-hanging bracket (vertical) ..................... TY-WK42PV7
• Wall-hanging bracket (angled) ..................... TY-WK42PR7
• Wall-hanging bracket (drawer type) ............. TY-WK42DR1
• Ceiling-hanging bracket ...............................TY-CE42PS7
• BNC Component Video Terminal Board ....... TY-42TM6A
• BNC Composite Video Terminal Board ........TY-42TM6B
• BNC Dual Video Terminal Board .................. TY-FB9BD
• RCA Component Video Terminal Board .......TY-42TM6Z
• RCA Composite Video Terminal Board ........TY-42TM6V
• RGB (Digital) Terminal Board ....................... TY-42TM6D
• RGB Active Through Terminal Board ...........TY-42TM6G
• PC Input Terminal Board ..............................TY-42TM6P
•
Composite / Component Video Terminal Board
• SDI Terminal Board ......................................TY-FB7SD
• HD-SDI Terminal Board ................................ TY-FB9HD
• HD-SDI Terminal Board with audio ..............TY-FB10HD
• HDMI Terminal Board ................................... TY-FB8HM
• Dual HDMI Terminal Board ..........................TY-FB10HMD
• Scart Terminal Board .................................... TY-FB8SC
• Ir Through Terminal Board ...........................TY-FB9RT
• U/V Tuner Board with Hospitality Port .......... TY-FB9TE (for TH-50PH11EK/S)
• Set Up Loader ..............................................TY-RM09SL (for TH-50PH11EK/S)
• DVI-D Terminal Board .................................. TY-FB11DD
• Wireless Presentation Board ........................ TY-FB10WPE
• AV Terminal Box ........................................... TY-TB10AV
• Touch Panel .................................................
∗
Except for UK and Ireland.
TY-SP42P8W-K (for TH-42PH11EK), TY-SP42P8W-S (for TH-42PH11ES),
TY-SP50P8W-K (for TH-50PH11EK), TY-SP50P8W-S (for TH-50PH11ES)
TY-ST08-K (for TH-42PH11EK, TH-50PH11EK),
TY-ST08-S (for TH-42PH11ES, TH-50PH11ES)
.. TY-42TM6Y
∗
∗
TY-TP50P10S (for TH-50PH11EK/S), TY-TP42P10S (for TH-42PH11EK/S)
Always be sure to ask a qualifi ed technician to carry out set-up.
Small parts can present choking hazard if accidentally swallowed. Keep small parts away from young children. Discard
unneeded small parts and other objects, including packaging materials and plastic bags/sheets to prevent them from
being played with by young children, creating the potential risk of suffocation.
Do not place the Plasma Display on sloped or unstable surfaces.
• The Plasma Display may fall off or tip over.
Do not place any objects on top of the Plasma Display.
• If water is spills onto the Plasma Display or foreign objects get inside it, a short-circuit may occur which could result
in fi re or electric shock. If any foreign objects get inside the Plasma Display, please consult your local Panasonic
dealer.
Transport only in upright position!
• Transporting the unit with its display panel facing upright or downward may cause damage to the internal
circuitry.
4
Page 5
Safety Precautions
Ventilation should not be impleded by covering the ventilation openings with items such as newspapers, table
cloths and curtains.
For suffi cient ventilation;
If using the pedestal (optional accessory), leave a space of 10 cm or more at the top, left and right, and 7 cm
or more at the rear, and also keep the space between the bottom of the display and the fl oor surface.
If using some other setting-up method, follow the manual of it. (If there is no specifi c indication of installation
dimension in the installation manual, leave a space of 10 cm or more at the top, bottom, left and right, and 7 cm
or more at the rear.)
When using the Plasma Display
The Plasma Display is designed to operate on 220 - 240 V AC, 50/60 Hz.
Do not cover the ventilation holes.
• Doing so may cause the Plasma Display to overheat, which can cause fi re or damage to the Plasma Display.
Do not stick any foreign objects into the Plasma Display.
• Do not insert any metal or fl ammable objects into the ventilations holes or drop them onto the Plasma Display, as
doing so can cause fi re or electric shock.
Do not remove the cover or modify it in any way.
• High voltages which can cause severe electric shocks are present inside the Plasma Display. For any inspection,
adjustment and repair work, please contact your local Panasonic dealer.
Ensure that the mains plug is easily accessible.
An apparatus with CLASS I construction shall be connected to a mains socket outlet with a protective earthing connection.
Do not use any power supply cord other than that provided with this unit.
• Doing so may cause fi re or electric shocks.
Securely insert the power supply plug as far as it will go.
• If the plug is not fully inserted, heat may be generated which could cause fi re. If the plug is damaged or the wall
socket is loose, they shall not be used.
Do not handle the power supply plug with wet hands.
• Doing so may cause electric shocks.
Do not do anything that may damage the power cable. When disconnecting the power cable, pull on the plug body, not the cable.
• Do not damage the cable, make any modifi cations to it, place heavy objects on top of it, heat it, place it near any
hot objects, twist it, bend it excessively or pull it. To do so may cause fi re and electric shock. If the power cable is
damaged, have it repaired at your local Panasonic dealer.
If the Plasma Display is not going to be used for any prolonged length of time, unplug the power supply plug
from the wall outlet.
If problems occur during use
If a problem occurs (such as no picture or no sound), or if smoke or an abnormal odour starts to come out
from the Plasma Display, immediately unplug the power supply plug from the wall outlet.
• If you continue to use the Plasma Display in this condition, fi re or electric shock could result. After checking that
the smoke has stopped, contact your local Panasonic dealer so that the necessary repairs can be made. Repairing
the Plasma Display yourself is extremely dangerous, and shall never be done.
If water or foreign objects get inside the Plasma Display, if the Plasma Display is dropped, or if the cabinet
becomes damages, disconnect the power supply plug immediately.
•
A short circuit may occur, which could cause fi re. Contact your local Panasonic dealer for any repairs that need to be made.
5
Page 6
Safety Precautions
CAUTION
When using the Plasma Display
Do not bring your hands, face or objects close to the ventilation holes of the Plasma Display.
• Heated air comes out from the ventilation holes at the top of Plasma Display will be hot. Do not bring your hands
or face, or objects which cannot withstand heat, close to this port, otherwise burns or deformation could result.
Be sure to disconnect all cables before moving the Plasma Display.
• If the Plasma Display is moved while some of the cables are still connected, the cables may become damaged,
and fi re or electric shock could result.
Disconnect the power supply plug from the wall socket as a safety precaution before carrying out any
cleaning.
• Electric shocks can result if this is not done.
Clean the power cable regularly to prevent it becoming dusty.
• If dust built up on the power cord plug, the resultant humidity can damage the insulation, which could result in fi re.
Pull the power cord plug out from the wall outlet and wipe the mains lead with a dry cloth.
This Plasma Display radiates infrared rays, therefore it may affect other infrared communication equipment.
Install your infrared sensor in a place away from direct or refl ected light from your Plasma Display.
Cleaning and maintenance
The front of the display panel has been specially treated. Wipe the panel surface gently using only a cleaning
cloth or a soft, lint-free cloth.
• If the surface is particularly dirty, wipe with a soft, lint-free cloth which has been soaked in pure water or water in
which neutral detergent has been diluted 100 times, and then wipe it evenly with a dry cloth of the same type until
the surface is dry.
• Do not scratch or hit the surface of the panel with fi ngernails or other hard objects, otherwise the surface may
become damaged. Furthermore, avoid contact with volatile substances such as insect sprays, solvents and thinner,
otherwise the quality of the surface may be adversely affected.
If the cabinet becomes dirty, wipe it with a soft, dry cloth.
• If the cabinet is particularly dirty, soak the cloth in water to which a small amount of neutral detergent has been
added and then wring the cloth dry. Use this cloth to wipe the cabinet, and then wipe it dry with a dry cloth.
• Do not allow any detergent to come into direct contact with the surface of the Plasma Display. If water droplets get
inside the unit, operating problems may result.
• Avoid contact with volatile substances such as insect sprays, solvents and thinner, otherwise the quality of the
cabinet surface may be adversely affected or the coating may peel off. Furthermore, do not leave it for long periods
in contact with articles made from rubber or PVC.
6
Page 7
Accessories
Accessories Supply
Check that you have the accessories and items shown
Operating Instruction book
Power supply cord Fixing band × 1
Remote Control
Transmitter
N2QAYB000178
Batteries for the Remote
Control Transmitter
(2 × R6 (UM3) Size)
Remote Control Batteries
Requires two R6 batteries.
1. Pull and hold the hook, then open
the battery cover.
2. Insert batteries - note correct
polarity ( + and -).
“R6 (UM3)” size
-
+
+
-
3. Replace the cover.
Helpful Hint:
For frequent remote control users, replace old batteries with Alkaline
batteries for longer life.
Precaution on battery use
Incorrect installation can cause battery leakage and corrosion that will damage the remote control transmitter.
Disposal of batteries should be in an environment-friendly manner.
Observe the following precaution:
1. Batteries shall always be replaced as a pair. Always use new batteries when replacing the old set.
2. Do not combine a used battery with a new one.
3. Do not mix battery types (example: “Zinc Carbon” with “Alkaline”).
4. Do not attempt to charge, short-circuit, disassemble, heat or burn used batteries.
5.
Battery replacement is necessary when remote control acts sporadically or stops operating the Plasma Display set.
6. Do not burn or breakup batteries.
Batteries must not be exposed to excessive heat such as sunshine, fi re or the like.
7
Page 8
Connections
When connecting the speakers, be sure to use only the optional accessory speakers.
Refer to the speaker’s Installation Manual for details on speaker installation.
(Example: TH-50PH11EK)
Speakers (Optional accessories)
1
2
1
Speaker
Speaker
terminal (R)
terminal (L)
AC cord connection (see page 12)
2
– AC cord fi xing
Unplug the AC cord
Unplug the AC cord
pressing the two
knobs.
Note:
When disconnecting the AC cord, be
absolutely sure to disconnect the AC
cord plug at the socket outlet fi rst.
2
Note:
Make sure that the AC cord
is locked on both the left and
right sides.
1
Plug the AC cord into
1
the display unit.
Plug the AC cord until
it clicks.
2
Fix the AC cord with
the clamper which
is atttached to the
unit.
Close
Push until
the hook
clicks.
Open
2. Pull off.
1. Keep the
knob pressed.
– Cable fi xing band
Secure any excess cables with band as required.
Note:
One fi xing band is supplied with this unit. In case of securing cables at two positions, please purchase it separately.
Pass the attached cable
fi xing band through the clip
as shown in the fi gure.
To secure cables connected to Terminals, wrap the cable fi xing band around them
then pass the pointed end through the locking block, as shown in the fi gure.
While ensuring there is suffi cient slack in cables to minimize stress (especially
in the power cord), fi rmly bind all cables with the supplied fi xing band.
To tighten: To loosen:
1
RL
AUDIO
Dual Video Terminals (equivalent
of BNC Dual Video Terminal Board
(TY-FB9BD)) (see page 11)
RL
AUDIO
S VIDEO
AV I NBA
SLOT1
2
VIDEO
SLOT2 SLOT3
Optional Terminal
Board Insert Slot
(covered)
Note: Terminal board is installed in SLOT 1 at factory shipment.
8
Pull
From EXTERNAL
monitor terminal on
Computer (see page 9)
Push the catch
Pull
AUDIO
SERIALPC IN
From SERIAL Terminal
on Computer
(see page 10)
Page 9
PC Input Terminals connection
COMPUTER
Conversion adapter
(if necessary)
RGB
PC cable
Connections
(Female)
AUDIO
PC IN
Mini D-sub 15p
(Male)
Audio
Connect a cable which matches
the audio output terminal on the computer.
Stereo plug
Notes:
• Computer signals which can be input are those with a horizontal scanning frequency of 15 to 110 kHz and vertical scanning
frequency of 48 to 120 Hz. (However, the image will not be displayed properly if the signals exceed 1,200 lines.)
• The display resolution is a maximum of 768 × 768 dots (TH-42PH11EK/S), 1,024 × 768 dots (TH-50PH11EK/S) when
the aspect mode is set to “4:3”, and 1,024 × 768 dots (TH-42PH11EK/S), 1,366 × 768 dots (TH-50PH11EK/S) when
the aspect mode is set to “16:9”. If the display resolution exceeds these maximums, it may not be possible to show
fi ne detail with suffi cient clarity.
• The PC input terminals are DDC2B-compatible. If the computer being connected is not DDC2B-compatible, you will
need to make setting changes to the computer at the time of connection.
• Some PC models cannot be connected to the set.
• There is no need to use an adapter for computers with DOS/V compatible Mini D-sub 15P terminal.
• The computer shown in the illustration is for example purposes only.
• Additional equipment and cables shown are not supplied with this set.
• Do not set the horizontal and vertical scanning frequencies for PC signals which are above or below the specifi ed
frequency range.
• Component Input is possible with the pin 1, 2, 3 of the Mini D-sub 15P Connector.
• To use sync input VBS signals, use the connector which incorporates a 75-ohm termination resistance and which is
available on the market, for the connection of the HD connector where the VBS signals are to be input.
• Change the “Component/RGB-in select” setting in the “Setup” menu to “Component”
(when Component signal connection) or “RGB” (when RGB signal connection). (see page 33)
Signal Names for Mini D-sub 15P Connector
Pin No. Signal Name Pin No. Signal Name Pin No. Signal Name
45
10
15 14 13 12 11
Pin Layout for PC Input
Terminal
1
2
67839
1
2
3
4
5
R (PR/CR)
B (PB/CB)
NC (not connected)
GND (Ground)
G (Y)
6
7
8
9
10
GND (Ground)
GND (Ground)
GND (Ground)
+5 V DC
GND (Ground)
11
NC (not connected)
12
13
14
15
HD/SYNC
SDA
VD
SCL
9
Page 10
Connections
SERIAL Terminals connection
The SERIAL terminal is used when the Plasma Display is controlled by a computer.
COMPUTER
RS-232C Straight cable
(Female)
D-sub 9p
Notes:
• Use the RS-232C straight cable to connect the computer to the Plasma Display.
• The computer shown is for example purposes only.
• Additional equipment and cables shown are not supplied with this set.
The SERIAL terminal conforms to the RS-232C interface
specifi cation, so that the Plasma Display can be controlled
Signal names for D-sub 9P connector
by a computer which is connected to this terminal.
The computer will require software which allows the
sending and receiving of control data which satisfies
the conditions given below. Use a computer application
such as programming language software. Refer to the
documentation for the computer application for details.
Communication parameters
Signal level RS-232C compliant
Synchronization method Asynchronous
Baud rate 9600 bps
Parity None
Character length 8 bits
Stop bit 1 bit
Flow control -
Basic format for control data
These signal names are those of computer specifi cations.
Command
Command Parameter Control details
PON None Power ON
POF None Power OFF
AVL ** Volume 00 - 63
AMT
IMS None
The transmission of control data from the computer
starts with a STX signal, followed by the command, the
parameters, and lastly an ETX signal in that order. If there
are no parameters, then the parameter signal does not
need to be sent.
STX C1 C2 C3 P1 P2 P3 P4:P5ETX
Start
(02h)
Colon Parameter(s)
3-character
command (3 bytes)
(1 - 5 bytes)
End
(03h)
DAM None
Notes:
• If multiple commands are transmitted, be sure to wait for
the response for the fi rst command to come from this unit
before sending the next command.
• If an incorrect command is sent by mistake, this unit will
send an “ER401” command back to the computer.
• SL1A, SL1B, SL2A and SL2B of Command IMS are
available only when a dual input terminal board is
attached.
With the power off, this display responds to PON command
only.
(Male)
SERIAL
Pin No. Details
2
3
5
4
6
•
7
8
1
9
•
0 Audio MUTE OFF
1 Audio MUTE ON
SL1
SL2
SL3
PC1
SL1A
SL1B
SL2A
SL2B
ZOOM
FULL
JUST
NORM
SELF
ZOM2
ZOM3
SJST
SNOM
SFUL
14:9
13452
6789
Pin layout for SERIAL Terminal
R X D
T X D
GND
Non use
(Shorted in this set)
NC
Input select (toggle)
Slot1 input
Slot2 input
Slot3 input
PC input
Slot1 input (INPUT1A)
Slot1 input (INPUT1B)
Slot2 input (INPUT2A)
Slot2 input (INPUT2B)
Screen mode select (toggle)
Zoom1
16:9
Just
4:3
Panasonic Auto
Zoom2
Zoom3
Just
4:3
4:3 Full
14:9
10
Page 11
Connections
AV connection
This unit has a terminal board equivalent to BNC Dual Video Terminal Board (TY-FB9BD) as standard equipment.
Example of input signal source
S VIDEO VCR
R L
AUDIO
R L
AUDIO
S VIDEO
AV IN
B A
SLOT1
VIDEO
CAMCORDER
VCR
R L
AUDIO
OUT
S VIDEO
OUT
R L
AUDIO
OUT
VIDEO
OUT
Note:
Additional equipment, cables and adapter plugs shown are not supplied with this set.
SLOT3 SLOT2
PC IN
11
Page 12
Power On / Off
Connecting the AC cord plug to the Plasma Display.
Fix the AC cord plug securely to the Plasma Display
with the clamper. (see page 8)
Connecting the plug to the Wall Outlet
Notes:
• Main plug types vary between countries. The power
plug shown at right may, therefore, not be the type
fi tted to your set.
• When disconnecting the AC cord, be absolutely
sure to disconnect the AC cord plug at the socket
outlet fi rst.
INPUT MENU ENTER/+/VOL-/
Power Indicator
Press the Power switch on the Plasma Display to
turn the set on: Power-On.
Power Indicator: Green
Press the
Power Indicator: Red (standby)
Press the button on the remote control to turn the Plasma Display on.
Power Indicator: Green
Turn the power to the Plasma Display off by pressing the switch on the
unit, when the Plasma Display is on or in standby mode.
Note:
During operation of the power management function, the power indicator turns
orange in the power off state.
button on the remote control to turn the Plasma Display off.
Remote Control Sensor
12
Page 13
When fi rst switching on the unit
Following screen will be displayed when the unit is turned on for the fi rst time.
Select the items with the remote control. Unit buttons are invalid.
OSD Language
1
Select the language.
2
Set.
PRESENT TIME Setup
Power On / Off
OSD Language
English (UK)
Deutsch
Français
Italiano
Español
ENGLISH (US)
SetSelect
1
Select “DAY” or “PRESENT TIME”.
2
Setup “DAY” or “PRESENT TIME”.
1
Select “Set”.
2
Set.
PRESENT TIME Setup
PRESENT TIME MON 99:99
Set
DAY
PRESENT TIME
PRESENT TIME Setup
PRESENT TIME MON 99:99
Set
DAY
PRESENT TIME
Display orientation
Display orientation
1
For vertical installation, select “Portrait”.
2
Set.
Landscape
Portrait
Notes:
• Once the items are set, the screens won't be displayed when switching on the unit next time.
• After the setting, the items can be changed in the following menus.
OSD Language (see page 14)
PRESENT TIME Setup (see page 26)
Display orientation (see page 30)
MON
99:99
TUE
10:00
From the second time on, the below screen is displayed for a while (setting condition is an example).
PC
16:9
13
Page 14
INPUT MENU ENTER/ + / VOL - /
Initial selections
Selecting the input signal
Select the input signals to be connected by installing the optional Terminal Boards.
Press to select the input signal to be played back from the
equipment which has been connected to the Plasma Display.
Input signals will change as follows:
INPUT1A INPUT2 PCINPUT3INPUT1B
SLOT1 is for dual input so that you can select INPUT1A or
INPUT1B for INPUT1.
INPUT1A : VIDEO signal terminal in SLOT1
INPUT1B : S-VIDEO signal terminal in SLOT1
Notes:
• Selecting is also possible by pressing the INPUT button on the unit.
• Input terminal will not be selected if the terminal board is not installed into the
SLOT.
• Select to match the signals from the source connected to the component/RGB input
terminals. (see page 33)
• In 2 screen display, the same input mode cannot be selected for the main picture and
sub picture.
• Image retention (image lag) may occur on the plasma display panel when a still picture
is kept on the panel for an extended period. The function that darkens the screen
slightly is activated to prevent image retention (see page 43), but this function is not
the perfect solution to image retention.
INPUT MENU ENTER/+/VOL-/
Selecting the On-Screen Menu Language
Press to display the Setup menu.
Press to select the OSD Language.
Press to select your preferred language.
Selectable languages
English(UK)
Deutsch
Français
Italiano
Español
ENGLISH(US)
.......(Chinese)
.......(Japanese)
Setup
Component/RGB-in select
Input label
Power save
Standby save
Power management
Auto power off
OSD Language English (UK
1/2
Signal
Screensaver
RGB
PC
Off
Off
Off
Off
)
14
Page 15
INPUT MENU ENTER/
+
/VOL
-
/
Basic Controls
Main Unit
Remote control sensor
Main Power On / Off Switch
Power Indicator
The Power Indicator will light.
• Power-OFF ....Indicator not illuminated (The unit will
still consume some power as long as
the power cord is still inserted into the
wall outlet.)
• Standby ......... Red
• Power-ON ......Green
• DPMS .............Orange (With PC input signal and during
operation of PC’s screensaver.)
Volume Adjustment
Volume Up “+” Down “–”
When the menu screen is
displayed:
“+” : press to move the cursor up
“–” :
press to move the cursor down
(see page 21)
Enter / Aspect button
(see page 17, 21)
MENU Screen ON / OFF
Each time the MENU button is pressed, the menu
screen will switch. (see page 21)
Normal Viewing Picture
Sound Pos. /Size Setup
INPUT button
(INPUT1, INPUT2, INPUT3 and PC selection)
(see page 14)
15
Page 16
Basic Controls
Remote Control Transmitter
SURROUND button
The surround setting switches on and off each time the SURROUND
button is pressed.
The benefi ts of surround sound are enormous. You can be completely
enveloped in sound; just as if you were at a concert hall or cinema.
Note:
The surround settings are memorized separately for each Sound Mode
(Normal, Dynamic, Clear).
ACTION button
Press to make selections.
ASPECT button
Press to adjust the aspect.
(see page 17)
POWER button
The Plasma Display must fi rst be plugged
into the wall outlet and turned on at the
power switch (see page 12).
Press this button to turn the Plasma
Display On, from Standby mode. Press
it again to turn the Plasma Display Off to
Standby mode.
POS. /SIZE button
(see page 22)
On Off
Surround
On
OFF TIMER button
The Plasma Display can be preset
to switch to stand-by after a fi xed
period. The setting changes to 30
minutes, 60 minutes, 90 minutes
and 0 minutes (off timer cancelled)
each time the button is pressed.
30 60
90
0
When three minutes remain, “Off
timer 3” will fl ash.
The off timer is cancelled if a
power interruption occurs.
SET UP button (see page 21)
PICTURE button
(see page 23)
Sound mute On / Off
Press this button to mute the
sound.
Press again to reactivate sound.
Sound is also reactivated when
power is turned off or volume level
is changed.
N button
(see page 22, 23, 24, 25)
POSITION buttons
INPUT button
Press to select INPUT1, INPUT2,
INPUT3 and PC input SLOTS
sequentially. (see page 14)
When a dual input terminal board
is attached, A or B is displayed
depending on the selected input
signal. (Ex. INPUT1A, INPUT1B)
MULTI Window buttons
(see page 18)
SOUND button (see page 25)
Volume Adjustment
Press the Volume Up “+” or Down “–”
button to increase or decrease the
sound volume level.
R button (see page 21)
Press the R button to return to
previous menu screen.
RECALL button
Press the “RECALL” button to display
the current system status.
Input label
1
Aspect mode (see page 17)
2
Off timer
3
The off timer indicator is displayed only
when the off timer has been set.
Clock display (see page 40)
4
PC
4:3
10:00
4
Off timer 90
1
2
3
Digital Zoom (see page 20)
16
Page 17
INPUT MENU ENTER/+/VOL-/
ASPECT Controls
The Plasma Display will allow you to enjoy viewing the picture at its maximum size, including wide screen cinema
format picture.
Press repeatedly to move through the aspect options:
For details about the aspect mode, please see “List of Aspect Modes” (page 44).
For VIDEO (S VIDEO) signal input:
Zoom1 Zoom2
14:9
16:9
Panasonic Auto
[from the unit]
4:3
Just
Note:
When selecting an input slot that attaches BNC Dual Video Terminal
Board (TY-FB9BD), Panasonic Auto cannot be selected.
The aspect mode changes each time the ENTER button is pressed.
For PC signal input:
4:3 Zoom 16:9
For SD signal input (525 (480) / 60i • 60p, 625 (575) / 50i • 50p):
4:3 Zoom1 16:9Zoom2 Zoom3 14:9 Just
For HD signal input [1125 (1080) / 60i • 50i • 60p • 50p • 24p • 25p • 30p • 24sF, 1250 (1080) /
50i, 750 (720) / 60p • 50p]:
4:3
4:3 Full Zoom1
14:9Just
16:9
[During MULTI PIP Operations]
•
Picture and Picture, Picture in Picture
:
Zoom2
Zoom3
4:3 16:9
• Others : Aspect switching is not possible.
Panasonic Auto
The display will automatically become enlarged (depending on the picture source), allowing you to view the picture at its maximum size.
416
39
Panasonic Auto
Notes:
• Panasonic Auto mode is designed to automatically adjust the
aspect ratio to handle a mix of 16:9 and 4:3 program material.
Certain 4:3 program material, such as stock market data screens,
For letter box image Image is expanded
4
For a 4:3 image
Changes in accordance with
the Panasonic Auto mode
3
setting (see page 35).
may occasionally cause the image size to change unexpectedly.
When viewing such programs, it is recommended that the
ASPECT be set to 4:3.
• If adjusting the Picture V-Pos/V-Size in Panasonic Auto with
16:9 mode, the adjustment is not memorized. When exiting the
mode, the screen will return to a former adjustment.
All Aspect mode
Set “All Aspect” to “On” in Options menu to enable the extended aspect mode (page 40). When All Aspect mode, the aspect
mode of pictures is switched as follows. For details about the aspect mode, please see “List of Aspect Modes” (page 44)
For VIDEO (S VIDEO) signal input:
4:3 Zoom1 16:9 JustZoom2 Zoom3 Panasonic Auto 14:9
Zoom3
Notes:
• Panasonic Auto can be selected only during
Video signal input.
• The aspect mode is memorized separately for
each input terminal.
• Do not allow the picture to be displayed in 4:3
mode for an extended period, as this can cause
a permanent image retention to remain on the
Plasma Display Panel.
Note: When selecting an input slot that attaches BNC Dual Video Terminal Board (TY-FB9BD), Panasonic Auto cannot
For PC signal input:
For SD signal input (525 (480) / 60i
For HD signal input [1125 (1080) / 60i • 50i • 60p • 50p • 24p • 25p • 30p • 24sF, 1250 (1080) / 50i, 750 (720) / 60p • 50p]:
be selected.
4:3 Zoom 16:9
•
60p, 625 (575) / 50i
•
50p):
4:3 Zoom1 16:9 JustZoom2 Zoom3 14:9
4:3 Full Zoom1 16:9 Just1Zoom2 Zoom3 14:9 Just2 4:3 (1) 4:3 (2)
17
Page 18
MULTI PIP
Press repeatedly.
Each time pressing this button main picture and sub picture will be displayed as follows below.
[Picture and Picture] [Picture in Picture]
Normal
Viewing
Press to swap main
picture and sub picture.
Main picture Sub picture
A B
Main picture Sub picture Main picture Sub picture
B A
Press to select the input mode.
Under main Picture and sub picture display, select the
picture which you would like to change input modes.
Notes:
• The sub picture sound is heard while a sub
picture operation is underway.
• The sub picture operation automatically returns
to the main picture operation if a sub picture
operation has not been performed for about 5
seconds or if any of the remote control buttons
is pressed (except button).
[Picture out Picture]
A
B
A
B
B
A
B
A
[Example]
Main picture label is bright Sub picture label is bright
PC1
VIDEO2
A
B
Input modes switching is possible
Main picture label is changed
VIDEO2
VIDEO1
C
B
Sub picture label is changed
A
A
PC1
VIDEO2
B
PC1
VIDEO2
D
Picture is changed
Press to change input signal.
Press to move the sub picture.
Each time the location of the sub picture will be moved.
Notes:
• This button is effective only in the picture in picture.
• The sub picture may be hidden by the on screen display, depending on its position.
18
Page 19
Advanced PIP
MULTI PIP
1
2
Notes:
• If “INPUT lock” in Options menu is set to other than “Off”, MULTI PIP function isn’t available.
• Sound output is from the picture which is selected in Audio OUT (PIP) (see page 25).
• In 2 screen display, the same input mode cannot be selected for the main picture and sub picture.
• The main picture and sub picture are processed by different circuits, resulting in a slight difference in the clarity of
the pictures. There may also be a difference in the picture quality of the sub picture depending on the type of signals
displayed on the main picture and depending on the 2-picture display mode.
• Due to the small dimensions of the sub pictures, these sub pictures cannot be shown in detail.
• Computer screen picture is displayed in a simplifi ed format, and it may not be possible to discern details on them
satisfactorily.
• Following combinations of two analog signals cannot be displayed simultaneously;
Component - Component, Component - PC (RGB), PC (RGB) - Component, PC (RGB) - PC (RGB)
Set "Advanced PIP" to "On" in Options menu. (see page 39)
Press repeatedly.
Each time pressing this button main picture and sub picture will be displayed as follows.
One screen Advanced PIP
Sub screen Main screen
1
8
Notes:
• To use , , buttons for the screen operations, follow the procedures in the previous page.
• and buttons are invalid during Advanced PIP operation.
2
7
3
6
4
5
19
Page 20
INPUT MENU ENTER/+/VOL-/
Digital Zoom
This displays an enlargement of the designated part of the displayed image.
Display the operation guide.
1
Press to access Digital Zoom.
The operation guide will be displayed.
During Digital Zoom, only the following buttons can be operated.
[Remote control]
Select the area of the image to be enlarged.
2
Press on the enlargement location to select.
SURROUND button
OFF TIMER button
VOL button
MUTE button
POSITION /
ACTION button
The cursor will move.
Exit
1
[Unit]
VOL button
Select the magnifi cation required for the enlarged display.
3
Each time this is pressed, the magnifi cation factor changes.
This is shown in the image being displayed.
× 1 × 2 × 3 × 4
Return to normal display (quit Digital Zoom).
4
Press to exit from the Digital Zoom.
Notes:
• When power goes OFF (including “Off Timer” operation), Digital Zoom terminates.
• The Digital Zoom function cannot be selected while in the following operation state:
“Multi-viewer” (Picture in Picture, Picture out Picture, Picture and Picture) operation. (see page 18)
When MULTI DISPLAY Setup is On (see page 31).
When Screensaver (except for Negative image) is running (see page 27)
• While Digital Zoom is in operation, “Adjusting Pos. / Size” cannot be used.
Exit
2
2
20
Page 21
On-Screen Menu Displays
Remote Control Unit
Display the menu screen.
1
Select the item.
2
Normalise
Picture Mode
Contrast
Brightness
Colour
Hue
Sharpness
Normal
25
0
0
0
5
1/2 Picture
Normal
Press to select.
(Example: Picture menu)
Select.
MENU
Each time the MENU button is pressed, the
menu screen will switch.
Press several times.
Normal Viewing Picture
Sound Pos. /Size Setup
Select.
Press.
(Example: Picture menu)
3
Set.
Set.
Set.
Press.
Exit the menu.
4
MENU
Press several times.
Press.
Press to return to the previous menu.
Overview
Note: Menu that cannot be adjusted is grayout. Adjustable menu changes depending on signal, input and menu setting.
Pos. /Size
Normal
Normalise
Auto Setup
H-Pos
H-Size
V-Pos
V-Size
Dot Clock
Clock Phase
White balance
Colour Management
Normal
Normalise
Advanced settings
Picture Mode
Contrast
Brightness
Colour
Hue
Sharpness
Advanced settings
Advanced settings
W/B High R
W/B High G
Normal
Normalise
W/B High B
Black extension
W/B Low R
Input level
W/B Low G
Gamma
W/B Low B
AGC
0
0
0
0
0
0
(Page 22)
2/2 Picture
1/2 Picture
Normal
Off
On
Normal
25
0
0
0
5
(Page 23, 24)
2/2
1/2
0
0
0
0
0
0
0
2.2
0
Off
(Page 23, 24)
Setup
Signal
Screensaver
Component/RGB-in select
Input label
Power save
Standby save
Power management
Auto power off
OSD Language English (UK
MULTI DISPLAY Setup
Set up TIMER
PRESENT TIME Setup
Display orientation
SDI Sound Output
Sound
Left Channel
Right Channel
Normal
Normalise
Sound Out
Sound Mode
Level Meter
Bass
Mid
Treble
Balance
Surround
Audio Out (PIP)
RGB
PC
Off
Off
Off
Off
Landscape
Channel 1
Channel 1
Off
Normal
Off
0
0
0
0
Off
Main
(Page 25)
1/2
)
2/2 Setup
1/2
2/2
Signal
3D Y/C Filter (NTSC)
Colour system
Cinema reality
Panasonic Auto (4:3)
Noise reduction
(Page 34-37)
Screensaver
Function
Mode
Start Time
Finish Time
Side panel
Wobbling
Peak limit
Start
PRESENT TIME 99:99
Scrolling bar only
Time Designation
(Page 27, 28)
MULTI DISPLAY Setup
MULTI DISPLAY Setup
Horizontal Scale
Vertical Scale
Seam hides video
Location
AI-synchronization
(Page 31, 32)
Set up TIMER
POWER ON Function
POWER ON Time
POWER OFF Function
POWER OFF Time
PRESENT TIME Setup
DAY
PRESENT TIME
PRESENT TIME 99:99
PRESENT TIME MON 99:99
Set
[ AV ]
On
Auto
Off
4:3
Off
6:15
12:30
High
Off
Off
Off
× 2
× 2
Off
A1
Off
Off
0:00
Off
0:00
(Page 26)
MON
99:99
(Page 26)
21
Page 22
Adjusting Pos. /Size
1
Press to display the Pos. /Size menu.
During “Video (S Video)”, “Digital”,
“SDI” and “HDMI” input signal.
Pos. /Size
Press to select the menu to adjust.
2
3
Press to adjust the menu.
Normalise
Auto Setup
H-Pos
H-Size
V-Pos
V-Size
During “Component”, “RGB” and
Normal
0
0
0
0
“PC” input signal.
Pos. /Size
Normal
0
0
0
0
0
0
4
Notes:
Press to exit from adjust mode.
Normalise
Auto Setup
H-Pos
H-Size
V-Pos
V-Size
Dot Clock
Clock Phase
• Unadjustable items are grayed out.
Adjustable items differ depending on the input signal and the display mode.
• Adjustment details are memorized separately for different input signal formats (Adjustments for component signals are
memorized for 525 (480) / 60i · 60p, 625 (575) / 50i · 50p, 1125 (1080) / 60i · 50i · 60p · 50p · 24p · 25p · 30p · 24sF,
1250 (1080) / 50i, 750 (720) / 60p · 50p each, and RGB/PC/Digital signals are memorized for each frequency.)
• If a “Cue” or “Rew” signal from a VCR or DVD player is received, the picture position will shift up or down. This picture
position movement cannot be controlled by the Picture Pos./Size function.
• If adjusting the Picture V-Pos/V-Size in Panasonic Auto with 16:9 mode, the adjustment is not memorized. When
exiting the mode, the screen will return to a former adjustment.
Auto Setup
Automatically adjust H-Pos / V-Pos / Clock Phase / Dot Clock and set H-Size / V-Size the standard
value when RGB signal is input.
Notes:
• If the dot clock frequency is 108 MHz or higher, Dot Clock cannot be made.
• If the image is that the edge is hardly fi gured out or shadowy, that cannot be adjusted automatically.
In such case, press Auto Setup again after changing the image to the clearer one.
• When DVI-D is input, Clock Phase cannot be adjusted automatically.
•
Select Normalise in Pos. /Size and press the ACTION ( ) button when appropriate adjustment cannot be made.
H-Pos Adjust the horizontal position. V-Pos Adjust the vertical position.
H-Size Adjust the horizontal size. V-Size Adjust the vertical size.
Dot Clock (During “Component”, “RGB” and “PC” input signal)
Periodic striped pattern interference (noise) may occur when a striped pattern is displayed. If this happens,
adjust so that any such noise is minimized.
Clock
Phase
(During “Component”, “RGB” and “PC” input signal)
Eliminate the fl ickering and distortion.
Helpful Hint ( /
Normalise
Normalisation)
While the Pos. / Size display is active, if either the N button on the remote control is pressed at any time or the ACTION
( ) button is pressed during “Normalise”, then all adjustment values are returned to the factory settings.
22
Page 23
Picture Adjustments
1
Select to adjust each item.
2
Press to display the Picture menu.
Press to select the menu to adjust.
Select the desired level by looking at the picture behind the menu.
Note:
Menu that cannot be adjusted is grayout. Adjustable menu changes depending on signal, input
and menu setting.
1/2 Picture
Normalise
Picture Mode
Contrast
Brightness
Colour
Hue
Sharpness
White balance
Colour Management
Advanced settings
Normal
Normal
25
0
0
0
5
2/2Picture
Normal
Off
On
Press to select “On”.
Press to enter
Advanced settings .
Advanced settings On
Enables fi ne picture adjustment at a professional
level (see next page).
Advanced settings
1/2
Press “ ” or “ ” button to switch between modes.
Normal
Dynamic
Cinema
Normal
For viewing in standard (evening lighting)
environments.
This menu selects the normal levels of Brightness
and Contrast.
Dynamic
For viewing in brighter environments.
This menu selects higher than normal levels of
Brightness and Contrast.
Cinema
Ideal for movies.
Note:
If you would like to change the picture and colour
of the selected Picture menu to something else,
adjust using the items in the Picture menu. (see
next page)
Normalise
Black extension
Input level
Gamma
AGC
Advanced settings
W/B High R
W/B High G
W/B High B
W/B Low R
W/B Low G
W/B Low B
Normal
0
0
2.2
Off
2/2
0
0
0
0
0
0
Press “ ” or “ ” button to switch between modes.
Normal Cool Warm
Colour Management On
Enables vivid colour adjustment automatically.
Advanced settings Off
Displays images with settings of the Picture menu.
Helpful Hint ( /
Normalise
Normalisation)
While the “Picture” menu is displayed, if either the N button on the remote control is pressed at any time or the
ACTION ( ) button is pressed during “Normalise”, then all adjustment values are returned to the factory settings.
23
Page 24
Picture Adjustments
Item Effect Adjustments
Contrast
Less More
Selects the proper brightness
and density for the room.
Adjusts for easier viewing of
Brightness
Colour
Hue
Sharpness
Darker Brighter
Less More
Reddish Greenish
Less More
dark pictures such as night
scenes and black hair.
Adjusts colour saturation.
Adjusts for nice skin colour.
Adjusts picture sharpness.
Advanced settings
Item Effect Details
Black
extension
Less More
Adjusts the dark shades of the image in gradation.
Notes:
• “Colour” and “Hue” settings cannot be
adjusted for “RGB/PC” and “Digital” input
signal.
• You can change the level of each function
(Contrast, Brightness, Colour, Hue,
Sharpness) for each Picture Mode.
• The setting details for normal, dynamic
and cinema respectively are memorized
separately for each input terminal.
• The “Hue” setting can be adjusted for NTSC
signal only during “AV (S Video)” input
signal.
• In Contrast, there is not a noticeable change
even when contrast is increased with a bright
picture or reduced with a dark picture.
Input level
Gamma
AGC
W/B High
R
W/B High
G
W/B High
B
W/B Low R
W/B Low G
W/B Low B
Less More
Down Up
Off On
Less More
Less More
Less More
Less More
Less More
Less More
Adjustment of parts which are extremely bright and hard to see.
(This cannot be adjusted when the input signal is Digital.)
S Curve 2.0 2.2 2.5
Increases the brightness of dark signal automatically.
Adjusts the white balance for light red areas.
Adjusts the white balance for light green areas.
Adjusts the white balance for light blue areas.
Adjusts the white balance for dark red areas.
Adjusts the white balance for dark green areas.
Adjusts the white balance for dark blue areas.
Notes:
• Carry out “W/B” adjustment as follows.
1.
Adjust the white balance of the bright sections using the “W/B High R”, “W/B High G” and “W/B High B” settings.
2. Adjust the white balance of the dark sections using the “W/B Low R”
, “W/B Low G”
and “W/B Low B” settings.
3. Repeat steps 1 and 2 to adjust.
Steps 1 and 2 affect each other’s settings, so repeat each step in turn to make the adjustment.
• The adjustment values are memorized separately for each input terminal.
• The adjustment range values should be used as an adjustment reference.
Helpful Hint ( /
Normalise
Normalisation)
On the remote control unit, while the “Advanced settings” menu is displayed, if either the N button is pressed at any time or
the ACTION ( ) button is pressed during “Normalise”, then all adjustment values are returned to the factory settings.
24
Page 25
Sound Adjustment
1
Select to adjust each item.
2
3
Item Details
Sound Mode
Bass Adjusts low pitch sounds.
Mid Adjusts normal sounds.
Treble Adjusts high pitch sounds.
Balance Adjusts left and right volumes.
Surround Select On or Off.
Audio Out (PIP)
Press to display the Sound menu.
Press to select the menu to adjust.
Select the desired level by listening to the sound.
Press to exit from adjust mode.
Normal: Emits the original sound.
Dynamic: Accentuates sharp sound.
Clear: Attenuates human voice.
Main: Selects main picture sound.
Sub: Selects PIP frame sound.
INPUT1
A
Sound
INPUT1
PC
Normal
0
0
0
0
Normalise
Sound Mode
Bass
Mid
Treble
Balance
Surround
Audio Out (PIP)
PC
1/2
Normal
Off
Main
A
B
B
Musical note ♪ is displayed on right side of the audio
output screen label.
Note: Bass, Mid, Treble and Surround settings are memorized separately for each Sound Mode.
Helpful Hint ( /
Normalise
Normalisation)
While the “Sound” menu is displayed, if either the N button on the remote control is pressed at any time or the
ACTION ( ) button is pressed during “Normalise”, then all adjustment values are returned to the factory settings.
SDI Sound Output
This menu is displayed when HD-SDI Terminal Board with audio (TY-FB10HD) is installed to the unit.
SDI Sound Output
Left Channel
Right Channel
Sound Out
Level Meter
2/2
Channel 1
Channel 1
Off
Off
Notes:
• This menu is available only when
selecting a slot that HD-SDI Terminal
Board with audio (TY-FB10HD) is
installed.
• This menu is unavailable when 2picture display mode is active.
Item Details
Left Channel
Right Channel
Sound Out
Level Meter
Channel 1 to Channel 16
Selects left audio channel.
Channel 1 to Channel 16
Selects right audio channel.
On Off
On: Enables audio output.
Off: Disables audio output.
Off 1-8ch 9-16ch
Sets audio channels to show in the audio level meter.
8 channels are displayed in the audio level meter; 4 channels
each on both right and left sides of the display.
Off: Hides the audio level meter.
1-8ch: Displays the audio level meter (1-8ch)
9-16ch
: Displays the audio level meter (9-16ch)
25
Page 26
PRESENT TIME Setup / Set up TIMER
The timer can switch the Plasma Display On or Off.
Before attempting Timer Set, confi rm the PRESENT TIME and adjust if necessary.
Then set POWER ON Time / POWER OFF Time.
1
Press to display the Setup menu.
Press to select Set up TIMER or PRESENT TIME Setup.
2
Press to display the Set up TIMER screen or
PRESENT TIME Setup screen.
PRESENT TIME Setup
1
Press to select DAY or PRESENT TIME.
Press to setup DAY or PRESENT TIME.
button: Forward
button: Back
Notes:
• Pressing “ ” or “ ” button once changes PRESENT TIME 1 minute.
• Pressing “ ” or “ ” button continuously changes PRESENT TIME by 15 minutes.
Press to select Set.
2
Press to store PRESENT TIME Setup.
Notes:
• Set cannot be selected unless PRESENT TIME is set.
• Unless setting the present time other than “99:99”, DAY setting is invalid.
• The settings of “DAY” and “PRESENT TIME” are reset when leaving the display
turned off for about 7 days for the following reasons:
Pressing switch of the unit to turn off the display.
Disconnecting the AC cord.
Interruption of power supply.
MULTI DISPLAY Setup
Set up TIMER
PRESENT TIME Setup
Display orientation
PRESENT TIME Setup
PRESENT TIME MON 99:99
Set
DAY
PRESENT TIME
2/2 Setup
Landscape
MON
99:99
Set up TIMER
1
2
26
Press to select
POWER ON Time / POWER OFF Time.
Press to setup
POWER ON Time / POWER OFF Time.
button: Forward
button: Back
Notes:
• Pressing “ ” or “ ” button once changes POWER ON Time / POWER OFF Time
1 minute.
• Pressing “ ” or “ ” button continuously changes POWER ON Time / POWER OFF Time
by 15 minutes.
Press to select POWER ON Function/POWER OFF Function.
Press to select On.
Note: Timer function will not work unless “PRESENT TIME” is set.
Set up TIMER
PRESENT TIME 99:99
POWER ON Function
POWER ON Time
POWER OFF Function
POWER OFF Time
Off
0:00
Off
0:00
Page 27
Screensaver (For preventing image retention)
Do not display a still picture, especially in 4:3 mode, for any length of time.
If the display must remain on, a Screensaver should be used.
1
Press to display the Setup menu.
Press to select Screensaver.
2
Press to display Screensaver screen.
Function selection
3
Press to select Function.
Press to select the desired function.
Scrolling bar only
Overlay scrolling bar
: A white bar will scroll from left to right. The image won't be displayed.
:
The brightness of the image will be decreased and a white bar will scroll on it.
Off
Interval
Time Designation : Operates when Start Time and Finish Time
On : Operates when Start is selected and the
Mode selection
4
Start setting
5
Negative image
White screen
Negative image : Negative image will be displayed on the screen.
Scrolling bar only
Overlay scrolling bar
White screen : The whole screen will be white.
Note: Overlay scrolling bar is not effective during two screen display.
Press to select Mode.
Press to select each
mode items.
When the Mode is set to On, press to select Start.
Setup
Signal
Screensaver
Component/RGB-in select
Input label
Power save
Standby save
Power management
Auto power off
OSD Language English (UK
Screensaver
Start
Function
Mode
Start Time
Finish Time
Side panel
Wobbling
Peak limit
PRESENT TIME 99:99
Scrolling bar only
1/2
RGB
PC
Off
Off
Off
Off
)
Off
6:15
12:30
High
Off
Off
: Operates when Periodic Time and Operating
Time are setup and those times arrive.
are setup and those times arrive.
ACTION ( ) button is pressed.
Press to start Screensaver.
The menu screen will disappear and the Screensaver will be activated. To stop the
Screensaver under On, press the R button or any buttons on the main unit.
Note: When the display is turned off, the Scrensaver will be deactivated.
Setup of Screensaver Time
After selecting Time Designation or Interval, the relevant Time Setup will become available for selection and the
Operating Time may be set. (Time cannot be set when “Mode” is “On” or “Off”.)
Press to select Start Time / Finish Time
(When Time Designation is selected).
Press to select Periodic Time / Operating Time
(When Interval is selected).
Press to setup.
button: Forward
button: Back
Notes:
• Pressing “ ” or “ ” button once changes the Time 1 minute.
[However, switching occurs every 15 minutes when Periodic Time is selected.]
• Pressing “ ” or “ ” button continuously changes the Time by 15 minutes.
Note: Timer function will not work unless “PRESENT TIME” is set.
Screensaver
Start
Function
Mode
Start Time
Finish Time
Screensaver
Start
Function
Mode
Periodic Time
Operating Time
PRESENT TIME 15:00
Scrolling bar only
Time Designation
6:15
12:30
PRESENT TIME 15:00
Scrolling bar only
Interval
12:00
3:00
27
Page 28
Screensaver (For preventing image retention)
Reduces screen image retention
These functions prevent the occurrence of an “image retention” on the display when turned ON.
Wobbling: Automatically shifts the display image (therefore unnoticeable to the eye) to prevent image retention of
sharper contour of image.
On1: Shifts the image every 30 seconds.
On2: Shifts the image at a dot level pitch depending on screen-detection.
Peak limit: Suppresses image contrast (peak brightness).
Note:
When a still picture is viewed for an extended time, the screen may become slightly darker. (see page 43)
Press to select “Wobbling” or “Peak limit”.
Press to select “On1”, “On2” or “Off” (Wobbling).
“On” or “Off” (Peak limit).
Side Panel Adjustment
Do not display a picture in 4:3 mode for an extended period,
as this can cause an image retention to remain on the side
panels either side of the display fi eld.
To reduce the risk of such an image retention, illuminate the
side panels.
This function may be applicable to the non-picture area.
side panel
4:3
Screen Display
Screensaver
Start
Function
Mode
Start Time
Finish Time
Side panel
Wobbling
Peak limit
Non picture area
PRESENT TIME 99:99
Scrolling bar only
Off
6:15
12:30
High
Off
Off
retention
Picture out Picture Picture and Picture
1
2
Press to select Side panel.
Press to select Off, Low, Mid, High.
Off Mid HighLow
Press to exit from Screensaver.
Screensaver
Start
Function
Mode
Start Time
Finish Time
Side panel
Wobbling
Peak limit
PRESENT TIME 99:99
Scrolling bar only
Off
6:15
12:30
High
Off
Off
Notes:
• To reduce the occurrence of image retention, set the Side panel to High.
• The side panels may fl ash (alternate black / white) depending on the picture being shown on the screen. Using
Cinema mode will reduce such fl ashing.
28
Page 29
Reduces power consumption
• Power save: When this function is turned On, luminous level of the Plasma Display is suppressed, so
power consumption is reduced.
• Standby save: When this function is turned On, power consumption of the microcomputer is reduced
during power supply standby (see page 12, 15, 16), so standby power of the set is reduced.
• Power management: When this function is set to On, it operates under the following conditions to turn the power
on or off automatically.
→ Power is turned off (standby); the power indicator lights up orange.
The power is not turned off when the Sync on G sync signal has been detected.
When pictures (sync signals) are subsequently detected:
→ Power is turned on; the power indicator lights up green.
The power is not turned on when only the Sync on G sync signal has been detected.
Notes:
• This function operates only during PC IN signal input.
• This function is invalid during input from PC Input Terminal Board (TY-42TM6P).
• This function is effective when “Sync” is set to “Auto”, “Component / RGB-in select” is set
• Auto power off: Equipment power supply is turned Off when there is no signal.
When this is set to On, the power supply of the unit goes Off 10 minutes after the input
Notes:
• This function operates only during PC IN signal input.
• This function is effective when “Sync” is set to “Auto”, “Component / RGB-in select” is set
When no pictures (sync signals) are detected for 30 or so seconds during PC IN signal input:
to “RGB” and during normal viewing (one picture screen).
signals stop.
to “RGB” and during normal viewing (one picture screen).
1
2
3
Press to select
“Power save”
“Standby save”
“Power management”
“Auto power off”.
Press to select “On” or “Off”.
On Off
Press to exit from Setup.
Setup
Signal
Screensaver
Component/RGB-in select
Input label
Power save
Standby save
Power management
Auto power off
OSD Language English (UK
RGB
PC
Off
Off
Off
Off
1/2
)
29
Page 30
Customizing the Input labels
This function can change the label of the Input signal to be displayed.
Setup
1/2
Select the input signal which you would like to change its label before customizing
the Input labels. (see page 14, 16)
Press to select Input label.
Press to change the Input label.
Component/RGB-in select
Input label
Power save
Standby save
Power management
Auto power off
OSD Language English (UK
Signal
Screensaver
RGB
PC
Off
Off
Off
Off
)
Note:
While selecting an Input signal through Optional Terminal Board connected to Slot1, Slot2 and Slot3, the Input label
will depend on each Optional Terminal Board.
Input labels for Slot1, Slot2, Slot3 and Mini D-sub:
[Slot1 Input]
[Slot2 Input]
[Slot3 Input]
INPUT1 / VIDEO1 / COMPONENT1 / RGB1 / DIGITAL1 / PC1 / DVD1 / CATV1 / VCR1 / STB1
INPUT2 / VIDEO2 / COMPONENT2 / RGB2 / DIGITAL2 / PC2 / DVD2 / CATV2 / VCR2 / STB2
INPUT3 / VIDEO3 / COMPONENT3 / RGB3 / PC3 / DVD3 / CATV3 / VCR3 / STB3
[PC (Mini D-sub) input] PC / COMPONENT / RGB / DVD / STB
When BNC Dual Video Terminal Board (TY-FB9BD) is used, an “A” or “B” is added at the end of each input label,
depending on the input selected (see below).
Addition sign “A” “B”
Selected Input Composite S VIDEO
Display orientation
Sets the fan control and the display style of on-screen menu for vertical installation.
1
2
3
Press to display the Setup menu.
Press to select Display orientation.
Press to select “Landscape” or “Portrait”.
Press to exit from adjust mode
Set up TIMER
2/2 Setup
Landscape
MULTI DISPLAY Setup
PRESENT TIME Setup
Display orientation
MULTI DISPLAY Setup
Set up TIMER
PRESENT TIME Setup
Display orientation
MULTI DISPLAY Setup
Set up TIMER
PRESENT TIME Setup
Display orientation
2/2 Setup
Portrait
2/2 Setup
Landscape
Landscape Portrait
Fan control for horizontal installation. Fan control for vertical installation. On-screen
menu will be rotated 90 degrees counterclockwise
to be suitable for the setting.
Notes:
• Turn up the power switch for the upward direction when you set Display vertically.
• Fan control will be switched when turning on the unit next time.
30
Page 31
Setup for MULTI DISPLAY
By lining up Plasma Displays in groups, for example, as illustrated below, an enlarged picture may be displayed across
all screens.
For this mode of operation, each plasma display has to be set up with a Display number to determine its location.
(Example)
group of 16 (4 × 4)group of 4 (2 × 2) group of 9 (3 × 3) group of 25 (5 × 5)
How to Setup MULTI DISPLAY
1
Press to display the Setup menu.
Press to select the MULTI DISPLAY Setup.
2
Press to display the “MULTI DISPLAY Setup” menu.
Press to select the MULTI DISPLAY Setup.
3
Press to select “On” or “Off”.
Item Details
MULTI DISPLAY Setup Select “On” or “Off”.
Horizontal Scale Select “× 1”, “× 2”, “× 3”, “× 4”, “× 5”.
Vertical Scale Select “× 1”, “× 2”, “× 3”, “× 4”, “× 5”.
Select “On” or “Off”.
Seam hides video
To hide joints between displays.
MULTI DISPLAY Setup
Set up TIMER
PRESENT TIME Setup
Display orientation
MULTI DISPLAY Setup
MULTI DISPLAY Setup
Horizontal Scale
Vertical Scale
Seam hides video
Location
AI-synchronization
To show joints between displays.
Landscape
Off
× 2
× 2
Off
A1
Off
2/2 Setup
Location
Suitable for moving image display.
Suitable for still image display.
On Off
Select the required arrangement number. (A1-E5 : Refer to the following)
Display Number locations for each arrangement.
(Examples)
( 2 × 1) ( 2 × 3 ) ( 4 × 4 )( 4 × 2 ) ( 5 × 5 )
A1 A2 A3 A4 A5
B1 B2 B3 B4 B5
C1 C2 C3 C4 C5
D1 D2 D3 D4 D5
E1 E2 E3 E4 E5
31
Page 32
Setup for MULTI DISPLAY
Item Details
Select “Off” or “On”.
AI-Synchronization
Note:
If you set AI-synchronization to On, the following menus will be unavailable and these settings
will be fi xed to the initial values.
Picture menu: Colour, Hue, Input level (Advanced settings)
The brightness depends on each
display’s setting.
Off On
Equalize the brightness of all the
displays.
4
Press twice to exit from Setup.
ID Remote Control Function
You can set the remote control ID when you want to use this remote control on one of several different displays.
Note:
To operate this function, please purchase ID remote controller sold separately.
Object model : EUR7636090R
Switch to on the right side.
1
Press the button on the remote control.
2
Press one of - , for the tens digit setting.
3
4
Press one of
- , for the units digit setting.
Notes:
• The numbers in 2, 3 and 4 should be set up quickly.
• Adjustable ID number range is 0 - 99.
• If a number button is pressed more than two times, the fi rst two numbers become the ID number for the remote
control.
ID remote control button operation
The operation is the same as normal remote control except for the button.
ID Cancellation
Press button on remote control. (This has the same effect as pressing the , , buttons at the same time.)
Notes:
• Set the Remote ID “On” to operate the ID remote control.
If remote ID is set to “On”, you can use the remote control without identical ID number during option menu display.
(see page 39)
• The ID remote control cannot be used when ID select is set to anything other than 0, and the remote control ID is
not the same as the ID select number (see page 39).
32
Page 33
Setup for Input Signals
Component / RGB-in select
Select to match the signals from the source connected to the Component / RGB input terminals.
Y, PB, PR signals “Component”
RGB signals “RGB”
1
Press to display the Setup menu.
Press to select the “Component / RGB-in select”.
2
Press to select the desired input signal.
Component RGB
3
Press to exit from adjust mode.
Notes:
• Selection may not be possible, depending on which optional board is installed.
• Make setting of the selected input terminal (SLOT1, SLOT2, SLOT3 or PC IN).
YUV / RGB-in select
Select to match the signals from the source connected to the DVI input terminals.
YUV signals “YUV”
RGB signals “RGB”
Setup
Signal
Screensaver
Component/RGB-in select
Input label
Power save
Standby save
Power management
Auto power off
OSD Language English (UK
RGB
PC
Off
Off
Off
Off
1/2
)
1
Press to display the Setup menu.
Press to select the “YUV / RGB-in select”.
2
Press to select the desired mode.
YUV RGB
3
Notes:
• Selection may not be possible, depending on which optional board is installed.
• Make setting of the selected input terminal (SLOT1 or SLOT2).
Press to exit from adjust mode.
Setup
Signal
Screensaver
YUV/RGB-in select
Input label
Power save
Standby save
Power management
Auto power off
OSD Language English (UK
RGB
PC
Off
Off
Off
Off
1/2
)
33
Page 34
Setup for Input Signals
Signal menu
Note:
“Signal” setup menu displays a different setting condition for each input signal.
1
2
3
4
Press to display the Setup menu.
Press to select the “Signal”.
Press to display the Signal menu.
Press to select the menu to adjust.
Press to adjust the menu.
Press to exit from adjust mode.
Setup
Signal
Screensaver
Component/RGB-in select
Input label
Power save
Standby save
Power management
Auto power off
OSD Language English (UK
Press ACTION ( ) button
For Video (S VIDEO) For RGB
On
Auto
Off
4:3
Off
[ AV ]
Signal
Sync
Cinema reality
XGA Mode
Noise reduction
H-Freq.
V-Freq.
Signal Format
Signal
3D Y/C Filter (NTSC)
Colour system
Cinema reality
Panasonic Auto (4:3)
Noise reduction
For Component For Digital
Signal
Cinema reality
XGA Mode
Noise reduction
H-Freq.
V-Freq.
Signal Format
[
Component
1024 × 768
kHz
63.98
Hz
60.02
1280×1024/60
]
Signal
Off
Off
Cinema reality
Noise reduction
H-Freq.
V-Freq.
Signal Format 1280×1024/60
1024 × 768
kHz
63.98
Hz
60.02
1280×1024/60
kHz
63.98
Hz
60.02
RGB
PC
Off
Off
Off
Off
Auto
[
Off
Off
[
Digital
Off
Off
1/2
)
RGB
]
]
3D Y/C Filter – For NTSC AV images
Select “Signal” from the “Setup” menu during AV(S Video) input signal. (“Signal [AV]” menu is displayed.)
Press to select the “3D Y/C Filter (NTSC)”
Press to set On / Off.
Note:
When On, this setting only affects NTSC input signals.
3D Y/C Filter (NTSC)
On
34
Page 35
Colour system / Panasonic Auto
Setup for Input Signals
Select Signal from the “Setup” menu during AV(S Video) input signal. (“Signal [AV]”
Signal
menu is displayed.)
Press to select the “Colour system” or “Panasonic Auto”.
Press to select each functions.
3D Y/C Filter (NTSC)
Colour system
Cinema reality
Panasonic Auto (4 : 3)
Noise reduction
If the picture image becomes unstable:
With the system set on Auto, under conditions of low level or noisy input signals the image may in rare cases
become unstable. Should this occur, set the system to match the format of the input signal.
Mode Function
Colour system
Set the colour system to match the input signal. When selecting “Auto”, the colour system is automatically
selected from NTSC/PAL/SECAM, however, M.NTSC signal is not displayed properly depending on
the attached terminal board. To display M.NTSC signal, select “M.NTSC” in Colour system.
Auto SECAM M.NTSC NTSCPAL
Panasonic Auto
(4 : 3)
Set to “4 : 3” to view 4:3 images in an unchanged format when Panasonic Auto is selected.
If you would like to view 4:3 images in Just format, set to “Just”.
Note:
Panasonic Auto does not function when BNC Dual Video Terminal Board (TY-FB9BD) is used.
On
Auto
Off
4 : 3
Off
[
]
AV
Cinema reality
Cinema reality:
When on, the display attempts to reproduce a more natural interpretation of sources such as movie pictures, which
are recorded at 24 frames per second. If the picture is not stable, turn the setting to off.
Note:
When On, this setting only affects the following signal input:
• NTSC / PAL signal input during “AV(S Video)” input signal.
• 525i(480i), 625i(575i), 1125(1080) / 60i signal input during “Component” input signal.
Press to select Cinema reality.
Cinema reality
Off
Press to set On / Off.
XGA Mode
This menu is displayed when the input signal is Analogue (Component/PC). It allows switching between different XGA
signal settings for fi eld angle/sampling.
Press to select “XGA Mode”.
Press to select “1024×768”, “1280×768” , “1366×768”.
XGA Mode
1024 × 768
35
Page 36
()
Setup for Input Signals
Noise reduction
Sets the following three NR (Noise Reduction) functions together.
P-NR, Mosquito NR, Block NR
Press to select “Noise reduction”.
Press to select “Off”, “Min” , “Mid” , “Max” , “Advanced”.
Advanced NR
Sets the three NR functions separately.
1
2
Press to select “Advanced”.
Press to enter Advanced NR.
Press to select P-NR, Mosquito NR
or Block NR.
Press to select “Off”, “Min”, “Mid”,
“Max”.
Advanced NR
P-NR
Mosquito NR
Block NR
Advanced NR
P-NR
Mosquito NR
Block NR
Off
Off
Off
[
Component
Off
Off
Off
Noise reduction
Noise reduction
[ AV ]
]
Advanced NR
P-NR
Mosquito NR
Block NR
Advanced NR
P-NR
Mosquito NR
Block NR
Off
Advanced
[
RGB
Off
Off
Off
[
Digital
Off
Off
Off
▼
]
]
P-NR: Automatically reduces unwanted picture noise.
Mosquito NR
: Reduces mosquito noise around subtitles on MPEG videos.
Block NR: Reduces block noise when playing MPEG videos.
Notes:
• Noise reduction cannot be adjusted while a PC signal is being applied.
• Block NR cannot be adjusted while a HD signal is being applied.
36
Page 37
Sync
Select Signal from the “Setup” menu during RGB input signal.
Setup for Input Signals
Press to select the “Sync”.
Press to adjust.
Setting RGB sync signal:
Confi rm that the input is set to RGB input (this setting is valid only for RGB input
signal).
Auto: The H and V sync or synchronized signal are automatically selected. If
both input, it is selected the H and V sync.
on G: Uses a synchronized signal on the Video G signal, which is input from
the G connector.
VBS: Uses a synchronized signal of Composite Sync input, which is input
from the HD connector.
Input signal display
Signal
Sync
Cinema reality
XGA Mode
Sync
Sync
Sync
[
RGB
Auto
Off
1024 × 768
Auto
on G
VBS
]
Displays the frequency and the type of the current input signal.
This display is valid only for Component / RGB / PC and Digital input signal.
Display range:
Horizontal 15 - 110 kHz
Vertical 48 - 120 Hz
H-Freq.
V-Freq.
Signal Format
kHz
63.98
Hz
60.02
1280×1024/60
37
Page 38
Options Adjustments
1
2
3
4
5
6
Press to display the Setup menu.
Press to select “OSD Language”.
Press and hold until the Options menu is displayed.
Press to select your preferred menu.
Press to adjust the menu.
Press to exit from Options menu.
Options
Weekly Command Timer
Onscreen display
Initial INPUT
Initial VOL level
Maximum VOL level
INPUT lock
Button lock
Remocon User level
Advanced PIP
Options
Off-timer function
Initial Power Mode
ID select
Remote ID
Serial ID
Display size
Studio W/B
Studio Gain
Options
Slot power
Power On Screen Delay
Clock Display
All Aspect
Rotate
Serial Slot Select
1/3
On
O f f
Off00
Off
Off
Off
Off
Off
2/3
Enable
Normal
0
Off
Off
Off
Off
Off
3/3
Off
Off
Off
Off
Off
Slot1
Item Adjustments
Weekly Command
Timer
Onscreen display
Initial INPUT
Initial VOL level
Sets Weekly Command Timer. (see page 41)
On: Displays all the following on screen.
• Power on display
• Input signal switch display
• No signal display
• Mute and the remaining time of off-timer after
Off: Hides all the items above from view.
Off PC INPUT1 INPUT2 INPUT3
Adjusts the input signal when the unit is turned on.
Notes:
• Only the adjusted signal is displayed. (see page 14)
• Signal can be displayed when the Terminal board is installed.
• This menu is available only when “INPUT lock” is “Off”.
• When a dual input terminal board is attached, A or B is displayed depending on the selected input signal.
(Ex. INPUT1A, INPUT1B)
Press
button to adjust the volume when the unit is turned on.
Off On
Off: Sets normal volume.
On: Sets your preferred volume.
Notes:
•
When “Maximum VOL level” is “On”, the volume can only be adjusted between 0 and your maximum range.
• You can hear the changed volume regardless of your volume setting before opening the options menu
if you adjust the volume when “Initial VOL level” is “On” and cursor is on the menu.
was pressed.
Maximum VOL level
38
Press
button to adjust the maximum volume.
Off On
Off: Sets auto maximum volume.
On: Sets your preferred maximum volume.
Notes:
• If the “Maximum VOL level” is set lower than the “Initial VOL level”, the “Initial VOL level” automatically
becomes the same as the “Maximum VOL level”.
• The volume display can go up to 63 regardless of the settings.
• You can hear the changed volume regardless of your volume setting before opening the options menu
if you adjust the volume when “Maximum VOL level” is “On” and cursor is on the menu.
Page 39
Item Adjustments
INPUT lock
Button lock
Remocon User level
Advanced PIP
Off-timer function
Initial Power Mode
ID select
Remote ID
Serial ID
Options Adjustments
Off PC INPUT1 INPUT2 INPUT3
Locks the input switch operation.
Notes:
• Only the adjusted signal is displayed (see page 14).
• Signal can be displayed when the Terminal board is installed.
• Input switch can be used when this is set to “Off”.
• In two screen display mode, if anything other than “Off” is set, the value will be fi xed as the value input
in the single screen display mode.
• When a dual input terminal board is attached, A or B is displayed depending on the selected input signal.
(Ex. INPUT1A, INPUT1B)
Off MENU&ENTER On
Off: All the buttons on main unit can be used.
MENU&ENTER:
Locks
On: Locks all the button on main unit.
Sets Button lock with the unit buttons in the following procedure.
Off: Press
MENU&ENTER: Press
On: Press four times→Press
Off User1 User2 User3
Off: You can use all of the buttons on the remote control.
User1: You can only use
User2: You can only use
User3:
Off: Sets normal two screen display mode (see page 18).
On: Sets Advanced PIP mode (see page 19).
Notes:
• When “INPUT lock” is “On”, you cannot use all the two screen display functions.
•
, buttons are unavailable during Advanced PIP mode operation.
Enable: Enables the “Off-timer function”.
Disable: Disables the “Off-timer function”.
Note: When “Disable” is set, the Off-timer is cancelled.
Normal Standby On
Sets the power mode of the unit for when the power recovers from failure or after plugging off and in again.
Normal: Power returns in as the same state as before the power interruption.
Standby
On: Power returns in power On. (Power Indicator : green)
Note: When using multiple displays, “Standby” is preferred to be set in order to reduce a power load.
Sets panel ID number when panel is used in “Remote ID” or “Serial ID”.
Set value range: 0 - 100
(Standard value: 0)
The setting of this menu is valid only when using ID remote control.
Off: Disables ID remote control functions. You can use normal remote control operations.
On: Enable ID remote control functions.
Sets the panel ID Control.
Off: Disables external control by the ID.
On: Enables the external control by the ID.
Adjusts the image display size on screen.
Off: Sets the normal image display size on screen.
On: Sets the image display size approximately 95 % of the normal image display.
Off On
and
MENU
four times→Press
buttons on main unit.
ENTER/
INPUT
four times→Press four times→Press
ENTER/
ENTER/
four times→Press four times→Press
four times→Press four times→Press
, , , , , buttons on the remote control.
button on the remote control.
Locks all the buttons on remote control.
: Power returns in standby mode. (Power Indicator : red/orange)
ENTER/
four times→Press
INPUT
ENTER/
ENTER/
Display size
Notes:
• This setting is valid only when the input signals are as follows;
NTSC, PAL, SECAM, M.NTSC, PAL60, PAL-M, PAL-N (BNC Dual Video Terminal Board (TY-FB9BD))
525i,
525p, 625i, 625p, 750/60p, 750/50p, 1125/60i, 1125/50i, 1125/24sF, 1125/25p, 1125/24p, 1125/30p,
1125/60p, 1125/50p, 1250/50i (Component Video, RGB, DVI, SDI, HDMI)
• This setting is invalid when two screen display, digital zoom or Multi display is selected.
• When “Display size” is set to “On”, “H-Pos” and “V-Pos” in “Pos. /Size” can be adjusted.
• Refer to each board’s operating instruction for DVI, SDI, HDMI’s corresponding signals.
39
Page 40
Options Adjustments
Item Adjustments
Studio W/B
Studio Gain
Slot Power
Power On Screen
Delay
Off: Nullify all the settings adjusted.
On: Sets the colour temperature for TV studio.
Note: Valid only when the low is set as colour temperature on screen adjustment.
Sharpens the contrast for a better view when a part of the image is too light to see.
Off: Disables “Studio Gain”.
On: Enables “Studio Gain”.
Note: This setting is valid only when the input signals are as follows:
Component Video, RGB (analog), SDI, HDMI
Off Auto On
Off: Power is not transmitted to the slot power.
Auto: Power is transmitted to the slot power only when main power is on.
On: Power is transmitted to the slot power when main power is on or in the standby state.
Note: In some cases, power is transmitted to the slot power when main power is on or in the standby
state regardless of the slot power setting.
Off 1 2 3.... 30
You can set the power-on delay time of the displays to reduce the power load, when you press
turn on the multiple displays that are set together, for example, on MULTI DISPLAY system.
Set each display’s setting individually.
Off: The display will be turned on at the same time as
1 to 30 (sec.)
Notes:
• During this function is working, the power indicator is blinking green.
• This function also works when the power recovers from failure or after plugging off and in again the
power cord.
After you unplug and plug the power cord in while the unit is in standby mode and also the power is
being supplied to a terminal board, the unit will start supplying the power to the board with time delay
according to the setting.
The power indicator lights up red fi rst and it turns orange when the power starts being supplied to the
board.
: Set the power-on delay time (second).
After pressing , the display will be powered on with time delay depending on this setting.
to
is pressed.
Clock Display
All Aspect
Rotate
Serial Slot Select
Off: Not display the clock.
On: Display the clock.
The clock is displayed at the lower left of the screen when
10:00
Note: When “PRESENT TIME Setup” is not set, the clock is not displayed even if “Clock Display” is
“On”. (see page 26)
Sets All Aspect mode (advanced aspect setting) or default aspect mode.
With each press of button, the aspect changes in the selected mode.
Off: Default aspect mode
On: All Aspect mode
Aspect mode of each setting is as follows:
(Example: HD signal)
Off 4:3→4:3 Full→Zoom1→Zoom2→Zoom3→16:9→14:9→Just
On 4:3 (1)→4:3 (2)→4:3 Full→Zoom1→Zoom2→Zoom3→16:9→14:9→Just1→Just2
Off: Does not rotate the image.
On: Rotates the image 180 degrees.
Slot1 Slot2 Slot3
Selects the slot which communicates serial.
Note: The setting of an external command can be set only from the fi xed serial terminal. (see page 10)
button is pressed.
Normalization
When both main unit buttons and remote control are disabled due to the “Button lock”, “Remocon User level” or “Remote
ID” adjustments, set all the values “Off” so that all the buttons are enabled again.
Press the button on main unit together with button on the remote control and hold for more than 5 seconds.
The “SHIPPING” menu is displayed and the lock is released when it disappears.
40
Page 41
y
Options Adjustments
Weekly Command Timer
You can set 7-day timer programming by setting time and command.
Note:
Before setting Weekly Command Timer, set PRESENT TIME Setup. (see page 26)
1
2
3
4
5
Press to select Function.
Press to select “On”.
Note:
• When Function is set to On, Set up TIMER
(see page 26) is unavailable and Interval /
Time Designation in Mode of Screensaver
(see page 27) cannot be selected.
Press to select a day.
Press to select a program number.
Note:
• You can set the program from 1 to 7.
--- indicates unset.
Press to select Program Edit.
Press to show the Program Edit screen.
Press to select Program.
Press to change the program numbers (1-7).
Press to select a command number.
Press to show the previous / next command
pages (1-8) of the selected program.
Options
Weekly Command Timer
Onscreen display
Press ACTION ( ) button
Weekly Command Timer
Function
Monday
Tuesday
Wednesday
Thursday
Friday
Saturday
Sunday
Program Edit
Program number
Thursday
Friday
Saturday
Sunday
Program Edit
Program Edit screen
Weekly Command Timer
--:--
--:--
--:--
--:--
1
PON
IMS:SL1
---
---
---
DAM:ZOOM
AVL:10
---
Program
01
02
03
04
05
06
07
08
8:00
10:30
12:00
9:12
1/3
On
On
Program1
Program3
---
Program3
---
Program6
Program4
Program3
---
Program6
Program4
1/8
Press to show the command setting screen.
Weekly Command Timer
Program
01
02
03
04
05
06
07
08
8:00
10:30
--:--
--:--
--:--
12:00
9:12
--:--
1
PON
IMS:SL1
---
---
---
DAM:ZOOM
AVL:10
---
1/8
Weekly Command Timer
Program
57
58
59
60
61
62
63
64
20:00
20:30
22:00
--:--
--:--
--:--
--:--
--:--
1
AVL:00
DAM:NORM
POF
---
---
---
---
---
8/8
Command (--- indicates unset)
Set time of timer(--:-- indicates unset)
Command numbers
41
Page 42
Options Adjustments
6
Press to select Command No.
Press to select a command number.
Press to select Time / Command.
7
Press to set each item.
Time: Set the time to execute a command program.
Pressing “ ” or “ ” button once changes “Time” 1
minute.
Pressing “ ” or “ ” button continuously changes “Time” by 15 minutes.
Command:Select a command to execute at the set time. This unit has 64 commands to set.
(see page 46)
Notes:
•
Command is performed in order of execution time, regardless of the command number.
• If a command execution time overlaps with that of other commands, these commands are
performed in number order.
• Pressing , Time becomes --:-- and Command becomes ---.
Note:
Press to return to the previous screen.
Command setting screen
Weekly Command Timer
Command No
Program
Time
Command
Weekly Command Timer
Program
Command No
Time
Command
IMS:SL1
IMS:SL1
02
10:30
02
10:30
1
1
Shipping condition
This function allows you to reset the unit to the factory setting.
1
2
3
4
Press to display the Setup menu.
Press to select “OSD Language”.
Press and hold till the SHIPPING menu is displayed.
Press to select “YES”.
Press to confi rm.
Setup
Signal
Screensaver
Component/RGB-in select
Input label
Power save
Standby save
Power management
Auto power off
OSD Language English (UK
SHIPPING
RGB
PC
Off
Off
Off
Off
YES
1/2
)
[from the unit]
1 Press the MENU button till the Setup menu is displayed.
2 Press the Volume Up“+” or Down“–” button to select “OSD Language”.
3 Press and hold the ENTER button till the SHIPPING menu is displayed.
4 Press the Volume Up“+” or Down“–” button to select “YES”.
5 Press the ENTER button and wait for 10 sec.
Note:
Press the R button to return to Setup menu when SHIPPING menu is displayed.
42
Page 43
Troubleshooting
Before you call for service, determine the symptoms and make a few simple checks as shown below.
Symptoms
Picture Sound
Electrical Appliances
Interference Noisy Sound
Normal Picture No Sound
No Picture No Sound
No Picture Normal Sound
No Colour Normal Sound
No remote control operations can be performed. Check whether the batteries have discharged completely and, if they have not,
A cracking sound is sometimes heard from the unit.
The top or bottom of the picture on the screen is cut
off when I use the zoom function.
Areas at the top and bottom of the screen where
the image is missing appear when I use the zoom
function.
I can hear sounds coming from inside the unit. When the power is turned on, a sound of the display panel being driven may be
This Plasma Display uses special image processing. Hence a slight time lag may occur between image and audio, depending on the
type of input signal. However, this is not a malfunction.
Cars / Motorcycles
Fluorescent light
Volume
(Check whether the mute function has been activated on the remote control.)
Not plugged into AC outlet
Not switched on
Picture and Brightness/Volume setting
(Check by pressing the power switch or stand-by button on the remote control.)
If a signal with a non-applicable colour system format, or frequency is input, only
the input terminal indication is displayed.
Colour controls set at minimum level
(see page 23, 24)
Colour system (see page 35)
whether they were inserted properly.
Check whether the remote control sensor is exposed to an outdoor light or a
strong fl uorescent light.
Check whether the remote control designed specifi cally for use with the unit is
being used. (The unit cannot be operated by any other remote control.)
If there is nothing wrong with the picture or sound, this is the sound of the cabinet
undergoing very slight contractions in response to changes in the room temperature.
There are no adverse effects on the performance or other aspects.
Adjust the position of the picture on the screen.
When using a video software program (such as a cinema size program) with a
screen wider than one in the 16:9 mode, blank areas separate from the images
are formed at the top and bottom of the screen.
heard: This is normal and not indicative of malfunctioning.
Checks
Plasma Display panel
Symptoms Check
The screen darkens slightly
when bright pictures with minimal
movements are shown.
It takes a while for the picture
to appear.
The edges of the images
fl icker.
The brightness on both sides of
images in the 4:3 mode changes.
Some parts of the screen do
not light up.
Image retention appears
Whirring sounds can be heard
from the display unit.
The screen will darken slightly when photos, still images of a computer or other pictures with minimal
movements are shown for an extended period. This is done to reduce image retention on the screen
and the shortening of the screen’s service life: It is normal and not indicative of malfunctioning.
The unit digitally processes the various signals in order to reproduce esthetically pleasing images. As
such, it sometimes takes a few moments for the picture to appear when the power has been turned
on, when the input has been switched or when the images for the main picture and sub picture on
the two screens are swapped.
Due to the characteristics of the system used to drive the panel, the edges may appear to fl icker in
the fast-moving parts of the images: This is normal and not indicative of malfunctioning.
When viewing the side panels at the “High” or “Mid” setting, the brightness on both sides may change
depending on the kind of program shown: This is normal and not indicative of malfunctioning.
The plasma display panel is manufactured using an extremely high level of precision technology,
however, sometimes some parts of the screen may be missing picture elements or have luminous
spots. This is not a malfunction.
Do not allow a still picture to be displayed for an extended period, as this can cause a permanent
image retention to remain on the Plasma Display.
Examples of still pictures include logos, video games, computer images, teletext and images displayed
in 4:3 mode.
Note:
The permanent image retention on the Plasma Display resulting from fi xed image use is not an
operating defect and as such is not covered by the Warranty.
This product is not designed to display fi xed images for extended periods of time.
The display unit is fi tted with a cooling fan to dissipate heat generated during normal use. The whirring
sound is caused by rotation of the fan and is not a malfunction.
43
Page 44
List of Aspect Modes
Aspect mode
All Aspect: OnFactory setting
All Aspect: Off
16:9 16:9
14:9 14:9
Just
Just
Just1
Just2 –
4:3
4:3
4:3 (1)
Picture Enlarged screen
Description
The display of the pictures fi lls the screen.
In the case of SD signals, pictures with a 4:3 aspect
ratio are enlarged horizontally, and displayed. This
mode is suited to displaying anamorphic pictures with
a 16:9 aspect ratio.
Letterbox pictures with a 14:9 aspect ratio are enlarged
vertically and horizontally so that their display fi lls the
screen vertically and is slightly smaller than the screen
horizontally. The top and bottom edges of the pictures
are cut off. Side panels are displayed at the left and right
edges of the screen.
Pictures with a 4:3 aspect ratio are enlarged horizontally
so that the picture distortion is minimized. The display of
the areas around the left and right edges of the screen
is slightly elongated.
The pictures with a 4:3 aspect ratio among the 16:9 aspect
ratio signals are enlarged horizontally so that the picture
distortion is minimized. The left and right edges of the
pictures are cut off. The display of the areas around the
left and right edges of the screen is slightly elongated.
Pictures with a 4:3 aspect ratio are displayed with their
original aspect ratio. Side panels are displayed at the
left and right edges of the screen.
4:3 (2) –
4:3 Full 4:3 Full
Zoom
Zoom1
Zoom1
Zoom2 Zoom2
Zoom3 Zoom3
The pictures with a 4:3 aspect ratio among the 16:9
aspect ratio signals are displayed with their original
aspect ratio. The left and right edges of the pictures are
masked with side panels.
The pictures with a 4:3 aspect ratio among the 16:9
aspect ratio signals are enlarged horizontally so that
their display fi lls the screen. The left and right edges of
the pictures are cut off.
Letterbox pictures with a 16:9 aspect ratio are enlarged
vertically and horizontally so that their display fi lls the
screen. The top and bottom edges of the pictures are
cut off.
The letterbox pictures with a 2.35:1 aspect ratio among
the 16:9 aspect ratio signals are enlarged vertically and
horizontally so that their display fi lls the screen. The top
and bottom edges as well as the left and right edges of
the pictures are cut off.
Letterbox pictures with a 2.35:1 aspect ratio are enlarged
vertically and horizontally so that their display fi lls the
screen vertically and is slightly larger than the screen
horizontally. The top and bottom edges as well as the
left and right edges of the pictures are cut off.
44
Page 45
VIDEO/PC input signals
VIDEO input
Signal name
1 NTSC 15.73 59.94
2 PAL 15.63 50.00
3 PAL60 15.73 59.94
4 SECAM 15.63 50.00
5 Modifi ed NTSC 15.73 59.94
Horizontal Vertical
frequency(kHz) frequency(Hz)
Applicable input signals for Mini D-sub 15P (Component) / Mini D-sub 15P (RGB) (
Horizontal
Signal name
1 525 (480) / 60i 15.73 59.94 13.5
2 525 (480) / 60p 31.47 59.94 27.0
3 625 (575) / 50i 15.63 50.00 13.5
4 625 (575) / 50p 31.25 50.00 27.0
5 750 (720) / 60p 45.00 60.00 74.25
6 750 (720) / 50p 37.50 50.00 74.25
7 1,125 (1,080) / 60p 67.50 60.00 148.5
8 1,125 (1,080) / 60i 33.75 60.00 74.25
9 1,125 (1,080) / 50p 56.26 50.00 148.5
10 1,125 (1,080) / 50i 28.13 50.00 74.25
11 1,125 (1,080) / 24sF 27.00 47.92 74.25
12 1,125 (1,080) / 30p 33.75 30.00 74.25
13 1,125 (1,080) / 25p 28.13 25.00 74.25
14 1,125 (1,080) / 24p 27.00 24.00 74.25
15 1,250 (1,080) / 50i 31.25 50.00 74.25
16 640 × 400 @70 Hz 31.46 70.07 25.17
17 640 × 480 @60 Hz 31.47 59.94 25.18
18 640 × 480 @72 Hz 37.86 72.81 31.5
19 640 × 480 @75 Hz 37.50 75.00 31.5
20 640 × 480 @85 Hz 43.27 85.01 36.0
21 852 × 480 @60 Hz 31.47 59.94 33.54
22 800 × 600 @56 Hz 35.16 56.25 36.0
23 800 × 600 @60 Hz 37.88 60.32 40.0
24 800 × 600 @72 Hz 48.08 72.19 50.0
25 800 × 600 @75 Hz 46.88 75.00 49.5
26 800 × 600 @85 Hz 53.67 85.06 56.25
27 1,024 × 768 @60 Hz 48.36 60.00 65.0
28 1,024 × 768 @70 Hz 56.48 70.07 75.0
29 1,024 × 768 @75 Hz 60.02 75.03 78.75
30 1,024 × 768 @85 Hz 68.68 85.00 94.5
31 1,152 × 864 @75 Hz 67.50 75.00 108.0
32 1,280 × 768 @60 Hz 47.70 60.00 80.14
33 1,280 × 960 @60 Hz 60.00 60.00 108.0
34 1,280 × 960 @85 Hz 85.94 85.00 148.5
35 1,280 × 1,024 @60 Hz 63.98 60.02 108.0
36 1,280 × 1,024 @75 Hz 79.98 75.03 135.0
37 1,280 × 1,024 @85 Hz 91.15 85.02 157.5
38 1,600 × 1,200 @60 Hz 75.00 60.00 162.0
39 1,600 × 1,200 @65 Hz 81.25 65.00 175.5
40 1,066 × 600 @60 Hz 37.64 59.94 53.0
41 1,366 × 768 @60 Hz 48.36 60.00 86.71
42 Macintosh13” (640 × 480) 35.00 66.67 30.24
43 Macintosh16” (832 × 624) 49.72 74.54 57.28
44 Macintosh21” (1,152 × 870) 68.68 75.06 100.0
frequency
(kHz)
Vertical
frequency
(Hz)
Dot clock
frequency
(MHz)
* Mark)
Mini D-sub 15P
(Component)
Mini D-sub 15P
(RGB)
**
**
**
**
**
**
**
**
**
**
**
**
**
**
**
∗1: Based on SMPTE 274M standard.
∗2: Based on SMPTE RP211 standard.
∗3: Based on SMPTE 295M standard.
∗4:
When selected the RGB format and 525p signal input to the Mini D-sub 15P terminal, it is recognized as VGA 60Hz signal.
∗5:
When inputted VGA 60Hz format signal from the other than Mini D-sub 15P terminal, it is recognized as 525p signal.
Note: Signals without above specifi cation may not be displayed properly.
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
∗4
∗1
∗1
∗1
∗1
∗2
∗1
∗1
∗1
∗3
∗5
∗5
45
Page 46
Command list of Weekly Command Timer
No. Command Control details
1 AAC:MENCLR Audio Menu (Clear)
2 AAC:MENDYN Audio Menu (Dynamic)
3 AAC:MENSTD Audio Menu (Standard)
4 AAC:SURMON Surround (ON)
5 AAC:SUROFF Surround (OFF)
6 AMT:0 Audio Mute (OFF)
7 AMT:1 Audio Mute (ON)
8 ASO:M Audio out when PIP mode (Main Picture)
9 ASO:S Audio out when PIP mode (Sub Picture)
10 AVL:00 Audio Volume (00)
11 AVL:10 Audio Volume (10)
12 AVL:20 Audio Volume (20)
13 AVL:30 Audio Volume (30)
14 AVL:40 Audio Volume (40)
15 AVL:50 Audio Volume (50)
16 AVL:60 Audio Volume (60)
17 DAM:FULL Aspect (16:9)
18 DAM:JUST Aspect (Just)
19 DAM:NORM Aspect (4:3)
20 DAM:SELF Aspect (Panasonic Auto)
21 DAM:ZOOM Aspect (Zoom)
22 DWA:OFF Advanced PIP mode (OFF)
23 DWA:OVL1 Advanced PIP mode (1) (see page 19)
24 DWA:OVL2 Advanced PIP mode (2) (see page 19)
25 DWA:OVL3 Advanced PIP mode (3) (see page 19)
26 DWA:OVL4 Advanced PIP mode (4) (see page 19)
27 DWA:OVL5 Advanced PIP mode (5) (see page 19)
28 DWA:OVL6 Advanced PIP mode (6) (see page 19)
29 DWA:OVLOF Advanced PIP mode (OFF) (normal two screen display mode)
30 DWA:OVLON Advanced PIP mode (ON)
31 DWA:PIN0 The location of the sub picture (lower right)
32 DWA:PIN1 The location of the sub picture (lower left)
33 DWA:PIN2 The location of the sub picture (upper left)
34 DWA:PIN3 The location of the sub picture (upper right)
35 DWA:PIP Dual Picture mode (Picture in Picture)
36 DWA:POP Dual Picture mode (Picture out Picture)
37 DWA:SWP Swap main picture and sub picture when PIP mode
38 DWA:TWN Dual Picture mode (Picture and Picture)
39 IMS:PC1 Input select (PC1) (Main Picture when PIP mode)
40 IMS:SL1 Input select (SLOT1) (Main Picture when PIP mode)
41 IMS:SL1A Input select (SLOT1A) (Main Picture when PIP mode)
42 IMS:SL1B Input select (SLOT1B) (Main Picture when PIP mode)
43 IMS:SL2 Input select (SLOT2) (Main Picture when PIP mode)
44 IMS:SL2A Input select (SLOT2A) (Main Picture when PIP mode)
45 IMS:SL2B Input select (SLOT2B) (Main Picture when PIP mode)
46 IMS:SL3 Input select (SLOT3) (Main Picture when PIP mode)
47 ISS:PC1 Sub Picture Input Select (PC1)
48 ISS:SL1 Sub Picture Input Select (SLOT1)
49 ISS:SL1A Sub Picture Input Select (SLOT1A)
50 ISS:SL1B Sub Picture Input Select (SLOT1B)
51 ISS:SL2 Sub Picture Input Select (SLOT2)
52 ISS:SL2A Sub Picture Input Select (SLOT2A)
53 ISS:SL2B Sub Picture Input Select (SLOT2B)
54 ISS:SL3 Sub Picture Input Select (SLOT3)
OSP:SCR0 Screen Saver Scrolling bar only (OFF)
55
OSP:SCR1 Screen Saver Scrolling bar only (ON)
56
57 POF Power OFF
58 PON Power ON
SSC:FNC0 Screen Saver function (Scrolling bar only)
59
SSC:FNC1 Screen Saver function (Negative image)
60
SSC:MOD0 Screen Saver (Mode (OFF))
61
SSC:MOD3 Screen Saver (Mode (ON))
62
63
64
Picture Mute cannot be unlocked by powering off/on with the remote control. Turn off and on again with the button
∗
on the unit or enter the command VMT:0 to unlock Picture Mute.
VMT:0
VMT:1
∗
∗
Picture Mute (OFF)
Picture Mute (ON)
46
Page 47
Specifi cations
TH-42PH11EK/S TH-50PH11EK/S
Power Source 220 - 240 V AC, 50/60 Hz
Power Consumption
Power on 275 W 365 W
Stand-by condition Save off 1.8 W, Save on 0.9 W Save off 1.5 W, Save on 0.7 W
Power off condition 0.5 W 0.3 W
Plasma Display panel Drive method : AC type
42-inch, 16:9 aspect ratio
Screen size 922 mm (W) × 518 mm (H)
× 1,057 mm (diagonal)
(No.of pixels) 786,432 (1,024 (W) × 768 (H))
[3,072 × 768 dots]
Operating condition
Temperature 0 °C - 40 °C
Humidity 20 % - 80 %
Applicable signals
Colour System NTSC, PAL, PAL60, SECAM, Modifi ed NTSC
Scanning format 525 (480) / 60i · 60p, 625 (575) / 50i · 50p, 750 (720) / 60p · 50p, 1125 (1080) / 60i · 60p · 50i ·
50p · 24p · 25p · 30p · 24sF, 1250 (1080) / 50i
PC signals VGA, SVGA, XGA
SXGA, UXGA ···· (compressed)
Horizontal scanning frequency 15 - 110 kHz
Vertical scanning frequency 48 - 120 Hz
Connection terminals
AV IN VIDEO IN (BNC)
S VIDEO IN (MINI DIN 4PIN)
AUDIO IN (RCA PIN JACK × 4)
PC IN (HIGH-DENSITY MINI D-SUB 15PIN)
B/P
R/P
HD/VD:
VBS (use HD port)
AUDIO IN (M3 JACK)
SERIAL EXTERNAL CONTROL TERMINAL (D-SUB 9PIN) RS-232C COMPATIBLE
SPEAKERS (6 Ω) 16W [8 W + 8 W] (10 % THD)
Accessories Supplied
Remote Control Transmitter
Batteries 2 × R6 Size
Fixing band TMME203 × 1
Dimensions (W × H × D) 1,020 mm × 610 mm × 89 mm 1,210 mm × 724 mm × 95 mm
Mass (weight)
main unit only approx. 25.0 kg net approx. 34.0 kg net
with speakers approx. 29.0 kg approx. 38.0 kg
N2QAYB000178
1.0 Vp-p (75 Ω)
Y: 1.0 Vp-p (75 Ω), C: 0.286 Vp-p (75 Ω)
0.5 Vrms
Y or G with sync 1.0 Vp-p (75 Ω)
Y or G without sync 0.7 Vp-p (75 Ω)
0.7 Vp-p (75 Ω)
B/CB:
0.7 Vp-p (75 Ω)
R/CR:
1.0 - 5.0 Vp-p (high impedance)
with picture 1.0 Vp-p (high impedance)
without picture 0.3 Vp-p (high impedance)
0.5 Vrms
Drive method : AC type
50-inch, 16:9 aspect ratio
1,106 mm (W) × 622 mm (H)
× 1,269 mm (diagonal)
1,049,088 (1,366 (W) × 768 (H))
[4,098 × 768 dots]
Notes:
• Design and specifi cations are subject to change without notice. Mass and dimensions shown are approximate.
• This equipment complies with the EMC standards listed below.
EN55022, EN55024, EN61000-3-2, EN61000-3-3.
47
Page 48
Information on Disposal for Users of Waste Electrical & Electronic Equipment
(private households)
This symbol on the products and/or accompanying documents means that used electrical
and electronic products should not be mixed with general household waste.
For proper treatment, recovery and recycling, please take these products to designated
collection points, where they will be accepted on a free of charge basis. Alternatively, in
some countries you may be able to return your products to your local retailer upon the
purchase of an equivalent new product.
Disposing of this product correctly will help to save valuable resources and prevent any
potential negative effects on human health and the environment which could otherwise arise
from inappropriate waste handling. Please contact your local authority for further details of your nearest
designated collection point.
Penalties may be applicable for incorrect disposal of this waste, in accordance with national legislation.
For business users in the European Union
If you wish to discard electrical and electronic equipment, please contact your dealer or supplier for further
information.
Information on Disposal in other Countries outside the European Union
This symbol is only valid in the European Union.
If you wish to discard this product, please contact your local authorities or dealer and ask for the correct
method of disposal.
Customer’s Record
The model number and serial number of this product can be found on its rear panel. You should note this serial
number in the space provided below and retain this book, plus your purchase receipt, as a permanent record
of your purchase to aid in identifi cation in the event of theft or loss, and for Warranty Service purposes.
Model Number Serial Number
Matsushita Electric Industrial Co., Ltd.
Web Site : http://panasonic.net
© 2008 Matsushita Electric Industrial Co., Ltd. All Rights Reserved.
Printed in Czech Republic
Loading...
