Page 1

MODE

123

456

789

IDTV

Operating Instructions

Digital Progressive Plasma Television

Model No.

TH-37PE50B TH-42PE50B TH-37PE40B TH-42PE40B

The image shown is for illustration only. Pedestal stand shown above is optional extra.

(U.K. Standard)

Please read these instructions before operating your set and retain them for future reference.

English

TQB0E0168-3

Page 2

Dear Panasonic Customer,

ABCDEF

We hope that you have many years of enjoyment from your new TV. The Quick Start Guide section at the beginning of this instruction book will allow you to use the TV as quickly as possible. We recommend that you then read the complete instruction book, and keep it to refer to as you explore the range of advanced features that this Plasma TV offers.

Analogue and Digital television – what are they?

Analogue transmission is the system that has been used for many years for broadcasting television programmes. With continuous improvements in technology it is now possible to transmit programmes in a digital format, allowing clearer pictures, more stations and other services to be displayed on screen. Digital television is provided in three different ways; it can be sent along a cable connection direct to your house, broadcast from a satellite, or broadcast using traditional land based (terrestrial) transmitters. The first two options require you to have an extra “set top box” decoder and in the case of satellite, a receiving dish mounted outdoors. While allowing you to receive traditional analogue transmissions in the usual way, this television can also receive terrestrial digital services using an integrated interactive services, without the need for a “set top box” or satellite dish – an adequate roof or loft mounted antenna is all you need.

(Digital Video Broadcasting) decoder. This allows you to enjoy the new era of digital terrestrial television, including

Contents

Important Safety Notice ............................................ 3

Safety Precautions .................................................... 4

Maintenance ............................................................. 5

Accessories ............................................................... 6

Fitting remote control batteries ................................. 6

AC cord connection ................................................... 7

Cable binding instructions ......................................... 7

Quick Start Guide ...................................................... 8

Basic controls: front panel and remote control .........11

Using the On Screen Displays ................................ 12

Picture menu ........................................................... 13

Sound menu ............................................................ 14

Setup menu ............................................................. 15

Tuning menu – overview ......................................... 16

Tuning menu – Programme edit.............................. 17

Adding / deleting a programme channel .............. 17

Moving a programme channel ............................. 17

Renaming a programme channel ........................ 18

Locking a programme channel ............................ 18

Copying programme information to

a recording device .................................... 18

Tuning menu – Auto setup ...................................... 19

Tuning menu – Manual tuning................................. 20

Manual tuning (via front panel) ............................... 20

Owner ID ................................................................. 21

Shipping condition ................................................... 22

DVB Setup Menu – overview .................................. 23

Timer programming menu ....................................... 24

Profile Edit menu ..................................................... 26

Child Lock menu ..................................................... 27

DVB Tuning Menu ................................................... 28

DVB System Setup ................................................. 29

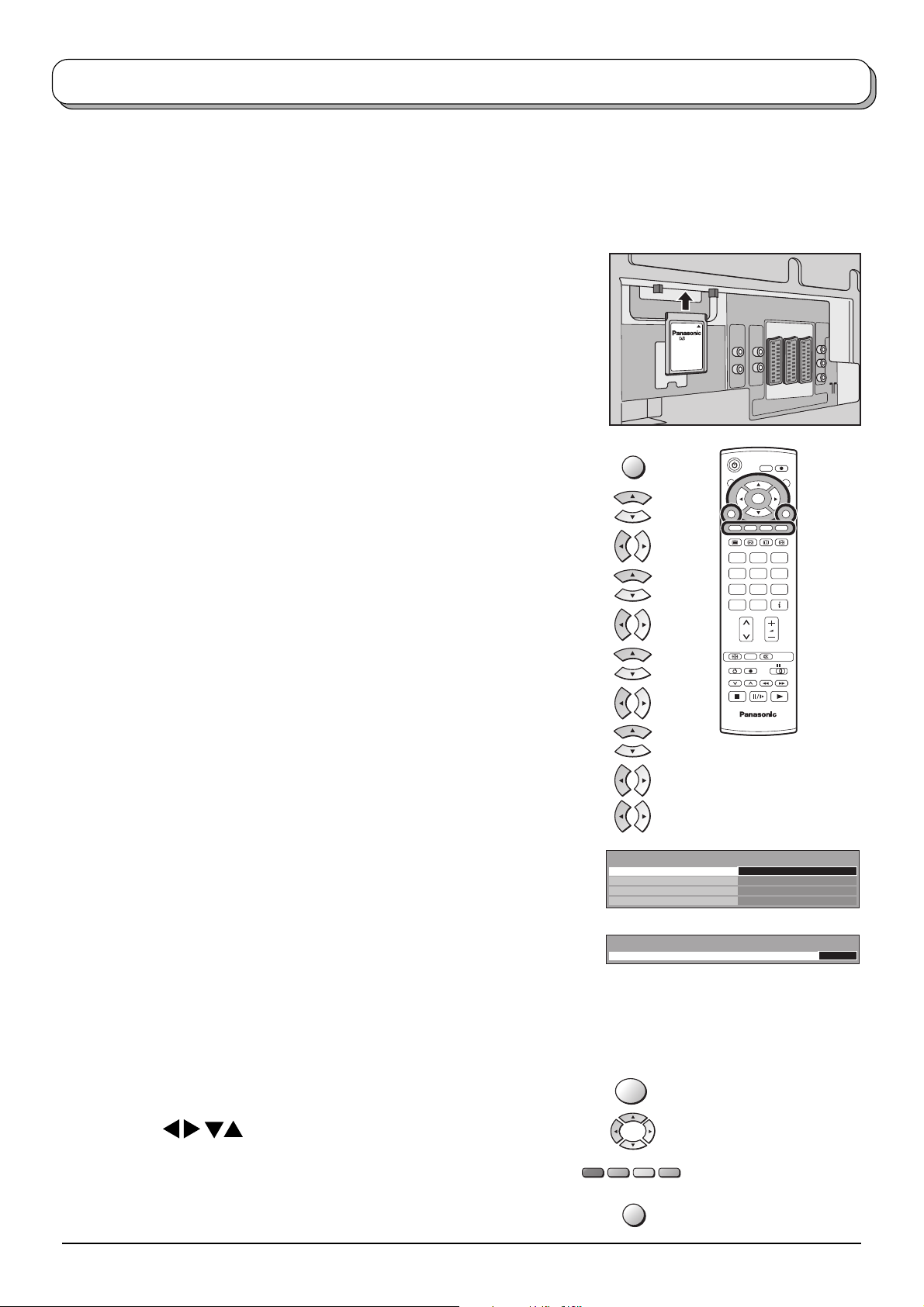

Common Interface Module menu ............................ 30

System Update menu ............................................. 31

TV Guide - Electronic Programme Guide (EPG) .... 32

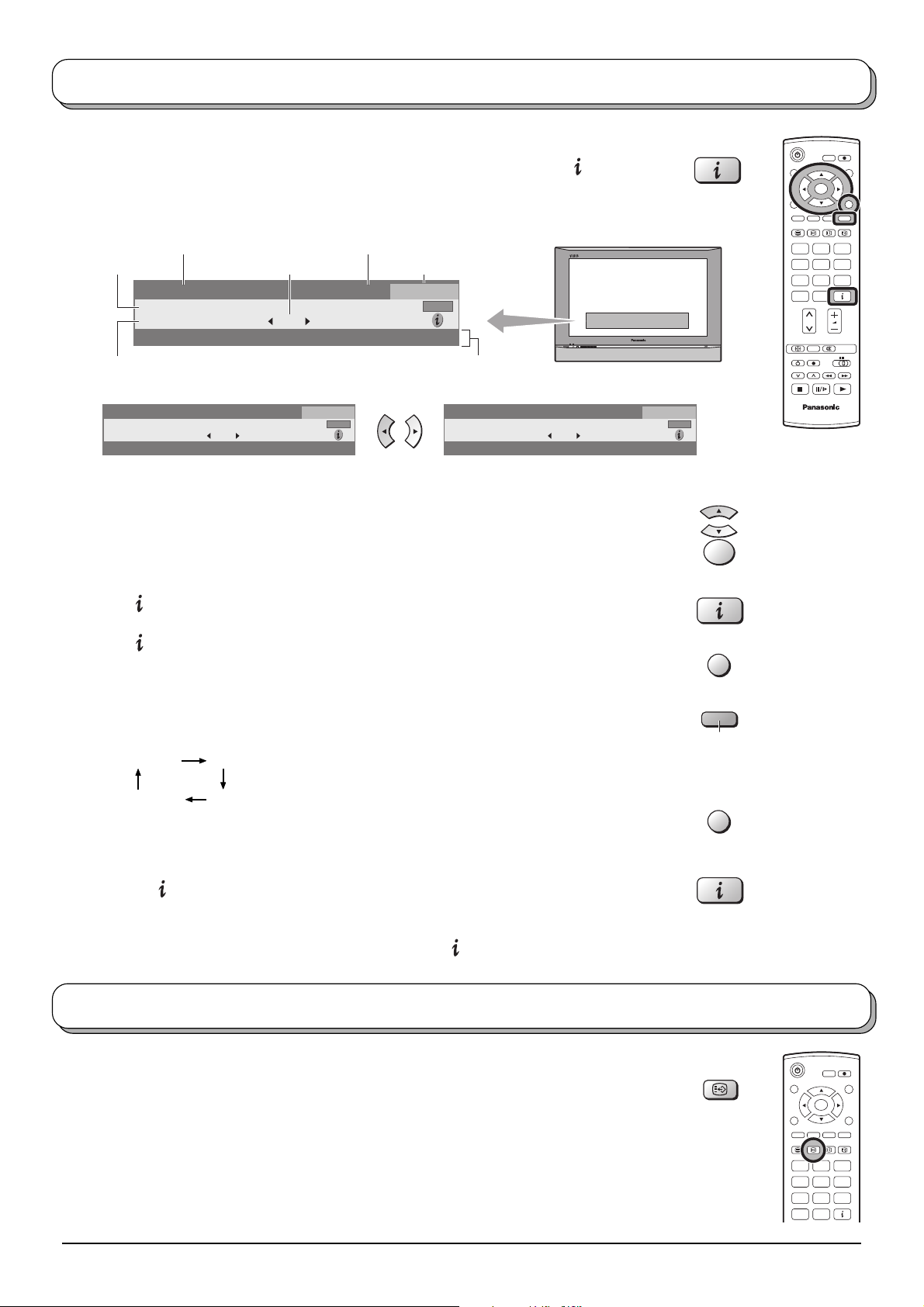

Information banner .................................................. 33

Subtitles ON / OFF .................................................. 33

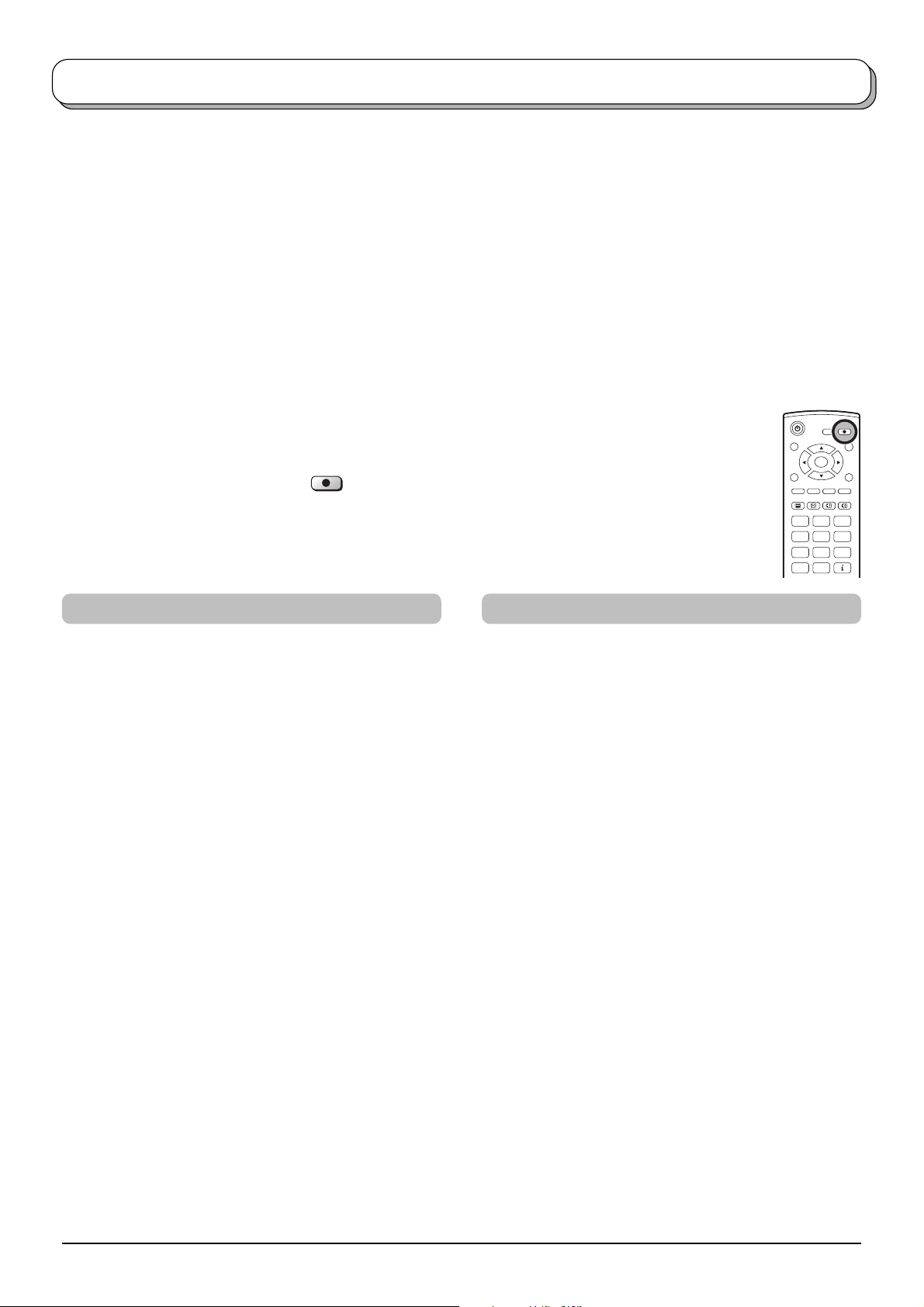

Q-Link...................................................................... 34

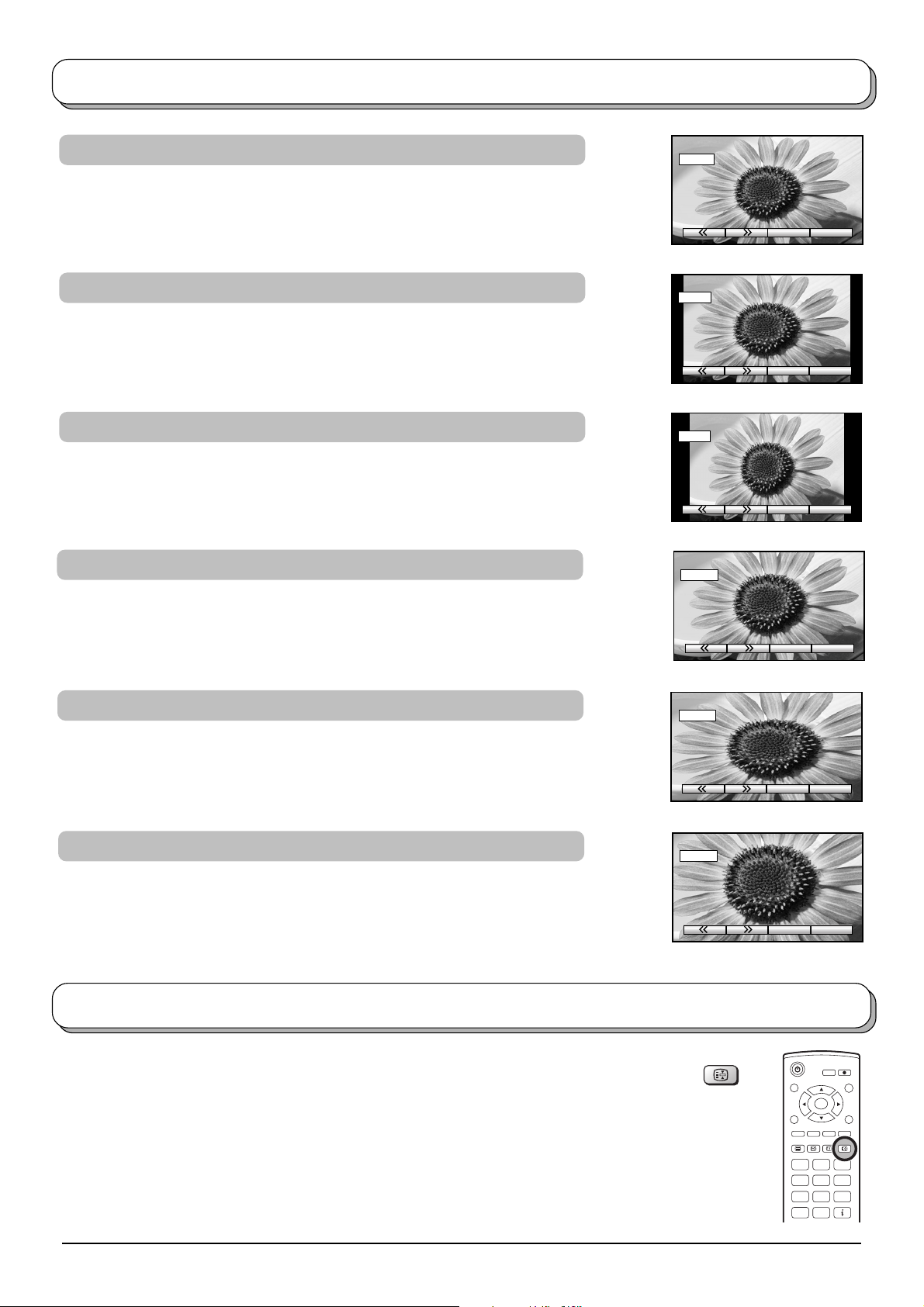

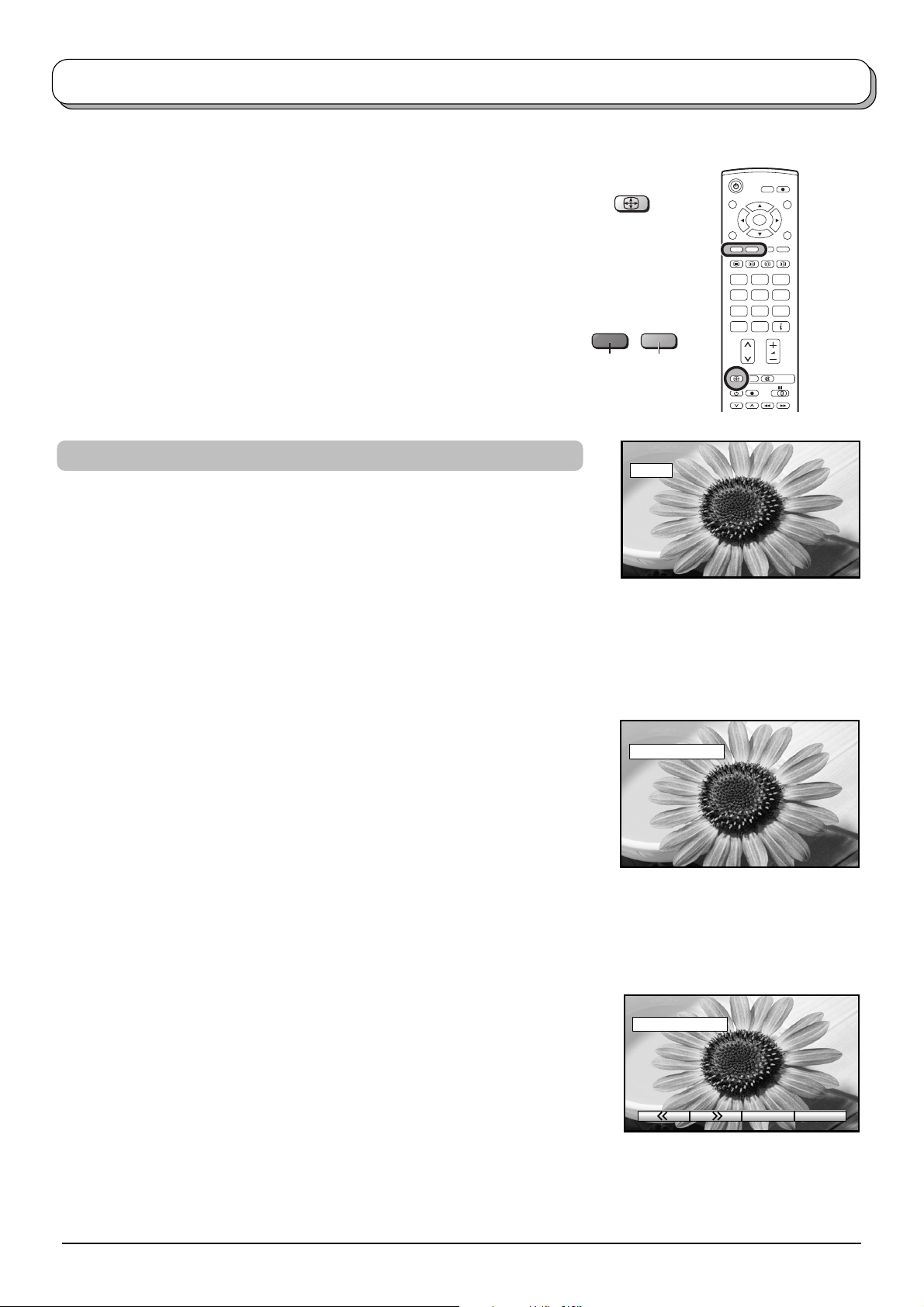

Aspect Controls ....................................................... 35

Still .......................................................................... 36

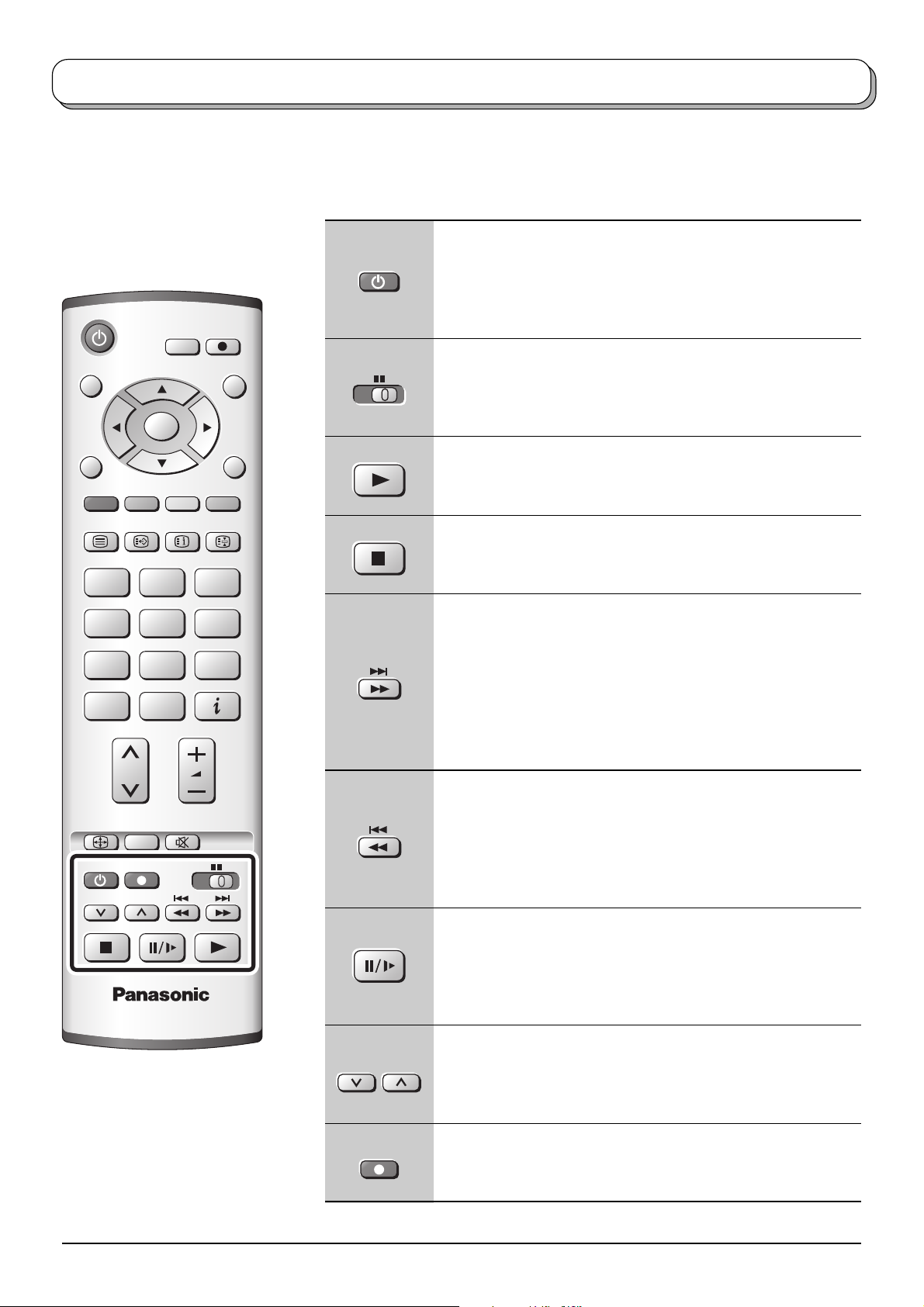

VCR / DVD operation .............................................. 37

Teletext operation.................................................... 38

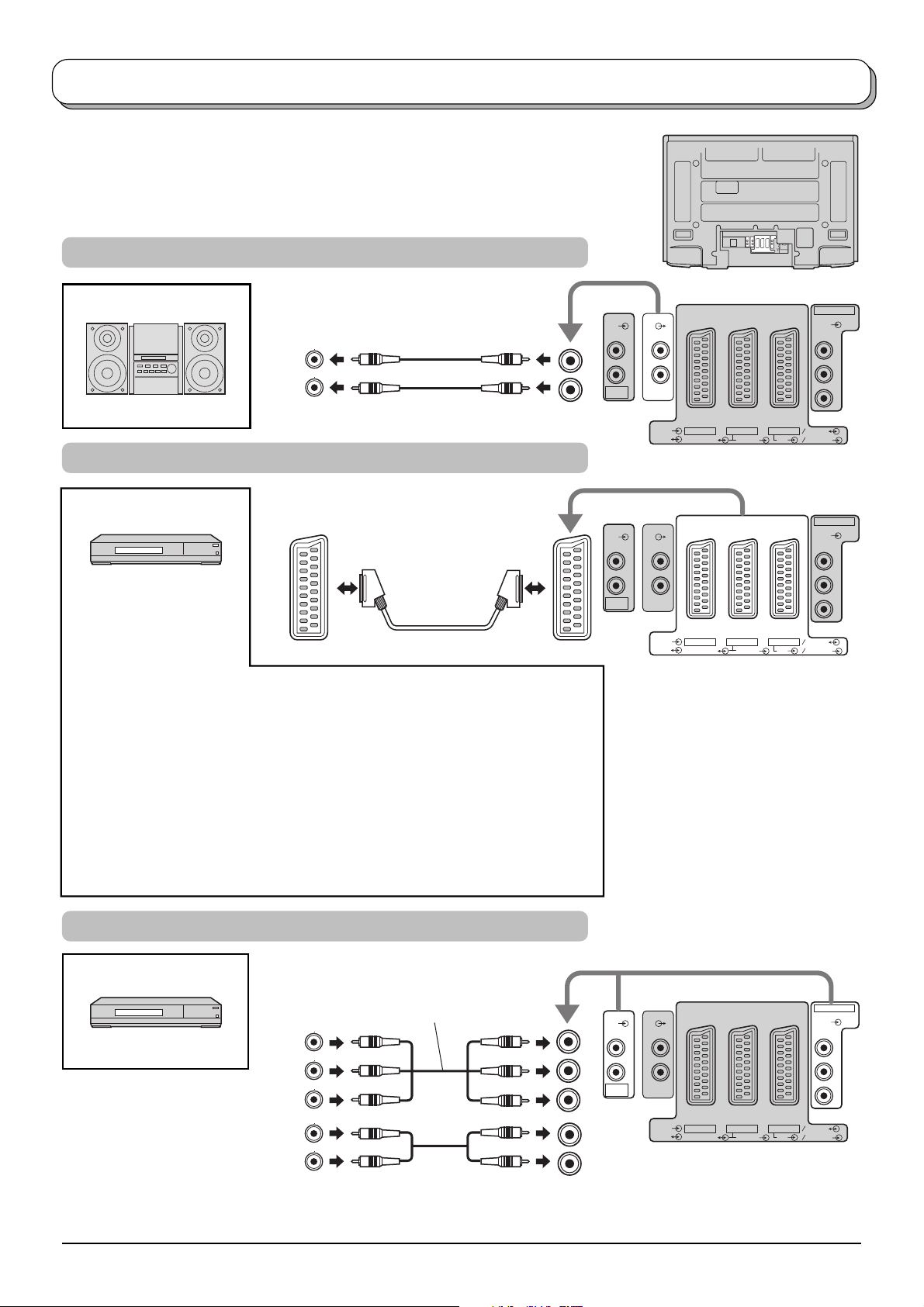

Audio / video connections ...................................... 41

How to connect the Audio Output terminals ........ 42

How to connect the AV1 / 2 / 3 Scart terminals.... 42

How to connect the Component Input terminals .. 42

Troubleshooting ...................................................... 43

DVB Troubleshooting .............................................. 44

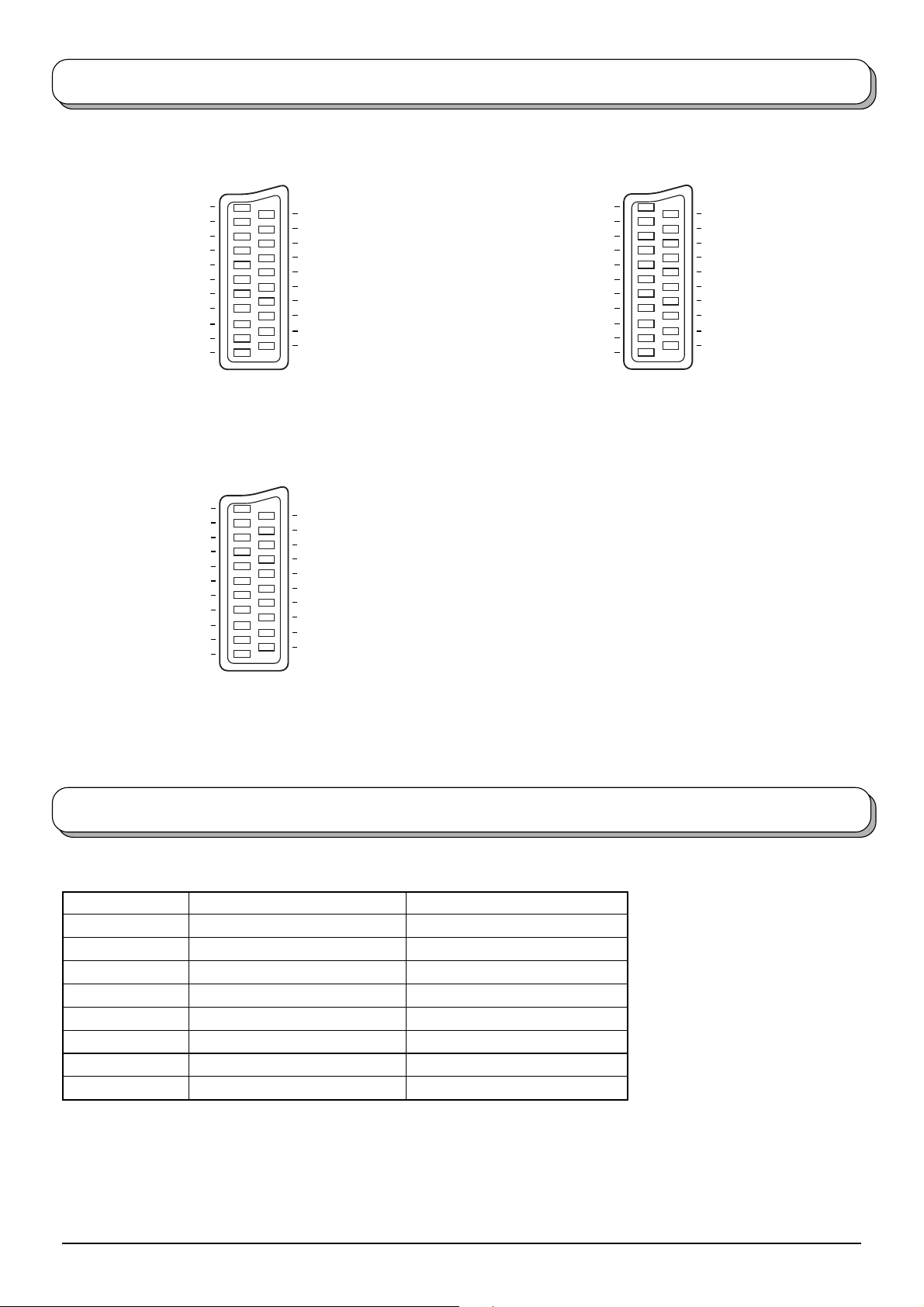

Scart terminal information ....................................... 45

Component signal that can be displayed ................ 45

Specifications .......................................................... 46

Trademark Credits

DVB is a trademark of the DVB Digital Video Broadcasting Project (1991 to 1996) .

CAUTION:

Symptoms

Do not allow a still picture to be displayed for an extended period, as this can cause a permanent after-image

After-images appear

ABCDEF

to remain on the Plasma TV. Examples of still pictures include logos, video games, computer images, teletext and images displayed in 4:3 mode. With no signal present, and without any user operation, the Panasonic screensaver will appear automatically after a few minutes to prevent image retention. During DVB teletext, radio service or menu display, the level of the contrast will decrease automatically after a few minutes to prevent image retention.

Note:

The permanent after-image on the Plasma TV resulting from fixed image use is not an operating defect and as such is not covered by the Warranty. This product is not designed to display fixed images for extended periods of time.

Check

Page 3

Important Safety Notice

WARNING

1) To prevent damage which may result in fire or shock hazard, do not expose this appliance to dripping or splashing. Do not place containers with water (flower vase, cups, cosmetics, etc.) above the set. (including on shelves above, etc.)

2) To prevent electric shock, do not remove cover. No user serviceable parts inside. Refer servicing to qualified service personnel.

3) Do not remove the earthing pin on the power plug. This apparatus is equipped with a three pin earthing-type power plug. This plug will only fit an earthing-type power outlet. This is a safety feature. If you are unable to insert the plug into the outlet, contact an electrician. Do not defeat the purpose of the earthing plug.

CAUTION

1) This appliance is intended for use in environments which are relatively free of electromagnetic fields. Using this appliance near sources of strong electromagnetic fields or where electrical noise may overlap with the input signals could cause the picture and sound to wobble or cause interference such as noise to appear. To avoid the possibility of damage to this appliance, keep it away from sources of strong electromagnetic fields.

2) If a static electricity discharge occurs inside the front cover, the screen may momentarily flicker. This is not a malfunction. The screen will return to normality in a short while.

To prevent electric shock, ensure the grounding pin on the AC cord power plug is securely connected.

IMPORTANT: THE MOULDED PLUG

FOR YOUR SAFETY, PLEASE READ THE FOLLOWING TEXT CAREFULLY.

This appliance is supplied with a moulded three pin mains plug for your safety and convenience. A 5 amp fuse is fitted in this plug. Shall the fuse need to be replaced, please ensure that the replacement fuse has a rating of 5 amps and that it is approved by ASTA or BSI to BS1362.

ASA

Check for the ASTA mark

If the plug contains a removable fuse cover, you must ensure that it is refitted when the fuse is replaced. If you lose the fuse cover the plug must not be used until a replacement cover is obtained. A replacement fuse cover can be purchased from your local Panasonic Dealer.

If the fitted moulded plug is unsuitable for the socket outlet in your home, then the fuse shall be removed and the plug cut off and disposed of safety. There is a danger of severe electrical shock if the cut off plug is inserted into any 13 amp socket.

If a new plug is to be fitted, please observe the wiring code as shown below. If in any doubt, please consult a qualified electrician.

WARNING: — THIS APPARATUS MUST BE EARTHED.

IMPORTANT: —The wires in this mains lead are coloured in accordance with the following code: —

Green-and-Yellow: Earth Blue: Neutral Brown: Live

or the BSI mark on the body of the fuse.

As the colours of the wire in the mains lead of this appliance may not correspond with the coloured markings identifying the terminals in your plug, proceed as follows.

The wire which is coloured GREEN-AND-YELLOW must be connected to the terminal in the plug which is marked with the letter E or by the Earth symbol

The wire which is coloured BLUE must be connected to the terminal in the plug which is marked with the letter N or coloured BLACK.

The wire which is coloured BROWN must be connected to the terminal in the plug which is marked with the letter L or coloured RED.

How to replace the fuse. Open the fuse compartment with a screwdriver and replace the fuse.

or coloured GREEN or GREEN-AND-YELLOW.

Page 4

Safety Precautions

WARNING

Setup

This Plasma TV is for use only with the following optional accessories. Use with any other type of optional accessories may cause instability which could result in the possibility of injury.

(All of the following accessories are manufactured by Matsushita Electric Industrial Co., Ltd.)

• Pedestal ................................................. TY-ST42PA50W

• Display stand ......................................... TY-S37PA50W (TH-37PE50B, TH-37PE40B)

TY-S42PA50W (TH-42PE50B, TH-42PE40B)

• Wall-hanging bracket (vertical) .............. TY-WK42PV3W, TY-WK42PV2W

• Wall-hanging bracket (angle) ................ TY-WK42PR2W

Always be sure to ask a qualified technician to carry out installation.

Do not place the Plasma TV on sloped or unstable surfaces.

• The Plasma TV may fall off or tip over.

Do not place any objects on top of the Plasma TV.

•

If water is spilt onto the Plasma TV or foreign objects get inside it, a short-circuit may occur which could result in fire or electric shock. If any foreign objects get inside the Plasma TV, please consult your local Panasonic dealer.

Ventilation should not be impleded by covering the ventilation openings with items such as newspapers, table cloths and curtains.

If using the pedestal (optional accessory), leave a space of at least 10 cm at the top, left and right, at least 6 cm at the bottom, and at least 7 cm at the rear. If using some other setting-up method, leave a space of at least 10 cm at the top, bottom, left and right, and at least 1.9 cm at the rear.

Electromagnetic interference may occur if electronic equipments are placed near each other.

• It will cause interference in image, sound, etc. In particular, keep video equipment away from this product.

Keep unneeded small parts and other objects out of the reach of small children. These objects can be accidentally swallowed. Also, be careful about packaging materials and plastic sheets.

When using the Plasma TV

The Plasma TV is designed to operate on 220 - 240 V AC, 50/60 Hz. Do not cover the ventilation holes.

• Doing so may cause the Plasma TV to overheat, which can cause fire or damage to the Plasma TV.

Do not insert any foreign objects into the Plasma TV.

• Do not insert any metal or flammable objects into the ventilations holes or drop them onto the Plasma TV, as doing so can cause fire or electric shock.

Do not remove the cover or modify it in any way.

• High voltages which can cause severe electric shocks are present inside the Plasma TV. For any inspection, adjustment and repair work, please contact your local Panasonic dealer.

Ensure that the mains plug is easily accessible.

Securely insert the power cord plug as far as it will go.

• If the plug is not fully inserted, heat may be generated which could cause fire. If the plug is damaged or the wall socket plate is loose, do not use them.

Do not handle the power cord plug with wet hands.

• Doing so may cause electric shocks.

Do not do anything that may damage the power cable. When disconnecting the power cable, pull on the plug body, not the cable.

• Do not damage the cable, make any modifications to it, place heavy objects on top of it, heat it, place it near any hot objects, twist it, bend it excessively or pull it. To do so may cause fire and electric shock. If the power cable is damaged, have it repaired at your local Panasonic dealer.

If the Plasma TV is not going to be used for any prolonged length of time, unplug the power cord plug from the wall outlet.

Page 5

Safety Precautions

If problems occur during use

If a problem occurs (such as no picture or no sound), or if smoke or an abnormal odour starts to come out from the Plasma TV, immediately unplug the power cord plug from the wall outlet.

• If you continue to use the Plasma TV in this condition, fire or electric shock could result. After checking that the smoke has stopped, contact your local Panasonic dealer so that the necessary repairs can be made. Repairing the Plasma TV yourself is extremely dangerous, and should never be attempted.

If water or foreign objects get inside the Plasma TV, if the Plasma TV is dropped, or if the cabinet becomes damages, disconnect the power cord plug immediately.

•A short circuit may occur, which could cause fire. Contact your local Panasonic dealer for any repairs that need to be made.

CAUTION

When using the Plasma TV

Do not bring your hands, face or objects close to the ventilation holes of the Plasma TV.

• Heated air comes out from the ventilation holes at the top of Plasma TV will be hot. Do not bring your hands or face, or objects which cannot withstand heat, close to this port, otherwise burns or deformation could result.

Be sure to disconnect all cables before moving the Plasma TV.

• If the Plasma TV is moved while some of the cables are still connected, the cables may become damaged, and fire or electric shock could result.

Disconnect the power cord plug from the wall socket as a safety precaution before carrying out any cleaning.

• Electric shocks can result if this is not done.

Clean the power cable regularly to prevent it becoming dusty.

• If dust built up on the power cord plug, the resultant humidity can damage the insulation, which could result in fire. Pull the power cord plug out from the wall outlet and wipe the mains lead with a dry cloth.

This Plasma TV radiates infrared rays, therefore it may affect other infrared communication equipment. Install your infrared sensor in a place away from direct or reflected light from your Plasma TV.

Maintenance

The front of the display panel has been specially treated. Wipe the panel surface gently using only a cleaning cloth or a soft, lint-free cloth.

If the surface is particularly dirty, wipe with a soft, lint-free cloth which has been soaked in pure water or water to

• which a small amount of neutral detergent has been added, and then wipe it evenly with a dry cloth of the same type until the surface is dry.

• Do not scratch or hit the surface of the panel with fingernails or other hard objects, otherwise the surface may become damaged. Furthermore, avoid contact with volatile substances such as insect sprays, solvents and thinner, otherwise the quality of the surface may be adversely affected.

If the cabinet becomes dirty, wipe it with a soft, dry cloth.

• If the cabinet is particularly dirty, soak the cloth in water to which a small amount of neutral detergent has been added and then wring the cloth dry. Use this cloth to wipe the cabinet, and then wipe it dry with a dry cloth.

• Do not allow any detergent to come into direct contact with the surface of the Plasma TV. If water droplets get inside the unit, operating problems may result.

•Avoid contact with volatile substances such as insect sprays, solvents and thinner, otherwise the quality of the cabinet surface may be adversely affected or the coating may peel off. Furthermore, do not leave it for long periods in contact with articles made from rubber or PVC.

Page 6

Accessories

Check that you have the accessories and items shown

Operating Instructions

Batteries for the Remote Control Transmitter (2 × R6 (UM3) size)

Remote Control Transmitter (EUR7651080)

MODE

123

456

789

IDTV

Mains Lead (K2CT3DH00018)

Clamper (TMME206) × 2

Pan European Guarantee Card 1 Year Guarantee Registration

Fitting remote control batteries

1 2 3

“R6 (UM3)” size

Pull and hold the hook, then open the battery cover.

Insert batteries - note correct

polarity ( + and

• Make sure that the batteries are fitted the correct way round.

• Do not mix old batteries with new batteries. Remove old, exhausted batteries immediately.

• Do not mix different battery types, i.e. Alkaline and Manganese or use rechargeable (Ni - Cad) batteries.

Replace the cover.

Page 7

AC cord connection

How to fix:

Clamp

Fix by pushing in till a clicking sound is heard.

Cable binding instructions

For using the TY-ST42PA50W

Attach the bands.

Insert the spigot on the two bands into the pedestal.

Fastening band

Band

Fastening

How to release:

Pull up while drawing the knob.

Connect cables.

Example of “connection cable routing”

Mains Lead

To tighten.

Loosening

Pull off.

Keep the knob pressed.

Note:

Refer to the operating instruction book of the pedestal.

Clamp

Binding strap

Band

Page 8

Quick Start Guide

Connection and setting up options

Note: Please ensure that the unit is disconnected from the mains

before attaching or disconnecting any leads.

RF cable (Not supplied)

Satellite Receiver

RGB

COMPONENT

VIDEO

S VIDEO

Scart cables

(Not supplied)

VCR / DVD Recorder

AUDIOAUDIO

LRL

AUDIO

RGB

AV1 AV2 AV3

VIDEO

S-VIDEO

RF cable (Not supplied)

Scart Connections

• The VCR / DVD Recorder can be connected to the TV using a Scart cable, if you are using a Scart equipped VCR

/ DVD Recorder.

• Use the TV’s any Scart terminal for any VCR. Always use a “fully wired” Scart cable.

• Use the TV’s AV1 or AV3 Scart terminal for any DVD Recorder. Always use a “fully wired” Scart cable.

• Use the TV’s AV1 or AV3 Scart terminal for Satellite Receiver. Always use a “fully wired” Scart cable.

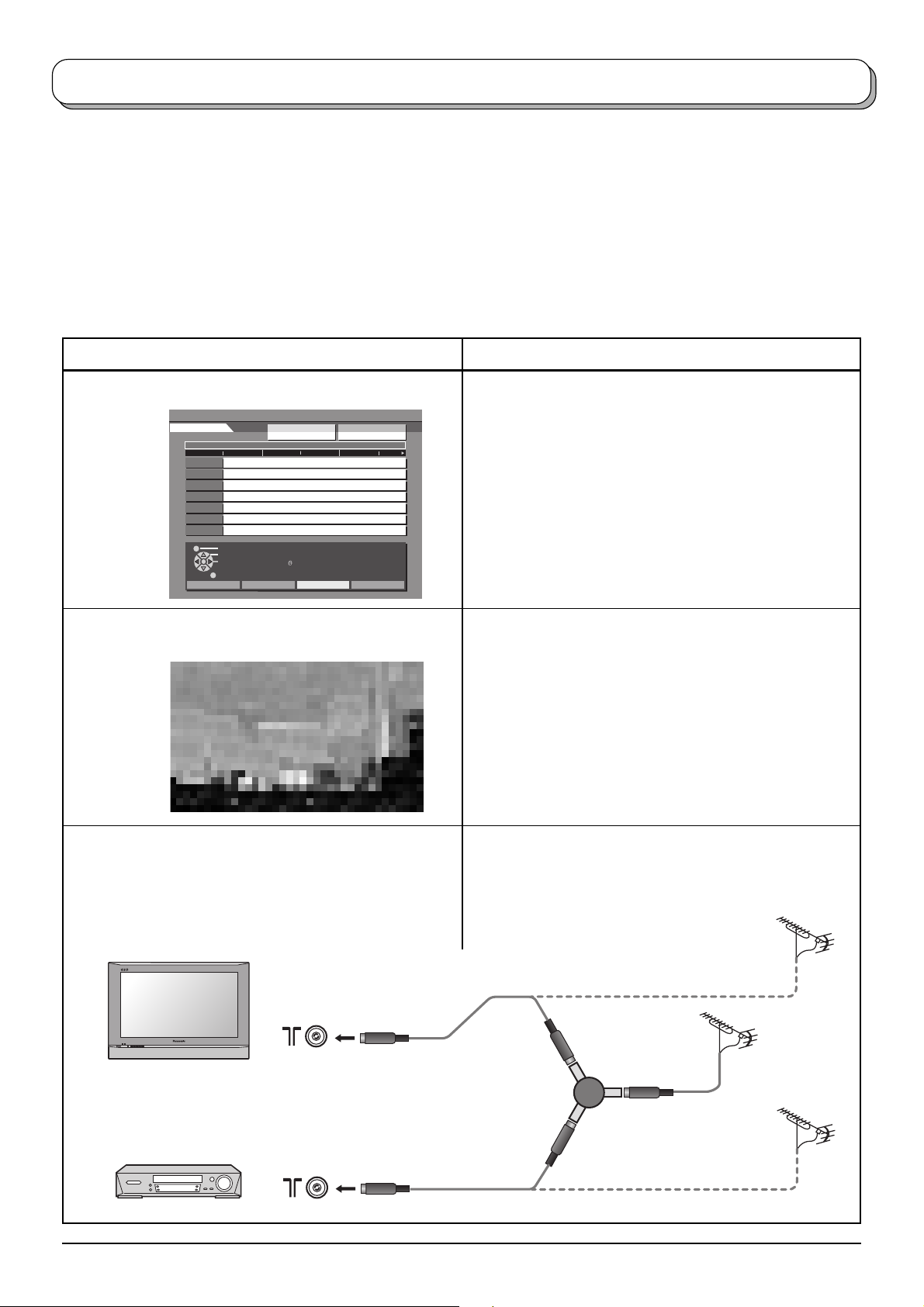

RF Connection

• Connect the RF cable to the “Aerial In” terminal of the VCR / DVD Recorder and an RF cable from the VCR / DVD

Recorder “Aerial Out” terminal to the TV Aerial terminal (

Notes:

• If using a “Q-Link” VCR / DVD Recorder, then the AV1 Scart of the VCR / DVD Recorder must be connected to the

AV2 or AV3 terminal of the TV. If your VCR or DVD Recorder is not a “Q-Link” device, please consult the operating instruction book for that product. Further information on Q-Link can be found on page 34.

• Further details of Audio / Video connections can be found on page 41, 42.

• Additional equipment and cables are not supplied.

Page 9

Quick Start Guide

Connect the mains plug to the wall socket.

Press the [

]switch on the TV set to turn

MODE

the set on.

To switch the TV set to Standby mode, press the

button on the remote control.

The TV set can be switched on by pressing

button again if it was in Standby mode.

the

123

456

789

Note:

This TV will still consume some power even

in the Off mode, as long as the mains plug is still connected to a live mains socket.

Power Indicator

Standby : Red

On : No Light

IDTV

Remote control signal sensor

DVB Indicator

DVB system active during Timer

recording or Direct TV Recording

: Orange (flash)

Standby for Timer Recording : Orange

Otherwise : No Light

Programmes will appear immediately if your dealer has programmed

the TV for you. If the TV has not been programmed for you then Auto setup will begin. The TV will search for DVB stations and Analogue stations: TV stations will be located, sorted into order and stored ready for use. Stations are sorted into the following order:

• DVB Stations: Are sorted by their logical channel number sent by

the broadcasters, which can be made the favourites list by Profile

DVB Aute Setup

Please Wait !

Prog. Channel Service Name NetID. TS ID. Quality

Exit

BBC NEWS 24

BBCI

CBBC Channel

BBC Radio Wales

BBC Radio Cymru

This will take about 3 mins.

12302

4158

Edit. See page 26.

• Analogue Stations: Are sorted into channel order, but can be

changed to your preference. See page 17. In this setup, usually Analogue auto setup screen may not be displayed. The sorted programme order depends upon the TV signal, the broadcasting system, and reception conditions.

TV to VCR or DVD Recorder Download

If a “Q-Link”, “NEXTVIEWLINK” or compatible recording device has

CH44

AUTO SETUP IN PROGRESS SEARCHING : PLEASE WAIT

21 68

Exit

been connected to a Scart terminal (AV2 or AV3) before starting Step 1, programme information will be downloaded to that device. Only the analogue programme positions will be downloaded to the recording device, in the same order as stored in the TV. See page 34. Not all VCRs / DVD Recorders support this download of programme information, some may require to be started manually.

DOWNLOAD IN PROGRESS

PLEASE WAIT

Programme : 63

Remote control unavailable

Refer to the recording device’s operating instruction book. If a recording device other than those described above has been connected, then there will be no download operation.

68 21

Notes:

• If the recording device has not accepted download data from the TV, you may need to select the Download

option from the device’s menu system. Refer to the recording device’s operating instruction book.

• If Q-Link is not operating correctly, check the following :

The Scart cable is connected to the TV’s Scart terminal, AV2 or AV3, and correctly setup in the menu.

The Scart cable is connected to the recording device’s compatible (Q-Link, NEXTVIEWLINK or similar

technology) Scart terminal.

The Scart cable is a “fully wired” type.

• For further information on Q-Link and connecting equipment, see page 34, 42, 45.

Page 10

Quick Start Guide

Owner ID

As an added feature, this TV has the option of adding a security code (Owner ID) and personal details into its memory, so that in the unfortunate event of theft it will help the Police to trace the owner.

Using the numeric buttons to enter required 4 digit Owner ID PIN NUMBER. If a 4 digit PIN NUMBER was entered, you will be taken automatically to the NAME line.

If not, using the left or right cursor buttons move to the NAME line.

123

456

789

VCR

MODE

123

456

789

Change character using the up or down cursor buttons.

Select the character position using the left or right cursor buttons.

Repeat above until NAME, HOUSE NUMBER and POSTCODE are entered.

Press the OK button to store the details. Press the OK button again, when you are asked “Are you sure ? ”.

For further information on Owner I.D., see page 21.

A space is provided on page 21 to write down the PIN NUMBER for future reference.

Your Plasma TV is now ready for use.

To view a list of the stations that have been found, press the GUIDE button.

Use the cursor buttons to move the cursor bar.

Use the programme change button to step through the guide page by page.

To view the selected programme, move the cursor to the channel and then press the OK button.

The guide can be cleared from the screen using the EXIT button.

Owner ID

PIN NUMBER :

HOUSE NO :

POSTCODE :

GUIDE

EXIT

Yo u now have the opportunity to enter your details and help the police crack crime see instruction book

∗ ∗ ∗ ∗

NAME :

∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗

0123456789

∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗

Change character Select character Store Owner ID Exit

IDTV

MODE

123

456

789

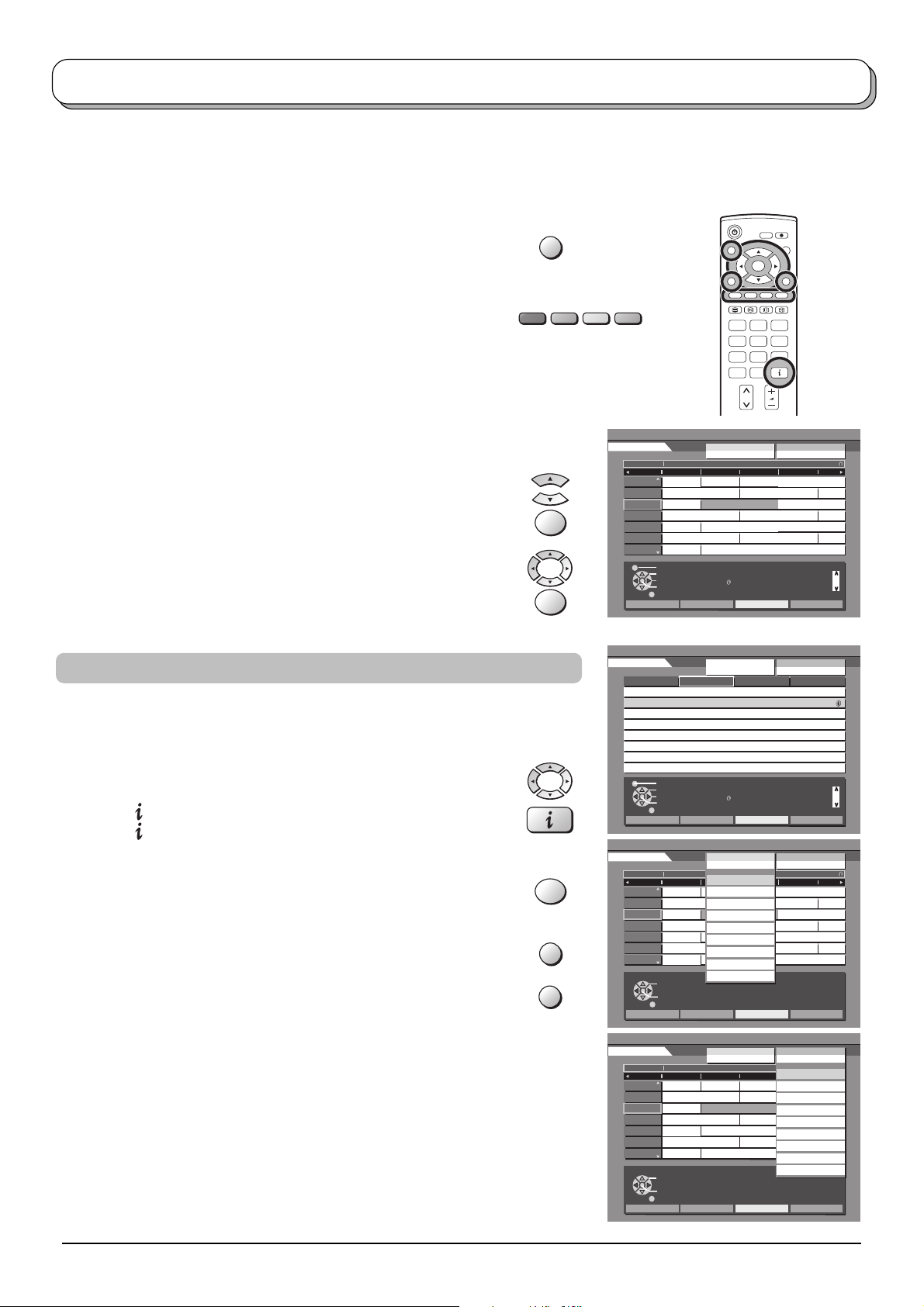

DVB TV Guide (DVB mode) See page 32. To make stations easier to find, specific stations can be listed by category; press the Yellow button to show a category. The chosen category name is shown on screen. For example, if you select Free TV and press the OK button, only ‘free-to-air’ stations will be listed – you can view any of these now.

If you select Pay TV and press the OK button, only subscription stations will be listed – you will need to contact the service provider to find out how to subscribe to these stations.

Analogue mode

Analogue Programme Guide

Prog. Name Chan.

VCR :

1 : 2 : 3 : 4 : 5 : 6 : 7 : 8 :

9 : 10 : 11 : 12 :

BBC1 BBC2 ITV S4C

CH21 CH44 CH51 CH41 CH47 CH23 CH26 CH58

13 : 14 : 15 : 16 : 17 : 18 : 19 : 20 : 21 : 22 : 23 : 24 :

DVB mode

DVB TV Guide

Fri 6th

20:00-21:00

122

142

144

:Landscape

All Services

Coronation Steet:We open in the Battersdy’s

Time: 19:30 20:00

BBC1

Eastender

BBC2

Hot Wars

ITV1

Emmerdal.

Channel4

10 O’ clock News BBC

five

Panoroma

ITV2

I’m A Celebrlty

SC4

Rugby

Change display mode Select channel

Select Programme

Timer Programming Exit

-24 Hr +24 Hr

All Services

DIY SOS

Coronation Street

Sex And The City

15 To1

Category

Prog. Name Chan.

20:30 21:00 21:30

The Bill

Hollday Program

Pepsi Char.

Pop Idol

Info

Category Prog. type

Thu 05/08/04 18:50

Prog. type

All Types

Red Cap

The Bill

Good bye

Term inato r

News

The Bill

Page up

Page dow n

Hell

The

Page 11

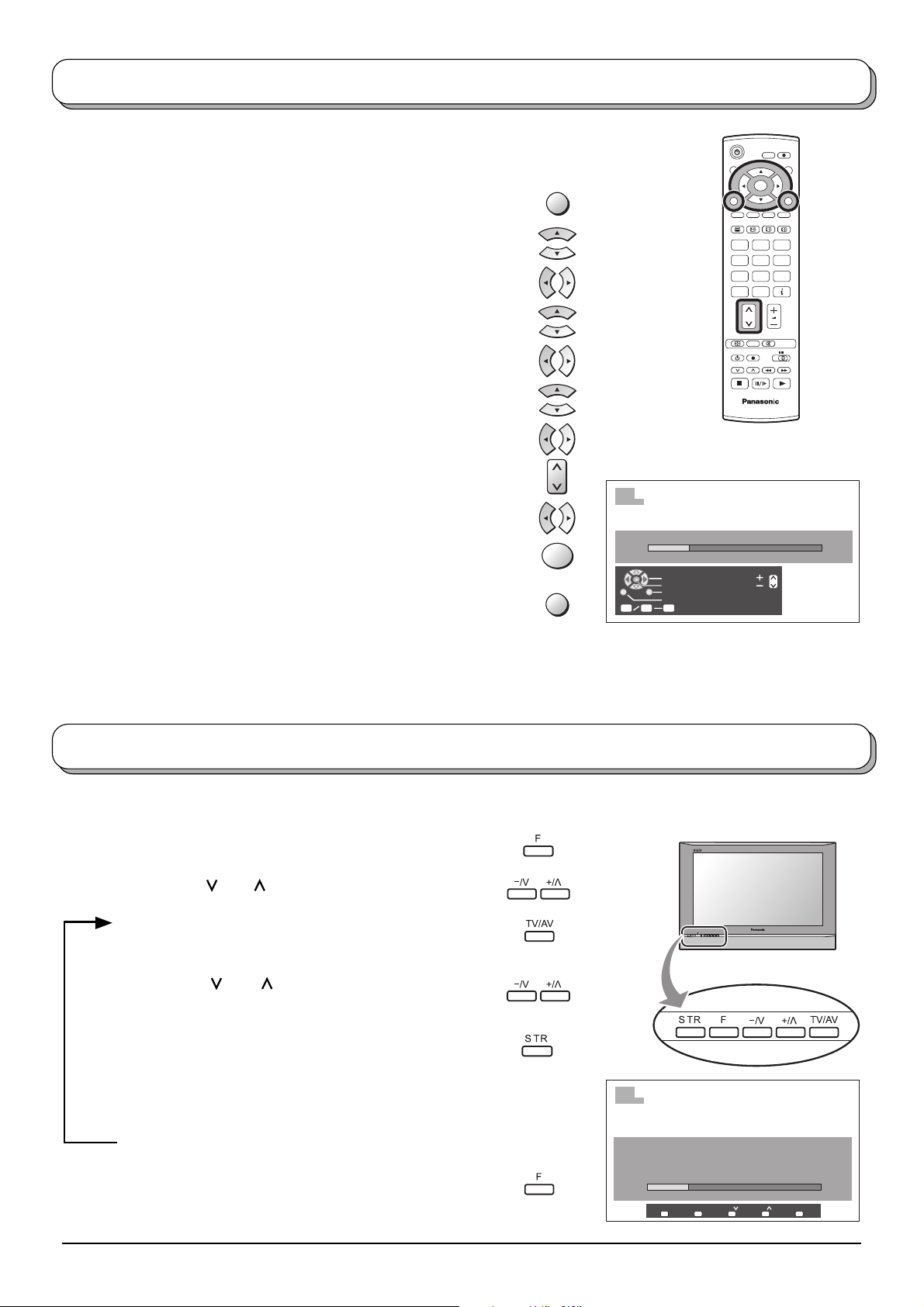

Basic controls: front panel and remote control

On / Off switch

STR

Used to store tuning in analogue mode.

TV/AV button (see page 41)

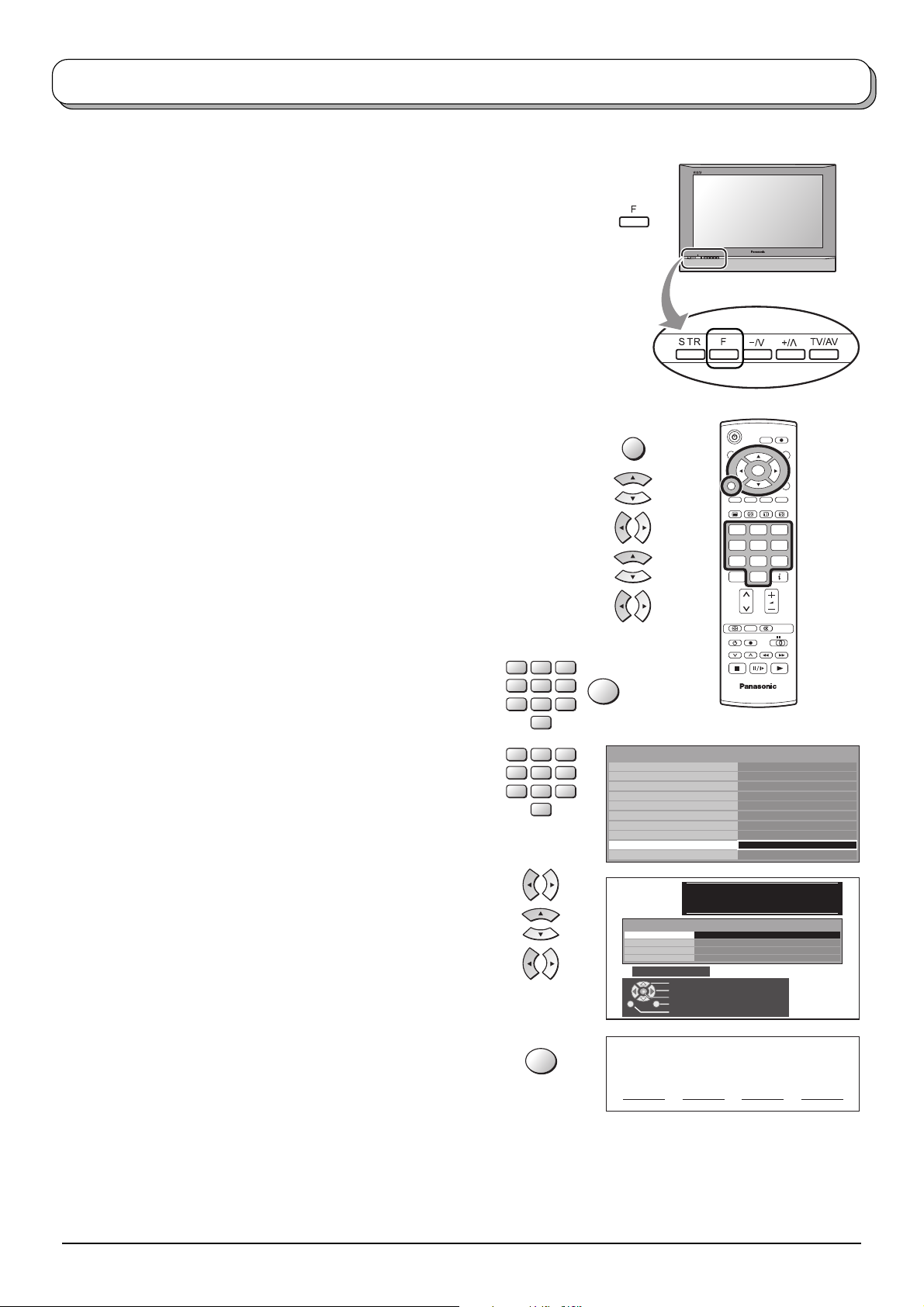

F (Function select)

Press repeatedly to select from the available functions through the On Screen Display:

- Volume, Contrast, Brightness, Colour,

Sharpness, Tint (in NTSC mode), Bass, Treble, Balance and Manual Tuning (analogue mode

only - see page 20).

Press either button to change TV programme up or down. Also used for changing various settings in conjunction with the F button. Press either button to switch the TV On from

Standby mode.

Standby On / Off button Switches TV On or Off (Standby mode).

GUIDE button

Displays the DVB and Analogue TV Guide. (see page 32).

Menu button Press to access the Picture, Sound and Setup menus. (see page 12-15)

Press to select a function or store a setting. Press after selecting programme positions to quickly change programme.

Coloured buttons used for the selection, navigation and operation of various functions.

Teletext button (see page 38-40)

STTL button Text F.P. button (Analogue mode) Subtitle On/Off (DVB mode) (see page 33, 39)

Direct channel access Available in Analogue mode. During normal TV viewing or when in the Tuning, Programme edit or Manual tuning menus, press and then enter channel number using the numeric buttons.

Programme up / down button

ASPECT control button (see page 35, 36)

DVB

Analogue

MODE

TEXT

STTL INDEX HOLD

123

456

789

ASPECT

PROGRAMME

REC

VCR

VCR DVD

DIRECT TV REC

TV/AVGUIDE

EXIT

MODE button (see page 14, 15) Switch between viewing DVB and Analogue modes.

DIRECT TV Record button (see page 34)

Switch between viewing TV or AV input. (see page 41)

Cursor buttons to make selections and adjustments.

Exit the mode.

Text Hold / Picture Still button (see page 36, 38)

Text Index button (see page 40)

Programme / channel change buttons (0-

9) and Teletext page buttons. (see page 38-40) When in Standby mode, switches TV On.

Status button Press to display status information for the current Programme position. (see page 33)

Volume up / down button

N (Normalize) button Resets all settings to their default levels.

Sound mute On / Off

VCR / DVD buttons (see page 37)

IDTV

Page 12

Using the On Screen Displays

Many features available on this TV can be accessed via the On Screen Display menu system. Use the remote control as shown below to access and adjust features as desired.

The MENU button is used to open the main menus and also to return to the previous menu.

The up and down cursor buttons are used to move the cursor and select menus.

The left and right cursor buttons are used to access menus, adjust levels or to select from a range of options.

The OK button is used with a number of features to store settings after adjustments have been made or options have been set.

The EXIT button is used to exit the menu system and return to the normal viewing screen.

An On Screen Help box is displayed whenever a menu is displayed on the TV. This Help box indicates which buttons on the remote control are used to navigate the menu shown, see above for descriptions of button functions.

Note:

The Help box is not shown in the menu pictures in this instruction book due to space limitations.

EXIT

Sound menu

Bass Treble Balance NICAM Mode Ambience

Select Adjust

Exit Return

MODE

123

456

789

IDTV

Off Music Off

ON SCREEN HELP ‘Instructions’ box

Page 13

Picture menu

Press the MENU button.

Move to Picture menu.

Access Picture menu.

Move to menu option.

Adjust chosen option or access chosen menu.

Press the EXIT button at any time to go back to watching TV.

Viewing mode The Viewing mode menu allows you to select three

different screen settings - Dynamic, Normal and Cinema. In each Viewing mode setting, Contrast, Brightness, Colour, Sharpness, Tint (in NTSC only), Colour balance, Colour management, P-NR, MPEG NR and 3D-COMB can be adjusted and stored to suit your particular viewing requirement. (e.g., you may require different settings for viewing sports, fi lms, news etc.) Changes to any settings in a viewing mode will affect all signal sources: RF, AV1, AV2, AV3 and Component. Changes will be stored automatically. By analysing and processing the incoming picture, all three modes feature automatic enhancement.

123

456

789

EXIT

Main menu

Picture menu

Sound menu

Setup menu

Picture menu

Viewing mode Contrast Brightness Colour Sharpness Tint Colour balance Colour management P-NR MPEG NR 3D-COMB On

MODE

Dynamic

Normal On Off Off

Contrast, Brightness, Colour, Sharpness

Increase or decrease the levels of these options according to your personal preference.

Tint

With an NTSC signal source connected to the TV, the picture hue can be adjusted to suit your taste.

Colour balance

Allows you to set the overall colour tone of the picture. Choose from Cool, Normal and Warm.

Colour management

P-NR

Enables vivid colour adjustment automatically.

Automatically reduces unwanted picture noise. Not available during HD signal input.

MPEG NR

Reduces MPEG noise. Allows you to choose from Off, Min, Mid and Max. This function is effective in reducing the digital block noise when viewing DVD, VCD or digital broad cast ing. The effect will be changed based on the scene and image. MPEG: Compression technology of the image signal

adopted by DVD, VCD or digital broadcasting.

3D-COMB

Not available in DVB mode. Occasionally, whilst viewing still or slow moving pictures, colour patterning may be seen. Set 3D-COMB to On to display sharper and more accurate colours. Displayed only when receiving PAL or NTSC signals. Not displayed during RGB Video, S-Video and component input mode.

Picture menu

Viewing mode Contrast Brightness Colour Sharpness Tint Colour balance Colour management P-NR MPEG NR 3D-COMB On

Picture menu

Viewing mode Contrast Brightness Colour Sharpness Tint Colour balance Colour management P-NR MPEG NR 3D-COMB On

Dynamic

Normal On Off Off

Dynamic

Normal On Off Off

Page 14

Sound menu

Press the MODE button to select DVB or Analogue mode.

Press the MENU button.

Move to Sound menu.

Access Sound menu.

Move to menu option.

DVB

nalogue

MODE

123

456

789

Adjust chosen option or access chosen menu.

Press the EXIT button at any time to go back to watching TV.

Bass

Increase or decrease level to enhance or minimise lower, deeper sound output.

Treble

Increase or decrease level to enhance or minimise sharper, higher sound output.

Balance

The levels of sound between the left and right speakers can be adjusted to suit your listening position.

NICAM

Not available in DVB mode. Select On to provide stereo sound reproduction. Select Off for FM Mono sound output. If Nicam Mono is being transmitted select either FM Mono (Off), Nicam Mono I (M1) or Nicam Mono II (M2). The options depend upon the signal being transmitted. If reception deteriorates it is advisable to switch to FM Mono (Off).

EXIT

Main menu

Picture menu

Analogue mode

Sound menu

Bass Treble Balance NICAM Mode Ambience

IDTV

Sound menu

Setup menu

Off Music Off

Mode

Ambience

Sound quality can be improved when watching music scene or drama by selecting the appropriate Music or Speech mode.

Ambience provides a dynamic enhancer to simulate

DVB mode

Sound menu

Bass Treble Balance Mode Ambience

Music Off

improved spatial effects.

Page 15

Setup menu

Press the MODE button to select DVB or Analogue mode.

Press the MENU button.

Move to Setup menu.

DVB

nalogue MODE

MODE

Access Setup menu.

Move to menu option.

Adjust chosen option or access chosen menu.

Press the EXIT button at any time to go back to watching TV.

Q-Link

Allows you to select which AV terminal is to be used for data communication between this TV and a compatible recording device. Choose from AV2 and

AV3. See page 34.

AV2 / AV3 out

Offers a choice of signals to send to the Scart terminal selected in the Q-Link option. You can choose from the current TV (Analogue, DVB) programme position, the signal entering AV1 / AV2 / AV3 or Monitor - the picture displayed on screen. Note: Component signal input cannot be output to

these Scart terminals.

Teletext

Allows you to choose between FASTEXT or List mode. See page 38-40.

Off timer

Switches the TV off within a preset time which you can choose from between 0 to 90 minutes in 15 minute intervals.

Side panel

Allows you to choose from Off, Low, Mid and High. Do not display a picture in 4:3, 14:9, Picture and text modes for an extended period, as this can cause an after-image to remain on the side panels either side of the display field. To prevent the appearance of such an after-image, illuminate the side panels.

Power save

By reducing the brighness of picture, power consumption can be lowered.

Power on preference

Set to TV to view picture from TV tuner. Set to AV to view input from an external equipment connected to a Scart socket, e.g. satellite receiver.

Note:

The external equipment must be switched on and sending a control signal for automatic switching at power on to occur.

Side panel

4 : 3

EXIT

Main menu

Picture menu

Sound menu

Setup menu

Analogue TV mode

Setup menu

Q-Link AV2 out Teletext Off timer Side panel Powe r save Powe r on preference Tu ning Menu Owner ID Shipping condition

DVB mode

Setup menu

Q-Link AV2 out Off timer Side panel Powe r save Powe r on preference DVB Setup Menu Owner ID Shipping condition

AV mode

Setup menu

Q-Link AV2 out Teletext Off timer Volume correction Side panel Powe r save Powe r on preference

123

456

789

AV2

Monitor FASTEXT Off High Off TV

AV2

Monitor Off High Off TV

AV2

Monitor FASTEXT Off

High Off TV

Tuning Menu

Provides access to many other features including Programme edit and Auto setup. See page 17-19.

DVB Setup Menu

Owner ID

Shipping condition

Provides access to setup the DVB operations. See page 23.

Allows you to enter a security code and address information. See page 21.

Allows you to clear all tuning information and reset all control levels back to factory settings. See page 22.

Volume correction

During AV mode, Volume correction is displayed. You can adjust volume level of AV mode. Volume level is memorised.

Page 16

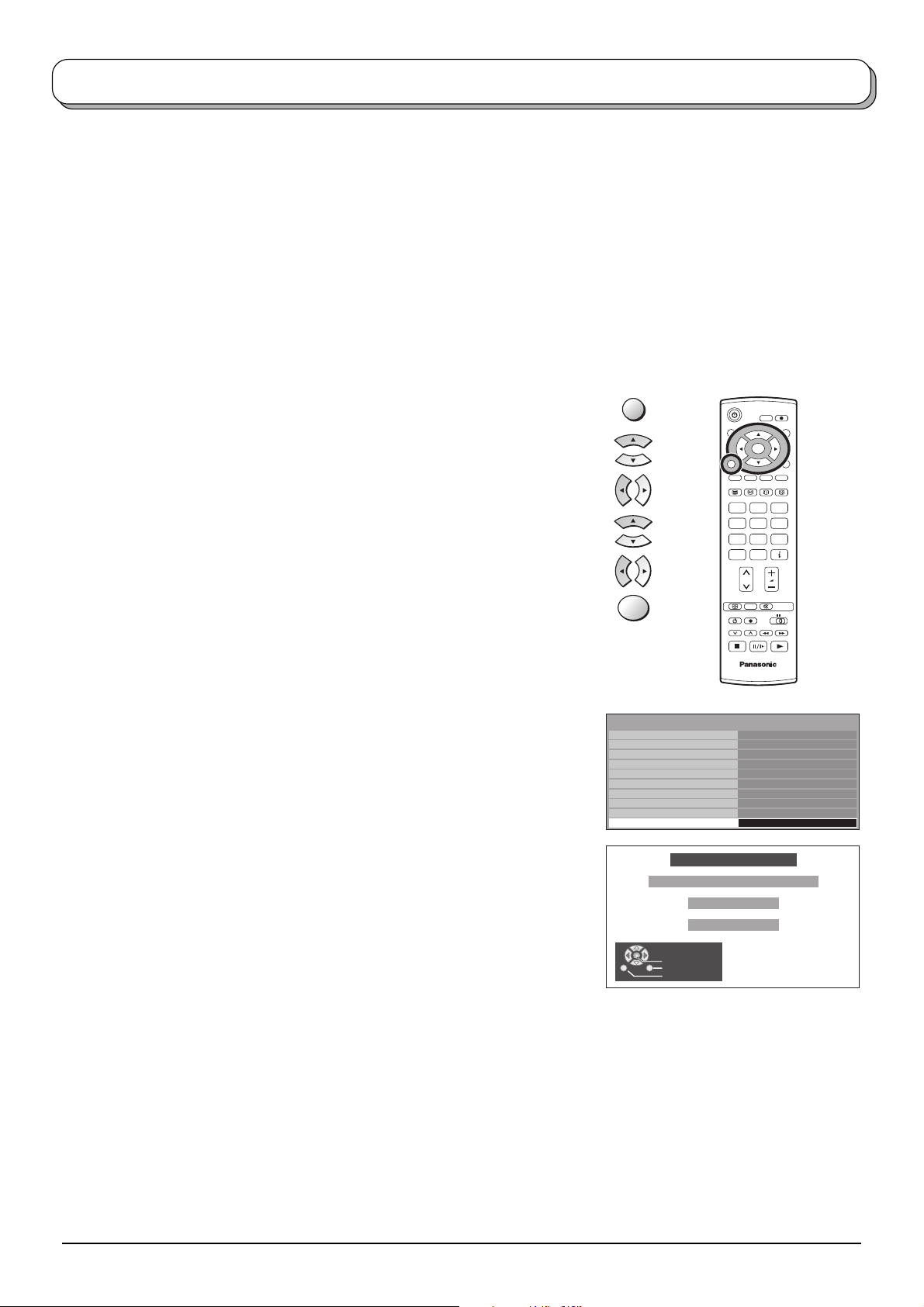

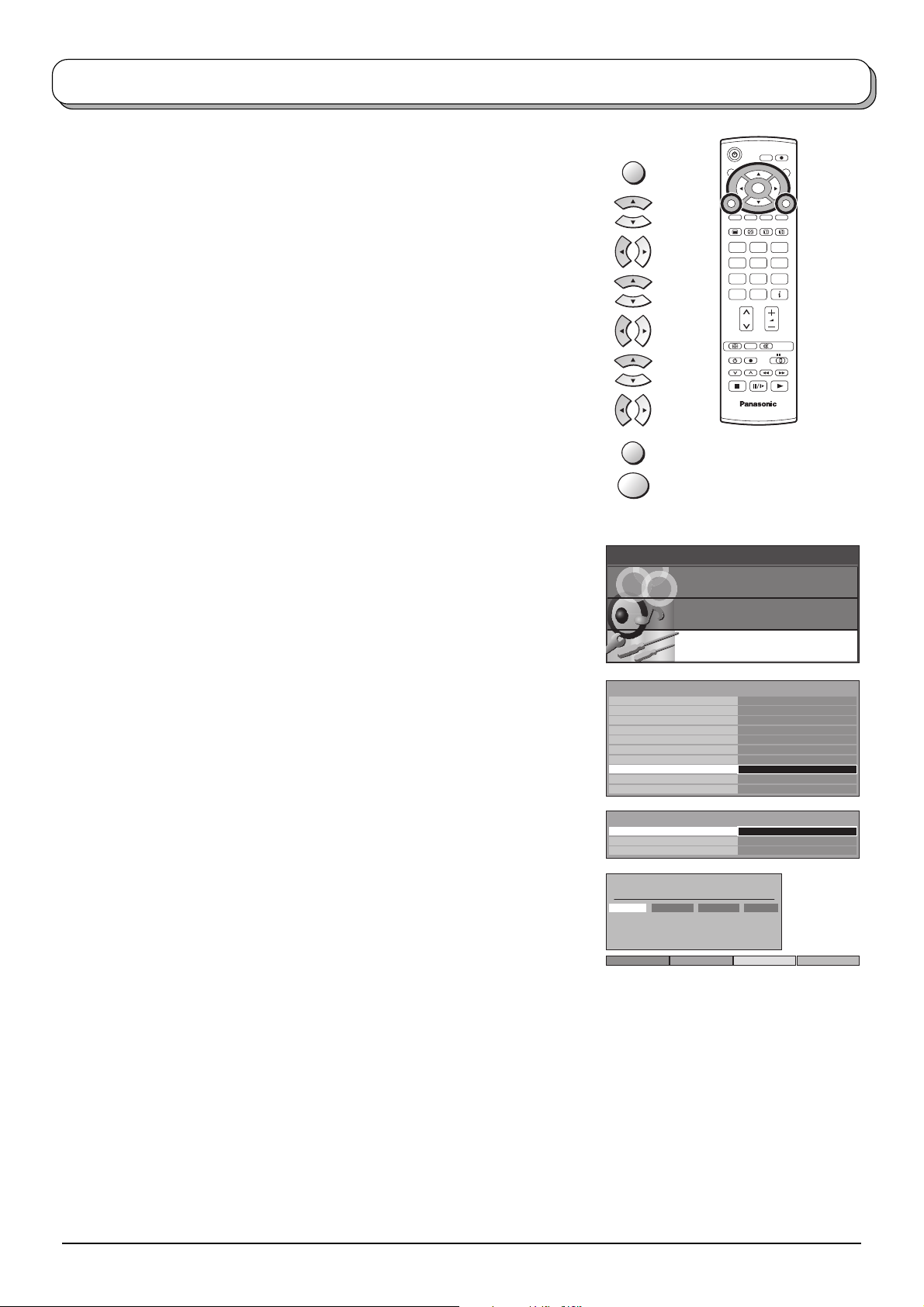

Tuning menu – overview (Analogue mode)

In Analogue mode

Press the MENU button.

Move to Setup menu.

Access Setup menu.

Move to Tuning Menu.

Access Tuning Menu.

Move to menu option.

Adjust chosen option or access chosen menu.

Press the EXIT button at any time to go back to watching TV.

Press the OK button after having adjusted some features to store the new settings as the default (replacing the factory setting).

Programme edit

Access in order to customize your programme settings (e.g., adding or deleting a programme position). See page 17, 18.

EXIT

Main menu

Picture menu

MODE

123

456

789

IDTV

Auto setup

Manual tuning

Allows you to automatically retune the TV. Useful if you move house and wish to retune your TV to the local stations. See page 19.

Allows individual programme positions to be tuned manually. See page 20.

Sound menu

Setup menu

Q-Link AV2 out Teletext Off timer Side panel Powe r save Powe r on preference Tu ning Menu Owner ID Shipping condition

Tuning Menu

Programme edit Auto setup Manual tuning

Programme edit

Prog. Chan. Name Lock

1 :

CH44

2 :

CH51

3 :

CH41

4 :

CH47

5 :

CH37

Delete Add Move Download

ABC XYZ FTP 123 456

AV2 Monitor FASTEXT Off High Off TV

Access

Off Off Off Off Off

Page 17

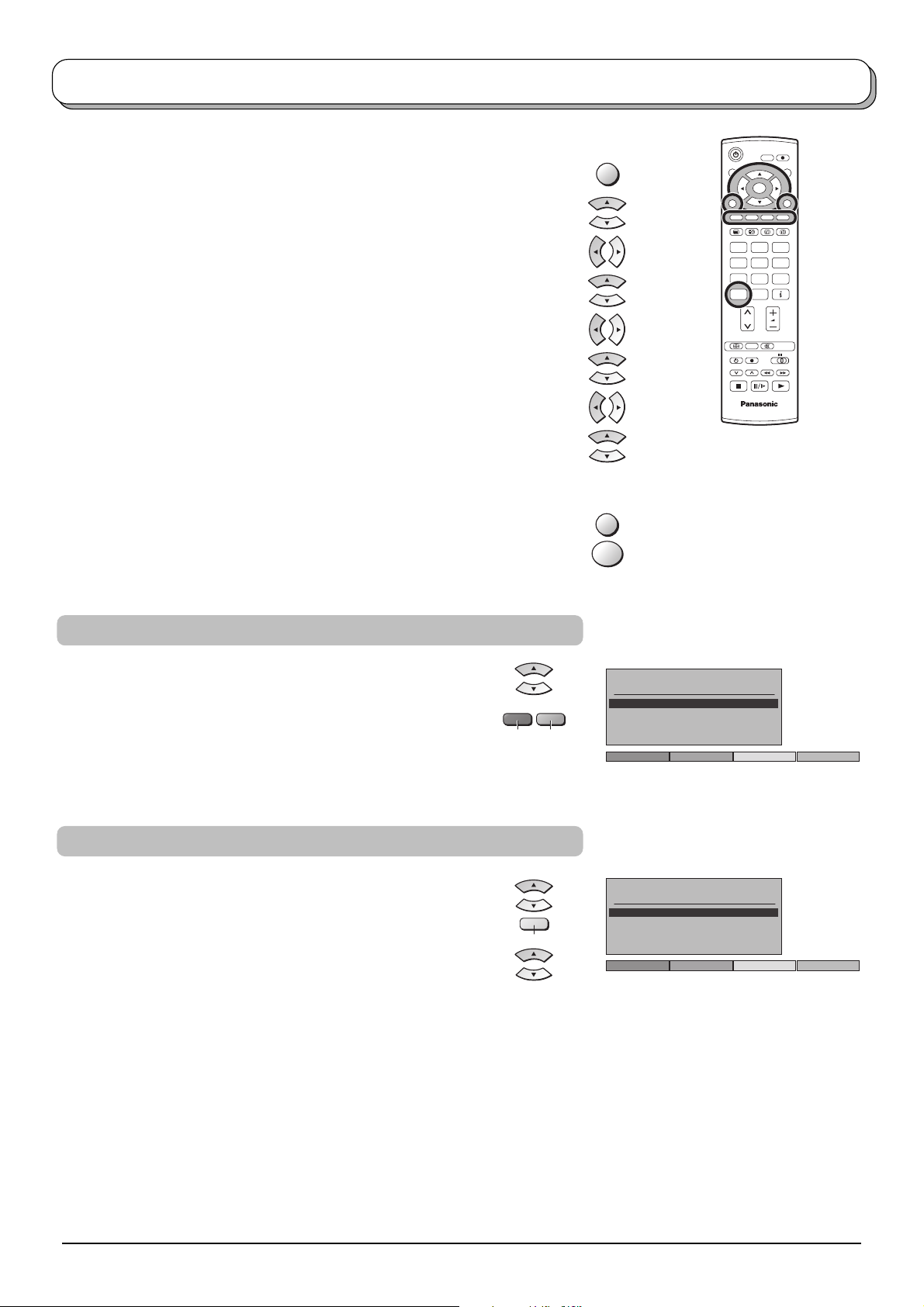

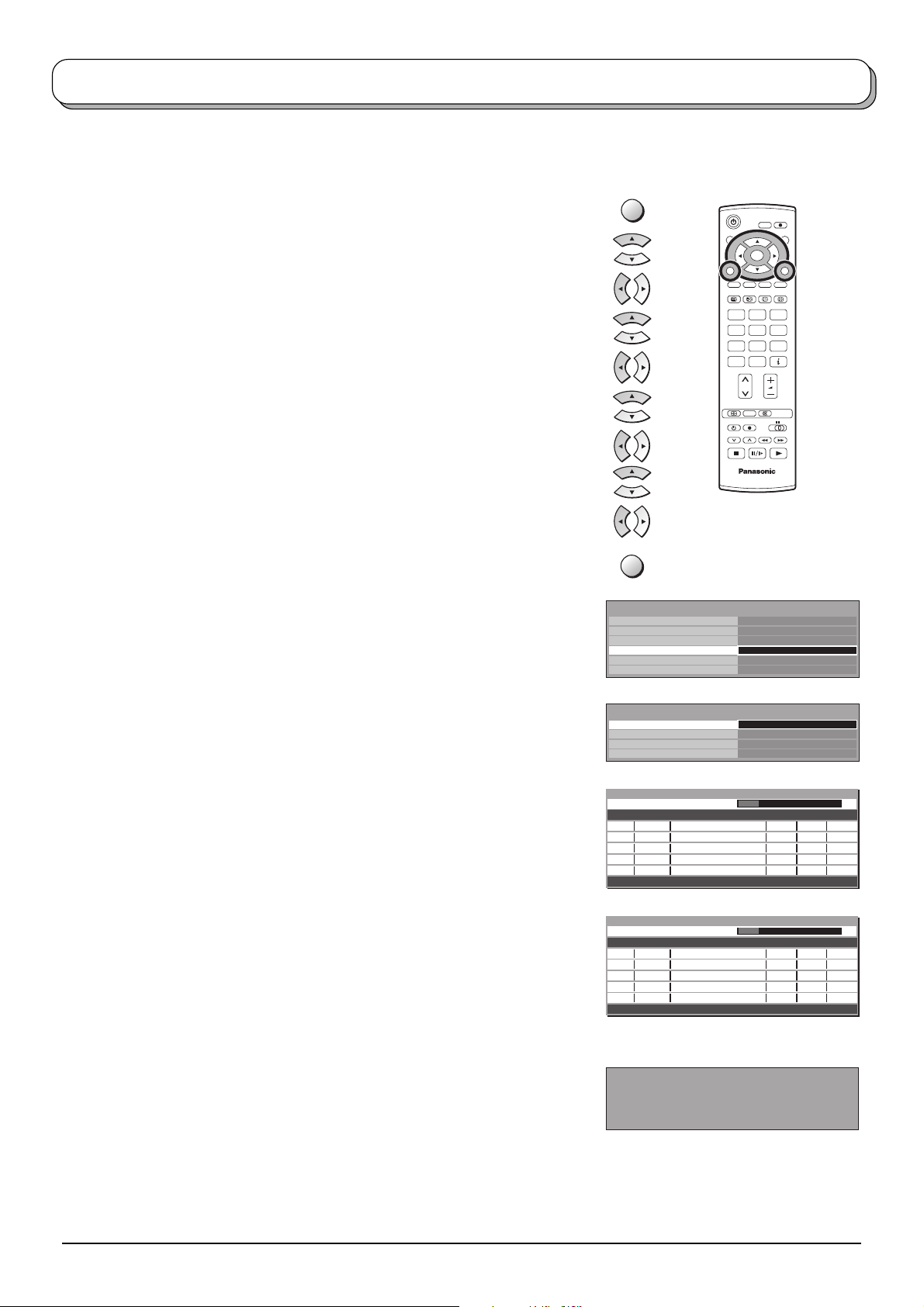

Tuning menu – Programme edit (Analogue mode)

In Analogue mode

Press the MENU button.

Move to Setup menu.

Access Setup menu.

Move to Tuning Menu.

Access Tuning Menu.

Move to Programme edit.

Access Programme edit.

Move to choose programme position (e.g., Prog. 3).

Make required change, e.g., moving a programme channel (see the relevant procedure below).

Press the EXIT button at any time to go back to watching TV.

Press the OK button after having adjusted some features to store the new settings.

EXIT

MODE

123

456

789

IDTV

Adding / deleting a programme channel

Move the cursor to the programme to be deleted or added.

Press the Green button to add a programme channel to the programme position, or the Red button to delete one.

Press the same button again to confirm your decision.

Moving a programme channel

Move the cursor to the programme to be moved.

Press the Yellow button.

Choose the new position for the programme channel.

Press the Yellow button again to confirm your decision.

Yel low

Programme edit

Prog. Chan. Name Lock

1 :

CH44

2 :

CH51

3 :

CH41

4 :

GreenRed

CH47

5 :

CH37

Add Cancel

Programme edit

Prog. Chan. Name Lock

1 :

CH44

2 :

CH51

3 :

CH41

4 :

CH47

5 :

CH37

ABC

XYZ FTP 123 456

ABC

XYZ FTP 123 456

Confirm Cancel

Off

Off Off Off Off

Off

Off Off Off Off

Page 18

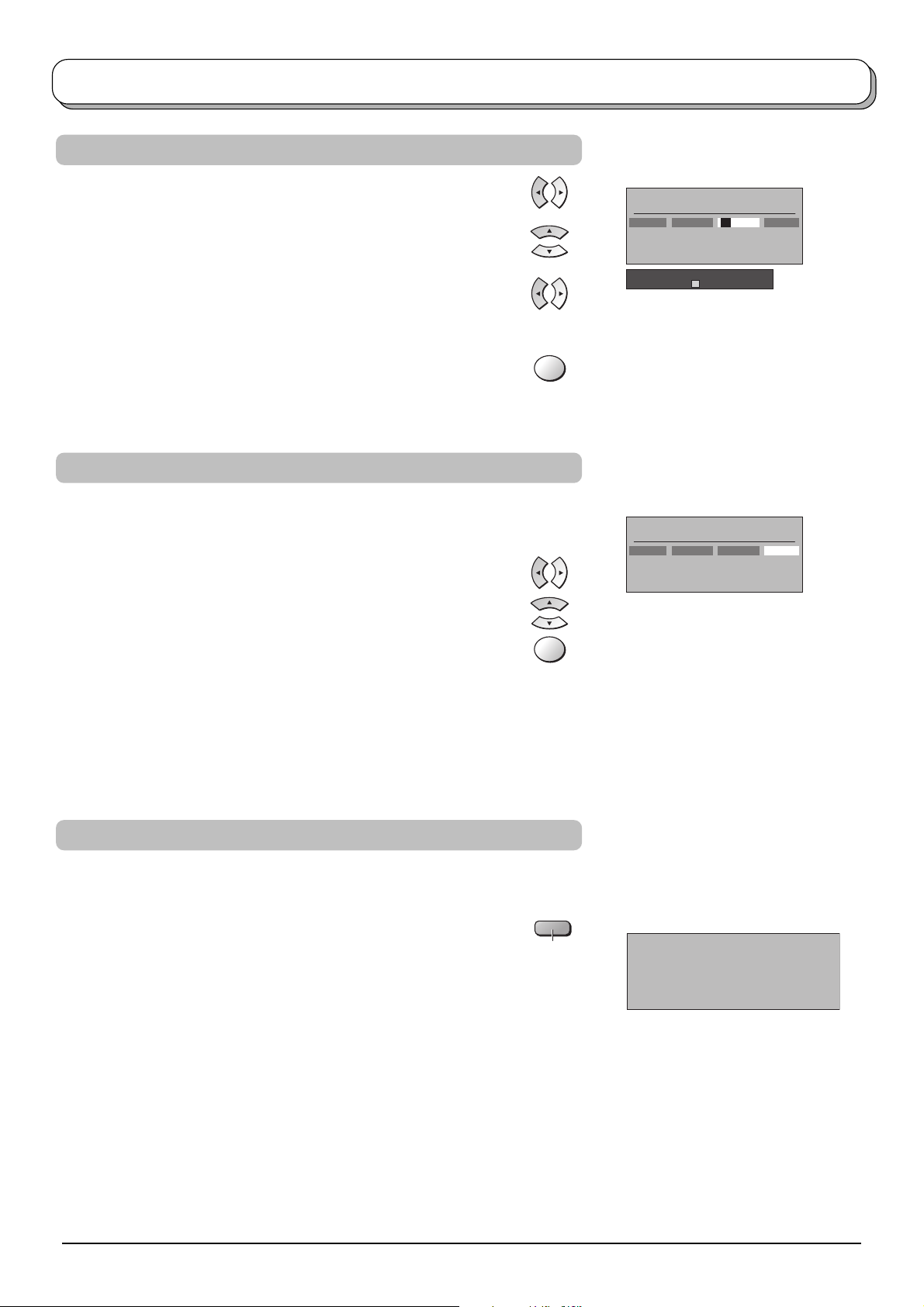

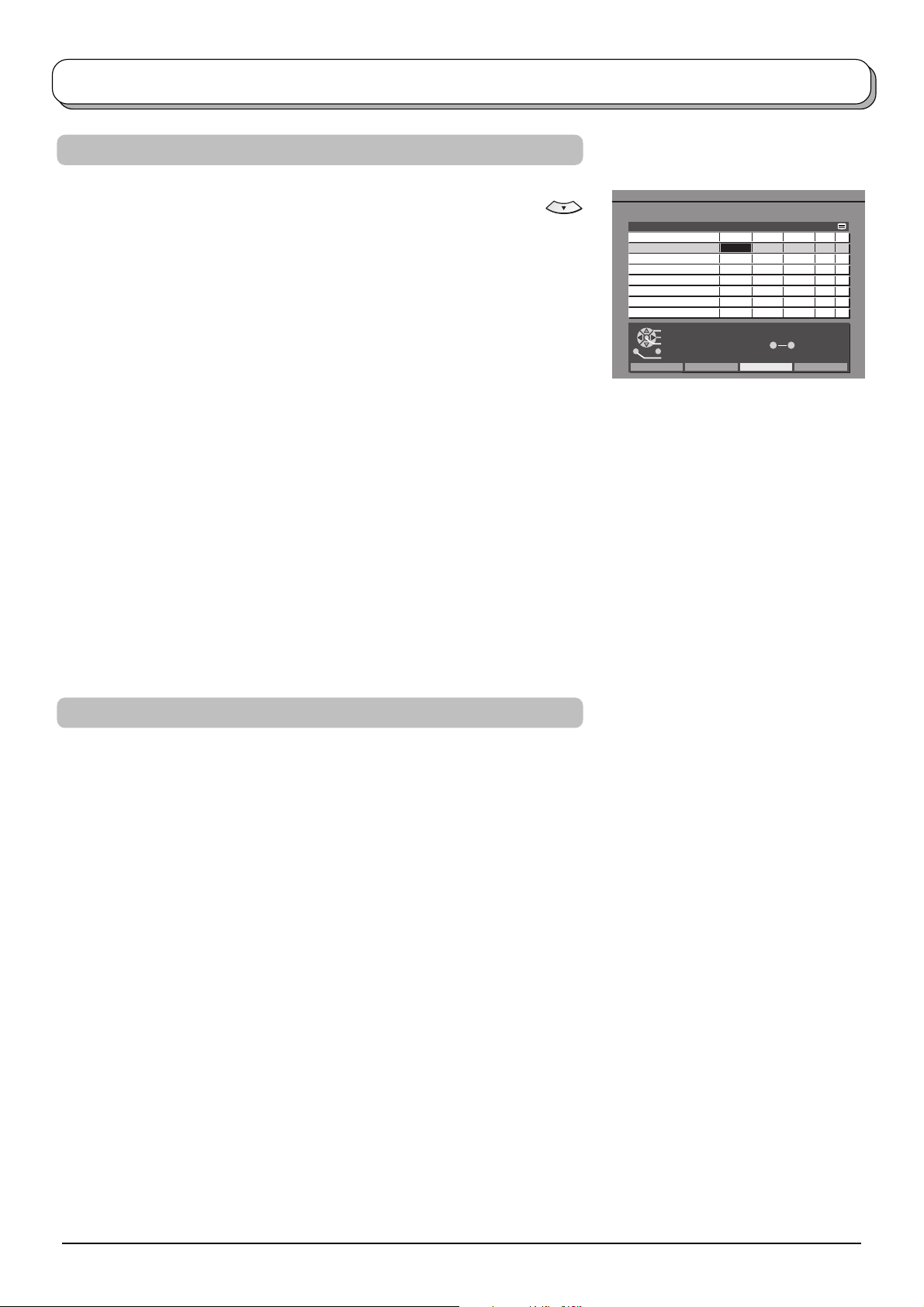

Tuning menu – Programme edit (Analogue mode)

Renaming a programme channel

Move to the Name column.

Choose the new character. The box at the bottom of the screen shows the character currently selected.

Move to the next character position.

Continue until renaming is done.

Press the OK button to store the new name.

Locking a programme channel

You may wish to lock a programme channel to prevent access to it.

Move to the Lock column.

Choose between Lock On or Lock Off.

Programme edit

Prog.

Chan. Name Lock

1 :

CH44

2 :

CH51

3 :

CH41

4 :

CH47

5 :

CH37

ABCDEFGHIJKLMNOPQRST UVWXYZ+

Programme edit

Prog. Chan. Name Lock

1 : 2 : 3 : 4 : 5 :

. 0123456789

CH44 CH51 CH41 CH47 CH37

XYZ FTP 123 456

ABC XYZ FTP 123 456

Off Off Off Off Off

Press the OK button to store the new setting.

Note:

When a programme position is locked, Direct Channel Access using the C and numeric buttons on the remote control is not available.

Copying programme information to a recording device

You can copy programme information to a compatible recording device connected to AV2 / AV3. See page 42 for connection information. Press the Download (Blue) button. Programme data will now be sent to the recording device(s). This might take a few seconds, depending on the number of stations stored. If the message “Feature not available” appears on the screen, the television is unable to send the programme information to the recording device(s). See the device’s instruction book for further information.

Download

(Blue)

DOWNLOAD IN PROGRESS

PLEASE WAIT

Programme : 63

Remote control unavailable

Page 19

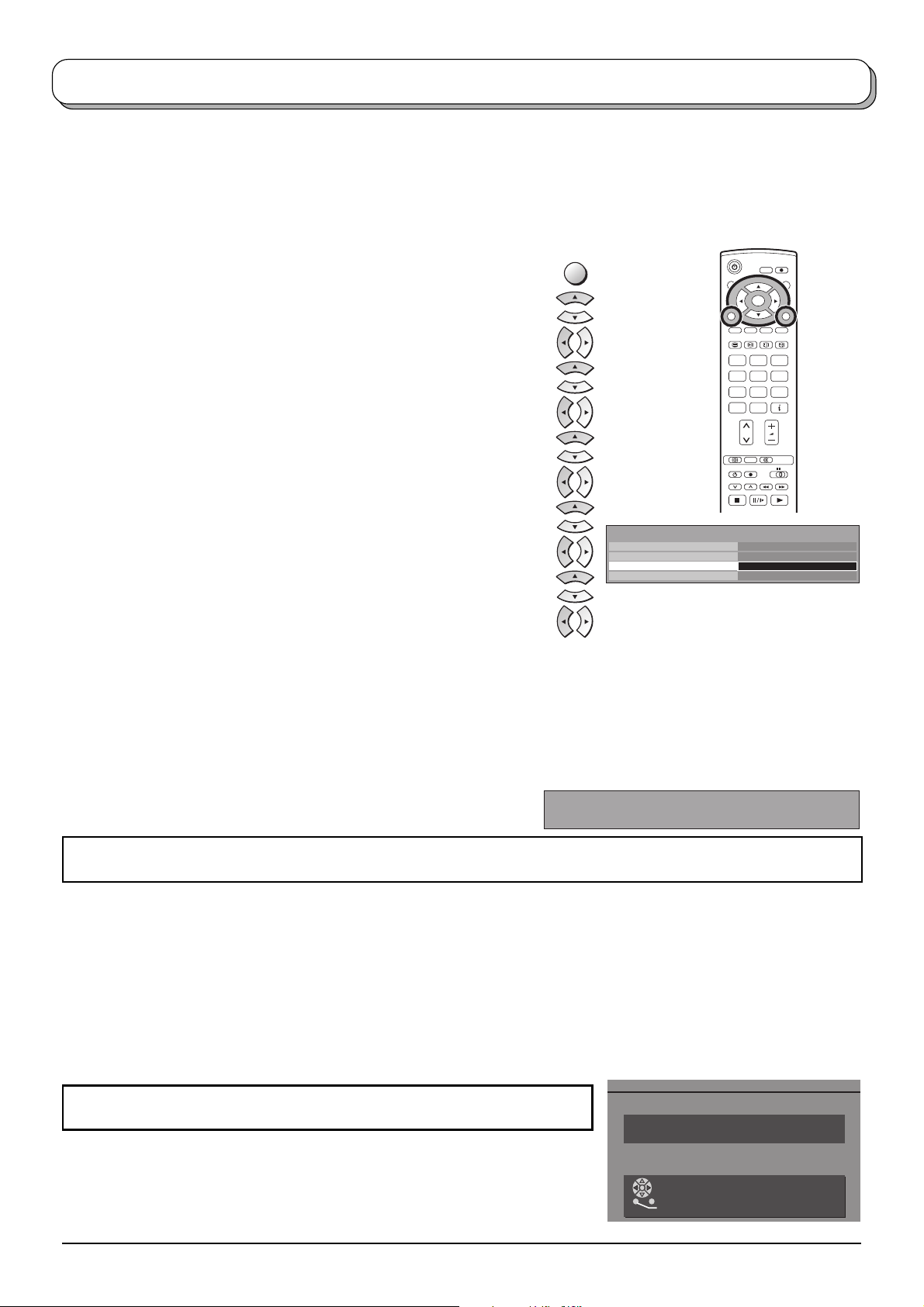

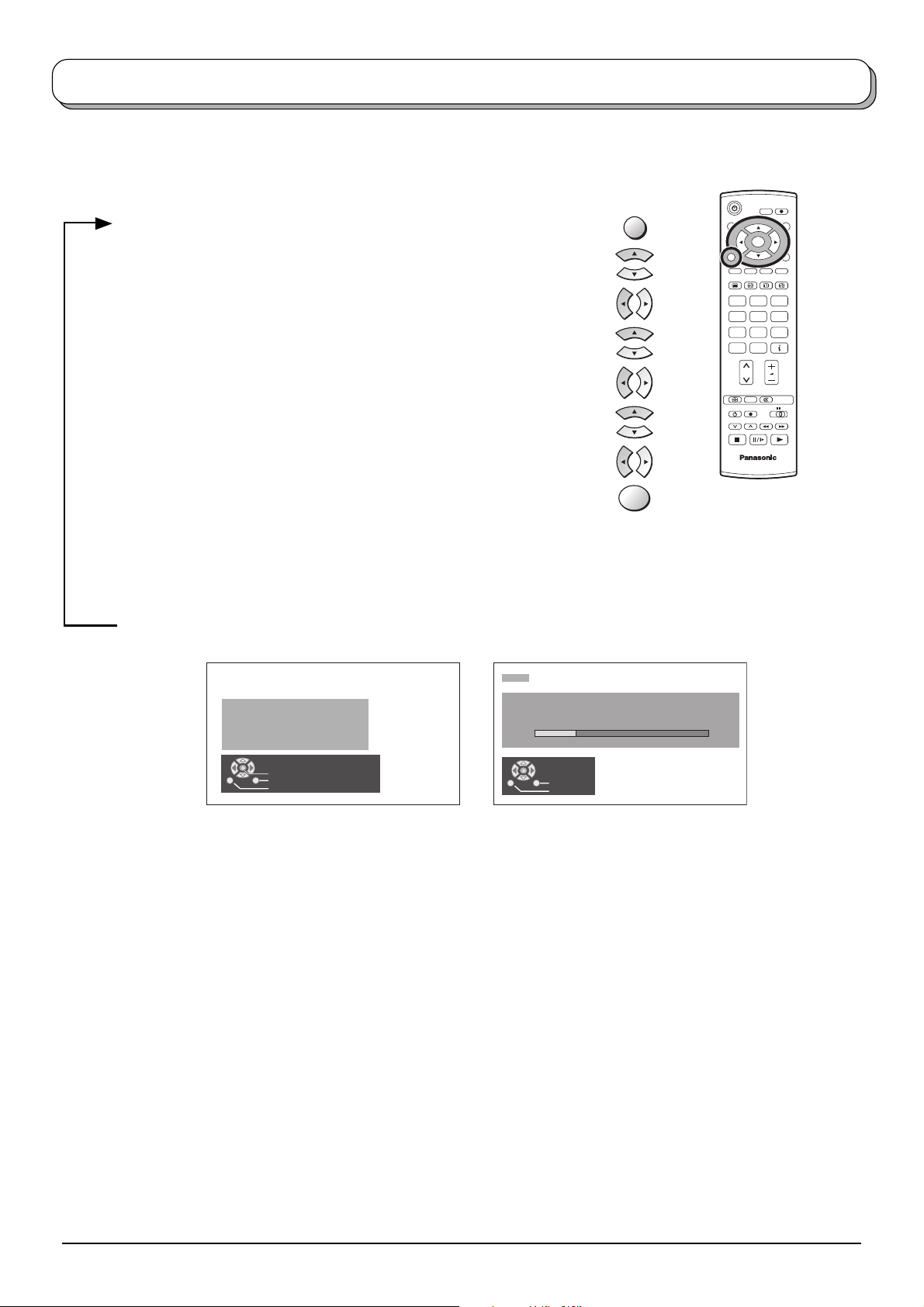

Tuning menu – Auto setup (Analogue mode)

Auto setup automatically retunes your TV. This feature is useful if, e.g., you move house and wish to retune your TV to receive the local stations.

In Analogue mode

MODE

Press the MENU button.

Move to Setup menu.

Access Setup menu.

Move to Tuning Menu.

123

456

789

Access Tuning Menu.

Move to Auto setup.

Access Auto setup.

Press to start Auto setup.

IDTV

Notes:

• If you proceed with the next step analogue tuning data will be erased (all stations and their programme

positions stored in your TV’s memory will be wiped out so the new settings can be stored).

• If you exit the procedure after this point and before Auto setup is complete, no station information will be

stored. Restart and complete the Auto setup procedure so that the TV is retuned.

CH44

WARNING

All analogue tuning data will be erased

Start Auto Setup Exit Return

AUTO SETUP IN PROGRESS SEARCHING : PLEASE WAIT

21 68

Exit Return

The TV will search for, locate, store and then sort into order your local stations.

If compatible recording device is connected via the AV2 / AV3 terminal, programme data will be sent to the device via Q-Link. See page 34.

Once this operation is completed the TV will display the programme now stored on programme position 1.

Page 20

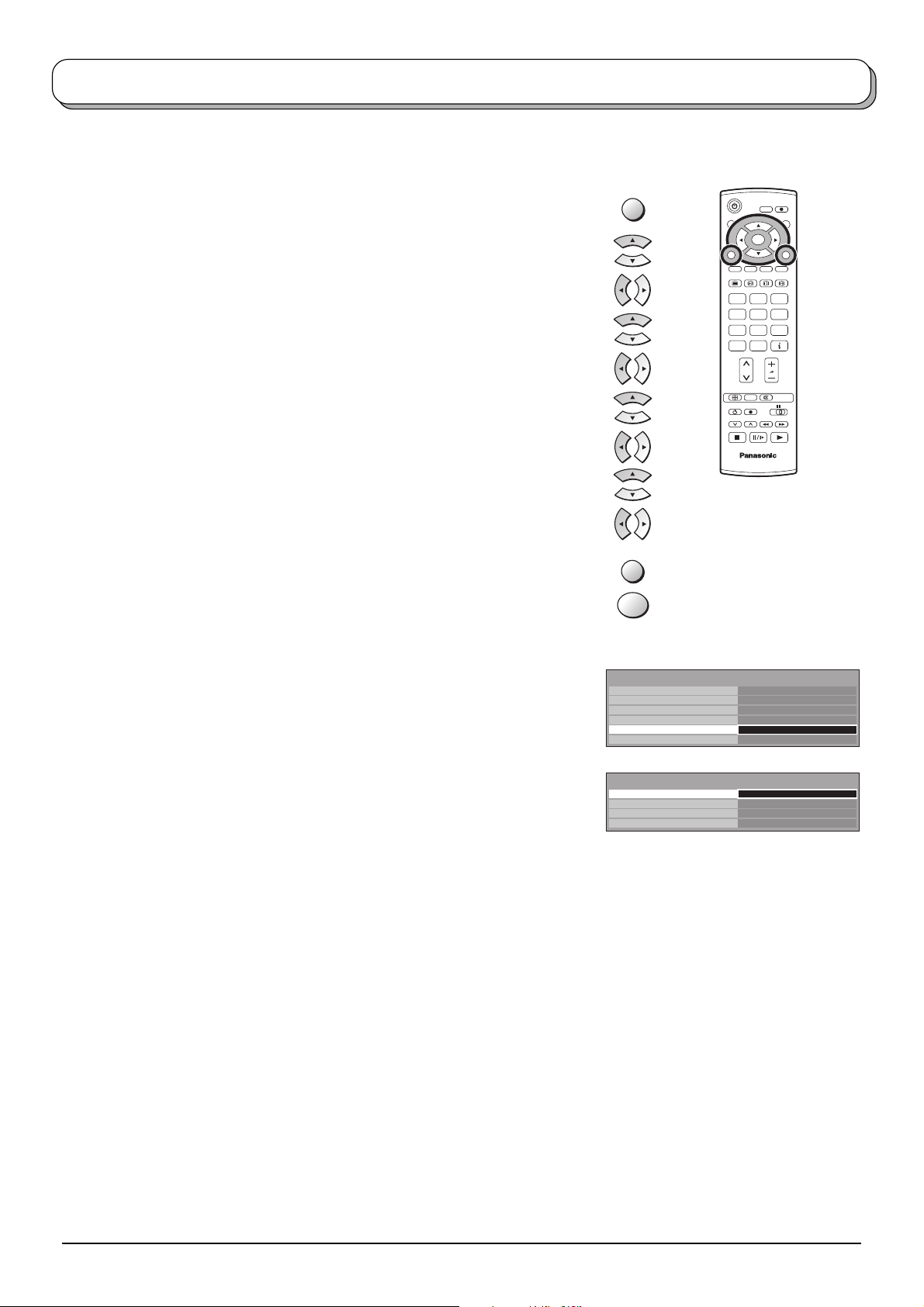

Tuning menu – Manual tuning (Analogue mode)

It is possible to retune individual programme positions:

In Analogue mode

Press the MENU button.

Move to Setup menu.

Access Setup menu.

Move to Tuning Menu.

Access Tuning Menu.

Move to Manual tuning.

Access Manual tuning.

Select the programme position to be tuned.

Press repeatedly until required station is found.

When the desired station is found, press the OK button to store. The programme position will flash.

Press the EXIT button at any time to go back to watching TV.

EXIT

123

456

789

CH44

Manual tuning

21 68

Search down/up Store Exit Return

0 9

Direct entry

MODE

IDTV

Note:

If your VCR is connected to this TV by an RF cable only, choose programme position “0” to tune to the VCR signals.

Manual tuning (via front panel) (Analogue mode)

It is also possible to use the control panel buttons on the front of your TV to tune individual programme positions:

Press the F button until Tuning mode is reached.

Press the –/ or +/ button to access Tuning mode.

Press the TV/AV button to move between Change programme and Search.

Press the –

/ or +/

position or start search.

When the desired station is found, press the STR button to store. The programme position will flash.

Repeat above procedure to tune additional programme positions.

Press the F button at any time to go back to watching TV.

button to change programme

CH44

Manual tuning

, + : Search TV / AV : Move cursor STR : To store F : To exit

21 68

STR F- / + / TV / AV

Page 21

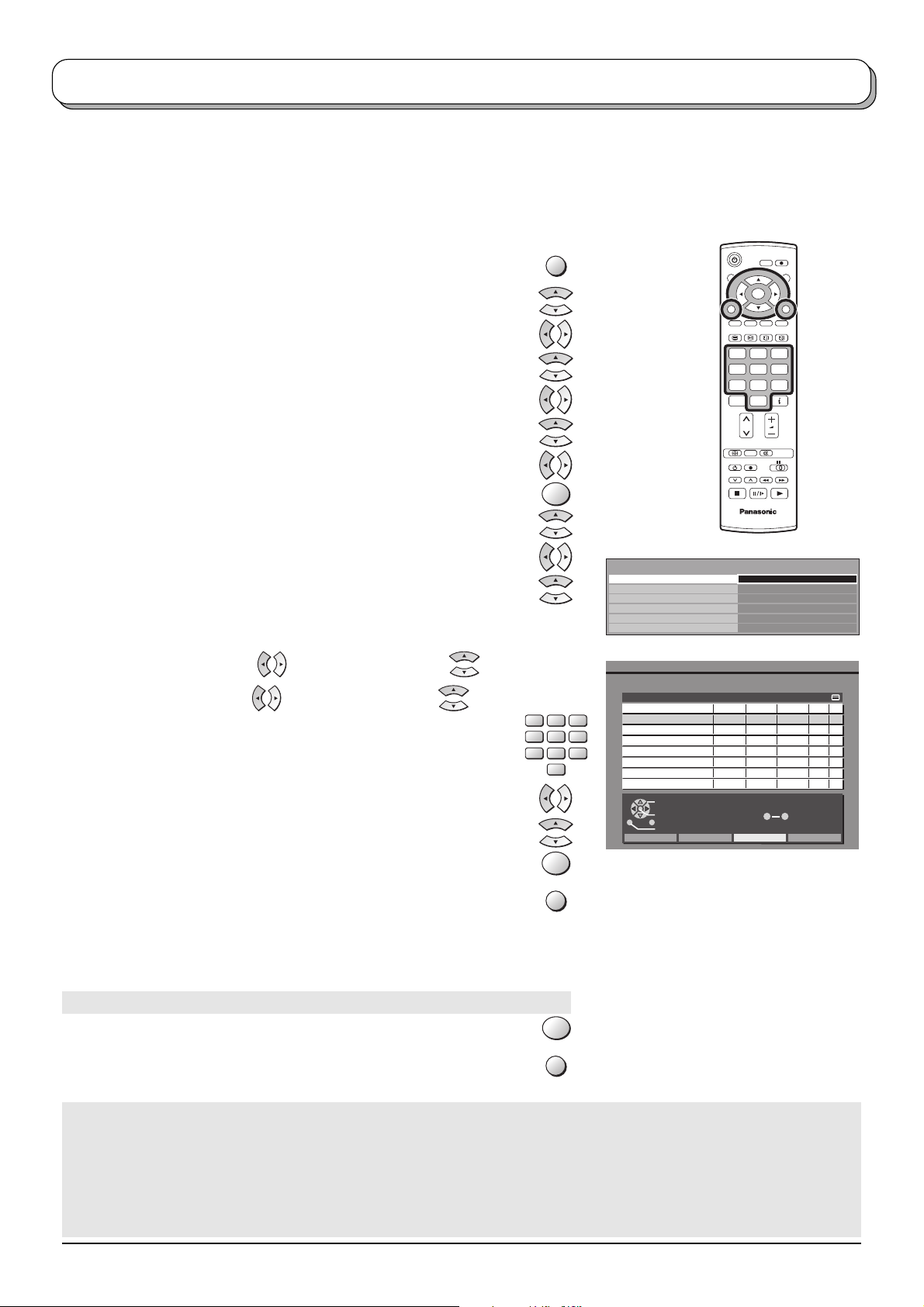

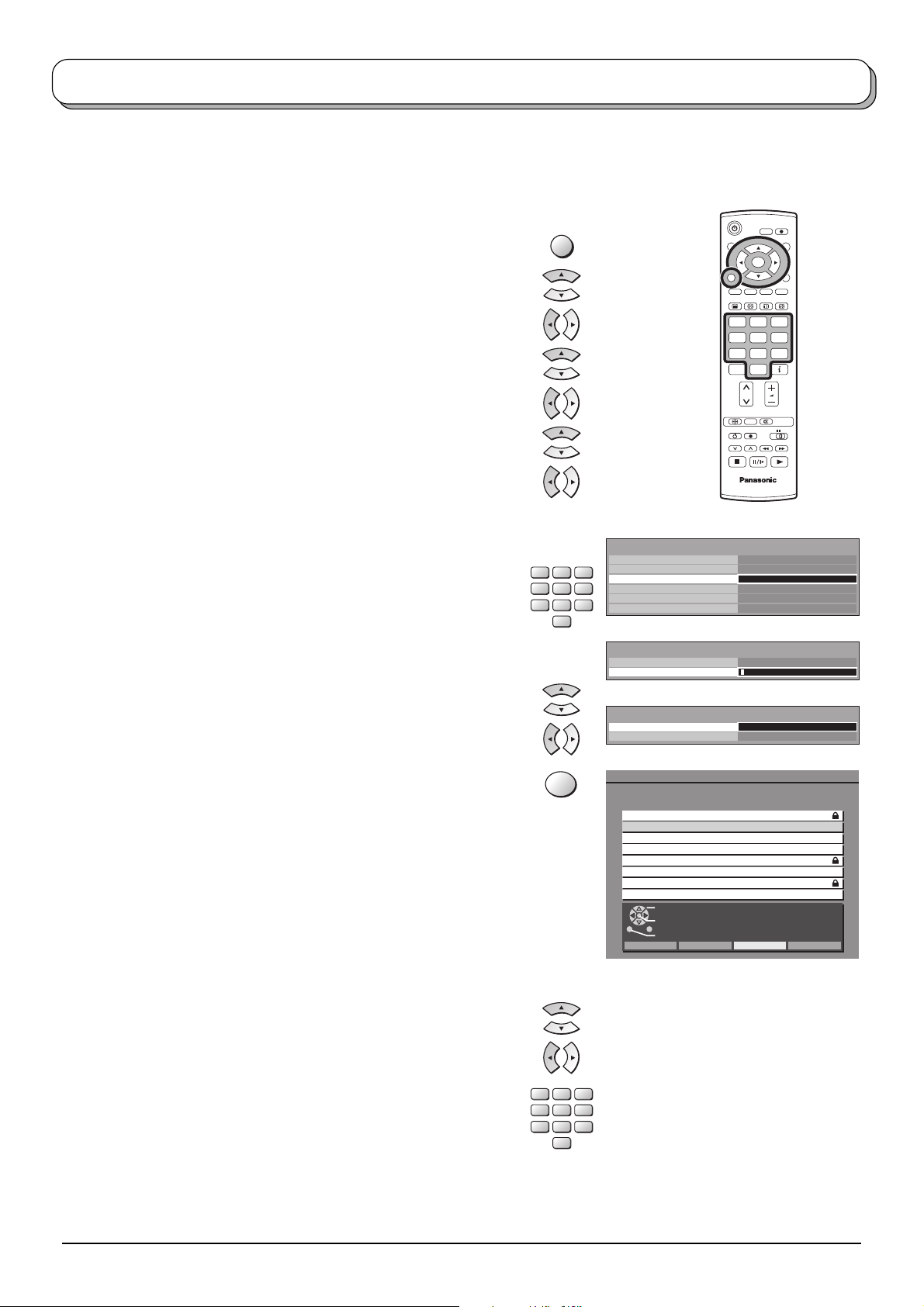

Owner ID

Owner ID allows you to enter a security code(Owner ID) and personal details into its memory, so that in the unfortunate event of theft it will help the police to trace the owner.

If you wish to check the personal details already entered into the TV (except your PIN number), press the F button(Front panel) and hold for 6 seconds(initially the volume level function will appear, as you continue to hold down the F button it will disappear again, and the Owner ID information will appear). The details already entered are displayed on screen and will disappear after a few seconds.

If Owner ID information was not entered when you switched on your TV for the first time or it is necessary to alter some of the information, Owner ID can be re-accessed via the Setup menu.

Press the MENU button.

Move to Setup menu.

Access Setup menu.

Move to Owner ID.

Access Owner ID.

If the Owner ID has previously been set, enter the PIN NUMBER (using 0 to 9 on the remote control) followed by OK to proceed, this will take you to the NAME option.

If no Owner ID has previously been set, enter the required 4 digit Owner ID PIN NUMBER (using 0 to 9 on the remote control).

If a 4 digit PIN NUMBER was entered above, you will be taken automatically to the NAME line.

If not, move to the NAME line.

Change character.

Select character position.

Repeat above until NAME, HOUSE NUMBER and POSTCODE are entered.

123

456

789

VCR

123

456

789

VCR

Setup menu

Q-Link AV2 out Teletext Off timer Side panel Powe r save Powe r on preference Tu ning Menu Owner ID Shipping condition

Owner ID

PIN NUMBER :

NAME :

HOUSE NO :

POSTCODE :

0123456789

MODE

123

456

789

IDTV

AV2 Monitor FASTEXT Off High Off TV

Access

Yo u now have the opportunity to enter your details and help the police crack crime see instruction book

∗ ∗ ∗ ∗

∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗

Change character Select character Store Owner ID Exit Return

Press the OK button to store the details. Press again when you are asked, “Are you sure?”.

For future reference,

write your PIN NUMBER here

Page 22

Shipping condition

Shipping condition allows you to reset the TV to its original condition, i.e. no channels tuned in. This is useful, for example, if you move to a different area when you will probably want the TV to tune itself to your new local stations.

Note:

Owner ID information will not be affected by this function.

This can be done either through the Shipping condition menu or through the Auto setup menu.

The Shipping condition menu will reset all data, except Owner ID information, clearing all DVB and Analogue tuning information and resetting all control levels back to factory settings. You may need to adjust your VCR or programme position ‘0’ VCR after operating the Shipping condition menu.

Press the MENU button.

MODE

Move to Setup menu.

Access Setup menu.

Move to Shipping condition.

Access Shipping condition.

Press the OK button to start.

Press again, to confirm, each time that you are asked, “Are you sure?”.

Switch the TV off at the mains power switch.

The next time you switch the TV on, Auto setup will begin. DVB and Analogue stations will be located, sorted and stored ready for use. See page 9.

Setup menu

Q-Link AV2 out Teletext Off timer Side panel Powe r save Powe r on preference Tu ning Menu Owner ID Shipping condition

Shipping condition

All tuning data will be erased

Are you sure ?

123

456

789

IDTV

AV2 Monitor FASTEXT Off High Off TV

Access

Start Exit Return

Page 23

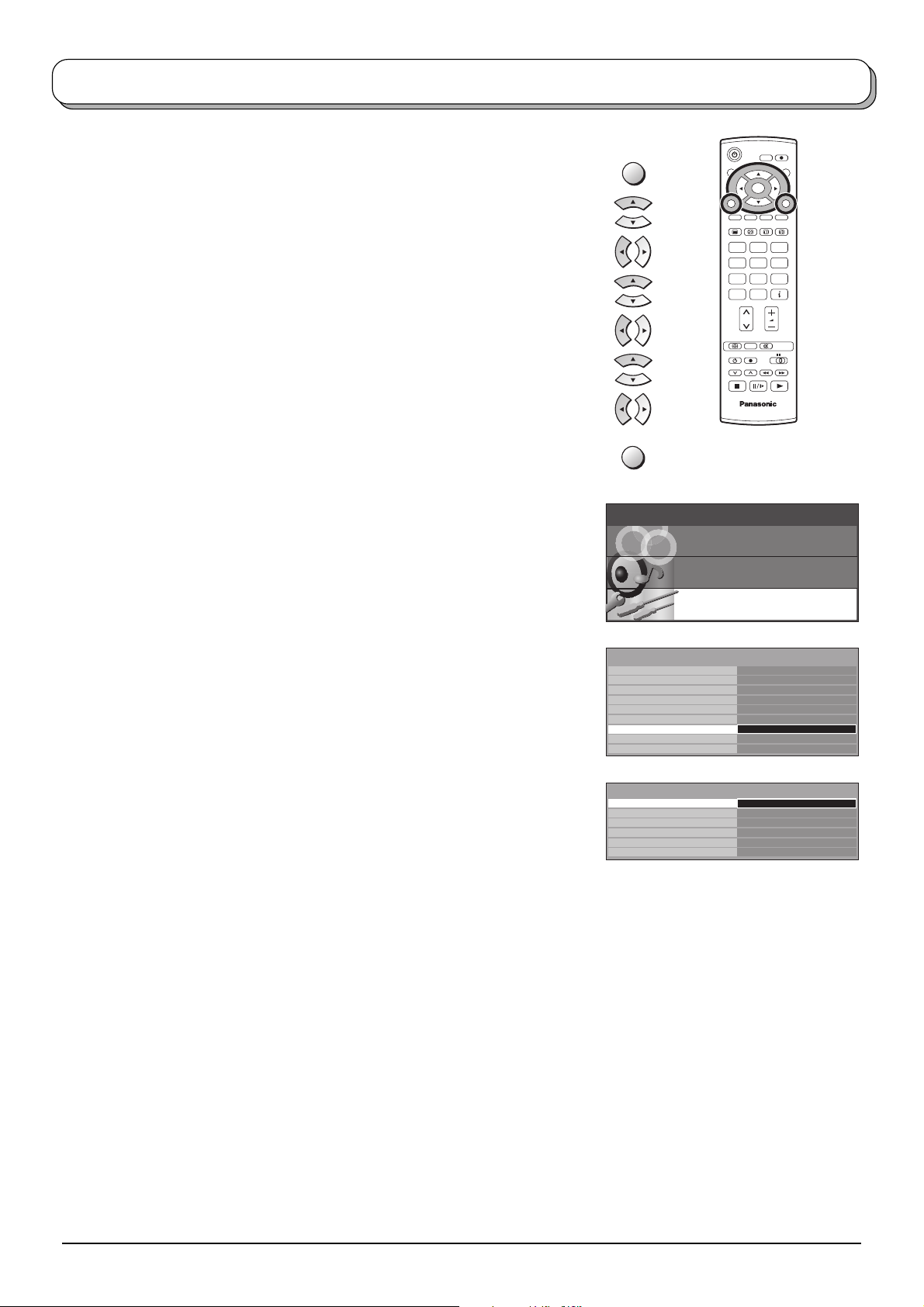

DVB Setup Menu – overview (DVB mode)

In DVB mode

Press the MENU button.

Move to Setup menu.

Access Setup menu.

Move to DVB Setup Menu.

Access DVB Setup Menu.

Move to menu option.

Adjust chosen option or access chosen menu.

Press the EXIT button at any time to go back to watching TV.

Timer Programming

Allows you to enter programme times at which the DVB tuner must switch on, ready for recording. See page

24.

Profile Edit

Allows you to select your favourite programme positions and display them as a list in the TV Guide or Information banner. See page 26.

EXIT

Main menu

Picture menu

MODE

123

456

789

IDTV

Sound menu

Setup menu

Child Lock

DVB Tuning Menu

DVB System Setup

Multi Audio

You may wish to lock a DVB programme channel to prevent access to it. See page 27.

Provides access to many other DVB Tuning features. See page 28.

Provides access to various specialized DVB options. See page 29.

Multi audio, which will only appear when a DVB programme is selected, allows you to select an alternative sound track. The number of options available depends on each broadcast.

Setup menu

Q-Link AV2 out Off timer Side panel Powe r save Powe r on preference DVB Setup Menu Owner ID Shipping condition

DVB Setup menu

Timer Programming

Profile Edit Child Lock DVB Tuning Menu DVB System Setup Multi Audio

AV2 Monitor Off High Off TV

Access

eng

Page 24

Timer programming menu (DVB mode)

For an external recording device to record DVB programmes, the integrated DVB system must be active to provide the signal. The Timer programming menu allows you to choose programmes that you wish to record. At the correct time, the DVB system will switch on and tune to the correct station (even if the TV is in standby mode). If the recording device is compatible with Q-Link or similar technologies (see page 34) and connected to the TV’s AV2 / AV3 terminal, you do not need to program the device – the DVB system will control the recording process. The device must be connected to the TV’s AV2 / AV3 terminal using a SCART cable to record DVB programmes.

In DVB mode

Press the MENU button.

Move to Setup menu.

Access Setup menu.

Move to DVB Setup Menu.

Access DVB Setup Menu.

Move to Timer Programming.

Access Timer Programming.

MODE

123

456

789

Press the OK button to begin programming.

Select the Programme position to be recorded.

Move to the Date field.

Set the Date on which recording is to take place.

The current Date and Time are shown at the top of the menu. See page 25 for further Date options.

Move to the Start time field

Move to the End time field

and set the Start time .

and set the End time .

The duration of the recording is shown in the min. column.

The channel position, start and end times can also be input using the numeric buttons on the remote control.

Move to the Subtitles field.

If you wish to record subtitles (if available) select Auto.

Press the OK button to store.

123

456

789

VCR

DVB Setup menu

Timer Programming

Profile Edit Child Lock DVB Tuning Menu DVB System Setup Multi Audio

DVB Timer Programming

Pos.

Name

Date Start End

BBC1

ITV1

BBC News 24

Boomerang

Kerrang!

The Community Channel

The Hits

Five

Select timer

Edit timer Exit Return

Delete

6/8 FR

7/8 SA

8/8 SU

9/8 MO

10/8 TU

11/8 WE

12/8 TH

13/8 FR

IDTV

Access

eng

18:00

21:30

15:30

23:10

20:00

19:30

16:00

19:00

0 9

EXIT

Press the EXIT button to leave the DVB Timer Programming screen.

Notes:

•To delete a timer programme, select the recording with the cursor bar and press the Red button.

•To edit a previously entered timer programme, select it with the cursor bar and press the OK button.

•Timer programmes can also be entered from the TV Guide. See page 32.

Two minutes before the recording is due to start, a reminder will appear on screen:

Press the OK button to remove the reminder from the screen.

If you wish to cancel the recording, press the EXIT button.

EXIT

Thu 05/08/04 18:49

min.

20:00

120

Off

22:30

16:45

24:30

22:00

21:30

18:00

20:00

Note: The above 2 operations will not be necessary if the TV set is in standby mode.

Notes:

Six seconds before the recording is due to start the DVB system will tune to the correct station. If you were already watching another DVB station you will see the station change on screen. If you were watching an analogue channel, you will not see the change. You can continue to watch analogue stations while a timer recording is in progress. If you attempt to switch to another DVB programme position while a timer recording is in progress the message “DVB Tuner Locked ” will be displayed. Press the OK button to continue recording, or EXIT to unlock the programme position. Beware that if you press EXIT, timer programming for this DVB position will be immediately deleted. To immediately cancel a recording that is already in progress, press GUIDE then EXIT. You may not be able to cancel recording just before it starts. Use the recording device to cancel it.

Page 25

Timer programming menu (DVB mode)

Daily and Weekly Timer Programmes

While in the Date field of the DVB Timer programming menu, you can select various options to determine how often a recording should be made. Press the down cursor button repeatedly to access the following options:

Daily SU–SA

The recording device will record at the same time every day.

Daily MO–SA

The recording device will record at the same time each day

DVB Ti mer Programming

Pos.

Name

Date Start End

BBC1

ITV1

BBC News 24

Boomerang

Kerrang!

The Community Channel

The Hits

Five

Change date

Select

Store timer Exit Return

Delete

6/8 FR

Weekly TH

8/8 SU

9/8 MO

10/8 TU

11/8 WE

12/8 TH

13/8 FR

Thu 05/08/04 18:50

18:00

21:30

15:30

23:10

20:00

19:30

16:00

19:00

0 9

20:00

22:30

16:45

24:30

22:00

21:30

18:00

20:00

min.

120

Off

from Monday to Saturday.

Daily MO–FR

The recording device will record at the same time each day from Monday to Friday.

Weekly SA, FR, TH, WE, TU, MO or SU The recording device will record at the same time on the same day each week.

Notes:

• If new timer programme data overlaps any part of an existing timer programme, a warning message will appear.

• The TV set must be “On” or in “Standby” mode for the DVB programme signals to be output to the external recording device.

Encrypted Programmes

In the future, some DVB programmes may be “encrypted”. This means that the DVB programme cannot be viewed or recorded unless you have the correct Common Interface module to decode the programme.

When you attempt to view or set Timer recording of an encrypted programme and you have no CI module inserted, a message will appear on screen.

Page 26

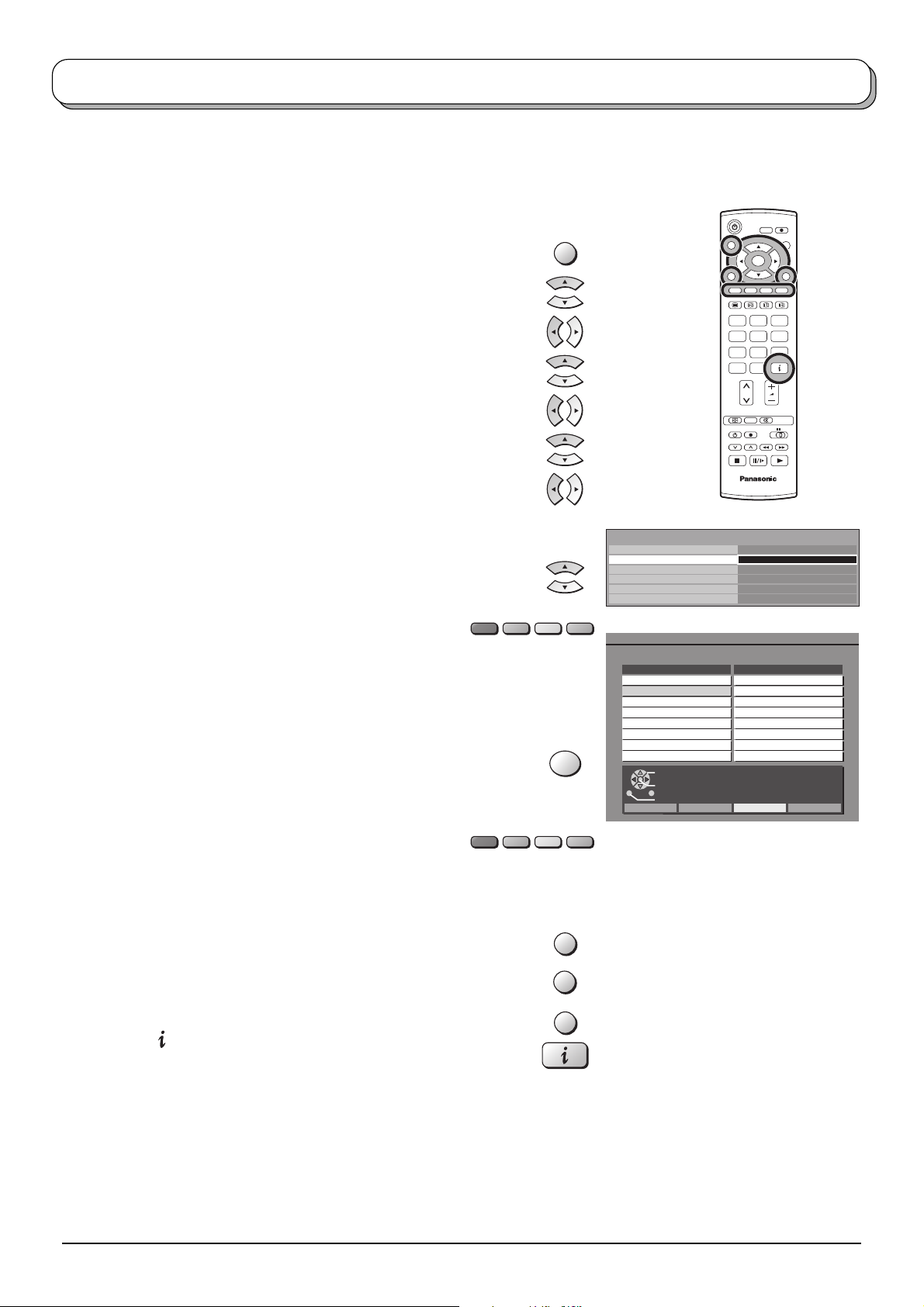

Profile Edit menu (DVB mode)

The Profile Edit menu allows you to select your favourite programme positions and display them as a list in the TV Guide or Information banner, to allow quick and easy access to the programs you watch most often. You can make the 4 kinds of the list.

In DVB mode

Press the MENU button.

Move to Setup menu.

Access Setup menu.

Move to DVB Setup Menu.

Access DVB Setup Menu.

Move to Profile Edit.

Access Profile Edit.

Add a channel to the Profile list

Move to the programme position which you wish to add to the profile list.

Press the Red button repeatedly to cycle through the channel categories. Press the Green button repeatedly to cycle through the profiles. Press the Yellow button to add a channel to the profile list. Press the Blue button to add all the channels to the profile list.

Press the OK button to store your Profile list.

Edit the Profile list

When the profile list is highlighted Press the Red button to edit the profile name. Press the Green button to move the channel. Press the Yellow button to delete the channel. Press the Blue button to delete the all channels.

Press the MENU button to return to the DVB Setup Menu.

Press the EXIT button at any time to exit Profile Edit.

A list of favourites can be accessed by pressing the GUIDE button or the

button.

See page 32.

EXIT

GUIDE

DVB Setup menu

Timer Programming

Profile Edit Child Lock DVB Tuning Menu DVB System Setup Multi Audio

Profile Editor

All Services Profile 1

1 BBC ONE Wales

2 BBC 2W

7 BBC THREE

10 BBC FOUR

30 CBBC Channel

31 CBeebies

40 BBC NEWS 24

Select programme

Store Exit Return

Select Category Select Profile

MODE

123

456

789

IDTV

Access

eng

Add Add All

Page 27

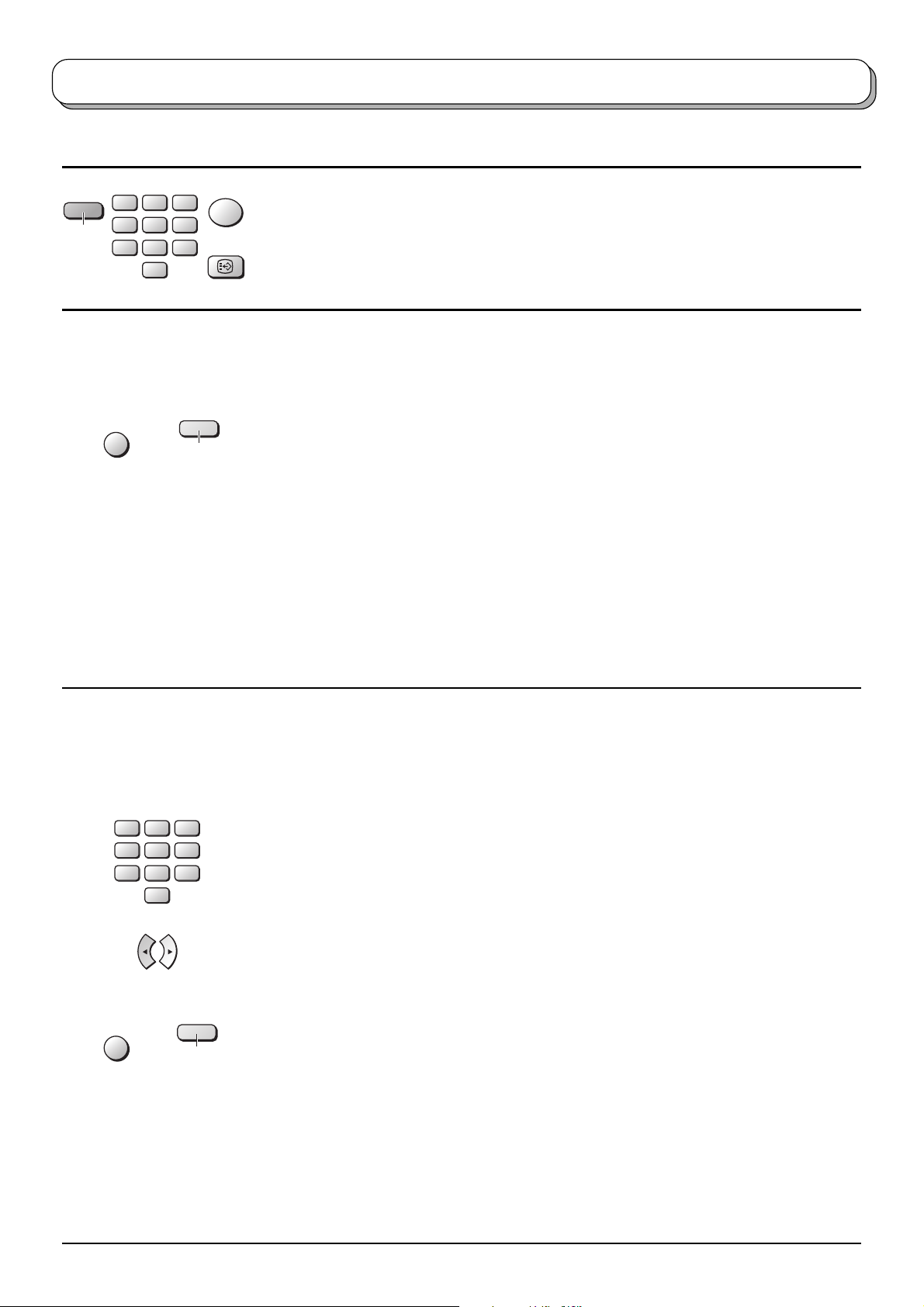

Child Lock menu (DVB mode)

You may wish to lock a DVB programme channel to prevent access to it.

Note:

The data of the PIN number and locked channel will be erased by operating the Shipping condition.

In DVB mode

Press the MENU button.

Move to Setup menu.

Access Setup menu.

Move to DVB Setup Menu.

Access DVB Setup Menu.

Move to Child Lock.

Access Child Lock.

When entering Child Lock menu for the first time, new PIN number setting screen is displayed.

Create a 4-digit password. Enter the password again to confirm. From the second time, enter a password once to display Child Lock screen.

123

456

789

VCR

123

456

789

DVB Setup menu

Timer Programming

Profile Edit Child Lock DVB Tuning Menu DVB System Setup Multi Audio

Child Lock-PIN Entry

Please enter new PIN PIN

MODE

IDTV

Access

eng

* * * *

Move to Child Lock Service List.

Access Child Lock Service List.

Select the channel you want to lock and then press the OK button to lock. Press again to unlock. Press the Yellow button to lock all channels. Press the Blue button to unlock all channels.

The PIN number is required when you wish to watch a locked channel. If the unit is turned off it will be necessary to input the PIN number again to access any locked channels.

Change the PIN number

In Child Lock menu

Move to Change PIN.

Access Change PIN.

Create a 4-digit new password. Enter the password again to confirm.

123

456

789

VCR

Child Lock

Change PIN Child Lock Service List

Child Lock Service List

1 BBC ONE Wales

2 BBC 2W

7 BBC THREE

30 CBBC Channel

51 BBCi

89 BBC Radio Wales

90 BBC Radio Cymru

Select

Lock Exit Return

Access

Lock All Unlock All

Page 28

DVB Tuning Menu (DVB mode)

DVB Tuning Menu provides access to DVB Tuning features.

In DVB mode

Press the MENU button.

Move to Setup menu.

Access Setup menu.

Move to DVB Setup Menu.

Access DVB Setup Menu.

Move to DVB Tuning Menu.

Access DVB Tuning Menu.

Move to menu option.

Adjust chosen option or access chosen menu.

Press the EXIT button at any time to go back to watching TV.

DVB Auto Setup

Automatically retunes your TV. DVB stations will be located, sorted into order and stored. DVB tuning data will be erased. If you set the Child Lock PIN number, the number is required before DVB Auto Setup.

EXIT

DVB Setup menu

Timer Programming

Profile Edit Child Lock DVB Tuning Menu DVB System Setup Multi Audio

MODE

123

456

789

IDTV

Access

eng

Add New Service

New Service Message

Signal Quality

You can add new DVB stations while retaining existing tuning data. When the New Services Found message appears new DVB stations are available to add to your existing DVB channel list.

This TV continually scans for updated DVB services and notifies you of any changes. Set to On to receive notification. Set to Off if you do not wish to be informed of any updates.

The signal quality function displays an indication of signal quality for each DVB programme position. The DVB system requires a good quality signal to provide the best picture. When viewing analogue pictures, interference such as signal reflection from nearby buildings or mountains causes ‘ghosting’, but still provides a viewable picture. For the DVB system, interference such as this can disrupt the flow of data causing the picture to appear to be made up of large blocks, or to freeze intermittently. If the picture disappears completely, this could mean that signal quality is very poor. If this happens often, you may need to improve your aerial system to provide a better signal.

DVB Tuning Menu

DVB Auto Setup Add New Service New Service Message Signal Quality

DVB Aute Setup

Please Wait !

Prog. Channel Service Name NetID. TS ID. Quality

This will take about 3 mins.

Add New Services

Please Wait !

Prog. Channel Service Name NetID. TS ID. Quality

This will take about 3 mins.

BBC NEWS 24

BBCI

CBBC Channel

BBC Radio Wales

BBC Radio Cymru

Access

12302

4158

12302

4158

12302

4158

12302

4158

12302

4158

New Service Message On

New DVB Service Found!

Press OK to add new service

Press EXIT to lgnore

68 21

Page 29

DVB System Setup (DVB mode)

The DVB System Setup menu provides access to DVB specific options.

In DVB mode

Press the MENU button.

Move to Setup menu.

Access Setup menu.

Move to DVB Setup Menu.

Access DVB Setup Menu.

Move to DVB System Setup.

Access DVB System Setup.

Move to menu option.

Adjust chosen option or access chosen menu.

Press the EXIT button at any time to go back to watching TV.

Pressing the OK button after having adjusted some features will store the setting as the default (replacing the factory setting).

EXIT

MODE

123

456

789

IDTV

Common Interface Module

Preferred Subtitles

System Update

Display Timeout

The Common Interface Module menu provides access to functions contained on a Common Interface Module inserted into the CI slot, located at the rear of the TV. See page 30.

This option allows you to select the language in which subtitles should appear (if available) when the STTL button is pressed.

This menu allows you to download new software to the television. See page 31.

This option allows you to set how long the information banner stays on screen. Select from 0 (No display) to 10 seconds in 1 second increments. See page 33.

DVB Setup menu

Timer Programming

Profile Edit Child Lock DVB Tuning Menu DVB System Setup Multi Audio

DVB System Setup

Common Interface Module Preferred Subtitles System Update Display Timeout

Access

eng

Access

English

3 seconds

Page 30

Common Interface Module menu (DVB mode)

The Common Interface Module menu provides access to software contained on Common Interface (CI) Modules. These can be inserted in the “CI” slot located at the rear of the TV.

IMPORTANT NOTES:

• Switch off the TV using the front panel switch before inserting or removing a module. If you are installing a TV software update, please follow the dedicated instructions supplied with the module.

•

• Insert / remove a module straightly to the CI slot.

Insert the CI module:

Some Common Interface Modules may be a two piece design consisting of a card reader together with the viewing card. When using this design of card, first insert the card reader firmly into the CI slot on the TV. Secondly, insert the viewing card into the reader.

Switch on the TV.

In DVB mode

Press the MENU button.

Move to Setup menu.

Access Setup menu.

Move to DVB Setup menu.

Access DVB Setup menu.

Move to DVB System Setup.

Access DVB System Setup.

Move to Common Interface Module.

Access Common Interface Module.

Access the module.

If no module is inserted the message “No Module Inserted” will be displayed. (If you have inserted a module, check that it is fully inserted.)

The features that now appear on screen are dependent on the contents of the selected Common Interface Module. Refer to the instructions supplied with the card or contact the vendor.

DVB System Setup

Common Interface Module Preferred Subtitles System Update Display Timeout

Common Interface

Slot 1: No module inserted

MODE

123

456

789

IDTV

Access

English

3 seconds

Access

In all cases, it is possible to navigate the pages using buttons on the remote control, but because the commands available must apply to all manufacturers of DVB equipment, some on screen commands may not correspond exactly to the remote control buttons.

For example: For the on screen command ‘select’ or ‘go’, use the OK button.

If you see the symbols, use the cursor keys.

If you see a line of key words displayed in red, green, yellow and blue, use the coloured buttons to operate the functions.

The EXIT button should always allow you to exit the CI software.

EXIT

Page 31

System Update menu (DVB mode)

From time to time new versions of software will become available to enhance the performance and features of this TV.

Auto Update Search in Standby (Overnight)

During the night time, this TV will automatically search for any new available software being broadcast. If a new software version is found, the unit will automatically download and install this new version. At the end of this process the unit will reset. Auto Update Search in Standby will occur at 03:00 or 05:00 every day.

In DVB mode

Press the MENU button.

Move to Setup menu.

Access Setup menu.

Move to DVB Setup Menu.

Access DVB Setup Menu.

Move to DVB System Setup.

Access DVB System Setup.

Move to System Update.

Access System Update.

Move to Auto Update Search in Standby.

Choose between On or Off.

Set to On to search for new software and update automatically in Standby mode. This does not work when the unit off. If there is a new version software being broadcast, the TV will download this automatically. Auto Update Search in Standby will only occur if:

• The unit is in Standby mode

• No timer recording is set for 03:00 or 05:00(GMT)

• No recording is being made at 03:00 or 05:00(GMT)

DVB System Setup

Common Interface Module Preferred Subtitles System Update Display Timeout

MODE

123

456

789

English

Access

3 seconds

Set to Off if you do not want new software to be automatically downloaded. In this case a new software banner will appear when the TV set is switched on and tuned to a BBC channel, if new software is being broadcast. Press the OK button to download the new version. The TV will begin download of the new software version. This can take up to 15 minutes. Press the EXIT button to exit without download.

New version 1.00 found. Do you really want to update the software and reboot the system?

To ensure that your TV automatically updates when new software is available, please place the TV in Standby last thing at night when you have finished viewing.

System Update Search Now (Manual Download)

To manually check if a new software version is available, select System Update Search Now in System Update menu and press the OK button. The TV will search for new versions of software and indicate whether a newer version is available or not. This search process may take a few minutes. If a newer software version is found, an on screen message will inform the user that it is available. The user is given the chance to download this version. Press the OK button to download the new version. The TV will begin download of the new software version. This can take up to 15 minutes. Press the EXIT button to exit without download.

Please do not switch off the TV or press any buttons while this download

System Update

is in progress. The TV will reset after the software download is complete.

Searching for new software version: Please wait!

Current software version 0.30

Press the MENU button to return to DVB System Setup menu. Press the EXIT button to exit from menus.

Software Licence

Access to show the information of the Software Licence.

Exit Return

Page 32

TV Guide - Electronic Programme Guide (EPG)

(DVB mode)

The DVB TV Guide displays the current programmes being transmitted, and forthcoming programmes on each DVB channel, up to about one week ahead (If broadcasters transmit the programmes information). When you are using the TV for the first time or you have not used it for about one week, it takes thirty to forty minutes after turning the TV on to display the TV Guide fully.

Press the GUIDE button. Choose from Landscape or Portrait display style by pressing the GUIDE button repeatedly.

Press the Red button to move the EPG listing to the previous day. Press the Green button to move the EPG listing to next day. Press the Yellow button to view a list of Categories. The Favourites list can be customised using the Profile Edit menu. See page 26. Press the Blue button to view a list of Prog. type.

EPG listing can be set to display by Category or Programme Type. For example press the Yellow button and select ‘Free TV’, ‘Radio’ services or ‘Profile 1’ by pressing the up or down cursor buttons. Press the OK button to view a list of the selected category.

To view any of the current DVB programmes, select it with the cursor buttons and press the OK button.

Information and Timer Programming (ex. Landscape)

You can view further information about the selected programme:

Select the programme for which you require further information using the cursor buttons. Press the Press the

When you select a future programme from the EPG listing, press the OK button to set timer programming for recording on a Q-Link compatible recorder. See page 24, 25, 34.

Press the MENU button to return to the TV Guide.

Press the EXIT button to exit the Guide.

button to display the information. button again to return to the list of programmes.

GUIDE

EXIT

MODE

123

456

789

Landscape

DVB TV Guide

Fri 6th

20:00-21:00

122

142

144

:Landscape

All Services

Coronation Steet:We open in the Battersdy’s

Time: 19:30 20:00

BBC1

Eastender

BBC2

Hot Wars

ITV1

Emmerdal.

Channel4

10 O’ clock News BBC

five

Panoroma

ITV2

I’m A Celebrlty

SC4

Rugby

Change display mode Select channel

Select Programme

Timer Programming Exit

-24 Hr +24 Hr

All Services

DIY SOS

Coronation Street

Sex And The City

15 To1

Category

20:30 21:00 21:30

The Bill

Hollday Program

Pepsi Char.

Pop Idol

Info

Category Prog. type

Portrait

DVB TV Guide

Wed 12th

1 BBC1 2 BBC2 44 Channel4 444 SC4

19:30~20:00

20:00~21:00

21:00~22:00

22:00~22:30

22:30~23:00

22:30~23:30

23:30~00:00

23:40~23:55

DVB TV Guide

Wed 12t h

20:00-21:00

BBC1

BBC2

ITV1

Channel4

five

122

ITV2

142

SC4

144

DVB TV Guide

Wed 12th

20:00-21:00

122

142

144

: Portrait

Eastender

Hot Wars

Emmerdal.

10 O’clock News BBC

Panoroma

I’m A Celebrlty

Rugby

The Bill

Change display mode Select Programme

Select channel

Timer Programming Exit

+24 Hr

:Landscape

Coronation Steet:We open in the Battersdy’s

All Services

Time: 19:30 2

BBC1

BBC2

ITV1

Channel4

five

ITV2

SC4

Select

Enter

Enter Exit

Exit

-24 Hr +24 Hr

Time: 19:30 20:00

BBC1

BBC2

ITV1

Channel4

five

ITV2

SC4

Select

Enter Exit

All Services

Free TV

Eastender

Hot Wars

Pay TV

Emmerdal.

Radio

10 O’ clock me

Information

Panorom a

Profile 1

I’m A Celebr

Profile 2

Rugby

Profile 3

Profile 4

:Landscape

Coronation Steet:We open in the Battersdy’s

Eastender

DIY SOS

Hot Wars

Emmerdal.

Coronation Street

10 O’ clock News BBC

Panoroma

Sex And The City

I’m A Celebrlty

Rugby

15 To1

Category

All Services

Info

Category Prog. type

Category

All Services

Category Prog. type

Return

Category

All Services

21:30 21:00 21:30

The Bill

Hollday Program

Pepsi Char.

Pop Idol

Thu 05/08/04 18:50

Prog. type

All Types

Red Cap

The Bill

Good bye

Hell

Term inato r

News

The

The Bill

Page up

Page dow n

Wed 12/05/04 10:46

Prog. type

All Types

Page up

Page dow n

Wed 12/05/04 10:46

Prog. type

All Types

21:00 21:30

Red Cap

The Bill

Good bye

Hell

Term inator

News

The

The Bill

Wed 12/05/04 10:46

Prog. type

All Types

21:00 21:30

Movies

Red Cap

News

The Bill

Entertainment

Good bye

Hell

Good bye

Hell

Sport

Term inator

Terminator

Children’s

News

The

News

The

Education

The Bill

Lifestyle

Drama

Return

Page 33

Information banner

In DVB mode

Information banner will appear when changing channel, or pressing the

(Information)

button. The banner gives the user information about the channel and programme currently being viewed. The banner will time out and dissapear from the screen after a set time period, this time period can be set in the DVB System Setup menu. See page 29.

Current Channel

Current Programme

1 BBC ONE WALES

Corontation Street 20:00~20:55

Encrypted

Programme Duration

Now or Next Current Category

Now

Multi-Audio

Current Time

20:30

Change Category

For info press

TXT

Profile 1

Subtitle

Features Available

Press the left or right cursor button while banner is displayed to switch between Now and Next.

1 BBC ONE WALES

Corontation Street 20:00~20:55

Encrypted

Multi-Audio

Change Category

Now

20:30

For info press

TXT

Profile 1

Subtitle

1 BBC ONE WALES

News 20:55~21:00

Change Category

20:30

Profile 1

For info press

This switches between the information for the current Programme being shown (Now) and the next Programme to be shown (Next). Press the up or down cursor button to step through the banner information for all channels. Press the OK button to view a channel. Now and Next can also be used in this mode.

While the banner appears Press the

button to display an extended banner showing any information available on the current selected programme. Press the

button while in extended banner mode to return to normal banner view.

EXIT

To clear the banner from the screen while in extended banner mode, press the EXIT button.

MODE

123

456

789

IDTV

Viewing Category

Press the Blue button while in the banner to scroll through available categories. For example:

All Services TV

All Services : All available Services

TV : TV channels only

Radio : Radio channels only

User Profiles Radio

User Profiles :

4 individual Profiles set up by user (see page 26)

Press the EXIT button to exit the banner at any time.

In Analogue mode

Pressing the

(Information) button will display the analogue channel information for a few seconds. This will then be timed out to display just the programme position number near the top left corner of the screen. To remove this programme position number, press the

(Information) button again.

Subtitles ON / OFF (DVB mode)

In DVB mode

Press the STTL button to switch Subtitles ON. Subtitles will appear (if available) by the language you select in Preferred Subtitles in DVB System Setup menu. See page 29. Press again to switch Subtitles OFF.

Blue

EXIT

STTL

MODE

312

456

789

Page 34

Q-Link

Q-Link allows the television to communicate with a compatible VCR or DVD Recorder.

For Q-Link communication to work, the TV must be connected to a recording device with the “Q-Link”, “NEXTVIEWLINK”, “DATA LOGIC”, “Easy Link”, “Megalogic” or “SMARTLINK” logo using a “fully wired” Scart cable between the AV2 / AV3 terminal of the television and the appropriate terminal on your VCR or DVD Recorder. See page 15 for details of Q-Link terminal setup. This television does not support any other types of recording control signal. For connection to the appropriate Scart terminal on the recording device, refer to the device’s instruction book.

When using a “NEXTVIEWLINK” device the main features possible are the following :

Preset Download

This allows the programme order from the TV to be downloaded to the recording device, helping to ensure that correct recordings are made; there are several ways to perform this operation :

1. During installation as explained in the “Quick Start Guide” on page 8-10.

2. When Auto setup is started from within the Tuning menu. See page 16.

3. Preset download started from the recording device, refer to the device’s instruction book. Because a recording device cannot tune to DVB stations, only the analogue programme positions are downloaded to the device.

What You See Is What You Record (DIRECT TV RECORDING)

This will allow the immediate recording of the programme currently shown on the TV, by the recording device attached to the Scart terminal, which can be chosen using “Q-Link”. See page 15.

Press the DIRECT TV REC button.

DIRECT TV REC

If the recording device is in Standby mode with usable recording media inserted, it will automatically switch on when you press the DIRECT TV REC button. If a “Q-Link” device is connected, a message will appear on the TV screen showing what is being recorded, or if it is not possible to record. Some “Q-Link” compatible devices will only display the message when on the VCR programme position(0) or in AV mode. Refer to the device’s instruction book.

MODE

123

456

789

Recording in progress No recording -Check tape or disc

The recording device is recording the programme signal from its own tuner. If you wish you can switch off the TV and leave the device recording in the normal way.

Recording DVB stations

If you press the DIRECT TV REC button while watching a DVB station, the recording device will automatically switch to its AV input to record the DVB signal from the TV (via the SCART cable), and the DVB programme position will be locked. If you attempt to select another DVB programme position while recording, you will see the message “DVB Tuner Locked”. Press the OK button to clear the message, or the EXIT button to unlock the programme. Beware that if you press EXIT, the DVB programme will be unlocked – switching to another DVB programme will spoil your intended recording. Stop the recording manually.

Additionally, when using a “Q-Link” device the following main features are possible:

The following features are only available from the device connected to the Scart terminal selected using “Q-Link”. See page 15.

TV / Recording device Auto Power On

If you insert pre-recorded media into the recording device and press the Play button whilst the TV is in Standby mode, the TV will automatically switch on and select the correct AV input so that you can view the content.

Recording device Auto Power Standby

When the TV is switched into Standby mode, the recording device will also switch into Standby mode if there is no media inserted, or if there is media inserted and the device is in Rewind or Stop mode. If a VCR is rewinding a tape, it will not switch into Standby mode until rewinding has finished.

Recording device Image View On

If the TV is in Standby mode and the recording device sends a menu to be displayed on the TV screen (e.g., Main menu), the TV will automatically switch On and the menu will be displayed. This TV will also communicate with other recording device’s that bear the following logos :

• “DATA LOGIC” (a trademark of Metz Corporation) • “Megalogic” (a trademark of Grundig Corporation)

• “Easy Link” (a trademark of Philips Corporation) • “SMARTLINK” (a trademark of Sony Corporation)

The tape or disc may have been “write protected”, missing or may be damaged. The device may already be recording. Refer to the device’s instruction book.

Important Note:

Some recording devices may not support all or some of the above functions. Refer to the instruction book for the device. If Q-Link functions do not work, check the connection and ensure that the scart lead is a fully-wired type.

Page 35

Aspect Controls

The Widescreen TV will allow you to enjoy viewing the picture at its optimum size and aspect, including widescreen cinema format pictures.

Press the ASPECT button repeatedly to move through the seven aspect options:

Panasonic Auto, 16:9, 14:9, 4:3, Zoom1, Zoom2 and Zoom3

SPECT

MODE

Press the ASPECT button. Whilst the on screen selector keys are displayed, use the Red or Green buttons to move in either direction through the seven aspect options.

Note:

This is not available for 720p and 1080i component signals input. Aspect is fixed to 16:9.

Panasonic Auto

Panasonic Auto determines the best aspect ratio to use to fill your screen.

It does this using a four step process to determine if the picture being viewed is a widescreen picture.

If Panasonic Auto detects a widescreen signal it switches into the appropriate widescreen mode. If Panasonic Auto does not detect a widescreen signal then this advanced TV set enhances the picture for optimum viewing pleasure.

The text shown on the screen indicates how Panasonic Auto determined which ratio to use:

123

456

789

GreenRed

WIDE

“WIDE” appears in the top left of the screen, Panasonic Auto switches to the appropriate 16:9 or 14:9 widescreen ratio.

Panasonic Auto switches to the appropriate widescreen ratio. “Panasonic Auto” appears in the top left of the screen if black stripes above and below the picture are detected. Panasonic Auto chooses the best ratio and expands the picture to fill the screen. This process can take several minutes, depending on the darkness of the picture.

You may prefer to manually select one of the other aspect options available to view the picture.

Notes:

• If, in Panasonic Auto mode, you experience problems with the screen

display size when playing back widescreen format recordings from your VCR then it is possible that the tracking control of your VCR requires adjustment (your VCR instruction book will contain adjustment details).

• The widescreen aspect ratios of different films and programmes can

vary. If these are wider than a standard 16:9 aspect picture then a black band may be visible at the top and bottom of the screen.

• “WIDE” will appear in the top left corner of the screen and picture aspect

changes accordingly in any aspect modes, if a widescreen identification signal (WSS) is detected or a control signal is found through a Scart terminal.

• Automatic aspect ratio adjustment by WSS signal is not available for

progressive and high definition component signals input.

Panasonic Auto

“Panasonic Auto” appears in the top left of the screen. The best ratio is chosen and the picture expanded to fill the screen.

Panasonic Auto

Press the ASPECT button, then use the Red or Green buttons to move in either direction through the seven aspect options.

Page 36

Aspect Controls

16 : 9

16:9 will display a true 16:9 (anamorphic) picture with no aspect

distortions.

14 : 9

14:9 will display a 14:9 picture at its standard 14:9 size without any

stretching.

4 : 3

4:3 will display a 4:3 picture at its standard 4:3 size with no aspect

distortions.

Zoom1

16 : 9

14 : 9

4 : 3

Zoom1

Zoom1 will display 16:9 letterbox or 4:3 pictures with no aspect distortions.

Zoom2

Zoom2 will display 16:9 anamorphic letterbox pictures as a full screen

display with no aspect distortions.

Zoom3

Zoom3 will display 21:9 letterbox pictures as a full screen display with

no aspect distortions.

16:9 will display the picture at its maximum size but with sligth stretching.

Still

Press the HOLD button to freeze the picture. Press again to return to watching the current programme.

Zoom2

Zoom3

HOLD

Zoom1

Zoom2

Zoom3

MODE

312

456

789

Page 37

VCR / DVD operation

The Remote Control is capable of operating some functions of selected Panasonic VCRs and DVD (Digital Versatile Disc) equipment. Some VCR and DVD equipment have different functions, so to ensure compatibility please refer to the equipment’s instruction book or consult your dealer for details.

Standby

Press to switch the VCR, DVD or DVD recorder to Standby mode.

DVB

Analogue

MODE

STTL INDEX HOLD

TEXT

123

DIRECT TV REC

TV/AVGUIDE

EXIT

VCR DVD

Press again to switch back on.

VCR / DVD switch

Use this switch to select whether controls operate the DVD equipment or VCR.

Play

Press to playback the tape or DVD.

Stop

Press to stop the tape or DVD.

456

789

ASPECT

PROGRAMME

REC

VCR

VCR DVD

IDTV

PROGRAMME

Skip / Fast Forward / Cue

VCR: Press to fast forward the tape. In Play mode, press

to view the picture rapidly forward (Cue). When fast forwarding the tape, the picture noise may occur.

DVD: Press to skip to the next track or title.

Press and hold to search forward.

Skip / Rewind / Review

VCR: Press to rewind the tape. In Play mode, press to

view the picture rapidly in reverse (Review).

DVD: Press to skip to the previous track or title.

Press and hold to search backward.

Pause / Still

Press in Play mode, the picture will pause. Press again to restart play. DVD: Press and hold for slow-motion play.

Programme Up / Down

Press to increase or decrease the programme position by one.

REC

Record

Press this button to start recording.

Page 38

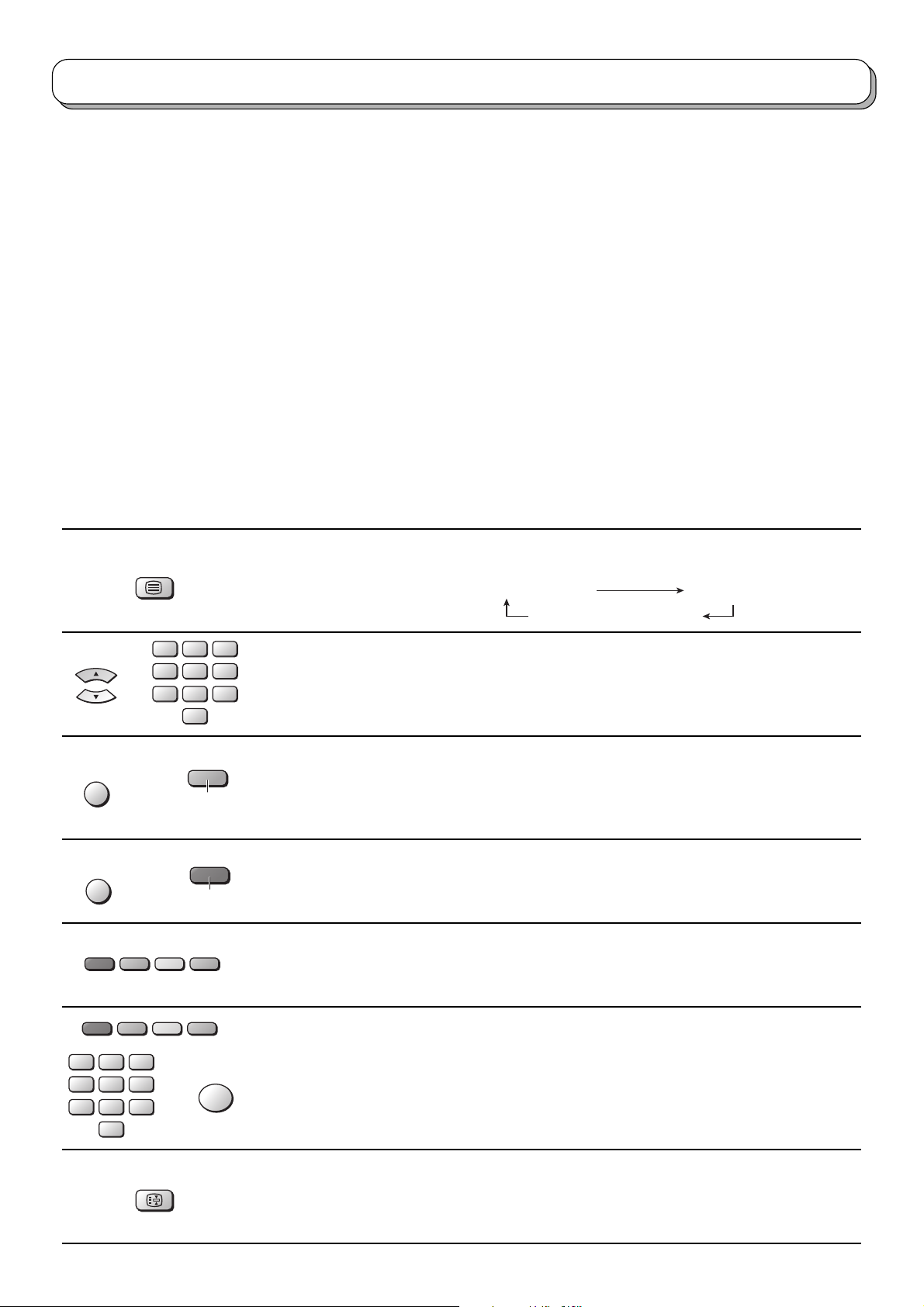

Teletext operation

In Analogue mode

•Teletext features may vary depending on the Broadcasting Companies and is only available if the channel selected

is transmitting Teletext.

• Pressing the MENU button whilst in Teletext operation will display the contrast function with a cyan bar, press the

left and right cursor buttons to alter the setting as required.

• Pressing the MENU button whilst in Teletext operation will display special function options at the bottom of the

screen.

• Pressing the Volume up / down button whilst in Teletext operation will display the volume function with a green

bar, press the volume up / down button to alter the setting as required.

What is List mode ?

In List mode, four differently coloured page numbers are situated at the bottom of the screen. Each of these numbers can be altered and stored in the TV’s memory.

What is FASTEXT mode?

In FASTEXT mode, four differently coloured subjects are situated at the bottom of the display. To access more information about one of these subjects, press the appropriately coloured button. This facility enables fast access to information on the subjects shown.

TEXT

123

456

789

VCR

Green

Red

TV / Teletext mode

Press the TEXT button repeatedly to switch the mode. Each time you press the button:

Teletext mode

Current TV programme

Picture and text mode

(see page 40)

Page Selection

Pages can be selected in two ways :

Press the Up / Down cursor buttons to increase or decrease the page number by one.

a. b. By entering the page number, using 0 - 9 on the remote control.

Full / Top / Bottom

Press the MENU button to display special functions, followed by the Green button. Press the Green button again to expand the BOTTOM half. Press again to return to normal (FULL) size.

Reveal

Press the MENU button to display special functions, followed by the Red button to reveal hidden words e.g. quiz page answers. Press again to hide.

Red / Green / Yellow / Blue buttons

In FASTEXT mode they correspond to the differently coloured subjects. In List mode they correspond to the differently coloured page numbers.

123

456

789

VCR

HOLD

List Store

In List mode the four page numbers can be altered (programme positions 1 - 25 only). To do this, press one of the four coloured buttons and enter the new page number. Press and hold the OK button, the page numbers will change to white indicating that the page is stored.

HOLD

To hold the Teletext page when viewing multi-page information. Press again to return to automatic page update.

Page 39

Teletext operation

It is not possible to change the programme position when in News flash, Update or Sub Coded Page Access operation.

Blue

123

456

789

VCR

Yel low

Favourite Page (F.P.)

Stores a favourite page in memory for instant recall. To store such a page, the TV must

be in List mode, and the programme position must be from 1 - 25. Press the Blue button, select the page number, then press and hold the OK button. The

STTL

page number is now stored. Press STTL to recall this page.

Update Display

Press the MENU button to display special functions, followed by the Yellow button to view the TV picture whilst searching for a Teletext page (this is not necessary in Picture and text mode, as the picture is displayed on the left of the screen). When found, the screen will display the page number at the top left. Press the Yellow button to view the page. Press the TEXT button again to return to normal TV operation.

News Flash

When a news flash page has been selected, press the MENU, Yellow buttons, to view the TV picture. When an update is received, the page number will be displayed on screen. Press the Yellow button to display the News Flash. Press the TEXT button to return to normal TV operation.

Update

Press the MENU, Yellow buttons to see the update of information on certain pages. When an update is received, the page number will be displayed at the top left of the screen. Press the Yellow button to view the page. Press the TEXT button to return to normal TV operation.

123

456

789

Accessing sub pages

When Teletext information exceeds one page, it may take some time for the automatic changing of the sub pages to reach the sub page you require. As each sub page is found its number is displayed at the top of the page so that you may select it; as more sub pages are picked up, the display at the top of the page changes, so that you are always offered the most recently transmitted selection of sub pages.

In Teletext operation, use the following procedure to access sub pages:

If the sub page you want to look at is not yet available, press the MENU button (to

VCR

display special functions) followed by the Yellow button to view the TV picture whilst waiting for more sub pages to be found. The sub pages found will be displayed across the top of the screen.

When the sub page you are waiting for is available press the Yellow button to return to viewing the Teletext pages, then use the left and right cursor buttons to select the sub page of your choice. The maximum number for sub page that can be entered is restricted to 79 by broadcasters.

Yel low

Notes:

• If you do not want to display the on screen selector keys on the TV picture whilst

waiting for a sub page to be found, press the MENU button to clear the keys from the screen. Press again to redisplay the keys. If you have cleared the special function keys from the screen and then used the left

• and right cursor buttons to select a sub page, whilst still viewing the TV picture, you must press the MENU button then the Yellow button to display the Teletext page again.

• If the top of the page indicates that sub pages are being transmitted but the page displayed never changes, then the ‘sub page number’ is there to show the page contents have been updated, there are no sub pages.

Page 40

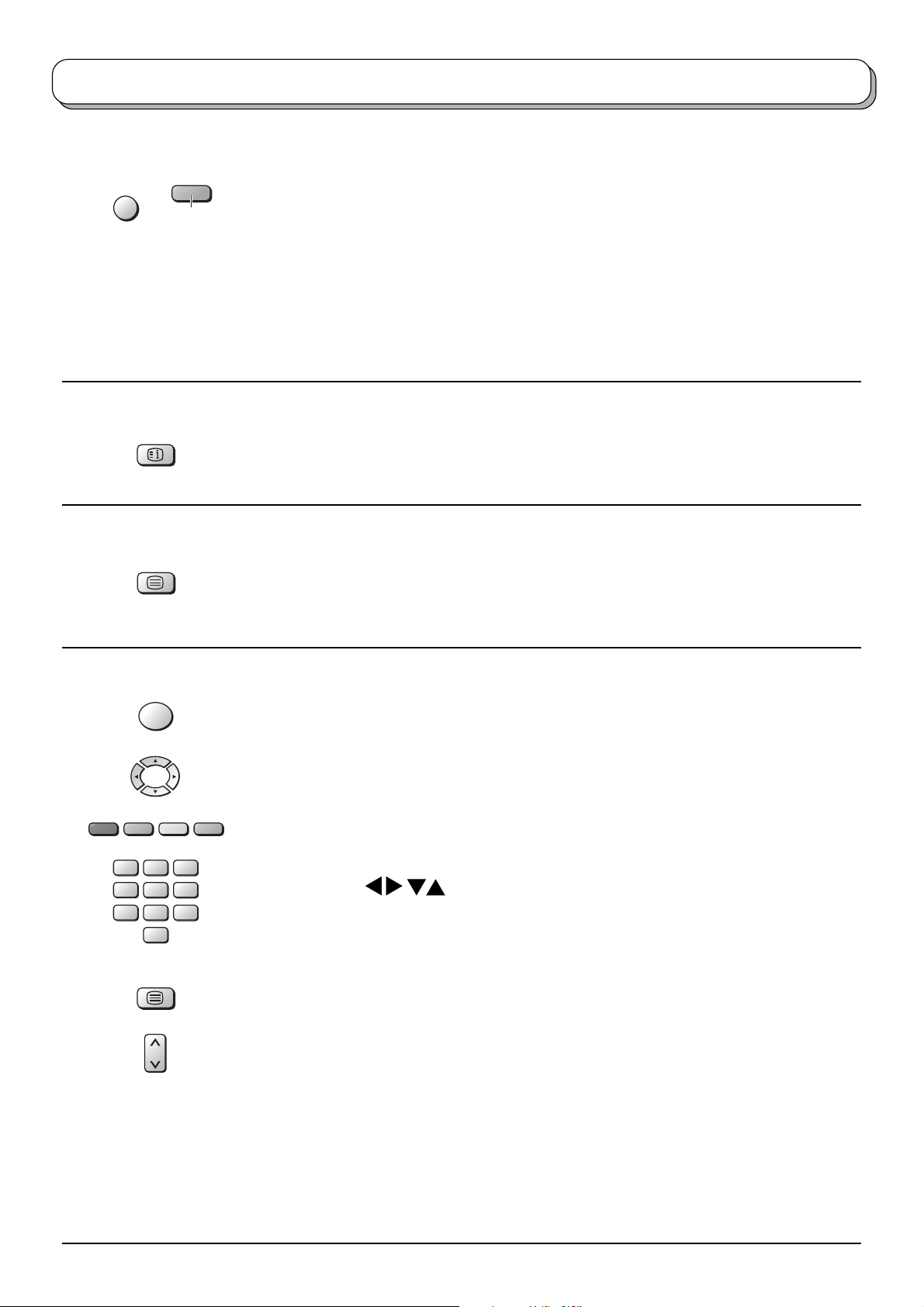

Teletext operation

Alternatively, if you know which sub page you require, press the MENU button (to display special functions) followed by the Blue button; T**** will be displayed where the page

Blue

INDEX

TEXT

number is normally found. Enter desired sub page number before the T**** disappears. e.g., to select page 6 enter 0, 0, 0 and 6. Press the Yellow button to view the TV picture whilst waiting for more sub pages to be found. The sub pages found will be displayed across the top of the screen. When the page is available, press the Yellow button to view the page. Regardless of how many pages are found, pressing the Yellow button will take you to the sub page which you requested.

Press the TEXT button to return to normal TV operation.

INDEX When in FASTEXT operation

Press the INDEX button to return to the main index page. Depending on the way information is transmitted, this may have to be pressed more than once to return to the main index page.

Picture and text

Press the TEXT button to enter Picture and text mode. Picture and text mode lets you see the current programme and a page of teletext side by side. Whilst using this feature, the remote control affects the teletext page; if you wish to make changes to the programme viewed press the TEXT button to return to watching the programme on its own then make the desired changes.

In DVB mode

123

456

789

VCR

TEXT

DVB teletext services

DVB teletext services differ greatly from analogue teletext. When you switch to a DVB teletext service, the images you see can contain graphics and text, laid out and controlled in a manner decided by the broadcaster. In all cases, it is possible to navigate the pages using buttons on the remote control, but because the commands available must apply to all manufacturers of DVB equipment, some on screen commands may not correspond exactly to the remote control buttons.

For example:

• For the on screen command ‘select’ or ‘go’, use the OK button.

• If you see the

symbols, use the appropriate CURSOR keys.

• If you see a line of key words displayed in red, green, yellow and blue, use the coloured

multifunction buttons to operate the functions.

• For numbered options, use the numeric keypad.

• The TEXT button should allow you to exit the teletext system. Alternatively, press the Channel up / down buttons to select another channel.

As soon as you switch to a DVB channel with links to a teletext service, software is downloaded in the background to enable the teletext function. This means that when switching to a DVB channel, you should wait for approximately 5 seconds before pressing the TEXT button – this will allow the software to download. If you press the TEXT button before download is complete, there will be a short delay before the text screen is displayed. While navigating DVB teletext, you will find there is a short delay when moving between pages while the page downloads. There is often a prompt shown somewhere on the page (for example “Loading”) to let you know what is happening.

Page 41

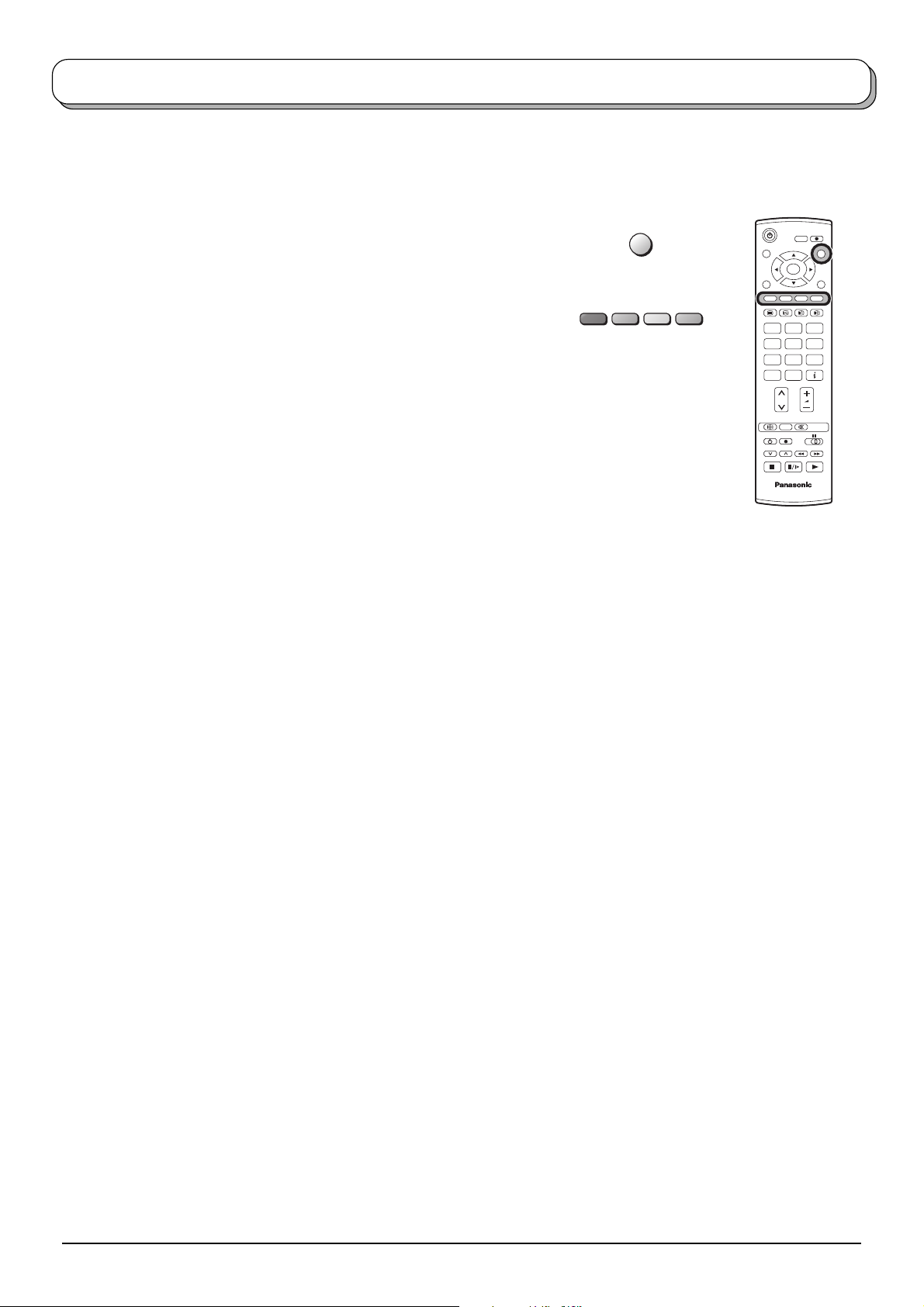

Audio / video connections

It is possible to connect a variety of additional equipment to this TV. The following pages detail how to connect external equipment to the rear of the TV. Once your equipment is connected, use the following procedure to view the input:

While viewing a TV channel

Press the TV/AV button.

Whilst the on screen selector keys are displayed, press coloured buttons to select the AV source you wish to view.

Red button : AV1 Scart terminal Green button : AV2 Video, S-Video Scart terminal Yellow button : AV3 Video, S-Video Scart terminal Blue button : Component terminals

The on screen selector keys will disappear after a few seconds. If you want to select an input when the keys are not shown, press any one of the coloured buttons and the keys will reappear.

Notes:

•You can also select an AV source using the TV/AV button

on the front panel of the TV. Press the TV/AV button repeatedly until you reach the AV source you wish to view.

• When in AV mode a reduced number of options are available in the Sound and Setup menus (e.g., in the Setup menu there is no Tuning Menu option).

TV/AV

MODE

123

456

789

IDTV

Page 42

Audio / video connections

How to connect the Audio Output terminals

Example:

AUDIO

Amplifier to Speaker System

How to connect the AV1 / 2 / 3 Scart terminals

Example:

AV1:

VCR SET TOP BOX DVD PLAYER DVD RECORDER CAMCORDER GAME CONSOLE / COMPUTER(RGB)

AV2:

VCR / S-VIDEO VCR Q-Link COMPATIBLE VCR DVD PLAYER DVD RECORDER Q-Link COMPATIBLE DVD RECORDER CAMCORDER / S-VIDEO CAMCORDER

AV3:

VCR / S-VIDEO VCR Q-Link COMPATIBLE VCR SET TOP BOX DVD PLAYER DVD RECORDER Q-Link COMPATIBLE DVD RECORDER CAMCORDER / S-VIDEO CAMCORDER GAME CONSOLE / COMPUTER(RGB)

AUDIO

OUT

AV1/2/3

RGB

COMPONENT

VIDEO

S VIDEO

COMPONENT

VIDEO

S VIDEO

AUDIOAUDIO

LRL

AUDIO

RGB

AV1 AV2 AV3

VIDEO

S-VIDEO

AUDIOAUDIO

LRL

RGB

AV1 AV2 AV3

VIDEO

S-VIDEO

How to connect the Component Input terminals

This terminal accepts progressive or non-

Example:

progressive signals format, as well as high definition 750(720)/50p, 750(720)/60p,

DVD PLAYER

Notes:

1125(1080)/50i and 1125(1080)/60i.

Y, P

B, PR

OUT

AUDIO

OUT

AUDIO

AUDIOAUDIO

LRL

RGB

VIDEO

• Additional equipment and cables shown are not supplied with this TV set.

• Do not connect a computer with TTL output (5V) to this set.

• For Scart terminal wiring and applicable component signals information see page 45.

AV1 AV2 AV3

VIDEO

S-VIDEO

RGB

COMPONENT

VIDEO

S VIDEO

Page 43

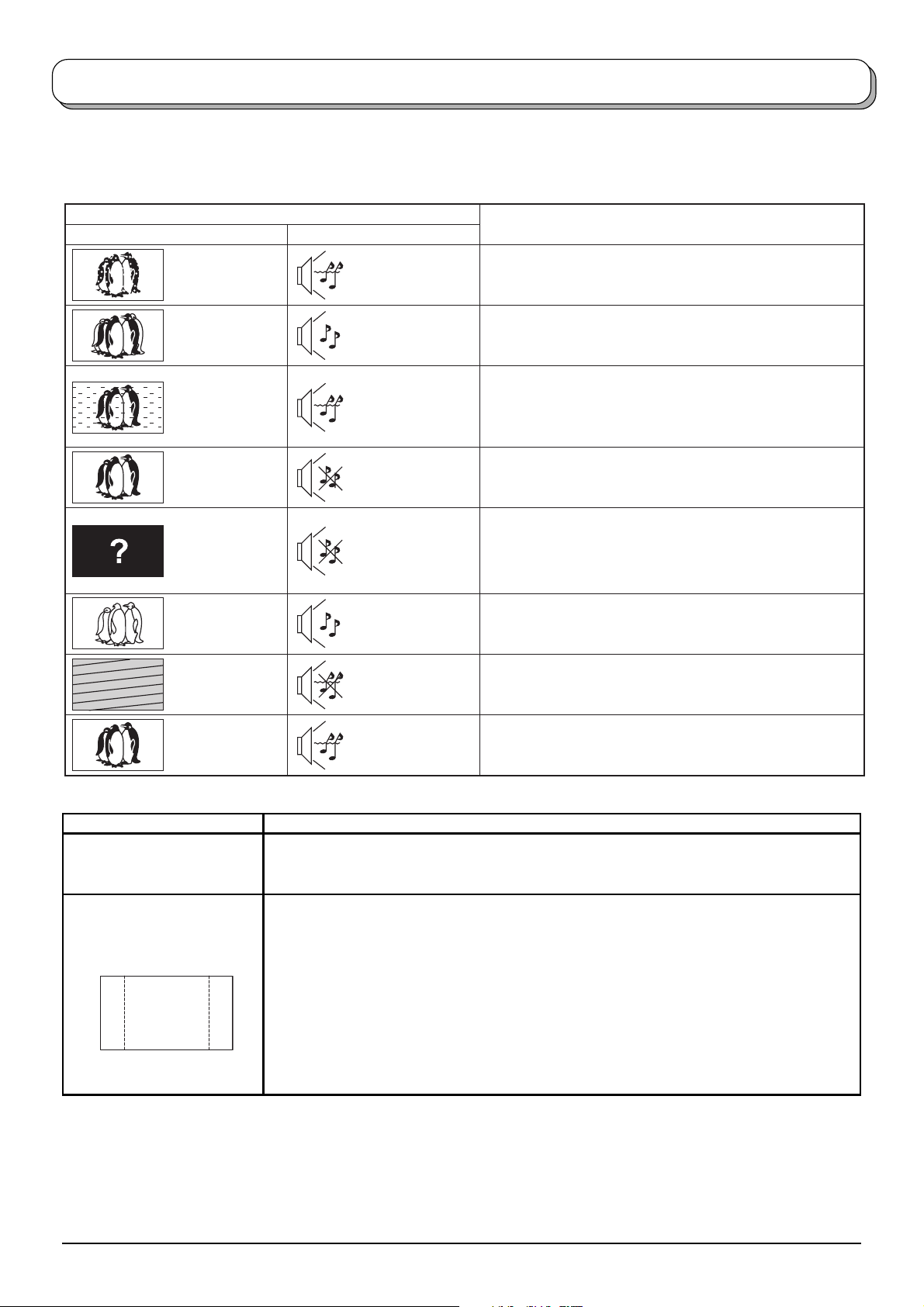

Troubleshooting

ABCDEF

If there is a problem with your TV please refer to the table below to determine the symptoms, then carry out the suggested check. If this does not solve the problem, please contact your local Panasonic dealer, quoting the model number and serial number (both found on the rear of the TV).

Symptoms

Picture Sound

Snowy Picture

Multiple Images

Interference

Normal Picture

No Picture No Sound

No Colour

Noisy Sound

Normal Sound

Noisy Sound

No Sound

Normal Sound

Checks

Aerial location, direction or connection

Electrical appliances Cars / Motorcycles Fluorescent lights

Switch on P-NR in Picture menu to reduce picture noise.

Volume level

Sound mute switched on.

TV set to AV mode. Not plugged into AC outlet. Not switched on. Picture / Sound controls set at minimum levels. Check if in Standby mode.

Colour controls set at minimum levels.

Poor or Distorted Picture

Normal Picture

Weak or No Sound

Weak or Distorted Sound

Retune Channel (s).

Sound reception may have deteriorated. Switch NICAM setting (Sound menu in Analogue only) to Off until reception improves.

CAUTION:

Symptoms

Some parts of the screen do not light up.

After-images appear

ABCDEF

The plasma TV panel is manufactured using an extremely high level of precision technology, however, sometimes some parts of the screen may be missing picture elements or have luminous spots. This is not a malfunction.

Do not allow a still picture to be displayed for an extended period, as this can cause a permanent after-image to remain on the Plasma TV. Examples of still pictures include logos, video games, computer images, teletext and images displayed in 4:3 mode. With no signal present, and without any user operation, the Panasonic screensaver will appear automatically after a few minutes to prevent image retention. During DVB teletext, radio service or menu display, the level of the contrast will decrease automatically after a few minutes to prevent image retention.

Note:

Check

Sleep Feature

If the set is not switched off when the TV station stops transmitting, it will automatically go to standby mode after 30 minutes, This function will not operate when this TV is in AV mode.

Notes:

• External surfaces of the unit may become hot during operation. But this is completely normal.

• See label on the base of this equipment for ratings and other information.

Page 44

DVB Troubleshooting

Some problems will only occur when viewing DVB channels. Due to the different techniques involved in digital reception, DVB signal quality programmes. The DVB system requires a good quality signal to provide the best picture. When viewing analogue pictures, interference such as signal reflection from nearby buildings or mountains causes ‘ghosting’, but still provides a viewable picture. For the DVB system, interference such as this can disrupt the flow of data causing the picture to appear to be made up of large blocks, or to freeze intermittently. If the picture disappears completely, this could mean that signal quality is very poor. If this happens often, you may need to improve your aerial system to provide a better signal. This TV contains a complex microprocessor which enables you to view enhanced digital services. Occasionally this device may need to be reset. This can be done by pressing the standby button on your remote control.

can be poor even if you appear to have a strong signal when viewing analogue

Symptoms

No DVB channels listed in the TV Guide after Auto Setup.

DVB TV Guide

Wed 12th

Time: 19:30 20:00

Change display mode Select channel

Select Programme

Exit

:Landscape

+24 Hr

Category

All Services

Info

Wed 12/05/04 10:46

20:30 21:00 21:30

Category Prog. type

Prog. type

All Types

Blocky interference. Picture freezes intermittently.

Checks

Check that DVB transmissions are available from the transmitter you are currently using. If not, try directing the aerial at another local transmitter.

Check analogue transmissions. If picture quality is poor, you will need to improve or change your aerial system to receive DVB channels. Consult a local installer.

Blocky interference indicates that the signal quality is poor. You should consider improving your aerial system. To check the quality of your signal use the Signal Quality feature (see page 28). Good quality signal – indication is green. Poor quality signal – indication is red.

I have a good aerial system, but still cannot receive DVB stations.

Aerial Input terminal

Aerial

VCR

Input terminal

If you have tried the previous solutions and are still unable to receive DVB channels, you may need to provide dedicated aerial feeds to the TV and other equipment. This can be implemented using an aerial splitter or separate aerials.

Separate Aerial

Aerial Output

AERIAL SPLITTER

Aerial Input terminal

Separate Aerial

Page 45

Scart terminal information

AV1 Scart terminal (RGB, VIDEO)

Socket Earth CVBS out (video) CVBS earth Red in Red earth Green in Green earth Blue in Blue earth Audio out (L) Audio out (R)

21 19 17 15 13 11

9 7 5 3 1

Suitable inputs for AV1 include RGB (Red / Green / Blue).

CVBS in (video)

RGB status earth

Status RGB

Earth

- -

Status CVBS

Audio in (L)

Audio earth

Audio in (R)

AV2 Scart terminal (VIDEO, S-VIDEO, Q-Link)

AV3 Scart terminal (RGB, VIDEO, S-VIDEO, Q-Link)

Socket Earth CVBS out (video) CVBS earth Red in, S.C. - in Red earth Green in Green earth Blue in Blue earth Audio out (L) Audio out (R)

21 19 17 15 13

CVBS in (video)

Earth

Status RGB

Earth

- -

9 7 5 3 1

Q-Link data

Status CVBS

Audio in (L)

Audio earth

Audio in (R)

Socket Earth CVBS out (video) CVBS earth S.C. - in Earth

- Earth

- Earth Audio out (L) Audio out (R)

AV2 - Pins 15 and 20 are dependent on AV2 S-VHS / VIDEO switching.

21 19 17 15 13 11

CVBS in (video)

Earth

- -

Earth

- -

Q-Link data

9 7 5 3 1

Status CVBS

Audio in (L)

Audio earth

Audio in (R)

AV3 - Pins 15 and 20 are dependent on AV3 S-VHS / VIDEO switching.

Component signal that can be displayed

Applicable input signal for Component(Y, PB, PR)

Signal name Horizontal frequency (kHz) Vertical frequency (Hz) 525(480)/60i 15.73 59.94 525(480)/60p 31.47 59.94 625(576)/50i 15.63 50.00 625(576)/50p 31.25 50.00 750(720)/50p 37.50 50.00 750(720)/60p 45.00 60.00 1125(1080)/50i 28.13 50.00 1125(1080)/60i 33.75 60.00

Note: Signals other than above may not be displayed properly.

Page 46

Specifications

Power Source

Power Consumption

Plasma Display panel

Drive method Aspect Ratio Contrast Ratio Visible screen size (No.of pixels)

Sound

Speaker Audio Output

Receiving Systems / Band name

Aerial - Rear

Operating Conditions

Connection Terminals

AV1 (Scart connecter) AV2 (Scart connecter) AV3 (Scart connecter) COMPONENT

Output Dimensions ( W × H × D ) Mass (Weight)

VIDEO

AUDIO L - R AUDIO L - R

TH-37PE50B, TH-37PE40B TH-42PE50B, TH-42PE40B AC 220 - 240 V, 50 / 60 Hz Average use : 253 W Average use : 323 W Standby condition : Standby condition :

0.3 W ( 16 W (With DVB Timer programmes) 16 W (With DVB Timer programmes)

94 cmV 106 cmV 818 mm (W) × 461 mm (H) × 939 mm (diagonal)

12 cm × 6 cm × 2 pcs, 6 Ω 16 W (8 W + 8 W ), 10 % THD

PAL I UHF E21-68. PAL 525/60 Playback of NTSC tape from some PAL Video

DVB Digital terrestrial services via UHF aerial input. M.NTSC Playback from M.NTSC Video recorders (VCR). NTSC (AV input only) Playback from NTSC Video recorders (VCR).

UHF Temperature : 0 °C - 40 °C Humidity : 20 % - 80 % RH (non-condensing)

21 Pin terminal (Audio/Video in, Audio/Video out, RGB in) 21 Pin terminal (Audio/Video in, Audio/Video out, S-Video in, Q-Link) 21 Pin terminal (Audio/Video in, Audio/Video out, RGB in, S-Video in, Q-Link) Y 1.0 Vp-p (including synchronization) P RCA PIN Type × 2 0.5 Vrms RCA PIN Type × 2 0.5 Vrms (high impedance) 968 mm × 641 mm × 96.5 mm 1,068 mm × 701 mm × 96.5 mm

28.5 kg Net 33 kg Net

Without DVB Timer programmes

408,960 (852 (W) × 480 (H)) [2,556 × 480 dots]

recorders (VCR) or NTSC disc playback from DVD player and recorder.

B, PR ±0.35 Vp-p

) 0.3 W (

AC type

16:9

4000:1

920 mm (W) × 518 mm (H) × 1,056 mm (diagonal)

Without DVB Timer programmes

)

Notes:

• Design and Specifications are subject to change without notice. Weight and Dimensions shown are approximate.

• This equipment complies with the EMC standards listed below. EN55013, EN61000-3-2, EN61000-3-3, EN55020.

Page 47

Sales and Support Information

Customer Care Centre

• For customers within the UK : 08705 357357

• For customers within the Republic of Ireland : 01 289 8333

• Visit our website for product information

www.panasonic.co.uk

• E-mail: [email protected]

Direct Sales at Panasonic UK

• Order accessory and consumable items for your product with ease and confidence by phoning our Customer Care Centre Monday – Thursday 9:00am – 5:30pm,

Friday 9:30am – 5:30pm (Excluding public holidays).

• Or go on line through our Internet Accessory ordering application at www.panasonic.co.uk.

• Most major credit and debit cards accepted.

• All enquiries transactions and distribution facilities are provided directly by Panasonic UK Ltd.

• It couldn’t be simpler!

• Also available through our Internet is direct shopping for a wide range of finished products, take a browse on our website for further details.

Exclusive to Plasma / DVD Ram / LCD Television / LCD Projector product:

Interested in purchasing an extended guarantee? Please contact your dealer or our Customer Support Department on 01344 476540 or [email protected] for more details.

Page 48

Information on Disposal for Users of Waste Electrical & Electronic Equipment (private households)

This symbol on the products and/or accompanying documents means that used electrical and electronic products should not be mixed with general household waste. For proper treatment, recovery and recycling, please take these products to designated collection points, where they will be accepted on a free of charge basis. Alternatively, in some countries you may be able to return your products to your local retailer upon the purchase of an equivalent new product. Disposing of this product correctly will help to save valuable resources and prevent any potential negative

effects on human health and the environment which could otherwise arise from inappropriate waste handling. Please contact your local authority for further details of your nearest designated collection point. Penalties may be applicable for incorrect disposal of this waste, in accordance with national legislation.

For business users in the European Union

If you wish to discard electrical and electronic equipment, please contact your dealer or supplier for further information.

Information on Disposal in other Countries outside the European Union

This symbol is only valid in the European Union. If you wish to discard this product, please contact your local authorities or dealer and ask for the correct method of disposal.

Trade Mark of the DVB Digital Video Broadcasting Project (1991 to 1996) TH-37PE50B Declaration of Conformity No 3397, 26th January 2005 TH-42PE50B Declaration of Conformity No 3396, 26th January 2005 TH-37PE40B Declaration of Conformity No 3535, 22nd April 2005 TH-42PE40B Declaration of Conformity No 3536, 22nd April 2005

Customer’ Record

The model number and serial number of this product can be found on its rear panel. You should note this serial number in the space provided below and retain this book, plus your purchase receipt, as a permanent record of your purchase to aid in identification in the event of theft or loss, and for Warranty Service purposes.

Model Number Serial Number

Panasonic (U. K.) Ltd.

Willoughby Road, Bracknell, Berks RG12 8FP Web Site http://www.panasonic.co.uk

Printed in Czech Republic
