Panasonic TH-65PHD8WK, TH-50PHD8WS, TH-50PHD8WK, TH-42PHD8WS, TH-42PWD8WS Specifications

Have assembly and installation done by a qualified electrician.

Simulated pictures on screen.

Specifications are subject to change without notice. Printed in Japan

ASIA05S-01

Industry-leading
Flat Panel Displays

65

HD

50

HD

42

HD/SD

32

HD

37

SD

Because flat panel displays are used in a variety of applications, they must meet a range of requirements. They must offer clear, faithful
images. And they must provide advanced functions, screen sizes large enough for the installation location, and selectable cabinet
colours (in this case, black or silver) to match their surroundings.
Panasonic flat panel displays provide all that and more. Our quest to lead the industry in image quality and innovative functions has led
to a new lineup of eleven models in five sizes and two cabinet colours.
Throughout this new lineup you'll see Panasonic's commitment to providing high-performance flat panel displays that meet the widest
range of professional applications.

The 65-inch plasma display has the powerful presence needed to draw
attention in even a large event area. With its large screen and high
resolution, this unit displays images that look clear and crisp even from a
distance. It's also suitable for lecture halls and amusement facilities.

At business meetings, presentations and other situations calling for powerful
visual impact, you can count on this 50-inch high-definition plasma display.
An optional touch panel adds sophistication and ease. The system can be
upgraded to display handwritten notes for even greater persuasive power.

When set up for portrait display, this 42-inch
plasma display is similar in size and aspect ratio to
a movie-size poster. Use it as a moving image
poster. Or upgrade the system with a scheduling
function that displays content according to the
correct time zone, and use it as a digital signboard.

The 37-inch plasma display fits well in stores. It
can display images from two video sources at the
same time, making it ideal for information display
in stores, show windows and other uses.

The 32-inch LCD display is perfect when space is
at a premium. Function slots let you customise
the unit for a specific application. This panel is
suitable for displaying both text and still images.

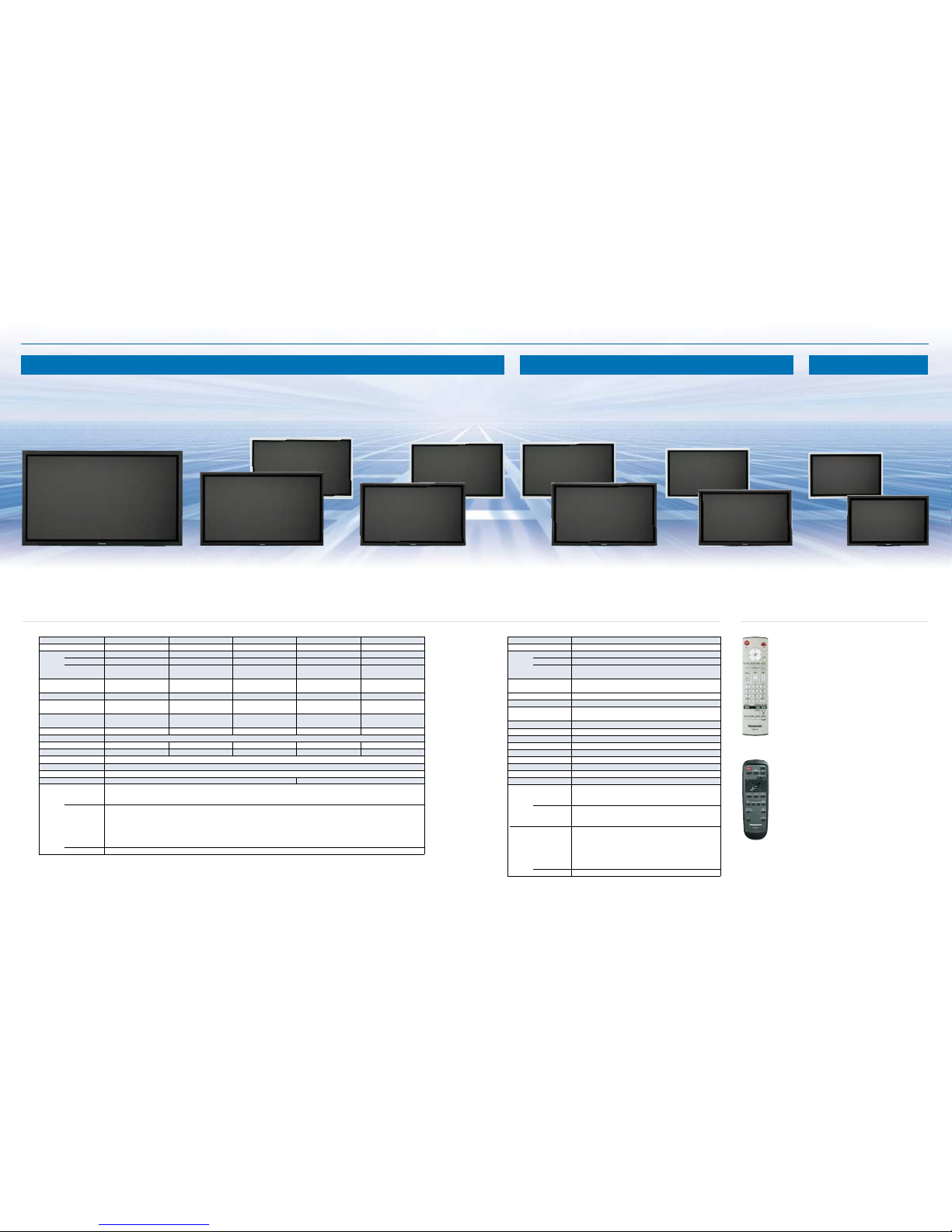

Panasonic's business-use flat panel displays lead the industry in image quality and
functions and are available in screen sizes from 32 to 65 inches.

2 3

TH-37PWD8WS

TH-42PHD8WS
TH-42PWD8WS

TH-65PHD8WK TH-50PHD8WK

TH-50PHD8WS

TH-42PHD8WK
TH-42PWD8WK

TH-37PWD8WK

TH-32LHD7WK

TH-32LHD7WS

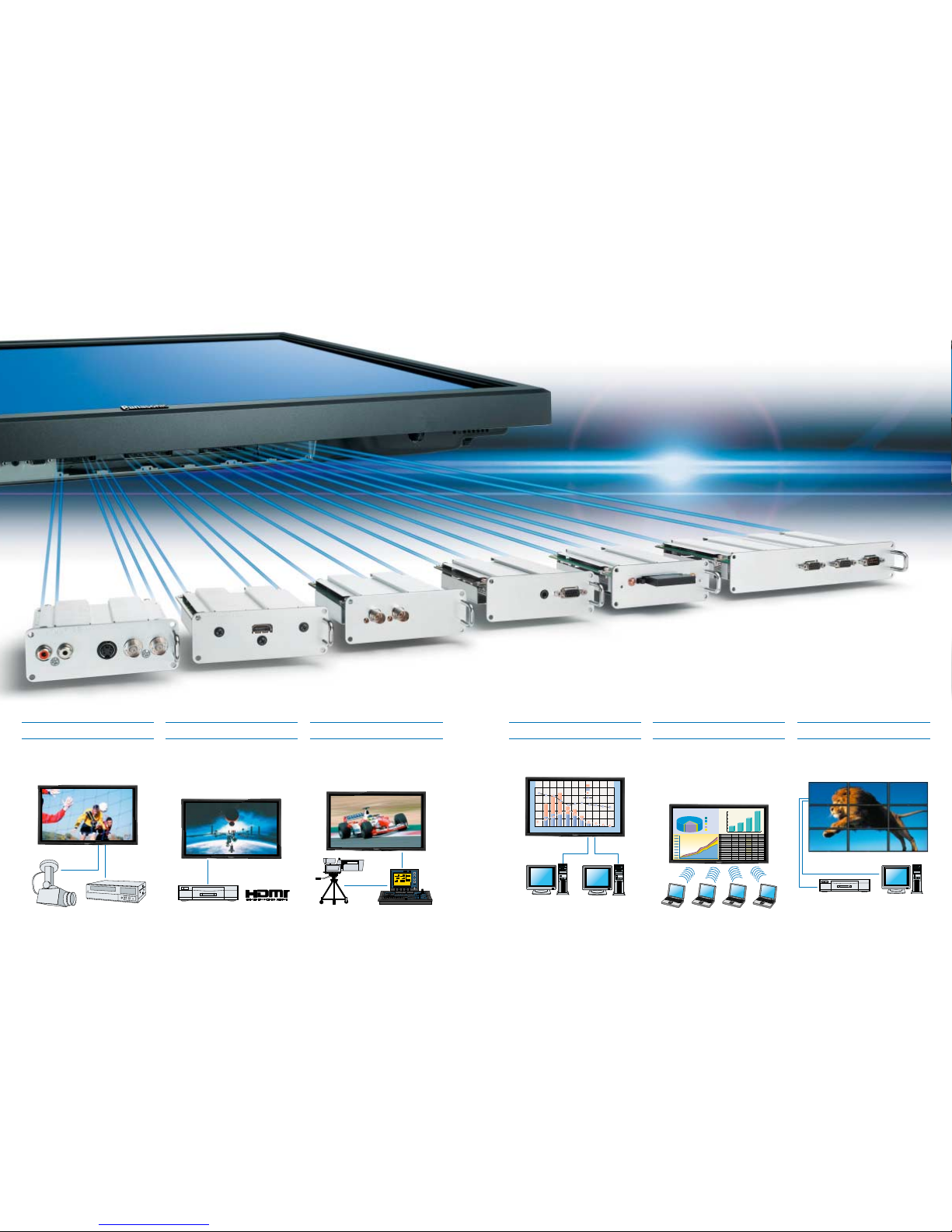

Image Quality and Versatility
that Lead the Industry

With Analogue Equipment

Video terminal boards let you connect an S­VHS VCR or video camera. The TY-42TM6B
has a video output terminal too, so you can
also connect a sub-monitor device for
monitoring images.

With Digital Equipment

The next-generation standard digital interface,
HDMI terminal board digitally transfers video
and audio signals over a single cable. Connect
a compatible DVD player via an HDMI
terminal, and the plasma display can
reproduce images with the equivalent of 4,096
gradation levels.

With Broadcast Equipment

SDI/HD-SDI terminal boards are compatible
with the SDI or HD-SDI (for HDTV) systems
used in broadcasting studios. Panasonic
displays are compatible with HD-SDI signals.
With these boards, the display can reproduce
crisp, clear images in a studio or control room.

With Multiple PCs

A PC input terminal board lets you connect
multiple PCs. This can be ideal in conference
rooms, classrooms, lecture halls and other
sites where PCs are often used.

Wireless PC Connection

A wireless presentation board lets you display
signals from up to four notebook PCs at the
same time. This makes it easy to get a
presentation or meeting underway quickly,
without the time and trouble of connecting a
number of cables.

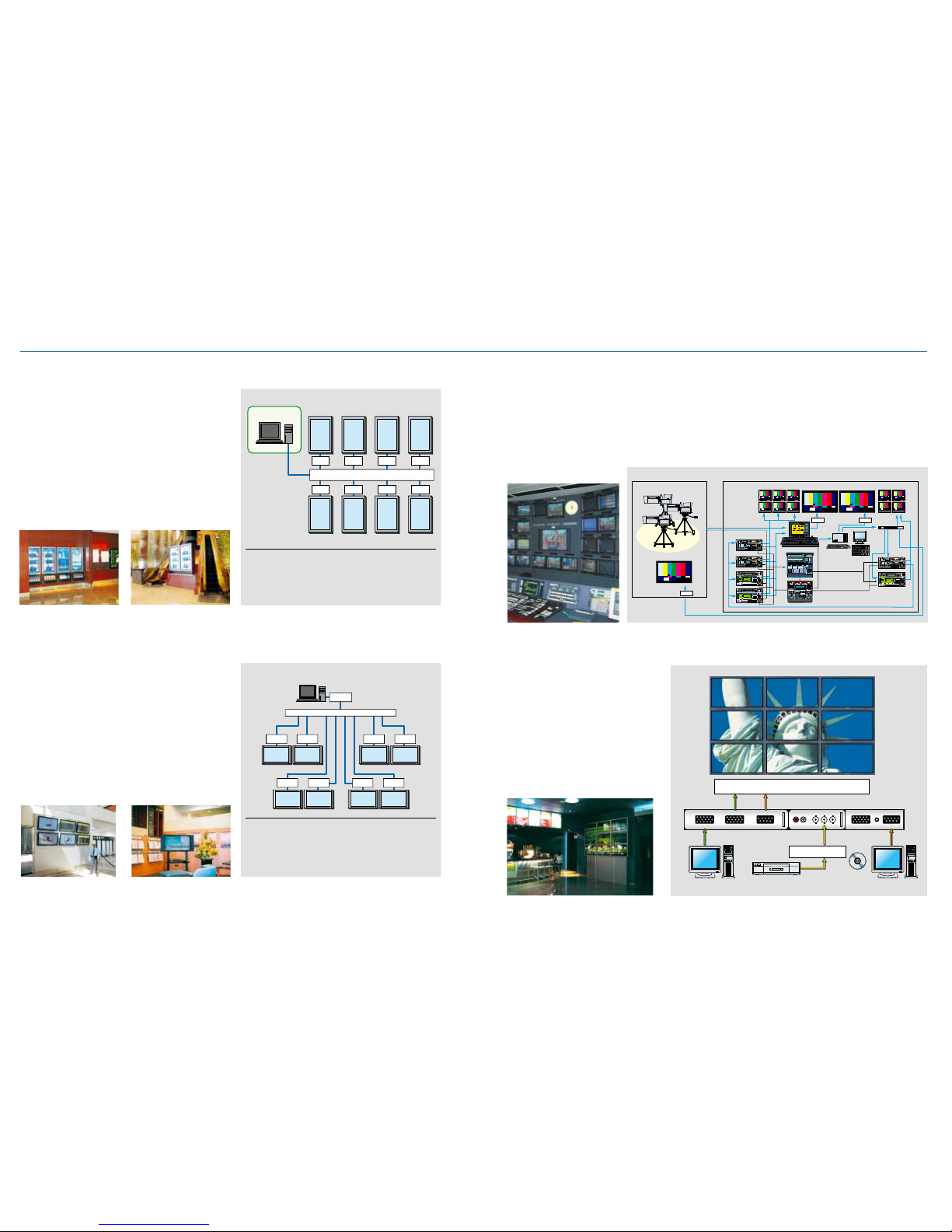

Multi-Screen System

The RGB active-through terminal board lets
you daisy-chain a number of panels to create a
multi-screen plasma display system.

Note: TH-32LHD7 series cannot be used in multi-screen

applications.

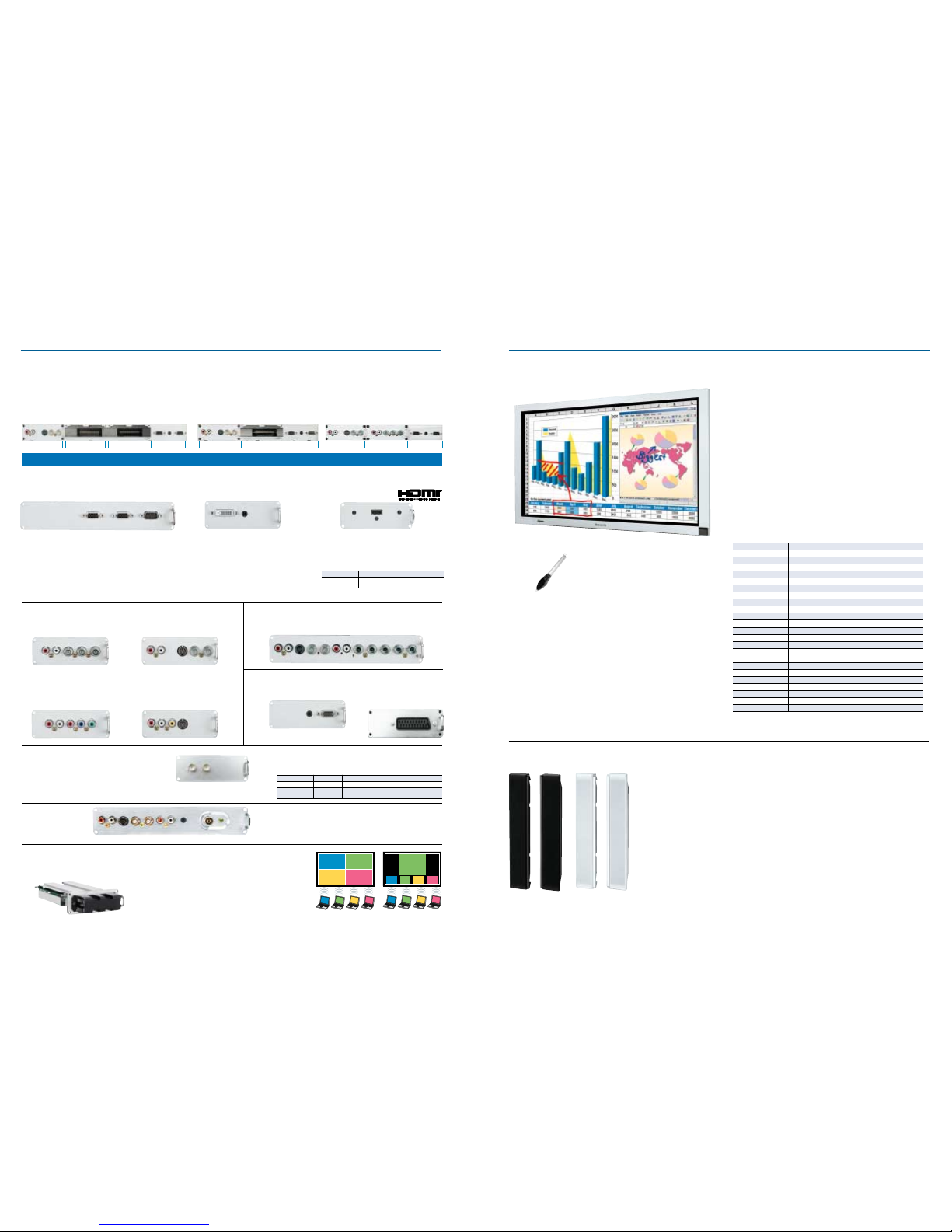

With triple function slots* and a variety of terminal boards, you have the flexibility to configure a system that's ideally suited to
the content to be displayed. Create a customised system that meets your exact needs. Combined with the superb image
quality, this level of flexibility makes Panasonic flat panel displays a high-performance solution to a range of applications.

* TH-37PWD8 series and 32LHD7 series are equipped with dual function slots.

Unmatched Expandability

RGB Active Through Terminal Board

TY-42TM6G

BNC Composite Video Terminal Board

TY-42TM6B

HDMI Terminal Board

TY-FB8HM

SDI Terminal Board TY-FB7SD

HD-SDI Terminal Board TY-FB7HD

PC Input Terminal Board

TY-42TM6P

Wireless Presentation Board

TY-FB7WPE

4

5

The triple function slots* and a host of optional function boards offer
outstanding flexibility and adaptability.

0

10

20

30

40

50

Female

Male

Over 6156 - 6051 - 5546 - 5041 - 4536 - 4031 - 3526 - 3021- 2516 - 200 - 15

0

20

40

60

80

100

More than 2 Units

1 Unit

200,000

1990 1995 2000 2005

400,000

600,000

800,000

1,000,000

1,200,000

Operating Profits

Prepayments

Current Assets

Finantial Assets

Fixed Assets

Formation Expenses

ANNUAL ACOUNTS

2004

ABCDEF

1

ANNUAL ACOUNTS

2 2002 2003 2004 2005
3Prepayments

$1,023,000.00$1,352,000.00 $1,450,000.00 $1,650,000.00

4Current Assets

$254,000.00 $284,000.00 $234,000.00 $275,000.00

5Finantial Assets

$456,000.00 $478,000.00 $568,000.00 $523,000.00

6Fixed Assets

$65,500.00 $87,500.00 $68,500.00 $76,500.00

7Formation Expenses

$125,000.00 $155,000.00 $164,000.00 $195,000.00

8
9 2002 2003 2004 2005
10Prepayments

42% 48% 36% 32%

11Current Assets

15% 16% 21% 14%

12Finantial Assets

25% 20% 19% 16%

13Fixed Assets

6% 4% 5% 3%

14Formation Expenses

8% 6% 6% 7%

15
16
17
18

Note: The wireless presentation board cannot be used in some

countries due to their laws and regulations.

Note: This board cannot be used in some countries

due to their laws and regulations.

6 7

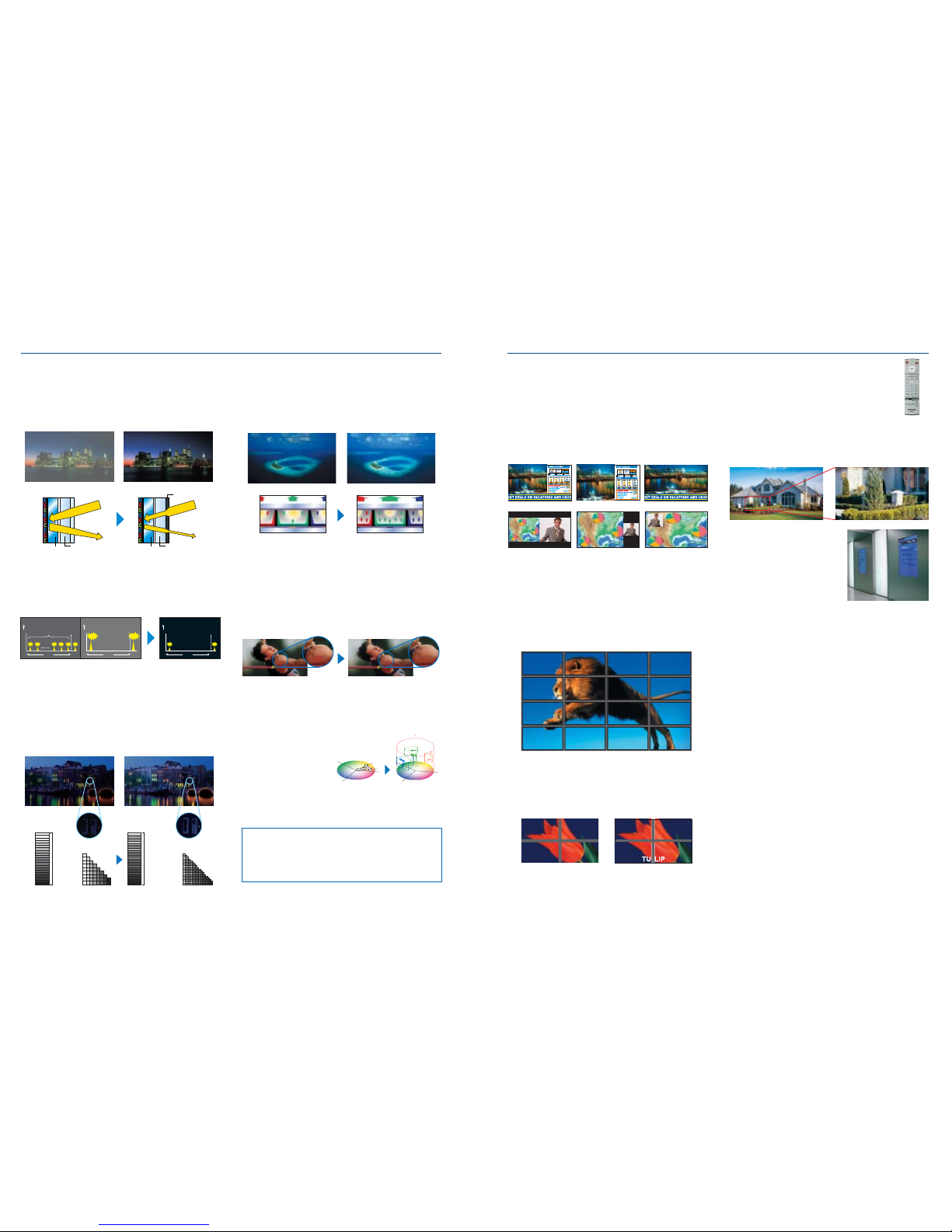

Industry’s Best Picture Quality Advanced Usability

Front protection glassFront glass

Ambient light

Deep Black
Filter

Front protection glassFront glass

Ambient light

Industry’s Highest Level of Gradation Steps —
Advanced Real Gamma System

*3

Panasonic plasma display series uses ultra-precise, maximum 14-bit
signal processing to produce vividly rich details. The Advanced Real
Gamma System then takes it another step further with full-time, full-pixel
1,536-step gradation and 2,048-step dark-area gradation. This level of
gradation brings intricate details and more faithful colour reproduction to
all scenes, dark and bright.

* The equivalent of 4,096 steps of gradation can be displayed with DVI or HDMI connection.

Industry’s Best*1 Bright-Area Contrast of 340:1

*2

—

Deep Black Filter

*3

The front protective glass of the plasma display panel incorporates a
Deep Black Filter that suppresses light transmittance and slashes the
amount of external light reflected. This technology helps these displays
achieve the industry's highest contrast ratio of 340:1*2 when viewed in
bright surroundings.

*1: As of July 1, 2005.
*2: For 42˝ SD model. Measured at 100 lux.

Industry’s Highest Level of Dark-Area Contrast —
New Real Black Drive System

*3

By reducing the pre-discharge emission when reproducing black, the
New Real Black Drive System provides deeper, richer blacks and a
stunning 4000:1 contrast*4. The result is dramatically enhanced image
clarity and realism.

*4: For SD models.

Weak pre-discharge
drive system

Single pre-discharge
drive system

New Real Black Drive
System

Weak pre-discharge emissions × 12

(Contrast: 550 : 1)

Emission intensity

1 field

Strong pre-discharge emission × 1

(Contrast: 400 :1)

Emission intensity

1 field

Weak pre-discharge emission × 1

(Contrast: 4000 :1)

Emission intensity

1 field

Industry’s Highest Level of Brightness —
Advanced Plasma Panel

*3

Panasonic plasma display panels feature a bounded cell structure in
which wall-like ribs are used to wrap each individual cell. By increasing
the area in which the phosphor can be applied, this dramatically
improves both light-emitting efficiency and intensity. Furthermore, by
optimizing the gas composition ratio, lighting efficiency has been
increased by about 15%. The result is the industry’s highest level of
brightness. You see crisp and clear images even in bright rooms.

Advanced LCD Panel (TH-32LHD7 series)

Boasting an HD panel with 1,366 x 768 pixels, the TH-32LHD7 series LCD
model relays all the detailed beauty of high-definition images. It achieves
excellent brightness of 500 cd/m

2

with high contrast of 800:1. The result is
vibrant, finely nuanced images even in brightly lit rooms. The viewing angle of
170° in both horizontal and vertical directions ensures superior legibility over a
wide area.

Advanced Dual Picture Mode

Panasonic plasma displays feature a new Advanced Dual Picture Mode
in addition to the conventional Dual Picture Mode. This new mode lets
you overlay a video image onto a full-screen PC image. For example,
you can superimpose text information from a PC over a video clip,
giving you a more effective way to present information. When displaying
two separate images, you can select the audio output from either
source (previous models reproduced audio from the main source only).
Playing back the audio from the sub-source can be useful in
teleconferencing, for example.

Note: Plasma models cannot display two images when both are from component video

or RGB (PC) signal sources. The Advanced Dual Picture Mode may not work properly
with some video signals and is not available on the TH-32LHD7 series.

Multi-Screen Applications

*3

The built-in image-enlarging function makes it easier to set up a multi­screen display system with four (2 x 2), nine (3 x 3), or 16 (4 x 4) units.
Thanks to the ID control function, you can use the standard remote
control unit to control multiple panels individually. There is also a mode
that displays a full-screen image, including the edges (the width of the
frame) of the display panel — something not possible with previous
systems. This is especially suitable for displaying text information, since
no words are hidden by the frame.

TULIP

Note: The ambient temperature varies depending on the installation location.

Provide sufficient air conditioning for surrounding conditions.

4x Digital Zoom

This function lets you enlarge a portion of an image by up to four times
normal size and display it on the full screen. Use this function to give
your presentations greater impact.

Note: Digital Zoom does not work in Dual Picture mode. Images of SXGA resolution or higher

from a PC or RGB source may not enlarge correctly. Some degradation occurs when
images are enlarged.

User-Friendly Remote Control

*3

Redesigned for easier operation, the remote control unit now
features a Power Off button and Direct input select buttons. It
also allows ID control in a multi-screen system.

New Cabinet Design

*3

Panasonic plasma displays (other than 65-inch model) introduce
simple, slim front bezel design. Control buttons and the Power button
are set on the bottom surface. This gives the panels a smooth, clean
look while also helping prevent accidental operation and tampering.

Enhanced Screen Saver Functions

*3

A variety of screen saver functions help minimise the risk of uneven phosphor
aging. You can also use the timer to set the screen saver operating cycles,
operating time, and start and stop times. This lets you make settings that match
your application.

• White Bar Scroll: White bars move across the screen from left to right at
regular intervals. Good for ordinary still-image displays.

• Screen Reversal: Displays images with the black and white reversed. Good for
text displays.

• Side Panel Adjustment: Brightens the black bands on the sides of the screen
when displaying images in the 4:3 format.

•Wobbling: Shifts the image's position by several pixels at fixed time intervals.

•Peak Limit Mode: Lowers the peak brightness level (image contrast) by 30%.

Energy-Saving Functions

A broad range of environment-friendly functions help minimise energy
consumption.

• DPMS (Display Power Management Signaling)

Power is automatically turned on or off in response to a sync signal from the PC
connected to the built-in PC input terminal.

• Auto Power Off

When you're using a device connected to the multi-function slots, the display
panel goes into standby mode after about 10 minutes if no sync signal is received.

• Power Save Mode

Reduces the display's brightness.

• Standby Power Save Mode

Reduces power consumption when on standby. (Start-up may take a few moments
once the display is in this mode.)

Sound Menu

*3

The Sound Menu gives you a choice of three sound settings
(Standard/Dynamic/Clear) to best match the kind of input source.

Fan-Less Quiet Operation

*3

Our "silence engineering" has eliminated the need for a fan — and fan noise —
giving you the kind of quiet operation that makes for a more pleasant viewing
experience.

(TH-65PHD8, 50PHD8 and 42PHD8 series feature a noise-suppressing silence design.)

Conventional

Panasonic plasma panel

Conventional

Panasonic plasma panel

Advanced Dual Picture Mode

Images are crisp and clear even
in bright rooms.

Conventional

3D Colour Management

G

B

R

R

G

B

Brightnes

sBrightness

Long Service Life of 60,000 Hours

*3

A new drive circuit and inner panel improvements give Panasonic plasma panels a
long service life of approximately 60,000 hours*

5

even with their increased
brightness. A newly developed phosphor also raises the plasma displays’
resistance to static-image screen burning to the same level as CRT displays.

*5: The time until panel brightness is reduced to half its initial level, when displaying moving

images at standard mode. Excludes afterimages and malfunctions.

High-Precision MPD Noise Reduction

*3

This technology dramatically reduces MPD (Motion Picture Disturbance) noise to
deliver crisp, clean moving images. Using a Panasonic original algorithm, it detects
motion patterns that tend to generate noise and makes the necessary adjustments
to maximise image quality.

Active I/P Conversion

The Active I/P (Interlace/Progressive) Conversion system detects slow movements
more precisely by increasing the range for detecting moving-picture and still­picture pixels. This reduces I/P conversion noise that often occurs when
reproducing tiny movements, thereby producing crisper images while raising the
vertical resolution in interlaced images.

3D Colour Management System

The 3D Colour Management System
achieves precise control based on
3D management in the colour
difference plane and brightness
directions. This finer level of control
produces more expressive images.

Note:The default setting for the 3D Colour

Management System is OFF.

Adaptive AGC

Adaptive AGC raises contrast while suppressing noise by detecting and boosting
only the image edges.

Note: The default setting for the Adaptive AGC is OFF.

Picture-And-Picture Picture-Out-Picture Picture-In-Picture

Dual Picture Mode

Dark areas are not shown
clearly.

Dark scenes have finer detail.

Conventional Advanced Real Gamma

Remote System Monitoring

In addition to the conventional display control command and power
supply/input selection check command, Panasonic flat panel displays
feature a new monitor command that lets you check the signal from a
distant location. In conventional systems, you had to install a monitoring
camera to check the images displayed on an advertising display panel
or digital signage system. This new monitor command, on the other
hand, lets you monitor images by simply connecting a PC via a serial
cable.

Vertical Mounting

*3

The 65-inch, 50-inch and 42-inch
models can be positioned vertically to
display portrait images, allowing them to
serve as effective storefront signboards.
There's no need to install an optional
fan kit.

Note: When using the display vertically, set it so the

power button is on top. The 37-inch & 32-inch
models cannot be positioned vertically.

Conventional

MPD Noise Reduction

BrightDark

1,024-shades

Image definition in low brightness areas
is greatly improved.

BrightDark

A maximum of
2,048 equivalent
shades of gradation

*3: These features found on only plasma models.

*3: These features found on only plasma models.

S-VIDEO CVBS

IN OUT

RL

RGB/COMPONENT IN

RL

8 9

Industry’s Best Expandability Options

Multi-Function Slots

In addition to the fixed input interface, the Panasonic flat panel display has three (or two) interchangeable slots that let you add different combinations of
optional terminal boards. This gives you the flexibility to add digital or analogue capabilities, as necessary, and to customise your system for specific needs.

Multi-Function Slots on 65˝, 50˝ and 42˝ Models

These models come equipped with the standard terminal board
mounted in slot 1. You can mount optional terminal boards in slots 2
and 3. Or, you can remove the standard terminal board and mount
up to three optional boards.

Multi-Function Slots on 37˝ and 32˝ Models

37˝ models come equipped with the standard terminal board mounted in slot 1, and you can mount
optional terminal board in slot 2. 32˝ models come with the standard terminal boards mounted in
slots 1 and 2. You can remove the standard boards and mount one or two optional boards.

Optional Terminal Boards

RGB Active Through Terminal Board

(mounts in slots 1 & 2)

TY-42TM6G

• Sends the signal that's input via the PC IN terminal to a
second display connected to the PC OUT terminal.
This connectability adds convenience when configuring a
multi-screen system.

RGB (Digital) Terminal Board
(DVI-D w/HDCP)

(mounts in slot 1 or 2)

TY-42TM6D

• Lets you connect a PC or other compatible
digital equipment that outputs digital RGB
signals (DVI-D compliant).

• Adding this board permits you to display
images with the equivalent of 4,096 gradation
levels*

1

.

HDMI Terminal Board

(mounts in slot 1 or 2; for plasma models only)

TY-FB8HM

• Enables fully digital connection of signals from HDMI­compatible DVD players and other digital equipment
for blur-free images with no colour bleeding.

• Adding this board permits you to display images
with the equivalent of 4,096 gradation levels*

1

.

PC Input Terminal Board

(mounts in any slot)

TY-42TM6P

• Lets you display images from two or more PCs.

* Does not support the DPMS function.

Composite/Component Video Terminal Board

(mounts in slots 1 & 2, or slots 2 & 3)

TY-42TM6Y

BNC Component Video
Terminal Board

(mounts in any slot)

TY-42TM6A

• Allows wireless connection (IEEE 802.11b compliant) of the
flat panel display and a PC.

• The Multi Live Mode displays up to four PC screens
simultaneously.

• The Live Mode projects the screen from one PC onto the entire
flat panel display.

• Lets you control flat panel displays with a Web browser.

Wireless Presentation Board (mounts in slot 1)

TY-FB7WPE

PC IN PC OUT SERIAL

(RS232C)

RGB (DIGITAL) IN

AUDIO IN

AUDIO IN

RGB/COMPONENT IN

COMPONENT IN

RL

RCA Component Video
Terminal Board

(mounts in any slot)

TY-42TM6Z

COMPONENT IN

RL

BNC Composite Video
Terminal Board

(mounts in slot 1 or 2)

TY-42TM6B

S-VIDEO

CVBS

IN OUT

RL

RCA Composite Video
Terminal Board

(mounts in slot 1 or 2)

TY-42TM6V

CVBS

S-VIDEO

RL

SDI/HD-SDI Terminal Board (mounts in slot 1 or 2)
SDI Terminal Board TY-FB7SD

HD-SDI Terminal Board TY-FB7HD

Tuner Board

(mounts in slot 1 or 2)

TY-FB7TA

• Supports the serial digital interface (SDI) used in broadcasting.

• Provides fully digital transmission for clear, clean image displays.

• The TY-FB7HD supports HDTV.

• Lets you receive analogue TV broadcasting.

• Video input/output terminals allow you to connect various kind of video
equipment such as a VCR or DVD.

• Supplied remote control offers fingertip command over virtually all major
functions. There is even an IR OUT (remote control signal output) terminal.

Touch Panel

TY-TP65P8-S (for TH-65PHD8 series)
TY-TP50P8-S (for TH-50PHD8 series)
TY-TP42P8-S (for TH-42PHD8/42PWD8 series)

• Highly reliable optical sensor system

• Outstanding resolution, easy operation

• Thin design makes a precise fit with display screen

• Lets you use display as a "whiteboard"

This add-on touch panel lets you write directly onto
the screen with a light touch. Ideal for adding written
comments during a presentation or meeting.

TY-TPEN6 Touch Pen
also available.

Detachable Stereo Speakers

TY-SP65P7W-K (for TH-65PHD8WK)

Configuration: 2-way, 3-speaker
Dimensions (W x H x D): 100 x 925 x 90 mm
Weight: 2.2 kg/each

TY-SP50P8W-K (for TH-50PHD8WK)
TY-SP50P8W-S (for TH-50PHD8WS)

Configuration: 2-way, 3-speaker
Dimensions (W x H x D): 107 x 724 x 88 mm
Weight: 2.0 kg/each

TY-SP42P8W-K

(for TH-42PHD8WK, 42PWD8WK)

TY-SP42P8W-S

(for TH-42PHD8WS, 42PWD8WS)
Configuration: 2-way, 3-speaker
Dimensions (W x H x D): 107 x 610 x 88 mm
Weight: 2.0 kg/each

TY-SP37P8W-K (for TH-37PWD8WK)
TY-SP37P8W-S (for TH-37PWD8WS)

Configuration: 2-way, 3-speaker
Dimensions (W x H x D): 107 x 550 x 88 mm
Weight: 2.0 kg/each

TY-SP32L7W-K (for TH-32LHD7WK)
TY-SP32L7W-S (for TH-32LHD7WS)

Configuration: 2-way, 3-speaker
Dimensions (W x H x D): 102 x 500 x 102 mm
Weight: 1.9 kg/each

Photo shows
TY-SP42P8W-K.

Photo shows
TY-SP42P8W-S.

Slot 1 Slot 2 Slot 1 Slot 2Slot 3

Fixed terminals Fixed terminals

Slot 1 Slot 2

Fixed terminals

S-VIDEO

IN

CVBS

OUTIN

LR

S-VIDEO

IN

CVBS

OUTIN

LR

S-VIDEO

IN

CVBS

OUTIN

LR

AUDIO

INPC IN

SERIAL

AUDIO

INPC IN

SERIAL

AUDIO

INPC IN

SERIAL

COMPONENT IN

RL

The characters in red are added for explanation.

HDMI

PC1

PC2

PC3

PC4

PC3

PC1

PC4

PC2

4-Screen Style Index Style

PC2

PC1 PC2 PC3 PC4

PC1

PC2

PC3

PC4

OUT IN

Specifications

TY-FB7SD TY-FB7HD

Standards compliance SMPTE259M-C SMPTE292M, SMPTE259M-C

Compatible video 525/59.94i 525/59.94i, 625/50i, 750/60p: 59.94p, 1125/30p, 1125/24p,
format 625/50i 1125/60i: 59.94i, 1125/50i, 1125/24sF: 23.98sF

Specifications

Standards compliance HDMI ver.1.1

Compatible video 525/60p, 625/50p, 750/60p, 750/50p, 1125/60i,
format 1125/50i, VGA60

* High-Definition Multimedia Interface and HDMI are trademarks of

HDMI Licensing, LLC.

*The photo above shows the TY-TP65P8-S and may differ slightly from the

actual final product appearance of TY-TP50P8-S and TY-TP42P8-S.

TY-TP65P8-S

Applicable display devices Panasonic 65˝ plasma display
Power supply (voltage) DC + 5V ±10% (Through USB)
Electric current DC + 5V, Max 400mA
Detection system Infrared ray interruption
Panel aperture (W x H) 1455 x 826 mm
Detection range (W x H) 1440 x 812 mm
Effective detection range Above detection range + 1.0 mm top, bottom, right, and left
Operating modes Input point, Continuous, Moving end point detection*
Resolution (W x H) 2881 x 1625*
Detection pitch 2.0 x 2.0 mm
Output system Coordinate output
Optical elements 361 (H) x 204 (V)
Optical element pitch 4.0 x 4.0 mm
Minimum stylus 6.0 x 6.0 mm
Scan speed First touch: 45 msec/frame max.

Moving: 10 msec/frame max.
Interface USB1.1 compliant; Signal: +DATA, -DATA, VCC, GND; I/F connector: TYPE B
Panel shape Integrated flat panel controller
Dimensions (W x H x D) 1598 x 951 x 72 mm
Depth when mounted 170 mm
Weight (excluding brackets) 5.0 kg
Escutcheon (frame) Aluminum
USB driver/Applicable OS Microsoft Windows® 98SE/2000/ME/XP

* When using the specific driver software.

TH-65PHD8/50PHD8/42PHD8/42PWD8 series TH-37PWD8 series TH-32LHD7 series

*1: For plasma display models only.

SCART Terminal Board

(mounts in slot 1 or 2;
for plasma models only)

TY-FB8SC

Note: This board cannot be used in some countries

due to their laws and regulations.

Note: This board is available in limited countries only.

IN RF INOUT

RL RL

S-VIDEO

AUDIO IN AUDIO OUT

IR OUT

CVBS

10 11

Plasma System Solutions

Digital Signage/Narrowcasting System Complete with Touch Panel

Easy, interactive content distribution system for retail chains and public
spaces such as shopping malls, office buildings and hotels

• Constructing a Multi-Language Environment

In contrast with conventional methods, in which several information
panels are prepared in different languages, this digital system allows
visitors to simply touch the panel itself to switch to the language they
want. It is a highly effective and efficient way to offer people the content
that they want to see.

• Flexible Content Control

Each PC connected to the Plasma has a unique IP address, allowing
content to be streamed to the Plasma on any LAN, modem, Internet or
Satellite network. It speeds up the process of updating information, and
any combination of Plasmas can be controlled locally or from a central
location.

• Universal System Design

Since the entire system can be configured in a Windows environment, it
requires no special software for content production or operation.

System Configuration

Content production and
delivery, System control

Control PC

LAN/Internet/Satellite Network

2F 3F 4F 5F

Near the 1st floor entrance

PDP with
touch panel

PDP with
touch panel

PC PC

* You can configure a 50-inch display and control system by simply

combining the TH-50PHD8 series Plasma Display and TY-TP50P8-S
Touch Panel, then connecting the PC to the plasma display.

* Content is distributed by a centralized control PC in an office and stored

in the hard disk of each PC, ready to be displayed by touch panel
operation.

PDP with
touch panel

PDP with
touch panel

PDP with
touch panel

PDP with
touch panel

PDP with
touch panel

PDP with
touch panel

Multi-Screen System Using RGB Active Through Terminal Board

Eye-catching huge display system at shopping malls
and event sites

• Easy-to-Configure Multi-Screen System at a
Low Cost

This system shows DVD video and PC data on a giant
9-screen (3 x 3) display. This system, which requires
no image enlargement device, makes it possible to
have a multi-screen system at a low cost.

• Easy-to-See Information

The system displays enlarged XGA images with
excellent quality.

• Various Display Patterns and Powerful Impact

A "control PC" connected through a serial interface
lets you switch the input sources and control various
display patterns.

D-sub15P D-sub9P

RGB/COMPONENT SERIAL

D-sub15P D-sub9P

OUT SERIAL

D-sub15P

IN

RL PBPR Y

Control
Software

DVD

PC

XGA

Control PC

Next Plasma Display

HD-SDI/SD-SDI System for Broadcast Use

Displays crisp, clear images in a studio or control room.

• Adapts Easily to HD-SDI/SD-SDI Systems

The PDP adapts easily to HD-SDI and SD-SDI, the digital interfaces
used in broadcasting and video production. Simply plug the SDI or HD­SDI terminal board into the function slot.

• Larger Screen with Wider Viewing Angle

Large PDP screens range from 42 to 50 inches — a big advantage
over the maximum 32-inch screen available with conventional HD-CRT
monitor displays for broadcast use. PDP screens also offer a wider
viewing angle and easier, more comfortable monitoring.

• Saves Rack Space

With its thin profile, a PDP takes up less rack space than a CRT
monitor.

• Ideal as a Studio Monitor

When the PDP is used as a studio monitor display, its large screen and
wide viewing angle provide superior viewing for performers and
production crew. The PDP also requires little installation space and is
easy to move. When a 65-inch PDP is used for recording a programme
with a live audience, it helps create a livelier, upbeat atmosphere.

To each PDP unit of the
multi-screen system

Signal Distributor

Studio Studio control room

PDP for studio monitor

SDI or HD-SDI
terminal board

SDI or HD-SDI
terminal board

LCD monitor

Broadcast VTR

Broadcast VTR

Digital video switcher

Digital mixer

Editing controller

CG system

PDP for master monitor

Signal
distributor

System Configuration

PC PC

PC PC PC PC

Displaying up-to-date information such as transportation schedule
changes, stock market conditions, and countless other possible
subjects.

• Real-Time Information Bulletins

The use of the CAT5e twisted-pair cable allows content to be sent from
the server in real-time, for instant response to events such as sudden
changes in transportation schedules or accident information as it
becomes available.

• Long-Distance Transmission of High-Quality Video Signals

High-resolution XGA images, sound and RS232C control signal are
transmitted approximately 150 m over a single cable. PDP control
signals can also be sent over the same cable to allow remote operation
of power ON/OFF and other functions.

• Higher Signal Quality, Lower Costs, and Easier Installation

Thin, lightweight CAT5e twisted-pair cables do a better job of
preventing signal degradation than coaxial cables. They also reduce
costs and shorten the time needed for installation.

System Configuration

*The use of twisted-pair-cable receiver allows images to be sent to the

plasma display from an office up to 150 meters away.

*Using the twisted-pair-cable splitter, several plasma displays can be

connected in a cascade configuration.

Twisted-pair­cable receiver

Control server

Office

Near the ticket vending machineNear the ticket gate

In a corridorNear the waiting area

Content production,
distribution
System control

Twisted-pair­cable receiver

Twisted-pair­cable receiver

Twisted-pair-

cable receiver

Twisted-pair­cable receiver

Twisted-pair-

cable receiver

Twisted-pair­cable receiver

Twisted-pair-

cable receiver

Twisted-pair-cable splitter

Twisted-pair-

cable transmitter

Information System Using Twisted-Pair-Cable Receivers

12 13

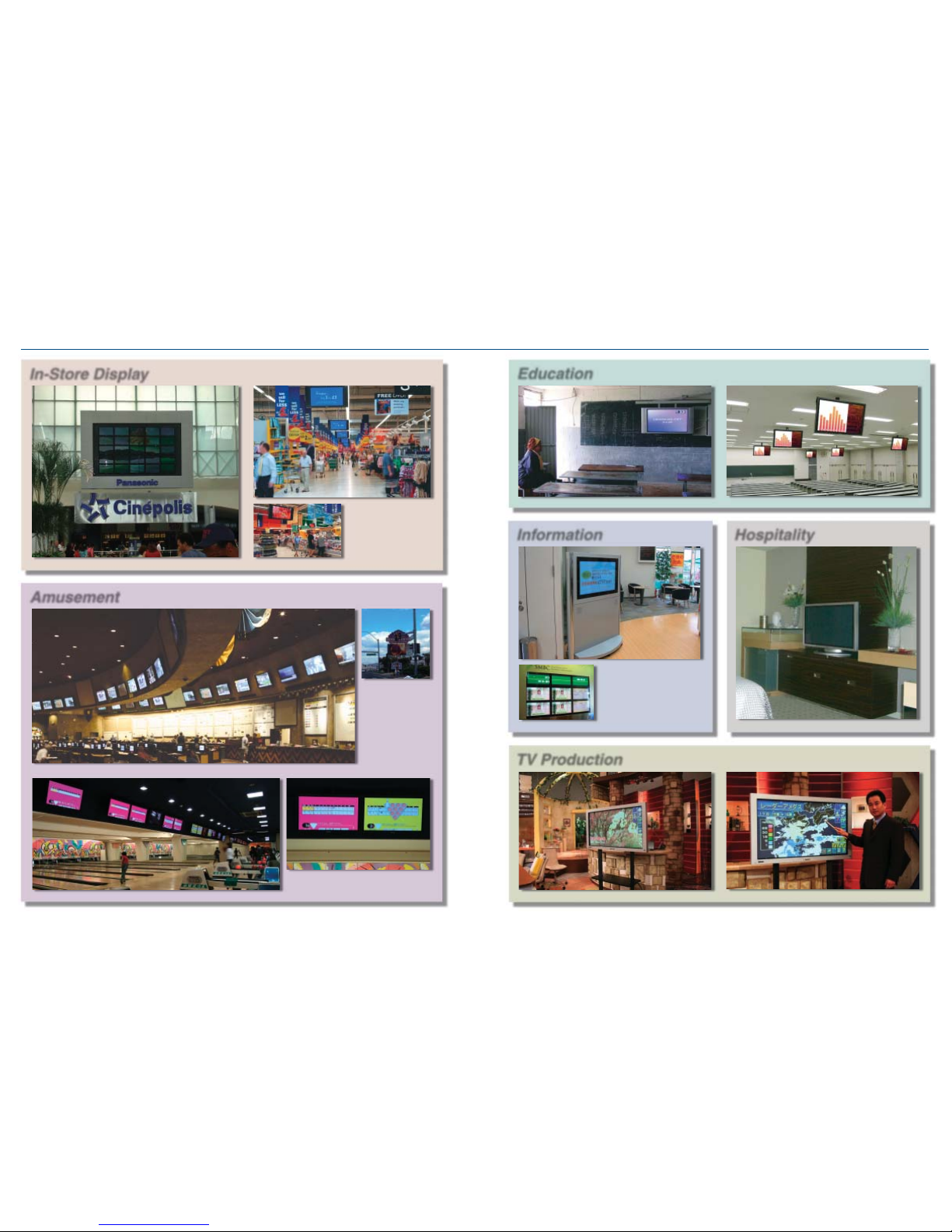

An Endless Array of Applications

Information

In-Store Display

TV Production

Amusement

Education

Hospitality

Sumitomo Mitsui Bank,
Kobe, Japan

Marina Mandarin Hotel, Singapore

Sunset Stations Casino,
Las Vegas, USA
(30 units of 65˝ displays)

Bowling Alley, Tokyo, Japan

Shopping Mall, Panama

TESCO, London, UK

School, Addis Ababa, Ethiopia

Ritsumeikan University, Kusatsu, Japan

Asahi Broadcasting Corporation, Osaka, Japan

14 15

Line Up

Specifications

TH-65PHD8WK

65-inch (165 cm) diagonal

High Definition Plasma Display

TH-50PHD8WK/WS

50-inch (127 cm) diagonal

High Definition Plasma Display

TH-42PHD8WK/WS

42-inch (106 cm) diagonal

High Definition Plasma Display

TH-42PWD8WK/WS

42-inch (106 cm) diagonal

Wide Plasma Display

TH-37PWD8WK/WS

37-inch (94 cm) diagonal

Wide Plasma Display

TH-32LHD7WK/WS

32-inch (80 cm) diagonal

High Definition LCD Display

Remote Control

Supplied Remote Control for PHD8/PWD8 series

(Comes with every Panasonic Plasma Display model.)

Remote Control Functions

Stand-by (On/Off)
Input Selection
Status
Surround On/Off
Sound Mute On/Off
Volume Up/Down
Normalization (N)
Exit (R)
Position/Action
Digital Zoom

Dual Picture

(MULTI PIP/SWAP/SELECT/MOVE)
Sound
Set Up
Picture Position/Size
Aspect
PC Mode Selection
Off Timer

Supplied Remote Control for TH-32LHD7WK/WS

Remote Control Functions

Power On
Power Off
Direct Input Selection
(1/2/3/PC)
Input Selection
Status
Surround On/Off
Sound Mute On/Off
Volume Up/Down
Normalization (N)
Exit (R)
Position/Action
Digital Zoom

Dual Picture
(MULTI PIP/SWAP/SELECT/MOVE)
Sound
Set Up
Picture Position/Size
Aspect
PC Mode Selection
Off Timer
Normal/ID Remote Selection
ID Number Set
ID All

Plasma HD Models LCD HD ModelsPlasma SD Models

TH-50PHD8WK TH-42PHD8WK TH-42PWD8WK TH-37PWD8WK TH-32LHD7WK

TH-50PHD8WS TH-42PHD8WS TH-42PWD8WS TH-37PWD8WS TH-32LHD7WS

Model Number TH-65PHD8WK TH-50PHD8WK/WS TH-42PHD8WK/WS TH-42PWD8WK/WS TH-37PWD8WK/WS
Power Source 220 - 240 V AC, 50/60 Hz 220 - 240 V AC, 50/60 Hz 220 - 240 V AC, 50/60 Hz 220 - 240 V AC, 50/60 Hz 220 - 240 V AC, 50/60 Hz
Power Consumption 615 W 395 W 295 W 240 W 215 W

Power off condition 0.35 W 0.3 W 0.3 W 0.1 W 0.1 W
Stand-by condition Save On: 0.7 W Save On: 0.6 W Save On: 0.6 W Save On: 0.9 W Save On: 0.9 W

Save Off: 0.9 W Save Off: 0.8 W Save Off: 0.8 W Save Off: 1.2 W Save Off: 1.2 W

Plasma Display Panel Drive method: AC type Drive method: AC type Drive method: AC type Drive method: AC type Drive method: AC type

65-inch, 16:9 aspect ratio 50-inch, 16:9 aspect ratio 42-inch, 16:9 aspect ratio 42-inch, 16:9 aspect ratio 37-inch, 16:9 aspect ratio
Contrast Ratio 3000:1 3000:1 3000:1 4000:1 4000:1
Screen Size W x H 1,434 x 806 mm 1,106 x 622 mm 920 x 518 mm 920 x 518 mm 818 x 461 mm

Diagonal 65˝ (1,645 mm) 50˝ (1,269 mm) 42˝ (1,056 mm) 42˝ (1,056 mm) 37˝ (939 mm)

Number of Pixels 1,049,088 1,049,088 786,432 408,960 408,960

(1,366 [W] x 768 [H]) (1,366 [W] x 768 [H]) (1,024 [W] x 768 [H]) (852 [W] x 480 [H]) (852 [W] x 480 [H])
Audio Output (10% THD) 20 W (10 W + 10 W) 16 W (8 W + 8 W) 16 W (8 W + 8 W) 16 W (8 W + 8 W) 16 W (8 W + 8 W)
Operating Conditions Temperature: 0°C — 40°C; Humidity: 20 % — 80 % (Non condensation)
Dimensions (W x H x D) 1,554 x 925 x 99 mm 1,210 x 724 x 95 mm 1,020 x 610 x 89 mm 1,020 x 610 x 89 mm 920 x 550 x 89 mm
Weight 43.0 kg78.0 kg 31.5 kg 29.5 kg 25.0 kg
EMC CISPR22 Class-B
Safety Standards AS/NZS60065, GOST12.2.006-87, SASO, IEC60065
Colour System NTSC, PAL, PAL 60, SECAM, Modified NTSC
Applicable PC Signals XGA (Signals exceeding XGA are compressed and displayed.) VGA (Signals exceeding VGA are compressed and displayed.)
Terminals AV VIDEO IN/OUT (BNC): 1.0 Vp-p (75-ohms or high-impedance)
(Slot-type) S-VIDEO (Mini DIN 4-pin): Y: 1.0 Vp-p (75-ohms), C: 0.286 Vp-p (75 ohms)

AUDIO IN L/R (RCA pin jack x 2): 0.5 Vrms (high impedance)

(Fixed) PC (Mini D-sub 15-pin)

fH: 15 — 110 kHz; fV: 48 — 120 Hz

R,G,B: 0.7 Vp-p (75-ohms)

Y: 1.0 Vp-p (75-ohms; including sync)

P

B, PR/CB, CR: ± 0.7 Vp-p (75-ohms); HD, VD/1.0 — 5.0 Vp-p (high impedance)

Audio In (M3 jack): 0.5 Vrms (high impedance)

SERIAL External control terminal (D-sub 9-pin), RS-232C compatible

Model Number TH-32LHD7WK/WS
Power Source 220 - 240 V AC, 50/60 Hz
Power Consumption 165 W

Power off condition 0.4 W
Stand-by condition Save On: 0.8 W

Save Off: 1.0 W

LCD Display Panel

32-inch, 16:9 aspect ratio
Viewing Angle Horizontal: 170°, Vertical: 170°
Contrast Ratio 800:1
Screen Size W x H 697.7 x 392.3 mm

Diagonal 32˝ (800.4 mm)
Number of Pixels 1,049,088 (1,366 [W] x 768 [H])
Audio Output (10% THD) 16 W (8 W + 8 W)
Operating Conditions Temperature: 0°C — 40°C; Humidity: 20 % — 80 % (Non condensation)
Dimensions (W x H x D) 805.0 x 499.6 x 102.0 mm
Weight 17.0 kg
EMC CISPR22 Class-B
Safety Standards AS/NZS60065, GOST12.2.006-87, SASO, IEC60065
Colour System
Applicable PC Signals

NTSC, PAL, PAL 60, SECAM, Modified NTSC

Terminals AV VIDEO IN/OUT (BNC): 1.0 Vp-p (75-ohms or high-impedance)
(Slot-type)

S-VIDEO (Mini DIN 4-pin): Y: 1.0 Vp-p (75-ohms), C: 0.286 Vp-p (75 ohms)

AUDIO IN L/R (RCA pin jack x 2): 0.5 Vrms (high impedance)

COMPONENT/RGB Y/G (BNC): 1.0 Vp-p/composite (75-ohms); 0.7 Vp-p/non-composite (75 ohms)

P

B, PR/CB, CR (BNC): 0.7 Vp-p (75 ohms); R/B (BNC): 0.7 Vp-p (75 ohms)

AUDIO IN L/R (RCA pin jack x 2): 0.5 Vrms (high impedance)

(Fixed) PC (Mini D-sub 15-pin)

fH: 15 — 110 kHz; fV: 48 — 120 Hz

R,G,B: 0.7 Vp-p (75-ohms)

Y: 1.0 Vp-p (75-ohms; including sync)

PB, PR/CB, CR: ± 0.7 Vp-p (75-ohms); HD, VD/1.0 - 5.0 Vp-p (high impedance)

Audio In (M3 jack): 0.5 Vrms (high impedance)

SERIAL External control terminal (D-sub 9-pin), RS-232C compatible

XGA (Signals exceeding XGA are compressed and displayed.)

a-Si TFT active matrix

16 17

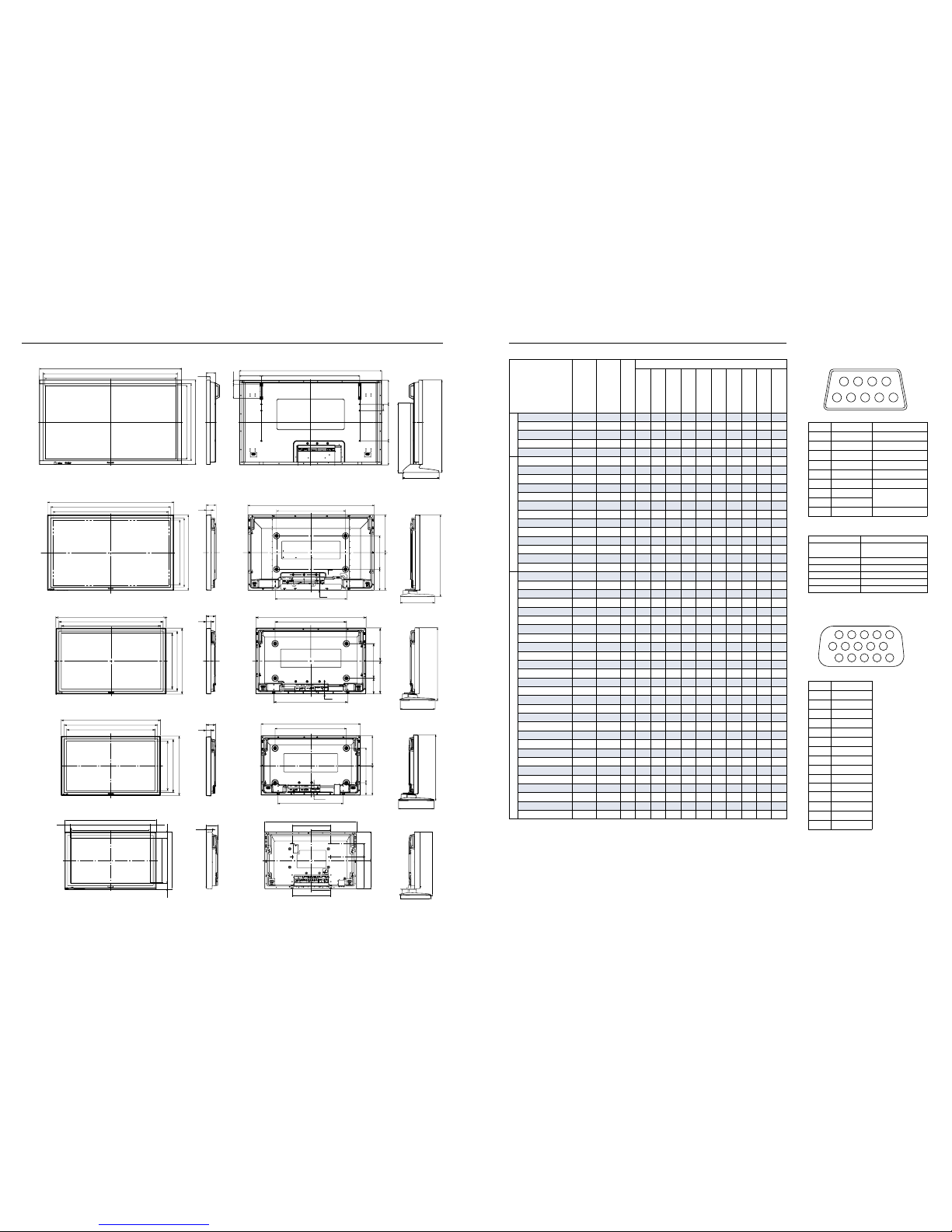

Dimensions Preset Input Signals

Serial RS232C: D-Sub 9-Pin (Female)

PC Input: D-Sub 15-Pin (Female)

Pin No. Signal name Descriptions

1CD NC

2 RXD Receive Data

3 TXD Transmit Data

4 DTR Not used

5 GND Ground

6 DSR Not used

7RTS

Short Circuit

8 CTS

9RI NC

Pin Assignment and Signal Name

Pin No. Signal name

1 R (P

R/CR)

2 G (Y)

3 B (P

B/CB)

4 GND (Ground)

5 GND (Ground)

6 GND (Ground)

7 GND (Ground)

8 GND (Ground)

9 NC (Not connected)

10 GND (Ground)

11 GND (Ground)

12 SDA

13 HD/SYNC

14 VD

15 SCL

Signal Name

1

2

6789

345

1

2345

6

78910

Signal Level Complied with RS232C

Synchronous System Start/Stop Synchronous

Communication

Baud Rate 9600 bps

Parity Nil

Character Length 8 bits

Stop Bit 1 bit

X Parameter Nil

Transmitting Conditions

*1: The TH-32LHD7WK/WS does not accept these signal formats.

Note: When a signal having a resolution that exceeds the panel resolution is input,

a simplified display will be produced.

11

12

13 14 15

610

518

1020 1020

89

44

89

44

964
920

669.3

327

89

305305

320

145

660

684

124

461

819

494

550

864

920

602

275 275

320

115

920
660

90.5

609.3

327

With the optional
pedestal attached.

With the optional
pedestal attached.

102

51.9

With the optional
pedestal attached.

805
339

339

279.8

120

249.8

249.8

556.7

176

176

271.5

TH-65PHD8WK

TH-50PHD8WK/WS

TH-42PHD8WK/WS
TH-42PWD8WK/WS

TH-37PWD8WK/WS

TH-32LHD7WK/WS

554

1554

1434

1471

806

841

925

42.5

99

1554

1075.2

239.4

47.5

150

262.5400

70

262.5

With the optional
pedestal attached.

459.4

395

1012

662

With the optional
pedestal attached.

724

1210

1210

1148
1106

622

95

44

660

684

202 320

362362

783.3

327

805

52.9

52.9

393.8

392.3

698.6

697.7

53.2

53.2

499.6

(Unit: mm)

Optional Board

NTSC 15.73 59.94 Y Y Y

PAL 15.63 50.00 Y Y Y

PAL60 15.73 59.94 Y Y Y

SECAM 15.63 50.00 Y Y Y

Modified NTSC 15.73 59.94 Y Y Y

Y
Y
Y
Y
Y

525 (480)/60i 15.73 59.94 Y Y Y Y Y Y Y

525 (480)/60p 31.47 59.94 Y Y Y Y Y Y Y

625 (575)/50i 15.63 50.00 Y Y Y Y Y Y Y
625 (575)/50p 31.25 50.00 Y Y Y Y Y Y Y
750 (720)/60p 45.00 60.00 Y Y Y Y Y Y Y Y
750 (720)/50p 37.50 50.00 Y Y Y Y Y Y

1125 (1080)/60i 33.75 60.00 Y Y Y Y Y Y Y Y
1125 (1080)/50i 28.13 50.00 Y Y Y Y Y

Y*

1

Y*

1

YY
1125 (1080)/24p 27.00 24.00 Y Y Y Y Y Y
1125 (1080)/24sf 27.00 48.00 Y Y Y Y Y Y
1125 (1080)/25p 28.13 25.00 Y Y Y Y Y Y
1125 (1080)/30p 33.75 30.00 Y Y Y Y Y Y

1250 (1080)/50i 31.25 50.00 Y Y Y Y Y
640 x 400 @70Hz 31.46 70.07 Y Y Y Y Y
640 x 480 @60Hz 31.47 59.94 Y Y Y Y Y Y Y
640 x 480 @72Hz 37.86 72.81 Y Y Y Y Y
640 x 480 @75Hz 37.50 75.00 Y Y Y Y Y
640 x 480 @85Hz 43.27 85.01 Y Y Y Y Y
852 x 480 @60Hz 31.47 59.94 Y Y Y Y Y Y
800 x 600 @56Hz 35.16 56.25 Y Y Y Y Y
800 x 600 @60Hz 37.88 60.32 Y Y Y Y Y Y
800 x 600 @72Hz 48.08 72.19 Y Y Y Y Y
800 x 600 @75Hz 46.88 75.00 Y Y Y Y Y
800 x 600 @85Hz 53.67 85.06 Y Y Y Y Y

1024 x 768 @60Hz 48.36 60.00 Y Y Y Y Y Y
1024 x 768 @70Hz 56.48 70.07 Y Y Y Y Y
1024 x 768 @75Hz 60.02 75.03 Y Y Y Y Y
1024 x 768 @85Hz 68.68 85.00 Y Y Y Y Y
1152 x 864 @75Hz 67.50 75.00 Y Y Y Y Y
1280 x 960 @60Hz 60.00 60.00 Y Y Y Y Y

1280 x 960 @85Hz 85.94 85.00 Y Y Y Y Y
1280 x 1024 @60Hz 63.98 60.02 Y Y Y Y Y
1280 x 1024 @75Hz 79.98 75.03 Y Y Y Y Y
1280 x 1024 @85Hz 91.15 85.02 Y Y Y Y Y
1600 x 1200 @60Hz 75.00 60.00 Y Y Y Y Y
1600 x 1200 @65Hz 81.25 65.00 Y Y Y Y Y

1066 x 600 @60Hz 37.88 60.32 Y Y Y Y Y Y

1366 x 768 @60Hz 48.36 60.00 Y Y Y Y Y Y
Mac 13˝ (640 x 480) 35.00 66.67 Y Y Y Y Y
Mac 16˝ (832 x 624) 49.72 74.54 Y Y Y Y Y
Mac 21˝ (1152 x 870) 68.68 75.06 Y Y Y Y Y

Signal name

TY-42TM6B/V

Standard-Equipped

Terminals

TY-42TM6Y

TY-42TM6A/Z

TY-42TM6P

TY-42TM6D

TY-42TM6G

TY-FB7SD

TY-FB7HD

TY-FB8HM

TY-FB8SC

Horizontal

Frequency (kHz)

Vertical

Frequency (Hz)

CompositeComponentRGB

TY-ST32L7-K/TY-ST32L7-S

TY-ST08-K/TY-ST08-S

TY-ST08-K TY-ST08-S

Pedestal

TY-WK42PR7 TY-WK32LR1S

Wall-hanging bracket
(drawer type)

TY-WK42PV7

●: Compatible; —: Not compatible

Compatible Models at a Glance

Wall-hanging bracket

Wall-hanging bracket (angled)

Ceiling-hanging bracket

TY-CE42PS7

Wall stand

TY-ST42PW1

Mobile stand

TY-ST42PF3

TY-WK37PV3TY-WK65PV7

TY-WK42DR1

TY-ST65-K

TY-ST07-K

18 19

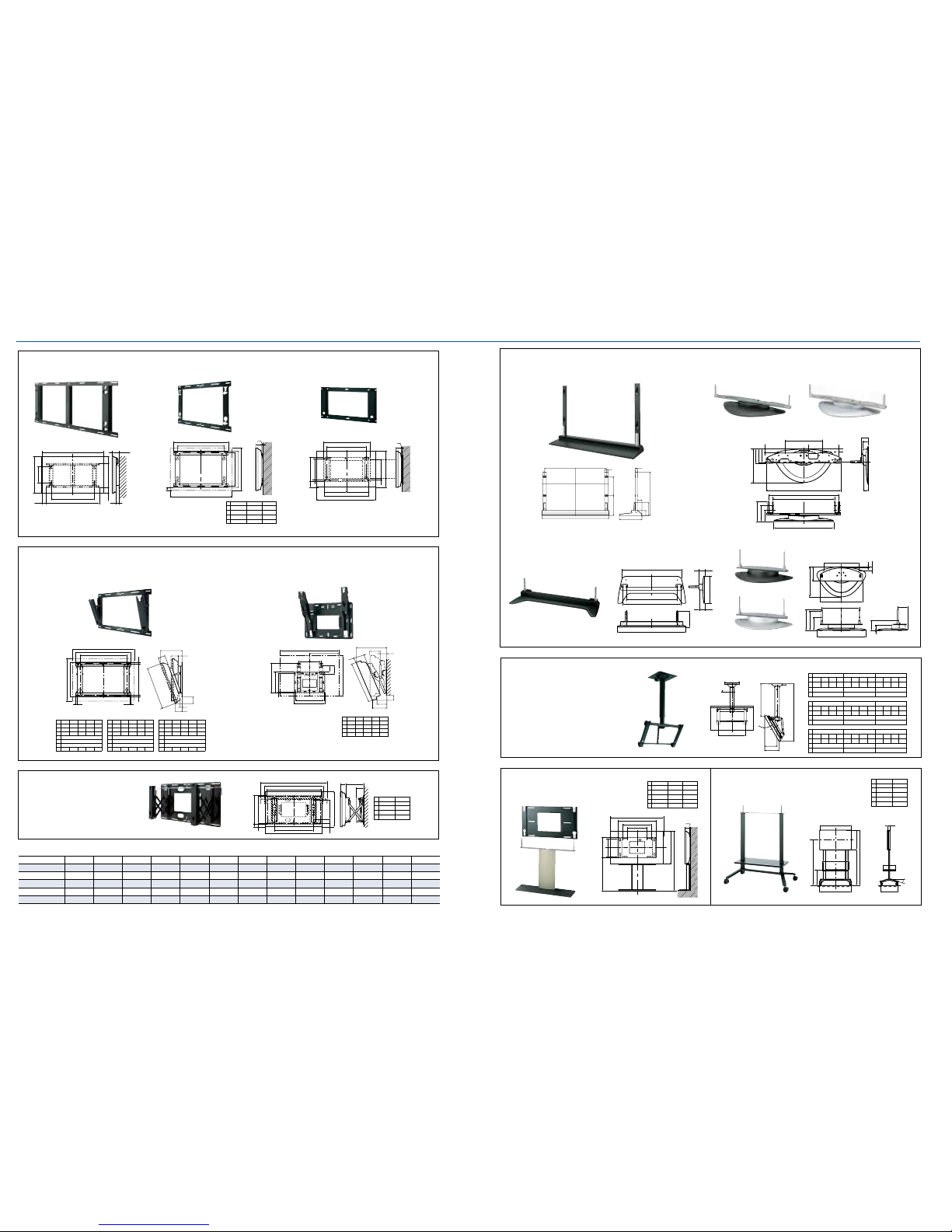

Mounting Options

TY-ST32L7-K

TY-ST32L7-S

Unit: mm

1554

1320

1075.2

117

177.5

75

604 178143

925

330

50˝ model 42˝ model 37˝ model
A 1210 1020 920
B 724 610 550
C 91.5 34.5 29.5
D95 89 89

Unit: mm

480

516

775
660

C

D

20

B

A

3.5

0.8

30.7

26.0

29.5

14.8 14.8

36.2

12.6

21.7

1.0

14.2

16.3

2.5

1.1

Unit: inch

486

450 18 18

D

E

775

15

15

660

F

F

A

D

C

B

G

60

Unit: mm

42˝ model

R

0° 5° 10° 15° 20°
A 149 188 226 264 299
B 149 135 121 107 92
C 73 80 88 95 101
D610
E1020
F89
G6050402919

50˝ model

R

0° 5° 10° 15° 20°
A 155 200 243 285 325
B 155 137 119 99 80
C 130 137 145 152 156
D724
E 1210
F95
G6057422611

37˝ model

R

0° 5° 10° 15° 20°
A 149 185 221 256 289
B 149 138 127 115 102
C4350535760
D550
E920
F89
G6053453729

Unit: mm

805

415.6

163 176

440
480

443.5
325

280

23

73

120

499.6

A

102

102

63.2

499.6

C

D

B

0° 5° 10° 15° 20°
A 6.5 8.1 9.5 11.0 12.3
B 6.5 6.4 6.3 6.1 5.8
C 0.1 0.4 1.0 1.4 1.9

4.5 4.3 4.2 4.0 3.8

D

50˝ model 42˝ model
A 1210 1020
B 724 610
C 112.5 55.5
D95 89

320D

120

930

999

1189

490

C

B

450

20

660

A

320

69.5

Unit: mm

1075.2
60

330

349.5

1171.2

393

90

227.8

82.2

759.4

35.5

Unit: mm

601
684

184.5

806

688

67.5

62.5

320.3

Unit: mm

Unit: mm

320

191191

443

176 163

89

8235

90

50

128

271.5

189

177

118

B

A

C
D

R

Unit: mm

660

350

89.1

50˝ model

42˝ model

R0° 15° 30°

A 1187 1287 1387 1487 1201 1301 1401 1501 1181 1281 1381 1481

B 466 566 666 766 506 606 706 806 558 658 758 858

C 199 249 286

D 0 186 360

R0° 15° 30°

A 1130 1230 1330 1430 1144 1244 1344 1444 1129 1229 1329 1429

B 523 623 723 823 561 661 761 861 604 704 804 904

C 193 228 252

D 0 157 303

37˝ model

R0° 15° 30°

A 1100 1200 1300 1400 1115 1215 1315 1415 1103 1203 1303 1403

B 553 571 671 771 589 689 789 889 630 730 830 930

C 193 220 236

D 0 141 273

50˝ model 42˝ model 37˝ model
A 1210 1020 920
B 724 610 550
C 1230.5 1116.5 1056.5
D 668.5 611.5 581.5
E95 89 89

Unit: mm

400

180180

B

D

C

744

A

560
390

E

19

Unit: mm

A

B

1027

C

D

350/500

1030

820

650

400

15°

E

50˝ model 42˝ model
A 1210 1020
B 724 610
C 1751 1637
D 1389 1332

E95 89

Unit: mm

360

8

40

46

327

141

136

131

179

145

100

72
63

55

704

684 (for 50˝ & 42˝)

602 (for 37˝)

578

TY-ST65-K TY-ST08-K/S TY-ST07-K TY-ST32L7-K/S TY-WK42DR1 TY-WK65PV7 TY-WK42PV7 TY-WK37PV3 TY-WK42PR7 TY-WK32LR1S TY-ST42PW1 TY-ST42PF3 TY-CE42PS7

TH-65PHD8 series ● ———— ● ———————

TH-50PHD8 series — ●● (WK) — ● — ● — ● — ●●●

TH-42PHD/42PWD8 series — ●● (WK) — ● — ● — ● — ●●●

TH-37PWD8 series — ●● (WK) ———●●●— ● — ●

TH-32LHD7 series ———● —————● ———
