Panasonic TC L32C4X, TC L32C4Y Diagram

ORDEN No. PMX1111005CS

Manual de Servicio

Televisor de LCD

Este Manual de Servicio se edita para guía de mantenimiento a los equipos de Televisión de la familia C4, MODELOS 2011 mencionados en esta portada. Así mismo se incluyen diagramas eléctricos y de bloques con sus respectivos procedimientos de ajuste y la lista de materiales para su referencia.

TC-L32C4X TC-L32C4Y

HD Serie C4 120V ATSC/NTSC HD Serie C4 220V NTSC

Chasis KM10V

ADVERTENCIA

Este manual de servicio solo esta diseñado para técnicos en reparación con experiencia y no para el público en general. No contiene advertencias ó precauciones sobre los peligros al dar mantenimiento por personas que no estén familiarizadas en esta área. El mantenimiento ó reparación de productos que funcionen con electricidad deben ser realizadas por personas con experiencia. Cualquier intento de reparar ó dar mantenimiento a los aparatos descritos en este manual por personas sin experiencia puede causar lesiones serias ó incluso hasta la muerte.

2

CONTENIDO

Página

Portada. Índice. 2

Precauciones de seguridad. Guía general . Verificación de filtración de corriente fr ía. Verificación de filtración de corriente Caliente. 3

Precauciónes. Prevención de descarga electroestática.

Soldadura libre de plomo.

4

Servicio . Modo de servicio . Contenido de los ajustes. 5

SRV TOOL Herramienta de servicio . Como acceder a menú de SRV TOOL . Despliegue de historial SOS. Contador y tiempo de encendido .

7

Guía para solución de problemas. Función self check. Parpadeo de led frontal. No enciende.

8

Modo de Hotel . Como acceder a la función modo de Hotel . Descripción de las funciones de modo de Hotel.

Mediciones y ajuste. Carta de voltajes. Ajuste de contraste (RF).

10

Especificaciones.

Instrucciones de ensamble y desensamble del Televisor.

Listas de partes de remplazo.

30

1

1.1

1.2

1.3

2

2.1

2.2

3

3.1

3.2

4

4.1

4.2

4.3

5

5.1

5.2

5.3

6

6.1

6.2

7

7.1

7.2

8

9

9.1

9.2

9.3

10

13

Página

Notas de lista de partes de remplazo.

10.1 Listas de partes Placa principal A

10.2

15

14

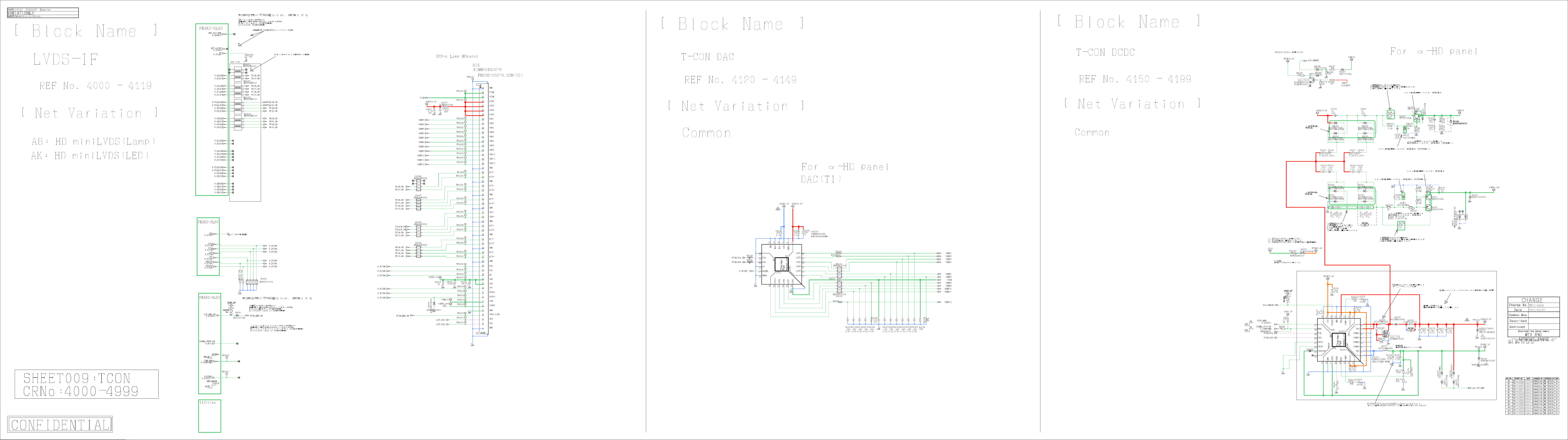

Esquematicos

16

Esquematicos placa principal A.

6

11

Listas de partes led driver GK

10.5

Listas de Partes Mecanicas 10.6

31

Layout placa principal A

12

Layout pcb A vista frontal

12.1 Layout pcb A vista trasera

Diagrama de bloques

11

33

35

37

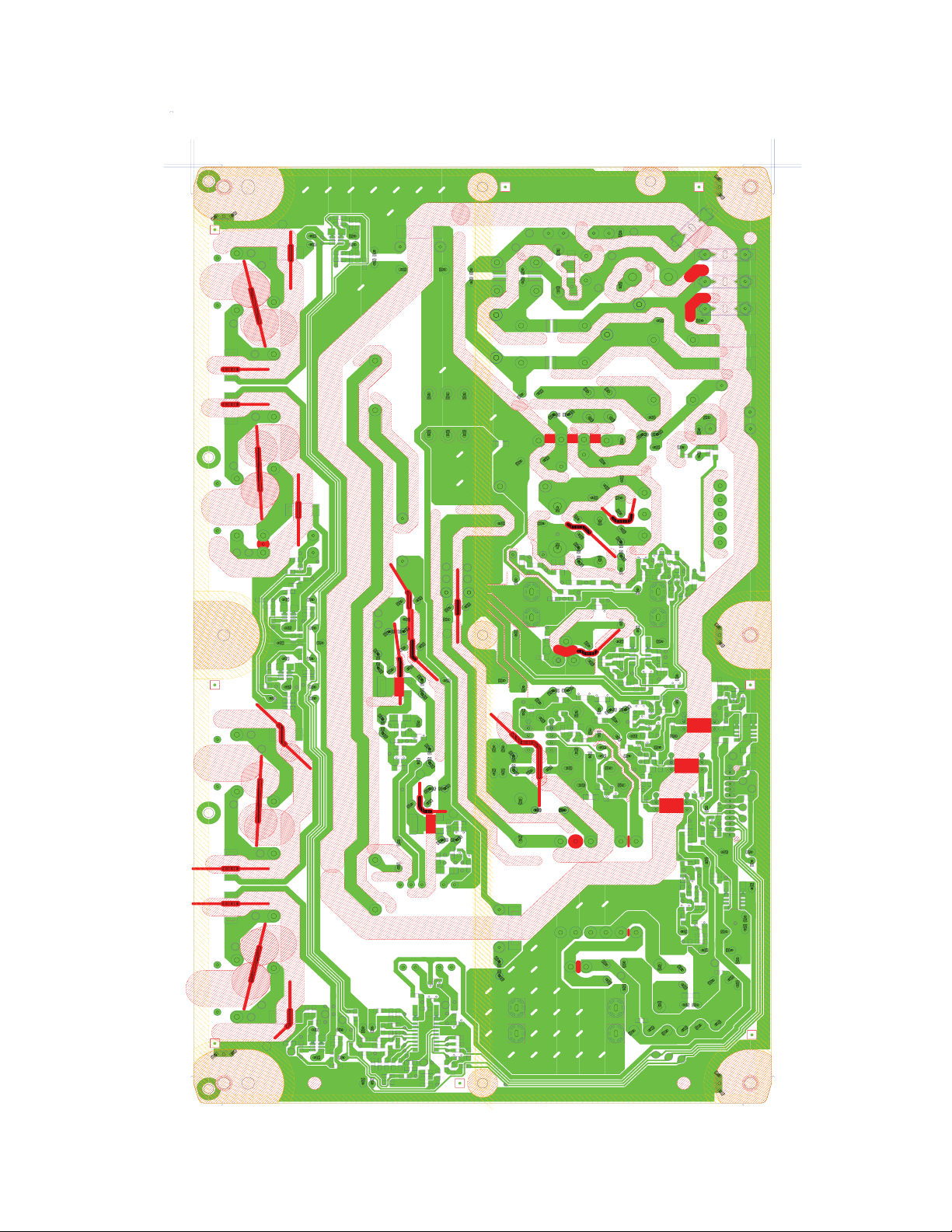

Layout PCB P

54 55

Esquematicos GK

Esquematicos KA,

9.4

9.5 Cable LVDS

Pedestal y tapa posterior. Placa de poder, Placa A, Metal inferior. AV bracket, Cable de AC.

9.6

12

25

Listas de partes placa de poder P 10.3

Listas de partes sensor panel KA aplica a todos los modelos.

10.4

28

29

32

14

34

Layout PCB KA Layout PCB GK

15

34

Esquematicos placa P.

Panel LCD

Placa KA

9.7

Bocinas y Metal VESA

9

56

9.8

Botonera y Placa GK

9.9

Diagrama de conexiones

13

1 Precauciones de Seguridad

1.1 Guía General

1. Es aconsejable conectar un transformador de aislamiento en el suministro AC antes de reparar un chasis dañado.

2. Cuando se de servicio, inspeccione el recubrimiento original de los cables, especialmente en los circuitos de alta tensión. Si se localiza un corto circuito, reemplace todas las partes dañadas (incluyendo aquellas que muestran señales de sobre calentamiento).

3. Después de la reparación, observe que todos los dispositivos de protección como son papel de fibra aislante, resistores y capacitores de aislamiento, así como los blindajes estén correctamente instalados.

4. Cuando el Receptor no sea usado por largos periodos de tiempo, desconecte el cable AC del toma de corriente.

Después de reparar el modelo deberá realizar una prueba minuciosa de la unidad, con el fin de asegurarse de que su manejo sea seguro.

1.2 Verificación de filtración de corriente fría

1. Desconecte el cable de suministro AC y conecte un puente (jumper) entre las dos terminales del conector.

2. Encienda el interruptor de potencia del receptor.

3. Mida la resistencia entre el conector puenteando y las partes metálicas expuestas como son cabezas de tornillos, terminales de antena, etc. Si la parte metálica expuesta tiene un retorno al chasis, la lectura deberá oscilar entre 100M . Si la parte metálica expuesta no tiene un retorno al chasis la lectura deberá ser infinita.

1.3 Verificación de filtración de corriente caliente

1. Conecte el cable de AC directamente al toma corriente. No utilice el transformador de aislamiento durante la revisión.

2. Conecte una resistencia a 2 k 10 watts con una parte

metálica expuesta en el receptor y un tubo de tierra.

3. Utilice un multimetro digital con mayor tipo de impedan-

cia para medir el voltaje de AC a través del resistor.

4. Verifique que cada parte metálica expuesta no exceda

del voltaje para medir cada punto.

5. Revise el cable de AC de la toma corriente y repita cada

una de las medidas anteriores..

6. Verifique que cualquier voltaje encontrado no exceda de

0.7 mA AC o 2 mA DC. En cualquier caso que la medi- ción esté fuera de los límites especificados, existe la posibilidad de un corto, el receptor deberá ser revisado antes de regresarse al cliente.

3

Ω

4

2.2 Soldadura libre de plomo (PbF).

La Soldadura Libre plomo es usada en nuestros procesos de fabricación y es (Sn+Ag+Cu). Estaño (Sn), Plata (Ag) y Cobre (Cu) aunque otros tipos están disponibles. Debido a los problemas de conservación ambientales. Para el servicio y trabajo de la reparación, sugerimos el uso de soldadura libre de plomo., aunque la soldadura de Pb puede usarse. Un Símbolo en forma de hoja y PbF se estampó en la parte de atrás del PCB para referencia del uso de soldadura sin plomo.

Precaución: La soldadura libre de plomo tiene un punto de fundición más alto que la soldadura normal. Típicamente el punto de fundición es 50 ~ 70 °F (30~40 °C) superior. Por favor use una temperatura alta y póngalo a 700 ± 20 °F (370 ± 10 °C). Si va a usar soldadura con plomo Pb por favor remover todo la soldadura antes de aplicar la soldadura con Pb.

2 PRECAUCIONES

PRECAUCIÓN CONTIENEN PARTES Y ENSAMBLES SUSCEPTIBLES DE DAÑARSE POR DESCARGAS ELECTROSTÁTICAS.

2.1 Prevención de Descarga Electrostática (ESD), El equipo es Sensible a la Electrostática (ES).

Algunos dispositivo semiconductor (estado sólido) pueden ser dañados fácilmente por electricidad estática. Normalmente se llaman Dispositivos Sensibles a la Electrostática (ES). Ejemplos típicos de dispositivos de ES son circuitos integrados algunos transistores de efecto de campo y componentes semiconductores [chip]. Las técnicas siguientes deben usarse para ayudar a reducir la incidencia de daño del componente por la descarga electrostática (ESD).

1. Inmediatamente antes de ocuparse de cualquier componente semiconductor o semiconductor ensamblado. Drene fuera de su cuerpo la carga ESD tocando una tierra conocida. Conjuntamente, obtenga una correa para su muñeca para descargar la energía electrostática, para mayor protección de los dispositivos sensibles a la ESD.

2. Después de quitar un dispositivo semiconductor ES, ponga el dispositivo en un material conductivo como la lamina de aluminio, para prevenir aumento de carga electrostática o exposición del ensamble.

3. Use Cautin con conexión a Tierra para soldar o desoldar los dispositivos de ES.

4. Use sólo removedor de soldadura antiestático. Algunos dispositivos removedor no son clasificados como [antiestáticos (ESD )] puede generar carga eléctrica suficiente para dañar los dispositivos ES.

5. No use los químicos freon. Estos pueden generar cargas eléctricas suficiente para dañar los dispositivos de ES.

6. No quite un dispositivo ES inmediatamente de su empaqué de protección hasta antes de que usted esté listo para instalarlo. (Los dispositivos de ES que son reemplazos deben de estar empacados con protección de cortos eléctricos junto con espuma conductiva, lamina de aluminio o material conductivo comparable).

7. Inmediatamente antes de quitar el material de protección del dispositivo de ES, toque el material protector con el chasis o ensamble el circuito en el dispositivo que se instalará.

Precaución Asegúrese de que ningún Voltaje es aplicado al chasis o circuito, y observe todas las otras precauciones de seguridad.

8. Minimice los movimientos corporales al ocuparse del reemplazo de los dispositivos ES. SÍMBOLOS USADOS EN DISPOSITIVOS SUSCEPTIBLES A ESD.

5

3.0 SERVICIO

PCB DE PODER

PCB A

Panel de control

PCB KA

Navegación con el control remoto. Tecla (1) Principales items en dirección hacia adelante Tecla (2) Principales items en dirección hacia atras Tecla (3) Principales items en dirección hacia adelante Tecla (4) Principales items en dirección hacia atras

3.2 Contenido de modo de servicio.

NOTA : Para salir solo apague el televisor desconectando el cable de AC.

Modo de servicio

Ajuste de contraste

Ajuste de white balance

Opción

Herramientas

Peaks SOFT 1.22

Peaks EEP 01.00.0101

LS1 DATA 1.00.01

STBY SOFT 2.00.00

STBY EEP 2.01.0717

STBY ROMCOR 0.00.00

ADJUST

CONTRAST 000

YMAX

Presione

la tecla Main Item Registro

(1) Sub item

Versión de Software

SERVICE

ADJUST

WB-ADJ

OPTION

SRV-TOOL

MENU SUB MENU

SERIE C4

ADJ AJUSTE CONTRASTE ver pagina 9

COLOR 4E TINT 00 SUB-BRT 800 BACKLGT 239

B-Y-G 40

MENU

WB - ADJ SOLO MODO VIVIDO

MENU SUB MENU OPTION BOOT ROM

STBY-SET 00 EMERGENCY ON CLK MODE 00 CLOCK 0D8 EDID CLK HIGH

MENU SUB MENU

SRV-TOOL ver pagina 6

Es necesario que confirme estos registros en el equipo, si no cambie a los especificado en estas tablas.

3.1 Modo de servicio.

Como entrar al modo de Fact test

1.- Presione el boton de volumen (-) y al mismo tiempo presione en el control remoto la tecla (info) tres veces dentro de tres segundos.

TC-L32C4X TC-L32C4Y

Vivido R-Gain G-Gain B-Gain R-Cent G-Cent B-Cent

Cool

60 71 80 7F 80 91

Normal

73 80 7A 7B 80 91

Warm

80 7A 58 7B 80 88

Serie C4

R-Y-A 00

VCOM 198

6

4 SRV-TOOL HERRAMIENTAS DE SERVICIO

4.1 Como accesar.

1.- Seleccione SRV-TOOL en service mode

2.- Presione OK en el control remoto

TD2Microcode : 08c00011

Flash ROM : 1-227E

PTCT: 00.00.00.00.00

SRV-TOOL

Time 000040:40 Count 0000049

4.2 Despliegue del Historial SOS.

Historial SOS

De Izquierda a derecha ; Ultimo SOS, Antes del ultimo, Tercer ocurrencia antes, 2a ocurrencia después de embarque, 1a ocurrencia después del embarque.

Esta indicación excepto la 2a y la 1a ocurrencia después del embarque se aclarara por indicación de self check y Forzado a condiciones de modo de fabrica.

4.3 Contador y Tiempo de Encendido.

Utilice el cursor del control remoto para desplazarse a la casilla de despliegue del Contador de tiempo de encendido y contador de veces en que el TV ha sido encendido y apagado.

Nota : Para desplegar el menú “contador y tiempo de encendido”, presione MUTE por 3 segundos. Time : Tiempo de encendido acumulado, indicando la hora : minuto en decimal. Count : Numero de veces que se ha encendido el TV en decimal.

Nota : estas indicaciones no son restablecidas por ningún Self Check o algún otro comando.

Salir del Menú

Desconecte el TV del toma corriente

Despliegue del contador y tiempo de encendido.

Despliegue de Historial SOS

Despliegue de código de marcado de

Despliegue versión de

7

Confirmar si el mensaje no sea NG

5.2 Parpadeo de LED Frontal.

Parpadeo de LED frontal funciona cuando una anormalidad en el Televisor esta ocurriendo, esta funcion opera como protección de los circuitos por lo que cambia el Televisor a modo stand by.

Para ubicar el bloque defectuoso puede verificar el numero de veces que parpadea el LED, ver tabla para referencia.

5.3 Cuando el Televisor no encienda.

Existen dos estados de no enciende,

1.- Parpadeo del LED por pocos segundos ver Tabla 2.

2.- No hay indicación del LED :

a) Confirme voltajes en la placa de poder [P] (ver Pagina 9).

b) Confirme los voltajes de la placa [A] (ver Pagina 9).

5 GUIA PARA SOLUCION DE PROBLEMAS.

5.1 Función Self check

a) Solo indicaciones de self check : Use esta función para confirmar la comunicación de las IIC como auto diagnostico.

Como accesar al modo de self check autodiagnostico. Presione en el Televisor la tecla de Volumen (-), y al mismo tiempo en el control remoto presione la tecla [OK] por mas de 3 segundos una imagen como la que se muestra abajo sera desplegada.

b) Indicacion de self check + reset : Use esta función para confirmar el estado de las memorias IIC y establecer los registros a modo de fabrica. Como accesar al modo de self check autodiagnostico y reset del TV. Presione en el Televisor la tecla de Volumen (-), y al mismo tiempo en el control remoto presione la tecla [menu] por mas de 3 segundos una imagen como la que se muestra abajo sera desplegada.

Tabla 2

Parpadeo de led

Descripción

Comentarios



$.A515



515VWPGTRQYGTUQWTEG



OCKPOKETQRTQEGUQTA515



57$8A5'05'A515



57$8A5'05'A515



5170&515



<9'+A515



+41/A515



$'5NFA515



'/'4)'0;A515

SELF CHECK SELF CHECK

TC-L32C4X TC-L32C4Y

PEAKS PEAKS OK OK TUNER TUN OK OK AVSW AVSW

OK

STBY STBY

OK

MEM1 MEM1

OK

MEM2 MEM2

OK

MEM3 DAC

OK

TCON-DC DC DC-DC

OK

TCON-DAC MEM3

OK

TC-L32C4X Y TC-L32C4Y

8

6 MODO DE HOTEL

El propósito es restringir funciones del TV para operación en los Hoteles

6.1 Como accesar al Menu Modo de Hotel

1.- Para accesar al modo de hotel es necesario realizar esta operación dentro de 2 segundos. Mantener presionada la tecla en el TV de volumen (-) y en el control remoto presione el boton (Input) por 3 veces al mismo tiempo.

Entonces, el menu de modo de Hotel sera desplegado.

Menú Operación

Modo Selecciona el modo de hotel off/on

Input Seleccione modos de señal de entrada, esta opción selecciona la entrada de AV cada vez que se enciende el TV. Selecciona : --- /RF/Component/HDMI1/HDMI2/Video1/Video2/PC Off: Le da prioridad al registro al ultimo registro de memoria.

Channel Selecciona el canal cuando la entrada de señal es RF. Selecciona el canal cada vez que el TV es encendido.

Volume Ajusta el volumen cada vez que se enciende el TV. Rango: 0 a 100

Vol. Máx Ajusta al volumen deseado Rango: 0 a 100

OSD Ctrl Restricciones de OSD Selection: OFF: No restricción PATTERN1: Restricción

FP Ctrl Selección de condición de teclas frontales. Selección: Off: Todas las teclas son validas. Pattern1: Solo la tecla de AV es Valida. All: ninguna tecla es valida.

Pow Ctrl Seleccione la condición de POWER-ON/OFF cuando el cable de AC es desconectado y después conectado. OFF: Misma condición cuando el cable de AC es desconectado. ON: Enciende cada vez que el cable de AC es conectado.

6.2 Descripcion de funciones de modo de Hotel

select

change

Hotel Mode

Mode

Input

Channel

Volume

Vol. Max

OSD Ctrl

FP Ctrl

Pow Ctrl

Off

-

+ 25 +100

Off Off Off

9

7 MEDICIONES Y AJUSTES

7.1 Carta de voltajes.

INSTRUMENTOS COMENTARIOS

Control remoto RF = SEÑAL EXT COLOR BAR

7.2 Ajuste de contraste ( Solo RF ).

PROCEDIMIENTO COMENTARIOS

Entre al modo de servicio y con las teclas 1, 2 del control remoto seleccione el canal donde tiene el patrón Color bar.

1.- Seleccione el modo de ajuste como se muestra Tiene que tener de fondo el ADJUST VIVID patrón Color Bar. CONTRAST Y MAX

Presione OK por mas de 3 segundos y observe que la operación se realice de forma Automática.

Patrón sprit color bar

PLACA DE PODER

PLACA DE PRINCIPAL A

㪪㪫㪙㪰㪍㪭

㪫㪧㪎㪌㪇㪍

㪌㪅㪏㩷㫧㩷㪈㩷㪭

㪩㪜㪚㪜㪧㪫㪠㪦㪥

㪌㪅㪏㩷㫧㩷㪈㩷㪭

㪪㪫㪘㪥㪛㩷㪙㪰

㪛㪫㪭㪈㪍㪭

㪫㪧㪎㪏㪇㪈㪃㪎㪌㪇㪌

㪈㪌㪅㪍㩷㫧㩷㪉㩷㪭

㪩㪜㪚㪜㪧㪫㪠㪦㪥

㪧㪝㪚㪊㪐㪇㪭

㪂㩷㪫㪧㪎㪉㪇㪈㪃㪎㪉㪇㪉

㪊㪐㪇㩷㫧㩷㪈㪌㩷㪭

㪩㪜㪚㪜㪧㪫㪠㪦㪥

㪁㩷㪟㪦㪫

㪄㩷㪫㪧㪎㪉㪇㪊㪃㪎㪉㪇㪋

㪄

㪩㪜㪚㪜㪧㪫㪠㪦㪥

㪁㩷㪟㪦㪫

VOLTAJE

㪧㪬㪥㪫㪦㩷㪛㪜㩷

㪧㪩㪬㪜㪙㪘㩷

㪜㪪㪧㪜㪚㪅

㪜㪪㪫㪘㪛㪦

㪱㪦㪥㪘

PLACA PRINCIPAL A TNP4G519** (A-Board)

SUB1.5V

TP8101

1.4-1.6 V

SUB5V

TP8702

4.95-5.25 V

STB5V

TP5400

4.9-5.1 V

SUB1.2V

TP8100

SUB3.3V

TP8701

VOLTAJE

PUNTO DE

PRUEBA

㪜㪪㪧㪜㪚㩷㪜㪥㩷㪭

SUB1.8V

TP8700

PLACA P TNP4G508* (P-Board)

10

8 ESPECIFICACIONES

TC-L32C4X

Alimentación

110-127 V CA, 60 Hz

om

usno

C

Consumo nominal de energía

88 W

Condición de espera

0,2 W

e

d

l

enaP

nóic

azilausiv

Relación de aspecto

16:9

Tamaño de pantalla visible

Clase 32” (31,5 pulgadas medidas diagonalmente)

(An. × Al. × Diagonal) 698 mm × 392 mm × 800 mm

(27,5 ” × 15,4 ” × 31,5 ”)

(Número de píxeles)

1.049.088 (1.366 (An.) × 768 (Al.)) [4.098 × 768 puntos]

odinoS

Altavoces

2 altavoces de 1 vía

Salida de audio

10 W [5 W + 5 W] (10 % de distorsión armónica total)

Señales PC

VGA, SVGA, XGA, WXGA, SXGA Frecuencia de escaneo horizontal 31 - 69 kHz Frecuencia de escaneo vertical 59 - 86 Hz

Capacidad de canales-

NTSC (Análogo)

VHF/ UHF: 2 - 69, CATV: 1 - 135

Condiciones de funcionamiento

Temperatura: 32 °F – 95 °F (0 °C – 35 °C) Humedad: 20 % – 80 % RH (sin condensación)

nó

ixe

n

o

c

e

d

se

lani

m

re

T

VIDEO IN

VIDEO: Tipo RCA PIN × 1 1,0 V [p-p] (75 Ω) AUDIO L-R: Tipo RCA PIN × 2 0,5 V [rms]

COMPONENT IN

Y: 1,0 V [p-p] (incluyendo sincronización) P

B, PR: ±0,35 V [p-p]

AUDIO L-R: Tipo RCA PIN × 2 0,5 V [rms]

HDMI 1-2

Conector tipo A × 2

•

Este televisor soporta la función “HDAVI Control 5”.

USB

USB 2.0 Conector tipo A × 1 (CC 5 V MÁX . 500 mA)

PC

D-SUB 15PIN: R,G,B / 0,7 V [p-p] (75 Ω) HD, VD / 1,0 - 5,0 V [p-p] (alta impedania)

Ranura de tarjeta

1 ranura de tarjeta SD

DIGITAL AUDIO OUT

PCM / Dolby Digital, Fibra óptica

CARACTERÍSTICAS

FILTRO Y/C 3D Subtítulos V-Chip VIERA IMAGE VIEWER Reproductor de Medios HDAVI Control 5

se

n

o

is

n

e

m

iD

)

.

for

P

×

.

IA ×

.n

A(

Incluyendo pedestal

763 mm × 510 mm × 196 mm (30,1 ” × 20,1 ” × 7,8 ”)

Televisor solamente

763 mm × 478 mm × 85 mm)

(30,1 ” × 13,7 ” × 3,4 ”

asa

M

Incluyendo pedestal

17,7 lb. (8,0

) NETO

Televisor solamente

16,6 lb. (7,5

) NETO

[TC-L32C4X TC-L32C4Y]

763 mm (30,1 ”)

)

” 3

,81 (

m m

564

)” 1,

02 (

m m

510

348 mm

(13,7 ”)

196 mm (7.8 “)

(3.4 ”)

85 mm

TC-L32C4Y

220 V CA, 50/60 Hz

87 W

ATSC/NTSC (Digital/Análogo)

VHF/ UHF: 2 - 69, CATV: 1 - 135

PCM / Fibra óptica

9.1 PEDESTAL Y TAPA POSTERIOR.

1.- Quite los tornillos para remover el pedestal y la tapa.

11

9.2 PLACA P DE PODER, PLACA A, METAL INFERIOR.

1.- Quite los tornillos para remover la placas y el metal.

XTV3+12JFJ12 (18)

Tornillo BC

9 INSTRUCCIONES DE ENSAMBLE Y DESENSAMBLE DEL TELEVISOR

9.3 AV BRACKET, CABLE DE AC.

PEDESTAL

XYN 4+F 12 FJK ( 4 )

TORNILLO

TKK4G8611 Puerta

(PLACA "P")

TXN/P1NWUX

TZRNP01NWUX TC-L32C4X

TZRNP01MGUL TC-L32C4Y

(PLACA "A")

Tornillo

THEJ036J (12)

Inserte el cable de AC en el amarre.

K2CB2YY00035 K2CQ2YY00085

TC-L32C4X

TC-L32C4Y

CABLE DE AC

9.4 PANEL LCD

PUNTO DE CUIDADO

El panel debe colocarse

cuidadosamente, sin

dejarlo caer. Asegurar

primero la parte inferior y

posteriormente la parte

superior.

1

2

XTV3+12JFJ x 2 Tornillo

Asegurar la conexión completa de los conectores del panel

No jalar del cable

PUNTO DE CUIDADO

TKZ4GX5105 Metal inferior

PUNTO DE CUIDADO

Confirmar que los seguros

(ganchos), esten bien insertados en la pista.

VVX32H121G00 PANEL LCD

9 INSTRUCCIONES DE ENSAMBLE Y DESENSAMBLE DEL TELEVISOR.

12

9.5 PLACA KA

1.- Quite el tornillo.

9.6 CABLE LVDS

1.- Quite el tornillo.

PUNTO DE CUIDADO

Insertar primero el punto 1 dentro del panel y

posteriormente fijar el punto 2.

Punto 2

Insertar arnés

Punto 1

Punto 2

Punto 1

Punto 2

12

14

(PLACA "KA")

XTV3+12JFJ x 1 Tornillo

TKK3AC5002 led Panel

CONECTOR DEL PANEL LCD

PUNTO DE CUIDADO: Conexión del cable LVDS.

CONECTOR DE LA PISTA "A"

Cuidar los puntos

de inserción.

Deslizar el arnés

dentro del conector.

Presionar

uniformemente.

TMK4GA020 FELTS

TSCKE0060001 CABLE LVDS

PUNTO DE CUIDADO

Asegurar el doblez en el Cable LVDS .

9.7 BOCINAS Y METAL VESA

Fijar las gomas.

Insertar completamente.

Bocina Derecha

Bocina Izquierda

PUNTO DE CUIDADO

Cuidar que las terminales estén

orientadas al centro del TV .

TMM4GJ007 Rubber bush

L0AA10B00003 Bocina x 2

Insertar en la

primer ranura.

Insertar en la

segunda ranura.

Colocar el tornillo.

Atornillar y asegurar.

TKZ4GX5056-A

VESA METAL

VESA METAL x 2

THEJ036J x 2

Tornillo

9.8 BOTONERA Y PLACA GK.

PUNTO DE CUIDADO

Asegurar la colocación correcta del PCB

"GK" en el braket previo a ser atornillado

TZRNP04NWUX

(Pista"GK")

v

XTV3+12JFJ Tornillo

TXJA02QMUU cabel A02-GK01

TKP3AA00101 Side AV bracket

9 DIAGRAMA DE CONEXIONES MODELO TC-L32C4X TC-L32C4Y.

9.9 DIAGRAMA DE CONEXIONES.

1.- Por favor confirmar que todos los cables estén conectados adecuadamente Inclusive verifique que no estén de lado o inclinados.

13

Punto guía: X = Al borde del panel. Y = Medio de la forma.

Punto guía:

Perforación central del Panel

A10

A02

A12

A09

P2

KA10

GK01

1

2

3

BOCINA DERECHA

BOCINA IZQUIERDA

A

B

C

X

Y

X

Y

►

Amarres

Arnés

A12+A10 - KA10

Interlón

123

P2 - A09

A12 - Bocina Izq.

TMK4GA041 INTERLÓN (0.55*15*35) TXJA09QMUU CABLE A09-P2

TXJA10QMUU

CABLE A10-KA10 (BOCINAS)

C

No.

Número de Parte

Descripción

Cant.

A

3

1

B

1

14

10 Lista de Partes de Reemplazo

10.1 Notas de Reemplazo de Lista de Partes

Aviso Importante de Seguridad

Los componentes identificados por una marca S: material de seguridad, tendrán características especiales importantes para seguridad. Cuando reemplace alguno de estos componentes, use las partes especificadas por el fabricante.

1. Resistor Ejemplo: ERD25J104T C 100k , J, 1/4W Tipo Tolerancia

2. Capacitor Ejemplo: ECKF1H103ZF C 0.01MF, Z, 50V Tipo Tolerancia

Ω

10.2 Lista de partes de reemplazo

PLACA PRINCIPAL A

APLICA A MODELO TC-L32C4X [TZRNP01NWUX], TC-L32C4Y [TZRNP01MGUL].

Nota: sea cuidadoso en la selección de las partes las diferencias están descritas en color rojo, todas las demás son iguales para ambos modelos.

CAPACITORES

Posición Cantidad Clave Descripción S Comentarios C4131 1 F 1G1C104A077 C 0.10µF, K, 16V

C3105 1 EEEHB0J101UR C 100µF, M, 6.3V C4132 1 F1G1C104A077 C 0.10µF, K, 16V

C5613 1 EEEHB0J221UP C 220µF, M, 6.3V C4133 1 F1G1C104A077 C 0.10µF, K, 16V

C3058 1 F1G1A105A047 Chip 1 µF, J, 10V C4151 1 F1G1C104A077 C 0.10µF, K, 16V

C3059 1 F1G1A105A047 Chip 1 µF, J, 10V C4809 1 F1G1C104A077 C 0.10µF, K, 16V Solo TC-L32C4X

C3159 1 F1G1A105A047 Chip 1 µF, J, 10V C4810 1 F1G1C104A077 C 0.10µF, K, 16V Solo TC-L32C4X

C3160 1 F1G1A105A047 Chip 1 µF, J, 10V C4811 1 F1G1C104A077 C 0.10µF, K, 16V

C3161 1 F1G1A105A047 Chip 1 µF, J, 10V C5020 1 F1G1C104A077 C 0.10µF, K, 16V

C4170 1 F1G1A105A047 Chip 1 µF, J, 10V C5616 1 F1G1C104A077 C 0.10µF, K, 16V

C4180 1 F1G1A105A047 Chip 1 µF, J, 10V C5625 1 F1G1C104A077 C 0.10µF, K, 16V

C4546 1 F1G1A105A047 Chip 1 µF, J, 10V C8004 1 F1G1C104A077 C 0.10µF, K, 16V

C4548 1 F1G1A105A047 Chip 1 µF, J, 10V C8005 1 F1G1C104A077 C 0.10µF, K, 16V

C4812 1 F1G1A105A047 Chip 1 µF, J, 10V C8006 1 F1G1C104A077 C 0.10µF, K, 16V

C4813 1 F1G1A105A047 Chip 1 µF, J, 10V C8011 1 F1G1C104A077 C 0.10µF, K, 16V

C5021 1 F1G1A105A047 Chip 1 µF, J, 10V C8016 1 F1G1C104A077 C 0.10µF, K, 16V

C5022 1 F1G1A105A047 Chip 1 µF, J, 10V C8023 1 F1G1C104A077 C 0.10µF, K, 16V

C8014 1 F1G1A105A047 Chip 1 µF, J, 10V C8028 1 F1G1C104A077 C 0.10µF, K, 16V

C8015 1 F1G1A105A047 Chip 1 µF, J, 10V C8029 1 F1G1C104A077 C 0.10µF, K, 16V

C8305 1 F1G1A105A047 Chip 1 µF, J, 10V C8031 1 F1G1C104A077 C 0.10µF, K, 16V

C8306 1 F1G1A105A047 Chip 1 µF, J, 10V C8034 1 F1G1C104A077 C 0.10µF, K, 16V

C8307 1 F1G1A105A047 Chip 1 µF, J, 10V C8035 1 F1G1C104A077 C 0.10µF, K, 16V

C8308 1 F1G1A105A047 Chip 1 µF, J, 10V C8041 1 F1G1C104A077 C 0.10µF, K, 16V

C8309 1 F1G1A105A047 Chip 1 µF, J, 10V C8044 1 F1G1C104A077 C 0.10µF, K, 16V

C8310 1 F1G1A105A047 Chip 1 µF, J, 10V C8046 1 F1G1C104A077 C 0.10µF, K, 16V

C8311 1 F1G1A105A047 Chip 1 µF, J, 10V C8047 1 F1G1C104A077 C 0.10µF, K, 16V

C2009 1 F1G1C104A077 C 0.10µF, K, 16V C8050 1 F1G1C104A077 C 0.10µF, K, 16V

C2750 1 F1G1C104A077 C 0.10µF, K, 16V C8051 1 F1G1C104A077 C 0.10µF, K, 16V

C3024 1 F1G1C104A077 C 0.10µF, K, 16V C8053 1 F1G1C104A077 C 0.10µF, K, 16V

C3036 1 F1G1C104A077 C 0.10µF, K, 16V C8054 1 F1G1C104A077 C 0.10µF, K, 16V

C3045 1 F1G1C104A077 C 0.10µF, K, 16V C8108 1 F1G1C104A077 C 0.10µF, K, 16V

C3080 1 F1G1C104A077 C 0.10µF, K, 16V C8110 1 F1G1C104A077 C 0.10µF, K, 16V

C3146 1 F1G1C104A077 C 0.10µF, K, 16V C8200 1 F1G1C104A077 C 0.10µF, K, 16V

C3158 1 F1G1C104A077 C 0.10µF, K, 16V C8203 1 F1G1C104A077 C 0.10µF, K, 16V

C4122 1 F1G1C104A077 C 0.10µF, K, 16V C8204 1 F1G1C104A077 C 0.10µF, K, 16V

C4123 1 F1G1C104A077 C 0.10µF, K, 16V C8205 1 F1G1C104A077 C 0.10µF, K, 16V

C4124 1 F1G1C104A077 C 0.10µF, K, 16V C8206 1 F1G1C104A077 C 0.10µF, K, 16V

C4125 1 F1G1C104A077 C 0.10µF, K, 16V C8208 1 F1G1C104A077 C 0.10µF, K, 16V

C4126 1 F1G1C104A077 C 0.10µF, K, 16V C8210 1 F1G1C104A077 C 0.10µF, K, 16V

C4127 1 F1G1C104A077 C 0.10µF, K, 16V C8212 1 F1G1C104A077 C 0.10µF, K, 16V

C4129 1 F1G1C104A077 C 0.10µF, K, 16V C8215 1 F1G1C104A077 C 0.10µF, K, 16V

C4130 1 F1G1C104A077 C 0.10µF, K, 16V C8218 1 F1G1C104A077 C 0.10µF, K, 16V

Posición Cantitdad Clave Descripción S Comentarios

15

10.2 Lista de partes de reemplazo

PLACA PRINCIPAL A

APLICA A MODELO TC-L32C4X [TZRNP01NWUX], TC-L32C4Y [TZRNP01MGUL].

Nota: sea cuidadoso en la selección de las partes las diferencias están descritas en color rojo, todas las demás son iguales para ambos modelos.

C8220 1 F1G1C104A077 C 0.10µF, K, 16V C2752 1 F1G1H1020008 C 1000pF, K, 50V

C8221 1 F1G1C104A077 C 0.10µF, K, 16V C2753 1 F1G1H1020008 C 1000pF, K, 50V

C8224 1 F1G1C104A077 C 0.10µF, K, 16V C2754 1 F1G1H1020008 C 1000pF, K, 50V

C8225 1 F1G1C104A077 C 0.10µF, K, 16V C2755 1 F1G1H1020008 C 1000pF, K, 50V

C8302 1 F1G1C104A077 C 0.10µF, K, 16V C4801 1 F1G1H1020008 C 1000pF, K, 50V

C8303 1 F1G1C104A077 C 0.10µF, K, 16V C4803 1 F1G1H1020008 C 1000pF, K, 50V

C8304 1 F1G1C104A077 C 0.10µF, K, 16V C4805 1 F1G1H1020008 C 1000pF, K, 50V

C8619 1 F1G1C104A077 C 0.10µF, K, 16V C4934 1 F1G1H1020008 C 1000pF, K, 50V

C8620 1 F1G1C104A077 C 0.10µF, K, 16V C4935 1 F1G1H1020008 C 1000pF, K, 50V

C8627 1 F1G1C104A077 C 0.10µF, K, 16V C4936 1 F1G1H1020008 C 1000pF, K, 50V

C8716 1 F1G1C104A077 C 0.10µF, K, 16V C4937 1 F1G1H1020008 C 1000pF, K, 50V

C8717 1 F1G1C104A077 C 0.10µF, K, 16V C8008 1 F1G1H1020008 C 1000pF, K, 50V

C8900 1 F1G1C104A077 C 0.10µF, K, 16V C8013 1 F1G1H1020008 C 1000pF, K, 50V

C8901 1 F1G1C104A077 C 0.10µF, K, 16V C8038 1 F1G1H1020008 C 1000pF, K, 50V

C8902 1 F1G1C104A077 C 0.10µF, K, 16V C8055 1 F1G1H1020008 C 1000pF, K, 50V

C8903 1 F1G1C104A077 C 0.10µF, K, 16V C8705 1 F1G1H1020008 C 1000pF, K, 50V

C8106 1 F1G1C223A081 Surface ceramic capa C4800 1 F1G1H220A565 C 22pF, K, 50V Solo TC-L32C4X

C8700 1 F1G1C223A081 Surface ceramic capa C4174 1 F1G1H560A565 C 56pF, K, 50V

C8711 1 F1G1C223A081 Surface ceramic capa C3167 1 F1G1H5610004 C 560pF, K, 50V

C8769 1 F1G1C223A081 Surface ceramic capa C3168 1 F1G1H5610004 C 560pF, K, 50V

C1000 1 F1G1E1030005 C 0.01 µF K, 25V C8300 1 F1G1H6R0A732 C 6pF, C, 50V

C2001 1 F1G1E1030005 C 0.01 µF K, 25V C8301 1 F1G1H6R0A732 C 6pF, C, 50V

C4005 1 F1G1E1030005 C 0.01 µF K, 25V C3169 1 F1H1A105A025 C 1µF, K, 6.3V

C5151 1 F1G1E1030005 C 0.01 µF K, 25V C3170 1 F1H1A105A025 C 1µF, K, 6.3V

C5171 1 F1G1E1030005 C 0.01 µF K, 25V C5000 1 F1H1A105A025 C 1µF, K, 6.3V

C8707 1 F1G1E1030005 C 0.01 µF K, 25V C5002 1 F1H1A105A025 C 1µF, K, 6.3V

C8712 1 F1G1E272A123 C 2700pF, K, 25V C5004 1 F1H1A105A025 C 1µF, K, 6.3V

C4173 1 F1G1E472A086 C 4700pF K, 25V C5012 1 F1H1A105A025 C 1µF, K, 6.3V

C4179 1 F1G1E472A086 C 4700pF K, 25V C5026 1 F1H1A105A025 C 1µF, K, 6.3V

C8100 1 F1G1E682A123 C 6800pF K, 25V C5476 1 F1H1A105A025 C 1µF, K, 6.3V

C4815 1 F1G1H100A565 C 10pF K, 50V C5477 1 F1H1A105A025 C 1µF, K, 6.3V

C4816 1 F1G1H100A565 C 10pF K, 50V C8764 1 F1H1A105A025 C 1µF, K, 6.3V

C4817 1 F1G1H100A565 C 10pF K, 50V C8765 1 F1H1A105A025 C 1µF, K, 6.3V

C1955 1 F1G1H101A565 C 100pF K, 50V C4134 1 F1H1C105A149 C 1µF, K, 6.3V

C2775 1 F1G1H101A565 C 100pF K, 50V C8104 1 F1H1C105A149 C 1µF, K, 6.3V

C4814 1 F1G1H101A565 C 100pF K, 50V C4120 1 F1H1H104A970 C 0.1µF, K, 50V

C8027 1 F1G1H101A565 C 100pF K, 50V C4121 1 F1H1H104A970 C 0.1µF, K, 50V

C8030 1 F1G1H101A565 C 100pF K, 50V C4153 1 F1H1H104A970 C 0.1µF, K, 50V

C8045 1 F1G1H101A565 C 100pF K, 50V C4154 1 F1H1H104A970 C 0.1µF, K, 50V

C1951 1 F1G1H1020008 C 1000pF, K, 50V C4158 1 F1H1H104A970 C 0.1µF, K, 50V

C2003 1 F1G1H1020008 C 1000pF, K, 50V C4160 1 F1H1H104A970 C 0.1µF, K, 50V

C2751 1 F1G1H1020008 C 1000pF, K, 50V C4162 1 F1H1H104A970 C 0.1µF, K, 50V

16

10.2 Lista de partes de reemplazo

PLACA PRINCIPAL A

APLICA A MODELO TC-L32C4X [TZRNP01NWUX], TC-L32C4Y [TZRNP01MGUL].

Nota: sea cuidadoso en la selección de las partes las diferencias están descritas en color rojo, todas las demás son iguales para ambos modelos.

C4169 1 F1H1H104A970 C 0.1µF, K, 50V C4006 1 F1J1A106A087 C 10µF, K, 6.3V

C4911 1 F1H1H104A970 C 0.1µF, K, 50V C4128 1 F1J1A106A087 C 10µF, K, 6.3V

C4913 1 F1H1H104A970 C 0.1µF, K, 50V C4970 1 F1J1A106A087 C 10µF, K, 6.3V

C4915 1 F1H1H104A970 C 0.1µF, K, 50V C4971 1 F1J1A106A087 C 10µF, K, 6.3V

C4917 1 F1H1H104A970 C 0.1µF, K, 50V C5624 1 F1J1A106A087 C 10µF, K, 6.3V

C4926 1 F1H1H223A219 C 0.022µF, K, 50V C8001 1 F1J1A106A087 C 10µF, K, 6.3V

C4927 1 F1H1H223A219 C 0.022µF, K, 50V C8009 1 F1J1A106A087 C 10µF, K, 6.3V

C4928 1 F1H1H223A219 C 0.022µF, K, 50V C8019 1 F1J1A106A087 C 10µF, K, 6.3V

C4929 1 F1H1H223A219 C 0.022µF, K, 50V C8024 1 F1J1A106A087 C 10µF, K, 6.3V

C4930 1 F1H1H223A219 C 0.022µF, K, 50V C8025 1 F1J1A106A087 C 10µF, K, 6.3V

C4931 1 F1H1H223A219 C 0.022µF, K, 50V C8037 1 F1J1A106A087 C 10µF, K, 6.3V

C4932 1 F1H1H223A219 C 0.022µF, K, 50V C8039 1 F1J1A106A087 C 10µF, K, 6.3V

C4933 1 F1H1H223A219 C 0.022µF, K, 50V C8042 1 F1J1A106A087 C 10µF, K, 6.3V

C4155 1 F1H1H473A918 C 0.047µF, K, 50V C8207 1 F1J1A106A087 C 10µF, K, 6.3V

C4156 1 F1H1H473A918 C 0.047µF, K, 50V C8216 1 F1J1A106A087 C 10µF, K, 6.3V

C4157 1 F1H1H473A918 C 0.047µF, K, 50V C8628 1 F1J1A106A087 C 10µF, K, 6.3V

C4159 1 F1H1H473A918 C 0.047µF, K, 50V C8703 1 F1J1A106A087 C 10µF, K, 6.3V

C8026 1 F1J0G2260001 C 22µF, K, 4V C8715 1 F1J1A106A087 C 10µF, K, 6.3V

C8120 1 F1J0G2260001 C 22µF, K, 4V C8773 1 F1J1A106A087 C 10µF, K, 6.3V

C8122 1 F1J0G2260001 C 22µF, K, 4V C8102 1 F1J1A475A087 C 4.7µF, K, 10V

C8124 1 F1J0G2260001 C 22µF, K, 4V C8714 1 F1J1A475A087 C 4.7µF, K, 10V

C8126 1 F1J0G2260001 C 22µF, K, 4V C4175 1 F1J1C475A170 C 4.7µF, K, 10V

C8128 1 F1J0G2260001 C 22µF, K, 4V C4176 1 F1J1C475A170 C 4.7µF, K, 10V

C1953 1 F1J0J106A004 C 10µF, K, 6.3V C4177 1 F1J1C475A170 C 4.7µF, K, 10V

C1954 1 F1J0J106A004 C 10µF, K, 6.3V C4178 1 F1J1C475A170 C 4.7µF, K, 10V

C3008 1 F1J1A106A043 C 10µF, K, 6.3V C4001 1 F1J1C475A217 C 4.7µF, K, 10V

C3057 1 F1J1A106A043 C 10µF, K, 6.3V C4152 1 F1J1E105A231 C 1µF, K, 25V

C3077 1 F1J1A106A043 C 10µF, K, 6.3V C4161 1 F1J1E105A231 C 1µF, K, 25V

C4802 1 F1J1A106A043 C 10µF, K, 6.3V C4909 1 F1J1E105A231 C 1µF, K, 25V

C4804 1 F1J1A106A043 C 10µF, K, 6.3V C4912 1 F1J1E105A231 C 1µF, K, 25V

C4806 1 F1J1A106A043 C 10µF, K, 6.3V C4914 1 F1J1E105A231 C 1µF, K, 25V

C8702 1 F1J1A106A043 C 10µF, K, 6.3V C4918 1 F1J1E105A231 C 1µF, K, 25V

C8708 1 F1J1A106A043 C 10µF, K, 6.3V C5006 1 F1J1E105A231 C 1µF, K, 25V

C8709 1 F1J1A106A043 C 10µF, K, 6.3V C4921 1 F1J1E4740001 C 4.7µF, K, 25V

C8710 1 F1J1A106A043 C 10µF, K, 6.3V C4922 1 F1J1E4740001 C 4.7µF, K, 25V

C3093 1 F1J1A106A087 C 10µF, K, 6.3V C4924 1 F1J1E4740001 C 4.7µF, K, 25V

C3095 1 F1J1A106A087 C 10µF, K, 6.3V C4925 1 F1J1E4740001 C 4.7µF, K, 25V

C3097 1 F1J1A106A087 C 10µF, K, 6.3V C4150 1 F1J1E475A267 C 4.7µF, K, 25V

C3171 1 F1J1A106A087 C 10µF, K, 6.3V C4181 1 F1J1E475A267 C 4.7µF, K, 25V

C3172 1 F1J1A106A087 C 10µF, K, 6.3V C4182 1 F1J1E475A267 C 4.7µF, K, 25V

C3173 1 F1J1A106A087 C 10µF, K, 6.3V C4187 1 F1K0J1060017 C 10µF, K, 6.3V

C4002 1 F1J1A106A087 C 10µF, K, 6.3V C4188 1 F1K0J1060017 C 10µF, K, 6.3V

17

10.2 Lista de partes de reemplazo

PLACA PRINCIPAL A

APLICA A MODELO TC-L32C4X [TZRNP01NWUX], TC-L32C4Y [TZRNP01MGUL].

Nota: sea cuidadoso en la selección de las partes las diferencias están descritas en color rojo, todas las demás son iguales para ambos modelos.

C2008 1 F1K1E106A136 C 10µF, M, 16V D4160 1 B0JCDE000006 Schottky barrier diodes

C2010 1 F1K1E106A136 C 10µF, M, 16V D4161 1 B0JCDE000006 Schottky barrier diodes

C4163 1 F1K1E106A136 C 10µF, M, 16V D4162 1 B0JCDE000006 Schottky barrier diodes

C4164 1 F1K1E106A136 C 10µF, M, 16V D4172 1 B0JCPE000004 Schottky barri er diodes

C4907 1 F1K1E106A136 C 10µF, M, 16V D8700 1 B0JCPG000032 Schottky barrier diodes

C4910 1 F1K1E106A136 C 10µF, M, 16V D4151 1 B0JDCE000017 Schottky barrier diodes

C4916 1 F1K1E106A136 C 10µF, M, 16V D1952 1 DA2J10100L Switching diodes

C4976 1 F1K1E106A136 C 10µF, M, 16V D1953 1 DA2J10100L Switching diodes

C4977 1 F1K1E106A136 C 10µF, M, 16V D1954 1 DA2J10100L Switching diodes

C8112 1 F1K1E106A136 C 10µF, M, 16V D4001 1 DA2J10100L Switching diodes

C8114 1 F1K1E106A136 C 10µF, M, 16V D4156 1 DA2J10100L Switching diodes

C8116 1 F1K1E106A136 C 10µF, M, 16V D4157 1 DA2J10100L Switching diodes

C8118 1 F1K1E106A136 C 10µF, M, 16V D4166 1 DA2J10100L Switching diodes

C8721 1 F1K1E106A136 C 10µF, M, 16V D4167 1 DA2J10100L Switching diodes

C8722 1 F1K1E106A136 C 10µF, M, 16V D4168 1 DA2J10100L Switching diodes

C8723 1 F1K1E106A136 C 10µF, M, 16V D4171 1 DA2J10100L Switching diodes

C8724 1 F1K1E106A136 C 10µF, M, 16V D4175 1 DA2J10100L Switching diodes

C4165 1 F1K1E225A085 C 2.2µF, K, 25V D5173 1 DA2J10100L Switching diodes

C4166 1 F1K1E225A085 C 2.2µF, K, 25V D5175 1 DA2J10100L Switching diodes

C4167 1 F1K1E225A085 C 2.2µF, K, 25V D8716 1 DA2J10100L Switching diodes

C4168 1 F1K1E225A085 C 2.2µF, K, 25V D5180 1 DZ2J033M0L Voltage regulation diodes

C5001 1 F2H0J1010009 C 100µF, M, 6.3V D4170 1 DZ2J047M0L Voltage regulation diodes

DIODOS

Posición Cantidad Clave Descripción S Comentarios D4155 1 D Z2J330M0L Voltage regulation diodes

D4165 1 B0BC01000035 Voltage regulation diodes D2001 1 EZJZ0V120JA Varistors

D5174 1 B0BC010A0007 Voltage regulation diodes D2005 1 EZJZ0V120JA Varistors

D5172 1 B0BC01700015 Voltage regulation diodes D5004 1 EZJZ0V120JA Varistors

D4173 1 B0BC01700030 Voltage regulation diodes D3050 1 K7AAAY000011 Optical links

D4174 1 B0BC022A0007 Voltage regulation diodes

D4000 1 B0BC4R700020 Voltage regulation diodes Posición Cantidad Clave Descripción S Comentarios

D4169 1 B0BC4R700020 Voltage regulation diodes IC5000 1 AN34043A-VF ICs for video / audio

D4721 1 B0JCCD000020 Schottky barrier diodes IC8702 1 C0DBAFG00029 ICs f or power supply

D1000 1 B0JCCE000008 Schottky barrier diodes IC8100 1 C0DBAYY00715 ICs for power supply

D1951 1 B0JCCE000008 Schottky barrier diodes IC4150 1 C0DBAYY00868 ICs for power supply

D1955 1 B0JCCE000008 Schottky barrier diodes IC8701 1 C0DBAYY00915 ICs for power supply

D4773 1 B0JCCE000008 Schottky barrier diodes IC8700 1 C0DBAYY00931 ICs for power supply

D5480 1 B0JCCE000008 Schottky barrier diodes IC5416 1 C0DBGYY00281 ICs for power supply

D4150 1 B0JCDE000006 Schottky barrier diodes IC8706 1 C0DBGYY00887 ICs for power supply

D4152 1 B0JCDE000006 Schottky barrier diodes IC5602 1 C0DBZYY00368 ICs for power supply

D4153 1 B0JCDE000006 Schottky barrier diodes IC1951 1 C0EBF0000354 Voltage detecting ICs (Reset ICs)

D4154 1 B0JCDE000006 Schottky barrier diodes IC4120 1 C0FBBY000086 A/D converters, D/A converters

D4159 1 B0JCDE000006 Schottky barrier diodes IC3001 1 C1AB00003385 ICs for video / audio

D4163 1 DZ2J200M0L Voltage regulation diodes

CIRCUITOS INTEGRADOS

18

10.2 Lista de partes de reemplazo

PLACA PRINCIPAL A

APLICA A MODELO TC-L32C4X [TZRNP01NWUX], TC-L32C4Y [TZRNP01MGUL].

Nota: sea cuidadoso en la selección de las partes las diferencias están descritas en color rojo, todas las demás son iguales para ambos modelos.

IC4900 1 C1AB00003705 ICs for video / audio L5601 1 J0JHC0000045 Filter for EMI / EMC

IC8200 1 C3ABTY000043 DRAM L8005 1 J0JHC0000045 Filter for EMI / EMC

IC8201 1 C3ABTY000043 DRAM L8006 1 J0JHC0000045 Filter for EMI / EMC

IC8000 1 MN2WS0175D ICs for video / audio L8007 1 J0JHC0000045 Filter for EMI / EMC

IC8900 1 TVR4G232-AB FLASH memories L4000 1 J0JHC0000046 Filter for EMI / EMC

IC8901 1 TVR4GAS1029 STBY EEPROM L4150 1 J0JHC0000046 Filter for EMI / EMC

IC8902 1 TVR4GAS1033 PEAKS EEPROM Solo TC- L32C4X L4152 1 J0JHC0000077 Filter for EMI / EMC

IC8902 1 TVR4GAS1034 PEAKS EEPROM Solo TC- L32C4Y L2310 1 J0JHC0000078 Filter for EMI / EMC

BOBINAS

Posición Cantidad Clave Descripción S Comentarios L2312 1 J0JHC0000078 Filter for EMI / EMC

L5603 1 EXC24CE900U Filter for EMI / EMC L2313 1 J0JHC0000078 Filter for EMI / EMC

L5605 1 EXC24CE900U Filter for EMI / EMC L8009 1 J0JKC0000021 Filter for EMI / EMC

FL4000 1 EXC28CE201U Filter for EMI / EMC L4700 1 J0JYC0000068 Filter for EMI / EMC

FL4001 1 EXC28CE201U Filter for EMI / EMC L4701 1 J0JYC0000068 Filter for EMI / EMC

FL4002 1 EXC28CE201U Filter for EMI / EMC L4703 1 J0JYC0000068 Filter for EMI / EMC

FL4003 1 EXC28CE201U Filter for EMI / EMC L4704 1 J0JYC0000068 Filter for EMI / EMC

FL4701 1 EXC28CE201U Filter for EMI / EMC L8702 1 J0JYC0000068 Filter for EMI / EMC

FL4702 1 EXC28CE201U Filter for EMI / EMC L2001 1 J0JYC0000328 Filter for EMI / EMC

FL4703 1 EXC28CE201U Filter for EMI / EMC L2750 1 J0JYC0000328 Filter for EMI / EMC

FL4704 1 EXC28CE201U Filter for EMI / EMC L2751 1 J0JYC0000328 Filter for EMI / EMC

L3006 1 G1C100MA0072 Surface mounting inductors L2754 1 J0JYC0000328 Filter for EMI / EMC

L4151 1 G1C100MA0426 Surface mounting inductors

L4900 1 G1C150MA0426 Surface mounting inductors Posición Cantidad Clave Descripción S Comentarios

L4901 1 G1C150MA0426 Surface mounting inductors Q4153 1 B1ABCE000015 Silicon transistors

L4902 1 G1C150MA0426 Surface mounting inductors Q4700 1 B1ABCE000015 Silicon transistors

L4903 1 G1C150MA0426 Surface mounting inductors Q4702 1 B1ABCE000015 Silicon transistors

L4153 1 G1C220MA0234 Surface mounting inductors Q0900 1 B1ADCF000194 Silicon transistors

L8102 1 G1C3R3MA0425 Surface mounting inductors Q1951 1 B1ADCF000194 Silicon transistors

L8100 1 G1C4R7MA0416 Surface mounting inductors Q4513 1 B1ADCF000194 Silicon transistors

L8701 1 G1C4R7MA0416 Surface mounting inductors Q2002 1 B1ADGJ000008 Silicon transistors

L8700 1 G1C6R8MA0426 Surface mounting inductors Q4154 1 B1CFQD000001 Small signal field effect transistors (a

L4803 1 G1CR39J00009 Surface mounting inductors Solo TC-L32C4X Q4514 1 B1HFCEA00001 Transistor arrays (Bipolar)

L4804 1 G1CR39J00009 Surface mounting inductors Solo TC-L32C4X Q8100 1 B1MBEDA00027 Transistor arrays (Field effect transist

L4805 1 J0JCC0000278 Filter for EMI / EMC Q8102 1 B1MBEDA00027 Transistor arrays (Field effect transist

L3122 1 J0JCC0000287 Filter for EMI / EMC JS0010 1 D0GAR00J0005 Surface mounting fixed resistors , recta

L3123 1 J0JCC0000287 Filter for EMI / EMC Q4151 1 DSA500100L Sili con transistors

L8003 1 J0JCC0000287 Filter for EMI / EMC Q4152 1 DSA500100L Sili con transistors

L8015 1 J0JCC0000287 Filter for EMI / EMC Q2001 1 DSC2001S0L Silicon transistors

L8016 1 J0JCC0000287 Filter for EMI / EMC Q4150 1 DSC500100L Silicon transistors

L4800 1 J0JGC0000020 Filter for EMI / EMC

L4801 1 J0JGC0000020 Filter for EMI / EMC Posición Cantidad Clave Descripción S Comentarios

L4802 1 J0JGC0000020 Filter for EMI / EMC R4125 1 D0GA100JA023 CHIP 10 OHM, 1/16W

L2311 1 J0JHC0000078 Filter for EMI / EMC

TRANSISTORES

RESISTENCIAS

19

10.2 Lista de partes de reemplazo

PLACA PRINCIPAL A

APLICA A MODELO TC-L32C4X [TZRNP01NWUX], TC-L32C4Y [TZRNP01MGUL].

Nota: sea cuidadoso en la selección de las partes las diferencias están descritas en color rojo, todas las demás son iguales para ambos modelos.

R4126 1 D0GA100JA023 CHIP 10 OHM, 1/16W R4721 1 D0GA103JA015 CHIP 10K OHM, 1/16W

R4127 1 D0GA100JA023 CHIP 10 OHM, 1/16W R4722 1 D0GA103JA015 CHIP 10K OHM, 1/16W

R4128 1 D0GA100JA023 CHIP 10 OHM, 1/16W R4807 1 D0GA103JA015 CHIP 10K OHM, 1/16W

R4910 1 D0GA100JA023 CHIP 10 OHM, 1/16W R4913 1 D0GA103JA015 CHIP 10K OHM, 1/16W

R4911 1 D0GA100JA023 CHIP 10 OHM, 1/16W R4921 1 D0GA103JA015 CHIP 10K OHM, 1/16W

R4912 1 D0GA100JA023 CHIP 10 OHM, 1/16W R5003 1 D0GA103JA015 CHIP 10K OHM, 1/16W

R0944 1 D0GA101JA015 CHIP 100 OHM, 1/16W R5030 1 D0GA103JA015 CHIP 10K OHM, 1/16W

R1961 1 D0GA101JA015 CHIP 100 OHM, 1/16W R5031 1 D0GA103JA015 CHIP 10K OHM, 1/16W

R1963 1 D0GA101JA015 CHIP 100 OHM, 1/16W R5104 1 D0GA103JA015 CHIP 10K OHM, 1/16W

R2006 1 D0GA102JA015 CHIP 1000 OHM, 1/16W R5181 1 D0GA103JA015 CHIP 10K OHM, 1/16W

R2009 1 D0GA102JA015 CHIP 1000 OHM, 1/16W R5606 1 D0GA103JA015 CHIP 10K OHM, 1/16W

R0945 1 D0GA102JA023 CHIP 1000 OHM, 1/16W R5607 1 D0GA103JA015 CHIP 10K OHM, 1/16W

R0952 1 D0GA102JA023 CHIP 1000 OHM, 1/16W R5608 1 D0GA103JA015 CHIP 10K OHM, 1/16W

R1005 1 D0GA102JA023 CHIP 1000 OHM, 1/16W R5609 1 D0GA103JA015 CHIP 10K OHM, 1/16W

R1007 1 D0GA102JA023 CHIP 1000 OHM, 1/16W R8221 1 D0GA103JA015 CHIP 10K OHM, 1/16W

R1008 1 D0GA102JA023 CHIP 1000 OHM, 1/16W R8637 1 D0GA103JA015 CHIP 10K OHM, 1/16W

R4002 1 D0GA102JA023 CHIP 1000 OHM, 1/16W R8638 1 D0GA103JA015 CHIP 10K OHM, 1/16W

R4182 1 D0GA102JA023 CHIP 1000 OHM, 1/16W R8639 1 D0GA103JA015 CHIP 10K OHM, 1/16W

R4554 1 D0GA102JA023 CHIP 1000 OHM, 1/16W R8640 1 D0GA103JA015 CHIP 10K OHM, 1/16W

R4711 1 D0GA102JA023 CHIP 1000 OHM, 1/16W R8647 1 D0GA103JA015 CHIP 10K OHM, 1/16W

R4724 1 D0GA102JA023 CHIP 1000 OHM, 1/16W R8648 1 D0GA103JA015 CHIP 10K OHM, 1/16W

R8861 1 D0GA102JA023 CHIP 1000 OHM, 1/16W R8649 1 D0GA103JA015 CHIP 10K OHM, 1/16W

R8863 1 D0GA102JA023 CHIP 1000 OHM, 1/16W R8650 1 D0GA103JA015 CHIP 10K OHM, 1/16W

R8871 1 D0GA102JA023 CHIP 1000 OHM, 1/16W R8651 1 D0GA103JA015 CHIP 10K OHM, 1/16W

R8872 1 D0GA102JA023 CHIP 1000 OHM, 1/16W R8653 1 D0GA103JA015 CHIP 10K OHM, 1/16W

R1304 1 D0GA103JA015 CHIP 10K OHM, 1/16W R8654 1 D0GA103JA015 CHIP 10K OHM, 1/16W

R1306 1 D0GA103JA015 CHIP 10K OHM, 1/16W R8655 1 D0GA103JA015 CHIP 10K OHM, 1/16W

R1953 1 D0GA103JA015 CHIP 10K OHM, 1/16W R8656 1 D0GA103JA015 CHIP 10K OHM, 1/16W

R1958 1 D0GA103JA015 CHIP 10K OHM, 1/16W R8657 1 D0GA103JA015 CHIP 10K OHM, 1/16W

R4024 1 D0GA103JA015 CHIP 10K OHM, 1/16W R8858 1 D0GA103JA015 CHIP 10K OHM, 1/16W

R4032 1 D0GA103JA015 CHIP 10K OHM, 1/16W R8859 1 D0GA103JA015 CHIP 10K OHM, 1/16W

R4033 1 D0GA103JA015 CHIP 10K OHM, 1/16W R8860 1 D0GA103JA015 CHIP 10K OHM, 1/16W

R4168 1 D0GA103JA015 CHIP 10K OHM, 1/16W R8910 1 D0GA103JA015 CHIP 10K OHM, 1/16W

R4169 1 D0GA103JA015 CHIP 10K OHM, 1/16W R8965 1 D0GA103JA015 CHIP 10K OHM, 1/16W

R4170 1 D0GA103JA015 CHIP 10K OHM, 1/16W R8966 1 D0GA103JA015 CHIP 10K OHM, 1/16W

R4173 1 D0GA103JA015 CHIP 10K OHM, 1/16W R8967 1 D0GA103JA015 CHIP 10K OHM, 1/16W

R4556 1 D0GA103JA015 CHIP 10K OHM, 1/16W R8968 1 D0GA103JA015 CHIP 10K OHM, 1/16W

R4563 1 D0GA103JA015 CHIP 10K OHM, 1/16W R1952 1 D0GA104JA023 CHIP 100k OHM, 1/16W

R4702 1 D0GA103JA015 CHIP 10K OHM, 1/16W R8755 1 D0GA104JA023 CHIP 100k OHM, 1/16W

R4708 1 D0GA103JA015 CHIP 10K OHM, 1/16W R3002 1 D0GA122JA023 CHIP 1.2 KOHM, 1/16W

R4709 1 D0GA103JA015 CHIP 10K OHM, 1/16W R4549 1 D0GA151JA023 CHIP 150 OHM, 1/16W

R4715 1 D0GA103JA015 CHIP 10K OHM, 1/16W R4550 1 D0GA151JA023 CHIP 150 OHM, 1/16W

20

10.2 Lista de partes de reemplazo

PLACA PRINCIPAL A

APLICA A MODELO TC-L32C4X [TZRNP01NWUX], TC-L32C4Y [TZRNP01MGUL].

Nota: sea cuidadoso en la selección de las partes las diferencias están descritas en color rojo, todas las demás son iguales para ambos modelos.

R4551 1 D0GA151JA023 CHIP 150 OHM, 1/16W R8302 1 D0GA360JA023 CHIP 36 OHM, 1/16W

R2024 1 D0GA152JA023 CHIP 1500 OHM, 1/16W R8303 1 D0GA360JA023 CHIP 36 OHM, 1/16W

R5179 1 D0GA153JA023 CHIP 15K OHM, 1/16W R8702 1 D0GA390JA023 CHIP 39 OHM, 1/16W

R1006 1 D0GA182JA023 CHIP 1.8K OHM, 1/16W R8706 1 D0GA390JA023 CHIP 39 OHM, 1/16W

R8118 1 D0GA183JA023 CHIP 18K OHM, 1/16W R0800 1 D0GA472JA023 CHIP 4.7 OHM, 1/16W

R0918 1 D0GA220JA023 CHIP 22 OHM, 1/16W R2021 1 D0GA472JA023 CHIP 4.7 OHM, 1/16W

R0919 1 D0GA220JA023 CHIP 22 OHM, 1/16W R3101 1 D0GA472JA023 CHIP 4.7 OHM, 1/16W

R0920 1 D0GA220JA023 CHIP 22 OHM, 1/16W R3102 1 D0GA472JA023 CHIP 4.7 OHM, 1/16W

R0921 1 D0GA220JA023 CHIP 22 OHM, 1/16W R8606 1 D0GA472JA023 CHIP 4.7 OHM, 1/16W

R0924 1 D0GA220JA023 CHIP 22 OHM, 1/16W R8607 1 D0GA472JA023 CHIP 4.7 OHM, 1/16W

R0925 1 D0GA220JA023 CHIP 22 OHM, 1/16W R8914 1 D0GA472JA023 CHIP 4.7 OHM, 1/16W

R0932 1 D0GA220JA023 CHIP 22 OHM, 1/16W R0911 1 D0GA473JA015 CHIP 47k OHM, 1/16W

R0933 1 D0GA220JA023 CHIP 22 OHM, 1/16W R0951 1 D0GA473JA015 CHIP 47k OHM, 1/16W

R4548 1 D0GA220JA023 CHIP 22 OHM, 1/16W R1956 1 D0GA473JA015 CHIP 47k OHM, 1/16W

R4739 1 D0GA220JA023 CHIP 22 OHM, 1/16W R2018 1 D0GA473JA015 CHIP 47k OHM, 1/16W

R8636 1 D0GA220JA023 CHIP 22 OHM, 1/16W R2019 1 D0GA473JA015 CHIP 47k OHM, 1/16W

R3013 1 D0GA221JA023 CHIP 220 OHM, 1/16W R2022 1 D0GA473JA015 CHIP 47k OHM, 1/16W

R3201 1 D0GA221JA023 CHIP 220 OHM, 1/16W R2023 1 D0GA473JA015 CHIP 47k OHM, 1/16W

R3202 1 D0GA221JA023 CHIP 220 OHM, 1/16W R2816 1 D0GA473JA015 CHIP 47k OHM, 1/16W

R8217 1 D0GA221JA023 CHIP 220 OHM, 1/16W R3119 1 D0GA473JA015 CHIP 47k OHM, 1/16W

R8218 1 D0GA221JA023 CHIP 220 OHM, 1/16W R4124 1 D0GA473JA015 CHIP 47k OHM, 1/16W

R2012 1 D0GA222JA023 CHIP 2.2K OHM, 1/16W R4167 1 D0GA473JA015 CHIP 47k OHM, 1/16W

R5152 1 D0GA222JA023 CHIP 2.2K OHM, 1/16W R4560 1 D0GA473JA015 CHIP 47k OHM, 1/16W

R8909 1 D0GA222JA023 CHIP 2.2K OHM, 1/16W R4704 1 D0GA473JA015 CHIP 47k OHM, 1/16W

R4123 1 D0GA223JA023 CHIP 22K OHM, 1/16W R4705 1 D0GA473JA015 CHIP 47k OHM, 1/16W

R4166 1 D0GA223JA023 CHIP 22K OHM, 1/16W R4710 1 D0GA473JA015 CHIP 47k OHM, 1/16W

R5007 1 D0GA223JA023 CHIP 22K OHM, 1/16W R4712 1 D0GA473JA015 CHIP 47k OHM, 1/16W

R8114 1 D0GA243JA023 CHIP 24K OHM, 1/16W R4713 1 D0GA473JA015 CHIP 47k OHM, 1/16W

R8306 1 D0GA243JA023 CHIP 24K OHM, 1/16W R4714 1 D0GA473JA015 CHIP 47k OHM, 1/16W

R0900 1 D0GA272JA023 CHIP 2.7K OHM, 1/16W R4718 1 D0GA473JA015 CHIP 47k OHM, 1/16W

R0901 1 D0GA272JA023 CHIP 2.7K OHM, 1/16W R4719 1 D0GA473JA015 CHIP 47k OHM, 1/16W

R0902 1 D0GA272JA023 CHIP 2.7K OHM, 1/16W R4723 1 D0GA473JA015 CHIP 47k OHM, 1/16W

R0903 1 D0GA272JA023 CHIP 2.7K OHM, 1/16W R8866 1 D0GA473JA015 CHIP 47k OHM, 1/16W

R0904 1 D0GA272JA023 CHIP 2.7K OHM, 1/16W R4552 1 D0GA560JA023 CHIP 56 OHM, 1/16W

R0905 1 D0GA272JA023 CHIP 2.7K OHM, 1/16W R8625 1 D0GA560JA023 CHIP 56 OHM, 1/16W

R0906 1 D0GA272JA023 CHIP 2.7K OHM, 1/16W R8629 1 D0GA560JA023 CHIP 56 OHM, 1/16W

R0907 1 D0GA272JA023 CHIP 2.7K OHM, 1/16W R1959 1 D0GA561JA023 CHIP 560 OHM, 1/16W

R4798 1 D0GA273JA023 CHIP 27K OHM, 1/16W R5006 1 D0GA563JA023 CHIP 56 KOHM, 1/16W

R1000 1 D0GA331JA023 CHIP 330 OHM, 1/16W R1960 1 D0GA564JA023 CHIP 560 KOHM, 1/16W

R8001 1 D0GA331JA023 CHIP 330 OHM, 1/16W R1962 1 D0GA564JA023 CHIP 560 KOHM, 1/16W

R3199 1 D0GA333JA023 CHIP 33 K OHM, 1/16W R0934 1 D0GA680JA023 CHIP 68 OHM, 1/16W

R3200 1 D0GA333JA023 CHIP 33 K OHM, 1/16W R0935 1 D0GA680JA023 CHIP 68 OHM, 1/16W

21

10.2 Lista de partes de reemplazo

PLACA PRINCIPAL A

APLICA A MODELO TC-L32C4X [TZRNP01NWUX], TC-L32C4Y [TZRNP01MGUL].

Nota: sea cuidadoso en la selección de las partes las diferencias están descritas en color rojo, todas las demás son iguales para ambos modelos.

R0936 1 D0GA680JA023 CHIP 68 OHM, 1/16W R8767 1 D0GAR00J0005 CHIP 0 OHM, 1/16W

R0937 1 D0GA680JA023 CHIP 68 OHM, 1/16W R8108 1 D0GB100JA065 CHIP 10 OHM, 1/16W

R0938 1 D0GA680JA023 CHIP 68 OHM, 1/16W R8110 1 D0GB100JA065 CHIP 10 OHM, 1/16W

R0939 1 D0GA680JA023 CHIP 68 OHM, 1/16W R4189 1 D0GBR00J0004 CHIP 0 OHM, 1/10W

R0940 1 D0GA680JA023 CHIP 68 OHM, 1/16W R4158 1 D0GD271JA052 CHIP 270 OHM, 1/8W

R0941 1 D0GA680JA023 CHIP 68 OHM, 1/16W R4150 1 D0GD391JA052 CHIP 390 OHM, 1/8W

R0942 1 D0GA680JA023 CHIP 68 OHM, 1/16W R2010 1 D0GDR00J0004 CHIP 0 OHM, 1/10W

R0943 1 D0GA680JA023 CHIP 68 OHM, 1/16W R4915 1 D0GF3R3JA048 CHIP 3.3 OHM, 1/10W

R0947 1 D0GA680JA023 CHIP 68 OHM, 1/16W R4916 1 D0GF3R3JA048 CHIP 3.3 OHM, 1/10W

R0948 1 D0GA680JA023 CHIP 68 OHM, 1/16W R4917 1 D0GF3R3JA048 CHIP 3.3 OHM, 1/10W

R0949 1 D0GA680JA023 CHIP 68 OHM, 1/16W R4918 1 D0GF3R3JA048 CHIP 3.3 OHM, 1/10W

R0962 1 D0GA680JA023 CHIP 68 OHM, 1/16W R4157 1 D1BA1001A014 CHIP 1K OHM, 1/16W

R0963 1 D0GA680JA023 CHIP 68 OHM, 1/16W R8203 1 D1BA1001A014 CHIP 1K OHM, 1/16W

R0964 1 D0GA680JA023 CHIP 68 OHM, 1/16W R8204 1 D1BA1001A014 CHIP 1K OHM, 1/16W

R0965 1 D0GA680JA023 CHIP 68 OHM, 1/16W R8205 1 D1BA1001A014 CHIP 1K OHM, 1/16W

R0966 1 D0GA680JA023 CHIP 68 OHM, 1/16W R8206 1 D1BA1001A014 CHIP 1K OHM, 1/16W

R0967 1 D0GA680JA023 CHIP 68 OHM, 1/16W R8207 1 D1BA1001A014 CHIP 1K OHM, 1/16W

R1951 1 D0GA680JA023 CHIP 68 OHM, 1/16W R8208 1 D1BA1001A014 CHIP 1K OHM, 1/16W

R3126 1 D0GA680JA023 CHIP 68 OHM, 1/16W R8224 1 D1BA1001A014 CHIP 1K OHM, 1/16W

R5175 1 D0GA680JA023 CHIP 68 OHM, 1/16W R8225 1 D1BA1001A014 CHIP 1K OHM, 1/16W

R8301 1 D0GA681JA023 CHIP 680 OHM, 1/16W R4154 1 D1BA1002A014 CHIP 10K OHM, 1/16W

R1954 1 D0GA683JA023 CHIP 68 K OHM, 1/16W R4155 1 D1BA1002A014 CHIP 10K OHM, 1/16W

R5002 1 D0GA683JA023 CHIP 68 K OHM, 1/16W R4172 1 D1BA1203A014 CHIP 120 kOHM, 1/16W

R5180 1 D0GA683JA023 CHIP 68 K OHM, 1/16W R4181 1 D1BA1302A014 CHIP 13k OHM, 1/16W

R3192 1 D0GA820JA023 CHIP 82 OHM, 1/16W R8703 1 D1BA1802A014 CHIP 18k OHM, 1/16W

R3193 1 D0GA820JA023 CHIP 82 OHM, 1/16W R4153 1 D1BA20010002 CHIP 2.2k OHM, 1/16W

R3196 1 D0GA820JA023 CHIP 82 OHM, 1/16W R4151 1 D1BA2201A014 CHIP 2.2k OHM, 1/16W

JS0026 1 D0GAR00J0005 CHIP 0 OHM, 1/16W R4162 1 D1BA2201A014 CHIP 2.2k OHM, 1/16W

R2001 1 D0GAR00J0005 CHIP 0 OHM, 1/16W R4178 1 D1BA2202A014 CHIP 22k OHM, 1/16W

R2004 1 D0GAR00J0005 CHIP 0 OHM, 1/16W R4184 1 D1BA2202A014 CHIP 22k OHM, 1/16W

R2005 1 D0GAR00J0005 CHIP 0 OHM, 1/16W R5012 1 D1BA2202A014 CHIP 22k OHM, 1/16W

R2020 1 D0GAR00J0005 CHIP 0 OHM, 1/16W R8200 1 D1BA2400A014 CHIP 240 OHM, 1/16W

R3015 1 D0GAR00J0005 CHIP 0 OHM, 1/16W R8219 1 D1BA2400A014 CHIP 240 OHM, 1/16W

R3016 1 D0GAR00J0005 CHIP 0 OHM, 1/16W R8220 1 D1BA2400A014 CHIP 240 OHM, 1/16W

R3017 1 D0GAR00J0005 CHIP 0 OHM, 1/16W R4152 1 D1BA3002A014 CHIP 30K OHM, 1/16W

R3018 1 D0GAR00J0005 CHIP 0 OHM, 1/16W R4171 1 D1BA3002A014 CHIP 30K OHM, 1/16W

R3019 1 D0GAR00J0005 CHIP 0 OHM, 1/16W R4159 1 D1BA3301A014 CHIP 3.3K OHM, 1/16W

R3020 1 D0GAR00J0005 CHIP 0 OHM, 1/16W R4160 1 D1BA3301A014 CHIP 3.3K OHM, 1/16W

R4805 1 D0GAR00J0005 CHIP 0 OHM, 1/16W Solo TC-L32C4X R4161 1 D1BA3601A014 CHIP 3.6K OHM, 1/16W

R4806 1 D0GAR00J0005 CHIP 0 OHM, 1/16W Solo TC-L32C4X R5009 1 D1BA5602A014 CHIP 5.6K OHM, 1/16W

R8641 1 D0GAR00J0005 CHIP 0 OHM, 1/16W R8304 1 D1BA6201A014 CHIP 6.2K OHM, 1/16W

R8709 1 D0GAR00J0005 CHIP 0 OHM, 1/16W R8305 1 D1BA6201A014 CHIP 6.2K OHM, 1/16W

22

10.2 Lista de partes de reemplazo

PLACA PRINCIPAL A

APLICA A MODELO TC-L32C4X [TZRNP01NWUX], TC-L32C4Y [TZRNP01MGUL].

Nota: sea cuidadoso en la selección de las partes las diferencias están descritas en color rojo, todas las demás son iguales para ambos modelos.

R8100 1 D1BB1301A087 CHIP 1.3 K OHM, 1/16W JK1031 1 K1FY104E0009 connectors for I/F

R4970 1 D1BB1403A055 CHIP 140K OHM, 1/16W JK1000A 1 K1FY119D0016 connectors for I/F

R4971 1 D1BB1403A055 CHIP 140K OHM, 1/16W JK1001A 1 K1FY119D0016 connectors for I/F

R8700 1 D1BB1802A087 CHIP 18K OHM, 1/16W JK3703 1 K1FY315A0011 connectors for I/F

R8106 1 D1BB2001A087 CHIP 2K OHM, 1/16W A10 1 K1KA07B00135 connectors for I/F

R8704 1 D1BB2002A055 CHIP 20K OHM, 1/16W CN0100 1 K1KA14A00248 connectors for I/F

R8102 1 D1BB2101A087 CHIP 2.1K OHM, 1/16W A02 1 K1KY04AA0719 connectors for I/F

R8705 1 D1BB3001A055 CHIP 3K OHM, 1/16W A12 1 K1KY04B00013 connectors for I/F

R8707 1 D1BB5601A055 CHIP 5.6K OHM, 1/16W A09 1 K1KY15BA0324 connectors for I/F

R8701 1 D1BB5601A087 CHIP 5.6K OHM, 1/16W A14 1 K1MN55BA0076 connectors for I/F

R1001 1 D1BB7151A055 CHIP 7150 OHM, 1/16W JK8850 1 K1NA12E00016 connectors for I/F

R8104 1 D1BB8200A087 Surface mounting precision res JK3000A 1 K1U511A00013 connectors units, different typ

R3103 1 D1BD75R0A066 CHIP 75 OHM, 1/16W PA4150 1 K5H1622A0031 Surface mounting fuses

R3105 1 D1BD75R0A066 CHIP 75 OHM, 1/16W

R3175 1 D1BD75R0A066 CHIP 75 OHM, 1/16W

R3176 1 D1BD75R0A066 CHIP 75 OHM, 1/16W

R3178 1 D1BD75R0A066 CHIP 75 OHM, 1/16W

R3203 1 D1BD75R0A066 CHIP 75 OHM, 1/16W

R4121 1 EXB28V100JX CHIP 10 OHM,

R4122 1 EXB28V100JX CHIP 10 OHM,

R4031 1 EXB28V103JX CHIP 10K OHM,

R8630 1 EXB28V103JX CHIP 10K OHM,

R4914 1 EXB28V220JX CHIP 22 OHM,

R8222 1 EXB28V330JX CHIP 33 OHM,

R8223 1 EXB28V330JX CHIP 33 OHM,

R0910 1 EXB28V472JX CHIP 4.7k OHM,

R8624 1 EXB28V560JX CHIP 56 OHM,

R8632 1 EXB28V560JX CHIP 56 OHM,

R8634 1 EXB28V560JX CHIP 56 OHM,

R3123 1 EXB28V680JX CHIP 68 OHM,

R8924 1 EXB28V680JX CHIP 68 OHM,

R8925 1 EXB28V680JX CHIP 68 OHM,

R4046 1 EXB28VR000X CHIP 0 OHM,

R4047 1 EXB28VR000X CHIP 0 OHM,

R4048 1 EXB28VR000X CHIP 0 OHM,

R4049 1 EXB28VR000X CHIP 0 OHM,

R8438 1 EXB2HV103JV CHIP 10K OHM,

R8915 1 EXB2HV680JV CHIP 68 OHM,

OTROS

Posición Cantidad Clave Descripción S Comentarios

TU4800A 1 ENGS6302D5F TV tuners

X8300 1 H0J245500113 Surface crystal resonators

S

23

10.3 Lista de partes de reemplazo

C72101F1A3A221A060

C 220pF, K, 1000V

C78431F1J1H152A721

C 1500pF, J, 50V

PLACA DE PODER

APLICA A MODELO TC-L32C4X TC-L32C4Y [TXN/P1NWUX].

Nota: sea cuidadoso en la selección de las partes las diferencias están descritas en color rojo, todas las demás son iguales.

CAPACITORES

Posición Cantidad Clave Descripción S Comentarios

C7861 1 ECCT3G150JGV 4000V 15pF,J C7220 1 F1J1H1030007 C 10000pF, J, 50V

C7862 1 ECCT3G150JGV 4000V 15pF,J C7221 1 F1J1H1030007 C 10000pF, J, 50V

C7863 1 ECCT3G150JGV 4000V 15pF,J C7505 1 F1J1H1030007 C 10000pF, J, 50V

C7864 1 ECCT3G150JGV 4000V 15pF,J C7817 1 F1J1H1030007 C 10000pF, J, 50V

C7865 1 ECCT3G150JGV 4000V 15pF,J C7818 1 F1J1H1030007 C 10000pF, J, 50V

C7866 1 ECCT3G150JGV 4000V 15pF,J C7821 1 F1J1H1030007 C 10000pF, J, 50V

C7867 1 ECCT3G150JGV 4000V 15pF,J C7826 1 F1J1H1030007 C 10000pF, J, 50V

C7868 1 ECCT3G150JGV 4000V 15pF,J C7831 1 F1J1H1030007 C 10000pF, J, 50V

C7214 1 F0C2H105A019 500V 1.0µF,K

C7804 1 F0C2H105A019 500V 1.0µF,K

C7104 1 F0CAF224A124 315V 0.22µF,K

C7105 1 F0CAF224A124 315V 0.22µF,K

C7102 1 F1A2E471A003 C 470pF, K, 250V

C7103 1 F1A2E471A003 C 470pF, K, 250V

C7308 1 F1A2E471A003 C 470pF, K, 250V

C7850 1 F1A2E471A003 C 470pF, K, 250V

C7202 1 F1A3A221A060 C 220pF, K, 1000V C7842 1 F1J1H152A721 C 1500pF, J, 50V

S

Posición Cantitdad Clave Descripción S Comentarios

C7207 1 F1J1H1030007 C 10000pF, J, 50V

C7204 1 F1J1H104A717 C 10000pF, J, 50V

C7501 1 F1J1H104A717 C 0.1µF, J, 50V

C7512 1 F1J1H104A717 C 0.1µF, J, 50V

C7520 1 F1J1H104A717 C 0.1µF, J, 50V

C7521 1 F1J1H104A717 C 0.1µF, J, 50V

C7819 1 F1J1H104A717 C 0.1µF, J, 50V

C7806 1 F1J1H152A721 C 1500pF, J, 50V

C7808 1 F1J1H152A721 C 1500pF, J, 50V

C7832 1 F1A3A222A060 C 2200pF, K, 1000V C7844 1 F1J1H152A721 C 1500pF, J, 50V

C7508 1 F1A3A471A060 C 470pF, J, 1000V C7845 1 F1J1H152A721 C 1500pF, J, 50V

C7509 1 F1A3A471A060 C 470pF, J, 1000V C7846 1 F1J1H152A721 C 1500pF, J, 50V

C7827 1 F1A3A471A060 C 470pF, J, 1000V C7847 1 F1J1H152A721 C 1500pF, J, 50V

C7828 1 F1A3A471A060 C 470pF, J, 1000V C7201 1 F1J1H222A721 C 2200pF, J, 50V

C7301 1 F1B3D470A099 C 47pF, J, 2000V C7205 1 F1J1H2240009 C 0.22µF, J, 50V

C7304 1 F1J1E105A231 C 1µF, K, 25V C7218 1 F1J1H2240009 C 0.22µF, J, 50V

C7502 1 F1J1E105A231 C 1µF, K, 25V C7219 1 F1J1H2240009 C 0.22µF, J, 50V

C7503 1 F1J1E105A231 C 1µF, K, 25V C7303 1 F1J1H472A702 C 4700pF, J, 50V

C7816 1 F1J1E105A231 C 1µF, K, 25V C7834 1 F1J1H472A702 C 4700pF, J, 50V

C7305 1 F1J1H101A709 C 100pF, J, 50V C7835 1 F1J1H472A702 C 4700pF, J, 50V

C7809 1 F1J1H101A709 C 100pF, J, 50V C7208 1 F1J1H474A757 C 0.47µF, J, 50V

C7810 1 F1J1H101A709 C 100pF, J, 50V C7802 1 F1J1H474A757 C 0.47µF, J, 50V

C7811 1 F1J1H101A709 C 100pF, J, 50V C7820 1 F1J1H474A757 C 0.47µF, J, 50V

C7812 1 F1J1H101A709 C 100pF, J, 50V C7822 1 F1J1H474A757 C 0.47µF, J, 50V

C7813 1 F1J1H101A709 C 100pF, J, 50V C7514 1 F2A1E101A089 C 100µF, M, 25V

C7814 1 F1J1H101A709 C 100pF, J, 50V C7513 1 F2A1E6810034 C 680µF, M, 25V

C7815 1 F1J1H101A709 C 100pF, J, 50V C7307 1 F2A1H330A122 C 33µF, M, 50V

C7833 1 F1J1H101A709 C 100pF, J, 50V C7309 1 F2A1H330A122 C 33µF, M, 50V

C7203 1 F1J1H102A721 C 1000pF, J, 50V C7212 1 F2A2W1010011 C 100µF, M, 450V

C7302 1 F1J1H102A721 C 1000pF, J, 50V

C7206 1 F1J1H1030007 C 10000pF, J, 50V

DIODOS

Posición Cantidad Clave Descripción S Comentarios

24

10.3 Lista de partes de reemplazo

D75031B0HESM000002

DIODO

Q72031B1ABBE000003

Silicon transistors

PLACA DE PODER

APLICA A MODELO TC-L32C4X TC-L32C4Y [TXN/P1NWUX].

Nota: sea cuidadoso en la selección de las partes las diferencias están descritas en color rojo, todas las demás son iguales.

DIODOS BOBINAS

Posición Cantidad Clave Descripción S Comentarios Posición Cantidad Clave Descripción S Comentarios

D7801 1 B0ADCK000001 DIODE LF7102 1 G0B103H00010 FILTRO DE LINEA

D7810 1 B0ADCK000001 DIODE LF7103 1 G0B103H00010 FILTRO DE LINEA

D7315 1 B0BB140A0011 DIODO LF7101 1 G0B650H00003 LINE FILTER

D7204 1 B0BC015A0336 DIODO L7303 1 J0JKA0000038 BEAD CORE

D7310 1 B0BC015A0336 DIODO L7803 1 J0JKA0000038 BEAD CORE

D7314 1 B0BC015A0336 DIODO L7104 1 J0JKB0000034 BEAD CORE

D7318 1 B0BC015A0336 DIODO L7105 1 J0JKB0000034 BEAD CORE

D7813 1 B0BC015A0336 DIODO L7201 1 J0JKB0000034 BEAD CORE

D7317 1 B0BC027A0336 DIODO L7203 1 J0JKB0000034 BEAD CORE

D7205 1 B0EAMR000020 DIODO L7301 1 J0JKB0000034 BEAD CORE

D7203 1 B0ECKM000038 DIODO L7308 1 J0JKB0000034 BEAD CORE

D7309 1 B0ECKM000038 DIODO L7804 1 J0JKB0000034 BEAD CORE

D7319 1 B0ECKM000038 DIODO L7808 1 J0JKB0000034 BEAD CORE

D7102 1 B0FBAT000021 DIODO

D7302 1 B0HAGQ000001 DIODO CF7101 1 D4CAY3R9A004 BOBINA

D7303 1 B0HAGQ000001 DIODO

D7505 1 B0HAMM000108 DIODO

S

L7809 1 J0JKB0000034 BEAD CORE

TRANSISTORES

Posición Cantidad Clave Descripción S Comentarios

S

D7811 1 B0JCKG000002 DIODE Q7303 1 B1ABBE000003 Silicon transistors

D7812 1 B0JCKG000002 DIODE Q7501 1 B1ABBE000003 Silicon transistors

D7101 1 D4EAY6210003 ERZV10V621C2

D7103 1 D4EAY6210003 ERZV10V621C2

D7208 1 DA2J10100L DIODE Q7202 1 B1ADCE000027 Silicon transistors

D7209 1 DA2J10100L DIODE Q7301 1 B1ADCE000027 Silicon transistors

D7507 1 DA2J10100L DIODE Q7302 1 B1ADCE000027 Silicon transistors

D7806 1 DA6X103Q0R DIODO Q7801 1 B1ADCE000027 Silicon transistors

D7807 1 DA6X103Q0R DIODO Q7802 1 B1ADCE000027 Silicon transistors

D7808 1 DA6X103Q0R DIODO Q7201 1 B1CERR000057 TRANSISTOR

D7809 1 DA6X103Q0R DIODO Q7803 1 B1CFRR000016 TRANSISTOR

D7207 1 DZ2J068M0L DIODE Q7804 1 B1CFRR000016 TRANSISTOR

D7304 1 DZ2J068M0L DIODE Q7503 1 B1CHRE000008 TRANSISTOR

D7814 1 DZ2J150M0L Voltage regulation diodes Q7504 1 B1CHRE000008 TRANSISTOR

D7504 1 DZ2J220M0L Voltage regulation diodes Q7306 1 B1DFDD000019 TRANSISTOR

S

Q7502 1 B1ABBE000003 Silicon transistors

Q7505 1 B1ABBE000003 Silicon transistors

CIRCUITOS INTEGRADOS RESISTENCIAS

Posición Cantidad Clave Descripción S Comentarios Posición Cantidad Clave Descripción S Comentarios

IC7301 1 C0DABYY00034 IC R7335 1 D0B1106JA033 Metal 10M OHM 1W S

IC7201 1 C0DBBYY00033 IC R7801 1 D0GD101JA052 CHIP 100 OHM, 1/8W

IC7801 1 C0DBZYY00413 ICs for power suppl y R7802 1 D0GD101JA052 CHIP 100 OHM, 1/8W

IC7501 1 C0DBZYY00486 ICs For Power Supply R7205 1 D0GD101JA059 CHIP 100 OHM, 1/8W

R7506 1 D0GD102JA052 CHIP 1000 OHM, 1/8W

25

10.3 Lista de partes de reemplazo

R78151D0GD103JA052

CHIP 10 KOHM, 1/8W

R78441D0GD750JA052

CHIP 75 OHM, 1/8W

PLACA DE PODER

APLICA A MODELO TC-L32C4X TC-L32C4Y [TXN/P1NWUX].

Nota: sea cuidadoso en la selección de las partes las diferencias están descritas en color rojo, todas las demás son iguales.

R7821 1 D0GD102JA052 CHIP 1000 OHM, 1/8W R7301 1 D0GD223JA052 CHIP 22 kOHM, 1/8W

R7832 1 D0GD102JA052 CHIP 1000 OHM, 1/8W R7345 1 D0GD223JA052 CHIP 22 kOHM, 1/8W

R7833 1 D0GD102JA052 CHIP 1000 OHM, 1/8W R7341 1 D0GD331JA052 CHIP 330 OHM, 1/8W

R7835 1 D0GD102JA052 CHIP 1000 OHM, 1/8W R7207 1 D0GD470JA052 CHIP 47 OHM, 1/8W

R7836 1 D0GD102JA052 CHIP 1000 OHM, 1/8W R7303 1 D0GD470JA059 CHIP 47 OHM, 1/4W

R7233 1 D0GD103JA052 CHIP 10 KOHM, 1/8W R7505 1 D0GD471JA052 CHIP 470 OHM, 1/8W

R7234 1 D0GD103JA052 CHIP 10 KOHM, 1/8W R7232 1 D0GD472JA052 CHIP 4.7 KOHM, 1/8W

R7302 1 D0GD103JA052 CHIP 10 KOHM, 1/8W R7510 1 D0GD472JA052 CHIP 4.7 KOHM, 1/8W

R7318 1 D0GD103JA052 CHIP 10 KOHM, 1/8W R7203 1 D0GD473JA052 CHIP 47 KOHM, 1/8W

R7504 1 D0GD103JA052 CHIP 10 KOHM, 1/8W R7221 1 D0GD473JA052 CHIP 47 KOHM, 1/8W

R7516 1 D0GD103JA052 CHIP 10 KOHM, 1/8W R7315 1 D0GD473JA052 CHIP 47 KOHM, 1/8W

R7519 1 D0GD103JA052 CHIP 10 KOHM, 1/8W R7316 1 D0GD473JA052 CHIP 47 KOHM, 1/8W

R7808 1 D0GD103JA052 CHIP 10 KOHM, 1/8W R7344 1 D0GD473JA052 CHIP 47 KOHM, 1/8W

R7809 1 D0GD103JA052 CHIP 10 KOHM, 1/8W R7503 1 D0GD473JA052 CHIP 47 KOHM, 1/8W

R7810 1 D0GD103JA052 CHIP 10 KOHM, 1/8W R7822 1 D0GD473JA052 CHIP 47 KOHM, 1/8W

R7811 1 D0GD103JA052 CHIP 10 KOHM, 1/8W R7206 1 D0GD563JA052 CHIP 56 KOHM, 1/8W

R7812 1 D0GD103JA052 CHIP 10 KOHM, 1/8W R7831 1 D0GD680JA052 CHIP 68 OHM, 1/8W

R7813 1 D0GD103JA052 CHIP 10 KOHM, 1/8W R7834 1 D0GD680JA052 CHIP 68 OHM, 1/8W

R7814 1 D0GD103JA052 CHIP 10 KOHM, 1/8W R7843 1 D0GD750JA052 CHIP 75 OHM, 1/8W

R7209 1 D0GD104JA052 CHIP 100 KOHM, 1/8W R7317 1 D0GD822JA052 CHIP 8.2 KOHM, 1/8W

R7512 1 D0GD152JA052 CHIP 1.5 KOHM, 1/8W R7328 1 D0GD822JA052 CHIP 8.2 KOHM, 1/8W

R7322 1 D0GD153JA052 CHIP 15 KOHM, 1/8W JA1 1 D0GDR00J0004 CHIP 0 OHM, 1/8W

R7329 1 D0GD153JA052 CHIP 15 KOHM, 1/8W JA10 1 D0GDR00J0004 CHIP 0 OHM, 1/8W

R7330 1 D0GD153JA052 CHIP 15 KOHM, 1/8W JA11 1 D0GDR00J0004 CHIP 0 OHM, 1/8W

R7509 1 D0GD153JA052 CHIP 15 KOHM, 1/8W JA12 1 D0GDR00J0004 CHIP 0 OHM, 1/8W

R7515 1 D0GD153JA052 CHIP 15 KOHM, 1/8W JA13 1 D0GDR00J0004 CHIP 0 OHM, 1/8W

R7517 1 D0GD153JA052 CHIP 15 KOHM, 1/8W JA14 1 D0GDR00J0004 CHIP 0 OHM, 1/8W

R7520 1 D0GD153JA052 CHIP 15 KOHM, 1/8W JA2 1 D0GDR00J0004 CHIP 0 OHM, 1/8W

R7518 1 D0GD154JA052 CHIP 150 KOHM, 1/8W JA3 1 D0GDR00J0004 CHIP 0 OHM, 1/8W

R7820 1 D0GD1R0JA052 CHIP 1 OHM, 1/8W JA4 1 D0GDR00J0004 CHIP 0 OHM, 1/8W

R7806 1 D0GD203JA052 CHIP 20 kOHM, 1/8W JA5 1 D0GDR00J0004 CHIP 0 OHM, 1/8W

R7807 1 D0GD203JA052 CHIP 20 kOHM, 1/8W JA6 1 D0GDR00J0004 CHIP 0 OHM, 1/8W

R7837 1 D0GD203JA052 CHIP 20 kOHM, 1/8W JA7 1 D0GDR00J0004 CHIP 0 OHM, 1/8W

R7838 1 D0GD203JA052 CHIP 20 kOHM, 1/8W JA8 1 D0GDR00J0004 CHIP 0 OHM, 1/8W

R7839 1 D0GD203JA052 CHIP 20 kOHM, 1/8W JA9 1 D0GDR00J0004 CHIP 0 OHM, 1/8W

R7840 1 D0GD203JA052 CHIP 20 kOHM, 1/8W R7342 1 D0GDR00J0004 CHIP 0 OHM, 1/8W

R7841 1 D0GD203JA052 CHIP 20 kOHM, 1/8W R7502 1 D0GDR00J0004 CHIP 0 OHM, 1/8W

R7842 1 D0GD203JA052 CHIP 20 kOHM, 1/8W R7804 1 D1BD1002A066 CHIP 10 KOHM, 1/8W

R7208 1 D0GD220JA059 CHIP 22 OHM, 1/4W R7818 1 D1BD1002A066 CHIP 10 KOHM, 1/8W

R7507 1 D0GD222JA052 CHIP 2.2 kOHM, 1/8W R7823 1 D1BD1002A066 CHIP 10 KOHM, 1/8W

R7511 1 D0GD222JA052 CHIP 2.2 kOHM, 1/8W R7231 1 D1BD1003A066 CHIP 100 KOHM, 1/8W

26

10.3 Lista de partes de reemplazo

R75131D1BD8202A066

CHIP 820 KOHM, 1/8W

PLACA DE PODER

APLICA A MODELO TC-L32C4X TC-L32C4Y [TXN/P1NWUX].

Nota: sea cuidadoso en la selección de las partes las diferencias están descritas en color rojo, todas las demás son iguales.

R7816 1 D1BD1003A066 CHIP 100 KOHM, 1/8W PC7303 1 B3PAA0000363 OPTOACOPLADOR S

R7819 1 D1BD1003A066 CHIP 100 KOHM, 1/8W T7801 1 G4DYA0000335 TRANSFORMADOR S

R7824 1 D1BD1003A066 CHIP 100 KOHM, 1/8W T7302 1 G4DYA0000338 TRANSFORMADOR S

R7825 1 D1BD1003A066 CHIP 100 KOHM, 1/8W T7201 1 G4DYA0000339 TRANSFORMADOR S

R7826 1 D1BD1003A066 CHIP 100 KOHM, 1/8W T7804 1 G4EYA0000037 Current transformers S

R7514 1 D1BD1202A066 CHIP 12 KOHM, 1/8W T7802 1 G4FYA0000020 transformers S

R7817 1 D1BD1202A066 CHIP 12 KOHM, 1/8W T7803 1 G4FYA0000020 transformers S

R7223 1 D1BD1603A066 CHIP 160 KOHM, 1/8W P1 1 K1KA02B00295 CONNECTOR

R7305 1 D1BD1803A066 CHIP 180 KOHM, 1/8W P2 1 K1KA12BA0237 CONECTOR

R7313 1 D1BD1803A066 CHIP 180 KOHM, 1/8W P5 1 K1KY02BA0249 CONECTOR

R7803 1 D1BD2702A066 CHIP 270 KOHM, 1/8W P6 1 K1KY02BA0249 CONECTOR

R7216 1 D1BD3901A066 CHIP 3.9 KOHM, 1/8W P7 1 K1KY02BA0249 CONECTOR

R7829 1 D1BD4700A066 CHIP 470 OHM, 1/8W P8 1 K1KY02BA0249 CONECTOR

R7830 1 D1BD4700A066 CHIP 470 OHM, 1/8W Z A7001 1 K4AD01A00003 Terminals

R7215 1 D1BD5102A066 CHIP 51 KOHM, 1/8W ZA7002 1 K4AD01A00003 Terminals

R7805 1 D1BD5102A066 CHIP 51 KOHM, 1/8W ZA7003 1 K4AD01A00003 Terminals

R7828 1 D1BD5102A066 CHIP 51 KOHM, 1/8W ZA7004 1 K4AD01A00003 Terminals

R7314 1 D1BD5103A066 CHIP 510 KOHM, 1/8W F7101 1 K5D502BNA005 FUSE

R7508 1 D1BD5601A066 CHIP 5.6 KOHM, 1/8W PA7551 1 K5H502YA0063 SURFACE FUSES

S

R7101 1 ERJ14YJ105U R 1M OHM, 1/4W

R7102 1 ERJ14YJ105U R 1M OHM, 1/4W

R7103 1 ERJ14YJ105U R 1M OHM, 1/4W

R7211 1 ERJ8ENF2204V R 2200 KOHM, 1/4W

R7213 1 ERJ8ENF2204V R 2200 KOHM, 1/4W

R7217 1 ERJ8ENF2204V R 2200 KOHM, 1/4W

R7219 1 ERJ8ENF2204V R 2200 KOHM, 1/4W

R7224 1 ERJ8ENF2204V R 2200 KOHM, 1/4W

R7226 1 ERJ8ENF2204V R 2200 KOHM, 1/4W

R7229 1 ERJ8ENF2204V R 2200 KOHM, 1/4W

R7230 1 ERJ8ENF2204V R 2200 KOHM, 1/4W

R7306 1 ERJ8ENF2204V R 2200 KOHM, 1/4W

R7308 1 ERJ8ENF2204V R 2200 KOHM, 1/4W

R7310 1 ERJ8ENF2204V R 2200 KOHM, 1/4W

R7324 1 ERX1SJ1R0V Res 1 ohm 1 W

R7201 1 ERX1SJR22V Res 0.22 ohm 1 W

R7202 1 ERX1SJR22V Res 0.22 ohm 1 W

R7346 1 ERX2SJR82V Res 0.82 ohm 1 W

S

OTROS

Posición Cantidad Clave Descripción Comentarios

PC7301 1 B3PAA0000363 OPTOACOPLADOR

PC7302 1 B3PAA0000363 OPTOACOPLADOR

S

27

10.4 Lista de partes de reemplazo

SN28001B3JB00000078

Photo detectors (Photo ICs)

PLACA KA LED PANEL

APLICA A MODELO TC-L32C4X, TC-L32C4Y [TZRNP03NWUX].

Nota: sea cuidadoso en la selección de las partes las diferencias están descritas en color rojo, todas las demás son iguales para ambos modelos.

CAPACITORES

Posición Cantidad Clave Descripción Comentarios

C2801 1 F2G0J470A019 aluminum non-solid elec

C2802 1 F1G1C1030008 aluminum non-s olid elec

C2805 1 F1H1C104A041 aluminum non-solid elec

D2800B 1 B3AAB0000379 Light emitting devices

KA10 1 K1KA07B00135 connectors for in-equipment use

Q2800 1 B1ABCE000015 Silicon transist ors

Q2802 1 B1ABCE000015 Silicon transist ors

R2801 1 D0GA473JA015 Surf ace mounting fixed resistors

R2802 1 D0GA223JA023 Surf ace mounting fixed resistors

R2805 1 D1BA1201A014 Surface mounting precision

R2806 1 D0GA470JA023 Surf ace mounting fixed resistors

R2807 1 D0GA562JA023 Surf ace mounting fixed resistors

R2808 1 D0GA184JA023 Surf ace mounting fixed resistors

R2809 1 D0GA103JA015 Surf ace mounting fixed resistors

R2810 1 D0GA104JA023 Surf ace mounting fixed resistors

R2811 1 D0GA103JA015 Surf ace mounting fixed resistors

RM2800 1 PNJ4815M01TV Photo detectors (Photo ICs)

28

11.4 Lista de partes de reemplazo

SN28001B3JB00000078

Photo detectors (Photo ICs)

PLACA GK PANEL DE CONTROL

APLICA A MODELO TC-L32C4X, TC-L32C4Y [TZRNP03NWUX].

Nota: sea cuidadoso en la selección de las partes las diferencias están descritas en color rojo, todas las demás son iguales para ambos modelos.

CAPACITORES

Posición Cantidad Clave Descripción Comentarios

C2801 1 F2G0J470A019 aluminum non-solid elec

C2802 1 F1G1C1030008 aluminum non-s olid elec

C2805 1 F1H1C104A041 aluminum non-solid elec

D2800B 1 B3AAB0000379 Light emitting devices

KA10 1 K1KA07B00135 connectors for in-equipment use

Q2800 1 B1ABCE000015 Silicon transist ors

Q2802 1 B1ABCE000015 Silicon transist ors

R2801 1 D0GA473JA015 Surf ace mounting fixed resistors

R2802 1 D0GA223JA023 Surf ace mounting fixed resistors

R2805 1 D1BA1201A014 Surface mounting precision

R2806 1 D0GA470JA023 Surf ace mounting fixed resistors

R2807 1 D0GA562JA023 Surf ace mounting fixed resistors

R2808 1 D0GA184JA023 Surf ace mounting fixed resistors

R2809 1 D0GA103JA015 Surf ace mounting fixed resistors

R2810 1 D0GA104JA023 Surf ace mounting fixed resistors

R2811 1 D0GA103JA015 Surf ace mounting fixed resistors

RM2800 1 PNJ4815M01TV Photo detectors (Photo ICs)

29

10.6 Lista de partes de reemplazo

PARTES MECANICAS

APLICA A MODELO TC-L32C4X, TC-L32C4Y.

Nota: sea cuidadoso en la selección de las partes las diferencias están descritas en color rojo, todas las demás son iguales para ambos modelos.

MECANICO

Posición Cantidad Clave Descripción S Comentarios

1 K2CB2YY00035 AC CORD

1 K2CQ2YY00085 AC CORD S

1 K2DR42E00007 AC PLUG ADAPTER

2 L0AA10B00003 SPEAKER UNIT

1 N2QAYB000570 REMOTE TRANSMITTER

1 TBL3AX0013 PEDESTAL ASS'Y

1 TBL5ZX0211 STAND MTG ASS'Y

1 TBM3AU032 CONTROL KEY SHEET

14 THEJ036J M3 SCREW(A5/P7)

1 TKK3AC5002 LED PANEL

1 TKK4G8611 COVER (Adj. WINDOW)

1 TKP3AA00101-S SIDE AV BRACKET

2 TKZ4GX5034 VESA METAL(BC)

2 TKZ4GX5056-A VESA METAL TOP

1 TKZ4GX5105 METAL BRACKET BOTTOM

2 TMK4GA020 AL TAPE

3 TMK4GA041 FELT

4 TMM4GJ007 RUBBER BUCH

1 TMME268 CLAMPER(V1/VESA1/BTM7)

1 TPE4GH020-1 POLYBAG(PEDE)

1 TPE4GH031 SET COVER

1 TQB3AC0017 OPERATING MANUAL

1 TQB3AC0018 OPERATING MANUAL S

1 TSCKE0060001 LVDS CABLE

1 TTU3AA0043 BACKCOVER COMPLETE ASSEMBLY

1 TTY3AA0042 CABINET COMPLETE ASS'Y

1 TTU3AA0044 BACKCOVER COMPLETE ASSEMBLY

1 TTY3AA0042A CABINET COMPLETE ASS'Y

1 TXFPE01LUUK-A KIT TORNILLOS PEDESTAL CON SET

4 XSS4+16FJK SCREW (PEDE4)

1 TXFPE02LTUK PEDESTAL ACCESORRIES ASS'Y

1 TXJA02QMUU A02-GK01

1 TXJA09QMUU A09-P2

1 TXJA10QMUU A10-KA10

1 TXN/P1NWUX P PRINT(FINISHED)

1 TZRNP01NWUX A-PCB ASS'Y KIT FOR PANAMEX S

1 TZRNP01MGUL A-PCB ASS'Y KIT FOR PANAMEX S

1 TZRNP03NWUX KA-PCB ASS'Y FIT FOR PANAMEX S

1 TZRNP04NWUX GK-PCB ASS'Y KIT FOR PANAMEX S

1 VVX32H121G00 LCD PANEL

S

Solo TC-L32C4X

Solo TC-L32C4Y

S

Solo TC-L32C4X

Solo TC-L32C4Y

Solo TC-L32C4X

Solo TC-L32C4Y

S

Solo TC-L32C4X

Solo TC-L32C4Y

24 XTV3+12JFJ SCREW(BTM_PANEL4)

30

11. DIAGRAMA A BLOQUES APLICA SERIE C4 (1/1).

31

NAND

FLASH

Support

Card

CPU BUS

I/F

CPU BUS

IFD_OUT

SIF_OUT

TUNER

AV 2

VIDEO_OUT

L/R

V

AV SW

DMD

AV1 / COMP

L/R

Y/PB/PR

PC

R/G/B/H/V

AUDIO OUT

L/R

HDMI 1

HDMI I/F

RECEIVER

ARC BUFFER SW

ARC

DIGITAL

AUDIO OUT

ARC OFF

SP DIF

USB

USB I/F

P

OWE

R

LINE

FILTER

RECTIFIER

PFC

CIRCUIT

PWM

CONTROL

PROCESS

VOLTAGE

CONVERTER

DCDC

+6V

SUB_ON

RELAY

5.8VS

F 16V

P1

L

N

AC CORD

GK BOARD

P BOARD

KEY 1

KEY 3

RELAY

SUB_ON

KEY 1

KEY 3

DDR3

EEPROM

SUB9V

SD I/F

STB 1.2V

STB 3.3V

SOUND SOS

(LED 9 TIMES)

T CON SOS

(LED 3 TIMES)

EEPROM

ANALOG-ASIA

P 15V

STB 5V

SUB 5V

5.8VS

OVP DET

P15V

STB 5.8V

P 15V

5.8VS

PWM

BL_ON

BL_SOS

BL_SOS (LED 4 TIMES)

PWM

BL_ON

PWM

AUDIO

AMP

L

R

A12

SUB 3.3V

STB 3.3V

POWER LED (R , G)

REMOTE IN

C.A.T.S SENSOR

AUDIO OUT

T CON

DCDC

SPEAKER (L)

SPEAKER (R)

SND SOS

SOS SENCE

P 15V

GAMMA

DAC

LVDS-TX

AVDD 12.6V

DVDD 2.5V

VOFF 2 - 6V

VON 31V

LVDS DATA

STB 5V

DCDC

SUB 3.3V

SUB 1.8V

SUB 3.3V

SUB 1.8V

DCDC

SUB 1.5V

SUB 1.2V

SUB 1.5V

SUB 1.2V

DCDC

SUB 5V

P 15V

V 5BT

S

V 8 . 5

B T S

HDMI 3.3V

SUB 5V

P15V SENSE

SUB 3.3V SENSE

(LED 4 TIMES)

(LED 7 TIMES)

STB 1.2V

STB 3.3V

sLD2

INV

MAIN

LCD DRIVER

BACK LIGHT

PANEL

A02

GK04

P2

A10

V10

POWER LED

REMOTE RECEIVER

C.A.T.S SENCOR

STB +3.3V

KA-BOARD

POWER LED

REMOTE RECEIVER

C.A.T.S SENSOR

Headphone

SD Card

L

R

T-CON

I2C

A10

32

12 PLACA A PRINCIPAL

12.1 TC-L32C4X [TZRNP01NWUX], TC-L32C4Y [TZRNP01MGUL],

1

5

1

5

P

b

F

1

6

1

5

1

0

1

5

1

A

1

5

6

1

0

1

5

1

9

1

9

1

4

2

7

8

1

3

4

5

1

3

6

1

4

1

3

0

3

1

6

0

1

OUT

I

N

1A1

A

1

9

2

4

1

3

7

1

4

1

9

1

7

2

5

3

2

9

1

2

1

0

1

8 7

6

5

1

A

1

A

1

A

1

4

1

5

1

7

1

4

1

5

1

3

6

1

8

1

9

D3 05

0

TU 480

0

J

K3 30

0

JK 330

1

JK 37 03

1 0 0 1 K J

0 0 0 1 K J

Q8 10

0

Q8 102

Q3 104

Q3 10

5

JK 103

1

JK 10 40

I

C5 41

6

IC 87 02

CN 895

9

Q4 70

0

Q4 70

2

JK 30 00

IC 41 20

CN 01 00

IC 41 50

Q4 97

1

Q4 972

Q0 90

0

JK 885

0

IC 800

0

IC 82 00

IC 820

1

A0

2

A0

9

A1

0

A1

2

A1

4

TNP4

G51

9

THERMAL P A

D

4

A

TH ER MAL P AD

SU FFI

X

Low

e

r

A

D

G

B

E

H

K

C

Q

X

S P

W U

R

L

T

A

G

B

H

C

D

J

E

K

F

L

M

U

ppe

r

F

V M

J

Y

N

IC 490

0

R0800

R3076

R3193

R0911

C8114

TU4800

L8100

R4171

C8703

TD8904

D3060

FL3104

R3196

L3103

R8606

C8705

C8702

C8122

R5002

TD8909

R3061

JS0000

C8208

L5603

C4973

VJ4150

C4802

D3057

C0085

R1006

JS0013

X8300

C8053

C8615

C8021

R3063

D3059

R0940

R5170

D8700

L3012

JS0002

C8209

D0908

Q4972

C3104

R0963

D3053

L3120

L8702

R2752

R3190

C4180

C8633

C4975

Q8102

R0935

L8700

R8704

D2763

C3170

L8102

D0901

FL4704

R5606

Q8100

R3062

L8602

JK1000A

JS0001

R3184

C5171

R3200

C8120

R5006

TD8906

R4805

C3153

C4909

JS0023

JK1040

C8310

R8667

JS0020

C4549

L4805

R5152

R3103

JK3703A

R0965

L4804

R4739

R8221

R0901

C8218

C8714

C3117

C5613

R8639

R0933

R8701

VJ8619

D5480

D0907

C8610

C3103

C4809

R8629

R2751

D2764

C8773

R3017

C8616

C4972

R8654

L2751

C3158

R3178

R4125

R0900

L4901

VJ9900

C3095

R8649

R5175

C2775

C3165

R4704

JS0031

D0906

Q4971

R8660

D5170

C4121

A10

R3101

C8118

FL4003

R8663

R8638

D2756

D2765

C3172

ZA0053

R4181

L2311

C4811

R0952

R0944

R8640

L2750

R3300

R3176

C4937

D4171

R3018

C8627

IC8200

C8710

C3093

R0948

R0943

L2754

R8915

C3163

C4913

R4127

ZA0052

R3201

FL4703

C5001

L3010

R4122

ZA0047

FL4701

R4172

R5607

C8124

R4048

D4000

JS0009

JS0022

R4145

C8605

R4047

IC8200

-B

C4810

JS0018

D2005

D0914

C8112

R0967

JS0016

R3194

R4921

C8631

R3002

R8301

TD0010

L3119

R1008

JS0008

R8608

L2312

D5175

C8725

C0084

C4910

IC8201-A

CN0100

C2754

C8116

C8301

R8661

L8701

C0077

R3019

R8219

C3097

L3122

R8624

C0066

C3169

D0912

C8603

C8709

R8665

R3119

JK1001A

JS0015

R3199

R0910

R3105

TD8901

R3077

JS0017

JK3000A

R8617

ZA0051

C8700

L4903

R4033

C5477

C2003

C4917

R2012

R3016

C2752

L4704

R8912

JS0010

ZA0054

C8617

R8656

R8646

R0941

R5171

C0061

JS0004

JS0012

R4911

D0904

IC8000

R4563

C8711

L4900

C4817

R0949

D3058

R8630

R8700

C3164

JS0014

R4914

D4175

C8628

C4974

C8712

R0932

R0921

R8710

C3167

R4708

R2020

R4978

C8708

L4153

R8662

R8705

Q0900

TD9901

C3109

R4046

IC8200-A

VJ8616

R3195

R2006

C4179

R8671

Q4700

IC4120

R3191

C8644

R0906

ZA0049

C3024

C8126

FL4000

R8651

L8601

JK3000

JS0024

JK1031

TD8907

R4807

R1312

C0080

C2005

C4935

ZA0050

C3119

D5172

R8706

L5605

C8715

C8707

C8300

C4808

D3050

R8625

R8703

R4709

A14

R4973

C4800

L2752

R1005

JS0005

R4126

JS0039

R0907

R3202

C4812

R3064

R8645

D3055

C1000

L8603

JS0011

R2018

R4979

C2750

L4902

R4049

R4031

C5476

C4915

C4934

R4721

A12

A09

L2310

C2751

C3112

R5007

R8910

R8965

IC4900

R2009

Q3104

R8672

R8666

R8709

Q4702

C4151

JS0025

C8311

C3101

JK3301

D2760

JS0027

R0918

FL4702

C8128

R4806

TD0001

C3154

C4918

R4722

C8052

R4178

C3116

R5003

L4703

R0951

L3011

R3175

C4936

R4724

D4170

C8602

C3105

R8670

R0964

R8707

R4128

C4548

L4803

R3020

TD9902

C8130

Q3105

JS0021

JS0026

R9970

C8601

C8717

FL4002

R0962

R8637

D5171

C0069

D0905

R4564

L4151

TD0011

L3005

C3168

JS0019

JS0040

R4974

IC8201

JK1001

C4816

R8648

L8606

JS0007

JS0030

R2019

D4174

R3203

C8609

C8022

R8657

D3056

L8604

C4911

R4702

C4174

R4985

JK3703

JK3300

TP1001

L3004

R4711

D0913

JK8850

R8866

R0966

IC8702

R4705

R3192

R4715

R0919

R3015

ZA0048

C4970

C3115

TU4800B

TD8908

L8600

R4121

JS0029

R4723

R8616

D0909

A02

C8612

TU4800A

TD8905

R4032

D3061

C4916

JS0028

JS0032

R8607

R4972

IC5416

R8653

D5174

JS0003

R3185

R4910

C4173

C8618

VJ8014

JK1000

C4815

C4801

R8647

R0942

R5172

C3162

JS0006

IC8201-B

R4912

L4801

C8629

C8600

C2753

FL4001

C4807

L3123

R0934

R8702

D2762

CN8959

C8611

R3102

C2755

D3054

D5180

D5173

R2753

IC4150

PLACA

DE PRINCIPAL A VISTA POSTERIOR.

106

1

5

15

11

BB

IF DOU T

1

IF DOU T

2

VB

1

RE SE

T

SD

A

SC

L

VB

2

IF AG

C

VI DEO OU

T

SI FOU

T

15

5

10

11

6

1

SI FOU

T

IF AG

C

SC

L

RE SE

T

IF DOU T

2

IF DOU T

1

VB

1

SD

A

VB

2

VI DEO OU

T

BB

VB

1

RE SE

T

SD

A

SC

L

VB

2

VI DEO OU

T

SI FOU

T

1

16

17

32

1

3

4

5

1

12

13

24

71

2 8

R E V E R S

E

F O

R

S U F F I X

.

S E

E

4

5

8

1

4

5

8

1

25

48

24

1

4

5

8

1

4

5

8

OU T

I N

33

17

64

1

49

1

13

25

37

48

D30 5

0

TU 480

0

JK3 30

0

JK3 30

1

Q1 95

1

JK 370

3

IC 500

0

IC 195

1

IC 560

2

IC 810

0

JK1 04

0

IC8 70

0

IC 870

1

IC8 70

6

IC8 90

0

IC8 90

1

IC 890

2

Q4 51

3

Q45 1

4

Q2 001Q2 00

2

JK 300

0

Q4 15

0

Q41 5

1

Q41 5

2

Q41 5

3

Q41 5

4

TV /Vo

l

-

SW 261

1

SW2 61

2

AV/ IN PU

T

SW 261

3

+/C H

-

SW 261

4

-/V ol

+

F/ CH

+

SW 261

5

Q49 7

4

IC 300

1

IC 860

1

TH ERM AL PA D

4

TNP4G51

9

A

THE RM AL PA D

TH ERM AL PA D

JK3300JK3301

JK1000

JK1001

JK1031

CN8959

JK8850

R4983

C8604

C8010

SW2612

R4150

C4161

C4922

Q4513

C0070

C8900

TP2008

C8306

R8673

TP4049

R2611

C4188

R4152

C4162

R2001

C4924

C4132

L3003

C8722

R8108

R5021

R8668

R8613

R8212

R4199

C8035

TP4032

R4915

C4163

L4000

TP8603

C0079

C8100

C5021

R8871

R4971

IC3001

C8037

C8214

JS0034

R4719

C4930

R8966

TP8607

C0081

C8104

D1952

C5002

R8220

R8208

C8223

D4166

TP4023

C4175

R4913

C4912

L8006

C8904

TP2775

C3080

C4006

C3036

C8606

TP4028

C4181

JS0037

C4167

R4124

R8919

C8901

R8669

TP0004

R8200

TP8614

TP8601

R5030

R5012

TP4703

R0902

TP4053

R2022

C4156

TP8612

C8716

C3118

L4152

C5615

TP2769

R1300

C3057

C8046

C8020

C8014

JS0035

TP4006

C4160

TP2016

R1953

D5003

C5017

C1954

R4798

C8043

TP4056

C8211

TP4033

R4916

TP4004

R8963

TP0905

R5608

D8100

R1951

C5023

R1311

R8610

C8028

C8205

TP4027

C4152

Q4514

C0071

C0058

TP4903

R8674

TP4047

TP4030

C4931

D2001

C4921

C4129

IC8701

C3108

TP8975

C8031

D4158

C4925

R8924

C8309

TP4701

C4806

R0924

R8223

TP4045

R2023

C4927

TP0900

R8112

R1962

C8106

R5181

R0936

C8626

C8608

C8016

D4165

R2025

L4800

C4550

R1002

C0060

TP2773

TP8701

R8641

IC8601

C8040

R4189

TP4043

C8019

D4169

C8005

C4176

C4914

C0088

R8302

R1308

C3059

R8222

C8033

D4159

C4926

R8925

R3123

C0067

R8305

TP2018

ZA056

R1961

C5032

R5180

R5179

D0910

C8034

C4976

TP4020

C4928

C4125

TP2019

C8303

C3077

C4002

C8049

C8038

SW2614

JS0036

R8968

R1000

C0082

TP4151

C8030

L2313

R4170

D4167

C8003

D4151

R2010

C0063

R8861

TP5602

TP5004

R4560

TP4034

R4918

TP4005

C2008

TP0907

R5609

TP2012

C5030

R1952

C5026

L4701

R8650

R8614

C8050

C8041

R4552

TP4003

C4134

TP0903

R3126

R5022

R1954

D1954

R8872

R8611

R4551

C4187

D4156

C4932

TP0922

IC8706

C8721

VJ8204

C8308

R4180

R4550

C8006

R2005

TP0920

L8015

R8118

R4024

R8218

TP4050

C8217

TP4039

D4168

D4160

D4152

R4144

C4150

C0087

C0064

C5020

R8863

R3059

TP8700

TP8100

D0902

R8206

C8220

TP4036

R4161

R4159

D4150

C3160

VJ8013

C4813

R8655

R1309

R1305

TP0003

R3013

C8227

C8219

R4156

Q4152

C4122

TP8600

C0068

R8306

TP4702

R1301

R8636

C8225

C8024

R4154

Q4151

TP8610

L3006

R8110

TP2017

TP8979

C5614

R5009

R5177

C8203

TP4025

C4177

C4929

R8116

TP2006

TP4901

C5006

VJ9901

Q4974

R4169

C8007

R4151

R4710

C4130

C3146

TP4150

C5624

C8307

R8675

R4970

TP5002

C8036

C8210

C8013

R4718

D2007

TP0904

R8100

C5029

D4001

C8625

C8622

R8204

C4971

TP4035

R2016

C4166

R4714

C2009

C8769

TP2013

X8600

IC5000

C5028

C5004

R4002

R8216

R4184

R2816

D4172

C8009

R2026

JS0038

R1004

R8914

C8903

C4814

C8055

C8619

C8200

TP4024

L4802

C2010

C0086

C4804

R0920

C5151

TP0909

C0065

IC5602

ZA055

C5035

C5031

C4805

R0939

R8224

TP4054

C8025

R2024

C4157

C4124

C3171

IC8900

R8114

C5616

C5033

R1302

R0937

C4001

R4984

C8011

SW2613

C4923

C4131

IC8100

TP8977

TP2770

D0911

C4977

R4167

SW2611

D4153

D2009

IC8700

R5031

ZA059

C8304

Q1951

R8859

C8045

TP4040

R4554

C4170

C4165

R8967

TP8608

TP2015

ZA062

C5027

C5016

C1953

TP5601

R0905

R8214

C8620

C8613

C8213

C8207

R4917

R4713

R8964

TP8605

VJ8008

C8102

D1955

C5025

C3045

C8228

C8026

R4158

C4158

C4126

TP8602

IC8901

ZA058

R1963

C5034

R8664

R1303

R0938

C8632

TP4052

TP4044

R4155

C4120

D8716

TP2002

IC1951

R8634

D4773

C8221

C8216

TP4037

R4549

C4182

D4721

D1000

R3302

R8860

R0947

R1306

R8205

C8607

C8215

R4556

SW2615

C8001

C4168

R8767

C0089

C8902

R4052

R8438

R8615

C8623

C8042

TP4055

R4173

R2612

R4712

C2001

TP8604

ZA064

R5023

D5004

R1310

L3102

C8044

TP4057

R2614

JS0033

C2007

TP0906

D1951

L4700

C1951

R3060

TP0006

C8027

C8204

D4162D4154

C4159

R8106

C8305

C5009

R8612

R8001

C8206

R4160

D4157

D2006

C4154

C4133

C8723

VJ8205

TP2771

C8051

C8624

TP5003

C8212

R2613

C4164

R2003

Q2001

C8765

C3111

ZA060

R1956

C5024

C5012

C8645

L5601

C8621

C8614

R2004

R4123

TP0908

D8102

ZA063

R1958

D1953

C5003

TP0005

R4166

D4161

Q4154

C4128

C0056

C8110

C1955

TP4048

TP4031

D4163

D4155

C4153

TP0921

L8016

L4150

R8676

TP1000

TP5400

R0903

R4157

Q4153

C4123

TP0901

C0078

R8104

ZA057

C8302

D3052

TP0001

TP4051

TP8609

L8009

R8303

R8102

C5036

R1959

D5181

R8632

TP8101

R8609

C8224

C8023

R5104

C8004

C4920

R1007

L8007

C4803

R1307

R5174

C3058

C8054

R8207

D4173

TP4029

C8002

C4169

C3161

L8005

TP2020

TP2774

TP8702

C4005

C8029

C8012

R4548

R4153

C4933

Q4150

FL3103

L8003

C5625

TP8978

R4168

TP4026

C4178

R8755

C0057

R5020

TP4902

R8210

R8203

TP4804

D2008

Q2002

TP8606

TP2011

ZA061

L2001

C5000

R1313

C8047

C3008

TP4803

C4546

C4907

C8764

IC8902

TP2014

TP2010

R1955

C5022

C8039

R4182

TP4041

C8015

C8008

TP4021

R1001

C0083

C8724

TP2772

R0945

R1304

R8217

C8222

TP4042

TP4038

R4162

TP4022

C3159

C0062

TP0002

C8226

R2021

C4155

TP0910

R8304

C3102

R1960

R0925

R8225

R0904

TP4046

PA4150

C4127

C3173

R8909

TP2004

TP4900

C8108

R8858

TU4800

JK1040

JK3703A

JK3000AJK3000

D3050

JK3703

TU4800BTU4800A

13 LAYOUT PLACA DE PODER

13.1 VISTA POSTERIOR TC-L32C4X TC-L32C4Y [TXN/P1NWUX],

ZA7003

R7808

CL7846

C7809

C7808

R7807

J212

D7806

CL7832

J206

CL7833

C7865

TP7820

C7866C7867

TP7806TP7807

TP7808

T7804

TP7810

TP7812

R7830

C7810

4487LC

JA1

R7810

D7807

JA10

3487LC

R7811

CL7842

D7808

JA5

R7813

CL7841

C7813

J205

R7839

C7844

C7861

TP7815 TP7816

TP7813 TP7814

P6 P7 P8

TP7817 TP7818

TP7819

C7862

C7863

TP7805

P5

TP7811

C7864

TP7809

R7814

TP7853

ZA7005

C7833

R7809

R7842

C7847

JS7850

JA11

CL7845

C7868

CL7848

R7829

CL7849

D7810

C7846

CL7834

R7841

J109

C7845

R7840

CL7835

J112

C7811

J202

R7812

J113

C7812

R7806

C7806

J115

CL7836

CL7837

T7802 T7803

CL7838

CL7839

CL7847

C7843

R7838

CL7830

TP7854

R7803

TP7852

C7814

CL7831

J102

CL7829

JA7

CL7828

CL7825

C7842

R7804

JA4

R7837

D7809

CL7826

R7824R7825

CL7827

J107

J303

J304

C7815

R7815

R7823

C7853

C7850

R7335

C7804

C7832

TP7821TP7822

JS7801

L7804

C7801

L7808 JS7808

C7827

Q7803

L7801 JS7811

D7811

CL7801

CL7850

CL7851

L7806 JS7803

R7831

R7832

Q7801

R7843

CL7857

J209

R7833

C7829

CL7802

D7819

D7813

CL7852

C7828

L7803

R7820

CL7808

R7821

C7821

R7822

CL7809

R7828

CL7810

R7826

CL7811

JA9

C7826

C7835

CL7812

R7805

C7834

CL7813

CL7814

CL7815

R7818

C7825

C7822

C7824

C7823

C7819

C7852

R7819

CL7822

JA6

JS7101

R7210

R7201

R7202

C7212

C7212-A

TP7202

TP7203

TP7201

TP7204

C7211

J208

J307

L7809 JS7809

L7802

JS7822

C7830

Q7804

R7836

D7814

JS7802

L7805

Q7802

R7844

CL7804

R7834

CL7853

CL7855

CL7856

R7835

D7812

CL7854

T7801

D7801

D7816

TP7855

CL7806

C7820

C7802

CL7807

D7817

CL7824

IC7801

C7817

C7816

R7801

JA14

D7818

CL7817CL7818CL7819CL7820

TP7851

JA3

CL7821

R7802

R7816

C7831

C7818

R7817

CL7840

C7851

TP7103

TP7102

S7110

LF7101

JS7102

C7104 C7104-A

S7100

D7204

C7214

J201

C7217

CL7201

R7217

CL7212

J305

CL7324

J101

C7304

J119

J120

L7301 JS7311

D7315

C7310

C7308

L7308 JS7308

CL7816

F7101

R7101

CL7102

R7104

S7111

R7103

CL7101

R7102

S7103

LF7102

S7107

JS7104

L7104

D7102

D7103

C7108

C7210

D7206

CL7215

L7203 JS7201

R7213

R7230

R7211

CL7209

R7226

CL7228

CL7220

R7219

CL7205

R7215

R7216

CL7203

CL7230

Q7201

R7208

R7209

CL7231

L7304

JS7301

D7309

D7317

R7328

C7307

C7305

D7314

CL7317

R7329

R7330

R7324

IC7301

CL7330CL7331

R7322

C7301

L7303

JS7310

D7503

D7503-HEAT0

TP7101

TP7105

J310

D7101

TP7104

C7105-A

C7105

CF7101

CF7102

J207

C7107

L7202

C7213

D7205

L7201 JS7202

D7208

R7223

C7220

R7229

CL7217

R7224

CL7218

J302

CL7233

R7205

Q7201-HEAT0

D7203

J210

J211

C7203

C7202

J114

R7346

D7310

IC7201

C7204

R7221

C7216

C7205

C7206

CL7208

R7203

CL7204

CL7207

C7207

JA12

R7206

D7319

D7304

L7305

JS7309

CL7313

D7320

R7315

J108

CL7329

R7316

C7309

Q7301

R7303

J309

CL7301

J110

CL7302

R7302

CL7327

R7344

R7341

R7323 R7345

CL7328

CL7325

Q7306

JA8

T7302

C7508

J117

TP7503

C7520

C7511C7513

S7101

P1

J213

LF7103

J301

JS7105

L7105

D7302

R7313

T7201

R7232

D7207

Q7203

CL7214

C7221

CL7225

R7234

C7218

CL7227

R7231

Q7202

CL7224

CL7226

R7310

CL7309

C7219

D7202

R7233

CL7234

C7208

CL7229

R7204

C7201

D7201

CL7235

D7209

CL7216

R7207

J111

JA2

C7302

CL7312

R7314

Q7303

CL7314

Q7302

R7318

CL7315

R7317

CL7316

J204

R7301

CL7303

PC7302

JA13

D7318

C7303

PC7301

CL7518

R7506

R7501

R7502

CL7507

R7512

CL7513

Q7502

CL7512

R7511

R7510

CL7511

D7504

R7513

CL7510

R7514

C7509

D7506

PA7551

JS7551

TP7803

TP7802

TP7804

ZA7004

C7106

S7108

C7103

S7104

C7102

S7102

C7112

C7111

C7109

C7110

CL7304

D7303

R7305

R7306

CL7305

CL7307

R7308

ZA7002

R7515R7516

C7510

CL7501

Q7505

C7503

R7519

CL7502

CL7517

CL7519

PC7303

R7518

Q7504

D7502

D7501

TP7506

C7512

C7501

TP7801

CL7503

CL7516

D7507

CL7504

J306

R7520

R7507

CL7508

CL7509

C7505

C7506

R7509

IC7501

J203

C7507

R7508

TP7505

R7505

D7508

P2

TP7501

R7504

TP7502

Q7501

CL7505 CL7506

C7504

R7503

J105

R7517

J118

CL7514 CL7515

C7502

Q7503

CL7823

J001

J104

TP7504

C7521

J103

C7514

C7515

ZA7001

33

14 PLACA KA LED PANEL APLICA A TC-L32C4X TC-L32C4Y [TZRNP03NWUX].

PLACA KA VISTA TRASEREA

TP2806

TP2802

TP2800 TP2801

TP2807

TP2803

PLACA KA VISTA FRONTAL

TP2804

TP2809

TP2808

RM2800

RM2800A

C2809

D2800B

D2800

D2800A

C2806

D2805

C2807

R2807 R2808

D2804

R2804

R2801

C2803

C2804

R2802

R2803

Q2801

R2805

Q2800

R2800

KA10

15 PLACA GK PANEL DE CONTROL APLICA A TC-L32C4X TC-L32C4Y [TZRNP04NWUX].

CL2602

C2604

SW26

00

SW2606

R2605

CL2608

R2604

SW2605

D2803

CL2607

C2805

Q2802

SW2601

SN2800

D2802

R2815

R2810R2811

R2817

R2809

R28

D2801

06

CL2604

R2601

SW2602

C2801

R2602

5 CL2606

CL260

C2811

C2802

SW2603

RM2800

RM2800A

R2831

R2603

R2828

R2829

R2830

R2827

SW2604

R2826

R2825

D2600

CL2603

CL2600

C2601

D2601

GK1

34

35

16 Diagramas

16.1 Diagrama para chasis LA15.

Aviso Importante de Seguridad

Los componentes identificados por una marca tendrán características especiales importantes para seguridad. Cuando reemplace alguno de estos componentes, use las partes especificadas por el fabricante.

Notas:

1. Resistencia:

Todas las resistencias de carbon son de 1/4W, a menos que marque lo contrario:

Bipolar Electrolítico Dipped Tantalum Diodo Tipo Zener

Óxido Metal Película de Metal Fusible

Línea de Tierra (Caliente)

La unidad es OHM [ ] k=1,000, M=1,000,000)

Inflamable Sólido Alambre dañado

2. Capacitor:

Todas los capacitores cerámicos son de 50V, a menos que marque lo siguiente:

La unidad es µF, a menos que note lo contrario:

Compensación de Temperatura Poliester Poliester Metálico Polisacárido

3. Bobina

La unidad de inductancia es µH, a menos que indique otra cosa.

4. Punto de Prueba

:Posición de Punto de Prueba

5. Símbolo de Tierra

: Chasis de Tierra Fria

6. Medida de Voltaje

El voltaje es medido por un Voltímetro DC Las condiciones de medida son las siguientes:

Fuente de Alimentación automatica ................... TC-L32C4X: 110~127 Vca, 50~60Hz

TC-L32C4Y: 220 Vca, 50~60Hz

Señal Recibida...................................................... Barra de Señal de Color

Todos los Controles del Usuario........................... Posición Máxima

7. Número en el círculo rojo indica el número en la forma de onda (Vea el patrón en la Tabla)

8. Cuando la flecha se encuentre señalando ( ), la conexión se encuentra fácilmente en dirección a la flecha.

9. Indica el flujo mayor señalado : Video : Audio

10. Este diagrama esquemático es el último en el momento de imprimirse y está sujeto a cambio sin previo aviso.

Comentarios:

1. El circuito de poder contiene una área del circuito (Tierra Caliente) que usa una fuente de alimentación separada para aislar la conexión de Tierra Fria.

M

T

m

Z

Ω

36

Precauciones:

a) No toque la parte ó las partes de tierra caliente con las de tierra fría al mismo tiempo, ya que usted puede sufrir daños.

b) No conecte al mismo tiempo un instrumento a los circuitos calientes ó frios, como un osciloscopio.

Conecte el instrumento de tierra a la conexión de tierra correcto.

c) Asegúrese de desconectar la clavija del Televisor antes de retirar el chasis.

d) Nota importante :

Use el esquemático anexo solo para referencia del circuito y para referencia con el numero de parte use siempre la lista de partes.

****** << Parts Destination list >> ****** User = Kamariah Client = PC975 Date = 2011/06/01 21:26:59

DESIGN = TNP4G519.A.KM10V.ARR02 ******** REF.NO.-LIST ********* Wed Jun 01 13:27:31 2011

[ Block Name ]

Information

REF No. 0000 - 0049

[ Net Variation ]

TNP4G519

SUFFIX

C

SUFFIX

JS0000 JS0001 *JS0002 *JS0003 JS0004 JS0005 JS0017 JS0006 JS0007 JS0008 JS0009 *JS0010 *JS0011

A B C D E F G H J K L M

SUFFIX (SUFFIX:higher)

A

G

B

H

SUFFIX (SUFFIX:lower)

JS0012 *JS0013 *JS0014 JS0015 JS0016

*JS0018 JS0019 JS0020 JS0021 JS0022

D

L

J

E

K

M

FC

A

G

BJKE

H

C

------------------------------------- USED -------------------------------------

A 12 14 02 09-11 C 1000 1951 1953-1955 2001 2003 2005 2007-2010 2750-2755 2775 3008 3024 3036 3045 3057-3059 3077 3080 3093 3095 3097 3101-3105 3108 3109 3111 3112 3115-3119 3146 3153 3154 3158-3165 3167-3173 4001 4002 4005 4006 4120-4134 4150-4170 4173-4182 4187 4188 4546 4548-4550 4800-4817 4907 4909-4918 4920-4937 4970-4977 5000-5004 5006 5009 5012 5016 5017 5020-5035 5151 5171 5476 5477 5613-5616 5624 5625 8001-8016 8019-8031 8033-8047 8049-8055 8100 8102 8104 8106 8108 8110 8112 8114 8116 8118 8120 8122 8124 8126 8128 8130 8200 8203-8228 8300-8311 8600-8629 8631-8633 8644 8645 8700 8702 8703 8705 8707-8712 8714-8717 8721-8725 8764 8765 8769 8773 8900-8904 0056-0058 0060-0071 0077-0089 CN 8959 0100 D 1000 1951-1955 2001 2005-2009 2756 2760 2762-2765 3050 3052 4000 4001 4150-4163 4165-4175 4721 4773 5003 5004 5170-5175 5180 5181 5480 8100 8102 8700 8716 0901 0902 0904-0914 ETC FL 3103 3104 4000-4003 4701-4704 IC 1951 3001 4120 4150 4900 5000 5416 5602 8000 8100 8200 8201 8601 8700-8702 8706 8900-8902 JK 1000 1001 1031 1040 3000 3300 3301 3703 8850 1000A 1001A 3000A 3703A JS 0001-0040 L 2001 2310-2313 2750-2752 2754 3003-3006 3010-3012 3102 3103 3119 3120 3122 3123 4000 4150-4153 4700 4701 4703 4704 4800-4805 4900-4903 5601 5603 5605 8003 8005-8007 8009 8015 8016 8100 8102 8600-8604 8606 8700-8702 PA 4150 Q 1951 2001 2002 3104 3105 4150-4154 4513 4514 4700 4702 4971 4972 4974 8100 8102 0900 R 1000-1002 1004-1008 1300-1313 1951-1956 1958-1963 2001 2003-2006 2009 2010 2012 2016 2018-2026 2611-2614 2751-2753 2816 3002 3013 3015-3020 3059-3064 3076 3077 3101-3103 3105 3119 3123 3126 3175 3176 3178 3184 3185 3190-3196 3199-3203 3300 3302 4002 4024 4031-4033 4046-4049 4052 4121-4128 4144 4145 4150-4162 4166-4173 4178 4180-4182 4184 4189 4199 4548-4552 4554 4556 4560 4563 4564 4702 4704 4705 4708-4715 4718 4719 4721-4724 4739 4798 4805-4807 4910-4918 4921 4970-4974 4978 4979 4983-4985 5002 5003 5006 5007 5009 5012 5020-5023 5030 5031 5104 5152 5170-5172 5174 5175 5177 5179-5181 5606-5609 8001 8100 8102 8104 8106 8108 8110 8112 8114 8116 8118 8200 8203-8208 8210 8212 8214 8216-8225 8301-8306 8438 8606-8617 8624 8625 8629 8630 8632 8634 8636-8641 8645-8651 8653-8657 8660-8676 8700-8707 8709 8710 8755 8767 8858-8861 8863 8866 8871 8872 8909 8910 8912 8914 8915 8919 8924 8925 8963-8968 9970 0800 0900-0907 0910 0911 0918-0921 0924 0925 0932-0945 0947-0949 0951 0952 0962-0967 SW 2611-2615 TD 8901-8909 9901 9902 0001 0010 0011 TP 1000 1001 2002 2004 2006 2008 2010-2020 2769-2775 4003-4006 4020-4057 4150 4151 4701-4703 4803 4804 4900-4903 5002-5004 5400 5601 5602 8100 8101 8600-8610 8612 8614 8700-8702 8975 8977 0001-0006 0900 0901 0903-0910 0920-0922 TU 4800 4800A 4800B VJ 4150 8008 8013 8014 8204 8205 8616 8619 9900 9901 X 8300 8600 ZA 055-064 0047-0054

------------------------------------ DISUSED -----------------------------------

A 1-9 11 13 01 03-08 C 1-999 1001-1950 1952 1956-2000 2002 2004 2006 2011-2749 2756-2774 2776-3007 3009-3023 3025-3035 3037-3044 3046-3056 3060-3076 3078 3079 3081-3092 3094 3096 3098-3100 3106 3107 3110 3113 3114 3120-3145 3147-3152 3155-3157 3166 3174-4000 4003 4004 4007-4119 4135-4149 4171 4172 4183-4186 4189-4545 4547 4551-4799 4818-4906 4908 4919 4938-4969 4978-4999 5005 5007 5008 5010 5011 5013-5015 5018 5019 5036-5150 5152-5170 5172-5475 5478-5612 5617-5623 5626-8000 8017 8018 8032 8048 8056-8099 8101 8103 8105 8107 8109 8111 8113 8115 8117 8119 8121 8123 8125 8127 8129 8131-8199 8201 8202 8229-8299 8312-8599 8630 8634-8643 8646-8699 8701 8704 8706 8713 8718-8720 8726-8763 8766-8768 8770-8772 8774-8899 0001-0055 0059 0072-0076 CN 1-8958 0001-0099 D 1-999 1001-1950 1956-2000 2002-2004 2010-2755 2757-2759 2761 2766-3049 3051 3053-3999 4002-4149 4164 4176-4720 4722-4772 4774-5002 5005-5169 5176-5179 5182-5479 5481-8099 8101 8103-8699 8701-8715 0001-0900 0903 FL 1-3102 3105-3999 4004-4700 IC 1-1950 1952-3000 3002-4119 4121-4149 4151-4899 4901-4999 5001-5415 5417-5601 5603-7999 8001-8099 8101-8199 8202-8600 8602-8699 8703-8705 8707-8899 JK 1-999 1002-1030 1032-1039 1041-2999 3001-3299 3302-3702 3704-8849 L 1-2000 2002-2309 2314-2749 2753 2755-3002 3007-3009 3013-3101 3104-3118 3121 3124-3999 4001-4149 4154-4699 4702 4705-4799 4806-4899 4904-5600 5602 5604 5606-8002 8004 8008 8010-8014 8017-8099 8101 8103-8599 8605 8607-8699 PA 1-4149 Q 1-1950 1952-2000 2003-3103 3106-4149 4155-4512 4515-4699 4701 4703-4970 4973 4975-8099 8101 0001-0899 R 1-999 1003 1009-1299 1314-1950 1957 1964-2000 2002 2007 2008 2011 2013-2015 2017 2027-2610 2615-2750 2754-2815 2817-3001 3003-3012 3014 3021-3058 3065-3075 3078-3100 3104 3106-3118 3120-3122 3124 3125 3127-3174 3177 3179-3183 3186-3189 3197 3198 3204-3299 3301 3303-4001 4003-4023 4025-4030 4034-4045 4050 4051 4053-4120 4129-4143 4146-4149 4163-4165 4174-4177 4179 4183

SUB ASSEMBLY

PART NO.

T O

TNP4G519MB NFUXKX-L32X33X

P

TNP4G519UB KL-32LX44 TNP4G519QB KX-L32C4S TNP4G519QB KX-L32C4G TNP4G519MA KX-L32C33X TNP4G519MAA KX-L32C33G TNP4G519CA CC-L32C35C TNP4G519DA KE-L32C33D TNP4G519PA KV-L32C33V TNP4G519MBB KX-L32X33G TNP4G519MBA KX-L32X33T TNP4G519DB KE-L32X33D TNP4G519LB CT-L32C4X TNP4G519LC CT-L32C4Y

APPLIED MODEL

PLAN NO.MODEL NO.

QMUU NBUS NHUG NGUX NGUG NNUC MXUD NAUV NFUG MVUT MWUD NWUX MGUL

ARRANGEMENT

DATE

10/05/11

11/05/11

12/04/11

25/04/11

26/04/11

06/05/11

26/05/11

03/06/11

PRODUCTION

START

15/08/11

12/09/11

05/09/11

21/07/11

16/08/11

18/08/11

22/08/11

06/10/11

CHG NO.

CHASSIS

KM10L

KM10V

KM10A

KM10L

KM10V

[ Block Name ]

Clip,Lag

REF No. 0050 - 0099

[ Net Variation ]

[ Block Name ]

Power line bypass C

REF No. 0050 - 0099

[ Net Variation ]

TNP4G519

MODELS

----------------------------------------------------------| <REFNO.> | <LB> | <LC> |

----------------------------------------------------------| | TUC4GJ5055,H32228 | TUC4GJ5055,H32228 | | | TUC4GJ5038,H32228 | TUC4GJ5038,H32228 | | | T8C1711300,H32228 | T8C1711300,H32228 | | | T4FT1520Q,H32228 | T4FT1520Q,H32228 | | | ---TUC4GC5040 | ---TUC4GC5040 | | | ---XSN3+6FJ | ---XSN3+6FJ | | | ---TUC4GC5041 | ---TUC4GC5041 | | A02 | K1KY04AA0719 | K1KY04AA0719 | | C1951 | F1G1H1020008 | F1G1H1020008 | | C1953 | F1J0J106A004 | F1J0J106A004 | | C1954 | F1J0J106A004 | F1J0J106A004 | | C1955 | F1G1H101A565 | F1G1H101A565 | | C2001 | F1G1E1030005 | F1G1E1030005 | | C2005 | ---F1G1C104A077 | ---F1G1C104A077 | | C2007 | ---F1G1H1020008 | ---F1G1H1020008 | | C3108 | ---F1G1H5610004 | ---F1G1H5610004 | | C3109 | ---F1G1H5610004 | ---F1G1H5610004 | | C3111 | ---F1J1A106A087 | ---F1J1A106A087 | | C3112 | ---F1G1H5610004 | ---F1G1H5610004 | | C3115 | ---F1G1H5610004 | ---F1G1H5610004 | | C3116 | ---F1H1A105A025 | ---F1H1A105A025 | | C3117 | ---F1H1A105A025 | ---F1H1A105A025 | | C3118 | ---F1G1C333A081 | ---F1G1C333A081 | | C3119 | ---F1G1C333A081 | ---F1G1C333A081 | | C3153 | ---F1G1H5610004 | ---F1G1H5610004 | | C3154 | ---F1G1H5610004 | ---F1G1H5610004 | | C3162 | ---F1J1A106A087 | ---F1J1A106A087 | | C3163 | ---F1J1A106A087 | ---F1J1A106A087 | | C3164 | ---F1J1A106A087 | ---F1J1A106A087 | | C3165 | ---F1J1A106A087 | ---F1J1A106A087 | | C4548 | F1G1A105A047 | F1G1A105A047 | | C4549 | ---F1G1A105A047 | ---F1G1A105A047 | | C4800 | F1G1H220A565 | ---F1G1H220A565 | | C4809 | F1G1C104A077 | ---F1G1C104A077 | | C4810 | F1G1C104A077 | ---F1G1C104A077 | | C4972 | ---EEEHB0J101UR | ---EEEHB0J101UR | | C4973 | ---EEEHB0J101UR | ---EEEHB0J101UR | | C8602 | ---F1G1H390A565 | ---F1G1H390A565 | | C8603 | ---F1J1A106A087 | ---F1J1A106A087 | | C8604 | ---F1G1C104A077 | ---F1G1C104A077 | | C8605 | ---F1G1C104A077 | ---F1G1C104A077 | | C8607 | ---F1G1H100A565 | ---F1G1H100A565 | | C8608 | ---F1G1H100A565 | ---F1G1H100A565 | | C8609 | ---F1G1C104A077 | ---F1G1C104A077 | | C8611 | ---F1G1C104A077 | ---F1G1C104A077 | | C8615 | ---F1J1A106A087 | ---F1J1A106A087 | | C8616 | ---F1J1A106A087 | ---F1J1A106A087 | | C8617 | ---F1G1C104A077 | ---F1G1C104A077 | | C8629 | ---F1G1H390A565 | ---F1G1H390A565 | | C8644 | ---F1G1C104A077 | ---F1G1C104A077 | | D1951 | B0JCCE000008 | B0JCCE000008 | | D1952 | DA2J10100L | DA2J10100L | | D1953 | DA2J10100L | DA2J10100L | | D1954 | DA2J10100L | DA2J10100L | | D1955 | B0JCCE000008 | B0JCCE000008 | | D2001 | EZJZ0V120JA | EZJZ0V120JA | | D2006 | ---B0ECKM000046 | ---B0ECKM000046 | | D2007 | ---B0ECKM000046 | ---B0ECKM000046 | | D2008 | ---B0ECKM000046 | ---B0ECKM000046 | | D2009 | ---B0ECKM000046 | ---B0ECKM000046 | | D3050 | K7AAAY000011 | K7AAAY000011 | | FL4701 | EXC28CE201U | EXC28CE201U | | FL4702 | EXC28CE201U | EXC28CE201U | | FL4703 | EXC28CE201U | EXC28CE201U | | FL4704 | EXC28CE201U | EXC28CE201U | | IC1951 | C0EBF0000354 | C0EBF0000354 | | IC4900 | C1AB00003705 | C1AB00003705 | | IC8000 | MN2WS0177D | MN2WS0177D | | IC8601 | ---C1CB00003491 | ---C1CB00003491 | | IC8900 | C3FBTY000011 | C3FBTY000011 | | IC8901 | C3EBGC000056 | C3EBGC000056 | | IC8902 | C3EBHC000035 | C3EBHC000035 | | JK1000 | K1FY119D0015 | K1FY119D0015 | | JK1000A | ---K1FY119D0016 | ---K1FY119D0016 | | JK1001 | K1FY119D0015 | K1FY119D0015 | | JK1001A | ---K1FY119D0016 | ---K1FY119D0016 | | JK1040 | ---K2LC1YYA0016 | ---K2LC1YYA0016 | | JK3000 | ---K1U713A00001,H3222| ---K1U713A00001,H3222| | JK3000A | K1U511A00013,H32228 | K1U511A00013,H32228 | | JK3300 | ---K2HC104E0020 | ---K2HC104E0020 | | JK3301 | ---K2HC104E0020 | ---K2HC104E0020 | | JK3703 | K1FY315A0011 | K1FY315A0011 | | JK3703A | ---K1FY315A0009 | ---K1FY315A0009 | | JS0002 | ---D0GAR00J0005 | ---D0GAR00J0005 | | JS0003 | ---D0GAR00J0005 | ---D0GAR00J0005 | | JS0010 | D0GAR00J0005 | D0GAR00J0005 | | JS0011 | ---D0GAR00J0005 | ---D0GAR00J0005 | | JS0013 | ---D0GAR00J0005 | ---D0GAR00J0005 | | JS0014 | ---D0GAR00J0005 | ---D0GAR00J0005 | | JS0018 | ---D0GAR00J0005 | ---D0GAR00J0005 | | JS0023 | ---D0GAR00J0005 | ---D0GAR00J0005 | | JS0024 | D0GAR00J0005 | ---D0GAR00J0005 |

CT-L42C4X CT-L32C4Y

TNP4G519

| JS0025 | ---D0GAR00J0005 | D0GAR00J0005 | | L2752 | ---J0JYC0000065 | ---J0JYC0000065 | | L3003 | ---J0JCC0000287 | ---J0JCC0000287 | | L3004 | ---J0JCC0000287 | ---J0JCC0000287 |

SHEET2

CRNo:IC9401

d U

STB3.3V

SUB5V

| L3005 | ---J0JCC0000287 | ---J0JCC0000287 | | L3102 | ---J0JCC0000287 | ---J0JCC0000287 | | L3103 | ---J0JCC0000287 | ---J0JCC0000287 | | L3119 | ---J0JCC0000287 | ---J0JCC0000287 | | L3120 | ---J0JCC0000287 | ---J0JCC0000287 | | L4700 | J0JYC0000068 | J0JYC0000068 | | L4701 | J0JYC0000068 | J0JYC0000068 | | L4803 | G1CR39J00009 | ---G1CR39J00009 | | L4804 | G1CR39J00009 | ---G1CR39J00009 | | L8600 | ---J0JHC0000045 | ---J0JHC0000045 |

SUFFIX F p

| L8603 | ---J0JBC0000115 | ---J0JBC0000115 |

SUFFIX

N P Q

*JS0023 *JS0024 *JS0025

A B C

TP0001

TP0002

TP0003

TP0005

TP0004

TP0006

SHEET3

CRNo:9401-9549

C

1000p

C0061

50V

1000p

C0062

50V

1000p

C0063

50V

1000p

C0064

50V

C

1000p

C0083

50V

1000p

C0084

50V

1000p

C0085

50V

1000p

C0086

50V

omote ura

R S T U V W X Y

U

V

D

JS0026 JS0027 JS0028 JS0029 JS0030 JS0031 JS0032 JS0039 JS0040

RN

W

S

P

X

TQ

L

D E F G H J K L M

JS0033

C

SUFFIX W p [

JS0034

JS0035

JS0036

z u

JS0038

JS0037

SHEET4 SHEET5 SHEET6

Y

CRNo:9801-9899 CRNo:9001-9149 CRNo:9601-9659

*ZA0048 K4ZZ01000267

C

ZA0047 K4ZZ01000267

C

*ZA0049 K4ZZ01000267

*ZA0051 K4ZZ01000267

C C

C

*ZA0053

K4ZZ01000267

*ZA0050 K4ZZ01000267

K4ZZ01000267

C

*ZA0054

*ZA0052 K4ZZ01000267

C

*ZA055

K4ZZ01000267

C C

*ZA060

K4ZZ01000267

C CC CC

*ZA056

K4ZZ01000267

*ZA061

K4ZZ01000267

*ZA057

K4ZZ01000267

C

*ZA062

K4ZZ01000267

C

*ZA058

K4ZZ01000267

CC

*ZA063

K4ZZ01000267

*ZA059

K4ZZ01000267

*ZA064

K4ZZ01000267

5.8VS

C0056

C

AVDD12.6V

C0057

C

50V

1000p

p l A i O d

13.7V 12.6V X

50V

1000p

STB5V

P15V

C

1000p

C0065

1000p

C0069

50V

1000p

C0066

1000p

C0070

50V

1000p

C0067

1000p

C0071

50V

1000p

C0068

50V

SUB9V

C0087

C

VOFF2_-6V

C0088

C

VON31V

50V

1000p

50V

1000p

CRNo:9661-9699

50V

1000p

C0089

C

| L8604 | ---J0JBC0000115 | ---J0JBC0000115 | | Q1951 | B1ADCF000194 | B1ADCF000194 | | Q2001 | DSC2001S0L | DSC2001S0L | | Q2002 | B1ADGJ000008 | B1ADGJ000008 | | Q3104 | ---B1ABCE000015 | ---B1ABCE000015 | | Q3105 | ---B1ABCE000015 | ---B1ABCE000015 | | Q4700 | B1ABCE000015 | B1ABCE000015 | | Q4971 | ---B1AAFB000004 | ---B1AAFB000004 | | Q4972 | ---B1AAFB000004 | ---B1AAFB000004 | | Q4974 | ---DSC2001S0L | ---DSC2001S0L | | R1004 | ---D0GA103JA015 | ---D0GA103JA015 | | R1305 | ---D0GA103JA015 | ---D0GA103JA015 | | R1307 | ---D0GA103JA015 | ---D0GA103JA015 | | R1308 | ---D0GA103JA015 | ---D0GA103JA015 | | R1309 | ---D0GA473JA015 | ---D0GA473JA015 | | R1311 | ---D0GA473JA015 | ---D0GA473JA015 | | R1312 | ---D0GA103JA015 | ---D0GA103JA015 | | R1313 | ---D0GA103JA015 | ---D0GA103JA015 | | R1951 | D0GA680JA023 | D0GA680JA023 | | R1952 | D0GA104JA023 | D0GA104JA023 | | R1953 | D0GA103JA015 | D0GA103JA015 | | R1954 | D0GA683JA023 | D0GA683JA023 | | R1956 | D0GA473JA015 | D0GA473JA015 | | R1958 | D0GA103JA015 | D0GA103JA015 | | R1959 | D0GA561JA023 | D0GA561JA023 | | R1960 | D0GA564JA023 | D0GA564JA023 | | R1961 | D0GA101JA015 | D0GA101JA015 | | R1962 | D0GA564JA023 | D0GA564JA023 | | R1963 | D0GA101JA015 | D0GA101JA015 | | R2001 | D0GAR00J0005 | D0GAR00J0005 | | R2003 | ---D0GBR00J0004 | ---D0GBR00J0004 | | R2004 | D0GAR00J0005 | D0GAR00J0005 | | R2005 | D0GAR00J0005 | D0GAR00J0005 | | R2010 | D0GDR00J0004 | D0GDR00J0004 | | R2016 | ---D0GDR00J0004 | ---D0GDR00J0004 | | R2020 | D0GAR00J0005 | D0GAR00J0005 | | R2021 | D0GA472JA023 | D0GA472JA023 | | R2022 | D0GA473JA015 | D0GA473JA015 | | R2023 | D0GA473JA015 | D0GA473JA015 | | R2024 | D0GA152JA023 | D0GA152JA023 | | R2025 | ---D0GDR00J0004 | ---D0GDR00J0004 | | R2026 | ---D0GDR00J0004 | ---D0GDR00J0004 | | R3059 | ---D1BD75R0A066 | ---D1BD75R0A066 | | R3060 | ---D0GA221JA023 | ---D0GA221JA023 | | R3061 | ---D0GA333JA023 | ---D0GA333JA023 | | R3062 | ---D0GA333JA023 | ---D0GA333JA023 | | R3063 | ---D0GA221JA023 | ---D0GA221JA023 | | R3064 | ---D0GA221JA023 | ---D0GA221JA023 | | R3184 | ---D0GA104JA023 | ---D0GA104JA023 | | R3185 | ---D0GA104JA023 | ---D0GA104JA023 | | R3190 | ---D0GA101JA015 | ---D0GA101JA015 | | R3191 | ---D0GA101JA015 | ---D0GA101JA015 | | R3194 | ---D0GA331JA023 | ---D0GA331JA023 |

4185-4188 4190-4198 4200-4547 4553 4555 4557-4559 4561 4562 4565-4701 4703 4706 4707 4716 4717 4720 4725-4738 4740-4797 4799-4804 4808-4909 4919 4920 4922-4969 4975-4977 4980-4982 4986-5001 5004 5005 5008 5010 5011 5013-5019 5024-5029 5032-5103 5105-5151 5153-5169 5173 5176 5178 5182-5605 5610-8000 8002-8099 8101 8103 8105 8107 8109 8111 8113 8115 8117 8119-8199 8201 8202 8209 8211 8213 8215 8226-8300 8307-8437 8439-8605 8618-8623 8626-8628 8631 8633 8635 8642-8644 8652 8658 8659 8677-8699 8708 8711-8754 8756-8766 8768-8857 8862 8864 8865 8867-8870 8873-8908 8911 8913 8916-8918 8920-8923 8926-8962 8969-9969 0001-0799 0801-0899 0908 0909 0912-0917 0922 0923 0926-0931 0946 0950 0953-0961 SW 1-2610 TD 1-8900 8910-9900 0002-0009 TP 1-999 1002-2001 2003 2005 2007 2009 2021-2768 2776-4002 4007-4019 4058-4149 4152-4700 4704-4802 4805-4899 4904-5001 5005-5399 5401-5600 5603-8099 8102-8599 8611 8613 8615-8699 8703-8974 8976 0007-0899 0902 0911-0919 TU 1-4799 VJ 1-4149 4151-8007 8009-8012 8015-8203 8206-8615 8617 8618 8620-9899 X 1-8299 8301-8599 ZA 001-054 0001-0046

CHG NO. CHANGED BY APPROVED BYREPORT NO. ENDDATE

H1 TR11-0191 H2 TR11-0193

H3 TR11-0200 H4 TR11-0207 H5 TR11-0214 H6 TR11-0219 H7 TR11-0230 H8 TR11-0232 H9 TR11-0235 H10 TR11-0229 H11 TR11-0242 H12 TR11-0254

07/05/11

12/05/11

19/05/11

20/05/11

25/05/11

26/05/11

25/05/11

30/05/11

01/06/11

KAMARIAH MR EDWIN N KAMARIAH MR EDWIN N

SHUHAILA MR EDWIN N KAMARIAH MR EDWIN N KAMARIAH MR EDWIN N KAMARIAH MR EDWIN N KAMARIAH MR EDWIN N KAMARIAH MR EDWIN N KAMARIAH MR EDWIN N SHUHAILA MR EDWIN N KAMARIAH MR EDWIN N KAMARIAH MR EDWIN N

CRNo:9701-9799

| R3195 | ---D0GA331JA023 | ---D0GA331JA023 |

M

F

SHEET7

CRNo:9151-9199

DVDD2.5V

C0058

C

STB1.2V

50V

1000p

SUB3.3V

| R4563 | D0GA103JA015 | D0GA103JA015 | | R4564 | ---D0GA103JA015 | ---D0GA103JA015 | | R4702 | D0GA103JA015 | D0GA103JA015 | | R4708 | D0GA103JA015 | D0GA103JA015 | | R4709 | D0GA103JA015 | D0GA103JA015 | | R4711 | D0GA102JA023 | D0GA102JA023 | | R4805 | D0GAR00J0005 | ---D0GAR00J0005 | | R4806 | D0GAR00J0005 | ---D0GAR00J0005 | | R4972 | ---D0GA103JA015 | ---D0GA103JA015 | | R4973 | ---D0GA103JA015 | ---D0GA103JA015 | | R4974 | ---D0GF122JA048 | ---D0GF122JA048 | | R4978 | ---D0GA472JA023 | ---D0GA472JA023 | | R4979 | ---D0GA472JA023 | ---D0GA472JA023 | | R4984 | ---D0GA473JA015 | ---D0GA473JA015 | | R4985 | ---D0GA103JA015 | ---D0GA103JA015 | | R5031 | D0GA103JA015 | D0GA103JA015 | | R5608 | D0GA103JA015 | D0GA103JA015 | | R5609 | D0GA103JA015 | D0GA103JA015 | | R8608 | ---D0GA272JA023 | ---D0GA272JA023 | | R8609 | ---D1BA6491A014 | ---D1BA6491A014 |

CRNo:9201-9249

| R8610 | ---D0GA221JA023 | ---D0GA221JA023 | | R8615 | ---D0GA105JA023 | ---D0GA105JA023 | | R8616 | ---D0GA101JA015 | ---D0GA101JA015 | | R8617 | ---D0GA101JA015 | ---D0GA101JA015 | | R8647 | D0GA103JA015 | D0GA103JA015 | | R8648 | D0GA103JA015 | D0GA103JA015 | | R8649 | D0GA103JA015 | D0GA103JA015 | | R8650 | D0GA103JA015 | D0GA103JA015 | | R8651 | D0GA103JA015 | D0GA103JA015 | | R8653 | D0GA103JA015 | D0GA103JA015 |

C

1000p

C0060

50V

1000p

C0077

50V

1000p

C0078

50V

1000p

C0079

50V

1000p

C0080

50V

1000p

C0081

50V

1000p

C0082

50V

SHEET3 p

| R8654 | D0GA103JA015 | D0GA103JA015 | | R8655 | D0GA103JA015 | D0GA103JA015 | | R8656 | D0GA103JA015 | D0GA103JA015 | | R8657 | D0GA103JA015 | D0GA103JA015 | | R8660 | ---D0GA101JA015 | ---D0GA101JA015 | | R8661 | ---D0GA101JA015 | ---D0GA101JA015 | | R8662 | ---D0GA101JA015 | ---D0GA101JA015 | | R8663 | ---D0GA101JA015 | ---D0GA101JA015 | | R8664 | ---D0GA101JA015 | ---D0GA101JA015 | | R8665 | ---D0GA101JA015 | ---D0GA101JA015 | | R8666 | ---D0GA101JA015 | ---D0GA101JA015 | | R8667 | ---D0GAR00J0005 | ---D0GAR00J0005 | | R8668 | ---D0GA101JA015 | ---D0GA101JA015 | | R8669 | ---D0GA101JA015 | ---D0GA101JA015 | | R8670 | ---D0GA101JA015 | ---D0GA101JA015 | | R8671 | ---D0GA101JA015 | ---D0GA101JA015 | | R8672 | ---D0GA101JA015 | ---D0GA101JA015 | | R8673 | ---D0GA101JA015 | ---D0GA101JA015 | | R8674 | ---D0GA101JA015 | ---D0GA101JA015 | | R8675 | ---D0GA101JA015 | ---D0GA101JA015 | | R8676 | ---D0GA101JA015 | ---D0GA101JA015 |

PCB NAME

PRINT TOOL NO.

COMB.PCB PARENT NO.

CHASSIS

BOARD

DESIGNED BY

CHECKED BY

APPROVED BY

TNP4G519 TNP4G519-1

KM10V/KM10L/KM10A

A LCD GROUP

MR THIRU

S

TECH.REPORT

UPDATED NO.

PAVCKM

ASIA R&D CENTER

ELECT. DESIGN SECT.

ISSUED

ENGINEERING ARRANGEMENT

SHEET8

CRNo:9551-9599

OTHER PARTS

REFNo.

for Pb Free

T2KD01200

[SINGLE PCB]

CHGNo.

C

SAFEPARTS NO.

PB FREE DIP SOLDER0.0016

CRNo:9901-9979

0.0001 PB FREE SOLDER

T2KA02610 T8EJ007 T2KC03600 TUC4GJ5055

*

TUC4GJ5038

*

T8C1711300

*

T4FT1520Q

*

TUC4GC5040

*

XSN3+6FJ

*

TUC4GC5041

*

FLUX0.0021 CREAM SOLDER0.0031 HEATSINK AT IC8000 HEATSINK AT IC8200 & IC8201 BOND AT IC8000,IC8200,IC82010.0006 TAPE(AT IC8200,IC8201,IC8000 ) SHIELDCASE SCREW SHIELDCASE SHIELDCASE BOTTOM

| TU4800 | ---ENGS7302D5F,S | ---ENGS7302D5F,S | | TU4800A | ENGS6302D5F,S | ENGS6302D5F,S | | TU4800B | ---ENGS9301D5RF,S | ---ENGS9301D5RF,S | | X8600 | ---H0J250500109 | ---H0J250500109 | | ZA0048 | K4ZZ01000267 | K4ZZ01000267 | | ZA0049 | K4ZZ01000267 | K4ZZ01000267 | | ZA0050 | K4ZZ01000267 | K4ZZ01000267 | | ZA0051 | K4ZZ01000267 | K4ZZ01000267 | | ZA0052 | K4ZZ01000267 | K4ZZ01000267 | | ZA0053 | K4ZZ01000267 | K4ZZ01000267 | | ZA0054 | K4ZZ01000267 | K4ZZ01000267 |

CONFIDENTIAL

NOTE :-

CIRCUIT DRAWING MANAGER

MR EDWIN

MR BISWAS

KM10A-012

KM10LKM10V-

03th.JUNE,2011

PLOT

11/06/01 23:52:32 Kamariah

CRNo:9981-9989

SHEET9

CRNo:9301-9399

| ZA055 | K4ZZ01000267 | K4ZZ01000267 | | ZA056 | K4ZZ01000267 | K4ZZ01000267 | | ZA057 | K4ZZ01000267 | K4ZZ01000267 | | ZA058 | K4ZZ01000267 | K4ZZ01000267 | | ZA059 | K4ZZ01000267 | K4ZZ01000267 | | ZA060 | K4ZZ01000267 | K4ZZ01000267 | | ZA061 | K4ZZ01000267 | K4ZZ01000267 | | ZA062 | K4ZZ01000267 | K4ZZ01000267 | | ZA063 | K4ZZ01000267 | K4ZZ01000267 | | ZA064 | K4ZZ01000267 | K4ZZ01000267 |

-----------------------------------------------------------

Until:

APPROVED

31/12/2010

ASIA R&D CENTER MATSUSHITA TELEVISION & NETWORK SYSTEMS CO.,(M) SDN.BHD. (170701-M)

THIS SCHEMATIC DIAGRAM IS THE LATEST AT THE TIME OF PRINTING AND SUBJECT TO CHANGE WITHOUT NOTICE.

CHECKED 2

CHECKED 1CHECKED 3

DRAWN

VARIATION

SHEET

TNP4G519.A.cir/001.sht

CHASSIS NO.

LB

MODEL NO.BOARD

CONFIDENTIAL

KM10V KM10L KM10A

NOTE : REFER TO THE DIFFERENTIAL TABLE FOR DETAILS

A

CT-L32C4X CT-L32C4Y

PLOT

11/06/01 23:53:03 Kamariah

VARIATION

SHEET

TNP4G519.A.cir/002.sht

LB

[ Block Name ]

IIC_BUS

IIC

REF No. 0900 - 0999

[ Net Variation ]

PEAKS-SLD2

P_SCL0

IIC_0

IIC_1

P_SDA0

P_SCL1

P_SDA1

SUB3.3V

2.7k

R0900

SUB3.3V

2.7k

R0902

2.7k

R0901

R0934

R0935

2.7k

R0903

R0936

R0937

f o b O R l N ^

LCD:Peaks EEP WP

LCD:GenX EEP WP

68

R0921

22

68

R0920

22

TCON_SCL

TCON_SDA

TCON DAC

0x74

TCON DCDC

0x80

R0919

22

R0918

22

LCD PANELTCON Model

LCD_SCL

LCD_SDA

PANEL EEPROM

0xA0 0xBA,DA

TCON Model

ZWEI2

R0951

SUB3.3V

47k

Q0900

B1ADCF000194

PEAKS-SLD2

EEPROM_WP P_PORT36

STM-EEP_WP P_STMGPIO8

IIC_3

STM IIC

P_SCL3

P_SDA3

P_STMSCL

P_STMSDA

SUB3.3V

2.7k

R0904

STB3.3V

2.7k

R0906

2.7k

R0907

R0905

R0940

R0941

2.7k

R0938

R0939

PEAKS EEPROM

0xA0

PEAKS-EEP_SCL

PEAKS-EEP_SDA

68

R0925

22

68

R0924

22

AV-SW

AV-SW_SCL

AV-SW_SDA

0x90

FE(HK/China)

0x80

R0962

R0963

R0964

R0965

R0966

R0967

68

SUB5V

STM EEPROM

H p R l N ^

TP0903

TP0920

TP0900

TP0901

TP0921

TP0922

TP0904

TP0905

TP0906

TP0907

TP0908

TP0909

TP0910

14

13

12

11

10

9

8

7

6

5

4

3

2

1

R_LED

SDBOOT

LCD_EEP_WP

SBO

SBI

PEAKS SDA0

PEAKS SCL0

PEAKS SDA1

PEAKS SCL1

STM SDA

STM SCL

GND

STM_SRQ

C

1k R0952

R0944

100

R0945

R0947

R0948

R0949

STB3.3V

R0911

1k

68

47k

SDBOOT

P_PORT01

P05 R_LED_ON P_STMTIME4

LCD_EEP_WP

TCON_EEP_WP

P_SBO0

P_SBI0

SRQ_STM

P_STMGPIO3

H:SDBOOT L:Normal

DEBUG SERIAL

H:Normal L:IIC STOP

0xA0

STM-EEP_SCL

STM-EEP_SDA

CN0100

K1KA14A00248

BM14B-GHS-TBT(LF)(SN)

DMD IIC_0

P_DMDSCL0

P_DMDSDA0

R0942

R0943

SUB3.3V

1.2mm/ c

EZAEG2A50AX

D0907

EZAEG2A50AX

D0908

EZAEG2A50AX

D0909

EZAEG2A50AX

D0910

EZAEG2A50AX

D0911

EZAEG2A50AX

D0912

EZAEG2A50AX

D0913

C

D0914

R0910

EXB28V472JX

68

R0933

R0932

22

EZJZ0V120JA

D0902

D0901

EZAEG2A50AX

D0904

EZAEG2A50AX

D0905

EZAEG2A50AX

D0906

Terrestrial Tuner

0xC6

TER_TUNER_SCL

TER_TUNER_SDA

DMD IIC_1

P_DMDSCL1

P_DMDSDA1

7/20 27k 24 X

Debug Monitor

1.0mm/ i

LVDS REF

GUARD

R8306

24k

LVVSS C

LVDSRREF M C

u p ^ [ B

N X g [ N o M Jitter B

\ A f m c V [ h B

P_LVDSRREF

CHANGE

Change No.

Date

Common Mng.

Described

Approved

Engineering Department

-- APPROVE RANGE --

nil UB QB MB MA MAA DA PA CA MBA MBB DB LB LC

TR11-0242

2011/05/27

MTV R&D

CHG NO. CHANGED BY APPROVED BYREPORT NO. ENDDATE

H1 TR11-0191 H2 TR11-0193

H3 TR11-0200 H4 TR11-0207 H5 TR11-0214 H6 TR11-0219 H7 TR11-0230 H8 TR11-0232 H9 TR11-0235 H10 TR11-0229 H11 TR11-0242 H12 TR11-0254

07/05/11

12/05/11

19/05/11

20/05/11

25/05/11

26/05/11

25/05/11

30/05/11

01/06/11

KAMARIAH MR EDWIN N KAMARIAH MR EDWIN N

SHUHAILA MR EDWIN N KAMARIAH MR EDWIN N KAMARIAH MR EDWIN N KAMARIAH MR EDWIN N KAMARIAH MR EDWIN N KAMARIAH MR EDWIN N KAMARIAH MR EDWIN N SHUHAILA MR EDWIN N KAMARIAH MR EDWIN N KAMARIAH MR EDWIN N

CONFIDENTIAL

PLOT

11/06/01 23:53:30 Kamariah

VARIATION

SHEET

TNP4G519.A.cir/003.sht

LB

[ Block Name ]

HDMI Connector IF

HDMI

HDMI_CEC

R4739

22

D4773

B0JCCE000008

R4798

27k

to Sheet Standby-MPU

P_STMCECPUL

P_STMCEC0

sLD-STMCECO

To Sheet Peaks-COMMON

[ Block Name ]

Mute

ARC

Audio-AMP

Main Tuner

REF No. 4500 - 4749

[ Net Variation ]

sLD2-4-LCD

US

ASIA(w/ HDMI2)

ASIA(w/o HDMI2)

HDMI2

ARC

HDMI1 HDMI2

HDMI1 ~

R4558

HDMI1

P_STMHPDO1

REF No. 4970 - 4999

P_RX2CM

HDMI3

REF No. 4750 - 4799

REF No. 4900 - 4969

*R4702

10k

C

*Q4700

B1ABCE000015

C

*R4708

GenX g p 47kPD K v

*R4709

10k

P_STM5VDET1

STB3.3V

R4704

47k

R4705

P_RX2CP

P_RX2M0 P_RX2P0

P_RX2M1 P_RX2P1

P_RX2M2 P_RX2P2

REF No. 4800 - 4899

[ Net Variation ]

10k

R4713

47k

[ Net Variation ]

HPDT

+5V

DDCG

SDA SCL N.C.

5VDET1

DDCSDA_1 DDCSCL_1

HDMI2_ARC

HPD1

asdf asdf

*R4711

47k

1k

TP4702

TP4703

*L4700

J0JYC0000068

*L4701

R4712

47k

R4714

47k

C

P_STMDDCSDA1 P_STMDDCSCL1

R4710

47k

P_STMDDCSDA2 P_STMDDCSCL2

to Sheet Standby-MPU

P_STM5VDET2 P_STMHPDO2

sLD-STMGPI09 sLD-STMHPD2

[ Net Variation ]

Common

J0JYC0000068

GenX g p 47kPD K v

R4722

10k

L4703 L4704

J0JYC0000068 J0JYC0000068

D4721

B0JCCD000020

STB5V

R4723

47k

R4718

47k

C

R4719

47k

HDMI_RX1CM

HDMI_RX1CP HDMI_RX1M0

HDMI_RX1P0 HDMI_RX1M1

HDMI_RX1P1 HDMI_RX1M2

HDMI_RX1P2

HDMI_RX0CM

HDMI_RX0CP HDMI_RX0M0

HDMI_RX0P0 HDMI_RX0M1

HDMI_RX0P1 HDMI_RX0M2

HDMI_RX0P2

P_STMDDCSDA0 P_STMDDCSCL0

HDMI_CEC

P_STMHPDO0

P_STM5VDET0

HDMI_CEC

HDMI_RX0CM HDMI_RX0CP

HDMI_RX0M0 HDMI_RX0P0

HDMI_RX0M1 HDMI_RX0P1

HDMI_RX0M2 HDMI_RX0P2

HDMI_RX1CM HDMI_RX1CP HDMI_RX1M0 HDMI_RX1P0

HDMI_RX1M1 HDMI_RX1P1 HDMI_RX1M2 HDMI_RX1P2

P_STM5VDET0 P_STMHPDO0

P_STM5VDET1 P_STMHPDO1

*FL4701

EXC28CE201U

1 2 3 4

*FL4702

EXC28CE201U

*FL4703

EXC28CE201U

1 2 3 4

*FL4704

EXC28CE201U

P_STMDDCSDA0 P_STMDDCSCL0

P_STMDDCSDA1 P_STMDDCSCL1

C

ARC1

GM/US

To Sheet Peaks-COMMON

P_RX0CM

P_RX0CP

HDMI2

2.6A/ 2.1mm

18V d

SOUND18V

TO Sheet AVSW

TO sht.700 LOCK Peaks

P_RX0M0

P_RX0P0

P_RX0M1 P_RX0P1

P_RX0M2

P_RX0P2

P_STMDDCSDA0 P_STMDDCSCL0

TO sht.700 LOCK Peaks

C4907 25V

10u

N X g [ N @

9/16 @

C4977

C

25V 10u

C

C4976

25V 10u

2.6A/ 2.1mm

AVSW_R049PIN_L2OUT

AVSW_R048PIN_R2OUT

C4970

C4971

10V

10u

10V 10u

R4970

140k

R4971

140k

1%

GUARD_SL

GUARD_SR

P_LIN1_LP

P_LIN1_RP

ARC

to Sheet Standby-MPU

P_STM5VDET0 P_STMHPDO0

sLD-STMGPI08 sLD-STMHPD1

To Sheet Peaks-COMMON

P_RX1CM P_RX1CP

P_RX1M0 P_RX1P0

P_RX1M1 P_RX1P1

P_RX1M2 P_RX1P2

P_STMDDCSDA1 P_STMDDCSCL1

to Sheet Standby-MPU

P_STM5VDET1 P_STMHPDO1

sLD-STMGPI07 sLD-STMHPD0

HDMI1

ARC_2

R4552

56

R4551

150

SUB3.3V

OPERATE

LV4924VH-TLM-H

SUB3.3V

C4918

25V 1u

C4909 25V 1u

C

C4912 25V

1u

C

C4914

25V

1u

2.0A/ 1.6mm

C

C4916 25V

10u

C4910 25V 10u

18

R4913

P_MUTEB

Q4513

C

R4548

C4546 1u

10V

22

R4556

10k

SUB3.3V

GUARD_CLK

P_IECOUT

ARC_OFF

P_PORT07

MUTE

OUTPUT

SUB1.8V

SUB5V

L4802

J0JGC0000020

L4800

J0JGC0000020

C4806

10V 10u

C4804

10V

10u

C4805

50V

1000p

C

C4803 50V

1000p

C4816

10p

50V

C A E g s AP N

Sheet FE_BRANCH

*L4803

G1CR39J00009

C4815

50V

C

10p

C

*C4800 50V

22p

*L4804 G1CR39J00009

\ sLD2 s T

*C4809

*C4810

0.1u

16V

To Sheet Peaks

P_FEAINP

P_FEAINN

Q4514

C

B1HFCEA00001

1k

R4554

C

C4550

0.01u 25V

R4560 47k

R4549

150

R4550

150

B1ADCF000194

C

P_NSHUTDOWN

sLD PD

P_PWM0LN P_PWM0LP

P_PWM0RN P_PWM0RP

10k

EXB28V220JX R4914 22

PWM_WO_L+

PWM_WO_L-

PWM_WO_R+

PWM_WO_R-

MUTE

AMP_STBY

PWM_READY

EMI

R4910

R4911

10

R4912

10

L_IF_Filter

SUB3.3V

L4801

J0JGC0000020

C4802

10V 10u

d b v

10uF K { B0.1uF s p B

` [ iPin T z u

C

C4801

50V

1000p

S

<

C

IFD-out1

IFD-out2

Video-out

NC

BB

NC

VB1

Reset

SDA

SCL

VB2

10

IF_AGC

11

12

C4814

50V

S

C

1

2

3

4

5

6

Reset

7

8

9

Video-out

<

NC

1

BB

2

NC

3

NC

4

NC

5

VB1

6

7

SDA

8

SCL

9

VB2

10

NC

11

12

S

<

C

IFD-out1

IFD-out2

Video-out

NC

VB1

Reset

SDA

SCL

VB2

10

IF_AGC

11

12

1

C4807

16V

2

3

4

5

6

7

8

9

TP4803

TP4804

0.1u

100p

W Q @ R

C

*R4806

C4808

0

16V

0.1u

`/ p t B ^

Tuner t z u

C4817

10p

50V

C

*R4805

0

C

t h ~ PED 3.3k ` [ i

L4805

J0JCC0000278

W Q @ R

Reset_Low_Start PORT35 lL i PD) PD R

C4811

0.1u

16V

C

RC t B ^

\ sLD2 s T

C

R4807

10k

C4812

10V

C4813

10V

To Sheet Peaks

1u

P_PORT35 FE_RST

To Sheet IIC

TER_TUNER_SDA

TER_TUNER_SCL

P_AGCI

To Sheet Peaks

To Sheet AVSW

AC_TV1_V

P_SIFINP

P_SIFINN

l F PD

init Finner PD

TO 100.sht Analog ASIC

AMP_STBY

SOUND_SOSDET

SUB3.3V

SOS

R4921

10k

OPERATE

C

M IC r A !!!

T [ } p b h !!!

OPERATE

MUTE

C1AB00003705

1

STBY

2

MUTE

3

SOS

4

NC1

5

NC2

6

NC3

7

NC4

8

PWM_A1

9

PWM_B1

10

PWM_B2

11

PWM_A2

12

NC5

13

NC6

14

NC7

15

NC8

16

NC9

17

NC10

18

NC11

*IC4900

OUT_CH1_P

BOOT_CH1_P

Thermal Pad

BOOT_CH1_N

OUT_CH1_N

OUT_CH2_N

BOOT_CH2_N

BOOT_CH2_P

OUT_CH2_P

GND

FIN FIN

C

GND

PVD1

VDDA1

VDDA2

PVD2

36

35

34

33

32

31

30

29

28

27

26

25

24

23

22

21

20

19

C4911

50V

0.1u C4913

50V

0.1u

C4915

50V

0.1u

C4917

50V

0.1u

18

C

R5020 D0GD180JA052

C5028

680p

50V C5029

680p

50V

C

R5021 D0GD180JA052

2.0A/ 1.6mm

C5030

680p

50V C5031

680p

50V

C

18

R5022 D0GD180JA052

2.0A/ 1.6mm

C5032

680p

50V C5033

680p

50V

L4900 G1C150MA0426

2.0A/ 1.6mm

G1C150MA0426

L4901

G1C150MA0426

L4902

R5023 D0GD180JA052

C5034

680p

50V C5035

680p

50V

C

G1C150MA0426

L4903

C4920

0.47u

C4923

0.47u

50V

C4921

25V

0.47u

C4922 25V

0.47u

C4924

25V

0.47u

C4925 25V

0.47u

C

R4915

3.3

C4926

50V

0.022u

C4927

50V

0.022u

C4928

50V

0.022u C4929

50V

0.022u R4916

R4917

3.3

C4930

50V

0.022u

C4931

50V

0.022u

C

3.3

C4932 50V

0.022u

C4933 50V

0.022u

R4918

3.3

C5023

50V

1000p

C

C4935

1000p

C4934

50V

1000p

C

C5024

50V

1000p

50V

C5025 1000p

C4936 50V 1000p

CC

R l N ^ t ( c )

C

C5027

50V

1000p

50V

C4937

50V

1000p

C

R l N ^ t ( i )

J0JHC0000078

L2311

L2313

J0JHC0000078

L2310

J0JHC0000078

L2312

J0JHC0000078

TP4900

TP4901

TP4902

TP4903

c z u

K1KY04B00013

4

3

2

1

C

A12

TO SPEAKER

HP C A

6.3V

100u

0.5mm

+

GUARD_SL

+

GUARD_SR

>> MainHP L

>> MainHP R

P_HP1_LHP_LOUT

P_HP1_R

HP_ROUT

to HeadPhone out L, R

*R4973

10k

*C4972

6.3V

100u

*C4973

*R4972 10k

C

C4975

25V

0.033u

C4974

25V

0.033u

C

HP_MUTE

L+

L-

R+

R-

*Q4971

B1AAFB000004

*Q4972

B1AAFB000004

*R4978

C

4.7k

*R4979

4.7k

*R4974

1.2k

OPERATE

P_A_MUTE

MUTE

*R5031

10k

C

HeadPhone g p PullDown

SUB3.3V

HeadPhone g p

10k

*R4985

*Q4974

DSC2001S0L

47k

*R4984

47k

C

R4983

C

CHANGE

Change No.

Date

Common Mng.

Described

Approved

Engineering Department

-- APPROVE RANGE --

nil UB QB MB MA MAA DA PA CA

TR11-0242

2011/05/27

MTV R&D

MBA MBB DB LB LC

TO 100.sht Analog ASIC

MUTE

OPERATE

EXT_MUTEHP_MUTE

MUTE

OPERATE

CHG NO. CHANGED BY APPROVED BYREPORT NO. ENDDATE

H1 TR11-0191 H2 TR11-0193

H3 TR11-0200 H4 TR11-0207 H5 TR11-0214 H6 TR11-0219 H7 TR11-0230 H8 TR11-0232 H9 TR11-0235 H10 TR11-0229 H11 TR11-0242 H12 TR11-0254

07/05/11

12/05/11

19/05/11

20/05/11

25/05/11

26/05/11

25/05/11

30/05/11

01/06/11

KAMARIAH MR EDWIN N KAMARIAH MR EDWIN N

SHUHAILA MR EDWIN N KAMARIAH MR EDWIN N KAMARIAH MR EDWIN N KAMARIAH MR EDWIN N KAMARIAH MR EDWIN N KAMARIAH MR EDWIN N KAMARIAH MR EDWIN N SHUHAILA MR EDWIN N KAMARIAH MR EDWIN N KAMARIAH MR EDWIN N

*R4564

10k

asdf asdf asdf

asdf asdf

asdf

*C4549

10V

1u

C

CEC CLK-

CLKG CLK+

D0D0G

D0+ D1D1G D1+ D2D2G D2+

HDMI_CEC

HDMI_RX1CM

HDMI_RX1CP

HDMI_RX1M0

HDMI_RX1P0

HDMI_RX1M1

HDMI_RX1P1

HDMI_RX1M2

HDMI_RX1P2

R4563 C4548

~

Q4702

B1ABCE000015

R4715

10k

C

R4721

10k

R4724

HPDT

+5V

DDCG

SDA SCL N.C. CEC CLK-

CLKG CLK+

D0D0G

D0+ D1D1G D1+ D2D2G D2+

5VDET0

DDCSDA_0 DDCSCL_0

HDMI1_ARC HDMI_CEC

HDMI_RX0CM

HDMI_RX0CP HDMI_RX0M0

HDMI_RX0P0 HDMI_RX0M1

HDMI_RX0P1 HDMI_RX0M2

HDMI_RX0P2

HPD0

asdf asdf

asdf asdf asdf asdf asdf

asdf asdf

asdf

1k

TP4701

*C4548

10V

1u

*R4563

10k

C

ARC_2

*TU4800

ENGS7302D5F

ASIA DIGITAL:VPS-03

ASIA ANALOG:VPS-03

SIF-out

13

NC

14

*TU4800B

C

ENGS9301D5RF

SIF-out

13

NC

14

C

ENGS6302D5F

SIF-out

13

NC

14

*TU4800A

USA:VPS-03

C

PLOT

11/06/01 23:53:57 Kamariah

VARIATION

SHEET

TNP4G519.A.cir/004.sht

LB

[ Block Name ]

AVSW-Connection

REF No. 3050 - 3249

[ Net Variation ]

MONITOR OUT

US :NON USE GM :USE

*L3119

MON_L

J0JCC0000287

*C3153 560p 50V

C

*R3184

100k

C

*Q3104

B1ABCE000015

C

*R3190

100

*R3194

330

*C3165

10V

*C3164 10V

10u

AVSW_R034PIN_L1OUT/L6IN

EXT_MUTE

TANSHI/AVSW

Terminal handling of NEW AVSW use

P_PORT04

P_PORT06

10k

R3077

C

10k

R3076

C

Sheet No.004

[ Block Name ]

AVSW

GM/US 64pin-LCD

US :AV2(SIDE) GM :AV3(SIDE)

SIDE_VIN_TERMINAL

SIDE_LIN_TERMINAL

SIDE_RIN_TERMINAL

HP

SIDE_HP_L_TERMINAL

SIDE_HP_R_TERMINAL

*R3059

1%

75

C

J0JCC0000287

GUARD_A

C

*L3005 J0JCC0000287

J0JCC0000287

*C3118

16V

0.033u

C

J0JCC0000287

*C3119

16V

0.033u

C

*L3003

*L3004

*L3102

*L3103

*C3112

560p

*C3115

560p

*C3108 560p

50V

*C3109

560p

50V

C

50V

C

J0JCC0000287

SIDE_TERMINAL T C h z u

HP_TERMINAL HP [ q z u

2G ,

D3052 EZJP0V080GA

*R3061

33k

*R3062

33k

*C3163 10V

*C3162

10V

10u

AVSW_R033PIN_R1OUT/R6IN

ANALOG/VIDEOSW

SUB5V

SUB9V

*R3060

220

*C3111

10V

10u

AVSW_R022PIN_CVBSIN3

MON_R

*L3120

J0JCC0000287

*C3154 560p 50V

C

*R3185

100k

C

*Q3105

B1ABCE000015

C

*R3191

100

*R3195

330

3000

PC

G1C100MA0072

L3006

*R3063

220

*R3064

220

R3302

1

2

R3300

1

2

*C3116

10V

1u

*C3117

1u

10V

S

HP_LOUT

3

FL3103

4

J0HABB000003

C

S

3

FL3104

4

J0HABB000003

C

AVSW_R038PIN_L2IN

AVSW_R039PIN_R2IN

Sheet A-Chip_A

HP_LOUT

HP_ROUT

PC_R_TERMINAL

PC_B_TERMINAL

PC_G_TERMINAL

PC_HD_TERMINAL

PC_VD_TERMINAL

C3104

560p

50V

C3103

560p

50V

C3171

10u

10V

1%

R3103

75

C

1%

R3203

75

C

1%

R3105

75

C

R3101

4.7k

C

R3102

4.7k

C

C3172

10u

C3173

10u

10V

R3126

68

EXB28V680JX

8

R3123

AVSW_R016PIN_RIN

AVSW_R012PIN_BIN AVSW_R013PIN_VDIN AVSW_R014PIN_GIN AVSW_R015PIN_HDIN

PC_RGBHV

AVSW_R022PIN_CVBSIN3

AVSW_R028PIN_CVBSIN6

AVSW_R033PIN_R1OUT/R6IN AVSW_R034PIN_L1OUT/L6IN

C

C3036

16V

0.1u

o o n C B

[ h [

OPEN-OK

OPEN-OK OPEN-OK

C3008

10V

10u

C

C3045

16V

0.1u

17 18 19 20 21 22

C

23 24

C

25 26 27 28

C

29 30 31 32

PC

VCC5V(Video_IN2)

Cin4 S2_DET1 CVBSin3 BG CVBSin2 GND(Video_IN2) CVBSin1 T_DET4 CVBSin6 GND(75driver) SAG_CVBSout3 CVBS/Y+Cout3 VCC9V(75driver)

55.56 o [ q g p o X ^

AVSW_R015PIN_HDIN

AVSW_R016PIN_RIN

AVSW_R014PIN_GIN

14

15

16

Gin

Rin

HDin

VCC9V(Audio)

33

34

35

C3080

16V

0.1u C

AVSW_R013PIN_VDIN

13

VDin

L1in37R1in38L2in39R2in40L3in41R3in42L4in43R4in44GND(Audio)

36

SUB3.3V

16V

0.1u

C3024 C

AVSW_R012PIN_BIN

OPEN-OK

10

11

12

Bin

PRin1

HD/VD_MUTE

VCC5V(Video_IN1)

C1AB00003385

IC3001

CYin2/G3

T_DET1

Yin4

T_DET3

R1out/R6in L1out/L6in

9

CYin1

OPEN-OK

7

8

T_DET2

Pad Thermal

AVSW_R004PIN_PRIN2/R3

C

OPEN-OK

3

4

5

6

PBin1

C

L3_DET1

PRin2/R3

GND(Video_IN1)

L2out50Port-EXP2

Port-EXP1/T_DET6

L5in46R5in47AU1/2Vcc48R2out

45

ADV d

AVSW_R002PIN_CYIN2/G3

AVSW_R001PIN_T_DET1

1

2

PBin2/B3

T_DET5

SCL SDA

GND(Driver)

R/Prout1

VD_out1

B/PB/Cout1

HD_out1 G/CY/CVBSout1 VCC5V(Driver)

CVBSin5

CVBSin4

C3057

C

10u

10V

C

65

64 63 62 61 60 59 58 57 56 55 54 53 52 51

49

C3105

6.3V

100u

AVSW_R064PIN_PBIN2/B3

C

+

C3101

10V

10u

C

C3146

0.1u 16V

C

C3102 10u

10V

C3158 16V

0.1u

C

MAIN_PR

P_VIN

MAIN_PB/C

P_HIN

MAIN_Y/CVBS

P_HIN

P_VIN

MAIN_Y/CVBS

MAIN_PB/C

MAIN_PR

AVSW_R037PIN_R1IN

AVSW_R036PIN_L1IN

C3159 10V 1u

C3160 10V 1u

C3161 10V 1u

C3059

1u

10V

C3058

1u

10V

AUDIO OUT

P_HIN

P_VIN

P_G1

YIN

PB/C

P_B1

P_R1

PR

P_V1

P_FBL1_RFAGC2

R3002

1.2k

C

sLD2 VIDEO INPUT

sLD2 VIDEO (PC) INPUT

sLD2 I2C

AV-SW_SCL

AV-SW_SDA

sLD2 VIDEO OUTPUT

P_VDAC1

sLD DOWNCON_V

sLD2 AUDIO OUTPUT

AusioSW<-DTV_ROUT for M-OUT

AusioSW<-DTV_LOUT for M-OUT

P_LO1_R

P_LO1_L

TUNER

CHANGE

Change No.

Date

Common Mng.

Described

Approved

Engineering Department

-- APPROVE RANGE --

nil UB QB MB MA MAA DA PA CA MBA MBB DB LB LC

TR11-0242

2011/05/27

MTV R&D

US :YUV1 ONLY LR

US-HOTEL :AV1 ONLY LR

GM :AV1 GM-HOTEL :AV1

AV1_L

AV1_R

L3122

J0JCC0000287

C

L3123

J0JCC0000287

C3167

560p

50V

C3168

560p

50V

R3199

33k

R3200

33k

R3201

220

R3202

220

C3169

10V

C3170

10V

C3077

10V

AVSW_R036PIN_L1IN

AVSW_R038PIN_L2IN

AVSW_R039PIN_R2IN

AVSW_R037PIN_R1IN

AVSW_R046PIN_R5IN

AVSW_R045PIN_L5IN

AVSW_R048PIN_R2OUT

AVSW_R049PIN_L2OUT

10u

AVSW X i100pin 64pin j

R VJ

C3095

REAR_Y_TERMINAL

REAR_PB_TERMINAL

REAR_PR_TERMINAL

1u

AVSW_R045PIN_L5IN

A_AV1_YSW_TERMINAL

AVSW_R046PIN_R5IN

R3175

R3176

R3178

C

75

1%

75

1%

75

1%

REAR_PR_TERMINAL

82 e m F

\ 68 i i j

R3119

47k

R3192

82

R3196

82

R3193

82

10V

10u

C3093

10u

10V

C3097

10u

10V

AVSW_R001PIN_T_DET1

o iUSA j A n

AVSW_R002PIN_CYIN2/G3

AVSW_R064PIN_PBIN2/B3

AVSW_R004PIN_PRIN2/R3

[ q C

SP OUT

R3013

220

iPod

OPEN-OK

CHG NO. CHANGED BY APPROVED BYREPORT NO. ENDDATE

H1 TR11-0191 H2 TR11-0193

H3 TR11-0200 H4 TR11-0207 H5 TR11-0214 H6 TR11-0219 H7 TR11-0230 H8 TR11-0232 H9 TR11-0235 H10 TR11-0229 H11 TR11-0242 H12 TR11-0254

07/05/11

12/05/11

19/05/11

20/05/11

25/05/11

26/05/11

25/05/11

30/05/11

01/06/11

KAMARIAH MR EDWIN N KAMARIAH MR EDWIN N

SHUHAILA MR EDWIN N KAMARIAH MR EDWIN N KAMARIAH MR EDWIN N KAMARIAH MR EDWIN N KAMARIAH MR EDWIN N KAMARIAH MR EDWIN N KAMARIAH MR EDWIN N SHUHAILA MR EDWIN N KAMARIAH MR EDWIN N KAMARIAH MR EDWIN N

AVSW_R028PIN_CVBSIN6

AC_TV1_V

YPbPrVIDEO/AUDIO IN

PLOT

11/06/01 23:54:31 Kamariah

VARIATION

SHEET

TNP4G519.A.cir/005.sht

LB

[ Block Name ]

Initial SETUP

[ Block Name ]

STM Port

Peaks Port

REF No. 1000 - 1299

REF No. 8000 - 8999

[ Net Variation ]

sLD2

INITHAL_SETUP

SUB3.3V

10k

R8860

R8859

R8858

R8872

R8871

10k

1k

R8861

1k

R8863

1k

R8866

47k

XTALSEL1 XTALSEL0 bootstm boot_mode_sel[4] boot_mode_sel[3] boot_mode_sel[2] boot_mode_sel[1] boot_mode_sel[0] clk_mode[1] clk_mode[0] ed_pullup_sel ea_pullup_sel BOOTBT SDBOOT eclk_mode[1] eclk_mode[0] use_PCI hbmd mode_sel_soft rev0_init rsv1_init rsv2_init cputest_sg

C

P_XTALSEL1 P_XTALSEL0 P_MAINPWRON P_EA3 P_EA2 P_EA1 P_EA0 P_ERXW P_ESZ0 P_ESZ1 P_EAS P_ECLK P_EA7 P_PORT01 P_XEWE1 P_XEWE0 P_EA4 P_EA5 P_EA6 P_XNFCE P_XNFRE P_XNFWE P_XERE

XTAL:24.576MHz

STM:USE

BOOTMODE:

ROM u [ g

NAND-Flash 2 l A o X 8bit A

A h X4 A u b N 8

UPLL:AXO A2PLL:AXO ED PullUP:USE EA PullUP:USE ADMUX:USE SDBOOT:NAND(L) ECLK:Low Fix

Low

PCI:NONUSE PCI Host:Don't Care mose_sel_soft:1'b1 DDR RAM:

CH0:1Gbit CH1:1Gbit

rsv2_init:1'b0 CPU Test Mode:Normal

[ Net Variation ]

LCD sLD2

STM

PEAKS-SLD2

STB3.3V

1k

C

P66 P67

P03 P13 P14

P_STMDDCSDA3

P_STMDDCSCL3 P74 P81

PA1

P_STMTIME2

P_STMSBO1 P_STMSBI1

P_STMGPIO4 P_STMADIN1

P_STMGPIO6

g p \

R1007

R1008

R1002

1k

PD OD PP

PU-C

[B5]

5mA/4mA

Don't care to floating when power on.

Pin processing when not used

OPEN Drain Push Pull Push Pull soft control pull up

Open Drain 5V tolerance

Drive Current 5mA/4mA (Other PP 2mA)

IR IN

OUTPUT ONLY OUTPUT ONLY OUTPUT ONLY OUTPUT ONLY OUTPUT ONLY

g p PU g p PU

OUTPUT ONLY OUTPUT ONLY

g p PU or PD

g p PD g p PD

Pull up in 002.sht

PD v?

g p PD g p PD

RESET

CLK SEL

JTAG I/F

PD PD PD PD PD

TEST

REMOTE

TIMER

PU-C

SERIAL

I2C

5mA/4mA 5mA/4mA

HDMI I/F

5mA/4mA

5mA/4mA 5mA/4mA

5mA/4mA

5mA/4mA 5mA/4mA

5mA/4mA

5mA/4mA 5mA/4mA

5mA/4mA

5mA/4mA 5mA/4mA

5mA/4mA

PP8mA

PU-C

\ z u z u

TP1001 TP1000

PU-C

PANEL_VCC_ON

PU-C PU-C PU-C PU-C PU-C

PU-C PU-C PU-C

PU-C PU-C

OD

PU-C

[B5]

OD

[B5]

OD

SG-KEY3

[B5]

OD

[B5]

OD

[B5]

OD

[B5]

OD

[B5]

OD

[B5]

OD

[B5]

OD

[B5]

OD

[B5]

OD

[B5]

OD OD

[B5] [B5]

OD

[B5]

OD

[B5]

OD

P_XRSTSTM

REF No. 1300 - 1499

P_XTALSEL0 P_XTALSEL1

P_TCK P_TMS P_TDI P_TDO P_TRST

C-2011_port_sigen_100614( ^ ).xls

P_STMRMIN

P_STMTIME0 P_STMTIME1 P_STMTIME2 P_STMTIME3 P_STMTIME4 P_STMTIME5 P_STMTIME6

P_STMSBO0 P_STMSBI0 P_STMSBT0

P_STMSBO1 P_STMSBI1

P_STMSDA P_STMSCL

P_STMCEC0

P_STMCECPUL P_STMCECAVL1A P_STMCECAVL1B

P_STMHPDO0

P_STMHPDO1

P_STMHPDO2

P_STM5VDET0

P_STM5VDET1 P_XIRQ6

P_STM5VDET2

P_STMDDCSDA0

P_STMDDCSCL0

P_STMDDCSDA1

P_STMDDCSCL1

P_STMDDCSDA2

P_STMDDCSCL2

P_STMDDCSDA3

P_STMDDCSCL3

P00 RMIN

P01 G_LED_ON / SYSCLOCK P02 PANEL_VCC_ON P03 PD4H_PANEL_MAIN_ON/BL_ON P04 PD4H_DRVRST/PWM_EMB P05 R_LED_ON P06 IPOD_PWR_ON/P3.3V_DET P07 IPOD_XDET/P5V_DET

P10 SP_HP_MUTE P11 MON_MUTE P12 PD4H_XRST_SYS/LED_FLAG

P13 HOTEL_SBO/HSP_SBO P14 HOTEL_SBI

P20 STMSDA P21 STMSCL

P30 HDMI_CEC/KEY3 P31 HDMI_CEC_PU_ON

P33 QLINK1(for AV1 in 2scart) P32 KEY3

P40 HPD0 P41 HPD1 P42 HPD2

P50 HDMI_5V_DET0 P51 HDMI_5V_DET1 P52 HDMI_5V_DET2

P60 DDCSDA0 P61 DDCSCL0 P62 DDCSDA1 P63 DDCSCL1 P64 DDCSDA2 P65 DDCSCL2 P66 PC_VESA_DDCSDA P67 PC_VESA_DDCSCL

[ Net Variation ]

LCD sLD2

NONUSE_PIN

PORT

PEAKS-SLD2

PORT10 PORT32 PORT33 PORT34

PORT63 PORT64 PORT66 PORT67 PORT73

PORT111 PORT122

PORT126 PORT127 PORT142 PORT143 PORT144 PORT145 PORT146

P_PORT10 P_PORT32 P_PORT33 P_PORT34 P_PORT37 P_WAKEUP

P_WUC

P_AGCR P_AGCBS P_PCCE2 P_PCVS1 P_PCREG

P_LCDPWM0 P_LCDPWM1

P_SBO1

P_SBI1

P_SBT1

P_TXD1

P_RXD1

TS

PEAKS-SLD2

P_PORT15

*R1004

10k

TCON

PEAKS-SLD2

TCON0 TCON1 TCON2 TCON3 TCON4 TCON5 TCON6 TCON7

P_TCON0 P_TCON1 P_TCON2 P_TCON3 P_TCON4 P_TCON5 P_TCON6 P_TCON7

SUB3.3V

IRQ

P_PORT00 P_PORT01 P_PORT02 P_PORT03 P_PORT04 P_PORT05 P_PORT06 P_PORT07 P_PORT10 P_PORT11 P_PORT12 P_PORT13 P_PORT14

P_PORT30 P_PORT31 P_PORT32 P_PORT33 P_PORT34 P_PORT35 P_PORT36 P_PORT37 P_RMCO P_DMDSCL1 P_WAKEUP P_WUC P_AGCR P_AGCBS P_PCCE2 P_PCVS1 P_LCDPWM1 P_DMDSDA1 P_SBO1 P_SBI1 P_SBT1 P_TXD1 P_RXD1 P_XIRQ1 P_XIRQ2 P_XIRQ3 P_XIRQ4 P_XIRQ5

P_XIRQ7 P_XIRQ8 P_XIRQ9 P_XIRQ10 P_XIRQ11 P_XIRQ14

XIRQ3 XIRQ4 XIRQ5 XIRQ6 XIRQ7 XIRQ8 XIRQ9

XIRQ11

PEAKS-SLD2

P_XIRQ3 P_XIRQ4 P_XIRQ5 P_XIRQ6 P_XIRQ7 P_XIRQ8 P_XIRQ9

P_XIRQ11

P_XIRQ2

IRQ2 POWER_DET

R1304

R5104 10k

10k

R1306

R1310

10k

*R1305

10k

SUB3.3V

R2816

47k

Pull up in 005.sht

C

8mA 8mA

8mA

8mA 8mA

PP PP

DMD

PEAKS-SLD2

P_RFAGC P_BSIQ_I P_BSIQ_Q

R1300

C

10k

POWER

PEAKS-SLD2

V [ g701

C

R1301

R1302 R1303

C

10k

1k 10k

LVDS

PEAKS-SLD2

TF1P TF1N TF2P TF2N

SUB3.3V

10k

*R1307

C-2011_port_sigen_100614( ^ ).xls

PORT00 SDRAM_CHK0 PORT01 SDBOOT PORT02 MAIN_FAN_ON PORT03 FAN_MAX PORT04 FV_STS/PANEL_AGW PORT05 HDMI_TMDS_SEL_A PORT06 HDMI_TMDS_SEL_B PORT07 ARC0_OFF PORT10 ARC1_OFF PORT11 FE_PWR_ON PORT12 DISPEN PORT13 ACTIVE_ANTENNA_ON PORT14 PANEL_LED_ON

PORT30 NOUSE

PORT31 AVDD_ENB PORT32 LCD_EEP_WP PORT33 SD_LED_ON PORT34 SD-REC_LED_ON PORT35 FE_XRST/SDRAM_CHK1

PORT36 EEPROM_WP PORT37 SD_PWR_ON PORT41 CI_POWER_ON PORT42 NOUSE

PORT63 REV_DAC_ENB

PORT64 PANEL_TEST_ON PORT66 SP_LED_DIM PORT67 SP_LED_ON PORT73 NOUSE PORT111 SIF_FIL_ON

PORT127 NOUSE PORT141 NOUSE PORT142 XEAB PORT143 NOUSE=>use for Rohm AVSW Judgement PORT144 NOUSE PORT145 NOUSE PORT146 NOUSE

IRQ1 T | [ g J [ h

IRQ2 POWER_DET IRQ3 HDMI-RX_IRQ IRQ4 SD_COIN_DET IRQ5 FAN_SOS

IRQ6 ACTIVE_ANTENNA_DET IRQ7 FE_IRQ IRQ8 EXT_LDINT IRQ9 NOUSE IRQ10 PD4H_OSD_VIN IRQ11 NOUSE IRQ14 CI_OCP

TRCD7

TRCD6 TRCD5

TRCD4

TRCD3 TRCD2 TRCD1PORT37

TRCD0

BEEXTRG TRCCLK TRCST

CHG NO. CHANGED BY APPROVED BYREPORT NO. ENDDATE

H1 TR11-0191 H2 TR11-0193

H3 TR11-0200 H4 TR11-0207 H5 TR11-0214 H6 TR11-0219 H7 TR11-0230 H8 TR11-0232 H9 TR11-0235 H10 TR11-0229 H11 TR11-0242 H12 TR11-0254

07/05/11

12/05/11

19/05/11

20/05/11

25/05/11

26/05/11

25/05/11

30/05/11

01/06/11

CHANGE

Change No.

Date

TR11-0242

2011/05/27

KAMARIAH MR EDWIN N KAMARIAH MR EDWIN N

SHUHAILA MR EDWIN N KAMARIAH MR EDWIN N KAMARIAH MR EDWIN N KAMARIAH MR EDWIN N KAMARIAH MR EDWIN N KAMARIAH MR EDWIN N KAMARIAH MR EDWIN N SHUHAILA MR EDWIN N KAMARIAH MR EDWIN N KAMARIAH MR EDWIN N

ASIC-SUBON

LCD_TV_SUB_ON

P_XRSTSTM

KEY1

D1000

B0JCCE000008

STB3.3V

R1001

7.15k

MIAN POWER CTRL

OUTPUT ONLY

R1006

1.8k

PU-C

P_MAINPWRON

P70 TV_SUB_ON

Common Mng.

Described

Approved

ANALOG INPUT

R1000

330

g p PD

PU-C

P_STMADIN0

P80 AI_SENSOR

Engineering Department

MTV R&D

g p PD

Pull up in 101.sht

PU-C PU-C

PU-C

P_STMADIN1 P_STMADIN2 P_STMADIN3

P81 NOUSE/ALL_OFF P82 PANEL_SOS/BL_SOS P83 KEY1

-- APPROVE RANGE --

nil UB QB MB MA MAA DA PA CA MBA MBB DB LB LC

COMMON I/O PORT & IRQ

1%

R1005

1k

C1000

0.01u 25V

C

Pull up in 100.sht Pull up in 100.sht Pull up in 100.sht Pull up in 002.sht

PU-C PU-C

PU-C PU-C PU-C

COMMON I/O PORT

Pull down in 100.sht

g p PD

Pull down inner ASIC

Pull up in 300.sht

g p PD

PU-C

PU-C PU-C

P_STMGPIO0 P_XIRQ2 P_STMGPIO2 P_STMGPIO3 P_STMGPIO4

P_STMGPIO5 P_STMGPIO6 P_STMGPIO7 P_STMGPIO8 P_STMGPIO9

P90 SUB3.3V_SENSE P91 SW_OFF_DET P92 SUB5V_SENSE P93 SRQ_STM P94 SD_REC_READY/HSP_SBI

PA0 SOS PA1 NOUSE PA2 SOUND_SOS PA3 STM-EEP_WP PA4 IPOD_PWR_SOS

P_EA8

P_EA9 P_EA10 P_EA11 P_EA12 P_EA13 P_EA14 P_EA15

P_LO2_L P_LO2_R

SUB3.3V

C

*R1309

47k

*R1312

10k

*R1313

10k

*R1308

10k

P_PCDOE P_PCRESET P_PCCE1 P_PCCE2 P_PCWE P_PCOE P_PCIOWR P_PCIORD P_PCWAIT P_PCCD1 P_PCCD2 P_PCREG P_PCREADY P_PCVS1

TS PARALLEL OUTPUT TS PARALLEL INPUT

P_HSBCLKOUT P_HSDOUT0 P_HSDOUT1 P_HSDOUT2 P_HSDOUT3 P_HSDOUT4 P_HSDOUT5 P_HSDOUT6 P_HSDOUT7 P_HSSYNCOUT P_HSVALOUT

47k

*R1311

C

TS SERIAL INPUT

P_HS0BCLKIN P_HS0DIN0 P_HS0DIN1 P_HS0DIN2 P_HS0DIN3 P_HS0DIN4 P_HS0DIN5 P_HS0DIN6 P_HS0DIN7 P_HS0SYNCIN P_HS0VALIN

CONFIDENTIAL

R8438

EXB2HV103JV

C

P_CH0CLK P_CH0DATA P_CH0PSYNC P_CH0VAL

PLOT

11/06/01 23:54:58 Kamariah

VARIATION

SHEET

TNP4G519.A.cir/008.sht

LB

[ Block Name ]

PWM Control

REF No. 9900 - 9969

[ Block Name ]

INV-LED

REF No. 9970 - 9979

[ Block Name ]

Temp Sensor

REF No. 9980 - 9999

[ Net Variation ]

sLD2

[ Net Variation ]

sLD2

TO Sheet @@@

[ Net Variation ]

LCD sLD2

IC8000

STM

P04 PD4H_DRVRST/PWM_EMB

P_LCDPWM0

P_STMTIME3

VJ9900

S

IC5000 z u

VJ9901

S

IC5000 AN34043A Analog ASIC

PWM_A_IN

PWM_POW_ON

PG-PANEL_LED_ON

P_PORT14

R9970

47k

C

g p [

TO Sheet IIC

q p

SLV:92

x Z T [

(temperature sensor)

H

CHANGE

Change No.

Date

Common Mng.

Described

Approved

Engineering Department

-- APPROVE RANGE --

nil UB QB MB MA MAA DA PA CA MBA MBB DB LB LC

TR11-0242

2011/05/27

MTV R&D

CHG NO. CHANGED BY APPROVED BYREPORT NO. ENDDATE

H1 TR11-0191 H2 TR11-0193

H3 TR11-0200 H4 TR11-0207 H5 TR11-0214 H6 TR11-0219 H7 TR11-0230 H8 TR11-0232 H9 TR11-0235 H10 TR11-0229 H11 TR11-0242 H12 TR11-0254

07/05/11

12/05/11

19/05/11

20/05/11

25/05/11

26/05/11

25/05/11

30/05/11

01/06/11

KAMARIAH MR EDWIN N KAMARIAH MR EDWIN N

SHUHAILA MR EDWIN N KAMARIAH MR EDWIN N KAMARIAH MR EDWIN N KAMARIAH MR EDWIN N KAMARIAH MR EDWIN N KAMARIAH MR EDWIN N KAMARIAH MR EDWIN N SHUHAILA MR EDWIN N KAMARIAH MR EDWIN N KAMARIAH MR EDWIN N

PLOT

11/06/01 23:55:27 Kamariah

VARIATION

SHEET

TNP4G519.A.cir/009.sht

LB

[ Block Name ]

LVDS-IF

REF No. 4000 - 4119

[ Net Variation ]

AB: HD miniLVDS(Lamp)

AK: HD miniLVDS(LED)

SHEET009:TCON

CRNo:4000-4999

PEAKS-SLD2

REV_DAC_ENB

P_WAKEUP

EXT_LDINT

P_TCLK1N P_TCLK1P

P_TCLK2N P_TCLK2P

PEAKS-SLD2

LPL

P_TCON3

POLR

P_TCON6

POLL

P_TCON5

LPR

P_TCON4

CPV

P_TCON0

GDATA1

P_TCON1

GDATA2

P_TCON2

PEAKS-SLD2

LCD_EEP_WP

P_PORT32

PANEL_TEST_ON

P_WUC

PWM L o

P_STMTIME3

P_PORT12

IIC-line

NORMAL

PWM_ENB

DISPEN

ZWEI2 PD L

OUTPUT

MUTE

P_XIRQ8

P_TCON7

P_TA1N P_TA1P

P_TB1N P_TB1P P_TC1N P_TC1P

P_TD1N P_TD1P

P_TE1N P_TE1P P_TF1N P_TF1P

P_TA2N P_TA2P

P_TB2N P_TB2P P_TC2N

P_TD2N P_TD2P

P_TE2N P_TE2P P_TF2N P_TF2P

LD

R4052

TP4056

TP4057

SUB3.3V

1k

sLD side

1.0mm/ i

D4001

DA2J10100L

d l s m A

TN p l f port

N [ q Read f B H:TN p l f iPU R ) L: O iPD R )

^ LD OK p ^ [

R [ h P

TD1N_CN TD1P_CN

TE1N_CN TE1P_CN TF1N_CN TF1P_CN

P_TCON6 P_TCON5 P_TCON4

P_TCON0 P_TCON1 P_TCON2

10k

R4032

C

R4024

10k

C

FL4000 EXC28CE201U

4 3 2 1

FL4001 EXC28CE201U

4 3 2 1

FL4002 EXC28CE201U

4 3 2 1

FL4003 EXC28CE201U

4 3 2 1

10k

R4033

TA1N_CN TA1P_CN

TB1N_CN TB1P_CN TC1N_CN TC1P_CN

TCLK1N_CN TCLK1P_CN

R4031

EXB28V103JX

d l s m A

Tcon f port

N [ q Read f B H:Tcon f (PU R ) L: O iopen or PD R )

TCON_EEP_WP

m [ } [ z C g p l f port

N [ q Read f B H: m [ } [ z C g p l f iPU R ) L: O iopen or PD R )

P_TCON6

P_TCON5

P_TCON4

P_TCON0

P_TCON1

P_TCON2

TA1N_CN TA1P_CN

TB1N_CN TB1P_CN TC1N_CN TC1P_CN

TCLK1N_CN TCLK1P_CN TD1N_CN TD1P_CN

TE1N_CN TE1P_CN TF1N_CN TF1P_CN

TCON_EEP_WP

VCOM

VREF1

VREF2

VREF3

VREF4

VREF5

VREF6

VREF8

VREF9

VREF10

VREF11P_TC2P

VREF12

R4046

EXB28VR000X

R4047

EXB28VR000X

R4048

EXB28VR000X

R4049

EXB28VR000X

AVDD12.6V

C4001

4.7u 16V

DVDD2.5V

D4000

C

B0BC4R700007

B0BC4R700020

IPS-a Lamp HDpanel

TP4020

10V

C

TP4021

TP4049

TP4048

TP4047

TP4046

TP4045

TP4044

TP4026

TP4025

TP4024

TP4023

TP4022

TP4028

TP4029

TP4030

TP4031

TP4032

TP4033

TP4034

TP4035

TP4036

TP4037

TP4038

TP4039

TP4040

TP4041

TP4042

TP4055

TP4043

TP4027

TP4052

TP4053

TP4054

TP4051

TP4050

TP4003

TP4004

TP4005

C4002

10V

C

R4002

1k

VOFF2_-6V

LCD_SDA

LCD_SCL

L4000

J0JHC0000046

C4005

0.01u 25V

C

C4006

10u

C

VON31V

10u

A14

K1MN55BA0076

TP4006

C

FH28D-55S-0.5SH(15)

C

TERM

SIDE

[ Block Name ]

DTV12V->P16V X(6/18)

T-CON DCDC

TCON15.6V

VON31V

T-CON DAC

SOS_SENSE

D4166 DA2J10100L

R4168

10k

REF No. 4120 - 4149

55

GND

54

VCOM

53

VCOM

52

AVDD

51

AVDD

REF No. 4150 - 4199

Q4153

B1ABCE000015 B1ABCF000231

D4168

DA2J10100L

C

10k

C

[ Net Variation ]

50

AVDD

49

AVDD

48

VRF1

47

VRF2

46

VRF3

45

VRF4

44

VRF5

43

VRF6

42

VRF8

41

VRF9

40

VRF10

39

VRF11

38

VRF12

37

GND

36

LV5-

35

LV5+

34

GND

33

LV4-

32

LV4+

31

GND

30

LV3-

29

LV3+

28

GND

27

CLK-

26

CLK+

25

GND

24

LV2-

23

LV2+

22

GND

21

LV1-

20

LV1+

19

GND

18

LV0-

17

LV0+

16

GND

15

POL

14

POL

13

LP

12

VDD

11

VDD

10

CPV

9

DATA1

8

DATA2

7

VON

6

VOFF2

5

GND

4

VDD3.3/WP

3

SDA

2

SCL

1

GND

[ Net Variation ]

Common

13

SCL

14

SDA

15

A0

16

BKSEL

17

GNDD

18

C

TCON_SCL

TCON_SDA

P_TCON7

R4144

S

R4145

S

12

19

EN

2

C4121

50V

0.1u

11

EA0

LD

OUT11

OUT1021OUT9

20

DVDD2.5V

10

EA1

Thermal

9

22

AVDD12.6V

C4120

50V

0.1u

8

7

VSD

GNDA

VS

Pad

OUT5

THERMAL_PAD

OUT823OUT724OUT6

C

For -HD panel

DAC(TI)

C4134

IC4120

16V

C0FBBY000086

1u

BUF12840AIRGER

R4125

OUT0

OUT1

OUT2

OUT3

OUT4

6

5

4

3

2

1

R4127

R4126

R4121

EXB28V100JX

R4122

R4128

10 10

10

C4123

16V

0.1u

C4124

16V

0.1u

C4125

0.1u

C4122

16V

0.1u

16V

C4126

16V

0.1u

C4128

10V 10u

AVDD12.6V

w i B

V i

Common

C4155

50V

0.047u

C4153

0.1u

w i B

V i

1. DTV12V->P16V X(6/18)

2. DIODE d h b v

3. B0ECLP000009(ODU) X \ x m F B

VJ4150

P

C

TCON15.6V

17

18

19

20

21

22

23

24

16V

C4151

END

SCL

SDA

SRCA

SRCD

VDD2IN

P15V

VREF1 VREF2 VREF3 VREF4

VREF5 VREF6

VCOM VREF8 VREF9

VREF10 VREF11

VREF12

SOS_SENSE

47k

R4124

C4127

C4129

C

16V

0.1u

16V

0.1u

C4130

16V

0.1u

C4131

16V

0.1u

C4132

16V

0.1u

C4133

16V

0.1u

R4123

22k

OFF

ON

AVDD_ENB

P_PORT31

PANEL_VCC_ON

P_STMTIME1 PEAKSRST2

TCON_SCL

TCON_SDA

1.6A i i 75% g

R4182 1k

PA4150

K5H1622A0031

SUB3.3V

10k

R4199

SUB3.3V

10k

R4173

C

L4150

J0JHC0000046

R4167

47k

R4166

22k

C

R4169

R4170

0.1u

10k

C4152

1u

25V

D4150 B0JCDE000006 RB521SM-40T2R

D4152 B0JCDE000006 RB521SM-40T2R

C4156

50V

0.047u

C4154

50V

0.1u

D4159 B0JCDE000006

RB521SM-40T2R

D4160 B0JCDE000006

RB521SM-40T2R

C

25V

C4165

C4166

2.2u

H } 1uF B

10 N H V [ g Diode M

2.2uF x2 X 11 N l u

TCON15.6V

C4181

25V

4.7u

C

13

14

15

16

SCP

TEST

ENA

FAULT

FBL

GND

C4180

C

PVCC1

Thermal

10V

1u

VCC

GND27VDD228VREG29FBD30COMP231PVCC2

25

26

D4167 DA2J10100L

P_PORT31

25V

2.2u

11

12

FBA

COMP1

Pad

THERMAL_PAD

PVCC2

C4157

50V

0.047u

C4158

0.1u

10

SW1

SW2

R4178

1%

22k

50V

R4181

1%

13k

PVCC1

C4182

25V

4.7u

B0JCDE000006 RB521SM-40T2R

C4159

50V

0.047u

C4160

50V

0.1u

D4161 B0JCDE000006

RB521SM-40T2R

D4162 B0JCDE000006

RB521SM-40T2R

C4150

25V

4.7u

9

SW1

PGND1

PGND2

SW2

32

C4173

4700p

C4161

1u

25V

C4167

C4179

4700p

8

7

6

5

4

3

2

1

25V

H } 1.6k 4 A R B 10 N H 6G T C Y u 11 N l u

D4153

D4154

25V

C4168

2.2u

R4156

0

10 N H 6G T C Y u 11 N l u

25V

C

L4153

G1C220MA0234

R4189

0

R4184

1%

22k

L4151

G1C100MA0426

IC4150

C0DBAYY00868

BD81021MUV-HVE2

C

F1J0G2260001(murata22uF4V1.09yen) _ H

[ w F1K0J1060017 x2 ( z10uF6.3V1.24yen)

For -HD panel

i A C

D4156 DA2J10100L

2.0 x 1.25

R4150

Q4150

390

R4151

1%

2.2k

i A C iPSCDD j

C

R4157

1%

1k

R A C R4160 3k->3.3k R4161 3.3k->3.6k

H } 1k 4 A R B

B0JCPE000004

Q4154

B1CFQD000001

C

C4188

10u

6.3V

DSC500100L

R4153

1%

2k

R4152

C4162

0.1u

C4169

0.1u

FHD k T C Y X K v

f B [ e B O

D4172

C4187

6.3V

D4155

50V

DZ2J330M0L

50V

D4163

DZ2J200M0L

X c F i [ v Z

R4158

270

J0JHC0000077

V i

AMP L V [ Y i

10u

C

R4172 120k

R4171 30k

1%

C

R A C i C j

1%

3.3k R4159

L4152

R4180

0

50V

C4174

56p

D4157

DA2J10100L

C4163

25V 10u

C4164

25V

30k

1%

X c F i [ v Z

i A C

1%

3.3k

R4160

1%

R4161

3.6k

C4175

4.7u

C

10u

1%

2.2k

R4162

Q4151

DSA500100L

Q4152 DSA500100L

\ u b u

C4176

16V

4.7u

10k

R4154

1%

10k

R4155

1%

C

C4170

10V 1u

} [ W A b v ^ B ~4 X

16V

DZ2J047M0L

D4171

C4178

16V

4.7u

D4174

B0BC022A0007

DA2J10100L

C4177

4.7u

D4170

VON31V

D4158 B0BC03900015

B0JDCE000017

D4151

HN2S02JE(T5LPAV,E)

C

D4175

DA2J10100L

C

4

D4165 B0BC01000035

TP4151

B0BC01700030

D4173 RKZ18-1KD#P2Q

C

TP4150

C

B0BC4R700007

AP_OVP_DET

VOFF2_-6V

AVDD12.6V

B0BC17000001

DVDD2.5V

D4169

B0BC4R700020

CHANGE

Change No.

Date

Common Mng.

Described

Approved

Engineering Department

-- APPROVE RANGE --

nil UB QB MB MA MAA DA PA CA MBA MBB DB LB LC

CHG NO. CHANGED BY APPROVED BYREPORT NO. ENDDATE

H1 TR11-0191 H2 TR11-0193

H3 TR11-0200 H4 TR11-0207 H5 TR11-0214 H6 TR11-0219 H7 TR11-0230 H8 TR11-0232 H9 TR11-0235 H10 TR11-0229 H11 TR11-0242 H12 TR11-0254

TR11-0242

2011/05/27

MTV R&D

07/05/11

12/05/11

19/05/11

20/05/11

25/05/11

26/05/11

25/05/11

30/05/11

01/06/11

KAMARIAH MR EDWIN N KAMARIAH MR EDWIN N

SHUHAILA MR EDWIN N KAMARIAH MR EDWIN N KAMARIAH MR EDWIN N KAMARIAH MR EDWIN N KAMARIAH MR EDWIN N KAMARIAH MR EDWIN N KAMARIAH MR EDWIN N SHUHAILA MR EDWIN N KAMARIAH MR EDWIN N KAMARIAH MR EDWIN N

CONFIDENTIAL

[ Block Name ]

POWER_KEY_RESET

[ Block Name ]

REF No. 1951 - 1999

[ Net Variation ]

US

SOS

Analog ASIC

POWER_DET

REF No. 5000 - 5139

REF No. 5170 - 5199

REF No. 5140 - 5169

[ Net Variation ]

To STM(sLD)

To O i j v H j

P_STMCECAVL1B

SW_OFF_DET

d L [ Z b g H

SW-RST

KEY3

SG-KEY3

P_XRSTSTM

P_XIRQ2

*R1951

68

100k

*R1952

*C1951

C

*D1955

B0JCCE000008

C

1000p

10k

*R1953

*Q1951

B1ADCF000194

50V

R1955

*R1954

STB3.3V

0

*R1956

47k

68k

C

STB5V

*D1951 B0JCCE000008

*R1958

10k

*R1959

560

DA2J10100L

*R1961

100

*R1960

560k

*D1952

*R1962

*D1953

DA2J10100L

*D1954

DA2J10100L

560k

k p @SW Z b g H

NET100168

10u

*C1954

6.3V

*C1953

6.3V 2

C

1

S-80932CNNB-G82T2G

*IC1951

C0EBF0000354

CD

VDD

OUT

VSS

LCD

IC8000 STM

d X

IC8000 z u

SUB_F12V_15V -> P15V

SOS_SENSE

15.8(V) * 15k / ( 15k + 56k ) = 3.34(V)

*R1963

100

{ d l 2010sLD f P

20100701 L

SG-SUB5V/SUB12V_SENSE

005sht STM PORT LIST 100sht F16V SENSE 700sht sLD2 STM PORT

SG-SUB3.3V_SENSE

005sht STM PORT LIST 100sht SUB3.3V SENSE 700sht sLD2 STM PORT

P_STMGPIO2

P_STMGPIO0

D5181

DZ2J062M0L

C

R5181

10k

R5180

68k

R5179 15k

C

d X R R5180 F68k -> 56K (Reset H g p j

IC5000

100p

50V

*C1955

3

4

C

d X

SUB_F12V_15V -> P15V

d X

STB_SUB_5.8V -> 5.8VS

P15V

5.8VS

B0BC01700015

D5174

B0BC010A0007

D5172

D5173

DA2J10100L

D5175

DA2J10100L

to ASIC

OPERATE

IC5000 z u

c F i [ d m F K v

H c F i [ d s

OVP

C

C5171 25V

0.01u

R5175

68

D5180

DZ2J033M0L

C

2010model SUB5V OVP DELETE

SUB3.3V/1.8V/1.2V o

AN34043A Analog ASIC

OVP

009sht AVDD13.7V / DVDD2.5V OVP 100sht OVP DETECT 100sht OVP DETECT to ASIC

AP_OVP_DET

100sht SOUND_SOS 100sht SOUND_SOS from ASIC

LATCH

SOS

SOUND_SOSDET

SOUND_SOS

IC5000 z u

OPERATE

SOS

OPERATE

0 ohm ES1

SUB5V SCP p S/O R5170 t

R5170

0

D5170

DA2J10100L

P15V

SUB3.3V

R5177

R5171

0

TO 003.sht AUDIO AMP

SOUND_SOSDET

SOUND_SOS

P_STMGPIO7

10k

DA2J10100L

C

D5171

TO STM

SUB5V

005sht STM PORT LIST 100sht SOUND_SOS 700sht sLD2 STM PORT

LCD

Peaks RESET

TO Sheet Peaks-COMMON

STM RESET

TO STM

P_XRST

IC8000 z u

P_XRSTSTM

SUB3.3V

R5152

2.2k

IC5000 AN34043A Analog ASIC

P_XRST

SUB9V

PWM_A_OUT

TO 008.sht PWM Control

IC5000 z u

TO 100.sht SOS

TO 100.sht POWER/POWER_DET

TO 009.sht LVDS-IF

C5151

25V

0.01u

C

P_XRSTSTM

STB_RST

PWM_A_IN

PWM_POW_ON

AP_OVP_DET

ASIC-SUBON

DCDCEN

P_XRST

PEAKSRST2

5.8VS

C5009 50V 1000p

g p LD [ q 1 _ p ^ [

C

D5004 EZJZ0V120JA

C

P_SDVOLC

SUB5V

5

R5006

56k

16V d

P15V

C5003

25V 10u

C

C5006 25V

1u

TP5004

10V

C5026

C5012

DZ2J062M0L

R5002

68k

R5007 22k

1u

10V

D5003

R5003

C5002

10V

C5004

10V

10k

1

DTV12V

2

SUB9V

3

PWMAOUT

4

PWMAIN

5

1u

6

7

8

9

10

11

12

13

14

15

16

PWMPOWON

5VS

OVP

SUBON

GND

MONDTV12V

DCDCCTL

PEAKSRST

PEAKSRST2

SUB5V

SDVCC

SD_UHS

STB3.3V

STB1.14V

MONSTB5V

STBRST

SWOFFDET

MON_MUTE

EXTMUTE

HPMUTE

SP_HP_MUTE

AMPSTBY

SOUND_SOS_DET

SOUNDSOS

SOSSENSE

STB5V

TVSOS

32

31

30

29

28

27

C5020

26

CD

16V

0.1u

25

24

23

22

21

20

19

18

17

AN34043AAVF

IC5000

M IC GND K {!!!

i IC z u!!!

STB5V

C5000 10V 1u

R5012

22k

+

C5001

6.3V 100u

11/27

C b V 10u->1u

C5021

10V

1u

C5022

1u

10V

R5009

1%

56k

C5016

10V

C5017

10V

P_XRSTSTM

P_XIRQ2

EXT_MUTE

HP_MUTE

AMP_STBY

P_STMSBI0

P_STMSBO0

10u

STB_RST

SW_OFF_DET

SG-MON_MUTE

SG-SP_HP_MUTE

5

TP5002

TP5003

STB3.3V

DDC C d

R5030

10k

STB1.2V

C

TO 100.sht POWER DET

TO 003.sht AUDIO/MUTE

TO STM

CHANGE

SOUND_SOSDET

Date

P_STMGPIO7

Change No.

C

R5174

10k

C

SOS_SENSE

P_STMGPIO5

TO 100.sht SOS

Common Mng.

Described

Approved

Engineering Department

-- APPROVE RANGE --

nil UB QB MB MA MAA DA PA CA MBA MBB DB LB LC

TR11-0242

2011/05/27

MTV R&D

005sht STM PORT LIST 100sht TV_SUB_ON 302sht to P-PRINT

005sht INITIAL SETUP 005sht STM PORT LIST 700sht sLD2 STM PORT

OPERATE

OVP

100sht TV SUB ON 100sht TV SUB ON from ASIC

009sht TC-DCDC FAULT 009sht VON31V / TCON15.6V SCP 100sht SOS_SENSE 100sht SOS_SENSE to ASIC

SOS_SENSE

100sht SOS 100sht SOS from ASIC

X _

SOS_SENSE DETECT Analog ASIC 20100701 L

OPERATE

SOS

OPERATE

R5172

10k

C

SOS

005sht STM PORT LIST 100sht SOS 700sht sLD2 STM PORT

SW_OFF_DET

CHG NO. CHANGED BY APPROVED BYREPORT NO. ENDDATE

H1 TR11-0191 H2 TR11-0193

H3 TR11-0200 H4 TR11-0207 H5 TR11-0214 H6 TR11-0219

07/05/11

12/05/11

19/05/11

20/05/11

KAMARIAH MR EDWIN N KAMARIAH MR EDWIN N

SHUHAILA MR EDWIN N KAMARIAH MR EDWIN N KAMARIAH MR EDWIN N KAMARIAH MR EDWIN N

TO STM

H7 TR11-0230 H8 TR11-0232 H9 TR11-0235 H10 TR11-0229 H11 TR11-0242 H12 TR11-0254

25/05/11

26/05/11

25/05/11

30/05/11

01/06/11

KAMARIAH MR EDWIN N KAMARIAH MR EDWIN N KAMARIAH MR EDWIN N SHUHAILA MR EDWIN N KAMARIAH MR EDWIN N KAMARIAH MR EDWIN N

[ Block Name ]

Terminal

REF No. 1000 - 1099

[ Net Variation ]

E3-US/GM-LCD

SUB3.3V

0.1u

16V

C8627

10V

10u

C8628

C

C8645

s

4V

22u

SDDAT2

SDDAT3

SDCMD

SDCLK

SDDAT0

SDDAT1

SDCD

SDWP

K1NA12E00016

SDDAT2

SDDAT3

SDCMD

GND

3.3V

SDCLK

GND

SDDAT0

SDDAT1

SDCD

SDWP

C

SD

SCDAAA0201

JK8850

9

1

2

3

4

5

6

7

8

10

D.SW

12

W.P.

Set

REF No. 2000 - 2499

[ Net Variation ]

TP8609

L-OUT

R-OUT PB-SW

L-IN

R-IN

<

MON_L

Y G

MON_R

PB

G

PR

G

C

A_AV1_YSW_TERMINAL

REAR_PB_TERMINAL

REAR_Y_TERMINAL REAR_PR_TERMINAL

AV1_L

AV1_R

E3-US/GM-LCD

<

L

Y

PB

11

C

PR

L

R

*JK3000A K1U511A00013

Y G

PB-SW

PB

G

PR

G

L-IN

G

R-IN

G

C

*JK3000 K1U713A00001

Y

R

PB

PR

L

R

HDMI2

*JK1000

K1FY119D0015

HPD1

5VDET1

DDCSDA_1

DDCSCL_1 HDMI2_ARC HDMI_CEC

HDMI_RX1CM

HDMI_RX1CP HDMI_RX1M0

HDMI_RX1P0 HDMI_RX1M1

HDMI_RX1P1 HDMI_RX1M2

HDMI_RX1P2

asdf asdf

asdf asdf asdf asdf asdf

asdf asdf

asdf

p

10.5mm i t W L

19

18

17

16

15

14

13

12

11

10

9

8

7

6

5

4

3

2

1

C C

K-PCB-CONNECTORPOWER-CONNECTOR

p

HDMI1

*JK1000A

<

K1FY119D0016

*JK1001

10.5mm i t W L

<

*JK1001A

<

K1FY119D0016

Ether

*JK1040

11 N s z X

7/9 top ^ side ^ X

SM15B-PASS-TB(D)(LF)(SN) K1KY15BA0324

A09

K2LC1YYA0016

2.5KV

1000pF

P v

16 GND

1 2 3 4 5 6 7 8

75

*JK3300

15 GND

14 PWM1

13 BL_ON

12 BL_SOS

11 KEY1

10 KEY3

9 RELAY

8 SUB_ON

7 GND

6 16V

5 18V

4 18V

3 GND

2 5.8V

1 STB_5.8VS

TP2002

C2008

10u25V

C2010 10u 25V

C2009

0.1u 16V

C

MAIN_ON

1

2

3

4

5

TP2019

6

7

8

9

10

11

12

13

14

15

TP2020

KEY3

SOUND18V

TP2018

B0ECKM000046

*D2006

*R2010 0

1/8W

2.0 x 1.25

B0ECKM000046

*D2007

B0ECKM000046

*D2008

*R2026

B0ECKM000046

HPDT +5V DDCG SDA SCL N.C. CEC CLKCLKG CLK+ D0D0G D0+ D1D1G D1+ D2D2G D2+

K1FY119D0015

19

18

17

16

15

14

13

12

11

10

9

8

7

6

5

4

3

2

1

HDMI_RX0CM

HDMI_RX0CP HDMI_RX0M0

HDMI_RX0P0 HDMI_RX0M1

HDMI_RX0P1 HDMI_RX0M2

HDMI_RX0P2

5VDET0

DDCSDA_0

DDCSCL_0 HDMI1_ARC HDMI_CEC

HPD0

asdf asdf

asdf asdf asdf asdf asdf

asdf asdf

asdf

19

17

15

13

11

9

7

5

3

1

HPDT +5V

18

DDCG SDA

16

SCL N.C.

14

CEC CLK-

12

CLKG CLK+

10

D0D0G

8

D0+ D1-

6

D1G D1+

4

D2D2G

2

D2+

19

18

17

16

15

14

13

12

11

10

9

8

7

6

5

4

3

2

1

ETHER3

ETHER5

ETHER7

TXP

TXM

RXP

RXM

G

G G

1

2 3 4

5 6

7 8

1CT:1CT

*R2020

0

R2006

1k

R2012

2.2k

KEY1

TP2017

TP2012

TP2013

TP2011

TP2016

STB3.3V

R2009

1k

R2019

47k

R2018 47k

C

*Q2002

P15V

TP2014

0

2.0 x 1.25

1/8W

*R2023

47k

*R2021

4.7k

*R2024

1.5k

*Q2001

DSC2001S0L

C

*D2009

TP2015

*R2022

C

47k

100.sht Analog ASIC

700.sht STM

0

*R2016

B1ADGJ000008

*R2004

0

PWM_A_OUT

P_STMTIME2

P_STMADIN2

005.sht STM Port ASIC-SUBON

LCD_TV_SUB_ON

5.8VS

BL_ON

BL_SOS

STB5.8V

ASIA

1

STB_5V

5VS

32KEYSCAN

USA

KEY3

GND

KEYSCAN

GNDGND4

TP2008

K1KY04AA0719

To K-PCB

*A02

1

2

3

4

C

*R2001

TP2004

*C2007

50V

1000p

*R2005

EZJZ0V120JA

0

TP2006

0

KEY1

C

D2005

C

*D2001

EZJZ0V120JA

*C2005

C

16V

0.1u

C

TP2010

C

KEY3

*C2001

25V

0.01u

*R2025

J0JYC0000328

J0JYC0000065

C2003

1000p 50V

0

*R2003

L2001

STB5.8V

5.8VS

0

to CONPANE

A W A p

1%

R2611

1%

R2612

100.sht POWER_KEY_RESET

SG-KEY3

005.sht STM Port

KEY1

1%

R2613

P83 KEY1

STM Port

P_STMRMIN

to V-PCB

D2765

EZJZ0V120JA

C2751

A10

SUB3.3V

REMOTE

STB3.3V

G_LED

R_LED

SM07B-GHS-TB(LF)(SN)

1%

R2614

1

2

GND

3

4

AI

5

6

7

8

K1KA07B00135

C

TP2769

TP2770

TP2771

TP2772

TP2773

TP2774

TP2775

C

D2763

D2762

EZJZ0V120JA

D2760

D2756

EZJZ0V120JA

C

EZJZ0V120JA

C

1000p

D2764

EZAEG2A50AX

1000p

50V

C2755

50V

C2754

50V

1000p

R2752

P

C2753

50V

1000p

SUB3.3V

L2750 J0JYC0000328

L2751 J0JYC0000328

R2753

*L2752 J0JYC0000065

L2754 J0JYC0000328

C2752

50V

R g < 40kHz

J0JYC0000065

P

J0JYC0000065

C2775

50V

100p

C

STB3.3V

R2751

15k

STM Port

C2750

0.1u 16V

C

P_STMADIN0

P_STMTIME0

P_STMTIME4

P80 AI_SENSOR

P01 G_LED_ON

P05 R_LED_ON

SG-RMIN

CHANGE

Change No.

Date

Common Mng.

Described

Approved

Engineering Department

-- APPROVE RANGE --

nil UB QB MB MA MAA DA PA CA

TR11-0242

2011/05/27

MTV R&D

MBA MBB DB LB LC

6.65k

SW2613 K0H1BA000445

SW2614

-

SW2613SW2612

CH -

+

14.3k

Vol + CH +Vol - INPUT CH -

SW2614 K0H1BA000445

SW2615

F

SW2615 K0H1BA000445

C

CHG NO. CHANGED BY APPROVED BYREPORT NO. ENDDATE

H1 TR11-0191 H2 TR11-0193 07/05/11 KAMARIAH MR EDWIN N

H3 TR11-0200 12/05/11 SHUHAILA MR EDWIN N H4 TR11-0207 19/05/11 KAMARIAH MR EDWIN N H5 TR11-0214 19/05/11 KAMARIAH MR EDWIN N H6 TR11-0219 20/05/11 KAMARIAH MR EDWIN N H7 TR11-0230 25/05/11 KAMARIAH MR EDWIN N H8 TR11-0232 25/05/11 KAMARIAH MR EDWIN N H9 TR11-0235 26/05/11 KAMARIAH MR EDWIN N H10 TR11-0229 25/05/11 SHUHAILA MR EDWIN N H11 TR11-0242 30/05/11 KAMARIAH MR EDWIN N H12 TR11-0254 01/06/11 KAMARIAH MR EDWIN N

07/05/11

KAMARIAH MR EDWIN N

Side USB

FOXCONN

10.5mm i t W

PC

*JK3703

K1FY315A0011

<

6

11

7

12

8

13

9

14

10

15

K2HC104E0020

*JK3703A

K1FY315A0009

<

6

1

11

7

R3018

1 2

R3015

0

L3010

EXC24CE900U

J0ZZB0000142

R3019

1

PC_R_TERMINAL

0

*JK3301

K2HC104E0020

1 4 3 2 5 5

C

SIDE_RIN_TERMINAL

SIDE_VIN_TERMINAL SIDE_LIN_TERMINAL

1.74k

SW2611 K0H1BA000445

7.15k

SW2612

K0H1BA000445

SW2611

2

3

4

5

2

12

8

3

13

9

4

14

10

5

15

R3020

0

1 2

0

R3017

2

L3012

EXC24CE900U

J0ZZB0000142

0

R3016

L3011 EXC24CE900U

J0ZZB0000142

C

PC_G_TERMINAL

PC_B_TERMINAL

PC_HD_TERMINAL

PC_VD_TERMINAL

1 4 3 2 5 5

C

SIDE_HP_R_TERMINAL SIDE_HP_L_TERMINAL

BRAZIL

AV

INPUT

TV

Vol - Vol + CH +

P_USB0DN_TERMINAL P_USB0DP_TERMINAL

VBUS0

JK1031

K1FY104E0009

1 2 3 4

C

parts characteristics

----------------------------------K1FY315A0010 with spring K1FY315A0011 with extra legs K1FY315A0009

hight 10.5mm

*D3050

K7AAAY000011

SUB3.3V

VCC

DRIVE IC

Vin

GND

C

P_IECOUT

SIDE TERMINAL

EB DC IA

F

G

H

J

K

L

M

N

O

P

Q

1

2

EX-BUS

PEAKS-SLD2

ED[15:0]

P_ED7 P_ED6 P_ED4

3

P_ED3 P_ED1 P_ED0 P_ED5 P_ED2 P_ED15 P_ED14 P_ED12 P_ED11 P_ED9 P_ED8 P_ED13 P_ED10

4

EA[7:0]

P_EA7 P_EA6 P_EA4 P_EA3 P_EA1 P_EA5 P_EA2 P_EA0

5

6

9/30 sLD z u

7

P_EA24

P_ECLK

P_XECS0 P_XECS1 P_XECS3

P_EAS

P_XERE P_XEWE0 P_XEWE1

P_ERXW

P_ESZ0

P_ESZ1

P_NANDRYBY

P_XNFRE P_XNFCE P_NFCLE P_NFALE P_XNFWE P_XNFWP

GUARD_CLK

R8915

EXB2HV680JV

R8919

R8924

R8925

EXB28V680JX

68

GUARD_CLK

EXB28V680JX

AH_ED5 AH_ED7 AH_ED4 AH_ED6 AH_ED3 AH_ED0 AH_ED1 AH_ED2 P_ED15 P_ED14 P_ED12 P_ED11

P_ED9

P_ED8 P_ED13 P_ED10

P_EA7 P_EA6

P_EA4 P_EA3 P_EA1 P_EA5 P_EA2 P_EA0

P_EA24

AH_ECLK

P_XERE P_XECS0 P_XECS1

P_ESZ1

P_XECS3

P_XEWE1

P_ESZ0

P_ERXW

P_EAS

P_XEWE0

NC

1NC2NC3NC4NC5NC6NC7

9/30 NAND z u

NAND_FLASH

AH_ED6

AH_ED7

44

45NC46NC47NC48

*IC8900

C3FBTY000011

C8904

0.1u 16V

2.2k

R8909

AH_ED4

AH_ED5

C8900

0.1u 16V

37

I/O7

43

I/O6

42

I/O5

I/O4

38NC39NC40NC41

VSS

VCC

1Gbit Hynix

R/B#8RE#9CE#10NC11NC12VCC13VSS14NC15NC16CLE17ALE18WE#19WP#20NC21NC22NC23NC24NC

C8901

0.1u 16V

33NC34NC35NC36

R8963

10k

AH_ED3

AH_ED2

32

I/O3

10k

31

I/O2

R8964

AH_ED0

AH_ED1

30

I/O1

I/O0

SUB3.3V

25NC26NC27NC28NC29

SUB3.3V

C

AH_ED1

AH_ED3

AH_ED5

AH_ED7

P_ED9

P_ED11

P_ED13

P_ED15

P_EA1

P_EA3

P_EA5

P_EA7

P_XECS0

P_XECS1

P_EAS

AH_ECLK

GUARD_CLK

P_ESZ1

P_XEWE1

P_ERXW

XNMIRQ

SUPPORT_CARD

R8912

RESERVED

K1KB60A00157

CN8959

31

32

33

34

35

36

37

38

39

40

41

42

43

44

45

46

47

48

49

50

51

52

53

54

1k

55

56

57

58

59

60

54477-0608

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

C

AH_ED0

AH_ED2

AH_ED4

AH_ED6

P_ED8

P_ED10

P_ED12

P_ED14

P_EA0

P_EA2

P_EA4

P_EA6

P_EA24

P_XECS3

P_ESZ0

P_XEWE0

P_XERE

SUB3.3V

10k

R8910

SUB3.3V

SUB5V

P_XRST

PEAKS-SLD2

P_BOOTSWAP

P_XEDK

P_XIRQ1

3

4

5

6

7

P_XNMIRQ

I I

1 `30 s t L o I I

C8902

0.1u 16V

SUB3.3V

C

EEPROM

SDA

5

SCL

6

*IC8902

C3EBHC000035

WC

7

Vcc

8

USA:32Kbit

ASIA:16Kbit

Vss

JTAG

8

CHANGE

PEAKS-SLD2

4

E2

3

E1

2

E0

1

C

P_TCK

XRSTSTM

P_XRSTSTM

BEXRST P_XRST

STMEXTRG

P_STMTIME1

BEEXTRG

P_PORT10

P_TRST

P_TMS

P_TDO

Change No.

Date

TR11-0242

2011/05/27

Common Mng.

Described

Approved

Engineering Department

MTV R&D

-- APPROVE RANGE --

nil UB QB MB MA MAA DA PA CA MBA MBB DB LB LC

9

8

PEAKS_EEPROM

TP8975

VJ8900 '10/09/07

PEAKS-EEP_SDA

I2CBUS

PEAKS-EEP_SCL

EEPROM_WP

P_PORT36

9

R0800

4.7k

10

11

STM_EEPROM

I2CBUS

STM-EEP_SDA

STM-EEP_SCL

STM-EEP_WP P_STMGPIO8

TP8977

VJ8901 '10/09/07

R8914

4.7k

C8903

0.1u 16V

STB3.3V

C

EEPROM

SDA

5

SCL

*IC8901

6

C3EBGC000056

WC

7

VCC

8

16Kbit

VSS

P_TDI

STB3.3V

10k

R8967

R8966

4

R8965

NC

3

NC

2

NC

1

C

R8968

CHG NO. CHANGED BY APPROVED BYREPORT NO. ENDDATE

C

H1 TR11-0191 H2 TR11-0193

H3 TR11-0200 H4 TR11-0207 H5 TR11-0214 H6 TR11-0219 H7 TR11-0230 H8 TR11-0232 H9 TR11-0235 H10 TR11-0229 H11 TR11-0242 H12 TR11-0254

07/05/11

12/05/11

19/05/11

20/05/11

25/05/11

26/05/11

25/05/11

30/05/11

01/06/11

KAMARIAH MR EDWIN N KAMARIAH MR EDWIN N

SHUHAILA MR EDWIN N KAMARIAH MR EDWIN N KAMARIAH MR EDWIN N KAMARIAH MR EDWIN N KAMARIAH MR EDWIN N KAMARIAH MR EDWIN N KAMARIAH MR EDWIN N SHUHAILA MR EDWIN N KAMARIAH MR EDWIN N KAMARIAH MR EDWIN N

12

CONFIDENTIAL

A

B PC MG

SHEETXXX:COMMON_NAND,SPC,JTAG,EEPROM

CRNo:8240-8299

D

H I J Q

L OKE F

N

12

[ Block Name ]

LAN

REF No. 8000 - 8999

[ Net Variation ]

sLD2

SD

REF No. 8000 - 8999

[ Net Variation ]

sLD2

USB

REF No. 5600 - 5649

[ Net Variation ]

USB2

CHG NO. CHANGED BY APPROVED BYREPORT NO. ENDDATE

H1 TR11-0191 H2 TR11-0193 07/05/11 KAMARIAH MR EDWIN N

H3 TR11-0200 12/05/11 SHUHAILA MR EDWIN N H4 TR11-0207 19/05/11 KAMARIAH MR EDWIN N H5 TR11-0214 19/05/11 KAMARIAH MR EDWIN N H6 TR11-0219 20/05/11 KAMARIAH MR EDWIN N H7 TR11-0230 25/05/11 KAMARIAH MR EDWIN N H8 TR11-0232 25/05/11 KAMARIAH MR EDWIN N H9 TR11-0235 26/05/11 KAMARIAH MR EDWIN N H10 TR11-0229 25/05/11 SHUHAILA MR EDWIN N H11 TR11-0242 30/05/11 KAMARIAH MR EDWIN N H12 TR11-0254 01/06/11 KAMARIAH MR EDWIN N

07/05/11

KAMARIAH MR EDWIN N

PEAKS-SLD2

P_MII_TXCLK

P_MII_TXD0

P_MII_TXD1

P_MII_TXD2

P_MII_TXD3

P_MII_TXEN

P_MII_RXCLK

P_MII_RXD0

P_MII_RXD1

P_MII_RXD2

P_MII_RXD3

P_MII_RXDV

P_MII_RXER

P_MII_COL

P_MII_CRS

P_MDC

P_MDIO

P_MDIO_INTL

P_PHYRSTL

ETHER_PHY

C

10k

*R8647

*R8653

10k

*R8648

10k

*R8650

*R8649

*R8651 LAN f p [ q 9/6 @

C

CC C

10k

*R8654

*R8655

CC CC

10k

*R8656

*R8657

*R8660

*R8661

*R8662

*R8663

*R8664

*R8667

0

100

R8606

R8607

*R8666

GUARD_CLK

*R8665

100

C

SUB3.3V

4.7k

50V

1000p

C8631

P_MII_TXCLK

AE_MII_TXD0

AE_MII_TXD1

AE_MII_TXD2

AE_MII_TXD3

AE_MII_TXEN

P_MII_RXCLKGUARD_CLK

P_MII_RXD0

P_MII_RXD1

P_MII_RXD2

P_MII_RXD3

P_MII_RXDV

P_MII_RXER

P_MII_COL

P_MII_CRS

AE_MDC

AE_MDIO

P_MDIO_INTL

AE_PHYRSTL

SUB3.3V

P_MII_RXDV P_MII_RXCLK P_MII_RXER

P_MDIO_INTL P_MII_TXCLK AE_MII_TXEN AE_MII_TXD0 AE_MII_TXD1

*L8600

L8601

*L8604

39p

*C8602

J0JYC0000322

P

*L8603

50V

J0JHC0000045

VJUMP1608-P

*R8668

100

J0JBC0000115

*R8669

*R8670

J0JBC0000115

50V

39p

*C8629

100

*C8603 10V

*C8604

16V

39p

C8600

50V

0.1u

C

10u

*R8616

*C8605

0.1u

*R8617

100

C8601

16V

39p

100

50V

C8632

50V

1000p

VDDIO

25

NC

26

RXDV/CONFIG2

27

RXC/B-CAST_OFF

28

RXER/ISO

29

GND

30

VDD_1.2

31

INTRP/NAND_Tree#

32

TXC

33

TXEN

34

TXD0

35

TXD1

36

AE_MDC

P_MII_RXD1

P_MII_RXD2

100

*R8675

*R8674

21

22

RXD2/PHYAD1

RXD1/PHYAD2

RXD0/DUPLEX

KSZ8051MLL TR

C1CB00003491

100

*R8671

*R8672

P_MII_COL

AE_MII_TXD3

P_MII_RXD3

100

*R8676

19

20

RXD3/PHYAD0

*IC8601

CRS/CONFIG1

41

42

100

P_MII_CRS

P_MII_RXD0

100

*R8673

23

24

GND

GND38TXD239TXD340COL/CONFIG0

37

AE_MII_TXD2

AE_MDIO

17

18

GND

MDC

MDIO

LED0/NWAYEN

LED1/SPEED

43

44NC45NC46NC47

REXT

13

14XO15XI16

GND

VDDA_3.3

VDD_1.2

RST#48NC

*R8608

AE_PHYRSTL

*R8615

TXP TXM RXP RXM

GND GND GND

2.7k

3225 ^ C v X @4/26

i X 5/19

7/8 NDK TXC X

*X8600

H0J250500109

10p

*C8607

*R8610

*R8609

12 11 10

9 8 7 6 5 4 3 2 1

50V

1%

6.49k

25M

220

C8606

C

1M

NC

NC NC

LAN } b ` O f 9/27 @ X @

*C8608

50V

10p

C

VJUMP1608-P

50V

100p

C8633

1000p 50V

*C8616

10u

10V

*C8609

16V

0.1u

C8610

0.1u *C8611

0.1u

16V

*C8615

10u

C8612

L8606

P

L8602

P

VJUMP1608-P

0.1u

16V

10V

R8611

49.9

USB0

SD_CARD

SUB3.3V

PEAKS-SLD2

H:3.3V o L:1.8V o

VPHY KSZ8051 @ @

PHY KSZ8041

R8646

0

TP8600

R8613

16V

C

C8613

49.9

1%

0.1u

1%

TP8601

TP8602

TP8603

C8618

*C8617

10V

10u

0.1u

16V

C

R8645

0

*C8644

16V

0.1u

C

G TXP

TXM ETHER3 RXP

RXM ETHER5

ETHER7

SUB3.3V

P_USB0VBUS

P_USB0OD

P_USB0DP P_USB0DN

R5607

10k

SUB5V

R5606

10k

1 2

L5605

EXC24CE900U

C

10V

10u

C5624

C

16V0.1u

C5625

R [750mA i i700mA j

1 2 3

C

5

Vin GND EN

IC5602

C0DBZYY00368

R5524N003A-TR-SE

1 2

L5603

EXC24CE900U

Vout

FLG

5

4

C5613

220u

6.3V

+

C5614

10u

10V

C5615

10u

10V

C

C5616

0.1u 16V

L5601

J0JHC0000045

J0JYC0000322

1.2mm/ c

TP5601

TP5602

C

VBUS0

P_USB0DP_TERMINAL P_USB0DN_TERMINAL

USB1

16V

C

R8614

C8614

49.9

1%

0.1u

F A i OGND f W ^ GND

g X d C I A

GND s

GGG

G G

10k

R8630

EXB28V103JX

5

VJ8619

P

C

G

VJ8616

P

C

5

PEAKS-SLD2

P_SDDAT2

P_SDDAT3

P_SDCMD

R8625

56

10k

R8639

10k

R8637

R8638

10k

R8640

SDCMD

SDDAT2

SDDAT3

R8632

EXB28V560JX

TP8605

TP8604

TP8608

SDDAT2

SDDAT3

SDCMD

PEAKS-SLD2

P_USB1VBUS

P_USB1OD

SUB3.3V

*R5609

10k

*R5608

10k

C

R8612

49.9

1%

C

P_SDCLK

P_SDDAT0

P_SDDAT1

P_SDCD

P_SDWP

R8624

EXB28V560JX

R8629

r [ Y p p ^ [

56

SDCLK

GND SDDAT0

SDDAT1

SDCD

SDWP

R8636

R8634

EXB28V560JX

22

R8641

1.0 x 0.5

0

TP8610

TP8607

TP8606

TP8612

TP8614

SDCLK

SDDAT0

SDDAT1

SDCD

SDWP

P_USB1DP P_USB1DN

1.2mm/2.5mm s b `/ c

16V

C8619

0.1u

16V

0.1u

C8620

50V

C8621

100p

50V

100p

C8622

50V

C8623

100p

50V

100p

C8624

50V

C8625

100p

50V

C8626

100p

Date

CHANGE

TR11-0242

2011/05/27

} z

FL8600, FL8601

1 4

C

2

3

USBP

USBN

Change No.

Common Mng.

Described

h p ^ [

Approved

Engineering Department

MTV R&D

-- APPROVE RANGE --

nil UB QB MB MA MAA DA PA CA MBA MBB DB LB LC

CONFIDENTIAL

PLOT

11/06/01 23:57:52 Kamariah

VARIATION

SHEET

TNP4G519.A.cir/302.sht

LB

ODU15V

USA , ASIA ODU g p

SUB1.8V

SUB3.3V

4.7u

C8717

0.1u 16V

C8714

10V

SUB5V

P15V

SUB5V

IC8702

C0DBAFG00029

S-1172B1J-E6T1G 6

VIN

5

VSS

4

NC

C

C8723

C8724

10u

25V

C

10V

1.85V i X

1

VOUT

2

VSS

Max:1A

C8710

C

10u

10V

C8709

3

G1C4R7MA0416

C8708

10u

10V

ON/OFF

10u

C8707

0.01u 25V

L8701

C8715 10u

10V

TP8700

C8716

0.1u 16V

R8706

39

SUB1.8V

1

2

3

4

IC8701 C0DBAYY00915 LV5857MXL-TLM-H

BOOT

VIN

SW

GND

AVDDH3.3V

R8767

V [ P X

10/21 KIDA O m X

8

COMP

SS

7

EN

6

5

FB

R8705

1%

3k

Thermal Pad

PAD

C

5V -> 3.3V

IC8706

MM3404A33URE(R59-C803)

C0DBGYY00887

1

CE

0

2

VSS

VOUT

C

C8711

16V

0.022u

R8704

20k

1%

d p

iPod f

VDD

C8765

C

10V 1u

R8709

5%

4

HDMI3.3V

3

DCDCEN

TP8702

0

C8764

10V 1u

SUB5V

R8707

1%

5.6k

C

C8712 2700p 25V

D8716

DA2J10100L

100k

R8755

C

STB5V

SUB3.3V

P15V

SUB3.3V

TP8701

C8702

10V

10u

L8702 J0JYC0000068

C

C8721

10u 25V

C

C8722

10u 25V

C8773

10V

10u

1MHz A Q

s v

C8700

0.022u 16V

1MHz L ^

G1C6R8MA0426

L8700

10V

C8703

10u

C

_ C I [ h IC A

IC s z u B

R8702

39

R8710

2.2

D8700

C8725

1000p

50V

B0JCPG000032

IC8700 C0DBAYY00931 LV5876MXL-TLM-H

1

BOOT

Thermal Pad

2

VIN

3

SW

4

GND

Thermal_Pad

2A 1MHz

SS

EN

COMP

FB

C C

R8701

0.5%

8

7

6

5

5.6k

C8769

0.022u

R8700

16V

0.5%

18k

C

DCDCEN

1%

R8703 18k

C8705 1000p 50V

STB5.8V

C5476 10V 1u

B0JCCE000008

VIN

CE

IC5416

C0DBGYY00281

D5480

4

XC6204F502PR

VSS

2

3

C

VOUT

NC

C5477 10V 1u

STB5V

Change No.

Date

CHANGE

TR11-0242

2011/05/27

TP5400

5

1

Common Mng.

Described

Approved

Engineering Department

MTV R&D

-- APPROVE RANGE --

nil UB QB MB MA MAA DA PA CA MBA MBB DB LB LC

CHG NO. CHANGED BY APPROVED BYREPORT NO. ENDDATE

H1 TR11-0191 H2 TR11-0193

H3 TR11-0200 H4 TR11-0207 H5 TR11-0214 H6 TR11-0219 H7 TR11-0230 H8 TR11-0232 H9 TR11-0235 H10 TR11-0229 H11 TR11-0242 H12 TR11-0254

07/05/11

12/05/11

19/05/11

20/05/11

25/05/11

26/05/11

25/05/11

30/05/11

01/06/11

KAMARIAH MR EDWIN N KAMARIAH MR EDWIN N

SHUHAILA MR EDWIN N KAMARIAH MR EDWIN N KAMARIAH MR EDWIN N KAMARIAH MR EDWIN N KAMARIAH MR EDWIN N KAMARIAH MR EDWIN N KAMARIAH MR EDWIN N SHUHAILA MR EDWIN N KAMARIAH MR EDWIN N KAMARIAH MR EDWIN N

CONFIDENTIAL

SHEET Common-Power CRNo:8700

PLOT

VARIATION

SHEET

1

A

11/06/01 23:58:53 Kamariah

LB

TNP4G519.A.cir/701.sht

B

C

E

F N

H J

K

LIG

M

O

P

QD

1

2

3

LOCK/SLD2

PEAKS-sLD2 p X R

4

SUB1.2V

2730mA

5/27 0

8/6 VJUMP

5

9/7 VJUMP

C8002 10u

10V

C8003

0.1u

16V

C

C8006

0.1u 16V

C8007

0.1u

16V

C8008 1000p

50V

1.25V_SUB

C8001 10u

10V

16V

C

C8004

0.1u

VDD12

SUB1.2V

VDDUSB SUB1.2V

SUB3.3V

382mA

L8006

J0JHC0000045

C8036

10u

10V

C8034

0.1u 16V

C8033 10u

10V

C8035

0.1u

16V

C

C8023

0.1u

16V

VDD33 P_VDD33

DPAVDD33(DIO PLL) P_VDD33

70mA

5/27 0

8/6 VJUMP

SUB3.3V

C

DVDD2.5V

C8046

0.1u 16V

SUB3.3V

4

5

C8055 1000p

50V

C

DVDD2.5V

VDDAVAD18 P_VDD18

AVDDH18 P_VDD18

AVDDSIF18 P_AVDDSIF18

6

7

LVVDD12 SUB1.2V

C8005

0.1u 16V

LVVSS

C8022

0.1u

16V

C

C8009 10u 10V

C8021

0.1u

16V

C8010

0.1u 16V

C8020

0.1u

16V

C

C8012

0.47u

10V

C

C8011

0.1u 16V

C8013 1000p

50V

VDDR12 SUB1.2V

VDDA12 P_VDDA12

7/2 7/20 F i X

C8019 10u

10V

C8014 1u

10V

C8016

0.1u 16V

VDDIO15 SUB1.5V

L8007

J0JHC0000045

C8039

10u

10V

C8040

0.1u

16V

C8041

0.1u

16V

LVVSS C

AVSSEVE

C8025 10u

10V

AVSSHP C

C8031

0.1u 16V

C

4/23 C

5/7 L8002 @ p ^ [ I x ^ A B

6

i ] n c j

L8003

J0JCC0000287

7

SUB1.5V

390mA

9/7 VJUMP

5/13

LVVDD33 SUB3.3V

SUB1.8V

AVDDEVE33 P_AVDD33

9/13 n

AVDDHP33 P_AVDD33

AVDDPLLA_33_PLLD1_33 P_AVDD33

9/13 n X

AVDPWM33 P_AVDD33

VJ8008

VJUMP1608-P

P

555mA

5/27 0

8/6 VJUMP

9/13 n \

C8047

0.1u

16V

C

L8009

J0JKC0000021

9/13 n

AVSSV C

C8045 100p

50V

C

AVSSSIF C

C8043

0.1u 16V

C8042 10u

10V

C8044

0.1u 16V

STB3.3V

5/27 0

C

8/6 VJUMP

VDDIOCK

8

L8015

J0JCC0000287

7/2

C

C8015 1u 10V

P_VDDIOCK15

HDMI3.3V

AVDDH33 HDMI3.3V

42.6mA

9

4/23 C

TMDS C PU @ pREG

C8038 1000p

50V

C8037

10u

10V

C

L8005

J0JHC0000045

20mA

C8024 10u

10V

R8001

330

1.0 x 0.5

C8026

22u

4V

C8030 100p 50V

AVSSPWM C

C8027 100p

50V

C

C8028

0.1u 16V

AVSSAPUSB C

C8029

0.1u 16V

AVSSADA C

AVDPLLD2_33 P_AVDD33

AVDAPUSB33 P_AVDD33

AVDDADA33 P_AVDDADA33

30mA

STB1.2V

40mA

VJ8013

VJUMP1608-P

P

5/27 0

8/6 VJUMP

VJ8014

VJUMP1005-P

P

5/27 0

8/6 VJUMP

C8053

0.1u 16V

VDD33STM P_VDD33STM

STMAVDD33 P_VDD33STM

P_VDD12STM

8

9

C

C8051

16V

0.1u

C8050 16V

0.1u

STMADAVSS C

C8049 10u

10V

C8052 10u 10V

C

10

11

12

CONFIDENTIAL

CHANGE

Change No.

Date

Common Mng.

Described

Approved

Engineering Department

-- APPROVE RANGE --

nil UB QB MB MA MAA DA PA CA MBA MBB DB LB LC

SHEET CHANGE

INFORMATION

SHEET NO. SHEET Ver. SHEET Mng.

FOR VIRTUAL-MODULE SHEET *Don't delete! *Don't change Sheet NO!

TR11-0242

2011/05/27

MTV R&D

SLD2-701

1.40 yokoyama

~

CHG NO. CHANGED BY APPROVED BYREPORT NO. ENDDATE

H1 TR11-0191 H2 TR11-0193

H3 TR11-0200 H4 TR11-0207 H5 TR11-0214 H6 TR11-0219 H7 TR11-0230 H8 TR11-0232 H9 TR11-0235 H10 TR11-0229 H11 TR11-0242 H12 TR11-0254

07/05/11

12/05/11

19/05/11

20/05/11

25/05/11

26/05/11

25/05/11

30/05/11

01/06/11

KAMARIAH MR EDWIN N KAMARIAH MR EDWIN N

SHUHAILA MR EDWIN N KAMARIAH MR EDWIN N KAMARIAH MR EDWIN N KAMARIAH MR EDWIN N KAMARIAH MR EDWIN N KAMARIAH MR EDWIN N KAMARIAH MR EDWIN N SHUHAILA MR EDWIN N KAMARIAH MR EDWIN N KAMARIAH MR EDWIN N

10

11

SHEET701:sLD2 POWER

12

CRNo:8001 - 8099

A

B

C

D

E I J Q

F P

G

H

LK

M

N

O

PLOT

VARIATION

SHEET

1

11/06/01 23:58:23 Kamariah

LB

TNP4G519.A.cir/700.sht

F N Q

H

IG

J

LCA

MK P

OEB D

1

2

3

4

5

6

7

8

9

10

11

12

LOCK/SLD2 LOCK/SLD2

CLK

*IC8000AF6AXI *IC8000AE6AXO

P_AXI P_AXO

SYSTEM BUS

USB CLK (reserve)

*IC8000U16UXI *IC8000V16UXI

*IC8000U17UXO *IC8000V17UXO *IC8000V18UXO

C

RESET

*IC8000AA9XRSTSTM

P_XRSTSTM

RESET

*IC8000AF4XRST

P_XRST

CLK SEL

*IC8000AF3XTALSEL0 *IC8000AC5XTALSEL1

P_XTALSEL0 P_XTALSEL1

JTAG I/F

*IC8000AA24TCK *IC8000AB24TMS *IC8000AC25TDI *IC8000AA23TDO *IC8000AC23TRST

P_TCK P_TMS P_TDI P_TDO P_TRST

TEST

*IC8000R12FPEN

*IC8000T12TESTSEL

C

REMOTE

*IC8000AB26STMRMIN

P_STMRMIN

TIMER

*IC8000AA21STMTIME0 *IC8000AC26STMTIME1 *IC8000AB22STMTIME2 *IC8000AD26STMTIME3 *IC8000AC22STMTIME4 *IC8000AD25STMTIME5 *IC8000AE25STMTIME6

P_STMTIME0 P_STMTIME1 P_STMTIME2 P_STMTIME3 P_STMTIME4 P_STMTIME5 P_STMTIME6

NAND FLASH I/F

SERIAL

*IC8000AD4STMSBO0 *IC8000AB8STMSBI0 *IC8000AE5STMSBT0

*IC8000AE7STMSBO1 *IC8000AF5STMSBI1

P_STMSBO0 P_STMSBI0 P_STMSBT0

P_STMSBO1 P_STMSBI1

I2C

*IC8000AD5STMSDA *IC8000AA8STMSCL

P_STMSDA P_STMSCL

HDMI I/F

*IC8000AD22STMCEC0 *IC8000AA18STMCECPUL *IC8000AE26STMCECAVL1A *IC8000AB21STMCECAVL1B

*IC8000AC20STMHPDO0 *IC8000AE23STMHPDO1 *IC8000AF23STMHPDO2

*IC8000AA19STM5VDET0 *IC8000AD23STM5VDET1 *IC8000AB19STM5VDET2

*IC8000AF25STMDDCSDA0 *IC8000AC21STMDDCSCL0 *IC8000AF24STMDDCSDA1 *IC8000AA20STMDDCSCL1 *IC8000AE24STMDDCSDA2 *IC8000AC24STMDDCSCL2 *IC8000AB20STMDDCSDA3 *IC8000AD24STMDDCSCL3

P_STMCEC0

P_STMCECPUL P_STMCECAVL1A P_STMCECAVL1B

P_STMHPDO0

P_STMHPDO1

P_STMHPDO2

P_STM5VDET0

P_STM5VDET1

P_STM5VDET2

P_STMDDCSDA0

P_STMDDCSCL0

P_STMDDCSDA1

P_STMDDCSCL1

P_STMDDCSDA2

P_STMDDCSCL2

P_STMDDCSDA3

P_STMDDCSCL3

MIAN POWER CTRL

*IC8000AE4MAINPWRON

P_MAINPWRON

ANALOG INPUT

*IC8000AD3STMADIN0 *IC8000AB7STMADIN1 *IC8000AC6STMADIN2 *IC8000AE3STMADIN3

P_STMADIN0

P_STMADIN1

P_STMADIN2 P_MDC

P_STMADIN3

COMMON I/O PORT & IRQ

*IC8000Y22STMGPIO0 *IC8000Y24STMGPIO1 *IC8000AB25STMGPIO2 *IC8000Y26STMGPIO3 *IC8000Y21STMGPIO4

P_STMGPIO0

P_XIRQ2

P_STMGPIO2

P_STMGPIO3

P_STMGPIO4

COMMON I/O PORT

*IC8000Y25STMGPIO5 *IC8000AB23STMGPIO6 *IC8000AA25STMGPIO7 *IC8000AA26STMGPIO8 *IC8000AA22STMGPIO9

P_STMGPIO5

P_STMGPIO6

P_STMGPIO7

P_STMGPIO8

P_STMGPIO9

CONFIDENTIAL

LOCK/SLD2

DDR3 I/F

*IC8000D24ED0 *IC8000C26ED1 *IC8000G21ED2 *IC8000C25ED3 *IC8000B25ED4 *IC8000E23ED5 *IC8000B26ED6 *IC8000A25ED7 *IC8000C24ED8 *IC8000B24ED9 *IC8000F22ED10 *IC8000A24ED11 *IC8000C23ED12 *IC8000D23ED13 *IC8000B23ED14 *IC8000A23ED15

*IC8000K21EA0 *IC8000J26EA1 *IC8000K22EA2 *IC8000J25EA3 *IC8000J24EA4 *IC8000K23EA5 *IC8000H26EA6 *IC8000H25EA7 *IC8000J23EA8 *IC8000H24EA9 *IC8000J22EA10 *IC8000G26EA11 *IC8000G25EA12 *IC8000H23EA13 *IC8000H22EA14 *IC8000J21EA15

*IC8000G24EA24

*IC8000K24ECLK

*IC8000F23XERE *IC8000G22XEWE0 *IC8000E24XEWE1 *IC8000D25ERXW

*IC8000H21EAS

*IC8000D26ESZ0 *IC8000E26ESZ1 *IC8000G23XEDK

*IC8000F26XECS0 *IC8000F24XECS1 *IC8000E25XECS3

*IC8000F25BOOTSWAP

*IC8000E21XNFCE *IC8000B21XNFRE *IC8000F20XNFWE *IC8000D21NFALE *IC8000C21NFCLE *IC8000E20XNFWP *IC8000A21NANDRYBY

P_ED0 P_ED1 P_ED2 P_ED3 P_ED4 P_ED5 P_ED6 P_ED7 P_ED8 P_ED9 P_ED10 P_ED11 P_ED12 P_ED13 P_ED14 P_ED15

P_EA0 P_EA1 P_EA2 P_EA3 P_EA4 P_EA5 P_EA6 P_EA7 P_EA8 P_EA9 P_EA10 P_EA11 P_EA12 P_EA13 P_EA14 P_EA15

P_EA24

P_ECLK

P_XERE P_XEWE0 P_XEWE1 P_ERXW

P_EAS

P_ESZ0 P_ESZ1 P_XEDK

P_XECS0 P_XECS1 P_XECS3

P_BOOTSWAP

P_XNFCE P_XNFRE P_XNFWE P_NFALE P_NFCLE P_XNFWP P_NANDRYBY

*IC8000A11MMCK *IC8000B11MMXCK

*IC8000D8MMDQ0 *IC8000E8MMDQ1 *IC8000D7MMDQ2 *IC8000D6MMDQ3 *IC8000C6MMDQ4 *IC8000A5MMDQ5 *IC8000B5MMDQ6 *IC8000E7MMDQ7 *IC8000B8MMDQ8 *IC8000A8MMDQ9 *IC8000A9MMDQ10 *IC8000B9MMDQ11 *IC8000D9MMDQ12 *IC8000E10MMDQ13 *IC8000F10MMDQ14 *IC8000E11MMDQ15

*IC8000C19MMDQ16 *IC8000B20MMDQ17 *IC8000E18MMDQ18 *IC8000N4PORT02 *IC8000F18MMDQ19 *IC8000A20MMDQ20 *IC8000D19MMDQ21 *IC8000E19MMDQ22 *IC8000C20MMDQ23 *IC8000F14MMDQ24 *IC8000E15MMDQ25 *IC8000E16MMDQ26 *IC8000C17MMDQ27 *IC8000D17MMDQ28 *IC8000C16MMDQ29 *IC8000B17MMDQ30 *IC8000A17MMDQ31

*IC8000B6MMDQS0 *IC8000A7MMDQS1 *IC8000A19MMDQS2 *IC8000B18MMDQS3

*IC8000A6MMXDQS0 *IC8000B7MMXDQS1 *IC8000B19MMXDQS2 *IC8000A18MMXDQS3

*IC8000C7MMDM0 *IC8000C8MMDM1 *IC8000D18MMDM2 *IC8000C18MMDM3

*IC8000D14MMA0 *IC8000C10MMA1 *IC8000D11MMA2 *IC8000A12MMA3 *IC8000F12MMA4 *IC8000A13MMA5 *IC8000D10MMA6 *IC8000E12MMA7 *IC8000B10MMA8 *IC8000C12MMA9 *IC8000B14MMA10 *IC8000A10MMA11 *IC8000E14MMA12 *IC8000D12MMA13

*IC8000D15MMBA0 *IC8000F11MMBA1 *IC8000A15MMBA2

*IC8000C14MMXCS0 *IC8000B15MMXCS1

*IC8000C13MMXRAS *IC8000A14MMXCAS *IC8000C15MMXWE

*IC8000F13MMCKE0 *IC8000B16MMCKE1

*IC8000B13MMODT0 *IC8000A16MMODT1

*IC8000B12MMXRESET

P_MMCK P_MMXCK

P_MMDQ0 P_MMDQ1 P_MMDQ2 P_MMDQ3 P_MMDQ4 P_MMDQ5 P_MMDQ6 P_MMDQ7 P_MMDQ8

P_MMDQ9 P_MMDQ10 P_MMDQ11 P_MMDQ12 P_MMDQ13 P_MMDQ14

P_MMDQ15

P_MMDQ16 P_MMDQ17 P_MMDQ18 P_MMDQ19 P_MMDQ20 P_MMDQ21 P_MMDQ22 P_MMDQ23 P_MMDQ24 P_MMDQ25 P_MMDQ26 P_MMDQ27 P_MMDQ28 P_MMDQ29 P_MMDQ30 P_MMDQ31

P_MMDQS0

P_MMDQS1

P_MMDQS2

P_MMDQS3

P_MMXDQS0

P_MMXDQS1

P_MMXDQS2

P_MMXDQS3

P_MMDM0

P_MMDM1

P_MMDM2

P_MMDM3

P_MMA0

P_MMA1

P_MMA2

P_MMA3

P_MMA4

P_MMA5

P_MMA6

P_MMA7

P_MMA8

P_MMA9

P_MMA10

P_MMA11

P_MMA12

P_MMA13

P_MMBA0

P_MMBA1

P_MMBA2

P_MMXCS0

P_MMXCS1

P_MMXRAS

P_MMXCAS

P_MMXWE

P_MMCKE0

P_MMCKE1

P_MMODT0

P_MMODT1

P_MMXRESET

P_MMDQ[0-15]

P_MMDQ[16-31]

LAN CON I/F

*IC8000AA3MII_COL *IC8000W5MII_CRS

*IC8000AA5MII_RXCLK

*IC8000AD2MII_RXD0 *IC8000AA4MII_RXD1 *IC8000AE2MII_RXD2 *IC8000AE1MII_RXD3

*IC8000AD1MII_RXDV *IC8000AC3MII_RXER

*IC8000AC1MII_TXCLK

*IC8000AB3MII_TXD0 *IC8000W6MII_TXD1 *IC8000AB2MII_TXD2 *IC8000AB1MII_TXD3

*IC8000Y6MII_TXEN

*IC8000Y5MDC *IC8000AF2MDIO

*IC8000AC2MDIO_INTL

*IC8000AA2PHYRSTL

*IC8000W4WAKEUP *IC8000Y4WUC

P_MII_COL

P_MII_CRS

P_MII_RXCLK

P_MII_RXD0

P_MII_RXD1

P_MII_RXD2

P_MII_RXD3

P_MII_RXDV

P_MII_RXER

P_MII_TXCLK

P_MII_TXD0

P_MII_TXD1

P_MII_TXD2

P_MII_TXD3

P_MII_TXEN

P_MDIO

P_MDIO_INTL

P_PHYRSTL

P_WAKEUP

P_WUC

CI I/F

*IC8000N21PCDOE *IC8000P23PCRESET *IC8000P22PCCE1 *IC8000P26PCCE2 *IC8000N22PCWE *IC8000N26PCOE *IC8000P21PCIOWR *IC8000P25PCIORD *IC8000M26PCWAIT *IC8000N23PCCD1 *IC8000M24PCCD2 *IC8000N25PCREG *IC8000M25PCREADY *IC8000N24PCVS1

P_PCDOE

P_PCRESET

P_PCCE1

P_PCCE2

P_PCWE

P_PCOE

P_PCIOWR

P_PCIORD

P_PCWAIT

P_PCCD1

P_PCCD2

P_PCREG

P_PCREADY

P_PCVS1

USB POWER CTRL

*IC8000U22USB0VBUS *IC8000T24USB0OD

*IC8000V21USB1VBUS *IC8000U24USB1OD

SD CARD I/F

*IC8000V24SDCLK *IC8000W26SDCMD *IC8000V25SDDAT0 *IC8000V26SDDAT1 *IC8000W24SDDAT2 *IC8000W25SDDAT3 *IC8000V22SDCD *IC8000V23SDWP *IC8000W21SDVOLC

TS SERIAL INPUT

*IC8000AB6CH0CLK *IC8000AC4CH0DATA *IC8000AB4CH0PSYNC *IC8000AB5CH0VAL

TS PARALLEL INPUT

*IC8000M23HS0BCLKIN *IC8000L25HS0DIN0 *IC8000L22HS0DIN1 *IC8000L23HS0DIN2 *IC8000M22HS0DIN3 *IC8000L24HS0DIN4 *IC8000K26HS0DIN5 *IC8000M21HS0DIN6 *IC8000K25HS0DIN7 *IC8000L21HS0SYNCIN *IC8000L26HS0VALIN

TS PARALLEL OUTPUT

*IC8000P24HSBCLKOUT *IC8000R24HSDOUT0 *IC8000R21HSDOUT1 *IC8000T21HSDOUT2 *IC8000R23HSDOUT3 *IC8000T23HSDOUT4 *IC8000R25HSDOUT5 *IC8000R22HSDOUT6 *IC8000R26HSDOUT7 *IC8000U21HSSYNCOUT *IC8000T22HSVALOUT

TUNER CTRL

*IC8000AE10AGCI *IC8000AF10AGCR *IC8000AD10AGCBS

VIDEO (PC) INPUT

*IC8000AC10HIN *IC8000AA10VIN

AUDIO OUTPUT

*IC8000AE12A_MUTE

*IC8000AA11IECOUT

*IC8000AA12NSHUTDOWN

*IC8000AD12MUTEB

TCON

*IC8000C3TCON0 *IC8000A3TCON1 *IC8000B3TCON2 *IC8000A2TCON3 *IC8000D4TCON4 *IC8000B2TCON5 *IC8000C4TCON6 *IC8000B1TCON7

PANEL PWM

*IC8000D3LCDPWM0 *IC8000C2LCDPWM1

I2C

*IC8000B4SDA0 *IC8000A4SCL0

*IC8000W22SDA1 *IC8000Y23SCL1

*IC8000AB11SDA3 *IC8000AF12SCL3

TUNER I2C

*IC8000AC11DMDSDA0 *IC8000AB10DMDSCL0

*IC8000AD11DMDSDA1 *IC8000AE11DMDSCL1

SERIAL

*IC8000D22SBO0 *IC8000F21SBI0

*IC8000D1SBO1 *IC8000E3SBI1 *IC8000E2SBT1

*IC8000E5TXD1 *IC8000C1RXD1

IR

*IC8000E4RMCO

P_USB0VBUS P_USB0OD

P_USB1VBUS P_USB1OD

P_SDCLK P_SDCMD P_SDDAT0 P_SDDAT1 P_SDDAT2 P_SDDAT3 P_SDCD P_SDWP P_SDVOLC

P_CH0CLK P_CH0DATA P_CH0PSYNC P_CH0VAL

P_HS0BCLKIN P_HS0DIN0 P_HS0DIN1 P_HS0DIN2 P_HS0DIN3 P_HS0DIN4 P_HS0DIN5 P_HS0DIN6 P_HS0DIN7 P_HS0SYNCIN P_HS0VALIN

P_HSBCLKOUT P_HSDOUT0 P_HSDOUT1 P_HSDOUT2 P_HSDOUT3 P_HSDOUT4 P_HSDOUT5 P_HSDOUT6 P_HSDOUT7 P_HSSYNCOUT P_HSVALOUT

P_AGCI P_AGCR P_AGCBS

P_HIN P_VIN

P_A_MUTE

P_IECOUT

P_NSHUTDOWN

P_MUTEB

P_TCON0 P_TCON1 P_TCON2 P_TCON3 P_TCON4 P_TCON5 P_TCON6 P_TCON7

P_LCDPWM0 P_LCDPWM1

P_SDA0 P_SCL0

P_SDA1 P_SCL1

P_SDA3 P_SCL3

P_DMDSDA0 P_DMDSCL0

P_DMDSDA1 P_DMDSCL1

P_SBO0 P_SBI0

P_SBO1 P_SBI1 P_SBT1

P_TXD1 P_RXD1

P_RMCO

NMI IRQ

*IC8000D2XNMIRQ

COMMON I/O PORT & IRQ

*IC8000E1XIRQ1 *IC8000V2XIRQ2 *IC8000V3XIRQ3 *IC8000U6XIRQ4 *IC8000W1XIRQ5 *IC8000T6XIRQ6 *IC8000U5XIRQ7 *IC8000V4XIRQ8 *IC8000T5XIRQ9 *IC8000W3XIRQ10 *IC8000W2XIRQ11 *IC8000Y1XIRQ14

COMMON I/O PORT

*IC8000M6PORT00 *IC8000N1PORT01

*IC8000N2PORT03 *IC8000N3PORT04 *IC8000N6PORT05 *IC8000P1PORT06 *IC8000N5PORT07 *IC8000P2PORT10 *IC8000P3PORT11 *IC8000R1PORT12 *IC8000P4PORT13 *IC8000R2PORT14 *IC8000P5PORT15 *IC8000R3PORT16 *IC8000P6PORT17 *IC8000T1PORT20 *IC8000R5PORT21 *IC8000T2PORT22 *IC8000T3PORT23 *IC8000R6PORT24 *IC8000U1PORT25 *IC8000R4PORT26 *IC8000U2PORT27 *IC8000U3PORT30 *IC8000T4PORT31 *IC8000B22PORT32 *IC8000E22PORT33 *IC8000A22PORT34 *IC8000C22PORT35 *IC8000V1PORT36 *IC8000U4PORT37

LVDS I/F

*IC8000M5TA1P *IC8000M4TA1N *IC8000M1TB1P *IC8000M2TB1N *IC8000L3TC1P *IC8000M3TC1N *IC8000L5TD1P *IC8000L6TD1N *IC8000K2TE1P *IC8000K1TE1N *IC8000K5TF1P *IC8000K6TF1N

*IC8000L2TCLK1P *IC8000L1TCLK1N

*IC8000J1TA2P *IC8000J2TA2N *IC8000H3TB2P *IC8000J3TB2N *IC8000H2TC2P *IC8000H1TC2N *IC8000G1TD2P *IC8000G2TD2N *IC8000F3TE2P *IC8000G3TE2N *IC8000F2TF2P *IC8000F1TF2N

*IC8000H5TCLK2P *IC8000J5TCLK2N

TEST

*IC8000R16T_L0N *IC8000P16T_L0P

DDR3 REF

*IC8000M9MMRODT *IC8000L9MMVCAL *IC8000L10MMVCAL *IC8000F8MMVREF0 *IC8000F16MMVREF1

TUNER I/F

*IC8000AF8FEAINP *IC8000AE8FEAINN

*IC8000AC13RFAGC

*IC8000AD8BSIQ_I *IC8000AC8BSIQ_Q

GUARD

P_FEAINP P_FEAINN

P_RFAGC

P_BSIQ_I P_BSIQ_Q

SIF I/F

*IC8000AC9SIFINP *IC8000AB9SIFINN

GUARD

AUDIO PWM

*IC8000V5PWM0LP *IC8000V6PWM0LN *IC8000Y3PWM0RP *IC8000Y2PWM0RN

P_XNMIRQ

P_XIRQ1 P_XIRQ2 P_XIRQ3 P_XIRQ4 P_XIRQ5 P_XIRQ6 P_XIRQ7 P_XIRQ8 P_XIRQ9 P_XIRQ10 P_XIRQ11 P_XIRQ14

P_PORT00 P_PORT01 P_PORT02 P_PORT03 P_PORT04 P_PORT05 P_PORT06 P_PORT07 P_PORT10 P_PORT11 P_PORT12 P_PORT13 P_PORT14 P_PORT15 P_PORT16 P_PORT17 P_PORT20 P_PORT21 P_PORT22 P_PORT23 P_PORT24 P_PORT25 P_PORT26 P_PORT27 P_PORT30 P_PORT31 P_PORT32 P_PORT33 P_PORT34 P_PORT35 P_PORT36 P_PORT37

P_TA1P P_TA1N P_TB1P P_TB1N P_TC1P P_TC1N P_TD1P P_TD1N P_TE1P P_TE1N P_TF1P P_TF1N

P_TCLK1P P_TCLK1N

P_TA2P P_TA2N P_TB2P P_TB2N P_TC2P P_TC2N P_TD2P P_TD2N P_TE2P P_TE2N P_TF2P P_TF2N

P_TCLK2P P_TCLK2N

P_MMRODT P_MMVCAL

P_MMVREF0 P_MMVREF1

P_SIFINP P_SIFINN

P_PWM0LP P_PWM0LN P_PWM0RP P_PWM0RN

USB I/F

HDMI I/F

VIDEO INPUT

VIDEO OUTPUT

AUDIO INPUT

AUDIO OUTPUT

LOCK/SLD2

V-ADC REF

SIF-ADC REF (DMD)

A-ADC REF

V-DAC REF

USB REF

LVDS REF

Change No.

Date

Common Mng.

Described

Approved

-- APPROVE RANGE --

nil UB QB MB MA MAA DA PA CA MBA MBB DB LB LC

SHEET CHANGE

INFORMATION

SHEET NO. SHEET Ver. SHEET Mng.

FOR VIRTUAL-MODULE SHEET *Don't delete! *Don't change Sheet NO!

SLD2-700

1.20 moriie

*IC8000T25USB0DP *IC8000T26USB0DN

*IC8000U25USB1DP *IC8000U26USB1DN

*IC8000AD15RX0CP *IC8000AE14RX0CM *IC8000AE15RX0P0 *IC8000AF15RX0M0 *IC8000AF16RX0P1 *IC8000AE16RX0M1 *IC8000AD17RX0P2 *IC8000AD16RX0M2

*IC8000AE17RX1CP *IC8000AF17RX1CM *IC8000AF18RX1P0 *IC8000AE18RX1M0 *IC8000AD19RX1P1 *IC8000AD18RX1M1 *IC8000AE19RX1P2 *IC8000AF19RX1M2

*IC8000AF20RX2CP *IC8000AE20RX2CM *IC8000AD21RX2P0 *IC8000AD20RX2M0 *IC8000AE21RX2P1 *IC8000AF21RX2M1 *IC8000AF22RX2P2 *IC8000AE22RX2M2

*IC8000AB14V1

*IC8000AB16R1 *IC8000AB15G1 *IC8000AA16B1

*IC8000AA15VC1_N *IC8000AA14VC4_N

*IC8000AF14FBL1_RFAGC2

*IC8000AE9VDAC1

*IC8000AC14LIN1_LP *IC8000AA13LIN1_RP

*IC8000AF13LO1_L *IC8000AB13LO1_R

*IC8000AC12LO2_L *IC8000AB12LO2_R

*IC8000AD13HP1_L *IC8000AE13HP1_R

*IC8000AB17VREFH0 *IC8000AA17VREFL0

*IC8000AD7VREFHSIF *IC8000AC7VREFLSIF

*IC8000AF11VREF1V5

*IC8000AF9VCOMP

*IC8000R18USB0RREF *IC8000R17USB1RREF

*IC8000L4LVDSRREF

GUARD_SL

GUARD_SR

GUARD_SL

GUARD_SR

GUARD_SL

GUARD_SR

GUARD_SL

GUARD_SR

GUARD_V

GUARD

CHANGE

TR11-0242

2011/05/27

Engineering Department

MTV R&D

~

P_USB0DP P_USB0DN

P_USB1DP P_USB1DN

P_RX0CP P_RX0CM P_RX0P0 P_RX0M0 P_RX0P1 P_RX0M1 P_RX0P2 P_RX0M2

P_RX1CP P_RX1CM P_RX1P0 P_RX1M0 P_RX1P1 P_RX1M1 P_RX1P2 P_RX1M2

P_RX2CP P_RX2CM P_RX2P0 P_RX2M0 P_RX2P1 P_RX2M1 P_RX2P2 P_RX2M2

P_V1

P_R1 P_G1 P_B1

P_VC1_N P_VC4_N

P_FBL1_RFAGC2

P_VDAC1

P_LIN1_LP P_LIN1_RP

P_LO1_L P_LO1_R

P_LO2_L P_LO2_R

P_HP1_L P_HP1_R

P_VREFH0 P_VREFL0

P_VREFHSIF P_VREFLSIF

P_VREF1V5

P_VCOMP

P_USB0RREF P_USB1RREF

P_LVDSRREF

STM POWER 3.3V

STM POWER 1.2V

MAIN POWER 1.2V

MAIN POWER 1.8V

MAIN POWER SD_CARD

MAIN POWER TCON

MAIN POWER 1.5V

MAIN POWER 3.3V

TOLERANT REFERENCE

CHG NO. CHANGED BY APPROVED BYREPORT NO. ENDDATE

H1 TR11-0191 H2 TR11-0193

H3 TR11-0200 H4 TR11-0207 H5 TR11-0214 H6 TR11-0219 H7 TR11-0230 H8 TR11-0232 H9 TR11-0235 H10 TR11-0229 H11 TR11-0242 H12 TR11-0254

07/05/11

12/05/11

19/05/11

20/05/11

25/05/11

26/05/11

25/05/11

30/05/11

01/06/11

*IC8000AF7VDD33STM

*IC8000AA7STMADAVDD33

*IC8000AD9VDD12STM

*IC8000J16VDD12 *IC8000K16VDD12 *IC8000L15VDD12 *IC8000M14VDD12 *IC8000M15VDD12 *IC8000N13VDD12 *IC8000N14VDD12 *IC8000N15VDD12 *IC8000P13VDD12 *IC8000P14VDD12 *IC8000P15VDD12

*IC8000M18VDDUSB12

*IC8000J6LVVDD12

*IC8000J13VDDR12 *IC8000K13VDDR12 *IC8000L12VDDR12

*IC8000J11VDDA12 *IC8000K11VDDA12

*IC8000U15VDDAVAD18 *IC8000V15VDDAVAD18

*IC8000AC18AVDDH18 *IC8000AC19AVDDH18

*IC8000V14AVDDSIF18

*IC8000L17VDDSD18_33 *IC8000L18VDDSD18_33

*IC8000J9VDD25TCON *IC8000K9VDD25TCON *IC8000K10VDD25TCON

*IC8000F7VDDIO15 *IC8000F9VDDIO15 *IC8000F15VDDIO15 *IC8000F17VDDIO15

*IC8000G7VDDIOCK15

*IC8000P9VDD33 *IC8000P10VDD33 *IC8000P11VDD33

*IC8000J12DPAVDD33 *IC8000K12DPAVDD33

*IC8000AC17AVDDH33

*IC8000F4LVVDD33 *IC8000G4LVVDD33

9/14 n

*IC8000U12AVDDV33

L8016

J0JCC0000287

*IC8000V12AVDDEVE33

*IC8000V13AVDDHP33

*IC8000R10AVDDPLLA_33

*IC8000R9AVDDPLLD1_33

*IC8000AA1AVDDPWM33 *IC8000N16AVDDPLLD2_33

*IC8000N18AVDDAPUSB33_0

*IC8000P17AVDDAPUSB33_1 *IC8000P18AVDDAPUSB33_1

*IC8000V10AVDDADA33 *IC8000V11AVDDADA33

*IC8000J17VDD5 *IC8000J18VDD5 *IC8000K18VDD5

KAMARIAH MR EDWIN N KAMARIAH MR EDWIN N

SHUHAILA MR EDWIN N KAMARIAH MR EDWIN N KAMARIAH MR EDWIN N KAMARIAH MR EDWIN N KAMARIAH MR EDWIN N KAMARIAH MR EDWIN N KAMARIAH MR EDWIN N SHUHAILA MR EDWIN N KAMARIAH MR EDWIN N KAMARIAH MR EDWIN N

VSS GND

P_VDD33STM

P_VDD12STM

SUB1.2V

P_VDDA12

P_VDD18

P_AVDDSIF18

SUB3.3V

DVDD2.5V

*IC8000AA6STMADAVSS

*IC8000T15AVSSV *IC8000T16AVSSV *IC8000T17AVSSV

*IC8000T13AVSSSIF *IC8000U13AVSSSIF

C

NC

SUB1.5V

P_VDDIOCK15

P_VDD33

HDMI3.3V

*IC8000G6LVVSS *IC8000H4LVVSS *IC8000J4LVVSS *IC8000K3LVVSS *IC8000K4LVVSS

*IC8000T14AVSSEVE *IC8000U14AVSSEVE

*IC8000R14AVSSHP

*IC8000U9AVSSPWM *IC8000U10AVSSPWM *IC8000V9AVSSPWM

*IC8000T18AVSSAPUSB *IC8000U18AVSSAPUSB *IC8000U23AVSSAPUSB

*IC8000R15AVSSADA

C

16V

C

SUB3.3V

P_AVDD33

C8054

0.1u

P_AVDD33

P_AVDDADA33

SUB5V

SHEET700:sLD2 CRNo:8000

MN2WS0177D

*IC8000

A1VSS

*IC8000A26VSS *IC8000C5VSS *IC8000C9VSS *IC8000C11VSS *IC8000D5VSS *IC8000D13VSS *IC8000D16VSS *IC8000D20VSS *IC8000E6VSS *IC8000E9VSS *IC8000E13VSS *IC8000E17VSS *IC8000F5VSS *IC8000F6VSS *IC8000F19VSS *IC8000G5VSS *IC8000H6VSS *IC8000J10VSS *IC8000J14VSS *IC8000J15VSS *IC8000K14VSS *IC8000K15VSS *IC8000K17VSS *IC8000L11VSS *IC8000L13VSS *IC8000L14VSS *IC8000L16VSS *IC8000M10VSS *IC8000M11VSS *IC8000M12VSS *IC8000M13VSS *IC8000M16VSS *IC8000M17VSS *IC8000N9VSS *IC8000N10VSS *IC8000N11VSS *IC8000N12VSS *IC8000N17VSS *IC8000P12VSS *IC8000R11VSS *IC8000R13VSS *IC8000T9VSS *IC8000T10VSS *IC8000T11VSS *IC8000U11VSS *IC8000W23VSS *IC8000AB18VSS *IC8000AC15VSS *IC8000AC16VSS *IC8000AD6VSS *IC8000AF1VSS *IC8000AF26VSS

*IC8000AD14NC

2

3

4

5

C

6

7

8

9

10

11

12

A

B PC

D

E F

H I J Q

MG

N

O

PLOT

VARIATION

SHEET

1

11/06/01 23:59:28 Kamariah

LB

TNP4G519.A.cir/702.sht

B

C

E

H

I

J

KA

LD

MF

NG

O

P

Q

1

2

3

4

z W [ H

SUB1.2V_1.5V

PGND1

C8102

C8104

C8106

R8118

PGND1

10

10V

16V

P

R8114

P

C8108

16V

24k

4.7u

PGND1

1u16V

0.022u

18k

R8116

C8110

16V

0.1u

AGND1

PGND1

S1G1S2G2

Q8100 B1MBEDA00027 ECH8666-P-TL-H

Q8102 B1MBEDA00027 ECH8666-P-TL-H

S1G1S2G2

10u25V

C8112

PGND1

D2 D2 D1 D1

10u25V

C8114

PGND1

R8108

5

1

DRVH1

2

VBST1

3

EN1

R8104

620

AGND1

6

AGND1

DCDCEN

CTL

R8100

1.27k

AGND1

R8102

2.1k R8106

25V

2k

C8100

6800p

4

VO1

5

VFB1

6

GND

7

SS1

8

VFB2

9

VO2

10

EN2

11

VBST2

12

DRVH2

C0DBAYY00715

IC8100

SW1

DRVL1

PGND1

TRIP1

VIN

VREG5

V5FILT

TPS53125PWR

SS2

TRIP2

PGND2

DRVL2

SW2

R8112

24

23

22

21

20

19

18

17

16

15

14

13

R8110

7

PDP ALCD p A d d l u12V_15V_DCDCIN v B

VIN

P15V

1.29V/2.8A

SUB1.2V

D8100 B0BC4R700007

1.51V/1.5A

SUB1.5V

D8102 B0BC4R700007

C8116

C8118

10u

25V

PGND1

10u

25V

PGND1

L8102

G1C3R3MA0425

L8100

G1C4R7MA0416

C8120

C8122

22u

4V

22u

4V

C8124

C8126

22u

4V

22u

4V

C8128

C8130

22u

4V

22u

4V

TP8100

CH1

C

TP8101

CH2

C

H pTP @ c z u

5

6

7

ANGD1 PGND1 o R f T t _ A [ X( r A) PGND1 C 2 w x ^

8

Change No.

Common Mng.

Described

Approved

9

-- APPROVE RANGE --

nil UB QB MB MA MAA DA PA CA MBA MBB DB LB LC

CHANGE

TR11-0242

Date

Engineering Department

2011/05/27

MTV R&D

PGND1

C

CHG NO. CHANGED BY APPROVED BYREPORT NO. ENDDATE

H1 TR11-0191 H2 TR11-0193

H3 TR11-0200 H4 TR11-0207 H5 TR11-0214 H6 TR11-0219 H7 TR11-0230 H8 TR11-0232 H9 TR11-0235 H10 TR11-0229 H11 TR11-0242 H12 TR11-0254

07/05/11

12/05/11

19/05/11

20/05/11

25/05/11

26/05/11

25/05/11

30/05/11

01/06/11

PGND1

KAMARIAH MR EDWIN N KAMARIAH MR EDWIN N

SHUHAILA MR EDWIN N KAMARIAH MR EDWIN N KAMARIAH MR EDWIN N KAMARIAH MR EDWIN N KAMARIAH MR EDWIN N KAMARIAH MR EDWIN N KAMARIAH MR EDWIN N SHUHAILA MR EDWIN N KAMARIAH MR EDWIN N KAMARIAH MR EDWIN N

AGND1

d

o

MAX

1.5A

1.5V

1.2V

2.8A R8118

2.6A 4A

l

R8114

18k 24k

8

9

10

11

12

CONFIDENTIAL

SHEET CHANGE

INFORMATION

SHEET NO. SHEET Ver. SHEET Mng.

FOR VIRTUAL-MODULE SHEET *Don't delete! *Don't change Sheet NO!

SLD2-702

1.20 fujimoto

10

11

~

SHEET702:sLD2 DC/DC

12

CRNo:8100 - 8199

A

B

C

D J

E

F I

G

H

M

N

O

P

Q

PLOT

VARIATION

SHEET

1

2

3

4

5

6

11/06/02 00:00:03 Kamariah

LB

TNP4G519.A.cir/703.sht

B

C

E

G

IFD

J

L O

NK M PH

LOCK/SLD2

QA

1

PEAKS-sLD2

P_MMDQ[0-15]

201:E2

P_MMDQ9

R8214

1k

R8225

1k

R8216

1k

1%

P_MMDQ13 P_MMDQ8 P_MMDQ12 P_MMDQ10 P_MMDQ14 P_MMDQ11 P_MMDQ15 P_MMDQ3 P_MMDQ7 P_MMDQ4 P_MMDQ1 P_MMDQ5 P_MMDQ0 P_MMDQ6 P_MMDQ2

C

R8218

C

2010/5/7

R8220

C8203

0.1u 16V

C8204

0.1u 16V

C8205

0.1u 16V

C8206

0.1u 16V

220

240

1%

C

sLD2 DDR3

--------------MMDQ8 DQL2 MMDQ9 DQL0

2010/5/10 Swap m F

sLD2 DDR3

--------------MMDM0 DMU MMDM1 DML MMDQS0 DQSU

P_MMDQS1201:F3

P_MMXDQS1201:F3

P_MMDQS0201:F3

P_MMXDQS0201:F3

P_MMDM1201:F3 P_MMDM0201:F3

P_MMA[0-13]

2010/5/7

o [ ` V [ g

7/20 X

7/2 VREF d o H

2010/5/7 VREF

7/2 VREF d o H

R8207

1%

R8206

1%

R8208

1%

P_MMA0 P_MMA1 P_MMA2 P_MMA3 P_MMA4

P_MMA5 P_MMA6 P_MMA7

P_MMA8 P_MMA9 P_MMA10 P_MMA11

P_MMA12

P_MMA13

1k

P_MMA0201:F5 P_MMA1201:F5 P_MMA2201:F5 P_MMA3201:F5 P_MMA4201:F5 P_MMA5201:F5 P_MMA6201:F5 P_MMA7201:F5 P_MMA8201:F5

P_MMA9201:F5 P_MMA10201:F5 P_MMA11201:F5 P_MMA12201:F5 P_MMA13201:F5

R8204

1%

R8203

1%

R8205

1%

SUB1.5V

1k

R8200

P_MMRODT201:F4

P_MMVREF0201:F4

240

1%

C

7/2

C

P_MMVCAL201:F4

P_MMVREF1201:F4

C

C8200

0.1u 16V

C

MMDQS1 DQSL

SUB1.5V

MMDQ10 DQL4 MMDQ11 DQL6 MMDQ12 DQL3 MMDQ13 DQL1 MMDQ14 DQL5 MMDQ15 DQL7

sLD2 DDR3

--------------MMDQ0 DQU5 MMDQ1 DQU3 MMDQ2 DQU7 MMDQ3 DQU0 MMQD4 DQU2 MMDQ5 DQU4 MMDQ6 DQU6 MMDQ7 DQU1

P_MMCK P_MMXCK

AD_MMCKE0

AD_MMXCS0 P_MMXRAS P_MMXCAS P_MMXWE

P_MMBA0 P_MMBA1 P_MMBA2

AD_MMODT0

P_MMXRESET

R8210

1k

R8224

1k

PP

R8212

VJ8205 VJ8204

1k

1%

C8225

0.1u 16V

1%

C

7/2

= IC8200 = IC8200 = IC8200 = IC8200 = IC8200 = IC8200 = IC8200 = IC8200 = IC8200 = IC8200 = IC8200 = IC8200 = IC8200 = IC8200 = IC8200 = IC8200

= IC8200 = IC8200 = IC8200 = IC8200

= IC8200 = IC8200

= IC8200

= IC8200 = IC8200 = IC8200 = IC8200

= IC8200 = IC8200 = IC8200

= IC8200

= IC8201

E3 DQL0 F7 DQL1 F2 DQL2 F8 DQL3 H3 DQL4 H8 DQL5 G2 DQL6 H7 DQL7 D7 DQU0 C3 DQU1 C8 DQU2 C2 DQU3 A7 DQU4 A2 DQU5 B8 DQU6 A3 DQU7

F3 DQSL G3 /DQSL C7 DQSU B7 /DQSU

E7 DML D3 DMU

J7 CK K7 /CK

K9 CKE

L2 /CS J3 /RAS K3 /CAS L3 /WE

M2 BA0 N8 BA1 M3 BA2 IC8200

K1 ODT

T2 /RESET

L8 ZQ

M8 VREFCA

C8216

C8217 C8218 C8219 C8220 C8221 C8222 C8223 C8224

P_MMA0 P_MMA1 P_MMA2 P_MMA3 P_MMA4 P_MMA5 P_MMA6 P_MMA7 P_MMA8 P_MMA9 P_MMA10 P_MMA11 P_MMA12 P_MMA13

SUB1.5V

10u

0.1u

2010/5/10 C: x4

10V

16V 16V 16V 16V

16V 16V

16V

= IC8200 = IC8200 = IC8200 = IC8200 = IC8200 = IC8200 = IC8200 = IC8200 = IC8200 = IC8200 = IC8200 = IC8200 = IC8200 = IC8200

1Gbit DDR3

C3ABTY000043

=

C

IC8200 = IC8200 = IC8200 = IC8200 = IC8200 = IC8200 = IC8200 = IC8200 = IC8200

= IC8200 = IC8200 = IC8200 = IC8200 = IC8200 = IC8200 = IC8200 = IC8200 = IC8200

N3 A0 P7 A1 P3 A2 N2 A3 P8 A4 P2 A5 R8 A6 R2 A7 T8 A8 R3 A9 L7 A10(AP) R7 A11 N7 A12(/BC) T3 NC

A1 VDDQ A8 VDDQ C1 VDDQ C9 VDDQ D2 VDDQ E9 VDDQ F1 VDDQ H2 VDDQ H9 VDDQ

B2 VDD D9 VDD G7 VDD K2 VDD K8 VDD N1 VDD N9 VDD R1 VDD R9 VDD

= IC8200 = IC8200 =

= IC8200 = IC8200 = IC8200

CH0

2Gbit

H1 VREFDQ

M8 VREFCA

1Gbit DDR3

H1 VREFDQ

C

= IC8200 = IC8200 = IC8200 = IC8200 = IC8200 = IC8200 = IC8200 = IC8200 = IC8200 = IC8200 = IC8200 = IC8200

= IC8200 = IC8200 = IC8200 = IC8200 = IC8200 = IC8200 = IC8200 = IC8200 = IC8200

J1 NC J9 NC L1 NC L9 NC M7 NC T7 NC

A9 VSS B3 VSS E1 VSS G8 VSS J2 VSS J8 VSS T9 VSS M1 VSS M9 VSS P1 VSS P9 VSS T1 VSS

B1 VSSQ B9 VSSQ D1 VSSQ D8 VSSQ E2 VSSQ E8 VSSQ F9 VSSQ G1 VSSQ G9 VSSQ

SUB1.5V

0.1u

C8226 C8227 C8228

0.1u

16V 16V 16V

C8229/8230

C

2010/5/7 EMI p DRAM i j

2

3

4

5

6

R8219

240

C

7

P_MMBA0201:F5 P_MMBA1201:F5 P_MMBA2201:F5

P_MMCK201:F2

P_MMXCK201:F2

R8222

P_MMODT0201:F4 P_MMXCS0201:F2

8 8

P_MMCKE0201:F2

EXB28V330JX

P_MMXCS1201:F2 P_MMCKE1201:F4 P_MMODT1201:F4

EXB28V330JX

33

R8223

33

P_MMBA0 P_MMBA1 P_MMBA2

P_MMCK

P_MMXCK

AD_MMODT0 AD_MMXCS0 AD_MMCKE0

AD_MMXCS1 AD_MMCKE1 AD_MMODT1

R8217

P_MMCK P_MMXCK

AD_MMCKE1

AD_MMXCS1 P_MMXRAS P_MMXCAS P_MMXWE

P_MMBA0 P_MMBA1 P_MMBA2

AD_MMODT1

1%

220

2010/5/13

~ [ C

P_MMXRESET

SIM 33ohm FIX i2010/6/4)

CHG NO. CHANGED BY APPROVED BYREPORT NO. ENDDATE

H1 TR11-0191 H2 TR11-0193

9

H3 TR11-0200 H4 TR11-0207 H5 TR11-0214 H6 TR11-0219 H7 TR11-0230 H8 TR11-0232 H9 TR11-0235 H10 TR11-0229 H11 TR11-0242 H12 TR11-0254

07/05/11

12/05/11

19/05/11

20/05/11

25/05/11

26/05/11

25/05/11

30/05/11

01/06/11

KAMARIAH MR EDWIN N KAMARIAH MR EDWIN N

SHUHAILA MR EDWIN N KAMARIAH MR EDWIN N KAMARIAH MR EDWIN N KAMARIAH MR EDWIN N KAMARIAH MR EDWIN N KAMARIAH MR EDWIN N KAMARIAH MR EDWIN N SHUHAILA MR EDWIN N KAMARIAH MR EDWIN N KAMARIAH MR EDWIN N

P_MMXRAS201:F2 P_MMXCAS201:F2

P_MMXWE201:F2

P_MMXRESET201:F4

C

R8221

10k

CHANGE

Change No.

Date

Common Mng.

Described

Approved

TR11-0242

2011/05/27

P_MMDQ[16-31]201:E2

P_MMDQS2201:F3

P_MMXDQS2201:F3

P_MMDQS3201:F3

P_MMXDQS3201:F4

P_MMDM2201:F3 P_MMDM3201:F3

P_MMXRAS P_MMXCAS

P_MMXWE

P_MMXRESET

2010/5/10 Swap m F

2010/5/13 Swap C

sLD2 DDR3

--------------MMDQ16 DQL0 MMDQ17 DQL6 MMDQ18 DQL3 MMDQ19 DQL1 MMDQ20 DQL2 MMDQ21 DQL7 MMDQ22 DQL5 MMDQ23 DQL4

sLD2 DDR3

--------------MMDQ24 DQU1 MMDQ25 DQU7 MMDQ26 DQU5 MMDQ27 DQU4 MMDQ28 DQU3 MMDQ29 DQU0 MMDQ30 DQU2 MMDQ31 DQU6

P_MMDQ16 P_MMDQ19 P_MMDQ20 P_MMDQ18 P_MMDQ23 P_MMDQ22 P_MMDQ17 P_MMDQ21 P_MMDQ29 P_MMDQ24 P_MMDQ30 P_MMDQ28 P_MMDQ27 P_MMDQ26 P_MMDQ31 P_MMDQ25

= IC8201

= IC8201 = IC8201

= IC8201

= IC8201 = IC8201 = IC8201 = IC8201

= IC8201 = IC8201 = IC8201

= IC8201

= IC8201 = IC8201 = IC8201 = IC8201 = IC8201 = IC8201 = IC8201 = IC8201 = IC8201 = IC8201 = IC8201 = IC8201 = IC8201 = IC8201 = IC8201 = IC8201

= IC8201 = IC8201 = IC8201 = IC8201

= IC8201 = IC8201

L8 ZQ

J7 CK K7 /CK

K9 CKE

L2 /CS J3 /RAS K3 /CAS L3 /WE

M2 BA0 N8 BA1 M3 BA2

K1 ODT

T2 /RESET

E3 DQL0 F7 DQL1 F2 DQL2 F8 DQL3 H3 DQL4 H8 DQL5 G2 DQL6 H7 DQL7 D7 DQU0 C3 DQU1 C8 DQU2 C2 DQU3 A7 DQU4 A2 DQU5 B8 DQU6 A3 DQU7

F3 DQSL G3 /DQSL C7 DQSU B7 /DQSU

E7 DML D3 DMU

P_MMA0 P_MMA1 P_MMA2 P_MMA3 P_MMA4 P_MMA5 P_MMA6 P_MMA7 P_MMA8 P_MMA9 P_MMA10 P_MMA11 P_MMA12 P_MMA13

2Gbit

C8207

C8208 C8209 C8210 C8211 C8212 C8213 C8214 C8215

2010/5/10 C: x4

SUB1.5V

10u

0.1u

10V

16V 16V 16V 16V 16V 16V 16V 16V

CH1

= IC8201 = IC8201 = IC8201 = IC8201 = IC8201 = IC8201 = IC8201 = IC8201 = IC8201 = IC8201 = IC8201 = IC8201 = IC8201 = IC8201

C

N3 A0 P7 A1 P3 A2 N2 A3 P8 A4 P2 A5 R8 A6 R2 A7 T8 A8 R3 A9 L7 A10(AP) R7 A11 N7 A12(/BC) T3 NC

C3ABTY000043

IC8201 = IC8201 = IC8201 = IC8201 = IC8201 = IC8201 = IC8201 = IC8201 = IC8201

= IC8201 = IC8201 = IC8201 = IC8201 = IC8201 = IC8201 = IC8201 = IC8201 = IC8201

= A1 VDDQ A8 VDDQ C1 VDDQ C9 VDDQ D2 VDDQ E9 VDDQ F1 VDDQ H2 VDDQ H9 VDDQ

B2 VDD D9 VDD G7 VDD K2 VDD K8 VDD N1 VDD N9 VDD R1 VDD R9 VDD

C

= IC8201 = IC8201 = IC8201 = IC8201 = IC8201 = IC8201

= IC8201 = IC8201 = IC8201 = IC8201 = IC8201 = IC8201 = IC8201 = IC8201 = IC8201 = IC8201 = IC8201 = IC8201

= IC8201 = IC8201 = IC8201 = IC8201 = IC8201 = IC8201 = IC8201 = IC8201 = IC8201

J1 NC J9 NC L1 NC L9 NC M7 NC T7 NC

A9 VSS B3 VSS E1 VSS G8 VSS J2 VSS J8 VSS T9 VSS M1 VSS M9 VSS P1 VSS P9 VSS T1 VSS

B1 VSSQ B9 VSSQ D1 VSSQ D8 VSSQ E2 VSSQ E8 VSSQ F9 VSSQ G1 VSSQ G9 VSSQ

10

Engineering Department

MTV R&D

7

9

12

-- APPROVE RANGE --

nil UB QB MB MA MAA DA PA CA MBA MBB DB LB LC

CONFIDENTIAL

A

11

SHEET CHANGE

INFORMATION

SHEET NO. SHEET Ver. SHEET Mng.

FOR VIRTUAL-MODULE SHEET *Don't delete! *Don't change Sheet NO!

C

F G H NE MD I J

SLD2-703

1.20 hanafusa

~

SHEET703:sLD2 DDR3 CRNo:8200 - 8299

O

12

P

QB

PLOT

VARIATION

SHEET

1

A

11/06/02 00:00:31 Kamariah

LB

TNP4G519.A.cir/704.sht

LOCK/SLD2

B I

C L

D G

E

H

JF

M

NK

O

P

Q

1

CLK

24.576MHz

C8301

2

C

6p

50V

680

R8301

X8300

C8300

H0J245500113

6p

50V

NX3225GA-EXS00A-CG02394-24.576MHZ

R8300 1M A R p ^ [ (2010/5/17)

4/12 @X8301 i X C8301 7p->6p X i U ] T j

P_AXI

P_AXO

SIF-ADC REF (DMD)

C8302

0.1u 16V

16V

0.1u

C8304

AVSSSIF

VREFHSIF, VREFLSIF { [

e z Z B

VREFHSIF AVREFLSIF z

o Z A B

SIF-ADC B

C

C8303

0.1u

16V

P_VREFHSIF

P_VREFLSIF

2

VIDEO INPUT

3

C8305/C8306 1005 T C Y X(2010/5/17)

R8302

R8303

N LSI GND B

C8305

36

AVSSV C

36

AVSSV C

1u10V

C8306

1u10V

P_VC1_N

P_VC4_N

3

V-ADC REF

4

C8307/C8308/C8309 1005 T C Y X(2010/5/13)

VREFH0, VREFL0 { [

e z Z B

f ADC B

C8307

1u

10V

AVSSV

C

A e z

C8308

1u 10V

8mm

C8309 1u 10V

P_VREFH0

P_VREFL0

B

5

4

5

A-ADC REF

P_VREF1V5

C8310

1u

10V

AVSSEVE C

VREF1V5 { [ e z

Z B

ADC S/N B

C8310 1005 T C Y X(2010/5/17)

6

V-DAC REF

AVDDEVE33 P_AVDD33

C8311

10V

COMP R f T A

{ [ z u B { [ z Z A

GND/ d V [ h B

m C Y A f M S/N B

S/N A e l \ B

C8311 1005 T C Y X(2010/5/17)

Z R

1u

GUARD_V

P_VCOMP

6

USB REF

7 7

R8304

6.2k

R8305

6.2k

USB*RREF A { [

z u B

{ [ z Z A

V [ h B

8

EYE p ^ [ W b ^ A

R v C A X e X g NG B

GUARD

1%

AVSSAPUSB C

GUARD

1%

AVSSAPUSB C

P_USB0RREF

P_USB1RREF

GND/ d

LVDS REF

7/27 sheet 002

LVDSRREF M C

9

u p ^ [ B

N X g [ N o M Jitter B

\ A f m c V [ h B

8

9

10

11

12

CONFIDENTIAL

CHANGE

Change No.

Date

Common Mng.

Described

Approved

Engineering Department

-- APPROVE RANGE --

nil UB QB MB MA MAA DA PA CA MBA MBB DB LB LC

TR11-0242

2011/05/27

MTV R&D

SHEET CHANGE

INFORMATION

SHEET NO. SHEET Ver. SHEET Mng.

FOR VIRTUAL-MODULE SHEET *Don't delete! *Don't change Sheet NO!

SLD2-704

1.30 moriie

~

CHG NO. CHANGED BY APPROVED BYREPORT NO. ENDDATE

H1 TR11-0191 H2 TR11-0193

H3 TR11-0200 H4 TR11-0207 H5 TR11-0214 H6 TR11-0219 H7 TR11-0230 H8 TR11-0232 H9 TR11-0235 H10 TR11-0229 H11 TR11-0242 H12 TR11-0254

07/05/11

12/05/11

19/05/11

20/05/11

25/05/11

26/05/11

25/05/11

30/05/11

01/06/11

KAMARIAH MR EDWIN N KAMARIAH MR EDWIN N

SHUHAILA MR EDWIN N KAMARIAH MR EDWIN N KAMARIAH MR EDWIN N KAMARIAH MR EDWIN N KAMARIAH MR EDWIN N KAMARIAH MR EDWIN N KAMARIAH MR EDWIN N SHUHAILA MR EDWIN N KAMARIAH MR EDWIN N KAMARIAH MR EDWIN N

10

11

SHEET704:sLD2 DEST

12

CRNo:8300 - 8399

A

B P

E

F

G

H

JI MDC

N

O

Q

K4AD01A00003

ZA7001

C

ZA7002

K4AD01A00003

C

K1KA02B00295

S02B-VT(LF)(SN)

L

P1

1

N

2

K4AD01A00003

ZA7003

C

K4AD01A00003

C

ZA7004

C

ZA7005

K4AD01A00003

S

C7102

470p

250V

C

M b v

S

C7101

100p

250V

<

*L7101 J0JKB0000034

JS7101

<

*

1

L.F

4

*

<

JS7102

<

*L7102

J0JKB0000034

*

2

Not specified DC

3

*

*LF7101

G0B650H00002

G0B650H00003

C7104

0.22u

=

S

TP7101

T5AH/250V

TP7104

S

F7101

K5D502BNA005

NEED HOLDER

TP7105

TP7102

S

R7104

1M

1/2W

$

TP7103

R7101 1M

1/2W

S

1/2W

1M

S

1/2W

S

R7102

1M

S

R7103

*D7101

B72210P2381K302 ERZV10V621C2

S

S S

C7106

100p

250V

C

B0EAKR000029

L7202 J0JKA0000038

EXCELSA35T

T7201

G4DYA0000339

*

S

3

C7214

F0C2H105A019

* *

500V

S

1u

C7208

0.47u 50V

R7221

47k

R7203

47k

75k 47k

C7206

0.01u 50V

C7205

0.22u 50V

0.47u 0.22u 75k 56k

4NC5

C7203

50V

1000p

C7204

50V

0.1u

50V

Npd

V i

C7216

1000p

C7213

220p

1kV

2

Np

NC

6NC7

C7207

0.01u 50V

D7206

*

* *

**

1

NC

8

S7100

J0LF00000025

1

FB

2

COMP

3

RT

4

RTZC

R7206

56k

S

LF7102

G0B103H00010

G0B103H00013

*

3

2

*

IC7201

C0DBBYY00033 FA5590N-A2-TE1

S

LF7103 G0B103H00010

G0B103H00013

S

L.F

*

4

=

C7105

0.22u

* *

1

*

Not specified DC

S

C7103

470p

250V

C

8

VCC

7

OUT

6

GND

5

IS

C7201

50V

2200p

S

C7110 470p 250V

*

3

2

*

C7109 470p 250V

D7203

B0ECKM000038

R7204

100k

L.F

*

4

1

C

R7205

100

D7201 DZ2J047M0L

R7207

47

SUB ASSEMBLY

PART NO.

T O

TNP4G508AH NDUKKX-L32C4K

6.3kV R f T

P

TNP4G508AH KX-L32C4X

C7861 ECCT3G150JGV 15p

4kV

JS7850

C

C7801 2200p

L7804

J0JKB0000034

EXCELDR35V

<

JS7801

TP7821

<

C7832

TP7822

C7844

1500p

50V

C

<

L7808

5%

R7839

20k

C

K1KY02BA0257

K1KY02BA0249

S02-BDAS-3(LF)(SN)(B)

TP7815

TP7813

2

*1*

DESIGN = TNP4G508.P.KM14_KM10V_VE_W.TR11-0331 ******** REF.NO.-LIST ********* Fri Jul 08 02:55:27 2011

------------------------------------- USED -------------------------------------

C 7101-7110 7201-7208 7210-7214 7216-7221 7301-7305 7307-7309 7501-7515 7520 7521 7801 7802 7804 7806 7808-7835 7842-7847 7850-7852 7861-7868

TNP4G508

P

TNP4G508AA KL-32LX44 TNP4G508AA KX-L32C4S TNP4G508AH KX-L32C4G TNP4G508AF TX-L32C4B TNP4G508AF TX-L32C4E TNP4G508AA TX-L32C4XE TNP4G508AH KX-L32C4T

PLAN NO.MODEL NO.

NHUX QMUU NBUS NHUG QZUB SBUE SDUE MXUT

ARRANGEMENT

DATE

19/04/11

11/05/11

12/05/11

19/05/11

PRODUCTION

START

16/08/11

12/09/11

05/09/11

29/09/11

21/09/11

CHG NO.

CHASSIS

KM14

KM10V

KM10VE

KM14

S

APPLIED MODEL

CF 7101 7102 CL 7101 7102 7201 7203-7205 7207-7209 7212 7214-7218 7220 7224-7231 7233-7235 7301-7305 7307 7309 7312-7317 7324-7331 7501-7519 7801 7802 7804 7806-7857 D 7101-7103 7201-7209 7302-7304 7309 7310 7314 7315 7317-7320 7501-7508 7801 7806-7814 7816-7819 F 7101 IC 7201 7301 7501 7801 J 101-105 107-115 117-120 201-213 301-307 309 310 001 JA 1-14 JS 7101 7102 7104 7105 7201 7202 7301 7302 7308-7311 7551 7801-7803 7808 7809 7811 7822 7850 L 7101 7102 7104 7105 7201-7203 7301-7305 7308 7801-7806 7808 7809 LF 7101-7103 P 1 2 5-8 PA 7551 PC 7301-7303 Q 7201-7203 7301-7303 7306 7501-7505 7801-7804 R 7101-7104 7201-7211 7213 7215-7217 7219 7221 7223 7224 7226 7229-7234 7301-7303 7305 7306 7308 7310 7313-7318 7322-7324 7328-7330 7335 7341 7342 7344-7346 7501-7520 7801-7826 7828-7844 S 7100-7104 7107 7108 7110 7111 T 7201 7302 7801-7804 TP 7101-7105 7201-7204 7501-7506 7801-7822 7851-7855 ZA 7001-7005

------------------------------------ DISUSED -----------------------------------

C 1-7100 7111-7200 7209 7215 7222-7300 7306 7310-7500 7516-7519 7522-7800 7803 7805 7807 7836-7841 7848 7849 7853-7860 CF 1-7100 CL 1-7100 7103-7200 7202 7206 7210 7211 7213 7219 7221-7223 7232 7236-7300 7306 7308 7310 7311 7318-7323 7332-7500 7520-7800 7803 7805 D 1-7100 7104-7200 7210-7301 7305-7308 7311-7313 7316 7321-7500 7509-7800 7802-7805 7815 F 1-7100 IC 1-7200 7202-7300 7302-7500 7502-7800 J 1-100 106 116 121-200 214-300 308 JS 1-7100 7103 7106-7200 7203-7300 7303-7307 7312-7550 7552-7800 7804-7807 7810 7812-7821 7823-7849 L 1-7100 7103 7106-7200 7204-7300 7306 7307 7309-7800 7807 LF 1-7100 P 3 4 PA 1-7550 PC 1-7300 Q 1-7200 7204-7300 7304 7305 7307-7500 7506-7800 R 1-7100 7105-7200 7212 7214 7218 7220 7222 7225 7227 7228 7235-7300 7304 7307 7309 7311 7312 7319-7321 7325-7327 7331-7334 7336-7340 7343 7347-7500 7521-7800 7827 S 1-7099 7105 7106 7109 T 1-7200 7202-7301 7303-7800 TP 1-7100 7106-7200 7205-7500 7507-7800 7823-7850 ZA 1-7000

-------------------------------------------------------------------------------PIN No.

C7104-1 C7104-2 C7105-1 C7105-2 C7212-1 C7212-2 C7214-1 C7214-2 CF71011 CF71012 CF71021 CF71022 D7102-1 D7102-2 D7102-3 D7102-4 D7205-1 D7205-2 D7503-L D7503-R F7101-1 F7101-2 LF71011 LF71012 LF71013 LF71014 LF71021 LF71022 LF71023 LF71024 LF71031 LF71032 LF71033 LF71034 P1-1 P1-2 P5-1 P5-2 P6-1 P6-2 P7-1 P7-2 P8-1 P8-2 Q7201-D Q7201-G Q7201-S T7201-1 T7201-3 T7302-1 T7302-3 T7802-1 T7802-2 T7802-3 T7802-4 T7802-5 T7802-6 T7803-1 T7803-2 T7803-3 T7803-4 T7803-5 T7803-6 T7804-1 T7804-3

ENG.RELEASE

Change No.

Date

Common Mng.

Described

Approved

Engineering Department

-- APPROVE RANGE --

AE

REL02

2011/07/28

MTV R&D

CONFIDENTIAL

Until:31/12/2012

ASIA R&D CENTER MATSUSHITA TELEVISION & NETWORK SYSTEMS CO.,(M) SDN.BHD. (170701-M)

APPROVED

CHECKED 3 CHECKED 1

SET JW INFO nil

RefNO.Pitch

CHGNo. J101 10 J102 10 J103 10 J104 10 J105 10

1

J107 10 J108 10 J109 10 J110 10 J111 10 J112 10 J113 10 JA13 1.8 J114 10 J115 10 J117 10 J118 10

J201 15 J202 15 J203 15 J120 10JA3 1.8 J204 15 J205 15 J206 15 J207 15 J208 15 JA8 1.8 J209 15 J210 15 J211 15 J212 15

OTHER PARTS

for PCB Parts Number with OR Parts Number

J301 20 J302 20 J303 20 J304 20 J305 20 J306 20 J307 20

J309 20

1

TNP4G508-1

OR1

OR2

OR3

For PCB Parts Number with OR Parts Number

PCB NAME

PRINT TOOL NO.

COMB.PCB PARENT NO.

CHASSIS

BOARD

DESIGNED BY

CHECKED BY

APPROVED BY

CIRCUIT DRAWING MANAGER

NOTE :THIS SCHEMATIC DIAGRAM IS THE LATEST AT THE TIME

OF PRINTING AND SUBJECT TO CHANGE WITHOUT NOTICE.

CHECKED 2

TNP4G508

Input to Special Other part

KM14/KM10V/KM10VE P

J.MIUNO K.BANDO K.KINOSHITA

J.MIZUNO

TNP4G508AH KX-L32C4M TNP4G508AH KX-L32C4RA TNP4G508AC KE-L32C4D TNP4G508AD KV-L32C4V TNP4G508AB CC-L32C4C TNP4G508AB CC-L32CH4C TNP4G508AE CT-L32C4X TNP4G508AE CT-L32C4Y TNP4G508AG TH-L32C40W

CHG NO. CHANGED BY APPROVED BYREPORT NO. ENDDATE

H1

TR11-0170

H2

TR11-0190

H3

TR11-0213

H4

TR11-0226

H5

TR11-0233

H6

TR11-0237

H7

TR11-0241

H8

TR11-0260

H9

TR11-0266

H10

TR11-0272

H11

TR11-0277

H12

TR11-0280

H13

TR11-0313

H14

TR11-0331

H15

TR11-0346

H16

TR11-0355

H17

TR11-0370

H18

TD11-0385

JA1 1.8 JA2 1.8

JA4 1.8 JA6 1.8 JA5 1.8 JA7 1.8

JA9 1.8 JA10 1.8 JA11 1.8 JA12 1.8

JA14 1.8

J001 5 J119 10

J213 15 J310 20

SAFECHGNo.PRINT TOOL Part No.

S

DRAWN

27/04/11

06/05/11

19/05/11

24/05/11

26/05/11

27/05/11

03/06/11

10/06/11

13/06/11

15/06/11

16/06/11

29/06/11

07/07/11

18/07/11

20/07/11

25/07/11

27/07/11

KM10VE-052

PLOT

VARIATION

SHEET

CHASSIS NO.

NCUM LDUQ MYUD NBUV PLUC PMUC NWUX MGUL MMUW

KAMARIAH MR EDWIN KAMARIAH MR EDWIN

KAMARIAH MR EDWIN

SHUHAILA MR EDWIN

KAMARIAH MR EDWIN

SHUHAILA MR EDWIN

19/05/11

03/06/11

21/06/11

N N

N N N N N N N N N N N N N N N N

ASIA R&D CENTER

ELECT. DESIGN SECT.

TECH.REPORT

UPDATED NO.

KM14-110

KM10V-076

11/07/27 20:04:37 Suwaya

ENGINEERING RELEASE

AE

TNP4G508.P.cir/001.sht

BOARD

KM14

KM10V

KM10VE

KM10W

P

21/09/11

22/09/11

06/10/11

03/10/11

OTHER PARTS

[SINGLE PCB]

REFNo.

for Pb Free

T2KD01200 T2KA02610 T8EJ007 VOF-1100 T8C12022L-1 T8CJ013

CHGNo.

SAFEPARTS NO.

PAVCKM

ISSUED

01st.AUGUST,2011

MODEL NO.

CT-L32C4X CT-L32C4Y

KM14

KM10V

KM10W

PB FREE DIP SOLDER PB FREE SOLDER FLUX THINNER

BOND FOR CHIP BOND FOR CAPACITOR

S

CF7102

D4CAY8R20001

* *

CF7101

D4CAY3R9A004

JS7105

L7105

J0JKB0000034

EXCELDR35V

*Q7201

B1CERR000057 TK12A60D(LS1PAV2,Q

R7208

22

B0BC015A0336

<

D7204

S

JS7202

R7209

100k

L7104

J0JKB0000034

EXCELDR35V

<

JS7104

*D7103

D4EAY6210003 ERZV10V621C2

<

*

R7210

0.22

1W

<

S

V i

D7205

B0EAMR000020

L7201

J0JKB0000034

<

EXCELDR35V

*

R7201

0.22

1W

R7202

0.22

C7210 1kV

1W

C7108 4700p F1BAF472A082

220p

`

3

*

-

D7102

<

*JS7201

C7202

220p 1kV

*

S

`

*

2

<

Not specified DC

4

B0FBAT000021 D6JBB80V-7009F01

*L7203 J0JKB0000034

EXCELDR35V

470p 220p

C7850

470p 250V

R7335

10M

1kV

H

S

1W

C7308

S

250V

470p

*L7308

J0JKB0000034

EXCELDR35V

<

*JS7308

<

C

2200p 1kV

H

D7811

B0JCKG000002

R7832 1k

R7831

68

R7843

75

Q7801

B1ADCE000027

D7819 DZ2J150M0L

C7829

1000p

50V

D7813

B0BC015A0336

R7833

1k

Q7803

STD7NM60N B1CFRR000016

<

JS7803

L7806 <

J0JKB0000034

EXCELDR35V

JS7808

JS7809

J0JKB0000034

<

EXCELDR35V

V i

<

L7809 J0JKB0000034

<

JS7811

EXCELDR35V

<

C7827 470p

1kV

L7801 J0JKB0000034

<

EXCELDR35V

L7803 J0JKA0000038

EXCELSA35T

*

2

*

1

G4FYA0000020

*

S1

3

P1

S

T7802

CD-T-7541A-995PN

*

4

*

S2

5

*

6

C7806

1500p

50V

C

C7842

1500p

50V

C

5%

R7806

20k

C

5%

R7837

20k

C

Q7804

STD7NM60N

B1CFRR000016

1

*

+

R7211

2.2M

R7213

2.2M

R7217

2.2M

R7219

2.2M

R7215

51k

R7216

3.9k

Not specified DC

C7107 4700p

F1BAF472A082

1%

TP7201

C7217

0.022u 630V

TP7202

C7211 2200p

1kV

+

**

C7212 450V

=

TP7203

H

r R F2A2W1010011 X P ~ OR

100u

F2A2W1010011

TP7204

D7209

DA2J10100L

H

D7202 B0ACCJ000051

B0ACCJ000048

OVP b ` H

R7233

10k

R7234 10k

DZ2J068M0L

Q7203

B1ABBE000003

C7218

0.22u 50V

C7219

0.22u 50V

D7207

Q7202

B1ADCE000027

R7232

4.7k D7208

DA2J10100L

R7231

1%

100k

C7221

0.01u 50V

R7230

1%

2.2M

R7226

1%

2.2M

R7229

1%

2.2M

R7224

1%

2.2M

R7223

160k

1%

0V

@C7221

C7220

0.01u 50V

1%

2.0 x 1.25

C7302

50V

1000p

D7302

B0HAGQ000001

R7313

180k

B0HAKR000004

R7305

1%

2.0 x 1.25

180k

R7306

1%

3.2 x 1.6

2.2M

R7308

1%

3.2 x 1.6

2.2M

R7310

1%

3.2 x 1.6

2.2M

R7342

5%

2.0 x 1.25

0

R7314

1%

2.0 x 1.25

510k

H

K X c F i [ V i

[ NXP B0BC015A0336 B0BC027A0336

D7303

B0HAGQ000001

B0HAKR000004

R7342,7314 @ X

Q7301

B1ADCE000027

R7302

10k

R7301 22k

2.0 x 1.25

R7303

47

C7307

50V

33u

+

D7317

B0BC027A0336

+ C7309

50V 33u

B0BC027A0336

B0BC015A0336

L7304

D7320

D7314

<

JS7301

<

J0JKB0000034 EXCELDR35V

D7319

B0ECKM000038 B0ECKM000051

JS7309

<

L7305

J0JKB0000034

EXCELDR35V

R7328

8.2k

B0ECKM000038 B0ECKM000051

<

D7309

R7322

R7329

R7330

C7305

100p

15k

50V

<

*JS7302

<

*L7302

J0JKB0000034

C7304

25V

1u

V i

D7315

B0BB140A0011

7

8

VCC

GND

V i

IC7301

C0DABYY00034 ICE2QR0680Z

ZC2FB3CS4NC

1

D7310

B0BC015A0336

BZV55-C15,115

B0BC015A0336

R7316

47k

2.0 x 1.25

R7315

47k

2.0 x 1.25

Q7303

B1ABBE000003

D7304

DZ2J068M0L

5

Drain

R7324

1

1W

B1DFDD000019

D7318

JS7311

R7323

0.82

2W

Q7306

<

JS7310

L7303

0

EXCELSA35T

R7346

0.82

2W

<

J0JKA0000038

<

L7301

J0JKB0000034 EXCELDR35V

<

C7301

47p

2kV

R7324:1 R7323,7346:0.82 X

R7344

47k

R7345

22k

H

1

*

2

3

*

5

6 7

T7302

G4DYA0000338

0 330

R7341

330

Q7302

B1ADCE000027

R7317

8.2k

2.0 x 1.25

R7318

10k

2.0 x 1.25

C7303

150p

50V

PC7303

B3PAA0000363

V i

NPdNP1NP2

H

PC7302

B3PAA0000363

DA2J10100L

D7507

H

12

NS5

11

-3,4

NS5-1,2

10

9 8

NS16-1,2

PC7301

B3PAA0000363

S

C

S

C

S

C7503

25V

1u

C

S

R7512

1.5k

Q7502

B1ABBE000003

Q7501

B1ABBE000003

C7504

50V

0.1u

R7506

1k

R7510

4.7k

R7505

470

R7503

47k

D7502

B0BC027A0336

Q t H [ ~ O i

KM F

u

R7507

2.2k

IC7501

C0DBZYY00486

V i ~ c ~ NXP

R7511

2.2k

C

R7504

10k

2.0 x 1.25

C7508

470p

1kV

*D7503

B0HESM000002

* *

C7509

470p 1kV

D7506

B0JAPK000017

V i

*D7505 B0HAMM000108

D7504

DZ2J220M0L

R7516

10k

<

i X

<

R7502

0

R7501

0

R7515

15k

C

TP7503

C7520

50V

0.1u

K5H502YA0063

PA7551

JS7551

C7505 50V

0.01u

3

KA

REF

1

C7510

16V

2.2u

+

2

C7511

680u

25V

C

C7506 50V 2200p

R7509

C7507

50V

100p

Q7505

B1ABBE000003

15k

+

C7513

680u

25V

C7521

50V

0.1u

C7514

100u

25V

R7514

12k

D7812

B0JCKG000002

u

R7517

15k

+

C7515

680u

25V

TP7504

+

C

15k

R7520

*C7502

1u

25V

Q7503

B1CHRE000008

TPC8116-H(T2LMA,QM

R7835

1k

R7834

68

R7844

75

Q7802

B1ADCE000027

H

C7830

50V

1000p

D7814

DZ2J150M0L

R7836

1k

S

H

5

P2P1

NC

768

3

S

10

V i

D7801

B0ADCK000001

1%

R7513

82k

1%

GND

C

R7508

5.6k

1%

C

TP7502

TP7501

C

15V

B0BC015A0336

D7508

C

BZV55-C15,115

0.1u

C7501

0.1u TP7505

C7512

50V

12

11

INV_PWM

10

INV_ON

9

INV_SOS

RELAY

8

TV_SUB_ON

7

GND

6

5

16V 16V

4

16V

3

GND

2

TUNER6V

1

5VS

P2

K1KA12BA0237

TP7803

TP7802

TP7804

TP7801

JST 14pin K1KA12BA0237 X

u

R7519

10k

R7518 150k

Q7504

B1CHRE000008

TPC8116-H(T2LMA,QM

TP7506

15V

B0BC015A0336

D7501

C

BZV55-C15,115

*T7801

G4DYA0000335

1

2

NC

11

1

R7821

1k

R7820

R7822

47k

C7820

50V

0.47u

0.01u

C

C7834

4700p 50V

C7821

50V

C

C7835

4700p

50V

1

2

R7828

51k

C

0.01u

C7825

0.1u

C

C7826

50V

1%

R7825

100k

0.01u

C

C7831

50V

C7823

0.01u 50V

1%

R7826

100k

C

3

C

1%

4

5

6

7

8

9

C

JS7802

J0JKB0000034

EXCELDR35V

DZ2J150M0L

VCC

STB

GND

RT

C0DBZYY00413

BD9247F-HVE2

FB

IS

VS

PWMCMP

CP

C7822

0.47u 50V

<

L7805 <

D7816

IC7801

R7801

100

R7802

100

TP7855

C

PGND

COMP

COMPSD

FAIL

SDON

PWM_IN

FREQ

N1

N2

SS

18

17

16

15

14

13

12

11

10

V i

JS7822

C7816

D7818

DZ2J047M0L

C

25V

C7828 470p

1kV

<

L7802

<

J0JKB0000034

EXCELDR35V

C7802

0.47u 50V

C7817

0.01u

1u

50V

C

t B R u K v

C7804 F0C2H105A019

1u

500V

R7816 100k

C

R7804

10k

1%

C

S

C

0.01u

R7805 51k

1%

C7818

50V

D7817 DZ2J150M0L

1%

R7817 12k

1%

R7803 27k

4kV

C7851

50V

0.1u

C

5%

R7838

20k

C

5%

R7842

20k

C

5%

R7807

20k

C

5%

R7840

20k

C

B0ADCK000001

5%

R7841

20k

C

D7810

C7843

1500p

50V

C

C7847

1500p

50V

C

*

2

P1

*

1

S

T7803

G4FYA0000020

CD-T-7541A-995PN

OVP1 OVP2

TP7851

1%

C7819

0.1u

C

1%

50V

C7824

0.1u

C

50V

C

R7818 10k

1%

R7823 10k

C

R7819 100k

R7824 100k

1%

*

S1

3

*

4

*

S2

5

*

6

TP7852

1%

C

C7852

50V

0.1u

C7808

1500p

50V

C

C7845

1500p

50V

C

C7868 ECCT3G150JGV

15p

C7846

1500p

50V

C

C7862 ECCT3G150JGV 15p

4kV

C7863 ECCT3G150JGV 15p 4kV

C7864 ECCT3G150JGV 15p 4kV

C7865 ECCT3G150JGV 15p

4kV

C7866 ECCT3G150JGV

15p

4kV

C7867 ECCT3G150JGV

15p

4kV

R7829

470

D7806

DA6X103Q0R

D7808

DA6X103Q0R

D7809

DA6X103Q0R

S

*

D7807

G4EYA0000037

T7804

*

2

3

NC

N2N1

4

1%

R7830

C

1%

470

5 1

R7808

C

R7809

C

R7810

C

R7811

C

5%

R7812

10k

C

5%

R7813

10k

C

TP7853

5%

R7814

10k

C

5%

R7815

10k

C

10k

ARC2ARC1

5%

C7809

100p

C7833

100p

C7810

100p

C7811

100p

C7812

100p

C7813

100p

C7814

100p

C7815

100p

50V

TP7854

50V

Z033-0505 1 5 X

P6

TP7817

TP7819

K1KY02BA0257

K1KY02BA0249

S02-BDAS-3(LF)(SN)(B)

TP7805

TP7807

2

P5

TP7809

TP7811

K1KY02BA0257

K1KY02BA0249

S02-BDAS-3(LF)(SN)(B)

TP7816

TP7814

2

P8

TP7818

TP7820

K1KY02BA0257

K1KY02BA0249

S02-BDAS-3(LF)(SN)(B)

TP7806

TP7808

2

P7

TP7810

TP7812

*1*

V i

HOT

COLD

NOTE : REFER TO THE DIFFERENTIAL TABLE FOR DETAILS

SUFFIX - i v

AA

AC

AB

AD

C1

aluminum -> ceramic @ ES -> LEPR

DESIGN = TNPA5378.KA.KM10_11.TR11-0072 ******** REF.NO.-LIST ********* Thu May 05 00:52:42 2011

------------------------------------- USED -------------------------------------

C 2801-2807 2809 2811 D 2800-2805 2800A 2800B KA 10 Q 2800-2802 R 2800-2811 2815 2817 2825-2831 RM 2800 2800A SN 2800 TP 2800-2804 2806-2809

------------------------------------ DISUSED -----------------------------------

C 1-2800 2808 2810 D 1-2799 KA 1-9 Q 1-2799 R 1-2799 2812-2814 2816 2818-2824 RM 1-2799 SN 1-2799 TP 1-2799 2805

C2811 10u 10V

C2801

6.3V

AE

47u

AF

+

C1

DZ2J056M0L

AG

R2806

47

D2801

*R2825

AA

0

AE

R2829

AB

0

*R2826

DOUBLE PITCH

C1

*R2827

AC

0

AF

R2830

AD

*R2828

C1

STB3.3V

R X

PullUP @100k 22k

VCC

GND

2

3

VCC

GND

2

3

C1

R2815

2.2k

C1

C2802 16V

0.01u

0

<

*RM2800A

OUT

B3RAD0000168

1

<

*RM2800

OUT

PNJ4815M01TV

1

D2802

DZ2J056M0L

*Q2802

B1ABCE000015

DSC200100L

*R2811

10k

0

AG

*R2810

*R2817

R2831

C1

100k

C1

0

W Q

47k 10k

2.2k

R2809

10k

K

A

TYPE-A

NC

4

GC1

5

GC2

6

B3JB00000078

*SN2800

C1

VCC

3

*C2805

16V

0.1u

GND

2

BOTTOM PAD NC

IOUT

1

*R2807

5.6k

*R2808

180k

C1

Del C2810 @ ES -> LEPR

[DOUBLE PCB]

OTHER PARTS

RE-FLOW EDIP for Pb Free

PARTS NO. CHGNo.

REFNo. SAFE

T8EJ007

VOF-1100 T2KD01200 T2KC03600

* T2KA02610

0.1u

C1

FLUX

THINNER DIP SOLDER CREAM SOLDER

SUB3.3V

C1

*C2806 10u 10V

CRNo. F2800

DOUBLE PITCH

<

*D2800B

B3AAB0000379

*D2803 DZ2J043M0L

*D2804 DZ2J043M0L

C1

0.0001

0.0001SOLDER

*C2809

0.01u 16V

CHG NO. CHANGED BY APPROVED BYREPORT NO. ENDDATE

H1 TR10-0505 H2 TR10-0533 14/12/10 KAMARIAH MR EDWIN N

H3 TR11-0019 12/01/11 KAMARIAH MR EDWIN N H4 TR11-0062 12/02/11 KAMARIAH MR EDWIN N H5 TR11-0072 04/03/11 KAMARIAH MR EDWIN N

H6 TR11-0113 08/04/11 SUWAYA MR EDWIN N H7 TR11-0238 27/05/11 KAMARIAH MR EDWIN N H8 TR11-0305 27/06/11 KAMARIAH MR EDWIN N H9 TR11-0351 19/07/11 SUWAYA MR EDWIN N H10 TD11-0385 27/07/11 SHUHAILA MR EDWIN N

H v ]

p pTP

091030

26/11/10

*Q2800

B1ABCE000015 DSC200100L

R2802

R_LED_ON

22k

R2801

47k

SHUHAILA MR EDWIN N

STB3.3V

<

*D2800

B3AGB0000060

TP2808

*R2805

1%

2.26k

A10 R l N ^

`2849

ON_TIMER_LEDPOWER_LEDAI_SENSORRM_RECEIVER SD_LED

D2805

DZ2J056M0L

G

R

G

R

<

B3AGB0000065

C1

*D2800A

C2807

0.01u

16V

REC_LED

SUB3.3V

TP2801

7

TP2802

GND

C1

6

TP2804

REMOTE

5

TP2800

AI

4

TP2803

C2804

0.01u

G_LED_ON

STBY 3.3

3

TP2807

16V

2

TP2806

C1

R_LED_ON

ONTIMER_LED_ON

1

C2803

0.01u

C1

REC_LED

SD_LED

KA10

SM07B-GHS-TB(LF)(SN) K1KA07B00135

AA FUSA

AB FASIA

AC FPMUK without CATS

AD FBrazil

AE F

AF F

AG F

16V

AH F

CIRCUIT INFORMATION

Only use for OR parts

d

Need both symbol.

OTHER PARTS

for PCB Parts Number with OR Parts Number

TP2809

TNPA5378-2

*R2800

1%

953

*Q2801

B1ABCE000015

DSC200100L

C1

*R2804

*R2803

47k

10k

G_LED_ON

*

OR1

OR2

OR3

For PCB Parts Number with OR Parts Number

PCB NAME

PRINT TOOL NO.

COMB.PCB PARENT NO.

CHASSIS

BOARD

DESIGNED BY

CHECKED BY

APPROVED BY

CIRCUIT DRAWING MANAGER

TNPA5378

Input to Special Other part

KM11 KA

S.ARIKAWA A.TACHIBANA T.HATANO

D.TAKABATAKE

SAFECHGNo.PRINT TOOL Part No.

S

ENG.RELEASE

Change No.

Date

Common Mng.

REL02

2011/07/28

SUB ASSEMBLY

PART NO.

T O

TNPA5378BA LYUHKX-L32E3H

P

TNPA5378BA KX-L32E3A TNPA5378BA KX-L32E3Z TNPA5378BA KX-L32U30H TNPA5378BA KX-L32U30S TNPA5378BA KX-L32U30K TNPA5378BA KX-L32U30X TNPA5378BA KX-L37U30K TNPA5378BA KX-L37U30X TNPA5378BA KX-L37U30H TNPA5378BA KX-L37U30S TNPA5378BA KX-L32C30H TNPA5378BA KX-L32C30S TNPA5378BA KX-L32C3S TNPA5378BA KX-L32C30K TNPA5378BA KX-L32C30X TNPA5378BA KX-L32C3K TNPA5378BA KX-L32C3X TNPA5378BA KX-L32C30G TNPA5378BA KX-L32C3G TNPA5378BA KX-L32C30M TNPA5378BA KX-L32C3M TNPA5378BA KX-L32C30T TNPA5378BA KX-L32C3T TNPA5378BA KX-L32C30A TNPA5378BA KX-L32C30Z TNPA5378BA KX-L32U30A TNPA5378BA KX-L32U30Z TNPA5378BA KX-L32U30M TNPA5378BA KX-L32U30T TNPA5378BA KX-L32U30G TNPA5378BA KX-L37U30M TNPA5378BA KX-L37U30T TNPA5378BA KX-L37U30G TNPA5378BA KX-L32X30K TNPA5378BA KX-L32X30X TNPA5378BA KX-L32X30M TNPA5378BA KX-L32X30T TNPA5378BA KX-L32C30R TNPA5378BA KX-L32E3M

Described

Approved

Engineering Department

MTV R&D

-- APPROVE RANGE --

BV

TNPA5378BA KX-L32E3R TNPA5378BA KX-L42E3H TNPA5378BA KX-L42E3S TNPA5378BA KX-L42E3A TNPA5378BA KX-L42E3Z TNPA5378BA KX-L42E3K TNPA5378BA KX-L42E3X

APPLIED MODEL

PLAN NO.MODEL NO.

MGUA MEUZ MBUH LXUS LVUK MBUX LUUK MAUX MAUH MKUS MDUH MDUS MEUS LZUK MGUX MBUK MJUX LMUG LPUG MBUM MDUM LXUT LZUT MMUA MKUZ NQUA MNUZ LWUM LSUT LGUG LVUM MCUT LFUG LYUK MEUX MAUM LVUT MRUR LZUM MPUR LWUH LZUS MFUA MDUZ LXUK MDUX

ARRANGEMENT

DATE

21/10/10

27/10/10

28/10/10

29/10/10

01/11/10

03/11/10

09/11/10

PRODUCTION

START

21/02/11

24/03/11

11/03/11

14/03/11

16/03/11

14/03/11

25/02/11

28/02/11

25/02/11

28/02/11

31/03/11

01/04/11

30/03/11

31/03/11

30/03/11

31/03/11

04/04/11

11/04/11

13/04/11

11/03/11

14/04/11

14/03/11

09/02/11

08/03/11

09/03/11

01/04/11

25/03/11

04/03/11

04/04/11

04/03/11

CHG NO.

TNPA5378BA KX-L42E3G TNPA5378BA KX-L42E3R TNPA5378BH KX-L42U30S TNPA5378BH KX-L42U30A TNPA5378BH KX-L42U30Z TNPA5378BH KX-L42U30G TNPA5378BH KX-L42U30H TNPA5378BH KX-L42U30K TNPA5378BH KX-L42U30M TNPA5378BH KX-L42U30X TNPA5378BH KX-L42U30T TNPA5378BH KX-L42U30R TNPA5378BH KX-L32U30R TNPA5378BA KX-LR32C3 TNPA5378BA KX-L32X35A TNPA5378BA KX-L32X35Z TNPA5378BC KV-L32X30V TNPA5378BB CC-L32C30C TNPA5378BD TH-L32C30W TNPA5378BD TH-L42E3W TNPA5378BD TH-L32U30W TNPA5378BD TH-L37U30W TNPA5378BE KE-L32C30D TNPA5378BE KE-L32C3D TNPA5378BE KE-L32X30D TNPA5378BC KV-L32C30V TNPA5378BC KV-L32C3V TNPA5378BE KE-L32U30D TNPA5378BC KV-L32U30V TNPA5378BC KV-L37U30V TNPA5378BA KX-L42E3T TNPA5378BE KE-L42E3D TNPA5378BC KV-L42E3V TNPA5378BB CC-L42E3C TNPA5378BA KX-L19X35A TNPA5378BA KX-L19X35Z TNPA5378BA KX-L19X30A TNPA5378BA KX-L19X30A

LJUG MNUR LWUS NPUA MMUZ LEUG LZUH LTUK LUUM LZUX LRUT MJUR MKUR MEUR MHUA MFUZ LSUV NPUC LPUW MEUW LMUW LNUW LXUD LZUD LVUD LUUV LWUV LSUD LPUV LNUV LUUT LUUD LRUV NLUC MJUA MGUZ MLUA MJUZ

09/11/10

11/11/10

24/11/10

28/11/10

03/12/10

08/12/10

09/12/10

13/12/10

22/12/10

CONFIDENTIAL

Until:31/12/2012

ASIA R&D CENTER MATSUSHITA TELEVISION & NETWORK SYSTEMS CO.,(M) SDN.BHD. (170701-M)

APPROVED

04/03/11

04/04/11

24/03/11

22/04/11

24/03/11

15/04/11

24/03/11

15/04/11

14/04/11

13/04/11

30/03/11

06/06/11

18/03/11

24/03/11

06/05/11

24/03/11

25/03/11

24/03/11

25/03/11

15/04/11

14/04/11

15/04/11

04/04/11

01/04/11

07/06/11

31/05/11

TNPA5378BA KX-L19X30H TNPA5378BE KE-L37U30D TNPA5378BF CB-L32U30B TNPA5378BM CB-L42U30B TNPA5378BM CB-L42U30P TNPA5378BL KE-L42U30D TNPA5378BK KV-L42U30V TNPA5378BF CB-L32C30B TNPA5378BF CB-L32C30P TNPA5378BG TC-L32C30A TNPA5378BA KGX-L32X30E TNPA5378BA KGX-L32C3E TNPA5378BB CC-L32X30C TNPA5378BA KGX-L37U30E TNPA5378BH KGX-L42U30E TNPA5378BA KGX-L42E3E TNPA5378BA KX-LR32U3 TNPA5378BA KX-LR37U3 TNPA5378BH KX-LR42U3 TNPA5378BG TC-L32X30A TNPA5378BN TC-L42U30A TNPA5378BA KX-L24C3K TNPA5378BA KX-L24C3S TNPA5378BA KX-L24C3X TNPA5378BA KX-L24C3M TNPA5378BA KX-L24C3G TNPA5378BA KX-L24C3T TNPA5378BA KX-LR32U31 TNPA5378BA KX-L32C38K TNPA5378BH KX-L42U38K TNPA5378BA KX-L32C39K TNPA5378BH KX-L42U39K TNPA5378BJ CC-L42U30C TNPA5378BE KE-L24C3D TNPA5378BB CC-L32C3C TNPA5378BB CC-L32CH3C TNPA5378BC KV-L37DT30V TNPA5378BE KE-L42E30D

NOTE :THIS SCHEMATIC DIAGRAM IS THE LATEST AT THE TIME

OF PRINTING AND SUBJECT TO CHANGE WITHOUT NOTICE.

CHECKED 3 CHECKED 1

CHECKED 2

MJUH MDUD QGUB QHUB NCUP LRUD LMUV QFUB NDUP NUUA QDUE RSUE NMUC RUUE RTUE RVUE LXUR LWUR LVUR NTUA NSUA MDUK MFUS MKUX MEUM LRUG MAUT PFUR MZUK MXUK NAUK MYUK NKUC MBUD NQUC NVUC LKUV LTUD

22/12/10

28/12/10

31/12/10

11/03/11

24/03/11

07/01/11

ACTUAL ARRG. NOT YET (CRAETE FOR H/O 1)

18/04/11

18/01/11

21/01/11

01/02/11

17/02/11

08/02/11

11/02/11

16/02/11

15/03/11

11/03/11

22/04/11

14/04/11

26/05/11

18/05/11

23/05/11

18/04/11

23/05/11

31/05/11

17/05/11

01/06/11

05/06/11

29/04/11

02/05/11

06/05/11

23/05/11

05/05/11

06/06/11

29/04/11

28/02/11

24/03/11

06/04/11

13/04/11

03/06/11

02/06/11

14/06/11

13/05/11

TNPA5378BA TX-LR32C3A TNPA5378BA KX-L32C33X TNPA5378BA KX-L32C33G TNPA5378BR KX-L32C4K TNPA5378BR KX-L32C4X TNPA5378BB CC-L32C35C TNPA5378BE KE-L32C33D TNPA5378BC KV-L32C33V TNPA5378BA KX-L32X33X TNPA5378BV KL-32LX44 TNPA5378BA KX-L32C4S TNPA5378BR KX-L32C4G TNPA5378BA TX-LR32U3A TNPA5378BA TX-LR32U31A TNPA5378BR KX-L32C4T TNPA5378BR KX-L32C4M TNPA5378BR KX-L32C4RA TNPA5378BS KE-L32C4D TNPA5378BT KV-L32C4V TNPA5378BU CC-L32C4C TNPA5378BU CC-L32CH4C TNPA5378BS KE-L24C31D TNPA5378BA KX-L32X33G TNPA5378BA KX-L32X33T TNPA5378BE KE-L32X33D TNPA5378BE KE-L32E3D TNPA5378BV CT-L32C4X TNPA5378BV CT-L32C4Y TNPA5378BD TH-L32C40W

TECH.REPORT

UPDATED NO.

KM11-***

PLOT

11/07/27 20:03:32 Suwaya

VARIATION

SHEET

TNPA5378.KA.cir/001.sht

CHASSIS NO.

DRAWN

KM10/W KM11/E

KM10E

KM12 LA18

KM10A

KM14

KM10L/V

NOTE : REFER TO THE DIFFERENTIAL TABLE FOR DETAILS

PQUR NGUX NGUG NDUK NHUX NNUC MXUD NAUV NFUX QMUU NBUS NHUG PRUR PSUR MXUT NCUM LDUQ MYUD NBUV PLUC PMUC MZUD NFUG MVUT MWUD NAUD NWUX MGUL MMUW

23/03/11

12/04/11

25/04/11

19/04/11

26/04/11

06/05/11

10/05/11

11/05/11

20/05/11

19/05/11

23/05/11

26/05/11

27/05/11

03/06/11

21/06/11

ASIA R&D CENTER

ELECT. DESIGN SECT.

ISSUED

ENGINEERING RELEASE

01st.AUGUST,2011

BV

BOARD

KA

08/08/11

21/07/11

16/08/11

18/08/11

15/08/11

12/09/11

05/09/11

08/10/11

21/09/11

22/09/11

05/09/11

22/08/11

05/08/11

06/10/11

03/10/11

PAVCKM

MODEL NO.

CT-L32C4X CT-L32C4Y

K1KA03BA0237 S03B-PASK-2(LF)(SN)

GK1

KEY3(POWER)

GND

KEY1(KEYSCAN)

KEY_REFERENCE

1

2

3

C1

(PARTS PATTERN) = NA MODELS

SW2606

GK1

KEY_REFERENCE

SW2600

POWER

NA

(PARTS PATTERN) = ASIA AND EURO MODELS

SW2606

GK1

SW2600

POWER

ASIA&EURO AV Vol+/

D2601

DZ2J062M0L

D2600

DZ2J062M0L

SW2605

CH -

SW2605

C2601

0.1u

50V

SW2601

INPUT

SW2601

C2604

0.1u

50V

SW2600 EVQ11G05R

D1BD1741A066

1%

SW2601 EVQ11G05R

SW2603SW2602

MENU Vol +CH +

Vol -

SW2603SW2602

Vol-/ CH+F TV

CH-

CHG NO. CHANGED BY APPROVED BYREPORT NO. ENDDATE

H1 TR11-0231 H2 TR11-0239 27/05/11 KAMARIAH MR EDWIN N

H3 TR11-0296 24/06/11 KAMARIAH MR EDWIN N H4 TR11-0362 22/07/11 SUWAYA MR EDWIN N H5 TD11-0385 27/07/11 SHUHAILA MR EDWIN N

*R2601

1.74k

D1BD1621A066

SW2602 EVQ11G05R

SW2604

25/05/11

1%

*R2602

1.62k

KAMARIAH MR EDWIN N

D1BD2321A066

CRNo.

GK

1%

*R2603

2.32k

SW2603 EVQ11G05R

D1BD3161A066

1%

*R2604

3.16k

SW2604 EVQ11G05R

F2600

d SW H 2650 ~ g p i L [ R p l d r v CRNo. X K v s v j

D1BD7151A066

*R2605

7.15k

SW2605

EVQ11G05R

C1

PCB NAME

PRINT TOOL NO.

COMB.PCB PARENT NO.

CHASSIS

BOARD

DESIGNED BY

CHECKED BY

APPROVED BY

CIRCUIT DRAWING MANAGER

*SW2606 EVQ11G05R

TNP4G514 TNP4G514-1

GK OYAMA

OYAMA TAKABA

OYAMA

`2699

OTHER PARTS

REFNo.

S

* *

for Pb Free

T2KD01200 T2KA02610 T8EJ007 VOF-1100 T8C12022L-1 TKP4GA08202 XTV3+12JFJ

[SINGLE PCB]

CHGNo.

CONFIDENTIAL

Until:31/12/2012

ASIA R&D CENTER MATSUSHITA TELEVISION & NETWORK SYSTEMS CO.,(M) SDN.BHD. (170701-M)

APPROVED

CHECKED 3 CHECKED 1

SAFEPARTS NO.

SUB ASSEMBLY

PART NO.

T O

TNP4G514AA QMUUKL-32LX44

P

TNP4G514AB KX-L32C4S TNP4G514AE KX-L32C4G TNP4G514AC TX-L32C4B TNP4G514AC TX-L32C4E TNP4G514AC TX-L32C4XE TNP4G514AE KX-L32C4K TNP4G514AE KX-L32C4X TNP4G514AE KX-L32C4T TNP4G514AE KX-L32C4M TNP4G514AE KX-L32C4RA TNP4G514AF KE-L32C4D TNP4G514AG KV-L32C4V TNP4G514AH CC-L32C4C TNP4G514AH CC-L32CH4C TNP4G514AD CT-L32C4X TNP4G514AD CT-L32C4Y TNP4G514AJ TH-L32C40W

ENG.RELEASE

PB FREE DIP SOLDER PB FREE SOLDER FLUX THINNER

BOND FOR CHIP SIDE AV BRACKET SCREW (GK3)

NOTE :THIS SCHEMATIC DIAGRAM IS THE LATEST AT THE TIME

OF PRINTING AND SUBJECT TO CHANGE WITHOUT NOTICE.

CHECKED 2

Change No.

Date

Common Mng.

Described

Approved

Engineering Department

MTV R&D

-- APPROVE RANGE --

AD

REL02

2011/07/28

APPLIED MODEL

PLAN NO.MODEL NO.

NBUS NHUG QZUB SBUE SDUE NDUK NHUX MXUT NCUM LDUQ MYUD NBUV PLUC PMUC NWUX MGUL MMUW

DRAWN

ARRANGEMENT

DATE

11/05/11

12/05/11

19/04/11

19/05/11

03/06/11

21/06/11

PRODUCTION

START

CHG NO.

12/09/11

05/09/11

29/09/11

16/08/11

21/09/11

22/09/11

06/10/11

03/10/11

TECH.REPORT UPDATED NO.

KM14-***

PLOT

11/07/27 20:01:22 Suwaya

VARIATION

SHEET

TNP4G514.GK.cir/001.sht

CHASSIS NO.

KM14

KM10V

KM10VE

KM10W

AD

KM10V

KM10VE

KM14

KM10V

KM10W

PAVCKM

ASIA R&D CENTER

ELECT. DESIGN SECT.

ISSUED

ENGINEERING RELEASE

01st.AUGUST,2011

BOARD

GK

MODEL NO.

CT-L32C4X CT-L32C4Y

NOTE : REFER TO THE DIFFERENTIAL TABLE FOR DETAILS

Panasonic TC L32C4X, TC L32C4Y Diagram

Specifications and Main Features

Frequently Asked Questions

User Manual
