Panasonic TC-L32C3 User Manual
Owner’s Manual
32” Class 720p LCD HDTV
(31.5 inches measured diagonally)
Manual de usuario
Televisión de alta definición de 720p y
clase 32” de LCD
(31,5 pulgadas medidas diagonalmente)
Model No.
Número de modelo
TC-L32C3
For assistance (U.S.A./Puerto Rico), please call:
1-877-95-VIERA (958-4372)
www.panasonic.com/help
For assistance (Canada), please call:
1-866-330-0014
www.vieraconcierge.ca
Para solicitar ayuda (EE.UU./Puerto Rico), llame al:
1-877-95-VIERA (958-4372)
www.panasonic.com/help
English
Español
Thank you for purchasing this Panasonic product.
Please read these instructions before operating your set and retain them for future
reference. The images shown in this manual are for illustrative purposes only.
Gracias por su decisión de comprar este producto marca Panasonic.
Lea estas instrucciones antes de utilizar su televisor y guárdelas para consultarlas en
el futuro. Las imágenes mostradas en este manual tienen solamente fines ilustrativos.
Y
TQB4GC0591-1
Experience an amazing level of
multimedia excitement
Enjoy rich multimedia
SD memory card
VCR
Amplifier with
Speaker system
DVD Recorder/
Blu-ray Disc recorder
This product incorporates the following software:
(1) software developed independently by or for Panasonic Corporation,
(2) software owned by a third party and licensed to Panasonic Corporation,
(3) software licensed under the GNU General Public License, Version 2 (GPL v2),
(4) software licensed under the GNU LESSER General Public License (LGPL) and/or,
(5) open source software other than software licensed under the GPL and/or LGPL
For the software categorized as (3) or (4), please refer to the terms and conditions of GPL v2 and LGPL, as the
case may be at http://www.gnu.org/licenses/old-licenses/gpl-2.0.html and
http://www.gnu.org/licenses/old-licenses/lgpl-2.1.html In addition, software categorized as (3) or (4) is
copyrighted by several individuals and/or entities. Please refer to the copyright notice of those individuals at
http://www.am-linux.jp/dl/DTV11UT/.
GPL/LGPL SOFTWARE IS DISTRIBUTED IN THE HOPE THAT IT WILL BE USEFUL, BUT WITHOUT
ANY WARRANTY, EXPRESS, IMPLIED OR STATUTORY, INCLUDING THE IMPLIED WARRANTIES OF
MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE.
For at least three (3) years from delivery of products, Panasonic will give to anyone who contacts us at the
address provided below, for a charge of no more than our cost of physically performing source code distribution,
a complete machine-readable copy of the corresponding source code covered under GPL v2/LGPL.
Contact Information
cdrequest@am-linux.jp
Source code is also freely available to you and any other member of the public via our website below.
http://www.am-linux.jp/dl/DTV11UT/
DVD Player/
Blu-ray Disc player
Camcorder
Personal computer
Cable box
2
VIERA Link™ is a trademark of
Panasonic Corporation.
HDMI, the HDMI logo and HighDefinition Multimedia Interface are
trademarks or registered trademarks
of HDMI Licensing LLC in the United
States and other countries.
Contents
SDHC Logo is a trademark of SD3C, LLC.
This product qualifies for ENERGY
STAR in the “Home Use” setting
and this is the setting in which
energy savings will be achieved.
Any modifications to the “Home
Use” setting or other factory default
settings could result in greater
energy consumption beyond
levels that meet ENERGY STAR
qualifications.
Manufactured under license from Dolby Laboratories.
Dolby and the double-D symbol are trademarks of Dolby
Laboratories.
HDAVI Control™ is a trademark of Panasonic Corporation.
TM
Please read before using the unit
Safety Precautions ········································· 4
•
Getting started
Accessories/Optional Accessory ···················7
•
Connections ··················································9
•
Identifying Controls ······································ 11
•
First Time Setup ·········································· 12
•
Basic Features
Watching TV ·················································15
•
Using VIERA TOOLS ···································18
•
Watching content from external devices ······19
•
Viewing photos with VIERA IMAGE VIEWER
•
Advanced Features
VIERA LinkTM “HDAVI ControlTM” ··················· 22
•
Editing and Setting Channels ·······················28
•
How to Use Menu Functions ························ 30
•
Picture settings ··········································· 31
•
Audio settings ············································· 32
•
Timer settings ············································· 32
•
Lock ···························································· 33
•
Closed caption ············································33
•
Setup ··························································34
•
Getting started
Basic Advanced Support Information
····· 20
Support Information
Ratings List for parental control ···················35
•
Technical Information ··································· 36
•
Care and Cleaning ······································· 40
•
Specifications ··············································· 41
•
Frequently Asked Questions (FAQ) ············· 42
•
Index ····························································44
•
Limited Warranty
•
(for U.S.A. and Puerto Rico only) ·················45
Customer Services Directory
•
(for U. S. A. and Puerto Rico)
Limited Warranty (for Canada) ·····················47
•
························ 46
3

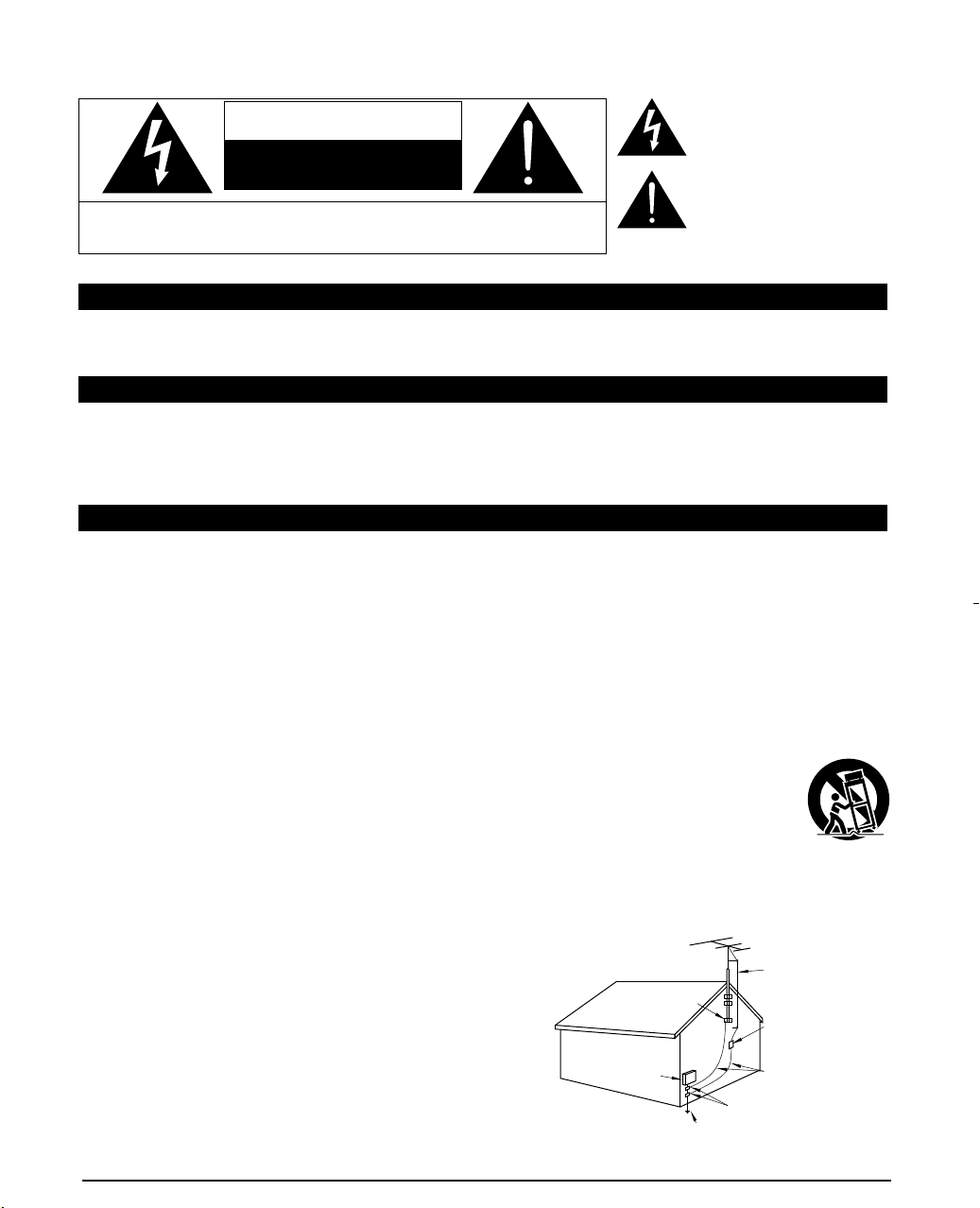

Safety Precautions
The lightning flash with arrowhead
CAUTION
RISK OF ELECTRIC SHOCK
WARNING: To reduce the risk of electric shock, do not remove cover or back.
No user-serviceable parts inside. Refer servicing to qualified service personnel.
DO NOT OPEN
Note to CATV System Installer
This reminder is provided to direct the CATV system installer’s attention to Article 820-40 of the NEC that provides guidelines for
proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding system of the building, as
close to the point of cable entry as practical.
Secure Ventilation
Slots and openings in the cabinet and the back or bottom are provided for ventilation, and to ensure reliable operation of the LCD
TV and to protect it from overheating. These openings must not be blocked or covered. There should be at least 10 cm of space
around the TV. The openings should never be blocked by placing the LCD TV on a bed, sofa, rug or other similar surface. This
LCD TV should not be placed in a built-in installation such as a bookcase unless proper ventilation is provided.
Important Safety Instructions
1) Read these instructions.
2) Keep these instructions.
3) Heed all warnings.
4) Follow all instructions.
5) Do not use this apparatus near water.
6) Clean only with dry cloth.
7) Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.
8) Do not install near any heat sources such as radiators, heat registers, stoves or other apparatus (including amplifiers) that
produce heat.
9) Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than
the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided
for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.
10) Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where
they exit from the apparatus.
11) Only use attachments / accessories specified by the manufacturer.
12) Use only with the cart, stand, tripod, bracket or table specified by the manufacturer, or sold with the apparatus.
When a cart is used, use caution when moving the cart / apparatus combination to avoid injury from tip-over.
13) Unplug this apparatus during lightning storms or when unused for long periods of time.
14) Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged
in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into
the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.
15) Operate only from the type of power source indicated on the marking label. If you are not sure of the type of power supplied
to your home consult your television dealer or local power company.
16) Follow all warnings and instructions marked on the LCD TV.
17) Never push objects of any kind into this LCD TV through cabinet
slots as they may touch dangerous voltage points or short out parts
that could result in a fire or electric shock. Never spill liquid of any
kind on the LCD TV.
18) If an outside antenna is connected to the television equipment,
be sure the antenna system is grounded so as to provide some
protection against voltage surges and built up static charges.
In the U.S. Section 810-21 of the National Electrical Code
provides information with respect to proper grounding of the mast
and supporting structure, grounding of the lead-in wire to an
antenna discharge unit, size of grounding conductors, location of
antenna discharge unit, connection to grounding electrodes, and
requirements for the grounding electrode.
EXAMPLE OF ANTENNA
GROUNDING AS PER
(NEC) NATIONAL
ELECTRICAL
CODE
GROUND CLAMP
ELECTRIC
SERVICE
EQUIPMENT
POWER SERVICE GROUNDING
ELECTRODE SYSTEM
(NEC ART 250, PART H)
4
within a triangle is intended to tell the
user that parts inside the product are a
risk of electric shock to persons.
The exclamation point within a
triangle is intended to tell the
user that important operating and
servicing instructions are in the
papers with the appliance.
ANTENNA
LEAD-IN WIRE
ANTENNA
DISCHARGE UNIT
(NEC SECTION 810-20)
GROUNDING
CONDUCTORS
(NEC SECTION 810-21)
GROUND CLAMPS
19) An outside antenna system should not be located in the vicinity of overhead power lines, other electric light, power circuits, or
where it can fall into such power lines or circuits. When installing an outside antenna system, extreme care should be taken to
keep from touching such power lines or circuits as contact with them might be fatal.
20) Unplug this LCD TV from the wall outlet and refer servicing to qualified service personnel under the following conditions:
a. When the power cord or plug is damaged or frayed.
b. If liquid has been spilled into the LCD TV.
c. If the LCD TV has been exposed to rain or water.
d. If the LCD TV does not operate normally by following the operating instructions.
Adjust only those controls that are covered by the operating instructions as improper adjustment of other
e. If the LCD TV has been dropped or the cabinet has been damaged.
f. When the LCD TV exhibits a distinct change in performance - this indicates a need for service.
When replacement parts are required, be sure the service technician uses replacement parts specified by the manufacturer that
21)
have the same characteristics as the original parts. Unauthorized substitutions may result in fire, electric shock, or other hazards.
22) WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPARATUS TO RAIN,
23) WARNING: SMALL PARTS CAN PRESENT CHOKING HAZARD IF ACCIDENTALLY SWALLOWED. KEEP SMALL
24) WARNING: To prevent the spread of fire, keep candles or other open flames away from this product at all
25) CAUTION: The Power switch on this unit will not completely shut off all power from AC outlet. Since the power
26) CAUTION: TO PREVENT ELECTRIC SHOCK, DO NOT USE THIS PLUG WITH A RECEPTACLE OR OTHER OUTLET
27) CAUTION: USE WITH OTHER STAND MAY RESULT IN INSTABILITY POSSIBLY CAUSING INJURY.
28) CAUTION: DANGER OF EXPLOSION IF BATTERY IS INCORRECTLY REPLACED. REPLACE ONLY WITH THE SAME
29) CAUTION: This LCD TV is for use only with the following optional accessory. Use with any other type of optional
NOTE: This equipment is designed to operate in North America and other countries where the broadcasting system and AC
house current are exactly the same as in North America.
controls may result in damage and will often require extensive work by a qualified technician to restore the
LCD TV to normal operation.
MOISTURE, DRIPPING OR SPLASHING.
DO NOT PLACE LIQUID CONTAINERS (FLOWER VASES, CUPS, COSMETICS, ETC.) ABOVE THE SET
(INCLUDING ON SHELVES ABOVE, ETC.).
PARTS AWAY FROM YOUNG CHILDREN.
DISCARD UNNEEDED SMALL PARTS AND OTHER OBJECTS, INCLUDING PACKAGING MATERIALS
AND PLASTIC BAGS/SHEETS TO PREVENT THEM FROM BEING PLAYED WITH BY YOUNG CHILDREN,
CREATING THE POTENTIAL RISK OF SUFFOCATION.
times.
cord serves as the main disconnect device for the unit, you will need to unplug it from the AC outlet
to shut down all power.
Therefore, make sure the unit has been installed so that the power cord can be easily unplugged from AC outlet
in case of an accident. To avoid fire hazard, the power cord should also be unplugged from the AC outlet when
left unused for a long period of time (for example, when on vacation).
UNLESS THE BLADES CAN BE FULLY INSERTED TO PREVENT BLADE EXPOSURE.
OR EQUIVALENT TYPE.
accessories may cause instability which could result in the possibility of injury.
(All of the following accessories are manufactured by Panasonic Corporation)
• Wall-hanging bracket: TY-WK3L2RW
Always be sure to ask a qualified technician to carry out set-up.
5
FCC STATEMENT
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC
Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in
a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may
not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause
undesired operation.
FCC Caution:
To assure continued compliance, follow the attached installation instructions and use only shielded interface cables
when connecting to computer or peripheral devices. Any changes or modifications not expressly approved by
Panasonic Corp. of North America could void the user’s authority to operate this device.
FCC Declaration of Conformity
Model No. TC-L32C3
Responsible Party: Panasonic Corporation of North America
Contact Source: Panasonic Consumer Electronics Company
email: consumerproducts@panasonic.com
One Panasonic Way, Secaucus, NJ 07094
1-877-95-VIERA (958-4372)
CEA CHILD SAFETY NOTICES
WARNING
Flat panel displays are not always supported on the
proper stands or installed according to the manufacturer’s
recommendations. Flat panel displays that are inappropriately
situated on dressers, bookcases, shelves, desks, speakers,
chests or carts may fall over and may cause personal injury or
even death.
The consumer electronics industry (of which Panasonic is
a member) is committed to making home entertainment
enjoyable and safe. To prevent personal injury or death, be
sure to follow the following safety guidelines:
TUNE INTO SAFETY:
• One size does NOT fit all. Follow the manufacturer’s
recommendations for the safe installation and use of your
flat panel display.
• Carefully read and understand all enclosed instructions for
proper use of this product.
• Don’t allow children to climb on or play with furniture and
television sets.
• Don’t place flat panel displays on furniture that can easily be
used as steps, such as a chest of drawers.
• Remember that children can become excited while watching
a program, especially on “larger than life” flat panel
displays. Care should be taken to install the display where it
cannot be pushed, pulled over, or knocked down.
• Care should be taken to route all cords and cables
connected to the flat panel display so that they cannot be
pulled or grabbed by curious children.
WALL MOUNTING: IF YOU DECIDE TO WALL MOUNT
YOUR FLAT PANEL DISPLAY, ALWAYS:
• Use a mount that has been recommended by the display
manufacturer and/or listed by an independent laboratory
(such as UL, CSA, ETL).
• Follow all instructions supplied by the display and wall
mount manufacturers.
• If you have any doubts about your ability to safely
install your flat panel display, contact your retailer about
professional installation.
• Make sure the wall where you are mounting the display
is appropriate. Some wall mounts are not designed to
be mounted to walls with steel studs or old cinder block
construction. If you are unsure, contact a professional
installer.
• A minimum of two people are required for installation. Flat
panel displays can be heavy.
Panasonic recommends that a qualified installer perform
the wall-mount installation. See page 5.
The American Academy of Pediatrics discourages
television viewing for children younger than two years
of age.
6
Accessories/Optional Accessory
Accessories

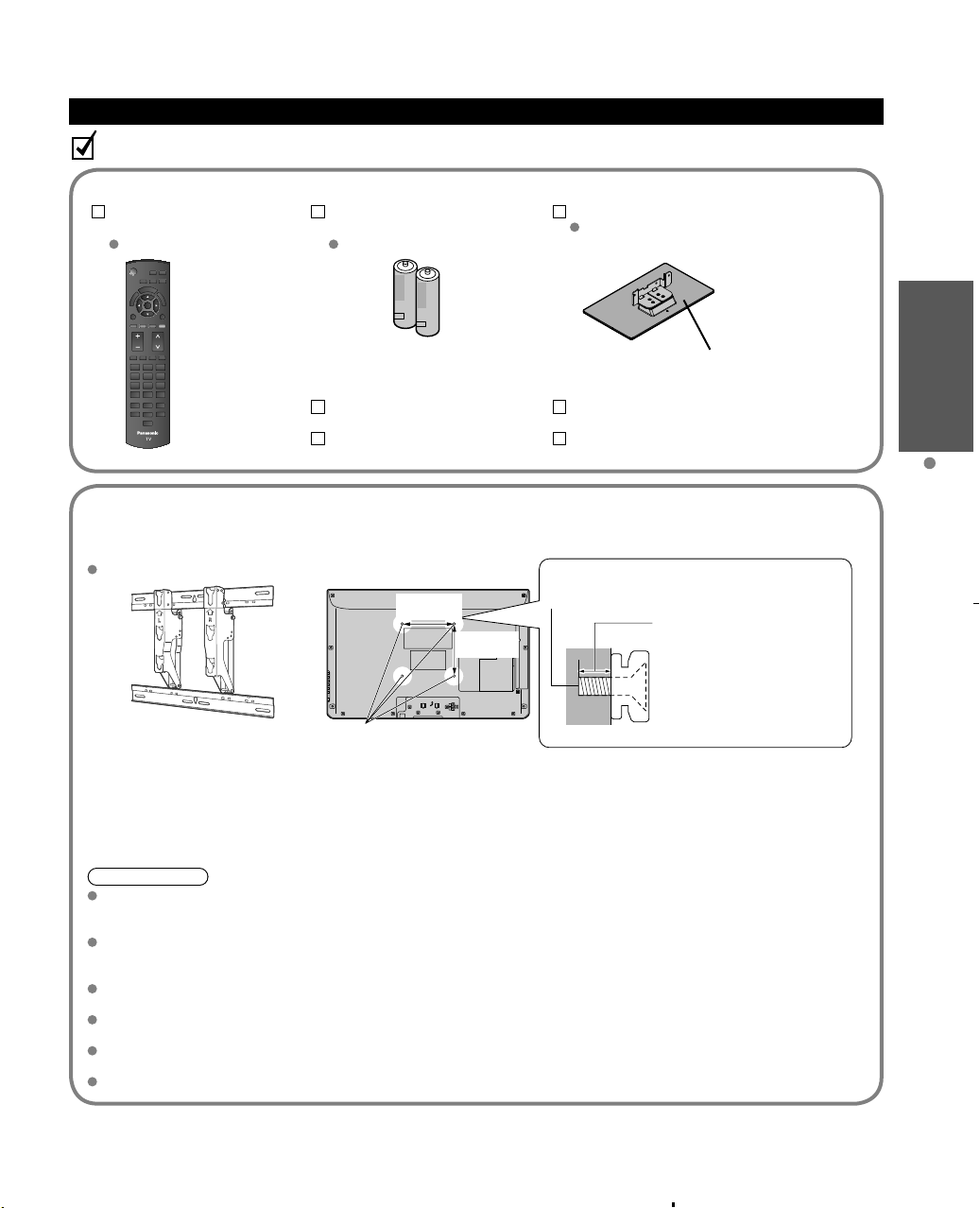

Check you have all the items shown.
Accessories
Remote Control
Transmitter
N2QAYB000570
Batteries for the
Remote Control
Transmitter (2)
AA Battery
Pedestal
TBL5ZX0084
Getting started
How to assemble (p. 8)
Owner’s Manual
Quick Start Guide
Optional Accessory
Wall-hanging bracket
TY-WK3L2RW
The angle of wall-hanging bracket
can be adjusted in “zero tilting
(vertical)”, “5-degree tilting”,
“10-degree tilting”, “15-degree tilting”
and “20-degree tilting” for this TV.
WARNING
Customer assumes liability if mounting the unit themselves or if a Panasonic bracket is not used. Any damage resulting
from not having a professional installer mount your unit will void your warranty.
Always be sure to ask a qualified technician to perform any necessary set-up. Incorrect fitting may cause equipment to
fall, resulting in injury and product damage.
Do not mount the unit directly below ceiling lights (such as spotlights, floodlights or halogen lights) which typically give off
high heat. Doing so may warp or damage plastic cabinet parts.
Take care when fixing wall brackets to the wall. Always ensure that there are no electrical cables or pipes in the wall
before hanging bracket.
When using an angled-type wall hanging bracket, please ensure that there is sufficient space for the connecting cables
so that they do not to press against the wall when the TV is tilted forward.
For safety reasons, remove units no longer being used from their wall-mounted locations.
Please contact your nearest Panasonic dealer to purchase the recommended
wall-hanging bracket. For additional details, please refer to the wall-hanging
bracket installation manual.
Back of the TV
7.9 ”
(200 mm)
Holes for wall-hanging bracket
installation
Child safety
Product Registration Card (U.S.A)
Screw for fixing the TV onto the
wall-hanging bracket
(not supplied with the TV)
7.9 ”
(200 mm)
(View from the side)
Depth of screw:
Minimum: 0.39” (10.0 mm)
Maximum: 0.47” (12.0 mm)
M4
Accessories/Optional Accessory
7

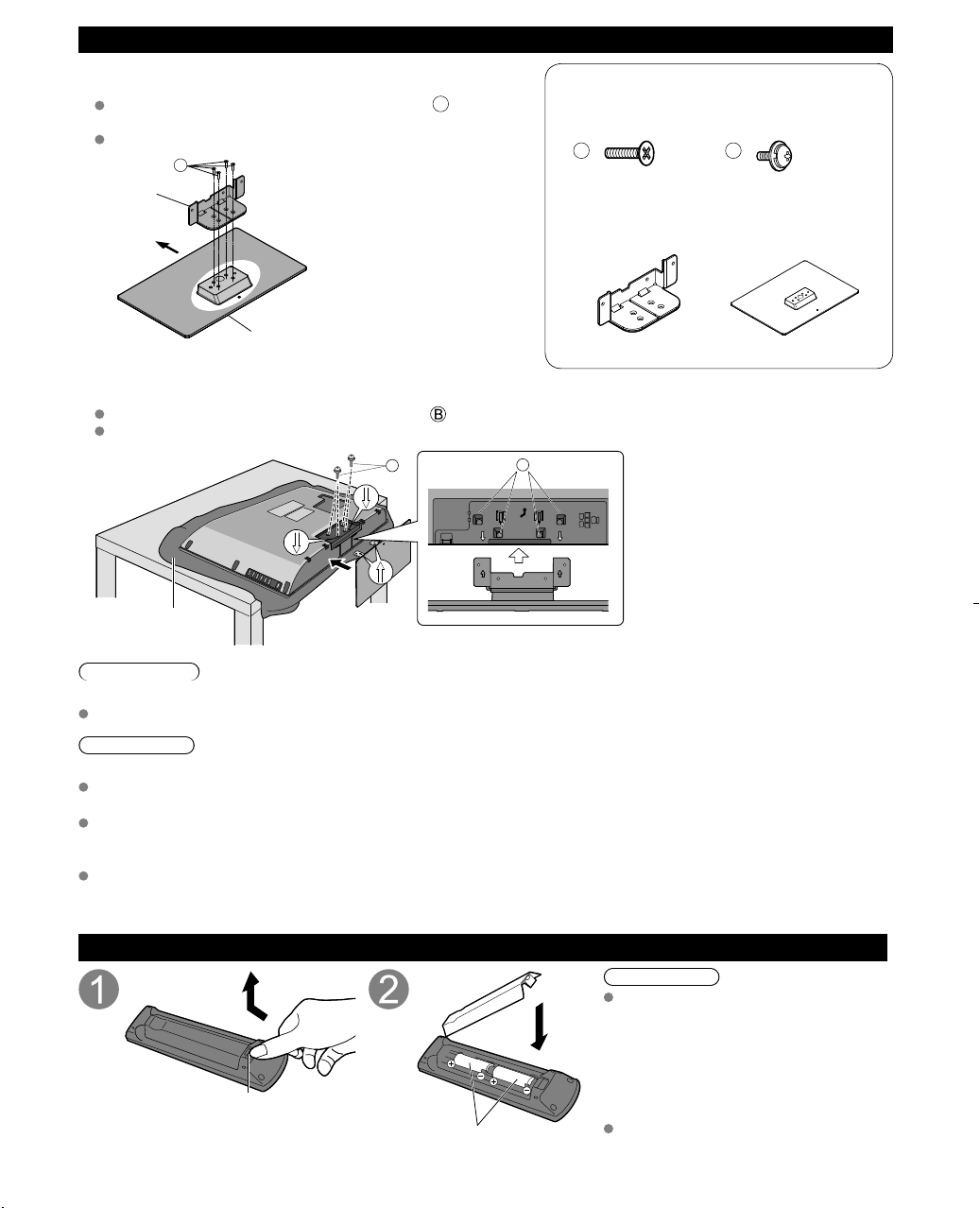

Attaching the pedestal to TV
Ŷ
Assembling the pedestal
Fix securely with assembly screws A. (Total 4 screws)
Tighten screws firmly.
A
Bracket
Front
Base
Ŷ
Set-up
Fix securely with assembly screws . (Total 4 screws)
Tighten screws firmly.
Accessories
Assembly screws (4 of each)
A
XSS4+16FJK
size (M4 × 16)
Bracket (1) Base (1)
B
XYN4+F12FJK
size (M4 × 12)
B
Foam mat or thick
soft cloth
WARNING
Do not disassemble or modify the pedestal.
Otherwise the TV may fall over and become damaged, and personal injury may result.
Caution
Do not use any pedestal other than that provided with this TV.
Otherwise the TV may fall over and become damaged, and personal injury may result.
Do not use the pedestal if it becomes warped or physically damaged.
If you use the pedestal when it is physically damaged, personal injury may result. Contact your nearest Panasonic
Dealer immediately.
During set-up, make sure that all screws are securely tightened.
If sufficient care is not taken to ensure screws are properly tightened during assembly, the pedestal will not be strong
enough to support the TV, and it might fall over and become damaged, and personal injury may result.
B
Installing the remote’s batteries
Caution
Incorrect installation may cause
battery leakage and corrosion,
resulting in damage to the remote
control.
Do not mix old and new batteries.
•
Do not mix different battery types (such
•
as alkaline and manganese batteries).
Do not use rechargeable (Ni-Cd)
•
batteries.
Do not burn or break batteries.
Hook
Open
Close
Note the correct polarity
(+ or -).
8
Connections
Connection Panels
Front of the TV
SD card
slot (p. 20)
PC terminal
DIGITAL
AUDIO OUT
Back of the TV
Antenna or Cable connection
Back of the TV
VHF/UHF Antenna
Power Cord
(Connect after
all the other
connections have
been made.)
VHF/UHF Antenna
• NTSC (National Television System Committee):
• ATSC (Advanced Television Systems Committee):
Digital TV Standards include digital high-definition television (HDTV), standard-definition television
(SDTV), data broadcasting, multichannel surround-sound audio and interactive television.
Cable
You need to subscribe to a cable TV service to enjoy viewing their programming.
Ɣ
You may need to subscribe to a high-definition (HD) cable service to enjoy HD programming.
Ɣ
The connection for high-definition can be done with the use of an HDMI or Component Video cable. (p. 10)
Note
When using a Cable box, external equipment and video cables shown in this manual are not supplied with the TV.
Ɣ
For additional assistance, visit us at: www.panasonic.com/help
Ɣ
www.panasonic.ca
Cable TV
or
A
Getting started
B
Connections
Accessories/Optional Accessory
Connection references
Ŷ
Antenna terminal
Firmly tighten by hand.
Ɣ
Ŷ
Pin terminals
green
bluered
green/ yellow
Insert firmly.
Ɣ
Ŷ
HDMI terminal
Insert firmly.
Ɣ
9

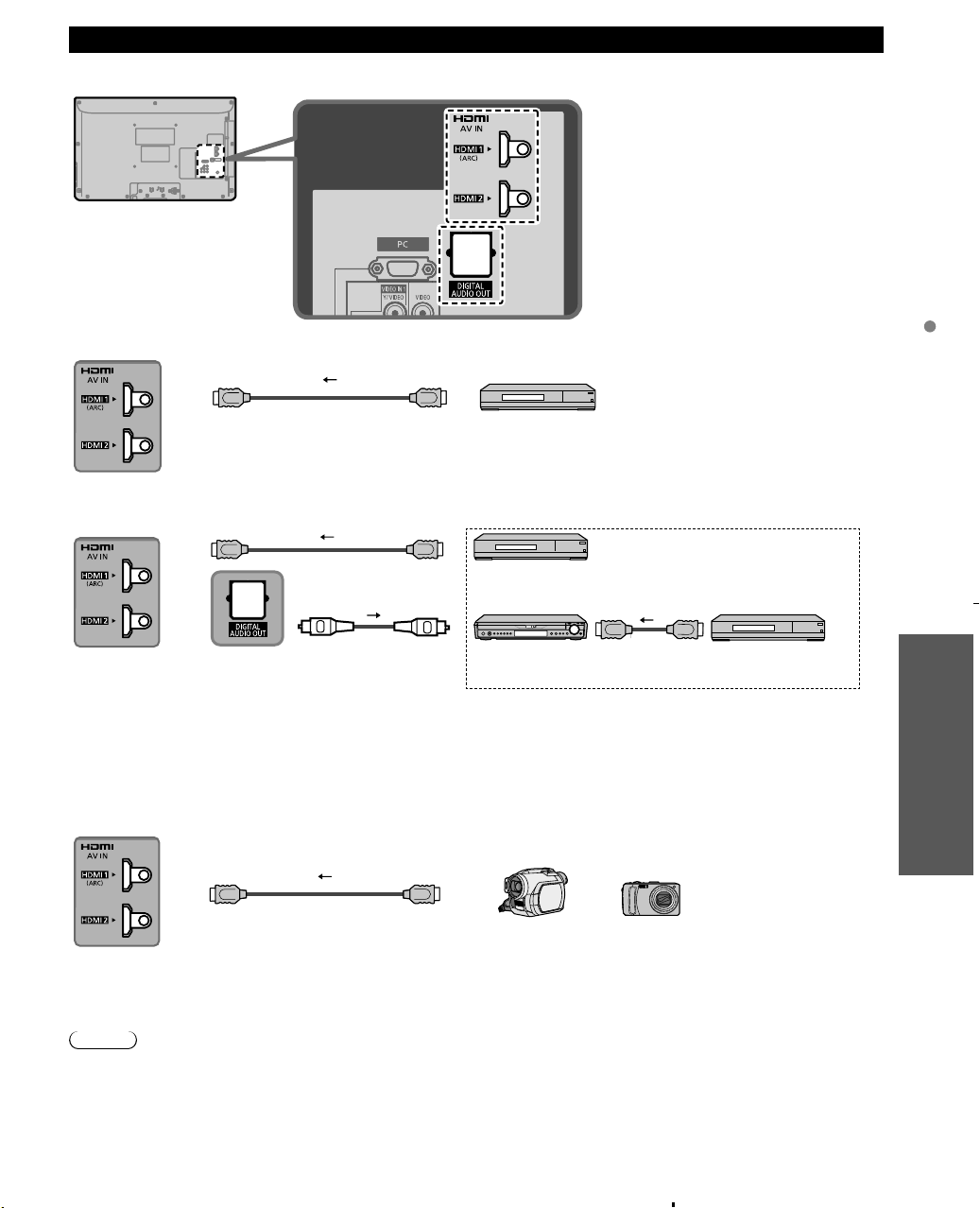

AV cable connection
Best
Good
Basic
(Not HD)
To use HDMI terminals
HDMI-DVI
Conversion cable
VIERA Link connection, please refer to p. 23
Ɣ
The HDMI connection is required for a 1080p signal.
Ɣ
To use COMPONENT terminals
green
blue
red
white
red
To use COMPOSITE terminals
yellow
white
red
green
blue
red
white
red
yellow
white
red
green
blue
red
white
red
yellow
white
red
R
Y
P
B
PR
L
R
L
R
HDMI
AV OUT
DVI OUT
L
AUDIO OUT
COMPONENT
VIDEO OUT
AUDIO
OUT
COMPOSITE
OUT
AV Equipment
e.g. Blu-ray Disc
player
AV Equipment
e.g. Blu-ray Disc
player
AV Equipment
e.g. Blu-ray Disc
player
AV Equipment
e.g. DVD Recorder
or
e.g. VCR
10
The Green terminal is shared for both the COMPONENT and COMPOSITE (VIDEO IN 1) connection.
Ɣ
When using COMPOSITE (VIDEO IN 1) connection the Yellow connector (Video) should be inserted into Green connection.
Audio connection
Audio equipment
DIGITAL
Optical cable
For HDMI-ARC (Audio Return Channel) connection, see p. 22
Ɣ
AUDIO IN
e.g. Amplifier
PC / Computer connection (VGA)
RGB PC cable
Audio cable
Conversion adapter (if necessary)
PC OUT Computer
Audio OUT
Connect cable which matches the
audio out terminal on the computer

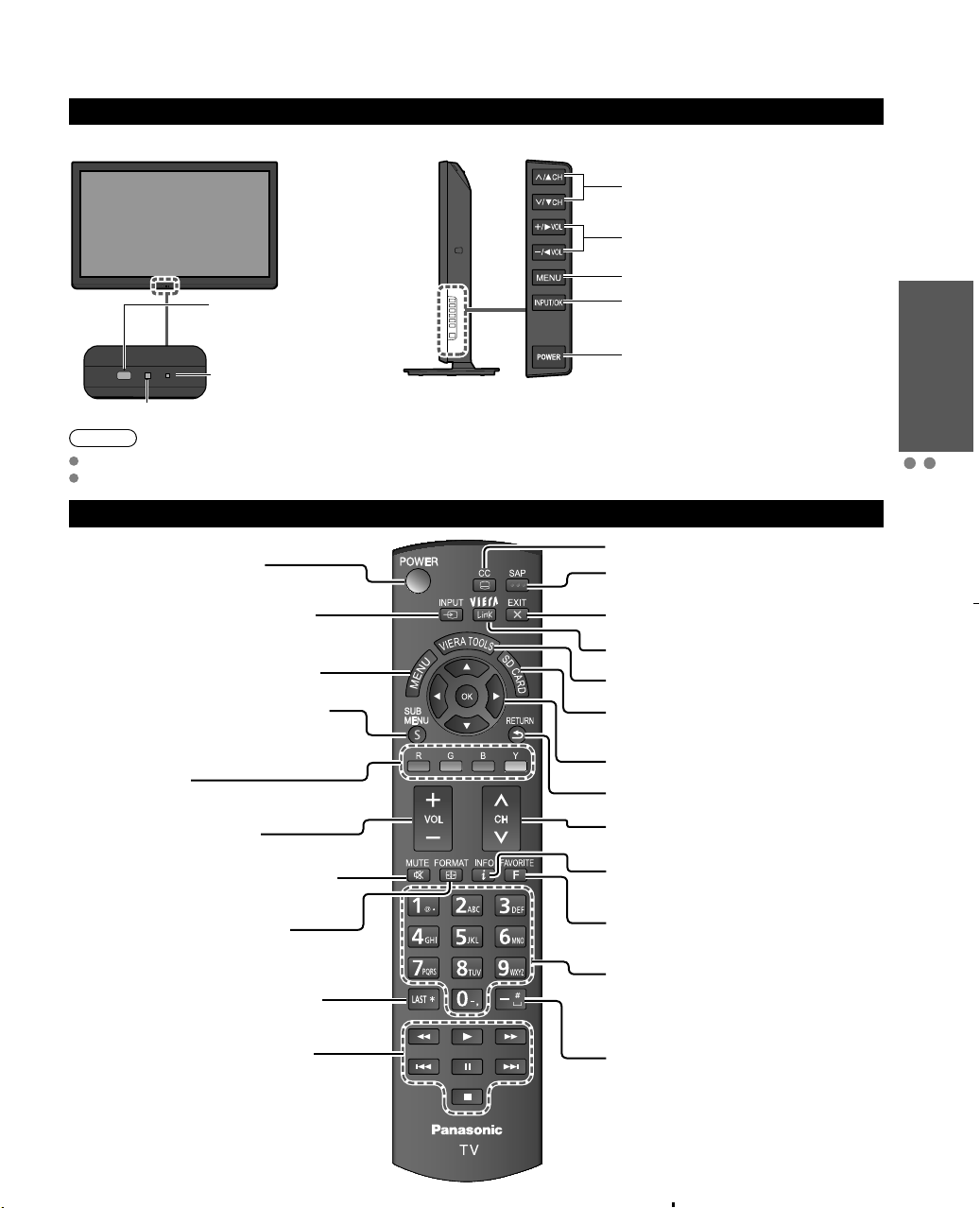

Identifying Controls
TV controls/indicators
Front of the TV
Selects channels in sequence
Volume up/down
Menu navigations
Remote control sensor
within about 23 feet
(7 meters) in front of the
TV set
Power indicator
( on: red, off: no light)
C.A.T.S (Contrast Automatic Tracking System)
Note
The TV consumes a small amount of electric energy even when turned off.
Do not place any objects between the TV remote control sensor and remote control.
Remote control
Switches TV On or Off (Standby)
Select source to watch (p. 19)
Displays Main Menu (p. 30)
Displays Sub Menu for special functions
(when available) (p. 16)
Colored buttons
(used for various functions)
Volume up/down
Sound mute On/Off
Changes aspect ratio and zoom
(p. 16, 36)
Switches to previously viewed channel
or input
External equipment operations
(p. 27)
Changes the input mode
Chooses menu and submenu entries
POWER button
Closed Caption On/Off (p. 15)
Selects Secondary Audio Programming
(p. 15)
Exits from menu screen
VIERA Link menu (p. 26-27)
Display VIERA TOOLS Menu (p. 18)
Viewing from SD Card (p. 20-21)
Selects/OK/Change
Go back to previous menu
Channel up/down, when viewing from
ANT/Cable source
Displays or removes the channel
banner (p. 15)
Operates the Favorite channel list
function (p. 16)
Numeric keypad to select any channel
or press to enter alphanumeric input in
menus
Use for digital channels. (p. 15)
Getting started
Identifying Controls
Connections
11
First Time Setup
First time setup screen is displayed only when the TV is turned on for the first time after the power cord is
inserted into a wall outlet and when “Auto power on” (p. 34) is set to “No”.
Turn the TV On with the POWER button
(TV) (Remote)
or
or
Configure your viewing mode
Select your language
Language / Idioma / Langue
English Español Français
Select your viewing mode (Be sure to select “Home use”)
Set viewing mode
Home Use Store Demonstration
OK
Select
RETURN
Step 2 of 6
Please confirm your selection (Home Use) before pressing OK button.
If you select “Store Demonstration” by mistake in ,
confirmation screen will be displayed.
You are selecting the store demonstration mode.
Yes
If you select “Yes”, the picture mode will regularly reset
to “Vivid” and a Picture Refresh message will be displayed on the
screen.
No
select
OK
select
OK
select
OK
12
Select “No” and return to previous screen .
If you select “Yes”, Screen enters the store demonstration mode.
To display the “Set viewing mode” screen again as shown above and select
“Home Use”, do one of the following:
• Press and hold down the side POWER button for at least five seconds.
• Unplug power cord for 30 seconds and plug it again.
Note
If you use any other step other than
then turn the TV off, or if you used the EXIT
button to quit before completing the settings, the next time you turn the TV on, “First
time setup” will not be automatically displayed.
• The settings up to that point are saved.
• You can start “First time setup” at any time. (p. 34)
Language, ANT/Cable setup, Input labels, Clock can also be changed from the
Settings Menu. (p. 34)
Auto channel setup ( ANT/Cable setup)
Select the connected Antenna in terminal
ANT/Cable setup
Cable Antenna Not used
OK
Select
RETURN
ANTENNA
Select “Not used” when no wire is connected to the “Antenna/Cable” terminal.
Typical when a Cable/Satellite box is connected to a TV AV input.
Prevents accidental tuning to an unavailable signal, when Cable or Satellite box is
used.
Select “Start”
Auto program
Start Skip
Cable In
Step 3 of 6
ANTENNA
Cable In
Step 4 of 6
Not used: Go to
(Label inputs)
select
OK
Skip: Go to
(Label inputs)
select
Getting started
Press to go back to
the previous screen
Note
About broadcasting
systems
Analog (NTSC):
Conventional
broadcasting
Digital (ATSC):
New
programming
that allows
you to view
more channels
featuring
high-quality video
and sound
OK
Select
OK
RETURN
Start scanning the channels
(Available channels are automatically set.)
Auto program
Progress
Number of analog channels
Number of digital channels
Press RETURN to quit
RETURN
10
0
Complete the Auto program setup
This process may take up to 20 minutes.
8%
This step is not needed when a Cable or Satellite
box is connected to an AV input.
Completion message is displayed when the Auto program scan is successfully
completed.
Auto program
Number of analog channels
Number of digital channels
Auto program completed.
Press OK to continue.
OK
RETURN
10
0
OK
If there is no available
channel, return to -
(ANT/ Cable setup).
“Not used” will be selected.
Operation of the EXIT button during “First time setup”
Press the button once to display confirmation screen. Press again to close
confirmation screen.
[EXIT confirmation screen]
Are you sure you want to exit the First Time Setup?
Yes
To repeat the First Time Setup, select
“First time setup” in the Setup Menu.
No
Yes Exit “First time setup”
No Return to the original screen.
First Time Setup
13
Give names to the TV’s inputs (Label inputs)
OK
RETURN
Select
ABC Delete abc
R G B Y
1
@.
4
GHI
7
PQRS
2
ABC
5
JKL
8
TUV
3
DEF
6
MNO
9
WXYZ
0
- ,
LAST
HDMI 2
NEXT
GA
OK
RETURN
0 9
10
Minute
Next
When done, select NEXT and press OK to go to the next step.
Label inputs
HDMI 1
HDMI 2
Comp./Video 1
Video 2
PC
Next
Select
Change
R G B Y
Edit
RETURN
ABC Deleteabc
@.
1
2
3
ABC
DEF
4
5
6
GHI
JKL
MNO
7
8
9
PQRS
TUV
WXYZ
LAST
- ,
0
Blu-ray, DVD ...
HDMI HDMI
Label: [BLANK] Not used/Blu-ray/DVD/DVD REC/HOME THTR/GAME/COMPUTER/
VCR/CABLE/SATELLITE/DVR/CAMERA/MONITOR/AUX/RECEIVER/MEDIA
CTR/MEDIA EXT/OTHER
• Select “Not used” for any back-panel input that has no device connected to it.
Afterward, the input will be skipped when pressing INPUT, for your convenience.
• The input labels can be changed at any time from the TV’s setup menu.
Step 5 of 6
select
change
or
Follow the instructions on
screen to complete the
following operations.
GA
Adjust the Clock (Set clock)
When done, select NEXT and press OK to go to the next step.
Set clock
Year
Month
Day
Hour
Minute
Next
--
--
--
--
--
Step 6 of 6
select
change
or
10
Press to go back to
the previous screen
Select
Change
Edit
RETURN
09
Follow the instructions on
screen to complete the
following operations.
Complete the First time setup
Congratulations! You are done.
The First time setup can be repeated at any time.
Press MENU and select SETUP; then “First time setup”.
Setup is complete. Enjoy your
Panasonic VIERA TV.
OK
RETURN
To watch TV via a Cable box, Satellite receiver, or any other source (DVD, DVR,
gaming device, etc.), press the INPUT button and select the appropriate input.
14
Watching TV
Turn power on
(Remote)
or
(TV)
Note
Please select correct input --> (p. 19)
Select a channel number
up
or
down
• Also available side CH button on the unit.
[For Cable/Satellite box connection]
- Use your connected box’s remote control.
Note
Reselect “Cable” or “Antenna” in “ANT in” of “ANT/Cable setup” to switch the signal
reception between cable TV and antenna. (p. 13, 28)
The channel number and volume level remain the same even after the TV is turned
off.
ŶOther Useful Functions
Listen with SAP (Secondary Audio Programming)
ŶSelect the Audio mode for watching TV
Digital mode
Press SAP to select next Audio track (if available) when receiving a digital channel.
Audio track 1 of 2
Analog mode
Press SAP to select the desired Audio mode.
• Each press of SAP will change the Audio mode. (Stereo/SAP/Mono)
SAP is not available when watching TV with a Cable or Satellite box connected via HDMI.
Contact your Cable or Satellite operator for instructions on enabling SAP with their box.
(English)
Closed Caption
ŶSwitches the Closed Caption mode On or Off
Closed caption OnClosed caption Off
Closed caption On mute
To directly enter the digital channel
number
When tuning to a digital channel,
press the button to enter the minor
number in a compound channel
number.
example: CH15-1:
Getting started
Basic
Watching TV
First Time Setup
Closed Caption is not available when watching TV with a Cable or Satellite box connected via HDMI.
Contact your Cable or Satellite operator for instructions on enabling CC with their box.
Displaying Information
ŶDisplays and removes information. When watching programming via the Antenna/Cable input,
shows the channel banner.
Channel
15-2 12:30 PM
ABC-HD
Station
identifier
THE NEWS
CC SAP
SAP
indication
TV-G 1080i Standard 4:3
Signal
resolution
Rating Level
mode
Aspect ratioClosed caption
Clock
30
Sleep timer
remaining time
15
Change aspect ratio and Zoom the picture
Favorite channels
1/3
26-1
1
2
3
4
5
Set favorite 1/3
26-1
1
2
3
4
5
Set favorite 1/3
26-1
1
2
3
4
5

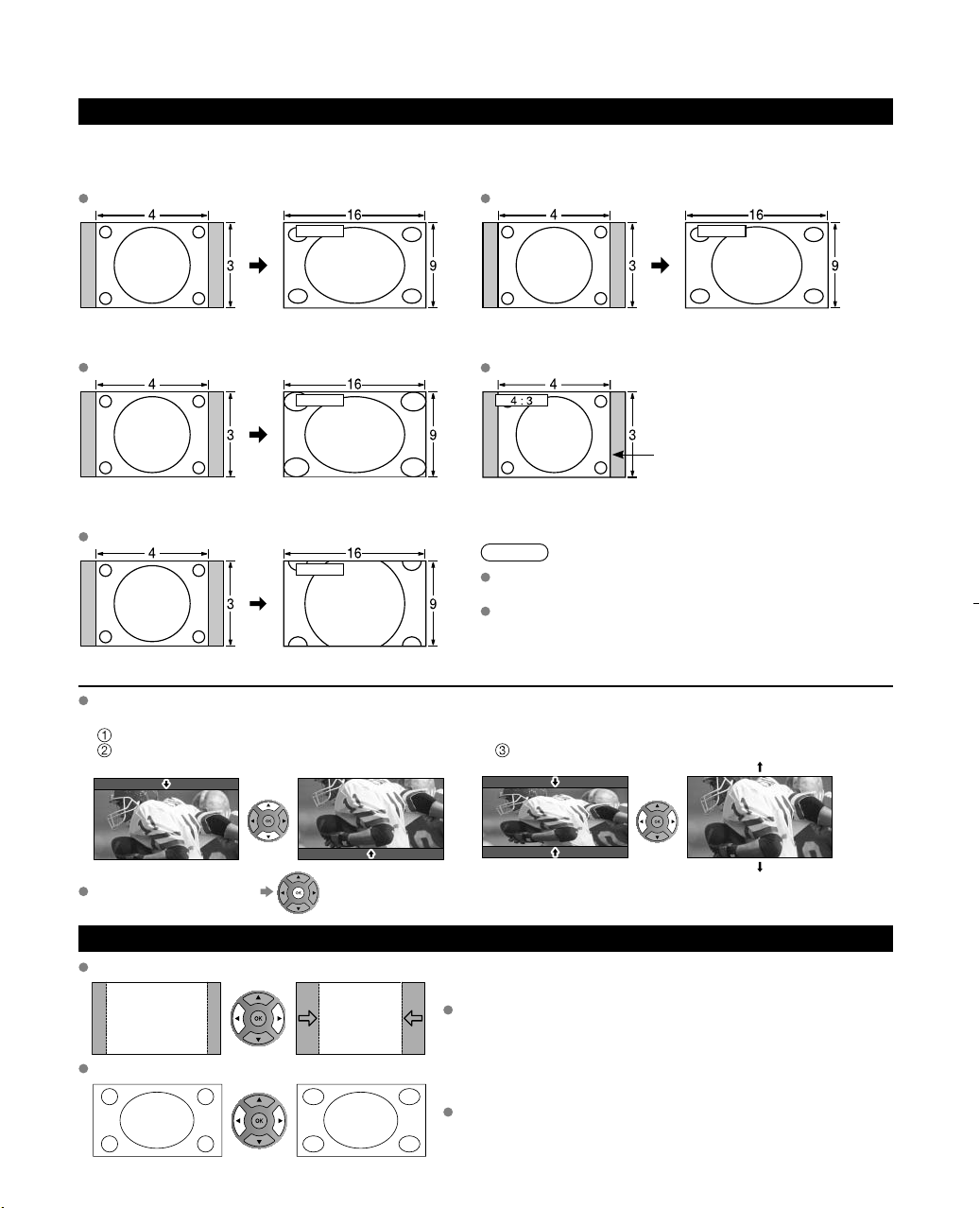

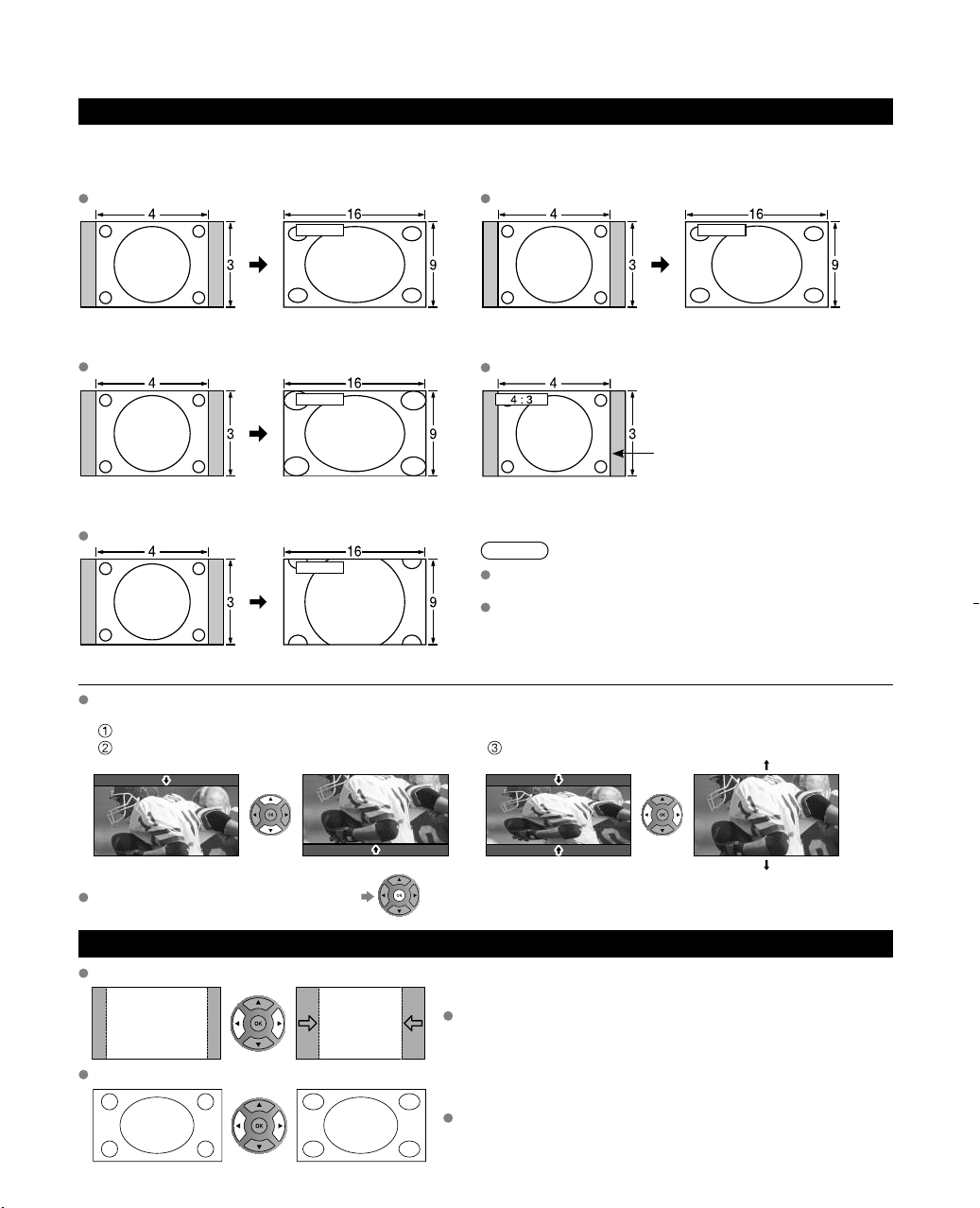

ŶPress FORMAT to cycle through the aspect modes (p. 36)
• 480i, 480p: FULL/JUST/4:3/ ZOOM
• 1080p, 1080i, 720p: FULL/H-FILL/JUST/4:3/ZOOM
Use when the picture does not fill the whole screen (bars appears on either side of
the image) or portions of the picture is trimmed.
Note
1. Some content, such as film-based movies, are available in extra-wide format.
Top and bottom bars are unavailable.
2. Connected devices, such as Cable/Satellite box, DVD/Blu-ray players and game
consoles have their own aspect (format) settings. Adjust the device’s aspect
settings.
Display the SUB MENU
ŶPress SUB MENU to show the Sub Menu screen
This menu consists of shortcuts to convenient functions.
Sub menu is only available when the TV is using the Antenna/Cable input, not when using Cable or Satellite box.
SUB
MENU
Setup SUB MENU
Channel surf mode
All
Set favorite
Edit CH caption
Signal meter
Specify favorites or type of channels to view when pressing the channel up/
down button.
Set favorite channel (below)
Edit the channel identifier (p. 29)
Check the signal strength (p. 29)
Call up a favorite channel
Ŷ FAVORITE
Channel numbers registered in Favorite are displayed on the favorite tune screen. Select the desired broadcast
station with the cursor or use the number buttons. (p. 15)
select
ŶSet the Favorite channel
ŶDelete a favorite channel
ŶTo change the page
16
or
SUB
MENU
Setup SUB MENU
Channel surf mode
All
Set favorite
Edit CH caption
Signal meter
Press repeatedly to change between pages (1/3, 2/3, 3/3 or exit)
Favorite channels cannot be set when using Cable or Satellite box.
Ɣ
Changes the page forward/backward
or
select the list number
(to save the channel
without pressing OK)
select
the list
number
save the displayed
channel
select
delete
(while holding down)
ŶOther Useful Operations
Select
OK
RETURN
ABC Deleteabc
R G B Y
1
@.
4
GHI
7
PQRS
2
ABC
5
JKL
8
TUV
3
DEF
6
MNO
9
WXYZ
0
- ,
LAST
Menu
Input labels
Video 2
Video 1
HDMI 2
Comp./Video 1
HDMI 1
Entering characters
You can use the remote control keys to enter the alphanumeric characters.
ŶSwitches input mode.
ABC ĺ abc ĺ 123
ŶPress each number key to cycle through the
alphanumeric character.
Password setting/entering
You need to enter the password when you access locked channel or inputs.
Navigation area
Input your 4-digit password
Menu
Password
Enter password.
* * * -
If it is your first time entering the password, enter the password twice in
Ɣ
order to register it.
Make a note of your password. Do not forget it. (If you have forgotten your
Ɣ
password, consult your local dealer.)
When you select a locked channel, a message will be displayed that
Ɣ
allows you to view the channel after you input your password.
Change password (p. 33)
Ɣ
Basic
Watching TV
17

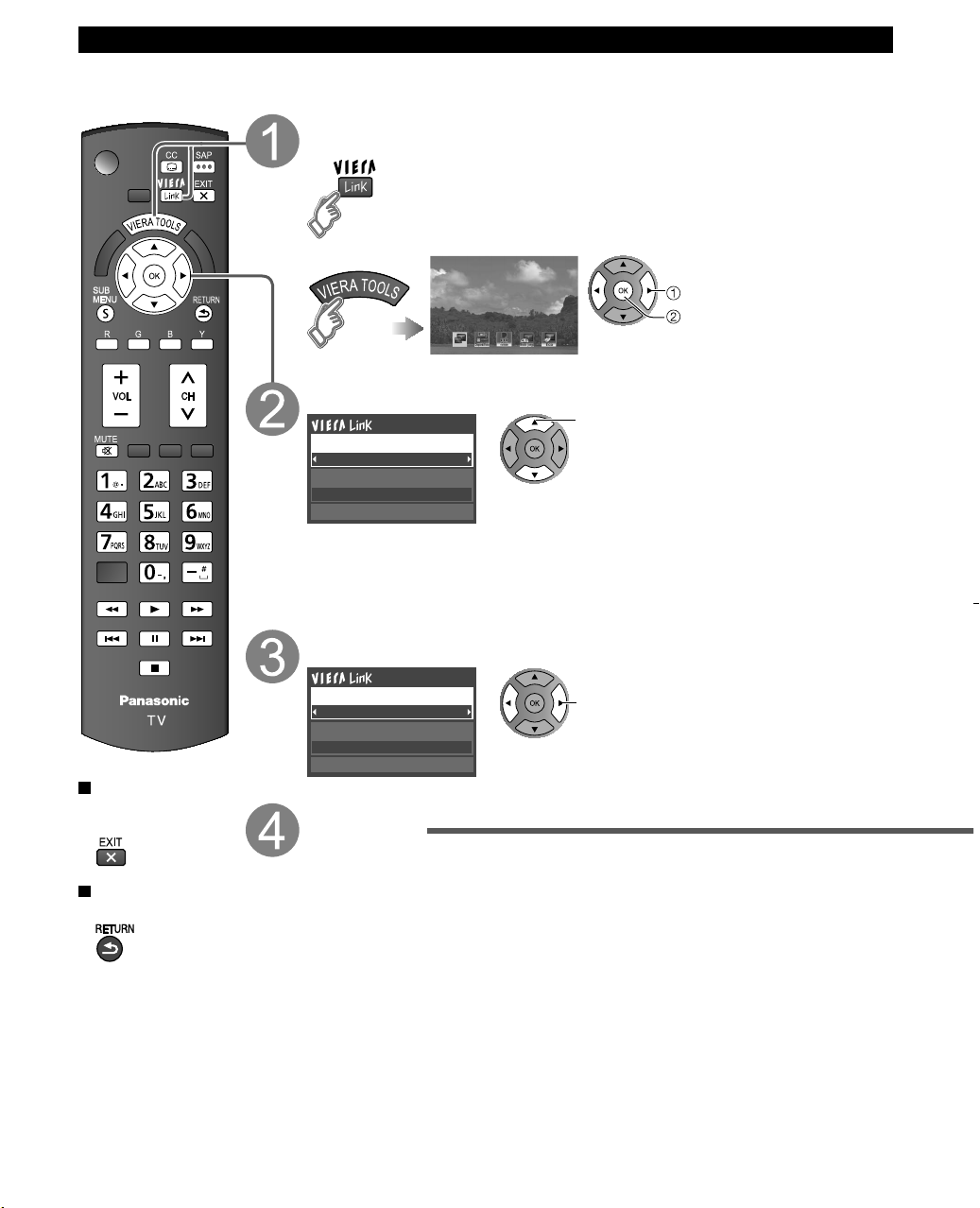

Using VIERA TOOLS

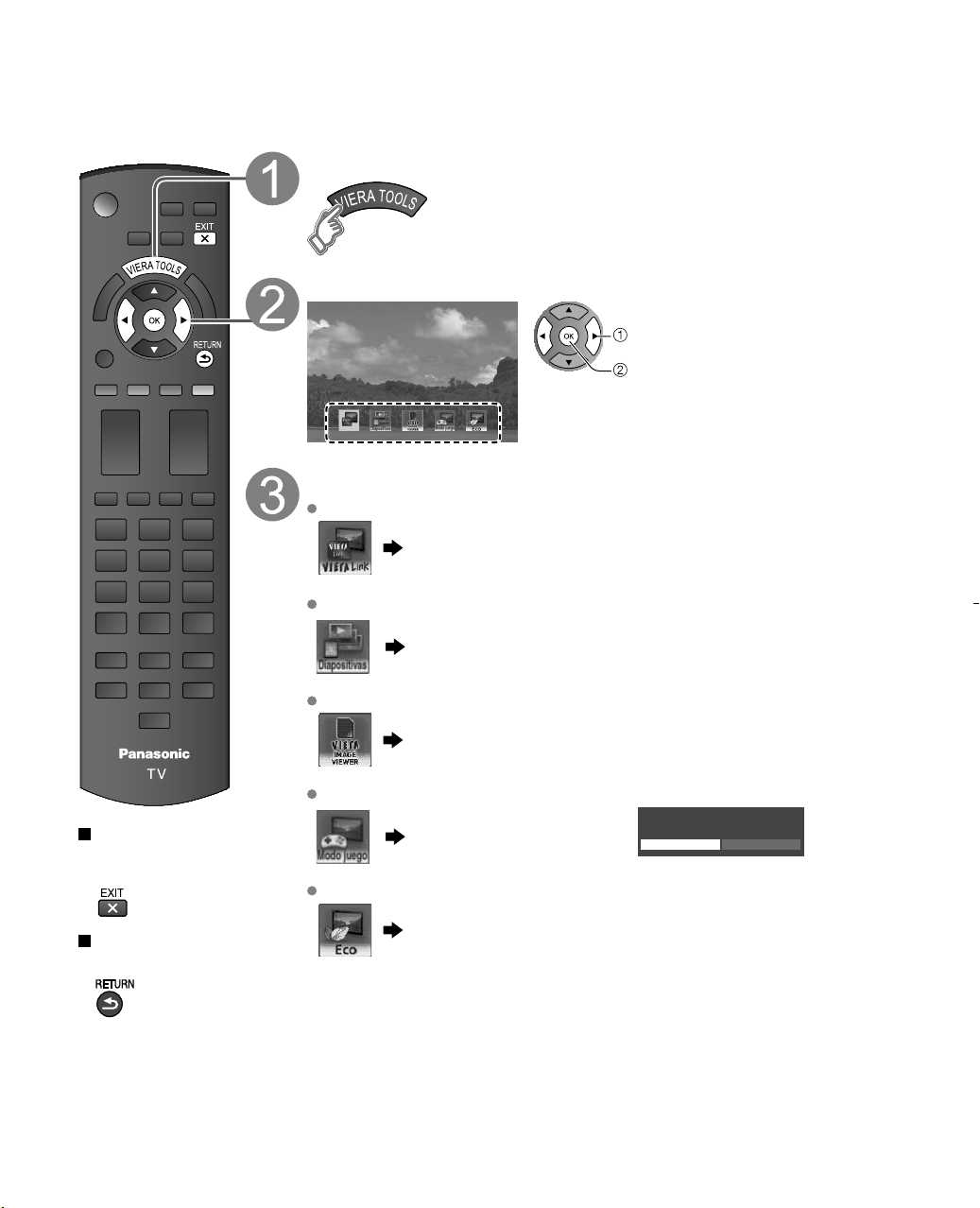

VIERA TOOLS is the easy way to access the TV’s special features. They are displayed as shortcut icons on
the TV screen.
Display VIERA TOOLS
Select the item
select
next
VIERA Link
Set each item
VIERA Link
VIERA Link (p. 26-27)
Slideshow
18
Press to exit from
a menu screen
Press to go back
to the previous
screen
Slideshow (p. 20-21)
VIERA IMAGE VIEWER
VIERA IMAGE VIEWER (p. 20-21)
Game mode
Game mode setting
(Game/Standard) (p. 31)
Eco mode
ECO/energy saving (p. 34)
Please select Picture mode.
Game mode allows optimum picture settings
for gaming.
Game Standard

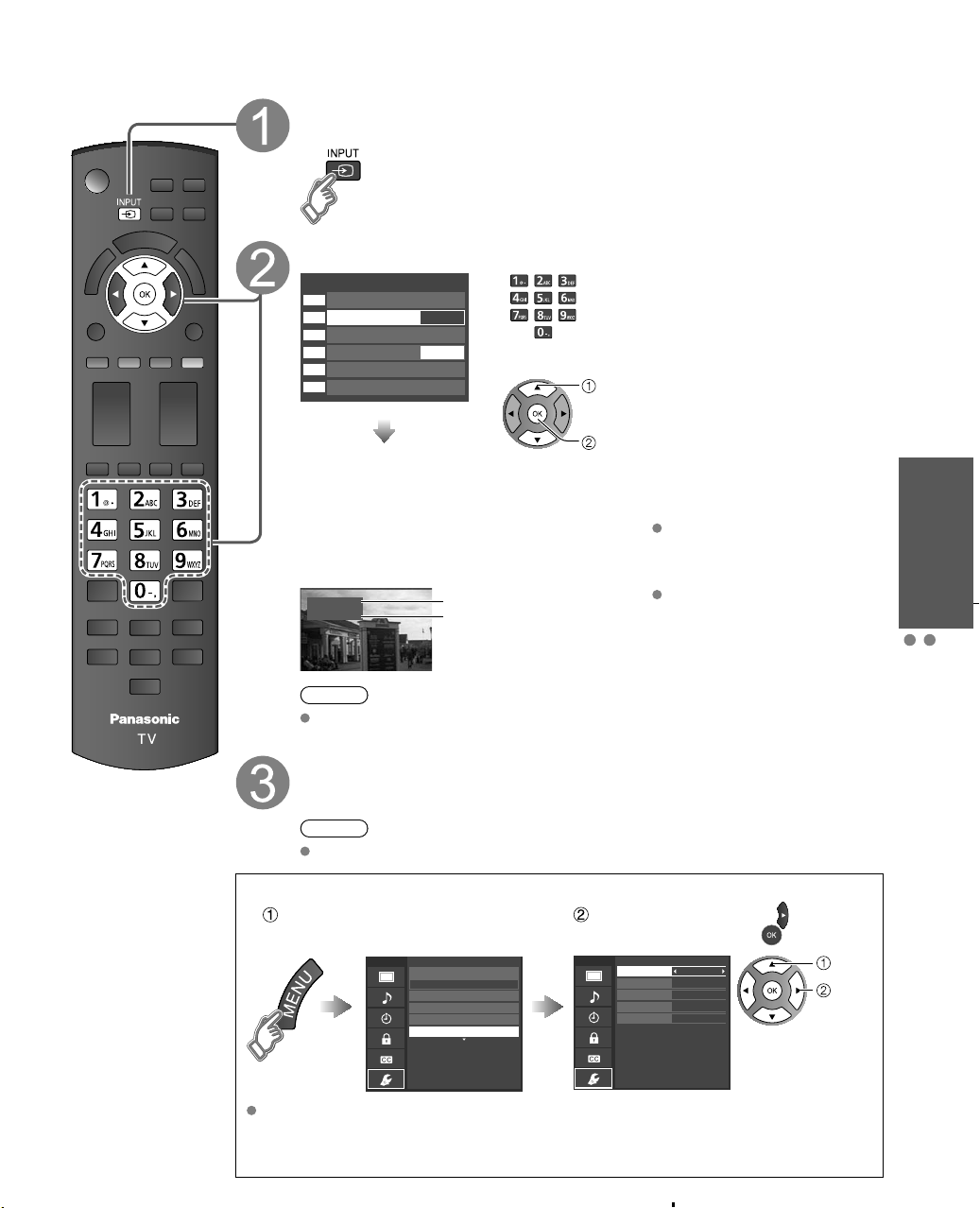

Watching content from external devices
With the connected equipment turned On
Display the Input select menu
Select the input mode
Input select
1
TV
2
HDMI 1
3
HDMI 2
4
Comp./Video 1
5
Video 2
6
PC
DVD
AUX
or
(example)
HDMI 1
DVD
Terminal
Label
(example)
Note
The input label will be displayed on the “Input select” screen if the Input label was
customized.
Operate the connected device directly by using its own
remote control.
(shortcut) press the corresponding
NUMBER button on the remote
control to select the input of your
choice. Or, press the INPUT
button repeatedly, to cycle through
the available inputs.
* set unused input to “Not used”
select
(below) for quick skipping.
Select the input of your choice,
enter
then press OK.
During the selection, if no action
is taken for several seconds,
the “Input select” menu
disappears.
The terminal and label (names)
of the connected equipment are
displayed.
To label each of the inputs, see
below.
Basic
Watching content from external devices
Using VIERA TOOLS
Note
PC adjustments (p. 31)
Ŷ Label each input
Select “Input labels” in “Setup”
Menu
Setup 1/2
Channel surf mode
All
Language
Clock
ANT/Cable setup
Input labels
Labeling each input with names of connected devices such as DVD Player, Cable box, etc.
will help you to identify and switch between them.
• See p. 34 for list of available label names.
• You can also enter the label name directly. (Entering characters (p. 17))
For each input, press to select a
label or
Menu
Input labels
HDMI 1
HDMI 2
Comp. /Video 1
Video 2
PC
to edit
select
set
19
Viewing photos with VIERA IMAGE
VIEWER
The VIERA Image Viewer lets you easily view still images on the television by simply inserting an SD card into the VIERA
SD card slot.
Insert the SD card
Insert the card Remove the card
Gently insert the SD Card label
surface facing front.
Label surface
Press in lightly
Push until a
click is heard
on SD Card,
then release.
Cutout
Compliant card type (maximum
capacity): SDHC Card (32 GB),
microSDHC Card (32 GB), SD
Card (2 GB), miniSD Card (2 GB),
microSD Card (2 GB) (requiring
microSDHC Card/miniSD Card/
microSD Card adapter)
If a microSDHC Card, miniSD Card
or microSD Card is used, insert /
remove it together with the adapter.
For cautions and details on SD
Cards (p. 37)
Display “VIERA IMAGE VIEWER”
Using VIERA TOOLS (p. 18)
Select the item
select
Auto play setting
Image viewer auto
play (p. 34)
Slideshow
VIERA IMAGE VIEWER
Displayed Thumbnail screen.
Slideshow Start slideshow.
next
Select the data to be viewed
Thumbnail view
VIERA IMAGE VIEWER
All photos
238
Total
Name
Date
03/04/2010
Size
Select
Slideshow Folders
R Y
Pana0001 Pana0002 Pana0003 Pana0004
Pana0001
1029×1200
Pana0005 Pana0006 Pana0007 Pana0008
OK
Pana0009 Pana0010 Pana0011 Pana0012
RETURN
Sort by monthGSort by date
B
select
view
To start Slideshow
Selected picture information is displayed.
Total number of images.
Note
Depending on the JPEG file format, “Information” contents may not be displayed
correctly. Refer to p. 37 (Data format for SD card browsing) for details.
View
Navigation area
Accessing
Present status
(While reading the data)
Accessing
20
Press to exit from
a menu screen
Press to go back to
the previous screen
Accessing
Rotate
Play
Prev.
Next
RETURN
Displays one at a time
To display/hide the Navigation area
Return to the Thumbnail view
Rotate
Prev.
Play
Next
RETURN
Single photo view
Rotate 90 degrees (counter-clockwise)
To next photo
Rotate 90 degrees (clockwise)
To previous photo
Prev.
Slideshow
Pause
Next
RETURN

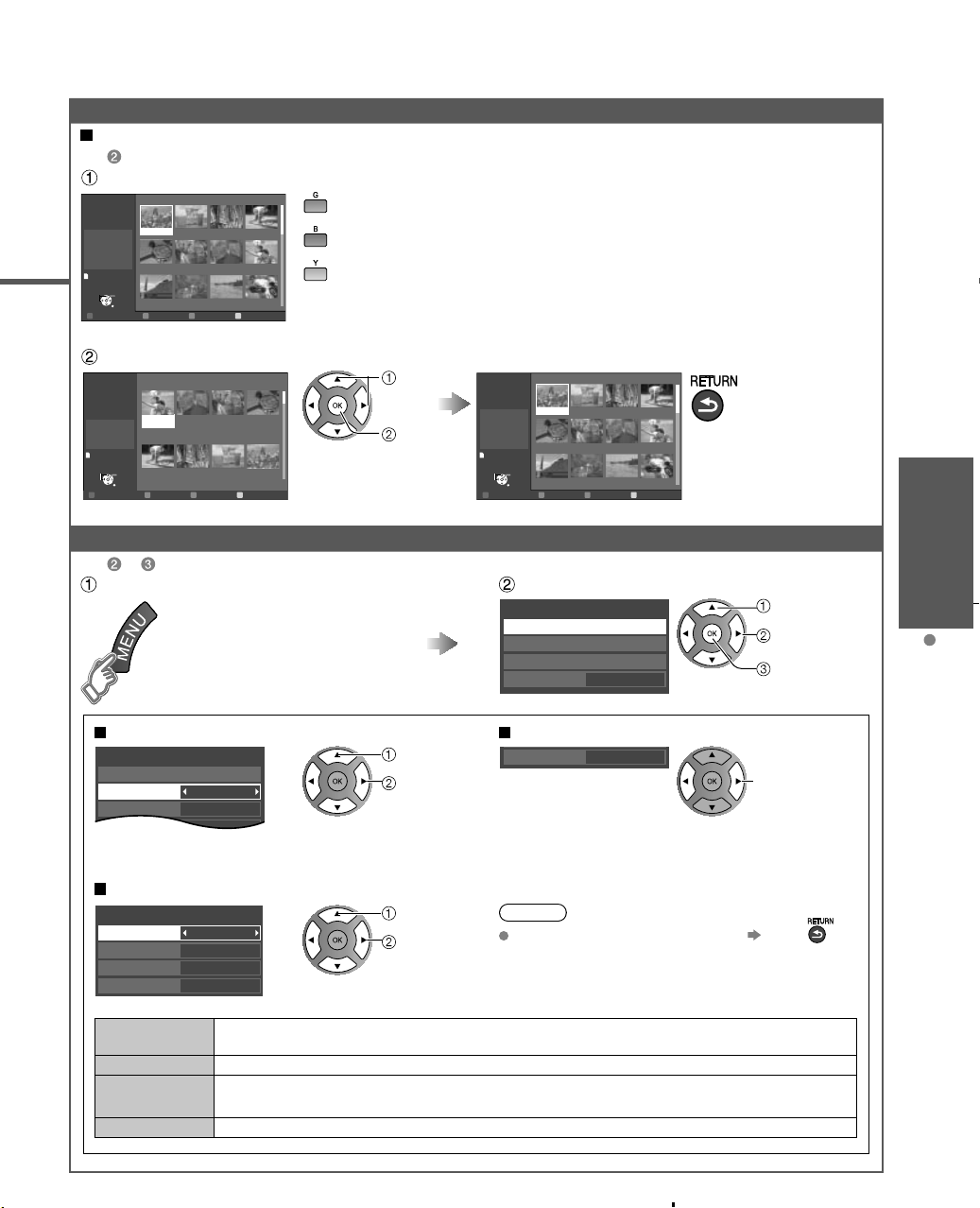

Sort
0
20
Vivid
To sort by Folder, month or date
In
Select the sort type
VIERA IMAGE VIEWER
All photos
238
Total
Name
Date
03/04/2010
Size
R Y
Pana0001 Pana0002 Pana0003 Pana0004
Pana0001
1029×1200
Pana0005 Pana0006 Pana0007 Pana0008
Select
OK
Pana0009 Pana0010 Pana0011 Pana0012
RETURN
Slideshow Folders
Sort by monthGSort by date
B
Folders (ascending order of numeric/alphabetical)
Sort by month (ascending order of the month)
Sort by date (ascending order of the date )
Select the directory.
VIERA IMAGE VIEWER
All photos
Sort by date
15
09/23/2009
Select
Slideshow
28 photos
OK
RETURN
28 photos
12/25/2009
24 photos
Date
09/23/2009
Number of photos
Accessing
R YG B
09/28/2009
58 photos
01/01/2010
10 photos
10/10/2009
3 photos
02/15/2010
16 photos
11/20/2009
8 photos
03/04/2010
32 photos
select
OK
VIERA IMAGE VIEWER
All photos
09/23/2009
Total 28
Name
Date
09/23/2009
Size
Accessing
R YG B
Pana0001 Pana0002 Pana0003 Pana0004
Pana0001
1029×1200
Pana0011 Pana0012 Pana0013 Pana0014
Select
OK
Pana0055 Pana0056 Pana0057 Pana0058
RETURN
Slideshow
Photo settings
In or
Display “Photo settings” Select the item
Photo settings
Audio
Slideshow settings
Soundtrack
Off
Go back to
previous
screen
select
change
next
Basic
Viewing photos with VIERA IMAGE VIEWER
Adjust the picture/Audio Set the Soundtrack
Picture 1/2
Reset to defaults
Picture mode
Select
Adjust
Soundtrack
Back light
Contrast
example :Picture menu
Picture menu/Audio menu (p. 31-32)
Slideshow settings
Slideshow settings
Display interval
Repeat playback
Transition effect
Photo effect
Display interval
Repeat playback
Transition effect
Fast
Off
Off
Sepia
Set how many seconds each image is displayed in the Slideshow mode.
(Short/Fast/Normal/Slow/Very slow)
Turn the slideshow Repeat (cycle) function on or off (Off/On).
Select the transition effect shown between photos (Off /Wipe Ļ/Wipe Ĺ/Wipe ĺ/Wipe ĸ
/Comb ĹĻ/Comb ĺĸ/Dissolve/Checker wipe/Random/Array/Collage)
Select
Adjust
Select the music from 5 options.
(Off/Music 1/Music 2/Music 3/Music 4/Music 5)
Note
To stop in mid-cycle Press
Photo effect Select the display effect (Off/Sepia/Gray scale)
Off
change
21
VIERA Link
Simultaneously control all Panasonic “HDAVI Control” equipped components using one button on the TV remote.
Enjoy additional HDMI Inter-Operability with compatible Panasonic products.
This TV supports “HDAVI Control 5” function.
Connections to equipment (DVD recorder DIGA, HD Camcorder, Home theater system, Amplifier, etc.) with HDMI cables
enables VIERA Link controls.
Equipment with the “HDAVI Control” function enables the following operations:
Version Operations (See p. 24-27, for more information)
HDAVI Control or later
HDAVI Control 2 or later
HDAVI Control 3 or later
HDAVI Control 4 or later
HDAVI Control 5
•
•
•
•
•
•
•
•
•
•
•
“ HDAVI Control
Automatic Input Switching
Power on link
Power off link
Default speakers
Speaker control
VIERA Link control only with the TV’s remote control
Unselected device energy save (for available equipment only)
Provides setting information (Language, time. etc.)
Automatic lip-sync function
Energy saving mode (with Quick Start mode)
Audio Return Channel
Audio Return Channel (ARC) is a function that enables digital sound signals to
be sent via an HDMI cable back from the TV to a connected audio device.
TM
TM
”
ŶWhen adding new equipment, reconnecting equipment or changing the setup after the connection,
turn the equipment on and then switch the TV on. Set the input mode to HDMI1 or HDMI2 (p. 19),
and make sure that the image is displayed correctly.
VIERA Link “HDAVI Control”, is based on the control functions provided by HDMI and industry standard known as HDMI
CEC (Consumer Electronics Control), with unique function that we have developed and added. As such, its operation with
other manufacturers’ equipment that supports HDMI CEC cannot be guaranteed.
Please refer to the individual manuals for other manufacturers’ equipment supporting the VIERA Link function.
ŶHDMI cable
This function needs an HDMI compliant (fully wired) cable. Non-HDMI-compliant cables cannot be utilized.
It is recommended that you use Panasonic’s HDMI cable. Recommended part number:
RP-CDHS15 (4.9 ft/1.5 m), RP-CDHS30 (9.8 ft/3.0 m), RP-CDHS50 (16.4 ft/5.0 m)
* For more details on the external equipment’s connections, please refer to the operating manual for the equipment.
22
VIERA Link™ Connections (with VIERA Link function)
ŶTerminal overview
Back of the TV
ŶConnecting DVD Recorder (DIGA)
VIERA Link
HDMI cable
DVD recorder (DIGA)
with VIERA Link function
ŶConnecting Home theater system/AV amp
HDMI 1 is recommended.
HDMI cable
Optical cable
No optical cable is necessary when connecting a Home Theater
supporting “HDAVI control 5” with an HDMI cable. Audio will be
supported via ARC (Audio Return Channel) (p. 22)
One AV amp and one DVD recorder (DIGA) can be operated with this unit.
Ɣ
Home theater systems
with VIERA Link function
AV amp with
VIERA Link function
DVD recorder (DIGA)
with VIERA Link function
ŶConnecting HD Camcorder/Digital camera
Press INPUT and select an available HDMI terminal, then connect the camcorder to this input. After connection,
confirm the HDAVI control functions. (p. 24-27)
HDMI / mini HDMI cable
HD Camcorder
with VIERA Link
If connection (or setting) of equipment compatible with HDAVI control is changed, switch the power of this unit Off and
On again while the power of all equipment is On (so that the unit can correctly recognize the connected equipment) and
check that the connected equipment playback operates.
Note
Individual HDMI equipment may require additional menu settings specific to each model. Please refer to their
Ɣ
respective manuals.
When audio from other equipment connected to this unit via HDMI is output using “DIGITAL AUDIO OUT” of this unit,
Ɣ
the system switches to 2CH audio.
(When connecting to an AV amp via HDMI, you can enjoy higher sound quality.)
Some devices use Mini-HDMI terminal. HDMI (type A) to Mini-HDMI (type C) cable or adapter should be used.
Ɣ
function
LUMIX with
VIERA Link
function
TM
“HDAVI Control
TM
”
Advanced
23

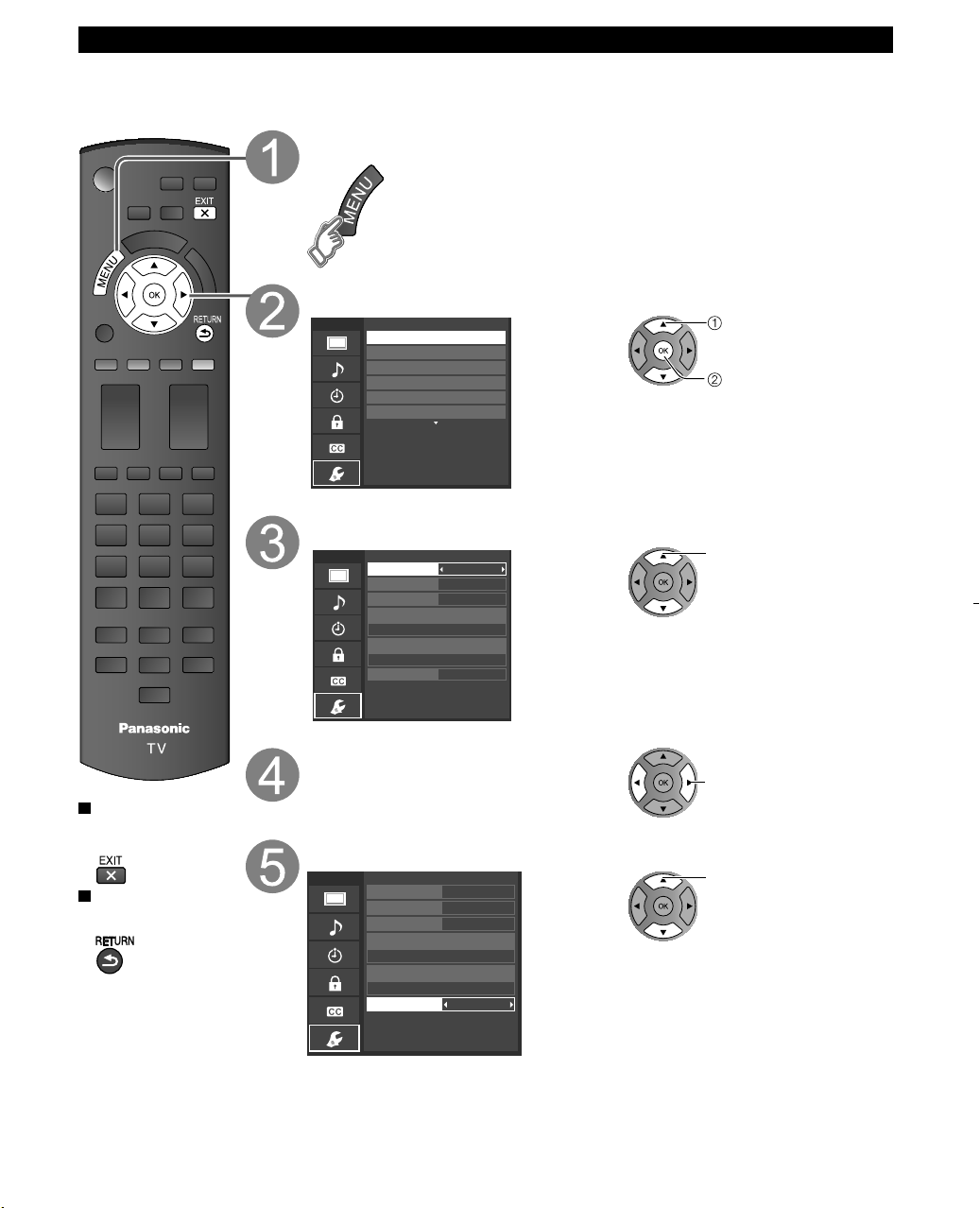

VIERA Link settings and Available features
To use all VIERA Link functions: After everything is connected, in VIERA Link settings menu, set “VIERA Link” to “On”.
Some features are disabled depending on the “HDAVI Control” version of the equipment.
Please check the list (p. 22)
Display the menu
Select “VIERA Link settings” in “Setup”
Menu
Setup
VIERA Link settings
ECO/energy saving
Advanced setup
First time setup
About
Reset to defaults
2/2
select
next
Select “VIERA Link”
Menu
VIERA Link settings
VIERA Link
Power on link
Power off link
Energy saving mode
Unselected device energy save
No (stay on)
Default speakers
On
No
Yes
Quick start
TV
select
24
Press to exit from
a menu screen
Press to go back
to the previous
screen
Select “On”
(default is On)
Select and make other settings
Menu
VIERA Link settings
VIERA Link
Power on link
Power off link
Energy saving mode
Unselected device energy save
No (stay on)
Default speakers
On
No
Yes
Quick start
TV
change
select
Automatic Input Switching
When using a Blu-ray Disc player, DVD player/recorder or Home theater system, the TV will automatically change to
the appropriate input, when playback begins on one of those devices.
• For a Home theater system the speakers automatically switch to the theater system.
Power on link
Yes: The TV is turned on automatically and switches to the appropriate HDMI input whenever VIERA Link compatible
equipment is initially turned on and the Play mode is selected.
Power off link
When “Yes” is selected and the TV is turned off, all connected VIERA Link compatible equipment is also automatically
turned off.
• A Panasonic DVD Recorder will not turn off if it is still in Rec mode.
• The TV remains on even if the VIERA Link compatible equipment is turned off.
Energy saving mode
Quick Start: When TV is turned off, all connected VIERA Link compatible equipment is moved to ECO Standby mode*
automatically under these conditions.
• Power off link:(Yes), The connected equipment has “HDAVI Control 4 or later (with Quick Start mode)”
* Minimum power consumption of Standby condition for the equipment.
Unselected device energy save
Yes: The connected VIERA Link compatible equipment will be turned off automatically when not in use under these
conditions.
• The connected equipment has “HDAVI Control 2 or later” (for available equipment only)
[ Example of timing for operation ]
• When the input is switched from the HDMI.
Default speakers
“TV” is the default setting. To set the Home theater system as Default speakers, change the Default speakers setting
from “TV” to “Theater”. Sound will be output from the Home theater whenever the TV is powered on.
Automatic lip-sync function
Minimizes lip-sync delays between the picture and audio when you connect to a Panasonic theater system or
Amplifier.
TV provided setting information
The following information about the TV settings can be transmitted to each piece of equipment (Recorder/Home
theater/Player) that has “HDAVI Control 3 or later” function connected to a TV with an HDMI cable.
Transmittable data Recorder Home theater Player
On Screen Display Language setting
(English/Español/Français)
Panel Aspect Ratio
(16:9 fixed)
Closed caption information
(Mode/CC type/Digital setting)
Channel information
(Input signal/Channel list/Caption information)
żżż
żżż
ż
ż
--- ---
--- ---
VIERA Link
TM
“HDAVI Control
TM
”
Advanced
Note
There is a possibility that all the GUI language information might be set from equipment that has an HDMI CEC
Ɣ
function connected to the TV with an HDMI cable. Depending on the operating conditions or the specification for
each piece of equipment the setting may or may not be applied.
For more details on the external equipment’s operation, please refer to the operating manual for the equipment.
Ɣ
25
VIERA Link menu and Available features
Some features are disabled depending on the “HDAVI Control” version of the equipment.
Please check the list (p. 22)
Display the VIERA Link menu
or
VIERA Link
Select the item
select
VIERA Link control
Recorder
Speaker output
TV
Back to TV
Items in the VIERA Link menu may be grayed out
if no compatible equipment is connected (must be
HDAVI Control 2 or later) or if the equipment has
not initiated a connection with the TV. In that case,
switch the equipment’s power Off and On while the
TV is On.
For further details, see “VIERA Link” on page 24.
select
next
26
Press to exit from
a menu screen
Press to go back
to the previous
screen
Select
VIERA Link control
Home theater
Speaker output
Back to TV
Set
change
TV

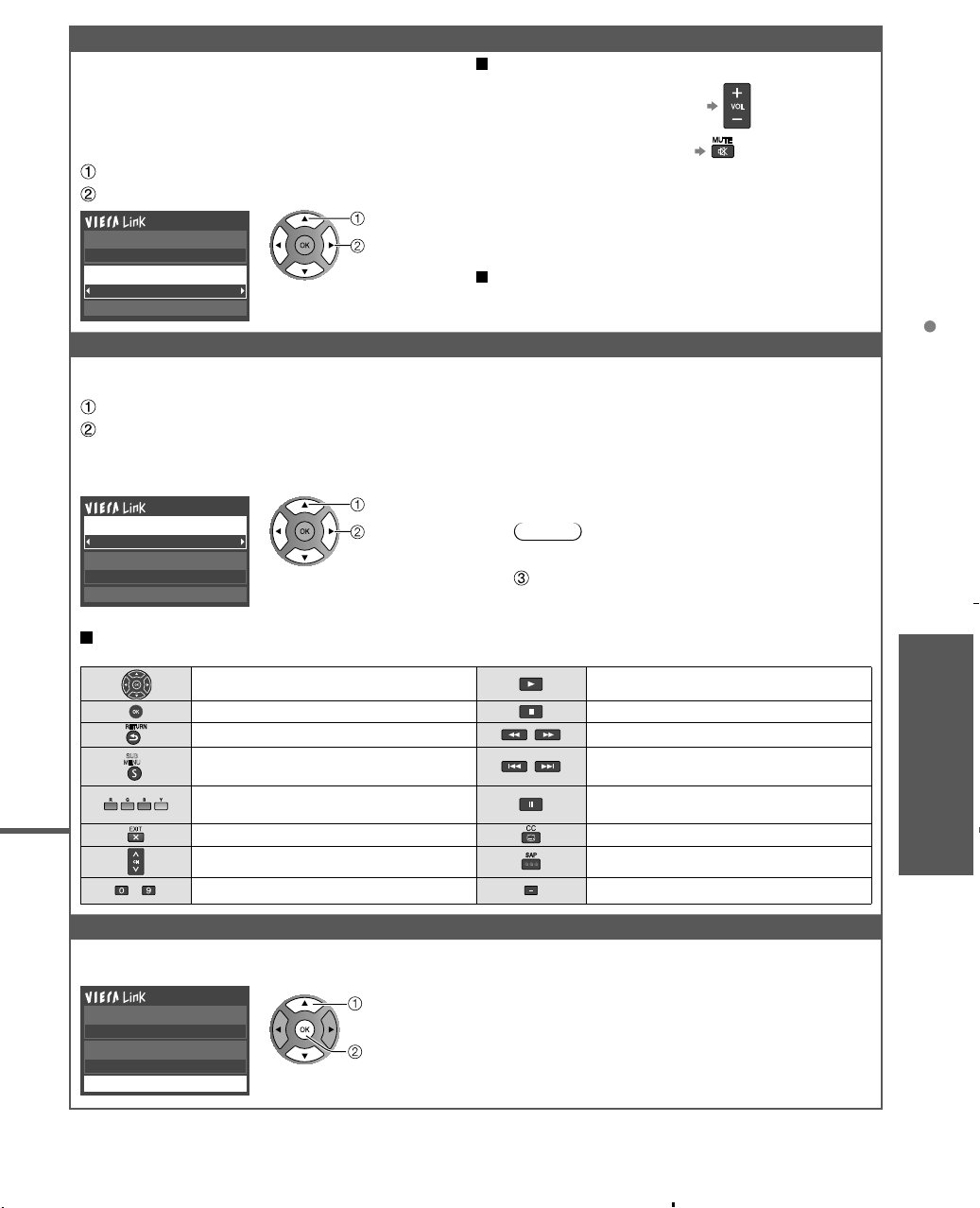

Speaker control
You can select the Home theater or TV speakers for audio
output.
Control the theater speakers with the TV remote control.
This function is available only when a Panasonic Amplifier
or Player theater is connected.
Select “Speaker output”
Select “Home theater” or “TV”
VIERA Link control
Recorder
Speaker output
TV
Back to TV
select
change
ŶHome theater: Adjustment for the equipment
Volume up / down
Mute
The sound of the TV is muted.
•
When the equipment is turned off, the TV speakers
•
take over.
Selecting “Home theater” turns the equipment on
•
automatically if it is in Standby mode.
ŶTV: The TV speakers are on.
VIERA Link control only with the TV’s remote control
In the VIERA Link menu, you can select HDMI connected equipment and access it quickly. Continue using your TV
remote control to operate the equipment, pointing it at the TV.
Select “VIERA Link control”
Select the equipment you want to access
(Recorder/Home theater/Player/Camcorder/LUMIX/
Digital camera)
Using VIERA TOOLS (p. 18)
Ɣ
VIERA Link control
Recorder
Speaker output
TV
Back to TV
You can select available items
only.
select
change
If there is more than one equipment item, a number
Ɣ
after the name indicates the number of items. (e.g.
Recorder 1/Recorder 2/Recorder 3...)
The number of equipment items that can be connected
Ɣ
is three for recorders, and a total of three for Home
theater/Player/Camcorder/LUMIX/Digital camera.
Note
There is a limit to the number of HDMI connectors.
Ɣ
Operate the equipment with the TV remote
control, pointing it at the TV
To operate the equipment, read the manual of the
Ɣ
equipment.
ŶAvailable TV remote control buttons
Whether an operation is available differs depending on the connected equipment.
Move the cursor/Select Play
Set/Access Stop
SUB
MENU
-
Return to previous menu Reverse/Forward
Display the functions
menu on the equipment
Available when the purpose of the keys
is displayed on screen
Exit Closed caption
Channel Up/Down SAP (Select Audio Mode)
0-9 Select digital subchannel
Skip Reverse/Forward
Pause
VIERA Link
TM
“HDAVI Control
TM
”
Advanced
Back to TV
Returns the input selection of the device selected with the VIERA Link Control to the TV input.
Select “Back to TV”
VIERA Link control
Recorder
Speaker output
TV
Back to TV
select
OK
27
Editing and Setting Channels
Menu
Cable
ANT/Cable setup
ANT in
Auto program
Manual program
Signal meter
Menu
Auto program
All channels
Analog only
Digital only
The current channel settings can be changed according to your needs and reception conditions.
ANT/Cable setup and operation
Display the menu
Select “Setup”
Menu
Setup 1/2
Channel surf mode
Language
Clock
ANT/Cable setup
Input labels
All
Select “ANT/Cable setup”
Menu
Setup 1/2
Channel surf mode
Language
Clock
ANT/Cable setup
Input labels
All
next
select
next
select
28
Press to exit from
a menu screen
Auto program (Set automatically)
Automatically searches and adds available channels to the memory.
Select “ANT in”
Select “Cable” or “Antenna”
Or select “Not used” (p. 13).
Select “Auto program”
next
select
Select a scanning mode (p. 13)
After the scanning is completed, select “Apply”.
Ɣ
(see p. 29 ).
All previously saved channels are erased.
Ɣ
OK
select
Loading...
