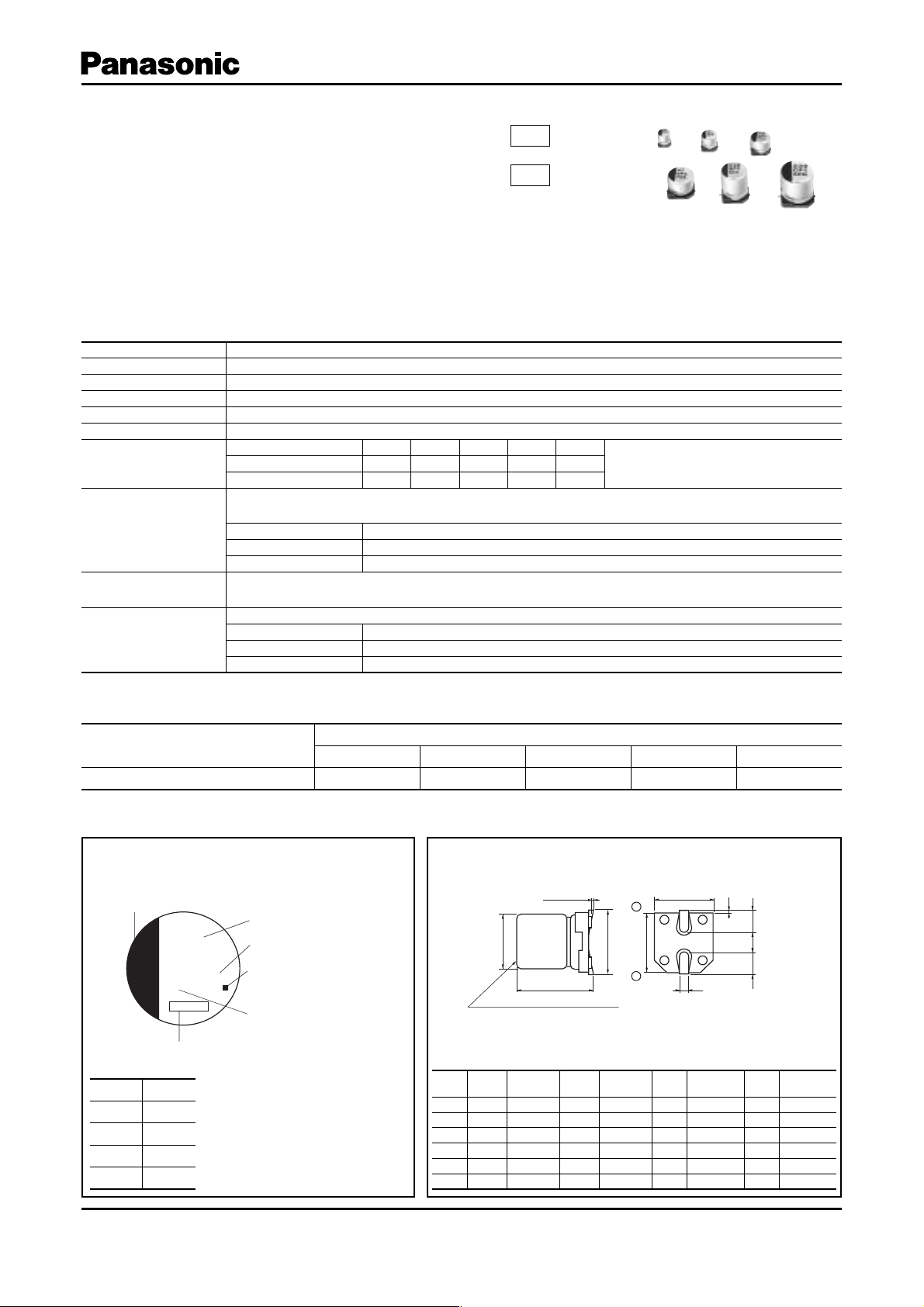

panasonic [smd] FC Series Datasheet

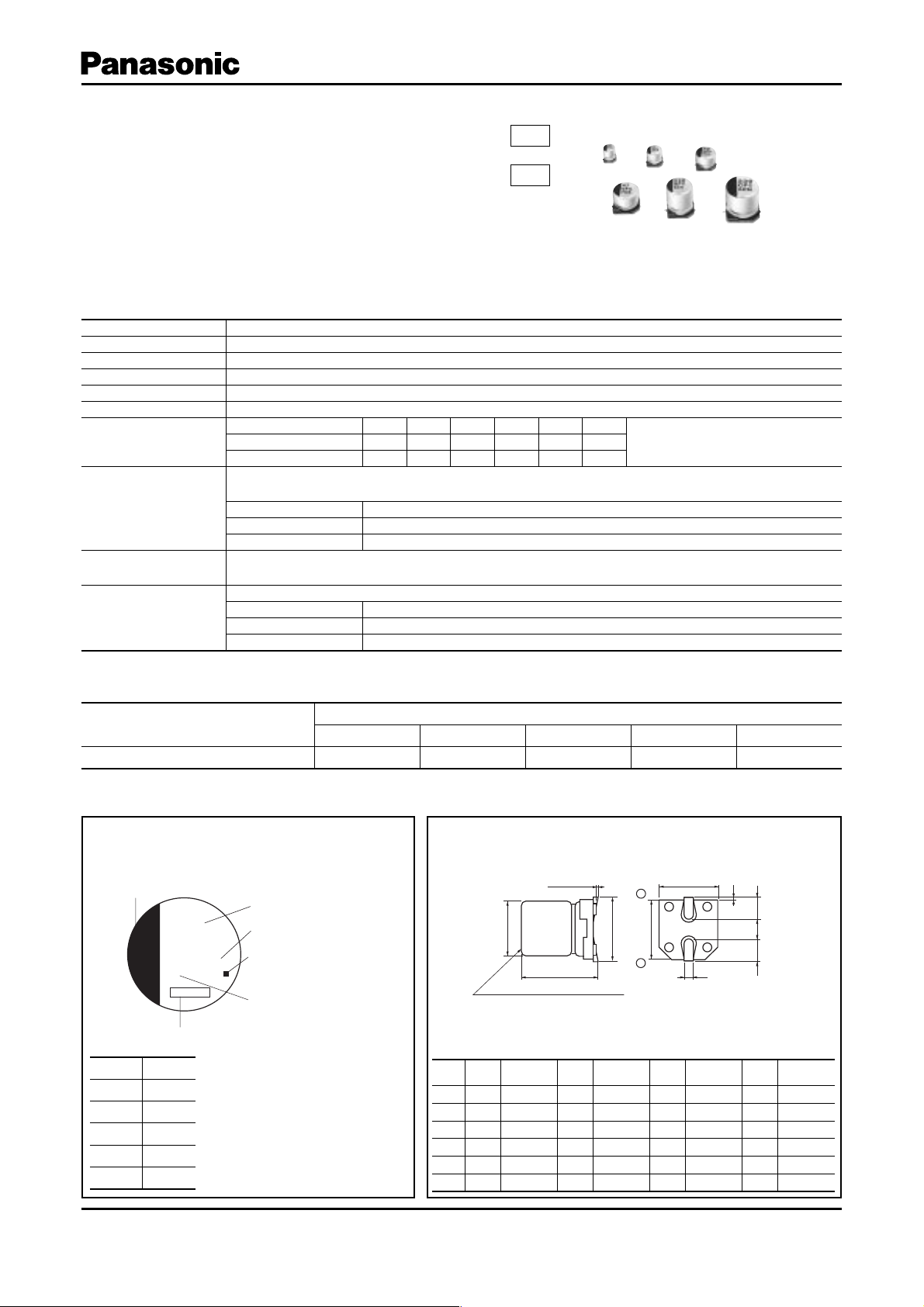

Aluminum Electrolytic Capacitors/ FC

A±0.2

WL

()Reference size

φD±0.5

H

B±0.2

(I)

K

(P)

(I)

+

–

0.3 max.

Pressure Relief (φ10 and larger)

Surface Mount Type

Series:

Typ e:

FC

High temperature Lead-Free refl ow(suffi x:A✽)

FC

V

Low impedance

FC

앖

HA

■ Features

Endurance : 105 °C 1000 h

●
Low impedance (1/2 for HA series)

●
Vibration-proof product is available upon request. (φ8 mm and larger)

●
RoHS directive compliant

●

■ Specifi cations

Category Temp. Range –40 °C to +10 5 °C
Rated W.V. Range 6.3 V.DC to 35 V.DC
Nominal Cap. Range 1 µF to 1500 µF
Capacitance Tolerance ±20 % (120 Hz/+20 °C)
DC Leakage Cur rent I < 0.01 CV or 3 (µA) After 2 minutes (Whichever is greater)
tan

δ

Characteristics
at Low Temperature

Endurance

Shelf Life

Resistance to
Soldering Heat

W.V. (V) 6.3 10 16 25 35

Z(–40 °C) / Z(+20 °C) 33333

After applying rated working voltage for 1000 hours at +105 °C±2 °C and then being stabilized
at +20 °C, Capacitors shall meet the following limits.

Capacitance change ±20 % of initial measured value
tan

δ

DC leakage current

After storage for 1000 hours at +105 °C±2 °C with no voltage applied and then being stabilized
at +20 °C, capacitors shall meet the limits specifi ed in Endurance.(With voltage treatment)

After refl ow soldering and then being stabilized at +20 °C, capacitors shall meet the following limits.
Capacitance change ±10 % of initial measured value
tan

δ

DC leakage current

Please see the attached High temperature lead- free refl ow products list.

(Impedance ratio at 120 Hz)Z(–25 °C) / Z(+20 °C) 22222

200 % of initial specifi ed value

<

initial specifi ed value

<

initial specifi ed value

<

initial specifi ed value

<

■ Frequency correction factor for ripple current

Correction factor 0.70 0.75 0.90 0.95 1.00

Example:6.3 V 22 µF

Marking color : BLACK

Negative polarity
marking (–)

Rated Voltage Mark

j6.3 V

A10 V

C16 V

E25 V

V35 V

Design and specifi cations are each subject to change without notice. Ask factory for the current technical specifi cations before purchase and/or use.
Should a safety concern arise regarding this product, please be sure to contact us immediately.

22

jFC

Lot number

Capacitance (µF)

Series identification

Mark for Lead-Free
Products Black Dot
(Square)

Rated Voltage Mark

Frequency (Hz)

50, 60 120 1 k 10 k 100 k to

■ Dimensions in mm (not to scale) ■ Marking

Size

DLA, B H I W P K

code

B 4.0 5.4
C 5.0 5.4
D 6.3 5.4
E 8.0 6.2±0.3 8.3 9.5 max. 3.4 0.65±0.1 2.2 0.35
F 8.0 10.2±0.3 8.3 10.0 max. 3.4 0.90±0.2 3.1 0.70±0.2

G 10.0 10.2±0.3 10.3 12.0 max. 3.5 0.90±0.2 4.6 0.70±0.2

– EE55 –

+0.1

4.3 5.5 max. 1.8 0.65±0.1 1.0 0.35

-0.2

+0.1

5.3 6.5 max. 2.2 0.65±0.1 1.5 0.35

-0.2

+0.1

6.6 7.8 max. 2.6 0.65±0.1 1.8 0.35

-0.2

Sep. 201103

(mm)

+0.15

-0.20

+0.15

-0.20

+0.15

-0.20

+0.15

-0.20

Aluminum Electrolytic Capacitors/ FC

■ High temperature Lead-Free refl ow Products

Case size Specifi cation

W.V.

Cap.

(±20 %)

Dia. Length

Size

Code

(V) (µF) (mm) (mm)

22 4 5.4 B 60 0.26 3.00
47 5 5.4 C 95 0.26 1.80
68 6.3 5.4 D 140 0.26 1.00

6.3

100 6.3 5.4 D 140 0.26 1.00
220 8 6.2 E 230 0.26 0.40

330 8 10.2 F 450 0.26 0.30
100 0 10 10.2 G 670 0.26 0.15
1500 10 10.2 G 670 0.26 0.15

33 5 5.4 C 95 0.19 1.80

100 8 6.2 E 230 0.19 0.40

10

150 8 6.2 E 230 0.19 0.4 0

220 8 10.2 F 450 0.19 0.30

470 10 10.2 G 6700.19 0.15
100 0 10 10.2 G 670 0.19 0.15

10 4 5.4 B 60 0.16 3.00
22 5 5.4 C 95 0.16 1.80
47 6.3 5.4 D 140 0.16 1.00
68 8 6.2 E 230 0.16 0.40

16

100 8 6.2 E 230 0.16 0.40

220 10 10.2 G 6700.16 0.1 5

330 10 10.2 G 6700.16 0.15

470 10 10.2 G 6700.16 0.1 5

680 10 10.2 G 6700.16 0.15

6.8 4 5.4 B 60 0.14 3.00
22 6.3 5.4 D 140 0.14 1.00
33 6.3 5.4 D 140 0.14 1.00
47 8 6.2 E 230 0.14 0.40

25

68 8 10.2 F 450 0.14 0.30

100 8 10.2 F 450 0.14 0.30
220 10 10.2 G 6700.14 0.15
330 10 10.2 G 6700.14 0.1 5
470 10 10.2 G 6700.14 0.1 5

145.4B600.123.00

2.2 4 5.4 B 60 0.12 3.00

3.3 4 5.4 B 60 0.12 3.00

4.7 4 5.4 B 60 0.12 3.00

6.8 5 5.4 C 95 0.12 1.80

35

10 5 5.4 C 95 0.12 1.80
22 6.3 5.4 D 140 0.12 1.00
33 8 6.2 E 230 0.12 0.40
47 8 6.2 E 230 0.12 0.40

100 10 10.2 G 6700.12 0.1 5
220 10 10.2 G 6700.12 0.1 5
330 10 10.2 G 6700.12 0.1 5

The taping dimensions are explained on EE188 of our Catalog.
Please use it as a reference guide.
Refl ow Profi le (Fig-1 to Fig-11) listed on EE186 of our Catalog.

Ripple

Current
(10 0 kHz)
(+105°C )

(mA r.m.s.)

tan

δ

(120 Hz)
(+20 ° C)

Endurance : 105 °C 1000 h

Min.

Packaging Q'ty

Impedance

(10 0 kHz)

Part No.

(RoHS:compliant)

Refl ow

Tap ing

(+20 ° C)

(액)(pcs)

EEEFC0J220AR
EEEFC0J470AR
EEEFC0J680AP
EEEFC0J101AP
EEEFC0J221AP
EEEFC0J331AP
EEEFC0J102AP
EEEFC0J152AP
EEEFC1A330AR
EEEFC1A101AP
EEEFC1A151AP
EEEFC1A221AP
EEEFC1A471AP
EEEFC1A102AP
EEEFC1C100AR
EEEFC1C220AR
EEEFC1C470AP
EEEFC1C680AP
EEEFC1C101AP
EEEFC1C221AP
EEEFC1C331AP
EEEFC1C471AP
EEEFC1C681AP
EEEFC1E6R8AR
EEEFC1E220AP
EEEFC1E330AP
EEEFC1E470AP
EEEFC1E680AP
EEEFC1E101AP
EEEFC1E221AP
EEEFC1E331AP
EEEFC1E471AP
EEEFC1V1R0AR
EEEFC1V2R2AR
EEEFC1V3R3AR
EEEFC1V4R7AR
EEEFC1V6R8AR
EEEFC1V100AR
EEEFC1V220AP
EEEFC1V330AP
EEEFC1V470AP
EEEFC1V101AP
EEEFC1V221AP
EEEFC1V331AP

(5) 2000
(5) 1000
(5) 1000
(5) 1000
(6) 1000
(6) 500
(6) 500
(6) 500
(5) 1000
(6) 1000
(6) 1000
(6) 500
(6) 500
(6) 500
(5) 2000
(5) 1000
(5) 1000
(6) 1000
(6) 1000
(6) 500
(6) 500
(6) 500
(6) 500
(5) 2000
(5) 1000
(5) 1000
(6) 1000
(6) 500
(6) 500
(6) 500
(6) 500
(6) 500
(5) 2000
(5) 2000
(5) 2000
(5) 2000
(5) 1000
(5) 1000
(5) 1000
(6) 1000
(6) 1000
(6) 500
(6) 500
(6) 500

Design and specifi cations are each subject to change without notice. Ask factory for the current technical specifi cations before purchase and/or use.
Should a safety concern arise regarding this product, please be sure to contact us immediately.

– EE56 –

Sep. 201000

Aluminum Electrolytic Capacitors/ FC

A±0.2

WL

()Reference size

φD±0.5

H

B±0.2

(I)

K

(P)

(I)

+

–

0.3 max.

Pressure Relief (φ10 and larger)

Surface Mount Type

Series:

FC

Typ e:

V

Low impedance

FC

앖

HA

■ Features

Endurance : 105 °C 1000 h

●
Low impedance (1/2 for HA series)

●
Vibration-proof product is available upon request. (φ8 mm and larger)

●
RoHS directive compliant

●

■ Specifi cations

Category Temp. Range –40 °C to +10 5 °C
Rated W.V. Range 6.3 V. DC to 5 0 V. DC
Nominal Cap. Range 1 µF to 1500 µF
Capacitance Tolerance ±20 % (120 Hz/+20 °C)
DC Leakage Cur rent I < 0.01 CV or 3 (µA) After 2 minutes (Whichever is greater)
tan

δ

Characteristics
at Low Temperature

Endurance

Shelf Life

Resistance to
Soldering Heat

W.V. (V) 6.3 10 16 2 5 35 50

Z(–40 °C) / Z(+20 °C) 3 3 3 3 3 3

After applying rated working voltage for 1000 hours at +105 °C±2 °C and then being stabilized
at +20 °C, Capacitors shall meet the following limits.

Capacitance change ±20 % of initial measured value
tan

δ

DC leakage current

After storage for 1000 hours at +105 °C±2 °C with no voltage applied and then being stabilized
at +20 °C, capacitors shall meet the limits specifi ed in Endurance.(With voltage treatment)

After refl ow soldering and then being stabilized at +20 °C, capacitor shall meet the following limits.
Capacitance change ±10 % of initial measured value
tan

δ

DC leakage current

Please see the attached standard products list

200 % of initial specifi ed value

<

initial specifi ed value

<

initial specifi ed value

<

initial specifi ed value

<

(Impedance ratio at 120 Hz)Z(–25 °C) / Z(+20 °C) 2 2 2 2 2 2

■ Frequency correction factor for ripple current

Correction factor 0.70 0.75 0.90 0.95 1.00

Example:6.3 V 22 µF

Marking color : BLACK

Negative polarity
marking (–)

Rated Voltage Mark

j6.3 V

A10 V

C16 V

E25 V

V35 V

H50 V

Design and specifi cations are each subject to change without notice. Ask factory for the current technical specifi cations before purchase and/or use.
Should a safety concern arise regarding this product, please be sure to contact us immediately.

22

jFC

Lot number

Capacitance (µF)

Series identification

Mark for Lead-Free
Products Black Dot
(Square)

Rated Voltage Mark

Frequency (Hz)

50, 60 120 1 k 10 k 100 k to

■ Di men sions in mm (not to scale) ■ Marking

Size

DLA, B H I W P K

code

B 4.0 5.4

C 5.0 5.4

D 6.3 5.4

E 8.0 6.2±0.3 8.3 9.5 max. 3.4 0.65±0.1 2.2 0.35

F 8.0 10.2±0.3 8.3 10.0 max. 3.4 0.90±0.2 3.1 0.70±0.2

G 10.0 10.2±0.3 10.3 12.0 max. 3.5 0.90±0.2 4.6 0.70±0.2

– EE57 –

+ 0.1

4.3 5.5 max. 1.8 0.65±0.1 1.0 0.35

- 0.2

+ 0.1

5.3 6.5 max. 2.2 0.65±0.1 1.5 0.35

- 0.2

+ 0.1

6.6 7.8 max. 2.6 0.65±0.1 1.8 0.35

- 0.2

Sep. 201103

+ 0.15

- 0.20

+ 0.15

- 0.20

+ 0.15

- 0.20

+ 0.15

- 0.20

(mm)

Aluminum Electrolytic Capacitors/ FC

■ Standard Prod ucts

Case size Specifi cation

W.V.

Cap.

(±20 %)

Dia. Length

Size

Code

(V) (µF) (mm) (mm)

22 4 5.4 B 60 0.26 3.00
47 5 5.4 C 95 0.26 1.80
68 6.3 5.4 D 140 0.26 1.00

6.3

100 6.3 5.4 D 140 0.26 1.00
220 8 6.2 E 230 0.26 0.40

330 8 10.2 F 450 0.26 0.30
100 0 10 10.2 G 670 0.26 0.15
1500 10 10.2 G 670 0.26 0.15

33 5 5.4 C 95 0.19 1.80

100 8 6.2 E 230 0.19 0.40

10

150 8 6.2 E 230 0.19 0.4 0

220 8 10.2 F 450 0.19 0.30

470 10 10.2 G 6700.19 0.15
100 0 10 10.2 G 670 0.19 0.15

10 4 5.4 B 60 0.16 3.00
22 5 5.4 C 95 0.16 1.80
47 6.3 5.4 D 140 0.16 1.00
68 8 6.2 E 230 0.16 0.40

16

100 8 6.2 E 230 0.16 0.40

220 10 10.2 G 6700.16 0.1 5

330 10 10.2 G 6700.16 0.15

470 10 10.2 G 6700.16 0.1 5

680 10 10.2 G 6700.16 0.15

6.8 4 5.4 B 60 0.14 3.00
22 6.3 5.4 D 140 0.14 1.00
33 6.3 5.4 D 140 0.14 1.00
47 8 6.2 E 230 0.14 0.40

25

68 8 10.2 F 450 0.14 0.30

100 8 10.2 F 450 0.14 0.30
220 10 10.2 G 6700.14 0.15
330 10 10.2 G 6700.14 0.1 5
470 10 10.2 G 6700.14 0.1 5

145.4B600.123.00

2.2 4 5.4 B 60 0.12 3.00

3.3 4 5.4 B 60 0.12 3.00

4.7 4 5.4 B 60 0.12 3.00

6.8 5 5.4 C 95 0.12 1.80

35

10 5 5.4 C 95 0.12 1.80
22 6.3 5.4 D 140 0.12 1.00
33 8 6.2 E 230 0.12 0.40
47 8 6.2 E 230 0.12 0.40

100 10 10.2 G 6700.12 0.1 5
220 10 10.2 G 6700.12 0.1 5
330 10 10.2 G 6700.12 0.1 5

145.4B300.12 5.00

2.2 4 5.4 B 30 0.12 5.00

3.3 4 5.4 B 30 0.12 5.00

4.7 5 5.4 C 50 0.12 3.00

50

10 6.3 5.4 D 70 0.12 2.00
22 8 6.2 E 120 0.12 0.70
33 8 10.2 F 300 0.12 0.60
47 10 10.2 G 500 0.12 0.30

100 10 10.2 G 500 0.12 0.30
220 10 10.2 G 500 0.12 0.30

The taping dimensions are explained on EE188 of our Catalog.
Please use it as a reference guide.
Refl ow Profi le (Fig-1 to Fig-11) listed on EE186 of our Catalog.

Ripple

Current
(10 0 kHz)
(+105°C )

(mA r.m.s.)

tan

δ

(120 Hz)
(+20 ° C)

Endurance : 105 °C 1000 h

Min.

Packaging Q'ty

Impedance

(10 0 kHz)

Part No.

(RoHS:compliant)

Refl ow

Tap ing

(+20 ° C)

(액)(pcs)

EEEFC0J220R
EEEFC0J470R
EEEFC0J680P
EEEFC0J101P
EEEFC0J221P
EEEFC0J331P
EEEFC0J102P
EEEFC0J152P
EEEFC1A330R
EEEFC1A101P
EEEFC1A151P
EEEFC1A221P
EEEFC1A471P
EEEFC1A102P
EEEFC1C100R
EEEFC1C220R
EEEFC1C470P
EEEFC1C680P
EEEFC1C101P
EEEFC1C221P
EEEFC1C331P
EEEFC1C471P
EEEFC1C681P
EEEFC1E6R8R
EEEFC1E220P
EEEFC1E330P
EEEFC1E470P
EEEFC1E680P
EEEFC1E101P
EEEFC1E221P
EEEFC1E331P
EEEFC1E471P
EEEFC1V1R0R
EEEFC1V2R2R
EEEFC1V3R3R
EEEFC1V4R7R
EEEFC1V6R8R
EEEFC1V100R
EEEFC1V220P
EEEFC1V330P
EEEFC1V470P
EEEFC1V101P
EEEFC1V221P
EEEFC1V331P
EEEFC1H1R0R
EEEFC1H2R2R
EEEFC1H3R3R
EEEFC1H4R7R
EEEFC1H100P
EEEFC1H220P
EEEFC1H330P
EEEFC1H470P
EEEFC1H101P
EEEFC1H221P

(1) 2000
(1) 1000
(1) 1000
(1) 1000
(2) 1000
(2) 500
(2) 500
(2) 500
(1) 1000
(2) 1000
(2) 1000
(2) 500
(2) 500
(2) 500
(1) 2000
(1) 1000
(1) 1000
(2) 1000
(2) 1000
(2) 500
(2) 500
(2) 500
(2) 500
(1) 2000
(1) 1000
(1) 1000
(2) 1000
(2) 500
(2) 500
(2) 500
(2) 500
(2) 500
(1) 2000
(1) 2000
(1) 2000
(1) 2000
(1) 1000
(1) 1000
(1) 1000
(2) 1000
(2) 1000
(2) 500
(2) 500
(2) 500
(1) 2000
(1) 2000
(1) 2000
(1) 1000
(1) 1000
(2) 1000
(2) 500
(2) 500
(2) 500
(2) 500

Design and specifi cations are each subject to change without notice. Ask factory for the current technical specifi cations before purchase and/or use.
Should a safety concern arise regarding this product, please be sure to contact us immediately.

– EE58 –

Sep. 201000
