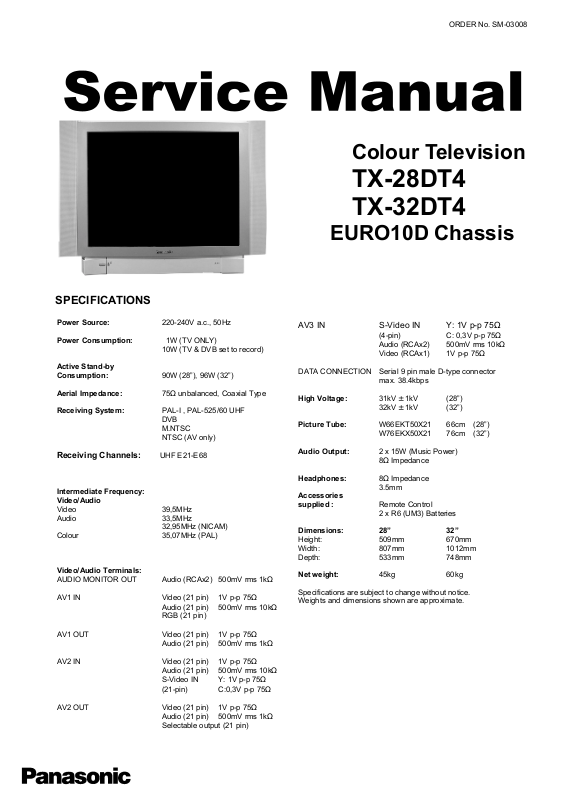

ORDER No. SM-03008

Colour Television

TX-28DT4

TX-32DT4

EURO10D Chassis

SPECIFICATIONS

Power Source: 220-240V a.c., 50Hz

Power Consumption: 1W (TV ONLY)

10W (TV & DVB set to record)

Active Stand-by
Consumption: 90W (28”), 96W (32”)

Aerial Impedance: 75Ω unbalanced, Coaxial Type

Receiving System: PAL-I , PAL-525/60 UHF

DVB
M.NTSC
NTSC (AV only)

Receiving Channels: UHF E21-E68

Intermediate Frequency:
Video/Audio

Video 39,5MHz
Audio 33,5MHz

32,95MHz (NICAM)

Colour 35,07MHz (PAL)

Video/Audio Terminals:

AUDIO MONITOR OUT Audio (RCAx2) 500mV rms 1kΩ
AV1 IN Video (21 pin) 1V p-p 75Ω

Audio (21 pin) 500mV rms 10kΩ

RGB (21 pin)

AV3 IN S-Video IN Y: 1V p-p 75Ω

(4-pin) C: 0,3V p-p 75Ω
Audio (RCAx2) 500mV rms 10kΩ
Video (RCAx1) 1V p-p 75Ω

DATA CONNECTION Serial 9 pin male D-type connector

max. 38.4kbps

High Voltage: 31kV ± 1kV (28”)

32kV ± 1kV (32”)

Picture Tube: W66EKT50X21 66cm (28”)

W76EKX50X21 76cm (32”)

Audio Output: 2 x 15W (Music Power)

8Ω Impedance

Headphones: 8Ω Impedance

3.5mm

Accessories
supplied : Remote Control

2 x R6 (UM3) Batteries

Dimensions: 28” 32”

Height: 509mm 670mm
Width: 807mm 1012mm
Depth: 533mm 748mm

Net weight: 45kg 60kg

Specifications are subject to change without notice.
Weights and dimensions shown are approximate.

AV1 OUT Video (21 pin) 1V p-p 75Ω

AV2 IN Video (21 pin) 1V p-p 75Ω

AV2 OUT Video (21 pin) 1V p-p 75Ω

Audio (21 pin) 500mV rms 1kΩ

Audio (21 pin) 500mV rms 10kΩ
S-Video IN Y: 1V p-p 75Ω
(21-pin) C:0,3V p-p 75Ω

Audio (21 pin) 500mV rms 1kΩ

Selectable output (21 pin)

CONTENTS

SAFETY PRECAUTIONS ......................................................................................................................................................... 2

SERVICE HINTS....................................................................................................................................................................... 3

ADJUSTMENT PROCEDURE AND FACTORY SETTINGS..................................................................................................... 4

WAVEFORM PATTERN TABLE............................................................................................................................................... 5

ALIGNMENT SETTINGS .......................................................................................................................................................... 6

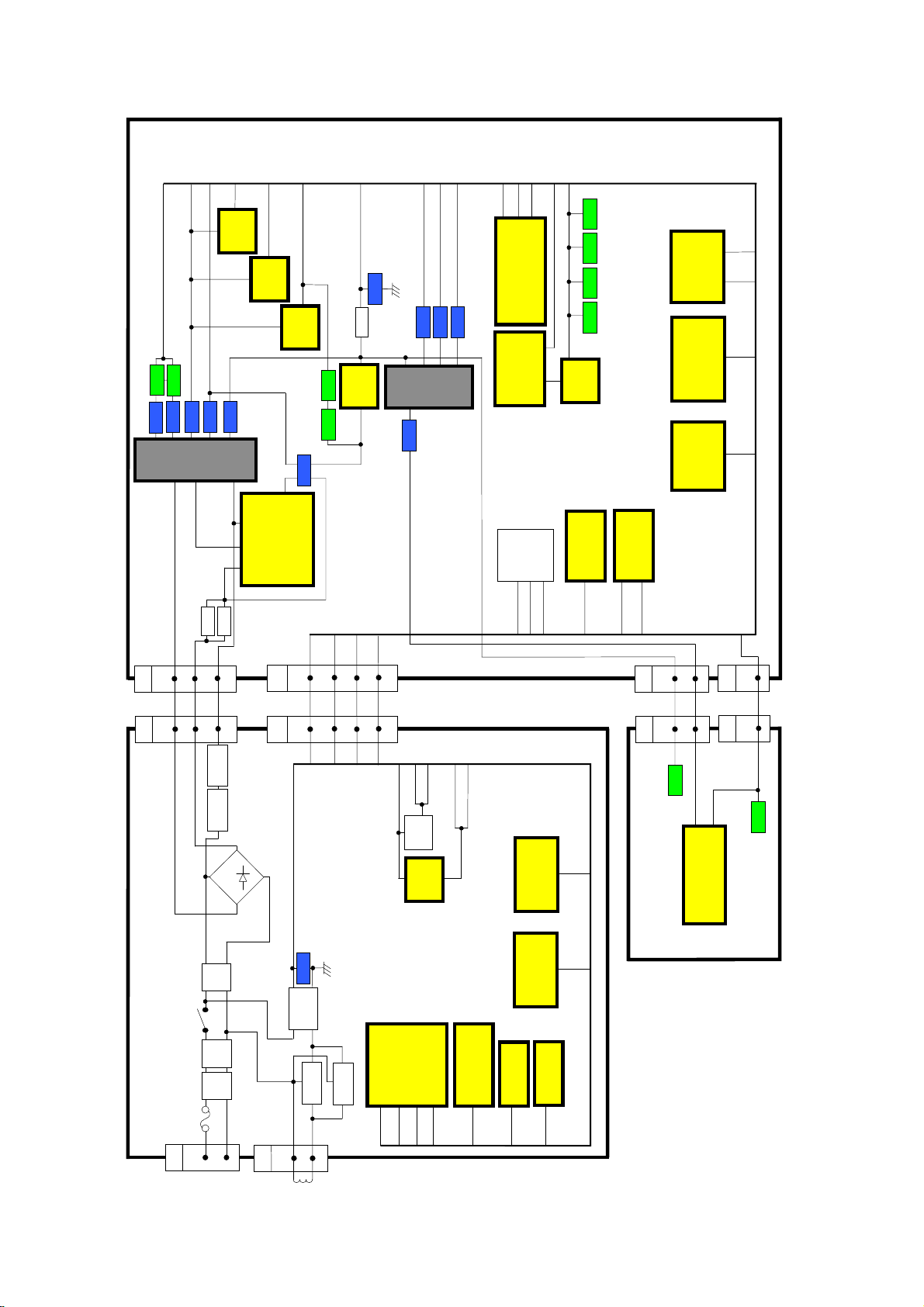

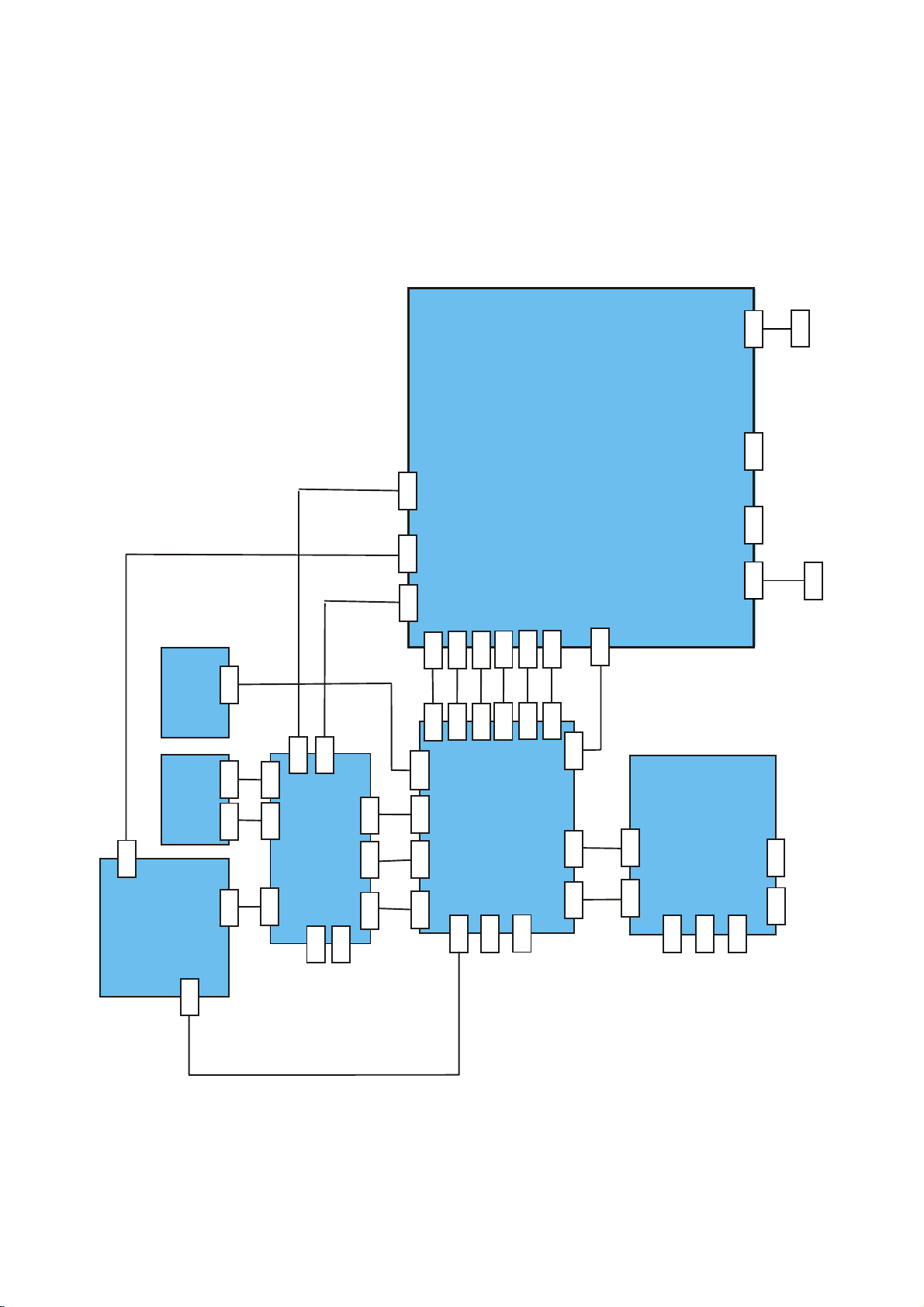

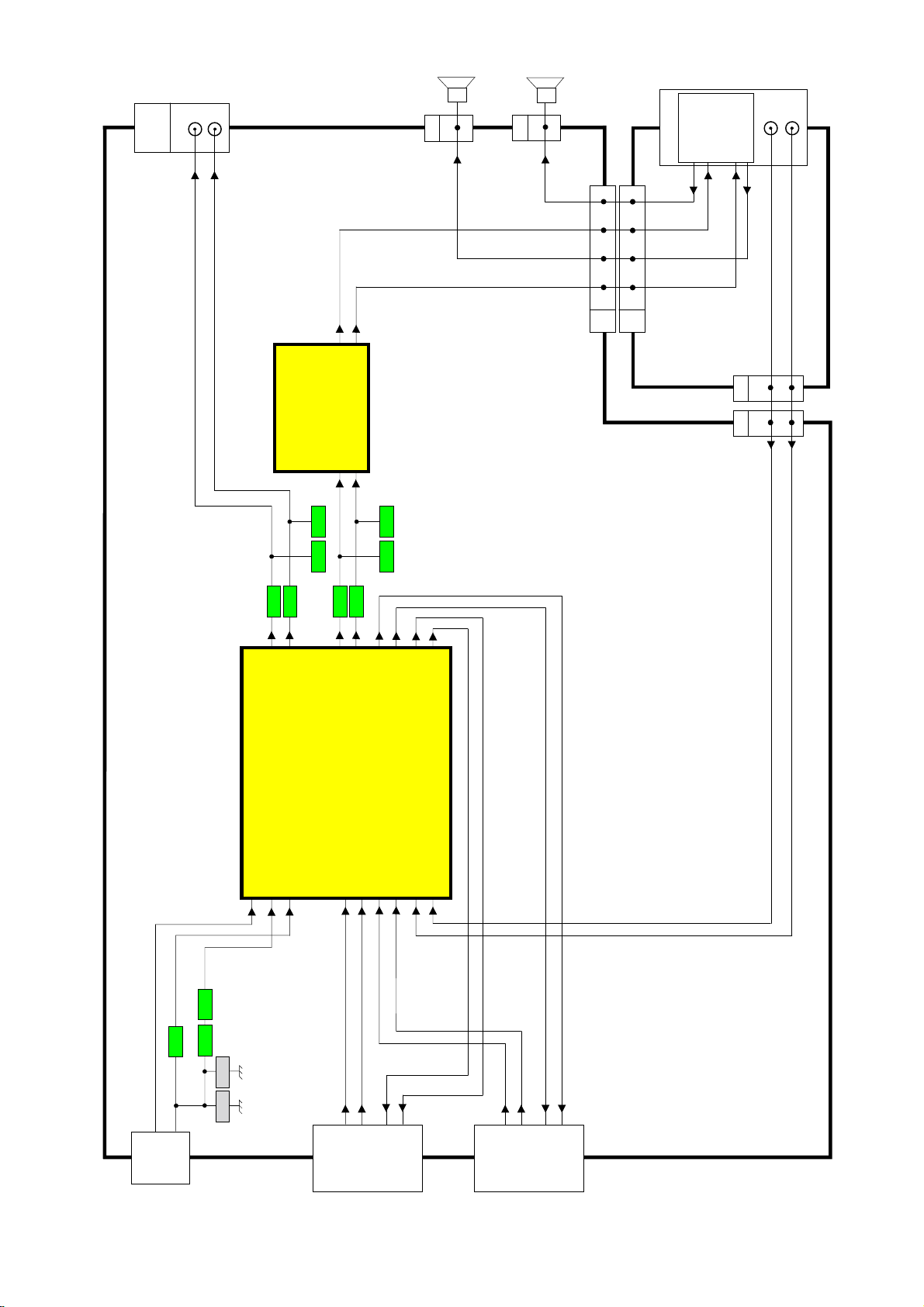

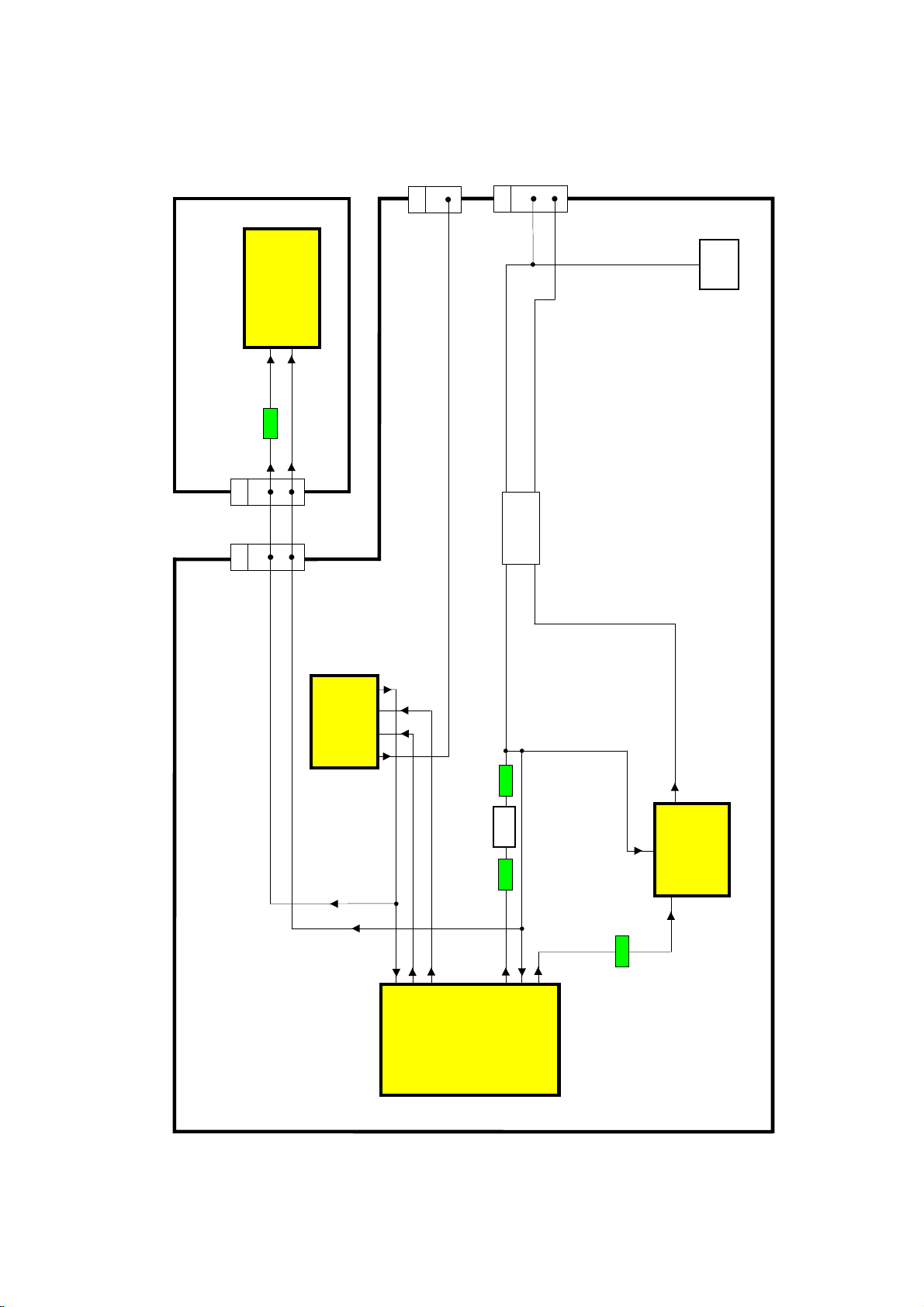

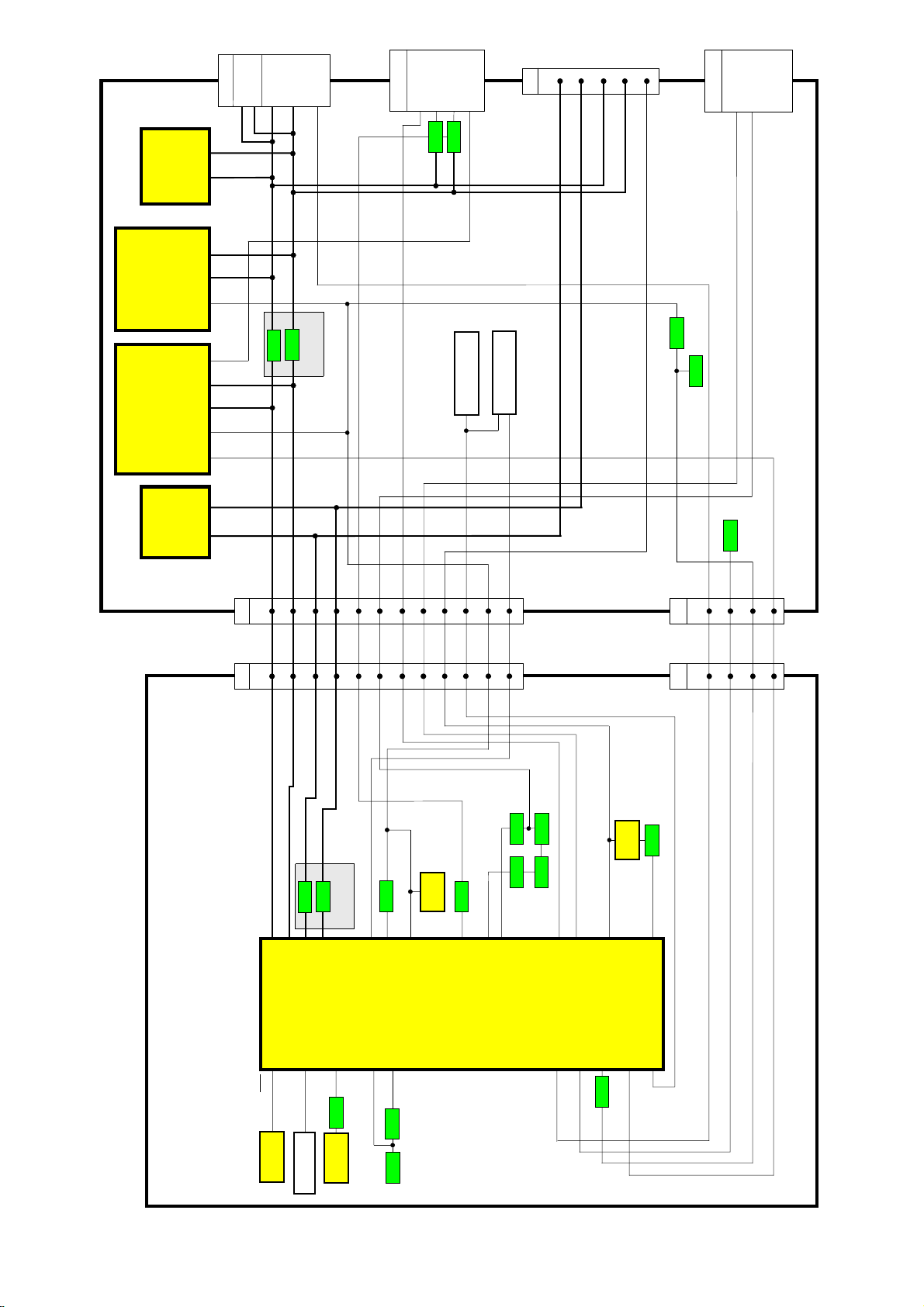

BLOCK DIAGRAMS.................................................................................................................................................................. 7

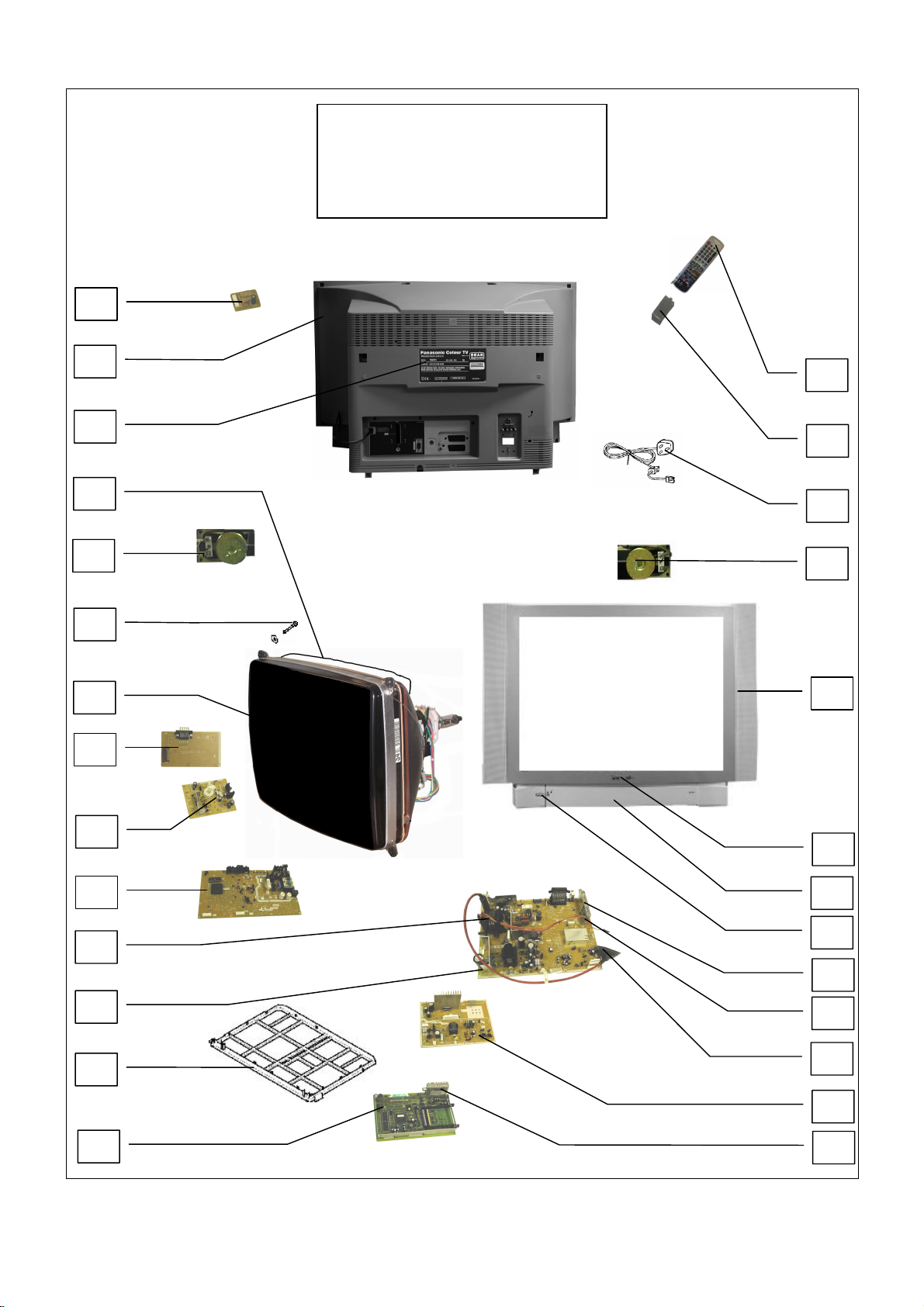

PARTS LOCATION................................................................................................................................................................. 13

REPLACEMENT PARTS LIST................................................................................................................................................ 14

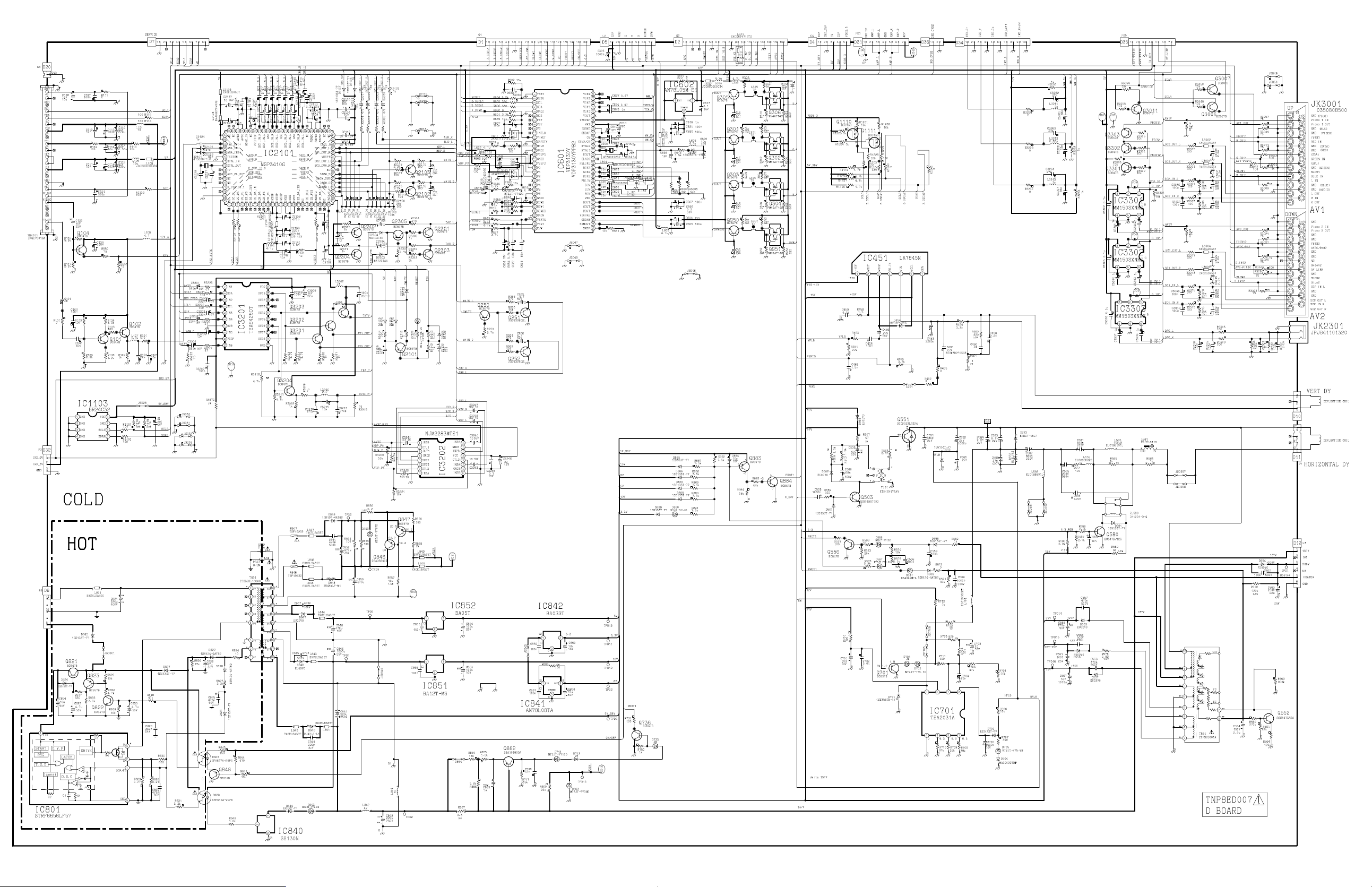

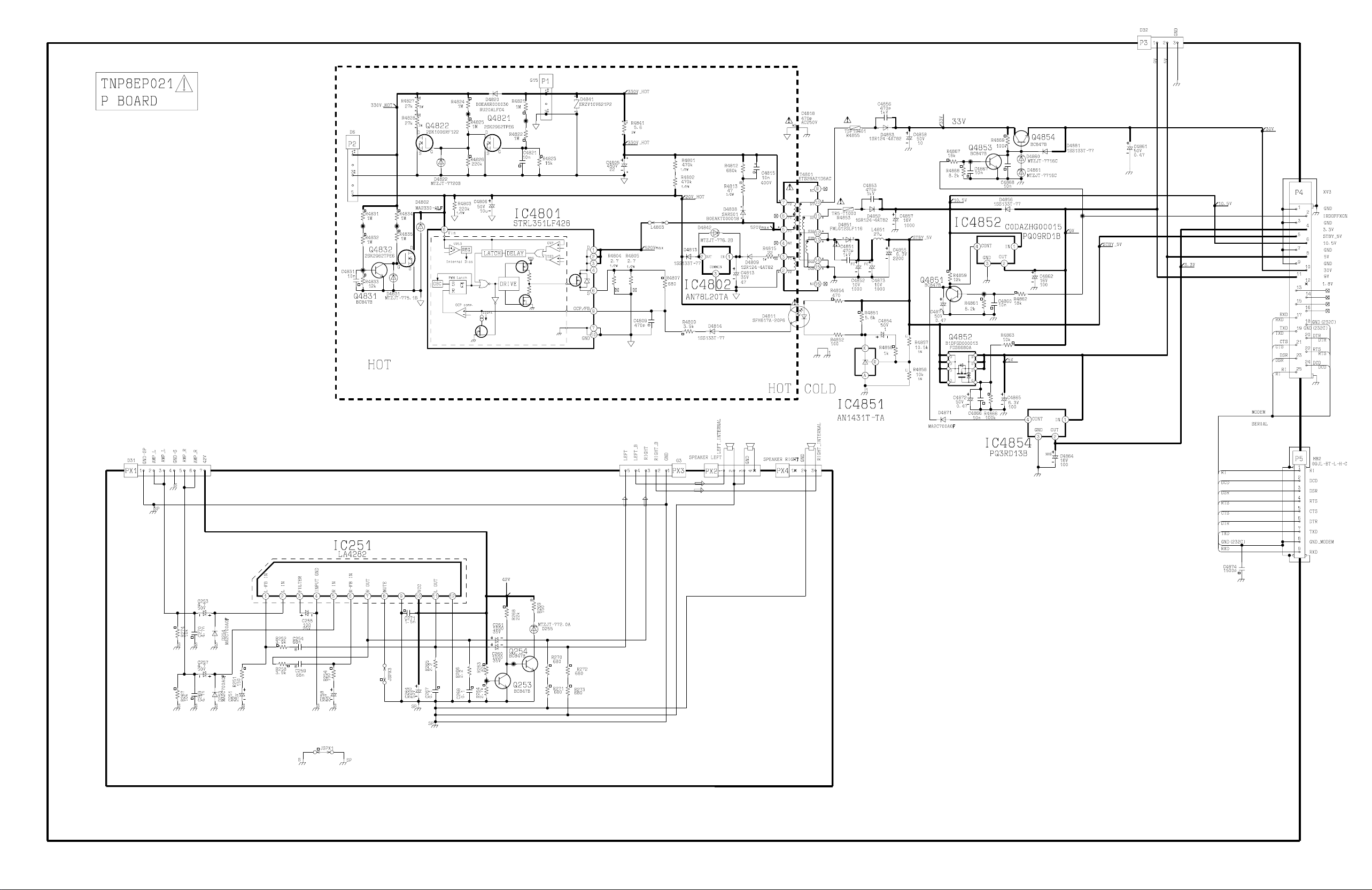

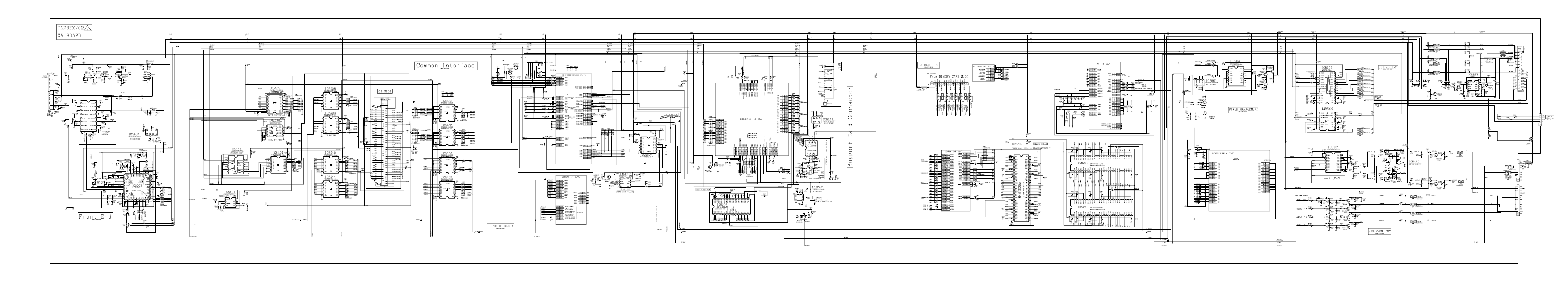

SCHEMATIC DIAGRAMS....................................................................................................................................................... 30

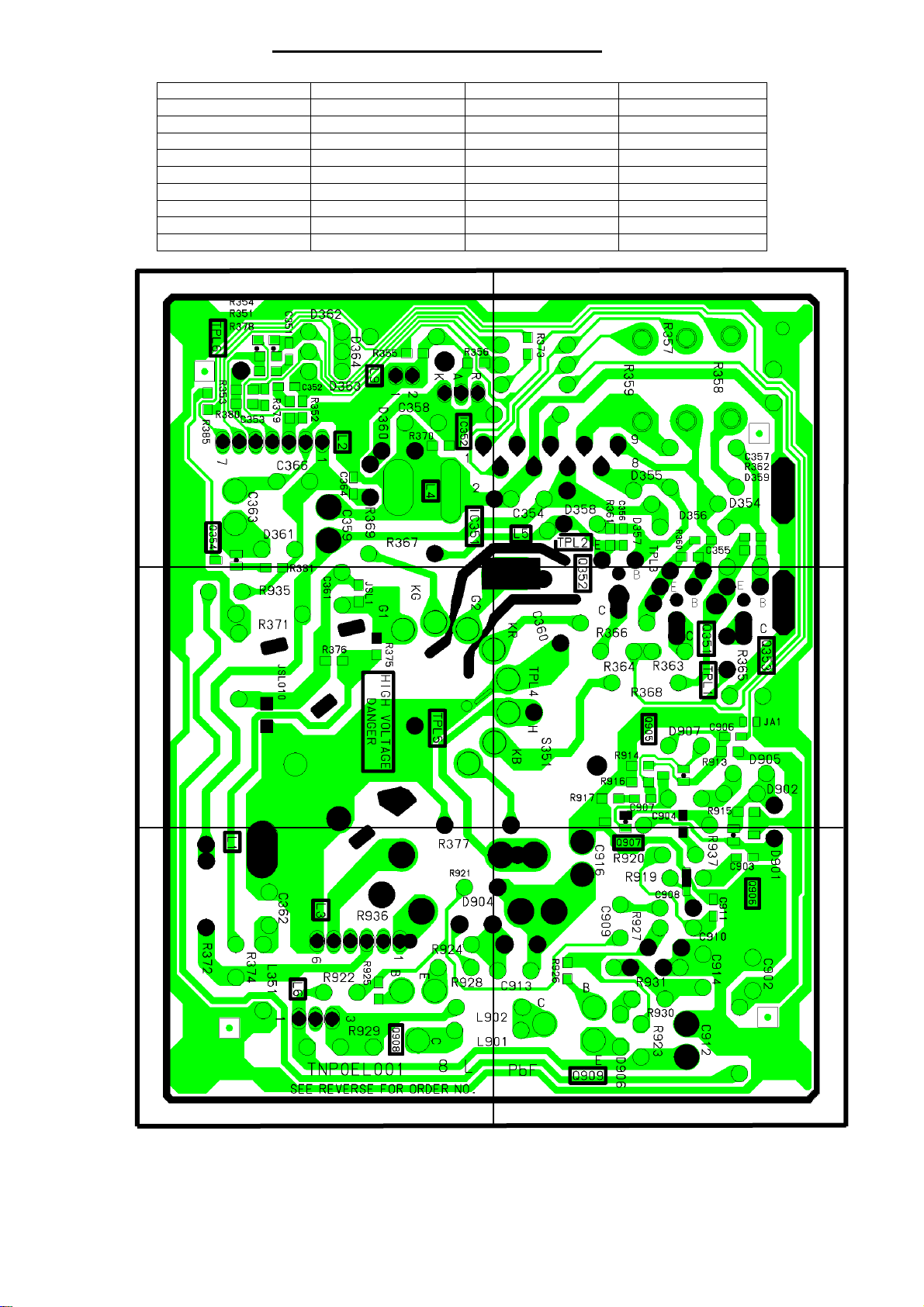

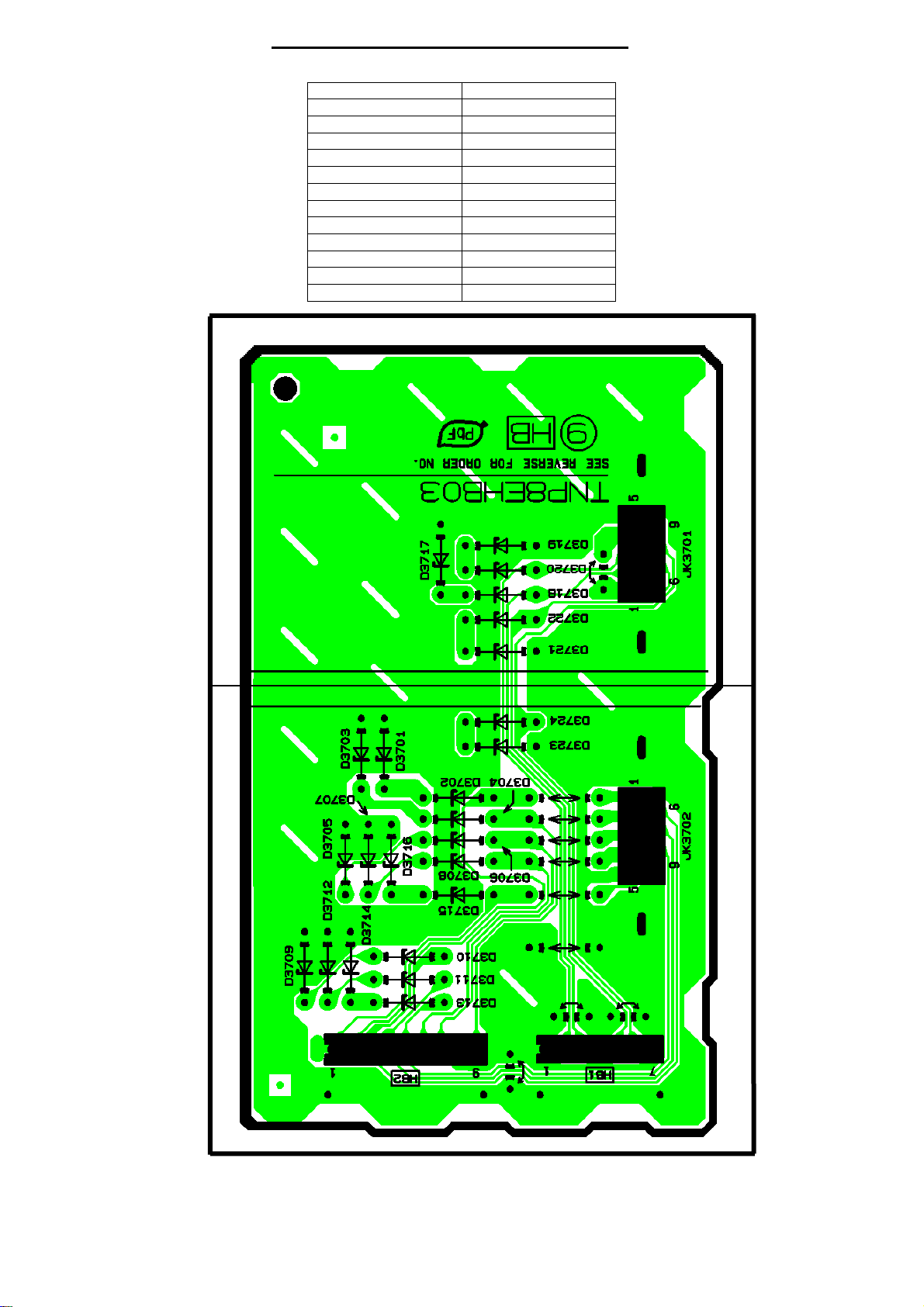

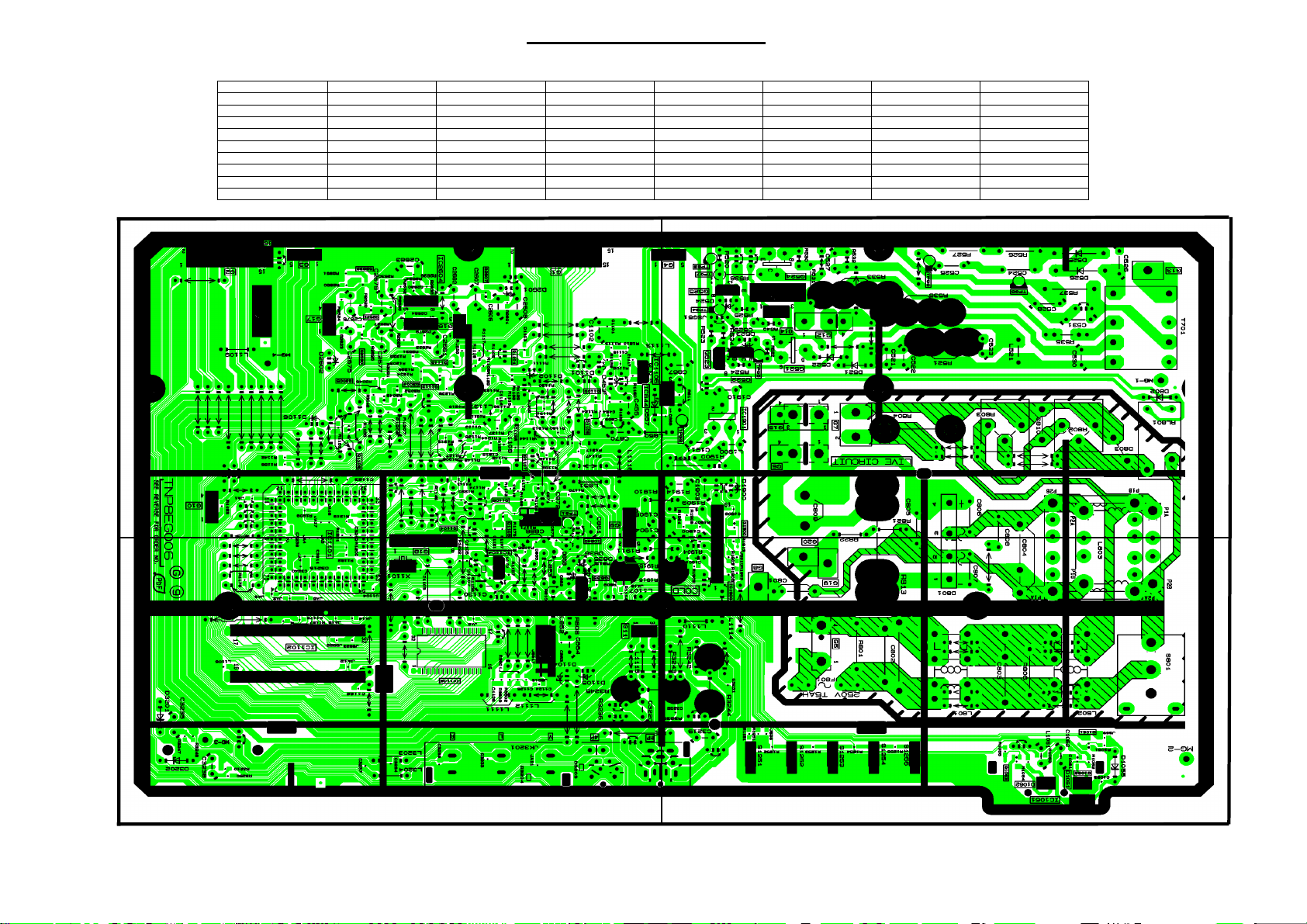

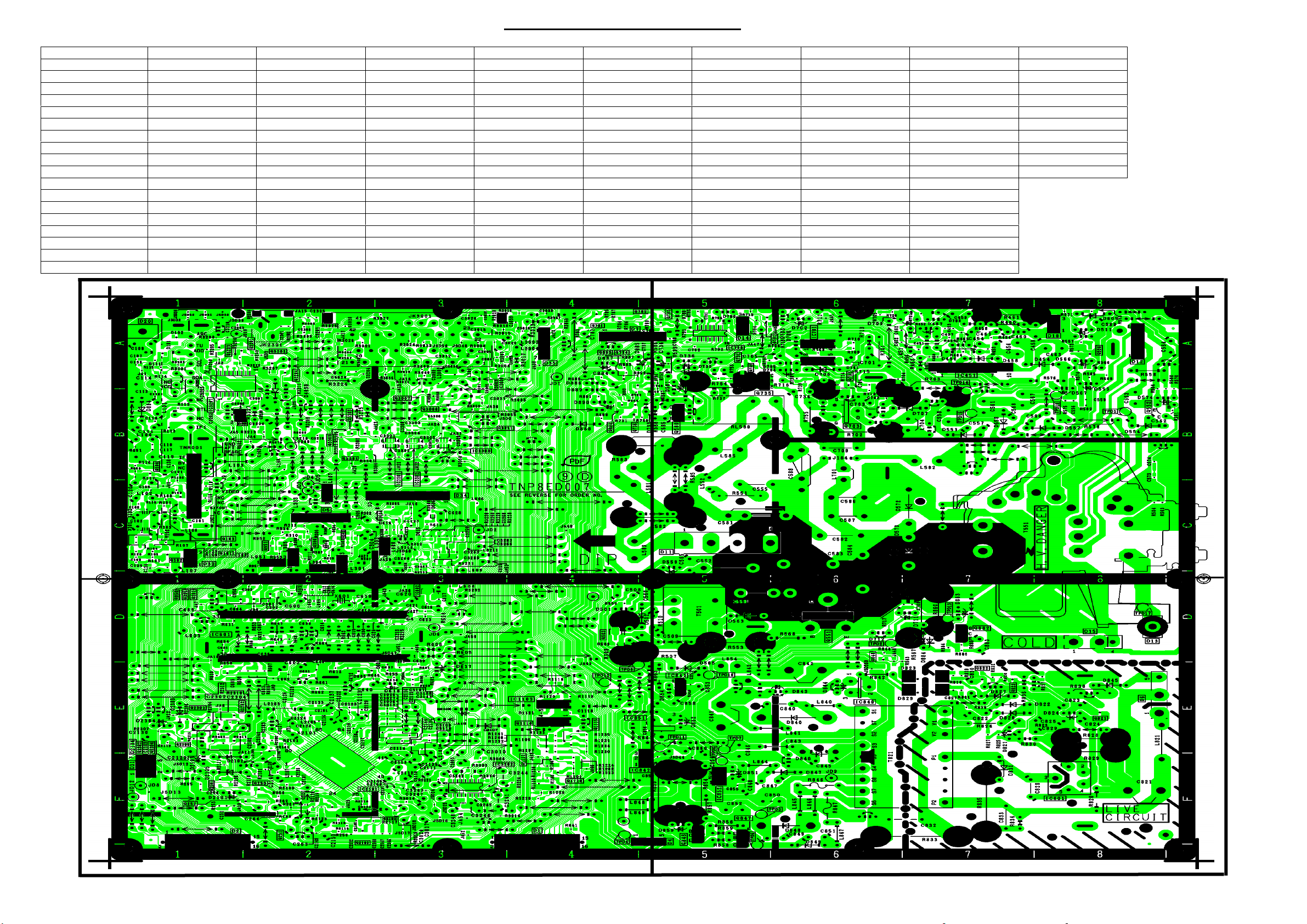

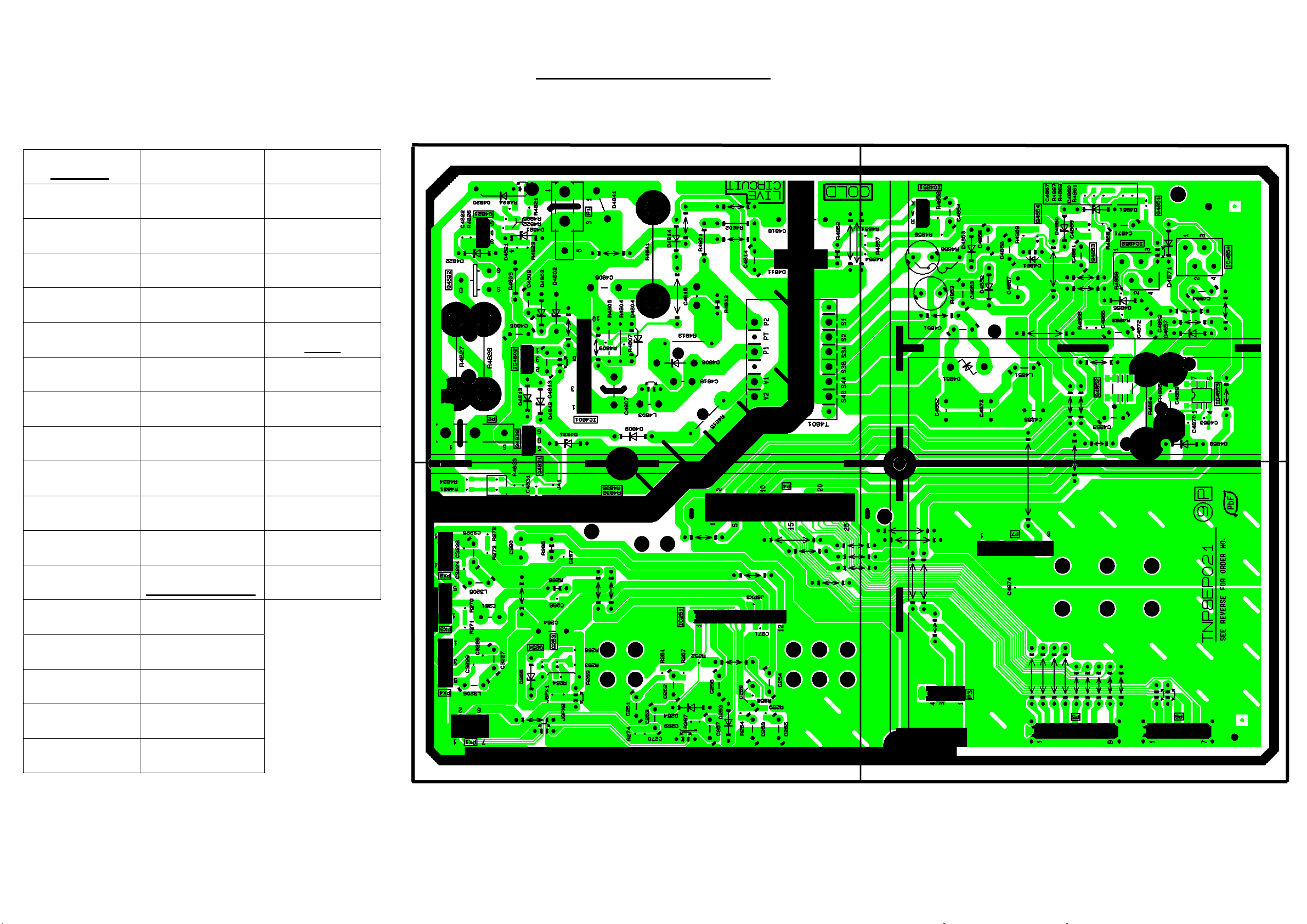

CONDUCTOR VIEWS ............................................................................................................................................................ 38

SAFETY PRECAUTIONS

GENERAL GUIDE LINES

1. It is advisable to insert an isolation transformer in the
a.c. supply before servicing a hot chassis.

2. When servicing, observe the original lead dress in the
high voltage circuits. If a short circuit is found, replace
all parts that have been overheated or damaged by
the short circuit.

3. After servicing, see that all the protective devices
such as insulation barriers, insulation papers, shields
and isolation R-C combinations are correctly
installed.

4. When the receiver is not being used for a long period
of time, unplug the power cord from the a.c. outlet.

5. Potentials as high as 33kV are present when this
receiver is in operation. Operation of the receiver
without the rear cover involves the danger of a shock
hazard from the receiver power supply. Servicing
should not be attempted by anyone who is not
familiar with the precautions necessary when working
on high voltage equipment. Always discharge the
anode of the tube.

6. After servicing make the following leakage current
checks to prevent the customer from being exposed
to shock hazard.

LEAKAGE CURRENT COLD CHECK

1. Unplug the a.c. cord and connect a jumper between
the two prongs of the plug.

2. Turn on the receiver’s power switch.

3. Measure the resistance value with an ohmmeter,
between the jumpered a.c. plug and each exposed
metallic cabinet part on the receiver, such as screw
heads, aerials, connectors, control shafts etc. When
the exposed metallic part has a return path to the
chassis, the reading should be between 4M ohm and
20M ohm. When the exposed metal does not have a
return path to the chassis, the reading must be
infinite.

LEAKAGE CURRENT HOT CHECK

1. Plug the a.c. cord directly into the a.c. outlet. Do not
use an isolation transformer for this check.

2. Connect a 2kΩ 10W resistor in series with an

exposed metallic part on the receiver and an earth,
such as a water pipe.

3. Use an a.c. voltmeter with high impedance to
measure the potential across the resistor.

4. Check each exposed metallic part and check the
voltage at each point.

5. Reverse the a.c. plug at the outlet and repeat each of
the above measurements.

6. The potential at any point should not exceed
1,4Vrms. In case a measurement is outside the limits
specified, there is a possibility of a shock hazard, and
the receiver should be repaired and rechecked before
it is returned to the customer.

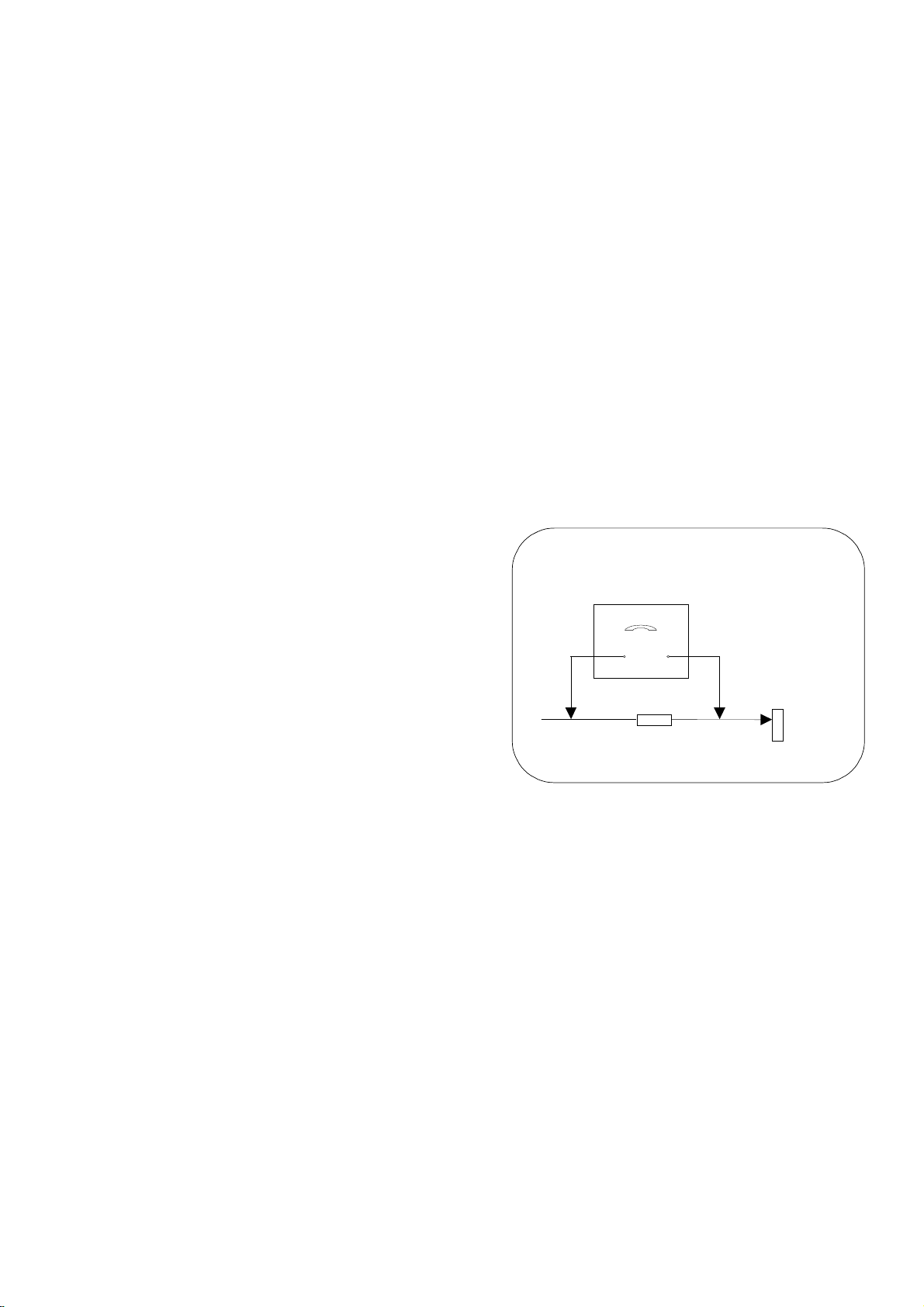

HOT CHECK CIRCUIT

a.c. VOLTMETER

ΩΩΩΩ

2k

10 Watts

TO INSTRUMENT'S EXPOSED
METALLIC PARTS

Fig. 1.

X-RADIATION WARNING

1. The potential sources of X-Radiation in TV sets are
the high voltage section and the picture tube.

2. When using a picture tube test jig for service, ensure
that the jig is capable of handling 33kV without
causing X-Radiation.

NOTE: It is important to use an accurate periodically
calibrated high voltage meter.

1. Set the brightness to minimum.

2. Measure the high voltage. The meter should indicate.
31kV ± 1kV (28”), 32kV ± 1kV (32”)
If the meter indication is out of tolerance, immediate
service and correction is required to prevent the
possibility of premature component failure.

3. To prevent any X-Radiation possibility, it is essential
to use the specified tube.

WATER PIPE

(

EARTH)

2

SERVICE HINTS

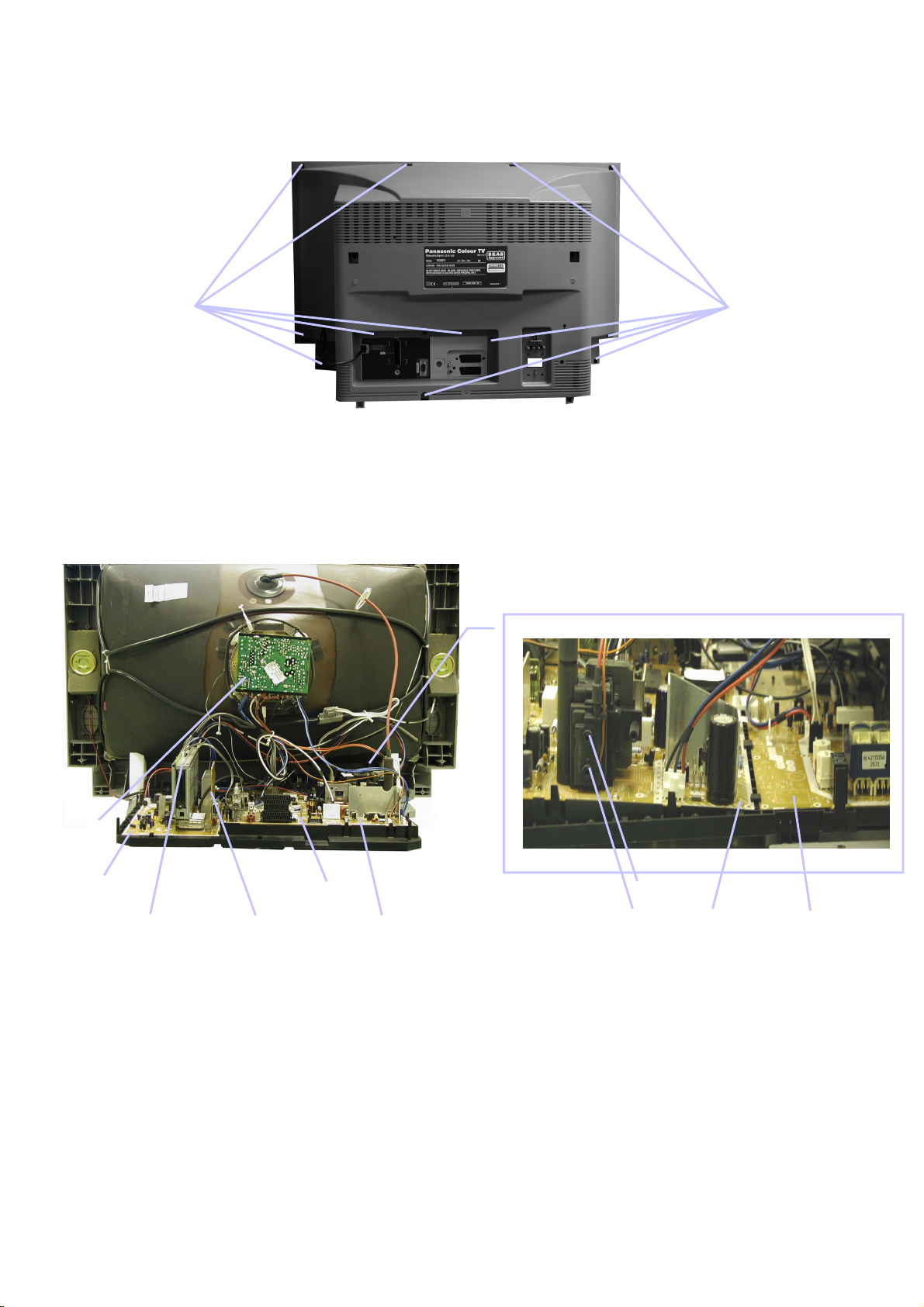

How to remove the rear cover

1. Remove the 12 screws as shown in Fig.2.

SCREWS SCREWS

LOCATION OF CONTROLS

Fig. 2.

L-Board

P-Board

XV-Board

HQ-Board

Focus

D-BoardHB-Board

Screen

D-Board G-Board

Fig. 3.

3

ADJUSTMENT PROCEDURE

V

Item / Preparation Adjustments
+B SET-UP

1. Receive a Greyscale signal.

2. Set the controls :

Brightness Minimum

Contrast Minimum

Volume Minimum

CUT OFF / Ug2 Test

1. Receive a Greyscale signal.

2. Degauss the tube externally.

3. Set the TV into Service Mode 1.

4. Select Cut off mode.

Confirm the following voltages.

TPD1 220 ± 10V TPD11 3,3 ± 0,2V
TPD2 137 ± 1,5V TPD12 5 ± 0,25V
TPD3 26,5 ± 1,5V TPD13 31 ± 1,5V
TPD4 5 ± 0,25V TPD14 26 ± 1V
TPD5 38 ± 1,5V TPD15 -13,5 ± 1V
TPD6 6,4 ± 0,5V TPD16 13,5 ± 1V
TPD7 13,6 ± 0,5V TPG1 2,5 ± 0,2V
TPD9 8 ± 0,5V TPG2 3,3 ± 0,2V
TPD10 12 ± 0,5V

To adjust Cutoff connect an oscilloscope to the Blue cathode. Adjust
“cutoff” value using the “Yellow” and “Blue” buttons until the black
level is 160V +5V/-0V press “TV/AV” to store the value.
Remove the oscilloscope.
Select Ug2 adjustment and adjust the screen VR until the display
shows “O.K.”

SELF CHECK

Self-check is used to automatically check the bus lines and hexadecimal code of the TV set.To enter Self-Check mode, press
the STATUS button on the remote control and at the same time press the down (-/v) button on the customer controls at
the front the TV set. To exit Self Check, switch off the TV set at the power button.

DP: O.K.
Avs: O.K.
TUN: O.K.
E2: O.K.
MSP: O.K.
IPC: O.K.
PCB: O.K.
CAB: O.K.
SUM: ####

TX-28DT4

TX-32DT4

OPTION 1 40 40
OPTION 2 E1 E1
OPTION 3 82 82
OPTION 4 60 60
OPTION 5 B1 B1
OPTION 6 E9 E9

If the CCU ports have been checked and found to be incorrect or not located then " - - " will appear in place of "O.K.".

Service Aids

To aid in the service of our current chassis there are a number of Service Aids which have been made available.

• LUCI interface kit (Linked Utility Computer Interface)

Part number: TZS6EZ002
This contains interface and cables for connecting TV service connector and a PC as well as diagnostic software. As new
models are introduced upgrade software will become available.

• VICI (Visual Interactive Computer Information)

These C.D.'s contain multimedia documentation providing quick access to service information.
Part No. TZS7EZ006, TZS7EZ005, TZS8EZ001 & TZS9EZ001

1. Service Manuals

2. Instruction Books

3. Technical Information

• TASMIN (Technically Advanced System for Multimedia Interactive Notes)

As well as providing a first step towards more interactive training this product also achieves quick access to Technical
Information.

4

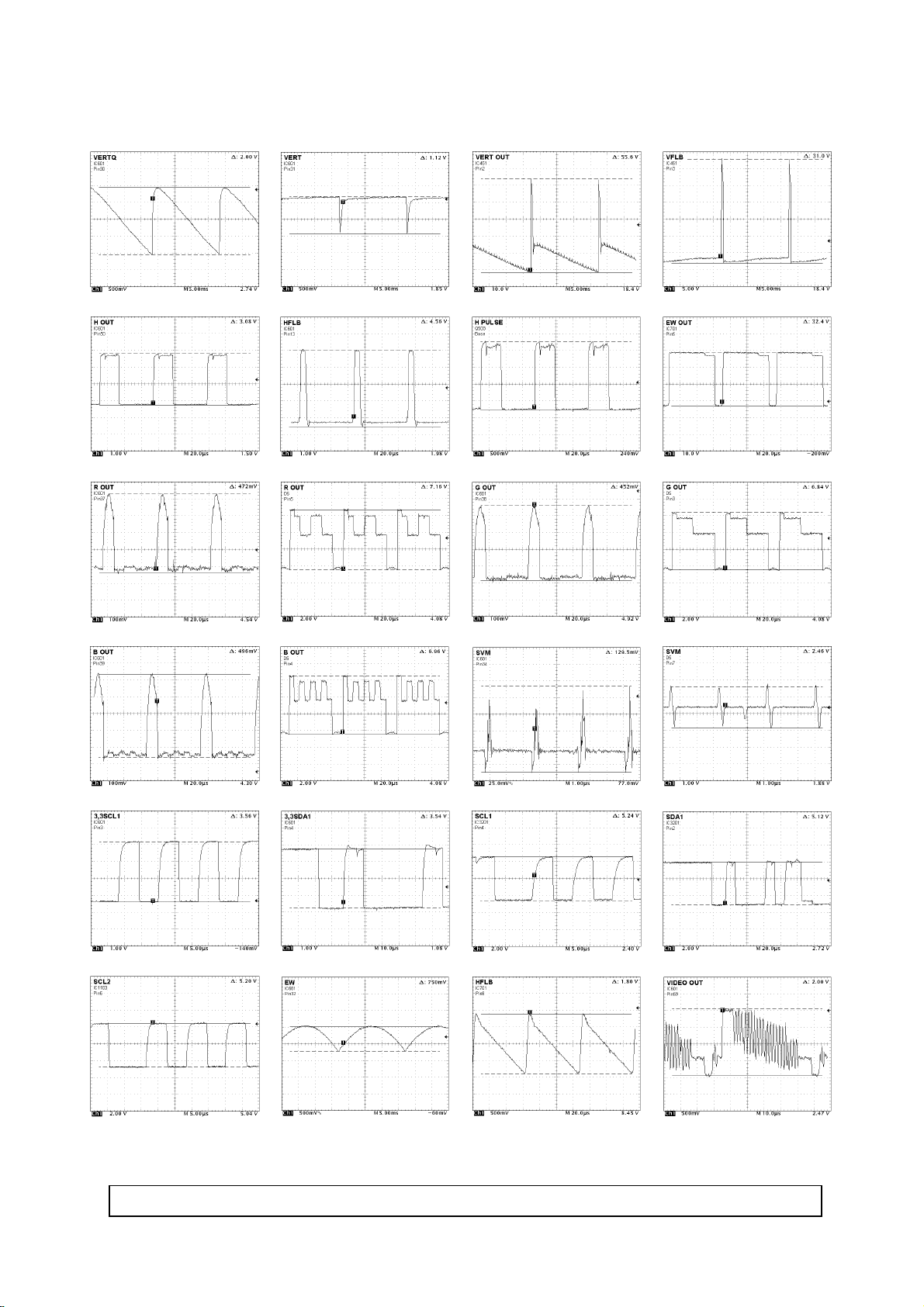

WAVEFORM PATTERN TABLE

CONDITIONS: CONTRAST...MAX, BRIGHTNESS...MID, COLOUR...MID, SHARPNESS...MID

5

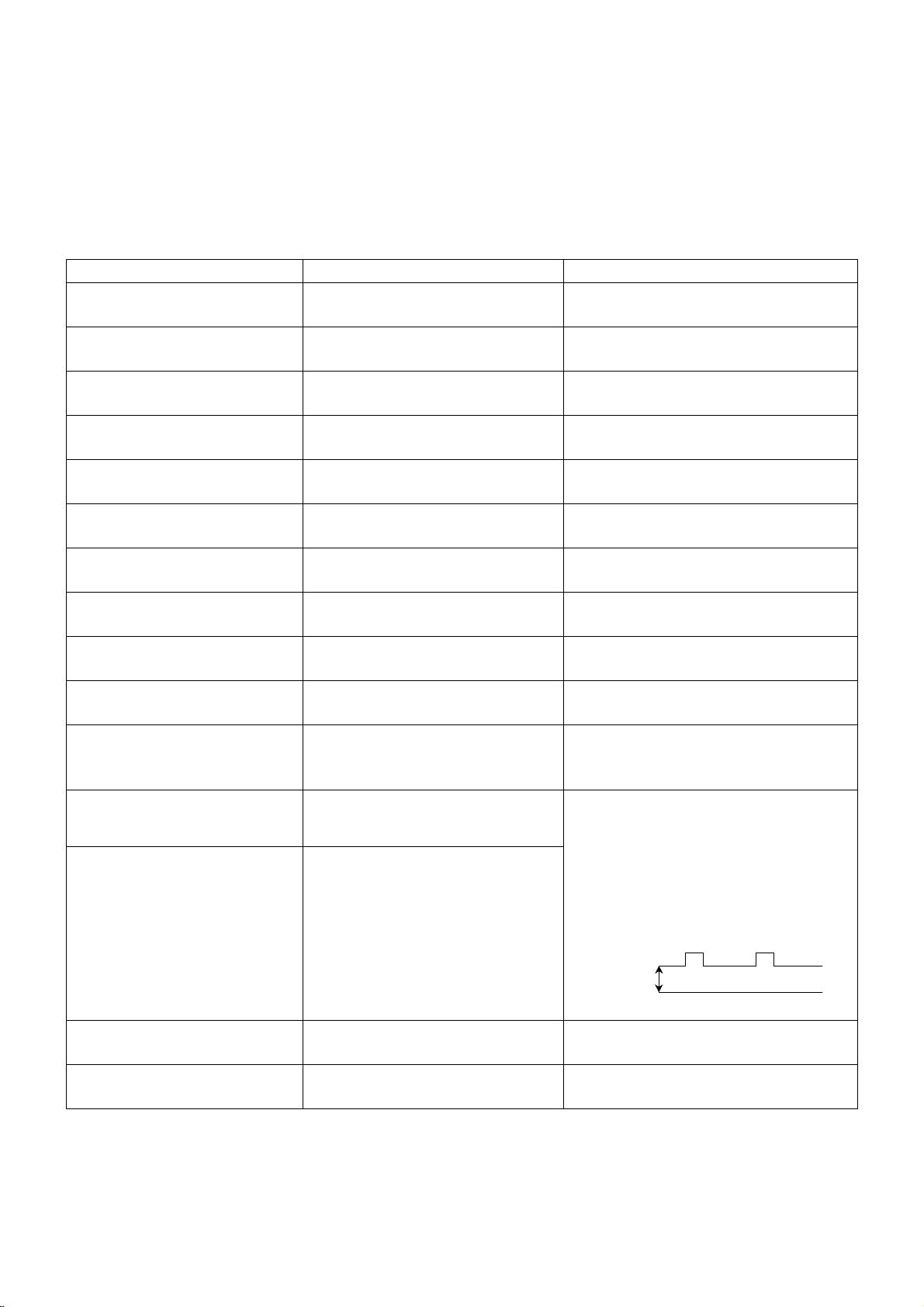

ALIGNMENT SETTINGS

(The figures below are nominal and used for representative purposes only.)

1. Set the Bass to maximum position, set the Treble to minimum position, set the Volume to minimum then press the
down button (-/v) on the customer controls at the front of the TV and at the same time press the INDEX button on the
remote control, this will place the TV into the Service Mode 1.

2. Press the RED / GREEN buttons to step up / down through the functions.

3. Press the YELLOW / BLUE buttons to alter the function values.

4. Press the TV/AV button after each adjustment has been made to store the required values.

5. To exit the Service Mode, press the "N" button.

Alignment Function Settings / Special features

Horizontal Position

Vertical Position

Horizontal Amplitude

Vert. Amplitude

EW-amplitude

EW-amplitude

Trapezium-comp

Trapezium-comp

Vertical Linearity

Vertical Symmetry

DVCO

Cut-off DC

Ug2 Test

H-Pos

021

V-Pos

- 005

H-Amp

- 011

V-Amp

061

EW-Amp 1

- 057

EW-Amp 2

008

Trapez 1

- 006

Trapez 2

- 004

V-Lin

- 024

V-Sym

001

DVCO

021

Cut-off

0204

Ug2

130

O.K.

Optimum setting.

Optimum setting.

Optimum setting.

Optimum setting.

Optimum setting.

Optimum setting.

Optimum setting.

Optimum setting.

Optimum setting.

Optimum setting.

Receive a PAL Colour Bar Pattern. For
DVCO alignment press "Blue" button, wait
until the colours are changing slowly and
press "TV/AV".

To adjust Cutoff connect an oscilloscope to
the Blue cathode. Adjust “cutoff” value
using the “Yellow” and “Blue” buttons until
the black level is 160V +5V/-0V, press
“TV/AV” to store the value.
Remove the oscilloscope.
Select Ug2 adjustment and adjust the
screen VR until the display shows “O.K.”

Black Level

160V+5V/-0V

GND

Highlight

Lowlight

Sub-Brightness

High 0902 0777 0864
Low 0117 0132 0112

Sub-Brightness

003

6

Optimum setting.

Optimum setting.

R

Y

X

Q304

Q302

Q306

6 5 4 3

D5

6 5 4 3

L2

CRT

SENSE

TXTV

Q3203

AV1 OUT

Q3202

CVBS/Y

Q3204

Q351

R 9

2

G 8

B 7

28

SENSE

Q303

BOUT 39

Q301

GOUT 38

Q305

ROUT 37

47

BIN2

GIN2 46

RIN2 45

IC351

IDEO

IC601

DP3132

PROCESSOR

43 BIN

61 VIN1

AV2 OUT

C

Q3201

42 GIN

60 CIN

41 RIN

AV3V

AV3C

R 1 G 2 B 3

TXTV

RGB OUTPUT

TDA6103Q/N3

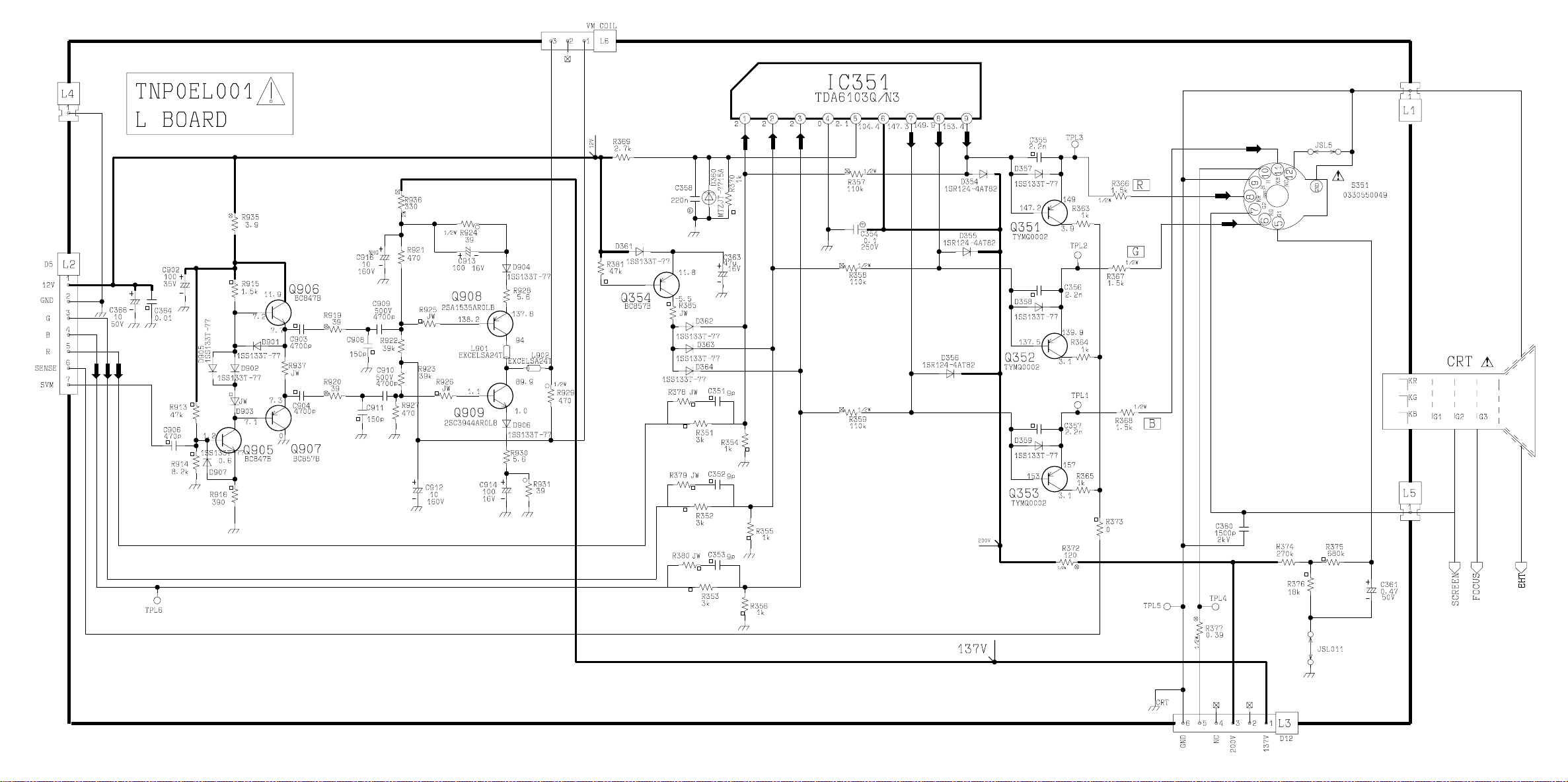

L - BOARD

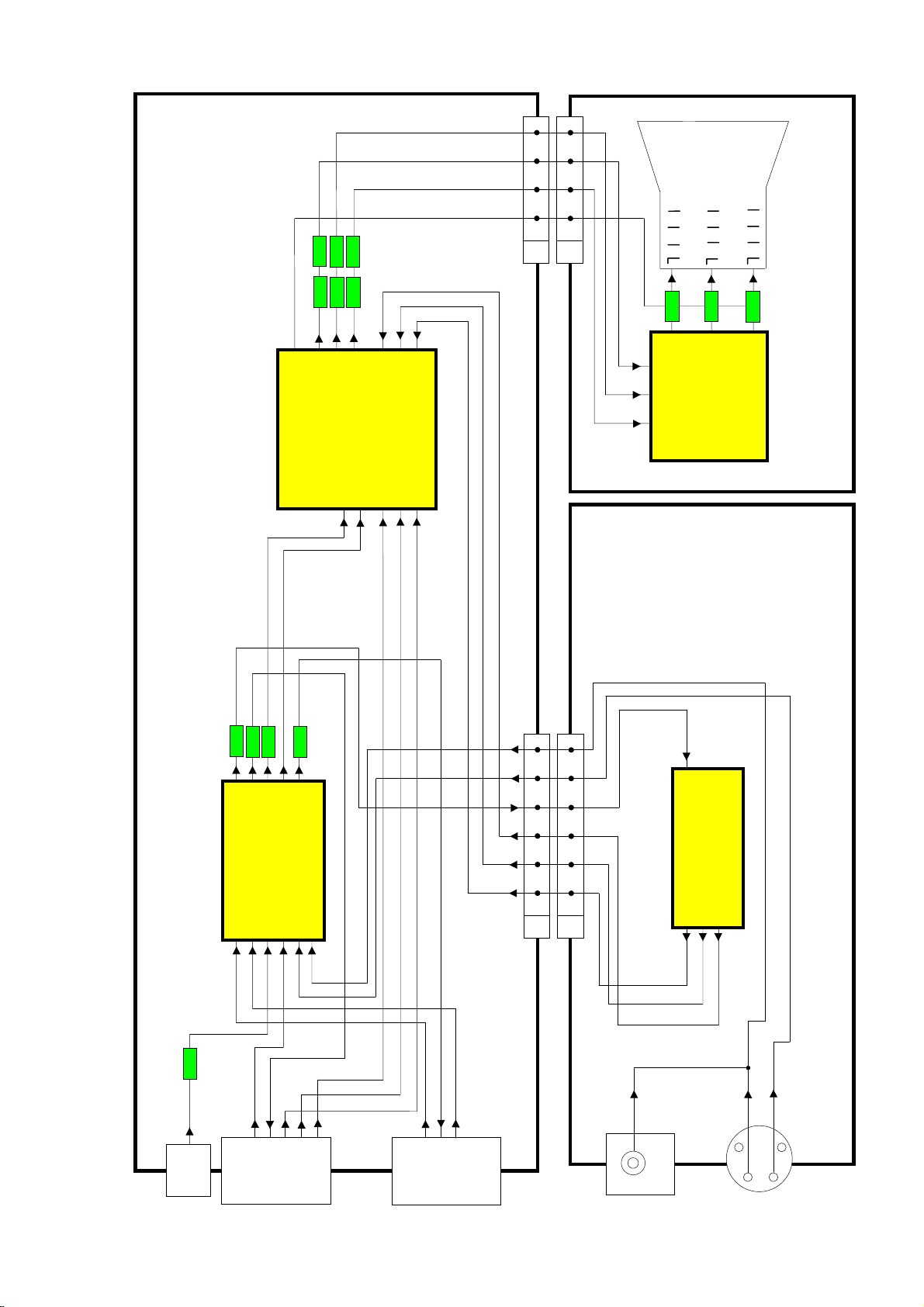

VIDEO BLOCK DIAGRAM

16

OUT6 14

OUT4

OUT3 17

OUT8 12

IDEO

MATRI

IC1101

SDA5550

TVTEXT PRO

OUT1 19

IC3201

TEA6425DT

10 11 12 14 15 16

Q104

10 11 12 14 15 16

D2

1 IN1

3 IN2

AV2V

RFV

AV2C

10 IN6

5 IN3

8 IN5

6 IN4

AV3V

AV3C

AV1V

G2

60 B

58 RCVBS 25

59 G

RIN2

GIN2

BIN2

D - BOARD

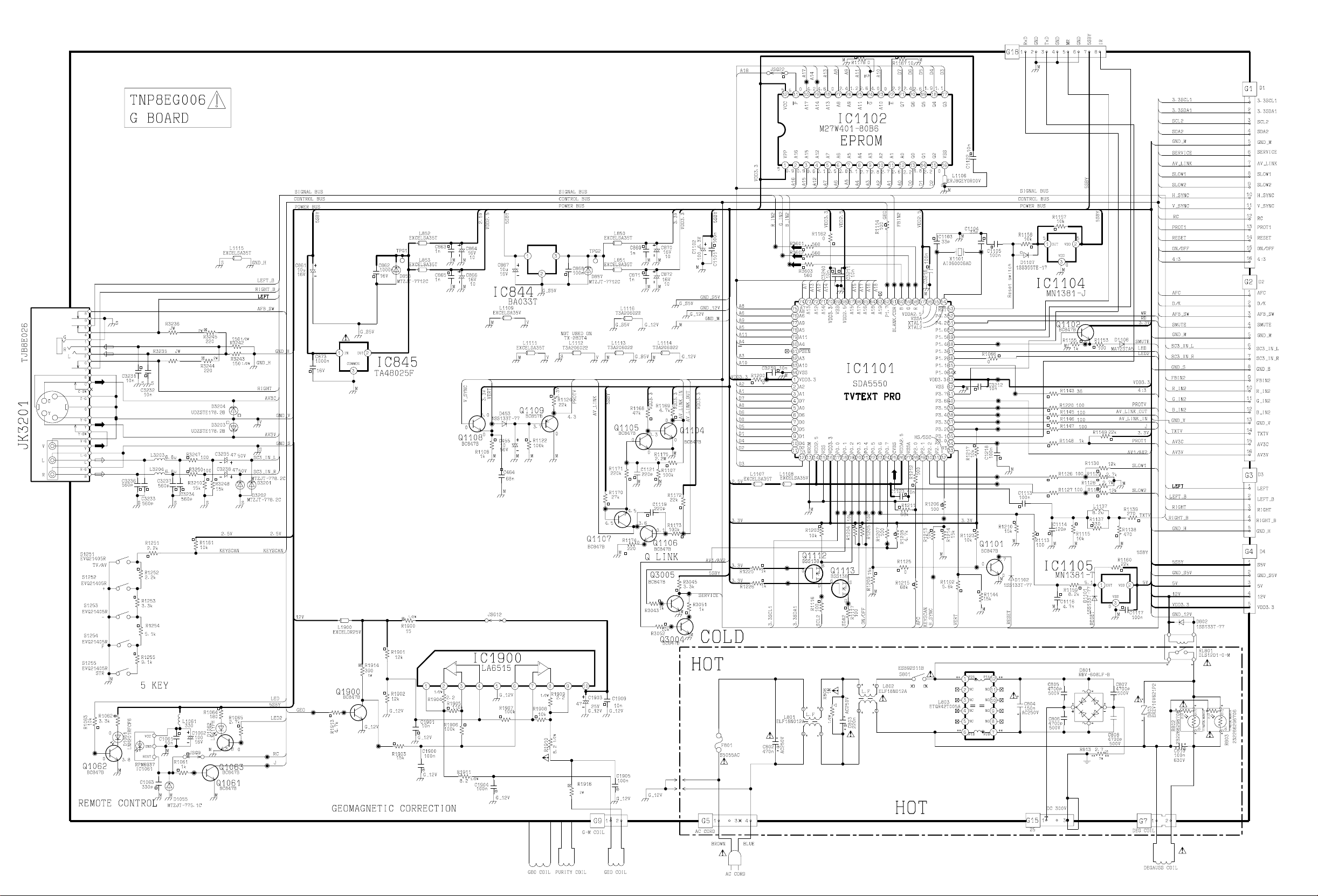

G - BOARD

TUNE

VIDEO

AV1

VIDEO 1 IN 20

VIDEO OUT 19

BLUE IN 7

RED IN 15

GREEN IN 11

AV2

VIDEO IN 20

CHROMA 15

VIDEO OUT 19

AV3

C

7

L

R

L

R

OUT

AUDIO

MONITOR

D16

1

D17

R

R

3

1 2 3 4

D3

1 2 3 4

G3

AV3

7 R

3 R

L

HEADPHONE

5 L

2 L

G - BOARD

R OUT 7

L OUT 11

6G27

AUDIO BLOCK DIAGRAM

Q2302

DACA L 25

IC251

Q2304

DACA R 24

LA4282

AUDIO OUTPUT

Q2301 Q2303

2 L IN

Q2103

DACM L 28

IC2101

MSP3410GAB83

5 R IN

Q2102

DACM R 27

IDEO

PROCESSOR

SC1 OUT R 36

Q252

Q251

SC1 OUT L 37

SC2 OUT R 33

SC2 OUT L 34

6D27

SC3 IN L

SC3 IN R

67 ANA IN1 +

60 MONO IN

69 ANA IN2 +

Q101 Q102

102

X101

AM

MSP Q103

TUNE

AV1

53 SC2 IN L

6

L IN

56 SC1 IN L

51 SC3 IN R

54 SC2 IN R

50 SC3 IN L

57 SC1 IN R

D - BOARD

R IN 2

L OUT 3

R OUT 1

SC1 IN L 6

AV2

SC1 IN R 2

SC1 OUT L 3

SC1 OUT R 1

8

Y

IC2101

R

IC601

IC3201

MSP3410GAB83

IDEO

DP3132

IC1103

MATRIX

TEA6425DT

UDIO

PROCESSOR

FBLIN 44

SDA1 4

SCL1 3

RESQ 2

PROCESSOR

FBLIN2 48

EAROM

BR24C16

SDA1

SCL1

SDA1

SCL1

RESQ

SDA2

SCL2

SERVICE

3D74

5

6

SCL1

SDA1

TUNE

2

4

SCL1

3

2

21

5

6

SCL1

Q1110

SDA1

SDA1

Q1111

AFC

3.3V TO 5V

LEVEL SHIFTER

AV1

8 SLOW1

10 (SCL)

16 FBIN1

12 (SDA)

SCL2

SDA2

Q3007

Q3006

FBT, HEATER

POWER SUPPLY

7

RC

SCL1

SDA1

Q2101

Q2305

AV2

8 SLOW2

10 AVLIN K

Q103

CONTROL BLOCK DIAGRAM

D - BOARD

1D12

3

4

6

7

8

3.3SCL1

1G12

3.3SCL1

17

53

RST

1

9

12

13

14

15

SCL2

SDA2

4

GEO

6

3.3V TO 5V

LEVEL SHIFTER

62

Q1900

AV LIN K

SERVICE

7

RESET

Q1101

ON/OFF

21

22

33

39

VERT

PROTV

Q1109

3.3SDA1

3

SDA2

SCL2

Q1113

Q1112

3.3SDA1

20

19

18

29

KEYSCAN

RC

PROT1

12

IC1105

MICROPROCESSOR

13

SERVICE

Q3005

24

RESET

14

AV LINK IN38AV LINK OUT

ON/OFF

15

AV LIN K

Q1106

Q1107

Q1104

Q1105

SLOW2

SLOW1

37

AFC

RC

31

30

44

48

28

D/K

Q1102

SMUTE

Q1062

IC1061

LED

36

47

61

34

FBIN2

PROT1

SLOW1

SLOW2

8

9

1

23

IC1101

SDA5550

1D22

AFC

1G22

4

9

D/K

FBIN2

SMUTE

4

9

KEYSCAN

IC1900

Q1108

G - BOARD

IC1104

9

A

HORIZ DY

4

1

D11

10

FBT

IC1101

33 VS

VERT

Q1108

SDA5550

32 HS

MICRO

VERT DY

3

D10

PROCESSOR

G - BOARD

11G110

V SYNC

H SYNC

11D110

DIODE

MODULATOR

DEFLECTION BLOCK DIAGRAM

7

5

4

IC451

VERTICAL

LA7845N

2

HFLB

Q551

5

T501

VPROT 11

VERTQ 30

VERT 31

IC601

Q503

HOUT 50

HFBL 13

8

Q701

EW 32

EW

IC701

TEA2031

7

VDP3132Y

VIDEO

PROCESSOR

D - BOARD

10

r

r

r

T821

R

Y

42V

Q847

D849

S6

Q846

D848

S7

P2

D8475VD846

S4

P1

12V

5V

137V

5V398V

65,66

IC2101

IDEO

IC601

TUNE

11,12,13

UDIO

PROCESSOR

15

PROCESSOR

BPL

BTL

12V

3.3V

Q951Q306Q304Q302

15V

6

VERTICAL

AUDIO OUTPUT

EW

-15V

1

42V

10

27V

6

IC451

58

REG

5V

IC602

IC251

IC701

MATRIX

IC3201

EAROM

IC1103

8

9

BV

20

8V

3.3V

5V_SBY

REG

IC841

REG

IC842

REG

IC843

D840

S1

S3

B1

3

1

2

IC801

6

POWER

D829

SUPPLY

Q851

Q850

33V

IC840

R828

REG

D840

T551

200V

9

D554

27V

15V

-15V

D553

D557

D558

8

7

2

1

POWER SUPPLY BLOCK DIAGRAM

D - BOARD

1D63

1G63

R828

4

4

~

R822

R821

R829

5V

12V

5VSBY

1

D4

1

G4

12V

-

~

D801

+

3.3V

3

5

4

3

5

4

2.5V

3.3V

DD2.5

Q835

IC844

DD3.3

REG

5VSBY

5V

33V

IC1900

5V

POWER BUS

12V

10

GEOMAG

5V_SBY

8V

8V

D12

1

137V

1L33

Q908

POWER BUS

3

200V

6

12V

1

D5

12V

1

L2

Q906

5

IC351

RGB OUTPUT

L - BOARD

5VSB

VCC

IC1061

RC RECEIVER

IC11042IC1105

2

S801

PFC

Filte

D802

RL801

Line

Filte

Line

Filte

R802

R803

57,68

1,43,70

MICRO

IC1101

16

14,26

EPROM

IC1102

1,32

F801

G - BOARD

1G54

MAINS IN

1G72

DEGAUSS

COIL

DD2.5

3.3V

VDD3.3

DD3.3

2.5V

3.3V

5V

11

Headphones

WIRING BLOCK DIAGRAM

HQ - BOARD

HB - BOARD

XV1

XV - BOARD

XV2

PX5XV3

HB2

HB1

P1

P5

P6

P4

P - BOARD

PX3

PX2

Left Speaker

PX4

Right Speaker

PX1

P3

P2

G15

G18

G3

G16

G7

G - BOARD

G1D1

D35

D31

D32

G13

D13

D - BOARD

G14

D14

G12D15

G4D4

G2D2

G8

D20

D12

L3

G7

G5

L - BOARD

D6

D11

D34

Horizontal DY

D10

Coil

Vertical DY

D5

Coil

L2

L1

CRT

L4

GND

Earth

VM

L6

Coil

G11

Geomagnetic/Purity

Coil

Degauss

Coil

In

Mains

CRT

S351

Socket

L5

Screen

12

10

PARTS LOCATION

NOTE:

The numbers on the exploded view below
refer to the mechanical section of the
Replacement Parts List.
This diagram is used for representative
purposes only.

17

25

21

18

4

15

13

1

6

9

1

19

24

23

22

20

12

26

7

5

2

14

8

16

11

3

13

Components Identified by mark have special characteristics important for safety.
* When replacing any of these components, use only manufacturers specified parts.
In case of ordering these spare parts, please always add the complete Model-Type
number to your order.

DescriptionCct Ref Parts Number DescriptionCct Ref Parts Number

COMMON PARTS

EXPLODED VIEW

SPEAKER 1 EASG12S500A2

TUNER1 2 ENG27C01GA

TUNER2 3 ENV77H03D5

REMOTE CONTROL 4 EUR511243

POWER BUTTON 5 TBX8E101

CRT FIXING SCREW 6 THT1062

DOOR LID 7 TKP0E10602

CHASSIS FRAME 8 TMX0E401

HB P.C.B. 9 TNP8EHB03AB

HQ P.C.B. 10 TNP8EHQ01AB

P P.C.B. 11 TNP8EP021AB

XV P.C.B. 12 TNP8EXV02AB

AC POWER CORD ASSEMBLY 13 TXASX01DGYG2

FOCUS/SCREEN ASSEMBLY 14 TXJ/FC0DCNG

BATTERY COVER (REMOTE) 15 UR51EC904A

ANODE CABLE 16 ZTBZAD550A

MISCELLANEOUS COMPONENTS

SET FOOT . TBL8E014

SET FOOT . TBL8E016

PRESET LABEL . TBM0E0033

PRESET LABEL . TBM0E0034

AV PANEL LABEL . TBM8E2306

LID SWITCH . TEK6935

CRT EARTH SPRING . TES2298

LED WINDOW . TKP0E10702

CI MODULE COVER . TKP8E1474

IRD BRACKET . TKP8E1537

AV PANEL . TKP8E1538

ROTATION COIL . TLK8E05190

LED HOLDER . TMW8E050-2

BATTERY PACK . UM-3DJ-2P

PLUG . VHR-5M

84 PIN IC SOCKET IC1101S DBCPLCC84

IC SOCKET IC1102S 832AG11D-ESL

I.C.s

AUDIO OUTPUT IC251 LA4282

R.G.B. OUTPUT IC351 TDA6103Q-N3

VERTICAL OUTPUT IC451 LA7845N

VIDEO DISPLAY PROCESSORIC601 VDP3130YPPB2

5V REGULATOR IC602 AN78L05M-E1

E/W CORRECTION IC701 TEA2031A

POWER SUPPLY IC801 STRF6656LF57

ERROR AMPLIFIER IC840 SE130N

8V REGULATOR IC841 AN78L08TA

REPLACEMENT PARTS LIST

Important Safety Notice

3.3V REGULATOR IC842 BA033T

3.3V REGULATOR IC844 BA033T

5V STANDBY REGULATOR IC845 TA48025F

12V REGULATOR IC851 BA12T-M3

5V REGULATOR IC852 BA05T

L.E.D. RECEIVER IC1061 RPM-6937

TV TEXT PROCESSOR IC1101 SDA5550

EPROM* IC1102 S11E0/010/0E

5V REGULATOR IC1104 MN1381RU

5V REGULATOR IC1105 MN1381RU

GEOMAGNETIC CORRECTIONIC1900 LA6515

SOUND PROCESSOR IC2101 MSP3410GAB83

VIDEO MATRIX IC3201 TEA6425DT

VIDEO SWITCH IC3202 NJM2283MTE1

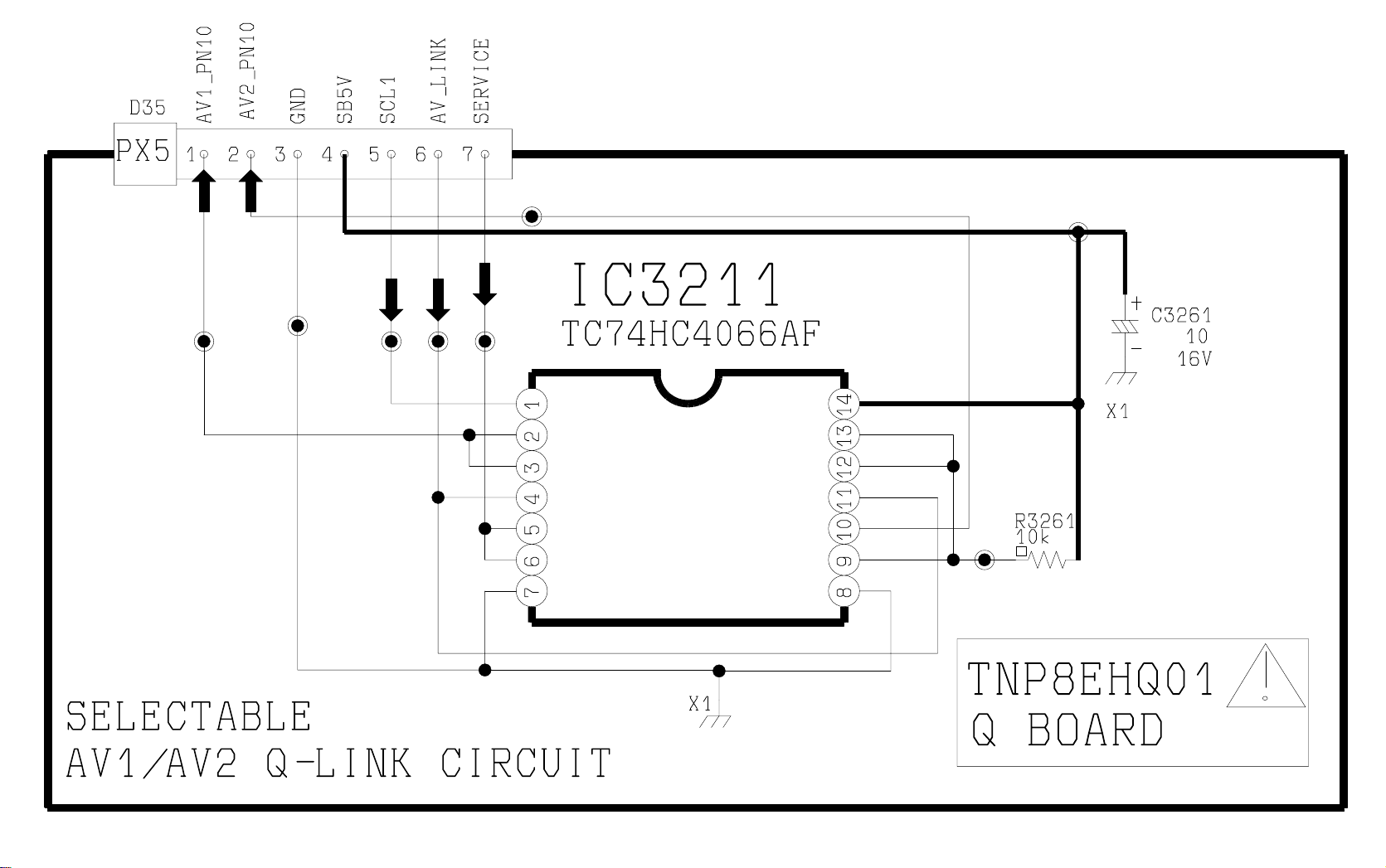

DUAL Q-LINK IC3211 TC74HC4066AF

VIDEO SWITCH IC3301 MM1503XNRE

VIDEO SWITCH IC3302 MM1503XNRE

VIDEO SWITCH IC3303 MM1503XNRE

SMPS CONTROL IC4801 STRL351LF428

20V REGULATOR IC4802 AN78L20TA

VARIABLE REGULATORIC4851 AN1431T-TA

9V SWITCH REGULATOR IC4852 C0DAZHG00015

3.3V REGULATOR IC4854 PQ3RD13B

DUAL IF/RF AMPLIFIER IC5001 LA7783V

IQ DECODER IC5003 STV0360

AUDIO DAC IC5101 C0FBBZ000013

OP-AMP IC5102 BA15218FDXE2

DIGITAL PROCESSOR/CPU IC5201 MN2WS0018TA

CMOS EEPROM IC5202 PCF8593T.118

SWITCHABLE BUFFER IC5204 74LVT245SJX

2MB FLASH ROM IC5206 E11F0/010/04

RESET IC5207 C0EBF0000086

LOGIC IC5208 74VHCU04MX

SDRAM IC5210 S641632FTC75

SDRAM IC5211 S641632FTC75

5 PIN REGULATOR IC5213 C0CBCBC00037

CI POWER CONTROL IC5401 C0ZBZ0000351

DATA BUFFER IC5402 C0JBAZ000810

CONTROL BUFFER IC5403 C0JBAZ001297

TRANSPORT STREAM BUFFER IC5404 74AHCT541PWR

2 INPUT QUAD LOGIC BUFFERIC5405 74AHCT32PWR

TRANSPORT STREAM BUFFER IC5408 74AHCT541PWR

TRANSPORT STREAM BUFFER IC5409 74AHCT541PWR

TRANSPORT STREAM BUFFER IC5410 74AHCT541PWR

TRANSPORT STREAM BUFFER IC5411 74AHCT541PWR

TRANSPORT STREAM BUFFER IC5412 74AHC245NSR

TRANSPORT STREAM BUFFER IC5413 74AHC245NSR

TRANSPORT STREAM BUFFER IC5414 74AHC245NSR

TRANSPORT STREAM BUFFER IC5415 74AHC245NSR

RESET IC5861 C0EBH0000181

LOGIC IC5862 C0JBAF000444

DC CONVERTER IC5863 L5971

1.8V REGULATOR IC5864 C0DBFFD00003

14

FUSES

DIODES

DescriptionCct Ref Parts Number DescriptionCct Ref Parts Number

RS232 INTERFACE DRIVERIC5901 MAX3243CAI

FUSE HOLDER F801-1 EYF52BC

FUSE HOLDER F801-2 EYF52BC

FUSE F801 XBA2C50TH15

FUSE R4853 TR5-T1000

DIODE D253 MA2C700A0F

DIODE D254 MA2C700A0F

DIODE D255 MTZJT-772.0A

DIODE D354 1SR124-4AT82

DIODE D355 1SR124-4AT82

DIODE D356 1SR124-4AT82

DIODE D357 MA165TA5

DIODE D358 MA165TA5

DIODE D359 MA165TA5

DIODE D360 MTZJT-7715A

DIODE D361 MA165TA5

DIODE D362 MA165TA5

DIODE D363 MA165TA5

DIODE D364 MA165TA5

DIODE D453 MA165TA5

DIODE D454 ERA15-02V3

DIODE D501 MA165TA5

DIODE D502 EU02

DIODE D511 MTZJ4.7C

DIODE D553 EU02

DIODE D554 EU02

DIODE D555 MA165TA5

DIODE D557 EU02

DIODE D558 EU02

DIODE D559 MA165TA5

DIODE D565 EU02

DIODE D566 MTZJT-7712C

DIODE D567 MTZJT-772.0A

DIODE D572 RU3LFA1

DIODE D573 ERD07-15L7

DIODE D581 MA165TA5

DIODE D601 DAN217T146

DIODE D603 DAN217T146

DIODE D605 DAN212KT146

DIODE D606 1SS355TE-17

DIODE D609 1SR124-4AT82

DIODE D617 MA2C029QAF

DIODE D618 MTZJT-7712C

DIODE D700 MA165TA5

DIODE D701 1SS355TE-17

DIODE D702 MTZJT-775.1C

DIODE D704 MA2C029TBF

DIODE D705 MTZJT-775.6B

DIODE D711 MTZJT-7710D

DIODE D801 RBV-608LF-B

DIODE D802 MA165TA5

DIODE D821 MA165TA5

DIODE D822 1SR124-4AT82

PHOTO COUPLER D823 TLP621GR-LF2

DIODE D824 MA165TA5

DIODE D827 MA165TA5

DIODE D828 1SR124-4AT82

PHOTO COUPLER D829 TLP621GR-LF2

DIODE D840 RU4BLF-L1

DIODE D843 MTZJT776.2B

DIODE D844 MA165TA5

DIODE D845 MA165TA5

DIODE D846 EU02

DIODE D847 EU02

DIODE D848 RU4AMLF-M1

DIODE D849 1SR124-4AT82

DIODE D857 MTZJT-7712C

DIODE D858 MTZJT-7712C

DIODE D859 MTZJT-7727D

DIODE D863 MTZJT-7730D

DIODE D885 MA165TA5

DIODE D886 MA165TA5

DIODE D887 MA165TA5

DIODE D888 MA165TA5

DIODE D889 MA165TA5

ZENER DIODE D890 MTZJT-772.0B

DIODE D901 MA165TA5

DIODE D902 MA165TA5

DIODE D904 MA165TA5

DIODE D905 MA165TA5

DIODE D906 MA165TA5

DIODE D907 MA165TA5

DIODE D1055 MTZJT-775.1C

LED D1061 LNH201RFCF6

L.E.D. D1062 LN41YPH

DIODE D1101 MA165TA5

DIODE D1102 MA165TA5

DIODE D1106 MA723TA5

DIODE D1107 1SS355TE-17

DIODE D2101 MA723TA5

DIODE D2102 MA723TA5

DIODE D2103 MA723TA5

DIODE D2104 MA723TA5

DIODE D2105 MTZJT-778.2C

DIODE D2106 MA165TA5

DIODE D2107 MA165TA5

DIODE D2303 MA723TA5

DIODE D2304 MA723TA5

DIODE D3201 MTZJT-778.2C

DIODE D3202 MTZJT-778.2C

S.M.T. ZENER DIODED3203 UDZSTE178.2B

S.M.T. ZENER DIODED3204 UDZSTE178.2B

DIODE D4802 MA2330-ALF

DIODE D4808 SARS01LF-F7

DIODE D4809 1SR124-4AT82

PHOTO COUPLER D4811 TLP621GR-LF2

DIODE D4813 MA165TA5

DIODE D4814 MA165TA5

DIODE D4820 B0EAKR000030

ZENER DIODE D4822 MTZJT-772.0B

DIODE D4831 MTZJT-775.1B

DIODE D4842 MTZJT776.2B

DIODE D4851 FMLG12SLF116

DIODE D4852 1SR124-4AT82

DIODE D4853 1SR124-4AT82

DIODE D4856 MA165TA5

DIODE D4860 MTZJT-7716C

DIODE D4861 MTZJT-7716C

DIODE D4871 MA2C700A0F

DIODE D4881 MA165TA5

DIODE D5101 MA8180MTX

DIODE D5102 MA8180MTX

DIODE D5201 B0CCAB000015

3 TERM CHIP DIODED5861 MA3X704A0L

3 TERM CHIP DIODED5862 MA3X704A0L

3 TERM CHIP DIODED5863 MA3X704A0L

3 TERM CHIP DIODED5865 MA3X704A0L

DIODE D5866 STPS3L60S

DIODE Q1110 BSS138

DIODE Q1111 BSS138

15

TRANSISTORS

DescriptionCct Ref Parts Number DescriptionCct Ref Parts Number

DIODE Q1112 BSS138

DIODE Q1113 BSS138

DIODE Q4852 B1DFGD000013

DIODE Q5002 BF799

DIODE Q5005 BF799

DIODE Q5201 BSS138

DIODE Q5202 BSS138

DIODE Q5203 BSS138

DIODE Q5867 BSS138

TRANSISTOR Q101 BC847B

TRANSISTOR Q102 BC847B

TRANSISTOR Q104 BC847B

TRANSISTOR Q250 BC857B

TRANSISTOR Q251 2SD13280SL

TRANSISTOR Q252 2SD13280SL

TRANSISTOR Q253 BC847B

TRANSISTOR Q254 BC847B

TRANSISTOR Q301 BC847B

TRANSISTOR Q302 FMY4AT148

TRANSISTOR Q303 BC847B

TRANSISTOR Q304 FMY4AT148

TRANSISTOR Q305 BC847B

TRANSISTOR Q306 FMY4AT148

TRANSISTOR Q354 BC857B

TRANSISTOR Q503 2SD2195T100

TRANSISTOR Q551 2SD2553LB324

TRANSISTOR Q552 2SC1473AEA

TRANSISTOR Q556 BC847B

TRANSISTOR Q580 BC547B/126

TRANSISTOR Q701 BC857B

TRANSISTOR Q736 BC847B

TRANSISTOR Q821 BC847B

TRANSISTOR Q822 BC847B

TRANSISTOR Q823 BC857B

TRANSISTOR Q846 2SA06840R

TRANSISTOR Q847 BC557B/126

TRANSISTOR Q848 BC857B

TRANSISTOR Q882 2SA10180QA

TRANSISTOR Q883 BC857B

TRANSISTOR Q884 BC847B

TRANSISTOR Q905 BC847B

TRANSISTOR Q906 BC847B

TRANSISTOR Q907 BC857B

TRANSISTOR Q908 2SA1535AR0LB

TRANSISTOR Q909 2SC3944AR0LB

TRANSISTOR Q950 BC847B

TRANSISTOR Q951 FMY4AT148

TRANSISTOR Q1061 BC847B

TRANSISTOR Q1062 BC847B

TRANSISTOR Q1063 BC847B

TRANSISTOR Q1101 BC847B

TRANSISTOR Q1102 BC847B

TRANSISTOR Q1104 BC847B

TRANSISTOR Q1105 BC847B

TRANSISTOR Q1106 BC847B

TRANSISTOR Q1107 BC847B

TRANSISTOR Q1108 BC847B

TRANSISTOR Q1109 BC857B

TRANSISTOR Q1900 BC847B

TRANSISTOR Q2101 BC857B

TRANSISTOR Q2102 BC857B

TRANSISTOR Q2103 BC857B

TRANSISTOR Q2301 BC847B

TRANSISTOR Q2302 BC857B

TRANSISTOR Q2303 BC847B

TRANSFORMERS

COILS

TRANSISTOR Q2304 BC857B

TRANSISTOR Q2305 BC857B

TRANSISTOR Q3004 BC847B

TRANSISTOR Q3005 BC847B

TRANSISTOR Q3006 BC847B

TRANSISTOR Q3007 BC847B

TRANSISTOR Q3011 BC847B

TRANSISTOR Q3201 BC847B

TRANSISTOR Q3202 BC847B

TRANSISTOR Q3203 BC847B

TRANSISTOR Q3204 BC847B

TRANSISTOR Q3301 BC847B

TRANSISTOR Q3302 BC847B

TRANSISTOR Q3303 BC847B

TRANSISTOR Q4821 2SK2962TPE6

TRANSISTOR Q4822 2SK1006RF122

TRANSISTOR Q4831 BC847B

TRANSISTOR Q4832 2SK2962TPE6

TRANSISTOR Q4851 BC847B

TRANSISTOR Q4853 BC847B

TRANSISTOR Q4854 BC847B

TRANSISTOR Q5101 BC857B

TRANSISTOR Q5102 BC857B

TRANSISTOR Q5103 BC857B

TRANSISTOR Q5104 BC857B

TRANSISTOR Q5105 BC847B

TRANSISTOR Q5106 BC847B

TRANSISTOR Q5204 XN0640100L

TRANSISTOR Q5205 BC847B

TRANSISTOR Q5206 BC857B

TRANSISTOR Q5209 BC847B

TRANSISTOR Q5861 BC847B

TRANSISTOR Q5862 BC847B

TRANSISTOR Q5863 BC847B

TRANSISTOR Q5864 BC847B

TRANSISTOR Q5865 BC847B

TRANSISTOR Q5866 BC847B

TRANSISTOR Q5868 BC847B

HORIZONTAL DRIVE T501 ETH19Y173AY

POWER SUPPLY SWITCHINGT821 ETS39KL136AG

SWITCH MODE POWER SUPPLYT4801 ETS28AZ1D6AC

COIL L101 TLTACT100K

COIL L106 TLTACT100K

COIL L107 TLTACT6R8K

S.M.T. COIL L108 ELJFA4R7KF

COIL L109 J0JHC0000034

COIL L302 TLTACT4R7K

COIL L303 TLTACT4R7K

COIL L306 J0JHC0000034

COIL L552 ELC08D682E

COIL L582 ELC18B801L

COIL L585 ELC18B101L

S.M.T. COIL L602 ELJFA4R7KF

COIL L603 TLTACT4R7K

COIL L604 J0JHC0000034

COIL L605 J0JHC0000034

S.M.T. COIL L606 ELJFC4R7KF

EMI BEADCORE L607 EXCEMT471BTS

EMI BEADCORE L608 EXCEMT471BTS

COIL L609 EXCELSA35V

COIL L701 ELC10D822E

COIL L803 ETQR42T005A

COIL L821 EXCELSA39V

COIL L840 EXCELSA35T

16

DescriptionCct Ref Parts Number DescriptionCct Ref Parts Number

COIL L841 EXCELSA35T

COIL L842 ELEKE470KA

COIL L843 EXCELSA35T

COIL L844 EXCELSA35T

COIL L845 EXCELSA35T

COIL L846 EXCELSA35T

COIL L847 EXCELSA35T

COIL L848 EXCELSA35T

COIL L849 EXCELSA35T

COIL L850 EXCELSA35T

COIL L851 EXCELSA35T

COIL L852 EXCELSA35T

COIL L853 EXCELSA35T

COIL L854 ELEIE180KA

COIL L901 EXCELSA24T

COIL L902 EXCELSA24T

COIL L1061 TLT331K991R

COIL L1107 EXCELSA35T

COIL L1108 EXCELSA35V

COIL L1109 EXCELSA35V

COIL L1111 EXCELSA35T

COIL L1137 TALV35VB8R2K

COIL L1900 EXCELDR25V

COIL L2101 TLTACT100K

COIL L2103 EXCELSA35T

COIL L2104 TLTACT4R7K

COIL L3001 EXCELDR35V

COIL L3002 EXCELDR35V

COIL L3003 EXCELDR35V

COIL L3004 EXCELDR35V

COIL L3200 ELJFC2R2KF

COIL L3203 ELEBR6R8KA

COIL L3204 ELEBR6R8KA

S.M.T. COIL L3211 ELJFA1R0KF

S.M.T. COIL L3212 ELJFAR68KF2

S.M.T. COIL L3213 ELJFA1R0KF

COIL L4851 ELC08D270E

S.M.T. COIL L5001 ELJNA2R2JF

COIL L5003 J0JJC0000015

COIL L5004 J0JJC0000015

S.M.T. COIL L5005 ELJNAR82JF

COIL L5006 J0JJC0000015

COIL L5007 J0JJC0000015

COIL L5008 J0JJC0000015

S.M.T. COIL L5106 ELJFA2R7JF

S.M.T. COIL L5107 ELJFA2R7JF

S.M.T. COIL L5108 ELJFA2R7JF

S.M.T. COIL L5109 ELJFA2R7JF

S.M.T. COIL L5118 ELJFA4R7JF

S.M.T. COIL L5203 ELJNA2R7JF

CHOKE COIL L5204 ELC10D121E

EMI BEADCORE L5217 EXCCET471U

EMI BEADCORE L5218 EXCCET471U

COIL L5352 EXCEMT103DTM

COIL L5354 EXCEMT103DTM

COIL L5355 EXCEMT103DTM

COIL L5357 EXCEMT103DTM

COIL L5358 EXCEMT103DTM

EMI BEADCORE L5861 EXCCET471U

COIL L5862 ELC10D330E

EMI BEADCORE L5905 EXCCET471U

EMI BEADCORE L5907 EXCCET471U

EMI BEADCORE L5908 EXCCET471U

EMI BEADCORE L5909 EXCCET471U

EMI BEADCORE L5910 EXCCET471U

EMI BEADCORE L5911 EXCCET471U

FILTERS

CRYSTALS

RESISTORS

EMI FILTER L301 QJT1090

EMI FILTER L304 QJT1090

EMI FILTER L305 QJT1090

LINE FILTER L801 ELF18N012A

LINE FILTER L802 ELF18N012A

EMI FILTER L951 QJT1090

EMI FILTER L5110 J0HAAC000011

EMI FILTER L5111 J0HAAC000011

EMI FILTER L5112 J0HAAC000011

EMI FILTER L5113 J0HAAC000011

EMI FILTER L5115 J0HAAC000011

EMI FILTER L5116 J0HAAC000011

FILTER L5202 J0HAAC000009

FILTER L5356 J0HABB000007

EMI FILTER L5906 J0HAAC000011

EMI FILTER L5912 J0HAAC000011

SAW FILTER X5001 X6874D100

SAW FILTER X5002 X6874D100

CRYSTAL X601 4730007267

CRYSTAL X1101 AI060006AD

CRYSTAL X2101 4730007158

CRYSTAL X5003 4730007932

CRYSTAL X5201 H0A327600001

CRYSTAL X5202 H0D270500005

S.M.CARBC101 ERJ6GEY0R00 0.1W 5% 0 Ω

S.M.CARBC632 ERJ6GEYJ103 0.1W 5% 10K Ω

S.M.CARBC5028 ERJ3GEY0R00 0.1W 5% 0 Ω

VARISTORD803 ERZV10V621P2 10W 0.5 620 Ω

VARISTORD4841 ERZV10V621P2 10W 0.5 620 Ω

S.M. CARJA1 ERJ1WY0R00U 1W 5% 0 Ω

S.M.CARBJA1 ERJ6GEY0R00 0.1W 5% 0 Ω

S.M.CARBJA2 ERJ6GEY0R00 0.1W 5% 0 Ω

S.M.CARBJA3 ERJ6GEY0R00 0.1W 5% 0 Ω

S.M.CARBJA3 ERJ8GEY0R00 .125W 5% 0 Ω

S.M.CARBJA4 ERJ6GEY0R00 0.1W 5% 0 Ω

S.M.CARBJA5 ERJ6GEY0R00 0.1W 5% 0 Ω

S.M.CARBJA5 ERJ8GEY0R00 .125W 5% 0 Ω

S.M.CARBJA6 ERJ6GEY0R00 0.1W 5% 0 Ω

S.M.CARBJA7 ERJ6GEY0R00 0.1W 5% 0 Ω

S.M.CARBJA8 ERJ6GEY0R00 0.1W 5% 0 Ω

S.M.CARBJA9 ERJ6GEY0R00 0.1W 5% 0 Ω

S.M.CARBJA9 ERJ8GEY0R00 .125W 5% 0 Ω

S.M.CARBJA10 ERJ6GEY0R00 0.1W 5% 0 Ω

S.M.CARBJA11 ERJ6GEY0R00 0.1W 5% 0 Ω

S.M.CARBJA12 ERJ6GEY0R00 0.1W 5% 0 Ω

S.M.CARBJA12 ERJ8GEY0R00 .125W 5% 0 Ω

S.M.CARBJA13 ERJ8GEY0R00 .125W 5% 0 Ω

S.M.CARBJA14 ERJ6GEY0R00 0.1W 5% 0 Ω

S.M.CARBJA14 ERJ8GEY0R00 .125W 5% 0 Ω

S.M.CARBJA15 ERJ6GEY0R00 0.1W 5% 0 Ω

S.M.CARBJA16 ERJ6GEY0R00 0.1W 5% 0 Ω

S.M.CARBJA16 ERJ8GEY0R00 .125W 5% 0 Ω

S.M.CARBJA17 ERJ6GEY0R00 0.1W 5% 0 Ω

S.M.CARBJA18 ERJ6GEY0R00 0.1W 5% 0 Ω

S.M.CARBJA19 ERJ8GEY0R00 .125W 5% 0 Ω

S.M.CARBJA20 ERJ8GEY0R00 .125W 5% 0 Ω

S.M.CARBJA21 ERJ6GEY0R00 0.1W 5% 0 Ω

S.M.CARBJA22 ERJ6GEY0R00 0.1W 5% 0 Ω

S.M.CARBJA23 ERJ8GEY0R00 .125W 5% 0 Ω

S.M.CARBJA24 ERJ8GEY0R00 .125W 5% 0 Ω

S.M.CARBJA25 ERJ8GEY0R00 .125W 5% 0 Ω

S.M.CARBJA26 ERJ8GEY0R00 .125W 5% 0 Ω

17

DescriptionCct Ref Parts Number DescriptionCct Ref Parts Number

S.M.CARBJA27 ERJ6GEY0R00 0.1W 5% 0 Ω

S.M.CARBJA28 ERJ6GEY0R00 0.1W 5% 0 Ω

S.M.CARBJA29 ERJ6GEY0R00 0.1W 5% 0 Ω

S.M.CARBJA30 ERJ6GEY0R00 0.1W 5% 0 Ω

S.M.CARBJA34 ERJ8GEY0R00 .125W 5% 0 Ω

S.M.CARBJA35 ERJ6GEY0R00 0.1W 5% 0 Ω

S.M.CARBJA36 ERJ6GEY0R00 0.1W 5% 0 Ω

S.M.CARBJA37 ERJ8GEY0R00 .125W 5% 0 Ω

S.M.CARBJA40 ERJ8GEY0R00 .125W 5% 0 Ω

S.M.CARBJA41 ERJ8GEY0R00 .125W 5% 0 Ω

S.M.CARBJA42 ERJ6GEY0R00 0.1W 5% 0 Ω

S.M.CARBJA43 ERJ8GEY0R00 .125W 5% 0 Ω

S.M.CARBJA45 ERJ8GEY0R00 .125W 5% 0 Ω

S.M.CARBJA46 ERJ8GEY0R00 .125W 5% 0 Ω

S.M.CARBJA47 ERJ6GEY0R00 0.1W 5% 0 Ω

S.M.CARBJA48 ERJ6GEY0R00 0.1W 5% 0 Ω

S.M.CARBJA49 ERJ8GEY0R00 .125W 5% 0 Ω

S.M.CARBJA50 ERJ8GEY0R00 .125W 5% 0 Ω

S.M.CARBJA51 ERJ8GEY0R00 .125W 5% 0 Ω

S.M.CARBJA52 ERJ6GEY0R00 0.1W 5% 0 Ω

S.M.CARBJA53 ERJ8GEY0R00 .125W 5% 0 Ω

S.M.CARBJA54 ERJ8GEY0R00 .125W 5% 0 Ω

S.M.CARBJA55 ERJ6GEY0R00 0.1W 5% 0 Ω

S.M.CARBJSD3 ERJ6GEY0R00 0.1W 5% 0 Ω

S.M.CARBJSD13 ERJ8GEY0R00 .125W 5% 0 Ω

S.M.CARBJSD15 ERJ6GEY0R00 0.1W 5% 0 Ω

S.M.CARBJSD16 ERJ6GEY0R00 0.1W 5% 0 Ω

S.M.CARBJSD30 ERJ6GEY0R00 0.1W 5% 0 Ω

S.M.CARBJSD31 ERJ6GEY0R00 0.1W 5% 0 Ω

S.M.CARBJSD32 ERJ6GEY0R00 0.1W 5% 0 Ω

S.M.CARBJSD33 ERJ6GEY0R00 0.1W 5% 0 Ω

S.M. CARJSD47 ERJ1WY0R00U 1W 5% 0 Ω

S.M.CARBJSD48 ERJ6GEY0R00 0.1W 5% 0 Ω

S.M.CARBJSD49 ERJ6GEY0R00 0.1W 5% 0 Ω

S.M.CARBJSD50 ERJ8GEY0R00 .125W 5% 0 Ω

S.M.CARBJSG9 ERJ6GEY0R00 0.1W 5% 0 Ω

S.M.CARBJSG22 ERJ6GEY0R00 0.1W 5% 0 Ω

S.M.CARBJSPX3 ERJ6GEY0R00 0.1W 5% 0 Ω

S.M.CARBL1106 ERJ8GEY0R00 .125W 5% 0 Ω

S.M.CARBL2105 ERJ6GEY0R00 0.1W 5% 0 Ω

S.M.CARBL2106 ERJ6GEY0R00 0.1W 5% 0 Ω

S.M.CARBL2107 ERJ6GEY0R00 0.1W 5% 0 Ω

S.M.CARBL5205 ERJ6GEY0R00 0.1W 5% 0 Ω

CARBONL5351 EXCEMT220BTS 0.25W 5% 22 Ω

CARBONL5353 EXCEMT102BTS 0.25W 5% 1K Ω

S.M.CARBR101 ERJ6GEY0R00 0.1W 5% 0 Ω

S.M.CARBR102 ERJ6GEYJ103 0.1W 5% 10K Ω

S.M.CARBR103 ERJ6GEYJ222 0.1W 5% 2K2 Ω

S.M.CARBR104 ERJ6GEYJ332 0.1W 5% 3K3 Ω

S.M.CARBR105 ERJ6GEYJ101 0.1W 5% 100 Ω

S.M.CARBR106 ERJ6GEYJ122 0.1W 5% 1K2 Ω

S.M.CARBR107 ERJ6GEYJ102 0.1W 5% 1K Ω

S.M.CARBR111 ERJ6GEY0R00 0.1W 5% 0 Ω

S.M.CARBR112 ERJ6GEYJ101 0.1W 5% 100 Ω

S.M.CARBR113 ERJ6GEYJ223 0.1W 5% 22K Ω

S.M.CARBR114 ERJ6GEYJ101 0.1W 5% 100 Ω

S.M.CARBR115 ERJ6GEYJ101 0.1W 5% 100 Ω

S.M.CARBR116 ERJ6GEYJ562 0.1W 5% 5K6 Ω

S.M.CARBR117 ERJ6GEYJ222 0.1W 5% 2K2 Ω

S.M.CARBR121 ERJ6GEYJ471 0.1W 5% 470 Ω

S.M.CARBR250 ERJ6GEYJ272 0.1W 5% 2K7 Ω

S.M.CARBR251 ERJ6GEYJ151 0.1W 5% 150 Ω

S.M.CARBR252 ERJ6GEYJ392 0.1W 5% 3K9 Ω

S.M.CARBR254 ERJ6GEYJ151 0.1W 5% 150 Ω

S.M.CARBR256 ERJ6GEYJ471 0.1W 5% 470 Ω

S.M.CARBR258 ERJ6GEYJ392 0.1W 5% 3K9 Ω

S.M.CARBR260 ERJ6GEYJ103 0.1W 5% 10K Ω

S.M.CARBR261 ERJ6GEYJ471 0.1W 5% 470 Ω

S.M.CARBR262 ERJ6GEYJ103 0.1W 5% 10K Ω

S.M.CARBR263 ERJ6GEYJ823 0.1W 5% 82K Ω

S.M.CARBR264 ERJ6GEYJ272 0.1W 5% 2K7 Ω

CARBON R265 ERD25TJ2R2 0.25W 5% 2R2 Ω

CARBON R266 ERD25TJ2R2 0.25W 5% 2R2 Ω

S.M.CARBR267 ERJ6GEYJ103 0.1W 5% 10K Ω

S.M.CARBR268 ERJ6GEYJ223 0.1W 5% 22K Ω

FUSIBLER269 ERQ14AJ151 0.25W 5% 150 Ω

S.M.CARBR270 ERJ6GEYJ681 0.1W 5% 680 Ω

S.M.CARBR271 ERJ6GEYJ681 0.1W 5% 680 Ω

S.M.CARBR272 ERJ6GEYJ681 0.1W 5% 680 Ω

S.M.CARBR273 ERJ6GEYJ681 0.1W 5% 680 Ω

S.M.CARBR274 ERJ6GEYJ103 0.1W 5% 10K Ω

S.M.CARBR301 ERJ6GEYJ391 0.1W 5% 390 Ω

S.M.CARBR302 ERJ6GEYJ102 0.1W 5% 1K Ω

S.M.CARBR303 ERJ6GEYJ750 0.1W 5% 75 Ω

S.M.CARBR304 ERJ6GEYJ331 0.1W 5% 330 Ω

S.M.CARBR305 ERJ6GEYJ391 0.1W 5% 390 Ω

S.M.CARBR306 ERJ6GEYJ102 0.1W 5% 1K Ω

S.M.CARBR307 ERJ6GEYJ750 0.1W 5% 75 Ω

S.M.CARBR308 ERJ6GEYJ331 0.1W 5% 330 Ω

S.M.CARBR309 ERJ6GEYJ391 0.1W 5% 390 Ω

S.M.CARBR310 ERJ6GEYJ102 0.1W 5% 1K Ω

S.M.CARBR311 ERJ6GEYJ750 0.1W 5% 75 Ω

S.M.CARBR312 ERJ6GEYJ331 0.1W 5% 330 Ω

S.M.CARBR351 ERJ6GEYJ302 0.1W 5% 3K Ω

S.M.CARBR352 ERJ6GEYJ302 0.1W 5% 3K Ω

S.M.CARBR353 ERJ6GEYJ302 0.1W 5% 3K Ω

S.M.CARBR354 ERJ6GEYJ102 0.1W 5% 1K Ω

S.M.CARBR355 ERJ6GEYJ102 0.1W 5% 1K Ω

S.M.CARBR356 ERJ6GEYJ102 0.1W 5% 1K Ω

METALR357 ERG12DJ114V 0.5W 5% 110K Ω

METALR358 ERG12DJ114V 0.5W 5% 110K Ω

METALR359 ERG12DJ114V 0.5W 5% 110K Ω

CARBONR363 ERD25TJ102 0.25W 5% 1K Ω

CARBONR364 ERD25TJ102 0.25W 5% 1K Ω

CARBONR365 ERD25TJ102 0.25W 5% 1K Ω

CARBONR366 ERDS1TJ152 0.5W 5% 1K5 Ω

CARBONR367 ERDS1TJ152 0.5W 5% 1K5 Ω

CARBONR368 ERDS1TJ152 0.5W 5% 1K5 Ω

CARBONR369 ERDS2TJ472T 0.25W 5% 4K7 Ω

S.M.CARBR370 ERJ6GEYJ102 0.1W 5% 1K Ω

FUSIBLE R372 ERQ12AJ121 0.5W 5% 120 Ω

S.M.CARBR373 ERJ6GEYJ220 0.1W 5% 22 Ω

CARBONR374 ERD25TJ274 0.25W 5% 270K Ω

S.M.CARBR375 ERJ6GEYJ684 0.1W 5% 680K Ω

S.M.CARBR376 ERJ6GEYJ183 0.1W 5% 18K Ω

S.M.CARBR378 ERJ6GEY0R00 0.1W 5% 0 Ω

S.M.CARBR379 ERJ6GEY0R00 0.1W 5% 0 Ω

S.M.CARBR380 ERJ6GEY0R00 0.1W 5% 0 Ω

S.M.CARBR381 ERJ6GEYJ473 0.1W 5% 47K Ω

S.M.CARBR385 ERJ6GEY0R00 0.1W 5% 0 Ω

S.M.CARBR451 ERJ6GEYJ223 0.1W 5% 22K Ω

S.M.CARBR452 ERJ6GEY0R00 0.1W 5% 0 Ω

S.M.CARBR453 ERJ6GEY0R00 0.1W 5% 0 Ω

S.M.CARBR454 ERJ6GEYJ332 0.1W 5% 3K3 Ω

S.M.CARBR455 ERJ6GEY0R00 0.1W 5% 0 Ω

CARBON R458 ERD25TJ1R5 0.25W 5% 1R5 Ω

CARBON R460 ERDS1TJ221 0.5W 5% 220 Ω

METALR461 ERX2FJ1R0H 2W 5% 1 Ω

S.M. CARR465 ERJ6GEYJ362 0.1W 5% 3K6 Ω

METAL R509 ERG1SJ152 1W 5% 1K5 Ω

METAL R510 ERG1SJ152 1W 5% 1K5 Ω

METALR551 ERG1FJ101P 1W 5% 100 Ω

18

DescriptionCct Ref Parts Number DescriptionCct Ref Parts Number

METALR553 ERX2SJSR47H 2W 5% R47 Ω

S.M.CARBR557 ERJ6GEYJ101 0.1W 5% 100 Ω

CARBON R558 ERDS1TJ124 0.5W 5% 120K Ω

S.M.CARBR559 ERJ6GEYJ561 0.1W 5% 560 Ω

S.M.CARBR560 ERJ6GEYJ274 0.1W 5% 270K Ω

S.M.CARBR561 ERJ6GEYJ223 0.1W 5% 22K Ω

S.M.CARBR563 ERJ6GEYJ824 0.1W 5% 820K Ω

S.M.CARBR564 ERJ6GEYJ124 0.1W 5% 120K Ω

S.M.CARBR566 ERJ6GEYJ102 0.1W 5% 1K Ω

METALR567 343-23R3AY 10W 5% 3.3 Ω

S.M.CARBR569 ERJ6GEYJ102 0.1W 5% 1K Ω

S.M.CARBR571 ERJ6GEYJ563 0.1W 5% 56K Ω

S.M.CARBR572 ERJ6GEY0R00 0.1W 5% 0 Ω

S.M.CARBR573 ERJ6GEYJ203 0.1W 5% 20K Ω

S.M.CARBR574 ERJ6GEYJ123 0.1W 5% 12K Ω

S.M.CARBR575 ERJ6GEYJ912 0.1W 5% 9K1 Ω

S.M.CARBR576 ERJ6GEYJ222 0.1W 5% 2K2 Ω

FUSIBLER578 ERQ12HKR82 0.5W 10% R82 Ω

METALR583 ERG1SJ102 1W 5% 1K Ω

METALR585 ERG3FJ102H 3W 5% 1K Ω

CARBONR586 ERD25TJ682 0.25W 5% 6K8 Ω

CARBONR587 ERD25TJ272F 0.25W 5% 2K7 Ω

CARBONR588 ERDS2TJ222T 0.5W 5% 2K2 Ω

CARBON R589 ERDS1TJ680 0.5W 5% 68 Ω

S.M.CARBR601 ERJ6GEYJ222 0.1W 5% 2K2 Ω

S.M.CARBR602 ERJ6GEYJ153 0.1W 5% 15K Ω

S.M.CARBR604 ERJ6GEYJ822 0.1W 5% 8K2 Ω

CARBONR605 ERD25TJ331 0.25W 5% 330 Ω

CARBONR606 ERD25TJ331 0.25W 5% 330 Ω

S.M.CARBR607 ERJ6GEYJ821 0.1W 5% 820 Ω

S.M.CARBR608 ERJ6GEYJ181 0.1W 5% 180 Ω

S.M.CARBR609 ERJ6GEYJ122 0.1W 5% 1K2 Ω

S.M.CARBR610 ERJ6GEY0R00 0.1W 5% 0 Ω

S.M.CARBR611 ERJ6GEYJ103 0.1W 5% 10K Ω

S.M.CARBR612 ERJ6GEYJ101 0.1W 5% 100 Ω

S.M.CARBR613 ERJ6GEYJ152 0.1W 5% 1K5 Ω

CARBON R614 ERDS1TJ221 0.5W 5% 220 Ω

S.M.CARBR616 ERJ6GEY0R00 0.1W 5% 0 Ω

S.M.CARBR643 ERJ6GEYJ472 0.1W 5% 4K7 Ω

S.M.CARBR645 ERJ6GEYJ222 0.1W 5% 2K2 Ω

S.M.CARBR647 ERJ6GEYJ472 0.1W 5% 4K7 Ω

S.M.CARBR648 ERJ6GEYJ472 0.1W 5% 4K7 Ω

S.M.CARBR650 ERJ6GEYJ750 0.1W 5% 75 Ω

S.M.CARBR651 ERJ6GEYJ750 0.1W 5% 75 Ω

S.M.CARBR654 ERJ6GEYJ622 0.1W 5% 6K2 Ω

S.M.CARBR655 ERJ6GEYJ103 0.1W 5% 10K Ω

S.M.CARBR658 ERJ6GEYJ153 0.1W 5% 15K Ω

S.M.CARBR659 ERJ6GEY0R00 0.1W 5% 0 Ω

S.M.CARBR660 ERJ6GEY0R00 0.1W 5% 0 Ω

S.M.CARBR661 ERJ6GEYJ101 0.1W 5% 100 Ω

S.M.CARBR662 ERJ6GEYJ101 0.1W 5% 100 Ω

S.M.CARBR663 ERJ6GEYJ101 0.1W 5% 100 Ω

METALR701 ERQ12AJ330P 0.5W 5% 330 Ω

METAL R703 ERG2FJ821 2W 5% 820 Ω

S.M.CARBR704 ERJ6GEYJ563 0.1W 5% 56K Ω

S.M.CARBR705 ERJ6GEYJ473 0.1W 5% 47K Ω

S.M.CARBR706 ERJ6GEYJ103 0.1W 5% 10K Ω

S.M.CARBR707 ERJ6GEYJ391 0.1W 5% 390 Ω

S.M.CARBR708 ERJ6GEYJ393 0.1W 5% 39K Ω

S.M.CARBR709 ERJ6GEYJ393 0.1W 5% 39K Ω

S.M.CARBR710 ERJ6GEYJ273 0.1W 5% 27K Ω

METAL R711 ERG1SJ101 1W 5% 100 Ω

S.M.CARBR712 ERJ6GEYJ102 0.1W 5% 1K Ω

S.M.CARBR717 ERJ6GEYJ153 0.1W 5% 15K Ω

S.M.CARBR721 ERJ6GEYJ563 0.1W 5% 56K Ω

S.M.CARBR731 ERJ6GEYJ101 0.1W 5% 100 Ω

S.M.CARBR750 ERJ6GEYJ102 0.1W 5% 1K Ω

SOLIDR806 ERC12ZGK105C 0.5W 10% 1M Ω

WOUND R813 ERF7ZK2R7 7W 20% 2R7 Ω

S.M.CARBR818 ERJ6GEYJ473 0.1W 5% 47K Ω

S.M.CARBR819 ERJ6GEYJ103 0.1W 5% 10K Ω

FUSIBLER824 ERQ14AJ100 0.25W 5% 10 Ω

S.M.CARBR826 ERJ6GEYJ103 0.1W 5% 10K Ω

S.M.CARBR827 ERJ6GEYJ222 0.1W 5% 2K2 Ω

WIRER828 D0D2R27KA003 2W 5% 0.27 Ω

WIRER829 D0D2R27KA003 2W 5% 0.27 Ω

CARBONR830 ERD25TJ681 0.25W 5% 680 Ω

S.M.CARBR831 ERJ6GEYJ332 0.1W 5% 3K3 Ω

S.M.CARBR832 ERJ6GEYJ472 0.1W 5% 4K7 Ω

CARBONR833 ERD75TAJ825 0.75W 5% 8M2 Ω

CARBONR836 ERDS2TJ332T 2W 5% 3K2 Ω

S.M.CARBR837 ERJ6GEYJ331 0.1W 5% 330 Ω

S.M.CARBR839 ERJ6GEYJ473 0.1W 5% 47K Ω

S.M.CARBR841 ERJ6GEYJ151 0.1W 5% 150 Ω

CARBONR842 ERD25TJ122 0.25W 5% 1K2 Ω

S.M.CARBR843 ERJ6GEYJ151 0.1W 5% 150 Ω

S.M.CARBR844 ERJ6GEYJ471 0.1W 5% 470 Ω

METALR854 ERG3FJ101 3W 5% 100 Ω

METALR855 ERG3FJ101 3W 5% 100 Ω

CARBONR856 ERDS1TJ2R2 0.5W 5% 2R2 Ω

CARBONR857 ERDS1TJ103 0.5W 5% 10K Ω

CARBON R858 ERD25TJ202 0.25W 5% 2K Ω

CARBONR859 ERD25TJ101 0.25W 5% 100 Ω

METAL R860 ERG2FJ223 2W 5% 22K Ω

CARBONR863 ERDS1TJ101 0.5W 5% 100 Ω

S.M.CARBR884 ERJ6GEYJ181 0.1W 5% 180 Ω

S.M.CARBR885 ERJ6GEYJ152 0.1W 5% 1K5 Ω

S.M.CARBR886 ERJ6GEYJ182 0.1W 5% 1K8 Ω

S.M.CARBR887 ERJ6GEYJ752 0.1W 5% 7K5 Ω

S.M.CARBR888 ERJ6GEYJ752 0.1W 5% 7K5 Ω

S.M.CARBR889 ERJ6GEYJ752 0.1W 5% 7K5 Ω

S.M.CARBR890 ERJ6GEYJ752 0.1W 5% 7K5 Ω

S.M.CARBR891 ERJ6GEYJ752 0.1W 5% 7K5 Ω

S.M.CARBR892 ERJ6GEYJ752 0.1W 5% 7K5 Ω

S.M.CARBR893 ERJ6GEYJ473 0.1W 5% 47K Ω

S.M.CARBR894 ERJ6GEYJ153 0.1W 5% 15K Ω

S.M.CARBR913 ERJ6GEYJ473 0.1W 5% 47K Ω

S.M.CARBR914 ERJ6GEYJ822 0.1W 5% 8K2 Ω

S.M.CARBR915 ERJ6GEYJ152 0.1W 5% 1K5 Ω

S.M.CARBR916 ERJ6GEYJ391 0.1W 5% 390 Ω

FUSIBLER919 ERQ14AJW390 0.25W 5% 39 Ω

FUSIBLER920 ERQ14AJW390 0.25W 5% 39 Ω

CARBONR921 ERDS2TJ471T 0.5W 5% 470 Ω

CARBON R922 ERD25TJ393 0.25W 5% 39K Ω

CARBON R923 ERD25TJ393 0.25W 5% 39K Ω

CARBONR924 ERDS1FJ390 0.5W 5% 39 Ω

S.M.CARBR925 ERJ6GEY0R00 0.1W 5% 0 Ω

S.M.CARBR926 ERJ6GEY0R00 0.1W 5% 0 Ω

CARBONR927 ERDS2TJ471T 0.5W 5% 470 Ω

CARBONR928 ERD25TJ5R6 0.25W 5% 5R6 Ω

CARBONR929 ERDS1FVJ471 0.5W 5% 470 Ω

CARBONR930 ERD25TJ5R6 0.25W 5% 5R6 Ω

CARBONR931 ERDS1FJ390 0.5W 5% 39 Ω

FUSIBLER935 ERQ14AJW3R9 0.25W 5% 3R9 Ω

FUSIBLER936 ERQ1CJP331 1W 5% 330 Ω

S.M.CARBR951 ERJ6GEYJ391 0.1W 5% 390 Ω

S.M.CARBR952 ERJ6GEYJ102 0.1W 5% 1K Ω

S.M.CARBR953 ERJ6GEYJ750 0.1W 5% 75 Ω

S.M.CARBR954 ERJ6GEYJ331 0.1W 5% 330 Ω

S.M.CARBR1061 ERJ6GEYJ102 0.1W 5% 1K Ω

S.M.CARBR1062 ERJ6GEYJ332 0.1W 5% 3K3 Ω

S.M.CARBR1063 ERJ6GEYJ103 0.1W 5% 10K Ω

19

DescriptionCct Ref Parts Number DescriptionCct Ref Parts Number

S.M.CARBR1064 ERJ6GEYJ181 0.1W 5% 180 Ω

S.M.CARBR1065 ERJ6GEYJ272 0.1W 5% 2K7 Ω

S.M.CARBR1066 ERJ6GEY0R00 0.1W 5% 0 Ω

S.M.CARBR1102 ERJ6GEYJ562 0.1W 5% 5K6 Ω

S.M.CARBR1103 ERJ6GEYJ331 0.1W 5% 330 Ω

S.M.CARBR1104 ERJ6GEYJ331 0.1W 5% 330 Ω

S.M.CARBR1107 ERJ6GEYJ104 0.1W 5% 100K Ω

S.M.CARBR1108 ERJ6GEYJ102 0.1W 5% 1K Ω

S.M.CARBR1109 ERJ6GEYJ472 0.1W 5% 4K7 Ω

S.M.CARBR1110 ERJ6GEYJ472 0.1W 5% 4K7 Ω

S.M.CARBR1113 ERJ6GEYJ101 0.1W 5% 100 Ω

S.M.CARBR1114 ERJ6GEYJ101 0.1W 5% 100 Ω

S.M.CARBR1115 ERJ6GEYJ103 0.1W 5% 10K Ω

S.M.CARBR1116 ERJ6GEYJ101 0.1W 5% 100 Ω

S.M.CARBR1117 ERJ6GEYJ101 0.1W 5% 100 Ω

S.M.CARBR1118 ERJ6GEYJ472 0.1W 5% 4K7 Ω

S.M.CARBR1119 ERJ6GEYJ472 0.1W 5% 4K7 Ω

S.M.CARBR1120 ERJ6GEYJ101 0.1W 5% 100 Ω

S.M.CARBR1121 ERJ6GEYJ101 0.1W 5% 100 Ω

S.M.CARBR1122 ERJ6GEYJ104 0.1W 5% 100K Ω

S.M.CARBR1123 ERJ6GEYJ103 0.1W 5% 10K Ω

S.M.CARBR1124 ERJ6GEYJ223 0.1W 5% 22K Ω

S.M.CARBR1125 ERJ6GEY0R00 0.1W 5% 0 Ω

S.M.CARBR1126 ERJ6GEYJ101 0.1W 5% 100 Ω

S.M.CARBR1127 ERJ6GEYJ101 0.1W 5% 100 Ω

S.M.CARBR1128 ERJ6GEYJ272 0.1W 5% 2K7 Ω

S.M.CARBR1129 ERJ6GEYJ272 0.1W 5% 2K7 Ω

S.M.CARBR1130 ERJ6GEYJ123 0.1W 5% 12K Ω

S.M.CARBR1131 ERJ6GEYJ123 0.1W 5% 12K Ω

S.M.CARBR1132 ERJ6GEYJ101 0.1W 5% 100 Ω

S.M.CARBR1137 ERJ6GEYJ331 0.1W 5% 330 Ω

S.M.CARBR1138 ERJ6GEYJ471 0.1W 5% 470 Ω

S.M.CARBR1139 ERJ6GEYJ271 0.1W 5% 270 Ω

S.M.CARBR1143 ERJ6GEYJ360 0.1W 5% 36 Ω

S.M.CARBR1144 ERJ6GEYJ153 0.1W 5% 15K Ω

S.M.CARBR1145 ERJ6GEYJ101 0.1W 5% 100 Ω

S.M.CARBR1146 ERJ6GEYJ101 0.1W 5% 100 Ω

S.M.CARBR1147 ERJ6GEYJ101 0.1W 5% 100 Ω

S.M.CARBR1148 ERJ6GEYJ102 0.1W 5% 1K Ω

S.M.CARBR1149 ERJ6GEYJ223 0.1W 5% 22K Ω

S.M.CARBR1153 ERJ6GEYJ101 0.1W 5% 100 Ω

S.M.CARBR1155 ERJ6GEYJ102 0.1W 5% 1K Ω

S.M.CARBR1157 ERJ6GEYJ103 0.1W 5% 10K Ω

S.M.CARBR1158 ERJ6GEYJ103 0.1W 5% 10K Ω

S.M.CARBR1159 ERJ6GEYJ822 0.1W 5% 8K2 Ω

S.M.CARBR1160 ERJ6GEYJ223 0.1W 5% 22K Ω

S.M.CARBR1161 ERJ6GEYJ103 0.1W 5% 10K Ω

S.M.CARBR1162 ERJ6GEY0R00 0.1W 5% 0 Ω

S.M.CARBR1167 ERJ6GEYJ100 0.1W 5% 10 Ω

S.M.CARBR1168 ERJ6GEYJ473 0.1W 5% 47K Ω

S.M.CARBR1169 ERJ6GEYJ472 0.1W 5% 4K7 Ω

S.M.CARBR1170 ERJ6GEYJ273 0.1W 5% 27K Ω

S.M.CARBR1171 ERJ6GEYJ224 0.1W 5% 220K Ω

S.M.CARBR1172 ERJ6GEYJ223 0.1W 5% 22K Ω

S.M.CARBR1173 ERJ6GEYJ104 0.1W 5% 100K Ω

S.M.CARBR1174 ERJ6GEYJ221 0.1W 5% 220 Ω

S.M.CARBR1175 ERJ6GEYJ225 0.1W 5% 2M2 Ω

S.M.CARBR1178 ERJ6GEY0R00 0.1W 5% 0 Ω

S.M.CARBR1200 ERJ6GEY0R00 0.1W 5% 0 Ω

S.M.CARBR1201 ERJ6GEYJ103 0.1W 5% 10K Ω

S.M.CARBR1202 ERJ6GEYJ103 0.1W 5% 10K Ω

S.M.CARBR1203 ERJ6GEYJ103 0.1W 5% 10K Ω

S.M.CARBR1204 ERJ6GEYJ103 0.1W 5% 10K Ω

S.M.CARBR1205 ERJ6GEYJ103 0.1W 5% 10K Ω

S.M.CARBR1206 ERJ6GEYJ101 0.1W 5% 100 Ω

CARBONR1207 ERD25TJ101 0.25W 5% 100 Ω

S.M.CARBR1208 ERJ6GEYJ472 0.1W 5% 4K7 Ω

S.M.CARBR1209 ERJ6GEYJ153 0.1W 5% 15K Ω

S.M.CARBR1210 ERJ6GEYJ153 0.1W 5% 15K Ω

S.M.CARBR1211 ERJ6GEYJ683 0.1W 5% 68K Ω

S.M.CARBR1212 ERJ6GEYJ101 0.1W 5% 100 Ω

S.M.CARBR1213 ERJ6GEYJ103 0.1W 5% 10K Ω

S.M.CARBR1214 ERJ6GEYJ153 0.1W 5% 15K Ω

S.M.CARBR1215 ERJ6GEYJ683 0.1W 5% 68K Ω

S.M.CARBR1217 ERJ6GEYJ103 0.1W 5% 10K Ω

S.M.CARBR1220 ERJ6GEYJ101 0.1W 5% 100 Ω

S.M.CARBR1222 ERJ6GEYJ203 0.1W 5% 20K Ω

S.M.CARBR1223 ERJ6GEYJ102 0.1W 5% 1K Ω

S.M.CARBR1224 ERJ6GEYJ102 0.1W 5% 1K Ω

S.M.CARBR1225 ERJ6GEYJ102 0.1W 5% 1K Ω

S.M.CARBR1226 ERJ6GEYJ102 0.1W 5% 1K Ω

S.M.CARBR1228 ERJ6GEYJ101 0.1W 5% 100 Ω

S.M.CARBR1229 ERJ6GEYJ101 0.1W 5% 100 Ω

S.M.CARBR1236 ERJ6GEYJ472 0.1W 5% 4K7 Ω

S.M.CARBR1237 ERJ6GEYJ472 0.1W 5% 4K7 Ω

S.M.CARBR1240 ERJ6GEY0R00 0.1W 5% 0 Ω

S.M.CARBR1241 ERJ6GEY0R00 0.1W 5% 0 Ω

S.M.CARBR1251 ERJ6GEYJ222 0.1W 5% 2K2 Ω

S.M.CARBR1252 ERJ6GEYJ222 0.1W 5% 2K2 Ω

S.M.CARBR1253 ERJ6GEYJ332 0.1W 5% 3K3 Ω

S.M.CARBR1254 ERJ6GEYJ512 0.1W 5% 5K1 Ω

S.M.CARBR1255 ERJ6GEYJ912 0.1W 5% 9K1 Ω

FUSIBLER1900 ERQ12HJ150 0.1W 5% 15 Ω

S.M.CARBR1901 ERJ6GEYJ123 0.1W 5% 12K Ω

S.M.CARBR1902 ERJ6GEYJ123 0.1W 5% 12K Ω

S.M.CARBR1903 ERJ6GEYJ153 0.1W 5% 15K Ω

CARBONR1904 ERDS1TJ2R2 0.5W 5% 2R2 Ω

S.M.CARBR1905 ERJ6GEYJ114 0.1W 5% 110K Ω

S.M.CARBR1906 ERJ6GEYJ104 0.1W 5% 100K Ω

S.M.CARBR1907 ERJ6GEYJ104 0.1W 5% 100K Ω

S.M.CARBR1908 ERJ6GEYJ103 0.1W 5% 10K Ω

CARBONR1909 ERDS1TJ2R2 0.5W 5% 2R2 Ω

CARBONR1910 ERDS1TJ8R2 0.5W 5% 8R2 Ω

CARBONR1911 ERDS1TJ8R2 0.5W 5% 8R2 Ω

S.M.CARBR1913 ERJ6GEYJ472 0.1W 5% 4K7 Ω

METALR1914 ERG1SJ391E 1W 5% 390 Ω

S.M.CARBR2101 ERJ6GEYJ103 0.1W 5% 10K Ω

S.M.CARBR2102 ERJ6GEYJ101 0.1W 5% 100 Ω

S.M.CARBR2103 ERJ6GEYJ101 0.1W 5% 100 Ω

S.M.CARBR2109 ERJ6GEYJ101 0.1W 5% 100 Ω

S.M.CARBR2110 ERJ6GEY0R00 0.1W 5% 0 Ω

S.M.CARBR2111 ERJ6GEYJ221 0.1W 5% 220 Ω

S.M.CARBR2112 ERJ6GEYJ102 0.1W 5% 1K Ω

S.M.CARBR2113 ERJ6GEYJ562 0.1W 5% 5K6 Ω

S.M.CARBR2114 ERJ6GEYJ101 0.1W 5% 100 Ω

S.M.CARBR2115 ERJ6GEYJ222 0.1W 5% 2K2 Ω

S.M.CARBR2116 ERJ6GEYJ101 0.1W 5% 100 Ω

S.M.CARBR2117 ERJ6GEYJ101 0.1W 5% 100 Ω

S.M.CARBR2118 ERJ6GEYJ222 0.1W 5% 2K2 Ω

S.M.CARBR2119 ERJ6GEYJ101 0.1W 5% 100 Ω

S.M.CARBR2120 ERJ6GEYJ222 0.1W 5% 2K2 Ω

S.M.CARBR2123 ERJ6GEYJ102 0.1W 5% 1K Ω

S.M.CARBR2131 ERJ6GEYJ102 0.1W 5% 1K Ω

S.M.CARBR2302 ERJ6GEYJ104 0.1W 5% 100K Ω

S.M.CARBR2303 ERJ6GEYJ101 0.1W 5% 100 Ω

S.M.CARBR2304 ERJ6GEYJ471 0.1W 5% 470 Ω

S.M.CARBR2305 ERJ6GEYJ102 0.1W 5% 1K Ω

S.M.CARBR2306 ERJ6GEYJ102 0.1W 5% 1K Ω

S.M.CARBR2307 ERJ6GEYJ272 0.1W 5% 2K7 Ω

S.M.CARBR2308 ERJ6GEYJ104 0.1W 5% 100K Ω

S.M.CARBR2309 ERJ6GEYJ101 0.1W 5% 100 Ω

S.M.CARBR2310 ERJ6GEYJ471 0.1W 5% 470 Ω

20

DescriptionCct Ref Parts Number DescriptionCct Ref Parts Number

S.M.CARBR2311 ERJ6GEYJ102 0.1W 5% 1K Ω

S.M.CARBR2312 ERJ6GEYJ102 0.1W 5% 1K Ω

S.M.CARBR3001 ERJ6GEYJ101 0.1W 5% 100 Ω

S.M.CARBR3002 ERJ6GEYJ471 0.1W 5% 470 Ω

S.M.CARBR3003 ERJ6GEYJ101 0.1W 5% 100 Ω

S.M.CARBR3004 ERJ6GEYJ153 0.1W 5% 15K Ω

S.M.CARBR3005 ERJ6GEYJ101 0.1W 5% 100 Ω

S.M.CARBR3006 ERJ6GEYJ471 0.1W 5% 470 Ω

S.M.CARBR3007 ERJ6GEYJ101 0.1W 5% 100 Ω

S.M.CARBR3008 ERJ6GEYJ153 0.1W 5% 15K Ω

S.M.CARBR3009 ERJ6ENF75R0 0.5W 1% 75 Ω

S.M.CARBR3010 ERJ6ENF75R0 0.5W 1% 75 Ω

S.M.CARBR3011 ERJ6ENF75R0 0.5W 1% 75 Ω

S.M.CARBR3012 ERJ6GEYJ750 0.1W 5% 75 Ω

CARBONR3013 ERD25TJ101 0.25W 5% 100 Ω

S.M.CARBR3014 ERJ6GEYJ471 0.1W 5% 470 Ω

S.M.CARBR3015 ERJ6GEYJ101 0.1W 5% 100 Ω

S.M.CARBR3016 ERJ6GEYJ153 0.1W 5% 15K Ω

CARBONR3017 ERD25TJ101 0.25W 5% 100 Ω

S.M.CARBR3018 ERJ6GEYJ471 0.1W 5% 470 Ω

S.M.CARBR3019 ERJ6GEYJ101 0.1W 5% 100 Ω

S.M.CARBR3020 ERJ6GEYJ153 0.1W 5% 15K Ω

S.M.CARBR3021 ERJ6GEYJ750 0.1W 5% 75 Ω

S.M.CARBR3022 ERJ6GEYJ102 0.1W 5% 1K Ω

S.M.CARBR3023 ERJ6ENF75R0 0.5W 1% 75 Ω

S.M.CARBR3024 ERJ6ENF75R0 0.5W 1% 75 Ω

S.M.CARBR3025 ERJ6GEYJ750 0.1W 5% 75 Ω

S.M.CARBR3026 ERJ6ENF75R0 0.5W 1% 75 Ω

S.M.CARBR3027 ERJ6GEYJ750 0.1W 5% 75 Ω

S.M.CARBR3043 ERJ6GEYJ102 0.1W 5% 1K Ω

S.M.CARBR3044 ERJ6GEYJ750 0.1W 5% 75 Ω

S.M.CARBR3045 ERJ6GEYJ332 0.1W 5% 3K3 Ω

S.M.CARBR3046 ERJ6GEYJ101 0.1W 5% 100 Ω

S.M.CARBR3047 ERJ6GEYJ101 0.1W 5% 100 Ω

S.M.CARBR3048 ERJ6GEYJ103 0.1W 5% 10K Ω

S.M.CARBR3049 ERJ6GEYJ101 0.1W 5% 100 Ω

S.M.CARBR3050 ERJ6GEYJ103 0.1W 5% 10K Ω

S.M.CARBR3051 ERJ6GEYJ102 0.1W 5% 1K Ω

S.M.CARBR3052 ERJ6GEYJ103 0.1W 5% 10K Ω

S.M.CARBR3054 ERJ6GEYJ103 0.1W 5% 10K Ω

S.M.CARBR3055 ERJ6GEYJ103 0.1W 5% 10K Ω

S.M.CARBR3057 ERJ6GEYJ750 0.1W 5% 75 Ω

S.M.CARBR3201 ERJ6GEYJ101 0.1W 5% 100 Ω

S.M.CARBR3202 ERJ6GEYJ101 0.1W 5% 100 Ω

S.M.CARBR3203 ERJ6GEYJ472 0.1W 5% 4K7 Ω

S.M.CARBR3204 ERJ6GEYJ472 0.1W 5% 4K7 Ω

S.M.CARBR3206 ERJ6GEYJ102 0.1W 5% 1K Ω

S.M.CARBR3207 ERJ6GEYJ102 0.1W 5% 1K Ω

S.M.CARBR3209 ERJ6GEYJ750 0.1W 5% 75 Ω

S.M.CARBR3210 ERJ6GEYJ153 0.1W 5% 15K Ω

S.M.CARBR3211 ERJ6GEYJ472 0.1W 5% 4K7 Ω

S.M.CARBR3212 ERJ6GEYJ472 0.1W 5% 4K7 Ω

S.M.CARBR3213 ERJ6GEYJ750 0.1W 5% 75 Ω

S.M.CARBR3214 ERJ6GEYJ750 0.1W 5% 75 Ω

S.M.CARBR3215 ERJ6GEYJ750 0.1W 5% 75 Ω

S.M.CARBR3220 ERJ6GEYJ103 0.1W 5% 10K Ω

S.M.CARBR3221 ERJ6GEYJ103 0.1W 5% 10K Ω

CARBONR3225 ERD25TJ470 0.25W 5% 47 Ω

CARBONR3226 ERD25TJ470 0.25W 5% 47 Ω

CARBONR3227 ERD25TJ470 0.25W 5% 47 Ω

S.M.CARBR3228 ERJ6GEY0R00 0.1W 5% 0 Ω

S.M.CARBR3229 ERJ6GEY0R00 0.1W 5% 0 Ω

S.M.CARBR3230 ERJ6GEY0R00 0.1W 5% 0 Ω

S.M.CARBR3231 ERJ6GEYJ102 0.1W 5% 1K Ω

S.M.CARBR3232 ERJ6GEYJ102 0.1W 5% 1K Ω

S.M.CARBR3233 ERJ6GEYJ102 0.1W 5% 1K Ω

CARBON R3242 ERDS1TJ151 0.5W 5% 150 Ω

CARBON R3243 ERDS1TJ151 0.5W 5% 150 Ω

METAL R3244 ERG2FJ221 2W 5% 220 Ω

METAL R3245 ERG2FJ221 2W 5% 220 Ω

S.M.CARBR3247 ERJ6GEYJ101 0.1W 5% 100 Ω

S.M.CARBR3248 ERJ6GEYJ153 0.1W 5% 15K Ω

S.M.CARBR3250 ERJ6GEYJ101 0.1W 5% 100 Ω

S.M.CARBR3261 ERJ6GEYJ103 0.1W 5% 10K Ω

S.M.CARBR3301 ERJ6GEYJ103 0.1W 5% 10K Ω

S.M.CARBR3302 ERJ6GEYJ103 0.1W 5% 10K Ω

S.M.CARBR3303 ERJ6GEYJ103 0.1W 5% 10K Ω

S.M.CARBR3304 ERJ6GEYJ103 0.1W 5% 10K Ω

S.M.CARBR3305 ERJ6GEYJ103 0.1W 5% 10K Ω

S.M.CARBR3601 ERJ6GEYJ561 0.1W 5% 560 Ω

S.M.CARBR3602 ERJ6GEYJ561 0.1W 5% 560 Ω

S.M.CARBR3603 ERJ6GEYJ561 0.1W 5% 560 Ω

S.M.CARBR3604 ERJ6GEYJ391 0.1W 5% 390 Ω

S.M.CARBR3605 ERJ6GEYJ391 0.1W 5% 390 Ω

S.M.CARBR3606 ERJ6GEYJ391 0.1W 5% 390 Ω

CARBON R4801 ERDS1TJ474 0.5W 5% 470K Ω

CARBON R4802 ERDS1TJ474 0.5W 5% 470K Ω

METALR4803 ERDS1TJ224T 2W 5% 220K Ω

METALR4804 ERX12SJ2R7P 0.5W 5% 2R7 Ω

METALR4805 ERX12SJ2R7P 0.5W 5% 2R7 Ω

S.M.CARBR4807 ERJ6GEYJ681 0.1W 5% 680 Ω

S.M.CARBR4809 ERJ6GEYJ392 0.1W 5% 3K9 Ω

CARBONR4812 ERDS2TJ684T 2W 5% 680K Ω

FUSIBLER4813 ERQ12AJ470 0.5W 5% 47 Ω

METALR4815 ERG1SJ220E 1W 5% 22 Ω

S.M.CARBR4821 ERJ6GEYJ105 0.1W 5% 1M Ω

S.M.CARBR4822 ERJ6GEYJ105 0.1W 5% 1M Ω

S.M.CARBR4823 ERJ6GEYJ153 0.1W 5% 15K Ω

S.M.CARBR4824 ERJ6GEYJ105 0.1W 5% 1M Ω

S.M.CARBR4825 ERJ6GEYJ105 0.1W 5% 1M Ω

S.M.CARBR4826 ERJ6GEYJ224 0.1W 5% 220K Ω

METALR4827 ERG3FJ273H 3W 5% 27K Ω

METALR4828 ERG3FJ273H 3W 5% 27K Ω

S.M.CARBR4831 ERJ6GEYJ105 0.1W 5% 1M Ω

S.M.CARBR4832 ERJ6GEYJ105 0.1W 5% 1M Ω

S.M.CARBR4833 ERJ6GEYJ123 0.1W 5% 12K Ω

S.M.CARBR4834 ERJ6GEYJ105 0.1W 5% 1M Ω

S.M.CARBR4835 ERJ6GEYJ105 0.1W 5% 1M Ω

WOUNDR4841 ERF2AK5R6 2W 20% 5R6 Ω

S.M.CARBR4851 ERJ6GEYJ562 0.1W 5% 5K6 Ω

CARBONR4852 ERD25TJ101 0.25W 5% 100 Ω

S.M.CARBR4854 ERJ6GEYJ471 0.1W 5% 470 Ω

S.M.CARBR4856 ERJ6GEYJ102 0.1W 5% 1K Ω

S.M. CARR4857 ERJ6ENF1052V 0.16W 1% 10K5 Ω

S.M.CARBR4858 ERJ6ENF1002 0.1W 1% 10K Ω

S.M.CARBR4859 ERJ6GEYJ123 0.1W 5% 12K Ω

S.M.CARBR4861 ERJ6GEYJ822 0.1W 5% 8K2 Ω

S.M.CARBR4862 ERJ6GEYJ183 0.1W 5% 18K Ω

S.M.CARBR4863 ERJ6GEYJ103 0.1W 5% 10K Ω

S.M.CARBR4866 ERJ6GEYJ104 0.1W 5% 100K Ω

S.M.CARBR4867 ERJ6GEYJ183 0.1W 5% 18K Ω

S.M.CARBR4868 ERJ6GEYJ822 0.1W 5% 8K2 Ω

S.M.CARBR4869 ERJ6GEYJ104 0.1W 5% 100K Ω

S.M.CARBR5005 ERJ3GEYJ101 0.1W 5% 100 Ω

S.M.CARBR5006 ERJ3GEYJ101 0.1W 5% 100 Ω

S.M.CARBR5007 ERJ3GEY0R00 0.1W 5% 0 Ω

S.M.CARBR5008 ERJ3GEYJ102 0.1W 5% 1K Ω

S.M.CARBR5009 ERJ3GEYJ822 0.33W 5% 8.2K Ω

S.M.CARBR5013 ERJ3GEYJ102 0.1W 5% 1K Ω

S.M.CARBR5014 ERJ3GEYJ123 0.33W 5% 12K Ω

S.M.CARBR5017 ERJ6GEYJ823 0.1W 5% 82K Ω

S.M.CARBR5018 ERJ3GEYJ331 0.125 5% 330 Ω

21

DescriptionCct Ref Parts Number DescriptionCct Ref Parts Number

S.M.CARBR5019 ERJ3GEYJ331 0.125 5% 330 Ω

S.M.CARBR5020 ERJ3GEYJ100 0.33W 5% 10 Ω

S.M.CARBR5021 ERJ3GEYJ222 0.125 5% 2K2 Ω

S.M.CARBR5022 ERJ3GEYJ222 0.125 5% 2K2 Ω

S.M.CARBR5023 ERJ3GEYJ104V 0.1W 5% 100K Ω

S.M.CARBR5024 ERJ3GEYJ102 0.1W 5% 1K Ω

S.M.CARBR5025 ERJ3GEY0R00 0.1W 5% 0 Ω

S.M.CARBR5026 ERJ3GEY0R00 0.1W 5% 0 Ω

S.M.CARBR5027 ERJ3GEYJ100 0.33W 5% 10 Ω

S.M.CARBR5029 ERJ3GEYJ181 0.125 5% 180 Ω

S.M.CARBR5030 ERJ3GEYJ102 0.1W 5% 1K Ω

S.M.CARBR5033 ERJ3GEYJ103 0.1W 5% 10K Ω

S.M.CARBR5034 ERJ3GEYJ152 0.1W 5% 150K Ω

S.M. CARR5036 ERJ3GEYJ163V 3W 5% 16K Ω

S.M.CARBR5037 ERJ3GEYJ561V 0.125 5% 560 Ω

S.M.CARBR5038 ERJ3GEYJ103 0.1W 5% 10K Ω

S.M.CARBR5039 ERJ3GEYJ103 0.1W 5% 10K Ω

S.M.CARBR5040 ERJ3GEYJ103 0.1W 5% 10K Ω

S.M.CARBR5041 ERJ3GEY0R00 0.1W 5% 0 Ω

S.M.CARBR5044 ERJ3GEYJ103 0.1W 5% 10K Ω

S.M.CARBR5046 ERJ3GEYJ560 0.33W 5% 56 Ω

S.M.CARBR5048 ERJ3GEYJ101 0.1W 5% 100 Ω

S.M.CARBR5049 ERJ3GEYJ101 0.1W 5% 100 Ω

CHIP ARRR5051 EXB38V560JV 3W 5% 56 Ω

S.M.CARBR5052 ERJ3GEY0R00 0.1W 5% 0 Ω

S.M.CARBR5053 ERJ3GEYJ103 0.1W 5% 10K Ω

S.M.CARBR5054 ERJ3GEYJ103 0.1W 5% 10K Ω

S.M.CARBR5055 ERJ3GEYJ560 0.33W 5% 56 Ω

S.M.CARBR5056 ERJ3GEYJ560 0.33W 5% 56 Ω

S.M.CARBR5057 ERJ3GEYJ560 0.33W 5% 56 Ω

CHIP ARRR5058 EXB38V560JV 3W 5% 56 Ω

S.M.CARBR5062 ERJ3GEY0R00 0.1W 5% 0 Ω

S.M.CARBR5063 ERJ3GEY0R00 0.1W 5% 0 Ω

S.M.CARBR5066 ERJ3GEY0R00 0.1W 5% 0 Ω

S.M.CARBR5067 ERJ3GEY0R00 0.1W 5% 0 Ω

S.M.CARBR5073 ERJ3GEYJ105 0.33W 5% 1M Ω

S.M.CARBR5074 ERJ3GEYJ181 0.125 5% 180 Ω

S.M.CARBR5075 ERJ3GEYJ181 0.125 5% 180 Ω

S.M.CARBR5076 ERJ3GEYJ103 0.1W 5% 10K Ω

S.M.CARBR5101 ERJ3GEYF181 0.33W 1% 180 Ω

S.M.CARBR5102 ERJ3GEYF181 0.33W 1% 180 Ω

S.M.CARBR5103 ERJ3GEYF181 0.33W 1% 180 Ω

S.M.CARBR5104 ERJ3GEYF181 0.33W 1% 180 Ω

S.M.CARBR5107 ERJ3GEYF272 0.33W 1% 2.7K Ω

S.M.CARBR5108 ERJ3GEYF272 0.33W 1% 2.7K Ω

S.M.CARBR5109 ERJ3GEYF272 0.33W 1% 2.7K Ω

S.M.CARBR5110 ERJ3GEYF272 0.33W 1% 2.7K Ω

S.M.CARBR5111 ERJ3GEYJ471V 0.125 5% 470 Ω

S.M.CARBR5112 ERJ3GEYJ471V 0.125 5% 470 Ω

S.M.CARBR5113 ERJ3GEYJ471V 0.125 5% 470 Ω

S.M.CARBR5114 ERJ3GEYJ471V 0.125 5% 470 Ω

S.M.CARBR5116 ERJ3GEYJ103 0.1W 5% 10K Ω

S.M.CARBR5117 ERJ6GEYJ471 0.1W 5% 470 Ω

S.M.CARBR5118 ERJ6GEYJ471 0.1W 5% 470 Ω

S.M.CARBR5119 ERJ6GEYJ471 0.1W 5% 470 Ω

S.M.CARBR5120 ERJ6GEYJ471 0.1W 5% 470 Ω

S.M.CARBR5121 ERJ3GEYJ103 0.1W 5% 10K Ω

S.M.CARBR5122 ERJ3GEYJ103 0.1W 5% 10K Ω

FUSIBLER5123 ERQ14AJ2R2 0.25W 5% 2R2 Ω

S.M.CARBR5124 ERJ3GEYJ563V 0.125 5% 56K Ω

S.M.CARBR5125 ERJ3GEYJ563V 0.125 5% 56K Ω

S.M.CARBR5126 ERJ3GEYJ563V 0.125 5% 56K Ω

S.M.CARBR5127 ERJ3GEYJ563V 0.125 5% 56K Ω

S.M.CARBR5128 ERJ3GEYF153 0.33W 1% 15K Ω

S.M.CARBR5129 ERJ3GEYF153 0.33W 1% 15K Ω

S.M.CARBR5130 ERJ3GEYF153 0.33W 1% 15K Ω

S.M.CARBR5131 ERJ3GEYF153 0.33W 1% 15K Ω

S.M.CARBR5132 ERJ3GEYF103 0.33W 1% 10K Ω

S.M.CARBR5133 ERJ3GEYF123 0.33W 1% 12K Ω

S.M.CARBR5134 ERJ3GEYF103 0.33W 1% 10K Ω

S.M.CARBR5135 ERJ3GEYF123 0.33W 1% 12K Ω

S.M.CARBR5136 ERJ3GEYJ471V 0.125 5% 470 Ω

S.M.CARBR5137 ERJ3GEYJ471V 0.125 5% 470 Ω

S.M.CARBR5138 ERJ3GEYJ181 0.125 5% 180 Ω

S.M.CARBR5139 ERJ3GEYJ181 0.125 5% 180 Ω

S.M.CARBR5140 ERJ3GEYJ473V 0.125 5% 47K Ω

S.M.CARBR5141 ERJ3GEYJ473V 0.125 5% 47K Ω

S.M.CARBR5142 ERJ14YJ471 0.25W 1% 470 Ω

S.M.CARBR5143 ERJ14YJ471 0.25W 1% 470 Ω

S.M.CARBR5144 ERJ3GEYF430 0.33W 1% 43 Ω

S.M.CARBR5145 ERJ3GEYF390 0.33W 1% 39 Ω

S.M.CARBR5146 ERJ3GEYF390 0.33W 1% 39 Ω

S.M.CARBR5147 ERJ3GEYF390 0.33W 1% 39 Ω

S.M.CARBR5201 ERJ3GEYJ102 0.1W 5% 1K Ω

S.M.CARBR5202 ERJ3GEYJ102 0.1W 5% 1K Ω

S.M.CARBR5203 ERJ3GEYJ102 0.1W 5% 1K Ω

S.M.CARBR5204 ERJ3GEYJ102 0.1W 5% 1K Ω

S.M.CARBR5205 ERJ3GEY0R00 0.1W 5% 0 Ω

S.M.CARBR5206 ERJ3GEY0R00 0.1W 5% 0 Ω

S.M.CARBR5208 ERJ3GEYJ222 0.125 5% 2K2 Ω

S.M.CARBR5209 ERJ3GEYJ472V 0.125 5% 4.7K Ω

S.M.CARBR5210 ERJ3GEYJ101 0.1W 5% 100 Ω

S.M.CARBR5211 ERJ3GEYJ560 0.33W 5% 56 Ω

S.M.CARBR5212 ERJ3GEYJ560 0.33W 5% 56 Ω

S.M.CARBR5213 ERJ3GEYJ560 0.33W 5% 56 Ω

S.M.CARBR5214 ERJ3GEYJ222 0.125 5% 2K2 Ω

S.M.CARBR5215 ERJ3GEYJ102 0.1W 5% 1K Ω

S.M.CARBR5216 ERJ3GEYJ560 0.33W 5% 56 Ω

S.M.CARBR5217 ERJ3GEYJ101 0.1W 5% 100 Ω

S.M.CARBR5218 ERJ3GEYJ222 0.125 5% 2K2 Ω

S.M.CARBR5219 ERJ3GEY0R00 0.1W 5% 0 Ω

S.M.CARBR5220 ERJ3GEY0R00 0.1W 5% 0 Ω

S.M.CARBR5223 ERJ3GEYJ560 0.33W 5% 56 Ω

S.M.CARBR5224 ERJ3GEYJ560 0.33W 5% 56 Ω

S.M.CARBR5225 ERJ3GEYJ560 0.33W 5% 56 Ω

S.M.CARBR5226 ERJ3GEYJ101 0.1W 5% 100 Ω

S.M.CARBR5227 ERJ3GEYJ560 0.33W 5% 56 Ω

S.M.CARBR5228 ERJ3GEYJ560 0.33W 5% 56 Ω

S.M.CARBR5229 ERJ3GEYJ101 0.1W 5% 100 Ω

CHIP ARRR5230 EXB38V222JV 3W 5% 2.2K Ω

CHIP ARRR5231 EXB38V222JV 3W 5% 2.2K Ω

S.M.CARBR5232 ERJ3GEYJ472V 0.125 5% 4.7K Ω

S.M.CARBR5233 ERJ3GEYJ472V 0.125 5% 4.7K Ω

S.M.CARBR5234 ERJ3GEYJ222 0.125 5% 2K2 Ω

S.M.CARBR5235 ERJ3GEYJ222 0.125 5% 2K2 Ω

S.M.CARBR5236 ERJ3GEYJ101 0.1W 5% 100 Ω

S.M.CARBR5237 ERJ3GEYJ473V 0.125 5% 47K Ω

S.M.CARBR5238 ERJ3GEYJ472V 0.125 5% 4.7K Ω

S.M.CARBR5239 ERJ3GEYJ103 0.1W 5% 10K Ω

S.M.CARBR5240 ERJ3GEY0R00 0.1W 5% 0 Ω

S.M.CARBR5241 ERJ3GEYJ101 0.1W 5% 100 Ω

S.M.CARBR5242 ERJ3GEYJ823V 0.125 5% 82K Ω

S.M.CARBR5243 ERJ3GEYJ223V 0.1W 5% 22K Ω

S.M.CARBR5244 ERJ3GEYJ101 0.1W 5% 100 Ω

S.M.CARBR5245 ERJ3GEY0R00 0.1W 5% 0 Ω

S.M.CARBR5246 ERJ3GEYJ332 0.125 5% 3.3K Ω

S.M.CARBR5247 ERJ3GEY0R00 0.1W 5% 0 Ω

S.M.CARBR5248 ERJ3GEYJ103 0.1W 5% 10K Ω

S.M.CARBR5249 ERJ3GEYJ103 0.1W 5% 10K Ω

S.M.CARBR5250 ERJ3GEYJ222 0.125 5% 2K2 Ω

S.M.CARBR5252 ERJ3GEYJ101 0.1W 5% 100 Ω

CHIP NETR5253 D1HG2208A002 0.25W 5% 22 Ω

22

DescriptionCct Ref Parts Number DescriptionCct Ref Parts Number

S.M.CARBR5254 ERJ3GEYJ472V 0.125 5% 4.7K Ω

CHIP NETR5255 D1HG2208A002 0.25W 5% 22 Ω

S.M.CARBR5256 ERJ3GEYJ472V 0.125 5% 4.7K Ω

S.M.CARBR5257 ERJ3GEYJ472V 0.125 5% 4.7K Ω

S.M.CARBR5258 ERJ3GEY0R00 0.1W 5% 0 Ω

S.M.CARBR5259 ERJ3GEYJ472V 0.125 5% 4.7K Ω

S.M.CARBR5264 ERJ3GEYJ560 0.33W 5% 56 Ω

CHIP NETR5267 D1HG5608A002 0.25W 5% 56 Ω

S.M.CARBR5268 ERJ3GEYJ560 0.33W 5% 56 Ω

S.M.CARBR5269 ERJ3GEYJ560 0.33W 5% 56 Ω

S.M.CARBR5270 ERJ3GEYJ103 0.1W 5% 10K Ω

S.M.CARBR5271 ERJ3GEYJ560 0.33W 5% 56 Ω

S.M.CARBR5272 ERJ8GEY0R00 .125W 5% 0 Ω

S.M.CARBR5273 ERJ8GEY0R00 .125W 5% 0 Ω

S.M.CARBR5274 ERJ8GEY0R00 .125W 5% 0 Ω

S.M.CARBR5275 ERJ3GEY0R00 0.1W 5% 0 Ω

S.M.CARBR5276 ERJ3GEYJ103 0.1W 5% 10K Ω

S.M.CARBR5277 ERJ3GEYJ103 0.1W 5% 10K Ω

S.M.CARBR5278 ERJ3GEYJ103 0.1W 5% 10K Ω

S.M.CARBR5279 ERJ3GEYJ103 0.1W 5% 10K Ω

S.M.CARBR5280 ERJ3GEYJ560 0.33W 5% 56 Ω

S.M.CARBR5283 ERJ3GEYJ121 0.1W 5% 120 Ω

S.M.CARBR5284 ERJ3GEYJ560 0.33W 5% 56 Ω

CHIP NETR5285 D1HG5608A002 0.25W 5% 56 Ω

CHIP NETR5287 D1HG5608A002 0.25W 5% 56 Ω

CHIP NETR5289 D1HG5608A002 0.25W 5% 56 Ω

S.M.CARBR5291 ERJ3GEYJ104V 0.1W 5% 100K Ω

S.M.CARBR5292 ERJ3GEYJ181 0.125 5% 180 Ω

S.M.CARBR5293 ERJ3GEYJ104V 0.1W 5% 100K Ω

S.M.CARBR5294 ERJ3GEYJ104V 0.1W 5% 100K Ω

S.M.CARBR5295 ERJ3GEYJ105 0.33W 5% 1M Ω

S.M.CARBR5296 ERJ3GEYJ332 0.125 5% 3.3K Ω

S.M.CARBR5297 ERJ3GEYJ101 0.1W 5% 100 Ω

S.M.CARBR5298 ERJ3GEYJ101 0.1W 5% 100 Ω

S.M.CARBR5300 ERJ3GEYJ331 0.125 5% 330 Ω

S.M.CARBR5301 ERJ3GEYJ101 0.1W 5% 100 Ω

S.M.CARBR5304 ERJ6GEY0R00 0.1W 5% 0 Ω

S.M.CARBR5305 ERJ3GEYJ680 0.33W 5% 68 Ω

S.M.CARBR5309 ERJ3GEYJ103 0.1W 5% 10K Ω

CHIP NETR5311 D1HG6808A002 0.25W 5% 68 Ω

CHIP NETR5313 D1HG6808A002 0.25W 5% 68 Ω

CHIP NETR5315 D1HG6808A002 0.25W 5% 68 Ω

CHIP NETR5317 D1HG6808A002 0.25W 5% 68 Ω

S.M.CARBR5319 ERJ3GEYJ680 0.33W 5% 68 Ω

CHIP NETR5320 D1HG6808A002 0.25W 5% 68 Ω

CHIP NETR5321 D1HG6808A002 0.25W 5% 68 Ω

S.M.CARBR5322 ERJ3GEY0R00 0.1W 5% 0 Ω

S.M.CARBR5323 ERJ3GEY0R00 0.1W 5% 0 Ω

S.M.CARBR5324 ERJ3GEYJ680 0.33W 5% 68 Ω

S.M.CARBR5325 ERJ3GEY0R00 0.1W 5% 0 Ω

S.M. CARR5326 ERJ3GEYJ390V 3W 5% 39 Ω

S.M.CARBR5327 ERJ3GEYJ220 0.1W 5% 22 Ω

S.M.CARBR5328 ERJ3GEYJ680 0.33W 5% 68 Ω

S.M.CARBR5329 ERJ3GEYJ680 0.33W 5% 68 Ω

S.M.CARBR5331 ERJ3GEYJ103 0.1W 5% 10K Ω

S.M.CARBR5334 ERJ3GEYJ680 0.33W 5% 68 Ω

S.M.CARBR5335 ERJ3GEYJ680 0.33W 5% 68 Ω

S.M.CARBR5338 ERJ3GEY0R00 0.1W 5% 0 Ω

S.M. CARR5345 ERJ3GEYF273V 3W 5% 27K Ω

S.M.CARBR5346 ERJ3GEYF272 0.33W 1% 2.7K Ω

S.M.CARBR5347 ERJ3GEYF153 0.33W 1% 15K Ω

S.M.CARBR5348 ERJ3GEYJ103 0.1W 5% 10K Ω

S.M.CARBR5349 ERJ3GEYJ103 0.1W 5% 10K Ω

S.M.CARBR5350 ERJ3GEYJ103 0.1W 5% 10K Ω

S.M.CARBR5351 ERJ3GEYJ103 0.1W 5% 10K Ω

S.M.CARBR5352 ERJ3GEYJ103 0.1W 5% 10K Ω

S.M. CARR5353 ERJ3GEYF180V 3W 5% 18 Ω

S.M.CARBR5355 ERJ3GEYF750 0.33W 1% 75 Ω

S.M.CARBR5356 ERJ3GEY0R00 0.1W 5% 0 Ω

S.M.CARBR5357 ERJ3GEY0R00 0.1W 5% 0 Ω

S.M. CARR5358 ERJ3GEYF122V 3W 5% 1.2K Ω

S.M. CARR5359 ERJ3GEYF180V 3W 5% 18 Ω

S.M. CARR5361 ERJ3GEYF332V 3W 5% 3.3K Ω

S.M.CARBR5362 ERJ3GEYF750 0.33W 1% 75 Ω

S.M.CARBR5366 ERJ3GEYF103 0.33W 1% 10K Ω

S.M.CARBR5367 ERJ3GEYF123 0.33W 1% 12K Ω

S.M.CARBR5370 ERJ3GEY0R00 0.1W 5% 0 Ω

S.M.CARBR5371 ERJ3GEYJ560 0.33W 5% 56 Ω

S.M.CARBR5372 ERJ3GEYJ560 0.33W 5% 56 Ω

S.M.CARBR5373 ERJ3GEYJ560 0.33W 5% 56 Ω

S.M.CARBR5374 ERJ3GEYJ560 0.33W 5% 56 Ω

S.M.CARBR5375 ERJ3GEYJ560 0.33W 5% 56 Ω

S.M.CARBR5376 ERJ3GEY0R00 0.1W 5% 0 Ω

S.M.CARBR5379 ERJ3GEYJ103 0.1W 5% 10K Ω

S.M.CARBR5383 ERJ3GEYJ103 0.1W 5% 10K Ω

S.M.CARBR5389 ERJ3GEYJ102 0.1W 5% 1K Ω

S.M.CARBR5391 ERJ3GEYJ102 0.1W 5% 1K Ω

S.M.CARBR5392 ERJ3GEYJ102 0.1W 5% 1K Ω

S.M.CARBR5393 ERJ3GEY0R00 0.1W 5% 0 Ω

S.M. CARR5394 ERJ3GEYF180V 3W 5% 18 Ω

S.M. CARR5395 ERJ3GEYF180V 3W 5% 18 Ω

S.M.CARBR5397 ERJ3GEYF750 0.33W 1% 75 Ω

S.M.CARBR5398 ERJ3GEYF750 0.33W 1% 75 Ω

S.M.CARBR5399 ERJ3GEYJ472V 0.125 5% 4.7K Ω

S.M.CARBR5401 ERJ8GEY0R00 .125W 5% 0 Ω

S.M.CARBR5402 ERJ6GEY0R00 0.1W 5% 0 Ω

S.M.CARBR5415 ERJ3GEYJ273 0.125 5% 27K Ω

S.M.CARBR5416 ERJ3GEYJ273 0.125 5% 27K Ω

CHIP ARRR5417 EXB38V473JV 3W 5% 47K Ω

CHIP ARRR5418 EXB38V473JV 3W 5% 47K Ω

CHIP ARRR5419 EXB38V220JV 3W 5% 22 Ω

CHIP ARRR5420 EXB38V220JV 3W 5% 22 Ω

S.M.CARBR5421 ERJ3GEYJ103 0.1W 5% 10K Ω

S.M. CARR5422 ERJ3GEYF472V 3W 5% 4.7K Ω

S.M. CARR5424 ERJ8RSJR10V 0.125 5% 0.1 Ω

S.M.CARBR5437 ERJ3GEYJ103 0.1W 5% 10K Ω

CHIP ARRR5438 EXB38V560JV 3W 5% 56 Ω

CHIP ARRR5439 EXB38V560JV 3W 5% 56 Ω

CHIP ARRR5440 EXB38V560JV 3W 5% 56 Ω

CHIP ARRR5441 EXB38V560JV 3W 5% 56 Ω

CHIP ARRR5442 EXB38V560JV 3W 5% 56 Ω

CHIP ARRR5443 EXB38V560JV 3W 5% 56 Ω

S.M.CARBR5444 ERJ3GEYJ101 0.1W 5% 100 Ω

S.M.CARBR5445 ERJ3GEYJ560 0.33W 5% 56 Ω

S.M.CARBR5446 ERJ3GEYJ560 0.33W 5% 56 Ω

S.M.CARBR5447 ERJ3GEYJ223V 0.1W 5% 22K Ω

S.M.CARBR5448 ERJ3GEYJ473V 0.125 5% 47K Ω

S.M.CARBR5449 ERJ3GEYJ103 0.1W 5% 10K Ω

S.M.CARBR5450 ERJ3GEYJ103 0.1W 5% 10K Ω

CHIP ARRR5451 EXB38V104JV 3W 5% 100K Ω

CHIP ARRR5452 EXB38V104JV 3W 5% 100K Ω

CHIP ARRR5453 EXB38V104JV 3W 5% 100K Ω

CHIP ARRR5454 EXB38V470JV 3W 5% 47 Ω

CHIP ARRR5455 EXB38V470JV 3W 5% 47 Ω

CHIP ARRR5456 EXB38V470JV 3W 5% 47 Ω

CHIP ARRR5457 EXB38V470JV 3W 5% 47 Ω

S.M.CARBR5458 ERJ3GEYJ470V 0.125 5% 47 Ω

CHIP ARRR5459 EXB38V470JV 3W 5% 47 Ω

S.M.CARBR5460 ERJ3GEYJ104V 0.1W 5% 100K Ω

S.M.CARBR5462 ERJ3GEYJ470V 0.125 5% 47 Ω

S.M.CARBR5463 ERJ3GEYJ470V 0.125 5% 47 Ω

S.M.CARBR5464 ERJ3GEYJ470V 0.125 5% 47 Ω

23

CAPACITORS

DescriptionCct Ref Parts Number DescriptionCct Ref Parts Number

S.M.CARBR5465 ERJ3GEYJ470V 0.125 5% 47 Ω

CHIP ARRR5466 EXB38V560JV 3W 5% 56 Ω

S.M.CARBR5467 ERJ3GEYJ560 0.33W 5% 56 Ω

S.M.CARBR5468 ERJ3GEYJ560 0.33W 5% 56 Ω

S.M.CARBR5469 ERJ3GEY0R00 0.1W 5% 0 Ω

S.M.CARBR5747 ERJ3GEYJ104V 0.1W 5% 100K Ω

S.M.CARBR5748 ERJ3GEYJ104V 0.1W 5% 100K Ω

S.M.CARBR5749 ERJ3GEYJ104V 0.1W 5% 100K Ω

S.M.CARBR5862 ERJ3GEYJ103 0.1W 5% 10K Ω

S.M.CARBR5863 ERJ3GEYJ682V 0.125 5% 6.8K Ω

S.M.CARBR5864 ERJ3GEYJ103 0.1W 5% 10K Ω

S.M.CARBR5865 ERJ3GEY0R00 0.1W 5% 0 Ω

S.M.CARBR5866 ERJ3GEYJ103 0.1W 5% 10K Ω

S.M.CARBR5868 ERJ3GEYJ103 0.1W 5% 10K Ω

S.M.CARBR5869 ERJ3GEYJ103 0.1W 5% 10K Ω

S.M.CARBR5870 ERJ3GEYJ103 0.1W 5% 10K Ω

S.M.CARBR5871 ERJ3GEYJ103 0.1W 5% 10K Ω

S.M.CARBR5872 ERJ3GEYJ472V 0.125 5% 4.7K Ω

S.M.CARBR5873 ERJ3GEYJ472V 0.125 5% 4.7K Ω

S.M.CARBR5874 ERJ3GEYJ471V 0.125 5% 470 Ω

S.M.CARBR5875 ERJ3GEYJ103 0.1W 5% 10K Ω

S.M.CARBR5876 ERJ3GEYJ103 0.1W 5% 10K Ω

S.M.CARBR5877 ERJ3GEYJ103 0.1W 5% 10K Ω

S.M.CARBR5878 ERJ3GEYJ103 0.1W 5% 10K Ω

S.M.CARBR5879 ERJ3GEYJ103 0.1W 5% 10K Ω

S.M.CARBR5880 ERJ3GEYJ103 0.1W 5% 10K Ω

S.M.CARBR5881 ERJ3GEYJ332 0.125 5% 3.3K Ω

S.M. CARR5882 ERJ3GEYJ912V 3W 5% 9.1K Ω

S.M.CARBR5883 ERJ3GEYF561 0.33W 1% 560 Ω

S.M.CARBR5884 ERJ3GEYF272 0.33W 1% 2.7K Ω

S.M.CARBR5885 ERJ3GEYJ223V 0.1W 5% 22K Ω

S.M.CARBR5887 ERJ3GEYJ332 0.125 5% 3.3K Ω

S.M.CARBR5889 ERJ3GEY0R00 0.1W 5% 0 Ω

S.M.CARBR5890 ERJ3GEYJ103 0.1W 5% 10K Ω

S.M.CARBR5891 ERJ3GEYF102 0.33W 1% 1K Ω

S.M.CARBR5892 ERJ3GEYF102 0.33W 1% 1K Ω

S.M.CARBR5893 ERJ3GEYJ224V 0.16W 5% 220 Ω

S.M.CARBR5894 ERJ3GEYJ103 0.1W 5% 10K Ω

S.M.CARBR5895 ERJ3GEYJ472V 0.125 5% 4.7K Ω

CHIP ARRR5901 EXB38V560JV 3W 5% 56 Ω

S.M.CARBR5902 ERJ3GEYJ560 0.33W 5% 56 Ω

S.M.CARBR5905 ERJ6GEY0R00 0.1W 5% 0 Ω

S.M.CARBR5906 ERJ3GEY0R00 0.1W 5% 0 Ω

S.M.CARBR5907 ERJ3GEY0R00 0.1W 5% 0 Ω

CERAMICC102 ECUV1H103JCN 50V 10nF

S.M. CAPC103 ECUV1H104KBX 50V 100nF

S.M. CAPC107 ECUV1H104KBX 50V 100nF

FILMC108 F2A1C100A180 16V 10µF

CERAMICC110 ECJ2VF1H103Z 50V 10nF

FILMC111 F2A1HR33A182 50V 0.33µF

CERAMICC112 ECJ2VF1H103Z 50V 10nF

S.M. CAPC113 ECUV1H104KBX 50V 100nF

FILMC114 F2A1H221A184 50V 220µF

CERAMICC117 ECJ2VF1H103Z 50V 10nF

S.M. CAPC118 ECUV1H104KBX 50V 100nF

FILMC119 F2A1H221A184 50V 220µF

ELECTC120 ECEA1AN221UB 10V 220µF

CERAMICC121 ECJ2VB1H561K 50V 560pF

S.M. CAPC124 ECUV1H220JCX 50V 22pF

CERAMICC125 ECUV1H100DCN 50V 10µF

CERAMICC138 ECJ2YB1H104K 50V 100nF

ELECTC251 ECA1EM220B 25V 22µF

FILMC253 F2A1H4R7A182 50V 4.7µF

FILMC254 ECQV1H683JZ 50V 68nF

FILMC255 F2A1E1010056 25V 100µF

FILMC257 F2A1H4R7A182 50V 4.7µF

ELECTC258 ECA1EM220B 25V 22µF

FILMC259 ECQV1H683JZ 50V 68nF

FILMC260 F2A1V1020042 35V 1nF

FILMC261 F2A1V1020042 35V 1nF

FILMC263 F2A1H4R7A182 50V 4.7µF

ELECTC264 ECA1HHG222E 50V 2200µF

FILMC266 F2A1H4R7A182 50V 4.7µF

CERAMICC267 ECJ2YB1H104K 50V 100nF

CERAMICC268 ECJ2YB1H104K 50V 100nF

S.M. CAPC269 ECUV1H472KBX 50V 4.7nF

S.M. CAPC270 ECUV1H472KBX 50V 4.7nF

CERAMICC271 ECJ2VB1H152K 50V 1.5nF

S.M. CAPC301 ECUV1H683ZFX 50V 68nF

S.M. CAPC302 ECUV1H683ZFX 50V 68nF

S.M. CAPC303 ECUV1H683ZFX 50V 68nF

FILMC304 F2A1C100A180 16V 10µF

CERAMICC305 ECJ2VC1H102J 50V 1nF

CERAMICC351 ECJ2VC1H090D 16V 9pF

CERAMICC352 ECJ2VC1H090D 16V 9pF

CERAMICC353 ECJ2VC1H090D 16V 9pF

FILMC354 ECQM2104KZ 250V 100nF

S.M. CAPC355 ECUV1H222KBX 50V 2.2nF

S.M. CAPC356 ECUV1H222KBX 50V 2.2nF

S.M. CAPC357 ECUV1H222KBX 50V 2.2nF

FILMC358 ECQV1H224JL3 50V 220nF

CERAMIC C360 ECKC3D152J 2KV 1.5nF

FILMC361 F2A1HR47A182 50V 0.47µF

FILMC363 F2A1V471A141 35V 470µF

CERAMICC364 ECJ2VF1H103Z 50V 10nF

FILMC366 F2A1C100A180 16V 10µF

CERAMICC453 ECJ2VB1H223K 50V 22nF

FILMC454 ECQV1H154J 50V 150nF

FILMC455 F2A1H100A182 100V 10µF

ELECTC456 ECA1HHG221B 50V 220µF

FILMC458 ECQB1222JF3 100V 2.2nF

FILMC459 ECQV1J154JM3 63V 150nF

CERAMICC461 ECCW 3D270KGE 2KV 27µF

CERAMICC462 ECJ2VC1H152J 50V 1,5nF

CERAMICC464 ECJ2YB1H683K 50V 68nF

FILMC508 ECQV1H105JZ 50V 1µF

ELECTC509 ECA1VHG470B 35V 47µF

FILMC552 ECW H20102JVY 200V 1µF

FILMC555 ECW F2564JBB 200V 560nF

CERAMICC556 ECJ2YB1H104K 50V 100nF

CERAMIC C557 ECKC2H471J 500V 470pF

ELECTC558 ECA1HHG471E 50V 470µF

CERAMICC559 ECJ2YB1H104K 50V 100nF

FILMC560 ECQM2A104KZ 100V 100nF

FILMC561 F2A1E102A151 25V 1nF

CERAMIC C562 ECKC2H101J 500V 100pF

ELECTC563 ECA2EM220B 250V 22µF

ELECTC564 ECA2AM2R2B 200V 2.2µF

FILMC565 ECQB1H273J 50V 27nF

CERAMIC C566 ECKC2H471J 500V 470pF

FILMC567 F2B1H102A007 50V 1nF

CERAMIC C568 ECKC2H471J 500V 470pF

CERAMIC C569 ECKC2H102J 500V 1nF

FILMC583 ECW H20822JVB 200V 8.2nF

FILM C585 ECQB1H103J 50V 10nF

FILMC588 ECW F2474JBB 500V 470nF

FILMC602 F2A1C101A180 16V 100µF

CERAMICC603 ECJ2VC1H102J 50V 1nF

CERAMICC604 ECJ2VF1H223Z 50V 22nF

FILMC605 F2A1C101A180 16V 100µF

FILMC606 F2A1H3R3A182 50V 3.3µF

24

DescriptionCct Ref Parts Number DescriptionCct Ref Parts Number

S.M. CAPC607 ECUV1H104KBX 50V 100nF

CERAMICC608 ECUV1H153ZFX 50V 15nF

CERAMICC609 ECUV1H153ZFX 50V 15nF

CERAMICC610 ECUV1H153ZFX 50V 15nF

CERAMICC611 ECUV1H153ZFX 50V 15nF

CERAMICC612 ECUV1H153ZFX 50V 15nF

CERAMICC613 ECUV1H153ZFX 50V 15nF

CERAMICC614 ECJ2VC1H050D 50V 5pF

CERAMICC615 ECJ2VC1H050D 50V 5pF

S.M. CAPC616 ECUV1H683ZFX 50V 68nF

CERAMICC617 ECJ2VF1C104Z 16V 100nF

FILMC618 F2A1C2210044 16V 220µF

CERAMICC619 ECJ2YB1H473K 50V 47nF

FILMC620 F2A1C101A180 16V 100µF

S.M. CAPC621 ECUV1H683ZFX 50V 68nF

CERAMICC622 ECJ2YB1H683K 50V 68nF

CERAMICC623 ECJ2VC1H102J 50V 1nF

CERAMICC624 ECJ2YB1C474K 16V 470nF

S.M. CAPC625 ECUV1C224KBX 16V 220nF

S.M. CAPC626 ECUV1C224KBX 16V 220nF

CERAMICC627 ECJ2YB1C474K 16V 470nF

FILMC628 F2A1C100A180 16V 10µF

CERAMICC629 ECJ2YB1H104K 50V 100nF

CERAMICC631 ECJ2YB1H683K 50V 68nF

CERAMICC636 ECJ2YB1H683K 50V 68nF

CERAMICC637 ECUV1H101JCG 50V 100pF

CERAMICC638 ECJ2VC1H180J 50V 18pF

S.M. CAPC639 ECUV1H332KBX 50V 3.3nF

ELECT C701 ECA1HHG101B 50V 100µF

CERAMICC702 ECUV1H103JCN 50V 10nF

ELECTC703 ECA1HHG100B 50V 10µF

CERAMICC704 ECUV1H223JCN 50V 22nF

FILMC705 ECQB1H152K 50V 1.5nF

CERAMICC708 ECJ2YB1H473K 50V 47nF

FILMC802 ECQU2A474MLA 200V 470nF

FILMC803 ECQU2A224MLA 100V 220nF

FILMC804 ECQU2A154MLA 100V 150nF

CERAMIC C805 ECKC2H472J 500V 4.7nF

CERAMIC C806 ECKC2H472J 500V 4.7nF

CERAMIC C807 ECKC2H472J 500V 4.7nF

CERAMIC C808 ECKC2H472J 500V 4.7nF

FILMC810 ECQE6104K 600V 100nF

ELECT C821 ECOS2GA221CA 400V 220µF

ELECT C822 ECA1VM470B 35V 47µF

ELECT C823 ECA1HM4R7GB 50V 4.7µF

ELECT C824 ECA1HM100GB 50V 10µF

FILMC825 ECQB1H471KF3 50V 470pF

CERAMIC C828 ECKC3D331J 2KV 330pF

CERAMICC829 ECKC1H471J 50V 470pF

ELECT C830 ECA1HM4R7GB 50V 4.7µF

CERAMICC832 ECKW NA222ME 100V 2.2nF

CERAMICC840 ECKC3D221JB 2KV 220pF

FILMC841 F2B2E2210005 250V 220µF

FILMC842 F2B2E2210005 250V 220µF

CERAMIC C845 ECKC2H471J 500V 470pF

ELECTC846 ECA1EHG102B 25V 1000µF

CERAMIC C847 ECKC2H471J 500V 470pF

ELECTC848 ECA1CHG471B 16V 470µF

ELECTC850 ECA1JHG471B 63V 470µF

CERAMIC C851 ECKC2H471J 500V 470pF

ELECTC852 ECA1VHG471B 35V 47µF

ELECTC853 ECA1CHG101 16V 100µF

ELECTC854 EEUEB1E101B 25V 100µF

S.M. CAPC855 ECUV1H104KBX 50V 100nF

S.M. CAPC856 ECUV1H104KBX 50V 100nF

S.M. CAPC857 ECUV1H104KBX 50V 100nF

ELECTC858 ECA1HHG100B 50V 10µF

S.M. CAPC859 ECUV1H104KBX 50V 100nF

ELECTC860 EEUEB1H100SB 50V 10µF

FILMC861 F2A1C100A180 16V 10µF

CERAMICC862 ECJ2VF1C105Z 16V 1pF

CERAMICC863 ECJ2VB1H102K 50V 1nF

FILMC864 F2A1C100A180 16V 10µF

CERAMICC865 ECJ2VB1H102K 50V 1nF

FILMC866 F2A1C100A180 16V 10µF

FILMC867 F2A1C100A180 16V 10µF

CERAMICC868 ECJ2YB1H104K 50V 100nF

CERAMICC869 ECJ2VB1H102K 50V 1nF

FILMC870 F2A1C100A180 16V 10µF

CERAMICC871 ECJ2VB1H102K 50V 1nF

FILMC872 F2A1C100A180 16V 10µF

CERAMICC873 ECJ2VF1C105Z 16V 1pF

FILMC883 F2A1H1R00053 50V 1µF

FILMC884 F2A1C100A180 16V 10µF

FILMC902 F2A1V1010038 35V 100µF

S.M. CAPC903 ECUV1H472KBX 50V 4.7nF

S.M. CAPC904 ECUV1H472KBX 50V 4.7nF

CERAMICC906 ECJ2VB1H471K 50V 470pF

S.M. CAPC908 ECUV1H151JCX 50V 150pF

CERAMIC C909 ECKC2H472J 500V 4.7nF

CERAMIC C910 ECKC2H472J 500V 4.7nF

S.M. CAPC911 ECUV1H151JCX 50V 150pF

ELECT C912 ECEA2CU100 160V 10µF

FILMC913 F2A1C101A180 16V 100µF

FILMC914 F2A1C101A180 16V 100µF

ELECTC916 ECEA2CGE100 160V 10µF

S.M. CAPC950 ECUV1H683ZFX 50V 68nF

CERAMICC1061 ECUV1H103JCN 50V 10nF

FILMC1062 F2A1C101A180 16V 100µF

CERAMICC1063 ECJ2VC1H331J 50V 330pF

S.M. CAPC1101 ECUV1H104KBX 50V 100nF

FILMC1102 F2A0J101A181 6.3V 100µF

S.M. CAPC1103 ECUV1H330JCX 50V 33pF

S.M. CAPC1104 ECUV1H330JCX 50V 33pF

CERAMICC1113 ECJ2YB1H104K 50V 100nF

CERAMICC1114 ECJ2VC1H121J 50V 120pF

S.M. CAPC1116 ECUV1H472KBX 50V 4.7nF

S.M. CAPC1117 ECUV1H104KBX 50V 100nF

CERAMICC1118 ECUV1H103JCN 50V 10nF

CERAMICC1119 ECUV1H221KBX 50V 220µF

CERAMICC1121 ECUV1H221KBX 50V 220µF

CERAMICC1122 ECUV1H103JCN 50V 10nF

CERAMICC1123 ECUV1H103JCN 50V 10nF

CERAMICC1218 ECJ2YB1H104K 50V 100nF

FILMC1900 ECQB1H104J 50V 100nF

CERAMICC1901 ECUV1H103JCN 50V 10nF

FILMC1903 F2A1E470A149 25V 47µF

FILMC1904 ECQB1H104J 50V 100nF

FILMC1905 ECQB1H104J 50V 100nF

CERAMICC1909 ECUV1H103JCN 50V 10nF

CERAMICC2101 ECJ2VC1H102J 50V 1nF

CERAMICC2102 ECJ2VC1H102J 50V 1nF

CERAMICC2103 ECJ2VC1H102J 50V 1nF

CERAMICC2104 ECJ2VC1H102J 50V 1nF

CERAMICC2105 ECJ2VC1H102J 50V 1nF

CERAMICC2107 ECJ2VC1H102J 50V 1nF

CERAMICC2108 ECJ2VC1H102J 50V 1nF

CERAMICC2109 ECJ2VC1H102J 50V 1nF

CERAMICC2110 ECJ2VC1H102J 50V 1nF

FILMC2111 F2A1C100A180 16V 10µF

FILMC2112 F2A1C100A180 16V 10µF

FILMC2113 F2A1H3R3A182 50V 3.3µF

25

DescriptionCct Ref Parts Number DescriptionCct Ref Parts Number

S.M. CAPC2114 ECUV1H104KBX 50V 100nF

CERAMICC2115 ECUV1H221KBX 50V 220µF

CERAMICC2116 ECUV1H221KBX 50V 220µF

CERAMICC2117 ECUV1H221KBX 50V 220µF

CERAMICC2118 ECUV1H221KBX 50V 220µF

CERAMICC2119 ECUV1H221KBX 50V 220µF

CERAMICC2120 ECUV1H221KBX 50V 220µF

FILMC2121 F2A1C100A180 16V 10µF

S.M. CAPC2122 ECUV1H104KBX 50V 100nF

CERAMICC2123 ECUV1H221KBX 50V 220µF

CERAMICC2124 ECJ2VC1H070D 50V 7pF

S.M. CAPC2125 ECUV1H470JCX 50V 47pF

S.M. CAPC2126 ECUV1H560GCG 50V 56pF

CERAMICC2127 ECUV1H010CCN 50V 56pF

CERAMICC2128 ECUV1H010CCN 50V 56pF

FILMC2129 F2A1C1020049 16V 1nF

FILMC2130 F2A1C3310039 16V 330µF

CERAMICC2131 ECJ2VF1H103Z 50V 10nF

CERAMICC2132 ECJ2VF1H103Z 50V 10nF

CERAMICC2134 ECJ2VF1H103Z 50V 10nF

FILMC2135 F2A1C101A180 16V 100µF

S.M. CAPC2136 ECUV1H104KBX 50V 100nF

FILMC2137 F2A1C100A180 16V 10µF

CERAMICC2138 ECJ2VB1H471K 50V 470pF

CERAMICC2139 ECUV1H221KBX 50V 220µF

FILMC2140 F2A1C101A180 16V 100µF

CERAMICC2141 ECJ2VC1H152J 50V 1,5nF

CERAMICC2142 ECUV1H103JCN 50V 10nF

CERAMICC2143 ECUV1H221KBX 50V 220µF

CERAMICC2144 ECUV1H221KBX 50V 220µF

CERAMICC2146 ECJ2VC1H102J 50V 1nF

CERAMICC2147 ECJ2VC1H102J 50V 1nF

CERAMICC2148 ECJ2VC1H102J 50V 1nF

CERAMICC2149 ECJ2YB1H104K 50V 100nF

FILMC2150 F2A1C101A180 16V 100µF

S.M. CAPC2301 ECUV1H222KBX 50V 2.2nF

FILMC2302 F2A1C470A180 16V 47µF

S.M. CAPC2303 ECUV1H222KBX 50V 2.2nF

FILMC2304 F2A1C470A180 16V 47µF

CERAMICC2305 ECUV1H101JCG 50V 100pF

CERAMICC2306 ECUV1H101JCG 50V 100pF

S.M. CAPC3001 ECUV1H222KBX 50V 2.2nF

FILMC3003 F2A1C470A180 16V 47µF

CERAMICC3005 ECJ2VB1H223K 50V 22nF

CERAMICC3006 ECJ2YB1C474K 16V 470nF

S.M. CAPC3008 ECUV1H222KBX 50V 2.2nF

FILMC3010 F2A1C470A180 16V 47µF

CERAMICC3012 ECJ2VB1H223K 50V 22nF

CERAMICC3013 ECJ2YB1C474K 16V 470nF

S.M. CAPC3015 ECUV1H222KBX 50V 2.2nF

FILMC3017 F2A1C470A180 16V 47µF

CERAMICC3019 ECJ2VB1H223K 50V 22nF

CERAMICC3020 ECJ2YB1C474K 16V 470nF

S.M. CAPC3022 ECUV1H222KBX 50V 2.2nF

FILMC3024 F2A1C470A180 16V 47µF

CERAMICC3026 ECJ2VB1H223K 50V 22nF

CERAMICC3027 ECJ2YB1C474K 16V 470nF

CERAMICC3036 ECUV1H101JCG 50V 100pF

CERAMICC3037 ECUV1H101JCG 50V 100pF

CERAMICC3038 ECUV1H101JCG 50V 100pF

CERAMICC3039 ECUV1H101JCG 50V 100pF

CERAMICC3107 ECJ2YB1C474K 16V 470nF

CERAMICC3108 ECJ2YB1C474K 16V 470nF

CERAMICC3109 ECJ2YB1C474K 16V 470nF

CERAMICC3110 ECJ2YB1C474K 16V 470nF

S.M. CAPC3201 ECUV1C224KBX 16V 220nF

S.M. CAPC3202 ECUV1C224KBX 16V 220nF

S.M. CAPC3203 ECUV1C224KBX 16V 220nF

S.M. CAPC3204 ECUV1C224KBX 16V 220nF

CERAMICC3205 ECUV1H103JCN 50V 10nF

S.M. CAPC3206 ECUV1C224KBX 16V 220nF

S.M. CAPC3207 ECUV1H104KBX 50V 100nF

S.M. CAPC3208 ECUV1H104KBX 50V 100nF

FILMC3209 F2A1C220A180 16V 22µF

CERAMICC3210 ECJ2YB1H104K 50V 100nF

CERAMICC3211 ECUV1H103JCN 50V 10nF

CERAMICC3212 ECUV1H103JCN 50V 10nF

CERAMICC3213 ECJ2VC1H271J 50V 270pF

CERAMICC3215 ECJ2VC1H180J 50V 18pF

CERAMICC3216 ECJ2VC1H271J 50V 270pF

CERAMICC3218 ECJ2YB1H104K 50V 100nF

CERAMICC3231 ECUV1H103JCN 50V 10nF

CERAMICC3232 ECUV1H103JCN 50V 10nF

S.M. CAPC3233 ECUV1H561KBX 50V 560pF

S.M. CAPC3234 ECUV1H561KBX 50V 560pF

FILMC3235 F2A1H4700031 50V 47µF

S.M. CAPC3236 ECUV1H561KBX 50V 560pF

S.M. CAPC3237 ECUV1H561KBX 50V 560pF

FILMC3238 F2A1H4700031 50V 47µF

CERAMICC3239 ECUV1H103JCN 50V 10nF

CERAMICC3240 ECUV1H103JCN 50V 10nF

ELECT C3241 ECA1CM100GB 16V 10µF

ELECT C3242 ECA1CM100GB 16V 10µF

ELECT C3243 ECA1CM100GB 16V 10µF

ELECT C3244 ECA1CM100GB 16V 10µF

CERAMICC3245 ECJ2VF1C104Z 16V 100nF

ELECT C3246 ECA1CM220GB 16V 22µF

ELECT C3247 ECA1CM100GB 16V 10µF

ELECT C3248 ECA1CM100GB 16V 10µF

ELECT C3261 ECA1CM100GB 16V 10µF

CERAMICC3262 ECUV1H270JCG 50V APA 27µF

CERAMICC3263 ECJ2VC1H390J 50V 39pF

CERAMICC3264 ECUV1H270JCG 50V APA 27µF

CERAMICC3265 ECUV1H680DCN 50V 68µF

CERAMICC3266 ECUV1H680DCN 50V 68µF

CERAMICC3267 ECUV1H680DCN 50V 68µF

CERAMICC3300 ECJ1VB0J105K 6.3V 1µF

CERAMICC3301 ECJ1VB0J105K 6.3V 1µF

CERAMICC3302 ECJ2VF1C104Z 16V 100nF

CERAMICC3303 ECJ1VB0J105K 6.3V 1µF

CERAMICC3304 ECJ1VB0J105K 6.3V 1µF

CERAMICC3305 ECJ2VF1C104Z 16V 100nF

CERAMICC3306 ECJ1VB0J105K 6.3V 1µF

CERAMICC3307 ECJ1VB0J105K 6.3V 1µF

CERAMICC3308 ECJ2VF1C104Z 16V 100nF

ELECTC4805 ECA2WM220E ELEC 100nF

ELECT C4806 ECA1HM100GB 50V 10µF

FILMC4809 ECQB1H471KF3 50V 470pF

ELECT C4813 ECA1VM470B 35V 47µF

FILMC4815 ECQM4103KZ 400V 10nF

CERAMIC C4818 ECKCWS471J 400V 470pF

CERAMICC4821 ECUV1H103JCN 50V 10nF

CERAMICC4831 ECUV1H103JCN 50V 10nF

CERAMIC C4851 ECKC3A471J 1KV 470pF

ELECTC4852 EEUFC1A102B 10V 1nF

CERAMIC C4853 ECKC3A471J 1KV 470pF

ELECT C4854 ECA1HM010GB 50V 1µF

ELECT C4855 ECA0JM222GB 6.3V 2.2nF

CERAMIC C4856 ECKC3A471J 1KV 470pF

ELECTC4857 ECA1CM102B 16V 1000µF

ELECT C4858 ECA1HM100GB 50V 10µF

CERAMICC4860 ECUV1H103JCN 50V 10nF

26

DescriptionCct Ref Parts Number DescriptionCct Ref Parts Number

ELECT C4861 ECA1HMR47GB 50V 0.47µF

ELECT C4862 ECA1HM101GB 50V 100µF

ELECTC4864 ECA1CHG101 16V 100µF

ELECTC4865 ECA0JM101G 6.3V 100µF

CERAMICC4866 ECUV1H103JCN 50V 10nF

CERAMICC4867 ECUV1H103JCN 50V 10nF

CERAMICC4868 ECUV1H103JCN 50V 10nF

ELECT C4871 ECA1HMR47GB 50V 0.47µF

ELECT C4872 ECA1HMR47GB 50V 0.47µF

ELECTC4873 EEUFC1A102B 10V 1nF

CERAMICC4874 ECJ2VC1H152J 50V 1,5nF

CERAMICC5001 ECJ1VB1H103 50V 10nF

CERAMICC5002 ECJ1VB1C104K 16V 100nF

CERAMICC5003 ECJ1VB1H103 50V 10nF

CERAMICC5004 ECJ1VB1H103 50V 10nF

ELECT C5005 ECA1HM100GB 50V 10µF

CERAMICC5008 ECJ1VB1H102 50V 10nF

ELECT C5009 ECA1HM2R2GB 50V 2.2µF

CERAMICC5010 ECJ1VB1C104K 16V 100nF

CERAMICC5011 ECJ1VB1C104K 16V 100nF

CERAMICC5012 ECJ1VB1C104K 16V 100nF

CERAMICC5013 ECJ1VB1H103 50V 10nF

CERAMICC5014 ECJ1VC1H020 50V 10nF

CERAMICC5015 ECJ1VB1H102 50V 10nF

CERAMICC5016 ECJ1VB1H103 50V 10nF

CERAMICC5017 ECJ1VB1C104K 16V 100nF

CERAMICC5018 ECJ1VB1H103 50V 10nF

CERAMICC5019 ECJ1VB1H103 50V 10nF

ELECT C5020 ECA1HM101GB 50V 100µF

CERAMICC5021 ECJ1VB1C104K 16V 100nF

CERAMICC5022 ECJ1VB1H103 50V 10nF

ELECT C5023 ECA1HM2R2GB 50V 2.2µF

CERAMICC5024 ECJ1VB1C104K 16V 100nF

CERAMICC5025 ECJ1VB1C104K 16V 100nF

CERAMICC5026 ECJ1VB1H103 50V 10nF

CERAMICC5027 ECJ1VB1C104K 16V 100nF

CERAMICC5029 ECJ1VB1C104K 16V 100nF

CERAMICC5030 ECJ1VB1H103 50V 10nF

CERAMICC5031 ECJ1VB1H102 50V 10nF

CERAMICC5032 ECJ1VB1H102 50V 10nF

CERAMICC5034 ECJ1VB1C104K 16V 100nF

CERAMICC5036 ECJ1VB1H102 50V 10nF

CERAMICC5037 ECJ1VB1H103 50V 10nF

CERAMICC5038 ECJ1VB1H103 50V 10nF

CERAMICC5039 ECJ1VB1H103 50V 10nF

CERAMICC5040 ECJ1VB1H103 50V 10nF

CERAMICC5041 ECJ1VB1H103 50V 10nF

CERAMICC5042 ECJ1VC1H470J 50V 47pF

CERAMICC5043 ECJ1VC1H470J 50V 47pF

CERAMICC5044 ECJ1VB1C104K 16V 100nF

CERAMICC5045 ECJ1VB1H102 50V 10nF

CERAMICC5046 ECJ1VB1H103 50V 10nF

CERAMICC5047 ECJ1VB1H103 50V 10nF

ELECTC5048 EEUFC1A101B 10V 100µF

CERAMICC5049 ECJ1VB1H103 50V 10nF

CERAMICC5050 ECJ1VB1H103 50V 10nF

CERAMICC5051 ECJ1VB1H103 50V 10nF

CERAMICC5052 ECJ1VB1H103 50V 10nF

CERAMICC5053 ECJ1VB1H103 50V 10nF

ELECT C5054 ECA1HM100GB 50V 10µF

ELECT C5055 ECA1HM100GB 50V 10µF

CERAMICC5056 ECJ2VF1H103Z 50V 10nF

CERAMICC5058 ECJ2VF1H103Z 50V 10nF

CERAMICC5059 ECJ1VB1H103 50V 10nF

CERAMICC5060 ECJ1VB1H103 50V 10nF

CERAMICC5061 ECJ1VB1H103 50V 10nF

ELECT C5101 ECA1CM221GB 16V 220µF

CERAMICC5110 ECJ1VF1E104 35V 100nF

CERAMICC5115 ECJ1VC1H121 50V 120pF

CERAMICC5116 ECJ1VC1H121 50V 120pF

CERAMICC5117 ECJ1VC1H121 50V 120pF

CERAMICC5118 ECJ1VC1H121 50V 120pF

CERAMICC5119 ECJ1VC1H101J 50V 100pF

CERAMICC5120 ECJ1VC1H121 50V 120pF

CERAMICC5121 ECJ1VC1H121 50V 120pF

CERAMICC5122 ECJ1VC1H121 50V 120pF

CERAMICC5123 ECJ1VF1E104 35V 100nF

ELECT C5124 ECA1HM100GB 50V 10µF

CERAMICC5125 ECJ1VF1E104 35V 100nF

CERAMICC5126 ECJ1VF1E104 35V 100nF

CERAMICC5127 ECJ1VF1E104 35V 100nF

CERAMICC5128 ECJ1VF1E104 35V 100nF

CERAMICC5129 ECJ1VF1E104 35V 100nF

ELECT C5130 ECA1HM101GB 50V 100µF

ELECT C5131 ECA1HM100GB 50V 10µF

ELECT C5132 ECA1HM100GB 50V 10µF

ELECT C5133 ECA1HM101GB 50V 100µF

ELECT C5134 ECA1HM101GB 50V 100µF

CERAMICC5135 ECJ1VC1H331 50V 330pF

CERAMICC5136 ECJ1VF1E104 35V 100nF

CERAMICC5137 ECJ1VF1E104 35V 100nF

CERAMICC5138 ECJ1VC1H331 50V 330pF

CERAMICC5139 ECJ1VC1H221 50V 220pF

CERAMICC5140 ECJ1VC1H221 50V 220pF

CERAMICC5141 ECJ1VF1H103Z 50V 10nF

ELECT C5142 ECA1VM470B 35V 47µF

ELECT C5143 ECA1VM470B 35V 47µF

CERAMICC5144 ECJ1VB1H272 50V 2.7nF

CERAMICC5145 ECJ1VB1H272 50V 2.7nF

CERAMICC5146 ECJ1VC1H470J 50V 47pF

CERAMICC5147 ECJ1VC1H560J 50V 56pF

CERAMICC5205 ECJ1VC1H150 50V 15pF

CERAMICC5206 ECJ1VF1E104 35V 100nF

CERAMICC5209 ECJ1VF1E104 35V 100nF

CERAMICC5210 ECJ1VF1E104 35V 100nF

CERAMICC5213 ECJ1VF1E104 35V 100nF

CERAMICC5214 ECJ1VB1C104K 16V 100nF

CERAMICC5215 ECJ1VF1C334 16V 330nF

ELECT C5216 ECA1HM101GB 50V 100µF

CERAMICC5217 ECJ1VC1H102J 50V 1nF

CERAMICC5218 ECJ1VC1H220J 50V 22pF

CERAMICC5219 ECJ1VF1A105 25V 1pF

CERAMICC5220 ECJ2VF1C105Z 16V 1pF

CERAMICC5221 ECJ1VF1H103Z 50V 10nF

CERAMICC5222 ECJ1VC1H220J 50V 22pF

CERAMICC5223 ECJ1VC1H020 50V 22pF

CERAMICC5224 ECJ1VF1E104 35V 100nF

CERAMICC5226 ECJ1VF1H103Z 50V 10nF

CERAMICC5237 ECJ1VB1E223 35V 22nF

CERAMICC5238 ECJ2VF1C105Z 16V 1pF

CERAMICC5241 ECJ1VF1H103Z 50V 10nF

CERAMICC5242 ECJ1VF1H103Z 50V 10nF

CERAMICC5243 ECJ1VF1H103Z 50V 10nF

CERAMICC5244 ECJ1VF1H103Z 50V 10nF

CERAMICC5245 ECJ1VF1H103Z 50V 10nF

CERAMICC5246 ECJ1VF1H103Z 50V 10nF

CERAMICC5248 ECJ1VF1H103Z 50V 10nF

CERAMICC5249 ECJ1VF1E104 35V 100nF

CERAMICC5250 ECJ1VF1E104 35V 100nF

CERAMICC5251 ECJ1VF1E104 35V 100nF

CERAMICC5252 ECJ1VF1E104 35V 100nF

CERAMICC5253 ECJ1VF1E104 35V 100nF

27

DescriptionCct Ref Parts Number DescriptionCct Ref Parts Number

CERAMICC5254 ECJ1VF1E104 35V 100nF

CERAMICC5255 ECJ1VF1E104 35V 100nF

CERAMICC5256 ECJ1VF1E104 35V 100nF

CERAMICC5257 ECJ1VF1E104 35V 100nF

CERAMICC5259 ECJ1VF1E104 35V 100nF

CERAMICC5260 ECJ1VF1H103Z 50V 10nF

CERAMICC5261 ECJ1VF1E104 35V 100nF

CERAMICC5262 ECJ1VF1E104 35V 100nF

CERAMICC5263 ECJ1VF1H103Z 50V 10nF

CERAMICC5272 ECJ2VF1C105Z 16V 1pF

CERAMICC5286 ECJ1VF1E104 35V 100nF

CERAMICC5287 ECJ1VF1E104 35V 100nF

CERAMICC5288 ECJ1VF1E104 35V 100nF

CERAMICC5290 ECJ2VF1C105Z 16V 1pF

CERAMICC5291 ECJ2VF1C105Z 16V 1pF

CERAMICC5292 ECJ1VF1H103Z 50V 10nF

CERAMICC5293 ECJ1VF1H103Z 50V 10nF

ELECT C5296 ECA0JM102GB 6.3V 1000µF

CERAMICC5297 ECJ1VF1H103Z 50V 10nF

CERAMICC5303 ECJ1VF1H103Z 50V 10nF

CERAMICC5304 ECJ1VF1H103Z 50V 10nF

CERAMICC5305 ECJ1VF1H103Z 50V 10nF

CERAMICC5306 ECJ1VF1H103Z 50V 10nF

CERAMICC5307 ECJ1VF1A105 25V 1pF

CERAMICC5308 ECJ1VF1E104 35V 100nF

ELECT C5313 ECA1HM100GB 50V 10µF

CERAMICC5320 ECJ1VF1H103Z 50V 10nF

CERAMICC5321 ECJ1VF1H103Z 50V 10nF

CERAMICC5322 ECJ1VF1H103Z 50V 10nF

CERAMICC5323 ECJ1VF1H103Z 50V 10nF

CERAMICC5324 ECJ1VF1H103Z 50V 10nF

CERAMICC5325 ECJ1VF1H103Z 50V 10nF

CERAMICC5326 ECJ1VF1H103Z 50V 10nF

CERAMICC5327 ECJ1VF1H103Z 50V 10nF

CERAMICC5328 ECJ1VF1H103Z 50V 10nF

CERAMICC5329 ECJ1VF1H103Z 50V 10nF

CERAMICC5330 ECJ1VF1H103Z 50V 10nF

CERAMICC5331 ECJ1VF1H103Z 50V 10nF

CERAMICC5350 ECJ1VF1H103Z 50V 10nF

CERAMICC5352 ECJ1VF1H103Z 50V 10nF

CERAMICC5353 ECJ1VF1H103Z 50V 10nF

CERAMICC5354 ECJ1VF1H103Z 50V 10nF

CERAMICC5355 ECJ1VF1H103Z 50V 10nF

CERAMICC5356 ECJ1VF1H103Z 50V 10nF

ELECT C5358 ECA1HM101GB 50V 100µF

ELECT C5359 ECA1HM100GB 50V 10µF

ELECT C5360 ECA1CM221GB 16V 220µF

ELECT C5361 ECA1CM221GB 16V 220µF

ELECT C5362 ECA1HM101GB 50V 100µF

ELECT C5364 ECA1HM101GB 50V 100µF

CERAMICC5365 ECJ1VF1H103Z 50V 10nF

CERAMICC5401 ECJ1VF1E104 35V 100nF

CERAMICC5402 ECJ1VF1E104 35V 100nF

CERAMICC5403 ECJ1VF1E104 35V 100nF

CERAMICC5404 ECJ1VF1E104 35V 100nF

CERAMICC5405 ECJ1VF1E104 35V 100nF

CERAMICC5407 ECJ1VF1E104 35V 100nF

CERAMICC5408 ECJ1VC1H102J 50V 1nF

CERAMICC5415 ECJ1VF1E104 35V 100nF

CERAMICC5419 ECJ1VF1E104 35V 100nF

CERAMICC5420 ECJ1VF1E104 35V 100nF

CERAMICC5421 ECJ1VF1E104 35V 100nF

CERAMICC5422 ECJ1VF1E104 35V 100nF

ELECT C5427 ECA1HM101GB 50V 100µF

CERAMICC5428 ECJ1VF1E104 35V 100nF

CERAMICC5429 ECJ1VF1E104 35V 100nF

TERMINALS AND LI NK S

SWITCHES

RELAYS

DIFFERENCES FOR MODEL TX--28DT4

EXPLODED VIEW

MISCELLANEOUS COMPONENTS

INSTRUCTION BOOKS

CERAMICC5430 ECJ1VF1E104 35V 100nF

CERAMICC5431 ECJ1VF1E104 35V 100nF

CERAMICC5432 ECJ1VF1E104 35V 100nF

CERAMICC5861 ECJ1VF1E104 35V 100nF

CERAMICC5862 ECJ2VB1H183K 50V 18nF

CERAMICC5863 ECJ1VF1E104 35V 100nF

CERAMICC5864 ECUV1H103JCN 50V 10nF

CERAMICC5865 ECJ1VB1H123K 50V 12nF

CERAMICC5866 ECJ1VB1H122K 50V 1.2nF

CERAMICC5867 ECJ1VF1E104 35V 100nF

CERAMICC5868 ECJ1VF1E104 35V 100nF

ELECT C5869 ECA1CHG102B 10V 1000µF

ELECT C5870 ECA1CM221GB 16V 220µF

CERAMICC5871 ECUV1H471JCN 50V 470µF

CERAMICC5872 ECJ2YB0J225K 6.3V 2.2pF

CERAMICC5873 ECJ2VF1C105Z 16V 1pF

CERAMICC5874 ECJ1VB1E223 35V 22nF

CERAMICC5875 ECJ1VF1A105 25V 1pF

CERAMICC5901 ECJ1VF1E104 35V 100nF

CERAMICC5902 ECJ1VF1E104 35V 100nF

CERAMICC5903 ECJ1VF1E104 35V 100nF

CERAMICC5904 ECJ1VF1E104 35V 100nF

CERAMICC5905 ECJ1VF1E104 35V 100nF

CERAMICJSPX1 ECJ2VB1H152K 50V 1.5nF

RCA SOCKET JK2301 JPJ841101320

SCART SOCKET JK3001 0350808500

AV TERMINAL JK3201 TJB8E026

FS LINK R846 TSF19632

FS LINK R847 TSF19252

FS LINK R4855 TSF19401

CRT SOCKET S351 0330550049

SWITCH S801 ESB92S11B

SWITCH S1251 EVQ21405R

SWITCH S1252 EVQ21405R

SWITCH S1253 EVQ21405R

SWITCH S1254 EVQ21405R

SWITCH S1255 EVQ21405R

RELAY RL580 DH12D1-O-Q

RELAY RL801 DLS12D1-OM

BACKCOVER 17 TKU0E0112

C.R.T. 18 W66EKT50X21

CABINET 19 TKY0E0125

D P.C.B. 20 TNP8ED007AB

DEGAUSS COIL 21 TLK8E05175

F.B.T. 22 ZTFN65001A

G P.C.B. 23 TNP8EG006AA

L P.C.B. 24 TNP0EL001AM

MODEL LABEL 25 TQF8E3430

PANASONIC BADGE 26 TBMA060

CARTON . TPC8E5013

TOP CUSHION . TPD8E792

BOTTOM CUSHION . TPD8E793

ENGLISH TQB8E3910

28

DescriptionCct Ref Parts Number DescriptionCct Ref Parts Number

I.C.s

EAROM* IC1103 X24X1100-1AA

COILS

COIL L581 ELH5L6110

RESISTORS

FUSIBLER377 ERQ12HKR39P 0.5W 10% 0.39 Ω

METALR507 ERG2SJS470H 2W 5% 47 Ω

METALR702 ERG3SJS120 3W 5% 12 Ω

PTCR802 232266296706 Ω

PTCR803 232266296706 Ω

CAPACITORS

CERAMIC C551 ECKC3D681J 2KV 680pF

FILMC581 ECW F2684JBB 500V 680nF

FILMC582 ECW F2684JBB 500V 680nF

FILMC584 ECW H20562JVB 200V 5.6nF

FILM C586 ECQF4273JZH 400V 27nF

S.M. CAPC1105 ECUV1H104KBX 50V 100nF

TERMINALS AND LI NK S

AUDIO TERMINAL TJS59034

DIFFERENCES FOR MODEL TX--32DT4

EXPLODED VIEW

BACKCOVER 17 TKU8E00780

C.R.T. 18 W76EKX50X21

CABINET 19 TKY8E667

D P.C.B. 20 TNP8ED007AC

DEGAUSS COIL 21 TLK8E05186

F.B.T. 22 ZTFN65005A

G P.C.B. 23 TNP8EG006AB

L P.C.B. 24 TNP0EL001AL

MODEL LABEL 25 TQF8E3426-1

PANASONIC BADGE 26 TBM8E1928

MISCELLANEOUS COMPONENTS

CARTON . TPC8E4976

TOP CUSHION . TPD8E786

BOTTOM CUSHION . TPD8E787

SUB CUSHION . TPD8E788

INSTRUCTION BOOKS

ENGLISH TQB8E3908

I.C.s

EAROM* IC1103 X24X1100-1BA

64MB SDRAM IC5209 C3ABPJ000017

PM CIA CONNECTOR JK5401 MG68HD1121NF

COILS

COIL L581 ELH5L6118

RESISTORS

METALR377 ERQ12HKR56 0.5W 10% R56 Ω

METALR507 ERG2FJ820 2W 5% 82 Ω

METALR702 ERX3FJ2R2 3W 5% 2R2 Ω

DEG PTCR802 T707B60A110 20% 7 Ω

DEG PTCR803 T707B60A110 20% 7 Ω

CAPACITORS

CERAMICC551 ECKW 3D221JBN 2KV 220pF

FILMC581 ECW F2135JSB 200V 1.3µF

FILMC582 ECW F2564JBB 200V 560nF

FILMC584 ECW H20622JVB 200V 6.2nF

FILM C586 ECQM4333JC 400V 33nF

CERAMICC1105 ECJ2VB1H183K 50V 18nF

TERMINALS AND LI NK S

AUDIO TERMINAL TJS59034

29

SCHEMATIC DIAGRAMS FOR MODELS

TX-28DT4,TX-32DT4

(EURO-10D CHASSIS)

IMPORTANT SAFETY NOTICE

Components identified by mark have special characteristics
important for safety. When replacing any of these components, use
only manufacturers' specified parts.

NOTE

1. RESISTOR
All resistors are carbon ¼W resistor, unless marked otherwise.

Unit of resistance is OHM (Ω) (k=1,000, M=1,000,000)

2. CAPACITORS
All capacitors are ceramic 50V unless marked otherwise.

Unit of capacitance is µF unless otherwise stated.

3. COIL

Unit of inductance is µH, unless otherwise stated.

4. TEST POINT

Test Point Position

5. EARTH SYMBOL

Chassis Earth (Cold)

Line Earth (Hot)

6. VOLTAGE MEASUREMENT
Voltage is measured by a d.c. voltmeter.
Measurement conditions are as follows:
Power source a.c. 220V-240V, 50Hz
Receiving Signal Colour Bar signal (RF)
All customer controls Maximum position

7.

Indicates the Video signal path

Indicates the Audio signal path

These schematic diagrams are the latest at time of printing and are subject to change without notice.

REMARKS

a. Do not touch the hot part, or the hot and cold parts at the same time, as you are liable to a shock hazard.

b. Do not short circuit the hot and cold circuits as electrical components may be damaged.

c. Do not connect an instrument, such as an oscilloscope, to the hot and cold circuits simultaneously as this may cause

fuse failure. Connect the earth of the instruments to the earth connection of the circuit being measured.

d. Make sure to disconnect the power plug before removing the chassis.

NOTE

1. The Power Supply Circuit contains a circuit area, which uses a separate power supply to isolate the earth connection.

The circuit is defined by HOT and COLD indications in the schematic diagram. All circuits, except the Power Circuit, are
COLD.

30

TNP8EHQ01 – HQ – PCB VIEW

I.C.’s

IC3211

38

TNP8ED007 – D – PCB VIEW

DIODES
D101 A2 D572 B2 D707 B2 D844 B1 D2101 A1 TPD13 B1 Q503 A1 Q846 B1 Q3006 A2 IC851 B1
D102 A2 D573 B2 D708 B2 D845 B1 D2102 A1 TPD14 B2 Q551 B1 Q847 B1 Q3007 A2 IC852 B1
D454 B2 D574 B2 D709 B2 D846 B1 D2103 A1 TPD15 B2 Q552 B2 Q848 B1 Q3201 A2 IC851 B1
D456 B2 D581 B2 D711 B1 D847 B1 D2105 A1 TPD16 B2 Q556 B2 Q882 B1 Q3202 A2 IC1103 A1
D457 B2 D601 A1 D712 B1 D848 B1 D2303 A1 TPD17 B1 Q580 B2 Q883 A2 Q3203 A2 IC2101 A1
D458 B2 D603 A1 D733 A2 D849 B1 D2304 A1
D501 A1 D605 A1 D734 B2 D851 B1 D4859 A2 Q101 A2 Q702 B2 Q950 A1 Q3301 A2 IC3202 A1
D502 A1 D606 A2 D735 B2 D852 B1
D511 B2 D609 B2 D736 B2 D854 B1 TPD1 B2 Q103 A2 Q731 B2 Q1110 A1 Q3303 A2 IC3302 A2
D553 B2 D615 A2 D790 B2 D859 B1 TPD2 B1 Q104 A2 Q732 B2 Q1111 A1
D554 B2 D616 A2 D821 B1 D863 B1 TPD3 B1 Q250 A1 Q734 A2 Q1114 A1 IC451 B2
D555 B2 D617 A1 D822 B1 D864 A2 TPD4 A1 Q251 A1 Q735 B2 Q1115 A1 IC601 A1
D557 B2 D700 B2 D823 B1 D884 B1 TPD5 B1 Q252 A1 Q736 A2 Q2101 A1 IC602 A1
D558 B2 D701 B2 D824 B1 D885 A2 TPD6 B1 Q301 A1 Q781 A2 Q2102 A1 IC701 B2
D559 B2 D702 B2 D827 B1 D886 A2 TPD7 B1 Q302 A2 Q782 A2 Q2103 A1 IC790 B2
D563 B1 D703 B2 D828 B1 D887 A2 TPD9 A1 Q303 A1 Q783 B2 Q2301 A1 IC801 B1
D565 B1 D704 B2 D829 B1 D888 A2 TPD10 B1 Q304 A2 Q821 B1 Q2302 A1 IC840 B1
D566 B2 D705 B2 D831 B1 D889 A2 TPD11 B1 Q305 A1 Q822 B1 Q2303 A1 IC841 B1

D567 B2 D706 B2 D843 B1 D890 A2 TPD12 A1 Q306 A2 Q823 B1 Q2304 A1 IC842 A1

TEST POINTS

TRANSISTORS

Q102 A2 Q703 B2 Q951 A2 Q3302 A2 IC3301 A2

Q701 B2 Q884 A2 Q3204 A2 IC3201 A2

I.C.’s

IC3303 A2

2

1

39

A

B

&)+3$4556*7*4*7*+-2*8"$9

0

!!!!!!!!!!"#!$%
"23% )' "#%3 )( "(($2 )( "%'$2 )(
"3'( &' "#%. )( "(($3 )(
"3'' &' "#3/ )' "(($. )' *+,( )' -3'' &' -(($2 )' -'.%' )' 01(($3 )'
"3'% &' "#3# )( "(($/ )( *+,' &' -3'% &' -(($3 )' -%$$2 )' 01(($. )'
"3'2 &' "($33 &( "(4$$ &' *+,% &' -3'2 &' -(($. )' -%$$3 )' 01(4$$ &(
"3'3 &' "($.( &( "'.$( )' *+,2 &' -3'3 &' -(($/ )'
"3'. &' "($.' &( "'.$' )' *+,3 &' -#%3 )( -(($# )' 01#22 &' 01'.$2 )'
"#$( &( "(($( )' "%'$( )( *+,. &' -($.( &( -(($4 )' 01#23 &'
"#$' &' "(($' )' "%'$' )( *+,/ &' -($.' &( -(((' )' 01($.( &'

"#$% &' "(($% )' "%'$% )( *+,' &' -($.% &( -'.$/ )' 01(($( )(

*****&$%&*+#")&%

!!!!&'()%"%&#'%

-3'( &' -(($' )' -'.%( )' 01(($2 )(

-(($( )' -'.%$ )' 01(($' )(

*************",-,./

01(4$( &'

1

(

2

:5

DIODES D4842 A2 Q4832 A2

D253 A1 D4850 B2 Q4851 B2

D254 A1 D4851 B2 Q4852 B2

D255 A1 D4852 B2 Q4853 B2

TNP8EP021 – P – PCB VIEW

D253 A1 D4853 B2 Q4854 B2

D4802 A2 D4856 B2 I.C.’s

D4803 A2 D4857 B2 IC251 A1

D4805 A2 D4858 B2 IC4801 A2

D4808 A2 D4860 B2 IC4802 A2

D4809 A2 D4861 B2 IC4851 B2

D4811 A2 D4871 B2 IC4852 B2

D4813 A2 D4881 B2 IC4853 B2

D4814 A2 TRANSISTORS IC4854 B2

D4820 A2 Q253 A1

2

1

D4821 A2 Q254 A1

D4822 A2 Q4821 A2

D4831 A2 Q4822 A2

D4841 A2 Q4831 A1

AB

41

3

TNP0EL001 – L – PCB VIEW

DIODES D363 A3 TEST POINTS TRANSISTORS
D354 B3 D364 A3 TPL1 B2 Q351 B2
D355 B3 D901 B1 TPL2 B3 Q352 B2
D356 B3 D902 B2 TPL3 B3 Q353 B2
D357 B3 D904 A1 TPL4 B2 Q354 A3
D358 B3 D905 B2 TPL5 A2 Q905 B2
D359 B3 D906 B1 TPL6 A3 Q906 B1
D360 A3 D907 B2 I.C.’s Q907 B1
D361 A3 IC351 A3 Q908 A1
D362 A3 IC352 A3 Q909 B1

2

1

AB

A

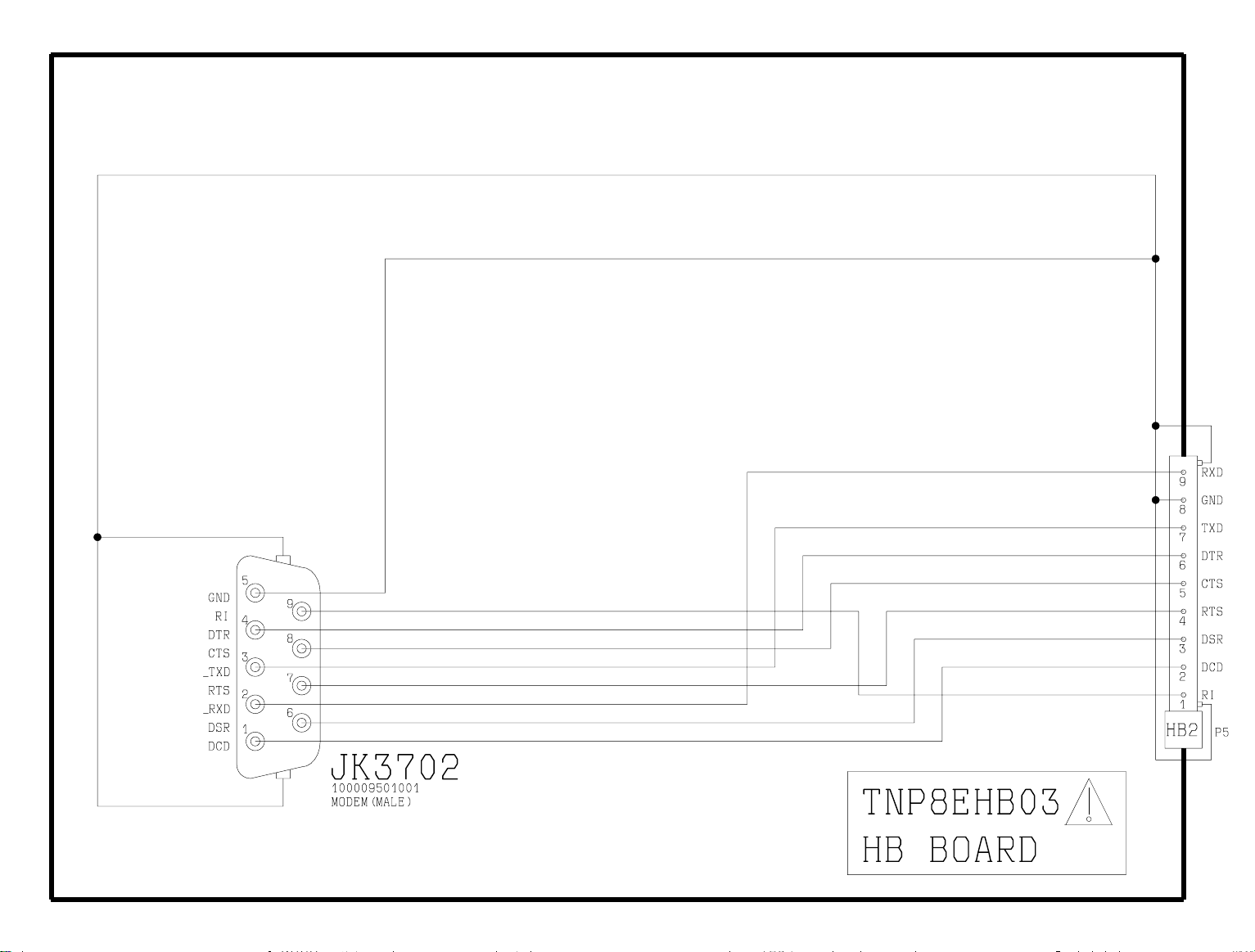

TNP8EHB03 – HB – PCB VIEW

DIODES D3713 A1
D3701 A1 D3714 A1
D3702 A1 D3715 A1
D3703 A1 D3716 A1
D3704 A1 D3717 A2
D3705 A1 D3718 A2
D3706 A1 D3719 A2
D3707 A1 D3720 A2
D3708 A1 D3721 A2
D3709 A1 D3722 A2
D3710 A1 D3723 A1
D3711 A1 D3724 A1
D3712 A1

2

1

42
