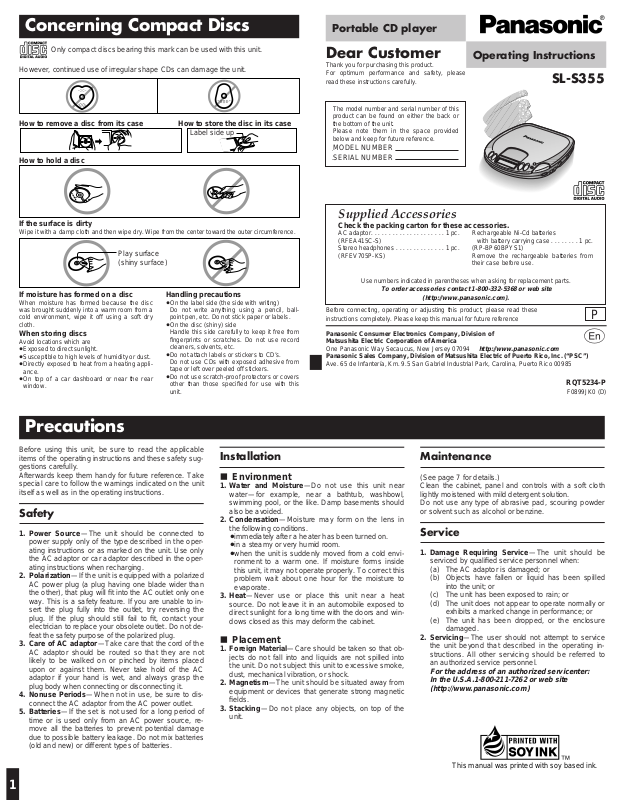

Panasonic SLS355 User Manual

1

Dear Customer

Thank you for purchasing this product.
For optimum performance and safety, please
read these instructions carefully.

Supplied Accessories

Check the packing carton for these accessories.

SL-S355

Before connecting, operating or adjusting this product, please read these
instructions completely. Please keep this manual for future reference

Portable CD player

Operating Instructions

The model number and serial number of this
product can be found on either the back or
the bottom of the unit.
Please note them in the space provided
below and keep for future reference.

MODEL NUMBER
SERIAL NUMBER

Precautions

Before using this unit, be sure to read the applicable
items of the operating instructions and these safety sug­gestions carefully.
Afterwards keep them handy for future reference. Take
special care to follow the warnings indicated on the unit
itself as well as in the operating instructions.

Safety

1. Power Source—The unit should be connected to
power supply only of the type described in the oper­ating instructions or as marked on the unit. Use only
the AC adaptor or car adaptor described in the oper­ating instructions when recharging.

2. Polarization—If the unit is equipped with a polarized
AC power plug (a plug having one blade wider than
the other), that plug will fit into the AC outlet only one
way. This is a safety feature. If you are unable to in­sert the plug fully into the outlet, try reversing the
plug. If the plug should still fail to fit, contact your
electrician to replace your obsolete outlet. Do not de­feat the safety purpose of the polarized plug.

3. Care of AC adaptor— Take care that the cord of the
AC adaptor should be routed so that they are not
likely to be walked on or pinched by items placed
upon or against them. Never take hold of the AC
adaptor if your hand is wet, and always grasp the
plug body when connecting or disconnecting it.

4. Nonuse Periods— When not in use, be sure to dis­connect the AC adaptor from the AC power outlet.

5. Batteries— If the set is not used for a long period of
time or is used only from an AC power source, re­move all the batteries to prevent potential damage
due to possible battery leakage. Do not mix batteries
(old and new) or different types of batteries.

Installation

∫ Environment

1. Water and Moisture—Do not use this unit near

water—for example, near a bathtub, washbowl,
swimming pool, or the like. Damp basements should
also be avoided.

2. Condensation—Moisture may form on the lens in
the following conditions.

2. ≥immediately after a heater has been turned on.

2. ≥in a steamy or very humid room.

2. ≥when the unit is suddenly moved from a cold envi-

ronment to a warm one. If moisture forms inside
this unit, it may not operate properly. To correct this
problem wait about one hour for the moisture to
evaporate.

3. Heat—Never use or place this unit near a heat
source. Do not leave it in an automobile exposed to
direct sunlight for a long time with the doors and win­dows closed as this may deform the cabinet.

∫ Placement

1. Foreign Material—Care should be taken so that ob-

jects do not fall into and liquids are not spilled into
the unit. Do not subject this unit to excessive smoke,
dust, mechanical vibration, or shock.

2. Magnetism— The unit should be situated away from
equipment or devices that generate strong magnetic
fields.

3. Stacking— Do not place any objects, on top of the
unit.

Maintenance

(See page 7 for details.)
Clean the cabinet, panel and controls with a soft cloth
lightly moistened with mild detergent solution.
Do not use any type of abrasive pad, scouring powder
or solvent such as alcohol or benzine.

Service

1. Damage Requiring Service—The unit should be
serviced by qualified service personnel when:

1. (a) The AC adaptor is damaged; or

1. (b) Objects have fallen or liquid has been spilled

into the unit; or

1. (c) The unit has been exposed to rain; or

1. (d) The unit does not appear to operate normally or

exhibits a marked change in performance; or

1. (e) The unit has been dropped, or the enclosure

damaged.

2. Servicing—The user should not attempt to service
the unit beyond that described in the operating in­structions. All other servicing should be referred to
an authorized service personnel.

2.

For the address of an authorized servicenter:

2.

In the U.S.A.1-800-211-7262 or web site

2.

(http://www.panasonic.com)

Concerning Compact Discs

Only compact discs bearing this mark can be used with this unit.

However, continued use of irregular shape CDs can damage the unit.

If moisture has formed on a disc

When moisture has formed because the disc
was brought suddenly into a warm room from a
cold environment, wipe it off using a soft dry
cloth.

When storing discs

Avoid locations which are

≥Exposed to direct sunlight.
≥Susceptible to high levels of humidity or dust.
≥Directly exposed to heat from a heating appli-

ance.

≥On top of a car dashboard or near the rear

window.

Handling precautions

≥On the label side (the side with writing)

≥Do not write anything using a pencil, ball-

point pen, etc. Do not stick paper or labels.

≥On the disc (shiny) side

≥Handle this side carefully to keep it free from

fingerprints or scratches. Do not use record
cleaners, solvents, etc.

≥Do not attach labels or stickers to CD’s.

≥Do not use CDs with exposed adhesive from

tape or left over peeled off stickers.

≥Do not use scratch-proof protectors or covers

other than those specified for use with this
unit.

If the surface is dirty

Wipe it with a damp cloth and then wipe dry. Wipe from the center toward the outer circumference.

How to hold a disc

How to store the disc in its caseHow to remove a disc from its case

AC adaptor. . . . . . . . . . . . . . . . . . . . . 1 pc.

(RFEA415C-S)

Stereo headphones . . . . . . . . . . . . . . 1 pc.

(RFEV705P-KS)

Rechargeable Ni-Cd batteries

with battery carrying case . . . . . . . . 1 pc.

(RP-BP60BPYS1)
Remove the rechargeable batteries from
their case before use.

Use numbers indicated in parentheses when asking for replacement parts.

To order accessories contact 1-800-332-5368 or web site

(http://www.panasonic.com).

Panasonic Consumer Electronics Company, Division of

p

Matsushita Electric Corporation of America

One Panasonic Way Secaucus, New Jersey 07094

http://www.panasonic.com

Panasonic Sales Company, Division of Matsushita Electric of Puerto Rico, Inc. (“PSC”)

Ave. 65 de Infantería, Km. 9.5 San Gabriel Industrial Park, Carolina, Puerto Rico 00985

RQT5234-P

F0899JK0 (D)

P

This manual was printed with soy based ink.

Play surface
(shiny surface)

Label side up

Power Supply Preparations

Refer to the specifications (page 8) for information on operating times when using rechargeable batteries or dry-cell batteries.

Using the AC adaptor

Connect the AC adaptor supplied.

Using rechargeable batteries

Make sure to recharge the batteries before using them.
The unit cannot be used to charge rechargeable batter­ies other than those specially designed for it.

≥Supplied batteries (RP-BP60)
≥Optional batteries (P-3GAVA/2B, SH-CDB8D)

Recharging procedure

1 Insert the special rechargeable bat-

teries into the unit.

2 Connect the AC adaptor.

(Refer to “Using the AC adaptor” for connection
instructions.)
Recharging starts and the “H

” charging indicator
flashes on and off on the unit’s display panel.
When the rechargeable batteries fully recharge the
charging indicator disappears.

3 When recharging is complete, un-

plug the AC adaptor from the power
outlet and the DC IN jack.

Note!

≥It takes approximately 3 hours to fully recharge the

supplied rechargeable batteries.

≥Rechargeable batteries have a service life of approxi-

mately 300 charge-discharge cycles. If the operating
time on one full charge becomes noticeably shorter
than it used to be, the battery has reached the end of
its service life and should be replaced.

≥Recharging may only be performed when the unit is

powered off. (It is not possible to recharge the batter­ies while playing a CD.)

≥The AC adaptor and rechargeable batteries may be-

come warm while recharging is in progress. This is not
a malfunction.

Using the car adaptor

Be sure to obtain the car adaptor (SH-CDC9) available
as an optional accessory.
The car adaptor can be used to recharge the unit’s bat­teries while in the car.

Using dry-cell batteries
(not included)

After disconnecting the AC adaptor, insert two “AA”
(LR6) alkaline batteries.

The procedure for inserting and removing dry-cell
batteries is identical to that for rechargeable bat­teries.

Battery indicator

This indicator flashes on and off when the batteries are
almost out of power. Power is cut off completely a short
while later.

Rechargeable batteries: Recharge batteries.
Dry-cell batteries: Replace batteries with new ones.

Note!

≥The length of time the unit will continue to operate be-

tween when the battery indicator starts flashing and
when the power is cut off differs depending on the
type of batteries used.

≥The battery indicator may not flash if rechargeable

batteries, other than those designated by Panasonic,
are used.

Removing batteries

Push up on the battery
in the direction indicat­ed by the arrow. Then
lift it out.

If the battery lid
comes loose

Slide the lid back into
place horizontally.

HOLD Function

This function causes the unit to ignore
short, accidental button presses. (The
disc lid can still be opened and closed.)

The HOLD function prevents the
following:

≥Powering on the unit accidentally

(which can cause the batteries to go
dead).

≥Play being cut off unexpectedly in the

middle of a selection.

To use the HOLD function

Set [HOLD] to the HOLD position.

“(” indication

When the unit is in hold status, pressing
any button (other than the OPEN button)
causes the indication “(” to appear
on the display.

When the unit is powered off

The “(” indication appears only
when [1;] is pressed.

Location of Controls

A Skip/search buttons

(:, 96, 5)

B Display
C Stop/power off button

(∫, POWER OFF)

D Play/pause button (1;)
E Repeat button (REP)
F Memory/recall button

(MEMORY/RECALL)

G Open button (OPEN)
H Headphones volume control

(VOLUME)

I Anti-shock button (A.SHOCK)
J S-XBS button (S-XBS)
K Headphone jack (Ë)
L Play mode selector

(RESUME, NORMAL, RANDOM)

M Hold switch (HOLD)
N CD release button (PUSH)
O Out jack (OUT)
P

DC in jack
(K DC IN 4.5 V)

Q Hole for car insulator mount-

ing screw

Before operating the buttons

Be sure to move HOLD to release
the unit from the hold mode.

If the unit malfunctions or freezes during use,
then disconnect the power sources (the AC
adaptor and batteries).
Re-connect the power source and continue op­eration.

+

-

2

3

1

CAUTION:

Use only car adaptor, Model: SH-CDC9 manufac­tured by Matsushita Electric Industrial Co.,Ltd.

2

DC IN jack (K DC IN 4.5 V)

Back panel of the unit

AC power
outlet

Battery indicator

HOLD mode

Back panel of
the unit

A B CD

HOLD

E F H I J K LMG

O

N

PQ

Button Display/referenceOperation

To pause play

To stop play

To turn off the

unit

Skip forward/

backward

(skip function)

Rapid forward/

backward

(search function)

Off mode

Stop mode

Sequential Play

Basic Play

Follow steps 1–6.

In step 4, connect the stereo headphones to the Ë jack. (Plug in firmly.)
≥Play stops automatically when all the tracks have been played.
≥If the unit has been connected to the car audio system, adjust the volume level between 4 and 6 on the unit, then

adjust the volume level on the system.

For your reference:
“)” indication

This indication appears for about 30 seconds if [1;] is
pressed when no disc is loaded in the unit or if the disc
is not completely seated.

“*” indication

This indication appears for about 10 minutes when the
cover is opened. (However, the indication does not ap­pear when the unit is powered off.)

Note!

Never insert foreign objects into the unit body.

Removing discs

After the disc has stopped rotating, press [PUSH] to re­lease the disc. (To protect the disc, never open the
cover while it is playing.)

≥During program play (page 4), these buttons are

used to skip forward or back through the pro­grammed sequence of tracks.

≥During random play (page 4), the skip buttons

cannot be used to skip back to tracks that were
played previously in the random sequence.

≥During program play, random play or 1 track re-

peat play (page 4), search operation is limited to
the current track only.

Press during play.

Press during play.

Press during stop mode.

Press during play.

Press again to restart play.

Keep depressed during play.

Auto power off function

If the unit is left in stop or paused status for approxi­mately 10 minutes, the unit powers itself off auto­matically in order to prevent the battery from
running down.
(If no disc is loaded in the unit, it powers itself off in
30 seconds.)

RESUME RANDOM

NORMAL

HOLD

5

4

6

VOLUME

1

5

6

2

3
4

L

R

:

9

6

5

1;

POWER

OFF

B

O

PEN



Label must face upward.

Press here to close the lid.

Track number in play

Elapsed playing time of each track

3

1;

POWER
OFF

∫

POWER
OFF

∫

:

9

6

5

(Backward) (Forward)

Total number of tracks

Total playing time

S

H

P

U

P

H

S

U

Other Play Methods

Skip play

The disc plays from the specific track through to the
end, then play stops automatically.

Preparation: Put unit in stop mode.

1

2

Select the desired track.

3

Random play

1

2

For your reference:

≥It is also possible to press [9] while the unit is in

stop status to change the first track to be played. (All
tracks are played eventually, regardless of which is
played first.)

≥Program play is not possible in the random mode.

Resume play

This function allows you to listen from the beginning of
the track where play stopped because the unit was
powered off (or switched to stop status). It is useful
when listening to CDs in the car, etc.

For your reference:

≥If the [RESUME, NORMAL, RANDOM (play mode)]

slider is put in the [RESUME] position, the all­repeat function will be activated automatically as soon
as the unit is powered on.

≥If power is cut off near the end of a track (power off

status), playback may resume from the beginning of
the next track.

≥If the unit is powered off while a disc was playing and

then a new disc is inserted, play will begin from the
middle of the new disc because the unit remembers
the position where play stopped on the previous disc.

Release

Release

The letters such as A in the various illustrations refer to the descriptions in the “Location of Controls” section (see page 2).

Program play

Up to 24 tracks can be entered in the programmed se­quence.

Preparation: Put unit in stop mode.

1

2

Select the desired track.

3 Register in sequence.

(The indication “M” and the programmed se­quence appear on the display panel.)

4 Repeat steps 2 and 3 to program all

the desired tracks.

5

∫ To program the same track in the se-

quence more than once

∫ After step 3, press [MEMORY/RECALL] the desired

number of times.

∫ If “'” is displayed

∫ No more tracks can be programmed.

∫ To confirm the contents of the program

∫ Press [MEMORY/RECALL] while the disc is playing.

(The number of the programmed tracks appear on
the display panel in sequence.)

∫ To delete the entire programmed se-

quence

∫ Press [∫, POWER OFF].

Repeat function

Press during play or stop mode.

The setting is switched in the sequence indicated below
each time [REP] is pressed.

1-track repeat (1 `)( ----------------]

One track is repeated. |

;|

All-track repeat (ALL `) |

All the tracks on the disc are repeated. |

;|

Cancel ------------------------------------------------}

For your reference:

If [REP] is pressed during program play, only the tracks
in the program are repeated.
(The indication “ALL” is not displayed.)

Changing the sound quality

Press during play or stop mode.

The setting switches in the sequence indicated below
each time [S-XBS] pressed.

S-XBS>Normal (No indicator is shown.)

^========b

S-XBS:

Select this setting to boost the low-range response.

4

RESU

M

E

RAND

O

M

L

NO

RM

AL

A

:

9

6

5

1;

D

NO

RM

AL

RESUM

E

L

RANDO

M

1;

D

RESUM

E

RAN

DO

M

L

NO

RM

AL

NO

RM

AL

RAND

O

M

L

RESUM

E

R

ESU

M

E

R

AN

DO

M

L

NO

RM

AL

R

ESUM

E

R

AN

D

O

M

L

N

O

RM

AL

A

:

9

6

5

F

MEMORY/

RECALL

1;

D

REP

E

J

S-XBS

B

S-XBS

Using the Unit with Optional Accessories

Using the unit with an audio
system

Using stereo connection cable (not included), you can
hear CDs on your audio system.

≥Connect the cable to the amplifier after turning off its

power.

≥Do not connect the cable to the PHONO jacks on the

amplifier.

≥Obtain the optional connecting cable if the amplifier

comes with mini-phone jacks.

≥Adjust the volume on the amplifier.
≥Sound quality changes when S-XBS is selected, but

volume is reduced by approximately fifty percent.

Using the unit with a car audio
system

Items to be purchased

For connection to the car audio system

Car stereo cassette adaptor (SH-CDM10A)

For securing the unit and connecting the power
supply:

≥

Car adaptor (SH-CDC9)

≥Car mounting kit (SH-CDF7)

≥Car mounting arm, Car insulator

Note!

It may not be possible to use the unit with some types of car
stereos owing to restrictions imposed by the construction of the
car stereo cassette adaptor.

For further details, refer to the instructions of the part concerned.

L

R

Connect the car stereo cassette adaptor
to the unit’s headphone jack.
(When doing this, keep the unit’s VOLUME
control at a setting between 4 and 6.)

Anti shock works by reading audio data and storing it in
memory (up to 40 seconds worth). The unit then fills in
interruptions caused by bumps and vibrations with data
from the memory. This unit also incorporates a powerful
anti-shock mechanism that prevents skipping caused
when play speed is changed by swinging of the unit.

Press during play or stop mode.

The following indicator appears on the display panel.

Note!

If you have pressed [A.SHOCK] when the unit is in stop
status, press [1;] to start play.

When bumps continue repeatedly

The following indicator appears on the display panel
and sound is interrupted.

To cancel the anti-shock function

Press [A.SHOCK] again.

Note!

≥The anti-shock setting can be changed during play,

but this may cause a slight interruption in the sound
because the disc’s rotation speed changes.

≥During anti-shock operation, the disc rotates at a high-

er rate than usual to collect extra audio data. This
could result in a slight increase in disc rotation noise.

Using the unit with an audio system

The anti-shock function uses digital signal compression
technology. It is recommended that the anti-shock func­tion be canceled if the unit is connected to a home
audio system.

Anti-Shock Function

5

If you ship the product

Carefully pack and send it prepaid, adequately insured and preferably in the original carton.
Attach a postage-affixed letter, detailing the complaint, to the outside of the carton.

Do NOT send the product to the Executive or Regional Sales offices. They are NOT equipped to make repairs.

Model
No.

Serial
No.
or

Code
No.

Date
of
Purchase

Dealer’s
Name

Dealer’s
Address

Customer’s Record

I

A.SHOCK

B

A.SHOCK

B

A.SHOCK

OUT jack

Back panel of the unit

Amplifier

(White)

(Red)

Stereo connection cable (not included)

To CD or AUX
terminals

RQT5234

For Product Information, Operating Assistance, Literature Request, Dealer Locations, and
all Customer Service inquiries please contact:
1-800-211-PANA (7262), Monday–Friday 9 am–9 pm; Saturday–Sunday 9 am–7 pm, EST.

Web Site: http://www.panasonic.com
You can purchase parts, accessories or
locate your nearest servicenter by visiting
our Web Site.

CALIFORNIA

6550 Katella Avenue
Cypress, CA 90630

800 Dubuque Avenue
S. San Francisco
CA 94080

20201 Sherman Way
Suite 102
Canoga Park, CA 91306

3878 Ruffin Road
Suite A
San Diego, CA 92123

COLORADO

1640 South Abilene Street
Suite D
Aurora, CO 80012

FLORIDA

3700 North 29thAvenue
Suite 102
Hollywood, FL 33020

GEORGIA

8655 Roswell Road
Suite 100
Atlanta, GA 30350

ILLINOIS

9060 Golf Road
Niles, IL 60714

1703 North Randall Road
Elgin, IL 60123
(Pick-up/Drop-off only)

MARYLAND

62 Mountain Road
Glen Burnie, MD 21061

MASSACHUSETTS

60 Glacier Drive
Suite G
Westwood, MA 02090

MICHIGAN

37048 Van Dyke Avenue
Sterling Heights, MI 48312

MINNESOTA

7850-12thAvenue South
Airport Business Center
Bloomington, MN 55425

OHIO

2236 Waycross Road
Civic Center Plaza
Forest Park, OH 45240

PENNSYLVANIA

2221 Cabot Blvd. West
Suite B
Langhorne, PA 19047

Chartiers Valley
Shopping Center
1025 Washington Pike
Bridgeville, PA 15017

TENNESSEE

3800 Ezell Road
Suite 806
Nashville, TN 37211

TEXAS

7482 Harwin Drive
Houston, TX 77036

13615 Welch Road
Suite 101
Farmers Branch,
TX 75244

WASHINGTON

20425-84thAvenue South
Kent, WA 98032

HAWAII

99-859 Iwaiwa Street
Aiea, Hawaii 96701
Phone [phone]
Fax [phone]

Factory Servicenters Locations

Service in Puerto Rico

Matsushita Electric of Puerto Rico, Inc. Panasonic Sales Company/Factory Servicenter:

Ave. 65 de Infanteria, Km. 9.5, San Gabriel Industrial Park, Carolina, Puerto Rico 00985

Phone [phone] Fax [phone]

Accessory Purchases::::::

1-800-332-5368 (Customer Orders Only)
Panasonic Services Company 20421 84th Avenue South, Kent, WA 98032
(6 am to 5 pm Monday-Friday; 6 am to 10:30 am Saturday; PST)
(Visa, MasterCard, Discover Card, American Express, Check)

6

Maintaining the
Lens

Open the lid and clean the lens as shown in the figure.
Use a cotton swab to gently wipe off any finger-prints.
Recommended product: Lens cleaner kit (SZZP1038C)

Product Service

Do not attempt to remove the cover(s) or repair the unit
yourself. Refer servicing to qualified personnel only.

Product information

For product service, product information or assistance
with product operation, refer to the servicenter directory.

User memo:

DATE OF PURCHASE
DEALER NAME
DEALER ADDRESS

TELEPHONE NUMBER

WARNING:

TO REDUCE THE RISK OF FIRE, ELEC­TRIC SHOCK OR PRODUCT DAMAGE, DO
NOT EXPOSE THIS APPLIANCE TO RAIN,
SPLASHING, DRIPPING OR MOISTURE.

CAUTION!

THIS PRODUCT UTILIZES A LASER.
USE OF CONTROLS OR ADJUSTMENTS
OR PERFORMANCE OF PROCEDURES
OTHER THAN THOSE SPECIFIED HEREIN
MAY RESULT IN HAZARDOUS RADIA­TION EXPOSURE.
DO NOT OPEN COVERS AND DO NOT
REPAIR YOURSELF. REFER SERVICING
TO QUALIFIED PERSONNEL.

The product you have purchased is powered
by a nickel-cadmium battery which is recy­clable.
Please call 1-800-8-BATTERY for informa­tion on how to recycle this battery.

CAUTION:

This equipment has been tested and found to
comply with the limits for a Class B digital de­vice, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reason­able protection against harmful interference
in a residential installation. This equipment
generates, uses and can radiate radio fre­quency energy and, if not installed and used
in accordance with the instructions, may
cause harmful interference to radio communi­cations. However, there is no guarantee that
interference will not occur in a particular
installation. If this equipment does cause
harmful interference to radio or television re­ception, which can be determined by turning
the equipment off and on, the user is encour­aged to try to correct the interference by one
of the following measures:

≥Reorient or relocate the receiving antenna.
≥Increase the separation between the equip-

ment and receiver.

≥Connect the equipment into an outlet on a

circuit different from that to which the re­ceiver is connected.

≥Consult the dealer or an experienced

radio/TV technician for help.

Any unauthorized changes or modifications
to this equipment would void the user’s au­thority to operate this device.

This device complies with Part 15 of the FCC
Rules. Operation is subject to the following
two conditions: (1) This device may not
cause harmful interference, and (2) this de­vice must accept any interference received,
including interference that may cause unde­sired operation.

Ni-Cd

RBRC

RBRC

7

Panasonic Audio Products

Limited Warranty

Panasonic Consumer Electronics Company or Panasonic Sales Company (col­lectively referred to as “The warrantor”) will repair this product with new or refur­bished parts, free of charge, in the U.S.A. or Puerto Rico from the date of original
purchase in the event of a defect in materials or workmanship as follows:

AUDIO COMPONENTS, RADIOS, COMPACT DISC PLAYERS. VIDEO CD
PLAYERS AND HOME ENTERTAINMENT SYSTEMS—For one (1) year.

ACCESSORIES, HEADPHONES AND CARTRIDGES— (when applicable) For
ninety (90) days.

BATTERIES—(when applicable) —New rechargeable batteries in exchange for
defective rechargeable batteries—For ten (10) days. Non-rechargeable batteries
are not warranted.

RECHARGEABLE BATTERY PACKS—(when applicable)—New rechargeable
battery packs in exchange for defective rechargeable battery packs for (90) days.
Non-rechargeable battery packs are not warranted.

Carry-in or mail-in service in the continental U.S.A. can be obtained during the
warranty period from a Panasonic Services Company (PASC) Factory
Servicenter listed in the Servicenter Directory. Or call 1-800-211-7262, toll free,
to locate an authorized PASC Servicenter. Carry-in or mail-in service in Puerto
Rico can be obtained during the warranty period by calling the telephone num­bers listed in the Servicenter Directory.

This warranty is extended only to the original purchaser. A purchase receipt or
other proof of date of original purchase will be required before warranty service is
rendered.

This warranty only covers failures due to defects in materials or workmanship

which occur during normal use and does not cover normal wear to the stylus
(when applicable) or dealer installed cartridge or stylus. It does not cover dam­age which occurs in shipment or failures which are caused by products not sup­plied by the warrantor or failures which result from accident, misuse, abuse,
neglect, mishandling, misapplication, faulty installation, set-up adjustment, im­proper maintenance, alteration, improper antenna, inadequate signal pick-up,
maladjustment of consumer controls, modification, or commercial use of product,
or service by anyone other than a PASC Factory Servicenter or authorized PASC
Servicenter, or damage that is attributable to acts of God.

LIMITS AND EXCLUSIONS

There are no express warranties except as listed above.

THE WARRANTOR SHALL NOT BE LIABLE FOR INCIDENTAL OR CONSE­QUENTIAL DAMAGES RESULTING FROM THE USE OF THIS PRODUCT, OR
ARISING OUT OF ANY BREACH OF THIS WARRANTY, INCLUDING WITH­OUT LIMITATION, DAMAGE TO TAPES RECORDS OR DISCS. ALL EXPRESS
AND IMPLIED WARRANTIES INCLUDING THE WARRANTIES OF MER­CHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, ARE LIMIT­ED TO THE APPLICABLE WARRANTY PERIOD SET FORTH ABOVE. Some
states do not allow the exclusion or limitation of incidental or consequential dam­ages, or limitations on how long an implied warranty lasts, so the above exclu­sions or limitations may not apply to you.

This warranty gives you specific legal rights and you may also have other
rights which vary from state to state.

If a problem with this product develops during or after the warranty period, you
may contact your dealer or Servicenter. If the problem is not handled to your sat­isfaction, then write to the Consumer Affairs Division at the company address in­dicated above.

Panasonic Consumer Electronics
Company, Division of Matsushita
Electric Corporation of America

One Panasonic Way,
Secaucus, New Jersey 07094

Panasonic Sales Company, Division
of Matsushita Electric
of Puerto Rico, Inc. (“PSC”)

Ave. 65 de Infanteria, Km. 9.5
San Gabriel Industrial Park
Carolina, Puerto Rico 00985
Tel. [phone]
FAX. [phone]

Air blower for
camera lens

Lens

Lens

Problem

Cannot close cover.
Cannot play discs.

Cannot remove disc.
Tracks on disc do not

play in order, starting
with the first track.

Cannot hear music—
too noisy.

TV picture is distorted.
Radio reception is
noisy.

Check this

Is the disc properly secured in place?

≥Is the unit in hold status?
≥Is the disc properly secured in place?
≥Is there condensation on the lens?

(Wait for about an hour and then try again.)
Did you press [PUSH] to release the disc?
Is [RESUME, NORMAL, RANDOM (play mode)] in

[NORMAL] position?

≥Is the headphones plug inserted all the way?
≥Is the plug dirty? (Wipe away dirt on plug.)

Are you using the unit body too near a TV or tuner?
(If the TV or tuner is connected to a simple indoor
antenna, connect it to an outdoor antenna.)

Batteries used

2 alkaline batteries

Rechargeable
batteries (RP-BP60)

Optional
rechargeable
batteries
(P-3GAVA/2B)

Power source

AC adaptor

Anti-shock
OFF/ON

2.9 W/3.0 W

Carrying dry cell batteries/
rechargeable batteries around

When putting dry cell or rechargeable batteries in a pocket or
bag, ensure that no other metal objects such as a necklace are
placed together with them. Contact with metal may cause short­circuiting which, in turn, may cause a fire.
Be absolutely sure to carry the rechargeable batteries in the bat­tery carrying case.

When purchasing rechargeable
batteries

As a safety precaution, the portable CD players made by
Panasonic have a construction designed to make it impossible to
recharge ordinary batteries.
To use rechargeable batteries, be absolutely sure to purchase
the rechargeable Ni-Cd batteries designed especially for this unit.

Special rechargeable Ni-Cd batteries:
P-3GAVA/2B, SH-CDB8D (set of 2)

For details, check with your dealer.

When driving a car

In the interest of traffic safety, do not operate the unit while dri­ving.

Specifications Troubleshooting Guide

Before requesting service for this unit, check the chart below for a possible cause of
the problem you are experiencing. Some simple checks or a minor adjustment on
your part may eliminate the problem and restore proper operation.
If you are in doubt about some of the check points, or if the remedies indicated in the
chart do not solve the problem, refer to the directory of Authorized Service Centers
(enclosed with this unit) to locate a convenient service center, or consult your dealer
for instructions.

For detailed instructions, contact an authorized servicenter 1-800-211-7262 or
web site (http://www.panasonic.com)

Listening caution

Do not play your headphones or earphones at a high volume.
Hearing experts advise against continuous extended play.

If you experience a ringing in your ears, reduce volume or dis­continue use.

Do not use while operating a motorized vehicle. It may create a
traffic hazard and is illegal in many areas.

You should use extreme caution or temporarily discontinue use in
potentially hazardous situations.

Even if your headphones or earphones is an open-air type de­signed to let you hear outside sounds, don’t turn up the volume
so high that you can’t hear what’s around you.

Sound can be deceiving. Over time your hearing “comfort level”
adapts to higher volumes of sound. So what sounds “normal” can
actually be loud and harmful to your hearing.
Guard against this by setting your equipment at a safe level BE­FORE your hearing adapts.
To establish a safe level:

≥Start your volume control at a low setting.
≥Slowly increase the sound until you can hear it comfortably and

clearly, and without distortion.

Once you have established a comfortable sound level:
≥Set the dial and leave it there.

Cautions

Rechargeable batteries

≥Only the RP-BP60, P-3GAVA/2B, SH-CDB8D batteries can be

recharged.

≥If the power delivered by the batteries lasts for a very short time

after recharging, it means that the batteries’ service life is over.
Do not use them any more.

≥Recharging already charged batteries will shorten their service

life.

≥When recharging batteries for the first time or when they have

not been used for a long period of time, the play time may be
shorter than usual. In a case like this, repeatedly recharge and
discharge the batteries. This will restore them to their regular
state.

≥Do not allow any metal objects to touch the terminals of

rechargeable batteries since this may cause short-circuiting
which is dangerous.

≥Do not peel off the plastic covering on the rechargeable batter-

ies. Short-circuiting may occur which is dangerous.

Dry cell batteries/rechargeable
batteries

To prevent damage to the batteries and electrolyte leakage, heed
the following points.
≥Align the + and - polarities properly when inserting the bat-

teries.

≥Do not mix different types or makes of batteries or old and new

batteries.

≥Remove the batteries if you do not plan to use the unit for a

long period of time.

≥Do not throw batteries into a fire, and do not short-circuit, disas-

semble or subject them to excessive heat.

≥Do not attempt to recharge dry cell batteries.

Audio

No. of channels: 2 (left and right,

stereo)

Frequency

response: 20 to 20,000 Hz

(r0.5 dB to

s1.5 dB)
Output voltage: 0.6 V (50 k≠)
S/N: More than 94 dB

§

Wow and flutter: Below measurable

limit
DA converter: 1 bit, MASH
Headphones

output level: Max. 9 mWr9 mW/

16 ≠ (adjustable)

Pickup

Light source: Semiconductor laser
Wavelength: 780 nm

General

Operational

temperature
range: 0 xC–40 xC

(32xF–104xF)
Rechargeable

temperature
range: 5 xC–40 xC

(41xF–104xF)
Power supply: DC 4.5 V
Power consumption:

Play time:
[When used in hold mode, at 25 xC
(77xF) temperature and on flat and
stable surface]

The play time may be less depending on
the operating conditions.
Recharging time:

RP-BP60: About 3 hours
P-3GAVA/2B: About 5 hours

Dimensions

(WtHtD): 128t25.8t144 mm

(5

1

⁄16zt11⁄32zt511⁄16z)

Weight: 257

g (9.1 oz.)
(with batteries)
212 g (7.5 oz.)
(without batteries)

§

These specifications were measured in

the anti-shock OFF mode.

Note:

Specifications are subject to change
without notice.
Weight and dimensions are
approximate.

Anti-shock

OFF/ON

About 22 h/
25 h

About 6 h/

6.5 h

About 10 h/
11 h

8

Ordinary dry cell
batteries/rechargeable
batteries

Special rechargeable
batteries

When recharging: Approx. 4.0 W

EST. 1924
