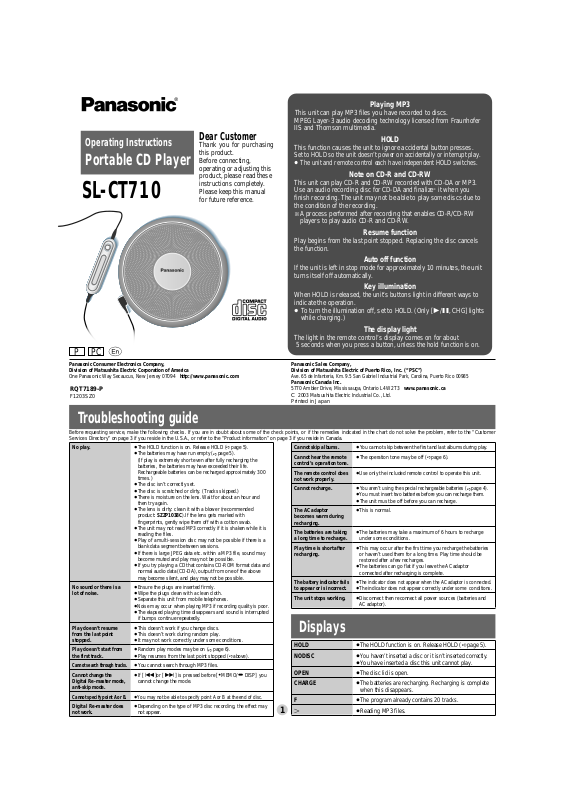

Page 1
No play.
No sound or there is a
lot of noise.
Play doesn’t resume
from the last point
stopped.
Play doesn’t start from
the first track.
Cannot search through tracks.
Cannot change the
Digital Re-master mode,
anti-skip mode.
Cannot specify point A or B.
Digital Re-master does
not work.
Cannot skip albums.
Cannot hear the remote
control’s operation tone.
The remote control does
not work properly.
Cannot recharge.
The AC adaptor
becomes warm during
recharging.
The batteries are taking
a long time to recharge.
Play time is short after
recharging.
The battery indicator fails
to appear or is incorrect.
The unit stops working.
≥The HOLD function is on. Release HOLD (➪page 5).
≥The batteries may have run empty (➪page 5).
(If play is extremely short even after fully recharging the
batteries, the batteries may have exceeded their life.
Rechargeable batteries can be recharged approximately 300
times.)
≥The disc isn’t correctly set.
≥The disc is scratched or dirty. (Tracks skipped.)
≥There is moisture on the lens. Wait for about an hour and
then try again.
≥The lens is dirty: clean it with a blower (recommended
product: SZZP1038C).If the lens gets marked with
fingerprints, gently wipe them off with a cotton swab.
≥The unit may not read MP3 correctly if it is shaken while it is
reading the files.
≥Play of a multi-session disc may not be possible if there is a
blank data segment between sessions.
≥If there is large JPEG data etc. within a MP3 file, sound may
become muted and play may not be possible.
≥If you try playing a CD that contains CD-ROM format data and
normal audio data (CD-DA), output from one of the above
may become silent, and play may not be possible.
≥Ensure the plugs are inserted firmly.
≥Wipe the plugs clean with a clean cloth.
≥Separate this unit from mobile telephones.
≥Noise may occur when playing MP3 if recording quality is poor.
≥The elapsed playing time disappears and sound is interrupted
if bumps continue repeatedly.
≥This doesn’t work if you change discs.
≥This doesn’t work during random play.
≥It may not work correctly under some conditions.
≥Random play modes may be on (➪page 6).
≥Play resumes from the last point stopped (➪above).
≥You cannot search through MP3 files.
≥If [:]or [9] is pressed before [$MEMO/%DISP] you
cannot change the mode.
≥You may not be able to specify point A or B at the end of disc.
≥Depending on the type of MP3 disc recording, the effect may
not appear.
Panasonic Sales Company,
Division of Matsushita Electric of Puerto Rico, Inc. (“PSC”)
Ave. 65 de Infantería, Km. 9.5 San Gabriel Industrial Park, Carolina, Puerto Rico 00985
Panasonic Canada Inc.
5770 Ambler Drive, Mississauga, Ontario L4W 2T3 www.panasonic.ca
C 2003 Matsushita Electric Industrial Co., Ltd.
Printed in Japan
Before requesting service, make the following checks. If you are in doubt about some of the check points, or if the remedies indicated in the chart do not solve the problem, refer to the “Customer
Services Directory” on page 3 if you reside in the U.S.A., or refer to the “Product information” on page 3 if you reside in Canada.
Troubleshooting guide
1
Dear Customer
Thank you for purchasing
this product.
Before connecting,
operating or adjusting this
product, please read these
instructions completely.
Please keep this manual
for future reference.
P PC
Operating Instructions
Portable CD Player
SL-CT710
RQT7189-P
F1203SZ0
p
≥You cannot skip between the first and last albums during play.
≥The operation tone may be off (➪page 6).
≥Use only the included remote control to operate this unit.
≥
You aren’t using the special rechargeable batteries (➪page 4).
≥You must insert two batteries before you can recharge them.
≥The unit must be off before you can recharge.
≥This is normal.
≥The batteries may take a maximum of 6 hours to recharge
under some conditions.
≥This may occur after the first time you recharge the batteries
or haven’t used them for a long time. Play time should be
restored after a few recharges.
≥The batteries can go flat if you leave the AC adaptor
connected after recharging is complete.
≥The indicator does not appear when the AC adaptor is connected.
≥The indicator does not appear correctly under some conditions.
≥Disconnect then reconnect all power sources (batteries and
AC adaptor).
Displays
HOLD
NODISC
OPEN
CHARGE
F
N
≥The HOLD function is on. Release HOLD (➪page 5).
≥
You haven’t inserted a disc or it isn’t inserted correctly.
≥You have inserted a disc this unit cannot play.
≥The disc lid is open.
≥The batteries are recharging. Recharging is complete
when this disappears.
≥The program already contains 20 tracks.
≥Reading MP3 files.
Playing MP3
This unit can play MP3 files you have recorded to discs.
MPEG Layer-3 audio decoding technology licensed from Fraunhofer
IIS and Thomson multimedia.
HOLD
This function causes the unit to ignore accidental button presses.
Set to HOLD so the unit doesn’t power on accidentally or interrupt play.
≥ The unit and remote control each have independent HOLD switches.
Note on CD-R and CD-RW
This unit can play CD-R and CD-RW recorded with CD-DA or MP3.
Use an audio recording disc for CD-DA and finalize
§
it when you
finish recording. The unit may not be able to play some discs due to
the condition of the recording.
§A process performed after recording that enables CD-R/CD-RW
players to play audio CD-R and CD-RW.
Resume function
Play begins from the last point stopped. Replacing the disc cancels
the function.
Auto off function
If the unit is left in stop mode for approximately 10 minutes, the unit
turns itself off automatically.
Key illumination
When HOLD is released, the unit’s buttons light in different ways to
indicate the operation.
≥ To turn the illumination off, set to HOLD. (Only [1/;, CHG] lights
while charging.)
The display light
The light in the remote control’s display comes on for about
5 seconds when you press a button, unless the hold function is on.
Panasonic Consumer Electronics Company,
Division of Matsushita Electric Corporation of America
One Panasonic Way Secaucus, New Jersey 07094 http://www.panasonic.com
Page 2
∫Listening
Do not play your headphones or earphones at a high volume. Hearing
experts advise against continuous extended play.
If you experience a ringing in your ears, reduce volume or discontinue
use.
Do not use while operating a motorized vehicle. It may create a traffic
hazard and is illegal in many areas.
You should use extreme caution or temporarily discontinue use in
potentially hazardous situations.
Even if your headphones or earphones are the open-air type designed to
let you hear outside sounds, don’t turn up the volume so high that you
can’t hear what’s around you.
Sound can be deceiving. Over time your hearing “comfort level” adapts to
higher volumes of sound. So what sounds “normal” can actually be loud
and harmful to your hearing.
Guard against this by setting your equipment at a safe level BEFORE your
hearing adapts.
To establish a safe level:
≥Start your volume control at a low setting.
≥Slowly increase the sound until you can hear it comfortably and clearly,
and without distortion.
Once you have established a comfortable sound level:
≥Leave it there.
∫CDs
≥Do not use irregularly shaped CDs.
≥Do not use non-specification discs.
≥Do not use CDs printed with label printers available on the market.
≥Do not use CDs with labels and stickers that are coming off or with
adhesive exuding from under labels and stickers.
Caution
≥Discontinue use if you experience discomfort with the earphones or any
other parts that directly contact your skin. Continued use may cause
rashes or other allergic reactions.
∫Batteries
≥Do not peel off the covering on the batteries and do not use if the
covering has been peeled off.
≥Align the poles r and s correctly when inserting the batteries.
≥Do not mix different types of batteries or old and new batteries.
≥Remove the batteries if you do not intend to use the unit for a long time.
≥Do not throw into a fire, short-circuit, disassemble, or subject to
excessive heat.
≥Do not attempt to recharge dry cell batteries.
≥When carrying batteries in a pocket or bag, ensure no metal objects
such as necklaces are placed together with them. Contact with metal
may cause short-circuiting which can cause a fire. For safety, carry the
rechargeable batteries in the battery carrying case.
IMPORTANT SAFETY INSTRUCTIONS
2
A nickel cadmium battery that is recyclable powers the product you have
purchased. At the end of its useful life, under various state and local laws, it
is illegal to dispose of this battery into your municipal waste stream. Please
call 1-800-8-BATTERY for information on how to recycle this battery.
1) Read these instructions.
2) Keep these instructions.
3) Heed all warnings.
4) Follow all instructions.
5) Do not use this apparatus near water.
6) Clean only with dry cloth.
7) Do not block any ventilation openings. Install in accordance with the
manufacturer’s instructions.
8) Do not install near any heat sources such as radiators, heat
registers, stoves, or other apparatus (including amplifiers) that
produce heat.
9) Do not defeat the safety purpose of the polarized or grounding-type
plug. A polarized plug has two blades with one wider than the other.
A grounding-type plug has two blades and a third grounding prong.
The wide blade or the third prong are provided for your safety. If the
provided plug does not fit into your outlet, consult an electrician for
replacement of the obsolete outlet.
10) Protect the power cord from being walked on or pinched particularly
at plugs, convenience receptacles, and the point where they exit
from the apparatus.
11) Only use attachments/accessories specified by the manufacturer.
Read these operating instructions carefully before using the unit. Follow the safety instructions on the unit and the applicable safety instructions listed
below. Keep these operating instructions handy for future reference.
12) Use only with the cart, stand, tripod, bracket,
or table specified by the manufacturer, or sold
with the apparatus. When a cart is used, use
caution when moving the cart/apparatus
combination to avoid injury from tip-over.
13) Unplug this apparatus during lightning storms or when
unused for long periods of time.
14) Refer all servicing to qualified service personnel. Servicing is
required when the apparatus has been damaged in any way,
such as power-supply cord or plug is damaged, liquid has
been spilled or objects have fallen into the apparatus, the
apparatus has been exposed to rain or moisture, does not
operate normally, or has been dropped.
Page 3
WARNING:
TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR
PRODUCT DAMAGE, DO NOT EXPOSE THIS APPARATUS TO
RAIN, MOISTURE, DRIPPING OR SPLASHING AND THAT NO
OBJECTS FILLED WITH LIQUIDS, SUCH AS VASES, SHALL BE
PLACED ON THE APPARATUS.
CAUTION!
THIS PRODUCT UTILIZES A LASER.
USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE
OF PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN
MAY RESULT IN HAZARDOUS RADIATION EXPOSURE.
DO NOT OPEN COVERS AND DO NOT REPAIR YOURSELF.
REFER SERVICING TO QUALIFIED PERSONNEL.
Marking sign is located on bottom of the unit.
CAUTION:
Use only car adaptor, Model: SH-CDC9
manufactured by Matsushita Electric Industrial Co., Ltd.
THE FOLLOWING APPLIES ONLY IN THE U.S.A.
CAUTION:
This equipment has been tested and found to comply with the limits for a Class
B digital device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses and
can radiate radio frequency energy and, if not installed and used in accordance
with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and
on, the user is encouraged to try to correct the interference by one or more of
the following measures:
≥Reorient or relocate the receiving antenna.
≥Increase the separation between the equipment and receiver.
≥Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected.
≥Consult the dealer or an experienced radio/TV technician for help.
Any unauthorized changes or modifications to this equipment would void the
user’s authority to operate this device.
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference,
and (2) this device must accept any interference received, including
interference that may cause undesired operation.
Product Service
1. Damage requiring service—The unit should be serviced by qualified service
personnel if:
1. (a) The AC power supply cord or AC adaptor has been damaged; or
1. (b) Objects or liquids have gotten into the unit; or
1. (c) The unit has been exposed to rain; or
1. (d) The unit does not operate normally or exhibits a marked change in
performance; or
1. (e) The unit has been dropped or the cabinet damaged.
2.
Servicing—Do not attempt to service the unit beyond that described in these
operating instructions. Refer all other servicing to authorized servicing personnel.
3.
Replacement parts—
When parts need replacing ensure the servicer uses parts
specified by the manufacturer or parts that have the same characteristics as the original
parts. Unauthorized substitutes may result in fire, electric shock, or other hazards.
4. Safety check—After repairs or service, ask the servicer to perform safety
checks to confirm that the unit is in proper working condition.
Product information
For product information or assistance with product operation:
In the U.S.A., refer to “Customer Services Directory” below.
For assistance in the continental U.S.A. in obtaining repairs please ship the product to:
Panasonic Services Company - Customer Servicenter
Suite B 4900 George McVay Drive
McAllen, TX 78503
In Puerto Rico contact the Panasonic Sales Company.
Tel. (787) 750-4300 Fax. (787) 768-2910
When shipping the unit carefully pack and send it prepaid, adequately insured and
preferably in the original carton. Include a letter detailing the complaint and
provide a day time phone number where you can be reached.
IF REPAIR IS NEEDED DURING THE WARRANTY PERIOD THE PURCHASER WILL
BE REQUIRED TO FURNISH A SALES RECEIPT/PROOF OF PURCHASE
INDICATING DATE OF PURCHASE, AMOUNT PAID AND PLACE OF PURCHASE.
CUSTOMER WILL BE CHARGED FOR THE REPAIR OF ANY UNIT RECEIVED
WITHOUT SUCH PROOF OF PURCHASE.
Also, the purchaser will be responsible for shipping the unit to the above address.
In Canada, contact the Panasonic Canada Inc. Customer Care Centre at 905-624-5505,
or visit the website (www.panasonic.ca), or an authorized Servicentre closest to you.
DATE OF PURCHASE
DEALER NAME
DEALER ADDRESS
TELEPHONE NUMBER
User memo:
3
ONLY FOR U.S.A.
Panasonic Consumer Electronics Company,
Division of Matsushita Electric Corporation of America
One Panasonic Way Secaucus, New Jersey 07094
Panasonic Sales Company, Division of Matsushita Electric of Puerto Rico, Inc.,
Ave. 65 de Infantería, Km. 9.5
San Gabriel Industrial Park, Carolina, Puerto Rico 00985
Panasonic Portable Audio Products Limited Warranty
Limited Warranty Coverage
If your product does not work properly because of a defect in materials or workmanship, Panasonic Consumer
Electronics Company or Panasonic Sales Company (collectively referred to as “the warrantor”) will, for the
length of the period indicated on the chart below, which starts with the date of original purchase (“warranty
period”), at its option either (a) repair your product with new or refurbished parts, or (b) replace it with a new
or a refurbished product. The decision to repair or replace will be made by the warrantor.
Product or Part Name
All Portable Audio Products except item listed
below
Rechargeable batteries
(in exchange for defective item)
Parts
One (1) Year
Ten (10) Days
Labor
One (1) Year
Not applicable
During the “Labor” warranty period there will be no charge for labor. During the “Parts” warranty period, there
will be no charge for parts. You must mail-in your product during the warranty period. This Limited Warranty
excludes both parts and labor for batteries, antennas, and cosmetic parts (cabinet). This warranty only applies
to products purchased and serviced in the United States or Puerto Rico. This warranty is extended only to the
original purchaser of a new product which was not sold “as is”.
Mail-In Service
For assistance in the continental U.S.A. in obtaining repairs please ship the product to:
Panasonic Services Company
Customer Servicenter
Suite B
4900 George McVay Drive
McAllen, TX 78503
For assistance in Puerto Rico call Panasonic Sales Company (787)-750-4300 or fax (787)-768-2910.
When shipping the unit carefully pack and send it prepaid, adequately insured and preferably in the original
carton. Include a letter detailing the complaint and provide a day time phone number where you can be reached.
Customer Services Directory
IF REPAIR IS NEEDED DURING THE WARRANTY PERIOD THE PURCHASER WILL BE REQUIRED TO FURNISH
A SALES RECEIPT/PROOF OF PURCHASE INDICATING DATE OF PURCHASE, AMOUNT PAID AND PLACE OF
PURCHASE. CUSTOMER WILL BE CHARGED FOR THE REPAIR OF ANY UNIT RECEIVED WITHOUT SUCH
PROOF OF PURCHASE.
Limited Warranty Limits And Exclusions
This warranty ONLY COVERS failures due to defects in materials or workmanship, and DOES NOT COVER
normal wear and tear or cosmetic damage. The warranty ALSO DOES NOT COVER damages which occurred in
shipment, or failures which are caused by products not supplied by the warrantor, or failures which result from
accidents, misuse, abuse, neglect, mishandling, misapplication, alteration, faulty installation, set-up
adjustments, misadjustment of consumer controls, improper maintenance, power line surge, lightning damage,
modification, introduction of sand, humidity or liquids, commercial use such as hotel, office, restaurant, or
other business or rental use of the product, or service by anyone other than a Factory Servicenter or other
Authorized Servicer, or damage that is attributable to acts of God.
THERE ARE NO EXPRESS WARRANTIES EXCEPT AS LISTED UNDER “LIMITED WARRANTY COVERAGE”.
THE WARRANTOR IS NOT LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES RESULTING FROM THE
USE OF THIS PRODUCT, OR ARISING OUT OF ANY BREACH OF THIS WARRANTY. (As examples, this excludes
damages for lost time, travel to and from the servicer, loss of or damage to media or images, data or other
memory or recorded content. The items listed are not exclusive, but are for illustration only.)
ALL EXPRESS AND IMPLIED WARRANTIES, INCLUDING THE WARRANTY OF MERCHANTABILITY, ARE
LIMITED TO THE PERIOD OF THE LIMITED WARRANTY.
Some states do not allow the exclusion or limitation of incidental or consequential damages, or limitations on how
long an implied warranty lasts, so the exclusions may not apply to you. This warranty gives you specific legal
rights and you may also have other rights which vary from state to state. If a problem with this product develops
during or after the warranty period, you may contact your dealer or Servicenter. If the problem is not handled to
your satisfaction, then write to the warrantor’s Consumer Affairs Department at the addresses listed for the warrantor.
PARTS AND SERVICE, WHICH ARE NOT COVERED BY THIS LIMITED WARRANTY, ARE YOUR RESPONSIBILITY.
Matsushita Electric of Puerto Rico, Inc. Panasonic Sales Company/Factory Servicenter:
Ave. 65 de Infantería, Km. 9.5, San Gabriel Industrial Park, Carolina, Puerto Rico 00985
Phone (787)750-4300, Fax (787)768-2910
F1003
Obtain Product Information and Operating Assistance; locate your nearest Dealer
or Servicenter; purchase Parts and Accessories; or make Customer Service and
Literature requests by visiting our Web Site at:
http://www.panasonic.com/support
or, contact us via the web at:
http://www.panasonic.com/contactinfo
You may also contact us directly at:
1-800-211-PANA (7262),
Monday-Friday 9 am-9 pm; Saturday-Sunday 10 am-7 pm, EST.
For hearing or speech impaired TTY users, TTY : 1-877-833-8855
Accessory Purchases
Service in Puerto Rico
Purchase Parts, Accessories and Instruction Books online for all Panasonic Products by visiting our
Web Site at: http://www.pasc.panasonic.com
or, send your request by E-mail to: [email protected]
You may also contact us directly at:
1-800-332-5368 (Phone) 1-800-237-9080 (Fax Only) (Monday – Friday 9 am to 8 pm, EST.)
Panasonic Services Company
20421 84th Avenue South,Kent, WA 98032
(We Accept Visa, MasterCard, Discover Card, American Express, and Personal Checks)
For hearing or speech impaired TTY users, TTY : 1-866-605-1277
The model number and serial number of this product can be found on
either the back or the bottom of the unit.
Please note them in the space provided below and keep for future
reference.
MODEL NUMBER
SL-CT710
SERIAL NUMBER
Page 4
A
Location of controls/Connection to other equipment
Rechargeable battery
compartment
Hold switch
Headphone jack
Open switch
Skip/Search
Play/Pause
Stop/Turn off
Volume control
∫To Battery case terminal (EXT BATT)
Display panel
Volume control
Volume control
Play/Stop/
Turn off
Skip/Search
Skip/Search
Sound quality selection/Operation tone on-off
Play mode selection
Memory/Recall/Display/
Digital Re-master/
Anti-skip mode selection
Earphones
To CD or AUX terminals
Audio system
Adjust the volume
level on the audio
system.
AC adaptor
Household
AC outlet
External battery case
≥ You can recharge the batteries with
this connection.
Some cannot be
connected.
Car audio
Hold switch
Supplied Accessories
Check the packing carton for these accessories.
≥ 1 Wired remote control: N2QCBD000037
≥ 1 AC adaptor: RFEA415C-1S
≥ 1 Pair of stereo earphones: L0BAB0000176
≥ 1 External battery case: RFA1821-H
≥ 2 Ni-Cd rechargeable batteries: (see below)
≥ 1 Battery carrying case: RFC0062-X
Recommended replacement rechargeable batteries:
HHF-AZ01 (Nickel-metal hydride rechargeable batteries)
Car stereo cassette adaptor (SH-CDM10A)
(not included)
≥ Set the unit’s volume to 10-15.
≥ Turn the operation tones off so they are not
heard when operating the remote control.
Lens
Main unit
Remote control
4
∫To DC IN jack
≥Turn off this unit and the other equipment before connection.
∫To remote control jack
Plug type:
3.5mm (
1
/8in.)
stereo
Audio cable (not included)
Use numbers indicated when ordering replacements or optional accessories
from your Panasonic dealer.
In the U.S.A. to order accessories, refer to “Accessory Purchases” on page 3.
Car power adaptor (SH-CDC9)
(not included)
≥ Set the unit’s volume to 10-15.
MP3
disc
96
21
117
Batteries
used
2 optional
alkaline batteries
2 supplied
rechargeable
batteries
2 supplied
rechargeable and
2 alkaline batteries
Specifications
AC adaptor power
consumed in standby mode: 1.6 W
CD-DA
disc
53
12
65
Audio (CD-DA)
Sampling frequency: 44.1 kHz
No. of channels:
2 (left and right, stereo)
Headphone output level:
RMS max. 6 mWi6 mW/
16 ≠ (adjustable)
Frequency response:
20 Hz to 20,000 Hz
(i0.5 dB to j8 dB)
Pickup
Light source: Semiconductor laser
Wavelength: 780 nm
MP3
Supported bit-rates:
32 kbps to 320 kbps
(128 kbps is recommended)
Supported sampling frequency:
48 kHz/44.1 kHz/32 kHz
Maximum number of items
(total no. of albums and tracks):
999
Maximum album levels: 100
General
Power supply:
DC input (via included AC adaptor):
DC 4.5 V
AC adaptor input:
AC 120 V 60 Hz
Power consumption:
Using AC adaptor
(MP3/CD-DA): 2.6 W/2.6 W
Recharging: 5.5 W
Play time:
Using on a flat stable surface at
25 eC (77 eF), EQ is off, Hold is on,
Anti-skip is on POS 1 (CD-DA),
recommended bit rate (MP3:128 kbps),
and Digital Re-master is off (MP3). Play
times are in hours and approximate.
Recharging time:
About 2 to 3 hours
≥The play time may be less depending
on the operating conditions.
≥Play time will be considerably
reduced when playing CD-RW.
Operational temperature range:
0 eC–40 eC (32 eF–104eF)
Rechargeable temperature range:
5 eC–40 eC (41 eF–104eF)
Dimensions (WaHaD):
134.4a16.1a133.5 mm
(59/
32
z
a
5
/
8
z
a5
1
/
4
z
)
Mass: 196 g (6.9 oz.)(with batteries)
150 g (5.3 oz.)(without batteries)
Note:
Specifications are subject to change
without notice.
Mass and dimensions are approximate.
Plug type:
3.5mm
(
1
/8in.)
stereo
Page 5
How to Use
Playback
Open the lid and insert a CD.
Release HOLD.
Track number Elapsed playing
time of track
Press.
Adjust the volume
(0 - 25) by moving [1/∫]
toward [r] or [s].
Long cord to the
right.
Pause
Remote control Main unit
Press.
Not available.
∫Press again to restart play.
Search
Remote control Main unit
Move and hold
during play.
≥ You cannot search while playing MP3.
≥ You can search only within the current track during program, one track repeat,
random, random repeat and AB repeat play modes (➪page 6).
Skip
Remote control Main unit
Move
. Press.
≥
Move or press [:] twice to skip to the beginning of the previous track during play.
≥ You cannot use [:] to skip to the previous track during random play (
➪
page 6).
Press and hold
during play.
≥ MP3 files take a little
longer to be read.
≥ “ ” lights on the
display while playing
MP3 files.
Power Supply
Rechargeable batteries Recharge before initial use.
Turn the unit off before recharging.
1 2 3
3
+
-
+
-
OPEN
≥ You can recharge the batteries before they are fully discharged.
≥ Press the
- end and lift out to remove.
≥ Fit the battery lid so it is secure and flush with the battery
compartment. If it comes loose, it may scratch your discs.
Dry cell batteries (not included)
12 3
Press
You can get longer play by using the rechargeable and dry cell batteries
together.
The battery indicator
∫While the unit is off
Release HOLD on the main unit (➪ below) and press [VOL, +,
BATT CHECK].
The number of buttons on the main unit that light indicates the charge.
The unit switches off shortly after the
indicator starts flashing.
Conserving power
If you are not going to be using for a long time, we recommend
removing the AC adaptor from the AC outlet. Power is consumed by
the AC adaptor even if the main unit is not connected: 1.6 W
∫While the unit is on
AC adaptor
LR6, AA, UM-3
EXT BATT jack of
the main unit
Household
AC outlet
5
Recharging starts.
Illumination goes out.
(Approximately 2 to 3 hours)
Illumination lights.
Recharging complete.
Close
securely.
Stop/Turn off
Number of
tracks
Total play time
Number
of albums
Number of
tracks
Remote control Main unit
Press. Press.
∫Press and hold to turn
the unit off.
∫Press again to turn
the unit off.
11 51:52
6 25
ALBUM
MP3
DC IN
≥ Before playing starts the battery indicator may flash although the
batteries are not drained. It appears correctly once you start play.
Play time (
➪
Specifications, page 4)
MP3
Plug in firmly.
1
2
1
3
2
1 0 : 01
3
4
4
Plug in firmly.
Page 6
ALBUM MODE
ALBUM
10
3
1
4
3
2
M
01
3
Playing MP3
Starting play from an album (Album skip)
Move and hold until the
album you want appears.
Album number Number of tracks
Playing only the tracks in a selected album (Album mode)
Each time you press and hold [MODE]
No display
(canceled)
≥ You can select another album with album skip.
≥ You cannot turn album mode on during program play.
Changing the display
Each time you press and hold [$MEMO/%DISP] during play
Album
title
Track
title
ID3
artist name
Track number and
elapsed play time
≥
Up to 30 characters can be scrolled in the display. “~” is displayed in excess of 30 characters.
≥ “_” is displayed in place of characters this unit cannot display.
≥ ID3 tags are indicated as “Id3 ” before the artist name and “Id3 ”before the track
name. “ ” appears instead if ID3 tags haven’t been entered.
MP3
This unit can play MP3, a method of compressing audio without overtly hurting audio quality.
∫When creating MP3 files to play on this unit
Disc formats: ISO9660 level 1 and level 2 (except for extended formats)
∫Limitations on MP3
≥Only artist name and track name ID3 tags (version 1.0 and 1.1) are displayed.
≥This unit is compatible with multi-session but if there are a lot of sessions it takes more time
for play to start. Keep the number of sessions to a minimum to avoid this.
≥This unit cannot play files recorded using packet write.
≥If a CD-ROM format CD contains MP3 and files other than MP3, only the MP3 files will be
playable.
≥Depending on how you create MP3 files, they may not play in the order you numbered them
or may not play at all.
Other Play Methods
Program Play Play modes
Track
number
Sequence
number
While stopped, move [
1/
∫
] toward
[:] or [9] to select the track.
You can skip albums when programming
MP3 tracks (➪ below).
Press [$MEMO/%DISP] to register.
Press [1/∫] to start play.
Repeat steps 1 and 2 to
register up to 20 tracks.
∫To cancel program play
∫
Press [1/∫].
∫To confirm the contents of
the program
∫Press [$MEMO/%DISP] while the
disc is playing.
Changing the sound quality
When Playing MP3
Sequence number
Album number Track number
Each time you press [EQ], while displayed
Boosts the
bass
Enhanced
S-XBS
Reduces sound
leaks and listening
fatigue
Concert hall-
like sound
Each time you press [MODE]
One track
repeat
All track
repeat
Random Random
repeat
No display
(canceled)
≥ The effect may differ between different kinds of music.
≥ You cannot select “RND” and “A`B” while playing MP3.
01
M
ALBUM
1
3
M
Anti-Skip System
This system reduces skipping caused by vibration to a minimum.
You can change the anti-skip memory time for CD-DA to improve sound quality.
While stopped, each time you press and hold [$MEMO/%DISP]
≥ You cannot change the memory time for MP3. It is a maximum of 400 seconds for MP3
recorded at 128 kbps.
Sound enhanced mode,
45-second anti-skip memory
Anti-skip enhanced mode,
180-second anti-skip memory
Main unit
ID3 track
title
If you created an album such as 004album on the
left, the files may not play in name order.
The albums would play in the order 1, 2, 3, 4.
Other remote control functions
∫Turning the operation tone off
Press and hold [EQ] until “BP OFF” appears. (“BP ON”, tone on)
∫Adjusting the contrast of the display
1. Set the main unit to HOLD while stopped.
2. While pressing and holding [ 1/;] on the main unit, press [i] (darker) or
[j] (lighter) on the main unit.
Adjust if unlit parts of the display are too dark or if the display is too light to read.
Album mode
RQT7189
6
EQ OFF
Press and hold.
or
While paused
During play
AB repeat (AB specified
segment repeat) (➪below)
∫
Specifying the AB segment
Press [$MEMO/%DISP] at the start point (A) and once more at the end point (B).
≥ Stop or skip (➪ page 5) to cancel.
≥ If you do not specify point B and reach the end of disc, point B is set automatically and
repeat begins. You can also specify point B again by pressing [$MEMO/%DISP].
Enjoying even more natural sound (Digital Re-master)
You can regenerate signal frequency lost during compression, restoring
to near pre-compression form.
While stopped, each time you press and hold [$MEMO/%DISP]
Sound enhanced Conserves battery life
[“EQ” disappears from the display (canceled)]
Loading...
