Troubleshooting guide

Before requesting service, make the following checks. If you are in doubt about some of the check points, or if the solutions indicated in the chart do not solve the problem, refer to the “Customer Services Directory” on page 3 if you reside in the U.S.A., or refer to the “Product information” on page 3 if you reside in Canada.

No play.

No sound or there is a lot of noise.

Play doesn’t resume from the last point stopped.

Play doesn’t start from the first track.

Cannot search through tracks.

Cannot change the Digital Re-master mode, anti-skip mode.

≥The HOLD function is on. Cancel HOLD (➪page 5, 6). ≥The batteries may be depleted (➪page 4). ≥The disc isn’t correctly set. ≥The disc is scratched or dirty. (Tracks may be skipped

particularly with MP3 discs.)

≥

There is moisture on the lens. Wait for about an hour and then try again.

≥The lens is dirty: clean it with a blower (recommended

product: SZZP1038C). If the lens gets marked with fingerprints, gently wipe them off with a cotton swab.

≥The unit may not read a track properly if shaken

strongly during disc reading.

≥If there is no data between sessions on a multi-session

disc, play may not be possible.

≥

If there is a large amount of JPEG data etc. within a MP3 file, sound may be muted and play may not be possible.

≥If the disc contains data with different formats, sound

may be muted and play may not be possible.

≥If a CD-ROM format disc contains MP3 and other files,

only the MP3 files will be playable.

≥Ensure the plugs are inserted firmly. ≥Wipe the plugs with a clean cloth. ≥The disc is scratched or dirty. ≥The sound may be interrupted or there may be noise

when playing MP3 if the recording quality is poor.

≥The elapsed play time disappears and sound is

interrupted if bumps continue repeatedly.

≥Separate the unit from mobile telephones. ≥This doesn’t work during random play.

≥It may not work correctly under some conditions. ≥Random play modes may be on (➪page 5).

≥Play resumes from where last stopped (➪page 5, Play).

(If the lid is opened while the unit is turned off, the resume function may not be cancelled.)

You cannot search through a disc with MP3 files.

If [:, j] or [9, i] is pressed before [RECALL, MEMORY] you cannot change the mode.

not designed for use with a remote control.

References to the remote control apply only to .

The model number and serial number of this product can be found on either the back or the bottom of the unit. Please note them in the space provided below and keep for future reference.

MODEL NUMBER SERIAL NUMBER

User memo:

DATE OF PURCHASE DEALER NAME DEALER ADDRESS

TELEPHONE NUMBER

Panasonic Puerto Rico, Inc.

Ave. 65 de Infantería, Km. 9.5 San Gabriel Industrial Park, Carolina, Puerto Rico 00985

Panasonic Canada Inc.

5770 Ambler Drive, Mississauga, Ontario L4W 2T3 www.panasonic.ca

C 2004 Matsushita Electric Industrial Co., Ltd. Printed in China

SL-CT582V

Digital Re-master does not work.

Cannot skip albums.

SL-CT582V

ONLY

The unit malfunctions when connected to other equipment.

The remote control does not work properly.

Radio reception is noisy.

Cannot recharge.

The AC adaptor becomes warm during recharging.

The batteries are taking a long time to recharge.

Play time is short after recharging.

The battery indicator fails to appear or is incorrect.

The unit stops working. Power cuts off.

Depending on the type of MP3 disc recording, the effect may not appear.

You cannot skip from the last to first album, or vice versa, during play. Be sure to connect other equipment through the remote

control. If speakers are connected directly to the unit, they should have an impedance of 1 k≠ or less.

≥Remove the plug and reinsert it as fully as possible. ≥

Use only the included remote control to operate the unit.

≥Keep the unit away from televisions and other tuners. ≥

The AM antenna is in the unit, so noise may increase if you are holding it.

≥

You aren’t using the special rechargeable batteries (➪page 4).

≥

You must insert two batteries before you can charge.

≥The unit must be off before you can charge. This is normal.

The batteries may take as long as 4.5 hours to recharge under some conditions.

≥This may occur the first time you charge the batteries

or if you haven’t used them for a long time. Play time should be restored after a few recharges.

≥The batteries can go flat if you leave the AC adaptor

connected after charging is complete.

≥If play is extremely short even after fully recharging the

batteries, the batteries may have exceeded their life (Rechargeable batteries can be recharged approximately 300 times). Please purchase new nickel-metal hydride rechargeable batteries (HHR-4AGA/2B).

≥

The indicator does not appear when the AC adaptor is connected.

≥

The indicator may not appear correctly when using the rechargeable

and dry cell batteries at the same time and under certain conditions. Disconnect then reconnect all power sources (batteries and AC adaptor). If you connect or disconnect the AC adaptor, the power

cuts off even if batteries are inserted.

Page 2

EST. 1924

Display

Specifications

(

)

The HOLD function is on. Cancel HOLD (➪page 5, 6).

≥You haven’t inserted a disc or it isn’t inserted correctly. ≥You have inserted a disc this unit cannot play.

The disc lid is open.

The program already contains 20 tracks.

Reading MP3 files.

Supplied Accessories

Check the packing carton for these accessories.

SL-CT582VSL-CT580V

For U.S.A.:

≥ 1 Pair of stereo headphones:

L0BAD0000172

≥ 1 External battery case:

RFA2666-H

For Canada.:

≥ 1 Pair of stereo earphones:

L0BAB0000182

≥ 1 External battery case:

RFA2666-H

Use numbers indicated when ordering replacements or optional accessories from your Panasonic dealer.

(Product numbers correct as of December 2004. These may be subject to change.)

To order accessories in the U.S.A., refer to “Accessory Purchases” on page 3.

≥ 1 Wired remote control:

N2QCBD000011

≥

1 Pair of stereo headphones:

L0BAD0000173

≥ 1 External battery case:

RFA2666-H

SL-CT680V

≥

1 Pair of stereo headphones:

L0BAD0000176

≥ 1 External battery case:

RFA2666-H

CD Section

∫Audio (CD-DA)

Sampling frequency: 44.1 kHz No. of channels: 2 (left and right, stereo) Frequency response:

20 Hz to 20,000 Hz (i0.5 dB to j7 dB)

Headphone output level:

RMS max. 8 mWi8 mW/

16 ≠ (adjustable

)

∫Pickup

Light source: Semiconductor laser Wavelength: 780 nm

∫MP3

Supported bit rates:

(Supports variable bit rates)

Supported sampling frequency:

Maximum number of items

(total no. of albums and tracks): 999

Maximum album levels: 100

32 kbps to 320 kbps

(128 kbps is recommended)

48 kHz/44.1 kHz/32 kHz

Radio section

∫Frequency

Radio frequency:

FM; 87.90–107.90 MHz (0.2 MHz steps)

87.50–108.00 MHz (0.1 MHz/0.05 MHz steps)

AM;

520–1710 kHz (10 kHz steps)

522–1629 kHz (9 kHz steps)

General

Power supply:

DC input

(via AC adaptor, not included):

Operational temperature range:

0 eC–40 eC (32 eF–104 eF)

Rechargeable temperature range:

5 eC–40 eC (41 eF–104 eF)

DC 4.5 V

Play time: Using on a flat stable surface at 25 eC (77 eF), EQ is off, Hold is on, Anti-skip is on POS 1 (CD-DA), recommended bit rate (MP3:128 kbps), and the Digital Re-master is off (MP3). Play times are in hours and approximate.

CD-DA

Batteries

used

2 alkaline batteries (LR03)

2 alkaline batteries (LR6)

4 alkaline batteries (2 LR03r2 LR6)

2 optional rechargeable batteries (HHR-4AGA/2B)

2 optional rechargeable (HHR-4AGA/2B) and 2 alkaline (LR6) batteries

Recharging time: About 3.5 to 4.5 hours ≥The play time may be less depending

on the operating conditions.

≥Play time will be considerably

reduced when playing CD-RW.

Dimensions (WaHaD):

136.7 mma20.5 mma136.7 mm

Mass:

172.5 g (6.09 oz.) (without batteries)

MP3 disc

100

141

128

194.5 g (6.86 oz.) (with batteries)

Radio

disc

(FM band)

106

/16za13/16za57/16z)

Note:

Specifications are subject to change without notice. Mass and dimensions are approximate.

Caution

Discontinue use if you experience discomfort with the earphones or any other parts that directly contact your skin. Continued use may cause rashes or other allergic reactions.

∫Batteries

≥Do not peel off the covering on the batteries and do not use if the covering has been peeled

off.

≥Align the poles i and j correctly when inserting the batteries. ≥Do not mix different types of batteries or old and new batteries. ≥Remove the batteries if you do not intend to use the unit for a long time. ≥Do not throw into a fire, short-circuit, disassemble, or subject to excessive heat. ≥Do not attempt to recharge dry cell batteries.

When carrying batteries in a pocket or bag, ensure no metal objects such as necklaces are placed

≥

together with them. Contact with metal may cause short-circuiting which can cause a fire.

≥Keep out of the reach of small children. Accidental swallowing of batteries can result in

stomach and intestinal damage.

∫CDs

≥Do not use irregularly shaped CDs. ≥Do not use non-specification discs. ≥Do not use CDs printed with label printers available on the market. ≥Do not use CDs with labels and stickers that are coming off or with adhesive exuding from

under labels and stickers.

∫Listening

Do not play your headphones or earphones at a high volume. Hearing experts advise against continuous extended play.

If you experience a ringing in your ears, reduce volume or discontinue use.

Do not use while operating a motorized vehicle. It may create a traffic hazard and is illegal in many areas.

You should use extreme caution or temporarily discontinue use in potentially hazardous situations.

Even if your headphones or earphones are the open-air type designed to let you hear outside sounds, don’t turn up the volume so high that you can’t hear what’s around you.

Sound can be deceiving. Over time your hearing “comfort level” adapts to higher volumes of sound. So what sounds “normal” can actually be loud and harmful to your hearing. Guard against this by setting your equipment at a safe level BEFORE your hearing adapts. To establish a safe level:

≥Start your volume control at a low setting.

≥

Slowly increase the sound until you can hear it comfortably and clearly, and without distortion.

Once you have established a comfortable sound level: ≥Leave it there.

Read these operating instructions carefully before using the unit. Follow the safety instructions on the unit and the applicable safety instructions listed below. Keep these operating instructions handy for future reference.

1) Read these instructions.

2) Keep these instructions.

3) Heed all warnings.

4) Follow all instructions.

5) Do not use this apparatus near water.

6) Clean only with dry cloth.

7) Do not block any ventilation openings. Install in accordance with the

8) Do not install near any heat sources such as radiators, heat registers,

9) Do not defeat the safety purpose of the polarized or grounding-type plug. A

10) Protect the power cord from being walked on or pinched particularly at

11) Only use attachments/accessories specified by the manufacturer.

12) Use only with the cart, stand, tripod, bracket, or table

13) Unplug this apparatus during lightning storms or

14) Refer all servicing to qualified service personnel. Servicing is required

IMPORTANT SAFETY INSTRUCTIONS

manufacturer’s instructions.

stoves, or other apparatus (including amplifiers) that produce heat.

polarized plug has two blades with one wider than the other. A groundingtype plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

plugs, convenience receptacles, and the point where they exit from the apparatus.

specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.

when unused for long periods of time.

when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

Page 3

WARNING:

TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR PRODUCT DAMAGE, DO NOT EXPOSE THIS APPARATUS TO RAIN, MOISTURE, DRIPPING OR SPLASHING AND THAT NO OBJECTS FILLED WITH LIQUIDS, SUCH AS VASES, SHALL BE PLACED ON THE APPARATUS.

CAUTION!

THIS PRODUCT UTILIZES A LASER. USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE. DO NOT OPEN COVERS AND DO NOT REPAIR YOURSELF. REFER SERVICING TO QUALIFIED PERSONNEL.

THE FOLLOWING APPLIES ONLY IN THE U.S.A.

CAUTION:

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

≥Reorient or relocate the receiving antenna. ≥Increase the separation between the equipment and receiver. ≥Connect the equipment into an outlet on a circuit different from that to which the

receiver is connected.

≥Consult the dealer or an experienced radio/TV technician for help.

Any unauthorized changes or modifications to this equipment would void the user’s authority to operate this device.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Product service

1. Damage requiring service—The unit should be serviced by qualified service personnel if:

1. (a) The AC power supply cord or AC adaptor has been damaged; or

1. (b) Objects or liquids have gotten into the unit; or

1. (c) The unit has been exposed to rain; or

1. (d) The unit does not operate normally or exhibits a marked change in performance; or

1. (e) The unit has been dropped or the cabinet damaged.

2. Servicing—Do not attempt to service the unit beyond that described in these operating

instructions. Refer all other servicing to authorized servicing personnel.

3. Replacement parts—When parts need replacing ensure the servicer uses parts specified

by the manufacturer or parts that have the same characteristics as the original parts. Unauthorized substitutes may result in fire, electric shock, or other hazards.

4. Safety check—After repairs or service, ask the servicer to perform safety checks to

confirm that the unit is in proper working condition.

Product information

For product information or assistance with product operation: In the U.S.A., refer to “Customer Services Directory” below. For assistance in the continental U.S.A. in obtaining repairs please ship the product to:

In Puerto Rico contact Panasonic Puerto Rico, Inc.

When shipping the unit carefully pack and send it prepaid, adequately insured and preferably in the original carton. Include a letter detailing the complaint and provide a day time phone number where you can be reached.

IF REPAIR IS NEEDED DURING THE WARRANTY PERIOD THE PURCHASER WILL BE REQUIRED TO FURNISH A SALES RECEIPT/PROOF OF PURCHASE INDICATING DATE OF PURCHASE, AMOUNT PAID AND PLACE OF PURCHASE. CUSTOMER WILL BE CHARGED FOR THE REPAIR OF ANY UNIT RECEIVED WITHOUT SUCH PROOF OF PURCHASE.

Also, the purchaser will be responsible for shipping the unit to the above address. In Canada, contact the Panasonic Canada Inc. Customer Care Centre at 905-624-5505, or visit the website (www.panasonic.ca), or an authorized Servicentre closest to you.

The socket outlet shall be installed near the equipment and easily accessible or the mains plug or an appliance coupler shall remain readily operable.

Marking sign is located on bottom of the unit.

Panasonic Services Company - Customer Servicenter Suite B 4900 George McVay Drive McAllen, TX 78503

Tel. (787) 750-4300 Fax. (787) 768-2910

CAUTION:

Use only car power adaptor and car stereo cassette adaptor, Model: RP-CK455 manufactured by Matsushita Electric Industrial Co., Ltd.

Panasonic Consumer Electronics Company, Division of Panasonic Corporation of North America

One Panasonic Way Secaucus, New Jersey 07094

ONLY FOR U.S.A.

Panasonic Portable Audio Products Limited Warranty

Limited Warranty Coverage

If your product does not work properly because of a defect in materials or workmanship, Panasonic Consumer Electronics Company or Panasonic Puerto Rico, Inc. (collectively referred to as “the warrantor”) will, for the length of the period indicated on the chart below, which starts with the date of original purchase (“warranty period”), at its option either (a) repair your product with new or refurbished parts, or (b) replace it with a new or a refurbished product. The decision to repair or replace will be made by the warrantor.

Product or Part Name

All Portable Audio Products except item listed below

Rechargeable batteries (in exchange for defective item)

During the “Labor” warranty period there will be no charge for labor. During the “Parts” warranty period, there will be no charge for parts. You must mail-in your product during the warranty period. This Limited Warranty excludes both parts and labor for batteries, antennas, and cosmetic parts (cabinet). This warranty only applies to products purchased and serviced in the United States or Puerto Rico. This warranty is extended only to the original purchaser of a new product which was not sold “as is”.

Mail-In Service

For assistance in the continental U.S.A. in obtaining repairs please ship the product to:

Panasonic Services Company Customer Servicenter Suite B 4900 George McVay Drive McAllen, TX 78503

For assistance in Puerto Rico call Panasonic Puerto Rico, Inc. (787)-750-4300 or fax (787)-768-2910. When shipping the unit carefully pack and send it prepaid, adequately insured and preferably in the original carton. Include a letter detailing the complaint and provide a day time phone number where you can be reached.

Customer Services Directory

Obtain Product Information and Operating Assistance; locate your nearest Dealer or Servicenter; purchase Parts and Accessories; or make Customer Service and Literature requests by visiting our Web Site at:

http://www.panasonic.com/consumersupport

or, contact us via the web at:

http://www.panasonic.com/contactinfo

You may also contact us directly at: 1-800-211-PANA (7262), Monday-Friday 9 am-9 pm; Saturday-Sunday 10 am-7 pm, EST.

For hearing or speech impaired TTY users, TTY : 1-877-833-8855

Parts

One (1) Year

Ten (10) Days

Labor

One (1) Year

Not applicable

Panasonic Puerto Rico, Inc.

Ave. 65 de Infantería, Km. 9.5 San Gabriel Industrial Park, Carolina, Puerto Rico 00985

Limited Warranty Limits And Exclusions

This warranty ONLY COVERS failures due to defects in materials or workmanship, and DOES NOT COVER normal wear and tear or cosmetic damage. The warranty ALSO DOES NOT COVER damages which occurred in shipment, or failures which are caused by products not supplied by the warrantor, or failures which result from accidents, misuse, abuse, neglect, mishandling, misapplication, alteration, faulty installation, set-up adjustments, misadjustment of consumer controls, improper maintenance, power line surge, lightning damage, modification, introduction of sand, humidity or liquids, commercial use such as hotel, office, restaurant, or other business or rental use of the product, or service by anyone other than a Factory Servicenter or other Authorized Servicer, or damage that is attributable to acts of God.

THERE ARE NO EXPRESS WARRANTIES EXCEPT AS LISTED UNDER “LIMITED WARRANTY COVERAGE”. THE WARRANTOR IS NOT LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES RESULTING FROM THE USE OF THIS PRODUCT, OR ARISING OUT OF ANY BREACH OF THIS WARRANTY. (As examples, this excludes damages for lost time, travel to and from the servicer,

loss of or damage to media or images, data or other memory or recorded content. The items listed are not exclusive, but are for illustration only.)

ALL EXPRESS AND IMPLIED WARRANTIES, INCLUDING THE WARRANTY OF MERCHANTABILITY, ARE LIMITED TO THE PERIOD OF THE LIMITED WARRANTY.

Some states do not allow the exclusion or limitation of incidental or consequential damages, or limitations on how long an implied warranty lasts, so the exclusions may not apply to you. This warranty gives you specific legal rights and you may also have other rights which vary from state to state. If a problem with this product develops during or after the warranty period, you may contact your dealer or Servicenter. If the problem is not handled to the warrantor’s Consumer Affairs Department at the addresses listed for the warrantor.

PARTS AND SERVICE, WHICH ARE NOT COVERED BY THIS LIMITED WARRANTY, ARE YOUR RESPONSIBILITY.

your satisfaction, then write to

Accessory Purchases

Purchase Parts, Accessories and Instruction Books online for all Panasonic Products by visiting our Web Site at: http://www.pasc.panasonic.com or, send your request by E-mail to: [email protected] You may also contact us directly at: 1-800-332-5368 (Phone) 1-800-237-9080 (Fax Only) (Monday – Friday 9 am to 8 pm, EST.) Panasonic Services Company 20421 84th Avenue South, Kent, WA 98032 (We Accept Visa, MasterCard, Discover Card, American Express, and Personal Checks)

For hearing or speech impaired TTY users, TTY : 1-866-605-1277

Service in Puerto Rico

Panasonic Puerto Rico, Inc. Ave. 65 de Infantería, Km. 9.5, San Gabriel Industrial Park, Carolina, Puerto Rico 00985 Phone (787)750-4300, Fax (787)768-2910

F1104

Page 4

001track.mp3 002track.mp3 003track.MP3

001album

CD-ROM drive

001track.mp3

Prefix with 3-digit numbers in the order you want to play

Naming tracks and albums

Extension

(

or.MP3

)

002album

004track.mp3 005track.mp3

004album

008track.MP3 009track.MP3

003album

006track.mp3 007track.MP3

Note on CD-R and CD-RW

224

OPEN

(CD-DA/MP3 only)

For CD-DA format, use a music disc and finalize§it after recording. The unit may not be able to play some discs due to the condition of the recording.

§A process performed after recording that enables CD-R/CD-RW players to play

audio CD-R and CD-RW.

Playing MP3

MP3: A method of compressing data with little loss to the original

sound quality.

∫When creating MP3 files to play on this unit

Disc formats: ISO9660 level 1 and level 2 (except for extended formats)

Up to 32 characters

If you create an album like this, the files may not play in the order you numbered them. The albums would play in the order 1, 2, 3, 4.

∫Unit limitations

≥This unit is compatible with multi-session discs but if there are a lot

of sessions it takes more time for play to start. Keep the number of sessions to a minimum to avoid this.

≥This unit cannot play files recorded using packet write. ≥Depending on how you create MP3 files, they may not play in the

order you numbered them or may not play at all.

MPEG Layer-3 audio decoding technology licensed from Fraunhofer IIS and Thomson multimedia.

References to the remote control apply

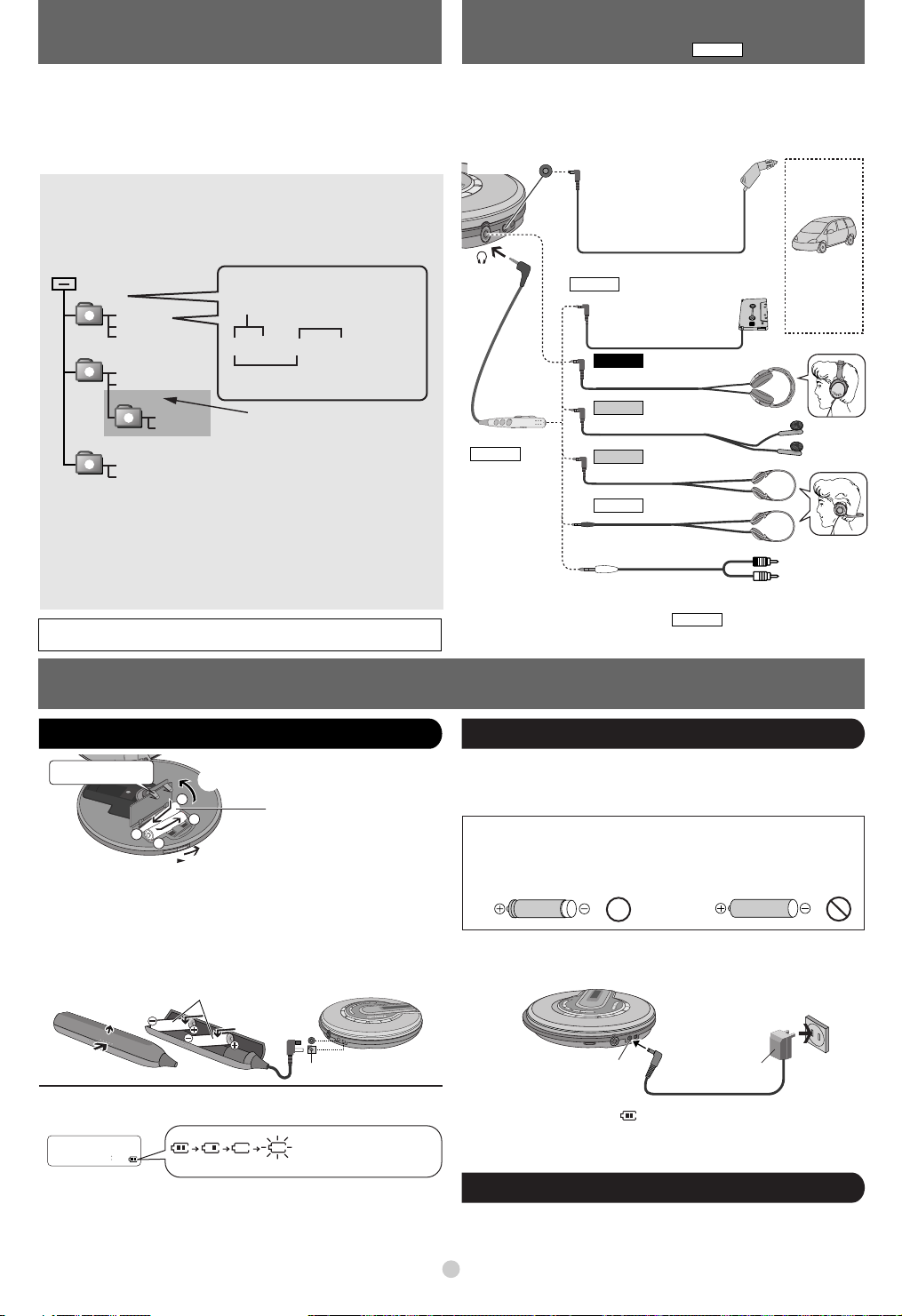

Connections

SL-CT582V

only to .

Turn off this unit and the other equipment before connection. Insert each plug fully.

When the unit is connected to other equipment, adjust the volume on the connected equipment. (Product numbers correct as of December 2004. These may be subject to change.)

Main unit

Remote control

SL-CT582V

(

Connect the remote control to the main unit first.

§The RP-CK455 set contains the car power adaptor and car stereo cassette adaptor. Be sure to use these together with the car audio connection.

ONLY)

[Plug type: 3.5 mm (1/8in.) stereo]

∫To DC IN jack

Car power adaptor (RP-CK455§) (not included)

≥You can recharge the batteries with

this connection.

≥Noise may occur when using the

car power adaptor and listening to the radio.

∫To headphone jack

SL-CT582V

( ONLY)

[

Car stereo cassette adaptor (RP-CK455

Set the unit’s volume to 10-15.

SL-CT680V

SL-CT580V

Earphones (included)

SL-CT580V

Headphones (included)

SL-CT582V

Audio cable (not included)

≥Set the unit’s volume to 10-15. ≥Use the buttons on the main unit to

avoid the beep sounds from the remote control buttons ( ONLY).

through remote control

) (not included)

Headphones (included)

for Canada

for U.S.A.

Headphones (included)

SL-CT582V

Car audio

Connection is not always possible.

]

Long cord to the right

Audio system

To CD or AUX terminals

Power Supply

Close securely.

≥Recharging/Play time ➪page 2, Specifications ≥To save power when the unit is not to be used for a long time, unplug the AC adaptor from the household AC outlet.

“LR03, AAA, UM-4” alkaline batteries

≥Fit the battery lid so it is secure and flush with the battery compartment.

If it comes loose, it may scratch your discs.

(Lift up the + end when removing.)

∫External battery case

You can get longer play time by attaching this case. (The unit will also work when using the case only.)

“LR6, AA, UM-3”

alkaline batteries

Press.

The battery indicator

This indicator appears when the unit is on.

≥Before play starts the battery indicator level may temporarily go down

or flash although the batteries are not drained. It appears correctly once you start play.

≥The battery indicator level may differ when listening to a CD or the radio. ≥The battery indicator level may briefly go down when changing from

CD to radio or vice versa. It appears correctly immediately afterwards.

EXT BATT

The unit switches off shortly after the indicator starts flashing.

Rechargeable batteries (not included)

Charge before initial use.Dry cell batteries (not included)

As a safety precaution this unit is constructed so it is not possible to charge ordinary batteries. For details, check with your dealer.

When charging, use only the following Panasonic Nickel-metal hydride rechargeable batteries. HHR-4AGA/2B (set of 2)

You cannot charge any other type of rechargeable/dry cell batteries.

Turn the unit off (➪page 5, 6) before charging.

Insert in the same way as the dry cell batteries.

Household AC outlet

DC IN

≥The battery indicator “” scrolls while charging and

disappears when finished.

≥You can charge the batteries before they are fully discharged.

AC adaptor (not included)

The unit will also work when using the AC adaptor only. Connect the AC adaptor (➪above).

AC adaptor: RP-AC46 (not included)

Page 5

Button control guide (Listening to CDs)

RND

ALBUM

-10

001

POS1

POS2

- - 01

ALBUM

- - 01

51 52

ALBUM

-25

References to the remote control apply only to .

SL-CT582V

< > indicates the buttons for the remote control.

Open lid

HOLD

(Function lock)

Play

Skip

CD-DA

Album

skip

MP3

Volume

control

(0–25)

Pause

OPEN 1

HOLD 1

HOLD

1/;

< ∫/1 >

9, i < 9 >

(Forward)

:, j

< : >

(Backward)

9, i

< 9 >

(Forward)

:, j

< : >

(Backward)

9, i

< 9 >

(Forward)

:, j

< : >

(Backward)

i, VOL

(Increase)

j, VOL

(Decrease)

1/;

Slide in

Inserting/removing a disc

direction of arrow.

Slide in direction of arrow.

(Slide in opposite direction to cancel.)

≥The unit and remote control each have

independent HOLD switches.

Current track number

Elapsed play time of track

Press.

Lights while playing MP3

≥

Play begins from where last stopped (Resume function). (This will be cancelled if you open the lid.)

Press.

≥Press [:, j] (Main unit)/[:] (Remote

control) twice consecutively to skip to the previous track during play.

≥

You cannot use [:, j] (Main unit)/[:] (Remote control) to skip to any previous tracks during random and random repeat (➪below) modes.

During play, press and hold.

≥You can only search within the current track

except for during all track repeat (➪below) and regular play.

Until the album you want appears, press and hold.

Album number

Number of tracks

Press.

≥Press again to restart play.

Program

play

(Desired

tracks only)

Anti-skip

mode

CD-DA

Digital

Re-master

(Enjoy more

natural sound)

MP3

RECALL,

MEMORY

RECALL,

MEMORY

RECALL,

MEMORY

While stopped, press [:, s] or [9, r] to select the track, then press [RECALL, MEMORY].

Album

number

MP3

Sequence number

Track number

CD-DA

Will appear after [RECALL, MEMORY] is pressed

Sequence

Track

number

Repeat to program up to 20 tracks.

∫Play:

Press [

1/;

∫/1

] (Remote control) after all desired tracks

[ have been programmed.

∫Confirm tracks selected: Press [RECALL,

MEMORY] during play.

∫Cancel: Press [∫, OPR OFF]. (Main unit)

Press [∫/1] during play. (Remote control) (“M” disappears.)

The anti-skip function (ANTI-SKIP SYSTEM) reduces or eliminates skipping caused by vibration. You can change the anti-skip memory time.

] (Main unit)/

While stopped, each time you press and hold [RECALL,MEMORY]

Sound enhanced mode,

10-second anti-skip

memory

≥You cannot change the memory time for

MP3. It’s a maximum of 100 seconds for MP3 recorded at 128 kbps.

You can regenerate signal frequency lost during compression, restoring the sound to near pre-compression form.

Anti-skip enhanced mode,

45-second anti-skip

memory

While stopped, each time you press and hold [RECALL, MEMORY]

RMTR

Sound enhanced

No display

(

Conserves battery life)

(Play only the

selected album)

Stop/

Turn off

Play

modes

Album

mode

tracks in a

MP3

∫, OPR OFF

< ∫/1 >

PLAY MODE

Press.

CD-DA

Number

of tracks

≥

Total play time

Press again to turn the unit off. (Main unit) Press and hold to turn the unit off. (Remote control) If the unit is left in stop mode for approximately 10 minutes, it turns itself off automatically.

MP3

Number

of albums

Each time you press [PLAY MODE]

One track

repeat

You cannot select “RND” while playing MP3.

≥

All track

Random

repeat

No display (canceled)

Random

Each time you press and hold [PLAY MODE]

ALBUM MODE

≥To select another album (➪above, Album skip) ≥You cannot turn album mode on during

program play (➪right).

No display (canceled)

Number of tracks

repeat

Each time you press [EQ]

(Press [EQ] twice consecutively while “3D” is displayed.)

3d-2 (3D)

Enhanced

3d-1

Boosts the

S-XBSr

Enhanced S-XBS

Sound

quality

3d-1 (3D)

Sound field

of 3D

No display (canceled)

≥“3d-1” or “3d-2” disappears after being

selected and “3D” appears instead. The effect may differ with different kinds of music.

≥ ≥

Depending on the recording conditions, sound may be interrupted when switching between EQ settings.

≥If you select 3d-1 or 3d-2 then try playing a

disc that contains both CD-ROM format and CD-DA format tracks, there will be a brief noise when the disc changes from playing the CDROM format track to the CD-DA format one.

≥You cannot select 3d-1 or 3d-2 when

listening to the radio.

Note about using a DualDisc

≥The digital audio content side of a DualDisc does not meet the tech-

nical specifications of the Compact Disc Digital Audio (CD-DA) format so play may not be possible.

≥Do not use a DualDisc in this unit as it may not be possible to insert

it correctly and it may get scratched or scraped.

S-XBS

bass

Page 6

S-XBS

S-XBSr

Button control guide (Listening to the Radio)

MONO

U0.2 U0.1 E

U0 2

98 00

06 00

07 10

CITY

- - - -

07 10

References to the remote control apply only to . < > indicates the buttons for the remote control.

SL-CT582V

HOLD

(Function lock)

Radio on/

Change

band

Select the

station

Volume

control

(0–25)

Receive

an FM

broadcast

clearly

HOLD 1

HOLD

RADIO/BAND

RADIO

9, i

< 9 >

Forward)

(

:, j

< : >

(Backward)

i, VOL

(Increase)

j, VOL

(Decrease)

CITY/NOR

Slide in direction of arrow.

(Slide in opposite direction to cancel.)

≥The unit and remote control each have

independent HOLD switches.

Press.

≥Press again to change the band.

Each time you press the button:

()

Press.

≥Press and hold to scan the stations rapidly. ≥“TUNED” appears when tuned.

When “M” is displayed, press [TUNING MODE]

≥

to cancel it.

Press.

Set to “CITY” if reception is poor or if there is interference from another station.

Each time you press and hold [%CITY/NOR]

No display (canceled)

Set to “MONO” when there is noise during FM

Select

stereo or

monaural

MONO/ST,

FM MODE

reception. Sound becomes monaural, but noise is reduced.

Each time you press [MONO/ST, FM MODE]

No display

(stereo)

Each time you press [EQ]

No display (canceled)

Sound

quality

Boosts the

bass

≥The effect may differ with different kinds of

music.

Enhanced

S-XBS

Press. (Main unit)

Turn off

∫, OPR OFF

RADIO

Press and hold. (Remote control)

To obtain good reception

Try various directions to obtain optimum reception.

The headphone/earphone cord is also the FM antenna, so extend it instead of leaving it coiled.

Storing stations in memory

Store the frequencies of up to 30 stations; 20 FM and 10 AM.

1 Slide [HOLD1] in the opposite direction to the arrow to cancel. 2 Press [RADIO/BAND] to turn the tuner on and change the band. 3 Press [TUNING MODE] to display “M”.

4 Press [RECALL, MEMORY].

5 Do each of the following within 10 seconds.

1Press [:, s] or [9, r] to select the frequency.

1≥Press and hold to scan the stations rapidly.

2Press [RECALL, MEMORY]. 3Press [:, s] or [9, r] to select the memory number.

1≥Press and hold to change incrementally.

4Press [RECALL, MEMORY] to confirm the setting.

Listening to a memorized station

1 Perform steps 1 to 3 for “Storing stations in memory” (➪above). 2 Press [:, s] or [9, r] to select the memorized station.

≥

Press and hold to change incrementally.

≥

“TUNED” appears when tuned.

3 Adjust the volume.

Erasing a memorized station

1 Perform steps 1 to 3 for “Storing stations in memory” (➪left). 2 Press [:,s] or [9,r] to select the memorized station to

be erased.

≥

Press and hold to change incrementally.

3 Press [RECALL, MEMORY].

The frequency number flashes.

4 Do each of the following within 10 seconds.

1Press and hold [RECALL, MEMORY] until “- - - -” flashes.

2Press [RECALL, MEMORY].

When using overseas

Change the frequency step according to the area.

1 Press [RADIO/BAND] to switch on the power. 2 Press and hold [RADIO/BAND] until the step appears.

3 Do each of the following within 10 seconds.

1Press [:, s] or [9, r] to select the step.

1Each time you press [:, j] or [9, i]

FM 0.2 MHz, AM 10 kHz

FM 0.1 MHz, AM 10 kHz

(original setting)

2Press and hold [RECALL, MEMORY] until the frequency appears to

confirm the step.

∫To return to the previous frequency step

Repeat the above procedure. ≥Changing the step erases the stations you stored in memory.

FM 0.05 MHz, AM 9 kHz

RQT8124
