Page 1

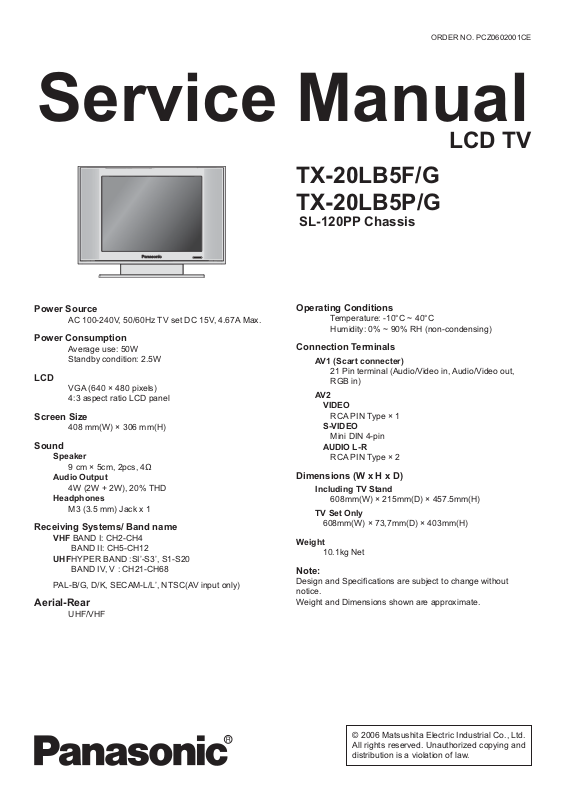

ORDER NO. PCZ0602001CE

Service Manual

LCD TV

TX-20LB5F/G TX-20LB5P/G

SL-120PP Chassis

Power Source

AC 100-240V, 50/60Hz TV set DC 15V, 4.67A Max.

Power Consumption

Average use: 50W Standby condition: 2.5W

LCD

VGA (640 × 480 pixels) 4:3 aspect ratio LCD panel

Screen Size

408 mm(W) × 306 mm(H)

Sound

Speaker 9 cm × 5cm, 2pcs, 4Ω

Audio Output

4W (2W + 2W), 20% THD

Headphones

M3 (3.5 mm) Jack x 1

Receiving Systems/ Band name

VHF BAND I: CH2-CH4

BAND II: CH5-CH12 UHF HYPER BAND :SI’-S3’, S1-S20 BAND IV, V : CH21-CH68

PAL-B/G, D/K, SECAM-L/L’, NTSC(AV input only)

Aerial-Rear

UHF/VHF

Operating Conditions

Temperature: -10°C ~ 40°C Humidity: 0% ~ 90% RH (non-condensing)

Connection Terminals

AV1 (Scart connecter)

21 Pin terminal (Audio/Video in, Audio/Video out,

RGB in)

AV2 VIDEO

RCA PIN Type × 1

S-VIDEO

Mini DIN 4-pin

AUDIO L-R

RCA PIN Type × 2

Dimensions (W x H x D)

Including TV Stand

608mm(W) × 215mm(D) × 457.5mm(H)

TV Set Only

608mm(W) × 73,7mm(D) × 403mm(H)

Weight

10.1kg Net

Note:

Design and Speciﬁcations are subject to change without notice. Weight and Dimensions shown are approximate.

Page 2

TX-20LB5F/G TX-20LB5P/G

CONTENTS

Page

1. Safety Precautions ----------------------------------------------- 3

1.1. General Guidelines -------------------------------------- 3

1.2. Touch-Current Check ------------------------------------ 3

2. Prevention of Electro Static Discharge (ESD) to

Electrostatically Sensitive (ES) Devices ------------------ 4

3 About lead free solder (PbF) --------------------------------- 5

4. Self Check ---------------------------------------------------------- 6

5. Chasis Board Layout -------------------------------------------- 7

6. Before servicing -------------------------------------------------- 8

6.1. Wire dressing ---------------------------------------------- 8

7. Disassembly for service --------------------------------------- 9

7.1. Stand ass´y ------------------------------------------------ 9

7.2. Back cover ------------------------------------------------- 9

7.3. CTRL ass´y -----------------------------------------------10

7.4. LED ass´y -------------------------------------------------10

7.5. AV ass´y ----------------------------------------------------11

7.6. INVERTER ------------------------------------------------11

7.7. TTL ass´y -------------------------------------------------- 11

7.8. Speaker (left and right) --------------------------------- 11

7.9. Main ass´y -------------------------------------------------12

7.10.Panel LCD -------------------------------------------------12

Page

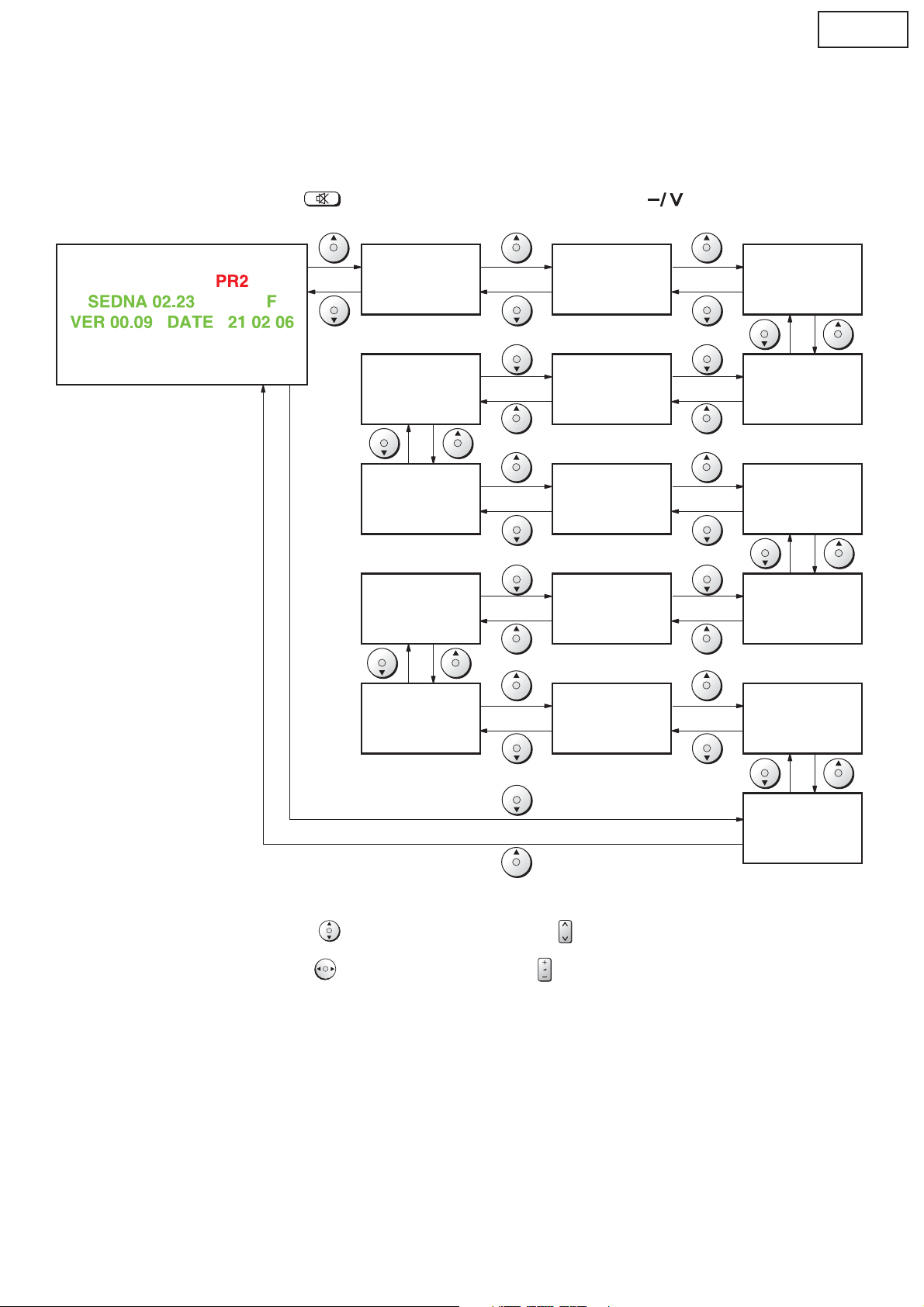

8 Service Mode Function ----------------------------------------13

8.1. How to enter SERVICE 1 ------------------------------13

8.2. How to enter SERVICE 2 ------------------------------13

8.3. Option Description --------------------------------------14

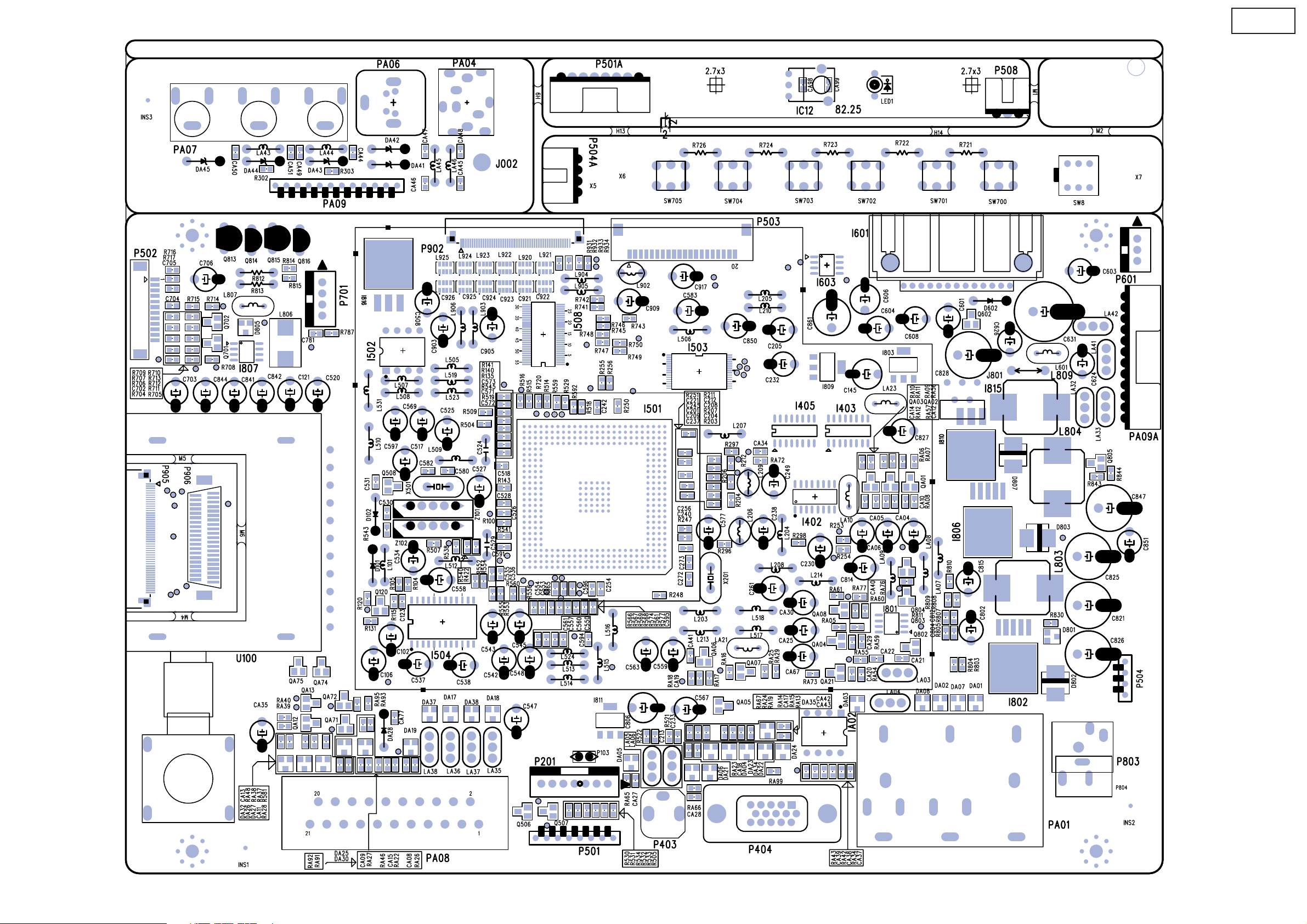

9. Conduct Views ---------------------------------------------------16

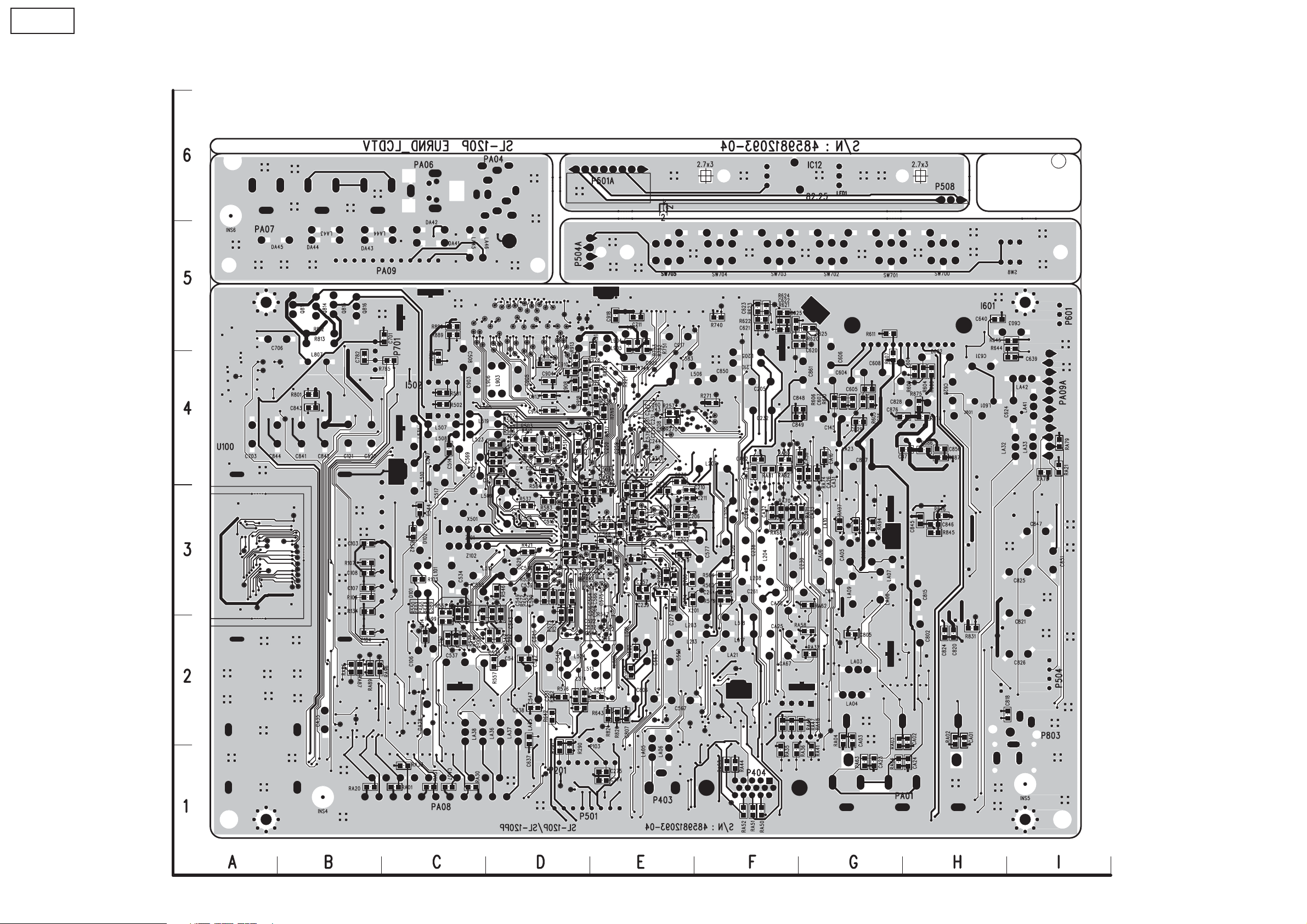

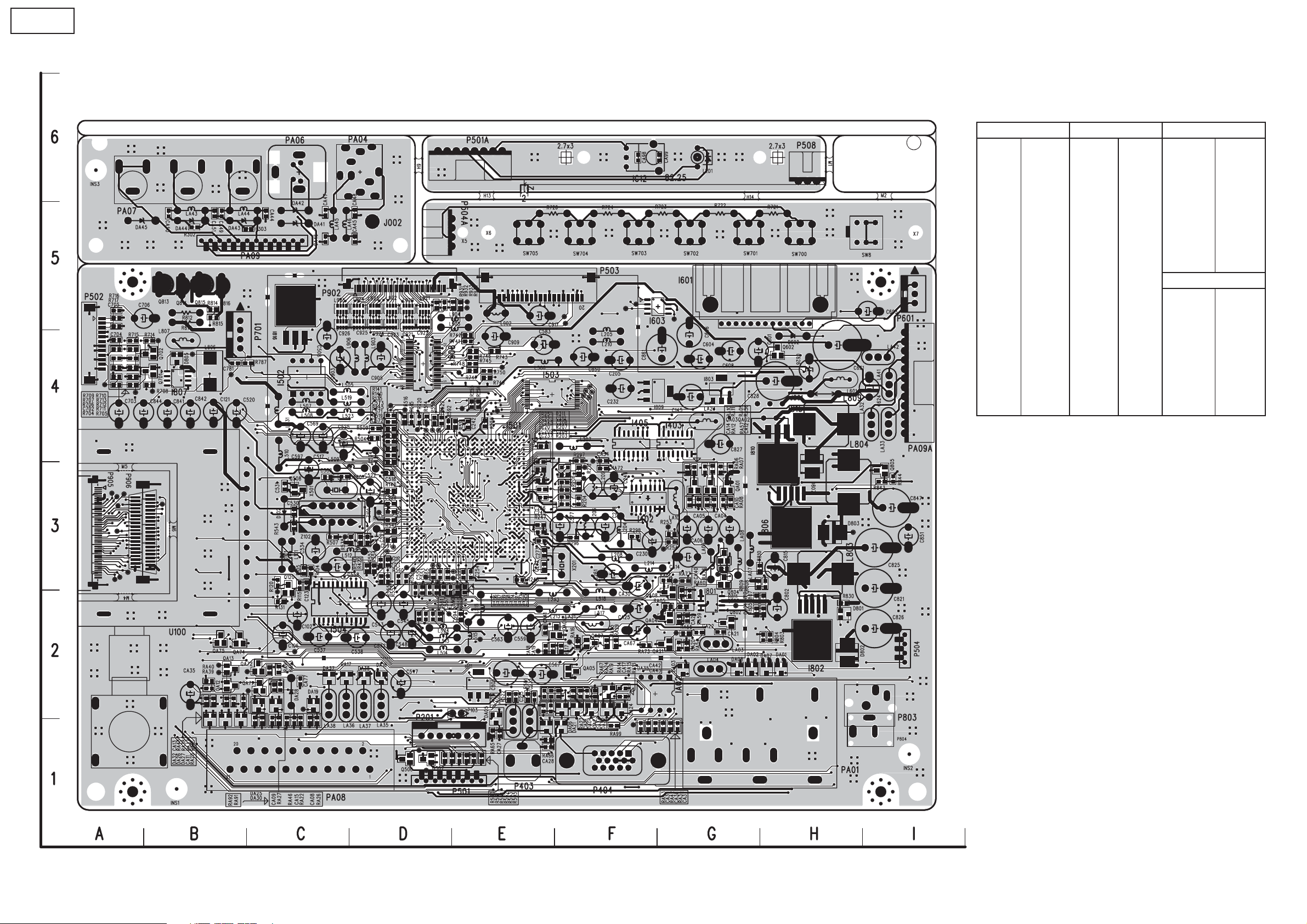

9.1. Foil Side ---------------------------------------------------16

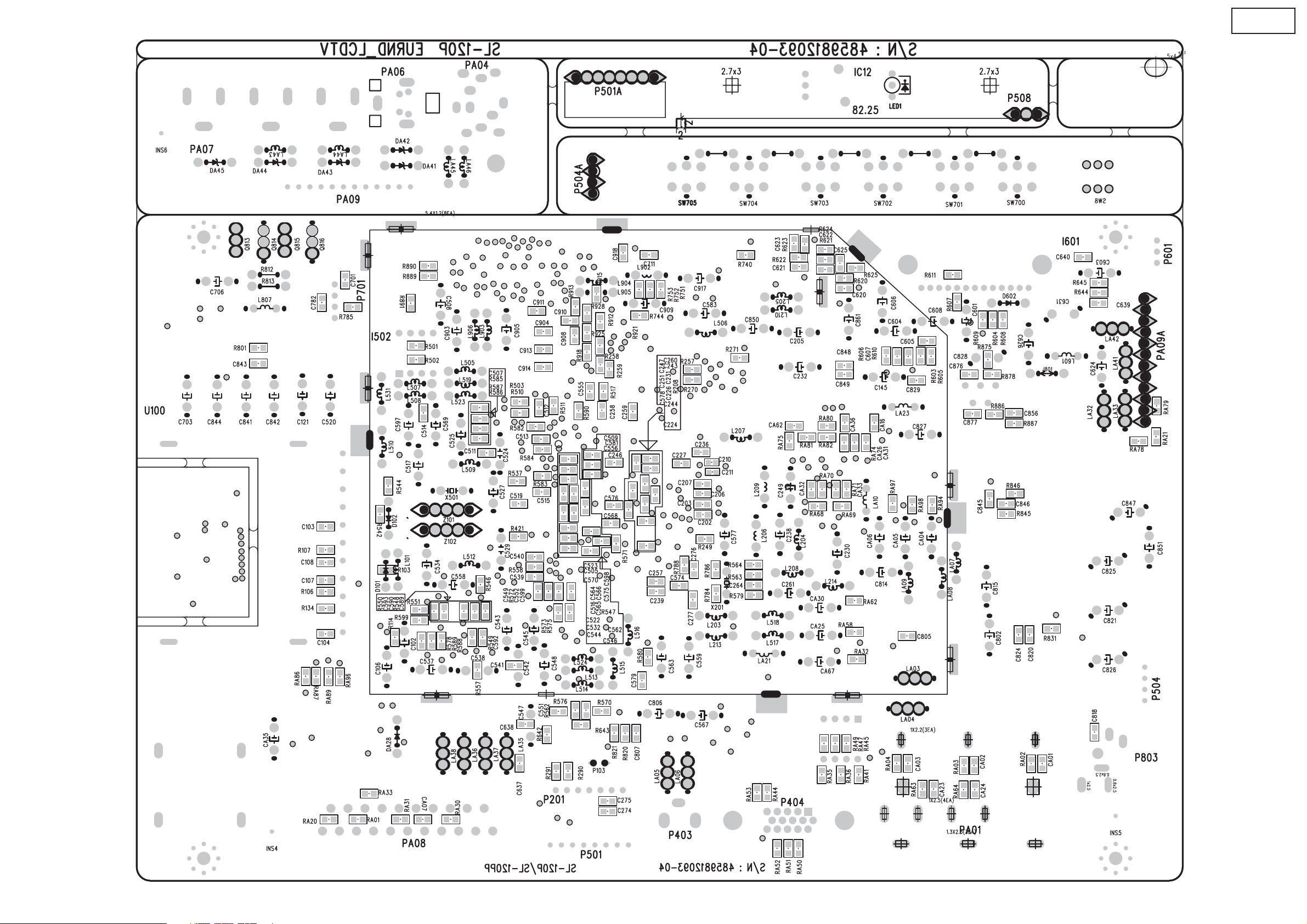

9.2. Component Side -----------------------------------------18

10. Block and Schematic Diagrams --------------------------20

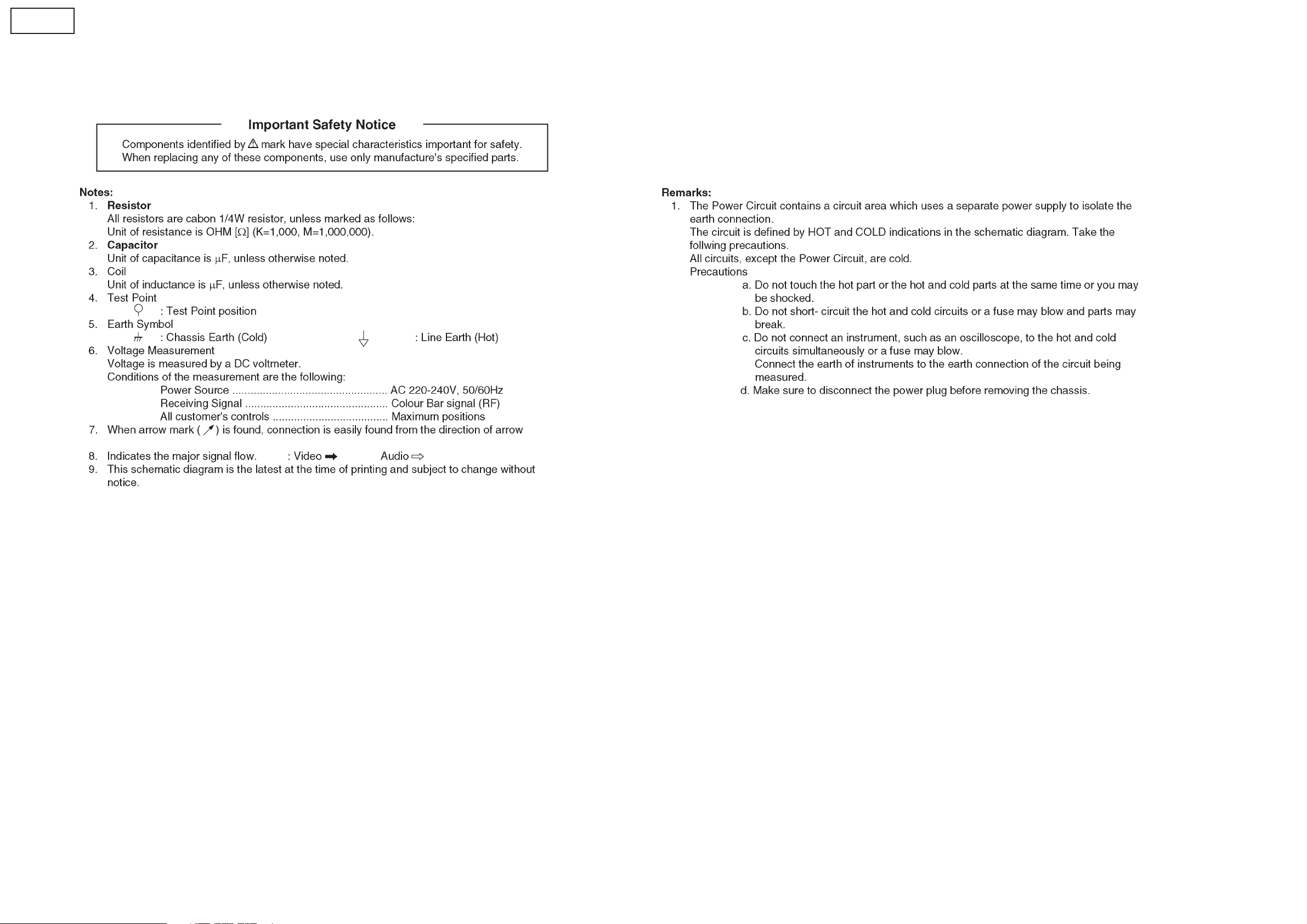

10.1. Schematic Diagram Notes ---------------------------20

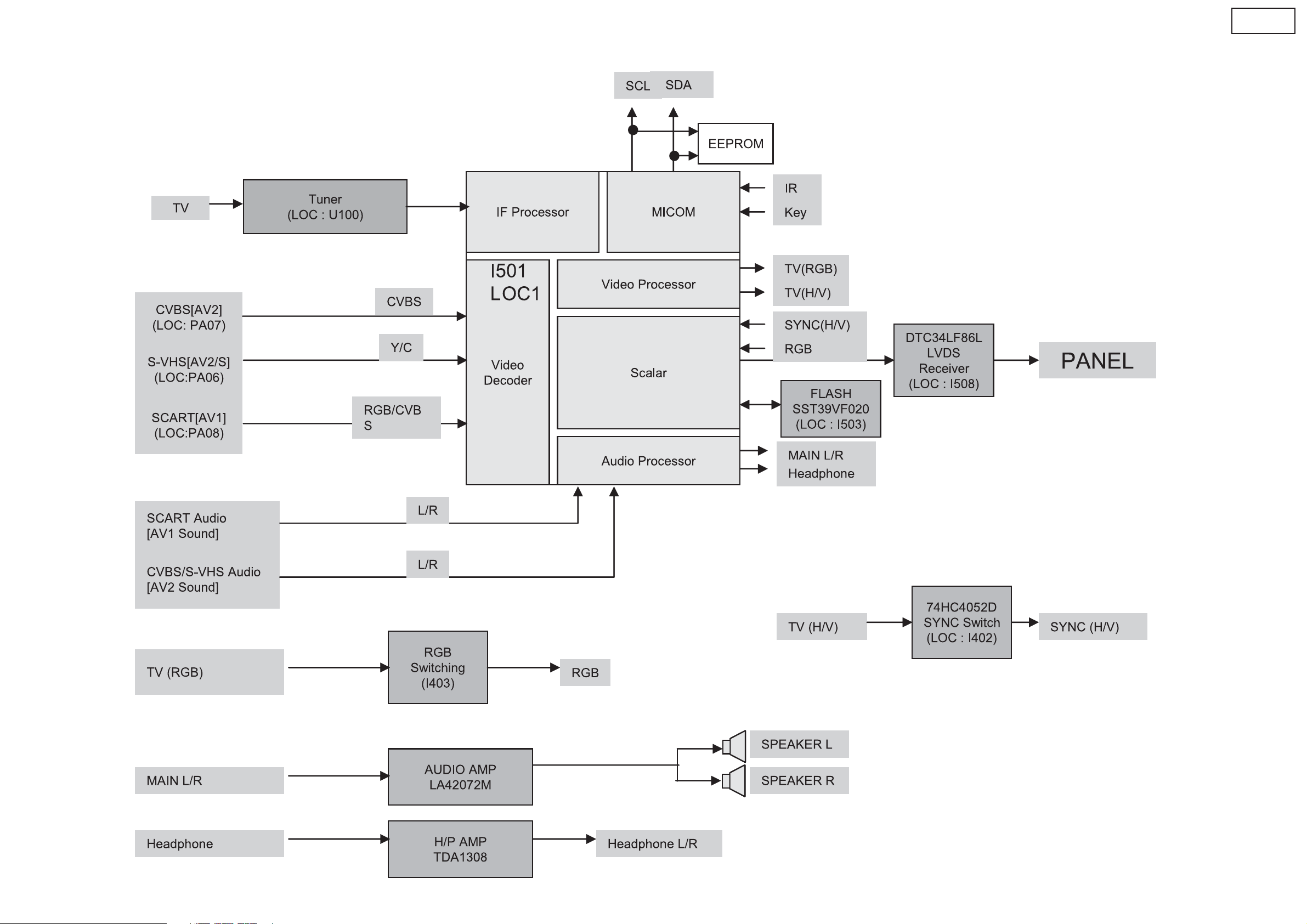

10.2. Block Diagram ------------------------------------------21

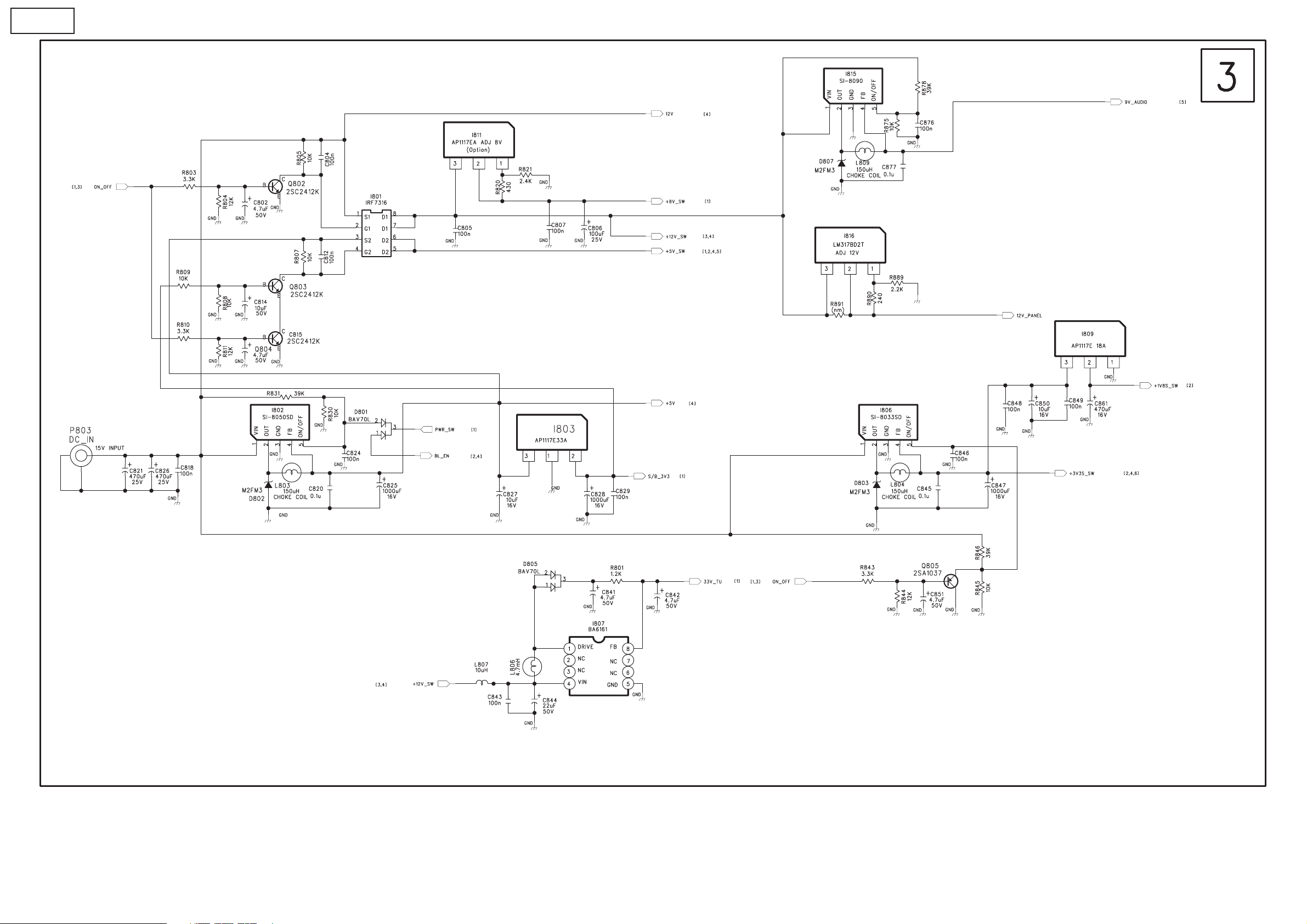

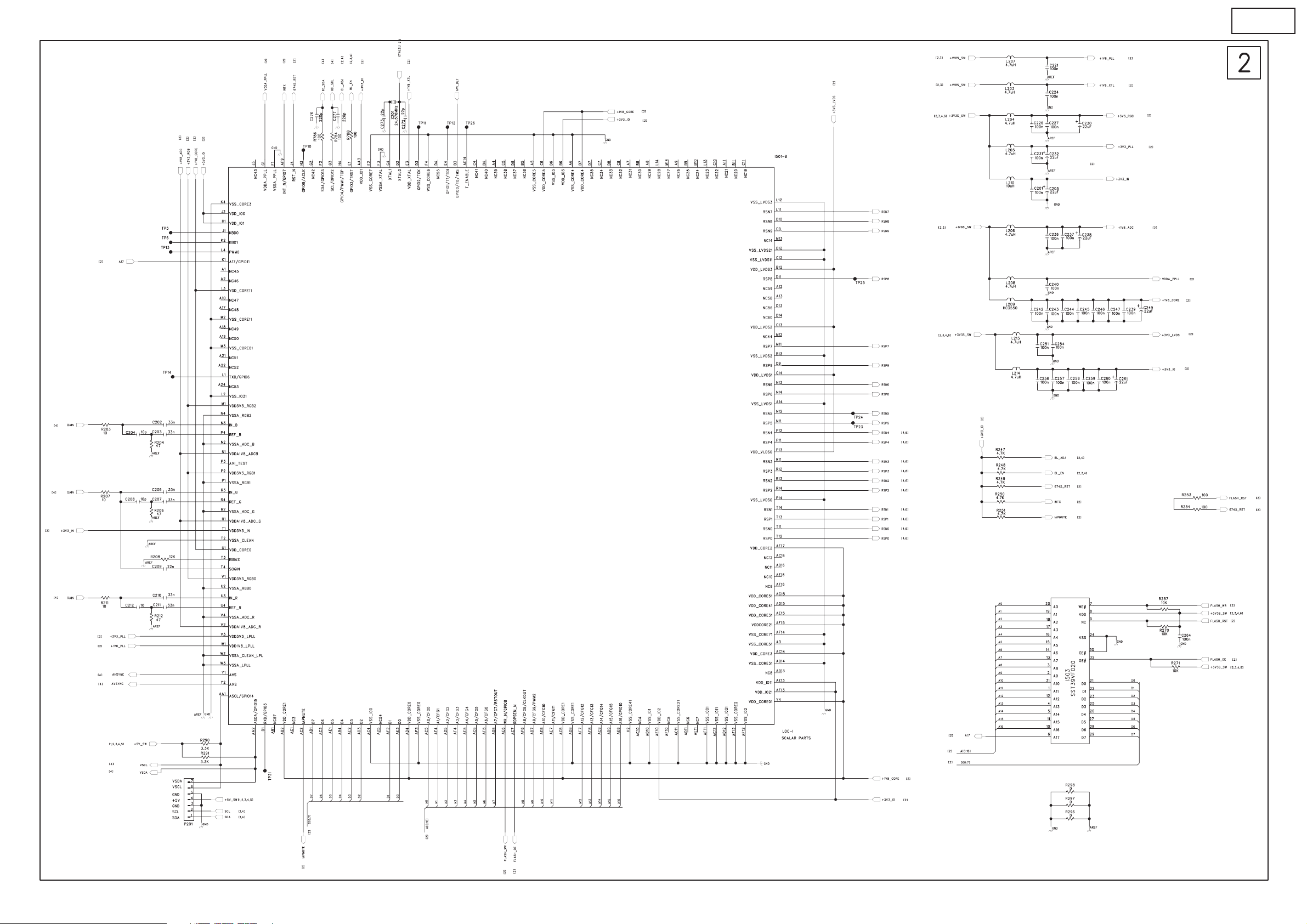

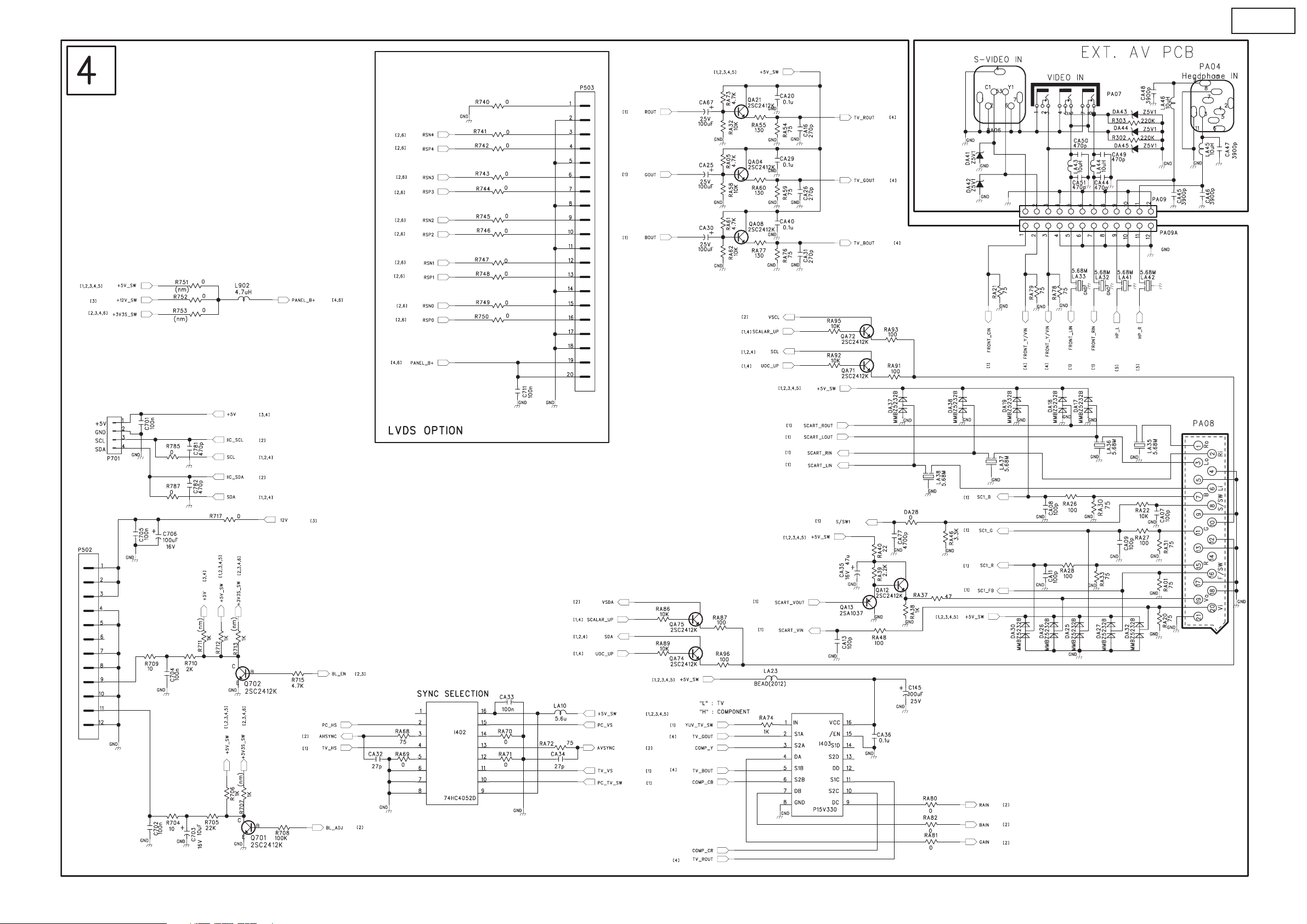

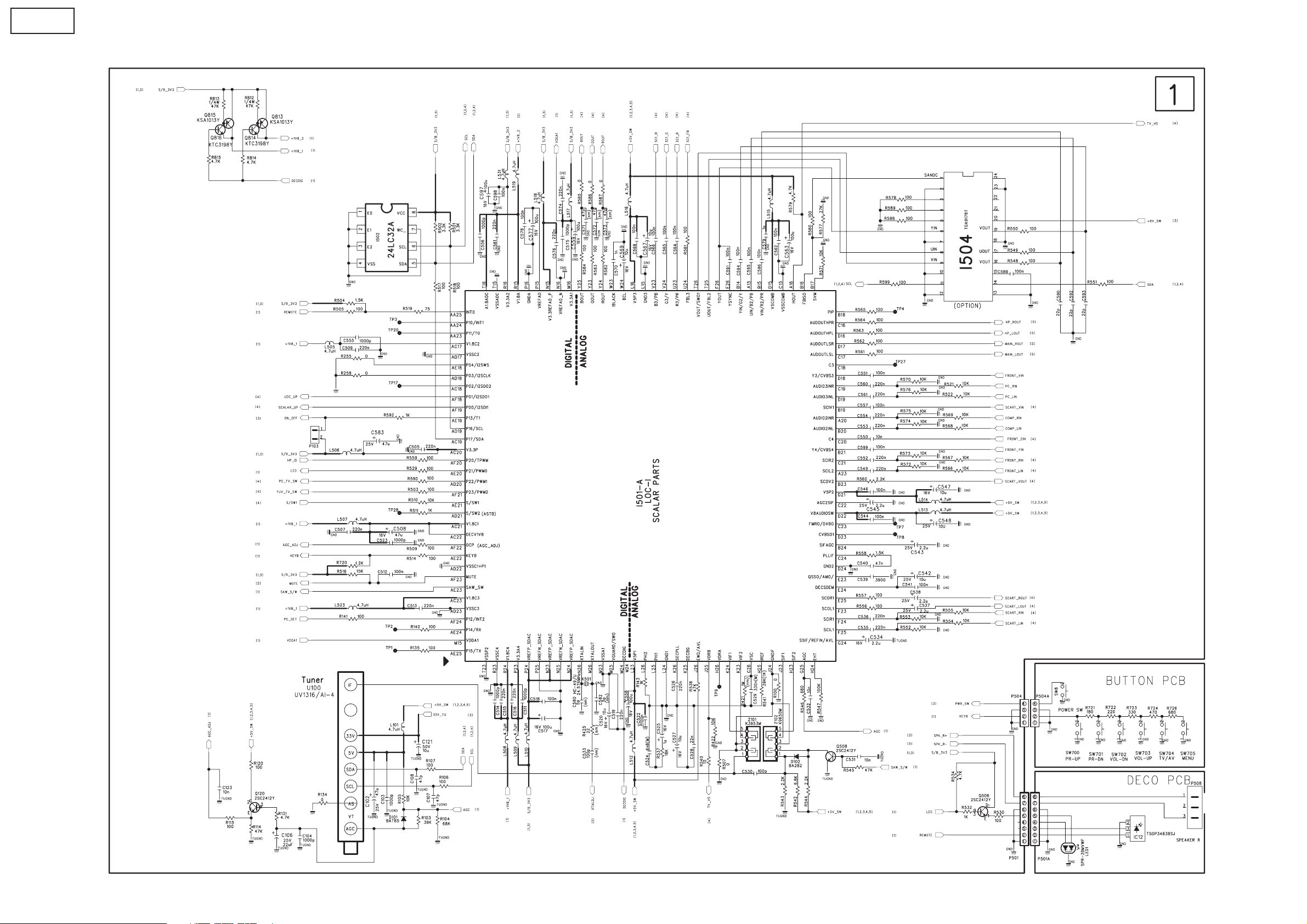

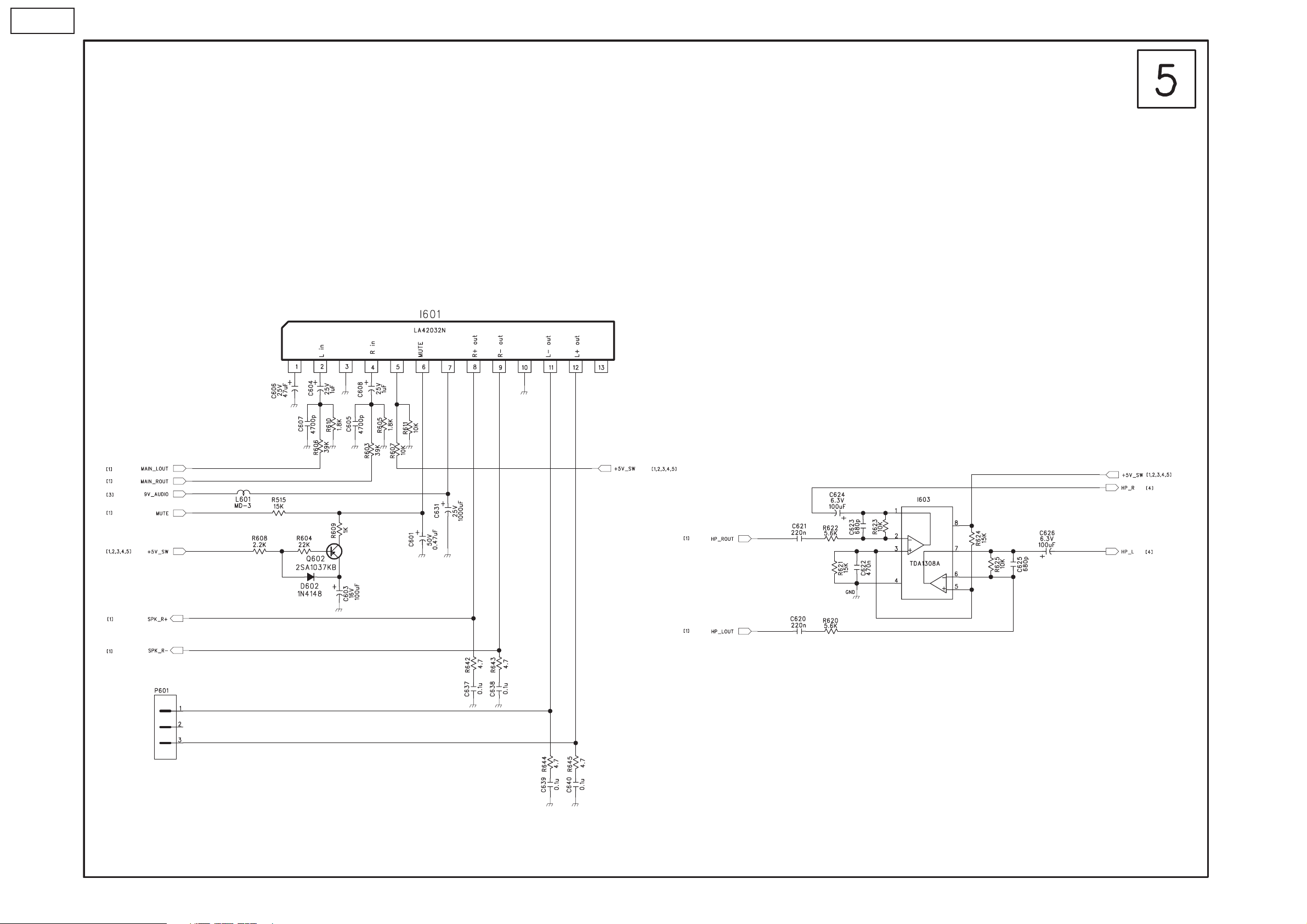

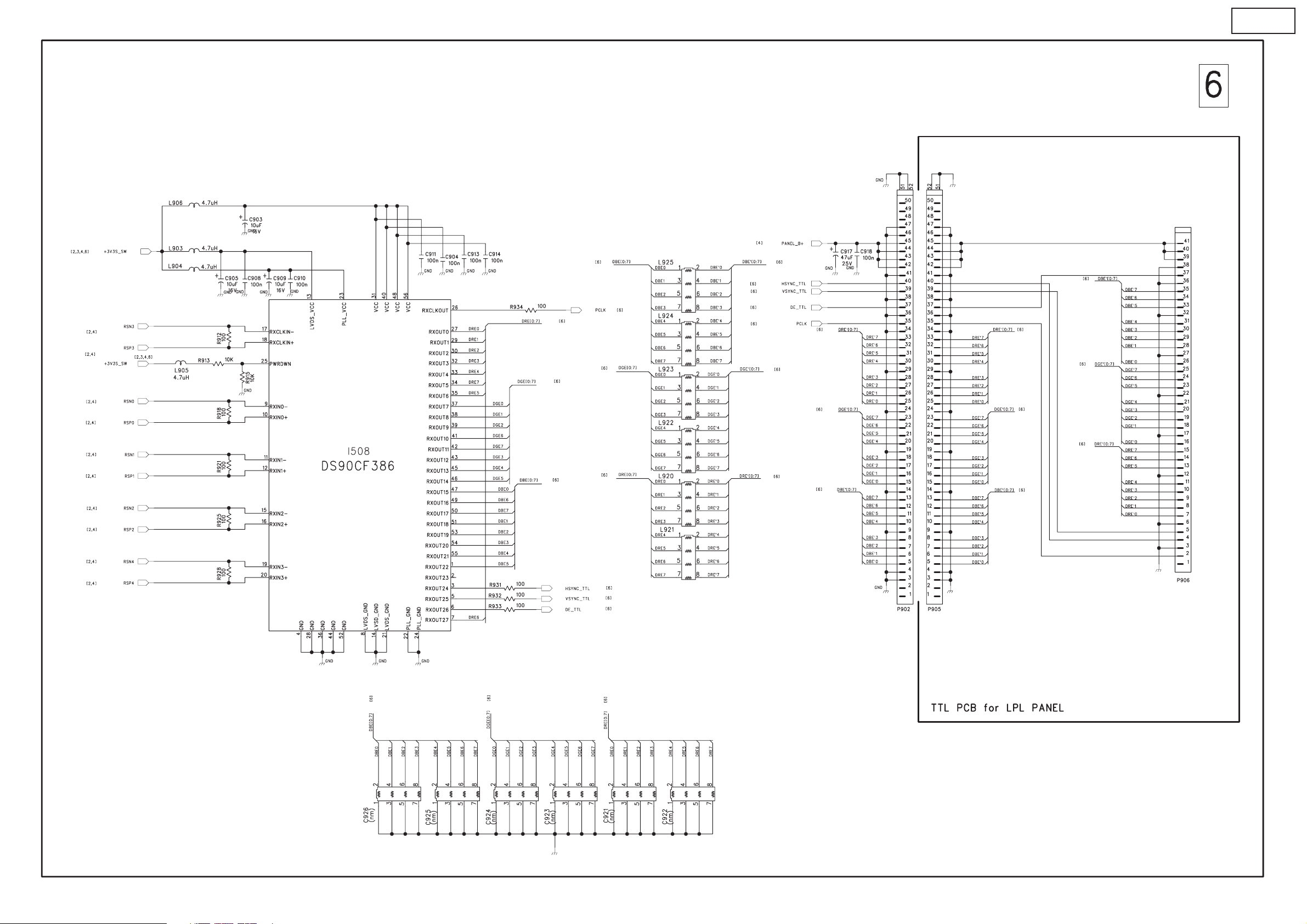

10.3. Schematic Diagram -----------------------------------22

11. Parts Location & Replacement Parts List -------------28

11.1. Different parts List -------------------------------------28

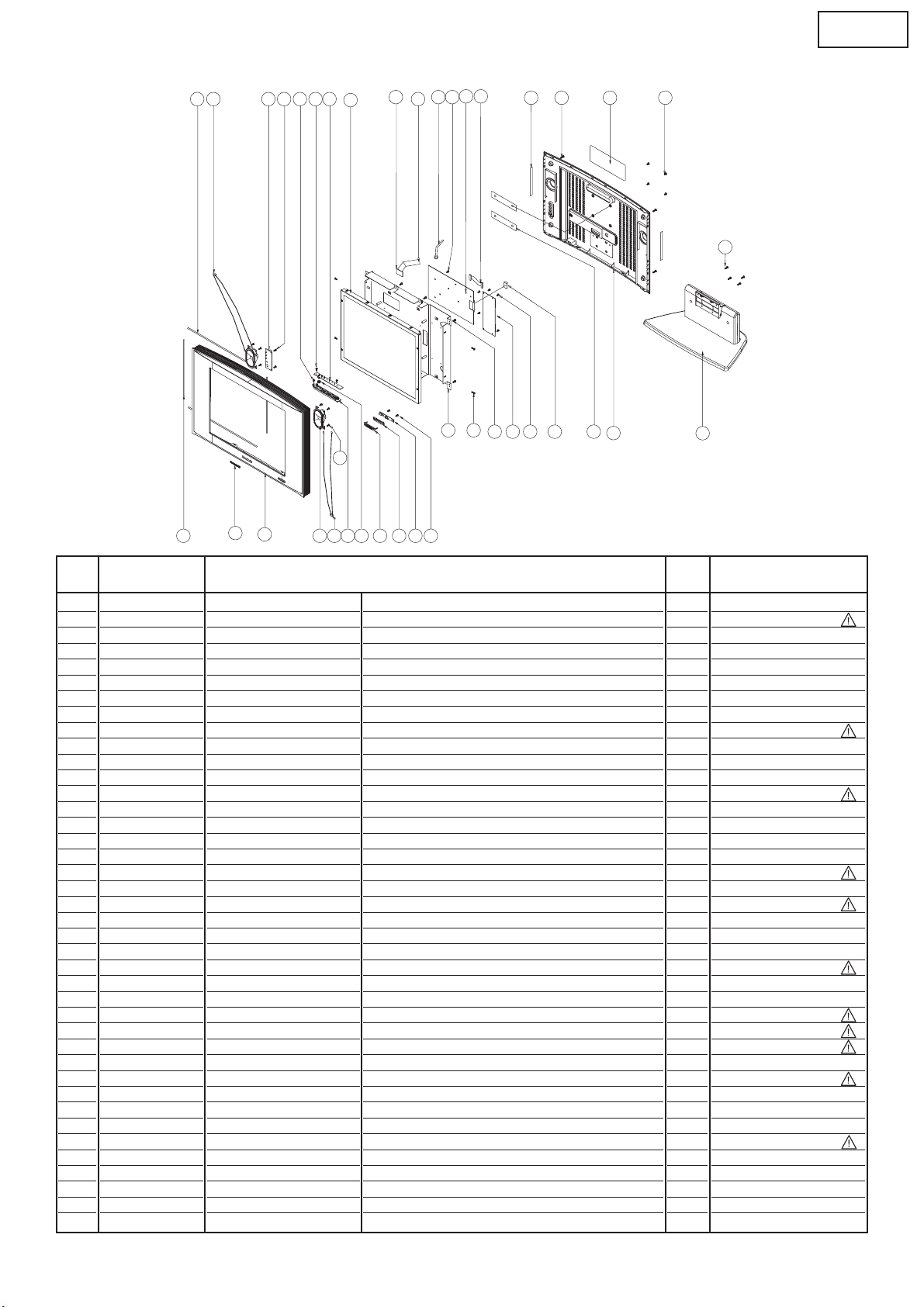

11.2. Exploded View ------------------------------------------29

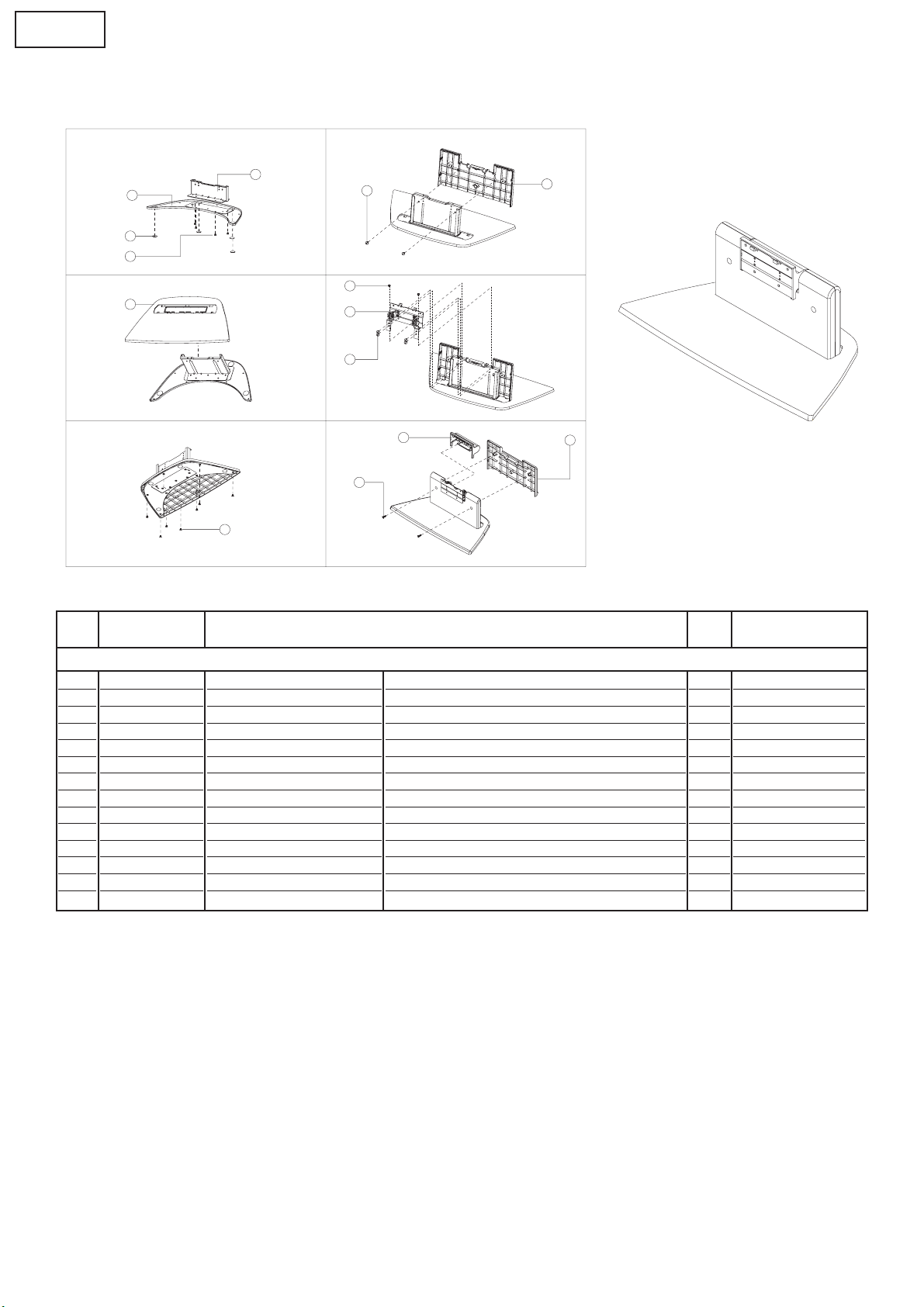

11.3. Stand Assy Exploded View --------------------------30

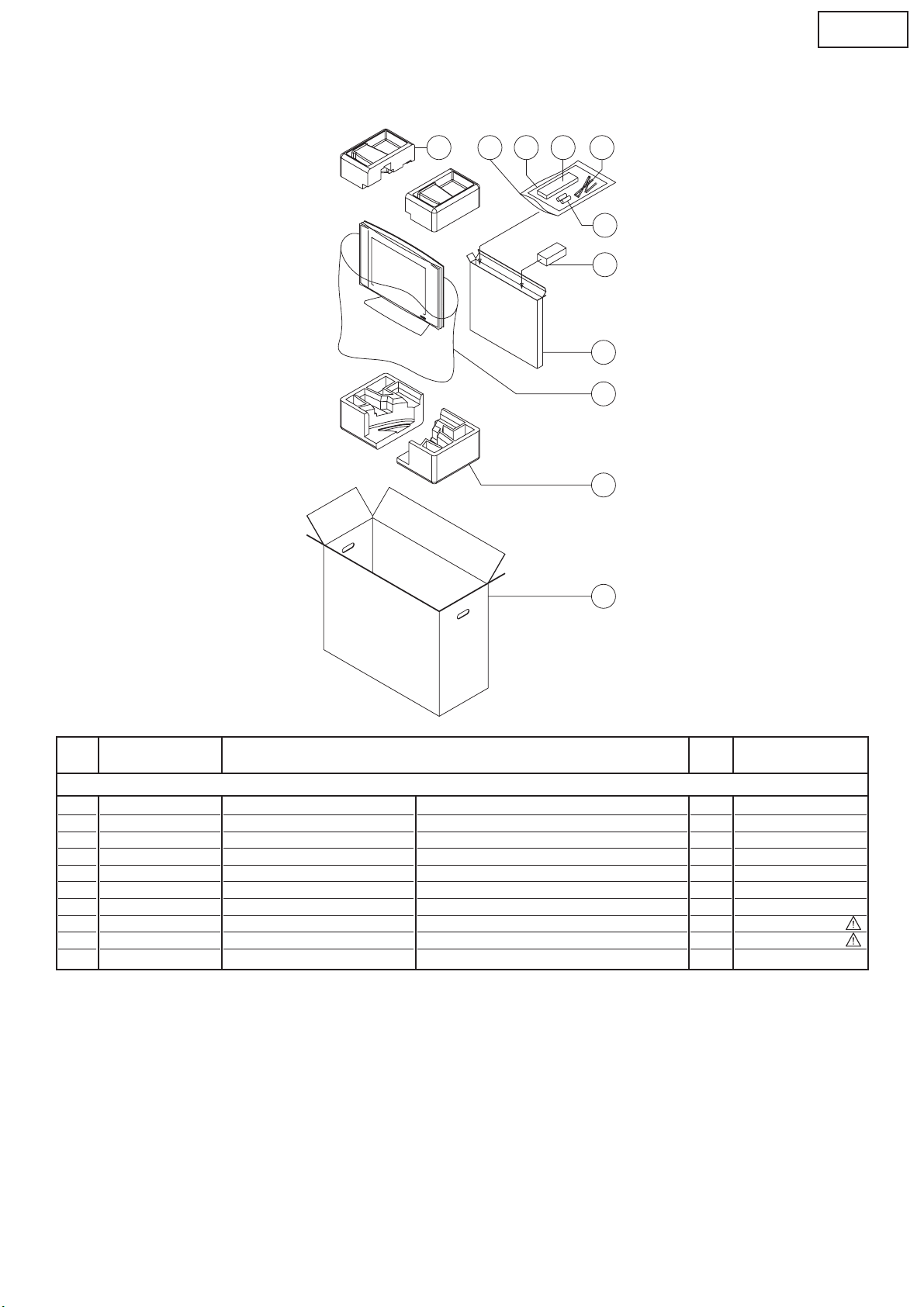

11.4. Packing Exploded Views -----------------------------31

11.5. Electrical Replacement Parts List ------------------32

Page 3

TX-20LB5F/G TX-20LB5P/G

1 Safety Precautions

1.1. General Guidelines

1. When servicing, observe the original lead dress. If a short circuit is found, replace all parts which have been overheated or damaged by the short circuit.

2. After servicing, see to it that all the protective devices such as insulation barriers, insulation papers shields are properly installed.

3. After servicing, make the following leakage current checks to prevent the customer from being exposed to shock hazards.

1.2. Touch-Current Check

1. Plug the AC cord directly into the AC outlet. Do not use an isolation transformer for this check.

2. Connect a measuring network for touch currents between each exposed metallic part on the set and a good earth ground such as a water pipe, as shown in Figure 1.

3. Use Leakage Current Tester (Simpson 228 or equivalent) to measure the potential across the measuring network.

4. Check each exposed metallic part, and measure the voltage at each point.

5. Reserve the AC plug in the AC outlet and repeat each of the above measure.

6. The potential at any point (TOUGH CURRENT) expressed as voltage U1 and U2, does not exceed the following values: For a. c.: U For d. c.: U

Note:

The limit value of U2 = 0.35 V (peak) for a. c. and U1 = 1.0 V for d. c. correspond to the values 0.7 mA (peak) a. c. and 2.0

7. In case a measurement is out of the limits speciﬁed, there is a possibility of a shock hazard, and the equipment should be

repaired and rechecked before it is returned to the customer.

1 = 35 V (peak) and U2 = 0.35 V (peak); 1 = 1.0 V,

mA d. c. The limit value U1 = 35 V (peak) for a. c. correspond to the value 70 mA (peak) a. c. for frequencies greater than 100 kHz.

Page 4

TX-20LB5F/G TX-20LB5P/G

2 Prevention of Electro Static Discharge (ESD) to

Electrostatically Sensitive (ES) Devices

Some semiconductor (solid state) devices can be damaged easily by static electricity. Such components commonly are called Electrostatically Sensitive (ES) Devices. Examples of typical ES devices are integrated circuits and some ﬁeld-effect transistors and semiconductor „chip” components. The following techniques should be used to help reduce the incidence of component damage caused by electro static discharge (ESD).

1. Immediately before handling any semiconductor component or semiconductor-equipped assembly, drain off any ESD on your

body by touching a known earth ground. Alternatively, obtain and wear a commercially available discharging ESD wrist strap, which should be removed for potential shock reasons prior to applying power to the unit under test.

2. After removing an electrical assembly equipped with ES devices, place the assembly on a conductive surface such as almi-

num foil, to prevent electrostatic charge buildup or exposure of the assembly.

3. Use only a grounded-tip soldering iron to solder or unsolder ES devices.

4. Use only an anti-static solder removal device. Some solder removal devices not classiﬁed as „anti-static (ESD protected)” can

generate electrical charge sufﬁcient to damage ES devices.

5. Do not use freon-propelled chemicals. These can generate electrical charges sufﬁcient to damage ES devices.

6. Do not remove a replacement ES device from its protective package until immediately before you are ready to install it. (Most

replacement ES devices are packaged with leads electrically shorted together by conductive foam, alminum foil or comparable conductive material).

7. Immediately before removing the protective material from the leads of a replacement ES device, touch the protective material

to the chassis or circuit assembly into which the device will be installed.

Caution

Be sure no power is applied to the chassis or circuit, and observe all other safety precautions.

8. Minimize bodily motions when handling unpackaged replacement ES devices. (Otherwise hamless motion such as the brush-

ing together of your clothes fabric or the lifting of your foot from a carpeted ﬂoor can generate static electricity (ESD) sufﬁcient to damage an ES device).

Page 5

TX-20LB5F/G TX-20LB5P/G

3 About lead free solder (PbF)

Note: Lead is listed as (Pb) in the periodic table of elements. In the information below, Pb will refer to Lead solder, and PbF will refer to Lead Free Solder. The Lead Free Solder used in our manufacturing process and discussed below is (Sn+Ag+Cu). That is Tin (Sn), Silver (Ag) and Copper (Cu) although other types are available.

This model uses Pb Free solder in it’s manufacture due to environmental conservation issues. For service and repair work, we’d suggest the use of Pb free solder as well, although Pb solder may be used.

PCBs manufactured using lead free solder will have the PbF within a leaf Symbol

Caution

• Pb free solder has a higher melting point than standard solder. Typically the melting point is 50 ~ 70 °F (30~40°C) higher.

Please use a high temperature soldering iron and set it to 700 ± 20 °F (370 ± 10 °C).

• Pb free solder will tend to splash when heated too high (about 1100 °F or 600 °C).

If you must use Pb solder, please completely remove all of the Pb free solder on the pins or solder area before applying Pb solder. If this is not practical, be sure to heat the Pb free solder until it melts, before applying Pb solder.

• After applying PbF solder to double layered boards, please check the component side for excess solder which may ﬂow onto

the opposite side. (see ﬁgure below)

Suggested Pb free solder

There are several kinds of Pb free solder available for purchase. This product uses Sn+Ag+Cu (tin, silver, copper) solder.

However, Sn+Cu (tin, copper), Sn+Zn+Bi (tin, zinc, bismuth) solder can also be used.

stamped on the back of PCB.

Page 6

TX-20LB5F/G TX-20LB5P/G

4 Self Check

1. Self-Check is used to automatically check the bus lines and hexadecimal code of the TV set.

2. To get into the Self -Check mode press the Down (

button on the remote control, and the screen will show when the self Check is ﬁnished:

SEDNA VERSION

3. Turn off the TV to reset after SELF-CHECK menu.

) button on the TV set, at the same time pressing the Recall ( )

Programm number

Software Type

When Self Check is ﬁnished you have this line within the option deﬁnition.

Page 7

5. Chassis Board Layout

TX-20LB5F/G TX-20LB5P/G

TTL ASSY

INVERTER

AV ASSY

MAIN ASSY

LED ASSY CTRL ASSY

Board Name Function

MAIN ASSY Main Board

CTRL ASSY Power Switch, Select Switch

AV ASSY AV, Headphone

LED ASSY Remote Receiver, LED, Speaker(R) connection

TTL ASSY Transistor-Transistor Logic circuit

INVERTER Inverter

None serviceable and should be exchanged for service.

Page 8

TX-20LB5F/G TX-20LB5P/G

6. Before servicing

6.1. Wire dressing

Check a wire dressing is same as illustrated below;

P508

4850712S01

A B

P502-INVERTER Coupler Wire

P502

P902

P501A

P504A

4859004560 P902-LCD PANEL FFC Cable

P601

PA09 A

P504

PA09

4850703S50

P601-Speaker(L) Coupler Wire

4850712N12

PA09-PA09A Coupler Wire

4850703S51

E F G

P508-Speaker(R) Coupler

6.1.1 Connection

1. Conect every connector surely as ilustrated above photo (

2. Manage wires not to touch any sharp edge of the metal parts.

3. Manage wires not to have too much tension.

6.1.2 Clamping

Clamp Wire

P501 - P501A connection wire

P502 - INVERTER connection wire

P504 - P504A connection wire

P508 - Right speaker connection wire

P601 - Left speaker connection wire

PA09 - PA09A connection wire

Wire

CLAMP WIRE

4850708S02 P501-P501A Coupler Wire

TIE CABLE

~ G).

4850704G06 P504-P504A Coupler Wire

FILAMENT TAPE

Remark

No clamping

Page 9

TX-20LB5F/G TX-20LB5P/G

7. Disassembly for service

7.1 Stand Ass’y

1. Lay down the main unit so that the back cover faces

upward.

stand ass’y back cover

2. Remove the ﬁxing screws (4pcs

3. Remove the stand ass’y

)

7.2. Back cover

1. Remove stand ass’y (see 7.1.)

2. Remove the ﬁxing screws (4pcs

3. Remove the Back cover as pushing clips as illustrated below (2 point clip

)

Page 10

TX-20LB5F/G TX-20LB5P/G

7.3. CTRL Ass’y

1. Remove the back cover (see. 7.2.)

2. Remove the ﬁxing screw (1pcs

3. Remove the CTRL Ass’y with cable

4. Disconnect the coupler (conncector P504)

P504

5. Remove the ﬁxing screws (2pcs Power (1pcs

)

) and Button

7.4. LED Ass’y

1. Remove the back cover (see. 7.2.)

2. Remove the tapes (2pcs

3. Remove the ﬁxing screws (2pcs

4. Remove the LED Ass’y with cable

SP02A P501

5. Disconnect the couplers. (connector P501 and CONN As SP02A)

)

6. Remove the CTRL PCB.

SP02A P501

6. Remove the LED PCB.

Page 11

TX-20LB5F/G TX-20LB5P/G

7.5. AV Ass’y

1. Remove the back cover (see. 7.2.)

2. Remove tie cable(1pcs (1pcs

3. Disconnect the coupler (connector PA09)

4. Remove the ﬁxing screws (3pcs

5. Remove the AV Ass’y

) to free the cable.

) and unlock the clamp wire

)

7.6. INVERTER

1. Remove the back cover (see. 7.2.)

2. Disconnect the coupler(connector P502A)

3. Disconnect the backlight interface connectors which are introduced from LCD panel.

4. Remove the ﬁxing screw (4pcs

backlight interface connector

)

PA0 9

7.7. TTL Ass’y

1. Remove the back cover (see. 7.2.)

2. Unlock the coupler(CONN WAFER P902) to free the FFC cable(P902A).

3. Remove the TTL Ass’y with FFC cable.

FFC CABLE

P502A

5. Remove the INVERTER.

7.8. Speaker (left and right)

1. Remove the back cover (see. 7.2.)

2. Remove the LED Ass’y (see 7.4.)

3. Remove tie cable(1pcs pler (CONN AS SP01A)

4. Remove the ﬁxing screws (8pcs

5. Remove the speaker (left and right).

) and disconnect the cou-

)

SP02

4. Unlock the coupler(CONN WAFER P905) and remove FFC cable.

FFC CABLE

5. Remove the TTL Ass’y.

P905

LED Ass’y

Page 12

TX-20LB5F/G TX-20LB5P/G

7.9. Main Ass’y

1. Remove the back cover (see. 7.2.)

2. Remove the LED Ass’y, CTRL Ass’y (see 7.3., 7.4.)

3. Remove tie cable(1pcs (1pcs

4. Disconnect the couplers (connector P902A, SP01A, PA09A, P504A, P501A)

5. Disconnect the FFC cable(P902A)

6. Remove the ﬁxing screws (4 pcs

P502A P902A SP01A PA09A

) to free the cable.

) and unlock the clamp wire

)

7.10. Panel LCD

1. Remove the back cover (see. 7.2.)

2. Remove the TTL Ass’y (see 7.7.)

3. Disconnect the backlight interface connectors which are introduced from LCD panel

4. Remove the LED Ass’y (see 7.4.)

5. Remove tie cable (1pcs

6. Disconnect left speaker wire (connector SP01A)

7. Remove the ﬁxing screws from AV Ass’y (3 pcs, see 7.5.4.)

8. Remove the ﬁxing screw from CTRL Ass’y (1 pcs, see 7.3.2.)

9. Remove the ﬁxing screws from Frame Main (8 pcs

backlight interface connector

)

SP01A

CTRL Ass’yP504AP501ALED Ass’y

10. Take out Frame Main with Panel.

11. Remove screws from Frame Main PCB (4 pcs

)

Page 13

8. Service Mode Function

MPU controls the functions switching for each IICs through IIC bus in this chassis. The following setting and adjustment can be adjusted by remote control in Service Mode.

8.1. How to enter SERVICE

Simultaneously press MUTE button ( ) on remote control and program DOWN button ( ) on the TV set.

GRN GAIN 32 BLUE GAIN 32 RED BIAS 00

RED GAIN 32

TX-20LB5F/G TX-20LB5P/G

OPTION1 3C

OPTION 2 4F AVL 00

ADC CLAMP

RED 17

ADC CLAMP

GREEN 18

AGC LEVEL 00

ADC GAIN

BLUE 22

ADC CLAMP

BLUE 02

GRN BIAS 00

ADC GAIN

RED 22

ADC GAIN

GREEN 22

CCU OFF

SHIPPING

4F 3C

Key Command

* Press the selection button (

* Each adjustment values will stored automatically.

) or program up/down button ( ) to step up/down through the functions.

) or volume up/down button(

8.2. How to exit SERVICE

To exit from Service mode, press menu or Power button on remote control.

) to change the function values.

Page 14

TX-20LB5F/G TX-20LB5P/G

8.3. Option Description

There are two option bytes available (16 bits in all). These option bits are available from FACTORY and SERVICE mode. First

ﬁnd the OPTION1 or OPTION2 control, and then use the UP/DOWN and PLUS/MINUS keys on the relevant remote keypad to control the bits. The table below shows the two option bytes available;

8.3.1 OPTION 1

B7 B6 B5 B4 B3 B2 B1 B0

TOP

Teletext

OFF

TOP

Teletext

FASTEXT

(FLOF) OFF

FASTEXT

(FLOF) ON

PANEL 4:3 Not used

PANEL 15:9 Not used

Dolby

Virtual

OFF

Dolby

Virtual

Disable

Enable

TUNER OPTIONS

00 = Philips

01 = Not used

10 = Alps

11 = Partsnic

8.3.2 OPTION 2

B7 B6 B5 B4 B3 B2 B1 B0

Fixed to ‘0’

PANASONIC

remote control

Daewoo

Remote

control

Must be set

to ‘1’

Must be set

to ‘1’

Not used Not used Full ATSS

Not used Not used Basic ATSS

PAT

Enabled

PAT

Disabled

Must be set

to ‘1’

Must be set

to ‘1’

Page 15

TX-20LB5F/G TX-20LB5P/G

Page 16

TX-20LB5F/G TX-20LB5P/G

9. Conduct Views

9.1. FOIL SIDE

Page 17

TX-20LB5F/G TX-20LB5P/G

Page 18

TX-20LB5F/G TX-20LB5P/G

9.2. COMPONENT SIDE

Part Location

IC TRANSISTOR CRYSTAL QUARTZ

I402 I403 I501 I502 I503 I504 I508 I601 I603 I801 I802 I803 I806 I807 I809 I811 I815 I816 IC12

F3 G4 D3,E3 C4 D4,F4 C2 D4 G5,H5 G5 G2 H2 G4 H3 B4 G4 E2 H4 C5 F6

Q120 Q506 Q508 Q602 Q701 Q702 Q802 Q803 Q804 Q805 Q813 Q814 Q815 Q816 QA04 QA08 QA12 QA13 QA21 QA71 QA72 QA74 QA75

C2 D1 C3 H4 B4 B4 B2 B3 B3 I3 B5 B5 B5 B5 G2 G2 B2 B2 G2 C2 C2 B2 B2

X201 X501

FILTER SAW

Z101 Z102

F3 C3

C3 C3

Page 19

TX-20LB5F/G TX-20LB5P/G

Page 20

TX-20LB5F/G TX-20LB5P/G

10. Block and Schematic Diagrams

10.1. Schematic Diagram Notes

Page 21

10.2. Block Diagram

TX-20LB5F/G TX-20LB5P/G

Page 22

TX-20LB5F/G TX-20LB5P/G

10.3. Schematic Diagram

Page 23

TX-20LB5F/G TX-20LB5P/G

Page 24

TX-20LB5F/G TX-20LB5P/G

Page 25

TX-20LB5F/G TX-20LB5P/G

Page 26

TX-20LB5F/G TX-20LB5P/G

Page 27

TX-20LB5F/G TX-20LB5P/G

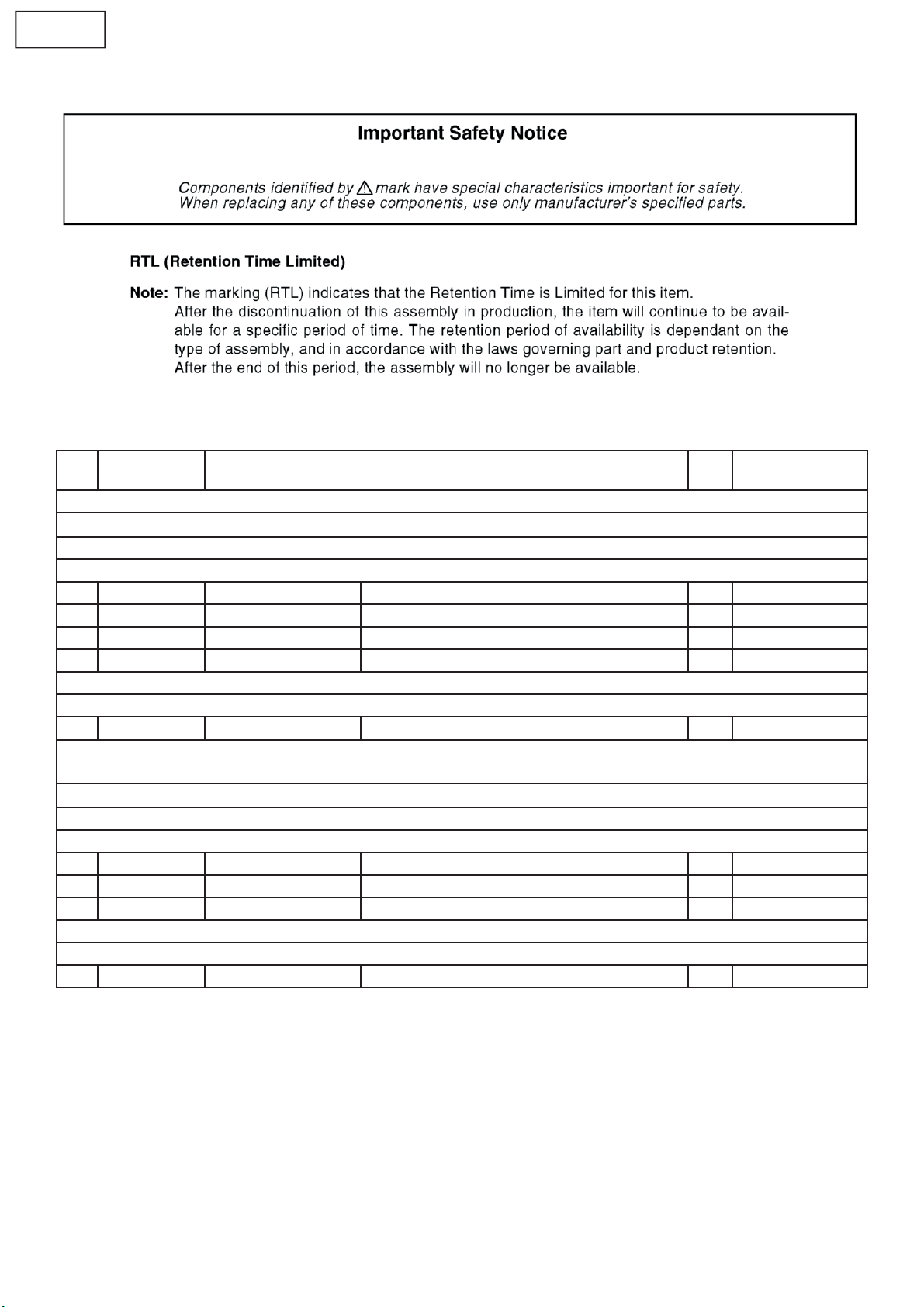

Page 28

TX-20LB5F/G

24 PTMPMSD119F

24 PTMPMSD119P

MAIN ASSY DLP-20D6 MAIN 1 see „Note”

TX-20LB5P/G

11 Parts Location & Replacement Parts List

11.1. Different parts List

Ref.

Part No. Part Name & Description Q’ty Remark

DIFFERENCES FOR MODEL TX-20LB5F/G

Part Location View

38 4855421600 S/PLATE TX-20LB5F/G (WEST) 1 see „Note”

60 TQB0E0289 MANUAL GERMAN, DUTCH, ITALIAN, FRENCH, SPANISH 1

60 TQB0E0290 MANUAL SWEDISH, PORTUGUESE, DANISH, ENGLISH 1

I.C.s

I501 1TDA155F81 IC MICOM F VERSION 1

DIFFERENCES FOR MODEL TX-20LB5P/G

Part Location View

38 4855421601 S/PLATE TX-20LB5P/G (EAST) 1 see „Note”

60 TQB0E0291 MANUAL RUSSIAN, BULGARIAN, ROMANIAN, POLISH 1

60 TQB0E0292 MANUAL HUNGARIAN, CZECH, ENGLISH, UKRAINIAN 1

I.C.s

I501 1TDA155F81 IC MICOM P VERSION 1

<Note> to ﬁnd exact position, refer 11.2. Exploded View

Page 29

11.2. Exploded View

refer „11.1. Different parts List”

9101514

13 32

TX-20LB5F/G TX-20LB5P/G

Ref.

Part No. Part Name & Description Q’ty Remark

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40

4855624700 4852088414 4857743900 4857743800 4858316410 4850703S50 4850703S51 7178301051 PTAVMSD119 7178301051 4854867811 4854963611 PTCTMSD119 7178301051 7178301051 485353643101 485555280001 PTLEMSD119 7178301051 485LD03202 4853821910 7008301451 7172401252

485A100170 4856815900 7008300651 4850M003NV 4850712S01 7008300651 PTTLMSD119 4859004560 4853295500 4857817300 48521679D6 7002400852 7172401652

PTSTCAD119 7002401452

MARK BRAND MASK FRONT CUSION PANEL CUSION PANEL SPEAKER CONN AS CONN AS SCREW TAPPTITE AV ASSY SCREW TAPPTITE BUTTON POWER BUTTON CTRL CTRL ASSY SCREW TAPPTITE SCREW TAPPTITE HOLDER SENSOR DECO SENSOR LED ASSY SCREW TAPPTITE LCD PANEL FRAME MAIN PCB SCREW MACHINE SCREW TAPPTITE MAIN ASSY SHIELDRON CLAMP WIRE SCREW MACHINE INVERTER CONNECTOR SCREW MACHINE TTL ASSY CABLE FFC BRKT VESA CLOTH BLACK COVER BACK SCREW MACHINE SCREW TAPPTITE S/PLATE STAND ASSY SCREW MACHINE

162111 17

18 195

PANA LCD 17INCH 20D6 FR HIPS GY (HALOGEN FREE) PVC 300 X 10 T=1.0 PVC 400 X 10 T=1.0 SP-5090N01 YH025-03+3509=200 YH025-03=300 LOCK TT2 WAS 3X10 MFZN 3CR DLP-20D6 AV ASSY TT2 WAS 3X10 MFZN 3CR ABS T-GR0010 ABS T-GR0010 DLP-20D6 CONTROL ASSY TT2 WAS 3X10 MFZN 3CR TT2 WAS 3X10 MFZN 3CR 20D6 ABS GY340A PC GY739AT DLP-20D6 LED,IR ASSY TT2 WAS 3X10 MFZN 3CR LG-PHILIPS SECC T1.2 (LG) M-WAS 3X14 MFZN 3CR TT2 TRS 4X12 MFZN BK 3CR

20X40X8.5T EGI T0.4+PVC COATING WAS 3X6 MFZN 3CR DS-1020WDL 12505HS-12+12505HS-12+ULW=100 WAS 3X6 MFZN 3CR DLP-20D6 TTL ASSY

0.50T-50N-154L-T5 SECC T1.2 CLOTH 152X15XT0.5 20D6 TGR991 TRS 4X8 MFZN BK 3CR TT2 TRS 4X16 MFZN BK 3CR refer „11.1. Different parts List” DLP-20D6LHS-CF TRS 4X14 MFZN BK 3CR

1 1 2 2 2 1 1 8

RTL

1 2 1 1

RTL

no.12 + no.13

[no.12+13+14] + no.2

1 1 1

RTL

1 2 1 1

no.20 + no.21

no.21 + no.2

RTL

on the Tuner

1 1

no.24 + no.21

RTL

no.24 + no.28

INVERTER

RTL

FFC CABLE

1 2 2 1 4 4 1 1 4

Page 30

TX-20LB5F/G TX-20LB5P/G

11.3. Stand Assy Exploded View

< STEP 1 >

< STEP 2 >

< STEP 3 >

< STEP 4 >

< STEP 5 >

< STEP 6 >

Ref.

Part No. Part Name & Description Q’ty Remark

Stand Assy

41 42 43 44 45 46 47 48 49 50 51 52 53 54

4855217000 4853219700 4857942700 7005400608 4852175111PA 7115400850 4852168611PA 7172401251 4851955800 7001400550 7001400808 4852168511PA 4852168711PA 7172401251

PLATE BASE STAND BRKT STAND RUBBER SCREW MACHINE COVER STAND BASE SCREW TAPPING COVER HINGE FRONT SCREW TAPPTITE HINGE ASSY SCREW MACHINE SCREW MACHINE COVER HINGE COVER HINGE BACK SCREW TAPPTITE

GI T2.3 SECC T2.3 BK PHI 18X1.6T FLT 4X6 SUS ABS GY503A+T-MGR0317 FLT 4X8 MFZN WH 3CR ABS GY503A+TMGR0317 TT2 TRS 4X12 MFZN 3CR DLP-20D3 PAN 4X5 MFZN WH 3CR PAN 4X8 SUS ABS GY503A+TMGR0317 ABS GY503A+TMGR0317 TT2 TRS 4X12 MFZN 3CR

1 1 5 4 1 7 1 2 1 2 4 1 1 2

Page 31

11.4. Packing Exploded Views

TX-20LB5F/G TX-20LB5P/G

6160 645965

Ref.

Part No. Part Name & Description Q’ty Remark

Stand Assy

DMP5012200

485819AT01DN

4858215701

DMP5012300

4858213801

48BEUR7636

486A716202

4859000940

4859910110

485819AT01UP

BOX PAD D OWN BAG P.E. BOX ACCESSORY BAG INSTRUCTION TRANSMITTER REMOCON BATTERY ADAPTER CORD POWER AS PAD U P

PANASONIC TX-20LB5 EPS 20D4 1000X950 (U.K) LAMINATED DLP-20D4LHS L. D. P. E. T0. 05X250X400 EUR7636080R PANASONIC AA N0JZHK000011 EU KKP-419C KKS-15A 1.8M EPS 20D4

1 1 1 1 1 1 1 1 1 1

Page 32

TX-20LB5F/G TX-20LB5P/G

11.5. Electrical Replacement Parts List

Ref. No.

Part No. Part Name & Description

P501 4850708S02 CONNECTOR YH025-08+YST025+ULW=300 1 BOARD-IN

P504 4850704G06 CONNECTOR YH025-04+YBNH250-04+ULW=300 1 BOARD-IN

PA09 4850712N12 CONNECTOR YH025-12+YBNH250-12+USW=200 1 BOARD-IN

J002 4850701S01 CONNECTOR RINGTER4.3+YPT018+ULW=100 1 BOARD-IN

C102 CEXF1C470A C ELECTRO 16V RSM 47MF (6.3X7) TP 1

C103 HCBK102KBA C CHIP CERA 50V X7R 1000PF K 1608 1

C104 HCBK102KBA C CHIP CERA 50V X7R 1000PF K 1608 1

C106 CEXF1C220A C ELECTRO 16V RSM 22MF (5X7) 1

C107 HCQK470JBA C CHIP CERA 50V CH 47PF J 1608 1

C108 HCQK470JBA C CHIP CERA 50V CH 47PF J 1608 1

C121 CEXF1H100V C ELECTRO 50V RSS 10MF (5X11) TP 1

C123 HCBK103KBA C CHIP CERA 50V X7R 0.01MF K 1608 1

C145 CEXF1C101A C ELECTRO 16V RSM 100MF (6.3X7) TP 1

C201 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608 1

C202 HCBK333KBA C CHIP CERA 50V X7R 0.033MF K 1608 1

C203 HCBK333KBA C CHIP CERA 50V X7R 0.033MF K 1608 1

C204 HCQK150JBA C CHIP CERA 50V CH 15PF J 1608 1

C205 CEXF1C220A C ELECTRO 16V RSM 22MF (5X7) 1

C206 HCBK333KBA C CHIP CERA 50V X7R 0.033MF K 1608 1

C207 HCBK333KBA C CHIP CERA 50V X7R 0.033MF K 1608 1

C208 HCQK150JBA C CHIP CERA 50V CH 15PF J 1608 1

C209 HCBK223KBA C CHIP CERA 50V X7R 0.022MF K 1608 1

C210 HCBK333KBA C CHIP CERA 50V X7R 0.033MF K 1608 1

C211 HCBK333KBA C CHIP CERA 50V X7R 0.033MF K 1608 1

C212 HCQK150JBA C CHIP CERA 50V CH 15PF J 1608 1

C221 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608 1

C224 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608 1

C226 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608 1

C227 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608 1

C230 CEXF1C220A C ELECTRO 16V RSM 22MF (5X7) 1

C231 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608 1

C232 CEXF1C220A C ELECTRO 16V RSM 22MF (5X7) 1

C236 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608 1

C237 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608 1

C238 CEXF1C220A C ELECTRO 16V RSM 22MF (5X7) 1

C239 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608 1

C240 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608 1

C242 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608 1

C243 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608 1

C244 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608 1

C245 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608 1

C246 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608 1

C247 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608 1

C249 CEXF1C220A C ELECTRO 16V RSM 22MF (5X7) 1

C251 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608 1

C254 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608 1

C256 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608 1

C257 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608 1

C258 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608 1

C259 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608 1

C260 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608 1

C261 CEXF1C220A C ELECTRO 16V RSM 22MF (5X7) 1

C264 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608 1

Q’ty

Remark

Ref. No.

Part No. Part Name & Description

C272 HCQK220JBA C CHIP CERA 50V CH 22PF J 1608 1

C273 HCQK220JBA C CHIP CERA 50V CH 22PF J 1608 1

C276 HCQK221JBA C CHIP CERA 50V CH 220PF J 1608 1

C277 HCQK221JBA C CHIP CERA 50V CH 220PF J 1608 1

C505 HCBH224KBA C CHIP CERA 25V X7R 0.22MF K 1608 1

C507 HCBH224KBA C CHIP CERA 25V X7R 0.22MF K 1608 1

C508 CEXF1C470A C ELECTRO 16V RSM 47MF (6.3X7) TP 1

C509 HCBH224KBA C CHIP CERA 25V X7R 0.22MF K 1608 1

C511 HCBK102KBA C CHIP CERA 50V X7R 1000PF K 1608 1

C512 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608 1

C513 HCBH224KBA C CHIP CERA 25V X7R 0.22MF K 1608 1

C514 HCBK102KBA C CHIP CERA 50V X7R 1000PF K 1608 1

C515 HCBH224KBA C CHIP CERA 25V X7R 0.22MF K 1608 1

C516 HCBH224KBA C CHIP CERA 25V X7R 0.22MF K 1608 1

C517 CEXF1C101A C ELECTRO 16V RSM 100MF (6.3X7) TP 1

C518 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608 1

C519 HCBH224KBA C CHIP CERA 25V X7R 0.22MF K 1608 1

C520 CEXF1C100A C ELECTRO 16V RSM 10MF 5X7 1

C522 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608 1

C523 HCBK102KBA C CHIP CERA 50V X7R 1000PF K 1608 1

C524 CMXM2A682J C MYLAR 100V 6800PF J TP 1

C525 CEXF1H109A C ELECTRO 50V RSM 1MF (4X7) TP 1

C526 HCBH224KBA C CHIP CERA 25V X7R 0.22MF K 1608 1

C527 CEXF1C100A C ELECTRO 16V RSM 10MF 5X7 1

C528 HCBK223KBA C CHIP CERA 50V X7R 0.022MF K 1608 1

C529 CMXL1J334J C MYLAR 63V 0.33MF J MEU TP 1

C530 HCQK101JBA C CHIP CERA 50V CH 100PF J 1608 1

C531 HCBK103KBA C CHIP CERA 50V X7R 0.01MF K 1608 1

C532 HCBK103KBA C CHIP CERA 50V X7R 0.01MF K 1608 1

C534 CEXF1H229A C ELECTRO 50V RSM 2.2MF (4X7) TP 1

C535 HCBH224KBA C CHIP CERA 25V X7R 0.22MF K 1608 1

C536 HCBH224KBA C CHIP CERA 25V X7R 0.22MF K 1608 1

C537 CEXF1H229A C ELECTRO 50V RSM 2.2MF (4X7) TP 1

C538 CEXF1H229A C ELECTRO 50V RSM 2.2MF (4X7) TP 1

C539 HCBK392KBA C CHIP CERA 50V X7R 3900PF K 1608 1

C540 HCBK473KBA C CHIP CERA 50V X7R 0.047MF K 1608 1

C541 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608 1

C542 CEXF1C100A C ELECTRO 16V RSM 10MF 5X7 1

C543 CEXF1H229A C ELECTRO 50V RSM 2.2MF (4X7) TP 1

C544 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608 1

C545 CEXF1H229A C ELECTRO 50V RSM 2.2MF (4X7) TP 1

C546 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608 1

C547 CEXF1C100A C ELECTRO 16V RSM 10MF 5X7 1

C548 CEXF1C100A C ELECTRO 16V RSM 10MF 5X7 1

C549 HCBH224KBA C CHIP CERA 25V X7R 0.22MF K 1608 1

C550 HCBK103KBA C CHIP CERA 50V X7R 0.01MF K 1608 1

C551 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608 1

C552 HCBH224KBA C CHIP CERA 25V X7R 0.22MF K 1608 1

C553 HCBH224KBA C CHIP CERA 25V X7R 0.22MF K 1608 1

C554 HCBH224KBA C CHIP CERA 25V X7R 0.22MF K 1608 1

C555 HCBK102KBA C CHIP CERA 50V X7R 1000PF K 1608 1

C556 HCBK102KBA C CHIP CERA 50V X7R 1000PF K 1608 1

C557 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608 1

C558 CEXF1C101A C ELECTRO 16V RSM 100MF (6.3X7) TP 1

C559 CEXF1C101A C ELECTRO 16V RSM 100MF (6.3X7) TP 1

Q’ty

Remark

Page 33

Ref. No.

Part No. Part Name & Description

C560 HCBH224KBA C CHIP CERA 25V X7R 0.22MF K 1608 1

C561 HCBH224KBA C CHIP CERA 25V X7R 0.22MF K 1608 1

C562 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608 1

C563 CEXF1C101A C ELECTRO 16V RSM 100MF (6.3X7) TP 1

C564 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608 1

C565 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608 1

C566 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608 1

C567 CEXF1C100A C ELECTRO 16V RSM 10MF 5X7 1

C568 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608 1

C569 CEXF1C100A C ELECTRO 16V RSM 10MF 5X7 1

C570 HCBK102KBA C CHIP CERA 50V X7R 1000PF K 1608 1

C571 HCQK470JBA C CHIP CERA 50V CH 47PF J 1608 1

C572 HCQK470JBA C CHIP CERA 50V CH 47PF J 1608 1

C573 HCQK470JBA C CHIP CERA 50V CH 47PF J 1608 1

C574 HCBH224KBA C CHIP CERA 25V X7R 0.22MF K 1608 1

C575 HCBK102KBA C CHIP CERA 50V X7R 1000PF K 1608 1

C576 HCBH224KBA C CHIP CERA 25V X7R 0.22MF K 1608 1

C577 CEXF1C101A C ELECTRO 16V RSM 100MF (6.3X7) TP 1

C578 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608 1

C579 HCBK102KBA C CHIP CERA 50V X7R 1000PF K 1608 1

C581 HCBH224KBA C CHIP CERA 25V X7R 0.22MF K 1608 1

C583 CEXF1C470A C ELECTRO 16V RSM 47MF (6.3X7) TP 1

C589 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608 1

C590 HCQK220JBA C CHIP CERA 50V CH 22PF J 1608 1

C591 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608 1

C592 HCQK220JBA C CHIP CERA 50V CH 22PF J 1608 1

C593 HCQK220JBA C CHIP CERA 50V CH 22PF J 1608 1

C594 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608 1

C595 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608 1

C596 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608 1

C597 CEXF1C101A C ELECTRO 16V RSM 100MF (6.3X7) TP 1

C598 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608 1

C599 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608 1

C601 CEXF1H478A C ELECTRO 50V RSM 0.47MF 4X7 1

C603 CEXF1C101V C ELECTRO 16V RSS 100MF (6.3X11) TP 1

C604 CEXF1H109V C ELECTRO 50V RSS 1MF (5X11) TP 1

C605 HCBK472KBA C CHIP CERA 50V X7R 4700PF K 1608 1

C606 CEXF1E470V C ELECTRO 25V RSS 47MF (5X11) TP 1

C607 HCBK472KBA C CHIP CERA 50V X7R 4700PF K 1608 1

C608 CEXF1H109V C ELECTRO 50V RSS 1MF (5X11) TP 1

C620 HCBH224KBA C CHIP CERA 25V X7R 0.22MF K 1608 1

C621 HCBH224KBA C CHIP CERA 25V X7R 0.22MF K 1608 1

C622 HCFF474ZBA C CHIP CERA 16V Y5V 0.47MF Z 1608 1

C623 HCQK681JBA C CHIP CERA 50V CH 680PF J 1608 1

C624 CEXF1C101A C ELECTRO 16V RSM 100MF (6.3X7) TP 1

C625 HCQK681JBA C CHIP CERA 50V CH 680PF J 1608 1

C626 CEXF1C101A C ELECTRO 16V RSM 100MF (6.3X7) TP 1

C631 CEXE1C102E C ELECTRO 16V RM 1000MF (10X16) 1

C637 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608 1

C638 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608 1

C639 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608 1

C640 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608 1

C701 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608 1

C702 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608 1

C703 CEXF1C100A C ELECTRO 16V RSM 10MF 5X7 1

C704 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608 1

C705 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608 1

Q’ty

Remark

Ref. No.

Part No. Part Name & Description

C706 CEXF1C101A C ELECTRO 16V RSM 100MF (6.3X7) TP 1

C711 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608 1

C802 CEXF1H479A C ELECTRO 50V RSM 4.7MF 4X7 1

C804 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608 1

C805 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608 1

C806 CEXF1C101A C ELECTRO 16V RSM 100MF (6.3X7) TP 1

C807 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608 1

C812 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608 1

C814 CEXF1C100A C ELECTRO 16V RSM 10MF 5X7 1

C815 CEXF1H479A C ELECTRO 50V RSM 4.7MF 4X7 1

C818 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608 1

C820 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608 1

C821 CEXF1E471V C ELECTRO 25V RSS 470MF (10X16) TP 1

C824 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608 1

C825 CEXE1C102E C ELECTRO 16V RM 1000MF (10X16) 1

C826 CEXF1E471V C ELECTRO 25V RSS 470MF (10X16) TP 1

C827 CEXF1C100A C ELECTRO 16V RSM 10MF 5X7 1

C828 CEXE1C102E C ELECTRO 16V RM 1000MF (10X16) 1

C829 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608 1

C841 CEXF1H479A C ELECTRO 50V RSM 4.7MF 4X7 1

C842 CEXF1H479A C ELECTRO 50V RSM 4.7MF 4X7 1

C843 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608 1

C844 CEXF1H220V C ELECTRO 50V RSS 22MF (5X11) TP 1

C845 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608 1

C846 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608 1

C847 CEXE1C102E C ELECTRO 16V RM 1000MF (10X16) 1

C848 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608 1

C849 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608 1

C850 CEXF1C100A C ELECTRO 16V RSM 10MF 5X7 1

C851 CEXF1H479A C ELECTRO 50V RSM 4.7MF 4X7 1

C856 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608 1

C861 CEXF1C471V C ELECTRO 16V RSS 470MF (10X12.5)TP 1

C876 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608 1

C877 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608 1

C903 CEXF1C100A C ELECTRO 16V RSM 10MF 5X7 1

C904 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608 1

C905 CEXF1C100A C ELECTRO 16V RSM 10MF 5X7 1

C908 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608 1

C909 CEXF1C100A C ELECTRO 16V RSM 10MF 5X7 1

C910 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608 1

C911 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608 1

C913 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608 1

C914 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608 1

C917 CEXF1E470A C ELECTRO 25V RSM 47MF TP 1

C918 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608 1

CA07 HCBK102KBA C CHIP CERA 50V X7R 1000PF K 1608 1

CA08 HCQK101JBA C CHIP CERA 50V CH 100PF J 1608 1

CA09 HCQK101JBA C CHIP CERA 50V CH 100PF J 1608 1

CA11 HCQK101JBA C CHIP CERA 50V CH 100PF J 1608 1

CA13 HCQK101JBA C CHIP CERA 50V CH 100PF J 1608 1

CA16 HCQK271JBA C CHIP CERA 50V CH 270PF J 1608 1

CA20 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608 1

CA25 CEXF1C101A C ELECTRO 16V RSM 100MF (6.3X7) TP 1

CA26 HCQK271JBA C CHIP CERA 50V CH 270PF J 1608 1

CA29 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608 1

CA30 CEXF1C101A C ELECTRO 16V RSM 100MF (6.3X7) TP 1

CA31 HCQK271JBA C CHIP CERA 50V CH 270PF J 1608 1

Q’ty

Remark

TX-20LB5F/G TX-20LB5P/G

Page 34

TX-20LB5F/G TX-20LB5P/G

Ref. No.

Part No. Part Name & Description

CA32 HCQK270JBA C CHIP CERA 50V CH 27PF J 1608 1

CA33 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608 1

CA34 HCQK270JBA C CHIP CERA 50V CH 27PF J 1608 1

CA35 CEXF1C470A C ELECTRO 16V RSM 47MF (6.3X7) TP 1

CA36 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608 1

CA40 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608 1

CA44 HCBK471KBA C CHIP CERA 50V X7R 470PF K 1608 1

CA45 HCBK392KBA C CHIP CERA 50V X7R 3900PF K 1608 1

CA46 HCBK392KBA C CHIP CERA 50V X7R 3900PF K 1608 1

CA47 HCBK392KBA C CHIP CERA 50V X7R 3900PF K 1608 1

CA48 HCBK392KBA C CHIP CERA 50V X7R 3900PF K 1608 1

CA49 HCBK471KBA C CHIP CERA 50V X7R 470PF K 1608 1

CA50 HCBK471KBA C CHIP CERA 50V X7R 470PF K 1608 1

CA51 HCBK471KBA C CHIP CERA 50V X7R 470PF K 1608 1

CA67 CEXF1C101A C ELECTRO 16V RSM 100MF (6.3X7) TP 1

CA77 HCBK472KBA C CHIP CERA 50V X7R 4700PF K 1608 1

D101 DBAT85---- DIODE BAT85 (TAPPING) 1

D102 DBA282---- DIODE BA282 1

D602 D1N4148--- DIODE 1N4148 (TAPPING) 1

D801 DBAV70---B DIODE CHIP BAV70 1

D802 DM2FM3---C

D803 DM2FM3---C

D805 DBAV70---B

D807 DM2FM3---C

DA17 DZ02W5R6VA DIODE CHIP ZENER Z02W5.6V 1

DA18 DZ02W5R6VA DIODE CHIP ZENER Z02W5.6V 1

DA19 DZ02W5R6VA DIODE CHIP ZENER Z02W5.6V 1

DA25 DZ02W5R6VA DIODE CHIP ZENER Z02W5.6V 1

DA26 DZ02W5R6VA DIODE CHIP ZENER Z02W5.6V 1

DA27 DZ02W5R6VA DIODE CHIP ZENER Z02W5.6V 1

DA30 DZ02W5R6VA DIODE CHIP ZENER Z02W5.6V 1

DA32 DZ02W5R6VA DIODE CHIP ZENER Z02W5.6V 1

DA37 DZ02W5R6VA DIODE CHIP ZENER Z02W5.6V 1

DA38 DZ02W5R6VA DIODE CHIP ZENER Z02W5.6V 1

DA41 DTZX5V1B-- DIODE ZENER TZX5V1B (TAPPING) 1

DA42 DTZX5V1B-- DIODE ZENER TZX5V1B (TAPPING) 1

DA43 DTZX5V1B-- DIODE ZENER TZX5V1B (TAPPING) 1

DA44 DTZX5V1B-- DIODE ZENER TZX5V1B (TAPPING) 1

DA45 DTZX5V1B-- DIODE ZENER TZX5V1B (TAPPING) 1

LED1 DHL320CRGD LED HI-L320CRGD 1

I402 1CD74HC52D IC CHIP LOGIC CD74HC4052M SOIC 16 REEL 1

I403 1P15V330-D

I502 124LC32A-P IC EEPROM 24LC32A-I/P 32K 8 PIN DIP STIK 1

I503 139VF0207Q IC CHIP FLASH SST39VF020-70 1

I504 1TDA9178TE IC CHIP TDA9178T 1

I508 1DTC34LF86 IC CHIP RECEIVER DTC34LF86A 1

I601 1LA42072N- IC AUDIO AMP LA42072N 1

I601A 4857027724 HEAT SINK AL EX (NO ANODIZING) 1

I603 1TDA1308TC IC CHIP TDA1308T 1

I801 TFDS4953-C FET CHIP FDS4953 SO-8 -30V -5A REEL 1

I802 1S18050SDE IC CHIP SW REG SI-8050SD 3.0A 5.0V 60KHZ 5PIN 1

I803 1A1117E33D IC CHIP REGULATOR AP1117E33A 3.3V 2% SOT-223 1

I806 1S18033SDE IC CHIP SW REG SI-8033SD 3.0A 3.3V 60KHZ 5PIN 1

I807 1BA6161F-C IC CHIP SW REG

I809 1A1117E18D IC CHIP REGULATOR AP1117E18A 1.8V 2% SOT-223 1

DIODE CHIP SCHOTTKY

DIODE CHIP

DIODE CHIP SCHOTTKY

IC CHIP VIDEO SWITCH

M2FM3 M2F TYPE 1

BAV70 1

M2FM3 M2F TYPE 1

PI5V330 1

BA6161F 30-35V 100KHZ SOP8 REEL

Q’ty

Remark

Ref. No.

Part No. Part Name & Description

I811 1A1117EA-D IC CHIP REGULATOR AP1117EA ADJ 2% SOT-223 1

I815 1S18090S-- IC SW REG SI-8090S 1

I816 1LM317BD2E IC CHIP REGULATOR

IC12 1TS0P34838 IC PREAMP TSOP34838SJ 1

L101 5CPZ479K02 COIL PEAKING 4.7UH 3.5MM K (LAL02TB) 1

L203 5CPZ479K02 COIL PEAKING 4.7UH 3.5MM K (LAL02TB) 1

L204 5CPZ479K02 COIL PEAKING 4.7UH 3.5MM K (LAL02TB) 1

L205 5CPZ479K02 COIL PEAKING 4.7UH 3.5MM K (LAL02TB) 1

L206 5CPX479K-- COIL PEAKING 4.7UH K RADIAL 1

L207 5CPZ479K02 COIL PEAKING 4.7UH 3.5MM K (LAL02TB) 1

L208 5CPZ479K02 COIL PEAKING 4.7UH 3.5MM K (LAL02TB) 1

L209 58C0000116 COIL BEAD HC-3550R 1

L210 5CPZ479K02 COIL PEAKING 4.7UH 3.5MM K (LAL02TB) 1

L213 5CPZ479K02 COIL PEAKING 4.7UH 3.5MM K (LAL02TB) 1

L214 5CPZ479K02 COIL PEAKING 4.7UH 3.5MM K (LAL02TB) 1

L505 5CPZ479K02 COIL PEAKING 4.7UH 3.5MM K (LAL02TB) 1

L506 5CPZ479K02 COIL PEAKING 4.7UH 3.5MM K (LAL02TB) 1

L507 5CPZ479K02 COIL PEAKING 4.7UH 3.5MM K (LAL02TB) 1

L508 5CPZ479K02 COIL PEAKING 4.7UH 3.5MM K (LAL02TB) 1

L509 5CPZ479K02 COIL PEAKING 4.7UH 3.5MM K (LAL02TB) 1

L510 5CPZ479K02 COIL PEAKING 4.7UH 3.5MM K (LAL02TB) 1

L512 5CPZ479K02 COIL PEAKING 4.7UH 3.5MM K (LAL02TB) 1

L513 5CPZ479K02 COIL PEAKING 4.7UH 3.5MM K (LAL02TB) 1

L514 5CPZ479K02 COIL PEAKING 4.7UH 3.5MM K (LAL02TB) 1

L515 5CPZ479K02 COIL PEAKING 4.7UH 3.5MM K (LAL02TB) 1

L516 5CPZ479K02 COIL PEAKING 4.7UH 3.5MM K (LAL02TB) 1

L517 5CPZ479K02 COIL PEAKING 4.7UH 3.5MM K (LAL02TB) 1

L518 5CPZ479K02 COIL PEAKING 4.7UH 3.5MM K (LAL02TB) 1

L519 5CPZ479K02 COIL PEAKING 4.7UH 3.5MM K (LAL02TB) 1

L523 5CPZ479K02 COIL PEAKING 4.7UH 3.5MM K (LAL02TB) 1

L531 5CPZ479K02 COIL PEAKING 4.7UH 3.5MM K (LAL02TB) 1

L601 58C0000116 COIL BEAD HC-3550R 1

L807 58C0000116 COIL BEAD HC-3550R 1

L902 5CPX479K-- COIL PEAKING 4.7UH K RADIAL 1

L903 5CPZ479K02 COIL PEAKING 4.7UH 3.5MM K (LAL02TB) 1

L904 5CPZ479K02 COIL PEAKING 4.7UH 3.5MM K (LAL02TB) 1

L905 5CPZ479K02 COIL PEAKING 4.7UH 3.5MM K (LAL02TB) 1

L906 5CPZ479K02 COIL PEAKING 4.7UH 3.5MM K (LAL02TB) 1

LA07 58C0000116 COIL BEAD HC-3550R 1

LA08 58C0000116 COIL BEAD HC-3550R 1

LA09 58C0000116 COIL BEAD HC-3550R 1

LA10 58C0000116 COIL BEAD HC-3550R 1

LA23 58C0000116 COIL BEAD HC-3550R 1

LA43 5CPZ100K02 COIL PEAKING 10UH 3.5MM K (LAL02TB) 1

LA44 5CPZ100K02 COIL PEAKING 10UH 3.5MM K (LAL02TB) 1

LA45 5CPZ100K02 COIL PEAKING 10UH 3.5MM K (LAL02TB) 1

LA46 5CPZ100K02 COIL PEAKING 10UH 3.5MM K (LAL02TB) 1

L920 HFRMZA600A

L921 HFRMZA600A

L922 HFRMZA600A

L923 HFRMZA600A

L924 HFRMZA600A

L925 HFRMZA600A

LA32 5PXF1B471M FILTER EMI CFI 06 B 1H 470PF 1

F CHIP BEAD ARRARY

LM317BD2T ADJ 1.2V 37V 1.5A D2PAK

60 OHM MZA 3216Y 1

Q’ty

Remark

Page 35

Ref. No.

Part No. Part Name & Description

LA33 5PXF1B471M FILTER EMI CFI 06 B 1H 470PF 1

LA35 5PXF1B471M FILTER EMI CFI 06 B 1H 470PF 1

LA36 5PXF1B471M FILTER EMI CFI 06 B 1H 470PF 1

LA37 5PXF1B471M FILTER EMI CFI 06 B 1H 470PF 1

LA38 5PXF1B471M FILTER EMI CFI 06 B 1H 470PF 1

LA41 5PXF1B471M FILTER EMI CFI 06 B 1H 470PF 1

LA42 5PXF1B471M FILTER EMI CFI 06 B 1H 470PF 1

Z101 5PK3953M-- FILTER SAW K3953M 1

Z102 5PK9650M-- FILTER SAW K9650M 1

P103 4859295520 CONN WAFER 4602-02MV2-60-1 PLUG 2P ST 1

P103A 4859295620 CONN WAFER 4602-2FV2-1 JUMPER 2P 2.54 1

P201 485923202S CONN WAFER YW025-07 (STICK) 1

P501A 4859236520 CONN WAFER YAW025-08 1

P502 49590004S0 CONN WAFER 12505WR-12(SMD) 1

P504A 4859236120 CONN WAFER YAW025-04 1

P508 4859236020 CONN WAFER YAW025-03 1

P601 485923162S CONN WAFER YW025-03 (STICK) 1

P701 485923172S CONN WAFER YW025-04 (STICK) 1

P902 4859297320 CONN WAFER 05002HR-50A01(G) 1

P905 4859297320 CONN WAFER 05002HR-50A01(G) 1

P906 4859200970 CONN WAFER SMD DF9B-41S-1V SMD 1

PA09A 4859236920 CONN WAFER YAW025-12 1

L803 HLC151K01E L CHIP COIL 150UH K 120120 1

L804 HLC151K01E L CHIP COIL 150UH K 120120 1

L806 HLC472M01D L CHIP COIL 4.7MH M SLF7045 1

L809 HLC151K01E L CHIP COIL 150UH K 120120 1

P803 4859101310 JACK DC DC-037 1

PA04 97P6316100 JACK HEAD PHONE DHSE-9959 1

PA06 4859105340 JACK S-VHS DSW-10 (STRAIGHT) 1

PA07 4859112850 JACK PIN DPSS-0173 3PIN STR 1

PA08 4859112950 JACK SCART DSSM-0378 STR 1

DA28 85801060GY WIRE COPPER 1

R100 HRFT000-BA R CHIP 1/10W 0 OHM 1608 1

R103 HRFT393JBA R CHIP 1/10W 39K OHM J 1608 1

R104 HRFT683JBA R CHIP 1/10W 68K OHM J 1608 1

R105 HRFT103JBA R CHIP 1/10W 10K OHM J 1608 1

R106 HRFT101JBA R CHIP 1/10W 100 OHM J 1608 1

R107 HRFT101JBA R CHIP 1/10W 100 OHM J 1608 1

R114 HRFT473JBA R CHIP 1/10W 47K OHM J 1608 1

R115 HRFT101JBA R CHIP 1/10W 100 OHM J 1608 1

R120 HRFT101JBA R CHIP 1/10W 100 OHM J 1608 1

R131 HRFT472JBA R CHIP 1/10W 4.7K OHM J 1608 1

R134 HRFT000-BA R CHIP 1/10W 0 OHM 1608 1

R135 HRFT101JBA R CHIP 1/10W 100 OHM J 1608 1

R140 HRFT101JBA R CHIP 1/10W 100 OHM J 1608 1

R141 HRFT101JBA R CHIP 1/10W 100 OHM J 1608 1

R143 HRFT101JBA R CHIP 1/10W 100 OHM J 1608 1

R203 HRFT100JBA R CHIP 1/10W 10 OHM J 1608 1

R204 HRFT470JBA R CHIP 1/10W 47 OHM J 1608 1

R206 HRFT470JBA R CHIP 1/10W 47 OHM J 1608 1

R207 HRFT100JBA R CHIP 1/10W 10 OHM J 1608 1

R208 HRFT123JBA R CHIP 1/10W 12K OHM J 1608 1

R211 HRFT100JBA R CHIP 1/10W 10 OHM J 1608 1

Q’ty

Remark

Ref. No.

Part No. Part Name & Description

R212 HRFT470JBA R CHIP 1/10W 47 OHM J 1608 1

R247 HRFT472JBA R CHIP 1/10W 4.7K OHM J 1608 1

R248 HRFT472JBA R CHIP 1/10W 4.7K OHM J 1608 1

R249 HRFT472JBA R CHIP 1/10W 4.7K OHM J 1608 1

R250 HRFT472JBA R CHIP 1/10W 4.7K OHM J 1608 1

R251 HRFT472JBA R CHIP 1/10W 4.7K OHM J 1608 1

R253 HRFT101JBA R CHIP 1/10W 100 OHM J 1608 1

R254 HRFT101JBA R CHIP 1/10W 100 OHM J 1608 1

R255 HRFT000-BA R CHIP 1/10W 0 OHM 1608 1

R257 HRFT103JBA R CHIP 1/10W 10K OHM J 1608 1

R258 HRFT000-BA R CHIP 1/10W 0 OHM 1608 1

R270 HRFT103JBA R CHIP 1/10W 10K OHM J 1608 1

R271 HRFT103JBA R CHIP 1/10W 10K OHM J 1608 1

R290 HRFT332JBA R CHIP 1/10W 3.3K OHM J 1608 1

R291 HRFT332JBA R CHIP 1/10W 3.3K OHM J 1608 1

R296 HRFT000-BA R CHIP 1/10W 0 OHM 1608 1

R297 HRFT000-BA R CHIP 1/10W 0 OHM 1608 1

R298 HRFT000-BA R CHIP 1/10W 0 OHM 1608 1

R302 HRFT224JBA R CHIP 1/10W 220K OHM J 1608 1

R303 HRFT224JBA R CHIP 1/10W 220K OHM J 1608 1

R422 HRFT103JBA R CHIP 1/10W 10K OHM J 1608 1

R501 HRFT332JBA R CHIP 1/10W 3.3K OHM J 1608 1

R502 HRFT332JBA R CHIP 1/10W 3.3K OHM J 1608 1

R503 HRFT101JBA R CHIP 1/10W 100 OHM J 1608 1

R504 HRFT152JBA R CHIP 1/10W 1.5K OHM J 1608 1

R505 HRFT101JBA R CHIP 1/10W 100 OHM J 1608 1

R507 HRFT000-BA R CHIP 1/10W 0 OHM 1608 1

R509 HRFT101JBA R CHIP 1/10W 100 OHM J 1608 1

R510 HRFT103JBA R CHIP 1/10W 10K OHM J 1608 1

R511 HRFT102JBA R CHIP 1/10W 1K OHM J 1608 1

R514 HRFT101JBA R CHIP 1/10W 100 OHM J 1608 1

R515 HRFT153JBA R CHIP 1/10W 15K OHM J 1608 1

R516 HRFT153JBA R CHIP 1/10W 15K OHM J 1608 1

R517 HRFT101JBA R CHIP 1/10W 100 OHM J 1608 1

R518 HRFT101JBA R CHIP 1/10W 100 OHM J 1608 1

R519 HRFT750JBA R CHIP 1/10W 75 OHM J 1608 1

R521 HRFT103JBA R CHIP 1/10W 10K OHM J 1608 1

R522 HRFT103JBA R CHIP 1/10W 10K OHM J 1608 1

R529 HRFT101JBA R CHIP 1/10W 100 OHM J 1608 1

R530 HRFT101JBA R CHIP 1/10W 100 OHM J 1608 1

R532 HRFT102JBA R CHIP 1/10W 1K OHM J 1608 1

R534 HRFT472JBA R CHIP 1/10W 4.7K OHM J 1608 1

R537 HRFT183JBA R CHIP 1/10W 18K OHM J 1608 1

R538 HRFT473JBA R CHIP 1/10W 47K OHM J 1608 1

R540 HRFT100JBA R CHIP 1/10W 10 OHM J 1608 1

R541 HRFT393JBA R CHIP 1/10W 39K OHM J 1608 1

R542 HRFT682JBA R CHIP 1/10W 6.8K OHM J 1608 1

R543 HRFT222JBA R CHIP 1/10W 2.2K OHM J 1608 1

R544 HRFT222JBA R CHIP 1/10W 2.2K OHM J 1608 1

R545 HRFT473JBA R CHIP 1/10W 47K OHM J 1608 1

R546 HRFT681JBA R CHIP 1/10W 680 OHM J 1608 1

R547 HRFT104JBA R CHIP 1/10W 100K OHM J 1608 1

R548 HRFT101JBA R CHIP 1/10W 100 OHM J 1608 1

R549 HRFT101JBA R CHIP 1/10W 100 OHM J 1608 1

R550 HRFT101JBA R CHIP 1/10W 100 OHM J 1608 1

R551 HRFT101JBA R CHIP 1/10W 100 OHM J 1608 1

R552 HRFT103JBA R CHIP 1/10W 10K OHM J 1608 1

Q’ty

Remark

TX-20LB5F/G TX-20LB5P/G

Page 36

TX-20LB5F/G TX-20LB5P/G

Ref. No.

Part No. Part Name & Description

R553 HRFT103JBA R CHIP 1/10W 10K OHM J 1608 1

R554 HRFT103JBA R CHIP 1/10W 10K OHM J 1608 1

R555 HRFT103JBA R CHIP 1/10W 10K OHM J 1608 1

R556 HRFT101JBA R CHIP 1/10W 100 OHM J 1608 1

R557 HRFT101JBA R CHIP 1/10W 100 OHM J 1608 1

R558 HRFT152JBA R CHIP 1/10W 1.5K OHM J 1608 1

R559 HRFT101JBA R CHIP 1/10W 100 OHM J 1608 1

R560 HRFT222JBA R CHIP 1/10W 2.2K OHM J 1608 1

R561 HRFT101JBA R CHIP 1/10W 100 OHM J 1608 1

R562 HRFT101JBA R CHIP 1/10W 100 OHM J 1608 1

R563 HRFT101JBA R CHIP 1/10W 100 OHM J 1608 1

R564 HRFT101JBA R CHIP 1/10W 100 OHM J 1608 1

R565 HRFT101JBA R CHIP 1/10W 100 OHM J 1608 1

R566 HRFT103JBA R CHIP 1/10W 10K OHM J 1608 1

R567 HRFT103JBA R CHIP 1/10W 10K OHM J 1608 1

R568 HRFT103JBA R CHIP 1/10W 10K OHM J 1608 1

R569 HRFT103JBA R CHIP 1/10W 10K OHM J 1608 1

R570 HRFT103JBA R CHIP 1/10W 10K OHM J 1608 1

R571 HRFT103JBA R CHIP 1/10W 10K OHM J 1608 1

R572 HRFT103JBA R CHIP 1/10W 10K OHM J 1608 1

R573 HRFT103JBA R CHIP 1/10W 10K OHM J 1608 1

R574 HRFT103JBA R CHIP 1/10W 10K OHM J 1608 1

R575 HRFT103JBA R CHIP 1/10W 10K OHM J 1608 1

R576 HRFT103JBA R CHIP 1/10W 10K OHM J 1608 1

R577 HRFT273JBA R CHIP 1/10W 27K OHM J 1608 1

R578 HRFT101JBA R CHIP 1/10W 100 OHM J 1608 1

R579 HRFT472JBA R CHIP 1/10W 4.7K OHM J 1608 1

R580 HRFT101JBA R CHIP 1/10W 100 OHM J 1608 1

R581 HRFT101JBA R CHIP 1/10W 100 OHM J 1608 1

R582 HRFT101JBA R CHIP 1/10W 100 OHM J 1608 1

R583 HRFT101JBA R CHIP 1/10W 100 OHM J 1608 1

R584 HRFT101JBA R CHIP 1/10W 100 OHM J 1608 1

R585 HRFT000-BA R CHIP 1/10W 0 OHM 1608 1

R586 HRFT000-BA R CHIP 1/10W 0 OHM 1608 1

R587 HRFT000-BA R CHIP 1/10W 0 OHM 1608 1

R588 HRFT101JBA R CHIP 1/10W 100 OHM J 1608 1

R589 HRFT101JBA R CHIP 1/10W 100 OHM J 1608 1

R590 HRFT101JBA R CHIP 1/10W 100 OHM J 1608 1

R592 HRFT102JBA R CHIP 1/10W 1K OHM J 1608 1

R599 HRFT101JBA R CHIP 1/10W 100 OHM J 1608 1

R603 HRFT393JBA R CHIP 1/10W 39K OHM J 1608 1

R604 HRFT223JBA R CHIP 1/10W 22K OHM J 1608 1

R605 HRFT182JBA R CHIP 1/10W 1.8K OHM J 1608 1

R606 HRFT393JBA R CHIP 1/10W 39K OHM J 1608 1

R607 HRFT103JBA R CHIP 1/10W 10K OHM J 1608 1

R608 HRFT222JBA R CHIP 1/10W 2.2K OHM J 1608 1

R609 HRFT102JBA R CHIP 1/10W 1K OHM J 1608 1

R610 HRFT182JBA R CHIP 1/10W 1.8K OHM J 1608 1

R611 HRFT103JBA R CHIP 1/10W 10K OHM J 1608 1

R620 HRFT562JBA R CHIP 1/10W 5.6K OHM J 1608 1

R621 HRFT153JBA R CHIP 1/10W 15K OHM J 1608 1

R622 HRFT562JBA R CHIP 1/10W 5.6K OHM J 1608 1

R623 HRFT103JBA R CHIP 1/10W 10K OHM J 1608 1

R624 HRFT153JBA R CHIP 1/10W 15K OHM J 1608 1

R625 HRFT103JBA R CHIP 1/10W 10K OHM J 1608 1

R642 HRFT479JBA R CHIP 1/10W 4.7 OHM J 1608 1

R643 HRFT479JBA R CHIP 1/10W 4.7 OHM J 1608 1

Q’ty

Remark

Ref. No.

Part No. Part Name & Description

R644 HRFT479JBA R CHIP 1/10W 4.7 OHM J 1608 1

R645 HRFT479JBA R CHIP 1/10W 4.7 OHM J 1608 1

R704 HRFT100JBA R CHIP 1/10W 10 OHM J 1608 1

R705 HRFT223JBA R CHIP 1/10W 22K OHM J 1608 1

R706 HRFT102JBA R CHIP 1/10W 1K OHM J 1608 1

R708 HRFT104JBA R CHIP 1/10W 100K OHM J 1608 1

R709 HRFT100JBA R CHIP 1/10W 10 OHM J 1608 1

R710 HRFT202JBA R CHIP 1/10W 2K OHM J 1608 1

R712 HRFT102JBA R CHIP 1/10W 1K OHM J 1608 1

R715 HRFT472JBA R CHIP 1/10W 4.7K OHM J 1608 1

R717 HRFT000-BA R CHIP 1/10W 0 OHM 1608 1

R720 HRFT122JBA R CHIP 1/10W 1.2K OHM J 1608 1

R721 RD-AZ181J- R CARBON FILM 1/6 180 OHM J 1

R722 RD-AZ221J- R CARBON FILM 1/6 220 OHM J 1

R723 RD-AZ331J- R CARBON FILM 1/6 330 OHM J 1

R724 RD-AZ471J- R CARBON FILM 1/6 470 OHM J 1

R726 RD-AZ681J- R CARBON FILM 1/6 680 OHM J 1

R740 HRFT000-BA R CHIP 1/10W 0 OHM 1608 1

R752 HRFT000-BA R CHIP 1/10W 0 OHM 1608 1

R784 HRFT101JBA R CHIP 1/10W 100 OHM J 1608 1

R785 HRFT000-BA R CHIP 1/10W 0 OHM 1608 1

R786 HRFT101JBA R CHIP 1/10W 100 OHM J 1608 1

R787 HRFT000-BA R CHIP 1/10W 0 OHM 1608 1

R788 HRFT101JBA R CHIP 1/10W 100 OHM J 1608 1

R801 HRFT122JBA R CHIP 1/10W 1.2K OHM J 1608 1

R803 HRFT332JBA R CHIP 1/10W 3.3K OHM J 1608 1

R804 HRFT123JBA R CHIP 1/10W 12K OHM J 1608 1

R805 HRFT103JBA R CHIP 1/10W 10K OHM J 1608 1

R807 HRFT103JBA R CHIP 1/10W 10K OHM J 1608 1

R808 HRFT103JBA R CHIP 1/10W 10K OHM J 1608 1

R809 HRFT103JBA R CHIP 1/10W 10K OHM J 1608 1

R810 HRFT332JBA R CHIP 1/10W 3.3K OHM J 1608 1

R811 HRFT123JBA R CHIP 1/10W 12K OHM J 1608 1

R812 RD-AZ103J- R CARBON FILM 1/6 10K OHM J 1

R813 RD-AZ103J- R CARBON FILM 1/6 10K OHM J 1

R814 HRFT472JBA R CHIP 1/10W 4.7K OHM J 1608 1

R815 HRFT472JBA R CHIP 1/10W 4.7K OHM J 1608 1

R820 HRFT431JBA R CHIP 1/10W 430 OHM J 1608 1

R821 HRFT242JBA R CHIP 1/10W 2.4K OHM J 1608 1

R830 HRFT103JBA R CHIP 1/10W 10K OHM J 1608 1

R831 HRFT393JBA R CHIP 1/10W 39K OHM J 1608 1

R843 HRFT332JBA R CHIP 1/10W 3.3K OHM J 1608 1

R844 HRFT123JBA R CHIP 1/10W 12K OHM J 1608 1

R845 HRFT103JBA R CHIP 1/10W 10K OHM J 1608 1

R846 HRFT393JBA R CHIP 1/10W 39K OHM J 1608 1

R875 HRFT103JBA R CHIP 1/10W 10K OHM J 1608 1

R878 HRFT393JBA R CHIP 1/10W 39K OHM J 1608 1

R889 HRFT222JBA R CHIP 1/10W 2.2K OHM J 1608 1

R890 HRFT241JBA R CHIP 1/10W 240 OHM J 1608 1

R912 HRFT101JBA R CHIP 1/10W 100 OHM J 1608 1

R913 HRFT103JBA R CHIP 1/10W 10K OHM J 1608 1

R915 HRFT103JBA R CHIP 1/10W 10K OHM J 1608 1

R918 HRFT101JBA R CHIP 1/10W 100 OHM J 1608 1

R921 HRFT101JBA R CHIP 1/10W 100 OHM J 1608 1

R925 HRFT101JBA R CHIP 1/10W 100 OHM J 1608 1

R928 HRFT101JBA R CHIP 1/10W 100 OHM J 1608 1

R931 HRFT101JBA R CHIP 1/10W 100 OHM J 1608 1

Q’ty

Remark

Page 37

Ref. No.

Part No. Part Name & Description

R932 HRFT101JBA R CHIP 1/10W 100 OHM J 1608 1

R933 HRFT101JBA R CHIP 1/10W 100 OHM J 1608 1

R934 HRFT101JBA R CHIP 1/10W 100 OHM J 1608 1

RA01 HRFT750JBA R CHIP 1/10W 75 OHM J 1608 1

RA05 HRFT472JBA R CHIP 1/10W 4.7K OHM J 1608 1

RA20 HRFT750JBA R CHIP 1/10W 75 OHM J 1608 1

RA21 HRFT750JBA R CHIP 1/10W 75 OHM J 1608 1

RA22 HRFT103JBA R CHIP 1/10W 10K OHM J 1608 1

RA26 HRFT101JBA R CHIP 1/10W 100 OHM J 1608 1

RA27 HRFT101JBA R CHIP 1/10W 100 OHM J 1608 1

RA28 HRFT101JBA R CHIP 1/10W 100 OHM J 1608 1

RA30 HRFT750JBA R CHIP 1/10W 75 OHM J 1608 1

RA31 HRFT750JBA R CHIP 1/10W 75 OHM J 1608 1

RA32 HRFT103JBA R CHIP 1/10W 10K OHM J 1608 1

RA33 HRFT750JBA R CHIP 1/10W 75 OHM J 1608 1

RA37 HRFT470JBA R CHIP 1/10W 47 OHM J 1608 1

RA38 HRFT102JBA R CHIP 1/10W 1K OHM J 1608 1

RA39 HRFT222JBA R CHIP 1/10W 2.2K OHM J 1608 1

RA40 HRFT220JBA R CHIP 1/10W 22 OHM J 1608 1

RA46 HRFT332JBA R CHIP 1/10W 3.3K OHM J 1608 1

RA48 HRFT101JBA R CHIP 1/10W 100 OHM J 1608 1

RA54 HRFT750JBA R CHIP 1/10W 75 OHM J 1608 1

RA55 HRFT131JBA R CHIP 1/10W 130 OHM J 1608 1

RA58 HRFT103JBA R CHIP 1/10W 10K OHM J 1608 1

RA59 HRFT750JBA R CHIP 1/10W 75 OHM J 1608 1

RA60 HRFT131JBA R CHIP 1/10W 130 OHM J 1608 1

RA61 HRFT472JBA R CHIP 1/10W 4.7K OHM J 1608 1

RA62 HRFT103JBA R CHIP 1/10W 10K OHM J 1608 1

RA68 HRFT750JBA R CHIP 1/10W 75 OHM J 1608 1

RA69 HRFT000-BA R CHIP 1/10W 0 OHM 1608 1

RA70 HRFT000-BA R CHIP 1/10W 0 OHM 1608 1

RA71 HRFT000-BA R CHIP 1/10W 0 OHM 1608 1

RA72 HRFT750JBA R CHIP 1/10W 75 OHM J 1608 1

RA73 HRFT472JBA R CHIP 1/10W 4.7K OHM J 1608 1

RA74 HRFT102JBA R CHIP 1/10W 1K OHM J 1608 1

RA76 HRFT750JBA R CHIP 1/10W 75 OHM J 1608 1

RA77 HRFT131JBA R CHIP 1/10W 130 OHM J 1608 1

RA78 HRFT750JBA R CHIP 1/10W 75 OHM J 1608 1

RA79 HRFT750JBA R CHIP 1/10W 75 OHM J 1608 1

RA80 HRFT000-BA R CHIP 1/10W 0 OHM 1608 1

RA81 HRFT000-BA R CHIP 1/10W 0 OHM 1608 1

RA82 HRFT000-BA R CHIP 1/10W 0 OHM 1608 1

RA86 HRFT103JBA R CHIP 1/10W 10K OHM J 1608 1

RA87 HRFT101JBA R CHIP 1/10W 100 OHM J 1608 1

RA89 HRFT103JBA R CHIP 1/10W 10K OHM J 1608 1

RA91 HRFT101JBA R CHIP 1/10W 100 OHM J 1608 1

RA92 HRFT103JBA R CHIP 1/10W 10K OHM J 1608 1

RA93 HRFT101JBA R CHIP 1/10W 100 OHM J 1608 1

RA95 HRFT103JBA R CHIP 1/10W 10K OHM J 1608 1

RA96 HRFT101JBA R CHIP 1/10W 100 OHM J 1608 1

Q’ty

Remark

Ref. No.

Part No. Part Name & Description

SW703 5S50101Z90 SW TACT SKHV10910A 1

SW704 5S50101Z90 SW TACT SKHV10910A 1

Q120 T2SC2412KB TR CHIP 2SC2412KB 1

Q506 T2SC2412KB TR CHIP 2SC2412KB 1

Q508 T2SC2412KB TR CHIP 2SC2412KB 1

Q602 T2SA1037KB TR CHIP 2SA1037KB 1

Q701 T2SC2412KB TR CHIP 2SC2412KB 1

Q702 T2SC2412KB TR CHIP 2SC2412KB 1

Q802 T2SC2412KB TR CHIP 2SC2412KB 1

Q803 T2SC2412KB TR CHIP 2SC2412KB 1

Q804 T2SC2412KB TR CHIP 2SC2412KB 1

Q805 T2SA1037KB TR CHIP 2SA1037KB 1

Q813 T2SA1980Y- TR 2SA1980Y 1

Q814 T2SC5343Y- TR 2SC5343Y 1

Q815 T2SA1980Y- TR 2SA1980Y 1

Q816 T2SC5343Y- TR 2SC5343Y 1

QA04 T2SC2412KB TR CHIP 2SC2412KB 1

QA08 T2SC2412KB TR CHIP 2SC2412KB 1

QA12 T2SC2412KB TR CHIP 2SC2412KB 1

QA13 T2SA1037KB TR CHIP 2SA1037KB 1

QA21 T2SC2412KB TR CHIP 2SC2412KB 1

QA71 T2SC2412KB TR CHIP 2SC2412KB 1

QA72 T2SC2412KB TR CHIP 2SC2412KB 1

QA74 T2SC2412KB TR CHIP 2SC2412KB 1

QA75 T2SC2412KB TR CHIP 2SC2412KB 1

TU2 4850A23840 ANT SHIELD BOX PAXBF01DA (PAL) 1

U100 4859728430 TUNER VARACTOR UV1316/AIH-4 1

X201 5XJ24R576E CRYSTAL QUARTZ HC-49/S 24.576MHZ 30PPM 1

X501 5XJ24R576E CRYSTAL QUARTZ HC-49/S 24.576MHZ 30PPM 1

Q’ty

Remark

TX-20LB5F/G TX-20LB5P/G

I601B 7174300851 SCREW TAPPTITE TT2 RND 3X8 MFZN 3CR 1 H/SINK + IC

SW8 5S40101009 SW PUSH PS-22E06 1

SW700 5S50101Z90 SW TACT SKHV10910A 1

SW701 5S50101Z90 SW TACT SKHV10910A 1

SW702 5S50101Z90 SW TACT SKHV10910A 1
