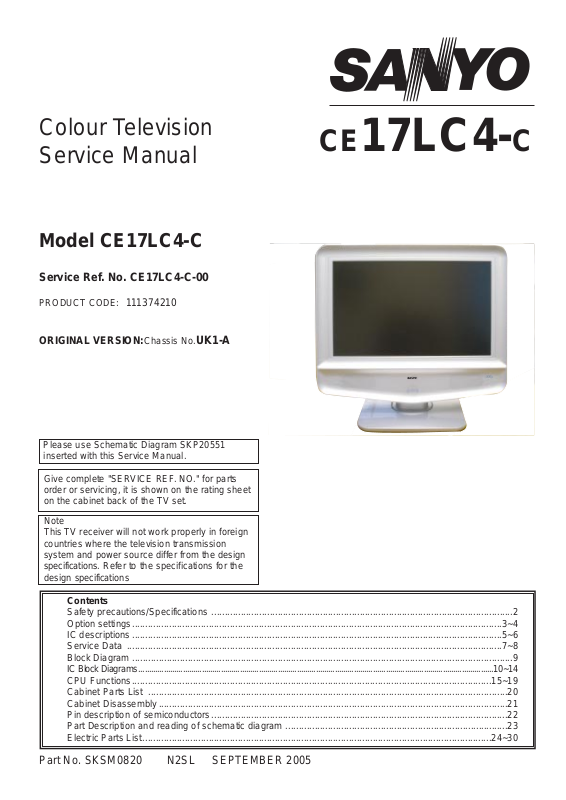

Give complete "SERVICE REF. NO." for parts
order or servicing, it is shown on the rating sheet
on the cabinet back of the TV set.
Note
This TV receiver will not work properly in foreign
countries where the television transmission
system and power source differ from the design
specifications. Refer to the specifications for the
design specifications
IC descriptions............................................................................................................................................5~6
Service Data ..............................................................................................................................................7~8

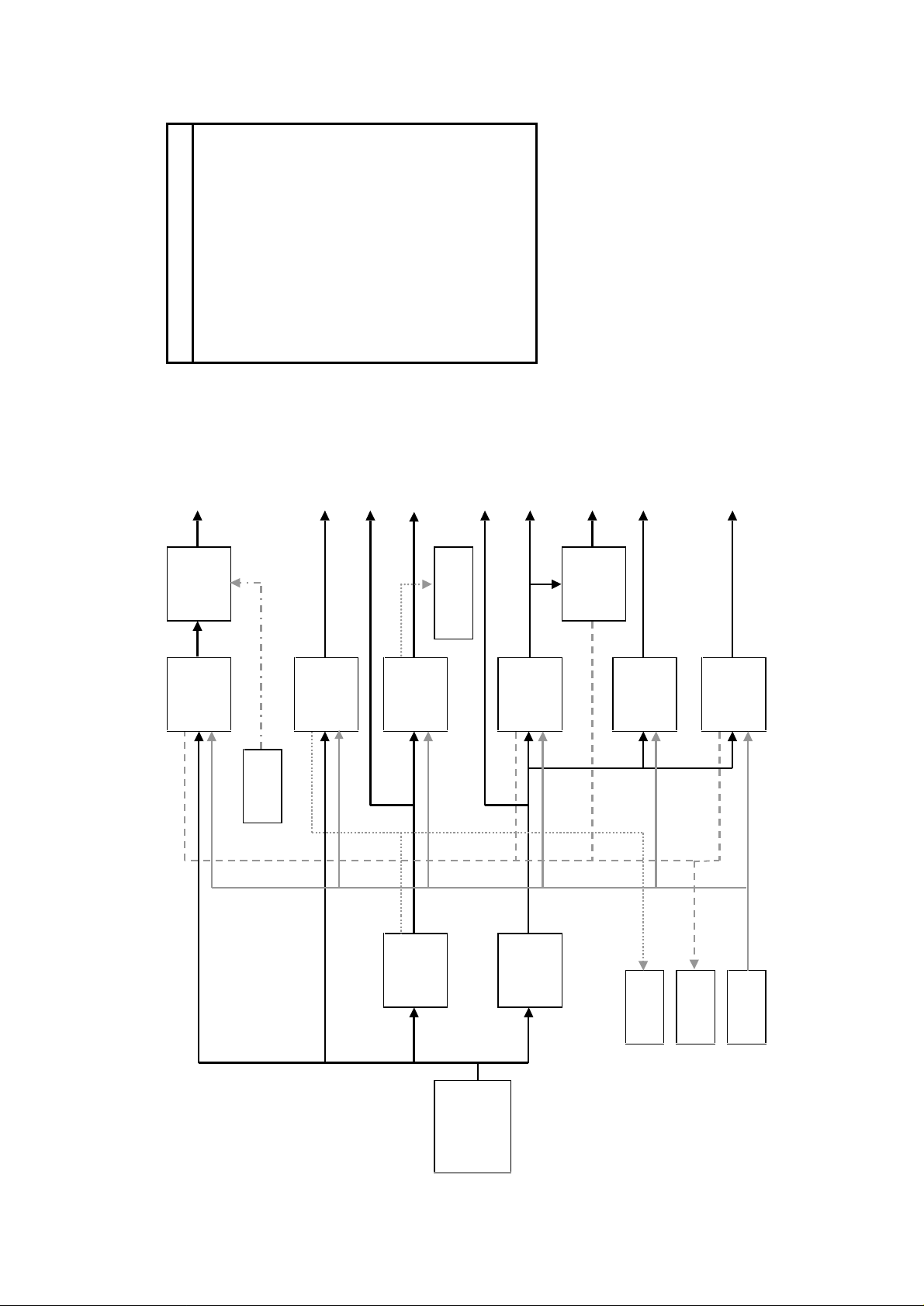

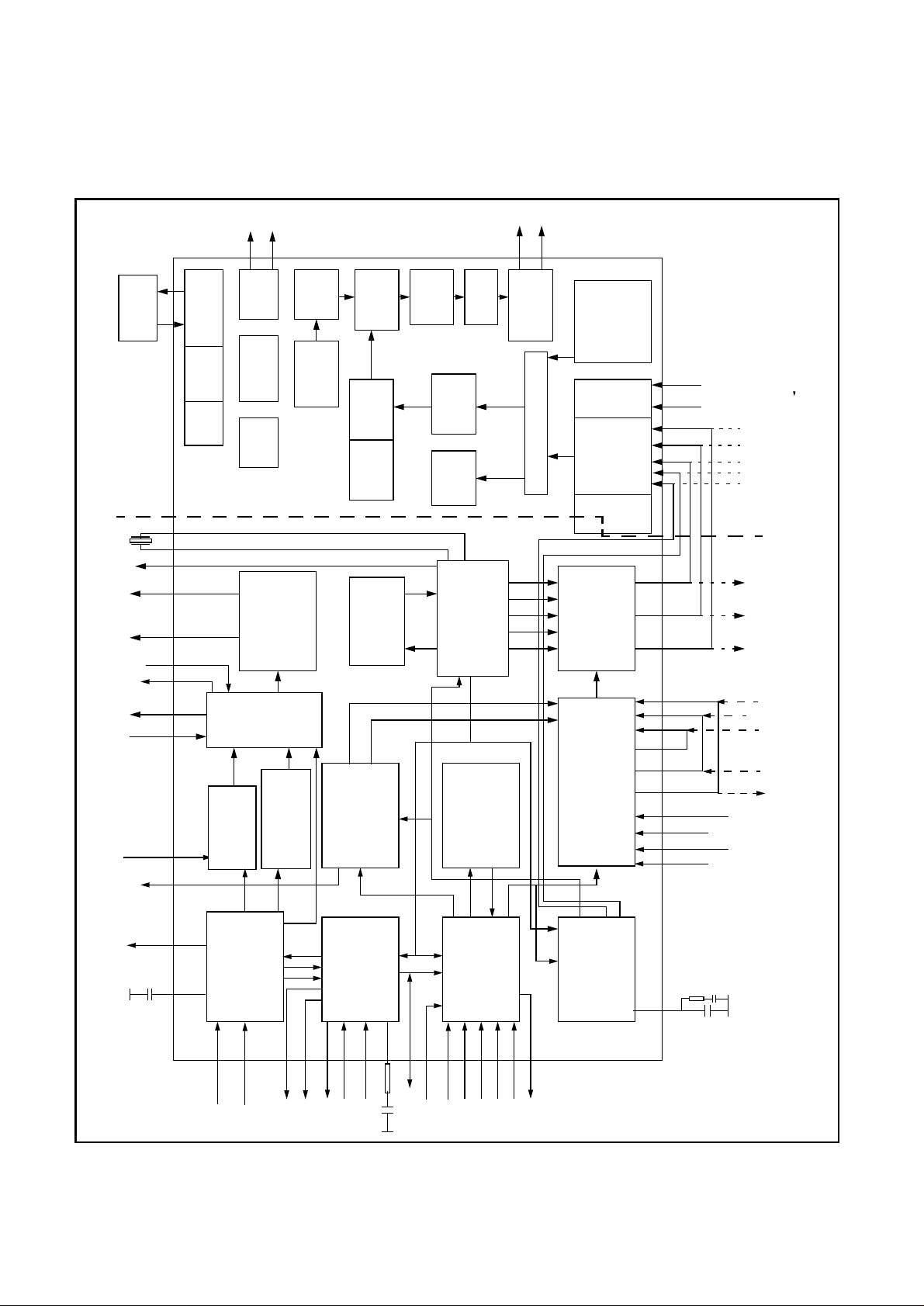

IC Block Diagrams........................................................................................................................................................................10~14
CPU Functions ........................................................................................................................................15~19
Cabinet Parts List ........................................................................................................................................20

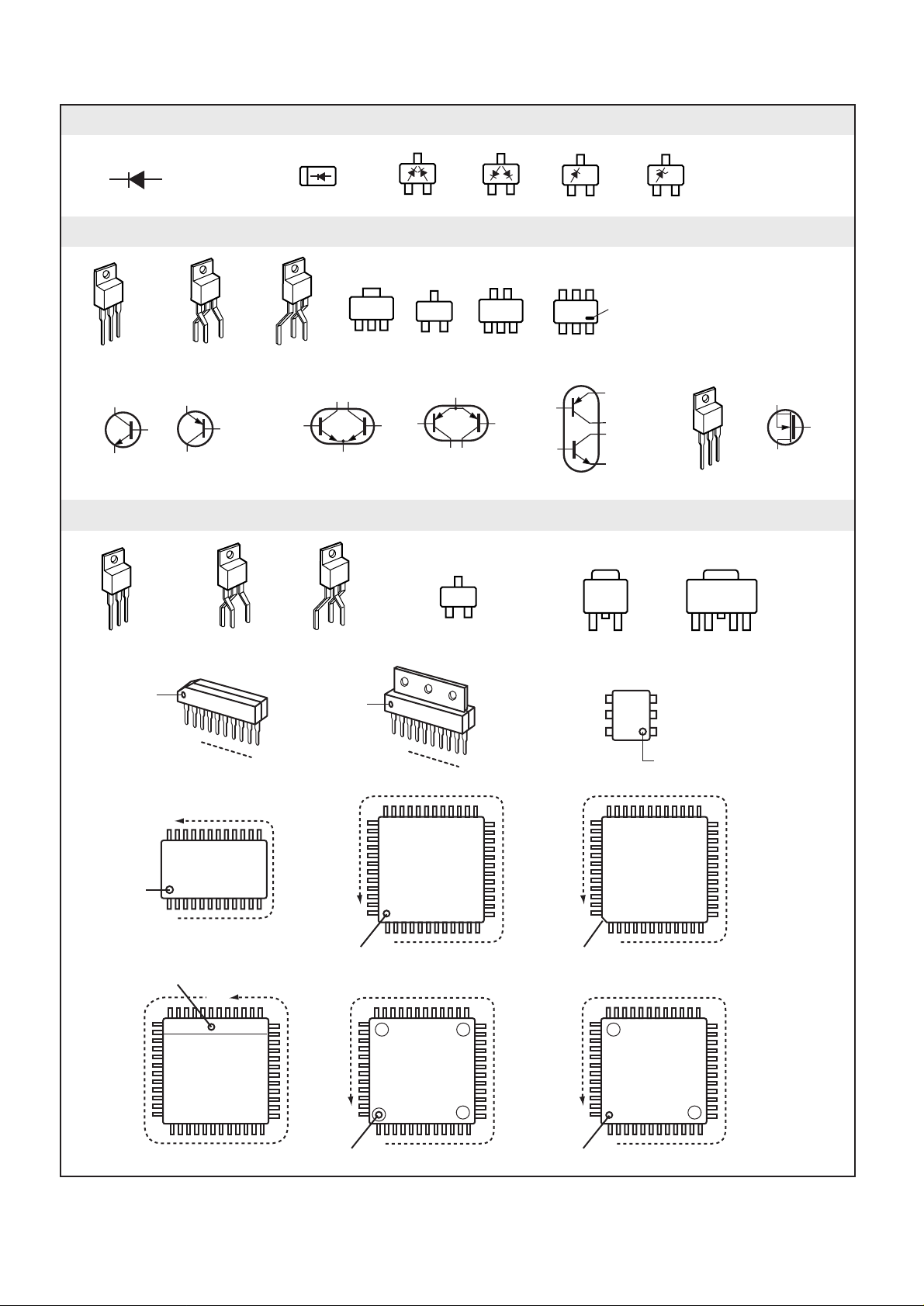

Pin description of semiconductors................................................................................................................22
Part Description and reading of schematic diagram ....................................................................................23
Electric Parts List....................................................................................................................................24~30
Please use Schematic Diagram SKP20551
inserted with this Service Manual.
Page 2
-2-
N2SL
SAFETY PRECAUTION
X-RADIATION PRECAUTION
The primary source of X-RADIATION in the television receiver is the picture tube. The picture tube is specially
constructed to limit X-RADIATION emissions. For continued X-RADIATION protection, the replacement tube
must be the same type as the original including suffix letter. Excessive high voltage may produce potentially
hazardous X-RADIATION. To avoid such hazards, the high voltage must be maintained within specified limit.
Refer to this service manual, high voltage adjustment for specific high voltage limit. If high voltage exceeds
specified limits, take necessary corrective action. Carefully follow the instructions for +B1 volt power supply
adjustment, and high voltage adjustment to maintain the high voltage within the specified limits.
PRODUCT SAFETY NOTICE
SPECIFICATIONS
Product safety should be considered when a component replacement is made in any area of a receiver.
Components indicated by markin the parts list and the schematic diagram designate components in which
safety can be of special significance. It is particularly recommended that only parts designated on the parts list in
this manual be used for component replacement designated by mark. No deviations from resistance wattage
or voltage ratings may be made for replacement items designated by mark.
1: An isolation transformer should be connected in the
power line between the receiver and the AC line
when a service is performed on the primary of the
converter transformer of the set.
2: Comply with all caution and safety-related notes
provided on the cabinet back, inside the cabinet, on
the chassis or the picture tube.
3: When replacing a chassis in the cabinet, always be
certain that all the protective devices are installed
properly, such as, control knobs, adjustment covers
or shields, barriers, isolation resistor-capacitor networks
etc. Before returning any television to the customer,
the service technician must be sure that it is completely
safe to operate without danger of electrical shock.
Power source AC 220~240V, 50Hz
Television system System I
Colour system PAL/NTSC4.43 (PAL/NTSC4.43/NTSC3.58 IN AV MODE)
Receiving channel UHF: #21~69
Aerial input impedance 75ohm
Rear AV terminal
AV1:CENELEC standard
INPUT: Composite video, RGB and Audio L/R
OUTPUT: TV-output with composite video and audio L/R
AV2:CENELEC standard
INPUT: Composite video, RGB, S-VHS and Audio L/R
OUTPUT: Monitor output with composite video and Audio L/R
Front AVterminal
AV3:RCA jacks
INPUT: Composite video and Audio L/R
Sound output(Music) 12 x 2
Dimensions (WxHxD) 452 x 409 x 237mm
Weight 6.5 Kg
!
!
!
Important recycling information.
Your SANYO product is designed and manufactured with high quality
materials and components which can be recycled and reused.
This symbol means that electrical and electronic equipment, at their
end-of-life, should be disposed of separately from your household
waste.
Please dispose of this equipment at your local community waste collection / recycling centre.
In the European Union there are separate collection systems for used electrical and electronic
products.
Please help us to conserve the environment we live in!
Note: This symbol mar k and recycle system are applied only to EU countries and are not applied
to other countries of the world.
Page 3
-3-
N2SL
OPTION SETTING
To enter to the Option Mode
+ Press and hold the F/OK button on the remote control and P▼ button on the front panel of the TV. The option win-
dow will appear on the screen.
To set the Option Mode
+ Highlight the desired option item by using the P▲ or P▼ button .
+ To switch the option mode, use the Volume - (LEFT) or Volume + (RIGHT) button.
+ The data which is set in the option mode is stored into the memory IC automatically.
The following table shows the available option items and default setting mode.
Exit from the Option Mode
+ Press the MENUbutton.
Option ModeModeDescription & Note
OSD H-POS Set value to 6
COUNTRYEU or UKCountry default “EU”
SORT MODESort mode, default “Sorting”
PLUG & PLAYON or OFFPlug & Play mode, default “ON”
WELCOME TEXTON or OFFWelcome Text default “ON”
SURROUNDON or OFFSurround sound default “ON”
BASS FEATUREBass Feature default “BBE+Bass Exp”
AVLON or OFFAVL mode, default “OFF”
AV3ON or OFFAV3 mode, default “ON”
COLOUR SYSTEMON or OFFColour system, default “OFF”
AFCON or OFFAFC mode, default “ON”
PROGRAM NAMEON or OFFProgram name default “OFF”
TEXT NO SIGNALON or OFFDisables Text when no signal, default “ON”
BLUE BACKON or OFFBlue Black mode, default “OFF”
DIGITAL MODEON or OFFDigital mode, default “OFF”
SCARTSet value to 2
OPTION MODE FOR CE17LC4-C-00
Option
OSD H-Pos6
Country EU
Sort ModeSORTING
Plug & PlayON
Welcome TextON
SurroundON
Bass FeatureBBE+Bass Exp
AVLOFF
AV3ON
Colour SystemOFF
AFCOFF
Program NameON
Text no signalON
Blue BackOFF
Digital ModeOFF
Scart2
This is an LA42052 which is the audio amplifier for the set. It has left and right inputs from the LOC and left and right
outputs to the speakers and headphone socket. It also has mute and standby functions which are activated by the
LOC as appropriate.
IC1101 (monitor sets only)
This is a switching IC, NJM2233BM, which allows the sync signal input on monitor sets to be switched between pin
20 of SCART 1 (conventional & ALBOS) and pin 14 of SCART 1 (SIS signal). The IC takes a 5V supply and is
switched by the control line SC2_8, which is normally used for SCART 2 pin 8 signalling but is adapted fro the moni-
tor sets.
IC1205

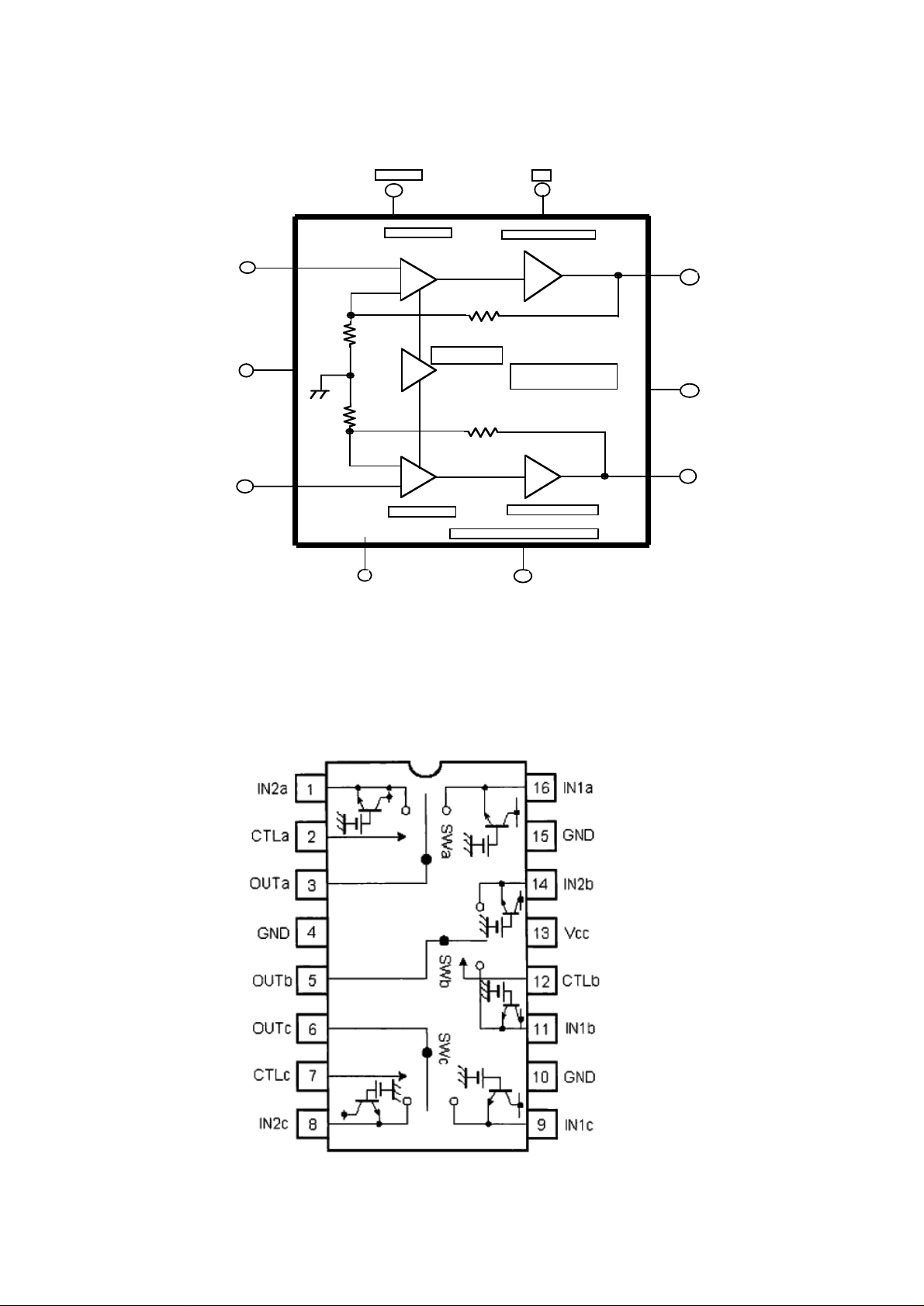

This a ROHM BA7603F triple video switch which allows the RGB input to be switched between SCART 1 and
SCART 2. The switch is controlled by the RGB_SW line from the IC.
IC2001
This is a picture improvement chip, Philips TDA9178, which takes a YUV input from the LOC and carries out vector
processing of luminance and colour to improve overall picture quality and reduce noise. The IC requires an 8V
power supply and is also connected to the I2C bus.
IC201
This is the Philips LOC 1 chip which is the main system processor. It consists of three ICs encapsulated in one BGA
package with 388 balls. The “Cosmic” and “Picasso” chips carry out analogue and digital processing respectively,
and together from the UOC III which is used in many other sets. These are complemented by the Lithium IC which
carries out digital processing and scaling functions.
The IC requires 5V, 3.3V and 1.8V for correct operation – although only 5V and 3.3V are required in “standby”
mode. Full descriptions of all port functions are given elsewhere in this manual.
IC1221(digital only)
This is a ROHM BA7609F triple video switch which allows audio and video from the digital system to be output to
the SCART 2 socket for recording. The IC is controlled by the REC_CTL signal from the MCU IC860.
IC4001
This is a SST SST39VF020 CMOS multi-purpose flash with a capacity of 2Mbits. It is connected to the LOC using
address lines, data input/output, write enable and control lines. The flash IC is powered by the 3V3 SW supply.
IC4002
This is a ROHM BD5260G open drain voltage detector IC which works in conjunction with the backlight enable line
BL_EN. It takes input from the main power and the 5V CPU line.
IC6600

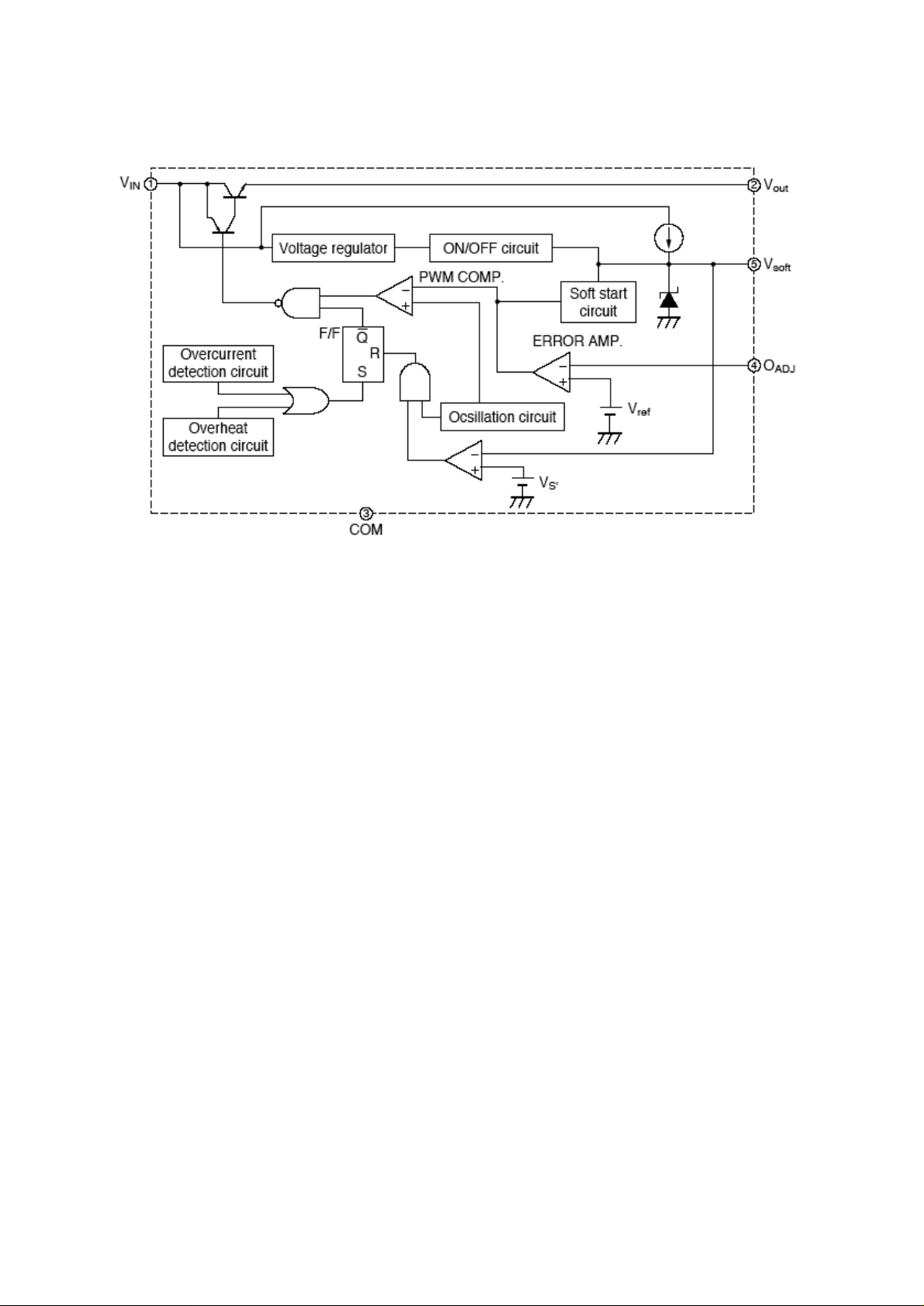

This is a chopper regulator, Sharp PQ1CY series, which provides the power for the LCD panel – 3.3V for 15” and
20”, 5V for 17” and 23”. The regulator is switched on at power up via the control line POWER 1 and transistor
Q6600. The power is switched to the panel, also by POWER 1, via the FET switch Q1600.
IC6602
This is a Sharp PQ1CZ series chopper regulator which provides the 14V supply for the audio IC. It is switched by
the control line POWER 1 from the LOC.
Page 6
-6-
N2SL
IC Descriptions for UK1A (continued)
IC6603(digital only)
This is a Sharp PQ1CZ series chopper regulator which provides the 6V supply for the digital module, hence it is only
present on digital sets. The regulator is switched by the POWER 1 control line from the LOC.
IC6604
This is a linear voltage regulator providing in this case 8V to supply the picture improvement IC IC2001. The regulator is switched by the control line POWER 1.
IC6605
This is a chopper regulator, Sharp PQ1CY series, which provides 6V. This voltage is clamped by a diode after the
regulator to produce 5V CPU. This voltage is passed to IC 6606.
IC6606
This is a linear voltage regulator, ROHM BA05SFP, which takes the 6V from IC6605 as an input and produces 5V
SW. This regulator is controlled by the POWER 1 control line from the LOC.
IC6607
This is a linear voltage regulator which takes the 6V from IC6605 and produces 3V3 STB used by the LOC in standby mode.
IC6608
This is a ROHM BA00BC0WFP linear regulator which converts the 6V from IC6605 to the 1V8 use by the LOC
when the set is powered on. This regulator is controlled by the POWER 1 control line.
IC6642
This is also a ROHM linear regulator which takes the 5V SW from IC6606 as an input and produces 3V3 SW used
by various parts of the circuit.
IC701 (20” LCD only)
This is a THine THC63LVDF84B LCD panel interface which converts 4 LVDS data streams from the LOC into 28bits
of RGB data and a clock to send to the panel. Currently this IC is only required on 20” LCD sets where the panel
requires data in RGB form rather than LVDS.
The IC requires a 3V3 power supply on several pins.
IC801
This is the non-volatile memory(NVM) IC which contains data settings for the LOC and stored user data such as picture settings and programs. It also contains data relating to the LCD panel type and data requirements. It is a 24C64
64K EEPROM arranged as 8192 x 8bits. It uses the 3V3 STB power supply and is connected to the LOC via the
12C bus.
IC860(digital only)
This is a Renesas RSF21162SP microprocessor which acts as a controller for the digital module via the I2C bus and
the D/A_CTL and REC_CTL line to IC1251 and IC1221. This IC has a small amount of memory which contains the
ICs program, this is programmed separately from the LOC program via the KSUB socket.
IC861(digital only)
This is a ROHM BD4828G CMOS voltage detector which controls the reset line to the IC860 microprocessor.
Page 7
-7-
N2SL
To enter to the Service Mode
+ Press and hold the GREEN button on the remote control and then press the P▼ button on the cabinet.
To select the service item and change data value
+ To select the adjustment item, use the P▲ or P▼ button.
+ To change the service data, use the Volume -(LEFT) or Volume + (RIGHT) button.
+ The data which is set in the service mode is stored into the memory IC automatically.
EXAMPLE: 000 GTV 4.0 E4.17
ITEM NO SECTION VALUE
ITEM
Exit from the Service Mode
+ Press the MENU button or turn off the TV set by using the Mains switch.
H1VDD_IO01Digital SupplyDigital 3V3 supply used for I/Os
H2VSS_CORE41Digital GroundCommon digital core 1V8 ground
H3GPIO9/ACLK5 V TTLGeneral pur pose I/O / Analog video clock I/O
H4GPIO4/PWM1/TCP_TDO5 V TT LGeneral purpose I/O / Pulse width modul. output / test control
H23SIFIN2/DVBIN2 (1)SIF input 2 / DVB input 2
H24EHTOTest signal, Do not connect
H 2 5IREFR e ference current input
H2 6VDRAver tical drive A output
K1A17/GPIO115V TTLMemor y address bus, general purpose I/O
K2KBD1Keyboard ADC input (scaler)
K3N/ CN /ANot Connected
K 4VSS_CORE3Digital GroundCommon digital core 1V8 ground
K2 3VIFNI2I F input 2
K2 4VIFIN1IF input 1
K2 5DECBGBandgap decoupling
K 2 6SECPLLSECAM PLL decoupling
LVDS
differential
LVDS
differential
LVDS
differential
ROW D
LVDS Panel Bus PB for ODD / EVEN pixels
LVDS Panel Bus PB for ODD / EVEN pixels
LVDS Panel Bus PB for ODD / EVEN pixels
ROW E
ROW F
ROW G
reference output / external reference signal input for Isignal mixer for
p
ROW H
ROW J
ROW K
Page 17
-17-
N2SL
CPU PORT FUNCTIONS (continued page 3 of 5)
d
d
ocessor (+3.3 V)
ocessor (+3.3 V)
d
s)
d
d
d
d
d
d
d
d
d
d
d
L1GPIO6General purpose I/O
L2VSS_IO31Digital GroundDigital 3V3 ground used for I/Os
L3VDD_CORE11Digital SupplyDigital 1V8 supply used for core logic
L 4PWM05 V TT LPulse width modulated backlight brightness control
L11RSN7
L12VSS_LVDS3LVDS GroundLVDS supply ground
L1 3N/CN / ANot Connected
L1 4N/CN / ANot Connected
L1 5GND1ground 1 for TV processor
L1 6VP33rd supply for TV processor (+5 V)
L2 3VP11st supply for TV processor (+5 V)
L 2 4GND1Ground 1 for TV processor
L 2 5PH1LFPhase 1 filter
L 2 6PH2LFPhase 2 filter
M1VDD3V3_RGB2Analog supply voltage (3.3 V)
M2VSS_CORE11Digital GroundCommon digital core 1V8 ground
M3VSS_CORE01Digital GroundCommon digital core 1V8 ground
M4N/CN/ANot Connected
M1 1RSP7
N1VDDA1V8_ADC_BAnalog supply voltage for ADC (1.8 V)
N2VSSA_ADC_BAnalog supply ground for ADC
N3IN_BAnalog Blue colour input (scaler)
N4VSSA_RGB2Analog supply ground
N11RSP5
N1 2RSN5
N1 3RSN6
N14RSP6
N1 5VREFAD_POSPositive reference voltage (+3.3 V)
N1 6VREFAD_NEGNegative reference voltage (0 V)
N2 3VREF_POS_LSR+HPRPositive reference voltage SDAC (+3.3 V)
N2 4VREF_POS_HPRPositive reference voltage SDAC (+3.3 V)
N2 5VREF_NEG_HPL+HPRNegative reference voltage SDAC (0 V)
N2 6XTALINCr ystal oscillator input (TV processor)
P1VSSA_RGB1Analog supply ground
P2VDD3V3_RGB1Analog supply voltage (+3.3 V)
P3AVI_TEST
P4REF_BReference voltage Blue
P1 1RSP4
P12RSN4
P13VDD_LVDS0LVDS SupplyLVDS supply voltage (3.3 Volt)
P14VSS_LVDS0LVDS GroundLVDS supply ground
P15VREFADReference voltage for audio ADCs (3.3/2 V)
P16GNDAground
P23VDDA3Supply (+3.3 V)
P2 4VREF_POS_LSLPositive reference voltage SDAC (+3.3 V)
P2 5VREF_NEG_LSR+HPRNegative reference voltage SDAC (0 V)
P26N/CN / ANot Connected
R1VDDA1V8_ADC_GAnalog supply voltage for ADC (+1.8 V)
R2VSSA_ADC_GAnalog supply ground for ADC
R3IN_GAnalog Green input (scaler)
R4REF_GReference voltage Green
R11RSN3
R1 2RSP3
R13RSN2
R1 4RSP2
R15VDDAAnalog supply for audio ADCs (+1.8 V)
R16V DDA2supply voltage for SDAC (+3.3 V)
R2 3VSSC4g round
R2 4VDDC4digital supply for SDACs (+1.8 V)
R25N /CN / ANot Connected
R26N /CN / ANot Connected
T1VDD3V3_INAnalog supply for analog input buffer (+3.3 V) (scaler)
T2VSSA_CLEANAnalog supply ground (clean)
T3RBIASExternal bias resistor
T4SOGINGreen input for sync separation (scaler)
T11RSN0
LVDS
differential
river
LVDS
differential
river
LVDS
differential
river
LVDS
differential
river
LVDS
differential
river
LVDS
differential
river
LVDS
differential
river
LVDS
differential
river
LVDS
differential
river
LVDS
differential
river
LVDS
differential
river
LVDS
differential
river
LVDS
differential
river
ROW L
LVDS Panel Bus PB for ODD / EVEN pixels
ROW M
LVDS Panel Bus PB for ODD / EVEN pixels
Analog supply for TCG u-controller and digital supply for TV
pr
Analog supply for TCG u-controller and digital supply for TV
pr
V-guard / I/O switch (e.g. 4mA current sinking capability for direct
rive of LED
ROW N
LVDS Panel Bus PB for ODD / EVEN pixels
LVDS Panel Bus PB for ODD / EVEN pixels
LVDS Panel Bus PB for ODD / EVEN pixels
LVDS Panel Bus PB for ODD / EVEN pixels
ROW P
LVDS Panel Bus PB for ODD / EVEN pixels
LVDS Panel Bus PB for ODD / EVEN pixels
ROW R
LVDS Panel Bus PB for ODD / EVEN pixels
LVDS Panel Bus PB for ODD / EVEN pixels
LVDS Panel Bus PB for ODD / EVEN pixels
LVDS Panel Bus PB for ODD / EVEN pixels
ROW T
LVDS Panel Bus PB for ODD / EVEN pixels
Page 18
-18-
N2SL
CPU PORT FUNCTIONS (continued page 4 of 5)
s)
U1VDD_CORE0Digital core supply (+1.8 V)
U2VSSA_RGB0Analog supply ground
U3IN_RAnalog Red colour input (scaler)
U4REF_RReference voltage Red
U2 3R/PrIN33rd R input / PR input
U24INSSW33rd RGB / YPRPB insertion input
U2 5N/ CN / ANot Connected
U2 6N/ CN / ANot Connected
V 1VDD3V3_RGB0Analog supply voltage (+3.3 V)
V 2VDDA1V8_ADC_RAnalog supply voltage for ADC (+1.8 V)
V 3VDD3V3_LPLLLPLL Supply voltage (+3.3 V)
V 4VSSA_ADC_RAnalog supply ground for ADC
V 23B/PbIN33rd B input / PB input
V 24G/YIN33rd G input / Y input
V 2 5N/CN / ANot Connected
V 2 6N/CN / ANot Connected
W1VDD1V8_LPLLAnalog supply voltage (+1.8 V)
W2VSSA_CLEAN_LPLLLPLL supply ground (clean)
W3VSSA_LPLLAnalog supply ground
W4N/CN /ANot Connected
W 2 3BLKINTest signal, Do not connect
W24BCLINBeam current limiter input
W2 5N/CN / ANot Connected
W2 6N/CN / ANot Connected
Y1AHS5 V TTLHorizontal / Composite sync
Y2AVS5 V TTLVertical Sync
Y3N/ CN/ANot Connected
Y4VDD_CORE01Digital SupplyDigital 1V8 supply used for core logic
Y2 3GOGreen output
Y2 4RORed output
Y2 5BOBlue output
Y2 6N/CN / ANot Connected
AA1ASCL/GPIO14DDC clock 400 kHz, general purpose I/O
AA2ASDA/GPIO15DDC data 400 kHz, general purpose I/O
AA3VDD_IO1Digital SupplyDigital 3V3 supply used for I/Os
AA 4N/CN / ANot Connected
AA23P1.1/T0Port 1.1 or Counter Timer 0 input
AA24P1.0/INT1Port 1.0 or external interrupt 1
AA25INT0/P0.5
AA26N/CN/ANot Connected
AB1N/CN/ANot Connected
AB2VDD_CORE1Digital SupplyDigital 1V8 supply used for core logic
AB3N/CN/ANot Connected
AB4D45 V TTLMemory data bus
AB23N/CN/ANot Connected
AB24N/CN/ANot Connected
AB25N/CN/ANot Connected
AB26N/CN/ANot Connected
AC1N/CN / ANot Connected
AC 2IAPMUTE5 V T TLControl signal for in-circuit emulation
AC3D 65 V TTLMemory data bus
AC4VSS_IO0Digital GroundDigital 3V3 ground used for I/Os
AC5A0/CFG05 V TTLMemory address bus, config pins for boot strap
AC6A5/CFG55 V TTLMemory address bus, config pins for boot strap
AC 7RDPSEN_N5 V T T LMemory read enable, program store enable
AC8VDD_CORE1Digital SupplyMemory read enable, program store enable
AC9A14/CFG145 V TTLMemory address bus, config pins for boot strap
AC10N/CN/ANot Connected
AC11VSS_CORE21Digital GroundCommon digital core 1V8 ground
AC12VSS_IO11Digital GroundDigital 3V3 ground used for I/Os
AC13N/CN/ANot Connected
AC 14VDD_CORE3Digital SupplyDigital 1V8 supply used for core logic
AC15VDD_CORE51Digital SupplyDigital 1V8 supply used for core logic
AC16N/CN/ANot Connected
AC17VDDC2Digital SupplyDigital 1V8 supply used for core logic
AC18P0.2/I2SDO2Port 0.2 or I2S digital output 2
AC19P1.7/SDAPort 1.7 or I2C bus data line
AC20VDDPSupply to periphery and on chip voltage regulator (+3.3 V)
AC21VDDC1Digital SupplyDigital 1V8 supply used for core logic
AC22DECV1V8Decoupling 1.8 V supply
AC23VDDC3Digital SupplyDigital 1V8 supply used for core logic
AC24N/CN/ANot Connected
AC25N/CN/ANot Connected
AC26N/CN/ANot Connected
ROW U
ROW V
ROW W
ROW Y
ROW AA
External interrupt 0 or port 0.5 (4mA sinking capability for direct drive of
LED
ROW AB
ROW AC
Page 19
-19-
N2SL
CPU PORT FUNCTIONS (continued page 5 of 5)
AD1D 75 V TTLMemory data bus
AD2N/CN / ANot Connected
AD3D 25 V TTLMemory data bus
AD4VDD_CORE0Digital SupplyDigital 1V8 supply used for core logic
AD5A2/CFG25 V TTLMemory address bus, config pins for boot strap
AD6A7/FCG7/RSTOUT5 V TTLMemory address bus, config pins for boot strap, reset output
AD7A9/CFG9/PWM25 V TTLMemory address bus, config pins for boot strap, PWM[2] output
AD 8VSS_CORE1Digital GroundCommon digital core 1V8 ground
AD9A15/CFG155 V TTLMemory address bus, config pins for boot strap
AD10VSS_I01Digital GroundDigital 3V3 ground used for I/Os
AD11N/CN/ANot Connected
AD12VSS_I021Digital GroundDigital 3V3 ground used for I/Os
AD13N/CN/ANot Connected
AD14VSS_CORE31Digital GroundCommon digital core 1V8 ground
AD15VSS_CORE41Digital SupplyDigital 1V8 supply used for core logic
AD16N/CN/ANot Connected
AD17VSSC2Digital GroundCommon digital core 1V8 ground
AD18P0.3/I2SCLKPort 0.3 or I2S clock
AD19P1.6/SCLPort 1.6 or I2C clock line
AD20P2.2/PWM1Port 2.2 or PWM1 output
AD21P3.1/ADC1Port 3.1 or ADC1 input
AD22VSSC/PDigital GroundCommon digital core 1V8 ground for u-controller and periphery
AD23VSSC3Digital GroundCommon digital core 1V8 ground
AD24N/CN/ANot Connected
AD25N/CN/ANot Connected
AD26N/CN/ANot Connected
AE1D55 V TTLMemory data bus
AE2D35 V TTLMemory data bus
AE3D05 V TTLMemory data bus
AE4A1/CFG15 V TTLMemory address bus, config pins for boot strap
AE5A4/CFG45 V TTLMemory address bus, config pins for boot strap
AE6WR_N/GPIO85 V TTLMemory write enable, general purpose I/O
AE7A11/CFG115 V TTLMemor y address bus, config pins for boot strap
AE8A10/CFG105 V TTLMemor y address bus, config pins for boot strap
AE9A16/GPIO105 V TTLMemory adress bus, general purpose I/O
AE10VDD_IO2Digital SupplyDigital 3V3 supply used for I/Os
AE11N/CN/ ANot Connected
AE12VSS_CORE2Digital GroundCommon digital core 1V8 ground
AE13VDD_IO11Digital SupplyDigital 3V3 supply used for I/Os
AE14T_ENABLELVTTL, pull down Test control enable
AE15VDD_CORE31Digital SupplyDigital 1V8 supply used for core logic
AE16N/CN/ ANot Connected
AE17VDD_CORE2Digital SupplyDigital 1V8 supply used for core logic
AE18P0.4/I2SWSPort 0.4 or I2S Word Select
AE19P1.3/T1Port 1.3 or Counter/Timer1 input
AE20P2.1/PWM0Port 2.1 or PWM0 output
AE21P3.0/ADC0Port 3.0 or ADC0 input
AE22P3.3/ADC3Port 3.3 or ADC3 input
AE23P2.5/PWM4Port 2.2 or PWM4 output
AE24P1.4/RXPort 1.4 or UART bus
AE25P1.5/TXPort 1.5 or UART bus
AE26N/CN/ ANot Connected
AF1N/CN / ANot Connected
AF2D15 V TTLMemory data bus
AF3VSS_CORE0Digital GroundCommon digital core 1V8 ground
AF4A3/CFG35 V TTLMemory address bus, config pins for boot strap
AF5A6/CFG65 V TTLMemory address bus, config pins for boot strap
AF6A8/CFG8/CLKOUT5 V TTLMemory address bus, config pins for boot strap, cr ystal clock output
AF7A12/CFG125 V TTLMemory address bus, config pins for boot strap
AF8A13/CFG135 V TTLMemory address bus, config pins for boot strap
AF9INT_N/GPIO75 V TTLOpen drain interr upt request output, general purpose I/O
AF10N/CN /ANot Connected
AF11VSS_IO01Digital GroundDigital 3V3 ground used for I/Os
AF12VSS_IO2Digital GroundDigital 3V3 ground used for I/Os
AF13VDD_IO21Digital SupplyDigital 3V3 supply used for I/Os
AF14VSS_CORE71Digital GroundCommon digital core 1V8 ground
AF15VDD_CORE21Digital SupplyDigital 1V8 supply used for core logic
AF16N/CN /ANot Connected
AF17N/CN /ANot Connected
AF18P0.1/I2SDO1Port 0.1 or I2S digital output 1
AF19P0.0/I2SDI1/OPort 0.0 or I2S digital input 1 or I2S digital output
AF20P2.0/TPWMPort 2.0 or Tuning PWM output
AF21P2.3/PWM2Port 2.3 or PWM2 output
AF22P3.2/ADC2Port 3.2 or ADC2 input
AF23P2.4/PWM3Port 2.4 or PWM3 output
AF24P1.2/INT2Port 1.2 or external interrupt 2
AF25N/CN /ANot Connected
AF26N/CN /ANot Connected

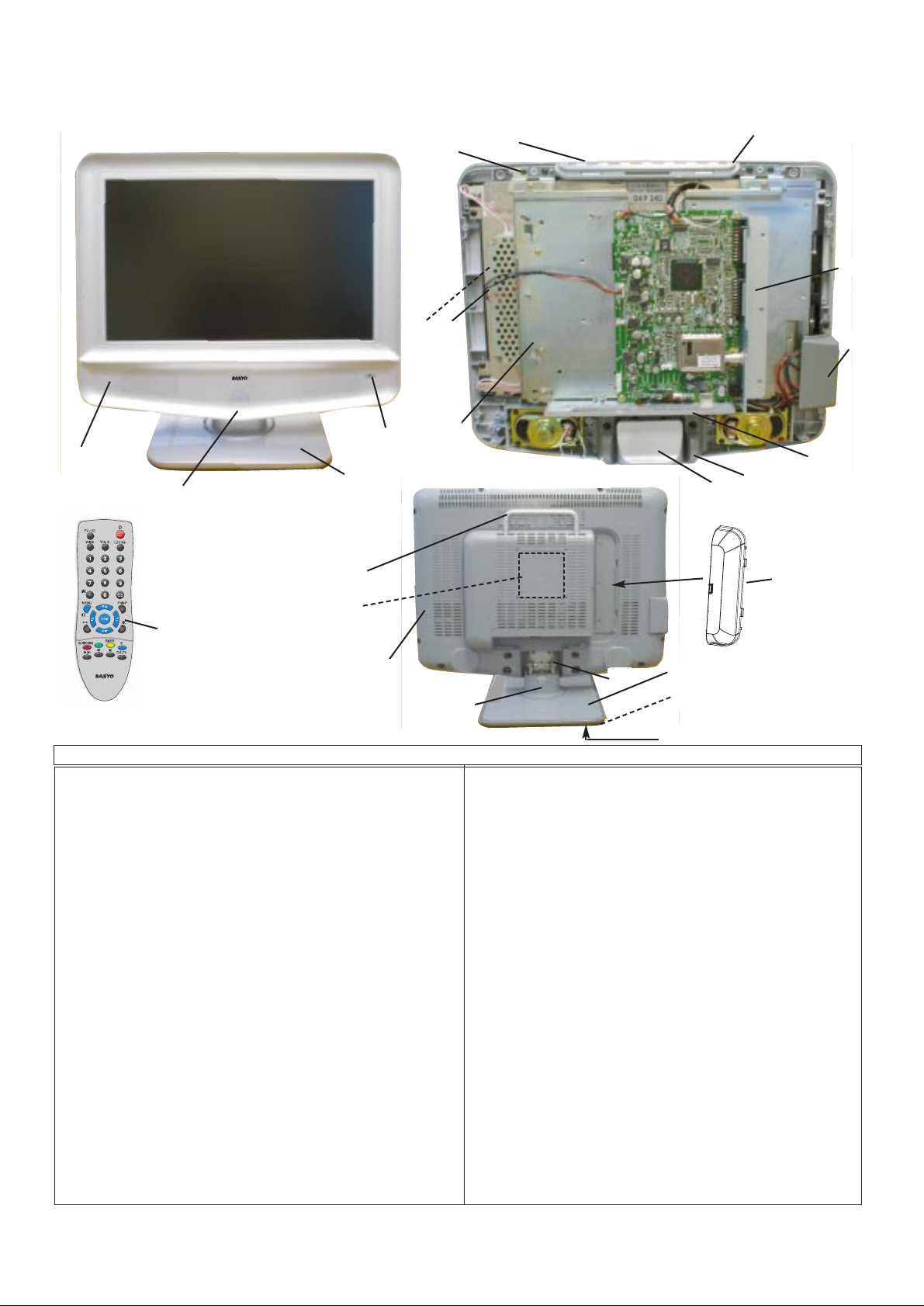

Item Part No. Description Item Part No. Description
JXPLA
Page 21
N2SL
-21-
CABINET DISASSEMBLY

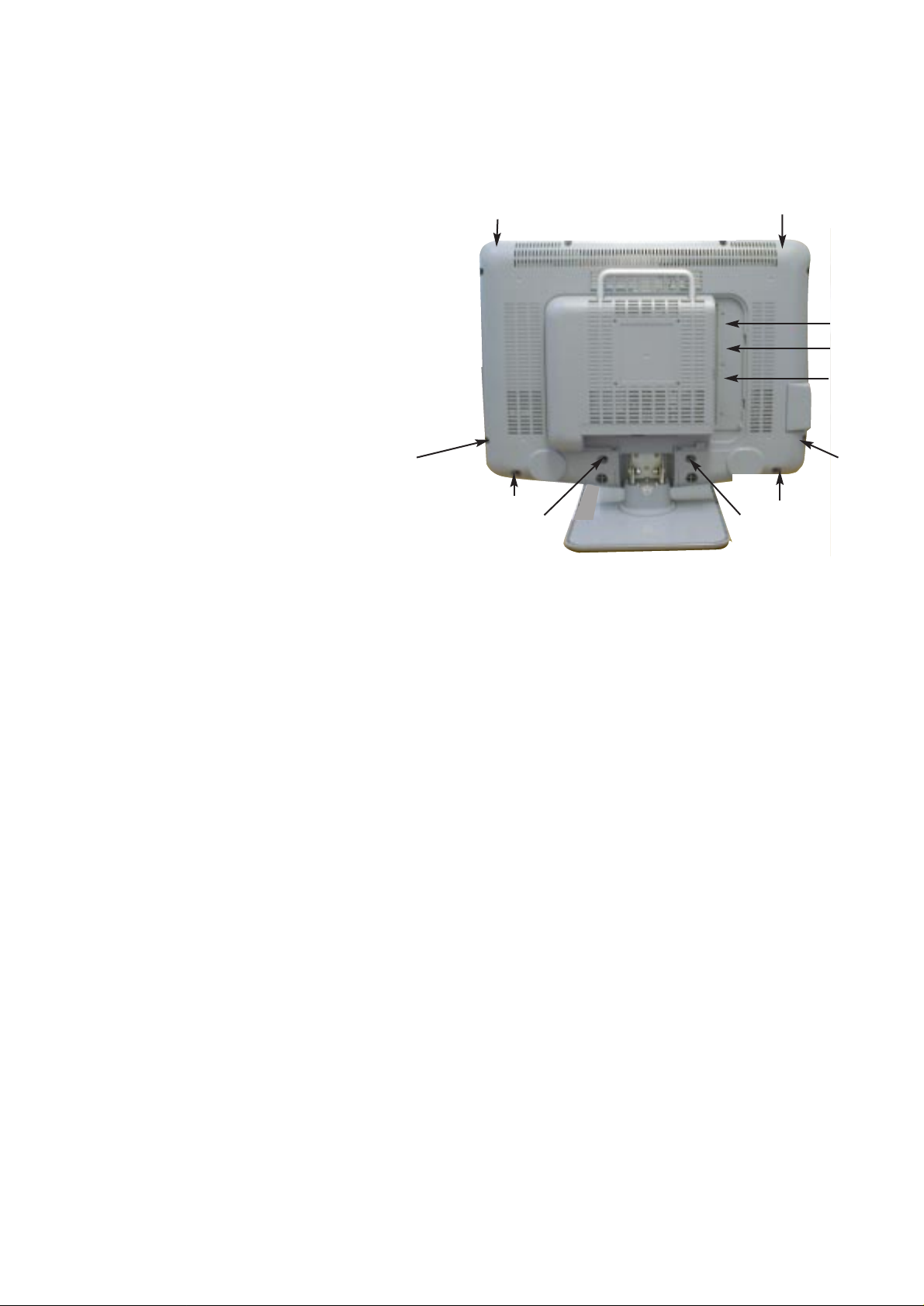

CABINET BACK DISASSEMBLY
1. Remove 11 screws(A) for 17”
2. Pull out the cabinet back.
(A)
(A)
(A)
(A)
(A)
(A)
(A)
(A)
(A)
(A)
(A)
Page 22
-22-
N2SL
PIN DESCRIPTION OF SEMICONDUCTORS
● Diode
● Transistor/FET
● IC
FET
● Diode
K
A
● Transistor/FET
K
A
K
AA
KK
A
K
K
K: Cathode
A: Anode
A
A
C
B
C
E
● IC
1
Index
C1
3
E
C2
Vdd
2
1
C1
B1B2
E
B2
GND
C2
C
E
2
C
E
B
C
3
E
B
B
2
3
1
E
C1
CBE
C2
B2
E
3
2
C
B
B1
1
C
BE
B1
RESET
Index
1
2
N
1
2
N
C2
E2C1
B1
B2
B1
B2
(IN)
E1
1
(GND)
2
4
5
6
Index
E1
C1
C2
E2
3
(OUT)
C: Collector
B: Base
E: Emitter
G
3
2
1
Index
D: Drain
G: Gate
S: Source
S
G
D
S
D
3
21
5
4
Index
N
1
Index
Index
Index
N
1
N
1
N
1
Index
N
1
N
1
Index
Page 23
-23-
N2SL
PARTS DESCRIPTION AND READING IN SCHEMATIC DIAGRAM
1. The parts specification of resistors, capacitors and
coils are expressed in designated code. Please
check the parts description by the following code
table.
2. Some of transistors and diodes are indicated in
mark for the substitution of parts name. Please
check the parts name by the following code table.
3. Voltages and waveforms were taken with a video
colour bar signal(1Vp-p at 75 ohms terminated) and
controls to normal.
4. Voltages were taken with a high-impedance digital
voltmetre.
Example 2000 K K 1000 BG
Characteristic
Example 160E M 10
Capacitance value
Tolerance
Type
Rated voltage
Excepting electric capacitors, all
capacitance values of less than 1
are expressed in µF and more
than 1 are in pF.
Example L2
C1 4R7 KN
Tolerance
Inductance value
Manufacture code
Unique code
AA 1S1555,1S2076,1S2473,1SS133,DS442,1SS176,1N4148,GMA01
● Diode
MarkType number
--2SC536 2SC945A 2SC1815 2SC1740 2SC1740S KSC945C
AE, F, GP, Q, RO, Y, GQ, R, SQ, R, S
BE, F, GP, Q, RO, Y, GQ, R, S
DF, GP, QY, GQ, R, S
FF, GPGR, S
HF, GP, QY, GQ, R, SY, G
IE, F, GP, Q, RO, Y, GQ, R, SY, G
GF, GPGR, SG
ADF, GQ, RY, GRQ, R, S
AEE, F, GQ, RO, Y, GRQ, R, S
● Transistor (NPN type)
MarkType number
--2SA6082SA564A 2SA1015 2SA9332SA933S KSA733C
YE, FQ, RO, Y, GQ, R
WF R Y, G R
VE, FQ, RO, Y, GQ, RY, G
UFRY, GRG
ZE, FQ, RO, Y, GQ, RQ, R
ABFRYQ, R
AEE, FQ, RO, YR
● Transistor (PNP type)
Diode/Transistor Type Reading
Page 24
N2SL
-24-
CHASSIS ELECTRICAL PARTS LIST
Product safety should be considered when a component replacement is made in any area of a receiver.
Components indicated by a mark in this parts list and the circuit diagram show components whose value have
special significance to product safety. It is particularly recommended that only parts specified on the following
parts list be used for components replacement pointed out by the mark .
