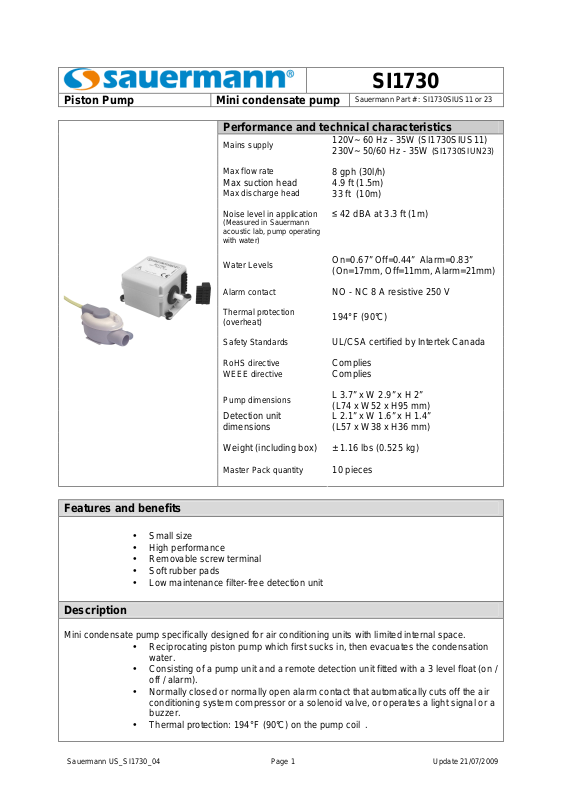

Panasonic SI1730 User Manual

RoHS directive

WEEE directive

Piston Pump Mini condensate pump

Performance and technical characteristics

Mains supply

Max flow rate

Max suction head 4.9 ft (1.5m)

Max discharge head
Noise level in application

(Measured in Sauermann
acoustic lab, pump operating
with water)

Water Levels

Alarm contact
Thermal protection

(overheat)
Safety Standards

Pump dimensions

Detection unit
dimensions

Weight (including box) ± 1.16 lbs (0.525 kg)

Master Pack quantity

120V~ 60 Hz - 35W (SI1730SIUS11)
230V~ 50/60 Hz - 35W

8 gph (30l/h)
33 ft (10m)

≤ 42 dBA at 3.3 ft (1m)

On=0.67” Off=0.44” Alarm=0.83”
(On=17mm, Off=11mm, Alarm=21mm)

NO - NC 8 A resistive 250 V

194° F (90°C)

UL/CSA certified by Intertek Canada
Complies

Complies
L 3.7” x W 2.9” x H 2”

(L74 x W52 x H95 mm)
L 2.1” x W 1.6” x H 1.4”
(L57 x W38 x H36 mm)

10 pieces

Features and benefits

SI1730

Sauermann Part # : SI1730SIUS11 or 23

(SI1730SIUN23)

• Small size

• High performance

• Removable screw terminal

• Soft rubber pads

• Low maintenance filter-free detection unit

Description

Mini condensate pump specifically designed for air conditioning units with limited internal space.

• Reciprocating piston pump which first sucks in, then evacuates the condensation

• Consisting of a pump unit and a remote detection unit fitted with a 3 level float (on /

• Normally closed or normally open alarm contact that automatically cuts off the air

• Thermal protection: 194° F (90°C) on the pump coil .

Sauermann US_SI1730_04 Page 1 Update 21/07/2009

water.
off / alarm).
conditioning system compressor or a solenoid valve, or operates a light signal or a

buzzer.

Kit contents

• Piston pump bloc 8 gph (30l/h)

• 6 ways connector (Power: L, N, E + Alarm: C, NO, NC) and Connector protector

• Detection unit with float (SI2958)

• Detector installation kit : blond rubber Ø 0.59”x1.38”, vent pipe Ø 0.16”x0.24” –

2.95”, self-adhesive mounting rail

Applications

Air conditioners up to 8.5 tons (102 kBtu/h - 30 kW)
Wall split systems
Fan coils
Ceiling suspended units
Ducted units

Accessories

ACC 00105, ACC 00150

Clear tubing Ø 0.24” int.
ACC 00105 : in 16 ft roll in plastic bag
ACC 00150 : in 164 ft roll

ACC 00205

6 self-sealing drainage fitting for leak tight
connection to the PVC drainage tube.

ACC 17010

In line filter
For 1/4"

Sauermann US_SI1730_04 Page 2 Update 21/07/2009
