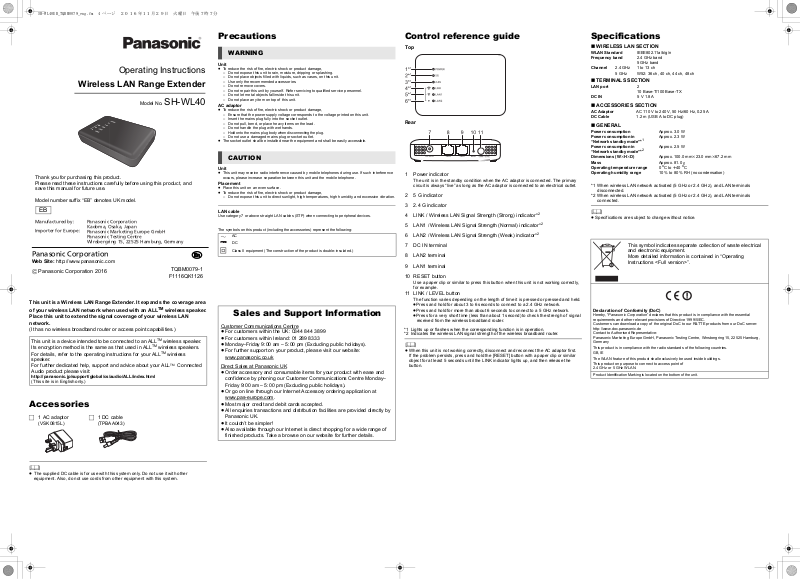

Panasonic SHWL40 Operating Instructions

EB
Operating Instructions
Wireless LAN Range Extender
Model No. SH-WL40
Thank you for purchasing this product. Please read these instructions carefully before using this product, and save this manual for future use.
Model number suffix “EB” denotes UK model.
Manufactured by:
Importer for Europe:
Panasonic Corporation
Panasonic Corporation Kadoma, Osaka, Japan Panasonic Marketing Europe GmbH Panasonic Testing Centre Winsbergring 15, 22525 Hamburg, Germany
p
Web Site: http://www.panasonic.com
C Panasonic Corporation 2016
TQBM0079-1
F1116QK1126
This unit is a Wireless LAN Range Extender. It expands the coverage area
TM
of your wireless LAN network when used with an ALL
wireless speaker. Place this unit to extend the signal coverage of your wireless LAN network.
(It has no wireless broadband router or access point capabilities.)
This unit is a device intended to be connected to an ALLTM wireless speaker. Its encryption method is the same as that used in ALL For details, refer to the operating instructions for your ALL
speaker. For further dedicated help, support and advice about your ALL
TM
wireless speakers.
TM
wireless
TM
Connected
Audio product please visit:
http://panasonic.jp/support/global/cs/audio/ALL/index.html
(This site is in English only.)
Accessories
1 AC adaptor
(VSK0815L)
1 DC cable
(TPBAA043)
Precautions
WARNING
Unit
To reduce the risk of fire, electric shock or product damage,
– Do not expose this unit to rain, moisture, dripping or splashing. – Do not place objects filled with liquids, such as vases, on this unit. – Use only the recommended accessories. – Do not remove covers. – Do not repair this unit by yourself. Refer servicing to qualified service personnel. – Do not let metal objects fall inside this unit. – Do not place any item on top of this unit.
AC adaptor
To reduce the risk of fire, electric shock or product damage,
– Ensure that the power supply voltage corresponds to the voltage printed on this unit. – Insert the mains plug fully into the socket outlet. – Do not pull, bend, or place heavy items on the lead. – Do not handle the plug with wet hands. – Hold onto the mains plug body when disconnecting the plug. – Do not use a damaged mains plug or socket outlet.
The socket outlet shall be installed near the equipment and shall be easily accessible.
CAUTION
Unit
This unit may receive radio interference caused by mobile telephones during use. If such interference
occurs, please increase separation between this unit and the mobile telephone.
Placement
Place this unit on an even surface.To reduce the risk of fire, electric shock or product damage,
– Do not expose this unit to direct sunlight, high temperatures, high humidity, and excessive vibration.
LAN cable
Use category 7 or above straight LAN cables (STP) when connecting to peripheral devices.
The symbols on this product (including the accessories) represent the following:
AC
DC
Class II equipment (The construction of the product is double-insulated.)
Sales and Support Information
Customer Communications Centre
For customers within the UK: 0344 844 3899For customers within Ireland: 01 289 8333Monday–Friday 9:00 am – 5:00 pm (Excluding public holidays).For further support on your product, please visit our website:
panasonic.co.uk
www.
Direct Sales at Panasonic UK Order accessory and consumable items for your product with ease and
confidence by phoning our Customer Communications Centre Monday– Friday 9:00 am – 5:00 pm (Excluding public holidays).
Or go on line through our Internet Accessory ordering application at
www.pas-europe.com
Most major credit and debit cards accepted.All enquiries transactions and distribution facilities are provided directly by
Panasonic UK.
It couldn’t be simpler!Also available through our Internet is direct shopping for a wide range of
finished products. Take a browse on our website for further details.
.
Control reference guide
Top
1
1
1
1
1
1
Rear
1 Power indicator
The unit is in the standby condition when the AC adaptor is connected. The primary circuit is always “live” as long as the AC adaptor is connected to an electrical outlet.
2 5 G indicator
3 2.4 G indicator
4 LINK / Wireless LAN Signal Strength (Strong) indicator*
5 LAN1 / Wireless LAN Signal Strength (Normal) indicator*
6 LAN2 / Wireless LAN Signal Strength (Weak) indicator*
7 DC IN terminal
8 LAN2 terminal
9 LAN1 terminal
10 RESET button
Use a paper clip or similar to press this button when this unit is not working correctly, for example.
11 LINK / LEVEL button
The function varies depending on the length of time it is pressed or pressed and held.
Press and hold for about 3 to 6 seconds to connect to a 2.4 GHz network.Press and hold for more than about 6 seconds to connect to a 5 GHz network.Press for a very short time (less than about 1 second) to check the strengh of signal
received from the wireless broadband router.
*1 Lights up or flashes when the corresponding function is in operation. *2 Indicates the wireless LAN signal strength of the wireless broadband router.
When this unit is not working correctly, disconnect and reconnect the AC adaptor first.
If the problem persists, press and hold the [RESET] button with a paper clip or similar object for at least 5 seconds until the LINK indicator lights up, and then release the button.
2
2
2
Specifications
WIRELESS LAN SECTION
WLAN Standard IEEE802.11a/b/g/n Frequency band 2.4 GHz band
Channel 2.4 GHz 1 to 13 ch
5 GHz W52: 36 ch, 40 ch, 44 ch, 48 ch
TERMINALS SECTION
LAN port 2
DC IN 5 V 1.8 A
ACCESSORIES SECTION
AC Adaptor AC 110 V to 240 V, 50 Hz/60 Hz, 0.25 A DC Cable 1.2 m (USB A to DC plug)
GENERAL
Power consumption Approx. 3.0 W Power consumption in
“Network standby mode” Power consumption in
“Network standby mode” Dimensions (WkHkD) Approx. 100.0 mmk23.0 mmk67.2 mm Mass Approx. 81.0 g Operating temperature range 0 Operating humidity range 10 % to 80 % RH (no condensation)
*1 When wireless LAN network activated (5 GHz or 2.4 GHz), and LAN terminals
disconnected.
*2 When wireless LAN network activated (5 GHz or 2.4 GHz), and LAN terminals
connected.
Specifications are subject to change without notice.
Declaration of Conformity (DoC)
Hereby, “Panasonic Corporation” declares that this product is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC. Customers can download a copy of the original DoC to our R&TTE products from our DoC server: http://www.doc.panasonic.de Contact to Authorised Representative: Panasonic Marketing Europe GmbH, Panasonic Testing Centre, Winsbergring 15, 22525 Hamburg, Germany
This product is in compli ance with the radio standards of the following countries. GB, IE
The WLAN feature of this product shall exclusively be used inside buildings. This product on purpose to connect to access point of
2.4 GHz or 5 GHz WLAN.
Product Identification Marking is located on the bottom of the unit.
5 GHz band
10 Base-T/100 Base-TX
Approx. 2.3 W
1
*
Approx. 2.5 W
2
*
o
C to r40oC
This symbol indicates separate collection of waste electrical and electronic equipment. More detailed information is contained in “Operating Instructions <Full version>”.
The supplied DC cable is for use with this system only. Do not use it with other
equipment. Also, do not use cords from other equipment with this system.
Connections and Settings
The LINK, LAN1, and LAN2 indicators light up
Wireless LAN signal strengh: strong
The LAN1, and LAN2 indicators light up
Wireless LAN signal strengh: normal
The LAN2 indicator lights up
Wireless LAN signal strengh: weak
Wireless broadband router, etc.
ALL
TM
wireless speaker
Wireless LAN Range Extender
Connect the DC cable to the AC adaptor.
1
A DC cable (supplied)
Check the directions of the connectors, and plug them straight in or unplug them straight out. (Otherwise the connectors may bend out of shape, which may cause malfunction.)
B AC adaptor (supplied)
Do not use any other AC adaptors except the supplied one.
C To a household mains socket
After connecting, check that indicators light up as follows:
1 The POWER indicator lights up. 2 The 5 G and 2.4 G indicators lights up. (It takes about 1 minute until this indicator
lights up.)
2 Pair with the wireless broadband router.
Preparation
Fix to W52 if the wireless broadband router supports W52, W53, and W56. (For how to fix, refer to the operating instructions for the wireless broadband router)
1 Press the pairing button on the wireless broadband router.
For details about pairing operations, refer to the operating instructions for the
wireless broadband router.
2 Select 2.4 GHz or 5 GHz to connect to a network.
jTo connect to a 2.4 GHz network:
Press and hold the [jLINK/-LEVEL] button for about 3 to 6 seconds.
jTo connect to a 5 GHz network:
Press and hold the [jLINK/-LEVEL] button for more than about 6 seconds.
Stop pressing and holding the button when the LINK indicator flashes once.
Pressing and holding the [jLINK/-LEVEL] button will cause the LINK indicator to light up. When you stop pressing and holding the button, the LINK indicator will flash and the unit will start connecting to the network of the selected frequency band. When the LINK indicator lights off and the POWER indicator and the 5 G or
2.4 G indicator light up, the connection is complete.
3 Determine the location to place this unit.
1 Disconnect the AC adaptor from the electrical outlet. 2 Connect the AC adaptor of this unit to an electrical outlet located between
the wireless broadband router and the ALLTM wireless speaker you want to connect to.
3 Confirm that the indicator for the frequency band of the network to which
you have connected in Step 2 lights up. (It takes about 1 minute until the indicator lights up.)
4 Check the strengh of signal received from the wireless broadband router.
While the POWER indicator and the 5 G or 2.4 G indicator are lit up, press the [jLINK/-LEVEL] button (for less than about 1 second).
Indicators should light up for about 2 seconds:
After the indicators light up for about 2 seconds, the LINK, LAN1, and LAN2 indicators flash three times. Move this unit to a location where two or three of the indicators light up and
place it there.
If only one or none of the indicators light up, move this unit a little closer to the
wireless broadband router. You can use a commercially-available extension cord to change the location of this unit.
4 Connect to the ALL
Place the ALLTM wireless speaker.
After placing this unit, check that the ALLTM wireless speaker can be connected to the
wireless LAN network.
For information on how to connect to a wireless LAN network and check the signal status
on the ALL
The ALL
router. If this happens, disable the standby mode setting of the ALL You may need to reset the speaker, depending on the model.
Match the frequency band of this unit with that of the ALLIf a connection attempt fails, repeat the procedure from Step 2.
Layout example
Depending on the materials and number of walls and other environmental factors,
signals may be blocked.
Signals are particularly vulnerable to blockage if there is any of the following obstacles
between the wireless broadband router or the ALL metal object (reinforced concrete, furniture made of metal materials, etc.), water, person, etc.
Use of two or more wireless LAN range extenders (this unit, wireless broadband router,
etc.) will extend the signal coverage of your wireless network, but this will cause audio to break up frequently.
If you cannot connect to a network with the connection method described above, you can connect this unit to a computer to set up a connection. For details, refer to the “Operating Instructions <Full version>”.
http://panasonic.jp/support/global/cs/audio/ALL/index.html
Further Support
For more information and other network setting methods, refer to the Operating Instructions <Full version>. If you require further help, please visit
http://panasonic.jp/support/global/cs/audio/ALL/index.html
(This site is in English only.)
TM
wireless speaker, refer to the operating instructions for it.
TM
wireless speaker may not connect to this unit, but to the wireless broadband
TM
wireless speaker.
TM
TM
wireless speaker and this unit:
TM
wireless speaker.
wireless speaker.
GNU GENERAL PUBLIC LICENSE Version 2, June 1991
Copyright (C) 1989, 1991 Free Software Foundation, Inc., 51 Franklin Street, Fifth Floor, Boston, MA 02110-1301 USA Everyone is permitted to copy and distribute verba tim copies of this license document, but changing it is not allowe d.
Preamble
The licenses for most software are designed to take away your freedom to share and change it. By contrast, the GNU General Public License is intended to guarant ee your freedom to share and change free software--to make s ure the software is free for all its users. This General Public License applie s to most of the Free Software Foundation's software and to any other program whose authors commit to using it. (Some other Free Software Foundati on software is covered by the GNU Lesser General Public License instead.) You can apply it to your programs, too.
When we speak of free software, we are referring to freedom, not price. Our General Public Licenses are designed to make sure that you have the freedom to distribute copies of free software (and charge for this service if you wish), that you receive source code or can get it if you want it, that you can change the software or use pieces of it in new free programs; and that you know you can do these things.
To protect your rights, we need to make restrictions that forbid anyone to deny you these rights or to ask you to surrender the rights. These restrictions translate to certain responsibil ities for you if you distribute copies of the software, or if you modify it.
For example, if you distribute copies of such a program, whether gratis or for a fee, you must give the recipients all the rights that you have. You must make sure that they, too, receive or can get the source code. And you must show them these terms so they know their rights.
We protect your rights with two steps: (1) copyright the software, and (2) offer you this license which gi ves you legal permission to copy, distribute and/or modify the software.
Also, for each author's protection and ours, we want to make certain that e veryone understands that there is no warranty for this free software. If the software is modified by someone else and passed on, we want its recipien ts to know that what they have is not the original, so that any problems intro duced by others will not reflect on the original auth ors' reputations.
Finally, any free program is threatened constantly by software patents. We wish to avoid the danger that redistributors of a free program will individually obtain patent licenses, in effect making the program proprietary. To prevent this, we have made it clear that any patent must be licensed for everyone's free u se or not licensed at all.
The precise terms and conditions for copying, distribution and modification follow.
GNU GENERAL PUBLIC LICENSE TERMS AND CONDITIONS FOR COPYING, DISTRIBUTION AND MODIFICATION
0. This License applies to any program or other work which contains a notice placed by the copyright holder saying it may be distributed under the terms of this General Public L icense. The "Program", below, refers to any such program or work, and a "work based on the Program" means either the Program or any derivative work under copyright law: that is to say, a work containing the Program or a portion of it, either verbatim or with modific ations and/or translated into another language. (Hereinafter, translation is included without limitation in the term "modifica tion".) Each licensee is addressed as "you".
Activities other than copying, distribution and modification are not covered by this License; they are outside its scope. The act of running the Program is not restricted, and the output from the Program is covered only if its contents constitute a work based on the Program (independent of having been made by r unning the Program). Whether that is true depends on what the Program does .
1. You may copy and distribute verbatim copies of the Program's source code as you receive it, in any medium, provided that you conspicuously and appropriately publis h on each copy an appropriate copyright notic e and disclaimer of warranty; keep intact all the notices that refer to this License and to the absence of any warranty; and give any other recipients of the Program a copy of this License along with the Program.
You may charge a fee for the physical act of transferring a copy, and you may at your option offer warranty protection in exchange for a fee.
2. You may modify your copy or copies of the Program or any portion of it, thus f orming a work based on the Program, and copy and distribute such modifications or work under the terms of Section 1 above, provided that you also meet all of thes e conditions:
a) You must cause the modified files to carry prominent notices stating that you changed the files and the date of any change.
b) You must cause any work that you distribute or publish, that in whole or in part contains or i s derived from the Program or any part thereof, to be licensed as a whole at no charge to all th
c) If the modified program normally reads commands interactively when run, you must cause it, when started running for such interactive use in the most ordinary way, to print or display an announcement including an appropriate copyright notice and a notice that there is no warranty (or else, saying that you provide a warranty) and that users may redistribute the pr ogram under these conditions, and telling the user how to view a copy of this License. (Exception: if the Program itself is interacti ve but does not normally print such an announcement, your work based on the Program is not required to print an announcement.)
These requirements apply to the modified work as a whole. If i dentifiable sections of that work are not derived from the Program, and can be reasonably considered independent and separate works in themsel ves, then this License, and its terms, do not apply to those sections when you distribute them as separate works. But when you distribute the same sections as part of a whole which is a work based on the Program, the d istribution of the whole must be on the terms of this License, who se permissions for other licensees extend to the entir e whole, and thus to each and every part regardless of who wrote it.
Thus, it is not the intent of this section to claim rights or c ontest your rights to work written entirely by you; rather, the intent is to exercise the right to control the distribution of derivative or collective work s based on the Program.
In addition, mere aggregation of another work not based on the Program with the Program (or with a work based on the Program) on a volume of a storage or distributio n medium does not bring the other work under the scope o f this License.
3. You may copy and distribute the Program (or a work based on it, under Section 2) in object code or executable form under the terms of Sections 1 and 2 above provided that you also do o ne of the following:
a) Accompany it with the complete corresponding machine-readable source cod e, which must be distributed under the terms of Sections 1 and 2 above on a medium customarily used for software interchange; or,
b) Accompany it with a written offer, valid for at least three years, to give any third party, for a charge no more than your cost of physically performing source distributio n, a complete machine-readable copy of the corresponding source code, to be distributed under the terms of Sections 1 and 2 abo ve on a medium customarily used for software interchange; or,
c) Accompany it with the information you received as to the offer to distribute corresponding source code. (This alternative is allowed only for noncommercial distribution and only if you received the program in objec t code or executable form with such an offer, in accord with Subsection b above.)
The source code for a work means the preferred form of the work for making modifications to it. For an executable work, complete source code means all the source code for all modules it contains, plus any associated interface definition files, plus the scripts used to control compilation and installation of the executable. However, as a special exception, the source code distributed need not include anything that is norm ally distributed (in either source or binary form) wi th the major components (compiler, kernel, and so on) of the operating system on which the executable runs, unless that component itself accompanies the executable.
If distribution of executable or object code is made by offering access to copy from a designated place, then offering equivalent access to copy the source code from the same plac e counts as distribution of the source code, even though third parti es are not compelled to copy the source along with the ob ject code.
4. You may not copy, modify, sublicense, or distribute the Program except as expressly provided un der this License. Any attempt otherwise to copy, modify, sublicense or distribute the Program is void, and will automatically terminate your rights under this License. However, parties who have received copies, or rights, from you under this License will not have their licenses terminated so long as such parties remain in full compliance.
ird parties under the terms of this License.
5. You are not required to accept this License, since you have not signed it. However, nothing else grants you permis sion to modify or distribute the Program or its derivative works. These actions are prohibited by law if you do not accept this License. Therefore, by modifying or distributing the Progra m (or any work based on the Program), you indicate your acceptance of this License to do so, and all its terms and conditions for co pying, distributing or modifying the Program or works based on it.
6. Each time you redistribute the Program (or any work based on the Program), the recipient automatically receives a license from the original licensor to copy, distribute or modify the Program subject to these terms and conditions. You may not impose any further restrictions on the recipients' exercise of the rights granted herein. You are not responsible for enforcing compliance by third partie
7. If, as a consequence of a court judgment or allegation of patent infringement or for any other reason (no t limited to patent issues), conditions are imposed on you (whethe r by court order, agreement or otherwise) that contradict the conditions of this License, they do not excuse you from the conditions of this License. If you cannot distribute so as to s atisfy simultaneously your obligations under this License and any othe r pertinent obligations, then as a consequence you may n ot distribute the Program at all. For example, if a patent license would not permi t royalty-free redistribution of the Program by all thos e who receive copies directly or indirectly through you, then the only way you could satisfy both it and this License would be to refrain entirely from distribution of the Program.
If any portion of this section is held invalid or unenforceable under any particular circumstance, the balance of the section is intended to apply and the section as a whole is intended to apply in other circumstances.
It is not the purpose of this section to induce y ou to infringe any patents or other property right claims or to contest validity of any such claims; this section has the sole purpose of protec ting the integrity of the free software distribution sys tem, which is implemented by public license practices. Many people have made generous contributions to the wide r ange of software distributed through that system in reliance on consistent application of that system; it is up to the author/donor to decide if he or she is willing to distribute software through any other system and a licensee cannot impose that choice.
This section is intended to make thoroughly clear what is belie ved to be a consequence of the rest of this License.
8. If the distribution and/or use of the Program is restricted in certain countries either by patents or by copyrighted interfaces, the original copyright holder who places the Program under this License may add an explicit geographical distribution limitation excluding those countries, so that distribution is permitted only in or among countries not thus excluded. In such case, t his License incorporates the limitation as if written in the body of this License.
9. The Free Software Foundation may publish revised and/or new versions of the General Public License from tim e to time. Such new versions will be similar in spirit to the present versio n, but may differ in detail to address new problems or concerns.
Each version is given a distinguishing version number. If the Program specifies a version number of this License which applies to it and "any later version", you have the option of following the terms and conditions either of that versi on or of any later version published by the Free Software Foundation. If the Prog ram does not specify a version number of this License, you may choose any version ever published by the Free Software Foundation.
10. If you wish to incorporate parts of the Program into other free programs whose dis tribution conditions are different, write to the author to ask for permission. For software which is copyrighted by the Free Software Foundation, write to the Free Software Foundation; we sometimes make exceptions for this. O ur decision will be guided by the two goals of preserving the free status of all derivatives of our free software and of promoting the sharin g and reuse of software generally.
NO WARRANTY
11. BECAUSE THE PROGRAM IS LICENSED FREE OF CHARGE, THERE IS NO WARRANTY FOR THE PROGRAM, TO THE EXTENT PERMITTED BY APPLICABLE LAW. EXCEPT WHEN OTHERWISE STATED IN WRITING THE COPYRIGHT HOLDERS AND/OR OTHER PARTIES PROVIDE THE PROGRAM "AS IS" WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESSED OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PUR POSE. THE ENTIRE RISK AS TO THE QUALITY AND PERFORMANCE OF THE PROGRAM IS WITH YOU. SHOULD THE PROGRAM PROVE DEFECTIVE, YOU ASSUME THE COST OF ALL NECESSARY SERVICING, REPAIR OR CORRECTION.
12. IN NO EVENT UNLESS REQUIRED BY APPLICABLE L AW OR AGREED TO IN WRITING WILL ANY COPYRIGHT HOLDER, OR ANY OTHER PARTY WHO MAY MODIFY AND/OR REDISTRIBUTE THE PROGRAM AS PERMITTED ABOVE, BE LIABLE TO YOU FOR DAMAGES, INCLUDING ANY GENERAL, SPECIA L, INCIDENTAL OR CONSEQUENTIAL DAMAGES ARISING OUT OF THE USE OR INABILITY TO USE THE PROGRAM (INCLUDING BUT NOT LIMITED TO LOSS OF DATA OR DATA BEING RENDERED INACCURATE O
ARTIES OR A FAILURE OF THE PROGRAM TO OPERATE WITH ANY OTHER PROGRAMS), EVEN IF SUCH
THIRD P HOLDER OR OTHER PARTY HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.
END OF TERMS AND CONDITIONS
How to Apply These Terms to Your New Programs
If you develop a new program, and you want it to be of the greatest possible use to the public, the best way to achieve this is to make it free software which everyone can redistribute an d change under these terms.
To do so, attach the following notices to the program. It is safest to attach them to the start of each source file to most effectively convey the exclusion of warranty; and each file should ha ve at least the "copyright" line and a pointer to where t he full notice is found.
<one line to give the program's name and a brie f idea of what it does.> Copyright (C) <year> <name of author>
This program is free software; you can redistribute it and/or modify it under the terms of the GNU General Public License as published by the Free Software Foundation; either version 2 of the License, or (at your option) any later version.
This program is distributed in the hope that it will be u seful, but WITHOUT ANY WARRANTY; without even the implied warranty of MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE. See the GNU General Public License for more details.
You should have received a copy of the GNU General Public License along with this program; if not, write to the Free Software Foundation, Inc., 51 Franklin Street, Fifth Floor, Boston, MA 02110-1301 USA.
Also add information on how to contact you by electronic and paper mail.
If the program is interactive, make it output a short n otice like this when it starts in an interactive mode:
Gnomovision version 69, Copyright (C) year nam e of author Gnomovision comes with ABSOLUTELY NO WARRANTY; for details type `show w'. This is free software, and you are welcome to redistribute it under certain conditions; type `show c' for details.
The hypothetical commands `show w' and `show c' should show the appropriate parts of the General Public Licen se. Of course, the commands you use may be called somethin g other than `show w' and `show c'; they could even be mouse -clicks or menu items--whatever suits your program.
You should also get your employer (if you work as a programmer) or your school, if any, to sign a "copyright disclaimer" for the program, if necessary. Here is a sample; alter the names:
Yoyodyne, Inc., hereby disclaims all copyright interest in the program `Gnomovision' (which mak es passes at compilers) written by James Hacker.
<signature of Ty Coon>, 1 April 1989 Ty Coon, President of Vice
This General Public License does not permit in corporating your program into proprietary programs. If your program is a subroutine library, you may consider it more useful to permit linking proprietary applications with the library. If this is what you want to do, use the GNU Lesser General Public License instead o f this License.
s to this License.
R LOSSES SUSTAINED BY YOU OR
Loading...
