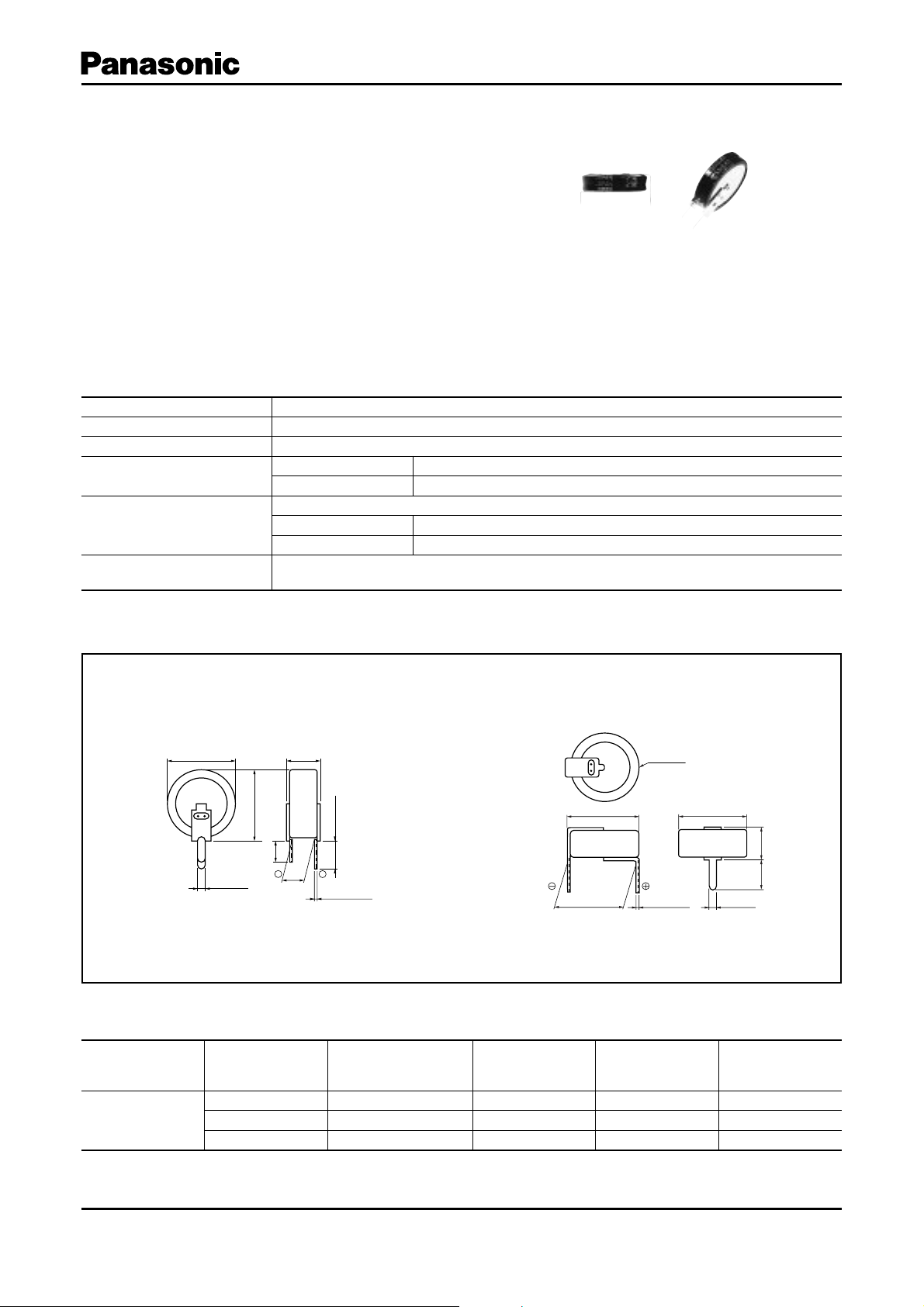

Page 1
20.5 max.
Sleeve
20.0±0.5
φ19.0±0.3
1.0±0.10.2±0.05
6.5 max.
3.5±0.3

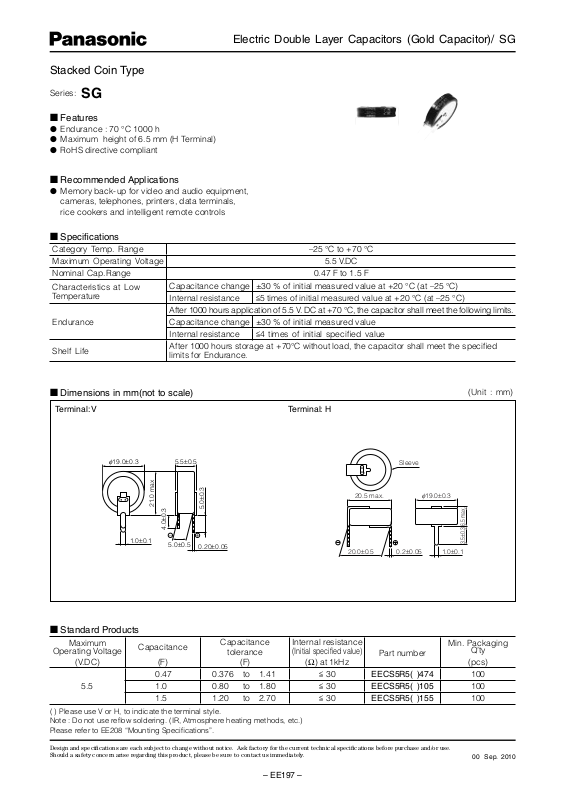

Stacked Coin Type
Electric Double Layer Capacitors (Gold Capacitor)/ SG
Series:
SG
■ Features
Endurance : 70 °C 1000 h
●
Maximum height of 6.5 mm (H Terminal)
●
RoHS directive compliant
●
■ Recommended Applications
Memory back-up for video and audio equipment,
●
cameras, telephones, printers, data terminals,
rice cookers and in tel li gent remote controls
■ Specifi cations
Category Temp. Range –25 °C to +70 °C
Maximum Operating Voltage 5.5 V.DC
Nominal Cap.Range 0.47 F to 1.5 F
Characteristics at Low
Temperature
Endurance
Shelf Life
Capacitance change ±30 % of initial measured value at +20 °C (at –25 °C)
Internal resistance
5 times of initial measured value at +20 °C (at –25 °C)
<
After 1000 hours application of 5.5 V. DC at +70 °C, the capacitor shall meet the following limits.
Capacitance change ±30 % of initial measured value
Internal resistance
4 times of initial specifi ed value
<
After 1000 hours storage at +70°C without load, the capacitor shall meet the specifi ed
limits for Endurance.
■ Di men sions in mm(not to scale)
Te r minal: V
φ19.0±0.3
1.0±0.1
21.0 max
5.5±0.5
4.0±0.3
–
5.0±0.5
5.0±0.3
+
0.20±0.05
Te r minal: H
■ Standard Products
Maximum
Op er at ing Volt age
Capacitance
Capacitance
tolerance
(V.DC) (F) (F) (Ω) at 1kHz (pcs)
0.47 0.376 to 1.41
5.5
( ) Please use V or H, to indicate the terminal style.
Note : Do not use refl ow soldering. (IR, Atmosphere heating methods, etc.)
Please refer to EE208 “Mounting Specifi cations”.
Design and specifi cations are each subject to change without notice. Ask factory for the current technical specifi cations before purchase and/or use.
Should a safety concern arise regarding this product, please be sure to contact us immediately.
1.0 0.80 to 1.80
1.5 1.20 to 2.70
– EE197 –
Internal resistance
(Initial specifi ed value)
30
<
30
<
30
<
Part number
EECS5R5( )474
EECS5R5( )105
EECS5R5( )155
(Unit : mm)
Min. Packaging
Q’ty
100
100
100
Sep. 201000
