Page 1

Operating Instructions

Home Theater Audio System

Model No. SC-HTE50

Thank you for purchasing this product. For optimum performance and safety, please read these instructions carefully.

Please keep this manual for future reference.

Model number suffix “EB” denotes UK model.

VQT4E88

Page 2

Safety precautions

WARNING CAUTION

Unit

≥ To reduce the risk of fire, electric shock or

product damage, jDo not expose this unit to rain, moisture,

dripping or splashing.

jDo not place objects filled with liquids, such

as vases, on this unit.

jUse only the recommended accessories. jDo not remove covers. jDo not repair this unit by yourself. Refer

servicing to qualified service personnel.

AC mains lead

≥ To reduce the risk of fire, electric shock or

product damage, jEnsure that the power supply voltage

corresponds to the voltage printed on this unit.

jInsert the mains plug fully into the socket

outlet.

jDo not pull, bend, or place heavy items on

the lead.

jDo not handle the plug with wet hands. jHold onto the mains plug body when

disconnecting the plug.

jDo not use a damaged mains plug or socket

outlet.

≥ Install this unit so that the AC mains lead can

be unplugged from the socket outlet immediately if any problem occurs.

Button-type battery (Lithium battery)

≥ Risk of fire, explosion and burns. Do not

recharge, disassemble, heat above 60 incinerate.

≥ Keep the Button-Type battery out of the reach

of children. Never put Button-Type battery in mouth. If swallowed call your doctor.

C or

Unit

≥ Do not place sources of naked flames, such as

lighted candles, on this unit.

≥ This unit may receive radio interference caused

by mobile telephones during use. If such interference occurs, please increase separation between this unit and the mobile telephone.

≥ This unit is intended for use in moderate

climates.

Placement

≥ Place this unit on an even surface. ≥ To reduce the risk of fire, electric shock or

product damage, jDo not install or place this unit in a bookcase,

built-in cabinet or in another confined space. Ensure this unit is well ventilated.

jDo not obstruct this unit’s ventilation

openings with newspapers, tablecloths, curtains, and similar items.

jDo not expose this unit to direct sunlight, high

temperatures, high humidity, and excessive vibration.

Button-type battery (Lithium battery)

≥ Danger of explosion if battery is incorrectly

replaced. Replace only with the type recommended by the manufacturer.

≥ When disposing the batteries, please contact

your local authorities or dealer and ask for the correct method of disposal.

≥ Insert with poles aligned. ≥ Mishandling of batteries can cause electrolyte

leakage and may cause a fire. jRemove the battery if you do not intend to

use the remote control for a long period of time. Store in a cool, dark place.

≥ Do not heat or expose to flame. ≥ Do not leave the battery(ies) in a car exposed

to direct sunlight for a long period of time with doors and windows closed.

VQT4E88

Page 3

Caution for AC Mains Lead

Figure A Figure B

Fuse cover

Figure A Figure B

Fuse (5 ampere)

For your safety, please read the following text carefully.

This appliance is supplied with a moulded three pin mains plug for your safety and convenience. A 5-ampere fuse is fitted in this plug. Should the fuse need to be replaced please ensure that the replacement fuse has a rating of 5-ampere and that it is approved by ASTA or BSI to BS1362. Check for the ASTA mark Ï or the BSI mark Ì on the body of the fuse.

If the plug contains a removable fuse cover you must ensure that it is refitted when the fuse is replaced. If you lose the fuse cover the plug must not be used until a replacement cover is obtained. A replacement fuse cover can be purchased from your local dealer.

CAUTION!

IF THE FITTED MOULDED PLUG IS UNSUITABLE FOR THE SOCKET OUTLET IN YOUR HOME THEN THE FUSE SHOULD BE REMOVED AND THE PLUG CUT OFF AND DISPOSED OF SAFELY. THERE IS A DANGER OF SEVERE ELECTRICAL SHOCK IF THE CUT OFF PLUG IS INSERTED INTO ANY 13-AMPERE SOCKET.

The wire which is coloured Brown must be connected to the terminal which is marked with the letter L or coloured Brown or Red.

WARNING: DO NOT CONNECT EITHER WIRE TO THE EARTH TERMINAL WHICH IS MARKED WITH THE LETTER E, BY THE EARTH SYMBOL Ó OR COLOURED GREEN OR GREEN/YELLOW.

THIS PLUG IS NOT WATERPROOF—KEEP DRY.

Before use

Remove the connector cover.

How to replace the fuse

The location of the fuse differ according to the type of AC mains plug (figures A and B). Confirm the AC mains plug fitted and follow the instructions below. Illustrations may differ from actual AC mains plug.

1. Open the fuse cover with a screwdriver.

2. Replace the fuse and close or attach the fuse cover.

Precautions

If a new plug is to be fitted please observe the wiring code as stated below. If in any doubt please consult a qualified electrician.

IMPORTANT

The wires in this mains lead are coloured in accordance with the following code: Blue: Neutral, Brown: Live. As these colours may not correspond with the coloured markings identifying the terminals in your plug, proceed as follows:

The wire which is coloured Blue must be connected to the terminal which is marked with the letter N or coloured Black or Blue.

VQT4E88

Page 4

Table of Contents

Safety precautions .......................................................................................... 2

Caution for AC Mains Lead ............................................................................ 3

Before use

Supplied items ................................................................................................. 5

System (SC-HTE50) .......................................................................................................... 5

Accessories ........................................................................................................................5

Control reference guide .................................................................................. 6

Active subwoofer ................................................................................................................6

Remote control ................................................................................................................... 7

Unit care ........................................................................................................... 7

Getting started

Information for your safety ............................................................................ 8

Speaker system .................................................................................................................8

Active subwoofer ................................................................................................................8

Connections .................................................................................................... 9

Basic connection ................................................................................................................ 9

Connection with other devices .........................................................................................10

Speaker cable connection ................................................................................................11

Speaker installation option ...............................................................................................12

AC mains lead connection ...............................................................................................13

Operations

Using this unit ............................................................................................... 14

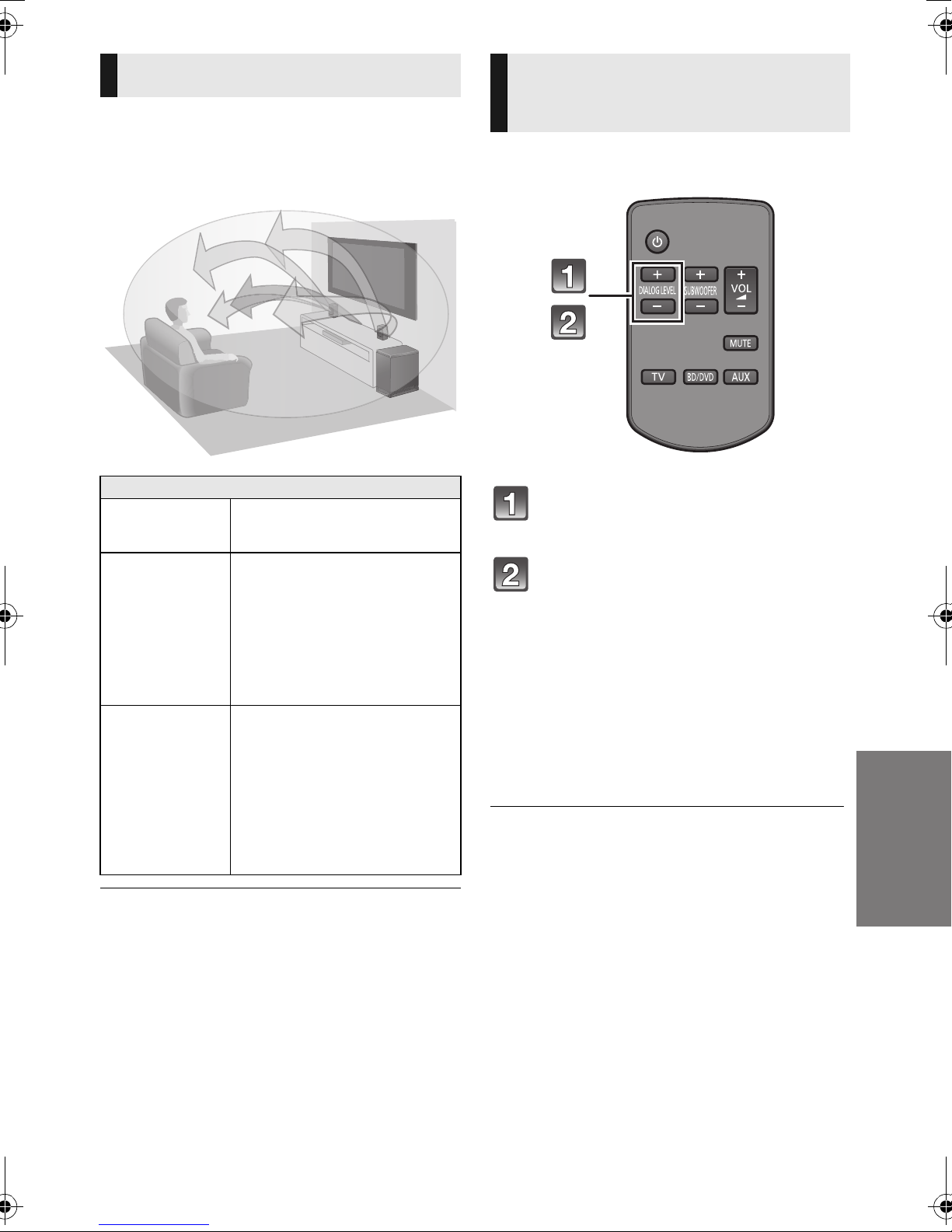

3D sound ......................................................................................................................... 15

To adjust the dialog effect level .......................................................................................15

Audio output modes ......................................................................................................... 16

Linked operations with the TV (VIERA Link “HDAVI ControlTM”) ................. 17

Advanced operations .................................................................................... 18

Reference

Troubleshooting ............................................................................................ 19

Indicator illumination .................................................................................... 21

Specifications ................................................................................................ 22

VQT4E88

Page 5

Before use

≥ The illustrations shown may differ from your unit. ≥ Operations in these Operating Instructions are described mainly with the remote control, but

you can perform the operations on the active subwoofer if the controls are the same.

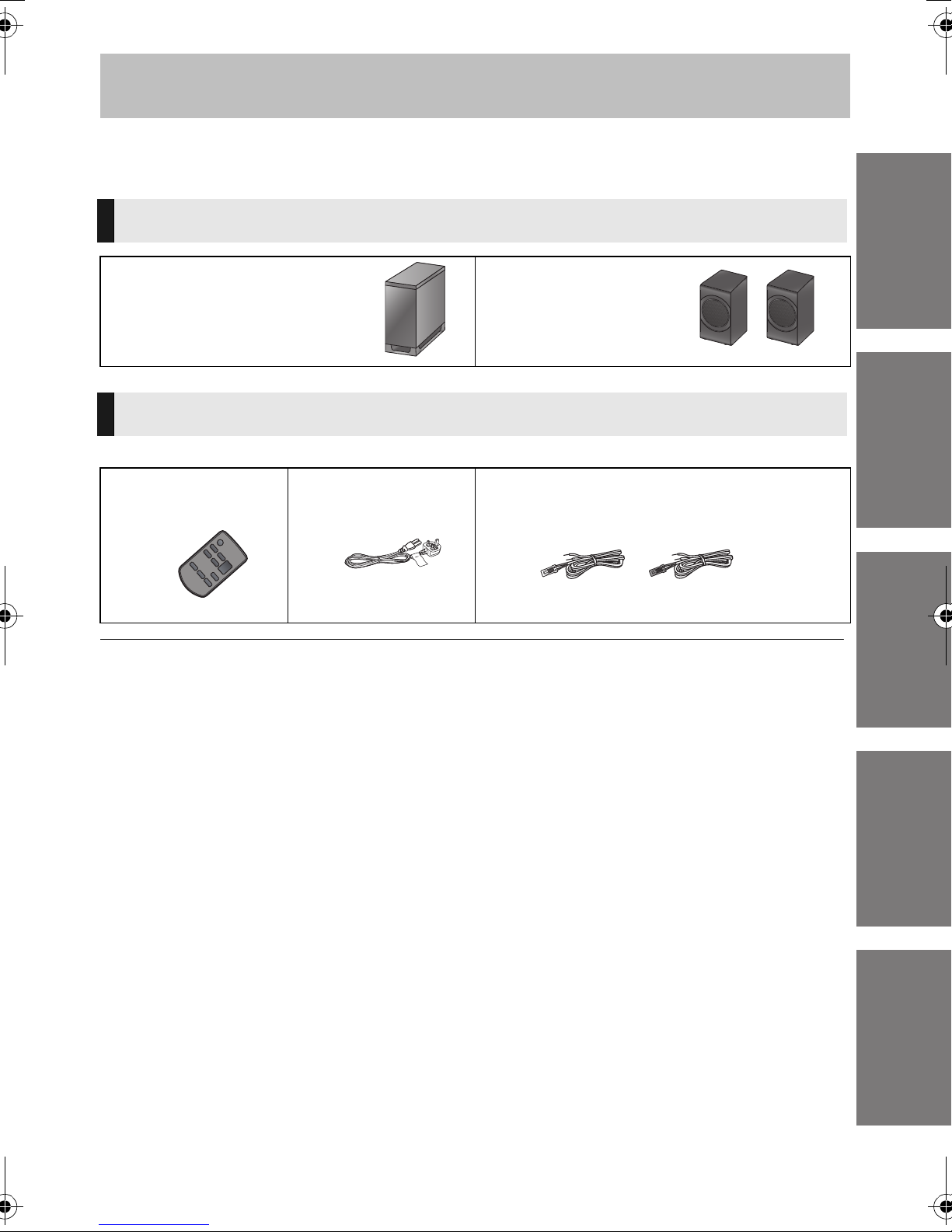

Supplied items

System (SC-HTE50)

∏ 1 Active subwoofer

(SU-HTE50)

∏ 2 Front speakers

(SB-HTE50)

Accessories

Check the supplied accessories before using the system.

∏ 1 Remote control

(with a battery)

(N2QAYC000064)



≥ Product numbers are correct as of February 2012. These may be subject to change. ≥ The supplied AC mains lead is for use with the active subwoofer.

Do not use it with other equipment. Also, do not use cords for other equipment with the active subwoofer.

∏ 1 AC mains lead

(K2CZ3YY00005)

∏ 2 Speaker cables

(REEX1266A-J:RED) (REEX1267A-J:WHITE)

Precautions

Before useOperations

Reference Getting started

VQT4E88

Page 6

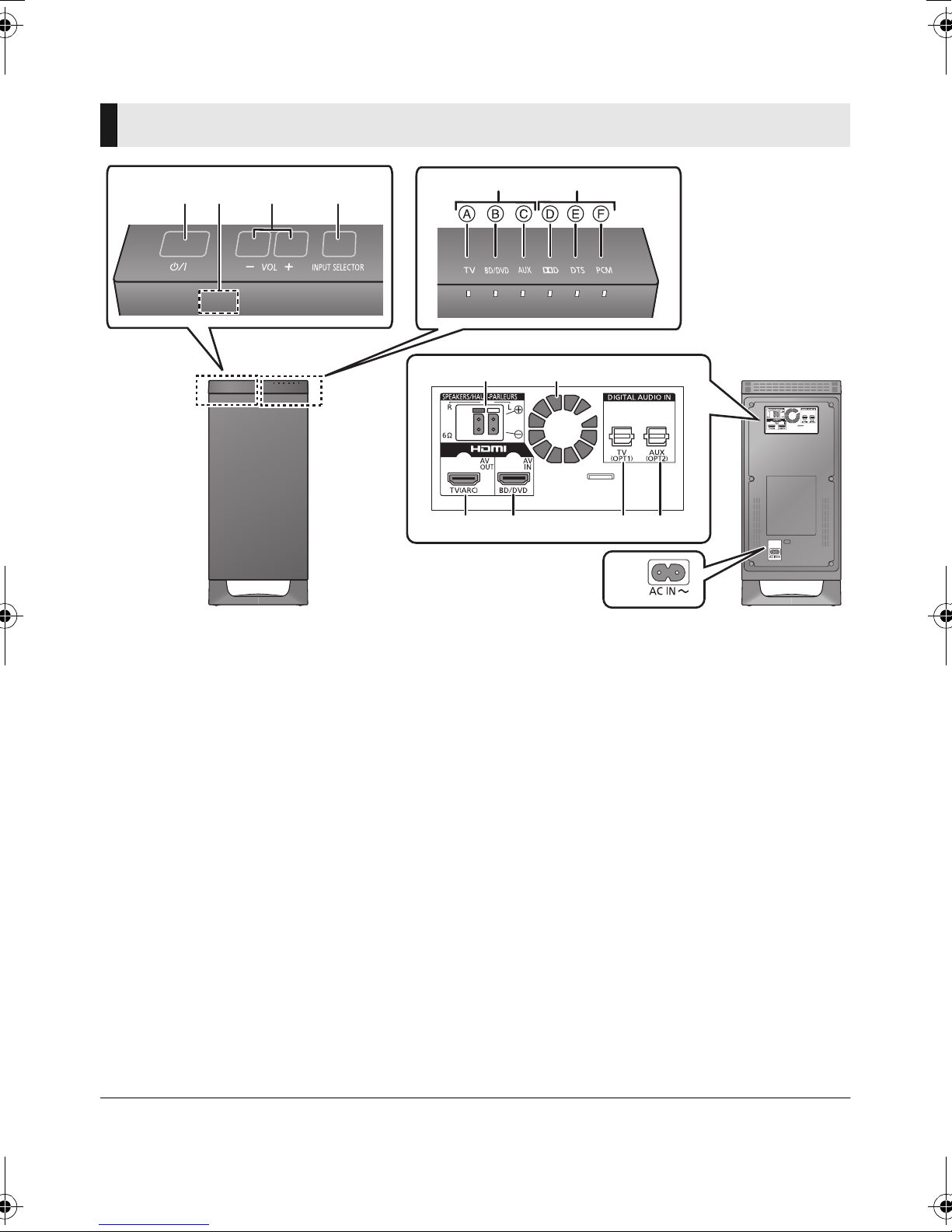

Control reference guide

Active subwoofer (front)

Active subwoofer (rear)

Active subwoofer

314

7 8

9 10 11 12

1 Standby/on switch (Í/I)

Press to switch the unit from on to standby mode or vice versa. In standby mode, the unit

is still consuming a small amount of power. 2 Remote control signal sensor (> 8) 3 Adjust the volume of the speakers 4 Select the input source

TV # BD/DVD # AUX

^----------------------------------}

5 Input selector indicators

A TV indicator

Lights green when the TV is the audio source

B BD/DVD indicator

Lights amber when the device connected to the BD/DVD terminal is the audio source

C AUX indicator

Lights amber when the device connected to the AUX terminal is the audio source

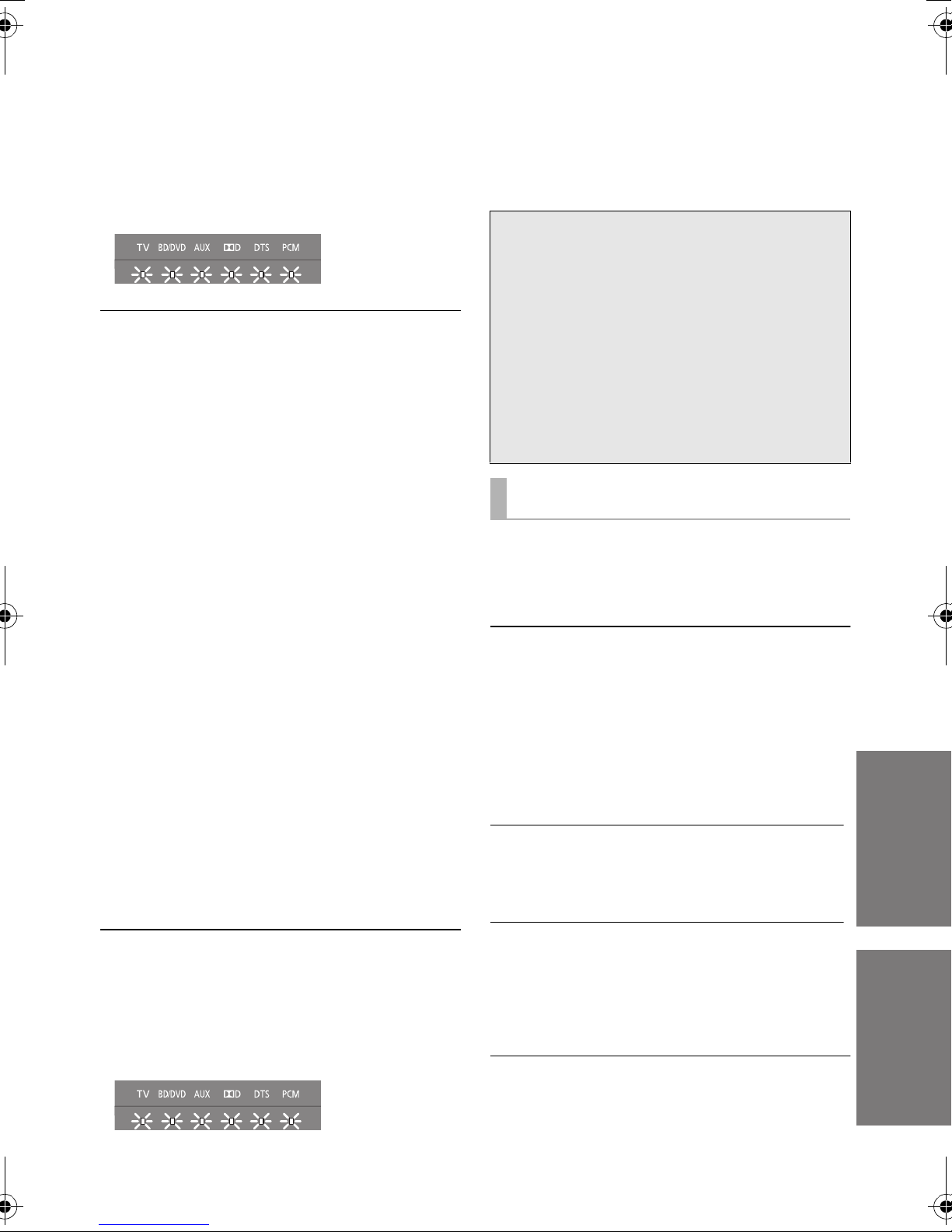

§ The indicators will also blink in various conditions (> 21)

6 Audio format indicators

D DolbyR Digital indicator

Lights when Dolby audio format

E DTS indicator

Lights when DTS is the current audio format

F PCM indicator

Lights when PCM (2ch, Multi-channel) is the current audio format

7 Speaker terminals (> 11) 8 Cooling fan 9 HDMI OUT terminal (ARC compatible)

(> 9, 10) 10 HDMI IN terminal (BD/DVD) (> 10) 11 OPTICAL DIGITAL AUDIO IN terminal (TV)

(> 10) 12 OPTICAL DIGITAL AUDIO IN terminal (AUX)

(> 10) 13 AC IN terminal (> 13)

Digital is the current

VQT4E88

Page 7

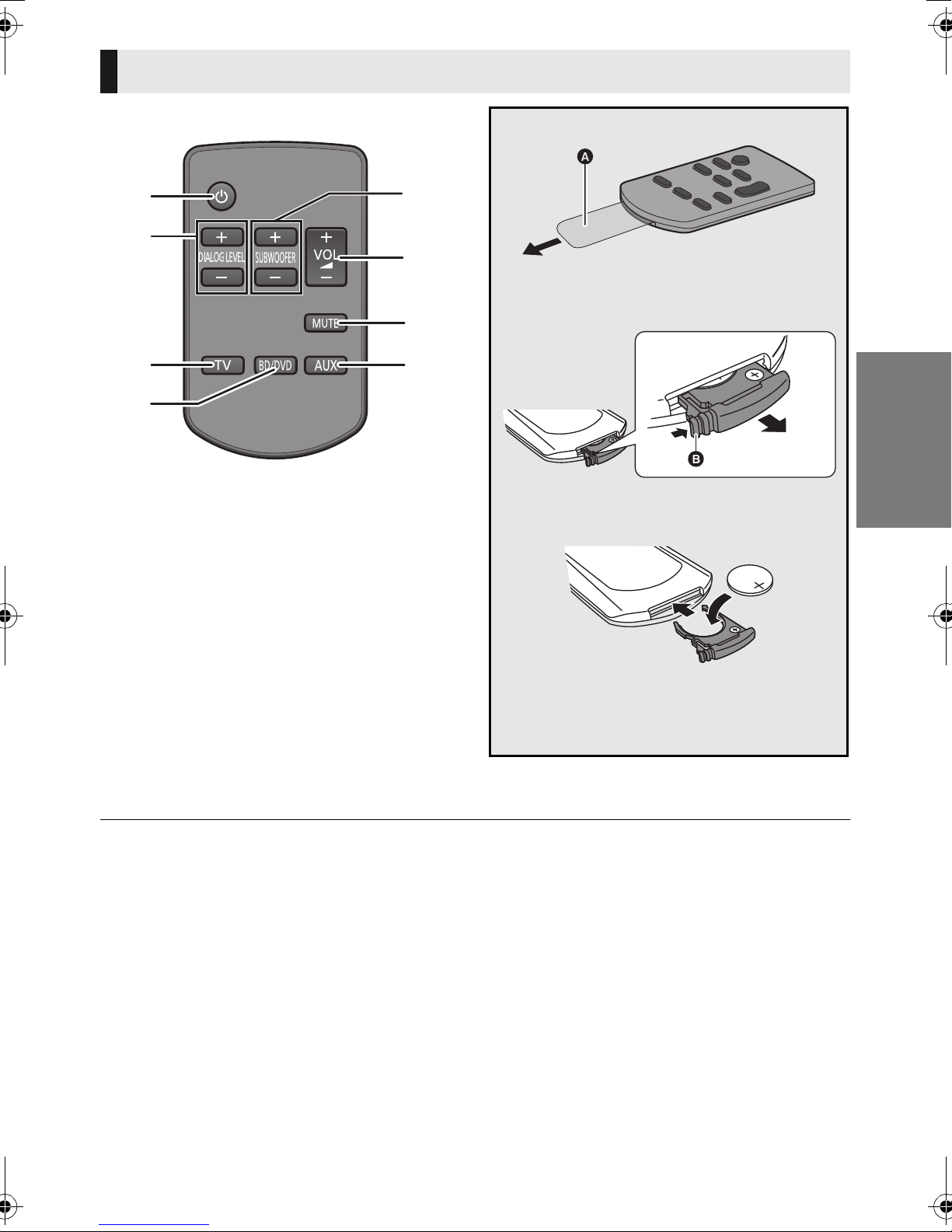

Remote control

Remove the insulation sheet A before using.

∫ To replace a button-type battery

1 While pressing the stopper B, pull out

the battery holder.

2 Set the button-type battery with its (i)

1 Turn the system on or off (> 14) 2 Adjust the dialog effect level (> 15) 3 Select the TV as the source (> 14) 4 Select the BD/DVD as the source (> 14) 5 Adjust the output level of the active

subwoofer (bass sound) (> 14) 6 Adjust the volume of the speakers (> 14) 7 Mute the sound (> 14) 8 Select the AUX as the source (> 14)

mark facing upward and then put the battery holder back in place.

≥ When replacing the battery, use:

CR2025 (Lithium battery)

≥ Keep the button-type battery out of reach of

children to prevent swallowing.

Unit care

∫ Clean the system with a soft, dry cloth

≥ When the system becomes very dirty, wring a cloth moistened in water tightly to wipe the dirt, and

then wipe it with a dry cloth.

≥ When cleaning the system, use a fine cloth. Do not use tissues or other materials (towels, etc.) that

can fall apart. Small grains may get stuck inside the speaker cover.

≥ Never use alcohol, paint thinner or benzine to clean the system. ≥ Before using chemically-treated cloth, carefully read the instructions that came with the cloth.

Before use

VQT4E88

Page 8

Getting started

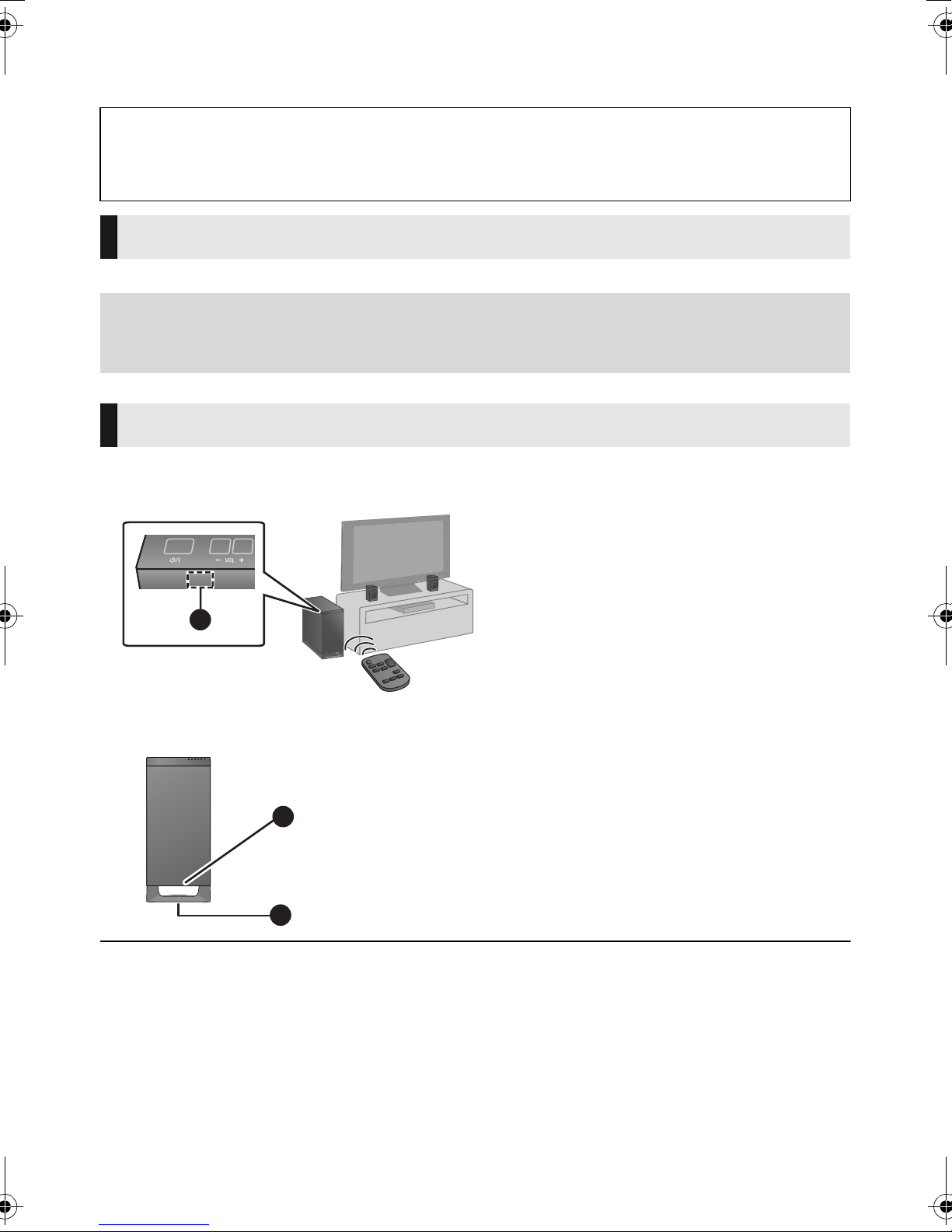

A Remote control signal sensor

≥ Remote control operation range

Distance: Within approx. 7 m directly in front Angle: Approx. 30

left and right

Information for your safety

Caution

≥ The active subwoofer and supplied speakers are to be used only as indicated in these instructions. Failure to do so may

lead to damage to the amplifier and/or the speakers, and may result in the risk of fire. Consult a qualified service person if damage has occurred or if you experience a sudden change in performance.

≥ Do not attempt to attach these speakers to a wall using methods other than those described in this manual.

Speaker system

≥ Do not hold the speakers in one hand to avoid injury by dropping the speakers when carrying.

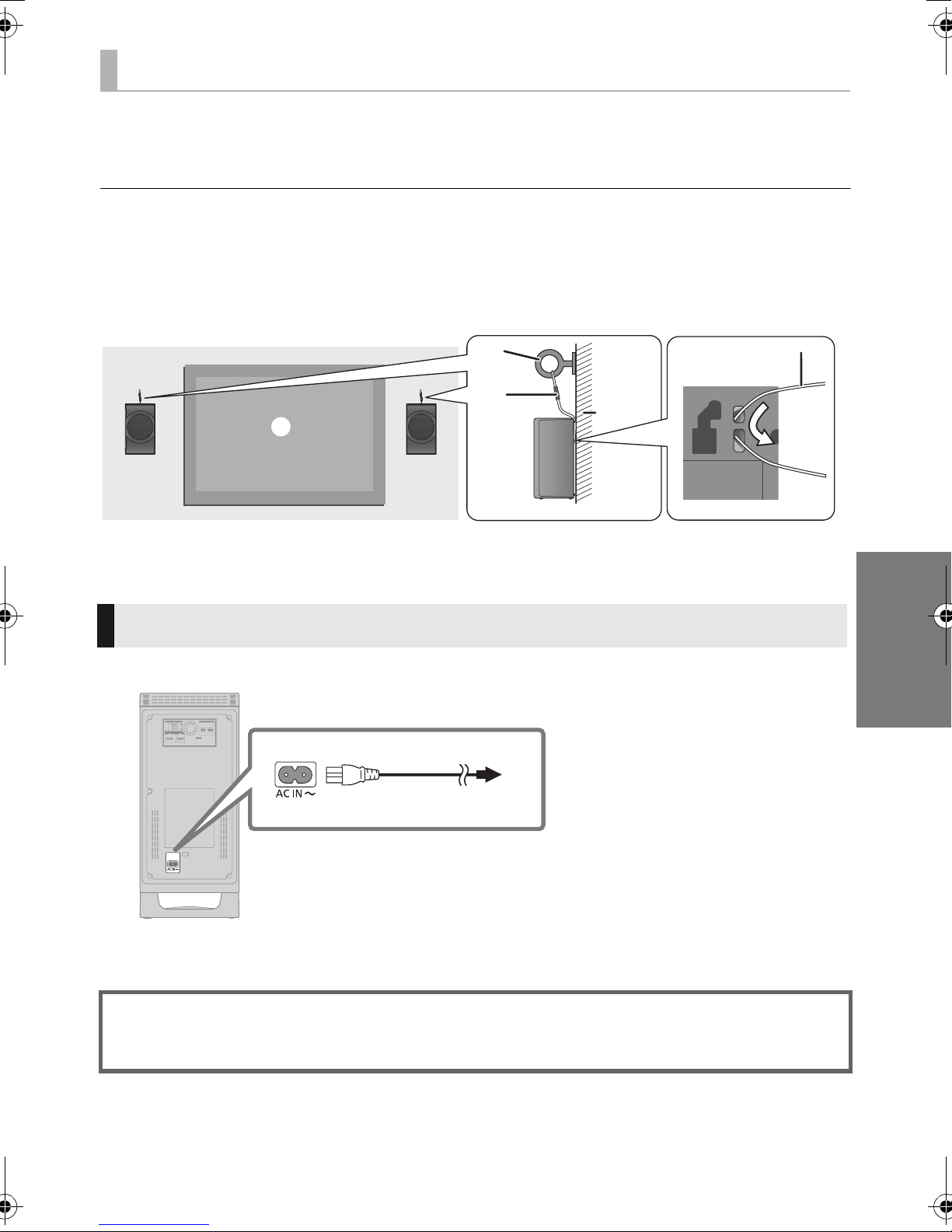

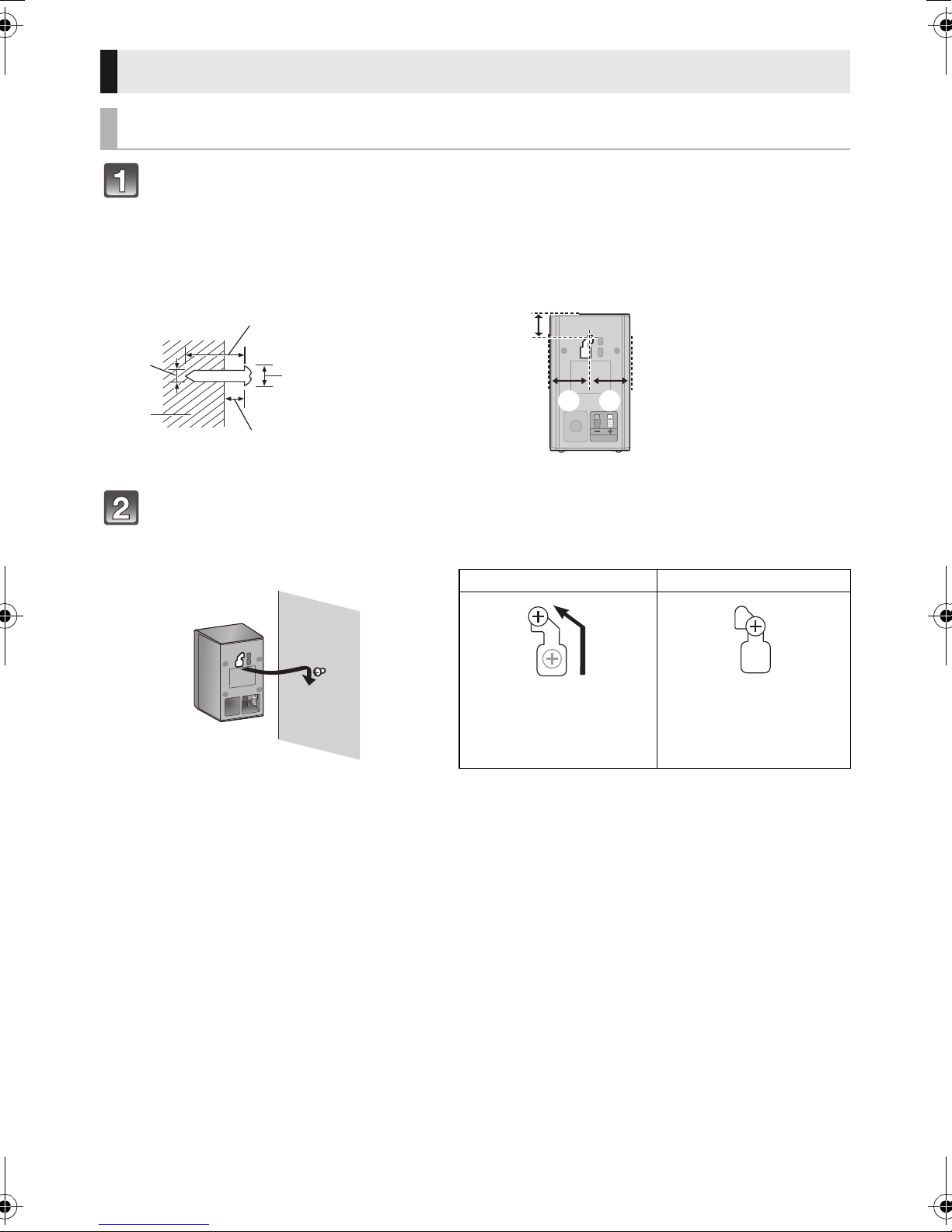

∫ When attaching the speakers to a wall (> 12)

The wall or pillar on which the speakers are to be attached should be capable of supporting 10 kg per screw. Consultation with a qualified building contractor is recommended when attaching the speakers to a wall. Improper attachment may result in damage to the wall and speakers, and personal injury.

Active subwoofer

The remote control signal sensor is located on the active subwoofer.

≥ Use the remote control within the correct operation range.

∫ When carrying the active subwoofer

B Do not hold the active subwoofer from this

opening.

The parts inside (speaker unit) may be damaged.

C Always hold the bottom of the active subwoofer when

moving it.



≥ Place the active subwoofer in a horizontal position with the top panel faced upward. ≥ Placing the active subwoofer and the speakers too close to the walls, and corners can result in excessive bass. Cover walls

and windows with thick curtains.

≥ If irregular colouring occurs on your TV, turn the TV off for about 30 minutes. If it persists, move the speakers further away

from the TV.

≥ Keep magnetised items away. Magnetised cards, watches etc., can be damaged if placed too close to the system.

VQT4E88

Page 9

Getting started

Connections

Active subwoofer

Be sure to connect to the TV’s ARC compatible terminal. (Refer to the operating instructions for the TV.)

≥ Turn off all equipment before connection and read the appropriate operating instructions.

Do not connect the AC mains lead until all other connections are complete.

∫ HDMI

The HDMI connection supports VIERA Link “HDAVI Control” (> 17) when used with a compatible Panasonic TV. ≥ Use the High Speed HDMI cables. Non-HDMI-compliant cables cannot be utilised. It is recommended that you use

Panasonic’s HDMI cable. Recommended part number (High Speed HDMI cable): RP-CDHS15 (1.5 m), RP-CDHS30 (3.0 m), RP-CDHS50 (5.0 m), etc.

∫ 3D compatibility

Compatible with FULL HD 3D TV and Blu-ray Disc Player ≥ This system can pass through the 3D video signal from a 3D compatible Blu-ray Disc Player to a FULL HD 3D TV.

Basic connection

Verify if the TV’s HDMI terminal is labelled “HDMI (ARC)”.

The connection will differ when the TV’s HDMI terminal is labelled “HDMI (ARC)” and when it is not.

Labelled “HDMI (ARC)”: Connection ]A[ Not labelled “HDMI (ARC)”: Connection ]B[ (> 10)

∫ What is ARC?

ARC is an abbreviation of Audio Return Channel, also known as HDMI ARC. It refers to one of the HDMI functions. When you connect the active subwoofer to the terminal labelled “HDMI (ARC)”, the optical digital audio cable that is usually required in order to listen to sound from a TV is no longer required, and TV pictures and sound can be enjoyed with a single HDMI cable.

Make the connection.

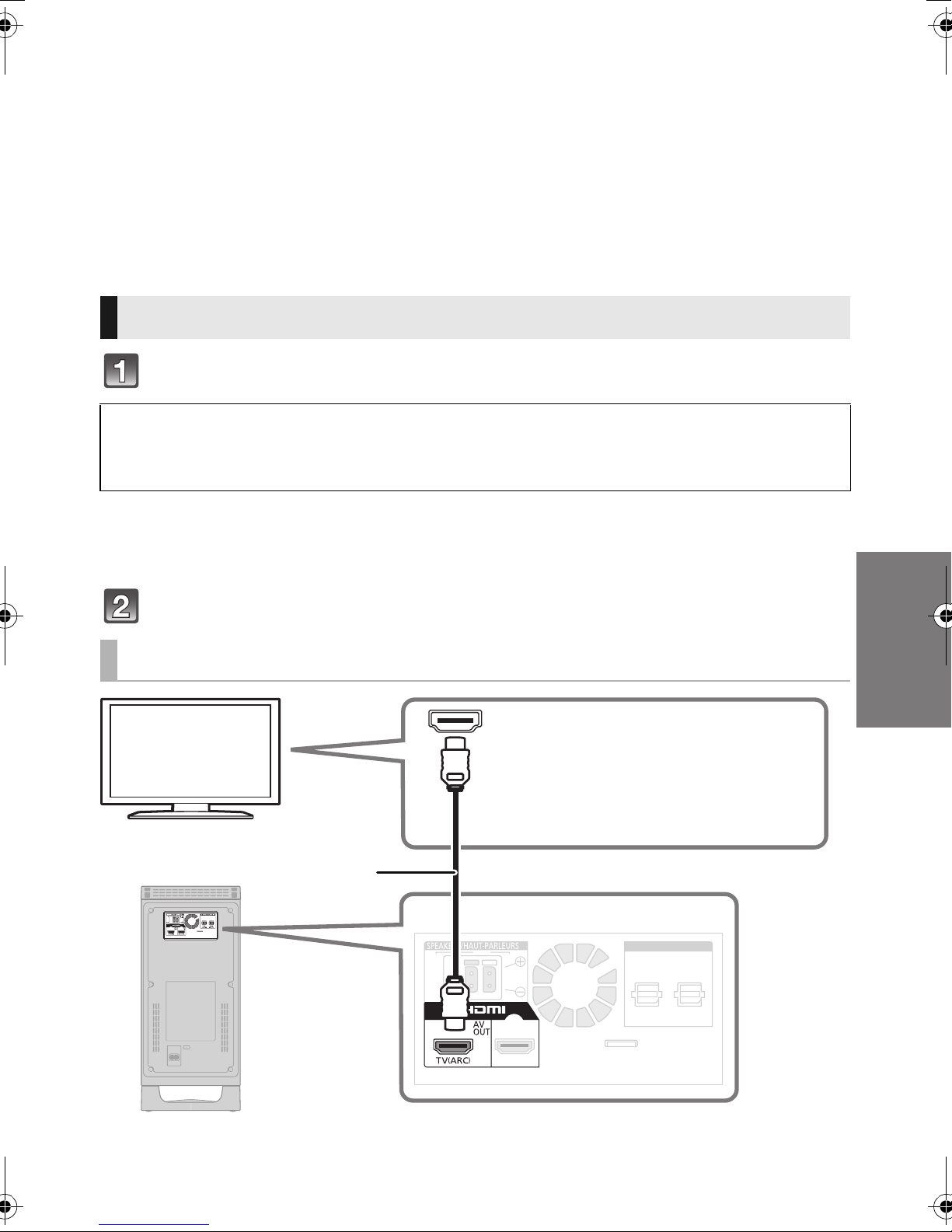

[A] Labelled “HDMI (ARC)”

HDMI (ARC)

A HDMI cable (not supplied)

(Continued on the next page)

VQT4E88

Page 10

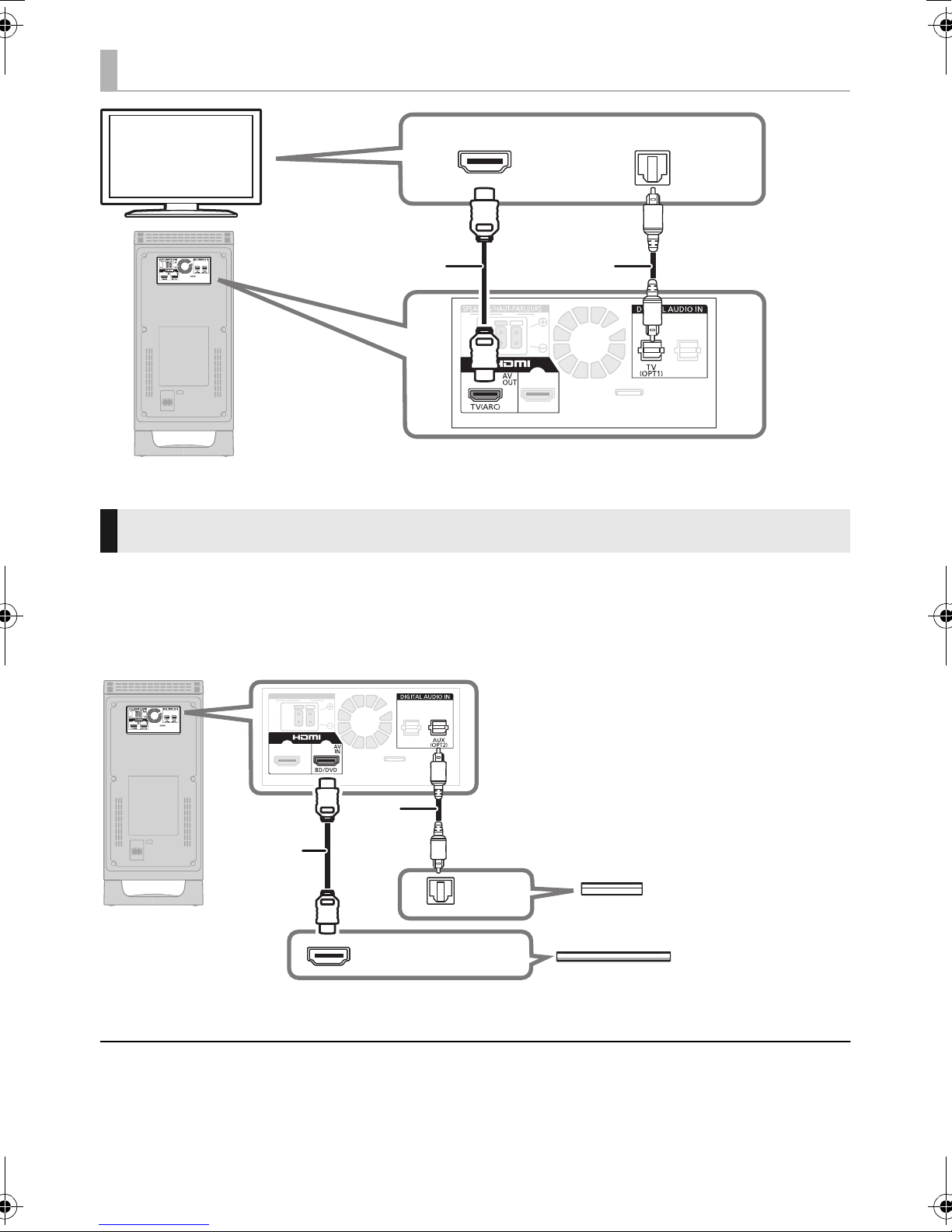

[B] Not labelled “HDMI (ARC)”

HDMI IN

OPTICAL OUT

Active subwoofer

OPTICAL

OUT

HDMI OUT

e.g., Set top box

e.g., Blu-ray Disc Player

Active subwoofer

A HDMI cable (not supplied) B Optical digital audio cable (not supplied)

Connection with other devices

You can direct the audio signal from the connected Blu-ray Disc player, DVD player, Set Top Box, etc. to this system. ≥Refer to the operating instructions of the set top box for the optimal video connection.

Preparation

≥ Connect this system to the TV. (> 9)

A HDMI cable (not supplied) B Optical digital audio cable

∫ HDMI standby pass-through

Even if this system is in standby mode, the audio and/or video signal from the device connected to the HDMI IN terminal (BD/DVD) will be sent to the TV connected to the HDMI OUT terminal (ARC) (The sound will not be output from this system).

VQT4E88

(not supplied)

Page 11

Getting started

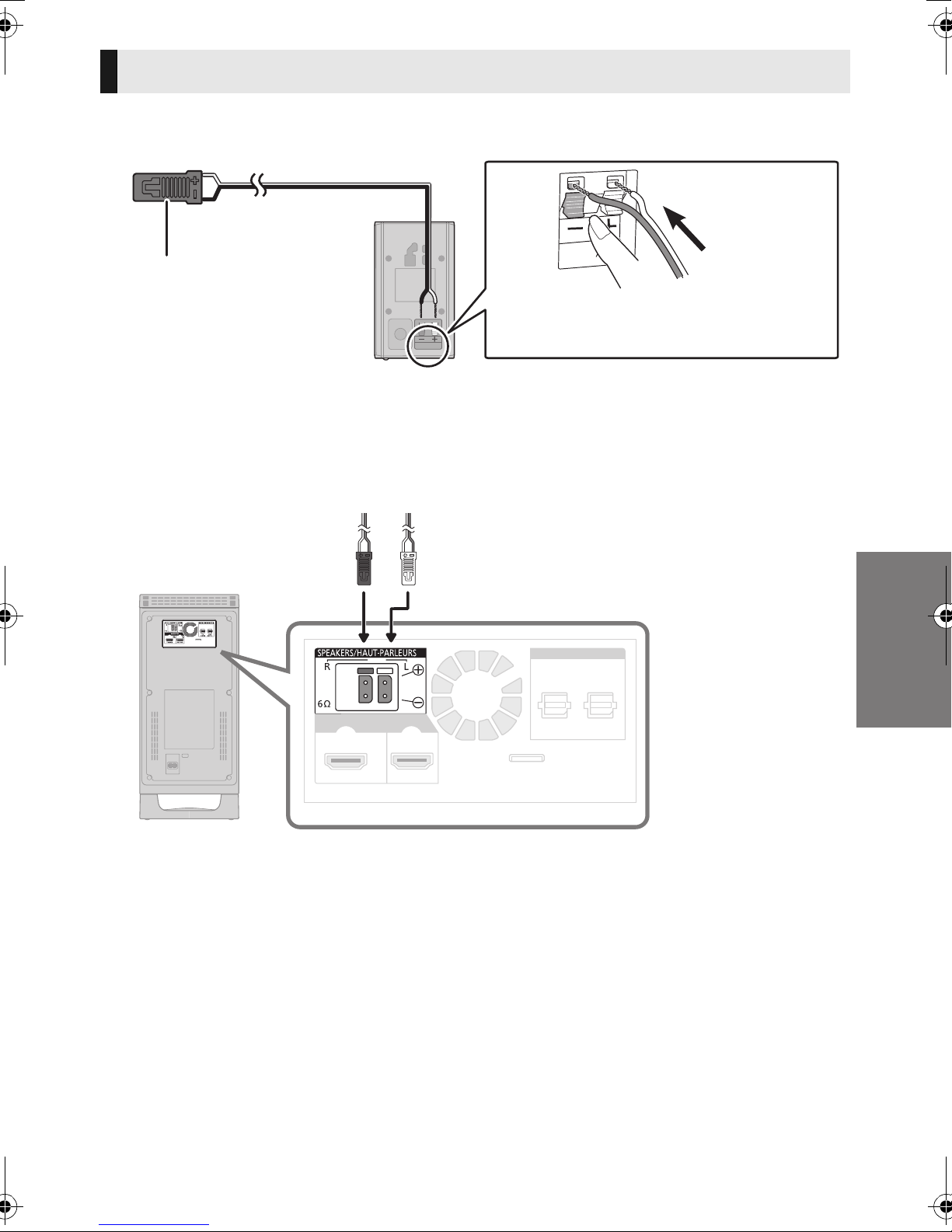

Speaker cable connection

Connector

Insert the wire fully while pushing the lever.

r: White s: Blue line

Push

Front speaker

Active subwoofer

Preparation

Connecting the speaker cables

≥ To make sure that the speaker cable is connected to the correct speaker, match the colour of the speaker connector with

the colour of the L/R indicator on the speaker label so as not to connect the speaker cable to the wrong speaker.

Connect to the terminals of the same colour.



A RED

Front speaker (Rch)

B WHITE

Front speaker (Lch)

≥ Place the speaker that is connected with the speaker cable with a red connector on the observers’ right, and connect with the

speaker cable with a white connector on the observers’ left.

VQT4E88

Page 12

Speaker installation option















Attaching to a wall

Drive a screw (not supplied) into the wall.

≥ Use the measurements indicated below to identify the screwing positions on the wall. ≥ Leave at least 20 mm of space above and 10 mm of space each side of the speaker to allow enough space for fitting the

speaker.

≥ The position in the wall where the screw is to be attached as well as the screw should be capable of supporting over 10 kg. ≥ Keep the screws out of reach of children to prevent swallowing.

A At least 30 mm B ‰4.0 mm C ‰7.0 mm to

‰9.4 mm

D Wall or pillar E 5.5 mm to 6.5 mm

F 24 mm G 40 mm

Fit the speaker(s) securely onto the screw(s) with the hole(s).

≥ Place the speaker that is connected with the speaker cable with a red connector on the observers’ right, and connect with the

speaker cable with a white connector on the observers’ left.

DO DO NOT

≥ Move the speaker so

that the screw is in this position.

≥ In this position, the

speaker will likely fall if moved to the left or right.

VQT4E88

Page 13

Getting started

Speaker fall prevention measures

Wall-mounted speakers

Active subwoofer

To prevent the speakers from falling, it is recommended, as an additional protection measure, to attach the speakers to the wall with a fall prevention cord (hereafter “cord”).



≥ Consultation with a qualified housing contractor concerning the appropriate procedure when attaching to a concrete wall or a

surface that may not have strong enough support is recommended wall and speakers, and personal injury.

≥ Use a cord of less then ‰1.5 mm, which is capable of supporting over 10 kg. ≥ Keep the screws out of reach of children to prevent swallowing. ≥ Make sure that the slack of the cord is minimal.

(>12). Improper attachment may result in damage to the

A Cord (not supplied) B Screw eye (not supplied)

C Wall D TV

AC mains lead connection

≥ Connect only after all other connections are complete.



A To a household mains socket

≥ The active subwoofer consumes a small amount of AC power, even when it is in standby mode (Approx. 0.12 W). In the

interest of power conservation, if you will not be using this system for a long time, unplug it from the household mains socket.

Saving energy

This system is designed to conserve its power consumption and save energy.

≥ This system will automatically switch to standby mode when no signal is input and no operation is performed for approx.

2 hours.

VQT4E88

Page 14

Operations

Using this unit

Preparation

≥ Turn on the TV.

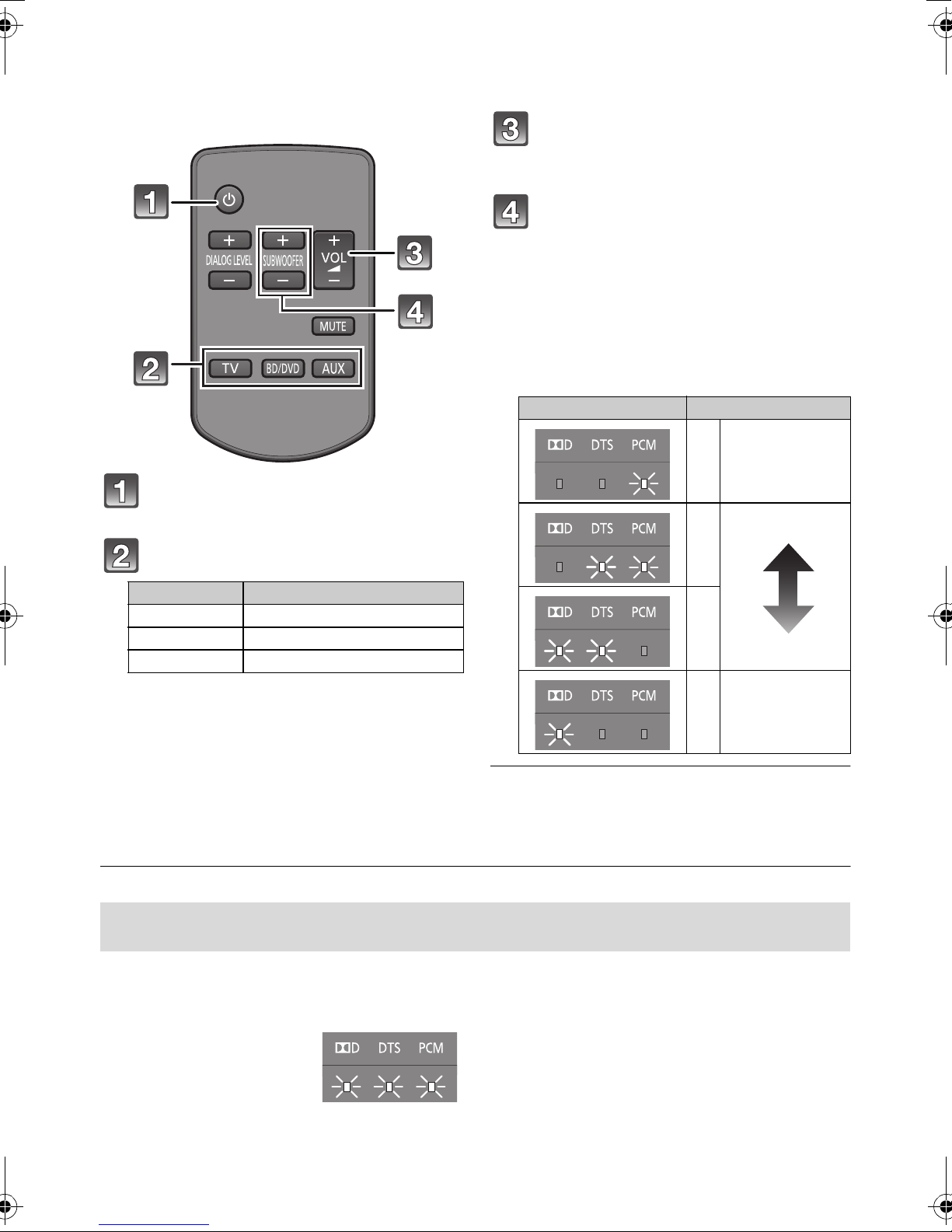

Press [i VOL j] to adjust the

Press [Í] to turn on the system.

Select the source. (> 6)

Press To select [TV] “TV” [BD/DVD] “BD/DVD” [AUX] “AUX”

≥ This remote control cannot be used to control the

operations of the connected devices.

∫ When “BD/DVD” or “AUX” is selected

as the source

On the connected device:

Select the TV’s input for this unit and start the playback on the connected device.

volume of the speakers.

≥ Volume range: 1 to 100

Press [i SUBWOOFER j] to adjust the subwoofer level

(bass sound).

≥ Subwoofer levels: 1 to 4§ (Factory preset: 3)

1 Press [i SUBWOOFER j] to display the

current level.

2 While the level is displayed:

Press [i SUBWOOFER j] to adjust the level.

Indication Effect level

4 Highest

1 Lowest

§ The audio format indicators blink from left to right (i) or from right to left (s) while adjusting the speaker volume or the subwoofer level.The indicators will not blink when it has reached the maximum or minimum.



If the system does not operate as expected such as sound defects, return the settings to the factory preset and operate the system again. (> 19)

∫ To mute the sound

Press [MUTE].

The audio format indicators blink simultaneously while muting.

≥ To cancel, press the button again or adjust the

volume.

≥ Muting is cancelled if this system is turned off.

VQT4E88

≥ If there is sound from the TV’s speakers too, then use the

TV’s remote control to lower the volume to minimum.

≥ The maximum volume of the TV and this system may be

different.

≥ If this system is turned off with the volume setting in the

greater half (above 50), this system will automatically lower the volume to the middle (50) when the system is turned on. (Refer to page 19 to turn this function off.)

Page 15

3D sound

e.g., Image of 3D sound field

To adjust the dialog

This system provides a feeling that the sound and the image are as one. The 3D sound effect will be applied to Multi-channel audio sources as a factory preset.

Dolby Virtual Speaker

3D surround effect

Clear-mode dialog



Dolby Virtual Speaker and the 3D surround effects can be turned off and on by changing the audio output mode settings.

3D sound

With this effect you can enjoy a surround sound effect similar to

5.1ch. Adding to the Dolby Virtual

Speaker effect, Panasonic has applied its own sound field controlling technology to expand the sound field forwards, backwards, upwards and downwards providing a sound with depth and force that better matches 3D images.

Sports commentary and dialogs from TV dramas are heard as if the sound is coming from the TV, giving the feeling that the sound and the image is as one. Also, the dialog will stand out from the other sounds during normal volume playback and when the volume is lowered for night time viewing.

effect level

This setting will change the level of the Clearmode dialog effect. (> left)

Press [i DIALOG LEVEL j] to

display the current level.

While the level is displayed: Press [i DIALOG LEVEL j] to

adjust the level.

≥ The level indication pattern is the same as subwoofer

level.§

≥ Dialog effect levels: 1 to 4 ≥ The dialog effect level can be also adjusted by

pressing both [s VOL] and [VOL r] on the active subwoofer for more than 2 seconds. After the current setting is displayed, press [s VOL] or [VOL r] again to adjust the level.



≥ Depending on audio signals, sound other than dialog

is emphasized.

§ The audio format indicators blink from left to right (i) or from right to left (s) while adjusting the dialog effect level.The indicators will not blink when it has reached the maximum or minimum.

(Factory preset: 2)

Operations

VQT4E88

Page 16

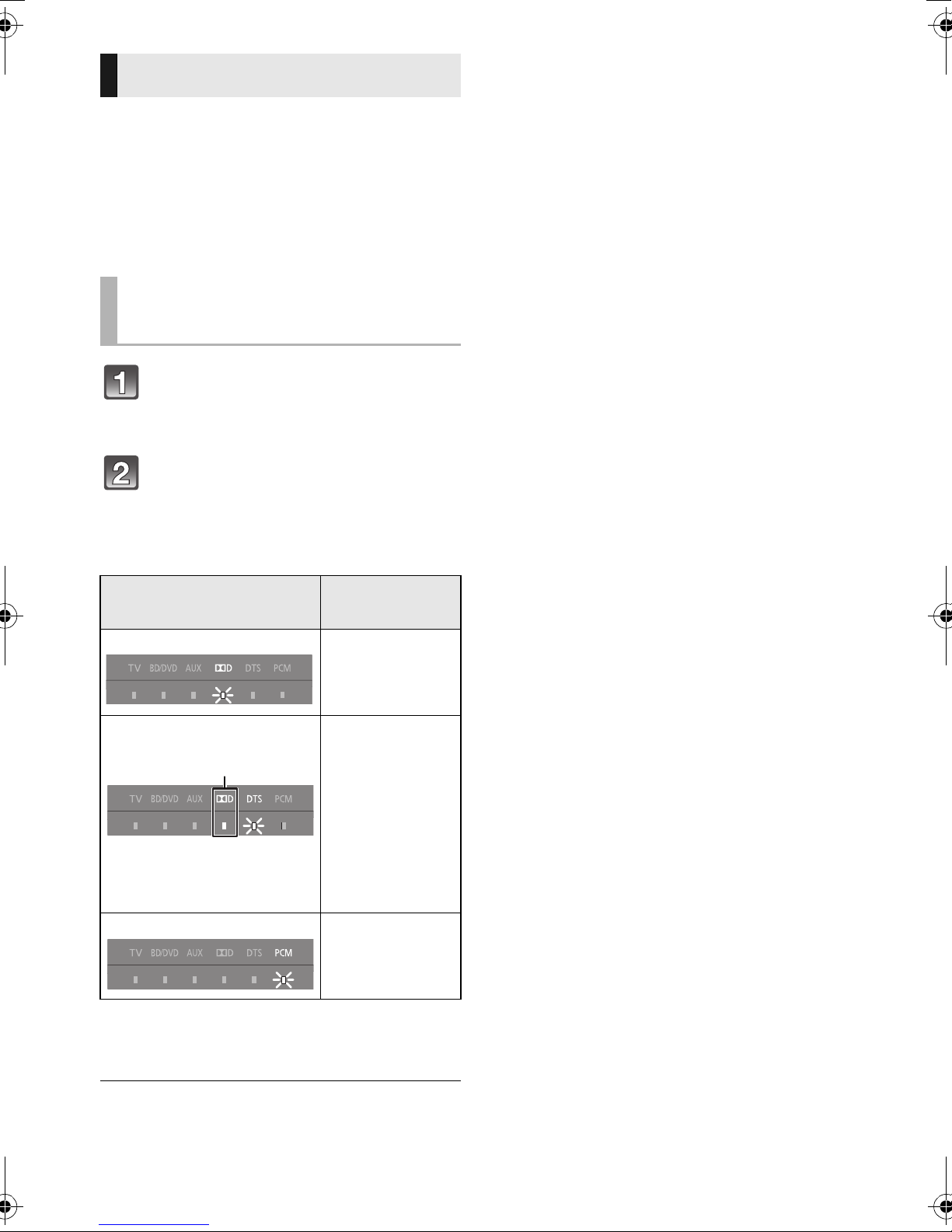

Audio output modes



As a factory preset, Dolby Virtual Speaker and the 3D surround effects will be applied to Multichannel audio sources, such as those from a Bluray Disc player or DVD player, etc. By changing the audio output setting, it is possible to apply the Dolby Virtual Speaker and 3D surround effects to 2ch audio sources, such as the audio from the TV.

To change the audio output mode

Press and hold [MUTE] for more

than 2 sec.

≥ The indicator for the current setting blinks for 10 sec.

While the indicator is blinking,

press [MUTE] again to change the setting.

≥ The setting changes each time [MUTE] is pressed.

Dolby Virtual

Audio output mode

Multi-channel mode

Auto mode (Direct mode)

(Factory preset)

2ch mode

§1 Depending on the audio source, Dolby Virtual Speaker

and 3D surround effect settings are automatically adjusted.

§1

Speaker and 3D

surround effect

The effects are applied to all audio sources.

The effects are applied to Multichannel audio sources. The effects are not applied to 2 channel audio sources.

§2 This indicator will

also blink when the audio source is Multi-channel audio.

The effects are not applied to any audio source.



When using the optical digital audio cable, Dolby Virtual Speaker and the 3D surround effect will be automatically cancelled if the audio signal’s sampling frequency is greater

VQT4E88

than 48 kHz.

Page 17

Linked operations with the TV

(VIERA Link “HDAVI ControlTM”)

What is VIERA Link “HDAVI Control”?

VIERA Link “HDAVI Control” is a convenient function that offers linked operations of this system, and a Panasonic TV (VIERA) under “HDAVI Control”. You can use this function by connecting the equipment with an HDMI cable. See the operating instructions for connected equipment for operational details.

Preparation

1 Confirm that the HDMI connection has been

made. (> 9, 10)

2 Set the “HDAVI Control” operations on the

connected equipment (e.g., TV).

3 For the optimal “HDAVI Control” operations

change the following settings on the

connected TV

≥ Set the default speaker settings to this

system.

≥ Set the speaker selection settings to this

system.

4 Turn on all “HDAVI Control” compatible

equipment and select the TV’s input for this system so that the “HDAVI Control” function works properly.

5 If a device is connected to the HDMI IN

terminal, start play to check that the picture is displayed on the TV correctly.

When the connection or settings are changed, repeat this procedure.

§1 The availability and function of the settings may vary

depending on the TV. Refer to the operating instructions for the TV for details.

§2 If the TV has a default speaker setting within the VIERA

Link setting items, choosing this system as the default speaker will automatically change the speaker selection to this system.



≥ VIERA Link “HDAVI Control”, based on the control

functions provided by HDMI which is an industry standard known as HDMI CEC (Consumer Electronics Control), is a unique function that we have developed and added. As such, its operation with other manufacturers’ equipment that supports HDMI CEC cannot be guaranteed.

≥ This unit supports “HDAVI Control 5” function.

“HDAVI Control 5” is the newest standard (current as of November, 2011) for Panasonic’s HDAVI Control compatible equipment. This standard is compatible with Panasonic’s conventional HDAVI equipment.

≥ Please refer to individual manuals for other manufacturers’

equipment supporting VIERA Link function.

What you can do with VIERA Link “HDAVI Control”

To make sure that the audio is output from this system, select home cinema speaker from the speaker menu of VIERA Link menu using the TV’s remote control to turn this system on. The availability and function of the settings may vary depending on the TV. Refer to the operating instructions for the TV for details.

∫ Speaker control

You can select whether audio output is from this system or the TV speakers by using the TV menu settings.

Home cinema

This system is active.

≥

When this system is in standby mode, changing the TV speakers to this system in the VIERA Link menu will automatically turn this system on and select TV as the source.

≥ You can control the volume setting of this system using the

volume or mute button on the TV remote control.

≥ If you turn off this system, TV speakers will be

automatically activated.

≥

Audio will automatically be output from this system if the TV is compatible to VIERA Link “HDAVI Control 4” or later.

TV speakers are active.

≥ The volume of this system is set to its minimum.

∫ Automatic input switching

When the following operations are performed, this system will automatically change the input to the corresponding source. jWhen play starts on an HDMI connected

device.

jWhen the TV input or the TV channel is

changed.

§3 If the speaker output setting on the TV is set to this

∫ Power off link

When the TV is turned off, this system also turns off automatically.

∫ Automatic lip-sync function

Delay between audio and video is automatically adjusted by adding time-lag to the audio output, enabling you to enjoy smooth audio for the picture.



The delay information is automatically set if the TV is compatible to VIERA Link “HDAVI Control 3” or later and the VIERA Link is set to on.

§3

system, the TV and this system turn on automatically (Power on link).

(for HDAVI Control 3 or later)

Operations

VQT4E88

Page 18

Advanced operations

Changing the dual audio

Change the dual audio from main to secondary.

Confirm the digital audio output setting on the

connected TV or player, etc. is set to “Bitstream”.

2 Press and hold [TV] for more than 2 sec. 3 While the indicator of the current setting is blinking,

press [TV] to change the setting.

A : Main

B : Secondary

A, B : Main and secondary

≥ The setting works only when the dual audio is

available in the audio source.

≥ The setting is maintained until it is changed again. ≥ The same setting is used for [TV] and [BD/DVD] audio

sources.

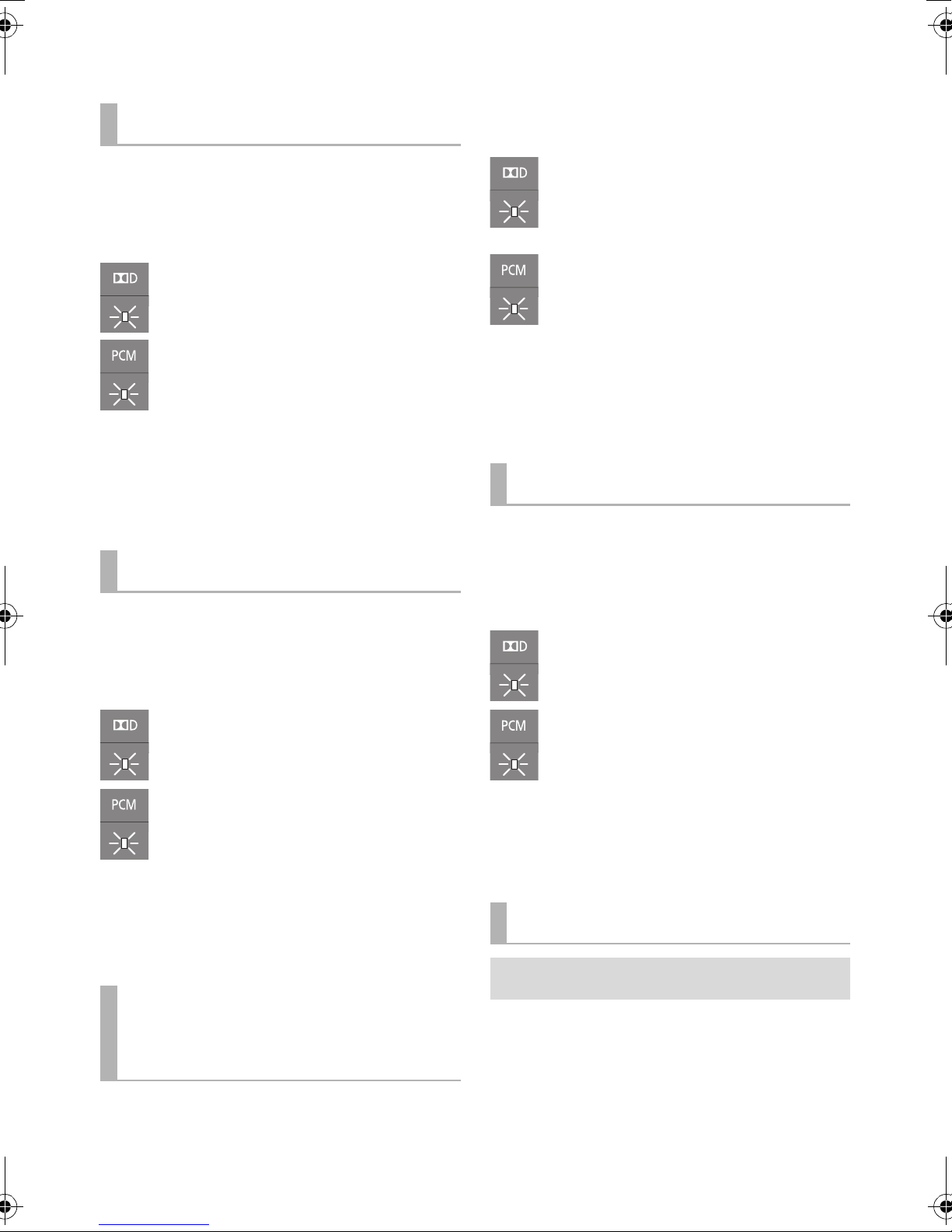

Auto gain control

This function adjusts the volume automatically when the volume exceeds a certain level. With this function, you can prevent sudden loud sounds.

Press and hold [AUX] on remote control for more than 2 sec.

≥ The indicator for the current setting blinks for 10 sec.

2 While the indicator is blinking, press [BD/DVD] to

≥ The setting changes each time [BD/DVD] is pressed. ≥ The setting will be reset to on when this system is

turned off.

With this function turned on, this unit can be set to automatically switch to standby mode if there is no signal input and no operation is performed for 2 hours.

≥ The indicator for the current setting blinks for 10 sec.

Press and hold [BD/DVD] on remote controller for more than 2 sec.

Dolby Digital indicator blinks:

3D surround effect and clear-mode dialog effect are on.

PCM indicator blinks:

3D surround effect and clear-mode dialog effect are off.

change the setting.

Auto standby function

Press and hold [INPUT SELECTOR] for more than 2 sec.

Dolby Digital indicator blinks:

Auto standby function is on.

Dolby Digital indicator blinks:

Auto gain control is on.

PCM indicator blinks:

Auto gain control is off.

2 While the indicator is blinking, press [AUX] to

change the setting.

≥ The setting changes each time [AUX] is pressed. ≥ The setting is maintained until it is changed again. ≥ Default setting of this function is OFF.

To turn off the 3D surround effect and clear-mode dialog effect

Depending on your preference, it is possible to use only the Dolby Virtual Speaker effect by turning off the 3D surround effect and the clear-mode dialog effect.

PCM indicator blinks:

Auto standby function is off.

2 While the indicator is blinking, press [INPUT

SELECTOR] to change the setting.

≥ The setting changes each time [INPUT SELECTOR] is

pressed.

≥ The setting is maintained until it is changed again.

Others

The following settings are unnecessary under general usage conditions of the system.

∫ Remote control code

When other Panasonic devices respond to this system’s remote control, change the remote control code on the active subwoofer and the remote control.

(Continued on the next page)

VQT4E88

Page 19

Preparation

≥ Turn off all other Panasonic products. ≥ Turn on this system.

Change the remote control code to code 2:

Aim the remote control at this system’s remote control sensor.

2 Press and hold [MUTE] and [BD/DVD] on the

remote control for more than 4 sec.

≥ All the indicators will blink for 10 sec when the code of

this system is changed.

≥ The setting is maintained until it is changed again.



≥ If this system does not operate after changing the code,

repeat steps 1 and 2.

≥ To change the remote control code to code 1, repeat the

steps above, but replace [BD/DVD] with [TV].

∫ To reduce the clear-mode dialog

effect

When the dialog does not sound natural while the volume is set low, for example, it is possible to reduce the dialog enhancing effect as follows:

Press and hold [TV] on the remote control and [s VOL] on the active subwoofer for more than 2 sec.

∫ To turn off VIERA Link “HDAVI

Control”

When “HDAVI Control” compatible equipment does not work well with this system, for example, it is possible to turn off this function as follows:

≥ When VIERA Link is turned off the ARC function is not

available. Be sure to connect the optical digital audio cable. (> 10)

Press and hold [MUTE] on the remote control and

VOL] on the active subwoofer for more than 2 sec.

[

2 After the setting has changed, turn off all the

connected devices and then turn them on again.

∫ To turn off the volume limitation

If a state of the lowered volume disturbs you every time this system turns on, for example, it is possible to turn off this function as follows:

Press and hold [MUTE] on the remote control and [VOL r] on the active subwoofer for more than 2 sec.

Reference

Troubleshooting

Before requesting service, make the following checks. If you are in doubt about some of the check points, or if the solutions indicated in the following guide do not solve the problem, consult your dealer for instructions.

To return to the factory preset.

While this system is on, press [Í/I] on the active subwoofer for more than 4 sec. (All the indicators will blink twice when the active subwoofer is reset.)

If the system does not operate as expected, returning the settings to the factory preset may solve the problem.

≥ The remote control code will return to “1”

when this system is returned to the factory preset. To change the remote control code, refer to page 18.

General operation

No power.

≥ Insert the AC mains lead securely. (> 13) ≥

After turning this system on, if the indicators blink and this system immediately turns off, unplug the AC mains lead and consult your dealer.

The remote control does not work properly.

≥ The battery is depleted. Replace it with a new

one. (> 7)

≥

It is possible that the insulation sheet has not been

removed. Remove the insulation sheet. (

≥ It may be necessary to set the code of the

remote control again after changing the battery of the remote control. (> 18)

≥ Use the remote control within the correct

operation range. (> 8)

The “TV” indicator blinks, but there is no sound.

Remove the AC mains lead and consult your dealer. If there are any other indicators blinking, be sure to inform the blinking indicators to your dealer.

Operations



The settings of the clear-mode dialog effect, VIERA Link “HDAVI Control”, and the volume limitation remain intact even if you switch this system to standby mode. To turn these 3 functions back on, this system must be set back to the factory preset. (> right)

≥ All the indicators will blink once when the setting is

changed.

This system is automatically switched to standby mode.

The auto standby function is on. This system will automatically switch to standby mode when no signal is input and no operation is performed for approx. 2 hours. Refer to page 18 to turn this function off.

This system is turned off when the TV’s speakers are selected in the speaker control.

This is a normal feature when using VIERA Link (HDAVI Control 4 or later). For details please read the operating instructions for the TV on its power save feature. (> 17)

VQT4E88

Reference

Page 20

HDMI

This system does not operate correctly.

If the HDMI cable is connected to the wrong terminal (HDMI IN or HDMI OUT), this system will not operate correctly. Turn this system off, disconnect the AC mains lead and reconnect the HDMI cable(s). (> 9, 10)

VIERA Link related operations no longer function properly.

≥ Check the VIERA Link setting on the connected

devices.

≥ Have you turned the VIERA Link settings off?

(> 19)

≥ When the HDMI connections are changed,

after a power failure or after the AC mains lead has been removed, VIERA Link operations may not function properly. jTurn on all the devices that are connected to

the TV with an HDMI cable and then turn the TV on.

jTurn off the VIERA Link settings of the TV

and turn it on again. For details refer to the operating instructions for the TV.

jWhile this system and the TV are connected

with the HDMI cable, turn on the TV and then remove the system’s AC mains lead and reconnect it again.

The first few seconds of audio cannot be heard when using the HDMI connection.

This may occur during DVD-Video chapter playback. Change the digital audio output setting on the connected device from “Bitstream” to “PCM”.

≥ If this system is connected to a Panasonic TV

and turned on using the button on the active subwoofer or the remote control, sound might not be output from this system. In this case, turn this system on using the TV’s remote control. (> 17)

≥ If the connections are correct, there might be a

problem with the cables. Redo the connections with different cables.

≥ Check the audio output settings on the

connected device.

≥ If the BD/DVD indicator flashes and there is no

audio output, try the following.

1 Turn the connected device off and then on. 2 Turn off this system, remove the HDMI

cable, then reconnect the HDMI cable and turn this system back on.

The dual audio cannot be changed from main to secondary.

If the audio received from the connected device is not “Dolby Dual Mono” or the output setting is not “Bitstream”, the setting cannot be changed from this system. Change the setting on the connected device.

The volume is lowered when this system is turned on.

If this system is turned off with the volume setting in the greater half (above 50), this system will automatically lower the volume to the middle (50) when this system is turned on. (> 19)

The dialog is too persistent or the dialog does not sound natural.

This system has a function to make the dialog stand out when the volume is low. (> 19)

When operating an HDMI compatible device of a different brand, this system reacts in an unwanted manner.

HDAVI Control commands may use a different signal depending on the brand of the device. In this case, turn VIERA Link off (> 19).

Sound

No sound (or image).

≥ Turn muting off. (> 14) ≥ Check the connections to the other devices.

(> 9, 10)

≥ Make sure that the received audio signal is

compatible with this system. (> 6)

≥ Turn this system off and then on again. ≥ If this system is connected to the TV with only

an HDMI cable, make sure that the TV’s HDMI terminal is labelled “HDMI (ARC)”. If not, connect using the optical digital audio cable. (> 9, 10)

VQT4E88

There is no audio. This system turns off automatically.

(When this system detects a problem, a safety measure is activated and this system automatically switches to standby mode.)

≥ There is a problem with the amplifier. ≥ Is the volume extremely high?

If so, lower the volume.

≥ Is this system placed in an extremely hot

place? If so, move this system to a cooler place and wait a few moments and then try to turn it on

again. If the problem persists, confirm the TV indicator and AUX indicator blink, turn the system off, remove the AC mains lead and consult your dealer. Please be sure to remember the indicators that were blinking and inform the dealer.

Page 21

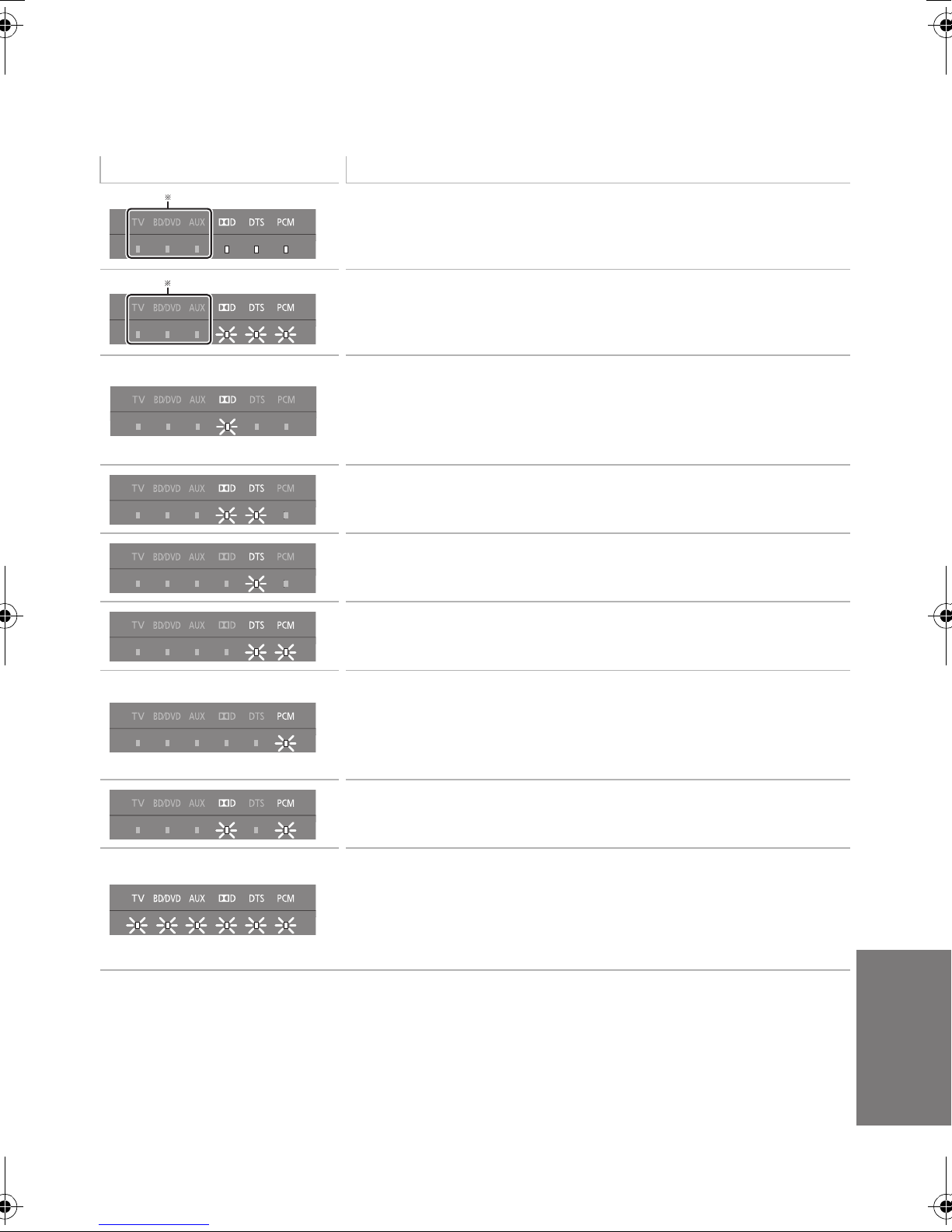

Indicator illumination

The indicators display the condition of this system by flashing. The indicator patterns illustrated below are displayed during normal operational conditions. They do not refer to the indications of a problem. Refer to “Troubleshooting” (> 19) if the indicators do not light as illustrated below.

Indicator Description

The indicators blink from left to right (i) or from right to left (s).

≥ When the speaker volume, the subwoofer level, or dialog effect level is

adjusted (> 14, 15)

The indicators blink simultaneously.

≥ When “MUTE” is on (> 14)
