Operating Instructions

CD Stereo System

Model No. SC-EN37

Dear customer

Thank you for purchasing this product. Before connecting, operating or adjusting this product, please read the instructions completely. Please keep this manual for future reference.

System SC-EN37 Main unit SA-EN37

Speakers

SB-EN37

SB-EN37A

Matsushita Electric Industrial Co., Ltd. Web Site: http://panasonic.net

RQTV0229-1B

H0307FL1047

EG EB

These instructions are applicable to the following systems.

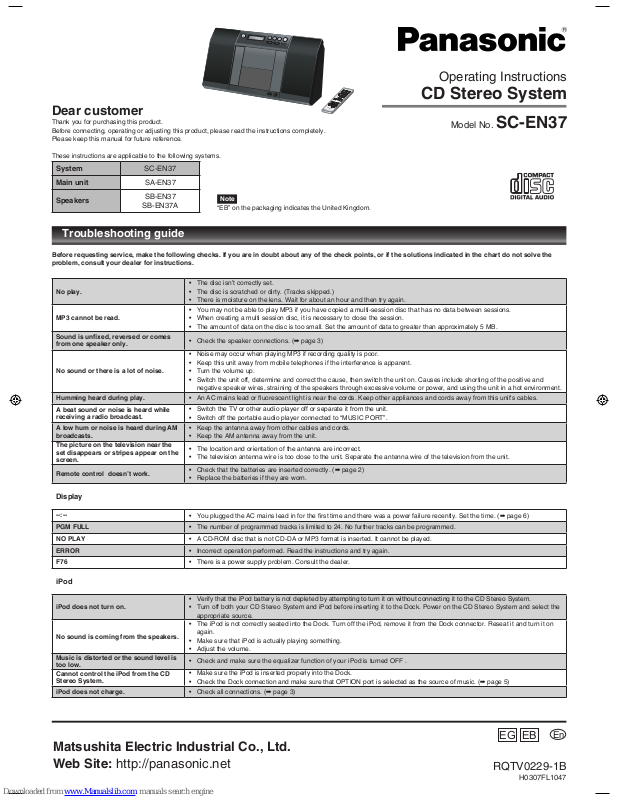

Before requesting service, make the following checks. If you are in doubt about any of the check points, or if the solutions indicated in the chart do not solve the problem, consult your dealer for instructions.

No play.

The disc isn’t correctly set. The disc is scratched or dirty. (Tracks skipped.) There is moisture on the lens. Wait for about an hour and then try again.

•

MP3 cannot be read.

You may not be able to play MP3 if you have copied a multi-session disc that has no data between sessions. When creating a multi session disc, it is necessary to close the session. The amount of data on the disc is too small. Set the amount of data to greater than approximately 5 MB.

•

Sound is unﬁxed, reversed or comes from one speaker only.

Check the speaker connections. (➡ page 3)•

No sound or there is a lot of noise.

Noise may occur when playing MP3 if recording quality is poor. Keep this unit away from mobile telephones if the interference is apparent. Turn the volume up. Switch the unit off, determine and correct the cause, then switch the unit on. Causes include shorting of the positive and negative speaker wires, straining of the speakers through excessive volume or power, and using the unit in a hot environment.

•

Humming heard during play. An AC mains lead or ﬂuorescent light is near the cords. Keep other appliances and cords away from this unit’s cables.• A beat sound or noise is heard while

receiving a radio broadcast.

Switch the TV or other audio player off or separate it from the unit. Switch off the portable audio player connected to “MUSIC PORT”.

•

A low hum or noise is heard during AM broadcasts.

Keep the antenna away from other cables and cords. Keep the AM antenna away from the unit.

•

The picture on the television near the set disappears or stripes appear on the screen.

The location and orientation of the antenna are incorrect. The television antenna wire is too close to the unit. Separate the antenna wire of the television from the unit.

•

Remote control doesn’t work.

Check that the batteries are inserted correctly. (➡ page 2) Replace the batteries if they are worn.

•

Display

--:--

You plugged the AC mains lead in for the ﬁrst time and there was a power failure recently. Set the time. (

➡ page 6)•

PGM FULL The number of programmed tracks is limited to 24. No further tracks can be programmed.• NO PLAY A CD-ROM disc that is not CD-DA or MP3 format is inserted. It cannot be played.• ERROR Incorrect operation performed. Read the instructions and try again.• F76 There is a power supply problem. Consult the dealer.•

iPod

iPod does not turn on.

Verify that the iPod battery is not depleted by attempting to turn it on without connecting it to the CD Stereo System. Turn off both your CD Stereo System and iPod before inserting it to the Dock. Power on the CD Stereo System and select the appropriate source.

•

No sound is coming from the speakers.

The iPod is not correctly seated into the Dock. Turn off the iPod, remove it from the Dock connector. Reseat it and turn it on again. Make sure that iPod is actually playing something. Adjust the volume.

•

Music is distorted or the sound level is too low.

Check and make sure the equalizer function of your iPod is turned OFF .•

Cannot control the iPod from the CD Stereo System.

Make sure the iPod is inserted properly into the Dock. Check the Dock connection and make sure that OPTION port is selected as the source of music. (➡ page 5)

•

iPod does not charge.

Check all connections. (➡ page 3)•

Troubleshooting guide

“EB” on the packaging indicates the United Kingdom.

Note

Page 2

R6/LR6, AA

Aim at the sensor, avoiding obstacles, at a maximum range of 7 m directly in front of the unit. Operation can be affected by strong light sources, such as direct sunlight, and the glass doors on cabinets.

•

Keep your speakers at least 10 mm away from the system for proper ventilation. These speakers do not have magnetic shielding. Do not place them near televisions, personal computers or other devices easily inﬂuenced by magnetism. You cannot take the front net off the speakers.

•

Note

Left and right speakers are different.

Insert so the poles (+ and – ) match those in the remote control. Do not use rechargeable type batteries.

•

Standby/on switch [8]

Press to switch the unit from on to standby mode or vice versa. In standby mode, the unit is still consuming a small amount of power.

[SLEEP]

SLEEP timer operation ON/OFF or SLEEP time setting

CD/MP3 Program, Tuner Preset (Manual) [PGM, -AUTO PRESET]

[Long press] Tuner Preset (Auto)

CD/MP3: Delete all programs [CLEAR]

[PLAY MODE] Play mode button

[CD q/h] Selector switch to CD

Direct CD Play/CD Pause

Selector switch to Tuner for FM and AM [FM/AM]

Turn the volume up/down [VOL-], [+VOL]

[z PLAY] Timer PLAY ON/OFF

Clock and Timer setting [CLOCK/TIMER]

[1-9, 0, ≧10] Numbered buttons To select a 2-digit number

e.g. 16: [≧10]  [1]  [6]

To select a 3-digit number

e.g. 226: [≧10]  [≧10]  [2]  [2]  [6]

[MUSIC PORT] Selector switch to MUSIC PORT

[g] Stop button

[2/u, 1\i] CD: Skip/Search MP3: Track Skip TUNER: Tune up/down, [Long press] Auto tuning

SA-EN35

[REPEAT] Repeat ON/OFF

[SURROUND] SURROUND mode ON/OFF

Delete last programmed track [DEL]

[DISPLAY] CD: CD Display (Elapsed play time/Remaining play time) MP3: MP3 Display (Elapsed time/Album name/Track

name/ID3 [Album]/ID3 [Track]/ID3 [Artist])

Preset EQ mode selector [PRESET EQ]

SA-EN35

Remote control signal sensor

■ Use

■ Batteries

The remote control

Control guide

Display

Standby/on switch

[^]

Remote control signal sensor

Placement of speakers

Caution

Use the speakers only with the recommended system. Failure to do so may lead to damage to the ampliﬁer and/or speakers, and may result in the risk of ﬁre. Consult a qualiﬁed service person if damage has occurred or if you experience a sudden change in performance. Do not attach these speakers to walls or ceilings.

•

Music port jack

[- VOLUME +] To adjust the volume

[2/u, 1\i] CD: Skip/Search MP3: Track Skip TUNER: Tune up/down, [Long press] Auto tuning

[g] Stop button

[CD q/h] Selector switch to CD. Direct CD Play/CD Pause

[OPTION q/h] Selector switch to OPTION

Direct OPTION Play/OPTION Pause

[; OPEN/CLOSE] Open and Close CD lid

FM/AM/MUSIC PORT select button [FM/AM/MUSIC P.]

2 3

[;, OPEN/CLOSE] Open and Close CD lid

Previous/Next Album [ , ALBUM]

Conﬁrm track selection during MP3 Program Mode

[ENTER]

(Minimum)

(Maximum)

Use the numbers indicated in parentheses when asking for replacement parts.

Supplied accessories

(As of March 2007)

1 Remote control [➡ page 2]

1 FM/AM antenna [➡ page 3]

2 Batteries [➡ page 2]

1 Universal Dock for iPod [➡ page 5]

1 AC mains lead [➡ page 3]

(N2QAYB000109)

AC mains lead

Right Speaker

Left Speaker

DC in cord to connect to main set

For the United Kingdom

Selector switch to OPTION [q/h, OPTION]

Direct OPTION Play/OPTION Pause

The included AC mains lead is for use with this unit only. Do not use it with other equipment. Do not use an AC mains lead from other equipment.

•

For continental Europe

(N1DADYY00003)

(RFE0208)

(K2CT3CA00004)

(K2CQ2CA00002)

Page 3

 Press [8] to turn the unit on.  Press [; OPEN/CLOSE] to open the CD lid and then set the CD in place.

Press [; OPEN/CLOSE] again to close the lid.

Keep ﬁngers away from the CD lid when it is closing to avoid possible minor injury.

Label must face outward. Press until you hear it click into place.

 Press [CD q/h] to start play.  Adjust the volume.

Be sure to press the [; OPEN/CLOSE] button to open and close the CD lid. Damage may occur if the lid is forced closed. During standby, if the CD is ready in the unit, the unit comes on and play begins.

(One touch play)

•

Basic play

Discs operations

Connections

SA-EN35

2. FM/AM antenna

Stand the antenna up on its base.

Taped part

FM antenna

AM antenna

4. AC mains lead

AC IN

To household mains socket

If the unit is left unplugged for longer than approximately two weeks, all settings will revert to the factory settings. Remember to reset the radio stations and any other memory items before using the unit again.

Connect the AC mains lead after all other connections are complete.

Note

Headphones

(not included)

Reduce the volume level and connect the headphones. Plug type: 3.5 mm stereo.

To prevent hearing damage, avoid listening for prolonged periods of time .

Note

Portable audio equipment

(Cords and equipment not included)

Use

Adjust the volume and sound quality of this unit and the other equipment. For details, refer to the instruction manual of the other equipment.

•

Portable audio player Plug type:

3.5 mm stereo

➡

Start Playback from the Portable audio source.

Stop

Press [g].

Pause

Press [CD q/h]. Press again to resume play.

Skip/Search

Press [2/u] or [1/i] to skip/ Press and hold [2/u] or [1/i] to search.

You can search during play or while paused. You cannot search through MP3 ﬁles. You can only search within the current track during program play, one track repeat, and random play.

•

Skip album Press [ALBUM or ] in the play mode.

Press [ALBUM or ] once and then the numbered buttons in the stop mode.

Direct access play

(Play starts with the track you select.)

Press the numbered buttons to select the desired track.

 Press [ALBUM or ] to select the album.  Press [1/i] once and then press the numbered buttons

select the desired track.

Note

1. Speakers

Copper (+)

Silver (-)

Copper (+)

➡

Page 2 for the position of remote control and

main unit buttons.

The function allows you to program up to 24 tracks.

 Press [PGM, -AUTO PRESET] while stopped.  Press the numbered buttons to select tracks. (Maximum 24 tracks)

Repeat this step to program other tracks.

 Press [CD q/h] to start play.

 Press [PGM, -AUTO PRESET] while stopped.  Press[ALBUM or ] to select your desired album.  Press [1/i] once and then press the numbered buttons to select tracks.

(Maximum 24 tracks)

 Press [ENTER].

Repeat step 2 to 4 to program other tracks.

 Press [CD q/h] to start play.

g Conﬁrm a programmed

track

Press [2/u] or [1/i] when “PGM” is displayed in the stop mode. To check while programming, press [PGM, -AUTO PRESET] twice after “PGM” appears, then press [2/u] or [1/i] .

g Delete all programs

Press [CLEAR] in the stop mode. “CLR ALL” is displayed.

g Cancel program mode

Press [PGM, -AUTO PRESET] in the stop mode to clear “PGM” indicator from the display.

Program contents are stored in the unit’s memory even after changing to a different function or turning the unit off. All program contents are erased by pressing [CLEAR] or by opening the CD lid.

Program play

Track number

Program number

Note

PGM

Album number Track number

MP3

Note

 Connect the DC in cord from

left speaker to main set.

 Connect the AC mains lead.

Red

Black Black

Unplug the antenna connector by holding the taped part.

MAIN UNIT REMOTE CONTROL

Ferrite core ( )

For continental Europe

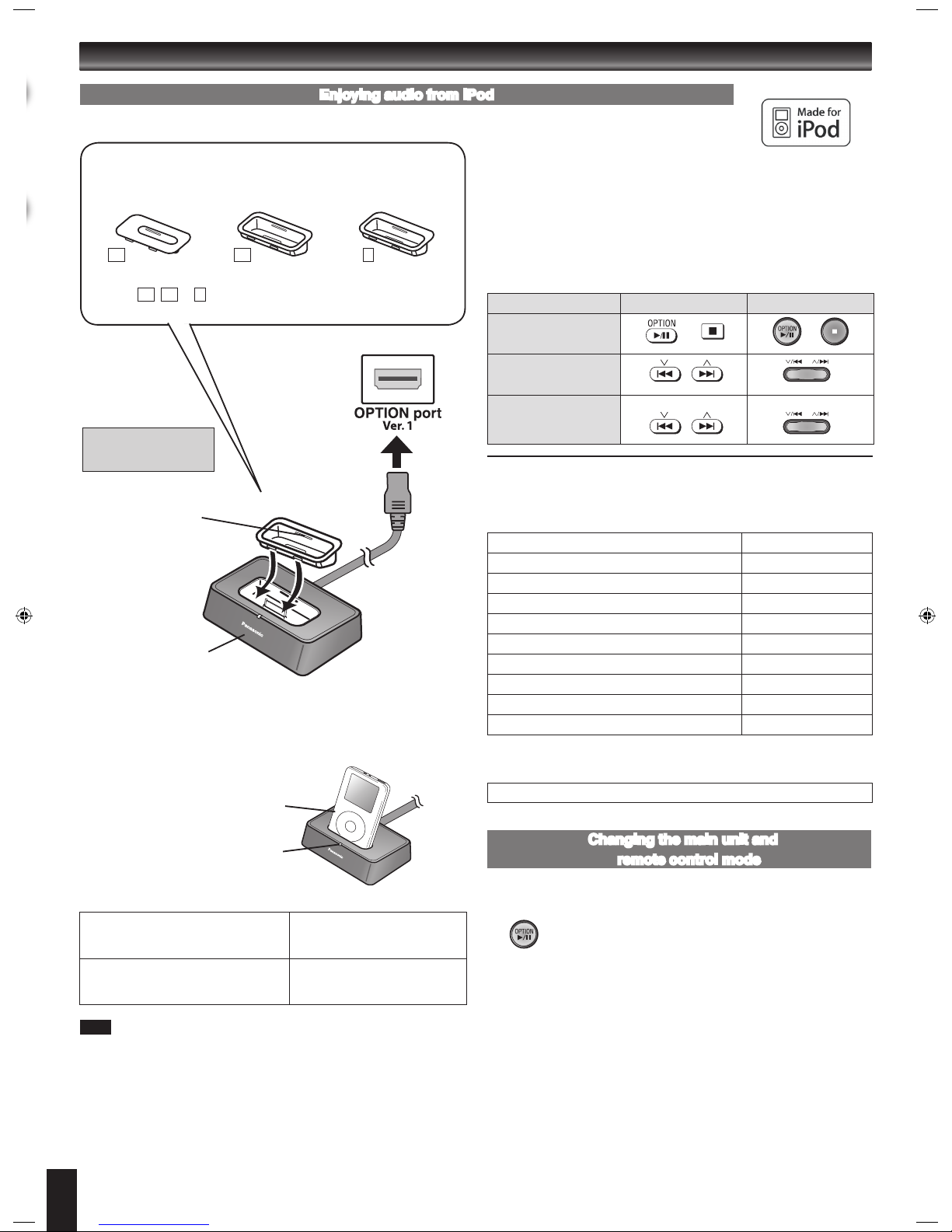

iPod connection

Proceed to step 4 if you are not connecting an iPod to the main unit.

➡ Refer to page 5 for further information.

Connect the Universal Dock for iPod to OPTION port.

READ THE CAUTION FOR THE AC MAINS LEAD ON PAGE 8 BEFORE CONNECTION.

For the United Kingdom

Page 4

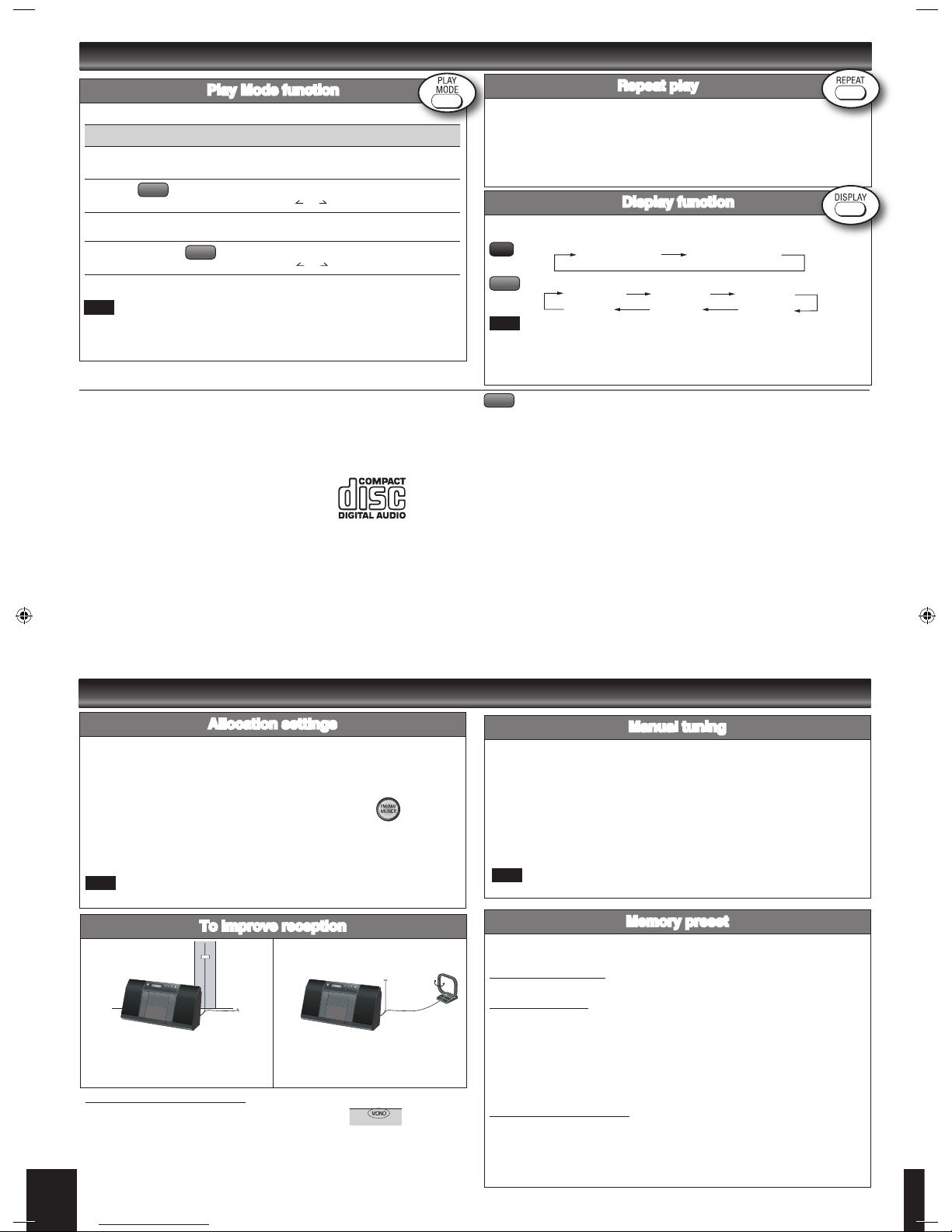

This function allows you to display the information of the current track.

Press [DISPLAY] repeatedly during play or pause.

Elapsed play time Remaining play time

Elapsed time Album name Track name

ID3 (Artist) ID3 (Track) ID3 (Album)

Maximum number of displayable characters: approximately 30 This unit supports ver. 1.0 & 1.1 ID3 tags. Text data that is not supported will not be displayed. ID3 is a tag embedded in MP3 tracks to provide information about the track.

•

Display function

The unit can play MP3, a method of compressing audio without overly hurting audio quality.

When creating MP3 ﬁles to play on this unit

Maximum number of tracks and albums: 999 tracks and 256 albums. Compatible compression rate: Between 64 kbps and 320 kbps (stereo).

128 kbps (stereo) is recommended. Disc formats: ISO9660 level 1 and level 2 (except for extended formats). The time for reading TOC depends on the number of the tracks, the folders or folder structures.

Limitations on MP3

This unit is compatible with multi-session but if there are a lot of sessions it takes more time for play to start. Keep the number of sessions to a minimum to avoid this. This unit cannot play ﬁles recorded using packet write. If the disc includes both MP3 and normal audio data (CD-DA), the unit plays the type recorded in the inner part of the disc. If the disc includes both MP3 and other types of audio data (e.g. WMA or WAV), the unit plays only the MP3. Depending on how you create MP3 ﬁles, they may not play in the order you numbered them or may not play at all.

•

Memory preset

You can preset up to 20 FM channels and up to 12 AM channels.

Preparation: Press [FM/AM] to select “FM” or “AM”.

Automatic presetting

Press and hold [PGM, -AUTO PRESET] to start presetting.

Manual presetting

 Press [PLAY MODE] to select “MANUAL”.  Press [2/u] or [1/i] to tune to the required station.  Press [PGM, -AUTO PRESET].  Press the numbered buttons to select a channel.

The station occupying a channel is erased if another station is preset in that channel.

 Repeat steps 2 to 4 to preset more stations.

Selecting a preset station

Press the numbered buttons to select the channel.

For channels 10 to 20 press [≧10], then the two digits.

 Press [PLAY MODE] to select “PRESET”.  Press [2/u] or [1/i] to select the channel.

Discs operations (continued)

Radio operations

➡

Page 2 for the position of remote control buttons.

4 5

Manual tuning

 Press [FM/AM] to select “FM” or “AM”.  Press [PLAY MODE] to select “MANUAL”.  Press [2/u] or [1/i] to select the frequency of the required station.

To tune automatically

 Press [FM/AM] to select “FM” or “AM”.  Press [PLAY MODE] to select “MANUAL”.  Press and hold [2/u] or [1/i] until the frequency starts changing rapidly.

Auto tuning stops when it ﬁnds a station. To cancel auto tuning, press [2/u] or [1/i] once again.

Auto tuning may not function when there is excessive interference.

•

Note on CD-R and CD-RW

This unit can play CD-R and CD-RW recorded with CD-DA or MP3. Use an audio recording disc for CD-DA and ﬁnalize* it when you ﬁnish recording. The unit may not be able to play some discs due to the condition of the recording. * A process performed after recording that enables CD-R/CD-RW players to play audio CD-R and CD-RW.

Caution

Choose discs with this mark: Do not:

use irregularly shaped CDs. attach extra labels and stickers. use CDs with labels and stickers that are coming off or with adhesive exuding from under labels and stickers. attach scratch-proof covers or any other kind of accessory. write anything on the CD. clean CDs with liquids (Wipe with a soft, dry cloth.).

•

Allocation settings

Each country allocates broadcast bands according to their particular system. You can change the AM steps. The step is factory-set to 9 kHz, but you can change it to receive broadcasts allocated 10 kHz steps. Any FM/AM frequencies preset in channels will be changed by this procedure. Preset them again.

 Select the FM band with [FM/AM/MUSIC P.] on the unit.  Press and hold [FM/AM/MUSIC P.] on the unit.

After a few seconds the display changes to show the current minimum frequency. Continue to hold the button down. The minimum frequency changes and the step is changed.

To return to the original step, repeat the above steps.

The preset memory will be initialized when you change your frequency step.

To improve reception

Receive the radio stations after connecting the antenna. Then attach the antenna cord to a wall or pillar where there is good reception.

Change the direction and location of the antenna.

To improve FM sound quality

Press and hold [PLAY MODE] to display “MONO”.

To cancel

Press and hold [PLAY MODE] again until “MONO” disappears.

MONO is also canceled if the frequency is changed. Turn off “MONO” for normal listening.

•

Press [PLAY MODE] to select the desired mode.

During random play, you cannot skip to previous track.•

Play Mode function

You can repeat program play or other selected play mode.

Press [REPEAT] before or during play.

“REPEAT ON” and “ & ” are displayed.

To cancel

Press [REPEAT] again.

“REPEAT OFF” is displayed and “ & ” is cleared.

Repeat play

Mode To play

1-TRACK

1TR

one selected track on the disc. Press the numbered buttons to select the track.

1-ALBUM

1ALBUM

one selected album on the disc. Press [ALBUM or ] to select the album.

RANDOM

RND

a disc randomly.

1-ALBUM RANDOM

1ALBUM RND

all tracks in one selected album randomly. Press [ALBUM or ] to select the album.

MP3

Note

Universal Dock for iPod

Page 5

The remote control and main unit are factory-set to “REMOTE 1” mode. If your remote control affects other equipment during operation, you can switch to operate in “REMOTE 2” mode.

To switch to “REMOTE 2” mode

 (While pressing and hold [OPTION q/h] on the main unit)

Press and hold [2] until “REMOTE 2” appears on the main unit display.

 Press and hold [ENTER] and [2] for at least 2 seconds.

The main unit and remote control are now set to operate in “REMOTE 2” mode.

To return to “REMOTE 1” mode

Perform steps 1 and 2 above but use [1] instead of [2] for both steps. (“REMOTE 1” appears on the main unit during step 1.)

The remote control cannot work with the main unit if their modes are different.

“REMOTE 1” or “REMOTE 2” appears on the main unit when you operate the remote control.* * If “REMOTE 1” appears (The main unit is in “REMOTE 1” mode.)

Press and hold [ENTER] and [1] on the remote control for at least 2 seconds. If “REMOTE 2” appears (The main unit is in “REMOTE 2” mode.) Press and hold [ENTER] and [2] on the remote control for at least 2 seconds.

iPod nano 2nd generation (aluminum) iPod 5th generation (video) iPod nano 1st generation

Until iPod is fully charged

iPod 4th generation (color display) iPod 4th generation iPod mini

5 hours (ﬁxed)

AC mains lead and DC in cord must be connected to the CD stereo system. “OPTION ” will be shown on the main unit display during iPod charging in main unit standby mode. It will go off when charging is ﬁnished. For the above models under “ﬁxed 5-hour charging”, “OPTION ” continues to be displayed throughout this duration, even when your iPod is fully charged. You can turn off this display by removing the iPod from the dock. Compatibility depends on the software version of your iPod.

•

Enjoying audio from iPod

External unit

Dock adapter for iPod nano 2nd generation (aluminum) (2GB, 4GB, 8GB)

Dock adapter for iPod 5th generation (video) (60GB, 80GB)

Dock adapter for iPod 5th generation (video) (30GB)

The mark , or is shown on the back of each dock adapter.

For other types of iPod, please use the dock adapter sold separately.•

Note

➡

Page 2 for the position of remote control and

main unit buttons.

Universal Dock for iPod

Do not connect or disconnect the dock while the main unit is on.

Connect the dock to the back of the main unit.

(➡ page 3)

iPod (not included)

The indicator lights up when the iPod is inserted, and charging starts.

11 10

1099

When removing,

insert your ﬁngernail

or a ﬂat object and lift

upwards.

iPod is a trademark of Apple Inc., registered in the U.S. and other countries.

Preparation:

Reduce the volume of the main unit. Conﬁrm the iPod connection. (

➡ left)

 Press [OPTION q/h] to play the iPod.  Adjust the volume of the main unit.

Remote control Main unit

To pause track

To skip a track (During play/pause)

To search the current track (During play/pause)

press and hold press and hold

When you select another source, or turn the main unit off, the iPod turns off.

•

■ Compatible iPod

Name Memory size

iPod nano 2nd generation (aluminum) 2GB, 4GB, 8GB

iPod 5th generation (video) 60GB, 80GB

iPod 5th generation (video) 30GB

iPod nano 1st generation 1GB, 2GB, 4GB

iPod 4th generation (color display) 40GB, 60GB

iPod 4th generation (color display) 20GB, 30GB

iPod 4th generation 40GB

iPod 4th generation 20GB

iPod mini 4GB, 6GB

Compatibility depends on the software version of your iPod.•

g Charging the iPod

g Connecting the iPod

g Playing the iPod

Changing the main unit and

remote control mode

Page 6

g AMPLIFIER SECTION

RMS OUTPUT POWER both channel driven simultaneously

10 % total harmonic distortion (THD) 1 kHz 3.0 W per channel

Output impedance

HEADPHONE 16 Ω to 32 Ω MUSIC PORT 14 kΩ

DC IN Jack

Terminal DC 14 V

Phone Jack

Terminal 3.5 mm stereo

Music Port Jack

Terminal 3.5 mm stereo

Option Port Version 1

g TUNER SECTION

Frequency range FM 87.50 MHz to 108.00 MHz (50 kHz) AM 522 kHz to 1629 kHz (9 kHz)

520 kHz to 1630 kHz (10 kHz)

g CD SECTION

Disc played [8 cm or 12 cm]

(1) CD-Audio (CD-DA) (2) CD-R/RW (CD-DA, MP3) (3) MP3

Sampling frequency

CD 44.1 kHz MP3 32 kHz, 44.1 kHz, 48 kHz

Bit rate

MP3 32 kbps to 384 kbps Decoding 16/20/24 bit linear Pick up

Wavelength 785 nm

Laser power CLASS 1 (For Norge) Bølgelengde 785 nm Laserstyrke Ingen farlig stråling sendes ut

(med sikkerhets-beskyttelse)

Audio Output (Disc)

Number of channels 2 channel Frequency response 20 Hz to 20 kHz (+1, -2 dB) Wow and ﬂutter

Below measurement limit

Digital ﬁlter 8 D/A converter MASH (1 bit DAC)

g SPEAKER SECTION

Type 1 Way, 1 Speaker system Speaker Unit(s)

Full Range Speaker 8 cm cone type 6 Ω Impedance 6 Ω Input power 6 W (MAX)

Dimensions (W x H x D)

121 mm x 236 mm x 146 mm

g GENERAL

Power supply AC 230 to 240 V, 50 Hz Power consumption 32 W Dimensions (W x H x D) 220 mm x 236 mm x 146 mm Mass

With speakers 3.57 kg

Without speakers 1.27 kg Operating temperature range +5 °C to +35 °C Operating humidity range

% to 90 % RH (no condensation)

Power consumption in standby mode:2.0 W (approx.)

Notes:

Speciﬁcations are subject to change without notice. Mass and dimensions are approximate.

Speciﬁcations

6 7

Sleep timer

The SLEEP timer can turn the unit off after a set time.

Press [SLEEP] to turn the SLEEP function ON/OFF.

Each time you press the button: 30 MIN 60 MIN 90 MIN 120 MIN

OFF (Canceled)

g To check the remaining time

Press [SLEEP] once

The play timer and sleep timer can be used together. The sleep timer always has priority. Be sure not to overlap timer settings.

•

Sound quality

You can choose one of four types of sound quality.

Press [PRESET EQ] to select the sound quality.

Each time you press the button:

HEAVY CLEAR SOFT

(Adds punch to rock) (Clariﬁes higher sounds) (For background music)

EQ OFF (Canceled) VOCAL (Adds gloss to vocals)

•

Live Virtualizer

You can create a three-dimensional sound ﬁeld when listening to stereo sound.

Press [SURROUND] to turn the Live Virtualizer ON/OFF.

The actual effect depends on the source played.

Play timer

You can set the timer to come on at a certain time to wake you up. Preparation: Turn the unit on and set the clock. Prepare the music source you want to listen to; disc, radio, OPTION or music port source, and set the volume.

 Press [CLOCK/TIMER] repeatedly to select play timer.

CLOCK zPLAY Original display

 Within 5 seconds, press [2/u] or [1/i] to set the starting time.

 Press [CLOCK/TIMER] to conﬁrm.  Repeat steps 2 and 3 to set the ﬁnishing time.

To activate the timer

 Press [zPLAY] to turn on the timer.  Press [^] to turn off the unit.

To Action

Change the settings Repeat steps 1 to 4 and 6.

Change the source of volume

 Press [zPLAY] to clear zPLAY indicator

from the display.

 Make changes to the source or volume.

 Perform steps 5 and 6.

Check the settings (when the unit is on or in standby mode)

Press [CLOCK/TIMER] repeatedly to select

zPLAY.

Cancel

Press [zPLAY] to clear the timer

indicator from the display.

The timer will start at the preset time, with the volume increasing gradually to the preset level. The timer comes on at the set time every day if the timer is on. The unit must be in the standby mode for the timer to function. If you turn the unit off and on again while the timer is functioning, the ﬁnish time setting will not be activated. When MUSIC PORT or OPTION port is selected as the source when the timer comes on, the system turns on and engages MUSIC PORT or OPTION port as the source. If you wish to playback from the portable audio equipment, activate the equipment’s play mode and increase the volume. (See the portable audio equipment’s instruction manual.)

•

Timers and others

➡

Page 2 for the position of remote control buttons.

Note

Setting the time

This is a 24-hour clock.

 Press [CLOCK/TIMER] to set the clock.  Press [2/u] or [1/i] to select the time within 5 seconds.

(Press and hold to change the time faster.)

 Press [CLOCK/TIMER] again.

g To display the clock when the unit is on

Press [CLOCK/TIMER]

g To check the time when the unit is off

Press [CLOCK/TIMER]

The clock is accurate to within ±60 seconds a month. Readjust if necessary. Set again after disconnecting the AC mains lead or power failure.

Note

To clean this unit, wipe with a soft, dry cloth.

Never use alcohol, paint thinner or benzine to clean this unit. Before using chemically treated cloth, read the instructions that came with the cloth carefully.

•

Clean the lens regularly to prevent malfunctions. Use a blower to remove dust and a cotton swab if it is extremely dirty. Recommended product: Lens cleaner kit (part no. SZZP1038C). Do not use the lens cleaner of the CD type.

•

Care of the CD lens

Maintenance

If the surfaces are dirty

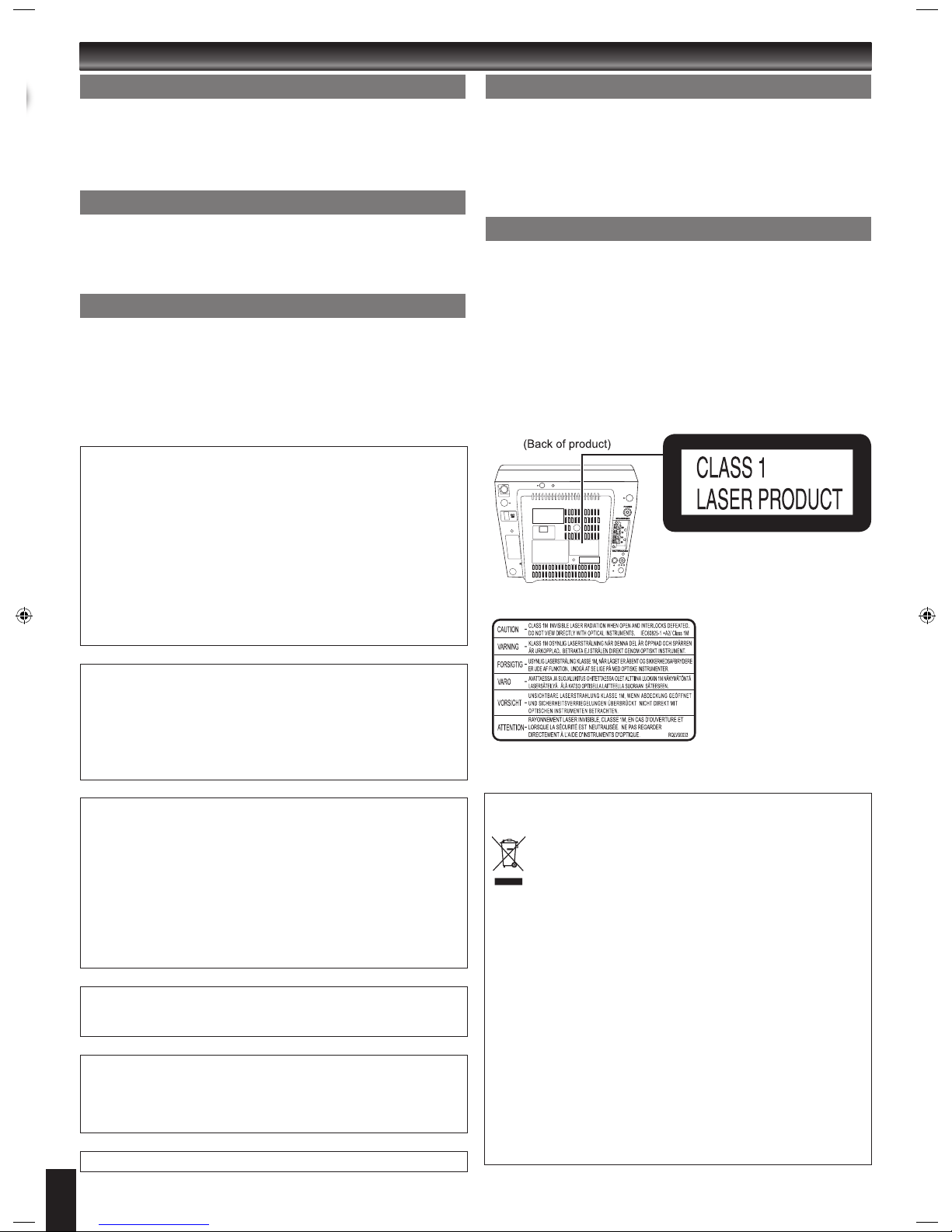

Page 7

Placement

Set the unit up on an even surface away from direct sunlight, high temperature, high humidity, and excessive vibration. These conditions can damage the cabinet and other components, thereby shortening the unit’s service life.

Do not place heavy items on the unit.

Voltage

Do not use high voltage power sources. This can overload the unit and cause a ﬁre.

Do not use a DC power source. Check the source carefully when setting the unit up on a ship or other place where DC is used.

AC mains lead protection

Ensure the AC mains lead is connected correctly and not damaged. Poor connection and lead damage can cause ﬁre or electric shock. Do not pull, bend, or place heavy items on the lead.

Grasp the plug firmly when unplugging the lead. Pulling the AC mains lead can cause electric shock.

Do not handle the plug with wet hands. This can cause electric shock.

Foreign matter

Do not let metal objects fall inside the unit. This can cause electric shock

or malfunction.

Do not let liquids get into the unit. This can cause electric shock or malfunction. If this occurs, immediately disconnect the unit from the power supply and contact your dealer.

Do not spray insecticides onto or into the unit. They contain ﬂammable gases which can ignite if sprayed into the unit.

Service

Do not attempt to repair this unit by yourself. If sound is interrupted, indicators fail to light, smoke appears, or any other problem that is not covered in these instructions occurs, disconnect the AC power cord and contact your dealer or an authorized service center. Electric shock or damage to the unit can occur if the unit is repaired, disassembled or reconstructed by unqualiﬁed persons.

Extend operating life by disconnecting the unit from the power source if it is not to be used for a long time.

Safety precautions

WARNING:

TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR PRODUCT DAMAGE,

DO NOT EXPOSE THIS APPARATUS TO RAIN, MOISTURE, DRIPPING OR SPLASHING AND THAT NO OBJECTS FILLED WITH LIQUIDS, SUCH AS VASES, SHALL BE PLACED ON THE APPARATUS. USE ONLY THE RECOMMENDED ACCESSORIES. DO NOT REMOVE THE COVER (OR BACK); THERE ARE NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

•

CAUTION!

DO NOT INSTALL OR PLACE THIS UNIT IN A BOOKCASE, BUILTIN CABINET OR IN ANOTHER CONFINED SPACE. ENSURE THE UNIT IS WELL VENTILATED. TO PREVENT RISK OF ELECTRIC SHOCK OR FIRE HAZARD DUE TO OVERHEATING, ENSURE THAT CURTAINS AND ANY OTHER MATERIALS DO NOT OBSTRUCT THE VENTILATION VENTS. DO NOT OBSTRUCT THE UNIT’S VENTILATION OPENINGS WITH NEWSPAPERS, TABLECLOTHS, CURTAINS, AND SIMILAR ITEMS. DO NOT PLACE SOURCES OF NAKED FLAMES, SUCH AS LIGHTED CANDLES, ON THE UNIT. DISPOSE OF BATTERIES IN AN ENVIRONMENTALLY FRIENDLY MANNER.

•

CAUTION!

THIS PRODUCT UTILIZES A LASER. USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE. DO NOT OPEN COVERS AND DO NOT REPAIR YOURSELF. REFER SERVICING TO QUALIFIED PERSONNEL.

The socket outlet shall be installed near the equipment and easily accessible. The mains plug of the power supply cord shall remain readily operable. To completely disconnect this apparatus from the AC Mains, disconnect the power supply cord plug from AC receptable.

This product may receive radio interference caused by mobile telephones during use. If such interference is apparent, please increase separation between the product and the mobile telephone.

LUOKAN 1 LASERLAITE KLASS 1 LASER APPARAT

Inside of product Tuotteen sisällä Produktets innside

THIS UNIT IS INTENDED FOR USE IN MODERATE CLIMATES.

-If you see this symbol-

Information on Disposal for Users of Waste Electrical & Electronic Equipment (private households)

This symbol on the products and/or accompanying documents means that used electrical and electronic products should not be mixed with general household waste. For proper treatment, recovery and recycling, please take

these products to designated collection points, where they will be accepted on a free of charge basis. Alternatively, in some countries you may be able to return your products to your local retailer upon the purchase of an equivalent new product. Disposing of this product correctly will help to save valuable resources and prevent any potential negative effects on human health and the environment which could otherwise arise from inappropriate waste handling. Please contact your local authority for further details of your nearest designated collection point. Penalties may be applicable for incorrect disposal of this waste, in accordance with national legislation.

For business users in the European Union

If you wish to discard electrical and electronic equipment, please contact your dealer or supplier for further information.

Information on Disposal in other Countries outside the European Union

This symbol is only valid in the European Union. If you wish to discard this product, please contact your local authorities or dealer and ask for the correct method of disposal.

Page 8

NORSK

TÄMÄ LAITE ON TARKOITETTU KÄYTETTÄVÄKSI LEUDOSSA ILMASTOSSA.

VAROITUS!

LAITTEEN KÄYTTÄMINEN MUULLA KUIN TÄSSÄ KÄYTTÖOHJEESSA MAINITULLA TAVALLA SAATTAA ALTISTAA KÄYTTÄJÄN TURVALLISUUSLUOKAN 1 YLITTÄVÄLLE NÄKYMÄTTÖMÄLLE LASERSÄTEILYLLE.

VAROITUS!

ÄLÄ ASENNA TAI LAITA TÄTÄ LAITETTA KABINETTITYYPPISEEN KIRJAKAAPPIIN TAI MUUHUN SULJETTUUN TILAAN, JOTTA TUULETUS ONNISTUISI. VARMISTA, ETTÄ VERHO TAI MIKÄÄN MUU MATERIAALI EI HUONONNA TUULETUSTA, JOTTA VÄLTETTÄISIIN YLIKUUMENEMISESTA JOHTUVA SÄHKÖISKUTAI TULIPALOVAARA. ÄLÄ PEITÄ LAITTEEN TUULETUSAUKKOJA SANOMALEHDELLÄ, PÖYTÄLIINALLA, VERHOLLA TAI MUULLA VASTAAVALLA ESINEELLÄ. ÄLÄ ASETA PALAVAA KYNTTILÄÄ TAI MUUTA AVOTULEN LÄHDETTÄ LAITTEEN PÄÄLLE. HÄVITÄ PARISTOT LUONTOA VAHINGOITTAMATTOMALLA TAVALLA.

•

VAROITUS:

VÄHENNÄ TULIPALON, SÄHKÖISKUN TAI LAITTEISTON VAHINGOITTUMISEN VAARAA

TÄTÄ LAITETTA EI SAA ALTISTAA SATEELLE, KOSTEUDELLE, ROISKEILLE TAI TIPPUVILLE NESTEILLE. LAITTEEN PÄÄLLE EI SAA MYÖSKÄÄN ASETTAA MITÄÄN NESTEELLÄ TÄYTETTYÄ ESINETTÄ, KUTEN MALJAKKOA. KÄYTÄ VAIN SUOSITELTUJA LISÄVARUSTEITA. ÄLÄ IRROTA KANTTA (TAI TAUSTAA). SISÄLLÄ EI OLE KÄYTTÄJÄN HUOLLETTAVISSA OLEVIA OSIA. HUOLLON SAA SUORITTAA VAIN AMMATTITAITOINEN HENKILÖKUNTA.

•

Pistorasia tulee asentaa laitteen lähelle helppopääsyiseen paikkaan. Verkkojohdon pistokkeen on oltava aina helposti käytettävissä. Tämä laite voidaan kytkeä kokonaan irti verkkovirrasta irrottamalla verkkojohdon pistoke pistorasiasta.

ADVARSEL!

DETTE PRODUKTET ANVENDER EN LASER. BETJENING AV KONTROLLER, JUSTERINGER ELLER ANDRE INNGREP ENN DE SOM ER BESKREVET I DENNE BRUKSANVISNING, KAN FØRE TIL FARLIG BESTRÅLING. DEKSLER MÅ IKKE ÅPNES, OG FORSØK ALDRI Å REPARERE APPARATET PÅ EGENHÅND. ALT SERVICE OG REPARASJONSARBEID MÅ UTFØRES AV KVALIFISERT PERSONELL.

ADVARSEL!

APPARATET MÅ IKKE PLASSERES I EN BOKHYLLE, ET INNEBYGGET KABINETT ELLER ET ANNET LUKKET STED HVOR VENTILASJONSFORHOLDENE ER UTILSTREKKELIGE. SØRG FOR AT GARDINER ELLER LIGNENDE IKKE FORVERRER VENTILASJONSFORHOLDENE, SÅ RISIKO FOR ELEKTRISK SJOKK ELLER BRANN FORÅRSAKET AV OVERHETING UNNGÅS. APPARATETS VENTILASJONSÅPNINGER MÅ IKKE DEKKES TIL MED AVISER, BORDDUKER, GARDINER OG LIGNENDE. PLASSER IKKE ÅPEN ILD, SLIK SOM LEVENDE LYS, OPPÅ APPARATET. BRUKTE BATTERIER MÅ KASSERES UTEN FARE FOR MILJØET.

•

ADVARSEL:

FØLG NEDENSTÅENDE INSTRUKSER FOR Å REDUSERE RISIKOEN FOR BRANN, ELEKTRISK STØT OG SKADE PÅ PRODUKTET:

DETTE APPARATET MÅ IKKE UTSETTES FOR REGN, FUKTIGHET, DRYPP ELLER SPRUT, OG INGEN VÆSKEFYLTE GJENSTANDER, SOM F.EKS. VASER, MÅ PLASSERES PÅ APPARATET. BRUK KUN ANBEFALT TILBEHØR. IKKE FJERN DEKSELET (ELLER BAKSIDEN); APPARATET INNEHOLDER INGEN DELER SOM KAN SKIFTES ELLER REPARERES AV BRUKEREN. OVERLAT TIL KVALIFISERTE SERVICETEKNIKERE Å UTFØRE SERVICE.

•

Strømuttaket må beﬁnne seg i nærheten av utstyret og være lett tilgjengelig. Støpslet på strømkabelen må være klart til bruk. Når dette apparatet skal kobles helt fra strømnettet (AC), må støpslet på strømkabelen trekkes ut av stikkontakten.

DETTE APPARATET ER BEREGNET TIL BRUK UNDER MODERATE KLIMAFORHOLD.

Caution for AC Mains Lead

(For United Kingdom)

(“EB” area code model only)

For your safety, please read the following text carefully.

This appliance is supplied with a moulded three pin mains plug for your safety and convenience. A 5-ampere fuse is

 tted in this plug. Should the fuse need to be replaced please ensure that the replacement fuse has a rating of 5-ampere and that it is approved by ASTA or BSI to BS1362.

Check for the ASTA mark

or the BSI mark on the body of the fuse.

If the plug contains a removable fuse cover you must ensure that it is re

 tted

when the fuse is replaced.

If you lose the fuse cover the plug must not be used until a replacement cover is obtained. A replacement fuse cover can be purchased from your local dealer.

CAUTION!

IF THE FITTED MOULDED PLUG IS UNSUITABLE FOR THE SOCKET OUTLET IN YOUR HOME THEN THE FUSE SHOULD BE REMOVED AND THE PLUG CUT OFF AND DISPOSED OF SAFELY. THERE IS A DANGER OF SEVERE ELECTRICAL SHOCK IF THE CUT OFF PLUG IS INSERTED INTO ANY 13-AMPERE SOCKET.

If a new plug is to be

 tted please observe the wiring code as stated below.If in any

doubt please consult a quali

 ed electrician.

IMPORTANT

The wires in this mains lead are coloured in accordance with the following code: Blue: Neutral, Brown: Live. As these colours may not correspond with the coloured markings identifying the terminals in your plug, proceed as follows: The wire which is coloured Blue must be connected to the terminal which is marked with the letter N or coloured Black or Blue. The wire which is coloured Brown must be connected to the terminal which is marked with the letter L or coloured Brown or Red.

WARNING: DO NOT CONNECT EITHER WIRE TO THE EARTH TERMINAL WHICH IS MARKED WITH THE LETTER E, BY THE EARTH SYMBOL

OR COLOURED

GREEN OR GREEN/YELLOW.

THIS PLUG IS NOT WATERPROOF–KEEP DRY.

Before use

Remove the connector cover.

How to replace the fuse

The location of the fuse differ according to the type of AC mains plug ( gures A and B). Con

 rm the AC mains plug  tted and follow the instructions below.

Illustrations may differ from actual AC mains plug.

Fuse cover

Figure A

Figure B

Fuse (5 ampere)

Figure A

Figure B

1. Open the fuse cover with a screwdriver.

2. Replace the fuse and close or attach the fuse cover.

Caution for AC Mains Lead

SUOMI

Safety precautions

Inside of product Tuotteen sisällä Produktets innside

Information on Disposal for Users of Waste Electrical & Electronic Equipment (private households)

to designated collection points, where they will be accepted on a free of charge basis. Alternatively, in some countries you may be able to return your products to your local retailer upon the purchase of an equivalent new product. Disposing of this product correctly will help to save valuable resources and prevent any potential negative effects on human health and the environment which could otherwise arise from inappropriate waste handling. Please contact your local authority for further details of your nearest designated collection point. Penalties may be applicable for incorrect disposal of this waste, in accordance with national legislation.

For business users in the European Union

If you wish to discard electrical and electronic equipment, please contact your dealer or supplier for further information.

Information on Disposal in other Countries outside the European Union

This symbol is only valid in the European Union. If you wish to discard this product, please contact your local authorities or dealer and ask for the correct method of disposal.

-If you see this symbol-

Set the unit up on an even surface away from direct sunlight, high temperatures, high humidity, and excessive vibration. These conditions can damage the cabinet and other components, thereby shortening the unit’s service life.

Do not place heavy items on the unit.

Placement

Do not use high voltage power sources. This can overload the unit and cause a  re.

Do not use a DC power source. Check the source carefully when setting the unit up on a ship or other place where DC is used.

Voltage

Ensure the AC mains lead is connected correctly and not damaged. Poor connection and lead damage can cause

 re or electric shock. Do not pull, bend,

or place heavy items on the lead.

Grasp the plug

 rmly when unplugging the lead. Pulling the AC mains lead can

cause electric shock.

Do not handle the plug with wet hands. This can cause electric shock.

AC mains lead protection

Do not let metal objects fall inside the unit. This can cause electric shock or malfunction.

Do not let liquids get into the unit. This can cause electric shock or malfunction. If this occurs, immediately disconnect the unit from the power supply and contact your dealer.

Do not spray insecticides onto or into the unit. They contain

 ammable gases

which can ignite if sprayed into the unit.

Foreign matter

Do not attempt to repair this unit by yourself. If sound is interrupted, indicators fail to light, smoke appears, or any other problem that is not covered in these instructions occurs, disconnect the AC mains lead and contact your dealer or an authorized service center. Electric shock or damage to the unit can occur if the unit is repaired, disassembled or reconstructed by unquali

 ed persons.

Extend operating life by disconnecting the unit from the power source if it is not to be used for a long time.

Service

LUOKAN 1 LASERLAITE KLASS 1 LASER APPARAT

(Back of product)

Sales and Support Information

Customer Care Centre

• For customers within the UK: 08705 357357

• For customers within the Republic of Ireland: 01 289 8333

• Visit our website for product information

• E-mail: [email protected]

Direct Sales at Panasonic UK

• Order accessory and consumable items for your product with ease and con dence by phoning our Customer Care Centre Monday - Thursday 9:00am - 5:30pm, Friday 9:30am - 5:30pm (Excluding public holidays).

• Or go on line through our Internet Accessory ordering application at

www.panasonic.co.uk.

• Most major credit and debit cards accepted.

• All enquiries transactions and distribution facilities are provided directly by Panasonic UK Ltd.

• It couldn’t be simpler!

• Also available through our Internet is direct shopping for a wide range of  nished products, take a browse on our website for further details.

For the United Kingdom and Republic of Ireland

Caution for AC Mains Lead

(For United Kingdom)

(“EB” area code model only)

For your safety, please read the following text carefully.

This appliance is supplied with a moulded three pin mains plug for your safety and convenience. A 5-ampere fuse is

 tted in this plug. Should the fuse need to be replaced please ensure that the replacement fuse has a rating of 5-ampere and that it is approved by ASTA or BSI to BS1362.

Check for the ASTA mark

or the BSI mark on the body of the fuse.

If the plug contains a removable fuse cover you must ensure that it is re

 tted

when the fuse is replaced.

If you lose the fuse cover the plug must not be used until a replacement cover is obtained. A replacement fuse cover can be purchased from your local dealer.

CAUTION!

If a new plug is to be

 tted please observe the wiring code as stated below.If in any

doubt please consult a quali ed electrician.

IMPORTANT

WARNING: DO NOT CONNECT EITHER WIRE TO THE EARTH TERMINAL WHICH IS MARKED WITH THE LETTER E, BY THE EARTH SYMBOL

OR COLOURED

GREEN OR GREEN/YELLOW.

THIS PLUG IS NOT WATERPROOF–KEEP DRY.

Before use

Remove the connector cover.

How to replace the fuse

The location of the fuse differ according to the type of AC mains plug ( gures A and B). Con

 rm the AC mains plug  tted and follow the instructions below.

Illustrations may differ from actual AC mains plug.

Fuse cover

Figure A

Figure B

Fuse (5 ampere)

Figure A

Figure B

1. Open the fuse cover with a screwdriver.

2. Replace the fuse and close or attach the fuse cover.

CLASS 1 LASER PRODUCT

Except continental Europe and the United Kingdom

0844 844 3852
