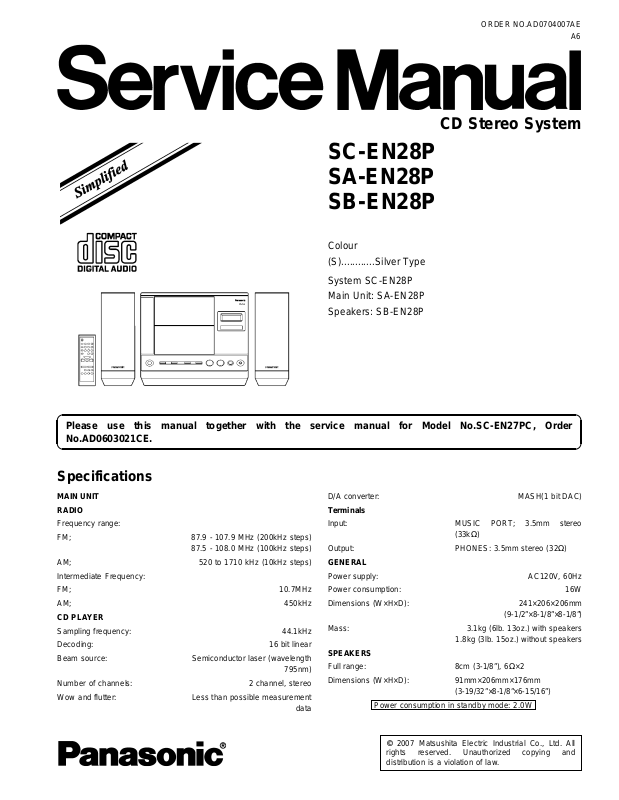

Panasonic SA-EN28P, SC-EN28P, SB-EN28P Schematic

SC-EN28P
SA-EN28P
SB-EN28P

Colour

(S)............Silver Type

System SC-EN28P
Main Unit: SA-EN28P
Speakers: SB-EN28P

ORDER NO.AD0704007AE

A6

CD Stereo System

Please use this manual together with the service manual for Model No.SC-EN27PC, Order
No.AD0603021CE.

Specifications

MAIN UNIT
RADIO

Frequency range:
FM; 87.9 - 107.9 MHz (200kHz steps)

87.5 - 108.0 MHz (100kHz steps)
AM; 520 to 1710 kHz (10kHz steps)
Intermediate Frequency:
FM; 10.7MHz
AM; 450kHz

CD PLAYER

Sampling frequency: 44.1kHz
Decoding: 16 bit linear
Beam source: Semiconductor laser (wavelength

795nm)
Number of channels: 2 channel, stereo
Wow and flutter: Less than possible measurement

data

D/A converter: MASH(1 bit DAC)

Terminals

Input: MUSIC PORT; 3.5mm stereo

(33kΩ)

Output: PHONES: 3.5mm stereo (32Ω)

GENERAL

Power supply: AC120V, 60Hz
Power consumption: 16W
Dimensions (W×H×D): 241×206×206mm

(9-1/2”×8-1/8”×8-1/8”)

Mass: 3.1kg (6lb. 13oz.) with speakers

1.8kg (3lb. 15oz.) without speakers

SPEAKERS

Full range: 8cm (3-1/8”), 6Ω×2
Dimensions (W×H×D): 91mm×206mm×176mm

(3-19/32”×8-1/8”×6-15/16”)

Power consumption in standby mode: 2.0W

© 2007 Matsushita Electric Industrial Co., Ltd. All
rights reserved. Unauthorized copying and
distribution is a violation of law.

SC-EN28P / SA-EN28P / SB-EN28P

Note:

Specifications are subject to change without notice.
Mass and dimensions are approximate.

MPEG Layer-3 audio decording technology

licenced from Fraunhofer IIS and Thomson multimedia.

CONTENTS

Page Page

1 Note 2
2 Replacement Parts List

2.1. SA-EN28P(CABINET PARTS, ACCESSORY AND
PACKAGING)

2.2. SA-EN28P(ELECTRIC PARTS)

2.3. SB-EN28P

3 Schematic Diagram

2

2
2
6

8

3.1. Schematic Diagram Notes 8

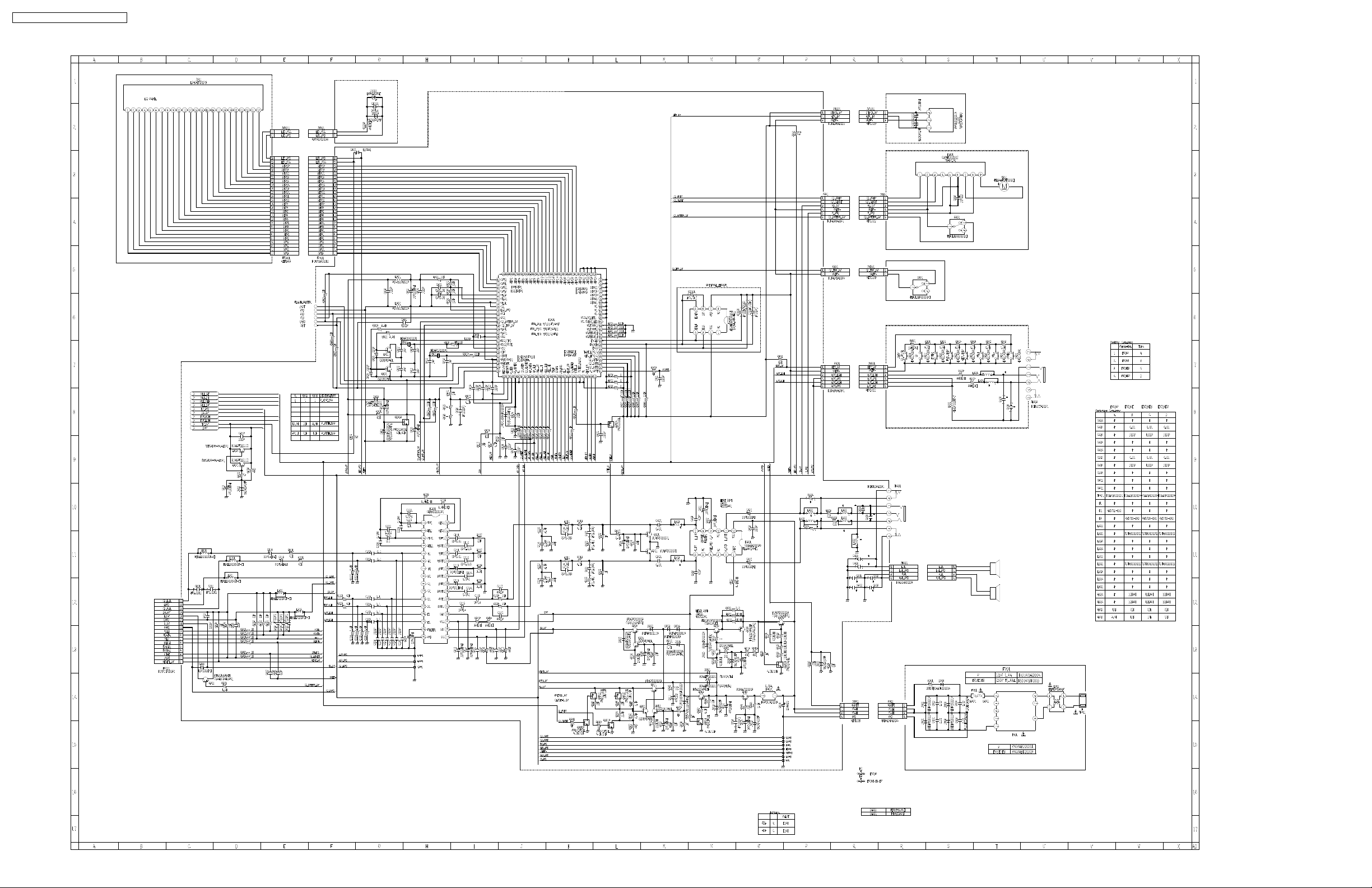

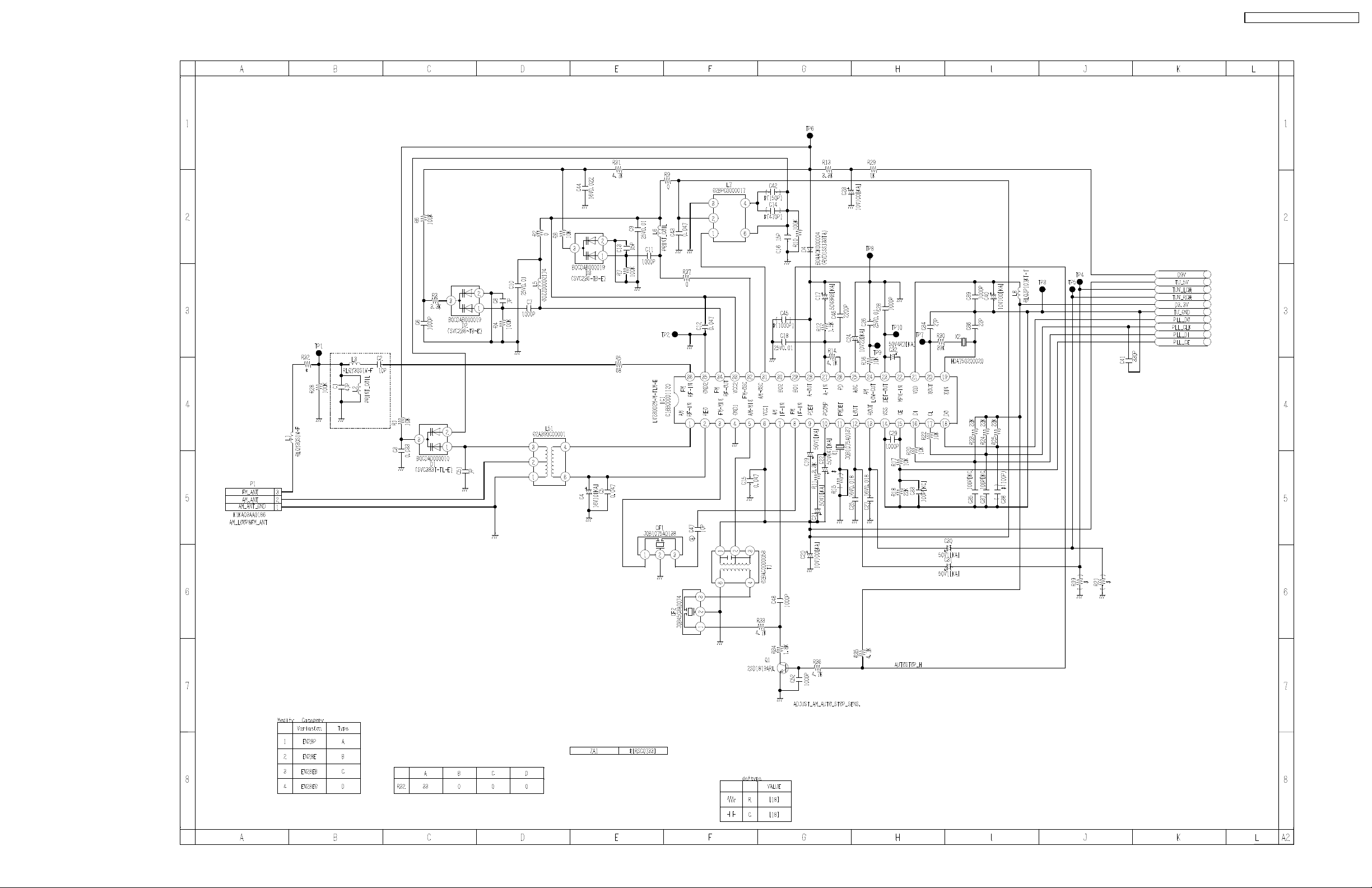

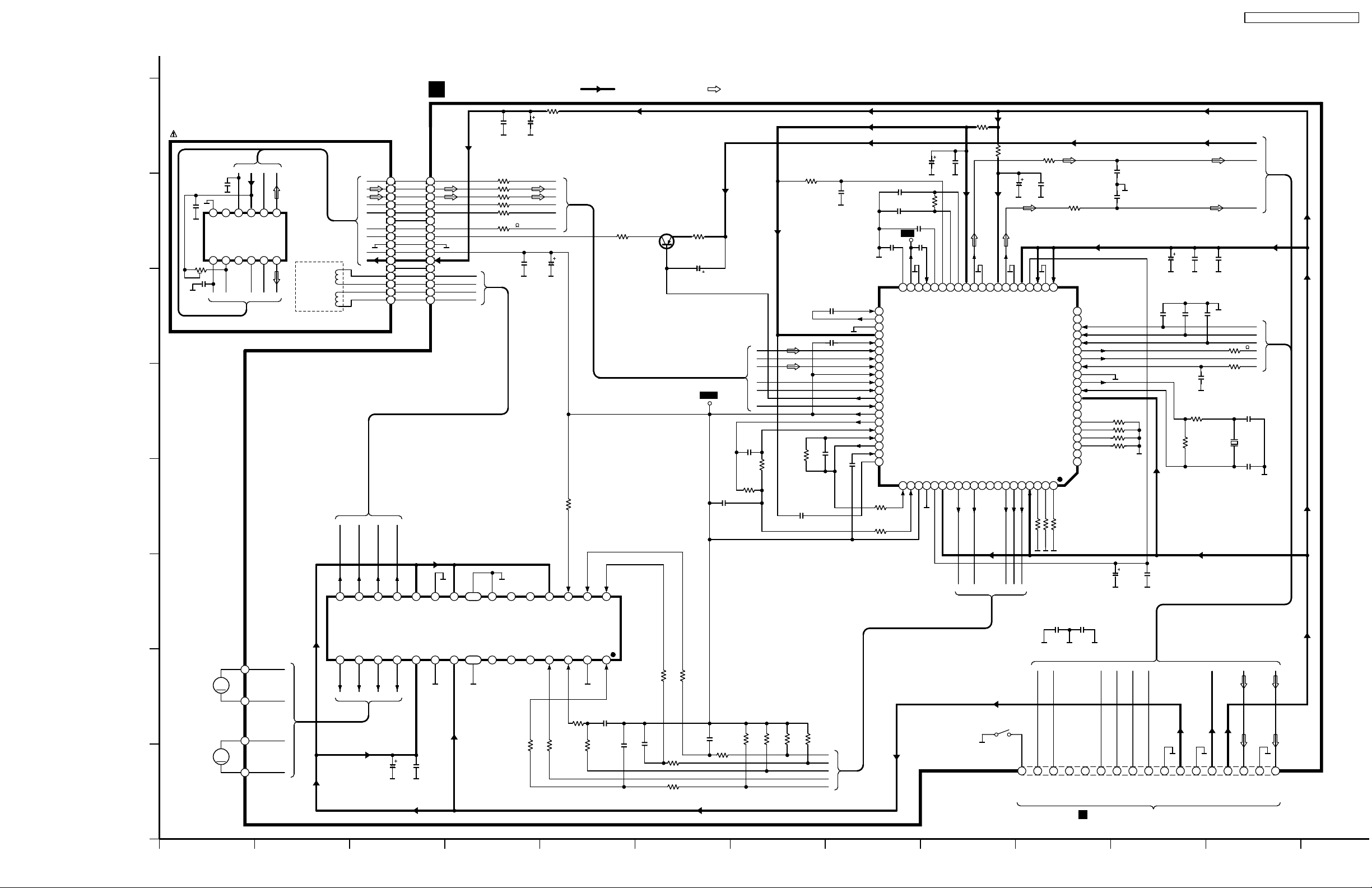

3.2. Schematic Diagram

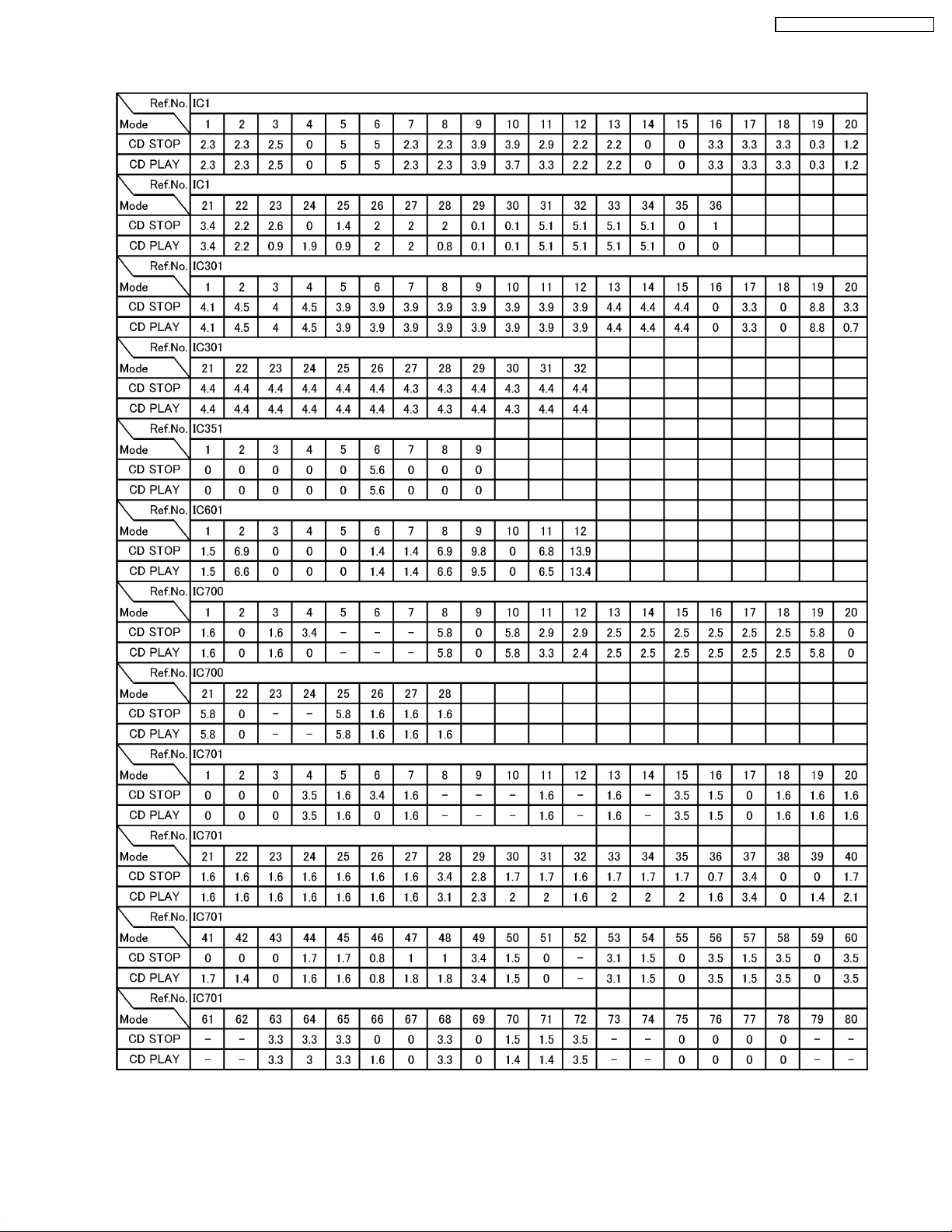

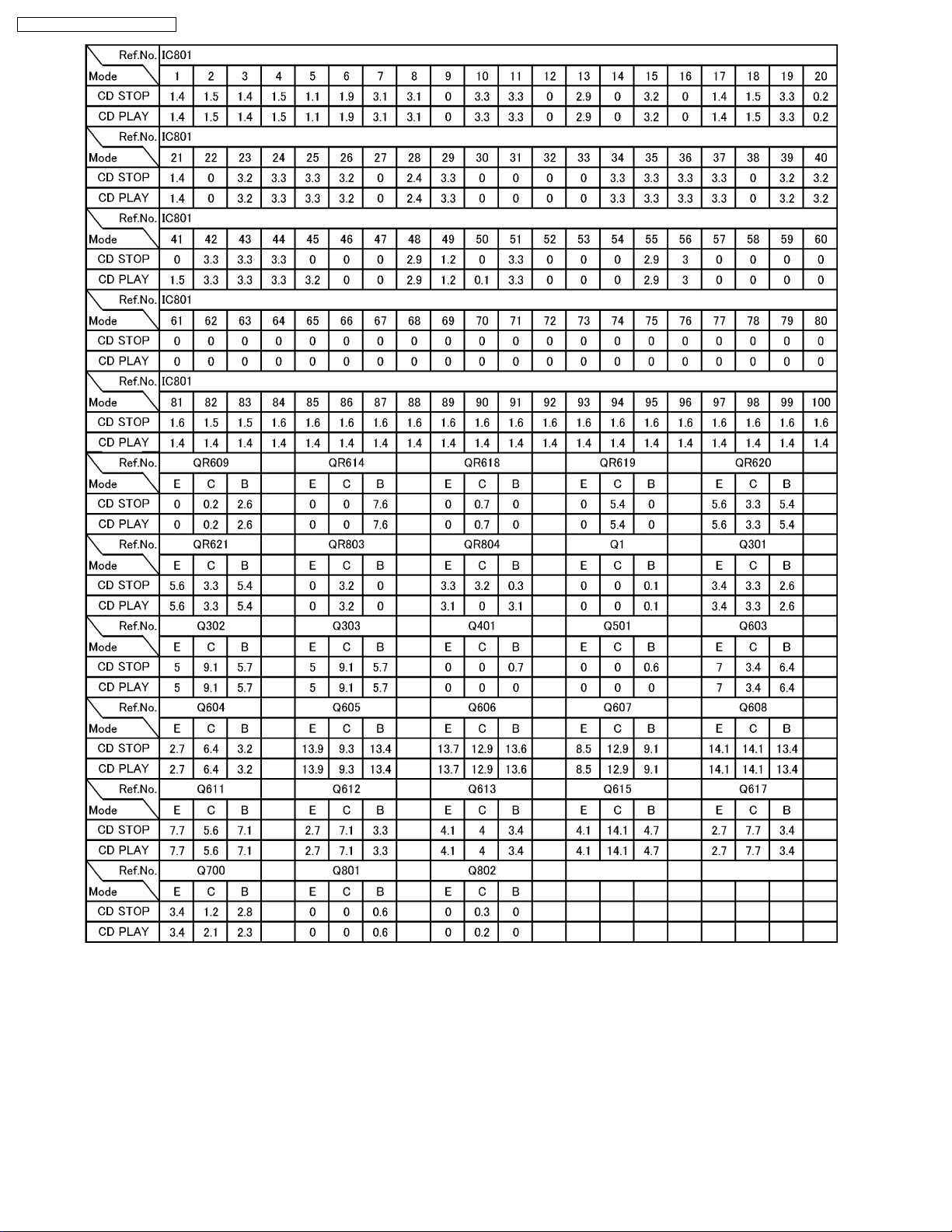

3.3. Voltage Value

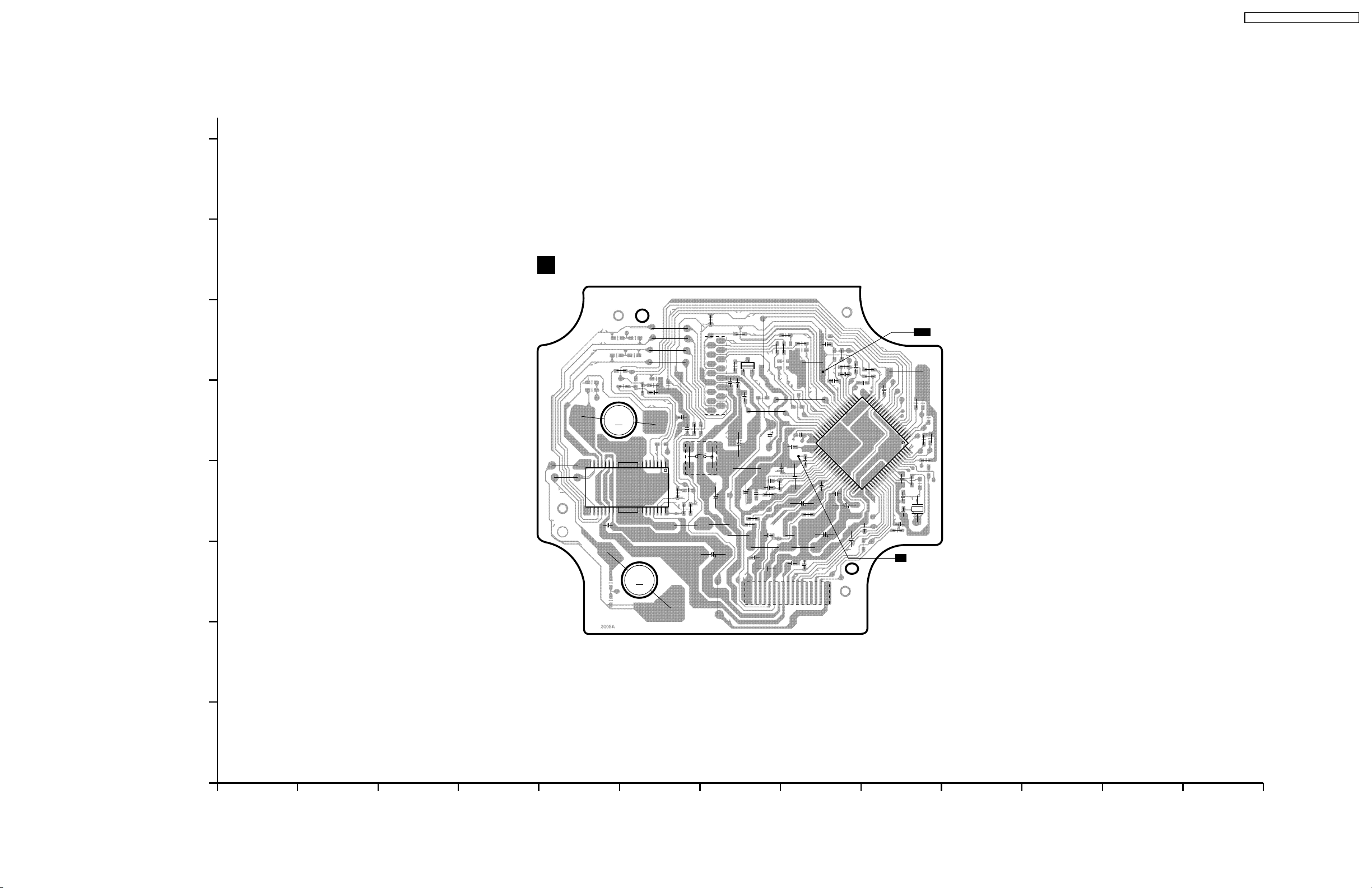

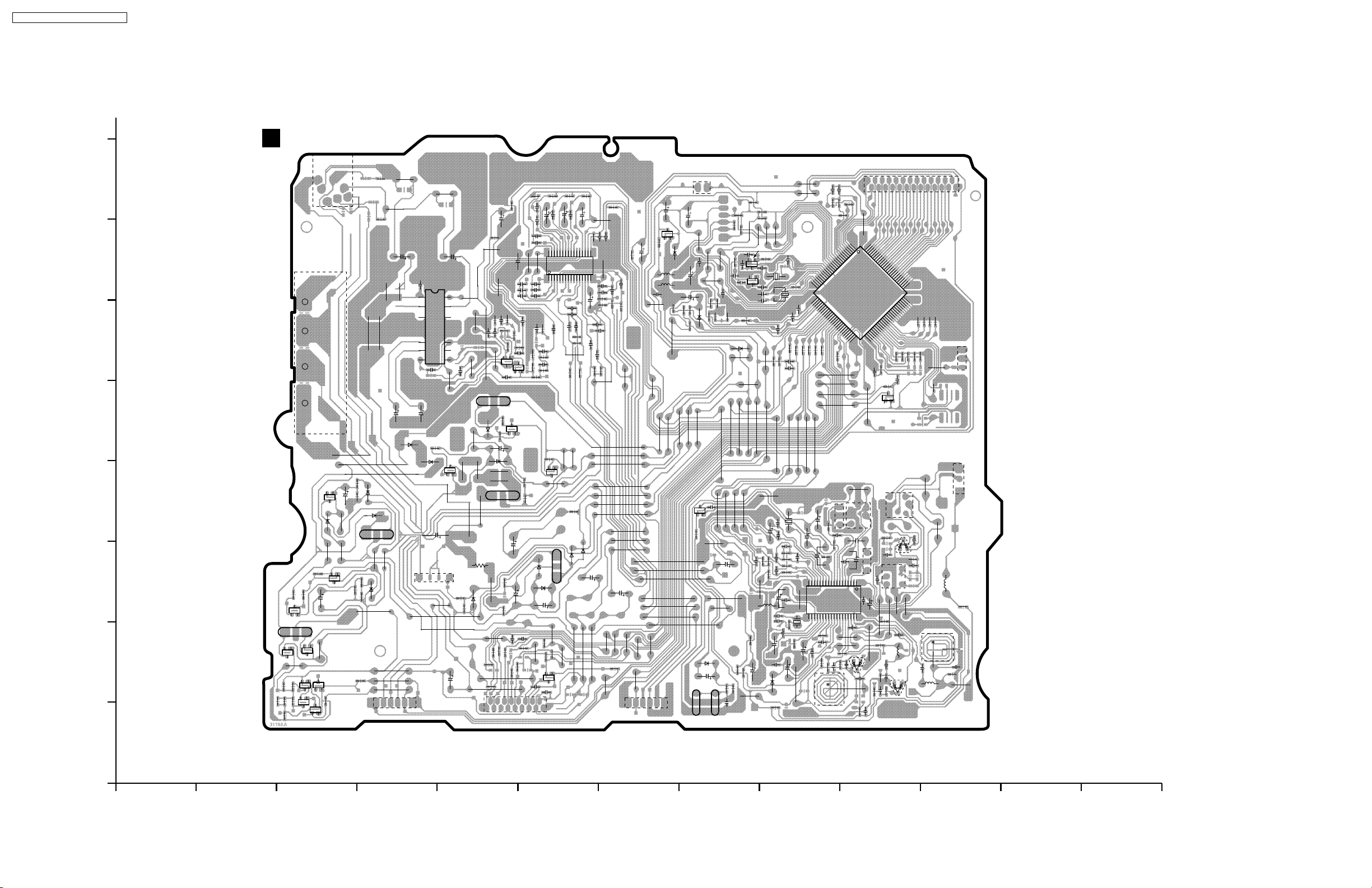

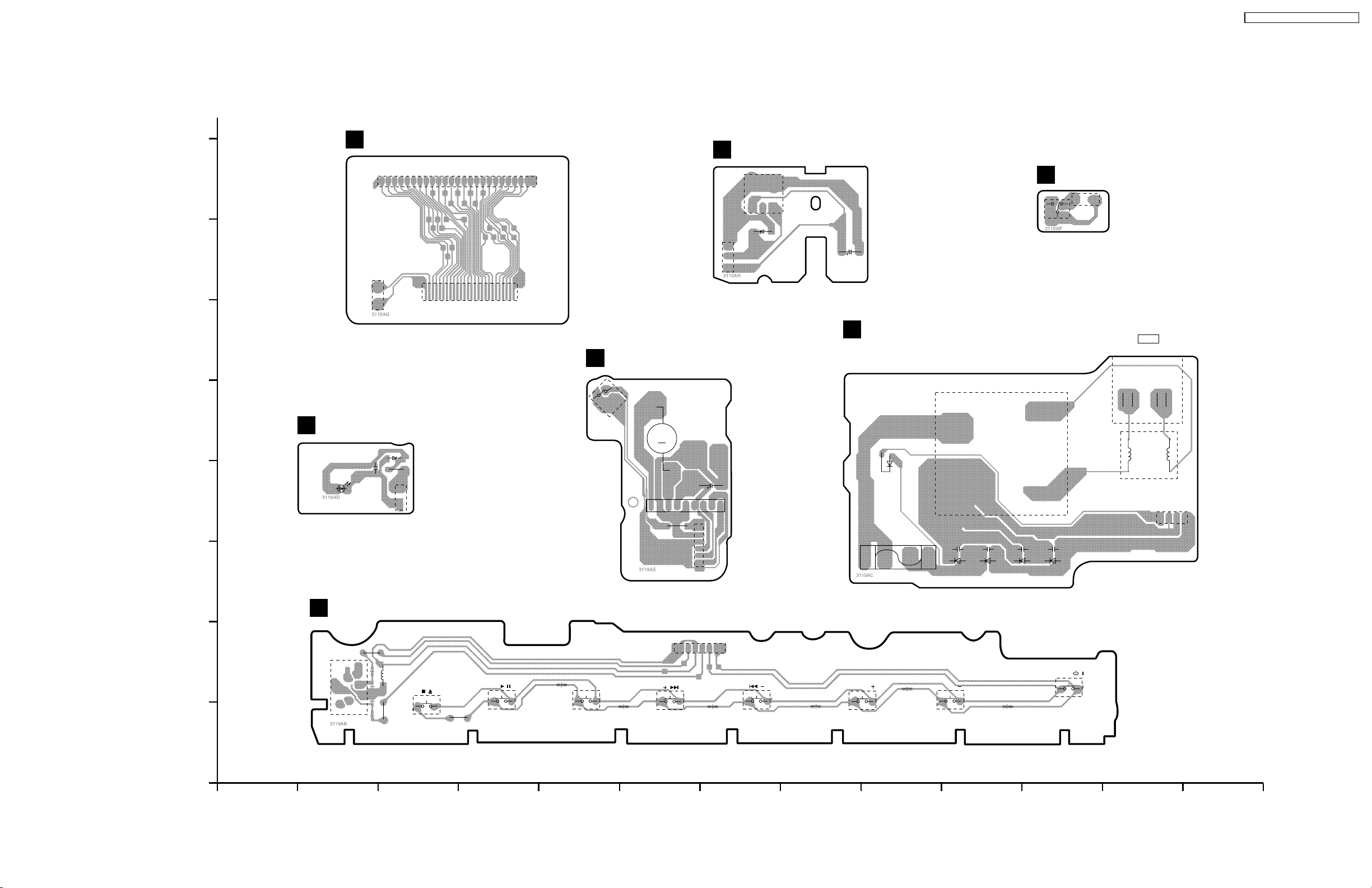

4 Printed Circuit Board Diagram
5 Cabinet Parts Location

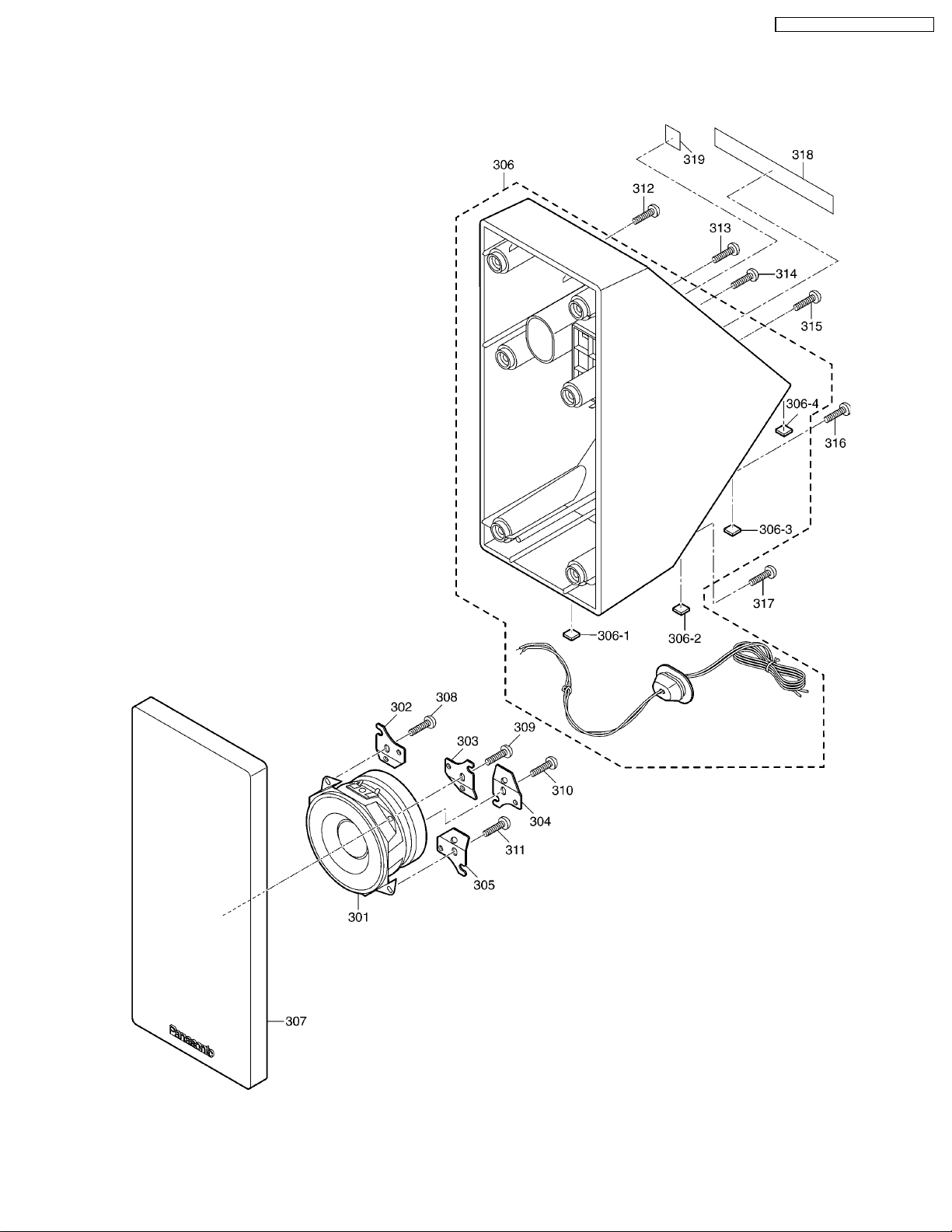

5.1. Speaker(SB-EN28)

9

13

15
19

19

1 Note

· This simplified service manual is provided to indicate the main differences between the original model No. SC-EN27PC(SA­EN27PC+SB-EN25P) and the subsequent model No. SC-EN28P(SA-EN28P+SB-EN28P).

2 Replacement Parts List

Note:

2.1. SA-EN28P(CABINET PARTS, ACCESSORY AND PACKAGING)

Ref. No. Change of Part No. Part Name & description PCS Remarks

SA-EN27PC SA-EN28P
CABINET PARTS
18 RDG0613 RDG0613-1 2ND GEAR 1 Change
25 RDP0118 RDP0118-1J LID ROLLER 1 Change
26 RDP0118 RDP0118-1J LID ROLLER 1 Change
28 RGU2449-S1 RGUW0020-S FUNCTION BUTTON 1 Change
74 RKQ0274A-K RKQ0274-K1 CD BASE 1 Change
75 RKS0423A-H RKS0423-H BACK CAB 1 Change
98 RMS0879 RMS0879-1 ROLLER BEARING L 1 Change
105 RYK1477A-S RYKW0089-S FRONT CAB UNIT 1 Change
138 RFKNAEN25PS RFKNAEN28PS CD LID ASS’Y 1 Change
139 RGN2875-K RGNW0098-K NAME PLATE 1 Change
140 RQLXS0053 - LASER CAUTION LABEL 1 Deletion
141 RKU0086A-H RKU0086-H TRANS COVER 1 Change
ACCESSORY AND PACKAGING
A4 RQT8520-P

RQT8521-C

P1 RPG7816 RPGW0208 PACKING CASE 1 Change

RQTW0074-P O/I BOOK 1 Change

· All parts are supplied by ASPC.

(English)

2.2. SA-EN28P(ELECTRIC PARTS)

Ref.

No.

## REP3875B CD SERVO ASS’Y (RTL)

C704 ECEA0JKA331B 6.3V 330U 1
C705 F1H1C104A042 16V 0.1U 1

Part No. Part Name &

Description

Pcs Remarks

Ref.

No.
C707 F1H1C104A042 16V 0.1U 1
C709 ECEA0JKA101B 6.3V 100U 1
C716 F1H1C333A071 16V 0.033U 1
C717 F1H1C154A068 16V 0.15U 1
C718 F1H1H272A748 50V 2700P 1

Part No. Part Name &

Description

2

Pcs Remarks

Ref.

No.
C719 F1H1H332A013 50V 3300P 1
C720 ECEA0JKA330B 6.3V 33U 1
C721 F1H1H472A013 50V 4700P 1
C722 ECUV1H821JCV 50V 820P 1
C723 F1H1C104A042 16V 0.1U 1
C724 F1H1C104A042 16V 0.1U 1
C726 F1H1H471A737 50V 470P 1
C727 ECUV1C473KBV 16V 0.047U 1
C729 F1H1C104A042 16V 0.1U 1
C730 ECUV1H821KBV 50V 820P 1
C731 F1H1C223A071 16V 0.022U 1
C732 F1H1C104A042 16V 0.1U 1
C733 ECUV1H102KBV 50V 1000P 1
C734 F1D1H104A046 50V 0.1U 1
C735 ECEA0JKA101B 6.3V 100U 1
C736 F1H1C823A071 16V 0.082U 1
C738 ECEA0JKA221B 6.3V 220U 1
C739 F1H1C104A042 16V 0.1U 1
C740 ECUV1E103KBN 25V 0.01U 1
C741 ECUV1H102KBV 50V 1000P 1
C742 ECUV1H102KBV 50V 1000P 1
C743 ECEA0JKA331B 6.3V 330U 1
C744 ECUV1H221KBV 50V 220P 1
C745 F1H1H330A860 50V 33P 1
C746 F1H1H330A860 50V 33P 1
C747 F1H1C104A042 16V 0.1U 1
C748 ECUV1H221KBV 50V 220P 1
C749 F1D1H221A012 50V 220P 1
C750 F1H1E103A029 25V 0.01U 1
C751 F1D1H471A012 50V 470P 1
C752 F1H1C104A042 16V 0.1U 1
C753 ECEA0JKA101B 6.3V 100U 1
C754 ECUV1C393KBV 16V 0.039U 1
C756 F1H1C104A042 16V 0.1U 1
C757 F1H1C104A042 16V 0.1U 1
C762 ECEA0JKA100B 6.3V 10U 1

CN701 K1MN16B00154 CONNECTOR 1
CN702 REE1362 CD SERVO FFC 1

FP701 K1MN17B00032 CONNECTOR 1

IC700 BA5948FPE2 IC 1
IC701 MN6627953HB IC 1

Q700 2SB0709A0L TRANSISTOR 1

R704 ERDS2TJ5R6T 1/4W 5.6 1
R705 ERJ3GEYJ562V 1/10W 5.6K 1
R706 ERJ3GEYJ822V 1/10W 8.2K 1
R707 ERJ3GEYJ822V 1/10W 8.2K 1
R708 ERJ3GEYJ562V 1/10W 5.6K 1
R710 ERJ3GEYJ101V 1/10W 100 1
R711 ERJ3GEYJ822V 1/10W 8.2K 1
R712 ERJ3GEYJ101V 1/10W 100 1
R713 ERJ3GEYJ682V 1/10W 6.8K 1
R714 ERJ3GEYJ223V 1/10W 22K 1
R715 ERJ3GEYJ102V 1/10W 1K 1
R716 ERJ3GEYJ332V 1/10W 3.3K 1
R717 ERJ3GEYJ562V 1/10W 5.6K 1
R718 ERJ3GEYJ5R6V 1/10W 5.6 1
R719 ERJ3GEYJ683V 1/10W 68K 1
R720 ERJ3GEYJ562V 1/10W 5.6K 1
R721 ERJ3GEYJ4R7V 1/10W 4.7 1
R722 ERJ3GEYJ563V 1/10W 56K 1
R723 ERJ3GEYJ102V 1/10W 1K 1
R724 ERJ3GEYJ332V 1/10W 3.3K 1
R725 ERJ3GEYJ273V 1/10W 27K 1
R726 ERJ3GEYJ102V 1/10W 1K 1
R727 ERJ3GEYJ393V 1/10W 39K 1
R728 ERJ3GEYJ562V 1/10W 5.6K 1
R729 ERJ3GEYJ562V 1/10W 5.6K 1
R730 ERJ3GEYJ562V 1/10W 5.6K 1

Part No. Part Name &

Description

Pcs Remarks

SC-EN28P / SA-EN28P / SB-EN28P

Ref.

No.
R731 ERJ3GEYJ823V 1/10W 82K 1
R732 ERJ3GEYJ821V 1/10W 820 1
R733 ERJ3GEYJ5R6V 1/10W 5.6 1
R734 ERJ3GEYJ101V 1/10W 100 1
R735 ERJ3GEYJ683V 1/10W 68K 1
R736 ERJ3GEYJ683V 1/10W 68K 1
R737 ERJ3GEYJ102V 1/10W 1K 1
R738 ERJ3GEYJ102V 1/10W 1K 1
R739 ERJ3GEYJ683V 1/10W 68K 1
R740 ERJ3GEYJ105V 1/10W 1M 1
R741 ERJ3GEYJ101V 1/10W 100 1
R742 ERJ3GEYJ102V 1/10W 1K 1
R743 ERJ3GEYJ102V 1/10W 1K 1
R744 ERJ3GEY0R00V 1/10W 0 1
R747 ERJ3GEYJ683V 1/10W 68K 1
R748 ERJ3GEYJ683V 1/10W 68K 1
R749 ERJ3GEYJ683V 1/10W 68K 1
R750 ERJ3GEYJ683V 1/10W 68K 1
R751 ERJ3GEY0R00V 1/10W 0 1

S700 K0L1BA000109 RESET SWITCH 1

X700 H2A169500011 CRYSTAL OSC 1

## REP4044B MAIN PCB ASS’Y (RTL)

C1 ECJ1VC1H470J 50V 47P 1
C2 ECJ1VC1H100D 50V 10P 1
C3 ECJ1VB1C333K 16V 0.033U 1
C4 ECEA1CKA100B 16V 10U 1
C5 ECJ1VB1C473K 16V 0.047U 1
C6 ECJ1VB1H102K 50V 1000P 1
C7 ECJ1VB1H102K 50V 1000P 1
C8 ECJ1VC1H070D 50V 7P 1
C9 ECJ1VB1E103K 25V 0.01U 1
C10 ECJ1VB1E103K 25V 0.01U 1
C11 ECJ1VB1H102K 50V 1000P 1
C12 ECJ1VB1C473K 16V 0.047U 1
C13 ECJ1VC1H150J 50V 15P 1
C15 ECJ1VB1C473K 16V 0.047U 1
C16 ECJ1VC1H150J 50V 15P 1
C17 ECEA1HKA3R3B 50V 3.3U 1
C18 ECJ1VB1E103K 25V 0.01U 1
C19 ECEA1HKA010B 50V 1U 1
C20 ECEA1AKA101B 10V 100U 1
C21 ECEA1HKA010B 50V 1U 1
C22 ECEA1HKAR47B 50V 0.47U 1
C23 ECEA1AKA101B 10V 100U 1
C24 ECEA1AKA220B 10V 22U 1
C25 ECJ1VB1C183K 16V 0.018U 1
C26 ECJ1VB1E103K 25V 0.01U 1
C27 ECJ1VB1C183K 16V 0.018U 1
C28 ECJ1VB1H102K 50V 1000P 1
C29 ECJ1VB1H102K 50V 1000P 1
C30 ECEA1HKA010B 50V 1U 1
C31 ECEA1HKA010B 50V 1U 1
C32 F2A1H4R7B318 50V 4.7U 1
C33 ECJ1VC1H101K 50V 100P 1
C34 ECJ1VC1H270J 50V 27P 1
C35 ECJ1VC1H101K 50V 100P 1
C36 ECJ1VC1H220J 50V 22P 1
C37 ECJ1VC1H101K 50V 100P 1
C39 ECJ1VB1H102K 50V 1000P 1
C40 ECEA1CKA101B 16V 100U 1
C41 ECJ1VB1H331K 50V 330P 1
C43 ECJ1VB1C473K 16V 0.047U 1
C44 ECJ1VB1C223K 16V 0.023U 1
C46 ECJ1VB1H222K 50V 2200P 1
C47 F1D1H100A015 50V 10U 1
C48 ECJ1VB1H102K 50V 1000P 1
C51 ECJ1VC1H070D 50V 7P 1
C52 ECJ1VB1H102K 50V 1000P 1
C103 F1H1C104A042 16V 0.1U 1

Part No. Part Name &

Description

Pcs Remarks

3

SC-EN28P / SA-EN28P / SB-EN28P

Ref.

No.
C104 F1H1C104A042 16V 0.1U 1
C105 F1H1C104A042 16V 0.1U 1
C106 ECJ1VB1H102K 50V 1000P 1
C107 ECJ1VB1H102K 50V 1000P 1
C108 ECJ1VB1H102K 50V 1000P 1
C109 ECJ1VB1C683K 16V 0.068U 1
C110 F1H1C104A042 16V 0.1U 1
C111 ECJ1VB1E103K 25V 0.01U 1
C112 ECJ1VB1E153K 25V 0.015U 1
C113 F2A1HR22B318 50V 0.22U 1
C114 ECJ1VB1C473K 16V 0.047U 1
C115 ECJ1VB1C105K 16V 1U 1
C116 ECEA1HKA010B 50V 1U 1
C117 F1H1H682A013 50V 6800P 1
C118 ECJ1VB1C333K 16V 0.033U 1
C119 ECJ1VB1E153K 25V 0.015U 1
C122 ECJ1VB1C473K 16V 0.047U 1
C203 F1H1C104A042 16V 0.1U 1
C204 F1H1C104A042 16V 0.1U 1
C205 F1H1C104A042 16V 0.1U 1
C206 ECJ1VB1H102K 50V 1000P 1
C207 ECJ1VB1H102K 50V 1000P 1
C208 ECJ1VB1H102K 50V 1000P 1
C209 ECJ1VB1C683K 16V 0.068U 1
C210 F1H1C104A042 16V 0.1U 1
C211 ECJ1VB1E103K 25V 0.01U 1
C212 ECJ1VB1E153K 25V 0.015U 1
C213 F2A1HR22B318 50V 0.22U 1
C214 ECJ1VB1C473K 16V 0.047U 1
C215 ECJ1VB1C105K 16V 1U 1
C216 ECEA1HKA010B 50V 1U 1
C217 F1H1H682A013 50V 6800P 1
C218 ECJ1VB1C333K 16V 0.033U 1
C219 ECJ1VB1E153K 25V 0.015U 1
C222 ECJ1VB1C473K 16V 0.047U 1
C301 ECJ1VB1H102K 50V 1000P 1
C305 ECJ1VB1H221K 50V 220P 1
C309 ECEA1AKA470B 10V 47U 1
C310 ECEA1AKA101B 10V 100U 1
C311 ECEA1HKAR33B 50V 0.33U 1
C312 ECJ1VB1H221K 50V 220P 1
C313 ECJ1VB1H221K 50V 220P 1
C315 ECEA0JKA101B 6.3V 100U 1
C353 F2A1A221B054 10V 220U 1
C356 ECJ1VB1H221K 50V 220P 1
C357 ECJ1VB1H221K 50V 220P 1
C358 F2A1A102B057 10V 1000U 1
C359 ECJ1VB1H102K 50V 1000P 1
C402 F1H1C224A074 16V 0.22U 1
C403 ECJ1VB1H471K 50V 470P 1
C407 F2A1A102B057 10V 1000U 1
C502 F1H1C224A074 16V 0.22U 1
C503 ECJ1VB1H471K 50V 470P 1
C507 F2A1A102B057 10V 1000U 1
C601 ECEA1CKA470B 16V 47U 1
C602 ECEA1CKA100B 16V 10U 1
C603 ECJ1VB1H102K 50V 1000P 1
C604 ECEA1EKA100B 25V 10U 1
C608 ECEA1EKA100B 25V 10U 1
C609 ECEA1EKA100B 25V 10U 1
C610 ECEA1EKA100B 25V 10U 1
C611 F2B0J472A006 6.3V 4700U 1
C612 ECEA0JKA101B 6.3V 100U 1
C615 ECEA1CKA101B 16V 100U 1
C616 F2B1E332A023 25V 3300U 1
C801 ECEA1AKA101B 10V 100U 1
C802 ECJ1VB1E103K 25V 0.01U 1
C803 ECJ1VB1H102K 50V 1000P 1
C804 ECJ1VB1H102K 50V 1000P 1
C805 ECJ1VB1E103K 25V 0.01U 1
C806 ECJ1VB1H102K 50V 1000P 1
C807 ECJ1VC1H560J 50V 56P 1
C808 ECJ1VC1H560J 50V 56P 1

Part No. Part Name &

Description

Pcs Remarks

Ref.

No.
C809 ECJ1VB1H102K 50V 1000P 1
C810 ECJ1VC1H390J 50V 39P 1
C811 ECJ1VC1H560J 50V 56P 1
C812 F1H1H180A860 50V 18P 1
C813 F1H1H180A860 50V 18P 1
C814 F2A1H2R2B318 50V 2.2U 1
C815 ECEA1HKA010B 50V 1U 1
C817 ECJ1VB1H102K 50V 1000P 1
C818 ECJ1VB1H102K 50V 1000P 1
C819 ECJ1VB1H102K 50V 1000P 1
C820 ECEA1EKA100B 25V 10U 1
C821 ECJ1VB1H102K 50V 1000P 1
C822 ECJ1VB1H102K 50V 1000P 1
C826 ECJ1VB1H102K 50V 1000P 1
C827 F2A1A331B055 10V 330U 1
C828 ECJ1VB1H222K 50V 2200P 1
C829 ECJ1VB1H222K 50V 2200P 1
C830 ECJ1VB1H102K 50V 1000P 1
C901 F1D1H103A046 50V 0.01U 1
C902 F1D1H103A046 50V 0.01U 1
C903 F1D1H103A046 50V 0.01U 1
C904 F1D1H103A046 50V 0.01U 1
C1001 ECEA1CKA100B 16V 10U 1
C1002 ECJ1VB1C105K 16V 1U 1

CF1 J0B1075A0138 FM CERAMIC FILTER 1
CF2 J0B4503A0074 AM FILTER 1

P1 K1KA03AA0186 CONNECTOR(3P) 1
P351 K1KA06BA0061 CONNECTOR 1
P352 K1KA02BA0055 BATT PLUG 1
P601 K1KA06BA0061 CONNECTOR 1
P901 K1KA04BA0055 CONNECTOR 1
P1001 K1KA03BA0055 CONNECTOR 1

D1 B0CDAD000010 DIODE 1
D2 B0CDAB000019 DIODE 1
D3 B0CDAB000019 DIODE 1
D4 B0AACK000004 DIODE 1
D301 MAZ40560MF DIODE 1
D601 MAZ40510MF DIODE 1
D602 B0EAKM000118 DIODE 1
D603 B0EAKM000118 DIODE 1
D604 B0EAKM000118 DIODE 1
D605 B0AACK000004 DIODE 1
D607 B0AACK000004 DIODE 1
D608 MAZ40910LF DIODE 1
D610 B0AACK000004 DIODE 1
D611 B0AACK000004 DIODE 1
D612 B0AAEF000001 DIODE 1
D613 B0AAEF000001 DIODE 1
D614 MAZ40620MF DIODE 1
D615 MAZ40470MF DIODE 1
D801 B0AACK000004 DIODE 1
D802 B0AACK000004 DIODE 1
D803 B0AAEF000001 DIODE 1
D901 B0EAKM000118 DIODE 1
D902 B0EAKM000118 DIODE 1
D903 B0EAKM000118 DIODE 1
D904 B0EAKM000118 DIODE 1
D906 B0AACK000004 DIODE 1
D1001 MAZ40820MF DIODE 1
D1002 LNG4A4CN4E LED 1
D1003 MAZ40620MF DIODE 1

F901 K5D162AQ0004 FUSE 1

FFC801 REE1363 LCD FFC 1

FP801 K1MN26B00010 CONNECTOR 1

IC1 C1BB00001120 TUNER IC 1
IC301 C1BB00000732 IC 1

Part No. Part Name &

Description

Pcs Remarks

4

Ref.

No.
IC351 C0GAE0000007 MOTOR DRIVER IC 1
IC601 C0AAAA000036 POWER IC 1
IC801 MN101C74FAD MICON IC 1

IP602 K5G251A00008 FUSE PROTECTOR 1

JK601 K2HC103A0031 JACK 1
JK602 K4AC04B00008 TERMINAL 1
JK603 K2HC1YYA0002 JACK 1
JK901 K2AB2B000007 AC INLET 1

JW351 REX1227 MOTER TO MAIN WIRE 1
JW352 REX1228 SW TO MAIN WIRE 1
JW601 REX1227 MOTER TO MAIN WIRE 1
JW801 RWJ9002070SS LEAF SW WIRE 1
JW901 REX1226 POWER TO AMIN WIRE 1
JW1001 REX1229 SENSOR TO MAIN

L1 RLQY30S1W-F FM COIL 1
L3 RLQY30S1W-F FM COIL 1
L5 G0ZZ00002174 FM COIL 1
L7 G2BPC0000017 COIL 1
L8 RLQZP101KT-Y AXIAL COIL 1
L51 G2A390C00001 AM RF COIL 1
L601 RLQZP101KT-Y AXIAL COIL 1
L801 G0C2R2JA0019 FIXED INDUCTOR 1
L802 G0C2R2JA0019 FIXED INDUCTOR 1
L901 ELF15N035AN POWER COIL 1

Q1 2SD1819ARL TRANSISTOR 1
Q301 KTA2014GRRTK TRANSISTOR 1
Q302 B1AACF000117 TRANSISTOR 1
Q303 B1AACF000117 TRANSISTOR 1
Q401 B1ABGD000021 TRANSISTOR 1
Q501 B1ABGD000021 TRANSISTOR 1
Q603 B1ACND000003 TRANSISTOR 1
Q604 2SD1819ARL TRANSISTOR 1
Q605 B1BCCG000002 TRANSISTOR 1
Q606 KTA2014GRRTK TRANSISTOR 1
Q607 2SD1819ARL TRANSISTOR 1
Q608 B1ACND000003 TRANSISTOR 1
Q611 B1ACND000003 TRANSISTOR 1
Q612 2SD1819ARL TRANSISTOR 1
Q613 KTA2014GRRTK TRANSISTOR 1
Q615 B1BAAJ000003 TRANSISTOR 1
Q617 2SD1819ARL TRANSISTOR 1
Q801 2SD1819ARL TRANSISTOR 1
Q802 2SD1819ARL TRANSISTOR 1

QR609 UNR521400L TRANSISTOR 1
QR614 UNR521F00L TRANSISTOR 1
QR618 UNR521F00L TRANSISTOR 1
QR619 UNR521F00L TRANSISTOR 1
QR620 UNR511100L TRANSISTOR 1
QR621 UNR511100L TRANSISTOR 1
QR803 UNR521300L TRANSISTOR 1
QR804 UNR511100L TRANSISTOR 1

R1 ERJ3GEYJ103V 1/10W 10K 1
R2 ERJ3GEY0R00V 1/10W 0 1
R3 ERJ3GEYJ332V 1/10W 3.3K 1
R4 ERJ3GEYJ104V 1/10W 100K 1
R5 ERJ3GEYJ680V 1/10W 68 1
R6 ERJ3GEYJ104V 1/10W 100K 1
R7 ERJ3GEYJ104V 1/10W 100K 1
R8 ERJ3GEYJ103V 1/10W 10K 1
R9 ERJ3GEY0R00V 1/10W 0 1
R10 ERJ3GEYJ104V 1/10W 100K 1
R11 ERJ3GEYJ332V 1/10W 3.3K 1
R12 ERJ3GEYJ152V 1/10W 1.5K 1
R13 ERJ3GEYJ332V 1/10W 3.3K 1
R14 ERJ3GEYJ472V 1/10W 4.7K 1

Part No. Part Name &

Description

WIRE

Pcs Remarks

SC-EN28P / SA-EN28P / SB-EN28P

Ref.

No.
R16 ERJ3GEYJ103V 1/10W 10K 1
R17 ERJ3GEYJ103V 1/10W 10K 1
R18 ERJ3GEYJ223V 1/10W 22K 1
R20 ERJ3GEYJ103V 1/10W 10K 1
R22 ERJ3GEYJ103V 1/10W 10K 1
R23 ERJ3GEYJ223V 1/10W 22K 1
R24 ERJ3GEYJ223V 1/10W 22K 1
R25 ERJ3GEYJ223V 1/10W 22K 1
R28 ERJ3GEYJ104V 1/10W 100K 1
R29 ERJ3GEYJ102V 1/10W 1K 1
R30 ERJ3GEYJ393V 1/10W 39K 1
R31 ERJ3GEYJ472V 1/10W 4.7K 1
R32 ERJ3GEYJ330V 1/10W 33 1
R33 ERJ3GEYJ472V 1/10W 4.7K 1
R34 ERJ3GEYJ182V 1/10W 1.8K 1

1

R35 ERJ3GEYJ472V 1/10W 4.7K 1
R36 ERJ3GEYJ472V 1/10W 4.7K 1
R37 ERJ3GEY0R00V 1/10W 0 1
R101 ERJ3GEYJ473V 1/10W 47K 1
R102 ERJ3GEYJ562V 1/10W 5.6K 1
R103 ERJ3GEYJ473V 1/10W 47K 1
R104 ERJ3GEYJ562V 1/10W 5.6K 1
R105 ERJ3GEYJ562V 1/10W 5.6K 1
R106 ERDS2TJ682T 1/4W 6.8K 1
R107 ERJ3GEYJ223V 1/10W 22K 1
R108 ERJ3GEYJ332V 1/10W 3.3K 1
R109 ERJ3GEYJ103V 1/10W 10K 1
R110 ERJ3GEYJ392V 1/10W 3.9K 1
R111 ERJ3GEYJ333V 1/10W 33K 1
R112 ERJ3GEYJ682V 1/10W 6.8K 1
R113 ERJ3GEYJ472V 1/10W 4.7K 1
R201 ERJ3GEYJ473V 1/10W 47K 1
R202 ERJ3GEYJ562V 1/10W 5.6K 1
R203 ERJ3GEYJ473V 1/10W 47K 1
R204 ERJ3GEYJ562V 1/10W 5.6K 1
R205 ERJ3GEYJ562V 1/10W 5.6K 1
R206 ERDS2TJ682T 1/4W 6.8K 1
R207 ERJ3GEYJ223V 1/10W 22K 1
R208 ERJ3GEYJ332V 1/10W 3.3K 1
R209 ERJ3GEYJ103V 1/10W 10K 1
R210 ERJ3GEYJ392V 1/10W 3.9K 1
R211 ERJ3GEYJ333V 1/10W 33K 1
R212 ERJ3GEYJ682V 1/10W 6.8K 1
R213 ERJ3GEYJ472V 1/10W 4.7K 1
R301 ERJ3GEYJ223V 1/10W 22K 1
R302 ERJ3GEYJ223V 1/10W 22K 1
R303 ERJ3GEYJ223V 1/10W 22K 1
R304 ERJ3GEYJ223V 1/10W 22K 1
R305 ERJ3GEYJ103V 1/10W 10K 1
R306 ERJ3GEYJ102V 1/10W 1K 1
R307 ERJ3GEYJ102V 1/10W 1K 1
R308 ERJ3GEYJ102V 1/10W 1K 1
R309 ERJ3GEYJ102V 1/10W 1K 1
R312 ERJ3GEYJ102V 1/10W 1K 1
R313 ERJ3GEYJ102V 1/10W 1K 1
R316 ERJ3GEYJ334V 1/10W 330K 1
R317 ERJ3GEYJ334V 1/10W 330K 1
R318 ERDS2TJ330T 1/4W 33 1
R319 ERDS2TJ330T 1/4W 33 1
R322 ERJ3GEYJ470V 1/10W 47 1
R323 ERJ3GEYJ331V 1/10W 330 1
R325 ERJ3GEYJ152V 1/10W 1.5K 1
R402 ERJ3GEYJ102V 1/10W 1K 1
R403 ERJ3GEYJ271V 1/10W 270 1
R409 ERDS2TJ333T 1/4W 33K 1
R502 ERJ3GEYJ102V 1/10W 1K 1
R503 ERJ3GEYJ271V 1/10W 270 1
R509 ERDS2TJ333T 1/4W 33K 1
R601 ERDS2TJ822T 1/4W 8.2K 1
R603 ERJ3GEYJ104V 1/10W 100K 1
R604 ERJ3GEYJ273V 1/10W 27K 1
R605 ERJ3GEYJ102V 1/10W 1K 1
R607 ERJ3GEYJ222V 1/10W 2.2K 1

Part No. Part Name &

Description

Pcs Remarks

5

SC-EN28P / SA-EN28P / SB-EN28P

Ref.

No.
R608 ERJ3GEYJ333V 1/10W 33K 1
R612 ERJ3GEYJ222V 1/10W 2.2K 1
R613 ERJ3GEYJ223V 1/10W 22K 1
R614 ERDS2TJ151T 1/4W 150 1
R615 ERJ3GEYJ1R0V 1/10W 1 1
R616 ERDS2TJ471T 1/4W 470 1
R617 ERJ3GEYJ101V 1/10W 100 1
R618 ERJ3GEYJ681V 1/10W 680 1
R619 ERJ3GEYJ681V 1/10W 680 1
R620 ERJ3GEYJ2R2V 1/10W 2.2 1
R621 ERDS2TJ1R0T 1/4W 1 1
R622 ERDS2TJ1R0T 1/4W 1 1
R623 ERDS2TJ471T 1/4W 470 1
R624 ERDS2TJ471T 1/4W 470 1
R625 ERDS2TJ121T 1/4W 120 1
R626 ERDS2TJ121T 1/4W 120 1
R627 ERDS2TJ221T 1/4W 220 1
R628 ERJ3GEYJ102V 1/10W 1K 1
R629 ERJ3GEYJ102V 1/10W 1K 1
R630 ERJ3GEYJ221V 1/10W 220 1
R631 ERJ3GEYJ102V 1/10W 1K 1
R632 ERJ3GEYJ472V 1/10W 4.7K 1
R633 ERJ3GEYJ103V 1/10W 10K 1
R634 ERJ3GEYJ101V 1/10W 100 1
R635 ERJ3GEYJ222V 1/10W 2.2K 1
R636 ERJ3GEYJ222V 1/10W 2.2K 1
R637 ERJ3GEYJ681V 1/10W 680 1
R638 ERJ3GEYJ153V 1/10W 15K 1
R639 ERJ3GEYJ102V 1/10W 1K 1
R640 ERJ3GEYJ153V 1/10W 15K 1
R641 ERJ3GEYJ102V 1/10W 1K 1
R642 ERJ3GEYJ562V 1/10W 5.6K 1
R643 ERJ3GEYJ273V 1/10W 27K 1
R644 ERJ3GEYJ562V 1/10W 5.6K 1
R801 ERJ3GEYJ123V 1/10W 12K 1
R802 ERJ3GEYJ104V 1/10W 100K 1
R803 ERJ3GEYJ104V 1/10W 100K 1
R804 ERJ3GEYJ104V 1/10W 100K 1
R807 ERJ3GEYJ332V 1/10W 3.3K 1
R808 ERJ3GEYJ332V 1/10W 3.3K 1
R809 ERJ3GEYJ224V 1/10W 220K 1
R811 ERJ3GEYJ473V 1/10W 47K 1
R812 ERJ3GEYJ102V 1/10W 1K 1
R813 ERJ3GEYJ102V 1/10W 1K 1
R814 ERJ3GEYJ102V 1/10W 1K 1
R815 ERJ3GEYJ102V 1/10W 1K 1
R816 ERJ3GEYJ102V 1/10W 1K 1
R817 ERJ3GEYJ183V 1/10W 18K 1
R818 ERJ3GEYJ103V 1/10W 10K 1
R819 ERJ3GEYJ472V 1/10W 4.7K 1
R820 ERJ3GEYJ103V 1/10W 10K 1
R822 ERJ3GEYJ102V 1/10W 1K 1
R823 ERJ3GEYJ102V 1/10W 1K 1
R824 ERJ3GEYJ224V 1/10W 220K 1
R825 ERJ3GEYJ123V 1/10W 12K 1
R826 ERJ3GEYJ392V 1/10W 3.9K 1
R827 ERJ3GEYJ472V 1/10W 4.7K 1
R828 ERJ3GEYJ102V 1/10W 1K 1
R829 ERJ3GEYJ102V 1/10W 1K 1
R830 ERJ3GEYJ104V 1/10W 100K 1
R831 ERJ3GEYJ104V 1/10W 100K 1
R832 ERJ3GEYJ153V 1/10W 15K 1
R833 ERJ3GEYJ104V 1/10W 100K 1
R835 ERJ3GEYJ103V 1/10W 10K 1
R836 ERJ3GEYJ103V 1/10W 10K 1
R837 ERJ3GEYJ103V 1/10W 10K 1
R838 ERJ3GEYJ104V 1/10W 100K 1
R839 ERJ3GEYJ104V 1/10W 100K 1
R840 ERJ3GEYJ153V 1/10W 15K 1
R841 ERJ3GEYJ821V 1/10W 820 1
R846 ERJ3GEYJ152V 1/10W 1.5K 1
R847 ERJ3GEYJ222V 1/10W 2.2K 1
R848 ERJ3GEYJ272V 1/10W 2.7K 1

Part No. Part Name &

Description

Pcs Remarks

Ref.

No.
R849 ERJ3GEYJ392V 1/10W 3.9K 1
R850 ERJ3GEYJ562V 1/10W 5.6K 1
R851 ERJ3GEYJ822V 1/10W 8.2K 1
R852 ERDS2TJ153T 1/4W 15K 1
R860 ERJ3GEYJ104V 1/10W 100K 1
R861 ERJ3GEYJ104V 1/10W 100K 1
R862 ERJ3GEYJ820V 1/10W 82 1
R864 ERJ3GEYJ102V 1/10W 1K 1
R865 ERJ3GEYJ102V 1/10W 1K 1
R874 ERJ3GEYJ104V 1/10W 100K 1
R875 ERJ3GEYJ104V 1/10W 100K 1
R876 ERJ3GEY0R00V 1/10W 0 1
R877 ERJ3GEY0R00V 1/10W 0 1
R878 ERJ3GEY0R00V 1/10W 0 1
R901 ERDS2TJ102T 1/4W 1K 1
R1003 ERDS2TJ680T 1/4W 68 1

S351 K0L1BB000005 SW FOR SMALL SIGN

S352 K0L1BB000005 SW FOR SMALL SIGN

S801 EVQ21405R SW 1
S802 EVQ21405R SW 1
S803 EVQ21405R SW 1
S804 EVQ21405R SW 1
S805 EVQ21405R SW 1
S806 EVQ21405R SW 1
S807 EVQ21405R SW 1
S808 EVQ21405R SW 1

T1 G2BAC0000053 IFT 1
T901 G4C4ABD00011 POWER TRANSFORMERS 1

X1 J0B1075A0137 DISCRIMINATOR 1
X2 H0A750200020 75KHZ X’TAL 1
X801 H0A327200097 CRYSTAL OSCILLATOR 1
X802 H2A800400011 PIEZO-CERMIC

Z801 L5ACAEC00028 LCD 1
Z1001 B3RAD0000074 SENSOR 1

ZA901 K3GE1ZA00011 FUSE HOLDER 1
ZA902 K3GE1ZA00011 FUSE HOLDER 1

PCB1 REP3875B CD SERVO ASS’Y 1 (RTL)
PCB2 REP4044B MAIN PCB ASS’Y 1 (RTL)

Part No. Part Name &

Description

USE

USE

RESONATORS

Pcs Remarks

1

1

1

2.3. SB-EN28P

Ref.

No.

301 EAS8P198A SPEAKER 1
302 RMA1981 SP ANGLE A 1
303 RMA1981 SP ANGLE A 1
304 RMA1982 SP ANGLE B 1
305 RMA1982 SP ANGLE B 1
306 RFKHBEN25PS SP BACK CAB ASS’Y 1
306-1 RKAX0011-K LEG FELT 1
306-2 RKAX0011-K LEG FELT 1
306-3 RKAX0011-K LEG FELT 1
306-4 RKAX0011-K LEG FELT 1
307 RFKGBEN28PS SP FRONT CAB ASS’Y 1
308 XTV3+14GFJ SCREW 1
309 XTV3+14GFJ SCREW 1
310 XTV3+14GFJ SCREW 1
311 XTV3+14GFJ SCREW 1
312 XTV3+14GFJ SCREW 1
313 XTV3+14GFJ SCREW 1
314 XTV3+14GFJ SCREW 1
315 XTV3+14GFJ SCREW 1

Part No. Part Name &

Description

Pcs Remarks

6

Ref.

No.
316 XTV3+14GFJ SCREW 1
317 XTV3+14GFJ SCREW 1
318 RQLA1030 SP CAUTION LABEL 1
319 RGNW0101-K SP NAME PLATE 1

Part No. Part Name &

Description

Pcs Remarks

SC-EN28P / SA-EN28P / SB-EN28P

7

SC-EN28P / SA-EN28P / SB-EN28P

3 Schematic Diagram

3.1. Schematic Diagram Notes

(All schematic diagrams may be modified at any time with the
development of new technology.)

Notes:

S351: CD TOP DETECTION Switch in “OFF”

position.

S352: CD BOTTOM DETECTION Switch in “OFF”

position.
S700: REST Switch in “OFF” position.
S801: CD switch
S802: TUNER switch
S803: VOL + switch.
S804: VOL - switch
S805: FWD- Skip Switch ( )
S806: REV- Skip Switch ( )
S807: CD OPEN/CLOSE Switch
S808: POWER OFF/TAPE Switch

· The voltage value and waveforms are the reference voltage
of this unit measured by DC electronic voltmeter (high
impedance) and oscilloscope on the basis of chassis.
Accordingly, there may arise some error in voltage values
and waveforms depending upon the internal impedance of
the tester or the measuring unit.

foil.

· Put a conductive mat on the work table.

· Ground the soldering iron.

· Do not touch the pins of IC, LSI or VLSI with fingers

directly.

· Indicated voltage values are the standard values for the unit
measured by the DC electronic circuit tester (high­impedance) with the chassis taken as standard. Therefore,
there may exist some errors in the voltage values,
depending on theinternalimpedanceof the DC circuit tester.

· No mark: All VR is set as a center position.

Important safety notice:

Components identified by

mark have special

characteristics important for safety.
Furthermore, special parts which have purpose of fire-

retardant (resistors), high-quality sound (capacitors), low­noise (resistors), etc. are used. When replacing any of
components, be sure to use only manufacture´s specified
parts shownintheparts list.

Caution!

· IC and LSI are sensitive to static electricity.

· Secondary trouble can be prevented by taking care

during repair.

· Cover the parts boxes made of plastics with
aluminum foil.

· Ground the soldering iron.

· Put a conductive mat on the work table.

· Do not touch the legs of IC or LSI with the fingers

directly.

· Battery Curent
Vol min.: 120mA (CD)

103mA (FM)
102mA (AM)

Vol max.: 118mA (CD)

102mA (FM)
100mA (AM)

− Measurement instruction
CD: 1kHz, 0dB

FM: 60dB, 30% Mod.
AM: 74dB/m, 30% Mod.

· Importance safety notice:

Components identified by

; mark have special
characteristics important for safety. Furthermore, special
parts which have purposes of fire-retardant (resistors),high­quality sound (capacitors), low-noise (resistors), etc. are
used. When replacing any of components, be sure to use
only manufacturer’s specified parts shown in the parts list.

Caution!

IC, LSI and VLSI are sensitive to static electricity.
Secondary trouble can be prevented by taking care during

repair.

· Cover the parts boxes made of plastics with aluminium

8

3.2. Schematic Diagram

SCHEMATIC DIAGRAM-1

SC-EN28P / SA-EN28P / SB-EN28P

NOTE:
The number which noted at the connectors on the schematic diagram
as "SCHEMATIC DIAGRAM-1" or "SCHEMATICDIAGRAM-2" indicates

the schematic diagram serial number located on the left corner in the
schematic diagram.

H

OPTICAL PICK-UP

AB

HI

I

0.22

0.22

G

1

VS

NC

GND

LD

MPD

NC

1 2 3 4 5 6

CD EFG

Vcc

VC

789101112

VB

VE

VF

VA

TRACKING

COIL

FOCUS

COIL

H
G
F
E

D
C

B
A

F

E

D

DCBA

R721

4.7

C720

6.3V33

VREF

:CD PLAYBACK SIGNAL LINE:POSITIVE VOLTAGE LINE

C721
4700P

C726
470P

R724

3.3K

C
E

B

D
A

F

R727

39K

R725

C754

0.039

27K

R731

82K

0.1

C732

C724

0.1

C723 0.1

C722

820P

(2.1V)1.7V

(1.4V)0V

(1.6V)0.7V

(2V)1.7V
(2V)1.7V
(2V)1.7V

(2V)1.7V

(2V)1.7V
(2.3V)2.8V
(3.1V)3.4V

C727

0.047

3.4V

1.6V

1.6V

1.6V

1.6V

1.6V

1.6V

1.6V

1.6V

R733

5.6

0.1

C734

C735

6.3V100

C736 0.082

820

C733 1000P

C729

0.1

40

RF IN

39

RFOUT

38

RESERVE

37

RFV

36

DCDET

35

A

34

C

33

B

32

D

31

F

30

E

29

LD

28

PD

27

VREF

26

TEOUT

25

TEN

24

FEN

23

FEOUT

22

RFENV

21

CEA

R726

1K

R723

1K

R732

C731

0.022

RF

C730
820P

0V(1.7V)

0V(1.4V)

1.7V(1.6V)

1.7V(1.6V)

0.8V

1V(1.8V)

1V(1.8V)

3.4V

41

42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60

2

SS

ARF

DSLF

AV

CAGC

ARF IN

DD

1

1

DD

SS

DV

ADPVCC

TEIN

FEIN

DV

1.5V

1.6V

1.6V

1.6V

1.5V

2

DD

IREF

PLLE

OUTL

PLLF0

AV

IC701
MN6627953HB

SERVOAMP/SERVO PROCESSOR/
DIGITALSIGNAL PROCESSOR/
DIGITALFILTER/
D/A CONVERTER

3

DD

TRP

TRM

FOP

FOM

IOV

1.6V

1.6V

3.5V

1

SS

AV

TRVM2

R734

AVREF

TRVP2

100

3.1V

1

DD

AV

TRVM

1.5V

OUTR

TRVP

1.6V

C738

6.3V220

2

SS

DV

SPPOL

(0V)3.4V

3.5V

1

DD

IOV

SPOUT

1.6V

0.1

C739

1.5V

3.5V

2

DD

DV

PWMSEL

0V

3.5V

R735 68K

R737

LON

EXT2

0V

R736 68K

1K

3.5V

NTEST

IOMODE

FLAG
MCLK

MDATA

BLKCK

NRST

DV

IOV

DQSY

TXTD

TXTCK

GOUT0
GOUT1

EXT0

EXT1

1234567891011121314151617181920

0V

R739 68K

MLD

STAT

GID0
GID1
GID2

G

I

C741

1000P

R738

1K

TX

SS

3
X2
X1

DD

2

61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80

3.3V

3.3V(3V)

3.3V
0V(1.6V)
0V

3.3V

1.5V(1.4V)

1.5V(1.4V)

3.5V

R747 68K

0V

R748 68K

0V

R749 68K

0V

R750 68K

0V

C742

1000P

C744

C743

220P

6.3V330

C748

R740

0.1

C747

220P

0.01

C750

R741

100

1M

(16.9344MHz)

C749

220P

X700

0.01

C740

R744 0

R742 1K

C746

22P

C745

22P

H

F
E
D
B
C
A

CD SERVO CIRCUIT

A

R704

C709

0.1

6.3V100

C753

6.3V100

5.6

A
B
C
D
E

F

R710

100

R718

5.6

Q700
2SB0709A0L

LASER POWER
DRIVE

(2.1V)

3.4V

1.2V

2.8V

(2.3V)

0.1

C707

CN701

VE
VB
VA
VF
VC
NC

MPD

LD
GND
VREF

Vcc

NC

TR+
TR
FO+
FO

1
2
3
4
5
6
7
8

9
10
11
12
13

­14

15

­16

IC700
BA5948FPE2

FOCUS COIL/
TRACKING COIL/
TRAVERSEMOTOR/
SPINDLE MOTOR DRIVE

1
2
3
4
5
6
7
8

9
10
11
12
13
14
15
16

R705 5.6K
R706 8.2K
R707 8.2K
R708 5.6K
R711 8.2K

R751 0

A
B
C
D

C756

C

B

A

M701
TRAVERSE
MOTOR

M702
SPINDLE
MOTOR

M

M

0.1

C757

C762

6.3V10

0.1

D

E

SQCK

C

BLKCK

MLD

MDATA

F

11 12 13 14 15 16

+5.5V

MCLK

P.GND

D.GND

G

+3.3V

LD SW

HI

17109876

A.GND

Lch OUT

Rch OUT

C

S700

(REST)

CN702

E

DABC

1

REST SW

C751

C752

470P

AB

2 3 4 5

/RST

STAT

SUBQ

2.5V 2.5V 2.5V 2.5V 5.8V 5.8V 1.6V

15 16 17 18 19 20 21

VO3+

VO3-

VO2+

14 13 12 11 10 9 8

A

B

C

D

2.5V 2.5V 2.9V

AB DC

VO2-

VO4-

VO1+

(2.4V)

C704

5.8V 1.6V 1.6V

VO4+

VO1-

2.9V

(3.3V)

6.3V330

C705

PVcc2

PVcc1

5.8V

0.1

PGND2

PGND1

NC

NC

5.8V

23 24 25 26 27 28

22

NC

GND

GND

NC

NC

7

NC

NC

NC

6 5 4 3 2 1

6.8K

R713

R712

100

Vcc

MUTE1

(0V)

BIAS

VIN1

R715

1K

R716

3.3K

VIN4

MUTE2

C717

0.15

VIN3

VIN2

1.6V1.6V3.4V

C716

0.033

C718

2700P

5.6K

5.6K

R717

R720

R719

68K

R714 22K

C719

3300P

R722

56K

R728

5.6K

R729

5.6K

R730

5.6K

R743

1K

B
C
D
E
A

To MAIN CIRCUIT(CS701)

SA-EN28 CD SERVO CIRCUIT DIAGRAM

121110987654321

9

SC-EN28P / SA-EN28P / SB-EN28P

10

SC-EN28P / SA-EN28P / SB-EN28P

11

SC-EN28P / SA-EN28P / SB-EN28P

12

3.3. Voltage Value

SC-EN28P / SA-EN28P / SB-EN28P

13

SC-EN28P / SA-EN28P / SB-EN28P

14

4 Printed Circuit Board Diagram

Note: This printed circuit board diagram may be modified at any time with the development of new technology.

H

SC-EN28P / SA-EN28P / SB-EN28P

G

F

E

D

C

CD SERVO P.C.B.

A

(SPINDLE MOTOR)

J

J

15 2021 22 25 28

C705

R712

4

R713

71
R

M702

M

IC700

(TRAVERSE MOTOR)

M

6
71

R

7

M701

R728
R729
C716

R715

0
73

C717

10
R7

J

R717

2
72

C718

R719

R

S700(REST)

C719

R720

J

R

CN701

2
4
6

8
10
12
14
16

C704

R751
1
3

Q700

C

5

718

7

R

B

9

11

C756

13

C707

C723

15

53

C7

J

35
C7

709
C

R733

J

R

704

J

R737

C741

E

C732

R721

C736

J

R731

C742

J

C751

J

C733

C720

R705

6

7
R70

R70

C729

C731

2
R73

R734

C752

CN702

R711

C734

R708

C724

C738

C721

24

R727

R7

J

R725

R723

C722

C727

55

25

C762

21

60

C749

C754

IC701

R726

C748

4
R74

20

15

65

61

C726

J

30

35

40

41

45

C730

50

C739

C747

R738

C743

J

C744

123456891011121314151617 7

C757

70

C750

10

R742

VREF

J

5

R736

R73

39
R7

5

9

1

0

R74

R75

80

R748

75

7
R74

40

1

C740

R7

R74

C746

X700

C745

RF

J

J

J

J

43
R7

1581014

(REP3875B)

B

A

SA-EN28(P) CD SERVO P.C.B.

123456789101112

13

15

SC-EN28P / SA-EN28P / SB-EN28P

MAIN P.C.B.

B

100

C821

C4

C44

C43

6
R

95

55

R828

B

QR804

R

C3

3

J

R5

R

2

4
R

C6

60

R829

C

2

1

FP801

7

1

1

17 2122232425

2018

26

90

85

80

76

75

70

65

R875

R874

R861

R860

P1001

3

R878

R838

R839

R877

R876

C822

E

J

L51

4

6

2

3

C51

D1

R

10

L7

C16

4

6

J

J

J

C10

L5

C7

C2

C8

D2

R3

2

J

1

R833

P1

3

2

1

J

L1

R32

L2

J

J

C1

R28

L3

J

R403

R503

J

Q603

CBE

J

J

J

J

J

R608

R31

R626

R604

8

R31

R

601

J

J

R616

R625

J

J

IP602

D601

9

R402

C503

C119

J

J

Q401

Q605

CEB

D605

C609

D608

R624

R623

Q608

J

J

R313

R305

J

R304

12345689101112131415

C407

J

J

J

C602

D604

J

J

J

J

J

123456

P351

C507

C603

12

10

1

IC601

5

67

C403

C402

J

C601

R605

D603

C

B

E

QR609

J

C616

JW901

1234

R603

J

J

J

C358

4

C60

J

R112

E

R617

R312

J

C118

C

C502

R615

CBE

R634

R635

C209
C210
C222

R113

B

R309

R607

R111

C

C611

C357

R307

310
C

R110

R109

B

B

Q501

E

C615

R306

FP701

C

Q607

C305

R308

C111

C115

C117

E

R618

R619

R107

C112

R206R

C110

C356

R502
R213

C212C211

D615

J

106

C122
C109

C218

R210

D614

C612

16

Q301

E

C301

177

3

C11

1

R211

R620

E

R303

R301

C

R207

C217
R209

C219
R212

C

Q615

3032

C215

J

R302

J

B

C114

C207
C107

B

C

E

R108 R208

3
21

C

25

IC301

5

C104

R621

B

Q606

J

R103

R622

R630

D612

C214

10

R204
R104

J

C311

20 17

R203

D613

C204

C116

15

C309

R317

16

C106

C105

JJJ

C205

R105

C206

R202
R102

J

C313

J

R205

J

C108

C208

J

J

R316

R325

C312

C216

J

C203

R201

J

J

J

7
82

C

R862

C103

R101

J

J

J

J

J

J

J

J

J

J

J

123456

P601

B

R811

L801

L802

C803

J

J

J

J

H

J

JK601

(PHONES)

G

JK602

(SPEAKERS)

1

2

J

F

3

4

E

J

Q604

R612R613

E

B

D611

D

C

R632

R631

C

QR614

B

E

Q611

CBE

Q612

Q617

E

B

B

E

C

C

R636

R644

R642R637

QR621

(REP4044A)

J

QR620

E

R638

E

R640

C

C

QR619

B

A

C608

C

D607

J

Q613

R633

E

C

C610

R627

C

QR618

B

B

E

B

C

R641

B

E

B

R614

J

R643

R639

R629

R628

D602

D610

P352

12

R841

C811

R826

J

R322

C359

C809

J

3

R32

R836

R835

R808

Q802

D803

35
R

R837

C810

J

C806

R819

J

13
R

R830
R831

J

J

J

Q801

R807

E

B

C807

C

X802

E

B

C808

C

C812
C813

J

J

JJJ

J

J

C31

R23

R24

C41

25
R

J

L8

C36
C34

29
R

C32

C26

C23

D4

J

R

814

15

C

C8

C

QR803

E

J

D801

C82

R820

R818

J

J

J

J

J

J

J

J

J

J

801
C

J

R824

R817

0

B

B

C

E

Q303

36
R

C804

D802

J

C

Q1

D301

C315

E

J

J

R840

R827

C52

Q302

J

R832

R825

JJJ

J

J

B

C

E

C830

J

C30

J

R864

J

C35

31

C819

C27

C37

C40

R865

C25

C28

X1

C33

R

R1
R
R2

C39

C17

J

J

C826

25

R809

X801

C817

26

C818

R822

R814

R813

R823

C829

C828

J

J

J

C21

18

7

C29

20

2

J

19201825 30 35

30
R

X2

16
R

C24

C18

J

30

20

R815

J

C19

C22

15

C802

R803

10

15

35

40

R816

33
R

C48

R11

10

IC1

R14

C46

R12

37
R

L6

R804
R801

5

45

R812

J

J

J

J

CF2

1

2

34

34
R

C15

C12

R

C11

7
R

9

C805

R802

50

J

J

J

1

6

IC801

J

T1

2

C47

C20

15

36

C13

123456891011121314151619

J

51

J

1

3

CF1

3

2

1

C5

J

D3

C9

R8

SA-EN28(P) MAIN P.C.B.

123456789101112

16

13

SC-EN28P / SA-EN28P / SB-EN28P

LCD P.C.B.

C

H

G

JW8011

2

1

Z801

FFC801

26

1510152024

1510152025

SENSOR P.C.B.

E

Z1001

(REMOTE

SENSOR)

233

1

JW1001

D1001

2

1

(REP4044B)

C1001

SW P.C.B.

G

S351

(REP4044B)

1

JW352

2

F

(REP4044B)

MOTOR P.C.B.

F

S352

(CD BOTTOM DET.)

M351

E

LCD BACK-LIGHT P.C.B.

D

(LOADING MOTOR)

M

D1003

2

R1003

00

JK603

(AUX)

R509

C1

JW801

2

1

(REP4044B)

L601

R409

S808

( / )

R852

S807

(CD / )

R851

(TUNER/ BAND)

S806

S805

( / )

IC351

J

JW351

6
5
4
3
2
1

JW601

C35

3

159

123456

S804

( / )

R849R850

R848

D1002

D

(REP4044B)

C

OPERATION P.C.B.

H

B

POWER TRANSFORMER P.C.B.

I

(POWER TRANSFORMER)

R901

D906

F901

1.6A

ZA901 ZA902

S803

(VOLUME )

R847

(REP4044B)

(VOLUME )

S802

C901
D901

C904
D904

T901

R846

C902
D902

C903
D903

S801

(POWER / )

JK901

L901

J

AC IN

(120V 60Hz)

J

J

J

P901

1234

A

123456789101112

(REP4044B)

SA-EN28(P) LCD, LCD BACK-LIGHT, MOTOR, SENSOR, SW, OPERATION,POWER TRANSFORMER P.C.B.

13

17

SC-EN28P / SA-EN28P / SB-EN28P

18

5 Cabinet Parts Location

5.1. Speaker(SB-EN28)

SC-EN28P / SA-EN28P / SB-EN28P

19

K0703HH/YH
