Panasonic S62E81 User Manual

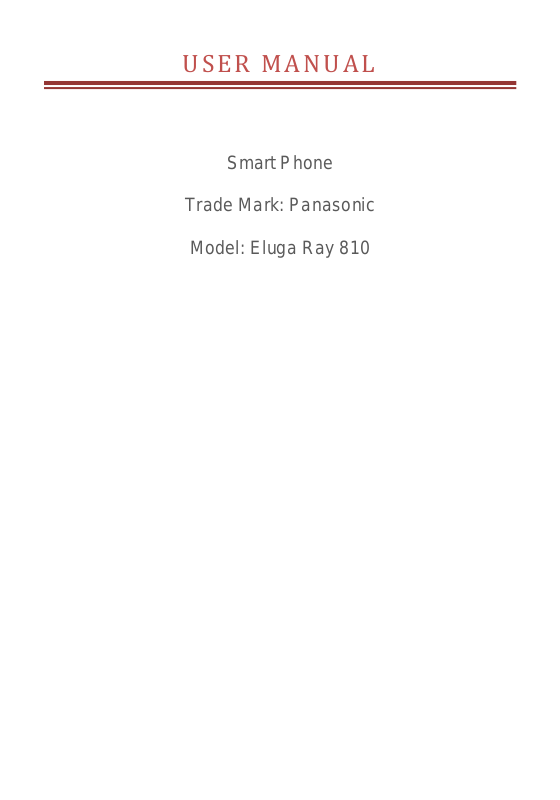

USER MANUAL

Smart Phone

Trade Mark: Panasonic

Model: Eluga Ray 810

This handbook is for reference only. Software might upgr ade any time, and no further notifications will be announc ed.

SAFETY PRECAUTIONS

Please read the following safety guidelines before using the device.

Do not use the phone while you are driving.

Do not place magnetic storage media near your phone. Radiation from the phone may erase the information stored on them.

Keep your phone and its accessories away from children.

Mobile phones can interfere with the functioning of medical devices such as hearing aids or pacemakers. Contacts having active medical implants should keep their cell phone at least 15 cm away from the implant.

Permanent hearing loss may occur if you use earphones or headphones at high volume.

Use a wireless hands-free system (headphone/ headset) with a low power Bluetooth emitter.

Make sure the cell phone has a low SAR.

Keep your calls short or send a text message (SMS) instead. This advice applies specially to children adolescents and pregnant women.

Use cell phone when the signal quality is good.

1. UNDERSTANDING YOU R DEVICE

1.1 DEVICE OVERVIE

Position of keys

1.	Earphone jack	2.	Front flash
3.	Earpiece	4.	Front camera
5.	Breathe light	6.	Touch screen
7.	SIM card slot	8.	Type-C port
9. Speaker		10. Volume key
11. Power key		12. Rear camera
13. Back Flash		14. Fingerprint

2.INSTALLING CARDS

Please power off your device before inserting or removing the SIM card and memory card.

Installing SIM card or Memory card

Use the pin to open the card slot.

Insert the SIM card or TF card correctly.

Push the SIM card slot to the correct position.

3.POWERING ON/OFF THE DEVICE

Turning On the Device

After installing the SIM cards and charging the battery, you are now ready to turn on your device.

Long press the Power key to turn on the device.

The first screen that appears is known as the Home/Idle Screen.

Drag up the unlock icon to release the screen.

If the screen turns off, then short press the Power key to turn on the display.

Turning Off the Device

Long press the Power key.

A pop-up window appears, select “Power off”.

3. SYSTEM GUIDE

3.1 MAIN SCREEN OPERATING

Notification Panel

The table below lists various icons that might appear on the notification Panel of the device.

Network intensity of SIM card 1 or SIM card 2

Battery level of the device

New short message

Headset is plugged in

Wi-Fi is connected

Bluetooth is activated

3.2 USING YOUR PHONE

Enter main menu

In idle mode slide up the key to enter the main menu on the desktop and press the Home or Back key to return.

Enter sub menu

In the main menu click the icon to select the sub menu, press the Back key to return to the previous menu, and press the Home key to return to the Home screen.
