Panasonic PV C923 User Manual

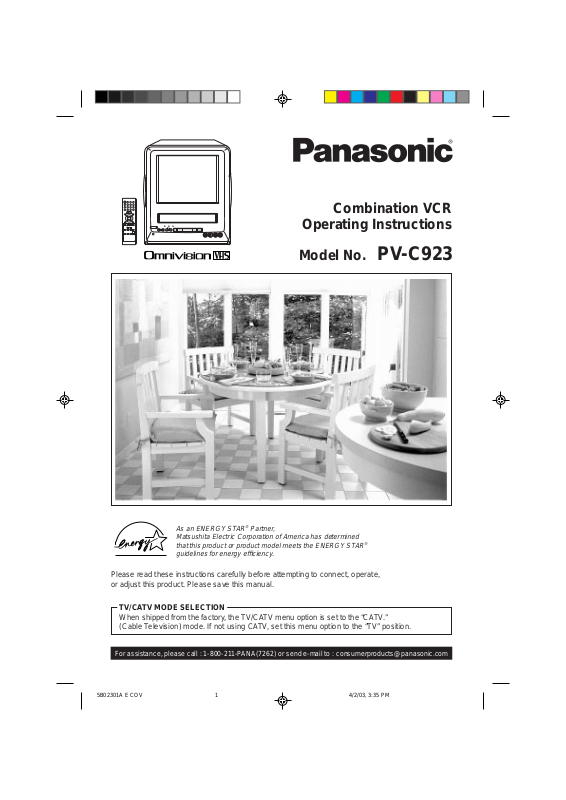

Page 1

Combination VCR

Operating Instructions

Model No.

As an ENERGY STAR® Partner, Matsushita Electric Corporation of America has determined that this product or product model meets the ENERGY STAR guidelines for energy efﬁciency.

PV-C923

Please read these instructions carefully before attempting to connect, operate, or adjust this product. Please save this manual.

TV/CATV MODE SELECTION

When shipped from the factory, the TV/CATV menu option is set to the “CA TV.” (Cable Television) mode. If not using CATV, set this menu option to the “TV” position.

For assistance, please call : 1-800-211-PANA(7262) or send e-mail to : consumerproducts@panasonic.com

Page 2

CAUTION:

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SER VICING TO QUALIFIED SERVICE PERSONNEL.

The lightning flash with arrowhead symbol, within an equilateral triangle is intended to alert the user to the presence of uninsulated dangerous voltage within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

WARNING: TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS APPLIANCE TO RAIN

OR MOISTURE.

WARNING:

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the

interference by one or more of the following measures:

- Reorient or relocate the receiving antenna.

- Increase the separation between the equipment and receiver.

- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

- Consult the dealer or an experienced radio/TV technician for help.

CAUTION:

Changes or modifications not expressly approved by the party responsible for compliance with the FCC Rules could void the user's authority to operate this equipment.

IMPORTANT SAFEGUARDS

1. READ INSTRUCTIONS

All the safety and operating instructions should be read before the unit is operated.

2. RETAIN INSTRUCTIONS

The safety and operating instructions should be retained for future reference.

3. HEED WARNINGS

All warnings on the unit and in the operating instructions should be adhered to.

4. FOLLOW INSTRUCTIONS

All operating and use instructions should be followed.

5. CLEANING

Unplug this unit from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning the exterior cabinet only.

6. ATT ACHMENTS

The manufacturer of this unit does not make any recommendations for attachments, as they may cause hazards.

7. WA TER AND MOISTURE

Do not use this unit near water. For example, near a bathtub, washbowl, kitchen sink, laundry tub, in a wet basement, or near a swimming pool.

8. ACCESSORIES

Do not place this unit on an unstable cart, stand,

tripod, bracket, or table. The unit may fall, causing serious injury, and serious damage to the unit.

8A. An appliance and cart

combination should be moved with care. Quick stops, excessive force, and uneven surfaces may cause the appliance and cart combination to overturn.

PORTABLE CART WARNING

(symbol provided by RETAC)

S3126A

Page 3

IMPORTANT SAFEGUARDS

9. VENTILATION

Slots and openings in the cabinet back or bottom are provided for ventilation, and to ensure reliable operation of the unit, and to protect it from overheating. These openings must not be blocked or covered. The openings should never be blocked by placing the unit on a bed, sofa, rug, or other similar surface. This unit should never be placed near or over a radiator or heat source. This unit should not be placed in a built-in installation such as a bookcase or rack unless proper ventilation is provided or the manufacturer’s instructions have been adhered to.

10. POWER SOURCES

This unit should be operated only from the type of power source indicated on the rating plate. If you are not sure of the type of power supply to your home, consult your appliance dealer or local power company. For units intended to operate from battery power, or other sources, refer to the operating instructions.

11. GROUNDING OR POLARIZATION

This unit is equipped with a polarized alternatingcurrent line plug (a plug having one blade wider than the other). This plug will fit into the power outlet only one way. This is a safety feature. If you are unable to insert the plug fully into the outlet, try reversing the plug. If the plug should still fail to fit, contact your electrician to replace your obsolete outlet. Do not defeat the safety purpose of the polarized plug, if your unit is equipped with a 3-wire grounding-type plug, a plug having a third (grounding) pin. This plug will only fit into a grounding-type power outlet. This too, is a safety feature. If you are unable to insert the plug into the outlet, contact your electrician to replace your obsolete outlet. Do not defeat the safety purpose of the groundingtype plug.

12. POWER-CORD PROTECTION

Power-supply cords should be routed so that they are not likely to be walked on or pinched by items placed upon or against them, paying particular attention to cords at plugs, convenience receptacles, and the point where they exit from the appliance.

This product utilizes both a Cathode Ray Tube (CRT) and other components that contain lead. Disposal of these materials may be regulated in your community due to environmental considerations. For disposal or recycling information please contact your local authorities, or the Electronics Industries Alliance: <http://www.eiae.org.>

13. LIGHTNING

To protect your unit from a lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet and disconnect the antenna or cable system. This will prevent damage to the unit due to lightning and power line surges.

14. POWER LINES

An outside antenna system should not be located in the vicinity of overhead power lines or other electric light or power circuits, or where it can fall into such power lines or circuits. When installing an outside antenna system, extreme care should be taken to keep from touching such power lines or circuits, as contact with them might be fatal.

15. OVERLOADING

Do not overload wall outlets and extension cords, as this can result in a risk of fire or electric shock.

16. OBJECT AND LIQUID ENTRY

Do not push objects through any openings in this unit, as they may touch dangerous voltage points or short out parts that could result in fire or electric shock. Never spill or spray any type of liquid into the unit.

17. OUTDOOR ANTENNA GROUNDING

If an outside antenna or cable system is connected to the unit, be sure the antenna or cable system is grounded to provide some protection against voltage surges and built-up static charges, Section 810 of the National Electrical Code, ANSI/NFPA 70, provides information with respect to proper grounding of the mast and supporting structure, grounding of the lead-in wire to an antenna discharge unit, size of grounding conductors, location of antenna discharge unit, connection to grounding electrodes, and requirements for the grounding electrode.

18. SERVICING

Do not attempt to service this unit yourself as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.

Page 4

IMPORTANT SAFEGUARDS

19. DAMAGE REQUIRING SERVICE

Unplug this unit from the wall outlet and refer servicing to qualified service personnel under the following conditions:

a. When the power-supply cord or plug is damaged. b. If liquid has been spilled, or objects have fallen

into the unit. c. If the unit has been exposed to rain or water. d. If the unit does not operate normally by

following the operating instructions. Adjust only

those controls that are covered by the operat-

ing instructions, as an improper adjustment of

other controls may result in damage and will

often require extensive work by a qualified

technician to restore the unit to its normal

operation. e. If the unit has been dropped or the cabinet has

been damaged. f

. When the unit exhibits a distinct change in

performance, this indicates a need for service.

EXAMPLE OF ANTENNA GROUNDING AS PER THE

NATIONAL ELECTRICAL CODE

20. REPLACEMENT PARTS

When replacement parts are required, be sure the service technician uses replacement parts specified by the manufacturer or those that have the same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock or other hazards.

21. SAFETY CHECK

Upon completion of any service or repairs to this unit, ask the service technician to perform safety checks to determine that the unit is in proper operating condition.

22. HEAT

The product should be situated away from heat sources such as radiators, heat registers, stoves, or other products (including amplifiers) that produce heat.

23. NOTE TO CATV SYSTEM INSTALLER

This reminder is provided to call the CATV system installer’s attention to Article 820-40 of the NEC that provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding system of the building, as close to the point of cable entry as practical.

GROUND CLAMP

ELECTRIC SERVICE

EQUIPMENT

NEC-NATIONAL ELECTRICAL CODE

S2898A

ANTENNA LEAD IN WIRE

ANTENNA DISCHARGE UNIT (NEC SECTION 810-20)

GROUNDING CONDUCTORS (NEC SECTION 810-21)

GROUND CLAMPS POWER SERVICE GROUNDING

ELECTRODE SYSTEM (NEC ART 250, PART H)

Page 5

SAFETY PRECAUTIONS

MOISTURE CONDENSATION

DO NOT OPERATE ANY FUNCTIONS ON THIS UNIT FOR AT LEAST TWO OR THREE HOURS WHEN MOISTURE IN THE AIR CONDENSES ON IT. LET THE UNIT STAND WITH POWER ON (SEE BELOW).

WHAT IS MOISTURE CONDENSATION?

When a cold liquid is poured into a glass, for example, water vapor in the air will condense on the surface of the glass. This is called moisture condensation.

MOISTURE WILL CONDENSE ON THE UNIT IN THE FOLLOWING CASES:

• When you move the unit from a cold to a warm place.

• After heating a cold room or under extremely humid

conditions.

WHEN YOU EXPERIENCE THE ABOVE CONDITIONS,

"DEW" appears on the screen and all the function buttons except the EJECT button (or the STOP/ EJECT button on the unit) are made non-operational to protect the video heads. In this case, eject the video cassette, leave the unit turned on and let it remain at room temperature until moisture condensation disappears. Depending on the surrounding conditions, this may take two or three hours.

• If you cause a static discharge when touching the unit, and the unit fails to function, simply unplug the unit from the wall outlet, wait 10 minutes and plug it back in. The unit should return to normal operation.

• A void extreme heat or cold (41˚F/5˚C-104˚F/40˚C).

• Do not place the unit on or near appliances which may

cause electromagnetic interference (e.g. speakers, etc). Doing so may cause erratic operation of the unit including picture and/or sound distortion or noise.

• Avoid extreme moisture and dust.

• The ventilation holes prevent overheating. Do not

block or cover these holes. Especially avoid covering the holes with soft materials such as cloth or paper.

• Do not insert fingers or any other objects into the cassette loading slot. Do not spray cleaner or wax directly on the unit or use forced air to remove dust.

• Avoid places subject to strong vibration. Use in a horizontal (flat) position only.

• Keep the unit away from flower vases, sinks, etc. If liquids should be spilled into the unit, serious damage will result. If you spill any liquids into the unit, unplug the AC power cord immediately and consult qualified service personnel before attempting to use it again.

• When you finish operating the unit, always unload the cassette and turn off the power.

• When you leave your home for a long time, unplug the AC power cord.

• To protect the unit from a lightning storm, unplug the AC power cord from the wall outlet and disconnect the antenna.

INSTALL THE TV/VCR IN YOUR CAR

• For a car equipped with air bags, be sure to follow the

manufacturer’s instructions whenever performing any electrical wiring work. Incorrect wiring can cause the air bag system of a car to malfunction.

• Never cut the insulation from the power supply lead in an attempt to draw power for another device. Doing so can overload the current capacity of the lead, creating the danger of fire and electric shock.

• For proper installation and wiring special technical knowledge is required. If you have any doubts about where to position or how to install components, contact the retailer where you purchased the product, your automobile dealership, or an automotive service provider. Note that you will be charged separately for installation work.

• Use all of the components that come with this product only as directed. Improper use of components can damage interior components or result in improper anchoring of components, which creates the danger of accident and personal injury.

• Improper installation creates the danger of fire and accident.

• Take care so wires are not pinched between chassis parts, by screws, or by the seat as it slides on its rails, etc. Such conditions can cut wires and cause shorts, creating the danger of accident, electric shock, and fire.

• Avoid installation in areas subject to strong vibration and areas where secure anchoring cannot be achieved. Components installed in such areas can work loose, creating the danger of accident and personal injury.

• Never install the TV/VCR on the dashboard or in any other location where it obstructs forward vision.

• Never attach the stand to the roof of your car. Doing so creates the danger of the TV/VCR falling down.

• Never attach the stand to a sharply angled surface or to a surface that causes the TV/VCR to face downwards. Such installation can cause the TV/VCR to fall.

• Be sure to turn the ignition key of the car to the “OFF” position before connecting or disconnecting wires and cables. Failure to do so creates the danger of electric shock and personal injury.

Page 6

SAFETY PRECAUTIONS

WARNING!

DRIVING SAFETY

• Never watch the TV/VCR or try to adjust settings while driv-

ing. Doing so creates the danger of traffic accident. Before operating the TV/VCR, be sure to stop the car in a safe area.

• Never install the unit on the dashboard or in any other location where it obstructs forward vision. Items that obstruct forward vision in a motor car may be illegal. Also, make sure that all components are installed where they do not interfere with operation of the steering wheel, shift lever, brake pedal, etc., for example under the driver’s seat, and where they do not endanger passengers. Improper installation creates the danger of traffic accident and personal injury.

• Make sure all cables are bundled together so they do not interfere with car operation, as described in this manual. Improperly installed cables create the danger of entanglement with the steering wheel, shift lever, brake pedal, etc.

IMPORTANT NOTES:

• The unit is designed for use with a 12V DC automotive

power supply. Never use it in a truck, bus, or any other car that has a 24V power supply.

• Be sure to stop your car in a safe area before watching or adjusting the TV/VCR.

• Operating the TV/VCR for a long time with the engine of your car stopped can run down your car’s battery.

• Never leave the TV/VCR in areas exposed to temperature extremes or strong direct sunlight. Leaving it in a closed car, in direct sunlight, near a heater, etc. can cause deformation of the case. Using this product in areas that are colder than 5°C (41°F) or hotter than 40°C (104°F) can result in poor image quality.

• Never use benzene or other chemical agents for cleaning. Chemicals can damage the case and remove markings. Use a soft cloth moistened with a weak solution of water and mild neutral detergent. Wring out all excess moisture from the cloth before wiping.

• Never drop the TV/VCR or otherwise subject it to strong impact.

• Should the TV/VCR ever begin to emit smoke, abnormal odor, or a strange noise, immediately turn off power and unplug the unit from the cigarette lighter socket. Continued use of the TV/VCR under any of these conditions creates the danger of fire and electric shock.

• Do not continue to use the TV/VCR if it is malfunctioning and does not produce a video image or sound. Whenever you notice such symptoms, immediately turn off power, unplug the TV/VCR from the cigarette lighter socket. Continued use of the TV/VCR creates the danger of fire and electric shock.

• When you leave your car unattended for long periods, be sure to unplug the TV/VCR from the cigarette lighter socket. Leaving the TV/VCR plugged in can run down the car’s battery.

FEATURES

Color TV With Video Cassette Recorder - Unique space

saving design combines a color TV and a video cassette recorder.

High Quality Picture Technology - This TV/VCR equipped “HQ” incorporates VHS High Quality technology. A built-in detail enhancer is used to boost the recorded signal and provide maximum picture quality during playback. It is compatible with other VHS video cassette recorders.

120V AC or DC Operation - This TV/VCR is designed to operate from household AC current or from a 12V DC car cigarette lighter socket.

181 Channel Tuner - Receives standard VHF and UHF broadcast channels and up to 113 cable channels. The actual number of channels received depends upon channel reception in your area or your cable system.

Closed Caption Decoder With Full Text Mode - Displays text captions or full screen text on the screen for hearing impaired viewers.

8-Programs/1-Month Programmable Timer With Everyday/Every Week Capability - The built-in timer allows

automatic absentee recording of up to 8 TV programs within 1 month. It is also possible to record a program which is broadcast at the same time everyday or every week.

Automatic Clock Set - Once your TV/VCR is plugged into the AC outlet, it automatically sets the correct date and time.

On-Screen TV Display And VCR Programming - When you select a channel or make other changes, the TV will show an indicator on the screen for a few seconds. Timer recording can be programmed and confirmed on the screen.

Picture Adjustments Using The Remote Control - The On-Screen display allows precise remote control adjustment of BRIGHTNESS, CONTRAST, COLOR, TINT and SHARPNESS.

Automatic Playback/Rewind-Stop-Eject - When loading a cassette tape without the erase prevention tab, this TV/VCR will automatically play back the cassette tape at the correct speed. When a tape reaches its end during play-back, recording (except during OTR and Timer Record) and fast forward, it will automatically stop, rewind, stop and eject the tape.

Page 7

FEATURES TABLE OF CONTENTS

Programmable ON/OFF Timer - Allows you to automatically

turn on or off the TV/VCR at a set time.

Programmable TV Sleep Timer - Operable from the remote control, the TV can be programmed up to 120 minutes to turn off automatically.

Automatic Repeat Play System - When Auto Repeat option is turned on, the TV/VCR will automatically play back the same cassette tape repeatedly.

One-touch Timer Recording (OTR) - Simply by pressing the REC/OTR button, the TV/VCR can be programmed for up to 5 hours of recording with an immediate start.

Audio/Video Input /Output Jacks - A VCR or other video device may be hooked up to this TV/VCR for dubbing or playback purposes.

CM Skip - When the CM SKIP button is pressed during playback, the TV/VCR will automatically search forward in 30 second increments to a maximum of 3 minutes with each press of the CM SKIP button, and then return to normal playback.

2 Speed Picture Search - 3 or 5 times normal speed in SP mode (7X or 9X in LP and 9X or 15X in SLP).

3 Speed Playback - Plays three tape speeds (SP, LP, SLP).

2 Speed Record - Records two tape speeds (SP, SLP).

Real Time Tape Counter With Zero Search - The counter

displays the real tape time and the zero search can be used to return the tape to a pre-selected position (00:00:00) while the counter can be used to locate programs.

Digital Auto Tracking - Automatically adjusts tracking during playback for the best possible picture.

On-Screen 3 Language Display - You can select one of 3 languages, English, Spanish or French for on-screen programming.

V-Chip - The V-Chip function can read the rating of a TV program or movie content if the program is encoded with this information. V-Chip will allow you to set a restriction level.

Accessories

POWER

123

456

SLEEP

789

EJECT

INPUT R-TUNE

SET/TRACKING

+–

MENU CANCEL

VOL –ENTER

VOL

MUTE DISPLAY

REW

FFPLAY

PAUSE/STILL

STOP

COUNTER

TRACKING

RESET

AUTO

ZERO SEARCH

CM SKIP

PROG

REC/OTRSPEED

PROGRAM

TIMER

CAUTIONS

IMPORTANT SAFEGUARDS...................................... 2

SAFETY PRECAUTIONS ........................................... 5

PREPARATION

FEATURES ................................................................. 6

LOCATION OF CONTROLS....................................... 8

REMOTE CONTROL .................................................. 9

POWER SOURCES ................................................. 10

ANTENNA CONNECTIONS ..................................... 11

CABLE TV CONNECTIONS ..................................... 12

SETTING THE LANGUAGE ..................................... 12

AUTO CLOCK SETTING .......................................... 13

MANUAL CLOCK SETTING ..................................... 14

TV OPERATION

TV OPERATION ....................................................... 14

TO MEMORIZE CHANNELS.................................... 16

SETTING THE V-CHIP............................................. 17

TO SET THE ON TIMER .......................................... 18

TO SET THE OFF TIMER......................................... 19

PICTURE CONTROL ADJUSTMENTS .................... 19

PLAYBACK

LOADING AN D U NL O AD I NG.....................................

PLAYBACK............................................................... 20

SPECIAL PLAYBACK ............................................... 21

RECORDING

RECORDING A TV PROGRAM................................ 21

ONE-TOUCH TIMER RECORDING (OTR) .............. 22

TIMER RECORDING................................................ 22

ADDITIONAL INFORMATION

USING THE REAL TIME TAPE COUNTER.............. 23

USING ZERO SEARCH ........................................... 23

DUPLICATING A VIDEO TAPE ................................. 24

RECEPTION DISTURBANCES................................ 25

VIDEO HEAD CLEANING ........................................ 25

TROUBLESHOOTING GUIDE ................................. 26

SPECIFICATIONS .................................................... 28

INDEX OF CONTROLS............................................ 29

SPANISH QUICK USE GUIDE

(GUÍA PARA RÁPIDA CONSULTA) .......................... 31

LIMITED WARRANTY .............................................. 36

CUSTOMER SERVICES DIRECTORY .................... 37

INDEX....................................................................... 38

Remote Control

(076N0GU010)

Batteries 2 “AAA”

(1411004015)

T elescopic Antenna

(125C108027)

12V DC Car Cord

(121B164101)

Page 8

LOCATION OF CONTROLS

REARFRONT

4 5 6782

POWER REC

POWER

PROG TIMER

VOL CH

REC STOP/EJECT PLAY

10 12 13

REW/

FF/

AUDIO IN

VIDEO IN

159

DESCRIPTION OF CONTROLS

FRONT:

1. Cassette Loading Slot - To insert or remove a

video tape.

2. POWER Button - Press to turn the TV/VCR on or off.

3. POWER Indicator - Light when the power is turned

on.

4. PROG TIMER Indicator - Lights when the unit is in the Timer Record Mode.

5. REC Indicator - Lights when the TV/VCR is recording.

6. STOP/EJECT Button - Press once to stop the tape in any mode. Press again to eject the tape.

7. FF (Fast Forward) Button - In the Stop mode, this button rapidly winds the tape forward. In the Play mode, this button activates forward search.

8. PHONES Jacks - Plug monaural headphones or an earphone with an 1/8" miniplug into these jacks for private listening. Two persons can be able to use these jacks at the same time.

9. Remote Sensor - Signals from the Remote Control are received here.

10. VOL – / + Buttons - Press to raise or lower the volume of the sound.

CH / Buttons -

11.

viewing or recording.

Press to select a channel for

VIDEO

UHF/

AUDIO

VHF

LINE1OUT

1817

12. REC Button - Press once to start normal recording.

Additional presses activate One-touch Timer Recording.

13. PLAY Button - Press to play a prerecorded tape.

14. REW (Rewind) Button - In the Stop mode, this

button rapidly winds the tape backwards. In the Play mode, this button activates reverse search.

15. Audio/Video In (LINE 2) Jacks - Audio and video signal cables from an external source can be connected here.

REAR:

16. VHF/UHF Antenna Jack - Connect the 75 ohm

coaxial cable from the antenna or Cable TV service to this jack.

17. AUDIO/VIDEO OUT Jacks - Used to output audio and video signals to a TV, amplifier or VCR.

18. AUDIO/VIDEO IN (LINE 1) Jacks - Audio and video signal cables from an external source can be connected here.

19. AC Power Cord - Connect to a 120V, 60Hz outlet.

20. DC Input Jack - Connect the 12V DC car cord

(supplied) here for DC operation.

Page 9

REMOTE CONTROL

2 3

POWER

123

456

SLEEP

789

INPUT R-TUNE

EJECT

MENU CANCEL

VOL –ENTER

MUTE DISPLAY

REW PLAY

COUNTER

REC/OTR SPEED

RESET

SET/TRACKING

PAUSE/STILL

STOP

ZERO SEARCH

PROGRAM

CM SKIP

+–

TRACKING

PROG TIMER

VOL

AUTO

DESCRIPTION OF CONTROLS

1. POWER Button - Press to turn the TV/VCR on. Press

again to turn the TV/VCR off.

2. Direct Channel Selection Buttons (0-9) - Allows direct access to any channel.

3. EJECT Button - Press to eject the tape.

4. MENU Button - Press to display the On-Screen menu

function.

5. MUTE Button - Press to turn off the sound. Press again to turn the sound back on.

6. REW (Rewind) Button - In the Stop mode, this button rapidly winds the tape backwards. In the Play mode, this button activates reverse search.

7. COUNTER RESET Button - Used to reset the counter to 00:00:00.

8. SPEED Button - Sets the tape speed for recording.

9. CC Button - Switches between Caption, Text and TV

modes for Closed-Captioned programs.

10. SET/TRACKING +/– Buttons - Used to set or adjust in the menu mode. During playback they are used to adjust manually.

11. CANCEL Button - Used to clear the selected program and to move the cursor backward.

12. VOL +/– Buttons - Press the + button to increase, or the – button to decrease the volume level.

13. CM SKIP Button - Press in the playback mode to search forward in 30 seconds increments to a maximum of 3 minutes.

14. PROGRAM Button - Press to confirm the programmed timer recording and ON/OFF timer.

15. SLEEP Button - Sets the TV to turn off automatically after up to 120 minutes.

POWER

123

456

SLEEP

789

INPUT R-TUNE

EJECT

MENU CANCEL

VOL –ENTER

MUTE DISPLAY

REW

COUNTER

REC/OTR SPEED

RESET

SET/TRACKING

STOP

ZERO SEARCH

+–

PAUSE/STILL

CM SKIP

PROGRAM

TRACKING

FFPLAY

AUTO

PROG TIMER

VOL

24 25

16. INPUT Button - Switches the program for viewing

between the VCR and external input sources.

17. CH C/D Buttons - Press the C button to change to a higher numbered channel set into memory. Press the D button to change to a lower numbered channel set into memory.

18. PLAY Button - Press to play a prerecorded tape.

19. STOP Button - Press once to stop the tape.

20. ZERO SEARCH Button - Use to stop the tape when the

counter reaches 00:00:00.

21. REC/OTR Button - Press once to start normal recording. Additional presses activate One-touch Timer Recording.

22. R-TUNE Button - Switches between the present channel and the last channel selected.

23. ENTER Button - Press to enter or select information for On-Screen operations.

24. DISPLAY Button - Displays the present time/day of the week, channel, counter, speed selection (and VCR mode if VCR is playing) on the TV screen.

25. FF (Fast Forward) Button - In the Stop mode, this button rapidly winds the tape forward. In the Play mode, this button activates forward search.

26. PAUSE/STILL Button - During recording, this button temporarily stops the tape. During playback, it stops the tape and displays a still image on the TV screen.

27. TRACKING AUTO Button - Allows automatic adjustment of tracking to minimize picture noise during playback.

28. PROG TIMER Button - Used to set the TV/VCR to start recording at a preset time.

Page 10

REMOTE CONTROL

POWER SOURCES

BATTERY INSTALLATION

Open the battery compartment cover. Install two “AAA” batteries, paying attention

diagram in the battery compartment.

Replace the compartment cover.

to the polarity

BATTERY PRECAUTIONS

The precautions below should be followed when using batteries in this device:

1 Use only the size and type of batteries specified. 2 Be sure to follow the correct polarity when installing

the batteries as indicated in the battery compartment. Reversed batteries may cause damage to the device.

3 Do not mix different types of batteries together (e.g. Al-

kaline and Carbon-zinc) or old batteries with fresh ones.

4 If the device is not to be used for a long period of time,

remove the batteries to prevent damage or injury from possible battery leakage.

5 Do not try to recharge batteries not intended to be

recharged; they can overheat and rupture (Follow battery manufacturer’s directions).

EFFECTIVE DISTANCE OF THE REMOTE CONTROL

Use the AC polarized line cord provided for operation on AC. Insert the AC cord plug into a standard 120V 60Hz polarized AC outlet.

NOTES: • Never connect the AC line cord plug to

anything other than the specified voltage (120V 60Hz). Use the attached power cord only.

• If the polarized AC cord does not fit into a nonpolarized AC outlet, do not attempt to file or cut the blade. It is the user's responsibility to have an electrician replace the obsolete outlet.

AC Outlet

Wider Hole and Blade

Polarized AC Cord Plug (One blade is wider than the other.)

TO USE DC POWER

By using the DC car cord supplied with the TV/VCR, you can operate this TV/VCR from a cigarette lighter socket in any car that utilizes a negative ground system. The fused 12V DC car cord has been designed to power the set from the external DC power (12 volt negative ground) through the TV/VCR DC input jack.

Connect the smaller plug on the end of the cord to the DC input jack on the rear of the TV/VCR, then insert the other end of the car cord into the cigarette lighter socket of your car. Make sure that the cord makes a firm connection. It may be necessary to try several insertions, rotating the plug for proper electrical connection.

15 PIES (5m)

5 METERS (15 FEET)

30˚

NOTES: • When there is an obstacle between the TV/VCR

and the remote control, the remote control may not operate.

• When direct sunlight, an incandescent lamp, ﬂuorescent lamp or any other strong light shines on the Remote sensor of the TV/VCR, the remote operation may be unstable.

TV/VCR

CAR

To Cigarette

Lighter Socket

To DC Input Jack

Car Cord (supplied)

Page 11

NOTES: • AL W AYS TURN OFF TV/VCR FIRST BEFORE

SWITCH ON OR OFF THE IGNITION OF CAR ENGINE.

• Make sure that the negative terminal of the

battery is grounded. This set is designed for use with negative ground system only.

• Use the supplied car cord only.

• When the TV/VCR is not in use, always

disconnect it from the car cigarette lighter socket to avoid a battery drain.

• If the TV/VCR is to be directly connected to a 12V DC power source, for example, recreational vehicle (RV) applications, make sure the power cord is connected after the ignition switch to avoid battery drain.

• Do not operate the TV/VCR if the car battery is weak. Peak current from the car alternator could blow the DC fuse.

• Check the battery’s charge level regularly when the TV/VCR is used in a vehicle.

REPLACING THE FUSE IN THE CAR BATTERY CORD PLUG

If the fuse in the car battery cord plug blows, replace it with a new 8 A fuse (Fast Blow Type) as shown below. Unscrew the tip of the plug to remove.

PLUG

Please use correct fuse.

8A FUSE

TIP

ANTENNA CONNECTIONS

If you are using an indoor or outdoor antenna, follow the instructions below that correspond to your antenna system. If you are using a cable TV service (CATV), see page 12 for Cable TV connections.

Combination VHF/UHF Antenna (

Single 75 ohm cable or 300 ohm

twin-lead wire

Connect the 75 ohm cable from the combination VHF/ UHF antenna to the Antenna Jack. If your combination VHF/UHF antenna has a 300 ohm twin-lead wire, the use of the 300-75 ohm Matching Transformer may be necessary. Connect the VHF 75 ohm cable and UHF 300 ohm

75 ohm Coaxial Cable

Combination VHF/UHF Antenna (

Separate VHF and UHF 300 ohm

twin-lead wires

Connect the UHF 300 ohm twin-lead wire to the Combiner (not supplied). Connect the VHF 300 ohm twin-lead wire to the 300-75 ohm Matching Transformer. Attach the Transformer to the Combiner, then attach the Combiner to the Antenna Jack.

Antenna Jack

UHF/ VHF

Combiner

UHF 300 ohm

)

Antenna Jack Antenna Jack

UHF/ VHF

300-75 ohm Matching Transformer

UHF/ VHF

)

300-75 ohm Matching Transformer

VHF 300 ohm

Separate VHF/UHF Antennas (

75 ohm VHF cable and 300 ohm UHF

twin-lead wires

Connect the VHF 75 ohm cable and UHF 300 ohm twin-lead wire to the Combiner (not supplied). Attach the Combiner to the Antenna Jack.

Antenna Jack

UHF/ VHF

Combiner

)

VHF 75 ohm

UHF 300 ohm

Page 12

UHF/ VHF

CABLE TV CONNECTIONS

This TV/VCR has an extended tuning range and can tune most cable channels without using a Cable TV converter box. Some cable companies offer "premium pay channels" in which the signal is scrambled. Descrambling these signals for normal viewing requires the use of a descrambler device which is generally provided by the cable company.

FOR SUBSCRIBERS TO BASIC CABLE TV SERVICE

For basic cable service not requiring a Converter/Descrambler box, connect the CATV 75 ohm Coaxial Cable directly to the Antenna Jack on the back of the TV/VCR.

75 ohm Coaxial Cable

FOR SUBSCRIBERS TO SCRAMBLED CABLE TV SERVICE

If you subscribe to a cable TV service which requires the use of a Converter/Descrambler box, connect the incoming 75 ohm Coaxial Cable to the Converter/Descrambler box. Using another 75 ohm Coaxial Cable, connect the output jack of the Converter/Descrambler box to the Antenna Jack on the TV/VCR. Follow the connections shown below. Set the TV/VCR to the output channel of the Converter/Descrambler box (usually channel 3 or 4) and use the Converter/ Descrambler box to select channels.

Incoming 75 ohm CATV cable

Converter/Descrambler

75 ohm Cable to TV/VCR

FOR SUBSCRIBERS TO UNSCRAMBLED BASIC CABLE TV SERVICE WITH SCRAMBLED PREMIUM CHANNELS

If you subscribe to a cable TV service in which basic channels are unscrambled and premium channels require the use of a Converter/Descrambler box, you may wish to use a signal splitter and an A/B Switch box (available from the Cable company or an electronics supply store). Follow the connections shown below. With the switch in the "B" position, you can directly tune any nonscrambled channels on your TV/VCR. With the switch in the "A" position, tune your TV/VCR to the output of the Converter/Descrambler box (usually channel 3 or 4) and use the Converter/ Descrambler box to tune scrambled channels.

Antenna Jack

UHF VHF

Incoming

Converter/Descrambler

75 ohm CATV cable

Splitter

A/B Switch

SETTING THE LANGUAGE

This TV/VCR can display the on screen language in English, Spanish or French. On-screen language selection (step 3) will automatically appear on the screen when you press the MENU button initially. Select the language you prefer first, then proceed with the other menu options.

1 Press the MENU button.

Press the SET/TRACKING + or –

button to select the SYSTEM SETUP option, then press the ENTER button.

M E N U TIMER REC SET TV SETUP CH SETUP AUTO REPEAT ON OFF SYSTEM SETUP

+/–/ENTER/MENU

75 ohm cable

to TV/VCR

2 Press the SET/TRACKING + or

– button to select the LANGUAGE option, then press the ENTER button.

3 Press the SET/TRACKING + or

– button to select the desired language: English (ENGLISH), Spanish (ESPAÑOL) or French (FRANCAIS), then press the ENTER button.

4 Press the MENU button until the

MENU screen is cleared.

Antenna Jack

UHF VHF

SYSTEM SETUP CLOCK SET LANGUAGE/IDIOMA/LANGUE AUTO CLOCK ON OFF STANDARD TIME DAYLIGHT SAVING TIME

+/–/ENTER/MENU

LANGUAGE/IDIOMA/LANGUE

ENGLISH ESPAÑOL FRANCAIS

〈

+/–/ENTER/MENU

〉

Page 13

AUTO CLOCK SETTING

The Auto Clock function will automatically set the built-in clock (Month, Day, Year and Time) when the TV/VCR is connected to an Antenna or Cable system and it is turned off. As the TV/VCR searches for a receivable station in your area and it receives a broadcast signal for Auto Clock, the Auto Clock needs several minutes to set itself.

AUTO CLOCK SETTING

1 Connect the Antenna or Cable system.

• If you use a cable box, turn it on.

2 Plug the AC Power cord to the AC outlet. 3 Make sure the TV/VCR is turned off.

• If you press the POWER button, the Auto Clock set is

not effective.

Wait at least three minutes and press the POWER button.

5 Press the DISPLAY button to check the clock on the

screen.

6 If the clock is not set, check the Antenna condition. The

Auto Clock may not function properly if the reception condition is not good.

AUTO CLOCK ADJUSTMENT

The Auto Clock Adjustment will be performed at 12:00 PM everyday if you turn off the TV/VCR.

• If you use a cable box and you want Auto Clock adjust-

ment to be performed, the cable box must be left on.

• The Auto Clock Adjustment is not effective when there

is a difference of more than 5 minutes exists between the built-in clock time and the actual time.

TO SET AUTO CLOCK TO OFF

When shipped from factory the AUTO CLOCK option is set to ON. But if you do not want Auto Clock set (Adjustment):

1 Turn on the TV/VCR. 2 Press the MENU button. 3 Press the SET/TRACKING + or – button to select the

SYSTEM SETUP option, then press the ENTER button.

4 Press the SET/TRACKING + or – button to select the

AUTO CLOCK option.

5 Press the ENTER button to select OFF. 6 Press the MENU button repeatedly to return to the

normal screen.

• When the AUTO CLOCK is set to OFF , the Auto Clock

adjustment does not function.

• Set the clock manually (see page 14).

TO SET STANDARD TIME

In the rare event that you live within broadcast range of two stations in two different time zones, the TV/VCR may recognize the wrong station for the Auto Clock set. To correct the situation:

1 Press the MENU button. 2 Press the SET/TRACKING + or – button to select the

SYSTEM SETUP option, then press the ENTER button.

3 Press the SET/TRACKING + or – button to select the

STANDARD TIME option, then press the ENTER button.

4 Press the SET/TRACKING + or – button to select your

time zone, then press the ENTER button.

ATLANTIC : GMT – 4 hours

(GMT: Greenwich Mean Time)

EASTERN : GMT – 5 hours CENTRAL : GMT – 6 hours MOUNTAIN : GMT – 7 hours PACIFIC : GMT – 8 hours ALASKA : GMT – 9 hours HAWAII : GMT – 10 hours AUTO : AUTO SET

5 Press the MENU button until the MENU screen is

cleared.

• To be able to select the standard time, the

NOTES:

clock must first be set by “AUTO CLOCK” once.

• When shipped from factory, the STANDARD

TIME option is set to AUTO.

DAYLIGHT SAVING TIME SETTING

Y ou can set the Daylight Saving Time “ON” or “OFF”.

1 Press the MENU button. Press

the SET/TRACKING + or – button to select the SYSTEM SETUP option, then press the ENTER button.

2 Press the SET/TRACKING + or –

button to select the DAYLIGHT SAVING TIME option, then press the ENTER button.

3 Press the SET/TRACKING + or –

button to select “ON” or “OFF”, then press the ENTER button. Press the MENU button until the MENU screen is cleared.

ON: forward one hour OFF: back one hour

When you set the Daylight Saving Time on the first Sunday in April you set to “ON”, and on the last Sunday in October you set to “OFF”.

NOTES: • When shipped from factory, the DAYLIGHT

SAVING TIME option is set to OFF position.

• When the clock is not set, Daylight Saving Time setting is not available.

• When there is no Daylight Saving Time in your area, always select OFF position in step 3.

M E N U TIMER REC SET TV SETUP CH SETUP AUTO REPEAT ON OFF SYSTEM SETUP

+/–/ENTER/MENU

DAYLIGHT SAVING TIME

+/–/ENTER/MENU

SYSTEM SETUP CLOCK SET LANGUAGE/IDIOMA/LANGUE AUTO CLOCK ON OFF STANDARD TIME DAYLIGHT SAVING TIME

ON OFF

Page 14

MANUAL CLOCK SETTING

TV OPERATION

You must set the date and time manually for Timer Recordings, ON/OFF Timer and Daylight Saving Time if the Auto Clock process did not set them correctly.

EXAMPLE: Setting the clock to “8:30 AM”, 29th (WED)

October, 2003.

1 Press the MENU button.

Press the SET/TRACKING + or – button to select the SYSTEM SETUP option, then press the ENTER button.

2 Press the SET/TRACKING + or –

button to select the CLOCK SET option, then press the ENTER button.

3 Press the SET/TRACKING + or –

button to set the month, then press the ENTER button.

4 Set the day, year and time as in

step 3.

After setting the clock, date and time starts functioning automatically.

M E N U TIMER REC SET TV SETUP CH SETUP AUTO REPEAT ON OFF SYSTEM SETUP

+/–/ENTER/MENU

CLOCK SET

+/–/ENTER/CANCEL/MENU

CLOCK SET

+/–/ENTER/CANCEL/MENU

SYSTEM SETUP CLOCK SET LANGUAGE/IDIOMA/LANGUE AUTO CLOCK ON OFF STANDARD TIME DAYLIGHT SAVING TIME

MONTH

DAY

1 (WED)

YEAR

2003

TIME

12 : 00 AM

MONTH

DAY

29 (WED)

YEAR

2003

TIME

8 : 30 AM

8 : 30 AM WED

NOTES: •After a power failure or disconnection of the

power plug, the time display will be lost. In this case, set the present time again if the Auto Clock did not set correctly.

•To move cursor backward, press the CANCEL

button.

1 To turn on the TV/VCR, press the POWER button. 2 Adjust the volume level by

pressing the VOL + or – button. The volume level will be indicated on the screen by green bars. As the volume level

VOLUME 32

increases, so do the number of bars. If the volume decreases, the number of green bars also decreases.

3 Set the TV/CATV menu option to the appropriate

position (See page 16).

4 Press the Direct Channel selection buttons to select

the channel.

• TV mode direct channel selection When the TV/CATV menu option is in the TV position, all channels can be instantly selected by using two buttons (for example, to select channel 2, press "0", then "2". If you press only "2", channel selection will be delayed for a few seconds). For channels 10 and above, press the 2 digits in order.

• CATV mode direct channel selection

When the TV/CATV menu option is in the CATV position, channels can be selected as follows:

• TO SELECT CATV CHANNELS: 1-9 Press "0" twice, then 1-9 as needed.

Example, to select channel 2, press "002".

10-12 Press "0", then the remaining 2 digits.

Example, to select channel 12, press "012".

13-99 Press the 2 digits in order.

Example, to select channel 36, press "36".

100-125 Press the 3 digits in order.

Example, to select channel 120, press "120".

NOTE FOR CHANNELS 1-12:

If only 1 or 2 buttons are pressed, the corresponding channel will be selected in 2 seconds.

NOTES: •If a channel with no broadcast is selected,

the sound will automatically be muted.

•If a station being viewed stops broadcasting,

the TV will automatically shut itself off after 15 minutes.

CH 012

Page 15

CH 012

MUTE

Press the MUTE button to switch off the sound. The TV/VCR’s sound will be silenced and “MUTE” will briefly appear on the screen. The sound can be switched back on by pressing this button again or one of the VOL + or – button.

MUTE

CHANNEL

Press and release the CH C or D button. The channel automatically stops at the next channel set into memory. For proper operation, before selecting channels, they should be set into the memory. See pages 16 and 17 “To memorize channels”.

CH 012

DISPLAY

Press the DISPLAY button. The clock, date, channel number, real time tape counter, tape speed and VCR operation will be indicated. Press the DISPLA Y button again to disappear the call displa y .

Current time

8:47AM THU CH 012

00:04:38 SP

Real Time Counter

NOTE: To listen through the headphones, insert a

headphones (not supplied) with a 1/8" mini plug into PHONES jack on the front. The sound from the TV speaker is muted.

Channel No. Auto Repeat

Tape In

T ape Speed

VCR operation

: Play : Rewind : Fast-forward : Eject : Recording : Pause : Stop

SLEEP

To set the TV/VCR to turn off after a preset amount of time, press the SLEEP button on the remote control. The clock will count down 10 minutes for each press of the SLEEP button (120, 110, ...10, 0). After the sleep time is programmed, the display will appear briefly every ten minutes to remind you that the sleep timer is operating. To confirm the sleep timer setting, press the SLEEP button and the remaining time will be momentarily displayed. T o cancel the sleep timer , press the SLEEP button repeatedly until the display turns to 0.

SLEEP

120

R-TUNE

This button allows you to go back to the last channel selected by pressing the R-TUNE button. Press this button again to return to the last channel you were watching.

CLOSED CAPTION

Press the CC button to switch between normal TV and the two closed caption modes (captions and full screen text). Closed captioning will display text on the screen for hearing impaired viewers.

NOTES:

• If using an indoor antenna or if TV reception

is very poor, the Closed Caption Decoder text may not appear. In this case, adjust the antenna for better reception or use an outdoor antenna.

•When activating the Closed Captioned

Decoder, there will be a short delay before the Closed Captioned text appears on the screen.

•Closed Captioned TV programs can be

recorded and played back on a VCR with the Closed Captioned text intact. The Closed Captioning text will disappear during Cue, Rewind and Pause modes or if the VCR tracking is not adjusted properly.

•Closed Captioned text is only displayed in

locations where it is available.

•If the Display is on, the Closed Captioning text

will not appear.

WHAT IS CLOSED CAPTIONING?

This television has the capability to decode and display Closed Captioned television programs. Closed Captioning will display text on the screen for hearing impaired viewers or it will translate and display text in another language.

CLOSED CAPTIONING WITH A VCR

Closed Captioned programs can be recorded and played back on a VCR with the Closed Captioned text intact. The Closed Captioned text will disappear during Cue (Fast Forward Search), Review (Rewind Search) and Pause Modes or if the VCR tracking is not adjusted properly.

TO VIEW CLOSED CAPTIONS

Press the CC button on the remote control to switch between normal TV and the two Closed Caption Modes (Captions and Full Screen Text).

CAPTION CH 1

Page 16

TV OPERATION

Captions: This Closed Caption Mode will display text on

the screen in English or another language (depending on the setting of the Closed Captions CH. 1 or 2). Generally, Closed Captions in English are transmitted on Captions Channel 1 and Closed Captions in other languages are transmitted on Captions Channel 2.

Text: The Text Closed Caption Mode will usually fill the screen with a programming schedule or other information. After selecting a Closed Caption Mode, it will stay in effect until it is changed, even if the channel is changed. If the Captions signal is lost due to a commercial or a break in the signal, the Captions will reappear when the signal is received again. If the channels are changed, the Captions will be delayed approximately 10 seconds. The Captions will appear in places on the screen where they will least interfere with the picture, usually on the bottom of the screen. News programs will usually show three-line Closed Captions which scroll onto the screen. Most other shows provide two or three lined Captions placed near the character who is speaking so the viewer can follow the dialogue. Words in italics or underlined describe titles, words in foreign languages or words requiring emphasis. Words that are sung usually appear enclosed by musical notes. For television programs broadcasting with Closed Captions, look in your TV guide for the Closed Captions symbol (CC).

• When selecting Closed Captions, the captioning will be delayed approximately 10 seconds.

• If no caption signal is received, no captions will appear, but the television will remain in the Caption Mode.

• When Captions are being displayed, on-screen displays, such as volume and mute may not be seen or may interfere with Closed Captions.

• Misspellings or unusual characters may occasionally appear during Closed Captioning. This is normal with Closed Captioning, especially with live programs. This is because during live programs, captions are also entered live. These transmissions do not allow time for editing.

• Some cable systems and copy protection systems may interfere with the Closed Captioned signal.

• If using an indoor antenna or if TV reception is very poor, the Closed Caption Decoder may not appear or may appear with strange characters or misspelled words. In this case, adjust the antenna for better reception or use an outdoor antenna.

TO MEMORIZE CHANNELS

This TV/VCR is equipped with a channel memory feature which allows channels to skip up or down to the next channel set into memory, skipping over unwanted channels. Before selecting channels, they must be programmed into the TV/VCR’s memory. In addition to normal VHF and UHF channels, this TV/ VCR can receive up to 113 Cable TV channels. To use this TV/VCR with an antenna, set the TV/CATV menu option to the TV mode. When shipped from the factory, this menu option is in the CATV mode.

TV/CATV SELECTION

1 Press the MENU button. 2 Press the SET/TRACKING + or

– button to select the CH SETUP mode, then press the ENTER button.

3 Press the SET/TRACKING + or

– button to select the TV/CATV mode.

4 Press the ENTER button to

select the TV or CATV mode. The arrow indicates the selected.

TV - VHF/UHF channels CATV - CABLE TV channels

VHF/UHF/CATV CHANNELS

VHF 2-13

UHF

14-69

STD/HRC/IRC

14-36 (A) (W)

37-59 (AA) (WW)

60-85 (AAA) (ZZZ)

86-94 (86) (94)

95-99 (A-5) (A-1)

100-125 (100)(125)

5 Press the MENU button until the MENU screen is cleared.

AUTOMATIC MEMORY TUNING

1 Press the MENU button. 2 Press the SET/TRACKING + or

– button to select the CH SETUP mode, then press the ENTER button.

3 Press the SET/TRACKING + or

– button to select the AUTO CH MEMORY mode, then press the ENTER button. The TV/VCR will begin memorizing all the channels available in your area. Channel numbers will remain red until auto memorizing is complete.

4 Press the MENU button until the MENU screen is

cleared.

M E N U TIMER REC SET TV SETUP CH SETUP AUTO REPEAT ON OFF SYSTEM SETUP

+/–/ENTER/MENU

CH SETUP TV CATV AUTO CH MEMORY ADD/DELETE

+/–/ENTER/MENU

CATV

VHF 2-13

01 (5A)

M E N U TIMER REC SET TV SETUP CH SETUP AUTO REPEAT ON OFF SYSTEM SETUP

+/–/ENTER/MENU

CH SETUP TV CATV AUTO CH MEMORY ADD/DELETE

+/–/ENTER/MENU

Page 17

V-CHIP SET V-CHIP : OFF TV RATING : TV–PG MOVIE RATING : OFF CHANGE PASSWORD

+/–/ENTER/MENU

V-CHIP SET V-CHIP : OFF TV RATING : OFF MOVIE RATING : OFF CHANGE PASSWORD

+/–/ENTER/MENU

SETTING THE V -CHIP

V-CHIP SET V-CHIP : OFF TV RATING : TV–PG MOVIE RATING : OFF CHANGE PASSWORD

+/–/ENTER/MENU

V-CHIP SET V-CHIP : OFF TV RATING : TVÐPG MOVIE RATING : PGÐ13 CHANGE PASSWORD

+/Ð/ENTER/MENU

TO ADD/DELETE CHANNELS

1 Press the MENU button. 2 Press the SET/TRACKING + or

– button to select the CH SETUP mode, then press the ENTER button.

3 Press the SET/TRACKING + or

– button to select the ADD/ DELETE mode, then press the ENTER button.

4 Select the desired channel to be

memorized or deleted using the SET /TRACKING + or – button, or using the Direct Channel

Selection buttons (10 keys, 0-9).

5 Press the ENTER button to

select the ADD or DELETE.

If you select an unmemorized

channel, the Channel indication will be red. If you select the ADD mode, the Channel indication changes from red to green and the channel will be memorized. If you select a memorized channel, the Channel indication will be green. If y ou select the DELETE mode, the Channel indication changes from green to red and the channel will be deleted from the memory.

6 Press the MENU button until the MENU screen is

cleared.

M E N U TIMER REC SET TV SETUP CH SETUP AUTO REPEAT ON OFF SYSTEM SETUP

+/–/ENTER/MENU

CH SETUP TV CATV AUTO CH MEMORY ADD/DELETE

+/–/ENTER/MENU

〈

0–9/+/–/ENTER/MENU

SETTING THE V-CHIP

An age limitation can be set to forbid children to see and hear violent scenes or pictures for adults, etc. The TV/VCR responds to "TV RATING" and "MOVIE RATING". To use the V-Chip function, you must register a password.

TO REGISTER THE PASSWORD

1 Press the MENU button. 2 Press the SET/TRACKING + or –

button to select the TV SETUP option, then press the ENTER button.

3 Press the SET/TRACKING + or –

button to select the V-CHIP SET then press the ENTER button.

4 Enter the password (4 digits) us-

ing the Direct Channel Selection buttons (0-9), then press the ENTER button.

" "appears instead of the number.

5 Enter the same password again

for safety, then press the ENTER button.

V-CHIP SET menu appears.

M E N U TIMER REC SET TV SETUP CH SETUP AUTO REPEAT ON OFF SYSTEM SETUP

+/–/ENTER/MENU

TV SETUP V-CHIP SET ON/OFF TIMER PICTURE

+/–/ENTER/MENU

V-CHIP SET

NEW PASSWORD:

〈

0–9/ENTER/CANCEL/MENU

NOTES:

• To avoid forgetting the password, write it down and

keep in a safe place.

• If you are changing channels using a cable box, while the TV/VCR remains on channel 3 or 4, the V-Chip operates differently. When you enter your password to

temporarily release the block on any channel, you have completely disabled the V-Chip function for all stations. To reset the V-Chip turn your TV/VCR off and back on.

• Some cable boxes are built with a delay feature, in some cases it can take up to 10 seconds for a program to appear after the password has been input.

TO SET THE V-CHIP

CH 003ADD

1 In the V-CHIP SET menu, press

the SET/TRACKING + or – button to select the TV RATING,

〉

then press the ENTER button.

2 Press the SET/TRACKING + or

– button to display the desired setting, then press the ENTER button.

OFF : TV RATING is not set TV-Y : All children TV-Y7 : 7 years old and above TV-G : General Audience TV-PG : Parental guidance TV-14 : 14 years old and above TV-MA : 17 years old and above

• When you select TV- Y7, TV-PG, TV-14 or TV-MA,

press the DISPLAY button to explain the rating. Press the SET/TRACKING + or – button to select the desired rating you want. Press the ENTER button to select the setting ON or OFF.

3 Press the SET/TRACKING + or

– button to select the MOVIE RATING, then press the ENTER button. The V-Chip function is activated only on programs and tapes that have the rating signal.

4 Press the SET/TRACKING + or

– button to select desired rating, then press the ENTER button.

OFF : MOVIE RATING is not set G:All ages PG : Parental guidance PG-13 : Parental guidance less than 13 years old R:Under 17 years old Parental guidance

suggested

NC-17 : 17 years old and above X:Adult only

〉

Page 18

SETTING THE V-CHIP

TO SET THE ON TIMER

5 Press the SET/TRACKING + or

– button to select V-CHIP.

6 Press the ENTER button to

display ON.

7 Press the MENU button until the

MENU screen is cleared.

V-CHIP SET V-CHIP : OFF TV RATING : TV—PG MOVIE RATING : PG—13 CHANGE PASSWORD

〈

+/—/ENTER/MENU

V-CHIP SET V-CHIP : ON TV RATING : TV–PG MOVIE RATING : PG–13 CHANGE PASSWORD

〈

+/–/ENTER/MENU

〉

NOTE : The V-Chip function is activated only on programs and tapes that have the rating signal.

To use the TV after the TV is protected.

When the program applied to the V-Chip setting is received, enter the password, then press the ENTER button. When the password is entered correctly the protection will be temporarily overridden.

If you forget the password...

Disconnect the AC cord plug from AC outlet and leave the unit for more than two minutes. Insert the AC cord plug again, then turn the volume level into a minimum. Press the VOL – button on the unit and the 0 button on the remote control for more than 1 second simultaneously.

TO CHANGE PASSWORD

1 Repeat the steps 1-3 on “TO

9), then press the ENTER button.

2 Press the SET/TRACKING +

or – button to select CHANGE PASSWORD, then press the ENTER button.

3 Enter the new password using

the Direct Channel Selection button (0-9), then press the ENTER button.

4 Enter the same password

again to confirm, then press the ENTER button.

5 Press the MENU button

repeatedly to return to normal screen.

V-CHIP SET

PASSWORD: – – – –

〈

0–9/ENTER/CANCEL/MENU

V-CHIP SET V-CHIP : ON TV RATING : TV–PG MOVIE RATING : PG–13 CHANGE PASSWORD

〈

0–9/ENTER/CANCEL/MENU

〈

0–9/ENTER/CANCEL/MENU

/–/ENTER/MENU

V-CHIP SET V-CHIP : ON TV RATING : TV–PG MOVIE RATING : PG–13 CHANGE PASSWORD NEW PASSWORD: – – – –

V-CHIP SET V-CHIP : ON TV RATING : TV–PG MOVIE RATING : PG–13 CHANGE PASSWORD CONFIRM PASSWORD: – – – –

This feature allows you to have the TV/VCR automatically turn on at a predetermined time. If you program the ON TIMER once, the TV/VCR will turn on on the programmed day (daily/weekly) at the same time to the same channel. EXAMPLE: Turning on the TV to channel 12 at 7:00 AM,

MONDAY-FRIDAY.

1 Press the MENU button.

Press the SET/TRACKING + or – button to select the TV SETUP option, then press the ENTER button.

2 Press the SET/TRACKING + or

– button to select the ON/OFF TIMER option, then press the

M E N U TIMER REC SET TV SETUP CH SETUP AUTO REPEAT ON OFF SYSTEM SETUP

+/–/ENTER/MENU

TV SETUP V-CHIP SET ON/OFF TIMER PICTURE

ENTER button.

+/–/ENTER/MENU

3 Press the SET/TRACKING + or

– button to select the ON TIMER option, then press the ENTER button.

4 Press the SET/TRACKING + or

– button to set the desired hour, then press the ENTER button.

5 Set the desired minute, channel

and daily or weekly timer date as in step 4.

〉

6 Press the SET/TRACKING + or –

button to select the SET mode, then press the ENTER button. Press the MENU button repeatedly to return to normal screen.

ON/OFF TIMER ON TIMER

12:00AM CH001 SUN-SAT CANCEL

OFF TIMER

12:00AM CANCEL

+/–/ENTER/CANCEL/MENU

ON/OFF TIMER ON TIMER

7:00AM CH001

SUN-SAT CANCEL

OFF TIMER

12:00AM CANCEL

+/–/ENTER/CANCEL/MENU

ON/OFF TIMER ON TIMER

7:00AM CH012

MON-FRI CANCEL

OFF TIMER

12:00AM CANCEL

〈

+/–/ENTER/CANCEL/MENU

ON/OFF TIMER ON TIMER

7:00AM CH012

MON-FRI SET

OFF TIMER

12:00AM CANCEL

〈

+/–/ENTER/CANCEL/MENU

NOTES: • The TV/VCR will automatically turn off approxi-

mately 1 hour later after the ON TIMER turns on if no OFF TIMER has been set. To continue watching the TV, press any button to cancel the one hour automatic shut off.

〉

• To cancel ON TIMER, follow above steps 1-5, then press the SET/TRACKING + or – button to select the CANCEL. Press the MENU button repeatedly to return to the normal screen.

• After setting the ON TIMER, "

" of the OFF TIMER

will flash on and off. If you wish to set the OFF

〉

TIMER, press the ENTER button then follow the steps 4-6 on " TO SET THE OFF TIMER" .

• If you want to correct the digits while setting, press the CANCEL button until the item you want to correct, then press the SET/TRACKING + or – button to correct the desired setting.

〉

Page 19

ON/OFF TIMER

〈

+/–/ENTER/CANCEL/MENU

〉

ON TIMER

7:00AM CH012

MON-FRI SET

OFF TIMER

11:00PM CANCEL

ON/OFF TIMER

〈

+/–/ENTER/CANCEL/MENU

〉

ON TIMER

7:00AM CH012

MON-FRI SET

OFF TIMER

11:30PM SET

ON/OFF TIMER

〈

+/–/ENTER/CANCEL/MENU

〉

ON TIMER

7:00AM CH012

MON-FRI SET

OFF TIMER

11:30PM CANCEL

SHARPNESS 0

〈

+/–/ENTER/CANCEL/MENU

〉

COLOR 0

〈

+/–/ENTER/CANCEL/MENU

〉

TINT 0

〈

+/–/ENTER/CANCEL/MENU

〉

TO SET THE OFF TIMER

This feature allows you to have the TV/VCR turn off automatically at a predetermined time. If you program the OFF TIMER once, the TV/VCR will automatically turn off at the same time everyday.

EXAMPLE: Turning off the TV at 11:30 PM.

1 Press the MENU button.

Press the SET/TRACKING + or – button to select the TV SETUP option, then press the ENTER button.

2 Press the SET/TRACKING + or –

button to select the ON/OFF TIMER option, then press the

M E N U TIMER REC SET TV SETUP CH SETUP AUTO REPEAT ON OFF SYSTEM SETUP

+/–/ENTER/MENU

TV SETUP V-CHIP SET ON/OFF TIMER PICTURE

4 Press the SET/TRACKING + or –

button to set the desired hour, then press the ENTER button.

5 Press the SET/TRACKING + or –

button to set the desired minute, then press the ENTER button.

6 Press the SET/TRACKING + or –

button to select the SET mode, then press the MENU button repeatedly to return to the normal screen.

NOTES: • If a station being viewed

ENTER button.

3 Press the SET/TRACKING + or –

button to select the OFF TIMER option, then press the ENTER button.

+/–/ENTER/MENU

〈

+/–/ENTER/CANCEL/MENU

ON/OFF TIMER ON TIMER

7:00AM CH012

MON-FRI SET

OFF TIMER

12:00AM CANCEL

〉

PICTURE CONTROL ADJUSTMENTS

Picture controls are factory preset but you can adjust them individually as follows:

1 To display the picture adjustment

screen, press the MENU button. Press the SET/TRACKING + or – button to select the TV SETUP option, then press the ENTER button.

2 Press the SET/TRACKING + or –

button to select the PICTURE option, then press the ENTER button.

M E N U TIMER REC SET TV SETUP CH SETUP AUTO REPEAT ON OFF SYSTEM SETUP

+/–/ENTER/MENU

TV SETUP V-CHIP SET ON/OFF TIMER PICTURE

+/–/ENTER/MENU

BRIGHTNESS

Press the ENTER button until “BRIGHTNESS” appears on the screen, then press the SET/ TRACKING + or – button to adjust the brightness of the picture. When the SET/TRACKING + button is

BRIGHTNESS 0

〈

+/–/ENTER/CANCEL/MENU

pressed, the darker portions of the picture become lighter.

CONTRAST

Press the ENTER button until “CONTRAST” appears on the screen, then press the SET/TRACKING + or – button to adjust the contrast of the picture. Pictures look sharpest in the daytime (bright light) by increasing the contrast. At night (dim light), the sharpest picture is obtained by reducing the contrast.

NOTE: The CONTRAST default setting is set to maximum

at the factory.

CONTRAST 32

〈

+/–/ENTER/CANCEL/MENU

COLOR

Press the ENTER button until “COLOR” appears on the screen, then press the SET/TRACKING + or – button to adjust the color intensity of the picture. The control should be set when colors appear normal in intensity and brilliance.

TINT

Press the ENTER button until “TINT” appears on the screen, then press the SET/TRACKING + or – button to adjust the tint of the picture. This determines how accurately the colors are reproduced by the TV . Adjusting the tint for natural facial tone is the best method of obtaining accurate color reproduction of the entire picture.

SHARPNESS

〉

Press the ENTER button until “SHARPNESS” appears on the screen, then press the SET/ TRACKING + or – button to adjust the sharpness of the picture.

CANCEL

Pressing the CANCEL button while making picture

〉

adjustments will return all adjustments to the factory preset levels.

NOTE: The On-screen display will disappear 6 seconds

stops broadcasting, the TV will automatically shut itself off after 15 minutes.

• To cancel OFF TIMER, follow above steps 1-5, then press the SET/TRACKING + or – button to select the CANCEL. Press the MENU button to return to the normal screen.

• To confirm the ON/OFF TIMER: Press the PROGRAM button twice to indicate the programs on the screen.

after finishing an adjustment or by pressing the MENU button three times. The settings can only be adjusted when they are displayed on the TV screen.

Page 20

LOADING AND UNLOADING

PLAYBACK

Use only video cassette tapes marked

Push the center of the tape until it is automatically retracted into the TV/VCR.

AUTOMATIC POWER ON AND PLAY

When loading a cassette tape without the erase prevention tab intact, the TV/VCR will turn on automatically and playback will start immediately.

Insert the cassette with its labeled side facing you. An inverted video cassette cannot be inserted.

UNLOADING

To unload a video cassette, press the EJECT button on the remote control, or press the STOP/EJECT button on the TV/VCR twice. The first press will stop the tape in any mode. The second press will eject the tape.

AUTOMA TIC EJECT

If the TV/VCR automatically rewinds the tape to the beginning (AUTO REWIND FEATURE), the tape will be ejected automatically (See NOTE on page 21).

NOTES: • Always eject the tape when not in use.

• The cassette tape can be ejected even if the

POWER is “OFF”.

TO PREVENT ACCIDENTAL ERASURE

After recording, break off the erase prevention tab if you do not wish to record over the tape.

Screwdriver

Erase prevention tab

TO RECORD AGAIN

Cover the hole with adhesive tape. Be careful the tape does not extend past the edges of the video cassette housing.

To play a prerecorded tape.

TO START PLAYBACK

Load a prerecorded tape (When loading a cassette tape without the erase prevention tab, playback will start automatically).

Press the PLAY button to begin playback.

” will appear on the screen.

“ NOTE: This TV/VCR selects the playback tape speed

SP, LP or SLP automatically.

TO STOP PLAYBACK

Press the STOP button once. The tape will stop, but remain fully loaded and ready to play.

” will appear on the screen.

“

TO REWIND OR FORWARD THE TAPE RAPIDLY

Press the REW (Rewind) or FF (Fast Forward) button in the Stop mode.

” or “ ” will appear on the screen.

“

FORWARD/REVERSE PICTURE SEARCH

If you want to see the tape during REW or FF mode, press and hold the REW or FF button. The backward or forward visual search picture will be seen on the screen. Release to return to the REW or FF mode.

DIGITAL TRACKING CONTROLS

When a tape is played, the Digital Auto Tracking system automatically adjusts the tracking to obtain the best possible picture. If noise bars appear during playback, adjust the tracking manually as follows:

• Press the Manual SET/ TRACKING + or – button to obtain the best possible picture. “MANUAL TR.” will appear for 4 seconds on the screen. To resume automatic tracking, press the TRACKING AUTO button. “AUTO TR.” will appear for 4 seconds on the screen.

MANUAL TR.

–

AUTO TR

Adhesive tape

Page 21

00:00:00 SP

CH 012

SPECIAL PLAYBACK

RECORDING A TV PROGRAM

TO VISUALLY SEARCH FOR DESIRED POINTS

When either the FF or REW button is pressed in the PLAYBACK mode, the speed search picture will appear. When pressed twice, the search picture will increase speed. Speed search time depends upon the speed used (SP, LP or SLP) during recording. See chart below. To visually search backward or forward, press the REW or FF button once or twice in the PLAYBACK mode. Press the PLAY button to resume normal viewing speed.

SPEED SEARCH TIMES

TAPE SPEED

SP (Standard Play) LP (Long Play) SLP (Super Long Play)

PICTURE SEARCH SPEED

PRESS ONCE

3 X 7 X 9 X

PRESS TWICE

5 X 9 X

15 X

CM SKIP

Press the CM SKIP button in the PLAY mode. The VCR will search forward through approximately 30 seconds of the tape (e.g. unwanted commercial time) for each press of the CM SKIP button (maximum six presses) and then resume normal playback.

TO WATCH STILL PICTURE

Press the PAUSE/STILL button in the PLAYBACK mode. Press the PLAY button or PAUSE/STILL button to resume normal playback.

NOTES: • The audio output is muted during Speed

Search and Still.

• A few noise bars will appear on the TV screen

during Speed Search and Still.

• T o prev ent damage to the tape, Still and Speed

Search mode is automatically changed to the Playback mode after 5 minutes.

TO WATCH A TAPE REPEATEDLY

1 Press the MENU button. 2 Press the SET/TRACKING + or

– button to select the AUTO REPEA T option.

3 Press the ENTER button to select

the ON position.

4 Press the MENU button. If you press the PLAY button,

the tape will play over and over until the repeat mode is canceled.

NOTE: To cancel repeat mode, follow above steps 1 and

2, then press the ENTER button to select the OFF position. Press the MENU button to return to the TV. The repeat function is canceled automatically when the unit is switched off or the tape is ejected.

M E N U TIMER REC SET TV SETUP CH SETUP AUTO REPEAT ON OFF SYSTEM SETUP

+/–/ENTER/MENU

RECORDING AND VIEWING THE SAME TV PROGRAM

1 Load a cassette tape with the erase prevention tab

intact.

2 Press the SPEED button to

select the desired tape speed SP or SLP. The counter and SP or SLP will appear on the screen about 4 seconds.

3 Set the TV/CATV option to the appropriate position

(See page 16).

TV - VHF/UHF channels CATV - CABLE TV channels

NOTES: • If power is switched off during recording,

the TV set goes off and the VCR continues to record. Press the STOP button to halt the recording and turn off the VCR.

• The TV/VCR Channel cannot be changed during recording.

4 Press the Direct Channel Selection buttons or CH C

or D button to select the channel to be recorded.

5 Press the REC/OTR button.

" and the channel number will appear on the screen and the REC indicator will light.

TO STOP RECORDING

Press the STOP button to stop recording. “

” will appear on the screen.

TO STOP RECORDING TEMPORARILY

Press the PAUSE/STILL button to avoid recording unwanted material.

“

” will appear on the screen and the REC indicator will

blink on and off. Press the PAUSE/STILL button or the REC/OTR button to continue the recording.

NOTE: The P AUSE mode will be changed to STOP mode

after five minutes to prevent damage to the tape.

NOTES: • AUTO REWIND FEATURE

This TV/VCR will automatically rewind the video cassette when the tape has ended (except during OTR and Timer Record). It will also eject the video cassette.

• If the erase prevention tab is removed, the tape will eject when the REC/OTR button is pressed for recording.

Page 22

ONE-TOUCH TIMER

〈

+/–/ENTER/CANCEL/MENU

〉

----- --:-- --- -

----- --

23 TH

007

--:--

--- -

----- --- -

7:00PM9:30

SLP

Press once twice 3 times 4 times 5 times 6 times 7 times 8 times 9 times

)

Recording time

NORMAL REC

RECORDING (OTR

The One-Touch Timer Recording feature provides a simple and convenient way to make a timed recording.

EXAMPLE: One-touch Timer Recording for 30 minutes.

1 Press the POWER button to turn on the TV/VCR. 2 Load a video cassette with the erase prevention tab

intact.

3 Press the SPEED button to

select the desired tape speed (SP or SLP). SP or SLP will appear on the screen.

4 Set the TV/CATV option to the

appropriate setting (See page 16).

TV - VHF/UHF channels CATV - CABLE TV channels

5 Press the Direct Channel Selection buttons or CH C

or D button to select the channel to be recorded.

6 Press the REC/OTR button to

begin recording. Press the button again to stop recording after 30 minutes. Each additional press of the REC/OTR button will increase recording time as shown below, up to a maximum of 5 hours. “OTR” will appear on the screen.

NOTES: • Press the REC/OTR

button to increase the time needed for recording (See the chart right).

• To cancel OTR, press the STOP button.

• The TV/VCR channel cannot be changed during recording.

TIMER RECORDING

Timer recording can be programmed on-screen with the remote control. The built-in timer allows automatic unattended recording of up to 8 programs within 1 month.

EXAMPLE: Program a timer recording for 23rd day , channel

007 (CATV), 7:00 - 9:30 PM (Tape speed : SLP).

• Load a video cassette with the erase prevention tab intact. The TV/VCR will automatically turn on.

• Set the TV/CATV selection to the appropriate position (See page 16).

1 Press the MENU button. 2 Check the TIMER REC SET

option is selected, then press the ENTER button.

M E N U TIMER REC SET TV SETUP CH SETUP AUTO REPEAT ON OFF SYSTEM SETUP

+/–/ENTER/MENU

00:00:00 SP

OTR 0 : 30

CH 012

0:30 1:00 1:30 2:00 3:00 4:00 5:00

TIMER RECORDING

3 Press the SET/TRACKING + or –

button to select the program position, then press the ENTER button.

4 Press the SET/TRACKING + or –

button to select the date, then press the ENTER button.

5 Set the start time, end time,

channel and tape speed as in step 4.

TIMER REC SET

DATE

23 (THU)

START

7 : 00 PM

END

9 : 30 PM

007

SPEED

SLP

〈

+/–/ENTER/CANCEL/MENU

〉

6 To set the timer for another program, press the SET/

TRACKING + or – button until the number of the second program blinks, then press the ENTER button. Repeat steps 4 to 5 to set the second program.

7 Press the PROG TIMER button. The PROG TIMER

indicator will light. The Timer is programed, when the programed time is reached, the recording is automatically started.

To cancel timer recording, press the button again and PROG TIMER indicator will go out.

NOTES: • If programming is performed without a tape in

the TV/VCR, or with a tape without an erase prevention tab, the Timer Recording is not possible. If a tape without an erase prevention tab is in the TV/VCR, the tape will be ejected.

• To record from the external equipment press the SET/TRACKING + or – button repeatedly until "L 1 (from AUDIO/VIDEO LINE1 jacks on the rear)" or "L 2 (from AUDIO/VIDEO IN jacks on the front)" appears when setting the channel in step 5.

• The VCR section cannot be used while the

PROG TIMER indicator is lit. If you want to use

the VCR operation, press the button to deactivate the timer.

• After a power failure or disconnection of the power plug, all programmed recording setting and time display will be lost upon resumption of power. In this case, reset the clock (see pages 13-14) and reprogram any timer recordings.

• If you want to correct the digits while setting, press the CANCEL button until the item you want to correct, then press the SET/TRACKING + or – button to correct the desired setting.

-- --- ---:--

----- --

----- --:-- --- -

----- --

----- --- -

〈

+/–/ENTER/CANCEL/MENU

TIMER REC SET

+/–/ENTER/CANCEL/MENU

DATE START END CH SPEED

--- -

23 (THU) 8 : 30 AM

-- : -012 SP

PROG TIMER

〉

Page 23

TO SET DAILY/WEEKLY TIMER

8:40AM THU

00:00:00 SP

CH 012

When setting the date in the step 4 on page 22, press the SET/ TRACKING played. The setting changes as follows:

– button repeatedly when the current day is dis-

Example

The current day (Friday) SUN-SAT (Sunday to Saturday)

MON-SAT (Monday to Saturday) One month later minus one day MON-FRI (Monday to Friday)

WKL-WED WKL-THU (Weekly Thursday) (Weekly Wednesday)

TO CONFIRM THE SETTINGS

Press the PROGRAM button once. The TV screen displays the timer program list. Press the PROGRAM button again. The TV screen displays the ON/OFF TIMER setting.

(once)

SLP

7:00PM9:30

--:--

007

--- -

〉

23 TH

----- --:-- --- -

----- --

----- --- -

〈

+/–/ENTER/CANCEL/MENU

(twice)

ON/OFF TIMER ON TIMER

7:00AM CH012

MON-FRI SET

OFF TIMER

11:30PM SET

〈

+/–/ENTER/CANCEL/MENU

〉

Press the PROGRAM button until the normal screen is appeared.

TO CANCEL A PROGRAM

Press the SET/TRACKING + or – button to select the TIMER REC SET option in the MENU, then press the ENTER button. Press the SET/TRACKING + or – button to select the unnecessary program, and press the CANCEL button to cancel the program.

-- --- ---:--

----- --

----- --:-- --- -

----- --

----- --- -

〈

+/–/ENTER/CANCEL/MENU

IF THE PROGRAM OVERLAPS ANOTHER

NOTE: Do not overlap programs as portions of the

conflicting programs will be lost. The first recording time has priority over the next recording time as shown in the diagram.

Program 1 Program 2

Program 3

Recording Control Settings

NOTES: • The everyday/every week recording can be

• During timer recording, the automatic

• You can correct or cancel the programmed

8 : 00

Prog.1

9 : 00

Deleted Parts

Non Recorded Portion Parts

Prog.2 Prog.3

10 : 00

11 : 00

made continuously until the recording is canceled or the tape reaches the end.

rewinding mechanism does not function. setting in program confirm mode.

USING THE REAL TIME TAPE COUNTER

The On-Screen Real Time Tape Counter shows the tape running time in Hours, Minutes and Seconds. You can easily determine how long the tape has been running or how much time is left on the tape.

TO VIEW THE COUNTER DISPLAY

1 Press the DISPLAY button. 2 Press the COUNTER RESET

button to set the counter to “00:00:00”.

3 Begin Playback or Recording to

start the tape, the counter will display the elapsed time.

4 When you wish to make the

counter disappear, press the DISPLAY button once again.

NOTES: • If you rewind the tape from “00:00:00”, a minus

sign (“–”) will be displayed in front of the time.

• When you load a tape, the counter will reset to “00:00:00”.

• The counter does not function on nonrecorded (blank) sections of the tape. When you rewind, fast forward or play tapes through blank sections, the counter stops.

USING ZERO SEARCH

The zero search function provides a convenient method of rapidly returning to the starting point of recording or playback. The starting point can be

--- -

indexed for any location on the tape by pressing the COUNTER RESET button and ZERO SEARCH button.

1 Press the DISPLAY button.

〉

2 Before playback or recording,

press the COUNTER RESET button to set the counter to “00:00:00”.

3 Begin playback or recording. 4 Press the STOP button.

5 Press the ZERO SEARCH

button. The tape will rewind and automatically stop at the “00:00:00” position.

8:40AM THU

9:00AM THU

8:40AM THU

9:00AM THU

CH 012

00:00:00

CH 012

00:30:00 SP

CH 012

00:30:50

CH 012

00:20:00 SP

CH 012

00:00:00 SP

Page 24

DUPLICATING A VIDEO TAPE

If you connect the TV/VCR to another VCR or Camcorder, you can duplicate a previously recorded tape. Make all connections before turning on the power.

1 Insert a blank cassette with the erase prevention tab

intact into the TV/VCR. Insert a previously recorded cassette into the playback VCR or Camcorder.

2 Press the INPUT button twice to

select AUDIO/VIDEO input position. The "LINE 2" will appear on the screen.

NOTE: You can also use the rear AUDIO/VIDEO

LINE1 Jacks. Select "LINE 1" by pressing the INPUT button.

LINE 2

3 Press the REC/OTR button on the remote control of

the TV/VCR, then press the PAUSE/STILL button.

4 Press the PLAY button on the playback VCR, then

press the PAUSE/STILL button.

5 Press the PAUSE/STILL buttons on both units

simultaneously to begin the duplicating process.

NOTES: • It is recommended that the tape speed be set

to the SP mode on the TV/VCR for best result.

• Unauthorized recording of copyrighted television programs, films, video cassettes and other materials may infringe the rights of copyright owners and be contrary to copyright laws.

CONNECTION TO ANOTHER VCR

Recording TV/VCR

Playback VCR

To VIDEO

OUT

To AUDIO OUT

Audio/Video Cord (not supplied)

To Video In

To Audio In

CONNECTION TO CAMCORDER

For duplicating a previously recorded tape from a camcorder, follow the camcorder manufacturer’s instructions. A typical camcorder dubbing hookup is shown below.

Recording TV/VCR

Playback Camcorder

To AV Jack

To Video/Audio In

Audio/Video Cord (not supplied)

Page 25

RECEPTION DISTURBANCES

Most types of television interference can be remedied by adjusting the height and position of the VHF/UHF antenna. Outdoor antennas are recommended for best results. The most common types of television interference are shown below. If one of these symptoms appear when the TV/VCR is connected to a Cable TV system, the disturbance may be caused by the local Cable TV company broadcast.

IGNITION

Black spots or horizontal streaks may appear, the picture may flutter or drift. Usually caused by interference from automobile ignition systems, neon lamps or AC powered tools and appliances such as drills or hair dryers.

GHOSTS

Ghosts are caused by the television signal following two paths. One is the direct path and the other is reflected by tall buildings, hills or other large objects. Changing the direction or position of the antenna may improve the reception.

CARE AND MAINTENANCE

To prevent fire or shock hazard, disconnect the TV/VCR from the AC power sources before cleaning. The finish on the cabinet may be cleaned with mild soap and a soft, damp cloth and cared for as other furniture. Use caution when cleaning or wiping the plastic parts.

VIDEO HEAD CLEANING

VIDEO HEAD CLOGGING

The video heads are the means by which the TV/VCR reads the picture from the tape during playback. In the unlikely event that the heads become dirty enough to be clogged, no picture will be played back. This can easily be determined if, during playback of a known good tape, there is good sound, but no picture (picture is extremely snowy). If the heads require cleaning use a high quality head cleaning system or have them cleaned professionally.

SNOW

If the TV/VCR is located far from the TV station, in a fringe reception area where the signal is weak, small dots may appear in the picture. If the signal is extremely weak, the installation of a larger external antenna may be necessary.

RADIO FREQUENCY INTERFERENCE (RFI)

Caused by two-way radios, this type of interference produces moving ripples or diagonal streaks in the picture. Some cases may cause a loss of contrast in the picture. Changing the direction and position of the antenna or installing an RFI filter may improve the picture.

PICTURE SIZE VARIATION

A slight picture size variation is normal when you adjust the CONTRAST or BRIGHTNESS settings.

Good Picture Snowy Picture

VIDEO HEAD CLEANING

Video head cleaning is needed when the playback picture becomes unclear. This signifies that the heads are getting dirty and can occur when playing poor quality or damaged tapes. If the heads require cleaning use a high quality head cleaning system or have them cleaned professionally. If playing a head cleaning tape in the VCR once does not improve the picture, play it several times before requesting service.

DO NOT ATTEMPT TO CLEAN THE VIDEO HEADS OR SERVICE THE UNIT BY REMOVING THE TOP COVER.

NOTES: • Video heads may eventually wear out and

should be replaced when they fail to produce clear pictures.

• To help prevent video head clogging, use only good quality VHS tapes. Discard worn out tapes.

Page 26

TROUBLESHOOTING GUIDE

Check the following chart before requesting service.

SYMPTOM CAUSE POSSIBLE SOLUTION PAGE

POWER

The AC power cord is not connected.

No power.

Although the power is on, the TV/VCR does not operate.

TV BROADCAST RECEPTION

Poor or no picture.

Poor or no color.

Picture wobbles or drifts.

No CATV reception.

No reception above channel 13.

Poor or no sound.

The DC car cord is not plugged into the cigarette lighter socket.

The DC car cord fuse is blown. Cassette is not inserted. PROG TIMER button is depressed. Moisture condenses on the video

heads.

TV station experiencing problems. Picture control is not adjusted. Possible local interference.

Antenna (CATV) connector is not connected or possible localinterference.

TV station experiencing problems. Picture control is not adjusted. Possible local interference.

Antenna (CATV) connector is not connected or possible local interference.

TV station experiencing problems. Antenna (CATV) connector is not

connected or possible local interference.

Cable TV channel is scrambled. CATV connector is not connected. TV/CATV Mode menu option is set to

the TV mode. Cable TV service interrupted. TV/CATV Mode menu option is not

set to the appropriate mode. UHF antenna is not connected. TV station experiencing problems. Antenna (CATV) connector is not

connected or possible local interference.

Possible local interference.

MUTE button is depressed.

Connect the AC power cord to the AC outlet.

Connect the DC car cord to the cigarette lighter socket.

Replace fuse. Insert a video cassette. Press the PROG TIMER button. "DEW" appears on the screen. Wait

two or three hours until it goes off.

Try another channel. Check picture control adjustments. Check for source of reception

disturbance. Check CATV connection or VHF/

UHF antenna, reposition or rotate antenna.

Try another channel. Check picture control adjustments. Check for source of reception

disturbance. Check CATV connection or VHF/

UHF antenna, reposition or rotate antenna.

Try another channel. Check CATV connection or VHF/

UHF antenna, reposition or rotate antenna.

Try another channel. Check all CATV connections. Set the TV/CATV Menu option to

the CATV mode. Contact your Cable TV company. Make sure TV/CATV menu option is

in the appropriate mode. Check UHF antenna. Try another channel. Check CATV connection or VHF/

UHF antenna, reposition or rotate antenna.

Check for source of reception disturbance.

Check that MUTE button has not been pressed.

10 11

20 22

14 19

11,12

14 19

11,12

14 12

16 12 16 11

11, 12

Page 27

SYMPTOM CAUSE POSSIBLE SOLUTION PAGE

TV shuts off.

Closed caption is not activated.

RECORDING

TV recording does not work.

Timer recording does not work.

PLAYBACK

Noise bars appear on the screen.

REMOTE CONTROL

Remote control does not operate.

TV station stopped broadcasting. Sleep timer is set. TV station experiencing problems or

program tuned is not closed caption. TV signal is weak.

The CC button is not depressed.

The video cassette's erase prevention tab is broken off.

The time is not set correctly. The recording start/end time is not

set correctly.

The PROG TIMER button has not been pressed (The PROG TIMER indicator is not lit).

Tape is old or worn. Tracking adjustment is beyond range

of automatic tracking circuit.

Video heads are dirty.

The remote control is not aimed at the sensor.

Distance is too far or too much light in the room.

There is an obstacle in the path of the beam.

The batteries are weak. The batteries are not inserted

correctly.

Tune new channel. Set Sleep Timer to "0". Try another channel.

Check CATV connection of VHF/ UHF antenna, reposition or rotate antenna.

Press the CC button to turn on the closed caption.

Place a piece of vinyl tape over the hole.

Reset the present time. Reset the start/end time.

Press the PROG TIMER button (The PROG TIMER indicator is lit).

Replace the tape. Adjust tracking manually using the

SET/TRACKING + or – buttons on the remote control.

Clean the video heads.

Aim the remote control at the remote sensor.

Operate within 15 feet or reduce the light of the room.

Clear the path of the beam.

Replace the batteries. Insert correctly.

14 15

11,12

20 14 22

—

10 10

If you cannot resolve the problem, please call the Customer Satisfaction Center for product assistance at 1-800-211-PANA(7262). To locate an authorized servicenter call toll free 1-800-211-PANA(7262) or send e-mail to : consumerproducts@panasonic.com.

Page 28

SPECIFICATIONS

TELEVISION

Picture Tube: 9" (measured diagonally) Tuner Type: Quartz PLL Frequency Synthesized Receiving Channels: VHF 2-13

Antenna Input: VHF/UHF In 75 ohms coaxial Speaker: 3", 8 ohm x 1 Audio Output Power: 1.2W

VCR

Video System: VHS, 2 Rotary Heads Helical Scanning System. Video Signal: NTSC Color Cassette Tape: VHS Audio Track: 1 Track Maximum Recording Time: SP: 120 minutes with T-120 Cassette

FF/REW Time: FF: Approx. 4 minutes 50 seconds at 25 °C (77 °F)

Speed Search: SP 3 & 5 x Normal Speed

GENERAL

Power Source: AC 120V 60Hz

Power Consumption: Operation: 48 Watts (AC 120V, DC 12V)

Weight: 8.8 kg (19.4 lbs.) Dimensions: 278 mm x 311.5 mm x 312.5 mm (WxHxD) (10-15/16"x12-1/4"x12-5/16") Inputs/Outputs: Video: IN (RCA) 1V p-p/75 ohm

Storage Temperature: –20°C to 60°C (–4°F to 140°F) Operating Temperature: 5°C to 40°C (41°F to 104°F) Remote Control: Infrared, Direct Access, 2 x AAA batteries

UHF 14-69 CATV 14-36 (A)-(W)

37-59 (AA)-(WW) 60-85 (AAA)-(ZZZ) 86-94 (86)-(94) 95-99 (A-5)-(A-1) 100-125 (100)-(125) 01 (5A)

SLP: 360 minutes with T-120 Cassette

REW: Approx. 2 minutes 30 seconds at 25 °C (77 °F) (T-120 Cassette)

LP 7 & 9 x Normal Speed SLP 9 & 15 x Normal Speed

DC 12V

Stand by: 3 Watts (AC 120V), 2 Watts (DC 12V)

OUT (RCA) 1Vp-p/75 ohm

Audio: IN (RCA) –8 dBm/50K ohm

OUT (RCA) –8 dBm/1K ohm

Accessories: Remote Control

Specifications are subject to change without notice.

Batteries 2 “AAA” T elescopic Antenna 12V DC Car Cord

Page 29

INDEX OF CONTROLS

Remote Control Button

See pages 13, 14, 20

POWER

CLOSED CAPTION

See page 15

SLEEP

See page 15

EJECT

See page 20

INPUT

See page 24

See pages 12~14, 16~19, 21,22

VOLUME +/–

See pages 14, 15

MUTE

See page 15

PLAY

See pages 20, 21

REW

See pages 20, 21

STOP

See pages 20, 21

COUNTER RESET

See page 23

ZERO SEARCH

See page 23

REC/OTR

See pages 21, 22, 24

SPEED

See pages 21, 22

POWER

123

456

SLEEP

789

INPUT R-TUNE

EJECT

SET/TRACKING

MENU CANCEL

VOL

–

MUTE DISPLAY

REW PLAY

COUNTER

RESET

REC/OTR SPEED

ENTER

PAUSE/STILL

STOP

ZERO SEARCH

PROGRAM

+–

CM SKIP

TRACKING

AUTO

PROG TIMER

VOL

DIRECT CHANNEL SELECTION

See pages 14, 17, 18, 21, 22

RAPID TUNE

See page 15

SET +/– TRACKING +/–

See pages 12~14, 16~19, 21~23

CANCEL

See pages 18, 19, 22, 23

ENTER

See pages 12~14, 16~19, 21~23

CHANNEL C/D

See pages 15, 21, 22

DISPLAY

See pages 15, 23

See pages 20, 21

PAUSE/STILL

See pages 21, 24

TRACKING AUTO

See page 20

CM SKIP

See page 21

PROG TIMER

See page 22

PROGRAM

See pages 19, 23

Page 30

INDEX OF CONTROLS

Front

Cassette Loading Slot

VOLUME +/–

See pages 14, 15

POWER

See pages 13, 14, 20

Remote Sensor

See page 10

CHANNEL C/D

See pages

15, 21, 22

Rear

REC

See pages

21, 22, 24

STOP/

EJECT

See pages

20, 21

PLAY

See pages

20, 21

REWIND/

See pages

20, 21

POWER Indicator

Light when the power is turned on.

PROG TIMER Indicator

Lights when the unit is in the Timer Record Mode.

REC Indicator

Lights when the TV/VCR is recording.

PHONES Jacks

See page 15

Audio/Video In Jacks

See page 24

FIRST

FORWARD/

See pages

20, 21

VHF/UHF Antenna Jack

Connect the 75 ohm

coaxial cable from the

antenna or Cable TV

service to this jack.

Audio/Video Out Jacks

Used to output audio and

video signals to a TV,

amplifier or VCR.

DC Input Jack

Connect the 12V DC car cord (supplied) here for DC operation.

Audio/Video In Jacks

Audio and video signal cables from an external source can be connected here.

UHF/ VHF

VIDEO

AUDIO

LINE1OUT

AC Power Cord

Connect to a 120V, 60Hz outlet.

Page 31

SPANISH QUICK USE GUIDE (GUÍA PARA RÁPIDA CONSULTA)

CONEXIONES DE LA ANTENA

Antena combinada de VHF/UHF (Cable único de 75 ohmios o cable con doble conductor de 300 ohmios)

Conecte el cable de 75 ohmios de la antena combinada de VHF/UHF en el jack de la antena. Si su antena combinada de VHF/UHF posee un cable de dos conductores de 300 ohmios, es posible que sea necesario utilizar un transformador de adaptación de 300-75 ohmios.

Jack de antena Jack de antena

Cable

coaxial de

75 ohmios

UHF/ VHF

Transformador de adaptacion de 300-75 ohmios

UHF/

VHF

Antena combinada de VHF/UHF (Cables de 300 ohmios independientes de dos conductores de VHF y de UHF)

Conecte el cable de dos conductores de 300 ohmios de UHF en el combinador (no suministrado). Conecte el cable de dos conductores de 300 ohmios de VHF en el transformador de adaptación de 300-75 ohmios. Conecte el transformador al combinador, y luego conecte el combinador al jack de la antena.

Jack de antena

UHF/ VHF

Combinador

UHF 300 ohmios

Transformador de adaptacion de 300-75 ohmios

VHF 300 ohmios

Antenas independientes de VHF/UHF (cable de VHF de 75 ohmios y cables de dos conductores UHF de 300 ohmios)

Conecte el cable de 75 ohmios de VHF y el cable de dos conductores de 300 ohmios de UHF al combinador (no suministrado). Conecte el combinador en el jack de la antena.

Jack de antena

CONEXIONES DE TV CABLE

Para abonados al servicio basico de TV cable

Para el servicio básico de cable y cuando no es necesario un convertidor/caja decodificadora, conecte el cable coaxial de 75 ohmios de CATV al jack de la antena en la parte trasera del TV/VCR.

Jack de antena

Cable coaxial de 75 ohmios

ANT

UHF/

VHF

Para abonados al servicio codificado de TV cable

Si usted es abonado a un servicio de TV cable que requiere el uso de un convertidor/caja decodificadora, conecte el cable coaxial entrante de 75 ohmios al convertidor/caja decodificadora. Utilizando otro cable coaxial de 75 ohmios conecte el jack de salida del convertidor/caja decodificadora al jack de la antena del TV/VCR. Vea las conexiones mostradas abajo. Sintonice el TV/VCR al canal de salida del convertidor/ caja decodificadora (generalmente canal 3 ó 4), y utilice el convertidor/caja decodificadora para seleccionar los canales.

Cable entrante de 75 ohmios de CATV

Convertidor/Decodificador

Cable de 75 ohmios el TV/VCR

Jack de antena

UHF/

VHF

Combinador

UHF 300 ohmios

VHF 75 ohmios

Page 32

SPANISH QUICK USE GUIDE (GUÍA PARA RÁPIDA CONSULTA)

SELECCION DE IDIOMA EN PANTALLA

Presione el botón MENU. Presione el botón SET/TRACKING + ó – para seleccionar la opción SYSTEM SETUP, luego presione el botón ENTER.

2 Presione el botón SET/TRACK-

ING + ó – para seleccionar el modo LANGUAGE, luego presione el botón ENTER.

3 Presione el botón SET/TRACK-

ING + ó – para seleccionar el idioma deseada: inglés (ENGLISH), español (ESPAÑOL) o francés (FRANCAIS), luego presione el botón ENTER.

M E N U TIMER REC SET TV SETUP CH SETUP AUTO REPEAT ON OFF SYSTEM SETUP

+/–/ENTER/MENU

LANGUAGE/IDIOMA/LANGUE

〈

+/–/ENTER/MENU

SYSTEM SETUP CLOCK SET LANGUAGE/IDIOMA/LANGUE AUTO CLOCK ON OFF STANDARD TIME DAYLIGHT SAVING TIME

ENGLISH ESPAÑOL FRANCAIS

〉

4 Presione el botón MENU para

volver a la imagen normal de TV .

AJUSTE DE RELOJ AUTOMATICO

1 Connecte la antena o sistema de cable.

Si utiliza una caja de cable, enciéndala.

•

2 Enchufe el cable eléctrico de CA a un tomacorriente CA. 3 Compruebe que el TV/VCR está apagado.

Si presiona el botón POWER, el ajuste automático no

•

se activará

4 Espere por lo menos tres minutos y presione el botón

POWER.

5 Presione el botón DISPLAY para verificar el reloj en la

pantalla.

6 Si el reloj no ha quedado ajustado, verifique el estado

de la antena. El reloj automático no funciona en el estado de recepción.

REAJUSTE DEL RELOJ AUTOMATICO

El reajuste del reloj automático se hará a las 12:00 PM todos los días si el TV/VCR está desconectado.

Si utiliza una caja de cable y desea hacer el ajuste del

•

reloj automático, debe dejar encendida la caja de cable. El ajuste de reloj automático no es efectivo cuando hay

•

una diferencia de más de 5 minutos entre la hora del reloj integrado y la hora real.

AJUSTE DE RELOJ MANUAL

EJEMPLO: Ajuste del reloj amiércoles, 8:30 am el día

29 (MIE) de octubre, 2003.

1 Presione el botón MENU.

Presione el botón SET/TRACK ING + ó – para seleccionar la opción SYSTEM SETUP, luego presione el botón ENTER.

2 Presione el botón SET/TRACK

ING + ó – para seleccionar la opción CLOCK SET, luego presione el botón ENTER.

3 Presione el botón SET/TRACK

ING + ó – para ajustar el mes y presione el botón ENTER.

4 Ajuste el día, año y hora como

en el paso 3.

Después de ajustar el reloj, hora y fecha, la hora empieza a funcionar automáticamente.

M E N U TIMER REC SET TV SETUP CH SETUP AUTO REPEAT ON OFF SYSTEM SETUP

+/–/ENTER/MENU

CLOCK SET

+/–/ENTER/CANCEL/MENU

CLOCK SET

+/–/ENTER/CANCEL/MENU

SYSTEM SETUP CLOCK SET LANGUAGE/IDIOMA/LANGUE AUTO CLOCK ON OFF STANDARD TIME DAYLIGHT SAVING TIME

MONTH

DAY

1 (WED)

YEAR

2003

TIME

12 : 00 AM

MONTH

DAY

29 (WED)

YEAR

2003

TIME

8 : 30 AM

8 : 30 AM WED

OPERACION DEL TV

1 Para encender el TV/VCR, presione el botón POWER. 2 Ajuste el nivel de volumen

presionando el botón + ó – de VOL. El nivel de volumen será indicado en la pantalla por medio de barras verdes y una indicación de número. A medida que el volumen aumenta, se incrementan el número de barras y la indicación de número. Si se reduce el volumen, el número de barras verdes y la indicación de número decrecen.

3 Ajuste el modo TV/CATV a la posición apropiada. (Vea

página 33.)

TV - Canales de VHF/UHF CATV - Canales de TV CABLE

4 Presione el botón de selección directa de canal.

VOLUME 32

Page 33

SELECCION DE TV/CATV

1 Presione el botón MENU. 2 Presione el botón SET/TRACK

ING + ó – para seleccionar el modo CH SETUP , a continuación presione el botón ENTER.

VHF/UHF/CATV CANALES

VHF 2-13

UHF

14-69

STD/HRC/IRC

14-36 (A) (W)

37-59 (AA) (WW)

60-85 (AAA) (ZZZ)

86-94 (86) (94)

95-99 (A-5) (A-1)

100-125 (100)(125)

3 Presione el botón SET/

TRACKING + ó – para seleccionar el modo TV/CATV.

4 Presione el botón ENTER para

seleccionar el modo TV ó CATV. La flecha indica el modo seleccionado.

TV - Canales de VHF/UHF CATV - Canales de TV CABLE

5 Presione el botón MENU hasta que se borre la pantalla

MENU.

M E N U TIMER REC SET TV SETUP CH SETUP AUTO REPEAT ON OFF SYSTEM SETUP

+/–/ENTER/MENU

CATV

VHF 2-13

01 (5A)

+/–/ENTER/MENU

CH SETUP TV CATV AUTO CH MEMORY ADD/DELETE

SINTONIZACION DE MEMORIA AUTOMATICA DE CANAL

1 Presione el botón MENU. 2 Presione el botón SET/

TRACKING + ó – para CH SETUP, a continuación presione el botón ENTER.

3 Presione el botón SET/

TRACKING + ó – para seleccionar el modo AUTO CH MEMORY, a continuación presione el botón ENTER. El TV comenzará a memorizar todos los canales disponibles en su área. Los números de canal permanecerán en rojo hasta que se complete la memorización automática.

4 Presione el botón MENU hasta que se borre la

pantalla MENU.

M E N U TIMER REC SET TV SETUP CH SETUP AUTO REPEAT ON OFF SYSTEM SETUP

+/–/ENTER/MENU

CH SETUP TV CATV AUTO CH MEMORY ADD/DELETE

COLOCACION

Presione en el centro del videocassette hasta que se retraiga automáticamente.

ENCENDIDO Y REPRODUCCION AUTOMATICA

Cuando se carga un videocassette desprovisto de su lengüeta de protección contra borrados accidentales, el TV/VCR se encenderá automaticamente y la reproducción comenzará inmediatamente. Inserte el cassette con el lado de la etiqueta de cara hacia usted. El videocassette no puede ser insertado al revés.

EXTRACCION

Para extraer un cassette de la unidad, presione el botón de EJECT del control remoto o presione dos veces el botón STOP/EJECT del TV/VCR. La primera pulsación del botón detendrá la cinta durante cualquier modo de operación. La segunda pulsación expulsará la cinta.

INICIO DE LA REPRODUCCION

Coloque una cinta grabada. (Cuando coloca el cassette de cinta sin la lengüeta para grabación, la reproducción se iniciará automáticamente.)

Presione el botón PLAY para iniciar la reproducción. “

” aparecerá en

la pantalla.

NOTA: Este TV/VCR selecciona automáticamente la velocidad de la cinta de reproducción SP, LP o SLP.

PARADA DE LA REPRODUCCION

Presione el botón STOP una vez. La cinta se detendrá, pero permanecerá en su lugar lista para la reproducción. “

” aparecerá en

la pantalla.

REBOBINADO O AVANCE RAPIDO DE LA CINTA

Presione el botón REW (rebobinado) o FF (avance rápido), cuando el modo de parada está activado. “

” aparecerá en la pantalla.

o “

BUSQUEDA DE IMAGEN EN AVANCE/ REBOBINADO

Si usted desea ver el programa de cinta durante el modo de REW o FF, mantenga presionado botón REW o FF. La imagen de búsqueda visual del retroceso (avance) será aparecido en la pantalla. Suéltalo para volver al modo de REW o FF.

”

Page 34

SPANISH QUICK USE GUIDE (GUÍA PARA RÁPIDA CONSULT A)

〈

+/–/ENTER/CANCEL/MENU

〉

----- --:-- --- -

----- --

23 TH

007

--:--

--- -

----- --- -

7:00PM9:30

SLP

GRABACION DE UN PROGRAMA DE TV

1 Coloque un cassette de cinta con la lengüeta de

grabación intacta.

2 Presione el botón SPEED de

velocidad de la cinta, para escoger la velocidad deseada (SP o SLP). "SP" o "SLP" aparecerá en la pantalla.

3 Ajuste la opción de TV/CATV a la posición apropiada . 4 Presione el Botones de Selección de Canales

directos ó botón CH C ó D para grabar.

seleccionar canal a

5 Presione el botón REC/OTR.

" ● " y el número de canal aparecerán en la pantalla y el indicador REC se iluminará.

PARADA DE GRABACION

Para detener la grabación presione el botón STOP. “ ■ ” aparecerá en la pantalla.

PARADA TEMPORARIA DE GRABACION

Presione el botón PAUSE/STILL para evitar grabar material indeseado. “ indicador REC destellará. Presione el botón PAUSE/ STILL o REC/OTR para cotinuar la grabacion.

” aparecerá en la pantalla y el

GRABACION POR TEMPORIZADOR DE UN SOLO TOQUE (OTR)

EJEMPLO: Una grabación por temporizador de un solo

toque para 30 minutos.

1 Presione el botón POWER para encender el TV/VCR. 2 Coloque un videocassette con la lengüeta de grabación

intacta.

3 Presione el botón selector

SPEED de velocidad de la cinta para escoger la velocidad deseada (SP o SLP). "SP" o "SLP", aparecerán en pantalla.

4 Ajuste el modo TV/CATV a la

posición apropiada.

5 Presione el Botones de Selección de Canales

directos o botón CHANNEL anterior o posterior para seleccionar canal a grabar.

6 Presione el botón REC/OTR para

comenzar la grabación. Presione el botón nuevamente para detener la grabación después de 30 minutos. Cada presión adicional de ambos botones aumenta el tiempo de grabación como se indica a

continuación, a un máximo de 6 horas. Aparece "OTR" en la pantalla.

00:00:00 SP

CH 012

00:00:00 SP

OTR 0 : 30

CH 012

GRABACION POR TEMPORIZADOR EN PANTALLA

EJEMPLO: Programe una grabación con temporizador

para el día 23, canal 007 (CATV), 7:00 - 9:30 PM (VELOCIDAD DE CINTA: SLP).

1 Presione el botón MENU. 2 Compruebe la selección de la

opción TIMER REC SET y presione el botón ENTER.

3 Presione el botón + ó – de SET/

TRACKING para seleccionar la opción de PROGRAM NO., luego presione el botón ENTER.

4 Presione el botón + ó – de SET/

TRACKING para seleccionar el día, luego presione el botón ENTER.

5 Ajuste el tiempo de partida, tiempo de término, canal

y velocidad de cinta como en paso 4.

TIMER REC SET

DATE

23 (THU)

START

7 : 00 PM

END

9 : 30 PM

007

SPEED

SLP

〈

+/–/ENTER/CANCEL/MENU

〉

6 Para programar el temporizador para otr programa,

presione el botón + ó – de SET/TRACKING hasta que parpadee el número del segundo programa, luego presione el botón ENTER. Repita los pasos de 4 a 5 para fijar el segundo programa.

7 Presione el botón PROG TIMER. Se encenderá el

indicador PROG TIMER. El temporizador queda programado y cuando llegue la hora programada, empezará automáticamente la grabación.

Para cancelar la grabación por temporizador, presione el botón otra vez y apagará el indicador PROG TIMER.

M E N U TIMER REC SET TV SETUP CH SETUP AUTO REPEAT ON OFF SYSTEM SETUP

+/–/ENTER/MENU

----- --

----- --:-- --- -

----- --

----- --- -

〈

+/–/ENTER/CANCEL/MENU

TIMER REC SET

+/–/ENTER/CANCEL/MENU

DATE START END CH SPEED

-- --- ---:--

23 (THU) 8 : 30 AM

012 SP

--- -

-- : --

〉

Page 35

MEMO

○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○

Page 36

Limited Warranty

PANASONIC CONSUMER ELECTRONICS COMPANY, DIVISION OF MATSUSHITA ELECTRIC CORPORATION OF AMERICA One Panasonic Way Secaucus, New Jersey 07094

PANASONIC SALES COMPANY, DIVISION OF MATSUSHITA ELECTRIC OF PUERTO RICO, INC., AVE. 65 de Infantería, Km. 9.5 San Gabriel Industrial Park, Carolina, Puerto Rico 00985

Panasonic/Quasar Video Products

Limited Warranty

Limited Warranty Coverage

If your product does not work properly because of a defect in materials or workmanship, Panasonic Consumer Electronics Company or Panasonic Sales Company (collectively referred to as “the warrantor”) will, for the length of the period indicated on the chart below, which starts with the date of original purchase (“warranty period”), at its option either (a) repair your product with new or refurbished parts, or (b) replace it with a new or a refurbished product. The decision to repair or replace will be made by the warrantor.

Product

Camcorder

DVD/VCR Deck, A/V Mixer

TV/VCR, TV/DVD, TV/DVD/VCR Combination

TV/HDR Combination

Rechargeable Batteries (in exchange for defective item)

Tape (in exchange for defective item)

Memory Cards (in exchange for defective item)

During the “Labor” warranty period there will be no charge for labor. During the “Parts” warranty period, there will be no charge for parts. You must carry-in or mail-in your product or arrange for in-home service, as applicable, during the warranty period. If non-rechargeable batteries are included, they are not warranted. This warranty only ap plies to products purchased and serviced in the United States or Puer to Rico. This warranty is extended only to the original purchaser of a new product which was not sold “as is.” A purchase receipt or other proof of the original purchase date is required for warranty service.

Carry-In, Mail-in or In-Home Service

For Carry-In, Mail-In or In-Home Service (as applicable) in the United States call toll free contact number listed above or visit Panasonic Web Site: http://www.panasonic.com For assistance in Puerto Rico call Panasonic Sales Company (787)-750-4300 or fax (787)-768-2910. In-Home service, if applicable, requires clear, complete and easy access to the product by the authorized servicer and does not include removal or re-installation of an installed product. It is possible that certain in-home repairs will not be completed in-home, but will require that the product, or parts of the product, be removed for shop diagnosis and/or repair and then re turned.

One (1) Year (except CCD Image Sensor) CCD Image Sensor - 6 (Six) Months

One (1) Year One (1) Year (except

CRT) CRT - Two (2) Years

One (1) Year (except CRT) CRT - Two (2) Years

Ten (10) Days

Five (5) Days

Ninety (90) Days

Parts

Labor

Ninety (90) Days Ninety (90) Days

Ninety (90) Days Ninety (90) Days Ninety (90) Days

Ninety (90) Days Ninety (90) Days

Not Applicable

Service

Carry-In or Mail-In

Carry-In or Mail-In Carry-In: 21” CRT

and Smaller In-Home or Carry-In: 22” CRT and Larger

In-Home or Carry-In

Carry-In or Mail-In

Contact Number

1-800-211-PANA(7262)

1-800-211-PANA(7262) 1-800-211-PANA(7262)

1-888-843-9788

1-800-211-PANA(7262)

Page 37

Limited Warranty Limits And Exclusions

This warranty ONLY COVERS failures due to defects in materials or workmanship, and DOES NOT COVER normal wear and tear or cosmetic damage, nor does it cover markings or retained images on the picture tube resulting from viewing fi xed images (including, among other things, letterbox pictures on standard 4:3 screen TV’s, or non-expanded standard 4:3 pic tures on wide screen TV’s, or onscreen data in a stationary and fi xed location). The warranty ALSO DOES NOT COVER damages which occurred in shipment, or failures which are caused by products not supplied by the warrantor, or failures which result from accidents, misuse, abuse, neglect, mishandling, misapplication, alteration, faulty installation, set-up ad just ments, misadjustment of consumer controls, improper maintenance, power line surge, lightning damage, modifi cation, or commercial use (such as in a hotel, offi ce, restaurant, or other business), rental use of the product, service by anyone other than a Factory Servicenter or other Authorized Servicer, or damage that is attributable to acts of God.

THERE ARE NO EXPRESS WARRANTIES EXCEPT AS LISTED UNDER “LIMITED WARRANTY COVERAGE.” THE WARRANTOR IS NOT LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES RESULTING FROM THE USE OF THIS PRODUCT, OR ARISING OUT OF ANY BREACH OF THIS WARRANTY . (As examples, this excludes damages for lost time, cost of having someone

remove or re-install an installed unit if applicable, or travel to and from the servicer, loss of media or images, data or other memory or recorded content. The items listed are not exclusive, but are for illustration only.)

ALL EXPRESS AND IMPLIED WARRANTIES, INCLUDING THE WARRANTY OF MERCHANTABILITY, ARE LIMITED TO THE PERIOD OF THE LIMITED WARRANTY.

Some states do not allow the exclusion or limitation of incidental or consequential damages, or limitations on how long an implied warranty lasts, so the exclusions may not apply to you. This warranty gives you specifi c legal rights and you may also have other rights which vary from state to state. If a problem with this product develops during or after the warranty period, you may contact your dealer or Servicenter. If the problem is not handled to your satisfaction, then write to the warrantor’s Consumer Affairs Department at the addresses listed for the warrantor.

PARTS AND SERVICE (INCLUDING COST OF AN IN-HOME SERVICE CALL, WHERE APPLICABLE) WHICH ARE NOT COVERED BY THIS LIMITED WARRANTY ARE YOUR RESPONSIBILITY.

Customer Services Directory

For Product Information, Operating Assistance, Literature Request, Dealer Lo ca tions, and all Customer Service inquiries please contact: 1-800-211-PANA (7262), Monday-Friday 9 am-9 pm; Saturday-Sunday 10 am-7 pm, EST. or send e-mail : consumerproducts@panasonic.com For hearing or speech impaired TTY users, TTY : 1-877-833-8855

Web Site: http://www.panasonic.com You can purchase parts, accessories or locate your nearest servicenter by vis it ing our Web Site.

Accessory Purchases:

1-800-332-5368 (Customer Orders Only) For hearing or speech impaired TTY users, TTY : 1-866-605-1277 Panasonic Services Company 20421 84th Avenue South, Kent, WA 98032 (Monday-Friday 6 am-5 pm; Saturday 6 am-10:30 am, PST) (Visa, MasterCard, Discover Card, American Express, Check)

Service in Puerto Rico

Matsushita Electric of Puerto Rico, Inc. Panasonic Sales Company/ Factory

Servicenter:

Ave. 65 de Infantería, Km. 9.5, San Gabriel Industrial Park,

Carolina, Puerto Rico 00985

Phone (787)750-4300 Fax (787)768-2910

As of August 2002

Page 38

INDEX

Accessories......................................................... 7

Add/Delete Channels ........................................ 17

Antenna Connections........................................ 11

Auto Clock Setting.............................................13

Auto Repeat ...................................................... 21

Auto Rewind...................................................... 21

Automatic Eject ................................................. 20

Automatic Memory Tuning .................................16

Automatic Power On and Play...........................20

Battery Installation ............................................ 10

Battery Precautions........................................... 10

Cable TV Connections ...................................... 12

Change Password............................................. 18

Channel C/D ..................................................... 15

Closed Caption..................................................15

CM Skip.............................................................21

Counter Reset ...................................................23

Customer Service Directory .............................. 37

Daylight Saving Time ........................................13

Digital T r acking Controls....................................20

Display ..............................................................15

Duplicating a Video Tape...................................24

Erase Prevention Tab ........................................20

Features ..............................................................6

Forward .............................................................20

Important Safeguards ......................................... 2

Index of Controls ..........................................29-30

Install the TV/VCR in Your Car ............................ 5

Language .......................................................... 12

Limited Warranty ...............................................36

Loading .............................................................20

Location of Controls ............................................ 8

Manual Clock Setting ........................................ 14

Memorize Channels .......................................... 16

Moisture Condensation ....................................... 5

Movie Rating ..................................................... 17

Mute .................................................................. 15

Off Timer ...........................................................19

On Timer ...........................................................18

One-touch Timer Recording (OTR) ...................22

Password...........................................................17

Phones ..............................................................15

Picture Control Adjustment ...............................19

Playback............................................................20

Power Sources.................................................. 10

Real Time T ape Counter....................................23

Reception Disturbances ....................................25

Recording a TV Program................................... 21

Remote Control ...................................................9

Replacing the Fuse ........................................... 11

Rewind .............................................................. 20

R-Tune...............................................................15

Safety Precautions ..............................................5

Setting the Language ........................................12

Setting the V-chip ..............................................17

Sleep .................................................................15

Spanish Quick Use Guide .................................31

Specifications ....................................................28

Page 39

Speed Search ...................................................21

Standard Time...................................................13

Still Picture ........................................................21

Stop................................................................... 20

Timer Recording................................................22

Tracking Control ................................................20

Troubleshooting Guide ......................................26

TV Operation..................................................... 14

TV Rating ..........................................................17

TV/CATV selection ............................................16

Video Head Cleaning ........................................ 25

Visually Search .................................................21

Volume ..............................................................14

V-Chip ...............................................................17

Zero Search ......................................................23

Page 40

Panasonic Consumer Electronics Company, Division of Matsushita Electric Corporation of America

One Panasonic Way Secaucus, New Jersey 07094

Panasonic Sales Company (“PSC”), Division of Matsushita Electric of Puerto Rico, Inc.

Ave. 65 de Infanteria. Km. 9.5 San Gabriel Industrial Park, Carolina, Puerto Rico 00985 Printed in Thailand

J5B02301A 03/04

Panasonic PV C923 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

IMPORTANT SAFEGUARDS

SAFETY PRECAUTIONS

FEATURES

FEATURES TABLE OF CONTENTS

LOCATION OF CONTROLS

REMOTE CONTROL

POWER SOURCES

ANTENNA CONNECTIONS

CABLE TV CONNECTIONS

SETTING THE LANGUAGE

AUTO CLOCK SETTING

MANUAL CLOCK SETTING

TV OPERATION

TO MEMORIZE CHANNELS

SETTING THE V -CHIP

TO SET THE ON TIMER

TO SET THE OFF TIMER

PICTURE CONTROL ADJUSTMENTS

LOADING AND UNLOADING

PLAYBACK

SPECIAL PLAYBACK

RECORDING A TV PROGRAM

TIMER RECORDING

USING THE REAL TIME TAPE COUNTER

USING ZERO SEARCH

DUPLICATING A VIDEO TAPE

RECEPTION DISTURBANCES

VIDEO HEAD CLEANING

TROUBLESHOOTING GUIDE

SPECIFICATIONS

INDEX OF CONTROLS

Limited Warranty

Customer Services Directory

INDEX
