Panasonic PV-24DF62 User Manual

Download

TV / DVD Combination

Operating Instructions

Model No. PV-24DF62

Initial Setup

Basic Operation

TV Operation

Advanced Operation

• Initial Setup and Connection Procedures are on pages 10 to 11.

As an ENERGY STAR determined that this product or product model meets the guidelines for energy efficiency.

Please read these instructions carefully before attempting to connect, operate, or adjust this product. Please save this manual. Spanish Quick Use Guide is included. (Guía para rápida consulta en español está incluida.)

For assistance, please call : 1-800-211-PANA(7262) or send e-mail to : consumerproducts@panasonic.com

Partner, Matsushita Electric Corporation of America has

NERGY STAR

LSQT0501A

For Your Information

Important Safeguards and Precautions

READ AND RETAIN ALL SAFETY AND OPERATING INSTRUCTIONS. HEED ALL WARNINGS IN THE MANUAL AND ON UNIT

INSTALLATION

1 POWER SOURCE CAUTION

Operate only from power source indicated on unit or in this manual. If uncertain, have your Electric Utility Service Company or Video Products Dealer verify your home power source.

2 POWER CORD PLUG

For safety, this unit has a polarized type plug (one wide blade), or a three-wire grounding type plug. Always hold the plug firmly and make sure your hands are dry when plugging in or unplugging the AC power cord. Regularly remove dust, dirt, etc. on the plug.

POLARIZED PLUG CAUTION:

The plug fits into outlet one way. If it cannot be fully inserted, try reversing it. If it still will not fit, have an electrician install the proper wall outlet. Do not tamper with the plug.

GROUNDING PLUG CAUTION:

The plug requires a three-hole grounding outlet. If necessary, have an electrician install the proper outlet. Do not tamper with the plug.

3 POWER CORD

To avoid unit malfunction, and to protect against electrical shock, fire or personal injury:

-Keep power cord away from heating appliances and walking traffic. Do not rest heavy objects on, or roll such objects over the power cord.

-Do not tamper with the cord in any way.

-An extension cord should have the same type plug (polarized or grounding) and must be securely connected.

-Overloaded wall outlets or extension cords is a fire hazard.

-Frayed cords, damaged plugs, and damaged or cracked wire insulation are hazardous and should be replaced by a qualified electrician.

4 DO NOT BLOCK VENTILATION HOLES

Ventilation openings in the cabinet release heat generated during operation. If blocked, heat build-up may result in a fire hazard or heat damage to cassettes. For your protection: a.Never cover ventilation slots while unit is ON, or

operate unit while placed on a bed, sofa, rug, or other soft surface.

b.Avoid built-in installation, such as a book case

or rack, unless properly ventilated.

AVOID EXTREMELY HOT LOCATIONS

OR SUDDEN TEMPERATURE CHANGES

Do not place unit over or near a heater or radiator, in direct sunlight, inside closed vehicles, in high temperature [over 95°F (35°C)], or in over 75% humidity. If unit is suddenly moved from a cold place to a warm one, moisture may condense in unit and on the tape causing damage. Never subject unit to vibration, impact, or place it so that the surface is tilted as internal parts may be seriously damaged.

6 TO AVOID PERSONAL INJURY

• Never place unit on support or stand

that is not firm, level, and adequately strong. The unit could fall causing serious injury to a child or adult and damage to the unit.

• Move any appliance and cart

combination with care. Quick stops, excessive force, and uneven surfaces may cause objects to overturn.

• Carefully follow all operating instructions.

For assistance, please call : 1-800-211-PANA(7262) or send e-mail to : consumerproducts@panasonic.com

OUTDOOR ANTENNA INST ALLATION

1 SAFE ANTENNA AND CABLE CONNECTION

An outside antenna or cable system must be properly grounded to provide some protection against built up static charges and voltage. Section 810 of the National Electrical Code, ANSI/NFPA 70 (in Canada, part 1 of the Canadian Electrical Code) provides information regarding proper grounding of the mast and supporting structure, grounding of the lead-in wire to an antenna discharge unit, size of grounding conductors, location of antenna discharge unit, connection to grounding electrodes, and requirements for the grounding electrode.

2 KEEP ANTENNA CLEAR OF HIGH VOLTAGE

POWER LINES OR CIRCUITS

Locate an outside antenna system well away from pow er lines and electric light or power circuits so it will never touch these power sources should it ever fall. When installing antenna, absolutely never touch power lines, circuits or other power sources as this could be fatal.

NEC - NATIONAL

ELECTRICAL CODE

ELECTRIC SERVICE EQUIPMENT

GROUND CLAMP

ANTENNA LEAD IN WIRE

ANTENNA DISCHARGE UNIT (NEC SECTION 810-20)

GROUNDING CONDUCTORS (NEC SECTION 810-21)

GROUND CLAMPS

POWER SERVICE GROUNDING ELECTRODE SYSTEM (NEC ART 250, PART H)

USING THE UNIT

Before unit is brought out of storage or mov ed to a new location, refer again to the INSTALLATION section of these safeguards.

1 KEEP UNIT WELL AWAY FROM WATER OR

MOISTURE, such as vases, sinks, tubs, etc.

2 IF EXPOSED TO RAIN, MOISTURE, OR

STRONG IMPACT, unplug unit and have it inspected by

a qualified service technician before use.

3 ELECTRICAL STORMS

During a lightning storm, or before leaving unit unused for extended periods of time, disconnect all equipment from the power source as well as the antenna and cable system.

4 WHEN UNIT IS PLUGGED IN

• DO NOT OPERA TE IF:

- liquid has spilled into unit.

- unit was dropped or otherwise damaged.

- unit emits smoke, malodors, or noises. Immediately unplug unit, and have it inspected by a service technician to avoid potential fire and shock hazards.

• Never drop or push any object through openings in unit. T ouching internal parts may cause electric shock or fire hazard.

• Keep magnetic objects, such as speakers, away from unit to avoid electrical interference.

5 USING ACCESSORIES

Use only accessories recommended by the manufacturer to avoid risk of fire, shock, or other hazards.

6 CLEANING UNIT

Unplug unit. Use a clean, dry, chemically untreated cloth to gently remove dust or debris. DO NO T USE cleaning fluids, aerosols , or forced air that could over-spray , or seep into unit and cause electrical shock. Any substance, such as wax, adhesive tape, etc. may mar the cabinet surf ace. Exposure to greasy, humid, or dusty areas may adversely affect internal parts.

SERVICE

1 DO NOT SERVICE PRODUCT YOURSELF

If, after carefully following detailed operating instructions, the unit does not operate properly, do not attempt to open or remove cov ers, or make any adjustments not described in the manual. Unplug unit and contact a qualified service technician.

2 REPLACEMENT OF PA RTS

Make sure the service technician uses only parts specified by the manufacturer, or have equal safety characteristics as original parts. The use of unauthorized substitutes may result in fire, electric shock, or other hazards.

3 SAFETY CHECK AFTER SERVICING

After unit is serviced or repaired, request that a through safety check be done as described in the manufacturer’s service literature to insure video unit is in safe operating condition.

Safety Precautions/Mesures de sécurité

Warning : To pre vent fire or shock hazard, do not expose this equipment to rain or moisture.

Caution : T o prevent electric shoc k, match wide blade of plug to wide slot, fully insert. Avertissement : Afin de prévenir tout risque d’incendie ou de chocs électriques, ne pas

Attention : Pour éviter les chocs électriques, intr oduire la lame la plus large de la fiche dans la

FCC WARNING :Any unauthorized changes or modifications to this equipment

would void the user’ s authority to operate.

exposer cet appareil à la pluie ou à une humidité excessive.

borne correspondante de la prise et pousser jusqu’au fond.

CAUTION:

UNIT IS A CLASS I LASER PRODUCT. HOWEVER THIS UNIT USES A VISIBLE LASER BEAM WHICH COULD CAUSE HAZARDOUS RADIATION EXPOSURE IF DIRECTED. BE SURE TO OPERATE THE UNIT CORRECTLY AS INSTRUCTED.

WHEN THIS UNIT IS PLUGGED TO THE WALL OUTLET, DO NOT PLACE YOUR EYES CLOSE TO THE OPENING OF THE DISC TRAY AND OTHER OPENINGS TO LOOK INTO THE INSIDE OF THIS UNIT.

USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE.

DO NOT OPEN COVERS AND DO NOT ATTEMPT TO REPAIR THE UNIT YOURSELF. REFER SERVICING TO QUALIFIED PERSONNEL.

CAUTION:

LASER RADIATION WHEN OPEN. DO NOT STARE INTO BEAM.

ATTENTION:

RAYONNEMENT LASER EN CAS D’OUVERTURE. NE PAS REGARDER DANS LE FAISCEAU.

(Inside of product)

FCC NOTICE:

This equipment has been tested and found to comply with part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when operated in a residential environment. If this eqiupment does cause interference to radio or television reception, which can be determined by turning the equipment off and on, use the equipment in another location and/or utilize an electrical outlet different from that used by the receiver. If necessary, consult the dealer or an experienced radio/TV technician for help. You may find the booklet, 'Something About Interference' available from FCC local regional offices helpful.

This product utilizes both a Cathode Ray Tube (CRT) and other components that contain lead. Disposal of these materials may be regulated in your community due to environmental considerations. For disposal or recycling information please contact your local authorities, or the Electronics Industries Alliance: <http://

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION: TO REDUCE THE RISK

OF ELECTRIC SHOCK, DO NOT

REMOVE COVER (OR BACK)

NO USER-SERVICEABLE PARTS

INSIDE REFER SERVICING TO

QUALIFIED SERVICE PERSONNEL

www.eiae.org.>

This symbol warns the user that uninsulated voltage within the unit may have sufficient magnitude to cause electric shock. Therefore, it is dangerous to make any kind of contact with any inside part of this unit.

This symbol alerts the user that important literature concer ning the operation and maintenance of this unit has been included. Therefore, it should be read carefully in order to avoid any problems.

Region Management Information

Region Management Information: This unit is designed and manufactured to respond to the Region Management Information that is recorded on a DVD disc. If the Region number described on the DVD disc does not correspond to the Region number of this unit, this unit cannot play this disc.

The Region number for this unit is 1.

Before Using

Congratulations

on your purchase of one of the most sophisticated and reliable products on the market today. Used properly, it will bring you and your family years of enjoyment. Please fill in the information below. The serial number is on the tag located on the back of your unit.

Date of Purchase Dealer Purchased From Dealer Address Dealer Phone No. Model No. Serial No.

Accessories

OPEN/CLOSE

LIGHT

DSS

D V DTV

CABLE

ADD/DLT

SUB TITLE

ANGLE

AUDIO

DISPLAY

TITLE MENU

S E T

ACTION RETURN

PLAY

SKIP

ZOOM

STOP

PAUSE

SLOW/SEARCH

Remote Control LSSQ0321

Batteries 2 “AA”

CLEAR

ENTER

To order accessories, call toll free 1-800-332-5368.

Features for a Quality Picture

PureFlatTM Picture Tube

This unit is equipped with PureFlatTM Picture Tube.

Disc Handling

Handling precautions

• Only hold disc by edges as shown. Fingerprints, dirt, and scratches can cause skipping and distortion.

• Do not write on label side of disc.

• Never use record cleaning sprays, benzine, thinner, static electricity prevention liquids, or any other solvent.

• Be careful not to drop or bend disc.

• Do not place more than 1 disc on disc tray.

• Do not try to close disc tray when disc is not properly placed.

• Always store discs in their proper cases when not in use.

T o clean disc surface

With a soft, damp (water only) cloth, gently wipe from the center hole to the outer edge as shown below. (Wiping in a circular pattern will scratch the surface.)

Disc tray

Disc

Loading the Batteries

If disc is brought from a cold to a warm environment, moisture may form on the disc

Wipe away moisture with a soft, dry, lint-free cloth before using disc. (See above.)

Improper disc storage

Battery replacement caution

• Do not mix old and new batteries.

• Do not mix alkaline with manganese batteries.

For assistance, please call : 1-800-211-PANA(7262) or send e-mail to : consumerproducts@panasonic.com

Discs could be damaged if stored or left in areas:

• exposed to direct sunlight.

• that are humid or dusty.

• near heat (i.e. heater, radiator, etc.).

Initial Setup

DVD Operation

Important Safeguards and Precautions/Safety Precautions ......... 2 ~ 3

Before Using ........................................................................................ 4

Information..................................................................................... 6 ~ 7

Location of Controls ...................................................................... 8 ~ 9

Basic Connections & Initial Setup ............................................... 10, 11

Reset Language, Channels, Clock, Time Zone Adjust............... 12, 13

Audio Connections ...................................................................... 14, 15

Initial Setup

DVD Operation

DVD

Basic DVD Operation .................................................................. 16, 17

TV Operation

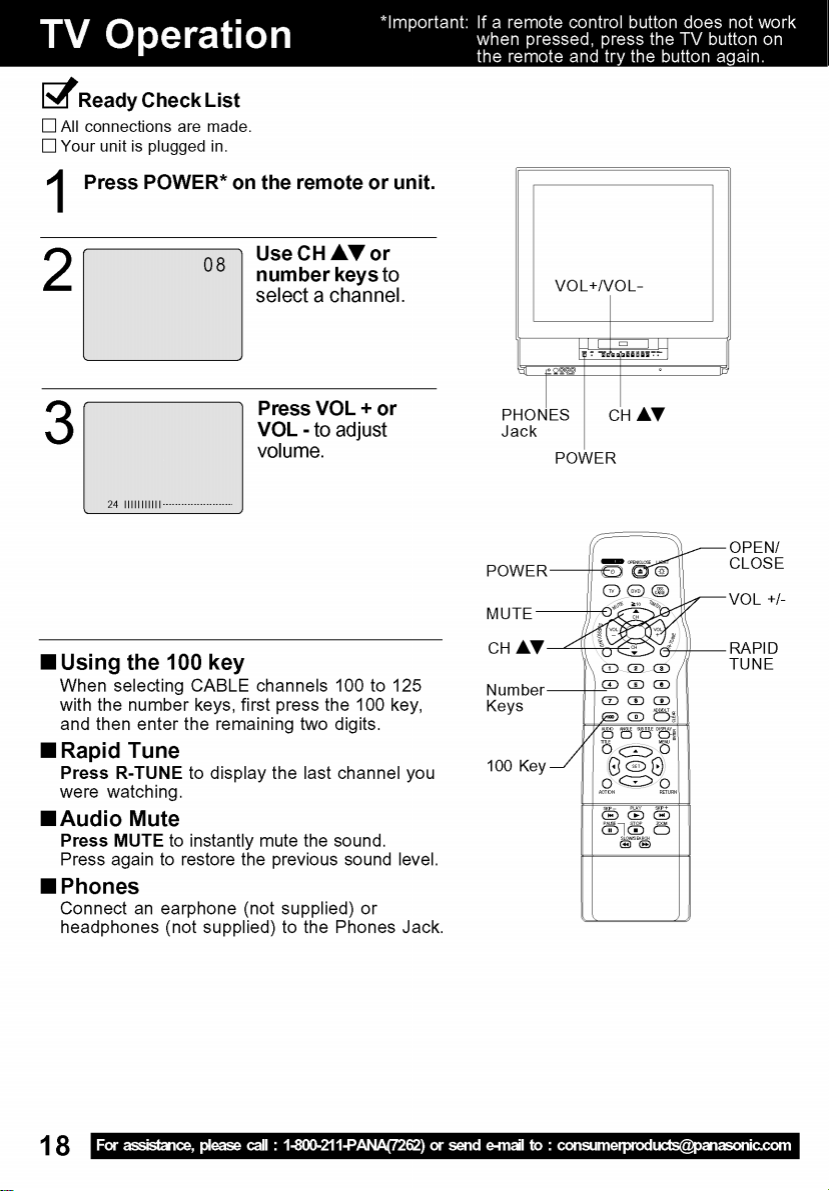

TV Operation ..................................................................................... 18

MTS Broadcast/TV Stereo System .................................................... 19

Closed Caption System ............................................................... 20, 21

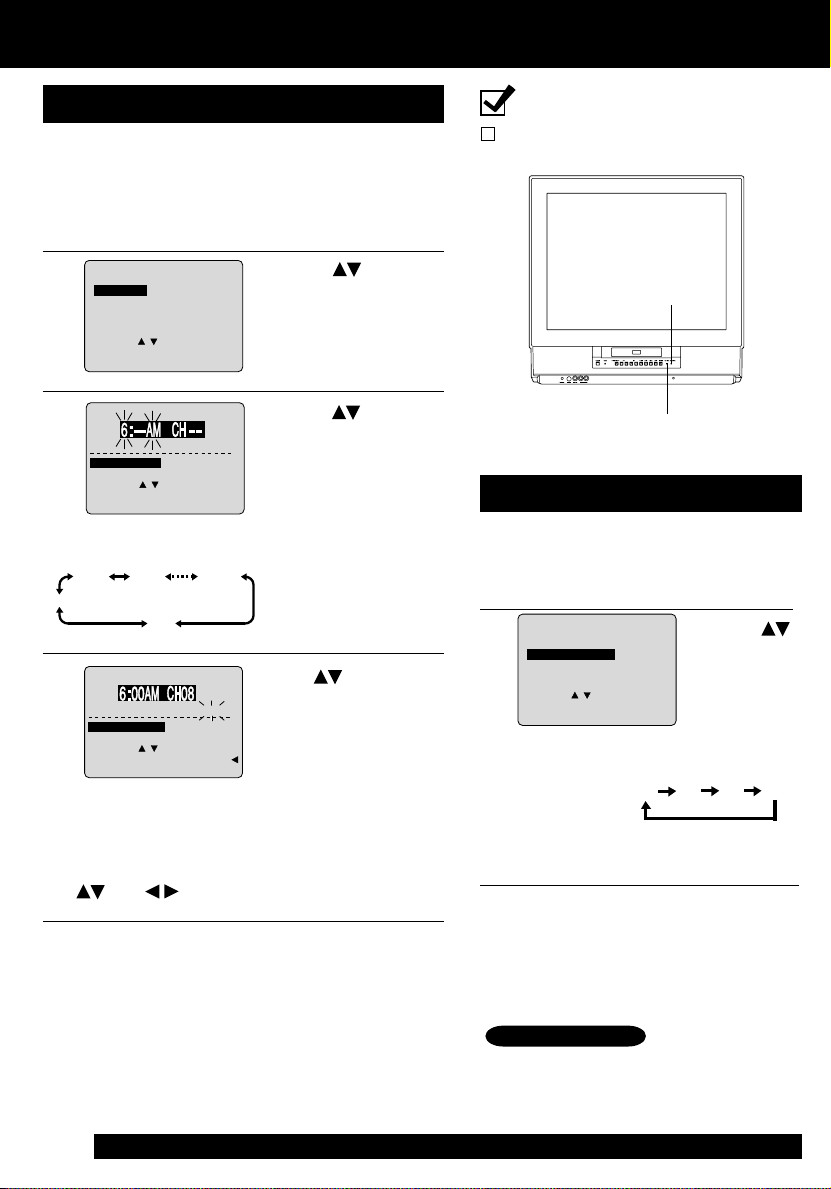

TV Timer Features ............................................................................. 22

On-Screen Displays (OSD) ............................................................... 2 3

Advanced Operation

DVD

Cable Box Universal Remote Control Feature ........................... 24, 25

Special Features ......................................................................... 26, 27

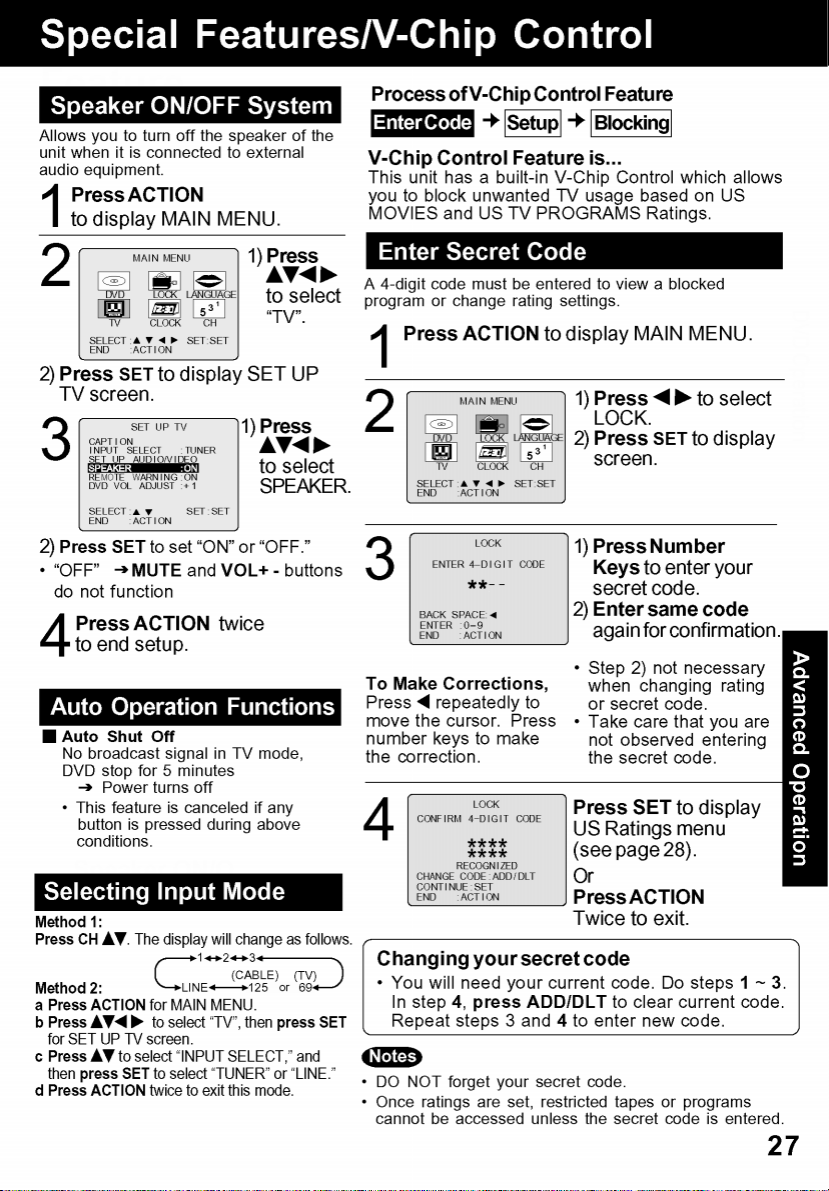

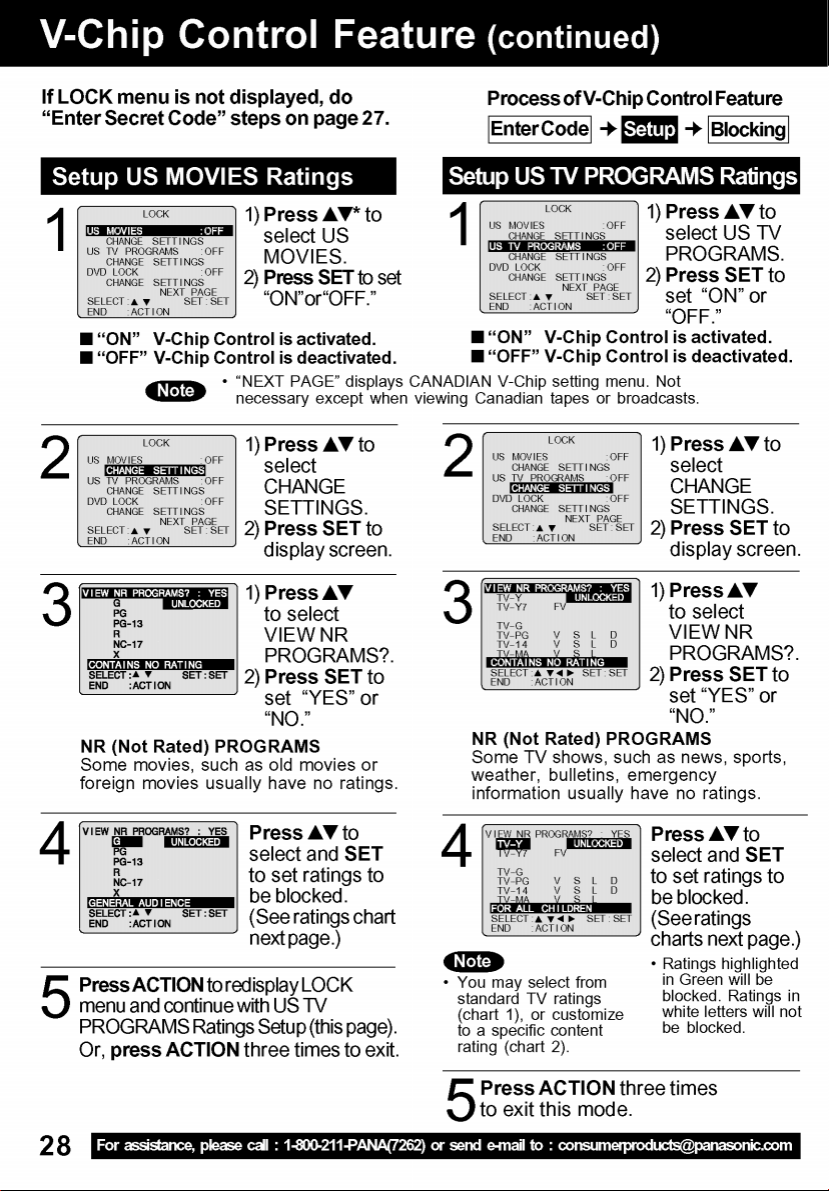

V-Chip Control Feature ............................................................. 27 ~ 29

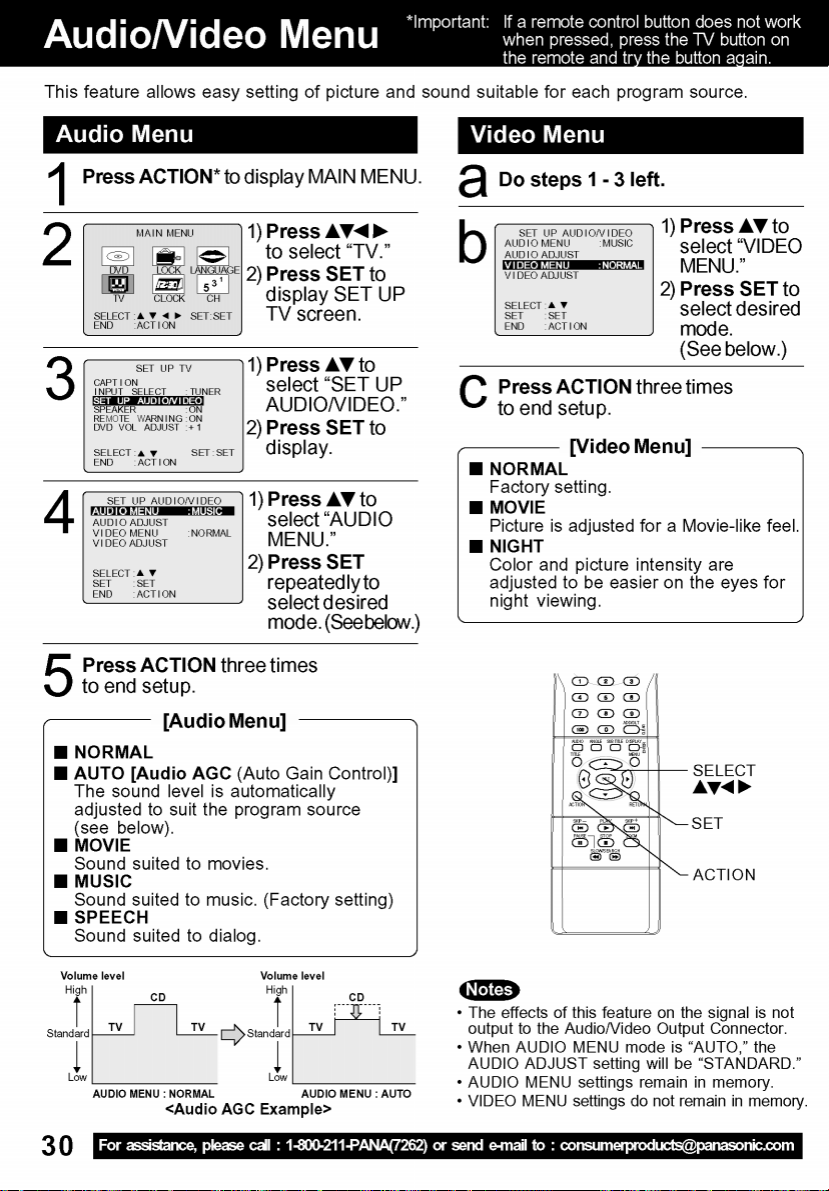

Audio/Video Menu ............................................................................. 30

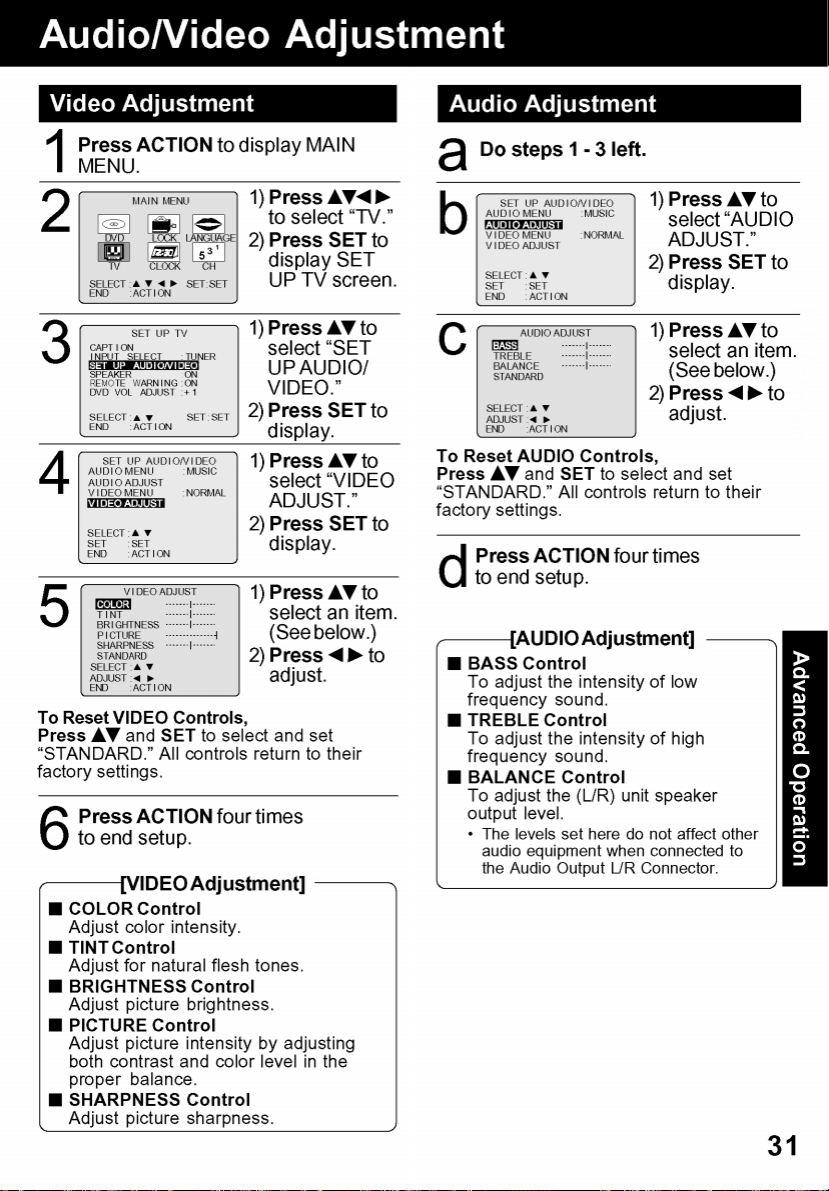

Audio/Video Adjustment .................................................................... 31

Disc Operation ........................................................................... 32 ~ 36

DVD Operation using On-Screen Displays.............................. 37 ~ 39

DVD Lock Feature ............................................................................. 40

For Your Information

DVD

Before Requesting Service ......................................................... 44, 45

Warning and Instruction Displays ..................................................... 45

Servicenter List .................................................................................. 47

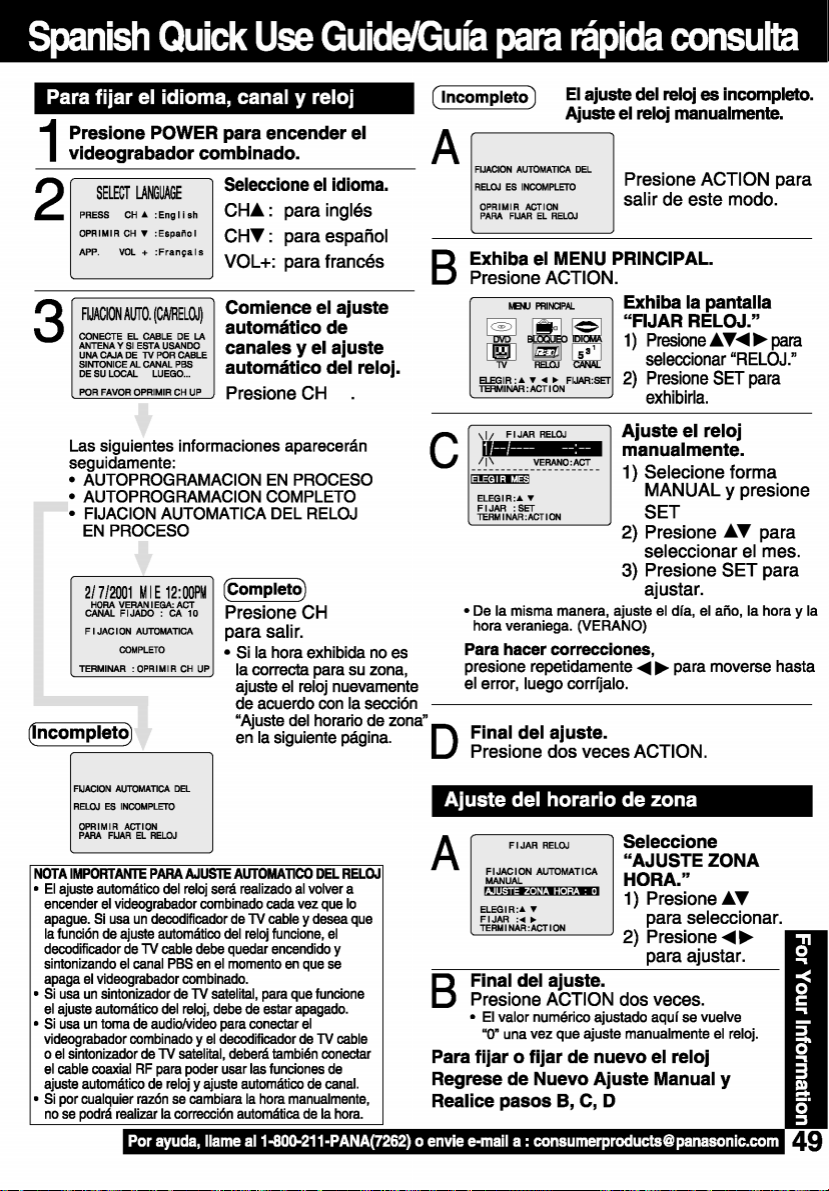

Spanish Quick Use Guide/Guía para rápida consulta ............. 48 ~ 53

Index ............................................................................................ 54, 55

Limited Warranty .............................................................................. B C

Settings for DVD Operation ....................................................... 41 ~ 43

Language Code List .......................................................................... 4 6

TV Operation

Advanced Operation

For Your Information

Information

Specifications

Display

Picture Tube: 24 inch diagonal pure flat Picture Tube

Tuner

Broadcast Channels: VHF 2 ~ 13, UHF 14 ~ 69 CABLE Channels: Midband A through I (14 ~ 22)

General

Power Source: 120V AC, 60 Hz Power Consumption:

Television System: EIA Standard NTSC color Speaker: 2 pieces (5.0W x 2) Operating Temperature: 5 Operating Humidity: 10 % ~ 75% Weight: 38.1 kg (84 lbs.) Dimensions: 596 (W) x 568 (H) x 504 (D) mm

Discs played

(1) DVD-VIDEO disc 5” (12 cm) single-sided, single-layer

(2) Compact disc 5” (12 cm) disc

(CD-DA, VIDEO CD) 3” (8 cm) disc

Digital audio output:

Optical digital output: Optical connector Pickup: Wave length:

Superband J through W (23 ~ 36) Hyperband AA ~ EEE (37 ~ 64) Lowband A-5 ~ A-1 (95 ~ 99) Special CABLE channel 5A (01) Ultraband 65 ~ 94, 100 ~ 125

Power On Approx. 142 watts Power Off Approx. 2.9 watts

C ~ 35 °C (41 °F ~ 95 °F)

23-1/2” (W) x 22-3/8” (H) x 19-7/8” (D)

5” (12 cm) single-sided, double-layer 5” (12 cm) double-sided, double-layer (one layer per side) 3” (8 cm) single-sided, single-layer 3” (8 cm) single-sided, double-layer 3” (8 cm) double-sided, double-layer (one layer per side)

655 nm (DVD) 790 nm (Video CD/CD)

Laser power: CLASS II

Note :Designs and specifications are subject to change without notice.

Apparatus Claims of U.S. Patent Nos. 4,631,603, 4,577,216, and 4,819,098, licensed for limited viewing uses only.

This product incorporates copyright protection technology that is protected by method claims of certain U.S. Patents and other intellectual property rights owned by Macrovision Corporation and other rights owners. Use of this copyright protection technology must be authorized by Macrovision Corporation, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision Corporation. Reverse engineering or disassembly is prohibited.

For assistance, please call : 1-800-211-PANA(7262) or send e-mail to : consumerproducts@panasonic.com

Disc formats supported by this unit

The unit can play back discs bearing any of the following marks:

DVD

3” (8 cm) disc / 5” (12 cm) disc

Video CD

3” (8 cm) disc / 5” (12 cm) disc

Discs which cannot be played with this unit

• DVD with Region No. other than “1” or “ALL”

• DVD of PAL system

• DVD-ROM

• DVD-R/DVD-RAM

• CDV

• CD-G

• Do not try to play a Photo CD.

is a registered trademark.

Definition of T erms

Angle

Some DVD discs feature scenes simultaneously shot from different angles. The ANGLE button can be used to view the scene from different angles. (ANGLE Indicator lights up on the unit when a scene recorded at different angles is detected.)

Chapter Number

Titles are subdivided into numbered sections. You can quickly search for a favorite scene using these numbers.

DVD

A high-density optical disc on which highqualitypictures and sound have been digitally recorded. DVD incorporates new video compression technology (MPEG II) and high-density recording technology which allow entire movies to be recorded with incredible playback quality.

Playback Control

With Video CD (version 2.0), scenes or information may be selected for viewing or listening from an interactive menu that appears on the TV screen.

Subtitles

Written dialogue which appears at the bottom of the screen.

Time Number

The elapsed play time from the start of a disc or title. Use to quickly find scenes. (May not work with some discs.)

Title Number

For DVD discs with two or more titles, the title is numbered as title 1, title 2, etc.

Track Number

Numbers assigned to tracks on Video CDs and CDs to allow specific tracks to be quickly located.

Video CD

CD containing picture and sound with same quality level as video tape. This unit also supports Video CDs with playback control (version 2.0).

If the disc cannot be removed...

First, unplug unit. Then, prepare a rigid wire (e.g. an extended paper clip) and, applying moderate force, insert it straight into the hole at the base of the tray. The tray will eject a little. Then, pull the tray all the way out and remove the disc.

Location of Controls

Remote Control Buttons (Light Tower™ Illuminated Remote Control)

OPEN/CLOSE

Opens or closes the disc tray.

POWER

Turn the unit on or off.

Sets to TV mode.

MUTE

Mutes the sound instantly.

CHANNEL UP/DOWN

Selects a channel.

SURROUND

Hears a deeper, 3-D sound effect.

NUMBER Keys

Selects a channel directly.

ANGLE

Selects the desired angle in DVD mode.

AUDIO

Selects the desired audio mode.

TITLE

Selects the desired title by number on some DVDs.

SELECT

Control navigation around on-screen menu.

ACTION

Displays Main Menu.

SET

Sets a selected menu.

SKIP I

Skips back one chapter or track. Goes to previous menu screen.

PAUSE

Pauses picture in Play mode and frame advance picture in Still mode.

PLAY

Begins playback.

OPEN/CLOSE

LIGHT

DSS

D V DTV

CABLE

SUB TITLE

ANGLE

S E T

PLAY

STOP

SLOW/SEARCH

ADD/DLT

DISPLAY

SKIP

ZOOM

AUDIO

TITLE MENU

ACTION RETURN

SKIP

PAUSE

DVD

Sets to DVD mode.

LIGHT

See below.

DSS/CABLE

Sets the remote to control some basic DDS or Cable box functions.

TIMER

Sets ON TIMER or SLEEP TIMER.

VOLUME UP/DO WN

Adjusts volume.

RAPID TUNE

Displays the last channel you were watching.

ADD/DELETE/CLEAR

Adds or deletes a channel. Cancels an item on the screen.

CLEAR

ENTER

SUB TITLE

Selects a different subtitle language.

DISPLAY/ENTER

Displays the TV status and clock. In DVD mode, displays disc and unit information. In DSS or CABLE mode, it may be necessary after channel selection.

Displays DVD menu.

RETURN

Returns to Menu screen.

SKIP I

Skips one chapter or track. Goes to next menu screen.

ZOOM

Enlarges specific portions of picture.

STOP

Stops playback.

SLOW/SEARCH

Slow motion picture in Still mode. Forward/Reverse rapid scene search in Play mode.

Note

• When LIGHT is pressed, (TV, DVD, DSS/CABLE, CH UP/DOWN, VOL+/-) buttons will light for 5 seconds for easy location. If no button is pressed in 5 seconds the light goes out to conserve the battery.

For assistance, please call : 1-800-211-PANA(7262) or send e-mail to : consumerproducts@panasonic.com

Front View of the Unit and Indicators

PHONES

Connect an earphone or headphones.

S-VIDEO IN Connector

Connect from other component with S-Video.

AUDIO/VIDEO IN Connector

Connect from other component.

POWER (See previous page.) ANGLE Indicator

Lights when a scene recorded at different angle is detected.

OPEN/CLOSE (See previous page.) VOLUME UP/DOWN (See previous page.) CHANNEL UP/DOWN (See previous page.)

Rear View of the unit

Built-In SpeakerX2

Remote Sensor

Aim the remote to this point.

SLEEP TIMER Indicator

Lights when the Sleep-Timer is set.

ON TIMER Indicator

Lights when the On-Timer is set.

Disc T ray

Insert a disc to this tray.

PAUSE (See previous page.)

SKIP+ (See previous page.)

PLAY (See previous page.) SKIP- (See previous page.) STOP (See previous page.)

AC P ower Plug

When plugged into an AC outlet, the unit consumes 2.9 W of electric power in OFF condition.

S-VIDEO IN Connector

Connect from other component with S-Video.

AUDIO/VIDEO IN Connector

Connect from other component.

VHF/UHF Antenna Input T erminal

In from your Antenna or Cable.

Optical Digital Audio Output Connector

Connect to a Dolby Digital decoder or dts

decoder. For details, see page 15.

AUDIO OUT Connector

Connect to other component.

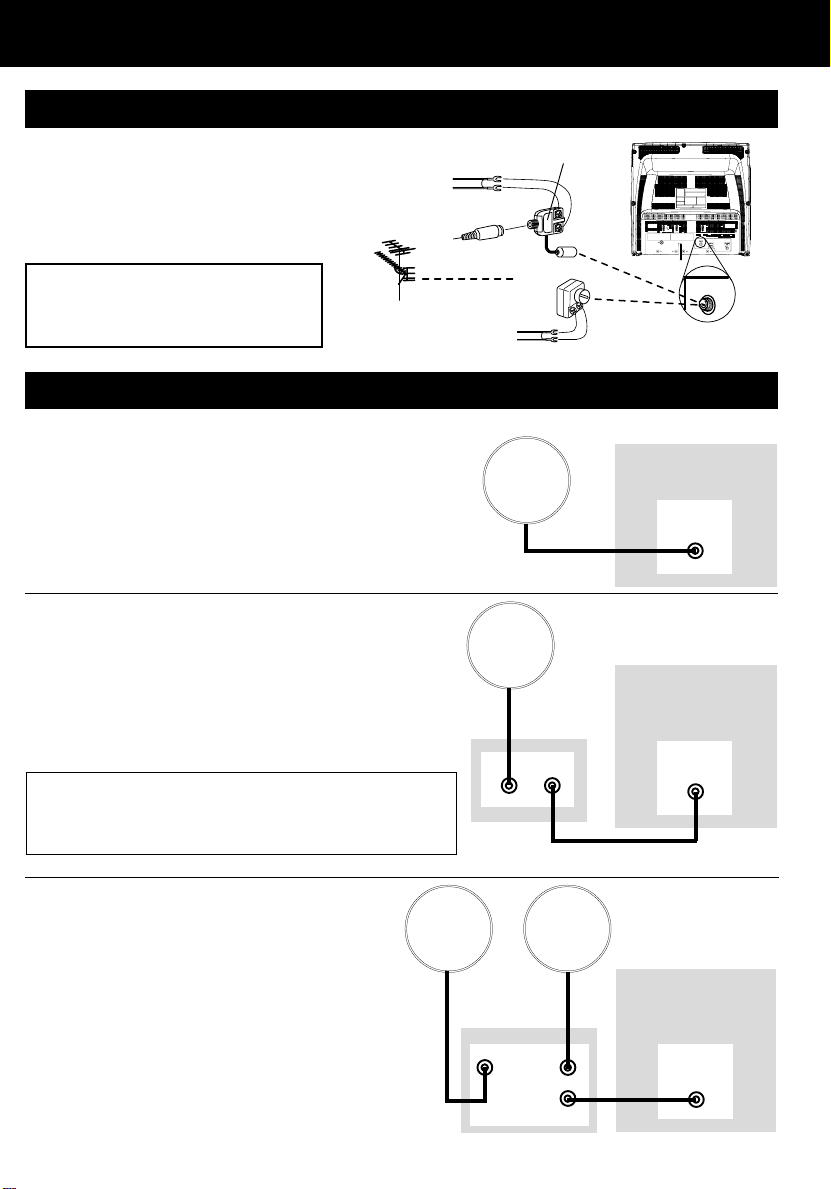

Basic Connections & Initial Setup

Connecting

For ANT./Cable Connect the cable from Antenna/Cable to the VHF/ UHF terminal on the unit.

For DSS/Cable Box Connect the OUT jack on your cable box to the VHF/ UHF terminal on the unit with a RF cable.

WARNING:

Overtightening "Nut type" RF coaxial cables may damage jacks. Finger tighten only.

How to do Initial Setup

Press TV on the remote for TV mode.

Press POWER* on the remote or unit.

• Turn on your cable box and set it to PBS (Public

Broadcast Station) channel in your time zone. If you use DSS receiver, it must be turned off.

Press CH to select

CHANNEL / CLOCK

CONNECT ANTENNA CABLE AND B

OX,

LOCA

LE ASE PRESS CH UP KEY

I F YOU

TUNE I T L PBS CH

AUTO SET

USE A

TO YOUR

THEN. . .

English. Press CH to select

Spanish (Español). Press VOL+ to select

French (Français).

Press CH to start CHANNEL/CLOCK

CABLE

AUTO SET operation.

UNIT

F/UH

VHF/UHF

Setup completed

If the setup is completed, the following screen is displayed.

2 / 6 / 2002

END

• If time is not correct... even though your area observes daylight saving time and DST is set to ON, do “Time Zone Adjust” steps on page 13.

Setup incomplete

If the following screen is displayed, set the clock manually. (See "Manual Clock Set" on next page.)

PLEASE SET CLOCK BY

ESS I NG ACT I ON KEY

VHF/UHF

Cable TV Converter Box

WED 12 : 00PM

SETT I NG : CH 1 A

: PRESS CH UP KEY

A I S I NCO

DST : O

UTO CLOCK SET

MPL

ETED

UTO CLOCK SET

MPL

ETE

IN from ANT./CABLE

For assistance, please call : 1-800-211-PANA(7262) or send e-mail to : consumerproducts@panasonic.com

Reset Language, Channels, Clock

2002

WED

HOUR

ANT

ENN

ABLE

DVD

SELECT : END : ACT I ON

Language

1) Press to select language icon.

DVD

SELECT : END : ACT I ON

2) Press SET repeatedly.

MENU PR I NCIPAL

DVD

ELEG I R : TERM I NAR :

For Spanish

DVD

SEL. :

REGLER : SET

FIN :

ACT I ON

For French

DVD

SELECT : END : ACT I ON

For English

3) Press ACTION to exit.

M A I N MENU

LOCK

CLOC

M A I N MENU

LOCK

CLOC

BLOQUEO

RELOJTV

F I

ACT I ON

BLOCAGE

HORLOGETELE

M A I N MENU

LOCK

CLOC

LANGUAGE

SET : SET

LANGUAGE

SET : SET

HOLA

ID I OMA

CANAL

JAR : SET

BONJOUR

LANGUE

CANAL

HELLO

LANGUAGE

SET : SET

Press ACTION*

to display MAIN MENU.

Channels

1) Press select “CH.”

M A I N MENU

DVD

SELECT : END : ACT I ON

2) Press SET.

SET UP CHA

ANT

ENN

A : CABLE

UTO SE

EAK S I GNAL

SELECT : SET

: SET

END

: ACT I ON

3) Press to select “ANTENNA,” then press SET to set your antenna system (“TV” or “CABLE”).

4) Press “AUTO SET,” then press SET.

• After Channel Auto Set is

finished, Clock Auto Set will be performed.

LOCK

CLOC

D I

SPLAY : OFF

LANGUAGE

SET : SET

NNE

to select

Clock

1) Press “CLOCK.”

M A I N MENU

DVD

SELECT : END : ACT I ON

2) Press SET.

SET CLOCK

AUTO CLOCK SET

MANUNUAL

T I M

E ZONE AD

SELECT : SET

: SET : ACT I ON

END

(“TIME ZONE ADJUST” appears

only when auto clock is set.)

3) Press to select “MANUAL” or “AUTO CLOCK SET” and press SET.

• For Auto Clock Set, select

“AUTO CLOCK SET,” and press SET. Then press CH

SET

2 / 6/

2002

SESELE CT HOUR

SELECT : SET :

SET

END

ACT I ON

4) Press and press SET to select and set the month, date, year, time, and DST (Daylight Saving Time).

• To Make Corrections,

repeatedly press error, then correct.

5) Press ACTION twice to start the clock and exit this mode.

to select

LANGUAGE

LOCK

CLOC

SET : SET

JUS

T :

CLOC

WED

: ON

DST

BACK :

to move to

For assistance, please call : 1-800-211-PANA(7262) or send e-mail to : consumerproducts@panasonic.com

Time Zone Adjust

JUS

*Important: If a remote control button does not work when pressed, press the TV button

on the remote and try the button again.

Reset all unit Memory Functions

When moving unit to a new location, or if a mistake was made in the Initial Setup section.

Time Zone Adjust

(Only when Auto Clock is set.)

1) Press to select “CLOCK.”

M A I N MENU

LANGUAGE

LOCK

DVD

CLOC

SELECT : END : ACT I ON

2) Press SET.

SET CLOCK

AUTO CLOCK SET MANU

T I M

ZOZONE AD

SELECT : SET

END

: ACT I ON

3) Press to select TIME ZONE ADJUST and press subtract or add hour(s) as necessary.

SET CLOCK

AUTO CLOCK SET MANU

T I M

ZOZONE AD

SELECT : SET

END

: ACT I ON

SET : SET

JUS

: 0

or to

JUS

: +1

Add or Delete a Channel

To add channel:

Select channel with Number keys and press ADD/DLT.

HANNEL

08 ADDED

• Make sure a disc is not inser ted in the unit.

Turn the unit

Power on. Press and hold both PLAY and

SKIP- on the unit for more than 5 seconds.

• The power will shut off.

• Please ignore “NO DISC” warning.

Do “Initial Setup” on page 10.

To delete channel:

Select channel with CH and press ADD/DLT.

or Number keys

HANNEL

08 DELE T

Initial Setup

4) Press ACTION twice to exit.

Basic DVD Operation

Ready Checklist

All connections are made. (See page 10.) Your unit is plugged in. If unit is connected to an audio amplifier,

turn the stereo system’s power on.

OPEN/

OPEN/CLOSE

POWER

LIGHT

DSS

D V DTV

CABLE

VOL

Number Keys

ADD/DLT

DISPLAY

SUB TITLE

ANGLE

AUDIO

TITLE MENU PLAY

SKIP I PAUSE

TITLE MENU

S E T

ACTION RETURN

PLAY

SKIP

ZOOM

STOP

PAUSE

SLOW/SEARCH

SLOW

CLOSE DVD

SELECT

SET

CLEAR

ENTER

RETURN SKIP I

STOP SLOW

Press POWER* on the remote or unit.

Press DVD to select DVD mode.

• If a disc is already inserted, go to step 4.

(Depending on the disc, playback may start automatically.)

Press OPEN/CLOSE to insert a disc and place disc into disc tray.

• Hold disc by its edges only (page 7) with printed side up and use guides to place into tray. Use 3”(8 cm) or 5” (12 cm) disc.

Press PLAY to start play.

• Disc tray closes automatically.

READING

If an interactive DVD*1 or a Video CD with playback control*2 is used and a TITLE MENU appears, go to step 5.

• You may also close the tray by pressing OPEN/CLOSE.

• Data reading time differs with each disc.

T I TLE MENU

Dogs

Love

Cas t l es

i r

1 2

Press or number key(s) (see

below) to select title and press SET to play.

Using number key(s)

Operation using unit buttons

Press POWER.

3•7

Press OPEN/CLOSE.

3 Insert disc.

T I TLE MENU

Cas t l es

Dogs

Love

Dogs

of the world

i r

starts play automatically.

1 digit number 1 ••• 1 2 digit number 12 •••

10 ->1 ->2

3 digit number 123 •••100 ->1 ->2 ->3

Press SKIP | or | to go to next or previous menu screen.

6 Press STOP. 4 Press PLAY.

• SKIP function not available with all discs. Please refer to disc jacket for operation information.

To return to MENU (play stops), Press TITLE, MENU, or RETURN. (DVD)

Interactive DVD... May include multiple camera angles, stories, etc.

Video CD with playback control...

Press RETURN. (Video CD)

Press STOP to stop play.

Particular scenes or information can be interactively selected from a menu that appears on the screen.

For assistance, please call : 1-800-211-PANA(7262) or send e-mail to : consumerproducts@panasonic.com

Press OPEN/CLOSE to eject the disc.

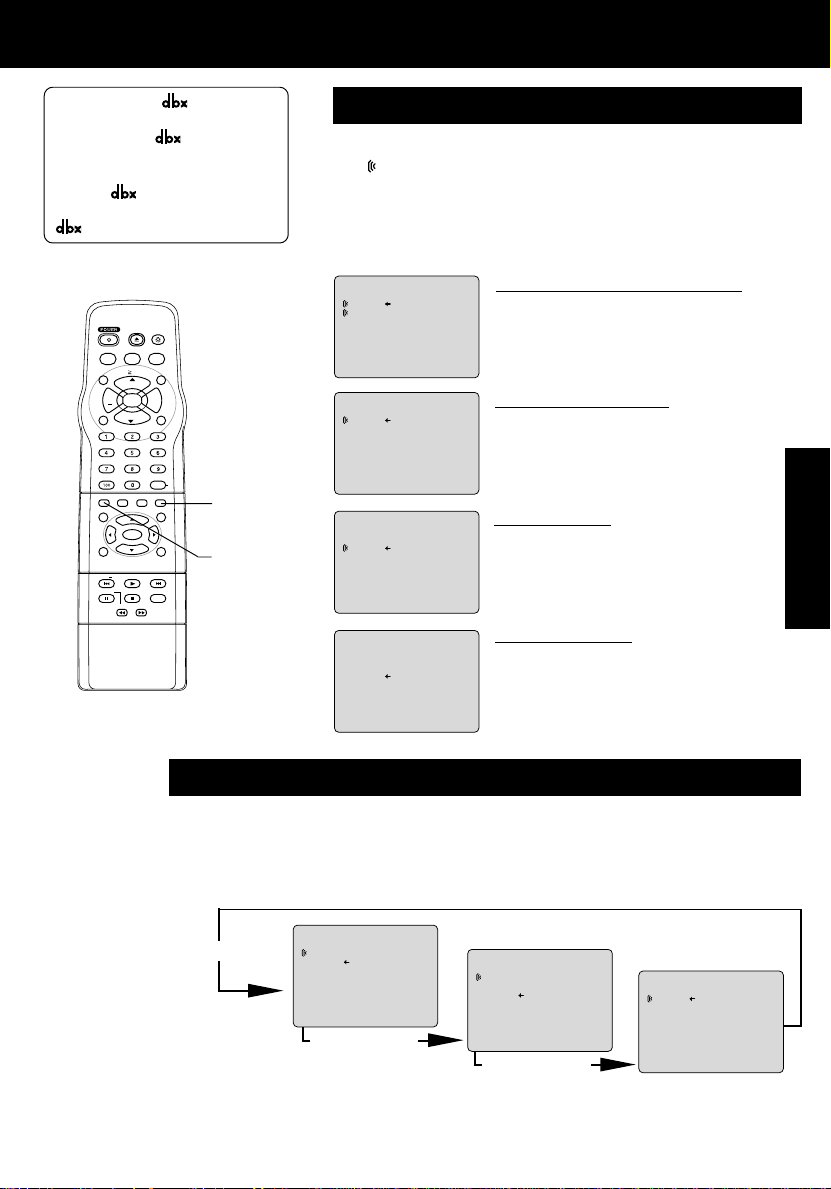

MTS Broadcast/TV Stereo System

Equipped with ® -TV Noise Reduction for true MTS reproduction.

-TV Noise Reduction is required for good stereo separation and audio fidelity. trademark, and is licensed by

is a registered

Technology Licensing.

OPEN/CLOSE

LIGHT

DSS

D V DTV

CABLE

VOL

AUDIO

TITLE MENU

ACTION RETURN

SKIP

PAUSE

ANGLE

S E T

PLAY

STOP

SLOW/SEARCH

SUB TITLE

ADD/DLT

DISPLAY

SKIP

ZOOM

CLEAR

ENTER

DISPLAY

AUDIO

Receivable Broadcast Types

The following are possible audio broadcast types and on-screen displays. The signal being received is indicated with an “

” mark while the selected audio mode is indicated with an arrow. To change the audio mode for these broadcasts, see the “Select Audio Mode for TV Viewing” section (below.)

Press DISPLAY to display

the broadcast signal being received.

STOP

STER SAP M

STOP

STER SAP M

STOP

STER SAP M

STOP

STER SAP M

ONO

1 2 : 0 0A

ABC

MTS Stereo and SAP broadcast

Multi-channel Television Sound Stereo (main language) and Secondary Audio Program (sub language) broadcasts are being received simultaneously. Select the STEREO or SAP audio mode.

ABC

MTS Stereo broadcast

Multi-channel Television Sound Stereo broadcast. Select STEREO audio mode.

• If stereo broadcast is weak and the display flickers, select MONO audio mode for possibly better results.

ABC

SAP broadcast

Secondary Audio Program (sub language). Select SAP audio mode for the sub language.

MONO broadcast

ABC

Normal monaural sound broadcast.

TV Operation

Select Audio Mode for TV Viewing

Press AUDIO to select the desired audio mode as described above.

(Arrow shows selection.)

• Each press of AUDIO will change the audio mode as shown below.

• “SAP” is selected with first press of AUDIO.

< Example >

Press AUDIO

STOP

1 2 : 0 0A

STER

EO SAP M

ONO

Press AUDIO

ABC

STOP

STER SAP M

ONO

1 2 : 0 0A

ABC

STOP

STER SAP M

ONO

1 2 : 0 0A

ABC

Press AUDIO

Closed Caption System

MODE

CAP C1

CAPT I ON

Closed Caption is ...

This multi-use system not only allows the hearing impaired to enjoy selected programs, but also makes useful information from TV stations available to everyone.

Closed Caption Mode Feature

Press ACTION* to display MAIN MENU.

M A I N MENU

LOCK

DVD

CLOC

SELECT : END : ACT I ON

CAPT I ON I

NPUT

SET

UP SPEAKER REMOTE WARN I NG : ON DVD

SELECT :

: ACT I ON

END

CACAPTPT I ON MODE

CC ON MUTE

SELECT : SET : SET END

: ACT I ON

TEXT C2

SET

UP TV

SELECT

AUD I O/V I DEO

: ON

VOL ADJUST : + 1

CAPT I ON

OFF

CAP C2

LANGUAGE

SET : SET

TUNER

SET : SET

CAP C1

1) Press to select “TV.”

2) Press SET to

display SET UP TV screen.

1) Press select “

2) Press SET to display CAPTION screen.

1) Press

CAP C1

select CAPTION MODE.

2) Press SET repeatedly to select mode. (See left.)

TEXT C1

CAPTION”.

Closed Caption Mode Selections

Caption Mode: CAP C1 or C2

A narration of selected TV programs is displayed. Check TV program listings for CC(Closed Caption) broadcasts.

Caption Mode: TEXT C1 or C2

The lower half of the screen will be blocked out. When the TV station broadcasts information, such as program listings, it will appear in this space.

Caption Mode: OFF

Closed Caption / Text narration will not be displayed.

NOTE : The closed caption or text signal may be broadcast over C1, C2, or both. Also, text contents can vary so you may wish to try different settings.

Press ACTION three times to return to the normal screen.

For assistance, please call : 1-800-211-PANA(7262) or send e-mail to : consumerproducts@panasonic.com

MODE

OFF

*Important: If a remote control button does not work when pressed, press the TV button

CAPT I ON

on the remote and try the button again.

Caption On Mute Feature

Closed Caption narration, if available, is displayed when MUTE button is pressed for silence.

MUTE

ACTION

OPEN/CLOSE

LIGHT

DSS

D V DTV

CABLE

VOL

ADD/DLT

DISPLAY

SUB TITLE

ANGLE

AUDIO

TITLE MENU

S E T

ACTION RETURN

PLAY

SKIP

ZOOM

STOP

PAUSE

SLOW/SEARCH

Press ACTION to display MAIN MENU.

M A I N MENU

CLEAR

ENTER

SELECT

SET

2 3

LOCK

DVD

CLOC

SET

UP TV

SELECT

AUD I O/V I DEO

: ON

CAPT I ON

SELECT : END : ACT I ON

CAPT I ON I

NPUT

SET

UP SPEAKER REMOTE WARN I NG : ON DVD

VOL ADJUST : + 1

SELECT : END

: ACT I ON

CACAPTPT I ON MODE

CC ON MUTE

SELECT : SET : SET END

: ACT I ON

LANGUAGE

SET : SET

TUNER

SET : SET

1) Press

2) Press SET to

1) Press

2) Press SET to

1) Press

OFF

CAP C1

2) Press SET

to select “TV.” display SET UP

TV screen.

select “CAPTION”. display CAPTION

screen.

CAPTION MODE. repeatedly to select

“OFF.”

1) Press

CAP C2

CAP C1

CC ON MUTE.

2) Press SET

repeatedly to select desired mode.

• Each press of SET will change the display as shown left.

• The caption may be broadcast over CAP C1 or C2.

TV Operation

to select

Note

• When a disc supporting closed caption is used, the subtitle and the closed caption may overlap. In this case, turn the subtitle or caption on mute mode off. (See page 32.)

Press ACTION three times to return to the normal screen.

Press MUTE to mute the sound and display closed captioning.

• To cancel, press MUTE again.

TV Timer Features

ON T

MER

ALARMRM

LEEP

MER : 00

ON-TIMER with Alarm

This unit can be set to automatically power on in one of 2 modes (TV, or DVD/Video CD/CD).

Press TIMER* to display SET TIMER screen.

SET T I MER

ON T

MER

CH01

LEEP T I MER : 00

SELECT : SET : SET END

ALARM : O

SESELE CT H

• ON-TIMER mode selection order

CH02CH

SESELECECT ALA

SELECT : SET END

: T I MER

N T I MER

OUOUR

SELECT : SET : SET END

ANCEL : ADD / DLT

: T I MER

DVD

N T I MER

ALARM : ON

: SET BACK :

: T I MER

When “ON” is selected,

an alarm will gradually increase in volume for one minute or until canceled by pressing any button (including VOL + -).

To Make Corrections,

use and to move back and correct.

Press TIMER to set ON TIMER.

• “ON TIMER SET” is displayed.

• ON TIMER Indicator lights on the unit.

1) Press to select “ON TIMER.”

2) Press SET to display ON TI MER screen.

1) Press to select desired settings.

2) Press SET to set the ON-TIMER TIME or ON-TIMER mode.

• Make sure a disc is

CH125

inserted if DVD (DVD/Video CD/CD) mode is selected.

Press to select ALARM “ON” or “OFF.”

Ready Check List

The clock is set to correct time.

SLEEP TIMER Indicator

ON TIMER Indicator

Sleep Timer

This unit can be set for auto power off.

Press TIMER to display SET TIMER screen.

SET T I MER

ON T I MER

LEEP

T I

MER : 00

SELECT : SET : SET END

: T I MER

2) Press SET repeatedly to select the desired time.

SLEEP TIMER

To cancel, press SET repeatedly until 00 appears.

Press TIMER to return to the

normal screen.

• Pressing DISPLAY with sleep timer set displays remaining time.

• SLEEP TIMER Indicator lights on the unit.

1) Press to select SLEEP TIMER.

30 60 90 00

To Cancel ON-TIMER set,

Repeat steps 1 and 2. Then, press ADD/DLT to clear the time in step 3. Now, press TIMER to end. “ON TIMER END” briefly appears on-screen.

For assistance, please call : 1-800-211-PANA(7262) or send e-mail to : consumerproducts@panasonic.com

ON TIMER Note

• When the ON-TIMER starts, the SLEEP

TIMER for 60 minutes will start automatically. SLEEP TIMER Indicator lights during SLEEP TIMER.

On-Screen Displays (OSD)

*Important: If a remote control button does not work when pressed, press the TV button

on the remote and try the button again.

TV Status & Clock Display

Press DISPLAY to display or remove the overlay.

Channel

Current Time

OPEN/CLOSE

LIGHT

DSS

D V DTV

CABLE

VOL

ADD/DLT

DISPLAY

SUB TITLE

ANGLE

AUDIO

TITLE MENU

S E T

ACTION RETURN

PLAY

SKIP

ZOOM

STOP

PAUSE

SLOW/SEARCH

1 2 : 0 0PM

STER

Receivable

TIMER

Broadcast Types (See page 19.)

SAP M

ONO

ADD/DLT

CLEAR

ENTER

DISPLAY SELECT

SET

Blue Screen Display

Whenever the selected channel has no broadcast signal with the Weak Signal Display Feature set to “OFF” (see page 26), the screen will turn solid blue.

CH08

TV Operation

Channel Display

When you change channels, the channel number will be displayed.

0 8

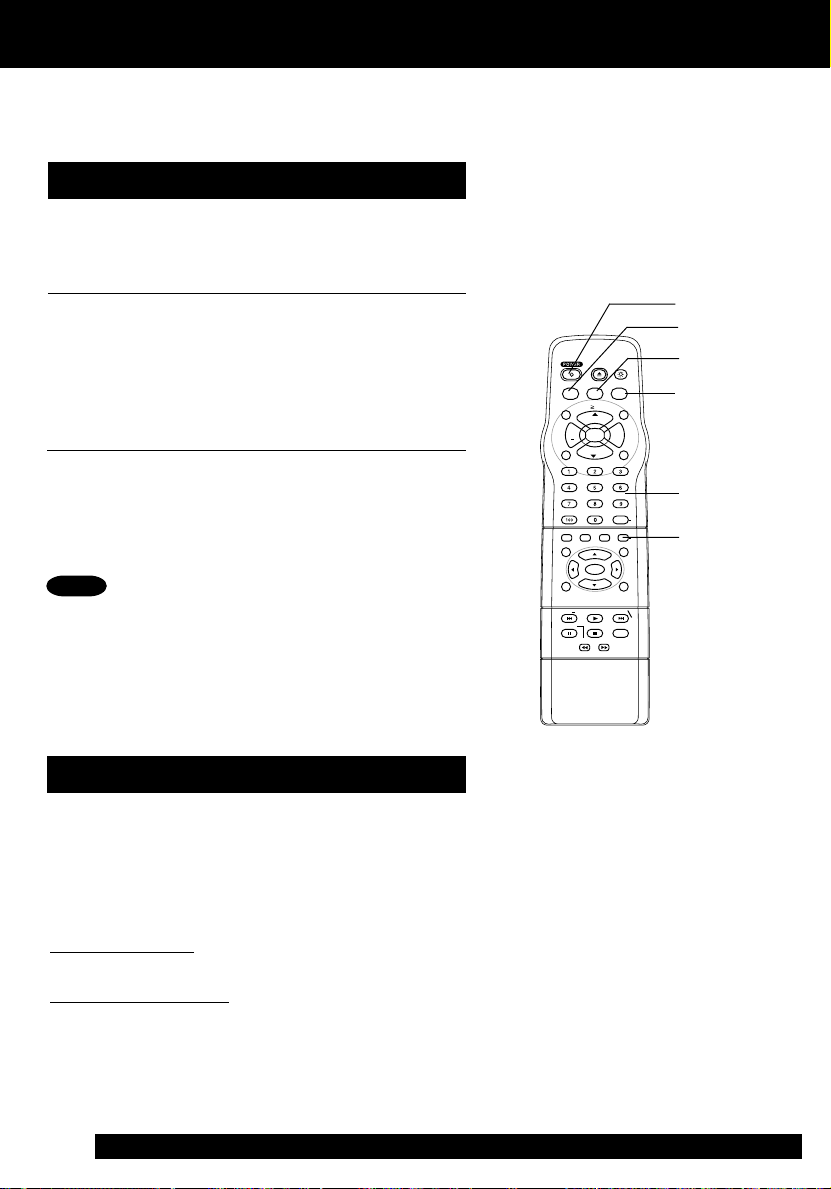

Cable Bo x Univer sal Remote Control Feature

Universal Remote Control is...

The Remote Control may be set up to control some basic DSS or Cable box functions.

The Universal Remote Control Setup

Find your DSS box or Cable box Brand Code Number from one of

the charts on the next page. Setup remote.

Hold down DSS CABLE and press Number Keys to enter code.

• For code 100 or greater, first press 100 key, then the remaining digits. E.g. for 102, press 100, then press 0, and then press 2.

Confirm code entry.

Press POWER* to turn selected unit ON or OFF.

• See below for controllable functions in each mode.

Notes

• Please repeat the Universal Remote Control Setup after replacing remote control batteries.

• The remote control will not operate all DSS receivers or Cable Boxes made by the manufactures listed. If you get no results, your particular brand cannot be controlled.

Using the Universal Remote Control

Once the remote control has been properly set up, you can select TV, DVD, DSS or CABLE mode depending on which functions you wish to control. (See below.)

Press TV or DVD, or DSS CABLE on the

remote control to select the desired mode. (See below for buttons available in each mode.)

Set to TV, DVD:

• All TV and DVD functions.

Set to DSS CABLE:

• CABLE/DSS functions, e.g. POWER, ENTER, Number Keys (except 100 key), CH UP/DOWN.

OPEN/CLOSE

LIGHT

DSS

D V DTV

CABLE

VOL

ADD/DLT

DISPLAY

SUB TITLE

ANGLE

AUDIO

TITLE MENU

S E T

ACTION RETURN

PLAY

SKIP

ZOOM

STOP

PAUSE

SLOW/SEARCH

CLEAR

ENTER

POWER TV

DVD DSS/CABLE

NUMBER Keys

ENTER

For assistance, please call : 1-800-211-PANA(7262) or send e-mail to : consumerproducts@panasonic.com

*Important: If a remote control button does not work when pressed, press the TV, DVD button

on the remote and try the button again.

DSS Brand Code Numbers

Toshiba........................................................... 90

Hitachi/ Hughes ........................................ 91, 99

Primestar ........................................................92

Drake ..............................................................93

Magnavox.................................................94, 95

Uniden ......................................................94, 95

Opti mu s .................................................... 94, 95

Panasonic....................................................... 96

ProScan.......................................................... 97

RCA ................................................................ 97

SONY ..................................................... 98, 105

Cable Box Brand Code Numbers

Archer ..................... 44, 06, 01, 120, 05, 63, 126

Cableview .... 29, 09, 01, 63, 120, 44, 42, 30, 52,

04, 124, 126

Citizen ............... 44, 52, 30, 63, 42, 04, 124, 126

Curtis ................................ 08, 09, 25, 61, 53, 87

Century ................................. 44, 51, 75, 59, 126

Cabletenna.............. 29, 09, 01, 63, 120, 44, 126

Cable Cinema..........29, 09, 01, 63, 120, 44, 126

Diamond.................. 29, 09, 01, 63, 120, 44, 126

Eagle ................... 62, 40, 22, 13, 58, 20, 26, 107

Eastern ............................................. 28, 29, 130

Explorer ............................ 08, 09, 25, 61, 53, 87

Gemini............................................... 30, 04, 124

General Electric ................................ 01, 57, 120

General Instruments ... 01, 84, 83, 34, 03, 02, 04,

55, 65, 66, 67, 68, 120, 106, 121, 122, 115, 117,

118, 124

Ger r ard ......................................... 44, 51, 75, 59

GC Electronics ........... 44, 42, 63, 29, 30, 52, 04,

124, 126

Hamlin ........... 41, 14, 15, 28, 102, 104, 103, 130

Hitachi ............................................................. 31

Jerrold....... 01, 84, 83, 34, 03, 02, 04, 55, 65, 66,

67, 68, 120, 106, 121, 122, 115, 117, 118, 124

Jasco................................................30, 04, 124

Macom ............................................................ 31

Magnavox ............................................... 26, 112

Matsushita ............................ 17, 16, 08, 87, 109

Movietime.................. 32, 39, 42, 44, 126, 38, 40

Maestro..................................................... 74, 35

NEC .............................................. 40, 19, 38, 32

NSC .............................................. 40, 19, 38, 32

Novavision ........................ 08, 09, 25, 61, 53, 87

Next Level............ 01, 84, 83, 34, 03, 02, 04, 55,

65, 66, 67, 68, 120, 106, 121, 122

Oak ........................................... 46, 11, 129, 101

Oak Sigma ................................ 46, 11, 129, 101

Panasonic ............................. 17, 16, 08, 87, 109

Philips................ 23, 24, 20, 13, 07, 50, 128, 129

Pioneer................................................ 06, 05, 12

Pulsar................ 04, 42, 63, 44, 30, 52, 124, 126

Quest .................................................. 06, 05, 12

Radio Shack ......................... 44, 51, 75, 59, 126

RCA ...................................... 17, 16, 08, 87, 109

Realistic ................................ 44, 51, 75, 59, 126

Recoton ................................ 44, 51, 75, 59, 126

Regal............. 41, 14, 15, 28, 102, 104, 103, 130

Regency ........................................... 28, 29, 130

Rembrandt .. 44, 42, 63, 29, 01, 32, 39, 120, 126

Samsung................................. 42, 06, 32, 05, 40

Scientific Atlanta................ 08, 09, 25, 61, 53, 87

Sheritech......................................................... 27

Signal ...................................................... 26, 112

SL Marx ........ 42, 06, 32, 40, 43, 44, 52, 63, 126

Sprucer ................................. 17, 16, 08, 87, 109

Standard Components.......... 32, 39, 42, 44, 126

Stargate ......... 04, 42, 32, 40, 63, 44, 30, 52, 06,

124, 126

Sylvania .................................................... 19, 18

Teknika ..................................................... 74, 35

Telecaption ............................................. 77, 127

Teleview............................ 40, 19, 38, 32, 42, 06

Texscan.................................................... 19, 18

Tocom............................. 34, 33, 01, 42, 66, 120

Toshiba ........................................................... 36

Unika....................... 44, 42, 63, 29, 01, 126, 120

Univer s a l ......................... 52, 43, 44, 63, 42, 126

Viewstar .............. 62, 40, 22, 13, 58, 20, 26, 107

Videoway .................................... 07, 23, 50, 129

Vidtek .............................................................. 64

Zenith .......................................... 07, 23, 50, 129

DVD Operation

Advanced Operation

Notes

• In DSS or CABLE mode, it may be necessary to press DISPLAY/ENTER after pressing number keys for channel selection.

• In DSS or CABLE mode, POWER, CH Up/Down, Number Keys, ACTION, TIMER, DISPLAY/ ENTER, SEARCH, SKIP+/-, R-TUNE, SELECT, SET, ZOOM, ANGLE, AUDIO, TITLE, MENU, or ADD/DLT are not available. Press TV, DVD to use these functions.

• Depending on your DSS receiver or Cable box brand, some of the functions listed may not be remote controllable.

• Some DSS receiver or Cable box brands require you to turn on the power manually.

• Due to changes in infra-red commands used by manufacturers, some brands have several codes. If your unit does not respond to the first code, please try the next one.

Special Features

DVD

VOL ADJUST

EAK S

GNAL

SPLAY

OFF

*Important: If a remote control button does not work

when pressed, press the TV button on the remote and try the button again.

Weak Signal Display ON/OFF

When “ON” is selected, the picture is displayed even when a broadcast signal is weak or non-existent.

Press ACTION* to display MAIN MENU.

1) Press

LANGUAGE

2) Press SET to

SET : SET

1) Press

OFF

2) Press SET to

to select “CH.” display SET

UP CHANNEL screen.

select WEAK SIGNAL DISPLAY .

set “ON” or “OFF.”

Notes

M A I N MENU

DVD

SELECT : END : ACT I ON

SET UP CHA

ANT

ENNA

: CABLE

UTO SE

EAK S

GNAL

SELECT : SET

END

: ACT I ON

LOCK

CLOC

D I SPLAY

NNE

• “O N” = Picture is displayed regardless of signal condition, and may not always be clearly visible.

“OFF”= Screen turns solid blue when signal

is absent or weak.

• If unit is connected to equipment which has

blue back feature, selecting “ON” will have no effect on the other equipment.

Press ACTION twice to return to the normal screen.

Remote Warning ON/OFF

When Universal Remote Control (page 24 ) is used, and this feature is set to “ON,” a warning appears whenever an invalid key is pressed in DSS or Cable mode.

Press ACTION to display MAIN MENU.

M A I N MENU

2 3

DVD

SELECT :

END : ACT I ON

CAPT I ON

NPUT

SELECT

SET

UP SPEAKER

REMOMOTETE WARN I NGNG :

DVD

VOL ADJUST : + 1

SELECT : END

: ACT I ON

LOCK

CLOC

SET

UP TV

AUD I O/V I DEO

: ON

LANGUAGE

SET : SET

TUNER

SET : SET

• “REMOTE WARNING : OFF”

-> Remote warning will not appear even if

invalid key is pressed.

Press ACTION twice to return to normal screen.

1) Press to select “TV.”

2) Press SET o

display SET UP TV screen.

1) Press select REMOTE WARNING.

2) Press SET to set “ON” or “OFF.”

Surround Sound System

You can hear a deeper, 3-D sound effect using just the unit’s two front speakers.

Set Surround sound.

SURROUND ON

Notes

• Surround sound effect is not available for normal (mono) broadcasts.

• The surround effect (TV mode only) is not output to Audio Output L/R Connector.

For assistance, please call : 1-800-211-PANA(7262) or send e-mail to : consumerproducts@panasonic.com

Press SURROUND.

• “SURROUND ON” is displayed.

To Cancel, press SURROUND.

DVD Volume Adjust

Remote Warning ON/OFF

Repeat steps 1 and 2 on “Remote Warning ON/OFF” section above.

SET

CAPT I ON I

NPUT

SET SPEAKER : ON

EMOTE WARN I NG :

DVD

SELECT : END

UP TV

SELECT

AUD I O/V I DEO

VOL ADJUST

: ACT I ON

1) Press

TUNER

2) Press SET to

SET : SET

select DVD VOL ADJUST.

set the level (0, +1, or +2).

Press ACTION twice to return to normal screen.

*Important: If a remote control button does not work when pressed, press the TV button

on the remote and try the button again.

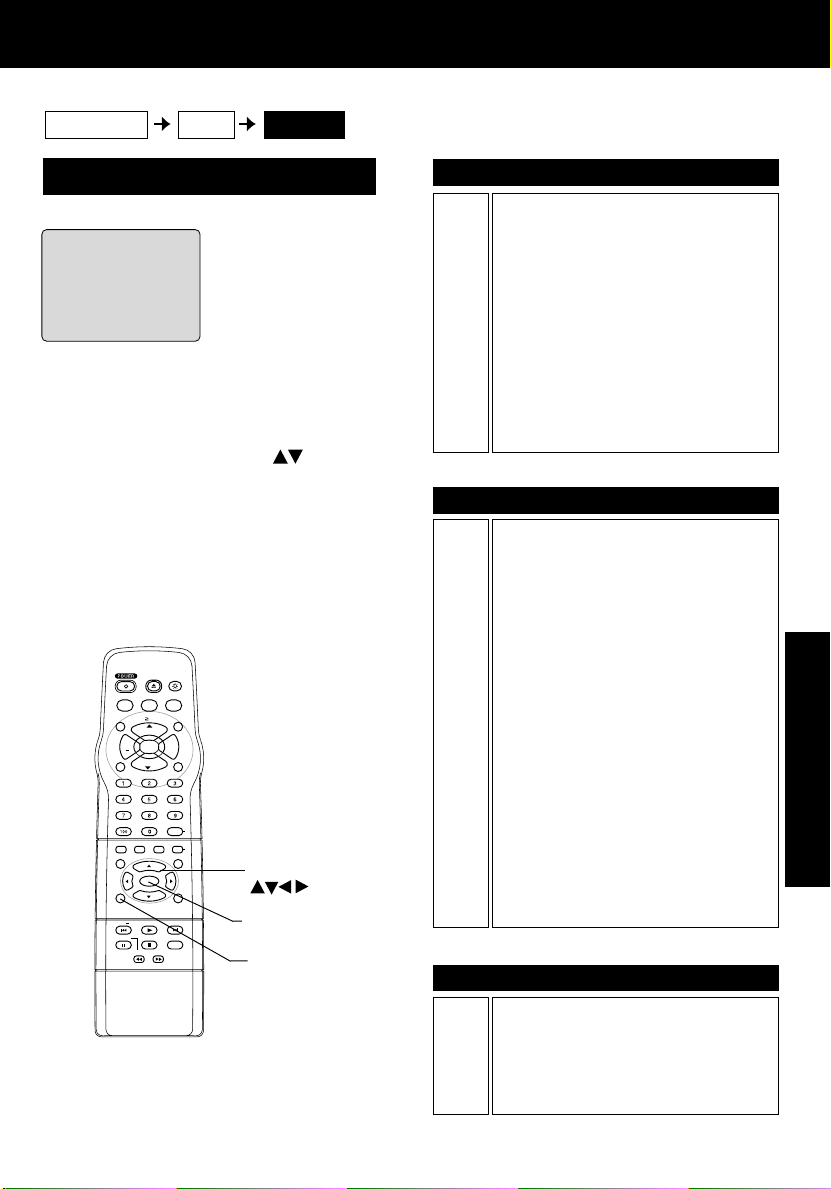

Process of V-Chip Control Feature

Enter Code

Setup

Blocking

Blocking Message

• If a program or movie exceeds the

PROGRAM

RAT I NG

RAT I NG : PG-1 3

EXCEEDED

To View a Blocked Program/Movie

[Deactivate V-Chip Control]

Enter your secret code (steps 1-4 page

27). Then, set US MOVIES and/or US TV PROGRAMS to “OFF” using and SET. (Ratings set on page 28 is retained and will be in effect when V-Chip Control is activated again.)

OPEN/CLOSE

D V DTV

VOL

SUB TITLE

ANGLE

AUDIO

TITLE MENU

S E T

ACTION RETURN

PLAY

SKIP

STOP

PAUSE

SLOW/SEARCH

ratings you have set, a message will appear on a black background and sound is muted.

LIGHT

DSS

CABLE

VOL

ADD/DLT

CLEAR

DISPLAY

ENTER

SKIP

ZOOM

SELECT

SET

ACTION

US MOVIES RATINGS

GENERAL AUDIENCE:

All ages admitted.

PARENTAL GUIDANCE:

Some material may not be suitable for children.

PG-13

PARENTS CAUTIONED:

Some material may be inappropriate for children under 13.

RESTRICTED:

Children under 17 must be

NC-17

accompanied by a parent or adult.

OVER AGE 17 ONLY:

No one 17 and under admitted.

ADULTS ONLY:

US TV PROGRAMS RATINGS:Chart 1

TV-Y

FOR ALL CHILDREN:

Content specifically geared to young

TV-Y7

viewers ages 2-6.

FOR AGE 7 AND OLDER:

May contain mild physical or comedic violence which may frighten children under 7.

TV-G

GENERAL AUDIENCE:

Contains little or no violence, strong language, or sexual dialogue or situations.

TV-PG

PARENTAL GUIDANCE:

May contain infrequent coarse language, limited violence, some suggestive sexual dialogue and situations.

TV-14

PARENTS CAUTIONED:

May contain sophisticated themes, sexual situations, strong language,

TV-MA

and more intense violence.

MATURE AUDIENCE:

May contain mature themes, profane language, graphic violence, and sexual situations.

US TV PROGRAMS RATINGS: Chart 2

Fantasy Violence

Violence

Sexual Situations

Adult Language

Sexually Suggestive Dialogue

DVD Operation

Advanced Operation

Disc Operation

1 ENG

SELECT

SET

3 ESP

SELECT

SET

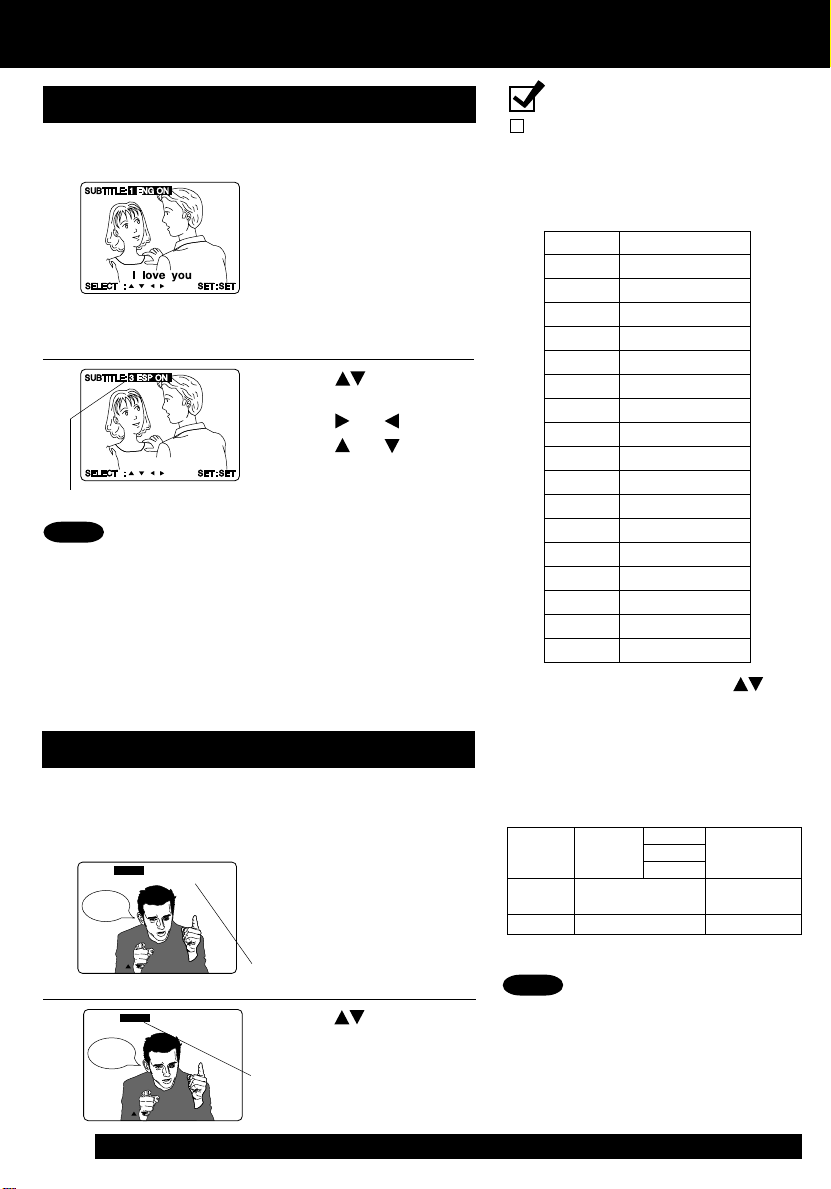

Subtitle Language (DVD only)

You can select a different subtitle language (if offered) than the one set at the Settings for DVD Operation. (See page 41.)

Press SUB TITLE*

Te amo

Number of subtitle language being played back.

Notes

• When closed captioning is used along with subtitles, they may overlap. If so, turn one function off. (See page 20 ~ 2 1 .)

• If after several presses of the button the language does not change, language selection is not offered on the disc.

• Subtitles may not change to the selected language immediately.

• When power is turned on again or disc is removed, subtitles revert to initial setting language. If the initial language is not recorded on the disc, the disc’s priority language will appear.

in Play mode to display the subtitle selection on-screen.

• Display disappears after 5 seconds.

• When no subtitles are offered, “-” will be displayed instead of the language number.

1) Press to select

desired language.

2) Press

3) Press

(or ) to set. (or ) to

select “ON” or “OFF.”

Ready Checklist

Please read “Basic DVD Operation” on page 16.

[Subtitle Language (No.)] [Audio Soundtrack Language (No.)]

ENG English FRA French DEU German ITA Italian ESP Spanish NLD Dutch SVE Swedish NOR Norwegian DAN Danish POR Portuguese RUS Russian JPN Japanese CHI Chinese KOR Korean MAL Malay VIE Vietnamese THA Thai ∗ Other

• Change the No. by pressing , and press SET.

Audio Soundtrack Language (DVD only)

You can change the audio soundtrack language, selected at the Settings for DVD Operation, to a different language if availab le. (See page 41 .) (Th is operation works only with discs on which multiple audio soundtrack languages are recorded.)

AUDIO: 1 ENG

Dolby Digital 3/2.1ch

Hello

SELECT

: SESET:SET

AUDIO: 3 ESP

Dolby Digital 3/2.1ch

Hola

SELECT

: SESET:SET

For assistance, please call : 1-800-211-PANA(7262) or send e-mail to : consumerproducts@panasonic.com

Press AUDIO in Play

mode to display the audio selection on-screen.

• Display disappears after 5 seconds.

Audio attribute 1 type, sampling frequency, bit No. of the disc.

1) Press to select desired language.

Number of the audio soundtrack language being played back.

[Audio Attribute 1 type, Sampling Frequency, Bit No. of the Disc

(see page 42)]

LPCM

Dolby

Digital

DTS

96KHz 48KHz

16bit

20bit 24bit

1ch - 5.1ch 1ch - 5.1ch DTS Disc

Notes

• If, after several presses of the AUDIO button the language does not change, language selection is not offered on the disc.

• When power is turned on again or disc is removed, language reverts to initial setting. If this language is not recorded on the disc, the language recorded will be heard.

Linear PCM

Disc

Dolby Digital

Disc

Disc Operation (continued)

Title menu (DVD only)

Some DVDs have more than one title, e.g. movies. If the disc offers a title menu, you can select the desired title number. (Operation may vary according to the disc.)

T I TLE MENU

Dogs

Love

Cas t l es

i r

T I TLE MENU

Dogs

Love

Cas t l es

i r

B i rds

of the world

DVD menu (DVD only)

DVDs may offer a special menu. This menu may include guides to unique contents, audio/subtitle languages, etc. Although contents and operation may vary, the following steps show basic steps for using the menu.

DVD MENU

1 . SUBT I TLE 2 . AUD

3 . ANGLE

Press TITLE* in Play mode to display title screen.

• Pressing TITLE again

resumes play from the scene when TITLE was first pressed.

1) Press or number Key(s) to select a title.

2) Press SET or PLAY to start play.

• Step 2) not necessary

when using Number Key(s).

Press MENU in Play mode to display DVD menu.

• Pressing MENU again

resumes play from the scene when MENU was first pressed.

OPEN/CLOSE

LIGHT

DSS

D V DTV

CABLE

VOL

ADD/DLT

SUB TITLE

ANGLE

AUDIO

DISPLAY

TITLE MENU

S E T

ACTION RETURN

PLAY

SKIP

ZOOM

STOP

PAUSE

SLOW/SEARCH

NUMBER Keys

TITLE CLEAR

CLEAR

ENTER

DISPLAY MENU

SELECT

SET

ACTION

1) Press or number key(s) to select an item.

2) Press SET or PLAY to access.

• Step 2) not necessary

when using Number Key(s).

DVD MENU

1 . SUBT I TLE

2 . AUD

3 . ANGLE

Repeat step “b” if more than one menu.

For assistance, please call : 1-800-211-PANA(7262) or send e-mail to : consumerproducts@panasonic.com

*Important: If a remote control button does not work when pressed, press the TV, DVD button

PLAY

MODE

OGRA

PLAY

START

TRACKCK

on the remote and try the button again.

Program Play (Video CD/CD)

You can program specific tracks and order of play.

Press ACTION in Stop mode to display

MAIN MENU.

M A I N MENU

SELECT : END : ACT I ON

D I SC LANGUAGES AUD I O OUTPUT

ST I LL MODE TV

PLAY

SELECT : SET : SET END : ACTION

PRPROGRA

RANDOM PLAY

SELECT : SET : SET END : ACTION

1 61116 5 8

2 7 12 17 15 6

3 8 13 18 1 13 4 9 14 19 3 2 5101520 2

SELECT : SET : SET END : ACTION

DVD

DVD MA I N

MODE

: L e t t e r b o x

MODE

M PLAY

DISC

CLEAR LAST CLEAR ALL START

LOCK

CLOC

: F I

PLAY MODE

ROGRAM

LANGUAGE

SET : SET

ELD

PLAY

• Repeat step 5 to select another track.

• The selected track is added on the right side.

ROGRAM

PLAY

DISC

1 61116 5 8

2 7 12 17 15 6

3 8 13 18 1 13 4 91419 3 2 5101520 2

CLEAR LAST

CLEAR ALL START SELECT : SET : SET END : ACTION

Notes

• Up to 15 tracks can be programmed.

•“

” or “ ” (depending on disc) indicates additional PROGRAM PLAY screen. Press previous screen.

• To clear the last program one by one, Press SET. (Pressing CLEAR also clears last program.)

• To clear all programs, Press SET. (Programs are also cleared when the power is

turned off or the disc is removed.)

to move to “CLEAR LAST” and press

to move to “CLEAR ALL” and press

1) Press to select “DVD.”

2) Press SET to

display screen.

1) Press to select

“PLAY MODE.”

2) Press SET to

display screen.

1) Press to select

“PROGRAM PLAY.”

2) Press SET to

display screen.

1) Press to

ROGRAM

select a track number. (Track numbers on disc are displayed.)

2) Press SET to set.

1) Press to

ROGRAM

select “START.”

2) Press SET to start

play of programs in the sequence selected.

• To cancel, press STOP

during play, then press

CLEAR.

for next or

Ready Checklist

Unit is in TV mode, press TV. Video CD or CD is inserted.

Program Repeat Play (Video CD/CD)

Do steps 1 through 6 on this

page. Press DISPLAY to display

Disc Information screen.

(Disc Information Screen)

TRA

: 1 1

PBC: O

SET : SET NEXT: DISPLAY

Press DISPLAY again to

display Unit Information screen. Press SET to enter Select mode.

(“REPEAT OFF” will flash.)

(Unit Information Screen)

PLAY

REREPE

AT OFF

ROGRAM

PLAY

SET : SET END :DISPLAY

Press to select “DISC

REPEAT.”

(Unit Information Screen)

PLAY

D I SC REREPE

ROGRAM

PLAY

SET : SET END :DISPLAY

Press SET to set mode. (“DISC REPEAT” stops flashing.)

To cancel, select “REPEAT OFF” in step e, then press SET.

VIDEO

FF 1:35:

CD 12

Advanced Operation

Disc Operation (continued)

PLAY

MODE

RANDO

PLAY

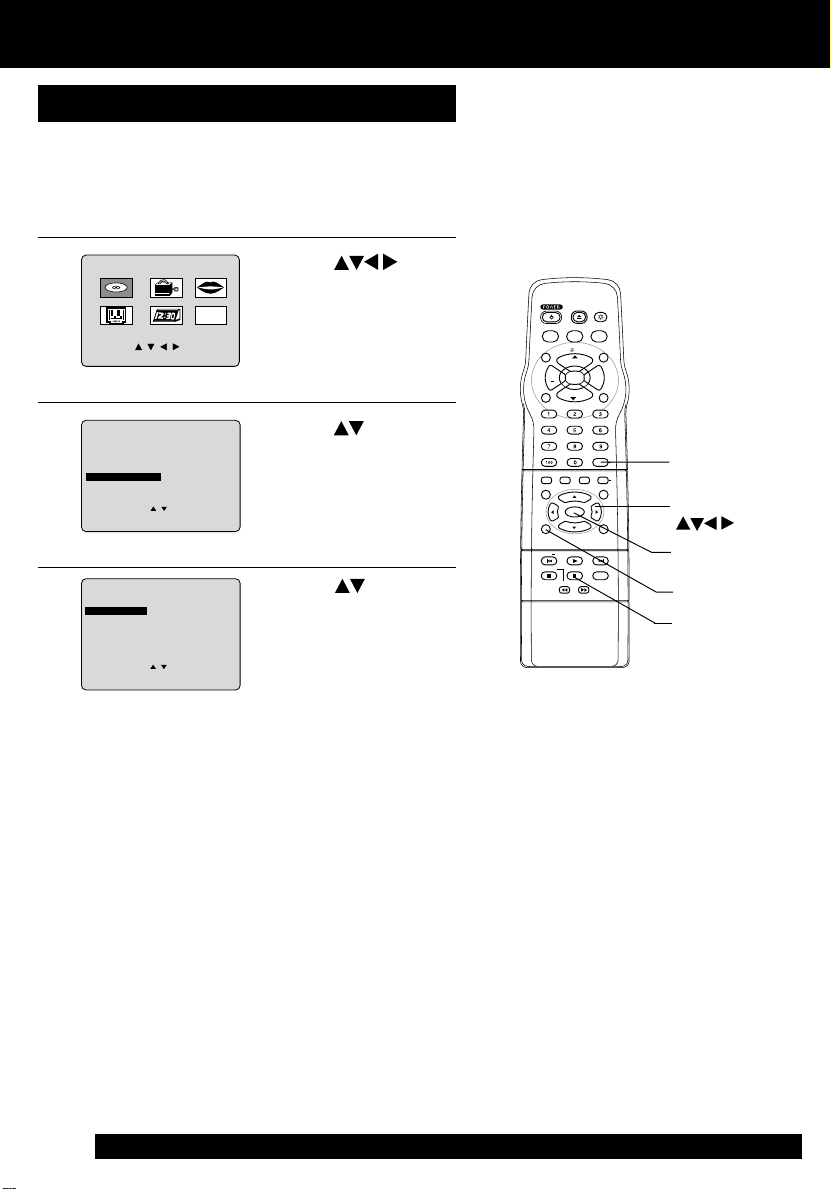

Random Play (Video CD/CD)

Tracks are played in a random order.

Press ACTION* in Stop mode to display MAIN MENU.

1 2

M A I N MENU

LOCK

DVD

CLOC

SELECT : END : ACT I ON

DVD MA I N

D I SC LANGUAGES AUD I O OUTPUT ST I LL MODE

: F I

MODE

: L e t t e r b o x

PLAY

MODE

SELECT : SET : SET END : ACTION

PLAY MODE

PROGRAM

PLAY

RANDO

PLAY

SELECT : SET : SET END : ACTION

LANGUAGE

SET : SET

ELD

1) Press

to select “DVD.”

2) Press SET to

display screen.

1) Press to select “PLAY MODE.”

2) Press SET to display screen.

1) Press to select “RANDOM PLAY.”

2) Press SET to begin random play.

• To cancel, press STOP during play, then press

CLEAR.

*Important:

If a remote control button does not work when pressed, press the TV, DVD button on the remote and try the button again.

OPEN/CLOSE

LIGHT

DSS

D V DTV

CABLE

VOL

AUDIO

TITLE MENU

ACTION RETURN

SKIP

PAUSE

ANGLE

S E T

PLAY

STOP

SLOW/SEARCH

SUB TITLE

ADD/DLT

DISPLAY

SKIP

ZOOM

CLEAR

ENTER

CLEAR

SELECT

SET

ACTION STOP

For assistance, please call : 1-800-211-PANA(7262) or send e-mail to : consumerproducts@panasonic.com

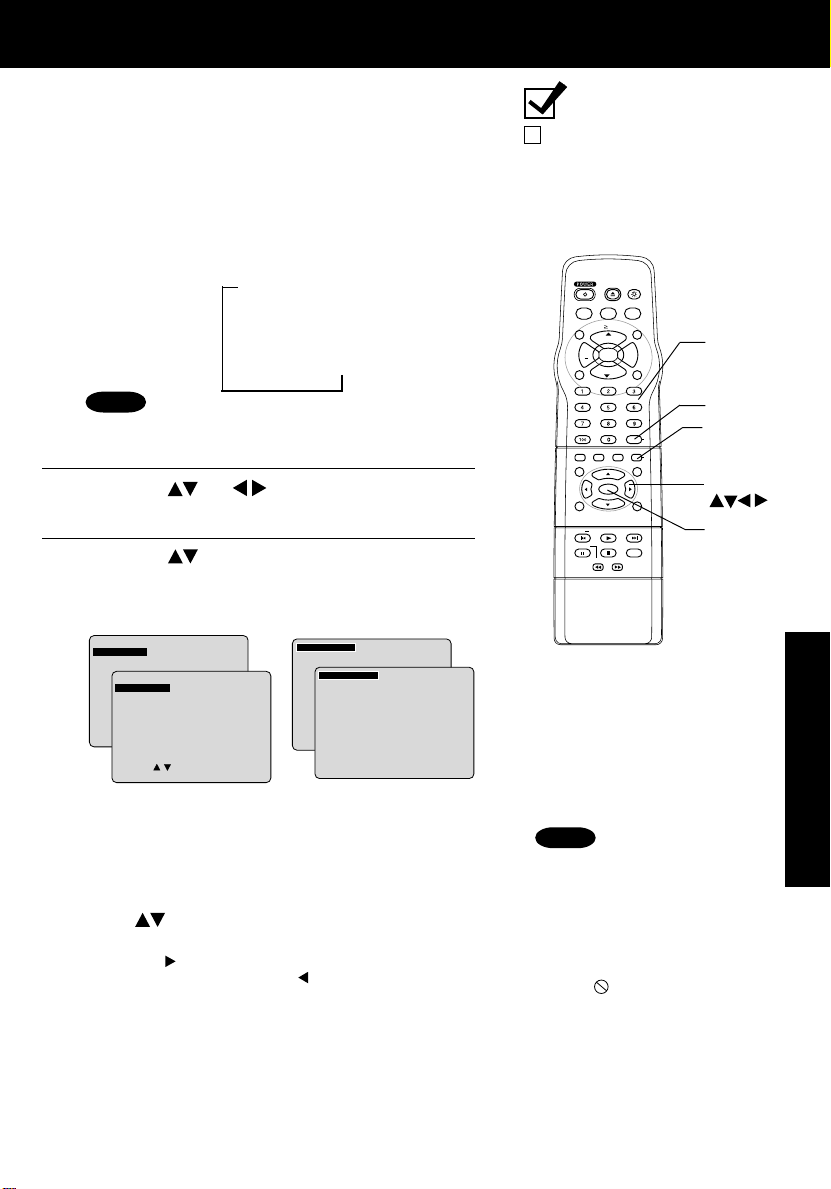

DVD Operation Using On-Screen Displays

CHAPTPT

TRACKCK

When DISPLAY is pressed, On-Screen Displays show disc information (title/chapter/track number, elapsed playing time) and unit information (repeat play, Play mode).

Press DISPLAY in Play or Stop mode to display “On-Screen Display.”

• Each press of DISPLAY changes the on-screen display as follows. (Please refer to page 38 or 39.)

> Selected disc information

-> ->

Selected unit information

Normal Screen

Note

• DISPLAY button does not function while DVD TITLE MENU is displayed.

1) Press (or ) to select an item.

2) Press SET to set.

1) Press to select the setting.

2) Press SET to set.

TLE : 12

DVD

CHA

: 11 0 :12 :34

TLE : 12

DVD

CHA

2424 0 :12 :34

TRA

CKCK: 12 VIDEO CD

PBC: O

FF 0:12 :34

TRA

: 1717

PBC: O

FF 0:12 :34

VIDEO

Ready Checklist

Unit is in DVD mode, press DVD.

OPEN/CLOSE

LIGHT

DSS

D V DTV

CABLE

VOL

NUMBER Keys

CLEAR

ADD/DLT

DISPLAY

SUB TITLE

ANGLE

AUDIO

TITLE MENU

S E T

ACTION RETURN

PLAY

SKIP

ZOOM

STOP

PAUSE

SLOW/SEARCH

CLEAR

ENTER

DISPLAY

SELECT

SET

Advanced Operation

SELECT: SET : SET NEXT: D ISPLAY

SET : SET NEXT: DISPLAY

• For some functions the setting will be registered immediately without pressing SET.

• When numbers are displayed (e.g. title number), the Number Keys are also available.

To make corrections, press

and SET repeatedly to move to

error, then correct.

• Pressing is effective for elapsing time instead of the above buttons. Press the error, then correct.

repeatedly to delete

To return to the normal screen, press CLEAR or DISPLAY repeatedly.

Notes

• When DISPLAY is pressed during playback of a Video CD with Playback control, the Number Keys are not available on the displayed screen. In this case, press DISPLAY again to remove the displayed screen.

• When while a button is being operated, it means that the corresponding operation is prohibited by the unit or the disc.

appears on the screen

DVD Operation Using On-Screen Displays (continued)

CHAPTPT

TRACKCK

LIGHT

TITLE MENU

DISPLAY

ADD/DLT

PAUSE

DSS

CABLE

SKIP

PLAY

STOP

VOL

SUB TITLE

ANGLE

ZOOM

AUDIO

OPEN/CLOSE

CLEAR

ENTER

ACTION RETURN

D V DTV

S E T

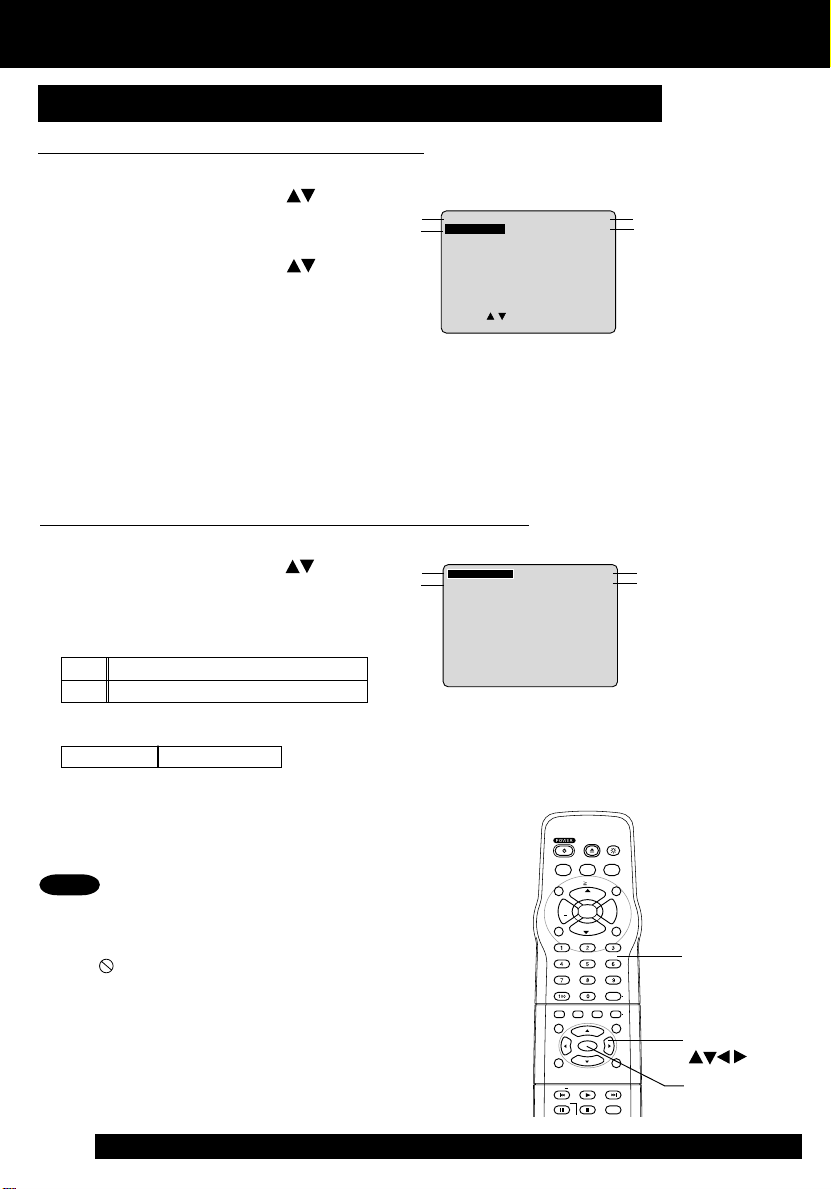

Detailed Descriptions of Each On-Screen Display

Disc Information Screen (for DVD)

1. TITLE No.

• Change the No. by pressing * or the Number Keys, and press SET.

2. Chapter No.

• Change the No. by pressing or the Number Keys, and press SET.

3. Disc currently being played

4. Elapsed playing time

The screen may be changed by selecting the elapsed time.

• Change the elapsed time by pressing Number Keys, and press SET. For “01 : 23 : 45,” press 0 -> 1 -> 2 -> 3 -> 4 -> 5

• This function does not work with some discs.

Disc Information Screen (for Video CD/ CD)

.Track No.

• Change the No. by pressing or

the Number Keys, and press SET.

.Playback control ON/OFF

[Video CD with playback control only]

Video CD menu play is displayed.

OFF

Video CD menu play is cleared.

TLE : 12

DVD

CHA

1111 0 :12 :34

A B

SELECT: SET : SET NEXT: DISPLAY

TRA

: 1212

PBC: O

SET : SET NEXT:DI SPLAY

FF 0:12 :34

VIDEO

3 4

.Disc currently being played

Video CD CD

.Elapsed playing time

Notes

• Track No. and elapsed playing time are not displayed during play started from menu of Video CDs with playback control.

• When being operated, it means that the corresponding operation is prohibited by the unit or the disc.

appears on the screen while a button is

For assistance, please call : 1-800-211-PANA(7262) or send e-mail to : consumerproducts@panasonic.com

NUMBER Keys

SELECT

SET

*Important: If a remote control button does not work when pressed, press the DVD button

CHA

PTE

REPEAT

on the remote and try the button again.

Detailed Descriptions of Each On-Screen Display

Unit information screen

• Change the desired mode during play by pressing , and press SET.

a. Repeat Play

Video CD/CD

TRACK REPEAT

DISC REPEAT

REPEAT OFF

• TRACK/DISC REPEAT PLAY

(Video CD/CD)

CURRENT PLAYBACK POSITION

track

TRACK REPEAT

DISK REPEAT

NORMAL PLAY

DVD

CHAPTER REPEAT

TITLE REPEAT

REPEAT OFF

track

b.Play mode [Video CD/ CD only]

(See pages 35 - 36.)

PROGRAM PLAY RANDOM PLAY

program play random play normal play

PLAY

CHA

PTE

R REPEAT

SET

END : D I SPLAY

SELECT: SET :

• CHAPTER/TITLE REPEAT PLAY

(DVD)

CURRENT PLAYBACK POSITION

TITLE

chapter

CHAPTER REPEAT

TITLE REPEAT

NORMAL PLAY

chapter

PLAY

D I SC

REREPE

ROGRAM

PLAY

SET : SET END :DISPLAY

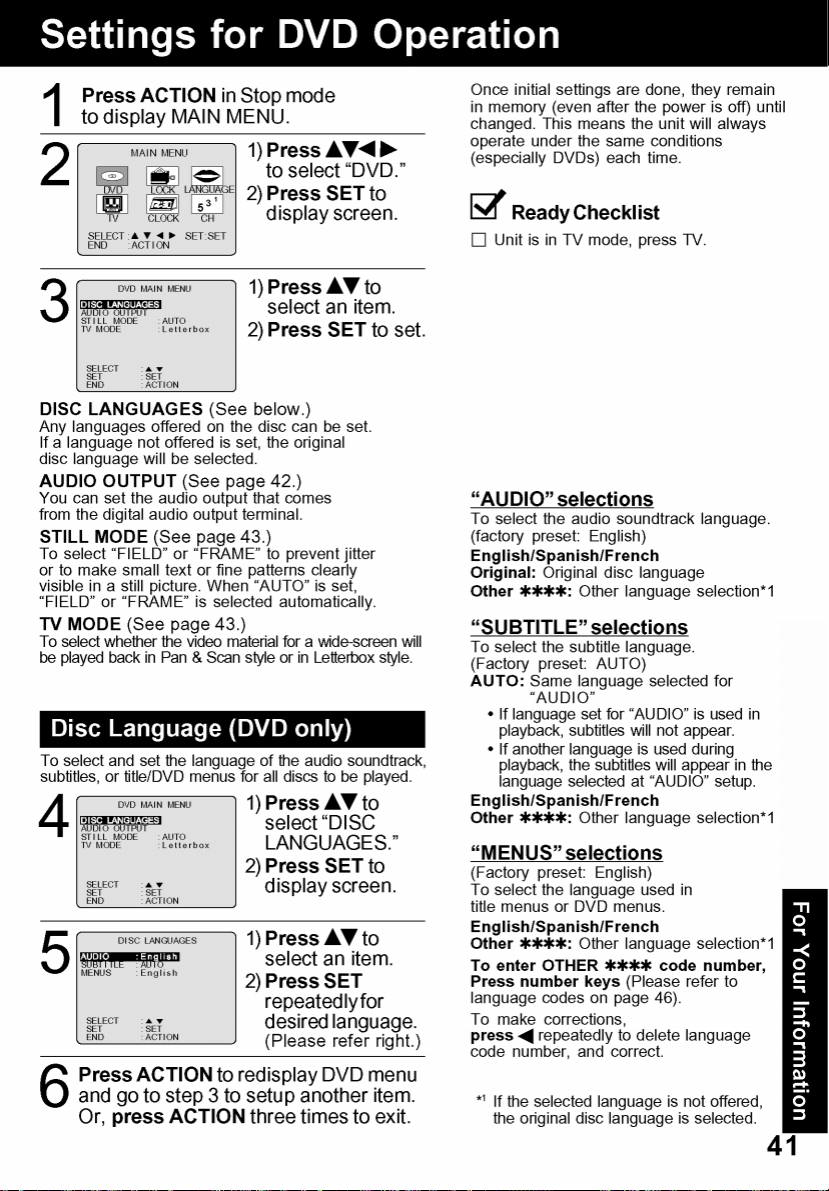

Advanced Operation

*Important: If a remote control button does not work when pressed, press the DVD button

TILLLL

MODE

ELD

TV MODE

on the remote and try the button again.

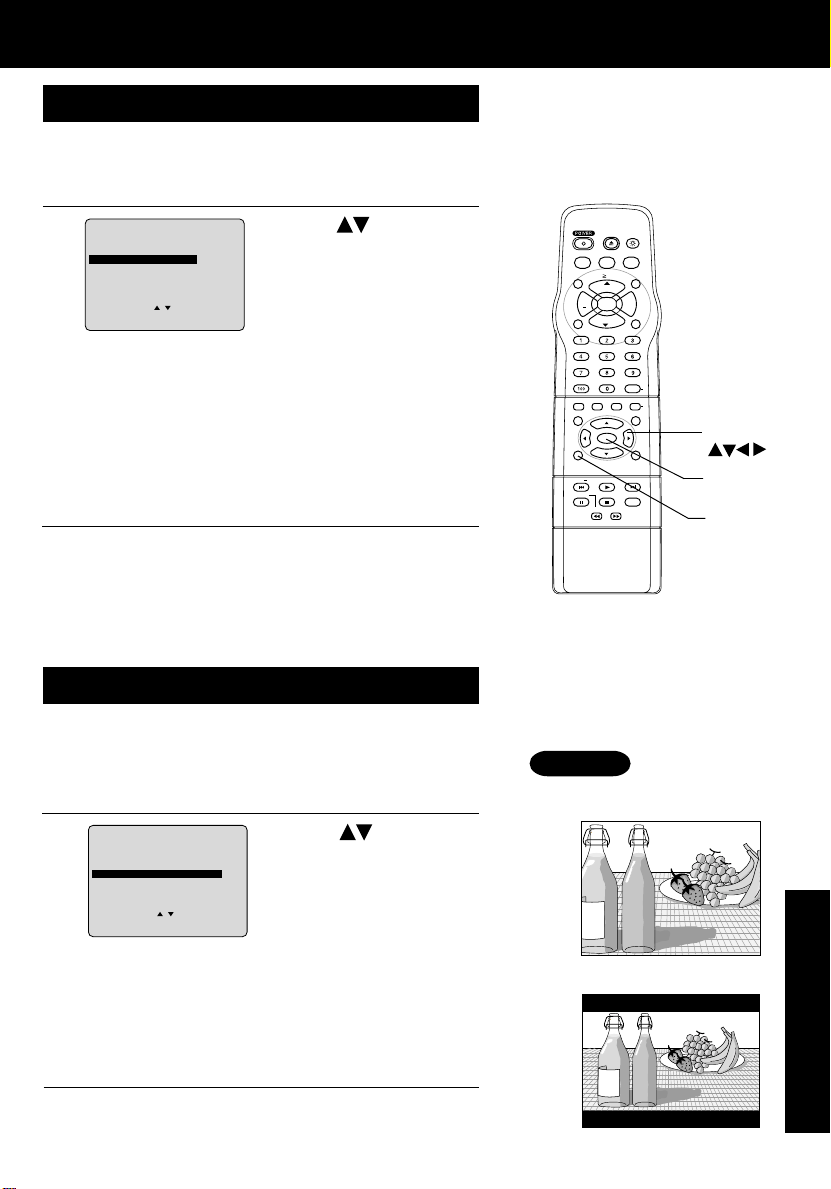

STILL MODE

Set to reduce jitter in a displayed still picture or a motion picture.

Do steps 1 and 2 on page 41.

DVD MAIN MENU

DISC LANGUAGES AUDIO OUTPUT

STI

MODE

: F

TV MODE : Lette r b o x

SELECT : SET : SET END : ACTION

ELD

AUTO: “FIELD” (Field still) or “FRAME” (Frame still) is

automatically selected during the still mode. (Factory preset)

FIELD: “FIELD” (Field still) is always selected.

This setting will reduce jitter when compared with “AUTO” on some discs.

FRAME:“FRAME” (Frame still) is always selected.

Some texts and fine patterns will be seen clearly when compared with “AUTO” on some discs.

Press ACTION twice to exit this mode.

1) Press to select “STILL MODE.”

2) Press SET repeatedly for mode. (See below)

OPEN/CLOSE

LIGHT

DSS

D V DTV

CABLE

VOL

ADD/DLT

DISPLAY

SUB TITLE

ANGLE

AUDIO

TITLE MENU

S E T

ACTION RETURN

PLAY

SKIP

ZOOM

STOP

PAUSE

SLOW/SEARCH

CLEAR

ENTER

SELECT

SET

ACTION

Selecting TV MODE

Set the screen display style for widescreen video material playback.

Do steps 1 and 2 on page 41.

DVD MAIN MENU

DISC LANGUAGES AUDIO OUTPUT

STI LL MODE : F

TV MODE

SELECT : SET : SET END : ACTION

LED

: Letterbox

Pan & Scan : Widescreen video data is played in Pan & Scan (Factory preset)

style (left and right of screen is trimmed.)

• Video data not formatted in Pan & Scan will play in letterbox style.

Letterbox : Widescreen video data is played in Letterbox

style (top and bottom of screen has black margin).

Press ACTION twice to exit this mode.

1) Press to select “TV MODE.”

2) Press SET repeatedly for mode. (See below.)

Advanced Operation

Example

• Pan & Scan (Factory preset)

For Your Information

• Letterbox

Before Requesting Service

Check the following points once again if you are having trouble with your unit.

Power

No power…

Power turns itself off...

Monitor

No picture or sound...

Poor picture with normal sound...

Poor sound with normal picture... Poor TV reception...

No color or poor color...

Ghost (multiple) images... TV programs cannot be watched...

Remote Control

Unit cannot be controlled...

ACTION, SELECT, SET, POWER, etc. buttons cannot be selected...

Correction

• Completely insert Power Plug into an AC outlet.

• Set POWER button to ON.

• Auto power-off (shutoff) occurs after about 5 min. in DVD mode with no operation, or if there is no broadcast signal in TV. Tur n the power back on. (P. 17, 27)

Correction

• Make sure your antenna system (TV or CABLE), is correctly set. (P. 10)

• Completely insert Power Plug into an AC outlet.

• Set POWER button to ON.

• Adjust BRIGHTNESS, SHARPNESS, and PICTURE controls in the SET UP Video Adjustment. (P. 31)

• Adjust VOLUME control. (P. 18)

• Adjust SHARPNESS and PICTURE controls in the SET UP Video Adjustment. (P. 31)

• Adjust TINT and COLOR controls in the SET UP Video Adjustment. (P. 30, 31)

• Install a directional antenna.

• Make sure the selected channel is in unit’s memory. (P. 12)

Correction

• Aim Remote directly at the remote sensor on the unit. (P. 9)

• Avoid any object blocking signal path.

• Inspect the remote batteries. (P. 4)

• Exposing unit remote sensor to direct fluorescent or outdoor

light may cause signal interference.

• Press TV for TV mode. (P. 24)

• Press DVD for DVD mode. (P. 24)

• Check remote batteries.

If you cannot resolve the problem, please call the Customer Call Center for product assistance at 1-800-211-PANA (7262.) To locate an authorized servicenter, please call toll free 1-800-211-PANA (7262.) or send e-mail to : consumerproducts@panasonic.com

For assistance, please call : 1-800-211-PANA(7262) or send e-mail to : consumerproducts@panasonic.com

DVD/Video CD/CD

Play fails to start even when PLAY is pressed...

Play starts but then stops immediately...

Picture is distorted during rapid advance or rapid reverse...

No Forward/Reverse search play...

Play does not start even when title is selected...

Audio soundtrack and/or subtitle language is not the one selected at the initial settings...

No subtitles...

Alternative audio soundtrack (or subtitle) language cannot be selected...

Angle cannot be changed...

Correction

• This unit cannot play discs other than DVDs, Video CDs and CDs.

• The disc may be dirty and require cleaning.

• Be sure disc is installed with label side up.

• The picture will be somewhat distorted at times: this is normal.

• Some discs may have sections which prohibit Forward/Reverse search. (P. 17)

• Confirm the “DVD LOCK” setting. (P. 40)

• If the audio soundtrack and/or subtitle language selected at DVD initial settings does not exist on the disc, it will not be accessible.

• Subtitles appear only when available on disc.

• Select “ON” at the “subtitle language” section (P. 32) to display subtitles.

• Alternative language cannot be selected with discs which do not contain more than one language.

• For some discs, alternative language cannot be selected with the AUDIO or SUB TITLE button. Try selecting it from the DVD menu if available.

• This function is dependent on software availability. Even if disc has multiple angles, they may be recorded for specific scenes only (ANGLE Indicator on unit lights up). (P. 33)

Miscellaneous

The disc cannot be removed...

Correction

• First, unplug unit. Then, prepare a rigid wire (e.g. an extended paper clip, etc.) and, applying moderate force, insert it straight into the hole at the base of the tray. The tray will eject a little. Now, pull the tray all the way out and remove the disc. (P. 7)

Warning and Instruction Displays

These displays will alert you of a missed operation or provide further instructions.

OSD

NO CH FOUND PLEASE CHECK ANTENNA CABLE CONNECTION THEN PRESS CH UP KEY AGAIN

PLEASE SET CLOCK BEFORE TIMER SETTING

PLEASE CHECK THE DISC, AND FOR STAINS OR SCRATCHES ON DISC

Caution

• If no active channels are found for CHANNEL MEMORY...

• If you attempt to set or review a set the On-Timer and the Clock is not set...

• If you press PLAY, or the unit reads data from a stained or scratched disc in DVD mode. Also, if the type of disc is other than DVD, Video CD or CD...

Page

For Your Information

Language Code List

Enter the appropriate code number for the initial settings “AUDIO”, “SUBTITLE” and/or “MENUS” (see page 45).

Code Language

6565 Afar 6566 Abkhazian 6570 Afrikaans 6577 Ameharic 6582 Arabic 6583 Assamese 6588 Aymara 6590 Azerbaijani 6665 Bashkir 6669 Byelorussian 6671 Bulgarian 6672 Bihari 6678 Bengali, 6679 Tibetan 6682 Breton 6765 Catalan 6779 Corsican 6783 Czech 6789 Welsh 6865 Danish 6869 German 6890 Bhutani 6976 Greek 6978 English 6979 Esperanto 6983 Spanish 6984 Estonian 6985 Basque 7065 Persian 7073 Finnish 7074 Fiji

Bangla

Code Language

7079 Faroese 7082 French 7089 Frisian 7165 Irish 7168 Scots Gaelic 7176 Galician 7178 Guarani 7185 Gujarati 7265 Hausa 7273 Hindi 7282 Croatian 7285 Hungarian 7289 Armenian 7365 Interlingua 7378 Indonesian 7383 Icelandic 7384 Italian 7387 Hebrew 7465 Japanese 7473 Yiddish 7487 Javanese 7565 Georgian 7575 Kazakh 7576 Greenlandic 7577 Cambodian 7578 Kannada 7579 Korean 7583 Kashmiri 7585 Kurdish 7589 Kirghiz 7665 Latin

Code Language

7678 Lingala 7679 Laothian 7684 Lithuanian 7686 Latvian, 7771 Malagasy 7773 Maori 7775 Macedonian 7776 Malayalam 7778 Mongolian 7779 Moldavian 7782 Marathi 7783 Malay 7784 Maltese 7789 Burmese 7865 Nauru 7869 Nepali 7876 Dutch 7879 Norwegian 7982 Oriya 8065 Panjabi 8076 Polish 8083 Pashto, Pushto 8084 Portuguese 8185 Quechua 8277 Rhaeto-Romance 8279 Romanian 8285 Russian 8365 Sanskrit 8368 Sindhi 8372 Serbo-Croatian 8373 Singhalese

Lettish

Code Language

8375 Slovak 8376 Slovenian 8377 Samoan 8378 Shona 8379 Somali 8381 Albanian 8382 Serbian 8385 Sundanese 8386 Swedish 8387 Swahili 8465 Tamil 8469 Telugu 8471 Tajik 8472 Thai 8473 Tigrinya 8475 Turkmen 8476 Tagalog 8479 Tonga 8482 Turkish 8484 Tatar 8487 Twi 8575 Ukrainian 8582 Urdu 8590 Uzbek 8673 Vietnamese 8679 Volapük 8779 Wolof 8872 Xhosa 8979 Yoruba 9072 Chinese 9085 Zulu

For assistance, please call : 1-800-211-PANA(7262) or send e-mail to : consumerproducts@panasonic.com

Servicenter List

For Product Information, Operating Assistance, Literature Request, Dealer Locations, and all Customer Service inquires please contact:

1-800-211-PANA(7262), Monday-Friday 9am-9pm Saturday-Sunday 9am-7pm, EST.

or send e-mail : consumerproducts@panasonic.com

Web Site: http://www.panasonic.com

You can purchase parts, accessories or locate your nearest servicenter by visiting our Web Site.

Accessory Purchases:

1-800-332-5368 (Customer Orders Only) Panasonic Services Company 20421 84th Avenue South, Kent, WA 98032 (6 am to 5 pm Monday - Friday; 6 am to 10:30 am Saturday; PST) (Visa, Master Card, Discover Card, American Express, Check)

Factory Servicenter Locations

CALIFORNIA

6550 Katella Avenue Cypress, CA 90630

800 Dubuque Avenue S. San Francisco, CA 94080

3878 Ruffin Road Suite A San Diego, CA 92123

FLORIDA

3700 North 29th Avenue Suite 102 Hollywood, FL 33020

GEORGIA

8655 Roswell Road Suite 100 Atlanta, GA 30350

ILLINOIS

1709 North Randall Road Eligin, IL 60123

MASSACHUSETTS

60 Glacier Drive, Suite G Westwood, MA 02090

MINNESOTA

7850-12th Avenue South Airport Business Center Bloomington, MN 55425

OHIO

2236 Waycross Road Civic Center Plaza Forest Park, OH 45240

PENNSYLVANIA

2221 Cabot Blvd. West Suite B Langhorne, PA 19047

TEXAS

13615 Welch Road Suite 101 Farmers Branch, TX 75244

WASHINGTON

20425-84th Avenue South Kent, WA 98032

HAWAII

99-859 Iwaiwa Street Aiea, Hawaii 96701 Phone (808) 488-1996 Fax (808) 486-4369

Service in Puerto Rico

Matsushita Electric of Puerto Rico, Inc. Panasonic Sales Company/ Factory Servicenter: Ave. 65 de Infanteria. Km. 9.5 San Gabriel Industrial Park Carolina, Puerto Rico 00985

Phone (787) 750-4300 Fax (787) 768-2910

As of June 2001

For Your Information

Spanish Quick Use Guide/Guía para rápida consulta

Conexión de la antena externa

Desenganche la antena del televisor o de la videograbadora que tuviera anteriormente y conéctela a la parte trasera de la unidad Combinación TV/DVD, como se muestra en el diagrama. Si el sistema de su antena tiene conductores UHF y VHF separados, usted necesita un mezclador de banda UHF/VHF (no viene con el equipo.)

ADVERTENCIA:

Al utilizar cables coaxiales RF del “Tipo tuerca”, solo debe apretarse con los dedos. Si se aprieta demasiado los cables pueden resultar dañados.

Conexiones de TV cable

Sin un decodificador de TV cable

Podrá;

• ver canales sin codificar.

No Podrá;

• ver canales codificados.

(Plano) Cable bifubular de 300 ohmios

(Redondo) Cable coaxial de 75 ohmios

desde la antena

Transformador de 300-75 ohmios (no está incluido)

(Plano) Cable bifubular de 300 ohmios

Mezclador de banda UHF/VHF (no está incluido)

Parte trasera de la unidad combinación TV/DVD

Parte trasera de la combinación de TV/DVD

Antena

Cable TV

VHF/ UHF

Con un decodificador de TV cable

Podrá;

ver cualquier canal incluso los canales codificados.

•

NOTA : El canal deberá ser seleccionado en el decodificador

de TV cable.

Para ver un canal codificado/ no codificado

Sintonice el canal del Registrador de la combinación de VCR/TV en el canal de salida de la caja convertidora de televisión por cable (por ejemple el canal 3.) Después, seleccione en el decodificador de TV cable el canal que se quiera ver.

Con un receptor DSS

Podrá;

• ver cualquier canal incluso los canales codificados.

NOTA : El canal deberá ser seleccionado en el receptor

DSS.

NOTA : El receptor DSS debe estar apagado para ver

programas desde un decodificador de TV cable o desde la antena. Consulte el manual del receptor DSS para más detalles.

Antena

Cable TV

Receptor DSS

Antena

Caja convertidora de TV por cable

OUTIN

Satellite

OUT

Parte trasera de la combinación de TV/DVD

VHF/ UHF

Parte trasera de la combinación de TV/DVD

VHF/ UHF

For Your Information

Spanish Quick Use Guide/Guía para rápida consulta

Operaciones básicas del DVD

Presione POWER en el control remoto o el aparato.

Elija el modo DVD

Presione DVD.

Introducir un disco.

1) Presione OPEN/CLOSE.

2) Ponga un disco en la bandeja de disco.

• Sujete el disco sin tocar ninguna de sus superficies, póngalo con el lado donde esté impreso el título hacia arriba, alinéelo con las guías y póngalo en su posición apropiada. Disco de 3”(8 cm) Disco de 5” (12 cm)

Iniciar la reproducción

Presione PLAY.

La bandeja del disco se cierra automáticamente.

• Si está usando un DVD interactivo (Interactive DVD) o un Vídeo CD con contol de reproducción (playback control) y aparece un menú de títulos (TITLE MENU) en la pantalla, siga al paso 5.

Elija el artículo deseado.

1) Presione

2) Presione SET para la reproducción.

Si usa las teclas numéricas, la reproducción comienza automáticamente.

Parar la reproducción.

Presione STOP.

Expulsar el disco.

Presione OPEN/CLOSE.

Para buscar una escena particular Búsqueda hacia adelante

Presione SLOW/SEARCH en el modo de reproducción. Búsqueda hacia atrás Presione SLOW/SEARCH en el modo de reproducción. (Para liberar, presione PLAY)

Para saltar un capítulo o una pista Salto hacia adelante

Presione SKIP Un capítulo (DVD) o una pista (Vídeo CD/CD) se salta cada ves que se oprime la tecla.

Salto hacia atrás

Presione -

Para ver una imagen fija

Presione PAUSE durante la reproducción. (Para liberar, presione PLAY)

Para ver imágenes cuadro a cuadro (DVD/Vídeo CD)

Presione PAUSE en el modo de imagen fija. La imagen avanza un cuadro cada vez que presiona la tecla. (Para volver a la reproducción normal, presione PLAY.)

Para ver en cámara lenta (DVD/Vídeo CD)

Coloque modo de imagen figa (pause) y despues presione SLOW/SEARCH o SLOW/SEARCH (Para liberar presione PLAY.)

SKIP en el modo de reproducción.

Por ayuda, llame al 1-800-211-PANA(7262) o envie e-mail a : consumerproducts@panasonic.com

o las teclas numéricas.

+ en el modo de reproducción.

Funcionnamiento del DVD utilizando visualizaciones en pantalla

Cuando se presiona DISPLAY, la visualización en pantalla muestra la información del disco (título / capítulo / número de lista, tiempo transcurrido de reproducción, audio / idioma del subtítulo, y ángulo) e información (repetir la reproducción, modo reproducción, Karaoke vocal encendido / apagado, etc.).

Visualizar Información en pantalla.

Presione DISPLAY en el modo reproducción o parada.

• Cada vez que se presione DISPLAY, la visualización en pantalla cambia como se muestra a continuación.

Selected disc information

Información seleccionada del disco

Selected unit information

Información seleccionada de la unidad

Limpiar la Pantalla

Normal Screen

Selección del ítem deseado

1)Presione

seleccionar.

2)Presione SET para ajustar

T ITULO : 12 DVD

CAPI TULO: 11 0:12:34

T ITULO : 12 DVD

CAPI TULO: 24 0:12:34

ELEGI R: FI JAR : SET SI GUIENTE :D ISPLAY

2)Presione SET para Inicio de Ajuste

3)Presione para cambiar

4)Presione de nuevo set para Realizacion

PI STA : 12 V IDEO CD

PBC : I NACTIVO 0 : 12 :34

PI STA : 17 V IDEO CD

PBC : I NACTIVO 0 : 12 :34

FIJAR : SET SIGUIENTE:DISPLAY

FI JAR : SET SI GUIENTE :D ISPLAY

(o ) para

Selección del ajuste deseado

1)Presione para

seleccionar.

Para limpiar la pantalla,

Presione repetidamente CLEAR o DISPLAY.

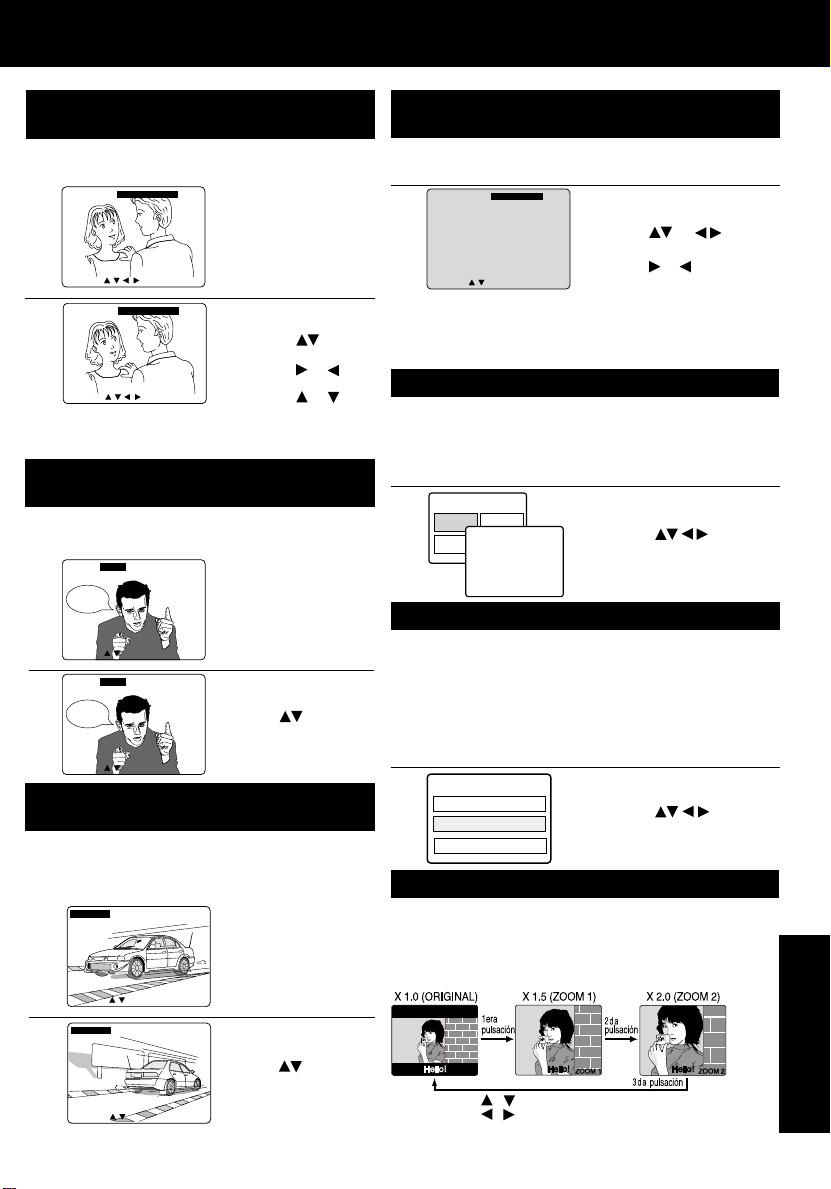

Cambio del idioma de subtítulos [DVD solamente]

EI idioma de los subtítulos seleccionado al hacer las fijaciones iniciales se puede cambiar por otro idioma diferente, si éste se encuentra disponible.

SUBTI TULO: 1 ENG ACT IVO

ELEGI R

SUBTI TULO: 3 ESP ACT IVO

ELEGI R

I love you

: F IJAR : SET

Te amo

: F IJAR : SET

Presione SUBTITLE durante la reproducción.

Cuando no haya subtítulos grabados, “-” se visualizará en lugar del número de idioma.

Seleccionar el idioma deseado.

1) Presione para seleccionar idioma.

2) Presione ajustar.

3) Presione (o ) para seleccionar “ACTIVO” o “INACTIVO.”

(o ) para

Cambio del idioma de la pista de sonido [DVD solamente]

EI idioma de la pista de sonido seleccionado al hacer las fijaciones iniciales se puede cambiar por otro idioma diferente, si éste se encuentra disponible.

SONI DO:1 ENG

Dolby Digital 3/2.1ch

Hello

ELEGI R : FIJAR : SET

SONI DO:3 ESP

Dolby Digital 3/2.1ch

Hola

ELEGI R : FIJAR : SET

Visualizar la pantalla AUDIO.

Presione AUDIO durante la reproducción.

Seleccionar el idioma deseado.

Presione para seleccionar idioma.

Visión desde otro ángulo [DVD solamente]

Algunos discos DVD tienen escenas que han sido filmadas simultáneamente desde un número de ángulos diferentes. Con estos discos, la misma escena podrá verse desde cada uno de estos ángulos diferentes utilizando el botón ANGLE.

ANGULO

ELEGI R : F IJAR : SET

ANGULO

ELEGI R : F IJAR : SET

: 1

: 2

Visualizar la pantalla de ángulo.

Presione ANGLE durante la reproducción.

Seleccionar el ángulo deseado.

Presione para seleccionar.

Selección de vocal para los discos de Karaoke [DVD/Video CD]

Visualizar la pantalla AUDIO.

Presione AUDIO durante la reproducción.

SONIDO:2 ENG VOZ ACTIVO

ELEGI R

: F IJAR : SET

• DVD Karaoke (1 vocal) VOZ ACTIVA VOZ INACTIVA

• DVD Karaoke (2 vocales) VOCAL V1 + V2 VOCAL V1

• Video CD LR L R

Seleccionar el ajuste deseado.

1) Presione (o ) para seleccionar.

2) Presione (DVD solamente)

VOCAL OFF VOCAL V2

(o ) para ajustar.

Utilización de un menú de títulos [DVD solamente]

Algunos discos con películas, por ejemplo, vienen con dos o más títulos. Si el disco tiene un menú de títulos grabados, el botón TITLE podrá utilizarse para seleccionar el título de la película.

Presione TITLE durante la reproducción.

Ahora se visualiza una lista de los títulos del disco.

T I TLE MENU

Cas t l es

Dogs

Utilización de un menu de DVD [DVD solamente]

Algunos discos DVD tienen estructuras únicas de menús llamadas menús DVD. Por ejemplo, los DVDs programados con un contenido complejo proporcionan menús guía, y los grabados con varios idiomas proporcionan menús para audio e idiomas de subtítulos. Aunque los contenidos de los menús DVD y la operación cambian de disco a disco, a continuación se explica la operación básica cuando se utiliza esta característica.

Presione MENU durante la reproducción.

El menú de DVD introducido en el disco se visualiza ahora.

1 2

i r

Love

Dogs

of the world

DVD MENU

1 . SUBT I TLE

2 . AUD

3 . ANGLE

Seleccionar el título deseado.

1) Presione o las teclas numéricas seleccionar.

2) Presione SET o PLAY.

Seleccionar el ítem deseado.

1) Presione o las teclas numéricas para seleccionar.

2) Presione SET o PLAY.

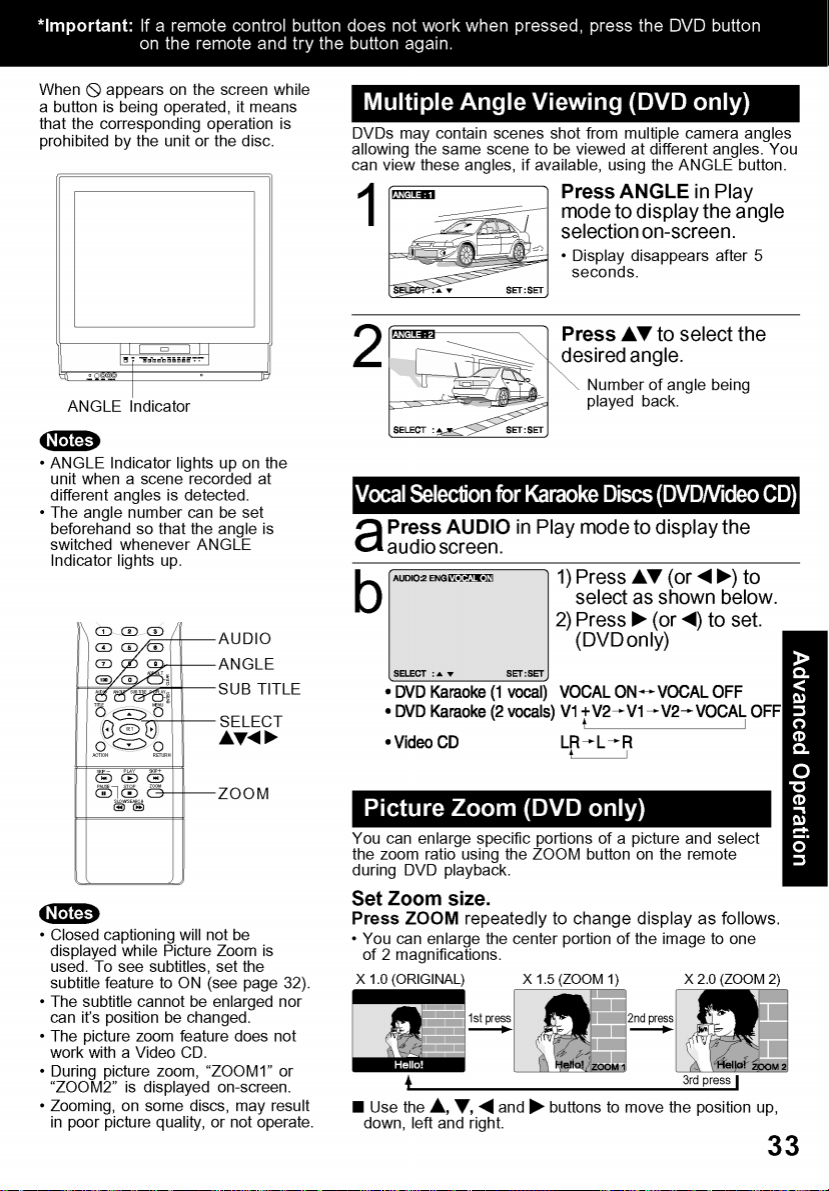

Ampliación de la imagen [DVD solamente]

Durante la reproducción de un DVD, puede ampliar partes específicas de una imagen y seleccionar la relación de zoom usando el botón ZOOM del control remoto.

Seleccione el tamaño de la imagen.

Presione ZOOM repetidamente para cambiar el tamaño de la imagen como se indica a continuación:

Use los botones y para desplazar la posición hacia arriba o hacia abajo. Use los botones derecha.

y para desplazar la posición hacia la izquierda o hacia la

For Your Information

Spanish Quick Use Guide/Guía para rápida consulta

Reproducción programada [Vídeo CD/CD]

Puede usted programar pistas específicas y el orden de reproducción.

• Vídeo CD o CD es insertado en el modeo DVD.

Visualizar MAIN MENU.

Presione ACTION en el modo parada.

Vísualizar la pantalla DVD.

1) Presione para

ID I OMA

CANAL

JAR : SET

seleccionar “DVD.”

2) Presione SET para visualizar.

Seleccionar “MODO DE REPRODUCCION.”

1) Presione para seleccionar.

2) Presione SET para visualizar.

Seleccionar “REPRODUCCION DE

PROGRAMAS.”

1) Presione para seleccionar.

2) Presione SET para visualizar.

Seleccionar el número

PROGRAMA

de la pista deseada. (Se visualizan los números de la pista del disco).

1) Presione para

seleccionar.

2) Presione SET para seleccionar.

• Repita el paso 5 para

seleccionar otra pista.

• La pista seleccionada se añade

a la parte derecha.

Comenzar

PROGRAMA

“REPRODUCCION DE PROGRAMAS.”

1) Presione para

seleccionar “INICIAR.”

2) Presione SET.

• La reproducción comienza

en la secuencia programada.

• Para cancelar, pulsar STOP

durante la reproducción y luego presione CLEAR.

DVD

ELEG I R : TERM I NAR :

DVD MENU PRI NCIPAL

ID IOMAS DEL DI SCO SALI DA DE AUDIO DETENER RASTREO : CAMPO 4: 3 PREFERENCIA : Le tt erbox

MODO DE REPRODUCCI ON

ELEGI R : FI JAR : SET TERMI NAR : ACT ION

MODO DE REPRODUCCI ON

REPRODUCCION DE PROGRAMAS

REPRODUCCI ON ALEATORIA

ELEGI R : FI JAR : SET TERMI NAR : ACT ION

REPRODUCCI ON DE PROGRAMAS

DI SCO

1 61116 5 8

2 7 12 17 15 6 3 8 13 18 1 13 4 91419 3 2 510 1520 2

BORRAR EL ULTI MO BORRAR TODO IN IC IAR

ELEGI R : FI JAR : SET TERMI NAR : ACT ION

REPRODUCCI ON DE PROGRAMAS

DI SCO

1 61116 5 8

2 7 12 17 15 6 3 8 13 18 1 13 4 91419 3 2 510 1520 2

BORRAR EL ULTI MO BORRAR TODO IN ICI AR

ELEGI R : FI JAR : SET TERMI NAR : ACT ION

MENU PR I NCIPAL

BLOQUEO

RELOJTV

F I

ACT I ON

Reproducción arbitraria [Vídeo CD/CD]

Las pistas se reproducen de forma arbitraria.

Repita los pasos 1-3 de la página anterior.

MODO DE REPRODUCCI ON

REPRODUCCI ON DE PROGRAMAS

REPRODUCCION ALEATORIA

ELEGI R : FI JAR : SET TERMI NAR : ACT ION

Por ayuda, llame al 1-800-211-PANA(7262) o envie e-mail a : consumerproducts@panasonic.com

Seleccionar “REPRODUCCION ALEATORIA.”

1) Presione para seleccionar.

2) Presione SET.

• Comienza la reproducción arbitraria.

• Para cancelar, presione STOP durante la reproducción y luego presione CLEAR.

Fijaciones iniciales

Visualizar MAIN MENU. Presione ACTION en el modo de parada.

Visualizar la pantalla DVD.

1) Presione para seleccionar.

2) Presione SET.

Seleccionar el artículo deseado.

1) Presione para seleccionar.

2) Presione SET.

IDIOMAS DEL DISCO

Todos los idiomas ofrecidos en el disco pueden ser ajustados, Si el idioma ajustado no es ofrecido en el

disco, se seleccionará el idioma original del disco.

SALIDA DE AUDIO

Puede usted ajustar la salida audio procedente del terminal de salida audio digital.

DETENER RASTREO

Para seleccionar “CAMPO” o “CUADRO” para prevenir inestabilidad o para permitir ver textos pequeños o patrones finos claramente en el modo de

imagen fija.

4 : 3 PREFERENCIA

Para seleccionar si el material del vídeo para pantalla ancha será vuelto a reproducir en el estilo Pan&Scan o en el estilo Letterbox en la pantalla.

Seleccionar el artículo deseado.

1) Presione para seleccionar.

2) Presione SET.

Volver a visualizar el menú de DVD para continuar el ajuste.

Presione ACTION y pase al paso 3 para ajustar otro ajuste o, para salir, presione ACTION tres veces.

Selección de IDIOMAS DEL DISCO [DVD solamente]

Seleccione “AUDIO”

(Fijación de fábrica : inglés)

Original : Se seleccionará el idioma original de cada

OTRO **** : Se puede seleccionar el otro idioma.

Seleccione “SUBTITULO”

AUTO : Se seleccionará el mismo que fue seleccionado

Inglés / Español / Francés OTRO **** : Se puede seleccionar el otro idioma.

Seleccione “MENU”

Inglés / Español / Francés : (Fijación de fábrica : inglés) OTRO **** : Se puede seleccionar el otro idioma.

disco.

en la preparación de “AUDIO”. (Fijación de fábrica)

• Si el idioma seleccionado en la preparación de “AUDIO” se utiliza durante la reproducción, los subtítulos no aparecerán.

• Si se utiliza otro idioma durante la reproducción, los subtítulos aparecerán en el idioma seleccionado en la preparación de “AUDIO”

Inglés / Español / Francés :

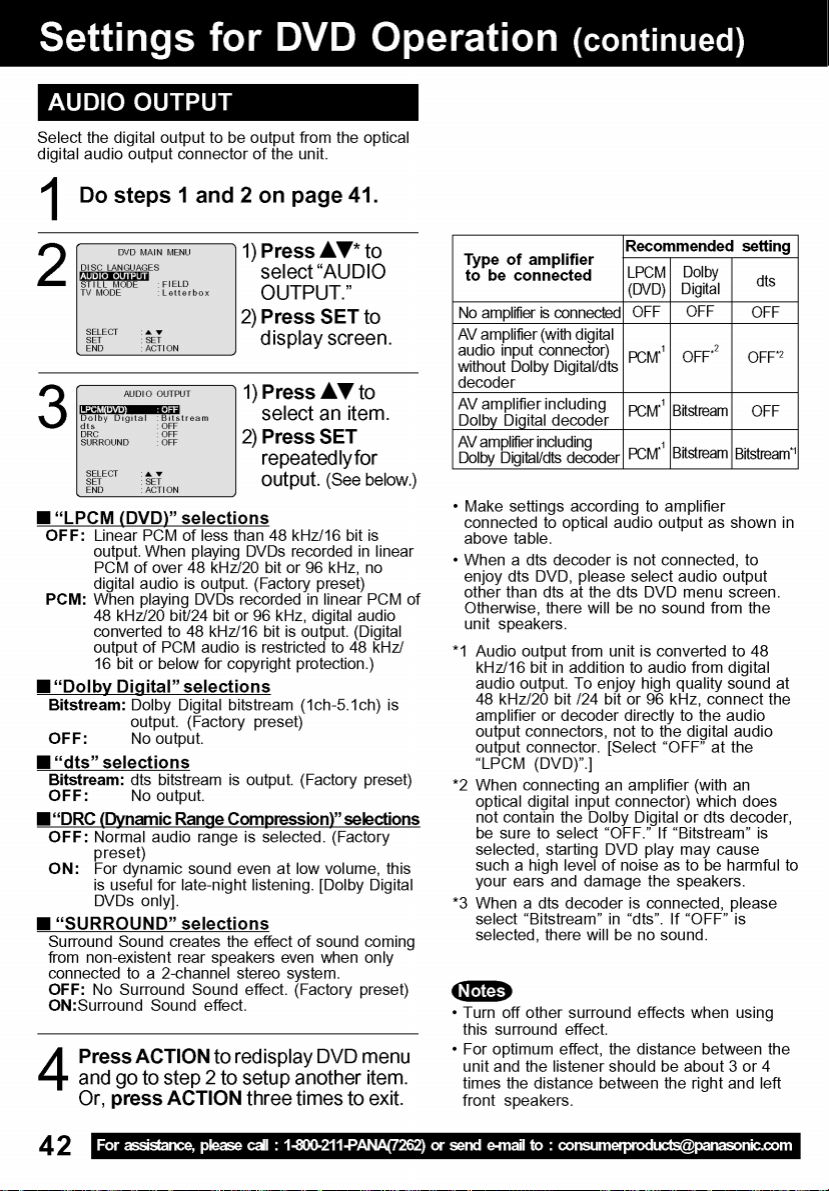

Selección de SALIDA DE AUDIO

Seleccione “LPCM(DVD)”

INACTIVO : Por el conector de salida de audio

PCM : Durante la reproducción del DVD

digital solamente sale PCM lineal de 48 kHz/16 bits. Durante la reproducción del DVD grabado en el PCM lineal de 48 kHz/20 bits o 96 kHz, no sale audio digital. (Fijación de fábrica)

grabado en el PCM lineal de 48 kHz/ 20 bits/24 bits o 96 kHz, sale audio digital convertido a 48 kHz/16 bits. (La salida restringida a 48 kHz/16bits para proteger los derechos de autor.)

digital de audio PCM está

o menos

Seleccione “Dolby Digital”

Bitstream: Sale un flujo de bits Dolby digital

INACTIVO : No hay salida de audio.

(2ch-5.1ch). (Fijación de fábrica)

Seleccione “dts”

Bitstream : Sale un flujo de bits dts. (Fijación de

INACTIVO : No hay salida de audio.

Seleccione “DRC (

INACTIVO : Se selecciona el margen de audio

ACTIVO : Seleccione este ajuste para disfrutar

fábrica)

Dynamic Range Compression

normal. (Fijación de fábrica)

de un sonido dinámico incluso a bajo volumen. Esto es muy útil para escuchar durante la noche. [Esta función sólo se activa con DVDs Dolby Digital.]

Seleccione “SURROUND”

El sonido envolvente crea el efecto de sonido que procede de altavoces que parecen ester en la parte de atrás aún cuando solo se ha conectado a un sistema estéreo de 2 canales.

INACTIVO : No efecto de sonido envolvente.

ACTIVO : Efecto de sonido envolvente.

(Fijación de fábrica)

Selección de DETENER RASTREO

AUTO : Durante el modo de imagen fija se

CAMPO : Seleccione este ajuste cuando ocurra

CUADRO : “Cuadro fijo” es siempre seleccionado.

seleccionarán automáticamente

“Campo fijo” o “Cuadro fijo” (Fijacion

de fabrica)

“distorsión” en las imagenes, incluso cuando se haya seleccionado “AUTO”.

Seleccionar este ajuste cuando no se puedan ver claramente texto pequeño o patrones finos incluso cuando esté seleccionado “AUTO”.

Selección de 4 : 3 PREFERENCIA

Pan&Scan :

)”

Letterbox : Datos de la pantalla ancha de vídeo

Datos de la pantalla ancha de vídeo son reproducidos en el estilo Pan & Scan (la parte derecha e izquierda de la pantalla son recortadas). (Fijación de fábrica)

• Datos de vídeo no formateados en Pan & Scan serán reproducidos en el estilo letterbox.

son reproducidos en el estilo Letterbox (la parte de arriba y abajo de la pantalla tienen un margen negro).

For Your Information

Index

A Accessories............................................... 4

AC Power Plug........................................... 9

ACTION button .................................... 8, 12

ADD / DLT button ................................ 8, 13

Audio Adjustment ..................................... 31

Audio Auto Gain Control (AGC) .............. 30

Audio button ......................................... 8, 19

Audio connections ............................. 14, 15

Audio Menu .............................................. 30

Audio Mode for TV Viewing ..................... 19

Audio Mute ............................................... 18

Audio / Video Adjustment ........................ 31

Audio / Video In Jack ................................. 9

Audio / Video Menu.................................. 30

Audio Output Connector (L/R) .................. 9

Auto Operation Functions ....................... 27

B Batteries ..................................................... 4

Before Requesting Service ..................... 44

Before Using .............................................. 4

Blocking Message ................................... 29

Blue Screen Display ................................ 23

Broadcast Types ..................................... 19

C Cable Box Brand Code Number ............. 25

Cable Box Universal Remote

Control Feature ....................................... 24

Caption On Mute ...................................... 21

Channel ........................................ 10, 11, 23

CHANNEL UP / DOWN button ....... 8, 9, 18

Clock ........................................................ 12

Closed Caption .................................. 20, 21

Code Numbers, DSS / Cable Box Brand

Connections............................................. 10

Connections, Audio ................................. 15

Connections, DSS / Cable Box ............... 10

Connections, Ant./Cable ......................... 10

D DISPLAY / ENTER button ............. 8, 23, 24

DSS Brand Code Number ....................... 25

DSS CABLE button.............................. 8, 24

DSS / Cable Box Connections ................ 10

DST (Daylight Saving Time) ................... 11

F Front Panel Indicators ............................... 9

Function Display ...................................... 23

I Important Safeguards and Precautions ... 2

Information (Unit, Disc) .....................4 , 6 , 7

Initial Setup............................................... 10

Indicators on the Front Panel ................... 9

Input Mode ............................................... 27

L Language ................................................. 12

LIGHT button ............................................. 8

Limited Warranty ..................................... BC

Location of Controls .............................. 8, 9

M MTS Broadcast / TV Stereo System ...... 19

MUTE but ton.................................. 8, 18, 21

N NUMBER keys .................................. 8, 18, 24

O 100 Key .............................................. 18, 24

On-Screen Displays (OSD) ....... 23, 37, 38

ON-TIMER Indicator ........................... 9 , 22

ON-TIMER with Alarm ............................. 22

Outdoor Antenna Connections ............... 10

P Phones ..................................................... 18

POWER button ............. 8, 9, 10, 16, 18, 24

Q Quality Picture ........................................... 4

R Rapid Tune ............................................... 18

R-TUNE button .................................... 8, 18

Remote Control Buttons ............................ 8

Remote Sensor .......................................... 9

Remote Warning Feature ........................ 26

Reset Language, Channels, Clock,

Time Zone Adjust .............................. 12, 13

S Safety Precautions .................................... 3

Secret Code ............................................. 27

SELECT / SET button.......................... 8, 1 2

Servicenter ............................................... 47

Sleep Timer .............................................. 22

Spanish Quick Use Guide .............. 48 ~ 5 3

Specifications............................................. 6

SURROUND button ............................ 8, 26

Surround Sound ....................................... 26

T Table of Contents ...................................... 5

Time Zon e Adjus t .................................... 13

TV Operation ........................................... 18

TV Timer Features .................................. 22

TV button.............................................. 8, 24

TV Status & Clock Display ...................... 23

U Unit, Front/Rear view ............................ 8, 9

Universal Remote Control ....................... 24

US MOVIES Ratings ......................... 28, 29

US TV PROGRAMS Ratings ............28, 29

V Video Adjustment..................................... 31

Video Menu .............................................. 30

V-Chip Control Feature ................... 27 ~ 29

VHF / UHF Antenna Input Terminal ......... 9

Volume Adjust .......................................... 26

VOLUME UP / DOWN button ............. 8, 18

W Warning and Instruction Displays .......... 45

Weak Signal Display Feature ................. 26

For assistance, please call : 1-800-211-PANA(7262) or send e-mail to : consumerproducts@panasonic.com

DVD

A ANGLE button ...................................... 8, 33

ANGLE Indicator ...................................... 33

Auto-Power Off function .......................... 17

AUDIO button ...................................... 8, 32

AUDIO OUTPUT ............................... 41, 42

Audio soundtrack language (DVD) ........ 32

B Basic DVD Operation ........................ 16, 17

C CLEAR button .............................. 8, 35 ~ 37

D Definition of terms...................................... 7

Disc Audio Attribute 1 Type, Sampling

Frequency, Bit No. ................................. 32

Disc format................................................. 7

Disc handling ............................................. 4

Disc Information Screen ................... 35, 38

DISC LANGUAGES (DVD) ..................... 41

Disc Operation................................. 32 ~ 36

Disc Tray .........................................4 , 9, 16

DISPLAY button .............................8, 35, 37

DVD button ........................................... 8 , 16

DVD Lock Feature (DVD) ....................... 40

DVD Lock Ratings (DVD) ....................... 40

DVD menu (DVD) .................................... 34

DVD Operation using On-Screen .. 37 ~ 39

F FF button .................................................. 16

Foward / Reverse Chapter / Track skip 17 Frame by Frame picture

(DVD/Video CD) ..................................... 17

K Karaoke (DVD/Video CD) ....................... 33

L Language Code List ................................ 46

M MENU button ........................................... 34

Multiple angle viewing (DVD) .................. 33

O OPEN / CLOSE button.................... 8, 9, 16

Optical digital audio output connector ...... 9

P PAUSE button ...................................... 8, 17

Picture Zoom (DVD) ................................ 33

Play........................................................... 16

Playback control (Video CDs) ................ 17

PLAY button ......................................... 8, 16

Program Play (Video CD/CD) ................. 35

Program Repeat Play (Video CD/CD) ... 35

R Random Play (Video CD/CD) ................. 36

Region number .......................................... 3

Foward / Reverse rapid scene search .. 17

Repeat Play ............................................. 35

RESUME function .................................... 17

RETURN button ...................................8, 16

REW button.......................................... 8, 16

Settings for DVD Operation ............ 41 ~ 43

SKIP

Slow Motion (DVD/Video CD) ................. 17

SLOW

STILL MODE ..................................... 41, 43

Still (Pause) Picture................................. 17

I / I button........................... 8, 16

/ button .......................... 8 , 17

Subtitle language (DVD) .................... 32, 41

T TV MODE ........................................... 41, 43

Title menu (DVD)..................................... 34

U Unit information screen (Unit) ................ 39

Z Z oom button ......................................... 8, 33

For Your Information

Warranty

Panasonic Consumer Electronics Company, Division of Matsushita Electric Corporation of America, One Panasonic Way Secaucus, New Jersey 07094

PANASONIC/QUASAR Video Products

Limited Warranty

Panasonic Consumer Electronics Company or Panasonic Sales Company (collectively referred to as “the Warrantor”) will repair or replace this product with new or refurbished parts or equivalent product, free of charge, in the USA or Puerto Rico, in the event of a defect in materials or workmanship as follows (all time periods commence from the date of the original purchase):

PRODUCT

CAMCORDER

DVD/VCR DECK DIGITAL STILL

CAMERA

A/V MIXER TV/VCR,

TV/DVD/VCR COMBINATION

TV/HDR COMBINATION

Batteries (if included) - New rechargeable batteries in exchange for defective rechargeable batteries for ten (10) days. Non-rechargeable batteries are not warranted.

Tape (if included) - New video cassette tape in exchange for a defective video cassette tape for five (5) days. Memory cards (if included) - Exchange defective item for new one for ninety (90) days.

In-home, carry-in or mail-in service, as applicable, in the USA can be obtained during the warranty period by contacting a Panasonic Services Company (PASC) Factory Servicenter listed in the Servicenter Directory. Or call toll free contact number listed above, to locate an authorized PASC Servicenter. Carry-in or mail-in service in Puerto Rico can be obtained during the warranty period by calling the Panasonic Sales Company telephone number listed in the Servicenter Directory. This warranty is extended only to the original purchaser. A purchase receipt or other proof of the date of the original purchase is requires before warranty service is rendered.

This warranty only covers failures due to defects in materials and workmanship, which occur during normal use and does not cover normal maintenance, including, but not limited to, video and audio head cleaning. The warranty does not cover damage which occurs in shipment, or failures which are caused by products not supplied by the warrantor, or failures which result from accident, misuse, abuse, neglect, mishandling, misapplication, alteration, modification, faulty installation, set-up adjustments, improper antenna, inadequate signal pickup, maladjustment of consumer controls, improper operation, power line surge, improper voltage supply, lightning damage, commercial use such as hotel, office, restaurant, or other business or rental use of the product, or service by anyone other than a PASC Factory Servicenter or a PASC authorized Servicenter, or damage that is attributable to acts of God.

LIMITS AND EXCLUSIONS There are no express warranties except as listed above. THE WARRANTOR SHALL NOT BE LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES (INCLUDING, WITHOUT LIMITATION, DAMAGE TO RECORDING MEDIA) RESULTING FROM THE USE OF THIS PRODUCTS, OR ARISING OUT OF ANY BREACH OF THE WARRANTY. ALL EXPRESS AND IMPLIED WARRANTIES, INCLUDING THE WARRANTIES OF MERCHANTABILITY AND FITNESS FOR PARTICULAR PURPOSE, ARE LIMITED TO THE APPLICABLE WARRANTY PERIOD SET FORTH ABOVE. Some states do not allow the exclusion or limitation of incidental or consequential damages, or limitations on how long an implied warranty lasts, so the above exclusions or limitations may not apply to you. This warranty gives you specific legal rights and you may also have other rights, which vary, from state to state. If a problem with this product develops during or after the warranty period, you may contact your dealer or Servicenter. If the problem is not handled to your satisfaction, then write to the Consumer Affairs Department at the Panasonic Consumer Electronics Company address above.

SERVICE CALLS WHICH DO NOT INVOLVE DEFECTIVE MATERIALS OR WORKMANSHIP AS DETERMINED BY THE WARRANTOR, IN ITS SOLE DISCRETION, ARE NOT COVERED. COSTS OF SUCH SERVICE CALLS ARE THE RESPONSIBILITY OF THE PURCHASER. warvid 02/ 12/ 2001

Panasonic Consumer Electronics Company, Division of Matsushita Electric Corporation of America

One Panasonic Way Secaucus, New Jersey 07094

Panasonic Sales Company (“PSC”), Division of Matsushita Electric of Puerto Rico, Inc.

Ave. 65 de Infantería, Km. 9.5 San Gabriel Industrial Park, Carolina, Puerto Rico 00985

TV/DVD

PARTS

ONE (1) YEAR, EXCEPT CCD IMAGE SENSOR CCD IMAGE SENSOR

- SIX (6) MONTHS ONE (1) YEAR ONE (1) YEAR, EXCEPT

CCD IMAGE SENSOR CCD IMAGE SENSOR

- SIX (6) MONTHS ONE (1) YEAR

ONE (1) YEAR, EXCEPT CRT CRT - TWO (2) YEARS

LABOR

NINETY (90) DAYS

NINETY (90) DAYS NINETY (90) DAYS

NINETY (90) DAYS

NINETY (90) DAYS NINETY (90) DAYS

NINETY (90) DAYS CRT - NINETY (90) DAYS

Panasonic Sales Company, Division of Matsushita Electric of Puerto Rico, Inc. AVE. 65 de Infantería, Km. 9.5 San Gabriel Industrial Park Carolina, Puerto Rico 00985

SERVICE

Carry-In or Mail-In

Carry-In or Mail-In Carry-In or Mail-In

Carry-In or Mail-In Carry-In: 21” CRT

and Smaller In-Home or Carry-In: 22” CRT and Larger

In-Home or Carry-In

CONTACT NUMBER

1-800-211-PANA(7262)

1-800-211-PANA(7262) 1-800-272-7033

1-800-211-PANA(7262) 1-800-211-PANA(7262)

1-888-843-9788

Printed in U.S.A

LSQT0501A

M1001-0

Panasonic PV-24DF62 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

Before Using

Table of Contents

Information

Location of Controls

Basic Connections & Initial Setup

Basic DVD Operation

MTS Broadcast/TV Stereo System

Closed Caption System

TV Timer Features

On-Screen Displays (OSD)

Cable Bo x Univer sal Remote Control Feature

Special Features

Disc Operation

DVD Operation Using On-Screen Displays

Before Requesting Service

Warning and Instruction Displays

Language Code List

Servicenter List

Index

Limited Warranty
