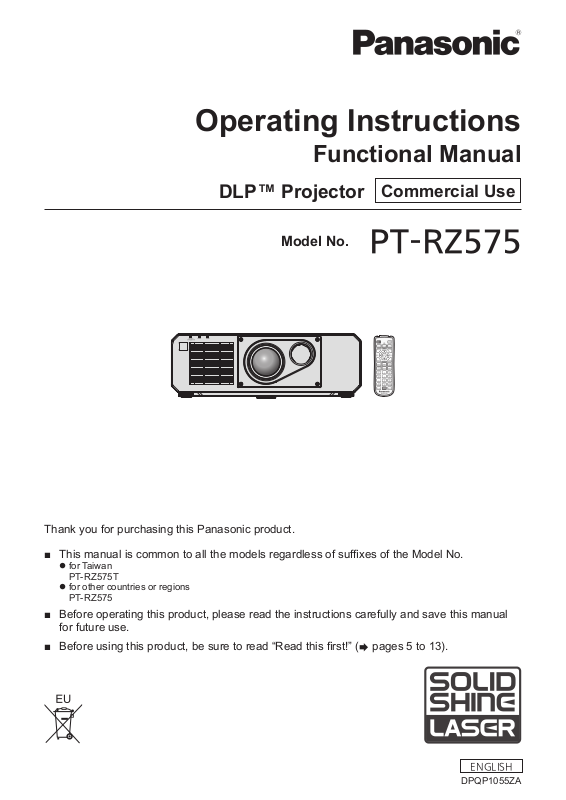

Page 1

Operating Instructions

Functional Manual

DLP™ Projector

Model No.

Commercial Use

PT-RZ575

Thank you for purchasing this Panasonic product.

■ This manual is common to all the models regardless of sufxes of the Model No.

zfor Taiwan

PT- RZ575T

zfor other countries or regions

PT- RZ575

■ Before operating this product, please read the instructions carefully and save this manual for future use.

■ Before using this product, be sure to read “Read this rst!” (x pages 5 to 13).

ENGLISH

DPQP1055ZA

Page 2

Contents

Read this rst! 5

Chapter 1 Preparation

Precautions for use 17

Lens protection material Cautions when transporting Cautions when installing

Security DIGITAL LINK Art-Net Early Warning Software

Disposal Cautions on use Accessories Optional accessories

About your projector

Remote control Projector body

Preparing the remote control

Inserting and removing the batteries When using the multiple projectors

17 17 17 19 20 20 20 20 20 22 23

24 26

28 28

Projecting 50

Selecting the input signal

Adjusting the image Adjusting the focus and the shift Moving the lens position to the home position Adjustment range by the lens position shift

(optical axis shift)

Operating with the remote control

Using the shutter function Using the mute function Adjusting the volume Using the freeze function Using the on-screen display function Using the automatic setup function Using the screen adjustment function

Switching the image aspect ratio Using the P IN P function

Using the function button Displaying internal test pattern Using the status function Using the ECO management function Setting ID number of the remote control

51 52

55 56 56

57 57 57

Chapter 2 Getting Started

Setting up 30

Installation mode Parts for installation (optional)

Projected image and throw distance Adjusting adjustable feet

Connecting

Before connecting

Connecting example: AV equipment Connecting example: Computers Connecting example using DIGITAL LINK

30 31 31 33

34 35 36 37

Chapter 3 Basic Operations

Switching on/off the projector 40

Connecting the power cord Power indicator Switching on the projector When the initial setting screen is displayed

Making adjustments and selections Switching off the projector

40 40 41 42 48 49

Chapter 4 Settings

Menu navigation 61

Navigating through the menu Main menu Sub-menu

[PICTURE] menu

[PICTURE MODE] [CONTRAST] [BRIGHTNESS] [COLOR] [TINT] [COLOR TEMPERATURE] [WHITE GAIN] [GAMMA] [DAYLIGHT VIEW] [SHARPNESS] [NOISE REDUCTION] [DYNAMIC CONTRAST] [SYSTEM SELECTOR] sRGB-compliant video

[POSITION] menu

[SHIFT] [ASPECT] [ZOOM] [CLOCK PHASE] [SCREEN ADJUSTMENT]

2 - ENGLISH

Page 3

Contents

[ADVANCED MENU] menu

[DIGITAL CINEMA REALITY] [BLANKING] [INPUT RESOLUTION] [CLAMP POSITION] [EDGE BLENDING] [FRAME RESPONSE] [RASTER POSITION]

[DISPLAY LANGUAGE] menu

Changing the display language

[DISPLAY OPTION] menu

[COLOR MATCHING] [COLOR CORRECTION] [SCREEN SETTING] [AUTO SIGNAL] [AUTO SETUP] [BACKUP INPUT SETTING] [COMPUTER IN/OUT] [DVI-D IN] [HDMI IN] [DIGITAL LINK IN] [ON-SCREEN DISPLAY] [CLOSED CAPTION SETTING] (only when

NTSC or 480/60i YC [BACK COLOR] [STARTUP LOGO] [UNIFORMITY] [SHUTTER SETTING] [FREEZE] [WAVEFORM MONITOR] [CUT OFF]

[PROJECTOR SETUP] menu

[PROJECTOR ID] [PROJECTION METHOD] [ECO MANAGEMENT] [OPERATION SETTING] [LIGHT OUTPUT] [BRIGHTNESS CONTROL] [SCHEDULE] [INITIAL STARTUP] [STARTUP INPUT SELECT] [RS-232C] [FUNCTION BUTTON] [LENS CALIBRATION] [AUDIO SETTING] [STATUS] [DATE AND TIME] [SAVE ALL USER DATA] [LOAD ALL USER DATA] [INITIALIZE] [SERVICE PASSWORD]

signal is input) 95

BCR

77 77 78 78 78 80 81

83 84 84 85 85 86 87 89 90 91 93

95 96 96 97 98 98 99

100

100 100 101 103 107 107

111 113 114 114 115 115 115 117 118 119 119 119

120

[P IN P] menu 121

Using P IN P function

[TEST PATTERN] menu

[TEST PATTERN]

[SIGNAL LIST] menu

Registering new signals Renaming the registered signal Deleting the registered signal Protecting the registered signal

Expanding signal lock-in range Sub memory

[SECURITY] menu

[SECURITY PASSWORD] [SECURITY PASSWORD CHANGE] [DISPLAY SETTING] [TEXT CHANGE] [CONTROL DEVICE SETUP] [CONTROL DEVICE PASSWORD CHANGE]

129

[NETWORK] menu

[DIGITAL LINK MODE] [DIGITAL LINK STATUS] [NETWORK SETUP] [NETWORK CONTROL] [NETWORK STATUS] [DIGITAL LINK MENU] [Art-Net SETUP] [Art-Net CHANNEL SETTING] [Art-Net STATUS]

126

Chapter 5 Operations

Network connection 136

Connecting to the network

Web control function

Computer that can be used for setting Accessing from the web browser

Chapter 6 Maintenance

Light source/temperature indicators 157

When an indicator lights up

Maintenance

Before maintaining the projector

Maintenance

Troubleshooting

[SELF TEST] indications

158

159

121

123

124

124 124 125 125

127

128

131

132

133

134

136

139

139 139

157

158

161

ENGLISH - 3

Page 4

Contents

Chapter 7 Appendix

Technical information 164

PJLink protocol Using Art-Net function Control commands via LAN <SERIAL IN> terminal

Two-window display combination list Control device password List of compatible signals

Specications

Dimensions

Precautions for attaching the Ceiling Mount

Bracket

Index

164 165 169 171 174 174 175

178

181

182

183

4 - ENGLISH

Page 5

Read this rst!

WARNING: THIS APPARATUS MUST BE EARTHED.

WARNING: To prevent damage which may result in re or shock hazard, do not expose this appliance to rain

or moisture.

This device is not intended for use in the direct eld of view at visual display workplaces. To avoid

incommoding reexions at visual display workplaces this device must not be placed in the direct eld of view.

The equipment is not intended for used at a video workstation in compliance BildscharbV.

The sound pressure level at the operator position is equal or less than 70 dB (A) according to ISO 7779.

WARNING:

1. Remove the plug from the mains socket when this unit is not in use for a prolonged period of time.

2. To prevent electric shock, do not remove cover. No user serviceable parts inside. Refer servicing to qualied

service personnel.

3. Do not remove the earthing pin on the mains plug. This apparatus is equipped with a three prong earthing-

type mains plug. This plug will only t an earthing-type mains socket. This is a safety feature. If you are

unable to insert the plug into the mains socket, contact an electrician. Do not defeat the purpose of the earthing plug.

WARNING:

This equipment is compliant with Class A of CISPR32. In a residential environment this equipment may cause radio interference.

CAUTION: To assure continued compliance, follow the attached installation instructions. This includes using

the provided power cord and shielded interface cables when connecting to computer or peripheral

devices. Also, any unauthorized changes or modications to this equipment could void the user’s

authority to operate this device.

This is a device to project images onto a screen, etc., and is not intended for use as indoor lighting in a domestic environment.

Directive 2009/125/EC

WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS PRODUCT

TO RAIN OR MOISTURE.

WARNING: RISK OF ELECTRIC SHOCK. DON’T OPEN

Indicated on the projector

The lightning ash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufcient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the

product.

ENGLISH - 5

Page 6

Read this rst!

Notice on laser

(for USA and Canada)

This projector is the Class 3R laser product that complies with IEC 60825-1:2007.

TQFX640

(for other countries or regions)

This projector is the Class 1 laser product that complies with IEC/EN 60825-1:2014.

TQFX340

(Inside of product)

TQFX340

6 - ENGLISH

Page 7

Read this rst!

CAUTION (North/Middle/South America/Taiwan)

Power Supply: This Projector is designed to operate on 100 V - 240 V, 50 Hz/60 Hz AC, house current only.

CAUTION: The AC power cord which is supplied with the projector as an accessory can only be used for

power supplies up to 125 V. If you need to use higher voltages than this, you will need to obtain a separate 250 V power cord. If you use the accessory cord in such situations, re may result.

CAUTION (North/Middle/South America/Taiwan)

This equipment is equipped with a three-pin grounding-type power plug. Do not remove the grounding pin on the power plug. This plug will only t a grounding-type power outlet. This is a safety feature. If you are unable to insert the plug into the

outlet, contact an electrician. Do not defeat the purpose of the grounding plug.

Do not remove

WARNING (USA and Canada)

fNot for use in a computer room as dened in the Standard for the Protection of Electronic Computer/Data

Processing Equipment, ANSI/NFPA 75.

fFor permanently connected equipment, a readily accessible disconnect device shall be incorporated in the

building installation wiring.

fFor pluggable equipment, the socket-outlet shall be installed near the equipment and shall be easily

accessible.

NOTIFICATION (Canada)

This class A digital apparatus complies with Canadian ICES-003.

For USA-California Only

This product contains a CR Coin Cell Lithium Battery which contains Perchlorate Material – special handling

may apply.

See www.dtsc.ca.gov/hazardouswaste/perchlorate

FCC NOTICE (USA)

Verication

Model Number: PT-RZ575 Trade Name: Panasonic Responsible Party: Panasonic Corporation of North America Address: Two Riverfront Plaza, Newark, NJ 07102-5490 General Contact: http://www.panasonic.com/support Projector Contact: http://panasonic.net/avc/projector/

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received,

including interference that may cause undesired operation.

Caution:

This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.

FCC Warning:

To assure continued compliance, follow the attached installation instructions. This includes using the provided power cord and shielded interface cables when connecting to computer or peripheral devices. Also, any

unauthorized changes or modications to this equipment could void the user’s authority to operate this device.

ENGLISH - 7

Page 8

Read this rst!

IMPORTANT: THE MOLDED PLUG

FOR YOUR SAFETY, PLEASE READ THE FOLLOWING TEXT CAREFULLY.

This appliance is supplied with a molded three pin mains plug for your safety and convenience. A 13 amp fuse

is tted in this plug. Should the fuse need to be replaced, please ensure that the replacement fuse has a rating of 13 amps and that it is approved by ASTA or BSI to BS1362.

Check for the ASTA mark If the plug contains a removable fuse cover, you must ensure that it is retted when the fuse is replaced. If you

lose the fuse cover, the plug must not be used until a replacement cover is obtained. A replacement fuse cover

can be purchased from an Authorized Service Center.

If the tted molded plug is unsuitable for the mains socket in your home, then the fuse should be

removed and the plug cut off and disposed of safely. There is a danger of severe electrical shock if the cut off plug is inserted into any 13 amp socket.

If a new plug is to be tted, please observe the wiring code as shown below. If in any doubt, please consult a qualied electrician.

WARNING: THIS APPLIANCE MUST BE EARTHED.

IMPORTANT: The wires in this mains lead are colored in accordance with the following code:

As the colors of the wire in the mains lead of this appliance may not correspond with the colored markings identifying the terminals in your plug, proceed as follows.

The wire which is colored GREEN - AND - YELLOW must be connected to the terminal in the plug

which is marked with the letter E or by the Earth symbol

YELLOW.

The wire which is colored BLUE must be connected to the terminal in the plug which is marked with the letter N or colored BLACK.

or the BSI mark on the body of the fuse.

Green - and - Yellow: Earth Blue: Neutral Brown: Live

or colored GREEN or GREEN - AND -

The wire which is colored BROWN must be connected to the terminal in the plug which is marked with the letter L or colored RED.

How to replace the fuse: Open the fuse compartment with a screwdriver and replace the fuse.

Importer’s name and address within the European Union

Panasonic Marketing Europe GmbH

Panasonic Testing Centre

Winsbergring 15, 22525 Hamburg, Germany

8 - ENGLISH

Page 9

Read this rst!

WARNING:

rPOWER

The wall outlet or the circuit breaker shall be installed near the equipment and shall be easily accessible

when problems occur. If the following problems occur, cut off the power supply immediately.

Continued use of the projector in these conditions will result in re or electric shock, or will cause visual

impairment.

fIf foreign objects or water get inside the projector, cut off the power supply. fIf the projector is dropped or the cabinet is broken, cut off the power supply. fIf you notice smoke, strange smells or noise coming from the projector, cut off the power supply.

Please contact an Authorized Service Center for repairs, and do not attempt to repair the projector yourself.

During a thunderstorm, do not touch the projector or the cable.

Electric shocks can result.

Do not do anything that might damage the power cord or the power plug.

If the power cord is used while damaged, electric shocks, short-circuits or re will result.

fDo not damage the power cord, make any modications to it, place it near any hot objects, bend it

excessively, twist it, pull it, place heavy objects on top of it or wrap it into a bundle.

Ask an Authorized Service Center to carry out any repairs to the power cord that might be necessary.

Do not use anything other than the provided power cord.

Failure to observe this will result in electric shocks or re. Please note that if you do not use the provided power

cord to ground the device on the side of the outlet, this may result in electric shocks.

Completely insert the power plug into the wall outlet and the power connector into the projector terminal.

If the plug is not inserted correctly, electric shocks or overheating will result.

fDo not use plugs which are damaged or wall outlets which are coming loose from the wall.

Do not handle the power plug and power connector with wet hands.

Failure to observe this will result in electric shocks.

Do not overload the wall outlet.

If the power supply is overloaded (ex., by using too many adapters), overheating may occur and re will result.

Clean the power plug regularly to prevent it from becoming covered in dust.

Failure to observe this will cause a re.

fIf dust builds up on the power plug, the resulting humidity can damage the insulation. fIf not using the projector for an extended period of time, pull the power plug out from the wall outlet.

Pull the power plug out from the wall outlet and wipe it with a dry cloth regularly.

rON USE/INSTALLATION

Do not place the projector on soft materials such as carpets or sponge mats.

Doing so will cause the projector to overheat, which can cause burns, re or damage to the projector.

Do not set up the projector in humid or dusty places or in places where the projector may come into contact with oily smoke or steam.

Using the projector under such conditions will result in re, electric shocks or deterioration of components. Deterioration of components (such as ceiling mount brackets) may cause the projector which is mounted on the

ceiling to fall down.

Do not install this projector in a place which is not strong enough to take the full weight of the projector or on top of a surface which is sloped or unstable.

Failure to observe this will cause projector to fall down or tip over the projector, and severe injury or damage

could result.

Do not cover the air intake/exhaust ports or place anything within 500 mm (19-11/16") of them.

Doing so will cause the projector to overheat, which can cause re or damage to the projector.

fDo not place the projector in narrow, badly ventilated places. fDo not place the projector on cloth or papers, as these materials could be drawn into the air intake port.

ENGLISH - 9

Page 10

Read this rst!

WARNING:

Do not look at or place your skin into the light emitted from the lens while the projector is being used.

Do not enter the projection luminous ux using an optical device (such as magnier or mirror).

Doing so can cause burns or loss of sight.

fStrong light is emitted from the projector’s lens. Do not look at or place your hands directly into this light. fBe especially careful not to let young children look into the lens. In addition, turn off the power and switch

off the main power when you are away from the projector.

Never attempt to remodel or disassemble the projector.

High voltages can cause re or electric shocks.

fFor any inspection, adjustment and repair work, please contact an Authorized Service Center.

Doing so may cause exposure to dangerous laser radiation.

fThe laser module is built in this projector. Follow procedures specied in the Operating Instructions to make

operations and adjustments.

Do not allow metal objects, ammable objects, or liquids to enter inside of the projector. Do not allow

the projector to get wet.

Doing so may cause short circuits or overheating, and result in re, electric shock, or malfunction of the

projector.

fDo not place containers of liquid or metal objects near the projector. fIf liquid enters inside of the projector, consult your dealer. fParticular attention must be paid to children.

Use the ceiling mount bracket specied by Panasonic.

Using the ceiling mount bracket other than the specied one will result in falling accidents.

fAttach the supplied safety cable to the ceiling mount bracket to prevent the projector from falling down.

Installation work (such as ceiling mount bracket) should only be carried out by a qualied technician.

If installation is not carried out and secured correctly, it can cause injury or accidents, such as electric shocks.

fBe sure to use the wire provided with the ceiling mount bracket as an extra safety measure to prevent the

projector from falling down. (Install in a different location to the ceiling mount bracket.)

rACCESSORIES

Do not use or handle the batteries improperly, and refer to the following.

Failure to observe this will cause burns, batteries to leak, overheat, explode or catch re.

fDo not use unspecied batteries. fDo not charge dry cell batteries. fDo not disassemble dry cell batteries. fDo not heat the batteries or place them into water or re. fDo not allow the + and – terminals of the batteries to come into contact with metallic objects such as

necklaces or hairpins. fDo not store or carry batteries together with metallic objects. fStore the batteries in a plastic bag and keep them away from metallic objects. fMake sure the polarities (+ and –) are correct when inserting the batteries. fDo not use a new battery together with an old battery or mix different types of batteries. fDo not use batteries with the outer cover peeling away or removed.

If the battery uid leaks, do not touch it with bare hands, and take the following measures if necessary.

fBattery uid on your skin or clothing could result in skin inammation or injury.

Rinse with clean water and seek medical advice immediately. fBattery uid coming in contact with your eyes could result in loss of sight.

In this case, do not rub your eyes. Rinse with clean water and seek medical advice immediately.

Do not allow children to reach the batteries.

Accidentally swallowing them can cause physical harm.

fIf swallowed, seek medical advice immediately.

Remove the depleted batteries from the remote control promptly.

fLeaving them in the unit may result in uid leakage, overheating, or explosion of the batteries.

10 - ENGLISH

Page 11

Read this rst!

CAUTION:

rPOWER

When disconnecting the power cord, be sure to hold the power plug and power connector.

If the power cord itself is pulled, the lead will become damaged, and re, short-circuits or serious electric shocks

will result.

When not using the projector for an extended period of time, disconnect the power plug from the wall

outlet.

Failure to do so may result in re or electric shock.

Disconnect the power plug from the wall outlet before carrying out any cleaning.

Failure to do so may result in electric shock.

rON USE/INSTALLATION

Do not place heavy objects on top of the projector.

Failure to observe this will cause the projector to become unbalanced and fall, which could result in damage or

injury. The projector will be damaged or deformed.

Do not put your weight on this projector.

You could fall or the projector could break, and injury will result.

fBe especially careful not to let young children stand or sit on the projector.

Do not place the projector in extremely hot locations.

Doing so will cause the outer casing or internal components to deteriorate, or result in re.

fTake particular care in locations exposed to direct sunlight or near heaters.

Do not place your hands in the openings beside the optical lens, while shifting the lens.

Failure to observe this could cause injury.

Do not install the projector in a location where salt pollution or corrosive gas may occur.

Doing so may result in falling due to corrosion. Also, it may result in malfunctions.

Do not stand in front of the lens while the projector is being used.

Doing so can cause damage and burns to clothing.

fStrong light is emitted from the projector’s lens.

Do not place objects in front of the lens while the projector is being used.

Doing so can cause re, damage to an object, or malfunction of the projector.

fStrong light is emitted from the projector’s lens.

Always disconnect all cables before moving the projector.

Moving the projector with cables still attached can damage the cables, which will cause re or electric shocks to

occur.

Never plug headphones and earphones into <VARIABLE AUDIO OUT> terminal.

Excessive sound pressure from headphones and earphones can cause hearing loss.

When mounting the projector on the ceiling, keep mounting screws and power cord from contact with

metal parts inside the ceiling.

Contact with metal parts inside the ceiling can cause electric shocks.

rACCESSORIES

When not using the projector for an extended period of time, remove the batteries from the remote

control.

Failure to observe this will cause the batteries to leak, overheat, catch re or explode, which may result in re

or contamination of surrounding area.

rMAINTENANCE

Ask your dealer about cleaning inside the projector every 20 000 hours of usage as an estimated duration.

Continuous use while dust is accumulated inside the projector may result in re.

fFor cleaning fee, ask your dealer.

ENGLISH - 11

Page 12

To remove the battery

Remote Control Battery

Read this rst!

1. Press the guide and lift the cover.

(ii)

(i)

2. Remove the batteries.

12 - ENGLISH

Page 13

Read this rst!

Brazil Only

Brasil Apenas

rManuseio de baterias usadas

BRASIL

Após o uso, as pilhas e/ou baterias deverão

ser entregues ao estabelecimento comercial ou rede de assistência técnica autorizada.

Cobrir os terminais positivo (+) e negativo (-) com uma ta isolante adesiva, antes de depositar numa caixa

destinada para o recolhimento. O contato entre partes metálicas pode causar vazamentos, gerar calor, romper

a blindagem e produzir fogo. (Fig. 1)

Fig. 1 Como isolar os terminais

Não desmonte, não remova o invólucro, nem amasse a bateria. O gás liberado pela bateria pode irritar a garganta, danicar o lacre do invólucro ou o vazamento provocar calor, ruptura da blindagem e produzir fogo devido ao curto circuito dos terminais. Não incinere nem aqueça as baterias, elas não podem car expostas a temperaturas superiores a 100 °C (212 °F). O gás liberado pela bateria pode irritar a garganta, danicar o lacre

do invólucro ou o vazamento provocar calor, ruptura da blindagem e produzir fogo devido ao curto circuito dos terminais provocado internamente.

Evite o contato com o liquido que vazar das baterias. Caso isto ocorra, lave bem a parte afetada com bastante água. Caso haja irritação, consulte um médico.

Fita Isolante

rRemoção das baterias

1. Pressione a guia e levante a tampa.

(ii)

2. Remova as baterias.

(i)

ENGLISH - 13

Page 14

rTrademarks

f SOLID SHINE is a trademark of Panasonic Corporation. f Windows and Internet Explorer are registered trademarks or trademarks of Microsoft Corporation in the United

States and other countries.

f Mac, Mac OS, and Safari are trademarks of Apple Inc., registered in the United States and other countries.

f PJLink

regions.

f HDMI, the HDMI Logo, and High-Denition Multimedia Interface are trademarks or registered trademarks of

HDMI Licensing LLC in the United States and other countries.

f RoomView and Crestron RoomView are registered trademarks of Crestron Electronics, Inc.

Crestron Connected

f HDBaseT f Art-Net f Adobe, Adobe Flash Player, and Adobe Reader are trademarks or registered trademarks of Adobe Systems Inc.

in the United States and/or other countries.

f Some of the fonts used in the on-screen menu are Ricoh bitmap fonts, which are manufactured and sold by

Ricoh Company, Ltd.

f All other names, company names, and product names mentioned in this manual are trademarks or registered

trademarks of their respective owners. Please note that the

is a registered trademark or pending trademark in Japan, the United States, and other countries and

and Fusion RV are trademarks of Crestron Electronics, Inc.

is a trademark of HDBaseT Alliance.

and TM symbols are not specied in this manual.

rIllustrations in this manual

f Illustrations of the projector, screen, and other parts may vary from the actual product. f Illustrations of the projector with the power cord attached are only examples. The shape of the supplied power

cords varies depending on the country where you purchased the product.

rReference pages

f Reference pages in this manual are indicated as (x page 00).

rTerm

f In this manual, the “Wireless remote control unit” accessory is referred to as “Remote control”.

14 - ENGLISH

Page 15

Features of the Projector

High luminance and high contrast

▶ With a unique optical system which uses

a new-generation laser light source, and the laser light source drive system, high luminance of 5 000 lm and high contrast

of 20 000:1 are achieved even with its

compact size.

Easy and highly exible setup

▶ In addition to the electrical focus lens and

the electrical lens shift function, support for

wide range of interfaces (such as DIGITAL LINK and Art-Net) and 360° installation

support utilizing the characteristics of solidstate light source allow usage for wide range of application.

Long life and high reliability

Quick Steps

For details, refer to the corresponding pages.

1. Set up the projector.

(x page 30)

2. Connect with external devices.

(x page 34)

3. Connect the power cord.

(x page 40)

4. Switch on the projector.

(x page 41)

5. Make initial settings.

(x page 42)

f Take this step when you switch on the

power for the rst time after purchasing the

projector.

▶ The maintenance cost for long-term

operation is reduced by the unique light

source cooling control technology and improvement of the dust resistance.

6. Select the input signal.

(x page 50)

7. Adjust the image.

(x page 51)

ENGLISH - 15

Page 16

Chapter 1 Preparation

This chapter describes things you need to know or check before using the projector.

16 - ENGLISH

Page 17

Chapter 1 Preparation — Precautions for use

Precautions for use

Lens protection material

Lens protection material is attached to the product at the time of purchase to protect the projection lens from the

vibration during transport. Remove the lens protection material before use.

rRemoving the lens protection material

Lens protection material

Tab

1) Hold the tab of the lens protection material and remove the lens protection material by pulling in the direction of the arrow.

Cautions when transporting

f When transporting the projector, hold it securely by its bottom and avoid excessive vibration and impacts. They

may damage the internal components and result in malfunctions.

f Do not transport the projector with the adjustable feet extended. Doing so may damage the adjustable feet.

Cautions when installing

rDo not set up the projector outdoors.

The projector is designed for indoor use only.

rDo not set up the projector in the following locations.

f Places where vibration and impacts occur such as in a car or vehicle: Doing so may cause damage to internal

components or malfunction.

f Location close to sea or where corrosive gas may occur: The projector may fall due to corrosion. Also, failure to

do so may shorten the life of the components and result in malfunction.

f Near the exhaust of an air conditioner: Depending on the conditions of use, the screen may uctuate in rare

cases due to the heated air from the air exhaust port or the hot or cooled air from the air conditioner. Make sure that the exhaust from the projector or other equipment, or the air from the air conditioner does not blow toward

the front of the projector.

f Places with sharp temperature uctuations such as near lights (studio lamps): Doing so may shorten the life of

the light source, or result in deformation of the projector due to heat, which may cause malfunctions.

Follow the operating environment temperature of the projector.

f Near high-voltage power lines or near motors: Doing so may interfere with the operation of the projector. f Places where there is high-power laser equipment: Directing a laser beam onto the projection lens surface

causes damage to the DLP chips.

ENGLISH - 17

Page 18

Chapter 1 Preparation — Precautions for use

rBe sure to ask a specialized technician or your dealer when installing the projector on

a ceiling.

The optional Ceiling Mount Bracket is required. Model No.: ET-PKD120H (for High Ceilings), ET-PKD120S (for Low Ceilings), ET-PKD130B (Projector Mount

Bracket)

rAsk a qualied technician or your dealer to install the cable wiring for DIGITAL LINK

connection.

Image and sound may be disrupted if cable transmission characteristics cannot be obtained due to inadequate

installation.

rThe projector may not work properly due to strong radio wave from the broadcast

station or the radio.

If there is any facility or equipment which outputs strong radio waves near the installation location, install the projector at a location sufciently far from the source of the radio waves. Or, wrap the LAN cable connected to the <DIGITAL LINK/LAN> terminal using a piece of metal foil or a metal pipe which is grounded at both ends.

rFocus adjustment

The high clarity projection lens is thermally affected by the light from the light source, making the focus unstable in

the period just after switching on the power. It is recommended that images be projected continuously for at least

30 minutes before the focus is adjusted.

rDo not install the projector at an altitude of 4 200 m (13 780') or higher above sea level.

rDo not use the projector in a location that the ambient temperature exceeds 45 °C

(113 °F).

Using the projector in a location that the altitude is too high or the ambient temperature is too high may reduce the life of the components or result in malfunctions.

The upper limit of the operating environment temperature differs depending on the altitude or the setting of the

[PROJECTOR SETUP] menu → [OPERATION SETTING] → [OPERATING MODE].

Setting for [OPERATING MODE]

Altitude above sea level

Altitude of 0 m (0') or higher to lower than 1 400 m (4 593')

Altitude of 1 400 m (4 593') or higher to lower than 2 700 m (8 858')

Altitude of 2 700 m (8 858') or higher to lower than 4 200 m (13 780')

[NORMAL], [USER1], [USER2],

[USER3]

0 °C (32 °F) to 45 °C (113 °F)

0 °C (32 °F) to 40 °C (104 °F)

0 °C (32 °F) to 40 °C (104 °F) The projector cannot be used.

[ECO], [SILENT], [LONG LIFE1],

[LONG LIFE2], [LONG LIFE3]

rProjection in all 360° direction is possible.

360°

360° vertically 360° horizontally 360° tilted

(combination of vertical and horizontal)

rCautions when setting up the projector

f Use the adjustable feet only for the oor standing installation and for adjusting the angle. Using them for other

purposes may damage the projector.

18 - ENGLISH

Page 19

Chapter 1 Preparation — Precautions for use

f When installing the projector with a method other than the oor installation using the adjustable feet or the

ceiling installation, use the ve screw holes for ceiling mount (as shown in the gure) to x the projector to the

mount.

(Screw diameter: M6, tapping depth inside the projector:15 mm (19/32"), torque: 4 ± 0.5 N·m) In such case, make sure that there is no clearance between the screw holes for ceiling mount on the projector

bottom and the setting surface by inserting spacers (metallic) between them.

Adjustable feet

Screw holes for ceiling mount (M6)

Positions of screw holes for ceiling mount and

adjustable feet

f Do not stack projectors on top of each other. f Do not use the projector supporting it by the top. f Do not block the ventilation ports (intake and exhaust) of the projector. f Prevent hot and cool air from the air conditioning system to blow directly to the ventilation ports (intake and

exhaust) of the projector.

500 mm (19-11/16") or longer 500 mm (19-11/16") or longer

500 mm (19-11/16") or longer

100 mm (3-15/16") or longer

f Do not install the projector in a conned space.

When installing the projector in a conned space, provide air conditioning or ventilation separately. Exhaust heat

may accumulate when the ventilation is not enough, triggering the protection circuit of the projector.

Security

When using this product, take safety measures against the following incidents.

f Personal information being leaked via this product f Unauthorized operation of this product by a malicious third party

ENGLISH - 19

Page 20

Chapter 1 Preparation — Precautions for use

f Interfering or stopping of this product by a malicious third party

Take sufcient security measures.

f Make your password difcult to guess as much as possible. f Change your password periodically. A password can be set in the [SECURITY] menu → [SECURITY

PASSWORD CHANGE].

f Panasonic Corporation or its afliate companies will never ask for your password directly. Do not divulge your

password in case you receive such inquiries.

f The connecting network must be secured by a rewall, etc. f Set a password for the web control and restrict the users who can log in. A password for the web control can be

set in the [Change password] page of the web control screen.

DIGITAL LINK

“DIGITAL LINK” is a technology to transmit the video, audio, Ethernet, and serial control signals using a twisted pair cable by adding unique functions by Panasonic to the HDBaseTTM communication standard formulated by HDBaseT Alliance.

This projector supports the optional Panasonic DIGITAL LINK output supported device (Model No.: ET-YFB100G, ET-YFB200G) and peripheral devices by other manufacturers (twisted-pair-cable transmitters such as the “XTP transmitter” of Extron Electronics) that use the same HDBaseT manufacturers that the operation has been veried with this projector, visit the Panasonic website (http:// panasonic.net/avc/projector/). Note that the verication for devices of other manufacturers has been made for the items set by Panasonic Corporation, and not all the operations have been veried. For operation or performance

problems caused by the devices of other manufacturers, contact the respective manufacturers.

standard. For the devices of other

Art-Net

“Art-Net” is an Ethernet communication protocol based on the TCP/IP protocol. By using the DMX controller and the application software, illumination and stage system can be controlled. Art-Net

is made based on DMX512 communication protocol.

Early Warning Software

The projector supports “Early Warning Software”, which monitors the status of the display (projector or at panel display) and the peripheral devices inside an intranet, and noties of abnormality of such equipment and detects

signs of possible abnormality. Also, maintenance can be performed in advance, because this software gives

notication of approximate time to replace consumables of the display, to clean each part of the display, and to

replace the components of the display.

Depending on the type of license, the number of displays that can be registered for monitoring varies. Limited to the rst 90 days after installation in a computer, it is possible to register up to 2048 units of displays free of charge.

Download the software from the Panasonic website (http://panasonic.net/avc/projector/pass/). It is necessary to register and login to PASS

*1 PASS: Panasonic Professional Display and Projector Technical Support Website

Visit the Panasonic website (http://panasonic.net/avc/projector/pass/) for details.

to download.

Disposal

To dispose of the product, ask your local authorities or dealer for correct methods of disposal. Also, dispose of the product without disassembling.

Cautions on use

rTo get a good picture quality

In order to view a beautiful image in higher contrast, prepare an appropriate environment. Draw curtains or blinds

over windows and turn off any lights near the screen to prevent outside light or light from indoor lamps from shining onto the screen.

rDo not touch the surface of the projection lens with your bare hands.

If the surface of the projection lens becomes dirty from ngerprints or anything else, this will be magnied and

projected onto the screen.

20 - ENGLISH

Page 21

Chapter 1 Preparation — Precautions for use

rDLP chips

f The DLP chips are precision-made. Note that in rare cases, pixels of high precision could be missing or always

lit. Such a phenomenon does not indicate malfunction.

f Directing a high-power laser beam onto the projection lens surface can damage the DLP chips.

rDo not move the projector or subject it to vibration or impact while it is operating.

Doing so may shorten the life of the built-in motor.

rLight source

The light source of the projector uses lasers, and has the following characteristics.

f Depending on the operating environment temperature, the luminance of the light source will decrease.

The higher the temperature becomes, the more the luminance of the light source decreases.

f The luminance of the light source will decrease by duration of usage.

The time until when the luminance of the light source decreases by half differs depending on the setting of the

[PROJECTOR SETUP] menu → [OPERATION SETTING] → [OPERATING MODE].

The estimated time until when the luminance of the light source decreases by half is as follows.

g When [OPERATING MODE] is set to [NORMAL] or [SILENT]: Approximately 20 000 hours g When [OPERATING MODE] is set to [ECO]: Approximately 24 000 hours g When [OPERATING MODE] is set to [LONG LIFE1]: Approximately 43 000 hours g When [OPERATING MODE] is set to [LONG LIFE2]: Approximately 61 000 hours g When [OPERATING MODE] is set to [LONG LIFE3]: Approximately 87 000 hours

The luminance can be maintained as much as possible for the same runtime by setting the [PROJECTOR SETUP] menu → [OPERATION SETTING] → [CONSTANT MODE] to [AUTO].

This time is rough estimate when the projector is used without changing the [OPERATING MODE] setting, and

will vary depending on individual difference and usage condition.

If brightness is noticeably reduced and the light source does not turn on, ask your dealer to clean inside the

projector or replace the light source unit.

rComputer and external device connections

When connecting a computer or an external device, read this manual carefully regarding the use of power cords

and shielded cables as well.

ENGLISH - 21

Page 22

Chapter 1 Preparation — Precautions for use

Accessories

Make sure that the following accessories are provided with your projector. Numbers enclosed in < > show the

number of accessories.

Wireless remote control unit <1>

(N2QAYA000136)

Power cord

(TXFSX01RXQZ)

(TXFSX01RXRZ)

(TXFSX01RWDZ)

(TXFSX02UTRZ)

CD-ROM <1>

(DPQC1013ZA)

AAA/R03 or AAA/LR03 battery <2>

(For remote control unit)

Attention

f After unpacking the projector, discard the power cord cap and packaging material properly. f Do not use the supplied power cord for devices other than this projector. f For missing accessories, consult your dealer. f Store small parts in an appropriate manner, and keep them away from small children.

Note

f The type and number of the supplied power cords vary depending on the country or region where you purchased the

product.

f The model numbers of accessories are subject to change without prior notice.

22 - ENGLISH

Page 23

Chapter 1 Preparation — Precautions for use

Contents of the supplied CD-ROM

The contents of the supplied CD-ROM are as follows.

Instruction/list (PDF) Operating Instructions

Multi Monitoring & Control Software Operating Instructions Logo Transfer Software Operating Instructions List of Compatible Device

Models

Software Multi Monitoring & Control

Software (Windows) Logo Transfer Software

(Windows)

This is a list of projectors that are compatible with the software

contained in the CD-ROM and their restrictions.

This software allows you to monitor and control multiple displays

(projector or at panel display) connected to the LAN.

This software allows you to transfer original images, such as company logos to be displayed when projection starts, to the projector.

Note

f The “List of Compatible Device Models” for the at panel display compatible with the “Multi Monitoring & Control Software”

can be downloaded from the Panasonic website (http://panasonic.net/prodisplays/).

Optional accessories

Optional accessories (product name) Model No.

ET-PKD120H (for High Ceilings)

Ceiling Mount Bracket

Early Warning Software (Basic license/3-year license)

Digital Interface Box ET-YFB100G DIGITAL LINK Switcher ET-YFB200G D-SUB - S Video conversion cable ET-ADSV

ET-PKD120S (for Low Ceilings) ET-PKD130B (Projector Mount Bracket)

ET-SWA100 Series

*1 The sufx of the Model No. differs according to the license type.

Note

f The model numbers of optional accessories are subject to change without prior notice.

ENGLISH - 23

Page 24

Chapter 1 Preparation — About your projector

About your projector

Remote control

Front Top

1 2 3

10 11

1 Power <v/b> button

Sets the projector to the state where the projector is turned off (standby mode) when the <MAIN POWER> switch on the projector is set to <ON> and in projection mode. Sets the projector to projection mode when the power is switched off (standby mode).

2 Remote control indicator

Blinks if any button in the remote control is pressed.

3 Lens buttons (<FOCUS>, <SHIFT>)

Adjusts the projection lens. (x page 51) The <ZOOM> button is not used with the projector.

4 <MENU> button/<RETURN> button/<ENTER> button/

asqw buttons

Used to navigate through the menu screen. (x page 61) asqw buttons are also used to enter the password in

[SECURITY] or enter characters.

5 <VOL

6 <DEFAULT> button

7 Input selection buttons (<HDMI 1>, <HDMI 2>, <DIGITAL

8 Number (<0> - <9>) buttons

9 <ON SCREEN> button

10 <ID ALL> button

> button/<VOL+> button

Adjusts the volume of audio output. (x page 55)

Resets the content of the sub-menu to the factory default. (x page 62)

LINK>, <COMPUTER 1/2>, <VIDEO>, <DVI-D>)

Switches the input signal to project. (x page 50)

Used for entering an ID number or a password in a multiple

projector environment.

Switches the on-screen display function on (display) or off (hide). (x page 55)

Used to simultaneously control all the projectors with a single remote control in a multiple projector environment. (x page 28)

Bottom

11 <ECO> button

Displays the setting screen relating to ECO management. (x pages 58, 101)

12 <AUTO SETUP> button

Automatically adjusts the image display position while projecting the image.

[PROGRESS] is displayed while in automatic adjustment. (x page 56)

13 <FUNCTION> button

Assigns a frequently used operation as a shortcut button. (x page 57)

14 <TEST PATTERN> button

Displays the test pattern. (x page 57)

15 <ID SET> button

Sets the ID number of the remote control in a multiple projector environment. (x page 28)

16 <SCREEN ADJ> button

Used to correct the distortion of the projected image. (x pages 56, 74)

17 <FREEZE> button

Used when pausing the image and turning off the audio. (x page 55)

18 <P IN P> button

Switches the picture in picture function setting. (x page 57)

19 <STATUS> button

Displays the projector information.

20 <SHUTTER> button

Used when temporarily turning off the image and audio. (x page 54)

21 <MUTE> button

Used when temporarily turning off the audio. (x page 54)

22 <ASPECT> button

Switches the aspect ratio of the image. (x page 57)

23 Remote control signal transmitter

24 (Not available with this projector)

Attention

f Do not drop the remote control.

24 - ENGLISH

Page 25

Chapter 1 Preparation — About your projector

f Avoid contact with liquids or moisture. f Do not attempt to modify or disassemble the remote control. f Observe the following instructions that are indicated on the caution label at the back of the remote control:

g Do not use old battery with new one. g Do not use batteries other than the type specied. g Be sure the batteries are inserted properly.

For other instructions, read the instructions related to batteries that are described in “Read this rst!”.

Caution label at the back of the remote control

Note

f When operating the remote control by directly pointing at the remote control signal receiver of the projector, operate the remote control

within a distance approximately 30 m (98'5") from the remote control signal receiver. The remote control can control at angles of up to ±30°

vertically and horizontally, but the effective control range may be reduced.

f If there are any obstacles between the remote control and the remote control signal receiver, the remote control may not operate properly. f The signal will be reected off the screen. However, the operating range may be limited from light reection loss due to the screen material. f If the remote control signal receiver directly receives strong light, such as uorescent light, the remote control may not operate properly. Use

it in a place distant from the light source.

f The power indicator <ON (G)/STANDBY (R)> will blink if the projector receives a remote control signal.

ENGLISH - 25

Page 26

Projector body

Chapter 1 Preparation — About your projector

Front

1 2 3

6 6

Rear

8 9

Side

7 7 7

14 15

Projection direction

1 Remote control signal receiver (front)

2 Power indicator <ON (G)/STANDBY (R)>

Indicates the status of the power.

3 Light source indicator <LIGHT>

Indicates the status of the light source.

4 Temperature indicator <TEMP>

Indicates the internal temperature status.

5 Projection lens

6 Adjustable feet

Adjusts the projection angle.

7 Air intake port

8 Air exhaust port

9 Remote control signal receiver (rear)

BottomTop

16710

10 Luminance sensor

This is a sensor to detect the luminance of the installed environment.

When the [PICTURE] menu → [DAYLIGHT VIEW] is set to [AUTO], the luminance of the installed environment is detected

by the luminance sensor to automatically perform appropriate

picture quality correction.

11 Control panel (x page 27) 12 Connecting terminals (x page 27)

13 Security slot

This security slot is compatible with the Kensington security

cables.

14 <MAIN POWER> switch

Turns on/off the main power.

26 - ENGLISH

Page 27

Chapter 1 Preparation — About your projector

15 <AC IN> terminal

Connect the supplied power cord.

Attention

f Do not block the ventilation ports (intake and exhaust) of the projector.

r Control panel

1 Power <v/b> button

r Connecting terminals

1 2 3 4 5 6 7

16 Burglar hook port

Attaches a burglar prevention cable, etc.

2 <MENU> button/<ENTER> button/asqw buttons

Used to navigate through the menu screen.

Also used to enter a password in the [SECURITY] menu or

enter characters.

3 <INPUT SELECT> button

Switches the input signal to project. (x page 50)

4 <LENS> button

Adjusts the focus and shift (position) of the lens.

8 9 10 11 12

1 <VIDEO IN> terminal

This is a terminal to input video signal.

2 <COMPUTER 1 IN> terminal

This is a terminal to input the RGB signal, YC or Y/C signal.

3 <COMPUTER 2 IN/1 OUT> terminal

This is a terminal to input the RGB signal or YC

signal.

Also, the RGB signal or YCBCR/YPBPR signal input to the <COMPUTER 1 IN> terminal can be output to an external device. Video signal is output when the input is switched to COMPUTER1.

4 <DVI-D IN> terminal

This is a terminal to input the DVI-D signal.

5 <HDMI 1 IN> terminal/<HDMI 2 IN> terminal

This is a terminal to input the HDMI signal.

6 <DIGITAL LINK/LAN> terminal

This is a terminal to connect a device that transmits video

signal or audio signal via the LAN terminal. Also, this is the LAN

terminal to connect to the network.

/YPBPR signal,

BCR

/YPBPR

BCR

7 <LAN> terminal

This is the LAN terminal to connect to the network.

8 <AUDIO IN 1> terminal

This is a terminal to input audio signal. There are right input

<R> and left input <L>.

9 <SERIAL IN> terminal

This is the RS-232C compatible terminal to externally control

the projector by connecting a computer.

10 <AUDIO IN 2> terminal/<AUDIO IN 3> terminal

This is a terminal to input audio.

11 <VARIABLE AUDIO OUT> terminal

This is a terminal to output the audio signal input to the projector.

12 <DC OUT> terminal

This is the USB terminal dedicated for power supply. (DC5 V, maximum 900 mA)

This can be used when a power is needed to be supplied to a wireless display adaptor, etc.

Attention

f When a LAN cable is directly connected to the projector, the network connection must be made indoors.

ENGLISH - 27

Page 28

Chapter 1 Preparation — Preparing the remote control

Preparing the remote control

Inserting and removing the batteries

(ii)

(i)

Fig. 1 Fig. 2

1) Open the cover. (Fig. 1)

2) Insert the batteries and close the cover (insert the m side first). (Fig. 2)

f When removing the batteries, perform the steps in reverse order.

When using the multiple projectors

When you use the multiple projectors together, you can operate all the projectors simultaneously or each projector

individually using single remote control, if a unique ID number is assigned to each projector. When using the projectors by setting the ID numbers, set the ID number of the projector body after initial settings

have been completed. Then, set the ID number of the remote control. For initial settings, refer to “When the initial setting screen is displayed” (x page 42).

The factory default ID number of the projector (projector body and remote control) is set to [ALL], so you can use it as it is. Set the ID numbers of the projector body and remote control as necessary.

For details on setting the ID number of the remote control, refer to “Setting ID number of the remote control” (x page 58).

Note

f Set the ID number of the projector body from the [PROJECTOR SETUP] menu → [PROJECTOR ID].

28 - ENGLISH

Page 29

Chapter 2 Getting Started

This chapter describes things you need to do before using the projector such as the setup and connections.

ENGLISH - 29

Page 30

Chapter 2 Getting Started — Setting up

Setting up

Installation mode

The installation modes of the projector are as follows. Set [FRONT/REAR]/[FLOOR/CEILING] in the [PROJECTOR SETUP] menu → [PROJECTION METHOD] (x page 100) depending on the installation mode.

Setting on a desk/oor and projecting forward Setting on a desk/oor and projecting from rear

(Using the translucent screen)

Menu item Setting value Menu item Setting value

[FRONT/REAR] [FRONT] [FRONT/REAR] [REAR]

[FLOOR/CEILING] [AUTO] or [FLOOR] [FLOOR/CEILING] [AUTO] or [FLOOR]

Mounting on the ceiling and projecting forward Mounting on the ceiling and projecting from rear

(Using the translucent screen)

Menu item Setting value Menu item Setting value

[FRONT/REAR] [FRONT] [FRONT/REAR] [REAR]

[FLOOR/CEILING] [AUTO] or [CEILING] [FLOOR/CEILING] [AUTO] or [CEILING]

Portrait setting and projecting forward Portrait setting and projecting from rear

(Using the translucent screen)

Menu item Setting value Menu item Setting value

[FRONT/REAR] [FRONT] [FRONT/REAR] [REAR]

[FLOOR/CEILING]

Set in accordance with the image

to project.

[FLOOR/CEILING]

Set in accordance with the image

to project.

Note

f In the portrait setting, the on-screen menu is displayed sideways.

To display the on-screen menu vertically, go to the [DISPLAY OPTION] menu → [ON-SCREEN DISPLAY] (x page 93) and change the [OSD ROTATION] setting.

f The projector has a built-in angle sensor. The attitude of the projector is automatically detected by setting [FLOOR/CEILING] to [AUTO] in

the [PROJECTOR SETUP] menu → [PROJECTION METHOD].

30 - ENGLISH

Page 31

Chapter 2 Getting Started — Setting up

r Angle sensor

The range of the installation attitude that is detected by the angle sensor built-in the projector is as follows.

Floor standing installation

30°

Floor standing installation

Projection direction

Ceiling mount installation

Parts for installation (optional)

The projector can be installed on the ceiling by combining the optional Ceiling Mount Bracket (Model No.: ET-PKD120H (for High Ceilings), ET-PKD120S (for Low Ceilings)) and Ceiling Mount Bracket (Model No.: ET-PKD130B (Projector Mount Bracket)).

f Be sure to use the Ceiling Mount Bracket specied for this projector. f Refer to the Installation Instructions of the Ceiling Mount Bracket when installing and setting up the projector.

Attention

f To ensure projector performance and security, installation of the Ceiling Mount Bracket must be carried out by your dealer or a qualied

technician.

Projected image and throw distance

Install the projector referring to the projected image size and projection distance. Image size and image position

can be adjusted in accordance with the screen size and screen position.

f Following illustration is prepared on the assumption that the projected image size and position have been

aligned to t full in the screen.

Projected image

L Projection distance

SH Projected image height

SW Projected image width

H Distance from the lens center to the bottom edge of the projected image

SD Projected image size

Attention

f Before setting up, read “Precautions for use” (x page 17).

Screen

SW SH

Screen

(Unit: m)

ENGLISH - 31

Page 32

Chapter 2 Getting Started — Setting up

f Do not use the projector and the high-powered laser equipment in the same room. The DLP chips can be damaged if a laser beam hits the

projection lens surface.

[SCREEN ADJUSTMENT] projection range

[VERTICAL KEYSTONE] (viewed from the side) [HORIZONTAL KEYSTONE] (viewed from above)

Screen

Vertical arc correction (viewed from the side) Horizontal arc correction (viewed from above)

Projection distance Arc radius

Screen

Projection distance Arc radius

Screen

Arc center

Screen

Projection distance Arc radius

Only [KEYSTONE] used [KEYSTONE] and [CURVED CORRECTION] used together

Vertical

keystone

correction

angle α (°)

±25 ±20 ±8 ±8 1.7 4.3 1.0 2.6

Horizontal

keystone

correction

angle β (°)

Vertical

keystone

correction

angle α (°)

Horizontal

keystone

correction

angle β (°)

Arc center

Min. value of

R2/L2

Screen

Min. value of

R3/L3

Projection distance Arc radius

Only [CURVED CORRECTION]

Min. value of

R2/L2

Note

f When [SCREEN ADJUSTMENT] is used, the focus of the entire screen may be lost as correction increases. f Make the curved screen a circular arc shape with one part of a perfect circle removed.

used

Min. value of

R3/L3

32 - ENGLISH

Page 33

Chapter 2 Getting Started — Setting up

Projection distance

A ±5 % error in listed projection distances may occur. When [SCREEN ADJUSTMENT] is used, distance is corrected to become smaller than the specied image size.

(Unit: m)

Projected image

size

Diagonal (SD)

1.02 (40") 0.65 0.26 - 0.28 0.67 0.24 - 0.26 0.75 0.29 - 0.32

1.27 (50") 0.83 0.32 - 0.35 0.85 0.30 - 0.33 0.94 0.36 - 0.40

1.52 (60") 1.00 0.39 - 0.42 1.03 0.36 - 0.39 1.14 0.44 - 0.48

1.78 (70") 1.18 0.45 - 0.49 1.21 0.42 - 0.46 1.34 0.51 - 0.56

2.03 (80") 1.35 0.51 - 0.56 1.39 0.48 - 0.52 1.54 0.58 - 0.64

2.29 (90") 1.53 0.58 - 0.63 1.57 0.54 - 0.59 1.74 0.66 - 0.72

2.54 (100") 1.70 0.64 - 0.70 1.75 0.60 - 0.65 1.93 0.73 - 0.80

3.05 (120") 2.05 0.77 - 0.84 2.11 0.71 - 0.78 2.33 0.87 - 0.95

3.81 (150") 2.58 0.97 - 1.05 2.65 0.89 - 0.98 2.93 1.09 - 1.19

5.08 (200") 3.45 1.29 - 1.41 3.55 1.19 - 1.30 3.92 1.46 - 1.59

6.35 (250") 4.33 1.61 - 1.76 4.45 1.49 - 1.63 4.91 1.82 - 1.99

7.62 (300") 5.20 1.93 - 2.11 5.35 1.79 - 1.95 5.90 2.19 - 2.39

Aspect ratio 16:10 Aspect ratio 16:9 Aspect ratio 4:3

Projection

distance (L)

Height position

(H)

Projection

distance (L)

Height position

(H)

Projection

distance (L)

Height position

(H)

Formula for calculating the projection distance

To use a projected image size not listed in this manual, check the projected image size SD (m) and use the

respective formula to calculate the value.

The unit of all the formulae is m. (Values obtained by the following calculation formulae contain a slight error.) When calculating the value using image size designation (value in inches), multiply the value in inches by 0.0254

and substitute it into SD in the formula.

Aspect ratio 16:10 Aspect ratio 16:9 Aspect ratio 4:3

Projected image size

Height (SH)

Projected image size

Width (SW)

Projection distance (L) = 0.6892 x SD

= SD x 0.530 = SD x 0.490 = SD x 0.6

= SD x 0.848 = SD x 0.872 = SD x 0.8

0.0474 = 0.7084 x SD - 0.0474 = 0.7802 x SD - 0.0474

Adjusting adjustable feet

Install the projector on a at surface so that the front of the projector is parallel to the screen surface and the

projection screen is rectangular.

If the screen is tilted downward, extend the front adjustable feet so that the projected image becomes rectangular.

The adjustable feet can also be used to adjust the projector to be level when it is tilted in the horizontal direction.

Adjustable feet can be extended by turning them as shown in the gure. Turning them in the opposite direction will

return them to the original position.

Maximum adjustable range

Adjustable feet: 35 mm (1-3/8") each

Attention

f Be careful not to block the intake/exhaust ports with your hands or any objects when adjusting the adjustable feet while the light source is

on. (x page 26)

ENGLISH - 33

Page 34

Chapter 2 Getting Started — Connecting

Connecting

Before connecting

f Before connecting, carefully read the operating instructions for the external device to be connected. f Turn off the power of all devices before connecting cables. f Take note of the following points before connecting the cables. Failure to do so may result in malfunctions.

g When connecting a cable to a device connected to the projector or the projector itself, touch any nearby

metallic objects to eliminate static electricity from your body before performing work.

g Do not use unnecessarily long cables to connect a device to the projector or to the projector body. The longer

the cable, the more susceptible to noise it becomes. Since using a cable while it is wound makes it act like an

antenna, it is more susceptible to noise.

g When connecting cables, connect GND rst, then insert the connecting terminal of the connecting device in a

straight manner.

f Acquire any connection cable necessary to connect the external device to the system that is neither supplied

with the device nor available as an option.

f If video signals from video equipment contain too much jitter, the images on the screen may wobble. In this

case, a time base corrector (TBC) must be connected.

f If synchronization signals output from computers or video equipment are disrupted due to changes in the video

output setting or other reasons, colors of projected images may be temporarily disrupted.

f The projector accepts video signals, Y/C signals, YC

signals are TTL level), and digital signals.

f Some computer models or graphics cards are not compatible with the projector. f Use a cable compensator when you connect devices to the projector using long cables. Otherwise the projector

may not project the image properly.

f For details of the types of video signals that can be used with the projector, refer to “List of compatible signals”

(x page 175).

/YPBPR signals, analog RGB signals (synchronization

BCR

<COMPUTER 1 IN> terminal/<COMPUTER 2 IN/1 OUT> terminal pin assignments and signal names

Outside view Pin No. Signal name Pin No. Signal name

(6)

(11) (15)

(1) (5)

(10)

(1) R/P (2) G/Y/Y (10) GND (3) B/P (4) ― (12) DDC data (5) GND (13) HD/SYNC (6) GND (14) VD (7) GND (15) DDC clock (8) GND

/C (9) +5 V

(11) GND

<HDMI 1 IN> terminal/<HDMI 2 IN> terminal pin assignments and signal names

Outside view Pin No. Signal name Pin No. Signal name

(1) T.M.D.S data 2+ (11) T.M.D.S clock shield

Even-numbered pins of (2) to (18)

(2) (18)

(1) (19)

Odd-numbered pins of (1) to (19)

(2) T.M.D.S data 2 shield (12) T.M.D.S clock (3) T.M.D.S data 2 (4) T.M.D.S data 1+ (14) ― (5) T.M.D.S data 1 shield (15) SCL (6) T.M.D.S data 1

(7) T.M.D.S data 0+ (17)

(8) T.M.D.S data 0 shield (18) +5 V (9) T.M.D.S data 0

(10) T.M.D.S clock+

(13) CEC

(16) SDA

DDC/CEC

GND

(19) Hot plug detection

34 - ENGLISH

Page 35

Chapter 2 Getting Started — Connecting

<DVI-D IN> terminal pin assignments and signal names

Outside view Pin No. Signal name Pin No. Signal name

(1) T.M.D.S data 2 (2) T.M.D.S data 2+ (14) +5 V (3) T.M.D.S data 2/4 shield (15) GND (4) ― (16) Hot plug detection (5) ― (17) T.M.D.S data 0 (6) DDC clock (18) T.M.D.S data 0+ (7) DDC data (19) T.M.D.S data 0/5 shield (8) ― (20) ―

(9) T.M.D.S data 1 (10) T.M.D.S data 1+ (22) T.M.D.S clock shield (11) T.M.D.S data 1/3 shield (23) T.M.D.S clock+ (12) ― (24) T.M.D.S clock

(16)

(17)(24)

(9)

(1)(8)

Connecting example: AV equipment

DVD player

DVD player with HDMI terminal (HDCP)

(13) ―

(21) ―

S-video cable (commercially

available)

D-SUB - S Video conversion cable

(Optional (Model No.: ET-ADSV))

VCR (with built-in TBC)

Blu-ray disc player

Audio device

Attention

f Be sure to use one of the following when connecting a VCR.

g Use a VCR with built-in time base corrector (TBC). g Use a time base corrector (TBC) between the projector and the VCR.

f The image may be disrupted when nonstandard burst signal is connected. In such a case, connect the time base corrector (TBC) between

the projector and the external devices.

Note

f Switching of the setting in the [DISPLAY OPTION] menu → [DVI-D IN] → [EDID SELECT] may be required depending on the connected

external device when DVI-D is input.

f The <DVI-D IN> terminal can be connected with the HDMI and DVI-D compatible devices. However, some external devices may not be able

to project images properly, such as the image not displaying.

f For the HDMI cable, use an HDMI High Speed cable that conforms to the HDMI standards. If a cable that does not conform to the HDMI

standards is used, images may be interrupted or may not be projected.

f The <HDMI 1 IN>/<HDMI 2 IN> terminals can be connected to an external device with the DVI-D terminal by using an HDMI/DVI conversion

cable. However, this may not function properly for some external devices, and image may not be projected.

f The projector does not support VIERA Link (HDMI). f When Y/C signal is input to the <COMPUTER 1 IN> terminal using the optional D-SUB - S Video conversion cable (Model No.: ET-ADSV), it

is necessary to switch the setting with the [DISPLAY OPTION] menu → [COMPUTER IN/OUT] → [INPUT SETTING].

f When RGB signal or YCBCR/YPBPR signal input to the <COMPUTER 1 IN> terminal is output from the <COMPUTER 2 IN/1 OUT> terminal,

it is necessary to switch the setting with the [DISPLAY OPTION] menu → [COMPUTER IN/OUT] → [COMPUTER2 SELECT].

ENGLISH - 35

Page 36

Chapter 2 Getting Started — Connecting

Connecting example: Computers

Computer

Control computer

Attention

f When connecting the projector to a computer or an external device, use the power cord supplied with each device and commercially

available shielded cables.

Note

f Switching of the setting in the [DISPLAY OPTION] menu → [DVI-D IN] → [EDID SELECT] may be required depending on the connected

external device when DVI-D is input.

f For the HDMI cable, use an HDMI High Speed cable that conforms to the HDMI standards. If a cable that does not conform to the HDMI

standards is used, images may be interrupted or may not be projected.

f The <HDMI 1 IN>/<HDMI 2 IN> terminals can be connected to an external device with the DVI-D terminal by using an HDMI/DVI conversion

cable. However, this may not function properly for some external devices, and image may not be projected.

f The <DVI-D IN> terminal supports single links only. f If you operate the projector using the computer with the resume feature (last memory), you may have to reset the resume feature to operate

the projector.

f When RGB signal or YCBCR/YPBPR signal input to the <COMPUTER 1 IN> terminal is output from the <COMPUTER 2 IN/1 OUT> terminal,

it is necessary to switch the setting with the [DISPLAY OPTION] menu → [COMPUTER IN/OUT] → [COMPUTER2 SELECT].

36 - ENGLISH

Page 37

Chapter 2 Getting Started — Connecting

Connecting example using DIGITAL LINK

Twisted-pair-cable transmitter based on the communication standard HDBaseTTM such as the optional DIGITAL LINK output supported device (Model No.: ET-YFB100G, ET-YFB200G) uses the twisted pair cable to transmit

input images, audio, Ethernet, and serial control signal, and the projector can input such digital signal to the

<DIGITAL LINK/LAN> terminal.

Computer

Computer cable

Projector connecting terminals

Example of twisted-pair-cable transmitter

(commercially available)

HDMI cable (commercially available)

Hub

VCR

Control computer

*1 Control target is the projector or the twisted-pair-cable transmitter. The control itself may not be possible depending on the twisted-pair-cable

transmitter. Check the operating instructions of the device to be connected.

(with built-in TBC)

Blu-ray disc player

Attention

f Always use one of the following when connecting a VCR.

g Use a VCR with built-in time base corrector (TBC). g Use a time base corrector (TBC) between the projector and the VCR.

f The image may be disrupted when nonstandard burst signal is connected. In such a case, connect the time base corrector (TBC) between

the projector and the external devices.

f Ask a qualied technician or your dealer to install the cable wiring between the twisted-pair-cable transmitter and the projector. Image may

be disrupted if cable transmission characteristics cannot be obtained due to inadequate installation.

f For the LAN cable between the twisted-pair-cable transmitter and the projector, use a cable that meets the following criteria:

g Conforming to CAT5e or higher standards g Shielded type (including connectors) g Straight-through g Single wire

f When laying cables between the twisted-pair-cable transmitter and the projector, conrm that cable characteristics are compatible with

CAT5e or higher using tools such as a cable tester or cable analyzer. When a relay connector is used, include it in the measurement.

f Do not use a hub between the twisted-pair-cable transmitter and the projector. f When connecting to the projector using a twisted-pair-cable transmitter (receiver) of other manufacturers, do not place another twisted-pair-

cable transmitter between the twisted-pair-cable transmitter of other manufacturers and the projector. This may cause image to be disrupted.

f Do not pull cables forcefully. Also, do not bend or fold cables unnecessarily. f To reduce the effects of noise as much as possible, stretch out the cables between the twisted-pair-cable transmitter and the projector

without any loops.

f Lay the cables between the twisted-pair-cable transmitter and the projector away from other cables, particularly power cables. f When laying multiple cables, run them side by side along the shortest distance possible without bundling them together. f After laying the cables, go to the [NETWORK] menu → [DIGITAL LINK STATUS] and conrm that the value of [SIGNAL QUALITY] is

displayed in green which indicates normal quality. (x page 131)

Note

f For the HDMI cable, use an HDMI High Speed cable that conforms to the HDMI standards. If a cable that does not conform to the HDMI

standards is used, images may be interrupted or may not be projected.

f The projector does not support VIERA Link (HDMI). f The maximum transmission distance between the twisted-pair-cable transmitter and the projector is 100 m (328'1"). It is possible to transmit

up to 150 m (492'2") if the twisted-pair-cable transmitter supports the long-reach communication method. If this distance is exceeded, image may be disrupted or a malfunction may occur in LAN communication. Please note that Panasonic does not support the use of the projector outside the maximum transmission distance. When connecting with the long reach, video signal or distance that can be transmitted may be restricted, depending on the specication of the twisted-pair-cable transmitter.

ENGLISH - 37

Page 38

Chapter 2 Getting Started — Connecting

f For twisted-pair-cable transmitters of other manufacturers of which the operation has been veried with the projector, visit the Panasonic

website (http://panasonic.net/avc/projector/). Note that the verication for devices of other manufacturers has been made for the items set by Panasonic Corporation, and not all the operations have been veried. For operation or performance problems caused by the devices of

other manufacturers, contact the respective manufacturers.

38 - ENGLISH

Page 39

Chapter 3 Basic Operations

This chapter describes basic operations to start with.

ENGLISH - 39

Page 40

Chapter 3 Basic Operations — Switching on/off the projector

Switching on/off the projector

Connecting the power cord

Make sure that the supplied power cord is securely xed to the projector body to prevent it from being

removed easily.

Conrm that the <MAIN POWER> switch is on the <OFF> side before connecting the power cord.

Use the power cord matching with the power supply voltage and the shape of the outlet. For details of power cord handling, refer to “Read this rst!” (x page 5).

How to attach the power cord

1) Check the shapes of the <AC IN> terminal on the side of the projector and the power cord connector, and insert the connector completely in the correct direction (until you hear the side tabs click in place).

How to remove the power cord

1) Confirm that the <MAIN POWER> switch on the side of the projector is on the <OFF> side, and remove the power plug from the outlet.

2) Remove the power cord connector from the <AC IN> terminal of the projector while pressing the side tabs.

Power indicator

Indicate the status of the power. Check the status of the power indicator <ON (G)/STANDBY (R)> before operating

the projector.

Power indicator <ON (G)/STANDBY (R)>

Indicator status Projector status

Off The main power is switched off.

40 - ENGLISH

Page 41

Chapter 3 Basic Operations — Switching on/off the projector

Indicator status Projector status

The power is switched off. (standby mode)

Projection will start when the power <v/b> button is pressed.

f The setting of the projector is as follows.

g The [PROJECTOR SETUP] menu → [ECO MANAGEMENT] → [QUICK STARTUP]

Lit

Red

Blinking

Green Lit Projecting.

Orange Lit

is set to [OFF]

g The [PROJECTOR SETUP] menu → [AUDIO SETTING] → [IN STANDBY MODE] is

set to [OFF]

f The projector may not operate when the light source indicator <LIGHT> or the

temperature indicator <TEMP> is blinking. (x page 157)

The power is switched off. (standby mode)

Projection will start when the power <v/b> button is pressed.

f The projector is set to one of the following. Power consumption is high.

g The [PROJECTOR SETUP] menu → [ECO MANAGEMENT] → [QUICK STARTUP]

is set to [ON]

g The [PROJECTOR SETUP] menu → [AUDIO SETTING] → [IN STANDBY MODE] is

set to [ON]

f The indicator will change to a red light when the specied time has elapsed after the

projector enters the standby mode if the projector is set as following.

The specied time is a time set in the [PROJECTOR SETUP] menu → [ECO MANAGEMENT] → [QUICK STARTUP] → [VALID PERIOD].

g The [PROJECTOR SETUP] menu → [ECO MANAGEMENT] → [QUICK STARTUP]

is set to [ON]

g The [PROJECTOR SETUP] menu → [AUDIO SETTING] → [IN STANDBY MODE] is

set to [OFF]

f The projector may not operate when the light source indicator <LIGHT> or the

temperature indicator <TEMP> is blinking. (x page 157)

The projector is preparing to switch off the projector.

The power is switched off after a while. (Changes to the standby mode.)

Note

f While the power indicator <ON (G)/STANDBY (R)> lights in orange, the fan is running to cool the projector. f For approximately ve seconds after the projector is turned off, the indicator does not light up even if the power is turned on. Turn on the

power again after the power indicator <ON (G)/STANDBY (R)> lights/blinks in red.

f The projector consumes power even in standby mode (power indicator <ON (G)/STANDBY (R)> lights/blinks in red). Refer to “Power

consumption” (x page 178) for the power consumption.

f The power indicator <ON (G)/STANDBY (R)> will blink if the projector receives a remote control signal. f The power indicator <ON (G)/STANDBY (R)> will blink slowly in green while the shutter function is in use (shutter: closed), or while the

function of the [PROJECTOR SETUP] menu → [ECO MANAGEMENT] → [AUTO POWER SAVE] → [NO SIGNAL LIGHTS-OUT] is

operating and the light source is turned off.

Switching on the projector

1) Connect the power cord to the projector.

2) Connect the power plug to an outlet.

3) Press the <ON> side of the <MAIN POWER> switch to turn on the power.

f The power indicator <ON (G)/STANDBY (R)> lights/blinks in red, and the projector enters the standby

mode.

ENGLISH - 41

Page 42

Chapter 3 Basic Operations — Switching on/off the projector

4) Press the power <v/b> button.

f The power indicator <ON (G)/STANDBY (R)> lights in green and the image is soon projected on the screen.

Note

f A warm-up period of up to approximately ve minutes may be necessary until an image is displayed when the projector is switched on at

around 0 °C (32 °F). The temperature indicator <TEMP> lights in red during the warm-up period. When the warm-up is completed, the temperature indicator <TEMP> turns off and the projection starts. Refer to “When an indicator lights up” (x page 157) for the indicator status display.

f If the operating environment temperature is low and warm-up takes more than ve minutes, the projector will judge that a problem has

occurred and the power will automatically be set to standby mode. In such case, increase the operating environment temperature to 0 °C (32 °F) or higher, turn off the main power, and then turn on the power again.

f When the [PROJECTOR SETUP] menu → [ECO MANAGEMENT] → [STANDBY MODE] is set to [ECO], it takes longer for the projection to

start after the power is turned on, compared to when set to [NORMAL].

f When the [PROJECTOR SETUP] menu → [ECO MANAGEMENT] → [QUICK STARTUP] is set to [ON], and the power is turned on before

the specied time elapses after the projector enters the standby mode, an image will be projected approximately one second after the power

is turned on.

The specied time is a time set in the [PROJECTOR SETUP] menu → [ECO MANAGEMENT] → [QUICK STARTUP] → [VALID PERIOD].

f When the power is turned on or an input signal is switched, you may here a high-frequency driving sound. This is not a malfunction. f If the power was turned off at the previous use by pressing the <OFF> side of the <MAIN POWER> switch or by using the breaker directly

while projecting, the power indicator <ON (G)/STANDBY (R)> lights up in green and an image is projected after a while when the power is turned on by pressing the <ON> side of the <MAIN POWER> switch or by turning the breaker on with the power plug connected to the outlet. This applies only when the [PROJECTOR SETUP] menu → [INITIAL STARTUP] is set to [LAST MEMORY].

When the initial setting screen is displayed

When the projector is switched on for the rst time after purchase, as well as when the [PROJECTOR SETUP]

menu → [INITIALIZE] → [ALL USER DATA] is executed, the focus adjustment screen is displayed after projection starts, and then the [INITIAL SETTING] screen is displayed. Set them according to the circumstances.

In other occasions, you can change the settings by menu operations. If you press the <MENU> button while the [INITIAL SETTING] screen is displayed, you can go back to the

previous screen.

Same operation is available by pressing the <RETURN> button on the remote control.

Focus adjustment

Adjust the focus to display the menu screen clearly. Adjustment of the shift may also be necessary. For details, refer to “Adjusting the focus and the shift” (x page 51).

1) Press asqw to adjust the focus.

LENS

FOCUS

ADJUST

2) Press the <MENU> button to proceed to the initial setting.

Initial setting (display language)

Select the language to show on the screen. After completed the initial setting, you can change the display language from the [DISPLAY LANGUAGE] menu.

1) Press asqw to select the display language.

INITIAL SETTING

1/7

SELECT

ENTER

SET

2) Press the <ENTER> button to proceed to the initial setting.

42 - ENGLISH

Page 43

Chapter 3 Basic Operations — Switching on/off the projector

Initial setting (operation setting)

Set the items regarding the operating method depending on the duration of use and the usage of the projector. After completed the initial setting, you can change the settings of each item from the [PROJECTOR SETUP]

menu. If you change the settings while using the projector, the duration until the luminance of light source

decreases by half may shorten or the luminance may decrease.

This initial setting (operation setting) is prepared to complete the settings at once during the installation when the operation of the projector is predetermined. When the [PROJECTOR SETUP] menu → [INITIALIZE] → [ALL USER DATA] is executed, do not change the setting in the initial setting (operation setting) and press the <ENTER> button and proceed to next initial setting (installation setting). Request to the person responsible for this projector (such as a person in charge of equipment or operation) when it is necessary to change the setting.

INITIAL SETTING

OPERATING MODE

MAX LIGHT OUTPUT LEVEL

LIGHT OUTPUT

BRIGHTNESS CONTROL SETUP

CONSTANT MODE

LINK

CALIBRATION TIME

CALIBRATION MESSAGE

Set the way to use the projector. For details, please

refer to the operating instructions "When the initial

setting screen is displayed".

ENTER

SET

NORMAL

GROUP A

CHANGEMENU SELECT

2/7

100.0%

OFF

Note

f The preceding initial setting screen is displayed when the projector is switched on for the rst time after purchase. If the [PROJECTOR

SETUP] menu → [INITIALIZE] → [ALL USER DATA] is executed, the settings before execution are displayed in [OPERATING MODE] and [MAX LIGHT OUTPUT LEVEL].

f For the relationship between the luminance and the runtime, refer to “Interrelation of luminance and runtime” (x page 45). f For details on each setting item, refer to the [PROJECTOR SETUP] menu →[OPERATION SETTING].

1) Press as to select [OPERATING MODE].

2) Press qw to switch the item.

f The items will switch each time you press the button. f Set [OPERATING MODE] to [NORMAL], [USER1], [USER2], or [USER3] when using the projector at an

altitude of 2 700 m (8 858') or higher above sea level.

[NORMAL] Set this item when high luminance is required. The estimated runtime is approximately 20 000 hours.

[ECO]

[SILENT]

[LONG LIFE1]

[LONG LIFE2]

[LONG LIFE3]

[USER1]

[USER3]

The luminance will decrease compared to [NORMAL], but set this item to increase the expected life of the light source. The estimated runtime is approximately 24 000 hours.

The luminance will decrease compared to [NORMAL], but set this item to prioritize the operation with less noise. The estimated runtime is approximately 20 000 hours.

The luminance will decrease compared to [ECO], but set this item to increase the expected life of the light source. The estimated runtime is approximately 43 000 hours.

The luminance will decrease compared to [LONG LIFE1], but set this item to increase the expected life of the light source. The estimated runtime is approximately 61 000 hours.

The luminance will decrease compared to [LONG LIFE2], but set this item to increase the expected life of the light source. The estimated runtime is approximately 87 000 hours.

[MAX LIGHT OUTPUT LEVEL] and [LIGHT OUTPUT] can be set individually.[USER2]

f Proceed to Step 5) when [NORMAL], [ECO], [SILENT], [LONG LIFE1], [LONG LIFE2], or [LONG LIFE3] is

selected.

3) Press as to select [MAX LIGHT OUTPUT LEVEL].

4) Press qw to adjust.

Operation Adjustment Range of adjustment

Press w. Press q.

Increases the maximum level of brightness correction. Decreases the maximum level of brightness correction.

5.0 % - 100.0 %

ENGLISH - 43

Page 44

Chapter 3 Basic Operations — Switching on/off the projector

5) Press as to select [LIGHT OUTPUT].

6) Press qw to adjust.

Operation

Press w. Press q.

Brightness Runtime (estimate)

The screen becomes brighter. The runtime becomes shorter.

The screen becomes darker. The runtime becomes longer.

Adjustment

7) Press as to select [CONSTANT MODE].

8) Press qw to switch the item.

f The items will switch each time you press the button.

[OFF] Does not perform the brightness control (correction by the brightness sensor).

Performs the brightness control (correction by the brightness sensor).

[AUTO]

[PC]

*1 “Multi Monitoring & Control Software” is included in the supplied CD-ROM.

When the brightness of light source or white balance changes, the brightness of the screen is automatically corrected.

Synchronizes nine or more projectors using a computer and the dedicated software “Multi Monitoring & Control Software”

f Proceed to Step 15) if the brightness control is not to be performed (when [OFF] is selected). f Proceed to Step 11) when [PC] is selected.

9) Press as to select [LINK].

10) Press qw to switch the item.

f The items will switch each time you press the button.

Range of adjustment

5.0 % - 100.0 %

Performs correction by the brightness sensor on one projector without synchronizing with the other

[OFF]

[GROUP A] [GROUP B] [GROUP C] [GROUP D]

projectors.

The duration that the constant brightness is kept will become longer by setting the value of [LIGHT OUTPUT] smaller.

Performs correction by the brightness sensor in multiple projectors in synchronization.

Up to four groups (A to D) can be set within the same subnet by using the network function.

Up to eight projectors can be registered and synchronized in one group.

11) Press as to select [CALIBRATION TIME].

12) Press the number (<0> - <9>) buttons on the remote control to enter the time.

f The projector will go into the adjustment mode (the time is blinking). f Press qw to select “hour” or “minute”. f [CALIBRATION TIME] is set when the cursor is moved from [CALIBRATION TIME] using as. f Brightness and color are measured at the specied time. The dynamic contrast function does not operate

during measurement.

f When the time is not to be specied, press the <DEFAULT> button while [CALIBRATION TIME] is selected

(the time is not blinking) using as.

13) Press as to select [CALIBRATION MESSAGE].

14) Press qw to switch the item.

f The items will switch each time you press the button.

[ON] Displays the message while executing the calibration.

[OFF] Does not display the message while executing the calibration.

15) Press the <ENTER> button to proceed to the initial setting.

44 - ENGLISH

Page 45

Chapter 3 Basic Operations — Switching on/off the projector

Interrelation of luminance and runtime

The projector can be operated at arbitrary brightness and duration of use by combining the settings of [MAX LIGHT OUTPUT LEVEL], [LIGHT OUTPUT], and [CONSTANT MODE] in [BRIGHTNESS CONTROL SETUP].

Interrelation of luminance and runtime is as follows. Make the initial setting (operation setting) depending on your

desired duration of use and brightness of the projected image.

Values of the luminance and runtime are rough estimations.

f To set the projector based on the duration of use

When [CONSTANT MODE] is set to [OFF] When [CONSTANT MODE] is set to [AUTO] or [PC]

Duration of use

(hour)

20 000 100.0 100.0 5 000 100.0 50.0 2 500

24 000 100.0 68.0 3 400 100.0 40.0 2 000

27 000 100.0 28.0 1 400 100.0 34.0 1 700 31 000 ― ― ― 100.0 26.0 1 300 35 000 ― ― ― 100.0 20.0 1 000 40 000 ― ― ― 100.0 14.0 700

[MAX LIGHT

OUTPUT LEVEL]

(%)

[LIGHT OUTPUT]

(%)

Luminance (lm)

[MAX LIGHT

OUTPUT LEVEL]

(%)

[LIGHT OUTPUT]

(%)

Luminance (lm)

f To set the projector based on luminance

When [CONSTANT MODE] is set to [OFF] When [CONSTANT MODE] is set to [AUTO] or [PC]

Luminance (lm)

5 000 100.0 100.0 20 000 ― ― ―

4 500 100.0 90.0 21 500 100.0 90.0 4 400

4 000 100.0 80.0 22 800 100.0 80.0 7 800

3 500 100.0 70.0 23 900 100.0 70.0 11 600

3 000 100.0 60.0 25 000 100.0 60.0 15 700

2 500 100.0 50.0 25 800 100.0 50.0 20 000

2 000 100.0 40.0 26 400 100.0 40.0 24 000

1 500 100.0 30.0 26 900 100.0 30.0 29 000

[MAX LIGHT

OUTPUT LEVEL]

(%)

[LIGHT OUTPUT]

(%)

Runtime (hour)

[MAX LIGHT

OUTPUT LEVEL]

(%)

[LIGHT OUTPUT]

(%)

Runtime (hour)

Note

f Under inuences of characteristics of each light source, conditions of use, installation environment, etc., the runtime may be shorter than the

estimation.

f The duration of use is referred to as the runtime when you use the projector successively. The duration of use is an estimated duration and

is not the warranty period.

f If the runtime exceeds 20 000 hours, replacement of the components inside the projector may be required. Consult your dealer for details.

ENGLISH - 45

Page 46

Chapter 3 Basic Operations — Switching on/off the projector

Initial setting (installation setting)

Set [FRONT/REAR] and [FLOOR/CEILING] in [PROJECTION METHOD] depending on the installation mode. Refer to “Installation mode” (x page 30) for details.

After completed the initial setting, you can change the setting from the [PROJECTOR SETUP] menu → [PROJECTION METHOD].

1) Press qw to switch the setting.

INITIAL SETTING

PROJECTION METHOD

FRONT/REAR

FLOOR/CEILING

Change the projection method (FRONT/REAR,

FLOOR/CEILING) if the screen display is upside down

or inverted.

3/7

FRONT

AUTO

ENTER

MENU SELECT

SET

CHANGE

2) Press the <ENTER> button to proceed to the initial setting.

Initial setting (standby mode)

Set the operation mode during standby. The factory default setting is [NORMAL], which allows you to use the network function during standby. To keep power consumption low during standby, set this item to [ECO].

After completed the initial setting, you can change the setting from the [PROJECTOR SETUP] menu → [ECO MANAGEMENT] → [STANDBY MODE].

1) Press qw to switch the setting.

INITIAL SETTING

STANDBY MODE

When set to ECO, network functions and some RS-232C commands are not available during standby.

CHANGE

ENTER

SET

NORMAL

4/7

2) Press the <ENTER> button to proceed to the initial setting.

Note

f The preceding initial setting screen is displayed when the projector is switched on for the rst time after purchase. When the [PROJECTOR

SETUP] menu → [INITIALIZE] → [ALL USER DATA] is executed, the [STANDBY MODE] setting before executing is displayed.

46 - ENGLISH

Page 47

Chapter 3 Basic Operations — Switching on/off the projector

Initial setting (screen setting)

Set the screen format (aspect ratio) and display position of the image. After completed the initial setting, you can change the settings of each item from the [DISPLAY OPTION] menu →

[SCREEN SETTING].

1) Press qw to switch the setting.

f Proceed to Step 4) when [16:10] is selected.

INITIAL SETTING

SCREEN FORMAT

SCREEN POSITION

Set as necessary for the screen in use.

CHANGE

ENTER

SET

2) Press as to select [SCREEN POSITION].

INITIAL SETTING

SCREEN FORMAT

SCREEN POSITION

Set as necessary for the screen in use.

5/7

16:10

5/7

16:9

MENU SELECT

ENTER

SET

CHANGE

3) Press qw to adjust.

4) Press the <ENTER> button to proceed to the initial setting.

Initial setting (time zone)

Set [TIME ZONE] in accordance with the country or region where you use the projector. After completed the initial setting, you can change the setting from the [PROJECTOR SETUP] menu → [DATE

AND TIME]. The current settings are displayed in [LOCAL DATE] and [LOCAL TIME].

1) Press qw to switch the setting.

INITIAL SETTING

TIME ZONE

LOCAL DATE

LOCAL TIME

Please set up a time zone according to the area of your

country or region.

CHANGE

ENTER

SET

20XX/01/01

12：34：56

6/7

+09:00

2) Press the <ENTER> button to proceed to the initial setting.

ENGLISH - 47

Page 48

Chapter 3 Basic Operations — Switching on/off the projector

Note

f In the factory default setting, the time zone of the projector is set to +09:00 (Japan and Korea Standard Time). Change the setting of the

[PROJECTOR SETUP] menu → [DATE AND TIME] → [TIME ZONE] to the time zone of the region where you use the projector.

Initial setting (date and time)

Set the local date and time. After completed the initial setting, you can change the setting from the [PROJECTOR SETUP] menu → [DATE AND TIME].

To set the date and time automatically, refer to “Setting the date and time automatically” (x page 118).

1) Press as to select an item.

INITIAL SETTING

YEAR

MONTH

DAY

HOUR

MINUTE

SECOND

Please set the date and time of the built-in clock of the

projector.

7/7

20XX

ENTER

SET

CHANGEMENU SELECT

2) Press qw to switch the setting.

3) Press the <ENTER> button.

f Conrm the setting value and complete the initial setting.

Making adjustments and selections

It is recommended that images be projected continuously for at least 30 minutes before the focus is adjusted.

1) 7)

1) 5) 7)

1) Press the <FOCUS> button to roughly adjust the focus of the projected image. (x page 51)

2) Change the setting of the [PROJECTOR SETUP] menu → [PROJECTION METHOD] depending on the

installation mode. (x page 30)

f Refer to “Navigating through the menu” (x page 61) for the operation of the menu screen.

3) Select the input by pressing the input selection button on the remote control or the control panel.

f The buttons that can be used on the remote control or the control panel are as follows.

Remote control:

<HDMI 1> button, <HDMI 2> button, <DIGITAL LINK> button, <COMPUTER 1/2> button, <VIDEO> button, <DVI-D> button

Control panel:

<INPUT SELECT> button

f For details of operation for input selection, refer to “Selecting the input signal” (x page 50).

4) Adjust the front, back and sideway tilt of the projector with the adjustable feet. (x page 33)

48 - ENGLISH

Page 49

Chapter 3 Basic Operations — Switching on/off the projector

5) Press the <SHIFT> button to adjust the position of the projected image. (x page 51)

6) If the input signal is the analog RGB signal or the DVI-D/HDMI signal, press the <AUTO SETUP> button.

7) Press the <FOCUS> button again to adjust the focus.

Note

f When the projector is switched on for the rst time after purchase, as well as when the [PROJECTOR SETUP] menu → [INITIALIZE] →

[ALL USER DATA] is executed, the [INITIAL SETTING] screen is displayed after projection starts. Refer to “When the initial setting screen is displayed” (x page 42) for details.

Switching off the projector

1) Press the power <v/b> button.

f The [POWER OFF(STANDBY)] conrmation screen is displayed.

2) Press qw to select [OK], and press the <ENTER> button. (Or press the power <v/b> button again.)

f Projection of the image will stop, and the power indicator <ON (G)/STANDBY (R)> on the projector body

lights in orange. (The fan keeps running.)

3) Wait for a few seconds until the power indicator <ON (G)/STANDBY (R)> of the projector body lights/ blinks in red.

4) Press the <OFF> side of the <MAIN POWER> switch to turn off the power.

Note

f For approximately ve seconds after the projector is turned off, the indicator does not light up even if the power is turned on.

f Even when the power <v/b> button is pressed and the projector is switched off, the projector consumes power if the main power

of the projector is on.

When the [PROJECTOR SETUP] menu → [ECO MANAGEMENT] → [STANDBY MODE] is set to [ECO], use of some functions is restricted,

but the power consumption during standby mode can be conserved.

f While projecting, the power can be turned off by pressing the <OFF> side of the <MAIN POWER> switch, or by directly using the breaker

under conditions where the <MAIN POWER> switch of the projector cannot be switched off/on easily such as while installing on the ceiling. However, the settings or adjustments performed right before the power is turned off may not be reected.

ENGLISH - 49

Page 50

Chapter 3 Basic Operations — Projecting

Projecting

Check the external device connection (x page 34) and the power cord connection (x page 40), and turn on the power (x page 41) to start projection. Select the image to project, and adjust appearance of the projected

image.

Selecting the input signal

Remote control Control panel

The input of the image to project can be switched. Method to switch the input is as follows.

f Press the input selection button on the remote control and directly specify the input to project. f Press the <INPUT SELECT> button on the control panel to display the input selection screen, and select the

input to project from the list.

Switching the input directly with the remote control

The input for projection can be switched by directly specifying it with the input selection button on the remote control.

1) Press the input selection button (<HDMI 1>, <HDMI 2>, <DIGITAL LINK>, <COMPUTER 1/2>, <VIDEO>, <DVI-D>).

<VIDEO>

<DVI-D>

Switches the input to HDMI1. The image of the signal input to the <HDMI 1 IN> terminal is projected.

Switches the input to HDMI2. The image of the signal input to the <HDMI 2 IN> terminal is projected.

Switches the input to DIGITAL LINK. The image of the signal input to the <DIGITAL LINK/LAN> terminal is projected.

Switches the input to COMPUTER1 or COMPUTER2. Switches to the other input when one input has already been selected. The image of the signal input to the <COMPUTER 1 IN> terminal or the <COMPUTER 2 IN/1 OUT> terminal is projected.

Switches the input to VIDEO. The image of the signal input to the <VIDEO IN> terminal is projected.

Switches the input to DVI-D. The image of the signal input to the <DVI-D IN> terminal is projected.

Attention

f Images may not be projected properly depending on the external device, or the Blu-ray disc or DVD disc, to be played back.

Set the [PICTURE] menu → [SYSTEM SELECTOR].

f Conrm the aspect ratio of the projection screen and the image, and switch to an optimum aspect ratio from the [POSITION] menu →

[ASPECT].

Note

f When the optional DIGITAL LINK output supported device (Model No.: ET-YFB100G, ET-YFB200G) is connected to the <DIGITAL LINK/

LAN> terminal, the input on the DIGITAL LINK output supported device changes each time the <DIGITAL LINK> button is pressed. The input can also be changed using the RS-232C control command. For twisted-pair-cable transmitters of other manufacturers, switch the input on the projector to DIGITAL LINK, and then switch the input on

the twisted-pair-cable transmitter.

f Set the [DISPLAY OPTION] menu → [COMPUTER IN/OUT] → [INPUT SETTING] in accordance with the signal input to the <COMPUTER 1

IN> terminal.

f Set the [DISPLAY OPTION] menu → [COMPUTER IN/OUT] → [COMPUTER2 SELECT] to [COMPUTER2 IN] when a signal is to be input to

the <COMPUTER 2 IN/1 OUT> terminal.

50 - ENGLISH

Page 51

Chapter 3 Basic Operations — Projecting

Switching the input by displaying the input selection screen

The input for projection can be selected by displaying the input selection screen using the <INPUT SELECT>

button on the control panel.

1) Press the <INPUT SELECT> button on the control panel.

f The input selection screen is displayed.

INPUT SELECT

COMPUTER1

COMPUTER2

VIDEO

DVI-D

HDMI1

HDMI2

DIGITAL LINK

SELECT

ENTER

SET

2) Press as to select the input for projection, and press the <ENTER> button.

Note

f The input can also be switched by pressing the <INPUT SELECT> button while the input selection screen is displayed.

The input will switch each time you press the <INPUT SELECT> button.

f If the optional DIGITAL LINK output supported device (Model No.: ET-YFB100G, ET-YFB200G) is connected to the projector, the input

selection menu for the DIGITAL LINK output supported device is displayed when the <ENTER> button is pressed while the DIGITAL LINK

input is selected in the input selection screen.

f If the optional DIGITAL LINK output supported device (Model No.: ET-YFB100G, ET-YFB200G) is connected to the projector, the DIGITAL

LINK logo and the input name selected in the DIGITAL LINK output supported device are displayed in the display section of the [DIGITAL LINK] in the input selection screen.

Adjusting the image

Adjust the projection angle, focus, and shift if the projected image or the position is not correct while the position of the projector and the screen is correctly set up.

1) Adjust the projection angle.

f Install the projector on a at surface so that the front of the projector is parallel to the screen surface,

making the projected image rectangular.

f If the projector is tilted downward than the screen, extend the adjustable feet so that the projected image

becomes rectangular. Refer to “Adjusting adjustable feet” (x page 33) for details.

2) Adjust the focus and the lens position.

f For details, refer to “Adjusting the focus and the shift” (x page 51).

Note

f Perform the [POSITION] menu → [SCREEN ADJUSTMENT] when the projected image is distorted. f The projector is not equipped with the zoom adjustment function. Adjust the size of the projected image with the position of the projector and

the screen (projection distance).

Adjusting the focus and the shift

Using the control panel

1) Press the <LENS> button on the control panel.

f The scree will switch between the adjustment screens of [FOCUS] and [SHIFT] every time the button is

pressed.

2) Select each adjustment item and press asqw to adjust.

ENGLISH - 51

Page 52

Chapter 3 Basic Operations — Projecting

Using the remote control

1) Press the lens buttons (<FOCUS>, <SHIFT>) on the remote control.

f <FOCUS> button: Adjusts focus. f <SHIFT> button: Adjusts shift.

2) Select each adjustment item and press asqw to adjust.

CAUTION

Do not insert the hand into the opening around the lens while performing the lens shift operation.

Your hand may be caught in between, resulting in injury.

Note

f The adjustment can be performed faster by holding down asqw for approximately three seconds or longer while adjusting the focus. f The adjustment can be performed faster by holding down asqw for approximately six seconds or longer while adjusting the shift. f It is recommended that images be projected continuously for at least 30 minutes before the focus is adjusted.

Only [FOCUS] is displayed in yellow so that the displayed menu item can be recognized by color, even when the displayed characters are unreadable due to incorrect focus. (Factory default)

f The displayed color of [FOCUS] differs depending on the setting of the [DISPLAY OPTION] menu → [ON-SCREEN DISPLAY] → [OSD

DESIGN].

f The projector will not operate by pressing the <ZOOM> button. f When the projector is switched off during the shift adjustment, lens calibration needs to be performed the next time the projector is switched

on. (x page 115)

f When the main power is switched off during the shift adjustment, the lens calibration error screen is displayed during the next shift

adjustment. Execute the [PROJECTOR SETUP] menu → [LENS CALIBRATION].

f When the lens calibration error is displayed even though [LENS CALIBRATION] was executed, ask your dealer to repair the unit.

Moving the lens position to the home position

To move the lens position to the home position, perform the following procedure.

1) Press the <DEFAULT> button on the remote control while the shift adjustment screen is displayed.

f The [HOME POSITION] screen is displayed.

LENS

HOME POSITION

ENTER

EXECUTE

CANCEL

2) Press the <ENTER> button.

f [PROGRESS] is displayed in the [HOME POSITION] screen, and the lens position returns to the home

position.

Note

f Complete the operation within approximately 5 seconds after the [HOME POSITION] screen is displayed. The [HOME POSITION] screen

will disappear after time limit.

f The home position of the lens is used when the projector is being stored, and it is not the optical center of the screen. f You can also display the [HOME POSITION] screen by pressing the <LENS> button on the control panel or the <SHIFT> button on the

remote control for at least three seconds.

52 - ENGLISH

Page 53

Chapter 3 Basic Operations — Projecting

Adjustment range by the lens position shift (optical axis shift)

Perform the lens position shift within the adjustment range. Part of the peripheral image may not be visible or the focus may change when the lens position is shifted outside

the adjustment range, but this is not a malfunction.

This projector is equipped with the optical axis shift function, and projection position can be adjusted within the range indicated in the following gure based on the position of the projected screen in the home position (standard

projection position).

Projected image width H

0.021 H

Standard projection position

0.021 H

0.044 V

Projected image height V

0.044 V

ENGLISH - 53

Page 54

Chapter 3 Basic Operations — Operating with the remote control

Operating with the remote control

Using the shutter function

If the projector is not used for a certain period of time during the meeting intermission, for example, it is possible

to turn off the image and audio temporarily.

button

1) Press the <SHUTTER> button.

f The image and audio disappear.

2) Press the <SHUTTER> button again.

f The image and audio reappear.

Note

f The power indicator <ON (G)/STANDBY (R)> will blink slowly in green while the shutter function is in use (shutter: closed). f The fade-in/fade-out time of the image can be set by the [DISPLAY OPTION] menu → [SHUTTER SETTING]. f To output audio while the shutter function is in use (shutter: closed), set the [PROJECTOR SETUP] menu → [AUDIO SETTING]

(x page 115) → [IN SHUTTER] to [ON].

f The projector does not have a built-in speaker. Audio is output from the external audio system connected to the <VARIABLE AUDIO OUT>

terminal.

f The light source may be lit dimly due to warm up when the shutter function is used in the operating environment temperature of around 0 °C

(32 °F).

Using the mute function

Audio can be temporarily turned off.

button

1) Press the <MUTE> button.

f The audio is muted.

2) Press the <MUTE> button again.

f The audio is turned on.

54 - ENGLISH

Page 55

Chapter 3 Basic Operations — Operating with the remote control

Adjusting the volume

Adjust the volume of audio output.

button

1) Press the <VOL-> button/<VOL+> button on the remote control.

<VOL+> Increases the volume.

> Decreases the volume.

<VOL

Note

f This operation can be also performed using qw on the control panel.

Using the freeze function

The projected image can be paused and audio can be turned off regardless of the playback of the external device.

button

1) Press the <FREEZE> button.

f The image freezes and audio is muted.

2) Press the <FREEZE> button again.

f Freezing of the image is canceled and audio is turned on.

Note

f [FREEZE] is displayed on the screen when video is paused. f When freezing of the moving image is canceled, the image may disappear or be disrupted temporarily.

Using the on-screen display function

Turn off the on-screen display function (no display) when you do not wish the viewers to see the on-screen

display, such as the menu or the input terminal name.

button

1) Press the <ON SCREEN> button.

f Turns off (hides) the on-screen display.

2) Press the <ON SCREEN> button again.

f Cancels the hide condition of the on-screen display.

Note

f The hide condition of the on-screen display can also be canceled by pressing the <MENU> button on the control panel for at least three

seconds while the on-screen display is off (hidden).

ENGLISH - 55

Page 56

Chapter 3 Basic Operations — Operating with the remote control

Using the automatic setup function

The image position when the DVI-D/HDMI signal is input, or the resolution, clock phase, and image position when the analog RGB signal is input can be adjusted automatically. (Analog RGB signal is a signal structured with dots

just like the computer signal.)

It is recommended to input an image with bright white borders at the edges and high-contrast black and white

characters when the automatic adjustment is being performed. Avoid using images that include halftones or gradation, such as photographs and computer graphics.

button

1) Press the <AUTO SETUP> button.

f [COMPLETE] is displayed when it has completed without any problem.

Note

f The clock phase may shift even if it has completed without any incident. In such a case, adjust the [POSITION] menu → [CLOCK PHASE]

(x page 74).

f If an image with blurred edges or a dark image is input, [INCOMPLETE] may appear or adjustment may not be performed properly even

when [COMPLETE] appears. In such a case, adjust the following settings.

g [ADVANCED MENU] menu → [INPUT RESOLUTION] (x page 78) g [POSITION] menu → [CLOCK PHASE] (x page 74) g [POSITION] menu → [SHIFT] (x page 72)

f Adjust special signals according to the [DISPLAY OPTION] menu → [AUTO SETUP] (x page 85). f Automatic adjustment may not be possible depending on the computer model. f Automatic adjustment may not be possible for the synchronization signal for composite sync or SYNC ON GREEN. f Image may be disrupted for a few seconds during automatic adjustment, but this is not a malfunction. f Adjustment is required for each input signal. f Automatic adjustment can be canceled by pressing the <MENU> button during the automatic adjustment operation. f Even if a signal possible to perform the automatic setup is being input, it may not be able to adjust correctly if the automatic setup function

is used while the moving image is being input. [INCOMPLETE] may be displayed, or the adjustment may not be completed correctly even if [COMPLETE] is displayed.

Using the screen adjustment function

The [SCREEN ADJUSTMENT] menu can be displayed.

Correct the distortion of the image that occurs when the projector is installed tilted or when the screen is tilted or curved.

button

1) Press the <SCREEN ADJ> button.

f The [SCREEN ADJUSTMENT] screen is displayed.

2) Press qw to switch the item.

f The items will switch each time you press the button.

[OFF] Disables the screen adjustment function.

[KEYSTONE] Adjusts any trapezoidal distortion in the projected image.

[CORNER CORRECTION] Adjusts any distortion in the four corners of the projected image.

[CURVED CORRECTION] Adjusts any curved distortion in the projected image.

[PC-1]

[PC-3]

*1 Advanced skills are necessary to use a computer to control screen adjustment. Consult your dealer. Up to three screen adjustments

performed using the computer can be saved.

f The items will also switch by pressing the <SCREEN ADJ> button. f Proceed to Step 3) when anything other than [OFF] is selected.

Performs screen adjustment using a computer.[PC-2]

3) Press the <ENTER> button.

f The [KEYSTONE] screen, the [CORNER CORRECTION] screen, or the [CURVED CORRECTION] screen

is displayed.

56 - ENGLISH

Page 57

Chapter 3 Basic Operations — Operating with the remote control

Note

f To adjust [KEYSTONE] or [CURVED CORRECTION], press as to select the item to adjust, and press qw to adjust the item. f To adjust [CORNER CORRECTION], press as to select the item to adjust. Individual adjustment screen is displayed by pressing the

<ENTER> button. Adjust the item using asqw. f Only one of the [KEYSTONE], [CORNER CORRECTION], or [CURVED CORRECTION] setting is enabled. f Refer to the [POSITION] menu → [SCREEN ADJUSTMENT] (x page 74) for details.

Switching the image aspect ratio

Switch the image aspect ratio according to the input.

button

1) Press the <ASPECT> button.

f The setting will change each time you press the button.

Note

f Refer to the [POSITION] menu → [ASPECT] (x page 72) for details.

Using the P IN P function

Locate a separate, small sub screen in the main screen to project two images simultaneously.

button

1) Press the <P IN P> button.

f The setting will change each time you press the button.

Note

f Refer to “[P IN P] menu” (x page 121) for details.

Using the function button

By assigning the following functions to the <FUNCTION> button, it can be used as a simplied shortcut button. [SUB MEMORY], [SYSTEM SELECTOR], [DAYLIGHT VIEW], [WAVEFORM MONITOR]

button

1) Press the <FUNCTION> button.

Note

f Assignment of the function is performed from the [PROJECTOR SETUP] menu → [FUNCTION BUTTON] (x page 115).

Displaying internal test pattern

The projector has eight types of internal test patterns to check the condition of the projector body. To display test patterns, perform the following steps.

button

1) Press the <TEST PATTERN> button.

2) Press qw to select the test pattern.

Note

f Test patterns can also be displayed using the menu operation. Refer to “[TEST PATTERN] menu” (x page 123) for details. f Settings of position, size, and other factors will not be reected in test patterns. Make sure to display the input signal before performing

various adjustments.

ENGLISH - 57

Page 58

Chapter 3 Basic Operations — Operating with the remote control

Using the status function

Display the status of the projector.

button

1) Press the <STATUS> button.

f The [STATUS] screen is displayed.

STATUS

PROJECTOR TYPE

PROJECTOR RUNTIME

LIGHT RUNTIME

MAIN/SUB VERSION

INTAKE AIR TEMP.

OPTICS MODULE TEMP.

EXHAUST AIR TEMP.

LIGHT TEMP. 1

LIGHT TEMP. 2

COOLING CONDITION

ATMOSPHERIC PRESSURE

SELF TEST

ENTER

SEND E-MAIL

RZ575(123456789012)

10000h

1.00 / 1.00

31°C/87°F

27°C/80°F

31°C/87°F

AUTO - FLOOR

1013hPa

NO ERRORS

EXITCHANGE

1/3

Note

f The projector status can also be displayed using the menu operation. Refer to the [PROJECTOR SETUP] menu → [STATUS]

(x page 117) for details.

Using the ECO management function

Display the setting screen relating to ECO management.

button

1) Press the <ECO> button.

Note

f Refer to the [PROJECTOR SETUP] menu → [ECO MANAGEMENT] (x page 101) for details.

Setting ID number of the remote control

When you use the multiple projectors together, you can operate all the projectors simultaneously or each projector

individually using a single remote control, if a unique ID number is assigned to each projector. After setting the ID number of the projector, set same ID number on the remote control.

The factory default ID number of the projector is set to [ALL]. When using a single projector, press the <ID ALL> button on the remote control. Also, you can control a projector by pressing the <ID ALL> button on

the remote control even if you do not know the projector ID.

button

1) Press the <ID SET> button on the remote control.

2) Within five seconds, press and set the one-digit or two-digit ID number set on the projector body using the number (<0> - <9>) buttons.

f If you press the <ID ALL> button, you can control the projectors regardless of the ID number setting of the

projector body.

Attention

f Since the ID number of the remote control can be set without the projector body, do not press the <ID SET> button on the remote control

carelessly. If the <ID SET> button is pressed and no number (<0> - <9>) buttons are pressed within ve seconds, the ID number returns to its original value before the <ID SET> button was pressed.

58 - ENGLISH

Page 59

Chapter 3 Basic Operations — Operating with the remote control

f The ID number set on the remote control will be stored unless it is set again. However, it will be erased if the remote control is left with dead

batteries. Set the same ID number again when the batteries are replaced.

Note

f When the ID number of the remote control is set to [0], you can control the projector regardless of the ID number setting of the projector

body, as same as when [ALL] is set.

f Set the ID number of the projector body from the [PROJECTOR SETUP] menu → [PROJECTOR ID].

ENGLISH - 59

Page 60

Chapter 4 Settings

This chapter describes the settings and adjustments you can make using the on-screen menu.

60 - ENGLISH

Page 61

Chapter 4 Settings — Menu navigation

Menu navigation

The on-screen menu (Menu) is used to perform various settings and adjustments of the projector.

Navigating through the menu

Operating procedure

button

1) Press the <MENU> button on the remote control or control panel.

f The [MAIN MENU] screen is displayed.

MAIN MENU


POSITION

ADVANCED MENU

DISPLAY LANGUAGE

DISPLAY OPTION

PROJECTOR SETUP

P IN P

TEST PATTERN

SIGNAL LIST

SECURITY

NETWORK

MENU SELECT

ENTER

SUB MENU

2) Press as to select an item from the main menu.

f The selected item is highlighted in yellow.

MAIN MENU


POSITION

ADVANCED MENU

DISPLAY LANGUAGE

DISPLAY OPTION

PROJECTOR SETUP

P IN P

TEST PATTERN

SIGNAL LIST

SECURITY

NETWORK

MENU SELECT

ENTER

SUB MENU

3) Press the <ENTER> button.

f The sub-menu items of the selected main menu are displayed.

POSITION

SHIFT

ASPECT

ZOOM

CLOCK PHASE

SCREEN ADJUSTMENT

DEFAULT

ENTER

MENU SELECT

SUB MENU

ENGLISH - 61

Page 62

Chapter 4 Settings — Menu navigation

4) Press as to select a sub-menu, and press qw or the <ENTER> button to change or adjust settings.

f Some items will switch in order as follows each time you press qw.

A B C

f For some items, press qw to display an individual adjustment screen with a bar scale as shown below.

CONTRAST

ADJUST

Note

f Pressing the <MENU> button while the menu screen is displayed returns to the previous menu.

Same operation is available by pressing the <RETURN> button on the remote control.

f Some items or functions may not be adjusted or used for certain signals to be input to the projector. When the items cannot be adjusted or

used, the items in the menu screen are shown in black characters, and they cannot be adjusted or set.

If the item in the menu screen is displayed in black characters and the item cannot be adjusted or set, the factor causing it is displayed by pressing the <ENTER> button while the corresponding menu is selected.

f Some items can be adjusted even if signals are not input. f Individual adjustment screen is cleared automatically if no operation is performed for approximately ve seconds. f For menu items, refer to “Main menu” (x page 62) and “Sub-menu” (x page 63). f The cursor color depends on the setting in the [DISPLAY OPTION] menu → [ON-SCREEN DISPLAY] → [OSD DESIGN]. The selected item

is displayed with the yellow cursor by the factory default.

f In the portrait setting, the on-screen menu is displayed sideways.

To display the on-screen menu vertically, change the setting of the [DISPLAY OPTION] menu → [ON-SCREEN DISPLAY] → [OSD ROTATION].

Resetting adjustment values to the factory default

If the <DEFAULT> button on the remote control is pressed, the values adjusted in the menu items are restored to

the factory default settings.

button

1) Press the <DEFAULT> button on the remote control.

CONTRAST

ADJUST

Note

f You cannot reset all the settings to the factory default at a time. f To reset all the settings adjusted in the sub-menu item to the factory default one at a time, execute the [PROJECTOR SETUP] menu →

[INITIALIZE].

f Some items cannot be reset to the factory default settings even when the <DEFAULT> button on the remote control is pressed. Adjust those

items individually.

f The triangular mark under the bar scale in the individual adjustment screen indicates the factory default setting. The position of the triangular

mark varies according to the selected input signals.

Current adjustment value

Factory default setting

Main menu

The following items are in the main menu. When a main menu item is selected, the screen changes to a sub-menu selection screen.

Main menu item Page

[PICTURE] 66

[POSITION] 72

[ADVANCED MENU] 77

62 - ENGLISH

Page 63

Chapter 4 Settings — Menu navigation

Main menu item Page

[DISPLAY LANGUAGE] 82

[DISPLAY OPTION] 83

[PROJECTOR SETUP] 100

[P IN P] 121

[TEST PATTERN] 123

[SIGNAL LIST] 124

[SECURITY] 127

[NETWORK] 131

Sub-menu

The sub-menu of the selected main menu item is displayed, and you can set and adjust items in the sub-menu.

[PICTURE]

Sub-menu item Factory default Page

[PICTURE MODE] [GRAPHIC]

[CONTRAST] [0] 66 [BRIGHTNESS] [0] 66 [COLOR] [0]

[TINT] [0] 67 [COLOR TEMPERATURE] [DEFAULT]

[WHITE GAIN] [+10] 68 [GAMMA] [DEFAULT] 69 [DAYLIGHT VIEW] [AUTO] [SHARPNESS] [+6] [NOISE REDUCTION] [OFF] [DYNAMIC CONTRAST] [OFF] [SYSTEM SELECTOR] [AUTO]

*1 Depends on the signal input. *2 Depends on the [PICTURE MODE].

[POSITION]

Sub-menu item Factory default Page

[SHIFT] ― 72 [ASPECT] [DEFAULT] [ZOOM] ― 73 [CLOCK PHASE] [0] [SCREEN ADJUSTMENT] [OFF] 74

*1 Depends on the signal input.

[ADVANCED MENU]

Sub-menu item Factory default Page

[DIGITAL CINEMA REALITY] [AUTO] [BLANKING] ― 77 [INPUT RESOLUTION] ― 78

ENGLISH - 63

Page 64

Chapter 4 Settings — Menu navigation

Sub-menu item Factory default Page

[CLAMP POSITION] [24] [EDGE BLENDING] [OFF] 78 [FRAME RESPONSE] [NORMAL] 80 [RASTER POSITION] ― 81

*1 Depends on the signal input.

Note

f The factory default setting varies depending on the selected input terminal.

[DISPLAY LANGUAGE]

Details (x page 82)

[DISPLAY OPTION]

Sub-menu item Factory default Page

[COLOR MATCHING] [OFF] 83 [COLOR CORRECTION] [OFF] 84 [SCREEN SETTING] ― 84 [AUTO SIGNAL] [OFF] 85 [AUTO SETUP] ― 85 [BACKUP INPUT SETTING] ― 86 [COMPUTER IN/OUT] ― 87 [DVI-D IN] ― 89 [HDMI IN] ― 90 [DIGITAL LINK IN] ― 91 [ON-SCREEN DISPLAY] ― 93 [CLOSED CAPTION SETTING] ― 95 [BACK COLOR] [BLUE] 95 [STARTUP LOGO] [DEFAULT LOGO] 96 [UNIFORMITY] ― 96 [SHUTTER SETTING] ― 97 [FREEZE] ― 98 [WAVEFORM MONITOR] [OFF] 98 [CUT OFF] ― 99

[PROJECTOR SETUP]

Sub-menu item Factory default Page

[PROJECTOR ID] [ALL] 100 [PROJECTION METHOD] ― 100 [ECO MANAGEMENT] ― 101 [OPERATION SETTING] ― 103 [LIGHT OUTPUT] [100.0%] 107 [BRIGHTNESS CONTROL] ― 107 [SCHEDULE] [OFF] 111 [INITIAL STARTUP] [LAST MEMORY] 113 [STARTUP INPUT SELECT] [LAST USED] 114 [RS-232C] ― 114 [FUNCTION BUTTON] ― 115 [LENS CALIBRATION] ― 115 [AUDIO SETTING] ― 11 5 [STATUS] ― 11 7 [DATE AND TIME] ― 118 [SAVE ALL USER DATA] ― 119

64 - ENGLISH

Page 65

Chapter 4 Settings — Menu navigation

Sub-menu item Factory default Page

[LOAD ALL USER DATA] ― 11 9 [INITIALIZE] ― 11 9 [SERVICE PASSWORD] ― 120

[P IN P]

Details (x page 121)

[TEST PATTERN]

Details (x page 123)

[SIGNAL LIST]

Details (x page 124)

[SECURITY]

Sub-menu item Factory default Page

[SECURITY PASSWORD] [OFF] 127 [SECURITY PASSWORD CHANGE] ― 127 [DISPLAY SETTING] [OFF] 127 [TEXT CHANGE] ― 128 [CONTROL DEVICE SETUP] ― 128 [CONTROL DEVICE PASSWORD CHANGE] ― 129

[NETWORK]

Sub-menu item Factory default Page

[DIGITAL LINK MODE] [AUTO] 131 [DIGITAL LINK STATUS] ― 131 [NETWORK SETUP] ― 132 [NETWORK CONTROL] ― 132 [NETWORK STATUS] ― 133 [DIGITAL LINK MENU] ― 133 [Art-Net SETUP] [OFF] 133 [Art-Net CHANNEL SETTING] [2] 134 [Art-Net STATUS] ― 134

Note

f Some items may not be adjusted or used for certain signal formats to be input to the projector.

When the items cannot be adjusted or used, the items in the menu screen are shown in black characters, and they cannot be adjusted or set.

f The factory default setting varies depending on the selected input terminal.

ENGLISH - 65

Page 66

Chapter 4 Settings — [PICTURE] menu

[PICTURE] menu

On the menu screen, select [PICTURE] from the main menu, and select an item from the sub-menu.

Refer to “Navigating through the menu” (x page 61) for the operation of the menu screen.

[PICTURE MODE]

You can switch to the desired picture mode suitable for the image source and the environment in which the projector is used.

1) Press as to select [PICTURE MODE].

2) Press qw or the <ENTER> button.

f The [PICTURE MODE] individual adjustment screen is displayed.

3) Press qw to switch the item.

f The items will switch each time you press the button.

[STANDARD] The image becomes suitable for moving images in general.

[CINEMA] The image becomes suitable for movie contents.

[NATURAL] The image becomes sRGB compliant.

[REC709]

[DICOM SIM.] The image becomes similar to that of DICOM Part 14 Grayscale Standard.

[DYNAMIC] The light output is maximized for use in bright areas.

[GRAPHIC] The image becomes suitable for input from the personal computer.

The image becomes Rec.709 compliant when the setting other than [PICTURE MODE] is set to the

factory default.

Note

f The factory default picture mode is [GRAPHIC] for still image input signals and [STANDARD] for movie-based input signals. f Rec.709 is an abbreviation of “ITU-R Recommendation BT.709” and is a color standard of high-vision broadcasting. f DICOM is an abbreviation of “Digital Imaging and COmmunication in Medicine” and is a standard for medical imaging devices. Although the

DICOM name is used, the projector is not a medical device, and display images should not be used for medical purposes such as diagnosis.

[CONTRAST]

You can adjust the contrast of the colors.

1) Press as to select [CONTRAST].

2) Press qw or the <ENTER> button.

f The [CONTRAST] individual adjustment screen is displayed.

3) Press qw to adjust the level.

Operation Adjustment Range of adjustment

Press w. Press q.

The screen becomes brighter.

The screen becomes darker.

31 - +31

Attention

f Adjust the [PICTURE] menu → [BRIGHTNESS] rst when you need to adjust the black level.

[BRIGHTNESS]

You can adjust the dark (black) part of the projected image.

1) Press as to select [BRIGHTNESS].

2) Press qw or the <ENTER> button.

f The [BRIGHTNESS] individual adjustment screen is displayed.

3) Press qw to adjust the level.

Operation Adjustment Range of adjustment

Press w. Press q.

Increases the brightness of the dark (black) parts of the screen. Reduces the brightness of the dark (black) parts of the screen.

66 - ENGLISH

31 - +31

Page 67

Chapter 4 Settings — [PICTURE] menu

[COLOR]

You can adjust the color saturation of the projected image.

1) Press as to select [COLOR].

2) Press qw or the <ENTER> button.

f The [COLOR] individual adjustment screen is displayed.

3) Press qw to adjust the level.

Operation Adjustment Range of adjustment

Press w. Press q.

Deepens colors.

Weakens colors.

[TINT]

You can adjust the skin tone in the projected image.

1) Press as to select [TINT].

2) Press qw or the <ENTER> button.

f The [TINT] individual adjustment screen is displayed.

31 - +31

3) Press qw to adjust the level.

Operation Adjustment Range of adjustment

Press w. Press q.

Adjusts skin tone toward greenish color.

Adjusts skin tone toward reddish purple.

[COLOR TEMPERATURE]

You can switch the color temperature if the white areas of the projected image are bluish or reddish.

Adjusting with color temperature

1) Press as to select [COLOR TEMPERATURE].

2) Press qw or the <ENTER> button.

f The [COLOR TEMPERATURE] individual adjustment screen is displayed.

3) Press qw to switch the item.

f The items will switch each time you press the button.

[DEFAULT] Factory default setting.

[USER]

[LOW]/[HIGH] Select an item so that images become natural.

Adjusts white balance as desired. Refer to “Adjusting desired white balance” (x page 67) for details.

31 - +31

Note

f [DEFAULT] cannot be selected when the [PICTURE] menu → [PICTURE MODE] is set to [DICOM SIM.]. f The item is xed to [USER] when the [DISPLAY OPTION] menu → [COLOR MATCHING] is set to anything other than [OFF].

Adjusting desired white balance

1) Press as to select [COLOR TEMPERATURE].

2) Press qw or the <ENTER> button.

f The [COLOR TEMPERATURE] individual adjustment screen is displayed.

3) Press qw to select [USER].

4) Press the <ENTER> button.

f The [COLOR TEMPERATURE] screen is displayed.

ENGLISH - 67

Page 68

Chapter 4 Settings — [PICTURE] menu

5) Press as to select [WHITE BALANCE].

6) Press the <ENTER> button.

f The [WHITE BALANCE] screen is displayed.

7) Press as to select [WHITE BALANCE HIGH] or [WHITE BALANCE LOW].

8) Press the <ENTER> button.

f The [WHITE BALANCE HIGH] screen or the [WHITE BALANCE LOW] screen is displayed.

9) Press as to select [RED], [GREEN], or [BLUE].

10) Press qw to adjust the level.

Item Operation Adjustment Range of adjustment

[RED]

[GREEN]

[BLUE]

Press w. Press q. Press w. Press q. Press w. Press q.

Deepens red.

Weakens red.

Deepens green.

Weakens green.

Deepens blue.

Weakens blue.

[WHITE BALANCE HIGH]: 0 - +255 (factory default is

[WHITE BALANCE LOW]:

Note

+255)

127 - +127 (factory default is

f Adjust [COLOR TEMPERATURE] correctly. All colors will not be displayed properly unless adequate adjustment is made. If the adjustment

does not look suitable, you can press the <DEFAULT> button on the remote control to return the setting for the selected item only to the

factory default setting.

Changing the [USER] name

1) Press as to select [COLOR TEMPERATURE].

2) Press qw or the <ENTER> button.

f The [COLOR TEMPERATURE] individual adjustment screen is displayed.

3) Press qw to select [USER].

4) Press the <ENTER> button.

f The [COLOR TEMPERATURE] screen is displayed.

5) Press as to select [COLOR TEMPERATURE NAME CHANGE].

6) Press the <ENTER> button.

f The [COLOR TEMPERATURE NAME CHANGE] screen is displayed.

7) Press asqw to select the text, and press the <ENTER> button to enter the text.

8) Press asqw to select [OK], and press the <ENTER> button.

f The name set to color temperature is changed.

Note

f When a name is changed, display of [USER] is also changed.

[WHITE GAIN]

Adjust the brightness of the white part of the image.

1) Press as to select [WHITE GAIN].

2) Press qw or the <ENTER> button.

f The [WHITE GAIN] individual adjustment screen is displayed.

3) Press qw to adjust the level.

68 - ENGLISH

Page 69

Chapter 4 Settings — [PICTURE] menu

Operation Adjustment Range of adjustment

Press w. Press q.

Brightness of the white part gets stronger.

The image becomes more natural.

[GAMMA]

You can switch gamma mode.

1) Press as to select [GAMMA].

2) Press qw or the <ENTER> button.

f The [GAMMA] individual adjustment screen is displayed.

3) Press qw to switch the item.

f The items will switch each time you press the button.

[DEFAULT] Factory default setting.

[1.8]

Set so that images become as you like.[2.0]

[2.2]

Note

0 - +10

f In the following conditions, the [DEFAULT] setting is disabled even when it is selected, and the same gamma mode as when [2.2] is set is

applied.

g When the [ADVANCED MENU] menu → [EDGE BLENDING] is set to anything other than [OFF] g When the levels of [WHITE], [RED], [GREEN], and [BLUE] are adjusted from the [DISPLAY OPTION] menu → [UNIFORMITY] g When the [DISPLAY OPTION] menu → [UNIFORMITY] → [PC CORRECTION] is set to [ON]

[DAYLIGHT VIEW]

You can correct the image to the optimal vividness even if it is projected under a bright light.

1) Press as to select [DAYLIGHT VIEW].

2) Press qw or the <ENTER> button.

f The [DAYLIGHT VIEW] individual adjustment screen is displayed.

3) Press qw to switch the item.

f The items will switch each time you press the button.

[AUTO]

[OFF] No correction.

[1] Corrects the image to weaken vividness.

[2] Corrects the image to medium vividness.

[3] Corrects the image to high vividness.

Note

Detects the brightness of the installed environment by the luminance sensor, and automatically corrects the vividness of the image.

f [AUTO] cannot be selected when the [ADVANCED MENU] menu → [EDGE BLENDING] is set to [ON] or [USER]. f [AUTO] cannot be selected when the [PROJECTOR SETUP] menu → [FRONT/REAR] of [PROJECTION METHOD] is set to [REAR]. f The luminance may not be detected correctly when an object is placed on top of the projector, blocking the luminance sensor. In such a

case, this function may not operate properly even if it is set to [AUTO].

f The factory default setting is [OFF] when the [PICTURE] menu → [PICTURE MODE] is set to [NATURAL], [REC709], or [DICOM SIM.]. In

this case, [AUTO] cannot be selected.

[SHARPNESS]

You can adjust the sharpness of the projected image.

1) Press as to select [SHARPNESS].

2) Press qw or the <ENTER> button.

f The [SHARPNESS] individual adjustment screen is displayed.

3) Press qw to adjust the level.

ENGLISH - 69

Page 70

Chapter 4 Settings — [PICTURE] menu

Operation Adjustment Range of adjustment

Press w. Press q.

Contours become sharper.

Contours become softer.

0 - +15

Note

f If you press w while the adjustment value is [+15], the value will become [0]. If you press q while the adjustment value is [0], the value will

become [+15].

[NOISE REDUCTION]

You can reduce noises when the input image is degraded and noise is occurring in the image signal.

1) Press as to select [NOISE REDUCTION].

2) Press qw or the <ENTER> button.

f The [NOISE REDUCTION] individual adjustment screen is displayed.

3) Press qw to switch the item.

f The items will switch each time you press the button.

[OFF] No correction.

[1] Slightly corrects the noise. [2] Moderately corrects the noise. [3] Strongly corrects the noise.

Attention

f When this is set for an input signal with less noise, the image may look different from the original image. In such a case, set it to [OFF].

[DYNAMIC CONTRAST]

Light adjustment of the light source is performed automatically according to the image to make the contrast

optimum for the image.

1) Press as to select [DYNAMIC CONTRAST].

2) Press qw or the <ENTER> button.

f The [DYNAMIC CONTRAST] individual adjustment screen is displayed.

3) Press qw to switch the item.

f The items will switch each time you press the button.

[OFF] Disables the dynamic contrast function.

[ON] Executes the light adjustment of the light source.

Note

f The brightness control function and the dynamic contrast function will operate simultaneously, but the dynamic contrast function will not

operate while measuring the brightness and the color.

[SYSTEM SELECTOR]

The projector will automatically detect the input signal, but you can set the system method manually when an

unstable signal is input. Set the system method matching the input signal.

1) Press as to select [SYSTEM SELECTOR].

2) Press the <ENTER> button.

3) Press as to select a system format.

f Available system formats vary depending on the input signal.

Terminal System format

Select [AUTO], [NTSC], [NTSC4.43], [PAL], [PAL-M], [PAL-N], [SECAM], or [PAL60].

<VIDEO IN> terminal,

<COMPUTER 1 IN> terminal

Select [AUTO] normally. ([AUTO] will automatically determine from [NTSC], [NTSC4.43], [PAL],

[PAL-M], [PAL-N], [SECAM], or [PAL60].) Switch the setting to the appropriate TV signal format.

70 - ENGLISH

Page 71

Chapter 4 Settings — [PICTURE] menu

Terminal System format

480/60i, 576/50i, or 576/50p

<COMPUTER 1 IN> terminal

terminal

<DVI-D IN> terminal

<HDMI 1 IN> terminal, <HDMI

2 IN> terminal, <DIGITAL

LINK/LAN> terminal

*1 When the [DISPLAY OPTION] menu → [COMPUTER IN/OUT] → [INPUT SETTING] is set to [Y/C] *2 When the [DISPLAY OPTION] menu → [COMPUTER IN/OUT] → [INPUT SETTING] is set to [RGB/YP

640 x 480/60 or 480/60p

Other moving image signals Select [RGB] or [YP

480/60i, 576/50i, 480/60p, or

Other moving image signals Select [RGB] or [YP

480/60i, 576/50i, 480/60p, or

Other moving image signals Select [AUTO], [RGB], or [YP

signal

576/50p signal

Select [RGB] or [YC

Select [640x480/60], [480/60p YC

Select [RGB] or [YC

Select [AUTO], [RGB], or [YC

BCR

BPR

BCR

BPR

BCR

BPR

], or [480/60p RGB].

BCR

]

BPR

4) Press the <ENTER> button.

Note

f For details of the types of video signals that can be used with the projector, refer to “List of compatible signals” (x page 175). f This may not function properly for some connected external devices.

sRGB-compliant video

sRGB is an international standard (IEC61966-2-1) for color reproduction dened by IEC (International

Electrotechnical Commission).

Set according to the following steps to reproduce more faithful, sRGB compliant colors.

1) Set [COLOR MATCHING] to [OFF].

f Refer to [COLOR MATCHING] (x page 83).

2) Display the [PICTURE] menu.

f Refer to “[PICTURE] menu” (x page 66).

3) Press as to select [PICTURE MODE].

4) Press qw to set [NATURAL].

5) Press as to select [COLOR].

6) Press the <DEFAULT> button on the remote control to set the factory default setting.

7) Follow Steps 5) to 6) to set [TINT], [COLOR TEMPERATURE], [WHITE GAIN], [GAMMA], and [DAYLIGHT VIEW] to the factory default settings.

Note

f sRGB is available for RGB signal input only.

ENGLISH - 71

Page 72

Chapter 4 Settings — [POSITION] menu

[POSITION] menu

On the menu screen, select [POSITION] from the main menu, and select an item from the sub-menu.

Refer to “Navigating through the menu” (x page 61) for the operation of the menu screen.

Note

f When the optional DIGITAL LINK output supported device (Model No.: ET-YFB100G, ET-YFB200G) is connected to the <DIGITAL LINK/

LAN> terminal, adjust the shift, aspect, and clock phase from the menu of DIGITAL LINK output supported device at rst.

[SHIFT]

Move the image position vertically or horizontally if the image projected on the screen is still out of position even

when the positions of the projector and screen are correct.

1) Press as to select [SHIFT].

2) Press the <ENTER> button.

f The [SHIFT] screen is displayed.

3) Press asqw to adjust the position.

Orientation Operation Adjustment

Press a.

Vertical (up and down)

adjustment

Press s.

Press w.

Horizontal (right and left)

adjustment

Press q.

The image position moves up.

The image position moves down.

The image position moves to the right.

The image position moves to the left.

Note

f For the portrait setting, image position is moved horizontally when “Vertical (up and down) adjustment” is made. Image position is moved

vertically when “Horizontal (right and left) adjustment” is made.

[ASPECT]

You can switch the aspect ratio of the image.

The aspect ratio is switched within the screen range selected in the [DISPLAY OPTION] menu → [SCREEN SETTING] → [SCREEN FORMAT]. Set [SCREEN FORMAT] rst. (x page 84)

1) Press as to select [ASPECT].

2) Press qw or the <ENTER> button.

f The [ASPECT] individual adjustment screen is displayed.

3) Press qw to switch the item.

f The items will switch each time you press the button.

[DEFAULT] Displays images without changing the aspect ratio of the input signals.

[VID AUTO]

Identies the video ID (VID) embedded in the video signal, and automatically switches the image size between 4:3 and 16:9. This is enabled when NTSC signal is input.

72 - ENGLISH

Page 73

Chapter 4 Settings — [POSITION] menu

[AUTO]

[THROUGH] Displays images without changing the resolution of the input signals.

[16:9]

[4:3]

[H FIT]

[V FIT]

[HV FIT]

*1 During video signals and Y/C signal (NTSC) input only *2 During RGB signal (480/60i, 480/60p) input only *3 Standard signals are input signals with an aspect ratio of 4:3 or 5:4. *4 Wide-screen signals are input signals with an aspect ratio of 16:10, 16:9, 15:9 or 15:10.

Identies the video ID (VID) embedded in the video signal, and automatically switches the image size between 4:3 and 16:9. This is enabled when 480/60i or 480/60p signal is input.

Displays images with the aspect ratio converted to 16:9 when standard signals are input

wide-screen signals are input*4, the images are displayed without changing the aspect ratio.

Displays images without changing the aspect ratio when standard signals are input screen signals are input*4, the images are reduced to be displayed without changing input aspect ratio

so that the images will t in the 4:3 screen. Displays images using the entire width of the screen range selected in [SCREEN FORMAT]. When

signals have the aspect ratio vertically longer than the screen aspect ratio selected in [SCREEN FORMAT], the images are displayed with the top and bottom parts cut off.

Displays images using the entire height of the screen range selected in [SCREEN FORMAT]. When

signals have the aspect ratio horizontally longer than the aspect ratio of the screen selected in

[SCREEN FORMAT], the images are displayed with the right and left parts cut off. Displays images in the entire screen range selected in [SCREEN FORMAT]. When the aspect ratio of

the input signals differs from that of the screen range, the images are displayed with the aspect ratio

converted to that of the screen selected in [SCREEN FORMAT].

. When

. When wide-

Note

f Some size modes are not available for certain types of input signals. [DEFAULT] cannot be selected for video signal, Y/C signal (NTSC), or

analog RGB signal (480/60i, 480/60p).

f If an aspect ratio which is different from the aspect ratio for the input signals is selected, the images will appear differently from the originals.

Be careful of this when selecting the aspect ratio.

f If using the projector in places such as cafes or hotels to display programs for a commercial purpose or for public presentation, note that

adjusting the aspect ratio or using the zoom function to change the screen images may be an infringement of the rights of the original copyright owner for that program under copyright protection laws. Take care when using a function of the projector such as the aspect ratio adjustment and zoom function.

f If conventional (normal) 4:3 images which are not wide-screen images are displayed on a wide screen, the edges of the images may not

be visible or they may become distorted. Such images should be viewed as with an aspect ratio of 4:3 in the original format intended by the

creator of the images.

[ZOOM]

You can adjust the image size.

The adjustments in [ZOOM] will differ depending on the setting of the [POSITION] menu → [ASPECT].

When [ASPECT] is set to other than [DEFAULT] and [THROUGH]

1) Press as to select [ZOOM].

2) Press the <ENTER> button.

f The [ZOOM] screen is displayed.

3) Press as to select [INTERLOCKED].

4) Press qw to switch the item.

[OFF] Sets the [VERTICAL] and [HORIZONTAL] zoom ratio.

[ON]

5) Press as to select [VERTICAL] or [HORIZONTAL].

f If [ON] is selected, select [BOTH].

6) Press qw to adjust.

Note

Uses [BOTH] to set zoom ratio. Image can be enlarged or reduced vertically and horizontally at the same magnication.

f When the [POSITION] menu → [ASPECT] is set to [THROUGH], [ZOOM] cannot be adjusted.

When [ASPECT] is set to [DEFAULT]

1) Press as to select [ZOOM].

ENGLISH - 73

Page 74

Chapter 4 Settings — [POSITION] menu

2) Press the <ENTER> button.

f The [ZOOM] screen is displayed.

3) Press as to select [MODE].

4) Press qw to switch the item.

[INTERNAL] Enlarges the size within the aspect range set with [SCREEN FORMAT].

[FULL] Enlarges or reduces the size using the entire display area set with [SCREEN FORMAT].

5) Press as to select [INTERLOCKED].

6) Press qw to switch the item.

[OFF] Sets the [VERTICAL] and [HORIZONTAL] zoom ratio.

[ON]

Uses [BOTH] to set zoom ratio. Image can be enlarged or reduced vertically and horizontally at the same magnication.

7) Press as to select [VERTICAL] or [HORIZONTAL].

f If [ON] is selected, select [BOTH].

8) Press qw to adjust.

Note

f When the [POSITION] menu → [ASPECT] is set to anything other than [DEFAULT], [MODE] is not displayed.

[CLOCK PHASE]

You can adjust the image to achieve an optimal image when there is a ickering image or smeared outlines.

1) Press as to select [CLOCK PHASE].

2) Press qw or the <ENTER> button.

f The [CLOCK PHASE] individual adjustment screen is displayed.

3) Press qw to adjust.

f Adjustment value will change between [0] and [+31]. Adjust the image so that the amount of interference is

at a minimum.

Note

f Adjustment may not be possible depending on the signal. f There may be no optimal value if the output from the input computer is unstable. f There may be no optimal value when the total dot number is shifted. f [CLOCK PHASE] can be adjusted only when YCBCR/YPBPR signal or RGB signal is input to the <COMPUTER 1 IN> terminal or the

<COMPUTER 2 IN/1 OUT> terminal.

f [CLOCK PHASE] cannot be adjusted when a digital signal is input. f The adjustment value will change to [0] when w is pressed while it was at [+31]. Also, the adjustment value will change to [+31] when q is

pressed while it was at [0].

[SCREEN ADJUSTMENT]

You can correct various types of distortion in a projected image.

Unique image processing technology enables projection of a square image on a special screen shape.

1) Press as to select [SCREEN ADJUSTMENT].

2) Press qw to switch the item.

f The items will switch each time you press the button.

[OFF] Does not perform [SCREEN ADJUSTMENT].

[KEYSTONE] Adjusts any trapezoidal distortion in the projected image.

[CORNER CORRECTION] Adjusts any distortion in the four corners of the projected image.

[CURVED CORRECTION] Adjusts any curved distortion in the projected image.

74 - ENGLISH

Page 75

Chapter 4 Settings — [POSITION] menu

[PC-1]

[PC-3]

*1 Advanced skills are necessary to use a computer to control screen adjustment. Consult your dealer. Up to three screen adjustments

performed using the computer can be saved.

Performs screen adjustment using a computer.[PC-2]

Setting [KEYSTONE] or [CURVED CORRECTION]

1) Press as to select [SCREEN ADJUSTMENT].

2) Press qw to select [KEYSTONE] or [CURVED CORRECTION].

3) Press the <ENTER> button.

f The [KEYSTONE] or [CURVED CORRECTION] screen is displayed.

4) Press as to select the item to adjust.

5) Press qw to adjust.

[KEYSTONE]

[LENS THROW RATIO]

The throw ratio of this projector is displayed.

[VERTICAL KEYSTONE]

[HORIZONTAL KEYSTONE]

[VERTICAL BALANCE] [HORIZONTAL BALANCE]

Adjust the setting according to the lens shift range in the vertical direction.

[CURVED CORRECTION]

[LENS THROW RATIO]

The throw ratio of this projector is displayed.

[VERTICAL KEYSTONE]

[VERTICAL ARC] [HORIZONTAL ARC]

Adjust the setting according to the lens shift range in the horizontal direction.

[HORIZONTAL KEYSTONE]

ENGLISH - 75

Page 76

Chapter 4 Settings — [POSITION] menu

[CURVED CORRECTION]

[VERTICAL BALANCE]

[MAINTAIN ASPECT RATIO]

Select [ON] to correct while keeping the aspect ratio.

[HORIZONTAL BALANCE]

Setting [CORNER CORRECTION]

1) Press as to select [SCREEN ADJUSTMENT].

2) Press qw to select [CORNER CORRECTION].

3) Press the <ENTER> button.

f The [CORNER CORRECTION] screen is displayed.

4) Press as to select the item to adjust, and press the <ENTER> button.

5) Press asqw to adjust.

[CORNER CORRECTION]

[UPPER LEFT]

[LINEARITY]

Horizontal direction

[UPPER RIGHT] [LOWER LEFT] [LOWER RIGHT]

Vertical direction

Note

f The picture quality will degrade more when the correction for [SCREEN ADJUSTMENT] increases, making it harder to focus. Install the

projector so that the correction will be as small as possible.

f Image size will also change when [SCREEN ADJUSTMENT] is used to perform various adjustments. f If [SCREEN ADJUSTMENT] and the adjustment in the [ADVANCED MENU] menu → [EDGE BLENDING] are used together, the edge

blending may not be adjusted correctly depending on the environment.

f The image may disappear for a moment or may be disrupted while performing adjustment, but this is not a malfunction.

76 - ENGLISH

Page 77

Chapter 4 Settings — [ADVANCED MENU] menu

[ADVANCED MENU] menu

On the menu screen, select [ADVANCED MENU] from the main menu, and select an item from the sub-

menu. Refer to “Navigating through the menu” (x page 61) for the operation of the menu screen.

[DIGITAL CINEMA REALITY]

The picture quality is enhanced by raising the vertical resolution higher by performing the cinema processing when 576/50i signal for PAL (or SECAM), 480/60i signal for NTSC, or 1080/50i or 1080/60i signal is input.

1) Press as to select [DIGITAL CINEMA REALITY].

2) Press qw to switch the item.

f The items will switch each time you press the button.

[AUTO] Automatically detects the signal and performs the cinema processing. (Factory default setting)

[OFF] Does not perform cinema processing.

[30p FIXED]

[25p FIXED]

When 480/60i or 1080/60i

signal is input

When 576/50i or 1080/50i

signal is input

Performs forced cinema processing (2:2 pulldown).

Note

f In [DIGITAL CINEMA REALITY], the picture quality will degrade when a signal other than the 2:2 pulldown is set as [25p FIXED] or [30p

FIXED]. (Vertical resolution will degrade.)

f When the [ADVANCED MENU] menu → [FRAME RESPONSE] is set to [FAST], [DIGITAL CINEMA REALITY] cannot be set.

[BLANKING]

You can adjust the blanking width if there are noises at the edge of the screen or the image is slightly running out

from the screen while an image from the VCR or other devices are projected.

1) Press as to select [BLANKING].

2) Press the <ENTER> button.

f The [BLANKING] adjustment screen is displayed.

3) Press as to select [UPPER], [LOWER], [LEFT], or [RIGHT].

4) Press qw to adjust the blanking width.

Blanking correction Item Operation Adjustment Range of adjustment

The blanking zone moves upward.

The blanking zone moves downward.

The blanking zone moves upward.

The blanking zone moves downward.

Top and bottom 0 - 599

Top of the screen [UPPER]

Bottom of the

screen

[LOWER]

Press q.

Press w.

Press q.

ENGLISH - 77

Page 78

Chapter 4 Settings — [ADVANCED MENU] menu

Blanking correction Item Operation Adjustment Range of adjustment

The blanking zone moves to the right.

The blanking zone moves to the left.

Left side of the

screen

Press w.

[LEFT]

Press q.

Left and right 0 - 959

Right side of the

screen

[RIGHT]

Press q.

Press w.

The blanking zone moves to the right.

The blanking zone moves to the left.

[INPUT RESOLUTION]

You can adjust the image to achieve an optimal image when there is a ickering image or smeared outlines.

1) Press as to select [INPUT RESOLUTION].

2) Press the <ENTER> button.

f The [INPUT RESOLUTION] screen is displayed.

3) Press as to select [TOTAL DOTS], [DISPLAY DOTS], [TOTAL LINES], or [DISPLAY LINES], and press qw to adjust each item.

f Values corresponding to the signal being input are displayed automatically for each item. Increase or

decrease the displayed values and adjust to the optimal point while viewing the screen if there are vertical stripes or sections are missing from the screen.

Note

f Previously mentioned vertical banding will not occur with all white signal input. f Image may be disrupted during automatic adjustment, but this is not a malfunction. f [INPUT RESOLUTION] can be adjusted only when an RGB signal is input to the <COMPUTER 1 IN> terminal or the <COMPUTER 2 IN/1

OUT> terminal.

f Adjustment may not be possible depending on the signal.

[CLAMP POSITION]

You can adjust the optimal point when the black part of the image is blunt or it has turned green.

1) Press as to select [CLAMP POSITION].

2) Press qw to adjust.

Status Rough guide for optimal value Range of adjustment

The black part is blunt.

The black part is green.

The point where bluntness of the black part improves the most is the optimal value.

The point where the green part becomes black, and the bluntness has improved is the optimal value.

1 - 255

Note

f [CLAMP POSITION] can be adjusted only when a signal is input to the <COMPUTER 1 IN> terminal or the <COMPUTER 2 IN/1 OUT>

terminal.

f Adjustment may not be possible depending on the signal.

[EDGE BLENDING]

The edge blending function allows multiple images to be seamlessly overlapped by using the inclination of the brightness at the overlapped area.

1) Press as to select [EDGE BLENDING].

2) Press qw to switch the item.

f The items will switch each time you press the button.

[OFF] Sets the edge blending function to off.

78 - ENGLISH

Page 79

Chapter 4 Settings — [ADVANCED MENU] menu

[ON] Use the setting value preset in the projector for the inclination of the edge blending area.

[USER]

Use the user-setting value for the inclination of the edge blending area. (Conguration/registration requires separate software. Consult your dealer.)

f Proceed to Step 3) when anything other than [OFF] is selected.

3) Press the <ENTER> button.

f The [EDGE BLENDING] screen is displayed.

4) Press as to specify the location to be corrected.

f When joining at top: Set [UPPER] to [ON] f When joining at bottom: Set [LOWER] to [ON] f When joining at left: Set [LEFT] to [ON] f When joining at right: Set [RIGHT] to [ON]

5) Press qw to switch to [ON].

6) Press as to select [START] or [WIDTH].

7) Press qw to adjust the starting position or correction width.

8) Press as to select [MARKER].

9) Press qw to switch to [ON].

f A marker for image position adjustment is displayed. The position where the red and green lines overlap for

the projectors to be joined will be the optimal point. Make sure to set the correction width for the projectors

to be joined with the same value. Optimal joining is not possible with projectors that have different correction widths.

The optimal point is the point at which these lines overlap.

Green line

Red line

10) Press as to select [BRIGHTNESS ADJUST].

11) Press the <ENTER> button.

f The [BRIGHTNESS ADJUST] screen is displayed. f By setting [AUTO TESTPATTERN] to [ON] on the [EDGE BLENDING] screen, the black test pattern is

displayed when you enter the [BRIGHTNESS ADJUST] screen.

12) Press as to select [NON-OVERLAPPED BLACK LEVEL].

13) Press the <ENTER> button.

f The [NON-OVERLAPPED BLACK LEVEL] screen is displayed. f [RED], [GREEN], and [BLUE] can be adjusted individually if [INTERLOCKED] is set to [OFF].

14) Press as to select an item, and press qw to adjust the setting.

f Once the adjustment is completed, press the <MENU> button to return to the [BRIGHTNESS ADJUST]

screen.

15) Press as to select [UPPER], [LOWER], [LEFT], or [RIGHT] in [BLACK BORDER WIDTH].

16) Press qw to set the region (width) of the [BLACK BORDER WIDTH] adjustment.

17) Press as to select [UPPER KEYSTONE AREA], [LOWER KEYSTONE AREA], [LEFT KEYSTONE

AREA], or [RIGHT KEYSTONE AREA].

ENGLISH - 79

Page 80

Chapter 4 Settings — [ADVANCED MENU] menu

18) Press qw to adjust the tilt of the border between [NON-OVERLAPPED BLACK LEVEL] and [BLACK BORDER LEVEL].

19) Press as to select [BLACK BORDER LEVEL].

20) Press the <ENTER> button.

f The [BLACK BORDER LEVEL] screen is displayed. f [RED], [GREEN], and [BLUE] can be adjusted individually if [INTERLOCKED] is set to [OFF].

21) Press as to select an item, and press qw to adjust the setting.

f Once the adjustment is completed, press the <MENU> button to return to the [BRIGHTNESS ADJUST]

screen.

22) Press as to select [UPPER], [LOWER], [LEFT], or [RIGHT] for [OVERLAPPED BLACK LEVEL].

23) Press the <ENTER> button.

f The [OVERLAPPED BLACK LEVEL] screen is displayed. f [RED], [GREEN], and [BLUE] can be adjusted individually if [INTERLOCKED] is set to [OFF].

24) Press as to select an item, and press qw to adjust the setting.

[BLACK BORDER WIDTH] (Right)

Projection range Edge blending [WIDTH] (Right)

[MARKER] (Red)

Edge blending [START] (Right) ([MARKER] (Green))

[OVERLAPPED BLACK LEVEL] (Right)

[NON-OVERLAPPED BLACK LEVEL]

[BLACK BORDER LEVEL]

Note

f [BRIGHTNESS ADJUST] is a function that makes the increased brightness in black level of the overlapping image area difcult to

notice when [EDGE BLENDING] is used to structure a multi-display screen. The optimal point of correction is set by adjusting [NONOVERLAPPED BLACK LEVEL] so the black level of the overlapping image area will be the same level as the non-overlapping area. If the border area of the part where the image is overlapping and the non-overlapping part gets brighter after adjusting [NON-OVERLAPPED BLACK LEVEL], adjust the width of the top, bottom, left, or right. Adjust [BLACK BORDER LEVEL] when the width adjustment makes only

the border area darker.

f The joining part may look discontinuous depending on the position you are looking from when a screen with high gain or rear screen is used. f When structuring a multi-display screen using both horizontal and vertical edge blending, adjust [OVERLAPPED BLACK LEVEL] rst before

making adjustments in Step 12). Adjustment method is same as the procedure of [NON-OVERLAPPED BLACK LEVEL].

f If only horizontal or vertical edge blending is used, set all items in [OVERLAPPED BLACK LEVEL] to 0. f The [AUTO TESTPATTERN] setting will change in conjunction with the setting in the [DISPLAY OPTION] menu → [COLOR MATCHING] →

[AUTO TESTPATTERN].

f The tilt adjustment of the border between [NON-OVERLAPPED BLACK LEVEL] and [BLACK BORDER LEVEL] is a function to perform

edge blending together with the adjustment in [SCREEN ADJUSTMENT] (x page 74). If the area of [NON-OVERLAPPED BLACK LEVEL] is tilted by correcting the keystone distortion with the [POSITION] menu → [SCREEN ADJUSTMENT] → [KEYSTONE], perform Steps 17) and 18) to adjust the tilt and adjust the edge blending according to the shape of [NON-OVERLAPPED BLACK LEVEL].

f If [EDGE BLENDING] is set to anything other than [OFF], the setting of the [PICTURE] menu → [GAMMA] → [DEFAULT] is disabled, and

the same gamma mode as when [2.2] is set is applied.

[FRAME RESPONSE]

Set image frame delay.

1) Press as to select [FRAME RESPONSE].

2) Press qw to switch the item.

f The items will switch each time you press the button.

[NORMAL] Standard setting.

[FAST] Simplies the image processing to reduce image frame delay.

Note

f When [FAST] is set, the picture quality deteriorates. The [ADVANCED MENU] menu → [DIGITAL CINEMA REALITY] cannot be set.

80 - ENGLISH

Page 81

Chapter 4 Settings — [ADVANCED MENU] menu

f [FRAME RESPONSE] cannot be set while in the P IN P mode.

[RASTER POSITION]

This will allow the position of the image to move within the display area arbitrarily when the input image is not using the whole display area.

1) Press as to select [RASTER POSITION].

2) Press the <ENTER> button.

f The [RASTER POSITION] screen is displayed.

3) Press asqw to adjust the position.

ENGLISH - 81

Page 82

Chapter 4 Settings — [DISPLAY LANGUAGE] menu

[DISPLAY LANGUAGE] menu

On the menu screen, select [DISPLAY LANGUAGE] from the main menu, and display the sub-menu.

Refer to “Navigating through the menu” (x page 61) for the operation of the menu screen.

Changing the display language

You can select the language of the on-screen display.

1) Press asqw to select the display language and press the <ENTER> button.

DISPLAY LANGUAGE

SELECT

ENTER

SET

f Various menus, settings, adjustment screens, control button names, etc., are displayed in the selected

language.

f The language can be switched to English, German, French, Italian, Spanish, Portuguese, Dutch, Swedish,

Finnish, Norwegian, Danish, Polish, Hungarian, Romanian, Czech, Russian, Turkish, Arabic, Kazakh, Vietnamese, Chinese, Korean, Japanese, and Thai.

Note

f The on-screen display language is set to English in the factory default setting as well as when the [PROJECTOR SETUP] menu →

[INITIALIZE] → [ALL USER DATA] is executed.

82 - ENGLISH

Page 83

Chapter 4 Settings — [DISPLAY OPTION] menu

[DISPLAY OPTION] menu

On the menu screen, select [DISPLAY OPTION] from the main menu, and select an item from the sub-

menu. Refer to “Navigating through the menu” (x page 61) for the operation of the menu screen.

[COLOR MATCHING]

Correct the color difference between projectors when using multiple projectors simultaneously.

Adjusting the color matching as desired

1) Press as to select [COLOR MATCHING].

2) Press qw to switch the item.

f The items will switch each time you press the button.

[OFF] Color matching adjustment is not carried out.

[3COLORS] Adjusts the three colors [RED], [GREEN], or [BLUE]. [7COLORS] Adjusts the seven colors [RED], [GREEN], [BLUE], [CYAN], [MAGENTA], [YELLOW], or [WHITE].

[MEASURED]

3) Select [3COLORS] or [7COLORS], and press the <ENTER> button.

f The [3COLORS] or [7COLORS] screen is displayed.

Refer to “Adjusting the color matching using a colorimeter” (x page 83) for details about this mode.

4) Press as to select [RED], [GREEN], [BLUE], or [WHITE] ([RED], [GREEN], [BLUE], [CYAN], [MAGENTA], [YELLOW], or [WHITE] when [7COLORS] is selected).

5) Press the <ENTER> button.

f The [3COLORS:RED], [3COLORS:GREEN], [3COLORS:BLUE], or [3COLORS:WHITE] screen is

displayed.

When [7COLORS] is selected, the [7COLORS:RED], [7COLORS:GREEN], [7COLORS:BLUE], [7COLORS:CYAN], [7COLORS:MAGENTA], [7COLORS:YELLOW], or [7COLORS:WHITE] screen is

displayed.

f By setting [AUTO TESTPATTERN] to [ON], the test pattern for the selected color is displayed.

6) Press as to select [RED], [GREEN], or [BLUE].

f Only [GAIN] can be adjusted when [WHITE] is selected for [3COLORS].

7) Press qw to adjust.

f The adjustment value will change between 0

*1 The lower limit varies depending on the color to be adjusted.

and 2 048.

Note

f Operation when correcting the adjustment color

When the correction color same as the adjustment color is changed: The luminance of the adjustment color changes. When correction color red is changed: Red is added to or subtracted from the adjustment color. When correction color green is changed: Green is added to or subtracted from the adjustment color. When correction color blue is changed: Blue is added to or subtracted from the adjustment color.

f Since advanced skills are necessary for the adjustment, this adjustment should be carried out by a person who is familiar with the projector

or by a service person.

f Pressing the <DEFAULT> button on the remote control will restore the factory default settings for all items. f When the item is set to anything other than [OFF], the [DISPLAY OPTION] menu → [COLOR CORRECTION] is xed to [OFF], and the

[PICTURE] menu → [COLOR TEMPERATURE] is xed to [USER].

Adjusting the color matching using a colorimeter

Use a colorimeter that can measure chromaticity coordinates and luminance to change the colors [RED], [GREEN], [BLUE], [CYAN], [MAGENTA], [YELLOW], or [WHITE] to desired colors.

1) Press as to select [COLOR MATCHING].

2) Press qw to select [MEASURED].

ENGLISH - 83

Page 84

Chapter 4 Settings — [DISPLAY OPTION] menu

3) Press the <ENTER> button.

f The [MEASURED MODE] screen is displayed.

4) Press as to select [MEASURED DATA].

5) Press the <ENTER> button.

f The [MEASURED DATA] screen is displayed.

6) Measure the current luminance (Y) and the chromaticity coordinates (x, y) using the colorimeter.

7) Press as to select a color, and press qw to adjust the setting.

f Set [AUTO TESTPATTERN] to [ON] to display a test pattern of selected colors.

8) Once all the input is completed, press the <MENU> button.

f The [MEASURED MODE] screen is displayed.

9) Press as to select [TARGET DATA].

10) Press the <ENTER> button.

f The [TARGET DATA] screen is displayed.

11) Press as to select a color and press qw to input coordinates for desired colors.

f By setting [AUTO TESTPATTERN] to [ON], the test pattern for the selected color is displayed.

12) Once all the input is completed, press the <MENU> button.

Note

f Colors are not displayed properly when target data is a color outside the region of this projector. f Set the [AUTO TESTPATTERN] to [ON] to automatically display a test pattern for use in adjusting the selected adjustment colors. f The [AUTO TESTPATTERN] setting will change in conjunction with the setting in the [ADVANCED MENU] menu → [EDGE BLENDING] →

[ON]/[USER] → [AUTO TESTPATTERN].

f When using a colorimeter or similar instrument to take measurement, measure the colors displayed in [AUTO TESTPATTERN]. f A difference in the color coordinates of target data and measurement value obtained from an instrument may occur for certain instrument

and measurement environment used.

[COLOR CORRECTION]

Colors can be adjusted and registered for each input signal format.

1) Press as to select [COLOR CORRECTION].

2) Press qw to switch the item.

f The items will switch each time you press the button.

[OFF] Standard setting.

/YPBPR, six colors of red, green,

BCR

[USER]

For each of the four signal formats of VIDEO, Y/C, RGB, and YC blue, cyan, magenta, and yellow can be adjusted and registered. Press the <ENTER> button and set

the details. Adjustment is possible within the range of -31 to +31.

[SCREEN SETTING]

Set the screen size.

Correct to the optimum image position for the set screen when the aspect ratio of a projected image is changed.

Set as necessary for the screen in use.

1) Press as to select [SCREEN SETTING].

2) Press the <ENTER> button.

f The [SCREEN SETTING] screen is displayed.

3) Press qw to switch the [SCREEN FORMAT] item.

f The items will switch each time you press the button.

[SCREEN FORMAT] Range when [SCREEN POSITION] is selected

[16:10] Cannot be adjusted.

[4:3] Adjusts the horizontal position between

[16:9] Adjusts the vertical position between

84 - ENGLISH

160 and 160.

60 and 60.

Page 85

Chapter 4 Settings — [DISPLAY OPTION] menu

4) Press as to select [SCREEN POSITION].

f [SCREEN POSITION] cannot be selected or adjusted when [SCREEN FORMAT] is set to [16:10].

5) Press qw to adjust [SCREEN POSITION].

[AUTO SIGNAL]

Set whether to execute automatic setup of signals automatically. The screen display position or signal level can be adjusted automatically without pressing the <AUTO SETUP>

button on the remote control on each occasion if you input unregistered signals frequently at meetings, etc.

1) Press as to select [AUTO SIGNAL].

2) Press qw to switch the item.

f The items will switch each time you press the button.

[OFF] Sets the auto signal function to off.

[ON]

Executes automatic setup automatically when images are changed to unregistered signals during

projection.

[AUTO SETUP]

Set this when adjusting a special signal or horizontally long (such as 16:9) signal.

Setting with [MODE]

1) Press as to select [AUTO SETUP].

2) Press the <ENTER> button.

f The [AUTO SETUP] screen is displayed.

3) Press as to select [MODE].

4) Press qw to switch the item.

f The items will switch each time you press the button.

[DEFAULT] Standard setting.

[WIDE]

[USER] Select this when receiving a signal with a special horizontal resolution (number of display dots).

f Proceed to Step 7) when [DEFAULT] or [WIDE] is selected. f Proceed to Step 5) when [USER] is selected.

5) Press as to select [DISPLAY DOTS], and press qw to match [DISPLAY DOTS] to the horizontal resolution of the signal source.

6) Press as to select [MODE].

7) Press the <ENTER> button.

f Automatic adjustment is executed. [PROGRESS] is displayed while in automatic adjustment. When

completed, the screen returns to the [AUTO SETUP] screen.

Select this item when an image aspect ratio is a wide-screen signal, which does not meet the [DEFAULT] setting.

Note

f Automatic setup of signal can be executed when analog RGB signal consisting of dots such as computer signal, or DVI-D/HDMI signal is

being input.

Adjusting position automatically

1) Press as to select [AUTO SETUP].

2) Press the <ENTER> button.

f The [AUTO SETUP] screen is displayed.

3) Press as to select [POSITION ADJUST].

ENGLISH - 85

Page 86

Chapter 4 Settings — [DISPLAY OPTION] menu

4) Press qw to switch the item.

[ON] Adjust the screen position and size when automatic setup is executed.

[OFF] Does not perform automatic adjustment.

Adjusting signal level automatically

1) Press as to select [AUTO SETUP].

2) Press the <ENTER> button.

f The [AUTO SETUP] screen is displayed.

3) Press as to select [SIGNAL LEVEL ADJUST].

4) Press qw to switch the item.

[OFF] Does not perform automatic adjustment.

[ON]

Note

f [SIGNAL LEVEL ADJUST] may not function properly unless a still image containing clear blacks and whites is input.

Adjusts black level (the [PICTURE] menu → [BRIGHTNESS]) and white level (the [PICTURE] menu → [CONTRAST]) when automatic setup is executed.

[BACKUP INPUT SETTING]

Set the backup function that switches the signal to the backup input signal as seamless as possible when the

video input signal is disrupted.

1) Press as to select [BACKUP INPUT SETTING].

2) Press the <ENTER> button.

f The [BACKUP INPUT SETTING] screen is displayed.

3) Press as to select [BACKUP INPUT MODE].

4) Press qw to switch the item.

f The items will switch each time you press the button.

[OFF] Disables the backup function.

Enables the backup function between the DVI-D input and the HDMI2 input.

The input is switched as seamless as possible when the same signal is input to the primary and

[1]

[2]

secondary inputs.

Primary input is xed to the <DVI-D IN> terminal, and the secondary input is xed to the <HDMI 2 IN>

terminal.

Enables the backup function between the HDMI1 input and the HDMI2 input.

The input is switched as seamless as possible when the same signal is input to the primary and secondary inputs.

Primary input is xed to the <HDMI 1 IN> terminal, and the secondary input is xed to the <HDMI 2 IN> terminal.

5) Press as to select [AUTOMATIC SWITCHING].

f [AUTOMATIC SWITCHING] cannot be selected when [BACKUP INPUT MODE] is set to [OFF].

6) Press qw to switch the item.

f The items will switch each time you press the button.

[ENABLE]

[DISABLE] Disables the automatic input switching function.

Switches to the secondary input (primary input) automatically when the input signal for the primary input (secondary input) is disrupted.

Note

f Backup function is enabled when [BACKUP INPUT MODE] is set to [1], and the same signal is input to the <DVI-D IN> and <HDMI 2 IN>

terminals.

Alternatively, the backup function is enabled when [BACKUP INPUT MODE] is set to [2], and same signal is input to the <HDMI 1 IN> and <HDMI 2 IN> terminals.

86 - ENGLISH

Page 87

Chapter 4 Settings — [DISPLAY OPTION] menu

f To switch to the backup input signal using the backup function, make sure that the following three conditions are satised to be ready to use

the function.

g Set [BACKUP INPUT MODE] to anything other than [OFF]. g Input the same signal to the primary and secondary inputs. g Display the image for the primary input or secondary input.

f If the input is switched to other than the primary or secondary input while the backup function is ready for use, the state of readiness to use

the backup function is canceled. To switch to the backup input signal using the backup function again, switch to the primary input.

f [BACKUP INPUT STATUS] is displayed in the input guide (x page 93) and [STATUS] screen (x pages 58, 117 ) when [BACKUP

INPUT MODE] is set to anything other than [OFF]. When switching to the backup input signal is possible using the backup function, [ACTIVE] is displayed in [BACKUP INPUT STATUS]. When it is not possible, [INACTIVE] is displayed instead. The secondary input will be the backup input when [BACKUP INPUT STATUS] is displaying [ACTIVE] while the image from the primary

input is displayed.

The primary input will be the backup input when [BACKUP INPUT STATUS] is displaying [ACTIVE] while the image from the secondary

input is displayed.

f If [BACKUP INPUT MODE] is set to [1], the input is switched seamlessly when the inputs of DVI-D and HDMI1 are switched while switching

to the backup input signal is possible.

f If [BACKUP INPUT MODE] is set to [2], the input is switched seamlessly when the inputs of HDMI1 and HDMI2 are switched while switching

to the backup input signal is possible.

f When [AUTOMATIC SWITCHING] is set to [ENABLE], and [BACKUP INPUT STATUS] is set to [ACTIVE], the signal is automatically

switched to the backup input if the input signal is disrupted.

f At the same time the video is switched to the secondary input, audio will switch to the audio set in the [PROJECTOR SETUP] menu →

[AUDIO SETTING] → [AUDIO IN SELECT].

f When [AUTOMATIC SWITCHING] is set to [ENABLE] and the signal is automatically switched to the backup input due to disruption of the

input signal, [BACKUP INPUT STATUS] changes to [INACTIVE]. In this case, switching to the backup input signal is not possible until the original input signal is restored. If the signal is automatically switched to the backup input, switching to the backup input signal becomes possible when the original input signal is restored. In this case, the current input is retained.

f [BACKUP INPUT SETTING] cannot be set during P IN P. The backup operation is not performed either.

[COMPUTER IN/OUT]

Set the <COMPUTER 1 IN> terminal and the <COMPUTER 2 IN/1 OUT> terminal.

Setting [INPUT SETTING] in [COMPUTER IN/OUT] (COMPUTER1 input)

1) Press as to select [COMPUTER IN/OUT].

2) Press the <ENTER> button.

f The [COMPUTER IN/OUT] screen is displayed.

3) Press as to select [INPUT SETTING].

4) Press qw to switch the item.

f The items will switch each time you press the button.

[RGB/YPBPR] Select this item when RGB signal or YC

[Y/C]

Select this item when a luminance signal and color signal are input to the <COMPUTER 1 IN>

terminal.

Note

f Use the optional D-SUB - S Video conversion cable (Model No.: ET-ADSV) when the Y/C signal is input to the <COMPUTER 1 IN> terminal.

For connection method, refer to “Connecting example: AV equipment” (x page 35).

Switching the slice level of an input synchronization signal

/YPBPR signal is input to the <COMPUTER 1 IN> terminal.

BCR

1) Press as to select [COMPUTER IN/OUT].

2) Press the <ENTER> button.

f The [COMPUTER IN/OUT] screen is displayed.

3) Press as to select [SYNC SLICE LEVEL] of [COMPUTER1] or [COMPUTER2].

4) Press qw to switch the item.

[LOW] Set the slice level to [LOW].

[HIGH] Set the slice level to [HIGH].

ENGLISH - 87

Page 88

Chapter 4 Settings — [DISPLAY OPTION] menu

Note

f [SYNC SLICE LEVEL] of [COMPUTER2] cannot be set when [COMPUTER2 SELECT] is set to [COMPUTER1 OUT].

Setting [EDID MODE] in [COMPUTER IN/OUT] (COMPUTER1 input/COMPUTER2 input)

1) Press as to select [COMPUTER IN/OUT].

2) Press the <ENTER> button.

f The [COMPUTER IN/OUT] screen is displayed.

3) Press as to select [EDID MODE] of [COMPUTER1] or [COMPUTER2].

4) Press the <ENTER> button.

f The [EDID MODE] screen is displayed.

5) Press qw to switch the item.

f The items will switch each time you press the button.

[DEFAULT] Standard setting.

[SCREEN FIT] Changes the EDID data according to the [SCREEN FORMAT] setting.

[USER] Sets the [RESOLUTION] and [VERTICAL SCAN FREQUENCY] items as EDID.

f Proceed to Step 10) when [DEFAULT] or [SCREEN FIT] is selected.

6) Press the <ENTER> button.

f The [RESOLUTION] screen is displayed.

7) Press asqw to select [RESOLUTION].

f Select [1024x768p], [1280x720p], [1280x768p], [1280x800p], [1280x1024p], [1366x768p], [1400x1050p],

[1440x900p], [1600x900p], [1600x1200p], [1680x1050p], [1920x1080p], [1920x1080i], or [1920x1200p].

8) Press the <ENTER> button.

f The [VERTICAL SCAN FREQUENCY] screen is displayed.

9) Press qw to select [VERTICAL SCAN FREQUENCY].

f Select [60Hz], [50Hz], [30Hz], [25Hz], or [24Hz] when [1920x1080p] is selected for [RESOLUTION]. f Select [60Hz], [50Hz], or [48Hz] when [1920x1080i] is selected for [RESOLUTION]. f Select [60Hz] or [50Hz] when anything other than following is selected for [RESOLUTION].

g [1920x1080p], [1920x1080i]

10) Press the <ENTER> button.

f The conrmation screen is displayed.

11) Press qw to select [OK], and press the <ENTER> button.

Note

f Settings in [RESOLUTION] and [VERTICAL SCAN FREQUENCY] are displayed in the [COMPUTER IN/OUT] screen. f Setting of the resolution and the vertical scanning frequency may be necessary on the computer or video device in use. f The computer, video device, or projector in use may require the power to be turned off and on again after setting. f The output with the set resolution or vertical scanning frequency may not be possible depending on the computer or video device in use. f [EDID MODE] in [COMPUTER2] cannot be set when [COMPUTER2 SELECT] is set to [COMPUTER1 OUT].

Setting [COMPUTER2 SELECT] in [COMPUTER IN/OUT] (COMPUTER2 input/COMPUTER1 output)

1) Press as to select [COMPUTER IN/OUT].

2) Press the <ENTER> button.

f The [COMPUTER IN/OUT] screen is displayed.

3) Press as to select [COMPUTER2 SELECT].

4) Press qw to switch the item.

f The items will switch each time you press the button.

88 - ENGLISH

Page 89

Chapter 4 Settings — [DISPLAY OPTION] menu

[COMPUTER2 IN] Select this item when using the <COMPUTER 2 IN/1 OUT> terminal as the COMPUTER2 input.

[COMPUTER1 OUT]

Select this item when the analog RGB signal or YC terminal is output from the <COMPUTER 2 IN/1 OUT> terminal.

/YPBPR signal input to the <COMPUTER 1 IN>

BCR

Note

f [COMPUTER2 SELECT] cannot be set when the COMPUTER2 input is selected.

[DVI-D IN]

Set this item in accordance with the video signal input to the <DVI-D IN> terminal.

Setting [SIGNAL LEVEL] in [DVI-D IN]

1) Press as to select [DVI-D IN].

2) Press the <ENTER> button.

f The [DVI-D IN] screen is displayed.

3) Press as to select [SIGNAL LEVEL].

4) Press qw to switch the item.

f The items will switch each time you press the button.

[AUTO] Automatically sets the signal level.

[0-255:PC]

[16-235]

Select this item when the signal output from the DVI-D terminal of the external device (such as a computer) is input to the <DVI-D IN> terminal.

Select this item when the signal output from the HDMI terminal of the external device (such as a Bluray disc player) is input to the <DVI-D IN> terminal using a conversion cable, etc.

Note

f The optimal setting varies depending on the output setting of the connected external device. Refer to the operating instructions of the

external device regarding the output of the external device.

Setting [EDID SELECT] in [DVI-D IN]

1) Press as to select [DVI-D IN].

2) Press the <ENTER> button.

f The [DVI-D IN] screen is displayed.

3) Press as to select [EDID SELECT].

4) Press qw to switch the item.

f The items will switch each time you press the button.

[EDID3] Determines the moving image or still image signal automatically.

[EDID1]

[EDID2:PC]

Select this item mainly when an external device that will output the moving image signal (such as a Blu-ray disc player) is connected to the <DVI-D IN> terminal.

Select this item mainly when an external device that will output the still image signal (such as a computer) is connected to the <DVI-D IN> terminal.

Note

f The data for plug and play will change when the setting is changed. Refer to “List of compatible signals” (x page 175) for details on a

resolution that supports plug and play.

Setting [EDID MODE] in [DVI-D IN]

1) Press as to select [DVI-D IN].

2) Press the <ENTER> button.

f The [DVI-D IN] screen is displayed.

3) Press as to select [EDID MODE].

ENGLISH - 89

Page 90

Chapter 4 Settings — [DISPLAY OPTION] menu

4) Press the <ENTER> button.

f The [DVI-D] screen is displayed.

5) Press qw to switch the item.

f The items will switch each time you press the button.

[DEFAULT] Standard setting.

[SCREEN FIT] Changes the EDID data according to the [SCREEN FORMAT] setting.

[USER] Sets the [RESOLUTION] and [VERTICAL SCAN FREQUENCY] items as EDID.

f Proceed to Step 10) when [DEFAULT] or [SCREEN FIT] is selected.

6) Press the <ENTER> button.

f The [RESOLUTION] screen is displayed.

7) Press asqw to select [RESOLUTION].

f Select [1024x768p], [1280x720p], [1280x768p], [1280x800p], [1280x1024p], [1366x768p], [1400x1050p],

[1440x900p], [1600x900p], [1600x1200p], [1680x1050p], [1920x1080p], [1920x1080i], or [1920x1200p].

8) Press the <ENTER> button.

f The [VERTICAL SCAN FREQUENCY] screen is displayed.

9) Press qw to select [VERTICAL SCAN FREQUENCY].

g [1920x1080p], [1920x1080i]

10) Press the <ENTER> button.

f The conrmation screen is displayed.

11) Press qw to select [OK], and press the <ENTER> button.

Note

f Settings in [RESOLUTION] and [VERTICAL SCAN FREQUENCY] are displayed in the [DVI-D IN] screen. f Setting of the resolution and the vertical scanning frequency may be necessary on the computer or video device in use. f The computer, video device, or projector in use may require the power to be turned off and on again after setting. f The output with the set resolution or vertical scanning frequency may not be possible depending on the computer or video device in use.

[HDMI IN]

Set this item in accordance with the video signal input to the <HDMI 1 IN> terminal or the <HDMI 2 IN> terminal.

Setting [SIGNAL LEVEL] in [HDMI IN]

1) Press as to select [HDMI IN].

2) Press the <ENTER> button.

f The [HDMI IN] screen is displayed.

3) Press as to select [SIGNAL LEVEL] of [HDMI1] or [HDMI2].

4) Press qw to switch the item.

f The items will switch each time you press the button.

[AUTO] Automatically sets the signal level.

[64-940]

[0-1023]

90 - ENGLISH

Select this item when the signal output from the HDMI terminal of the external device (such as a Bluray disc player) is input to the <HDMI 1 IN> terminal or the <HDMI 2 IN> terminal.

Select this item when the signal output from the DVI-D terminal of the external device (such as a computer) is input to the <HDMI 1 IN> terminal or the <HDMI 2 IN> terminal using a conversion cable,

etc.

Select this item also when the signal output from the HDMI terminal of a computer, etc., is input to the <HDMI 1 IN> terminal or the <HDMI 2 IN> terminal.

Page 91

Chapter 4 Settings — [DISPLAY OPTION] menu

Note

f The optimal setting varies depending on the output setting of the connected external device. Refer to the operating instructions of the

external device regarding the output of the external device.

f The HDMI signal level is displayed for 30 bits of input.

Setting [EDID MODE] in [HDMI IN]

1) Press as to select [HDMI IN].

2) Press the <ENTER> button.

f The [HDMI IN] screen is displayed.

3) Press as to select [EDID MODE] of [HDMI1] or [HDMI2].

4) Press the <ENTER> button.

f The [HDMI1] screen or the [HDMI2] screen is displayed.

5) Press qw to switch the item.

f The items will switch each time you press the button.

[DEFAULT] Standard setting.

[SCREEN FIT] Changes the EDID data according to the [SCREEN FORMAT] setting.

[USER] Set the [RESOLUTION] and [VERTICAL SCAN FREQUENCY] items as EDID.

f Proceed to Step 10) when [DEFAULT] or [SCREEN FIT] is selected.

6) Press the <ENTER> button.

f The [RESOLUTION] screen is displayed.

7) Press asqw to select [RESOLUTION].

f Select [1024x768p], [1280x720p], [1280x768p], [1280x800p], [1280x1024p], [1366x768p], [1400x1050p],

[1440x900p], [1600x900p], [1600x1200p], [1680x1050p], [1920x1080p], [1920x1080i], or [1920x1200p].

8) Press the <ENTER> button.

f The [VERTICAL SCAN FREQUENCY] screen is displayed.

9) Press qw to select [VERTICAL SCAN FREQUENCY].

g [1920x1080p], [1920x1080i]

10) Press the <ENTER> button.

f The conrmation screen is displayed.

11) Press qw to select [OK], and press the <ENTER> button.

Note

f Settings in [RESOLUTION] and [VERTICAL SCAN FREQUENCY] are displayed in the [HDMI IN] screen. f Setting of the resolution and the vertical scanning frequency may be necessary on the computer or video device in use. f The computer, video device, or projector in use may require the power to be turned off and on again after setting. f The output with the set resolution or vertical scanning frequency may not be possible depending on the computer or video device in use.

[DIGITAL LINK IN]

Set this item in accordance with the video signal input to the <DIGITAL LINK/LAN> terminal.

Setting [SIGNAL LEVEL] in [DIGITAL LINK IN]

1) Press as to select [DIGITAL LINK IN].

2) Press the <ENTER> button.

f The [DIGITAL LINK IN] screen is displayed.

3) Press as to select [SIGNAL LEVEL].

ENGLISH - 91

Page 92

Chapter 4 Settings — [DISPLAY OPTION] menu

4) Press qw to switch the item.

f The items will switch each time you press the button.

[AUTO] Automatically sets the signal level.

[64-940]

[0-1023]

Select this item when the signal output from the HDMI terminal of an external device (Blu-ray disc player, etc.) is input to the <DIGITAL LINK/LAN> terminal via a twisted-pair-cable transmitter.

Select this item when the signal output from the DVI-D terminal or HDMI terminal of an external device (such as a computer) is input to the <DIGITAL LINK/LAN> terminal via a twisted-pair-cable

transmitter.

Note

f The optimal setting varies depending on the output setting of the connected external device. Refer to the operating instructions of the

external device regarding the output of the external device.

f The signal level is displayed for 30 bits of input.

Setting [EDID MODE] in [DIGITAL LINK IN]

1) Press as to select [DIGITAL LINK IN].

2) Press the <ENTER> button.

f The [DIGITAL LINK IN] screen is displayed.

3) Press as to select [EDID MODE].

4) Press the <ENTER> button.

f The [DIGITAL LINK] screen is displayed.

5) Press qw to switch the item.

f The items will switch each time you press the button.

[DEFAULT] Standard setting.

[SCREEN FIT] Changes the EDID data according to the [SCREEN FORMAT] setting.

[USER] Sets the [RESOLUTION] and [VERTICAL SCAN FREQUENCY] items as EDID.

f Proceed to Step 10) when [DEFAULT] or [SCREEN FIT] is selected.

6) Press the <ENTER> button.

f The [RESOLUTION] screen is displayed.

7) Press asqw to select [RESOLUTION].

f Select [1024x768p], [1280x720p], [1280x768p], [1280x800p], [1280x1024p], [1366x768p], [1400x1050p],

[1440x900p], [1600x900p], [1600x1200p], [1680x1050p], [1920x1080p], [1920x1080i], or [1920x1200p].

8) Press the <ENTER> button.

f The [VERTICAL SCAN FREQUENCY] screen is displayed.

9) Press qw to switch [VERTICAL SCAN FREQUENCY].

g [1920x1080p], [1920x1080i]

10) Press the <ENTER> button.

f The conrmation screen is displayed.

11) Press qw to select [OK], and press the <ENTER> button.

Note

f Settings in [RESOLUTION] and [VERTICAL SCAN FREQUENCY] are displayed in the [DIGITAL LINK IN] screen. f Setting of the resolution and the vertical scanning frequency may be necessary on the computer or video device in use. f The computer, video device, or projector in use may require the power to be turned off and on again after setting. f The output with the set resolution or vertical scanning frequency may not be possible depending on the computer or video device in use.

92 - ENGLISH

Page 93

Chapter 4 Settings — [DISPLAY OPTION] menu

[ON-SCREEN DISPLAY]

Set the on-screen display.

Setting [OSD POSITION]

Set the position of the menu screen (OSD).

1) Press as to select [ON-SCREEN DISPLAY].

2) Press the <ENTER> button.

f The [ON-SCREEN DISPLAY] screen is displayed.

3) Press as to select [OSD POSITION].

4) Press qw to switch the item.

f The items will switch each time you press the button.

[2] Sets to the center left of the screen. [3] Sets to the bottom left of the screen. [4] Sets to the top center of the screen. [5] Sets to the center of the screen. [6] Sets to the bottom center of the screen. [7] Sets to the upper right of the screen. [8] Sets to the center right of the screen. [9] Sets to the bottom right of the screen. [1] Sets to the upper left of the screen.

Setting [OSD ROTATION]

Set the orientation of the menu screen (OSD).

1) Press as to select [ON-SCREEN DISPLAY].

2) Press the <ENTER> button.

f The [ON-SCREEN DISPLAY] screen is displayed.

3) Press as to select [OSD ROTATION].

4) Press qw to switch the item.

f The items will switch each time you press the button.

[OFF] Does not rotate the screen.

[CLOCKWISE] Rotates the screen by 90° clockwise.

[COUNTERCLOCKWISE] Rotates the screen by 90° counterclockwise.

Setting [OSD DESIGN]

Set the color of the menu screen (OSD).

1) Press as to select [ON-SCREEN DISPLAY].

2) Press the <ENTER> button.

f The [ON-SCREEN DISPLAY] screen is displayed.

3) Press as to select [OSD DESIGN].

4) Press qw to switch the item.

f The items will switch each time you press the button.

[1] Sets to yellow. [2] Sets to blue. [3] Sets to white. [4] Sets to green. [5] Sets to peach.

ENGLISH - 93

Page 94

Chapter 4 Settings — [DISPLAY OPTION] menu

[6] Sets to brown.

Setting [OSD MEMORY]

Set hold for the position of the menu screen (OSD) cursor.

1) Press as to select [ON-SCREEN DISPLAY].

2) Press the <ENTER> button.

f The [ON-SCREEN DISPLAY] screen is displayed.

3) Press as to select [OSD MEMORY].

4) Press qw to switch the item.

f The items will switch each time you press the button.

[ON] Holds the cursor position.

[OFF] Does not hold the cursor position.

Note

f Even if [ON] is set, the cursor position is not maintained when the power is turned off.

Setting [INPUT GUIDE]

Set whether to display the input guide in the position set in [OSD POSITION].

The input guide is the screen to display the information such as currently selected input terminal name, signal

name, memory number, and the input terminal and signal structuring [P IN P].

1) Press as to select [ON-SCREEN DISPLAY].

2) Press the <ENTER> button.

f The [ON-SCREEN DISPLAY] screen is displayed.

3) Press as to select [INPUT GUIDE].

4) Press qw to switch the item.

f The items will switch each time you press the button.

[ON] Displays the input guide.

[OFF] Hides the input guide.

Setting [WARNING MESSAGE]

Set the display/hide of the warning message.

1) Press as to select [ON-SCREEN DISPLAY].

2) Press the <ENTER> button.

f The [ON-SCREEN DISPLAY] screen is displayed.

3) Press as to select [WARNING MESSAGE].

4) Press qw to switch the item.

f The items will switch each time you press the button.

[ON] Displays the warning message.

[OFF] Hides the warning message.

Note

f If [OFF] is set, the warning message will not be displayed on the projected image even when warning condition such as [TEMPERATURE

WARNING] is detected while using the projector. Also, the following countdown message is not displayed: the message until the power is turned off after the no signal lights-out function is executed; the message until the light source is turned off after the no signal lights-out function is executed

94 - ENGLISH

Page 95

Chapter 4 Settings — [DISPLAY OPTION] menu

[CLOSED CAPTION SETTING] (only when NTSC or 480/60i YCBCR signal is input)

Set closed captions.

Selecting the closed caption display

1) Press as to select [CLOSED CAPTION SETTING].

2) Press the <ENTER> button.

f The [CLOSED CAPTION SETTING] screen is displayed.

3) Press as to select [CLOSED CAPTION].

4) Press qw to switch the item.

f The items will switch each time you press the button.

[OFF] Hides closed captions.

[ON] Displays closed captions.

f Proceed to Step 5) when [ON] is selected.

5) When the confirmation screen is displayed, press qw to select [OK], and press the <ENTER> button.

Setting the closed caption mode

1) Press as to select [CLOSED CAPTION SETTING].

2) Press the <ENTER> button.

f The [CLOSED CAPTION SETTING] screen is displayed.

3) Press as to select [MODE].

f [MODE] cannot be selected when [CLOSED CAPTION] is set to [OFF].

4) Press qw to switch the item.

f The items will switch each time you press the button.

[CC1] Displays CC1 data.

[CC2] Displays CC2 data.

[CC3] Displays CC3 data.

[CC4] Displays CC4 data.

Note

f Closed caption is a function that displays text information of video signals mainly used in North America. Captions may not be displayed

depending on the connected devices or contents being played back.

f [CLOSED CAPTION SETTING] can be selected only when NTSC or 480/60i YCBCR signal is input. f If [CLOSED CAPTION] is set to [ON], brightness of images may change depending on the external devices compatible with closed caption

function to be connected or contents to be used.

f If a closed caption signal of the selected mode is input, the security message set in the [SECURITY] menu → [DISPLAY SETTING] is not

displayed.

f Closed captions are not displayed when the menu screen is displayed.

[BACK COLOR]

Set the display of the projected screen when there is no signal input.

1) Press as to select [BACK COLOR].

2) Press qw to switch the item.

f The items will switch each time you press the button.

[BLUE] Displays the entire projection area in blue.

[BLACK] Displays the entire projection area in black.

[DEFAULT LOGO] Displays the Panasonic logo.

[USER LOGO] Displays the image registered by the user.

ENGLISH - 95

Page 96

Chapter 4 Settings — [DISPLAY OPTION] menu

Note

f To create/register the [USER LOGO] image, use “Logo Transfer Software” included in the supplied CD-ROM.

[STARTUP LOGO]

Set the logo display when the power is turned on.

1) Press as to select [STARTUP LOGO].

2) Press qw to switch the item.

f The items will switch each time you press the button.

[DEFAULT LOGO] Displays the Panasonic logo.

[USER LOGO] Displays the image registered by the user.

[NONE] Disables the startup logo display.

Note

f When [USER LOGO] is selected, the display of the startup logo will be kept for approximately 15 seconds. f To create/register the [USER LOGO] image, use “Logo Transfer Software” included in the supplied CD-ROM. f If the [PROJECTOR SETUP] menu → [ECO MANAGEMENT] → [QUICK STARTUP] is set to [ON], the startup logo is not displayed when

projection starts before the specied time elapses after the projector enters the standby mode. The specied time is a time set in the [PROJECTOR SETUP] menu → [ECO MANAGEMENT] → [QUICK STARTUP] → [VALID PERIOD].

[UNIFORMITY]

Correct the brightness and color unevenness of the entire screen.

Setting each color

1) Press as to select [UNIFORMITY].

2) Press the <ENTER> button.

f The [UNIFORMITY] screen is displayed.

3) Press as to select [WHITE], [RED], [GREEN], or [BLUE].

4) Press qw to adjust the level.

Item Operation Adjustment Range of adjustment

The lower-side color becomes

Press w.

[VERTICAL]

Press q.

Press w.

[HORIZONTAL]

Press q.

pale, or the upper-side color becomes dark.

The upper-side color becomes pale, or the lower-side color becomes dark.

The left-side color becomes pale, or the right-side color becomes dark.

The right-side color becomes pale, or the left-side color becomes dark.

127 - +127

Setting [PC CORRECTION]

Set the [PC CORRECTION] function to correct the brightness and the color unevenness of the entire screen using

a computer.

To use the [PC CORRECTION] function, an optional software application is required. Consult your dealer.

1) Press as to select [UNIFORMITY].

2) Press the <ENTER> button.

f The [UNIFORMITY] screen is displayed.

3) Press as to select [PC CORRECTION].

4) Press qw to switch the item.

96 - ENGLISH

Page 97

Chapter 4 Settings — [DISPLAY OPTION] menu

[OFF] Does not perform correction using a computer.

[ON]

*1 Advanced skills are necessary to use computer control correction. Consult your dealer.

Performs correction for the brightness and color unevenness of the entire screen using a computer.

Note

f The setting value for [UNIFORMITY] will not return to factory default even if the [PROJECTOR SETUP] menu → [INITIALIZE] → [ALL USER

DATA] is executed.

f In the following conditions, the setting of the [PICTURE] menu → [GAMMA] → [DEFAULT] is disabled and the same gamma mode as when

[2.2] is set is applied.

g When the levels of [WHITE], [RED], [GREEN], and [BLUE] are adjusted g When [PC CORRECTION] is set to [ON]

f If you need to switch the gamma mode to [1.8] or [2.0], rst set the [PICTURE] menu → [GAMMA].

[SHUTTER SETTING]

Set the operation of the shutter function.

Setting [FADE-IN] or [FADE-OUT]

1) Press as to select [SHUTTER SETTING].

2) Press the <ENTER> button.

f The [SHUTTER SETTING] screen is displayed.

3) Press as to select [FADE-IN] or [FADE-OUT].

4) Press qw to switch the item.

Item Adjustment

[OFF] Does not set fade-in or fade-out.

[FADE-IN]

[FADE-OUT]

[0.5s] - [10.0s]

Sets the fade-in or fade-out time. Select an item from [0.5s] - [4.0s], [5.0s], [7.0s], or [10.0s]. [0.5s] [4.0s] can be selected in increments of 0.5.

Note

f If the <SHUTTER> button on the remote control is pressed during fade-in or fade-out, the fade operation is canceled. f Fade-in/fade-out is not performed on the audio. Audio is output or paused linked to the operation of the shutter function.

Setting [STARTUP]

Automatically enable/disable the shutter function (shutter: closed/open) when the power is turned on.

1) Press as to select [SHUTTER SETTING].

2) Press the <ENTER> button.

f The [SHUTTER SETTING] screen is displayed.

3) Press as to select [STARTUP].

4) Press qw to switch the item.

[OPEN]

[CLOSE]

The projector goes into projection mode with the shutter function disabled (shutter: opened) when the

power is turned on.

The projector goes into projection mode with the shutter function enabled (shutter: closed) when the

power is turned on.

Using the shutter function

Image and audio are turned off when the projector is not used for a specic time.

1) Press as to select [SHUTTER SETTING].

2) Press the <ENTER> button.

f The [SHUTTER SETTING] screen is displayed.

3) Press as to select [SHUTTER].

ENGLISH - 97

Page 98

Chapter 4 Settings — [DISPLAY OPTION] menu

4) Press the <ENTER> button.

f Press the <MENU> button to cancel the function.

Note

f The power indicator <ON (G)/STANDBY (R)> will blink slowly in green while the shutter function is in use (shutter: closed). f To output audio while the shutter function is in use (shutter: closed), set the [PROJECTOR SETUP] menu → [AUDIO SETTING] → [IN

SHUTTER] to [ON].

[FREEZE]

The projected image is paused and audio is turned off regardless of the playback of the external device.

1) Press as to select [FREEZE].

2) Press the <ENTER> button.

f Press the <MENU> button to release.

Note

f [FREEZE] is displayed on the screen when video is paused.

[WAVEFORM MONITOR]

Use the input signals from a connected external device to display in a waveform. Check whether video output (luminance) signal level is within the recommended range for the projector and adjust.

1) Press as to select [WAVEFORM MONITOR].

2) Press qw to switch the item.

[OFF] Does not display the waveform monitor.

[ON] Displays the waveform monitor.

3) Press the <MENU> button two times to clear.

4) Press as to select any horizontal line.

5) Press the <ENTER> button to switch the Select line to either luminance, red, green, or blue.

f Line selection items switch each time the <ENTER> is pressed only when the waveform monitor is

displayed.

“Select line (luminance)” Displayed in white waveform.

“Select line (red)” Displayed in red waveform.

“Select line (green)” Displayed in green waveform.

“Select line (blue)” Displayed in blue waveform.

Note

f Setting is also available from the [PROJECTOR SETUP] menu → [FUNCTION BUTTON]. f The waveform monitor cannot be displayed while in the P IN P mode. f The waveform monitor turns off when the P IN P function is used while the waveform is being monitored. f The waveform monitor is not displayed when on-screen display is hidden (off).

98 - ENGLISH

Page 99

Chapter 4 Settings — [DISPLAY OPTION] menu

Adjusting the waveform

Project the luminance adjustment signal of a commercial test disk (0 % (0 IRE or 7.5 IRE) – 100 % (100 IRE)) and

adjust.

Image displayable area

Signal level

Image position

1) Select “Select line (luminance)” on the waveform monitor.

2) Adjust black level.

f Adjust the black level 0 % of the video signal to the 0 % position of the waveform monitor using the

[PICTURE] menu → [BRIGHTNESS].

3) Adjust white level.

f Adjust the white level 100 % of the video signal to the 100 % position of the waveform monitor using the

[PICTURE] menu → [CONTRAST].

Adjusting red, green, and blue

1) Set [COLOR TEMPERATURE] to [USER]. (x page 67)

2) Select “Select line (red)” on the waveform monitor.

3) Adjust dark red areas.

f Use [RED] in [WHITE BALANCE LOW] to adjust the black level 0 % of the video signal to the 0 % position

of the waveform monitor.

4) Adjust bright red areas.

f Use [RED] in [WHITE BALANCE HIGH] to adjust the white level 100 % of the video signal to the 100 %

position of the waveform monitor.

5) Use the procedure for [RED] to adjust [GREEN] and [BLUE].

Note

f Conrm that the [SIGNAL LEVEL] setting of the input signal is correct before adjusting the black level.

Check the [SIGNAL LEVEL] setting from the [DISPLAY OPTION] menu → [DVI-D IN]/[HDMI IN]/[DIGITAL LINK IN] → [SIGNAL LEVEL].

[CUT OFF]

Each red, green, and blue color component can be removed.

1) Press as to select [CUT OFF].

2) Press the <ENTER> button.

f The [CUT OFF] screen is displayed.

3) Press as to select [RED], [GREEN], or [BLUE].

4) Press qw to switch the item.

[OFF] Disables cutoff.

[ON] Enables cutoff.

Note

f When input is switched or a signal is switched, the cutoff setting returns to its original setting (off).

ENGLISH - 99

Page 100

Chapter 4 Settings — [PROJECTOR SETUP] menu

[PROJECTOR SETUP] menu

On the menu screen, select [PROJECTOR SETUP] from the main menu, and select an item from the sub-

menu. Refer to “Navigating through the menu” (x page 61) for the operation of the menu screen.

[PROJECTOR ID]

The projector has an ID number setting function that can be used when multiple projectors are used side by side

to enable simultaneous control or individual control via a single remote control.

1) Press as to select [PROJECTOR ID].

2) Press qw to switch the item.

f The items will switch each time you press the button.

[ALL] Select this item when controlling projectors without specifying an ID number.

[1] - [64] Select this item when specifying an ID number to control individual projector.

Note

f To specify an ID number for individual control, the ID number of a remote control must match the ID number of the projector. f When the ID number is set to [ALL], the projector will operate regardless of the ID number specied during remote control or computer

control.

If multiple projectors are set up side by side with IDs set to [ALL], they cannot be controlled separately from the projectors with other ID

numbers.

f Refer to “Setting ID number of the remote control” (x page 58) for how to set the ID number on the remote control.

[PROJECTION METHOD]

Set the projection method in accordance with the installation status of the projector. Change the [FRONT/REAR] setting when the screen display is inverted. Change the [FLOOR/CEILING] setting when the screen display is upside down.

Setting [FRONT/REAR]

1) Press as to select [FRONT/REAR] of [PROJECTION METHOD].

2) Press qw to switch the item.

f The items will switch each time you press the button.

[FRONT] Select this item when installing the projector in front of the screen.

[REAR] Select this item when installing behind the screen (using translucent screen).

Setting [FLOOR/CEILING]

1) Press as to select [FLOOR/CEILING] of [PROJECTION METHOD].

2) Press qw to switch the item.

f The items will switch each time you press the button.

[AUTO]

[FLOOR] Select this item when installing the projector on a desk, etc.

[CEILING]

Automatically detects the attitude of the projector by the built-in angle sensor.

Set [AUTO] normally.

Select this item when installing the projector using the Ceiling Mount Bracket (optional).

Projected image is inverted upside down.

Note

f Refer to “Angle sensor” (x page 31) for details on the range of the installation attitude that can be detected by the built-in angle sensor.

100 - ENGLISH
