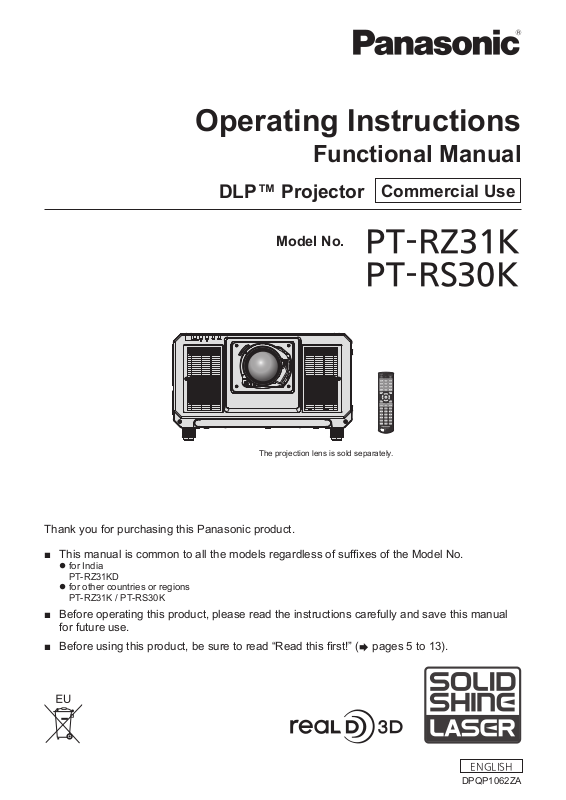

Operating Instructions

Functional Manual

DLP™ Projector

Model No.

PT-RZ31K

 PT-RS30K

The projection lens is sold separately.

Commercial Use

Thank you for purchasing this Panasonic product.

■ This manual is common to all the models regardless of sufxes of the Model No.

zfor India

PT- RZ31KD

zfor other countries or regions

PT- RZ31K

■ Before operating this product, please read the instructions carefully and save this manual for future use.

■ Before using this product, be sure to read “Read this rst!” (x pages 5 to 13).

PT- RS30K

ENGLISH

DPQP1062ZA

Contents

Read this rst! 5

Chapter 1 Preparation

Precautions for use 17

Cautions when transporting Cautions when installing Cautions when setting up the projector Security

DIGITAL LINK Art-Net

Early Warning Software Disposal Cautions on use Accessories Optional accessories

About your projector

Remote control Projector body

Preparing the remote control

Inserting and removing the batteries When using the multiple projectors Connecting the remote control to the projector

with a cable

17 17 18 21 22 22 22 22 22 24 26

27 28

32 32

Chapter 2 Getting Started

Setting up 35

Usable outlet Installation mode Projected image and throw distance Adjusting adjustable feet

Attaching/removing the projection lens

(optional)

Attaching the projection lens Removing the projection lens

Connecting

Before connecting

Connecting example: AV equipment Connecting example: Computers Connecting example using DIGITAL LINK Connecting example when using the

contrast synchronization function/shutter synchronization function

35 35 37 47

48 49

51 52 53 54

Chapter 3 Basic Operations

Switching on/off the projector 58

Connecting the power cord Power indicator Switching on the projector When the initial setting screen is displayed Making adjustments and selections Switching off the projector

Projecting

Selecting the input signal Adjusting the focus, zoom, and shift Adjusting the lens position and focus when the

Setting the lens position Adjustment range by the lens position shift

Adjusting the lens mounter when the focus is

Operating with the remote control

Using the shutter function Using the on-screen display function Using the automatic setup function Switching the image aspect ratio Using the function button Displaying internal test pattern Using the status function Using the AC voltage monitor function Setting ID number of the remote control

Fixed-focus Lens (Model No.: ET-D75LE95)

is used

(optical axis shift)

unbalanced

Chapter 4 Settings

Menu navigation 81

Navigating through the menu Main menu

Sub-menu

61 67

76 77 77

79 79

2 - ENGLISH

Contents

[PICTURE] menu

[PICTURE MODE] [CONTRAST] [BRIGHTNESS] [COLOR] [TINT] [COLOR TEMPERATURE] [GAMMA] [SYSTEM DAYLIGHT VIEW] [SHARPNESS] [NOISE REDUCTION] [DYNAMIC CONTRAST] [COLOR SPACE] [SYSTEM SELECTOR] sRGB-compliant video

[POSITION] menu

[SHIFT] [ASPECT] [ZOOM] [CLOCK PHASE] [GEOMETRY]

[ADVANCED MENU] menu

[DIGITAL CINEMA REALITY] [BLANKING] [INPUT RESOLUTION] [CLAMP POSITION] [EDGE BLENDING] [FRAME RESPONSE] [FRAME CREATION] [FRAME LOCK] [RASTER POSITION]

[DISPLAY LANGUAGE] menu

Changing the display language

[3D SETTINGS] menu

[3D SYSTEM SETTING] [3D SYNC SETTING] [3D INPUT FORMAT] [LEFT/RIGHT SWAP] [3D COLOR MATCHING] [3D PICTURE BALANCE] [DARK TIME SETTING] [3D FRAME DELAY] [3D TEST MODE] [3D TEST PATTERN] [SAFETY PRECAUTIONS MESSAGE] [3D SAFETY PRECAUTIONS]

87 87 88 88 88 88 90 91 91 92 92 93 94 94

96 96 97 98 98

101

101 101 102 102 103 104 105 106 106

107

108

108 108 109 109

110 110 110 111 111 111 112 112

[DISPLAY OPTION] menu

[COLOR MATCHING] [LARGE SCREEN CORRECTION] [SCREEN SETTING] [AUTO SIGNAL] [AUTO SETUP] [BACKUP INPUT SETTING] [SIMUL INPUT SETTING] [RGB IN] [DVI-D IN] [HDMI IN] [DIGITAL LINK IN] [SDI IN] [ON-SCREEN DISPLAY] [IMAGE ROTATION] [BACK COLOR] [STARTUP LOGO] [UNIFORMITY] [SHUTTER SETTING] [FREEZE] [WAVEFORM MONITOR] [CUT OFF]

[PROJECTOR SETUP] menu

[PROJECTOR ID] [PROJECTION METHOD] [OPERATION SETTING] [LIGHT OUTPUT] [BRIGHTNESS CONTROL] [STANDBY MODE] [NO SIGNAL SHUT-OFF] [NO SIGNAL LIGHTS-OUT] [INITIAL STARTUP] [STARTUP INPUT SELECT] [DATE AND TIME] [SCHEDULE] [MULTI PROJECTOR SYNC] [RS-232C] [REMOTE2 MODE] [FUNCTION BUTTON] [LENS CALIBRATION] [LENS MEMORY] [STATUS] [AC VOLTAGE MONITOR] [FILTER SETTING] [SAVE ALL USER DATA] [LOAD ALL USER DATA] [INITIALIZE] [SERVICE PASSWORD]

[P IN P] menu

Using P IN P function

[TEST PATTERN] menu

[TEST PATTERN]

118

123

115

119

121

122

128

129

132

133

134

137

142

143

144

148

151

152

156

158

160

113

114

116

117

126

128

129

132

134

135

138

142

143

146

150

150 150

154

155

156

157

158

160

ENGLISH - 3

Contents

[SIGNAL LIST] menu 161

Registering new signals Renaming the registered signal Deleting the registered signal Protecting the registered signal Expanding signal lock-in range Sub memory

[SECURITY] menu

[SECURITY PASSWORD] [SECURITY PASSWORD CHANGE] [DISPLAY SETTING] [TEXT CHANGE] [CONTROL DEVICE SETUP] [CONTROL DEVICE PASSWORD CHANGE]

[NETWORK] menu

[DIGITAL LINK MODE] [DIGITAL LINK STATUS] [NETWORK SETUP] [NETWORK CONTROL] [NETWORK STATUS] [DIGITAL LINK MENU] [Art-Net SETUP] [Art-Net CHANNEL SETTING] [Art-Net STATUS]

161 161 161 162 162 163

164

164 164 164 165 165

166

168

168 168 169 169 170 170 170 171 171

Chapter 7 Appendix

Technical information 210

PJLink protocol Using Art-Net function Control commands via LAN <SERIAL IN>/<SERIAL OUT> terminal <REMOTE 2 IN> terminal

Two-window display combination list Control device password Upgrade Kit

List of compatible signals

Specications

Dimensions

Attaching the Long Life Filter Unit (optional)

Removing the air lter unit Attaching the long life lter mount clasp Attaching the air lter unit Attaching the long life lter cover Setting the lter

Attaching the Smoke Cut Filter Unit (optional)

242

Removing the air lter unit

Attaching the Smoke Cut Filter

Setting the lter

Index

245

210

224

233

236

240

243

Chapter 5 Operations

211

215

218

222

223

224

225

238

239

240

242

243

Network connection 173

Connecting to the network

Web control function

Computer that can be used for setting Accessing from the web browser

173

176

176 176

Chapter 6 Maintenance

Light source/temperature/lter indicators 193

When an indicator lights up

Maintenance/replacement

Before performing maintenance/replacement

Maintenance Maintenance of lter

Replacing the unit

Troubleshooting

Self-diagnosis display

193

196

196 196 196 202

204

206

4 - ENGLISH

Read this rst!

WARNING: THIS APPARATUS MUST BE EARTHED.

WARNING: To prevent damage which may result in re or shock hazard, do not expose this appliance to rain

or moisture.

This device is not intended for use in the direct eld of view at visual display workplaces. To avoid incommoding reexions at visual display workplaces this device must not be placed in the direct eld of view. The equipment is not intended for used at a video workstation in compliance BildscharbV.

The sound pressure level at the operator position is equal or less than 70 dB (A) according to ISO 7779.

WARNING:

1. Remove the plug from the mains socket when this unit is not in use for a prolonged period of time.

2. To prevent electric shock, do not remove cover. No user serviceable parts inside. Refer servicing to qualied

service personnel.

3. Do not remove the earthing pin on the mains plug. This apparatus is equipped with a three prong earthing-

type mains plug. This plug will only t an earthing-type mains socket. This is a safety feature. If you are

unable to insert the plug into the mains socket, contact an electrician. Do not defeat the purpose of the earthing plug.

WARNING:

This equipment is compliant with Class A of CISPR32. In a residential environment this equipment may cause radio interference.

CAUTION: To assure continued compliance, follow the attached installation instructions. This includes using

the provided power cord and shielded interface cables when connecting to computer or peripheral

devices. Also, any unauthorized changes or modications to this equipment could void the user’s

authority to operate this device.

This is a device to project images onto a screen, etc., and is not intended for use as indoor lighting in a domestic environment.

Directive 2009/125/EC

WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS PRODUCT

TO RAIN OR MOISTURE.

WARNING: RISK OF ELECTRIC SHOCK. DON’T OPEN

Indicated on the projector

The lightning ash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufcient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the

product.

ENGLISH - 5

Read this rst!

WARNING: Do not look at the light emitted from the lens while the projector is being used.

Indicated on the projector

Notice on laser

(for USA and Canada)

This projector is the Class 3R laser product that complies with IEC 60825-1:2007.

130 For North America “Complies with 21 CFR Parts 1040.10 and 1040.11 except for deviations pursuant to Laser Notice No.50 dated June 24.2007”

IEC 60825-1:2007 LASER RADIATION AVOID DIRECT EYE EXPOSURE CLASS 3R LASER PRODUCT WAVE LENGTH:448-462nm MAXIMUM OUTPUT:333mW

IEC 60825-1:2007 RAYONNEMENT LASER EXPOSITION DIRECTE DANGEREUSE POUR LES YEUX APPAREIL À LASER DE CLASSE 3R LONGUEURS D'ONDES:448-462nm MAXIMALE DU RAYONNEMENT:333mW

DPQT1100ZA

TQFX340

DANGER-

CLASS 4 LASER RADIATION WHEN OPEN AVOID EYE OR SKIN EXPOSURE TO DIRECT OR SCATTERED RADIATION DANGER-

RAYONNEMENT LASER DE CLASSE 4 - EN CAS D'OUVERTURE EXPOSITION DANGEREUSE AU RAYONNEMENT DIRECT OU DIFFUS DES YEUX OU DE LA PEAU

(for India)

This projector is the Class 1 laser product that complies with IEC/EN 60825-1:2014.

(for other countries or regions)

This projector is the Class 1 laser product that complies with IEC/EN 60825-1:2014.

TQFX608

(Inside of product)

TQFX340

6 - ENGLISH

TQFX340

Read this rst!

WARNING (North America)

This projector would become Class IIIb laser product if used with interchangeable lens, types ET-D75LE8/LE30/ LE40; and if used without lens hood mounted over the long lens. If you use under this condition, you must

receive variance approval letter from FDA before usage. Class IIIb levels of laser radiation are considered to be an acute hazard to the skin and eyes from direct radiation.

CAUTION (North/Middle/South America/Taiwan)

This equipment is equipped with a three-pin grounding-type power plug. Do not remove the grounding pin on the power plug. This plug will only t a grounding-type

power outlet. This is a safety feature. If you are unable to insert the plug into the outlet, contact an electrician. Do not defeat the purpose of the grounding plug.

Do not remove

WARNING (USA and Canada)

fNot for use in a computer room as dened in the Standard for the Protection of Electronic Computer/Data

Processing Equipment, ANSI/NFPA 75.

fFor permanently connected equipment, a readily accessible disconnect device shall be incorporated in the

building installation wiring.

fFor pluggable equipment, the socket-outlet shall be installed near the equipment and shall be easily

accessible.

NOTIFICATION (Canada)

This class A digital apparatus complies with Canadian ICES-003.

For USA-California Only

This product contains a CR Coin Cell Lithium Battery which contains Perchlorate Material – special handling

may apply. See www.dtsc.ca.gov/hazardouswaste/perchlorate

ENGLISH - 7

Read this rst!

FCC NOTICE (USA)

Verication

Model Number: PT-RZ31K / PT-RS30K Trade Name: Panasonic Responsible Party: Panasonic Corporation of North America Address: Two Riverfront Plaza, Newark, NJ 07102-5490 General Contact: http://www.panasonic.com/support Projector Contact: http://panasonic.net/avc/projector/

This device complies with Part 15 of the FCC Rules.

Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received,

including interference that may cause undesired operation.

Caution:

This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part

15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference

when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.

FCC Warning:

To assure continued compliance, follow the attached installation instructions. This includes using the provided power cord and shielded interface cables when connecting to computer or peripheral devices. Also, any

unauthorized changes or modications to this equipment could void the user’s authority to operate this device.

Importer’s name and address within the European Union

Panasonic Marketing Europe GmbH

Panasonic Testing Centre

Winsbergring 15, 22525 Hamburg, Germany

8 - ENGLISH

Read this rst!

WARNING:

rPOWER

The wall outlet or the circuit breaker shall be installed near the equipment and shall be easily accessible when problems occur. If the following problems occur, cut off the power supply immediately.

Continued use of the projector in these conditions will result in re or electric shock, or will cause visual

impairment.

fIf foreign objects or water get inside the projector, cut off the power supply. fIf the projector is dropped or the cabinet is broken, cut off the power supply. fIf you notice smoke, strange smells or noise coming from the projector, cut off the power supply.

Please contact an Authorized Service Center for repairs, and do not attempt to repair the projector yourself.

During a thunderstorm, do not touch the projector or the cable.

Electric shocks can result.

Do not do anything that might damage the power cord, the power plug, or the power connector.

If the power cord is used while damaged, electric shocks, short-circuits or re will result.

fDo not damage the power cord, make any modications to it, disassemble it, place it near any hot objects,

bend it excessively, twist it, pull it, place heavy objects on top of it or wrap it into a bundle.

Consult an Authorized Service Center for any repairs to the power cord, the power plug, or the power connector that might be necessary.

Do not use anything other than the provided power cord.

Failure to observe this will result in electric shocks or re. Please note that if you do not use the provided power

cord to ground the device on the side of the outlet, this may result in electric shocks.

Completely insert the power plug into the wall outlet.

If the plug is not inserted correctly, electric shocks or overheating will result.

fDo not use plugs which are damaged or wall outlets which are coming loose from the wall.

Fully attach the power connector (projector-side) to the <AC IN> terminal.

A power connector that is not completely attached may result in res caused by electric shocks or heat

generation.

Do not handle the power plug and power connector with wet hands.

Failure to observe this will result in electric shocks.

Use an outlet supporting 30 A independently when using the projector with 200 V to 240 V alternating current. Use an outlet supporting 15 A independently when using the projector with 100 V to 120 V alternating current.

Using an outlet together with another device may result in res due to heat generation.

Do not overload the wall outlet.

If the power supply is overloaded (ex., by using too many adapters), overheating may occur and re will result.

Clean the power plug regularly to prevent it from becoming covered in dust.

Failure to observe this will cause a re.

fIf dust builds up on the power plug, the resulting humidity can damage the insulation. fIf not using the projector for an extended period of time, pull the power plug out from the wall outlet.

Pull the power plug out from the wall outlet and wipe it with a dry cloth regularly.

rON USE/INSTALLATION

Do not place the projector on soft materials such as carpets or sponge mats.

Doing so will cause the projector to overheat, which can cause burns, re or damage to the projector.

Do not set up the projector in humid or dusty places or in places where the projector may come into contact with oily smoke or steam.

Using the projector under such conditions will result in re, electric shocks or deterioration of components. Oil

may also distort the plastic and the projector could fall such as when mounted on the ceiling.

Do not install this projector in a place which is not strong enough to take the full weight of the projector or on top of a surface which is sloped or unstable.

Failure to observe this will cause projector to fall down or tip over the projector, and severe injury or damage could result.

ENGLISH - 9

Read this rst!

WARNING:

Do not cover the air intake/exhaust ports or place anything within 500 mm (19-11/16") of them.

Doing so will cause the projector to overheat, which can cause re or damage to the projector.

fDo not place the projector in narrow, badly ventilated places. fDo not place the projector on cloth or papers, as these materials could be drawn into the air intake port.

Do not look at or place your skin into the light emitted from the lens while the projector is being used.

Do not enter the projection luminous ux using an optical device (such as magnier or mirror).

Doing so can cause burns or loss of sight.

fStrong light is emitted from the projector’s lens. Do not look at or place your hands directly into this light. fBe especially careful not to let young children look into the lens. In addition, turn off the power and switch

off the main power when you are away from the projector.

Do not project an image with the lens cover of the projection lens (optional) attached.

Doing so can cause re.

Never attempt to remodel or disassemble the projector.

High voltages can cause re or electric shocks.

fFor any inspection, adjustment and repair work, please contact an Authorized Service Center.

Doing so may cause exposure to dangerous laser radiation.

fThe laser module is built in this projector. Follow procedures specied in the Operating Instructions to make

operations and adjustments.

Do not touch the top surface of the projector during use.

Doing so may result in burns, as the top surface is hot during use and for a while after use.

Do not allow metal objects, ammable objects, or liquids to enter inside of the projector. Do not allow

the projector to get wet.

Doing so may cause short circuits or overheating, and result in re, electric shock, or malfunction of the

projector.

fDo not place containers of liquid or metal objects near the projector. fIf liquid enters inside of the projector, consult your dealer. fParticular attention must be paid to children.

Installation work such as mounting the projector on the ceiling should only be carried out by a qualied

technician.

If installation is not carried out and secured correctly, it can cause injury or accidents, such as electric shocks.

rACCESSORIES

Do not use or handle the batteries improperly, and refer to the following.

Failure to observe this will cause burns, batteries to leak, overheat, explode or catch re.

fDo not use unspecied batteries. fDo not charge dry cell batteries. fDo not disassemble dry cell batteries. fDo not heat the batteries or place them into water or re. fDo not allow the + and – terminals of the batteries to come into contact with metallic objects such as

necklaces or hairpins. fDo not store or carry batteries together with metallic objects. fStore the batteries in a plastic bag and keep them away from metallic objects. fMake sure the polarities (+ and –) are correct when inserting the batteries. fDo not use a new battery together with an old battery or mix different types of batteries. fDo not use batteries with the outer cover peeling away or removed.

If the battery uid leaks, do not touch it with bare hands, and take the following measures if necessary.

fBattery uid on your skin or clothing could result in skin inammation or injury.

Rinse with clean water and seek medical advice immediately. fBattery uid coming in contact with your eyes could result in loss of sight.

In this case, do not rub your eyes. Rinse with clean water and seek medical advice immediately.

Do not allow children to reach the lens xing screw, the lens hood screws, and the knurled head

screws.

Accidentally swallowing them can cause physical harm.

fIf swallowed, seek medical advice immediately.

Remove the depleted batteries from the remote control promptly.

fLeaving them in the unit may result in uid leakage, overheating, or explosion of the batteries.

10 - ENGLISH

Read this rst!

CAUTION:

rPOWER

When disconnecting the power cord, be sure to hold the power plug and power connector.

If the power cord itself is pulled, the lead will become damaged, and re, short-circuits or serious electric shocks

will result.

When not using the projector for an extended period of time, disconnect the power plug from the wall outlet.

Failure to do so may result in re or electric shock.

Before replacing the projection lens, be sure to turn off the power and disconnect the power plug from the wall outlet.

fUnexpected projection of light may cause injury to eyes. fReplacing the projection lens without removing the power plug may result in electric shock.

Disconnect the power plug from the wall outlet before carrying out any cleaning.

Failure to do so may result in electric shock.

Do not remove the power connector (projector-side) while current is running.

Removing the power connector while current is running may result in res caused by sparks.

rON USE/INSTALLATION

Do not place heavy objects on top of the projector.

Failure to observe this will cause the projector to become unbalanced and fall, which could result in damage or injury. The projector will be damaged or deformed.

Do not put your weight on this projector.

You could fall or the projector could break, and injury will result.

fBe especially careful not to let young children stand or sit on the projector.

Do not place the projector in extremely hot locations.

Doing so will cause the outer casing or internal components to deteriorate, or result in re.

fTake particular care in locations exposed to direct sunlight or near heaters.

Do not place your hands in the openings beside the optical lens, while shifting the lens.

Failure to observe this could cause injury.

Do not install the projector in a location where salt pollution or corrosive gas may occur.

Doing so may result in falling due to corrosion. Also, it may result in malfunctions.

Do not stand in front of the lens while the projector is being used.

Doing so can cause damage and burns to clothing.

fStrong light is emitted from the projector’s lens.

Do not place objects in front of the lens while the projector is being used.

Doing so can cause re, damage to an object, or malfunction of the projector.

fStrong light is emitted from the projector’s lens.

The projector must be carried or installed by four or more people.

Failure to do so may cause falling accidents.

Always disconnect all cables before moving the projector.

Moving the projector with cables still attached can damage the cables, which will cause re or electric shocks to

occur.

ENGLISH - 11

Read this rst!

CAUTION:

rACCESSORIES

When not using the projector for an extended period of time, remove the batteries from the remote control.

Failure to observe this will cause the batteries to leak, overheat, catch re or explode, which may result in re or

contamination of surrounding area.

rMAINTENANCE

Do not attach the air lter unit while it is wet.

Doing so may result in electric shock or malfunctions.

fAfter you clean the air lter units, dry them thoroughly before reattaching them.

Ask your dealer about cleaning inside the projector every 20 000 hours of usage as an estimated duration.

Continuous use while dust is accumulated inside the projector may result in re.

fFor cleaning fee, ask your dealer.

rVIEWING 3D VIDEO

Those with a medical history of oversensitivity to light, heart problems, or poor physical health should not view 3D images.

This may lead to a worsening of medical conditions.

If you feel tiredness or discomfort, or other abnormality while viewing with 3D Eyewear, discontinue viewing.

Continuing use may cause health problems. Take a break as necessary.

When viewing 3D movies, aim to view one movie at a time and take a break as necessary.

When viewing 3D images, for example when playing 3D games or using a PC where two way interaction is possible, take an appropriate break every 30 to 60 minutes.

Watching for long periods of time may cause eye fatigue.

When preparing contents, use contents properly created to be used for 3D.

This may cause eye fatigue or health problems.

When viewing 3D images, pay attention to people and objects in the vicinity.

3D video may be mistaken for actual objects, and the related bodily movements can cause damage to objects and lead to injury.

Use 3D Eyewear when viewing 3D videos.

Do not tilt your head when viewing with 3D Eyewear.

Those who are near or far sighted, those with weaker eyesight in one eye, or those with astigmatism should use corrective glasses etc. when using 3D Eyewear.

If the image appears distinctly double when viewing 3D video, discontinue viewing.

Watching for long periods of time may cause eye fatigue.

View at a distance of at least three times the effective height of the screen.

Viewing at distance closer than the recommended distance may cause eye fatigue. As with movies, if there are

black bands at the top and bottom of the video, view at a distance of 3 times or more of the height of the video section.

Children younger than 5 or 6 years old should not use 3D Eyewear.

As it is difcult to gauge the reactions of children to fatigue and discomfort their condition may worsen suddenly. If a child uses the 3D Eyewear, guardians should beware of the child’s eyes becoming tired.

12 - ENGLISH

To remove the battery

Remote Control Battery

Read this rst!

1. Press the guide and lift the cover.

(ii)

(i)

2. Remove the batteries.

Brazil Only

Brasil Apenas

rManuseio de baterias usadas

BRASIL

Após o uso, as pilhas e/ou baterias deverão ser entregues ao estabelecimento comercial ou rede de assistência técnica autorizada.

Cobrir os terminais positivo (+) e negativo (-) com uma ta isolante adesiva, antes de depositar numa caixa

destinada para o recolhimento. O contato entre partes metálicas pode causar vazamentos, gerar calor, romper

a blindagem e produzir fogo. (Fig. 1)

Fig. 1 Como isolar os terminais

Não desmonte, não remova o invólucro, nem amasse a bateria. O gás liberado pela bateria pode irritar a garganta, danicar o lacre do invólucro ou o vazamento provocar calor, ruptura da blindagem e produzir fogo devido ao curto circuito dos terminais. Não incinere nem aqueça as baterias, elas não podem car expostas a temperaturas superiores a 100 °C (212 °F). O gás liberado pela bateria pode irritar a garganta, danicar o lacre

do invólucro ou o vazamento provocar calor, ruptura da blindagem e produzir fogo devido ao curto circuito dos terminais provocado internamente.

Evite o contato com o liquido que vazar das baterias. Caso isto ocorra, lave bem a parte afetada com bastante água. Caso haja irritação, consulte um médico.

Fita Isolante

rRemoção das baterias

1. Pressione a guia e levante a tampa.

(ii)

2. Remova as baterias.

(i)

ENGLISH - 13

rTrademarks

f SOLID SHINE is a trademark of Panasonic Corporation. f Windows, Internet Explorer, and Microsoft Edge are registered trademarks or trademarks of Microsoft

Corporation in the United States and other countries.

f Mac, Mac OS, and Safari are trademarks of Apple Inc., registered in the United States and other countries.

f PJLink

regions.

f HDMI, the HDMI Logo, and High-Denition Multimedia Interface are trademarks or registered trademarks of

HDMI Licensing LLC in the United States and other countries.

f RoomView and Crestron RoomView are registered trademarks of Crestron Electronics, Inc.

Crestron Connected

f HDBaseT f Art-Net f DisplayPort is a trademark or registered trademark of the Video Electronics Standards Association. f Adobe, Adobe Flash Player, and Adobe Reader are trademarks or registered trademarks of Adobe Systems Inc.

in the United States and/or other countries.

f RealD 3D is a trademark of RealD Inc. f Some of the fonts used in the on-screen menu are Ricoh bitmap fonts, which are manufactured and sold by

Ricoh Company, Ltd.

f All other names, company names, and product names mentioned in this manual are trademarks or registered

trademarks of their respective owners. Please note that the

is a registered trademark or pending trademark in Japan, the United States, and other countries and

and Fusion RV are trademarks of Crestron Electronics, Inc.

is a trademark of HDBaseT Alliance.

and TM symbols are not specied in this manual.

rIllustrations in this manual

f Illustrations of the projector, screen, and other parts may vary from the actual product. f Illustrations of the projector with the power cord attached are only examples. The shape of the supplied power

cords varies depending on the country where you purchased the product.

rReference pages

f Reference pages in this manual are indicated as (x page 00).

rTerm

f In this manual, the “Wireless/wired remote control unit” accessory is referred to as “Remote control”.

14 - ENGLISH

Features of the Projector

High luminance and high contrast

▶ With the high efcient optical system that

maximizes the output of the solid-state light source, and unique drive system, high

luminance of 25 000 lm and high contrast

of 20 000:1

high color reproduction. Also, high-contrast

image content supported by HDR (High

Dynamic Range) can be reproduced as a projected image.

*1 When [DYNAMIC CONTRAST] is set to [3]

Easy and highly exible setup

▶ In addition to the DIGITAL LINK support,

Art-Net support, and abundant lineup

of optional lenses, application to wide range of usage is possible with support of all 360° direction projection utilizing the characteristics of solid-state light source.

The projector is equipped with handholds (handles) for transporting and eyebolt

attachment is also allowed. Therefore, the projector can be installed without attaching a separate frame.

are realized in addition to the

Quick Steps

For details, refer to the corresponding pages.

1. Set up the projector.

(x page 35)

2. Attach the projection lens (optional).

(x page 48)

3. Connect with external devices. (x page 51)

4. Connect the power cord. (x page 58)

5. Switch on the projector. (x page 60)

6. Make initial settings. (x page 61)

f Take this step when you switch on the

power for the rst time after purchasing the

projector.

Long life and high reliability

▶ The maintenance cost for long-term

operation is reduced by the unique light

source cooling control technology and improvement of the dust resistance. Also, it will contribute to the stable operation by implementation of the backup function that will continue the projection by switching to the backup input signal immediately even when the input signal is discontinued, in addition to adopting solid-state light source which has long life.

7. Select the input signal. (x page 69)

8. Adjust the image. (x page 70)

ENGLISH - 15

Chapter 1 Preparation

This chapter describes things you need to know or check before using the projector.

16 - ENGLISH

Chapter 1 Preparation — Precautions for use

Precautions for use

Cautions when transporting

f Transport the projector with four or more people. Failure to do so may drop the projector, which may result in

damage or deformation of the projector, or injury.

f When transporting the projector, hold it securely by its front side and back side handles and avoid excessive

vibration and impacts. Failure to do so may cause a failure due to the damaged internal components.

f Do not transport the projector with the adjustable feet extended. Doing so may damage the adjustable feet.

Cautions when installing

rDo not set up the projector outdoors.

The projector is designed for indoor use only.

rDo not set up the projector in the following locations.

f Places where vibration and impacts occur such as in a car or vehicle: Doing so may cause damage to internal

components or malfunction.

f Location close to sea or where corrosive gas may occur: The projector may fall due to corrosion. Also, failure to

do so may shorten the life of the components and result in malfunctions.

f Near the exhaust of an air conditioner: Depending on the conditions of use, the screen may uctuate in rare

cases due to the heated air from the air exhaust port or the hot or cooled air. Make sure that the exhaust from the projector or other equipment, or the air from the air conditioner does not blow toward the front of the

projector.

f Places with sharp temperature uctuations such as near lights (studio lamps): Doing so may shorten the life of

the light source, or result in deformation of the projector due to heat, which may cause malfunctions. Follow the operating environment temperature of the projector.

f Near high-voltage power lines or near motors: Doing so may interfere with the operation of the projector. f Places where there is high-power laser equipment: Directing a laser beam onto the projection lens surface

causes damage to the DLP chips.

rAsk a qualied technician or your dealer to do installation work such as mounting the

projector on the ceiling, including installation work that uses eyebolts.

To ensure projector performance and security, ask a qualied technician or your dealer when installing the projector in a method other than the oor installation or when installing the projector in a high place.

rAsk a qualied technician or your dealer to install the cable wiring for DIGITAL LINK

connection.

Image and sound may be disrupted if cable transmission characteristics cannot be obtained due to inadequate

installation.

rThe projector may not work properly due to strong radio wave from the broadcast

station or the radio.

If there is any facility or equipment which outputs strong radio waves near the installation location, install the projector at a location sufciently far from the source of the radio waves. Or, wrap the LAN cable connected to the <DIGITAL LINK/LAN> terminal using a piece of metal foil or a metal pipe which is grounded at both ends.

rFocus adjustment

The high clarity projection lens is thermally affected by the light from the light source, making the focus unstable in the period just after switching on the power. It is recommended that images be projected continuously for at least 30 minutes before the focus is adjusted.

rDo not install the projector at an altitude of 4 200 m (13 780') or higher above sea level.

ENGLISH - 17

Chapter 1 Preparation — Precautions for use

rDo not use the projector in a location that the ambient temperature exceeds 50 °C

(122 °F).

Using the projector in a location that the altitude is too high or the ambient temperature is too high may reduce the life of the components or result in malfunctions.

The upper limit of the operating environment temperature differs depending on the altitude or the setting of the [PROJECTOR SETUP] menu → [OPERATION SETTING] (x page 135) → [OPERATING MODE].

Setting for [OPERATING MODE]

Altitude above sea level

Altitude of 0 m (0') or higher

to lower than 1 400 m

(4 593') Altitude of 1 400 m (4 593')

or higher to lower than

2 700 m (8 858') Altitude of 2 700 m (8 858')

or higher to lower than

4 200 m (13 780')

When the Smoke Cut Filter is used, the operating environment temperature should be between 0 °C (32 °F) and 40 °C (104 °F) regardless of the [OPERATING MODE] setting. It cannot be used at an altitude of 1 400 m (4 593')

or higher above sea level.

[HIGH], [NORMAL], [USER1], [USER2], [USER3]

0 °C (32 °F) to 50 °C (122 °F)

0 °C (32 °F) to 45 °C (113 °F)

[LONG LIFE1], [LONG LIFE2], [LONG LIFE3]

0 °C (32 °F) to 45 °C (113 °F)

The projector cannot be used.

rProjection in all 360° direction is possible.

360°

360° vertically 360° horizontally 360° tilted

360°

(combination of vertical and horizontal)

360°

Cautions when setting up the projector

f Install the projector in a place or with a mount that can sufciently tolerate the weight. The position of the

projected image may shift if the strength is not sufcient.

f Use the adjustable feet only for the oor standing installation and for adjusting the angle. Using them for other

purposes may damage the projector.

f The adjustable feet can be removed if not needed in the installation. However, do not use the screw holes

where the adjustable feet were removed to x the projector to a mount.

Also, do not insert any screws other than the eyebolts for the installation work into the screw holes of the

adjustable feet. Do not insert the removed adjustable feet into other M10 screw holes.

f Do not x the projector to a mount with the screw holes for eyebolts (4 locations on each side) on the top side,

right and left sides, and back side.

f When installing and using the projector in a method other than the oor installation using the adjustable feet,

remove the adjustable feet (4 locations) and use the six screw holes to x the projector to a mount (as shown in the gure).

18 - ENGLISH

Chapter 1 Preparation — Precautions for use

f Use a torque screwdriver or Allen torque wrench to tighten the xing screws to their specied tightening torques.

Do not use electric screwdrivers or impact screwdrivers.

(Screw diameter: M10, thread engagement length: 18 mm (23/32") or more, tapping depth inside the projector: 30 mm (1-3/16"), screw tightening torque: 20 ± 1 N·m)

Adjustable feet

Mount

Screw holes to fix the projector

Tapping depth (common for 6 locations) 30 mm (1-3/16")

Adjustable feet

Position of screw holes to fix projector and

adjustable feet

f Do not stack three or more projectors. f Do not use the projector supporting it by the top. f Do not block the ventilation ports (intake and exhaust) of the projector.

ENGLISH - 19

Chapter 1 Preparation — Precautions for use

f Prevent hot and cool air from the air conditioning system to blow directly to the ventilation ports (intake and

exhaust) of the projector.

When the optional Long Life Filter Unit (Model No.: ET-EMFU330) is attached

500 mm (19-11/16") or longer

100 mm (3-15/16") or longer

f Do not install the projector in a conned space.

When installing the projector in a conned space, provide air conditioning or ventilation separately. Exhaust heat

may accumulate when the ventilation is not enough, triggering the protection circuit of the projector.

f Panasonic takes no responsibility for any damage to the product caused by an inappropriate choice of location

for installing the projector, even if the warranty period of the product has not expired.

rCautions when conducting lifting work

f Use the eyebolts only when temporarily lifting the projector such as when installing the projector. f Use ISO standard eyebolts (commercially available) for the M10 with an underhead length of 18 mm (23/32") to

30 mm (1-3/16"). Also use ISO standard parts for other components to lift the projector (wires, etc.).

f Lift the projector using the eyebolts attached to 4 locations on the same plane.

20 - ENGLISH

Chapter 1 Preparation — Precautions for use

f Set the lifting angle to 60° or more.

18 mm (23/32") - 30 mm (1-3/16")

60° or more

Security

When using this product, take safety measures against the following incidents.

f Personal information being leaked via this product f Unauthorized operation of this product by a malicious third party f Interfering or stopping of this product by a malicious third party

Take sufcient security measures.

f Make your password difcult to guess as much as possible. f Change your password periodically. A password can be set in the [SECURITY] menu → [SECURITY

PASSWORD CHANGE].

f Panasonic Corporation or its afliate companies will never ask for your password directly. Do not divulge your

password in case you receive such inquiries.

f The connecting network must be secured by a rewall, etc. f Set a password for the web control and restrict the users who can log in. A password for the web control can be

set in the [Change password] page of the web control screen.

ENGLISH - 21

Chapter 1 Preparation — Precautions for use

DIGITAL LINK

“DIGITAL LINK” is a technology to transmit the video, audio, Ethernet, and serial control signals using a twisted pair cable by adding unique functions by Panasonic to the HDBaseTTM communication standard formulated by HDBaseT Alliance.

This projector supports the optional Panasonic DIGITAL LINK output supported device (Model No.: ET-YFB100G, ET-YFB200G) and peripheral devices by other manufacturers (twisted-pair-cable transmitters such as the “XTP transmitter” of Extron Electronics) that use the same HDBaseT manufacturers that the operation has been veried with this projector, visit the Panasonic website (http:// panasonic.net/avc/projector/). Note that the verication for devices of other manufacturers has been made for the items set by Panasonic Corporation, and not all the operations have been veried. For operation or performance

problems caused by the devices of other manufacturers, contact the respective manufacturers. This projector

does not support audio transmission because it is not equipped with audio function.

standard. For the devices of other

Art-Net

“Art-Net” is an Ethernet communication protocol based on the TCP/IP protocol. By using the DMX controller and the application software, illumination and stage system can be controlled. Art-Net

is made based on DMX512 communication protocol.

Early Warning Software

The projector supports “Early Warning Software”, which monitors the status of the display (projector or at panel display) and the peripheral devices inside an intranet, and noties of abnormality of such equipment and detects

signs of possible abnormality. Also, maintenance can be performed in advance, because this software gives

notication of approximate time to replace consumables of the display, to clean each part of the display, and to

replace the components of the display.

Depending on the type of license, the number of displays that can be registered for monitoring varies. Limited to the rst 90 days after installation in a computer, it is possible to register up to 2048 units of displays free of charge.

Download the software from the Panasonic website (http://panasonic.net/avc/projector/pass/). It is necessary to

*1 PASS: Panasonic Professional Display and Projector Technical Support Website

Visit the Panasonic website (http://panasonic.net/avc/projector/pass/) for details.

to download.

Disposal

To dispose of the product, ask your local authorities or dealer for correct methods of disposal. Also, dispose of the product without disassembling.

Cautions on use

rTo get a good picture quality

In order to view a beautiful image in higher contrast, prepare an appropriate environment. Draw curtains or blinds over windows and turn off any lights near the screen to prevent outside light or light from indoor lamps from shining onto the screen.

rDo not touch the surface of the projection lens with your bare hands.

If the surface of the projection lens becomes dirty from ngerprints or anything else, this will be magnied and

projected onto the screen. Attach the supplied lens cover to the optional projection lens when not using the projector.

rDLP chips

f The DLP chips are precision-made. Note that in rare cases, pixels of high precision could be missing or always

lit. Such a phenomenon does not indicate malfunction.

f Directing a high-power laser beam onto the projection lens surface can damage the DLP chips.

rDo not move the projector or subject it to vibration or impact while it is operating.

Doing so may shorten the life of the built-in motor.

22 - ENGLISH

Chapter 1 Preparation — Precautions for use

rLight source

The light source of the projector uses lasers, and has the following characteristics.

f Depending on the operating environment temperature, the luminance of the light source will decrease.

The higher the temperature becomes, the more the luminance of the light source decreases.

f The luminance of the light source will decrease by duration of usage.

If brightness is noticeably reduced and the light source does not turn on, ask your dealer to clean inside the projector or replace the light source unit.

rComputer and external device connections

f When connecting a computer or an external device, read this manual carefully regarding the use of power cords

and shielded cables as well.

rViewing 3D images

The projector can display the 3D video signal input in various formats such as “frame packing”, “side by side”, etc. You are required to prepare external devices for viewing 3D images (such as 3D eyewear, video signal output

devices) which are suitable for your 3D system. Connections of the projector and external devices vary depends on the 3D system to be used, see the operating instructions of external devices you use.

Refer to “List of 3D compatible signals” (x page 230) for the types of 3D video signals that can be used with the

projector.

ENGLISH - 23

Chapter 1 Preparation — Precautions for use

Accessories

Make sure that the following accessories are provided with your projector. Numbers enclosed in < > show the

number of accessories.

Wireless/wired remote control unit <1>

(N2QAYB001052)

Power cord

(DPJA1002ZA): for 200 V - 240 V

(DPJA1001ZA): for 200 V - 240 V

Lens xing screw <1>

(XYN4+J18FJ)

Replacement Filter Unit <4>

(ET-EMF330)

Lens hood 1 <1>

(7MHRZ31KU)

Lens hood 2 <1>

(8MHRZ31KU)

(DPJA1004ZA): for 110 V - 120 V

Lens hole cover <1>

(GE1RZ31KU)

(Attached to the product at the time of purchase)

CD-ROM <1>

(1JK1RZ31KU)

AA/R6 or AA/LR6 battery <2>

Lens hood mounting plate 1 <1>

(DPMH1090ZA)

Lens hood mounting plate 2 <1>

(DPMH1089ZA)

Lens hood screw <6>

(XYN4+F8FJK)

Knurled head screw <6>

(DPHD1026ZA)

(For remote control unit)

24 - ENGLISH

Chapter 1 Preparation — Precautions for use

Attention

f After unpacking the projector, discard the power cord cap and packaging material properly. f Do not use the supplied power cord for devices other than this projector. f For missing accessories, consult your dealer. f Store small parts in an appropriate manner, and keep them away from small children.

Note

f The lens hood needs to be mounted to the projector when using the projector in combination with the projection lenses

below in the North American region. Always ask a qualied technician or your dealer to attach these projection lenses or to

mount the lens hood.

Projection lens: ET-D75LE8, ET-D75LE30, ET-D75LE40

The lens hood is assembled and mounted to the projector using the following supplied components.

Lens hood 1, Lens hood 2, Lens hood mounting plate 1, Lens hood mounting plate 2, Lens hood screws, Knurled head

screws

For the assembly and attachment, refer to the separate document “Mounting the lens hood”. The components and document

of the lens hood may not be supplied depending on the country or region where you purchased the product.

f The type and number of the supplied power cords vary depending on the country or region where you purchased the

product.

f The air lter unit is already attached to the projector at the time of purchase. Four Replacement Filter Units (Model No.:

ET-EMF330) are supplied.

f The model numbers of accessories are subject to change without prior notice.

Contents of the supplied CD-ROM

The contents of the supplied CD-ROM are as follows.

Instruction/list (PDF) Operating Instructions

Multi Monitoring & Control Software Operating Instructions Logo Transfer Software Operating Instructions List of Compatible Device

Models

Software Multi Monitoring & Control

Software (Windows) Logo Transfer Software

(Windows)

This is a list of projectors that are compatible with the software

contained in the CD-ROM and their restrictions.

This software allows you to monitor and control multiple displays

(projector or at panel display) connected to the LAN.

This software allows you to transfer original images, such as company logos to be displayed when projection starts, to the projector.

Note

f The “List of Compatible Device Models” for the at panel display compatible with the “Multi Monitoring & Control Software”

can be downloaded from the Panasonic website (http://panasonic.net/prodisplays/).

ENGLISH - 25

Optional accessories

Chapter 1 Preparation — Precautions for use

Optional accessories

(product name)

Projection lens

Replacement Filter Unit ET-EMF330

Long Life Filter Unit ET-EMFU330

Smoke Cut Filter ET-SFR330

Early Warning Software

(Basic license/3-year

license)

Upgrade Kit ET-UK20

Auto Screen Adjustment Upgrade Kit

Auto Screen Adjustment

Upgrade Kit (PC) Digital Interface Box ET-YFB100G DIGITAL LINK Switcher ET-YFB200G

*1 The sufx of the Model No. differs according to the license type. *2 Available worldwide except in the United States.

Zoom Lens

Fixed-focus Lens ET-D75LE50, ET-D75LE95

ET-SWA100 Series

ET-CUK10

ET-CUK10P

ET-D75LE6, ET-D75LE8, ET-D75LE10, ET-D75LE20, ET-D75LE30, ET-D75LE40

Model No.

Note

f The model numbers of optional accessories are subject to change without prior notice. f For details on how to attach the Long Life Filter Unit (Model No.: ET-EMFU330), refer to “Attaching the Long Life Filter Unit

(optional)” (x page 238).

f For details on how to attach the Smoke Cut Filter (Model No.: ET-SFR330), refer to “Attaching the Smoke Cut Filter Unit

(optional)” (x page 242).

26 - ENGLISH

Chapter 1 Preparation — About your projector

About your projector

Remote control

Front Top

2 3

1 Remote control indicator

Blinks if any button in the remote control is pressed.

2 Power on <b> button

Sets the projector to projection mode when the <MAIN POWER> switch on the projector is set to <ON> and the power is turned off (standby mode).

3 Power standby <v> button

Sets the projector to the state where the projector is turned

off (standby mode) when the <MAIN POWER> switch on the projector is set to <ON> and in projection mode.

4 <MENU> button/<ENTER> button/asqw buttons

Used to navigate through the menu screen. (x page 81)

5 <ON SCREEN> button

Switches the on-screen display function on (display) or off (hide). (x page 76)

6 <AUTO SETUP> button

Automatically adjusts the image display position while projecting the image.

[PROGRESS] is displayed while in automatic adjustment. (x page 77)

7 <ASPECT> button

Switches the aspect ratio of the image. (x page 77)

8 Number (<0> - <9>) buttons

Used for entering an ID number or a password in a multiple projector environment.

9 <STATUS> button

Displays the projector information.

10 <LIGHT> button

Pressing this button lights up the remote control buttons. The lights will go off when the remote control operation goes idle for 10 seconds.

11 <INPUT MENU> button

Displays the input selection screen. (x page 70)

Bottom

A strap can be attached depending on the usage.

12 Input selection buttons (<RGB1>, <RGB2>, <VIDEO>,

<S-VIDEO Y/C>, <DIGITAL LINK>, <DVI-D>, <HDMI>, <SDI>)

Switches the input signal to project. (x page 69) The <DISPLAY PORT> button, the <SLOT1> button, and the <SLOT2> button are not used with the projector.

13 <SHUTTER> button

Used to temporarily turn off the image. (x page 76)

14 <TEST PATTERN> button

Displays the test pattern. (x page 78)

15 Lens buttons (<FOCUS>, <ZOOM>, <SHIFT>)

Adjusts the projection lens. (x page 70)

16 <FUNCTION> button

Assigns a frequently used operation as a shortcut button. (x page 77)

17 <DEFAULT> button

Resets the content of the sub-menu to the factory default. (x page 82)

18 <ID SET> button

Sets the ID number of the remote control in a multiple projector environment. (x page 32)

19 <ID ALL> button

Used to simultaneously control all the projectors with a single remote control in a multiple projector environment. (x page 32)

20 <LOCK> button

Used to prevent unintended operation by careless pressing of the buttons and prevent draining the remote control batteries. Operation of each button on the remote control is disabled by

sliding the <LOCK> button toward the arrow.

21 Remote control signal transmitter

22 Remote control wired terminal

This is a terminal used to connect to the projector via a cable when the remote control is used as a wired remote control. (x page 33)

23 Strap hole

Attention

f Do not drop the remote control.

ENGLISH - 27

Chapter 1 Preparation — About your projector

f Avoid contact with liquids or moisture. f Do not attempt to modify or disassemble the remote control. f Do not swing the remote control holding onto the strap when a strap is attached. f Observe the following instructions that are indicated on the caution label at the back of the remote control:

g Do not use old battery with new one. g Do not use batteries other than the type specied. g Be sure the batteries are inserted properly.

For other instructions, read the instructions related to batteries that are described in “Read this rst!”.

1.Do not use old battery with new one.

2.Do not use batteries other than the type specified.

3.Be sure the batteries are inserted properly.

N2QAYB001052

Caution label at the back of the remote control

Made in China

Note

f When operating the remote control by directly pointing the remote control signal receiver of the projector, operate the remote control at

a distance approx. 30 m (98'5") or shorter from the remote control signal receiver. The remote control can control at angles of up to ±15° vertically and ±30° horizontally, but the effective control range may be reduced.

f If there are any obstacles between the remote control and the remote control signal receiver, the remote control may not operate properly. f The signal will be reected off the screen. However, the operating range may be limited from light reection loss due to the screen material. f If the remote control signal receiver directly receives strong light, such as uorescent light, the remote control may not operate properly. Use

it in a place distant from the light source.

f The power indicator <ON (G)/STANDBY (R)> will blink if the projector receives a remote control signal.

Projector body

Front

12345 6

7 7

Rear

Side

9 9

10 8 8 99

9 9 99

13 14

912 9 916 179

Projection direction

1 Remote control signal receiver (front)

2 Power indicator <ON (G)/STANDBY (R)>

Indicates the status of the power.

3 Light source indicator <LIGHT1>

Indicates the status of light source 1.

4 Light source indicator <LIGHT2>

Indicates the status of light source 2.

5 Temperature indicator <TEMP>

Indicates the internal temperature status.

28 - ENGLISH

6 Filter indicator <FILTER>

Indicates the status of the air lter unit.

7 Adjustable feet

Adjusts the projection angle.

8 Air intake port

9 Screw holes for eyebolts

Screw diameter: M10, tapping depth inside the projector: 35 mm (1-3/8")

10 Air lter cover

The air lter unit is inside.

Chapter 1 Preparation — About your projector

11 Remote control signal receiver (rear)

12 Air exhaust port 13 Control panel (x page 30) 14 Connecting terminals (x page 31)

15 Security slot

This security slot is compatible with the Kensington security cables.

16 <AC IN> terminal

Connect the supplied power cord.

17 <MAIN POWER> switch

Turns on/off the main power.

BottomTop

Projection direction

WARNING

Do not touch the top surface of the projector during use.

f Doing so may result in burns, as the top surface is hot during

use and for a while after use.

Attention

f Do not block the ventilation ports (intake and exhaust) of the projector.

1 Screw holes for eyebolts

Screw diameter: M10, tapping depth inside the projector: 35 mm (1-3/8")

2 Handle

Hold the handle with your hand when carrying the projector.

3 Screw holes to x the projector

Screw diameter: M10, tapping depth inside the projector: 30 mm (1-3/16")

ENGLISH - 29

r Control panel

Chapter 1 Preparation — About your projector

1 2 3

7 8 9

13 14

1 Power on <b> button

Sets the projector to projection mode when the <MAIN POWER> switch on the projector is set to <ON> and the power is turned off (standby mode).

2 Power standby <v> button

Sets the projector to the state where the projector is turned

off (standby mode) when the <MAIN POWER> switch on the projector is set to <ON> and in projection mode.

3 <RGB1> button

Switches the input to RGB1.

4 <RGB2> button

Switches the input to RGB2.

5 <DVI-D> button

Switches the input to DVI-D.

6 <HDMI> button

Switches the input to HDMI.

7 <DIGITAL LINK> button

Switches the input to DIGITAL LINK.

8 <SDI 1/2> button

Switches the input to SDI.

9 Input selection terminal indicator

Indicator that shows the selected input terminal. This indicator lights up when a video signal is being input to the selected terminal, and blinks when there is no video signal being input.

10 <AUTO SETUP> button

Automatically adjusts the image display position while the

image is projected. [PROGRESS] is displayed while in automatic adjustment. (x page 77)

11 <MENU> button

Displays or hides the main menu. (x page 81) Returns to the previous menu when a sub-menu is displayed.

If you press the <MENU> button on the control panel for at least three seconds while the on-screen display is off (hidden), the

on-screen display is turned on.

12 <LENS> button

Adjusts the focus, zoom, and shift (position) of the lens.

13 <ENTER> button

Determines and executes an item in the menu screen.

14 <SHUTTER> button

Used to temporarily turn off the image. (x page 76)

15 asqw buttons

Used to select items in the menu screen, change settings, and adjust levels.

Also used to enter a password in [SECURITY] or enter

characters.

16 <LIGHT> switch

This is a light switch for the connecting terminals and control panel.

17 Self-diagnosis display

Automatically displays the value of the input supply voltage, or the alphanumeric symbols of errors or warnings when they occur.

(x pages 79, 206)

30 - ENGLISH

r Connecting terminals

Chapter 1 Preparation — About your projector

1 2 3 4 65 7

9 10 11 12 138

1 <REMOTE 1 IN> terminal/<REMOTE 1 OUT> terminal

These are terminals to connect the remote control for serial control in a multiple projector environment.

2 <REMOTE 2 IN> terminal

This is a terminal to remotely control the projector using the

external control circuit.

3 <SERIAL IN> terminal

This is the RS-232C compatible terminal to externally control

the projector by connecting a computer.

4 <SERIAL OUT> terminal

This is a terminal to output the signal connected to the <SERIAL IN> terminal.

5 <MULTI PROJECTOR SYNC IN> terminal/<3D SYNC 1 IN/

OUT> terminal (dual purpose)

This terminal is used to connect multiple projectors when balancing the contrast as a combined screen or synchronizing the effects using the shutter function including the fade in/fade out with a system using multiple projectors. This terminal is also used to input or output control signals when using the projector in 3D systems.

6 <MULTI PROJECTOR SYNC OUT> terminal/<3D SYNC 2

OUT> terminal (dual purpose)

This terminal is used to connect multiple projectors when balancing the contrast as a combined screen or synchronizing the effects using the shutter function including the fade in/fade out with a system using multiple projectors. This terminal is also used to output control signals when using the projector in 3D systems.

7 <DC OUT 1> terminal/<DC OUT 2> terminal

This is the USB terminal dedicated for power supply. (DC 5 V, maximum 900 mA) Use this terminal when a power supply is required to wireless display adapters and wireless LAN Ethernet converters, etc.

8 <SDI IN 1> terminal/<SDI IN 2> terminal

These are terminals to input SDI signals.

9 <RGB 1 IN> terminals (<R/P

<SYNC/HD>, <VD>)

These are terminals to input RGB signals, YCBCR/YPBPR

signals, Y/C signals, or video signals.

10 <RGB 2 IN> terminal

This is a terminal to input RGB signals or YC

11 <DVI-D IN> terminal

This is the terminal to input DVI-D signals.

12 <HDMI IN> terminal

This is the terminal to input HDMI signals.

13 <DIGITAL LINK/LAN> terminal

This is the LAN terminal to connect to the network. This is also

used when connecting a video signal transmission device via

the LAN terminal.

/VIDEO>, <G/Y>, <B/PB/C>,

/YPBPR signals.

BCR

Attention

f When a LAN cable is directly connected to the projector, the network connection must be made indoors. f When the [PROJECTOR SETUP] menu → [STANDBY MODE] is set to [NORMAL], power can be supplied by using the <DC OUT 1>

terminal or the <DC OUT 2> terminal even while the projector is in standby mode. If [ECO] is set, power cannot be supplied in standby

mode.

ENGLISH - 31

Chapter 1 Preparation — Preparing the remote control

Preparing the remote control

Inserting and removing the batteries

(ii)

(i)

Fig. 1 Fig. 2

1) Open the cover. (Fig. 1)

2) Insert the batteries and close the cover (insert the m side first). (Fig. 2)

f When removing the batteries, perform the steps in reverse order.

When using the multiple projectors

When you use the multiple projectors together, you can operate all the projectors simultaneously or each projector

individually using single remote control, if a unique ID number is assigned to each projector.

When using the projectors by setting the ID numbers, set the ID number of the projector body after initial settings have been completed. Then, set the ID number of the remote control. For initial settings, refer to “When the initial

setting screen is displayed” (x page 61). The factory default ID number of the projector (projector body and remote control) is set to [ALL], so you can use

it as it is. Set the ID numbers of the projector body and remote control as necessary.

For details on setting the ID number of the remote control, refer to “Setting ID number of the remote control” (x page 79).

Note

f Set the ID number of the projector body from the [PROJECTOR SETUP] menu → [PROJECTOR ID].

32 - ENGLISH

Chapter 1 Preparation — Preparing the remote control

Connecting the remote control to the projector with a cable

If you control the multiple projectors with a single remote control, use commercially available M3 stereo mini jack cables to connect to the <REMOTE 1 IN>/<REMOTE 1 OUT> terminals of the projectors.

The remote control is effective even in places where an obstacle stands in the light path or where devices are susceptible to outside light.

M3 stereo mini jack cable (commercially available)

Remote control

Connecting to a second projector

Connecting to the remote control wired terminal

Connecting terminals

Attention

f Use a cable that is 15 m (49'3") or shorter, with 2 core shielded. The remote control may not operate when the length of the cable exceeds

15 m (49'3") or when the shielding of the cable is inadequate.

ENGLISH - 33

Chapter 2 Getting Started

This chapter describes things you need to do before using the projector such as the setup and connections.

34 - ENGLISH

Chapter 2 Getting Started — Setting up

Setting up

Usable outlet

This projector supports AC 100 V to AC 120 V, and AC 200 V to AC 240 V as the power supply. A grounded outlet supporting 30 A is required when using the projector with AC 200 V to AC 240 V. A grounded outlet supporting 15 A is required when using the projector with AC 100 V to AC 120 V.

The shape of the usable outlet differs depending on the power supply. Following illustrations are examples.

2P/3W 30 A 250 V

NEMA L6-30

2P/3W 30 A 250 V

Clock position 6h

2P/3W 15 A 125 V

Attention

f Use the supplied power cord and ground at the outlet. f Use the power cord matching the used power supply voltage and outlet shape.

Note

f The light output will decrease to approximately 1/3 when using the projector with AC 100 V to AC 120 V. f The supplied power cords vary depending on the country or region where you purchased the product.

Installation mode

The installation modes of the projector are as follows. Set [FRONT/REAR]/[FLOOR/CEILING] in the [PROJECTOR SETUP] menu → [PROJECTION METHOD] (x page 134) depending on the installation mode.

Setting on a desk/oor and projecting forward Setting on a desk/oor and projecting from rear

(Using the translucent screen)

Menu item Setting value Menu item Setting value

[FRONT/REAR] [FRONT] [FRONT/REAR] [REAR]

[FLOOR/CEILING] [AUTO] or [FLOOR] [FLOOR/CEILING] [AUTO] or [FLOOR]

Mounting on the ceiling and projecting forward Mounting on the ceiling and projecting from rear

(Using the translucent screen)

Menu item Setting value Menu item Setting value

[FRONT/REAR] [FRONT] [FRONT/REAR] [REAR]

[FLOOR/CEILING] [AUTO] or [CEILING] [FLOOR/CEILING] [AUTO] or [CEILING]

ENGLISH - 35

Chapter 2 Getting Started — Setting up

Portrait setting and projecting forward Portrait setting and projecting from the rear

(Using the translucent screen)

Menu item Setting value Menu item Setting value

[FRONT/REAR] [FRONT] [FRONT/REAR] [REAR]

[FLOOR/CEILING]

Set in accordance with the image to project.

[FLOOR/CEILING]

Set in accordance with the image to project.

Note

f In the portrait setting, the on-screen menu is displayed sideways.

To display the on-screen menu vertically, change the [OSD ROTATION] setting in the [DISPLAY OPTION] menu → [ON-SCREEN DISPLAY] (x page 126).

f The projector has a built-in angle sensor. The attitude of the projector is automatically detected by setting [FLOOR/CEILING] to [AUTO] in

the [PROJECTOR SETUP] menu → [PROJECTION METHOD].

r Angle sensor

The range of the installation attitude that is detected by the angle sensor built-in the projector is as follows.

Floor standing installation

Projection direction

30°

Ceiling mount installation

36 - ENGLISH

Chapter 2 Getting Started — Setting up

Projected image and throw distance

Install the projector referring to the projected image size and projection distance. Image size and image position

can be adjusted in accordance with the screen size and screen position. When the Fixed-focus Lens (Model No.: ET-D75LE95) is attached, the projection relation between the screen and the projector differs from that of other lenses. Refer to “Fixed-focus Lens (Model No.: ET-D75LE95)” (x page 38) for details.

f Following illustration is prepared on the assumption that the projected image size and position have been

aligned to t full in the screen.

Projected image

L (LW/LT)

*1 LW: Minimum projection distance when the Zoom Lens is used

LT: Maximum projection distance when the Zoom Lens is used

Projection lens Model No. Dimension for L1 (approximate value)

ET-D75LE6 0.182

ET-D75LE8 0.224 ET-D75LE10 0.095 ET-D75LE20 0.091 ET-D75LE30 0.091 ET-D75LE40 0.094 ET-D75LE50 0.173

L1 Lens protrusion dimension

SH Projected image height

SW Projected image width

SD Projected image size

Projection distance

Screen

L (LW/LT)

SW SH

Screen

(Unit: m)

ENGLISH - 37

Chapter 2 Getting Started — Setting up

r Fixed-focus Lens (Model No.: ET-D75LE95)

Projected image

Screen

SHA1

Screen

SH Projected image height

SW Projected image width

SD Projected image size

L1 Projection distance (from the screen to the mirror reection surface

)

L2 Distance between the projector and the screen (from the screen to the tip of the lens) L3 Distance between the projector and the screen (from the screen to the front surface of the projector) L4 Distance between the projector and the screen (from the screen to the rear surface of the projector)

A1 Distance between the projector and the screen (from the screen bottom edge to the projector top) A2 Distance between the projector and the screen (from the screen bottom edge to the projector bottom)

*1 The mirror reection surface cannot be seen from the outside, because it is located inside the Fixed-focus Lens.

(Unit: m)

Distance between projector

and screen

L2 = L1 L3 = L1 L4 = L1

A2 = A1

*1 For details of calculating values, refer to “Formula for calculating the projection distance per projection lens” (x page 46).

Formula

+ 0.029

- 0.262

- 1.332

+ 0.419

Attention

f Before setting up, read “Precautions for use” (x page 17).

Especially when the Fixed-focus Lens (Model No.: ET-D75LE95) is used, install the projector so that its back plane is parallel to the screen,

making the projected image rectangular.

The vertical keystone distortion in moderate range can be corrected with the [POSITION] menu → [GEOMETRY] → [KEYSTONE] → [VERTICAL KEYSTONE] (x page 99) even after the projector is installed. For the range that can be corrected, refer to “[GEOMETRY] projection range” (x page 39).

f Do not use the projector and the high-powered laser equipment in the same room. The DLP chips can be damaged if a laser beam hits the

projection lens surface.

f The dimension of L4 is not the distance between the rear of the projector body and the wall, but the distance between the rear of the

projector body and the screen surface. Install the projector with 500 mm (19-11/16") or larger space between the rear of the projector body

and the wall or any object so that the ventilation is not obstructed.

When installing the projector in a conned space, provide air conditioning or ventilation separately. Exhaust heat may accumulate when the

ventilation is not enough, triggering the protection circuit of the projector.

38 - ENGLISH

[GEOMETRY] projection range

[VERTICAL KEYSTONE] (viewed from the side) [HORIZONTAL KEYSTONE] (viewed from above)

Chapter 2 Getting Started — Setting up

Screen

Vertical arc correction (viewed from the side) Horizontal arc correction (viewed from above)

Projection distance Arc radius

Screen

Projection distance Arc radius

Screen

Arc center

Screen

Projection distance Arc radius

Arc center

Screen

Projection distance Arc radius

ENGLISH - 39

Standard status

Chapter 2 Getting Started — Setting up

Only [KEYSTONE] used [KEYSTONE] and [CURVED CORRECTION] used together

Projection

lens Model

No.

ET-D75LE6 ±28 ±15 ±10 ±10 1.6 3.9 0.9 2.3

ET-D75LE8 ±40 ±15 ±20 ±15 0.2 0.4 0.2 0.3 ET-D75LE10 ±40 ±15 ±20 ±15 1.1 2.6 0.6 1.5 ET-D75LE20 ±40 ±15 ±20 ±15 0.9 1.7 0.5 1.0 ET-D75LE30 ±40 ±15 ±20 ±15 0.6 1.2 0.4 0.7 ET-D75LE40 ±40 ±15 ±20 ±15 0.4 0.7 0.2 0.4 ET-D75LE50 ±22 ±15 ±8 ±8 2.0 4.9 1.2 2.9

ET-D75LE95

*1 Only the vertical keystone correction angle can be corrected in the direction in which the projector body moves away from the screen.

Vertical

keystone

correction

angle α (°)

+5 / -0 0 ― ― ― ― ― ―

Horizontal

keystone

correction

angle β (°)

Vertical

keystone

correction

angle α (°)

Horizontal

keystone

correction

angle β (°)

Min. value of

R2/L2

Min. value of

R3/L3

Only [CURVED

CORRECTION] used

Min. value of

R2/L2

Min. value of

When using the optional Upgrade Kit (Model No.: ET-UK20)

Only [KEYSTONE] used

Projection

lens Model

No.

ET-D75LE6 ±28 ±15 ±10 ±10 1.2 3.0 0.7 1.7

ET-D75LE8 ±45 ±40 ±20 ±15 0.2 0.3 0.1 0.2 ET-D75LE10 ±40 ±40 ±20 ±15 0.9 2.0 0.5 1.1 ET-D75LE20 ±40 ±40 ±20 ±15 0.7 1.3 0.4 0.7 ET-D75LE30 ±45 ±40 ±20 ±15 0.5 0.9 0.3 0.5 ET-D75LE40 ±45 ±40 ±20 ±15 0.3 0.5 0.2 0.3 ET-D75LE50 ±22 ±15 ±8 ±8 1.5 3.7 0.9 2.2

ET-D75LE95

Vertical

keystone

correction

angle α (°)

+5 / -0 0 ― ― ― ― ― ―

Horizontal

keystone

correction

angle β (°)

[KEYSTONE] and [CURVED CORRECTION] used together

Vertical

keystone

correction

angle α (°)

Horizontal

keystone

correction

angle β (°)

Min. value of

R2/L2

Min. value of

R3/L3

Only [CURVED

CORRECTION] used

Min. value of

R2/L2

Min. value of

R3/L3

*1 When [VERTICAL KEYSTONE] and [HORIZONTAL KEYSTONE] are used simultaneously, correction cannot be made exceeding total of 55°. *2 Only the vertical keystone correction angle can be corrected in the direction in which the projector body moves away from the screen.

Note

f When [GEOMETRY] is used, the focus of the entire screen may be lost as correction increases. f Make the curved screen a circular arc shape with one part of a perfect circle removed. f Adjustment range of the [GEOMETRY] items may not match the listed projection range depending on the projection lens. Use this projector

within the projection range, otherwise the correction may not work.

40 - ENGLISH

Chapter 2 Getting Started — Setting up

Projection distance of each projection lens

A ±5 % error in listed projection distances may occur. When [GEOMETRY] is used, distance is corrected to become smaller than the specied image size.

For PT-RZ31K

r When the image aspect ratio is 16:10

(Unit: m)

Projection lens Model No. ET-D75LE6 ET-D75LE10 ET-D75LE20 ET-D75LE30 ET-D75LE40 ET-D75LE8

Diagonal (SD)

1.78 (70") 0.942 1.508 1.35 1.62 1.90 2.46 2.46 3.58 3.56 6.94 6.87 11.04 10.78 20.56

2.03 (80") 1.077 1.723 1.55 1.86 2.19 2.83 2.82 4.11 4.08 7.96 7.88 12.65 12.37 23.55

2.29 (90") 1.212 1.939 1.76 2.10 2.47 3.20 3.19 4.64 4.61 8.98 8.88 14.25 13.97 26.54

2.54 (100") 1.346 2.154 1.96 2.34 2.76 3.56 3.55 5.17 5.13 9.99 9.88 15.85 15.57 29.53

3.05 (120") 1.615 2.585 2.36 2.82 3.32 4.30 4.28 6.22 6.18 12.03 11.89 19.05 18.76 35.50

3.81 (150") 2.019 3.231 2.96 3.55 4.18 5.40 5.37 7.81 7.75 15.08 14.90 23.85 23.54 44.47

5.08 (200") 2.692 4.308 3.97 4.75 5.60 7.24 7.19 10.45 10.38 20.16 19.92 31.86 31.52 59.41

6.35 (250") 3.365 5.385 4.98 5.96 7.02 9.07 9.00 13.09 13.00 25.25 24.95 39.86 39.49 74.36

7.62 (300") 4.039 6.462 5.99 7.17 8.44 10.91 10.82 15.73 15.62 30.34 29.97 47.87 47.47 89.30

8.89 (350") 4.712 7.539 6.99 8.37 9.86 12.74 12.64 18.37 18.24 35.42 34.99 55.87 55.44 104.24

10.16 (400") 5.385 8.616 8.00 9.58 11.28 14.58 14.46 21.01 20.86 40.51 40.01 63.87 63.42 119.19

12.70 (500") 6.731 10.770 10.01 11.99 14.12 18.25 18.09 26.29 26.11 50.68 50.05 79.88 79.37 149.08

15.24 (600") 8.077 12.923 12.03 14.40 16.96 21.92 21.73 31.58 31.35 60.85 60.09 95.89 95.32 178.96

17.78 (700") 9.423 15.077 14.04 16.82 19.80 25.60 25.36 36.86 36.60 71.02 70.13 111.90 111.27 ―

20.32 (800") 10.770 17.231 16.06 19.23 22.64 29.27 29.00 42.14 41.84 81.19 80.17 127.91 127.23 ―

22.86 (900") 12.116 19.385 18.07 21.64 25.48 32.94 32.63 47.42 47.09 91.36 90.21 143.92 143.18 ―

25.40 (1000") 13.462 21.539 20.08 24.06 28.33 36.61 36.27 52.70 52.33 101.53 100.25 159.93 159.13 ―

Projection lens Model No. ET-D75LE95

Diagonal (SD)

1.78 (70") 0.942 1.508 ― ― ― 1.01

2.03 (80") 1.077 1.723 ― ― ― 1.16

2.29 (90") 1.212 1.939 ― ― ― 1.32

2.54 (100") 1.346 2.154 ― ― ― 1.47

3.05 (120") 1.615 2.585 0.94

3.81 (150") 2.019 3.231 1.18

5.08 (200") 2.692 4.308 1.56 0.23 0.37 - 0.63 3.01

6.35 (250") 3.365 5.385 1.95 0.61 0.49 - 0.82 3.78

7.62 (300") 4.039 6.462 2.33 1.00 0.62 - 1.02 4.56

8.89 (350") 4.712 7.539 2.72 1.38 0.74 - 1.21 5.33

10.16 (400") 5.385 8.616 3.10 1.77 0.86 - 1.40 6.10

12.70 (500") 6.731 10.770 3.87 2.54 1.11 - 1.78 7.64

15.24 (600") 8.077 12.923 4.64 3.31 1.36 - 2.16 9.18

17.78 (700") 9.423 15.077 ― ― ― 10.72

20.32 (800") 10.770 17.231 ― ― ― 12.27

22.86 (900") 12.116 19.385 ― ― ― 13.81

25.40 (1000") 13.462 21.539 ― ― ― 15.35

*1 The throw ratio is based on the value during projection with the projected image size of 3.81 m (150"). *2 When the Fixed-focus Lens (Model No.: ET-D75LE95) is attached, the projection relation between the screen and the projector differs from that of

other lenses. Refer to “Fixed-focus Lens (Model No.: ET-D75LE95)” (x page 38) for details.

Lens type Zoom Lens

Throw ratio

Projected image size Projection distance (L)

Lens type Fixed-focus Lens

Throw ratio

Projected image size

Height

(SH)

Height

(SH)

0.9-1.1:1 1.3-1.7:1 1.7-2.4:1 2.4-4.7:1 4.6-7.4:1 7.3-13.8:1

Min.

Max.

Min.

Max.

Min.

Max.

Min.

Width (SW)

Width (SW) (L4) (A1) Fixed

(LW)

(LT)

Projection

distance

(L1)

(LW)

(LT)

(LW)

(LT)

0.36:1 0.7:1

Distance between projector and

screen

0.39 0.17 - 0.33 1.78

0.16 0.24 - 0.44 2.24

Max.

(LW)

ET-D75LE50

distance (L)

Min.

(LT)

(LW)

Projection

Max.

(LT)

Min. (LW)

Max.

(LT)

ENGLISH - 41

Chapter 2 Getting Started — Setting up

r When the image aspect ratio is 16:9

(Unit: m)

Projection lens Model No. ET-D75LE6 ET-D75LE10 ET-D75LE20 ET-D75LE30 ET-D75LE40 ET-D75LE8

Diagonal (SD)

1.78 (70") 0.872 1.550 1.39 1.66 1.96 2.53 2.53 3.68 3.66 7.14 7.07 11.36 11.09 21.14

2.03 (80") 0.996 1.771 1.60 1.91 2.25 2.91 2.91 4.23 4.20 8.19 8.10 13.00 12.73 24.21

2.29 (90") 1.121 1.992 1.81 2.16 2.54 3.29 3.28 4.77 4.74 9.23 9.13 14.65 14.37 27.29

2.54 (100") 1.245 2.214 2.01 2.41 2.83 3.67 3.65 5.31 5.28 10.28 10.16 16.29 16.01 30.36

3.05 (120") 1.494 2.657 2.43 2.90 3.42 4.42 4.40 6.40 6.35 12.37 12.23 19.58 19.29 36.50

3.81 (150") 1.868 3.321 3.05 3.65 4.29 5.55 5.52 8.03 7.97 15.50 15.32 24.52 24.21 45.72

5.08 (200") 2.491 4.428 4.08 4.89 5.75 7.44 7.39 10.74 10.67 20.73 20.48 32.75 32.40 61.08

6.35 (250") 3.113 5.535 5.12 6.13 7.21 9.33 9.26 13.46 13.36 25.96 25.64 40.97 40.60 76.44

7.62 (300") 3.736 6.641 6.15 7.37 8.67 11.21 11.13 16.17 16.06 31.18 30.80 49.20 48.80 91.79

8.89 (350") 4.358 7.748 7.19 8.61 10.13 13.10 12.99 18.88 18.75 36.41 35.96 57.43 57.00 107.15

10.16 (400") 4.981 8.855 8.22 9.85 11.59 14.99 14.86 21.60 21.45 41.64 41.12 65.65 65.19 122.51

12.70 (500") 6.226 11.069 10.29 12.33 14.51 18.76 18.60 27.03 26.84 52.09 51.44 82.11 81.59 153.23

15.24 (600") 7.472 13.283 12.36 14.81 17.44 22.54 22.33 32.46 32.23 62.54 61.76 98.56 97.98 183.95

17.78 (700") 8.717 15.497 14.43 17.29 20.36 26.31 26.07 37.89 37.62 73.00 72.08 115.02 114.38 ―

20.32 (800") 9.962 17.710 16.50 19.77 23.28 30.09 29.81 43.31 43.01 83.45 82.41 131.47 130.77 ―

22.86 (900") 11.207 19.924 18.57 22.25 26.20 33.86 33.54 48.74 48.40 93.90 92.73 147.92 147.17 ―

25.40 (1000") 12.453 22.138 20.64 24.73 29.12 37.63 37.28 54.17 53.79 104.36 103.05 164.38 163.56 ―

Projection lens Model No. ET-D75LE95

Diagonal (SD)

1.78 (70") 0.872 1.550 ― ― ― 1.04

2.03 (80") 0.996 1.771 ― ― ― 1.20

2.29 (90") 1.121 1.992 ― ― ― 1.36

2.54 (100") 1.245 2.214 ― ― ― 1.51

3.05 (120") 1.494 2.657 0.97

3.81 (150") 1.868 3.321 1.21

5.08 (200") 2.491 4.428 1.60 0.27 0.38 - 0.79 3.10

6.35 (250") 3.113 5.535 2.00 0.67 0.51 - 1.02 3.89

7.62 (300") 3.736 6.641 2.39 1.06 0.64 - 1.25 4.68

8.89 (350") 4.358 7.748 2.79 1.46 0.77 - 1.49 5.48

10.16 (400") 4.981 8.855 3.19 1.85 0.89 - 1.72 6.27

12.70 (500") 6.226 11.069 3.98 2.64 1.15 - 2.18 7.85

15.24 (600") 7.472 13.283 4.77 3.44 1.40 - 2.64 9.44

17.78 (700") 8.717 15.497 ― ― ― 11.02

20.32 (800") 9.962 17.710 ― ― ― 12.61

22.86 (900") 11.207 19.924 ― ― ― 14.19

25.40 (1000") 12.453 22.138 ― ― ― 15.78

other lenses. Refer to “Fixed-focus Lens (Model No.: ET-D75LE95)” (x page 38) for details.

Lens type Zoom Lens

Throw ratio

Projected image size Projection distance (L)

Lens type Fixed-focus Lens

Throw ratio

Projected image size

Height

(SH)

Height

(SH)

0.9-1.1:1 1.3-1.7:1 1.7-2.4:1 2.4-4.7:1 4.6-7.4:1 7.3-13.8:1

Min.

Max.

Min.

Max.

Min.

Max.

Min.

Width (SW)

Width (SW) (L4) (A1) Fixed

(LW)

(LT)

Projection

distance

(L1)

(LW)

(LT)

(LW)

(LT)

0.36:1 0.7:1

Distance between projector and

screen

0.36 0.18 - 0.43 1.83

0.13 0.26 - 0.56 2.31

Max.

(LW)

ET-D75LE50

distance (L)

Min.

(LT)

(LW)

Projection

Max.

(LT)

Min. (LW)

Max.

(LT)

42 - ENGLISH

Chapter 2 Getting Started — Setting up

r When the image aspect ratio is 4:3

(Unit: m)

Projection lens Model No. ET-D75LE6 ET-D75LE10 ET-D75LE20 ET-D75LE30 ET-D75LE40 ET-D75LE8

Diagonal (SD)

1.78 (70") 1.067 1.422 1.54 1.84 2.17 2.80 2.80 4.07 4.04 7.88 7.80 12.52 12.25 23.32

2.03 (80") 1.219 1.626 1.77 2.11 2.49 3.22 3.21 4.67 4.64 9.03 8.94 14.34 14.06 26.71

2.29 (90") 1.372 1.829 2.00 2.38 2.81 3.63 3.62 5.27 5.23 10.19 10.07 16.15 15.87 30.09

2.54 (100") 1.524 2.032 2.22 2.66 3.13 4.05 4.03 5.86 5.82 11.34 11.21 17.96 17.67 33.47

3.05 (120") 1.829 2.438 2.68 3.20 3.77 4.88 4.86 7.06 7.01 13.64 13.48 21.59 21.28 40.24

3.81 (150") 2.286 3.048 3.36 4.02 4.74 6.13 6.09 8.85 8.79 17.09 16.89 27.02 26.70 50.39

5.08 (200") 3.048 4.064 4.50 5.39 6.35 8.21 8.15 11.84 11.76 22.85 22.58 36.09 35.73 67.31

6.35 (250") 3.810 5.080 5.64 6.76 7.96 10.28 10.20 14.83 14.73 28.61 28.26 45.15 44.76 84.23

7.62 (300") 4.572 6.096 6.78 8.12 9.56 12.36 12.26 17.82 17.70 34.36 33.94 54.21 53.79 101.14

8.89 (350") 5.334 7.112 7.92 9.49 11.17 14.44 14.32 20.81 20.67 40.12 39.63 63.27 62.82 118.06

10.16 (400") 6.096 8.128 9.06 10.85 12.78 16.52 16.38 23.80 23.63 45.88 45.31 72.33 71.85 134.98

12.70 (500") 7.620 10.160 11.34 13.58 16.00 20.68 20.49 29.78 29.57 57.39 56.68 90.45 89.91 168.81

15.24 (600") 9.144 12.192 13.62 16.32 19.21 24.83 24.61 35.76 35.51 68.91 68.05 108.58 107.96 202.65

17.78 (700") 10.668 14.224 15.90 19.05 22.43 28.99 28.72 41.74 41.45 80.42 79.41 126.70 126.02 ―

20.32 (800") 12.192 16.256 18.18 21.78 25.65 33.15 32.84 47.72 47.38 91.93 90.78 144.82 144.08 ―

22.86 (900") 13.716 18.288 20.46 24.51 28.86 37.31 36.95 53.70 53.32 103.45 102.15 162.95 162.14 ―

25.40 (1000") 15.240 20.320 22.74 27.24 32.08 41.46 41.07 59.68 59.26 114.96 113.52 181.07 180.20 ―

Projection lens Model No. ET-D75LE95

Diagonal (SD)

1.78 (70") 1.067 1.422 ― ― ― 1.15

2.03 (80") 1.219 1.626 ― ― ― 1.33

2.29 (90") 1.372 1.829 ― ― ― 1.50

2.54 (100") 1.524 2.032 ― ― ― 1.67

3.05 (120") 1.829 2.438 1.07

3.81 (150") 2.286 3.048 1.33 0.00 0.29 - 0.52 2.55

5.08 (200") 3.048 4.064 1.76 0.43 0.43 - 0.74 3.42

6.35 (250") 3.810 5.080 2.20 0.87 0.57 - 0.95 4.29

7.62 (300") 4.572 6.096 2.64 1.30 0.71 - 1.17 5.17

8.89 (350") 5.334 7.112 3.07 1.74 0.85 - 1.38 6.04

10.16 (400") 6.096 8.128 3.51 2.17 0.99 - 1.60 6.91

12.70 (500") 7.620 10.160 4.38 3.05 1.27 - 2.03 8.66

15.24 (600") 9.144 12.192 5.25 3.92 1.55 - 2.46 10.40

17.78 (700") 10.668 14.224 ― ― ― 12.15

20.32 (800") 12.192 16.256 ― ― ― 13.90

22.86 (900") 13.716 18.288 ― ― ― 15.64

25.40 (1000") 15.240 20.320 ― ― ― 17.39

other lenses. Refer to “Fixed-focus Lens (Model No.: ET-D75LE95)” (x page 38) for details.

Lens type Zoom Lens

Throw ratio

Projected image size Projection distance (L)

Lens type Fixed-focus Lens

Throw ratio

Projected image size

Height

(SH)

Height

(SH)

1.1-1.3:1 1.6-2.0:1 2.0-2.9:1 2.9-5.6:1 5.5-8.9:1 8.8-16.5:1

Min.

Max.

Min.

Max.

Min.

Max.

Min.

Width (SW)

Width (SW) (L4) (A1) Fixed

(LW)

(LT)

Projection

distance

(L1)

(LW)

(LT)

(LW)

(LT)

0.44:1 0.8:1

Distance between projector and

screen

0.27 0.21 - 0.39 2.02

Max.

(LW)

ET-D75LE50

distance (L)

Min.

(LT)

(LW)

Projection

Max.

(LT)

Min. (LW)

Max.

(LT)

ENGLISH - 43

Chapter 2 Getting Started — Setting up

For PT-RS30K

r When the image aspect ratio is 4:3

(Unit: m)

Projection lens Model No. ET-D75LE6 ET-D75LE10 ET-D75LE20 ET-D75LE30 ET-D75LE40 ET-D75LE8

Diagonal (SD)

1.78 (70") 1.067 1.422 1.39 1.66 1.95 2.52 2.52 3.66 3.64 7.10 7.02 11.28 11.09 21.14

2.03 (80") 1.219 1.626 1.60 1.91 2.24 2.89 2.89 4.20 4.17 8.13 8.05 12.92 12.73 24.21

2.29 (90") 1.372 1.829 1.81 2.16 2.53 3.27 3.26 4.74 4.71 9.17 9.07 14.56 14.37 27.29

2.54 (100") 1.524 2.032 2.01 2.41 2.82 3.64 3.63 5.28 5.24 10.21 10.10 16.19 16.01 30.36

3.05 (120") 1.829 2.438 2.43 2.90 3.40 4.39 4.37 6.36 6.31 12.29 12.15 19.46 19.29 36.50

3.81 (150") 2.286 3.048 3.05 3.65 4.27 5.52 5.49 7.98 7.92 15.41 15.23 24.37 24.21 45.72

5.08 (200") 3.048 4.064 4.08 4.89 5.72 7.39 7.34 10.67 10.60 20.60 20.35 32.54 32.40 61.08

6.35 (250") 3.810 5.080 5.12 6.13 7.17 9.27 9.20 13.37 13.28 25.79 25.48 40.72 40.60 76.44

7.62 (300") 4.572 6.096 6.15 7.37 8.62 11.14 11.06 16.07 15.96 30.99 30.61 48.89 48.80 91.79

8.89 (350") 5.334 7.112 7.19 8.61 10.07 13.02 12.91 18.77 18.63 36.18 35.74 57.07 57.00 107.15

10.16 (400") 6.096 8.128 8.22 9.85 11.52 14.90 14.77 21.46 21.31 41.38 40.87 65.25 65.19 122.51

12.70 (500") 7.620 10.160 10.29 12.33 14.42 18.65 18.48 26.86 26.67 51.77 51.12 81.60 81.59 153.23

15.24 (600") 9.144 12.192 12.36 14.81 17.33 22.40 22.19 32.25 32.03 62.15 61.38 97.95 97.98 183.95

17.78 (700") 10.668 14.224 14.43 17.29 20.23 26.15 25.91 37.65 37.38 72.54 71.64 114.30 114.38 ―

20.32 (800") 12.192 16.256 16.50 19.77 23.13 29.90 29.62 43.04 42.74 82.93 81.89 130.65 130.77 ―

22.86 (900") 13.716 18.288 18.57 22.25 26.03 33.65 33.33 48.44 48.10 93.32 92.15 147.00 147.17 ―

25.40 (1000") 15.240 20.320 20.64 24.73 28.93 37.40 37.05 53.83 53.45 103.71 102.41 163.36 163.56 ―

Projection lens Model No. ET-D75LE95

Diagonal (SD)

1.78 (70") 1.067 1.422 ― ― ― 1.03

2.03 (80") 1.219 1.626 ― ― ― 1.19

2.29 (90") 1.372 1.829 ― ― ― 1.35

2.54 (100") 1.524 2.032 ― ― ― 1.50

3.05 (120") 1.829 2.438 0.96

3.81 (150") 2.286 3.048 1.20

5.08 (200") 3.048 4.064 1.59 0.26 0.38 - 0.50 3.08

6.35 (250") 3.810 5.080 1.99 0.65 0.50 - 0.66 3.87

7.62 (300") 4.572 6.096 2.38 1.05 0.63 - 0.81 4.65

8.89 (350") 5.334 7.112 2.77 1.44 0.76 - 0.97 5.44

10.16 (400") 6.096 8.128 3.17 1.83 0.88 - 1.13 6.23

12.70 (500") 7.620 10.160 3.95 2.62 1.14 - 1.44 7.80

15.24 (600") 9.144 12.192 4.74 3.41 1.39 - 1.76 9.38

17.78 (700") 10.668 14.224 ― ― ― 10.96

20.32 (800") 12.192 16.256 ― ― ― 12.53

22.86 (900") 13.716 18.288 ― ― ― 14.11

25.40 (1000") 15.240 20.320 ― ― ― 15.68

other lenses. Refer to “Fixed-focus Lens (Model No.: ET-D75LE95)” (x page 38) for details.

Lens type Zoom Lens

Throw ratio

Projected image size Projection distance (L)

Lens type Fixed-focus Lens

Throw ratio

Projected image size

Height

(SH)

Height

(SH)

1.0-1.2:1 1.4-1.8:1 1.8-2.6:1 2.6-5.1:1 5.0-8.0:1 7.9-15.0:1

Min.

Max.

Min.

Max.

Min.

Max.

Min.

Width (SW)

Width (SW) (L4) (A1) Fixed

(LW)

(LT)

Projection

distance

(L1)

(LW)

(LT)

(LW)

(LT)

0.39:1 0.8:1

Distance between projector and

screen

0.37 0.18 - 0.25 1.82

0.13 0.25 - 0.34 2.29

Max.

(LW)

ET-D75LE50

distance (L)

Min.

(LT)

(LW)

Projection

Max.

(LT)

Min. (LW)

Max.

(LT)

44 - ENGLISH

Chapter 2 Getting Started — Setting up

r When the image aspect ratio is 16:9

(Unit: m)

Projection lens Model No. ET-D75LE6 ET-D75LE10 ET-D75LE20 ET-D75LE30 ET-D75LE40 ET-D75LE8

Diagonal (SD)

1.78 (70") 0.872 1.550 1.52 1.82 2.13 2.75 2.75 4.00 3.97 7.74 7.66 12.31 12.12 23.06

2.03 (80") 0.996 1.771 1.75 2.09 2.44 3.16 3.15 4.59 4.55 8.88 8.78 14.09 13.90 26.41

2.29 (90") 1.121 1.992 1.97 2.36 2.76 3.57 3.56 5.17 5.14 10.01 9.90 15.87 15.69 29.76

2.54 (100") 1.245 2.214 2.20 2.63 3.08 3.98 3.96 5.76 5.72 11.14 11.01 17.65 17.47 33.10

3.05 (120") 1.494 2.657 2.65 3.17 3.71 4.79 4.77 6.94 6.89 13.40 13.25 21.21 21.04 39.79

3.81 (150") 1.868 3.321 3.33 3.98 4.66 6.02 5.98 8.70 8.64 16.80 16.60 26.56 26.40 49.83

5.08 (200") 2.491 4.428 4.45 5.33 6.24 8.06 8.01 11.64 11.56 22.46 22.19 35.46 35.33 66.56

6.35 (250") 3.113 5.535 5.58 6.68 7.82 10.11 10.03 14.58 14.47 28.11 27.77 44.37 44.26 83.29

7.62 (300") 3.736 6.641 6.71 8.03 9.40 12.15 12.05 17.51 17.39 33.77 33.36 53.27 53.19 100.02

8.89 (350") 4.358 7.748 7.84 9.38 10.98 14.19 14.07 20.45 20.31 39.43 38.95 62.18 62.12 116.75

10.16 (400") 4.981 8.855 8.96 10.73 12.56 16.23 16.10 23.39 23.23 45.09 44.53 71.09 71.05 133.48

12.70 (500") 6.226 11.069 11.22 13.43 15.72 20.32 20.14 29.27 29.06 56.40 55.70 88.90 88.91 166.95

15.24 (600") 7.472 13.283 13.47 16.14 18.88 24.41 24.18 35.15 34.90 67.72 66.88 106.71 106.77 200.41

17.78 (700") 8.717 15.497 15.73 18.84 22.04 28.49 28.23 41.02 40.73 79.04 78.05 124.52 124.63 ―

20.32 (800") 9.962 17.710 17.98 21.54 25.20 32.58 32.27 46.90 46.57 90.35 89.22 142.34 142.49 ―

22.86 (900") 11.207 19.924 20.24 24.24 28.36 36.66 36.32 52.78 52.40 101.67 100.39 160.15 160.35 ―

25.40 (1000") 12.453 22.138 22.49 26.94 31.53 40.75 40.36 58.65 58.24 112.98 111.56 177.96 178.20 ―

Projection lens Model No. ET-D75LE95

Diagonal (SD)

1.78 (70") 0.872 1.550 ― ― ― 1.13

2.03 (80") 0.996 1.771 ― ― ― 1.30

2.29 (90") 1.121 1.992 ― ― ― 1.47

2.54 (100") 1.245 2.214 ― ― ― 1.64

3.05 (120") 1.494 2.657 1.05

3.81 (150") 1.868 3.321 1.31

5.08 (200") 2.491 4.428 1.73 0.40 0.43 - 0.97 3.36

6.35 (250") 3.113 5.535 2.16 0.83 0.56 - 1.25 4.22

7.62 (300") 3.736 6.641 2.59 1.26 0.70 - 1.52 5.08

8.89 (350") 4.358 7.748 3.02 1.69 0.84 - 1.79 5.93

10.16 (400") 4.981 8.855 3.45 2.11 0.98 - 2.07 6.79

12.70 (500") 6.226 11.069 4.30 2.97 1.25 - 2.62 8.51

15.24 (600") 7.472 13.283 5.16 3.83 1.53 - 3.17 10.22

17.78 (700") 8.717 15.497 ― ― ― 11.94

20.32 (800") 9.962 17.710 ― ― ― 13.66

22.86 (900") 11.207 19.924 ― ― ― 15.37

25.40 (1000") 12.453 22.138 ― ― ― 17.09

other lenses. Refer to “Fixed-focus Lens (Model No.: ET-D75LE95)” (x page 38) for details.

Lens type Zoom Lens

Throw ratio

Projected image size Projection distance (L)

Lens type Fixed-focus Lens

Throw ratio

Projected image size

Height

(SH)

Height

(SH)

1.0-1.2:1 1.4-1.8:1 1.8-2.6:1 2.6-5.1:1 5.0-8.0:1 8.0-15.0:1

Min.

Max.

Min.

Max.

Min.

Max.

Min.

Width (SW)

Width (SW) (L4) (A1) Fixed

(LW)

(LT)

Projection

distance

(L1)

(LW)

(LT)

(LW)

(LT)

0.39:1 0.8:1

Distance between projector and

screen

0.28 0.20 - 0.53 1.99

0.03 0.29 - 0.70 2.50

Max.

(LW)

ET-D75LE50

distance (L)

Min.

(LT)

(LW)

Projection

Max.

(LT)

Min. (LW)

Max.

(LT)

ENGLISH - 45

Chapter 2 Getting Started — Setting up

Formula for calculating the projection distance per projection lens

To use a projected image size not listed in this manual, check the projected image size SD (m) and use the

respective formula to calculate projection distance.

The unit of all the formulae is m. (Values obtained by the following calculation formulae contain a slight error.) When calculating a projection distance using image size designation (value in inches), multiply the value in inches

by 0.0254 and substitute it into SD in the formula for calculating the projection distance.

For PT-RZ31K

r Zoom Lens

Projection lens Model No. Throw ratio Aspect ratio

0.9 - 1.1:1 16:10 = 0.8150 x SD

ET-D75LE6

ET-D75LE10

ET-D75LE20

ET-D75LE30

ET-D75LE40

ET-D75LE8

0.9 - 1.1:1 16:9 = 0.8858 x SD

1.1 - 1.3:1 4:3 = 0.7913 x SD

1.3 - 1.7:1 16:10 = 1.1186 x SD

1.3 - 1.7:1 16:9 = 1.1497 x SD

1.6 - 2.0:1 4:3 = 1.2663 x SD

1.7 - 2.4:1 16:10 = 1.4312 x SD

1.7 - 2.4:1 16:9 = 1.4709 x SD

2.0 - 2.9:1 4:3 = 1.6202 x SD

2.4 - 4.7:1 16:10 = 2.0647 x SD

2.4 - 4.7:1 16:9 = 2.1221 x SD

2.9 - 5.6:1 4:3 = 2.3374 x SD

4.6 - 7.4:1 16:10 = 3.9532 x SD

4.6 - 7.4:1 16:9 = 4.0631 x SD

5.5 - 8.9:1 4:3 = 4.4754 x SD

7.3 - 13.8:1 16:10 = 6.4567 x SD

7.3 - 13.8:1 16:9 = 7.0315 x SD

8.8 - 16.5:1 4:3 = 6.2795 x SD

r Fixed-focus Lens

Projection lens Model No. Throw ratio Aspect ratio

0.36:1 16:10 = 0.303 x SD + 0.020 = 0.184 x SH

ET-D75LE95

0.36:1 16:9 = 0.312 x SD + 0.020 = 0.205 x SH

0.44:1 4:3 = 0.343 x SD + 0.020 = 0.184 x SH

Projection distance

(L1) formula

Projection distance (L) formula

Min. (LW) Max. (LT)

0.0566 = 0.9764 x SD - 0.0736

0.0566 = 1.0630 x SD - 0.0736

0.0566 = 0.9488 x SD - 0.0736

0.0857 = 1.4458 x SD - 0.1085

0.0857 = 1.4860 x SD - 0.1085

0.0857 = 1.6367 x SD - 0.1085

0.0832 = 2.0795 x SD - 0.1162

0.0832 = 2.1373 x SD - 0.1162

0.0832 = 2.3542 x SD - 0.1162

0.1131 = 4.0041 x SD - 0.1765

0.1131 = 4.1155 x SD - 0.1765

0.1131 = 4.5330 x SD - 0.1765

0.1577 = 6.3027 x SD - 0.1615

0.1577 = 6.4779 x SD - 0.1615

0.1577 = 7.1351 x SD - 0.1615

0.3862 = 12.0945 x SD - 0.3598

0.3862 = 13.1732 x SD - 0.3598

0.3862 = 11.7677 x SD - 0.3598

Formula for distance between projector and

screen (A1)

Min. Max.

0.128 = 0.283 x SH - 0.128

0.128 = 0.370 x SH - 0.128

0.128 = 0.283 x SH - 0.128

Projection lens Model No. Throw ratio Aspect ratio Projection distance (L) formula

0.0713

ET-D75LE50

0.7:1 16:10 = 0.6072 x SD

0.7:1 16:9 = 0.6240 x SD

0.8:1 4:3 = 0.6873 x SD

46 - ENGLISH

For PT-RS30K

r Zoom Lens

Chapter 2 Getting Started — Setting up

Projection lens Model No. Throw ratio Aspect ratio

ET-D75LE6

ET-D75LE10

ET-D75LE20

ET-D75LE30

ET-D75LE40

ET-D75LE8

1.0 - 1.2:1 4:3 = 0.8150 x SD

1.0 - 1.2:1 16:9 = 0.8976 x SD

1.4 - 1.8:1 4:3 =1.1425 x SD

1.4 - 1.8:1 16:9 = 1.2446 x SD

1.8 - 2.6:1 4:3 = 1.4618 x SD

1.8 - 2.6:1 16:9 = 1.5924 x SD

2.6 - 5.1:1 4:3 = 2.1089 x SD

2.6 - 5.1:1 16:9 = 2.2972 x SD

5.0 - 8.0:1 4:3 = 4.0379 x SD

5.0 - 8.0:1 16:9 = 4.3985 x SD

7.9 - 15.0:1 4:3 = 6.4567 x SD

8.0 - 15.0:1 16:9 = 7.1102 x SD

Projection distance (L) formula

Min. (LW) Max. (LT)

0.0566 = 0.9764 x SD - 0.0736

0.0566 = 1.0748 x SD - 0.0736

0.0857 = 1.4767 x SD - 0.1085

0.0857 = 1.6086 x SD - 0.1085

0.0832 = 2.1241 x SD - 0.1162

0.0832 = 2.3137 x SD - 0.1162

0.1131 = 4.0899 x SD - 0.1765

0.1131 = 4.4552 x SD - 0.1765

0.1577 = 6.4377 x SD - 0.1615

0.1577 = 7.0126 x SD - 0.1615

0.3862 = 12.0945 x SD - 0.3598

0.3862 = 13.3189 x SD - 0.3598

r Fixed-focus Lens

Projection lens Model No. Throw ratio Aspect ratio

ET-D75LE95

Projection lens Model No. Throw ratio Aspect ratio Projection distance (L) formula

ET-D75LE50

0.39:1 4:3 = 0.310 x SD + 0.020 = 0.166 x SH

0.39:1 16:9 = 0.337 x SD + 0.020 = 0.222 x SH

0.8:1 4:3 = 0.6202 x SD

0.8:1 16:9 = 0.6755 x SD

Projection distance

(L1) formula

Formula for distance between projector and

screen (A1)

Min. Max.

0.128 = 0.206 x SH - 0.128

0.128 = 0.441 x SH - 0.128

0.0713

Adjusting adjustable feet

Install the projector on a at surface so that the front of the projector is parallel to the screen surface and the

projection screen is rectangular.

If the screen is tilted downward, extend the front adjustable feet so that the projected image becomes rectangular.

The adjustable feet can also be used to adjust the projector to be level when it is tilted in the horizontal direction.

Adjustable feet can be extended by turning them as shown in the gure. Turning them in the opposite direction will

return them to the original position.

Maximum adjustable range

Adjustable feet: 20 mm (25/32") each

Attention

f Be careful not to block the intake/exhaust ports with your hands or any objects when adjusting the adjustable feet while the light source is

on. (x page 28)

ENGLISH - 47

Chapter 2 Getting Started — Attaching/removing the projection lens (optional)

Attaching/removing the projection lens (optional)

Move the lens position to the home position before replacing or removing the projection lens. (x page 72)

Attention

f Replace the projection lens after turning off the power of the projector. f Do not touch the electric contacts of the projection lens. Dust or dirt may cause poor contact. f Do not touch the surface of the projection lens with your bare hands. f Before attaching the projection lens, remove the lens cover attached to the projection lens. f Panasonic takes no responsibility for any damage or malfunction of the product resulting from the use of projection lenses which are not

manufactured by Panasonic. Be sure to use the specied projection lenses.

Note

f The precautions for handling the lens are different for the Fixed-focus Lens (Model No.: ET-D75LE95). For details, refer to the Operating

Instructions of ET-D75LE95.

Attaching the projection lens

Attach the projection lens using the following procedure. Start from Step 3) when the lens hole cover is already removed.

Screw

Lens hole cover

Lens release button

Fig. 1 Fig. 2

Mark (orange)

Screw hole A

Lens fixing screw

Fig. 3 Fig. 4

1) Loosen the screw fixing the lens hole cover. (Fig. 1)

f Use a Phillips screwdriver to turn the screw xing the lens hole cover counterclockwise until it turns freely.

48 - ENGLISH

Chapter 2 Getting Started — Attaching/removing the projection lens (optional)

2) Remove the lens hole cover. (Fig. 2)

f While pressing the lens release button, turn the lens hole cover counterclockwise until the mark on the lens

hole cover (E) aligns with the mark on the projector (E on the left side of LOCK).

3) Insert the projection lens by aligning the mark on the projection lens (orange) with the mark on the

projector (E on the left side of LOCK) and turn clockwise until it clicks. (Fig. 3)

4) Secure the projection lens with the supplied lens fixing screw. (Fig. 4)

f Use a Phillips screwdriver to secure it in screw hole A located to the right of mark on the projection lens

(orange).

f Some lenses may not have a screw hole A for securing the projection lens.

Attention

f Turn the projection lens counterclockwise to conrm that it does not come out. f Store the removed lens hole cover in a safe place. f The lens hood needs to be mounted to the projector when using the projector in combination with the projection lenses below in the North

American region. Mount the lens hood after attaching the projection lens. Always ask a qualied technician or your dealer to attach these

projection lenses or to mount the lens hood.

Projection lens: ET-D75LE8, ET-D75LE30, ET-D75LE40

The lens hood is assembled and mounted to the projector using the following supplied components.

Lens hood 1, Lens hood 2, Lens hood mounting plate 1, Lens hood mounting plate 2, Lens hood screws, Knurled head screws For the assembly and attachment, refer to the separate document “Mounting the lens hood”. The components and document of the lens

hood may not be supplied depending on the country or region where you purchased the product.

Removing the projection lens

Remove the projection lens using the following procedure.

Lens release button

Fig. 1

Screw

Lens hole cover

Fig. 3Fig. 2

1) Remove the lens fixing screw.

f Use a Phillips screwdriver to remove the rst screw to the right of the mark on the projection lens (orange).

2) Remove the projection lens by turning it counterclockwise while pressing the lens release button. (Fig. 1)

f Turn the projection lens counterclockwise until the mark on the projection lens (orange) is aligned with the

mark on the projector (E on the left side of LOCK).

f Proceed to Step 3) when carrying or storing the projector.

ENGLISH - 49

Chapter 2 Getting Started — Attaching/removing the projection lens (optional)

3) Attach the supplied lens hole cover. (Fig. 2)

f Insert the lens hole cover by aligning the mark on the lens hole cover (E) with the mark on the projector (E

on the left side of LOCK) and turn clockwise until it clicks.

4) Secure the lens hole cover. (Fig. 3)

f Use a Phillips screwdriver to tighten the screw xing the lens hole cover.

Note

f Some lenses may not have a screw hole to use to secure the projection lens.

Attention

f Store the removed projection lens where it will be free from vibration and impact. f Store the removed lens xing screw in a safe place.

50 - ENGLISH

Chapter 2 Getting Started — Connecting

Connecting

Before connecting

f Before connecting, carefully read the operating instructions for the external device to be connected. f Turn off the power of all devices before connecting cables. f Take note of the following points before connecting the cables. Failure to do so may result in malfunctions.

g When connecting a cable to a device connected to the projector or the projector itself, touch any nearby

metallic objects to eliminate static electricity from your body before performing work.

g Do not use unnecessarily long cables to connect a device to the projector or to the projector body. The longer

the cable, the more susceptible to noise it becomes. Since using a cable while it is wound makes it act like an antenna, it is more susceptible to noise.

g When connecting cables, connect GND rst, then insert the connecting terminal of the connecting device in a

straight manner.

f Acquire any connection cable necessary to connect the external device to the system that is neither supplied

with the device nor available as an option.

f If video signals from video equipment contain too much jitter, the images on the screen may wobble. In this

case, a time base corrector (TBC) must be connected.

f The projector accepts video signals, Y/C signals, YC

signals are TTL level), and digital signals.

f Some computer models or graphic cards are not compatible with the projector. f Use a cable compensator when you connect devices to the projector using long cables. Otherwise the image

may not display properly.

f Refer to “List of compatible signals” (x page 225) for the types of video signals that can be used with the

projector.

/YPBPR signals, analog RGB signals (synchronization

BCR

<RGB 2 IN> terminal pin assignments and signal names

Outside view Pin No. Signal name Pin No. Signal name

(6)

(11) (15)

(1) (5)

(10)

(1) R/P (2) G/Y (10) GND

(3) B/P (4) ― (12) DDC data (5) GND (13) SYNC/HD (6) GND (14) VD (7) GND (15) DDC clock (8) GND

<HDMI IN> terminal pin assignments and signal names

Outside view Pin No. Signal name Pin No. Signal name

(1) T.M.D.S data 2+ (11) T.M.D.S clock shield

Even-numbered pins of (2) to (18)

(2) (18)

(1) (19)

Odd-numbered pins of (1) to (19)

(2) T.M.D.S data 2 shield (12) T.M.D.S clock (3) T.M.D.S data 2 (4) T.M.D.S data 1+ (14) ― (5) T.M.D.S data 1 shield (15) SCL (6) T.M.D.S data 1

(7) T.M.D.S data 0+ (17)

(8) T.M.D.S data 0 shield (18) +5 V (9) T.M.D.S data 0

(10) T.M.D.S clock+

(9) ―

(11) GND

(13) CEC

(16) SDA

DDC/CEC

GND

(19) Hot plug detection

ENGLISH - 51

Chapter 2 Getting Started — Connecting

<DVI-D IN> terminal pin assignments and signal names

Outside view Pin No. Signal name Pin No. Signal name

(1) T.M.D.S data 2 (2) T.M.D.S data 2+ (14) +5 V (3) T.M.D.S data 2/4 shield (15) GND (4) ― (16) Hot plug detection (5) ― (17) T.M.D.S data 0 (6) DDC clock (18) T.M.D.S data 0+ (7) DDC data (19) T.M.D.S data 0/5 shield (8) ― (20) ― (9) T.M.D.S data 1

(10) T.M.D.S data 1+ (22) T.M.D.S clock shield

(11) T.M.D.S data 1/3 shield (23) T.M.D.S clock+

(12) ― (24) T.M.D.S clock

(16)

(17)(24)

(9)

(1)(8)

Connecting example: AV equipment

For <HDMI IN>/<DVI-D IN>/<RGB 1 IN> terminals

(13) ―

(21) ―

VCR (with built-in TBC)

DVD player with HDMI terminal (HDCP)

Blu-ray disc playerVCR (with built-in TBC)

Attention

f Always use one of the following when connecting a VCR.

g A VCR with built-in time base corrector (TBC) g A time base corrector (TBC) between the projector and the VCR

f If nonstandard burst signals are connected, the image may be distorted. In such a case, connect the time base corrector (TBC) between the

projector and the external devices.

Note

f Switching of the setting in the [DISPLAY OPTION] menu → [DVI-D IN] → [EDID SELECT] may be required depending on the connected

external device when DVI-D is input.

f The <DVI-D IN> terminal can be connected to HDMI- or DVI-D-compliant devices. However, images may not appear or may not be

displayed properly on some devices.

f For the HDMI cable, use an HDMI High Speed cable that conforms to the HDMI standards. If a cable that does not conform to the HDMI

standards is used, images may be interrupted or may not be displayed.

f The <HDMI IN> terminal of the projector can be connected to an external device equipped with a DVI-D terminal using an HDMI/DVI

conversion cable. However, this may not function properly for some external devices, and images may not be displayed.

f The projector does not support VIERA Link (HDMI). f It is necessary to switch the setting in the [DISPLAY OPTION] menu → [RGB IN] → [RGB1 INPUT SETTING] (x page 118) when inputting

a video signal and the Y/C signal.

52 - ENGLISH

Chapter 2 Getting Started — Connecting

For <SDI IN 1>/<SDI IN 2> terminals

Digital VCR for commercial use

SD-SDI signal, HD-SDI signal, or 3G-SDI

signal

Note

f Use a 5CFB or higher (such as 5CFB, or 7CFB) or a Belden 1694A or higher connection cable to properly transmit images. Use a

connection cable of 100 m (328'1") length or less.

f Setting of the [DISPLAY OPTION] menu → [SDI IN] may be necessary depending on the connected external device. f To input the dual link signals, setting the [DISPLAY OPTION] menu → [SDI IN] → [SDI LINK] is required. f To input the dual link signals, the cables to connect to the <SDI IN 1>/<SDI IN 2> terminals should be the same length and the same type.

The image may not be displayed correctly when the difference of the cable length is 4 m (13'1") or more.

f Directly connect the projector with the external device that will output the signal without going through a distributor, etc., when inputting

dual link signals. A phase difference is generated between the LINK-A signal and the LINK-B signal, and the image may not be displayed

correctly.

f An error in signal detection may occur when an unsteady signal is connected. In such case, set the [DISPLAY OPTION] menu → [SDI IN] to

the content corresponding to the input signal.

Connecting example: Computers

Control computer

Computer

Control computer

Computer

Attention

f When connecting the projector to a computer or an external device, use the power cord supplied with each device and commercially

available shielded cables.

Note

f Switching of the setting in the [DISPLAY OPTION] menu → [DVI-D IN] → [EDID SELECT] may be required depending on the connected

external device when DVI-D is input.

f For the HDMI cable, use an HDMI High Speed cable that conforms to the HDMI standards. If a cable that does not conform to the HDMI

standards is used, images may be interrupted or may not be displayed.

f The <HDMI IN> terminal of the projector can be connected to an external device equipped with a DVI-D terminal using an HDMI/DVI

conversion cable. However, this may not function properly for some external devices, and images may not be displayed.

f The <DVI-D IN> terminal supports single links only. f When entering the SYNC ON GREEN signal, do not enter sync signals to the <SYNC/HD> terminal or the <VD> terminal. f If you operate the projector using the computer with the resume feature (last memory), you may have to reset the resume feature to operate

the projector.

ENGLISH - 53

Chapter 2 Getting Started — Connecting

Connecting example using DIGITAL LINK

Twisted-pair-cable transmitter based on the communication standard HDBaseTTM such as the optional DIGITAL LINK output supported device (Model No.: ET-YFB100G, ET-YFB200G) uses the twisted pair cable to transmit input images, Ethernet, and serial control signal, and the projector can input such digital signal to the <DIGITAL LINK/LAN> terminal.

Computer

Projector connecting terminals

Example of twisted-pair-cable

Hub

Control computer

*1 Control target is the projector or the twisted-pair-cable transmitter. The control itself may not be possible depending on the twisted-pair-cable

transmitter. Check the operating instructions of the device to be connected.

transmitter

VCR

(with built-in TBC)

Computer cable (commercially available)

HDMI cable (commercially available)

Blu-ray disc player

Attention

f Always use one of the following when connecting a VCR.

g Use a VCR with built-in time base corrector (TBC). g Use a time base corrector (TBC) between the projector and the VCR.

f If nonstandard burst signals are connected, the image may be disrupted. In such a case, connect the time base corrector (TBC) between

the projector and the external devices.

f Ask a qualied technician or your dealer to install the cable wiring between the twisted-pair-cable transmitter and the projector. Image may

be disrupted if cable transmission characteristics cannot be obtained due to inadequate installation.

f For the LAN cable between the twisted-pair-cable transmitter and the projector, use a cable that meets the following criteria:

g Conforming to CAT5e or higher standards g Shielded type (including connectors) g Straight-through g Single wire

f When laying cables between the twisted-pair-cable transmitter and the projector, conrm that cable characteristics are compatible with

CAT5e or higher using tools such as a cable tester or cable analyzer. When a relay connector is used, include it in the measurement.

f Do not use a hub between the twisted-pair-cable transmitter and the projector. f When connecting to the projector using a twisted-pair-cable transmitter (receiver) of other manufacturers, do not place another twisted-pair-

cable transmitter between the twisted-pair-cable transmitter of other manufacturers and the projector. This may cause image to be disrupted.

f Do not pull cables forcefully. Also, do not bend or fold cables unnecessarily. f To reduce the effects of noise as much as possible, stretch out the cables between the twisted-pair-cable transmitter and the projector

without any loops.

f Lay the cables between the twisted-pair-cable transmitter and the projector away from other cables, particularly power cables. f When laying multiple cables, run them side by side along the shortest distance possible without bundling them together. f After laying the cables, go to the [NETWORK] menu → [DIGITAL LINK STATUS] and conrm that the value of [SIGNAL QUALITY] is

displayed in green which indicates normal quality. (x page 168)

Note

f For the HDMI cable, use an HDMI High Speed cable that conforms to the HDMI standards. If a cable that does not conform to the HDMI

standards is used, images may be interrupted or may not be displayed.

f The projector does not support VIERA Link (HDMI). f The maximum transmission distance between the twisted-pair-cable transmitter and the projector is 100 m (328'1"). It is possible to transmit

up to 150 m (492'2") if the twisted-pair-cable transmitter supports the long-reach communication method. If this distance is exceeded, image may be disrupted or a malfunction may occur in LAN communication. Please note that Panasonic does not support the use of the projector outside the maximum transmission distance. When connecting with the long reach, there may be a limitation to the video signal or distance which can be transmitted, depending on the specication of the twisted-pair-cable transmitter.

54 - ENGLISH

Chapter 2 Getting Started — Connecting

f For twisted-pair-cable transmitters of other manufacturers of which the operation has been veried with the projector, visit the Panasonic

website (http://panasonic.net/avc/projector/). Note that the verication for devices of other manufacturers has been made for the items set by Panasonic Corporation, and not all the operations have been veried. For operation or performance problems caused by the devices of

other manufacturers, contact the respective manufacturers.

Connecting example when using the contrast synchronization function/shutter synchronization function

In a case to construct a multi-display by linking projected images from multiple projectors, following functions can

be used by synchronizing multiple projectors using the <MULTI PROJECTOR SYNC IN> terminal and the <MULTI PROJECTOR SYNC OUT> terminal.

f Contrast synchronization function

A linked screen with balanced contrast can be displayed by sharing the brightness level of the video signal being input to each projector.

To use this function, set the [PROJECTOR SETUP] menu → [MULTI PROJECTOR SYNC] for each

synchronized projector as follows.

g Set [MULTI PROJECTOR SYNC] → [MODE] to anything other than [OFF].

Set [MODE] to [MASTER] only on one projector that is synchronized. Set [MODE] to [SLAVE] for all other

projectors.

g Set [MULTI PROJECTOR SYNC] → [CONTRAST SYNC] to [ON].

f Shutter synchronization function

This is a function to synchronize the shutter operation of the specied projector to other projectors, and the

effect using the shutter function including the fade in/fade out operation can be synchronized.

To use this function, set the [PROJECTOR SETUP] menu → [MULTI PROJECTOR SYNC] for each

synchronized projector as follows.

g Set [MULTI PROJECTOR SYNC] → [MODE] to anything other than [OFF].

Set [MODE] to [MASTER] only on one projector that becomes the synchronization source within the linked projectors. Set [MODE] to [SLAVE] for all other projectors.

g Set [MULTI PROJECTOR SYNC] → [SHUTTER SYNC] to [ON].

r Connecting example

Connect all the projectors to be linked in a loop by daisy chain connection when using the contrast synchronization function/shutter synchronization function. The number of linked projectors is limited to the

maximum of 64 projectors.

Connecting terminals of the synchronization source

Connecting terminals of the projector to synchronize

ENGLISH - 55

Chapter 2 Getting Started — Connecting

Note

f The contrast synchronization function and the shutter synchronization function can be used simultaneously. f For details on the settings of the contrast synchronization function and the shutter synchronization function, refer to the [PROJECTOR

SETUP] menu → [MULTI PROJECTOR SYNC] (x page 146).

f The menu items in the [PROJECTOR SETUP] menu → [MULTI PROJECTOR SYNC] is the same as the following setting items.

g The [PICTURE] menu → [DYNAMIC CONTRAST] → [USER] → [MULTI PROJECTOR SYNC] g The [DISPLAY OPTION] menu → [SHUTTER SETTING] → [MULTI PROJECTOR SYNC]

f If there are any projectors which you do not want to synchronize within the linked projectors, set [CONTRAST SYNC] and [SHUTTER

SYNC] to [OFF] individually.

56 - ENGLISH

Chapter 3 Basic Operations

This chapter describes basic operations to start with.

ENGLISH - 57

Chapter 3 Basic Operations — Switching on/off the projector

Switching on/off the projector

Connecting the power cord

Conrm that the <MAIN POWER> switch is on the <OFF> side before connecting the supplied power cord.

Use the power cord matching with the power supply voltage and the shape of the outlet.

For details of power cord handling, refer to “Read this rst!” (x page 5). For the shape of the outlet, refer to “Usable outlet” (x page 35).

Attention

f The <AC IN> terminal on the side of the projector and the connector of the supplied power cord are not hot swapping compatible. When

removing the power cord from the projector, rst make sure to remove the power plug from the outlet.

Note

How to attach the power cord

Fig. 2Fig. 1

1) Check the shapes of the <AC IN> terminal on the side of the projector and the power cord connector, and insert the connector completely in the correct direction. (Fig. 1)

2) While inserting the power cord connector into the projector, turn clockwise until it clicks. (Fig. 2)

How to remove the power cord

Lock lever

Fig. 1 Fig. 2

1) Confirm that the <MAIN POWER> switch on the side of the projector is on the <OFF> side, and remove the power plug from the outlet.

2) Turn the power cord connector counterclockwise while sliding the lock lever forward (Fig. 1), and remove the connector from the <AC IN> terminal on the projector (Fig. 2).

58 - ENGLISH

Chapter 3 Basic Operations — Switching on/off the projector

Power indicator

Indicate the status of the power. Check the status of the power indicator <ON (G)/STANDBY (R)> before operating

the projector.

Power indicator <ON (G)/STANDBY (R)>

Indicator status Projector status

Off The main power is switched off.

The power is switched off. (standby mode)

Red Lit

Green Lit Projecting.

Orange Lit

Projection will start when the power on <b> button is pressed.

f The projector may not operate when the light source indicators <LIGHT1>/<LIGHT2>

or the temperature indicator <TEMP> are blinking. (x page 193)

The projector is preparing to switch off the projector.

The power is switched off after a while. (Changes to the standby mode.)

Note

f While the power indicator <ON (G)/STANDBY (R)> lights in orange, the fan is running to cool the projector. f For approximately 15 seconds after the projector is switched off, the indicator does not light up even if the power is switched on. Turn on the

power again after the power indicator <ON (G)/STANDBY (R)> lights in red.

f The projector consumes power even in standby mode (power indicator <ON (G)/STANDBY (R)> lit in red). Refer to “Power consumption”

(x page 233) for the power consumption.

f When the projector receives the signal from the remote control, the power indicator <ON (G)/STANDBY (R)> will blink in the following color

according to the status of the projector.

g When the projector is in projection mode: Green g When the projector is in standby mode: Orange

However, if the [PROJECTOR SETUP] menu → [STANDBY MODE] is set to [ECO], the indicator will stay lit in red and will not blink if the

projector is in standby mode.

f The power indicator <ON (G)/STANDBY (R)> will blink slowly in green while the shutter function is in use (shutter: closed), or while the

function of the [PROJECTOR SETUP] menu → [NO SIGNAL LIGHTS-OUT] (x page 142) is operating and the light source is turned off.

f If the power indicator <ON (G)/STANDBY (R)> is blinking in red, consult your dealer.

ENGLISH - 59

Chapter 3 Basic Operations — Switching on/off the projector

Switching on the projector

Install the projection lens before switching on the projector.

Remove the lens cover rst.

1) Connect the power cord to the projector.

2) Connect the power plug to an outlet.

3) Press the <ON> side of the <MAIN POWER> switch to turn on the power.

f The power indicator <ON (G)/STANDBY (R)> lights in red, and the projector enters the standby mode.

4) Press the power on <b> button.

f The power indicator <ON (G)/STANDBY (R)> lights in green and the image is soon projected on the screen.

Attention

f Always remove the lens cover before starting the projection. Projecting continuously while the lens cover is attached may cause the lens

cover to heat up and result in a re.

Note

f A warm-up period of up to approximately ve minutes may be necessary until an image is displayed when the projector is switched on at

around 0 °C (32 °F). The temperature indicator <TEMP> lights during the warm-up period. When the warm-up is completed, the temperature indicator <TEMP> turns off and the projection starts. Refer to “When an indicator lights up” (x page 193) for the indicator status display.

f If the operating environment temperature is low and warm-up takes more than ve minutes, the projector will judge that a problem has

occurred and the power will automatically be set to standby mode. In such case, increase the operating environment temperature to 0 °C

(32 °F) or higher, turn off the main power, and then turn on the power again.

f It may take longer to start the projection when the [PROJECTOR SETUP] menu → [STANDBY MODE] is set to [ECO] compared to the time

when it is set to [NORMAL].

f If the power was turned off at the previous use by pressing the <OFF> side of the <MAIN POWER> switch or by using the breaker directly

while projecting, the power indicator <ON (G)/STANDBY (R)> lights up in green and an image is projected after a while when the power is turned on by pressing the <ON> side of the <MAIN POWER> switch or by turning the breaker on with the power plug connected to the outlet. This applies only when the [PROJECTOR SETUP] menu → [INITIAL STARTUP] is set to [LAST MEMORY].

f The light output will decrease to approximately 1/3 when using the projector with AC 100 V to AC 120 V.

60 - ENGLISH

Chapter 3 Basic Operations — Switching on/off the projector

When the initial setting screen is displayed

When the projector is switched on for the rst time after purchase, as well as when the [PROJECTOR SETUP]

menu → [INITIALIZE] → [ALL USER DATA] is executed, the focus adjustment screen is displayed after projection starts, and then the [INITIAL SETTING] screen is displayed. Set them according to the circumstances.

In other occasions, you can change the settings by menu operations. If you press the <MENU> button while the [INITIAL SETTING] screen is displayed, you can go back to the

previous screen.

Focus adjustment

Adjust the focus to display the menu screen clearly. You may also need to adjust the zoom and shift. Refer to “Adjusting the focus, zoom, and shift” (x page 70) for details.

1) Press asqw to adjust the focus.

LENS

FOCUS

FOCUS POSITION

ADJUST

2) Press the <MENU> button to proceed to the initial setting.

Initial setting (display language)

Select the language to show on the screen.

After completed the initial setting, you can change the display language from the [DISPLAY LANGUAGE] menu.

1) Press as to select the display language.

INITIAL SETTING

Please select DISPLAY LANGUAGE.

SELECT

ENTER

SET

2) Press the <ENTER> button to proceed to the initial setting.

1/7

ENGLISH - 61

Chapter 3 Basic Operations — Switching on/off the projector

Initial setting (operation setting)

Set the items for the operating method depending on the projector’s application and duration of usage. After completed the initial setting, you can change the settings of each item from the [PROJECTOR SETUP]

menu → [OPERATION SETTING]. If you change the settings while using the projector, the duration until the luminance of the light source decreases by half may shorten or the luminance may decrease.

This initial setting (operation setting) is prepared to complete the settings at once during the installation when the operation of the projector is predetermined. When the [PROJECTOR SETUP] menu → [INITIALIZE] → [ALL USER DATA] is executed, do not change the setting in the initial setting (operation setting), but press the <ENTER> button and proceed to next initial setting (installation setting). If you need to change the setting, ask the person responsible for this projector (such as a person in charge of equipment or operation).

INITIAL SETTING

OPERATING MODE

MAX LIGHT OUTPUT LEVEL

LIGHT OUTPUT

Set the way to use the projector. For details, please

refer to the operating instructions "When the initial

setting screen is displayed".

NORMAL

2/7

83.3%

ENTER

SET

CHANGEMENU SELECT

Note

f The preceding initial setting screen is displayed when the projector is switched on for the rst time after purchase. If the [PROJECTOR

SETUP] menu → [INITIALIZE] → [ALL USER DATA] is executed, the settings before execution are displayed in [OPERATING MODE] and [MAX LIGHT OUTPUT LEVEL].

f For the relationship between the luminance and the runtime, refer to “Interrelation of luminance and runtime” (x page 63). f For details on each setting item, refer to the [PROJECTOR SETUP] menu → [OPERATION SETTING].

1) Press as to select [OPERATING MODE].

2) Press qw to switch the item.

f The items will switch each time you press the button. f Set [OPERATING MODE] to anything other than [LONG LIFE1], [LONG LIFE2], or [LONG LIFE3] when

using the projector at an altitude of 2 700 m (8 858') or higher above sea level.

f Set [OPERATING MODE] to anything other than [LONG LIFE1], [LONG LIFE2], or [LONG LIFE3] when

using the optional Smoke Cut Filter (Model No.: ET-SFR330).

[HIGH]

[NORMAL]

[LONG LIFE1]

[LONG LIFE2]

[LONG LIFE3]

[USER1]

[USER3]

The life of the light source will shorten compared to [NORMAL], but set this item when a higher luminance than [NORMAL] is required. The estimated runtime is approximately 8 000 hours.

Set this item when high luminance is required. The estimated runtime is approximately 20 000 hours. (Factory default setting)

The luminance will decrease compared to [NORMAL], but set this item to increase the expected life of the light source. The estimated runtime is approximately 43 000 hours.

The luminance will decrease compared to [LONG LIFE1], but set this item to increase the expected life of the light source. The estimated runtime is approximately 61 000 hours.

The luminance will decrease compared to [LONG LIFE2], but set this item to increase the expected life of the light source. The estimated runtime is approximately 87 000 hours.

Set [MAX LIGHT OUTPUT LEVEL] and [LIGHT OUTPUT] individually.[USER2]

*1 The runtime is an estimation when the [PICTURE] menu → [DYNAMIC CONTRAST] is set to [3].

f Proceed to Step 5) when [NORMAL], [LONG LIFE1], [LONG LIFE2], or [LONG LIFE3] is selected.

3) Press as to select [MAX LIGHT OUTPUT LEVEL].

4) Press qw to adjust.

Operation Adjustment Range of adjustment

Press w. Press q.

Increases the maximum level of brightness correction. Decreases the maximum level of brightness correction.

62 - ENGLISH

8.0 % - 100.0 %

Chapter 3 Basic Operations — Switching on/off the projector

5) Press as to select [LIGHT OUTPUT].

6) Press qw to adjust.

Operation

Press w. Press q.

Brightness Runtime

The screen becomes brighter. The runtime becomes shorter.

The screen becomes darker. The runtime becomes longer.

Adjustment

Range of adjustment

8.0 % - 100.0 %

7) Press the <ENTER> button to proceed to the initial setting.

Interrelation of luminance and runtime

The projector can be operated at arbitrary brightness and duration of use by combining the settings of [MAX LIGHT OUTPUT LEVEL] and [LIGHT OUTPUT].

Interrelation of luminance and runtime is as follows. Make the initial setting (operation setting) depending on your

desired duration of use and brightness of the projected image.

Values of the luminance and runtime are rough estimations.

r To set the projector based on the duration of use

Duration of use (hour)

5 000 100.0 100.0 30 000

10 000 100.0 100.0 30 000

20 000 83.3 83.3 25 000

24 000 83.3 53.2 16 000 48 000 83.3 ― ― 63 000 83.3 ― ― 87 000 83.3 ― ―

[MAX LIGHT OUTPUT LEVEL]

(%)

[LIGHT OUTPUT] (%) Luminance (lm)

r To set the projector based on luminance

Luminance (lm)

30 000 100.0 100.0 18 000

25 000 83.3 83.3 20 000

20 000 83.3 66.7 22 100

15 000 83.3 50.0 24 500 10 000 83.3 ― ―

8 000 83.3 ― ― 5 000 83.3 ― ―

Note

f Under inuence of characteristics of each light source, conditions of use, installation environment, etc., the runtime may be shorter than the

estimation.

f The duration of use is referred to as the runtime when you use the projector successively. The duration of use is an estimated duration and

is not the warranty period.

f The estimated runtime is the time until when the luminance decreases approximately by half, except when [OPERATING MODE] is set to

[HIGH].

f If the consolidated runtime of the projector exceeds 20 000 hours, replacement of the components inside the projector may be required. The

consolidated runtime can be conrmed in the [STATUS] screen. Refer to the [PROJECTOR SETUP] menu → [STATUS] for details.

f After completed the initial setting, the wider the combination of luminance and runtime becomes by setting the [PROJECTOR SETUP]

menu → [BRIGHTNESS CONTROL] → [BRIGHTNESS CONTROL SETUP] → [CONSTANT MODE] to [AUTO] or [PC]. Refer to the

[PROJECTOR SETUP] menu → [BRIGHTNESS CONTROL] for details.

[MAX LIGHT OUTPUT LEVEL]

(%)

[LIGHT OUTPUT] (%) Runtime (hour)

ENGLISH - 63

Chapter 3 Basic Operations — Switching on/off the projector

Initial setting (installation setting)

Set [FRONT/REAR] and [FLOOR/CEILING] in [PROJECTION METHOD] depending on the installation mode. Refer to “Installation mode” (x page 35) for details.

After completed the initial setting, you can change the setting from the [PROJECTOR SETUP] menu → [PROJECTION METHOD].

1) Press qw to switch the setting.

INITIAL SETTING

PROJECTION METHOD

FRONT/REAR

FLOOR/CEILING

Change the projection method (FRONT/REAR,

FLOOR/CEILING) if the screen display is upside down

or inverted.

3/7

FRONT

AUTO

MENU SELECT

ENTER

SET

CHANGE

2) Press the <ENTER> button to proceed to the initial setting.

Initial setting (standby mode)

Set the operation mode during standby. The factory default setting is [NORMAL], which allows you to use the network function during standby. To keep power consumption low during standby, set this item to [ECO]. After completed the initial setting, you can change the setting from the [PROJECTOR SETUP] menu → [STANDBY MODE].

1) Press qw to switch the setting.

INITIAL SETTING

STANDBY MODE

When set to ECO, network functions and SERIAL OUT terminal, and some RS-232C commands are not available during standby.

CHANGE

ENTER

SET

NORMAL

4/7

2) Press the <ENTER> button to proceed to the initial setting.

Note

f The preceding initial setting screen is displayed when the projector is switched on for the rst time after purchase. When the [PROJECTOR

SETUP] menu → [INITIALIZE] → [ALL USER DATA] is executed, the [STANDBY MODE] setting before execution is displayed.

64 - ENGLISH

Chapter 3 Basic Operations — Switching on/off the projector

Initial setting (screen setting)

Set the screen format (aspect ratio) and display position of the image. After completed the initial setting, you can change the settings of each item from the [DISPLAY OPTION] menu → [SCREEN SETTING].

1) Press qw to switch the setting.

f The setting will change each time you press the button.

INITIAL SETTING

SCREEN FORMAT

SCREEN POSITION

Set as necessary for the screen in use.

5/7

16:10

ENTER

SET

CHANGEMENU SELECT

2) Press as to select [SCREEN POSITION].

f [SCREEN POSITION] cannot be selected or adjusted when [SCREEN FORMAT] is set to the following

item.

PT-RZ31K: [16:10] PT-RS30K: [4:3]

3) Press qw to adjust.

INITIAL SETTING

SCREEN FORMAT

SCREEN POSITION

Set as necessary for the screen in use.

MENU SELECT

ENTER

SET

CHANGE

5/7

16:9

4) Press the <ENTER> button to proceed to the initial setting.

ENGLISH - 65

Chapter 3 Basic Operations — Switching on/off the projector

Initial setting (time zone)

Set [TIME ZONE] in accordance with the country or region where you use the projector. After completed the initial setting, you can change the setting from the [PROJECTOR SETUP] menu → [DATE

AND TIME]. The current settings are displayed in [LOCAL DATE] and [LOCAL TIME].

1) Press qw to switch the setting.

INITIAL SETTING

TIME ZONE

LOCAL DATE

LOCAL TIME

Please set up a time zone according to the area of your

country or region.

CHANGE

ENTER

SET

20XX/01/01

12：34：56

2) Press the <ENTER> button to proceed to the initial setting.

Note

6/7

+09:00

f In the factory default setting, the time zone of the projector is set to +09:00 (Japan and Korea Standard Time). Change the setting of the

[PROJECTOR SETUP] menu → [DATE AND TIME] → [TIME ZONE] to the time zone of the region where you use the projector.

Initial setting (date and time)

Set the local date and time. After completed the initial setting, you can change the setting from the [PROJECTOR

SETUP] menu → [DATE AND TIME]. To set the date and time automatically, refer to “Setting the date and time automatically” (x page 144).

1) Press as to select an item.

2) Press qw to switch the setting.

INITIAL SETTING

YEAR

MONTH

DAY

HOUR

MINUTE

SECOND

Please set the date and time of the built-in clock of the

projector.

ENTER

SET

CHANGEMENU SELECT

7/7

20XX

3) Press the <ENTER> button.

f Conrm the setting value and complete the initial setting.

66 - ENGLISH

Chapter 3 Basic Operations — Switching on/off the projector

Making adjustments and selections

It is recommended that images be projected continuously for at least 30 minutes before the focus is adjusted.

1) 5) 7) 8) 9)2)

1) 8)

7) 9)

1) Press the <FOCUS> button to roughly adjust the focus of the projected image. (x page 70)

2) Change the setting of the [PROJECTOR SETUP] menu → [PROJECTION METHOD] depending on the installation mode. (x page 35)

f Refer to “Navigating through the menu” (x page 81) for the operation of the menu screen.

3) Press the input selection button (<RGB1>, <RGB2>, <DIGITAL LINK>, <DVI-D>, <HDMI>, <SDI>, <SDI 1/2>) to select the input signal.

4) Adjust the front, back and sideway tilt of the projector with the adjustable feet. (x page 47)

5) Press the <SHIFT> button to adjust the position of the projected image.

6) If the input signal is the analog RGB signal or the DVI-D/HDMI signal, press the <AUTO SETUP> button.

7) Press the <ZOOM> button to match the projected image size to the screen.

8) Press the <FOCUS> button again to adjust the focus.

9) Press the <ZOOM> button again to adjust the zoom and match the projected image size to the screen.

Note

f When the projector is switched on for the rst time after purchase, as well as when the [PROJECTOR SETUP] menu → [INITIALIZE] →

[ALL USER DATA] is executed, the focus adjustment screen is displayed after projection starts, and then the [INITIAL SETTING] screen is displayed. Refer to “When the initial setting screen is displayed” (x page 61) for details.

ENGLISH - 67

Chapter 3 Basic Operations — Switching on/off the projector

Switching off the projector

1) Press the power standby <v> button.

f The [POWER OFF(STANDBY)] conrmation screen is displayed.

2) Press qw to select [OK], and press the <ENTER> button. (Or press the power standby <v> button again.)

f Projection of the image will stop, and the power indicator <ON (G)/STANDBY (R)> on the projector body

lights in orange. (The fan keeps running.)

3) Wait for a few seconds until the power indicator <ON (G)/STANDBY (R)> of the projector body lights up in red (fan is stopped).

4) Press the <OFF> side of the <MAIN POWER> switch to turn off the power.

Attention

f When switching off the projector, make sure to follow the procedures described. Failure to do so may damage the internal components and

result in malfunctions.

Note

f For approximately 15 seconds after the projector is switched off, the indicator does not light up even if the power is switched on.

f Even when the power standby <v> button is pressed and the projector is switched off, the projector consumes power if the main

power of the projector is on.

When the [PROJECTOR SETUP] menu → [STANDBY MODE] is set to [ECO], use of some functions is restricted, but the power

consumption during standby can be conserved.

f The <MAIN POWER> switch of the projector is equipped with an overcurrent protection function. When current exceeding 25 A is detected,

the overcurrent is automatically disconnected and the projector will go into the state that the <OFF> side is pressed. Consult your dealer

when the overcurrent protection function is operated.

68 - ENGLISH

Chapter 3 Basic Operations — Projecting

Projecting

Check the projection lens attachment (x page 48), external device connection (x page 51), power cord connection (x page 58), switch on the power (x page 60) to start projecting. Select the video for projection,

and adjust appearance of the projected image.

Selecting the input signal

The input of the image to project can be switched. Method to switch the input is as follows.

f Press the input selection button and directly specify the input of the image to project. f Display the input selection screen and select the input of the image to project from the list.

Remote control Control panel

Switching the input directly

The input of the image for projection can be switched by directly specifying it with the input selection button on the remote control or the control panel.

1) Press the input selection button (<RGB1>, <RGB2>, <VIDEO>, <S-VIDEO Y/C>, <DIGITAL LINK>, <DVI-D>, <HDMI>, <SDI> or <SDI 1/2>).

<RGB1>

<VIDEO>

<S-VIDEO Y/C>

<RGB2>

<DVI-D>

<HDMI>

<SDI>

Switches the input to RGB1. The image of the signal input to the <RGB 1 IN> terminal (<R/P HD>, <VD>) is projected.

Switches the input to RGB2. The image of the signal input to the <RGB 2 IN> terminal is projected.

Switches the input to DIGITAL LINK. The image of the signal input to the <DIGITAL LINK/LAN> terminal is projected.

Switches the input to DVI-D. The image of the signal input to the <DVI-D IN> terminal is projected.

Switches the input to HDMI. The image of the signal input to the <HDMI IN> terminal is projected.

Switches the input to SDI1 or SDI2.

The image of the signal input to the <SDI IN 1> terminal or the <SDI IN 2> terminal is projected.

Switches to the other input when one input has already been selected.

Input selection can be xed to SDI1 or SDI2 using the [SECURITY] menu → [CONTROL DEVICE SETUP].

/VIDEO>, <G/Y>, <B/PB/C>, <SYNC/

Attention

f Images may not be projected properly depending on the external device, or the Blu-ray disc or DVD disc, to be played back.

Set the [PICTURE] menu → [SYSTEM SELECTOR]. When the SDI signal is input, set the [DISPLAY OPTION] menu → [SDI IN].

f Conrm the aspect ratio of the projection screen and the image, and switch to an optimum aspect ratio from the [POSITION] menu →

[ASPECT].

Note

f When the optional DIGITAL LINK output supported device (Model No.: ET-YFB100G, ET-YFB200G) is connected to the <DIGITAL LINK/

LAN> terminal, the input on the DIGITAL LINK output supported device changes each time the <DIGITAL LINK> button is pressed. The input

can also be changed using the RS-232C control command.

For twisted-pair-cable transmitters of other manufacturers, switch the input on the projector to DIGITAL LINK, and then switch the input on

the twisted-pair-cable transmitter.

f Set the [DISPLAY OPTION] menu → [RGB IN] → [RGB1 INPUT SETTING] in accordance with the signal input to the <RGB 1 IN> terminal.

ENGLISH - 69

Chapter 3 Basic Operations — Projecting

Switching the input by displaying the input selection screen

The input of the image for projection can be selected by displaying the input selection screen.

1) Press the <INPUT MENU> button on the remote control.

f The input selection screen is displayed.

INPUT SELECT

RGB1

RGB2

DVI-D

HDMI

DIGITAL LINK

SDI1

SDI2

SELECT

ENTER

SET

2) Press the <INPUT MENU> button again.

f The input will switch each time you press the <INPUT MENU> button.

Note

f Input can be switched by pressing as to select the input of the image for projection and pressing the <ENTER> button while the input

selection screen is displayed.

f The [P IN P MODE] screen is displayed when the <INPUT MENU> button is pressed while in the P IN P. (x page 158) f If the optional DIGITAL LINK output supported device (Model No.: ET-YFB100G, ET-YFB200G) is connected to the projector, the input

selection menu for the DIGITAL LINK output supported device is displayed when the <ENTER> button is pressed while the DIGITAL LINK

input is selected in the input selection screen.

f If the optional DIGITAL LINK output supported device (Model No.: ET-YFB100G, ET-YFB200G) is connected to the projector, the DIGITAL

LINK logo and the input name selected in the DIGITAL LINK output supported device are displayed in the display section of the [DIGITAL LINK] in the input selection screen.

f Set the [DISPLAY OPTION] menu → [RGB IN] → [RGB1 INPUT SETTING] in accordance with the signal input to the <RGB 1 IN> terminal.

Adjusting the focus, zoom, and shift

If the projected image or the position is not correct when the positioning of the projector and the screen is correctly installed, adjust the focus, zoom, and shift.

This section describes the adjustment method when anything other than the Fixed-focus Lens (Model No.: ET-D75LE95) is used. When the Fixed-focus Lens (Model No.: ET-D75LE95) is used, refer to “Adjusting the lens position and focus when the Fixed-focus Lens (Model No.: ET-D75LE95) is used” (x page 71).

Using the control panel

1) Press the <LENS> button on the control panel.

f Pressing the button changes the adjustment screen in the order of [FOCUS], [ZOOM], and [SHIFT].

2) Select each item and press asqw to adjust it.

Using the remote control

1) Press the lens buttons (<FOCUS>, <ZOOM>, <SHIFT>) on the remote control.

f <FOCUS> button: Adjusts focus. f <ZOOM> button: Adjusts zoom. f <SHIFT> button: Adjusts shift.

2) Select each item and press asqw to adjust it.

CAUTION

During the lens shift operation, do not insert your hand in any opening around the lens.

Your hand may be caught in between, resulting to injury.

70 - ENGLISH

Chapter 3 Basic Operations — Projecting

Note

f When the projection lens without the zoom function is attached, the zoom adjustment screen will be displayed. However, operation is not

possible.

f When the Fixed-focus Lens (Model No.: ET-D75LE50) is used, do not use the shift adjustment, and use the projector with the lens position

at the home position. (x page 72)

f The adjustment can be performed faster by holding down asqw for approximately six seconds or longer while adjusting the focus, or for

approximately three seconds or longer while adjusting the shift.

f It is recommended that images be projected continuously for at least 30 minutes before the focus is adjusted. f Only [FOCUS] is shown in yellow so that the displayed menu item can be recognized by color, even when the projector is not focused and

displayed characters are unreadable. (Factory default) The displayed color of [FOCUS] differs depending on the setting of the [DISPLAY OPTION] menu → [ON-SCREEN DISPLAY] → [OSD DESIGN].

f When the power is switched off during focus and shift adjustment, lens calibration needs to be performed the next time the power is

switched on. (x page 150)

f When the main power is switched off during focus adjustment, lens calibration is performed automatically during the next focus adjustment. f When the main power is switched off during shift adjustment, a lens calibration error screen will be displayed during the next shift

adjustment. Execute the [PROJECTOR SETUP] menu → [LENS CALIBRATION].

f When the lens calibration error is displayed even though [LENS CALIBRATION] was executed, ask your dealer to repair the unit.

Adjusting the lens position and focus when the Fixed-focus Lens (Model No.: ET-D75LE95) is used

After attaching the projection lens, adjust the lens position and the focus with the projector correctly installed against the screen.

The focus balance between the center and periphery of the projected image will differ depending on the size of

the projected image when the Fixed-focus Lens (Model No.: ET-D75LE95) is attached. Adjust the focus balance of the periphery with the Fixed-focus Lens (Model No.: ET-D75LE95) as necessary.

1) Move the lens to the ET-D75LE95 lens standard position.

f While the shift adjustment screen is displayed, press the <DEFAULT> button on the remote control to

display the [HOME POSITION] screen. Select [D75LE95] to move the lens to the lens standard position. Refer to “Setting the lens position” (x page 72) for details.

2) Adjust the focus at the center of projected image.

f For the steps to adjust the focus, refer to “Adjusting the focus, zoom, and shift” (x page 70).

3) Loosen the lock screw and turn the periphery focus adjustment ring by hand to adjust the focus in the periphery of the screen.

Lock screw

Periphery focus adjustment ring

4) Check the focus at the center of the image again and make fine adjustments.

5) Tighten the lock screw.

f Periphery focus adjustment ring is xed.

Note

f The projected image size and scale shown on the periphery focus adjustment ring are an approximate guide.

ENGLISH - 71

Chapter 3 Basic Operations — Projecting

Setting the lens position

To move the lens position to the home position or the lens standard position, perform the following procedure.

1) Press the <DEFAULT> button on the remote control while the shift adjustment screen is displayed.

f The [HOME POSITION] screen is displayed.

LENS

HOME POSITION

CHANGE

ENTER

EXECUTE

2) Press qw to switch the item.

f The items will switch each time you press the button.

Moves the lens to the home position.

[NORMAL]

[D75LE95]

Select this item when replacing or removing the projection lens. Select this item when the Fixed-focus Lens (Model No.: ET-D75LE50) is used for projection.

Moves the lens to the ET-D75LE95 lens standard position. Select this item when the Fixed-focus Lens (Model No.: ET-D75LE95) is used for projection.

3) Press the <ENTER> button.

f [PROGRESS] is displayed in the [HOME POSITION] screen, and the lens position returns to the home

position or the lens standard position.

NORMAL

CANCEL

Note

f Complete the operation within approximately 5 seconds after the [HOME POSITION] screen is displayed. The [HOME POSITION] screen

will disappear after time limit.

f The home position of the lens is used when the lens is being replaced or when the projector is being stored, and it is not the optical center of

the screen.

f You can also display the [HOME POSITION] screen by pressing the <LENS> button on the control panel or the <SHIFT> button on the

remote control for at least three seconds.

Adjustment range by the lens position shift (optical axis shift)

Perform the lens position shift within the adjustment range. The focus may change when the lens position is shifted out of the adjustment range. This is because the shift

of the lens is restricted to protect the optical parts. Projection position can be adjusted with the optical axis shift function based on the position of the projected image in the home position (standard projection position) or the position of the projected image in the ET-D75LE95 lens standard position (reference projection position).

r PT-RZ31K

Projection lens Model No.

ET-D75LE8, ET-D75LE10, ET-D75LE20,

ET-D75LE30, ET-D75LE40

Projected image width H

0.2 H 0.2 H

0.55 V

0.15 H

0.12 V

ET-D75LE6 ET-D75LE95

Projected image width H

0.15 H

0.12 H

0.44 V

Projected image width H

0.05 V0.05 V

0.12 H

0.07 V

0.12 V 0.12 V Standard projection position

72 - ENGLISH

Projected image height V

0.55 V

0.12 V

Standard projection position

Projected image height V

0.44 V

0.73 V (standard position)

Reference projection position

Projected image height V

r PT-RS30K

ET-D75LE8, ET-D75LE10, ET-D75LE20,

ET-D75LE30, ET-D75LE40

Projected image width H

0.3 H

0.1 V

0.3 H

0.5 V

Chapter 3 Basic Operations — Projecting

Projection lens Model No.

ET-D75LE6 ET-D75LE95

Projected image width H

0.2 H

0.12 V

0.2 H

0.08 H

0.4 V

Projected image width H

0.08 H

0.07 V

0.04 V

Projected image height V

0.4 V

0.71 V (standard position)

Reference projection position

0.1 V

Standard projection position

Projected image height V

0.5 V

0.12 V Standard projection position

Note

f When the optional Fixed-focus Lens (Model No.: ET-D75LE50) is attached, use it in the standard projection position without adjusting shift.

Adjusting the lens mounter when the focus is unbalanced

Focus balance

Relationship between the tilt of the lens and the screen focus surface

When the projection lens is tilted in contrast with the image forming surface, tilting the front side (screen side) of the projection lens downwards (in the direction of the dotted arrow line), the upper side of the screen focus surface will tilt inwards and the lower side will tilt outwards as shown in the example.

Projection lens

Projected image height V

Image forming surface

Screen focus surface

How to adjust the focus balance (adjustment by tilting the lens mounter)

When the entire screen surface is not uniform even if the focus has been adjusted, the lens mounter has focus adjustment screws in three locations.

f Tool used: Hex driver or Allen wrench (diagonal 2.5 mm (3/32")) f The Allen wrench is included with the projection lens ET-D75LE6, ET-D75LE8.

Lens mounter structure

Focus adjustment screws (a), (b), and (c) can be turned to move the lens mount bracket back and forth. Also, tightening the xed screws locks the lens mount bracket in place so it does not move.

When a projection lens with a large weight is installed, or when the projector is installed on an inclination, the lens may tilt and the focus may become unbalanced. In these cases, perform adjustment by referring to the relationship between the adjustment location and adjustment screws.

ENGLISH - 73

Chapter 3 Basic Operations — Projecting

r Front view diagram of the lens mounter (viewed from the screen side)

Lens mount bracket

(b) (c)

(a)

Fixing screws

Note

f Focus adjustment screws (a), (b), and (c) are adjusted with the lens attached.

Adjustment procedure

r Relationship between the adjustment location and adjustment screws

(b)+(c)

(b) (c)

Adjustment location:

(a)

Location where the just focus point of the screen is in the inner side of the screen

When the just focus point of

the screen in V up (top in the

vertical direction) is in the inner side of the screen

(a) Rotate counterclockwise ― ― ― (b) ― Rotate counterclockwise Rotate counterclockwise ― (c) ― Rotate counterclockwise ― Rotate counterclockwise

When the just focus point of the

screen in V bottom (bottom in

the vertical direction) is in the inner side of the screen

When the just focus point of

the screen in H left (left in the

horizontal direction) is in the inner side of the screen

When the just focus point of the

screen in H right (right in the

horizontal direction) is in the inner side of the screen

1) Press the <FOCUS> button on the remote control or the <LENS> button on the control panel to display the focus adjustment screen.

2) Press s to shift the focus of the entire screen once.

3) Press a to stop on any part of the screen to be the first just focus point.

f For the location where focus is shifted in this state, the just focus point is on the inner side of the screen.

4) Loosen the fixed screws in the position relative to the location where the focus is shifted the most (the location where the just focus point is shifted the most towards the inner side in Step 2)) up to two rotations.

f Turn screws clockwise in two locations, or at least in one location when making an adjustment.

74 - ENGLISH

Chapter 3 Basic Operations — Projecting

5) Slowly turn the focus adjustment screws corresponding to the locations counterclockwise and stop where the image is in focus. (x page 73)

f If the screws are turned counterclockwise, the tilt of the lens will change by moving the lens mount bracket

of the lens mounter forward (screen side), and in the projected image on the screen, the focus point in the

opposite direction of the adjustment screws will move from the inner side of the screen to the outside.

6) Press the <SHIFT> button on the remote control or the <LENS> button on the control panel to display the shift adjustment menu, and reset the screen position of the projected image on the screen surface back to an optimal state.

7) Perform focus adjustment again near the center of the screen and if it is still not enough, fine tune the amount of rotation of the adjustment screws.

8) When adjustments have been made, securely tighten the loosened fixing screws.

9) Adjust the focus again using the remote control.

ENGLISH - 75

Chapter 3 Basic Operations — Operating with the remote control

Operating with the remote control

Using the shutter function

If the projector is not used for a certain period of time during the meeting intermission, for example, it is possible

to turn off the image temporarily.

button

1) Press the <SHUTTER> button.

f The image disappears. f This operation can be also performed using the <SHUTTER> button on the control panel.

2) Press the <SHUTTER> button again.

f The image is displayed.

Note

f The power indicator <ON (G)/STANDBY (R)> will blink slowly in green while the shutter function is in use (shutter: closed). f You can set whether to use the mechanical shutter or not and the time for the fade in/fade out of the image using the [DISPLAY OPTION]

menu → [SHUTTER SETTING].

f If [MECHANICAL SHUTTER] in the [DISPLAY OPTION] menu → [SHUTTER SETTING] (x page 129) is set to [DISABLE], the light source

may be lit dimly due to warm-up when the shutter function is used while the operating environment temperature is around 0 °C (32 °F).

Using the on-screen display function

Turn off the on-screen display function (no display) when you do not wish the viewers to see the on-screen

display, such as the menu or the input terminal name.

button

1) Press the <ON SCREEN> button.

f Turns off (hides) the on-screen display.

2) Press the <ON SCREEN> button again.

f Cancels the hide condition of the on-screen display.

76 - ENGLISH

Chapter 3 Basic Operations — Operating with the remote control

Note

f The hide condition of the on-screen display can also be canceled by pressing the <MENU> button on the control panel for at least three

seconds while the on-screen display is off (hidden).

Using the automatic setup function

The image position when the DVI-D/HDMI signal is input, or the resolution, clock phase, and image position when the analog RGB signal is input can be adjusted automatically. (Analog RGB signal is a signal structured with dots

just like the computer signal.) It is recommended to input an image with bright white borders at the edges and high-contrast black and white characters when the automatic adjustment is being performed.

Avoid using images that include halftones or gradation, such as photographs and computer graphics.

button

1) Press the <AUTO SETUP> button.

f [COMPLETE] is displayed when it has completed without any problem. f This operation can be also performed using the <AUTO SETUP> button on the control panel.

Note

f The clock phase may shift even if it has completed without any incident. In such a case, adjust the [POSITION] menu → [CLOCK PHASE]

(x page 98).

f If an image with blurred edges or a dark image is input, [INCOMPLETE] may appear or adjustment may not be performed properly even

when [COMPLETE] appears. In such a case, adjust the following settings.

g The [ADVANCED MENU] menu → [INPUT RESOLUTION] (x page 102) g The [POSITION] menu → [CLOCK PHASE] (x page 98) g The [POSITION] menu → [SHIFT] (x page 96)

f Adjust special signals according to the [DISPLAY OPTION] menu → [AUTO SETUP] (x page 115). f Automatic adjustment may not work depending on the model of the computer. f Automatic adjustment may not work for a synchronization signal of C-SY or SYNC ON GREEN. f Images may be disrupted for a few seconds during automatic adjustment, but it is not a malfunction. f Adjustment is required for each input signal. f Automatic adjustment can be canceled by pressing the <MENU> button during the automatic adjustment operation. f Even if a signal possible to perform the automatic setup is being input, it may not be able to adjust correctly if the automatic setup function

is used while the moving image is being input. [INCOMPLETE] may be displayed, or the adjustment may not be completed correctly even if [COMPLETE] is displayed.

Switching the image aspect ratio

Switch the image aspect ratio according to the input.

button

1) Press the <ASPECT> button.

f The setting will change each time you press the button.

Note

f The aspect ratio of the image can also be switched using the menu operation. Refer to the [POSITION] menu → [ASPECT] (x page 96)

for details.

Using the function button

By assigning the following functions to the <FUNCTION> button, it can be used as a simplied shortcut button. [P IN P], [SUB MEMORY], [SYSTEM SELECTOR], [SYSTEM DAYLIGHT VIEW], [FREEZE], [WAVEFORM

MONITOR], [LENS MEMORY LOAD], [LEFT/RIGHT SWAP], [PROJECTION METHOD]

button

1) Press the <FUNCTION> button.

Note

f Assignment of the function is performed from the [PROJECTOR SETUP] menu → [FUNCTION BUTTON] (x page 150).

ENGLISH - 77

Chapter 3 Basic Operations — Operating with the remote control

Displaying internal test pattern

The projector has nine types of internal test patterns to check the condition of the projector. To display test patterns, perform the following steps.

button

1) Press the <TEST PATTERN> button.

2) Press qw to select the test pattern.

Note

f Test patterns can also be displayed using the menu operation. Refer to “[TEST PATTERN] menu” (x page 160) for details. f Settings of position, size, and other factors will not be reected in test patterns. Make sure to display the input signal before performing

various adjustments.

Using the status function

Display the status of the projector.

button

1) Press the <STATUS> button.

f The [STATUS] screen is displayed.

STATUS

PROJECTOR TYPE

PROJECTOR RUNTIME

LIGHT RUNTIME

MAIN/SUB VERSION

INTAKE AIR TEMP.

OPTICS MODULE TEMP.

EXHAUST AIR TEMP.

LIGHT1-B TEMP.

LIGHT1-S TEMP.

LIGHT2-B TEMP.

LIGHT2-S TEMP.

SELF TEST

ENTER

SEND E-MAIL

RZ31K(123456789012)

100000h

100000h / 100000h

1.00 / 1.00

31°C/87°F

27°C/80°F

31°C/87°F

NO ERRORS

EXITCHANGE

1/6

Note

f The projector status can also be displayed using the menu operation. Refer to the [PROJECTOR SETUP] menu → [STATUS]

(x page 152) for details.

78 - ENGLISH

Chapter 3 Basic Operations — Operating with the remote control

Using the AC voltage monitor function

The value of input supply voltage can be displayed on the self-diagnosis display at the side of the projector.

r To display during projection

1) Press the power on <b> button.

f The value of the input supply voltage is displayed only as numeric value on the self-diagnosis display. f The display will turn off automatically after approximately 3 seconds.

r To display during standby mode

1) Press the power standby <v> button.

f The value of the input supply voltage is displayed only as numeric value on the self-diagnosis display. f The display will turn off automatically after approximately 3 seconds.

Note

f The value of the input supply voltage can be always displayed in the self-diagnosis display by setting the [PROJECTOR SETUP] menu →

[AC VOLTAGE MONITOR] (x page 154) to [ON].

f The value of input supply voltage cannot be displayed in the self-diagnosis display during standby when the [PROJECTOR SETUP] menu

→ [STANDBY MODE] (x page 142) is set to [ECO].

f Operation can also be performed by the power on <b> button or power standby <v> button on the control panel.

Setting ID number of the remote control

When you use the multiple projectors together, you can operate all the projectors simultaneously or each projector

individually using a single remote control, if a unique ID number is assigned to each projector.

After setting the ID number of the projector, set same ID number on the remote control.

The factory default ID number of the projector is set to [ALL]. When using a single projector, press the <ID ALL> button on the remote control. Also, you can control a projector by pressing the <ID ALL> button on the remote control even if you do not know the projector ID.

button

1) Press the <ID SET> button on the remote control.

2) Within five seconds, press and set the one-digit or two-digit ID number set on the projector body using the number (<0> - <9>) buttons.

f If you press the <ID ALL> button, you can control the projectors regardless of the ID number setting of the

projector body.

Attention

f Since the ID number of the remote control can be set without the projector body, do not press the <ID SET> button on the remote control

carelessly. If the <ID SET> button is pressed and no number (<0> - <9>) buttons are pressed within ve seconds, the ID number returns to its original value before the <ID SET> button was pressed.

f The ID number set on the remote control will be stored unless it is set again. However, it will be erased if the remote control is left with dead

batteries. Set the same ID number again when the batteries are replaced.

Note

f When the ID number of the remote control is set to [0], you can control the projector regardless of the ID number setting of the projector

body, as same as when [ALL] is set.

f Set the ID number of the projector body from the [PROJECTOR SETUP] menu → [PROJECTOR ID].

ENGLISH - 79

Chapter 4 Settings

This chapter describes the settings and adjustments you can make using the on-screen menu.

80 - ENGLISH

Chapter 4 Settings — Menu navigation

Menu navigation

The on-screen menu (Menu) is used to perform various settings and adjustments of the projector.

Navigating through the menu

Operating procedure

button

1) Press the <MENU> button on the remote control or control panel.

f The [MAIN MENU] screen is displayed.

MAIN MENU


POSITION

ADVANCED MENU

DISPLAY LANGUAGE

3D SETTINGS

DISPLAY OPTION

PROJECTOR SETUP

P IN P

TEST PATTERN

SIGNAL LIST

SECURITY

NETWORK

MENU SELECT

ENTER

SUB MENU

2) Press as to select an item from the main menu.

f The selected item is highlighted in yellow.

MAIN MENU


POSITION

ADVANCED MENU

DISPLAY LANGUAGE

3D SETTINGS

DISPLAY OPTION

PROJECTOR SETUP

P IN P

TEST PATTERN

SIGNAL LIST

SECURITY

NETWORK

MENU SELECT

ENTER

SUB MENU

3) Press the <ENTER> button.

f The sub-menu items of the selected main menu are displayed.

POSITION

SHIFT

ASPECT

ZOOM

CLOCK PHASE

GEOMETRY

DEFAULT

OFF

MENU SELECT

ENTER

SUB MENU

ENGLISH - 81

Chapter 4 Settings — Menu navigation

4) Press as to select a sub-menu, and press qw or the <ENTER> button to change or adjust settings.

f Some items will switch in order as follows each time you press qw.

A B C

f For some items, press qw to display an individual adjustment screen with a bar scale as shown below.

CONTRAST

ADJUST

Note

f Pressing the <MENU> button while the menu screen is displayed returns to the previous menu. f Some items or functions may not be adjusted or used depending on the signals input to the projector. When the items cannot be adjusted

or used, the items in the menu screen are shown in black characters, and they cannot be adjusted or set. [FRAME LOCK] may not be

displayed depending on the input signal. If the item in the menu screen is displayed in black characters and the item cannot be adjusted or set, the factor causing it is displayed by

pressing the <ENTER> button while the corresponding menu is selected.

f Some items can be adjusted even if signals are not input. f Individual adjustment screen is cleared automatically if no operation is performed for approximately ve seconds. f For menu items, refer to “Main menu” (x page 82) and “Sub-menu” (x page 83). f The cursor color depends on the setting in the [DISPLAY OPTION] menu → [ON-SCREEN DISPLAY] → [OSD DESIGN]. The selected item

is displayed with the yellow cursor by the factory default.

f In the portrait setting, the on-screen menu is displayed sideways.

To display the on-screen menu vertically, change the setting of the [DISPLAY OPTION] menu → [ON-SCREEN DISPLAY] → [OSD ROTATION].

Resetting adjustment values to the factory default

If the <DEFAULT> button on the remote control is pressed, the values adjusted in the menu items are restored to

the factory default settings.

button

1) Press the <DEFAULT> button on the remote control.

CONTRAST

ADJUST

Note

f You cannot reset all the settings to the factory default at a time. f To reset all the settings adjusted in the sub-menu item to the factory default one at a time, execute the [PROJECTOR SETUP] menu →

[INITIALIZE].

f Some items cannot be reset to the factory default settings even when the <DEFAULT> button on the remote control is pressed. Adjust those

items individually.

f The triangular mark under the bar scale in the individual adjustment screen indicates the factory default setting. The position of the triangular

mark varies according to the selected input signals.

Current adjustment value

Factory default setting

Main menu

The following items are in the main menu. When a main menu item is selected, the screen changes to a sub-menu selection screen.

Main menu item Page

[PICTURE] 87

[POSITION] 96

[ADVANCED MENU] 101

82 - ENGLISH

Sub-menu

Chapter 4 Settings — Menu navigation

Main menu item Page

[DISPLAY LANGUAGE] 107

[3D SETTINGS] 108

[DISPLAY OPTION] 113

[PROJECTOR SETUP] 134

[P IN P] 158

[TEST PATTERN] 160

[SIGNAL LIST] 161

[SECURITY] 164

[NETWORK] 168

The sub-menu of the selected main menu item is displayed, and you can set and adjust items in the sub-menu.

[PICTURE]

Sub-menu item Factory default Page

[PICTURE MODE] [GRAPHIC] [CONTRAST] [0] [BRIGHTNESS] [0] [COLOR] [0] [TINT] [0]

[COLOR TEMPERATURE] [DEFAULT] [GAMMA] [DEFAULT] [SYSTEM DAYLIGHT VIEW] [OFF] [SHARPNESS] [+8] [NOISE REDUCTION] [2] [DYNAMIC CONTRAST] [2]

[COLOR SPACE] [NATIVE] 93

[SYSTEM SELECTOR] [YP

*1 Depends on the signal input. *2 Depends on the [PICTURE MODE].

BPR

]

[POSITION]

Sub-menu item Factory default Page

[SHIFT] ― 96 [ASPECT] [DEFAULT]

[ZOOM] ― 97 [CLOCK PHASE] [0]

[GEOMETRY] [OFF] 98

*1 Depends on the signal input.

[ADVANCED MENU]

Sub-menu item Factory default Page

[DIGITAL CINEMA REALITY] [AUTO]

101

ENGLISH - 83

Chapter 4 Settings — Menu navigation

Sub-menu item Factory default Page

[BLANKING] ― 101 [INPUT RESOLUTION] ― 102 [CLAMP POSITION] [24] [EDGE BLENDING] [OFF] 103 [FRAME RESPONSE] [NORMAL] 104 [FRAME CREATION] ― 105 [FRAME LOCK] ― 106 [RASTER POSITION] ― 106

*1 Depends on the signal input.

[DISPLAY LANGUAGE]

Details (x page 107)

[3D SETTINGS]

Sub-menu item Factory default Page

[3D SYSTEM SETTING] [SINGLE] 108 [3D SYNC SETTING] ― 108 [3D INPUT FORMAT] [AUTO] [LEFT/RIGHT SWAP] [NORMAL] 109 [3D COLOR MATCHING] [SHARED 2D/3D] 110 [3D PICTURE BALANCE] ― 110 [DARK TIME SETTING] [1.5ms] 110 [3D FRAME DELAY] [0us] 111 [3D TEST MODE] [NORMAL] 111 [3D TEST PATTERN] ― 111 [SAFETY PRECAUTIONS MESSAGE] [ON] 112 [3D SAFETY PRECAUTIONS] ― 11 2

102

109

*1 Varies depending on the selected input terminal.

[DISPLAY OPTION]

Sub-menu item Factory default Page

[COLOR MATCHING] [OFF] 113 [LARGE SCREEN CORRECTION] [OFF] 114 [SCREEN SETTING] ― 114 [AUTO SIGNAL] [OFF] 115 [AUTO SETUP] ― 115 [BACKUP INPUT SETTING] ― 11 6 [SIMUL INPUT SETTING] ― 11 7 [RGB IN] ― 118 [DVI-D IN] ― 119 [HDMI IN] ― 121 [DIGITAL LINK IN] ― 122 [SDI IN] ― 123 [ON-SCREEN DISPLAY] ― 126 [IMAGE ROTATION] [OFF] 128 [BACK COLOR] [BLUE] 128 [STARTUP LOGO] [DEFAULT LOGO] 128 [UNIFORMITY] ― 129 [SHUTTER SETTING] ― 129 [FREEZE] ― 132 [WAVEFORM MONITOR] [OFF] 132 [CUT OFF] ― 133

84 - ENGLISH

Chapter 4 Settings — Menu navigation

[PROJECTOR SETUP]

Sub-menu item Factory default Page

[PROJECTOR ID] [ALL] 134 [PROJECTION METHOD] ― 134 [OPERATION SETTING] ― 135 [LIGHT OUTPUT] [83.3%] 137 [BRIGHTNESS CONTROL] ― 138 [STANDBY MODE] [NORMAL] 142 [NO SIGNAL SHUT-OFF] [DISABLE] 142 [NO SIGNAL LIGHTS-OUT] [DISABLE] 142 [INITIAL STARTUP] [LAST MEMORY] 143 [STARTUP INPUT SELECT] [LAST USED] 143 [DATE AND TIME] ― 143 [SCHEDULE] [OFF] 144 [MULTI PROJECTOR SYNC] ― 146 [RS-232C] ― 148 [REMOTE2 MODE] [DEFAULT] 150 [FUNCTION BUTTON] ― 150 [LENS CALIBRATION] ― 150 [LENS MEMORY] ― 151 [STATUS] ― 152 [AC VOLTAGE MONITOR] [OFF] 154 [FILTER SETTING] ― 155 [SAVE ALL USER DATA] ― 156 [LOAD ALL USER DATA] ― 156 [INITIALIZE] ― 156 [SERVICE PASSWORD] ― 157

[P IN P]

Details (x page 158)

[TEST PATTERN]

Details (x page 160)

[SIGNAL LIST]

Details (x page 161)

[SECURITY]

Sub-menu item Factory default Page

[SECURITY PASSWORD] [OFF] 164 [SECURITY PASSWORD CHANGE] ― 164 [DISPLAY SETTING] [OFF] 164 [TEXT CHANGE] ― 165 [CONTROL DEVICE SETUP] ― 165 [CONTROL DEVICE PASSWORD CHANGE] ― 166

[NETWORK]

Sub-menu item Factory default Page

[DIGITAL LINK MODE] [AUTO] 168

ENGLISH - 85

Chapter 4 Settings — Menu navigation

Sub-menu item Factory default Page

[DIGITAL LINK STATUS] ― 168 [NETWORK SETUP] ― 169 [NETWORK CONTROL] ― 169 [NETWORK STATUS] ― 170 [DIGITAL LINK MENU] ― 170 [Art-Net SETUP] [OFF] 170 [Art-Net CHANNEL SETTING] [2] 171 [Art-Net STATUS] ― 171

Note

f Some items may not be adjusted or used for certain signal formats to be input to the projector.

When the items cannot be adjusted or used, the items in the menu screen are shown in black characters, and they cannot be adjusted or set.

f Sub-menu items and factory default settings vary depending on the selected input terminal.

86 - ENGLISH

Chapter 4 Settings — [PICTURE] menu

[PICTURE] menu

On the menu screen, select [PICTURE] from the main menu, and select an item from the sub-menu. Refer to “Navigating through the menu” (x page 81) for the operation of the menu screen.

[PICTURE MODE]

You can switch to the desired picture mode suitable for the image source and the environment in which the projector is used.

1) Press as to select [PICTURE MODE].

2) Press qw.

f The [PICTURE MODE] individual adjustment screen is displayed.

3) Press qw to switch the item.

f The items will switch each time you press the button.

[STANDARD] The image becomes suitable for moving images in general.

[CINEMA] The image becomes suitable for movie contents.

[NATURAL] The image is sRGB compliant.

[DICOM SIM.] The image becomes similar to that of DICOM Part 14 Grayscale Standard.

[DYNAMIC] The light output is maximized for use in bright areas.

[GRAPHIC] The image becomes suitable for input from the personal computer.

[USER] Set any desired picture mode.

Note

f The factory default picture mode is [GRAPHIC] for still image input signals and [STANDARD] for movie-based input signals. f DICOM is an abbreviation of “Digital Imaging and COmmunication in Medicine” and is a standard for medical imaging devices. Although the

DICOM name is used, the projector is not a medical device, and should not be used for purposes such as diagnosis of display images.

f Press the <ENTER> button when each [PICTURE MODE] is selected to save as a specied value when a new signal is input. The data of

all items except [SYSTEM SELECTOR] in the [PICTURE] menu is saved.

f In the factory default settings, [USER] is set to images that comply with the ITU-R BT.709 standard.

Changing the [USER] name

1) Press as to select [PICTURE MODE].

2) Press qw to select [USER].

3) Press the <ENTER> button.

f The [PICTURE MODE] detailed screen is displayed.

4) Press as to select [PICTURE MODE NAME CHANGE], and press the <ENTER> button.

f The [PICTURE MODE NAME CHANGE] screen is displayed.

5) Press asqw to select the text, and press the <ENTER> button to enter the text.

6) Press asqw to select [OK], and press the <ENTER> button.

f The picture mode name is changed.

[CONTRAST]

You can adjust the contrast of the colors.

1) Press as to select [CONTRAST].

2) Press qw or the <ENTER> button.

f The [CONTRAST] individual adjustment screen is displayed.

3) Press qw to adjust the level.

Operation Adjustment Range of adjustment

Press w. Press q.

The screen becomes brighter.

The screen becomes darker.

31 - +31

ENGLISH - 87

Chapter 4 Settings — [PICTURE] menu

Attention

f Adjust [BRIGHTNESS] rst when you need to adjust the black level.

[BRIGHTNESS]

You can adjust the dark (black) part of the projected image.

1) Press as to select [BRIGHTNESS].

2) Press qw or the <ENTER> button.

f The [BRIGHTNESS] individual adjustment screen is displayed.

3) Press qw to adjust the level.

Operation Adjustment Range of adjustment

Press w. Press q.

Increases the brightness of the dark (black) parts of the screen. Reduces the brightness of the dark (black) parts of the screen.

[COLOR]

You can adjust the color saturation of the projected image.

1) Press as to select [COLOR].

31 - +31

2) Press qw or the <ENTER> button.

f The [COLOR] individual adjustment screen is displayed.

3) Press qw to adjust the level.

Operation Adjustment Range of adjustment

Press w. Press q.

Deepens colors.

Weakens colors.

[TINT]

You can adjust the skin tone in the projected image.

1) Press as to select [TINT].

2) Press qw or the <ENTER> button.

f The [TINT] individual adjustment screen is displayed.

3) Press qw to adjust the level.

Operation Adjustment Range of adjustment

Press w. Press q.

Adjusts skin tone toward greenish color.

Adjusts skin tone toward reddish purple.

[COLOR TEMPERATURE]

31 - +31

You can switch the color temperature if the white areas of the projected image are bluish or reddish.

Adjusting with color temperature

1) Press as to select [COLOR TEMPERATURE].

2) Press qw or the <ENTER> button.

f The [COLOR TEMPERATURE] individual adjustment screen is displayed.

3) Press qw to switch the item.

f The items will switch each time you press the button.

[DEFAULT] Factory default setting.

88 - ENGLISH

Chapter 4 Settings — [PICTURE] menu

[USER1]

[USER2]

[3200K] - [9300K] Allows you to set in increments of 100 K. Select so that images become natural.

Adjusts white balance as desired. Refer to “Adjusting desired white balance” (x page 89) for details.

Note

f When [PICTURE MODE] (x page 87) is set to [USER] or [DICOM SIM.], [DEFAULT] cannot be selected. f When [COLOR MATCHING] (x page 113) adjustment is set to other than [OFF], [COLOR TEMPERATURE] is xed to [USER1]. f The color temperature numerical values are guidelines.

Adjusting desired white balance

1) Press as to select [COLOR TEMPERATURE].

2) Press qw or the <ENTER> button.

f The [COLOR TEMPERATURE] individual adjustment screen is displayed.

3) Press qw to select [USER1] or [USER2].

4) Press the <ENTER> button.

f The [COLOR TEMPERATURE] screen is displayed.

5) Press as to select [WHITE BALANCE].

6) Press the <ENTER> button.

f The [WHITE BALANCE] screen is displayed.

7) Press as to select [WHITE BALANCE HIGH] or [WHITE BALANCE LOW].

8) Press the <ENTER> button.

f The [WHITE BALANCE HIGH] screen or the [WHITE BALANCE LOW] screen is displayed.

9) Press as to select [RED], [GREEN], or [BLUE].

10) Press qw to adjust the level.

Item Operation Adjustment Range of adjustment

[RED]

[GREEN]

[BLUE]

Press w. Press q. Press w. Press q. Press w. Press q.

Deepens red.

Weakens red.

Deepens green.

Weakens green.

Deepens blue.

Weakens blue.

[WHITE BALANCE HIGH]: 0 - +255 (factory default is

+255)

[WHITE BALANCE LOW]:

127 - +127 (factory default is

Note

f Adjust [COLOR TEMPERATURE] correctly. All colors will not be displayed properly unless adequate adjustment is made. If the adjustment

does not look suitable, you can press the <DEFAULT> button on the remote control to return the setting for the selected item only to the

factory default setting.

Adjusting desired white balance based on existing color temperature settings

1) Press as to select [COLOR TEMPERATURE].

2) Press qw or the <ENTER> button.

f The [COLOR TEMPERATURE] individual adjustment screen is displayed.

3) Press qw to select an item other than [DEFAULT], [USER1], and [USER2].

4) Press the <ENTER> button.

f The [CHANGE TO *****] screen is displayed.

5) Press as to select [USER1] or [USER2].

f The status of the color temperature changed is saved to the selected item.

ENGLISH - 89

Chapter 4 Settings — [PICTURE] menu

6) Press the <ENTER> button.

f The conrmation screen is displayed.

7) Press qw to select [OK], and press the <ENTER> button.

f The [USER1] or [USER2] data is overwritten. f If you press qw to select [CANCEL] and then press the <ENTER> button, the data will not be overwritten. f The [WHITE BALANCE HIGH] screen is displayed.

8) Press as to select [RED], [GREEN], or [BLUE].

9) Press qw to adjust the level.

Note

f Adjust [COLOR TEMPERATURE] correctly. All colors will not be displayed properly unless adequate adjustment is made. If the adjustment

does not look suitable, you can press the <DEFAULT> button on the remote control to return the setting for the selected item only to the

factory default setting.

f When color temperature has been changed, the colors before and after the change will differ slightly.

Changing the name of [USER1] or [USER2]

1) Press as to select [COLOR TEMPERATURE].

2) Press qw or the <ENTER> button.

f The [COLOR TEMPERATURE] individual adjustment screen is displayed.

3) Press qw to select [USER1] or [USER2].

4) Press the <ENTER> button.

f The [COLOR TEMPERATURE] screen is displayed.

5) Press as to select [COLOR TEMPERATURE NAME CHANGE].

6) Press the <ENTER> button.

f The [COLOR TEMPERATURE NAME CHANGE] screen is displayed.

7) Press asqw to select the text, and press the <ENTER> button to enter the text.

8) Press asqw to select [OK], and press the <ENTER> button.

f The name set to color temperature is changed.

Note

f When a name is changed, display of [USER1], [USER2] is also changed.

[GAMMA]

You can switch gamma mode.

1) Press as to select [GAMMA].

2) Press qw or the <ENTER> button.

f The [GAMMA] individual adjustment screen is displayed.

3) Press qw to switch the item.

f The items will switch each time you press the button.

[DEFAULT]

[USER1]

[USER2]

[HDR ST2084-500]

[HDR ST2084-1000]

[HDR HLG]

[DICOM SIM.] The picture becomes similar to that of DICOM standard.

Gamma mode unique to this projector.

Uses the gamma data registered by the user.

(Registration requires separate software. Consult your dealer.) Gamma mode compliant with SMPTE ST 2084 that assumes a highest luminance of 500 nt and

supports HDR (High Dynamic Range). Gamma mode compliant with SMPTE ST 2084 that assumes a highest luminance of 1 000 nt and

supports HDR (High Dynamic Range). Gamma mode compliant with ARIB STD-B67 (HLG: Hybrid Log Gamma system) that supports

HDR (High Dynamic Range).

90 - ENGLISH

Chapter 4 Settings — [PICTURE] menu

[1.0]

Set so that images become as you like. [2.0] - [2.8] can be set in increments of 0.1.[1.8]

[2.0] - [2.8]

*1 When [PICTURE MODE] is set to [DYNAMIC], [USER], or [DICOM SIM.], [DEFAULT] cannot be selected.

Note

f DICOM is an abbreviation of “Digital Imaging and COmmunication in Medicine” and is a standard for medical imaging devices. Although the

DICOM name is used, the projector is not a medical device, and should not be used for purposes such as diagnosis of display images.

Changing the name of [USER1] or [USER2]

1) Press as to select [GAMMA].

2) Press qw or the <ENTER> button.

f The [GAMMA] individual adjustment screen is displayed.

3) Press qw to select [USER1] or [USER2].

4) Press the <ENTER> button.

f The [GAMMA] screen is displayed.

5) Press the <ENTER> button.

f The [GAMMA NAME CHANGE] screen is displayed.

6) Press asqw to select the text, and press the <ENTER> button to enter the text.

7) Press asqw to select [OK], and press the <ENTER> button.

f The selected gamma name is changed.

Note

f When a name is changed, display of [USER1], [USER2] is also changed.

[SYSTEM DAYLIGHT VIEW]

You can correct the image to the optimal vividness even if it is projected under a bright light.

1) Press as to select [SYSTEM DAYLIGHT VIEW].

2) Press qw or the <ENTER> button.

f The [SYSTEM DAYLIGHT VIEW] individual adjustment screen is displayed.

3) Press qw to switch the item.

f The items will switch each time you press the button.

[OFF] No correction.

[1] - [6] Corrects the vividness of the image. The larger the value, the stronger the correction.

[SHARPNESS]

You can adjust the sharpness of the projected image.

1) Press as to select [SHARPNESS].

2) Press qw or the <ENTER> button.

f The [SHARPNESS] individual adjustment screen is displayed.

3) Press qw to adjust the level.

Operation Adjustment Range of adjustment

Press w. Press q.

Contours become sharper.

Contours become softer.

0 - +15

ENGLISH - 91

Chapter 4 Settings — [PICTURE] menu

Note

f If you press w while the adjustment value is [+15], the value will become [0]. If you press q while the adjustment value is [0], the value will

become [+15].

[NOISE REDUCTION]

You can reduce noises when the input image is degraded and noise is occurring in the image signal.

1) Press as to select [NOISE REDUCTION].

2) Press qw or the <ENTER> button.

f The [NOISE REDUCTION] individual adjustment screen is displayed.

3) Press qw to switch the item.

f The items will switch each time you press the button.

[OFF] No correction.

[1] Slightly corrects the noise. [2] Moderately corrects the noise.

[3] Strongly corrects the noise.

Attention

f When this is set for an input signal with less noise, the image may look different from what it originally was. In such a case, set it to [OFF].

[DYNAMIC CONTRAST]

Light adjustment of the light source and signal compensation are performed automatically according to the image

to make the contrast optimum for the image.

1) Press as to select [DYNAMIC CONTRAST].

2) Press qw or the <ENTER> button.

f The [DYNAMIC CONTRAST] individual adjustment screen is displayed.

3) Press qw to switch the item.

f The items will switch each time you press the button.

[OFF] Disables the dynamic contrast function.

[1] Adjusts the light source and compensates signals to a small extent. [2] Adjusts the light source and compensates signals to a moderate extent. [3] Adjusts the light source and compensates signals to a large extent.

[USER]

Performing desired correction

1) Press as to select [DYNAMIC CONTRAST].

2) Press qw or the <ENTER> button.

f The [DYNAMIC CONTRAST] individual adjustment screen is displayed.

Set any desired correction. Refer to “Performing desired correction” (x page 92) for details.

3) Press qw to select [USER].

4) Press the <ENTER> button.

f The [DYNAMIC CONTRAST] screen is displayed.

5) Press as to select the item to set.

f The items of the detailed settings will switch each time you press qw. f Press the <ENTER> button when [MULTI PROJECTOR SYNC] is selected.

92 - ENGLISH

Setting item Details

[AUTO CONTRAST]

(Automatic light source

adjustment)

[BRIGHT SIGNAL LEVEL]

(Setting of the brightness level

of the signal to start the light

adjustment)

[LIGHTS OUT TIMER]

(Time setting until the light turns

off)

[LIGHTS OUT SIGNAL

LEVEL]

(Setting of the brightness level

of the signal to turn off the light)

[MANUAL INTENSITY]

(Manual light source

adjustment)

[DYNAMIC GAMMA]

(Adjustment of signal

compensation)

[MULTI PROJECTOR SYNC]

Chapter 4 Settings — [PICTURE] menu

[OFF] Does not adjust the light source.

The higher the value, the stronger the light adjustment of the light

[1] - [255]

[6%] - [50%]

[DISABLE] Does not turn off the light source.

[0.0s] - [10.0s]

[0%] - [5%]

[0] - [255]

[OFF] Does not compensate the signal.

[1] Slightly compensates the signal. [2] Moderately compensates the signal.

[3] Strongly compensates the signal.

source. Can be set in increments of 1.

Adjusts the light source when the brightness level of the video signal being input gets lower than the set value. The higher the value, the larger the range to perform the light adjustment of the light source.

Can be set in increments of 1 %. (Factory setting: 30 %)

Turns off the light source when the brightness level of the video

signal being input goes under the value set in [LIGHTS OUT SIGNAL LEVEL]. Select an item from [0.0s] - [4.0s], [5.0s], [7.0s], or [10.0s]. [0.0s] [4.0s] can be selected in increments of 0.5.

Set the level of the brightness of the video signal to turn off the light

source with [LIGHTS OUT TIMER]. Can be set in increments of 1 %. (Factory setting: 0 %)

The larger the value, the stronger the correction.

Can be set in increments of 1. (Factory setting: 255)

Sets the contrast synchronization function. This setting item is common with the following menu item.

f The [PROJECTOR SETUP] menu → [MULTI PROJECTOR

SYNC]

Refer to the [PROJECTOR SETUP] menu → [MULTI PROJECTOR SYNC] (x page 146) for details.

Note

f [LIGHTS OUT SIGNAL LEVEL] cannot be set when [LIGHTS OUT TIMER] is set to [DISABLE]. f When [LIGHTS OUT TIMER] is set to anything other than [DISABLE], the following are the conditions to turn the light source back on again

from the state that the light source has turned off by this function.

g When the brightness level of the video signal being input has exceeded the value set in [LIGHTS OUT SIGNAL LEVEL] g When the input signal is gone g When on-screen display such as menu screen (OSD) or input guide, a test pattern, or a warning message is displayed g When the operating environment temperature is around 0 °C (32 °F) and the light source is forced to turn on due to warm-up

f When [LIGHTS OUT TIMER] is set to anything other than [DISABLE], it will take approximately 0.5 seconds to turn the light source back on

again from the state that the light source has turned off by this function.

f When the image of analog signal is projected, the image may be affected by the signal noise while the brightness level of the video signal is

detected. In this case, even when the brightness level of the image falls below the value set in [LIGHTS OUT SIGNAL LEVEL], it is judged

that the brightness level is not below the value as a signal.

f The contrast will be maximized when [DYNAMIC GAMMA] is set to [3]. f The brightness control function and the dynamic contrast function will operate simultaneously, but the dynamic contrast function will not

operate while measuring the brightness and the color.

f The contrast synchronization function is a function to display a combined screen with a balanced contrast by sharing the brightness level of

the video signal input to each projector when a multi-display is constructed by combining the projected image of multiple projectors.

f The [3D SYNC SETTING] setting is disabled and xed to [OFF] when [MULTI PROJECTOR SYNC] → [MODE] is set to anything other than

[OFF].

f The following settings are disabled and the contrast synchronization function and shutter synchronization function cannot be used when [3D

SYNC SETTING] is set to anything other than [OFF].

g The [PICTURE] menu → [DYNAMIC CONTRAST] → [USER] → [MULTI PROJECTOR SYNC] g The [DISPLAY OPTION] menu → [SHUTTER SETTING] → [MULTI PROJECTOR SYNC] g The [PROJECTOR SETUP] menu → [MULTI PROJECTOR SYNC]

[COLOR SPACE]

Set the color space used for the color representation of the image.

1) Press as to select [COLOR SPACE].

2) Press qw or the <ENTER> button.

f The [COLOR SPACE] individual adjustment screen is displayed.

ENGLISH - 93

Chapter 4 Settings — [PICTURE] menu

3) Press qw to switch the item.

f The items will switch each time you press the button.

[NATIVE] Displays the image with a color space unique to this projector.

[ITU-709] Displays the image with a color space compliant with the ITU-R BT.709 standard.

[DCI-P3 emu.] Displays the image with a color space close to DCI-P3.

[ITU-2020 emu.] Displays the image with a color space close to the ITU-R BT.2020 standard.

Note

f DCI-P3 is the specications of the digital cinema color region dened by the Digital Cinema Initiatives (DCI).

[SYSTEM SELECTOR]

The projector will automatically detect the input signal, but you can set the system method manually when an unstable signal is input. Set the system method matching the input signal.

1) Press as to select [SYSTEM SELECTOR].

2) Press the <ENTER> button.

3) Press as to select a system format.

f Available system formats vary depending on the input signal.

Terminal System format

Select [AUTO], [NTSC], [NTSC4.43], [PAL], [PAL-M], [PAL-N], [SECAM], or [PAL60].

/VIDEO> terminal, <G/

<R/P

Y>/<B/PB/C> terminal

<RGB 1 IN> terminal, <RGB 2

IN> terminal

<DVI-D IN> terminal

<HDMI IN> terminal, <DIGITAL

LINK/LAN> terminal

Set it to [AUTO] normally. (Setting [AUTO] will automatically select [NTSC], [NTSC4.43], [PAL], [PAL-M], [PAL-N], [SECAM], or [PAL60].) Switch the setting to the signal method for the TV used.

480/60i, 576/50i, or 576/50p

signal

640 x 480/60 or 480/60p

signal

Other movie-based signals Select [RGB] or [YP

480/60i, 576/50i, 480/60p, or

576/50p signal

Other movie-based signals Select [RGB] or [YP

480/60i, 576/50i, 480/60p, or

576/50p signal

Other movie-based signals Select [AUTO], [RGB], or [YP

Select [RGB] or [YC

Select [640x480/60], [480/60p YC

Select [RGB] or [YC

Select [AUTO], [RGB], or [YC

BCR

BPR

BCR

BPR

BCR

BPR

], or [480/60p RGB].

BCR

4) Press the <ENTER> button.

Note

f For details of the types of video signals that can be used with the projector, refer to “List of compatible signals” (x page 225). f This may not function properly for some connected external devices. f The system method can be set using the following menu items for the SDI input.

g The [DISPLAY OPTION] menu → [SDI IN] → [SINGLE LINK SETTING] → [SDI1]/[SDI2] → [SYSTEM SELECTOR] g The [DISPLAY OPTION] menu → [SDI IN] → [DUAL LINK SETTING] → [SYSTEM SELECTOR]

sRGB-compliant video

sRGB is an international standard (IEC61966-2-1) for color reproduction dened by IEC (International

Electrotechnical Commission).

Set according to the following steps to reproduce more faithful, sRGB compliant colors.

1) Set [COLOR MATCHING] to [OFF].

f Refer to [COLOR MATCHING] (x page 113).

2) Display the [PICTURE] menu.

f Refer to “[PICTURE] menu” (x page 87).

3) Press as to select [PICTURE MODE].

4) Press qw to set [NATURAL].

5) Press as to select [COLOR].

94 - ENGLISH

Chapter 4 Settings — [PICTURE] menu

6) Press the <DEFAULT> button on the remote control to set the factory default setting.

7) Follow Steps 5) to 6) to set [TINT], [COLOR TEMPERATURE], [GAMMA], and [SYSTEM DAYLIGHT VIEW] to the factory default settings.

Note

f sRGB is available for RGB signal input only.

ENGLISH - 95

Chapter 4 Settings — [POSITION] menu

[POSITION] menu

On the menu screen, select [POSITION] from the main menu, and select an item from the sub-menu. Refer to “Navigating through the menu” (x page 81) for the operation of the menu screen.

Note

f When the optional DIGITAL LINK output supported device (Model No.: ET-YFB100G, ET-YFB200G) is connected to the <DIGITAL LINK/

LAN> terminal, adjust the shift, aspect, and clock phase from the menu of DIGITAL LINK output supported device at rst.

[SHIFT]

Move the image position vertically or horizontally if the image projected on the screen is still out of position even

when the positions of the projector and screen are correct.

1) Press as to select [SHIFT].

2) Press the <ENTER> button.

f The [SHIFT] screen is displayed.

3) Press asqw to adjust the position.

Orientation Operation Adjustment

Press a.

Vertical (up and down)

adjustment

Press s.

Press w.

Horizontal (right and left)

adjustment

Press q.

The image position moves up.

The image position moves down.

The image position moves to the right.

The image position moves to the left.

Note

f For the portrait setting, image position is moved horizontally when “Vertical (up and down) adjustment” is made. Image position is moved

vertically when “Horizontal (right and left) adjustment” is made.

[ASPECT]

You can switch the aspect ratio of the image.

The aspect ratio is switched within the screen range selected in the [DISPLAY OPTION] menu → [SCREEN SETTING] → [SCREEN FORMAT]. Set [SCREEN FORMAT] rst. (x page 114)

1) Press as to select [ASPECT].

2) Press qw or the <ENTER> button.

f The [ASPECT] individual adjustment screen is displayed.

3) Press qw to switch the item.

f The items will switch each time you press the button.

[DEFAULT] Displays images without changing the aspect ratio of the input signals.

96 - ENGLISH

Chapter 4 Settings — [POSITION] menu

[VID AUTO]

[AUTO]

[THROUGH] Displays images without changing the resolution of the input signals.

[H FIT]

[V FIT]

[HV FIT]

*1 During video signals and Y/C signal (NTSC) input only *2 During RGB signal (480/60i, 480/60p) input only *3 Standard signals are input signals with an aspect ratio of 4:3 or 5:4. *4 Wide-screen signals are input signals with an aspect ratio of 16:10, 16:9, 15:9 or 15:10.

[16:9]

[4:3]

The projector identies the video ID (VID) embedded in the video signals and displays the image by automatically switching the screen sizes between 4:3 and 16:9. This function is effective for NTSC

signals.

The projector identies the video ID (VID) embedded in the video signals and displays the image by automatically switching the screen sizes between 4:3 and 16:9. This function is effective for 480/60i

and 480/60p signals.

Displays images with the aspect ratio converted to 16:9 when standard signals are input

wide-screen signals are input*4, the images are displayed without changing the aspect ratio.

Displays images without changing the aspect ratio when standard signals are input screen signals are input*4, and [4:3] is selected in [SCREEN FORMAT], the images are displayed by

converting the aspect ratio to 4:3. When anything other than [4:3] is selected in [SCREEN FORMAT], the images are reduced to be displayed without changing input aspect ratio so that the images will t in the 4:3 screen.

Displays images using the entire width of the screen range selected in [SCREEN FORMAT]. When signals have the aspect ratio vertically longer than the screen aspect ratio selected in [SCREEN FORMAT], the images are displayed with the top and bottom parts cut off.

Displays images using the entire height of the screen range selected in [SCREEN FORMAT]. When

signals have the aspect ratio horizontally longer than the aspect ratio of the screen selected in

[SCREEN FORMAT], the images are displayed with the right and left parts cut off. Displays images in the entire screen range selected in [SCREEN FORMAT]. When the aspect ratio of

the input signals differs from that of the screen range, the images are displayed with the aspect ratio

converted to that of the screen selected in [SCREEN FORMAT].

. When

. When wide-

Note

f Some size modes are not available for certain types of input signals. [DEFAULT] cannot be selected for video signal, Y/C signal (NTSC), or

analog RGB signal (480/60i, 480/60p).

f If an aspect ratio which is different from the aspect ratio for the input signals is selected, the images will appear differently from the originals.

Be careful of this when selecting the aspect ratio.

f If using the projector in places such as cafes or hotels to display programs for a commercial purpose or for public presentation, note that

adjusting the aspect ratio or using the zoom function to change the screen images may be an infringement of the rights of the original copyright owner for that program under copyright protection laws. Take care when using a function of the projector such as the aspect ratio adjustment and zoom function.

f If conventional (normal) 4:3 images which are not wide-screen images are displayed on a wide screen, the edges of the images may not

be visible or they may become distorted. Such images should be viewed as with an aspect ratio of 4:3 in the original format intended by the

creator of the images.

[ZOOM]

You can adjust the image size.

The adjustments in [ZOOM] will differ depending on the setting of the [POSITION] menu → [ASPECT].

When [ASPECT] is set to other than [DEFAULT] and [THROUGH]

1) Press as to select [ZOOM].

2) Press the <ENTER> button.

f The [ZOOM] screen is displayed.

3) Press as to select [INTERLOCKED].

4) Press qw to switch the item.

[OFF] Sets the [VERTICAL] and [HORIZONTAL] zoom ratio.

[ON]

Uses [BOTH] to set zoom ratio. Image can be enlarged or reduced vertically and horizontally at the same magnication.

5) Press as to select [VERTICAL] or [HORIZONTAL].

f If [ON] is selected, select [BOTH].

6) Press qw to adjust.

ENGLISH - 97

Chapter 4 Settings — [POSITION] menu

Note

f When [ASPECT] is set to [THROUGH], [ZOOM] cannot be adjusted.

When [ASPECT] is set to [DEFAULT]

1) Press as to select [ZOOM].

2) Press the <ENTER> button.

f The [ZOOM] screen is displayed.

3) Press as to select [MODE].

4) Press qw to switch the item.

[INTERNAL] Enlarges the size within the aspect range set with [SCREEN FORMAT].

[FULL] Enlarges or reduces the size using the entire display area set with [SCREEN FORMAT].

5) Press as to select [INTERLOCKED].

6) Press qw to switch the item.

[OFF] Sets the [VERTICAL] and [HORIZONTAL] zoom ratio.

[ON]

Uses [BOTH] to set zoom ratio. Image can be enlarged or reduced vertically and horizontally at the same magnication.

7) Press as to select [VERTICAL] or [HORIZONTAL].

f If [ON] is selected, select [BOTH].

8) Press qw to adjust.

Note

f When [ASPECT] is not set to [DEFAULT], [MODE] is not displayed.

[CLOCK PHASE]

You can adjust to achieve an optimal image when there is a ickering image or smeared outlines.

1) Press as to select [CLOCK PHASE].

2) Press qw or the <ENTER> button.

f The [CLOCK PHASE] individual adjustment screen is displayed.

3) Press qw to adjust.

f Adjustment value will change between [0] and [+31]. Adjust so that the amount of interference is at a

minimum.

Note

f Some signals may not be adjusted. f Optimal value may not be achieved if the output from the input computer is unstable. f Optimal value may not be achieved when there is a shift in the total dot numbers. f [CLOCK PHASE] can be adjusted only when YCBCR/YPBPR signal or RGB signal is input to the <RGB 1 IN> terminal or the <RGB 2 IN>

terminal.

f [CLOCK PHASE] cannot be adjusted when a digital signal is input. f If you press w while the adjustment value is [+31], the value will become [0]. If you press q while the adjustment value is [0], the value will

become [+31].

[GEOMETRY]

You can correct various types of distortion in a projected image.

Unique image processing technology enables projection of a square image on a special screen shape.

1) Press as to select [GEOMETRY].

2) Press qw to switch the item.

f The items will switch each time you press the button.

98 - ENGLISH

Chapter 4 Settings — [POSITION] menu

[OFF] Does not perform geometric adjustment.

[KEYSTONE] Adjusts any trapezoidal distortion in the projected image.

[CORNER CORRECTION] Adjusts any distortion in the four corners of the projected image.

[CURVED CORRECTION] Adjusts any curved distortion in the projected image.

[PC-1]

[PC-3]

*1 Advanced skills are necessary to use a computer to control geometric adjustment. Consult your dealer. Up to three geometric adjustments

performed using the computer can be saved.

Performs geometric adjustment using a computer.[PC-2]

Setting [KEYSTONE] or [CURVED CORRECTION]

1) Press as to select [GEOMETRY].

2) Press qw to select [KEYSTONE] or [CURVED CORRECTION].

3) Press the <ENTER> button.

f The [GEOMETRY:KEYSTONE] or [GEOMETRY:CURVED CORRECTION] screen is displayed.

4) Press as to select the item to adjust.

5) Press qw to adjust.

[KEYSTONE]

[LENS THROW RATIO]

Set the throw ratio. Select the value close to the actual projection distance divided by projected image width here.

[VERTICAL KEYSTONE]

[VERTICAL BALANCE] [HORIZONTAL BALANCE]

Adjust the setting according to the lens shift range in the vertical direction.

[CURVED CORRECTION]

[LENS THROW RATIO]

Set the throw ratio. Select the value close to the actual projection distance divided by projected image width here.

[VERTICAL KEYSTONE]

[HORIZONTAL KEYSTONE]

Adjust the setting according to the lens shift range in the horizontal direction.

[HORIZONTAL KEYSTONE]

ENGLISH - 99

Chapter 4 Settings — [POSITION] menu

[CURVED CORRECTION]

[VERTICAL ARC]

[VERTICAL BALANCE] [HORIZONTAL BALANCE]

[MAINTAIN ASPECT RATIO]

Select [ON] to correct while keeping the aspect ratio.

[HORIZONTAL ARC]

Setting [CORNER CORRECTION]

1) Press as to select [GEOMETRY].

2) Press qw to select [CORNER CORRECTION].

3) Press the <ENTER> button.

f The [GEOMETRY:CORNER CORRECTION] screen is displayed.

4) Press as to select the item to adjust, and press the <ENTER> button.

5) Press asqw to adjust.

[CORNER CORRECTION]

[UPPER LEFT]

[LINEARITY]

Horizontal direction

[UPPER RIGHT] [LOWER LEFT] [LOWER RIGHT]

Vertical direction

Note

f The menu or logo may run off the screen when [GEOMETRY] is set. f If [EDGE BLENDING] (x page 103) adjustment and [GEOMETRY] are used together, correct edge blending adjustment may not be

possible in certain environments.
