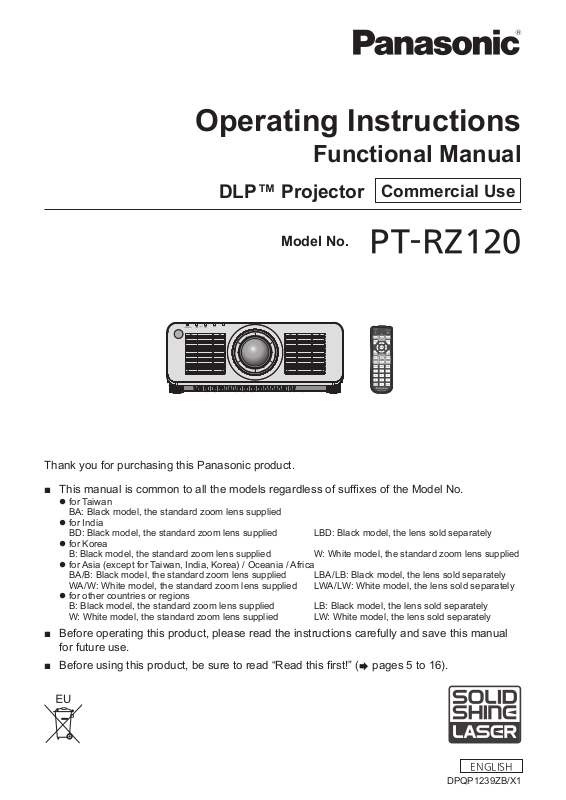

Operating Instructions

Functional Manual

DLP™ Projector

Model No.

Thank you for purchasing this Panasonic product.

Commercial Use

PT-RZ120

■ This manual is common to all the models regardless of sufxes of the Model No.

zfor Taiwan

BA: Black model, the standard zoom lens supplied

zfor India

BD: Black model, the standard zoom lens supplied LBD: Black model, the lens sold separately

zfor Korea

B: Black model, the standard zoom lens supplied W: White model, the standard zoom lens supplied

zfor Asia (except for Taiwan, India, Korea) / Oceania / Africa

BA/B: Black model, the standard zoom lens supplied LBA/LB: Black model, the lens sold separately WA/W: White model, the standard zoom lens supplied LWA/LW: White model, the lens sold separately

zfor other countries or regions

B: Black model, the standard zoom lens supplied LB: Black model, the lens sold separately W: White model, the standard zoom lens supplied LW: White model, the lens sold separately

■ Before operating this product, please read the instructions carefully and save this manual for future use.

■ Before using this product, be sure to read “Read this rst!” (x pages 5 to 16).

ENGLISH

DPQP1239ZB/X1

Page 2

Contents

Read this rst! 5

Chapter 1 Preparation

Precautions for use 20

Intended use of the product Cautions when transporting Cautions when installing

Security DIGITAL LINK Art-Net

Application software supported by the projector

Storing Disposal Cautions on use Accessories Optional accessories

About your projector

Remote control Projector body

Preparing the remote control

Inserting and removing the batteries When using the multiple projectors Connecting the remote control to the projector

with a cable

20 20 20 23 24 24

24 24 24 24 26 27

28 30

33 33

Chapter 3 Basic Operations

Switching on/off the projector 56

Connecting the power cord Power indicator

Switching on the projector

When the initial setting screen is displayed

Making adjustments and selections Switching off the projector

Projecting

Selecting the input signal

Adjusting the focus, zoom, and lens shift Adjusting the focus balance

Setting the lens type Moving the projection lens to the home position

Lens shift range

Operating with the remote control

Using the shutter function Using the on-screen display function Using the automatic setup function Using the function button Displaying internal test pattern Using the status function Setting ID number of the remote control

Chapter 4 Settings

Chapter 2 Getting Started

Setting up 35

Usable outlet Installation mode Parts for installation (optional) Projected image and throw distance Adjusting adjustable feet

Removing/attaching the projection lens

Removing the projection lens Attaching the projection lens

Connecting

Before connecting

Connecting example: AV equipment Connecting example: Computers Connecting example using DIGITAL LINK Connecting example when using the

contrast synchronization function/shutter

synchronization function

35 35 37 37 46

47 48

49 50 51 52

Menu navigation 77

Navigating through the menu Main menu Sub-menu

[PICTURE] menu

[PICTURE MODE] [CONTRAST] [BRIGHTNESS] [COLOR] [TINT] [COLOR TEMPERATURE] [WHITE GAIN] [GAMMA] [SYSTEM DAYLIGHT VIEW] [SHARPNESS] [NOISE REDUCTION] [DYNAMIC CONTRAST] [SYSTEM SELECTOR] [DEFAULT PICTURE MODE] sRGB-compliant video

59 65

73 74

2 - ENGLISH

Page 3

Contents

[POSITION] menu

[SHIFT] [ASPECT] [ZOOM] [CLOCK PHASE] [GEOMETRY]

[ADVANCED MENU] menu

[DIGITAL CINEMA REALITY] [BLANKING] [INPUT RESOLUTION] [CLAMP POSITION] [EDGE BLENDING] [FRAME RESPONSE] [RASTER POSITION]

[DISPLAY LANGUAGE] menu

Changing the display language

[DISPLAY OPTION] menu

[COLOR MATCHING] [COLOR CORRECTION] [SCREEN SETTING] [AUTO SIGNAL] [AUTO SETUP] [BACKUP INPUT SETTING] [RGB IN] [DVI-D IN] [HDMI IN] [DIGITAL LINK IN] [SDI IN] [ON-SCREEN DISPLAY] [MENU MODE] [IMAGE ROTATION] [BACK COLOR] [STARTUP LOGO] [UNIFORMITY] [SHUTTER SETTING] [FREEZE] [WAVEFORM MONITOR] [CUT OFF]

91 91 92 93 93

97 97 98 98

98 100 101

102

103

103 104 104 105 105 106 108 109

111 112 114 115 117 117 118 118 118 119

121 121 122

[PROJECTOR SETUP] menu

[PROJECTOR ID] [PROJECTION METHOD] [LENS] [OPERATION SETTING] [LIGHT OUTPUT] [BRIGHTNESS CONTROL] [STANDBY MODE] [QUICK STARTUP] [NO SIGNAL SHUT-OFF] [NO SIGNAL LIGHTS-OUT] [INITIAL STARTUP] [STARTUP INPUT SELECT] [DATE AND TIME] [SCHEDULE] [MULTI PROJECTOR SYNC] [RS-232C] [REMOTE2 MODE] [FUNCTION BUTTON] [STATUS] [DATA CLONING] [SAVE ALL USER DATA] [LOAD ALL USER DATA] [INITIALIZE] [SERVICE PASSWORD]

[TEST PATTERN] menu

[TEST PATTERN]

[SIGNAL LIST] menu

Registering new signals Renaming the registered signal Deleting the registered signal Protecting the registered signal

Expanding signal lock-in range Sub memory

[SECURITY] menu

[SECURITY PASSWORD] [SECURITY PASSWORD CHANGE] [DISPLAY SETTING] [TEXT CHANGE] [CONTROL DEVICE SETUP] [CONTROL DEVICE PASSWORD CHANGE]

[NETWORK] menu

[DIGITAL LINK MODE] [DIGITAL LINK STATUS] [NETWORK SETUP] [NETWORK CONTROL] [NETWORK STATUS] [DIGITAL LINK MENU] [Art-Net SETUP] [Art-Net CHANNEL SETTING] [Art-Net STATUS]

124

135

138

141

144

149

150

151

152

154

156

157

123

125

127

128

132

133

134

137

140

142

144

145

146

147

147 147 148 148

150

151

154

155

156

157

ENGLISH - 3

Page 4

Contents

Chapter 5 Operations

Network connection 159

Connecting to the network

Web control function

Computer that can be used for setting Accessing from the web browser

159

162

162 162

Chapter 6 Maintenance

Light source/temperature indicators 181

When an indicator lights up

Maintenance

Before maintaining the projector Maintenance

Troubleshooting

[SELF TEST] indications

181

183

183 183

184

186

Chapter 7 Appendix

Technical information 189

PJLink protocol Using Art-Net function Control commands via LAN <SERIAL/MULTI PROJECTOR SYNC

IN>/<SERIAL/MULTI PROJECTOR SYNC OUT> terminals

<REMOTE 2 IN> terminal

Control device password Upgrade Kit List of compatible signals

Specications

Dimensions

Precautions for attaching the Ceiling Mount

Bracket

Index

189 190 194

197 201 201 202 203

210

213

214

216

4 - ENGLISH

Page 5

Read this rst!

WARNING: THIS APPARATUS MUST BE EARTHED.

WARNING: To prevent damage which may result in re or shock hazard, do not expose this appliance to rain

or moisture.

This device is not intended for use in the direct eld of view at visual display workplaces. To avoid

incommoding reexions at visual display workplaces this device must not be placed in the direct eld of view.

The equipment is not intended for used at a video workstation in compliance BildscharbV.

The sound pressure level at the operator position is equal or less than 70 dB (A) according to ISO 7779.

WARNING:

1. Remove the plug from the mains socket when this unit is not in use for a prolonged period of time.

2. To prevent electric shock, do not remove cover. No user serviceable parts inside. Refer servicing to qualied

service personnel.

3. Do not remove the earthing pin on the mains plug. This apparatus is equipped with a three prong earthing-

type mains plug. This plug will only t an earthing-type mains socket. This is a safety feature. If you are

unable to insert the plug into the mains socket, contact an electrician. Do not defeat the purpose of the earthing plug.

WARNING:

This equipment is compliant with Class A of CISPR32. In a residential environment this equipment may cause radio interference.

(for Taiwan)

WARNING:

This equipment complies with the Class A standard of CISPR32. This is Class A information technology equipment that may cause radio frequency interference when used in a residential environment, in which the user will be required to take certain appropriate countermeasures.

CAUTION: To assure continued compliance, follow the attached installation instructions. This includes using

the provided power cord and shielded interface cables when connecting to computer or peripheral

devices. Also, any unauthorized changes or modications to this equipment could void the user’s

authority to operate this device.

This is a device to project images onto a screen, etc., and is not intended for use as indoor lighting in a domestic environment.

Directive 2009/125/EC

WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS PRODUCT

TO RAIN OR MOISTURE.

ENGLISH - 5

Page 6

Read this rst!

WARNING: RISK OF ELECTRIC SHOCK. DON’T OPEN

Indicated on the projector

The lightning ash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufcient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the

product.

WARNING: Do not look at the light emitted from the lens while the projector is being used.

As with any bright source, do not stare into the direct beam.

Indicated on the projector

Notice on laser

(for USA and Canada)

This projector is the Class 3R laser product that complies with IEC 60825-1:2007.

RG2 IEC 62471-5:2015

130C For North America “Complies with 21 CFR Parts 1040.10 and 1040.11 except for deviations pursuant to Laser Notice No.50 dated June 24.2007” IEC 60825-1:2007 LASER RADIATION AVOID DIRECT EYE EXPOSURE CLASS 3R LASER PRODUCT WAVE LENGTH:448-462nm MAXIMUM OUTPUT:248mW PULSE DURATION:1.1ms IEC 60825-1:2007 RAYONNEMENT LASER EXPOSITION DIRECTE DANGEREUSE POUR LES YEUX

LASER DE CLASSE 3R

APPAREIL

LONGUEURS D'ONDES:448-462nm MAXIMALE DU RAYONNEMENT:248mW

E DE L'IMPULSION:1.1ms

DUR

DPQT1024YA

(Inside of product)

6 - ENGLISH

Page 7

Read this rst!

(for Taiwan)

This projector is the Class 1 laser product that complies with IEC/EN 60825-1:2014.

(for India)

This projector is the Class 1 laser product that complies with IEC/EN 60825-1:2014.

第 1 類雷射產品

(for other countries or regions)

This projector is the Class 1 laser product that complies with IEC/EN 60825-1:2014.

CAUTION: Use of controls or adjustments or performance of procedures other than those specied herein

may result in hazardous radiation exposure.

CAUTION (North/Middle/South America)

Power Supply: This Projector is designed to operate on 100 V - 240 V, 50 Hz/60 Hz AC, house current only.

CAUTION: The AC power cord which is supplied with the projector as an accessory can only be used for

power supplies up to 125 V. If you need to use higher voltages than this, you will need to obtain a separate 250 V power cord. If you use the accessory cord in such situations, re may result.

ENGLISH - 7

Page 8

Read this rst!

CAUTION (North/Middle/South America/Taiwan)

This equipment is equipped with a three-pin grounding-type power plug. Do not remove the grounding pin on the power plug. This plug will only t a grounding-type

power outlet. This is a safety feature. If you are unable to insert the plug into the outlet, contact an electrician. Do not defeat the purpose of the grounding plug.

Do not remove

WARNING (USA and Canada)

fNot for use in a computer room as dened in the Standard for the Protection of Electronic Computer/Data

Processing Equipment, ANSI/NFPA 75.

fFor permanently connected equipment, a readily accessible disconnect device shall be incorporated in the

building installation wiring.

fFor pluggable equipment, the socket-outlet shall be installed near the equipment and shall be easily

accessible.

NOTIFICATION (Canada)

This class A digital apparatus complies with Canadian ICES-003.

For USA-California Only

This product contains a CR Coin Cell Lithium Battery which contains Perchlorate Material – special handling

may apply.

See www.dtsc.ca.gov/hazardouswaste/perchlorate

FCC NOTICE (USA)

Supplier’s Declaration of Conformity

Model Number: PT-RZ120B / PT-RZ120W / PT-RZ120LB / PT-RZ120LW Trade Name: Panasonic Responsible Party: Panasonic Corporation of North America Address: Two Riverfront Plaza, Newark, NJ 07102-5490 General Contact: http://www.panasonic.com/support Projector Contact: https://panasonic.net/cns/projector/

This device complies with Part 15 of the FCC Rules.

Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received,

including interference that may cause undesired operation.

Caution:

This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part

15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference

when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.

FCC Warning:

To assure continued compliance, follow the attached installation instructions. This includes using the provided power cord and shielded interface cables when connecting to computer or peripheral devices. Also, any

unauthorized changes or modications to this equipment could void the user’s authority to operate this device.

8 - ENGLISH

Page 9

Read this rst!

IMPORTANT: THE MOLDED PLUG

FOR YOUR SAFETY, PLEASE READ THE FOLLOWING TEXT CAREFULLY.

This appliance is supplied with a molded three pin mains plug for your safety and convenience. A 13 amp fuse

is tted in this plug. Should the fuse need to be replaced, please ensure that the replacement fuse has a rating of 13 amps and that it is approved by ASTA or BSI to BS1362.

Check for the ASTA mark If the plug contains a removable fuse cover, you must ensure that it is retted when the fuse is replaced. If you

lose the fuse cover, the plug must not be used until a replacement cover is obtained. A replacement fuse cover

can be purchased from an Authorized Service Center.

If the tted molded plug is unsuitable for the mains socket in your home, then the fuse should be

removed and the plug cut off and disposed of safely. There is a danger of severe electrical shock if the cut off plug is inserted into any 13 amp socket.

If a new plug is to be tted, please observe the wiring code as shown below. If in any doubt, please consult a qualied electrician.

WARNING: THIS APPLIANCE MUST BE EARTHED.

IMPORTANT: The wires in this mains lead are colored in accordance with the following code:

As the colors of the wire in the mains lead of this appliance may not correspond with the colored markings identifying the terminals in your plug, proceed as follows.

The wire which is colored GREEN - AND - YELLOW must be connected to the terminal in the plug

which is marked with the letter E or by the Earth symbol

YELLOW.

The wire which is colored BLUE must be connected to the terminal in the plug which is marked

with the letter N or colored BLACK.

or the BSI mark on the body of the fuse.

Green - and - Yellow: Earth Blue: Neutral

Brown: Live

or colored GREEN or GREEN - AND -

The wire which is colored BROWN must be connected to the terminal in the plug which is marked

with the letter L or colored RED.

How to replace the fuse: Open the fuse compartment with a screwdriver and replace the fuse.

Importer’s name and address within the European Union

Panasonic Marketing Europe GmbH

Panasonic Testing Centre

Winsbergring 15, 22525 Hamburg, Germany

ENGLISH - 9

Page 10

Read this rst!

rHazard distance (IEC 62471-5:2015)

The distance from the projection lens surface, at which the level of exposure has reached the level of the applicable Exposure Limit Value, is known as the hazard distance (HD) or safety distance.

Do not look into the projected light from inside the hazard distance (within RG3 range). The eyes may be damaged

by the direct irradiation. It is considered to be safe to look into the projected light from outside the hazard distance

(within RG2 range).

RG2

RG3

RG2

RG3

Except ET-DLE035

rRisk group

The combination of the projector and the projection lens is categorized as the risk group 2 when the hazard

distance is less than 1 m (39-3/8"). It is categorized as the risk group 3 when the hazard distance exceeds 1 m (39-3/8"), and it will be for professional use instead of consumer use.

In case of risk group 3, there is a possibility of damaging the eyes by direct irradiation when looking into the

projection light from inside the hazard distance (within RG3 range).

In case of risk group 2, it can be used safely without damaging the eyes in any condition.

The combination of the projector and the projection lens which the hazard distance exceeds 1 m (39-3/8") and is

categorized as risk group 3 is as follows.

Projection lens Model No. Risk group

ET-DLE250

ET-DLE350

Risk group 3

ET-DLE450

*1 When the projector is used with the optional Zoom Lens (Model No.: ET-DLE250, ET-DLE350, ET-DLE450) attached, the

hazard distance exceeds 1 m (39-3/8"), and regardless of the use condition, the throw ratio is larger than 2.2:1. In this case, it is

categorized as the risk group 3.

THISPROJECTORMAYBECOMERG3FORPROFESSIONALUSE ONLYANDISNOTINTENDEDFORCONSUMERUSEWHENAN INTERCHANGEABLEPROJECTIONLENSISUSEDUNDERTHE CONDITIONTHATTHROWRATIOISGREATERTHAN2.2. REFERTOTHEOPERATINGINSTRUCTIONSORLEAFLET FORHAZARDDISTANCEBEFOREOPERATION.

CEPROJECTEURPEUTDEVENIRRG3POURUNEUTILISATION PROFESSIONNELLEUNIQUEMENTETNESTPASDESTINÉÀUNE UTILISATIONDOMESTIQUELORSQUUNOBJECTIFDE PROJECTIONINTERCHANGEABLEESTUTILISÉÀCONDITIONQUE LERAPPORTDEPROJECTIONSOITSUPÉRIEURÀ2,2. CONSULTEZLEMANUELDUTILISATIONOULABROCHUREET PRENEZCONNAISSANCEDELADISTANCEDURISQUEAVANTDE LUTILISER.

DIESERPROJEKTORKANNALSRG3NURFÜRDIEPROFESSIONELLE VERWENDUNGEINGESTUFTWERDENUNDISTNICHTFÜRDIE VERWENDUNGDURCHVERBRAUCHERKONZIPIERT,WENNEIN AUSTAUSCHPROJEKTIONSOBJEKTIVVERWENDETWIRD,UNTER DERVORAUSSETZUNG,DASSDASPROJEKTIONSVERHÄLTNIS ÜBER2,2LIEGT. BEACHTENSIEVORDERBEDIENUNGDIEBEDIENUNGSANLEITUNG UNDDASFALTBLATTINBEZUGAUFDENGEFÄHRDUNGSABSTAND.

ДАННЫЙ ПРОЕКТОР МОЖЕТ ВХОДИТЬ В ГРУППУ РИСКА RG3 — ТОЛЬКО ДЛЯ ПРОФЕССИОНАЛЬНОГО ИСПОЛЬЗОВАНИЯ, И ОН НЕ ПРЕДНАЗНАЧЕН ДЛЯ ИСПОЛЬЗОВАНИЯ ПОТРЕБИТЕЛЯМИ ПРИ ИСПОЛЬЗОВАНИИ СМЕННЫХ ПРОЕКЦИОННЫХ ОБЪЕКТИВОВ ПРИ УСЛОВИИ, ЧТО ПРОЕКЦИОННОЕ ОТНОШЕНИЕ (THROW RATIO) БОЛЬШЕ ЧЕМ 2,2. ПЕРЕД НАЧАЛОМ РАБОТЫ ОБРАТИТЕСЬ К ИНСТРУКЦИЯМ ПО ЭКСПЛУАТАЦИИ ИЛИ БРОШЮРЕ, ЧТОБЫ УЗНАТЬ ПРО ОПАСНОЕ РАССТОЯНИЕ.

이 프로젝터는 투사 비율이 2.2보다 큰 교체식 투사 렌즈를 사용한 경우, 전문가 전용인 RG3 등급이 될 수 있으며, 일반 소비자용이 아닙니다. 작동하기 전에 위험 거리에 대해서는 사용 설명서 또는 안내책자를 참조하십시오.

DPQT1332ZA

THISPROJECTORMAYBECOMERG3FORPROFESSIONAL USEONLYANDISNOTINTENDEDFORCONSUMERUSE WHENANINTERCHANGEABLEPROJECTIONLENSIS USEDUNDERTHECONDITIONTHATTHROWRATIOIS GREATERTHAN2.2. REFERTOTHEOPERATINGINSTRUCTIONSORLEAFLET FORHAZARDDISTANCEBEFOREOPERATION.

本投影機使用可換式投影鏡頭，且投射率大於2.2 時，屬於僅適合專業使用的RG3級產品，不能用作消費類電子產品。操作前請先參閱使用說明書了解危險距離。

DPQT1347ZA

10 - ENGLISH

Page 11

Read this rst!

Each dimension inside the hazard distance (within RG3 range) for combination with projection lens which the hazard distance exceeds 1 m (39-3/8") is as follows.

(Unit: m)

Projection lens

Model No.

ET-DLE250 1.4 0.40 0.27 0.52 0.39

ET-DLE350 2.2 0.40 0.27 0.52 0.39

ET-DLE450 3.2 0.40 0.27 0.51 0.38

*1 HD: Hazard Distance *2 The values of D1 to D4 will change in accordance with the lens shift amount. Each value in the table is the maximum value.

Note

fThe value in the table is based on IEC 62471-5:2015.

ENGLISH - 11

Page 12

Read this rst!

WARNING:

rPOWER

The wall outlet or the circuit breaker shall be installed near the equipment and shall be easily accessible

when problems occur. If the following problems occur, cut off the power supply immediately.

Continued use of the projector in these conditions will result in re or electric shock, or will cause visual

impairment.

fIf foreign objects or water get inside the projector, cut off the power supply. fIf the projector is dropped or the cabinet is broken, cut off the power supply. fIf you notice smoke, strange smells or noise coming from the projector, cut off the power supply.

Please contact an Authorized Service Center for repairs, and do not attempt to repair the projector yourself.

During a thunderstorm, do not touch the projector or the cable.

Electric shocks can result.

Do not do anything that might damage the power cord or the power plug.

If the power cord is used while damaged, electric shocks, short-circuits or re will result.

fDo not damage the power cord, make any modications to it, place it near any hot objects, bend it

excessively, twist it, pull it, place heavy objects on top of it or wrap it into a bundle.

Ask an Authorized Service Center to carry out any repairs to the power cord that might be necessary.

Do not use anything other than the provided power cord.

Failure to observe this will result in electric shocks or re. Please note that if you do not use the provided power

cord to ground the device on the side of the outlet, this may result in electric shocks.

Completely insert the power plug into the wall outlet and the power connector into the projector terminal.

If the plug is not inserted correctly, electric shocks or overheating will result.

fDo not use plugs which are damaged or wall outlets which are coming loose from the wall.

Do not handle the power plug and power connector with wet hands.

Failure to observe this will result in electric shocks.

Use an outlet supporting 15 A independently.

Using an outlet together with another device may result in res due to heat generation.

Do not overload the wall outlet.

If the power supply is overloaded (ex., by using too many adapters), overheating may occur and re will result.

Clean the power plug regularly to prevent it from becoming covered in dust.

Failure to observe this will cause a re.

fIf dust builds up on the power plug, the resulting humidity can damage the insulation. fIf not using the projector for an extended period of time, pull the power plug out from the wall outlet.

Pull the power plug out from the wall outlet and wipe it with a dry cloth regularly.

rON USE/INSTALLATION

Do not place the projector on soft materials such as carpets or sponge mats.

Doing so will cause the projector to overheat, which can cause burns, re or damage to the projector.

Do not set up the projector in humid or dusty places or in places where the projector may come into contact with oily smoke or steam.

Using the projector under such conditions will result in re, electric shocks or deterioration of components. Oil

may also distort the plastic and the projector could fall such as when mounted on the ceiling.

Do not install this projector in a place which is not strong enough to take the full weight of the projector or on top of a surface which is sloped or unstable.

Failure to observe this will cause projector to fall down or tip over the projector, and severe injury or damage could result.

Do not install the projector in a location where people pass through.

People may bump into the projector or trip on the power cord, which may result in re, electric shock, or injury.

Do not cover the air intake/exhaust ports or place anything within 500 mm (19-11/16") of them.

Doing so will cause the projector to overheat, which can cause re or damage to the projector.

fDo not place the projector in narrow, badly ventilated places. fDo not place the projector on cloth or papers, as these materials could be drawn into the air intake port.

12 - ENGLISH

Page 13

Read this rst!

WARNING:

Do not look at or place your skin into the light emitted from the lens while the projector is being used.

Do not enter the projection luminous ux using an optical device (such as magnier or mirror).

Doing so can cause burns or loss of sight.

fStrong light is emitted from the projector’s lens. Do not look at or place your hands directly into this light. fBe especially careful not to let young children look into the lens. In addition, turn off the power and switch

off the main power when you are away from the projector.

Do not project an image with the lens cover attached.

Doing so can cause re.

Never attempt to remodel or disassemble the projector.

High voltages can cause re or electric shocks.

fFor any inspection, adjustment and repair work, please contact an Authorized Service Center.

Do not allow metal objects, ammable objects, or liquids to enter inside of the projector. Do not allow

the projector to get wet.

Doing so may cause short circuits or overheating, and result in re, electric shock, or malfunction of the

projector.

fDo not place containers of liquid or metal objects near the projector. fIf liquid enters inside of the projector, consult your dealer. fParticular attention must be paid to children.

Use the ceiling mount bracket specied by Panasonic.

Using the ceiling mount bracket other than the specied one will result in falling accidents.

fAttach the supplied safety cable to the ceiling mount bracket to prevent the projector from falling down.

Installation work such as mounting the projector on the ceiling should only be carried out by a qualied

technician.

If installation is not carried out and secured correctly, it can cause injury or accidents, such as electric shocks.

rACCESSORIES

Do not use or handle the batteries improperly, and refer to the following.

Failure to observe this will cause burns, batteries to leak, overheat, explode or catch re.

fDo not use unspecied batteries. fDo not charge dry cell batteries. fDo not disassemble dry cell batteries. fDo not heat the batteries or place them into water or re. fDo not allow the + and – terminals of the batteries to come into contact with metallic objects such as

necklaces or hairpins. fDo not store or carry batteries together with metallic objects. fStore the batteries in a plastic bag and keep them away from metallic objects. fMake sure the polarities (+ and –) are correct when inserting the batteries. fDo not use a new battery together with an old battery or mix different types of batteries. fDo not use batteries with the outer cover peeling away or removed.

If the battery uid leaks, do not touch it with bare hands, and take the following measures if necessary.

fBattery uid on your skin or clothing could result in skin inammation or injury.

Rinse with clean water and seek medical advice immediately. fBattery uid coming in contact with your eyes could result in loss of sight.

In this case, do not rub your eyes. Rinse with clean water and seek medical advice immediately.

Do not allow children to reach the batteries.

Accidentally swallowing them can cause physical harm.

fIf swallowed, seek medical advice immediately.

Remove the depleted batteries from the remote control promptly.

fLeaving them in the unit may result in uid leakage, overheating, or explosion of the batteries.

ENGLISH - 13

Page 14

Read this rst!

CAUTION:

rPOWER

When disconnecting the power cord, be sure to hold the power plug and power connector.

If the power cord itself is pulled, the lead will become damaged, and re, short-circuits or serious electric shocks

will result.

When not using the projector for an extended period of time, disconnect the power plug from the wall

outlet.

Failure to do so may result in re or electric shock.

Before replacing the projection lens, be sure to turn off the power and disconnect the power plug from

the wall outlet.

fUnexpected projection of light may cause injury to eyes. fReplacing the projection lens without removing the power plug may result in electric shock.

Disconnect the power plug from the wall outlet before carrying out any cleaning.

Failure to do so may result in electric shock.

rON USE/INSTALLATION

Do not place heavy objects on top of the projector.

Failure to observe this will cause the projector to become unbalanced and fall, which could result in damage or injury. The projector will be damaged or deformed.

Do not put your weight on this projector.

You could fall or the projector could break, and injury will result.

fBe especially careful not to let young children stand or sit on the projector.

Do not place the projector in extremely hot locations.

Doing so will cause the outer casing or internal components to deteriorate, or result in re.

fTake particular care in locations exposed to direct sunlight or near heaters.

Do not place your hands in the openings beside the optical lens, while shifting the lens.

Failure to observe this could cause injury.

Do not install the projector in a location where salt pollution or corrosive gas may occur.

Doing so may result in falling due to corrosion. Also, it may result in malfunctions.

Do not stand in front of the lens while the projector is being used.

Doing so can cause damage and burns to clothing.

fStrong light is emitted from the projector’s lens.

Do not place objects in front of the lens while the projector is being used. Do not block the projection by placing an object in front of the projection lens.

Doing so can cause re, damage to an object, or malfunction of the projector.

fStrong light is emitted from the projector’s lens.

The projector must be carried or installed by two or more people.

Failure to do so may cause falling accidents.

Always disconnect all cables before moving the projector.

Moving the projector with cables still attached can damage the cables, which will cause re or electric shocks to

occur.

When mounting the projector on the ceiling, keep mounting screws and power cord from contact with

metal parts inside the ceiling.

Contact with metal parts inside the ceiling can cause electric shocks.

14 - ENGLISH

Page 15

Read this rst!

CAUTION:

rACCESSORIES

When not using the projector for an extended period of time, remove the batteries from the remote

control.

Failure to observe this will cause the batteries to leak, overheat, catch re or explode, which may result in re or

contamination of surrounding area.

rMAINTENANCE

Ask your dealer about cleaning inside the projector every 20 000 hours of usage as an estimated duration.

Continuous use while dust is accumulated inside the projector may result in re.

fFor cleaning fee, ask your dealer.

To remove the battery

Remote Control Battery

1. Press the guide and lift the cover.

(ii)

(i)

2. Remove the batteries.

ENGLISH - 15

Page 16

Read this rst!

Brazil Only

Brasil Apenas

rManuseio de baterias usadas

BRASIL

Após o uso, as pilhas e/ou baterias deverão

ser entregues ao estabelecimento comercial ou rede de assistência técnica autorizada.

Cobrir os terminais positivo (+) e negativo (-) com uma ta isolante adesiva, antes de depositar numa caixa destinada para o recolhimento. O contato entre partes metálicas pode causar vazamentos, gerar calor, romper a blindagem e produzir fogo. (Fig. 1)

Fig. 1 Como isolar os terminais

Não desmonte, não remova o invólucro, nem amasse a bateria. O gás liberado pela bateria pode irritar a garganta, danicar o lacre do invólucro ou o vazamento provocar calor, ruptura da blindagem e produzir fogo devido ao curto circuito dos terminais. Não incinere nem aqueça as baterias, elas não podem car expostas a temperaturas superiores a 100 °C (212 °F). O gás liberado pela bateria pode irritar a garganta, danicar o lacre

do invólucro ou o vazamento provocar calor, ruptura da blindagem e produzir fogo devido ao curto circuito dos terminais provocado internamente.

Evite o contato com o liquido que vazar das baterias. Caso isto ocorra, lave bem a parte afetada com bastante água. Caso haja irritação, consulte um médico.

Fita Isolante

rRemoção das baterias

1. Pressione a guia e levante a tampa.

(ii)

(i)

2. Remova as baterias.

16 - ENGLISH

Page 17

rTrademarks

f SOLID SHINE is a trademark of Panasonic Corporation. f Windows, Internet Explorer, and Microsoft Edge are registered trademarks or trademarks of Microsoft

Corporation in the United States and other countries.

f Mac, macOS, and Safari are trademarks of Apple Inc., registered in the United States and other countries.

f PJLink

regions.

f DLP is a trademark or registered trademark of Texas Instruments. f The terms HDMI and HDMI High-Denition Multimedia Interface, and the HDMI Logo are trademarks or

registered trademarks of HDMI Licensing Administrator, Inc. in the United States and other countries.

f Crestron Connected, the Crestron Connected logo, Crestron Fusion, Crestron RoomView, and RoomView

are either trademarks or registered trademarks of Crestron Electronics, Inc. in the United States and/or other

countries.

f HDBaseT f Art-Net f Adobe, Acrobat, Flash Player, and Reader are either registered trademarks or trademarks of Adobe Systems

Incorporated in the United States and/or other countries.

f Some of the fonts used in the on-screen menu are Ricoh bitmap fonts, which are manufactured and sold by

Ricoh Company, Ltd.

f All other names, company names, and product names mentioned in this manual are trademarks or registered

trademarks of their respective owners. Please note that the

Software information regarding this product

This product incorporates the following software:

(1) the software developed independently by or for Panasonic Corporation, (2) the software owned by third party and licensed to Panasonic Corporation, (3) the software licensed under the GNU General Public License, Version 2.0 (GPL V2.0), (4) the software licensed under the GNU LESSER General Public License, Version 2.1 (LGPL V2.1), and/or (5) open source software other than the software licensed under the GPL V2.0 and/or LGPL V2.1. The software categorized as (3) - (5) are distributed in the hope that it will be useful, but WITHOUT ANY

WARRANTY, without even the implied warranty of MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE. Please refer to the detailed terms and conditions thereof shown in the attached CD-ROM.

At least three (3) years from delivery of this product, Panasonic will give to any third party who contacts us at

the contact information provided below, for a charge no more than our cost of physically performing source code

distribution, a complete machine-readable copy of the corresponding source code covered under GPL V2.0, LGPL V2.1 or the other licenses with the obligation to do so, as well as the respective copyright notice thereof.

Contact Information: oss-cd-request@gg.jp.panasonic.com

is a registered trademark or pending trademark in Japan, the United States, and other countries and

is a trademark of HDBaseT Alliance.

and TM symbols are not specied in this manual.

rIllustrations in this manual

f Illustrations of the projector, menu screen (OSD), and other parts may vary from the actual product. f Illustrations displayed on the computer screen may differ depending on the computer type and its operating

system.

f Illustrations of the projector with the power cord attached are only examples. The shape of the supplied power

cords varies depending on the country where you purchased the product.

rReference pages

f Reference pages in this manual are indicated as (x page 00).

rTerm

f In this manual, the “Wireless/wired remote control unit” accessory is referred to as “Remote control”.

ENGLISH - 17

Page 18

Features of the Projector

High luminance and high contrast

▶ With a unique optical system which uses

a new-generation laser light source, and the laser light source drive system, high

luminance of 12 000 lm

of 10 000:1 compact size. This projector also supports input of 4K video signals.

*1 When [OPERATING MODE] is set to [NORMAL] *2 When [DYNAMIC CONTRAST] is set to [3]

are achieved even with its

Easy and highly exible setup

▶ Easy and exible setup is achieved by

compatibility with DIGITAL LINK and Art-Net, standard support of 3G-SDI,

standard support of geometric adjustment function, 360° installation support including horizontal, vertical, and portrait utilizing the characteristics of solid-state light source, and a lineup of various optional lenses.

and high contrast

Quick Steps

For details, refer to the corresponding pages.

1. Set up the projector.

(x page 35)

2. Attach the projection lens.

(x page 47)

3. Connect with external devices.

(x page 49)

4. Connect the power cord.

(x page 56)

5. Switch on the projector.

(x page 58)

6. Make initial settings.

Long life and high reliability

▶ The maintenance cost for long-term

operation is reduced by the unique light

source cooling control technology and improvement of the dust resistance. Also, it will contribute to the stable operation by implementation of the backup function that will continue the projection by switching to the backup input signal immediately even when the input signal is discontinued, in addition to adopting solid-state light source which has long life.

(x page 59)

f Take this step when you switch on the

power for the rst time after purchasing the

projector.

7. Select the input signal.

(x page 67)

8. Adjust the image.

(x page 68)

18 - ENGLISH

Page 19

Chapter 1 Preparation

This chapter describes things you need to know or check before using the projector.

ENGLISH - 19

Page 20

Chapter 1 Preparation — Precautions for use

Precautions for use

Intended use of the product

The purpose of the projector is to project a video signal from imaging equipment or a computer on a screen or

other surface as a still image or moving image.

Cautions when transporting

f If you purchased the projector with the standard zoom lens, remove the lens protection material before use, and

store it for the future use. Move the lens position to the home position and attach the lens protection material

when transporting. If you purchased the projector with the lens sold separately, remove the lens hole cover before use, and store it

for the future use. Move the lens position to the home position, remove the projection lens, and attach the lens

hole cover when transporting.

For the steps to move the lens position to the home position, refer to “Moving the projection lens to the home position” (x page 70).

Lens hole cover

Lens protection material

f Transport the projector with two or more people. Failure to do so may drop the projector, which may result in

damage or deformation of the projector, or injury.

f Hold the bottom of the projector and do not hold the projection lens or the opening around the projection

lens when transporting. Failure to do so may cause damage. Also, handle the projector in a way not to apply

excessive vibration or shock. Failure to do so may cause a failure due to the damaged internal components.

f Do not transport the projector with the adjustable feet extended. Doing so may damage the adjustable feet.

Cautions when installing

rAfter attaching the projection lens, be sure to attach the Lens Mount Cover.

Not doing so may cause failure due to accumulating dust internally.

rDo not set up the projector outdoors.

The projector is designed for indoor use only.

rDo not set up the projector in the following locations.

f Places where vibration and impacts occur such as in a car or vehicle: Doing so may cause damage to internal

components or malfunction.

f Location close to sea or where corrosive gas may occur: The projector may fall due to corrosion. Also, failure to

do so may shorten the life of the components and result in malfunction.

f Near the exhaust of an air conditioner: Depending on the conditions of use, the screen may uctuate in rare

cases due to the heated air from the air exhaust port or the hot or cooled air from the air conditioner. Make sure that the exhaust from the projector or other equipment, or the air from the air conditioner does not blow toward

the front of the projector.

f Places with sharp temperature uctuations such as near lights (studio lamps): Doing so may shorten the life of

the light source, or result in deformation of the projector due to heat, which may cause malfunctions. Follow the operating environment temperature of the projector.

f Near high-voltage power lines or near motors: Doing so may interfere with the operation of the projector. f Places where there is high-power laser equipment: Directing a laser beam onto the projection lens surface

causes damage to the DLP chips.

20 - ENGLISH

Page 21

Chapter 1 Preparation — Precautions for use

rAsk a qualied technician or your dealer for the installation work such as installing to

a ceiling, etc.

To ensure projector performance and safety, ask a qualied technician or your dealer when installing to a ceiling

or in a high place.

rAsk a qualied technician or your dealer to install the cable wiring for DIGITAL LINK

connection.

Image and sound may be disrupted if cable transmission characteristics cannot be obtained due to inadequate

installation.

rThe projector may not work properly due to strong radio wave from the broadcast

station or the radio.

If there is any facility or equipment which outputs strong radio waves near the installation location, install the projector at a location sufciently far from the source of the radio waves. Or, wrap the LAN cable connected to the <DIGITAL LINK/LAN> terminal using a piece of metal foil or a metal pipe which is grounded at both ends.

rFocus adjustment

The high clarity projection lens is thermally affected by the light from the light source, making the focus unstable in the period just after switching on the power.

It is recommended to perform the focus adjustment after 30 minutes have elapsed with the focus test pattern

displayed. For details of the test pattern, refer to “[TEST PATTERN] menu” (x page 146).

rDo not install the projector at an altitude of 4 200 m (13 780') or higher above sea level.

rDo not use the projector in a location that the ambient temperature exceeds 45 °C

(113 °F).

Using the projector in a location that the altitude is too high or the ambient temperature is too high may reduce the life of the components or result in malfunctions.

rProjection in all 360° direction is possible.

360°

360° vertically 360° horizontally 360° tilted

360°

(combination of vertical and horizontal)

360°

ENGLISH - 21

Page 22

Chapter 1 Preparation — Precautions for use

rCautions when setting up the projector

f The projector can be used by installing its top placed on the oor. To prevent the top surface from getting

scratched during use, it is recommended to attach about a 20 mm (25/32") square buffer material (such as rubber cushion) on the four corners of the top surface.

Buffer material

Floor

Buffer material

f Use the adjustable feet only for the oor standing installation and for adjusting the angle. Using them for other

purposes may damage the projector.

f When installing the projector with a method other than the oor installation using the adjustable feet, top placed

on the oor, or the ceiling installation with the Ceiling Mount Bracket, use the ve screw holes for ceiling mount (as shown in the gure) to x the projector to the mount.

In such case, make sure that there is no clearance between the screw holes for ceiling mount on the projector

bottom and the setting surface by inserting spacers (metallic) between them.

f Use a torque screwdriver or Allen torque wrench to tighten the xing screws to their specied tightening torques.

Do not use electric screwdrivers or impact screwdrivers.

(Screw diameter: M6, tapping depth inside the projector: 12 mm (15/32"), torque: 4 ± 0.5 N·m)

Screw holes for ceiling mount (M6)

Adjustable feet Adjustable feet

Positions of screw holes for ceiling mount and adjustable feet

22 - ENGLISH

Page 23

Chapter 1 Preparation — Precautions for use

f Do not stack projectors on top of each other. f Do not block the ventilation ports (intake and exhaust) of the projector. f Prevent hot and cool air from the air conditioning system to blow directly to the ventilation ports (intake and

exhaust) of the projector.

500 mm (19-11/16") or longer 500 mm (19-11/16") or longer

500 mm (19-11/16") or longer

100 mm (3-15/16") or longer

f Do not install the projector in a conned space.

When installing the projector in a conned space, provide air conditioning or ventilation separately. Exhaust heat

may accumulate when the ventilation is not enough, triggering the protection circuit of the projector.

f Panasonic takes no responsibility for any damage to the product caused by an inappropriate choice of location

for installing the projector, even if the warranty period of the product has not expired.

Security

When using this product, take safety measures against the following incidents.

f Personal information being leaked via this product f Unauthorized operation of this product by a malicious third party f Interfering or stopping of this product by a malicious third party

Take sufcient security measures.

f Make your password difcult to guess as much as possible. f Change your password periodically. A password can be set in the [SECURITY] menu → [SECURITY

PASSWORD CHANGE].

f Panasonic Corporation or its afliate companies will never ask for your password directly. Do not divulge your

password in case you receive such inquiries.

f The connecting network must be secured by a rewall, etc. f Set a password for the web control and restrict the users who can log in. A password for the web control can be

set in the [Change password] page of the web control screen.

ENGLISH - 23

Page 24

Chapter 1 Preparation — Precautions for use

DIGITAL LINK

“DIGITAL LINK” is a technology to transmit the video, audio, Ethernet, and serial control signals using a twisted pair cable by adding unique functions by Panasonic to the HDBaseTTM communication standard formulated by HDBaseT Alliance.

This projector supports the optional Panasonic DIGITAL LINK output supported device (Model No.: ET-YFB100G, ET-YFB200G) and peripheral devices by other manufacturers (twisted-pair-cable transmitters such as the “XTP transmitter” of Extron Electronics) that use the same HDBaseT manufacturers that the operation has been veried with this projector, visit the Panasonic website (https:// panasonic.net/cns/projector/). Note that the verication for devices of other manufacturers has been made for the items set by Panasonic Corporation, and not all the operations have been veried. For operation or performance

problems caused by the devices of other manufacturers, contact the respective manufacturers. This projector

does not support audio transmission because it is not equipped with audio function.

standard. For the devices of other

Art-Net

“Art-Net” is an Ethernet communication protocol based on the TCP/IP protocol. By using the DMX controller and the application software, illumination and stage system can be controlled. Art-Net

is made based on DMX512 communication protocol.

Application software supported by the projector

The projector supports following application software. For details or downloading each application software, visit

the Panasonic website (https://panasonic.net/cns/projector/).

f Logo Transfer Software

This application software transfers the original image, such as company logo, which is projected at the start, to the projector.

f Smart Projector Control

This application software sets and adjusts the projector connected via LAN using a smartphone or a tablet.

f Multi Monitoring & Control Software

This application software monitors and controls the multiple display devices (projector and at panel display)

connected to an intranet.

f Early Warning Software

This plug-in software monitors the status of the display devices and their peripherals within an intranet, and

noties of abnormality of such equipment and detects the signs of possible abnormality. “Early Warning Software” is preinstalled in the “Multi Monitoring & Control Software”. To use the early warning function of this plug-in software, install “Multi Monitoring & Control Software” in the PC to be used. By enabling the early warning function, it will notify of the approximate time to replace the consumables for the display devices,

to clean each part of the display devices, and to replace the components of the display devices, allowing to

execute maintenance in advance. The early warning function can be used by registering maximum of 2048 display devices free of charge for

90 days after installing the “Multi Monitoring & Control Software” into a PC. To continuously use after the 90 days, it is necessary to purchase the license of “Early Warning Software” (ET-SWA100 Series) and perform

the activation. Also, depending on the type of license, the number of display devices that can be registered for

monitoring varies. For details, refer to the Operating Instructions of “Multi Monitoring & Control Software”.

Storing

To store the projector, store in a dry room.

Disposal

To dispose of the product, ask your local authorities or dealer for correct methods of disposal. Also, dispose of the product without disassembling.

Cautions on use

rTo get a good picture quality

In order to view a beautiful image in higher contrast, prepare an appropriate environment. Draw curtains or blinds over windows and turn off any lights near the screen to prevent outside light or light from indoor lamps from shining onto the screen.

24 - ENGLISH

Page 25

Chapter 1 Preparation — Precautions for use

rDo not touch the surface of the projection lens with your bare hands.

If the surface of the projection lens becomes dirty from ngerprints or anything else, this will be magnied and

projected onto the screen. Attach the lens cover supplied with the projector or with the optional projection lens to the projector when you do

not use the projector.

rDLP chips

f The DLP chips are precision-made. Note that in rare cases, pixels of high precision could be missing or always

lit. Such a phenomenon does not indicate malfunction.

f Directing a high-power laser beam onto the projection lens surface can damage the DLP chips.

rDo not move the projector or subject it to vibration or impact while it is operating.

Doing so may shorten the life of the built-in motor.

rLight source

The light source of the projector uses lasers, and has the following characteristics.

f Depending on the operating environment temperature, the luminance of the light source will decrease.

The higher the temperature becomes, the more the luminance of the light source decreases.

f The luminance of the light source will decrease by duration of usage.

If brightness is noticeably reduced and the light source does not turn on, ask your dealer to clean inside the projector or replace the light source unit.

rComputer and external device connections

When connecting a computer or an external device, read this manual carefully regarding the use of power cords

and shielded cables as well.

ENGLISH - 25

Page 26

Chapter 1 Preparation — Precautions for use

Accessories

Make sure that the following accessories are provided with your projector. Numbers enclosed in < > show the

number of accessories.

Wireless/wired remote control unit <1>

(N2QAYA000060)

Power cord

(K2CM3YY00028) 200 V - 240 V

(K2CT3YY00053) 200 V - 240 V

For Taiwan

(K2CZ3YY00081) <1> 200 V - 240 V

Lens Mount Cover <1>

(Black model: 1GE1RZ970BU) (White model: 1GE1RZ970WU)

(The same color as the outer case will be supplied.)

Lens cover <1>

(TKKL5244-1)

(K2CG3YY00218) 100 V - 120 V

For Korea

(K2CZ3YY00032) <1> 200 V - 240 V

For India

(K2CZ3YY00058) <1> 200 V - 240 V

Attention

(Only models with lens)

CD-ROM <1>

(Operating Instructions are included.)

AAA/R03 or AAA/LR03 battery <2>

(For remote control unit)

f After unpacking the projector, discard the power cord cap and packaging material properly. f Do not use the supplied power cord for devices other than this projector. f For missing accessories, consult your dealer. f Store small parts in an appropriate manner, and keep them away from small children.

Note

f The type and number of the supplied power cords vary depending on the country or region where you purchased the

product.

26 - ENGLISH

Page 27

Chapter 1 Preparation — Precautions for use

f The model numbers of accessories are subject to change without prior notice.

Optional accessories

Optional accessories (product name) Model No.

Projection lens

Ceiling Mount Bracket

Early Warning Software (Basic license/3-year license)

Upgrade Kit ET-UK20

Auto Screen Adjustment Upgrade Kit ET-CUK10 Auto Screen Adjustment Upgrade Kit (PC) ET-CUK10P Digital Interface Box ET-YFB100G DIGITAL LINK Switcher ET-YFB200G

*1 This product is equivalent to the lens attached to the projector models with standard zoom lens.

The availability of this product varies depending on the country. For details, contact your dealer.

*2 The sufx of the Model No. differs according to the license type.

Zoom Lens

Fixed-focus Lens ET-DLE035, ET-DLE055

ET-DLE060, ET-DLE085, ET-DLE105, ET-DLE150, ET-DLE170 ET-DLE250, ET-DLE350, ET-DLE450

ET-PKD120H (for High Ceilings) ET-PKD120S (for Low Ceilings) ET-PKD130H (for High Ceilings, 6-axis Adjustment) ET-PKD130B (Projector Mount Bracket)

ET-SWA100 Series

Note

f The model numbers of optional accessories are subject to change without prior notice.

ENGLISH - 27

Page 28

Chapter 1 Preparation — About your projector

About your projector

Remote control

Front Top

2 3

1 Power standby <v> button

Sets the projector to the state where the projector is turned off (standby mode) when the <MAIN POWER> switch on the projector is set to <ON> and in projection mode.

2 Power on <b> button

Sets the projector to projection mode when the <MAIN POWER> switch on the projector is set to <ON> and the power is turned off (standby mode).

3 Remote control indicator

Blinks if any button in the remote control is pressed.

4 Lens buttons (<FOCUS>, <ZOOM>, <SHIFT>)

Adjusts the focus, zoom, and lens shift. (x page 68)

5 <MENU> button/<ENTER> button/asqw buttons

Used to navigate through the menu screen. (x page 77) asqw buttons are also used to enter the password in

[SECURITY] or enter characters.

6 <ON SCREEN> button

Switches the on-screen display function on (display) or off (hide). (x page 73)

7 Input selection buttons (<RGB1/2>, <DIGITAL LINK>,

<DVI-D>, <SDI>, <HDMI>)

Switches the input signal to project. (x page 67) The <VIDEO> button is not used with this projector.

8 <FUNCTION> button

Assigns a frequently used operation as a shortcut button. (x page 74)

13 14

Bottom

9 Number (<0> - <9>) buttons

Used for entering an ID number or a password in a multiple projector environment.

10 <AUTO SETUP> button

Automatically adjusts the image display position while projecting the image.

[PROGRESS] is displayed while in automatic adjustment. (x page 74)

11 <SHUTTER> button

Used to temporarily turn off the image. (x page 73)

12 <TEST PATTERN> button

Displays the test pattern. (x page 74)

13 <STATUS> button

Displays the projector information.

14 <DEFAULT> button

Resets the content of the sub-menu to the factory default. (x page 78)

15 <ID SET> button

Sets the ID number of the remote control in a multiple projector environment. (x page 33)

16 Remote control signal transmitter

17 Remote control wired terminal

This is a terminal used to connect to the projector via a cable when the remote control is used as a wired remote control. (x page 33)

Attention

f Do not drop the remote control. f Avoid contact with liquids or moisture. f Do not attempt to modify or disassemble the remote control. f Observe the following instructions that are indicated on the caution label at the back of the remote control:

g Do not use old battery with new one. g Do not use batteries other than the type specied.

28 - ENGLISH

Page 29

Chapter 1 Preparation — About your projector

g Be sure the batteries are inserted properly.

For other instructions, read the instructions related to batteries that are described in “Read this rst!”.

Caution label at the back of the remote control

Note

f When operating the remote control by directly pointing at the remote control signal receiver of the projector, operate the remote control

within a distance approximately 30 m (98'5") from the remote control signal receiver. The remote control can control at angles of up to ±30°

vertically and horizontally, but the effective control range may be reduced.

f If there are any obstacles between the remote control and the remote control signal receiver, the remote control may not operate properly. f The signal will be reected off the screen. However, the operating range may be limited from light reection loss due to the screen material. f If the remote control signal receiver directly receives strong light, such as uorescent light, the remote control may not operate properly. Use

it in a place distant from the light source.

f The power indicator <ON (G)/STANDBY (R)> will blink if the projector receives a remote control signal.

ENGLISH - 29

Page 30

Projector body

Chapter 1 Preparation — About your projector

Front

1 2 3 4 5 6

7 7

Rear

Side

1413 15

16 17

Bottom

8 8

Projection direction

1 Remote control signal receiver (front)

2 Power indicator <ON (G)/STANDBY (R)>

Indicates the status of the power.

3 Light source indicator <LIGHT1>

Indicates the status of light source 1.

4 Light source indicator <LIGHT2>

Indicates the status of light source 2.

5 Temperature indicator <TEMP>

Indicates the internal temperature status.

6 (Not used with this projector)

7 Adjustable feet

Adjusts the projection angle.

8 Air intake port

9 Projection lens

(Only models with lens)

10 Remote control signal receiver (rear)

11 Air exhaust port

12 Burglar hook port

Attaches a burglar prevention cable, etc.

13 Control panel (x page 31) 14 Connecting terminals (x page 32)

15 Security slot

This security slot is compatible with the Kensington security cables.

16 <MAIN POWER> switch

Turns on/off the main power.

17 <AC IN> terminal

Connect the supplied power cord.

18 Power cord holder

Attention

f Do not block the ventilation ports (intake and exhaust) of the projector.

30 - ENGLISH

Page 31

r Control panel

Chapter 1 Preparation — About your projector

1 Power on <b> button

Sets the projector to projection mode when the <MAIN POWER> switch on the projector is set to <ON> and the power is turned off (standby mode).

2 Power standby <v> button

Sets the projector to the state where the projector is turned off (standby mode) when the <MAIN POWER> switch on the projector is set to <ON> and in projection mode.

3 <RGB1> button

Switches the input to RGB1.

4 <RGB2> button

Switches the input to RGB2.

5 <DVI-D> button

Switches the input to DVI-D.

6 <HDMI> button

Switches the input to HDMI.

7 <DIGITAL LINK> button

Switches the input to DIGITAL LINK.

8 <SDI> button

Switches the input to SDI.

9 <MENU> button

Displays or hides the main menu. (x page 77) Returns to the previous menu when a sub-menu is displayed.

If you press the <MENU> button on the control panel for at least three seconds while the on-screen display is off (hidden), the

on-screen display is turned on.

10 <LENS> button

Adjusts the focus, zoom, and lens shift.

11 <ENTER> button

Determines and executes an item in the menu screen.

12 <SHUTTER> button

Used to temporarily turn off the image. (x page 73)

13 asqw selection buttons

Used to select an item in the menu screen, change the setting, and adjust the level.

Also used to enter a password in [SECURITY] or enter

characters.

14 <AUTO SETUP> button

Automatically adjusts the image display position while the

image is projected. [PROGRESS] is displayed during the automatic adjustment. (x page 74)

ENGLISH - 31

Page 32

r Connecting terminals

Chapter 1 Preparation — About your projector

1 2 3 4

5 6 7 8 9 10

1 <REMOTE 1 IN> terminal/<REMOTE 1 OUT> terminal

These are terminals to connect the remote control for serial control in a multiple projector environment.

2 <REMOTE 2 IN> terminal

This is a terminal to remotely control the projector using the

external control circuit.

3 <SERIAL/MULTI PROJECTOR SYNC IN> terminal

This is the RS-232C compatible terminal to externally control

the projector by connecting a computer. This terminal is also used to connect multiple projectors when balancing the contrast as a combined screen or synchronizing

the effects using the shutter function including the fade in/fade

out with a system using multiple projectors.

4 <SERIAL/MULTI PROJECTOR SYNC OUT> terminal

This is a terminal to output RS-232C compliant signal input to the <SERIAL/MULTI PROJECTOR SYNC IN> terminal.

This terminal is also used to connect multiple projectors when balancing the contrast as a combined screen or synchronizing

the effects using the shutter function including the fade in/fade

out with a system using multiple projectors.

5 <SDI IN> terminal

This is a terminal to input the SDI signal.

6 <RGB 1 IN> terminals (<R/P

<VD>)

These are terminals to input the RGB signal or YCBCR/YPBPR

signal.

7 <RGB 2 IN> terminal

This is a terminal to input the RGB signal or YC

signal.

8 <DVI-D IN> terminal

This is a terminal to input the DVI-D signal.

9 <HDMI IN> terminal

This is a terminal to input the HDMI signal.

10 <DIGITAL LINK/LAN> terminal

This is the LAN terminal to connect to the network. This is also

used when connecting a video signal transmission device via

the LAN terminal.

11 <LAN> terminal

This is a terminal to connect a device that transmits video

signal or audio signal via the LAN terminal. Also, this is the LAN

terminal to connect to the network.

>, <G/Y>, <B/PB>, <SYNC/HD>,

BCR

/YPBPR

Attention

f When a LAN cable is directly connected to the projector, the network connection must be made indoors. f The <DIGITAL LINK/LAN> terminal and <LAN> terminal are connected inside of the projector. If both the <DIGITAL LINK/LAN> terminal and

<LAN> terminal are used, congure the system so that these terminals are not directly connected or connected through peripheral devices

such as a hub or a twisted-pair-cable transmitter to the same network.

32 - ENGLISH

Page 33

Chapter 1 Preparation — Preparing the remote control

Preparing the remote control

Inserting and removing the batteries

(i)

1) Open the cover. (Fig. 1)

2) Insert the batteries and close the cover (insert the m side first). (Fig. 2)

f When removing the batteries, perform the steps in reverse order.

(ii)

Fig. 1 Fig. 2

When using the multiple projectors

When you use the multiple projectors together, you can operate all the projectors simultaneously or each projector

individually using a single remote control, if a unique ID number is assigned to each projector.

When using the projectors by setting the ID numbers, set the ID number of the projector body after initial settings have been completed. Then, set the ID number of the remote control. For initial settings, refer to “When the initial

setting screen is displayed” (x page 59). The factory default ID number of the projector (projector body and remote control) is set to [ALL], so you can use

it as it is. Set the ID numbers of the projector body and remote control as necessary. For details on setting the ID number of the remote control, refer to “Setting ID number of the remote control”

(x page 75).

Note

f Set the ID number of the projector body from the [PROJECTOR SETUP] menu → [PROJECTOR ID].

Connecting the remote control to the projector with a cable

To simultaneously control multiple projectors next to each other with one remote control, connect the remote control with a commercially available M3 stereo mini jack cable using the <REMOTE 1 IN>/<REMOTE 1 OUT>

terminals. The remote control is effective even in places where an obstacle stands in the light path or where devices are

susceptible to outside light.

M3 stereo mini jack cable (commercially available)

Remote control

Connecting to the remote control wired terminal

Connecting to a second projector

Connecting terminals

Attention

f Use a cable that is 15 m (49'3") or shorter, with 2 core shielded. The remote control may not operate when the length of the cable exceeds

15 m (49'3") or when the shielding of the cable is inadequate.

ENGLISH - 33

Page 34

Chapter 2 Getting Started

This chapter describes things you need to do before using the projector such as the setup and connections.

34 - ENGLISH

Page 35

Chapter 2 Getting Started — Setting up

Setting up

Usable outlet

This projector supports AC 100 V to AC 240 V as the power supply. A grounded outlet supporting 15 A is required

with either voltage.

The shape of the usable outlet differs depending on the power supply. Following illustrations are examples.

2P/3W 15 A 250 V

2P/3W 15 A 125 V

2P/3W 15 A 250 V

Attention

f Use the supplied power cord and ground at the outlet. f Use the power cord matching the used power supply voltage and outlet shape.

Note

f The supplied power cords vary depending on the country or region where you purchased the product.

Installation mode

The installation modes of the projector are as follows. Set [FRONT/REAR]/[FLOOR/CEILING] in the [PROJECTOR SETUP] menu → [PROJECTION METHOD] (x page 123) depending on the installation mode.

Setting on a desk/oor and projecting forward Setting on a desk/oor and projecting from rear

(Using the translucent screen)

Menu item Setting value Menu item Setting value

[FRONT/REAR] [FRONT] [FRONT/REAR] [REAR]

[FLOOR/CEILING] [AUTO] or [FLOOR] [FLOOR/CEILING] [AUTO] or [FLOOR]

ENGLISH - 35

Page 36

Chapter 2 Getting Started — Setting up

Mounting on the ceiling and projecting forward Mounting on the ceiling and projecting from rear

(Using the translucent screen)

Menu item Setting value Menu item Setting value

[FRONT/REAR] [FRONT] [FRONT/REAR] [REAR]

[FLOOR/CEILING] [AUTO] or [CEILING] [FLOOR/CEILING] [AUTO] or [CEILING]

Portrait setting and projecting forward Portrait setting and projecting from rear

(Using the translucent screen)

Menu item Setting value Menu item Setting value

[FRONT/REAR] [FRONT] [FRONT/REAR] [REAR]

[FLOOR/CEILING]

Set in accordance with the image

to project.

[FLOOR/CEILING]

Set in accordance with the image

to project.

Note

f In the portrait setting, the on-screen menu is displayed sideways.

To display the on-screen menu vertically, go to the [DISPLAY OPTION] menu → [ON-SCREEN DISPLAY] (x page 115) and change the [OSD ROTATION] setting.

f The projector has a built-in angle sensor. The attitude of the projector is automatically detected by setting [FLOOR/CEILING] to [AUTO] in

the [PROJECTOR SETUP] menu → [PROJECTION METHOD].

r Angle sensor

The range of the installation attitude that is detected by the angle sensor built-in the projector is as follows.

Floor standing installation

30°

Ceiling mount installation

36 - ENGLISH

Floor standing installation

Projection direction

Page 37

Chapter 2 Getting Started — Setting up

Parts for installation (optional)

The projector can be installed on the ceiling by combining the optional Ceiling Mount Bracket (Model No.: ET-PKD120H (for High Ceilings), ET-PKD120S (for Low Ceilings), ET-PKD130H (for High Ceilings, 6-axis Adjustment)) and the Ceiling Mount Bracket (Model No.: ET-PKD130B (Projector Mount Bracket)).

f Be sure to use the Ceiling Mount Bracket specied for this projector. f Refer to the Installation Instructions of the Ceiling Mount Bracket when installing and setting up the projector.

Attention

f To ensure projector performance and security, installation of the Ceiling Mount Bracket must be carried out by your dealer or a qualied

technician.

Projected image and throw distance

Install the projector referring to the projected image size and projection distance. Image size and image position can be adjusted in accordance with the screen size and screen position. The projection relation between the

screen and the projector differs from that of other lenses, when the Fixed-focus Lens (Model No.: ET-DLE035) is used. Refer to “Fixed-focus Lens (Model No.: ET-DLE035)” (x page 38) for details.

Attention

f Before setting up, read “Precautions for use” (x page 20).

Especially when the Fixed-focus Lens (Model No.: ET-DLE035) is used, install the projector so that its back plane is parallel to the screen,

making the projected image rectangular.

The vertical keystone distortion in moderate range can be corrected with the [POSITION] menu → [GEOMETRY] → [KEYSTONE] → [VERTICAL KEYSTONE] (x page 94) even after the projector is installed. For the range that can be corrected, refer to “[GEOMETRY] projection range” (x page 39).

f Do not use the projector and the high-powered laser equipment in the same room. The DLP chips can be damaged if a laser beam hits the

projection lens surface.

Note

f The optional Zoom Lens (Model No.: ET-DLE170) is equivalent to the lens attached to the projector models with standard zoom lens.

The availability of this product varies depending on the country. For details, contact your dealer.

Figure of projected image and throw distance

Projected image

Screen

L (LW/LT)

SW SH

Screen

Note

f This illustration is prepared on the assumption that the projected image size and position have been aligned to t full in the screen.

SH Projected image height SW Projected image width SD Projected image size

H Distance from the lens center to the bottom edge of the projected image

(LW/LT)

Projection distance (distance from the front end of the projection lens to the screen)

Lens protrusion dimension (distance from the front surface of the projector to the front end of the projection

lens)

*1 For details about calculating the projection distance, refer to “Formula for calculating the projection distance per projection lens” (x page 45). *2 LW: Minimum projection distance when the Zoom Lens is used

LT: Maximum projection distance when the Zoom Lens is used

ENGLISH - 37

Page 38

Chapter 2 Getting Started — Setting up

Projection lens Model No. Lens protrusion dimension (L1) (approximate value)

Standard zoom lens/

ET-DLE170

0.043

ET-DLE055 0.027

ET-DLE060 0.104

ET-DLE085 0.084

ET-DLE105 0.088

ET-DLE150 0.044

ET-DLE250 0.045

ET-DLE350 0.051

ET-DLE450 0.095

Note

f For the adjustment range of the projected image position with the lens shift, refer to “Lens shift range” (x page 71).

r Fixed-focus Lens (Model No.: ET-DLE035)

Projected image

(Unit: m)

Screen

SHA1

Screen

Note

f This illustration is prepared on the assumption that the projected image size and position have been aligned to t full in the screen.

SH Projected image height SW Projected image width SD Projected image size

L2 Distance from the front end of the projection lens to the screen

L3 Distance from the front surface of the projector to the screen

L4 Distance from the back surface of the projector to the screen

A2 Distance from the installation surface of the projector to the screen (adjustable feet at lowest position)

Projection distance (distance from the mirror reection surface*2 to the screen)

Distance from the top surface of the projector to the bottom edge of the screen

*1 For details about calculating the projection distance, refer to “Formula for calculating the projection distance per projection lens” (x page 45). *2 The mirror reection surface cannot be seen from the outside because it is located inside the Fixed-focus Lens.

(Unit: m)

Distance from the projector

to the screen

L2 = L1 + 0.023

L3 = L1

L4 = L1

A2 = A1 + 0.200

Formula

0.166

0.704

38 - ENGLISH

Page 39

Chapter 2 Getting Started — Setting up

Attention

f The dimension of L4 is not the distance between the back surface of the projector and the wall, but the distance between the back surface of

the projector and the screen surface. Install the projector with 500 mm (19-11/16") or larger space between the back surface of the projector

and the wall or any object so that the ventilation is not obstructed.

When installing the projector in a conned space, provide air conditioning or ventilation separately. Exhaust heat may accumulate when the

ventilation is not enough, triggering the protection circuit of the projector.

Note

f For the adjustment range of the projected image position with the lens shift, refer to “Lens shift range” (x page 71).

[GEOMETRY] projection range

[VERTICAL KEYSTONE] (viewed from the side) [HORIZONTAL KEYSTONE] (viewed from above)

Screen

Vertical arc correction (viewed from the side) Horizontal arc correction (viewed from above)

Projection distance Arc radius

Screen

Projection distance Arc radius

Screen

Arc center

Screen

Projection distance Arc radius

Arc center

Screen

Projection distance Arc radius

ENGLISH - 39

Page 40

Standard status

Chapter 2 Getting Started — Setting up

Only [KEYSTONE] used [KEYSTONE] and [CURVED CORRECTION] used together

Projection

lens Model

No.

Standard

zoom lens/

ET-DLE170

ET-DLE035

ET-DLE055 ±22 ±15 ±8 ±8 1.7 4.3 1 2.6 ET-DLE060 ±16 ±10 ― ― ― ― ― ― ET-DLE085 ±22 ±15 ±8 ±8 1.7 4.3 1 2.6 ET-DLE105 ±22 ±15 ±8 ±8 1.7 4.3 1 2.6 ET-DLE150 ±40 ±15 ±20 ±15 1.1 2.6 0.6 1.5 ET-DLE250 ±40 ±15 ±20 ±15 0.7 1.3 0.4 0.7 ET-DLE350 ±40 ±15 ±20 ±15 0.4 0.8 0.3 0.5 ET-DLE450 ±40 ±15 ±20 ±15 0.3 0.6 0.2 0.3

*1 Only the vertical keystone correction angle can be corrected in the direction in which the projector body moves away from the screen.

Vertical

keystone

correction

angle α (°)

±40 ±15 ±20 ±15 0.9 1.7 0.5 1

+5 / -0 0 ― ― ― ― ― ―

Horizontal

keystone

correction

angle β (°)

Vertical

keystone

correction

angle α (°)

Horizontal

keystone

correction

angle β (°)

Min. value of

R2/L2

Min. value of

R3/L3

Only [CURVED

CORRECTION] used

Min. value of

R2/L2

Min. value of

When using the optional Upgrade Kit (Model No.: ET-UK20)

Only [KEYSTONE] used

Projection

lens Model

No.

Standard

zoom lens/

ET-DLE170

ET-DLE035

ET-DLE055 ±22 ±15 ±8 ±8 1.3 3.3 0.8 1.9 ET-DLE060 ±16 ±10 ― ― ― ― ― ― ET-DLE085 ±22 ±15 ±8 ±8 1.3 3.3 0.8 1.9 ET-DLE105 ±22 ±15 ±8 ±8 1.3 3.3 0.8 1.9 ET-DLE150 ±40 ±40 ±20 ±15 0.9 2 0.5 1.1 ET-DLE250 ±40 ±40 ±20 ±15 0.5 1 0.3 0.6 ET-DLE350 ±45 ±40 ±20 ±15 0.3 0.6 0.2 0.4 ET-DLE450 ±45 ±40 ±20 ±15 0.2 0.4 0.2 0.3

Vertical

keystone

correction

angle α (°)

±40 ±40 ±20 ±15 0.7 1.3 0.4 0.7

+5 / -0 0 ― ― ― ― ― ―

Horizontal

keystone

correction

angle β (°)

[KEYSTONE] and [CURVED CORRECTION] used together

Vertical

keystone

correction

angle α (°)

Horizontal

keystone

correction

angle β (°)

Min. value of

R2/L2

Min. value of

R3/L3

Only [CURVED

CORRECTION] used

Min. value of

R2/L2

Min. value of

R3/L3

*1 When [VERTICAL KEYSTONE] and [HORIZONTAL KEYSTONE] are used simultaneously, correction cannot be made exceeding total of 55°. *2 Only the vertical keystone correction angle can be corrected in the direction in which the projector body moves away from the screen.

Note

f When [GEOMETRY] is used, the focus of the entire screen may be lost as correction increases. f Make the curved screen a circular arc shape with one part of a perfect circle removed. f Adjustment range of the [GEOMETRY] items may not match the listed projection range depending on the projection lens. Use this projector

within the projection range, otherwise the correction may not work.

40 - ENGLISH

Page 41

Chapter 2 Getting Started — Setting up

Projection distance of each projection lens

A ±5 % error in listed projection distances may occur. When [GEOMETRY] is used, distance is corrected to become smaller than the specied image size.

r When the screen aspect ratio is 16:10

(Unit: m)

Lens type Zoom Lens

Projection lens Model No.

Throw ratio

Projected image size Projection distance (L)

Diagonal (SD)

1.27 (50") 0.673 1.077 1.82 2.57 0.63 0.84 0.82 1.04 1.03 1.41 1.38 2.01

1.52 (60") 0.808 1.292 2.20 3.10 0.76 1.02 1.00 1.25 1.25 1.70 1.66 2.43

1.78 (70") 0.942 1.508 2.58 3.63 0.90 1.20 1.17 1.47 1.47 1.99 1.95 2.84

2.03 (80") 1.077 1.723 2.95 4.16 1.03 1.38 1.35 1.68 1.68 2.28 2.23 3.25

2.29 (90") 1.212 1.939 3.33 4.69 1.17 1.56 1.52 1.90 1.90 2.57 2.52 3.66

2.54 (100") 1.346 2.154 3.71 5.21 1.31 1.74 1.70 2.11 2.12 2.86 2.81 4.08

3.05 (120") 1.615 2.585 4.47 6.27 1.58 2.10 2.05 2.55 2.55 3.44 3.38 4.90

3.81 (150") 2.019 3.231 5.60 7.86 1.99 2.63 2.57 3.19 3.20 4.32 4.24 6.14

5.08 (200") 2.692 4.308 7.50 10.50 2.67 3.53 3.44 4.27 4.29 5.77 5.67 8.20

6.35 (250") 3.365 5.385 9.39 13.14 3.35 4.42 4.31 5.35 5.37 7.23 7.10 10.26

7.62 (300") 4.039 6.462 11.28 15.79 4.03 5.32 5.18 6.43 6.46 8.68 8.53 12.33

8.89 (350") 4.712 7.539 13.18 18.43 4.71 6.21 6.06 7.51 7.54 10.14 9.96 14.39

10.16 (400") 5.385 8.616 15.07 21.07 5.39 7.11 6.93 8.59 8.63 11.59 11.39 16.45

12.70 (500") 6.731 10.770 18.86 26.36 6.75 8.90 8.67 10.75 10.80 14.50 14.25 20.58

15.24 (600") 8.077 12.923 22.64 31.65 8.11 10.69 10.42 12.91 12.97 17.41 17.11 24.70

*1 The throw ratio is based on the value during projection of 2.03 m (80") projected image size.

Lens type Zoom Lens Height position (H)

Projection lens Model No. ET-DLE250 ET-DLE350 ET-DLE450 Standard zoom

Throw ratio

Projected image size Projection distance (L)

Diagonal (SD)

1.27 (50") 0.673 1.077 2.42 3.87 3.80 5.81 5.66 9.12 0 - 0.44 0.07 - 0.44

1.52 (60") 0.808 1.292 2.92 4.65 4.59 7.00 6.85 11.01 0 - 0.53 0.08 - 0.53

1.78 (70") 0.942 1.508 3.42 5.44 5.38 8.19 8.04 12.89 0 - 0.62 0.09 - 0.62

2.03 (80") 1.077 1.723 3.92 6.23 6.16 9.38 9.23 14.78 0 - 0.71 0.11 - 0.71

2.29 (90") 1.212 1.939 4.42 7.02 6.95 10.57 10.43 16.66 0 - 0.80 0.12 - 0.80

2.54 (100") 1.346 2.154 4.92 7.81 7.74 11.76 11.62 18.55 0 - 0.89 0.13 - 0.89

3.05 (120") 1.615 2.585 5.91 9.39 9.31 14.14 14.00 22.31 0 - 1.07 0.16 - 1.07

3.81 (150") 2.019 3.231 7.41 11.75 11.68 17.71 17.58 27.97 0 - 1.33 0.20 - 1.33

5.08 (200") 2.692 4.308 9.91 15.70 15.61 23.66 23.54 37.39 0 - 1.78 0.27 - 1.78

6.35 (250") 3.365 5.385 12.41 19.64 19.55 29.61 29.50 46.81 0 - 2.22 0.34 - 2.22

7.62 (300") 4.039 6.462 14.91 23.59 23.49 35.56 35.46 56.24 0 - 2.67 0.40 - 2.67

8.89 (350") 4.712 7.539 17.40 27.53 27.42 41.51 41.42 65.66 0 - 3.11 0.47 - 3.11

10.16 (400") 5.385 8.616 19.90 31.48 31.36 47.46 47.38 75.08 0 - 3.55 0.54 - 3.55

12.70 (500") 6.731 10.770 24.90 39.37 39.23 59.36 59.30 93.93 0 - 4.44 0.67 - 4.44

15.24 (600") 8.077 12.923 29.89 47.25 47.11 71.25 71.22 112.77 0 - 5.33 0.81 - 5.33

*1 The throw ratio is based on the value during projection of 2.03 m (80") projected image size.

Height

(SH)

Height

(SH)

Width

(SW)

Width

(SW)

Standard zoom

lens/ET-DLE170

1.71-2.41:1 0.600-0.801:1 0.782-0.977:1 0.978-1.32:1 1.30-1.89:1

Min. (LW)

Max.

(LT)

2.27-3.62:1 3.58-5.45:1 5.36-8.58:1

Max.

(LT)

ET-DLE060 ET-DLE085 ET-DLE105 ET-DLE150

Min. (LW)

Max.

(LT)

Max.

(LT)

Min. (LW)

Max.

(LT)

Max.

(LT)

Min.

(LW)

lens/ET-DLE170/

ET-DLE085/ ET-DLE105/ ET-DLE150/ ET-DLE250/ ET-DLE350/

Max.

(LT)

ET-DLE450

Min.

(LW)

ET-DLE060

Max.

(LT)

(Unit: m)

ENGLISH - 41

Page 42

Chapter 2 Getting Started — Setting up

(Unit: m)

Lens type Fixed-focus Lens

Projection lens Model No. ET-DLE055 ET-DLE035

Throw ratio

Projected image size

Diagonal (SD)

1.27 (50") 0.673 1.077 0.83 0.34 ― ― ―

1.52 (60") 0.808 1.292 1.00 0.40 ― ― ―

1.78 (70") 0.942 1.508 1.18 0.47 ― ― ―

2.03 (80") 1.077 1.723 1.35 0.54 ― ― ―

2.29 (90") 1.212 1.939 1.53 0.61 ― ― ―

2.54 (100") 1.346 2.154 1.70 0.67 0.82 0.11 0.43

3.05 (120") 1.615 2.585 2.05 0.81 0.98 0.28 0.53

3.81 (150") 2.019 3.231 2.58 1.01 1.23 0.52 0.68

5.08 (200") 2.692 4.308 3.45 1.35 1.63 0.93 0.93

6.35 (250") 3.365 5.385 ― ― 2.04 1.34 1.18

7.62 (300") 4.039 6.462 ― ― 2.45 1.74 1.43

8.89 (350") 4.712 7.539 ― ― 2.85 2.15 1.69

10.16 (400") 5.385 8.616 ― ― ― ― ―

12.70 (500") 6.731 10.770 ― ― ― ― ―

15.24 (600") 8.077 12.923 ― ― ― ― ―

*1 When the Fixed-focus Lens (Model No.: ET-DLE035) is attached, the projection relation between the screen and the projector differs from that of

other lenses. Refer to “Fixed-focus Lens (Model No.: ET-DLE035)” (x page 38) for details.

*2 The throw ratio is based on the value during projection of 2.03 m (80") projected image size. When the Fixed-focus Lens (Model No.: ET-DLE035) is

attached, the throw ratio is based on the value during projection of 2.54 m (100") projected image size.

*3 When the Fixed-focus Lens (Model No.: ET-DLE055) is attached, the lens shift is not possible, therefore the height position (H) becomes the xed

value of SH/2.

Height

(SH)

Width

(SW)

0.785:1 0.380:1

Projection

distance

(L)

Height

position

(H)

Projection

distance

(L1)

Distance from the

projector to the

screen

(L4) (A1)

r When the screen aspect ratio is 16:9

Lens type Zoom Lens

Projection lens Model No.

Throw ratio

Projected image size Projection distance (L)

Diagonal (SD)

1.27 (50") 0.623 1.107 1.87 2.64 0.64 0.87 0.85 1.07 1.06 1.45 1.42 2.07

1.52 (60") 0.747 1.328 2.26 3.19 0.78 1.05 1.03 1.29 1.29 1.75 1.71 2.49

1.78 (70") 0.872 1.550 2.65 3.73 0.92 1.24 1.21 1.51 1.51 2.05 2.00 2.92

2.03 (80") 0.996 1.771 3.04 4.27 1.06 1.42 1.39 1.73 1.73 2.35 2.30 3.34

2.29 (90") 1.121 1.992 3.43 4.82 1.20 1.60 1.57 1.95 1.96 2.64 2.59 3.77

2.54 (100") 1.245 2.214 3.82 5.36 1.34 1.79 1.75 2.17 2.18 2.94 2.89 4.19

3.05 (120") 1.494 2.657 4.60 6.45 1.62 2.16 2.10 2.62 2.63 3.54 3.47 5.04

3.81 (150") 1.868 3.321 5.76 8.08 2.04 2.71 2.64 3.28 3.29 4.44 4.36 6.31

5.08 (200") 2.491 4.428 7.71 10.80 2.74 3.63 3.54 4.39 4.41 5.93 5.82 8.43

6.35 (250") 3.113 5.535 9.65 13.51 3.44 4.55 4.43 5.50 5.52 7.43 7.29 10.55

7.62 (300") 3.736 6.641 11.60 16.23 4.14 5.47 5.33 6.61 6.64 8.93 8.76 12.67

8.89 (350") 4.358 7.748 13.55 18.95 4.84 6.39 6.23 7.72 7.76 10.42 10.23 14.79

10.16 (400") 4.981 8.855 15.49 21.66 5.54 7.31 7.12 8.83 8.87 11.92 11.70 16.91

12.70 (500") 6.226 11.069 19.38 27.10 6.93 9.15 8.91 11.05 11.10 14.91 14.64 21.15

15.24 (600") 7.472 13.283 23.27 32.53 8.33 10.99 10.71 13.27 13.33 17.90 17.58 25.39

*1 The throw ratio is based on the value during projection of 2.03 m (80") projected image size.

Height

(SH)

Width

(SW)

Standard zoom

lens/ET-DLE170

1.72-2.41:1 0.600-0.802:1 0.783-0.977:1 0.979-1.32:1 1.30-1.89:1

Min. (LW)

Max.

(LT)

ET-DLE060 ET-DLE085 ET-DLE105 ET-DLE150

Min. (LW)

Max.

(LT)

Min. (LW)

Max.

(LT)

Min.

(LW)

Max.

(LT)

Min. (LW)

(Unit: m)

Max.

(LT)

42 - ENGLISH

Page 43

Chapter 2 Getting Started — Setting up

Lens type Zoom Lens Height position (H)

Projection lens Model No. ET-DLE250 ET-DLE350 ET-DLE450 Standard zoom

Throw ratio

Projected image size Projection distance (L)

Diagonal (SD)

1.27 (50") 0.623 1.107 2.49 3.97 3.91 5.98 5.82 9.39

1.52 (60") 0.747 1.328 3.00 4.79 4.72 7.20 7.05 11.32

1.78 (70") 0.872 1.550 3.51 5.60 5.53 8.43 8.27 13.26

2.03 (80") 0.996 1.771 4.03 6.41 6.34 9.65 9.50 15.20

2.29 (90") 1.121 1.992 4.54 7.22 7.15 10.87 10.72 17.13

2.54 (100") 1.245 2.214 5.05 8.03 7.96 12.09 11.95 19.07

3.05 (120") 1.494 2.657 6.08 9.65 9.58 14.54 14.40 22.94

3.81 (150") 1.868 3.321 7.62 12.08 12.00 18.21 18.08 28.75

5.08 (200") 2.491 4.428 10.19 16.14 16.05 24.32 24.20 38.44

6.35 (250") 3.113 5.535 12.75 20.19 20.10 30.44 30.33 48.12

7.62 (300") 3.736 6.641 15.32 24.25 24.14 36.55 36.45 57.81

8.89 (350") 4.358 7.748 17.89 28.30 28.19 42.67 42.58 67.49

10.16 (400") 4.981 8.855 20.46 32.35 32.24 48.78 48.71 77.18

12.70 (500") 6.226 11.069 25.59 40.46 40.33 61.01 60.96 96.55

15.24 (600") 7.472 13.283 30.72 48.57 48.42 73.24 73.21 115.91

*1 The throw ratio is based on the value during projection of 2.03 m (80") projected image size.

Height

(SH)

Width

(SW)

2.27-3.62:1 3.58-5.45:1 5.36-8.58:1

Min. (LW)

Max.

(LT)

Min. (LW)

Max.

(LT)

Min. (LW)

lens/ET-DLE170/

Max.

(LT)

(Unit: m)

ET-DLE085/ ET-DLE105/ ET-DLE150/

ET-DLE060

ET-DLE250/ ET-DLE350/

ET-DLE450

0.06 - 0.46 0.00 - 0.46

0.07 - 0.55 0.00 - 0.55

0.09 - 0.64 0.00 - 0.64

0.10 - 0.73 0.00 - 0.73

0.11 - 0.82 0.00 - 0.82

0.12 - 0.91 0.00 - 0.91

0.15 - 1.10 0.00 - 1.10

0.19 - 1.37 0.00 - 1.37

0.25 - 1.83 0.00 - 1.83

0.31 - 2.28 0.00 - 2.28

0.37 - 2.74 0.00 - 2.74

0.44 - 3.20 0.00 - 3.20

0.50 - 3.65 0.00 - 3.65

0.62 - 4.57 0.00 - 4.57

0.75 - 5.48 0.00 - 5.48

(Unit: m)

Lens type Fixed-focus Lens

Projection lens Model No. ET-DLE055 ET-DLE035

Throw ratio

0.786:1 0.380:1

Distance from the

Projected image size

Diagonal (SD)

Height

(SH)

Projection

distance

Width

(SW)

(L)

Height

position

(H)

Projection

distance

(L1)

projector to the

screen

(L4) (A1)

1.27 (50") 0.623 1.107 0.85 0.31 ― ― ―

1.52 (60") 0.747 1.328 1.03 0.37 ― ― ―

1.78 (70") 0.872 1.550 1.21 0.44 ― ― ―

2.03 (80") 0.996 1.771 1.39 0.50 ― ― ―

2.29 (90") 1.121 1.992 1.57 0.56 ― ― ―

2.54 (100") 1.245 2.214 1.75 0.62 0.84 0.14 0.51

3.05 (120") 1.494 2.657 2.11 0.75 1.01 0.30 0.63

3.81 (150") 1.868 3.321 2.65 0.93 1.26 0.56 0.81

5.08 (200") 2.491 4.428 3.55 1.25 1.68 0.97 1.10

6.35 (250") 3.113 5.535 ― ― 2.10 1.39 1.39

7.62 (300") 3.736 6.641 ― ― 2.51 1.81 1.68

8.89 (350") 4.358 7.748 ― ― 2.93 2.23 1.98

10.16 (400") 4.981 8.855 ― ― ― ― ―

12.70 (500") 6.226 11.069 ― ― ― ― ―

15.24 (600") 7.472 13.283 ― ― ― ― ―

*1 When the Fixed-focus Lens (Model No.: ET-DLE035) is attached, the projection relation between the screen and the projector differs from that of

other lenses. Refer to “Fixed-focus Lens (Model No.: ET-DLE035)” (x page 38) for details.

*2 The throw ratio is based on the value during projection of 2.03 m (80") projected image size. When the Fixed-focus Lens (Model No.: ET-DLE035) is

attached, the throw ratio is based on the value during projection of 2.54 m (100") projected image size.

*3 When the Fixed-focus Lens (Model No.: ET-DLE055) is attached, the lens shift is not possible, therefore the height position (H) becomes the xed

value of SH/2.

ENGLISH - 43

Page 44

Chapter 2 Getting Started — Setting up

r When the screen aspect ratio is 4:3

(Unit: m)

Lens type Zoom Lens

Projection lens Model No.

Throw ratio

Projected image size Projection distance (L)

Diagonal (SD)

1.27 (50") 0.762 1.016 2.07 2.92 0.71 0.96 0.94 1.18 1.18 1.60 1.56 2.29

1.52 (60") 0.914 1.219 2.50 3.52 0.87 1.16 1.14 1.42 1.42 1.93 1.89 2.75

1.78 (70") 1.067 1.422 2.93 4.12 1.02 1.37 1.33 1.67 1.67 2.26 2.21 3.22

2.03 (80") 1.219 1.626 3.35 4.72 1.18 1.57 1.53 1.91 1.91 2.59 2.54 3.69

2.29 (90") 1.372 1.829 3.78 5.31 1.33 1.77 1.73 2.16 2.16 2.92 2.86 4.15

2.54 (100") 1.524 2.032 4.21 5.91 1.48 1.97 1.93 2.40 2.41 3.25 3.18 4.62

3.05 (120") 1.829 2.438 5.07 7.11 1.79 2.38 2.32 2.89 2.90 3.91 3.83 5.55

3.81 (150") 2.286 3.048 6.35 8.91 2.25 2.99 2.91 3.62 3.63 4.89 4.80 6.96

5.08 (200") 3.048 4.064 8.50 11.90 3.02 4.00 3.90 4.84 4.86 6.54 6.42 9.29

6.35 (250") 3.810 5.080 10.64 14.89 3.79 5.01 4.89 6.07 6.09 8.19 8.04 11.63

7.62 (300") 4.572 6.096 12.78 17.88 4.56 6.03 5.88 7.29 7.32 9.84 9.66 13.96

8.89 (350") 5.334 7.112 14.93 20.88 5.33 7.04 6.86 8.51 8.55 11.48 11.28 16.30

10.16 (400") 6.096 8.128 17.07 23.87 6.10 8.05 7.85 9.73 9.78 13.13 12.90 18.63

12.70 (500") 7.620 10.160 21.36 29.85 7.64 10.08 9.82 12.17 12.23 16.42 16.13 23.30

15.24 (600") 9.144 12.192 25.64 35.84 9.18 12.11 11.80 14.62 14.69 19.72 19.37 27.97

*1 The throw ratio is based on the value during projection of 2.03 m (80") projected image size.

Lens type Zoom Lens Height position (H)

Projection lens Model No. ET-DLE250 ET-DLE350 ET-DLE450 Standard zoom

Throw ratio

Projected image size Projection distance (L)

Diagonal (SD)

1.27 (50") 0.762 1.016 2.75 4.39 4.32 6.60 6.45 10.37 0 - 0.50 0.08 - 0.50

1.52 (60") 0.914 1.219 3.31 5.28 5.21 7.95 7.80 12.50 0 - 0.60 0.09 - 0.60

1.78 (70") 1.067 1.422 3.88 6.17 6.10 9.29 9.14 14.63 0 - 0.70 0.11 - 0.70

2.03 (80") 1.219 1.626 4.44 7.07 7.00 10.64 10.49 16.77 0 - 0.80 0.12 - 0.80

2.29 (90") 1.372 1.829 5.01 7.96 7.89 11.99 11.84 18.90 0 - 0.91 0.14 - 0.91

2.54 (100") 1.524 2.032 5.57 8.85 8.78 13.34 13.19 21.03 0 - 1.01 0.15 - 1.01

3.05 (120") 1.829 2.438 6.71 10.64 10.56 16.03 15.89 25.30 0 - 1.21 0.18 - 1.21

3.81 (150") 2.286 3.048 8.40 13.32 13.24 20.07 19.94 31.70 0 - 1.51 0.23 - 1.51

5.08 (200") 3.048 4.064 11.23 17.78 17.69 26.80 26.69 42.37 0 - 2.01 0.30 - 2.01

6.35 (250") 3.810 5.080 14.06 22.25 22.15 33.54 33.44 53.04 0 - 2.51 0.38 - 2.51

7.62 (300") 4.572 6.096 16.88 26.71 26.61 40.27 40.18 63.70 0 - 3.02 0.46 - 3.02

8.89 (350") 5.334 7.112 19.71 31.18 31.06 47.01 46.93 74.37 0 - 3.52 0.53 - 3.52

10.16 (400") 6.096 8.128 22.54 35.64 35.52 53.74 53.68 85.04 0 - 4.02 0.61 - 4.02

12.70 (500") 7.620 10.160 28.19 44.58 44.43 67.21 67.17 106.37 0 - 5.03 0.76 - 5.03

15.24 (600") 9.144 12.192 33.85 53.51 53.35 80.68 80.67 127.70 0 - 6.04 0.91 - 6.04

*1 The throw ratio is based on the value during projection of 2.03 m (80") projected image size.

Height

(SH)

Height

(SH)

Width

(SW)

Width

(SW)

Standard zoom

lens/ET-DLE170

2.06-2.90:1 0.724-0.965:1 0.943-1.18:1 1.18-1.59:1 1.56-2.27:1

Min. (LW)

Max.

(LT)

2.73-4.35:1 4.30-6.55:1 6.46-10.3:1

Max.

(LT)

ET-DLE060 ET-DLE085 ET-DLE105 ET-DLE150

Min. (LW)

Max.

(LT)

Max.

(LT)

Min. (LW)

Max.

(LT)

Max.

(LT)

Min.

(LW)

lens/ET-DLE170/

ET-DLE085/ ET-DLE105/ ET-DLE150/ ET-DLE250/ ET-DLE350/

Max.

(LT)

ET-DLE450

Min. (LW)

ET-DLE060

Max.

(LT)

(Unit: m)

44 - ENGLISH

Page 45

Chapter 2 Getting Started — Setting up

(Unit: m)

Lens type Fixed-focus Lens

Projection lens Model No. ET-DLE055 ET-DLE035

Throw ratio

Projected image size

Diagonal (SD)

1.27 (50") 0.762 1.016 0.94 0.38 ― ― ―

1.52 (60") 0.914 1.219 1.14 0.46 ― ― ―

1.78 (70") 1.067 1.422 1.34 0.53 ― ― ―

2.03 (80") 1.219 1.626 1.54 0.61 ― ― ―

2.29 (90") 1.372 1.829 1.74 0.69 ― ― ―

2.54 (100") 1.524 2.032 1.93 0.76 0.93 0.22 0.50

3.05 (120") 1.829 2.438 2.33 0.91 1.11 0.41 0.61

3.81 (150") 2.286 3.048 2.93 1.14 1.39 0.68 0.78

5.08 (200") 3.048 4.064 3.92 1.52 1.85 1.14 1.06

6.35 (250") 3.810 5.080 ― ― 2.31 1.60 1.35

7.62 (300") 4.572 6.096 ― ― 2.77 2.07 1.63

8.89 (350") 5.334 7.112 ― ― 3.23 2.53 1.92

10.16 (400") 6.096 8.128 ― ― ― ― ―

12.70 (500") 7.620 10.160 ― ― ― ― ―

15.24 (600") 9.144 12.192 ― ― ― ― ―

*1 When the Fixed-focus Lens (Model No.: ET-DLE035) is attached, the projection relation between the screen and the projector differs from that of

other lenses. Refer to “Fixed-focus Lens (Model No.: ET-DLE035)” (x page 38) for details.

*2 The throw ratio is based on the value during projection of 2.03 m (80") projected image size. When the Fixed-focus Lens (Model No.: ET-DLE035) is

attached, the throw ratio is based on the value during projection of 2.54 m (100") projected image size.

*3 When the Fixed-focus Lens (Model No.: ET-DLE055) is attached, the lens shift is not possible, therefore the height position (H) becomes the xed

value of SH/2.

Height

(SH)

Width

(SW)

0.946:1 0.456:1

Projection

distance

(L)

Height

position

(H)

Projection

distance

(L1)

Distance from the

projector to the

screen

(L4) (A1)

Formula for calculating the projection distance per projection lens

To use a projected image size not listed in this manual, check the projected image size SD (m) and use the

respective formula to calculate projection distance.

The unit of all the formulae is m. (Values obtained by the following calculation formulae contain a slight error.) When calculating a projection distance using image size designation (value in inches), multiply the value in inches

by 0.0254 and substitute it into SD in the formula for calculating the projection distance.

r Zoom lens

Projection lens Model No. Throw ratio Aspect ratio

Standard zoom lens/

ET-DLE170

ET-DLE060

ET-DLE085

ET-DLE105

ET-DLE150

ET-DLE250

ET-DLE350

1.71 - 2.41:1 16:10 = 1.4906 x SD

1.72 - 2.41:1 16:9 = 1.5320 x SD

2.06 - 2.90:1 4:3 = 1.6874 x SD

0.600 - 0.801:1 16:10 = 0.5354 x SD

0.600 - 0.802:1 16:9 = 0.5503 x SD

0.724 - 0.965:1 4:3 = 0.6062 x SD

0.782 - 0.977:1 16:10 = 0.6865 x SD

0.783 - 0.977:1 16:9 = 0.7056 x SD

0.943 - 1.18:1 4:3 = 0.7772 x SD

0.978 - 1.32:1 16:10 = 0.8543 x SD

0.979 - 1.32:1 16:9 = 0.8781 x SD

1.18 - 1.59:1 4:3 = 0.9672 x SD

1.30 - 1.89:1 16:10 = 1.1259 x SD

1.30 - 1.89:1 16:9 = 1.1572 x SD

1.56 - 2.27:1 4:3 = 1.2747 x SD

2.27 - 3.62:1 16:10 = 1.9665 x SD

2.27 - 3.62:1 16:9 = 2.0212 x SD

2.73 - 4.35:1 4:3 = 2.2263 x SD

3.58 - 5.45:1 16:10 = 3.1000 x SD

3.58 - 5.45:1 16:9 = 3.1862 x SD

4.30 - 6.55:1 4:3 = 3.5094 x SD

Projection distance (L) formula

Min. (LW) Max. (LT)

0.0746 = 2.0814 x SD - 0.0725

0.0746 = 2.1393 x SD - 0.0725

0.0746 = 2.3563 x SD - 0.0725

0.0549 = 0.7047 x SD - 0.0518

0.0549 = 0.7243 x SD - 0.0518

0.0549 = 0.7978 x SD - 0.0518

0.0471 = 0.8498 x SD - 0.0442

0.0471 = 0.8735 x SD - 0.0442

0.0471 = 0.9621 x SD - 0.0442

0.0511 = 1.1457 x SD - 0.0472

0.0511 = 1.1775 x SD - 0.0472

0.0511 = 1.2970 x SD - 0.0472

0.0540 = 1.6243 x SD - 0.0498

0.0540 = 1.6695 x SD - 0.0498

0.0540 = 1.8388 x SD - 0.0498

0.0800 = 3.1059 x SD - 0.0792

0.0800 = 3.1923 x SD - 0.0792

0.0800 = 3.5161 x SD - 0.0792

0.1351 = 4.6843 x SD - 0.1346

0.1351 = 4.8146 x SD - 0.1346

0.1351 = 5.3030 x SD - 0.1346

ENGLISH - 45

Page 46

Chapter 2 Getting Started — Setting up

Projection lens Model No. Throw ratio Aspect ratio

5.36 - 8.58:1 16:10 = 4.6931 x SD

ET-DLE450

5.36 - 8.58:1 16:9 = 4.8236 x SD

6.46 - 10.3:1 4:3 = 5.3129 x SD

Projection distance (L) formula

Min. (LW) Max. (LT)

0.3017 = 7.4193 x SD - 0.2991

0.3017 = 7.6256 x SD - 0.2991

0.3017 = 8.3992 x SD - 0.2991

r Fixed-focus Lens (Model No.: ET-DLE055)

Projection lens Model No. Throw ratio Aspect ratio Projection distance (L) formula

0.0476

ET-DLE055

0.785:1 16:10 = 0.6893 x SD

0.786:1 16:9 = 0.7084 x SD

0.946:1 4:3 = 0.7803 x SD

r Fixed-focus Lens (Model No.: ET-DLE035)

Projection lens Model No. Throw ratio Aspect ratio

0.380:1 16:10 = 0.3205 x SD + 0.0047 = 0.1977 x SD

ET-DLE035

0.380:1 16:9 = 0.3294 x SD + 0.0047 = 0.2304 x SD

0.456:1 4:3 = 0.3628 x SD + 0.0047 = 0.2238 x SD

Projection distance (L1)

formula

Distance (A1) formula from

the projector to the screen

0.0721

Adjusting adjustable feet

Install the projector on a at surface so that the front of the projector is parallel to the screen surface and the

projection screen is rectangular.

If the screen is tilted downward, extend the front adjustable feet so that the projected image becomes rectangular.

The adjustable feet can also be used to adjust the projector to be level when it is tilted in the horizontal direction.

Adjustable feet can be extended by turning them as shown in the gure. Turning them in the opposite direction will

return them to the original position.

Maximum adjustable range

Adjustable feet: 30 mm (1-3/16") each

Attention

f Be careful not to block the intake/exhaust ports with your hands or any objects when adjusting the adjustable feet while the light source is

on. (x page 30)

46 - ENGLISH

Page 47

Chapter 2 Getting Started — Removing/attaching the projection lens

Removing/attaching the projection lens

Removing and attaching methods of the projection lens are basically the same for both standard zoom lenses and optional lenses.

Move the lens position to the home position before replacing or removing the projection lens. (x page 70)

Attention

f Replace the projection lens after turning off the projector. f Do not touch the electric contacts of the projection lens. Dust or dirt may cause poor contact. f Do not touch the surface of the projection lens with your bare hands. f Before attaching the projection lens, remove the lens cover attached to the projection lens. f Panasonic takes no responsibility for any damage or malfunction of the product resulting from the use of projection lenses which are not

manufactured by Panasonic. Always use the standard zoom lens supplied with the projector or the specied projection lens.

Note

f In case of the Zoom Lens (Model No.: ET-DLE060, ET-DLE085, ET-DLE105), attachment/removal procedures of the Lens Mount Cover are

different. Refer to the Operating Instructions of ET-DLE060, ET-DLE085, or ET-DLE105 for details.

f In case of the Fixed-focus Lens (Model No.: ET-DLE035), precautions on handling the lens and attachment/removal procedures of the Lens

Mount Cover are different. Refer to the Operating Instructions of ET-DLE035 for details.

f For the adjustment procedure of the focus, zoom, and lens shift after attaching the projector lens, refer to “Adjusting the focus, zoom, and

lens shift” (x page 68).

f For the adjustment procedure of the focus balance in the center and periphery of the projected image when the Zoom Lens (Model No.:

ET-DLE060, ET-DLE085, ET-DLE105) is used, refer to “Adjusting the focus balance” (x page 69).

Removing the projection lens

Remove the projection lens using the following procedure.

Lens Mount Cover

Projection lens

(iii)

(i)

(ii)

Fig. 2

Fig. 1

(ii)

(i)

Lens release button

1) Turn the Lens Mount Cover counterclockwise and remove. (Fig. 1)

2) While pressing the lens release button, turn the projection lens counterclockwise to the end and remove. (Fig. 2)

Attention

f Store the removed projection lens where it will be free from vibration and impact.

ENGLISH - 47

Page 48

Chapter 2 Getting Started — Removing/attaching the projection lens

Attaching the projection lens

Attach the projection lens using the following procedure.

Guide groove

Guide

(i)

(ii)

Fig. 1

Projection lens

Fig. 2 Fig. 3

Lens Mount Cover

1) Remove the Lens Mount Cover, and align the projection lens guide to the guide groove of the projector and insert to the end. (Fig. 1)

2) Turn the projection lens clockwise until it clicks. (Fig. 2)

3) Attach the Lens Mount Cover. (Fig. 3)

f Align the Lens Mount Cover and the projector at the dashed line positions in the gure to attach, and turn

the Lens Mount Cover clockwise to x it to the projector.

Attention

f Turn the projection lens counterclockwise to conrm that it does not come out. f After attaching the projection lens, turn on the projector and conrm the [LENS TYPE] setting. Change the setting if the type does not match

the projection lens attached to the projector. (x page 70)

48 - ENGLISH

Page 49

Chapter 2 Getting Started — Connecting

Connecting

Before connecting

f Before connecting, carefully read the operating instructions for the external device to be connected. f Turn off the power of all devices before connecting cables. f Take note of the following points before connecting the cables. Failure to do so may result in malfunctions.

g When connecting a cable to a device connected to the projector or the projector itself, touch any nearby

metallic objects to eliminate static electricity from your body before performing work.

g Do not use unnecessarily long cables to connect a device to the projector or to the projector body. The longer

the cable, the more susceptible to noise it becomes. Since using a cable while it is wound makes it act like an

antenna, it is more susceptible to noise.

g When connecting cables, connect GND rst, then insert the connecting terminal of the connecting device in a

straight manner.

f Acquire any connection cable necessary to connect the external device to the system that is neither supplied

with the device nor available as an option.

f If video signals from video equipment contain too much jitter, the images on the screen may wobble. In this

case, a time base corrector (TBC) must be connected.

f If synchronization signals output from computers or video equipment are disrupted due to changes in the video

output setting or other reasons, colors of projected images may be temporarily disrupted.

f The projector accepts YC

digital signals.

f Some computer models cannot be connected to the projector. f Use a cable compensator when you connect devices to the projector using long cables. Otherwise the projector

may not project the image properly.

f For details of the types of video signals that can be used with the projector, refer to “List of compatible signals”

(x page 203).

/YPBPR signals, analog RGB signals (synchronization signals are TTL level), and

BCR

<RGB 2 IN> terminal pin assignments and signal names

Outside view Pin No. Signal name Pin No. Signal name

(6)

(11) (15)

(1) (5)

(10)

(1) R/P (2) G/Y (10) GND (3) B/P (4) ― (12) DDC data (5) GND (13) SYNC/HD (6) GND (14) VD (7) GND (15) DDC clock (8) GND

<HDMI IN> terminal pin assignments and signal names

Outside view Pin No. Signal name Pin No. Signal name

(1) T.M.D.S data 2+ (11) T.M.D.S clock shield

Even-numbered pins of (2) to (18)

(2) (18)

(1) (19)

Odd-numbered pins of (1) to (19)

(2) T.M.D.S data 2 shield (12) T.M.D.S clock (3) T.M.D.S data 2 (4) T.M.D.S data 1+ (14) ― (5) T.M.D.S data 1 shield (15) SCL (6) T.M.D.S data 1

(7) T.M.D.S data 0+ (17)

(8) T.M.D.S data 0 shield (18) +5 V (9) T.M.D.S data 0

(10) T.M.D.S clock+

(9) ―

(11) GND

(13) CEC

(16) SDA

DDC/CEC

GND

(19) Hot plug detection

ENGLISH - 49

Page 50

Chapter 2 Getting Started — Connecting

<DVI-D IN> terminal pin assignments and signal names

Outside view Pin No. Signal name Pin No. Signal name

(1) T.M.D.S data 2 (2) T.M.D.S data 2+ (14) +5 V (3) T.M.D.S data 2/4 shield (15) GND (4) ― (16) Hot plug detection (5) ― (17) T.M.D.S data 0 (6) DDC clock (18) T.M.D.S data 0+ (7) DDC data (19) T.M.D.S data 0/5 shield (8) ― (20) ―

(9) T.M.D.S data 1 (10) T.M.D.S data 1+ (22) T.M.D.S clock shield (11) T.M.D.S data 1/3 shield (23) T.M.D.S clock+ (12) ― (24) T.M.D.S clock

(16)

(17)(24)

(9)

(1)(8)

Connecting example: AV equipment

For <HDMI IN>/<DVI-D IN> terminals

(13) ―

(21) ―

Blu-ray disc playerDVD player with HDMI terminal (HDCP)

Note

f Switching of the setting in the [DISPLAY OPTION] menu → [DVI-D IN] → [EDID SELECT] may be required depending on the connected

external device when DVI-D signal is input.

f Switching of the setting in the [DISPLAY OPTION] menu → [HDMI IN] → [EDID SELECT] may be required depending on the connected

external device when HDMI signal is input.

f The <DVI-D IN> terminal can be connected with the HDMI and DVI-D compatible devices. However, some external devices may not be able

to project images properly, such as the image not displaying.

f For the HDMI cable, use an HDMI High Speed cable that conforms to the HDMI standards. However, when the following 4K video signal

exceeding the supported transmission speed of the HDMI High Speed cable is to be input, use the HDMI cable supporting the high speed transmission of 18 Gbps such as the one with Premium HDMI cable authentication.

g A video signal with high specication color depth and gradation such as 3840 x 2160/60p 4:2:2/36-bit or 3840 x 2160/60p 4:4:4/24-bit

Images may be disrupted or may not be projected when a video signal exceeding the supported transmission speed of the HDMI cable is

input.

f The <HDMI IN> terminal of the projector can be connected to an external device equipped with a DVI-D terminal using an HDMI/DVI

conversion cable. However, this may not function properly for some external devices, and images may not be projected.

f The projector does not support VIERA Link (HDMI).

50 - ENGLISH

Page 51

For <SDI IN> terminal

Digital VCR for commercial use

Chapter 2 Getting Started — Connecting

SD-SDI signal, HD-SDI signal, or 3G-SDI

signal

Note

f Setting of the [DISPLAY OPTION] menu → [SDI IN] may be necessary depending on the connected external device. f Use a connection cable 5C-FB or higher (such as 5C-FB or 7C-FB), or Belden 1694A or higher to properly transmit the image. Use a

connection cable with length of 100 m (328'1") or shorter.

f An error in signal detection may occur when an unsteady signal is connected. In such case, set the [DISPLAY OPTION] menu → [SDI IN] to

the content corresponding to the input signal.

Connecting example: Computers

Control computer

Computer

Control computer

Computer

Attention

f When connecting the projector to a computer or an external device, use the power cord supplied with each device and commercially

available shielded cables.

Note

f Switching of the setting in the [DISPLAY OPTION] menu → [DVI-D IN] → [EDID SELECT] may be required depending on the connected

external device when DVI-D signal is input.

f Switching of the setting in the [DISPLAY OPTION] menu → [HDMI IN] → [EDID SELECT] may be required depending on the connected

external device when HDMI signal is input.

f For the HDMI cable, use an HDMI High Speed cable that conforms to the HDMI standards. However, when the following 4K video signal

g A video signal with high specication color depth and gradation such as 3840 x 2160/60p 4:2:2/36-bit or 3840 x 2160/60p 4:4:4/24-bit

Images may be disrupted or may not be projected when a video signal exceeding the supported transmission speed of the HDMI cable is

input.

f The <HDMI IN> terminal of the projector can be connected to an external device equipped with a DVI-D terminal using an HDMI/DVI

conversion cable. However, this may not function properly for some external devices, and image may not be projected.

f The <DVI-D IN> terminal supports single links only. f When entering the SYNC ON GREEN signal, do not enter sync signals to the <SYNC/HD> terminal or the <VD> terminal. f If you operate the projector using the computer with the resume feature (last memory), you may have to reset the resume feature to operate

the projector.

ENGLISH - 51

Page 52

Chapter 2 Getting Started — Connecting

Connecting example using DIGITAL LINK

Twisted-pair-cable transmitters based on the communication standard HDBaseTTM such as the optional DIGITAL LINK output supported device (Model No.: ET-YFB100G, ET-YFB200G) use twisted pair cables to transmit input images, Ethernet, and serial control signals, and the projector can input those digital signals to the <DIGITAL LINK/LAN> terminal.

Computer

Computer cable

Projector connecting terminals

Example of twisted-pair-cable transmitter

(commercially available)

HDMI cable (commercially available)

Hub

VCR

Control computer

*1 Control target is the projector or the twisted-pair-cable transmitter. The control itself may not be possible depending on the twisted-pair-cable

transmitter. Check the operating instructions of the device to be connected.

(with built-in TBC)

Blu-ray disc player

Attention

f Always use one of the following when connecting a VCR.

g Use a VCR with built-in time base corrector (TBC). g Use a time base corrector (TBC) between the projector and the VCR.

f The image may be disrupted when nonstandard burst signal is connected. In such a case, connect the time base corrector (TBC) between

the projector and the external devices.

f Ask a qualied technician or your dealer to install the cable wiring between the twisted-pair-cable transmitter and the projector. Image may

be disrupted if cable transmission characteristics cannot be obtained due to inadequate installation.

f For the LAN cable between the twisted-pair-cable transmitter and the projector, use a cable that meets the following criteria:

g Conforming to CAT5e or higher standards g Shielded type (including connectors) g Straight-through g Single wire g Diameter of the cable core is same or larger than AWG24 (AWG24, AWG23, etc.)

f When laying cables between the twisted-pair-cable transmitter and the projector, conrm that cable characteristics are compatible with

CAT5e or higher using tools such as a cable tester or cable analyzer. When a relay connector is used, include it in the measurement.

f Do not use a hub between the twisted-pair-cable transmitter and the projector. f When connecting to the projector using a twisted-pair-cable transmitter (receiver) of other manufacturers, do not place another twisted-pair-

cable transmitter between the twisted-pair-cable transmitter of other manufacturers and the projector. This may cause image to be disrupted.

f The <DIGITAL LINK/LAN> terminal and <LAN> terminal are connected inside of the projector. If both the <DIGITAL LINK/LAN> terminal and

<LAN> terminal are used, congure the system so that these terminals are not directly connected or connected through peripheral devices

such as a hub or a twisted-pair-cable transmitter to the same network.

f Do not pull cables forcefully. Also, do not bend or fold cables unnecessarily. f To reduce the effects of noise as much as possible, stretch out the cables between the twisted-pair-cable transmitter and the projector

without any loops.

f Lay the cables between the twisted-pair-cable transmitter and the projector away from other cables, particularly power cables. f When laying multiple cables, run them side by side along the shortest distance possible without bundling them together. f After laying the cables, go to the [NETWORK] menu → [DIGITAL LINK STATUS] and conrm that the value of [SIGNAL QUALITY] is

displayed in green which indicates normal quality. (x page 154)

Note

f Switching of the setting in the [DISPLAY OPTION] menu → [DIGITAL LINK IN] → [EDID SELECT] may be required depending on the

connected external device when DIGITAL LINK signal is input.

f For the HDMI cable, use an HDMI High Speed cable that conforms to the HDMI standards. If a cable that does not conform to the HDMI

standards is used, images may be interrupted or may not be projected.

52 - ENGLISH

Page 53

Chapter 2 Getting Started — Connecting

f The projector does not support VIERA Link (HDMI). f The optional Digital Interface Box (Model No.: ET-YFB100G) and the optional DIGITAL LINK Switcher (Model No.: ET-YFB200G) do not

support the input and output of the 4K video signal.

f The maximum transmission distance between the twisted-pair-cable transmitter and the projector is 100 m (328'1") for the signal with

resolution of 1 920 x 1 200 dots or less. For the signal with the resolution exceeding 1 920 x 1 200 dots, the maximum transmission distance is 50 m (164'1"). It is possible to transmit up to 150 m (492'2") if the twisted-pair-cable transmitter supports the long-reach communication method. However, the signal that the projector can receive is only up to 1080/60p (1 920 x 1 080 dots, dot clock frequency 148.5 MHz) for the long-reach communication method. If these distances are exceeded, image may be disrupted or a malfunction may occur in LAN communication. Please note that Panasonic does not support the use of the projector outside the maximum transmission distance. When connecting with the long reach, video signal or distance that can be transmitted may be restricted, depending on the specication of the

twisted-pair-cable transmitter.

f For twisted-pair-cable transmitters of other manufacturers of which the operation has been veried with the projector, visit the Panasonic

website (https://panasonic.net/cns/projector/). Note that the verication for devices of other manufacturers has been made for the items set by Panasonic Corporation, and not all the operations have been veried. For operation or performance problems caused by the devices of

other manufacturers, contact the respective manufacturers.

Connecting example when using the contrast synchronization function/shutter synchronization function

In a case to construct a multi-display by linking projected images from multiple projectors, following functions can

be used by synchronizing multiple projectors using the <SERIAL/MULTI PROJECTOR SYNC IN> terminal and the <SERIAL/MULTI PROJECTOR SYNC OUT> terminal.

f Contrast synchronization function

A linked screen with balanced contrast can be displayed by sharing the brightness level of the video signal being input to each projector.

To use this function, set the [PROJECTOR SETUP] menu → [MULTI PROJECTOR SYNC] for each

synchronized projector as follows.

g Set [MULTI PROJECTOR SYNC] → [MODE] to anything other than [OFF].

Set [MODE] to [MASTER] only on one projector that is synchronized. Set [MODE] to [SLAVE] for all other

projectors.

g Set [MULTI PROJECTOR SYNC] → [CONTRAST SYNC] to [ON].

f Shutter synchronization function

This is a function to synchronize the shutter operation of the specied projector to other projectors, and the effect using the shutter function including the fade out/fade in operation can be synchronized.

To use this function, set the [PROJECTOR SETUP] menu → [MULTI PROJECTOR SYNC] for each

synchronized projector as follows.

g Set [MULTI PROJECTOR SYNC] → [MODE] to anything other than [OFF].

Set [MODE] to [MASTER] only on one projector that becomes the synchronization source within the linked projectors. Set [MODE] to [SLAVE] for all other projectors.

g Set [MULTI PROJECTOR SYNC] → [SHUTTER SYNC] to [ON].

ENGLISH - 53

Page 54

Chapter 2 Getting Started — Connecting

r Connecting example

Connect all the projectors to be linked in a loop by daisy chain connection when using the contrast

synchronization function/shutter synchronization function. The number of linked projectors is limited to the maximum of 64 projectors.

Communication cable (straight all connected) Communication cable (straight all connected)

Connecting terminals of the first projector

Connecting terminals of the fourth projector

Communication cable (straight all connected) Communication cable (straight all connected)

Connecting terminals of the second projector

Connecting terminals of the third projector

Note

f The contrast synchronization function and the shutter synchronization function can be used simultaneously. f For details on the settings of the contrast synchronization function and the shutter synchronization function, refer to the [PROJECTOR

SETUP] menu → [MULTI PROJECTOR SYNC] (x page 137).

f The menu items in the [PROJECTOR SETUP] menu → [MULTI PROJECTOR SYNC] are the same as the following setting items.

g The [PICTURE] menu → [DYNAMIC CONTRAST] → [USER] → [MULTI PROJECTOR SYNC] g The [DISPLAY OPTION] menu → [SHUTTER SETTING] → [MULTI PROJECTOR SYNC]

f If there are any projectors which you do not want to synchronize within the linked projectors, set [CONTRAST SYNC] and [SHUTTER

SYNC] to [OFF] individually.

54 - ENGLISH

Page 55

Chapter 3 Basic Operations

This chapter describes basic operations to start with.

ENGLISH - 55

Page 56

Chapter 3 Basic Operations — Switching on/off the projector

Switching on/off the projector

Connecting the power cord

Make sure that the supplied power cord is securely xed to the <AC IN> terminal of the projector to

prevent it from being removed easily.

Conrm that the <MAIN POWER> switch is on the <OFF> side before connecting the supplied power cord to the

projector. Use the power cord matching with the power supply voltage and the shape of the outlet.

For details of power cord handling, refer to “Read this rst!” (x page 5). For the shape of the outlet, refer to “Usable outlet” (x page 35).

Note

f The supplied power cords vary depending on the country or region where you purchased the product.

How to attach the power cord

Power cord holder

Fig. 2Fig. 1

Fig. 3 Fig. 4

1) Confirm that the power cord holder is raised so that the power cord can be inserted. (Fig. 1)

2) Check the shapes of the <AC IN> terminal on the side of the projector and the power cord connector, then insert the connector completely in the correct direction. (Fig. 2)

3) Lower the power cord holder. (Fig. 3)

4) Press down the power cord holder until the end of the power cord holder snaps onto the power cord to secure the power cord. (Fig. 4)

f When pressing down and snapping the power cord holder onto the power cord, hold the power cord from

the opposite side to avoid excessive force to be applied on the <AC IN> terminal.

56 - ENGLISH

Page 57

Chapter 3 Basic Operations — Switching on/off the projector

How to remove the power cord

For India (when using the power cord with the lock button)

Lock button

Fig. 1 Fig. 2

1) Confirm that the <MAIN POWER> switch on the side of the projector is on the <OFF> side, and remove the power plug from the outlet.

2) Raise the power cord holder fixing the power cord upward. (Fig. 1)

f Fix the power cord holder by snapping into the projector.

3) Remove the power cord connector from the <AC IN> terminal of the projector while pressing the lock button. (Fig. 2)

For other countries or regions (when using the power cord without the lock button)

Fig. 1 Fig. 2

1) Confirm that the <MAIN POWER> switch on the side of the projector is on the <OFF> side, and remove the power plug from the outlet.

2) Raise the power cord holder fixing the power cord upward. (Fig. 1)

f Fix the power cord holder by snapping into the projector.

3) While holding the power cord connector, pull out the power cord from the <AC IN> terminal of the projector. (Fig. 2)

Power indicator

Indicate the status of the power. Check the status of the power indicator <ON (G)/STANDBY (R)> before operating

the projector.

Power indicator <ON (G)/STANDBY (R)>

Indicator status Projector status

Off The main power is switched off.

ENGLISH - 57

Page 58

Chapter 3 Basic Operations — Switching on/off the projector

Indicator status Projector status

The power is switched off. (standby mode)

Projection will start when the power on <b> button is pressed.

Lit

Red

Blinking

Green Lit Projecting.

Orange Lit

f The setting of the projector is as follows.

g The [PROJECTOR SETUP] menu → [QUICK STARTUP] is set to [OFF].

f The projector may not operate when the light source indicators <LIGHT1>/<LIGHT2>

or the temperature indicator <TEMP> are blinking. (x page 181)

The power is switched off. (standby mode)

Projection will start when the power on <b> button is pressed.

f The setting of the projector is as follows.

g The [PROJECTOR SETUP] menu → [QUICK STARTUP] is set to [ON].

f The indicator will change to a red light when the specied time has elapsed after the

projector enters the standby mode if the projector is set as following.

The specied time is the time set in the [PROJECTOR SETUP] menu → [QUICK STARTUP] → [VALID PERIOD].

g The [PROJECTOR SETUP] menu → [QUICK STARTUP] is set to [ON].

f The projector may not operate when the light source indicators <LIGHT1>/<LIGHT2>

or the temperature indicator <TEMP> are blinking. (x page 181)

The projector is preparing to switch off the projector.

The power is switched off after a while. (Changes to the standby mode.)

Note

f While the power indicator <ON (G)/STANDBY (R)> lights in orange, the fan is running to cool the projector. f For approximately ve seconds after the projector is turned off, the indicator does not light up even if the power is turned on. Turn on the

power again after the power indicator <ON (G)/STANDBY (R)> lights/blinks in red.

f The projector consumes power even in standby mode (power indicator <ON (G)/STANDBY (R)> lights/blinks in red). Refer to “Power

consumption” (x page 210) for the power consumption.

f When the projector receives the signal from the remote control, the power indicator <ON (G)/STANDBY (R)> will blink in the following color

according to the status of the projector.

g When the projector is in projection mode: Green g When the projector is in standby mode: Orange

However, if the [PROJECTOR SETUP] menu → [STANDBY MODE] is set to [ECO], the indicator will stay lit in red and will not blink if the

projector is in standby mode.

f The power indicator <ON (G)/STANDBY (R)> will blink slowly in green while the shutter function is in use (shutter: closed), or while the

function of the [PROJECTOR SETUP] menu → [NO SIGNAL LIGHTS-OUT] is operating and the light source is turned off.

Switching on the projector

When using the optional projection lens, attach the projection lens before switching on the projector.

Remove the lens cover rst.

1) Connect the power cord to the projector.

2) Connect the power plug to an outlet.

3) Press the <ON> side of the <MAIN POWER> switch to turn on the power.

f The power indicator <ON (G)/STANDBY (R)> lights/blinks in red, and the projector enters the standby

mode.

4) Press the power on <b> button.

f The power indicator <ON (G)/STANDBY (R)> lights in green and the image is soon projected on the screen.

58 - ENGLISH

Page 59

Chapter 3 Basic Operations — Switching on/off the projector

Note

f A warm-up period of up to approximately ve minutes may be necessary until an image is displayed when the projector is switched on at

around 0 °C (32 °F). The temperature indicator <TEMP> lights in red during the warm-up period. When the warm-up is completed, the temperature indicator <TEMP> turns off and the projection starts. Refer to “When an indicator lights up” (x page 181) for the indicator status display.

f If the operating environment temperature is low and warm-up takes more than ve minutes, the projector will judge that a problem has

occurred and the power will automatically be set to standby mode. In such case, increase the operating environment temperature to 0 °C

(32 °F) or higher, turn off the main power, and then turn on the power again.

f It will take longer to start the projection when the [PROJECTOR SETUP] menu → [STANDBY MODE] is set to [ECO] compared to the time

when it is set to [NORMAL].

f Projection will start in approximately one second when the [PROJECTOR SETUP] menu → [QUICK STARTUP] is set to [ON] and if the

power is turned on within a specied time after going into the standby mode. The specied time is the time set in the [PROJECTOR SETUP] menu → [QUICK STARTUP] → [VALID PERIOD].

f When the power is turned on or an input signal is switched, you may hear a high-frequency driving sound. This is not a malfunction. f If the power was turned off at the previous use by pressing the <OFF> side of the <MAIN POWER> switch or by using the breaker directly

while projecting, the power indicator <ON (G)/STANDBY (R)> lights up in green and an image is projected after a while when the power is turned on by pressing the <ON> side of the <MAIN POWER> switch or by turning the breaker on with the power plug connected to the outlet. This applies only when the [PROJECTOR SETUP] menu → [INITIAL STARTUP] is set to [LAST MEMORY].

When the initial setting screen is displayed

When the projector is switched on for the rst time after purchase, as well as when the [PROJECTOR SETUP]

menu → [INITIALIZE] → [ALL USER DATA] is executed, the focus adjustment screen is displayed after projection starts, and then the [INITIAL SETTING] screen is displayed. Set them according to the circumstances.

In other occasions, you can change the settings by menu operations. If you press the <MENU> button while the [INITIAL SETTING] screen is displayed, you can go back to the

previous screen.

Focus adjustment

Adjust the focus to display the menu screen clearly. Adjustment of the zoom and shift may also be necessary.

Refer to “Adjusting the focus, zoom, and lens shift” (x page 68) for details.

1) Press asqw to adjust the focus.

LENS

FOCUS

ADJUST

2) Press the <MENU> button to proceed to the initial setting.

Initial setting (display language)

Select the language to show on the screen. After completed the initial setting, you can change the display language from the [DISPLAY LANGUAGE] menu.

1) Press as to select the display language.

INITIAL SETTING

1/7

Please select DISPLAY LANGUAGE.

SELECT

ENTER

SET

2) Press the <ENTER> button to proceed to the initial setting.

ENGLISH - 59

Page 60

Chapter 3 Basic Operations — Switching on/off the projector

Initial setting (operation setting)

Set the items regarding the operating method depending on the duration of use and the usage of the projector. After completed the initial setting, you can change the settings of each item from the [PROJECTOR SETUP]

menu. If you change the settings while using the projector, the duration until the luminance decreases by half may shorten or the luminance may decrease.

This initial setting (operation setting) is prepared to complete the settings at once during the installation when the operation of the projector is predetermined. When the [PROJECTOR SETUP] menu → [INITIALIZE] → [ALL USER DATA] is executed, do not change the setting in the initial setting (operation setting), but press the <ENTER> button and proceed to next initial setting (installation setting). If you need to change the setting, ask the person responsible for this projector (such as a person in charge of equipment or operation).

INITIAL SETTING

OPERATING MODE

MAX LIGHT OUTPUT LEVEL

LIGHT OUTPUT

Set the way to use the projector. For details, please

refer to the operating instructions "When the initial

setting screen is displayed".

NORMAL

2/7

100.0%

ENTER

SET

CHANGEMENU SELECT

Note

f The preceding initial setting screen is displayed when the projector is switched on for the rst time after purchase. If the [PROJECTOR

SETUP] menu → [INITIALIZE] → [ALL USER DATA] is executed, the settings before execution are displayed in [OPERATING MODE] and [MAX LIGHT OUTPUT LEVEL].

f For the relationship between the luminance and the runtime, refer to “Interrelation of luminance and runtime” (x page 61). f For details on each setting item, refer to the [PROJECTOR SETUP] menu → [OPERATION SETTING].

1) Press as to select [OPERATING MODE].

2) Press qw to switch the item.

f The items will switch each time you press the button. f Set [OPERATING MODE] to [NORMAL], [USER1], [USER2], or [USER3] when using the projector at an

altitude of 2 700 m (8 858') or higher above sea level.

[NORMAL]

[ECO]

[QUIET1]

[QUIET2]

[USER1]

[USER3]

Set this item when high luminance is required. The estimated runtime is approximately 20 000 hours. The luminance will decrease compared to [NORMAL], but set this item to increase the expected life of

the light source. The estimated runtime is approximately 24 000 hours. The luminance will decrease compared to [NORMAL], but select this item when operation with low

noise is prioritized. The estimated runtime is approximately 20 000 hours. The luminance will decrease compared to [QUIET1], but select this item when operating the projector

with less noise. The estimated runtime is approximately 20 000 hours.

[MAX LIGHT OUTPUT LEVEL] and [LIGHT OUTPUT] can be set individually.[USER2]

*1 The runtime is an estimation when the [PICTURE] menu → [DYNAMIC CONTRAST] is set to [3].

f Proceed to Step 5) when [NORMAL], [ECO], [QUIET1], or [QUIET2] is selected.

3) Press as to select [MAX LIGHT OUTPUT LEVEL].

4) Press qw to adjust.

Operation Adjustment Range of adjustment

Press w. Press q.

Increases the maximum level of brightness correction. Decreases the maximum level of brightness correction.

5) Press as to select [LIGHT OUTPUT].

6) Press qw to adjust.

60 - ENGLISH

8.0 % - 100.0 %

Page 61

Chapter 3 Basic Operations — Switching on/off the projector

Operation

Press w. Press q.

Brightness Runtime (estimate)

The screen becomes brighter. The runtime becomes shorter.

The screen becomes darker. The runtime becomes longer.

Adjustment

Range of adjustment

8.0 % - 100.0 %

7) Press the <ENTER> button to proceed to the initial setting.

Interrelation of luminance and runtime

The projector can be operated at arbitrary brightness and duration of use by combining the settings of [MAX LIGHT OUTPUT LEVEL] and [LIGHT OUTPUT].

Interrelation of luminance and runtime is as follows. Make the initial setting (operation setting) depending on your

desired duration of use and brightness of the projected image.

Values of the luminance and runtime are rough estimations.

f To set the projector based on the duration of use

Duration of use (hour)

20 000 100.0 100.0 12 000

24 000 100.0 100.0 12 000

27 000 100.0 100.0 12 000

31 000 100.0 78.2 9 300

35 000 100.0 58.5 7 000 40 000 ― ― ―

[MAX LIGHT OUTPUT LEVEL]

(%)

[LIGHT OUTPUT] (%) Luminance (lm)

f To set the projector based on luminance

Luminance (lm)

12 000 100.0 100.0 27 000

11 000 100.0 91.7 28 500

10 000 100.0 83.3 30 000

9 000 100.0 75.0 31 500

8 000 100.0 66.7 33 000

7 000 100.0 58.3 35 000

6 000 100.0 50.0 37 000 5 000 ― ― ― 4 000 ― ― ―

[MAX LIGHT OUTPUT LEVEL]

(%)

[LIGHT OUTPUT] (%) Runtime (hour)

Note

f The runtime may be shorter than the estimation due to the inuence of characteristics of each light source, conditions of use, installation

environment, etc.

f The duration of use is referred to as the runtime when you use the projector successively. The duration of use is an estimated duration and

is not the warranty period.

f The estimated runtime is a time for the luminance to decrease to half. f If the consolidated runtime of the projector exceeds 20 000 hours, replacement of the components inside the projector may be required. The

consolidated runtime can be conrmed in the [STATUS] screen. Refer to the [PROJECTOR SETUP] menu → [STATUS] for details.

f After completed the initial setting, the wider the combination of luminance and runtime becomes by setting the [PROJECTOR SETUP]

menu → [BRIGHTNESS CONTROL] → [BRIGHTNESS CONTROL SETUP] → [CONSTANT MODE] to [AUTO] or [PC]. Refer to the

[PROJECTOR SETUP] menu → [BRIGHTNESS CONTROL] for details.

ENGLISH - 61

Page 62

Chapter 3 Basic Operations — Switching on/off the projector

Initial setting (installation setting)

Set [FRONT/REAR] and [FLOOR/CEILING] in [PROJECTION METHOD] depending on the installation mode. Refer to “Installation mode” (x page 35) for details.

After completed the initial setting, you can change the setting from the [PROJECTOR SETUP] menu → [PROJECTION METHOD].

1) Press qw to switch the setting.

INITIAL SETTING

PROJECTION METHOD

FRONT/REAR

FLOOR/CEILING

Change the projection method (FRONT/REAR,

FLOOR/CEILING) if the screen display is upside down

or inverted.

3/7

FRONT

AUTO

ENTER

MENU SELECT

SET

CHANGE

2) Press the <ENTER> button to proceed to the initial setting.

Initial setting (standby mode)

Set the operation mode during standby. The factory default setting is [NORMAL], which allows you to use the network function during standby. To keep power consumption low during standby, set this item to [ECO].

After completed the initial setting, you can change the setting from the [PROJECTOR SETUP] menu → [STANDBY MODE].

1) Press qw to switch the setting.

INITIAL SETTING

STANDBY MODE

When set to ECO, network functions and SERIAL OUT terminal, and some RS-232C commands are not available during standby.

CHANGE

ENTER

SET

NORMAL

4/7

2) Press the <ENTER> button to proceed to the initial setting.

Note

f The preceding initial setting screen is displayed when the projector is switched on for the rst time after purchase. If the [PROJECTOR

SETUP] menu → [INITIALIZE] → [ALL USER DATA] is executed, the [STANDBY MODE] setting before executing is displayed.

62 - ENGLISH

Page 63

Chapter 3 Basic Operations — Switching on/off the projector

Initial setting (screen setting)

Set the screen format (aspect ratio) and display position of the image. After completed the initial setting, you can change the settings of each item from the [DISPLAY OPTION] menu →

[SCREEN SETTING].

1) Press qw to switch the setting.

f The setting will change each time you press the button.

INITIAL SETTING

SCREEN FORMAT

SCREEN POSITION

Set as necessary for the screen in use.

5/7

16:10

ENTER

SET

CHANGEMENU SELECT

2) Press as to select [SCREEN POSITION].

f [SCREEN POSITION] cannot be selected or adjusted when [SCREEN FORMAT] is set to [16:10].

3) Press qw to adjust.

INITIAL SETTING

SCREEN FORMAT

SCREEN POSITION

Set as necessary for the screen in use.

ENTER

MENU SELECT

SET

CHANGE

5/7

16:9

4) Press the <ENTER> button to proceed to the initial setting.

ENGLISH - 63

Page 64

Chapter 3 Basic Operations — Switching on/off the projector

Initial setting (time zone)

Set [TIME ZONE] in accordance with the country or region where you use the projector. After completed the initial setting, you can change the setting from the [PROJECTOR SETUP] menu → [DATE

AND TIME]. The current settings are displayed in [LOCAL DATE] and [LOCAL TIME].

1) Press qw to switch the setting.

INITIAL SETTING

TIME ZONE

LOCAL DATE

LOCAL TIME

Please set up a time zone according to the area of your

country or region.

20XX/01/01

12 : 34 : 56

6/7

+09:00

ENTER

SET

CHANGEMENU SELECT

2) Press the <ENTER> button to proceed to the initial setting.

Note

f In the factory default setting, the time zone of the projector is set to +09:00 (Japan and Korea Standard Time). Change the setting of the

[PROJECTOR SETUP] menu → [DATE AND TIME] → [TIME ZONE] to the time zone of the region where you use the projector.

Initial setting (date and time)

Set the local date and time. After completed the initial setting, you can change the setting from the [PROJECTOR SETUP] menu → [DATE

AND TIME]. To set the date and time automatically, refer to “Setting the date and time automatically” (x page 134).

1) Press as to select an item.

INITIAL SETTING

YEAR

MONTH

DAY

HOUR

MINUTE

SECOND

Please set the date and time of the built-in clock of the

projector.

7/7

20XX

ENTER

SET

2) Press qw to switch the setting.

3) Press the <ENTER> button.

f Conrm the setting value and complete the initial setting.

64 - ENGLISH

CHANGEMENU SELECT

Page 65

Chapter 3 Basic Operations — Switching on/off the projector

Making adjustments and selections

It is recommended to perform the focus adjustment after 30 minutes have elapsed with the focus test pattern displayed.

For details of the test pattern, refer to “[TEST PATTERN] menu” (x page 146).

1) 5) 7) 8) 9)2)

1) 8)

7) 9)

1) Press the <FOCUS> button to roughly adjust the focus of the projected image. (x page 68)

2) Change the setting of the [PROJECTOR SETUP] menu → [PROJECTION METHOD] depending on the installation mode. (x page 35)

f Refer to “Navigating through the menu” (x page 77) for the operation of the menu screen.

3) Press the input selection button (<RGB1> and <RGB2>, or <RGB1/2>, <DIGITAL LINK>, <DVI-D>, <SDI>, <HDMI>) to select the input.

4) Adjust the front, back and sideway tilt of the projector with the adjustable feet. (x page 46)

5) Press the <SHIFT> button to adjust the position of the projected image.

6) If the input signal is the analog RGB signal or the DVI-D/HDMI signal, press the <AUTO SETUP> button.

7) Press the <ZOOM> button to adjust the image size to match the screen.

8) Press the <FOCUS> button again to adjust the focus.

9) Press the <ZOOM> button again to adjust the zoom to match the projected image size to the screen.

Note

f When the projector is switched on for the rst time after purchase, as well as when the [PROJECTOR SETUP] menu → [INITIALIZE] →

[ALL USER DATA] is executed, the focus adjustment screen is displayed after projection starts, and then the [INITIAL SETTING] screen is displayed. Refer to “When the initial setting screen is displayed” (x page 59) for details.

ENGLISH - 65

Page 66

Chapter 3 Basic Operations — Switching on/off the projector

Switching off the projector

1) Press the power standby <v> button.

f The [POWER OFF(STANDBY)] conrmation screen is displayed.

2) Press qw to select [OK], and press the <ENTER> button. (Or press the power standby <v> button again.)

f Projection of the image will stop, and the power indicator <ON (G)/STANDBY (R)> on the projector body

lights in orange. (The fan keeps running.)

3) Wait for a few seconds until the power indicator <ON (G)/STANDBY (R)> of the projector body lights/ blinks in red.

4) Press the <OFF> side of the <MAIN POWER> switch to turn off the power.

Note

f For approximately ve seconds after the projector is turned off, the indicator does not light up even if the power is turned on.

f Even when the power standby <v> button is pressed and the projector is switched off, the projector consumes power if the main

power of the projector is on.

Usage of some functions is restricted but the power consumption during the standby mode is conserved when the [PROJECTOR SETUP]

menu → [STANDBY MODE] is set to [ECO].

f While projecting, the power can be turned off by pressing the <OFF> side of the <MAIN POWER> switch, or by directly using the breaker

under conditions where the <MAIN POWER> switch of the projector cannot be switched off/on easily such as while installing on the ceiling. However, the settings or adjustments performed right before the power is turned off may not be reected.

66 - ENGLISH

Page 67

Chapter 3 Basic Operations — Projecting

Projecting

Check the external device connection (x page 49) and the power cord connection (x page 56), and turn on

the power (x page 58) to start projection. Select the image to project, and adjust appearance of the projected image.

Selecting the input signal

Remote control Control panel

The input of the image to project can be switched. The input for projection can be switched by directly specifying it with the input selection button on the remote

control or the control panel.

1) Press the input selection button (<RGB1/2> or <RGB1> and <RGB2>, <DIGITAL LINK>, <DVI-D>, <SDI>, <HDMI>) on the remote control or the control panel.

Switches the input to RGB1 or RGB2.

<RGB1>

<RGB2>

<DVI-D>

<SDI>

<HDMI>

Switches to the other input when one input has already been selected. The image of the signal input to the <RGB 1 IN> terminal or the <RGB 2 IN> terminal is projected. Input selection can be xed to RGB1 or RGB2 using the [SECURITY] menu → [CONTROL DEVICE SETUP].

Switches the input to RGB1. The image of the signal input to the <RGB 1 IN> terminal (<R/P <VD>) is projected.

Switches the input to RGB2. The image of the signal input to the <RGB 2 IN> terminal is projected.

Switches the input to DIGITAL LINK. The image of the signal input to the <DIGITAL LINK/LAN> terminal is projected.

Switches the input to DVI-D. The image of the signal input to the <DVI-D IN> terminal is projected.

Switches the input to SDI. The image of the signal input to the <SDI IN> terminal is projected.

Switches the input to HDMI. The image of the signal input to the <HDMI IN> terminal is projected.

>, <G/Y>, <B/PB>, <SYNC/HD>,

Attention

f Images may not be projected properly depending on the external device, or the Blu-ray disc or DVD disc, to be played back.

Set the [PICTURE] menu → [SYSTEM SELECTOR]. When the SDI signal is input, set the [DISPLAY OPTION] menu → [SDI IN].

f Conrm the aspect ratio of the projection screen and the image, and switch to an optimum aspect ratio from the [POSITION] menu →

[ASPECT].

Note

f When the optional DIGITAL LINK output supported device (Model No.: ET-YFB100G, ET-YFB200G) is connected to the <DIGITAL LINK/

LAN> terminal, the input on the DIGITAL LINK output supported device changes each time the <DIGITAL LINK> button is pressed. The input can also be changed using the RS-232C control command. For twisted-pair-cable transmitters of other manufacturers, switch the input on the projector to DIGITAL LINK, and then switch the input on

the twisted-pair-cable transmitter.

ENGLISH - 67

Page 68

Chapter 3 Basic Operations — Projecting

Adjusting the focus, zoom, and lens shift

Adjust the focus, zoom, and lens shift if the image projected to the screen or its position is shifted even if the projector and the screen are set up in the correct positions.

f When the following projection lens is used, also refer to “Adjusting the focus balance” (x page 69).

g Zoom Lens (Model No.: ET-DLE060, ET-DLE085, ET-DLE105) g Fixed-focus Lens (Model No.: ET-DLE035)

Using the control panel

1) Press the <LENS> button on the control panel.

f Pressing the button changes the adjustment screen in the order of [FOCUS], [ZOOM], and [SHIFT].

2) Select each adjustment item and press asqw to adjust.

Using the remote control

1) Press the lens buttons (<FOCUS>, <ZOOM>, <SHIFT>) on the remote control.

f Pressing the <FOCUS> button: Adjusts the focus (adjustment of the lens focus position). f Pressing the <ZOOM> button: Adjusts the zoom (adjustment of the lens zoom position). f Pressing the <SHIFT> button: Adjusts the lens shift (vertical position and horizontal position of the lens).

2) Select each adjustment item and press asqw to adjust.

CAUTION

During the lens shift operation, do not insert your hand in the opening around the lens.

Your hand may be caught in between, resulting to injury.

Note

f The zoom adjustment screen is displayed but it will not operate when a projection lens with no zoom function is attached. f When the Fixed-focus Lens (Model No.: ET-DLE055) is used, do not adjust the lens shift and use the projector with the lens position at the

home position. (x page 70)

f The adjustment can be performed faster by holding down asqw for approximately two seconds or longer while adjusting the focus or

zoom.

f The adjustment can be performed faster by holding down asqw for approximately three seconds or longer while adjusting the lens shift. f It is recommended to perform the focus adjustment after 30 minutes have elapsed with the focus test pattern displayed.

For details of the test pattern, refer to “[TEST PATTERN] menu” (x page 146).

f Only [FOCUS] is displayed in yellow so that the displayed menu item can be recognized by color, even when the displayed characters are

unreadable due to incorrect focus. (Factory default) The displayed color of [FOCUS] differs depending on the setting of the [DISPLAY OPTION] menu → [ON-SCREEN DISPLAY] → [OSD DESIGN].

f When the projector is switched off during the lens shift adjustment, lens calibration needs to be performed the next time the projector is

switched on. (x page 124)

f When the main power is switched off during the lens shift adjustment, the lens calibration error screen is displayed during the next lens shift

adjustment. Execute the [PROJECTOR SETUP] menu → [LENS] → [LENS CALIBRATION].

f When the lens calibration error is displayed even though [LENS CALIBRATION] was executed, ask your dealer to repair the unit.

68 - ENGLISH

Page 69

Chapter 3 Basic Operations — Projecting

Adjusting the focus balance

By changing the projected image size, the focus balance in the center and periphery of the image may be lost.

f When the following projection lens is used, the focus balance in the center and periphery of the projected image

can be adjusted on the projection lens side.

g Zoom Lens (Model No.: ET-DLE060, ET-DLE085, ET-DLE105) g Fixed-focus Lens (Model No.: ET-DLE035)

r Zoom Lens (Model No.: ET-DLE060, ET-DLE085, ET-DLE105)

f The illustrations in the steps are an example when attaching the Zoom Lens (Model No.: ET-DLE105).

1) Adjust the focus at the center of projected image.

f For the steps to adjust the focus, refer to “Adjusting the focus, zoom, and lens shift” (x page 68).

2) Turn the periphery focus adjustment ring by hand to adjust the focus in the periphery of the screen.

Periphery focus adjustment ring

3) Check the focus at the center of the image again and make fine adjustments.

Note

f The projected image size and scale shown on the periphery focus adjustment ring are an approximate guide. f Set the [PROJECTOR SETUP] menu → [LENS] → [LENS TYPE] to [NORMAL] when using a projection lens other than the Fixed-focus

Lens (Model No.: ET-DLE035).

r Adjusting the focus when the Fixed-focus Lens (Model No.: ET-DLE035) is used

After attaching the projection lens, adjust the focus with the projector correctly installed against the screen.

1) Move the projection lens to the home position.

f For details of operation method, refer to “Moving the projection lens to the home position” (x page 70).

2) Adjust the focus at the center of projected image.

f For the steps to adjust the focus, refer to “Adjusting the focus, zoom, and lens shift” (x page 68).

3) Turn the periphery focus adjustment ring by hand to adjust the focus in the periphery of the screen.

Periphery focus adjustment ring

4) Check the focus at the center of the image again and make fine adjustments.

ENGLISH - 69

Page 70

Chapter 3 Basic Operations — Projecting

Note

f The projected image size and scale shown on the periphery focus adjustment ring are an approximate guide. f Set the [PROJECTOR SETUP] menu → [LENS] → [LENS TYPE] to [ET-DLE035] when using the Fixed-focus Lens (Model No.:

ET-DLE035).

Setting the lens type

If the projection lens is replaced, conrm the [LENS TYPE] setting. Change the setting if the type does not match

the projection lens attached to the projector.

1) Press the <MENU> button.

f The [MAIN MENU] screen is displayed.

2) Press as to select [PROJECTOR SETUP].

3) Press the <ENTER> button.

f The [PROJECTOR SETUP] screen is displayed.

4) Press as to select [LENS].

5) Press the <ENTER> button.

f The [LENS] screen is displayed.

6) Press as to select [LENS TYPE].

7) Press qw to switch the item.

f The items will switch each time you press the button.

[NORMAL]

[ET-DLE035] Select this item when the Fixed-focus Lens (Model No.: ET-DLE035) is used for projection.

Select this item when a projection lens anything other than the Fixed-focus Lens (Model No.: ET-DLE035) is used for projection.

Moving the projection lens to the home position

Operate in following procedure to move the projection lens to the home position.

When operating from the main menu

1) Press the <MENU> button.

f The [MAIN MENU] screen is displayed.

2) Press as to select [PROJECTOR SETUP].

3) Press the <ENTER> button.

f The [PROJECTOR SETUP] screen is displayed.

4) Press as to select [LENS].

5) Press the <ENTER> button.

f The [LENS] screen is displayed.

6) Press as to select [LENS HOME POSITION].

7) Press the <ENTER> button.

f The conrmation screen is displayed.

8) Press qw to select [OK], and press the <ENTER> button.

f [PROGRESS] is displayed in the [HOME POSITION] screen, and the projection lens is moved to the origin

position.

Note

f The projection lens is not moved to the correct home position when the [PROJECTOR SETUP] menu → [LENS] → [LENS TYPE] is set

incorrectly. Change the setting if the type does not match the projection lens attached to the projector.

f The home position does not match with the optical image center position. f The home position varies depending on the projection lens type. Refer to “Lens shift range” (x page 71) for details. f The home position of the Fixed-focus Lens (Model No.: ET-DLE035) may deviate from the designed position.

70 - ENGLISH

Page 71

Chapter 3 Basic Operations — Projecting

When operating from the lens shift adjustment screen

1) Press the <DEFAULT> button on the remote control while displaying the lens shift adjustment screen.

f The conrmation screen is displayed.

2) Press qw to select [OK], and press the <ENTER> button.

f [PROGRESS] is displayed in the [HOME POSITION] screen, and the projection lens is moved to the origin

position.

Note

f The projection lens is not moved to the correct home position when the [PROJECTOR SETUP] menu → [LENS] → [LENS TYPE] is set

incorrectly. Change the setting if the type does not match the projection lens attached to the projector.

remote control for at least three seconds.

Lens shift range

The projector can adjust the position of the projected image within the lens shift range for each projection lens

based on the position of the projected image in the home position (standard projection position). Perform the lens shift adjustment within the range indicated in the following illustration. Note that moving the lens

outside the adjustment range may change the focus. This is because the shift of the lens is restricted to protect the optical parts.

Following illustration indicates the lens shift range when the projector is installed on desk/oor.

Projection lens

Model No.

Lens shift range

Projection lens

Model No.

Standard zoom lens, ET-DLE150, ET-DLE170,

ET-DLE250, ET-DLE350, ET-DLE450

Standard projection position

0.1 H

Projected image height V

0.1 H

Projected image width H

Origin position of the lens mounter

ET-DLE085, ET-DLE105 ET-DLE035

Standard projection position

0.4 V

0.3 H

0.5 V0.16 V

0.28 H

ET-DLE060

Standard projection position

0.19 H

0.4 V0.16 V

Projected image height V

0.1 H

Projected image width H

Origin position of the lens mounter

Standard projection position

Lens shift range

Projected image height V

0.1 H

Projected image width H

Origin position of the lens mounter

0.5 V

0.16 V

Projected image height V

Origin position of the lens mounter

ENGLISH - 71

0.88 V

Page 72

Chapter 3 Basic Operations — Projecting

Note

f Use the projection lens in the standard projection position without adjusting the lens shift when the optional Fixed-focus Lens (Model No.:

ET-DLE055) is attached.

f When the optional Fixed-focus Lens (Model No.: ET-DLE035) is attached, the projector can be used with the shift adjustment based on the

projected image position in the standard lens position within the range that the edge of the projected image is not blocked by the projector.

72 - ENGLISH

Page 73

Chapter 3 Basic Operations — Operating with the remote control

Operating with the remote control

Using the shutter function

If the projector is not used for a certain period of time during the meeting intermission, for example, it is possible

to turn off the image temporarily.

button

1) Press the <SHUTTER> button.

f The image disappears. f This operation can be also performed using the <SHUTTER> button on the control panel.

2) Press the <SHUTTER> button again.

f The image is displayed.

Note

f The power indicator <ON (G)/STANDBY (R)> will blink slowly in green while the shutter function is in use (shutter: closed). f The fade-in/fade-out time of the image can be set by the [DISPLAY OPTION] menu → [SHUTTER SETTING]. f The light source may be lit dimly due to warm up when the shutter function is used in the operating environment temperature of around 0 °C

(32 °F).

Using the on-screen display function

Turn off the on-screen display function (no display) when you do not wish the viewers to see the on-screen

display, such as the menu or the input terminal name.

button

1) Press the <ON SCREEN> button.

f Turns off (hides) the on-screen display.

2) Press the <ON SCREEN> button again.

f Cancels the hide condition of the on-screen display.

Note

f The hide condition of the on-screen display can also be canceled by pressing the <MENU> button on the control panel for at least three

seconds while the on-screen display is off (hidden).

ENGLISH - 73

Page 74

Chapter 3 Basic Operations — Operating with the remote control

Using the automatic setup function

The image position when the DVI-D/HDMI signal is input, or the resolution, clock phase, and image position when the analog RGB signal is input can be adjusted automatically. (Analog RGB signal is a signal structured with dots just like the computer signal.)

It is recommended to input an image with bright white borders at the edges and high-contrast black and white characters when the automatic adjustment is being performed.

Avoid using images that include halftones or gradation, such as photographs and computer graphics.

button

1) Press the <AUTO SETUP> button.

f [COMPLETE] is displayed when it has completed without any problem. f This operation can be also performed by pressing the <AUTO SETUP> button on the control panel.

Note

f The clock phase may shift even if it has completed without any incident. In such a case, adjust the [POSITION] menu → [CLOCK PHASE]

(x page 93).

f If an image with blurred edges or a dark image is input, [INCOMPLETE] may appear or adjustment may not be performed properly even

when [COMPLETE] appears. In such a case, adjust the following settings.

g [ADVANCED MENU] menu → [INPUT RESOLUTION] (x page 98) g [POSITION] menu → [CLOCK PHASE] (x page 93) g [POSITION] menu → [SHIFT] (x page 91)

f Adjust special signals according to the [DISPLAY OPTION] menu → [AUTO SETUP] (x page 105). f Automatic adjustment may not be possible depending on the computer model. f Automatic adjustment may not be possible for the synchronization signal for composite sync or SYNC ON GREEN. f Image may be disrupted for a few seconds during automatic adjustment, but this is not a malfunction. f Adjustment is required for each input signal. f Automatic adjustment can be canceled by pressing the <MENU> button during the automatic adjustment operation. f Even if a signal possible to perform the automatic setup is being input, it may not be able to adjust correctly if the automatic setup function

is used while the moving image is being input. [INCOMPLETE] may be displayed, or the adjustment may not be completed correctly even if [COMPLETE] is displayed.

Using the function button

By assigning the following functions to the <FUNCTION> button, it can be used as a simplied shortcut button. [SUB MEMORY], [SYSTEM SELECTOR], [SYSTEM DAYLIGHT VIEW], [FREEZE], [WAVEFORM MONITOR],

[ASPECT], [PROJECTION METHOD]

button

1) Press the <FUNCTION> button.

Note

f Assignment of the function is performed from the [PROJECTOR SETUP] menu → [FUNCTION BUTTON] (x page 140).

Displaying internal test pattern

The projector has nine types of internal test patterns to check the condition of the projector. To display test patterns, perform the following steps.

button

1) Press the <TEST PATTERN> button.

2) Press qw to select the test pattern.

Note

f Test patterns can also be displayed using the menu operation. Refer to “[TEST PATTERN] menu” (x page 146) for details. f Settings of position, size, and other factors will not be reected in test patterns. Make sure to display the input signal before performing

various adjustments.

74 - ENGLISH

Page 75

Chapter 3 Basic Operations — Operating with the remote control

Using the status function

Display the status of the projector.

button

1) Press the <STATUS> button.

f The [STATUS] screen is displayed.

STATUS

PROJECTOR TYPE

SERIAL NUMBER

PROJECTOR RUNTIME

LIGHT RUNTIME

CONTINUOUS LIGHTING TIME

MAIN/SUB VERSION

INTAKE AIR TEMP.

OPTICS MODULE TEMP.

EXHAUST AIR TEMP.

LIGHT1 TEMP.

LIGHT2 TEMP.

SELF TEST

ENTER

SEND E-MAIL

123456789012

10000h / 10000h

31°C/87°F

27°C/80°F

31°C/87°F

NO ERRORS

EXITCHANGE

1/5

PT-RZ120

10000h

1h 23m

1.00 / 1.00

Note

f The projector status can also be displayed using the menu operation. Refer to the [PROJECTOR SETUP] menu → [STATUS]

(x page 141) for details.

Setting ID number of the remote control

When you use the multiple projectors together, you can operate all the projectors simultaneously or each projector

individually using a single remote control, if a unique ID number is assigned to each projector.

After setting the ID number of the projector, set same ID number on the remote control.

The factory default ID number of the projector is set to [ALL]. When using a single projector, keep

pressing the <ID SET> button on the remote control for at least three seconds to set the ID number of

the remote control to [ALL]. In addition, when the ID number of the projector is unknown, setting the ID

number to [ALL] enables the remote control.

button

1) Press the <ID SET> button on the remote control.

2) Within five seconds, press the two-digit ID number set on the projector using the number (<0> - <9>) buttons.

f When the ID number is set to [ALL], you can control the projector regardless of the ID number setting of the

projector.

Attention

f Since the ID number of the remote control can be set without the projector body, do not press the <ID SET> button on the remote control

carelessly. If the <ID SET> button is pressed and no number (<0> - <9>) buttons are pressed within ve seconds, the ID number returns to its original value before the <ID SET> button was pressed.

f The ID number set on the remote control will be stored unless it is set again. However, it will be erased if the remote control is left with dead

batteries. Set the same ID number again when the batteries are replaced.

Note

f When the ID number of the remote control is set to [0], you can control the projector regardless of the ID number setting of the projector

body, as same as when [ALL] is set.

f Set the ID number of the projector body from the [PROJECTOR SETUP] menu → [PROJECTOR ID].

ENGLISH - 75

Page 76

Chapter 4 Settings

This chapter describes the settings and adjustments you can make using the on-screen menu.

76 - ENGLISH

Page 77

Chapter 4 Settings — Menu navigation

Menu navigation

The on-screen menu (Menu) is used to perform various settings and adjustments of the projector.

Navigating through the menu

Operating procedure

button

1) Press the <MENU> button on the remote control or control panel.

f The [MAIN MENU] screen is displayed.

MAIN MENU


POSITION

ADVANCED MENU

DISPLAY LANGUAGE

DISPLAY OPTION

PROJECTOR SETUP

TEST PATTERN

SIGNAL LIST

SECURITY

NETWORK

MENU SELECT

ENTER

SUB MENU

2) Press as to select an item from the main menu.

f The selected item is highlighted in yellow.

MAIN MENU


POSITION

ADVANCED MENU

DISPLAY LANGUAGE

DISPLAY OPTION

PROJECTOR SETUP

TEST PATTERN

SIGNAL LIST

SECURITY

NETWORK

MENU SELECT

ENTER

SUB MENU

3) Press the <ENTER> button.

f The sub-menu items of the selected main menu are displayed.

POSITION

SHIFT

ASPECT

ZOOM

CLOCK PHASE

GEOMETRY

DEFAULT

OFF

ENTER

MENU SELECT

SUB MENU

ENGLISH - 77

Page 78

Chapter 4 Settings — Menu navigation

4) Press as to select a sub-menu, and press qw or the <ENTER> button to change or adjust settings.

f Some items will switch in order as follows each time you press qw.

A B C

f For some items, press qw to display an individual adjustment screen with a bar scale as shown below.

CONTRAST

ADJUST

Note

f Pressing the <MENU> button while the menu screen is displayed returns to the previous menu. f Some items or functions may not be adjusted or used for certain signals to be input to the projector. When the items cannot be adjusted or

used, the items in the menu screen are shown in black characters, and they cannot be adjusted or set. If the item in the menu screen is displayed in black characters and the item cannot be adjusted or set, the factor causing it is displayed by

pressing the <ENTER> button while the corresponding menu is selected.

f Some items can be adjusted even if signals are not input. f Individual adjustment screen is cleared automatically if no operation is performed for approximately ve seconds. f For menu items, refer to “Main menu” (x page 78) and “Sub-menu” (x page 79). f The cursor color depends on the setting in the [DISPLAY OPTION] menu → [ON-SCREEN DISPLAY] → [OSD DESIGN]. The selected item

is displayed with the yellow cursor by the factory default.

f In the portrait setting, the on-screen menu is displayed sideways.

To display the on-screen menu vertically, change the setting of the [DISPLAY OPTION] menu → [ON-SCREEN DISPLAY] → [OSD ROTATION].

Resetting adjustment values to the factory default

If the <DEFAULT> button on the remote control is pressed, the values adjusted in the menu items are restored to

the factory default settings.

button

1) Press the <DEFAULT> button on the remote control.

CONTRAST

ADJUST

Note

f You cannot reset all the settings to the factory default at a time. f To reset all the settings adjusted in the sub-menu items to the factory default at a time, execute the [PROJECTOR SETUP] menu →

[INITIALIZE].

f Some items cannot be reset to the factory default settings even when the <DEFAULT> button on the remote control is pressed. Adjust those

items individually.

f The triangular mark under the bar scale in the individual adjustment screen indicates the factory default setting. The position of the triangular

mark varies according to the selected input signals.

Current adjustment value

Factory default setting

Main menu

The following items are in the main menu. When a main menu item is selected, the screen changes to a sub-menu selection screen. The menu item with l in the [SIMPLE] mode column indicates that this is displayed in the menu screen (OSD)

when the [DISPLAY OPTION] menu → [MENU MODE] is set to [SIMPLE].

Main menu item [SIMPLE] mode Page

[PICTURE]

[POSITION]

[ADVANCED MENU] ― 97

78 - ENGLISH

Page 79

Chapter 4 Settings — Menu navigation

Main menu item [SIMPLE] mode Page

[DISPLAY LANGUAGE]

[DISPLAY OPTION]

[PROJECTOR SETUP]

[TEST PATTERN]

[SIGNAL LIST]

102

103

123

146

147

[SECURITY] ― 150

[NETWORK]

154

Sub-menu

The sub-menu of the selected main menu item is displayed, and you can set and adjust items in the sub-menu. The menu item with l in the [SIMPLE] mode column indicates that this is displayed in the menu screen (OSD)

when the [DISPLAY OPTION] menu → [MENU MODE] is set to [SIMPLE].

[PICTURE]

Sub-menu item Factory default [SIMPLE] mode Page

[PICTURE MODE] [GRAPHIC] [CONTRAST] [0] [BRIGHTNESS] [0] [COLOR] [0]

l l l

[TINT] [0] ― 83 [COLOR TEMPERATURE] [DEFAULT]

― 83 [WHITE GAIN] [+10] ― 85 [GAMMA] [DEFAULT] ― 85 [SYSTEM DAYLIGHT VIEW] [OFF] [SHARPNESS] [+6] [NOISE REDUCTION] [OFF] [DYNAMIC CONTRAST] [2] [SYSTEM SELECTOR] [YP

BPR

]

― 86

― 87

― 88 [DEFAULT PICTURE MODE] [AUTO] ― 89

*1 Depends on the signal input. *2 Depends on the [PICTURE MODE].

[POSITION]

Sub-menu item Factory default [SIMPLE] mode Page

[SHIFT] ― ― 91 [ASPECT] [DEFAULT]

[ZOOM] ― ― 92 [CLOCK PHASE] [0] [GEOMETRY] [OFF]

*1 Depends on the signal input.

― 93

[ADVANCED MENU]

Sub-menu item Factory default [SIMPLE] mode Page

[DIGITAL CINEMA REALITY] [AUTO]

― 97

ENGLISH - 79

Page 80

Chapter 4 Settings — Menu navigation

Sub-menu item Factory default [SIMPLE] mode Page

[BLANKING] ― ― 97 [INPUT RESOLUTION] ― ― 98 [CLAMP POSITION] [24] [EDGE BLENDING] [OFF] ― 98 [FRAME RESPONSE] [NORMAL] ― 100 [RASTER POSITION] ― ― 101

*1 Depends on the signal input.

― 98

[DISPLAY LANGUAGE]

Details (x page 102)

[DISPLAY OPTION]

Sub-menu item Factory default [SIMPLE] mode Page

[COLOR MATCHING] [OFF] [COLOR CORRECTION] [OFF] ― 104 [SCREEN SETTING] ― [AUTO SIGNAL] [OFF] ― 105 [AUTO SETUP] ― ― 105 [BACKUP INPUT SETTING] ― ― 106 [RGB IN] ― ― 108 [DVI-D IN] ― ― 109 [HDMI IN] ― ― 111 [DIGITAL LINK IN] ― ― 112 [SDI IN] ― ― 114 [ON-SCREEN DISPLAY] ― [MENU MODE] [NORMAL] [IMAGE ROTATION] [OFF] ― 117 [BACK COLOR] [BLUE] ― 118 [STARTUP LOGO] [DEFAULT LOGO] [UNIFORMITY] ― ― 11 8 [SHUTTER SETTING] ― ― 11 9 [FREEZE] ― ― 121 [WAVEFORM MONITOR] [OFF] ― 121 [CUT OFF] ― ― 122

103

104

115

117

118

[PROJECTOR SETUP]

Sub-menu item Factory default [SIMPLE] mode Page

[PROJECTOR ID] [ALL] [PROJECTION METHOD] ― [LENS] ― [OPERATION SETTING] ― [LIGHT OUTPUT] [100.0%] [BRIGHTNESS CONTROL] ― ― 128 [STANDBY MODE] [NORMAL] ― 132 [QUICK STARTUP] [OFF] ― 132 [NO SIGNAL SHUT-OFF] [DISABLE] ― 133 [NO SIGNAL LIGHTS-OUT] [DISABLE] ― 133 [INITIAL STARTUP] [LAST MEMORY] ― 133 [STARTUP INPUT SELECT] [LAST USED] ― 133 [DATE AND TIME] ― [SCHEDULE] [OFF] ― 135

80 - ENGLISH

123

124

125

127

134

Page 81

Chapter 4 Settings — Menu navigation

Sub-menu item Factory default [SIMPLE] mode Page

[MULTI PROJECTOR SYNC] ― ― 137 [RS-232C] ― [REMOTE2 MODE] [DEFAULT] ― 140 [FUNCTION BUTTON] ― ― 140 [STATUS] ― [DATA CLONING] ― ― 142 [SAVE ALL USER DATA] ― ― 144 [LOAD ALL USER DATA] ― ― 144 [INITIALIZE] ― [SERVICE PASSWORD] ―

[TEST PATTERN]

Details (x page 146)

[SIGNAL LIST]

Details (x page 147)

138

141

144

145

[SECURITY]

Sub-menu item Factory default [SIMPLE] mode Page

[SECURITY PASSWORD] [OFF] ― 150 [SECURITY PASSWORD CHANGE] ― ― 150 [DISPLAY SETTING] [OFF] ― 150 [TEXT CHANGE] ― ― 151 [CONTROL DEVICE SETUP] ― ― 151 [CONTROL DEVICE PASSWORD CHANGE] ― ― 152

[NETWORK]

Sub-menu item Factory default [SIMPLE] mode Page

[DIGITAL LINK MODE] [AUTO] ― 154 [DIGITAL LINK STATUS] ― [NETWORK SETUP] ― [NETWORK CONTROL] ― [NETWORK STATUS] ― [DIGITAL LINK MENU] ― ― 156 [Art-Net SETUP] [OFF] ― 156 [Art-Net CHANNEL SETTING] [2] ― 157 [Art-Net STATUS] ― ― 157

154

155

156

Note

f Some items may not be adjusted or used for certain signal formats to be input to the projector.

When the items cannot be adjusted or used, the items in the menu screen are shown in black characters, and they cannot be adjusted or set.

f Sub-menu items and factory default settings vary depending on the selected input terminal.

ENGLISH - 81

Page 82

Chapter 4 Settings — [PICTURE] menu

[PICTURE] menu

On the menu screen, select [PICTURE] from the main menu, and select an item from the sub-menu.

Refer to “Navigating through the menu” (x page 77) for the operation of the menu screen.

[PICTURE MODE]

You can switch to the desired picture mode suitable for the image source and the environment in which the

projector is used.

1) Press as to select [PICTURE MODE].

2) Press qw. f The [PICTURE MODE] individual adjustment screen is displayed.

3) Press qw to switch the item.

f The items will switch each time you press the button.

[STANDARD] The image becomes suitable for moving images in general.

[CINEMA] The image becomes suitable for movie contents.

[NATURAL] The image becomes suitable for using in a relatively dark environment.

[REC709]

[DICOM SIM.] The image becomes similar to that of DICOM Part 14 Grayscale Standard.

[DYNAMIC] The light output is maximized for use in bright areas.

[GRAPHIC] The image becomes suitable for input from the personal computer.

The image becomes Rec.709 compliant when the setting other than [PICTURE MODE] is set to the

factory default.

Note

f Rec.709 is an abbreviation of “ITU-R Recommendation BT.709” and is a color standard of high-vision broadcasting. f DICOM is an abbreviation of “Digital Imaging and COmmunication in Medicine” and is a standard for medical imaging devices. Although the

DICOM name is used, the projector is not a medical device, and display images should not be used for medical purposes such as diagnosis.

f If the <ENTER> button is pressed while [PICTURE MODE] is selected, the adjustment condition that is currently set can be saved as a

specied value of the selected picture mode. The data of all items except [SYSTEM SELECTOR] and [DEFAULT PICTURE MODE] in the [PICTURE] menu are saved.

f If the [PICTURE] menu → [DEFAULT PICTURE MODE] is set to [AUTO], [GRAPHIC] is automatically selected when a new still image

signal is input and [STANDARD] is automatically selected when a new moving image signal is input. If the [PICTURE] menu → [DEFAULT PICTURE MODE] is set to anything other than [AUTO], the picture mode set in [DEFAULT PICTURE MODE] is selected when a new signal

is input.

[CONTRAST]

You can adjust the contrast of the colors.

1) Press as to select [CONTRAST].

2) Press qw or the <ENTER> button. f The [CONTRAST] individual adjustment screen is displayed.

3) Press qw to adjust the level.

Operation Adjustment Range of adjustment

Press w. Press q.

The screen becomes brighter.

The screen becomes darker.

31 - +31

Attention

f Adjust the [PICTURE] menu → [BRIGHTNESS] rst when you need to adjust the black level.

[BRIGHTNESS]

You can adjust the dark (black) part of the projected image.

1) Press as to select [BRIGHTNESS].

2) Press qw or the <ENTER> button. f The [BRIGHTNESS] individual adjustment screen is displayed.

82 - ENGLISH

Page 83

Chapter 4 Settings — [PICTURE] menu

3) Press qw to adjust the level.

Operation Adjustment Range of adjustment

Press w. Press q.

Increases the brightness of the dark (black) parts of the screen. Reduces the brightness of the dark (black) parts of the screen.

[COLOR]

You can adjust the color saturation of the projected image.

1) Press as to select [COLOR].

2) Press qw or the <ENTER> button. f The [COLOR] individual adjustment screen is displayed.

3) Press qw to adjust the level.

Operation Adjustment Range of adjustment

Press w. Press q.

Deepens colors.

Weakens colors.

[TINT]

31 - +31

You can adjust the skin tone in the projected image.

1) Press as to select [TINT].

2) Press qw or the <ENTER> button. f The [TINT] individual adjustment screen is displayed.

3) Press qw to adjust the level.

Operation Adjustment Range of adjustment

Press w. Press q.

Adjusts skin tone toward greenish color.

Adjusts skin tone toward reddish purple.

[COLOR TEMPERATURE]

You can switch the color temperature if the white areas of the projected image are bluish or reddish.

Adjusting with color temperature

1) Press as to select [COLOR TEMPERATURE].

2) Press qw or the <ENTER> button. f The [COLOR TEMPERATURE] individual adjustment screen is displayed.

3) Press qw to switch the item.

f The items will switch each time you press the button.

31 - +31

[DEFAULT] Factory default setting.

[USER1]

[USER2]

[3200K] - [9300K]

Adjusts white balance as desired. Refer to “Adjusting desired white balance” (x page 84) for

details.

Sets the value in increments of 100 K. Select an item so that images become natural.

Note

f [DEFAULT] cannot be selected when the [PICTURE] menu → [PICTURE MODE] is set to [DICOM SIM.]. f This item is xed to [USER1] when the [DISPLAY OPTION] menu → [COLOR MATCHING] is set to anything other than [OFF]. f The color temperature numerical values are guidelines.

ENGLISH - 83

Page 84

Chapter 4 Settings — [PICTURE] menu

Adjusting desired white balance

1) Press as to select [COLOR TEMPERATURE].

2) Press qw or the <ENTER> button. f The [COLOR TEMPERATURE] individual adjustment screen is displayed.

3) Press qw to select [USER1] or [USER2].

4) Press the <ENTER> button. f The [COLOR TEMPERATURE] screen is displayed.

5) Press as to select [WHITE BALANCE].

6) Press the <ENTER> button. f The [WHITE BALANCE] screen is displayed.

7) Press as to select [WHITE BALANCE HIGH] or [WHITE BALANCE LOW].

8) Press the <ENTER> button. f The [WHITE BALANCE HIGH] screen or the [WHITE BALANCE LOW] screen is displayed.

9) Press as to select [RED], [GREEN], or [BLUE].

10) Press qw to adjust the level.

Item Operation Adjustment Range of adjustment

[RED]

[GREEN]

[BLUE]

Press w. Press q. Press w. Press q. Press w. Press q.

Deepens red.

Weakens red.

Deepens green.

Weakens green.

Deepens blue.

Weakens blue.

[WHITE BALANCE HIGH]: 0 - +255 (factory default is

+255)

[WHITE BALANCE LOW]:

127 - +127 (factory default is

Note

f Adjust [COLOR TEMPERATURE] correctly. All colors will not be displayed properly unless adequate adjustment is made. If the adjustment

does not look suitable, you can press the <DEFAULT> button on the remote control to return the setting for the selected item only to the

factory default setting.

Adjusting to desired white balance based on existing color temperature settings

1) Press as to select [COLOR TEMPERATURE].

2) Press qw or the <ENTER> button. f The [COLOR TEMPERATURE] individual adjustment screen is displayed.

3) Press qw to select anything other than [DEFAULT], [USER1], or [USER2].

4) Press the <ENTER> button. f The [CHANGE TO *****] screen is displayed.

5) Press as to select [USER1] or [USER2].

f The status of the color temperature changed is saved to the selected item.

6) Press the <ENTER> button.

f The conrmation screen is displayed.

7) Press qw to select [OK], and press the <ENTER> button.

f The [USER1] or [USER2] data is overwritten. f The data is not overwritten when [CANCEL] is selected with qw and the <ENTER> button is pressed. f The [WHITE BALANCE HIGH] screen is displayed.

8) Press as to select [RED], [GREEN], or [BLUE].

9) Press qw to adjust the level.

84 - ENGLISH

Page 85

Chapter 4 Settings — [PICTURE] menu

Note

f Adjust [COLOR TEMPERATURE] correctly. All colors will not be displayed properly unless adequate adjustment is made. If the adjustment

does not look suitable, you can press the <DEFAULT> button on the remote control to return the setting for the selected item only to the

factory default setting.

f When color temperature has been changed, the colors before and after the change will differ slightly.

Changing the name of [USER1] or [USER2]

1) Press as to select [COLOR TEMPERATURE].

2) Press qw or the <ENTER> button. f The [COLOR TEMPERATURE] individual adjustment screen is displayed.

3) Press qw to select [USER1] or [USER2].

4) Press the <ENTER> button. f The [COLOR TEMPERATURE] screen is displayed.

5) Press as to select [COLOR TEMPERATURE NAME CHANGE].

6) Press the <ENTER> button. f The [COLOR TEMPERATURE NAME CHANGE] screen is displayed.

7) Press asqw to select the text, and press the <ENTER> button to enter the text.

8) Press asqw to select [OK], and press the <ENTER> button.

f The name set to color temperature is changed.

Note

f The display of [USER1] or [USER2] is also changed when the name is changed.

[WHITE GAIN]

Adjust the brightness of the white part of the image.

1) Press as to select [WHITE GAIN].

2) Press qw or the <ENTER> button. f The [WHITE GAIN] individual adjustment screen is displayed.

3) Press qw to adjust the level.

Operation Adjustment Range of adjustment

Press w. Press q.

Brightness of the white part gets stronger.

The image becomes more natural.

[GAMMA]

You can switch gamma mode.

1) Press as to select [GAMMA].

0 - +10

2) Press qw or the <ENTER> button. f The [GAMMA] individual adjustment screen is displayed.

3) Press qw to switch the item.

f The items will switch each time you press the button.

[DEFAULT] Factory default setting.

[USER]

[1.8]

[2.2]

Uses the gamma data registered by the user.

(Registration requires separate software. Consult your dealer.)

Set so that images become as you like.[2.0]

ENGLISH - 85

Page 86

Chapter 4 Settings — [PICTURE] menu

Changing the [USER] name

1) Press as to select [GAMMA].

2) Press qw or the <ENTER> button. f The [GAMMA] individual adjustment screen is displayed.

3) Press qw to select [USER].

4) Press the <ENTER> button. f The [GAMMA] screen is displayed.

5) Press the <ENTER> button. f The [GAMMA NAME CHANGE] screen is displayed.

6) Press asqw to select the text, and press the <ENTER> button to enter the text.

7) Press asqw to select [OK], and press the <ENTER> button.

f The gamma selection name is changed.

Note

f Display of [USER] is also changed when the name is changed.

[SYSTEM DAYLIGHT VIEW]

You can correct the image to the optimal vividness even if it is projected under a bright light.

1) Press as to select [SYSTEM DAYLIGHT VIEW].

2) Press qw or the <ENTER> button. f The [SYSTEM DAYLIGHT VIEW] individual adjustment screen is displayed.

3) Press qw to switch the item.

f The items will switch each time you press the button.

[OFF] No correction.

[1] - [6] Corrects the vividness of the image. The larger the value, the stronger the correction.

[SHARPNESS]

You can adjust the sharpness of the projected image.

1) Press as to select [SHARPNESS].

2) Press qw or the <ENTER> button. f The [SHARPNESS] individual adjustment screen is displayed.

3) Press qw to adjust the level.

Operation Adjustment Range of adjustment

Press w. Press q.

Contours become sharper.

Contours become softer.

0 - +15

Note

f If you press w while the adjustment value is [+15], the value will become [0]. If you press q while the adjustment value is [0], the value will

become [+15].

86 - ENGLISH

Page 87

Chapter 4 Settings — [PICTURE] menu

[NOISE REDUCTION]

You can reduce noises when the input image is degraded and noise is occurring in the image signal.

1) Press as to select [NOISE REDUCTION].

2) Press qw or the <ENTER> button. f The [NOISE REDUCTION] individual adjustment screen is displayed.

3) Press qw to switch the item.

f The items will switch each time you press the button.

[OFF] No correction.

[1] Slightly corrects the noise. [2] Moderately corrects the noise. [3] Strongly corrects the noise.

Attention

f When this is set for an input signal with less noise, the image may look different from the original image. In such a case, set it to [OFF].

[DYNAMIC CONTRAST]

Light adjustment of the light source and signal compensation are performed automatically according to the image to make the contrast optimum for the image.

1) Press as to select [DYNAMIC CONTRAST].

2) Press qw or the <ENTER> button. f The [DYNAMIC CONTRAST] individual adjustment screen is displayed.

3) Press qw to switch the item.

f The items will switch each time you press the button.

[OFF] Disables the dynamic contrast function.

[1] Adjusts the light source and compensates signals to a small extent. [2] Adjusts the light source and compensates signals to a moderate extent. [3] Adjusts the light source and compensates signals to a large extent.

[USER]

Set any desired correction. Refer to “Performing desired correction” (x page 87) for details.

Performing desired correction

1) Press as to select [DYNAMIC CONTRAST].

2) Press qw or the <ENTER> button. f The [DYNAMIC CONTRAST] individual adjustment screen is displayed.

3) Press qw to select [USER].

4) Press the <ENTER> button. f The [DYNAMIC CONTRAST] screen is displayed.

5) Press as to select the item to set.

f The items of the detailed settings will switch each time you press qw. f Press the <ENTER> button when [MULTI PROJECTOR SYNC] is selected.

Setting item Details

[AUTO CONTRAST]

(Automatic light source

adjustment)

[OFF] Does not adjust the light source.

The higher the value, the stronger the light adjustment of the light

[1] - [255]

source. Can be set in increments of 1.

ENGLISH - 87

Page 88

Setting item Details

[BRIGHT SIGNAL LEVEL] (Setting of the brightness

level of the signal to start the

light adjustment)

[LIGHTS OUT TIMER]

(Time setting until the light

turns off)

[LIGHTS OUT SIGNAL

LEVEL]

(Setting of the brightness

level of the signal to turn off

the light)

[LIGHTS OUT FADE-IN]

(Setting of fade-in when

lighting up again)

[LIGHTS OUT FADE-OUT] (Setting of fade-out when

lighting off)

[MANUAL INTENSITY]

(Manual light source

adjustment)

[DYNAMIC GAMMA]

(Adjustment of signal

compensation)

[MULTI PROJECTOR SYNC]

Chapter 4 Settings — [PICTURE] menu

Adjusts the light source when the brightness level of the video signal being input gets lower than the set value. The higher the

[6%] - [50%]

[DISABLE] Does not turn off the light source.

[0.0s] - [10.0s]

[0%] - [5%]

[OFF]

[0.5s] - [10.0s]

[OFF]

[0.5s] - [10.0s]

[0] - [255]

[OFF] Does not compensate the signal.

[1] Slightly compensates the signal. [2] Moderately compensates the signal. [3] Strongly compensates the signal.

value, the larger the range to perform the light adjustment of the light source.

Can be set in increments of 1 %. (Factory setting: 30 %)

Turns off the light source when the brightness level of the video

signal being input goes under the value set in [LIGHTS OUT SIGNAL LEVEL]. Select an item from [0.0s] - [4.0s], [5.0s], [7.0s], or [10.0s]. [0.0s] - [4.0s] can be selected in increments of 0.5.

Sets the level of the brightness of the video signal to turn off the light source with [LIGHTS OUT TIMER]. Can be set in increments of 1 %. (Factory setting: 0 %)

Does not set the fade-in of the image when the light source is turned on again from the condition that the light source was turned

off with [LIGHTS OUT TIMER]. Sets the time to fade in the image when the light source is turned

on again from the condition that the light source was turned off with

[LIGHTS OUT TIMER]. Select an item from [0.5s] - [4.0s], [5.0s], [7.0s], or [10.0s]. [0.5s] [4.0s] can be selected in increments of 0.5.

Does not set the fade-out of the image when the light source is

turned off with [LIGHTS OUT TIMER]. Sets the time to fade out the image when the light source is turned

off with [LIGHTS OUT TIMER]. Select an item from [0.5s] - [4.0s], [5.0s], [7.0s], or [10.0s]. [0.5s] [4.0s] can be selected in increments of 0.5.

The larger the value, the stronger the correction.

Can be set in increments of 1. (Factory setting: 255)

Sets the contrast synchronization function.

This setting item is common with the following menu item.

f The [PROJECTOR SETUP] menu → [MULTI PROJECTOR

SYNC]

Refer to the [PROJECTOR SETUP] menu → [MULTI PROJECTOR SYNC] (x page 137) for details.

Note

f [LIGHTS OUT SIGNAL LEVEL] cannot be set when [LIGHTS OUT TIMER] is set to [DISABLE]. f When [LIGHTS OUT TIMER] is set to anything other than [DISABLE], the following are the conditions to turn the light source back on again

from the state that the light source has turned off by this function.

g When the brightness level of the video signal being input has exceeded the value set in [LIGHTS OUT SIGNAL LEVEL] g When the input signal is gone g When on-screen display such as menu screen (OSD) or input guide, a test pattern, or a warning message is displayed g When the operating environment temperature is around 0 °C (32 °F) and the light source is forced to turn on due to warm-up

f When the image of analog signal is projected, the image may be affected by the signal noise while the brightness level of the video signal

is detected. In such case, it is determined that the signal has not fallen below even when the brightness level of the image falls below the

value set in [LIGHTS OUT SIGNAL LEVEL].

f The contrast will be maximized when [DYNAMIC GAMMA] is set to [3]. f The brightness control function and the dynamic contrast function will operate simultaneously, but the dynamic contrast function will not

operate while measuring the brightness and the color.

f The contrast synchronization function is a function to display a combined screen with a balanced contrast by sharing the brightness level of

the video signal input to each projector when a multi-display is constructed by combining the projected image of multiple projectors.

[SYSTEM SELECTOR]

The projector will automatically detect the input signal, but you can set the system method manually when an

unstable signal is input. Set the system method matching the input signal.

1) Press as to select [SYSTEM SELECTOR].

88 - ENGLISH

Page 89

Chapter 4 Settings — [PICTURE] menu

2) Press the <ENTER> button.

3) Press as to select a system format.

f Available system formats vary depending on the input signal.

Terminal System format

<RGB 1 IN> terminal, <RGB 2

IN> terminal

<DVI-D IN> terminal

<HDMI IN> terminal, <DIGITAL

LINK/LAN> terminal

480/60i, 576/50i, or 576/50p

signal

640 x 480/60 or 480/60p

signal

Other moving image signals Select [RGB] or [YP

480/60i, 576/50i, 480/60p, or

576/50p signal

Other moving image signals Select [RGB] or [YP

480/60i, 576/50i, 480/60p, or

576/50p signal

Other moving image signals Select [AUTO], [RGB], or [YP

Select [RGB] or [YC

Select an item from [640x480/60], [480/60p YC RGB].

Select [RGB] or [YC

Select [AUTO], [RGB], or [YC

BCR

BPR

BCR

BPR

BCR

BPR

BCR

4) Press the <ENTER> button.

Note

f For details of the types of video signals that can be used with the projector, refer to “List of compatible signals” (x page 203). f This may not function properly for some connected external devices. f For the SDI input, the signal format can be set in detail in the [DISPLAY OPTION] menu → [SDI IN].

], or [480/60p

[DEFAULT PICTURE MODE]

Set the picture mode to be applied when a new signal is input. The setting in the [PICTURE] menu → [PICTURE MODE] will switch according to the setting.

1) Press as to select [DEFAULT PICTURE MODE].

2) Press qw to switch the item.

f The items will switch each time you press the button.

[AUTO]

[STANDARD] Set [PICTURE MODE] to [STANDARD].

[CINEMA] Set [PICTURE MODE] to [CINEMA].

[NATURAL] Set [PICTURE MODE] to [NATURAL].

[REC709] Set [PICTURE MODE] to [REC709].

[DICOM SIM.] Set [PICTURE MODE] to [DICOM SIM.].

[DYNAMIC] Set [PICTURE MODE] to [DYNAMIC]. [GRAPHIC] Set [PICTURE MODE] to [GRAPHIC].

Note

f The following are the conditions where the setting in the [PICTURE] menu → [PICTURE MODE] is switched to the picture mode set in

[DEFAULT PICTURE MODE].

g When a new signal is input g When the deleted signal is input again after the registered signal has been deleted g When the <DEFAULT> button is pressed while the [PICTURE] menu → [PICTURE MODE] is selected g When there is no input signal

Set [PICTURE MODE] to [GRAPHIC] when a still image signal is input or [STANDARD] when a

moving image signal is input.

sRGB-compliant video

sRGB is an international standard (IEC61966-2-1) for color reproduction dened by IEC (International Electrotechnical Commission).

Set according to the following steps to reproduce more faithful, sRGB compliant colors.

1) Set [COLOR MATCHING] to [OFF].

f Refer to [COLOR MATCHING] (x page 103).

2) Display the [PICTURE] menu.

f Refer to “[PICTURE] menu” (x page 82).

ENGLISH - 89

Page 90

Chapter 4 Settings — [PICTURE] menu

3) Press as to select [PICTURE MODE].

4) Press qw to set [REC709].

5) Press as to select [GAMMA].

6) Press qw or the <ENTER> button. f The [GAMMA] individual adjustment screen is displayed.

7) Press qw to select [2.2].

8) Press as to select [COLOR].

9) Press the <DEFAULT> button on the remote control to set the factory default setting.

10) Follow Steps 8) - 9) to set [TINT], [COLOR TEMPERATURE], [WHITE GAIN], [GAMMA], and [SYSTEM

DAYLIGHT VIEW] to the factory default settings.

Note

f sRGB is available for RGB signal input only.

90 - ENGLISH

Page 91

Chapter 4 Settings — [POSITION] menu

[POSITION] menu

On the menu screen, select [POSITION] from the main menu, and select an item from the sub-menu.

Refer to “Navigating through the menu” (x page 77) for the operation of the menu screen.

Note

f When the optional DIGITAL LINK output supported device (Model No.: ET-YFB100G, ET-YFB200G) is connected to the <DIGITAL LINK/

LAN> terminal, adjust the shift, aspect, and clock phase from the menu of DIGITAL LINK output supported device at rst.

[SHIFT]

Move the image position vertically or horizontally if the image projected on the screen is still out of position even

when the positions of the projector and screen are correct.

1) Press as to select [SHIFT].

2) Press the <ENTER> button. f The [SHIFT] screen is displayed.

3) Press asqw to adjust the position.

Orientation Operation Adjustment

Press a.

Vertical (up and down)

adjustment

Press s.

Press w.

Horizontal (right and left)

adjustment

Press q.

The image position moves up.

The image position moves down.

The image position moves to the right.

The image position moves to the left.

Note

f For the portrait setting, image position is moved horizontally when “Vertical (up and down) adjustment” is made. Image position is moved

vertically when “Horizontal (right and left) adjustment” is made.

[ASPECT]

You can switch the aspect ratio of the image. The aspect ratio is switched within the screen range selected in the [DISPLAY OPTION] menu → [SCREEN

SETTING] → [SCREEN FORMAT]. Set [SCREEN FORMAT] rst. (x page 104)

1) Press as to select [ASPECT].

2) Press qw or the <ENTER> button. f The [ASPECT] individual adjustment screen is displayed.

3) Press qw to switch the item.

f The items will switch each time you press the button.

[DEFAULT] Displays images without changing the aspect ratio of the input signals.

ENGLISH - 91

Page 92

Chapter 4 Settings — [POSITION] menu

[AUTO]

[THROUGH] Displays images without changing the resolution of the input signals.

[16:9]

[4:3]

[H FIT]

[V FIT]

[HV FIT]

*1 During RGB signal (480/60i, 480/60p) input only *2 Standard signals are input signals with an aspect ratio of 4:3 or 5:4. *3 Wide-screen signals are input signals with an aspect ratio of 16:10, 16:9, 15:9 or 15:10.

The projector identies the video ID (VID) embedded in the video signals and displays the image by automatically switching the screen sizes between 4:3 and 16:9. This function is effective for 480/60i and 480/60p signals.

Displays images with the aspect ratio converted to 16:9 when standard signals are input wide-screen signals are input*3, the images are displayed without changing the aspect ratio.

Displays images without changing the aspect ratio when standard signals are input screen signals are input*3, the images are reduced to be displayed without changing input aspect ratio

so that the images will t in the 4:3 screen. Displays images using the entire width of the screen range selected in [SCREEN FORMAT]. When

signals have the aspect ratio vertically longer than the screen aspect ratio selected in [SCREEN FORMAT], the images are displayed with the top and bottom parts cut off.

Displays images using the entire height of the screen range selected in [SCREEN FORMAT]. When

signals have the aspect ratio horizontally longer than the aspect ratio of the screen selected in

[SCREEN FORMAT], the images are displayed with the right and left parts cut off. Displays images in the entire screen range selected in [SCREEN FORMAT]. When the aspect ratio of

the input signals differs from that of the screen range, the images are displayed with the aspect ratio

converted to that of the screen selected in [SCREEN FORMAT].

. When

. When wide-

Note

f Some size modes are not available for certain types of input signals.

[DEFAULT] cannot be selected for an analog RGB signal (480/60i, 480/60p). [THROUGH] cannot be selected for a 4K video signal (resolution of 3 840 x 2 160 or 4 096 x 2 160).

f If an aspect ratio which is different from the aspect ratio for the input signals is selected, the images will appear differently from the originals.

Be careful of this when selecting the aspect ratio.

f If using the projector in places such as cafes or hotels to display programs for a commercial purpose or for public presentation, note that

adjusting the aspect ratio or using the zoom function to change the screen images may be an infringement of the rights of the original copyright owner for that program under copyright protection laws. Take care when using a function of the projector such as the aspect ratio adjustment and zoom function.

f If conventional (normal) 4:3 images which are not wide-screen images are displayed on a wide screen, the edges of the images may not

be visible or they may become distorted. Such images should be viewed as with an aspect ratio of 4:3 in the original format intended by the

creator of the images.

[ZOOM]

You can adjust the image size. The adjustments in [ZOOM] will differ depending on the setting of the [POSITION] menu → [ASPECT].

When [ASPECT] is set to other than [DEFAULT] and [THROUGH]

1) Press as to select [ZOOM].

2) Press the <ENTER> button.

f The [ZOOM] screen is displayed.

3) Press as to select [INTERLOCKED].

4) Press qw to switch the item.

[OFF] Sets the [VERTICAL] and [HORIZONTAL] zoom ratio.

[ON]

5) Press as to select [VERTICAL] or [HORIZONTAL].

f If [ON] is selected, select [BOTH].

6) Press qw to adjust.

Note

Uses [BOTH] to set zoom ratio. Image can be enlarged or reduced vertically and horizontally at the same magnication.

f When the [POSITION] menu → [ASPECT] is set to [THROUGH], [ZOOM] cannot be adjusted.

92 - ENGLISH

Page 93

Chapter 4 Settings — [POSITION] menu

When [ASPECT] is set to [DEFAULT]

1) Press as to select [ZOOM].

2) Press the <ENTER> button.

f The [ZOOM] screen is displayed.

3) Press as to select [MODE].

4) Press qw to switch the item.

[INTERNAL] Enlarges the size within the aspect range set with [SCREEN FORMAT].

[FULL] Enlarges or reduces the size using the entire display area set with [SCREEN FORMAT].

5) Press as to select [INTERLOCKED].

6) Press qw to switch the item.

[OFF] Sets the [VERTICAL] and [HORIZONTAL] zoom ratio.

[ON]

7) Press as to select [VERTICAL] or [HORIZONTAL].

f If [ON] is selected, select [BOTH].

Uses [BOTH] to set zoom ratio. Image can be enlarged or reduced vertically and horizontally at the same magnication.

8) Press qw to adjust.

Note

f When the [POSITION] menu → [ASPECT] is set to anything other than [DEFAULT], [MODE] is not displayed.

[CLOCK PHASE]

You can adjust the image to achieve an optimal image when there is a ickering image or smeared outlines.

1) Press as to select [CLOCK PHASE].

2) Press qw or the <ENTER> button. f The [CLOCK PHASE] individual adjustment screen is displayed.

3) Press qw to adjust.

f Adjustment value will change between [0] and [+31]. Adjust the image so that the amount of interference is

at a minimum.

Note

f Adjustment may not be possible depending on the signal. f There may be no optimal value if the output from the input computer is unstable. f There may be no optimal value when the total dot number is shifted. f [CLOCK PHASE] can be adjusted only when YCBCR/YPBPR signal or RGB signal is input to the <RGB 1 IN> terminal or the <RGB 2 IN>

terminal.

f [CLOCK PHASE] cannot be adjusted when a digital signal is input. f The adjustment value will change to [0] when w is pressed while it was at [+31]. Also, the adjustment value will change to [+31] when q is

pressed while it was at [0].

[GEOMETRY]

You can correct various types of distortion in a projected image. Unique image processing technology enables projection of a square image on a special screen shape.

1) Press as to select [GEOMETRY].

2) Press qw to switch the item.

f The items will switch each time you press the button.

[OFF] Does not perform geometric adjustment.

[KEYSTONE] Adjusts any trapezoidal distortion in the projected image.

[CORNER CORRECTION] Adjusts any distortion in the four corners of the projected image.

ENGLISH - 93

Page 94

Chapter 4 Settings — [POSITION] menu

[CURVED CORRECTION] Adjusts any curved distortion in the projected image.

[PC-1]

[PC-3]

*1 Advanced skills are necessary to use a computer to control geometric adjustment. Consult your dealer. Up to three geometric adjustments

performed using the computer can be saved.

Performs geometric adjustment using a computer.[PC-2]

Setting [KEYSTONE] or [CURVED CORRECTION]

1) Press as to select [GEOMETRY].

2) Press qw to select [KEYSTONE] or [CURVED CORRECTION].

3) Press the <ENTER> button. f The [GEOMETRY:KEYSTONE] or [GEOMETRY:CURVED CORRECTION] screen is displayed.

4) Press as to select the item to adjust.

5) Press qw to adjust.

[KEYSTONE]

[LENS THROW RATIO]

Set the throw ratio. Select the value close to the actual projection distance divided by projected image width here.

[VERTICAL KEYSTONE]

[HORIZONTAL KEYSTONE]

[VERTICAL BALANCE] [HORIZONTAL BALANCE]

Adjust the setting according to the lens shift range in the vertical direction.

Adjust the setting according to the lens shift range in the horizontal direction.

94 - ENGLISH

Page 95

Chapter 4 Settings — [POSITION] menu

[CURVED CORRECTION]

[LENS THROW RATIO]

Set the throw ratio. Select the value close to the actual projection distance divided by projected image width here.

[VERTICAL KEYSTONE]

[VERTICAL ARC] [HORIZONTAL ARC]

[VERTICAL BALANCE] [HORIZONTAL BALANCE]

[HORIZONTAL KEYSTONE]

[MAINTAIN ASPECT RATIO]

Select [ON] to correct while keeping the aspect ratio.

Setting [CORNER CORRECTION]

1) Press as to select [GEOMETRY].

2) Press qw to select [CORNER CORRECTION].

3) Press the <ENTER> button. f The [GEOMETRY:CORNER CORRECTION] screen is displayed.

4) Press as to select the item to adjust, and press the <ENTER> button.

f When [LINEARITY] is selected, press qw to select either adjustment method ([AUTO] or [MANUAL]).

Select [AUTO] normally. For details of operation when [MANUAL] is selected, refer to “Adjusting to desired linearity” (x page 96).

5) Press asqw to adjust.

[CORNER CORRECTION]

[UPPER LEFT]

[UPPER RIGHT] [LOWER LEFT] [LOWER RIGHT]

[LINEARITY]

Horizontal direction

Vertical direction

ENGLISH - 95

Page 96

Chapter 4 Settings — [POSITION] menu

Adjusting to desired linearity

1) Press as to select [GEOMETRY].

2) Press qw to select [CORNER CORRECTION].

3) Press the <ENTER> button. f The [GEOMETRY:CORNER CORRECTION] screen is displayed.

4) Press as to select [LINEARITY].

5) Press qw to select [MANUAL].

6) Press the <ENTER> button. f The [LINEARITY] screen is displayed.

7) Press asqw to adjust.

Note

f The menu or logo may run off the screen when [GEOMETRY] is set. f The edge blending adjustment may not be performed correctly depending on the environment when using the [ADVANCED MENU] menu →

[EDGE BLENDING] and [GEOMETRY] simultaneously.

f The optional Upgrade Kit (Model No.: ET-UK20) can be used to expand the correctable range. To purchase the product, consult your dealer. f The image may disappear momentarily during adjustment, but this is not a malfunction.

96 - ENGLISH

Page 97

Chapter 4 Settings — [ADVANCED MENU] menu

[ADVANCED MENU] menu

On the menu screen, select [ADVANCED MENU] from the main menu, and select an item from the sub-

menu. Refer to “Navigating through the menu” (x page 77) for the operation of the menu screen.

[DIGITAL CINEMA REALITY]

The picture quality is enhanced by raising the vertical resolution higher performing the cinema processing when

interlace signal for moving image is input.

1) Press as to select [DIGITAL CINEMA REALITY].

2) Press qw to switch the item.

f The items will switch each time you press the button.

[AUTO] Automatically detects the signal and performs the cinema processing. (Factory default setting)

[OFF] Does not perform cinema processing.

[30p FIXED]

[25p FIXED]

When 60 Hz vertical scanning frequency signals are input

When 50 Hz vertical scanning frequency signals are input

Performs forced cinema processing (2:2 pulldown).

Note

f In [DIGITAL CINEMA REALITY], the picture quality will degrade when a signal other than the 2:2 pulldown is set as [25p FIXED] or [30p

FIXED]. (Vertical resolution will degrade.)

f When the [ADVANCED MENU] menu → [FRAME RESPONSE] is set to [FAST], [DIGITAL CINEMA REALITY] cannot be set.

[BLANKING]

You can adjust the blanking width if there are noises at the edge of the screen or the image is slightly running out from the screen while an image from the VCR or other devices are projected.

1) Press as to select [BLANKING].

2) Press the <ENTER> button. f The [BLANKING] adjustment screen is displayed.

3) Press as to select [UPPER], [LOWER], [LEFT], or [RIGHT].

f The blanking width can be adjusted to arbitrary shape using a computer when [CUSTOM MASKING] is set

to anything other than [OFF] ([PC-1], [PC-2], or [PC-3]). Up to three blanking settings adjusted using the

computer can be saved.

To use the [CUSTOM MASKING] function, the optional Upgrade Kit (Model No.: ET-UK20) is required. To

purchase the product, consult your dealer.

4) Press qw to adjust the blanking width.

Blanking correction Item Operation Adjustment Range of adjustment

Press q.

The blanking zone moves upward.

Top of the screen [UPPER]

Bottom of the

screen

[LOWER]

Press w.

Press q.

The blanking zone moves downward.

The blanking zone moves upward.

The blanking zone moves downward.

Top and bottom 0 - 1 198

ENGLISH - 97

Page 98

Chapter 4 Settings — [ADVANCED MENU] menu

Blanking correction Item Operation Adjustment Range of adjustment

The blanking zone moves to the right.

The blanking zone moves to the left.

Left side of the

screen

Press w.

[LEFT]

Press q.

Left and right 0 - 1 918

Right side of the

screen

[RIGHT]

Press q.

Press w.

The blanking zone moves to the right.

The blanking zone moves to the left.

Note

f The upper limit of the adjustment range may be restricted so that the entire projected image is not covered by blanking width.

[INPUT RESOLUTION]

You can adjust the image to achieve an optimal image when there is a ickering image or smeared outlines.

1) Press as to select [INPUT RESOLUTION].

2) Press the <ENTER> button. f The [INPUT RESOLUTION] screen is displayed.

3) Press as to select [TOTAL DOTS], [DISPLAY DOTS], [TOTAL LINES], or [DISPLAY LINES], and press

qw to adjust each item.

f Values corresponding to the signal being input are displayed automatically for each item. Increase or

decrease the displayed values and adjust to the optimal point while viewing the screen if there are vertical stripes or sections are missing from the screen.

Note

f Previously mentioned vertical banding will not occur with all white signal input. f Image may be disrupted during automatic adjustment, but this is not a malfunction. f [INPUT RESOLUTION] can be adjusted only when RGB signal or YCBCR/YPBPR signal is input to the <RGB 1 IN> terminal or the <RGB 2

IN> terminal.

f Adjustment may not be possible depending on the signal.

[CLAMP POSITION]

You can adjust the optimal point when the black part of the image is blunt or it has turned green.

1) Press as to select [CLAMP POSITION].

2) Press qw to adjust.

Status Rough guide for optimal value Range of adjustment

The black part is blunt.

The black part is green.

The point where bluntness of the black part improves the most is the optimal value.

The point where the green part becomes black, and the bluntness has improved is the optimal value.

1 - 255

Note

f [CLAMP POSITION] can be adjusted only when a signal is input to the <RGB 1 IN> terminal or the <RGB 2 IN> terminal. f Adjustment may not be possible depending on the signal.

[EDGE BLENDING]

The edge blending function allows multiple images to be seamlessly overlapped by using the inclination of the brightness at the overlapped area.

1) Press as to select [EDGE BLENDING].

98 - ENGLISH

Page 99

Chapter 4 Settings — [ADVANCED MENU] menu

2) Press qw to switch the item.

f The items will switch each time you press the button.

[OFF] Sets the edge blending function to off.

[ON] Use the setting value preset in the projector for the inclination of the edge blending area.

[USER]

Use the user-setting value for the inclination of the edge blending area. (Conguration/registration requires separate software. Consult your dealer.)

f Proceed to Step 3) when anything other than [OFF] is selected.

3) Press the <ENTER> button. f The [EDGE BLENDING] screen is displayed.

4) Press as to specify the location to be corrected.

f When joining at top: Set [UPPER] to [ON] f When joining at bottom: Set [LOWER] to [ON] f When joining at left: Set [LEFT] to [ON] f When joining at right: Set [RIGHT] to [ON]

5) Press qw to switch to [ON].

6) Press as to select [START] or [WIDTH].

7) Press qw to adjust the starting position or correction width.

8) Press as to select [MARKER].

9) Press qw to switch to [ON].

f A marker for image position adjustment is displayed. The position where the red and green lines overlap for

the projectors to be joined will be the optimal point. Make sure to set the correction width for the projectors to be joined with the same value. Optimal joining is not possible with projectors that have different

correction widths.

The optimal point is the point at which these lines overlap.

Green line

Red line

10) Press as to select [BRIGHTNESS ADJUST].

11) Press the <ENTER> button.

f The [BRIGHTNESS ADJUST] screen is displayed. f By setting [AUTO TESTPATTERN] to [ON] on the [EDGE BLENDING] screen, the black test pattern is

displayed when you enter the [BRIGHTNESS ADJUST] screen.

12) Press as to select [NON-OVERLAPPED BLACK LEVEL].

13) Press the <ENTER> button.

f The [NON-OVERLAPPED BLACK LEVEL] screen is displayed. f [RED], [GREEN], and [BLUE] can be adjusted individually if [INTERLOCKED] is set to [OFF].

14) Press as to select an item, and press qw to adjust the setting.

f Once the adjustment is completed, press the <MENU> button to return to the [BRIGHTNESS ADJUST]

screen.

15) Press as to select [UPPER], [LOWER], [LEFT], or [RIGHT] in [BLACK BORDER WIDTH].

ENGLISH - 99

Page 100

Chapter 4 Settings — [ADVANCED MENU] menu

16) Press qw to set the region (width) of the [BLACK BORDER WIDTH] adjustment.

17) Press as to select [UPPER KEYSTONE AREA], [LOWER KEYSTONE AREA], [LEFT KEYSTONE

AREA], or [RIGHT KEYSTONE AREA].

18) Press qw to adjust the tilt of the border between [NON-OVERLAPPED BLACK LEVEL] and [BLACK

BORDER LEVEL].

19) Press as to select [BLACK BORDER LEVEL].

20) Press the <ENTER> button.

f The [BLACK BORDER LEVEL] screen is displayed. f [RED], [GREEN], and [BLUE] can be adjusted individually if [INTERLOCKED] is set to [OFF].

21) Press as to select an item, and press qw to adjust the setting.

f Once the adjustment is completed, press the <MENU> button to return to the [BRIGHTNESS ADJUST]

screen.

22) Press as to select [UPPER], [LOWER], [LEFT], or [RIGHT] for [OVERLAPPED BLACK LEVEL].

23) Press the <ENTER> button.

f The [OVERLAPPED BLACK LEVEL] screen is displayed. f [RED], [GREEN], and [BLUE] can be adjusted individually if [INTERLOCKED] is set to [OFF].

24) Press as to select an item, and press qw to adjust the setting.

[BLACK BORDER WIDTH] (Right)

Projection range Edge blending [WIDTH] (Right)

[MARKER] (Red)

Edge blending [START] (Right) ([MARKER] (Green))

[OVERLAPPED BLACK LEVEL] (Right)

[NON-OVERLAPPED BLACK LEVEL]

[BLACK BORDER LEVEL]

Note

f [BRIGHTNESS ADJUST] is a function that makes the increased brightness in black level of the overlapping image area difcult to

notice when [EDGE BLENDING] is used to structure a multi-display screen. The optimal point of correction is set by adjusting [NONOVERLAPPED BLACK LEVEL] so the black level of the overlapping image area will be the same level as the non-overlapping area. If the border area of the part where the image is overlapping and the non-overlapping part gets brighter after adjusting [NON-OVERLAPPED BLACK LEVEL], adjust the width of the top, bottom, left, or right. Adjust [BLACK BORDER LEVEL] when the width adjustment makes only

the border area darker.

f The joining part may look discontinuous depending on the position you are looking from when a screen with high gain or rear screen is used. f When structuring a multi-display screen using both horizontal and vertical edge blending, adjust [OVERLAPPED BLACK LEVEL] rst before

making adjustments in Step 12). Adjustment method is same as the procedure of [NON-OVERLAPPED BLACK LEVEL].

f If only horizontal or vertical edge blending is used, set all items in [OVERLAPPED BLACK LEVEL] to 0. f The [AUTO TESTPATTERN] setting will change in conjunction with the setting in the [DISPLAY OPTION] menu → [COLOR MATCHING] →

[AUTO TESTPATTERN].

f Adjustment of the tilt of the border between [NON-OVERLAPPED BLACK LEVEL] and [BLACK BORDER LEVEL] is a function to perform

edge blending together with the adjustment of [GEOMETRY] (x page 93). Perform the edge blending adjustment matching the shape in [NON-OVERLAPPED BLACK LEVEL] following Steps 17) and 18) when [NON-OVERLAPPED BLACK LEVEL] is tilted due to correcting the keystone with the [POSITION] menu → [GEOMETRY] → [KEYSTONE].

[FRAME RESPONSE]

Set image frame delay.

1) Press as to select [FRAME RESPONSE].

2) Press qw to switch the item.

f The items will switch each time you press the button.

[NORMAL] Standard setting.

[FAST]

Simplies the image processing to reduce image frame delay.

100 - ENGLISH
