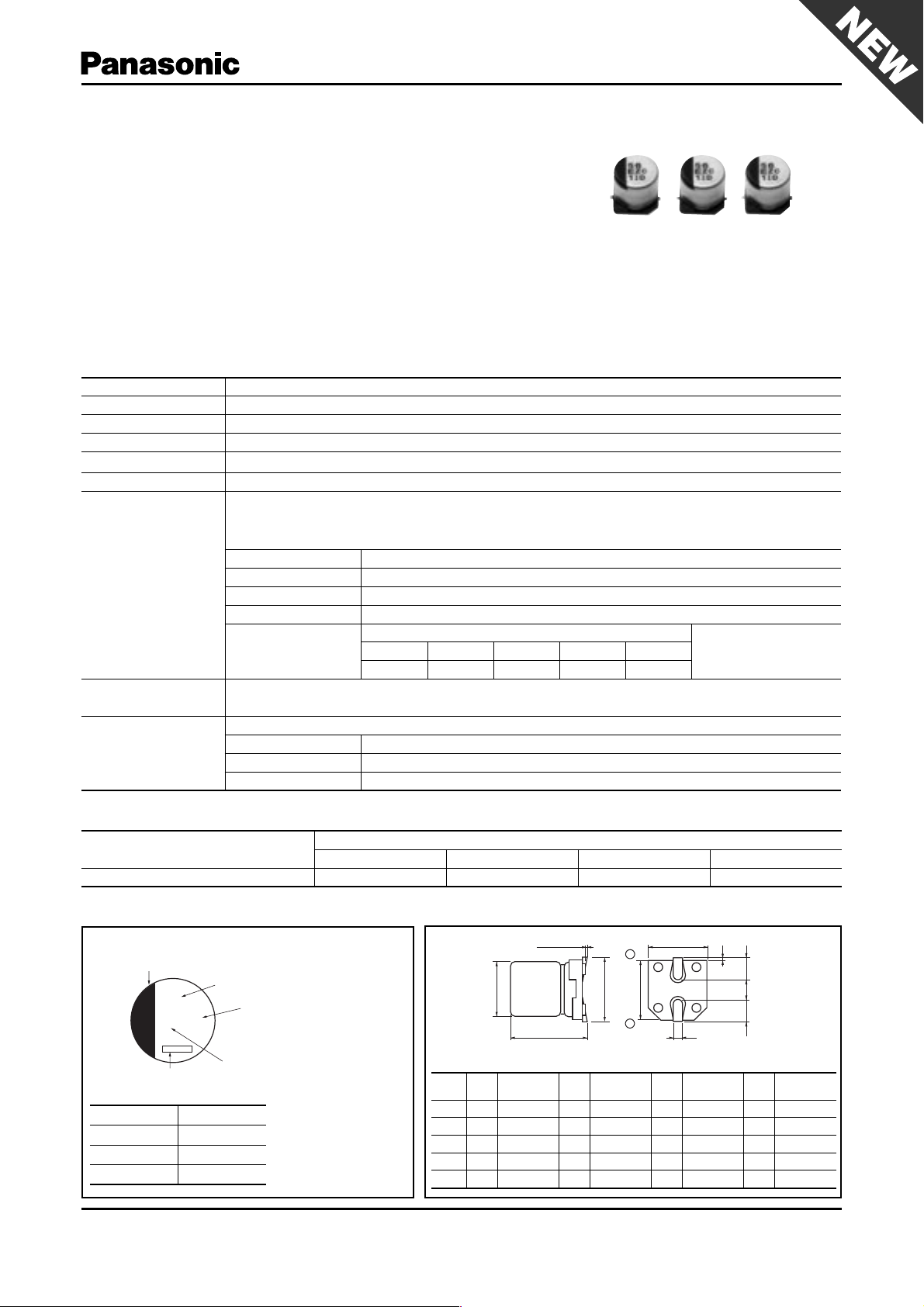

Conductive Polymer Hybrid Aluminum Electrolytic Capacitor/ZC
A±0.2
W
()Reference size
L
φD±0.5
H
B±0.2
(I)
K
(P)
(I)
+
–
0.3 max.
Surface Mount Type
Series:
■ Features
Endurance: 4000 h at 125 °C
●
(The longest endurance in the industry by each case size)
Low ESR and High ripple current(85% over, Lower ESR than Current V-TP)
●
High-withstand voltage (25 V to 63 V),Low LC(0.01 CV or 3 µA)
●
Equivalent to conductive polymer type Aluminum Electrolytic Capacitor
●
(There are little characteristics change by temperature and frequency)
RoHS directive compliant
●
■ Specifi cations
Category Temp. Range –55 °C to +125 °C
Rated W.V.Range 25 V. DC to 6 3 V. D C
Nominal Cap.Range 10 µF to 330 µF
Capacitance Tolerance ±20 % (120 Hz/+20 °C)
DC Leakage Cur rent I < 0.01 CV or 3 (µA) After 2 minutes (whichever is greater)
tan
δ
Endurance
Shelf Life
Resistance to
Soldering Heat
Typ e:
ZC
V
High temperature Lead-Free refl ow
The capacitor shall be subjected to application of the D.C. voltage with full rated ripple current at +125 °C for
4000 hours. After stabilizing at room temperature(+15 to 35 °C), the capacitor shall not exceed the specifi ed
limits.
(The sum of DC voltage and ripple peak voltage shall not exceed the rated voltage.)
Capacitance change ±30 % of initial measured value
tan
δ
E. S. R.
DC leakage current
ESR after Endurance
(액/100 kHz) (–40 °C)
After storage for 1000 hours at +125 °C±2 °C with no voltage applied and then being stabilized at +20 °C,
capacitors shall meet the limits specifi ed in Endurance. (With voltage treatment)
After refl ow soldering and then being stabilized at +20 °C, capacitors shall meet the following limits.
Capacitance change ±10 % of initial measured value
tan
δ
DC leakage current
Please see the attached Standard Products list
200 % of initial specifi ed value
<
200 % of initial specifi ed value
<
initial specifi ed value
<
Size Code
CDD8FG
2.0 1.4 0.8 0.4 0.3
initial specifi ed value
<
initial specifi ed value
<
■ Frequency correction factor for ripple current
Frequency (Hz)
120 1 k 10 k 100 k to
Correction factor 0.10 0.30 0.60 1.00
■ Di men sions in mm (not to scale)■ Marking
Example:25 V 33 µF Marking color : BLACK
Negative polarity marking (–)
Capacitance (µF)
33
Series identification
ZCE
Rated Voltage Mark
Size
DLA, B H I W P K
code
C 5.0 5.8±0.3 5.3 6.5 max. 2.2 0.65±0.1 1.5 0.35
D 6.3 5.8±0.3 6.6 7.8 max. 2.6 0.65±0.1 1.8 0.35
D8 6.3 7.7±0.3 6.6 7.8 max. 2.6 0.65±0.1 1.8 0.35
F 8.0 10.2±0.3 8.3 10.0 max. 3.4 0.90±0.2 3.1 0.70±0.2
G 10.0 10.2±0.3 10.3 12.0 max. 3.5 0.90±0.2 4.6 0.70±0.2
Lot number
Rated Voltage Mark
E25 V
V35 V
H50 V
J63 V
Design and specifi cations are each subject to change without notice. Ask factory for the current technical specifi cations before purchase and/or use.
Should a safety concern arise regarding this product, please be sure to contact us immediately.
(mm)
+ 0.15
- 0.20
+ 0.15
- 0.20
+ 0.15
- 0.20
Jan. 201200
Page 2
Conductive Polymer Hybrid Aluminum Electrolytic Capacitor/ZC
■ Standard Products
Case size Specifi cation
W.V.
Cap.
(±20 %)
Dia. Length
Size
Code
Ripple
Current
(10 0 kH z)
(+125 °C)
(V) (µF) (mm) (mm)
(mA r.m.s.)
33 5 5.8 C 550 80 0.14
56 6.3 5.8 D 900 50 0.14
25
100 6.3 7.7 D8 1400 30 0.14
220 8 10.2 F 1600 27 0.14
330 10 10.2 G 2000 20 0.14
22 5 5.8 C 550 100 0.12
47 6.3 5.8 D 9 00 60 0.12
35
68 6.3 7.7 D8 1400 35 0.12
150 8 10.2 F 160 0 27 0.12
270 10 10.2 G 2000 20 0.12
10 5 5.8 C 500 120 0.10
22 6.3 5.8 D 750 80 0.10
50
33 6.3 7.7 D8 1100 40 0.10
68 8 10.2 F 1250 30 0.10
100 10 10.2 G 1600 28 0.10
10 6.3 5.8 D 700 120 0.08
63
22 6.3 7.7 D8900 80 0.08
33 8 10.2 F 1100 4 0 0.08
56 10 10.2 G 1400300.08
The taping dimensions are explained on EE188 of our Catalog. Please use it as a ref er ence guide.
Refl ow Profi le(Fig-5,Fig-6) listed on EE186 of our Catalog.
E.S.R.
(10 0 kH z)
(+20 ° C)
(
m액)(pcs)
tan
δ
(120 Hz)
(+20 ° C)
Part No.
(RoHS:compliant)
EEHZC1E330R
EEHZC1E560P
EEHZC1E101XP
EEHZC1E221P
EEHZC1E331P
EEHZC1V220R
EEHZC1V470P
EEHZC1V680XP
EEHZC1V151P
EEHZC1V271P
EEHZC1H100R
EEHZC1H220P
EEHZC1H330XP
EEHZC1H680P
EEHZC1H101P
EEHZC1J100P
EEHZC1J220XP
EEHZC1J330P
EEHZC1J560P
Endurance : 125 °C 4000 h
Min.
Packaging Q'ty
Refl ow
Tap ing
(5) 1000
(5) 1000
(5) 900
(6) 500
(6) 500
(5) 1000
(5) 1000
(5) 900
(6) 500
(6) 500
(5) 1000
(5) 1000
(5) 1000
(6) 900
(6) 500
(5) 1000
(5) 900
(6) 500
(6) 500
Design and specifi cations are each subject to change without notice. Ask factory for the current technical specifi cations before purchase and/or use.
Should a safety concern arise regarding this product, please be sure to contact us immediately.
Jan. 201200
