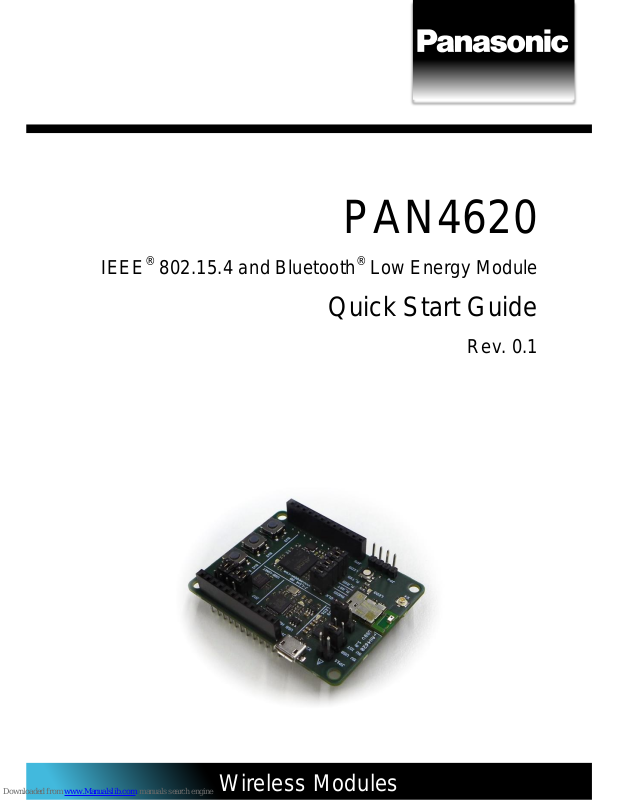

Panasonic PAN4620 Quick Start Manual
PAN4620
IEEE® 802.15.4 and Bluetooth® Low Energy Module
Quick Start Guide
Rev. 0.1
Wireless Modules
PAN4620
Quick Start Guide Rev. 0.1 Page 2
Overview
The PAN4620 is Panasonic’s Internet of Things
dual mode module comprising NXP
®
’s Kinetis
®
MKW41Z512CAT4 SoC – a 2.4 GHz 802.15.4 and
Bluetooth Low Energy (LE) wireless radio
microcontroller based on an ARM® Cortex®-M0+
core.
Features
•
UART, SPI, I²C, TSI, ADC, and DAC
•
Same form factor and compatible pinout for
VCC, GND, Reset, UART, I²C, and SWD as
PAN1026, PAN1760, PAN1760A, and PAN1761
•
Single and concurrent operation of IEEE
802.15.4 and Bluetooth LE
•
Open to various known application layers or
proprietary solutions
•
Surface Mount Type dimensions:
15.6 mm x 8.7 mm x 1.9 mm
•
On module 32 MHz and 32 kHz crystal
•
SoC: NXP Kinetis KW41Z – 2.4 GHz 802.15.4
and Bluetooth LE 4.2 Wireless Radio
Microcontroller
•
Core: Up to 48 MHz 32 bit ARM Cortex-M0+
•
Memory: 512 kB of flash and 128 kB of SRAM
•
Voltage range: 1.8 V to 4.2 V
•
Temperature range: -40 °C to 85 °C
Characteristics
•
Transceiver frequency range 2 360 MHz to
2 483.5 MHz
•
Programmable transmitter output power:
-30 dBm to 3 dBm
•
Receiver sensitivity (Bluetooth LE): -93 dBm
•
Receiver sensitivity typical for IEEE Standard
802.15.4: -98 dBm
•
Typical receiver current consumption (3.6 V
supply): 8.5 mA
•
Transmitter current consumption (3.6 V supply,
0 dBm): 7.6 mA
Bluetooth
•
Bluetooth LE 4.2 compliant implementation
certified by Bluetooth SIG
•
Supporting software consisting of Bluetooth LE
host stack and profiles and IPv6
over Bluetooth LE
•
Bluetooth Developer Studio Plug-In
IEEE 802.15.4
•
IEEE standard 802.15.4 compliant
•
Supporting software consisting of 802.15.4
MAC/PHY implementation, Simple Media Access
Controller (SMAC), and NXP’s certified Thread®
and Zigbee® stacks are available.
Block Diagram
Chip
Antenna
NXP
KW41Z
GPIOs
SPI
Reset
VCC 1.8 V - 4.2 V
PAN4620
IEEE 802.15.4 and
Bluetooth Low Energy 4.2 Module
Crystal
32 MHz
Crystal
32.768 kHz
Flash
512 kB
SRAM
128 kB
UART
TSI
I²C
ADC
DAC
SWD
PAN4620
Quick Start Guide Rev. 0.1 Page 3
By purchase of any of the products described in this document the customer accepts the document's
validity and declares their agreement and understanding of its contents and recommendations. Panasonic
Industrial Devices Europe GmbH (Panasonic) reserves the right to make changes as required at any time
without notification.
© Panasonic Industrial Devices Europe GmbH 2019.
This document is copyrighted. Reproduction of this document is permissible only if reproduction is without
alteration and is accompanied by all associated warranties, conditions, limitations, and notices. Do not
disclose it to a third party.
All rights reserved.
This Quick Start Guide does not lodge the claim to be complete and free of mistakes.
The information contained herein is presented only as guidance for Product use. No responsibility is
assumed by Panasonic for any infringement of patents or any other intellectual property rights of third
parties that may result from the use of Product. No license to any intellectual property right is granted by
this document, whether express or implied, by estoppel or otherwise.
Description of hardware, software, and other information in this document is only intended to illustrate the
functionality of the referred Panasonic product. It should not be construed as guaranteeing specific
functionality of the product as described or suitable for a particular application.
Any provided (source) code shall not be used or incorporated into any products or systems whose
manufacture, use or sale is prohibited under any applicable laws or regulations.
Any outlined or referenced (source) code within this document is provided on an “as is” basis without any
right to technical support or updates and without warranty of any kind on a free of charge basis according
to § 516 German Civil Law (BGB) including without limitation, any warranties or conditions of title, noninfringement, merchantability, or fitness for a particular purpose. Customer acknowledges that (source)
code may bear defects and errors.
The third-party tools mentioned in this document are offered by independent third-party providers who are
solely responsible for these products. Panasonic has no responsibility whatsoever for the performance,
product descriptions, specifications, referenced content, or any and all claims or representations of these
third-party providers. Panasonic makes no warranty whatsoever, neither express nor implied, with respect
to the goods, the referenced contents, or any and all claims or representations of the third-party providers.
To the maximum extent allowable by Law Panasonic assumes no liability whatsoever including without
limitation, indirect, consequential, special, or incidental damages or loss, including without limitation loss of
profits, loss of opportunities, business interruption, and loss of data.
PAN4620
Quick Start Guide Rev. 0.1 Page 4
Table of Contents
1 About This Document ......................................................................................................................... 5
1.1 Purpose and Audience .............................................................................................................. 5
1.2 Revision History ......................................................................................................................... 5
1.3 Use of Symbols ......................................................................................................................... 5
1.4 Related Documents ................................................................................................................... 6
2 Overview .............................................................................................................................................. 7
3 PAN4620 USB Evaluation-Board Overview ...................................................................................... 8
3.1 Building Block Overview ............................................................................................................ 8
3.2 Architecture Overview................................................................................................................ 8
3.3 Breakout Pins ............................................................................................................................ 9
3.4 Configuration Settings ............................................................................................................... 9
4 Getting Started .................................................................................................................................. 11
4.1 Jumper Start up Configuration ................................................................................................. 11
4.2 Device Drivers ......................................................................................................................... 12
4.3 Using Initial Bluetooth Heart Rate Example on PAN4620 USB ............................................... 13
4.4 Getting NXP MCUXpresso IDE for PAN4620 Module ............................................................. 14
4.5 Getting NXP SDK for PAN4620 Module .................................................................................. 15
4.6 Using SDK in MCUXpresso IDE .............................................................................................. 16
5 Restricted Use ................................................................................................................................... 24
5.1 Life Support Policy ................................................................................................................... 24
5.2 Restricted End Use .................................................................................................................. 24
6 Appendix ........................................................................................................................................... 25
6.1 Ordering Information ................................................................................................................ 25
6.2 Contact Details ........................................................................................................................ 25
PAN4620
1 About This Document
Quick Start Guide Rev. 0.1 Page 5
1 About This Document
1.1 Purpose and Audience
This Quick Start Guide applies to the IEEE 802.15.4 and Bluetooth Low Energy development
platform PAN4620 USB. The intention is to enable our customers to easily integrate our module
PAN4620 in their product. This guide describes the needed software and gives useful hints.
The product is referred to as “The PAN4620” or “the module” within this document.
1.2 Revision History
Revision
Date
Modifications/Remarks
0.1
2019-02-20
1st version
1.3 Use of Symbols
Symbol
Description
Note
Indicates important information for the proper use of the product.
Non-observance can lead to errors.
Attention
Indicates important notes that, if not observed, can put the product’s functionality
at risk.
Tip
Indicates useful information designed to facilitate working with the PAN4620.
[chapter number]
[chapter title]
Cross reference
Indicates cross references within the document.
Example:
Description of the symbols used in this document 1.3 Use of Symbols.
Requirement
Indicates a requirement that must be met before the corresponding tasks can be
completed.
Result
Indicates the result of a task or the result of a series of tasks.
This font
GUI text
Indicates fixed terms and text of the graphical user interface.
Example:
Click Save.
PAN4620
1 About This Document
Quick Start Guide Rev. 0.1 Page 6
Symbol
Description
Menu > Menu item
Path
Indicates a path, e.g. to access a dialog.
Example:
In the menu, select File > Setup page.
This font
File names, messages, user input
Indicates file names or messages and information displayed on the screen or to
be selected or entered by the user.
Examples:
pan1760.c contains the actual module initialization.
The message Failed to save your data is displayed.
Enter the value Product 123.
[ Key ]
Key
Indicates a key on the keyboard, e.g. [ F10 ].
1.4 Related Documents
Please refer to the Panasonic website for more information as well as related documents
6.2.2 Product Information.
PAN4620
2 Overview
Quick Start Guide Rev. 0.1 Page 7
2 Overview
The PAN4620 USB is a development platform for the PAN4620 IEEE 802.15.4 and Bluetooth
Low Energy module to implement Bluetooth and IEEE 802.15.4 functionality into various
electronic devices.
This guide will describe how to start up the Evaluation Board, get all needed software sources,
execute example code and build own implementations.
Please refer to the Panasonic website for related documents 6.2.2 Product Information.
Further information on the variants and versions 6.1 Ordering Information.
PAN4620
3 PAN4620 USB Evaluation-Board Overview
Quick Start Guide Rev. 0.1 Page 8
3 PAN4620 USB Evaluation-Board Overview
3.1 Building Block Overview
3.2 Architecture Overview
PAN4620 USB Development Board
PAN4620
USB
USB-Hub
J-Link
SWD
FTDI
UART
Breakout
PIN header
