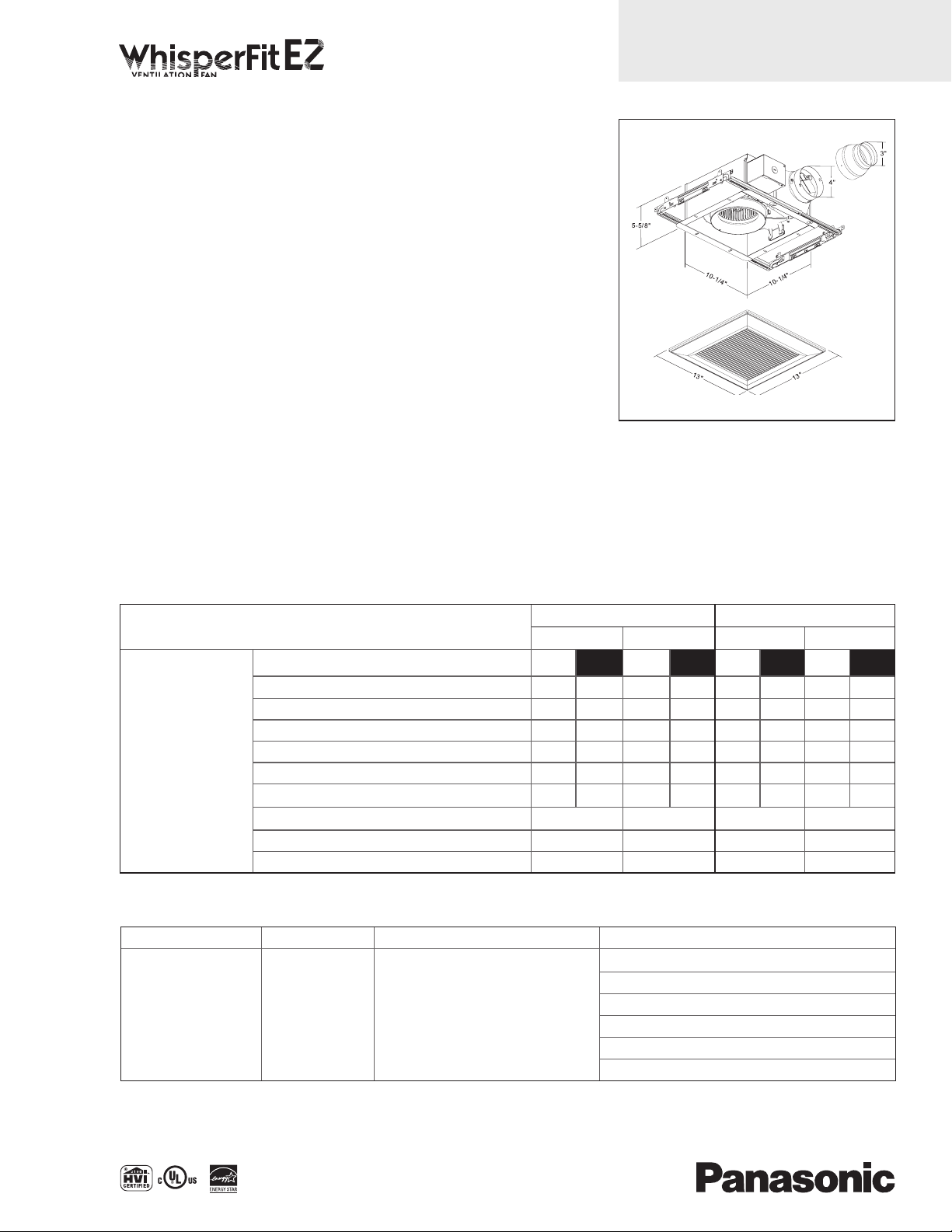

FV-08-11VF5
Specication Submittal Data / Panasonic Ventilation Fan
Description:
Ventilating fan shall be low sone ceiling mount
rated for continuous operation. Fan shall
be ENERGY STAR® rated and certied by the
Home Ventilating Institute (HVI). Evaluated by
the Underwriters Laboratories and conform to
both UL and cUL standards.
Motor/Blower:
• Four–pole totally enclosed condenser AC
motor rated for continuous use.
• Fan ventilation rates shall be manually
adjustable for 80 or 110 CFM.
• Power Rating shall be 120 volts and 60 Hz.
• Fan shall be UL and cUL listed for tub/shower
enclosure when GFCI protected.
• Motor equipped with thermal cutoff fuse.
• Removable, permanently lubricated, plug-in
motor.
Housing:
• Rust proof epoxy and polyester resin coating,
26 gauge galvanized steel body.
• 4" diameter duct with optional 3" adapter
included.
• Built in backdraft damper.
• Articulating and expandable extension bracket
up to 24".
Grille:
• Attractive design using Poly Pro material.
• Attaches directly to housing with torsion springs.
Warranty:
• ALL Parts: For period of 3 years from the date
of the original purchase.
Architectural Specications:
Ventilation fan shall be ceiling mount, ENERGY
STAR® rated with built-in speed selector. Select
from 80/110 CFM and no more than 0.3/0.8
sone as certied by the Home Ventilating
Institute (HVI) at 0.1 static pressure in inches
water gauge (w.g.) and with no less than 73/104
CFM and no more than 0.6/1.2 sone as certied
by HVI at 0.25 w.g. Power Consumption shall be
no greater than 21.1/26.5 watts at 0.1 w.g. and
20.7/26.4 watts at 0.25 w.g. ENERGY STAR®
rated with efciency of no less than 3.8/4.2
CFM/watt at 0.1 w.g. and 3.5/4.0 CFM/watt at
0.25 w.g. Duct diameter shall be no less than 4"
(3" if using the included duct adapter). The motor
shall be totally enclosed, four pole condenser
type engineered to run continuously. Power
rating shall be 120v/60Hz. Housing material shall
be no less than 26 gauge galvanized steel with
rust proof epoxy and polyester resin coating.
Fan shall be UL and cUL listed for tub/shower
enclosure when GFCI protected. Fan can be
used to comply with ASHRAE 62.2, LEED,
ENERGY STAR® IAP, EarthCraft, California
Title-24, and WA Ventilation Code.
3" or 4" Duct
FV-08-11VF5
See Following Page for Performance Curves
Specications: WhisperFit
Ventilation Fan
Characteristics
(HVI Certied Data)
®
EZ FV-08-11VF5
Static Pressure in inches w.g. 0.1 0.25 0.1 0.25 0.1 0.25 0.1 0.25
Air Volume (CFM) 110 104 100 88 80 73 70 61
Noise (sones) 0.8 1.2 1.3 1.5 0.3 0.6 0.5 1.1
Power Consumption (Watts) 26.5 26.4 26.4 25.9 21.1 20.7 20.9 20.3
Energy Efciency (CFM/Watt) 4.2 4.0 3.9 3.5 3.8 3.5 3.5 3.2
Speed (RPM) 961 1179 1215 1369 848 1123 1005 1236
Current (amps) 0.23 0.23 0.22 0.22 0.18 0.17 0.17 0.17
MAX. Current (amps) 0.23 0.23 0.18 0.18
Power Rating (V/Hz) 120/60 120/60 120/60 120/60
ENERGY STAR rated YES YES YES YES
For complete Installation Instructions visit us.panasonic.com/ventfans
Model Quantity Comments Project:
Panasonic Eco Solutions North America
Eco Products Division
Two Riverfront Plaza
Newark, NJ 07102
us.panasonic.com/ventfans
110 CFM Setting 80 CFM Setting
4" Duct 3" Duct 4" Duct 3" Duct
0.25=Installed Performance
Location:
Architect:
Engineer:
Contractor:
Submitted by:
Date:
Page 2
Airflow(CFM)
®
FV-08-11VF5

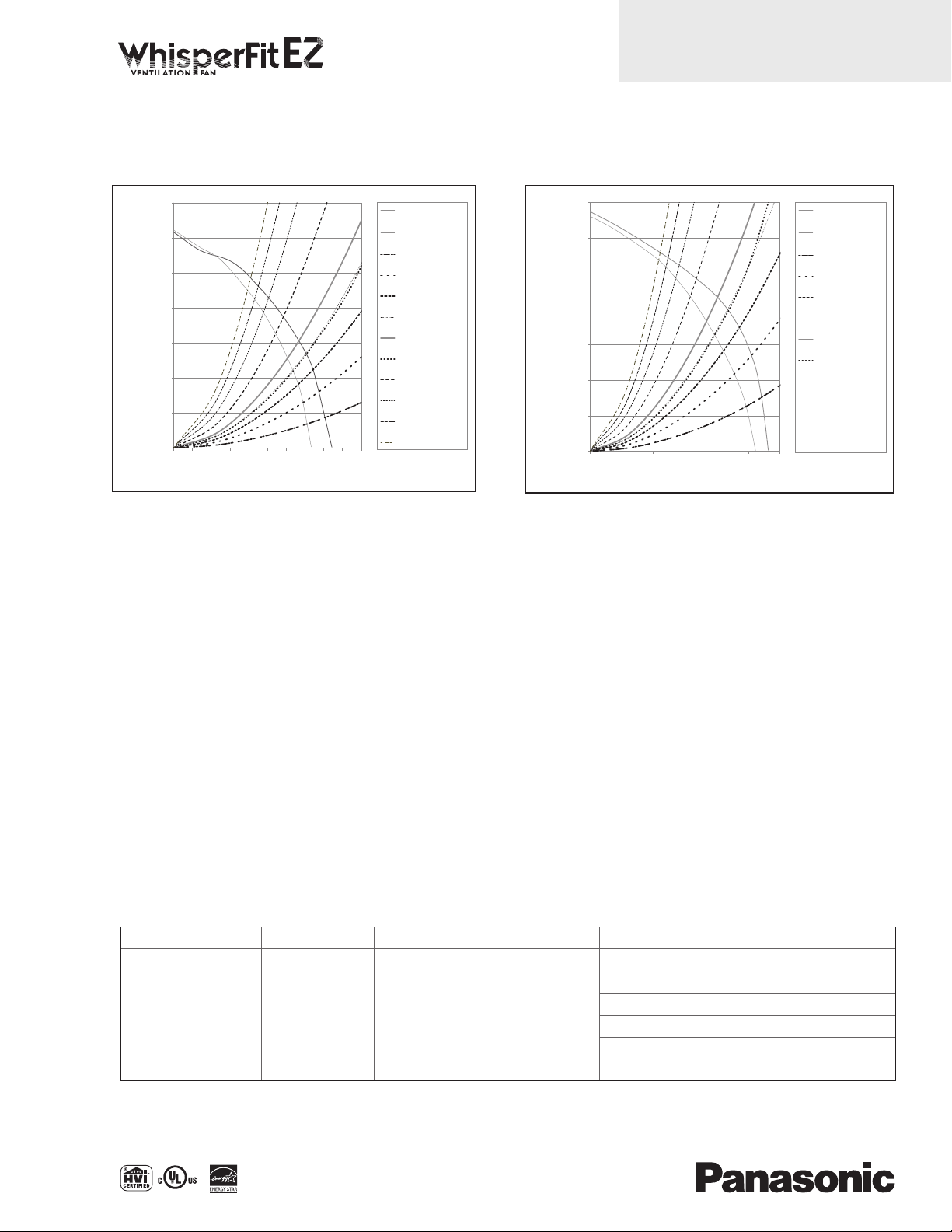

Performance Curve FV-08-11VF5 - 110 CFM Performance Curve FV-08-11VF5 - 80 CFM
0.70
0.60
0.50
0.40
Static Pressure(inch w.g.)
0.30
0.20
0.10
0.00
0 10 20 30 40 50 60 70 80 90 100
Airflow(CFM)
FV-08-11VF5
4" duct/80CFM
FV-08-11VF5
3" duct/80CFM
4" 20ft duct
4" 40ft duct
4" 60ft duct
4" 80ft duct
4" 100ft duct
3" 20ft duct
3" 40ft duct
3" 60ft duct
3" 80ft duct
3" 100ft duct
0.70
0.60
0.50
0.40
Static Pressure(inch w.g.)
0.30
0.20
0.10
0.00
FV-08-11VF5
4" duct/110CFM
FV-08-11VF5
3" duct/110CFM
4" 20ft duct
4" 40ft duct
4" 60ft duct
4" 80ft duct
4" 100ft duct
3" 20ft duct
3" 40ft duct
3" 60ft duct
3" 80ft duct
3" 100ft duct
1200 20 40 60 80 100
