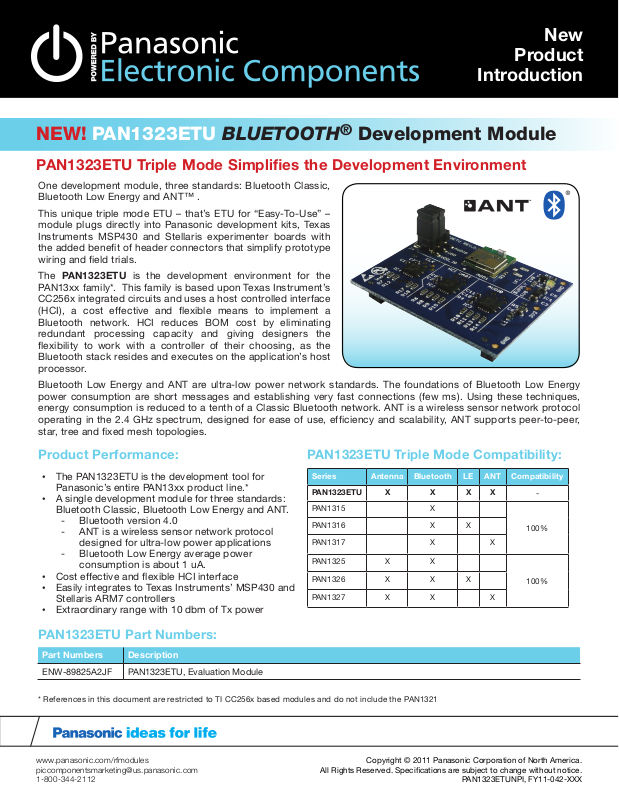

Introduction
Product
Introduction
NEW! PAN1323ETU BLUETOOTH® Development Module
PAN1323ETU Triple Mode Simplifies the Development Environment
One development module, three standards: Bluetooth Classic,
Bluetooth Low Energy and ANT™ .
This unique triple mode ETU – that’s ETU for “Easy-To-Use” –
module plugs directly into Panasonic development kits, Texas
Instruments MSP430 and Stellaris experimenter boards with
the added benefit of header connectors that simplify prototype
wiring and field trials.
The PAN1323ETU is the development environment for the
PAN13xx family*. This family is based upon Texas Instrument’s
CC256x integrated circuits and uses a host controlled interface
(HCI), a cost effective and flexible means to implement a
Bluetooth network. HCI reduces BOM cost by eliminating
redundant processing capacity and giving designers the
flexibility to work with a controller of their choosing, as the
Bluetooth stack resides and executes on the application’s host
processor.
Bluetooth Low Energy and ANT are ultra-low power network standards. The foundations of Bluetooth Low Energy
power consumption are short messages and establishing very fast connections (few ms). Using these techniques,
energy consumption is reduced to a tenth of a Classic Bluetooth network. ANT is a wireless sensor network protocol
operating in the 2.4 GHz spectrum, designed for ease of use, efficiency and scalability, ANT supports peer-to-peer,
star, tree and fixed mesh topologies.
New
Product Performance:
• The PAN1323ETU is the development tool for
Panasonic’s entire PAN13xx product line.*
• A single development module for three standards:
Bluetooth Classic, Bluetooth Low Energy and ANT.
- Bluetooth version 4.0
- ANT is a wireless sensor network protocol
designed for ultra-low power applications
- Bluetooth Low Energy average power
consumption is about 1 uA.
• Cost effective and flexible HCI interface
• Easily integrates to Texas Instruments’ MSP430 and
Stellaris ARM7 controllers
• Extraordinary range with 10 dbm of Tx power
PAN1323ETU Triple Mode Compatibility:
Series Antenna Bluetooth LE ANT Compatibility
PAN1323ETU X X X X
PAN1315 X
PAN1316 X X
PAN1317 X X
PAN1325 X X
PAN1326 X X X
PAN1327 X X X
PAN1323ETU Part Numbers:
Part Numbers Description
ENW-89825A2JF PAN1323ETU, Evaluation Module
* References in this document are restricted to TI CC256x based modules and do not include the PAN1321
-
100%
100%
www.panasonic.com/rfmodules
piccomponentsmarketing@us.panasonic.com
1-800-344-2112
All Rights Reserved. Specifications are subject to change without notice.
Copyright © 2011 Panasonic Corporation of North America.
PAN1323ETUNPI, FY11-042-XXX
Applications:
Product
New
Introduction
Product
Introduction
New
• Sports and Fitness
• Heart Rate Monitor
• Blood Pressure Sensor
• Blood Glucose Meter
• Thermometer
• Assisted Living
• Flood Alarm
• Heating Control
• Automatic Key Control
• Thermometer
Block Diagram PAN1323ETU:
• Industrial Sensors
• Toys
• Entertainment Devices
• Mobile Accessories
• All Bluetooth Wireless
Applications
Technical Specifications for PAN1323ETU:
Parameter Value Condition / Notes
Receiver Sensitivity (BER=10-3) -93 dBm GFSK, Typical, Dirty TX On
Output Power 10 dBm VDD_In = VBAT
Power Supply 1.7 - 4.8 V Battery or DC/DC
Ultra Low Power Scan 135 uA 1.28s Interval
GFSK DH1\DH5 33 mA Full Throughput
Operating Temperature Range -20°C to + 70°C -40°C to + 85°C Optional
