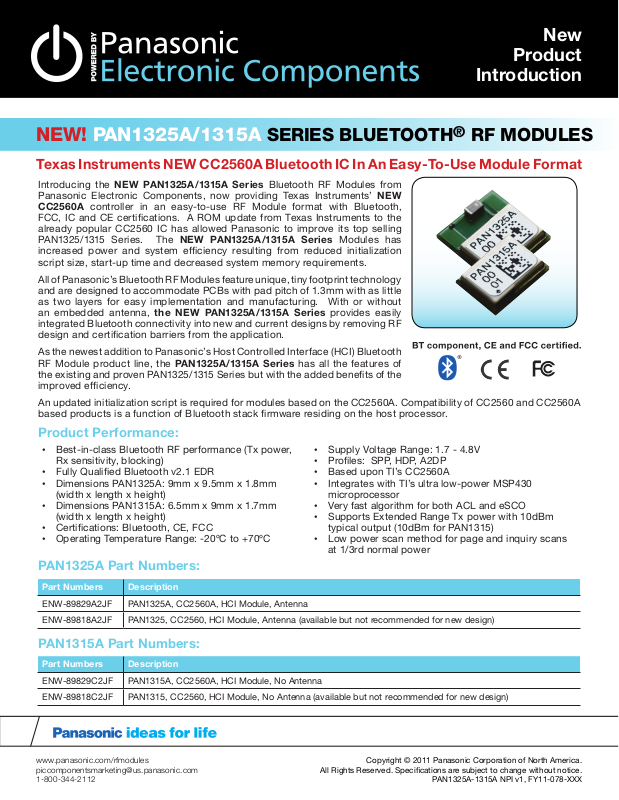

NEW! PAN1325A/1315A SERIES BLUETOOTH
®
RF MODULES
Texas Instruments NEW CC2560A Bluetooth IC In An Easy-To-Use Module Format
Introducing the NEW PAN1325A/1315A Series Bluetooth RF Modules from
Panasonic Electronic Components, now providing Texas Instruments’ NEW
CC2560A controller in an easy-to-use RF Module format with Bluetooth,
FCC, IC and CE certifications. A ROM update from Texas Instruments to the
already popular CC2560 IC has allowed Panasonic to improve its top selling
PAN1325/1315 Series. The NEW PAN1325A/1315A Series Modules has
increased power and system efficiency resulting from reduced initialization
script size, start-up time and decreased system memory requirements.
All of Panasonic’s Bluetooth RF Modules feature unique, tiny footprint technology
and are designed to accommodate PCBs with pad pitch of 1.3mm with as little
as two layers for easy implementation and manufacturing. With or without
an embedded antenna, the NEW PAN1325A/1315A Series provides easily
integrated Bluetooth connectivity into new and current designs by removing RF
design and certification barriers from the application.
As the newest addition to Panasonic’s Host Controlled Interface (HCI) Bluetooth
RF Module product line, the PAN1325A /1315A Series has all the features of
the existing and proven PAN1325/1315 Series but with the added benefits of the
improved efficiency.
An updated initialization script is required for modules based on the CC2560A. Compatibility of CC2560 and CC2560A
based products is a function of Bluetooth stack firmware residing on the host processor.
Product Performance:
• Best-in-class Bluetooth RF performance (Tx power,
Rx sensitivity, blocking)
• Fully Qualified Bluetooth v2.1 EDR
• Dimensions PAN1325A: 9mm x 9.5mm x 1.8mm
(width x length x height)
• Dimensions PAN1315A: 6.5mm x 9mm x 1.7mm
(width x length x height)
• Certifications: Bluetooth, CE, FCC
• Operating Temperature Range: -20ºC to +70ºC
• Supply Voltage Range: 1.7 - 4.8V
• Profiles: SPP, HDP, A2DP
• Based upon TI’s CC2560A
• Integrates with TI’s ultra low-power MSP430
microprocessor
• Very fast algorithm for both ACL and eSCO
• Supports Extended Range Tx power with 10dBm
typical output (10dBm for PAN1315)
• Low power scan method for page and inquiry scans
at 1/3rd normal power
PAN1325A Part Numbers:
Part Numbers Description
ENW-89829A2JF PAN1325A, CC2560A, HCI Module, Antenna
ENW-89818A2JF PAN1325, CC2560, HCI Module, Antenna (available but not recommended for new design)
PAN1315A Part Numbers:
Part Numbers Description
ENW-89829C2JF PAN1315A, CC2560A, HCI Module, No Antenna
ENW-89818C2JF PAN1315, CC2560, HCI Module, No Antenna (available but not recommended for new design)
www.panasonic.com/rfmodules
piccomponentsmarketing@us.panasonic.com
1-800-344-2112
All Rights Reserved. Specifications are subject to change without notice.
Copyright © 2011 Panasonic Corporation of North America.
PAN1325A-1315A NPI v1, FY11-078-XXX
Product
New
Introduction
Product
Introduction
New
Interfaces:
The PAN1325A/PAN1315A Host
Controlled Interface supports
several transport layers with the
following features:
• UART Rates of up to 4Mbps
• Three and Four Wire UART
Transport
Applications:
• Consumer Health Devices
• Heart Rate Monitor
• Blood Pressure Sensor
• Blood Glucose Meter
• Thermometer
• Fitness Sensors
• Assisted Living
• Flood Alarm
• Heating Control
• Automatic Key Control
• Industrial Sensors
• Toys
• Entertainment Devices
• Mobile Accessories
• All Bluetooth Wireless
Applications
Block Diagram PAN1325A:
Block Diagram PAN1315A:
Technical Specifications:
Parameter Value Condition / Notes
PAN1325A PAN1315A
Receiver Sensitivity (BER=10-3) -93 dBm -93 dBm GFSK, Typical, Dirty TX On
Output Power 10 dBm 10.5 dBm VDD_In = VBAT
Power Supply 1.7 - 4.8 V 1.7 - 4.8 V Battery or DC/DC
Ultra Low Power Scan 135 uA 135 uA 1.28s Interval
GFSK DH1\DH5 33 mA 33 mA Full Throughput
Operating Temperature Range -20°C to + 70°C -20°C to + 70°C
