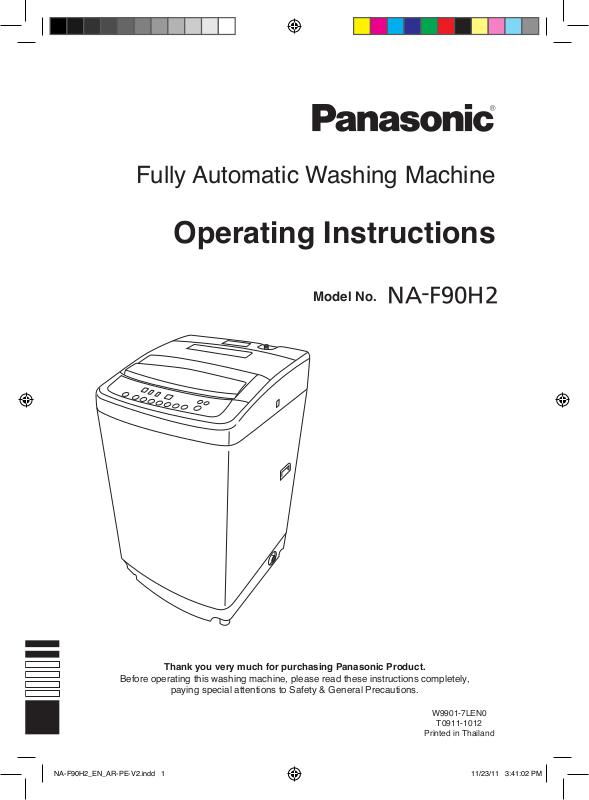

Panasonic NA-F90H2 User Manual

Fully Automatic Washing Machine

Operating Instructions

W9901-7LEN0

T0911-1012

Printed in Thailand

Model No.

NA-F90H2

Thank you very much for purchasing Panasonic Product.

Before operating this washing machine, please read these instructions completely,

paying special attentions to Safety & General Precautions.

NA-F90H2_EN_AR-PE-V2.indd 1 11/23/11 3:41:02 PM

Contents

ITEM PAGE

Safety & General Precautions 3-4 Name of parts 5 Procedures before washing 5 Determining load and detergent levels with the Quick Indication 6 Laundry Detergent 6 How to use liquid detergent 7 How to use bleach 7 How to use softener 7 How to use powdered synthetic detergent 7 How to use powdered detergent 8 “Economy’’ Laundering 8 Laundry Tips 8 Operations Panel 9 Miscellaneous

Options

Ag Crystal Shower Course 10 Normal Course 11 Speedy Course 11 Delicate Course 12 Extra Rinse Course 12 Blanket Course 13 Soak Course 14 Air Dry Course 14 Reserve Program 15

Manual Setting [Reserve] 15 Child Lock Program 16 Cancelling end buzzer after washing 16 Choosing Your Own Laundry Setting 17 Maintenance: Tub Hygiene Course 17 Maintenance: Tub Dry 18 Maintenance 18 Please observe the following Instructions 19 Caution 19 How to install 20 Install the washing machine horizontally 20 Connect the water supply hose 21 Changing the position of the drain hose 22 Connect external drain water hose 22 Bottom Cover Installation Instruction 22 Troubleshooting 23 Error Indication 24 Speciﬁcations

NA-F90H2_EN_AR-PE-V2.indd 2 11/23/11 3:41:02 PM

WARNING

Never disassemble, repair or remodel this washing machine.

If you disassemble, repair or remodel the washing machine by yourself, it can cause ﬁ re or irregular action that results in injury.

Consult your dealer for repair.

Do not place the washing machine on a damp place such as in a bathroom or exposed to the outside weather.

There is risk of the insulation deteriorating, electric shock and overheating, or breakdowns due to rust.

When you are cleaning your washing machine, do not apply water directly to any part of the washing machine.

It will cause short circuit and electric shock.

Do not use power plug socket or wiring equipment more than their rated capacity.

When you use the socket or wiring more than its rated capacity by connecting multiple appliances, it can cause ﬁ re due to overheating.

Safety & General Precautions

WARNING

May cause a serious injury or death.

CAUTION

May cause physical injury or damage other items.

To prevent the risk of danger or material loss or damage to the user of others, make sure to follow the precautions described below.

Never touch the laundry with your hand during spin until the tub has completely stopped spinning.

If you touch the laundry, even if the tub is rotating slowly, there is a danger of injury if the laundry becomes entangled with your hand. Pay particular attention to protecting children from such injury.

Make sure to push the power plug completely into the power supply outlet.

If the power plug is not completely pushed into the outlet, this may cause electric shock and ﬁ re due to overheating.

• Never use a damaged power cord.

Make sure that the ground is attached to the power supply outlet.

Otherwise, there is a danger of electric shock at the time of machine trouble or electricity has leaked.

• Be sure to ask your dealer about grounding work.

Do not place any burning object including burning candles or cigarettes, on top or near the washing machine.

There is a danger of ﬁ re or set deformation.

Never disconnect the power plug by pulling the power cord. Hold the power plug as you pull it out.

There is a danger of an electric shock or short circuit which may cause a ﬁ re.

Please do not wash or spin laundry which stained with gasoline, kerosene, benzine, paint thinner or the likes of it.

There is a risk of explosion or ﬁ re burn.

NA-F90H2_EN_AR-PE-V2.indd 3 11/23/11 3:41:12 PM

WARNING

Do not put your hand or foot under the washing machine while the washing machine is operating.

There is a rotating mechanism at the bottom of the washing machine, so you could be injured.

Do not wash and spin waterproof sheets and garments.

(Example) Raincoats, outﬁ ts (coats/jackets and pants) for ﬁ shing and skiing, etc.

The items could be damaged or you could be injured due to irregular vibration during the spin cycle.

Always check the hose connection by turning on the water tap before starting washing.

If the ﬁ xing screws are loose, it will cause water leakage that could cause unexpected damage.

CAUTION

Do not pull the power plug out of the socket or push in the power plug inside the socket with wet hand.

It will cause electric shock.

Always pull the power plug out of the power supply before doing cleaning or maintenance of the washing machine.

• Otherwise, there is a risk of electric shock or injury.

Remove any dust which may accumulate around the power cord.

When dust has accumulated on and around the power plug, and the dust gets damp or wet, the insulation plug become defective and may causes a ﬁ re. Pull out the power plug, and wipe off dampness with a dry clean laundry.

• If you are not going to use the washing machine for a long period of time, pull the power plug out of the socket.

Do not damage the power cord and power plug.

(Do not damage, modify, immoderately bend, twist, pull, or bundle the power cord, do not put the power cord and power plug close to heating appliances, do not put anything heavy on power cord and power plug.)

• If using the damaged power cord it will cause ﬁ re and current shortage.

• Consult your dealer about power cord and power plug repairing.

This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

Children should be supervised to ensure that they do not play with the appliance.

Do not climb up or put anything heavy on the top of the washing machine.

You could be injured due to set deformation or breakage of the washing machine.

Do not use water with temperature above 50°C.

• The plastic parts will become deform, resulting in set breakdown.

• Do not connect to the hot water supply.

NA-F90H2_EN_AR-PE-V2.indd 4 11/23/11 3:41:21 PM

Procedures before washing

• Check the installation

See pages 20~22 for details.

Level the washing machine by adjusting the adjustable leg and using the leveller as reference.

Connect the water supply hose.

Turn on the faucet.

Plug power cord into socket outlet.

Insert the drain hose to drain.

[NOTE]

Before installation, please make sure to install the bottom cover. See page 22 for details.

Ag Crystal Window

Feeding Valve

Name of parts

Bleach / Liquid Detergent Inlet

Lint Filter A

Leveller

Tub

Lid

Pulsator

Power Cord

Power Plug

Operation Panel

Adjustable Leg

Drain Hose

Accessories

Water Supply Hose (1)

Length: 1.0 m

Bottom Cover (1)Water Tap Adaptor (1)

Note: Water Tap Adaptor is set

to the Water Supply Hose.

Drain Hose (1)

Screw (2)

Note: For Bottom Cover

Detergent & Softener Drawer

Lint Filter B

Ag Air-Filter

Ag Air–Filter is to eliminate the particulate matter from the air and make the ﬁlter antibacterial with Ag effect. (It’s not meant to make clothes antibacterial directly.)

NA-F90H2_EN_AR-PE-V2.indd 5 11/23/11 3:41:22 PM

1 Put the laundry into the

machine.

2 Allow the machine to churn the

laundry for 5 seconds.

3 Detergent volume indications.

Press the [Power On] button

an d the n pr ess the [Sta rt/ Pause] button after putting in the laundry.

The pulsator operates for about

5 seconds without any water in the tub to measure the amount of laundry. If there is already water in the tub, the machine will not operate and the water level will be set to 71L.

A lamp will light up indicating

the appropriate water level and amount of detergent according to the laundry. Add this amount of detergent.

9 Detergent indicator

The indicates the number of scoop of compact powdered laundry detergent formula to be inserted

using the measuring scoop in the detergent box (1 scoop = about 40 grams).

For information concerning other types of laundry detergent, see the table below. 7 The pulsator operates without water in the washing tub in order to measure

the amount of laundry.

• According to laundry load, put in the detergent then close the lid. 7 Change the water level setting in the following cases:

• When placing the wet laundry inside the tub, the water level will be indicated 71L even though the laundry weight is light.

• When you put in light weight laundry or laundry that doesn’t absorb water easily (laundry made of synthetic fiber and mixed fiber, etc.).

Determining load and detergent levels with the Quick Indication

Laundry Detergent

Detergent type

Water level (Laundry volume)

Synthetic detergents

Powdered

detergent

Concentrated type Liquid type

(25g per 30L of water) (25ml per 30L of water) (40ml per 30L of water)

Powder

71L (Approx. 9.0k

1.5 scoops

approx. 60ml approx. 95ml approx. 92g

60L (Approx. 5.0k

1.2 scoops

approx. 50ml approx. 80ml approx. 78g

52L

(Approx. 3.5kg)

1 scoop

approx. 44ml approx. 70ml approx. 68g

43L

(Approx. 1.5kg)

0.8 scoop

approx. 36ml approx. 58ml approx. 56g

33L

(Approx. 0.8kg)

0.6 scoop

approx. 28ml approx. 44ml approx. 43g

18L

(Approx. 0.3kg)

0.2 scoop

approx. 15ml approx. 24ml approx. 24g

• The ﬁgures in parentheses in the water level column indicate the approximate weight of the laundry load.

• Please use the standard amount of laundry detergent as printed on the detergent container.

•

Some laundry detergents have their own prescribed methods of use. Please read the instructions to your laundry detergent.

• When a large quantity of suds is produced, use less detergent or switch to a low-suds detergent.

One

measuring

scoop (40g)

Powder

Concentrated

liquid

Non

Concentrated

liquid

NA-F90H2_EN_AR-PE-V2.indd 6 11/23/11 3:41:24 PM

How to use liquid detergent

Put in the liquid detergent according to the water level into the bleach / liquid detergent inlet.

Bleach / Liquid Detergent Inlet

[NOTE]

• Liquid detergent, like powdered

detergent is not easily dissolved and can leave scum along the inside of the washing tub, so be sure to rinse thoroughly.

■ Liquid bleach

• Dilute fully with water and pour in before

pressing [Start/Pause].

■ Powder bleach

• Place directly into the tub during ﬁll.

• Follow the instruction on the bleach

container.

Bleach / Liquid Detergent inlet

How to use bleach

Except for Extra Rinse Course

Softener is easy to get hard, so do not leave it in the Softener Compartment for many hours (12 hours or longer).

w Dilute the concentrated softener with the same volume of water only when using the wash with the

Programmable time.

How to use softener

Water level 71L 60L 52L 43L 33L 18L

Softener

Normal Approx. 48ml Approx. 40ml Approx. 35ml Approx. 29ml Approx. 22ml Approx. 12ml

Concentrated Approx. 16ml Approx. 14ml Approx. 12ml Approx. 10ml Approx. 8ml Approx. 4ml

Put in softener according to the water level, at the same time as you add detergent.

(The softener is to be automatically poured in the tub during the last rinse.)

(Insert completely)

Figure A

Softener level

Cap mark level

• If the machine is in operation, press the [Start/Pause] button and add the softener.

NOTE:

Always put the softener into the Softener Compartment. Keep the level of the softener below the cap mark (Figure A). The indication is to prevent the softener from ﬂowing immediately.

Table of softener quantities

(Normal) ............. 20 ml softener per 30L of water. (Concentrated) ... 6.6 ml softener per 30L of water.

Concentrated softener Water

Put the recommended amount of powdered synthetic detergent into the detergent drawer according to the water level.

How to use powdered synthetic detergent

NA-F90H2_EN_AR-PE-V2.indd 7 11/23/11 3:41:26 PM

Brush off laundry before washing them.

Turn inside out any garments which give off lint or lint balls.

Press down lightly on bulky items while the tub is filling with water to get them thoroughly soaked.

Put a little detergent on a brush and lightly scrub the tough stains off collars and cuffs.

Put laundry with lace attached, lingerie, nylon stockings, chemical fiber transparent fabrics etc. in a washing net.

For laundry which has long cord or clasps attached, tie the cords on aprons, pillow covers and the like, and fasten clasps.

“Economy’’ Laundering

Using wash water twice

Wash lightly soiled laundry in the first load.

Wash heavily soiled laundry in the second load.

1. Put the laundry in the tub, and press [Power On] button

Press [Wash] button and press [Start/Pause] button.

3. Put in the detergent.

4. Wash finishes.

✻ Take the wet laundry out.

5. Load the laundry.

6. Press

[Power On]

button

to carry out washing, rinsing and spinning. Add the detergent a little when you increase the water level or refilling water.

7. Wash finishes. ✻ Remove the laundry.

8. Put wet laundry which has been washed back into the tub again.

9. Press [Rinse] button and [Spin] button, then press [Start/Pause]

button

10. Close the lid and wait until laundry will be completed.

➜

Laundry Tips

How to dissolve

1. Fill the washing machine tub with water one level below the water level that will be used. (For low water level setting, the same water level will be used.)

2. Add the powdered detergent and let the machine run for about 3 minutes.

3. Put the laundry in and begin washing at the desired level. Set the [Water Level] button.

Dissolving hard-to-dissolve detergent

1. Pour 5 liters of water at about 30°C into a container.

2. Dissolve the detergent by adding it little by little while churning the water.

•

In order to keep it from hardening or sticking, mix it well and dissolve it, then pour it into the washing tub.

How to use powdered detergent

[Warning]

• Powdered detergent is not easily dissolved compared to synthetic detergent, be certain to rinse thoroughly. If it is not rinsed well laundry may be tinged with yellow or smell of detergent. If too much detergent is added, or if it is added directly to cold water, scum and clumps which are not completely

dissolved will stick to the inside of the tub and hose. These may float up and dirty the laundry.

[Note]

• In order to have the Ag ion coating working effectively, the washing machine performs showering even when the Ag Crystal Shower Course is not selected.

NA-F90H2_EN_AR-PE-V2.indd 8 11/23/11 3:41:27 PM
