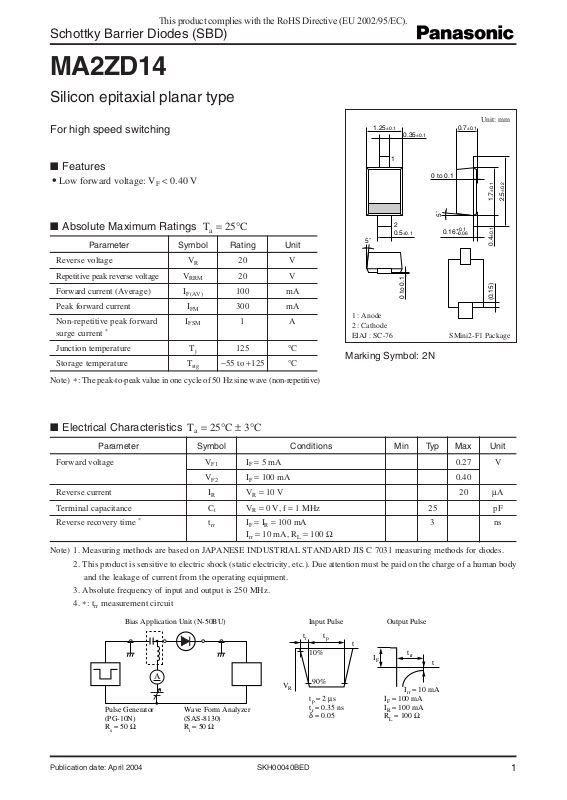

Panasonic MA2ZD14 User Manual
Schottky Barrier Diodes (SBD)
This product complies with the RoHS Directive (EU 2002/95/EC).
MA2ZD14
Silicon epitaxial planar type
For high speed switching
■ Features
•
Low forward voltage: V
< 0.40 V
F
■ Absolute Maximum Ratings Ta = 25°C
Parameter Symbol Rating Unit
Reverse voltage V
Repetitive peak reverse voltage V
Forward current (Average) I
Peak forward current I
Non-repetitive peak forward I
surge current
*
Junction temperature T
Storage temperature T
R
RRM
F(AV)
FM
FSM
j
stg
20 V
20 V
100 mA
300 mA
125 °C
−55 to +125 °C
1A
1.25
±0.1
0.35
±0.1
1
0 to 0.1
2
±0.1
0.5
5˚
0 to 0.1
1 : Anode
2 : Cathode
EIAJ : SC-76 SMini2-F1 Package
5˚
0.16
Marking Symbol: 2N
0.7
+0.1
–0.06
±0.1
Unit: mm
±0.1
1.7
±0.1
0.4
(0.15)
Note)*: The peak-to-peak value in one cycle of 50 Hz sine wave (non-repetitive)
■ Electrical Characteristics Ta = 25°C ± 3°C
Parameter Symbol Conditions Min Typ Max Unit
Forward voltage V
Reverse current I
F1
V
F2
R
Terminal capacitance C
Reverse recovery time
*
t
rr
Note) 1. Measuring methods are based on JAPANESE INDUSTRIAL STANDARD JIS C 7031 measuring methods for diodes.
2. This product is sensitive to electric shock (static electricity, etc.). Due attention must be paid on the charge of a human body
and the leakage of current from the operating equipment.
3. Absolute frequency of input and output is 250 MHz.
4.*:t
measurement circuit
rr
Bias Application Unit (N-50BU)
A
Pulse Generator
(PG-10N)
= 50 Ω
R
s
Wave Form Analyzer
(SAS-8130)
R
= 50 Ω
i
IF = 5 mA 0.27 V
IF = 100 mA 0.40
VR = 10 V 20 µA
VR = 0 V, f = 1 MHz 25 pF
t
IF = IR = 100 mA 3 ns
Irr = 10 mA, RL = 100 Ω
Input Pulse Output Pulse
t
t
p
r
10%
90%
V
R
= 2 µs
t
p
= 0.35 ns
t
r
δ = 0.05
t
I
F
I
I
R
t
I
rr
= 100 mA
F
= 100 mA
R
= 100 Ω
L
rr
= 10 mA
t
±0.2
2.5
Publication date: April 2004 SKH00040BED
1
MA2ZD14
This product complies with the RoHS Directive (EU 2002/95/EC).
IF V
F
75°C
25°C
−20°C
)
(
A
10
10
F
10
10
1
−1
Ta = 125°C
−2
−3
−4
Forward current I
−5
10
−6
10
0 0.2 0.4 0.6
Forward voltage VF (V
IR V
−1
10
−2
10
)
A
(
R
−3
10
−4
10
Reverse current I
−5
10
−6
10
)
Ta = 125°C
0 5 10 15 20 25 30
Reverse voltage VR (V
R
75°C
25°C
)
2
SKH00040BED
