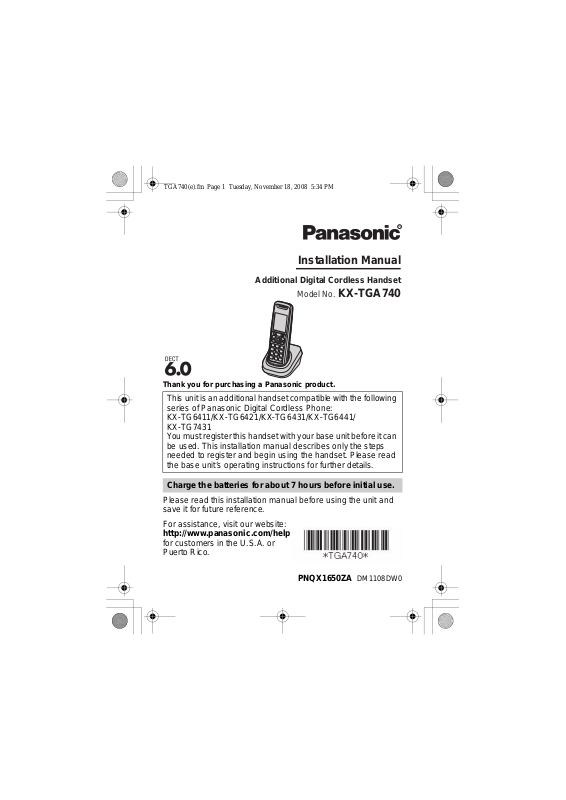

Installation Manual
Additional Digital Cordless Handset
Model No.
Thank you for purchasing a Panasonic product.
This unit is an additional handset compatible with the following series of Panasonic Digital Cordless Phone: KX-TG6411/KX-TG6421/KX-TG6431/KX-TG6441/ KX-TG7431 Y ou must register this handset with your base unit before it can be used. This installation manual describes only the steps needed to register and begin using the handset. Please read the base unit’s operating instructions for further details.
Charge the batteries for about 7 hours before initial use.
Please read this installa ti on man u al be fo re using the unit and save it for future reference.
For assistance, visit our website: http://www.panasonic.com/help for customers in the U.S.A. or Puerto Rico.
KX-TGA740
PNQX1650ZA DM1108DW0
Accessory information
Supplied accessories
Accessory item/Order number Quantity
Charger/PNWETGA740B 1 AC adaptor/PQLV219Z 1 Rechargeable batteries/HHR-4DPA
(Part No. HHR-65AAABU or N4DHYYY00002)
*1
Handset cover Belt clip/PNKE1029Z1 1
*1 The handset cover comes attached to the handset.
Note:
LPlease read the base unit’s operating instructions for additional/
replacement accessories.
/PNYNTGA641TR 1
2
Setting up
Connections
(120 V AC, 60 Hz)
Note:
LUse only the supplied Panasonic AC adaptor PQLV219. LThe AC adaptor must remain connected at all times. (It is normal for
the adaptor to feel warm during use.)
2 For assistance, please visit http://www.panasonic.com/help
Hooks
Battery installation/Battery charge
Important:
LUse the supplied rechargeable batteries. For replacement, we
recommend using the Panasonic rechargeable batteries noted on page 2.
LWipe the battery ends (S, T) with a dry cloth. LAvoid touching the battery ends (S, T) or the unit contacts. LConfirm correct polarities (S, T). LUSE ONLY Ni-MH batteries AAA (R03) size. LDo NOT use Alkaline/Manganese/Ni-Cd batteries.
Charge for about 7 hours. LWhen the batteries are fully charged, the charge indicator goes off.
Confirm “Charging”
Rechargeable Ni-MH ONLY
Note:
LIf the batteries are fully charged, but the operating time seems to be
shorter, clean the battery ends (S, T) and the charge cont acts with a dry cloth and charge again.
is displayed.
For assistance, please visit http://www.panasonic.com/help 3
Controls
N
A
A Charge indicator
Ringer indicator Message indicator
B Speaker C Soft keys D {C} (TALK) E {s} (SP-PHONE:
Speakerphone)
F Headset jack G Dial keypad
({*}: TONE)
H Receiver I Display J {OFF} K Joystick L {FLASH} {CALL WAIT} M Microphone N Charge contacts
B
C D
E
F
G
H
I
C J K L
M
Registering a handset to a base unit 1
Base unit: NKX-TG6411 series
Press and hold {LOCATOR} for about 4 seconds. (No registration tone)
NKX-TG6421/KX-TG6431/KX-TG6441/KX-TG7431 series
Press and hold {LOCATOR} for about 4 seconds until the registration tone sounds.
LIf all registered handsets start ringing, press the same button to
stop. Then repeat this step.
LThe next step must be completed within 90 seconds.
4 For assistance, please visit http://www.panasonic.com/help
2 Handset:
Press {OK}, then wait until a long beep sounds.
Note:
LIf an error tone sounds, or if _ is still displayed, register the handset
according to the base unit’s operating instructions.
Display language
{MENU} (center of joystick) i {#}{1}{1}{0}
1 2 {V}/{^}: Select the desired setting. 3 Press down the center of the joystick to save. i {OFF}
Belt clip
NTo attach N To remove
Wall mounting
Drive the screws (not supplied) into the wall.
1 2 Mount the charger (A), then slide it down (B) and to the right (C)
until it is secure.
25.4 mm (1 inch)
Screws
(120 V AC, 60 Hz)
For assistance, please visit http://www.panasonic.com/help 5
A
B
C
