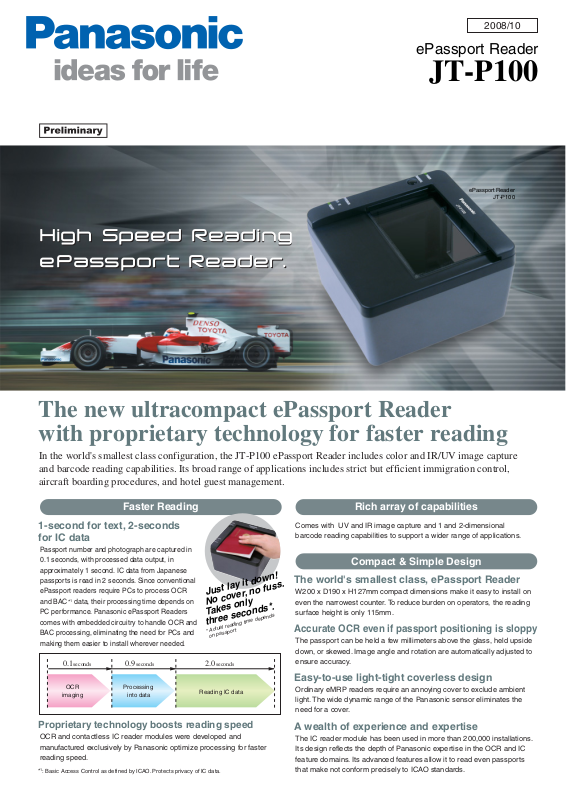

Panasonic JT-P100 User Manual

High Speed Reading

ePassport Reader.

2008/10

ePassport Reader

JT-P100

ePassport Reader

JT-P100

The new ultracompact ePassport Reader with proprietary technology for faster reading

In the world's smallest class configuration, the JT-P100 ePassport Reader includes color and IR/UV image capture and barcode reading capabilities. Its broad range of applications includes strict but efficient immigration control, aircraft boarding procedures, and hotel guest management.

Faster Reading

1-second for text, 2-seconds for IC data

Passport number and photograph are captured in

0.1 seconds, with processed data output, in approximately 1 second. IC data from Japanese passports is read in 2 seconds. Since conventional ePassport readers require PCs to process OCR and BAC PC performance. Panasonic ePassport Readers comes with embedded circuitry to handle OCR and BAC processing, eliminating the need for PCs and making them easier to install wherever needed.

data, their processing time depends on

0.1seconds 0.9seconds 2.0seconds

OCR

imaging

Processing

into data

Just lay it down! No cover, no fuss. Takes only three seconds*.

* Actual reading time depends on passport

Reading IC data

Proprietary technology boosts reading speed

OCR and contactless IC reader modules were developed and manufactured exclusively by Panasonic optimize processing for faster reading speed.

: Basic Access Control as defined by ICAO. Protects privacy of IC data.

Comes with UV and IR image capture and 1 and 2-dimensional barcode reading capabilities to support a wider range of applications.

The world's smallest class, ePassport Reader

W200 x D190 x H127mm compact dimensions make it easy to install on even the narrowest counter. To reduce burden on operators, the reading surface height is only 115mm.

Accurate OCR even if passport positioning is sloppy

The passport can be held a few millimeters above the glass, held upside down, or skewed. Image angle and rotation are automatically adjusted to ensure accuracy.

Easy-to-use light-tight coverless design

Ordinary eMRP readers require an annoying cover to exclude ambient light. The wide dynamic range of the Panasonic sensor eliminates the need for a cover.

A wealth of experience and expertise

The IC reader module has been used in more than 200,000 installations. Its design reflects the depth of Panasonic expertise in the OCR and IC feature domains. Its advanced features allow it to read even passports that make not conform precisely to ICAO standards.

Rich array of capabilities

Compact & Simple Design

Faster and simpler to operate, the JT-P100 ePassport Reader improves service and reduces strain on systems

Function characteristics [Preliminary]

ICAO recommendation Doc9303-1 conforming (TD3 size)

Readable documents ICAO recommendation Doc9303-3 conforming (TD1 size)

MRV

OCR Readable Characters ISO 1073/1 OCR B font size 1, Numeric: 0.9 alphabet: A..Z (Capital letter) sign: <

OCR processing time 1.0 Sec(Typ.), OCR imaging time is 0.1 Sec(Typ.)

OCR accuracy More than 98 % *Except dirty and damaged OCR

Image Sensor Scanning Area Size 130mm x 92mm

Resolution 240dpi

Capture Mode UV (Ultra Violet)Light

Barcode QR code (e.g. E/D card)

IC Reader

Key / Indicator Key: Power SW, Manual read key, Status Indicator(LED): POWER / READY / ERROR / IC

Maintenance feature Self-diagnostic function, able to tell diagnoses to connected PCs

Interface USB 2.0 x 1, RS232C x 1

Operation environment

Power supply (AC power pack) AC100V-240V 50/60 Hz

Weight Less Than 2.3kg (excluding cables and power pack)

Dimensions

Developer support package SDK (Windows XP)

Detection of the document

Automatic detection or Manual key

White Light (Color Image)

IR (Infra-Red)Light

Code 39 (e.g. E/D card)

PDF417 (IATA BCBP boarding ticket)

ISO/IEC 14443 TypeA and B, 106, 212, 424, 847 kbps (Automatic speed adjust function according to communication quality analyses.)

Data structure and read protocol: Comply to Doc 9303 Part1 6th Edition

Basic Access Control (BAC), Active Authentication (AA), Passive Authentication (PA), *extendable in the future

EAC V1.11 *extendable in the future

Operational temperature: 5 - 40 ˚C

Humidity: 20 - 90 % (non condensing)

W200 x D190 x H127mm (approx.)

Height of read position: 115mm (approx.)

How Panasonic Approaches the MRP Reader

Development based on

listening to what users say

In the 20 years since Panasonic began to supply immigration

authorities with the world's first high-speed, camera-type

passport image reader, we have worked to make our readers

more accurate, faster, and easier to use, plus smaller and

more portable as well. We listen carefully to what users

say as we continue research and development

on even better devices.

Due to printing irregularities, actual shades may vary slightly from the photo. Specifications are subject to change without notice.

DISTRIBUTED BY:

For more than a decade, Panasonic has participated

numerous times in compatibility tests to ensure that ePassport

These products may be subject to export control regulations. The content of the description of this catalog is the one as of June, 2008.

Participation in

standardization projects

readers satisfy international standards.
