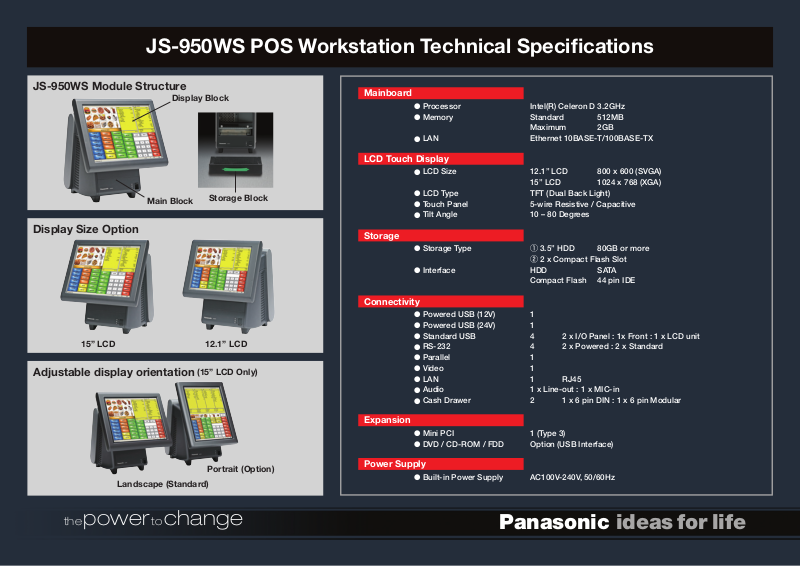

JS-950WS POS Workstation Technical Specifications
JS-950WS Module Structure
Main Block
Display Size Option
15” LCD 12.1” LCD
Adjustable display orientation
Display Block
Storage Block
(15” LCD Only)
Mainboard
Processor Intel(R) Celeron D 3.2GHz
l
Memory Standard 512MB
l
Maximum 2GB
LAN Ethernet 10BASE-T/100BASE-TX
l
LCD Touch Display
LCD Size 12.1” LCD 800 x 600 (SVGA)
l
15” LCD 1024 x 768 (XGA)
LCD Type TFT (Dual Back Light)
l
Touch Panel 5-wire Resistive / Capacitive
l
Tilt Angle 10 – 80 Degrees
l
Storage
Storage Type
l
Interface HDD SATA
l
Compact Flash 44 pin IDE
Connectivity
Powered USB (12V) 1
l
Powered USB (24V) 1
l
Standard USB 4 2 x I/O Panel : 1x Front : 1 x LCD unit
l
RS-232 4 2 x Powered : 2 x Standard
l
Parallel 1
l
Video 1
l
LAN 1 RJ45
l
Audio 1 x Line-out : 1 x MIC-in
l
Cash Drawer 2 1 x 6 pin DIN : 1 x 6 pin Modular
l
3.5” HDD 80GB or more
①
2 x Compact Flash Slot
②
Portrait (Option)
Landscape (Standard)
the power to change
Expansion
l
l
Power Supply
l
Mini PCI 1 (Type 3)
DVD / CD-ROM / FDD Option (USB Interface)
Built-in Power Supply AC100V-240V, 50/60Hz
Panasonic ideas for life
JS-950WS POS Workstation Technical Specifications
Customer Display Option
VFD Customer Display
POP Display Space
ID Device Option
MSR Fingerprint
Scanner
ID Device Position
Optional 2nd LCD
Dallas Key
Customer Display Option
VFD 2 Lines 20 Characters
l
4 Lines 20 Characters
LCD 8.4” TFT LCD 800 x 600
l
ID Device Option
MSR Track 1/2/3 USB Interface
l
Fingerprint Scanner USB Interface
l
Dallas Key Reader USB Interface
l
Operating System
Windows 2000
l
Windows XP
l
Windows XP Embedded
l
WEPOS
l
Windows Vista
l
MS-DOS 6.22 English
l
Linux
l
Dimensions
W Main Body 250 mm / 10”
l
w/ LCD (12.1”) 320 mm / 12.8” w/o ID Device
w/ LCD (15”) 364 mm / 14.56” w/o ID Device
D Main Body 282 mm / 11.28”
l
w/ LCD (12.1”) 317-366 mm / 12.68”-14.64”
w/ LCD (15”) 321-388 mm / 12.84”-15.52”
H Main Body 351 mm / 14.04”
l
w/ LCD (12.1”) 387 mm / 15.48”
w/ LCD (15”) 401 mm / 16.04”
ID Device can be mounted in two different positions
the power to change
Weights
12.1” LCD + 3.5” HDD 11.16 Kg / 24.55 lbs
l
15” LCD + 3.5” HDD 12.06 Kg / 26.53 lbs
l
- Microsoft and Windows are registered trademarks of Microsoft Corporation in the US and other countries.
- Intel and Celeron are trademarks of Intel Corporation.
- All display menus are simulated.
- Weights and dimensions are approximate.
- Specifications are subject to change without notice.
