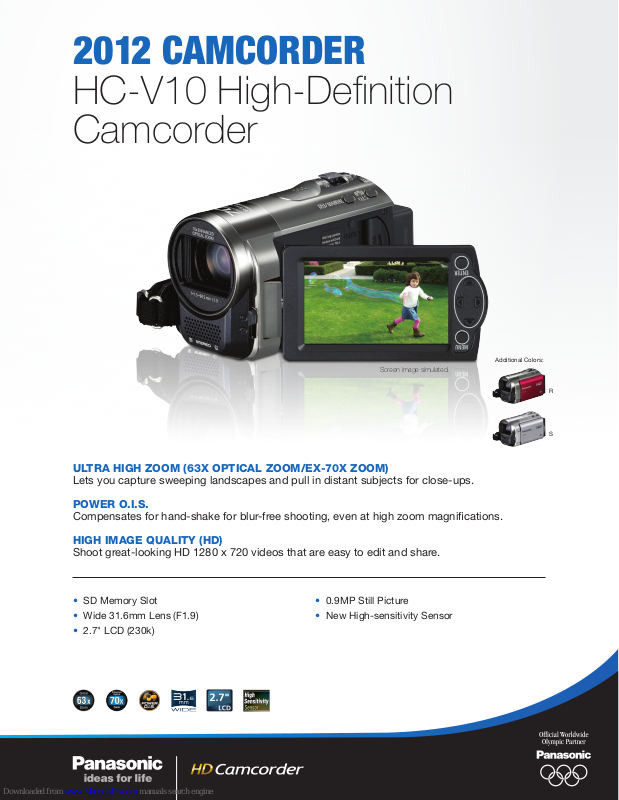

Page 1
2012 camcorder
HC-V10 High-Definition
Camcorder
Screen image simulated.
Ultra HigH Zoom (63x optical Zoom/Ex-70x Zoom)
Lets you capture sweeping landscapes and pull in distant subjects for close-ups.
powEr o.i.S.
Compensates for hand-shake for blur-free shooting, even at high zoom magnications.
HigH imagE QUality (HD)
Shoot great-looking HD 1280 x 720 videos that are easy to edit and share.
• SD Memory Slot
• Wide 31.6mm Lens (F1.9)
• 2.7" LCD (230k)
• 0.9MP Still Picture
• New High-sensitivity Sensor
Additional Colors:
R
S
Page 2
2012 camcorder
HC-V10 High-Definition Camcorder
SENSOR SECTION
Image Sensor 1/5.8" High-Sensitivity MOS Sensor
Total Pixels 1.5 megapixels
Effective Pixels Motion Image 0.56-0.44 megapixels [16:9]
Still Image 0.56-0.44 megapixels [16:9]
LENS SECTION
F Value F1.9 (WIDE) / F5.7 (TELE)
Optical Zoom 63 x
Focal Length 1.50-94.5 mm
35 mm Film
Camera Equivalent
Filter Diameter —
Lens Brand Panasonic Lens
CAMERA SECTION
Standard Illumination 1400 lx
Minimum Illumination 4 lx (1/30, Low Light, Scene Mode)
Focus Auto / Manual
Zoom Intelligent Zoom OFF Enhanced Optical 70x
White Balance Auto / Indoor1 / Indoor2 / Sunny / Cloudy / White set
Shutter Speed Motion Image [60i]
Iris Auto / Manual
Image Stabilizer Power O.I.S. with Active Mode
RECORDING SECTION
Recording Media SD/SDHC/SDXC Memory Card
Recording Format MP4
Compression Method MPEG-4 AVC/ H.264
Signal System 720 / 60p, 480/ 60p, 540/ 30p
Recording / Playback Mode 720 / 60p (15Mbps / VBR), (1280 x 720)
Thumbnail Display 20 thumbnails / page, 9 thumbnails / page,
Audio Recording System AAC (2ch)
Microphone 2ch Stereo
Speaker Dynamic type
Motion Image 31.6-2261.5 mm [16:9]
31.6 -2254.4 mm [4:3]
Still Image —
1 lx (Color Night View)
Intelligent Zoom ON —
Digital Zoom 100 x / 3500 x
(The maximum value of zoom magnification)
Auto Slow Shutter ON: 1/30-1/8000
Auto Slow Shutter OFF: 1/60-1/8000
Still Image —
480 / 60p (6Mbps / VBR), (640 x 480)
iFrame (28Mbps / VBR), (960 x 540)
1 thumbnails / page
STILL IMAGE SECTION
Recording Format JPEG (DCF/Exif2.2)
Recording Image Size Still Image —
Simultaneous
Recording
Flash —
GENERAL SECTION
Power Supply 3.6V (Battery) / 5.0V (AC Adaptor)
Power Consumption Max. 2.7W (Recording) / Max. 5.3W (Charging)
Dimensions (W x H x D) Approx. 55.0 x 64.5 x 109.5 [mm]
Weight (without battery and SD card) Approx. 212g (0.467 lb.)
LCD Monitor 2.7" Wide LCDmonitor (230,400 dots)
View Finder —
Manual Ring —
Interface AV Yes
HDMI Yes (mini)
Microphones
(stereo mini)
Headphone
(stereo mini)
USB 2.0 Hi-Speed
USB Charge Ye s
AV Multi —
LED Video Light —
Accessory Shoe —
On-Screen Display Language Please refer to “OSD” sheet
STANDARD ACCESSORY
AC Adapter Yes
AC Cable —
DC Cable —
Rechargeable Battery Pack Yes (895 mAh)
Battery Charger —
IR Remote —
AV Multi Cable Yes (AV Cable)
Shoe Adaptor —
Lens Hood —
USB Cable Yes
Lens Cap —
Stylus Pen —
Included Software HD Writer HE1.0
0.9 megapixels (1280 x 720) [16:9]
0.3 megapixels (640 x 480) [4:3]
(2.165 x 2.539 x 4.311 [inch])
—
—
02/12 Specifications subject to change without notice.
