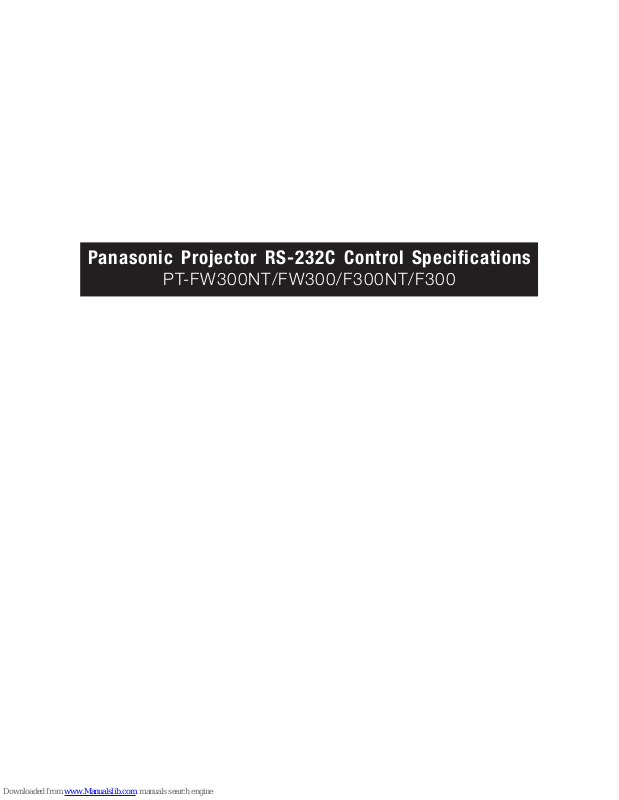

Panasonic Projector RS-232C Control Specifications
PT-FW300NT/FW300/F300NT/F300
Page 2
2/49
Using the Serial Terminal
1. Basic Format
Transmission from the computer begins with STX, then the command, parameter and ETX are sent in this
order.
Add parameters according to the details of control.
Basic control command (without parameter)
Start (STX) Command End (ETX)
1 byte 3 bytes 1 byte
Basic control command (with parameters)
Start (STX) Command Separator
(colon)
Parameters End (ETX)
1 byte 3 bytes 1 byte Undefined length 1 byte
Response (Callback) of the basic control command
In the period when the command can be accepted
Differs according to each command.
In the period when commands cannot be accepted or the command does not exist
Hexadecimal 02h 45h 52h 34h 30h 31h 03h
Character E R 4 0 1
In case of the parameter error
Hexadecimal 02h 45h 52h 34h 30h 32h 03h
Character E R 4 0 2
Notes:
• When sending several commands, be sure to wait for a response from the projector, and send the next
command after 0.5 seconds or more pass.
• It might take time by the time the response returns because the command is processed in the
projector. Set the time-out to 10 seconds or longer.
Page 3
3/49
2. Basic Control Command
Explanatory notes
○: Yes (Enable)
×: No (Disable)
△: Case by case (Refer to the note.)
2.1. Power ON (Lamp ON)
Hexadecimal 02h 50h 4Fh 4Eh 03h
Character P O N
Response (Callback)
In the period when the command can be accepted (This command in power-on condition is included.)
Hexadecimal 02h 50h 4Fh 4Eh 03h
Character P O N
Acceptability
SECURITY STANDBY NO SIGNAL
AV MUTE REMOTE
○ ○ ○ ○ △
Notes:
• When you confirm whether to have succeeded in power-on, confirm it by QPW (Query Power) command after
receiving the callback of PON command.
• When REMOTE is effective, ER401 is returned as a response (callback).
2.2. Power OFF (Standby)
Hexadecimal 02h 50h 4Fh 46h 03h
Character P O F
Response (Callback)
In the period when the command can be accepted (This command in power-off condition is included.)
Hexadecimal 02h 50h 4Fh 46h 03h
Character P O F
Acceptability
SECURITY STANDBY NO SIGNAL
AV MUTE REMOTE
○ ○ ○ ○ △
Notes:
• When you confirm whether to have succeeded in power-off, confirm it by QPW (Query Power) command after
receiving the callback of POF command.
• When REMOTE is effective, ER401 is returned as a response (callback).
2.3. AUTO SETUP
Hexadecimal 02h 4Fh 41h 53h 03h
Character O A S
Response (Callback)
In the period when the command can be accepted
Hexadecimal 02h 4Fh 41h 53h 03h
Character O A S
Acceptability
SECURITY STANDBY NO SIGNAL AV MUTE REMOTE
× × △ × ○
Note:
• During NO SIGNAL, this command is available only when SIGNAL SEARCH is ON.
2.4. AV MUTE
Hexadecimal 02h 4Fh 53h 48h 3Ah *1 03h
Character O S H : *2
Parameters (*1, *2)
AV MUTE OFF AV MUTE ON
Hexadecimal 30h 31h
Character 0 1
Response (Callback)
In the period when the command can be accepted
Hexadecimal 02h 4Fh 53h 48h 3Ah *1 03h
Character O S H : *2
Acceptability
SECURITY STANDBY NO SIGNAL AV MUTE REMOTE
× × ○ ○ ○
Page 4
4/49
2.5. FREEZE
Hexadecimal 02h 4Fh 46h 5Ah 3Ah *1 03h
Character O F Z : *2
Parameters (*1, *2)
FREEZE OFF FREEZE ON
Hexadecimal 30h 31h
Character 0 1
Response (Callback)
In the period when the command can be accepted
Hexadecimal 02h 4Fh 46h 5Ah 3Ah *1 03h
Character O F Z : *2
Acceptability
SECURITY STANDBY NO SIGNAL
AV MUTE REMOTE
× × × × ○
2.6. INPUT SELECT
Hexadecimal 02h 49h 49h 53h 3Ah *1 *3 *5 03h
Character I I S : *2 *4 *6
Parameters (*1, *2, *3, *4, *5, *6)
COMPUTER1 COMPUTER2
Hexadecimal 52h 47h 31h 52h 47h 32h
Character R G 1 R G 2
VIDEO S-VIDEO
Hexadecimal 56h 49h 44h 53h 56h 44h
Character V I D S V D
DVI NETWORK
Hexadecimal 44h 56h 49h 4Eh 57h 50h
Character Ｄ V I N W P
Response (Callback)
In the period when the command can be accepted
Hexadecimal 02h 49h 49h 53h 3Ah *1 *3 *5 03h
Character I I S : *2 *4 *6
Acceptability
SECURITY STANDBY NO SIGNAL
AV MUTE REMOTE
× △ ○ ○ △
Notes:
• During STANDBY, this command is available only when IN STANDBY MODE is ON.
• REMOTE is given to priority. Calls back ER402 if INPUT SELECT by REMOTE is effective.
2.7. MENU
Hexadecimal 02h 4Fh 4Dh 4Eh 03h
Character O M N
Response (Callback)
In the period when the command can be accepted
Hexadecimal 02h 4Fh 4Dh 4Eh 03h
Character O M N
Acceptability
SECURITY STANDBY NO SIGNAL AV MUTE REMOTE
○ × ○ × ○
2.8. ENTER
Hexadecimal 02h 4Fh 45h 4Eh 03h
Character O E N
Response (Callback)
In the period when the command can be accepted
Hexadecimal 02h 4Fh 45h 4Eh 03h
Character O E N
Acceptability
SECURITY STANDBY NO SIGNAL
AV MUTE REMOTE
○ × ○ × ○
Page 5
5/49
2.9. Navigation Up (↑)
Hexadecimal 02h 4Fh 43h 55h 03h
Character O C U
Response (Callback)
In the period when the command can be accepted
Hexadecimal 02h 4Fh 43h 55h 03h
Character O C U
Acceptability
SECURITY STANDBY NO SIGNAL
AV MUTE REMOTE
○ × ○ × ○
2.10. Navigation Down (↓)
Hexadecimal 02h 4Fh 43h 44h 03h
Character O C D
Response (Callback)
In the period when the command can be accepted
Hexadecimal 02h 4Fh 43h 44h 03h
Character O C D
Acceptability
SECURITY STANDBY NO SIGNAL
AV MUTE REMOTE
○ × ○ × ○
2.11. Navigation Left (←)
Hexadecimal 02h 4Fh 43h 4Ch 03h
Character O C L
Response (Callback)
In the period when the command can be accepted
Hexadecimal 02h 4Fh 43h 4Ch 03h
Character O C L
Acceptability
SECURITY STANDBY NO SIGNAL AV MUTE REMOTE
○ × ○ × ○
2.12. Navigation Right (→)
Hexadecimal 02h 4Fh 43h 52h 03h
Character O C R
Response (Callback)
In the period when the command can be accepted
Hexadecimal 02h 4Fh 43h 52h 03h
Character O C R
Acceptability
SECURITY STANDBY NO SIGNAL
AV MUTE REMOTE
○ × ○ × ○
2.13. DEFAULT
Hexadecimal 02h 4Fh 53h 54h 03h
Character O S T
Response (Callback)
In the period when the command can be accepted
Hexadecimal 02h 4Fh 53h 54h 03h
Character O S T
Acceptability
SECURITY STANDBY NO SIGNAL
AV MUTE REMOTE
○ × ○ × ○
2.14. RETURN
Hexadecimal 02h 4Fh 42h 4Bh 03h
Character O B K
Response (Callback)
In the period when the command can be accepted
Hexadecimal 02h 4Fh 42h 4Bh 03h
Character O B K
Acceptability
SECURITY STANDBY NO SIGNAL AV MUTE REMOTE
○ × ○ × ○
Page 6
6/49
2.15. VOLUME +
Hexadecimal 02h 41h 55h 55h 03h
Character A U U
Response (Callback)
In the period when the command can be accepted
Hexadecimal 02h 41h 55h 55h 03h
Character A U U
Acceptability
SECURITY STANDBY NO SIGNAL
AV MUTE REMOTE
× △ × × ○
Note:
• During STANDBY, this command is available only when IN STANDBY MODE is ON.
2.16. VOLUME -
Hexadecimal 02h 41h 55h 44h 03h
Character A U D
Response (Callback)
In the period when the command can be accepted
Hexadecimal 02h 41h 55h 44h 03h
Character A U D
Acceptability
SECURITY STANDBY NO SIGNAL
AV MUTE REMOTE
× △ × × ○
Note:
• During STANDBY, this command is available only when IN STANDBY MODE is ON.
2.17. INDEX-window
Hexadecimal 02h 4Fh 49h 58h 03h
Character O I X
Response (Callback)
In the period when the command can be accepted
Hexadecimal 02h 4Fh 49h 58h 03h
Character O I X
Acceptability
SECURITY STANDBY NO SIGNAL
AV MUTE REMOTE
× × × × ○
2.18. DIGITAL ZOOM +
Hexadecimal 02h 44h 5Ah 55h 03h
Character D Z U
Response (Callback)
In the period when the command can be accepted
Hexadecimal 02h 44h 5Ah 55h 03h
Character D Z U
Acceptability
SECURITY STANDBY NO SIGNAL AV MUTE REMOTE
× × × × ○
2.19. DIGITAL ZOOM -
Hexadecimal 02h 44h 5Ah 44h 03h
Character D Z D
Response (Callback)
In the period when the command can be accepted
Hexadecimal 02h 44h 5Ah 44h 03h
Character D Z D
Acceptability
SECURITY STANDBY NO SIGNAL
AV MUTE REMOTE
× × × × ○
Page 7
7/49
2.20. COMPUTER SEARCH
Hexadecimal 02h 4Fh 50h 43h 03h
Character O P C
Response (Callback)
In the period when the command can be accepted
Hexadecimal 02h 4Fh 50h 43h 03h
Character O P C
Acceptability
SECURITY STANDBY NO SIGNAL
AV MUTE REMOTE
× × ○ × ○
Note:
• This command is available only for PT-FW300NT**/F300NT**.
2.21. PAGE Up (↑)
Hexadecimal 02h 4Fh 55h 50h 03h
Character O U P
Response (Callback)
In the period when the command can be accepted
Hexadecimal 02h 4Fh 55h 50h 03h
Character O U P
Acceptability
SECURITY STANDBY NO SIGNAL
AV MUTE REMOTE
× × × × ○
2.22. PAGE Down (↓)
Hexadecimal 02h 4Fh 44h 50h 03h
Character O D P
Response (Callback)
In the period when the command can be accepted
Hexadecimal 02h 4Fh 44h 50h 03h
Character O D P
Acceptability
SECURITY STANDBY NO SIGNAL
AV MUTE REMOTE
× × × × ○
2.23. MULTI-LIVE
Hexadecimal 02h 4Fh 4Dh 4Ch 03h
Character O M L
Response (Callback)
In the period when the command can be accepted
Hexadecimal 02h 4Fh 4Dh 4Ch 03h
Character O M L
Acceptability
SECURITY STANDBY NO SIGNAL AV MUTE REMOTE
× × × × ○
Page 8
8/49
2.24. PICTURE MODE
Hexadecimal 02h 56h 50h 4Dh 3Ah *1 *3 *5 03h
Character V P M : *2 *4 *6
Parameters (*1, *2, *3, *4, *5, *6)
DYNAMIC NATURAL STANDARD BLACKBOARD
Hexadecimal 44h 59h 4Eh 4Eh 41h 54h 53h 54h 44h 42h 42h 44h
Character D Y N N A T S T D B B D
CINEMA
Hexadecimal 43h 49h 4Eh
Character C I N
Response (Callback)
In the period when the command can be accepted
Hexadecimal 02h 56h 50h 4Dh
3Ah *1 *3 *5 03h
Character V P M : *2 *4 *6
Acceptability
SECURITY STANDBY NO SIGNAL
AV MUTE REMOTE
× × × × ○
Note:
• Parameters "NAT" is available when still image is displayed and "CIN" is available when moving image is
displayed.
2.25. CONTRAST
Hexadecimal 02h 56h 43h 4Eh 3Ah *1 *3 *5 03h
Character V C N : *2 *4 *6
Parameters (*1, *2, *3, *4, *5, *6)
－32 －31 －30
Hexadecimal 2Dh 33h 32h 2Dh 33h 31h 2Dh 33h 30h
Character － 3 2 － 3 1 － 3 0
30 31 32
Hexadecimal 30h 33h 30h 30h 33h 31h 30h 33h 32h
Character 0 3 0 0 3 1 0 3 2
Response (Callback)
In the period when the command can be accepted
Hexadecimal 02h 56h 43h 4Eh 3Ah *1 *3 *5 03h
Character V C N : *2 *4 *6
Acceptability
SECURITY STANDBY NO SIGNAL
AV MUTE REMOTE
× × × × ○
2.26. BRIGHTNESS
Hexadecimal 02h 56h 42h 52h 3Ah *1 *3 *5 03h
Character V B R : *2 *4 *6
Parameters (*1, *2, *3, *4, *5, *6)
－32 －31 －30
Hexadecimal 2Dh 33h 32h 2Dh 33h 31h 2Dh 33h 30h
Character － 3 2 － 3 1 － 3 0
30 31 32
Hexadecimal 30h 33h 30h 30h 33h 31h 30h 33h 32h
Character 0 3 0 0 3 1 0 3 2
Response (Callback)
In the period when the command can be accepted
Hexadecimal 02h 56h 42h 52h 3Ah *1 *3 *5 03h
Character V B R : *2 *4 *6
Acceptability
SECURITY STANDBY NO SIGNAL AV MUTE REMOTE
× × × × ○
Page 9
9/49
2.27. COLOR
Hexadecimal 02h 56h 43h 4Fh 3Ah *1 *3 *5 03h
Character V C O : *2 *4 *6
Parameters (*1, *2, *3, *4, *5, *6)
－32 －31 －30
Hexadecimal 2Dh 33h 32h 2Dh 33h 31h 2Dh 33h 30h
Character － 3 2 － 3 1 － 3 0
30 31 32
Hexadecimal 30h 33h 30h 30h 33h 31h 30h 33h 32h
Character 0 3 0 0 3 1 0 3 2
Response (Callback)
In the period when the command can be accepted
Hexadecimal 02h 56h 43h 4Fh 3Ah *1 *3 *5 03h
Character V C O : *2 *4 *6
Acceptability
SECURITY STANDBY NO SIGNAL
AV MUTE REMOTE
× × × × ○
Note:
• This command is acceptable only when moving image is displayed. In other cases, ER401 is returned.
2.28. TINT
Hexadecimal 02h 56h 54h 4Eh 3Ah *1 *3 *5 03h
Character V T N : *2 *4 *6
Parameters (*1, *2, *3, *4, *5, *6)
－32 －31 －30
Hexadecimal 2Dh 33h 32h 2Dh 33h 31h 2Dh 33h 30h
Character － 3 2 － 3 1 － 3 0
30 31 32
Hexadecimal 30h 33h 30h 30h 33h 31h 30h 33h 32h
Character 0 3 0 0 3 1 0 3 2
Response (Callback)
In the period when the command can be accepted
Hexadecimal 02h 56h 54h 4Eh 3Ah *1 *3 *5 03h
Character V T N : *2 *4 *6
Acceptability
SECURITY STANDBY NO SIGNAL AV MUTE REMOTE
× × × × ○
Note:
• This command is acceptable only when moving image is displayed. In other cases, ER401 is returned.
2.29. SHARPNESS
Hexadecimal 02h 56h 53h 52h 3Ah *1 *3 *5 03h
Character V S R : *2 *4 *6
Parameters (*1, *2, *3, *4, *5, *6)
0 1 2
Hexadecimal 30h 30h 30h 30h 30h 31h 30h 30h 32h
Character 0 0 0 0 0 1 0 0 2
13 14 15
Hexadecimal 30h 31h 33h 30h 31h 34h 30h 31h 35h
Character 0 1 3 0 1 4 0 1 5
Response (Callback)
In the period when the command can be accepted
Hexadecimal 02h 56h 53h 52h 3Ah *1 *3 *5 03h
Character V S R : *2 *4 *6
Acceptability
SECURITY STANDBY NO SIGNAL AV MUTE REMOTE
× × × × ○
Page 10
10/49
2.30. COLOR TEMPERATURE
Hexadecimal 02h 4Fh 54h 45h 3Ah *1 03h
Character O T E : *2
Parameters (*1, *2)
LOW DEFAULT HIGH
Hexadecimal 30h 31h 32h
Character 0 1 2
Response (Callback)
In the period when the command can be accepted
Hexadecimal 02h 4Fh 54h 45h 3Ah *1 03h
Character O T E : *2
Acceptability
SECURITY STANDBY NO SIGNAL
AV MUTE REMOTE
× × × × ○
2.31. DAYLIGHT VIEW
Hexadecimal 02h 56h 58h 58h 3Ah 44h 4Ch 56h 49h
Character V X X : D L V I
Hexadecimal 30h 3Dh 2Dh *1 *3 *5 *7 *9 03h
Character 0 = + *2 *4 *6 *8 *10
Parameters (*1, *2, *3, *4, *5, *6, *7, *8, *9, *10)
FRONT INSTALLATION
OFF
Hexadecimal 30h 30h 30h 30h 30h
Character 0 0 0 0 0
AUTO
Hexadecimal 30h 30h 30h 30h 31h
Character 0 0 0 0 1
ON
Hexadecimal 30h 30h 30h 30h 32h
Character 0 0 0 0 2
REAR INSTALLATION
OFF
Hexadecimal 30h 30h 30h 30h 30h
Character 0 0 0 0 0
ON
Hexadecimal 30h 30h 30h 30h 31h
Character 0 0 0 0 1
Response (Callback)
In the period when the command can be accepted
Hexadecimal 02h 56h 58h 58h 3Ah 44h 4Ch 56h 49h
Character V X X : D L V I
Hexadecimal 30h 3Dh 2Dh *1 *3 *5 *7 *9 03h
Character 0 = + *2 *4 *6 *8 *10
Acceptability
SECURITY STANDBY NO SIGNAL
AV MUTE REMOTE
× × × × ○
Page 11
11/49
2.32. TV-SYSTEM
Hexadecimal 02h 56h 53h 47h 3Ah *1 *3 *5 03h
Character V S G : *2 *4 *6
Parameters (*1, *2, *3, *4, *5, *6)
AUTO NTSC NTSC4.43 PAL
Hexadecimal 41h 55h 54h 4Eh 54h 53h 4Eh 34h 34h 50h 41h 4Ch
Character A U T N T S N 4 4 P A L
PAL-M PAL-N SECAM
Hexadecimal 50h 41h 4Dh 50h 41h 4Eh 53h 45h 43h
Character P A M P A N S E C
Response (Callback)
In the period when the command can be accepted
Hexadecimal 02h 56h 53h 47h 3Ah
*1 *3 *5 03h
Character V S G : *2 *4 *6
Acceptability
SECURITY STANDBY NO SIGNAL
AV MUTE REMOTE
× × ○ × ○
Note:
• This command is acceptable only when the input is VIDEO or S-VIDEO. In other cases, ER401 is returned.
2.33. NOISE REDUCTION
Hexadecimal 02h 56h 4Eh 52h 3Ah *1 03h
Character V N R : *2
Parameters (*1, *2)
OFF ON
Hexadecimal 30h 31h
Character 0 1
Response (Callback)
In the period when the command can be accepted
Hexadecimal 02h 56h 4Eh 52h 3Ah *1 03h
Character V N R : *2
Acceptability
SECURITY STANDBY NO SIGNAL AV MUTE REMOTE
× × × × ○
Note:
• This command is acceptable only when the input is VIDEO or S-VIDEO. In other cases, ER401 is returned.
2.34. WHITE BALANCE RED
Hexadecimal 02h 56h 57h 52h 3Ah *1 *3 *5 03h
Character V W R : *2 *4 *6
Parameters (*1, *2, *3, *4, *5, *6)
－32 －31 －30
Hexadecimal 2Dh 33h 32h 2Dh 33h 31h 2Dh 33h 30h
Character － 3 2 － 3 1 － 3 0
30 31 32
Hexadecimal 30h 33h 30h 30h 33h 31h 30h 33h 32h
Character 0 3 0 0 3 1 0 3 2
Response (Callback)
In the period when the command can be accepted
Hexadecimal 02h 56h 57h 52h 3Ah *1 *3 *5 03h
Character V W R : *2 *4 *6
Acceptability
SECURITY STANDBY NO SIGNAL
AV MUTE REMOTE
× × × × ○
Note:
• Only when the input is DVI, COMPUTER1 or COMPUTER2, and still image is displayed, this command is
acceptable. In other cases, ER401 is returned.
Page 12
12/49
2.35. WHITE BALANCE GREEN
Hexadecimal 02h 56h 57h 47h 3Ah *1 *3 *5 03h
Character V W G : *2 *4 *6
Parameters (*1, *2, *3, *4, *5, *6)
－32 －31 －30
Hexadecimal 2Dh 33h 32h 2Dh 33h 31h 2Dh 33h 30h
Character － 3 2 － 3 1 － 3 0
30 31 32
Hexadecimal 30h 33h 30h 30h 33h 31h 30h 33h 32h
Character 0 3 0 0 3 1 0 3 2
Response (Callback)
In the period when the command can be accepted
Hexadecimal 02h 56h 57h 47h 3Ah *1 *3 *5 03h
Character V W G : *2 *4 *6
Acceptability
SECURITY STANDBY NO SIGNAL
AV MUTE REMOTE
× × × × ○
Note:
• Only when the input is DVI, COMPUTER1 or COMPUTER2, and still image is displayed, this command is
acceptable. In other cases, ER401 is returned.
2.36. WHITE BALANCE BLUE
Hexadecimal 02h 56h 57h 42h 3Ah *1 *3 *5 03h
Character V W B : *2 *4 *6
Parameters (*1, *2, *3, *4, *5, *6)
－32 －31 －30
Hexadecimal 2Dh 33h 32h 2Dh 33h 31h 2Dh 33h 30h
Character － 3 2 － 3 1 － 3 0
30 31 32
Hexadecimal 30h 33h 30h 30h 33h 31h 30h 33h 32h
Character 0 3 0 0 3 1 0 3 2
Response (Callback)
In the period when the command can be accepted
Hexadecimal 02h 56h 57h 42h 3Ah *1 *3 *5 03h
Character V W B : *2 *4 *6
Acceptability
SECURITY STANDBY NO SIGNAL
AV MUTE REMOTE
× × × × ○
Note:
• Only when the input is DVI, COMPUTER1 or COMPUTER2, and still image is displayed, this command is
acceptable. In other cases, ER401 is returned.
2.37. KEYSTONE
Hexadecimal 02h 4Fh 4Bh 53h 3Ah *1 *3 *5 03h
Character O K S : *2 *4 *6
Parameters (*1, *2, *3, *4, *5, *6)
－32 －31 －30
Hexadecimal 2Dh 33h 32h 2Dh 33h 31h 2Dh 33h 30h
Character － 3 2 － 3 1 － 3 0
30 31 32
Hexadecimal 30h 33h 30h 30h 33h 31h 30h 33h 32h
Character 0 3 0 0 3 1 0 3 2
Response (Callback)
In the period when the command can be accepted
Hexadecimal 02h 4Fh 4Bh 53h 3Ah *1 *3 *5 03h
Character O K S : *2 *4 *6
Acceptability
SECURITY STANDBY NO SIGNAL
AV MUTE REMOTE
× ○ ○ × ○
Page 13
13/49
2.38. SHIFT H
Hexadecimal 02h 56h 48h 50h 3Ah *1 *3 *5 *7 03h
Character V H P : *2 *4 *6 *8
Parameters (*1, *2, *3, *4, *5, *6, *7, *8)
－127 －126
Hexadecimal 2Dh 33h 32h 37h 2Dh 33h 32h 36h
Character － 1 2 7 － 1 2 6
126 127
Hexadecimal 30h 33h 32h 36h 30h 33h 32h 37h
Character 0 1 2 6 0 1 2 7
Response (Callback)
In the period when the command can be accepted
Hexadecimal 02h 56h 48h 50h 3Ah *1 *3 *5 *7 03h
Character V H P : *2 *4 *6 *8
Acceptability
SECURITY STANDBY NO SIGNAL
AV MUTE REMOTE
× × × × ○
Note:
• This command is not acceptable when the input is NETWORK. In this case, ER401 is returned.
2.39. SHIFT V
Hexadecimal 02h 56h 56h 50h 3Ah *1 *3 *5 03h
Character V V P : *2 *4 *6
Parameters (*1, *2, *3, *4, *5, *6)
－64 －63 －62
Hexadecimal 2Dh 36h 34h 2Dh 36h 33h 2Dh 36h 32h
Character － 6 4 － 6 3 － 6 2
62 63 64
Hexadecimal 30h 36h 32h 30h 36h 33h 30h 36h 34h
Character 0 6 2 0 6 3 0 6 4
Response (Callback)
In the period when the command can be accepted
Hexadecimal 02h 56h 56h 50h 3Ah *1 *3 *5 03h
Character V V P : *2 *4 *6
Acceptability
SECURITY STANDBY NO SIGNAL AV MUTE REMOTE
× × × × ○
Note:
• This command is acceptable except when the input is NETWORK. Or, this command is acceptable when the
input is NETWORK and ASPECT is H-FIT (for FW300 series only). In other cases, ER401 is returned.
2.40. DOT CLOCK
Hexadecimal 02h 56h 44h 43h 3Ah *1 *3 *5 03h
Character V D C : *2 *4 *6
Parameters (*1, *2, *3, *4, *5, *6)
－32 －31 －30
Hexadecimal 2Dh 33h 32h 2Dh 33h 31h 2Dh 33h 30h
Character － 3 2 － 3 1 － 3 0
30 31 32
Hexadecimal 30h 33h 30h 30h 33h 31h 30h 33h 32h
Character 0 3 0 0 3 1 0 3 2
Response (Callback)
In the period when the command can be accepted
Hexadecimal 02h 56h 44h 43h 3Ah *1 *3 *5 03h
Character V D C : *2 *4 *6
Acceptability
SECURITY STANDBY NO SIGNAL AV MUTE REMOTE
× × × × ○
Note:
• Only when the input is COMPUTER1 or COMPUTER2, and still image is displayed, this command is acceptable.
In other cases, ER401 is returned.
Page 14
14/49
2.41. CLOCK PHASE
Hexadecimal 02h 56h 43h 50h 3Ah *1 *3 *5 03h
Character V C P : *2 *4 *6
Parameters (*1, *2, *3, *4, *5, *6)
－16 －15 －14
Hexadecimal 2Dh 31h 36h 2Dh 31h 35h 2Dh 31h 34h
Character － 1 6 － 1 5 － 1 4
14 15 16
Hexadecimal 30h 31h 34h 30h 31h 35h 30h 31h 36h
Character 0 1 4 0 1 5 0 1 6
Response (Callback)
In the period when the command can be accepted
Hexadecimal 02h 56h 43h 50h 3Ah *1 *3 *5 03h
Character V C P : *2 *4 *6
Acceptability
SECURITY STANDBY NO SIGNAL
AV MUTE REMOTE
× × × × ○
Note:
• This command is acceptable only when the input is COMPUTER1 or COMPUTER2. In other cases, ER401 is
returned.
2.42. ASPECT
Hexadecimal 02h 56h 53h 31h 3Ah *1 03h
Character V S 1 : *2
Parameters (*1, *2)
F300 series
AUTO 4:3 16:9 S4:3 THROUGH
Hexadecimal 30h 31h 32h 33h
34h
Character 0 1 2 3 4
FW300 series
AUTO
4:3 16:9 H-FIT V-FI T HV-FIT THROUGH
Hexadecimal 30h 31h 32h 33h 34h 35h 36h
Character 0 1 2 3 4 5 6
Response (Callback)
In the period when the command can be accepted
Hexadecimal 02h 56h 53h 31h 3Ah *1 03h
Character V S 1 : *2
Acceptability
SECURITY STANDBY NO SIGNAL
AV MUTE REMOTE
× × × × ○
2.43. FRAME LOCK
Hexadecimal 02h 56h 46h 4Ch 3Ah *1 03h
Character V F L : *2
Parameters (*1, *2)
OFF ON
Hexadecimal 30h 31h
Character 0 1
Response (Callback)
In the period when the command can be accepted
Hexadecimal 02h 56h 46h 4Ch 3Ah *1 03h
Character V F L : *2
Acceptability
SECURITY STANDBY NO SIGNAL
AV MUTE REMOTE
× × × × ○
Page 15
15/49
2.44. LANGUAGE
Hexadecimal 02h 4Fh 4Ch 47h 3Ah *1 *3 *5 03h
Character O L G : *2 *4 *6
Parameters (*1, *2, *3, *4, *5, *6,)
English German French
Hexadecimal 45h 4Eh 47h 44h 45h 55h 46h 52h 41h
Character E N G D E U F R A
Spanish Italian Japanese
Hexadecimal 45h 53h 50h 49h 54h 4Ch 4Ah 50h 4Eh
Character E S P I T L J P N
Chinese Russian Korean
Hexadecimal 43h 48h 49h 52h 55h 53h 4Bh 4Fh 52h
Character C H I R U S K O R
Portuguese Swedish Norwegian
Hexadecimal 50h 4Fh 52h 53h 56h 45h 4Eh 4Fh 52h
Character P O R S V E N O R
Danish Polish Czech
Hexadecimal 44h 41h 4Eh 50h 4Fh 4Ch 43h 45h 53h
Character D A N P O L C E S
Hungarian Thai
Hexadecimal 4Dh 41h 47h 54h 48h 41h
Character M A G T H A
Response (Callback)
In the period when the command can be accepted
Hexadecimal 02h 4Fh 4Ch 47h 3Ah *1 *3 *5 03h
Character O L G : *2 *4 *6
Acceptability
SECURITY STANDBY NO SIGNAL
AV MUTE REMOTE
× ○ ○ ○ ○
2.45. INPUT GUIDE
Hexadecimal 02h 4Fh 49h 44h 3Ah *1 03h
Character O I D : *2
Parameters (*1, *2)
OFF SIMPLE DETAILED
Hexadecimal 30h 31h 32h
Character 0 1 2
Response (Callback)
In the period when the command can be accepted
Hexadecimal 02h 4Fh 49h 44h 3Ah *1 03h
Character O I D : *2
Acceptability
SECURITY STANDBY NO SIGNAL
AV MUTE REMOTE
× ○ ○ ○ ○
2.46. STARTUP LOGO
Hexadecimal 02h 4Dh 4Ch 4Fh 3Ah *1 03h
Character M L O : *2
Parameters (*1, *2)
OFF ON USER
Hexadecimal 30h 31h 32h
Character 0 1 2
Response (Callback)
In the period when the command can be accepted
Hexadecimal 02h 4Dh 4Ch 4Fh 3Ah *1 03h
Character M L O : *2
Acceptability
SECURITY STANDBY NO SIGNAL
AV MUTE REMOTE
× ○ ○ ○ ○
Page 16
16/49
2.47. COMPUTER2 SELECT
Hexadecimal 02h 4Fh 52h 49h 3Ah *1 *3 *5 03h
Character O R I : *2 *4 *6
Parameters (*1, *2, *3, *4, *5, *6)
INPUT OUTPUT
Hexadecimal 32h 49h 4Eh 32h 4Fh 55h
Character 2 I N 2 O U
Response (Callback)
In the period when the command can be accepted
Hexadecimal 02h 4Fh 52h 49h 3Ah
*1 *3 *5 03h
Character O R I : *2 *4 *6
Acceptability
SECURITY STANDBY NO SIGNAL
AV MUTE REMOTE
× × ○ ○ ○
Note:
• This command is not available when COMPUTER2 is selected.
2.48. NO SIGNAL SHUT-OFF
Hexadecimal 02h 4Fh 41h 46h 3Ah
*1 *3 03h
Character O A F : *2 *4
Parameters (*1, *2, *3, *4)
DISABLE 15 60
Hexadecimal 30h 30h 31h 35h 36h 30h
Character 0 0 1 5 6 0
Response (Callback)
In the period when the command can be accepted
Hexadecimal 02h 4Fh 41h 46h 3Ah *1 *3 03h
Character O A F : *2 *4
Acceptability
SECURITY STANDBY NO SIGNAL
AV MUTE REMOTE
× ○ ○ ○ ○
2.49. INITIAL START UP
Hexadecimal 02h 4Fh 50h 59h 3Ah *1 03h
Character O P Y : *2
Parameters (*1, *2)
STANDBY ON LAST MEMORY
Hexadecimal 30h 31h 32h
Character 0 1 2
Response (Callback)
In the period when the command can be accepted
Hexadecimal 02h 4Fh 50h 59h 3Ah *1 03h
Character C P Y : *2
Acceptability
SECURITY STANDBY NO SIGNAL
AV MUTE REMOTE
× × ○ ○ ○
2.50. AUTO SETUP setting
Hexadecimal 02h 4Fh 53h 53h 3Ah *1 03h
Character O S S : *2
Parameters (*1, *2)
BUTTON AUTO
Hexadecimal 30h 31h
Character 0 1
Response (Callback)
In the period when the command can be accepted
Hexadecimal 02h 4Fh 53h 53h 3Ah *1 03h
Character O S S : *2
Acceptability
SECURITY STANDBY NO SIGNAL
AV MUTE REMOTE
× ○ ○ ○ ○
Page 17
17/49
2.51. SIGNAL SEARCH
Hexadecimal 02h 4Fh 53h 52h 3Ah *1 03h
Character O S R : *2
Parameters (*1, *2)
OFF ON
Hexadecimal 30h 31h
Character 0 1
Response (Callback)
In the period when the command can be accepted
Hexadecimal 02h 4Fh 53h 52h 3Ah *1 03h
Character O S R : *2
Acceptability
SECURITY STANDBY NO SIGNAL
AV MUTE REMOTE
× ○ ○ ○ ○
2.52. INSTALLATION
Hexadecimal 02h 4Fh 49h 4Ch 3Ah *1 03h
Character O I L : *2
Parameters (*1, *2)
FRONT/DESK REAR/DESK FRONT / CEILING REAR/CEILING
Hexadecimal 30h 31h 32h 33h
Character 0 1 2 3
Response (Callback)
In the period when the command can be accepted
Hexadecimal 02h 4Fh 49h 4Ch 3Ah *1 03h
Character O I L : *2
Acceptability
SECURITY STANDBY NO SIGNAL
AV MUTE REMOTE
× ○ ○ × ○
2.53. HIGH ALTITUDE MODE
Hexadecimal 02h 4Fh 46h 4Dh 3Ah *1 03h
Character O F M : *2
Parameters (*1, *2)
OFF ON
Hexadecimal 30h 31h
Character 0 1
Response (Callback)
In the period when the command can be accepted
Hexadecimal 02h 4Fh 46h 4Dh 3Ah *1 03h
Character O F M : *2
Acceptability
SECURITY STANDBY NO SIGNAL
AV MUTE REMOTE
× ○ ○ ○ ○
2.54. OSD DESIGN
Hexadecimal 02h 4Dh 4Fh 44h 3Ah *1 03h
Character M O D : *2
Parameters (*1, *2)
TYPE1 TYPE2 TYPE3
Hexadecimal 30h 31h 32h
Character 0 1 2
Response (Callback)
In the period when the command can be accepted
Hexadecimal 02h 4Dh 4Fh 44h 3Ah *1 03h
Character M O D : *2
Acceptability
SECURITY STANDBY NO SIGNAL
AV MUTE REMOTE
× ○ ○ ○ ○
Page 18
18/49
2.55. SXGA MODE
Hexadecimal 02h 4Fh 53h 58h 3Ah *1 03h
Character O S X : *2
Parameters (*1, *2)
SXGA SXGA+
Hexadecimal 30h 31h
Character 0 1
Response (Callback)
In the period when the command can be accepted
Hexadecimal 02h 4Fh 53h 58h 3Ah *1 03h
Character O S X : *2
Acceptability
SECURITY STANDBY NO SIGNAL
AV MUTE REMOTE
× × × × ○
2.56. WIDE MODE
Hexadecimal 02h 4Fh 58h 47h 3Ah *1 03h
Character O X G : *2
Parameters (*1, *2)
OFF ON AUTO
Hexadecimal 30h 31h 32h
Character 0 1 2
Response (Callback)
In the period when the command can be accepted
Hexadecimal 02h 4Fh 58h 47h 3Ah *1 03h
Character O X G : *2
Acceptability
SECURITY STANDBY NO SIGNAL
AV MUTE REMOTE
× × × × ○
2.57. BACK COLOR
Hexadecimal 02h 4Fh 42h 43h 3Ah *1 03h
Character O B C : *2
Parameters (*1, *2)
BLUE BLACK
Hexadecimal 30h 31h
Character 0 1
Response (Callback)
In the period when the command can be accepted
Hexadecimal 02h 4Fh 42h 43h 3Ah *1 03h
Character O B C : *2
Acceptability
SECURITY STANDBY NO SIGNAL
AV MUTE REMOTE
× ○ ○ × ○
2.58. VOLUME
Hexadecimal 02h 41h 56h 4Ch 3Ah *1 *3 *5 03h
Character A V L : *2 *4 *6
Parameters (*1, *2, *3, *4, *5, *6)
0 1 2
Hexadecimal 30h 30h 30h 30h 30h 31h 30h 30h 32h
Character 0 0 0 0 0 1 0 0 2
61 62 63
Hexadecimal 30h 36h 31h 30h 36h 32h 30h 36h 33h
Character 0 6 1 0 6 2 0 6 3
Response (Callback)
In the period when the command can be accepted
Hexadecimal 02h 41h 56h 4Ch 3Ah *1 *3 *5 03h
Character A V L : *2 *4 *6
Acceptability
SECURITY STANDBY NO SIGNAL
AV MUTE REMOTE
× △ × × ○
Note:
• During STANDBY, this command is available only when IN STANDBY MODE is ON.
Page 19
19/49
2.59. BALANCE
Hexadecimal 02h 41h 42h 4Ch 3Ah *1 *3 *5 03h
Character A B L : *2 *4 *6
Parameters (*1, *2, *3, *4, *5, *6)
－16 －15 －14
Hexadecimal 2Dh 31h 36h 2Dh 31h 35h 2Dh 31h 34h
Character － 1 6 － 1 5 － 1 4
14 15 16
Hexadecimal 30h 31h 34h 30h 31h 35h 30h 31h 36h
Character 0 1 4 0 1 5 0 1 6
Response (Callback)
In the period when the command can be accepted
Hexadecimal 02h 41h 42h 4Ch 3Ah *1 *3 *5 03h
Character A B L : *2 *4 *6
Acceptability
SECURITY STANDBY NO SIGNAL
AV MUTE REMOTE
× △ × × ○
Note:
• During STANDBY, this command is available only when IN STANDBY MODE is ON.
2.60. AV MUTE setting
Hexadecimal 02h 41h 4Dh 54h 3Ah *1 03h
Character A M T : *2
Parameters (*1, *2)
OFF ON
Hexadecimal 30h 31h
Character 0 1
Response (Callback)
In the period when the command can be accepted
Hexadecimal 02h 41h 4Dh 54h
3Ah *1 03h
Character A M T : *2
Acceptability
SECURITY STANDBY NO SIGNAL AV MUTE REMOTE
× △ × × ○
Note:
• During STANDBY, this command is available only when IN STANDBY MODE is ON.
2.61. WIRELESS LAN
Hexadecimal 02h 4Fh 4Eh 53h 3Ah *1 *3 *5 03h
Character O N S : *2 *4 *6
Parameters (*1, *2, *3, *4, *5, *6,)
OFF 1 2
Hexadecimal 30h 30h 30h 30h 30h 31h 30h 30h 32h
Character 0 0 0 0 0 1 0 0 2
3 4 USER1
Hexadecimal 30h 30h 33h 30h 30h 34h 30h 30h 35h
Character 0 0 3 0 0 4 0 0 5
USER2 USER3 S-MAP
Hexadecimal 30h 30h 36h 30h 30h 37h 30h 30h 38h
Character 0 0 6 0 0 7 0 0 8
Response (Callback)
In the period when the command can be accepted
Hexadecimal 02h 4Fh 4Eh 53h 3Ah *1 *3 *5 03h
Character O N S : *2 *4 *6
Acceptability
SECURITY STANDBY NO SIGNAL
AV MUTE REMOTE
× × × × ○
Note:
• This command is available only for PT-FW300NT**/F300NT**.
Page 20
20/49
2.62. Wireless LAN OFF
Hexadecimal 02h 4Fh 52h 43h 3Ah *1 03h
Character O R C : *2
Parameters (*1, *2)
OFF
Hexadecimal 31h
Character 1
Response (Callback)
In the period when the command can be accepted
Hexadecimal 02h 4Fh 52h 43h 3Ah *1 03h
Character O R C : *2
Acceptability
SECURITY STANDBY NO SIGNAL
AV MUTE REMOTE
× × ○ × ○
Note:
• This command is available only for PT-FW300NT**/F300NT**.
2.63. Set Date
Hexadecimal 02h 54h 53h 44h 3Ah
Character T S D :
Hexadecimal *y1 *y2 *y3 *y4 *m1 *m2 *d1 *d2 *w 03h
Character
Parameters
*y1 - *y4: Year (4 digits)
*m1, *m2: Month (2 digits)
*d1, *d2: Day (2 digits)
*w: Day of the week (Mon = 1, Tue = 2, Wed = 3, Thu = 4, Fri = 5, Sat = 6, Sun = 7)
Set it by UTC (Coordinated Universal Time).
Example: Tuesday, April 1, 2008
*y1 *y2 *y3 *y4 *m1 *m2 *d1 *d2 *w
Hexadecimal 32h 30h 30h 38h 30h 34h 30h 31h 32h
Character 2 0 0 8 0 4 0 1 2
Response (Callback)
In the period when the command can be accepted
Hexadecimal 02h 54h 53h 44h 3Ah *y1 *y2
Character T S D :
Hexadecimal *y3 *y4 *m1 *m2 *d1 *d2 *w 03h
Character
Acceptability
SECURITY STANDBY NO SIGNAL AV MUTE REMOTE
× ○ ○ ○ ○
2.64. Set Time
Hexadecimal 02h 54h 53h 54h 3Ah
Character T S T :
Hexadecimal *h1 *h2 *m1 *m2 *s1 *s2 03h
Character
Parameters
*h1, *h2: Hour (2 digits)
*m1, *m2: Minute (2 digits)
*s1, *s2: Second (2 digits)
Set it by UTC (Coordinated Universal Time).
Example: 3 seconds at 3:45 p.m.
*h1 *h2 *m1 *m2 *s1 *s2
Hexadecimal 31h 35h 34h 35h 30h 33h
Character 1 5 4 5 0 3
Response (Callback)
In the period when the command can be accepted
Hexadecimal 02h 54h 53h 54h 3Ah
Character T S T :
Hexadecimal *h1 *h2 *m1 *m2 *s1 *s2 03h
Character
Acceptability
SECURITY STANDBY NO SIGNAL
AV MUTE REMOTE
× ○ ○ ○ ○
Page 21
21/49
2.65. REWIND ALL FILTER / Rewinding interval setting
Hexadecimal 02h 4Dh 46h 53h 3Ah *1 03h
Character M F S : *2
Parameters (*1, *2)
REWIND 100H 400H
Hexadecimal 30h 31h 32h
Character 0 1 2
Response (Callback)
In the period when the command can be accepted
Hexadecimal 02h 4Dh 46h 53h 3Ah
*1 03h
Character M F S : *2
Acceptability
SECURITY STANDBY NO SIGNAL
AV MUTE REMOTE
× × ○ × ○
2.66. FUNCTION
Hexadecimal 02h 46h 43h 31h 03h
Character F C 1
Response (Callback)
In the period when the command can be accepted
Hexadecimal 02h 46h 43h 31h 03h
Character F C 1
Acceptability
SECURITY STANDBY NO SIGNAL
AV MUTE REMOTE
× × ○ × ○
2.67. SIDE BY SIDE
Hexadecimal 02h 4Fh 44h 57h 03h
Character O D W
Response (Callback)
In the period when the command can be accepted
Hexadecimal 02h 4Fh 44h 57h 03h
Character O D 1
Acceptability
SECURITY STANDBY NO SIGNAL
AV MUTE REMOTE
× × ○ × ○
Note:
• This command is available only for PT-FW300 series.
2.68. CLOSED CAPTION SETTING
Hexadecimal 02h 4Fh 43h 43h 3Ah *1 03h
Character O C C : *2
Parameters (*1, *2)
OFF CC1 CC2 CC3 CC4
Hexadecimal 30h 31h 32h 33h 34h
Character 0 1 2 3 4
Response (Callback)
In the period when the command can be accepted
Hexadecimal 02h 4Fh 43h 43h 3Ah
*1 03h
Character O C C : *2
Acceptability
SECURITY STANDBY NO SIGNAL AV MUTE REMOTE
× × × × ○
Note:
• Only when the model is PT-FW300NTU/FW300U/F300NTU/F300U, and the input signal is 480i (YPbPr) or
NTSC, this command is available.
Page 22
22/49
2.69. EDID Setting
Hexadecimal 02h 4Fh 45h 44h 3Ah *1 03h
Character O E D : *2
Parameters (*1, *2)
EDID1 (Moving image) EDID2 (PC)
Hexadecimal 31h 32h
Character 1 2
Response (Callback)
In the period when the command can be accepted
Hexadecimal 02h 4Fh 45h 44h 3Ah
*1 03h
Character O E D : *2
Acceptability
SECURITY STANDBY NO SIGNAL
AV MUTE REMOTE
× ○ ○ ○ ○
2.70. RGB/YPbPr
Hexadecimal 02h 4Fh 52h 46h 3Ah *1 03h
Character O R F : *2
Parameters (*1, *2)
RGB YPbPr AUTO
Hexadecimal 30h 31h 32h
Character 0 1 2
Response (Callback)
In the period when the command can be accepted
Hexadecimal 02h 4Fh 52h 46h 3Ah
*1 03h
Character O R F : *2
Acceptability
SECURITY STANDBY NO SIGNAL
AV MUTE REMOTE
× ○ × × ○
2.71. FUNCTION BUTTON
Hexadecimal 02h 4Fh 46h 43h 3Ah *1 03h
Character O F C : *2
Parameters (*1, *2)
DISABLE ASPECT PICTURE MODE DAYLIGHT VIEW CLOSED CAPTION
Hexadecimal 30h 31h 32h 33h 34h
Character 0 1 2 3 4
Response (Callback)
In the period when the command can be accepted
Hexadecimal 02h 4Fh 46h 43h 3Ah
*1 03h
Character O F C : *2
Acceptability
SECURITY STANDBY NO SIGNAL
AV MUTE REMOTE
× ○ ○ ○ ○
Note:
• CLOSED CAPTION is available only for PT-FW300NTU/FW300U/F300NTU/F300U.
2.72. SCREEN FORMAT
Hexadecimal 02h 56h 53h 46h 3Ah *1 03h
Character V S F : *2
Parameters (*1, *2)
16:10 16:9
Hexadecimal 30h 31h
Character 0 1
Response (Callback)
In the period when the command can be accepted
Hexadecimal 02h 56h 53h 46h 3Ah
*1 03h
Character V S F : *2
Acceptability
SECURITY STANDBY NO SIGNAL AV MUTE REMOTE
× × ○ × ○
Note:
• This command is available only for PT-FW300 series.
Page 23
23/49
2.73. OVER SCAN
Hexadecimal 02h 4Dh 4Fh 56h 3Ah *1 03h
Character M O V : *2
Parameters (*1, *2)
0 1 2 3
Hexadecimal 30h 31h 32h 33h
Character 0 1 2 3
Response (Callback)
In the period when the command can be accepted
Hexadecimal 02h 4Dh 4Fh 56h 3Ah
*1 03h
Character M O V : *2
Acceptability
SECURITY STANDBY NO SIGNAL
AV MUTE REMOTE
× × × × ○
Note:
• This command is available only when moving image is displayed. In other cases, ER401 is returned.
2.74. SELF CHECK display
Hexadecimal 02h 4Fh 53h 43h 03h
Character O S C
Response (Callback)
In the period when the command can be accepted
Hexadecimal 02h 4Fh 53h 43h 03h
Character O S C
Acceptability
SECURITY STANDBY NO SIGNAL AV MUTE REMOTE
○ × ○ × ○
2.75. EXT OPTION display
Hexadecimal 02h 4Fh 48h 4Dh 03h
Character O H M
Response (Callback)
In the period when the command can be accepted
Hexadecimal 02h 4Fh 48h 4Dh 03h
Character O H M
Acceptability
SECURITY STANDBY NO SIGNAL AV MUTE REMOTE
○ × ○ × ○
2.76. VGA60/480p setting
Hexadecimal 02h 4Fh 56h 35h 3Ah *1 03h
Character O V 5 : *2
Parameters (*1, *2)
VGA60 480p AUTO
Hexadecimal 30h 31h 32h
Character 0 1 2
Response (Callback)
In the period when the command can be accepted
Hexadecimal 02h 4Fh 56h 35h 3Ah
*1 03h
Character O V 5 : *2
Acceptability
SECURITY STANDBY NO SIGNAL AV MUTE REMOTE
× × × × ○
Page 24
24/49
2.77. TEST PATTERN display
Hexadecimal 02h 4Fh 53h 56h 03h
Character O S V
Response (Callback)
In the period when the command can be accepted
Hexadecimal 02h 4Fh 53h 56h 03h
Character O S V
Acceptability
SECURITY STANDBY NO SIGNAL
AV MUTE REMOTE
× × ○ ○ ○
2.78. DIGITAL CINEMA REALITY
Hexadecimal 02h 4Fh 50h 44h 3Ah *1 03h
Character O P D : *2
Parameters (*1, *2)
OFF ON
Hexadecimal 30h 31h
Character 0 1
Response (Callback)
In the period when the command can be accepted
Hexadecimal 02h 4Fh 50h 44h 3Ah
*1 03h
Character O P D : *2
Acceptability
SECURITY STANDBY NO SIGNAL
AV MUTE REMOTE
× × × × ○
Note:
• This command is available only when an interlaced signal is inputted. In other cases, ER401 is returned.
2.79. KEYSTONE selected item display
Hexadecimal 02h 75h 83h 84h 03h
Character K S T
Response (Callback)
In the period when the command can be accepted
Hexadecimal 02h 75h 83h 84h 03h
Character K S T
Acceptability
SECURITY STANDBY NO SIGNAL AV MUTE REMOTE
○ × ○ × ○
2.80. IN STANDBY MODE
Hexadecimal 02h 56h 58h 58h 3Ah 41h 53h 42h 49h
Character V X X : A S B I
Hexadecimal 30h 3Dh 2Dh *1 *3 *5 *7 *9 03h
Character 0 = + *2 *4 *6 *8 *10
Parameters (*1, *2, *3, *4, *5, *6, *7, *8, *9, *10)
OFF
Hexadecimal 30h 30h 30h 30h 30h
Character 0 0 0 0 0
ON
Hexadecimal 30h 30h 30h 30h 31h
Character 0 0 0 0 1
Response (Callback)
In the period when the command can be accepted
Hexadecimal 02h 56h 58h 58h 3Ah 41h 53h 42h 49h
Character V X X : A S B I
Hexadecimal 30h 3Dh 2Dh *1 *3 *5 *7 *9 03h
Character 0 = + *2 *4 *6 *8 *10
Acceptability
SECURITY STANDBY NO SIGNAL AV MUTE REMOTE
× ○ ○ ○ ○
Page 25
25/49
2.81. DVI SIGNAL LEVEL
Hexadecimal 02h 56h 58h 58h 3Ah 44h 56h 49h 49h
Character V X X : D V I I
Hexadecimal 30h 3Dh 2Dh *1 *3 *5 *7 *9 03h
Character 0 = + *2 *4 *6 *8 *10
Parameters (*1, *2, *3, *4, *5, *6, *7, *8, *9, *10)
0-255:PC
Hexadecimal 30h 30h 30h 30h 30h
Character 0 0 0 0 0
16-235
Hexadecimal 30h 30h 30h 30h 31h
Character 0 0 0 0 1
Response (Callback)
In the period when the command can be accepted
Hexadecimal 02h 56h 58h 58h 3Ah 44h 56h 49h 49h
Character V X X : D V I I
Hexadecimal 30h 3Dh 2Dh *1 *3 *5 *7 *9 03h
Character 0 = + *2 *4 *6 *8 *10
Acceptability
SECURITY STANDBY NO SIGNAL
AV MUTE REMOTE
× × × ○ ○
2.82. WARNING MESSAGE
Hexadecimal 02h 56h 58h 58h 3Ah 57h 4Dh 44h 49h
Character V X X : W M D I
Hexadecimal 30h 3Dh 2Dh *1 *3 *5 *7 *9 03h
Character 0 = + *2 *4 *6 *8 *10
Parameters (*1, *2, *3, *4, *5, *6, *7, *8, *9, *10)
OFF
Hexadecimal 30h 30h 30h 30h 30h
Character 0 0 0 0 0
ON
Hexadecimal 30h 30h 30h 30h 31h
Character 0 0 0 0 1
Response (Callback)
In the period when the command can be accepted
Hexadecimal 02h 56h 58h 58h 3Ah 57h 4Dh 44h 49h
Character V X X : W M D I
Hexadecimal 30h 3Dh 2Dh *1 *3 *5 *7 *9 03h
Character 0 = + *2 *4 *6 *8 *10
Acceptability
SECURITY STANDBY NO SIGNAL
AV MUTE REMOTE
× × ○ ○ ○
Page 26
26/49
2.83. SCREEN POSITION
Hexadecimal 02h 56h 58h 58h 3Ah 56h 53h 50h 49h
Character V X X : V S P I
Hexadecimal 31h 3Dh 2Dh *1 *3 *5 *7 *9 03h
Character 1 = + *2 *4 *6 *8 *10
Parameters (*1, *2, *3, *4, *5, *6, *7, *8, *9, *10)
LOW
Hexadecimal 30h 30h 30h 30h 30h
Character 0 0 0 0 0
CENTER
Hexadecimal 30h 30h 30h 30h 31h
Character 0 0 0 0 1
HIGH
Hexadecimal 30h 30h 30h 30h 32h
Character 0 0 0 0 2
Response (Callback)
In the period when the command can be accepted
Hexadecimal 02h 56h 58h 58h 3Ah 56h 53h 50h 49h
Character V X X : V S P I
Hexadecimal 30h 3Dh 2Dh *1 *3 *5 *7 *9 03h
Character 0 = + *2 *4 *6 *8 *10
Acceptability
SECURITY STANDBY NO SIGNAL
AV MUTE REMOTE
× × ○ × ○
Note:
• This command is available only for PT-FW300 series.
Page 27
27/49
2.84. EMULATE
Hexadecimal 02h 56h 58h 58h 3Ah 45h 4Dh 55h 49h
Character V X X : E M U I
Hexadecimal 30h 3Dh 2Dh *1 *3 *5 *7 *9 03h
Character 0 = + *2 *4 *6 *8 *10
Parameters (*1, *2, *3, *4, *5, *6, *7, *8, *9, *10)
DEFAULT
Hexadecimal 30h 30h 30h 30h 31h
Character 0 0 0 0 1
D3500
Hexadecimal 30h 30h 30h 30h 32h
Character 0 0 0 0 2
D4000
Hexadecimal 30h 30h 30h 30h 33h
Character 0 0 0 0 3
D/W5K series
Hexadecimal 30h 30h 30h 30h 34h
Character 0 0 0 0 4
L730
Hexadecimal 30h 30h 30h 30h 35h
Character 0 0 0 0 5
L780
Hexadecimal 30h 30h 30h 30h 36h
Character 0 0 0 0 6
L735
Hexadecimal 30h 30h 30h 30h 37h
Character 0 0 0 0 7
L785
Hexadecimal 30h 30h 30h 30h 38h
Character 0 0 0 0 8
LB/W80
Hexadecimal 30h 30h 30h 30h 39h
Character 0 0 0 0 9
Response (Callback)
In the period when the command can be accepted
Hexadecimal 02h 56h 58h 58h 3Ah 45h 4Dh 55h 49h
Character V X X : E M U I
Hexadecimal 30h 3Dh 2Dh *1 *3 *5 *7 *9 03h
Character 0 = + *2 *4 *6 *8 *10
Acceptability
SECURITY STANDBY NO SIGNAL
AV MUTE REMOTE
× × ○ ○ ○
Page 28
28/49
2.85. AUDIO SETTING
Hexadecimal 02h 56h 58h 58h 3Ah 41h 49h 4Eh 49h
Character V X X : A I N I
Hexadecimal *1 3Dh 2Dh *3 *5 *7 *9 *11 03h
Character *2 = + *4 *6 *8 *10 *12
Parameters (*1, *2)
COMPUTER1
Hexadecimal 30h
Character 0
COMPUTER2
Hexadecimal 31h
Character 1
DVI
Hexadecimal 32h
Character 2
Parameters (*3, *4, *5, *6, *7, *8, *9, *10, *11, *12)
COM.AUDIO IN
Hexadecimal 30h 30h 30h 30h 30h
Character 0 0 0 0 0
AUDIO IN
Hexadecimal 30h 30h 30h 30h 31h
Character 0 0 0 0 1
Response (Callback)
In the period when the command can be accepted
Hexadecimal 02h 56h 58h 58h 3Ah 41h 49h 4Eh 49h
Character V X X : A I N I
Hexadecimal 30h 3Dh 2Dh *1 *3 *5 *7 *9 03h
Character 0 = + *2 *4 *6 *8 *10
Acceptability
SECURITY STANDBY NO SIGNAL
AV MUTE REMOTE
× × ○ × ○
2.86. Query Power
Hexadecimal 02h 51h 50h 57h 03h
Character Q P W
Response (Callback)
OFF
Hexadecimal 02h 30h 30h 31h 03h
Character 0 0 0
ON
Hexadecimal 02h 30h 30h 31h 03h
Character 0 0 1
Acceptability
SECURITY STANDBY NO SIGNAL
AV MUTE REMOTE
○ ○ ○ ○ ○
2.87. Query Lamp Status
Hexadecimal 02h 51h 24h 53h 03h
Character Q $ S
Response (Callback)
Lamp OFF
Hexadecimal 02h 30h 03h
Character 0
In turning ON
Hexadecimal 02h 31h 03h
Character 1
Lamp ON
Hexadecimal 02h 32h 03h
Character 2
In turning OFF
Hexadecimal 02h 33h 03h
Character 3
Acceptability
SECURITY STANDBY NO SIGNAL
AV MUTE REMOTE
○ ○ ○ ○ ○
Page 29
29/49
2.88. Query INPUT SELECT
Hexadecimal 02h 51h 49h 4Eh 03h
Character Q I N
Response (Callback)
COMPUTER1
Hexadecimal 02h 52h 47h 31h 03h
Character R G 1
COMPUTER2
Hexadecimal 02h 52h 47h 32h 03h
Character R G 2
VIDEO
Hexadecimal 02h 56h 49h 44h 03h
Character V I D
S-VIDEO
Hexadecimal 02h 53h 56h 44h 03h
Character S V D
DVI
Hexadecimal 02h 44h 56h 49h 03h
Character D V I
NETWORK
Hexadecimal 02h 4Eh 57h 50h 03h
Character N W P
Acceptability
SECURITY STANDBY NO SIGNAL
AV MUTE REMOTE
○ × ○ ○ ○
2.89. Query AV MUTE
Hexadecimal 02h 51h 53h 48h 03h
Character Q S H
Response (Callback)
OFF
Hexadecimal 02h 31h 03h
Character 0
ON
Hexadecimal 02h 31h 03h
Character 1
Acceptability
SECURITY STANDBY NO SIGNAL
AV MUTE REMOTE
○ × ○ ○ ○
2.90. Query FREEZE
Hexadecimal 02h 51h 46h 5Ah 03h
Character Q F Z
Response (Callback)
OFF
Hexadecimal 02h 30h 03h
Character 0
ON
Hexadecimal 02h 31h 03h
Character 1
Acceptability
SECURITY STANDBY NO SIGNAL
AV MUTE REMOTE
○ × × ○ ○
Page 30
30/49
2.91. Query INDEX-window
Hexadecimal 02h 51h 49h 58h 03h
Character Q I X
Response (Callback)
OFF
Hexadecimal 02h 30h 03h
Character 0
50%
Hexadecimal 02h 31h 03h
Character 1
75%
Hexadecimal 02h 32h 03h
Character 2
100%
Hexadecimal 02h 33h 03h
Character 3
Acceptability
SECURITY STANDBY NO SIGNAL
AV MUTE REMOTE
○ × × ○ ○
2.92. Query AUTO SETUP
Hexadecimal 02h 51h 41h 53h 03h
Character Q A S
Response (Callback)
OFF
Hexadecimal 02h 30h 03h
Character 0
In execution
Hexadecimal 02h 31h 03h
Character 1
Acceptability
SECURITY STANDBY NO SIGNAL
AV MUTE REMOTE
○ ○ ○ ○ ○
2.93. Query PICTURE MODE
Hexadecimal 02h 51h 50h 4Dh 03h
Character Q P M
Response (Callback)
In the period when the command can be accepted
Hexadecimal 02h *1 *3 *5 03h
Character *2 *4 *6
Acceptability
SECURITY STANDBY NO SIGNAL
AV MUTE REMOTE
○ × × ○ ○
Parameters (*1, *2, *3, *4, *5, *6)
DYNAMIC NATURAL STANDARD BLACKBOARD
Hexadecimal 44h 59h 4Eh 4Eh 41h 54h 53h 54h 44h 42h 42h 44h
Character D Y N N A T S T D B B D
CINEMA
43h 49h 4Eh
C I N
Note:
• Parameters "NAT" is not returned when the input signal is moving image. And parameters "CIN" is not returned
when the input signal is still image.
Page 31
31/49
2.94. Query CONTRAST
Hexadecimal 02h 51h 56h 52h 03h
Character Q V R
Response (Callback)
In the period when the command can be accepted
Hexadecimal 02h *1 *3 *5 03h
Character *2 *4 *6
Acceptability
SECURITY STANDBY NO SIGNAL
AV MUTE REMOTE
○ × × ○ ○
Parameters (*1, *2, *3, *4, *5, *6)
－32 －31 －30
Hexadecimal 2Dh 33h 32h 2Dh 33h 31h 2Dh 33h 30h
Character － 3 2 － 3 1 － 3 0
30 31 32
Hexadecimal 30h 33h 30h 30h 33h 31h 30h 33h 32h
Character 0 3 0 0 3 1 0 3 2
2.95. Query BRIGHTNESS
Hexadecimal 02h 51h 56h 42h 03h
Character Q V B
Response (Callback)
In the period when the command can be accepted
Hexadecimal 02h *1 *3 *5 03h
Character *2 *4 *6
Acceptability
SECURITY STANDBY NO SIGNAL
AV MUTE REMOTE
○ × × ○ ○
Parameters (*1, *2, *3, *4, *5, *6)
－32 －31 －30
Hexadecimal 2Dh 33h 32h 2Dh 33h 31h 2Dh 33h 30h
Character － 3 2 － 3 1 － 3 0
30 31 32
Hexadecimal 30h 33h 30h 30h 33h 31h 30h 33h 32h
Character 0 3 0 0 3 1 0 3 2
2.96. Query COLOR
Hexadecimal 02h 51h 56h 43h 03h
Character Q V C
Response (Callback)
In the period when the command can be accepted
Hexadecimal 02h *1 *3 *5 03h
Character *2 *4 *6
Acceptability
SECURITY STANDBY NO SIGNAL
AV MUTE REMOTE
○ × × ○ ○
Parameters (*1, *2, *3, *4, *5, *6)
－32 －31 －30
Hexadecimal 2Dh 33h 32h 2Dh 33h 31h 2Dh 33h 30h
Character － 3 2 － 3 1 － 3 0
30 31 32
Hexadecimal 30h 33h 30h 30h 33h 31h 30h 33h 32h
Character 0 3 0 0 3 1 0 3 2
Note:
• This command is acceptable when the input is VIDEO or S-VIDEO. And when the input is COMPUTER1,
COMPUTER2 or DVI, and moving image is displayed, it is acceptable. In other cases, ER401 is returned.
Page 32
32/49
2.97. Query TINT
Hexadecimal 02h 51h 56h 54h 03h
Character Q V T
Response (Callback)
In the period when the command can be accepted
Hexadecimal 02h *1 *3 *5 03h
Character *2 *4 *6
Acceptability
SECURITY STANDBY NO SIGNAL
AV MUTE REMOTE
○ × × ○ ○
Parameters (*1, *2, *3, *4, *5, *6)
－32 －31 －30
Hexadecimal 2Dh 33h 32h 2Dh 33h 31h 2Dh 33h 30h
Character － 3 2 － 3 1 － 3 0
30 31 32
Hexadecimal 30h 33h 30h 30h 33h 31h 30h 33h 32h
Character 0 3 0 0 3 1 0 3 2
Note:
• This command is acceptable when the input is VIDEO or S-VIDEO. And when the input is COMPUTER1,
COMPUTER2 or DVI, and moving image is displayed, it is acceptable. In other cases, ER401 is returned.
2.98. Query SHARPNESS
Hexadecimal 02h 51h 56h 53h 03h
Character Q V S
Response (Callback)
In the period when the command can be accepted
Hexadecimal 02h *1 *3 *5 03h
Character *2 *4 *6
Acceptability
SECURITY STANDBY NO SIGNAL
AV MUTE REMOTE
○ × × ○ ○
Parameters (*1, *2, *3, *4, *5, *6)
－08 －07 －06
Hexadecimal 2Dh 30h 38h 2Dh 30h 37h 2Dh 30h 36h
Character － 0 8 － 0 7 － 0 6
13 14 015
Hexadecimal 30h 31h 33h 30h 31h 34h 30h 31h 35h
Character 0 1 3 0 1 4 0 1 5
2.99. Query COLOR TEMPERATURE
Hexadecimal 02h 51h 54h 45h 03h
Character Q T E
Response (Callback)
In the period when the command can be accepted
Hexadecimal 02h *1 03h
Character *2
Acceptability
SECURITY STANDBY NO SIGNAL
AV MUTE REMOTE
○ × × ○ ○
Parameters (*1, *2)
LOW DEFAULT
HIGH
Hexadecimal 30h 31h 32h
Character 0 1 2
Page 33
33/49
2.100. Query DAYLIGHT VIEW
Hexadecimal 02h 51h 56h 58h 3Ah 44h 4Ch 56h 49h 30h
Character Q V X : D L V I 0
Response (Callback)
In the period when the command can be accepted
Hexadecimal 02h 44h 4Ch 56h 49h 30h 3Dh 2Dh
Character D L V I 0 = +
Hexadecimal *1 *3 *5 *7 *9 03h
Character *2 *4 *6 *8 *10
Acceptability
SECURITY STANDBY NO SIGNAL
AV MUTE REMOTE
○ × × ○ ○
Parameters (*1, *2, *3, *4, *5, *6, *7, *8, *9, *10)
FRONT INSTALLATION
OFF
Hexadecimal 30h 30h 30h 30h 30h
Character 0 0 0 0 0
AUTO
Hexadecimal 30h 30h 30h 30h 31h
Character 0 0 0 0 1
ON
Hexadecimal 30h 30h 30h 30h 32h
Character 0 0 0 0 2
REAR INSTALLATION
OFF
Hexadecimal 30h 30h 30h 30h 30h
Character 0 0 0 0 0
ON
Hexadecimal 30h 30h 30h 30h 31h
Character 0 0 0 0 1
2.101. Query TV-SYSTEM
Hexadecimal 02h 51h 53h 47h 03h
Character Q S G
Response (Callback)
In the period when the command can be accepted
Hexadecimal 02h *1 *3 *5 03h
Character *2 *4 *6
Acceptability
SECURITY STANDBY NO SIGNAL
AV MUTE REMOTE
○ × ○ ○ ○
Parameters (*1, *2, *3, *4, *5, *6)
AUTO NTSC NTSC4.43 PAL
Hexadecimal 41h 55h 54h 4Eh 54h 53h 4Eh 34h 34h 50h 41h 4Ch
Character A U T N T S N 4 4 P A L
PAL-M PAL-N SECAM
Hexadecimal 50h 41h 4Dh 50h 41h 4Eh 53h 45h 43h
Character P A M P A N S E C
Note:
• This command is acceptable only when the input is VIDEO or S-VIDEO. In other cases, ER401 is returned.
2.102. Query NOISE REDUCTION
Hexadecimal 02h 51h 4Eh 52h 03h
Character Q N R
Response (Callback)
In the period when the command can be accepted
Hexadecimal 02h *1 03h
Character *2
Acceptability
SECURITY STANDBY NO SIGNAL
AV MUTE REMOTE
○ × × ○ ○
Parameters (*1, *2)
OFF
ON
Hexadecimal 30h 31h
Character 0 1
Note:
• This command is acceptable only when the input is VIDEO or S-VIDEO. In other cases, ER401 is returned.
Page 34
34/49
2.103. Query WHITE BALANCE RED
Hexadecimal 02h 51h 57h 52h 03h
Character Q W R
Response (Callback)
In the period when the command can be accepted
Hexadecimal 02h *1 *3 *5 03h
Character *2 *4 *6
Acceptability
SECURITY STANDBY NO SIGNAL
AV MUTE REMOTE
○ × × ○ ○
Parameters (*1, *2, *3, *4, *5, *6)
－32 －31 －30
Hexadecimal 2Dh 33h 32h 2Dh 33h 31h 2Dh 33h 30h
Character － 3 2 － 3 1 － 3 0
30 31 32
Hexadecimal 30h 33h 30h 30h 33h 31h 30h 33h 32h
Character 0 3 0 0 3 1 0 3 2
Note:
• Only when the input is DVI, COMPUTER1 or COMPUTER2, and still image is displayed, this command is
acceptable. In other cases, ER401 is returned.
2.104. Query WHITE BALANCE GREEN
Hexadecimal 02h 51h 57h 47h 03h
Character Q W G
Response (Callback)
In the period when the command can be accepted
Hexadecimal 02h *1 *3 *5 03h
Character *2 *4 *6
Acceptability
SECURITY STANDBY NO SIGNAL
AV MUTE REMOTE
○ × × ○ ○
Parameters (*1, *2, *3, *4, *5, *6)
－32 －31 －30
Hexadecimal 2Dh 33h 32h 2Dh 33h 31h 2Dh 33h 30h
Character － 3 2 － 3 1 － 3 0
30 31 32
Hexadecimal 30h 33h 30h 30h 33h 31h 30h 33h 32h
Character 0 3 0 0 3 1 0 3 2
Note:
• Only when the input is DVI, COMPUTER1 or COMPUTER2, and still image is displayed, this command is
acceptable. In other cases, ER401 is returned.
2.105. Query WHITE BALANCE BLUE
Hexadecimal 02h 51h 57h 42h 03h
Character Q W B
Response (Callback)
In the period when the command can be accepted
Hexadecimal 02h *1 *3 *5 03h
Character *2 *4 *6
Acceptability
SECURITY STANDBY NO SIGNAL
AV MUTE REMOTE
○ × × ○ ○
Parameters (*1, *2, *3, *4, *5, *6)
－32 －31 －30
Hexadecimal 2Dh 33h 32h 2Dh 33h 31h 2Dh 33h 30h
Character － 3 2 － 3 1 － 3 0
30 31 32
Hexadecimal 30h 33h 30h 30h 33h 31h 30h 33h 32h
Character 0 3 0 0 3 1 0 3 2
Note:
• Only when the input is DVI, COMPUTER1 or COMPUTER2, and still image is displayed, this command is
acceptable. In other cases, ER401 is returned.
Page 35
35/49
2.106. Query KEYSTONE
Hexadecimal 02h 51h 4Bh 53h 03h
Character Q K S
Response (Callback)
In the period when the command can be accepted
Hexadecimal 02h *1 *3 *5 03h
Character *2 *4 *6
Acceptability
SECURITY STANDBY NO SIGNAL
AV MUTE REMOTE
○ ○ ○ ○ ○
Parameters (*1, *2, *3, *4, *5, *6)
－32 －31 －30
Hexadecimal 2Dh 33h 32h 2Dh 33h 31h 2Dh 33h 30h
Character － 3 2 － 3 1 － 3 0
30 31 32
Hexadecimal 30h 33h 30h 30h 33h 31h 30h 33h 32h
Character 0 3 0 0 3 1 0 3 2
2.107. Query SHIFT H
Hexadecimal 02h 51h 48h 50h 03h
Character Q H P
Response (Callback)
In the period when the command can be accepted
Hexadecimal 02h *1 *3 *5 03h
Character *2 *4 *6
Acceptability
SECURITY STANDBY NO SIGNAL
AV MUTE REMOTE
○ × × ○ ○
Parameters (*1, *2, *3, *4, *5, *6)
－127 －126 －125
Hexadecimal 2Dh 31h 32h 37h 2Dh 31h 32h 36h 2Dh 31h 32h 35h
Character － 1 2 7 － 1 2 6 － 1 2 5
125 126 127
Hexadecimal 31h 32h 35h 31h 32h 36h 31h 32h 37h
Character 1 2 5 1 2 6 1 2 7
Note:
• This command is not acceptable when the input is NETWORK.
2.108. Query SHIFT V
Hexadecimal 02h 51h 56h 50h 03h
Character Q V P
Response (Callback)
In the period when the command can be accepted
Hexadecimal 02h *1 *3 *5 03h
Character *2 *4 *6
Acceptability
SECURITY STANDBY NO SIGNAL AV MUTE REMOTE
○ × × ○ ○
Parameters (*1, *2, *3, *4, *5, *6)
－64 －63 －62
Hexadecimal 2Dh 36h 34h 2Dh 36h 33h 2Dh 36h 32h
Character － 6 4 － 6 3 － 6 2
62 63 64
Hexadecimal 36h 32h 36h 33h 36h 34h
Character 6 2 6 3 6 4
Note:
• This command is acceptable except when the input is NETWORK. Or, this command is acceptable when the
input is NETWORK and ASPECT is H-FIT (for FW300 series only). In other cases, ER401 is returned.
Page 36
36/49
2.109. Query DOT CLOCK
Hexadecimal 02h 51h 44h 43h 03h
Character Q D C
Response (Callback)
In the period when the command can be accepted
Hexadecimal 02h *1 *3 *5 03h
Character *2 *4 *6
Acceptability
SECURITY STANDBY NO SIGNAL
AV MUTE REMOTE
○ × × ○ ○
Parameters (*1, *2, *3, *4, *5, *6)
－32 －31 －30
Hexadecimal 2Dh 33h 32h 2Dh 33h 31h 2Dh 33h 30h
Character － 3 2 － 3 1 － 3 0
30 31 32
Hexadecimal 30h 33h 30h 30h 33h 31h 30h 33h 32h
Character 0 3 0 0 3 1 0 3 2
Note:
• Only when the input is COMPUTER1 or COMPUTER2, and still image is displayed, this command is acceptable.
In other cases, ER401 is returned.
2.110. Query CLOCK PHASE
Hexadecimal 02h 51h 43h 50h 03h
Character Q C P
Response (Callback)
In the period when the command can be accepted
Hexadecimal 02h *1 *3 *5 03h
Character *2 *4 *6
Acceptability
SECURITY STANDBY NO SIGNAL
AV MUTE REMOTE
○ × × ○ ○
Parameters (*1, *2, *3, *4, *5, *6)
－16 －15 －14
Hexadecimal 2Dh 31h 36h 2Dh 31h 36h 2Dh 31h 36h
Character － 1 6 － 1 6 － 1 4
14 15 16
Hexadecimal 30h 31h 34h 30h 31h 35h 30h 31h 36h
Character 0 1 4 0 1 5 0 1 6
Note:
• This command is acceptable only when the input is COMPUTER1 or COMPUTER2. In other cases, ER401 is
returned.
2.111. Query ASPECT
Hexadecimal 02h 51h 53h 31h 03h
Character Q S 1
Response (Callback)
In the period when the command can be accepted
Hexadecimal 02h *1 03h
Character *2
Acceptability
SECURITY STANDBY NO SIGNAL
AV MUTE REMOTE
○ × × ○ ○
Parameters (*1, *2)
F300 series
AUTO 4:3 16:9 S4:3 THROUGH
Hexadecimal 30h 31h 32h 33h
34h
Character 0 1 2 3 4
FW300 series
AUTO 4:3 16:9 H-FIT
V-FI T HV-FIT THROUGH
Hexadecimal 30h 31h 32h 33h 34h 35h 36h
Character 0 1 2 3 4 5 6
Page 37
37/49
2.112. Query FRAME LOCK
Hexadecimal 02h 51h 46h 4Ch 03h
Character Q F L
Response (Callback)
In the period when the command can be accepted
Hexadecimal 02h *1 03h
Character *2
Acceptability
SECURITY STANDBY NO SIGNAL
AV MUTE REMOTE
○ × × ○ ○
Parameters (*1, *2)
OFF ON
Hexadecimal 30h 31h
Character 0 1
2.113. Query LANGUAGE
Hexadecimal 02h 51h 4Ch 47h 03h
Character Q L G
Response (Callback)
In the period when the command can be accepted
Hexadecimal 02h *1 *3 *5 03h
Character *2 *4 *6
Acceptability
SECURITY STANDBY NO SIGNAL
AV MUTE REMOTE
○ ○ ○ ○ ○
Parameters (*1, *2, *3, *4, *5, *6)
English German French
Hexadecimal 45h 4Eh 47h 44h 45h 55h 46h 52h 41h
Character E N G D E U F R A
Spanish Italian Japanese
Hexadecimal 45h 53h 50h 49h 54h 4Ch 4Ah 50h 4Eh
Character E S P I T L J P N
Chinese Russian Korean
Hexadecimal 43h 48h 49h 52h 55h 53h 4Bh 4Fh 52h
Character C H I R U S K O R
Portuguese Swedish Norwegian
Hexadecimal 50h 4Fh 52h 53h 56h 45h 4Eh 4Fh 52h
Character P O R S V E N O R
Danish Polish Czech
Hexadecimal 44h 41h 4Eh 50h 4Fh 4Ch 43h 45h 53h
Character D A N P O L C E S
Hungarian Thai
Hexadecimal 4Dh 41h 47h 54h 48h 41h
Character M A G T H A
2.114. Query INPUT GUIDE
Hexadecimal 02h 51h 44h 49h 03h
Character Q D I
Response (Callback)
In the period when the command can be accepted
Hexadecimal 02h *1 03h
Character *2
Acceptability
SECURITY STANDBY NO SIGNAL
AV MUTE REMOTE
○ ○ ○ ○ ○
Parameters (*1, *2)
OFF SIMPLE DETAILED
Hexadecimal 30h 31h 32h
Character 0 1 2
Page 38
38/49
2.115. Query STARTUP LOGO
Hexadecimal 02h 51h 4Ch 4Fh 03h
Character Q L O
Response (Callback)
In the period when the command can be accepted
Hexadecimal 02h *1 03h
Character *2
Acceptability
SECURITY STANDBY NO SIGNAL
AV MUTE REMOTE
○ ○ ○ ○ ○
Parameters (*1, *2)
OFF ON USER
Hexadecimal 30h 31h 32h
Character 0 1 2
2.116. Query COMPUTER2 SELECT
Hexadecimal 02h 51h 52h 49h 03h
Character Q R I
Response (Callback)
In the period when the command can be accepted
Hexadecimal 02h *1 *3 *5 03h
Character *2 *4 *6
Acceptability
SECURITY STANDBY NO SIGNAL
AV MUTE REMOTE
○ × ○ ○ ○
Parameters (*1, *2, *3, *4, *5, *6)
INPUT OUTPUT
Hexadecimal 32h 49h 4Eh 32h 4Fh 55h
Character 2 I N 2 O U
2.117. Query NO SIGNAL SHUT-OFF
Hexadecimal 02h 51h 41h 46h 03h
Character Q A F
Response (Callback)
In the period when the command can be accepted
Hexadecimal 02h *1 *3 03h
Character *2 *4
Acceptability
SECURITY STANDBY NO SIGNAL
AV MUTE REMOTE
○ ○ ○ ○ ○
Parameters (*1, *2, *3, *4)
• The timer can be set to "DISABLE", or 15 to 60 minutes every 5 minutes.
• Examples of "DISABLE", "15 min." and "60 min." are below.
DISABLE 15 60
Hexadecimal 30h 30h 31h 35h 36h 30h
Character 0 0 1 5 6 0
2.118. Query INITIAL START UP
Hexadecimal 02h 51h 50h 59h 03h
Character Q P Y
Response (Callback)
In the period when the command can be accepted
Hexadecimal 02h *1 03h
Character *2
Acceptability
SECURITY STANDBY NO SIGNAL
AV MUTE REMOTE
○ ○ ○ ○ ○
Parameters (*1, *2)
STANDBY ON LAST MEMOR
Y
Hexadecimal 30h 31h 32h
Character 0 1 2
Page 39
39/49
2.119. Query AUTO SETUP setting
Hexadecimal 02h 51h 53h 53h 03h
Character Q S S
Response (Callback)
In the period when the command can be accepted
Hexadecimal 02h *1 03h
Character *2
Acceptability
SECURITY STANDBY NO SIGNAL
AV MUTE REMOTE
○ × ○ ○ ○
Parameters (*1, *2)
BUTTON AUTO
Hexadecimal 30h 31h
Character 0 1
2.120. Query SIGNAL SEARCH
Hexadecimal 02h 51h 53h 52h 03h
Character Q S R
Response (Callback)
In the period when the command can be accepted
Hexadecimal 02h *1 03h
Character *2
Acceptability
SECURITY STANDBY NO SIGNAL
AV MUTE REMOTE
○ × ○ ○ ○
Parameters (*1, *2)
OFF ON
Hexadecimal 30h 31h
Character 0 1
2.121. Query INSTALLATION
Hexadecimal 02h 51h 53h 50h 03h
Character Q S P
Response (Callback)
Hexadecimal 02h *1 03h
Character *2
Parameters (*1, *2)
FRONT/DESK REAR/DESK FRONT/CEILING REAR/CEILING
Hexadecimal 30h 31h 32h 33h
Character 0 1 2 3
Acceptability
SECURITY STANDBY NO SIGNAL AV MUTE REMOTE
○ ○ ○ ○ ○
2.122. Query HIGH ALTITUDE MODE
Hexadecimal 02h 51h 46h 4Dh 03h
Character Q F M
Response (Callback)
In the period when the command can be accepted
Hexadecimal 02h *1 03h
Character *2
Acceptability
SECURITY STANDBY NO SIGNAL AV MUTE REMOTE
○ ○ ○ ○ ○
Parameters (*1, *2)
OFF ON
Hexadecimal 30h 31h
Character 0 1
Page 40
40/49
2.123. Query OSD DESIGN
Hexadecimal 02h 51h 4Fh 44h 03h
Character Q O D
Response (Callback)
In the period when the command can be accepted
Hexadecimal 02h *1 03h
Character *2
Acceptability
SECURITY STANDBY NO SIGNAL
AV MUTE REMOTE
○ ○ ○ ○ ○
Parameters (*1, *2)
TYPE1 TYPE2 TYPE3
Hexadecimal 30h 31h 32h
Character 0 1 2
2.124. Query SXGA MODE
Hexadecimal 02h 51h 53h 58h 03h
Character Q S X
Response (Callback)
In the period when the command can be accepted
Hexadecimal 02h *1 03h
Character *2
Acceptability
SECURITY STANDBY NO SIGNAL
AV MUTE REMOTE
○ × × ○ ○
Parameters (*1, *2)
SXGA SXGA+
Hexadecimal 30h 31h
Character 0 1
2.125. Query WIDE MODE
Hexadecimal 02h 51h 58h 47h 03h
Character Q X G
Response (Callback)
In the period when the command can be accepted
Hexadecimal 02h *1 03h
Character *2
Acceptability
SECURITY STANDBY NO SIGNAL
AV MUTE REMOTE
○ × × ○ ○
Parameters (*1, *2)
OFF ON AUTO
Hexadecimal 30h 31h 32h
Character 0 1 2
2.126. Query BACK COLOR
Hexadecimal 02h 51h 42h 43h 03h
Character Q B C
Response (Callback)
In the period when the command can be accepted
Hexadecimal 02h *1 03h
Character *2
Acceptability
SECURITY STANDBY NO SIGNAL
AV MUTE REMOTE
○ × ○ ○ ○
Parameters (*1, *2)
BLUE
BLACK
Hexadecimal 30h 31h
Character 0 1
Page 41
41/49
2.127. Query VOLUME
Hexadecimal 02h 51h 41h 56h 03h
Character Q A V
Response (Callback)
In the period when the command can be accepted
Hexadecimal 02h *1 *3 *5 03h
Character *2 *4 *6
Acceptability
SECURITY STANDBY NO SIGNAL
AV MUTE REMOTE
○ △ ○ ○ ○
Parameters (*1, *2, *3, *4, *5, *6)
0 1 2
Hexadecimal 30h 30h 30h 30h 30h 31h 30h 30h 32h
Character 0 0 0 0 0 1 0 0 2
61 62 63
Hexadecimal 30h 36h 31h 30h 36h 32h 30h 36h 33h
Character 0 6 1 0 6 2 0 6 3
Note:
• During STANDBY, this command is available only when IN STANDBY MODE is ON.
2.128. Query BALANCE
Hexadecimal 02h 51h 42h 4Ch 03h
Character Q B L
Response (Callback)
In the period when the command can be accepted
Hexadecimal 02h *1 *3 *5 03h
Character *2 *4 *6
Acceptability
SECURITY STANDBY NO SIGNAL AV MUTE REMOTE
○ △ ○ ○ ○
Parameters (*1, *2, *3, *4, *5, *6)
－16 －15 －14
Hexadecimal 2Dh 31h 36h 2Dh 31h 35h 2Dh 31h 34h
Character － 1 6 － 1 5 － 1 4
14 15 16
Hexadecimal 30h 36h 31h 30h 31h 35h 30h 31h 36h
Character 0 1 4 0 1 5 0 1 6
Note:
• During STANDBY, this command is available only when IN STANDBY MODE is ON.
2.129. Query Date & Time
Hexadecimal 02h 51h 43h 54h 03h
Character Q C T
Response (Callback)
In the period when the command can be accepted
Hexadecimal 02h *Y1 *Y2 *Y3 *Y4 *M1 *M2 *D1 *D2
Character
Hexadecimal *h1 *h2 *m1 *m2 *s1 *s2 *t1 *t2 03h
Character
Acceptability
SECURITY STANDBY NO SIGNAL
AV MUTE REMOTE
○ ○ ○ ○ ○
Parameters
*Y1 - *Y4: Year (4 digits)
*M1, *M2: Month (2 digits)
*D1, *D2: Day (2 digits)
*h1, *h2: Hour (2 digits)
*m1, *m2: Minute (2 digits)
*s1, *s2: Second (2 digits)
*t1, *t2: Time zone (2 digits)
Example: 0 second at 0:00 p.m. (+00:00), April 1, 2008
*Y1 *Y2 *Y3 *Y4 *M1 *M2 *D1 *D2
Hexadecimal 02h 32ｈ 30h 30h 38h 30h 34h 30ah 31h
Character 2 0 0 8 0 4 0 1
*h1 *h2 *m1 *m2 *s1 *s2 *t1 *t2
Hexadecimal 31h 32h 30h 30h 30h 30h 30h 64h 03h
Character 1 2 0 0 0 0 0 ｄ
Page 42
42/49
2.130. Query Date
Hexadecimal 02h 51h 47h 44h 03h
Character Q G D
Response (Callback)
In the period when the command can be accepted
Hexadecimal 02h *y1 *y2 *y3 *y4 *m1 *m2 *d1 *d2 *w 03h
Character
Parameters (*1, *2, *3, *4, *5, *6)
*y1 - *y4: Year (4 digits)
*m1, *m2: Month (2 digits)
*d1, *d2: Day (2 digits)
*w: Day of the week (Mon = 1, Tue = 2, Wed = 3, Thu = 4, Fri = 5, Sat = 6, Sun = 7)
Set it by UTC (Coordinated Universal Time).
Example: Tuesday, April 1, 2008
*y1 *y2 *y3 *y4 *m1
*m2 *d1 *d2 *w
Hexadecimal 32h 30h 30h 38h 30h 34h 30h 31h 31h
Character 2 0 0 8 0 4 0 1 2
Acceptability
SECURITY STANDBY NO SIGNAL
AV MUTE REMOTE
○ ○ ○ ○ ○
2.131. Query Time
Hexadecimal 02h 51h 47h 54h 03h
Character Q G T
Response (Callback)
In the period when the command can be accepted
Hexadecimal 02h *h1 *h2 *m1 *m2 *s1 *s2 03h
Character
Parameters
*h1, *h2: Hour (2 digits)
*m1, *m2: Minute (2 digits)
*s1, *s2: Second (2 digits)
Set it by UTC (Coordinated Universal Time).
Example: 3 seconds at 3:45 p.m.
*h1 *h2 *m1 *m2 *s1 *s2
Hexadecimal 31h 35h 34h 35h 30h 33h
Character 1 5 4 5 0 3
Acceptability
SECURITY STANDBY NO SIGNAL
AV MUTE REMOTE
○ ○ ○ ○ ○
2.132. Query RUNTIME - LAMP
Hexadecimal 02h 51h 24h 4Ch 03h
Character Q $ L
Response (Callback)
In the period when the command can be accepted
Hexadecimal 02h *1 *3 *5 *7 03h
Character *2 *4 *6 *8
Acceptability
SECURITY STANDBY NO SIGNAL
AV MUTE REMOTE
○ ○ ○ ○ ○
Parameters (*1, *2, *3, *4, *5, *6)
0 h 1 h
Hexadecimal 30h 30h 30h 30h 30h 30h 30h 31h
Character 0 0 0 0 0 0 0 1
9998 h 9999 h
Hexadecimal 39h 39h 39h 38h 39h 39h 39h 39h
Character 9 9 9 8 9 9 9 9
Note:
• If the lamp runtime cannot be accessed, 0000 is returned.
Page 43
43/49
2.133. Query FILTER INFORMATION
Hexadecimal 02h 51h 46h 49h 3Ah *1 03h
Character Q F I : *2
Parameters (*1, *2)
Runtime Rewinding
frequency
Filter kind Rewinding
interval
Elapsed time
after rewinding
Remaining
time
Hexadecimal 30h 31h 32h 33h 34h 35h
Character 0 1 2 3 4 5
Response (Callback)
Example: When "QFI:5" is transmitted, and the remaining time is 1,500 h
Hexadecimal 02h 31h 35h 30h 30h 03h
Character 1 5 0 0
Acceptability
SECURITY STANDBY NO SIGNAL
AV MUTE REMOTE
○ × ○ ○ ○
Note:
• The remaining time returned by the response is a value of conversion, and it may differ from an actual value
depending on the environment and the condition.
2.134. Query CLOSED CAPTION SETTING
Hexadecimal 02h 51h 43h 43h 03h
Character Q C C
Response (Callback)
In the period when the command can be accepted
Hexadecimal 02h *1 03h
Character *2
Acceptability
SECURITY STANDBY NO SIGNAL
AV MUTE REMOTE
○ × × ○ ○
Parameters (*1, *2)
OFF CC1 CC2 CC3 CC4
Hexadecimal 30h 31h 32h 33h 34h
Character 0 1 2 3 4
Note:
• Only when the model is PT-FW300NTU/FW300U/F300NTU/F300U, and the input signal is 480i or NTSC, this
command is available.
2.135. Query MAC Address
Hexadecimal 02h 51h 4Dh 41h 03h
Character Q M A
Response (Callback)
Example: AB0102030405
Hexadecimal 02h 41h 42h 30h
31h 30h 32h 30h 33h 30h 34h 30h 35h 03h
Character A B 0 1 0 2 0 3 0 4 0 5
Acceptability
SECURITY STANDBY NO SIGNAL
AV MUTE REMOTE
○ × ○ ○ ○
2.136. Query Temperature Information
Hexadecimal 02h 51h 4Dh 41h 3Ah *1 03h
Character Q T M : *2
Parameters (*1, *2)
Intake air Exhaust air
Hexadecimal 30h 31h
Character 0 1
Response (Callback)
Example: 20°C (68°F)
Hexadecimal 02h 30h 30h 32h
30h 2Fh 30h 30h 36h 38h 03h
Character 0 0 2 0 / 0 0 6 8
Example: -10°C (14°F)
Hexadecimal 02h 2Dh 30h 31h
30h 2Fh 30h 30h 31h 34h 03h
Character - 0 1 0 / 0 0 1 4
Acceptability
SECURITY STANDBY NO SIGNAL
AV MUTE REMOTE
○ ○ ○ ○ ○
Page 44
44/49
2.137. Query Serial Number
Hexadecimal 02h 51h 53h 4Eh 03h
Character Q S N
Response (Callback)
Example: SB12345678
Hexadecimal 02h 41h 42h 31h
32h 33h 34h 35h 36h 37h 38h 03h
Character S B 1 2 3 4 5 6 7 8
Acceptability
SECURITY STANDBY NO SIGNAL
AV MUTE REMOTE
○ × ○ ○ ○
2.138. Query EDID Setting
Hexadecimal 02h 51h 45h 44h 03h
Character Q E D
Response (Callback)
In the period when the command can be accepted
Hexadecimal 02h *1 03h
Character *2
Acceptability
SECURITY STANDBY NO SIGNAL
AV MUTE REMOTE
○ ○ ○ ○ ○
Parameters (*1, *2)
Moving image PC
Hexadecimal 31h 32h
Character 1 2
2.139. Query RGB/YPbPr
Hexadecimal 02h 51h 52h 46h 03h
Character Q R F
Response (Callback)
In the period when the command can be accepted
Hexadecimal 02h *1 03h
Character *2
Acceptability
SECURITY STANDBY NO SIGNAL
AV MUTE REMOTE
○ × × ○ ○
Parameters (*1, *2)
RGB YPbPr AUTO
Hexadecimal 30h 31h 32h
Character 0 1 2
2.140. Query FUNCTION BUTTON
Hexadecimal 02h 51h 46h 43h 03h
Character Q F C
Response (Callback)
In the period when the command can be accepted
Hexadecimal 02h *1 03h
Character *2
Acceptability
SECURITY STANDBY NO SIGNAL
AV MUTE REMOTE
○ ○ ○ ○ ○
Parameters (*1, *2)
DISABLE ASPECT PICTURE MODE
DAYLIGHT VIEW CLOSED CAPTION
Hexadecimal 30h 31h 32h 33h 34h
Character 0 1 2 3 4
Page 45
45/49
2.141. Query SCREEN FORMAT
Hexadecimal 02h 51h 53h 46h 03h
Character Q S F
Response (Callback)
In the period when the command can be accepted
Hexadecimal 02h *1 03h
Character *2
Acceptability
SECURITY STANDBY NO SIGNAL
AV MUTE REMOTE
○ × ○ ○ ○
Parameters (*1, *2)
16:10 16:9
Hexadecimal 30h 31h
Character 0 1
Note:
• This command is acceptable only for PT-FW300 series. In other models, ER401 is returned.
2.142. Query OVER SCAN
Hexadecimal 02h 51h 4Fh 56h 03h
Character Q O V
Response (Callback)
In the period when the command can be accepted
Hexadecimal 02h *1 03h
Character *2
Acceptability
SECURITY STANDBY NO SIGNAL AV MUTE REMOTE
○ × × ○ ○
Parameters (*1, *2)
0％ 3％ 5％ 7％
Hexadecimal 30h 31h 32h 33h
Character 0 1 2 3
2.143. Query VGA60/480p setting
Hexadecimal 02h 51h 56h 35h 03h
Character Q V 5
Response (Callback)
In the period when the command can be accepted
Hexadecimal 02h *1 03h
Character *2
Acceptability
SECURITY STANDBY NO SIGNAL AV MUTE REMOTE
○ × × ○ ○
Parameters (*1, *2)
VGA60 480p AUTO
Hexadecimal 30h 31h 32h
Character 0 1 2
2.144. Query DIGITAL CINEMA REALITY
Hexadecimal 02h 51h 50h 44h 03h
Character Q P D
Response (Callback)
In the period when the command can be accepted
Hexadecimal 02h *1 03h
Character *2
Acceptability
SECURITY STANDBY NO SIGNAL
AV MUTE REMOTE
○ × × ○ ○
Parameters (*1, *2)
OFF ON
Hexadecimal 30h 31h
Character 0 1
Note:
• This command is available only when an interlaced signal is inputted. In other cases, ER401 is returned.
Page 46
46/49
2.145. Query IN STANDBY MODE
Hexadecimal 02h 51h 56h 58h 3Ah 41h 53h 42h 49h 30h
Character Q V X : A S B I 0
Response (Callback)
In the period when the command can be accepted
Hexadecimal 02h 41h 53h 42h 49h 30h 3Dh 2Dh
Character A S B I 0 = +
Hexadecimal *1 *3 *5 *7 *9 03h
Character *2 *4 *6 *8 *10
Acceptability
SECURITY STANDBY NO SIGNAL
AV MUTE REMOTE
○ ○ ○ ○ ○
Parameters (*1, *2, *3, *4, *5, *6, *7, *8, *9, *10)
OFF
Hexadecimal 30h 30h 30h 30h 30h
Character 0 0 0 0 0
ON
Hexadecimal 30h 30h 30h 30h 31h
Character 0 0 0 0 1
2.146. Query DVI SIGNAL LEVEL
Hexadecimal 02h 51h 56h 58h 3Ah 44h 56h 49h 49h 30h
Character Q V X : D V I I 0
Response (Callback)
In the period when the command can be accepted
Hexadecimal 02h 44h 56h 49h 49h 30h 3Dh 2Dh
Character D V I I 0 = +
Hexadecimal *1 *3 *5 *7 *9 03h
Character *2 *4 *6 *8 *10
Acceptability
SECURITY STANDBY NO SIGNAL
AV MUTE REMOTE
○ × × ○ ○
Parameters (*1, *2, *3, *4, *5, *6, *7, *8, *9, *10)
0-255:PC
Hexadecimal 30h 30h 30h 30h 30h
Character 0 0 0 0 0
16-235
Hexadecimal 30h 30h 30h 30h 31h
Character 0 0 0 0 1
2.147. Query WARNING MESSAGE
Hexadecimal 02h 51h 56h 58h 3Ah 57h 4Dh 44h 49h 30h
Character Q V X : W M D I 0
Response (Callback)
In the period when the command can be accepted
Hexadecimal 02h 57h 4Dh 44h 49h 30h 3Dh 2Dh
Character W M D I 0 = +
Hexadecimal *1 *3 *5 *7 *9 03h
Character *2 *4 *6 *8 *10
Acceptability
SECURITY STANDBY NO SIGNAL
AV MUTE REMOTE
○ ○ ○ ○ ○
Parameters (*1, *2, *3, *4, *5, *6, *7, *8, *9, *10)
OFF
Hexadecimal 30h 30h 30h 30h 30h
Character 0 0 0 0 0
ON
Hexadecimal 30h 30h 30h 30h 31h
Character 0 0 0 0 1
Page 47
47/49
2.148. Query SCREEN POSITION
Hexadecimal 02h 51h 56h 58h 3Ah 59h 53h 50h 49h 31h
Character Q V X : V S P I 1
Response (Callback)
In the period when the command can be accepted
Hexadecimal 02h 59h 53h 50h 49h 31h 3Dh 2Dh
Character V S P I 1 = +
Hexadecimal *1 *3 *5 *7 *9 03h
Character *2 *4 *6 *8 *10
Acceptability
SECURITY STANDBY NO SIGNAL
AV MUTE REMOTE
○ ○ ○ ○ ○
Parameters (*1, *2, *3, *4, *5, *6, *7, *8, *9, *10)
LOW
Hexadecimal 30h 30h 30h 30h 30h
Character 0 0 0 0 0
CENTER
Hexadecimal 30h 30h 30h 30h 31h
Character 0 0 0 0 1
HIGH
Hexadecimal 30h 30h 30h 30h 32h
Character 0 0 0 0 2
Note:
• This command is acceptable only for PT-FW300 series. In other models, ER401 is returned.
2.149. Query RUNTIME - PROJECTOR
Hexadecimal 02h 51h 56h 58h 3Ah 52h 54h 4Dh 49h 30h
Character Q V X : R T M I 0
Response (Callback)
In the period when the command can be accepted
Hexadecimal 02h 52h 54h 4Dh 49h 30h 3Dh 2Dh
Character R T M I 0 = +
Hexadecimal *1 *3 *5 *7 *9 03h
Character *2 *4 *6 *8 *10
Acceptability
SECURITY STANDBY NO SIGNAL AV MUTE REMOTE
○ ○ ○ ○ ○
Parameters (*1, *2, *3, *4, *5, *6, *7, *8, *9, *10)
Example: 55 hours
Hexadecimal 30h 30h 30h 35h 35h
Character 0 0 0 5 5
Page 48
48/49
2.150. Query EMULATE
Hexadecimal 02h 51h 56h 58h 3Ah 45h 4Dh 55h 49h 30h
Character Q V X : E M U I 0
Response (Callback)
In the period when the command can be accepted
Hexadecimal 02h 45h 4Dh 55h 49h 30h 3Dh 2Dh
Character E M U I 0 = +
Hexadecimal *1 *3 *5 *7 *9 03h
Character *2 *4 *6 *8 *10
Acceptability
SECURITY STANDBY NO SIGNAL
AV MUTE REMOTE
○ ○ ○ ○ ○
Parameters (*1, *2, *3, *4, *5, *6, *7, *8, *9, *10)
DEFAULT
Hexadecimal 30h 30h 30h 30h 31h
Character 0 0 0 0 1
D3500
Hexadecimal 30h 30h 30h 30h 32h
Character 0 0 0 0 2
D4000
Hexadecimal 30h 30h 30h 30h 33h
Character 0 0 0 0 3
D/W5K series
Hexadecimal 30h 30h 30h 30h 34h
Character 0 0 0 0 4
L730
Hexadecimal 30h 30h 30h 30h 35h
Character 0 0 0 0 5
L780
Hexadecimal 30h 30h 30h 30h 36h
Character 0 0 0 0 6
L735
Hexadecimal 30h 30h 30h 30h 37h
Character 0 0 0 0 7
L785
Hexadecimal 30h 30h 30h 30h 38h
Character 0 0 0 0 8
LB/W80
Hexadecimal 30h 30h 30h 30h 39h
Character 0 0 0 0 9
Page 49
49/49
2.151. Query AUDIO SETTING
Hexadecimal 02h 51h 56h 58h 3Ah 41h 53h 42h 49h *1 30h
Character Q V X : A I N I *2 0
Parameters (*1, *2)
COMPUTER1
Hexadecimal 30h
Character 0
COMPUTER2
Hexadecimal 31h
Character 1
DVI
Hexadecimal 32h
Character 2
Response (Callback)
In the period when the command can be accepted
Hexadecimal 02h 41h 53h 42h 49h *1 30h 3Dh 2Dh
Character A I N I *2 0 = +
Hexadecimal *1 *3 *5 *7 *9 03h
Character *2 *4 *6 *8 *10
Acceptability
SECURITY STANDBY NO SIGNAL
AV MUTE REMOTE
○ ○ ○ ○ ○
Parameters (*1, *2, *3, *4, *5, *6, *7, *8, *9, *10)
COM.AUDIO IN
Hexadecimal 30h 30h 30h 30h 30h
Character 0 0 0 0 0
AUDIO IN
Hexadecimal 30h 30h 30h 30h 31h
Character 0 0 0 0 1
2.152. Query Lamp Part No.
Hexadecimal 02h 51h 56h 58h 3Ah 4Ch 4Dh 4Eh 53h 30h 03h
Character Q V X : L M N S 0
Response (Callback)
In the period when the command can be accepted
Hexadecimal 02h 4Ch 4Dh 4Eh 53h 30h 3Dh
Character L M N S 0 =
Hexadecimal *1 *3 *5 *7 *9 03h
Character *2 *4 *6 *8 *10
Acceptability
SECURITY STANDBY NO SIGNAL
AV MUTE REMOTE
× ○ ○ ○ ○
Parameters (*1, *2, *3, *4, *5, *6, *7, *8, *9, *10)
Example: ET-LAF100
Hexadecimal 45h 54h 2Dh 4Ch 41h 46h 31h 30h 30h
Character E T - L A F 1 0 0
2.153. Query ACF Part No.
Hexadecimal 02h 51h 56h 58h 3Ah 46h 4Dh 4Eh 53h 30h 03h
Character Q V X : F M N S 0
Response (Callback)
In the period when the command can be accepted
Hexadecimal 02h 46h 4Dh 4Eh 53h 30h 3Dh
Character F M N S 0 =
Hexadecimal *1 *3 *5 *7 *9 03h
Character *2 *4 *6 *8 *10
Acceptability
SECURITY STANDBY NO SIGNAL
AV MUTE REMOTE
× ○ ○ ○ ○
Parameters (*1, *2, *3, *4, *5, *6, *7, *8, *9, *10)
Example: ET-ACF100
Hexadecimal 45h 54h 2Dh
41h 43h 46h 31h 30h 30h
Character E T - A C F 1 0 0
Loading...
