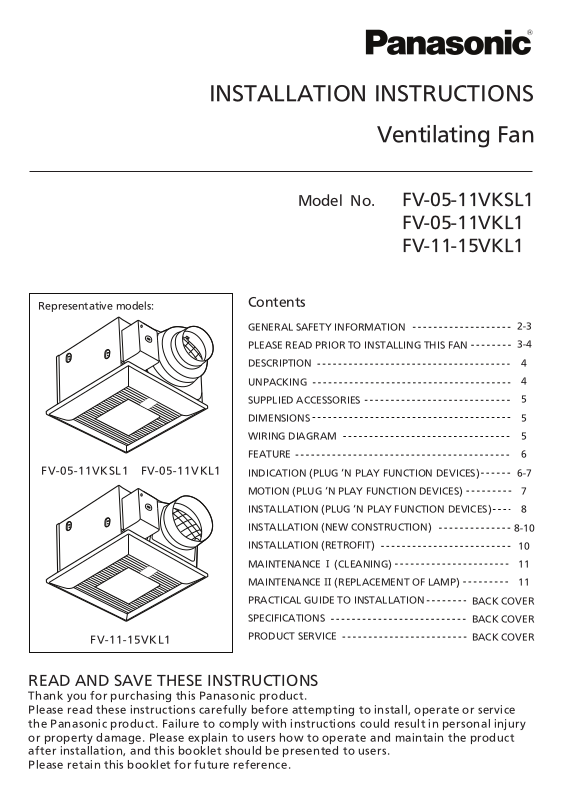

Panasonic fv-11vkl1, fv-15vkl1 installation

INSTALLATION INSTRUCTIONS

Ventilating Fan

Representative models:

FV-05-11VKSL1 FV-05-11VKL1

FV-11-15VKL1

Model No.

FV-05-11VKSL1
FV-05-11VKL1
FV-11-15VKL1

Contents

GENERAL SAFETY INFORMATION

PLEASE READ PRIOR TO INSTALLING THIS FAN

DESCRIPTION

UNPACKING

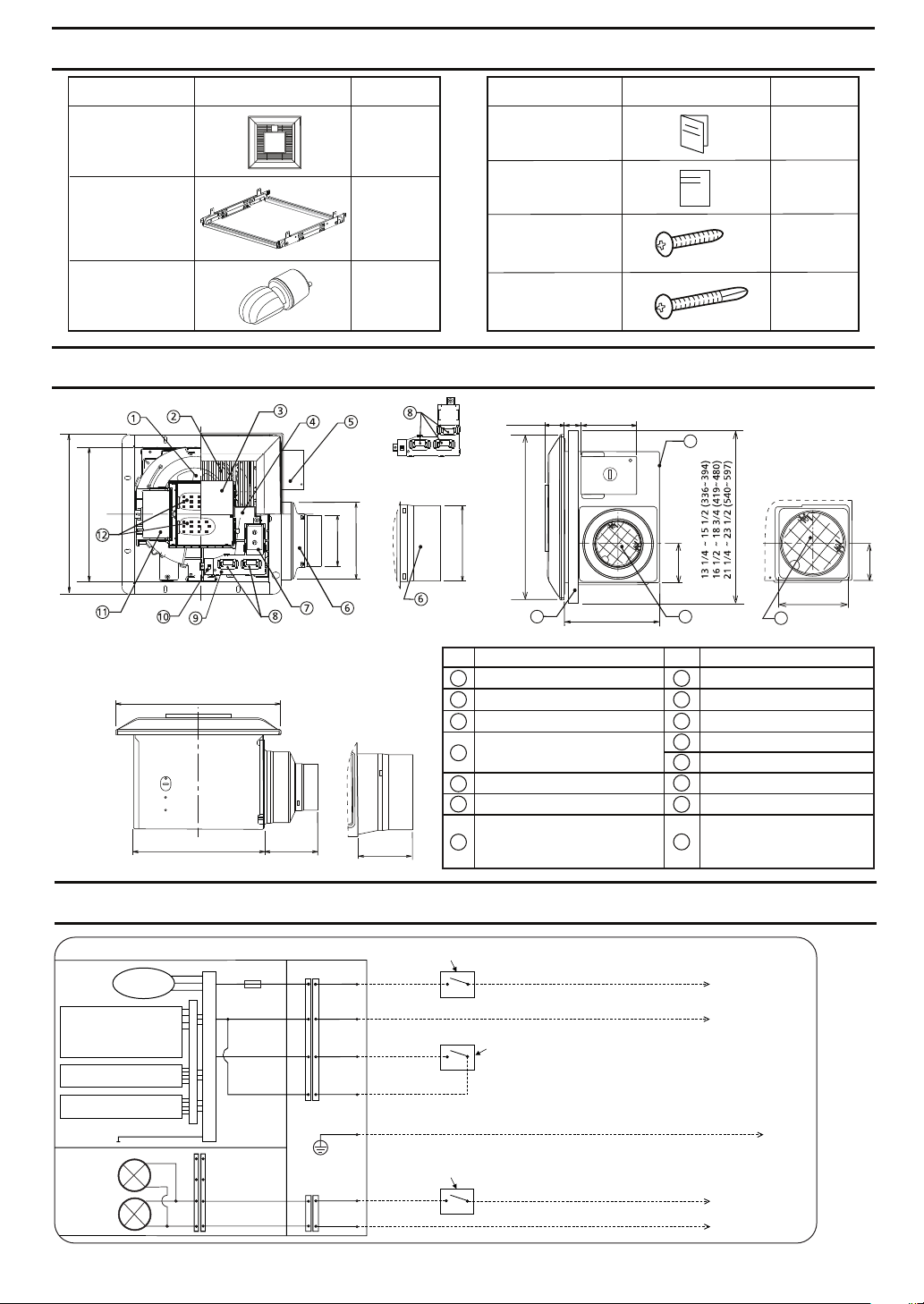

SUPPLIED ACCESSORIES

DIMENSIONS

WIRING DIAGRAM

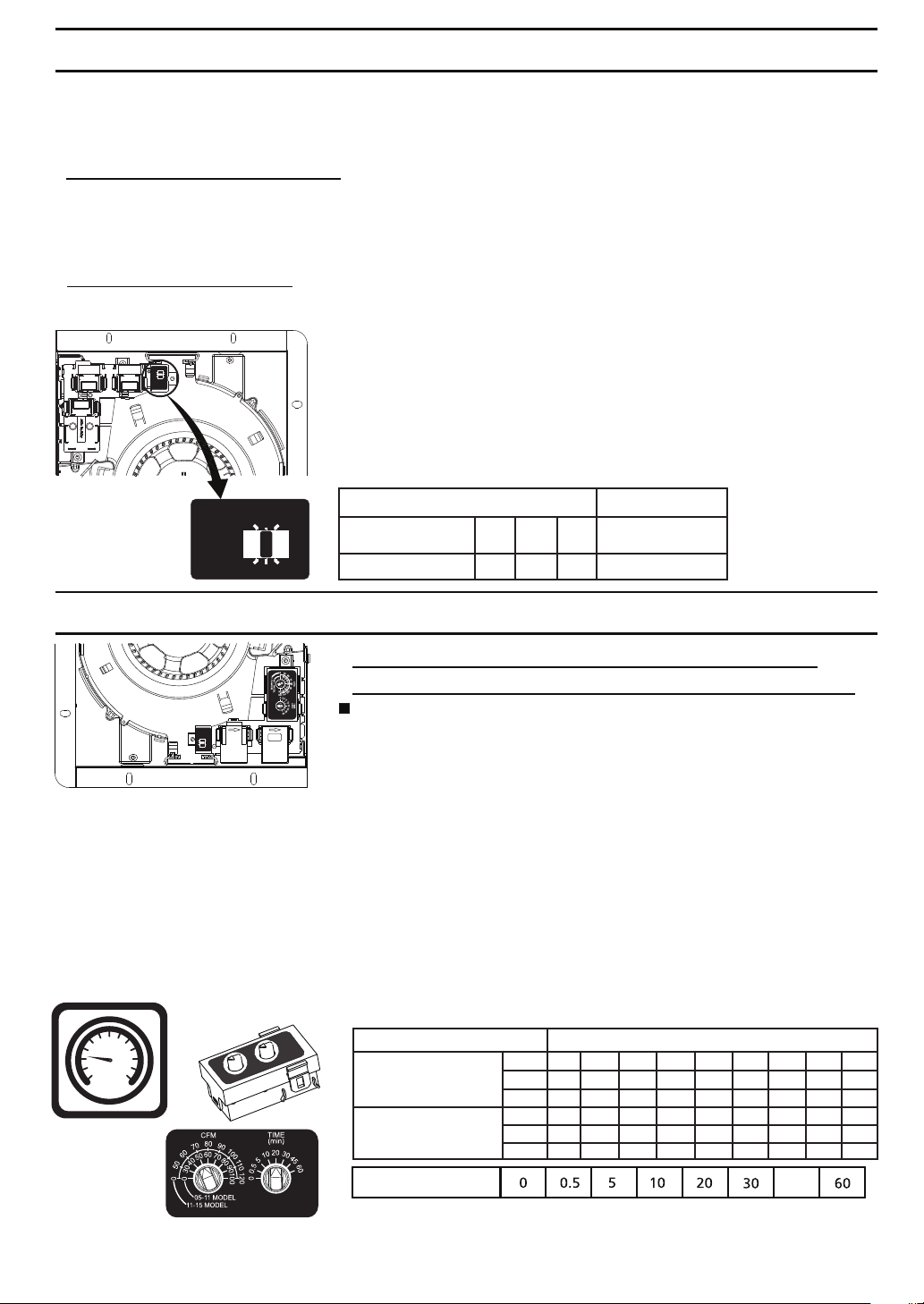

FEATURE

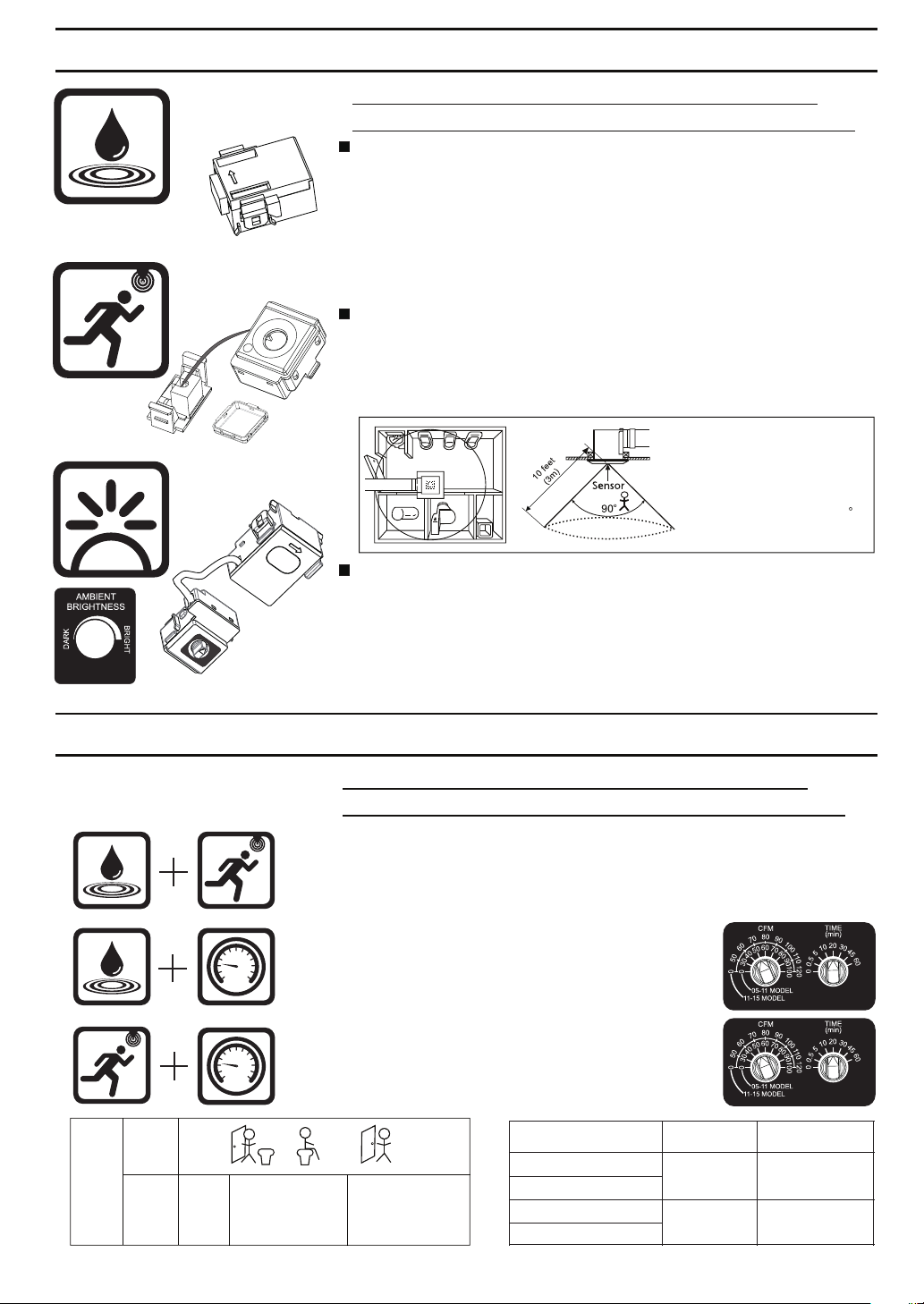

INDICATION (PLUG ‘N PLAY FUNCTION DEVICES)

MOTION (PLUG ‘N PLAY FUNCTION DEVICES)

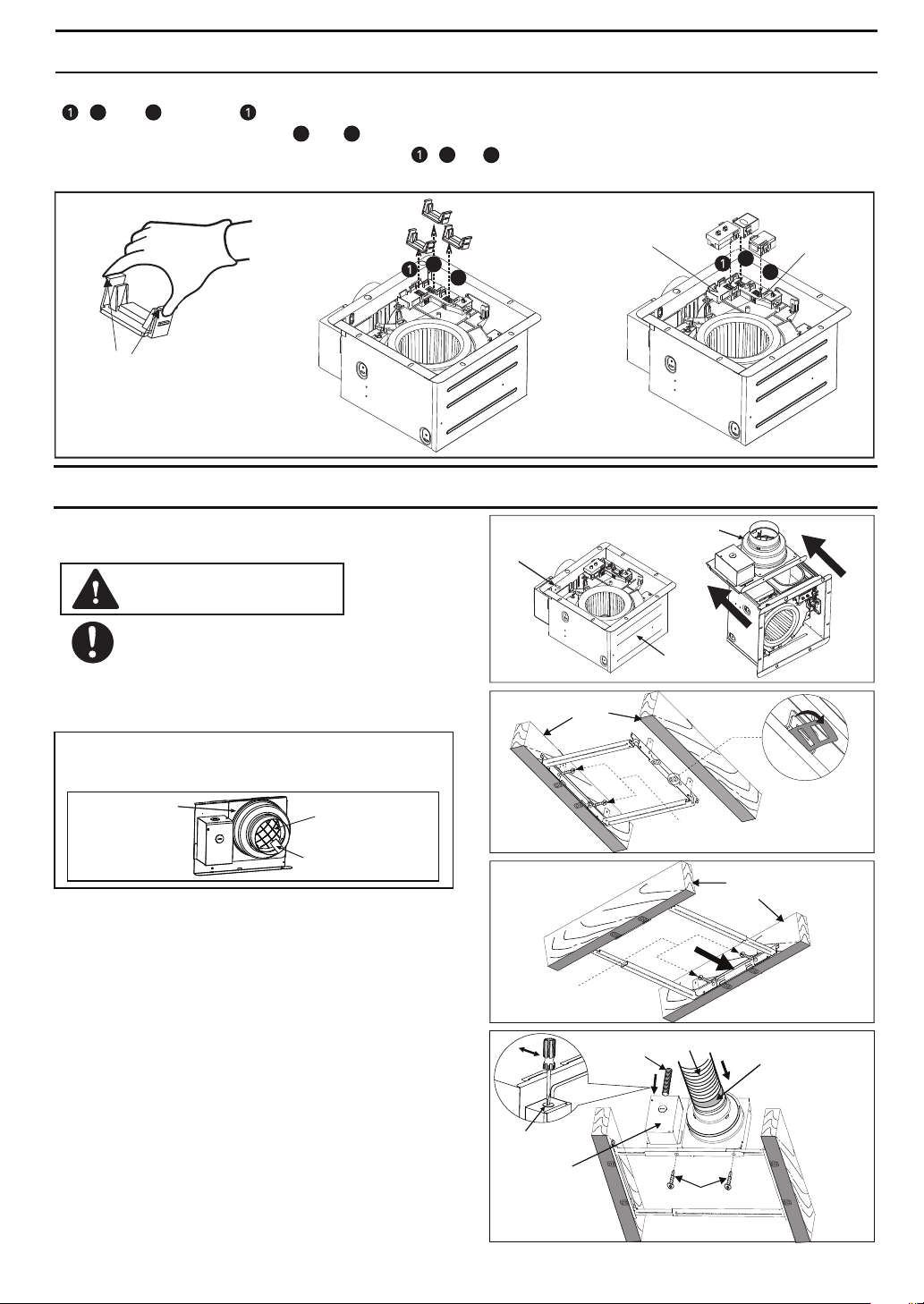

INSTALLATION (PLUG ‘N PLAY FUNCTION DEVICES)

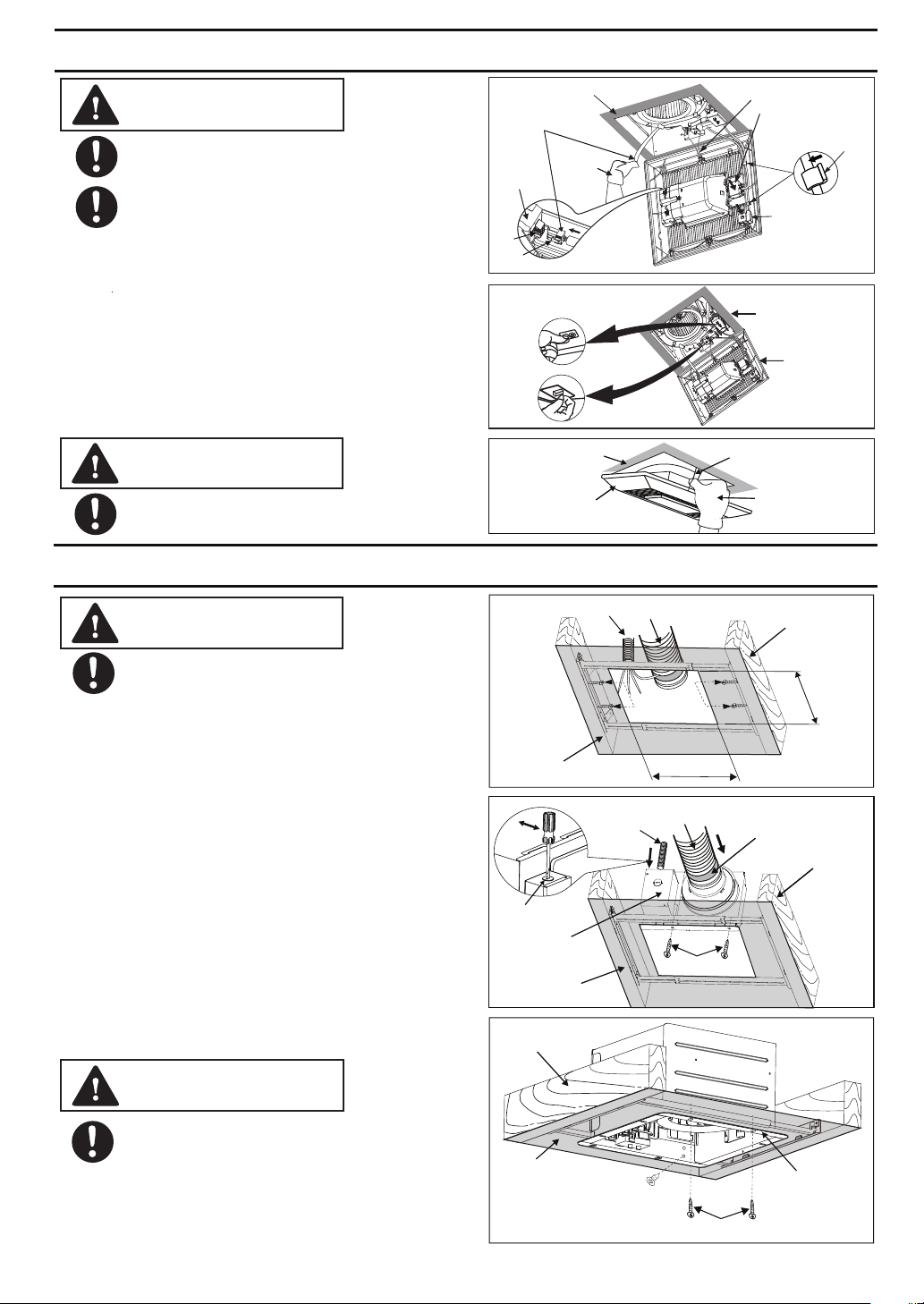

INSTALLATION (NEW CONSTRUCTION)

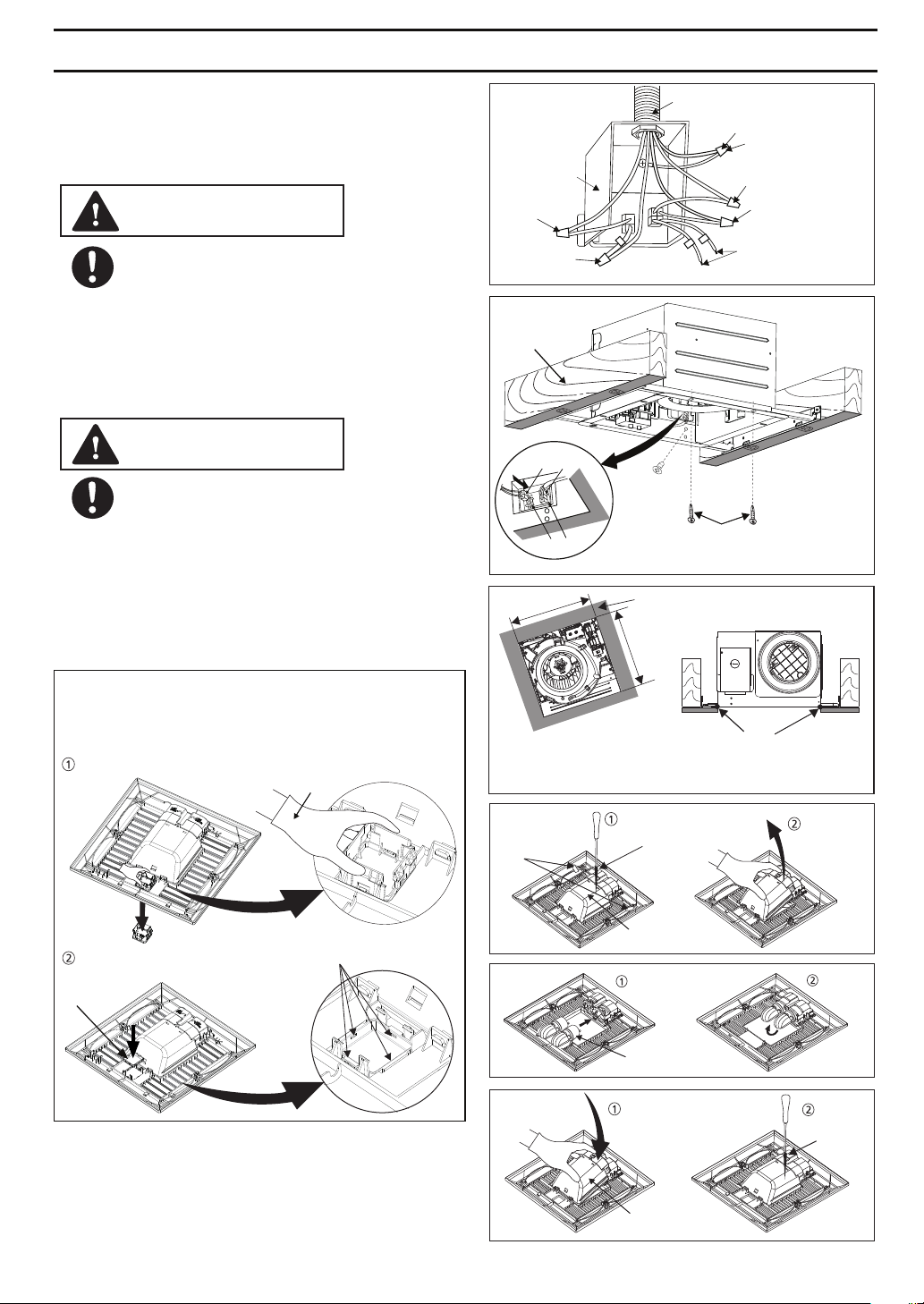

INSTALLATION (RETROFIT)

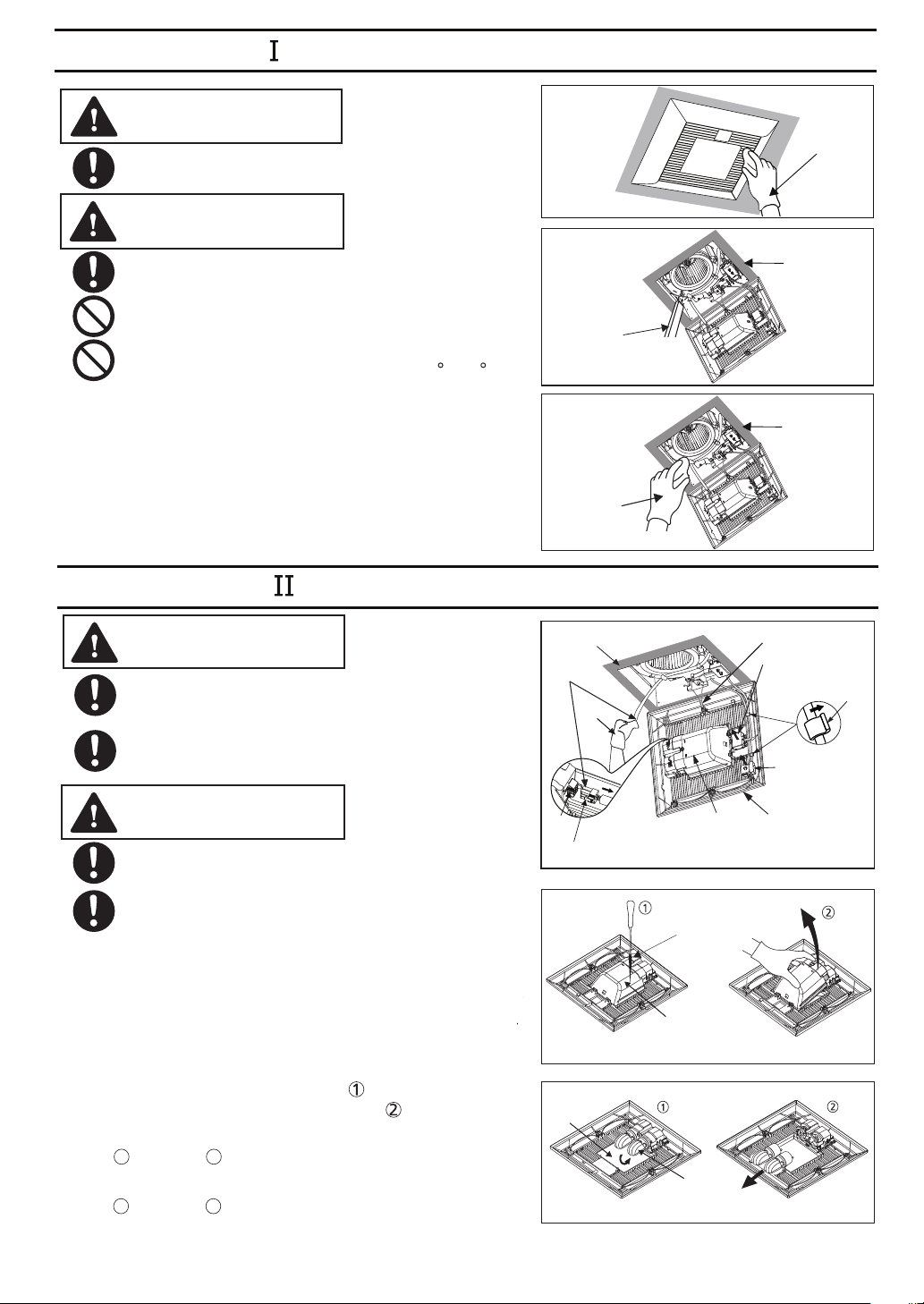

MAINTENANCE (CLEANING)

MAINTENANCE (REPLACEMENT OF LAMP)

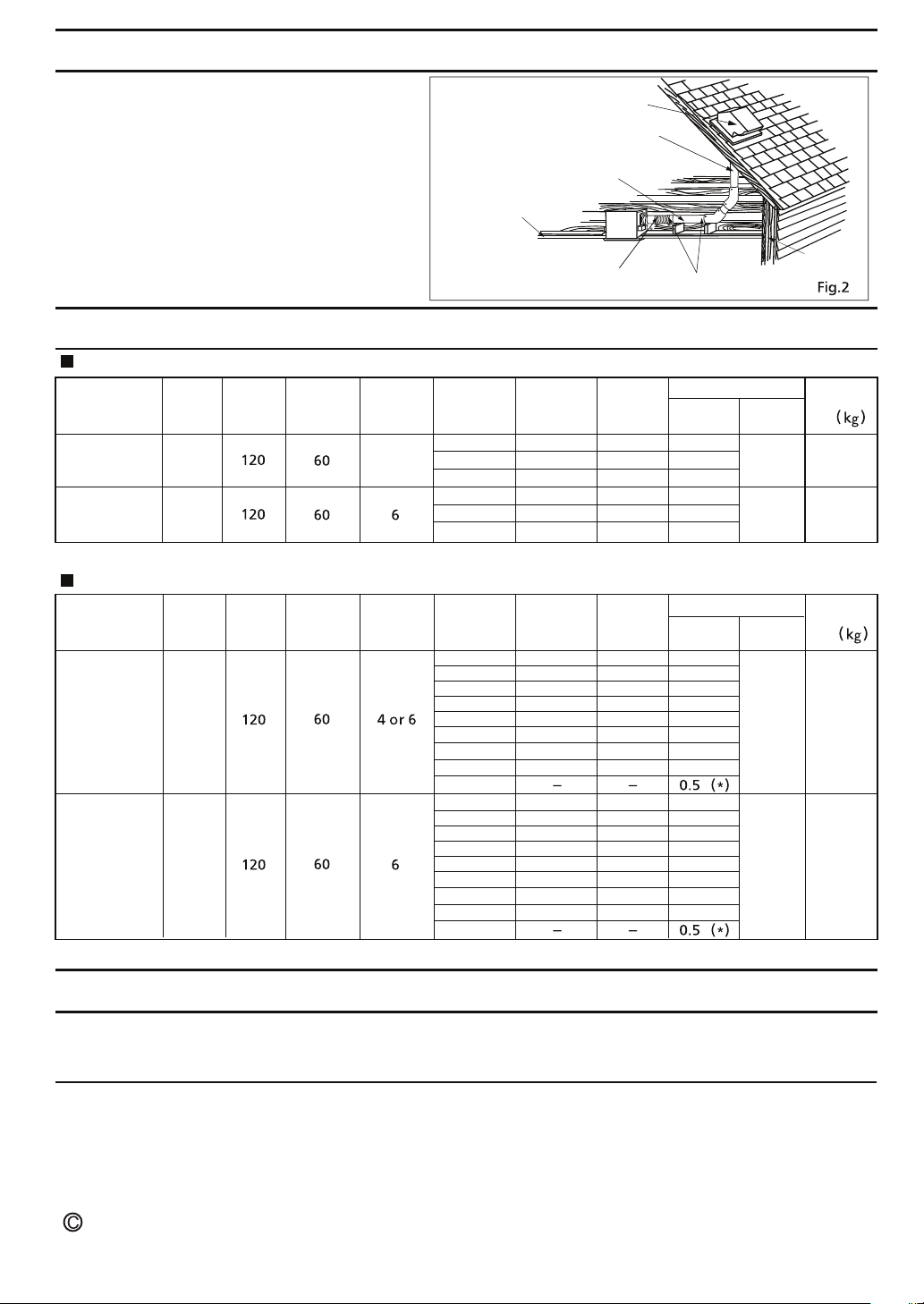

PRACTICAL GUIDE TO INSTALLATION

SPECIFICATIONS

PRODUCT SERVICE

BACK COVER

BACK COVER

BACK COVER

2-3

3-4

4

4

5

5

5

6

6-7

7

8

8-10

10

11

11

READ AND SAVE THESE INSTRUCTIONS

Thank you for purchasing this Panasonic product.
Please read these instructions carefully before attempting to install, operate or service
the Panasonic product. Failure to comply with instructions could result in personal injury
or property damage. Please explain to users how to operate and maintain the product
after installation, and this booklet should be presented to users.
Please retain this booklet for future reference.

GENERAL SAFETY INFORMATION

For Your Safety

To reduce the risk of injury, loss of life, electric shock, fire, malfunction, and damage to
equipment or property, always observe the following safety precautions.

Explanation of symbol word panels

The following symbol word panels are used to classify and describe the level of hazard, injury, and
property damage caused when the denotation is disregarded and improper use is performed.

WARNING

CAUTION

The following symbols are used to classify and describe the type of instructions to be observed.

This symbol is used to alert users to a specific operating procedure that must be followed
in order to operate the unit safely.

This symbol is used to alert users to a specific operating procedure that must not be
performed.

This symbol is used to alert users not to disassemble the equipment.

This symbol is used to alert users to make sure of grounding when using the equipment
with the grounding terminal.

WARNING

WARNING

To reduce the risk of fire, electric shock or injury to persons, observe the following :
Use this unit only in the manner intended by the manufacturer. If you have any questions,

contact the manufacturer.

Before servicing or cleaning unit, switch power off at service panel and lock the service
disconnecting means to prevent power from being switched on accidentally. When the
service disconnecting means cannot be locked, securely fasten a prominent warning device,

such as a tag, to the service panel.
Installation work and electrical wiring must be done by qualified person(s) in accordance with
all applicable codes and standards, including fire-rated construction.

Sufficient air is needed for proper combustion and exhausting of gases through the flue (chimney)
of fuel burning equipment to prevent back drafting. Follow the heating equipment manufacturer's
guideline and safety standards such as those published by the National Fire Protection Association
(NFPA), and the American Society for Heating, Refrigeration and Air Conditioning Engineers
(ASHRAE) and the local code authorities.

When cutting or drilling into wall or ceiling, do not damage electrical wiring and other

hidden utilities.

Ducted fans must always be vented to the outdoors.

Denotes a potential hazard that could result in serious
injury or death.

Denotes a hazard that could result in minor injury.

If this unit is to be installed over a tub or shower, it must be marked as appropriate for the
application and be connected to a GFCI(Ground Fault Circuit Interrupter) - protected branch
circuit.

These models are UL listed for tub and shower enclosures.

Canada only: Not to be installed in a ceiling thermally insulated to a value greater than R40.

Do not disassemble the unit for reconstruction.

2

GENERAL SAFETY INFORMATION CONTINUED

WARNING

When this product is no longer being operated, please remove the product to prevent the
possibility of falling.

Ceiling joist must be subjected to static load more than five times the weight of the product.

Do not install with a method which is not approved in the instructions.

Do not use this fan with any solid-state speed control device. Solid state controls may cause
harmonic distortion which can cause motor humming noise.

This product must be properly grounded.

CAUTION

Do not install this ventilating fan where interior room temperature may
exceed 104°F(40°C).

Make sure that the electric service supply voltage is AC 120V, 60Hz.

Prohibited

Follow all local electrical and safety codes, as well as the National
Electrical Code (NEC) and the Occupation Safety and Health Act (OSHA).

Always disconnect the power source before working on or near the fan,
motor, light fixture or junction box.

Protect the supply wiring from sharp edges, oil, grease, hot surfaces,
chemicals or other objects.

Do not kink the supply wiring.

Provide make up air for proper ventilation.

For general ventilating use only. Do not use to exhaust hazardous or
explosive materials and vapors.

Do not install the unit where ducts are configured as shown
in Fig.A.

Not for use in cooking area. (Fig.B)

The special-purpose or dedicated parts, such as mounting
fixtures, must be used if such parts are provided.

Prohibited

Prohibited

Prohibited

(Cooking area)

Do not install above or

inside this area

45

equipment

45

Cooking

Fig. B

Adaptor

Floor

PLEASE READ PRIOR TO INSTALLING THIS FAN

Spot and Continuous Ventilation: These fans are designed to run continuously ensuring a healthy

environment at low CFM levels 24 hours a day. By utilizing the optional CustomVent Multi-Speed module
the fans are built to run continuously at a pre-set lower level (FV-05-11VKSL1 and FV-05-11VKL1: 0, 30,
40, 50, 60, 70, 80, 90, 100 CFM; FV-11-15VKL1: 0, 50, 60, 70, 80, 90, 100, 110, 120 CFM). The setting is
dependent on the size of the house and the individual wishes of the homeowner. It is crucial that the
installer pre-set the lower setting during the installation. Please refer to the chart below and the
switch indication on page 6.

3

PLEASE READ PRIOR TO INSTALLING THIS FAN CONTINUED

CustomVent Multi-Speed module (Lower Setting). ASHRAE 62.2-2010

(sq.feet)

<1,000

1,500
2,000
2,500
3,000
3,500
4,000
4,500
5,000
5,500
6,000
6,500
7,000

These fans are also built to take care of the homeowner’s spot ventilation needs when the room is
occupied. The basic fan models allow a choice of three speeds. When fans are equipped with the optional
Multi-Speed module, these models kick up to a maximum level of 150 CFM for the FV-11-15VKL1 and 110
CFM for the FV-05-11VKSL1 and FV-05-11VKL1 either when the switch is turned on or activated by the
optional Condensation Sensor module or the optional Motion Sensor module.

A High/Low Delay Timer, located inside the fan unit, is utilized to return the fan back to the pre-set
Continuous ventilation mode. The installer needs to consult with the homeowner for the desired
setting on the timer (0 - 60 minutes) and make the adjustments during the installation.

Two Bedrooms

33
38
43
48
53
58
63
68
73
78
83
88
93

Three Bedrooms

40
45
50
55
60
65
70
75
80
85
90
95

100

Four Bedrooms

48
53
58
63
68
73
78
83
88
93

98
103
108

Five Bedrooms

55
60
65
70
75
80
85
90

95
100
105
110

DESCRIPTION

These products are listed by UL under UL file No. E78414.
These products use a sirocco fan driven by a DC motor powered by an integral transformer. The motor is
designed to have long operating life, high dynamic response, higher speed ranges with saving energy.
The grille covering the fan body is a spring-loaded, quick remove type. A damper for preventing air counter
flow is provided. The blower uses a high-capacity sirocco fan developed to reduce the noise level.

The lighting unit is an energy-saving LED lighting device that uses two 7W LED lamps and produces almost
the same illumination as a standard 60W incandescent lamp.

FCC Note: This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that interference will not occur in
a particular installation. If this equipment does cause harmful interference to radio or television reception,
which can be determined by turning this product on and off, the user is encouraged to try to correct the
interference by one of the following measures:

Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect equipment into outlet on a circuit different from that to which the receiver is connected.

Consult the dealer or an experienced radio/TV technician for help.
Warning: This equipment must be installed by qualified person in accordance with the provided installation
instructions; and all applicable codes and standards. Also, any changes or modifications not expressly
approved by the party responsible for compliance could void the user’s authority to operate this equipment.
DoC Responsible Party:

Customer Call Support:
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation.
Risk of Fire: Type IC-Inherently Protected, Only Use LED Lamp, Max 7W, Type GU24.

Panasonic Corporation of North America
Two Riverfront Plaza, Newark, NJ 07102
1-866-292-7299

UNPACKING

Unpack and carefully remove the unit from carton.
Refer to the Supplied Accessories list to verify that all parts are present.

4
